SEARS
Vacuum Cleaner
0WNER'SMANUAL
READTHISMANUAL for important safety,
assembly and operating instructions.
E CONTENTS
WARRANTY AND SERVICE ............................................................................................................. 1
IMPORTANT SAFETY INSTRUCTIONS ....................................................... ,.. _ . 2
PARTS AND FEATURES ............................................................ ...... ..... ...... ..... 3-4
ASSEMBLY ................................................................................................................................... 5-6
USE
How to Start ............................................................................... .... ................ 7
Vacuuming Tips.: ............................................................................... ......................... 8
Suggested Pile Height Settings ........ ........ " ..................................................................... 8
Attachments ......................................... ..................................................... ........................... 9
Attachment Use Chart ......................................................................................................... 9

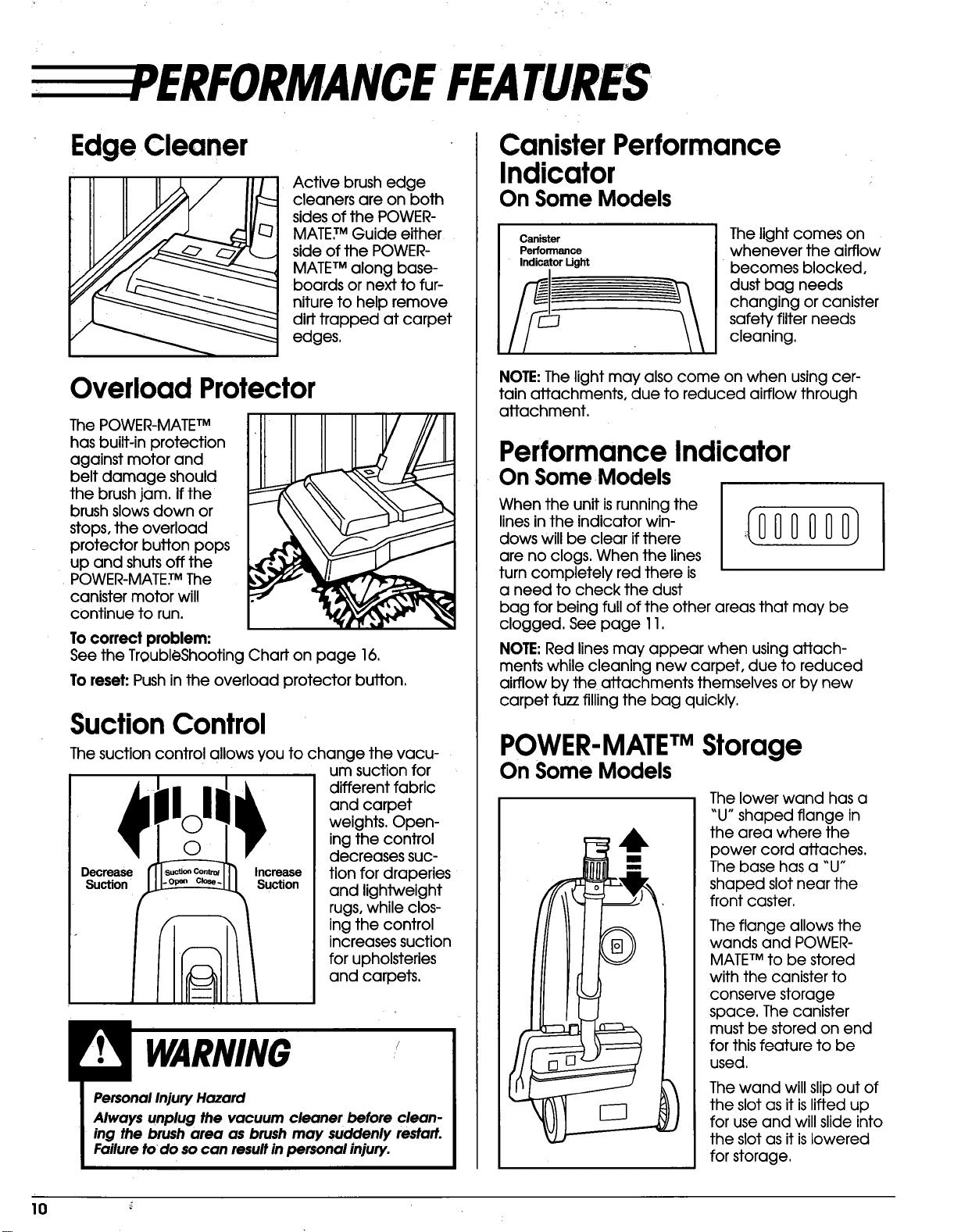

Performance Features... 10

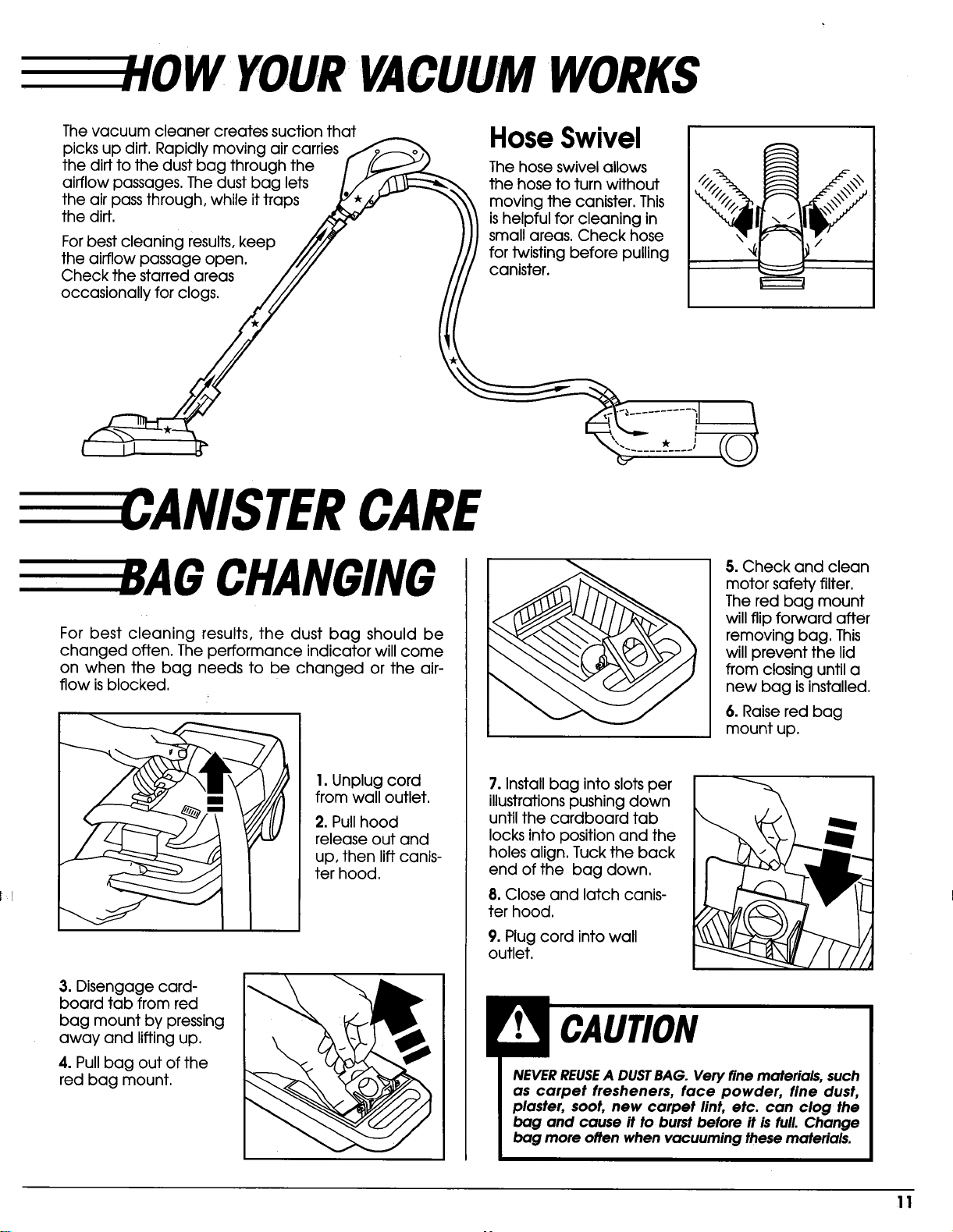

HOW YOUR VACUUM WORKS ..................................................................................................... 11
CANISTERCARE ..i........................... i..................................................... ...................................... 11
Bag Changing .................................... :.................................................................................... 11
Motor Safety FilterC/eaning ................................................................................ .................. 12
C/eaning Exterior and Attachments ..................................................................................... 12
POWER-MATE TM CARE ................................................................................................................. 12

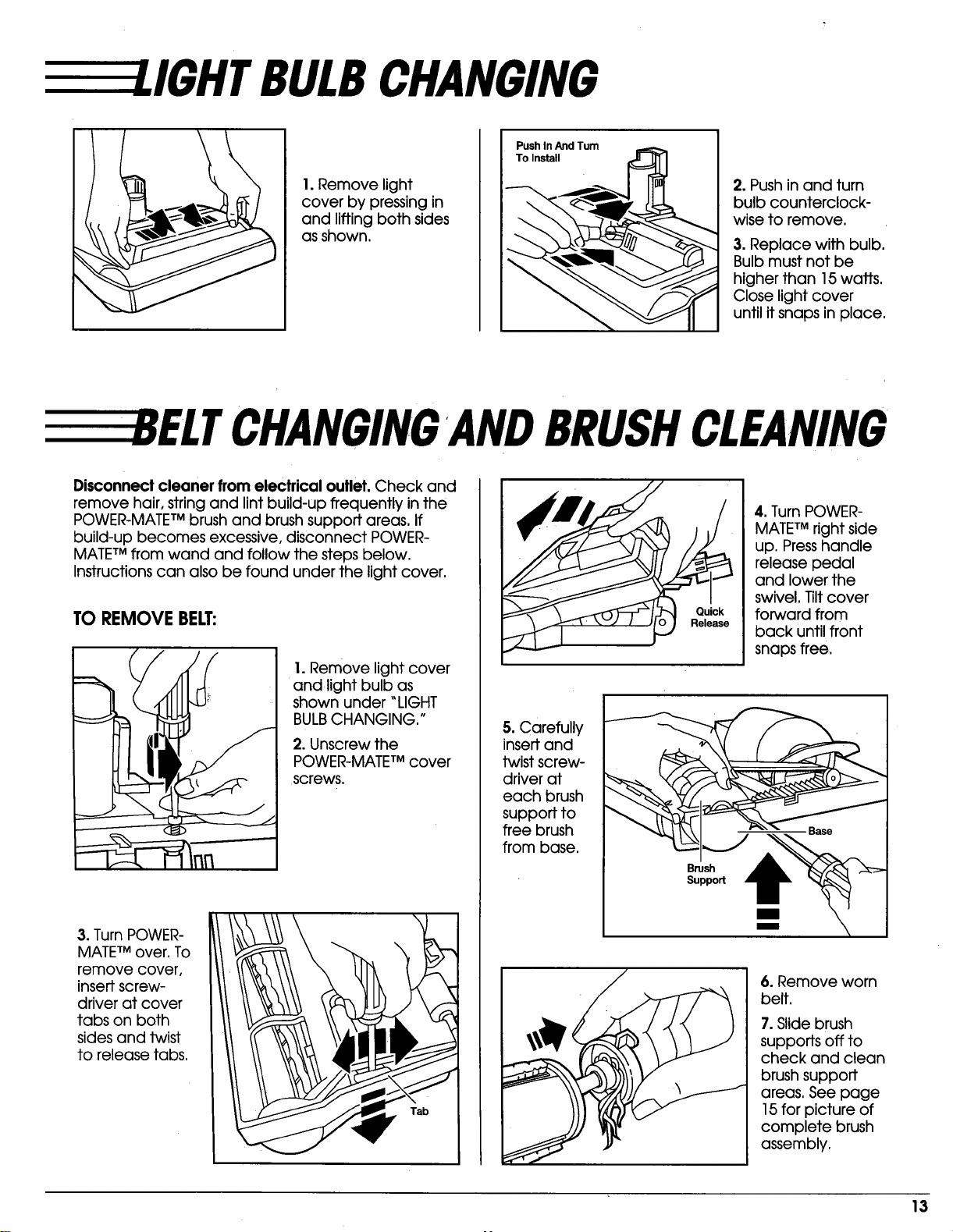

Light Bulb Changing .......................... i..... ................................................................................ 13
Belt Changing and Brush Cleaning ......................................... i ....................................... 13-14

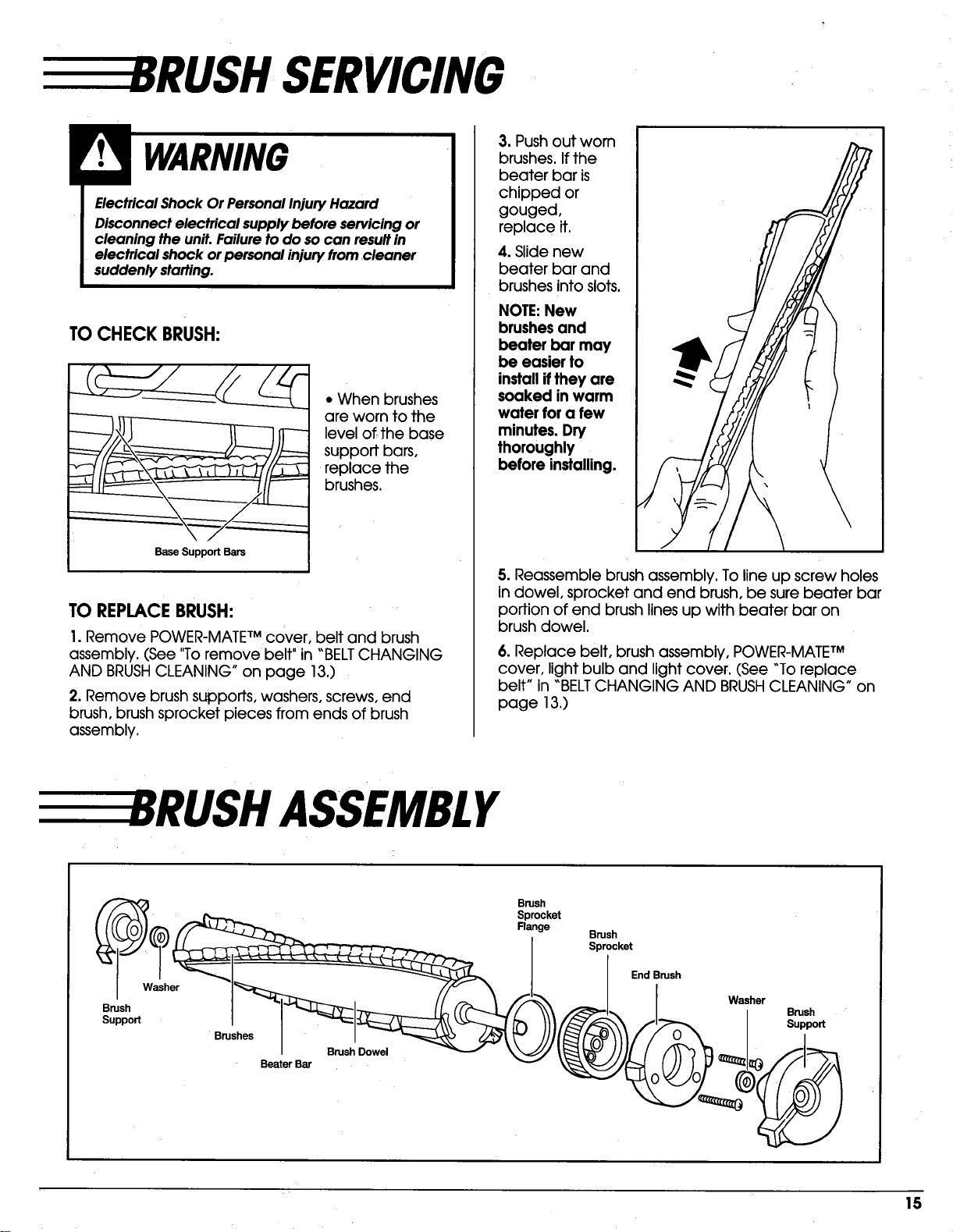

Brush Servicing ........ i...................... ......................................................................................... 15
Brush Assembly ...._......................... :........ :............................ ..................... i....... ....... .. • 15

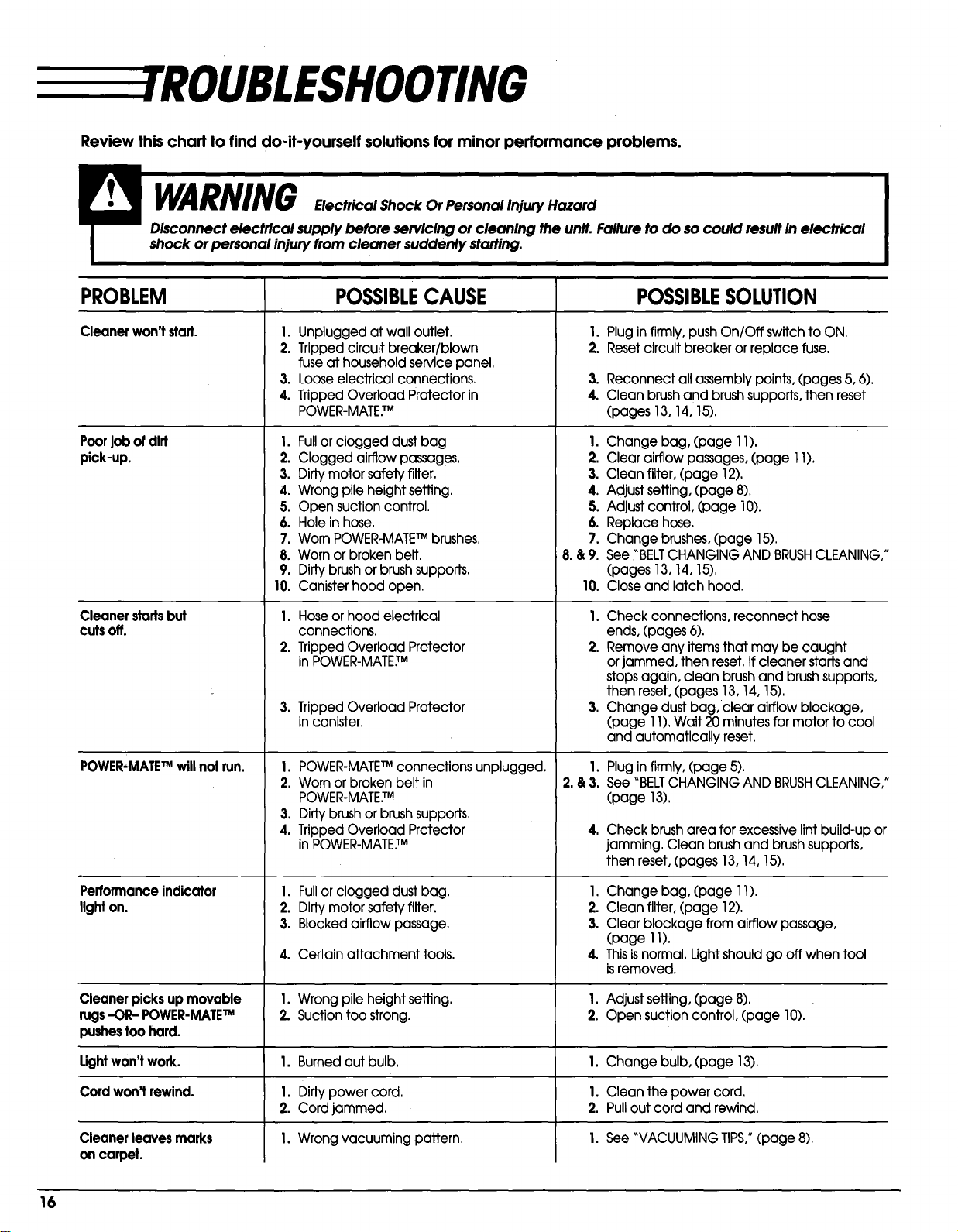

TROUBLESHOOTING 16
i
Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your
cleaner is intended only for household use. The cleaner should be stored in a dry, indoor
area. Read this Owner's Manual carefully for important use and safety information.
ARRANTY
KENMOREVACUUM CLEANER
FULLONE-YEARWARRANTY
When used for private household purposes, if within
one year from the date of purchase, this vacuum
cleaner fails due to a defect in material or work-
manship, RETURNIT TO THENEARESTSEARSSERVICE
CENTER/DEPARTMENT IN THE UNITED STATES, and
Sears will repair it, free of charge.
If this vacuum cleaner is used for commercial or
rental purposes, the above warranty coverage
applies for only 90 days from the date of purchase.
Thiswarranty gives you specific legal rights, and you
may also have other rights which vary from state to
state.
SEARS,ROEBUCKAND CO., D/817WA
HOFFMAN ESTATES,IL60195
E SERVICE
If you need service or parts, visit your local Sears service
or parts department. They will be able to solve your
problem and supply any needed replacement parts.
Any service needed other than described in this
Owner's Manual should be done by a Sears authorized
service representative.
When requesting assistance, parts or service, always
give the following information:
1. Canister model number and Serial number,
' 2. POWER_MATETM Model number and serial number;
3. Problem description;
4. Part number; =_,i
5. Name of part; ........
6. Location of part -.Canister or POWER-MATET M
MPOR TANTSAFETYINSTRUCTIONS
Toreduce the risk of fire, electrical shock, injury to persons or damage when using
your vacuum cleaner, follow basic safety precautions including the following:
Read this manual before assembling or using
your vacuum cleaner.
Use your cleaner only as described in this
manual. Use only with recommended
attachments.
Do not use outdoors or on wet surfaces.
Electrical shock could occur.
Disconnect electrical supply before servicing
or cleaning out brush area. Failure to do so
could result in electrical shock or brush
suddenly starting.
Always turn cleaner off before connecting or
disconnecting the hose or POWER-MATET M
Always turn cleaner off before unplugging.
Do not unplug by pulling •on cord. To unplug,
grasp the plug, not the cord.
Hold plug when rewinding onto cord reel. Do
not allow plug to whip when rewinding.
Do not use with damaged cord or plug. If
cleaner is not working as it should, has been
dropped, damaged, left outdoors, or
dropped into water, return it to a Sears
Service Center/Department.
Do not pull or carry by cord, use cord as a
handle, close door on cord, or pull cord
around sharp edges or corners. Do not run
cleaner over cord. Keep cord away from
heated surfaces .....
Do not leave cleaner when plugged in.
Unplug from outlet when not in use and
before servicing.
Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
Do not handle plug or cleaner with wet hands.
Do not operate cleaner with a punctured
hose. The hose contains electrical wires.
Replace if cut or worn. Avoid picking up
sharp objects.
Do not put any objects into openings.
Do not use with any opening blocked; keep
free of dust, lint, hair and anything that may
reduce airflow.
Keep hair, loose clothing, fingers, and all
parts of body away from openings and
moving parts.
Do not use cleaner without dust bag and/or
filters in place. Always change the dust bag
after vacuuming carpet cleaners or
fresheners, powders and fine dust. These
products clog the bag, reduce airflow and
can cause the bag to burst. Failure to
change could cause permanent damage to
the cleaner.
Do not use the cleaner to pick up sharp hard
objects, small toys, pins, paper, etc. They
may damage the cleaner or dust bag.
Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
Do not use cleaner to pick up flammable or
combustible liquids (gasoline, cleaning fluids,
perfumes, etc.), or use in areas where they
may be present. The fumes from these
substances can create a fire hazard or
explosion.
Use extra care when cleaning on stairs. Do
not put on chairs, tables, etc. Keep on floor.
You are responsible for making sure that your
vacuum cleaner is not used by anyone
unable to operate it properly.
SAVETHESEINSTRUCTIONS
2

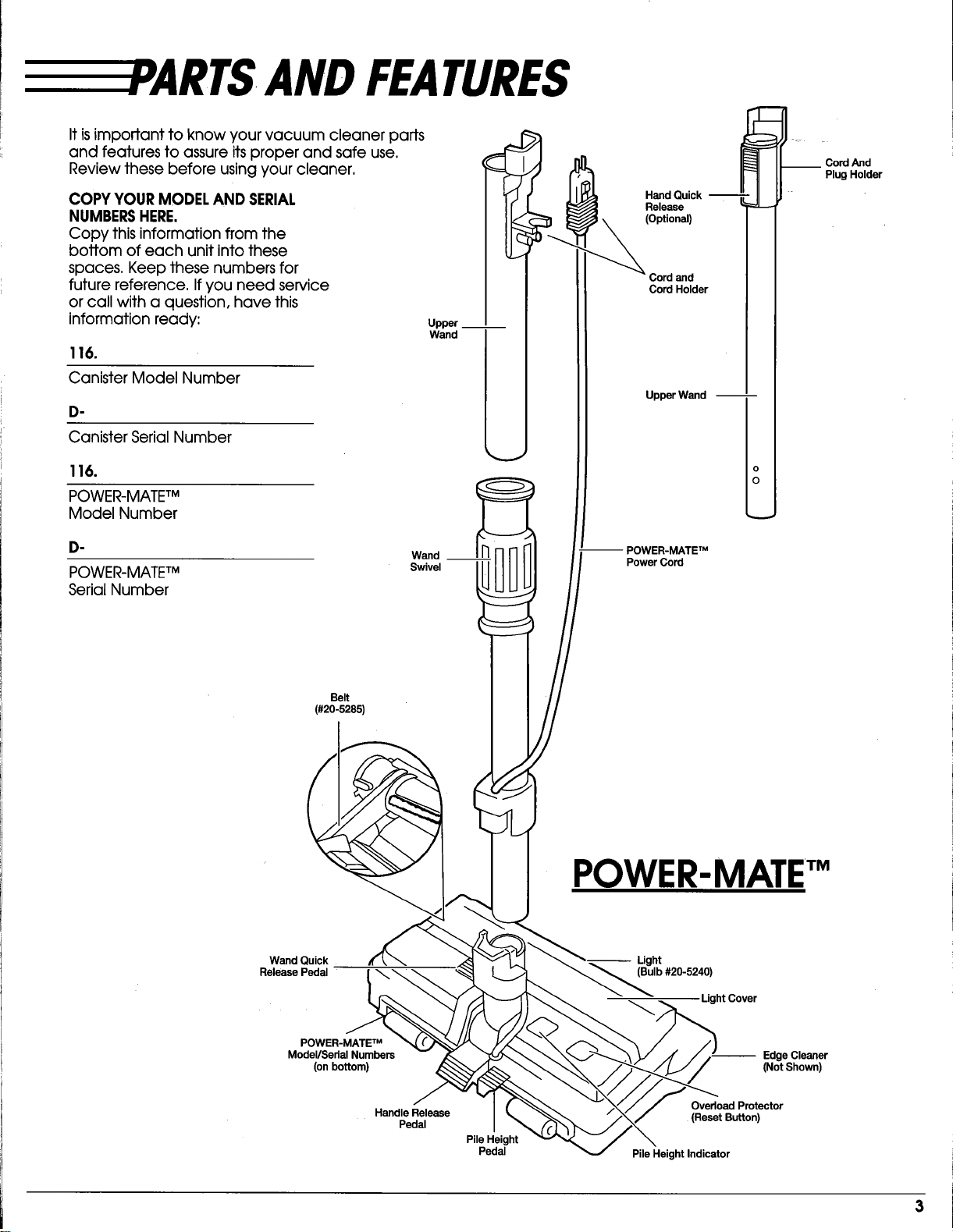

ANDFEATURES
It isimportant to know your vacuum cleaner parts
and features to assure its proper and safe use.
Review these before using your cleaner.
COPY YOUR MODEL AND SERIAL
NUMBERSHERE.
Copy this information from the
bottom of each unit into these
spaces. Keep these numbers for
future reference. If you need service
or call with a question, have this
information ready:
116.
Canister Model Number
D.
Canister Serial Number
116.
POWER-MATETM
Model Number
.
POWER-MATETM
Serial Number
Upper __
Wand
Wand __
Swivel
Hand Quick --
Release
(Optional)
Cord and
Cord Holder
Upper Wand --
-- POWER_MATETM
Power Cord
i
o
0
Cord And
Plug Holder
Belt
(#20-5285)
POWER-MATE"
Wand Quick
Release Pedal
POWER-MATE TM
Model/Serial Numbers
(on bottom)
Light
(Bulb #20-5240)
Light Cover
Edge Cleaner
(Not Shown)
Handle Release
Pedal
Pile Height
Pedal
Overload Protector
(Reset Button)
Pile Height Indicator
3

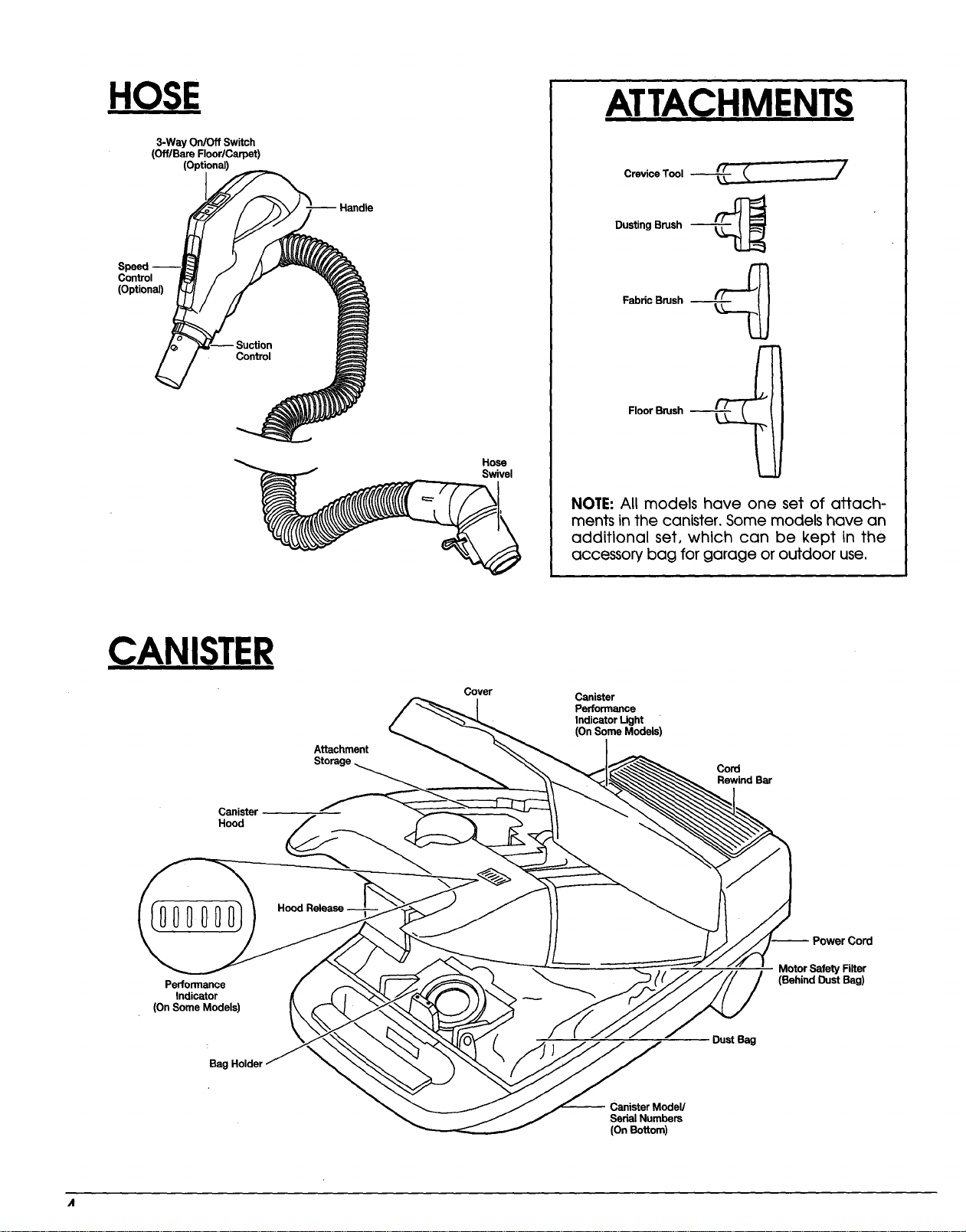

A
HOSE
3-Way On/Off Switch
(Off/Bare Floor/Carpet)
(Optional)
Control
(Optional)
CANISTER
Canister
Hood
Performance
Indicator
(On Some Models)
Bag Holder
Attachment
Hood
Hose
Swivel
Cover
ATTACHMENTS
i?
Crevice Tool _
Dusting Brush __
Fabric Brush --_
Floor Brush --_
/
NOTE: All models have one set of attach-
ments in the canister. Some models have an
additional set, which can be kept in the
accessory bag for garage or outdoor use.
Canister
Performance
Indicator Ught
(On Some Models)
Cord
Rewind Bar
-- Power Cord
Motor Safety Filter
(Behind Dust Bag)
Dust Bag
-- Canister Model/
Serial Numbers
(On Bottom)

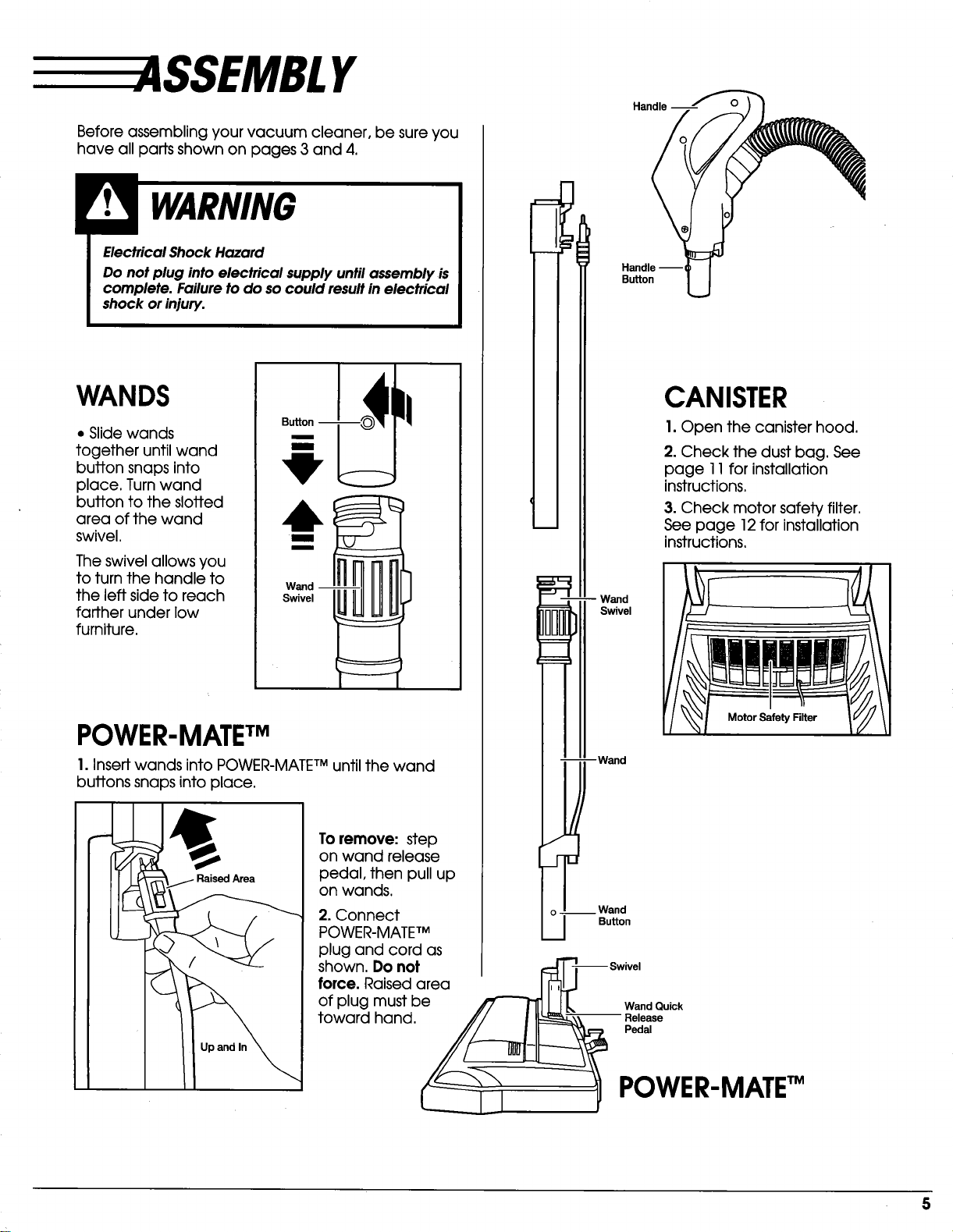

E ASSEMBL Y
Before assembling your vacuum cleaner, be sure you
have all parts shown on pages 3 and 4.
I
Electrical Shock Hazard |
i
Do not plug into electrical supply untilassembly is
complete. Failureto do socould resultin electrical
shock or injury.
WANDS
• Slide wands
together until wand
button snaps into
place. Turn wand
button to the slotted
area of the wand
swivel.
The swivel allows you
to turn the handle to
the left side to reach
farther under low
furniture.
4 II
Button____ _''1
roB=
Wand
Swivel
POWER-MATETM
I. Insert wands into POWER-MATETM until the wand
buttons snaps into place.
To remove: step
on wand release
pedal, then pull up
on wands.
2. Connect
POWER-MATETM
plug and cord as
shown. Do not F_
force. Raised area I
L= l
Handle/O_ q--
Handle --q
Button
CANISTER
1. Open the canister hood.
2. Check the dust bag. See
page 11 for installation
instructions.
3. Check motor safety filter.
See page 12 for installation
instructions.
Wand
Swivel
Motor Safety Filter
__ Wand
Button
Swivel
Wand Quick
Release
Pedal
POWER'MATET"
5

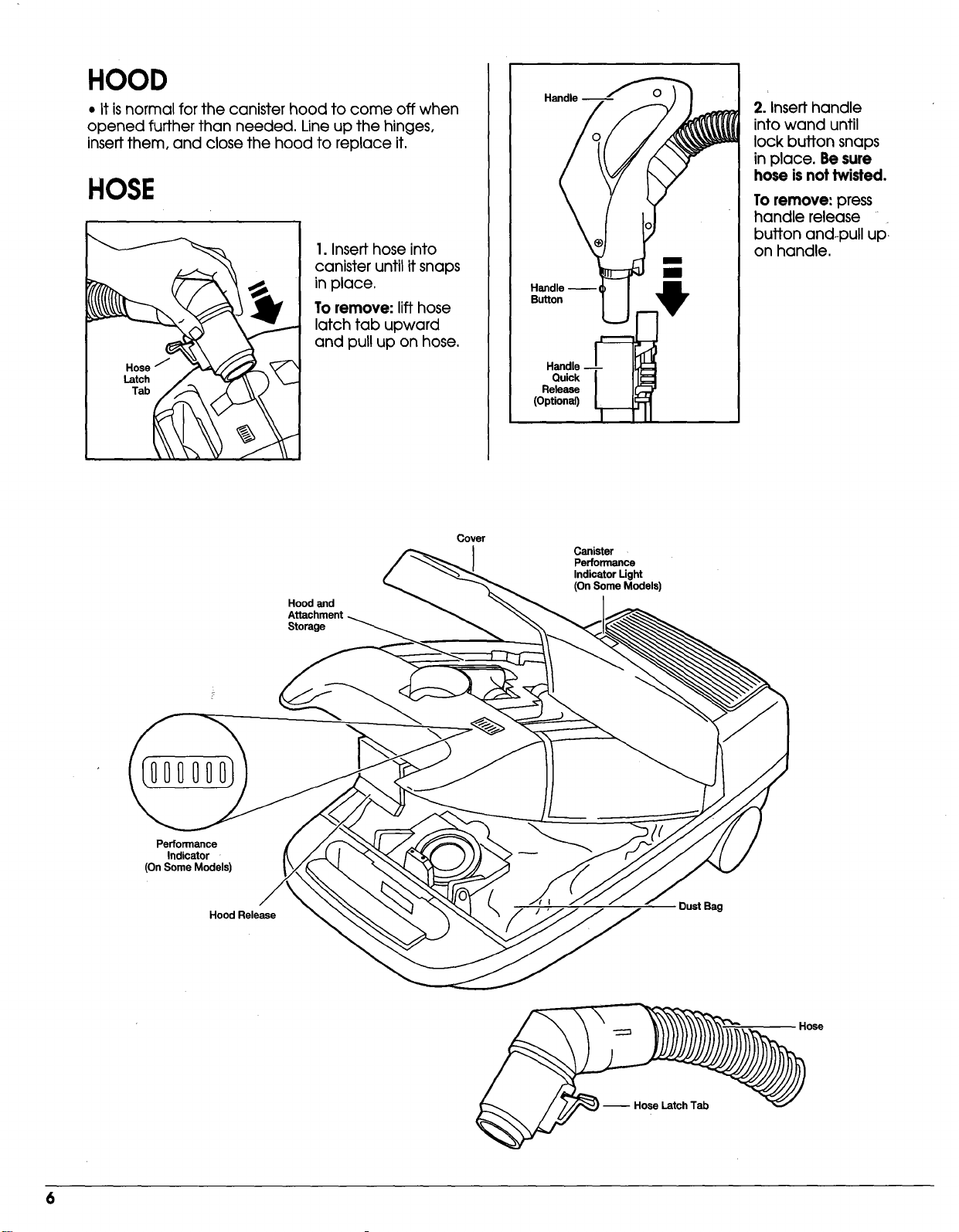

HOOD
, It isnormal for the canister hood to come off when
opened further than needed. Line up the hinges,
insert them, and close the hood to replace it.
HOSE
Hose j
Latch
Tab
1. Insert hose into
canister until it snaps
in place,
To remove: lift hose
latch tab upward
and pull up on hose,
Handle
Handle --
Button tV
Release I IC:_
(Optional) _
2. Insert handle
into wand until
lock button snaps
in place. Be sure
hose is not twisted.
To remove: press
handle release
button andpull up,
on handle.
Hood and
Attachment
Storage
Cover
Canister
Performance
Indicator Ught
(On Some Models)
Performance
Indicator
(On Some Models)
Hood Release
Dust Bag
Hose
6

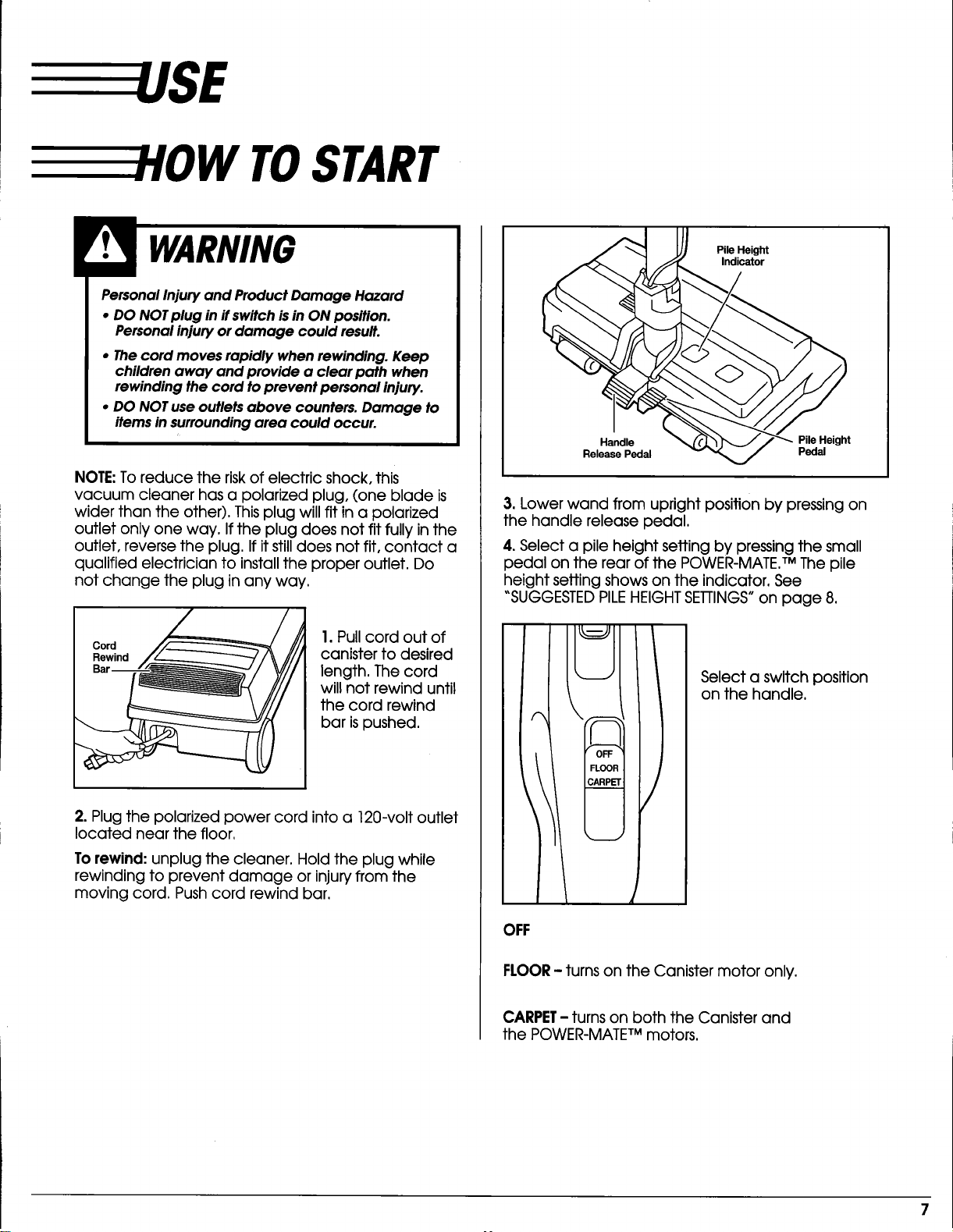

W TOSTART
PersonalInjuryand Product Damage Hazard
• DO NOTplug in ifswitch isin ON position.
Personal injuryor damage could result.
• Thecord moves rapidly when rewinding. Keep
children away and provide a clear path when
rewinding the cord toprevent personal injury.
• DO NOTuse outletsabove counters.Damage to
items in surroundingarea could occur.
NOTE:To reduce the risk of electric shock, this
vacuum cleaner has a polarized plug, (one blade is
wider than the other). Thisplug will fit in a polarized
outlet only one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install the proper outlet. Do
not change the plug in any way.
Cord
Rewind
1. Pull cord out of
canister to desired
length. The cord
will not rewind until
the cord rewind
bar ispushed.
2. Plug the polarized power cord into a 120-volt outlet
located near the floor.
Torewind: unplug the cleaner. Hold the plug while
rewinding to prevent damage or injury from the
moving cord. Push cord rewind bar.
Pile Height
Indicator
Handle
Release Pedal
Pile Height
Pedal
3. Lower wand from upright position by pressing on
the handle release pedal,
4. Select a pile height setting by pressing the small
pedal on the rear of the POWER-MATE3MThe pile
height setting shows on the indicator. See
"SUGGESTEDPILEHEIGHTSEI-FINGS"on page 8,
I
Select a switch position
on the handle.
OFF
FLOOR- turns on the Canister motor only.
CARPET- turnson both the Canisterand
the POWER-MATE TM motors.
EE VACUUMING TIPS
Suggested sweeping pattern.
For best cleaning action, the POWER-MATETM should
be pushed straight away from you and pulled
straight back. At the end of each pull stroke, the
direction of the POWER-MATETM should be changed
to point into the next section to be cleaned. This
pattern should be continued across the rug with
slow, gliding motions.
NOTE:Fast,
jerky strokes
do not provide
complete
cleaning.
Small areas can
be cleaned
without moving
the canister. The
hose swivel
allows the hose
to turn 360° while
the canister stays
in place. Check
hose for twisting
before pulling
canister.
/
/
Carpeted stairs need to be vacuumed regularly. For
best cleaning results, fully close the suction control.
Personal Injury Hazard
Use care if canister is placed on stairs. !f-it falls,
personal injury or property damage could result.
Forbest cleaning results, keep the airflow passage
open. Check each assembly area, (shown on
page 11) occasionally for clogs. Unplug from
outlet before checking.
== SUGGESTED
PILEHEIGHT
SETTINGS
For best deep down cleaning, use the XLO setting.
However, you may need to raise the height to make
some jobs easier, (such as scatter rugs and some
deep pile carpets) and to prevent the vacuum
cleaner from shutting off. Suggested settings are:
XLO - most carpets and bare floors.
LO- low to medium pile.
MED - medium to deep pile.
HI - shag; deep pile; scatter rugs.

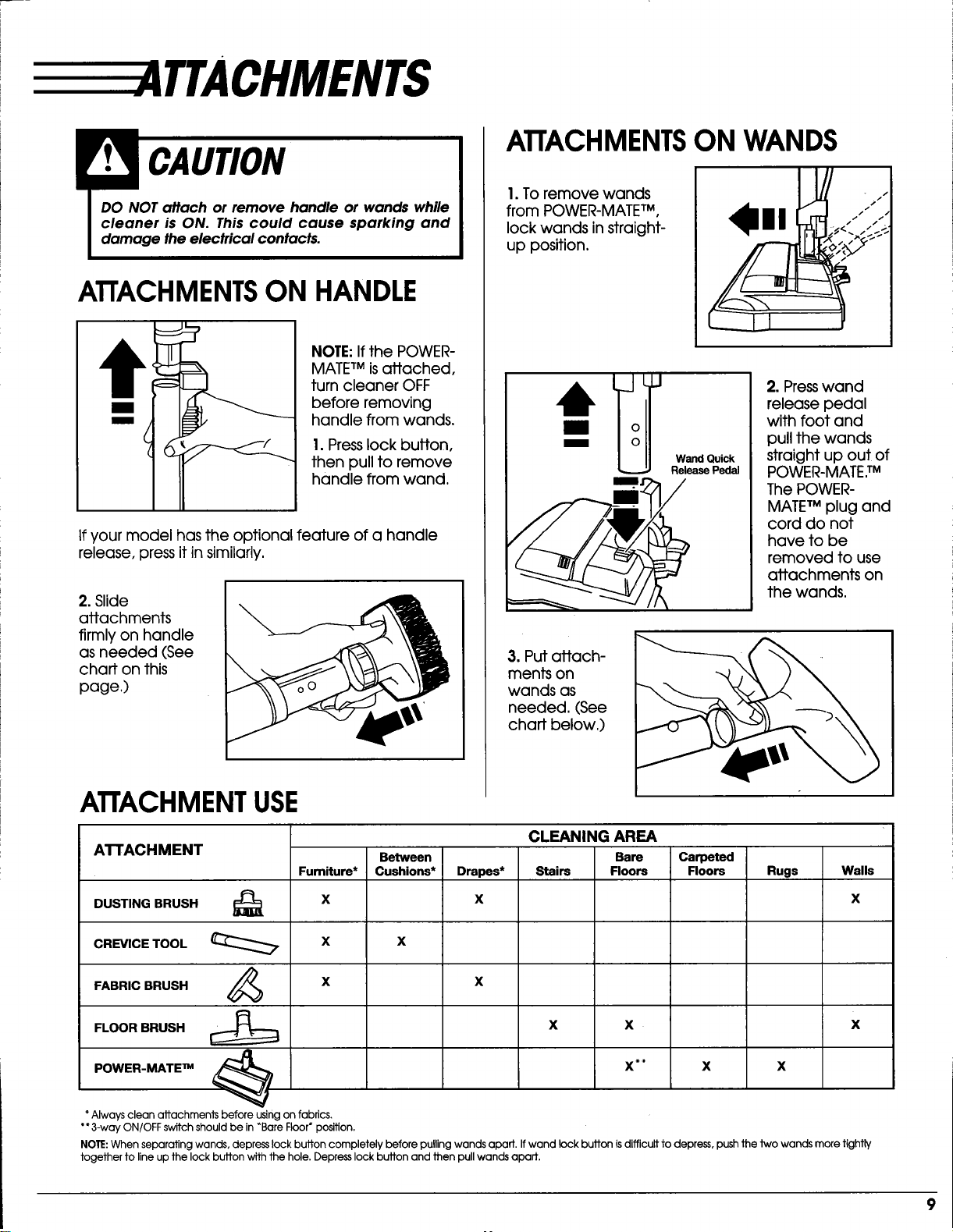

CHMENTS
ATTACHMENTSON HANDLE
t
m
I
NOTE: Ifthe POWER-
MATETM isattached,
turn cleaner OFF
before removing
handle from wands.
I.Press lock button,
then pull to remove
handle from wand.
If your model has the optional feature of a handle
release, press it in similarly.
2. Slide
attachments
firmly on handle
as needed (See
chart on this
page.)
ATTACHMENTUSE
ATTACHMENTSON WANDS
I. To remove wands
from POWER-MATETM,
lock wands in straight-
up position.
_ Wand Quick
Release Pedal
2. Presswand
release pedal
with foot and
pull the wands
straight up out of
POWER-MATE7M
The POWER-
MATETM plug and
cord do not
have to be
removed to use
attachments on
the wands.
3. Putattach-
ments on
wands as
needed. (See
chartbelow.)
ATTACHMENT
DUSTING BRUSH
CREVICE TOOL
FABRIC BRUSH
FLOOR BRUSH
POWER'MATETM
Furniture*
X
Between
Cushions*
Drapes*
x
CLEANING AREA
Bare
Stairs Roors
Carpeted
Floors
X
X
X
X
X
Rugs
X
Walls
X
* Always clean attachments before using on fabrics.
** 3-way ON/OFF switch should be in "Bare Floor" position.
NOTE: When separating wands, depress lock button completely before pulling wands apart. If wand lock button is difficult to depress, push the two wands more tightly
together to line up the lock button with the hole. Depress lock button and then pull wands apart.
9
EPERFORMANCE FEATURES
Edge Cleaner
Active brush edge
cleaners are on both
sides of the POWER-
MATETM Guide either
side of the POWER-
MATETM along base-
boards or next to fur-
niture to help remove
dirt trapped at carpet
edges.
Overload Protector
The POWER-MATETM
has built-in protection
against motor and
belt damage should
the brush jam. If the
brush slows down or
stops, the overload
protector button pops
up and shuts off the
POWER-MATETM The
canister motor will
continue to run.
To correctproblem:
See the TroubleShootingChaffon page 16,
To reset:Push inthe overloadprotectorbutton.
SuctionControl
The suction control allows you to change the vacu-
um suction for
Decrease
Suction
[
© •
Increase
Suction
different fabric
and carpet
weights. Open-
ing the control
decreases suc-
tion for draperies
and lightweight
rugs, while clos-
ing the control
increases suction
for upholsteries
and carpets.
PersonalInjuryHazard
Always unplug the vacuum cleaner before clean-
ing the brush area as brush may suddenly restart.
Failureto do so can resultin personal injury.
Canister Performance
Indicator
On Some Models
Canister
Performance
Indicator Light
The light comes on
whenever the airflow
becomes blocked,
dust bag needs
changing or canister
safety filter needs
cleaning.
NOTE: The lightmay alsocome on when usingcer-
tainattachments,due to reduced airflowthrough
attachment.
Performance Indicator
On Some Models
When the unit isrunning the
lines in the indicator win-
dows will be clear if there
are no clogs. When the lines
turn completely red there is
a need to check the dust
bag for being full of the other areas that may be
clogged. See page 11.
NOTE: Red lines may appear when using attach-
ments while cleaning new carpet, due to reduced
airflow by the attachments themselves or by new
carpet fuzz filling the bag quickly.
POWER-MATETM Storage
On Some Models
The lower wand has a
"U" shaped flange in
the area where the
power cord attaches.
The base has a "U"
shaped slot near the
front caster.
The flange allows the
wands and POWER-
MATETM to be stored
with the canister to
conserve storage
space. The canister
must be stored on end
for this feature to be
used.
The wand will slip out of
the slot as it islifted up
for use and will slide into
the slot as it islowered
for storage.
10
YOURVAOUUMWORKS
Thevacuum cleaner creates suction that "_ Hose Swlvel -
_\ moving the car _zzzz,,_, _
]]/ is helpful for cle _11 "
I_ smallareas.Ch _r
/// for twisting bef( x[
the hose to turn without
moving the canister. This
is helpful for cleaning in
small areas. Check hose
for twisting before pulling
picks up diff. Rapidly moving air carries f
the dirt to the dust bag through the / The hose swivel allows
airflow passages. The dust bag lets L/
the air pass through, while it traps _P'*,
the diff. /_
For best cleaning results, keep /7,/7
the airflow passage open. ////
Check the starred areas ///
OC
(_.__L_I
--------CANISTERCARE
GCHANGING
For best cleaning results, the dust bag should be
changed often. The performance indicator will come
on when the bag needs to be changed or the air-
flow isblocked.
1. Unplug cord
from wall outlet.
2. Pull hood
release out and
up, then lift canis-
ter hood.
3. Disengage card-
board tab from red
bag mount by pressing
away and lifting up.
4. Pull bag out of the
red bag mount.
5. Check and clean
motor safety filter.
The red bag mount
will flip forward after
removing bag. This
will prevent the lid
from closing until a
new bag isinstalled.
6. Raise red bag
mount up.
7. Install bag into slots per
illustrations pushing down
until the cardboard tab
locks into position and the
holes align. Tuck the back
end of the bag down.
8. Close and latch canis-
ter hood.
9. Plug cord into wall
outlet.
NEVERREUSEA DUSTBAG. Very fine materials, such
as carpet fresheners, face powder, fine dust,
plaster, soot, new carpet lint, etc. can clog the
bag and cause it to burstbefore it isfull. Change
bag more often when vacuuming these materials.
11
MOTOR SAFETYFILTERCLEANING
Check motor safety filter occasionally and clean when dirty.
ElectricalShockHazard
Do not operate the cleaner wlthoutthe motor safety
filter.Besure the filterisdry and properly installedto
preventmotorfailureand/or electrical shock.
1. Unplug cord
from wall outlet
and remove bag.
2. Pull out safety
filter as shown.
3. Wash filter in
warm soapy water,
rinse, then dry. Do
not clean in
dishwasher.
4. Snap filter back
into canister.
5. Insert bag.
EANINGEXTERIORANDATTACHMENTS
I.Unplug cord from walloutlet.DO NOT dripwater
on cleaner.
2. Clean exterior using a clean, soft cloth that has
been dipped in a solution of mild liquid detergent
and water, then wrung dry. Wipe dry after cleaning.
3. To reduce static electricity and dust build-up, wipe
outer surface of canister and attachments.
4. Wash attachments inwarm soapy water,rinseand
airdry.Do not clean in dishwasher.
DO NOT USEATTACHMENTSIFTHEYAREWET.
CAUTION
WER-MATETM CA RE
Always follow all safety precautions when cleaning
and servicing the POWER-MATE.TM
Electrical Shock Or Personal Injury Hazard
Disconnect electrical supply before servicing or
cleaning the unit. Failure to do so could result in
electrical shock or personal injury from cleaner sud-
denly staffing.
12 _
IGHTBULBCHANGING
1. Remove light
cover by pressing in
and lifting both sides
as shown.
Push In And Tum
To Install
2. Push in and turn
bulb counterclock-
wise to remove.
3. Replace with bulb.
Bulb must not be
higher than 15 wafts.
Close light cover
until it snaps in place.
CHANGINGANDBRUSHCLEANING
Disconnect cleaner from electrical outlet. Check and
remove hair, string and lint build-up frequently in the
POWER-MATETM brush and brush support areas. If
build-up becomes excessive, disconnect POWER-
MATETM from wand and follow the steps below.
Instructions can also be found under the light cover.
TO REMOVE BELT:
I. Remove light cover
and light bulb as
shown under "LIGHT
BULBCHANGING."
2. Unscrew the
POWER-MATETM cover
screws.
3. Turn POWER-
MATETM over. To
remove cover,
insert screw-
driver at cover
tabs on both
sides and twist
to release tabs.
4. TurnPOWER-
MATE TM rightside
up.Presshandle
releasepedal
and lowerthe
swivel.Tiltcover
forwardfrom
back untilfront
snaps free,
5. Carefully
insertand
twist screw-
driver at
each brush
support to
free brush
from base.
Brush
Support
Base
/
6. Remove worn
belt.
7. Slide brush
supports off to
check and clean
brush support
areas. See page
15 for picture of
complete brush
assembly.
13
TO REPLACEBELT:
1. Slide washers and brush supports onto brush
assembly.
2. Install new
belt over motor
drive, then over
brush sprocket. Motor
_/_1 / BrushSprocket
Brush Support
3. Snap brush
supports into place
on base. Be sure
brush supports are
not upside-down,
4. Line up front of
cover and base.
Rest cover on front
edge of base as
shown.
Cover Base
5. Tiltcover to
back. Presscover
firmly until side tabs
snap into place.
Replace cover
screws, light bulb
and light cover.
14
E BRUSH SERVICING
Electrical Shock Or Personal Injury Hazard
Disconnect electrical supply before servicing or
cleaning the unit. Failure to do so can result in
electrical shock or personal injury from cleaner
suddenly starting.
TO CHECK BRUSH:
Base Support Bars
• When brushes
are worn to the
level of the base
support bars,
replace the
brushes.
TO REPLACEBRUSH:
1. Remove POWER-MATETM cover, belt and brush
assembly. (See ""Toremove belt" in "BELTCHANGING
AND BRUSHCLEANING" on page 13.)
2. Remove brush supports, washers, screws, end
brush, brush sprocket pieces from ends of brush
assembly.
3.Push outworn
brushes.Ifthe
beater bar is
chipped or
gouged,
replaceit.
4.Slidenew
beater bar and
brushesintoslots.
NOTE:New
brushes and
beater bar may
be easier to
install ifthey are
soaked in warm
water for a few
minutes. Dry
thoroughly
before installing.
5. Reassemble brush assembly. To line up screw holes
in dowel, sprocket and end brush, be sure beater bar
portion of end brush lines up with beater bar on
brush dowel.
6. Replace belt, brush assembly, POWER-MATETM
cover, light bulb and light cover. (See "To replace
belt" in "BELTCHANGING AND BRUSHCLEANING" on
page 13.)
BRUSH ASSEMBLY
_W Brush
Sprocket
(-_ _ Flange Brush
"_i/_-_-_, , _-,,. _ Sprocket
/'_L " _ EndBrush
asher J_PT"r_._ /F
Brushes
Washer Brush
15
EEEEEETROUBLESHOOTING
Review this chad to find do-it-yourself solutions for minor performance problems,
PROBLEM POSSIBLECAUSE POSSIBLESOLUTION
Cleanerwon'tstart.
Poor job of dirt
pick-up.
Cleanerstartsbut
cutsoff.
POWER-MATETM willnot run.
Performanceindicator
lighton.
I.Unpluggedatwalloutlet.
2.Trippedcircuitbreaker/blown
fuseathouseholdservicepanel.
3.Looseelectricalconnections.
4.TrippedOverloadProtectorin
POWER-MATE7M
i. Fullor clogged dust bag
2. Clogged airflow passages.
3. Dirty motor safety filter.
4. Wrong pile height setting.
5. Open suction control.
6. Hole in hose.
7. Worn POWER-MATETM brushes.
8. Worn or broken belt.
9. Dirty brush or brush supports.
10. Canister hood open.
1. Hose or hood electrical
connections.
2. Tripped Overload Protector
in POWER-MATETM
3. TrippedOverload Protector
incanister.
I.
2.
.
4.
I. Plug in firmly, push On/Off switch to ON.
2. Reset circuit breaker or replace fuse.
3. Reconnect all assembly points, (pages 5,6).
4. Clean brush and brush supports, then reset
(pages 13, 14, 15).
.
2.
3.
4.
5.
6.
7.
8.&9.
10.
Change bag, (page 11).
Clear airflow passages, (page 11).
Clean filter, (page 12).
Adjust setting, (page 8).
Adjust control, (page 10).
Replace hose.
Change brushes, (page 15).
See "BELTCHANGING AND BRUSHCLEANING,u
(pages 13, 14, 15).
Close and latch hood.
I.Check connections,reconnecthose
ends,(pages6).
2.Remove any itemsthatmay be caught
orjammed,thenreset.Ifcleanerstartsand
stopsagain,cleanbrushand brushsupports,
thenreset,(pages13,14,15).
3.Change dustbag,clearairflowblockage,
(page1I),Wait20minutesformotortocool
and automaticallyreset.
POWER-MATE TM connectionsunplugged. I.
Worn orbrokenbeltin 2.& 3.
POWER-MATE.TM
Dirtybrushorbrushsupports,
TrippedOverload Protector 4.
inPOWER-MATE. TM
I.
2.
3.
I. Fullorclogged dustbag.
2. Dirtymotorsafetyfilter.
3. Blockedairflowpassage.
Plug in firmly, (page 5).
See "BELTCHANGING AND BRUSHCLEANING,"
(page 13).
Check brush area for excessive lint build-up or
jamming. Clean brush and brush supports,
then reset, (pages 13, 14, 15).
4. Certain attachment tools. 4.
Cleaner picks up movable 1. Wrong pile height setting. 1. Adjust setting, (page 8).
rugs-OR- POWER-MATETM 2. Suction too strong. 2. Open suction control, (page 10).
pushestoo hard.
Lightwon't work. I. Burned out bulb. I. Change bulb, (page 13).
Cord won't rewind. I. Dirty power cord. I. Clean the power cord.
2. Cord jammed. 2. Pulloutcord and rewind,
Cleanerleavesmarks I.Wrong vacuuming pattern. I,See "VACUUMING TIPS,"(page 8),
on carpet.
16
Change bag, (page 11).
Clean filter, (page 12).
Clear blockage from airflow passage,
(page 11).
Thisisnormal. Ught should go off when tool
isremoved.
i-
IIII
i _ ir
i i
L I .
m K li.
m H
m H
m i
i H
m H
i H
i i
a H
i n
m i.
--|
m •
A 1i
HI
SEARS
SEARS,ROEBUCKAND CO., HOFFMAN ESTATES,II 60195 U.S.A.
PARTNO. C_ IZKN 1_UO_-4369329A
Printed in U.S.A.
