LG Electronics LFX28978SB Ultra-Large Capacity 3 Door User Manual

OWNER’S MANUAL

FRENCH DOOR

REFRIGERATOR

Please read this owner's manual thoroughly before

operating and keep it handy for reference at all times.

P/No.: MFL62184410

www.lg.com

ENGLISH FRANÇAIS ESPAÑOL

IMPORTANT SAFETY INFORMATION

Basic Safety Precautions ........................................3

CFC Disposal ..........................................................4

How to Connect Electricity ......................................5

PARTS AND FEATURES

Special Features .....................................................6

Key Parts and Components ....................................7

INSTALLATION

Choose the Proper Location ...................................8

Clearances ..............................................................8

Flooring ...................................................................9

Handle Removal......................................................9

Refrigerator Door and Freezer Drawer Removal ..10

Light Replacement ................................................16

Connecting the Water Supply ...............................17

Connecting the Water Lines..................................18

Leveling the Refrigerator Doors ............................19

Starting..................................................................20

HOW TO USE

Control Panel Features .........................................21

The LED Display ...................................................22

Adjusting the Temperatures and Display .............23

Operating the Dispenser ......................................24

Setting the Functions ...........................................25

Spaceplus Ice System ..........................................26

Automatic Icemaker .............................................27

Storing Foods .......................................................28

Location of Foods .................................................29

Shelf Height Adjustment .......................................30

Removing and Replacing Components ................31

CARE AND CLEANING

Cleaning the Refrigerator .....................................35

General Information .............................................35

Replacing the Water Filter.....................................36

TROUBLESHOOTING

Before Calling for Service …………………………42

SMART DIAGNOSIS

Smart diagnosis ....................................................41

SPECIFICATIONS

Key Dimensions and Specifications .....................48

WARRANTY

Product Registration Information ..........................49

THANK YOU!

Congratulations on your purchase

and welcome to the LG family.

Your new LG French Door

Refrigerator combines

advanced cooling technology

with simple operation and high

efficiency. Follow the operating

and care instructions in this

manual and your refrigerator

will provide you with many years

of reliable service.

ENGLISH

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all

safety messages.

w This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill

or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety

alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

wDANGER

You might be killed or seriously injured if you don’t follow instructions.

wWARNING

You can be killed or seriously injured if you don’t follow instructions.

wCAUTION

Indicates an imminently hazardous situation which, if not avoided, may

result in minor or moderate injury, or product damage.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you

what can happen if the instructions are not followed.

wWARNING

To reduce the risk of fire, electric shock, or

injury to persons when using your product,

basic safety precautions should be followed,

including the following.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the

power cord. Always grip the plug firmly and pull it

straight out from the outlet.

• Repair or replace immediately all electric service

cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or

abrasion damage along its length or at either the

plug or connector end.

• When moving your refrigerator away from the wall,

be careful not to roll over or damage the power cord.

• DO NOT store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

• DO NOT allow children to climb, stand, or hang on

the refrigerator doors or shelves in the refrigerator.

They could damage the refrigerator and seriously

injure themselves.

• Keep fingers out of pinch point areas; clearances

between the doors and cabinet are necessarily

small. Be careful closing doors when children are

in the area.

• Unplug your refrigerator before cleaning or making

any repairs.

NOTE: Service should be performed by a qualified

technician.

• Before replacing a burned-out light bulb, unplug the

refrigerator or turn off power at the circuit breaker

or fuse box in order to avoid contact with a live wire

filament. (A burned-out light bulb may break when

being replaced.)

NOTE: Some models have LED interior lighting and

service should be performed by a qualified

technician.

NOTE: Setting either or both controls to the OFF

position does not remove power to the light circuit.

• When you are finished, reconnect the refrigerator to

the electrical source and reset the control

(Thermostat Refrigerator Control, or Freezer

Control, or Freezer Control, depending on the

model) to the desired setting.

• This refrigerator must be properly installed in

accordance with the Installer Instructions that

were taped to the front of the refrigerator.

• After your refrigerator is in operation, do not touch

the cold surfaces in the freezer compartment when

hands are damp or wet. Skin may adhere to the

extremely cold surfaces.

• In refrigerators with automatic icemakers, avoid

contact with the moving parts of the ejector

mechanism or with the heating element that

releases the cubes. DO NOT place fingers or hands

on the automatic icemaking mechanism while the

refrigerator is plugged in.

• Do not modify or extend the power cord length.

It will cause electric shock or fire.

BASIC SAFETY PRECAUTIONS

(CONT.)

• Do not use drier to dry the inside, nor light a candle

to remove odor.

• Install in places away from the fire such as the place

where flammable gas is leaked.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given

supervision or instruction concerning use of the

appliance by a person responsible for their safety.

Children should be supervised to ensure that they

do not play with the appliance.

• DO NOT refreeze frozen foods which have

thawed completely. The United States

Department of Agriculture in Home and Garden

Bulletin No. 69 says:

…You may safely refreeze frozen foods that have

thawed if they still contain ice crystals or if they are

still cold—below 40°F (4°C).

…Thawed ground meats, poultry, or fish that have

any off-odor or off-color should not be refrozen

and should not be eaten. Thawed ice cream

should be discarded. If the odor or color of any

food is poor or questionable, dispose of it. The

food may be dangerous to eat.

Even partial thawing and refreezing reduces the

quality of foods, particularly fruits, vegetables,

and prepared foods. The eating quality of red

meats is affected less than that of many other

foods. Use refrozen foods as soon as possible to

save as much of their quality as you can.

Risk of Child Entrapment

Discarded or abandoned refrigerators are

dangerous, even if they will sit for just a few

days. If you are disposing of your old refrigerator,

please follow the instructions below to help prevent

accidents.

Before you throw away your old refrigerator or

freezer:

• Take off the doors.

• Do not leave the shelves

in place, as children may

climb inside.

CFC DISPOSAL

Your old refrigerator may have a cooling system that

used CFCs (chlorofluorocarbons). CFCs are believed

to harm stratospheric ozone.

If you are throwing away your old refrigerator, make

sure the CFC refrigerant is removed for proper

disposal by a qualified servicer.

If you intentionally release this CFC refrigerant, you

can be subject to fines and imprisonment under

provisions of environmental legislation.

wWARNING

Keep away from moving drawers.

• Small children can be knocked down.

• Fingers and toes can be injured.

Do not sit or climb on

drawers.

• Refrigerator can tip over.

ENGLISH

HOW TO CONNECT ELECTRICITY

IMPORTANT: Please read carefully.

wWARNING

Electrical Shock Hazard

For personal safety, this appliance must be

properly grounded. Have the wall outlet and

the circuit checked by a qualified electrician to

make sure the outlet is properly grounded.

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into

its own individual properly grounded electrical

outlet rated for 120 volts, 60 Hz, AC only, and

fused at 20 amperes. This provides the

best performance and also prevents overloading

house wiring circuits which could cause a fire

hazard from overheated wires. It is

recommended that a separate circuit serving

only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord. Where a standard two-prong wall outlet is

encountered, it is your personal responsibility

and obligation to have it replaced with a properly

grounded three-prong wall outlet.

Do not, under any circumstances, cut or

remove the third (ground) prong from the

power cord.

Do not use an adapter plug.

NOTE: Some models have LED interior lighting and

service should be performed by a qualified technician.

When you are finished, reconnect the refrigerator to

the electrical source and reset the control

(Thermostat, Refrigerator Control, or Freezer Control,

depending on the model) to the desired setting.

USE OF EXTENSION CORDS

Because of potential safety hazards under

certain conditions, we strongly recommend

against the use of an extension cord.

However, if you still elect to use an extension

cord, it is absolutely necessary that it be a UL-listed

(USA), 3-wire grounding-type appliance

extension cord having a grounding-type plug

and outlet and that the electrical rating of the

cord be 20 amperes (minimum) and 120 volts.

Use of an extension cord will increase the

clearance needed for the back of the

refrigerator.

SAVE THESE INSTRUCTIONS

SPECIAL FEATURES

CONTROL PANEL LED DISPLAY SCREEN

Simple electronic controls are user-friendly. The LED

screen shows refrigerator and freezer temperatures,

displays water filter status, dispenser information, and

more.

ICE PLUS

When this feature is activated, the freezer section will

run at the coldest temperature for a 24- hour period to

increase ice production.

FILTERED WATER AND ICE DISPENSER

The water dispenser offers fresh, chilled, filtered

water through the door. The ice dispenser offers

cubed or crushed ice.

DOOR ALARM

A warning alarm sounds at 30-second intervals when

the refrigerator or freezer door is left open for more

than 60 seconds.

SPACEPLUS ICE SYSTEM

The icemaker automatically produces 80–130 ice

cubes in a 24-hour period to keep the ice dispenser

fully supplied. The in-door design creates more shelf

space.

CRISPERS

LG’s crispers preserve humidity and help vegetables

stay crisp.

GLIDE‘N’SERVE

Provides storage space with a variable temperature

control that keeps the compartment colder than

refrigerator.

MULLION

The door mullion folds in when the left

door is opened.

AUTO CLOSING HINGE

When you slightly push the door of the refrigerator,

it is automatically closed. (The door is automatically

closed within 30° of the opening angle.)

NOTE: This guide covers several different models.

The refrigerator you have purchased may have some

or all of the items listed below. The locations of the

features shown below may not match your model.

KEY PARTS AND COMPONENTS

In addition to the special features and components

outlined in the Special Features section, there are

several other important components that are

referenced in this manual.

ENGLISH

ADJUSTABLE REFRIGERATOR SHELVING

The refrigerator compartment shelves are

adjustable to allow flexibility for storage needs.

GALLON STORAGE BINS

Three interchangeable bins can be arranged to

suit your storage needs.

REMOVABLE ICE STORAGE BIN

The ice storage bin can be removed to fill ice

buckets, coolers, or pitchers.

LED INTERIOR LAMPS

Refrigerator interior is lit by the LED array.

CAN STORAGE BIN

FIXED DOOR BINS

CHOOSE THE PROPER LOCATION

wWARNING

Excessive Weight Hazard

Two or more people are required when

moving and unpacking the appliance.

• Store and install the refrigerator where it will not

be exposed to temperatures below freezing or

exposed to outdoor weather conditions.

• Install this appliance in an area where the

temperature is between 55°F (13°C) and 110°F

(43°C). If the temperature around the appliance

is too low or too high, cooling ability may be

adversely affected.

• If this refrigerator is installed where the

temperature is above 110°F (43°C), the

freezing capacity is compromised and the cost

of electricity used increases.

• To reduce the risk of electric shock, do not

install the refrigerator in a wet or damp area.

• Select a place where a water supply can be

easily connected for the automatic icemaker

and dispenser.

• Unstable installation may cause vibration and

noise. If the floor is not even, make the

refrigerator level by rotating the height adjusting

screws.

• Properly ground the refrigerator to conform with

all governing codes and ordinances.

wCAUTION

Avoid placing the unit near heat sources,

direct sunlight, or moisture.

CLEARANCES

• Too small a distance from adjacent items may

result in lowered freezing capability and

increased electricity consumption charges.

Allow at least 24 in. (61 cm) in front of the

refrigerator to open the doors.

NOTE: For complete dimensions and specifications,

see page 47.

2" (5.08 cm)

ENGLISH

FLOORING

• To minimize noise and vibration, the refrigerator

MUST be installed on a solidly constructed floor.

• To avoid vibration, the unit must be level.

If required, adjust the leveling legs to compensate

for unevenness of the floor. The front should be

slightly higher than the rear to aid in door

closing. The leveling legs can be turned easily

by pushing against the top of the refrigerator to

take the weight off the feet. Turn the leveling

legs clockwise to raise the unit or

counterclockwise to lower it.

• Carpeting and soft tile surfaces are not

recommended.

• Never install the refrigerator on a platform or

weakly supported structure.

NOTE: When moving the refrigerator for cleaning

or service, be sure to protect the floor. Always

pull the refrigerator straight out when moving it.

Do not wiggle or walk the refrigerator when trying

to move it; floor damage could occur.

HANDLE REMOVAL

NOTE: Handle appearance may vary from

illustrations on this page.

wCAUTION

• Use special care when removing handles to

prevent scratching the doors.

• The handle could be damaged if you hit it with

a hammer while removing or attaching.

• When you assemble or disassemble a handle,

you must push or pull with reasonable force.

NOTE: It is recommend that the doors be removed when it is necessary to move the refrigerator through a

narrow opening.

Loosen the set screws with a 2.5 mm (3/32")

Allen wrench and remove the handle.

NOTE: If the handle mounting fasteners need

to be tightened or removed, use a 1/4" Allen

wrench.

Loosen the set screws located on the lower

side of the handle with a 3.1 mm (1/8") Allen

wrench and remove the handle.

NOTE: If the handle mounting fasteners need

to be tightened or removed, use a 1/4" Allen

wrench.

Mounting

Fasteners

Set Screw

Allen Wrench

HANDLE REMOVAL

(CONT.)

HANDLE REINSTALLATION

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL

REFRIGERATOR DOOR REMOVAL

wWARNING

Electric Shock Hazard

• Disconnect electrical supply to the refrigerator before

installing. Failure to do so could result in death or serious

injury.

• Do not put hands or feet or metal sticks into the air vents,

base grille, or bottom of the refrigerator. You may be

injured or receive an electrical shock.

• Be careful when you work with the hinge, base grille, and

stopper. You may be injured.

Before you begin, remove food and bins from the doors. If

your entrance door is too narrow for the refrigerator to pass

through, remove the refrigerator door and move the

refrigerator sideways through the doorway.

wWARNING

When the customer takes apart the handle or

assemble it from a refrigerator, please be cautious of

following things.

• Hold the handle with your own hand to make sure

not to drop the handle to the floor or instep while

taking apart the handle from a refrigerator.

• Do not swing the handle towards people or animals

after taking apart the handle.

• Insert the bracket hole of the handle into the stopper

bolt of the door exactly, and then assemble the set

screws to fix the handle.

• Check if there's any gap between the door and

handle after fixing the handle.

Place the handle on the door by aligning handle

footprints to fit mounting fasteners and tighten the

set screws with a 2.5 mm (3/32") Allen wrench.

NOTE: If the handle mounting fasteners need to be

tightened or removed use a 1/4" Allen wrench

Place the handle on the door by aligning handle

footprints to fit mounting fasteners and tighten the set

screws on the bottom of the handle with a 3.1 mm

(1/8") Allen wrench.

NOTE: If the handle mounting fasteners need to be

tightened or removed use a 1/4" Allen wrench.

To remove the left refrigerator door:

Pull the water tube out of the fitting while pressing the

release ring on the fitting.

NOTE : When you pull out the tube, first you have to

push the collet by opposite direction of arrow in the

upper picture and pull the tube out by direction of arrow.

Mounting

Fasteners

Collet

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL

(CONT.)

REFRIGERATOR DOOR REMOVAL

(CONT.)

ENGLISH

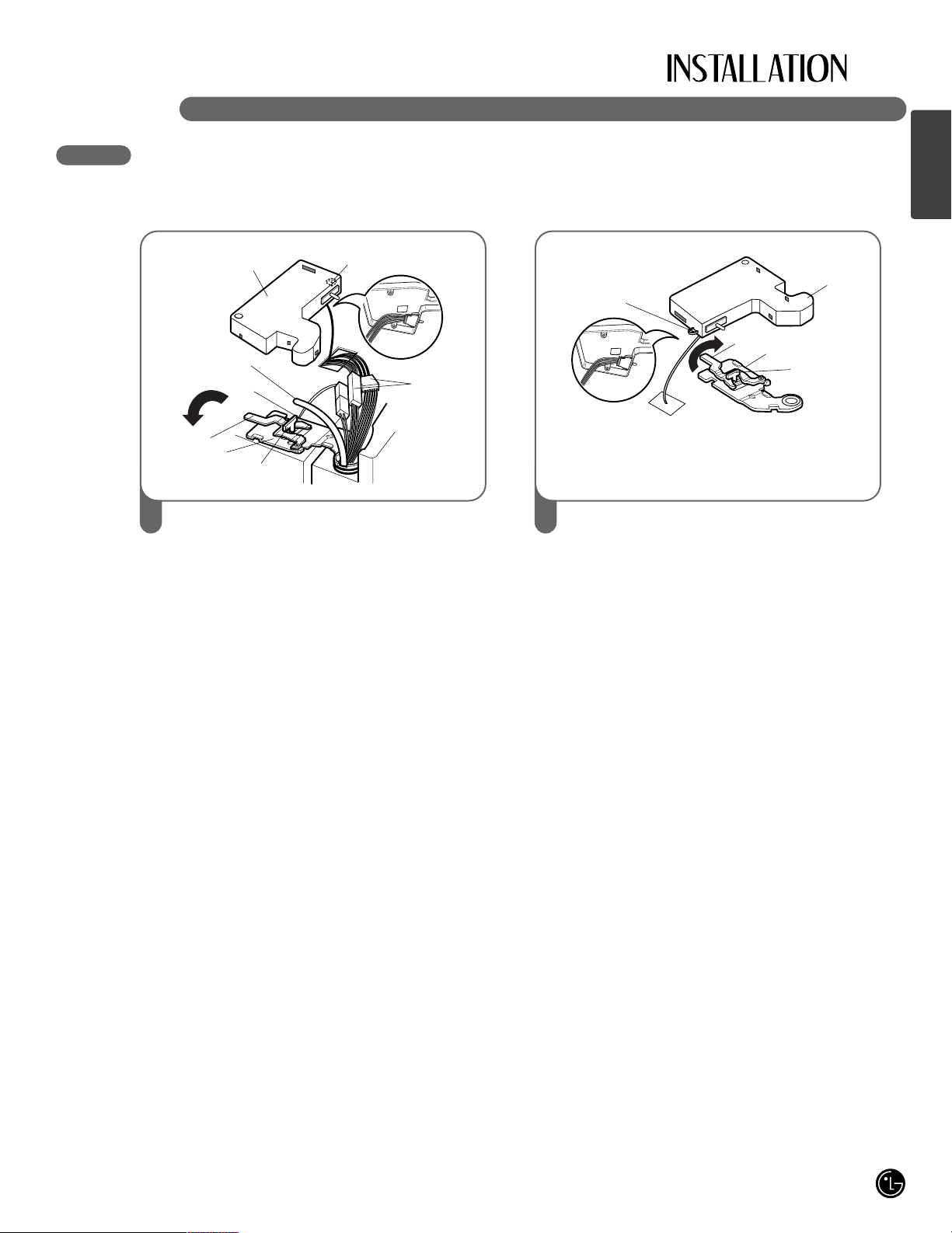

• Open the door. Remove the top hinge cover

screw (1 ).

• Use a flat blade screwdriver to lift the tabs

on the front underside of the cover(2). Lift up

the cover.

• Remove the cover. Pull out the tube (3).

• Disconnect all the wire harnesses (4).

• Remove the grounding screw(5)

• Rotate hinge lever (6) counterclockwise.

Lift the top hinge (7) free of the hinge lever

latch (8).

IMPORTANT: When lifting the hinge free of

the latch, be careful that the door does not fall

forward.

• Lift the door from the middle hinge pin and

remove the door.

• Place the door, inside facing up, on a non-

scratching surface.

(1)

(2)

(4)

(3)

(6)

(7)

(8)

(5)

2 To remove the right refrigerator door:

• Open the door. Remove the top hinge cover

screw (1 ). Lift up the cover (2).

• Remove the cover.

• Rotate the hinge lever (3) clockwise.

Lift the top hinge (4) free of the hinge lever

latch (5).

IMPORTANT: When lifting the hinge free of

the latch, be careful that the door is heavy

and may fall forward.

• Lift the door from the middle hinge pin and

remove the door.

• Place the door, inside facing up, on a non-

scratching surface.

(1)

(2)

(3)

(4)

(5)

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL

(CONT.)

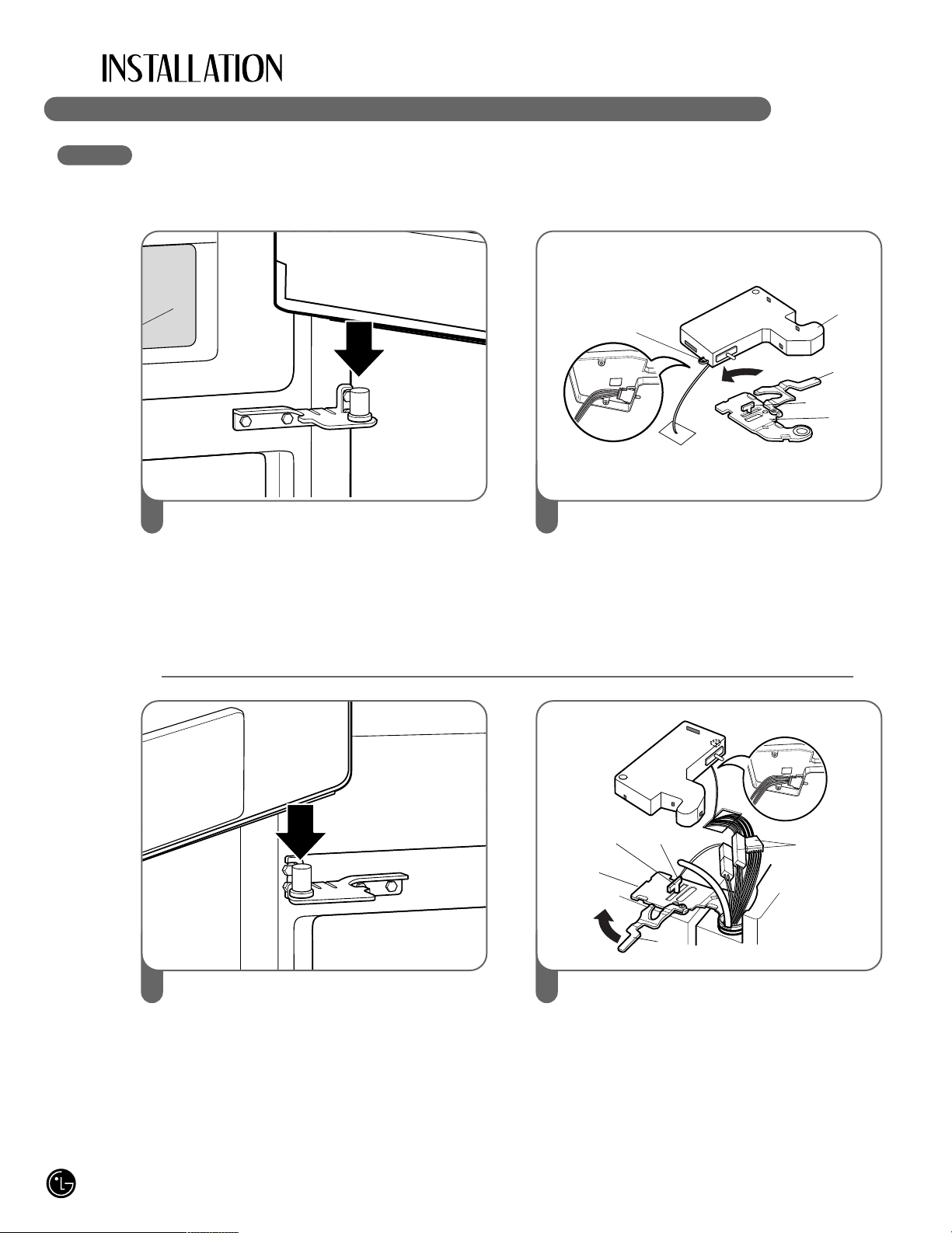

REFRIGERATOR DOOR REINSTALLATION

Install the right-side door first.

• Lower the door onto the middle hinge pin as

shown.

• Make sure the plastic sleeve is inserted in

the bottom of the door.

1 • Fit the top hinge (1) over the hinge lever

latch (2) and into place. Rotate the lever

(3) counterclockwise to secure the hinge.

• Hook the tab on the door-switch side of the

cover (4) under the edge of the wire opening

in the cabinet top. Position the cover into

place. Insert and tighten the cover screw (5).

(3)

(2)

(1)

(5)

(4)

Install the left-side door.

• Lower the door onto middle hinge pin.

3 • Fit the top hinge (1) over the hinge lever

latch (2) and into place. Rotate the lever (3)

clockwise to secure the hinge.

• Install the grounding screw (4) and connect

all the wire harnesses (5).

(2)

(1)

(3)

(4)

(5)

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL

(CONT.)

REFRIGERATOR DOOR REINSTALLATION

(CONT.)

ENGLISH

• Push the water supply tube (6) into the hole

on the top case and pull it through the

backplate.

(6)

5 Insert the water supply tube into the

connector.

• Insert the tube at least 5/8 in. (15 mm) into

the connector.

• Hook the tab on the door-switch side of the

cover under the edge of the wire opening in

the cabinet top. Position the cover into

place. Insert and tighten the cover screw.

Cover

Cover Screw

wCAUTION

1. Insert the tube until you can see only one of the lines printed on the tube.

2. After inserting, pull the tube to ascertain that it is secure.

3. Assemble the clip.

Collet

Correct Incorrect

Insert Line

Clip

Tube

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL

(CONT.)

FREEZER DRAWER REMOVAL

wCAUTION

• Care should be taken to avoid product or property

damage when removing the freezer door. It maybe

necessary to have assistance with the following

insturctions.

• To avoid damage do not hold the handle when

removing the door. It could come off and cause and

injury.

wCAUTION: When you remove the drawer, do not hold the handle. If it may come off and it could cause

personal injury.

wCAUTION: When placing the drawer on the floor, care should be taken to avoid floor damage.

Holding both sides of the door pull up to

separate the door from the rails.

3 With both hands, hold each rail and push it in

to allow both rails to slide in simultaneously.

Fully extend the freezer drawer. Lifting up and

out to remove the Dura Base basket making

sure to clear the rail system.

Remove one white screw  on each side of

the rails.

ENGLISH

wWARNING: To prevent accidental child and pet entrapment or suffocation risk.

DO NOT allow them to play inside of drawer.

wWARNING: DO NOT step or sit down on freezer.

REFRIGERATOR DOOR AND FREEZER DRAWER REMOVAL

(CONT.)

FREEZER DRAWER REINSTALLATION

wCAUTION

• To avoid possible injury or product or property

damage, you will need two people to perform the

following instructions. It maybe necessary to have

assistance with the following instructions.

wWARNING

Risk of Child Entrapment

• To prevent accidental child and pet entrapment

or suffocation risk, DO NOT allow them to play

inside of the freezer drawer.

• DO NOT step or sit on the freezer drawer.

With both hands, pull out each rail simultaneously

until both rails are fully extended.

Hook door supports  into rail tabs .

Lower door into final position and tighten the

screws.

3 With the drawer pulled out to full extension,

insert the lower basket in the rail assembly.

LIGHT REPLACEMENT

To Change Refrigerator Light

This model has special LED interior lighting

and service should be performed by a qualified

technician.

wWARNING

Electrical Shock Hazard

Before replacing a burned-out light bulb, either unplug

the refrigerator or turn off power at the circuit breaker

or fuse box.

NOTE: Moving the control to the OFF position does

not remove power to the light circuit.

NOTE:

• Not all appliance bulbs will fit your refrigerator.

Be sure to replace the bulb with one of the same

size, shape and wattage.

• The light bulbs will turn off if door is left open for

seven continuous minutes. Shutting door for one

second will light bulbs to come back on.

To Change Freezer Light

1. Unplug refrigerator power cord form outlet.

2. Use a screwdriver to remove the cover screw.

(Save the cover screw)

3. Using a flat instrument,

gently pry the lamp cover

loose in the front as

shown. Rotate downward

to remove the rear tabs.

4. Make sure the bulb is

cool to the touch.

Turn the bulb

counterclockwise to

remove.

5. Replace with a new

60-watt appliance bulb.

6. Insert tabs on back of

cover into slots in freezer

ceiling. Push cover up to

snap front into place.

7. Use a screwdriver to assemble the cover screw.

wCAUTION

• DO NOT place fingers inside of cover.

Lamp may be hot.

CONNECTING THE WATER SUPPLY

wWARNING

Connect to safe drinking water supply

only.

• The water pressure must be between 20 and

120 p.s.i. (1.4~8.4 kgf/cm

) on models without

a water filter and between 43 and 121 p.s.i.

(3~8.5 kgf/cm

) on models with a water filter.

• If water pressure does not reach 20 psi

(1.4 kgf/cm

) or falls below, it is necessary to

purchase a separate pressure pump for normal

automatic icemaker and water dispensing operation.

• It is recommended that the total length of the water

feed tube does not exceed 26 ft. (8 m).

• Install the water supply line where it will not be

affected by heat.

• If a reverse osmosis water filtration system is

connected to your cold water supply, This water line

installation is not warranted by the refrigerator or

icemaker manufacturer. Follow next instructions

carefully to minimize the risk of expensive water

damage.

• If a reverse osmosis water filtration system is

connected to your cold water supply, the water

pressure to the reverse osmosis system needs

to be a minimum of 40 to 60 psi (2.8 kgf/cm

4.2 kgf/cm

, less than 2.0~3.0sec to fill a cup of

7oz capacity).

If the water pressure from the reverse osmosis

system is less than 20 psi (1.4 kgf/cm

, more than

4.0sec to fill a cup of 7oz capacity):

• Check to see whether the sediment filter in the

reverse osmosis system is blocked. Replace the

filter if necessary.

• Allow the storage tank on the reverse osmosis

system to refill after heavy usage.

• If the issue about water pressure from reverse

osmosis remains, call a licensed, qualified plumber.

IMPORTANT: Read all directions thoroughly before

you begin.

• If operating the refrigerator before installing the

water connection, turn the icemaker to the OFF

position to prevent operation without water.

• All installations must be in accordance with local

plumbing code requirements.

• Use copper tubing and check for leaks.

• Install tubing only in areas where temperatures will

remain above freezing.

• It may take up to 24 hours for the icemaker to begin

producing ice.

Tools Required

• Standard screwdriver

• 7/16-in. and 1/2-in. open-end wrenches or two

adjustable wrenches

• 1/4-in. nut driver

• 1/4-in. drill bit

• Hand drill or electric drill (properly grounded)

NOTE: Refrigerator dealers offer a kit with a 1/4-in.

saddle-type shutoff valve, a union, and copper tubing.

Before purchasing, make sure a saddle-type valve

complies with local plumbing codes.

Do not use a piercing-type or 3/16-in. saddle valve

which reduces water flow and clogs more easily.

NOTE: The Commonwealth of Massachusetts

Plumbing Code 248CMR shall be adhered to.

Saddle valves are illegal and use is not permitted in

Massachusetts. Consult with your licensed plumber.

Cold Water Supply

• The icemaker water valve contains a flow washer

which is used as a water pressure regulator.

• The icemaker needs to be connected to a cold water

line with water pressure between 20~120 psi

(1.4~8.4 kgf/cm

) on models without a water filter

and between 43 and 121 p.s.i. (3~8.5 kgf/cm

) on

models with a water filter.

ENGLISH

IMPORTANT: Before connecting the tubing to the

refrigerator, be sure the refrigerator power cord is not

plugged into the wall outlet.

NOTE: If your refrigerator is equipped with an internal water

filter, an external in-line water filter should not be used.

• Remove the plastic flexible cap from the water valve.

• Place the compression nut and ferrule (sleeve) onto the

end of the tubing as shown.

• Insert the end of the copper tubing into the connection as

far as possible. While holding the tubing, tighten the fitting.

IMPORTANT: Tighten any connections that leak.

Open the water at the shutoff valve.

• Plug in the refrigerator.

• Arrange the coil of copper tubing behind the refrigerator so

it does not vibrate against the back of the refrigerator or

against the wall.

• Check for leaks.

• Before connecting the water line to house, purge the

house line for 2 minute.

NOTE: It may take a few seconds for water to begin to flow

as the internal tank fills and air clears from the lines.

• Push the refrigerator back to the wall.

• Set the icemaker switch to the ON position.

NOTE: The icemaker will not begin to operate until it

reaches its operating temperature of 15°F (-9°C).

It will then begin operation automatically.

NOTE: Throw away the first few batches of ice (about

20 pieces).

CONNECTING THE WATER LINES

IMPORTANT: Before connecting the tubing to the water

line, unplug the refrigerator or disconnect the power.

• Turn off the main water supply and open the nearest

faucet to relieve pressure in the line. Opening an outside

faucet may help drain water from the line in the house.

• Find a 1/2-in. vertical COLD water pipe near the

refrigerator.

NOTE: A horizontal pipe will work, but the following

precaution must be taken: drill on the top of the pipe, not

the bottom. This will help keep water away from the drill

and also keep normal sediment from collecting in the valve.

• To determine the length of copper tubing you will need,

measure from the connection on the lower left rear of the

refrigerator to the water pipe. Add 7 ft. (2.1 m) to allow for

moving the refrigerator for cleaning. Use 1/4-in. O.D.

(outside diameter) copper tubing. Be sure both ends of

the copper tubing are cut square.

• Using a drill, drill a 1/4-in. hole in the cold water pipe you

have selected.

• Fasten the shutoff valve to the cold water pipe with the

pipe clamp. Be sure the outlet end is solidly in the 1/4-in.

drilled hole in the water pipe and the washer is under the

pipe clamp. Tighten the packing nut. Tighten the pipe

clamp screws carefully and evenly so the washer makes

a watertight seal.

Do not overtighten or you may crush the copper tubing,

especially if soft (coiled) copper tubing is used. Now you

are ready to connect the copper tubing.

• Slip the compression sleeve and the compression nut

onto the copper tubing as shown. Insert the end of the

tubing into the outlet end squarely as far as it will go.

Screw the compression nut onto the outlet end with a

wrench. A flare nut wrench works best, but an open-end

wrench will suffice. Do not overtighten.

• Place the free end of the tubing into a container or sink,

and turn on the main water supply. Flush out the tubing

until the water is clear. Turn off the shutoff valve on the

water pipe. Coil the copper tubing as shown below.

Packing

Nut

Shutoff

Valve

Compression

Sleeve

Compression

Nut

Cold Water Pipe

Pipe Clamp

Coil of Polyethelyne

or Copper Tubing

Ferrule

(Sleeve)

Refrigerator

Connection

Water

valve

Tubing

Clamp

Tubing

Compression

Nut

ENGLISH

wWARNING

Electrical Shock Hazard

• Be careful when you work with the hinges,

base grille, and stopper. You may be injured.

• Do not put hands, feet, or metal items into

the air vents, base grille, or the bottom of the

refrigerator. You may be injured or receive

an electrical shock.

Leveling

After installing, secure the product with the LEGS

so it does not move to the right or left.

Your refrigerator has two front leveling legs—

one on the right and one on the left. Adjust the

legs to alter the tilt from front to back or side to

side. If your refrigerator seems unsteady or you

want the doors to close more easily, adjust the

refrigerator’s tilt using the following instructions:

wCAUTION

• To avoid possible injury or product or property

damage, you will need two people to perform the

following instructions.

LEVELING THE REFRIGERATOR DOORS

Plug the power cord into a 3-prong grounded

outlet, and move the refrigerator into its final

position. Remove the kick plate screws and

then the kick plate.

• Open the Freezer Drawer.

• Once the drawer is open, there is sufficient

clearance to remove the screws on top of

the kick plate.

NOTE: To replace the kick plate, place it into

position, and then insert and tighten the

screws.

Level the refrigerator by using an 11/16 inch

(18mm) wrench or a flat blade screw driver.

Turn the leveling legs (CCW) to raise or (CW)

to lower the height of the front of the

refrigerator.

NOTE: The front of the refrigerator should be

slightly higher than the back.

NOTE: If someone pushes backward against

the top of the refrigerator, weight is lifted off of

the leveling legs, which makes adjustment

easier.

Open both doors to make sure they close

easily. If not, raise the leveling legs higher by

turning both clockwise the same amount.

Once the refrigerator is level, replace the kick-

plate.

NOTE: Your new refrigerator is uniquely

designed with two fresh food doors. Either

door can be independently opened or closed.

You will have to exert slight pressure on the

doors to close them completely.

NOTE: In order not to move the refrigerator

back and forth, fix it with the 'Adjust' to the

floor to install and use.

Kick Plate

STARTING

Before loading your refrigerator with fresh foods:

• Remove tape and any temporary labels from

your refrigerator before using. To remove any

remaining adhesive residue, rub the area briskly

with your thumb, or rub a small amount of liquid

dish soap over the adhesive with your fingers.

Wipe with warm water and dry. Do not use sharp

instruments, rubbing alcohol, flammable fluids,

or abrasive cleaners to remove tape or glue.

NOTE: Do not remove any warning-type labels,

the model and serial number label, or the tech

sheet that is taped to the back of the refrigerator.

• Thoroughly clean your refrigerator and wipe off all

dust that may have accumulated during shipping.

• Install accessories such as the ice cube bin,

drawers, and shelves, in their proper places.

They are packed together to prevent possible

damage during shipment.

• Adjust the desired temperature for the

refrigerator and freezer (see Adjusting the

Temperature and Functions).

• Let your refrigerator run for at least 2 or 3 hours

before putting food in it. Check the flow of cold

air in the freezer compartment to ensure proper

cooling. Your refrigerator is now ready for use.

LEVELING THE REFRIGERATOR DOORS

(CONT.)

DOOR ALIGNMENT

• Use the wrench (Included with the User Manual)

to adjust the bolt in the door hinge to adjust the

height. (counter clockwise to raise or clockwise

to lower)

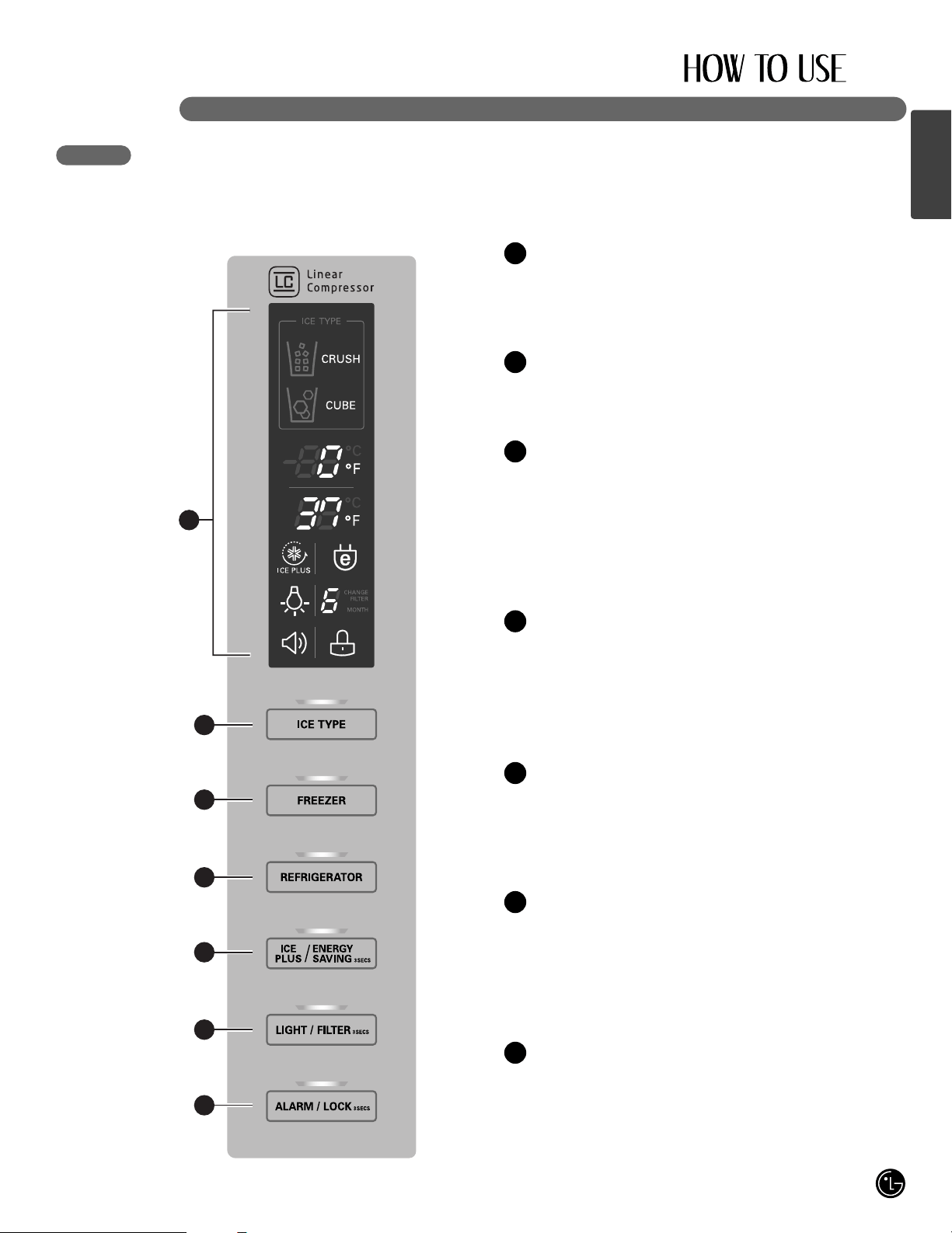

CONTROL PANEL FEATURES

For complete details on button functions, see pages 22–25.

NOTE: The shape of the buttons may not match your model.

ENGLISH

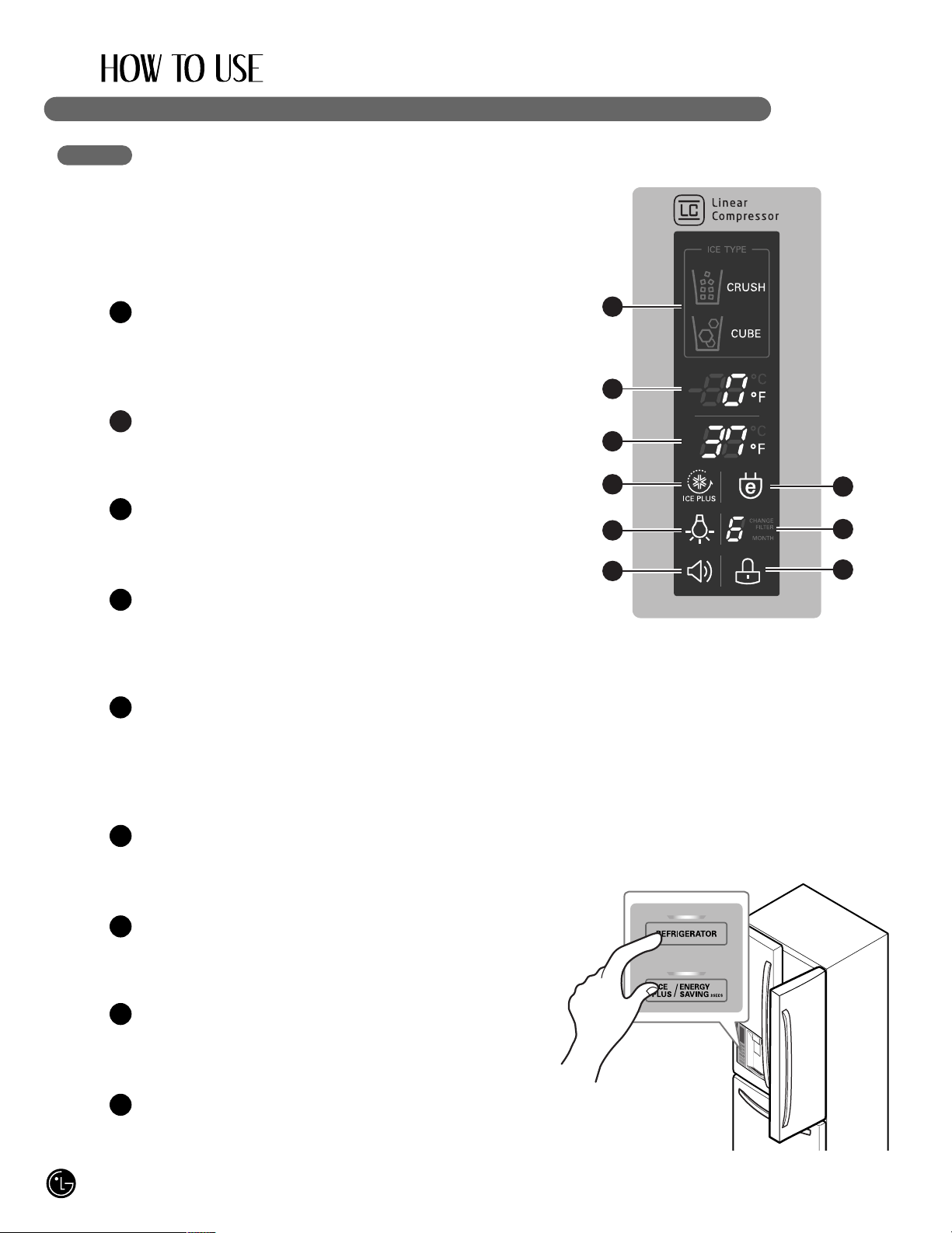

LED DISPLAY

The LED display shows the temperature settings,

dispenser options, water filter, door alarm, and locking

status messages.

ICE TYPE BUTTON

The ICE TYPE button is used to select Cubed Ice or

Crushed Ice.

FREEZER BUTTON

Press the FREEZER button to adjust the temperature in

the freezer compartment.

NOTE: When pressed simultaneously with the

REFRIGERATOR button for more than five seconds, the

temperature display will change from Fahrenheit to Celsius

or vice versa.

REFRIGERATOR BUTTON

Press the REFRIGERATOR button to adjust the

temperature in the refrigerator compartment.

NOTE: When pressed simultaneously with the FREEZER

button for more than five seconds, the temperature display

will change from Fahrenheit to Celsius or vice versa.

ICE PLUS/ENERGY SAVING BUTTON

Press this button to activate the ICE PLUS function to

increase icemaking capabilities.

OR, Press and hold this button for at least 3 seconds to

activate or deactivate the Energy Saving mode.

LIGHT/FILTER BUTTON

The LIGHT/FILTER button controls the lamp in the

dispenser.

Press and hold the LIGHT/FILTER button for more

than 3 seconds to reset the filter indicator after

the water filter has been replaced.

ALARM/LOCK BUTTON

Press this button to control the door-open alarm.

Press and hold this button at least 3 seconds to lock or

unlock all the other function buttons on the control panel,

including operation of the dispenser.

DISPENSER SELECTION INDICATOR

Shows Cubed ice or Crushed Ice selection

that will be dispensed when the push switch

is pressed.

FREEZER TEMPERATURE

Indicates the set temperature of the freezer

compartment in Celsius or Fahrenheit.

REFRIGERATOR TEMPERATURE

Indicates the set temperature of the refrigerator

compartment in Celsius or Fahrenheit.

ICE PLUS

When the ICE PLUS/ENERGY SAVING button is

pressed, the display will indicate the selected

function has been activated.

DISPENSER LIGHT INDICATOR

When the LIGHT button is pressed,

the display will indicate the selected function:

The dispenser light is on, this indicator will

appear on the display panel.

DOOR ALARM INDICATOR

This indicator shows that the door-open

warning alarm is activated.

ENERGY SAVING

This indicater shows that Energy Saving mode is

activated.

WATER FILTER STATUS

This indicator shows the current status for

the water filter. See Resetting the Filter Indicator.

LOCK STATUS

This indicator shows the current status for

the control panel functions is set to LOCK.

wCAUTION

Display mode setting and its cancellation

• With the refrigerator door open, keep pressing the

REFRIGERATOR button and ICE PLUS/ENERGY

SAVING button more than 5 seconds, then it goes

to the display mode.

• Perform the same way again to cancel the display

mode.

• All freezing units do not work at the display mode.

THE LED DISPLAY

The LED display shows the temperature settings,

dispenser options, water filter, door alarm, and

locking status messages.

ADJUSTING THE TEMPERATURES AND DISPLAY

Adjust Freezer Temperature

To adjust the temperature in the freezer

compartment, press the FREEZER button to cycle

through the the range of available settings.

Adjust Refrigerator Temperature

To adjust the temperature in the refrigerator

compartment, press the REFRIGERATOR button to

cycle through the range of available settings.

NOTE: The actual inner temperature varies

depending on the food status, since the indicated

temperature setting is the target temperature and

not the actual temperature within the refrigerator.

Initially set the REFRIGERATOR CONTROL at

37 degrees F and the FREEZER CONTROL at

0 degrees F. Leave them at these setting for

24 hours (one day) to stabilize. Then adjust the

compartment temperature as illustrated above.

Temperature Display

To change the temperature display from Fahrenheit

to Celsius:

• Simultaneously press and hold the FREEZER

and REFRIGERATOR buttons for more than

5 seconds.

• Do the same to convert back to Fahrenheit.

Power Saving Mode

• The display will remain off until the next time the

door is opened.

The display will also turn on when any button is

pressed, and it will remain on for 20 seconds after

the last door opening or button selection.

• To deactivate the Power-Saving Mode, press the

FREEZER and ICE PLUS/ENERGY SAVING

buttons simultaneously and hold them for 5 seconds

until the tone sounds.

NOTE: Power Saving Mode function is set on the

product.

Caution When Closing the Door

wCAUTION

To reduce the risk of door scratches, please make

sure that the refrigerator door mullion is always folded

in.

If dew gathers on the refrigerator door mullion at any

point, deactivate the Energy Saving mode until the

issue resolves itself.

ENGLISH

wCAUTION

• When filling container with a small opening, place the container as close as possible to the opening

on the water or ice dispenser.

• Do not dispense ice into fine china or crystal glasses. China or crystal can break.

Incorrect

Water

Ice

OPERATING THE DISPENSER

DISPENSING CRUSHED ICE

Press the ICE TYPE

button to illuminate the

Crushed Ice icon.

Press the push ice switch

with a glass or other

container and crushed ice

will be dispensed.

DISPENSING CUBED ICE

Press the ICE TYPE

button to illuminate the

Cubed Ice icon.

Press the push switch

with a glass or other

container and cubed ice

will be dispensed.

NOTE: Hold the glass or other container in place

for a couple of seconds after dispensing ice or

water to catch the last few cubes or drops. The

dispenser is designed to not operate while either

refrigerator door is open.

DISPENSING WATER

Press the push water switch

with a glass or other container

and chilled water will be

dispensed.

When the water switch is pressed, the light will be

illuminated.

CONTROLLING THE DISPENSER LIGHT

Press the LIGHT/FILTER

button to turn the dispenser

light on and off.

Correct

WATER SWITCH

ICE SWITCH

ENGLISH

Press the button for the desired function to view and

select other settings.

SETTING THE FUNCTIONS

SETTING THE DISPENSER LOCK

Press and hold the

ALARM/LOCK button for

three seconds to lock the

dispenser and all of the

other control panel functions.

Press and hold again for

3 seconds to unlock.

SETTING THE DOOR ALARM

The ALARM/LOCK button

also controls the door alarm

that sounds three times in

30-second intervals when

a compartment door is left

open for more than 60

seconds. The alarm stops

sounding when the door is

closed.

Press the ALARM/LOCK button once to activate

and deactivate the door alarm function.

NOTE: Contact your local service center if the

alarm continues to sound after the doors are closed.

RESETTING THE FILTER INDICATOR

Press and hold the

LIGHT/FILTER button for

more than 3 seconds to

reset the filter indicator

after the water filter has

been replaced.

NOTE: It is recommended that the filter be replaced

when the indicator light on the front dispenser

reaches 0.

If the water or ice cube taste starts to deteriorates.

ACTIVATING ICE PLUS

Press the ICE PLUS/ENERGY

SAVING button once to activate

the ICE PLUS function. The ICE

PLUS icon on the display panel

will illuminate when activated.

The ICE PLUS function runs the

freezer compartment at the

coldest setting for a 24-hour

period to increase icemaking by

up to about 20%, and then turns

off automatically.

NOTE: Press the button again to deactivate

the ICE PLUS function.

ACTIVATING ENERGY SAVING

Press the ICE PLUS/ENERGY

SAVING button for at least 3

seconds to activate or

deactivate the function.

This function is recommended

for added energy savings.

(Some heaters to reduce excess

moisture on the refrigerator may

be turned off)

The energy saving function is also recommended

during long periods of time spent away from

home-like vacation.

DIAGNOSTIC FAILURE DETECTION

The diagnostic function automatically detects problems with your refrigerator, and a diagnostic code will

appear in the display. NOTE: If a diagnostic code appears in the display during use, note the code and

then call

USA 1-800-243-0000 CANADA 1-888-LGCANADA

(24 hours per day/7 days per week)

and select the option to locate an authorized servicer.

SPACEPLUS ICE SYSTEM

wCAUTION

• Keep hands and tools out of the ice compartment

door and dispenser chute. You could break

something or injure yourself.

The icemaker will stop producing ice when the ice bin

is full. If you need more ice, empty the ice bin into the

extra ice bin in the freezer compartment so the

icemaker can keep producing ice.

Shake the ice bin occasionally to level the ice in it.

Sometimes the ice piles up near the icemaker,

causing the icemaker to misread the amount of ice

cubes and stop producing ice.

NOTE: Storing cans or other items in the ice bin may

damage the icemaker.

Keep the ice compartment door closed tightly. If the

ice compartment door is not closed tightly, the cold air

in the ice bin will freeze food in the refrigerator

compartment. This could also cause the icemaker to

not produce ice.

NOTE: If the On/Off switch on the icemaker is set to

Off for an extended time, the ice compartment will

gradually warm up to the temperature of the

refrigerator compartment. To prevent ice cubes from

melting and leaking from the dispenser, ALWAYS

empty the ice bin when the icemaker is set to Off for

more than a few hours.

wCAUTION

While you handle the ice bin,

keep your hands out of blade.

The blade has sharp edges

could cause injury.

NOTE: To open or close the ice

room compartment, push or pull on

the handle.

NOTE: Avoid touching the Ice-detecting sensor

when replacing the ice bin. See the label on the ice

compartment door for details.

To remove the in-door ice bin, grip the front

handle, slightly lift the lower part, and slowly

pull out the bin as shown.

1 To reinstall the in-door ice bin, slightly slant

the bin during replacement to avoid contact

with the icemaker.

Ice-detecting

Sensor

AUTOMATIC ICEMAKER

Ice is made in the automatic icemaker and sent to the

dispenser. The automatic icemaker can make 10 or 14

ice cubes (depending on your device) at a time, above

100 cubes per 24-hour period. This quantity may vary

by circumstance, including freezer compartment

temperature, room temperature, number of door

openings, freezer load, and other operating conditions.

• It takes about 12 to 24 hours for a newly installed

refrigerator to make ice.

• Icemaking stops when the ice storage bin is full.

• To turn off the automatic icemaker, set the icemaker

switch to OFF (O). To turn on the automatic icemaker,

set the switch to ON (I).

• The water pressure must be 20 and 120psi on models

without a water filter and between 40 and 120 psi on

models with a water filter to make normal amount and

size of ices.

NOTE: It is normal that a noise is produced when ice

drops into the ice storage bin.

• Even when the water pipe is not connected and the Ice

Maker is turned on, the water valve operates.

The noise is generated because the water pipe is not

connected, which does not mean the icemaker is

defective.

wWARNING

Personal Injury Hazard

• DO NOT place fingers or hands on the automatic

icemaking mechanism while the refrigerator is

plugged in.

ENGLISH

wCAUTION

• The first ice and water may include particles or

odor from the water supply line or the water tank.

• Throw away the first few batches of ice (about

20 pieces) and purge the water line for 2 minutes after

installation to eliminate air and odd tastes.

• This is also necessary if the refrigerator has not been

used for a long time.

• Never store beverage cans or other foods in the

ice bin for the purpose of rapid cooling.

Doing so may damage the icemaker or the containers

may burst.

• If discolored ice is dispensed, check the water

filter and water supply. If the problem continues,

contact an Authorized Service Center. Do not

use the ice or water until the problem is corrected.

• Keep children away from the dispenser.

Do not allow children to play in or around dispenser.

• The ice passage may also become blocked

with frost if only crushed ice is used. Remove

the frost that accumulates.

• Never use thin crystal glass or crockery to collect ice.

Such glasses or containers may break, and glass

fragments could be in the ice.

• Dispense ice into a glass before filling it with water or

other beverages. Splashing may occur if ice is

dispensed into a glass that already contains liquid.

• Never use a glass that is exceptionally narrow or deep.

Ice may jam in the ice passage and refrigerator

performance may be affected.

• Keep the glass at a proper distance from the ice outlet.

A glass held too close to the outlet may prevent ice

from dispensing.

• To avoid personal injury, keep hands out of the ice door

and passage.

• Never remove the dispenser cover.

• If you find ice or water dispensed unexpectedly,

turn off the water supply and contact an Authorized

Service Center. Call USA 1-800-243-0000

CANADA 1-888-LGCANADA (24 hours a day,

365 days a year) and select the option to locate an

authorized servicer.

Power Switch

lcemaker

Ice-detecting

Sensor

Power Switch

lcemaker

Ice-detecting

Sensor

5 cells icemaker

7 cells icemaker

STORING FOODS

• Store fresh food in the refrigerator compartment.

• How food is frozen and thawed is an important

factor in maintaining freshness and flavor.

• Do not store food that spoils easily, such as

bananas and melons, at low temperatures.

• Allow hot food to cool prior to storing; placing hot

food in the refrigerator could spoil other food and

lead to higher energy consumption.

• When storing food, cover it with vinyl wrap or store

in a container with a lid. This prevents moisture from

evaporating and helps food to keep its flavor and

nutrition.

• Do not block air vents with food or containers.

Smooth circulation of chilled air keeps the

refrigerator temperatures even.

• Do not open the doors frequently. Opening the

doors allows warm air to enter the refrigerator and

freezer compartments, which causes temperatures

to rise.

• Never overload the door racks; overloading may

push against the inner racks and prevent the doors

from closing correctly.

Freezer compartment

• Do not store glass bottles in the freezer

compartment; glass may break when the contents

are frozen.

• Do not refreeze food that has been thawed.

This causes loss of flavor and nutrition.

• Do not touch cold foods or containers, especially

those made of metal, with wet hands or place glass

products in the freezer compartment.

• Do not use the egg box as an ice bin in the freezer.

The egg box will break easily if it freezes.

Refrigerator compartment

• Avoid placing moist food on the top refrigerator

shelves; it could freeze from direct contact with

chilled air.

• Always clean food prior to refrigeration.

Vegetables and fruits should be washed and wiped

and packed food should be wiped to prevent

adjacent food from spoiling.

NOTE: If you keep the refrigerator in a hot and humid

place, frequent opening of the door or storing a lot of

vegetables in the refrigerator may cause

condensation to form. Wipe the condensation with a

clean cloth or a paper towel.

ENGLISH

LOCATION OF FOODS

REFRIGERATOR COMPARTMENT SHELVES

Store larger food items, platters, and containers

on the expansive refrigerator compartment

shelves.

CRISPERS

Store vegetables or fruits with humidity control.

FREEZER PULL-OUT DRAWER

Store small packed frozen food, or store meat,

fish, and chicken after wrapping them with thin

foil. Store dry.

DAIRY CORNER

Store milk products such as butter and cheese.

GALLON STORAGE BINS

Store small packed food or beverages such as

condiments, salad dressings, baby foods, milk, or

juice.

GLIDE‘N’SERVE

Provides storage space with a variable temperature

control that keeps the compartment colder than

refrigerator.

FIXED DOOR BINS

Great for condiments, soda cans, treats, and items

that need to be easily accessible.

SHELF HEIGHT ADJUSTMENT

The shelves in your refrigerator are adjustable to

meet your individual storage needs.

Storing similar food items together in your

refrigerator and adjusting the shelves to fit

different heights of items will make finding the

exact item you want easier; it will also reduce

the amount of time the refrigerator door is open,

saving energy.

IMPORTANT: Do not clean glass shelves with warm

water when they are cold. Shelves may break if

exposed to sudden temperature changes or impact,

such as bumping. For your protection, glass shelves

are made with tempered glass, which will shatter into

small, pebble-sized pieces.

NOTE: Glass shelves are heavy. Use special care

when removing them to avoid dropping them.

Adjusting Shelves

Remove shelves from the shipping position and place

shelves in the position you want.

wCAUTION

Make sure that shelves are level from one side to the

other. Failure to do so may result in the shelf’s falling

or spilling food.

Remove Shelf Reinstall Shelf

Tilt up the front of the shelf. Lift up the back

and pull out the shelf.

Folding Shelf

You can store taller items such as a gallon

container or bottles by simply pushing the front

half of shelf underneath back half of shelf.

Pull toward you to returm to a full shelf.

Tilt up the front of the shelf and guide the shelf

hooks into the slots at a desired height. Then

lower the front of the shelf so that the hooks drop

into the slots.

REMOVING AND REPLACING COMPONENTS

NOTE: When reinstalling components, reverse

the order of steps for removal. To prevent damage,

never use excessive force when removing or

reinstalling components.

wCAUTION

• Personal injury can occur if the door bins are not

firmly assembled.

NOTE: DO NOT adjust a loaded bin.

• DO NOT allow children to play with baskets.

The sharp corners on the baskets could cause

injury.

ENGLISH

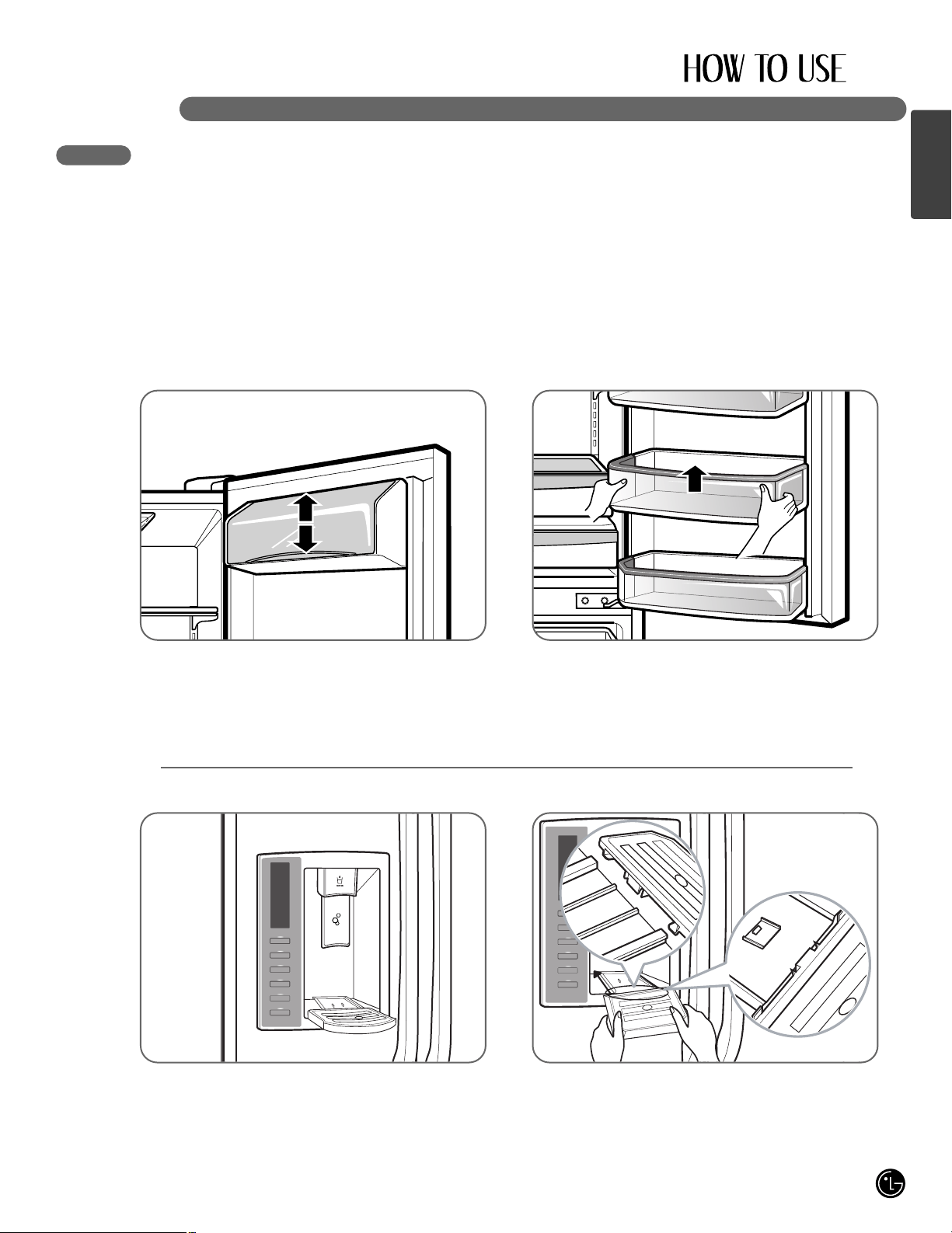

Dairy Bin Gallon Storage Bins

To remove the dairy bin, simply lift it and pull

straight out. To replace the dairy bin, slide it into

place and push down until it stops.

NOTE: The dairy bin will only fit in the top space

on the right-hand door.

The door bins are removable for easy cleaning

and adjusting. Simply lift the bin and pull it straight

out to remove it. To replace the bin, slide it in

above the desired support button and push down

until it stops.

Dispenser Drip Tray

The dispenser drip tray has no self-draining function. It should be cleaned regularly. Remove the cover by

pressing and pulling the tray. Dry it with a cloth. To reinstall the tray, slightly tilt the front of the tray and

snap the ribs into the holes.

REMOVING AND REPLACING COMPONENTS

(CONT.)

Crisper humidity control

You can control the amount of humidity in the

moisture-sealed crispers. Store vegetables or

fruits requiring more or less humidity in separate

crispers. Adjust the control to any setting

between HIGH and LOW.

• LOW lets moist air out of the crisper for best

storage of fruits.

• HIGH keeps moist air in the crisper for best

storage of fresh, leafy vegetables.

CAUTION : The glass shelf over the crisper is not

firmly secured. Be careful when tilting.

MEAT

DELI

PRODUCE

TEM

P. SELECTOR

LOW

HIGH

LOW

HIGH

Removing crisper

• To remove, pull the drawer out to full extension.

• Lift the front of the crisper up, then pull it straight

out.

• To install, slightly tilt up the front and insert the

drawer into the frame and push it back into

place.

MEAT

DELI

PRODUCE

TEMP. SELECTOR

LOW

HIGH

LOW

Glide‘N’Serve

The Glide‘N’Serve provides storage space with a

variable temperature control that keeps the

compartment colder than refrigerator.

This drawer can be used for large party trays, deli

items, or beverages.

Selection Button

• When “MEAT” is selected, the temperature of

the Glide‘N’Serve can be kept around 34°F

(1°C). This feature helps keep meat or fish fresh

for a longer time. The Glide‘N’Serve temperature

can be maintained under recommended

temperature setting (Freezer : 0°F, Referigerator

: 37°F).

• When “DELI” is selected, the temperature of the

Glide‘N’Serve can be kept around 38°F (3°C).

This feature helps keep food fresh for a longer

time. The Glide‘N’Serve temperature can be

maintained under recommended temperature

setting (Freezer : 0°F, Referigerator : 37°F).

• When “PRODUCE” is selected, the temperature

of the Glide‘N’Serve can be kept around 41°F

(5°C). This feature helps keep food fresh for a

long time. The Glide‘N’Serve temperature can

be maintained under recommended temperature

setting (Freezer : 0°F, Referigerator : 37°F).

MEAT

DELI

PRODUCE

TEMP. SELECTO

LOW

HIGH

LOW

MEAT

DELI

PRODUCE

TEMP. SELECTOR

ENGLISH

REMOVING AND REPLACING COMPONENTS

(CONT.)

wCAUTION

• When you close the refrigerator door with

GLIDE'N'SERVE DRAWER opened,

that the drawer could be broken.

To replace Glide‘N’Serve

• To remove, pull the drawer out to full extension.

• Lift the front of the drawer up, then pull it straight

out.

• To install, slightly tilt up the front and insert the

drawer into the frame and push it back into

place.

NOTE: Removing the fixed door bin is

recommended to reduce the risk of door bin

scratches.

MEAT

DELI

PRODUCE

TEMP. SELECTOR

LOW

To remove the glass

• Lift up the glass under the crisper cover.

• Pull the glass up and out.

HIG

LOW

REMOVING AND REPLACING COMPONENTS

(CONT.)

wCAUTION

• Pinch hazard! Keep hands and feet clear of the

bottom of the door when opening and closing.

wWARNING

Child Entrapment Hazard

• If the Durabase divider is removed, there is enough

open space for children or pets to crawl inside.

To prevent accidental child and pet entrapment or

suffocation risk, DO NOT allow them to play inside

of drawer.

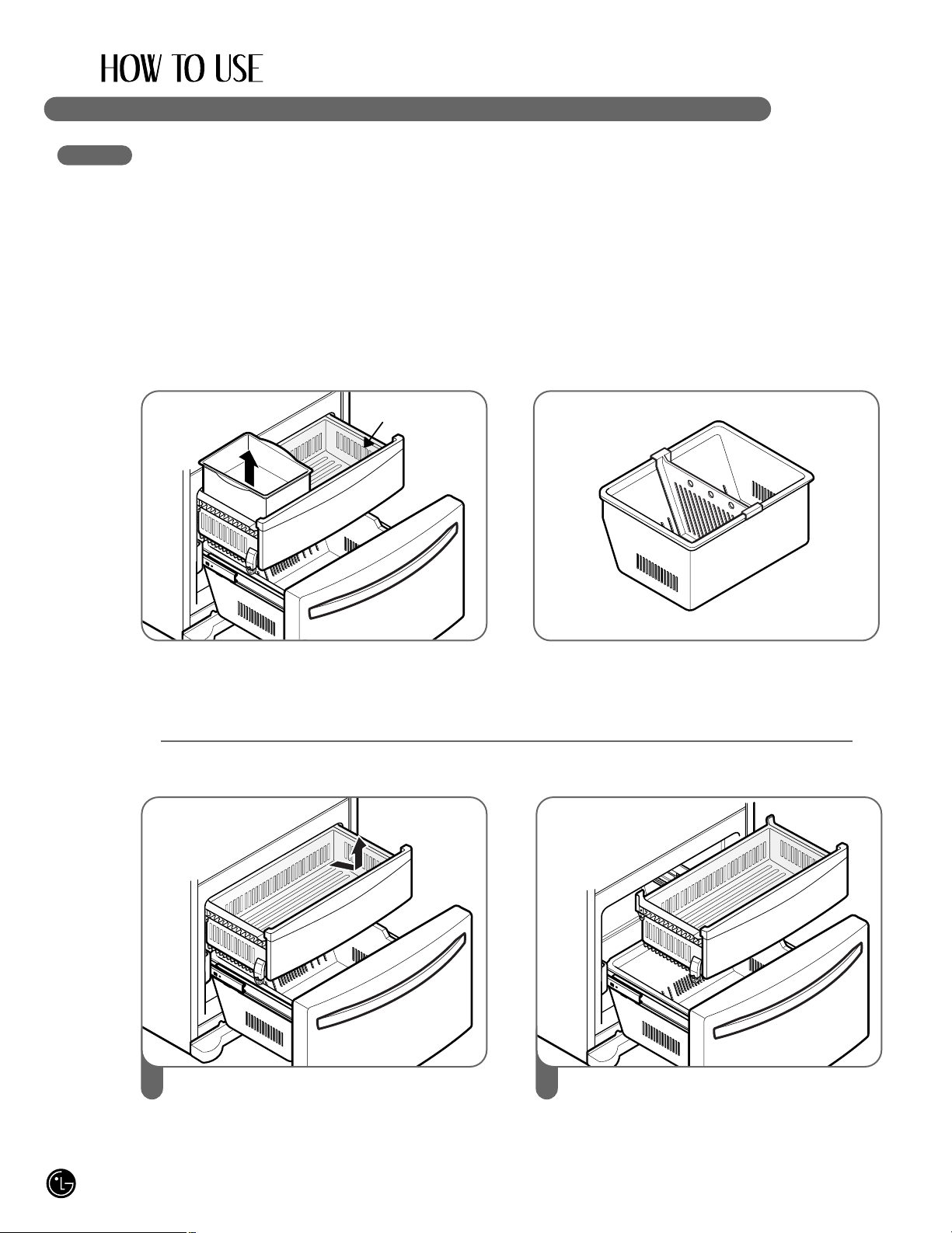

Ice Bin DuraBase ® Divider

To separate the ice bin, pull out the drawer to full

extension. Gently lift and pull out the ice bin.

To reinstall, simply set the ice bin in its correct

position.

Pull-Out Drawer

To remove the drawer, push the tabs located

on the front inside surface of each rail. Next,

gently lift the rear left and right sides of the

drawer and pull it out.

1 To reinstall, pull out and fully extend both

rails. Insert the end of rib in the bracket at left

and right. Making sure that the guides at the

front are lined up properly, gently push down

on both sides.

Drawer

ENGLISH

CLEANING THE REFRIGERATOR

wWARNING

Explosion Hazard

• Use nonflammable cleaner.

• Failure to do so can result in death,

explosion, or fire.

Both the refrigerator and freezer sections defrost

automatically. However, clean both sections about

once a month to prevent odors. Wipe up spills

immediately.

• Unplug the refrigerator.

• Remove all removable parts, such as shelves and

crispers.

• Use a clean sponge or soft cloth and a mild

detergent in warm water. Do not use abrasive or

harsh cleaners.

• Hand wash, rinse, and thoroughly dry all surfaces.

• Plug in the refrigerator.

NOTE: Window sprays, abrasive cleaners, or

flammable fluids can scratch or damage plastic

covers or panels.

Cleaning the Exterior

For models with a stainless steel exterior, use a

commercially available stainless steel cleaner in

accordance with the manufacturer’s instructions.

You may also use a clean sponge or soft cloth and

a mild detergent in warm water. Do not use abrasive

or harsh cleaners. Dry thoroughly with a soft cloth.

IMPORTANT: Do not use cleaning waxes,

concentrated detergents, or cleaners containing

petroleum on plastic refrigerator parts such as door

liners or gaskets.

Care and Cleaning of the Interior

NOTE: Allow the freezer to warm so the cleaning

cloth will not stick.

To help remove odors, you can wash the inside of

the refrigerator with a mixture of baking soda and

warm water. Mix 2 tbsp. baking soda to 1 qt. of water

(26 g soda to 1 L of water). Be sure the baking soda

dissolves completely so it does not scratch the

surfaces of the refrigerator.

IMPORTANT: Do not use a spray nozzle to clean

the interior.

GENERAL INFORMATION

Storage

During average-length vacations, you will

probably find it best to leave the refrigerator in

operation. Place freezable items in the freezer for

longer life.

When you plan to store the refrigerator, remove

all food, disconnect the power cord, clean the

interior thoroughly, and block the doors open to

prevent mold and mildew. Be certain the stored

refrigerator does not present a child entrapment

danger.

Moving

Unload the refrigerator to move it. (This is probably

not necessary when pulling it out to clean behind it.)

Be sure to let the refrigerator warm up to room

temperature, and dry the inside before closing the

doors to pack it for moving. To avoid damaging the

height-adjusting screws, turn them all the way into the

base.

Power Failure

Most power failures that are corrected within an

hour or two will not affect your refrigerator

temperatures. However, you should minimize the

number of door openings while the power is off.

Water may drip from the ice bin during a power

outage. To prevent this, remove the ice bin, discard

all of the ice, towel dry, and replace.

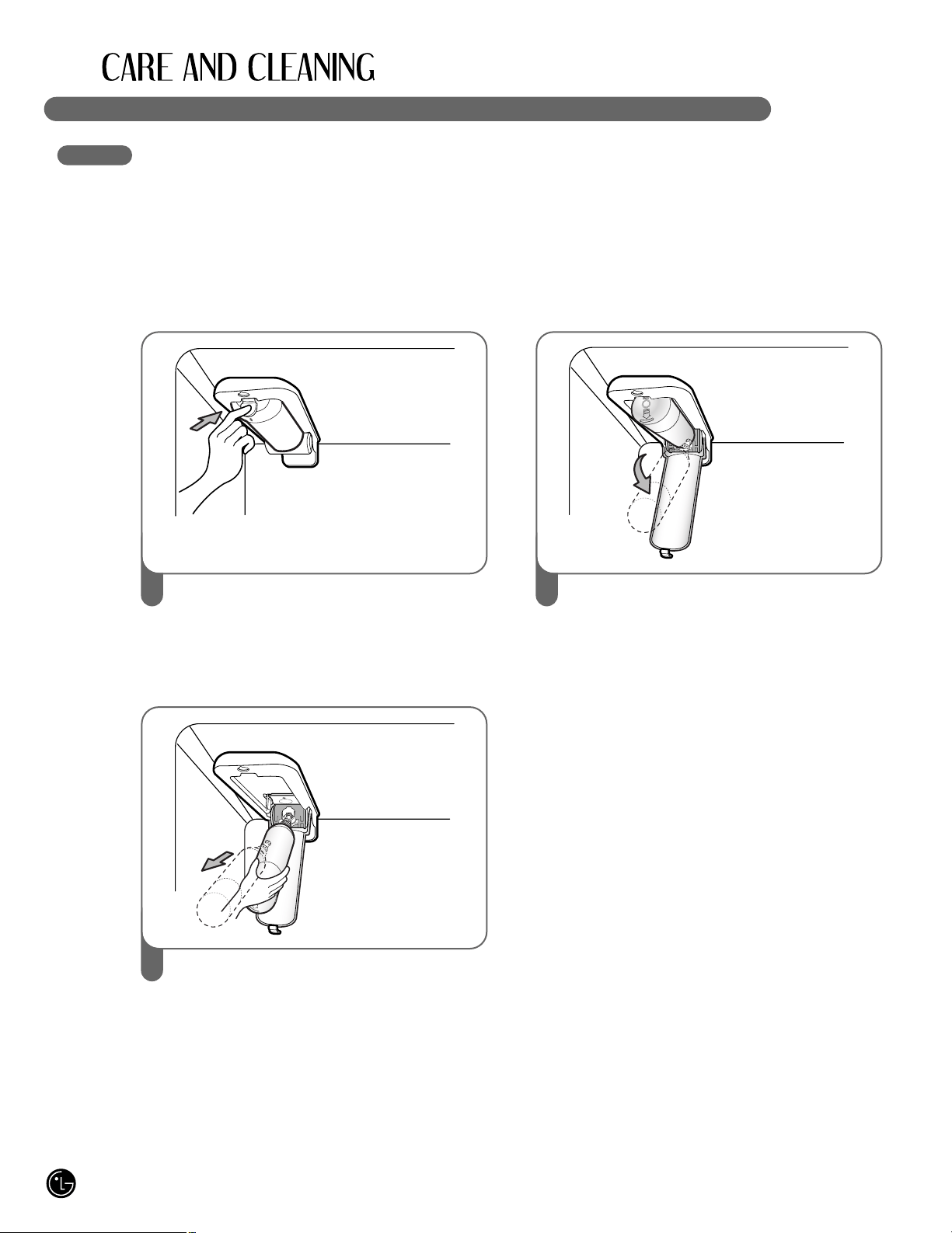

REPLACING THE WATER FILTER

It is recommended that you replace the filter

approximately every 6 months, when the water filter

indicator reaches 0 months, or when the ice and

water dispenser noticeably decreases out-put.

Pull out the filter cartridge.

NOTE : When opened at a full angle the

cartridge should easily come out.

Press the push button to open the filter cover.

NOTE : Replacing the filter causes a small

amount of water (around 1 oz. or 25 cc) to

drain. Place a cup under the filter hole to

catch any waste.

1 Pull the cartridge downward. 2

1. Remove the old cartridge.

REPLACING THE WATER FILTER

(CONT.)

2. Replace with a new cartridge.

ENGLISH

NOTE: After replacing the filter, flush 2.5 gallons

through filter before use (flush for approximately

5 minutes).

Check the filter for leaks.

When the water filter indicator displays the

message 0 Filter Month, hold 3 seconds.

Reset the water filter status display and indicator

light by pressing and holding the LIGHT/FILTER

button for at least 3 seconds.

NOTE: Filter Bypass Plug

Keep the filter bypass plug.

You must use the filter bypass plug when a

replacement filter cartridge is not available.

The icemaker will not operate without the filter or filter

bypass plug inserted in the proper compartment.

To purchase replacement water filter cartridges,

visit your local appliance dealer or parts distributor.

You can also call USA 1-800-243-0000

CANADA 1-888-LGCANADA (24 hours per day/

7 days per week).

The replacement water filter cartridge’s part

number is ADQ36006101.

Take the new cartridge out of its packing and

remove the protective cover from the o-rings.

With cartridge ears in the horizontal position,

push the new filter cartridge into the manifold

hole until it stops.

1 Firmly lock in the cartridge.

The cover will click back into place.

Filter Bypass Plug

* Based on the use of Cryptosporidium parvum oocysts.

Performance Data Sheet

Model: LG ADQ36006101-S

Use Replacement Cartridge: ADQ36006101

The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal

to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53.

Contaminant Reduction

Average

Influent

Avg %

Reduction

Average

Product Water

Concentration

Max Permissible

Product Water

Concentration

NSF Reduction

Requirements

NSF Test

Report

NSF specified Challenge

Concentration

Chlorine Taste and Odor

Nominal Particulate Class I, ,

≥0.5 to < 1.0 µm

Asbestos

Atrazine

Benzene

Carbofuran

Lindane

P-Dichlorobenzene

Toxaphene

2,4-D

Lead pH @6.5

Lead pH @8.5

Mercury @ pH 6.5

Mercury @ pH 8.5

Cyst*

2.1 mg/L

5,600,000

pts/mL

190 MFL

0.0094 mg/L

0.016 mg/L

0.08 mg/L

0.002 mg/L

0.22 mg/L

0.014 mg/L

0.213 mg/L

0.150 mg/L

0.0059 mg/L

0.0058 mg/L

120,000 cysts/L

97.2%

98.7%

>99%

94.7%

96.7%

98.1%

98.2%

99.8%

93%

95.2%

>99.3%

96.1

90.1

99.99%

0.06 mg/L

73,000 pts/ml

< 1MLF

0.00005 mg/L

0.005 mg/L

0.002 mg/L

0.00004 mg/L

0.0005 mg/L

0.001 mg/L

0.009 mg/L

0.001 mg/L

0.0002 mg/L

0.0006 mg/L

<1 cyst/L

N/A

0.003 mg/L

0.005 mg/L

0.04 mg/L

0.0002 mg/L

0.075 mg/L

0.003 mg/L

0.07 mg/L

0.010 mg/L

0.002 mg/L

N/A

≥ 50%

≥85%

≥99%

N/A

≥99.95%

J-00049247

J-00049282

J-0004928

J-00049293

J-00049300

J-00049294

J-00051975

J-00049298

J-00049302

J-00049284

J-00051974

J-00049277

J-00053886

J-00051972

J-00049281

2.0 mg/L ± 10%

At least 10,000 particles/mL

to 10

MFL; fibers greater

than 10 µm in length

0.009 mg/L ± 10%

0.015 mg/L ± 10%

0.08 mg/L ± 10%

0.002 mg/L ± 10%

0.225 mg/L ± 10%

0.015 mg/L ± 10%

0.210 mg/L ± 10%

0.15 mg/L ± 10%

0.006 mg/L ± 10%

Minimum 50,000 cysts/L

System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the

reduction of substances listed below.

ENGLISH

It is essential that the manufacturer’s recommended

installation, maintenance and filter replacement

requirements be carried out for the product to perform

as advertised.

Note: While the testing was performed under

standard laboratory conditions, actual performance

may vary.

Replacement Cartridge: ADQ36006101

For estimated costs of replacement elements

please call USA 1-800-243-0000 CANADA 1-888-

LGCANADA (24 hours per day/7 days per week)

or visit our website at www.lg.com

3M is a trademark of 3M Company.

NSF is a trademark of NSF International.

wWARNING

To reduce the risk associated with ingestion of

contaminants: Do not use with water that is

microbiologically unsafe or of unknown quality

without adequate disinfection before and after the

system. Systems certified for cyst reduction may be

used on disinfected water that may contain filterable

cysts. EPA Establishment Number 10350-MN-005

wCAUTION

To reduce the risk associated with property

damage due to water leakage:

• Read and follow. Use Instructions before

installation and use of this system.

• Installation and use MUST comply with all state and

local plumbing codes.

• Do not install if water pressure exceeds 120 psi

(827 kPa). If your water pressure exceeds 80 psi,

you must install a pressure limiting valve. Contact a

plumbing professional if you are uncertain how to

check your water pressure.

• Do not install where water hammer conditions may

occur. If water hammer conditions exist you must

install a water hammer arrester. Contact a plumbing

professional if you uncertain how to check for this

condition.

• Do not install on hot water supply lines. The

maximum operating water temperature of this filter

system is 100°F (38°C).

• Protect filter from freezing. Drain filter when

temperatures drop below 40°F (4.4°C).

• The disposable filter cartridge must be replaced

every 6 months, at the rated capacity or if a

noticeable reduction in flow rate occurs.

Manufactured for LG®Electronics by CUNO

Incorporated 400 Research Parkway Meriden,

CT 06450 U.S.A Worldwide: 203-237-5541

www.cuno.com

Application Guidelines/Water Supply Parameters

Service Flow 0.5 gpm (1.9 lpm)

Water Supply Potable Water

Water Pressure 20 -120 psi (138 - 827 kPa)

Water Temperature 33°F - 100°F (0.6°C - 38°C)

State of California

Department of Public Health

Water Treatment Device

Certificate Number

Date Issued: December 15, 2009

Trademark/Model Designation

Replacement Elements

201809 -

ADQ36006101-S

ADQ36006101

Manufacturer:

Cuno Inc.

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section

116830 of the Health and Safety Code for the following health related contaminants:

Cysts Asbestos

Lead

Mercury

2,4-D Reduction

Atrazine

Benzene

Carbofuran

Lindane

p-Dichlorobenzene

Toxaphene

Microbiological Contaminants and Turbidity

Inorganic/Radiological Contaminants

Organic Contaminants

200 gal

Rated Service Capacity:

0.5 gpm

Rated Service Flow:

Conditions of Certification:

SMART DIAGNOSIS

ENGLISH

Should you experience any problems with your

refrigerator, it has the capability of transmitting data

via your telephone to the LG service center. This

gives you the capability of speaking directly to our

trained specialists. The specialist records the data

transmitted from your machine and uses it to analyze

the issue, providing a fast and effective diagnosis.

If you experience problems with your refrigerator, call

1-800-243-0000. Only use the Smart Diagnosis

feature when instructed to do so by the LG call center

agent. The transmission sounds that you will hear are

normal and sound similar to a fax machine.

Smart Diagnosis cannot be activated unless your

refrigerator is connected to power. If your refrigerator

is unable to turn on, then troubleshooting must be

done without using Smart Diagnosis.

Using Smart Diagnosis

First, call 1-800-243-0000. Only use the Smart

Diagnosis feature when instructed to do so by the LG

call center agent.

1. Lock the display. To lock the display, press and

hold the Lock button for three seconds. (If the

display has been locked for over five minutes, you

must deactivate the lock and then reactivate it.)

2. Open the right refrigerator door.

3. Hold the mouthpiece of your phone in front of the

speaker that is located on the right hinge of the

refrigerator door, when instructed to do so by the

call center.

4. Press and hold the Freezer Temperature button for

three seconds while continuing to hold your phone

to the speaker.

5. After you hear three beeps, release the Freezer

Temperature button.

6. Keep the phone in place until the tone transmission

has finished. This takes about 15 seconds, and the

display will count down the time. Once the

countdown is over and the tones have stopped,

resume your conversation with the specialist, who

will then be able to assist you in using the

information transmitted for analysis.

NOTE

• For best results, do not move the phone while the

tones are being transmitted.

• If the call center agent is not able to get an accurate

recording of the data, you may be asked to try

again.

NOTE

• Call quality differences by region may affect the

function.

• Use the home telephone for better communication

performance, resulting in better service.

• Bad call quality may result in poor data transmission

from your phone to the machine, which could cause

Smart Diagnosis to not work properly.

BEFORE CALLING FOR SERVICE

Before calling for service, review this list. It may save you both time and expense. This list includes

common occurrences that are not the result of defective workmanship or materials in this appliance.

Problem Possible Causes Solutions

Refrigerator

compressor does

not run.

Refrigerator

compressor runs

too frequently or

too long.

Refrigerator

compressor

cycles on and off.

Temperature in

the freezer is too

cold, but the

refrigerator

temperature is

satisfactory.

Temperature in

the refrigerator is

too cold, but the

freezer

temperature is

satisfactory.

• Refrigerator is in defrost

cycle.

• Plug at the wall outlet is

disconnected.

• Power outage. Check house

lights.

• Refrigerator is larger than the

previous one you owned.

• The room or the outdoor

weather is hot.

• Refrigerator was recently

disconnected for a while.

• Large amounts of warm or

hot food may have been

stored recently.

• Doors are opened too

frequently or for too long.

• Refrigerator or freezer door

may be slightly open.

• Refrigerator control is set too

cold.

• Refrigerator or freezer gasket

is dirty, worn, cracked, or

poorly fitted.

• The thermostat is keeping the

refrigerator at a constant

temperature.

• Freezer control is set too

cold.

• Refrigerator control is set too

cold.

• This is normal for a fully automatic defrosting

refrigerator. The defrost cycle occurs periodically.

• Make sure the plug is tightly pushed into the

outlet.

• Call the local electric company.

• This is normal. Larger, more efficient units run

longer.

• It is normal for the refrigerator to work longer

under these conditions.

• It takes a few hours for the refrigerator to reach

cooling temperatures.

• Warm food will cause the refrigerator to run longer

until the desired temperature is reached.

• Warm air entering the refrigerator causes it to run

more. Open the door less often.

• Make sure the refrigerator is level. Keep food and

containers from blocking the door.

• Adjust the refrigerator control to a warmer setting

until the refrigerator temperature is satisfactory.

• Clean or change the gasket. Leaks in the door

seal will cause the refrigerator to run longer in

order to maintain desired temperatures.

• This is normal. The refrigerator cycles on and off

to keep the temperature constant.

• Adjust the freezer control to a warmer setting until

the freezer temperature is satisfactory.

• Adjust the refrigerator control to a warmer setting.

ENGLISH

BEFORE CALLING FOR SERVICE

(CONT.)

Problem Possible Causes Solutions

Food stored in

refrigerator

drawers freezes.

Temperatures in

the refrigerator or

freezer are too

warm.

Temperature in

the refrigerator

is too warm,

but the freezer

temperature is

satisfactory.

Louder sound

levels when

compressor

comes on.

Vibrating or

rattling noise.

Moisture collects

on the inside walls

of the refrigerator.

Moisture forms on

the outside of the

refrigerator or

between the doors.

• Refrigerator control is set too

cold.

• Freezer or refrigerator control

is set too warm.

• Doors are opened too

frequently or for too long.

• Door is slightly open.

• Large amounts of warm or

hot food may have been

stored recently.

• Refrigerator has recently

been disconnected for a

period of time.

• Refrigerator control is set too

warm.

• Refrigerator operates at

higher pressures during the

start of the ON cycle.

• Floor is uneven or weak. The

refrigerator rocks on the floor

when it is moved slightly.

• Items placed on the top of the

refrigerator are vibrating.

• Dishes are vibrating on the

shelves in the refrigerator.

• The refrigerator is touching

the wall or cabinets.

• The weather is hot and humid

which increases the rate of

frost buildup and internal

sweating.

• Door is slightly open.

• Door is opened too often or

for too long.

• Weather is humid.

• Door is slightly open.

• Adjust the refrigerator to a warmer setting.

• Adjust the freezer or refrigerator control to a

colder setting until the freezer or refrigerator

temperature is satisfactory.

• Warm air enters the refrigerator/freezer whenever

the door is opened. Open the door less often.

• Close the door completely.

• Wait until the refrigerator or freezer has had a

chance to cool food to the set temperature.

• It takes a few hours for the refrigerator to reach

the set temperatures.

• Adjust the refrigerator control to a colder setting.

• This is normal.

• Be sure floor is level and solid and can adequately

support the refrigerator.

• Remove items.

• It is normal for dishes to vibrate slightly. Move

dishes slightly. Make sure refrigerator is level and

firmly set on floor.

• Move the refrigerator so that it does not touch the

wall.

• This is normal.

• Close the door.

• Open the door less often.

• This is normal in humid weather. When humidity is

lower, the moisture should disappear.

• Close the door completely.

BEFORE CALLING FOR SERVICE

(CONT.)

Problem Possible Causes Solutions

Moisture forms

on the dispenser.

Odors in the

refrigerator.

The door(s) will

not close.

Drawers are

difficult to move.

Water has an odd

taste and/or odor.

Sound of ice

dropping.

Sound of water

trickling.

• Moisture may form when the

temperature or humidity are

high.

• Interior needs to be cleaned.

• Food with strong odor is in

the refrigerator.

• Some containers and

wrapping materials produce

odors.

• Food package is keeping the

door open.

• Door was closed too hard,

causing other door to open

slightly.

• Refrigerator is not level. It

rocks on the floor when it is

moved slightly.

• Floor is uneven or weak. The

refrigerator rocks on the floor

when it is moved slightly.

• Refrigerator is touching the

wall or the cabinets.

• Food is touching the shelf on

top of the drawer.

• The drawer track is dirty.

• The water has been in the

tank for too long.

• The unit is not properly

connected to cold water line.

• When a filter is old.

• A batch of ice has been

released into the ice bin.

• The icemaker is being

supplied with water.

• Wipe off the moisture.

• Clean interior with sponge, warm water, and baking

soda. Be sure the soda is completely dissolved so

it will not act as an abrasive compound.

• Cover food completely.

• Use a different container or brand of wrapping

materials.

• Move the packages that keep the door from

closing.

• Gently close both doors.

• Adjust the height-adjusting screw.

• Be sure the floor is level and can adequately

support the refrigerator. Contact a carpenter to

correct sagging or sloping floor.

• Move the refrigerator.

• Keep less food in the drawer.

• Clean the drawer and the track.

• Dispense for 2 minutes and discard to freshen the

supply. Dispense and discard for an additional 2

minutes to rinse the tank completely.

• Connect the unit to a cold water line that supplies

water to the kitchen faucet.

• Replace with a new filter.

• This sound is made when automatically made ice is

dropped into the ice storage bin. The volume may

vary according to the location of the refrigerator.

• This sound is normally made when the icemaker is

supplied with water after dropping the automatically

made ice.

• If this sound lasts more than 10 seconds, check for

a leak.

ENGLISH

BEFORE CALLING FOR SERVICE

(CONT.)

Problem Possible Causes Solutions

The icemaker is

not producing ice

or not enough ice

• New installation.

• Refrigerator is not connected

to a water supply and the

supply shutoff valve is not

turned on.

• Reverse osmosis water

filtration system is connected

to your cold water supply.

• Kink in the water source line.

• Large amount of ice recently

has been removed.

• The icemaker is not turned

on.

• There is Something on the

Ice-detecting sensor.

• The temperature setting is

too warm on Freezer.

• The doors are opened often.

• Any door is not closing

properly.

• The ice compartment door is

not closing properly.

• Ice Plus is not selected.

• Wait 24 hours after ice maker installation for ice

production to begin. Wait 72 hours for full ice

production.

• Connect refrigerator to water supply and turn

water shutoff valve fully open.

• This can decrease water pressure and a little

water comes to icemaker.

• A kink in the line can reduce water flow.

Straighten the water source line.

• Allow 24 hours for ice maker to produce more ice.

• On the icemaker itself, there should be a power

switch. It may have an “I” and “O” on it. The “I”

position is on. If it is off, please flip it to the on

position.

• Foreign substance or frost on theIce-detecting

sensor stops making ices. To keep making ice,

clean up the surface of Ice-detecting sensor with

clean and soft fabric.

• Below -1°F is recommended temperature setting

of the freezer compartment for normal ice

production. If the freezer temperature is set at a

warmer temperature, then the ice will produce at a

slower rate.

• If the doors of the unit are opened often, the cold

air will escape which will prevent the unit from

maintaining the set temperature. Lowering the

temperature can help, as well as not opening the

doors as frequently.

• The door that is not closed properly, makes the

Freezer temperature high and icemaker will make

ices slowly.

• The compartment door, that is not closed properly,

make the compartment temperature high and

icemaker makes ices slowly.

• With this option, the cold air in the compartment is

increased as is ice production.

BEFORE CALLING FOR SERVICE

(CONT.)

Problem Possible Causes Solutions

Not dispense ice • All the doors are not closed

completely.

• The dispenser is locked on

display.

• The ice dispenser is used

infrequently.

• Ice bin is not installed correctly.

• New installation.

• Ices are stuck in the delivery

chute.

• The wrong-sized ice has been

added to the ice bin.

• The ice dispenser is stalling

while dispensing “crushed” ice.

• If any door is not closed completely, any ice is not

dispensed.

• If the dispenser is locked, ice will not dispense. Look

at the right side of the control panel to see if the lock

is engaged. Press and hold the lock button on the

control panel until there is a “ding” sound. Try to

dispense again. Once unlocked, the dispenser

should dispense ice.

• Infrequent use of the ice dispenser will cause the

cubes to stick together over time, which will prevent

them from properly dispensing. Check the ice bin for

ice cubes clumping/sticking together. If they are,

break up the ice cubes by removing the bin and

breaking them up or shaking the bin to separate

them.

• Sure the ice bin is firmly in position.

• Wait 24 hours after ice maker installation for ice

production to begin. Wait 72 hours for full ice

production.

• Use a plastic utensil to clear the delivery chute.

• Use only cubes produced by the current ice maker.

• Change the ice button from “crushed” to “cubed”.

If cubed ice dispenses correctly, press the button for

“crushed” ice and begin dispensing again.

Dispense hot

water

• New installation.

• Water dispenser has been

used continuously within the

last 5~8 hours.

• Recently large amount of

water was dispensed.

• Refrigerator is not connected

to cold water pipe.

• Allow 24 hours after installation for the water

supply to cool completely.

• The unit has its own water tank inside. Water

storage capacity of the water tank is about two

cups of cold water that will be dispensed. While

the cool water is being dispensed, the tap water

comes into water tank and is reserved. At least

6 hours are needed for cooling the tap water

again.

• Allow 24 hours for water supply to cool

completely.

• Make sure the refrigerator is connected to a cold

water pipe.

ENGLISH

BEFORE CALLING FOR SERVICE

(CONT.)

Problem Possible Causes Solutions

Not dispense

water

Other

• New installation.

• Freezer door is not closed

completely.

• Refrigerator is not connected

to a water supply and the

supply shutoff valve is not

turned on.

• The water pressure is not

more than 20 psi.

• Home filter or reverse osmosis

system is used.

• The display is not set properly

for water to come out.

• Water filter need to be

changed.

Please thoroughly read the Automatic Icemaker and Operating the Dispenser sections in

this manual.

• Flush and fill the water system.

• If any door is not closed completely, the ice is never

dispensed.

• Connect refrigerator to water supply and turn water

shutoff valve fully open.

• The water pressure to the home determines the flow

from the dispenser.

• This can decrease water pressure. It is

recommended to remove reverse osmosis for

normal operation of water dispenser.

• Look on the right side of the display to see if the

display lock is engaged. If locked, it will not

dispense. Unlock the dispenser.

• The filter should be changed every 6 months or

more often depending on usage. The filter can get

buildup of foreign particles and slow the water

pressure.

Water is leaking

from the

dispenser.

NOTE: One or two

drops of water after

dispensing is

normal.

• Glass was not being held

under the dispenser long

enough.

• New installation.

• Recently water filter was

changed.

• Hold the glass under the dispenser 2 to 3 seconds

after releasing the dispenser lever.

• Flush and fill the water system.

• Flush the water system.

The interior of the

refrigerator is

covered with dust

or soot.

• The refrigerator is located

near a fire source, such as a

fireplace, chimney or candle.

• Make sure that the refrigerator is not located near

a fire source, such as a fireplace, chimney or

candle.

KEY DIMENSIONS AND SPECIFICATIONS

The appearance and specifications listed in this guide may vary due to constant product improvements.

Bottom-Freezer Refrigerator Models

Description

Electrical Requirements

Min. / Max. Water Pressure

Dimensions

Net Weight

Refrigerator Storage Capacity

Freezer Storage Capacity

French Door Refrigerator

115 VAC @ 60 Hz

20~120 PSI (1.4~8.4 kgf/cm

)

" (W) X 35

" (D) X 69

" (H), 47

" (D w/ door open)

908 mm (W) X 899 mm (D) X 1772 mm (H), 1210 mm (D w/ door open)

342 lb. (155 kg)

18.82 cu. ft.

8.79 cu. ft.

ENGLISH

LG ELECTRONICS U.S.A., INC.

LG REFRIGERATOR LIMITED WARRANTY - U.S.A.

Should your LG Refrigerator ("Product") fail due to a defect in materials or workmanship under normal home use, during the warranty period

set forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the

product and applies only when purchased and used within the United States including U.S. Territories. Proof of original retail purchase is

required to obtain warranty service under this limited warranty.

 Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

 Replacement products and parts may be new or remanufactured.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS

REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER

NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE

DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE

WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental or consequential

damages or limitations on how long an implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives you

specific legal rights and you may also have other rights that vary from state to state.

Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or

operating the unit in an unsuitable environment will not be covered under this warranty.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, install, or repair the product; instruct the

customer on operation of the product; repair or replace fuses or correct

wiring or plumbing, or correction of unauthorized repairs/installation.

2. Failure of product to perform during power failures and interruptions

or inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes,

restricted drain lines, inadequate or interrupted water supply or inadequate

supply of air.

4. Damage resulting from operating the product in a corrosive atmosphere or

contrary to the instructions outlined in the product owner’s manual.

5. Damage to the product caused by accidents, pests and vermin, lightning,

wind, fire, floods, or acts of God.

6. Damage resulting from misuse, abuse, improper installation, repair,

or maintenance. Improper repair includes use of parts not approved

or specified by LG.

7. Damage or failure caused by unauthorized modification or alteration, or if it

is used for other than the intended purpose, or any water leakage where

the unit was not properly installed.

Damage or failure caused by incorrect electrical current, voltage, or plumbing

codes, commercial or industrial use, or use of accessories, components, or

consumable cleaning products that are not approved by LG.

9. Damage caused by transportation and handling, including scratches,

dents, chips, and/or other damage to the finish of your product, unless

such damage results from defects in materials or workmanship and is

reported within one (1) week of delivery (Call: 1-800-243-0000).

10. Damage or missing items to any display, open box, discounted, or

refurbished product.

11. Products with original serial numbers that have been removed, altered, or

can not be readily determined. Model and Serial numbers, along with

original retail sales receipt, are required for warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your product is used in other than normal and usual

household use (e.g. commercial use, offices, and recreational facilities) or

contrary to the instructions outlined in the product owner’s manual.

15. Costs associated with removal of your product from your home for

repairs.

16. The removal and reinstallation of the product if it is installed in an

inaccessible location or is not installed in accordance with published

installation instructions, including LG’s owner’s and installation manuals.

17. Shelves, door bins, drawers, handles, accessories, and other parts

besidesÄthose that were originally included with this particular model.

Refrigerator

Sealed System

(Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)

One (1) year from the date of

original retail purchase

Parts and Labor

(internal/functional parts only)

One (1) year from the date of

original retail purchase

Parts and Labor

Linear Compressor

Ten (10) years from the date of

original retail purchase

Part only

(Consumer will be charged for labor)

Seven (7) years from the date of

original retail purchase

Parts only

(Consumer will be charged for labor)

WARRANTY PERIOD

For complete warranty details and customer assistance,

please call or visit our website:

Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate

option from the menu, or visit our website at www.lg.com

Or by mail: LG Customer Information Center:

P. O. Box 240007, 201 James Record Road Huntsville, Alabama 35813

ATTN: CIC

Write your warranty information below:

Product Registration Information:

Model:

Serial Number:

Date of Purchase:

Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or

operating the unit in an unsuitable environment will not be covered under this warranty.

Refrigerator/Freezer

Sealed System

(Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)

One (1) year from the date of

original retail purchase

Parts and Labor

(internal/functional parts only)

One (1) year from the date of

original retail purchase

Parts and Labor

Linear Compressor

Ten (10) years from the date of

original retail purchase

Part only

(Consumer will be charged for labor)

Seven (7) years from the date of

original retail purchase

Parts only

(Consumer will be charged for labor)

WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,

the warranty will begin sixty (60) days from the date of manufacture)

LG ELECTRONICS CANADA, INC.

LG REFRIGERATOR LIMITED WARRANTY - Canada

WARRANTY: Should your LG Refrigerator ("Product") fail due to a defect in material or workmanship under normal home use during the

warranty period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase.

This warranty is valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or

an authorized Canadian distributor thereof. The warranty only applies to Products located and used within Canada.

 Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.

 Replacement products and parts may be new or remanufactured.

 LG Authorized Service Center warranties their repair work for thirty (30) days.

LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG

CANADA MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER

EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE

ANY PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE

PRODUCT. TO THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY

PERIOD ABOVE. LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL,

SPECIAL, DIRECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER

DAMAGE, WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR

FROM ANY ACTS OR OMISSIONS, TORT, OR OTHERWISE. This warranty gives you specific legal rights. You may have other rights which may vary

from province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty

under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty’s terms.

All costs associated with the above excluded circumstances shall be borne by the consumer.

THIS LIMITED WARRANTY DOES NOT COVER:

1. Service trips to deliver, pick up, or install the product; instructing a customer on

operation of the product; repair or replacement of fuses or correction of wiring or

plumbing, or correction of unauthorized repairs/installation.

2. Failure of the product to perform during power failures and interruptions or

inadequate electrical service.

3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted

drain lines, inadequate or interrupted water supply or inadequate supply of air.

4. Damage resulting from operating the Product in a corrosive atmosphere or

contrary to the instructions outlined in the Product owner’s manual.

5. Damage to the Product caused by accidents, pests and vermin, lightning, wind,

fire, floods, or acts of God.

6. Damage resulting from the misuse, abuse, improper installation, repair, or

maintenance of the Product. Improper repair includes use of parts not approved

or specified by LG Canada.

7. Damage or product failure caused by unauthorized modification or alteration, or

use for other than its intended purpose, or resulting from any water leakage due

to improper installation.

8. Damage or Product failure caused by incorrect electrical current, voltage, or

plumbing codes, commercial or industrial use, or use of accessories,

components, or cleaning products that are not approved by LG Canada.

9. Damage caused by transportation and handling, including scratches, dents,

chips, and/or other damage to the finish of your product, unless such damage

results from defects in materials or workmanship and is reported within one (1)

week of delivery.

10. Damage or missing items to any display, open box, discounted, or refurbished

Product.

11. Products with original serial numbers that have been removed, altered, or cannot

be readily determined. Model and Serial numbers, along with original retail sales

receipt, are required for warranty validation.

12. Increases in utility costs and additional utility expenses.

13. Replacement of light bulbs, filters, or any consumable parts.

14. Repairs when your Product is used in other than normal and usual household

use (including, without limitation, commercial use, in offices or recreational

facilities) or contrary to the instructions outlined in the Product owner’s manual.

15. Costs associated with removal of the Product from your home for repairs.

16. The removal and reinstallation of the Product if it is installed in an inaccessible

location or is not installed in accordance with published installation instructions,

including the Product owner’s and installation manuals.

17. Shelves, door bins, drawers, handles, and accessories to the Product. Also

excluded are parts besides those that were originally included with the Product.

For complete warranty details and

customer assistance, please call or visit

our website: Call 1-888-542-2623 (24 hours

a day, 365 days a year) and select the

appropriate option from the menu, or visit our

website at www.lg.com

Write your warranty information below:

Product Registration Information:

Model: Serial Number:

Date of Purchase:

ENGLISH

For inquires or comments, visit www.lg.com or call;

1-800-243-0000 USA, Consumer User

1-888-865-3026 USA, Commercial User

1-888-542-2623 CANADA

www.lg.com

LG Customer Information Center

LG Electronics LFX28978SB Ultra-Large Capacity 3 Door French Door Refrigerator

Product's Documents

User Manual

Specifications

LG Electronics LFX28978SB Questions and Answers

Related Products

LG Electronics LFC25776SB Ultra-Large Capacity 3 Door French Door Refrigerator

LG Electronics LFC25776SW Ultra-Large Capacity 3 Door French Door Refrigerator

LG Electronics LMX28988SB Ultra-Large Capacity 4 Door French Door Refrigerator

LG Electronics LMX28988ST Ultra-Large Capacity 4 Door French Door Refrigerator

LG Electronics LMX28988SW Ultra-Large Capacity 4 Door French Door Refrigerator

LG Electronics LFX28979ST Ultra-Large Capacity 3 Door French Door Refrigerator with Dual Ice Maker
