Your new washing machine
Display rules
■ / -
Contentsen Instruction Manual and Installation Instructions
8 Intended use 4
( Safety instructions 5
7 Environmental protection 7
5 Positioning and connecting 8
* Getting to know the appliance 15
Z Laundry 18
C Detergent 19
0 Programme default settings 20
\ Additional programme settings 21
1 Operating the appliance 22
H Sensors 26
M Setting the signal 27
2 Cleaning and maintenance 27
3 Faults and what to do about them. 30
4 After-sales service 34
J Technical data 34
r Aqua-Stop warranty 34
8 Intended use
Intended use
■ For private domestic use only.
■ The washing machine is suitable for washing machine-washable fabrics and hand-washable wool in water containing detergent.
■ To be operated with cold* mains water or cold and hot* mains water (max. 60 °C), and standard detergents and care products which are suitable for use in washing machines.
■ When measuring out the amount of all detergents, additives, care products and cleaning agents, always follow the manufacturer's instructions.
■ The washing machine may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed by a responsi...
Children must not carry out any cleaning or maintenance work without supervision.
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
■ Keep children under the age of 3 years away from the washing machine.
■ Keep pets away from the washing machine.
( Safety instructions
Safety instructions
Electrical safety
: Warning
Danger of death!
Risk of injury
: Warning
Risk of injury!
: Warning
Risk of scalding!
Safety for children
: Warning
Danger of death!
: Warning
Danger of death!
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Eye/skin irritation!
: Warning
Risk of injury!
7 Environmental protection
Environmental protection
Packaging/used appliance
Tips on economical use
■ Always fill the appliance with the maximum amount of laundry for each programme.
Overview of programmes ~: Supplementary sheet for the operating and installation instructions.
■ Wash normally soiled laundry without a prewash.
■ Save energy and detergent when washing lightly and normally soiled laundry. ~ Page 20
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the machine may deviate from this so that you get the optimum mix of energy-saving and washing results.
■ Information about the energy consumption*: ~ Page 17
The display provides information about the relative energy consumption in the selected programs.
The more indicator lights light up, the higher the program's consumption.
This enables you to compare the consumption levels of the different programs when choosing your program settings and to decide on an energy- and water-saving program setting.
*depending on the model
■ Energy-saving mode: The display panel lighting goes out after a few minutes and the A button flashes. Press any button to activate the lighting.
Energy-saving mode is not activated if a programme is running.
■ If the laundry is subsequently dried in a tumble dryer, select the spin speed according to the tumble dryer manufacturer's instructions.
5 Positioning and connecting
Positioning and connecting

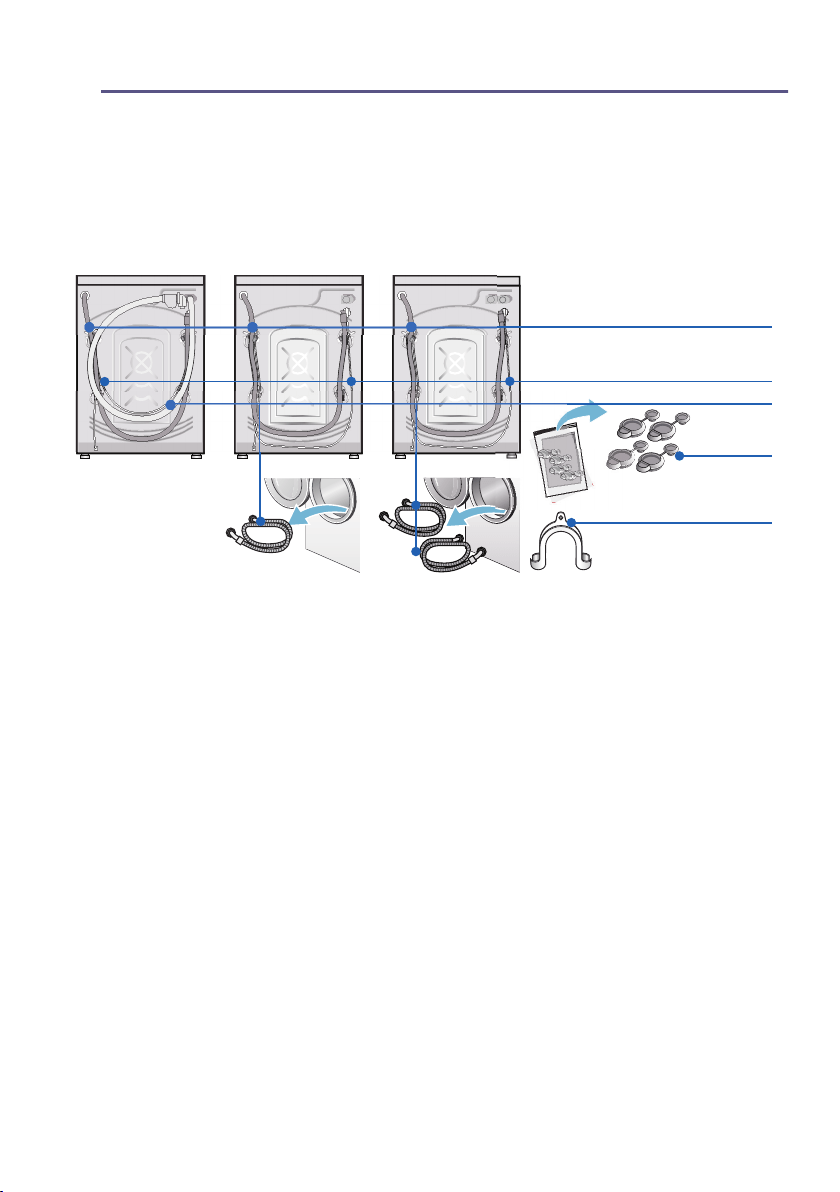

Included with the appliance
Note:
Check the machine for transport damage. Never use a damaged machine. If you have any complaints, contact the dealer from whom you purchased the appliance or our after-sales service.
■ Spirit level for levelling
■ Spanner with:
Safety instructions
: Warning
Risk of injury!
Caution!
Damage to the appliance
Caution!
Water damage
Notes
Installation surface
Note:
The washing machine be stable so that it does not move around.
Installation on a base or a wooden joist floor
Caution!
Damage to the appliance
Note:
On wooden joist floors, install the washing machine:
Installation on a platform with drawer
Installing the appliance in a kitchenette
: Warning
Danger of death!
Notes
Removing the transport locks
Caution!
Damage to the appliance
Note:
Keep the screws and sleeves in a safe place.

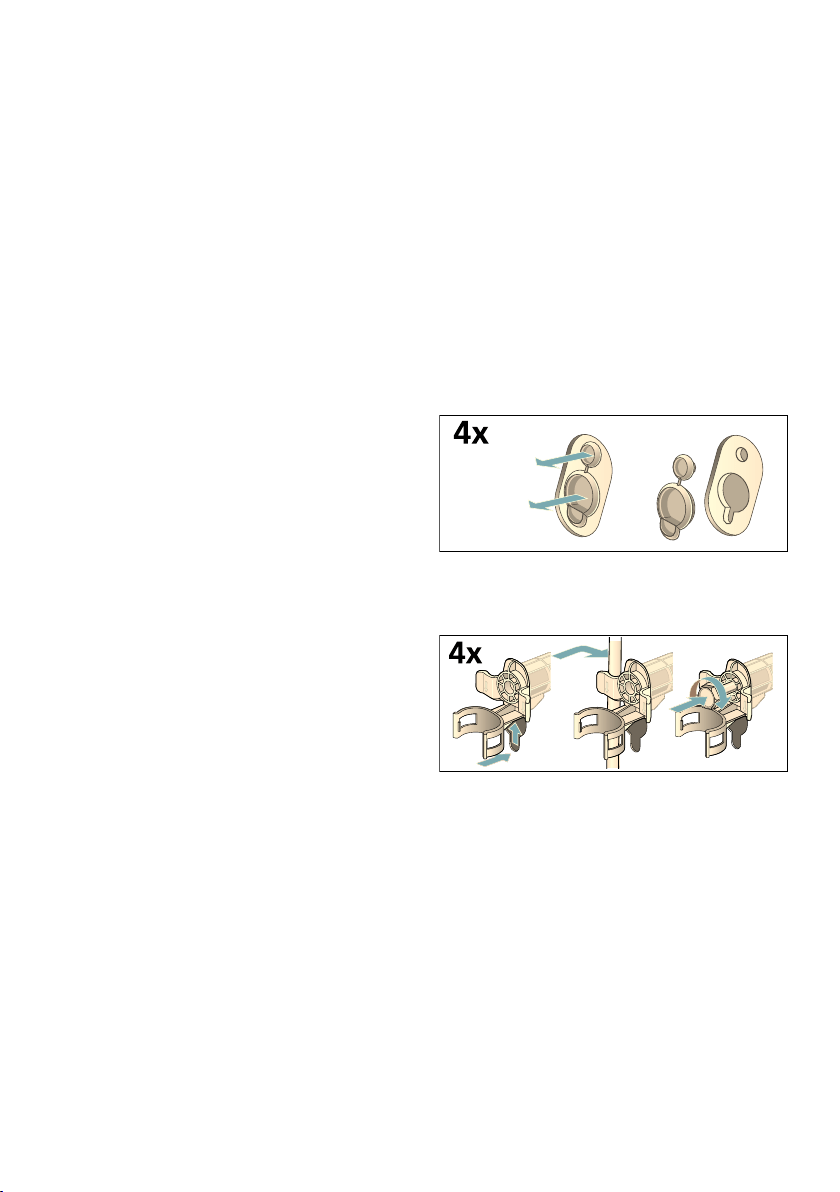

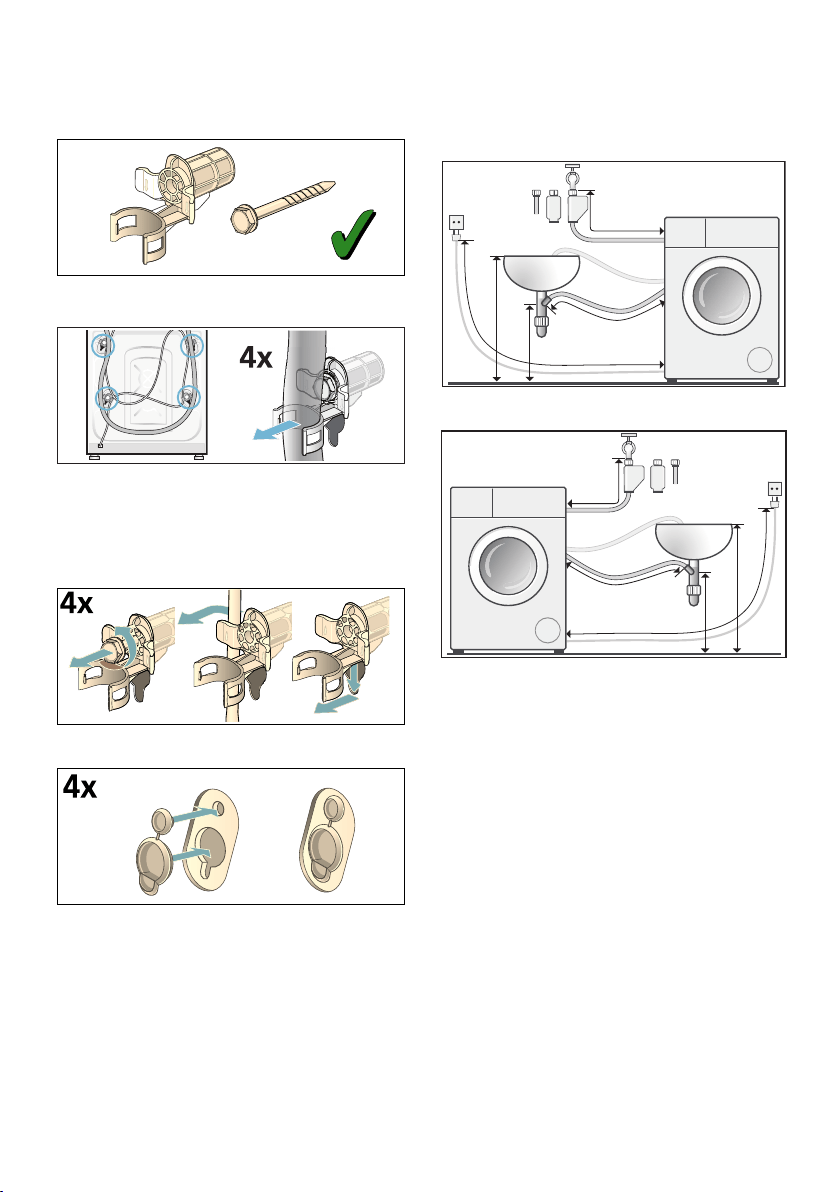

1. Take the hoses out of the holders.
2. Unscrew and remove the bolts from all four transport safety devices.
Remove the sleeves. To do this, remove the mains cable from the holders.
3. Insert the covers.
Hose and cable lengths
■ Left-hand connection
■ Right-hand connection
Tip:

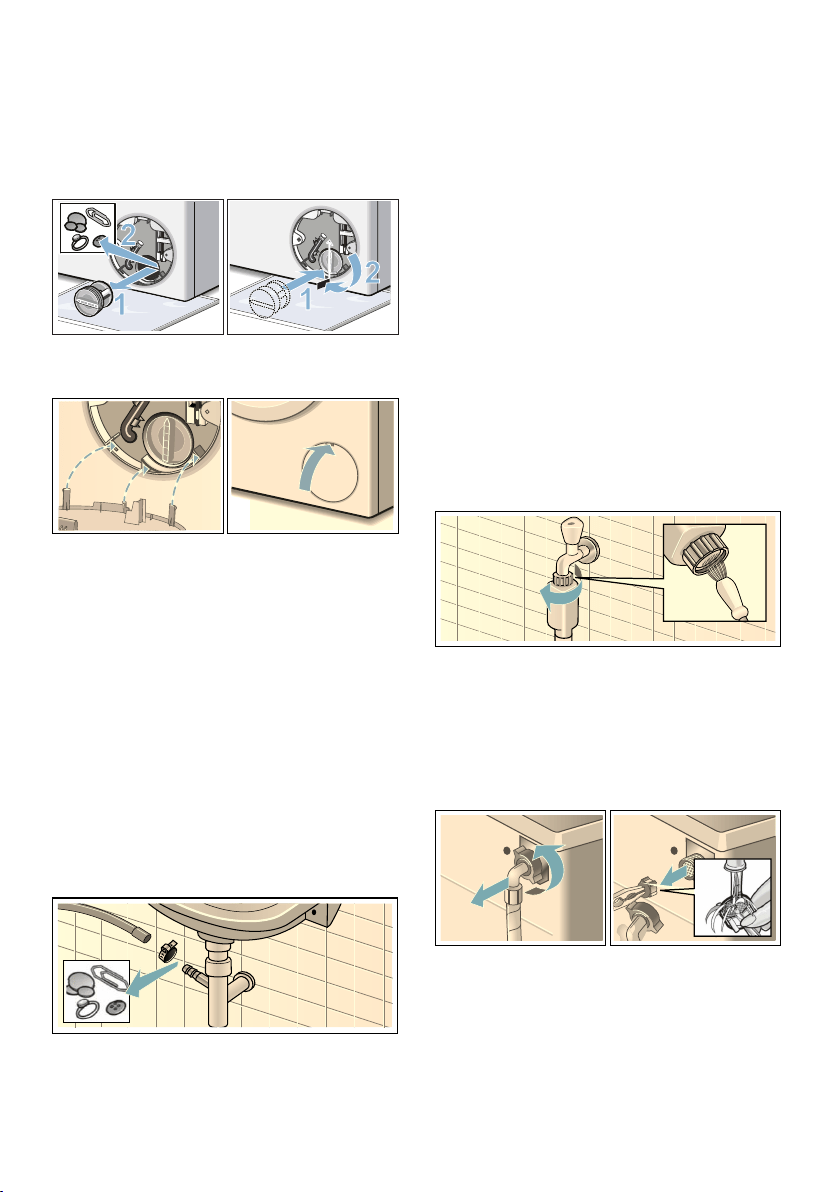

Water inlet
: Warning
Risk of death!
Notes
Note:
Note:

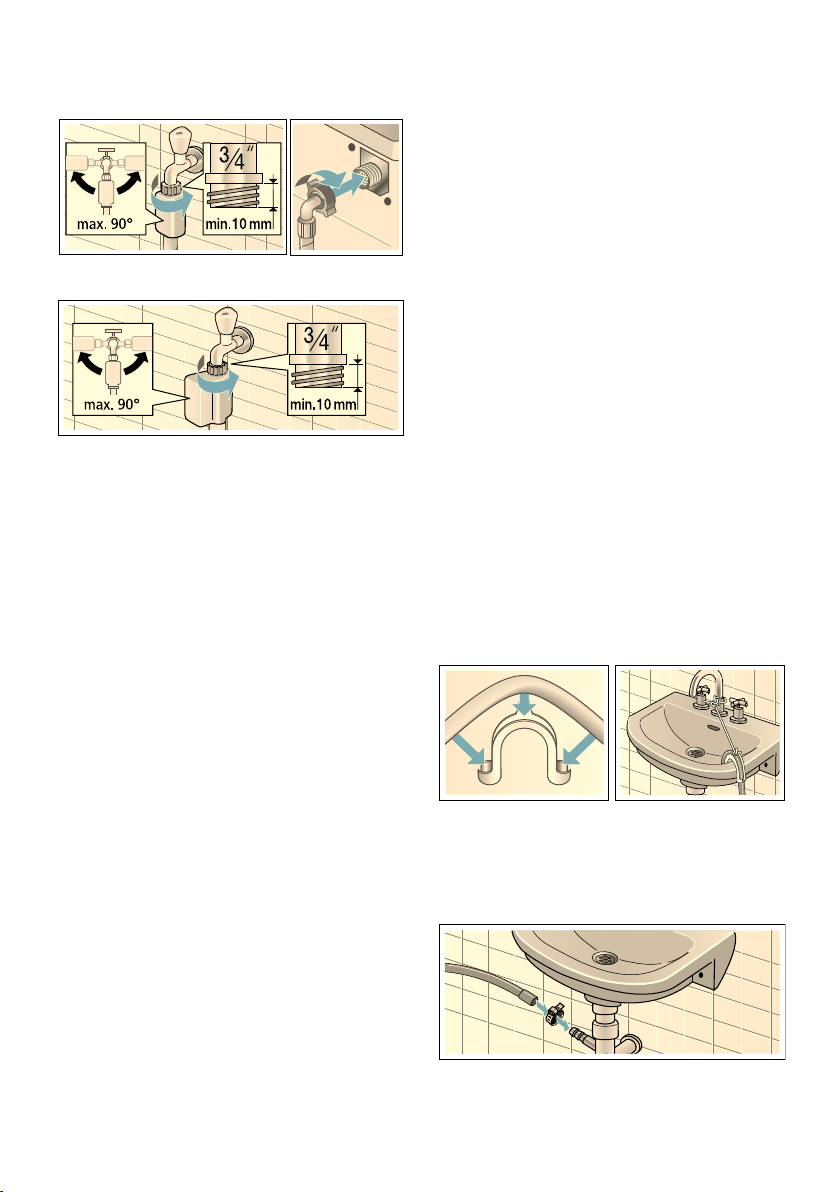

Carefully turn on the tap and check that the connection points are not leaking. The screw connection is under water pipe pressure.

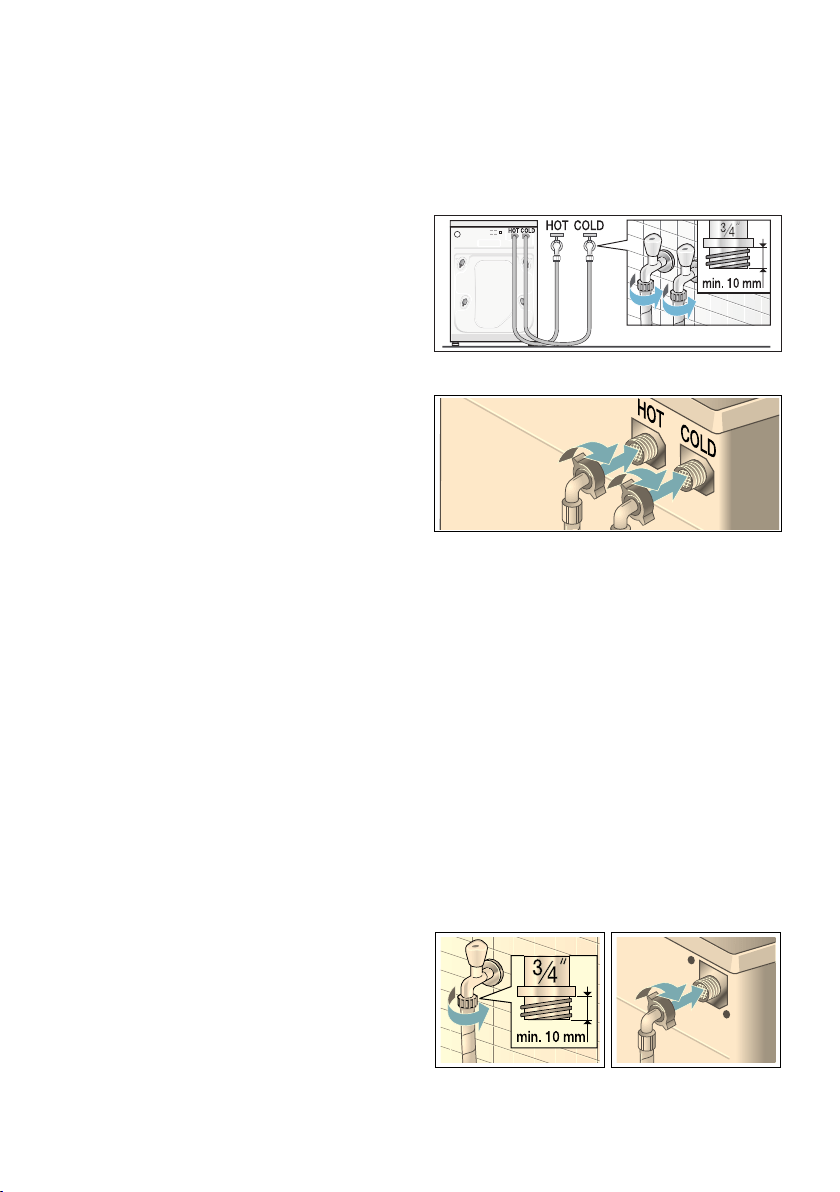

■ Model: Standard
■ Model: Aqua-Secure
■ Model: Aqua-Stop
Note:
Carefully turn on the tap and check that the connection points are not leaking. The screw connection is under water pipe pressure.
Water outlet
Caution!
Water damage
Note:
Do not kink the water drain hose or put strain on it lengthways.
■ Outlet in a sink
: Warning
Risk of scalding!
Caution!
Damage to the appliance/fabrics
Make sure that:
■ Drainage into a siphon
The connection point must be secured using a hose clamp with a diameter of 24-40 mm (available from specialist dealers).
■ Outlet into a plastic pipe with rubber bushing or into a drainage pit

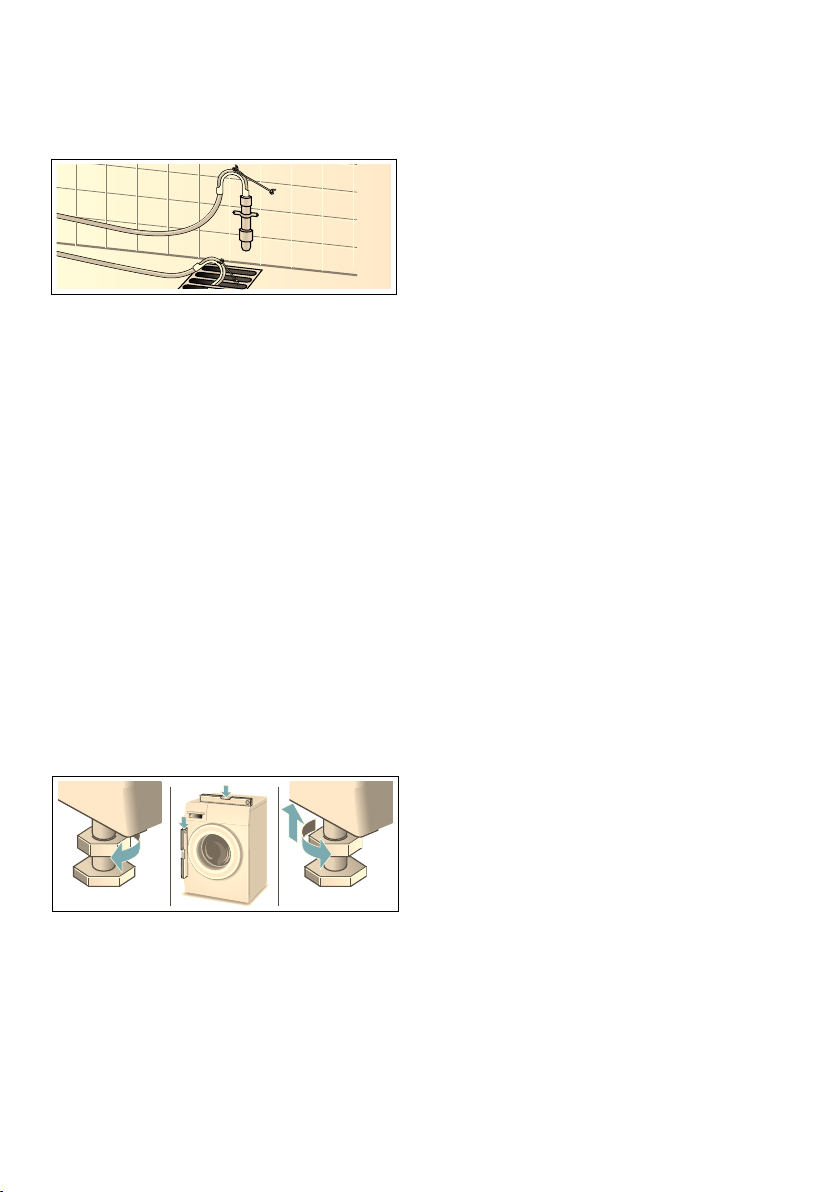

Levelling
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
All four appliance feet must stand firmly on the ground.
3. Tighten the lock nut against the housing.
In doing so, hold the foot tight and do not adjust its height.
The lock nuts on all four appliance feet must be screwed tightly against the housing.
Electrical connection
: Warning
Danger of death!
Notes
Before washing for the first time
Notes
1. Check the machine.
2. Remove the protective film from the control panel.
3. Connect the mains plug.
4. Turn on the tap.
5. Close the door (do not load any laundry).
6. Depending on the model, run the Drum Clean 90 °C or i Cottons 90 °C program.

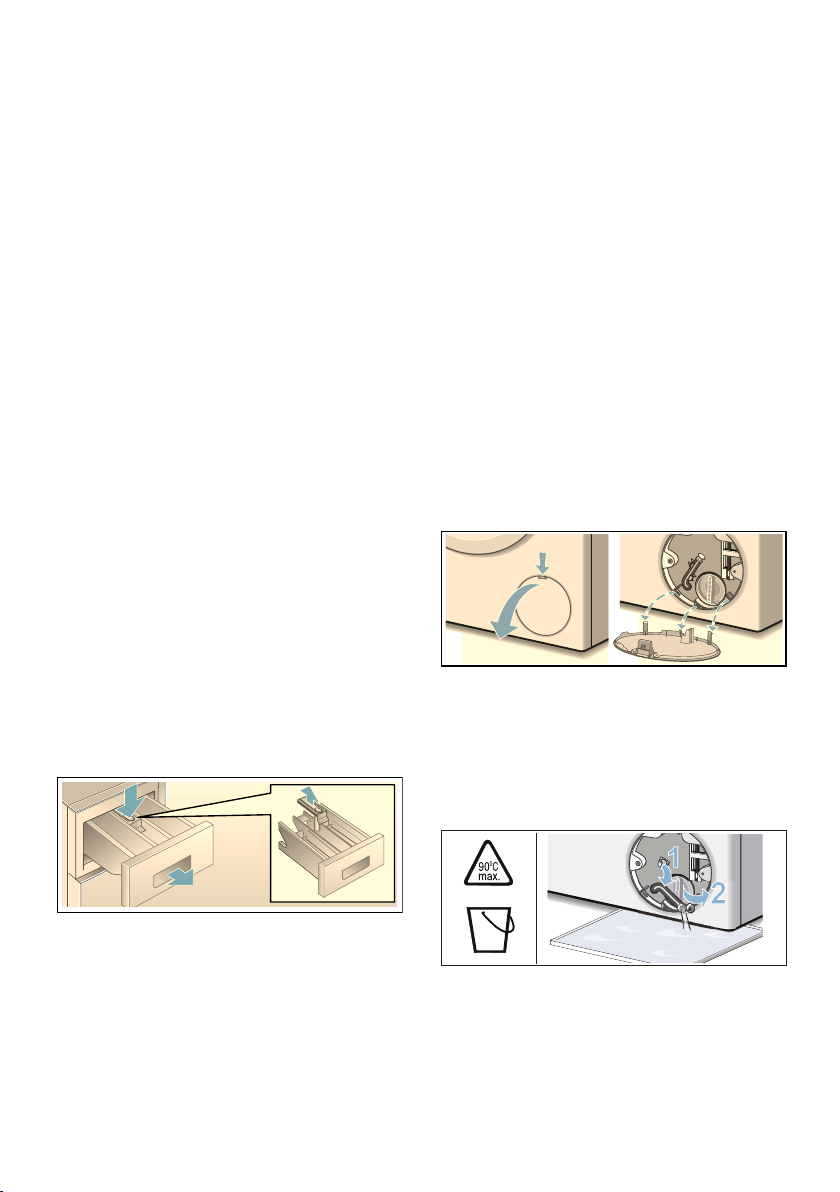

7. Open the detergent drawer.
8. Pour approximately 1 litre of water into compartment II.
9. Pour standard detergent into compartment II.
Note:
10. Close the detergent drawer.
11. Press the A button.
12. When the program ends, switch off the appliance.
Transportation
1. Turn off the water tap.
2. Reduce the water pressure in the supply hose.
Maintenance – filter in the water supply ~ Page 29
3. Drain the remaining detergent solution.
Maintenance – detergent solution pump blocked ~ Page 28
4. Disconnect the washing machine from the mains.
5. Remove the hoses.
1. Remove the covers and keep in a safe place.
If required, use a screwdriver.
2. Insert all four sleeves.
Clamp the mains cable on the holders. Insert and tighten the bolts.
Notes
* Getting to know the appliance
Getting to know the appliance
Washing machine
Control panel
Select additional program settings if necessary: ~ Page 21
■ Speed Eco
■ Water&Rinse+ *
■ Easy-Iron *
■ Prewash *
A button for:
■ Starting a program
■ Interrupting a program, e.g. to add items of laundry ~ Page 25
■ Cancelling a program ~ Page 25
Display panel
Note:
You will find settings and information for the selected program in the table.
More information on the display panel
Z Laundry
Laundry
Prepare the laundry
Caution!
Damage to the appliance/fabrics
■ Empty any pockets.
■ Look out for metal items (paperclips, etc.) and remove them.
■ Wash delicates in a laundry bag (tights, underwired bras, etc.).
■ Close any zips; button up any cover buttons.
■ Brush sand out of pockets and collars.
■ Remove curtain fittings or place curtains in a laundry bag.
Sorting laundry
■ Type of fabric/fibre
■ Colour
Note:
■ Soiling Wash laundry with the same level of soiling together.
Some examples of soiling levels can be found on ~ Page 20.
■ Symbols on the care labels
Note:
Starching
Note:
Laundry should not be treated with fabric softener.
Dyeing/bleaching
Soaking
1. Switch on the appliance.
2. Select the i Cottons 20 °C program.
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
4. Press the A button.
5. After approx. 10 minutes, press the A button to pause the program.
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the program or change the program.
Notes
C Detergent
Detergent
Correct selection of detergent
■ Standard detergent with optical brighteners
Suitable for boil-washable white laundry made from linen or cotton
Programme: Cottons/
cold - max. 90 °C
■ Detergent for colours without bleach or optical brighteners
Suitable for coloured laundry made from linen or cotton
Programme: Cottons/
cold - max. 60 °C
■ Detergent for colours/delicates without optical brighteners
Suitable for coloured laundry made from easy-care fibres, synthetic fibres
Programme: Easy-Care/
cold - max. 60 °C
■ Detergent for delicates
Suitable for delicate, fine fabrics, silk or viscose
Programme: Delicate/Silk/
cold - max. 40 °C
■ Detergent for woollens
Suitable for wool
Wool programme/
cold - max. 40 °C
Saving energy and detergent
Saving
Soiling/note
Note:
When measuring the amount of all detergents/additives/care products and cleaning agents, please always check the manufacturer's instructions and information. ~ Page 23
0 Programme default settings
Programme default settings
Note:
Pressing and holding the buttons automatically runs through the setting values until the last one. Then press the button again and you will be able to change the setting values again.
Temperature
Spin speed
Finished in-time
1. Select a program.
The program duration is displayed for the selected program, e.g. 2:30 (hours:minutes).
2. Press the Finished in-time button repeatedly until the required number of hours is displayed.
3. Press the A button.
The program starts.
The selected number of hours (e.g. 8 h) is shown in the display panel and counts down until the wash program starts. The duration of the program is then displayed.
Note:
The length of the program is automatically adjusted when the program is running.
Certain factors can affect the program length, e.g.:
1. Press the A button.
2. Use the Finished in-time button to change the number of hours.
3. Press the A button.
\ Additional programme settings
Additional programme settings
Speed Eco
■ Speed
Washing in a shorter time while achieving a washing result that is consistent with, but uses more energy than, the selected program, without the Speed Eco setting.
Note:
■ Eco
Energy-optimised washing by reducing the temperature while achieving a washing result that is consistent with the selected program, without the Speed Eco setting.
Easy-Iron
Note:
The washing's residual moisture is increased.
Water&Rinse+
Prewash
Note:
Pour detergent into compartments I and II.
1 Operating the appliance
Operating the appliance
Preparing the washing machine
Note:
The washing machine must be correctly installed and connected. From ~ Page 8
1. Connect the mains plug.
2. Turn on the water tap.
3. Open the door.
4. Check that the drum is completely drained. Drain if necessary.
Select programme/switch on the appliance
Note:
If you have activated the childproof lock, you must first deactivate it, before you can set a program.
■ Temperature*,
■ The maximum load and the duration of the program (alternately)
■ Energy consumption*.
Change the programme default settings
Select additional programme settings
Placing laundry into the drum
: Warning
Danger of death!
Notes
1. Unfold presorted laundry items and place them in the drum.
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
Measure and add detergent and care products
Caution!
Damage to the appliance
■ The water hardness (ask your water supply company)
■ The manufacturer's instructions on the packaging
■ The amount of laundry
■ The degree of soiling ~ Page 20
: Warning
Eye/skin irritation!
Note:
Dilute viscous fabric softener and fabric conditioner with water to prevent blockages.

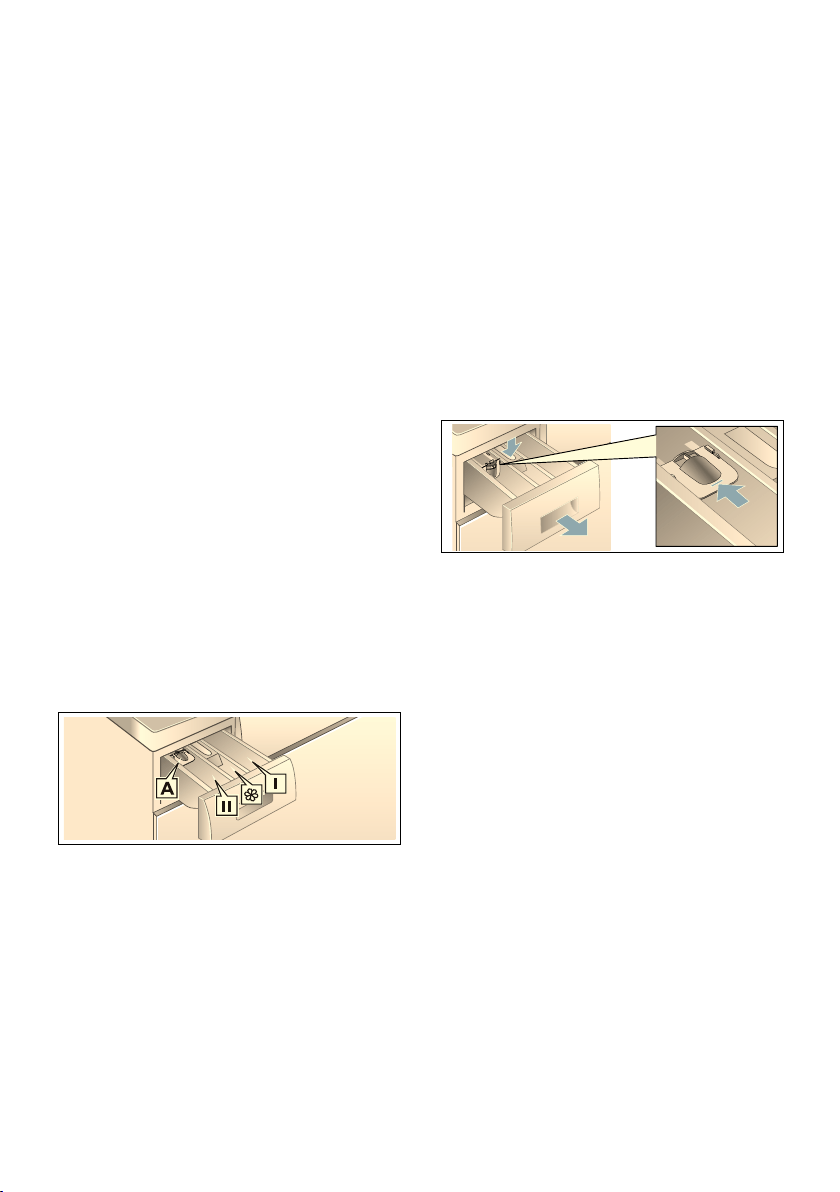

1. Pull out the detergent drawer as far as possible.
2. Add detergent and/or care products.
3. Close the detergent drawer.
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. Slide the measuring aid forwards, fold it down and click it into place.
3. Reinsert the drawer.
Note:
Do not use the measuring aid for gel detergents and washing powder, or for programmes with prewash or when the Ready in time is selected.
Start the programme
Note:
Foam detection
If the Å symbol also lights up in the display panel, the washing machine has detected too much foam during the wash cycle and automatically activated additional rinse cycles to remove the foam.
Add less detergent to the next wash cycle with the same load.
Childlock
■ E lights up: The childproof lock is active.
■ E flashes: The childproof lock is active and the program selector has been adjusted.To deactivate the childproof lock, reset the program selector to the initial program. The symbol lights up again.
Note:
Note:
The childproof lock remains active after the program has ended and the appliance is switched off. You must always deactivate the childproof lock if you want to start a new program.
Adding laundry
■ the è symbol disappears, and adding is possible.
■ the è symbol lights up, it is not possible to add laundry.
Notes
Changing the programme
1. Press the A button.
2. Select another program.
3. Press the A button.The new program starts from the beginning.
Cancel the programme
1. Press the A button.
2. To cool down laundry: Select ' Rinse.
3. Press the A button.
1. Press the A button.
2. Select 0 Spin/Drain//Spin/Empty `.
3. Press the A button.
Programme end during rinse hold
■ Pressing the A button or
■ Selecting a spin speed or setting the program selector to 0 Spin/Drain// Spin/Empty ` and then pressing the A button.
Programme end

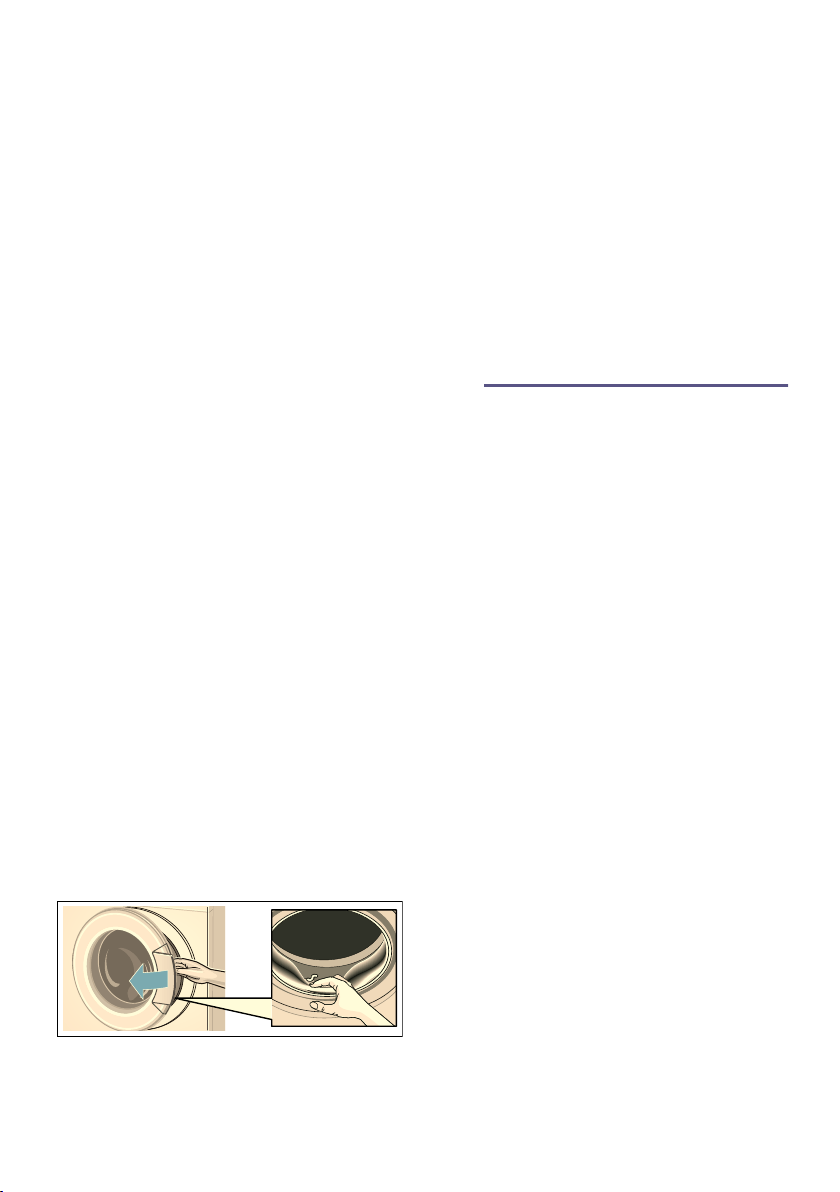

Removing laundry/switching off the appliance
1. Open the door and remove the laundry.
2. Turn the program selector to Off ($). The appliance is switched off.
3. Turn off the tap.
Note:
Notes
H Sensors
Sensors
Automatic load sensing
Unbalanced load detection system
Note:
Place large and small items of laundry evenly in the drum. ~ Page 32
M Setting the signal
Setting the signal
■ The volume of the buttons and information signals (e.g. at the end of the program) and/or
■ The volume of the button signals.
Activating the setting mode
1. Select the i Cottons program to position 1. The washing machine is switched on.
2. Press the A button and, at the same time, turn the program selector clockwise to position 2.Release the button.
■ 2: The volume of the information signals and/or
■ 3: The volume of the button signals.
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Danger of death!
: Warning
Risk of poisoning!
Caution!
Damage to the appliance
Notes
Machine housing/control panel
■ Wipe the housing and the control panel with a soft, damp cloth.
■ Remove the detergent residue immediately.
■ Do not clean with a water jet.
Drum
Descaling
Detergent drawer and housing
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. To remove the insert: Push the insert upwards from below with your finger.
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
5. Push in the detergent drawer.
Note:
Leave the detergent drawer open so that any residual water can evaporate.
Detergent solution pump blocked
: Warning
Risk of scalding!
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
2. Switch off the appliance. Pull out the mains plug.
3. Open and remove the service flap.
4. Take the drain hose out of the retainer.
Remove the sealing cap and pour the water out into a suitable container.
Replace the sealing cap and place the drain hose back in the retainer.
5. Carefully unscrew the pump cover; residual water may leak out.
Clean the interior, pump-cover thread and pump housing. The impeller in the drain pump must be able to rotate.
Refit the pump cover and screw it on tightly. The handle must be in a vertical position.
6. Place the service flap back on, lock it into place, and close it.
Note:
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 2 litre of water into compartment II and start the Empty programme.
The drain hose at the siphon is blocked
1. Switch off the appliance. Disconnect the mains plug.
2. Loosen the hose clamp. Carefully remove the drain hose, residual water may leak out.
3. Clean the drainage hose and siphon connecting piece.
4. Reattach the drainage hose and secure the connection using the hose clamp.
Filter in the water supply blocked
1. Turn off the tap.
2. Select any program (except Rinse// Spin/Empty).
3. Press the A button.Allow the program to run for approximately 40 seconds.
4. Turn the program selector to Off($). Pull out the mains plug.
5. Clean the filter on the tap:
Disconnect the hose from the tap.
Clean the filter with a small brush.
6. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
Remove the hose from the rear of the appliance.
Use pliers to remove the filter and then clean it.
7. Connect the hose and check for leaks.
3 Faults and what to do about them.
Faults and what to do about them.
Emergency release
: Warning
Risk of scalding!
: Warning
Risk of injury!
Caution!
Water damage
1. Switch off the appliance. Disconnect the mains plug.
2. Drain the detergent solution.
3. Pull the emergency release downwards with a tool and release.
The washing machine door can then be opened.
Information on the display panel
Display
Cause/remedy
Faults and what to do about them.
Faults
Cause/remedy
Note:
4 After-sales service
After-sales service
J Technical data
Technical data
r Aqua-Stop warranty
Aqua-Stop warranty
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
2. The liability guarantee is valid for the service life of the appliance.
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
Our warranty does not cover defective feed lines or fittings leading to the Aqua-Stop connection at the tap.
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
The tap only needs to be turned off if you are away from home for a long period, e.g. for several weeks' holiday.
Page 1/36
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Contents
Table of Contents
Search
Previous
Next
Bookmarks
en
Instruction Manual and
Installation Instructions
WASHING MACHINE
W7...
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 90228232_w7460x2es-16.pdf
File size: 3.51 MB
File Language: English
Pages: 36
Author: Neff
Published:
2020-08-31
Updated: 2023-07-23
Download File
Other documents for Neff W7460X2ES/16
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Neff
Model: W7460X2ES/16
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
K7650X0/03
K8111X0/02
T1683N0/03
C26MT23N0/38
C57M70N0GB/04
Related Products
Neff W7460X2ES/01
Neff W7460X2ES/18
Neff W7460X2ES/12
Neff W7460X4GB
Neff W7460X5GB
Neff W7460X2IR/01
Neff W7460X2GB/20
Neff W7460X1GB/06
Neff W7460X1GB/09
Neff W7460X2GB/01
Neff W7460X0GB/01
Neff W7460X0GB/06
Neff W7460X0GB/14
Neff W7460X0GB/10
Neff W7460X0GB/07
Table of Contents
×
Your new washing machine
2
Display rules
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 7
3
5 Positioning and connecting 8
3
* Getting to know the appliance 15
3
Z Laundry 18
3
C Detergent 19
3
0 Programme default settings 20
3
\ Additional programme settings 21
3
1 Operating the appliance 22
3
H Sensors 26
3
M Setting the signal 27
4
2 Cleaning and maintenance 27
4
3 Faults and what to do about them. 30
4
4 After-sales service 34
4
J Technical data 34
4
r Aqua-Stop warranty 34
4
8 Intended use
4
Intended use
4
■ For private domestic use only.
4
■ The washing machine is suitable for washing machine-washable fabrics and hand-washable wool in water containing detergent.
4
■ To be operated with cold* mains water or cold and hot* mains water (max. 60 °C), and standard detergents and care products which are suitable for use in washing machines.
4
■ When measuring out the amount of all detergents, additives, care products and cleaning agents, always follow the manufacturer's instructions.
4
■ The washing machine may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed by a responsi...
4
Children must not carry out any cleaning or maintenance work without supervision.
4
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
■ Keep children under the age of 3 years away from the washing machine.
4
■ Keep pets away from the washing machine.
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Danger of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
5
: Warning
5
Danger of death!
5
: Warning
6
Danger of death!
6
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye/skin irritation!
6
: Warning
6
Risk of injury!
6
7 Environmental protection
7
Environmental protection
7
Packaging/used appliance
7
Tips on economical use
7
■ Always fill the appliance with the maximum amount of laundry for each programme.
7
Overview of programmes ~: Supplementary sheet for the operating and installation instructions.
7
■ Wash normally soiled laundry without a prewash.
7
■ Save energy and detergent when washing lightly and normally soiled laundry. ~ Page 20
7
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the machine may deviate from this so that you get the optimum mix of energy-saving and washing results.
7
■ Information about the energy consumption*: ~ Page 17
7
The display provides information about the relative energy consumption in the selected programs.
7
The more indicator lights light up, the higher the program's consumption.
7
This enables you to compare the consumption levels of the different programs when choosing your program settings and to decide on an energy- and water-saving program setting.
7
*depending on the model
7
■ Energy-saving mode: The display panel lighting goes out after a few minutes and the A button flashes. Press any button to activate the lighting.
7
Energy-saving mode is not activated if a programme is running.
7
■ If the laundry is subsequently dried in a tumble dryer, select the spin speed according to the tumble dryer manufacturer's instructions.
7
5 Positioning and connecting
8
Positioning and connecting
8
Included with the appliance
8
Note:
8
Check the machine for transport damage. Never use a damaged machine. If you have any complaints, contact the dealer from whom you purchased the appliance or our after-sales service.
8
■ Spirit level for levelling
8
■ Spanner with:
8
Safety instructions
8
: Warning
8
Risk of injury!
8
Caution!
9
Damage to the appliance
9
Caution!
9
Water damage
9
Notes
9
Installation surface
9
Note:
9
The washing machine be stable so that it does not move around.
9
Installation on a base or a wooden joist floor
9
Caution!
9
Damage to the appliance
9
Note:
9
On wooden joist floors, install the washing machine:
9
Installation on a platform with drawer
9
Installing the appliance in a kitchenette
9
: Warning
9
Danger of death!
9
Notes
9
Removing the transport locks
9
Caution!
9
Damage to the appliance
9
Note:
10
Keep the screws and sleeves in a safe place.
10
1. Take the hoses out of the holders.
10
2. Unscrew and remove the bolts from all four transport safety devices.
10
Remove the sleeves. To do this, remove the mains cable from the holders.
10
3. Insert the covers.
10
Hose and cable lengths
10
■ Left-hand connection
10
■ Right-hand connection
10
Tip:
10
Water inlet
10
: Warning
10
Risk of death!
10
Notes
11
Note:
11
Note:
11
Carefully turn on the tap and check that the connection points are not leaking. The screw connection is under water pipe pressure.
11
■ Model: Standard
11
■ Model: Aqua-Secure
12
■ Model: Aqua-Stop
12
Note:
12
Carefully turn on the tap and check that the connection points are not leaking. The screw connection is under water pipe pressure.
12
Water outlet
12
Caution!
12
Water damage
12
Note:
12
Do not kink the water drain hose or put strain on it lengthways.
12
■ Outlet in a sink
12
: Warning
12
Risk of scalding!
12
Caution!
12
Damage to the appliance/fabrics
12
Make sure that:
12
■ Drainage into a siphon
12
The connection point must be secured using a hose clamp with a diameter of 24-40 mm (available from specialist dealers).
12
■ Outlet into a plastic pipe with rubber bushing or into a drainage pit
13
Levelling
13
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
13
2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
13
All four appliance feet must stand firmly on the ground.
13
3. Tighten the lock nut against the housing.
13
In doing so, hold the foot tight and do not adjust its height.
13
The lock nuts on all four appliance feet must be screwed tightly against the housing.
13
Electrical connection
13
: Warning
13
Danger of death!
13
Notes
13
Before washing for the first time
14
Notes
14
1. Check the machine.
14
2. Remove the protective film from the control panel.
14
3. Connect the mains plug.
14
4. Turn on the tap.
14
5. Close the door (do not load any laundry).
14
6. Depending on the model, run the Drum Clean 90 °C or i Cottons 90 °C program.
14
7. Open the detergent drawer.
14
8. Pour approximately 1 litre of water into compartment II.
14
9. Pour standard detergent into compartment II.
14
Note:
14
10. Close the detergent drawer.
14
11. Press the A button.
14
12. When the program ends, switch off the appliance.
14
Transportation
14
1. Turn off the water tap.
14
2. Reduce the water pressure in the supply hose.
14
Maintenance – filter in the water supply ~ Page 29
14
3. Drain the remaining detergent solution.
14
Maintenance – detergent solution pump blocked ~ Page 28
14
4. Disconnect the washing machine from the mains.
14
5. Remove the hoses.
14
1. Remove the covers and keep in a safe place.
14
If required, use a screwdriver.
14
2. Insert all four sleeves.
14
Clamp the mains cable on the holders. Insert and tighten the bolts.
14
Notes
14
* Getting to know the appliance
15
Getting to know the appliance
15
Washing machine
15
Control panel
16
Select additional program settings if necessary: ~ Page 21
16
■ Speed Eco
16
■ Water&Rinse+ *
16
■ Easy-Iron *
16
■ Prewash *
16
A button for:
16
■ Starting a program
16
■ Interrupting a program, e.g. to add items of laundry ~ Page 25
16
■ Cancelling a program ~ Page 25
16
Display panel
17
Note:
17
You will find settings and information for the selected program in the table.
17
More information on the display panel
17
Z Laundry
18
Laundry
18
Prepare the laundry
18
Caution!
18
Damage to the appliance/fabrics
18
■ Empty any pockets.
18
■ Look out for metal items (paperclips, etc.) and remove them.
18
■ Wash delicates in a laundry bag (tights, underwired bras, etc.).
18
■ Close any zips; button up any cover buttons.
18
■ Brush sand out of pockets and collars.
18
■ Remove curtain fittings or place curtains in a laundry bag.
18
Sorting laundry
18
■ Type of fabric/fibre
18
■ Colour
18
Note:
18
■ Soiling Wash laundry with the same level of soiling together.
18
Some examples of soiling levels can be found on ~ Page 20.
18
■ Symbols on the care labels
18
Note:
18
Starching
18
Note:
18
Laundry should not be treated with fabric softener.
18
Dyeing/bleaching
19
Soaking
19
1. Switch on the appliance.
19
2. Select the i Cottons 20 °C program.
19
3. Pour soaking agent/detergent into compartment II in accordance with the manufacturer’s instructions.
19
4. Press the A button.
19
5. After approx. 10 minutes, press the A button to pause the program.
19
6. Leave the laundry to soak for as long as required, then either press the A button again to continue the program or change the program.
19
Notes
19
C Detergent
19
Detergent
19
Correct selection of detergent
19
■ Standard detergent with optical brighteners
19
Suitable for boil-washable white laundry made from linen or cotton
19
Programme: Cottons/
19
cold - max. 90 °C
19
■ Detergent for colours without bleach or optical brighteners
19
Suitable for coloured laundry made from linen or cotton
19
Programme: Cottons/
19
cold - max. 60 °C
19
■ Detergent for colours/delicates without optical brighteners
19
Suitable for coloured laundry made from easy-care fibres, synthetic fibres
19
Programme: Easy-Care/
19
cold - max. 60 °C
19
■ Detergent for delicates
19
Suitable for delicate, fine fabrics, silk or viscose
19
Programme: Delicate/Silk/
19
cold - max. 40 °C
19
■ Detergent for woollens
19
Suitable for wool
19
Wool programme/
19
cold - max. 40 °C
19
Saving energy and detergent
20
Saving
20
Soiling/note
20
Note:
20
When measuring the amount of all detergents/additives/care products and cleaning agents, please always check the manufacturer's instructions and information. ~ Page 23
20
0 Programme default settings
20
Programme default settings
20
Note:
20
Pressing and holding the buttons automatically runs through the setting values until the last one. Then press the button again and you will be able to change the setting values again.
20
Temperature
20
Spin speed
20
Finished in-time
21
1. Select a program.
21
The program duration is displayed for the selected program, e.g. 2:30 (hours:minutes).
21
2. Press the Finished in-time button repeatedly until the required number of hours is displayed.
21
3. Press the A button.
21
The program starts.
21
The selected number of hours (e.g. 8 h) is shown in the display panel and counts down until the wash program starts. The duration of the program is then displayed.
21
Note:
21
The length of the program is automatically adjusted when the program is running.
21
Certain factors can affect the program length, e.g.:
21
1. Press the A button.
21
2. Use the Finished in-time button to change the number of hours.
21
3. Press the A button.
21
\ Additional programme settings
21
Additional programme settings
21
Speed Eco
21
■ Speed
21
Washing in a shorter time while achieving a washing result that is consistent with, but uses more energy than, the selected program, without the Speed Eco setting.
21
Note:
21
■ Eco
22
Energy-optimised washing by reducing the temperature while achieving a washing result that is consistent with the selected program, without the Speed Eco setting.
22
Easy-Iron
22
Note:
22
The washing's residual moisture is increased.
22
Water&Rinse+
22
Prewash
22
Note:
22
Pour detergent into compartments I and II.
22
1 Operating the appliance
22
Operating the appliance
22
Preparing the washing machine
22
Note:
22
The washing machine must be correctly installed and connected. From ~ Page 8
22
1. Connect the mains plug.
22
2. Turn on the water tap.
22
3. Open the door.
22
4. Check that the drum is completely drained. Drain if necessary.
22
Select programme/switch on the appliance
22
Note:
22
If you have activated the childproof lock, you must first deactivate it, before you can set a program.
22
■ Temperature*,
22
■ The maximum load and the duration of the program (alternately)
22
■ Energy consumption*.
22
Change the programme default settings
23
Select additional programme settings
23
Placing laundry into the drum
23
: Warning
23
Danger of death!
23
Notes
23
1. Unfold presorted laundry items and place them in the drum.
23
2. Make sure that no items of laundry are trapped between the door and the rubber seal, and close the door.
23
Measure and add detergent and care products
23
Caution!
23
Damage to the appliance
23
■ The water hardness (ask your water supply company)
24
■ The manufacturer's instructions on the packaging
24
■ The amount of laundry
24
■ The degree of soiling ~ Page 20
24
: Warning
24
Eye/skin irritation!
24
Note:
24
Dilute viscous fabric softener and fabric conditioner with water to prevent blockages.
24
1. Pull out the detergent drawer as far as possible.
24
2. Add detergent and/or care products.
24
3. Close the detergent drawer.
24
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
24
2. Slide the measuring aid forwards, fold it down and click it into place.
24
3. Reinsert the drawer.
24
Note:
24
Do not use the measuring aid for gel detergents and washing powder, or for programmes with prewash or when the Ready in time is selected.
24
Start the programme
24
Note:
24
Foam detection
24
If the Å symbol also lights up in the display panel, the washing machine has detected too much foam during the wash cycle and automatically activated additional rinse cycles to remove the foam.
24
Add less detergent to the next wash cycle with the same load.
25
Childlock
25
■ E lights up: The childproof lock is active.
25
■ E flashes: The childproof lock is active and the program selector has been adjusted.To deactivate the childproof lock, reset the program selector to the initial program. The symbol lights up again.
25
Note:
25
Note:
25
The childproof lock remains active after the program has ended and the appliance is switched off. You must always deactivate the childproof lock if you want to start a new program.
25
Adding laundry
25
■ the è symbol disappears, and adding is possible.
25
■ the è symbol lights up, it is not possible to add laundry.
25
Notes
25
Changing the programme
25
1. Press the A button.
25
2. Select another program.
25
3. Press the A button.The new program starts from the beginning.
25
Cancel the programme
25
1. Press the A button.
25
2. To cool down laundry: Select ' Rinse.
25
3. Press the A button.
25
1. Press the A button.
25
2. Select 0 Spin/Drain//Spin/Empty `.
25
3. Press the A button.
25
Programme end during rinse hold
26
■ Pressing the A button or
26
■ Selecting a spin speed or setting the program selector to 0 Spin/Drain// Spin/Empty ` and then pressing the A button.
26
Programme end
26
Removing laundry/switching off the appliance
26
1. Open the door and remove the laundry.
26
2. Turn the program selector to Off ($). The appliance is switched off.
26
3. Turn off the tap.
26
Note:
26
Notes
26
H Sensors
26
Sensors
26
Automatic load sensing
26
Unbalanced load detection system
26
Note:
26
Place large and small items of laundry evenly in the drum. ~ Page 32
26
M Setting the signal
27
Setting the signal
27
■ The volume of the buttons and information signals (e.g. at the end of the program) and/or
27
■ The volume of the button signals.
27
Activating the setting mode
27
1. Select the i Cottons program to position 1. The washing machine is switched on.
27
2. Press the A button and, at the same time, turn the program selector clockwise to position 2.Release the button.
27
■ 2: The volume of the information signals and/or
27
■ 3: The volume of the button signals.
27
2 Cleaning and maintenance
27
Cleaning and maintenance
27
: Warning
27
Danger of death!
27
: Warning
27
Risk of poisoning!
27
Caution!
27
Damage to the appliance
27
Notes
27
Machine housing/control panel
27
■ Wipe the housing and the control panel with a soft, damp cloth.
27
■ Remove the detergent residue immediately.
28
■ Do not clean with a water jet.
28
Drum
28
Descaling
28
Detergent drawer and housing
28
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
28
2. To remove the insert: Push the insert upwards from below with your finger.
28
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
28
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
28
5. Push in the detergent drawer.
28
Note:
28
Leave the detergent drawer open so that any residual water can evaporate.
28
Detergent solution pump blocked
28
: Warning
28
Risk of scalding!
28
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
28
2. Switch off the appliance. Pull out the mains plug.
28
3. Open and remove the service flap.
28
4. Take the drain hose out of the retainer.
28
Remove the sealing cap and pour the water out into a suitable container.
28
Replace the sealing cap and place the drain hose back in the retainer.
28
5. Carefully unscrew the pump cover; residual water may leak out.
28
Clean the interior, pump-cover thread and pump housing. The impeller in the drain pump must be able to rotate.
28
Refit the pump cover and screw it on tightly. The handle must be in a vertical position.
29
6. Place the service flap back on, lock it into place, and close it.
29
Note:
29
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 2 litre of water into compartment II and start the Empty programme.
29
The drain hose at the siphon is blocked
29
1. Switch off the appliance. Disconnect the mains plug.
29
2. Loosen the hose clamp. Carefully remove the drain hose, residual water may leak out.
29
3. Clean the drainage hose and siphon connecting piece.
29
4. Reattach the drainage hose and secure the connection using the hose clamp.
29
Filter in the water supply blocked
29
1. Turn off the tap.
29
2. Select any program (except Rinse// Spin/Empty).
29
3. Press the A button.Allow the program to run for approximately 40 seconds.
29
4. Turn the program selector to Off($). Pull out the mains plug.
29
5. Clean the filter on the tap:
29
Disconnect the hose from the tap.
29
Clean the filter with a small brush.
29
6. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:
29
Remove the hose from the rear of the appliance.
29
Use pliers to remove the filter and then clean it.
29
7. Connect the hose and check for leaks.
29
3 Faults and what to do about them.
30
Faults and what to do about them.
30
Emergency release
30
: Warning
30
Risk of scalding!
30
: Warning
30
Risk of injury!
30
Caution!
30
Water damage
30
1. Switch off the appliance. Disconnect the mains plug.
30
2. Drain the detergent solution.
30
3. Pull the emergency release downwards with a tool and release.
30
The washing machine door can then be opened.
30
Information on the display panel
31
Display
31
Cause/remedy
31
Faults and what to do about them.
32
Faults
32
Cause/remedy
32
Note:
33
4 After-sales service
34
After-sales service
34
J Technical data
34
Technical data
34
r Aqua-Stop warranty
34
Aqua-Stop warranty
34
1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.
34
2. The liability guarantee is valid for the service life of the appliance.
34
3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).
34
Our warranty does not cover defective feed lines or fittings leading to the Aqua-Stop connection at the tap.
34
4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.
34
The tap only needs to be turned off if you are away from home for a long period, e.g. for several weeks' holiday.
34
Search:
×
Search
