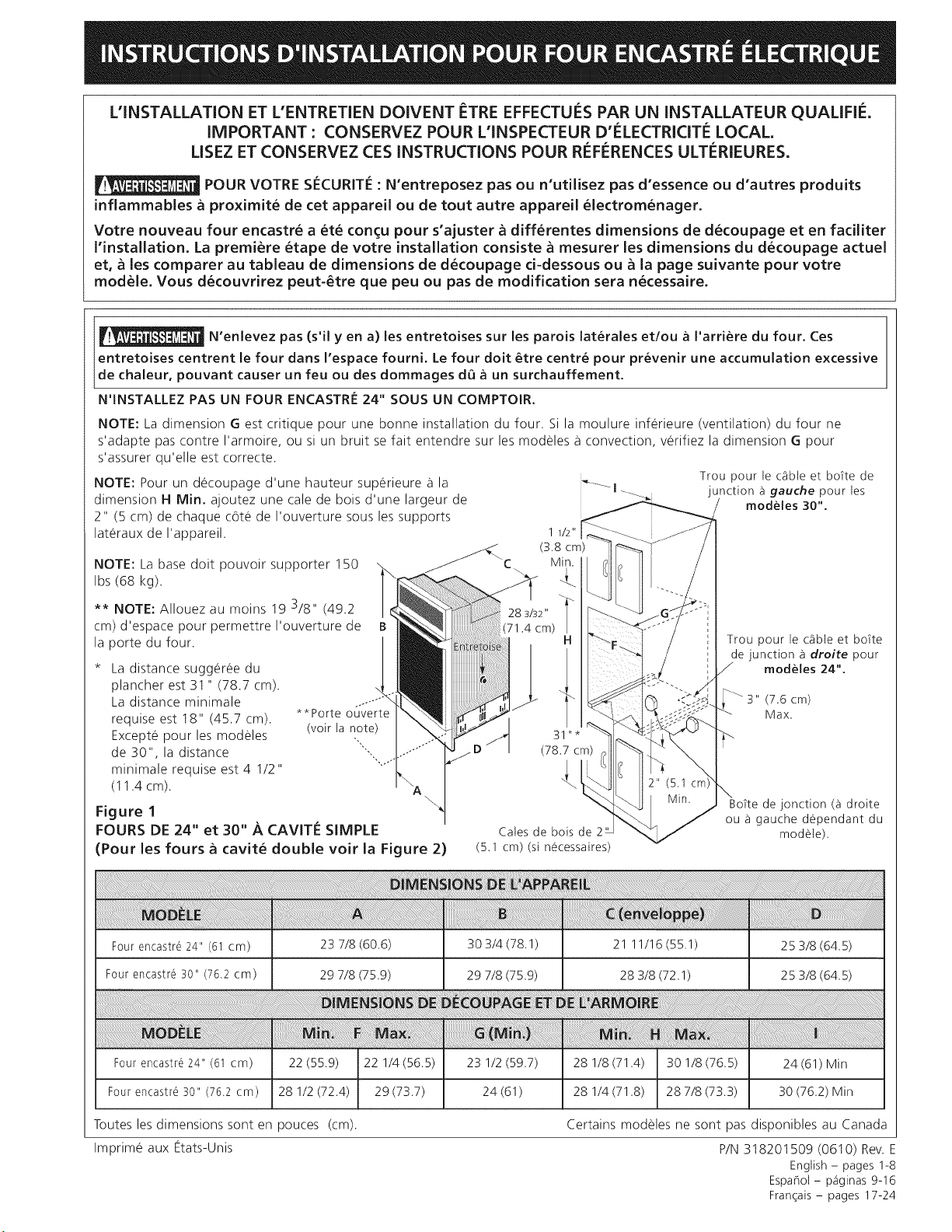

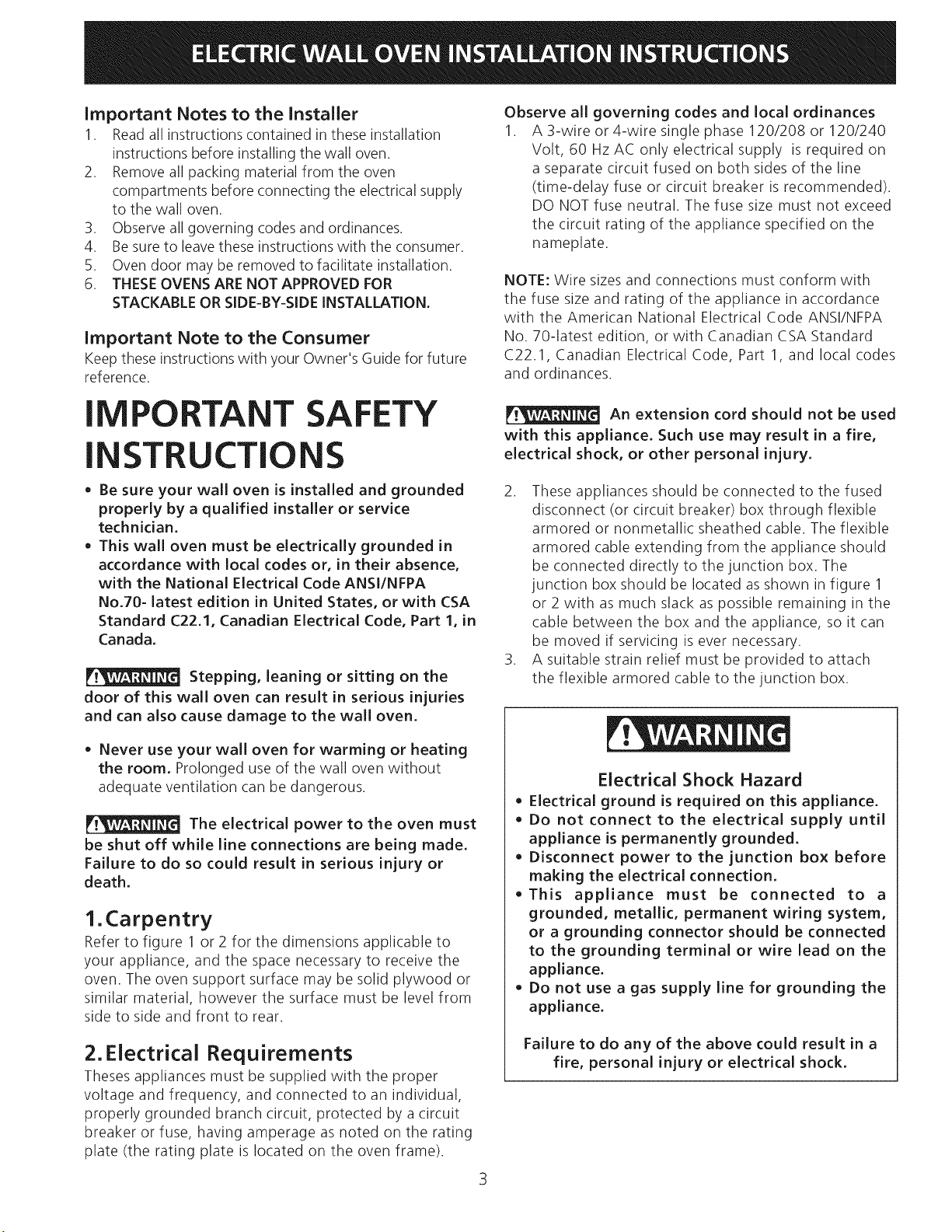

iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
Your new wall oven has been designed to fit a limited variety of cutout sizes to make the job of installing
easier. The first step of your installation should be to measure your current cutout dimensions and
compare them to the cutout dimensions chart below or next page for your model. You may find little or
no cabinet work will be necessary.
Do not remove spacers (if equipped) on the side walls and/or on the back of the built-in oven.
These spacers center the oven in the space provided. The oven must be centered to prevent excess heat buildup
that may result in heat damage or fire.
DO NOT INSTALL A 24" WALL OVEN IN A BASE CABINET WITH A COUNTERTOP ABOVE IT.
NOTE: Dimension G is critical to the proper installation of the built-in oven. If the oven decorative trim (ventilation) does not
but against the cabinet, or if noise is heard on convection models, verify dimension G to assure it is according to the required
dimension.
NOTE: For a cutout height greater than H Min. dimension add
one 2" (5 cm) wide wood shim to each side of the opening under
the appliance side rails.
NOTE: Base must be capable of
supporting 150 pounds (68 kg).
** NOTE: Allow at least 19 3/8" (49.2
cm) clearance for door depth when it is
open.
Suggested distance from B
floor is 31 " (78.7 cm). |
Minimum required distance
is 18" (45.7 cm).
Except for 30" models,
o
minimum required distance ..........
is 4 1/2" (11.4 cm). **Door Open
(see note)
"'",,%.
Figure 1
24" AND 30" SINGLE OVENS

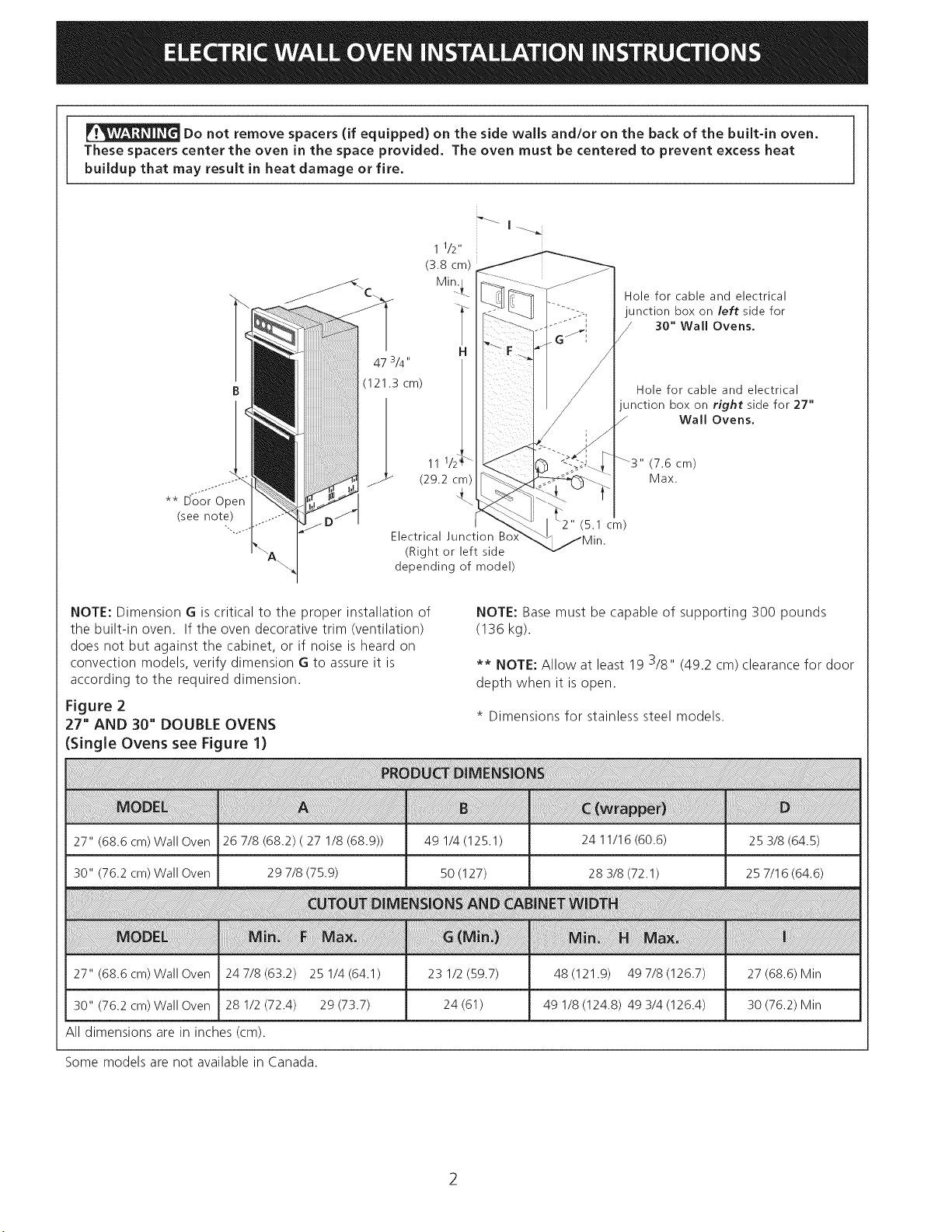

(Double Ovens see Figure 2)
28 3/32 "
(71.4 cm)
1 1/2"
(3.8 cm)
Min.
H
31 "*
(78.7 cm)
2" (5.1 cm) Wide Wood
Spacer if
Hole for cable and
electrical junction box on
left side for 30" Wall
Ovens.
Hole for cable and
electrical junction
box on right side for
24" Wall Ovens.
(7.6 cm)
Max.

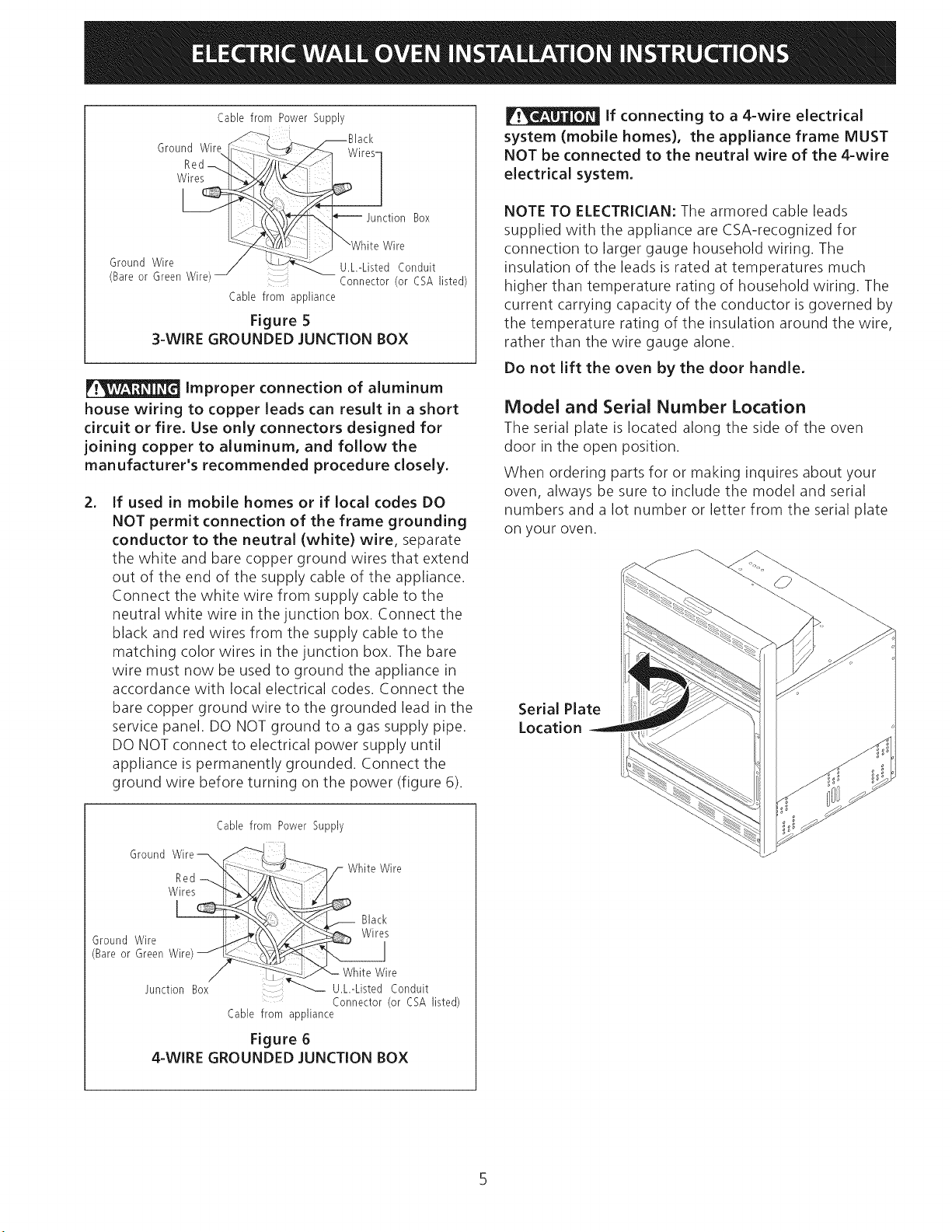

Electrical Junction
Box (Right or left
side depending of
model)
24" (61 cm) Wall Oven 23 7/8 (60.6) 30 3/4 (78.1) 21 11/16 (55.1) 25 3/8 (64.5)
30" (76.2 cm) Wall Oven 29 7/8 (75.9) 29 7/8 (75.9) 28 3/8 (72.1) 25 3/8 (64.5)
24" (61 cm)Wall Oven 22 (55.9)
30" (76.2 cm)Wall Oven 28 1/2 (72.4)
All dimensions are in inches (cm).
Printed in United States
22 1/4 (56.5) 23 1/2 (59.7)
29 (73.7) 24 (61)
28 1/8 (71.4) 30 1/8 (76.5) 24 (61) Min
28 1/4 (71.8) 28 7/8 (73.3) 30 (76.2) Min
Some models are not available in Canada.
P/N 318201509 (0610) Rev. E
English - pages 1-8
Espa_ol- p_iginas 9-16
Fran_ais - pages 17-24
