User Manual LG LMY120UM0AUCLPL Wine 2 U.s. Cellular

• User Manual - (English)

Table of contents

• Basic Functions
• Appendix

Basic Functions

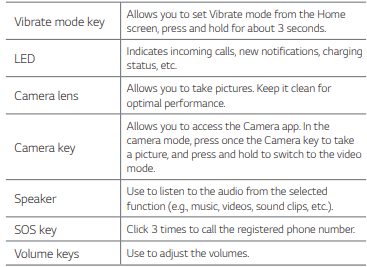

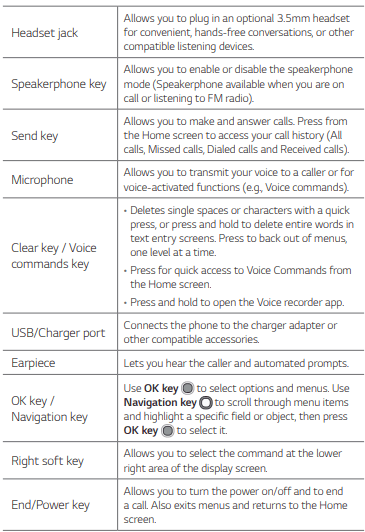

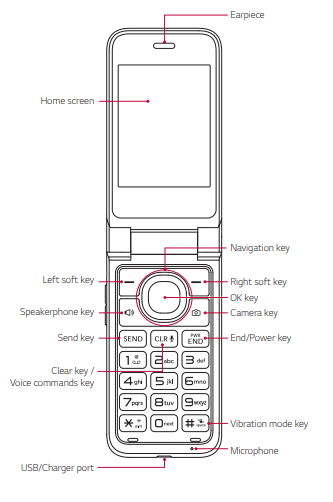

Parts overview

Home screen

The Home screen is your starting point to access all of the features on your phone using simple key presses.

Customizing the Home screen

You can customize your Home screen wallpaper and clock format using the Settings app. From the Home screen, press OK key [Menu], press 9 key [Settings], then press 4 key [Display].

• Wallpaper: Press 3 key [Wallpaper] to select a background image from pre-loaded images or your own pictures.
• Clock Format: Press 8 key [Clock] to set the clock format.

Phone’s status icons

The Status Bar appears at the top of every screen. It displays icons indicating that you’ve received notifications (on the left) and icons indicating the phone’s status (on the right), along with the current time.

The following icons may appear in the Status Bar.

Getting started with your phone

Step 1. Remove the back cover

With the phone facing down, insert your fingernail into the cutout located on the bottom of the back cover and gently lift the cover.

Step 2. Insert the battery

Insert the battery, making sure the gold contacts line up. Press down gently to secure.

Step 3. Replace the back cover

Place the back cover over the back of the phone and then press down along the edges to secure.

Step 4. Charge the phone

Before turning on your phone, charge it fully.

Insert the small end of the USB cable into the phone. Insert the larger end into the charger and plug the charger into an outlet

Removing the battery

1. Turn the phone off.
2. With the phone facing down, insert your fingernail into the cutout located on the bottom of the back cover and gently lift the cover.
3. Use the fingertip opening near the bottom of the battery compartment to lift the battery out.

Charging with USB

You can use your computer to charge your phone. To be able to charge with the USB cable, you may need to have the necessary USB Driver installed on your PC first. Connect one end of the USB cable to the Accessory/Charger Port on your phone and the other end to the USB port on your PC.

Quick access to convenient features

Vibration mode

You can set the phone to vibrate instead of ringing ( is displayed).

To set Vibration Mode, press and hold Vibration Mode key . To return to the standard mode, press and hold Vibration Mode key again.

Sounds off

Quickly deactivate your phone’s sounds when you’re in a place where phone sounds would be disruptive.

From the Home screen, press and hold Volume down key . To return to the standard sound mode, press and hold Volume up key .

Quick volume adjustment

Quickly adjust ringer and earpiece volumes by pressing Volume key on the left side of the phone. Press Volume up key to increase the volume and Volume down key to decrease the volume

Capturing a screenshot

Press and hold Volume down key and End/Power key at the same time for 2 seconds to capture a screenshot of the current screen. To view the captured image, press OK key [Menu], then press 3 key [Gallery].

Caller ID

Caller ID displays the number and/or name and picture (if applicable) of the person calling when your phone rings

Entering and editing information

Text input

The following key functions are available to help with text entry:

Left soft key: Press to change the text input mode.

Shift: Press to change capitalization (initial cap, caps lock, lowercase).

Next: Press to display other matching words in the database in T9 word mode.

Space: Press to insert a space.

Right soft key: Press to select one of the following options: Attach/ Save as draft/ Quick reply/ Add subject/ Priority/ Discard.

Clear key / Voice commands key: Press to delete a single space or character. Press and hold to delete entire words or sentences.

Punctuation: Press to insert punctuation symbols when using Abc text input mode.

Text input modes

In a text field, press Left soft key to select a text input mode:

T9 Word/ Abc/ ABC/ 123/ T9 Palabra/ Symbols/ Emojis/ Copy/Paste/ T9 dictionary

Appendix

Q&A

Please check to see if any problems you have encountered with the phone are described in this section before taking the phone in for a service or calling customer service.

Q How do I view the list of outgoing calls, incoming calls, and missed calls?

A Press Send key .

Q Why won’t the LCD turn on?

A Remove the battery, and place it back. Then turn on the power. If there is no change, fully charge the battery and try again.

Q Why is the connection inconsistent or not audible in certain areas?

A When the frequency environment is unstable in a certain area, connection may be inconsistent and inaudible. Relocate to another area and try again.

Q Why does the phone heat up?

A The phone may get hot when there is a very long call duration, when games are played, or even when surfing the Internet for a long time. This has no effect upon the life of the product or performance.

Q Why is the connection inconsistent or abruptly disconnects even when established?

A When frequency is unstable or weak, or if there are too many users, a connection may be cut off even after it was established.

Please try again later or attempt again after relocating to other areas.

Q Why does the battery run out so quickly during normal use?

A This may be due to the user environment, a large number of calls, or a weak signal.

Q Why is no number dialed when an contact list entry is recalled?

A Check that the number has been stored correctly by using the contact list Search feature. Restore them, if necessary.

Anti-Theft Guide

You can set up your device to prevent other people from using it if it's been reset to factory settings without your permission. For example, if your device is lost, stolen, or wiped, only someone with your Google account or screen lock information can use the device.

All you need to make sure your device is protected is:

• Set a screen lock: If your device is lost or stolen but you have a screen lock set, the device can't be erased using the Settings menu unless your screen is unlocked.
• Add your Google account on your device: If your device is wiped but you have your Google account on it, the device can't finish the setup process until your Google account information is entered again.

After your device is protected, you'll need to either unlock your screen or enter your Google account password if you need to do a factory reset. This ensures that you or someone you trust is doing the rese
