Your new washer dryer
2
Display rules
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Protection of the environment 6
3
Y The main points in brief 7
3
* Getting to know your appliance 8
3
Z Laundry 12
3
1 Operating the appliance 14
3
/ Overview of programmes 20
3
0 Changing programme default settings 24
3
\ Selecting additional functions 26
3
M Setting the signal 27
3
2 Cleaning and maintenance 28
3
3 Faults and what to do about them 31
3
4 Customer service 35
4
J Technical specifications 35
4
[ Consumption values 36
4
5 Positioning and connecting 37
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Danger of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
5
: Warning
5
Danger of death!
5
: Warning
5
Danger of death!
5
: Warning
6
Risk of choking!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye / skin irritation!
6
: Warning
6
Risk of injury!
6
7 Protection of the environment
6
Protection of the environment
6
Packaging/old appliance
6
Hints and tips
6
Y The main points in brief
7

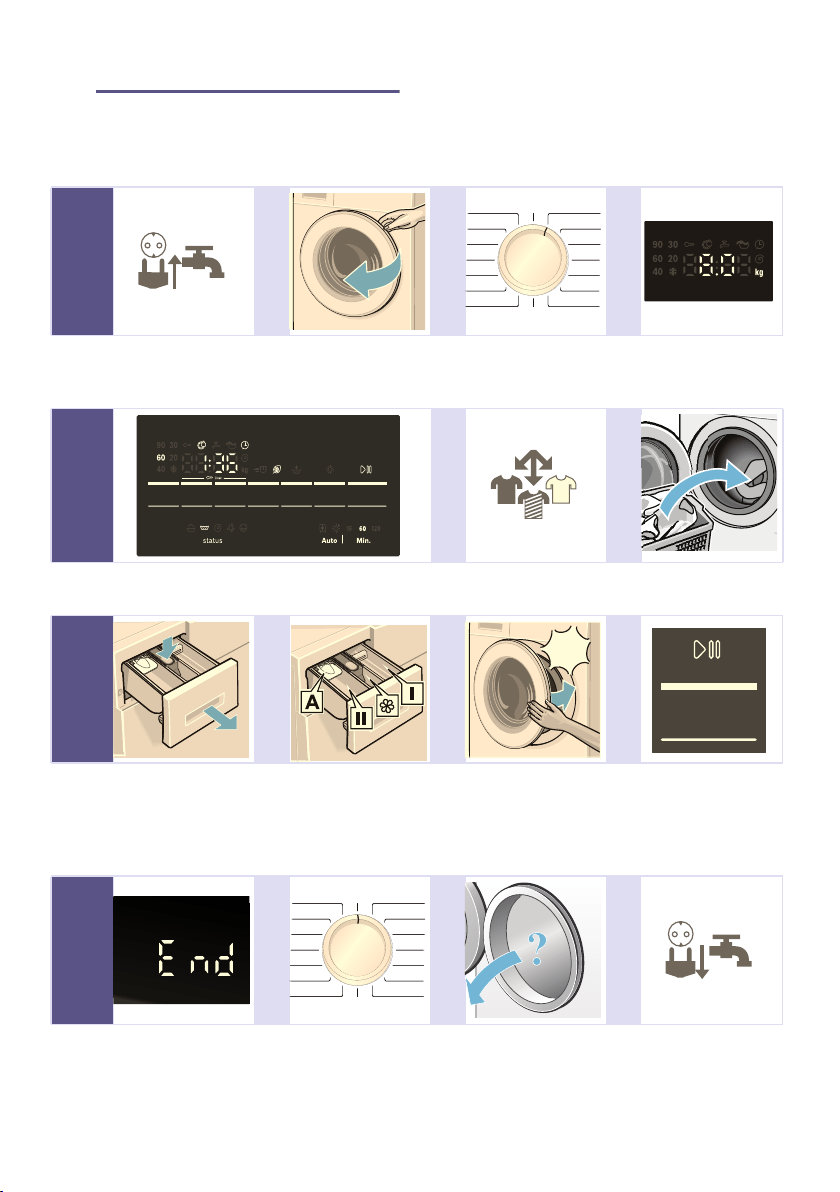

The main points in brief
7
* Getting to know your appliance
8
Getting to know your appliance
8
Washer dryer
8
Control panel
9
Display panel
10
Displays for the programme
10
Z Laundry
12
Laundry
12
Preparing laundry for washing
12
Sorting laundry according to:
12
Note:
12
Note:
12
Protecting your laundry and washer dryer:
12
Caution!
12
Damage to the appliance/textiles
12
Preparing laundry for drying
13
Note:
13
To ensure an even drying result, sort the laundry according to the:
13
Notes
13
1 Operating the appliance
14
Operating the appliance
14
Preparing the washer dryer
14
Note:
14

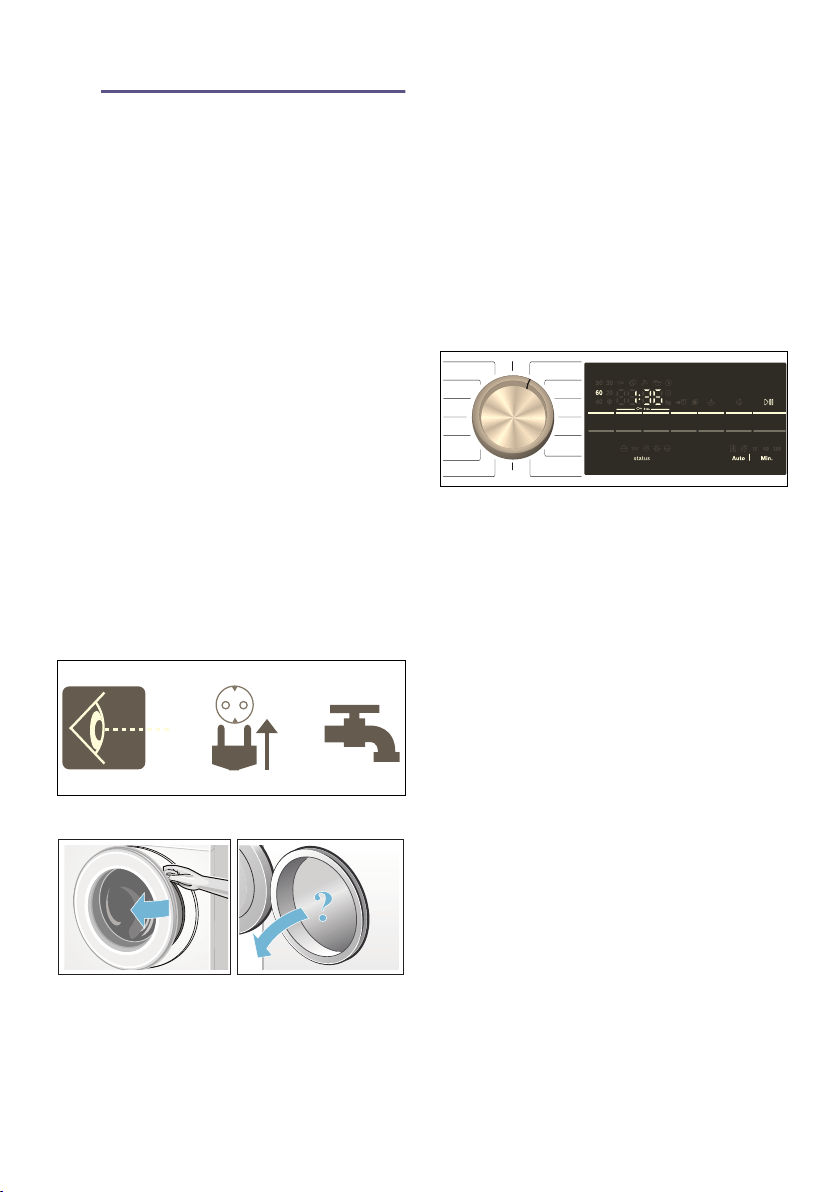

1. Insert mains plug.
14

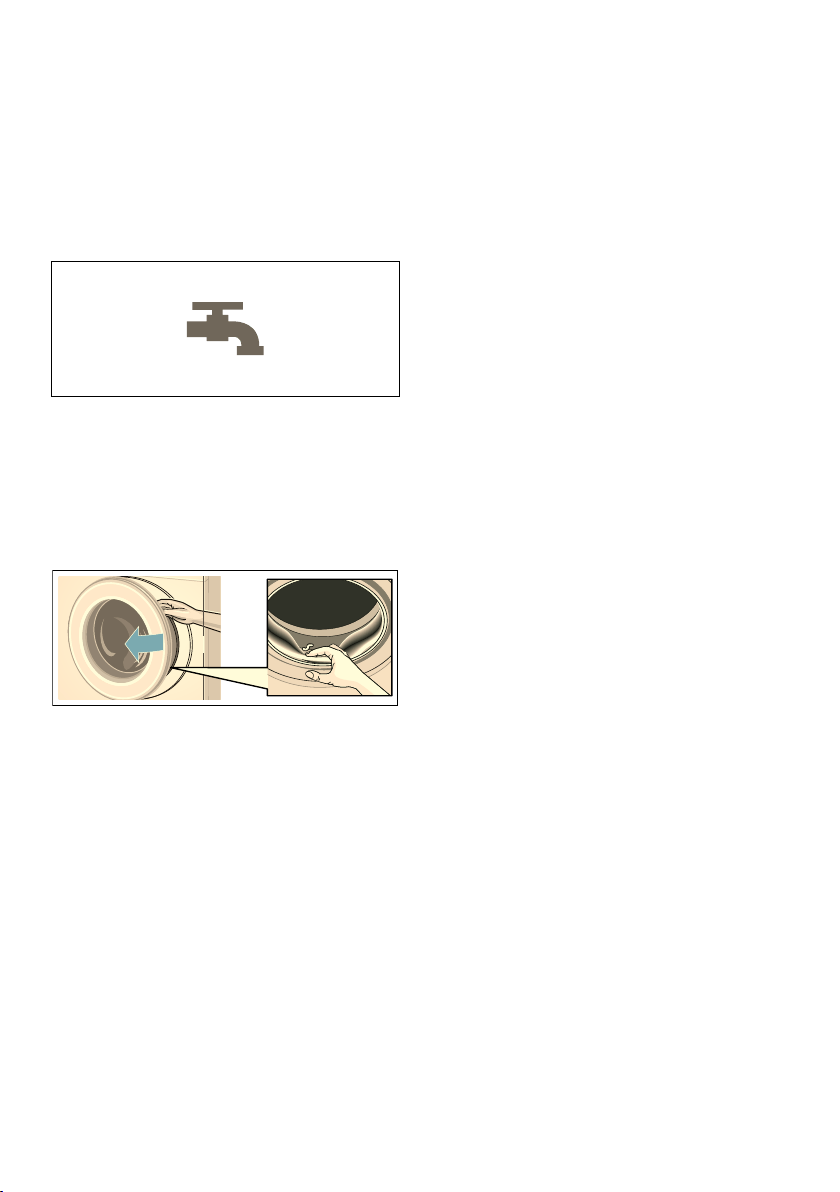

2. Turn the tap on.
14
3. Open the door.
14
Selecting the programme/ Switching on the appliance
14
Note:
14
If you have activated the childproof lock, you must deactivate it before you can set a programme.
14
Adjusting the washing programme
14
Notes
14
Note:
15
After changing the programme default settings and/or additional functions, the programme duration may change.
15
Adjusting the drying programme
15
Note:
15
If an individual drying programme or washing and drying without interruption is selected, you can change the default settings for the drying programme if required.
15
Overview of programmes~ Page 20
15
Note:
15
After changing the default settings for the drying programme, the programme duration may change.
15
Loading the laundry
15
: Warning
15
Danger of death!
15
Notes
15

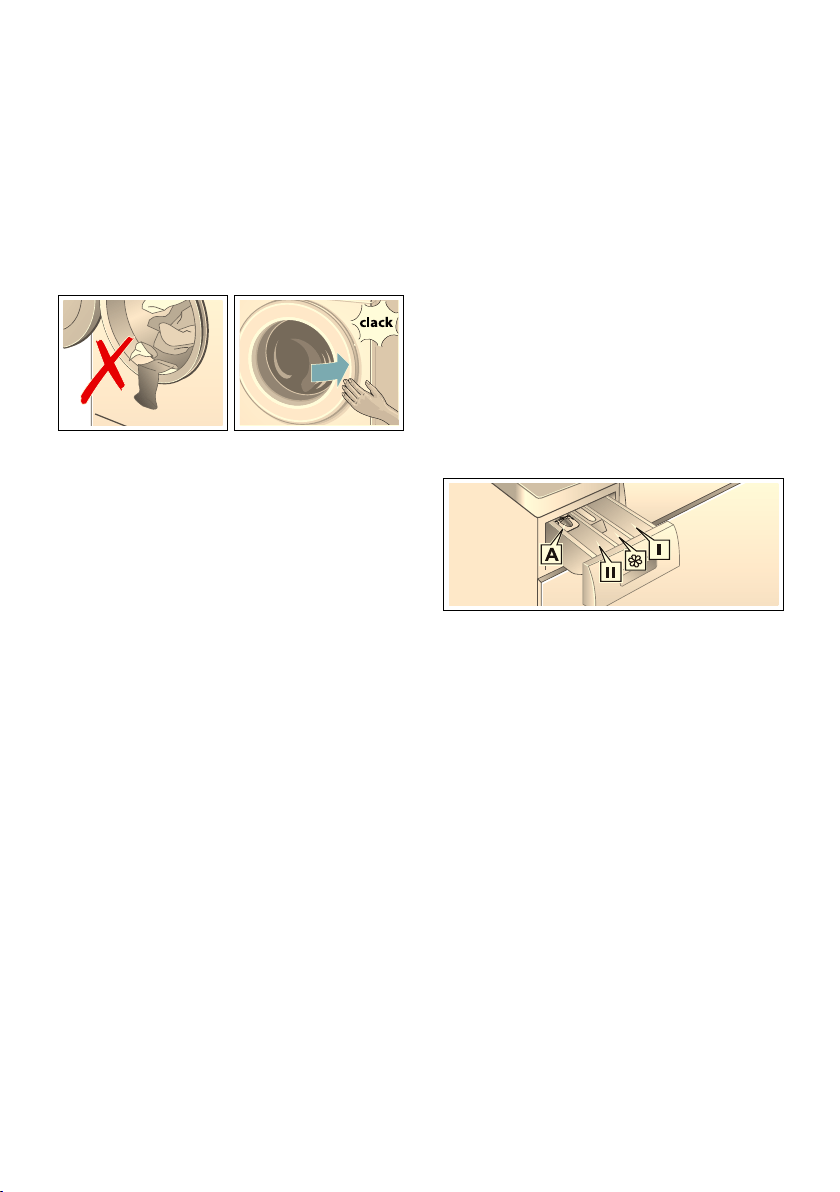

1. Unfold presorted laundry items and place in the drum.
16
2. Ensure that no laundry items are trapped between the door and rubber seal.
16
3. Close the door.
16
Note:
16
The indicator light on the A Start/Reload button flashes and the default settings for the programme appear continuously on the display panel. Changes may be made to the default settings.
16
Dosing and adding detergent and care product
16
Caution!
16
Damage to the appliance
16
1. Pull out the detergent drawer.
16
: Warning
16
Eye / skin irritation!
16
2. Pour in detergent and/or cleaning product.
16
Notes
16
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
17
2. Slide the measuring aid forwards, fold it down and click it into place.
17
3. Reinsert the drawer.
17
Note:
17
Do not use the measuring aid for gel detergents and washing powder, or for programmes with prewash or when "Finish in" time is selected.
17
Starting the programme
17
Note:
17
If you want to secure the programme to prevent it from being adjusted inadvertently, select the childproof lock.
17
Childproof lock
17
Note:
17
The childproof lock may remain activated until the next programme starts, even after the washer dryer has been switched off. If this is the case, deactivate the childproof lock before the programme starts and, if required, reactivate after the progra...
17
Reloading the laundry
17
Notes
18
Changing the programme
18
1. Select A Start/Reload.
18
2. Select another programme. If required, adjust the default settings and/or select additional functions.
18
3. Select A Start/Reload. The new programme starts from the beginning.
18
Interrupting or ending the programme
18
1. Select A Start/Reload.
18
2. To cool down laundry: Select Rinse.
18
3. Select A Start/Reload.
18
1. Select A Start/Reload.
18
2. Select Spin/Drain.
18
3. Select A Start/Reload.
18
1. Select Intensive Dry or Gentle Dry.
18
2. Touch button Š Dry and set drying time to 15 minutes.
18
3. Select A Start/Reload.
18
End of the programme
18
Notes
18
After washing/drying
19
1. Open the door and remove the laundry.
19
2. Turn the programme selector to Û Off. The appliance is switched off.
19
3. Turn off the tap.
19
Notes
19
/ Overview of programmes
20
Overview of programmes
20
Programme on the programme selector
20
Programme/Type of washing
20
Options/Information
20
Note:
20
Note:
20
Notes
21
Notes
21
Note:
22
Note:
22
Note:
22
Note:
22
Drying table
23
Starching
24
Note:
24
The laundry should not be treated with fabric softener.
24
Dyeing/Bleaching
24
Soaking
24
1. Pour soaking agent/detergent into dispenser II according to the manufacturer’s instructions.
24
2. Set the programme selector to Cottons 60°C and select A Start/ Reload.
24
3. After approximately 10 minutes select A Start/Reload to pause the programme.
24
4. After the required soaking time, reselect A Start/Reload if the programme is to be continued or change the programme.
24
Note:
24
Load laundry of the same colour. No additional detergent is required, the soaking solution is used for washing.
24
0 Changing programme default settings
24
Changing programme default settings
24
°C Temp.
24
0 rpm
24
ñ Finished in
25
Note:
25
The respective programme duration is displayed by selecting the programme. The programme duration is automatically adjusted while the programme is running if the programme duration needs to be changed, e.g. due to changes in the programme default set...
25
1. Touch the A Start/Reload button.
25
2. Touch the ñ Finished in button and change the Finish in time.
25
3. Touch the A Start/Reload button.
25
Š Dry
25
Notes
25
1. Touch button Š Dry and activate the function » or ·.
25
2. Do not exceed the maximum loads for drying.
25
3. Maximum spin speed for the washing programme will be selected automatically to obtain a good drying result.
25
\ Selecting additional functions
26
Selecting additional functions
26
G Speed Perfect
26
Note:
26
Do not exceed maximum load.
26
Overview of programmes~ Page 20
26
F Eco Perfect
26
Note:
26
The washing temperature is lower than the selected temperature. For special hygiene requirements, the Allergy+ programme is recommended.
26
Z Aqua Plus
26
M Setting the signal
27
Setting the signal
27
Setting signal volume
27
2 Cleaning and maintenance
28
Cleaning and maintenance
28
: Warning
28
Risk of electric shock!
28
: Warning
28
Risk of poisoning!
28
Caution!
28
Damage to the appliance
28
Machine housing/Control panel
28
Drum
28
Descaling
28
Cleaning the detergent dispenser
28
1. Pull out the detergent drawer. Depress the insert and remove the drawer completely.
28
2. Take out insert: using your finger, press insert upwards.
28
3. Clean the detergent dispenser and insert with water and a brush and dry.
28
4. Attach the insert and lock into position (push the cylinder onto the guide pin).
28
5. Insert detergent drawer.
28
Note:
28
Leave the detergent drawer open so that residual water can evaporate.
28

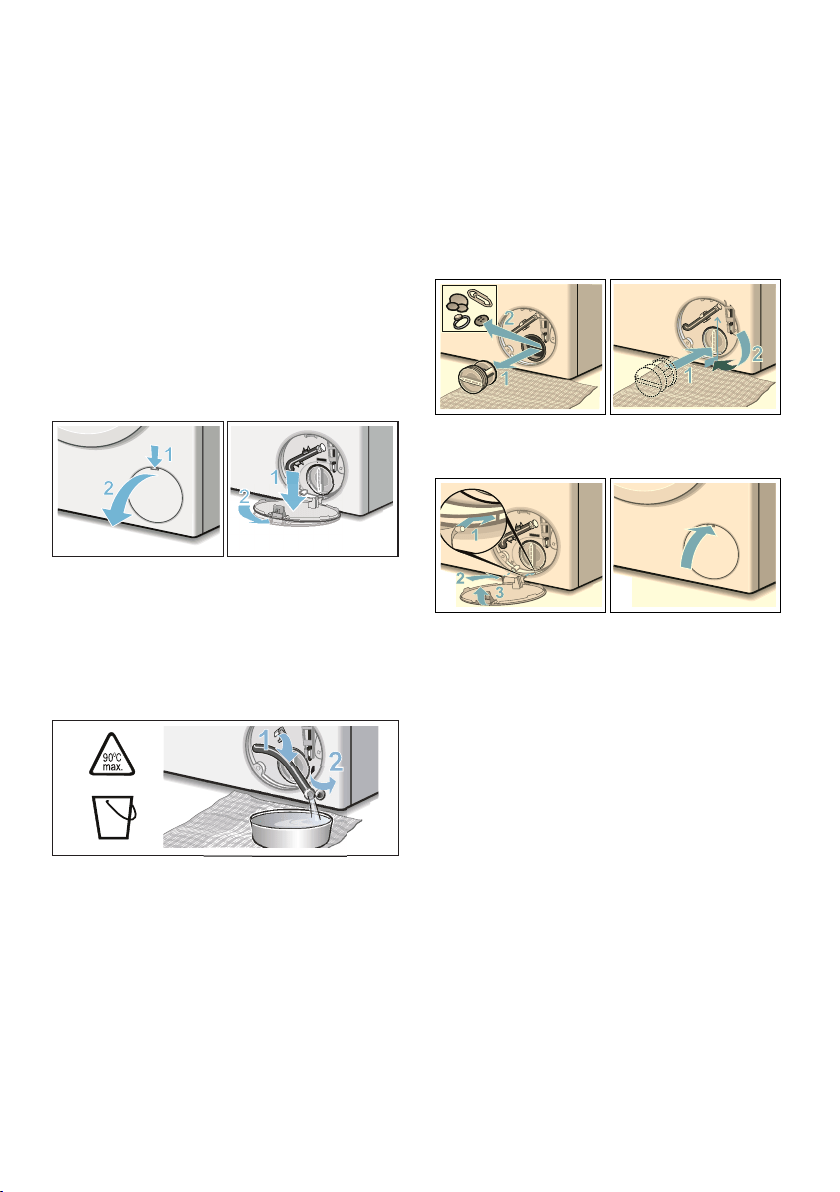

Drain pump blocked
29
: Warning
29
Risk of scalding!
29
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
29
2. Switch off the appliance. Pull out the mains plug.
29
3. Open and remove the service flap.
29
4. Take the drain hose out of the retainer.
29
5. Carefully unscrew the pump cover; residual water may leak out.
29
6. Place the service flap back on, lock it into place, and close it.
29
Note:
29
To prevent unused detergent from flowing into the outlet during the next wash: Pour 1 litre of water into dispenser II and start the Spin/Drain programme: (if only a drained cycle is required: set 0 rpm (spin speed) to 0 ).
29
Drainage hose on the siphon blocked
30
1. Turn the programme selector to Û Off. Pull out the mains plug.
30
2. Loosen hose clip, carefully remove drainage hose. Residual water may run out.
30
3. Clean drainage hose and siphon spigot.
30
4. Re-attach the drainage hose and secure the connection point with the hose clip.
30
Filter in the water inlet hose blocked
30
: Warning
30
Danger of death!
30
1. Turn off the tap.
30
2. Select any programme (except Spin /Drain).
30
3. Select A Start/Reload. Allow the programme to run for approx. 40 s.
30
4. Turn the programme selector to Û Off. Pull out the mains plug.
30
5. Clean the filter on the tap:
30
6. Clean the filter on the back of the appliance:
30
7. Connect the hose and check for leaks.
30
3 Faults and what to do about them
31
Faults and what to do about them
31
Emergency release, e.g. if a power failure occurs
31
: Warning
31
Risk of scalding!
31
: Warning
31
Risk of injury!
31
Caution!
31
Water damage
31
1. Switch off the appliance. Disconnect the mains plug.
31
2. Drain the detergent solution.
31
3. Pull the emergency release downwards with a tool and release.
31
Information on the display panel
31
Information
31
Cause/Remedy
31
Faults and what to do about them
32
Faults
32
Cause/Remedy
32
Note:
32
4 Customer service
35
Customer service
35
J Technical specifications
35
Technical specifications
35
[ Consumption values
36
Consumption values
36
Programme
36
Option
36
Load
36
(kg)
36
Energy consumption *** (kWh)
36
Water Consumption *** (liter)
36
Programme duration *** (hours)
36
5 Positioning and connecting
37
Positioning and connecting
37

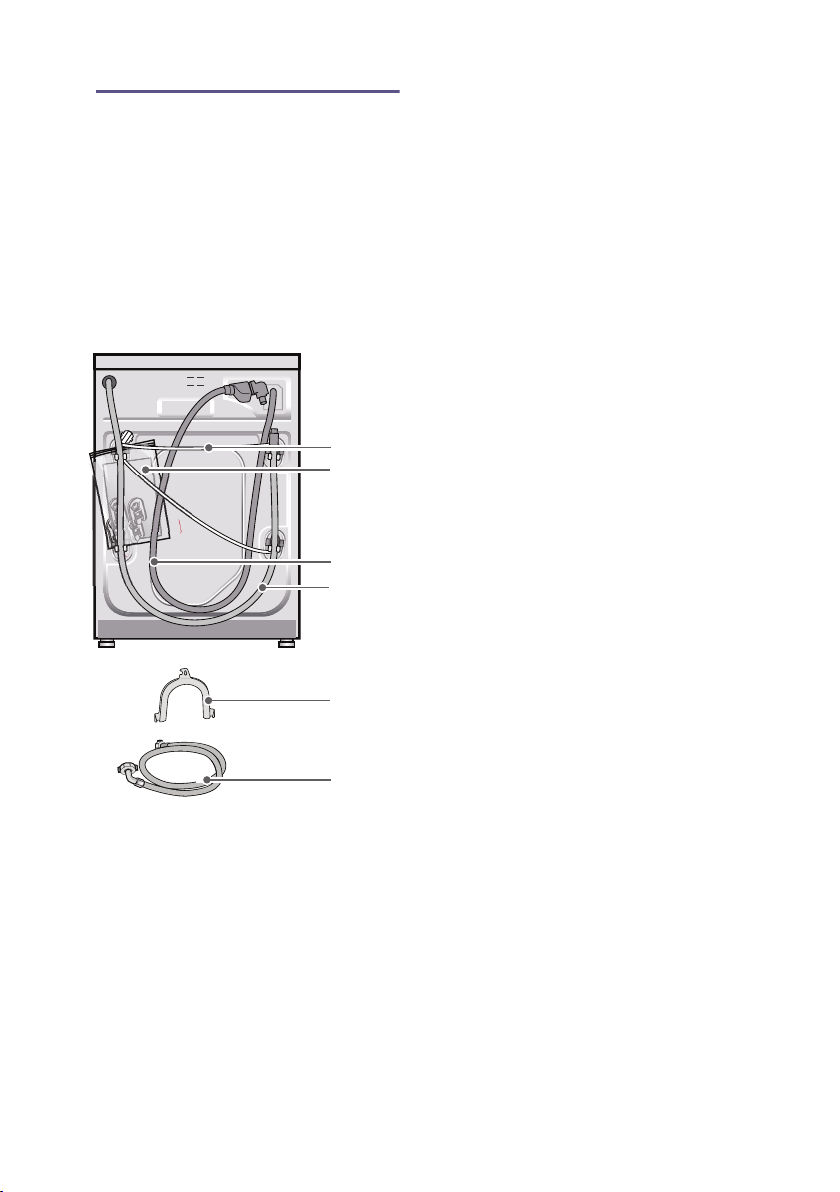

Included with the appliance
37
Note:
37
Check the machine for transport damage. Never use a damaged machine. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services. ~ Page 35
37
Useful tools
37
Safety instructions
37
: Warning
37
Risk of injury!
37
Caution!
37
Damage to the appliance
37
Caution!
38
Water damage
38
Notes
38
Installation surface
38
Note:
38
The washer dryer must be stable so that it does not move around.
38
Installing the appliance on a base or on a wooden joist ceiling
38
Caution!
38
Damage to the appliance
38
Note:
38
If installing on a wooden joist ceiling:
38
Installing the appliance in a kitchenette
38
: Warning
38
Danger of death!
38
Notes
38

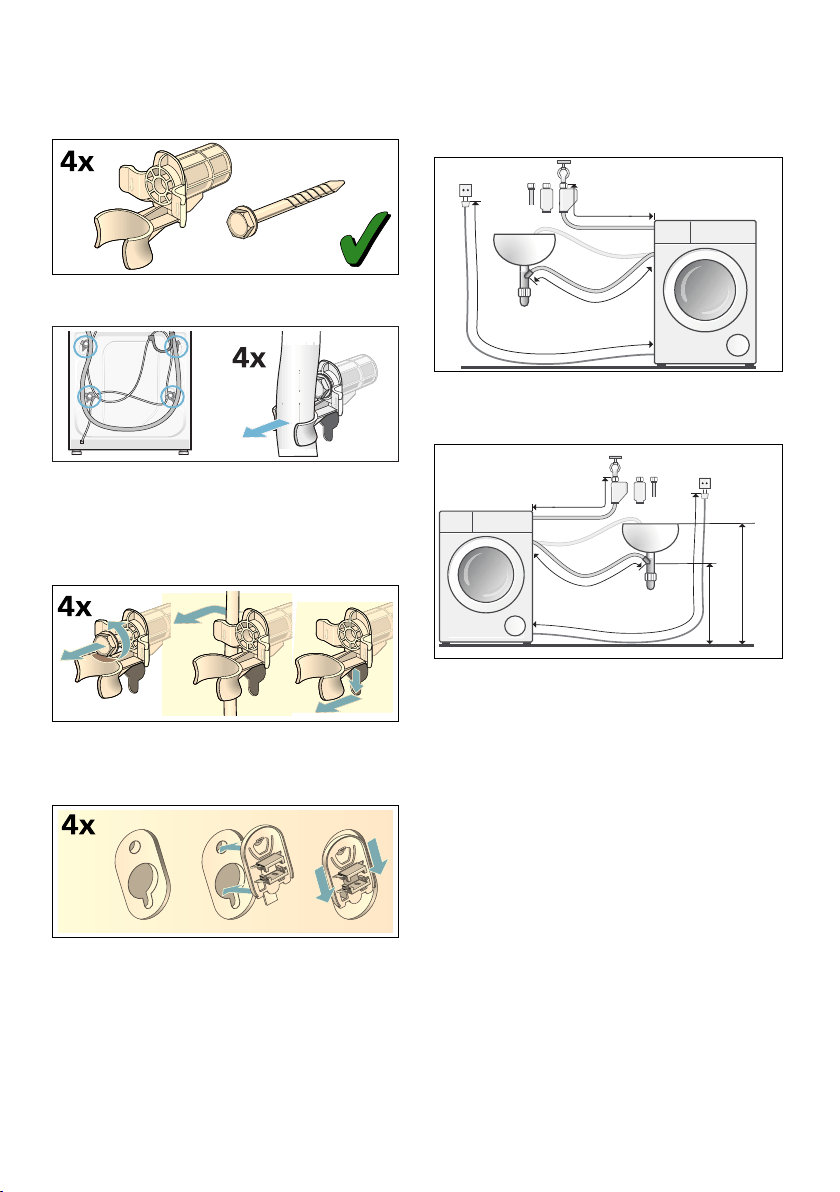

Removing the transport locks
38
Caution!
38
Damage to the appliance
38
Note:
39
Keep the screws and sleeves in a safe place.
39
1. Take the hoses out of the holders.
39
2. Unscrew and remove all four transport brace screws.
39
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
39
Hose and cable lengths
39
Note:
39
If the hose holders are used, the possible hose lengths are reduced!
39
Available from dealer/customer service:
39

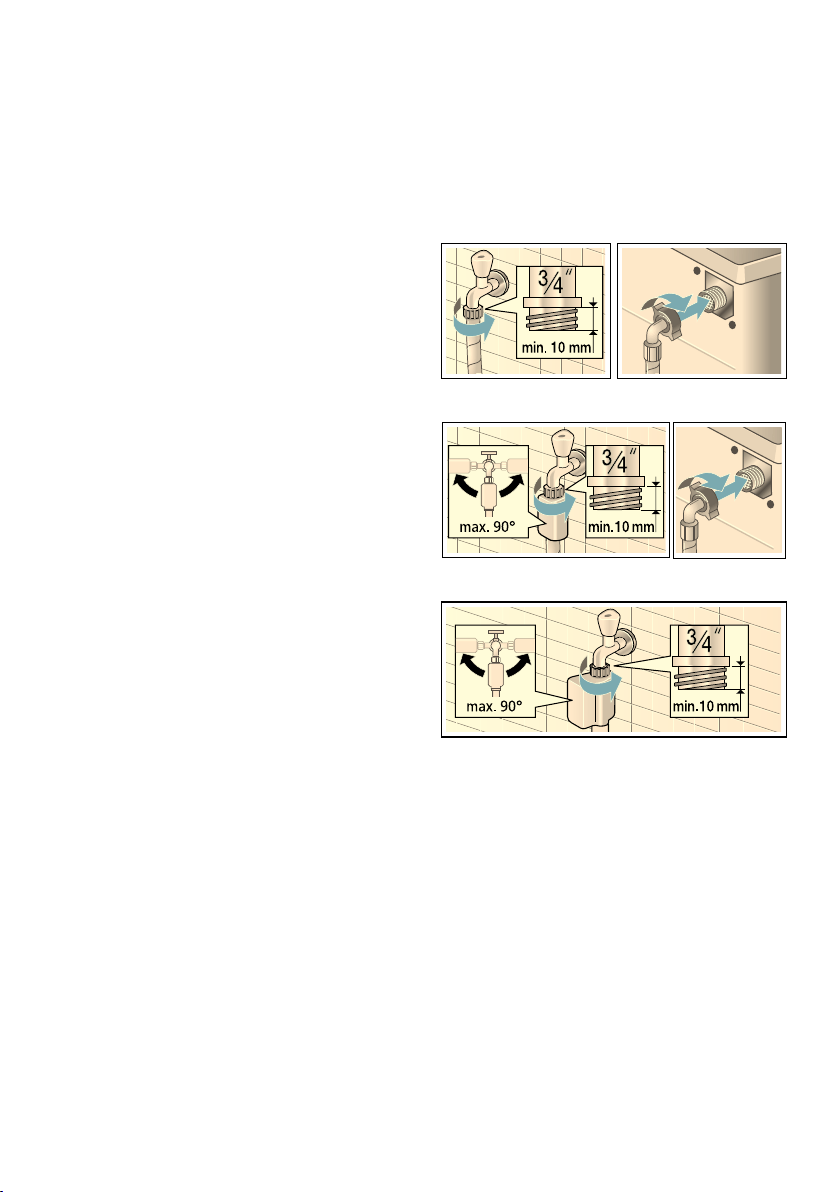

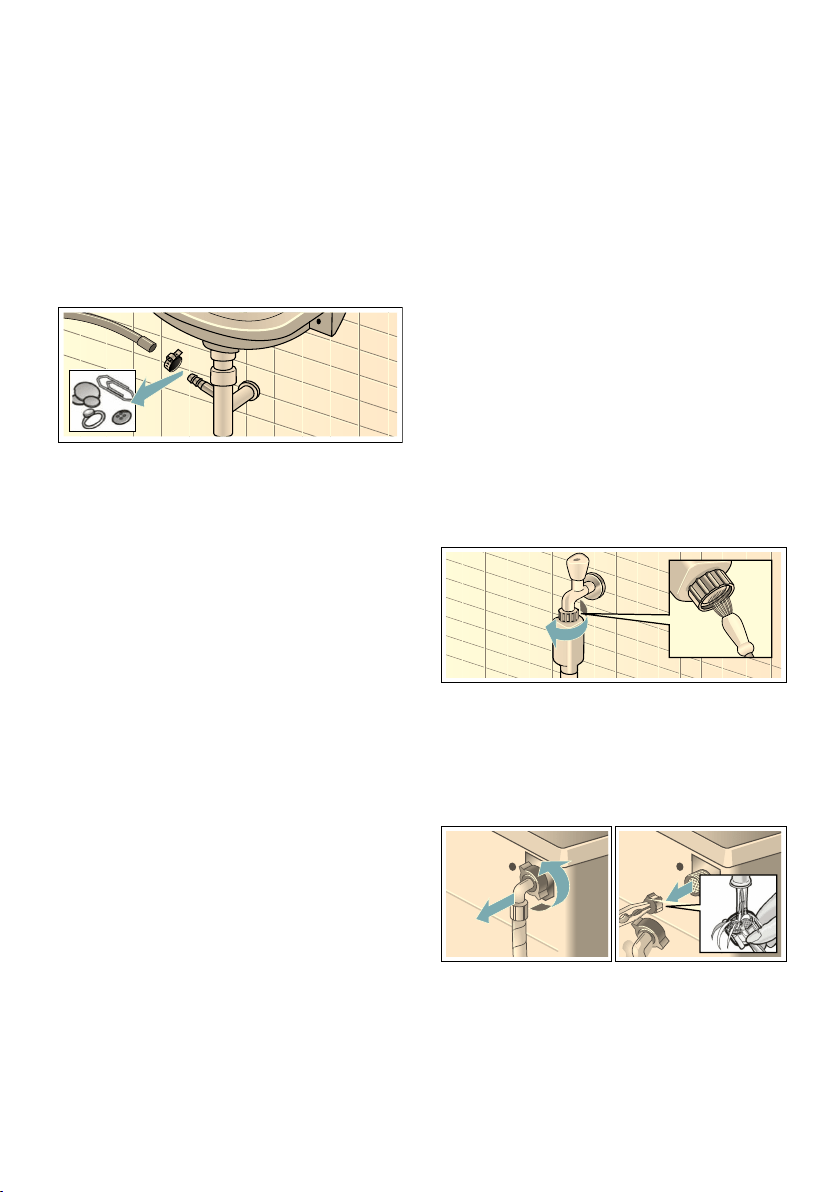

Water inlet
40
: Warning
40
Danger of death!
40
Notes
40
Connection
40
Note:
40
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
40

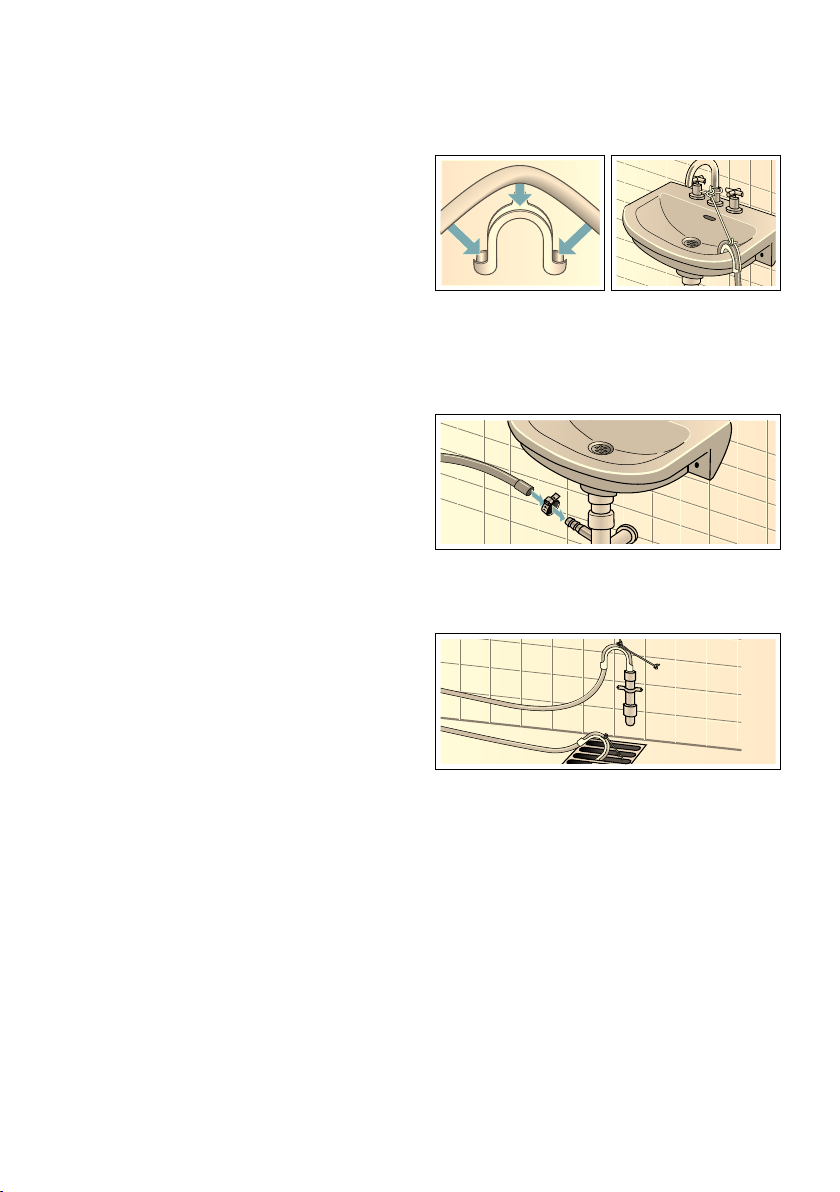

Water outlet
41
: Warning
41
Risk of scalding!
41
Caution!
41
Water damage
41
Caution!
41
Damage to the appliance/fabrics
41
Note:
41
Do not kink the water drain hose or put strain on it lengthways.
41
Connection
41
Alignment
42
1. Loosen the lock nut in a clockwise direction with a wrench.
42
2. Check the alignment of the washer dryer with a spirit level and, if required, correct. Adjust the height by rotating the appliance foot.
42
Note:
42
3. Tighten the lock nut against the housing.
42
Notes
42
Electrical connection
42
Electrical safety
42
: Warning
42
Risk of electric shock!
42
Before washing/drying for the first time
43
Note:
43
1. Insert mains plug.
43
2. Turn the tap on.
43
3. Switch on the appliance.
43
4. Close the door. Do not load any laundry.
43
5. Select the Drum Clean 40°C programme.
43
6. Open the detergent drawer.
43
7. Pour approx. 1 litre of water into dispenser II.
43
8. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
43
Note:
43
9. Close the detergent drawer.
43
10. Select A Start/Reload.
43
11. When the programme ends, switch off the appliance.
43
Transportation
43
Preparatory work
43
1. Turn off the tap.
43
2. Release the water pressure in the supply hose.
43
3. Drain any residual washing water.
43
4. Disconnect the washer dryer from the power supply.
43
5. Remove the hoses.
43
Installing transportation protection devices:
43
1. Remove the covers and keep in a safe place.
43
2. Insert all 4 sleeves.
43
Notes
43
File type: PDF
File name: 86006537_v7446x1gb-04.pdf
File size: 4.6 MB
File Language: English
Pages: 44
Author: Neff
Published: 2020-08-27
Updated: 2023-07-24
Download File
Specifications
Brand:
Neff
Model: V7446X1GB/04
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
K6614X6/03
C25CR22N0/03
N23TA19N0
S5409X0GB/03
B1524N0GB/10
Photos
Download User Manual
Related Products
Neff V7446X1GB/03
Neff V7446X1GB/02
Neff V7446X0GB/04
Neff V7446X1GB/01
Neff V7446X1GB/05
Neff V7446X0GB/02
Neff V7446X0GB/01
Neff V7446X2GB/01
Neff V7446X0GB/05
Neff V7446X0GB/03
Neff V7446X2GB/02
Neff V7446X2GB
Neff B1GCC0AN0B
Neff U1ACI5HN0B
Neff D64AFM1N0B
Table of Contents
×
Your new washer dryer
2
Display rules
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Protection of the environment 6
3
Y The main points in brief 7
3
* Getting to know your appliance 8
3
Z Laundry 12
3
1 Operating the appliance 14
3
/ Overview of programmes 20
3
0 Changing programme default settings 24
3
\ Selecting additional functions 26
3
M Setting the signal 27
3
2 Cleaning and maintenance 28
3
3 Faults and what to do about them 31
3
4 Customer service 35
4
J Technical specifications 35
4
[ Consumption values 36
4
5 Positioning and connecting 37
4
8 Intended use
4
Intended use
4
( Safety instructions
5
Safety instructions
5
Electrical safety
5
: Warning
5
Danger of death!
5
Risk of injury
5
: Warning
5
Risk of injury!
5
: Warning
5
Risk of scalding!
5
Safety for children
5
: Warning
5
Danger of death!
5
: Warning
5
Danger of death!
5
: Warning
6
Risk of choking!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Eye / skin irritation!
6
: Warning
6
Risk of injury!
6
7 Protection of the environment
6
Protection of the environment
6
Packaging/old appliance
6
Hints and tips
6
Y The main points in brief
7
The main points in brief
7
* Getting to know your appliance
8
Getting to know your appliance
8
Washer dryer
8
Control panel
9
Display panel
10
Displays for the programme
10
Z Laundry
12
Laundry
12
Preparing laundry for washing
12
Sorting laundry according to:
12
Note:
12
Note:
12
Protecting your laundry and washer dryer:
12
Caution!
12
Damage to the appliance/textiles
12
Preparing laundry for drying
13
Note:
13
To ensure an even drying result, sort the laundry according to the:
13
Notes
13
1 Operating the appliance
14
Operating the appliance
14
Preparing the washer dryer
14
Note:
14
1. Insert mains plug.
14
2. Turn the tap on.
14
3. Open the door.
14
Selecting the programme/ Switching on the appliance
14
Note:
14
If you have activated the childproof lock, you must deactivate it before you can set a programme.
14
Adjusting the washing programme
14
Notes
14
Note:
15
After changing the programme default settings and/or additional functions, the programme duration may change.
15
Adjusting the drying programme
15
Note:
15
If an individual drying programme or washing and drying without interruption is selected, you can change the default settings for the drying programme if required.
15
Overview of programmes~ Page 20
15
Note:
15
After changing the default settings for the drying programme, the programme duration may change.
15
Loading the laundry
15
: Warning
15
Danger of death!
15
Notes
15
1. Unfold presorted laundry items and place in the drum.
16
2. Ensure that no laundry items are trapped between the door and rubber seal.
16
3. Close the door.
16
Note:
16
The indicator light on the A Start/Reload button flashes and the default settings for the programme appear continuously on the display panel. Changes may be made to the default settings.
16
Dosing and adding detergent and care product
16
Caution!
16
Damage to the appliance
16
1. Pull out the detergent drawer.
16
: Warning
16
Eye / skin irritation!
16
2. Pour in detergent and/or cleaning product.
16
Notes
16
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
17
2. Slide the measuring aid forwards, fold it down and click it into place.
17
3. Reinsert the drawer.
17
Note:
17
Do not use the measuring aid for gel detergents and washing powder, or for programmes with prewash or when "Finish in" time is selected.
17
Starting the programme
17
Note:
17
If you want to secure the programme to prevent it from being adjusted inadvertently, select the childproof lock.
17
Childproof lock
17
Note:
17
The childproof lock may remain activated until the next programme starts, even after the washer dryer has been switched off. If this is the case, deactivate the childproof lock before the programme starts and, if required, reactivate after the progra...
17
Reloading the laundry
17
Notes
18
Changing the programme
18
1. Select A Start/Reload.
18
2. Select another programme. If required, adjust the default settings and/or select additional functions.
18
3. Select A Start/Reload. The new programme starts from the beginning.
18
Interrupting or ending the programme
18
1. Select A Start/Reload.
18
2. To cool down laundry: Select Rinse.
18
3. Select A Start/Reload.
18
1. Select A Start/Reload.
18
2. Select Spin/Drain.
18
3. Select A Start/Reload.
18
1. Select Intensive Dry or Gentle Dry.
18
2. Touch button Š Dry and set drying time to 15 minutes.
18
3. Select A Start/Reload.
18
End of the programme
18
Notes
18
After washing/drying
19
1. Open the door and remove the laundry.
19
2. Turn the programme selector to Û Off. The appliance is switched off.
19
3. Turn off the tap.
19
Notes
19
/ Overview of programmes
20
Overview of programmes
20
Programme on the programme selector
20
Programme/Type of washing
20
Options/Information
20
Note:
20
Note:
20
Notes
21
Notes
21
Note:
22
Note:
22
Note:
22
Note:
22
Drying table
23
Starching
24
Note:
24
The laundry should not be treated with fabric softener.
24
Dyeing/Bleaching
24
Soaking
24
1. Pour soaking agent/detergent into dispenser II according to the manufacturer’s instructions.
24
2. Set the programme selector to Cottons 60°C and select A Start/ Reload.
24
3. After approximately 10 minutes select A Start/Reload to pause the programme.
24
4. After the required soaking time, reselect A Start/Reload if the programme is to be continued or change the programme.
24
Note:
24
Load laundry of the same colour. No additional detergent is required, the soaking solution is used for washing.
24
0 Changing programme default settings
24
Changing programme default settings
24
°C Temp.
24
0 rpm
24
ñ Finished in
25
Note:
25
The respective programme duration is displayed by selecting the programme. The programme duration is automatically adjusted while the programme is running if the programme duration needs to be changed, e.g. due to changes in the programme default set...
25
1. Touch the A Start/Reload button.
25
2. Touch the ñ Finished in button and change the Finish in time.
25
3. Touch the A Start/Reload button.
25
Š Dry
25
Notes
25
1. Touch button Š Dry and activate the function » or ·.
25
2. Do not exceed the maximum loads for drying.
25
3. Maximum spin speed for the washing programme will be selected automatically to obtain a good drying result.
25
\ Selecting additional functions
26
Selecting additional functions
26
G Speed Perfect
26
Note:
26
Do not exceed maximum load.
26
Overview of programmes~ Page 20
26
F Eco Perfect
26
Note:
26
The washing temperature is lower than the selected temperature. For special hygiene requirements, the Allergy+ programme is recommended.
26
Z Aqua Plus
26
M Setting the signal
27
Setting the signal
27
Setting signal volume
27
2 Cleaning and maintenance
28
Cleaning and maintenance
28
: Warning
28
Risk of electric shock!
28
: Warning
28
Risk of poisoning!
28
Caution!
28
Damage to the appliance
28
Machine housing/Control panel
28
Drum
28
Descaling
28
Cleaning the detergent dispenser
28
1. Pull out the detergent drawer. Depress the insert and remove the drawer completely.
28
2. Take out insert: using your finger, press insert upwards.
28
3. Clean the detergent dispenser and insert with water and a brush and dry.
28
4. Attach the insert and lock into position (push the cylinder onto the guide pin).
28
5. Insert detergent drawer.
28
Note:
28
Leave the detergent drawer open so that residual water can evaporate.
28
Drain pump blocked
29
: Warning
29
Risk of scalding!
29
1. Turn off the tap so that no more water can flow in and has to be drained via the drain pump.
29
2. Switch off the appliance. Pull out the mains plug.
29
3. Open and remove the service flap.
29
4. Take the drain hose out of the retainer.
29
5. Carefully unscrew the pump cover; residual water may leak out.
29
6. Place the service flap back on, lock it into place, and close it.
29
Note:
29
To prevent unused detergent from flowing into the outlet during the next wash: Pour 1 litre of water into dispenser II and start the Spin/Drain programme: (if only a drained cycle is required: set 0 rpm (spin speed) to 0 ).
29
Drainage hose on the siphon blocked
30
1. Turn the programme selector to Û Off. Pull out the mains plug.
30
2. Loosen hose clip, carefully remove drainage hose. Residual water may run out.
30
3. Clean drainage hose and siphon spigot.
30
4. Re-attach the drainage hose and secure the connection point with the hose clip.
30
Filter in the water inlet hose blocked
30
: Warning
30
Danger of death!
30
1. Turn off the tap.
30
2. Select any programme (except Spin /Drain).
30
3. Select A Start/Reload. Allow the programme to run for approx. 40 s.
30
4. Turn the programme selector to Û Off. Pull out the mains plug.
30
5. Clean the filter on the tap:
30
6. Clean the filter on the back of the appliance:
30
7. Connect the hose and check for leaks.
30
3 Faults and what to do about them
31
Faults and what to do about them
31
Emergency release, e.g. if a power failure occurs
31
: Warning
31
Risk of scalding!
31
: Warning
31
Risk of injury!
31
Caution!
31
Water damage
31
1. Switch off the appliance. Disconnect the mains plug.
31
2. Drain the detergent solution.
31
3. Pull the emergency release downwards with a tool and release.
31
Information on the display panel
31
Information
31
Cause/Remedy
31
Faults and what to do about them
32
Faults
32
Cause/Remedy
32
Note:
32
4 Customer service
35
Customer service
35
J Technical specifications
35
Technical specifications
35
[ Consumption values
36
Consumption values
36
Programme
36
Option
36
Load
36
(kg)
36
Energy consumption *** (kWh)
36
Water Consumption *** (liter)
36
Programme duration *** (hours)
36
5 Positioning and connecting
37
Positioning and connecting
37
Included with the appliance
37
Note:
37
Check the machine for transport damage. Never use a damaged machine. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services. ~ Page 35
37
Useful tools
37
Safety instructions
37
: Warning
37
Risk of injury!
37
Caution!
37
Damage to the appliance
37
Caution!
38
Water damage
38
Notes
38
Installation surface
38
Note:
38
The washer dryer must be stable so that it does not move around.
38
Installing the appliance on a base or on a wooden joist ceiling
38
Caution!
38
Damage to the appliance
38
Note:
38
If installing on a wooden joist ceiling:
38
Installing the appliance in a kitchenette
38
: Warning
38
Danger of death!
38
Notes
38
Removing the transport locks
38
Caution!
38
Damage to the appliance
38
Note:
39
Keep the screws and sleeves in a safe place.
39
1. Take the hoses out of the holders.
39
2. Unscrew and remove all four transport brace screws.
39
3. Insert the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.
39
Hose and cable lengths
39
Note:
39
If the hose holders are used, the possible hose lengths are reduced!
39
Available from dealer/customer service:
39
Water inlet
40
: Warning
40
Danger of death!
40
Notes
40
Connection
40
Note:
40
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
40
Water outlet
41
: Warning
41
Risk of scalding!
41
Caution!
41
Water damage
41
Caution!
41
Damage to the appliance/fabrics
41
Note:
41
Do not kink the water drain hose or put strain on it lengthways.
41
Connection
41
Alignment
42
1. Loosen the lock nut in a clockwise direction with a wrench.
42
2. Check the alignment of the washer dryer with a spirit level and, if required, correct. Adjust the height by rotating the appliance foot.
42
Note:
42
3. Tighten the lock nut against the housing.
42
Notes
42
Electrical connection
42
Electrical safety
42
: Warning
42
Risk of electric shock!
42
Before washing/drying for the first time
43
Note:
43
1. Insert mains plug.
43
2. Turn the tap on.
43
3. Switch on the appliance.
43
4. Close the door. Do not load any laundry.
43
5. Select the Drum Clean 40°C programme.
43
6. Open the detergent drawer.
43
7. Pour approx. 1 litre of water into dispenser II.
43
8. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
43
Note:
43
9. Close the detergent drawer.
43
10. Select A Start/Reload.
43
11. When the programme ends, switch off the appliance.
43
Transportation
43
Preparatory work
43
1. Turn off the tap.
43
2. Release the water pressure in the supply hose.
43
3. Drain any residual washing water.
43
4. Disconnect the washer dryer from the power supply.
43
5. Remove the hoses.
43
Installing transportation protection devices:
43
1. Remove the covers and keep in a safe place.
43
2. Insert all 4 sleeves.
43
Notes
43
Search:
×
Search
