Use & Care Guide
English
Models: 796.5197*, 796.5199*
Kenmore Elite
®
T
op-Loading Pedestal
Automatic Washer
* = color number
P/N MFL68267011
Sears Brands Management Corporation
Hoff man Estates, IL 60179 U.S.A.
www.kenmore.com
Sears Canada Inc.
Toronto, Ontario, Canada M5B 2C3
www.sears.ca
high
ency
®
2
TABLE OF CONTENTS
PRODUCT RECORD
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore Elite
®
product is designed and manufactured
for years of dependable operation. But like all products,
it may require preventive maintenance or repair from
time to time. That’s when having a Master Protection
Agreement can save you money and aggravation.
The Master Protection Agreement also helps extend
the life of your new product. Here’s what the
Agreement* includes:
• Parts and labor not just for repairing defects, but to help
keep products operating properly under normal use.
Our
coverage goes well beyond the product warranty. No
deductibles, no functional failure excluded from coverage
– real protection.
• Expert service by a force of more than 10,000 authorized
Sears service technicians, which means someone you can
trust will be working on your product.
• Unlimited service calls and nationwide service, as often
as you want us, whenever you want us.
• “No-lemon” guarantee – replacement of your covered
product if four or more product failures occur within twelve
months.
• Product replacement if your covered product can’t be
fi xed.
• Annual Preventive Maintenance Check at your request
– no extra charge.
• Fast help by phone – we call it Rapid Resolution - phone
support from a Sears representative on all products. Think
of us as a “talking owner’s manual.”
• Power surge protection against electric damage due
to
power fl uctuations.
• $250 food loss protection annually for any food spoilage
that is the result of mechanical failure of any covered
refrigerator or freezer.
• Rental reimbursement if repair of your covered product
takes longer than promised.
• 25% discount off the regular price of any non-covered
repair service and related installed parts.
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call at
any time day or night or schedule a service appointment
online.
The Master Protection Agreement is a risk-free purchase.
If you cancel for any reason during the product warranty
period, we will provide a full refund, or a prorated refund
any time after the product warranty period expires.
Purchase your Master Protection Agreement today!
Some limitations and exclusions apply.
For prices and additional information in the U.S.A.
call 1-800-827-6655.
*Coverage in Canada varies on some items.
For full details call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. call 1-844-553-6667, and in
Canada call 1-800-469-4663.
In the space below, record the date of purchase, model,
and serial number of your product. You will fi nd the model and
serial number printed on an identifi cation plate located inside
the washer door. Have these items of information available
whenever you contact Sears concerning your
product.
Model No.
Date of Purchase
Serial No.
Save these instructions and your sales receipt for future
reference.
PROTECTION AGREEMENTS
IMPORTANT SAFETY INSTRUCTIONS ............................. 3-6
Grounding Requirements ........................................................4
Safety Instructions for Installation ......................................... 5
Safety Instructions for Use, Care, Cleaning and
Disposal ......................................................................................6
FEATURES AND BENEFITS

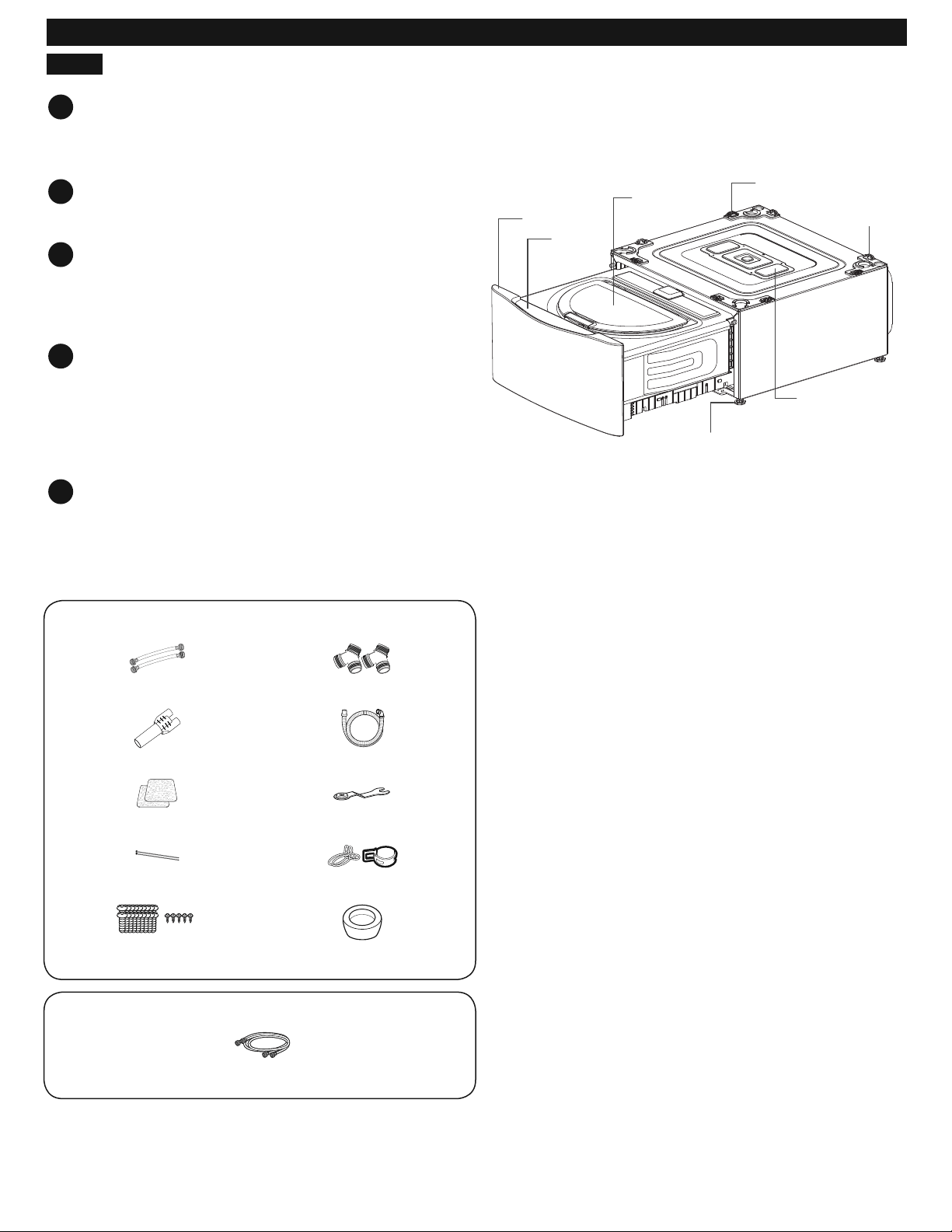

Key Parts and Components ................................................ 7
Included Accessories ...........................................................7
Required Accessories ...........................................................7
INSTALLATION INSTRUCTIONS

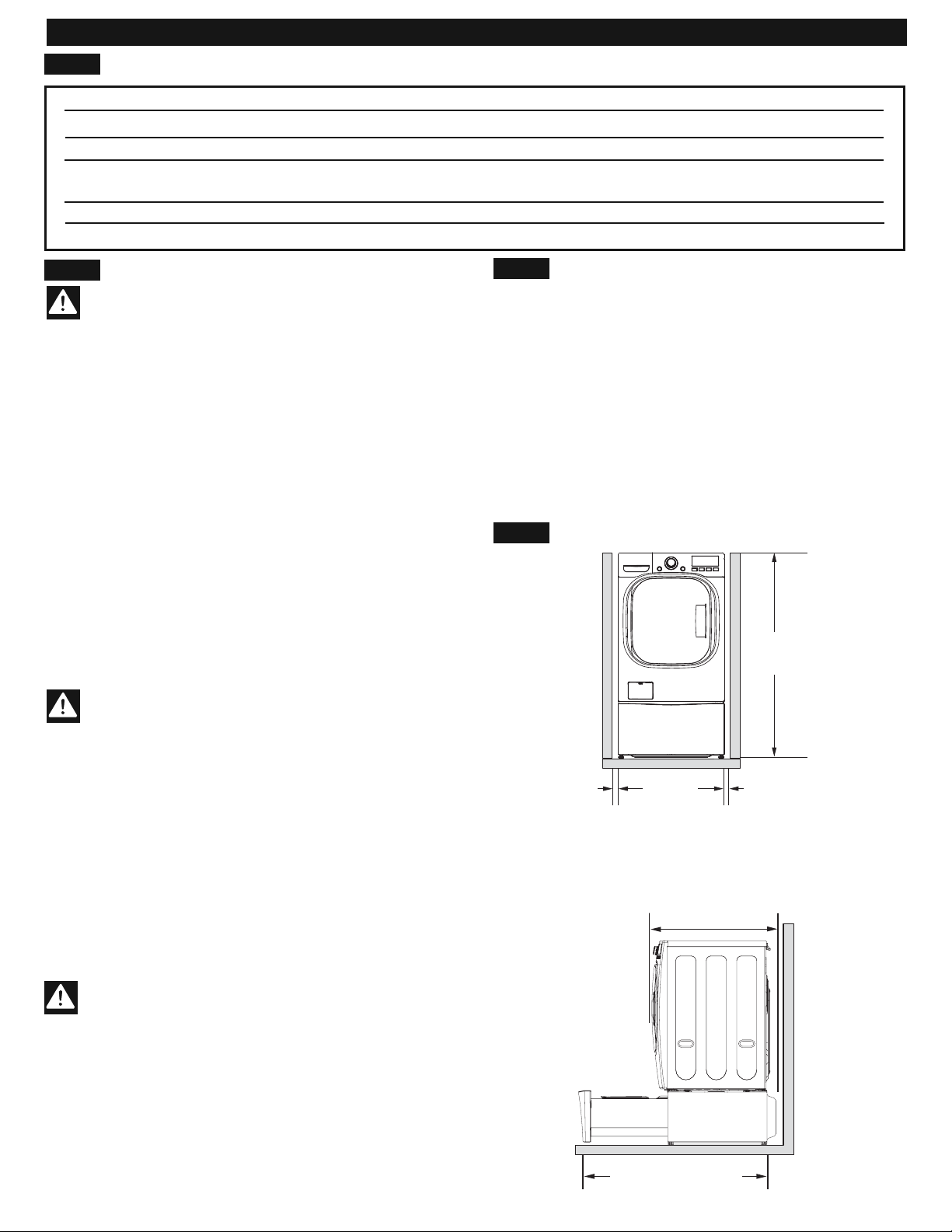

Key Dimensions and Specifi cations ................................... 8
Choose the Proper Location ................................................ 8
Power Outlet ......................................................................... 8
Flooring .................................................................................. 8
Clearances .............................................................................8

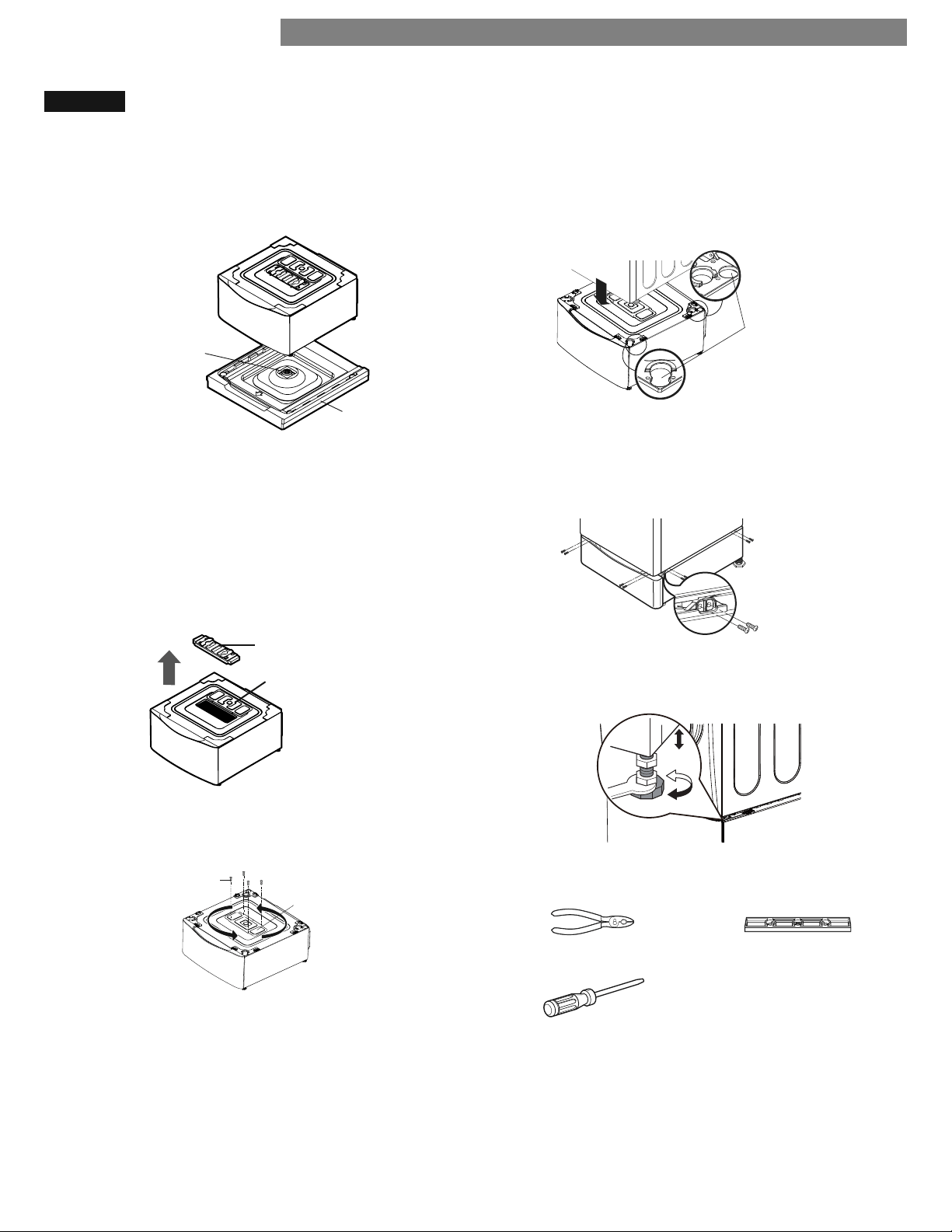

Unpacking and Removing Shipping Material ..................9
Overview of Connections ...................................................10
Connecting the Water Lines ................................................11

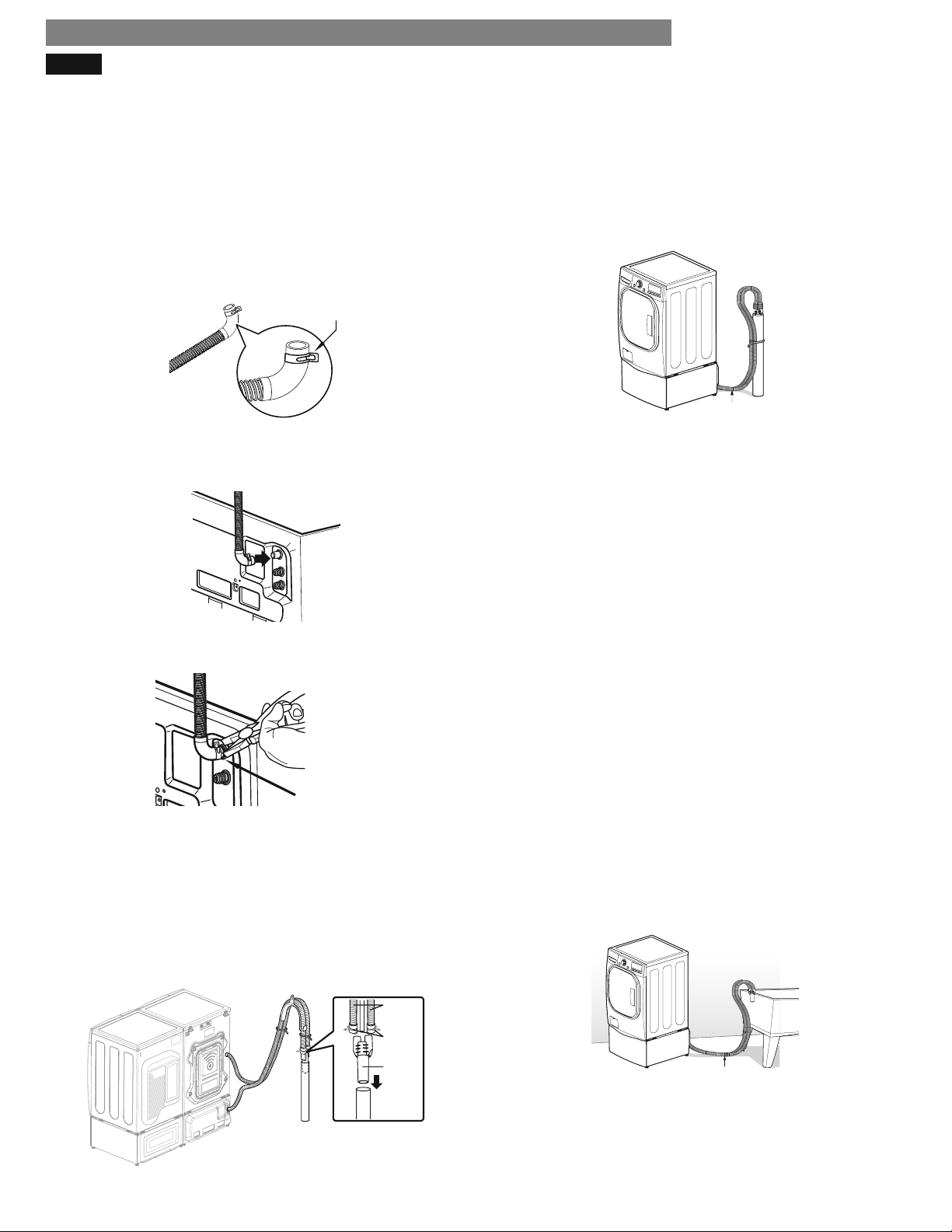

Connecting the Drain Hose ................................................12
Using The Drain Connector ................................................12

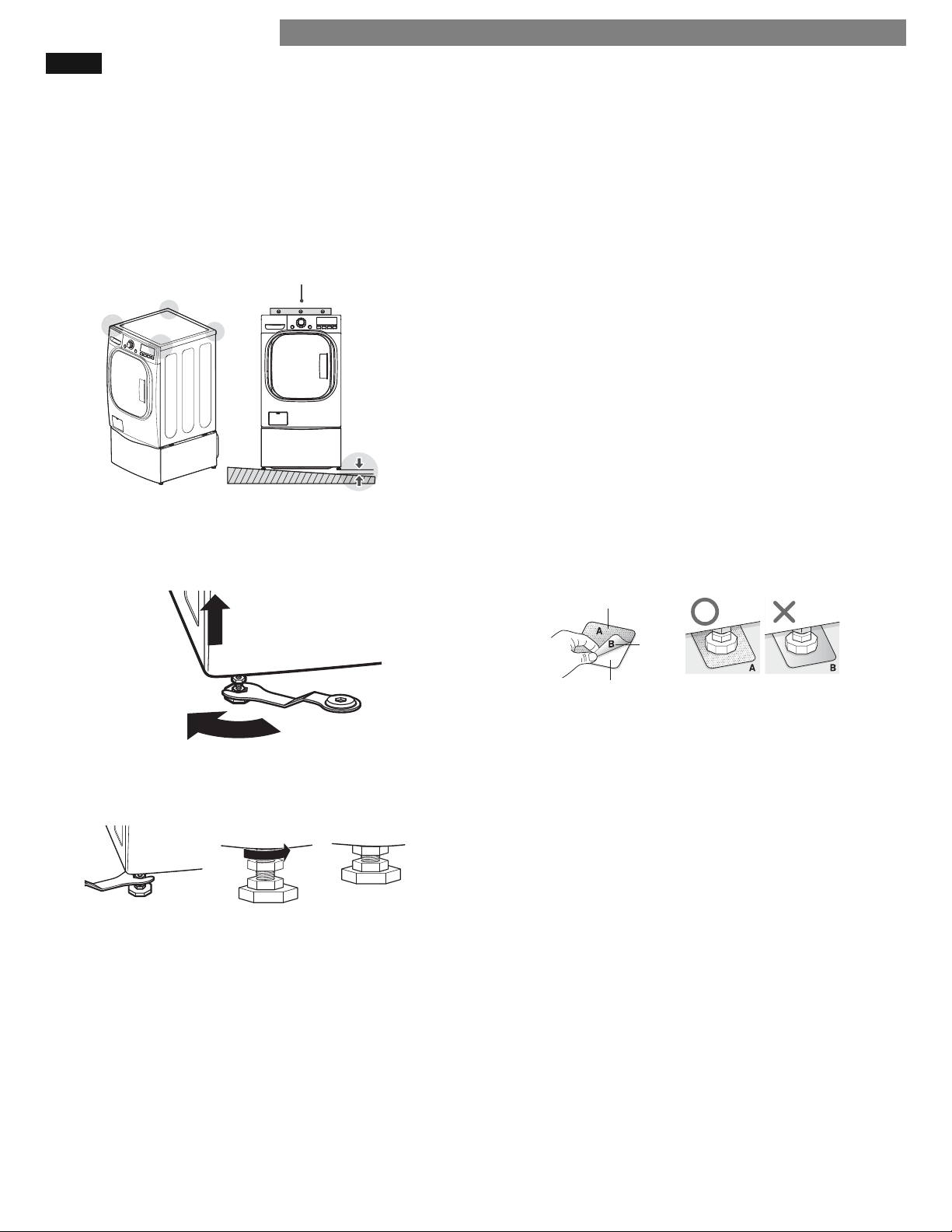

Leveling the Washing Machine .........................................13
Connecting to the Power Supply .......................................14
HOW TO USE
Control Panel Features ........................................................ 15
Operating the Washer ........................................................16
Cycle Guide ......................................................................... 17
Options ..................................................................................18
Warm Water ................................................................... 18
Extra Rinse ........................................................................18
Control Lock ......................................................................18
Special Drain Feature .....................................................18
Sorting Wash Loads .............................................................19
Detergent And Dispenser Use ........................................... 20
Time And Status Display ..................................................... 21
CARE AND CLEANING
Regular Cleaning ................................................................ 22
Cleaning the Exterior ......................................................22
Care and Cleaning of the Interior ................................22
Clean Washer Cycle .......................................................22
Removing Mineral Buildup .............................................22
Leave the Lid Open ........................................................22
Maintenance .......................................................................23
KENMORE CONNECT™ SYSTEM ......................................24
TROUBLESHOOTING
FAQs: Frequently Asked Questions ..................................25
Normal Sounds You May Hear .........................................26
Before Calling for Service .................................................26
Error Codes ..........................................................................30
WARRANTY ............................................................................32
3
SAFETY MESSAGES
IMPORTANT SAFETY INSTRUCTIONS
For your safety, the information in this manual must be followed to minimize the risk of fi re, explosion, or electric shock,
or to prevent property damage, injury to persons, or death. Your safety and the safety of others is very important. There
are many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property
damage and/or serious bodily harm or death.
All safety messages will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
Indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
Indicates a hazardous situation which, if not avoided, could result in minor or moderate
injury.
All safety messages will tell you what the potential hazard is, tell you how to reduce
the chance of injury, and tell you what can happen if the instructions are not fol-
lowed.
WARNING
WARNING
WARNING
CAUTION
To reduce the risk of fi re, electric shock, or injury to per-
sons when using this appliance, follow basic precautions,
including the following.
• Use this appliance only for its intended purpose as
described in this Use & Care Guide.
• Before use, the washer must be properly installed as
described in this manual.
• Do not wash articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline, dry
cleaning solvents, or other fl ammable or explosive
substances, as they give off vapors that could ignite or
explode.
• Do not add gasoline, dry cleaning solvents, or other
fl ammable or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
• Under certain conditions, hydrogen gas may be produced
in a hot water system that has not been used for 2
weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the
hot water system has not been used for such a period,
before using the washer, turn on all hot water faucets
and let the water fl ow from each for several minutes.
This will release any accumulated hydrogen gas. As the
gas is fl ammable, do not smoke or use an open fl ame
during this time.
• Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is
used near children. A child might become trapped inside
the washer and suff ocate.
• Before the washer is removed from service or discarded,
remove the lid to prevent children from climbing inside.
• Do not install or store the washer where it will be
exposed to the weather or freezing temperatures.
• Do not tamper with controls.
• Keep the area underneath and around your appliances
free of combustible materials (lint, paper, rags, etc.),
gasoline, chemicals and other fl ammable vapors and
liquids.
• Service must be performed by a qualified service
technician. Do not disassemble the washer.
• See Installation Instructions for grounding requirements.
• WARNING : This product contains chemicals known to
the State of California to cause cancer and birth defects
or other reproductive harm.
Wash hands after handling.
• ALWAYS follow the fabric care instructions supplied by
the garment manufacturer.
• Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a
load to catch fi re.
• Use fabric softeners or products to eliminate static only
as recommended by the manufacturer.
• This washer is not designed for maritime use or for mobile
installations such as in RVs, aircraft, etc.
• Turn off the water faucets and unplug the washer if the
machine is to be left for an extended period of time,
such as during vacations.
• Do not use to dry articles containing foam rubber or
similarly textured rubber-like materials.
• Packaging material can be dangerous for children. There
is a risk of suff ocation! Keep all packaging from children.
• Always check the inside of the washer for foreign objects
before loading laundry. Keep the lid closed when not
in use.
4
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING REQUIREMENTS
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce
the risk of electric shock by providing a path of least
resistance for electric current. This appliance is equipped
with a cord having an equipment-grounding conductor
and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
CERTAIN INTERNAL PARTS ARE INTENTIONALLY NOT
• For your safety, the information in this manual
must be followed to minimize the risk of fi re,
explosion or electric shock, or to prevent
property damage, injury to persons, or death.
WARNING
• Improper connection of the equipment-
grounding conductor can result in risk of electric
shock. Check with a qualifi ed electrician or
service technician you are in doubt as to
whether the appliance is properly grounded. Do
not modify the plug provided with the appliance.
If it does not fi t the outlet, have a proper outlet
installed by a qualifi ed electrician. Failure to
follow these warnings can cause serious injury,
fi re, electric shock, or death.
WARNING
WARNING
WARNING
WARNING
WARNING
• Do not reach into the appliance if the tub or agitator
is moving.
• In the event of a gas leak (such as propane gas, LP gas,
etc.), ventilate the area immediately. Do not turn any
appliance or light on or off . Do not use a ventilating fan.
A spark may result in an explosion or fi re.
• Do not repair or replace any part of the appliance or
attempt any servicing unless specifi cally recommended
in the user-maintenance instructions or in published
user-repair instructions that you understand and have
the skills to carry out.
• To reduce the risk of fi re, electric shock or injury to persons
when using this appliance, follow basic precautions,
including the following:
• Refer to INSTALLATION INSTRUCTIONS for detailed
grounding procedures. Installation instructions are
packed with the washer for installer’s reference. If the
washer is moved to a new location, have it checked and
reinstalled by a qualifi ed service technician. Failure to
follow this warning can cause serious injury, fi re, electric
shock, or death.
• The power cord of this appliance is equipped with a
3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility
of electric shock from this appliance.
• Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord. Failure to
follow this warning can cause serious injury, fi re, electric
shock, or death.
• For personal safety, this appliance must be properly
grounded. Failure to follow this warning can cause serious
injury, fi re, electric shock, or death.
• This washer must be plugged into a 120 VAC, 60 Hz
grounded outlet. Failure to follow this warning can cause
serious injury, fi re, electric shock, or death.
• Have the wall outlet and circuit checked by a qualifi ed
electrician to make sure the outlet is properly grounded.
Failure to follow this warning can cause serious injury,
fi re, electric shock, or death.
• Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Failure to follow this warning can cause serious injury,
fi re, electric shock, or death.
READ ALL INSTRUCTIONS BEFORE USE
SAFETY INSTRUCTIONS FOR INSTALLATION
GROUNDED AND MAY PRESENT A RISK
OF ELECTRIC SHOCK ONLY DURING SERVICING.
SERVICE PERSONNEL - DO NOT CONTACT THE
FOLLOWING PARTS WHILE THE APPLIANCE IS
ENERGIZED: PUMP, VALVE, MOTOR, CONTROL.
5
IMPORTANT SAFETY INSTRUCTIONS
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
• To reduce the risk of fi re, electric shock or injury to persons
when using this appliance, follow basic precautions,
including the following:
• Unplug the washer before cleaning to avoid the risk of
electric shock.
• Never use harsh chemicals, abrasive cleaners, or solvents
to clean the washer. They will damage the fi nish.
• Do not put oily or greasy rags or clothing on top of the
washer. These substances give off vapors that could ignite
the materials.
• Do not wash items that are soiled with vegetable or
cooking oil. These items may contain some oil after
laundering. Due to the remaining oil, the fabric may
smoke or catch fi re by itself.
SAFETY INSTRUCTIONS FOR USE, CARE, CLEANING AND DISPOSAL
• Do not install on carpet. Install washer on a solid fl oor.
Failure to follow this warning can cause serious leak
damage.
• The washer should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate. This provides the best
performance and also prevents overloading house wiring
circuits which could cause a fi re hazard from overheated
wires.
• If installing the pedestal washer with a Kenmore
front-loading washer and a Kenmore gas dryer, and
insuffi cient outlets are available, an extension cord rated
at no less than the branch circuit may be used.
• Never unplug your washer by pulling on the power cord.
Always grip plug fi rmly and pull straight out from the
outlet. Failure to follow this warning can cause serious
injury, fi re, electric shock, or death.
• Repair or immediately replace all power cords that have
become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its
length or at either end. Failure to follow this warning can
cause serious injury, fi re, electric shock, or death.
• When installing or moving the washer, be careful not
to pinch, crush, or damage the power cord. Failure to
follow this warning can cause serious injury, fi re, electric
shock, or death.
• The washer must be installed and electrically grounded
by a qualifi ed service person in accordance with local
codes to prevent shock hazard and assure stability during
operation.
• The washer is heavy. Two or more people may be
needed to install and move the appliance. Failure to do
so can result in back or other injury.
• Store and install the washer where it will not be exposed
to temperatures below freezing or exposed to outdoor
weather conditions. Failure to follow this warning can
cause serious leak damage.
• To reduce the risk of electric shock, do not install the
washer in humid spaces. Failure to follow this warning
can cause serious injury, fi re, electric shock, or death.
• To reduce the risk of injury to persons, adhere to all
industry recommended safety procedures including the
use of long sleeved gloves and safety glasses. Failure
to follow all of the safety warnings in this manual could
result in property damage, injury to persons or death.
• Never attempt to operate this appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or
broken parts, including a damaged cord or plug.
• To minimize the possibility of electric shock, unplug
this appliance from the power supply or disconnect the
washer at the household distribution panel by removing
the fuse or switching off the circuit breaker before
attempting any maintenance or cleaning.
• Plug the power plug into the wall socket in the right
direction so that the cord runs towards the fl oor. If
you plug the power plug into the socket in the opposite
direction, the electric wires within the cable may be
damaged and this may result in electric shock or fi re.
• The pedestal washer is for installation and use only
underneath a Kenmore model 796.* front-loading washer
manufactured after 2009.
• The pedestal washer is not designed to operate as a
standalone unit, under a top-loading washer, or under a
dryer. Do not tamper with the stacking switch. Doing so
may cause machine malfunctions or serious injury.
• Do not operate the pedestal washer with two or more
pedestal washers stacked. Doing so may cause machine
malfunctions or serious injury.
• For your safety, the information in this manual must
be followed to minimize the risk of fi re, explosion, or
electric shock, or to prevent property damage, injury
to persons, or death.
6
IMPORTANT SAFETY INSTRUCTIONS
• Disconnect this appliance from the power supply before
attempting any user maintenance. Turning the controls
to the OFF position does not disconnect this appliance
from the power supply. Failure to follow this warning can
cause serious injury, fi re, electric shock, or death.
• Do not combine laundry products for use in one load
unless specifi ed on the label.
• Do not mix chlorine bleach with ammonia or acids such
as vinegar. Follow package directions when using laundry
products. Incorrect usage can produce poisonous gas,
resulting in serious injury or death.
• Do not reach into the washer while parts are moving.
Before loading, unloading, or adding items, press the
START/PAUSE button and allow the drum to coast to a
complete stop before reaching inside. Failure to follow
this warning can cause serious injury, fi re, electric shock,
or death.
• Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is
used near children. As children grow, teach them the
proper, safe use of all appliances. Failure to comply with
these warnings could result in serious injury to persons
or death.
• Destroy the carton, plastic bag, and other packing
materials after the washer is unpacked. Children might
use them for play. Cartons covered with rugs, bedspreads,
or plastic sheets can become airtight chambers. Failure to
comply with these warnings could result in serious injury
to persons or death.
• Keep laundry products out of children’s reach. To prevent
injury to persons, observe all warnings on product labels.
Failure to comply with these warnings could result in
serious injury to persons or death.
• Remove the lid to the washing compartment before your
washer is removed from service or discarded to avoid
the danger of children or small animals getting trapped
inside. Failure to do so can result in serious injury to
persons or death.
• Keep hands and foreign objects clear of the lid and latch
area when closing the lid. Failure to keep hands clear
can result in personal injury.
• Do not touch the power plug with wet hands. This may
result in electric shock.
• Do not touch the water draining from the machine during
a high-temperature wash or drying cycle. This water is
hot, and touching it may result in burns or injury.
• Do not stand on top of the appliance or place objects(such
an laundry, lighted candles,lighted cigarettes, dishes,
chemicals, metal objects, etc.) on the appliance. This may
result in electric shock, fi re, problems with the product,
or injury.
• Do not install or store the washer where it will be exposed
to freezing temperatures. Water may freeze in the hoses
and damage the washer. Winterize the washer before
storing or moving it in freezing temperatures. Refer to
the Maintenance section for instructions.
• To avoid breaking the lid glass, do not push too hard on
the lid when closing.
• Do not step on the pedestal washer. Doing so may
damage the washer or cause serious injury.
• Do not open or close the lid by foot. Doing so may result
in personal injury or damage to the product.
SAVE THESE INSTRUCTIONS
7
FEATURES AND BENEFITS
KEY PARTS AND COMPONENTS
A
B
C
D
E
INVERTER DIRECT DRIVE MOTOR
The inverter motor, which is directly connected to the
tub, produces less noise and vibration while off ering
outstanding durability and a long lifespan.
COMPACT CAPACITY STAINLESS STEEL TUB
The effi cient design provides capacity in a compact
space.
FRONT TOUCH PANEL
The simple LED display shows cycle options, setting,
cycle status and estimated time remaining. The touch
buttons off er more convenience and a premium design
aesthetic.
KENMORE CONNECT™
Should you experience any problems with your
washing machine, it has the capability of transmitting
data via your telephone to the Kenmore Connect Team.
The data transmitted from the machine can be used
to analyze the issue, providing a fast and eff ective
diagnosis.
REMOTE CONTROL
Don’t want to bend down to reach the controls? Set
cycles with the touch of a button on the available
remote control. (Included accessory on some models
or available for purchase online or in stores.)
Drawer
Lid
Top Cover
Leveling feet
Leg
Support
Stacking Switch
Control
panel
Included Accessory
2 Inlet Hoses-Short 2 Inlet Hose Y-Connectors
Drain Hose Y-Connector Drain Hose
Non-Skid Pads Wrench
2 Tie Straps
2 Wire clamps and 1 Band clamp
(18EA)
(5EA)
Screws Detergent Dispenser
Required Accessory
2 Inlet Hoses
Appearance and specifi cations may vary without notice
to improve the quality of the product.
NOTE: To purchase accessories, or if any accessories
are missing, call 1-844-553-6667 (U.S.A.) or
1-800-469-4663 (Canada). Accessories can also
be purchased in the U.S.A. from the website at
www.searspartsdirect.com
NOTE: For a list of Kenmore front-loading washers which
are compatible with the pedestal washer, see the
pedestal washer product pages at the Kenmore
website: www.Kenmore.com.
8
KEY DIMENSIONS AND SPECIFICATIONS
CHOOSE THE PROPER LOCATION
FLOORING
CLEARANCES
WARNING
CAUTION
• Two or more people are required when moving, unpacking, and
stacking the washer. Failure to follow this warning may result in
damage to property or serious bodily harm.
• Store and install the washer where it will not be exposed to
weather or to temperatures below freezing. Failure to follow this
warning can cause serious injury, fi re, electric shock, or death.
• Properly ground the washer to conform with all electric
governing codes and ordinances. Failure to follow this warning
can cause serious injury, fi re, electric shock, or death.
• To reduce the risk of electric shock, do not install the washer in
humid spaces. Failure to follow this warning can cause serious
injury, fi re, electric shock, or death.
• To ensure proper air fl ow, do not block the large opening on the
bottom of the washer with carpeting or other materials.
• Do not remove the ground prong. Do not use a 2-prong adapter
or 2-wire extension cord. Failure to follow these warnings can
cause serious injury, fi re, electric shock, or death.
NOTE: Installing the washer in a humid space, or installing or
storing the washer where it will be exposed to the weather or
freezing temperatures, may result in rust or other damage that is
not covered by the product warranty.
• For best performance, plug the washer into its own individual
outlet. If necessary, use a new, UL-listed 3-prong adapter or
3-wire extension cord with a 3-prong (grounding) plug rated
at no less than the branch circuit. Do not use an extension cord
longer than three feet. Failure to follow these warnings can result
in serious injury, fi re, electric shock, or death
• The outlet must be grounded in acco with current wiring electric
codes and regulations.
• Time-delay fuse or circuit breaker is recommended.
NOTE: It is the personal responsibility and obligation of the
product owner to have a proper outlet installed by a qualifi ed
service technician.
• This pedestal washer must be installed underneath a matching
front-loading Kenmore model 796.* washing machine
manufactured after 2009. (The 29” wide machine must be
stacked under a 29” wide compatible Kenmore front-loading
washer. The 27” wide machine must be stacked under a 27”
wide compatible Kenmore front-loading washer.)
• The pedestal washer will not work as a standalone unit.
• The pedestal washer must be stacked under a compatible
Kenmore appliance in order to operate properly.
Power Outlet
• The power outlet must be within 60 in. (1.5 m) of either
side of the washer.
• The appliance and outlet must be positioned so that
the plug is easily accessible.
• To minimize noise and vibration, the washer MUST be
installed on a solidly constructed fl oor.
• Allowable slope under the entire washer is a maximum of
1 inch. diff erence from side to side or from front to back.
• Installing on carpeting and soft tile surfaces is not
recommended.
• Never install the washer on a platform or weakly
supported structure.
NOTE: The washer must be installed on fi rm fl ooring to
minimize vibration during the spin cycle. Concrete fl ooring
is best, but a wood fl oor is suffi cient, provided it is built to
FHA standards. The washer should not be installed on rugs
or exposed to weather.
Description Top-Loading Compact Pedestal Washer
Electrical Requirements 120 VAC @ 60 Hz.
Max. Water Pressure 20~120 PSI (138~827 kPa)
Dimensions 5197* 27” (W) x 30 3/4” (D) x 14 1/8”(H), 50 1/2”(D with drawer open)
5199* 29” (W) x 30 7/8” (D) x 14 1/8”(H), 50 9/16”(D with drawer open)
Net Weight 5197* 100 lb (45.4kg), 5199* 105 lb (47.8kg)
Max. Spin Speed 700 RPM
WARNING
1"
(2.5 cm)
1"
(2.5 cm)
65
1
/
8
" (165.4 cm)
54
1
/
4
" (137.8 cm)
27" (68.9 cm)
29" (73.7 cm)
INSTALLATION INSTRUCTIONS
To ensure suffi cient clearance for water lines and airfl ow, allow
minimum clearances of at least 1 in. (2.5 cm) at the sides and
4in. (10 cm) behind the unit. Be sure to allow for wall, door, or
fl oor moldings that may increase the required clearances.
50
1
/
2
" (128.3 cm)
52
3
/
4
" (134 cm)
(20 in. [50.8 cm] additional needed for service)
29
3
/
4
" (75.6 cm)
32" (82.1 cm)
9
UNPACKING AND REMOVING SHIPPING MATERIAL
1. After removing the carton and shipping material, lift
the washer off the foam base. Make sure the plastic tub
support comes off with the base and is not stuck to the
bottom of the washer.
Plastic Tub Support
Carton Base
If you must lay the washer down to remove the base
packaging materials, always protect the side of the
washer and lay it carefully on its side. DO NOT lay the
washer on its front or back.
2. Save the foam block for future use. If the washer must
be moved in the future, the foam block will help prevent
damage to the washer during transportation.
NOTE: To prevent damage, do not remove the foam tub
insert until the washer is at the fi nal location.
Foam Tub Insert
Top Cover
3. Turn the top cover about 180 degrees. Cover the upper
hole with the top cover and install 4 short screws
(included in packing box) to fi x it in place.
Top cover
Short
screws
WARNING: The top cover must be installed to avoid the
risk of electric shock or short circuit. Failure to do so can
cause serious injury, fi re, electric shock or death.
4. Make sure the leveling legs on the front-loading
washer are fully retracted before stacking it on top of
the pedestal washer. Position the appliance on top of
the pedestal washer.
Washer legs
5. Make sure the holes on the pedestal washer align
with the holes in the front-loading washer, then
install 4 long screws (included in box) at each corner
to securely attach the front-loading washer to the
pedestal washer.
Long screws
6. Extend the legs of the front-loading washer slightly
until it is snugged up against the pedestal washer.
TOOLS YOU WILL NEED
• Adjustable Pliers • Carpenter’s Level
• Screwdriver
INSTALLATION INSTRUCTIONS
10
INSTALLATION INSTRUCTIONS
OVERVIEW OF PEDESTAL WASHER CONNECTIONS
CONNECTING THE WATER LINES WITH FULL-SIZE
APPLIANCES
1. Front-loading washer and pedestal washer with dryer.
Cold
Hot
Short inlet hose
2. Front-loading washer and pedestal washer with steam
dryer.
Cold
Hot
Short inlet hose
CONNECTING THE DRAIN HOSE WITH FULL-SIZE
WASHER
1. Front-loading washer and pedestal washer with dryer.
Tie Strap
Wire Clamp
2. Front-loading washer and pedestal washer with hybrid
dryer
Tie Strap
Wire Clamp
DETAIL VIEW OF DRAIN CONNECTOR CONNECTION
Drain hose
Wire Clamp
Drain Y Connector
For narrow standpipes, insert hybrid dryer drain hose in
center of drain connector. DO NOT insert dryer drain
hose further than 1 inch (2.5 cm). Use tie straps to keep
hoses in place.
Required for water inlet
Item Qty
Y-Connector 2
Short inlet hose 2
Long inlet hose 4
Long inlet hoses sold separately. See
Features and Benefits section for
purchase information.
Required for water inlet
Item Qty
Y-Connector 3
Short inlet hose 3
Long inlet hose 5
Long inlet hoses sold separately.
One short inlet hose and
Y-connector supplied with steam
dryer. See Features and Benefits
section for purchase information.
The pedestal washer will not operate as a standalone unit. It must be stacked under a full-size, compatible Kenmore
front-loading washer.
11
INSTALLATION INSTRUCTIONS
CONNECTING THE WATER LINES
IMPORTANT:
• Use new hoses when installing the washer. Do NOT reuse
old hoses.
• Use ONLY the inlet hoses provided or sold by Kenmore.
Aftermarket hoses are not guaranteed to fi t or function
correctly. Other hoses may not tighten correctly and
could cause leaks. Subsequent damage to product or
property will not be covered under the terms of the
product warranty.
• Do not use fl ood-preventing hoses with auto shutoff
devices. The devices can be tripped during fi ll and
prevent the machine from fi lling properly.
1. Check the fi ttings and seals.
Inspect the threaded fi tting on each hose and make sure
there is a rubber seal in place in both ends of each hose
to prevent leaking.
Rubber Seal
Rubber Seal
Water Hose
(to water inlet
on washer)
Water Hose
(to tap)
2. Connect the water supply hoses.
Connect the water supply hoses to the HOT and COLD
water faucets tightly by hand and then tighten another
2/3 turn with pliers. Connect the blue hose to a cold
water faucet and the red hose to a hot water faucet.
WARNING: Do not overtighten. Damage to the coupling
can result.
Wa ter Faucet
3. Flush out the inlet hoses.
After connecting the inlet hoses to the
water faucets, turn on the water faucets
to fl ush out foreign substances (dirt, sand
or sawdust) in the water lines. Let water
drain into a bucket, and check the water
temperature to make sure you’ve connected
the hoses to the correct faucets.
4. Attach the water lines to the back of the washer.
Attach the hot water line to one
of the provided inlet Y-connectors.
Attach the short water line from the
Y-connector to the full-size washer
inlet. Then attach the long water
line from the Y-connector to the
pedestal washer inlet.
Repeat with the
cold water
connections.
Tighten the fi ttings
securely. Turn on
both faucets all the
way and check for
leaks at both ends
of the hoses.
WARNING: Do not overtighten the hoses or crossthread the
hose fi ttings. Overtightening or cross-threading can damage
the valves, resulting in leaking and property damage.
NOTE:
• Periodically check the hoses for cracks, leaks, and wear,
and replace the hoses every fi ve years. Do not stretch
the water hoses intentionally, and make sure that they
are not pinched, crushed or kinked by other objects.
• Water supply pressure must be between 20 psi and
120psi (138–827 kPa). If the water supply pressure is
more than 120 psi, a pressure reducing valve must be
installed.
• To provide optimum washing performance, set the water
heater temperature at 120°F (48°C).
• Never install or store the washer in a location subject
to freezing temperatures. Damage to the water lines
and internal mechanisms of the washer can result. If the
washer was exposed to freezing temperatures prior to
installation, allow it to stand at room temperature for
several hours before use and check for leaks prior to
operation.
Hot water inlet
Cold water inlet
12
INSTALLATION INSTRUCTIONS
CONNECTING THE DRAIN HOSE
• The drain hose should always be properly secured.
Failure to properly secure the drain hose can result in
fl ooding and property damage.
• The drain must be installed in accordance with any
applicable local codes and regulations.
• Make sure that the drain hose is not stretched, pinched,
crushed, or kinked.
CONNECTING THE PEDESTAL WASHER DRAIN HOSE
1. Insert the band clamp (included in packing box) on to
the drain hose elbow.
Band Clamp
2. With the hose leading up from the elbow, insert the
elbow onto the drain outlet on the back of the pedestal
washer.
3. Adjust the band clamp with pliers to keep the hose
securely in place and prevent leaking.
Band Clamp
USING THE DRAIN CONNECTOR
Connect the drain hose of the full-size washer and
the pedestal washer to the drain connector. Insert the
included wire hose clamps on to the ends of the two
drain hoses. Push the drain hoses fi rmly onto the drain
connector. Adjust the wire hose clamps to prevent the
hoses from coming loose or leaking. Failure to do so
could result in fl ooding. Use of the drain connector helps
avoid siphoning, odors, or improper draining.
Drain
hose
Wire
Clamp
Drain
Y Con-
nector
OPTION 1: STANDPIPE
Bend the outlet end of the drain hoses to form a U shape.
Insert the end of the drain connector into the drain.
Use the three tie straps included with the installation
materials in the foam block in the tub to secure the drain
hoses to each other and to the drain. See Overview of
Connections for details. If your drain is a standpipe,
fasten the drain hoses to the standpipe with the tie strap
provided.
Drain Hose
NOTE:
• Normal height of the end of the hoses should be
approximately 35”~47” (90~120 cm) from the fl oor.
• Do not install the end of the drain hoses lower than 29”
(73.7 cm) or higher than 96 in. (243.8 cm) above the
bottom of the washer or more than 60 in. (152.4 cm)
away from the washer.
• Never create an airtight seal between the hoses and
the drain with tape or other means. If no air gap is
present, water can be siphoned out of the tub resulting
in poor wash/rinse performance or clothing damage.
• For best performance, if there is an additional drain
hose from a hybrid dryer, place the drain hose in the
standpipe next to the drain connector.
• If the standpipe is too narrow to fi t both the drain
connector and the dryer drain hose, the dryer drain
hose may be inserted up to 3/4 in. into the center
channel of the drain connector. See Overview of
Connections, page 10.
CAUTION:
• Inserting the dryer drain hose farther than 3/4 in. will
cause leaking and improper draining.
OPTION 2: LAUNDRY TUB
Bend the end of the drain hoses to the desired shape and
support them on the edge of the laundry tub. Use the tie
strap to secure the drain hoses in place.
Drain Hose
NOTE:
• Do not use this drain hose with a fl oor drain. The end of
the drain hose must be at least 29 inches above the fl oor
for proper draining to occur.
13
INSTALLATION INSTRUCTIONS
LEVELING THE WASHING MACHINE
The washer tub of your new washing machine spins at very
high speeds. To minimize vibration, noise, and unwanted
movement, the fl oor must be perfectly level and solid.
• Check that the washing machine is level.
- Check for levelness by rocking the top edges of the
washing machine or placing a level on the washing
machine. The slope beneath the washing machine
must not exceed 1/2”, and all four leveling feet must
rest fi rmly on the fl oor.
Level
1/2"
• Turn the lower leveling feet clockwise to level the
washing machine.
- Turning the lower leveling feet clockwise raises the
washing machine.
Raise
• Turn the locknuts counterclockwise and tighten them
when the washing machine is level.
Tighten all 4 lock
nuts securely using
the wrench.
• Check again that the washing machine is level.
- Push or rock the top edges of the washing machine
gently to make sure that the washing machine does
not rock.
- If the washing machine rocks, adjust feet again.
WARNING:
• Using the washing machine without leveling may cause it
to malfunction, producing excess vibration and noise.
• When stacking the full-size washing machine on the
pedestal washer, use the leveling feet on the pedestal
washer to level both. The full-size washing machine´s
leveling feet should be minimized and the locknuts turned
counterclockwise to secure them.
• Use the leveling feet only when you level the washing
machine. If you raise the leveling feet unnecessarily, it
may cause abnormal vibration of the washing machine.
USING NON-SKID PADS (OPTIONAL)
If you install the washing machine on a slippery surface,
it may move because of excessive vibration. Incorrect
leveling may cause malfunction through noise and
vibration. If this occurs, lay the non-skid pads under the
leveling feet and adjust the level.
• Clean the fl oor to attach the non-skid pads.
- Use a dry rag to remove foreign objects or moisture.
If moisture remains, the non-skid pads may slip.
• Adjust the level after placing the washing machine in
the installation area.
• Place the adhesive side of the non-skid pad on the
fl oor.
- It is most eff ective to install the non-skid pads under
the front legs. If it is hard to place the pads under
the front legs, place them under the back legs.
Remove
backing
This side up
Adhesive
side
• Check again that the washing machine is level.
- Push or rock the top edges of the washing machine
gently to make sure that the washing machine does
not rock. If the washing machine rocks, level the
washing machine again.
14
INSTALLATION INSTRUCTIONS
The washer should be plugged into a 120 VAC, 60 Hz,
3-prong (grounded) outlet. Plug in the washer.
WARNING:
• Improper connection of the equipment grounding
conductor can result in risk of electric shock. Check
with a qualifi ed electrician or service technician if there
is doubt that the outlet is properly grounded. Do not
modify the plug provided with the appliance. Never
damage or cut off the ground prong of the power
cord. If the cord does not fi t the outlet, have a proper
outlet installed by a qualifi ed electrician. Failure to
follow these warnings can result in serious injury, fi re,
electric shock, or death.
WARNING:
• The power outlet must be within 60 inches (1.5 m) of
either side of the washer.
• The appliance and outlet must be positioned so that
the plug is easily accessible.
• Plug the washer into an electrical outlet which
has a voltage rating that matches the rating plate.
For best performance, plug the washer into its own
individual outlet. This helps prevent overloading house
wiring circuits which could cause a fi re hazard from
overheated wires. If necessary, use a new, UL-listed
3-prong adapter or 3-wire extension cord with a
3-prong (grounding) plug rated at no less than the
branch circuit. Do not use an extension cord longer
than three feet. Failure to follow these warnings can
cause serious injury, fi re, electric shock, or death.
• The outlet must be grounded in accordance with current
wiring codes and regulations.
• Time-delay fuse or circuit breaker is recommended.
• It is the personal responsibility and obligation of the product
owner to have a proper outlet installed by a qualifi ed
electrician.
• Do not use a worn or damaged power cord or power plug.
Replace or repair it immediately. Failure to do so may
result in death, fi re, electric shock, or malfunction.
• Do not modify the power cord and take care not to
damage it when installing or moving the washing
machine. Failure to do so may result in death, fi re, electric
shock, or malfunction.
• Make sure that the washing machine is grounded.
• Connect this washing machine to a grounded outlet
conforming to the rating prior to use. Failure to do so may
result in fi re, electric shock, or malfunction.
• Do not damage or cut off the ground prong of the power
cord. Doing so may cause death, fi re, electric shock, or
product malfunction.
CONNECTING TO THE POWER SUPPLY
15
HOW TO USE
CONTROL PANEL FEATURES
A
E
B C
WARNING:
To reduce the risk of fi re, electric shock, or injury to persons, read and follow this
entire Use & Care Guide, including the Important Safety Instructions, before operating this washer.
A
POWER (ON/OFF) BUTTON
Press to turn the washer ON. Press again to turn
the washer OFF. Pressing the POWER button
during a cycle will cancel that cycle and any load
settings will be lost. The drawer will unlock after a
brief pause.
NOTE:
• If there is any water remaining in the tub after
the washer shuts off, it will drain following
4-minutes delay. The washer can be restarted
any time before the drain begins. However,
once the water begins to drain, all functions
will be suspended until the water has been
completely drained and the washer shuts off.
• When the Power button is pressed, the Normal
cycle is selected by default. To modify the
default options or choose another cycle, press
the cycle selector (v) button to illuminate the
display.
B
CYCLE SELECTOR BUTTON
Press this button to select the desired cycle. Once
the desired cycle has been selected, the standard
presets will appear in the display. These settings
can be adjusted using the cycle setting buttons
any time before starting the cycle.
NOTE:
To protect your clothing, not all settings
are available on all cycle selections.
C
START/PAUSE BUTTON
Press this button to start the selected cycle. If the
washer is running, use this button to pause the
cycle without losing the current settings.
NOTE:
If you do not press the START/PAUSE
button within 4 minutes of selecting a cycle, the
washer automatically turns OFF and all cycle
settings are lost. Any water remaining in the tub
will be drained.
D
OPTION BUTTONS
Use these buttons to adjust the settings for the
selected cycle. The setting lights above the
buttons illuminate to show the current selection.
E
TIME AND STATUS DISPLAY
The display shows the cycle status and estimated
time remaining.
F
REMOTE CONTROL SENSOR
Use the remote to set the controls without bending
down to reach the control panel.
D F
16
OPERATING THE WASHER
1
SORT LAUNDRY AND LOAD THE WASHER
Sort laundry by fabric type, soil level, color and load size, as
needed. Slide the pedestal washer drawer forward, open the lid
and load items into the washer.
2
CLEANING PRODUCTS
Measure High-Efficiency (HE) detergent with the dispenser and
pour it into the washer.
3
TURN ON THE WASHER
Press the POWER button to turn ON the washer. The cycle lights
illuminate and a chime sounds.
4
SELECT A CYCLE
Press the cycle selector button to select the desired cycle. When you
press Power the Normal cycle is selected by default. To modify the
options, press the cycle selector button to activate the display. The
optional remote control can also be used to select the desired cycle.
5
ADJUST SETTINGS
Default settings for the selected cycle can now be changed, if
desired, using the option buttons.
NOTE:
Not all options are available on all cycles. A different
chime will sound and the light will not turn on if the selection is not
allowed.
6
BEGIN CYCLE
Press down gently on the lid handle until it clicks and slide the
pedestal washer drawer closed. Press START/PAUSE to begin the
cycle. The drawer locks, and the washer starts the cycle. If the
START/PAUSE button is not pressed within 4 minutes, the washer
shuts off and all settings are lost.
7
ADD FABRIC SOFTENER
A repeated chime sounds before the final rinse. When the chime
sounds, pause the machine and add liquid fabric softener within
three minutes, if desired. See Detergent and Dispenser Use for
instructions on adding softener.
8
END OF CYCLE
When the cycle is finished, a melody will sound. Immediately
slide the pedestal washer drawer out, open the lid, and remove
the clothing from the washer to reduce wrinkling.
WARNING:
• To reduce the risk of fi re, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
HOW TO USE
17
HOW TO USE
CYCLE GUIDE
The cycle guide below shows the default settings, available options and
recommended fabric types for each cycle. Allowable modifier
adjustments are shown below the default setting for each cycle.
Cycle Cycle Use
Est. Time
Wash Temp. Extra Rinse
Control Lock
Normal Lightly soiled cotton, t-shirts, towels, jeans, mixed loads. 39 ~ 116
Warm
Cold
Delicates
Lingerie, underwear, pajamas, delicates, etc.
47 ~ 103
Warm
Cold
Hand Wash Sweaters, knits, items labeled hand-washable, etc.
47 ~ 103
Warm
Cold
Workout
Wear
Specially designed/treated performance clothing.
43 ~ 103
Warm
Cold
Rinse & Spin Pre-treats stains, or rinses off soap and drains tub
8 ~ 90
Clean Washer Cleans tub and removes mildewy odor. 58
Warm
Cold
Key
Default
Available option
WASH CYCLES
Wash cycles are designed for the best wash performance
for each type of load. Select the cycle that best matches
the load contents for maximum wash performance and
fabric care. Press the cycle selector button to select the
desired cycle. When you select a wash cycle, the light for
the corresponding wash cycle will turn on. See page 19,
OPERATING THE WASHER
, for more details on operating
methods.
Normal
Use this cycle to wash lightly soiled normal items, except
delicate fabrics such as wool or silk.
NOTE:
Pressing the START/PAUSE button without
selecting a cycle will cause the NORMAL cycle to begin
immediately using the default settings.
Delicates
Use this cycle to wash delicate items such as lingerie or
sheer and lacy clothes which could easily be damaged in
a normal cycle. This cycle is not for silk items.
Hand Wash
Use this cycle to wash shrinkable woolen or hand-washable
items requiring delicate care. Only wash woolen items that
are labeled machine wash or hand wash.
Workout Wear
Use this cycle to wash performance garments that are
specially designed and treated for sports.
Rinse & Spin
Select this option to rinse and spin a load separately
from a regular cycle. This can be helpful in preventing
fresh stains from setting in fabrics.
Spin Only Cycle
To activate a spin only cycle, select the Rinse & Spin
cycle. Then press the Extra Rinse button six times or
until the display shows 8 and the Rinse icon is no longer
illuminated on the panel.
Clean Washer
Use this cycle to clean the tub of the washing machine.
18
OPTIONS
After selecting a cycle, select additional features for the
load.
NOTE:
To protect your garments, not every feature is available
with every cycle.
If the START/PAUSE button is not pressed within 4
minutes to start the cycle, the control will shut off and
all settings will be lost.
Warm Water
The warm water option is selected by default on the
Normal and Delicates cycles. It can be deselected by
pressing the Warm Water button. The water temperature
cannot be set on the Rinse & Spin cycle.
Extra Rinse
This option adds an extra rinse to the selected cycle. Use
this option to help ensure the removal of detergent from
fabrics.
NOTE:
You cannot select the Extra Rinse option with the Clean
Washer cycle.
A chime sounds repeatedly about 20 seconds before the
final rinse so the machine can be paused, the pedestal
washer drawer pulled out, and liquid fabric softener
added, if desired.
Control Lock
Use this option to disable the controls. This feature can
prevent children from changing cycles or operating
the machine. Once the Control Lock is set, it must be
deactivated before any controls, except the Power button,
can be used. Once the washer has shut off, the Power
button will allow the machine to be turned ON, but
the controls will still be locked. When the controls are
locked, CL will display alternately with the estimated time
remaining. Press and hold the Extra Rinse button for 3
seconds to activate or deactivate Control Lock.
NOTE
: Once the controls are locked, they must be
manually unlocked to restore operation.
SPECIAL DRAIN FEATURE
This washer is equipped with a special feature that is
designed to make the washer as safe as possible. If the
washer is paused or shut off while there is still water in
the tub, the water will drain automatically after several
minutes of inactivity. This helps keep children safe by
reducing the possibility of water remaining in the tub.
Any water remaining in the tub will automatically drain
four minutes after the washer has shut off. If the washer
is paused and the START/PAUSE button is not pressed
within 4 minutes, the washer will shut off and all cycle
settings will be lost. Any water remaining in the tub will
be drained.
The washer can be turned on or restarted any time before
the drain begins. However, once the washer begins to
drain, all controls and functions will be disabled until the
water has been completely drained and the washer shuts
off.
HOW TO USE
19
HOW TO USE
SORTING WASH LOADS
CAUTION
Do not load items higher than the top edge of the tub.
Failure to follow this caution can result in leakage or
damage to fabrics.
Use the Bedding cycle in the full-size washer for
buoyant or nonabsorbent items such as pillows or
comforters.
Refer to owner's manual included with
washing machine. Failure to follow this caution can
result in leakage.
Grouping Similar Items
For the best washing results, and to reduce the possibility
of damage to clothing, sort the clothing into loads that
are made up of similar items.
Mixing different fabric types and/or soil levels can result
in poor wash performance, color transfer, discoloration,
fabric damage or linting. Sort fabrics into groups as
described below.
Colors
Sort articles by color. Wash dark clothes together in a
separate load from light colors or whites. Mixing dark
clothes with light clothes can result in dye transfer or
discoloration of the lighter clothes.
Soil Level
Wash heavily soiled clothing in the full-sized washer.
Washing lightly soiled clothing in the same load
with heavily soiled clothing could result in poor wash
performance for the lightly soiled clothing. The pedestal
washer is optimized for use with lightly soiled and
delicate items.
Fabric Type
Do not mix delicate items with heavier or sturdier fabrics.
Washing heavier fabrics in a delicate load can result
in poor wash performance for the heavier fabrics and
possible damage to the delicate items.
Lint Type
Some fabrics attract and bind lint to them while others
give off lint in the laundry process. Avoid mixing these
lint collectors and lint producers in the same load. Mixing
these fabrics results in pilling and linting on the lint
collectors. (For example, lint collector—knit sweater; lint
producer—terry cloth towels.)
SORT LAUNDRY…
By Colors By Soil By Fabric By Lint
White Heavy Delicates Lint Producer
Lights Normal Easy Care Line Collector
Darks Light Sturdy
Fabric Care Labels
Many articles of clothing include a fabric care label.
Using the chart below, adjust the cycle and option
selections to care for your clothing according to the
manufacturer’s recommendations.
Fabric Care Labels
Loading the Washer
• Check all pockets to make sure that they are empty.
Items such as clips, matches, pens, coins, and keys can
damage both the washer and the clothes.
• Close zippers, hooks, and drawstrings to prevent these
items from snagging or tangling on other clothes.
• Pretreat heavily stained areas for best results.
• To prevent an out-of-balance load, do not wash single
items. Add one or two similar items to the load. Large,
bulky items, such as a blanket, comforter, or bedspread,
should be washed individually in the full-size washer.
• The washer will not fill or operate with the lid open.
• Don't overload the tub. Clothes should fit loosely in the
tub under the maximum fill line. Loading clothes over
the fill line may result in damage to clothing and the
washer.
CAUTION
Close the lid until it clicks before sliding the drawer in to
begin the cycle.
Press to open the lid. Do not force the lid of the washing
machine open. Doing so may damage the machine.
20
A WORD ABOUT DETERGENTS
High-Efficiency (HE) detergents produce fewer suds,
dissolve more efficiently to improve washing and rinsing
performance, and help to keep the interior of your
washer clean. Using detergent that is not HE may cause
oversudsing and unsatisfactory performance which could
result in error codes, cycle failure, and machine damage.
Max load
(2 tsp., 10 g)
Normal
(1 tsp., 5 g)
This machine requires very little detergent. For proper
wash performance, always use the dispenser and
measuring device provided with the machine.
The dispenser holds a maximum of 2 teaspoons (10g/10cc)
of HE detergent. Most normal loads require only
1teaspoon (5g/5cc) of detergent, or filling the dispenser
to the halfway line.
Do not use a full detergent pod in the pedestal washer.
Using too much detergent may cause oversudsing and
unsatisfactory performance. Reduce detergent amount or
add an extra rinse if detergent residue is left on fabrics.
To add an extra rinse, press the Extra Rinse button.
DESIGNED TO USE ONLY
HIGH-EFFICIENCY (HE)
DETERGENT
IMPORTANT: Your washing machine is designed for use
with only High-Effi ciency (HE) detergents. HE detergents
are formulated specifi cally for High- Effi ciency washers
and contain suds-reducing agents. Always look for the HE
symbol when purchasing detergent.
IMPORTANT: Not all detergents are the same. Pay
careful attention to the amount of detergent used to avoid
oversudsing, poor rinsing and detergent buildup in clothing,
and residue buildup that can contribute to odors in the
machine. The maximum measure on the dispenser provided
should only be used for very large loads. Using too much
detergent can result in detergent buildup in the washer and
in your clothes.
Always measure the detergent amount. While HE
detergents are designed for this type of washing
machine, be careful when measuring the detergent. For
most normal loads, no more than 1 teaspoon or half the
provided dispenser/measuring device of HE detergent
should be used.
NOTE:
• Extra care must be exercised when using 2X and 3X
concentrated detergents because even a little bit extra
can contribute to the problems mentioned above.
• Detergents designated as HE compatible may not provide
optimal results.
USING THE DETERGENT
1
Slide the drawer open, open the lid, and add the
garments into the tub.
2
Measure the detergent with the detergent dispenser and
pour it into the tub.
3
Close the lid, slide the drawer closed, and press the
START/PAUSE button to start the cycle.
NOTE: Liquid chlorine bleach or powdered bleach
cannot be used in the pedestal washer. To use bleach,
use the full-size washer and follow instructions in the
owner’s manual for that machine.
IMPORTANT: Do not place or store laundry products, such
as detergent, bleach, or liquid fabric softener, on top of
your washer or dryer. Wipe up any spills immediately. These
products can damage the fi nish and controls.
USING BLEACH
Do not use liquid chlorine bleach or powdered bleach in the
pedestal washer. To bleach items, use the full-size washer
and follow the instructions in the owner’s manual included
with that machine.
USING FABRIC SOFTENER
The pedestal washer chimes repeatedly before the fi nal
rinse so liquid fabric softener can be added to the load, if
desired. Use 1/4 the amount of softener recommended by
the manufacturer for a normal load. When the machine
chimes, press Start/Pause to pause the cycle.
1
Slide the drawer open, open the lid, and add the liquid
fabric softener to the detergent dispenser. The softener
can also be diluted with water and added directly into
the tub. Do not pour undiluted softener directly onto
clothing because it may stain fabrics.
2
Close the lid, slide the drawer closed, and press
Start/Pause to restart the cycle.
3
To disable or enable the fabric softener alert, press and
hold the Warm Water and Extra Rinse buttons at the
same time for three seconds.
If you miss the softener add point:
1
Press the Power button to interrupt the cycle.
2
Select the Rinse & Spin cycle and press Start/Pause to
start the cycle.
3
Add the fabric softener at the chimes following
instructions above.
DETERGENT AND DISPENSER USE
HOW TO USE
21
HOW TO USE
TIME AND STATUS DISPLAY
The time and status display shows the estimated time remaining and cycle progress.
A
DRAWER LOCK INDICATOR
The DRAWER LOCK indicator will illuminate
once a cycle has started. The indicator light will
stay on until the cycle is paused, stopped or has
finished.
B
LID OPEN
If the lid is open, the LED blinks. Close the lid, shut
the drawer, and press START/PAUSE to start the
cycle. Some models do not have the LID OPEN
indicator. If the lid is closed and the lid error
message is displayed, call for service.
C
CONTROL LOCK
When the Control Lock function is activated, the
LED lights up. When the Control Lock function
is set, except for the POWER button, the other
functions are disabled. Once the Control Lock
function is disabled, the LED will turn off.
D
CYCLE STATUS INDICATOR
These LEDs will illuminate when a cycle is selected
to indicate which stages will run. When a cycle
is running, the LED for the active stage will blink,
and the LEDs for the remaining stages will remain
steady. Once a stage is complete, the LED will
turn off. If a cycle is paused, the active stage LED
will stop blinking.
E
ESTIMATED TIME REMAINING
When a cycle is selected, the default time for
that cycle is displayed. This time will change as
modifiers or options are selected.
NOTE:
The time shown is only an estimate. This
time is based on normal operating conditions.
Several external factors (load size, room
temperature, incoming water temperature, water
pressure, etc.) can affect the actual time.
A
E D
B C
22
CARE AND CLEANING
REGULAR CLEANING
WARNING:
To reduce the risk of fi re, electric shock, or injury to persons, read and follow this entire
Use & Care Guide, including the Important Safety Instructions, before operating this washer.
• Unplug the washer before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause
serious injury, fi re, electric shock, or death.
• Never use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the fi nish.
CLEANING THE EXTERIOR
Proper care of your washer can extend its life. The outside of
the machine can be cleaned with warm water and a mild,
nonabrasive household detergent. Immediately wipe off any
spills with a soft, damp cloth.
IMPORTANT: Do not use solvents, cleaning alcohols or
similar products. Never use steel wool or abrasive cleaners
because they can damage the surface.
CARE AND CLEANING OF THE INTERIOR
Use a towel or soft cloth to wipe around the washer lid
opening and lid glass. Always remove items from the washer
as soon as the cycle is complete. Leaving damp items in the
washer can cause wrinkling, color transfer, and odor. Run the
Clean Washer cycle once a month, or more often if needed,
to remove detergent buildup and other residue.
CLEAN WASHER CYCLE
Some environmental and usage conditions can cause a
residue to build up in the tub over time and can lead to a
mildewy or musty smell. The Clean Washer cycle is specially
designed to remove this buildup using bleach or other
cleaners designed specifi cally for cleaning washing machines.
Run the Clean Washer cycle once a month, or more often
under heavy use conditions or if odor is present.
1
Remove any clothing from the tub.
2
Dilute 1/4 cup of liquid chlorine bleach in 1 quart of
water and pour the mixture in the tub. Do not use any
more than 1/4 cup of liquid bleach. Do not let bleach
sit in the tub for a long period before running the Clean
Washer cycle.
NOTE: For other tub cleaning products, follow the cleaner
manufacturer’s instructions and recommendations.
3
Close the lid and drawer and press the POWER button
to turn the washer ON. Select the Clean Washer cycle
then press the START/PAUSE button to begin the cycle.
Selecting any other cycle after Clean Washer has
been selected will cause the Clean Washer cycle to be
cancelled.
4
After the cycle ends, open the lid and allow the tub
interior to dry completely.
NOTE:
• Never load laundry while using CLEAN WASHER.. The
laundry may be damaged or contaminated with cleaning
products. Make sure to run the Clean Washer cycle ONLY
when the tub is empty.
• Leave the lid open after fi nishing the laundry to keep the
tub clean.
• The Clean Washer cycle should be repeated monthly.
REMOVING MINERAL BUILDUP
If you live in an area with hard water, mineral scale can form
on internal components of the washer. Use of a water softener
is recommended in areas with hard water.
Use a descaler, such as Washer Magic®, to remove visible
mineral buildup. After descaling, always run the Clean
Washer cycle before washing clothing.
Mineral scale and other spots may be removed from the
stainless steel tub using a stainless steel cleaner. Do NOT use
steel wool or abrasive cleaners.
LEAVE THE LID OPEN
If the washer will not be used for several days, pull the washer
drawer open, raise the lid, and leave the lid and drawer open
to allow the tub to dry.
CAUTION:
• Do not allow children or pets to play on or in the washer.
Close supervision is necessary when they are near the
open washer.
23
CARE AND CLEANING
MAINTENANCE
CLEANING THE WATER INLET FILTERS
If the washer does not fi ll properly, an error message will
show on the display. The inlet valve fi lter screens could be
plugged by hard water scale, sediment in the water supply, or
other debris.
NOTE: The inlet screens protect the delicate parts of the
inlet valve from being damaged by particles that could
enter the valves with the water supply. Operating the washer
with these fi lters removed could cause a valve to stick open
resulting in fl ooding and/or property damage.
Hot water inlet
Cold water inlet
Inlet Filter
1
Turn OFF both water faucets completely. Unscrew the
hot and cold water lines from the back of the washer.
IMPORTANT: Aftermarket hoses are not guaranteed to fi t
or function correctly. Other hoses may not tighten correctly
and could cause leaks. Subsequent damage to product or
property will not be covered under the terms of the product
warranty.
2
Carefully remove the fi lters from the water valves and
soak them in white vinegar or a lime scale remover,
following the manufacturer’s instructions. Be careful not
to damage the fi lters while cleaning.
3
Rinse thoroughly before reinstalling. Press the fi lters
back into place.
4
Before reattaching the hoses, fl ush the hoses and water
lines by running several gallons of water into a bucket
or drain, preferably with the faucets wide open for
maximum fl ow.
NOTE: An
IE
message may blink on the display when the
water pressure is weak or an inlet fi lter is clogged with dirt.
Clean the inlet fi lter.
WARNING:
• Unplug the power cord and turn off the faucets before
cleaning. Failure to do so may cause electric shock.
• Do not use the washing machine without the inlet
fi lters. If you use the washing machine without the inlet
fi lters it will cause leaks and product malfunction.
• If you use the washing machine in an area with hard
water, the inlet fi lter may clog due to lime buildup.
STORING THE WASHER
If the washer will not be used for an extended period of
time and is in an area that could be exposed to freezing
temperatures, perform the following steps to protect the
washer from damage.
1
Turn OFF the water supply.
2
Disconnect the hoses from the water supply and drain
water from the hoses.
3
Plug the power cord into a properly grounded electrical
outlet.
4
Add 1/4 gallon of nontoxic recreational vehicle (RV)
antifreeze to the empty tub and close the lid. Never use
automotive antifreeze.
5
Press the POWER button, then select the Spin Only
cycle (see page 20). Press the START/PAUSE button to
activate the drain pump. Allow the drain pump to run
for one minute, then press the POWER button to shut off
the washer. This will expel some of the anifreeze, leaving
enough to protect the washer from damage.
6
Unplug the power cord, dry the tub interior with a soft
cloth, and close the lid.
7
Store the washer in an upright position.
8
To remove the antifreeze from the washer after storage,
run a complete wash cycle using detergent. Do not add
laundry to this cycle.
24
Kenmore Connect™ System
Should you experience any problems with your washing
machine, it has the capability of transmitting data via
your telephone to the Kenmore Connect Team. This gives
you the capability of speaking directly to one of our
specially trained technicians. The technician records
the data transmitted from your machine and uses it
to analyze the issue, providing a fast and eff ective
diagnosis.
If you experience problems with your washer, in
the U.S.A. call 1-844-553-6667 and in Canada call
1-800-469-4663. Only use the Kenmore Connect
System feature when instructed to do so by the Kenmore
Connect Team. The transmission sounds that you will hear
are normal and sound similar to a melody.
Kenmore Connect cannot be activated unless your
washing machine can be turned on by pressing the
POWER button. If your washing machine is unable to
turn on, then troubleshooting must be done without using
Kenmore Connect™.
Using the Kenmore Connect™ System
First, call 1-844-553-6667 (U.S.A.) or 1-800-469-4663 (Canada). If the number of the phone you are using is on fi le
and is associated with your washer, you will be quickly relayed to a Kenmore Connect™ Team agent. Only use the
Kenmore Connect™ feature when instructed to do so by the Kenmore Connect™ Team agent.
HOLD the mouthpiece of your phone over the power button, when instructed to do so by the call center, no more
than one inch from (but not touching) the machine.
NOTE: Do not press any other buttons.
PUSH and hold the Warm Water button while continuing to hold your phone to the POWER button.
LISTEN for three beeps. After you hear the three beeps, release the Warm Water button. Keep the phone in place
until the tone transmission has fi nished. The display will count down the time. Once the countdown is over and the
tones have stopped, resume your conversation with the technician, who will then be able to assist you in using the
information transmitted for analysis.
NOTE:
• For best results, do not move the phone while the tones are being transmitted.
• If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.
• Pressing the POWER button during the transmission will shut off Kenmore Connect™.
25
TROUBLESHOOTING
FAQS: FREQUENTLY ASKED QUESTIONS
Q: Can the pedestal washer and the front-loading washer be run at the same time?
A: Yes. The pedestal washer is designed to operate simultaneously under compatible Kenmore front-
loading washers produced after 2009. It is not designed for operation under Kenmore top-loading
washers, Kenmore dryers, non-compatible appliances, or as a standalone unit.
For more information regarding compatibility, see the pedestal washer product pages at the website
www.Kenmore.com
Q:
How much clothing can be loaded in the pedestal washer?
A: The tub is designed to hold a maximum of 4 lb. (One thick bath towel weighs about one pound when
dry.) Do not overload the washer tub. The clothing should fit loosely into the tub and the lid should
close easily.
Q:
How much detergent, softener, or bleach should be used per load?
How/when is it added to the machine?
A: Detergent:
• The pedestal washer requires very little detergent. Most normal loads only require 1 tsp (5 g) of HE
detergent. Use a maximum of 2 tsp (10 g) of HE detergent. Do not use a full detergent pod.
• Pour the detergent in the measuring device/dispenser provided with the machine. Place the
dispenser in the tub with the clothing before beginning the cycle.
• If the dispenser is missing, place the 1–2 tsp. (5–10 g) detergent directly into the tub.
• For more information, see Detergent and Dispenser Use.
Fabric Softener:
• Use ¼ the amount recommended by the manufacturer for a normal load. Use the dispenser
provided with the machine. For instructions, see Using Fabric Softener.
Bleach:
• Do not use liquid or powdered bleach to launder items in the pedestal washer. To safely and
effectively launder items using bleach, use the bleach dispenser in the front-loading washer.
Q: Can I slide the drawer out while the cycle is running?
A: No. The drawer locks for safety during operation. Pause the cycle to open the drawer.
Q: What if I want to add an item after I've started the cycle?
A: Press the Start/Pause button to pause the cycle. After the drawer unlocks, add the item and press
Start/Pause to restart the cycle. Wash performance may be affected if the item is added after the
first few minutes.
Q:
How do I dry out the tub after the cycle is finished?
How do I keep the tub free from mildew and odors?
A: For best care, wipe the lid and tub dry with a soft cloth or towel after use. Leave the drawer and the
lid open to allow maximum air circulation after use. Run the Clean Washer cycle once a month or
more frequently as needed. TCL is displayed after every 30 cycles as a reminder.
26
NORMAL SOUNDS YOU MAY HEAR
BEFORE CALLING FOR SERVICE
Your washing machine is equipped with an automatic error-monitoring system to detect and diagnose
problems at an early stage. If your washer does not function properly or does not function at all, check the
following before you call for service:
Problem Possible Cause Solutions
Rattling and clanking
noise
Foreign objects, such as keys,
coins, or safety pins may be in tub
.
Stop washer, check tub for foreign objects. If noise continues after
washer is restarted, call for service.
Thumping sound Heavy wash loads may produce a
thumping sound.
This is normal. If sound continues, washer is probably out of balance.
Stop and redistribute wash load.
Wash load may be out of
balance.
Pause the cycle and redistribute the load after the lid unlocks.
Vibrating noise Packaging materials were not
removed.
See the Unpacking and Removing Shipping Material section in the
installation requirements section.
Wash load may be unevenly
distributed in the tub.
Pause the cycle and redistribute the load after the lid unlocks.
Not all leveling feet are resting
firmly and evenly on the floor.
See Leveling the Washer in the Installation Instructions section.
Floor not rigid enough. Make sure that the floor is solid and does not flex. See Flooring in the
Installation Requirements section.
Water leaking Inlet hose connection is loose at
faucet, washer, or Y-connector.
Check hoses and Y-connectors for leaks, cracks and splits.
Check and tighten hose connections.
House drain pipes are clogged. The washer pumps out water very rapidly. Check for water backing
up out of the drain pipe during drain. If water is seen coming out
of the drain, check for proper drain hose installation and check for
restrictions in the drain. Contact a plumber to repair drain pipe.
Drain hose has come out of drain
connector or is not inserted far
enough.
Tie drain hose to inlet hose or standpipe to prevent it from coming
out during drain. For smaller drain pipes, insert the drain hose into
the pipe as far as the drain hose flange. For larger drain pipes, insert
the drain hose into the pipe 1-2 inches past the flange.
Load is too large for the tub. Reduce the load or use the full-size washing machine. Use the BULKY/
BEDDING cycle on the front-loading washer for large or bulky items.
Stop the washer and check the load. Make sure the load fits loosely
in the tub and the lid closes easily.
NORMAL SOUNDS YOU MAY HEAR
The following sounds may be heard while the washer is
operating. They are normal.
CLICKING:
Lid lock relay when the lid locks and unlocks.
SPRAYING OR HISSING:
Water spraying or circulating during the cycle.
HUMMING OR GURGLING:
Drain pump is pumping water from the washer at times
during a cycle.
WATER SLOSHING SOUND:
A liquid in the balance ring around the wash basket helps
the basket spin smoothly.
SOUND OF WATER BEING ADDED AFTER THE WASHER HAS
ALREADY BEEN IN OPERATION
The washer adapts to the load size and type to add
more water to the cycle as needed.
The wash load may be unbalanced. If the washer
senses that the load is unbalanced, it will stop and refill
to redistribute the load.
The washer may be diluting laundry additives to add to
the wash load.
TROUBLESHOOTING GUIDE
27
TROUBLESHOOTING GUIDE
BEFORE CALLING FOR SERVICE (continued)
Problem Possible Cause Solutions
Wrinkling Washer not unloaded promptly. Always remove items from the washer as soon as the cycle is
complete.
Washer overloaded. The washer can be fully loaded, but the tub should not be tightly
packed with items. The lid of the washer should close easily.
Hot and cold water inlet hoses are
reversed.
Hot water rinse can set wrinkles in garments. Check the inlet hose
connections.
Excessive sudsing Too much detergent or incorrect
detergent.
HE detergents are formulated specifically for High-Efficiency washers
and contain suds-reducing agents. Only use detergent with the High-
Efficiency (HE) logo. For detergent quantities refer to the How to Use
section. If sudsing or detergent residue continue to be an issue, add
an Extra Rinse.
Staining
Bleach or softener was added
directly to the wash load in the
tub.Washer was not unloaded
promptly.
Always remove items from the washer as soon as possible after the
cycle is complete.
Clothes were not properly sorted. Always wash dark colors separately from light colors and whites to
prevent discoloration.
Never wash heavily soiled items washed with lightly soiled items.
Washer will not turn
ON
Power cord is not properly plugged
in.
Make sure that the plug is plugged securely into a grounded, 3-prong,
120-VAC, 60-Hz outlet.
House fuse is blown, circuit breaker
has tripped, or power outage has
occurred.
Reset circuit breaker or replace fuse. Do not increase fuse capacity.
If the problem is a circuit overload, have it corrected by a qualified
electrician.
Wash cycle time is
longer than usual
The washer automatically adjusts
the wash time for the amount of
laundry, water pressure and other
operating conditions.
This is normal. The washer adjusts cycle time automatically to provide
optimal results for the selected cycle. The time remaining shown in the
display is only an estimate. Actual time may vary.
Musty or mildewy
odor in washer
Incorrect or too much detergent
has been used.
Use only High-Efficiency (HE) detergent in accordance with the
manufacturer’s instructions. This machine requires very little detergent.
1-2 teaspoons is sufficient to wash a full load.
Inside of tub was not cleaned
properly.
Run the Tub clean cycle regularly.
Water leaks Oversudsing of detergent. Oversudsing may create leaks, and may be caused by the type
and amount of detergent used. High-Efficiency detergent is the only
detergent recommended. Always reduce the amount of detergent if
the load is small or lightly soiled, or if your water is very soft. Never
use more than the maximum amount shown in the dispenser provided.
28
BEFORE CALLING FOR SERVICE (continued)
TROUBLESHOOTING GUIDE
Problem Possible Cause Solutions
Washer will not
operate
Control panel has powered off due
to inactivity.
This is normal. Press the POWER button to turn the washer on.
Washer is unplugged. Make sure cord is plugged securely into a working outlet.
Water supply is turned off. Turn both hot and cold faucets fully on.
Controls are not set properly. Make sure the cycle was set correctly, close the lid and press the
START/PAUSE button.
Lid or drawer is open The washer will not operate if the lid is open. Close the lid and
drawer make sure that nothing is caught under the lid preventing it
from closing completely.
Circuit breaker/fuse is tripped/
blown.
Check house circuit breakers/fuses. Replace fuses or reset breaker.
The washer should be on a dedicated branch circuit. The washer will
resume the cycle where it stopped once power is restored.
Control needs to be reset. Press the POWER button, then re-select the desired cycle and press
the START/PAUSE button.
START/PAUSE was not pressed
after a cycle was set.
Press the POWER button then re-select the desired cycle and press
the START/PAUSE button. The washer will shut off if the START/PAUSE
button is not pressed within 4 minutes.
Extremely low water pressure. Check another faucet in the house to make sure that household water
pressure is adequate.
Washer is too cold. If the washer has been exposed to temperatures below freezing for
an extended period of time, allow it to warm up before pressing the
POWER button. Otherwise, the display will not come on.
Washer not filling
properly
Filter clogged. Make sure the inlet filters on the fill valves are not clogged. Refer to
the filter cleaning instructions.
Inlet hoses may be kinked. Check that inlet hoses are not kinked or clogged.
Energy efficiency. This is a High Efficiency (HE) washer. As a result, the water level
settings for this washer may be different than for conventional
washers.
Insufficient water supply. Make sure that both hot and cold water faucets are turned on all the
way.
lid and drawer are open. The washer will not operate if the lid is open. Close the lid and make
sure that nothing is caught under the lid preventing it from closing
completely.
Hot and cold inlet hoses are
reversed.
Check inlet hose connections. Make sure the hot water supply
is connected to the hot inlet valve, and the cold water supply is
connected to the cold inlet valve.
Water level is too low. This is a high efficiency washer. The water will not normally cover the
clothes. The fill level is optimized for the wash motion to achieve the
best wash performance.
29
TROUBLESHOOTING GUIDE
BEFORE CALLING FOR SERVICE (continued)
Problem Possible Cause Solutions
Washer will not drain
water
Kinked drain hose. Ensure that the drain hose is not kinked.
Drain located higher than 96 in.
(243.84 cm). above the floor.
Make sure that the drain hose is no higher than 8 ft. above the bottom
of the washer and is no more than 5 ft. away from the washer.
Poor stain removal Heavily soiled load. The pedestal washer is designed to gently and effectively care for
lightly soiled loads. Heavier soils and tougher stains may require the
extra cleaning power of the features on the front-loading washer.
Previously set stains. Articles that have previously been washed may have stains that have
been set. These stains may be difficult to remove and may require
hand washing or pre-treating to aid in stain removal.
Water leaks every
load
Hoses not installed correctly.
Hybrid dryer drain hose not
installed properly.
Check all fill and drain hose connections to ensure that they are tight
and secure.
Do not insert hybrid dryer hose into Y-connector further than 3/4 in.
See Connecting the Drain Hose.
Check clamps and tie straps to ensure they are secure. Install clamps
and tie straps if missing. See Connecting the Drain Hose.
30
ERROR CODES
TROUBLESHOOTING GUIDE
Problem Possible Cause Solutions
The display shows: Drawer is not closed properly Close the drawer and press START/PAUSE button to start the cycle.
If the drawer is closed and the drawer lock error message is
displayed, call for service
The display shows: Lid is not closed properly Open the drawer and make sure the latch area is free of clothing or
other obstructions.
Close the lid, shut the drawer, and press START/PAUSE to start the
cycle.
If the lid is closed and the lid error message is displayed, call for
service
Washer fills with
water slowly or not
at all, or the display
shows:
Water supply faucets are not fully
open.
Make sure that the water faucets are fully open.
Water line hoses are kinked,
pinched, or crushed.
Make sure that the hoses are not kinked or pinched. Be careful when
moving the washer during cleaning and maintenance.
Water inlet filters are clogged. Clean the inlet filters. See Maintenance in the Care and Cleaning
section.
Water supply pressure to faucet or
house is too low.
Check another faucet in the house to make sure that household water
pressure is adequate and flow is not restricted. Disconnect the inlet
hose from the washer and run a few gallons of water through the hose
to flush the water supply lines. If flow is too low, contact a plumber to
have the water lines repaired.
Water supply connected with leak-
limiting hoses.
Hoses designed to limit leaks can trip falsely and prevent the washer
from filling. The use of leak limiting hoses is not recommended.
Washer will not turn
on
Power cord is not properly plugged
in.
House fuse is blown, circuit breaker
has tripped, or power outage has
occurred.
Make sure that the plug is plugged seruely into a grounderd, 3-prong.
120-VAC, 60-Hz. outlet.
Reset circuit breaker or replace fuse. Do not increase fuse capacity.
If the problem is a circuit overload, have it corrected by a qualified
electrician.
Water in the washer
drains slowly or not
at all, or the display
shows:
Drain hose is kinked, pinched, or
clogged
Drain discharge is more than
53" (134.6 cm) above bottom of
washer.
Make sure the drain hose is free of clogs, kinks, etc., and is not
pinched behind or under the washer.
Adjust or repair drain. Maximum drain height is 53" (134.6 cm).
Washer chimes
repeatedly before
final rinse
This is not an error. This is an alert
to allow the addition of liquid
fabric softener before the final
rinse.
See Using Fabric Softener, page 16, for instructions on adding liquid
fabric softener to the load.
To disable or enable the fabric softener alert, press and hold Warm
Water and Extra Rinse at the same time for three seconds.
31
TROUBLESHOOTING GUIDE
ERROR CODES (continued)
Problem Possible Cause Solutions
The display shows: If the rebalancing operation (see
above) is not successful, this error
will be displayed.
The automatic attempt to rebalance the load was not successful. The
cycle has been paused to allow the load to be manually adjusted.
The load is too small. Small loads may need additional items to be added to allow the
washer to balance the loads.
Heavy articles are mixed with
lighter items.
The load may have heavy items loaded with lighter items. Always try
to wash articles of somewhat similar weight to allow the washer to
evenly distribute the weight of the load for spinning.
The load is out of balance. Manually redistribute the load if articles have become tangled
preventing the automatic distribution from working properly.
The display shows:
Control error. Unplug the power cord and contact your nearest service center.
The display shows :
Water level is too high due to a
faulty water valve.
Close the water faucets, unplug the washer, and call for service.
The display shows: The water level sensor is not
working correctly.
Close the water faucets, unplug the washer, and call for service.
The display shows:
A motor error has occurred. Allow the washer to stand for 30 minutes and then restart the cycle. If
the LE error code persists, call for service.
The display shows:
It is time to run the Clean Washer
cycle.
Empty the tub, add a diluted solution of 1/4 cup bleach to 1 qt. water
to the tub, and select the Clean Washer cycle.
To skip the Clean Washer cycle when alerted, press the cycle selector
buttons. The message continues to appear for a few more wash cycles
and then disappears until the next scheduled cleaning cycle.
The display shows:
Pedestal washer is being operated
without a full-size washer.
Stacking switch is not working
properly.
The pedestal washer will not operate as a standalone unit. It must be
stacked under a full-size compatible Kenmore appliance.
The stacking switch will not operate properly if the unit is stacked
under a non-compatible Kenmore appliance, or a Kenmore appliance
manufactured before 2009.
32
KENMORE ELITE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or
workmanship when it is correctly installed, operated and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option
of seller.
For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/
warranty.
This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if this
appliance is ever used for other than private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to fi lters, belts, bags or
screw-in base light bulbs.
2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance
installation, operation and maintenance.
3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to
repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems
resulting from such installation.
4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized
service agents, including installation that was not in accord with electrical, gas or plumbing codes.
5. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly
operated and maintained according to all supplied instructions.
6. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident,
alteration, abuse, misuse or use for other than its intended purpose.
7. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of
detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with
the product.
8. Damage to or failure of parts or systems resulting from unauthorized modifi cations made to this
appliance.
9. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined
to have the appropriate certifi cation logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement
as provided herein. Implied warranties, including warranties of merchantability or fi tness for a particular
purpose, are limited to one year or the shortest period allowed by law. Seller shall not be liable for incidental
or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental
or consequential damages, or limitation on the duration of implied warranties of merchantability or fi tness, so
these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada*.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to
state.
*In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user
or servicer travel and transportation expenses if this product is located in a remote area (as defi ned by
Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Hoff man Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
WARRANTY
.HQPRUH
§
)RU6HDUV+RPH6HUYLFHVLQKRPHUHSDLU
RIDOO.HQPRUHPDMRUDSSOLDQFHV
)RUWKHUHSODFHPHQWSDUWVDFFHVVRULHVDQG
8VH&DUH*XLGHVWKDW\RXQHHGWRGRLW\RXUVHOI
)RUSURIHVVLRQDOLQVWDOODWLRQRIPDMRUKRPHDSSOLDQFHV
DQGLWHPVOLNHDLUFRQGLWLRQHUVDQGZDWHUKHDWHUV
ZZZNHQPRUHFRP
,Q&DQDGD
,Q&DQDGD,Q&DQDGD
,Q&DQDGD
ZZZVHDUVFD
&DOODQ\WLPHIRUWKHORFDWLRQRI\RXUQHDUHVW
6HDUV
6HDUV6HDUV
6HDUV
3DUWV5HSDLU6HUYLFH&HQWHU
3DUWV5HSDLU6HUYLFH&HQWHU3DUWV5HSDLU6HUYLFH&HQWHU
3DUWV5HSDLU6HUYLFH&HQWHU
86$
&DQDGD
7RSXUFKDVHDSURWHFWLRQDJUHHPHQWRQDVHUYLFHDEOHSURGXFW
86$
&DQDGD
3DUDSHGLUVHUYLFLRGHUHSDUDFLÚQ
DGRPLFLOLR\RUGHQDUSLH]DV
68
6868
68
+2*$5
+2*$5+2*$5
+2*$5
§
ZZZNHQPRUHFRP
$X&DQDGDSRXUVHUYLFHHQIUDQÐDLV
/(
/(/(
/(
)2<(5
)2<(5)2<(5
)2<(5
0&
ZZZVHDUVFD
§
