OWNER’S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
F H/1 4 G6/G7 Q/T D(N)(W)(0~9)
MFL69515301
Rev.01_15042016
EN ENGLISH
F H/1 2 G6/G7 Q/T D(N)(W)(0~9)
F H/1 0 G6/G7 Q/T D(N)(W)(0~9)
TABLE OF CONTENTS
This manual may contain images or content
different from the model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ......................................03
Important Safety Instructions ....................................................... 04
Disposal of Your Old Appliance ...................................................07
INSTALLATION .......................................................08
Parts ............................................................................................08
Accessories .................................................................................08
Specifications ..............................................................................09
Installation Place Requirements ..................................................10
Unpacking and Removing Transit Bolts ....................................... 11
Using Anti-Slip Sheets (Optional) ................................................12
Wooden Floors (Suspended Floors) ............................................12
Leveling the Appliance ................................................................. 13
Connecting the Supply Hose .......................................................13
Installing the Drain Hose .............................................................16
Electrical Connections (In the UK Only) ......................................16
OPERATION ...........................................................17
Using the Washing Machine ........................................................ 17
Sorting Laundry ...........................................................................18
Adding Cleaning Products ...........................................................19
Control Panel ............................................................................... 21
Programme Table ........................................................................22
Option Programme ......................................................................26
SMART FUNCTION ................................................28
Using the Smart Diagnosis™ Function .......................................28
MAINTENANCE ......................................................29
Cleaning Your Washing Machine .................................................29
Cleaning the Water Inlet Filter .....................................................29
Cleaning the Drain Pump Filter ...................................................30
Cleaning the Dispenser Drawer ...................................................31
Tub Clean (Optional) ...................................................................31
Caution on Freezing During Winter .............................................32
TROUBLESHOOTING ............................................34
Diagnosing Problems ..................................................................34
Error Messages ...........................................................................37
WARRANTY ............................................................39
OPERATING DATA .................................................42
03
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent unforeseen risks or
damage from unsafe or incorrect operation of the product.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described
below.
This symbol is displayed to the indicate matters and operations that
can cause risk. Read the part with this symbol carefully and follow the
instructions in order to avoid risk.
WARNING
- This indicates that the failure to follow the instructions
can cause serious injury or death.
CAUTION
- This indicates that the failure to follow the instructions
can cause the minor injury or damage the product.
To reduce the risk of re, electric shock, or injury to persons when using
your product, basic safety precautions should be followed, including the
following:
Children in the Household
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
For Use in Europe:
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Children of less than 3 years should be kept away unless continuously supervised.
WARNING
EN
04
Important Safety Instructions
To reduce the risk of re, electric shock, or injury to persons when using
your product, basic safety precautions should be followed, including the
following:
Installation
•
Never attempt to operate this appliance if it is damaged, malfunctioning, partially
disassembled, or has missing or broken parts, including a damaged cord or plug.
•
This appliance should only be transported by two or more people holding the
appliance securely.
•
Do not install the appliance in a damp and dusty place. Do not install or store the
appliance in any outdoor area, or any area that is subject to weathering conditions
such as direct sunlight, wind, rain, or temperatures below freezing.
•
Tighten the drain hose to avoid separation.
•
If the power cord is damaged or the hole of the socket outlet is loose, do not use
the power cord and contact an authorized service centre.
•
This appliance must not be installed behind a lockable door, a sliding door or a
door with a hinge on the opposite side to that of the appliance, in such a way that
a full opening of the appliance door is restricted.
•
Do not plug multiple socket outlets, an extension power cable or adapter with this
appliance.
•
This appliance must be grounded. In the event of malfunction or breakdown,
grounding will reduce the risk of electric shock by providing a path of least
resistance for electric current.
•
This appliance is equipped with a power cord having an equipment-grounding
conductor and a grounding power plug. The power plug must be plugged into an
appropriate socket outlet that is installed and grounded in accordance with all local
codes and ordinances.
•
Improper connection of the equipment-grounding conductor can result in risk of
electric shock. Check with a qualied electrician or service personnel if you are in
doubt as to whether the appliance is properly grounded.
•
Do not modify the power cord provided with the appliance.If it does not t the
outlet, have a proper outlet installed by a qualied electrician.
WARNING
05
Operation
•
Do not use a sharp object like drill or pin to press or separate an operation unit.
•
Do not repair or replace any part of the appliance. All repairs and servicing must
be performed by qualied service personnel unless specically recommended in
this Owner’s Manual. Use only authorized factory parts.
•
Keep the area underneath and around your appliances free of combustible
materials such as lint, paper, rags, chemicals, etc.
•
Do not put animals, such as pets into the appliance.
•
Do not leave the appliance door open. Children may hang on the door or crawl
inside the appliance, causing damage or injury.
•
Use new hose or hose-set supplied with the appliance. Reusing old hoses can
cause a water leak and subsequent property damage.
•
Never reach into this appliance while it is operating. Wait until the drum has
completely stopped.
•
Do not put in, wash or dry articles that have been cleaned in, washed in, soaked
in, or spotted with combustible or explosive substances (such as wax, oil, paint,
gasoline, degreasers, drycleaning solvents, kerosene, vegetable oil, cooking oil,
etc.). Improper use can cause re or an explosion.
•
In case of ood, disconnect the power plug and contact the LG Electronics
customer information centre.
•
Do not push down on the door excessively, when the appliance door is open.
•
Do not touch the door during steam or drying programmes.
•
Do not use ammable gas and combustible substances (benzene, gasoline,
thinner, petroleum, alcohol, etc.) near the appliance.
•
If the drain hose or supply hose is frozen during winter, use it only after thawing.
•
Keep all washing detergents, softener and bleach away from children.
•
Do not touch the power plug or the appliance controls with wet hands.
•
When pulling out the power plug from an outlet, hold the power plug, not the cable.
•
Do not bend the power cable excessively or place a heavy object on it.
•
Do not wash rugs, mats, shoes or pet blankets, or any other items other than
clothes or sheets, in this machine.
06
•
This appliance must only be used for domestic household purposes and should
not be used in mobile applications.
•
If there is a gas leakage (isobutane, propane, natural gas, etc.), do not touch the
appliance or power plug and ventilate the area immediately.
Maintenance
•
Securely plug the power plug in the socket outlet after completely removing any
moisture and dust.
•
Disconnect the power cord before cleaning the appliance.
•
Never unplug the appliance by pulling on the power cable. Always grip the power
plug rmly and pull straight out from the socket outlet.
•
Do not spray the water inside or outside the appliance to clean it.
Disposal
•
Before discarding an old appliance, unplug it. Cut off the cable directly behind the
appliance to prevent misuse.
•
Dispose of all packaging materials (such as plastic bags and styrofoam) away from
children. The packaging material can cause suffocatoions.
•
Remove the door before disposing of or discarding this appliance to avoid the
danger of children or small animals getting trapped inside.
07
Disposal of Your Old Appliance
•
This crossed-out wheeled bin symbol indicates that waste electrical and
electronic products (WEEE) should be disposed of separately from the
municipal waste stream.
•
Old electrical products can contain hazardous substances so correct
disposal of your old appliance will help prevent potential negative
consequences for the environment and human health. Your old appliance
may contain reusable parts that could be used to repair other products,
and other valuable materials that can be recycled to conserve limited
resources.
•
You can take your appliance either to the shop where you purchased
the product, or contact your local government waste ofce for details of
your nearest authorised WEEE collection point. For the most up to date
information for your country please see www.lg.com/global/recycling.
08
INSTALLATION

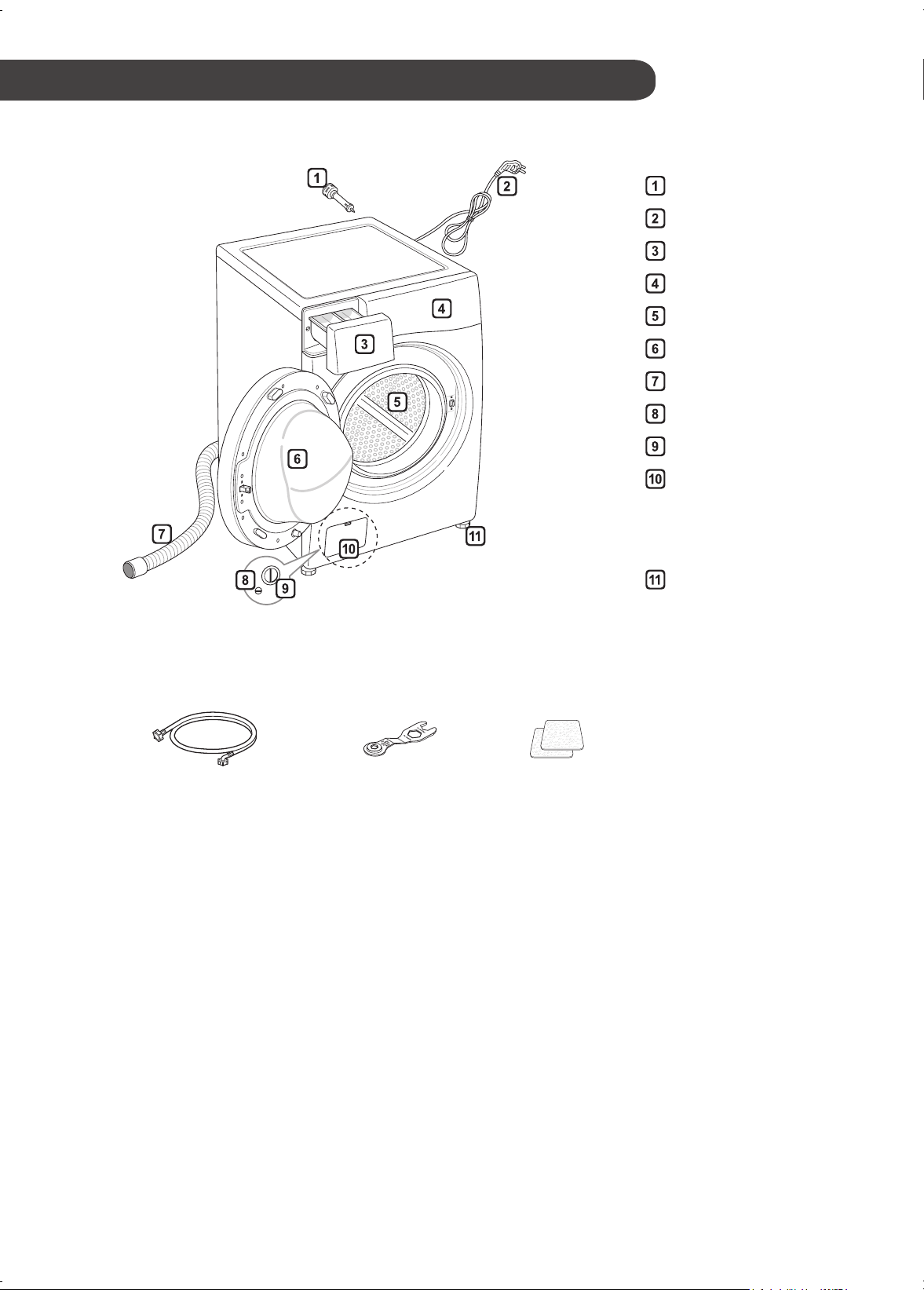

Parts
Transit bolts
Power plug
Drawer
Control panel
Drum
Door
Drain hose
Drain plug
Drain pump lter
Cover cap
(Location may
vary depending on
products)
Adjustable feet
Accessories
Cold supply hose (1EA)
(Option: Hot (1EA))
Spanner Anti–slip sheets (Optional)
09
Model
F H/1 4 G6/G7 Q/T D(N)(W)(0~9)
Wash Capacity 7/8 kg
Power Supply 220 - 240 V~, 50 Hz
Size 600 mm (W) x 550 mm (D) x 850 mm (H)
Product Weight 60 kg
Permissible Water pressure 0.1 - 1.0 MPa (1.0 - 10.0 kgf / cm²)
•
ve the quality of the product.
•
The external hot water supply MUST NOT exceed 65°C
•
ter supply.
F H/1 2 G6/G7 Q/T D(N)(W)(0~9)
F H/1 0 G6/G7 Q/T D(N)(W)(0~9)
10
Installation Place Requirements
Location
10
cm
2
cm
2
cm
Level Floor :
Allowable slope under the entire appliance
is 1°.
Power Outlet :
Must be within 1.5 meters of either side
of the location of the appliance.
•
Do not overload the outlet with more than one
appliance.
Additional Clearance :
For the wall, 10 cm: rear
/2 cm: right & left side
•
Do not place or store laundry products on top of the
appliance at any time.
•
These products may damage the nish or controls.
WARNING
•
The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance
with all local codes and ordinances.
Positioning
•
Install the appliance on a at hard oor.
•
Make sure that air circulation around the appliance is
not impeded by carpets, rugs, etc.
•
Never try to correct any unevenness in the oor with
pieces of wood, cardboard or similar materials under
the appliance.
•
If it is impossible to avoid positioning the appliance
next to a gas cooker or coal burning stove, an
insulation (85x60 cm) covered with aluminum foil on
the side facing the cooker or stove must be inserted
between the two appliances.
•
Do not install your appliance in rooms where freezing
temperatures may occur. Frozen hoses may burst
under pressure. The reliability of the electronic control
unit may be impaired at temperatures below freezing
point.
•
Ensure that when the appliance is installed, it is
easily accessible for an engineer in the event of a
breakdown.
•
With the appliance installed, adjust all four feet
using the transit bolt spanner provided to ensure the
appliance is stable, and a clearance of approximately
20 mm is left between the top of the appliance and the
underside of any work-top.
•
If the appliance is delivered in winter and temperatures
are below freezing, place the appliance at room
temperature for a few hours before putting it into
operation.
WARNING
•
This equipment is not designed for maritime use or for
use in mobile installations such as caravans, aircraft
etc.
Electrical Connection
•
Do not use an extension cord or double adapter.
•
Always unplug the appliance and turn off the water
supply after use.
•
Connect the appliance to an earthed socket in
accordance with the current wiring regulations.
•
The appliance must be positioned so that the plug is
easily accessible.
•
Repairs to the appliance must only be carried out
by qualied personnel. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local service centre.
11

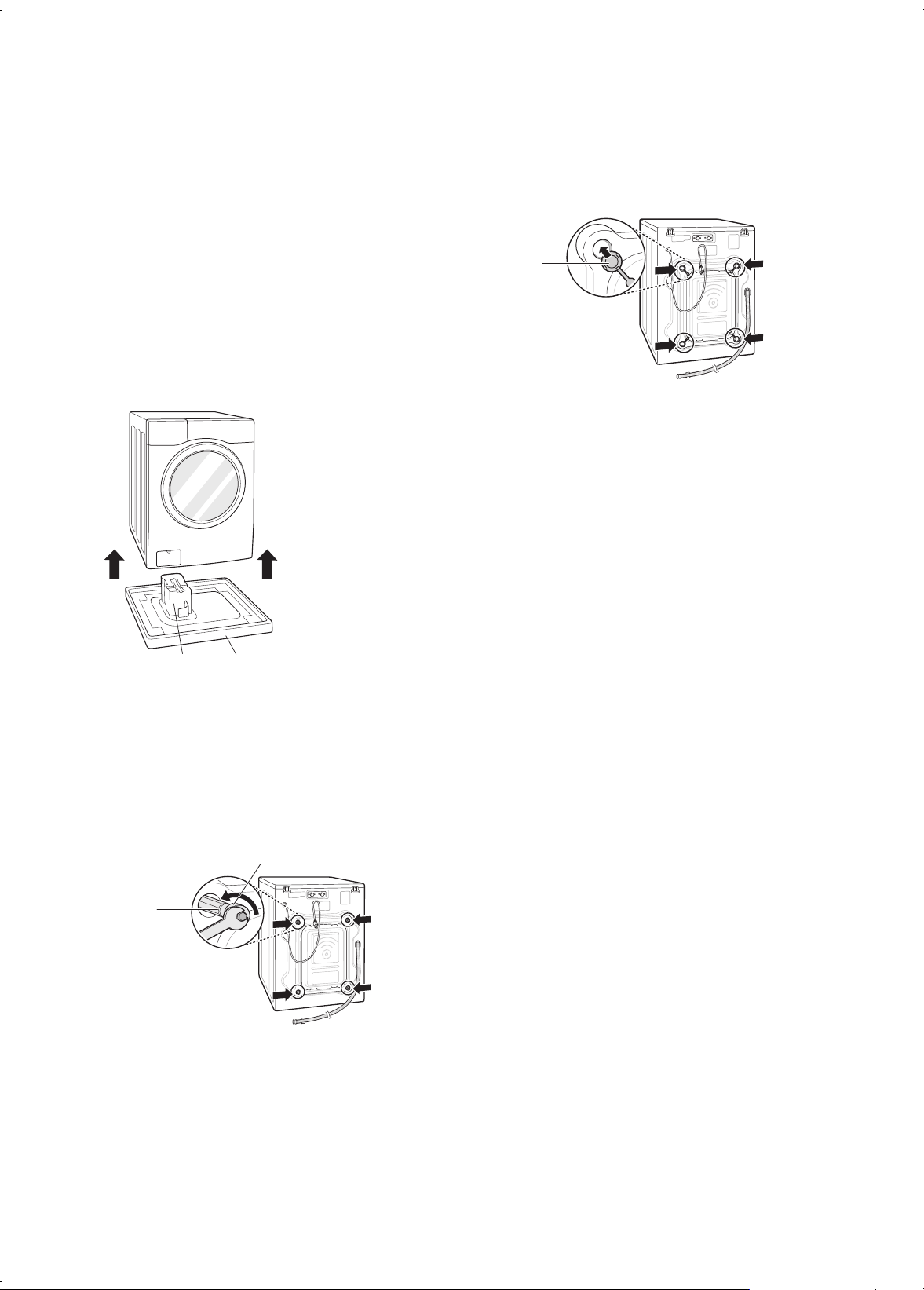

Unpacking and Removing Transit
Bolts
1
Lift the appliance off the foam base.
•
After removing the carton and shipping material,
lift the appliance off the foam base. Make sure
the tub support comes off with the base and is
not stuck to the bottom of the appliance.
•
If you must lay the appliance down to remove
the carton base, always protect the side of the
appliance and lay it carefully on its side. Do not
lay the appliance on its front or back.
Tub support
(Optional)
Carton base
2

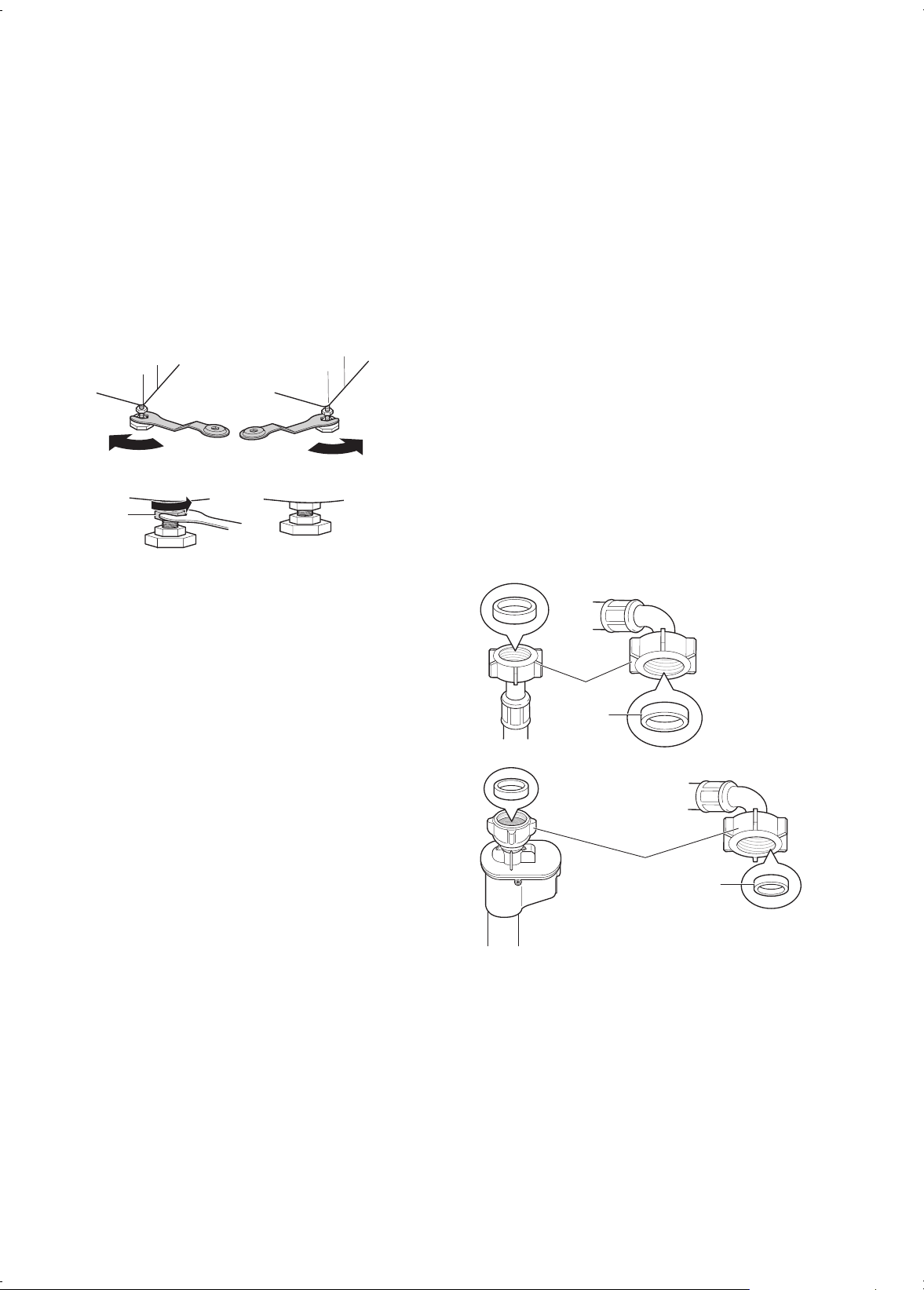

Remove the bolt assemblies.
•
Starting with the bottom two transit bolts, use the
spanner (included) to fully loosen all transit bolts
by turning them counterclockwise. Remove the
bolt assemblies by wiggling them slightly while
pulling them out.
Retainer
Shipping
bolt
3
Install the hole caps.
•
Locate the hole caps included in the accessory
pack and install them in the shipping bolt holes.
Cap
NOTE
•
Save the bolt assemblies for future use. To prevent
damage to internal components, Do not transport the
washing machine without reinstalling the transit bolts.
•
Failure to remove transit bolts and retainers may
cause severe vibration and noise, which can lead to
permanent damage to the washing machine. The cord
is secured to the back of the washing machine with
a shipping bolt to help prevent operation with transit
bolts in place.
12

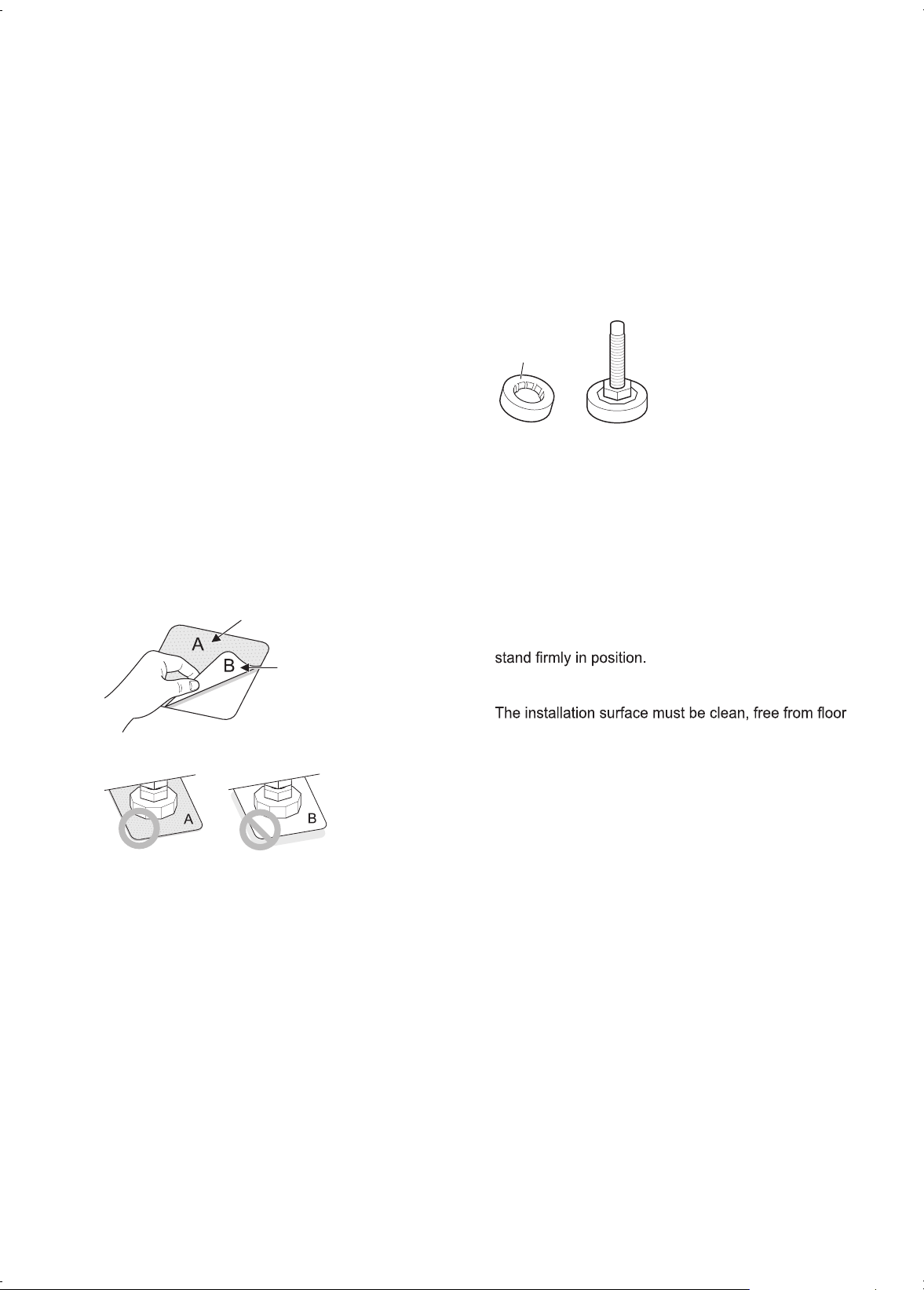

Using Anti-Slip Sheets (Optional)
If you install the appliance on a slippery surface, it may
move because of excessive vibration. Incorrect leveling
may cause malfunction through noise and vibration. If
this occurs, install the anti-slip sheets under the leveling
feet and adjust the level.
1
Clean the oor to attach the anti-slip sheets.
•
Use a dry rag to remove and clean foreign
objects and moisture. If moisture remains, the
anti-slip sheets may slip.
2
Adjust the level after placing the appliance in the
installation area.
3
Place the adhesive side of the anti-slip sheets on
the oor.
•
It is most effective to install the anti-slip sheets
under the front legs. If it is difcult to place the
pads under the front legs, place them under the
back legs.
This side up
Adhesive side
4
Ensure the appliance is level.
•
Push or rock the top edges of the appliance
gently to make sure that the appliance does not
rock. If the appliance rocks, level the appliance
again.
NOTE
•
You can obtain anti-slip sheets from the LG Service
Centre.
Wooden Floors (Suspended
Floors)
•
Wooden oors are particularly susceptible to vibration.
•
To reduce vibration we recommend you place rubber
cups at least 15 mm thick under each foot of the
appliance, secured to at least two oor beams with
screws.
Rubber cup
•
If possible install the appliance in one of the corners of
the room, where the oor is more stable.
•
Fit the rubber cups to reduce vibration.
NOTE
•
Proper placement and leveling of the washing machine
will ensure long, regular, and reliable operation.
•
The washing machine must be 100% horizontal and
•
It must not ‘Seesaw’ across corners under the load.
•
wax and other lubricant coatings.
•
Do not let the feet of the washing machine get wet.
Failure to do so may cause vibration or noise.
•
You can obtain rubber cups from
the LG Service Centre.
13
Leveling the Appliance
If the oor is uneven, turn the adjustable feet as required
(Do not insert pieces of wood etc. under the feet). Make
sure that all four feet are stable and resting on the oor
and then check that the appliance is perfectly level (Use
a spirit level).
•
Once the appliance is level, tighten the lock nuts up
towards the base of the appliance. All lock nuts must
be tightened.
Raise
Lock nut
Lower
Tighten all 4
lock nuts securely
Diagonal Check
•
When pushing down the edges of the top plate
diagonally, the appliance should not move up and
down at all (Check both directions). If the appliance
rocks when pushing the machine top plate diagonally,
adjust the feet again.
NOTE
•
Timber or suspended type ooring may contribute to
excessive vibration and unbalance.
•
If the washing machine is installed on a raised
platform, it must be securely fastened in order to
eliminate the risk of falling off.
Connecting the Supply Hose
•
Water supply pressure must be between 0.1 MPa and
1.0 MPa (1.0‒10.0 kgf/cm
2
).
•
Do not strip or crossthread when connecting supply
hose to the valve.
•
If the water supply pressure is more than 1.0 MPa, a
decompression device should be installed.
•
Periodically check the condition of the hose and
replace the hose if necessary.
Checking the Rubber Seal on the Supply
Hose
Two rubber seals are supplied with the water supply
hoses.
They are used for preventing water leaks. Make sure the
connection to taps is sufciently tight.
Hose connector
Rubber seal
Hose connector
Rubber seal
14

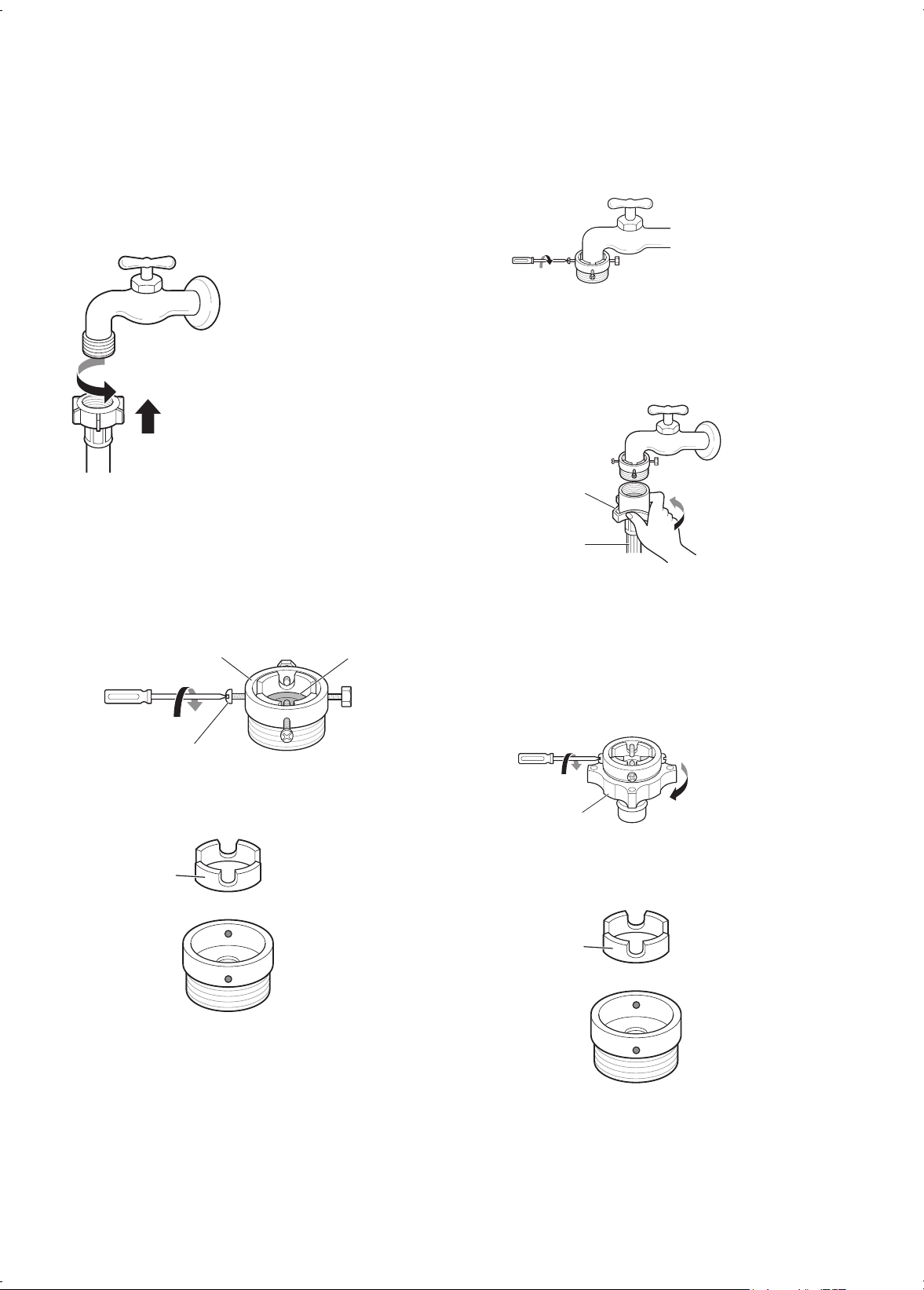

Connecting Hose to Water Tap

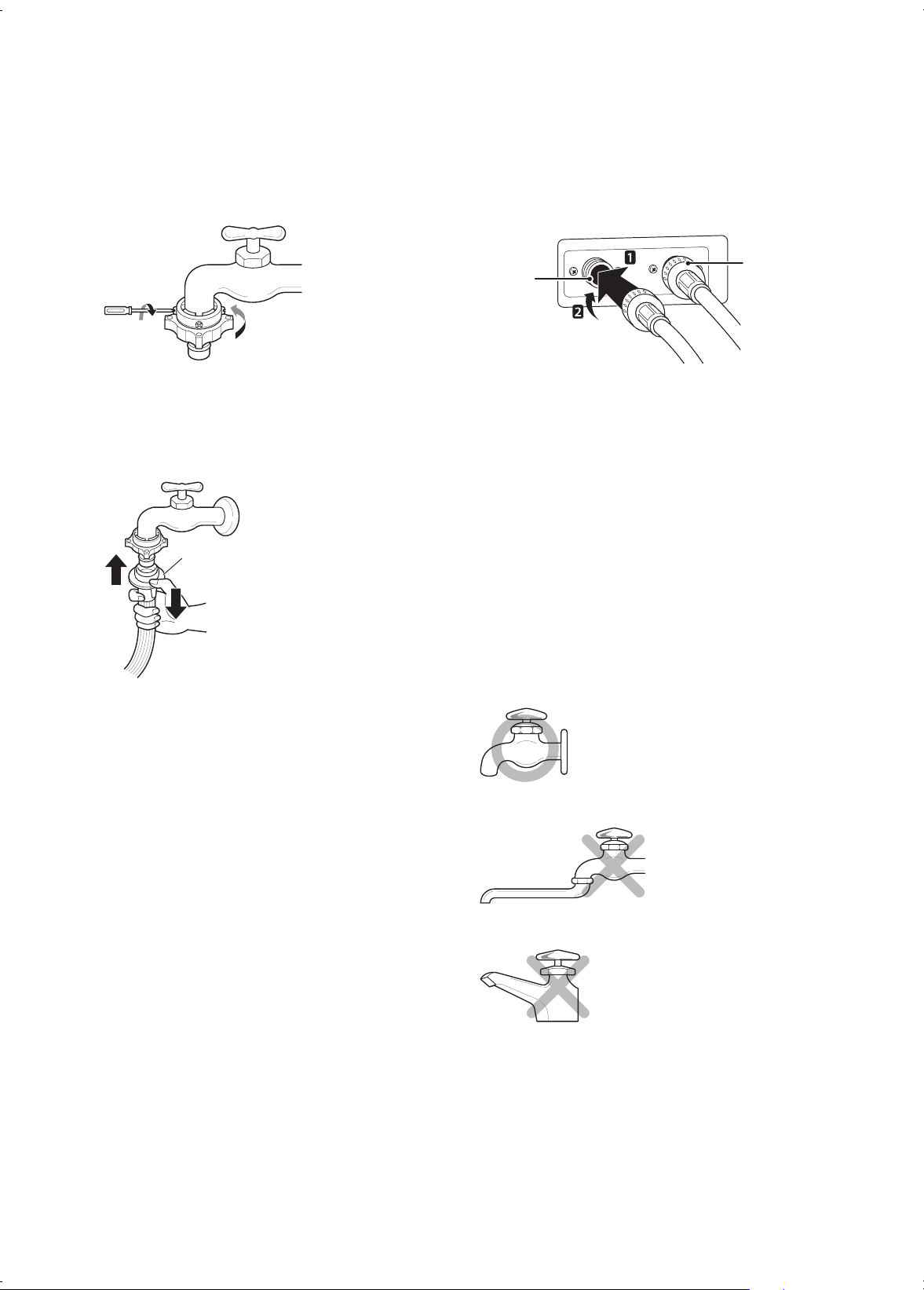

Connecting Screw-Type Hose to Tap with
Thread
Screw the hose connector onto the water supply tap.
Connecting Screw-Type Hose to Tap Without
Thread
1
Loose the four xing screws.
Upper
connector
Rubber
seal
Fixing screw
2
Remove the guide plate if the tap is too large to t
the adapter.
Guide plate
3
Push the adapter onto the end of the tap so that
the rubber seal forms a watertight connection.
Tighten the four xing screws.
4
Push the supply hose vertically upwards so that the
rubber seal within the hose can adhere completely
to the tap and then tighten it by screwing it to the
right.
Plate
Supply
hose
Connecting One Touch Type Hose to Tap
Without Thread
1
Unscrew the adapter ring plate and loose the four
xing screws.
Ring plate
2
Remove the guide plate if the tap is too large to t
the adapter.
Guide plate
15
3
Push the adapter onto the end of the tap so that
the rubber seal forms a watertight connection.
Tighten the four xing screws and the adapter ring
plate .
4
Pull the connector latch plate down, push the
supply hose onto the adapter, and release the
connector latch plate. Make sure the adapter locks
into place.
Latch plate
NOTE
•
After connecting the supply hose to the water tap,
turn on the water tap to ush out foreign substances
(dirt, sand, sawdust, and etc.) in the water lines. Let
the water drain into a bucket, and check the water
temperature.
Connecting Hose to Appliance
Attach the hot water line to the hot water supply on the
back of the washer. Attach the cold water line to the cold
water supply on the back of the washer.
NOTE
•
After completing connection, if water leaks from the
hose, repeat the same steps.
Use the most conventional type of tap for the water
supply. In case the tap is square or too big, remove
the guide plate before inserting the tap into the
adaptor.
Using the Horizontal Tap
Horizontal tap
Extension tap
Square tap
Hot
water
supply
Cold
water
supply
16

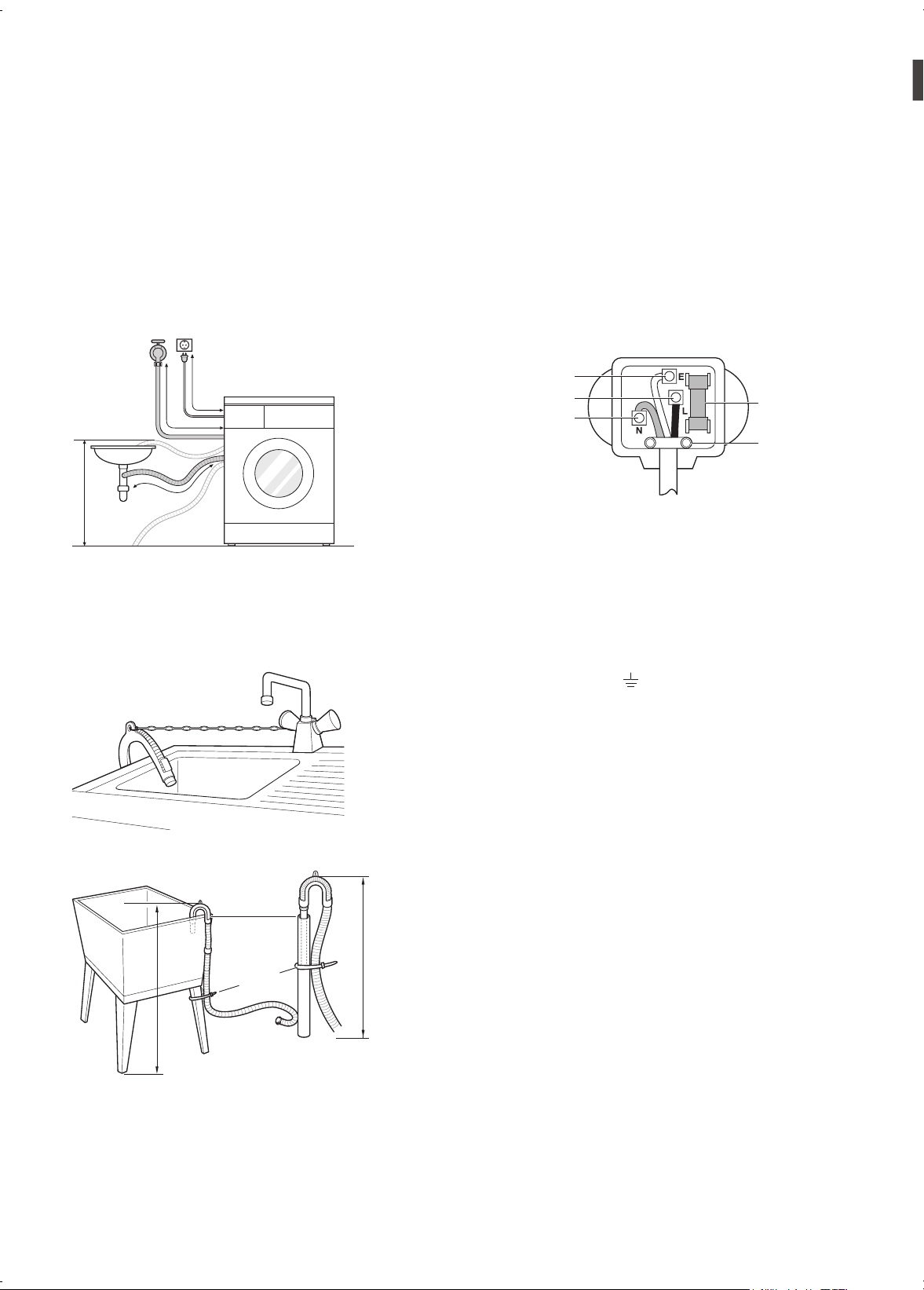

Installing the Drain Hose
•
The drain hose should not be placed higher than 100
cm above the oor. Water in the appliance may not
drain or may drain slowly.
•
Securing the drain hose correctly will protect the oor
from damage due to water leakage.
•
If the drain hose is too long, do not force it back into
the appliance. This will cause abnormal noise.
about 100 cm
about 145 cm
about 105 cm
•
When installing the drain hose to a sink, secure it
tightly with string.
•
Securing the drain hose correctly will protect the oor
from damage due to water leakage.
Laundry tub
Hose
retainer
Tie strap
Electrical Connections (In the UK
Only)
The wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
This appliance must be earthed.
Green and
Yellow (Earth)
Brown (Live)
Blue (Neutral)
Fuse
Cord grip
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The green and yellow wire must be connected to the
terminal in the plug which is marked with the letter E or
by the earth symbol ( ) or coloured Green or Green
and Yellow.
The blue wire must be connected to the terminal which
is marked with the letter N or coloured Black.
The brown wire must be connected to the terminal which
is marked with the letter L or coloured Red.
If a 13 amp (BS 1363) plug is used, t a 13 amp BS
1362 fuse.
max. 100 cm
max. 100 cm
max. 100 cm
17
OPERATION
Using the Washing Machine
Before the rst wash, select a washing programme,
allow the washing machine to wash without clothing.
This will remove residue and water from the drum that
may have been left during manufacturing.

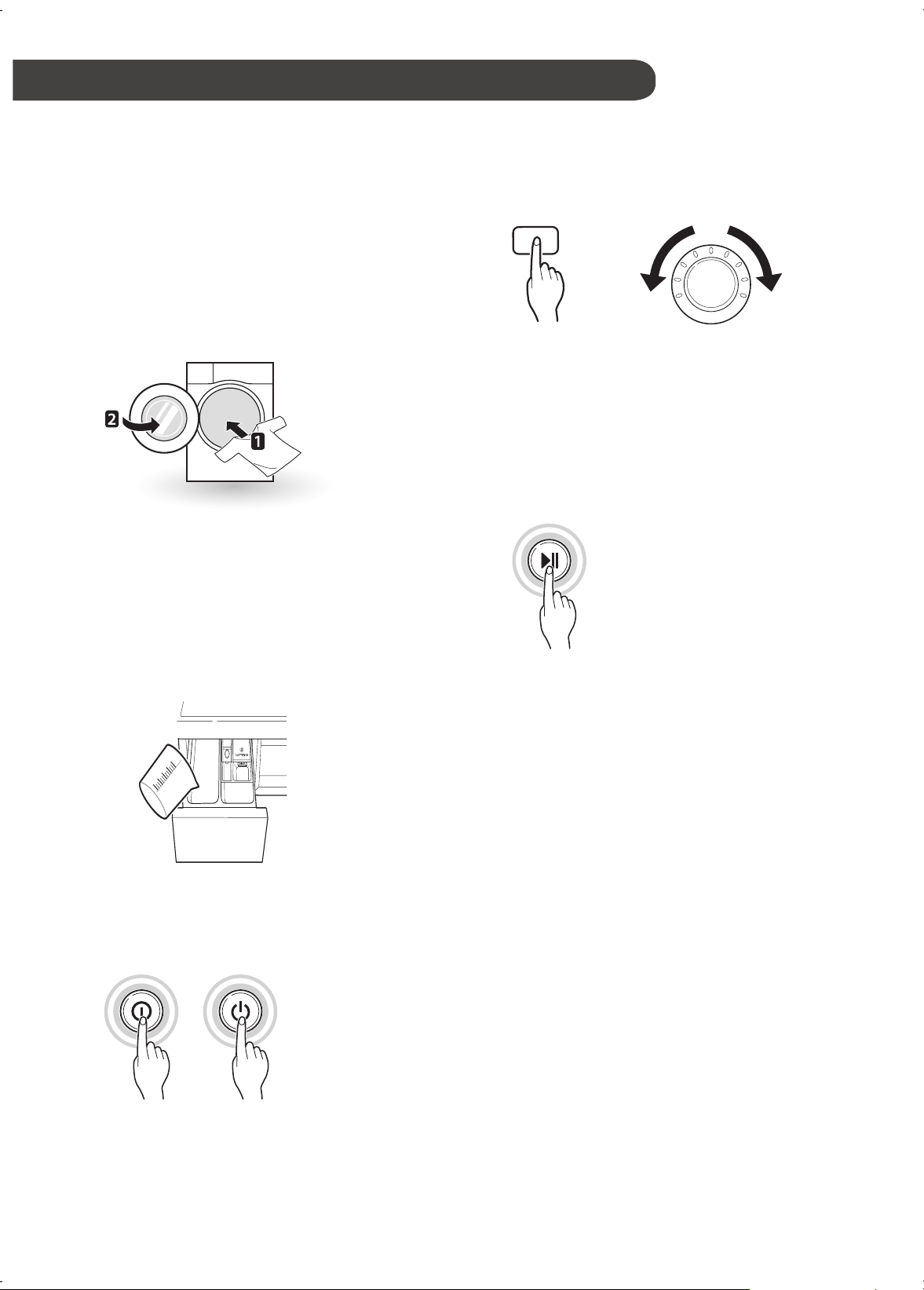

1
Sort laundry and load items.
•
Sort laundry by fabric type, soil level, colour and
load size as needed. Open the door and load
items into the washing machine.
2
Add cleaning products and/or detergent and
softener.
•
Add the proper amount of detergent to the
detergent dispenser drawer. If desired, add
bleach or fabric softener to the appropriate areas
of the dispenser.
3
Turn on the washing machine.
•
Press the
Power
button to turn on the washing
machine.
4
Choose the desired washing cycle.
•
Press the cycle button repeatedly or turn the
cycle selector knob until the desired cycle is
selected.
5
Begin cycle.
•
Press the
Start/Pause
button to begin the cycle.
The washing machine will agitate briey without
water to measure the weight of the load. If the
Start/Pause
button is not pressed within 5
minutes, the washing machine will shut off and
all settings will be lost.
6
End of cycle.
•
When the cycle is nished, a melody will sound.
Immediately remove your clothing from the
washing machine to reduce wrinkling. Check
around the door seal when removing the load for
small items that may be caught in the seal.
18
Sorting Laundry
1
Look for a care label on your clothes.
•
This will tell you about the fabric content of your
garment and how it should be washed.
•

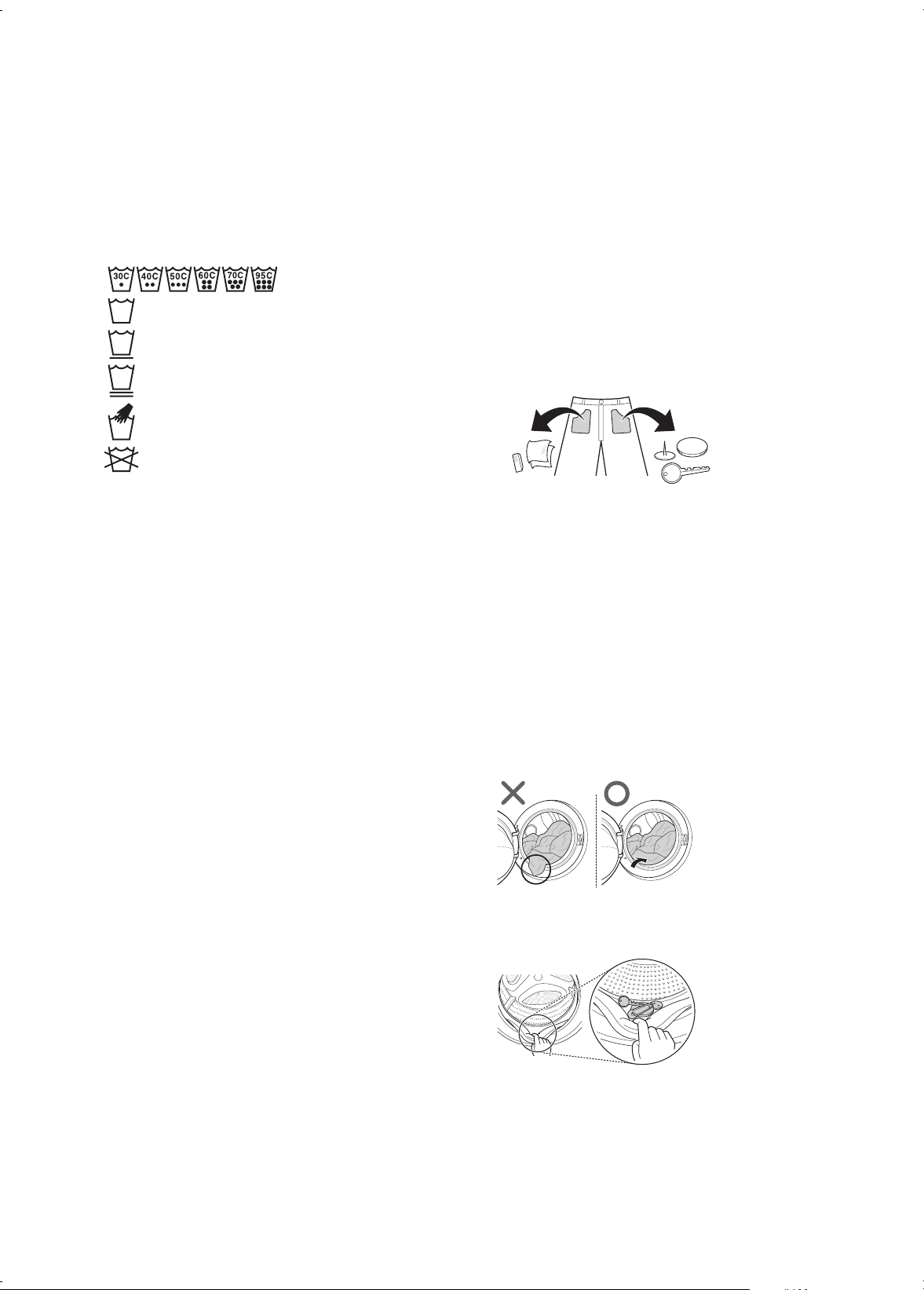

Symbols on the care labels.
Wash temperature
Normal machine wash
Permanent press
Delicate
Hand wash
Do not wash
2
Sorting laundry.
•
To get the best results, sort clothes into loads
that can be washed with the same wash cycle.
•
Different fabrics need to be washed at varying
temperatures and spin speeds.
•
Always sort dark colours from pale colours and
whites. Wash separately as dye and lint transfer
can occur causing discolouration of white and
pale garments. If possible, do not wash heavily
soiled items with lightly soiled ones.
– Soil (Heavy, Normal, Light) :
Separate clothes according to amount of soil.
– Colour (White, Lights, Darks):
Separate white fabrics from coloured fabrics.
– Lint (Lint producers, Collectors):
Wash lint producers and lint collectors
separately.
3
Caring before loading.
•
Combine large and small items in a load. Load
large items rst.
•
Large items should not be more than half the
total wash load. Do not wash single items. This
may cause an unbalanced load. Add one or two
similar items.
•
Check all pockets to make sure that they are
empty. Items such as nails, hair clips, matches,
pens, coins and keys can damage both your
washing machine and your clothes.
•
Close zippers, hooks and strings to make sure
that these items don’t snag on other clothes.
•
Pre-treat dirt and stains by brushing a small
amount of detergent dissolved water onto stains
to help lift dirt.
•
Check the folds of the exible gasket (gray) and
remove any small articles.
CAUTION
•
Check inside the drum and remove any items from a
previous wash.
•
Remove any clothing or items from the exible gasket
to prevent clothing and gasket damage.
19
Adding Cleaning Products
Detergent Dosage
•
Detergent should be used according to the instruction
of the detergent manufacturer and selected according
to type, colour, soiling of the fabric and washing
temperature.
•
If too much detergent is used, too many suds can
occur and this will result in poor washing results or
cause heavy load to the motor.
•
If you wish to use liquid detergent follow the guidelines
provided by the detergent manufacturer.
•
You can pour liquid detergent directly into the
main detergent drawer if you are starting the cycle
immediately.
•
Do not use liquid detergent if you are using Time
delay, or if you have selected Pre Wash, as the liquid
may harden.
•
If too many suds occur, reduce the detergent amount.
•
Detergent usage may need to be adjusted for water
temperature, water hardness, size and soil level of the
load. For best results, avoid oversudsing.
•
Refer to the label of the clothes, before chooseing the
detergent and water temperature.
•
When using the washing machine, use designated
detergent for each type of clothing only:
– General powdered detergents for all types of fabric
– Powdered detergents for delicate fabric
– Liquid detergents for all types of fabric or
designated detergents only for wool
•
For better washing performance and whitening, use
detergent with the general powdered bleach.
•
Detergent is ushed from the dispenser at the
beginning of the cycle.
NOTE
•
Do not let the detergent harden. Doing so may lead to
blockages, poor rinse performance or odour.
•
Full load : According to manufacturer’s
recommendation.
•
Part load : 3/4 of the normal amount
•
Minimum load : 1/2 of full load
Adding Detergent and Fabric Softener
Adding Detergent
•
Main wash only →
•
Pre wash+Main wash →
NOTE
•
Too much detergent, bleach or softener may cause an
overow.
•
Be sure to use the appropriate amount of detergent.
Adding Fabric Softener
•
Do not exceed the maximum ll line. Overlling can
cause early dispensing of the fabric softener, which
may stain clothes. Close the dispenser drawer slowly.
20
•
Do not leave the fabric softener in the detergent
drawer for more than 2 days (Fabric softener may
harden).
•
Softener will automatically be added during the last
rinse cycle.
•
Do not open the drawer when water is being supplied.
•
Solvents (benzene, etc.) must not be used.
NOTE
•
Do not pour fabric softener directly on the clothes.
Adding Water Softener
•
A water softener, such as anti-limescale (e.g. Calgon)
can be used to cut down on the use of detergent in
extremely hard water areas. Dispense according to
the amount specied on the packaging. First add
detergent and then the water softener.
•
Use the quantity of detergent required for soft water.

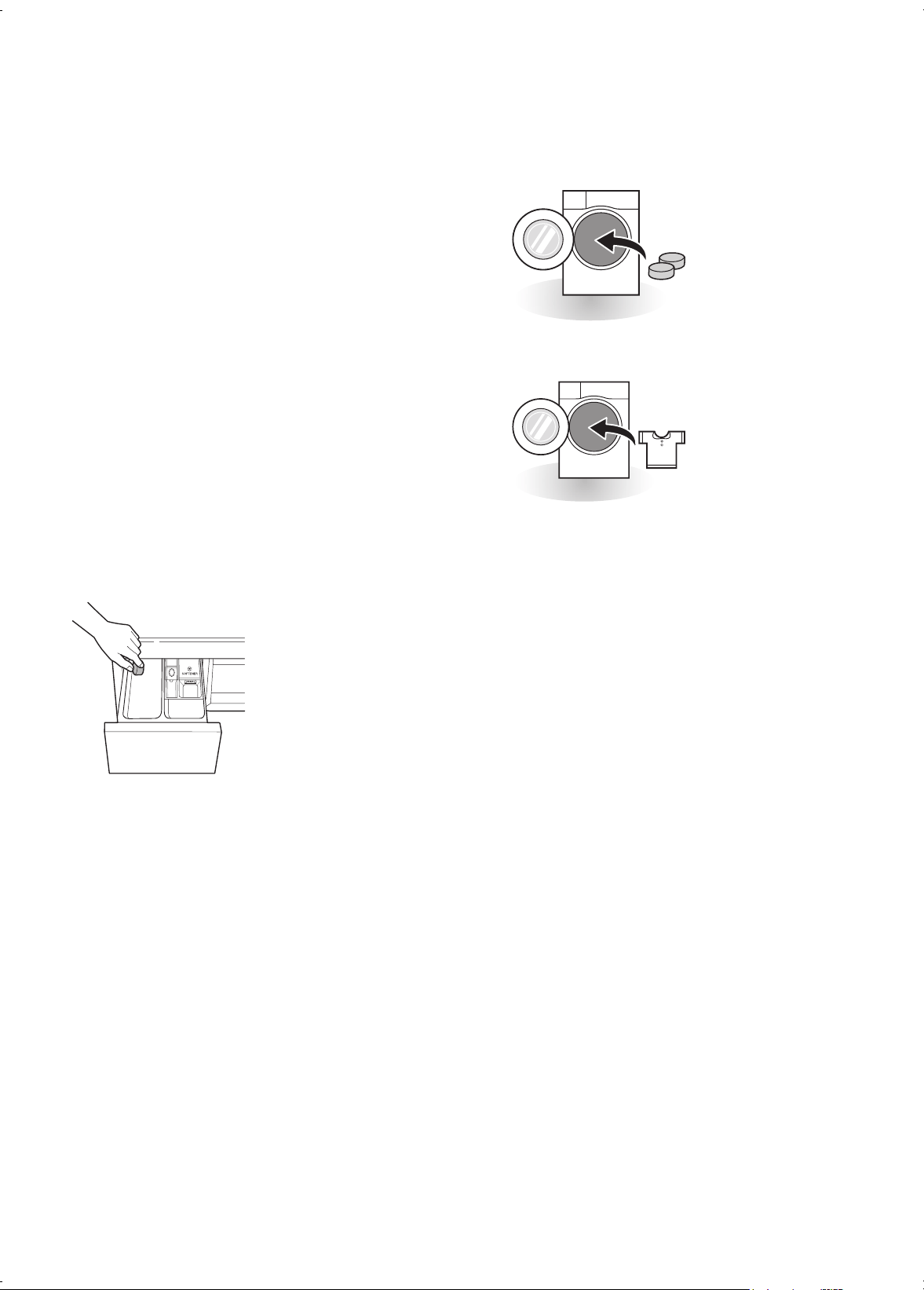

Using Tablet
1
Open the door and put tablets into the drum.
2
Load the laundry into the drum and close the door.
21

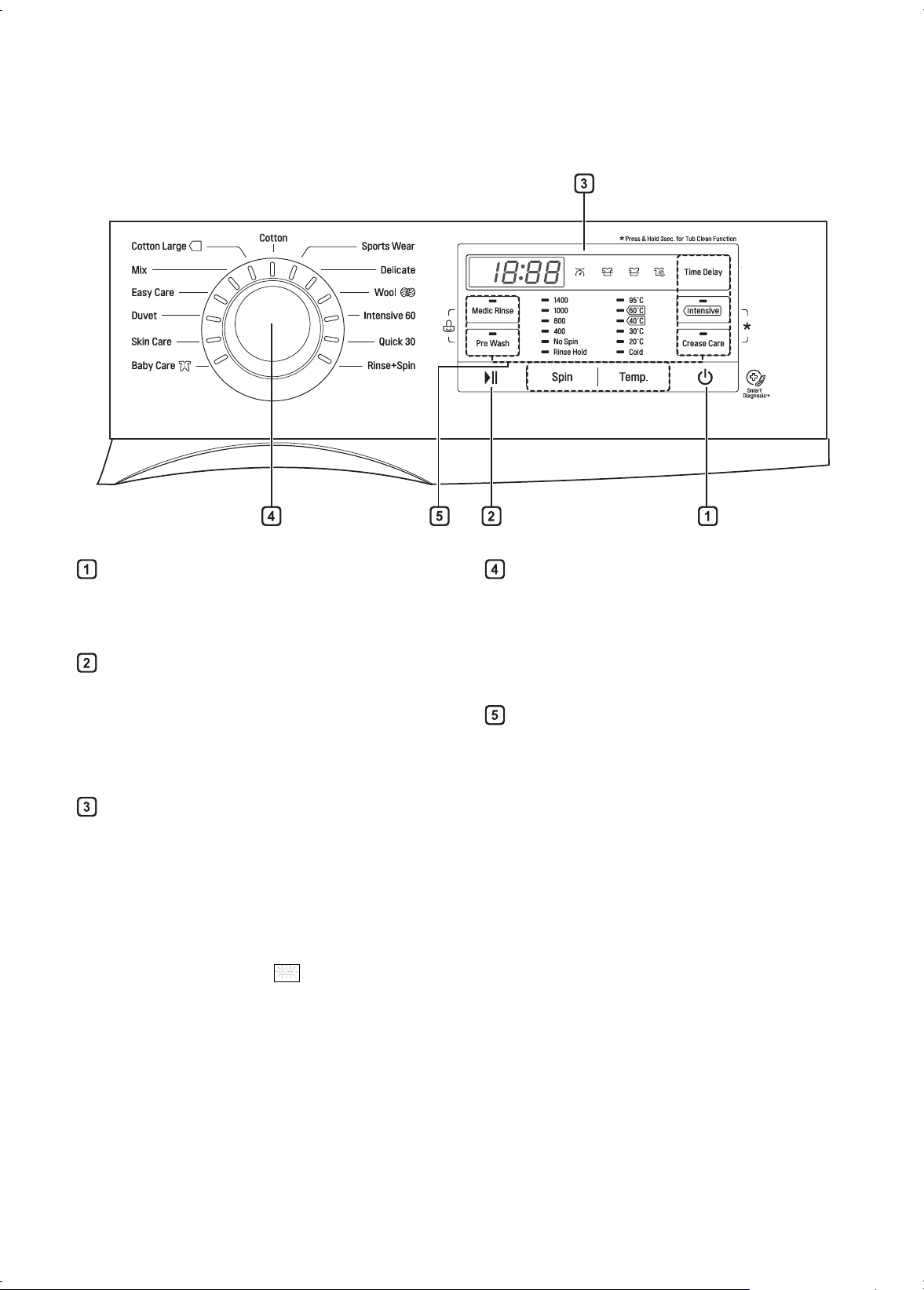

Control Panel
Power Button
•
Press the Power button to turn the washing
machine on.
Start/Pause Button
•
This Start/Pause button is used to start the
wash cycle or pause the wash cycle.
•
If a temporary stop of the wash cycle is needed,
press the Start/Pause button.
Display
•
The display shows the settings, estimated
time remaining, options, and status messages.
When the product is turned on, the default
settings in the display will illuminate.
•
The display shows estimate time remaining.
While the size of the load is being calculated
automatically, blinking
or ‘Detecting’
appears.
Programme Knob
•
Programmes are available according to laundry
type.
•
Lamp will light up to indicate the selected
programme.
Options
•
This allows you to select an additional
programme and will light when selected.
•
Use these buttons to select the desired
programme options for the selected cycle.
22
Programme Table
Washing Programme
Programme Description Fabric Type Proper Temp.
Maximum
Load
Cotton
Provides better performance by
combining various drum motions.
Coloured fast garments (shirts,
nightdresses, pajamas, etc)
and normally soiled cotton load
(underwear).
40 °C
(Cold to 95 °C)
Rating
Cotton Large
Provides optimised washing
performance for large amount of
laundry with less energy consumption.
60 °C
(Cold to 60 °C)
Easy Care
Suitable for casual shirts that do not
need ironing after washing.
Polyamide, acrylic, polyester
40 °C
(Cold to 60 °C)
3.0 kg
Mix
Enables various fabrics to be washed
simultaneously.
Various kind of fabrics except
special garments (silk/delicate,
sports wear, dark clothes, wool,
duvet/curtains).
40 °C
(Cold to 40 °C)
Baby Care
Remove solid and protein stain and
provide better rinse performance
Lightly soiled baby wear
60 °C
(60 °C to 95 °C)
6.0 kg
Skin Care
in clothes
Fabrics which will be in direct
contact with the skin, e.g.
underwear, nappies, towelling, bed
linen, pillow and mattress covers
40 °C
(Cold to 60 °C)
Rating
Duvet
For large items such as bed cover,
pillows, sofa covers, etc.
Cotton bedding except special
garments (delicates, wool, silk, etc.)
40 °C
(Cold to 40 °C)
1 single
size
Sports Wear
Suitable for sports wear such as
jogging clothes and running wear. Sympatex.
2.0 kg
23
Programme Description Fabric Type Proper Temp.
Maximum
Load
Delicate
For delicate clothes such as
underwear, blouse, etc.
Delicate, easily damaged laundry.
20 °C
(Cold to 40 °C)
2.0 kg
Wool
Enables to wash wool fabrics.
(Please use detergent for
machine washable woolens).
Machine washable woolens with
pure new wool only.
40 °C
(Cold to 40 °C)
Quick 30
Provides fast washing time for small
loads and lightly soiled clothes.
Colored laundry which is lightly
soiled fast.
20 °C
(Cold to 40 °C)
Intensive 60
Within 60mins provide better washing
Cotton and mix fabrics.
(Special programme within 60 mins
for normally soiled laundry).
60 °C
(Cold to 60 °C)
4.0 kg
Rinse+Spin
Use for laundry that need rinsing only
or to add rinse-added fabric softener
to laundry.
Normal fabrics which can be
washable.
- Rating
•
Water Temperature: Select the appropriate water temperature for chosen wash cycle. Always follow garment
manufacturer’s care label or instructions when washing.
•
•
The test results depend on water pressure, water hardness, water inlet temperature, room temperature, type and
options.
NOTE
•
Neutral detergent is recommended.
Set program at "Cotton Large 40°C + Intensive (Half Load)", "Cotton Large 60°C + Intensive (Half Load)",
"Cotton Large 60°C + Intensive (Full Load)" option for test in conformity with EN60456 and Regulation 1015/2010.
- Standard 60°C cotton program : Cotton Large
+
60 °C
+ Intensive (Full Load)
- Standard 60°C cotton program : Cotton Large
+
60 °C
+ Intensive (Half Load)
- Standard 40°C cotton program : Cotton Large
+
40 °C
+ Intensive (Half Load)
24
Extra Options
Programme Time Delay Medic Rinse Pre Wash Intensive Crease Care
Cotton
● ● ● ● ●
Cotton Large
● ● ● ● ●
Easy Care
● ● ● ● ●
Mix
● ● ● ● ●
Baby Care
● ●** ●** ● ●
Skin Care
● ● ● ● ●
Duvet
● ● ●
Sports Wear
● ● ●
Delicate
● ● ●
Wool
● ●
Quick 30
● ● ●
Intensive 60
● ●* ●
Rinse+Spin
● ●
•
*: This option is automatically included in the cycle and can not be deleted.
•
**: This option is automatically included in the cycle and can be deleted.
25
Operating Data
Programme
Max RPM
1400 1200
Cotton
1400 1200
Cotton Large
1400 1200
Easy Care
800 800
Mix
1400 1200
Baby Care
800 800
Skin Care
1400 1200
Duvet
800 800
Sports Wear
800 800
Delicate
800 800
Wool
800 800
Quick 30
1400 1200
Intensive 60
1400 1200
Rinse+Spin
1400 1200
NOTE
•
Information of main washing programmes at half load.
Program
Time in
minutes
Remaining moisture content
Water in
Liter
Energy in
kWh
1400 rpm
Cotton (40 °C)
96 40 % 53 % 65
Cotton Large (60 °C)
259 44 % 53 % 43
0,55
0,52
1200/1000 rpm
8 kg
8 kg 8 kg
7 kg
7 kg 7 kg
96
239
65
41
0,55
0,48
1000
1000
1000
800
1000
800
1000
800
800
800
800
1000
1000
1000
26
Option Programme
Time Delay
You can set a time delay so that the washing machine
will start automatically and nish after a specied time
interval.
1
Press the
Power
button.
2
Select a washing programme.
3
Press the
Time Delay
button to set time required.
4
Press the
Start/Pause
button.
NOTE
•
The delay time is the time to the end of the
programme, not the start. The actual running time may
vary due to water temperature, wash load and other
factors.
•
To cancel the Time Delay function, the power button
should be pressed.
•
Avoid using liquid detergent for this option.
Crease Care
If you want to prevent creasing, the Crease Care
programme is recommended.
1
Press the
Power
button.
2
Select a washing programme.
3
Press the
Crease Care
button.
4
Press the
Start/Pause
button.
Medic Rinse
For best results or for cleaner rinsing. This allows the
nal rinse to be heated to 40 degrees.
1
Press the
Power
button.
2
Select a washing programme.
3
Press the
Medic Rinse
button and set time
required.
4
Press the
Start/Pause
button.
Pre Wash
If the laundry is heavily soiled, the Pre Wash programme
is recommended.
1
Press the
Power
button.
2
Select a washing programme.
3
Press the
Pre Wash
button.
4
Press the
Start/Pause
button.
Intensive
If the laundry is normal and heavily soiled,
Intensive
option is effective.
1
Press the
Power
button.
2
Select a cycle.
3
Press the
Intensive
button.
4
Press the
Start/Pause
button.
27
Temp.
The Temp. button selects the wash and rinse
temperature combination for the selected programme.
Press this button until the desired setting is lit. All rinses
use cold tap water.
•
Select the water temperature suitable for the type of
load you are washing. Follow the garment fabric care
labels for best results.
Rinse
Rinse Hold
The programme is paused until start button is pressed
again when rinse is nished.
Spin
•
Spin speed level can be selected by pressing the Spin
button repeatedly.
•
Spin Only
1
Press the Power button.
2
Press the Spin button to select RPM.
3
Press the Start/Pause button.
NOTE
•
When you select No Spin
, it will still rotate for a short
time to drain quickly.
Child Lock ( )
Use this option to disable the controls. This feature can
prevent children from changing cycles or operating the
appliance
Locking the Control Panel
1
Press and hold the Medic Rinse and Pre Wash
button for three seconds.
2
A beeper will sound, and will appear on the
display.
When the Child Lock is set, all buttons are locked
except the Power button.
NOTE
•
Turning of
f the power will not reset the child lock
function. You must deactivate child lock before you
can access any other functions.
Unlocking the Control Panel
Press and hold the Medic Rinse and Pre Wash button
for three seconds.
•
A
beeper will sound and the remaining time for the
current programme will reappear on the display.
Beep On / Off
1
Press the Power button.
2
Press the Start/Pause button.
3
Press and hold the Time Delay and Crease Care
button simultaneously for 3 seconds to set the
Beep on/off function.
NOTE
•
Once the Beep on/of
f function is set, the setting is
memorized even after the power is turned off.
•
If you want to turn the Beeper of
f, simply repeat this
process.
28
SMART FUNCTION

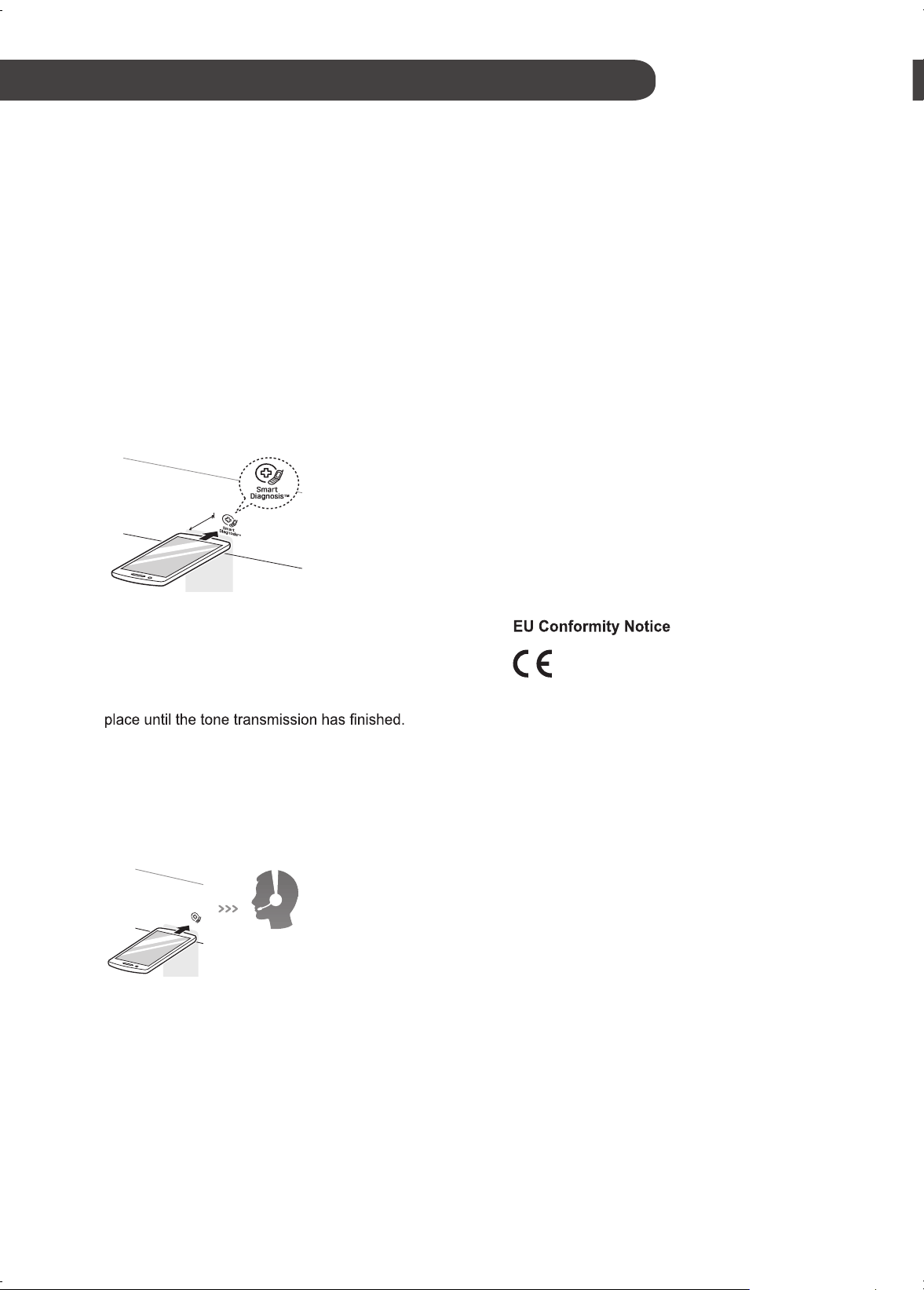

Using the Smart Diagnosis™
Function
Use this function if you need an accurate diagnosis
by an LG Electronics service centre when the product
malfunctions or fails. Use this function only to contact
the service representative, not during normal operation.
1
Press the Power button to turn on the washing
machine. Do not press any other buttons or turn
the programme selector knob.
2
When instructed to do so by the call centre, place
the mouthpiece of your phone close to the Power
button.
Max.
10 mm
3
Press and hold the Temp. button for three seconds,
while holding the phone mouthpiece to the icon or
Power button.
4
The display is turned off and keep the phone in
•
For best results, do not move the phone while
the tones are being transmitted.
•
If the call centre agent is not able to get an
accurate recording of the data, you may be
asked to try again.
LG Electronics
service centre
5
Once the tones have stopped, resume your
conversation with the call centre agent, who will
then be able to assist you using the information
transmitted for analysis.
NOTE
•
The Smart Diagnosis™ function depends on the local
call quality.
•
The communication performance will improve and you
can receive better service if you use the home phone.
•
If the Smart Diagnosis™ data transfer is poor due to
poor call quality, you may not receive the best Smart
Diagnosis™ service.
Hereby, LG Electronics European Shared Service
Center B.V., declares that this Washing machine is
compliant with the essential requirements and other
relevant provisions of Directive 1999/5/EC. The complete
Declaration of Conformity may be requested through the
following postal address:
LG Electronics European Shared Service Center B.V.
Krijgsman 1
1186 DM Amstelveen
T he Netherlands
or can be requested at our dedicated DoC website:
http :/ /www.lg.com/global/support/cedoc/cedoc#
29

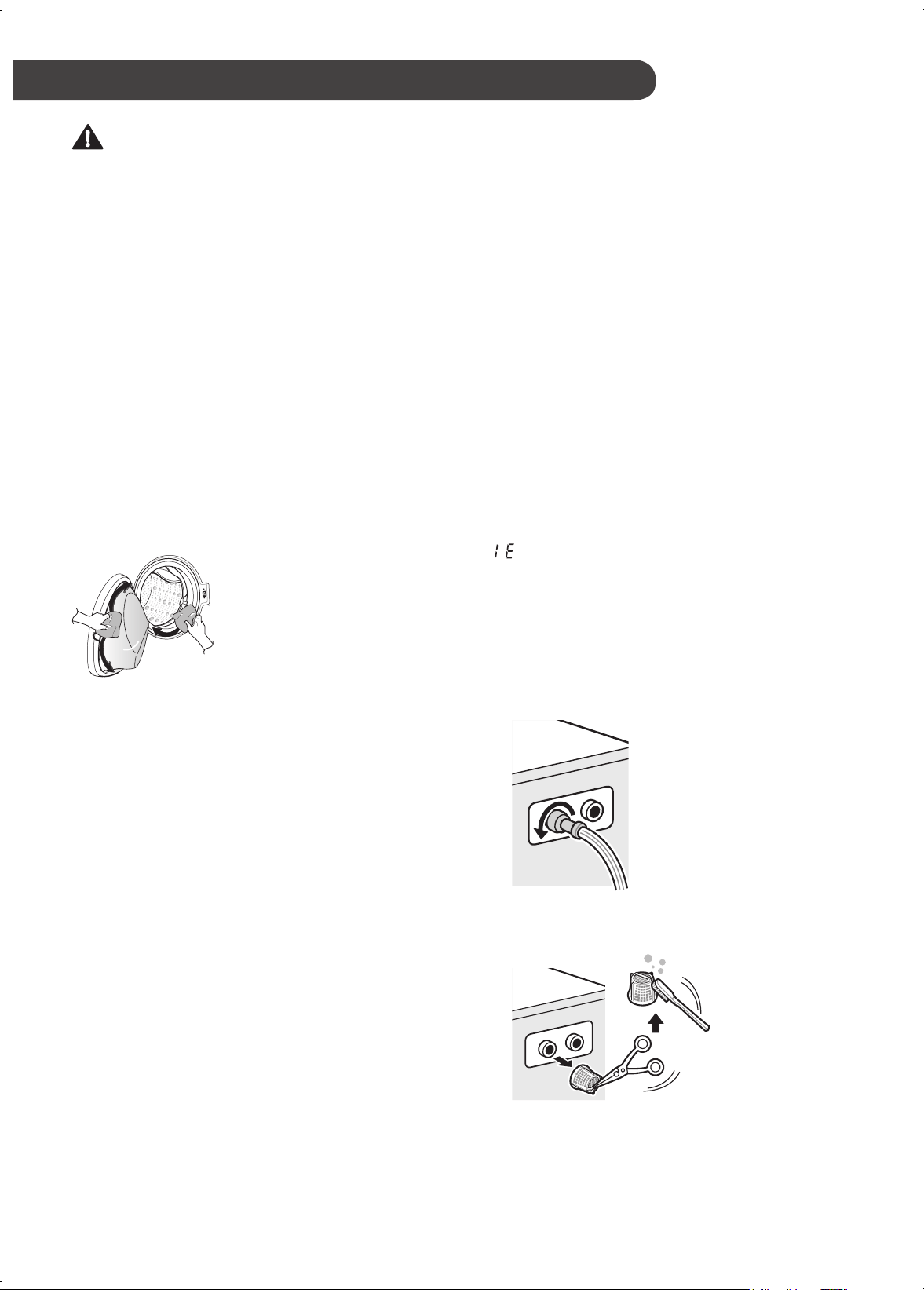

MAINTENANCE
WARNING
•
Unplug the washing machine before cleaning to avoid
the risk of electric shock. Failure to follow this warning
may result in serious injury, re, electric shock, or
death.
•
Never use harsh chemicals, abrasive cleaners, or
solvents to clean the washing machine. They may
damage the nish.
Cleaning Your Washing Machine
Care After Wash
•
After the cycle is nished, wipe the door and the inside
of the door seal to remove any moisture.
•
Leave the door open to dry the drum interior.
•
Wipe the body of the washing machine with a dry cloth
to remove any moisture.
Cleaning the Exterior
Proper care of your washing machine can extend its life.
Door:
•
Wash with a damp cloth on the outside and inside and
then dry with a soft cloth.
Exterior:
•
Immediately wipe off any spills.
•
Wipe with a damp cloth.
•
Do not press the surface or the display with sharp
objects.
Cleaning the Interior
•
Use a towel or soft cloth to wipe around the washing
machine door opening and door glass.
•
Always remove items from the washing machine as
soon as the cycle is complete. Leaving damp items
in the washing machine can cause wrinkling, colour
transfer, and odour.
•
Run the Tub Clean programme once a month (or more
often if needed) to remove detergent buildup and
other residue.
Cleaning the Water Inlet Filter
•
Turn off the supply taps to the machine if the washing
machine is to be left for any length of time (e.g.
holiday), especially if there is no oor drain (gully) in
the immediate vicinity.
•
icon will be displayed on the control panel when
water is not entering the detergent drawer.
•
If water is very hard or contains traces of lime deposit,
the water inlet lter may become clogged. It is
therefore a good idea to clean it occasionally.
1
Turn off the water tap and unscrew the water
supply hose.
2
Clean the lter using a hard bristle brush.
30

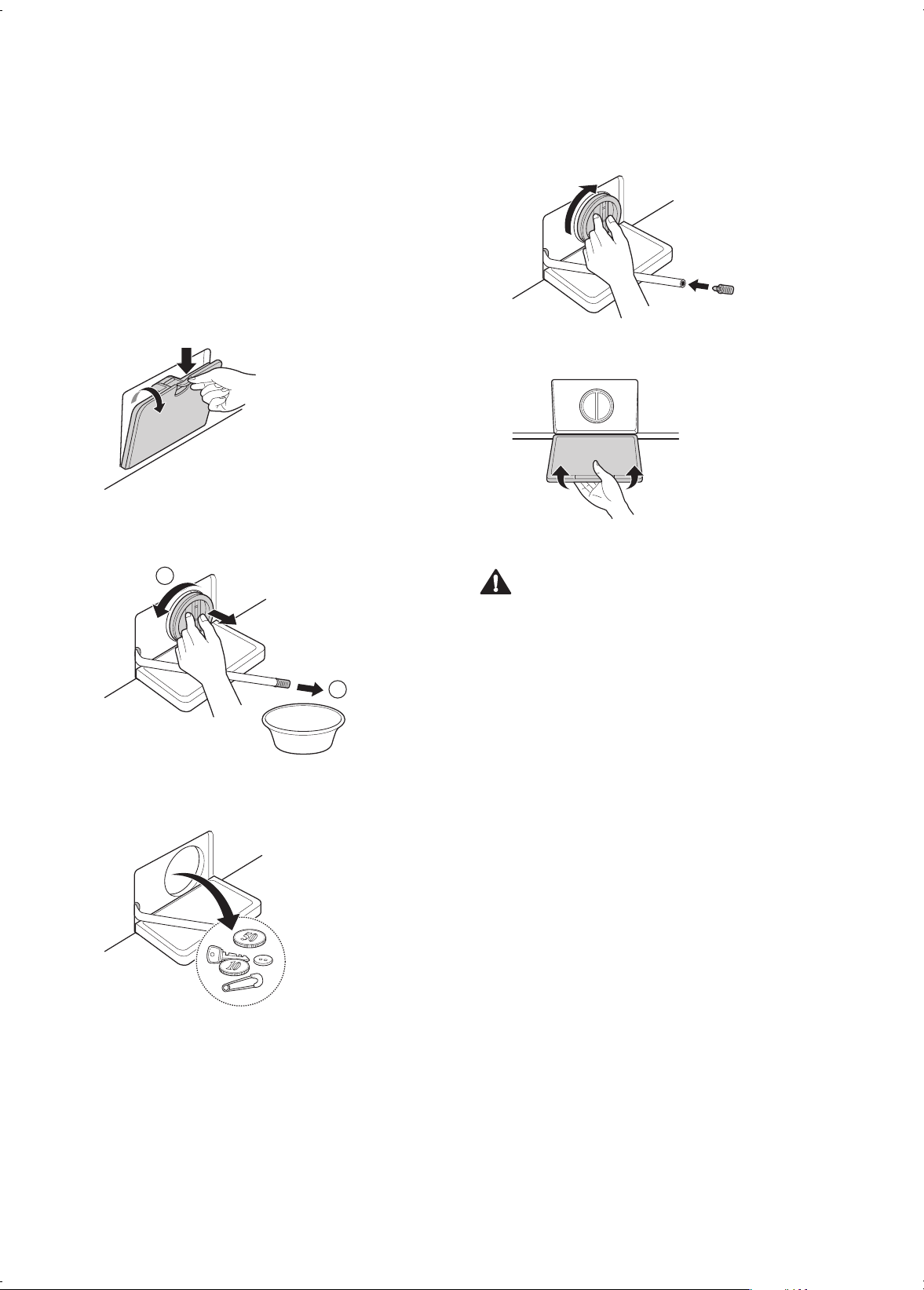

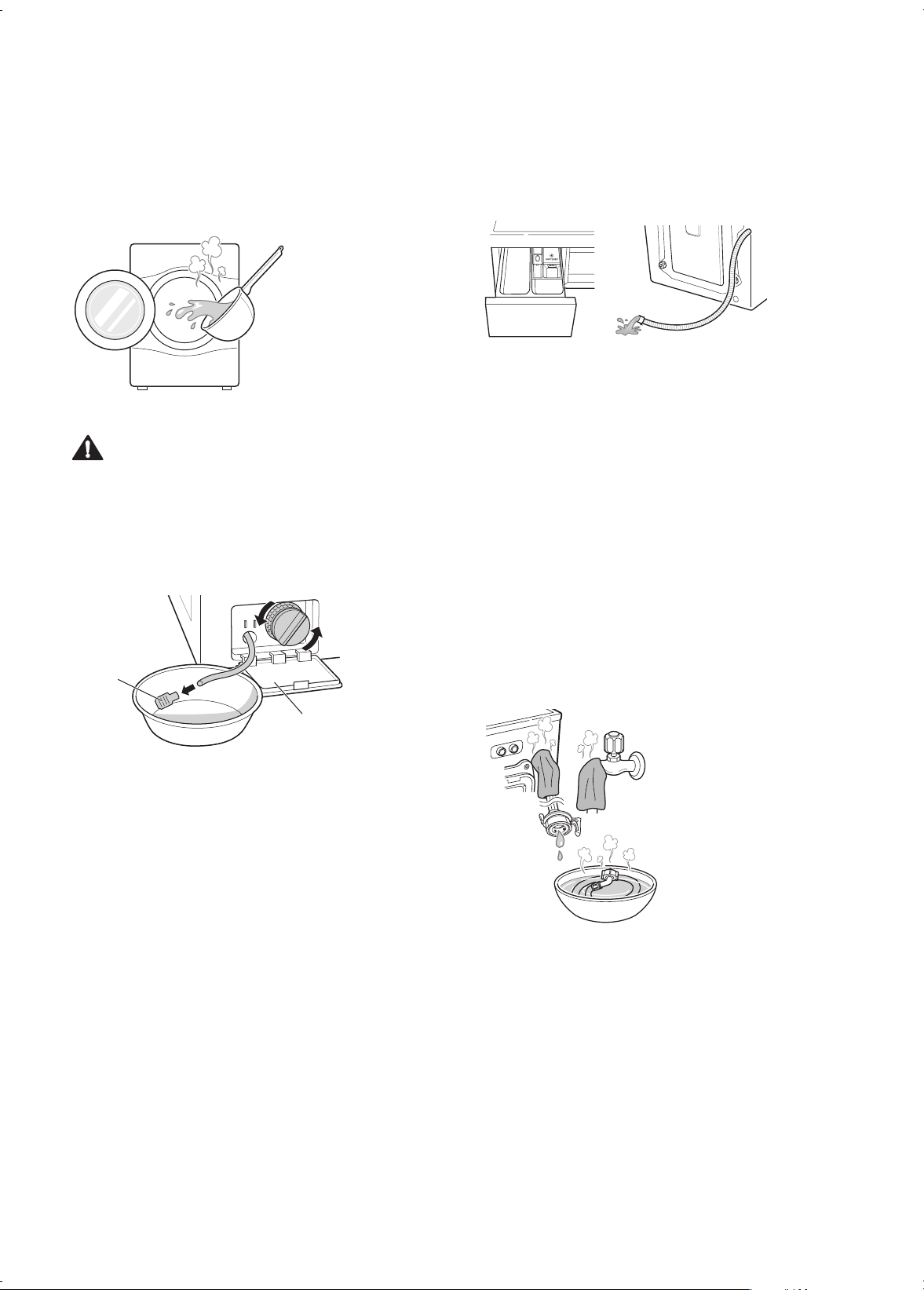

Cleaning the Drain Pump Filter
•
The drain lter collects threads and small objects left
in the laundry. Check regularly that the lter is clean to
ensure smooth running of your washing machine.
•
Allow the water to cool down before cleaning the drain
pump, carrying out emergency emptying, or opening
the door in an emergency.
1
Open the cover cap and pull out the hose.
2
Unplug the drain plug and open the lter by turning
it to the left.
1
2
Container to
collect the
drained water.
3
Remove any extraneous matter from the pump
lter.
4
After cleaning, turn the pump lter and insert the
drain plug.
5
Close the cover cap.
CAUTION
•
First drain using the drain hose and then open the
pump lter to remove any threads or objects.
•
Be careful when draining, as the water may be hot.
31
Cleaning the Dispenser Drawer
Detergent and fabric softener may build up in the
dispenser drawer. Remove the drawer and inserts and
check for buildup once or twice a month.
1
Remove the detergent dispenser drawer by pulling
it straight out until it stops.
•
Press down hard on the disengage button and
remove the drawer.
2
Remove the inserts from the drawer.
•
Rinse the inserts and the drawer with warm
water to remove buildup from laundry products.
Use only water to clean the dispenser drawer.
Dry the inserts and drawer with a soft cloth or
towel.
3
To clean the drawer opening, use a cloth or small,
non-metal brush to clean the recess.
•
Remove all residue from the upper and lower
parts of the recess.
4
Wipe any moisture off the recess with a soft cloth
or towel.
5
Return the inserts to the proper compartments and
ret the drawer.
Tub Clean (Optional)
Tub Clean is a special programme to clean the inside of
the washing machine.
A higher water level is used in this programme at higher
spin speed. Perform this programme regularly.
1
Remove any clothing or items from the washing
machine and close the door.
2
Open the dispenser drawer and add anti-limescale
(e.g. Calgon) to the main wash compartment.
•
For tablets put into the drum.
3
Close the dispenser drawer slowly.
4
Power on and then press and hold
Intensive
and
Crease Care
button for 3 seconds. Then will
be displayed on the display.
5
Press the
Start/Pause
button to start.
6
After the programme is complete, leave the door
open to allow the washing machine door opening,
exible gasket and door glass to dry.
CAUTION
•
If there is a child, be careful not to leave the door open
for too long.
NOTE
•
Do not add any detergent to the detergent
compartments. Excessive suds may generate and
leak from the washing machine.
32

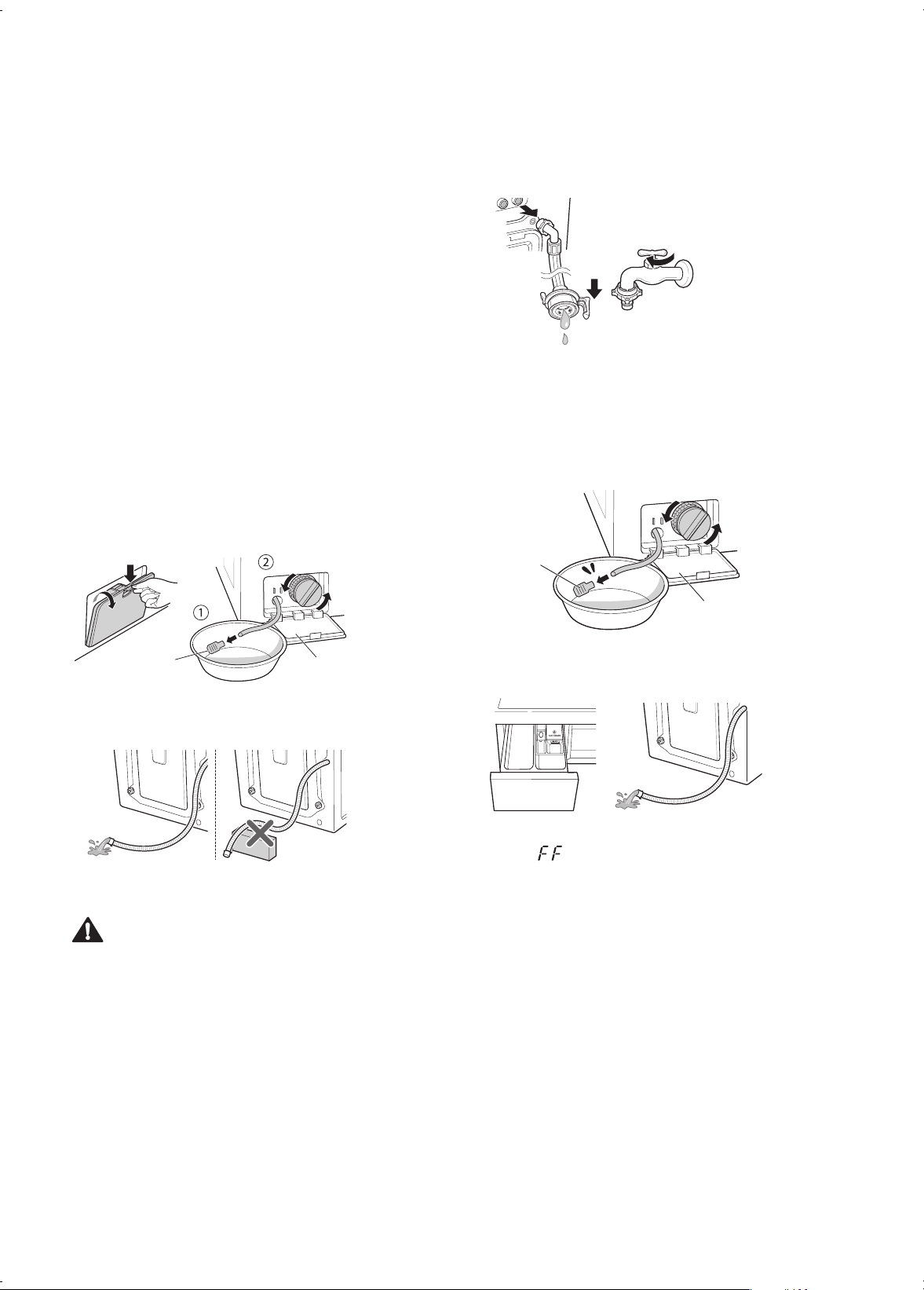

Caution on Freezing During
Winter
•
When frozen, the product does not operate normally.
Make sure to install the product where it will not freeze
during winter.
•
In case the product must be installed outside on a
porch or in other outdoor conditions, make sure to
check the following.
How to Keep the Product from Freezing
•
After washing, remove water remaining inside the
pump completely with the opening hose plug used for
removal of residual water. When the water is removed
completely, close the hose plug used for removal of
residual water and cover cap.
Cover cap
Drain plug
•
Hang down drain hose to pull out water inside the
hose completely.
Drain hose
CAUTION
•
When the drain hose is installed in a curved shape,
the inner hose may freeze.
•
After closing the tap, disconnect the cold supply hose
from the tap, and remove water while keeping the
hose facing downwards.
Supply
hose
Check for Freezing
•
If water does not drain when opening the hose plug
used for removal of residual water, check the drainage
unit.
Drain plug
Cover cap
•
Turn the power on, choose a washing programme,
and press the
Start/Pause
button.
Detergent drawer
Drain hose
•
When is shown in display window while the
product is in operation, check water supply unit and
drainage unit (Some models do not have an alarm
function that indicates freezing).
NOTE
•
Check that water is coming into the detergent drawer
while rinsing, and water is draining through the drain
hose while spinning.
33
How to Handle Freezing
•
Make sure to empty the drum, pour warm water of
50–60 °C up to the rubber part inside the drum, close
the door, and wait for 1–2 hours.
50‒60 °C
CAUTION
•
When the drain hose is installed in a curved shape,
the inner hose may freeze.
•
Open the cover cap and hose plug used for removal
of residual water to extract water completely.
Drain plug
Cover cap
NOTE
•
If water does not drain, this means the ice is not
melted completely. Wait more.
•
When water is removed completely from the drum,
close the hose plug used for removal of residual
water, choose a washing programme, and press the
Start/Pause
button.
Drain hose
Detergent drawer
NOTE
•
Check that water is coming into the detergent drawer
while rinsing, and water is draining through the drain
hose while spinning.
•
When water supply problems occur, take the following
measures.
– Turn off the tap, and thaw out the tap and both
connection areas of supply hose of the product
using a hot water cloth.
– Take out supply hose and immerse in warm water
below 50–60 °C.
Supply
hose
50‒60 °C
34
TROUBLESHOOTING
•
Your washing machine is equipped with an automatic error-monitoring system to detect and diagnose problems at
an early stage. If your washing machine does not function properly or does not function at all, check the following
before you call for service:
Diagnosing Problems
Symptoms Reason Solution
Rattling and clanking
noise
Foreign objects such as coins
or safety pins may be in drum or
pump.
•
Check all pockets to make sure that they
are empty. Items such as clips, matches,
pens, coins, and keys can damage both
your washer and your clothes.
•
Close zippers, hooks, and drawstrings
to prevent these items from snagging or
tangling on other clothes.
Thumping sound
Heavy wash loads may produce a
thumping sound. This is usually
normal.
•
If sound continues, washing machine
is probably out of balance. Stop and
redistribute wash load.
Vibrating noise
Have all the transit bolts and tub
support been removed?
•
If not removed during installation, refer
to Installation guide for removing transit
bolts.
Are all the feet resting rmly on
the ground?
•
Check that the appliance is perfectly level
(Use a spirit level).
Water leaks
Supply hoses or drain hose are
loose at tap or washing machine.
•
Check and tighten hose connections.
House drain pipes are clogged.
•
Unclog drain pipe. Contact plumber if
necessary.
Oversudsing
Too much detergent or unsuitable
detergent may cause excessive
foaming which may result in
water leaks.
•
Make sure that the suggested amount of
detergent is used per the manufacturer's
recommendations.
35
Symptoms Reason Solution
Water does not enter
washing machine or it
enters slowly
Water supply is not adequate in
that location.
•
Check another tap in the house.
Water supply tap is not
completely open.
•
Fully open tap.
Water supply hose(s) are kinked.
•
Straighten hose.
The lter of the supply hose(s)
clogged.
•
Check the lter of the supply hose.
Water in the washing
machine does not drain
or drains slowly
Drain hose is kinked or clogged.
•
Clean and straighten the drain hose.
The drain lter is clogged.
•
Clean the drain lter.
Washing machine does
not start
Electrical power cord may not be
plugged in or connection may be
loose.
•
Make sure plug ts tightly in wall outlet.
House fuse blown, circuit breaker
tripped,or a power outage has
occurred.
•
Reset circuit breaker or replace fuse. Do
not increase fuse capacity. If problem is
a circuit overload, have it corrected by a
qualied electrician.
Water supply tap is not turned on.
•
Turn on water supply tap.
Washing machine will
not spin
Check that the door is rmly shut.
•
Close the door and press the
Start/Pause
button. After pressing the
Start/Pause
button, it may take a few moments before
the washing machine begins to spin. The
door must be locked before spin can be
achieved. Add 1 or 2 similar items to help
balance the load. Rearrange load to allow
proper spinning.
36
Symptoms Reason Solution
Door does not open
Once washing machine has
started, the door cannot be
opened for safety reasons.
•
Check if the ‘Door Lock’ icon is
illuminated. You can safely open the door
after the ‘Door Lock’ icon turns off.
Wash cycle time
delayed
If an imbalance is detected or if
the suds removing programme is
on, the wash time will increase.
•
This is normal. The time remaining shown
in the display is only an estimate. Actual
time may vary.
Fabric softener
overow
Too much softener may cause an
overow.
•
Follow softener guidelines to ensure
appropriate amount is used. Do not
exceed the maximum ll line.
Softeners dispensed
too early
Too much softener may cause an
premature dispensing.
•
Follow the guidelines provided by the
detergent manufacturer.
•
Close the dispenser drawer slowly. Do not
open the drawer during the wash cycle.
Dry problem Check water supply tap.
•
Do not overload. Check that the washing
machine is draining properly to extract
adequate water from the load. Clothes
load is too small to tumble properly. Add a
few towels.
•
Turn off water supply tap.
37

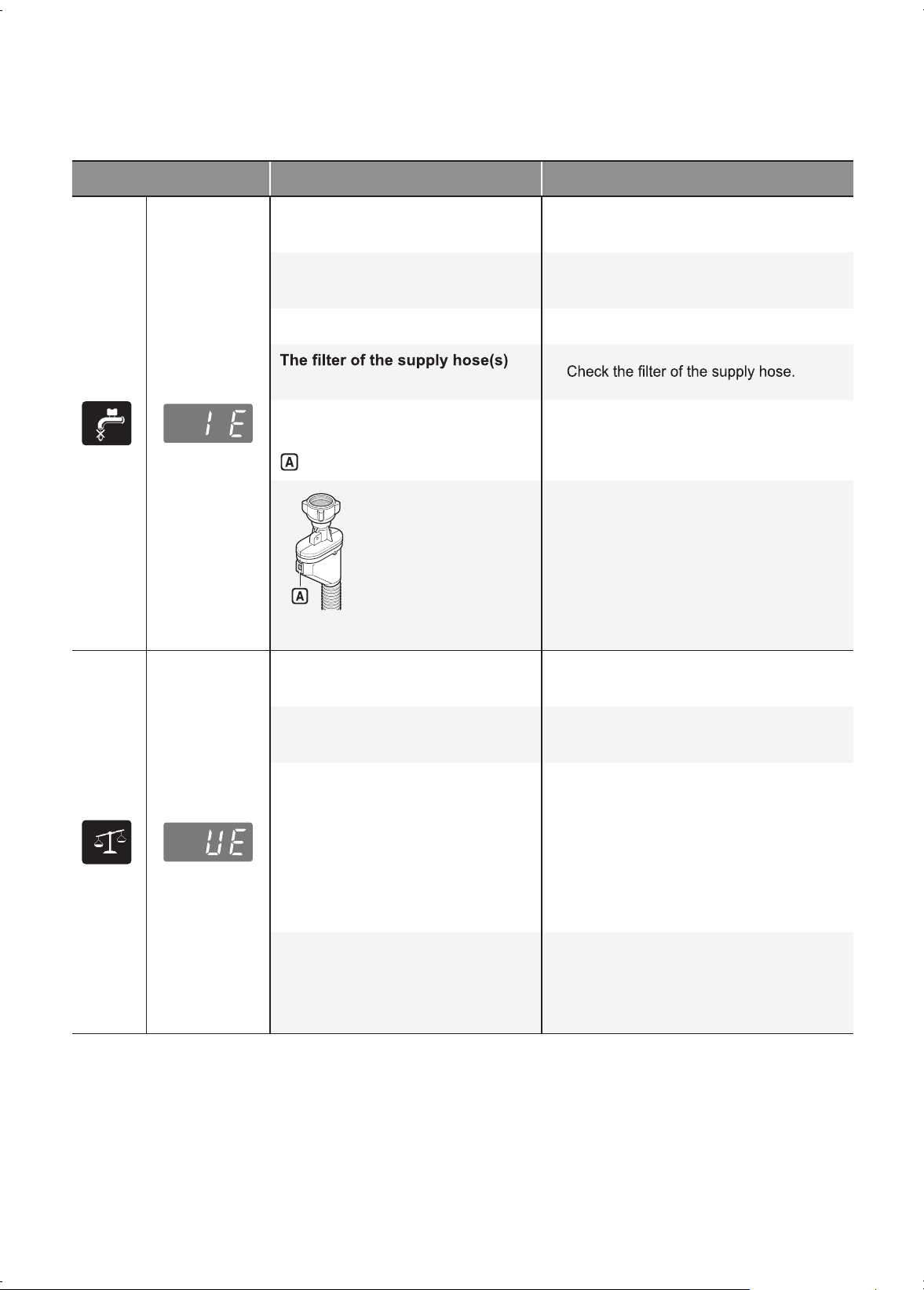

Error Messages
Symptoms Reason Solution
Water supply is not adequate in
area.
•
Check another tap in the house.
Water supply taps are not
completely open.
•
Fully open tap.
Water supply hose(s) are kinked.
•
Straighten hose(s).
are clogged.
•
If water leakage occurred in Aqua
stop supply hose indicator
will become red.
•
Use the new Aqua stop supply hose.
•
May vary depending on the model.
Load is too small.
•
Add 1 or 2 similar items to help balance
the load.
Load is out of balance.
•
Add 1 or 2 similar items to help balance
the load.
The appliance has an imbalance
detection and correction system.
If individual heavy articles are
loaded (e.g. bath mat, bath
robe, etc.) this system may stop
spinning or even interrupt the
spin cycle altogether.
•
Rearrange load to allow proper spinning.
If the laundry is still too wet at
the end of the cycle, add smaller
articles of laundry to balance the
load and repeat the spin cycle.
•
Rearrange load to allow proper spinning.
38

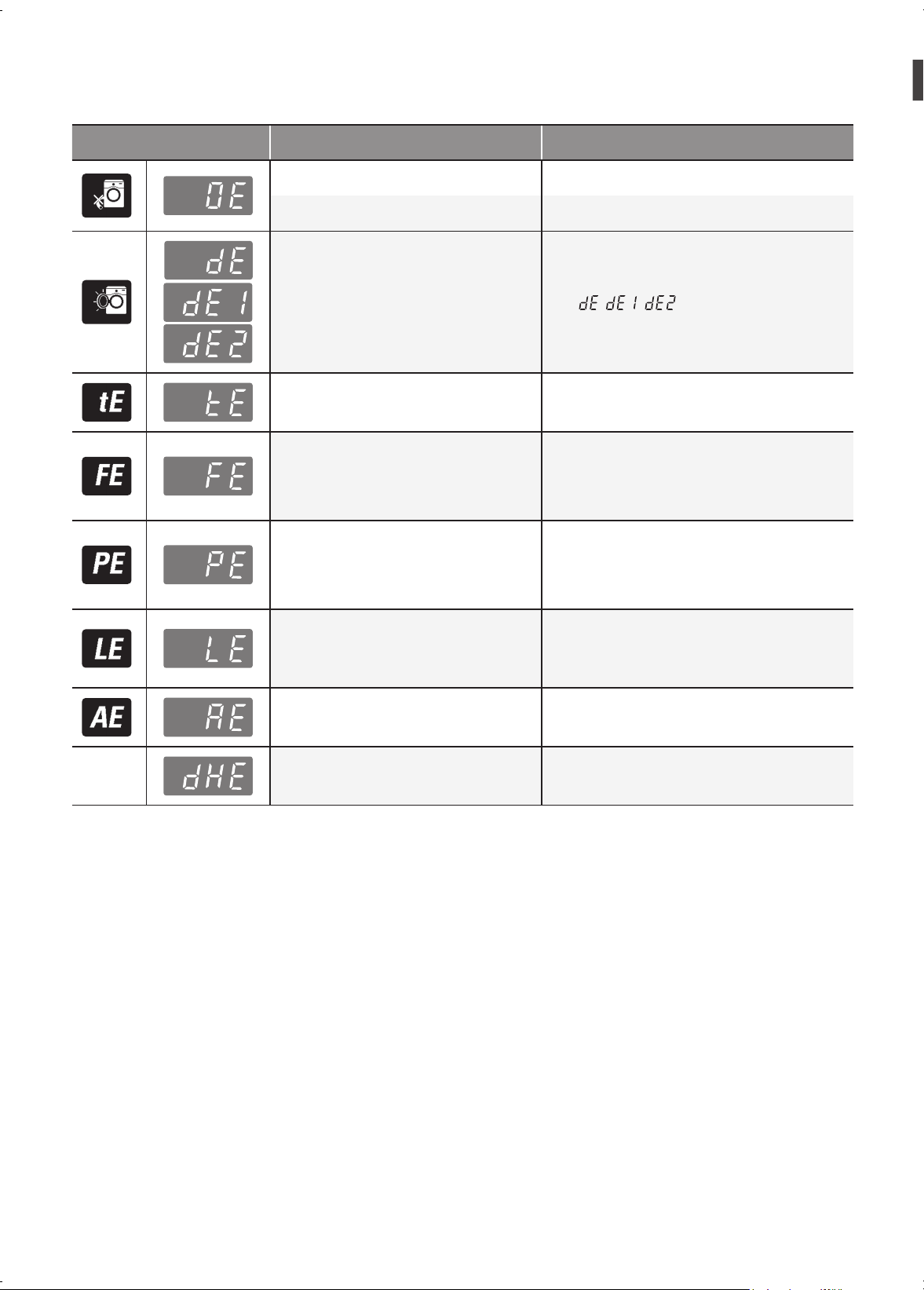

Symptoms Reason Solution
Drain hose is kinked or clogged.
•
Clean and straighten the drain hose.
The drain lter is clogged.
•
Clean the drain lter.
Ensure door is not open.
•
Close the door completely.
If
,
, is not released, call for
service.
Control error.
•
Unplug the power plug and call for
service.
Water overlls due to the faulty
water valve.
•
Close the water tap.
•
Unplug the power plug.
•
Call for service.
Malfunction of water level sensor.
•
Close the water tap.
•
Unplug the power plug.
•
Call for service.
Over load in motor.
•
Allow the washing machine to stand for
30 minutes to allow the motor to cool,
then restart the cycle.
Water leaks.
•
Call for service.
Does not dry
•
Call for service.
39
WARRANTY
This limited warranty does not cover:
•
Service trips to deliver, pick up, or install or repair the product; instruction to the customer on operation of the
product; repair or replacement of fuses or correction of wiring or plumbing, or correction of unauthorized repairs/
installation.
•
Failure of the product to perform during power failures and interruptions or inadequate electrical service.
•
Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted
water supply or inadequate supply of air.
•
Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the
Product’s owner’s manual.
•
Damage to the Product caused by accidents, pests and vermin, lightning, wind, re, oods, or acts of God.
•
Damage or failure caused by unauthorized modication or alteration, or if it is used for other than the intended
purpose, or any water leakage where the product was not properly installed.
•
Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use,
or use of accessories, components, or consumable cleaning products that are not approved by LG.
•
Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the nish
of your product, unless such damage results from defects in materials or workmanship.
•
Damage or missing items to any display, open box, discounted, or refurbished Product.
•
Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and
Serial numbers, along with original retail sales receipt, are required for warranty validation.
•
Increases in utility costs and additional utility expenses.
•
Repairs when your Product is used in other than normal and usual household use or contrary to the instructions
outlined in the Product’s owner’s manual.
•
Costs associated with removal of your Product from your home for repairs.
•
The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in
accordance with published installation instructions, including LG’s owner’s and installation manuals.
•
Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of
parts not approved or specied by LG.
40
Hot
Cold

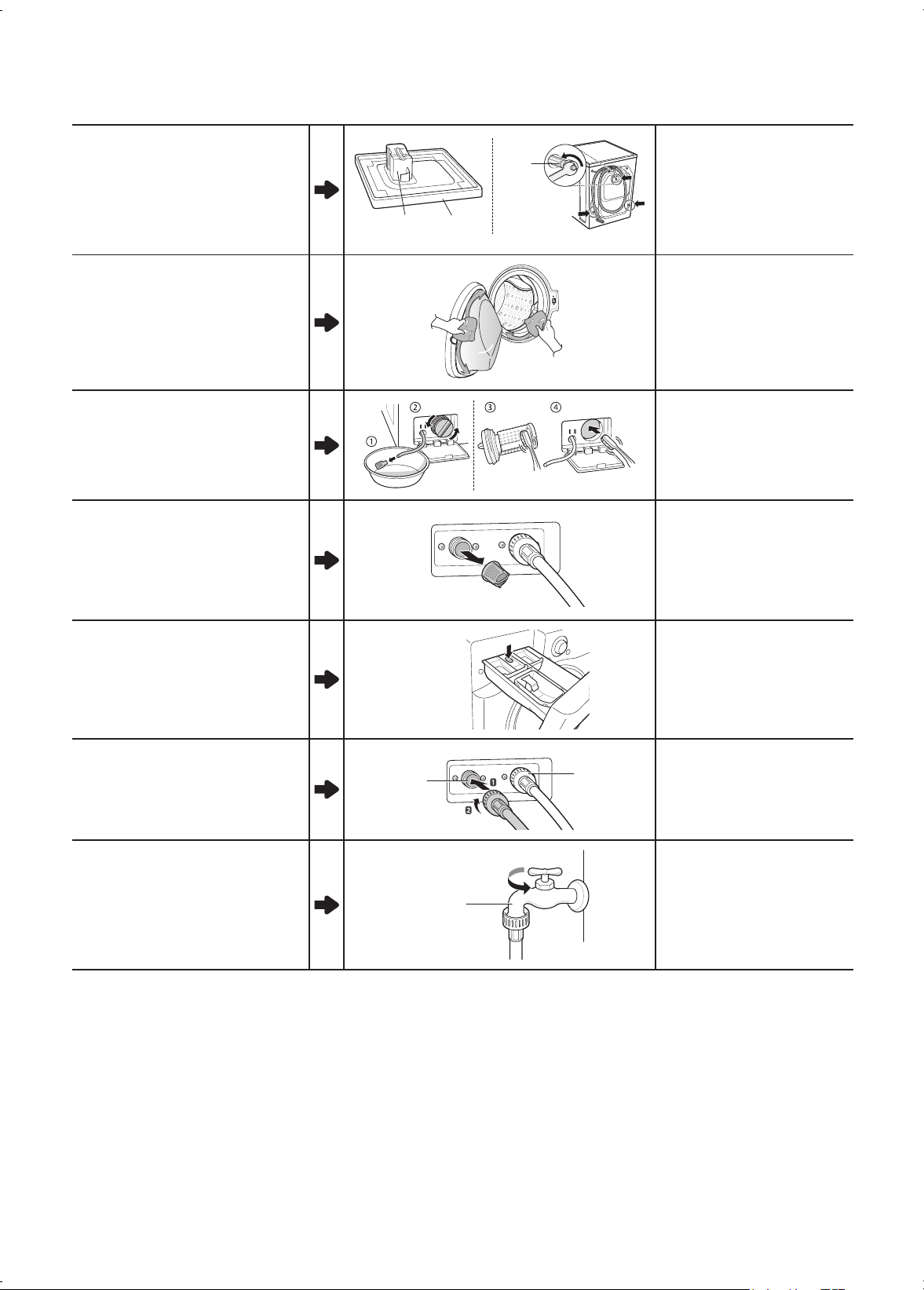

Strange vibration or noise
caused by not removing transit
bolts or tub support.
Tub
support
Carton
base
Transit
bolt
Remove the transit bolts &
tub support.
Leakage caused by dirt (hair,
lint) on gasket and door glass.
Clean the gasket & door
glass.
Not draining caused by clogging
of pump lter.
Clean the pump lter.
Water is not coming because
water inlet valve lters are
clogged or water supply hoses
are kinked.
Inlet lter
Clean the inlet valve
lter or reinstall the water
supply hoses.
Water is not coming because too
much detergent use.
Dispenser
Clean the detergent
disperser drawer.
Laundry is hot or warm after
nished washing because the
supply hoses are installed in
reverse.
Cold
water
supply
Hot
water
supply
Reinstall the supply hoses.
Water is not supplied because
the water tap is not turned on.
Water tap
Turn on the water tap.
41

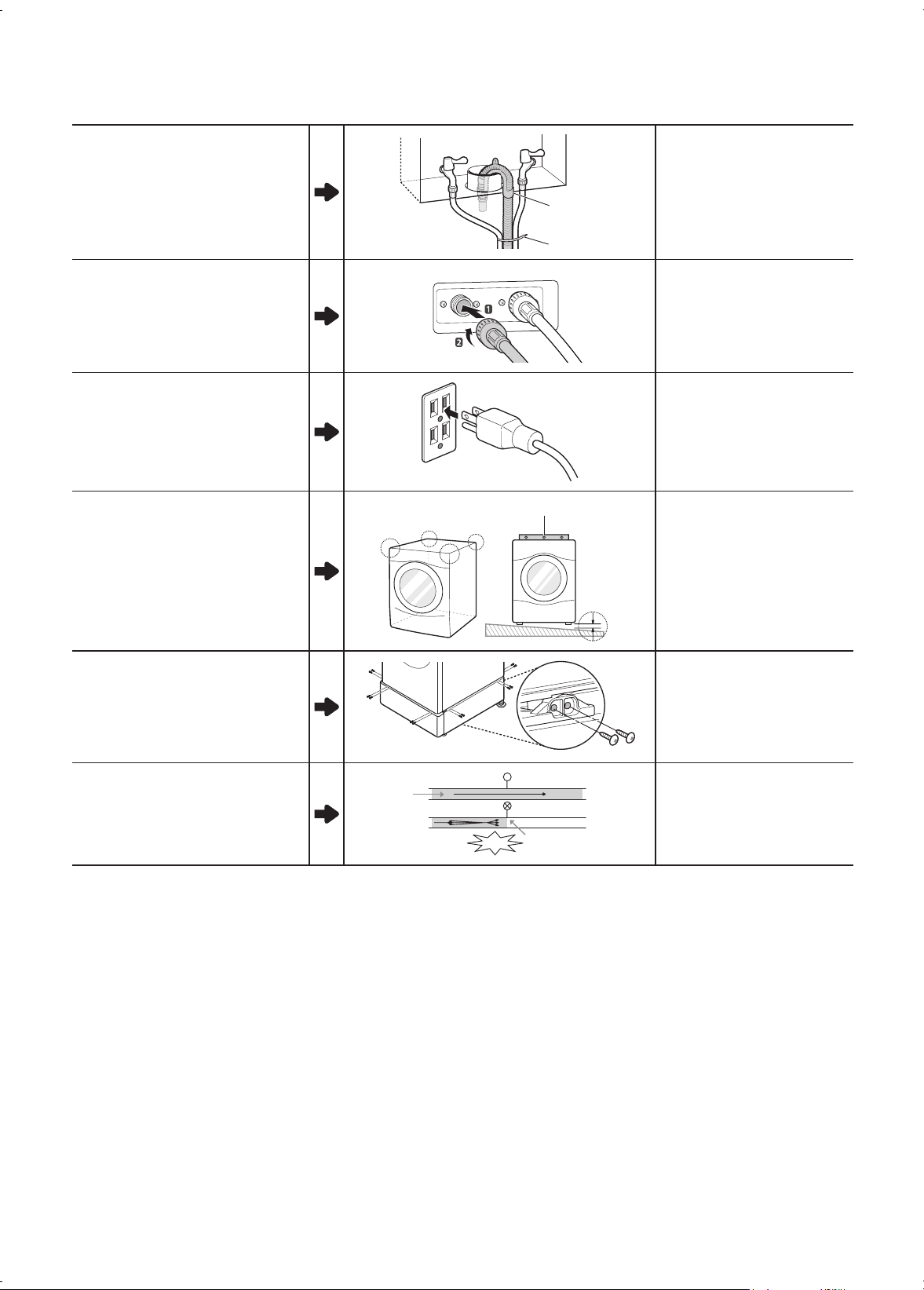

Leakage caused by improper
installation of drain hose or
clogged drain hose.
Elbow
bracket
Tie strap
Reinstall the drain hose.
Leakage caused by improper
installation of water supply hose
or using other brand supply
hoses.
Reinstall the supply hose.
No power problem caused by
loose connection of power cord
or electrical outlet problem.
Reconnect the power cord
or change the electrical
outlet.
Service trips to deliver, pick
up, install the product or for
instruction on product use. The
removal and reinstallation of the
Product.
Level
1°
The warranty covers
manufacturing defects
only. Service resulting from
improper Installation is not
covered.
If all screws are not installed
properly, it may cause excessive
vibration (Pedestal model only).
Install 4 screws at each
corner (Total 16EA).
Water hammering (banging)
noise when washing machine is
lling with water.
High
pressure
water
Natural
water ow
Sudden
stopping
water ow
Loud noise
Hit!!
Adjust the water pressure
by turning down the water
valve or water tap in the
home.
42
Supplier’s trade mark LG
F H/1 4 G6/G7
Q/T D(N)(W)(0~9)
Rated capacity 8/7 kg
10
52 / 74
10500/9300
B
1200/1000
53
8/7
A+++
No
137/122
0.70/0.60
0.52/0.48
0.42/0.39
0.45
312/292
259/239
254/234
F H/1 2/0 G6/G7
Q/T D(N)(W)(0~9)
A+++
Awarded an “EU Ecolabel award” under Regulation (EC) No 66/2010 No
Weighted annual energy consumption (AEC) in kWh per year based on 220 standard washing cycles for cotton
programmemes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual
energy consumption will depend on how the appliance is used.
137/122 kWh/year
The energy consumption
the standard 60 °C cotton programme at full load 0.70/0.60 kWh
the standard 60 °C cotton programme at partial load 0.52/0.48 kWh
the standard 40 °C cotton programme at partial load. 0.42/0.39 kWh
Weighted power consumption of the off-mode and of the left-on mode. 0.45 W
Weighted annual water consumption (AWC) in litres per year based on 220 standard washing cycles for cotton
programmemes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the
appliance is used.
10500/9300 litres/year
A
Maximum spin speed attained for the standard 60 °C cotton programme at full load or the standard 40 °C cotton
programme at partial load, whichever is the lower, and remaining moisture content attained for the standard
60 °C cotton programme at full load or the standard 40 °C cotton programme at partial load, whichever is the
greater.
1400 rpm
44 %
Standard washing programmemes to which the information in the l
programmemes are suitable to clean normally soiled cotton laund
programmemes in terms of combined energy and water consumption;
"Cotton Large 60 °C/40 °C + Intensive"
The programme time
the standard 60 °C cotton programme at full load 312/292 min.
the standard 60 °C cotton programme at partial load 259/239 min.
the standard 40 °C cotton programme at partial load. 254/234 min.
The duration of the left-on mode (Tl) 10 min.
Airborne acoustical noise emissions expressed in dB(A) re 1 pW and rounded to the nearest integer during the
washing and spinning phases for the standard 60 °C cotton programme at full load
52 / 75 dB(A)
Free-Standing
OPERATING DATA
Memo
