AIR CONDITIONER OWNER'S MANUAL

OPERATION

Suggestion for Energy Saving

• Do not over-cool the space. This may be harmful for your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly. within a short period of time.
• Open windows regularly for ventilation. The indoor air quality may deteriorate if the air conditioner is used for long durations.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the air flow or reduce the unit performance.

Parts and Functions

Indoor Unit

1. Air Filter
2. Air Intake
3. Front Cover
4. Air Outlet
5. Air Deflector (Horizontal Vane)
6. Air Deflector (Vertical Louver)
7. On/Off Button

Outdoor Unit

1. Air Intake Vents
2. Air Outlet Vents

NOTE

• The number and location of operation lamps may vary according to the model of the air conditioner.
• The feature may be changed according to the type of model.

Wireless Remote Control

Inserting Batteries

If the display screen of the remote control begins to fade, replace the batteries. Insert AAA (1.5 V) batteries before using the remote control. Remove the battery cover.

1. Remove the battery cover.
2. Insert the new batteries and make sure that the + and - terminals of the batteries are installed correctly.

Installing the Remote Control Holder

To protect the remote control. install the holder where there is no direct sunlight.

1. Choose a safe and easily accessible location.
2. Fix the holder by fastening 2 screws firmly with a screwdriver.

Operating Method

Point the remote control towards the signal receiver at the right side of the air conditioner to operate it.

NOTE

• The remote control may operate other electronic devices if it is directed towards them. Make sure to point the remote control towards the air conditioner signal receiver.
• For proper operation. use a soft cloth to clean the signal transmitter and receiver.
• In case of a function not provided in the product. no buzzer sound occurs from the product when a button for such function on the remote control is pressed except for Air Flow Direction (), Energy Display (), Air Purification function ().

Setting the Current Time

1. Insert batteries.
   • The icon below blinks at the bottom of the display screen.
   •
2. Press button to select the minutes.
3. Press SET/CANCEL button to finish.

NOTE

• The On/Off Timer is available after setting the current time.

Using the °C/°F Conversion Function (Optional)

This function changes unit between °C and °F

• Press and hold button about 5 seconds.

Operating the Air Conditioner without the Remote Control

You can use the ON/OFF button of the indoor unit to operate the air conditioner when the remote control is unavailable.

1. Open the front cover (Type2) or horizontal vane (Type1).

Type1
Type2

2. Press the ON/OFF button.

NOTE

• The stepping motor may be broken. if the horizontal vane opens rapidly.
• The fan speed is set to high.
• The feature may be changed according to the type of model.
• The temperature cannot be altered when using this emergency ON/OFF button.
• For cooling & heating models. the temperature is set from 22 °C to 24 °C

Using Wireless Remote Control

NOTE

• * buttons may be changed according to the type of model.
• When connected to the Multi Outdoor unit, the Energy Display, Energy Control, Silent and Smart Diagnosis function may not be supported.

NOTE

• Some functions may not be supported. depending on the model.
• * buttons may be changed according to the type of model.

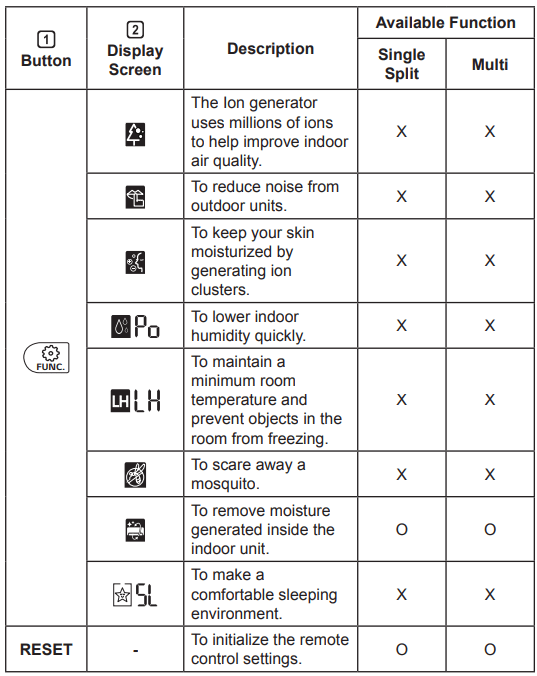

• Press the SET/CANCEL button to operate the selected FUNC.

Restarting the Air Conditioner Automatically

When the air conditioner is turned on again after a power failure. this function restores the previous settings.

Disabling Auto Restart

1. Open the front cover (Type2) or horizontal vane (Type1).

Type1
Type2

2. Press the ON/OFF button and hold it for 6 seconds. then the unit will beep twice and the lamp will blink twice 4 times.

• To re-enable the function. press the ON/OFF button and hold it for 6 seconds. The unit will beep twice and the lamp will blink 4 times.

NOTE

• The feature may be changed according to the type of model.
• If you press and hold the ON/OFF button for 3 – 5 seconds. instead of 6 seconds. the unit will switch to the test operation. In the test operation. the unit blows out strong cooling air for 18 minutes and then returns to factory default settings.

Using the Mode Function

This function allows you to select the desired function.

Cooling Mode

1. Turn the appliance on.
2. Press MODE button repeatedly to select the Cooling Mode. is displayed on the display screen.
3. Press button to set the desired temperature.

Auto Operation (Artificial Intelligence)

Multi Model

In this operation mode. the system is automatically operated by the electronic controls.

1. Turn the appliance on.
2. Press MODE button repeatedly to select the Auto Operation. is displayed on the display screen.
3. Press button to set the desired temperature.
4. Press FAN SPEED button to adjust the fan speed.

Auto Changeover Mode

Single Split Model

This mode changes the mode automatically to maintain the set temperature at ±2 °C

1. Turn the appliance on.
2. Press MODE button repeatedly to select the Auto Changeover Mode. is displayed on the display screen.
3. Press button to set the desired temperature.
4. Press FAN SPEED button to adjust the fan speed.

Dehumidification Mode

This mode removes excess moisture from a highly humid environment or during the rainy season. in order to prevent mildew from setting in. This mode adjusts the room temperature and the fan speed automatically to maintain the optimal level of humidity.

1. Turn the appliance on.
2. Press MODE button repeatedly to select the Dehumidification Mode. is displayed on the display screen.

NOTE

• In this mode you cannot adjust the room temperature. it is adjusted automatically.
• The room temperature is not displayed on the display screen.
• In the dehumidification mode. compressor and indoor fan will not operate when the room temperature is below 24 °C

Heating Mode

1. Turn the appliance on.
2. Press MODE button repeatedly to select the Heating Mode. is displayed on the display screen.
3. Press button to set the desired temperature.

NOTE

• will be displayed on the indoor unit when defrosting is operating.
• Furthermore. this indication will be displayed on the indoor unit:
  • When preheating is operating.
  • When the room temperature has been reached

Fan Mode

This mode only circulates the indoor air without changing the room temperature.

1. Turn the appliance on.
2. Press MODE button repeatedly to select the Fan Mode. is displayed on the display screen.
3. Press FAN SPEED button to adjust the fan speed.

Using the Jet Mode Function

Changing Room Temperature Quickly

This function allows you to cool indoor air quickly during the summer or warm it quickly during winter.

• The Jet Mode function is available with Cooling.

1. Turn the appliance on.
2. Press MODE button repeatedly to select the desired mode.
3. Press JET MODE button. is displayed on the display screen.

NOTE

• Jet Heating Mode is not available on some models.
• In Jet Cooling Mode. strong air blows out for 30 minutes.
• After 30 minutes later. setting temperature is maintaining 18 °C If you want to change the temperature. Press to set the desired temperature
• In Jet Heating Mode. strong air blows out for 30 minutes.
• After 30 minutes later. setting temperature is maintaining 30 °C If you want to change the temperature. Press to set the desired temperature
• This function may operate differently from the remote control display.

Using the Fan Speed Function

Adjusting the Fan Speed

• Press FAN SPEED button repeatedly to adjust the fan speed.

NOTE

• The fan speed of Natural Wind adjusts automatically.

• The fan speed icons are displayed on some indoor units.

• Indoor unit display is displayed only 5 seconds and return to the setting temperature on some models.

Using the Air Flow Direction Function

This function adjusts the direction of the air flow vertically (horizontally).

• Press () button repeatedly and select the desired direction.
  • Select to adjust the direction of the air

NOTE

• Adjusting the air flow direction horizontally may not be supported. depending on the model.
• Adjusting the air deflector arbitrarily may cause product failure.
• If you restart the air conditioner. it starts to operate with the previously set direction of air flow. so the air deflector may not match the icon displayed on the remote control. When this occurs. press or button to adjust the direction of the air flow again.
• This function may operate differently from the remote control display.

Setting the On/Off Timer

This function sets the air conditioner to turn on/off automatically at desired time.

On/Off Timer can be set together.

Setting the On Timer

1. Press button repeatedly.

• The icon below blinks at the bottom of the display screen.

2. Press button to select the minutes.

3. Press SET/CANCEL button to finish.

• After setting the timer. current time and icon are displayed on the display screen indicating that the desired time is set.

Canceling the On Timer

1. Press button repeatedly.

• The icon below blinks at the bottom of the display screen.

2. Press SET/CANCEL button to cancel the setting.

Setting the Off Timer

1. Press button repeatedly.

• The icon below blinks at the bottom of the display screen.

2. Press or button to select the minutes.

3. Press SET/CANCEL button to finish.

• After setting the timer. current time and icon are displayed on the display screen indicating that the desired time is set.

NOTE

• This function is disabled when you set Simple Timer.

Canceling the Off Timer

1. Press button repeatedly.

• The icon below blinks at the bottom of the display screen.

2. Press SET/CANCEL button to cancel the setting.

Canceling the Timer Setting

• Press button to cancel all timer settings.

Using the Sleep Function (Optional)

This function turns off the air conditioner automatically when you go to sleep.

1. Turn the appliance on.
2. Press button repeatedly.
   • The icon below blinks at the bottom of the display screen.
3. Press or button to select the hour (up to 7 hours).
4. Press SET/CANCEL button to finish.

NOTE

• is displayed on some indoor units.
• Indoor unit display is displayed from 1H to 7H which is displayed only 5 seconds and then return to the setting temperature.
• In the Cooling and Dehumidification Mode. the temperature increases by 1 °C after 30 minutes and additional 1 °C after another 30 minutes for a more comfortable sleep.
• The temperature increases up to 2 °C from the preset temperature.
• Although the remark for fan speed on the display screen may be changed. the fan speed is adjusted automatically.

Using the Simple Timer Function (Optional)

This function turns off the air conditioner automatically when you go to sleep.

1. Turn the appliance on.

2. Press button repeatedly.

• The icon below blinks at the bottom of the display screen.

3. Press or button to select the hour (up to 7 hours).

4. Press SET/CANCEL button to finish.

NOTE

• This function is disabled when you set Off Timer.

Using the Energy Display Function (Optional)

This function displays the amount of electricity generated on the indoor display as the product operates.

Display the Current Energy Usage

1. Turn the appliance on.
2. Press button and hold it about 3 seconds.

• The instantaneous power consumption is

NOTE

• It is not displayed on the wireless remote control.
• The unit of the displayed value is kW.
• If it is more than 99 kW. which is the range of expression. maintain it as 99 kW.
• Display wattage under 10 kW with 0.1 kW unit. and display one over 10 kW with 1 kW unit.
• The actual power may differ from the power displayed.
• When connected to the Multi Outdoor unit. this function may not be supported.

Using the Light Off Function (Optional)

Display Screen Brightness

You can set the brightness of the indoor unit display screen.

• Press LIGHT OFF button.

NOTE

• Turn on/off the Display screen.

Using the Comfort Air Function (Optional)

Comfort Vane Operation

This function conveniently sets the vane to a preset position to deflect the supply air away from blowing directly onto the occupants in the room.

1. Turn the appliance on.
2. Press COMFORT AIR button repeatedly and select the desired direction.
   • is displayed on the display screen.

NOTE

• is displayed on some indoor units.
• This function is disabled when you press MODE or JET MODE button.
• This function is disabled and auto swing of vertical direction is set up when you press button.
• When this function is off. the horizontal vane operates automatically depending on the set mode.

Using the Energy Saving Function (Optional)

This function minimizes power consumption during Cooling and increases the set temperature to the optimal level for a more comfortable environment.

The temperature automatically settles at 22 °C if desired temperature is below 22 °C The temperature remains constant if it is above 22 °C

1. Turn the appliance on.
2. Press MODE button repeatedly to select the Cooling Mode.
3. Press ENERGY SAVING button. is displayed on the display screen.

Using the Energy Control Function (Optional)

1. Turn the appliance on.
2. Press ENERGY CTRL button.
   • Press ENERGY CTRL button repeatedly to select each step.

NOTE

• 1 step : The power Input is decreased by 20 % compared to rated power input.
  • is displayed on the display screen.
• 2 step : The power Input is decreased by 40 % compared to rated power input.
  • is displayed on the display screen.
• 3 step (Optional) : The power Input is decreased by 60 % compared to rated power input.
• is displayed on the display screen.
• (1 step). (2 step) is displayed on some indoor
• This function is available with Cooling Mode.
• Capacity may decrease when Energy Control mode is selected.
• Desired temperature is displayed about 5 seconds if you press FAN SPEED. button.
• Room temperature is displayed about 5 seconds if you press ROOM TEMP button.

Using Special Functions

1. Turn the appliance on.
2. Press FUNC button repeatedly to select the desired function.
3. Press SET/CANCEL button to finish.

NOTE

• Some functions may not be supported. depending on the model.
• Some functions may operate differently from the remote control display.

Canceling Special Functions

1. Press FUNC button repeatedly to select the desired function.
2. Press SET/CANCEL button to cancel the function.

Using the Air Purification Function

These functions supply clean and fresh air by ion particles and the filter.

NOTE

• You can use this function without turning the air conditioner on.
• Both the plasma lamp and the cooling lamp light up while Smoke Away/Plasma is in operation on some models.
• Do not touch ionizer during operation.
• This function may operate differently from the remote control display.

Using the Silent Function (Optional)

This function prevents potential claims by neighbors. reducing noise from outdoor units.

• is displayed on the display screen.

NOTE

• This function is disabled when you press MODE or ENERGY CTRL or JET MODE button.
• This function is available with Cooling. Heating. Auto Changeover. Auto Operation Mode.

Using the Ion Care Function (Optional)

This function keeps your skin moisturized by generating ion clusters which is absorbed into the surface of skin.

• is displayed on the display screen about 3 seconds.

NOTE

• This function is available with Cooling. Fan Mode and Air Purification function.

Using the Jet Dry Function (Optional)

This function maximizes the performance of dehumidification.

• are displayed on the display screen.

NOTE

• This function is available with Cooling. Dehumidification. Auto Operation. Fan Mode and Air Purification function.
• This function is not available with Sleep function.
• This function is disabled when you press MODE button.

Using the Low Heating Function (Optional)

This function operates the heating system to maintain a minimum room temperature and prevent objects in the room from freezing where there is no permanent resident. such as a vacation.

• are displayed on the display screen.

NOTE

• This function is available with Heating Mode.

During LH operation. when you press buttons such as , MODE. FAN SPEED. and then return to Heating Mode, 30 °C high speed.

• If JET MODE button is pressed during LH operation. this function is disabled and Power Heating Mode is operated immediately. (only for power heating model)
• In case an error occurred. operation can be interrupted for the protection of the product.
• COMFORT AIR and button cannot be used while the LH function is in operation.

Using the Mosquito Away Function (Optional)

This function fans away mosquitos by generating a high-frequency wave.

• is displayed on the display screen.

NOTE

• You can use this function without turning the air conditioner on.

Using the Auto Clean Function

In the Cooling and Dehumidification Mode. moisture is generated inside the indoor unit. This function removes such moisture.

• is displayed on the display screen.

NOTE

• Some functions cannot be used while the Auto Clean function is in operation.
• If you turn off the unit. the fan continues to run for 30 minutes and cleans the inside of the indoor unit.

Using the Comfort Sleep Function (Optional)

This function operates the air conditioner automatically to make the comfortable sleep environment.

• are displayed on the display screen.

NOTE

• This function is available with Cooling Mode.
• The vane stops swing and sets indirect airflow angle. after 30 minutes from start even though the room temperature doesn’t decrease to optimal temperature to sleep.
• It is possible that a comfortable sleep environment is different according to the people.

SMART FUNCTIONS

Using LG SmartThinQ Application

Things to check before using LG SmartThinQ

(For appliances with the logo)

1. Check the distance between the appliance and the wireless router (Wi-Fi network).
   • If the distance between the appliance and the wireless router is too far. the signal strength becomes weak. It may take a long time to register or installation may fail.
2. Turn off the Mobile data or Cellular Data on your smartphone.
   • For iPhones. turn data off by going to Settings → Cellular → Cellular Data.

1. Connect your smartphone to the wireless router.

NOTE

• To verify the Wi-Fi connection. check that Wi-Fi icon on the control panel is lit.
• The appliance supports 2.4 GHz Wi-Fi networks only. To check your network frequency. contact your Internet service provider or refer to your wireless router manual.
• LG SmartThinQ is not responsible for any network connection problems or any faults. malfunctions. or errors caused by network connection.
• If the appliance is having trouble connecting to the Wi-Fi network. it may be too far from the router.
• Purchase a Wi-Fi repeater (range extender) to improve the Wi-Fi signal strength.
• The Wi-Fi connection may not connect or may be interrupted because of the home network environment.
• The network connection may not work properly depending on the Internet service provider.
• The surrounding wireless environment can make the wireless network service run slowly.
• The appliance cannot be registered due to problems with the wireless signal transmission.
• Unplug the appliance and wait about a minute before trying again.
• If the firewall on your wireless router is enabled. disable the firewall or add an exception to it.
• The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
• Smartphone user interface (UI) may vary depending on the mobile operating system (OS) and the manufacturer.
• If the security protocol of the router is set to WEP. you may fail to set up the network. Please change it to other security protocols (WPA2 is recommended) and register the product again.

Installing LG SmartThinQ

Search for the LG SmartThinQ application from the Google Play Store or Apple App Store on a smart phone. Follow instructions to download and install the application.

Wi-Fi Function

(For appliances with the logo)

Communicate with the appliance from a smart phone using the convenient smart features.

Smart Diagnosis

If you use the Smart Diagnosis function. you will be provided with the useful information such as a correct way of using the appliance based on the pattern of use.

Settings

Allows you to set various options on the appliance and in the application.

NOTE

• If you change your wireless router. Internet service provider. or password. delete the registered appliance from the LG SmartThinQ application and register it again.
• The application is subject to change for appliance improvement purposes without notice to users.
• Functions may vary by model.

Open Source Software Notice Information

To obtain the source code under GPL. LGPL. MPL. and other open source licenses. that is contained in this product. please visit http://opensource.lge.com.

In addition to the source code. all referred license terms. warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media. shipping. and handling) upon email request to [email protected] This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Smart Diagnosis Using a Smart Phone

• For appliances with the logo

Use this function if you need an accurate diagnosis by an LG Electronics customer information centre when the appliance malfunctions or fails.

Smart Diagnosis can not be activated unless the appliance is connected to power. If the appliance is unable to turn on. then troubleshooting must be done without using Smart Diagnosis.

NOTE

• Be sure to keep ambient noise to a minimum or the phone may not correctly receive the buzzer beeps from the indoor unit.
• When connected to the Multi Outdoor unit. this function may not be supported.

MAINTENANCE

WARNING

• Before cleaning or performing maintenance. disconnect the power supply and wait until the fan stops.
• If the air conditioner will not be used for an extended period of time. dry the air conditioner to maintain it in best condition. Clean the product regularly to maintain optimal performance and to prevent possible breakdown.
• Dry the air conditioner in Fan mode for 3 to 4 hours and disconnect the power. There may be internal damage if moisture is left in its components.
• Before using the air conditioner again. dry the inner components of the air conditioner in Fan mode for 3 to 4 hours. This will help to remove the odor generated from moisture.

• The feature may be changed according to the type of model.

NOTE

• Never use water that is higher than 40 °C when you clean the filters. It may cause deformation or discoloration.
• Never use volatile substances when you clean the filters. They may damage the surface of the product.
• Do not wash the Micro dust filter with water. because the filter can be damaged (Optional).
• Do not wash the Triple filter with water. because the filter can be damaged (Optional).

Clean the Air Filter

Clean the air filters once every 2 weeks. or more. if necessary.

NOTE

• The air filter can be broken when it is bent.
• When the air filter is not assembled correctly. dust and other substances can enter into the indoor unit.

Type1

1. If you look at the indoor unit from above it. can assemble the top filter easily. Turn off the power to the unit.
2. Hold the knobs of the air filter. lift it up slightly.

3. Remove it from the indoor unit.

4. Clean the filter with a vacuum cleaner or with lukewarm water with neutral detergent.

5. Dry the filter in the shade.

6. Insert the hooks of the air filter into the front cover.

7. Push down hooks to assemble the air filter.

8. Check the side of the front cover for correct assembly of the air filter.

Type2

1. Turn off the power to the unit.
2. Open the front cover.
   • Lift up both sides of the cover slightly.
3. Hold the knobs of the air filters. pull them down slightly and remove them from the indoor unit.

4. Clean the filters with a vacuum cleaner or with lukewarm water with neutral detergent.

5. Dry the filters in the shade.

6. Insert the hooks of the air filters into the front cover.

7. Check the side of the front cover for correct assembly of the air filters.

Clean the Micro Dust and Triple Filter (Optional)

1. Turn off the power to the unit.
2. Remove the air filters from the indoor unit.
3. Remove the Micro dust and Triple filter from the indoor unit.

Type1

Type2

4. Clean the filter with a vacuum cleaner.

5. Insert the Micro dust and Triple filter.

Type1

Type2

6. Assemble the air filters.

7. Check the side of the front cover for correct assembly of the air filters.

NOTE

• The feature and location of Micro dust and Triple filter may vary according to the type of model.

TROUBLESHOOTING

Self-diagnosis Function

This product has a built-in self-diagnosis function. If an error occurs. the lamp of the indoor unit will blink in 2 second intervals. If this occurs. contact your local dealer or service center.

Before Calling for Service

Related Products
