This Owner Handbook is intended to show the vehicle's operating conditions.

For the enthusiast user who wants to have insights, curiosities and detailed information about the characteristics and functions

of the vehicle, Fiat gives the opportunity to consult a dedicated section which is available in electronic format.

ONLINE VEHICLE OWNER HANDBOOK

The following symbol is reported within the text of the Owner Handbook, next to the subjects for which details are provided.

Go to the www.mopar.eu/owner

website and access your personal area.

The “Maintenance and care” page includes all the information about your vehicle and the link to access eLUM, where you will find

all the details of the Owner Handbook.

The eLUM website is free and will allow you, among many other things, to easily consult the on-board documents

of all the other vehicles of the Group.

Have a nice reading and happy motoring!

COP PANDA UM GB COMPAT QUAD 30/04/15 15:19 Pagina 2

Dear Customer,

We would like to congratulate and thank you for choosing a Fiat Panda.

We have written this handbook to help you get to know all the features of your vehicle and use it in the best possible way.

Here you will find information, advice and important warnings regarding use of your vehicle and how to achieve the best performance

from the technical features of your Fiat Panda.

You are advised to read it right through before taking to the road for the first time, to become familiar with the controls and above all

with those concerning brakes, steering and gearbox; at the same time, you can understand the vehicle behaviour on different road

surfaces.

This document also provides a description of special features and tips, as well as essential information for the safe driving, care and

maintenance of your Fiat Panda over time.

After reading it, you are advised to keep the handbook inside the vehicle, for an easy reference and for making sure it remains on

board the vehicle should it be sold.

In the attached Warranty Booklet you will also find a description of the Services that Fiat offers to its customers, the Warranty

Certificate and the detail of the terms and conditions for maintaining its validity.

We are sure that these will help you to get in touch with and appreciate your new vehicle and the service provided by the people at

Fiat.

Enjoy reading. Happy motoring!

IMPORTANT

This Owner Handbook describes all versions of the Fiat Panda; please consider only the information relevant to your

vehicle’s trim level, engine and version. All data contained in this publication are purely indicative. FCA Italy S.p.A. can

modify the content of this publication at any time, for technical or commercial purposes. For further information, contact

a Fiat Dealership.

READ THIS CAREFULLY

REFUELLING

Petrol engines: only refuel with unleaded petrol with octane rating (RON) not less than 95 in compliance with the European specification

EN228. Using these mixtures may cause misfiring and driving issues, as well as damage fundamental components of the supply system.

Diesel engines: refuel only with diesel fuel motor vehicles conforming to the European specification EN590. The use of other products

or mixtures may damage the engine beyond repair and consequently invalidate the warranty, due to the damage caused.

For further details on the use of the correct fuel see the "Refuelling the vehicle" paragraph in the "Starting and driving" chapter.

STARTING THE ENGINE

Make sure that the handbrake is engaged and place the gear lever in neutral. Fully depress the clutch pedal, without pressing the accelerator,

then turn the ignition key to MAR and wait for the

warning light to switch off (and warning light for diesel versions); turn the

ignition key to AVV and release it as soon as the engine starts.

Versions with Dualogic gearbox: make sure that the handbrake is engaged and that the gear lever is in P (Parking) or N (Neutral), fully

depress the brake pedal, then turn the ignition key to AVV and release it as soon as the engine is started. .

PARKING ON FLAMMABLE MATERIAL

The catalytic converter develops high temperatures during operation. Do not park the vehicle on grass, dry leaves, pine needles or other

flammable material: fire hazard.

RESPECTING THE ENVIRONMENT

The vehicle is fitted with a system that carries out a continuous diagnosis of the emission-related components in order to help protect the

environment.

ELECTRICAL ACCESSORIES

If, after buying the vehicle, you decide to add electrical accessories (with the risk of gradually draining the battery), contact a Fiat Dealership.

They can calculate the overall electrical requirement and check that the vehicle's electric system can support the required load.

SCHEDULED SERVICING

Correct maintenance of the vehicle is essential for ensuring that it maintains its performance and its safety features, its environmental

friendliness and low running costs unchanged in time.

USE OF THE OWNER HANDBOOK

OPERATING INSTRUCTIONS

Each time direction instructions (left/right or forwards/backwards) about the vehicle are given, these must be intended as

regarding an occupant in the driver's seat. Special cases not complying with this rule will be specified as appropriate in the text.

The figures in the Owner Handbook are provided by way of example only: this might imply that some details of the image do

not correspond to the actual arrangement of your vehicle. In addition, the Handbook has been conceived considering vehicles

with steering wheel on the left side; it is therefore possible that on vehicles with steering wheel on the right side, the position

or construction of some controls is not exactly mirror-like with respect to the figure.

To identify the chapter with the information needed you can consult the index at the end of this Owner Handbook.

Chapters can be rapidly identified with dedicated graphic tabs, at the side of each odd page. A few pages further there is a key

for getting to know the chapter order and the relevant symbols in the tabs. There is in any case a textual indication of the

current chapter at the side of each even page.

WARNINGS AND PRECAUTIONS

While reading this Owner Handbook you will find a series of WARNINGS to prevent procedures that could damage your

vehicle.

There are also PRECAUTIONS that must be carefully followed to prevent incorrect use of the components of the vehicle,

which could cause accidents or injuries.

Therefore all WARNINGS and PRECAUTIONS must always be carefully followed.

WARNINGS and PRECAUTIONS are recalled in the text with the following symbols:

personal safety;

vehicle safety;

environmental protection.

NOTE These symbols, when necessary, are indicated besides the title or at the end of the line and are followed by a number.

That number recalls the corresponding warning at the end of the relevant section.

A plate summarising these symbols can also be found under the bonnet.

VEHICLE CHANGES/ALTERATIONS

IMPORTANT Any change or alteration of the vehicle might seriously affect its safety and road holding, thus causing accidents,

in which the occupants could even be fatally injured.

SYMBOLS

Some vehicle components have coloured labels whose symbols indicate precautions to be observed when using this

component.

GETTING TO KNOW YOUR CAR

In-depth knowledge of your new vehicle

starts here.

The handbook that you are reading

simply and directly explains how it

is made and how it works.

That’s why we advise you to read it

seated comfortably on board, so that

you can see immediately what is

described here for yourself.

DASHBOARD ................................. 7

THE KEYS....................................... 8

IGNITION DEVICE ........................... 9

THE FIAT CODE SYSTEM ............... 10

DOORS........................................... 10

SEATS ............................................ 11

HEAD RESTRAINTS........................ 13

STEERING WHEEL ......................... 14

REAR VIEW MIRRORS.................... 15

EXTERIOR LIGHTS ......................... 16

INTERIOR LIGHTS .......................... 19

WINDOW CLEANING...................... 20

CLIMATE CONTROL SYSTEM ........ 22

ELECTRIC WINDOWS .................... 26

ELECTRIC SUN ROOF.................... 26

DUALDRIVE ELECTRIC POWER

STEERING ...................................... 28

ECO FUNCTION ............................. 29

BONNET......................................... 29

LUGGAGE COMPARTMENT........... 31

VERSION WITH LPG SYSTEM........ 32

VERSION WITH METHANE

SYSTEM (NATURAL POWER) ......... 34

GETTING TO KNOW YOUR CAR

DASHBOARD

The presence and position of controls, instruments and gauges may vary depending on the versions.

1. Adjustable air vents 2. Exterior light control stalk 3. Driver front airbag 4. Windscreen wiper/rear window wiper/trip computer control lever

5. Adjustable and directable central air vents 6. Passenger front airbag 7. Glove compartment (for versions/markets, where provided) 8. Radio (for

versions/markets, where applicable) 9. Control buttons 10. Gear lever 11. Heating/ventilation/climate control system controls 12. Ignition device

13. Instrument panel 14. Front electric windows 15. ECO/ASR OFF buttons (for versions/markets, where provided)

F1D0131

THE KEYS

KEY WITHOUT REMOTE

CONTROL

The metal insert of the key activates:

the ignition device, the driver's side and

passenger's side door locks (for

versions/markets where provided) and

the luggage compartment lock.

KEY WITH REMOTE

CONTROL

(for versions/markets, where provided)

1) 1) 1)

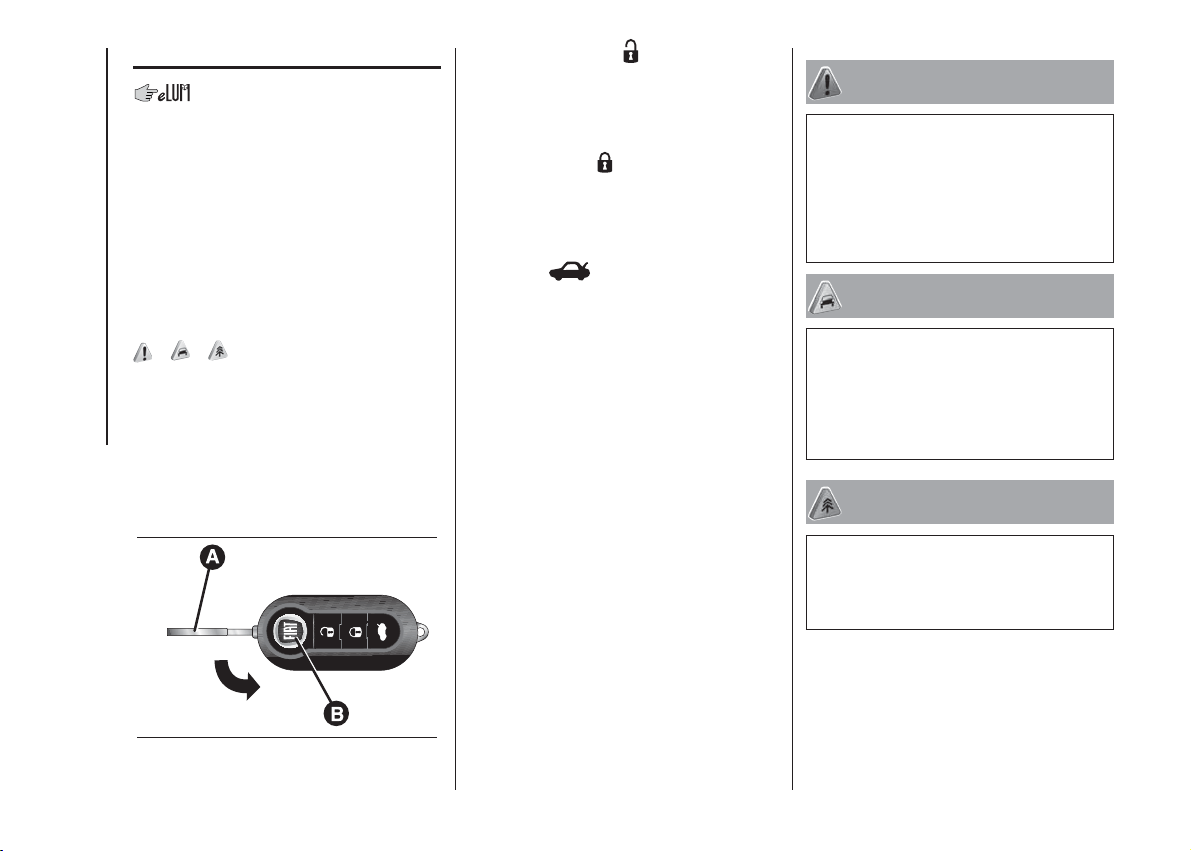

Metal insert A fig. 2 of the key operates:

❒ the ignition device;

❒ the driver side door and, for

versions/markets where provided, the

passenger side door.

Press button B fig. 2 to open/close the

metal insert.

Briefly press button

: unlocking of

doors and luggage compartment, timed

switching-on of internal lights and

double flashing of direction indicators

(for versions/markets, where provided).

Briefly press the

button: lock of

doors and luggage compartment with

roof lights off and single flash of

direction indicators (for versions/

markets, where provided).

Press the

button: remote

opening of the luggage compartment

and double flashing of the direction

indicators. The direction indicators will

flash twice to indicate that the luggage

compartment has been opened.

REQUEST FOR

ADDITIONAL KEYS

Should a new mechanical key or a new

key with remote control be necessary,

go to a FIAT Dealership, taking an ID

document and the vehicle ownership

documents. The system can recognise

up to 8 keys with incorporated remote

control.

WARNING

1) Press button B only with the key away

from your body, especially your eyes and

from objects which could get damaged

(e.g. your clothes). Do not leave the key

unattended, to prevent people, especially

children, from inadvertently pressing the

button.

WARNING

1) The electronic components inside the

key may be damaged if the key is

subjected to strong shocks. In order to

ensure complete efficiency of the

electronic devices inside the key, it should

never be exposed to direct sunlight.

WARNING

1) Used batteries must be disposed of, as

specified by law, in the special containers.

Otherwise take them to a Fiat Dealership,

which will deal with their disposal.

F1D0005

GETTING TO KNOW YOUR CAR

IGNITION DEVICE

2) 3) 4) 5)

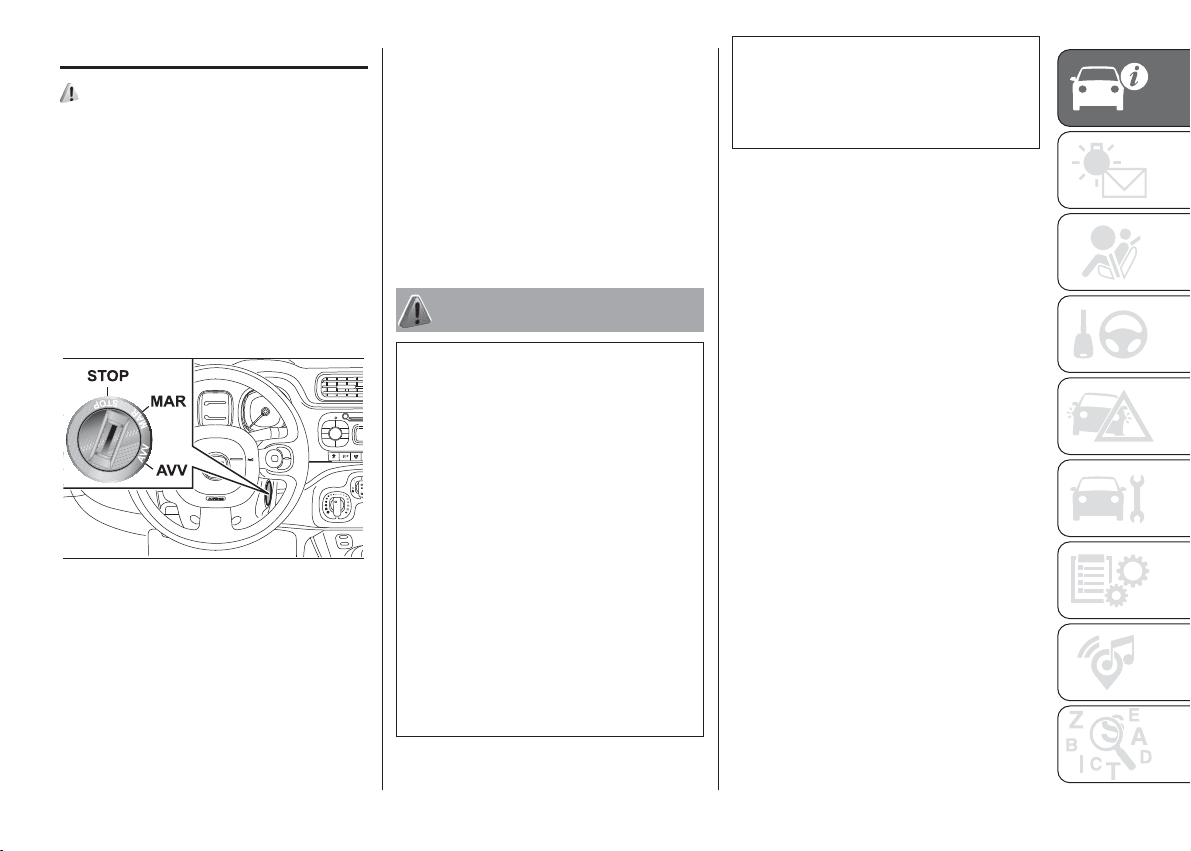

The key can be turned to 3 different

positions fig. 3:

❒ STOP: engine off, key can be

removed, steering column locked.

Some electrical devices (e.g. audio

system, central door locking system,

etc.) can operate;

❒ MAR: driving position. All electrical

devices are enabled;

❒ AVV: engine starting.

The ignition switch is fitted with a safety

system that requires the ignition key

to be turned back to STOP if the engine

does not start, before the starting

operation can be repeated.

STEERING LOCK

Engagement

When the key is at STOP, remove the

key and turn the steering wheel until

it locks.

Disengagement

Move the steering wheel slightly and

turn the key to MAR.

WARNING

2) If the ignition device is tampered with

(e.g.: attempted theft), have it checked

over by a Fiat Dealership as soon as

possible.

3) When getting out of the vehicle, always

remove the key to prevent any occupants

from accidentally activating the controls.

Remember to engage the handbrake.

Engage first gear if the vehicle is parked

uphill or reverse if the vehicle is parked

downhill. Never leave children unattended

in the vehicle.

4) It is absolutely forbidden to carry out any

after-market operation involving steering

system or steering column modifications

(e.g. installation of anti-theft device) that

could adversely affect performance and

safety, invalidate the warranty and also

result in non-compliance of the vehicle with

type-approval requirements.

5) Never extract the key while the vehicle is

moving. The steering wheel will

automatically lock as soon as it is turned.

This also applies to cases in which the

vehicle is towed.

F1D0006

THE FIAT CODE

SYSTEM

This is an electronic engine locking

system which increases protection

against attempted thefts of the vehicle.

It is automatically activated when the

ignition key is removed.

OPERATION

Each time the vehicle is started by

turning the ignition key to MAR, the Fiat

CODE system control unit sends a

recognition code to the Powertrain

Control Module to deactivate the

immobiliser.

The code is sent only if the Fiat CODE

system control unit has acknowledged

the code received from the key.

Each time the ignition key is turned to

STOP, the Fiat CODE system

deactivates the functions of the

Powertrain Control Module. If, during

starting, the code is not correctly

recognised, the

warning light

switches on in the instrument panel. In

this case, turn the key to STOP and

then to MAR; if it is still locked, try again

with the other keys that come with the

vehicle. Contact a Fiat Dealership if

you still cannot start the engine.

If the

warning light switches on, this

means that the system is running a

self-diagnosis (for example due to

a voltage drop). Should the fault persist,

contact a Fiat Dealership.

DOORS

LOCKING/UNLOCKING

DOORS FROM THE

INSIDE

Push the control lever A fig. 4 toward

the door, to lock the doors or pull it

to unlock them. With central door

locking system (for versions/markets,

where provided), operating the lever

A on the driver's side will lock/unlock all

the doors. Operating lever A on the

other doors locks/unlocks only the door

concerned. With mechanical lock,

locking/unlocking takes place operating

the single control levers.

IMPORTANT The locked door condition

is indicated by the red printing B fig.4.

F1D0029

GETTING TO KNOW YOUR CAR

LOCKING/UNLOCKING

DOORS FROM THE

OUTSIDE

Mechanical key: insert the metal

insert in the lock and turn it.

Key with remote control (for

versions/markets where provided):

press the

button to lock the doors, or

the

button to unlock the doors.

IMPORTANT Before opening a door,

ensure that you can do it in conditions

of safety. Open the doors only when the

vehicle is stationary.

CHILD SAFETY DEVICE

This system prevents the rear doors

from being opened from the inside.

The device A fig. 5 can only be

engaged with the doors open:

❒ position 1 - device engaged (door

locked);

❒ position 2 - device not engaged (door

may be opened from the inside).

The device remains engaged even if the

doors are electrically unlocked.

IMPORTANT The rear doors cannot be

opened from the inside when the child

safety device is engaged.

WARNING

6) Always use this device when carrying

children. After engaging the child lock

on both rear doors, check for proper

engagement by trying to open a rear door

with the internal handle.

SEATS

FRONT SEATS

7) 8) 9) 10) 2)

Longitudinal adjustment

Lift lever A fig. 6 and push the seat

forwards or backwards: in the driving

position your arms should rest on

the rim of the steering wheel.

Height adjustment

(for versions/markets, where provided)

Adjust lever B fig. 6 upwards or

downwards to obtain the required

height.

IMPORTANT Carry out the adjustment

whilst seated in the driver's seat.

F1D0030

F1D0007

Backrest angle adjustment

Operate lever C fig. 7 until the desired

position is reached, then release the

lever.

FRONT SEAT ELECTRIC

HEATING

(for versions/markets, where provided)

With the ignition key turned to MAR,

press button A or B fig. 8 respectively

to switch the function on.

To deactivate the function press the

button again.

REAR SEATS

Longitudinal adjustment

(for versions/markets, where provided)

To bring the seat to the wished

position, pull lever A fig. 9 then adjust.

Extending the luggage

compartment with fixed rear seat

Proceed as follows:

❒ remove the rear shelf;

❒ move the seat belts to the side,

making sure that they are correctly

extended and not twisted;

❒ if there is a third rear seat (for

versions/markets, where provided),

release the central belt, winding the

buckle into its housing on the roof

panel;

❒ operate the levers at the sides of the

rear seats fig. 10 pushing them towards

the inside of the vehicle, fold the

backrest and then bring the backrest

onto the cushion.

For versions equipped with split rear

seat, the left or right part of the

backrest can be tilted.

Extending the luggage

compartment with rear sliding seat

Proceed as follows:

❒ remove the rear shelf;

❒ move the seat belts to the side,

making sure that they are correctly

extended and not twisted;

❒ using the lever A fig. 11 in the

passenger's compartment or the

central tab D in the luggage

compartment, move the seat all

forward.

F1D0008

F1D0009

F1D0010

F1D0034

GETTING TO KNOW YOUR CAR

❒ Lift lever B or C fig. 11 or pull side

tabs E or F in the luggage compartment

to release the seat backrest section to

tilt; act on both if you want to tilt the

whole backrest, then guide the

backrest onto the cushion.

Repositioning the backrests

Move the seat belts to the side, making

sure that they are correctly extended

and not twisted. Lift up the backrest

folded previously until a click is heard

for the engagement mechanism.

WARNING

7) All adjustments must be made with the

vehicle stationary.

8) If a side bag is fitted, it is dangerous to

use seat covers not available from

Lineaccessori MOPAR

9) After releasing the adjustment lever,

always check that the seat is locked on the

guides by trying to move it back and forth.

If the seat is not locked into place, it may

unexpectedly slide and cause the driver to

lose control of the vehicle.

10) If passengers are seating in the rear

seats, remove all potentially dangerous

objects which may cause injuries in the

event of an accident.

WARNING

2) The fabric upholstery for the seats has

been designed to withstand long-term

wear deriving from normal use of the

vehicle. Nevertheless, some precautions

are required. Avoid prolonged and/or

excessive rubbing involving clothing

accessories such as metal buckles,

bosses, Velcro strips and the like, which,

by applying a high pressure on the fabric in

a limited area, could cause it to break,

thereby damaging the upholstery.

3) Before tilting the backrest, remove any

objects on the seat cushion.

HEAD RESTRAINTS

11) 12)

FRONT HEAD

RESTRAINTS

Upwards adjustment: raise the head

restraint until it clicks into place.

Downwards adjustment: press

button A fig. 12 and lower the head

restraint.

"Anti-Whiplash" device

The head restraints are equipped with

an "Anti-Whiplash" device, which

reduces the distance between head

and head restraint in the event of a rear

impact, thus mitigating the "whiplash"

effect.

The head restraint may move when the

backrest is pressed by the occupant’s

torso or hand: this behaviour is caused

by the system and should not be

considered a malfunction.

F1D0129

F1D0011

REAR HEAD RESTRAINTS

Upwards adjustment: raise the head

restraint until it clicks into place.

Downwards adjustment: press

button A fig. 13 and lower the head

restraint.

IMPORTANT If the rear seats are used,

always set the head restraints in the

"completely raised" position.

Removal

Proceed as follows to remove the head

restraints:

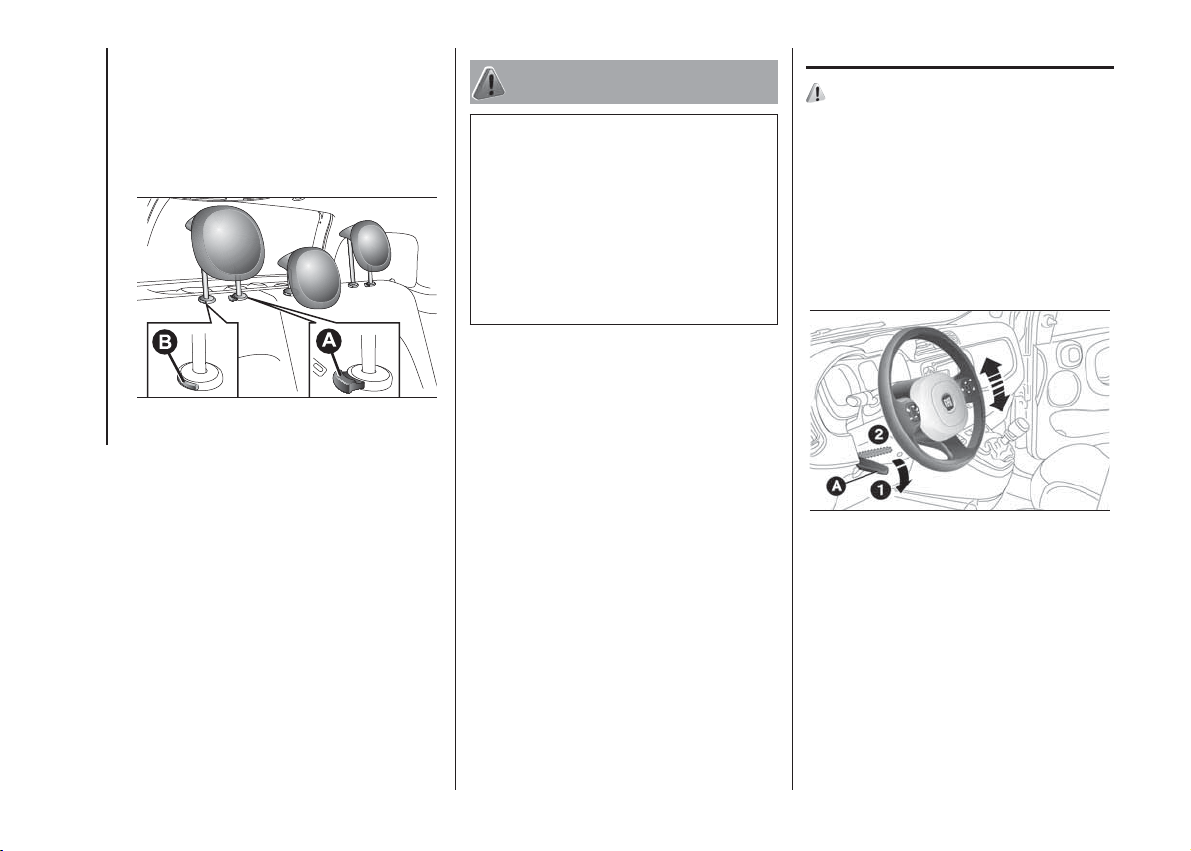

❒ raise the head restraints to their

maximum height;

❒ press buttons A and B fig. 13 at the

side of the two supports, then remove

the head restraints by pulling them

upwards.

WARNING

11) All adjustments must be made with the

vehicle stationary. Head restraints must

be adjusted so that the head, rather than

the neck, rests on them. Only in this case

can they protect your head correctly.

12) To make the best use of the head

restraint's protective action, adjust the

backrest so that your torso is upright and

keep your head as close as possible to the

head restraint.

STEERING WHEEL

13) 14)

ADJUSTMENTS

The steering wheel can be adjusted

vertically.

To adjust, move lever A fig. 14

downwards to position 1, then adjust

the steering wheel to the most suitable

position and lock it in position by

moving lever A to position 2.

F1D0012

F1D0013

GETTING TO KNOW YOUR CAR

WARNING

13) Adjustments must be made only with

the vehicle stationary and engine off.

14) It is absolutely forbidden to carry out

any after-market operation involving

steering system or steering column

modifications (e.g. installation of anti-theft

device) that could adversely affect

performance and safety, invalidate the

warranty and also result in non-compliance

of the vehicle with type-approval

requirements.

REAR VIEW

MIRRORS

INTERIOR MIRROR

The mirror is fitted with a safety device

that causes its release in the event of

a violent impact with the passenger.

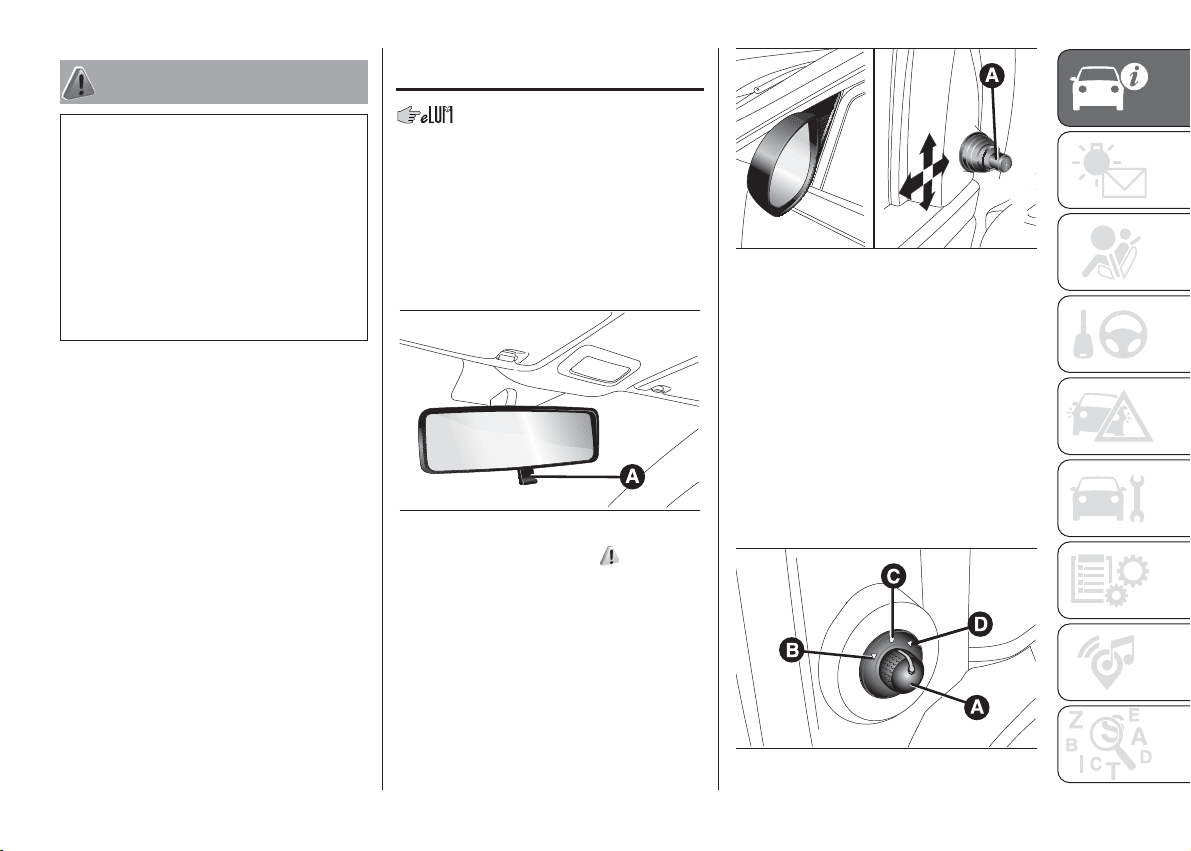

Operate lever A fig. 15 to adjust the

mirror into two different positions:

normal or anti-glare.

DOOR MIRRORS

15)

Manual adjustment

From the inside of the vehicle, operate

lever A fig. 16 to adjust the mirror.

Electric adjustment

(for versions/markets, where provided)

The mirrors can only be adjusted with

the ignition key at MAR.

To carry out the adjustment, proceed as

follows:

❒ select the desired mirror (left or right)

using selector A fig. 17;

❒ move selector A to position B and

manipulate it to adjust the left door

mirror;

❒ move selector A to position D and

manipulate it to adjust the right door

mirror.

Once you have finished the adjustment,

return selector A to intermediate

locking position C.

F1D0014

F1D0015

F1D0016

IMPORTANT When the heated rear

window is activated, door mirror

defrosting is activated (for versions/

markets, where provided).

Manual folding

When required, fold the mirrors toward

the vehicle interior.

IMPORTANT When driving, the mirrors

must always be open.

WARNING

15) As the driver's door mirror is curved, it

may slightly alter the perception of

distance.

EXTERIOR LIGHTS

The left stalk fig. 18 controls the

operation of the headlights, side lights,

dipped beam headlights, parking lights,

main beam headlights, direction

indicators, and "Follow me home"

device.

The external lights can only be

switched on when the ignition key is at

MAR.

The instrument panel and the various

dashboard controls will come on with

the external lights.

AUTOMATIC LIGHT

CONTROL

(Dusk sensor)

(for versions/markets, where provided)

This infrared LED sensor, located on the

windscreen, detects the variations in

outside brightness depending on the

light sensitivity set with the Setup

Menu: the greater the sensitivity, the

less external light is required to activate

the exterior lights.

Activation

The dusk sensor activates when ring

nut A fig. 18 is turned to

. In this

way the side lights and dipped beam

headlights are activated automatically

according to the external light level.

Following automatic light activation, the

fog lights (for versions/markets, where

provided) and rear fog light may still

be switched on. When the lights are

automatically switched off, the front and

rear fog lights (if activated) are also

switched off. The next time the lights

are switched on automatically, the

fog lights must be reactivated manually

(if required).

With dusk sensor active, it is not

possible to keep the main beam

headlights on constantly; only flashing

is permitted. To switch these lights

on constantly, turn ring nut A to

and

pull the stalk towards the steering

wheel.

F1D0019

GETTING TO KNOW YOUR CAR

On automatic sensor controlled

deactivation, the dipped headlights are

deactivated first, followed by the side

lights a few seconds later.

If the sensor is activated but is

malfunctioning, the side lights and

dipped headlights are switched

on irrespective of the external lighting

conditions: the sensor failure is

indicated on the display. It is also

possible to deactivate the sensor and

switch on the desired lights, if

necessary.

IMPORTANT The sensor cannot detect

the presence of fog. These lights must

therefore be switched on manually in

these circumstances.

SIDE LIGHTS/DAYTIME

RUNNING LIGHTS (DRL)

"Daytime Running Lights"

(for versions/markets, where provided)

16) 17)

With the ignition key turned to MAR

and ring nut A fig. 18 turned to position

O the daytime running lights are

automatically activated; the other lights

and interior lighting remain off.

SIDE LIGHTS AND

DIPPED BEAM

HEADLIGHTS

With the ignition key turned to MAR,

turn ring nut A fig. 18 to

. If dipped

beam headlights are activated, the

daytime running lights switch off and

the side lights and dipped headlights

switch on. The

warning light

switches on in the instrument panel.

When the ignition key is turned to

STOP or removed and the ring nut A is

turned from O to

, all the side

lights and the number plate lights come

on. The

warning light will come

on in the instrument panel.

PARKING LIGHTS

These lights can only be turned on with

ignition key in STOP position or

removed, by moving the ring nut A fig.

18 first to position O and then to

position

The

warning light switches on in

the instrument panel.

MAIN BEAM HEADLIGHTS

To activate the main beam headlights,

with ring nut A fig. 18 at

, pull the

stalk towards the steering wheel

beyond the end of travel position. The

warning light switches on in the

instrument panel.

When the stalk is pulled towards the

steering wheel again, beyond the end

of travel position, the main beam

headlights are deactivated, the dipped

beam headlights are reactivated and

the

warning light switches off.

FLASHING

To do this, pull the stalk towards the

steering wheel (unstable position)

regardless of the position of ring nut A

fig. 18. The

warning light switches

on in the instrument panel.

DIRECTION INDICATORS

Bring the stalk to the (stable) position:

upwards: activates the right direction

indicator;

downwards: activates the left direction

indicator.

Warning light

or will blink on the

instrument panel. The direction

indicators switch off automatically when

the steering wheel is straightened.

"Lane Change" function

If you wish to signal a lane change,

place the left stalk in the unstable

position for less than half a second. The

direction indicator on the side selected

will flash five times and then switch

off automatically.

"FOLLOW ME HOME"

DEVICE

This allows the space in front of the

vehicle to be lit for a set time.

Activation: with the ignition key on

STOP or removed, pull the stalk

towards the steering wheel within 2

minutes from turning the engine off.

Each time the stalk is moved, the lights

stay on for an extra 30 seconds up to

a maximum of 210 seconds; then

the lights are switched off automatically.

Each time the stalk is operated, the

warning light on the instrument

panel switches on and the display also

shows a message and how long the

function will remain active.

The

warning light comes on when

the stalk is first moved and stays on

until the function is automatically

deactivated. Each time the stalk is

activated it increases the time that the

lights remain on.

Deactivation: keep the stalk pulled

towards the steering wheel for more

than two seconds.

REAR FOG LIGHTS

Press the

button, on the dashboard,

to switch on the rear fog lights.

With rear fog lights on, the

warning

light on the instrument panel will come

on.

FOG LIGHTS/REAR FOG

LIGHTS

(for versions/markets, where provided)

The fog lights can be activated only

when the dipped beam headlights are

on.

To turn on the front/rear fog lights,

press button A fig. 19 as follows:

❒ First pressing: front fog lights on;

❒ second pressing: rear fog lamps

on;

❒ third pressing: front/rear fog lights

off.

With fog lights on, the

warning light

on the instrument panel will come on

at the same time.

With rear fog lights on, the

warning

light on the instrument panel will come

on.

WARNING

16) The daytime running lights are an

alternative to dipped headlights for driving

during the daytime. They are compliant

in countries where is it obligatory to have

lights on during the day and permitted

in those where it is not obligatory.

17) Daytime running lights cannot replace

dipped headlights when driving at night

or through tunnels. The use of daytime

running lights is governed by the highway

code of the country in which you are

driving. Comply with legal requirements.

F1D0024

GETTING TO KNOW YOUR CAR

INTERIOR LIGHTS

FRONT ROOF LIGHT

Singe-bulb roof light

The lens of roof light A fig. 20 can be

set to three positions:

❒ right side pressed: light always on

❒ left side pressed: light always off

❒ central position: the light switches

on/off when the doors are opened/

closed.

Multi-bulb roof light

(for versions/markets, where provided)

Switch A fig. 21 is used to switch on/off

the roof light bulbs.

Switch A positions:

❒ central position (position 1): lights C

and D switch on/off when the doors are

opened/closed;

❒ pressed to the left (position 0): lights

C and D are always switched off;

❒ pressed to the right (position 2): lights

C and D are always switched on.

The lights switch on/off gradually.

Switch B positions fig. 21:

❒ central position (position 1): lights C

and D are always switched off;

❒ pressed to the left (position 0): light C

switches on;

❒ pressed to the right (position 2): light

D switches on.

IMPORTANT Before getting out of the

vehicle, make sure that both switches

are in the central position: when the

doors are closed the lights will switch

off to avoid draining the battery. In

any case, if the switch is left in the on

position, the roof light switches off

automatically about 15 minutes after

the engine has been switched off.

ROOF LIGHT TIMING

On certain versions, to facilitate getting

in/out of the vehicle at night or in

poorly-lit areas, two timed modes have

been provided.

❒ when getting into the vehicle;

❒ when getting out of the vehicle.

F1D0021

F1D0022

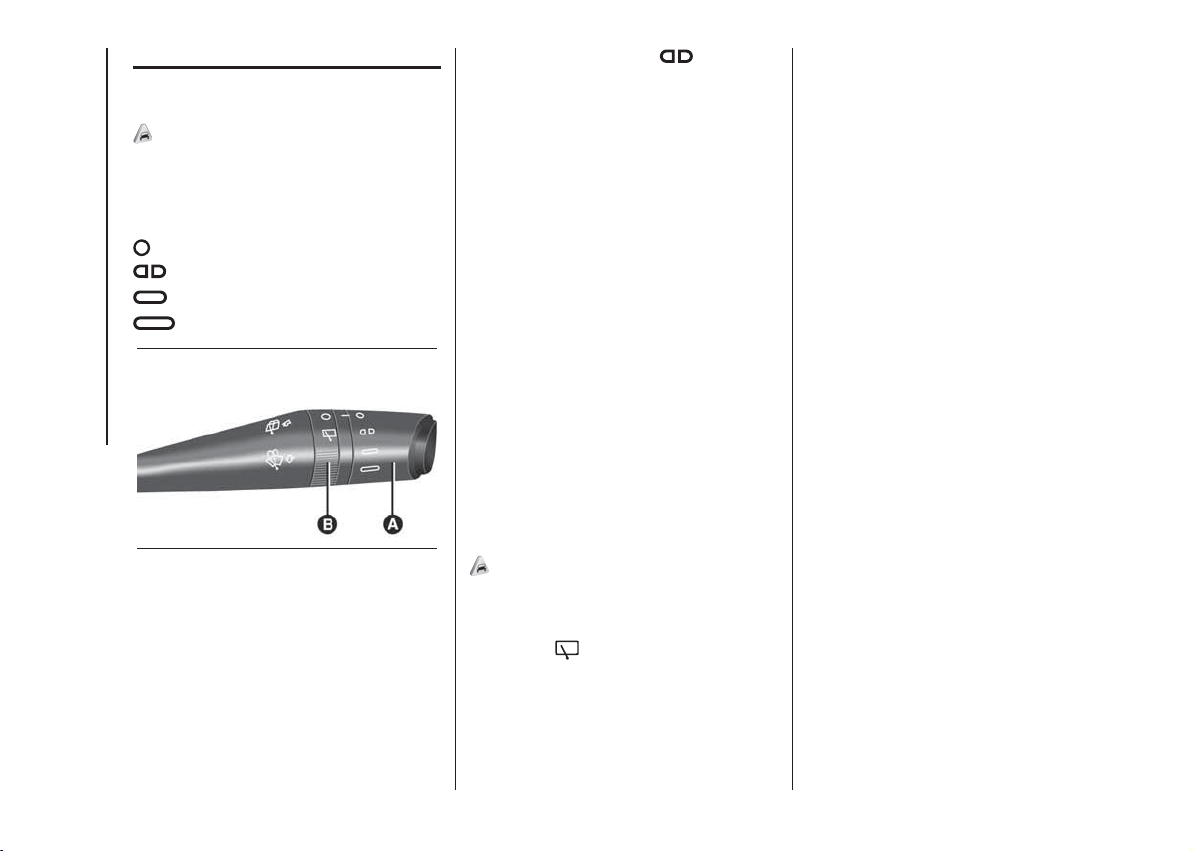

WINDOW CLEANING

WINDSCREEN

WIPER/WASHER

4) 5) 6)

This operates only with the ignition key

turned to MAR.

Ring nut A fig. 22 has four different

positions:

windscreen wiper off.

intermittent operation.

continuous slow operation.

continuous fast operation.

Move the stalk upwards (unstable

position) to limit operation to the time

for which the stalk is held in this

position. When released, the stalk will

return to its default position and the

windscreen wiper will be automatically

stopped.

With ring nut A fig. 22 in

position,

the windscreen wiper will automatically

adapt its operating speed to the speed

of the vehicle.

With the windscreen wipers

operational, if reverse gear is engaged,

the rear window wiper is automatically

activated.

“Smart washing” function

Pull the stalk towards the steering

wheel (unstable position) to operate the

windscreen washer.

Keeping the stalk pulled for more than

half a second, with just one movement

it is possible to operate the washer

jet and the wiper at the same time.

The windscreen wiper stops working

three strokes after the stalk is released.

A further stroke after approximately 6

seconds completes the cycle.

REAR WINDOW

WIPER/WASHER

This operates only with the ignition key

turned to MAR.

Turn ring nut B fig. 22 from position O

to position

to operate the rear

window wiper as follows:

❒ in intermittent mode when the

windscreen wiper is not operating;

❒ in synchronous mode (at half the

speed of the windscreen wiper) when

the windscreen wiper is operating;

❒ in continuous mode with reverse gear

engaged and the control active.

With the windscreen wiper on and

reverse gear engaged, rear window

wiping will be continuous.

Pushing the stalk towards the

dashboard (unstable position) will

activate the rear window washer jet.

Keep the stalk pushed for more than

half a second to activate the rear

window wiper as well. Releasing the

stalk will activate the smart washing

function, as described for the

windscreen wiper.

The function stops when the stalk is

released.

F1D0020

GETTING TO KNOW YOUR CAR

6) Make sure the device is switched off

whenever the windscreen must be

cleaned.

7) Do not use the rear window wiper to

remove layers of snow or ice. In such

conditions, the wiper may be subjected to

excessive stress and the motor cut-out

switch, which prevents operation for a few

seconds, may intervene. If operation is

not subsequently restored, contact a Fiat

Dealership.

WARNING

4) Do not use the windscreen wiper to

remove layers of snow or ice from the

windscreen. In such conditions, the

windscreen wiper may be subjected to

excessive stress and the motor cut-out

switch, which prevents operation for a few

seconds, may intervene. If operation is

not restored (even after turning the key and

restarting the engine), contact a Fiat

Dealership.

5) Do not operate the windscreen wiper

with the blades lifted from the windscreen.

CLIMATE CONTROL SYSTEM

18) 2)

HEATER/MANUAL CLIMATE CONTROL SYSTEM

(for versions/markets, where provided)

Controls

A - Air temperature adjustment knob (red-hot/blue-cold).

B - Air recirculation knob:

internal air recirculation.

air intake from outside.

C - Air distribution knob:

air outlet from the central and side vents of the dashboard.

F1D0132

GETTING TO KNOW YOUR CAR

air outlet from the footwell and the dashboard vents.

air outlet from footwell vents.

air outlet from footwell, windscreen and front side window vents.

air outlet from windscreen vents.

D - Heated rear window and (for versions/markets, where provided) heated mirrors/heated windscreen activation/deactivation.

E - Fan speed adjustment and climate control system activation/deactivation knob (for versions/markets, where provided).

IMPORTANT It is advisable to switch the air recirculation on whilst queuing or in tunnels, or whilst driving on dusty roads, to

prevent the introduction of polluted air. However, it is better not to use the function for long periods, particularly if there are

many people on board, to prevent the windows from misting.

Note To stop the air flow from the vents, turn the knob to 0.

ADDITIONAL HEATER

(for versions/markets, where provided)

The additional heater speeds up passenger compartment warming when it is very cold. The heater switches on automatically

according to the environmental conditions and with engine started when the temperature of the engine coolant is low. The

additional heater turns off automatically after the required comfort conditions are achieved.

The heater only works if the outside temperature and engine coolant temperature are low. The heater will not activate if the

battery voltage is too low.

AUTOMATIC CLIMATE CONTROL SYSTEM

(for versions/markets, where provided)

Controls

A - Manual air distribution selection.

By pressing the buttons, one of the five possible air flow distribution patterns can be selected:

air outlet from the windscreen and front side window vents to demist or defrost them.

air outlet from the dashboard central and side vents to ventilate the chest and the face.

air outlet from footwell vents. Due to the natural tendency of heat to spread upwards, this type of distribution warms the

passenger compartment up as quickly as possible.

air outlet from the footwell vents (warmest air) and the dashboard vents (coolest air).

air outlet from footwell, windscreen and front side window vents. This type of distribution achieves effective heating of

the passenger compartment and prevents the windows from misting up.

F1D0133

GETTING TO KNOW YOUR CAR

B - Activation/deactivation of the MAX-DEF function (fast front window defrosting/demisting).

C - Climate control system compressor activation/deactivation.

D - Internal air recirculation activation/deactivation button.

E - Climate control on/off.

F - Heated rear window and (for versions/markets, where provided) heated mirrors/heated windscreen activation/deactivation.

G/M - Fan speed adjustment.

H - AUTO function activation (climate control system automatic operation).

I/L - Adjustment of temperature inside the passenger compartment.

The automatic climate control manages the Stop/Start function (engine off when the vehicle speed is zero) to guarantee

adequate comfort inside the passenger compartment.

NOTE In particularly severe climate conditions it is recommended to limit the use of the Stop/Start function to prevent the

compressor from continuously switching on and off, with consequent rapid misting of the windows and accumulation of

humidity with unpleasant smells in the passenger compartment.

WARNING

18) It is advisable not to use the air recirculation function when the outside temperature is low, because the windows could rapidly steam up.

WARNING

2) The system uses R134a coolant which does not pollute the environment in the event of accidental leakage. Never use R12 fluid, which is

not compatible with the system components.

ELECTRIC WINDOWS

FRONT ELECTRIC

WINDOWS

19) 20)

These operate when the ignition key is

turned to MAR and for about three

minutes after turning the ignition key to

STOP or removing it.

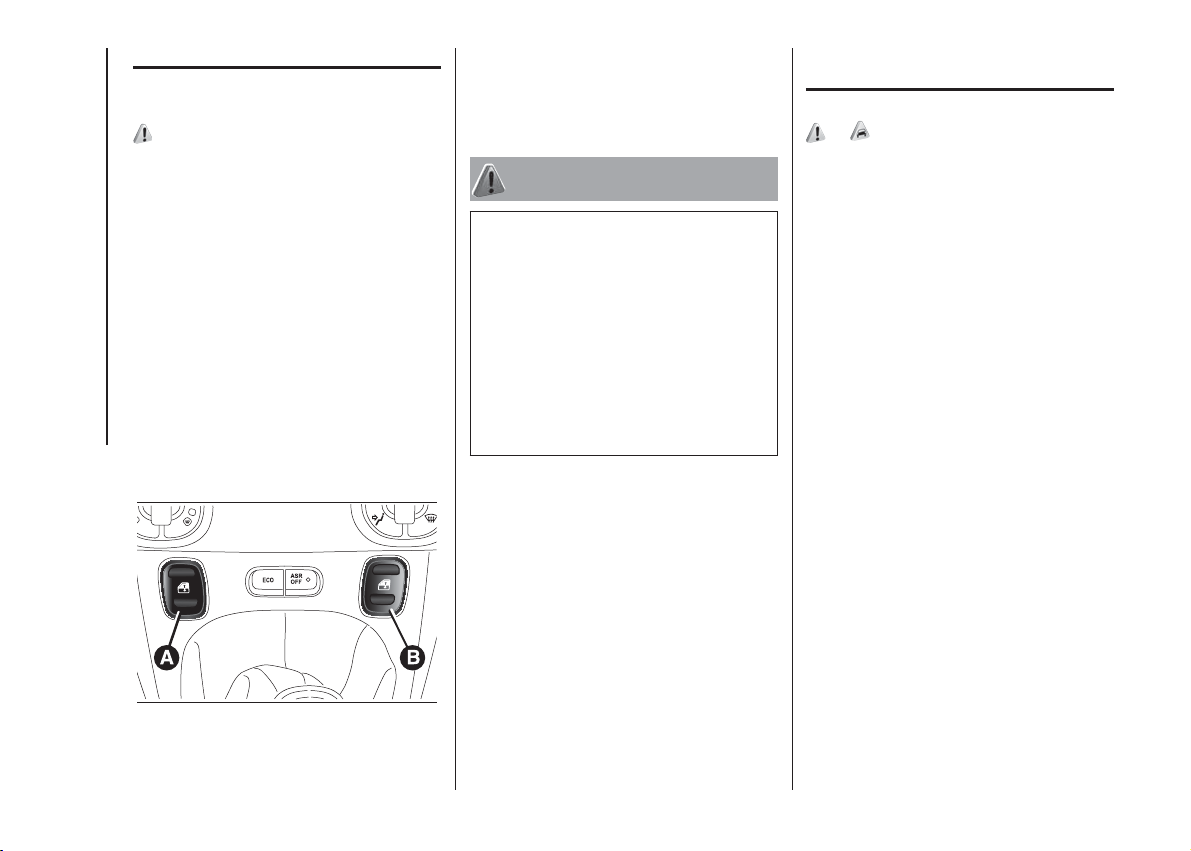

The electric window control buttons are

fig. 25 located beside the gear lever

and activate:

A Opening/closing of the left window.

B Opening/closing of the right

window.

With the ignition key at MAR, a long

press activates the automatic operation

of the window: raising/lowering on the

driver's side and lowering only the

passenger side.

MANUAL REAR WINDOW

WINDERS

To open/close the window operate the

handle on the door panel.

WARNING

19) Incorrect use of the electric windows

may be dangerous. Before and during

operation, always check that nobody

is exposed to the risk of being injured

either directly by the moving window or

through objects getting caught or by being

hit.

20) When leaving the vehicle, always

remove the ignition key to avoid the risk of

injury of people still on board due to

accidental operation of the electric

windows.

ELECTRIC SUN

ROOF

(for versions/markets, where provided)

21) 8)

The large electric sun roof comprises

two glass panels; the front one is

mobile and the rear one fixed. These

are equipped with two sun blinds (front

and rear) that can be moved manually.

With the sun roof closed, the blinds can

be placed in any position. To open the

blinds, grip handle A fig. 26, following

the direction indicated by the arrow until

the desired position is reached. To

close them, carry out the procedure in

reverse.

The sun roof can be operated only with

the ignition key turned to MAR.

Opening

Press and hold down button C fig. 26.

The front glass panel will move into

the spoiler position.

After opening in spoiler position, press

button C fig. 26 for more than half a

second to bring the roof automatically

to fully open position.

The automatic roof movement can be

stopped in any position by pressing

button B or C again.

F1D0031

GETTING TO KNOW YOUR CAR

Closing

Press button B fig. 26 from the fully

open position for more than half a

second to automatically move the sun

roof to spoiler position.

From the spoiler position, press button

B again to reach the fully closed

position.

ANTI-PINCH DEVICE

(for versions/markets, where provided)

The sunroof has an anti-pinch safety

system capable of detecting the

presence of an obstacle whilst the roof

is closing; when this happens, the

system stops and the movement of the

glass is immediately reversed.

EMERGENCY OPERATION

If the electrical device for moving the

roof fails, the sun roof can be moved

manually proceeding as described

below:

❒ for manual activation remove the

protective cap A fig. 27 from its housing

which is located on the internal

covering in front of the sun blind;

❒ take the Allen key provided and

located in the tool box in the luggage

compartment or, depending on the

version, inside the glove compartment;

❒ insert the key provided into the

housing A fig. 27 and turn it clockwise

to open the roof or anticlockwise to

close the roof.

INITIALISATION

PROCEDURE

Following an automatic movement

malfunction while opening/closing or

after an emergency manoeuvre (see

description in the previous paragraph),

the automatic operation of the sun

roof must be initialised again.

Proceed as follows:

❒ press button B fig. 26 in closing

position;

❒ hold down button B: after

approximately 10 seconds the roof

moves jerkily to closing position. Once

the operation has ended (roof closed)

release button B;

❒ turn the ignition key to STOP and

keep it there for 10 seconds;

❒ turn the ignition key to the MAR

position;

❒ Press button B in closed position;

F1D0027

F1D0028

❒ hold down button B until the roof is

completely closed: the initialisation

procedure has ended;

❒ press button B again within 3

seconds from the conclusion of the

initialisation procedure;

❒ hold down button B: the roof will

perform an automatic opening and

closing cycle: should this not occur,

repeat the operation from the

beginning;

❒ keeping button B held down, wait

until the roof is completely closed.

WARNING

21) When leaving the vehicle, always

remove the key from the ignition to avoid

the risk of injury due to accidental

operation of the sun roof. Improper use of

the roof can be dangerous. Before and

during operation, always check that

nobody is at risk of being injured by the

moving sun roof or by objects getting

caught or hit by it.

WARNING

8) Do not open the sunroof if snow or ice is

over it: you may damage it. In vehicles

with sun roof no roof rack can be fitted.

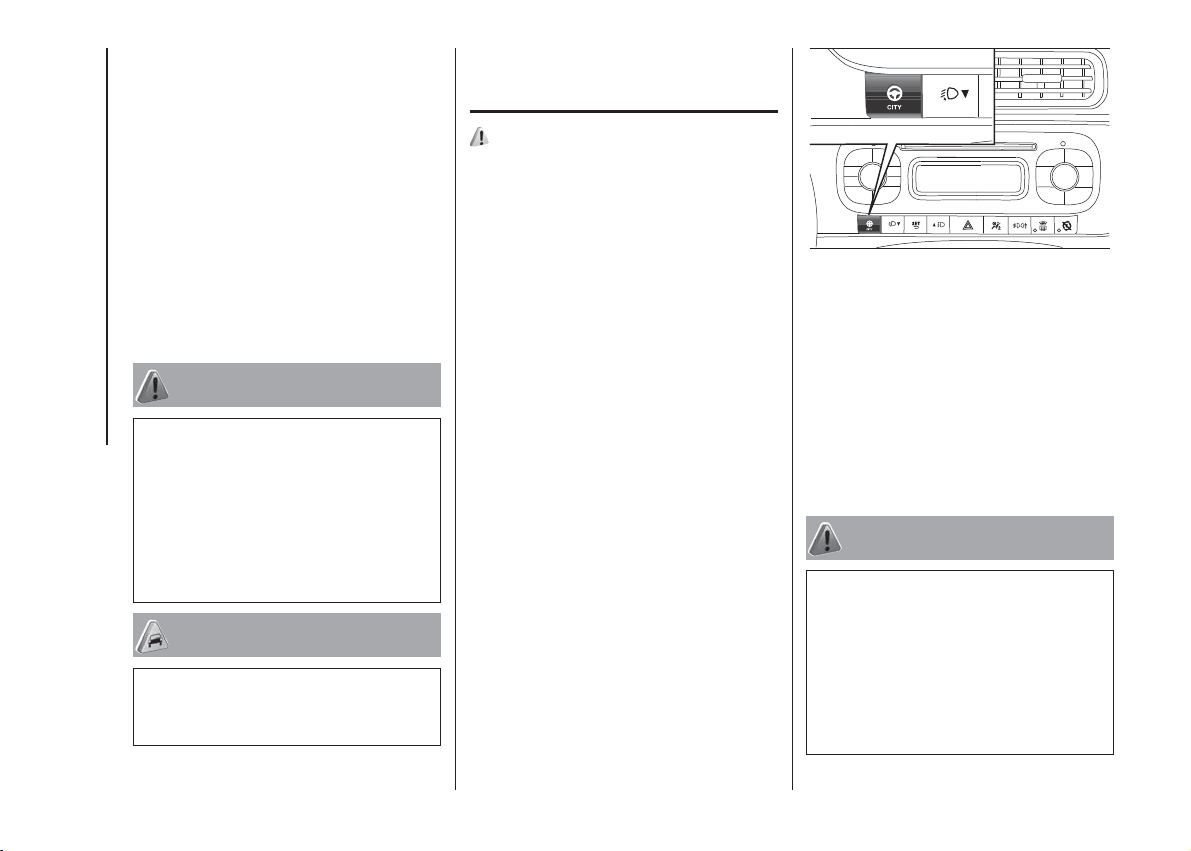

DUALDRIVE

ELECTRIC POWER

STEERING

22) 23)

This only operates with the key turned

to MAR and the engine started. The

steering allows the force required at the

steering wheel to be adjusted to suit

driving conditions.

IMPORTANT When turning the ignition

key quickly, full power steering

functionality can be achieved after a

few seconds.

CITY FUNCTION

ACTIVATION/

DEACTIVATION

Press the CITY fig. 28 button to

activate/deactivate the function. The

activation of the function is signalled by

the word CITY on the display (in some

versions it is signalled by the word CITY

appearing on the instrument panel).

When the CITY function is on, the

steering wheel effort is lighter, making

parking easier: therefore, this function is

particularly useful for driving in city

centres.

IMPORTANT During parking

manoeuvres requiring a lot of steering,

the steering may become harder; this is

normal and is due to the intervention

of the system to protect the electric

steering motor from overheating so no

intervention is required. When the

vehicle is used again later on,

the power steering will work normally.

WARNING

22) It is absolutely forbidden to carry out

any after-market operation involving

steering system or steering column

modifications (e.g. installation of anti-theft

device) that could adversely affect

performance and safety, invalidate the

warranty and also result in non-compliance

of the vehicle with type-approval

requirements.

F1D0025

GETTING TO KNOW YOUR CAR

23) Before servicing the vehicle, switch off

the engine and remove the key from the

ignition switch to activate the steering lock.

This is especially important when the

vehicle wheels are not touching the

ground. If this is not possible (for example if

the key needs to be turned to MAR or the

engine must be running), remove the

main fuse that protects the electric power

steering.

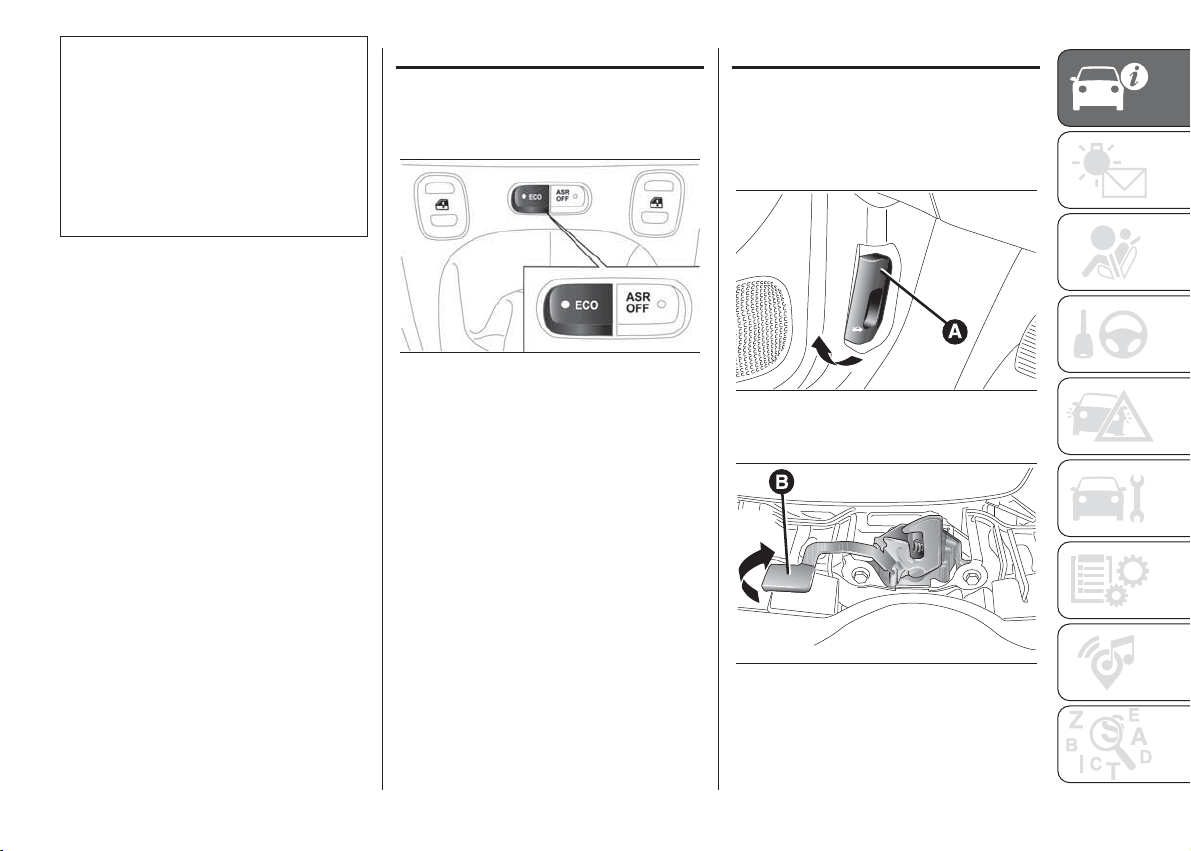

ECO FUNCTION

(for versions/markets, where provided)

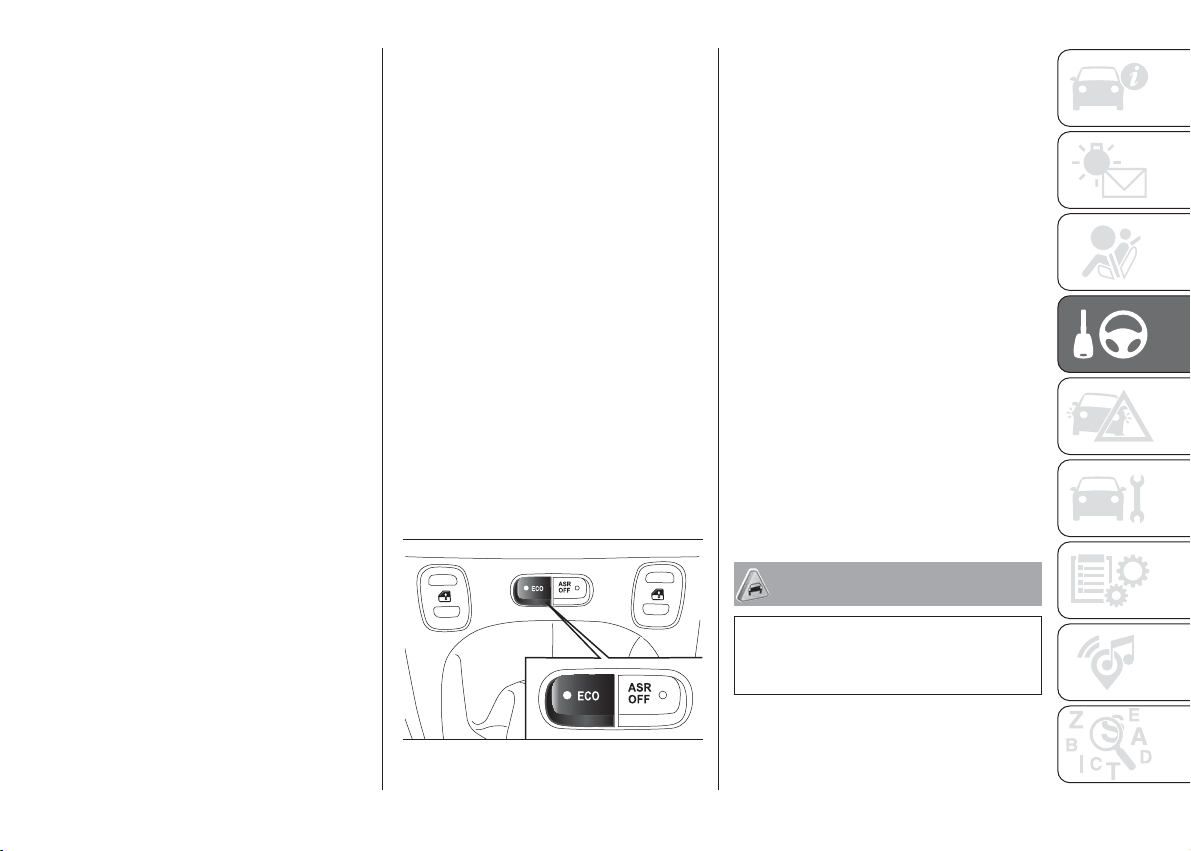

To activate the function press the ECO

button fig. 29.

When the ECO function is active, the

car is set for driving characterised

by reduced fuel consumption. When

the function is active, the

corresponding LED on the button

switches on.

This function stays in the memory and,

when the vehicle is started again, the

system keeps the setting it had before

the engine was stopped. Press the

ECO button again to deactivate the

function and restore the normal driving

setting.

BONNET

OPENING

Proceed as follows:

❒ pull lever A fig. 30 in the direction

indicated by the arrow;

❒ move lever B fig. 31 to the left;

F1D0140

F1D0035

F1D0036

❒ lift the bonnet and, at the same time,

release the supporting rod C fig. 32

from its catch D, then insert the end of

the rod into housing E in the bonnet

(large hole) and push to safety position

(small hole).

24) 25)

CLOSING

Proceed as follows:

❒ keep the bonnet raised with one

hand and remove rod C fig. 32 from

housing E with the other, inverting the

opening motion, then fit it back into

its catch D;

❒ lower the bonnet to approximately 20

centimetres from the engine

compartment and let it drop. Make sure

that the bonnet is completely closed

and not only fastened by the locking

device by trying to open it. If it is not

perfectly closed, do not try to press the

bonnet lid down but open it and repeat

the procedure.

26) 27)

IMPORTANT Always check that the

bonnet is closed correctly to prevent it

from opening while the vehicle is

travelling.

The following plate fig. 33 is applied

inside the engine compartment:

WARNING

24) Incorrect positioning of the supporting

rod may cause the bonnet to drop

suddenly.

25) Use both hands to lift the bonnet.

Before lifting, check that the windscreen

wiper arms are not raised from the

windscreen, that the vehicle is stationary

and that the handbrake is engaged.

26) Perform these operations only with

vehicle stationary.

27) For safety reasons, the bonnet must

always be properly closed while driving.

Therefore, make sure that the bonnet

is properly closed and that the lock

is engaged. If you discover that the bonnet

is not perfectly closed during travel, stop

immediately and close the bonnet in the

correct manner.

F1D0037

F1D1000

GETTING TO KNOW YOUR CAR

LUGGAGE

COMPARTMENT

The luggage compartment unlocking is

electrically operated and is deactivated

when the vehicle is in motion.

OPENING

28)

By mechanical key

On versions with mechanical key, the

luggage compartment can be opened

from outside the vehicle, inserting

the metal insert of the key in the latch

on the tailgate handle and rotating.

With remote control

(for versions/markets, where provided)

The luggage compartment is unlocked

by pressing the

button on the

remote control. The direction indicators

will blink twice.

With electric handle (soft touch)

(for versions/markets, where provided)

For versions with soft touch electrical

handle, the tailgate (when unlocked)

can only be opened from outside the

vehicle using the electric opening

handle A fig. 34 located under the

handle until a click is heard, which

indicates unlocking. The tailgate can be

opened at any time, if the doors are

unlocked. To open it, enable the

handle, opening one of the front doors

or unlocking the doors with the remote

control or using the key without remote

control.

Emergency opening from the inside

Proceed as follows:

❒ remove the rear head restraints and

fully fold the seats;

❒ remove the protective cap and

release the lock using a screwdriver or

the metal insert of the key fig. 35.

CLOSING

29)

Pull the grab handle located inside the

tailgate.

IMPORTANT Before closing the

luggage compartment make sure that

you have the keys since the luggage

compartment is automatically locked.

F1D0032

F1D0033

LUGGAGE

COMPARTMENT

INITIALISATION

IMPORTANT If the battery is

disconnected or the protection fuse

blows, the luggage compartment

opening/closing mechanism must be

reinitialised as follows: close all the

doors and the tailgate, press the

button on the remote control, then

press the

button

30) 31) 32)

WARNING

28) Take care not to knock objects on the

roof rack when opening the tailgate.

29) With the engine on, always make sure

that the tailgate is closed: exhaust gases

could be drawn inside the load

compartment.

30) Every attachment has a maximum load

capacity of 100 kg.

31) A heavy load that has not been

secured may cause serious injuries in the

event of an accident.

32) If you are travelling in an area with

limited opportunities for vehicle refuelling

and you wish to bring petrol with you in

a petrol can, you must do so in compliance

with current regulations and using an

approved can, appropriately secured to the

load securing attachments. Anyway, by

doing so, you increase the risk of fire in the

event of an accident with your vehicle.

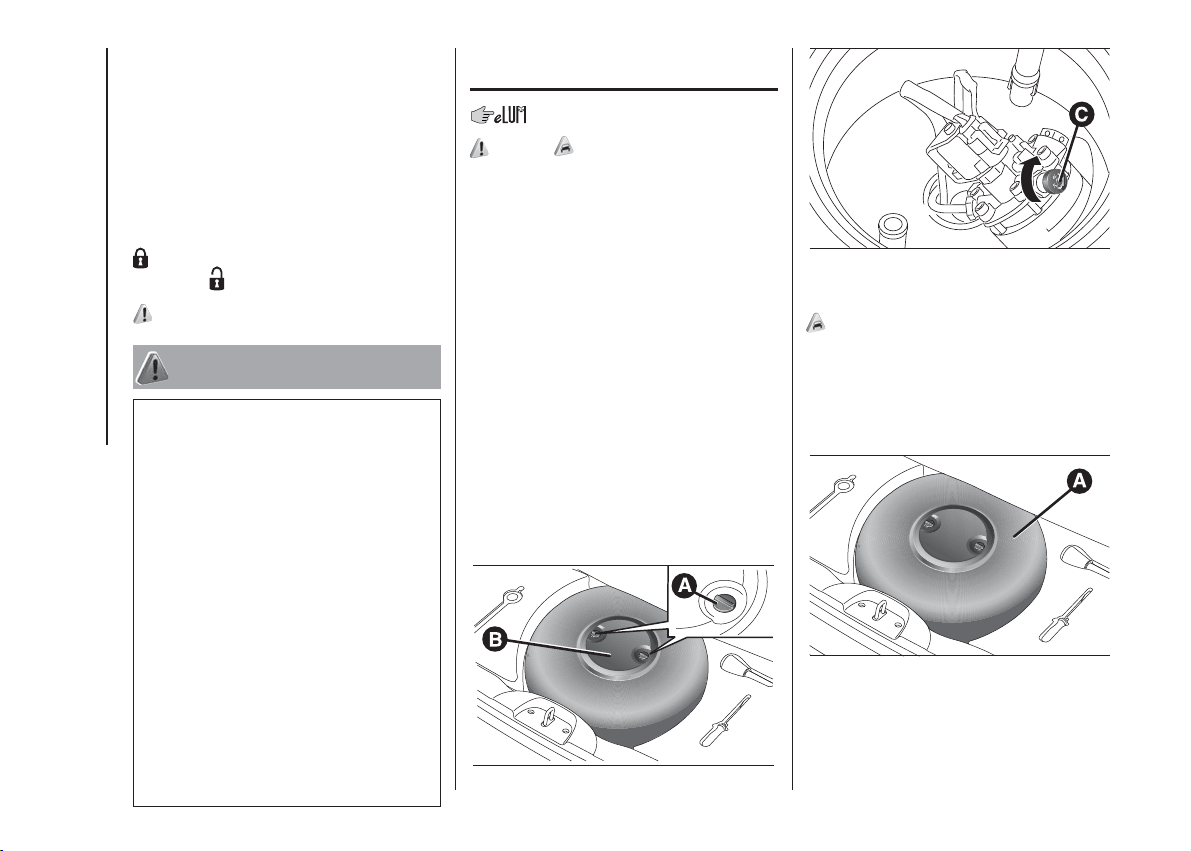

VERSION WITH LPG

SYSTEM

33) 34) 13) 9) 10) 11) 12)

INTRODUCTION

The LPG version features two fuel

supply systems: one for petrol and one

for LPG.

Although the LPG system has

numerous safety features, it is advisable

to proceed as follows every time the

vehicle is not in use for a long period or

moved in an emergency as a result of

a breakdown or accident:

❒ unscrew the fixing devices A fig. 36,

then remove the cover B;

❒ close the LPG cock by rotating the

ring nut C fig. 37 clockwise;

❒ refit the cover and retighten the

fastening devices.

LPG TANK

13)

The vehicle has a (pressurised) tank A

fig. 38 for collecting LPG in a liquid

state. It is ring-shaped and is located in

the spare wheel compartment with

suitable protection.

F1D0111

F1D0112

F1D0113

GETTING TO KNOW YOUR CAR

LPG tank certification

The LPG tank is certified in accordance

with the regulations in force.

In Italy, the tank has a life of 10 years

starting from the vehicle registration

date. If the vehicle has been registered

in a country other than Italy, the

duration and the testing/inspection

procedures of the LPG tank can vary

depending on the national laws of that

country. In any case, when the time limit

in the individual country has run out,

contact a Fiat Dealership to have the

tank replaced.

SELECTION OF

PETROL/LPG SUPPLY

TYPE

35) 14) 15) 16)

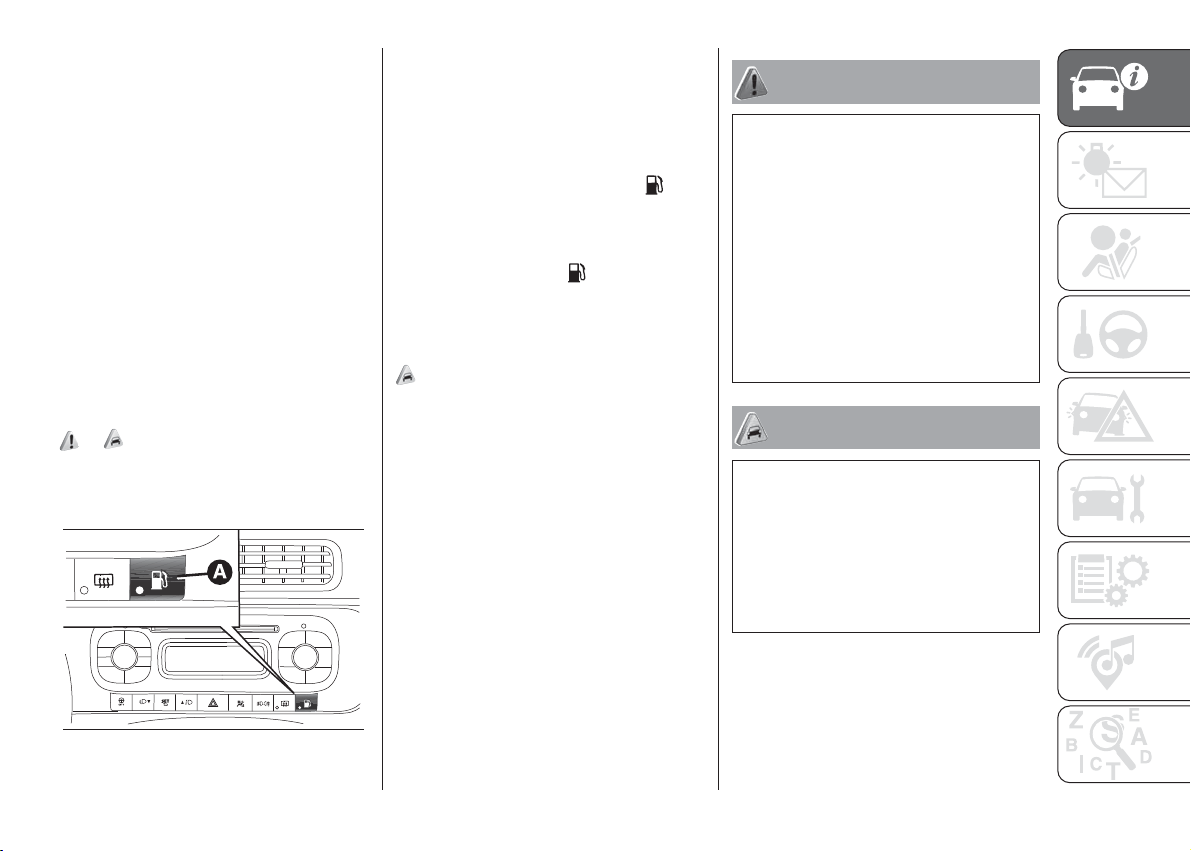

The (petrol/LPG switch) button A fig. 39

allows drivers to select petrol or LPG

operation.

To guarantee switching in absolute

safety, the actual change to the chosen

fuel system takes place depending on

the car usage conditions. It may not

therefore be immediate.

Switching is confirmed by the switching

on/off of the green warning light

the instrument panel.

If the LPG runs out, switching to petrol

takes place automatically. In this case

the display shows the

icon just

above wording LPG and the four bars

of the digital gauge turn off.

SUPPLIES

17) 18)

LPG

Maximum refuelling capacity (reserve

included): 30.5 litres. The figure already

takes into account the 80% tank filling

limit and the residual fluid required

for correct priming and it is the

maximum permitted capacity. In

addition, after different refuelling

processes, this figure may vary due to

differences between the network pump

supply pressures, pumps having

different supply/locking features, tank

not completely run out of fuel.

WARNING

33) It should be pointed out that in some

countries (including Italy) there are legal

restrictions in force for parking/garaging

motor vehicles with gas that has a higher

density than air; LPG comes under this

category.

34) Modifications or repairs to the fuel

system that are not carried out correctly or

do not take the system technical

specifications into account can cause

malfunctions leading to a fire risk.

35) Do not switch between the two

operating modes whilst starting the engine.

WARNING

9) The system operates at temperatures

ranging between −20 °C and 100 °C.

10) If, during LPG operation, the same runs

out, the vehicle switches to petrol

automatically and all the bars of the digital

gauge on the display switch off; this

displaying remains until the following LPG

refuelling.

F1D0109

11) The vehicle is equipped with a gaseous

LPG injection system designed specifically

for it: it is therefore absolutely forbidden

to alter the configuration of the system or

its components. The use of other

components or materials could cause

malfunctions and lead to a reduction in

safety; therefore, in the case of problems,

contact a Fiat Dealership. To prevent

damage to the gas system parts when

towing or raising the vehicle, follow the

instructions in the "Towing the vehicle"

paragraph of the Owner Handbook.

12) When painting in an oven, the LPG

tank must be removed from the vehicle and

later refitted by a Fiat Dealership. Although

the LPG system has numerous safety

features, it is advisable to proceed

as follows every time the vehicle is not in

use for a long period or moved in an

emergency as a result of a breakdown or

accident: unscrew the fastening devices A

fig. 36, then remove the cover B. Close

the LPG cock rotating the ring nut C fig. 38

clockwise. Refit the cover and retighten

the fastening devices.

13) Periodically (at least once every six

months), it is advisable to let the LPG in the

tank run out and, at the next refuelling,

check that it does not exceed the

maximum capacity of 30.5 litres (reserve

included) (with a tolerance of 2 litres

excess) (see instructions in the "Capacities"

paragraph of this Supplement). If the level

is above 30.5 litres (reserve included)

contact a Fiat Dealership immediately.

14) Regardless of the last fuel system

used, at the following engine starting, after

the initial petrol stage, the system will

automatically switch to LPG.

15) When switching from petrol to LPG is

requested, a metal noise from the valves

which pressurise the circuit can be heard.

As a result of the switching logic described

above, the delay between the ticking of

the valve and the switching off of the green

warning light

on the instrument panel

is entirely normal.

16) In particular usage conditions, such as

starting and operation at low ambient

temperature or LPG supply with low

propane content, the system may switch

temporarily to petrol operation, without

an indication of switching on the instrument

panel. In the event of low LPG levels in

the tank or request for high performance

(e.g. overtaking, vehicle fully laden, steep

hills), the system may automatically switch

to petrol operation to guarantee the engine

power requested; the green warning light

on the instrument panel switches on

to indicate this. When the above conditions

are no longer present, the system

automatically restores LPG operation; the

green warning light

switches off. To

achieve the automatic switching described

above, make sure that there is always

enough fuel in the petrol tank.

17) Only use LPG for motor vehicles.

18) It is strictly forbidden to use any

additive in the LPG.

VERSION WITH

METHANE SYSTEM

(Natural Power)

36) 37) 38) 19)

INTRODUCTION

The "Natural Power" version features

two fuel systems, one for petrol and

one for natural gas (methane).

METHANE CYLINDERS

The vehicle is equipped with two

cylinders (total capacity about 72 litres)

fig. 40 - fig. 41 located under the floor

of the vehicle and protected by two

special guards.

F1D0137

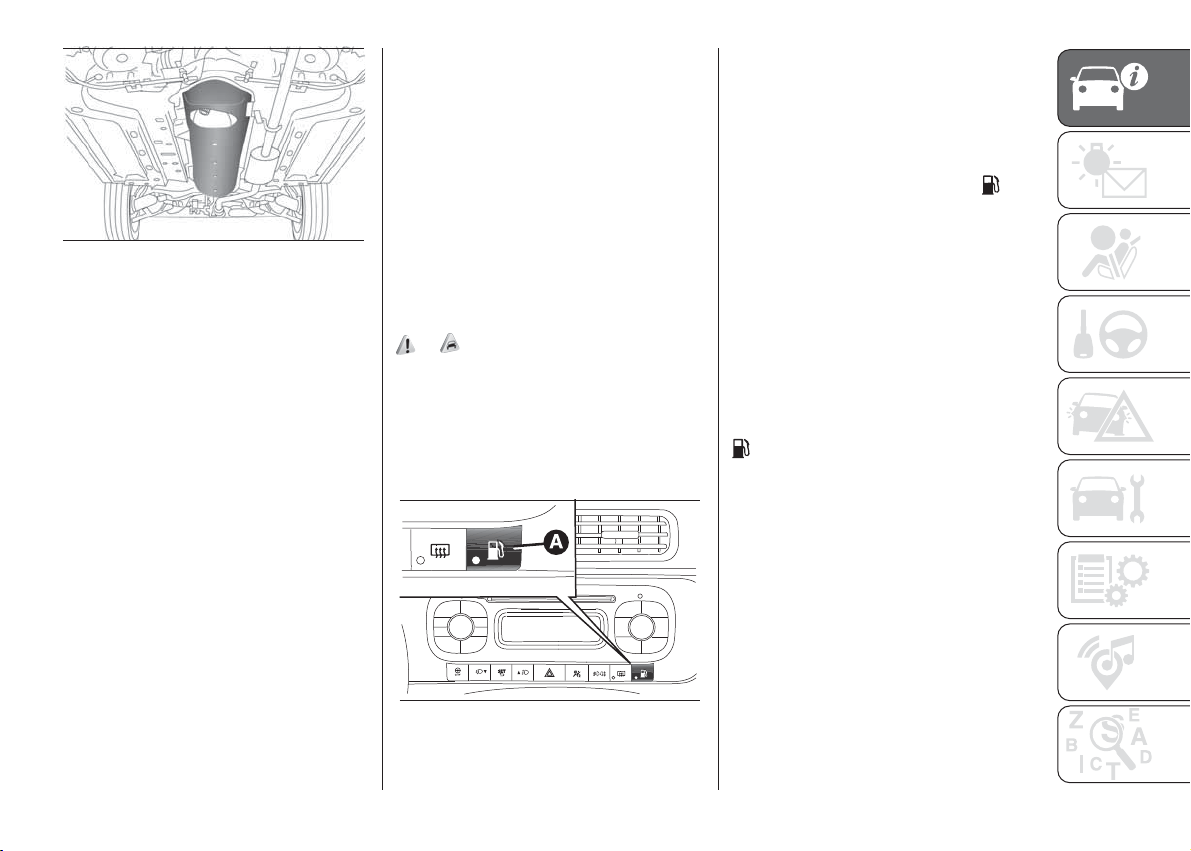

GETTING TO KNOW YOUR CAR

The methane, stored in the cylinders at

high pressure, flows through a

dedicated pipe to reach the pressure

regulator/reduction unit which supplies

the two methane injectors at low

pressure (about 9 bar).

Cylinder certification

The methane cylinders are certified in

accordance with ECE Regulation no.

110.

The cylinders must be inspected, in

accordance with ECE Regulation

Procedure no. 110, every 4 years from

the vehicle registration date or in

accordance with specific regulations in

individual countries.

The plates provided by the Dealership

with the on board documentation

contain the date for the first inspection

of the cylinders. Methane refuelling

stations are not authorised to refill the

cylinders when the inspection date has

expired.

IMPORTANT If the vehicle has been

registered in a country other than Italy,

the certification data, identification

and inspection procedures for

the methane cylinders should conform

to the legislation in that country. In

any case, remember that the life of the

cylinders is 20 years from the

production date as set out in ECE

Regulation no. 110.

SELECTION OF

PETROL/METHANE

SUPPLY TYPE

39) 20) 21) 22)

This engine normally runs on methane

except during starting, when it runs

on petrol.

The (petrol/methane switch) button A

fig. 42 allows drivers to select petrol or

methane operation.

To guarantee switching in full safety, the

actual change to the chosen fuel

system takes place depending on the

car usage conditions; it may not

therefore be immediate.

Switching is confirmed by the switching

on/off of the green warning light

the instrument panel.

In addition, when starting at outside

temperatures below approximately

–10°C, the switching times from petrol

to methane increase to allow the

pressure regulator/reduction unit to

heat up.

If the methane has run out, switching to

petrol takes place automatically. In this

case, the four bars of the digital gauge

switch off and the green warning light

on the instrument panel switches on.

SUPPLIES

Methane

Capacity: about 12 kg. The total

volume of cylinders is about 72 litres.

F1D0138

F1D0109

WARNING

36) The Fiat Panda Natural Power is

equipped with a high pressure methane

fuel supply system, designed to operate at

a rated pressure of 200 bar. It is dangerous

to stretch the system with higher

pressures. To prevent damage to the

methane system parts when towing or

raising the vehicle, follow the instructions in

the "Towing the vehicle" paragraph of the

Owner Handbook. If there is a problem

with the methane system, only contact a

Fiat Dealership. Do not alter the methane

system configuration or components; they

are designed exclusively for the Fiat Panda

Natural Power. The use of other

components or materials could cause

malfunctions and reduce safety.

37) In the case of painting in an oven, the

cylinders should be removed from the

vehicle and refitted later by a Fiat Dealer.

Although the methane system has

numerous safety features, it is advisable to

close the manual cocks for the cylinders

every time the vehicle is not in use for

a long period, transported on other

vehicles or moved in an emergency as a

result of a breakdown or accident.

38) Modifications or repairs to the fuel

system that are not carried out correctly or

do not take the system technical

specifications into account can cause

malfunctions leading to a fire risk.

39) Do not switch between the two

operating modes whilst starting the engine.

WARNING

19) If, during methane operation, the same

runs out, the vehicle switches to petrol

automatically and all the bars of the digital

gauge on the display switch off; this

displaying remains until the next methane

refuelling.

20) Regardless of the last fuel system

used, at the following engine starting, after

the initial petrol stage, the system will

automatically switch to methane.

21) When switching from petrol to methane

is requested, a metal noise from the valves

which pressurise the circuit can be heard,

as it happens while starting the vehicle.

As a result of the switching logic described

above, the delay between the ticking of

the valve and the switching off of the green

warning light

on the instrument panel

is entirely normal.

22) In particular usage conditions, such as

starting and operation at low ambient

temperature, the system may switch

temporarily to petrol operation, without

indicating the performed switching. In the

event of low methane levels in the tank

or request for high performance (e.g.

overtaking, vehicle fully laden, steep hills),

the system may automatically switch to

petrol operation to guarantee the engine

power requested; the green warning light

on the instrument panel switches on

to indicate this. When the above conditions

are no longer present, the system

automatically restores methane operation;

the green warning light

switches off.

To achieve the automatic switching

described above, make sure that there is

always enough fuel in the petrol tank.

GETTING TO KNOW YOUR CAR

KNOWING THE INSTRUMENT PANEL

This section of the handbook gives you

all the information you need to

understand, interpret and use the

instrument panel correctly.

CONTROL PANEL AND

ON-BOARD INSTRUMENTS ........... 38

DISPLAY ......................................... 39

WARNING LIGHTS AND

MESSAGES .................................... 41

- Red warning lights ............................ 41

- Amber warning lights ........................ 48

- Green warning lights ........................ 56

- Blue warning lights ........................... 57

- Symbols and messages on the

display ................................................ 57

CONTROL PANEL AND ON-BOARD INSTRUMENTS

The instrument background colour and type may vary according to the versions.

The warning lights on the instrument panel may change according to the version/trim level (e.g. LPG, Cross etc.) of the vehicle.

The warning lights

and are only present on Diesel versions. On diesel versions, the maximum engine speed (red

range on the rev counter) corresponds to 6000 rpm.

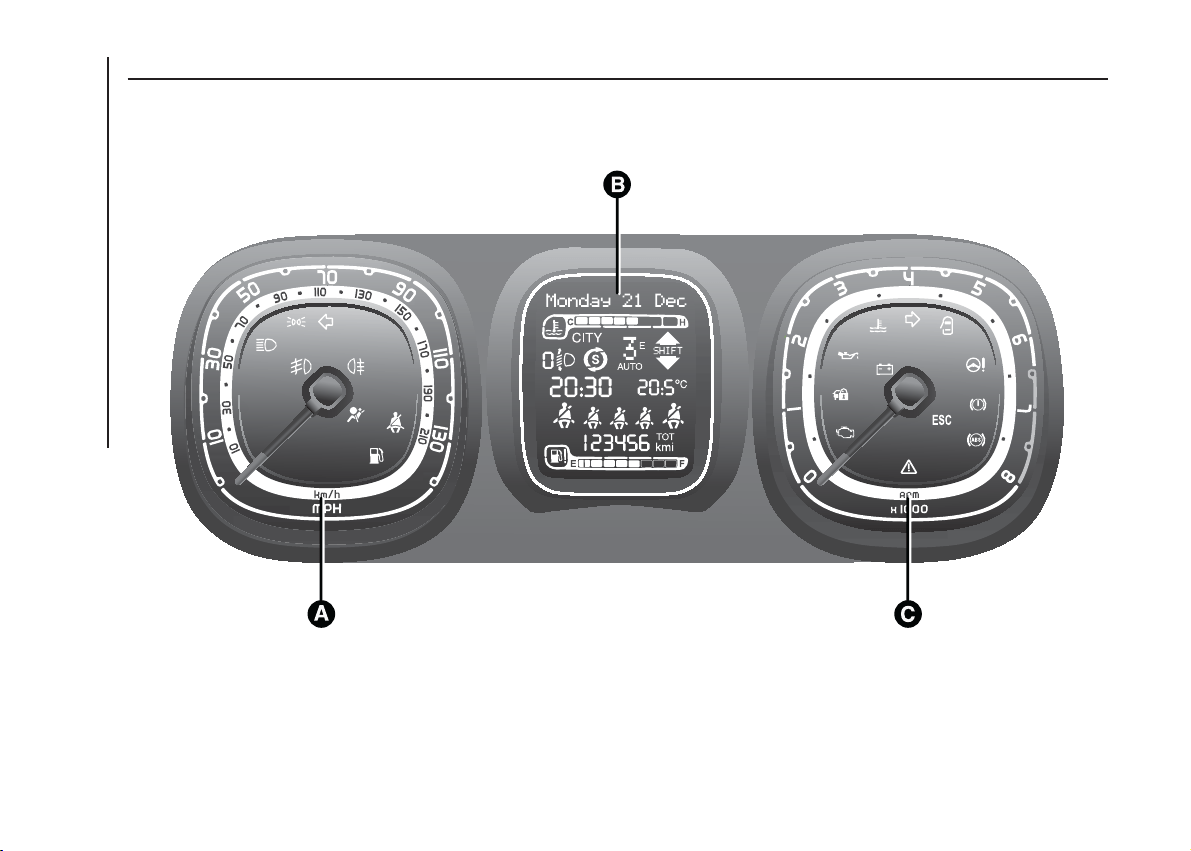

A. Speedometer (speed indicator) – B. Multifunction display – C. Rev counter

F1D0001

KNOWING THE INSTRUMENT PANEL

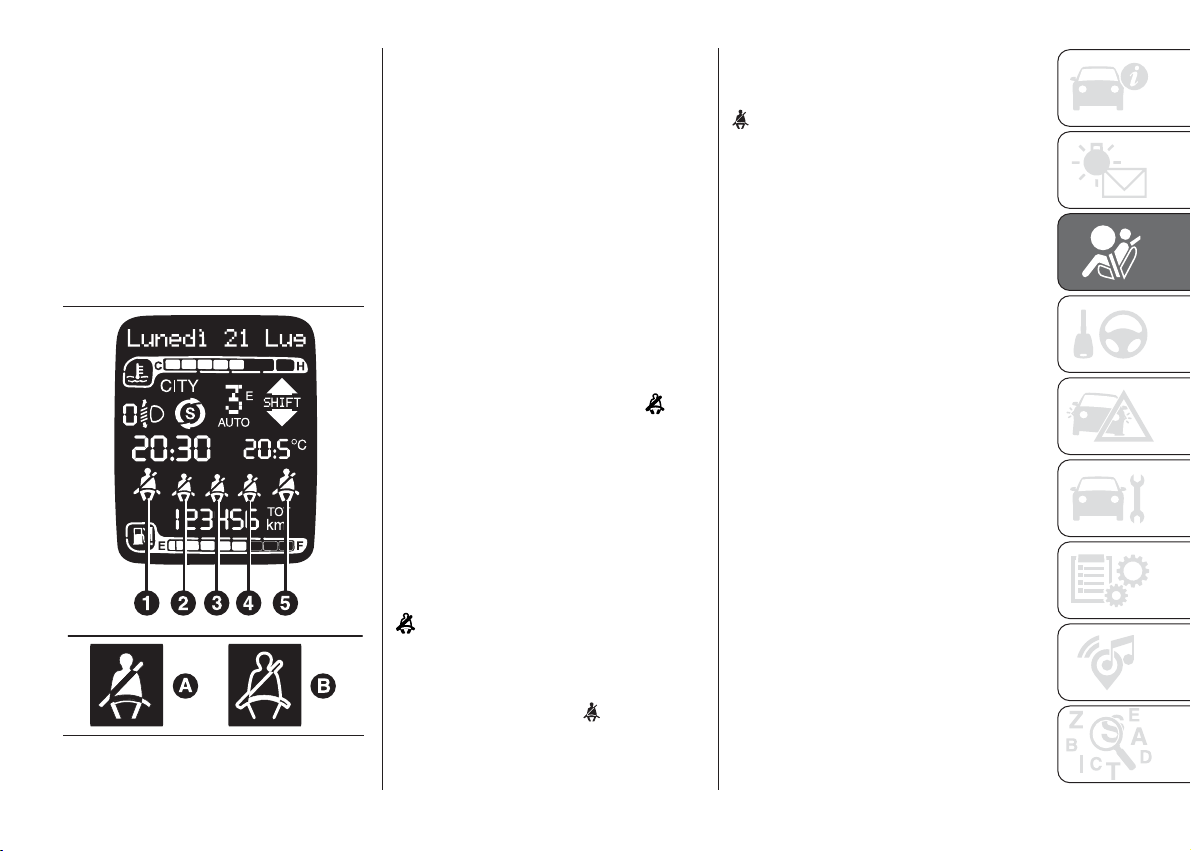

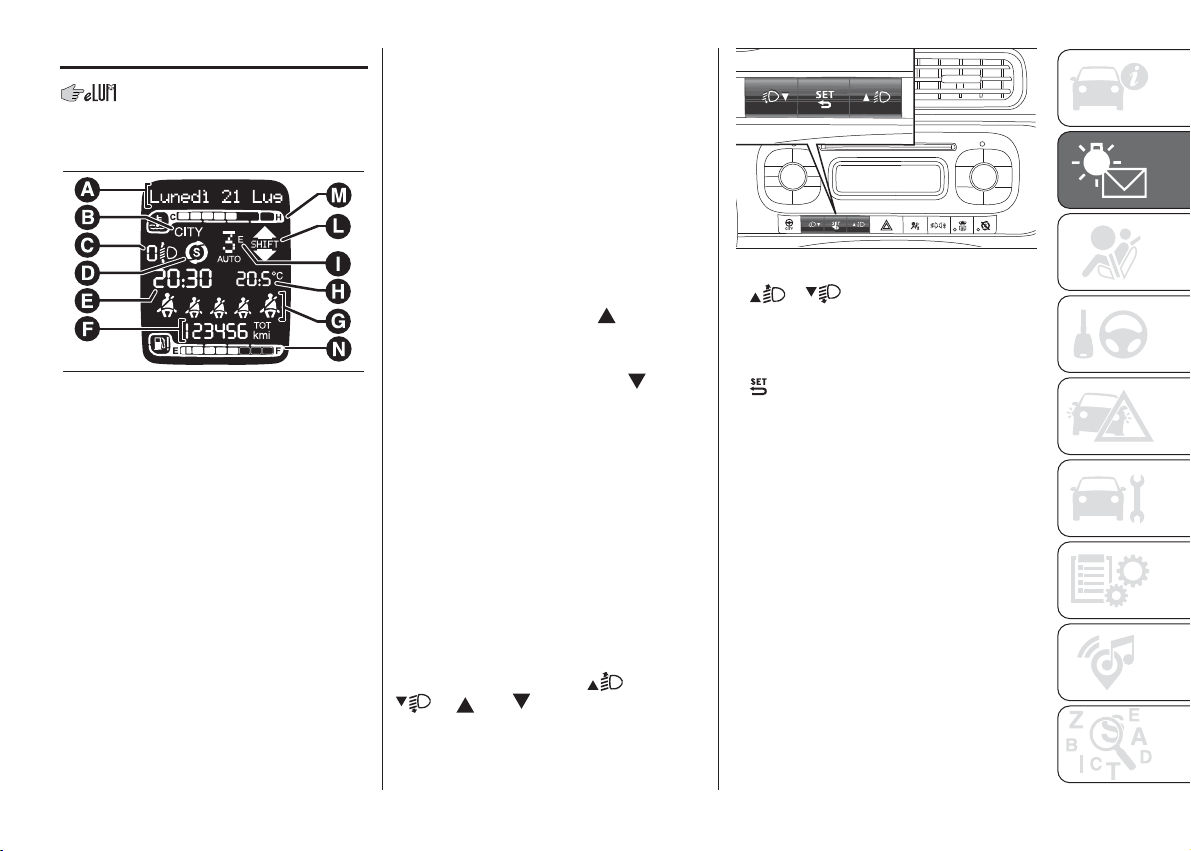

DISPLAY

The display fig. 44 will show the

following information:

Date

Dualdrive electric power steering

engagement indication (CITY text)

Headlight alignment position (only

with dipped beam headlights on)

Stop/Start function indication (for

versions/markets where provided)

Time

Odometer (display of distance

travelled in kilometres/miles)

Seat belt indicators

Outside temperature (for versions/

markets, where provided)

Gear engaged indication (Dualogic

versions only)

Gear Shift Indicator (for versions/

markets, where provided)

Engine coolant temperature indicator.

Fuel level indicator.

GEAR SHIFT INDICATOR

The GSI (Gear Shift Indicator) system

advises the driver to change gear

through a specific indication on the

control panel. Through the GSI, the

driver is notified that changing gear will

allow a reduction in fuel consumption.

When the SHIFT UP icon (

SHIFT)

is shown on the display, the GSI is

advising the driver to engage a higher

gear, while the SHIFT DOWN (

SHIFT)

icon advises the driver to engage a

lower gear.

The indication remains displayed until a

gear is shifted or the driving conditions

go back to a situation where

gearshifting is not required to improve

consumption.

CONTROL BUTTONS

They are located on the dashboard fig.

45.

Note The symbol on the buttons

depends on the version:

and

or and .

❒

/ : press and release the

buttons to scroll the menu items

upwards or downwards, or to

increase/decrease the displayed value.

❒

: press briefly to access the menu

and/or go to next screen or confirm

the desired selection. Hold pressed to

go back to the standard screen.

SETUP MENU

The menu includes the following items:

❒ MENU

❒ LIGHTING

❒ SPEED BUZZER

❒ HEADLIGHT SENSOR (for versions/

markets where provided)

❒ TRIP B ACTIVATION/DATA

❒ SET TIME

❒ SET DATE

❒ SEE RADIO

❒ AUTOCLOSE

F1D0002

F1D0003

❒ MEASUREMENT UNIT

❒ LANGUAGE

❒ WARNING VOLUME

❒ SEAT BELT BUZZER (for versions/

markets, where provided)

❒ SERVICE

❒ AIRBAG/PASSENGER BAG (for

versions/markets, where provided)

❒ DAYTIME RUNNING LIGHTS (for

versions/markets, where provided)

❒ TYRE RESET

❒ CITY BRAKE C./COLLISION

MITIGATION (for versions/markets,

where provided)

❒ EXIT MENU

Deactivating front passenger airbag

and side bag

This function is used to activate/

deactivate the front passenger's airbag.

Proceed as follows:

❒ press the

button and, after the

message "Bag pass: Off" (to deactivate)

or "Bag pass: On" (to activate) is

displayed by pressing buttons

and

, press the button again;

❒ a confirmation message will appear

on the display;

❒ by pressing the

or buttons

select "Yes" (to confirm activation/

deactivation) or "No" (to cancel);

❒ press the

button briefly; a

message confirming the selection is

displayed and you return to the menu

screen. Hold down the button to return

to the standard screen without storing.

TRIP COMPUTER

The Trip Computer can be used to

display information on vehicle operation

when the key is turned to MAR. This

function is composed of separate trips,

called “Trip A” and “Trip B” which can

monitor the entire mission (journey) in a

reciprocally independent manner.

“Trip A” allows the following values to

be displayed: "Outside temperature

(for versions/markets, where provided)",

"Range", "Distance travelled", "Average

consumption", "Instantaneous

consumption", "Average speed", "Trip

time (driving time)"

“Trip B” allows the following values to

be displayed: "Distance travelled B",

"Average consumption B", "Average

speed B", "Trip time (driving time)

B". The “Trip B” function may be

excluded.

Both functions can be reset (reset

means start of a new journey).

To reset, hold the TRIP button on the

right steering wheel stalk pressed.

NOTE “Range” and “Instantaneous fuel

consumption" parameters cannot be

reset.

KNOWING THE INSTRUMENT PANEL

WARNING LIGHTS AND MESSAGES

IMPORTANT INFORMATION

IMPORTANT Warning lights are accompanied by a specific message and/or sound when applicable. These indications are

indicative and precautionary and as such must not be considered as exhaustive and/or alternative to the information contained

in the Owner Handbook, which you are advised to read carefully in all cases. Always refer to the information in this chapter in

the event of a failure indication.

IMPORTANT Fault indications displayed are divided into two categories: serious and less serious faults. Serious faults are

indicated by a repeated and prolonged warning "cycle". Less serious faults are indicated by a warning "cycle" with a shorter

duration. The display cycle of both categories can be interrupted by pressing the

button. The instrument panel warning light

will stay on until the cause of the malfunction is eliminated.

WARNING LIGHTS ON INSTRUMENT PANEL

Red warning lights

Warning light What it means

SEAT BELTS NOT FASTENED

(for versions/markets, where provided)

The warning light switches on constantly with the vehicle stationary and the driver's side or passenger side

seat belt (when the passenger is present) not fastened. The warning light will flash and a buzzer will sound

if the vehicle is in motion and the front seat belts are not correctly fastened.

Contact a Fiat Dealership if you wish to permanently deactivate the SBR (Seat Belt Reminder) system

buzzer. The system can be reactivated using the Setup Menu.

Warning light What it means

EBD FAILURE

The simultaneous switching on of the

(red), (amber) and (amber) warning lights with the engine

on, indicates either a fault of the EBD system or that the system is not available. In this case, the rear

wheels may suddenly lock and the vehicle may swerve when braking sharply. On certain versions a

dedicated message is displayed.

Drive very carefully to the nearest Fiat Dealership to have the system inspected immediately.

AIRBAG FAILURE

When the ignition key is turned to MAR, the warning light turns on but should switch off after a few

seconds.

If the warning light switches on constantly, this indicates a fault in the airbag system. On certain versions a

dedicated message is displayed.

40) 41)

WARNING

40) If, when turning the key to MAR, the warning light does not turn on or if it stays on when travelling, there could be a fault in the

restraint systems; in this event airbags or pretensioners may not be deployed in the event of impact or, in a lower number of cases, they may

deploy accidentally. Before continuing, contact a Fiat Dealership immediately to have the system checked.

41) Failure of the

warning light is signalled by the warning light flashing. In this case, any faults of the airbag system might be not

signalled. Before continuing, contact a Fiat Dealership immediately to have the system checked.

KNOWING THE INSTRUMENT PANEL

Warning light What it means

LOW BRAKE FLUID/HANDBRAKE ENGAGED

When the ignition key is turned to MAR, the warning light turns on but should switch off after a few

seconds.

Low brake fluid level

The warning light switches on when the brake fluid in the reservoir falls below the minimum level, possibly

due to a leak in the circuit. On certain versions a dedicated message is displayed.

42)

Handbrake engaged

The warning light switches on when the handbrake is engaged. If the vehicle is moving a buzzer will also

sound.

IMPORTANT If the warning light turns on when travelling, check that the handbrake is not engaged.

LOW BATTERY CHARGE

(for versions/markets, where provided)

The warning light comes on when the ignition key is turned to MAR, but it should go out as soon as the

engine has started (with the engine running at idle speed a brief delay before going out is acceptable).

If the warning light stays on constantly or flashing, on some versions along with a dedicated message on

the display, contact a Fiat Dealership.

DOORS/BONNET/LUGGAGE COMPARTMENT OPEN

The warning light switches on, on some versions along with a message and a symbol in the display, when

one or more doors, the bonnet or the tailgate are not properly closed. An acoustic signal is emitted with the

doors open and the vehicle in motion.

WARNING

42) If the warning light comes on while driving, stop immediately and contact a Fiat Dealership

Warning light What it means

INSUFFICIENT ENGINE OIL/PRESSURE

When the ignition key is turned to MAR the warning light switches on, but should switch off as soon as the

engine is started.

Insufficient engine oil pressure

The warning light turns on constantly, on some versions along with a message on the display, when the

system detects that engine oil pressure is insufficient.

43)

WARNING

43) If the warning light comes on when the vehicle is travelling (on some versions along with the message on the display) stop the

engine immediately and contact a Fiat Dealership.

KNOWING THE INSTRUMENT PANEL

Warning light What it means

Engine oil degraded

(diesel versions with DPF)

The warning light comes on flashing, on some versions along with a dedicated message on the display.

The warning light flashes for 3 minute cycles with the warning light off for intervals of 5 seconds until oil is

changed.

After the first indication, at each engine start up the warning light will continue flashing as described above

until the oil is changed. On certain versions a dedicated message is displayed.

The flashing of the warning light should not be considered as a fault, it simply informs the customer that the

oil needs to be changed following normal vehicle use.

Remember that the deterioration of the engine oil is accelerated by:

❒ mainly town use of the vehicle which makes the DPF regeneration process more frequent;

❒ use of the vehicle for short drives, in which the engine does not have time to reach its regular operating

temperature;

❒ repeated interruption of the regeneration process, signalled by the DPF warning light switching on.

44)

WARNING

44) Degraded engine oil should be replaced as soon as possible after the warning light comes on, and never more than 500 km after it first

comes on. Failure to observe the above indications may result in severe damage to the engine and invalidate the warranty. Remember that

the operation of this warning light is not related to the amount of oil in the engine. Therefore, never top up with oil when the light starts

flashing.

Warning light What it means

ENGINE COOLANT TEMPERATURE TOO HIGH

When the key is turned to MAR, the warning light switches on but it should switch off after a few seconds.

The warning light comes on, on some versions along with a message on the display, when the engine is

overheated.

When driving normally: stop the vehicle, switch off the engine and check that the water level in the

reservoir is not below the MIN mark. If it is, wait for the engine to cool down then slowly and carefully open

the cap, top up with coolant and check that the level is between the MIN and MAX marks on the reservoir.

Also check visually for any fluid leaks. If, when restarting, the warning light switches on again, contact a Fiat

Dealership.

If the vehicle is used under demanding conditions (e.g. towing trailers uphill or fully loaded): slow

down and, if the warning light stays on, stop the vehicle. Wait for 2 or 3 minutes with the engine running

and slightly accelerated to further favour the coolant circulation. Then stop the engine. Check that the

coolant level is correct as described above.

IMPORTANT Over demanding routes, it is advisable to keep the engine on and slightly accelerated for a

few minutes before switching it off.

“DUALDRIVE” ELECTRIC POWER STEERING FAILURE

The warning light switches on when the ignition key is turned to MAR, but it should switch off after a few

seconds.

If the warning light stays on, on some versions along with a dedicated message on the display, you may

not have steering assistance and the effort required to operate the steering wheel could be notably

increased; steering is, however, possible.

In this case, contact a Fiat Dealership.

IMPORTANT In some circumstances, factors independent of the electric power steering could cause the

warning light on the instrument panel to switch on. In this case, stop the vehicle immediately (should it be

in motion), stop the engine for about 20 seconds and then restart the engine. If the warning light, on some

versions along with a dedicated message on the display, remains on, contact a Fiat Dealership.

IMPORTANT After the battery is disconnected, the steering must be initialised. The warning light switches

on to indicate this. To carry out this procedure, simply turn the steering wheel all the way from one end to

the other or drive in a straight line for about a hundred metres.

KNOWING THE INSTRUMENT PANEL

Warning light What it means

"DUALOGIC" GEARBOX FAILURE

When the ignition key is turned to MAR, the warning light switches on but should switch off after a few

seconds.

The warning light comes on flashing, along with a dedicated message on the display and an acoustic

signal, to indicate gearbox failure.

23)

WARNING

23) In the case of a gearbox failure, contact a Fiat Dealership as soon as possible to have the system checked.

Amber warning lights

Warning light What it means

ABS FAILURE

When the key is turned to MAR, the warning light switches on but it should switch off after a few seconds.

The warning light comes on, on some versions along with a message on the display, when the system is

inefficient. In this case the braking system maintains its efficiency unaltered but without the advantage of

the ABS system.

Drive carefully and contact a Fiat Dealership as soon as possible.

PASSENGER/SIDE AIRBAGS DEACTIVATED

The warning light is located on the dashboard in central position and switches on deactivating the front

passenger airbag and the side airbag. With front passenger airbag on, when the ignition key is turned to

MAR, the warning light switches on constantly for several seconds and then it should switch off.

45)

WARNING

45) Failure of the warning light is indicated by the warning light switching on. In addition, the airbag system automatically disables the

airbags on the passenger's side (front and side bags where provided). Before continuing, contact a Fiat Dealership immediately to have

the system checked.

KNOWING THE INSTRUMENT PANEL

Warning light What it means

City Brake Control - "Collision Mitigation" SYSTEM DEACTIVATED

(for versions/markets, where provided)

The warning light switches on when the City Brake Control - "Collision Mitigation" system is deactivated

through the Setup Menu.

INJECTION/EOBD SYSTEM FAILURE

In normal conditions, when the ignition key is turned to MAR the warning light switches on, but it should

switch off as soon as the engine is started.

If the warning light remains on or switches on whilst driving, the injection system is not working properly; in

particular, if the warning light switches on steadily, this indicates a malfunction in the supply/ignition system

that could cause excessive exhaust emissions, a possible loss of performance, poor driveability and high

fuel consumption.

Under these conditions, you may continue travelling at a moderate speed without demanding excessive

effort from the engine. Prolonged use of the vehicle with the warning light on constantly may cause

damage: contact a Fiat Dealership as soon as possible.

The warning light switches off if the malfunction disappears, but is still stored by the system.

NOTE For petrol engines, if the warning light flashes, the catalytic converter may be damaged. In this case,

it is necessary to release the accelerator pedal to lower the speed of the engine until the warning light

stops flashing; continue the journey at moderate speed, trying to avoid driving conditions that may cause

further flashing and contact a Fiat Dealership as soon as possible.

24)

WARNING

24) Contact a Fiat Dealership as soon as possible if the warning light either does not switch on when the key is turned to MAR or if while

driving the warning light switches on either constantly or flashing (along with a message and a symbol on the display on some versions).

Operation of the

warning light may be verified by traffic control officers using appropriate equipment. Comply with the laws and

regulations of the country where you are driving.

Warning light What it means

ESC SYSTEM

(for versions/markets, where provided)

When the key is turned to MAR, the warning light switches on but it should switch off after a few seconds.

If the warning light does not switch off or stays on while driving, on some versions along with a message

on the display, contact a Fiat Dealership. Flashing of the warning light while driving indicates the

intervention of the ESC system.

Hill Holder failure

This warning light switches on, on some versions along with a dedicated message on the display, in the

case of a Hill Holder system fault.

In this case, contact a Fiat Dealership.

ELD system failure

(For versions/markets, where provided)

This warning light switches on, on some versions along with a dedicated message on the display, in the

case of an ELD system failure.

In this case, contact a Fiat Dealership as soon as possible.

FIAT CODE SYSTEM FAILURE

The warning light (or the symbol on the display) switches on, on some versions along with a dedicated

message on the display, to signal the Fiat CODE system failure.

In this case, contact a Fiat Dealership as soon as possible.

KNOWING THE INSTRUMENT PANEL

Warning light What it means

GLOW PLUG HEATING/GLOW PLUG HEATING FAILURE (diesel versions)

Plug preheating

This warning light switches on when the key is turned to MAR. It should switch off as soon as the heater

plugs have reached a preset temperature. The engine can be started as soon as the warning light switches

off.

IMPORTANT At moderate or high ambient temperatures the warning light may stay on for an extremely

short time.

Heater plug preheating failure

The warning light will flash, on some versions along with a dedicated message on the display, to indicate a

fault in the plug preheating system.

Contact a Fiat Dealership as soon as possible to have the fault fixed.

FUEL RESERVE - LIMITED RANGE

This warning light switches on when 5 to 7 litres of fuel are left in the tank. When the remaining range is

lower than approx. 50 km (or equivalent value in miles), on some versions, the display will show a

dedicated message.

IMPORTANT The warning light will flash to indicate a system fault. If this is the case, go to a Fiat Dealership

to have the system checked.

REAR FOG LIGHT

The warning light switches on when the rear fog light is turned on.

Warning light What it means

DPF (PARTICULATE FILTER) CLEANING IN PROGRESS (Diesel versions with DPF)

When the ignition key is turned to MAR, the warning light turns on but should switch off after a few

seconds.

The warning light switches on constantly, on some versions along with a dedicated message on the

display, to notify the driver that the DPF system needs to eliminate captured pollutants (particulate) through

the regeneration process.

The warning light does not come on every time the DPF is being regenerated, rather only when the driving

conditions are such that the driver needs to know it. To switch the warning light off, the vehicle must be

kept moving until the regeneration process is completed. On average, the process lasts 15 minutes.

Optimal conditions for completing the process are achieved by travelling at 60 km/h with engine speed

above 2000 rpm.

If this light switches on, it does not mean that the vehicle is defective, so there is no need to take it to a

workshop.

46)

WARNING

46) Always drive at a speed appropriate to the traffic conditions, the weather and traffic regulations. The engine can also be switched off if the

DPF warning light is on; nevertheless, repeated interruptions of the regeneration process could cause an early deterioration of engine oil. For

this reason, always wait until the warning light switches off before stopping the engine as described above. It is not advisable to complete

DPF regeneration with the vehicle stationary.

KNOWING THE INSTRUMENT PANEL

Warning light What it means

GENERIC FAILURE INDICATION

(for versions/markets, where provided)

The warning light turns on in the following circumstances.

Speed limit exceeded

(for versions/markets, where provided)

The warning light switches on when the speed limit set in the Setup Menu is exceeded. When the vehicle

exceeds this value, on some versions a dedicated message is shown in the display and an acoustic signal

is emitted.

Fuel cut-off system intervention/failure

This warning light switches on, on some versions along with a dedicated message on the display, in the

case of fuel cut-off system activation/failure.

Stop/Start system failure

(for versions/markets, where provided)

The warning light comes on when a fault is detected in the Stop/Start system. In the event of a Stop/Start

system failure, contact a Fiat Dealership.

Temporary or permanent City Brake Control - "Collision Mitigation" system failure

(for versions/markets, where provided)

The warning light switches on, on some versions along with a message on the display, when a temporary

or permanent City Brake Control - "Collision Mitigation" system fault is detected. If the fault is permanent:

contact a Fiat Dealership to have the system checked.

Warning light What it means

Parking sensor failure

(for versions/markets, where provided)

The warning light switches on, on some versions along with a dedicated message on the display, when a

fault is detected in the parking sensors.

Exterior light failure

(for versions/markets, where provided)

The warning light switches on when a fault is detected in one of the following lights: side lights, number

plate lights, rear fog lights, direction indicators, daytime running lights (DRL).

Engine oil pressure sensor failure

(for versions/markets, where provided)

The engine oil pressure sensor failure is indicated by the activation of the warning light on the instrument

panel.

ELD system fault (Panda Cross and Panda 4x4 versions)

The warning light switches on, on some versions along with a dedicated message on the display, when a

fault is detected in the 4x4 drive. Contact a Fiat Dealership as soon as possible.

Water in diesel filter (diesel versions)

(for versions/markets, where provided)

When the key is turned to MAR, the warning light switches on but it should switch off after a few seconds.

The warning light switches on when water is detected in the diesel filter. On certain versions a dedicated

message is displayed.

25)

WARNING

25) If the warning light switches on (on some versions together with the dedicated message on the display), contact a Fiat Dealership as

soon as possible to have the system bled. If this problem is indicated immediately after refuelling, water may have entered the fuel tank. In

this case, immediately turn off the engine and contact a Fiat Dealership.

KNOWING THE INSTRUMENT PANEL

Warning light What it means

iTPMS

(for versions/markets, where provided)

Tyre pressure low

The warning light switches on constantly to indicate that the tyre pressure is lower than the recommended

value, in order to guarantee long tyre life and low fuel consumption, or to indicate a slow loss of pressure.

In this way the iTPMS warns the driver that one or more tyres may be flat and probably punctured. In this

case it is advisable to restore the correct pressure value. Once the normal operating conditions of the

vehicle are restored, carry out the Tyre reset procedure.

IMPORTANT Do not continue driving with one or more flat tyres as handling may be compromised. Stop

the vehicle, avoiding sharp braking and steering.

iTPMS failure/iTPMS temporarily deactivated

The warning light flashes for about 75 seconds and then stays on constantly (along with a dedicated

message on the display) to indicate that the system is temporarily deactivated or faulty. The system goes

back to normal operation when the operating conditions allow it. If this is not the case, carry out the Tyre

reset procedure after restoring the normal operating conditions.

If the malfunction warning persists, contact a Fiat Dealership as soon as possible.

LPG FUEL RESERVE

(for versions/markets, where provided)

The warning light switches on when the residual quantity of LPG in the cylinder goes below 1/5 of the

capacity. On some versions a dedicated message is displayed.

METHANE RESERVE (Natural Power versions)

The warning light switches on when the residual quantity of methane in the cylinder goes below 1/5 of the

capacity. On some versions a dedicated message is displayed.

Warning light What it means

ELD SYSTEM (Panda Cross and Panda 4x4 versions)

The warning light on flashing indicates activation of the electronic locking differential (ELD) function.

HDC SYSTEM (Panda Cross versions)

The warning light on constantly, along with a dedicated message on the display, indicates activation of the

HDC function. Deactivation of the function is signalled by flashing of the warning light, by an acoustic

warning and by a dedicated message on the display.

PETROL/LPG SWITCHING

(for versions/markets, where provided)

Warning light on constantly:

LPG operation.

Warning light off:

petrol operation.

PETROL/METHANE SWITCHING

(for versions/markets, where provided)

Warning light on constantly:

methane operation.

Warning light off:

petrol operation.

FOG LIGHTS

The warning light switches on when the fog lights are turned on.

SIDE LIGHTS AND DIPPED BEAM HEADLIGHTS/FOLLOW ME HOME

Side lights and dipped beam headlights

The warning light switches on when side lights or dipped beam headlights are turned on.

Follow me home

The warning light comes on, on some versions along with a message on the display, when the "Follow me

home" device is used.

KNOWING THE INSTRUMENT PANEL

Green warning lights

Warning light What it means

LEFT-HAND DIRECTION INDICATOR

The warning light turns on when the direction indicator control lever is moved downwards or, together with

the right indicator, when the hazard warning light button is pressed.

RIGHT-HAND DIRECTION INDICATOR

The warning light turns on when the direction indicator control lever is moved upwards or, together with the

left indicator, when the hazard warning light button is pressed.

Blue warning lights

Warning light What it means

MAIN BEAM HEADLIGHTS

The warning light switches on when the main beam headlights are turned on.

STOP/START SYSTEM ACTIVATION/

DEACTIVATION

(For versions/markets, where provided)

The message is displayed when the Stop/Start system is activated/deactivated by

pressing the

button in the central part of the dashboard.

With the Stop/Start system on, the LED on the button is off; if the system is deactivated

the LED comes on.

HDC FUNCTIONS MESSAGES

(Panda Cross versions)

With the "HDC" on, the following messages can be displayed.

❒ HDC on

❒ HDC off

❒ HDC cannot be activated

❒ HDC off, wait for the brakes to cool down

SERVICE (SCHEDULED SERVICING) EXPIRED

When the next scheduled service is approaching, the word “Service” appears on the

display, followed by the number of kilometres or miles left. This is displayed automatically,

with ignition key at MAR, 2000 km (or equivalent value in miles) before servicing or, where

provided, 30 days before servicing. It is also displayed each time the key is turned to MAR

or, for versions/markets, where provided, every 200 km (or equivalent value in miles).

Go to a Fiat Dealership, where the "Scheduled Servicing Plan" operations will be

performed and the message will be reset.

KNOWING THE INSTRUMENT PANEL

Symbols and messages on the display

The symbol is displayed, along with a dedicated message, in the event of an LPG system

failure.

In this case, contact a Fiat Dealership as soon as possible, running on petrol.

The symbol is displayed, along with a dedicated message, in the event of a methane

supply system failure.

In this case, contact a Fiat Dealership as soon as possible, running on petrol.

FUEL LEVEL SENSOR FAILURE

The symbol appears and all the notches disappear in the event of fuel gauge sensor failure.

Contact a Fiat Dealership as soon as possible.

Symbols and messages on the display

DUALOGIC GEARBOX MESSAGES

For versions equipped with "Dualogic" gearbox, the following messages can be displayed:

❒ Reduce gear changes

❒ Manual mode not available

❒ Automatic mode not available

❒ Clutch overheating

❒ Press the brake pedal

❒ Press the brake pedal - delayed start-up

❒ Gear not available

❒ Manoeuvre not allowed

❒ Press brake pedal and repeat manoeuvre

❒ Positioning of the gear lever at N (neutral).

26) 27)

WARNING

26) If the messages continue to be shown in the display, contact a Fiat Dealership.

27) In order to safeguard the efficiency of the clutch, do not use the accelerator to keep the vehicle stationary (e.g. when stopped on an

incline); if the clutch overheats it could damage it; use the brake pedal instead and only use the accelerator pedal when you decide to set off.

SAFETY

The chapter that you are about to read

is very important: it describes the

safety systems with which the vehicle is

equipped and provides instructions on

how to use them correctly.

ACTIVE SAFETY SYSTEMS ............ 61

DRIVING ASSISTANCE SYSTEMS .. 66

OCCUPANT PROTECTION

SYSTEMS ....................................... 71

SEAT BELTS ................................... 71

SBR (SEAT BELT REMINDER)

SYSTEM ......................................... 72

PRETENSIONERS........................... 74

CHILD PROTECTION SYSTEMS..... 76

SUPPLEMENTARY RESTRAINT

SYSTEM (SRS) - AIRBAG................ 85

SAFETY

ACTIVE SAFETY

SYSTEMS

ABS (Anti-lock Braking

System)

This system, which is an integral part of

the braking system, prevents one or

more wheels from locking and slipping

in all road surface conditions,

irrespective of the intensity of the

braking action, ensuring that the vehicle

can be controlled even during

emergency braking.

IMPORTANT To obtain the maximum

efficiency of the braking system, a

bedding-in period of about 500 km is

needed: during this period it is better to

avoid sharp, repeated and prolonged

braking.

The ABS also includes the following

systems: EBD (Electronic Braking Force

Distribution), MSR (Motor

Schleppmoment Regelung) and MBA

(Mechanical Brake Assist) (for

versions/markets, where provided).

System intervention

The driver can feel that the ABS system

has come into action because the

brake pedal pulsates slightly and the

system gets noisier: this is entirely

normal with the system operating.

ESC SYSTEM (Electronic

Stability Control)

(for versions/markets, where provided)

This is an electronic system that

controls vehicle stability in the event of

tyre grip loss, helping maintain

directional control. The system is

capable of recognising potentially

dangerous situations in terms of the

stability and intervenes automatically on

the brakes in a differentiated manner

for the four wheels in order to provide a

stabilising torque.

The ESC system switches on

automatically when the engine is

started and cannot be switched off.

System intervention

The intervention of the system is

indicated by the flashing of the ESC

warning light on the instrument panel,

to inform the driver that the vehicle is in

critical stability and grip conditions.

56) 57) 58) 59) 60) 61)

HH (Hill Holder) SYSTEM

This system is an integral part of the

ESC system and facilitates starting on

slopes.

It is automatically activated in the

following conditions:

❒ uphill: vehicle stationary on a road

with a gradient higher than 5%, engine

running, brake pressed and

transmission in neutral or gear other

than reverse engaged;

❒ downhill: vehicle stationary on a road

with a gradient higher than 5%, engine

running, brake pressed and reverse

gear engaged.

When setting off, the ESC system

control unit maintains the braking

pressure on the wheels until the torque

necessary for starting is reached, or

in any case for a maximum of 2

seconds, allowing your right foot to be

moved easily from the brake pedal to

the accelerator.

When two seconds have elapsed,

without starting, the system is

automatically deactivated, gradually

releasing the braking pressure. During

this release stage, the typical

mechanical brake release noise can be

heard, indicating that the vehicle is

about to move.

NOTE: the Hill Holder system is not

active with parking brake engaged.

IMPORTANT The Hill Holder system is

not a parking brake, therefore do not

leave the vehicle without activating the

handbrake, switching off the engine,

and engaging first gear, with the vehicle

parked in safe conditions.

47) 48) 49) 50) 51) 52) 53) 54) 55)

ASR (AntiSlip

Regulation) SYSTEM

It is an integral part of the ESC system.

It is automatically activated in the case

of drive wheels slipping, loss of grip

on wet roads (aquaplaning) and

acceleration on slippery, snowy or icy

roads, etc.

Depending on the slipping conditions,

two different control systems are

activated:

❒ if the slipping involves both drive

wheels, the ASR intervenes reducing

the power transmitted by the engine;

❒ if the slipping only involves one of the

drive wheels, it intervenes automatically

braking the wheel that is slipping.

Engagement/disengagement of the

ASR system

The ASR system switches on

automatically each time the engine is

started.

Whilst driving, the ASR can be switched

off and subsequently switched on

again by pressing the ASR OFF button

fig. 46.

On some versions, the intervention of

the system is indicated by a dedicated

message shown on the display. When

the system is not active, the LED on the

button ASR OFF turns on and, on

some versions, a message appears on

the display.

When the ASR is deactivated whilst

driving, the next time the vehicle is

started the ASR is automatically

activated.

When travelling on snowy roads with

snow chains, it may be helpful to turn

the ASR off: in fact, in these conditions,

the driving wheels skidding when

setting off gives you better traction.

62) 63) 64) 65) 66)

HBA (Hydraulic Brake

Assist) SYSTEM

The HBA system is designed to

improve the vehicle's braking capacity

during emergency braking. The system

detects an emergency braking by

monitoring the speed and strength with

which the brake pedal is pressed,

thereby applying the optimal brake

pressure.

This can reduce the braking distance:

the HBA system therefore completes

the ABS.

Maximum assistance from the HBA

system is obtained by pressing the

brake pedal very quickly. In addition,

the brake pedal must be pressed

continuously during braking, avoiding

intermittent presses, to benefit from the

system.

Do not reduce pressure on the brake

pedal until braking is not necessary

anymore.

The HBA system is deactivated when

the brake pedal is released.

67) 68) 69)

ELD (Electronic Locking

Differential) SYSTEM

(Panda Cross and Panda 4x4 versions)

The ELD system allows the drive force

to be evenly distributed over the same

axle when one or both wheels are

slipping. The ELD acts by braking the

wheels with poor grip (or those slipping

more than the others), thereby

transferring the drive force to those

which have greater grip on the ground.

The system operates at speeds below

50 km/h. Above this speed, it is

automatically deactivated and it is

reactivated when the speed falls below

50 km/h.

F1D0038

SAFETY

The activation of the ELD system

involves the following functions being

switched on:

❒ inhibition of the ASR function, in

order to fully exploit the engine torque;

❒ differential lock effect on the front and

rear axles, via the braking system, to

improve drive on uneven surfaces.

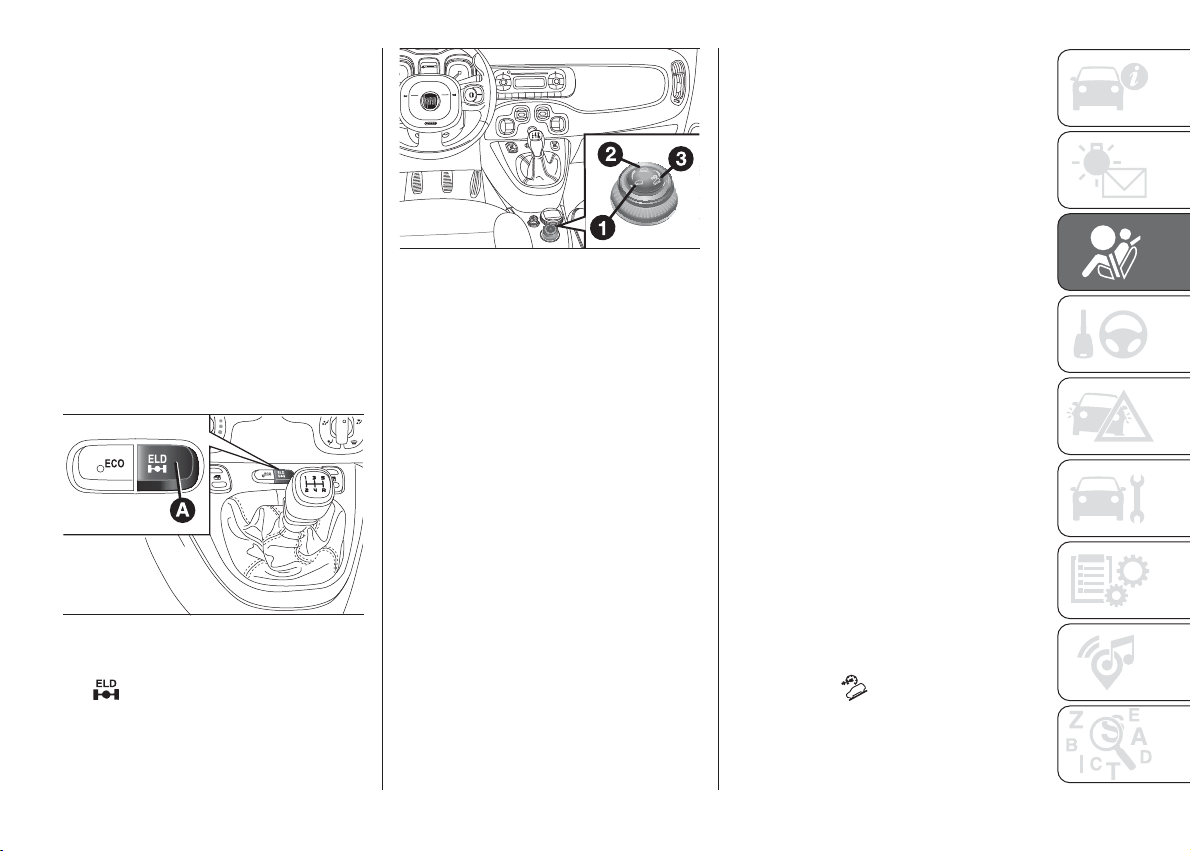

Enabling the system

To arrange operation of the ELD system

press button A fig. 47 (4x4 versions)

or turn the ring nut fig. 48 to the right

(Cross versions) and keep it in this

position until LED 2 on the selector

lights up.

System intervention

The

warning light on the instrument

panel flashes to signal that the system

has intervened.

If the space-saver wheel is used

If the space-saver wheel is used, the

control unit for 4x4 drive detects its

presence (via the wheel speed signals)

and reduces the intervention of the

four-wheel drive mode to a minimum,

while guaranteeing the agility of the

vehicle. No fault/alarm signal is

displayed on the instrument panel or on

the display.

Disabling the system

To disable the system, press button A

fig. 47 (4x4 versions) or turn the ring nut

fig. 48 to the left (Cross versions) and

keep it in this position until LED 1

on the selector lights up.

HDC (Hill Descent

Control) SYSTEM

(Panda Cross versions)

It is an integral part of the ESC system

and is aimed at keeping the vehicle at a

constant speed during a descent,

operating autonomously on the brakes

in various ways at the same time. In this

way the HDC function helps the driver

when facing steep gradient roads in

low-grip and/or rough ground

conditions.

Noise and vibrations coming from the

wheel sides (brakes) when the HDC

system is activated are normal.

IMPORTANT The system does not

relieve the driver of the responsibility of

controlling the vehicle and does not

replace attention while driving. The

driver of the vehicle takes the complete

responsibility for the consequences of

their actions and of an incorrect and not

responsible use of the vehicle.

Enabling the system

To arrange operation of the HDC

system, turn ring nut fig. 49, with LED 2

on, to the right, and keep it in this

position until LED 3 on the selector

lights up. The

warning light comes

on in the instrument panel and the

dedicated message is displayed.

F1D0122

F1D0116

IMPORTANT System intervention

set-up can be engaged only with "Off

Road" mode activated.

System intervention

To activate the system reach a speed

slower than 25 km/h. After reaching the

desired speed, release the accelerator

and brake pedals completely. If you

want to increase/decrease the speed,

press the accelerator/brake pedals

again.

IMPORTANT The system is also

available for very low speeds between

the gearbox must be set to neutral to

prevent engine stalling.

IMPORTANT For speeds above 9 km/h,

the HDC system must be used with a

gear that is suitable for the set speed,

in order to prevent possible engine

stalling. While the HDC system is

operating it is also possible to take

control of the vehicle again by pressing

the brake and accelerator pedals. If

the HDC is not available when system

intervention set-up is engaged, this

could be due to brake overheating. In

this case, wait for a few minutes.

IMPORTANT The system is available for

speeds between 5 km/h and 25 km/h.

It is advisable to use the system with

low gears (first, second and third).

IMPORTANT On level ground in urban

areas it is advisable to deactivate the

HDC system intervention set-up, since

for speeds below 25 km/h in some

usage conditions, such as when setting

off, gearshifting and driving over road

humps without using the accelerator

pedal, the system might activate.

Disabling the system

To deactivate the system, turn the ring

nut fig. 49 to the left, keeping it in

this position until LED 3 on the selector

switches off.

IMPORTANT If the braking system

overheats the system will deactivate

through a gradual release of the braking

pressure, leaving vehicle control to the

driver. Deactivation of the HDC system

is accompanied by flashing of the

warning light, by a dedicated

message on the display and an

acoustic warning. To reactivate the

system intervention set-up wait for the

system to cool down and turn the

ring nut again.

IMPORTANT If the speed exceeds

system intervention set-up is

deactivated but is ready for being

reactivated when the speed drops back

below 25 km/h. In this case the

indication on the instrument panel turns

off and the LED on the ring nut stays

on. If vehicle speed exceeds 50 km/h,

the HDC system completely

deactivates and each individual action

made by the system on the brakes

is blocked. To reactivate it, turn the ring

nut again when the speed is again

below 25 km/h.

F1D0116

SAFETY

5 km/h and 9 km/h, but in this interval

25 km/h and is below 50 km/h, the HDC

WARNING

47) The ABS exploits the grip available to

the full, but it cannot improve it. Therefore,

you should take great care when driving

on slippery surfaces, without taking

unnecessary risks.

48) When the ABS cuts in and you feel the

brake pedal pulsating, do not raise your

foot, but keep it pressed; in doing so you

will stop in the shortest amount of space

possible depending on the current road

conditions.

49) If the ABS intervenes, this indicates

that the grip of the tyres on the road is

nearing its limit. You must slow down to a

speed compatible with the available grip.

50) For maximum efficiency of the braking

system, a bedding-in period of about

500 km is required: during this period it is

advisable to avoid sharp, repeated and

prolonged braking.

51) The ABS cannot alter the natural laws

of physics, and cannot increase grip which

depends on the condition of the road.

52) The ABS cannot prevent accidents,

including those due to excessive speed on

corners, driving on low-grip surfaces or

aquaplaning.

53) The capability of the ABS must never

be tested irresponsibly and dangerously, in

such a way as to compromise personal

safety and the safety of others.

54) For the correct operation of the ABS,

the tyres must of necessity be the same

make and type on all wheels, in perfect

condition and, above all, of the prescribed

type and dimensions.

55) When the Mechanical Brake Assist

intervenes, noises may be heard from the

system. This is normal. In any case, keep

the brake pedal firmly depressed while

braking.

56) For the correct operation of the ESC

system, the tyres must of necessity be the

same make and type on all wheels, in

perfect condition and, above all, of the

prescribed type and size.

57) The ESC functions even when the

space-saver wheel is being used. Always

remember that the space-saver wheel,

being smaller than the original wheel,

provides less grip.

58) Do not take unnecessary risks, even if

your vehicle is fitted with an ESC system.

Your driving style must always be suited to

the road conditions, visibility and traffic.

The driver is always responsible for road

safety.

59) The ESC system cannot alter the

natural laws of physics, and cannot

increase grip which depends on the

condition of the road.

60) The ESC system cannot prevent

accidents, including those due to excessive

speed on corners, driving on low-grip

surfaces or aquaplaning.

61) The capability of the ESC system must

never be tested irresponsibly and

dangerously, in such a way as to

compromise personal safety and the safety

of others.

62) For the correct operation of the ASR

system, the tyres must of necessity be the

same make and type on all wheels, in

perfect condition and, above all, of the

prescribed type and size.

63) Do not take unnecessary risks, even if

your vehicle is fitted with an ASR system.

Your driving style must always be suited to

the road conditions, visibility and traffic.

The driver is ultimately responsible for road

safety.

64) The ASR system cannot alter the

natural laws of physics, and cannot

increase grip which depends on the

condition of the road.

65) The ASR system cannot prevent

accidents, including those due to excessive

speed on corners, driving on low-grip

surfaces or aquaplaning.

66) The capability of the ASR system must

never be tested irresponsibly and

dangerously, in such a way as to

compromise personal safety and the safety

of others.

67) The HBA system cannot increase tyre

grip on the road over the limits imposed by

laws of physics: always drive carefully

according to the conditions of the road

surface.

68) The HBA system cannot prevent

accidents, including those due to excessive

speed on bends, travelling on low-grip

surfaces or aquaplaning.

69) The HBA system is an aid for the driver,

who must always pay full attention while

driving. The responsibility always rests with

the driver. The features of the HBA system

must never be tested in imprudent or

dangerous ways, with the possibility of

putting the safety of the driver, occupants

or other road users at risk.

DRIVING

ASSISTANCE

SYSTEMS

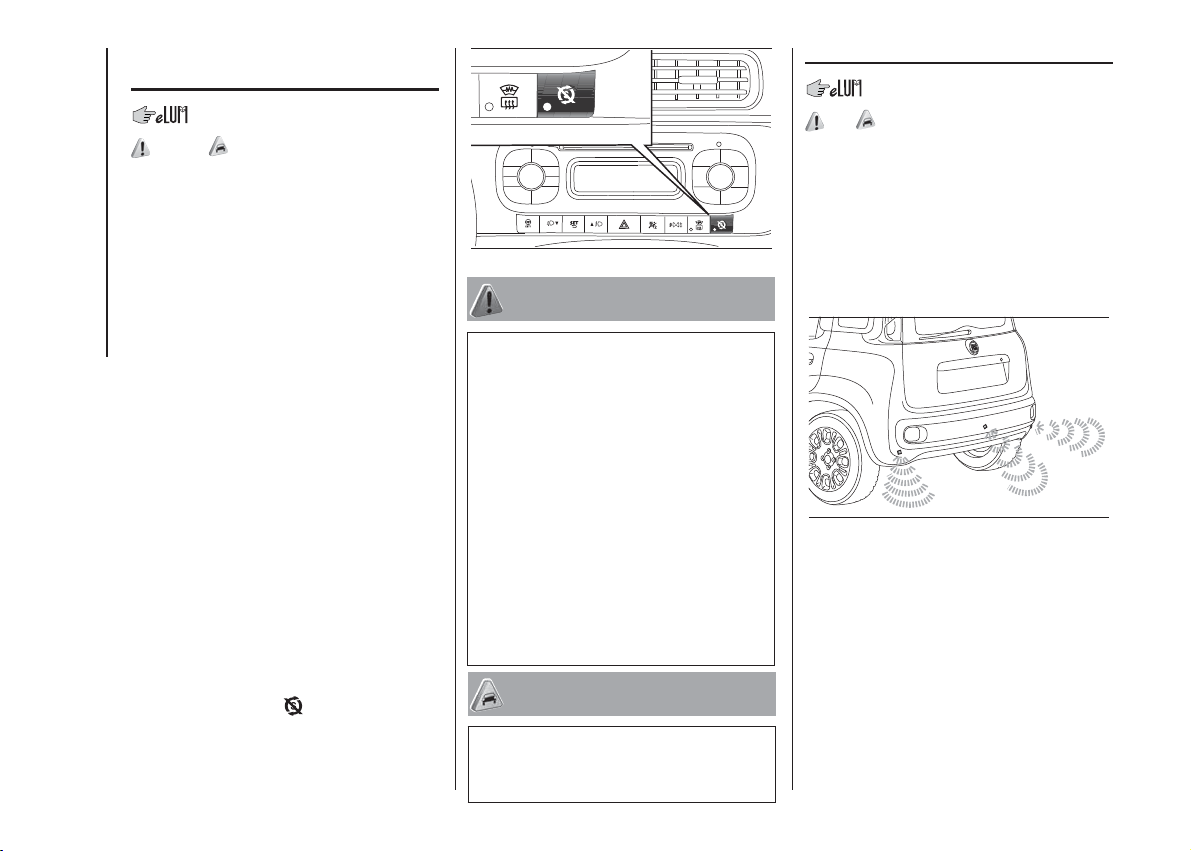

TP (Traction Plus)

SYSTEM

(for versions/markets, where provided)

Traction Plus is a driving aid, useful

for setting off in poor grip conditions

(snow, ice, mud, etc.) which allows the

drive force to be distributed in the

best way over the front axle when one

wheel is slipping.

Traction Plus acts by braking the

wheels with poor grip (or those slipping

more than the others), thereby

transferring the drive force to those

which have greater grip on the ground.

Engagement/disengagement

The system is deactivated when

starting. To activate the Traction Plus

system, press the T+ button fig. 50: the

LED on the button switches on; the

display shows a dedicated message.

To disengage the system press the T+

button again.

Operation

This function operates below a

threshold of 30 km/h. When this speed

is exceeded, it is automatically

deactivated (the LED in the button

remains on) and it is reactivated as

soon as the speed goes below the level

of 30 km/h.

The activation of the Traction Plus

system causes the differential locking

effect on the front axle, through the

braking system, to improve traction on

irregular grounds.

If the Traction Plus system is faulty, the

ESC warning light on the instrument

panel switches on constantly.

F1D0039

SAFETY

CBC (City Brake

Control) SYSTEM -

"Collision Mitigation"

(for versions/markets, where provided)

70) 71) 72) 73) 74)

28) 29) 30) 31) 32) 33) 34)

This is a driving assistance system,

which includes a laser sensor, located

in the upper part of the windscreen

fig. 51, that can detect the presence of

nearby cars in front of the vehicle and,

in the case of an imminent collision,

intervenes automatically, braking the

vehicle to prevent the impact or

mitigate its effects.

The system only works if:

❒ the ignition key is at MAR;

❒ the vehicle speed is between 5 and

30 km/h;

❒ the front seat belts are fastened.

Anyway, the system can be deactivated

(then reactivated) through the Setup

Menu on the display.

The system intervenes if there is risk of

imminent collision and the driver does

not press the brake pedal promptly.

If the system detects that the vehicle

ahead could be hit, it may prepare the

vehicle to a possible emergency

braking.

If the driver does not carry out any

action to prevent the collision, the

system may automatically slow down

the vehicle, in order to prepare it to

a possible impact.

When there is risk of impact, if the

action on the brake pedal by the driver

is not sufficient, the system may

intervene in order to improve

the reaction of the braking system,

therefore reducing vehicle speed

further.

When driving uphill on a steep slope,

the system may intervene, activating

the braking system.

Versions equipped with Stop/Start

system: at the end of the automatic

braking, the Stop/Start system will

activate as described in the "Stop/Start

system" paragraph of the "Starting

and driving" chapter.

Versions equipped with manual

gearbox: at the end of the automatic

braking the engine may stall and turn

off, unless the driver presses the clutch

pedal.

Versions equipped with "Dualogic"

gearbox (for versions/markets, where

provided): at the end of braking the last

gear stored remains engaged.

IMPORTANT Both on versions

equipped with manual gearbox and on

those with "Dualogic" gearbox (for

versions/markets, where provided),

after the vehicle is stopped the brake

calipers may be stuck for about 2

seconds for safety reasons. Make sure

you press the brake pedal if the vehicle

moves slightly forwards.

IMPORTANT The system does NOT

activate when reverse is engaged. The

system does NOT activate if the front

seat belts are not fastened.

Engagement/disengagement

The system can be deactivated (then

reactivated) through the Setup Menu on

the display.

F1D0041

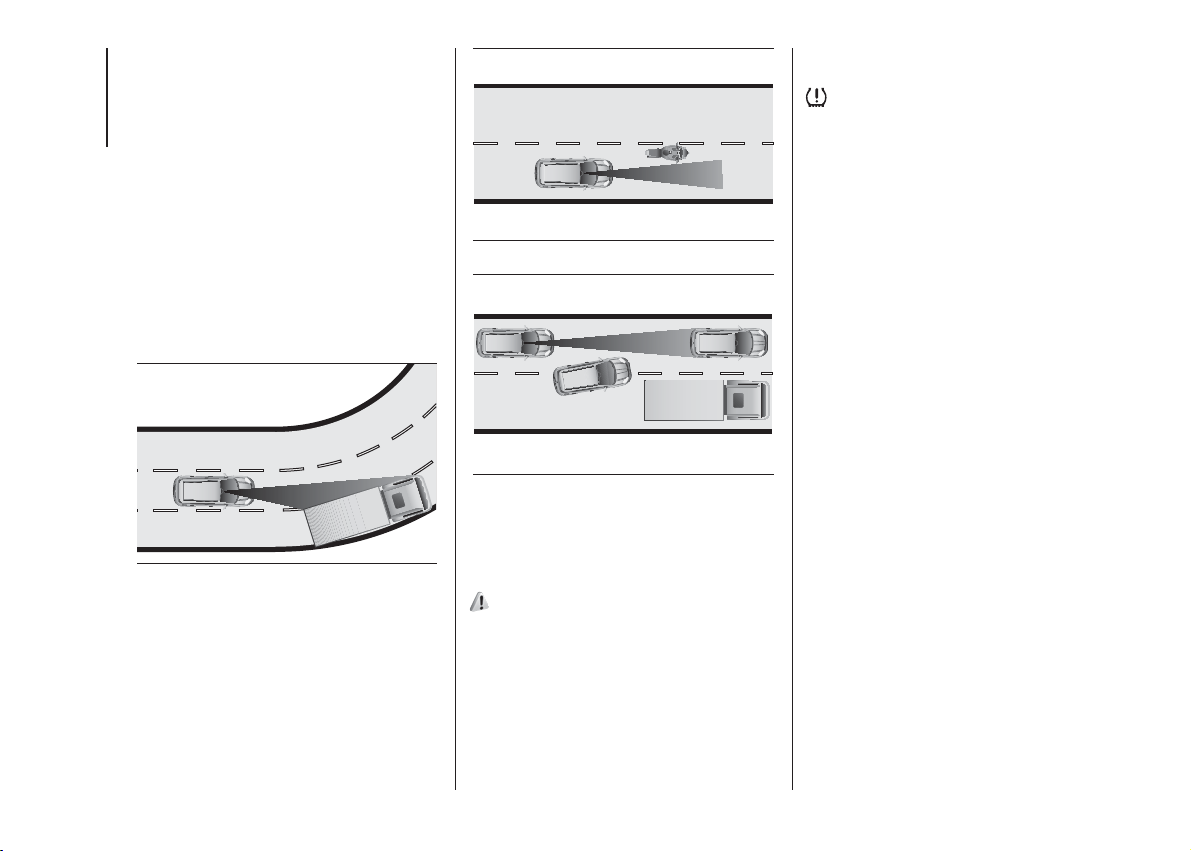

Driving in special conditions

In certain driving conditions, such as,

for example:

❒ driving close to a bend (see fig. 52);

❒ vehicles with small dimensions

and/or not aligned in the driving lane

(see fig. 53);

❒ lane change by other vehicles (see

fig. 54);

system intervention can be unexpected

or delayed. The driver must therefore

be very careful, keeping control of

the vehicle to drive in complete safety.

IMPORTANT If you are driving on roads

close to trees with protruding branches

it is advisable to deactivate the system

to prevent the branches at the height

of the bonnet or the windscreen from

interfering with the system.

iTPMS (indirect Tyre

Pressure Monitoring

System)

(for versions/markets, where provided)

75) 76) 77) 78) 79) 80)

The vehicle can be equipped with the

iTPMS (indirect Tire Pressure

Monitoring System) which monitors the

tyre inflation status thanks to wheel

speed sensors.

The system warns the driver if one or

more tyres are flat by the dedicated

warning light continuously on and a

dedicated warning message on the

display.

If one tyre only is flat, the system can

indicate its position: it is in any case

recommended to check the pressure

on all four tyres.

This indication is displayed also when

turning the engine off and on again until

the RESET procedure is carried out.

Reset procedure

The iTPMS needs an initial "self-

learning" phase (with length depending

on the driving style and road conditions:

optimal conditions being driving on a

straight road at 80 km/h for at least 20

minutes) which starts when the Reset

procedure is carried out.

The Reset procedure must be carried

out:

❒ each time tyre pressure is modified;

❒ when even only one tyre is changed;

❒ when tyres are rotated/inverted;

❒ when the space-saver wheel is fitted.

Before carrying out the Reset

procedure, inflate the tyres to the rated

pressure values specified in the inflation

pressure table (see "Wheels" paragraph

in the "Technical specifications"

chapter).

F1D0042

F1D0043

F1D0044

SAFETY

If the Reset procedure is not carried

out, in all above cases, the

warning

light may give false indications on

one or more tyres.

To carry out the RESET procedure, with

the vehicle stopped and the ignition

device at MAR, use the Main Menu as

follows:

❒ briefly press

button: the display will

show Reset;

❒ press

button or to select

(“Yes” or “No”);

❒ briefly press the

button: the

display will show "Confirm";

❒ press

button or to select

("Yes" to reset or "No" to exit the video

page);

❒ hold the

button down again to

return to the standard screen or to the

main menu according to where you

are in the menu.

At the end of the Reset procedure the

display will show the "Reset saved"

message, indicating that the self-

learning has been started.

Working conditions

The system is active for speeds above

15 km/h.

In a few situations such as sporty

driving, particular conditions of the road

surface (e.g. icy, snowy, unsurfaced

roads...) the signalling may be delayed

or partial in detecting the contemporary

deflation of more than one tyre.

Under special conditions (e.g. vehicle

loaded asymmetrically on one side,

towing a trailer, damaged or worn tyre,

fitting the space-saver wheel, use of the

"Fix&Go Automatic" kit, fitting snow

chains, fitting different tyres on the

axles) the system may give false

indications or be temporarily

deactivated.

If the system is temporarily deactivated

the

warning light flashes for about

75 seconds and then is continuously

on; at the same time, the display shows

a dedicated message.

This indication is displayed also after

the engine has been switched off and

then on again if the correct operating

conditions are not restored.

WARNING

70) The system is an aid for the driver, who

must always pay full attention while

driving. The responsibility always rests with

the driver, who must take into account

the traffic conditions in order to drive

in complete safety. The driver must always

maintain a safe distance from the vehicle

in front.

71) If the driver depresses the brake pedal

fully or carries out a fast steering during

system operation, the automatic braking

function may stop (e.g. to allow a possible

manoeuvre to avoid the obstacle).

72) The laser beam is not visible at the

naked eye. Do not look directly, or with

optical instruments (e.g. lenses), at the

laser beam from a distance lower than 10

cm: this may cause damage to the sight.

The laser beam is also present when

the key is at MAR but its operation is off,

not available or manually deactivated

with the display Setup Menu.

73) The system intervenes on vehicles

travelling in the same lane. Small sized

vehicles (e.g. bicycles or motorbikes)

or people, animals and things (e.g.

pushchairs) and more in general all those

obstacles with a low reflection of the light

emitted by the laser (e.g. vehicles soiled

with mud) are not taken into consideration.

74) If the vehicle must be placed on a roller

bench (at a speed within 5 and 30 km/h)

for maintenance interventions or if it is

washed in an automatic roller washing

tunnel with an obstacle in the front part

(e.g. another vehicle, a wall or another

obstacle), the system may detect its

presence and activate. In this case the

system must be deactivated through the

display Setup Menu.

75) If the system signals a pressure

decrease on a specific tyre, it is

recommended to check the pressure on all

four tyres.

76) iTPMS does not relieve the driver from

the obligation to check the tyre pressure

every month; it is not even to be

considered a replacing system for

maintenance or a safety system.

77) Tyre pressure must be checked with

tyres cold. Should it become necessary for

whatever reason to check pressure with

warm tyres, do not reduce pressure even

though it is higher than the prescribed

value, but repeat the check when tyres are

cold.

78) The iTPMS cannot indicate sudden

tyre pressure drops (for example when

a tyre bursts). In this case, stop the vehicle,

braking with caution and avoiding abrupt

steering.

79) The system only warns that the tyre

pressure is low: it is not able to inflate

them.

80) Insufficient tyre inflation increases fuel

consumption, reduces the tread duration

and may affect the capacity to drive safely.

WARNING

28) The laser sensor may have limited or

absent operation due to weather

conditions such as: heavy rain, hail, thick

fog, heavy snow, formation of ice layers on

the windscreen.

29) Sensor operation may also be

compromised by the presence of dust,

condensation, dirt or ice on the

windscreen, by traffic conditions (e.g.

vehicles that are driving not aligned with

yours, vehicle driving in a transverse or

opposite way on the same lane, bend with

a small radius of curvature), by road

surface conditions and by driving

conditions (e.g. off-road driving). Make sure

the windscreen is always clean. Use

specific detergents and clean cloths to

avoid scratching the windscreen. The

sensor operation may also be limited or

absent in some driving, traffic and road

surface conditions.

30) Projecting loads on the roof of the

vehicle may interfere with the correct

operation of the sensor. Before starting

make sure the load is correctly positioned,

in order not to cover the sensor operating

range.

31) If the windscreen must be replaced

due to scratches, chipping or breakage,

contact exclusively a Fiat Dealership.

Do not replace the windscreen on your

own, risk of malfunction! It is advisable to

replace the windscreen if it is damaged

in the laser sensor area.

32) Do not tamper nor operate on the laser

sensor. Do not close the openings in the

aesthetic cover located under the interior

rear view mirror. In the event of a sensor

failure, contact a Fiat Dealership.

33) Do not cover the operating range of the

sensor with stickers or other objects. Also

pay attention to other objects on the

bonnet (e.g. a layer of snow) and make

sure they do not interfere with the light

emitted by the laser.

34) If a trailer or a vehicle is towed the

system must be deactivated with the

display Setup Menu.

SAFETY

OCCUPANT

PROTECTION

SYSTEMS

The most important safety equipment

of the vehicle comprises the following

protection systems:

❒ seat belts;

❒ SBR (Seat Belt Reminder) system;

❒ head restraints;

❒ child restraint systems;

❒ front airbags and side bags.

Read the information given the

following pages with the utmost care. It

is of fundamental importance that the

protection systems are used in the

correct way to guarantee the maximum

possible safety level for the driver and

the passengers.

For the description of the headrest

adjustment see the "Headrests"

paragraph in the "Knowing your

vehicle" chapter.

SEAT BELTS

USING THE SEAT BELTS

The driver is responsible for respecting,

and ensuring that all the other

occupants of the vehicle also respect,

the local laws in force in relation to

the use of the seat belts.

Always fasten the seat belts before

setting off.

The belt should be worn keeping the

torso straight and rested against the

backrest.

To fasten the seat belts, hold tongue A

fig. 55 and insert it into buckle B, until

it clicks into place. On removal, if the

seat belt jams, let it rewind for a short

stretch, then pull it out again without

jerking.

To unfasten the seat belts, press button

C. Guide the seat belt with your hand

while it is rewinding, to prevent it from

twisting. Through the retractor, the

belt automatically adapts to the body of

the passenger wearing it, allowing

freedom of movement.

81)

The rear seat is fitted with inertia seat

belts with three anchor points and a

retractor. Wear the rear seat belts

as shown in fig. 56 (4-seater versions)

or fig. 57 (5-seater versions).

82) 83) 84)

F1D0050

F1D0051

F1D0052

IMPORTANT When putting the back

seat to its normal position, make sure

the seat belts are positioned so they are

ready to use.

ADJUSTING THE SEAT

BELT HEIGHT

(for versions/markets, where provided)

85) 86)

Four different adjustments in height are

provided. To adjust, press button A

fig. 58 and raise or lower handle B.

Always adjust the height of the seat belt

to fit the person wearing it: this

precaution could greatly reduce the risk

of injury in the case of collision.

Correct adjustment is obtained when

the belt passes approximately half way

between the shoulder and the neck.

For some versions, front seat belts have

just one fixed anchor point located on

the door pillar.

WARNING

81) Never press button C fig. 55 when

travelling.

82) Remember that in the event of an

accident, the rear seat passengers not

wearing seat belts are exposed to a very

serious risk and also represent a serious

danger for the front seat occupants.

83) The rear central seat belt (for

versions/markets, where provided) is

provided with a service buckle. Do not use

the seat belt with the service buckle not

fastened. In this case there is a high risk of

injury or death in the event of an accident.

Before using the belt, always make sure

that the service buckle is correctly

fastened.

84) The rear left and right side belts are

provided with an adjustment device for the

metal tongue position (metal hook). Adjust

the tongue position with respect to the seat

belt to improve comfort and reduce noise

inside the passenger compartment.

85) Stop the vehicle to adjust the seat belt

height.

86) After height adjustment, make sure that

the cursor to which the ring is secured is

blocked in one of the preset positions.

To do this, with button A fig. 58 released,

exert further pressure downwards to allow

the locking device to click if the grip has

not been released in one of the possible

positions.

SBR (Seat Belt

Reminder) SYSTEM

The SBR system warns the passengers

of the front and rear (for versions/

markets, where provided) seats if their

seat belt is not fastened.

The system signals unfastened seat

belts with visual warnings (warning

lights on in the instrument panel and

icons on the display) and an acoustic

signal (see the following paragraphs).

Contact a Fiat Dealership to deactivate

this acoustic warning permanently.

The acoustic warning can be

reactivated at any time through the

display Setup Menu.

F1D0053

SAFETY

With driver and/or passenger side (with

passenger present) seat belts

unfastened, when 20 km/h are

exceeded or when travelling at a speed

between 10 and 20 km/h for longer

than 5 seconds, an acoustic signal

cycle will be started for the front seats

(continuous acoustic signal for 6

seconds followed by a 90 second

beep) and the warning light will flash.

Once the cycle is complete, the

warning lights stay on with a fixed light

until the vehicle is turned off or the

seat belt fastened.

If the seat belt is unfastened again while

travelling, the acoustic warning restarts

as described previously and the

icon

is displayed.

For the rear seats, the reminder cycle is

only activated when any seat belt is

unfastened together with an acoustic

warning (three beeps). If the condition

of any (front or rear) seat belt changes,

also the condition of the other

(front/rear) seat belts is reported.

The visual indication (display of the

icon) will start and stop

independently for each warning light if

several seat belts are unfastened.

The visual indication will change

condition (display of the

icon) after

the corresponding seat belt has been

fastened again.

IMPORTANT When the ignition key is

turned to MAR, if all the front and

rear belts are already fastened the

warning lights will be displayed for

30 seconds.

F1D0054

Seat belts warning light operation

The icons shown on the display

❒ 1: front left seat belt;

❒ 2: rear left seat belt;

❒ 3: rear central seat belt;

❒ 4: rear right seat belt;

❒ 5: front right seat belt;

❒ A: seat belt not fastened;

❒ B: seat belt fastened;

fig.59 indicate:

PRETENSIONERS

87) 88) 89) 90)

35)

The vehicle is equipped with front seat

belt pretensioners, which draw back

the seat belts by several centimetres in

the event of a strong frontal impact.

This guarantees the perfect adherence

of the seat belts to the occupant's

bodies before the retention action

begins.

It is evident that the pretensioners have

operated when the belt withdraws

towards the retractor. This vehicle is

also equipped with a second

pretensioner (in the kick plate area). Its

activation is signalled by the shortening

of the metal cable.

A slight discharge of smoke may be

produced during the activation of the

pretensioner which is not harmful and

does not involve any fire hazard.

If, due to unusual natural events (floods,

sea storms, etc.), the device has been

affected by water and/or mud, contact

a Fiat Dealership to have it replaced.

IMPORTANT To obtain the highest

degree of protection from the action of

the pretensioner, wear the seat belt

tight to the chest and pelvis.

LOAD LIMITERS

To increase occupant safety, the

retractors contain a load limiter to dose

the force acting on the chest and

shoulders during the belt restraining

action in the case of frontal collisions.

GENERAL

INSTRUCTIONS FOR

USING THE SEAT BELTS

The driver is responsible for respecting,

and ensuring that all the other

occupants of the vehicle also respect,

the local laws in force in relation to

the use of the seat belts. Always fasten

the seat belts before setting off.

Seat belts are also to be worn by

pregnant women: the risk of injury in

the case of impact is greatly reduced

for them and the unborn child if they

are wearing a seat belt. Pregnant

women must position the lower part of

the belt very low down so that it passes

over the pelvis and under the

abdomen (see fig. 60 ). While

pregnancy increases, the driver must

adjust both seat and steering wheel to

have full control over the vehicle (pedals

and steering wheel should be easily

accessed). The maximum clearance

should be kept between the abdomen

and the steering wheel.

The seat belt must not be twisted. The

upper part must pass over the shoulder

and cross the chest diagonally. The

lower part must adhere to the pelvis (as

shown in fig. 61) rather than the

abdomen of the occupant. Do not use

devices (clips, etc.) to hold the seat belt

away from your body.

F1D0123

F1D0124

SAFETY

Each seat belt must be used by only

one person. Never travel with a child

sitting on the passenger's lap and

a single belt to protect them both fig.62.

In general, do not place any objects

between the person and the belt.

MAINTENANCE OF THE

SEAT BELTS

For keeping the seat belts in efficient

conditions, carefully observe the

following warnings:

❒ always use the seat belt with the

strap well stretched and not twisted;

make sure that it is free to run without

obstructions;

❒ replace the belt after an accident of a

certain severity even if it does not

appear to be damaged. Always replace

the seat belt if the pretensioners were

deployed;

❒ prevent the retractors from getting

wet: their correct operation is only

guaranteed if water does not get inside

❒ replace the seat belt when it shows

wear or cuts.

WARNING

87) The pretensioner may be used only

once. Contact a Fiat Dealership to have it

replaced after it has been deployed.

88) For maximum safety, keep the backrest

upright, lean back into it and make sure

the seat belt fits closely across your chest

and pelvis. Always fasten the seat belts

on both the front and the rear seats!

Travelling without wearing seat belts will

increase the risk of serious injury and even

death in the event of an accident.

89) Removing or tampering with the seat

belt and pretensioner components is

strictly prohibited. Any intervention on

these components must be performed by

qualified and authorised technicians.

Always contact a Fiat Dealership.

90) If the belt has been sharply pulled, for

example as the result of an accident, the

seat belt, together with the anchoring

devices, the anchoring device fixing screws

and the pretensioner must be completely

replaced. Even if the belt does not present

any exterior signs of wear or damage, it

may have lost its restraining properties.

WARNING

35) Operations which lead to impacts,

vibrations or localised heating (over 100°C

for a maximum of six hours) in the area

around the pretensioner may damage or

deploy it. Contact a Fiat Dealership should

intervention be necessary on these

components.

F1D0125

CHILD PROTECTION

SYSTEMS

CARRYING CHILDREN

SAFELY

91) 92) 93) 94)

For optimal protection in the event of an

impact, all occupants must be seated

and wearing adequate restraint

systems, including newborn and other

children! This prescription is

compulsory in all EC countries

according to EC Directive 2003/20/EC.

Children below the height of 1.50

metres and up to 12 years must be

protected with suitable restraint

systems and be seated on the rear

seats.

Statistics on accidents indicate that the

rear seats offer greater safety for

children.

Compared with an adult, a child's head

is larger and heavier in proportion to

their body and the child's muscular and

bone structures are not fully developed.

Therefore, correct restraint systems

other than adult seat belts are

necessary to reduce as much as

possible the risk of injuries in the event

of an accident, braking or sudden

manoeuvre.

Children must be seated safely and

comfortably. Depending on the

characteristics of the child restraint

systems used, you are advised to keep

children in rearward facing child

restraint systems for as long as

possible (at least until 3–4 years old),

since this is the most protected position

in the event of an impact.

The choice of the most suitable child

restraint system depends on the weight

and size of the child. There are various

types of child restraint systems, which

can be secured to the vehicle by means

of the seat belts or with the ISOFIX

anchorages.

It is recommended to always choose

the restraint system most suitable

for the child; for this reason always refer

to the Owner Handbook provided with

the child restraint system, to be sure

that it is of the right type for the children

it is intended for.

In Europe the characteristics of child

restraint systems are ruled by the

regulation ECE-R44, dividing them into

five weight groups:

Group Weight range

Group0 upto10kg

Group 0+ up to 13 kg

Group 1 9 - 18 kg

Group 2 15 - 25 kg

Group 3 22 - 36 kg

All restraint devices must bear the

certification data, together with the

control mark, on a label solidly fixed to

the child restraint system which must

never be removed.

Lineaccessori MOPAR

includes child

restraint systems for each weight

group. These devices are

recommended having been specifically

designed for Fiat vehicles.

FITTING A CHILD

RESTRAINT SYSTEM

WITH SEAT BELTS

95) 96) 97)

The Universal child restraint systems

installed with the seat belts only are

type-approved on the basis of the ECE

R44 standard and are divided into

various weight groups.

IMPORTANT The figures are indicative

and provided for assembly purposes

only. Fit the child restraint system

according to the instructions, which

must be included.

SAFETY

IMPORTANT Following an accident of a

certain importance, it is recommended

to replace both the child restraint

system and the seat belt to which it

was bound.

Group 0 and 0+

Infants up to 13 kg must be carried with

a rearward facing child restraint system

of the type shown in fig. 63 which,

supporting the head, does not induce

stress on the neck in the event of

sudden decelerations.

The child restraint system is restrained

by the vehicle seat belts, as shown

in fig. 63 and it must restrain the child in

turn with its own belts.

Group 1

Children of weight from 9 to 18 kg may

be carried in forward facing position

fig. 64

Group 2

Children from 15 to 25 kg may use the

vehicle seat belts directly fig. 65.

In this case, the child restraint system is

used to position the child correctly

with respect to the seat belts so that

the diagonal belt section crosses the

child’s chest and not the neck, and the

lower part is snug on the pelvis not

the abdomen.

Group 3

For children between 22 kg and 36 kg,

there are boosters which allow the

seat belt to be worn correctly.

The fig. 66 shows the correct child

positioning on the rear seat.

Children over 1.50 m in height can wear

seat belts like adults.

F1D0055

F1D0056

F1D0057

F1D0058

PASSENGER SEAT COMPLIANCE WITH REGULATIONS ON UNIVERSAL CHILD

RESTRAINT SYSTEM USE

The vehicle complies with the new European Directive 2000/3/EC which governs the arrangement possibilities for child restraint

systems on the various seats of the vehicle as shown in the following table:

Positioning the “Universal” child restraint system

Group Weight range Front passenger

Rear central passenger

(for versions/markets,

where provided)

Rear side passengers

Group 0, 0+ up to 13 kg

UXU

Group 1 9 - 18 kg

UXU

Group 2 15 - 25 kg

UXU

Group 3 22 - 36 kg

UXU

U= suitable for child restraint systems in the "Universal" category, according to European Regulation EEC-R44 for the specified "Groups".

X = seat not suitable for children in this weight category.

SAFETY

(

) IMPORTANT: NEVER fit rearward facing child restraint systems on the front seat with an active passenger side airbag.

Deactivate the respective airbag to install a rearward facing child restraint system (see instructions in the “Supplementary Restraint

System (SRS) - Airbag” paragraph).

(*)

FITTING AN ISOFIX

CHILD RESTRAINT

SYSTEM

98) 99) 100) 101)

The vehicle is equipped with ISOFIX

anchorages, a new standard which

makes fitting a child restraint system

quick, simple and safe.

The ISOFIX system allows the ISOFIX

child restraint systems to be fitted,

without using the vehicle's seat belt,

but directly securing the child restraint

system to three anchorages present on

the vehicle. Traditional child restraint

systems can be fitted alongside ISOFIX

child restraint systems on different

seats in the same vehicle.

To install an ISOFIX child restraint

system, attach it to the two metal

anchorages A fig. 67 located where the

rear seat cushion meets the backrest,

then fix the upper strap (available

together with the restraint system) to

the dedicated anchorage B fig. 68

located at the bottom behind the

backrest.

For versions with sliding split rear seat,

use the suitable catches shown in

fig. 69 on the tube at the base of the

backrest.

fig. 70 shows an example of a Universal

ISOFIX child restraint system for weight

group 1.

IMPORTANT The fig. 70 is indicative

and for assembly purposes only. Fit the

child restraint system according to

the instructions, which must be

included.

IMPORTANT Following an accident of a

certain importance, it is recommended

to replace both the child restraint

system and the Isofix anchoring

devices.

F1D0060

F1D0061

F1D0062

F1D0059

SUITABILITY OF PASSENGER SEATS FOR ISOFIX CHILD RESTRAINT SYSTEM USE

The table below shows the various installation possibilities for ISOFIX child restraint systems on seats fitted with the specific

anchorages in accordance with European standard ECE 16.

Weight group Child seat position ISOFIX size class Rear side Isofix positions

Group 0 up to 10 kg Facing backwards E

IL (*)

Group 0+ up to 13 kg

Facing backwards E

IL (*)

Facing backwards D

IL (*)

Facing backwards C

Group1from9upto18kg

Facing backwards D

IL (*)

Facing backwards C

Facing forwards B

IUF

Facing forwards BI

IUF

Facing forwards A

IUF

IL: suitable for ISOFIX child restraint systems specific and approved for this type of car.

(*): the Isofix child seat can be installed by adjusting the front seat.

X: ISOFIX position not suitable for ISOFIX child seats in this group of weight and/or size class.

IUF: suitable for Isofix restraint systems to be positioned facing forwards, universal class (fitted with third upper mounting), approved for the relevant weight group.

NOTE When a Universal ISOFIX child restraint system is used, only ECE R44 "ISOFIX Universal” (R44/03 or further upgrades)

type-approved child restraint systems can be used.

The other weight groups are covered by specific ISOFIX child restraint systems, which can be used only if specifically tested for

this vehicle (see list of vehicles provided with the child restraint system).

IMPORTANT The rear central seat (for versions/markets where provided) and the passenger front seat are not approved for any

type of Isofix child restraint system.

SAFETY

CHILD RESTRAINT SYSTEMS RECOMMENDED BY FCA FOR YOUR PANDA

Lineaccessori MOPAR

includes a complete range of child restraint systems to be fixed using the three-point seat belt or the

ISOFIX anchorages.

Weight group Child restraint system Type of child restraint system Child restraint system installation

Group 0+: from birth

to 13 kg

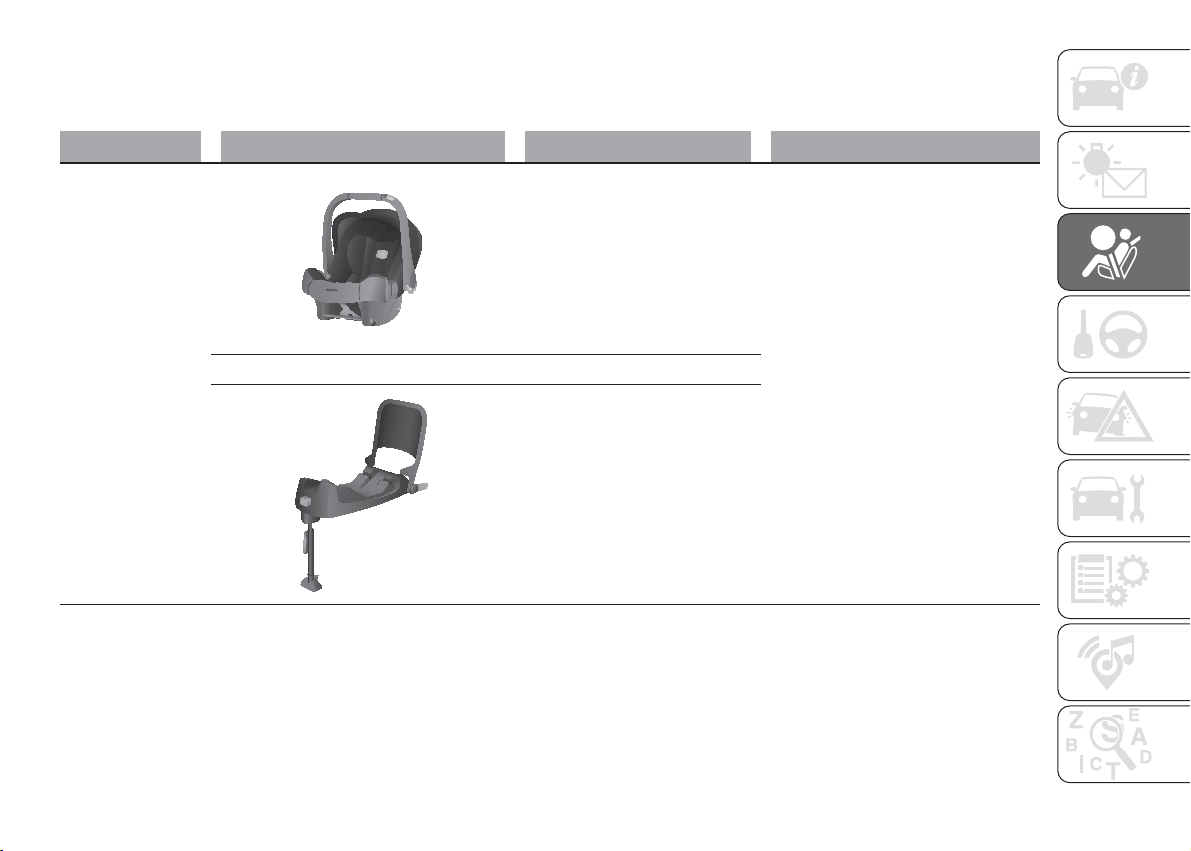

Britax Baby Safe plus

Type-approval number: E1

04301146

Fiat order code: 71806415

Universal/ISOFIX child restraint system.

It must be installed rear facing, using

the vehicle seat belts only, or the

dedicated ISOFIX base (which can be

purchased separately) and the vehicle

ISOFIX anchorages.

It must be fitted on the rear side seats.

Britax Baby Safe ISOFIX base

Fiat order code: 71806416

Weight group Child restraint system Type of child restraint system Child restraint system installation

Group 1: from 9 up

to 18 kg

Fair G0/1S

Type-approval number: E4

04443718

Fiat order code: 71807388

Universal/ISOFIX child restraint system.

It can be fitted forward facing/rear

facing using only the vehicle seat belts

or the ISOFIX anchorages.

FCA recommends fitting it using the

rear facing ISOFIX platform (RWF, "A"

type - to be purchased separately) or

the forward facing ISOFIX platform

(FWF, "M" type - to be purchased

separately), the rigid head restraint (to

be purchased separately) and the

ISOFIX anchorages for the vehicle.

It must be fitted on the rear side seats.

Fair ISOFIX RWF platform,

"A" type for G 0/1S

Fiat order code: 71805368

Fair ISOFIX FWF platform,

"M" type for G 0/1S

Fiat order code: 71806374

FAIR rigid head restraint

Fiat order code: 71807387

SAFETY

Weight group Child restraint system Type of child restraint system Child restraint system installation

Group 1: from 9 up

to 18 kg

Britax Safefix TT

Type-approval number: E1

04301199

Fiat order code: 71805956

It must be fitted forward facing only,

using the ISOFIX anchorages and the

upper strap, provided with the child

restraint system.

It must be fitted on the rear side seats.

Britax Roemer Duo Plus

Type-approval number: E1

04301133

Fiat order code: 71803161

It must be fitted forward facing only,

using the ISOFIX anchorages and the

upper strap, provided with the child

restraint system.

It must be fitted on the rear side seats.

Group 2: from 15 kg

to 36 kg

Fair Junior Fix

Type-approval number: E4

04443721

Fiat order code: 71806570

It can only be fitted forward facing,

using the three-point seat belt and the

ISOFIX anchorages of the vehicle, if

present in the selected position.

IMPORTANT FCA recommends fitting the child restraint system according to the instructions, which must be included.

Main recommendations to carry

children safely

❒ Install the child restraint systems on

the rear seat, which is the most

protected position in the event of an

impact.

❒ Keep children in rearward facing child

restraint systems for as long as

possible, until 3–4 years old if possible.

❒ Should a rearward facing child

restraint system be installed on the rear

seats, it is advisable to position it as

far forward as the position of the front

seat allows.

❒ If the passenger's front airbag is

deactivated, always check that the

warning light is on constantly in the

central dashboard, to make sure that it

has actually been deactivated.

❒ Carefully follow the instructions

supplied with the child restraint system.

Keep the instructions in the vehicle

along with the other documents and

this handbook. Do not use second-

hand child restraint systems without

instructions.

❒ Only one child is to be strapped into

each restraint system; never carry

two children using one child restraint

system.

❒ Always check that the seat belts do

not rest on the child’s neck.

❒ Always check that the seat belt is

well fastened by pulling on it.

❒ While travelling, do not let the child sit

incorrectly or unfasten the belts.

❒ Never allow a child to put the belt's

diagonal section under an arm or

behind their back.

❒ Never carry children on your lap,

even newborns. No one can hold

a child in the case of an accident.

❒ In the event of an accident, replace

the child restraint system with a new

one.

WARNING

91) SEVERE DANGER When a front

passenger airbag is fitted, do not install

rear facing child restraint systems on the

front passenger seat. Deployment of

the airbag in an accident could cause fatal

injuries to the child regardless of the

severity of the collision. It is advisable to

always carry children in a child restraint

system on the rear seat, which is the most

protected position in the event of an

impact.

92) On the sun visor there is a label with

suitable symbols reminding the user that it

is compulsory to deactivate the airbag if

a rearward facing child restraint system is

fitted. Always comply with the instructions

on the passenger's side sun visor (see

the "Supplementary Restraint System

(SRS) - Airbag" paragraph).

93) Should it be necessary to carry a child

on the passenger side front seat in a rear

facing child restraint system, the passenger

side front airbag and side bag must be

deactivated through the display main

menu, verifying deactivation by checking

that the

warning light has switched

on in the central part of the dashboard.

Move the passenger's seat as far back as

possible to avoid contact between the child

restraint system and the dashboard.

94) Do not adjust the front or rear seat if a

child is seated on it or on the dedicated

child restraint system.

95) Incorrect fitting of the child restraint

system may result in an inefficient

protection system. In the event of an

accident the child restraint system may

become loose and the child may be

injured, even fatally. When fitting a restraint

system for newborns or children, strictly

comply with the instructions provided

by the Manufacturer.

96) When the child restraint system is not

used, secure it with the seat belt or with

the ISOFIX anchorages, or remove it from

the vehicle. Do not leave it unsecured

inside the passenger compartment. In this

way, in the case of sudden braking or an

accident, it will not cause injuries to the

occupants.

97) After installing a child restraint system,

do not move the seat: always remove

the child restraint system before making

any adjustment.

SAFETY

98) Always make sure that the chest

section of the seat belt does not pass

under the arms or behind the back of the

child. In the event of an accident the seat

belt will not be able to secure the child,

with the risk of injury, including fatal injury.

Therefore the child must always wear

the seat belt correctly.

99) Do not use the same lower anchorage

to install more than one child restraint

system.

100) If a Universal ISOFIX child restraint

system is not fixed to all three anchorages,

it will not be able to protect the child

correctly. In a crash, the child could be

seriously or fatally injured.

101) Fit the child restraint system only

when the vehicle is stationary. The child

restraint system is correctly fixed to the

brackets when you hear the click. Follow

the instructions for assembly, disassembly

and positioning that the Manufacturer

must supply with the child restraint system.

SUPPLEMENTARY

RESTRAINT SYSTEM

(SRS) - AIRBAG

The vehicle is equipped with:

❒ front driver airbag;

❒ front passenger airbag;

❒ front side bags for pelvis, chest and

shoulder protection of driver and

passenger (for versions/markets, where

provided);

❒ side bags for head protection of front

seat passengers and rear side seat

passengers (window bag).

FRONT AIRBAGS

102)

The front (driver and passenger) airbags

protect the front seat occupants in the

event of head-on crashes of medium-

high severity, by placing the cushion

between the occupant and the steering

wheel or dashboard.

Therefore non-activation of airbags in

other types of collisions (side impacts,

rear shunts, roll-overs, etc.) does not

indicate a system malfunction.

Driver and passenger front airbags are

not a replacement of but

complementary to the seat belts, which

should always be worn, as specified

by law in Europe and most non-

European countries.

In the event of an impact, those not

wearing a seat belt are projected

forwards, and may come into contact

with the bag which is still inflating.

The protection offered by the bag is

compromised in these circumstances.

The front airbags may not activate in

the case of a frontal impact against

highly deformable objects not involving

the front surface of the vehicle (e.g.

wing collision against guard rail) or in

the case of the vehicle wedging under

other vehicles or protective barriers

(e.g. under trucks or guard rails).

Failure to activate in the conditions

described above is due to the fact that

they may not provide any additional

protection compared with seat belts, so

their activation would be inappropriate.

In these cases, non-deployment does

not indicate a system malfunction.

Passenger side front airbag

This consists of an instantly inflating

cushion contained in a special

compartment in the dashboard fig. 72:

this bag has a larger volume than

that of the driver's.

Passenger side front airbag and

child restraint systems

104)

Rearward facing child restraint systems

must NEVER be fitted on the front

seat with an active passenger side

airbag since in the event of an impact

the airbag activation may cause fatal

injuries to the transported child.

ALWAYS comply with the instructions

on the label stuck on the passenger

side sun visor fig. 73.

Deactivating the passenger side

airbags: front airbag and side bag

If a child must be carried on the front

seat in a rearward facing child restraint

system, deactivate the passenger

front airbag and the side bags. With

airbags deactivated, the

(A-fig. 74)

warning light turns on in the dashboard,

in central position. Use the display

Setup Menu to deactivate.

F1D0063

F1D0064

F1D0126

F0W0689

SAFETY

Driver's side front airbag

103)

This consists of an instantly inflating

cushion contained in a special

compartment in the centre of the

steering wheel fig. 71.

Passenger front airbag and child restraint system: WARNING

F1D0127

SIDE BAGS (Side bag -

Window bag)

To help increase occupants protection

in the event of a side impact, the

vehicle is equipped with front side bags

(for versions/markets, where provided)

and window bag (for versions/markets,

where provided).

Side bags protect occupants from

side-on crashes of medium/high

severity by placing the bag between the

occupant and the internal parts of the

side structure of the vehicle.

Non-activation of side bags in other

types of collisions (front collisions, rear

shunts, roll-overs, etc.) does not

indicate a system malfunction.

Side bags

(for versions/markets, where provided)

These comprise two types of bags

located in the front seat backrests fig.

76 which protect the pelvis, chest

and shoulder area of the occupants in

the event of a side impact of

medium/high severity.

Window bag

This consists of two "curtain" bags

housed behind the side upholstery of

the roof fig. 77 and covered with

finishing elements, which protect the

heads of front and rear occupants

in the event of a side impact.

The deployment of side bags in the

event of side impacts of low severity is

not required.

In the event of a side impact, the

system provides best protection if the

passenger sits on the seat in a correct

position, thus allowing correct window

bag deployment.

The window bag is not available for the

VAN version.

105) 106) 107) 108) 109) 110) 111) 112) 113) 114)

115) 116) 117)

Important

Do not wash the seats with water or

pressurised steam (wash by hand or at

automatic seat washing stations).

The front and/or side airbags

may activate in the event of sharp

impacts to the underbody of the vehicle

(e.g. impact with steps, pavements,

potholes or road bumps etc.).

When the airbag deploys it emits a

small amount of dust: the dust is

harmless and does not indicate the

beginning of a fire. The dust may irritate

the skin and eyes however: in this

case, wash with neutral soap

and water.

Airbag checking, repair and

replacement must be carried out at a

Fiat Dealership.

If the vehicle is scrapped, have the

airbag system deactivated at a Fiat

Dealership.

F1D0066

F1D0067

SAFETY

Pretensioners and airbags are deployed

in different ways on the basis of the

type of collision. Failure to deploy

of one of the devices does not

necessarily indicate a system

malfunction.

WARNING

102) Do not apply stickers or other objects

on the steering wheel, on the dashboard

in the passenger side airbag area, on

the side cover on the roof and on

the seats. Never put objects (e.g. mobile

phones) on the passenger's side

dashboard since they could interfere with

correct inflation of the airbag and also

cause serious injury to the passengers.

103) Always drive keeping your hands on

the steering wheel rim so that the airbag

can inflate freely if necessary. Do not drive

with your body bent forward. Keep your

back straight against the backrest.

104) When an active passenger airbag is

fitted, DO NOT install rearward facing child

restraint systems on the front seat.

Deployment of the airbag in an accident

could cause fatal injuries to the child

regardless of the severity of the impact.

Therefore, always deactivate the passenger

side airbag when a rearward facing child

restraint system is installed on the front

passenger seat. The front passenger seat

must also be positioned back as far as

possible in order to prevent the child

restraint system from coming into contact

with the dashboard. Immediately reactivate

the passenger airbag as soon as the child

restraint system has been removed.

105) Do not affix rigid objects to the coat

hooks or support handles.

106) Do not rest the head, arms or elbows

on the door, windows and window bag

area to avoid possible injuries during

inflation.

107) Never lean your head, arms and

elbows out of the window.

108) If the

warning light stays on whilst

driving, a fault may have occurred in the

restraint systems. In this case the airbags

or pretensioners may not be deployed

in an impact or, in a lower number of

cases, they may be deployed accidentally.

Before continuing, contact a Fiat

Dealership immediately to have the system

checked.

109) In the event of “yellow”

warning

light failure, the “red”

warning light

switches on and, for versions/markets

where provided, the explosive charges of

the passenger airbag and the side bags

are deactivated. When the "red" warning

light is on, before proceeding contact a Fiat

Dealership to have the system immediately

checked (see previous warning).

110) On vehicles with side bags, do not

cover the front seat backrests with extra

covers.

111) Do not travel carrying objects in your

lap, in front of your chest or between

your lips (pipe, pencils, etc.). They could

cause severe injury if the airbag is

deployed.

112) If the vehicle has been stolen or in the

case of attempt to steal it, if it has been

subjected to vandalism or floods, have the

airbag system checked by a Fiat

Dealership.

113) Airbags may be deployed if another

vehicle crashes into the vehicle, if the key is

inserted and at MAR even if the engine is

not running and the vehicle is stationary.

Therefore, even if the vehicle is stationary,

when an active front passenger airbag

is fitted, DO NOT install rearward facing

child restraint systems on the front

passenger seat. Deployment of the airbag

following an impact could cause fatal

injuries to the child. Therefore, always

deactivate the passenger side airbag when

a rearward facing child restraint system is

installed on the front passenger seat.

The front passenger seat must also be

positioned back as far as possible in order

to prevent the child restraint system from

coming into contact with the dashboard.

Immediately reactivate the passenger

airbag as soon as the child restraint system

has been removed. Also remember that, if

the key is turned to STOP, none of the

safety devices (airbags or pretensioners)

will be deployed in the event of collision.

Non-deployment in such cases does

not indicate a system malfunction.

114) The

airbag warning light indicates

the passenger protection status. If the

warning light is off, the passenger side

protection is activated. It can be

deactivated from the menu, in this case the

warning light comes on. When the vehicle

is started (ignition key in MAR position), the

warning light comes on for approx. 8

seconds, provided that at least 5 seconds

have elapsed from the previous switching

off. If this does not happen please contact

a Fiat Dealership. If the vehicle is switched

off/on again in less than 5 seconds the

warning light may remain off. In this case,

to check correct warning light operation,

switch the vehicle off, wait at least 5

seconds and switch on again. During the

first 8 seconds, the activation of the

warning light does not actually show the

passenger protection status, but only

checks its correct operation. The warning

light may light up with various intensity

levels depending on the vehicle conditions.

The intensity may also vary during the

same key cycle. (The warning light is tested

also for markets where the passenger

protection deactivation function is

not provided, and the warning light

switches on for less than one second when

the key is turned to MAR, then switches

off again.)

115) The front airbag deployment threshold

is higher than that of the pretensioners.

For collisions in the range between the two

thresholds, it is normal for only the

pretensioners to be activated.

116) The airbag does not replace seat

belts but increases their effectiveness.

Because front airbags are not deployed for

low-speed crashes, side collisions,

rear-end shunts or rollovers, occupants are

protected, in addition to any side bags,

only by their seat belts, which must

therefore always be fastened.

117) If the “red”

warning light does not

switch on for a few seconds when the

key is turned to MAR, there may be a fault

with the “red” warning light. In this case,

after a few seconds, the

warning light

starts flashing. Before proceeding, contact

a Fiat Dealership immediately to have the

system checked.

SAFETY

STARTING AND DRIVING

Let’s get to the "heart" of the vehicle:

seeing how you can exploit all of its

potential to the full.

We’ll look at how to drive it safely in any

situation, so that it can be a welcome

companion, with our comfort and

our wallets in mind.

STARTING THE ENGINE ................. 92

HANDBRAKE.................................. 93

MANUAL GEARBOX ....................... 94

DUALOGIC GEARBOX.................... 9

STOP/START SYSTEM ................... 96

PARKING SENSORS....................... 96

MODE SELECTOR.......................... 98

TOWING TRAILERS ........................

REFUELLING THE VEHICLE ...........

STARTING THE

ENGINE

118) 119)

36) 37) 38) 39)

Before starting the engine, adjust the

seat, the interior rear view mirrors,

the door mirrors and fasten the seat

belt correctly.

Never press the accelerator pedal for

starting the engine.

VERSIONS WITH MANUAL

GEARBOX

Petrol versions

Proceed as follows:

❒ engage the handbrake and place the

gear lever in neutral. For 0.9 TwinAir

and 0.9 TwinAir Turbo versions

engage the handbrake and place the

gear lever in neutral or fully press the

clutch pedal if a gear other than neutral

is engaged;

❒ for all versions (except 0.9

TwinAir Turbo) fully depress the clutch

pedal, without pressing the accelerator;

❒ turn the ignition key to AVV and

release it as soon as the engine starts.

Diesel versions

Proceed as follows:

❒ engage the handbrake, put the gear

lever into neutral and turn the ignition

key to MAR: the warning lights

and on the instrument panel

will turn on;

❒ wait for the warning lights

and

to turn off and then fully depress

the clutch pedal without pressing the

accelerator;

❒ turn the ignition key to AVV as soon

as warning light

switches off.

Release the ignition key as soon as the

engine starts.

IMPORTANT If the engine does not

start at the first attempt, return the

ignition key to STOP before repeating

the procedure. If, with the ignition

key at MAR, the warning lights

and

(only for petrol versions) stay on

in the instrument panel, the ignition key

must be brought back to STOP and

then to MAR again. If the

warning

light stays on, retry with the other

keys provided. Contact a Fiat

Dealership if you still cannot start the

engine.

VERSIONS WITH

DUALOGIC GEARBOX

120)

Engine starting is allowed both with a

gear engaged and with the gearbox

in neutral (N).

However, the brake pedal must always

be pressed first if neutral is not

engaged. It is therefore advisable to

place the gear lever in neutral (N) before

starting the engine.

LPG AND NATURAL

POWER VERSIONS

The engine always starts up on petrol

independently of the mode previously

selected.

40)

STOPPING THE ENGINE

41)

Turn the ignition key to STOP while the

engine is idling.

IMPORTANT After a demanding drive,

before turning the engine off you should

allow it to idle to allow the temperature

in the engine compartment to

decrease.

STARTING AND DRIVING

WARNING

118) It is dangerous to run the engine in

enclosed areas. The engine takes in

oxygen and releases carbon dioxide,

carbon monoxide and other toxic gases.

119) Remember that the brake servo

and power steering are not operational until

the engine has been started, therefore

you need to apply much more force than

usual to the brake pedal and steering

wheel.

120) If the engine fails to start with a gear

engaged, the potentially dangerous

situation due to the fact that the gearbox is

automatically placed in neutral will be

signalled by an acoustic signal.

WARNING

36) If the warning light flashes for 60

seconds after starting or during an

extended towing period, this indicates a

problem in the glow plug preheating

system. You can use the vehicle as usual if

the engine starts but you should contact

a Fiat Dealership as soon as possible.

37) It is advisable not to demand maximum

performance from your vehicle (e.g.

excessive acceleration, long distances at

maximum rpm, excessively intense braking,

etc.) when it is first used.

38) When the engine is off, do not leave

the key turned to MAR to prevent

unnecessary electrical consumption from

draining the battery.

39) Never bump start the engine by

pushing, towing or coasting downhill. This

could cause fuel to flow into the catalytic

converter and damage it beyond repair.

40) There must therefore always be some

petrol in the tank to protect the petrol

pump and to guarantee temporary

switching from LPG or Methane to petrol

operation, if high performance is required.

41) A quick burst on the accelerator

before stopping the engine serves no

practical purpose; it wastes fuel and is

especially damaging to turbocharged

engines.

HANDBRAKE

121) 122) 123)

The handbrake lever is located between

the two front seats.

Handbrake engagement: pull lever A

fig. 78 upwards until the vehicle is

braked.

Handbrake disengagement: slightly

raise lever A and hold button B pressed

checking that the

warning light

switches off in the instrument panel.

F1D0068

WARNING

121) Never leave children unattended in

the vehicle. Always remove the key from

the ignition device when leaving the vehicle

and take it with you.

122) The vehicle should be braked after a

few clicks of the lever, if it is not, contact

a Fiat Dealership to have it adjusted.

123) In the case of parking manoeuvres on

roads on a gradient, the front wheels

must be steered towards the pavement

(when parking downhill), or in the opposite

direction if the vehicle is parked uphill. If

the vehicle is parked on a steep slope, it is

also advisable to block the wheels with a

wedge or stone.

MANUAL GEARBOX

124) 42)

To engage the gears, press the clutch

pedal fully and put the gear lever into

the required position (the diagram

for gear engagement is shown on the

knob fig. 79).

For 0.9 TwinAir, 0.9 TwinAir Turbo and

1.2 8v 69 HP versions: to engage

reverse R from neutral, raise ring A fig.

79 underneath the knob and, at the

same time, shift the lever to the right

and then backwards.

For version 1.3 16v MultiJet : to engage

reverse R from neutral position, shift

the lever to the right and then back.

IMPORTANT Reverse can only be

engaged when the vehicle is completely

stationary. With the engine running,

wait for at least 2 seconds with the

clutch pedal fully pressed before

engaging reverse to prevent damage to

the gears and grating.

IMPORTANT The clutch pedal should

be used only for gear changes. Do

not drive with your foot resting on the

clutch pedal, however lightly. For

versions/markets where provided, the

electronic clutch pedal control could cut

in, interpreting the incorrect driving

style as a fault.

WARNING

124) Depress the clutch pedal fully to

change gear correctly. It is therefore

essential that there is nothing under the

pedals: make sure the mats are lying

flat and do not get in the way of the

pedals.

WARNING

42) Do not drive with your hand resting on

the gear lever as the force exerted, even

if slight, could lead over time to premature

wear of the internal gearbox components.

F1D0069

STARTING AND DRIVING

DUALOGIC

GEARBOX

(for versions/markets, where provided)

43)

The vehicle can be equipped with an

electronically controlled manual

gearbox known as Dualogic which

allows two operating modes: MANUAL

and AUTO.

GEAR LEVER

The gear lever A fig. 80, located on the

dashboard, is floating multistable type,

i.e. it has three stable positions and

three unstable positions.

The three stable positions correspond

to neutral (N), reverse (R) and the

central position located between the

unstable positions (+) and (-).

F1D0107

The unstable positions, in other words

those that are abandoned as soon

as the lever is released, are the

positions for requesting a higher gear

(+), requesting a lower gear (–) and

requesting automatic operating mode

(A/M).

IMPORTANT With the engine started,

any error between the lever position

and the gear actually engaged is

signalled by a buzzer until consistency

is restored.

MANUAL MODE

Proceed as follows:

❒ press the brake pedal and start the

engine;

❒ if AUTO appears on the display,

move the lever A fig. 80 to A/M

to select MANUAL mode;

❒ push gear lever A towards (+) to

engage first gear (if starting from N or

R, simply place the lever in the middle

position) or R to engage reverse;

❒ release the brake pedal and press

the accelerator pedal;

❒ in driving conditions, push lever A of

the gearbox towards (+) to engage

the next gear up or towards (–) to

engage the next gear down.

AUTOMATIC MODE

Proceed as follows:

❒ press the brake pedal;

❒ start the engine;

❒ if AUTO does not appear on the

display, move the gear lever A fig. 80 to

A/M to select AUTOMATIC mode;

❒ push the gear lever towards (+) to

engage 1st gear (if starting from N or R,

simply place the lever in the middle

position) or R to engage reverse;

❒ release the brake pedal and press

the accelerator pedal: the gear most

suited to the vehicle speed will be

engaged.

AUTO-ECO OPERATION

To activate the function press the ECO

button fig. 81 on the central tunnel.

The ECO function can be only activated

only with automatic mode active.

F1D0108

With the ECO function active, the

system will select the most suitable

gear depending on the vehicle speed,

engine rpm and intensity with which the

accelerator pedal is pressed, with the

aim of limiting fuel consumption.

“Kick Down” FUNCTION

(for versions/markets, where provided)

If necessary (e.g. when overtaking),

the system downshifts one or more

gears when the accelerator pedal

is depressed beyond the point where it

becomes stiff (and if the rpm allow it)

in order to provide suitable power and

torque for the acceleration requested

by the driver.

IMPORTANT The use of the “Kick

Down” function is recommended only

when overtaking or accelerating quickly,

in order not to increase fuel

consumption.

WARNING

43) Avoid keeping your hand on this lever

except during gear change or AUTO/

MANUAL mode requests.

STOP/START

SYSTEM

125) 126) 44)

The Stop/Start system automatically

stops the engine when the vehicle

is stationary and starts it again when

the driver wants to move off. This

reduces consumption, the emission of

harmful gases and noise pollution.

OPERATING MODE

Engine stopping mode: with the

vehicle stopped, the engine stops with

gearbox in neutral and clutch pedal

released.

Note The engine can only be stopped

automatically after exceeding a speed

of about 10 km/h, to prevent the engine

from being repeatedly stopped when

driving at walking pace.

Restarting the engine: press the

clutch pedal to restart the engine.

MANUAL SYSTEM

ACTIVATION/

DEACTIVATION

To activate/deactivate the system

manually, press the

fig. 82 button on

the dashboard control trim.

LED off: system deactivated.

LED on: system deactivated.

WARNING

125) If the battery needs to be replaced,

always contact a Fiat Dealership. The

replacement battery should be of the same

type (HEAVY DUTY) and should have the

same characteristics.

126) Before opening the bonnet, make

sure that the engine is off and that the

ignition key is in the STOP position. Please

follow the instructions on the decal near

the front crossmember. We recommend

that you remove the key from the ignition if

other people remain in the vehicle. Exit

from the vehicle only after having removed

the ignition key or having rotated it to the

STOP position. During refuelling, make sure

that the engine is off and that the ignition

key is in the STOP position.

F1D0040

STARTING AND DRIVING

WARNING

44) If climate comfort is to be favoured, the

Stop/Start system can be disabled, for a

continuous operation of the climate control

system.

PARKING SENSORS

127) 45)

SENSORS

The sensors are located in the rear

bumper fig. 83 and their function is to

detect the presence of any obstacles

near the rear part of the vehicle and

inform the driver, through an

intermittent acoustic signal.

ACTIVATION/

DEACTIVATION

The sensors are automatically activated

when reverse is engaged. As the

obstacle behind the vehicle gets closer,

the acoustic signal becomes more

frequent.

F1D0045

OPERATION WITH A

TRAILER

Sensor operation is automatically

deactivated when the trailer's electric

cable plug is fitted in the vehicle's

tow hook socket. The sensors are

automatically reactivated when the

trailer's cable plug is removed.

IMPORTANT

INFORMATION

When parking, take the utmost care

over obstacles that may be above

or under the sensor.

Objects close to the vehicle are not

detected under certain circumstances

and could therefore cause damage

to the vehicle or be damaged.

The following conditions may influence

the performance of the parking

assistance system:

❒ the presence of ice, snow, mud or

multiple layers of paint on the surface of

the sensor may reduce its sensitivity

and the system performance;

❒ mechanical interference (e.g. washing

the vehicle, rain, strong wind, hail) may

cause the sensor to detect a

non-existent obstacle ("echo

interference");

❒ the presence of ultrasonic systems

(e.g. pneumatic brake systems of

trucks or pneumatic drills) near the

vehicle could alter the signals sent to

the sensor;

❒ the variation in sensor position,

caused by variation in ride (due

to suspension or shock absorber wear),

changing tyres, overloaded vehicle, or

tuning that lowers the vehicle, for

example, may affect parking sensor

system performance;

❒ the presence of a tow hook without

trailer interferes with the correct

operation of the parking sensors. If a

fixed tow hook is installed, the sensors

cannot be used. If the customer installs

a removable tow hook, this must

always be disconnected from

the crossmember whenever the trailer

is not attached to prevent the activation

of the sensors.

WARNING

127) The responsibility for parking and

other dangerous manoeuvres always and

in every case lies with the driver. While

carrying out these manoeuvres, always

make sure that no people (especially

children) or animals are in the area

concerned. The parking sensors are used

to assist the driver, who must never allow

his attention to lapse during potentially

dangerous manoeuvres, even those

executed at low speeds.

WARNING

45) The sensors must be clean of mud,

dirt, snow or ice in order for the system to

operate correctly. Be careful not to scratch

or damage the sensors while cleaning

them. Avoid using dry, rough or hard

cloths. The sensors must be washed using

clean water, with the addition of vehicle

shampoo if necessary. When using special

washing equipment such as high pressure

jets or steam cleaning, clean the sensors

very quickly keeping the jet more than

10 cm away.

MODE SELECTOR

(Panda Cross versions)

This device allows, using the ring nut of

the knob fig. 84 (on the central tunnel),

three vehicle response modes to be

selected according to driving style and

road conditions:

❒ 1 = AUTO mode;

❒ 2 = OFF ROAD mode;

❒ 3 = HDC function.

The ring nut is monostable type. In

other words, it always remains in a

central position. The selected driving

mode is indicated by the corresponding

LED switching on the knob and by an

indication on the display.

F1D0116

STARTING AND DRIVING

"AUTO" MODE

It is a driving mode aimed at comfort

and safety in normal grip and driving

conditions.

"OFF ROAD" MODE

It is a driving mode aimed at setting off

in poor grip conditions on low-grip

road surfaces (e.g. snow, ice, mid, etc.).

Engagement

Rotate the ring nut fig. 84 to the right

and hold in this position for half a

second, until the corresponding LED

lights up and “Off Road” mode

activation indicator appears on the

display with a dedicated message.

When the "Off Road" mode is activated,

the presetting for ELD system

intervention activates automatically.

IMPORTANT When the "Off Road"

mode is activated, the Stop/Start

system is temporarily disabled.

Temporary deactivation of the system

switches on the corresponding LED on

the trim (located on the central

dashboard). To activate the Stop/Start

function, with "Off Road" mode on,

press the

button on the dashboard

trim. However, when the "Off Road"

mode is deactivated, the Stop/Start

system is enabled again.

IMPORTANT When the "Off Road"

mode is activated, the City Brake

Control system is temporarily

deactivated. Temporarily deactivation of

the system results in the switching on

of the

warning light on the

instrument panel. When the "Off Road"

mode is deactivated, the City Brake

Control system is enabled again.

Disengagement

To deactivate the "Off Road" mode and

return to the "Auto" mode, rotate the

ring nut to the left and hold in this

position for half a second. In this case,

the LED corresponding to “Auto” mode

will light up and the “Off Road” mode

deactivation indication will appear

on the display.

IMPORTANT If “Off Road” or “Auto”

mode was active when the engine was

stopped, the next time it is started

the mode that was selected is

reactivated.

"HDC" FUNCTION

This driving function permits a constant

vehicle speed to be maintained

downhill.

Engagement/Disengagement

For engaging/disengaging the HDC

function refer to the "Active safety

systems" paragraph in the "Safety"

chapter.

FAILURE OF THE MODE

SELECTOR SYSTEM

IMPORTANT In the event of system

failure or a fault with knob, no driving

modes can be selected. The display will

show a dedicated message.

IMPORTANT In this case it is not

advisable trying to drive down roads

with a steep gradient, the system

cannot help the driver in any way.

TOWING TRAILERS

128) 129)

IMPORTANT

For towing motorhomes or trailers the

vehicle must be fitted with an approved

tow hook and an adequate electrical

system. Installation must be carried out

by a specialist.

Install any specific and/or additional

door mirrors as specified by the

Highway Code.

Remember that when towing a trailer,

steep hills are harder to climb, braking

distances increase and overtaking

takes longer depending on the overall

weight of the trailer.

Engage a low gear when driving

downhill, rather than constantly using

the brake.

The weight the trailer exerts on the

vehicle tow hook reduces the vehicle's

loading capacity by the same amount.

To make sure that the maximum

towable weight is not exceeded (given

in the vehicle registration document)

account should be taken of the fully

laden trailer, including accessories and

luggage.

Do not exceed the speed limits specific

to each country you are driving in, in

the case of vehicles towing trailers.

In any case, the top speed must not

exceed 100 km/h.

An electric brake (or electric winch)

should be supplied directly by the

battery through a cable with a cross

section of no less than 2.5 mm

In addition to the electrical branches,

the vehicle electrical system can only

be connected to the supply cable for an

electric brake and to the cable for an

internal light for the trailer, not

exceeding 15 W. For connections, use

the preset control unit with a battery

cable with section not less than 2.5

On Panda Cross and Panda 4x4

versions, in the event of prolonged

vehicle use at maximum tow capacity

on slopes, replacing engine oil more

frequently (every 10,000 km) is

advisable.

IMPORTANT The use of auxiliary loads

other than external lights (electric brake,

winch, etc.) must be used with engine

running.

IMPORTANT To install a tow hook

contact a Fiat Dealership.

WARNING

128) The ABS with which the vehicle is

equipped will not control the braking

system of the trailer. Particular caution is

required on slippery roads.

129) Never modify the braking system of

the vehicle to control the trailer brake.

The trailer braking system must be fully

independent of the vehicle’s hydraulic

system.

REFUELLING THE

VEHICLE

130) 131) 132)

Always stop the engine before

refuelling.

PETROL ENGINES

Use unleaded petrol only, with an

octane number (R.O.N.) no lower than

95. Never introduce even the smallest

amount of leaded petrol, even in the

event of an emergency, in order to

prevent damage to the catalytic

converter.

DIESEL ENGINES

Only use Diesel for motor vehicles (EN

590 specification).

When using or parking the car for a

long time in the mountains or cold

areas, it is advisable to refuel using

locally available diesel. In this case, it is

also advisable to keep the tank over

50% full.

100

STARTING AND DRIVING

Diesel and petrol versions

The refuelling procedure described

below is illustrated on the label B fig. 85

located inside the fuel flap. The label

also indicates the fuel type (UNLEADED

FUEL=petrol, DIESEL=diesel fuel).

To refuel proceed as follows:

❒ open the flap A fig. 85 pulling it

outwards;

❒ introduce the dispenser in the filler

and refuel;

❒ at the end of refuelling, before

removing the dispenser, wait for at least

10 seconds in order for the fuel to

flow inside the tank;

❒ then remove the dispenser from the

filler and close flap A.

Flap A fig. 85 is provided with a dust

cover gaiter C which prevents deposits

of impurities and dust at the end of

the filler when the flap is closed.

Emergency refuelling

Proceed as follows:

❒ open the luggage compartment and

take the adapter B fig. 86 located in the

tool box (versions equipped with

space-saver wheel - for versions/

markets, where provided) or in the

Fix&Go Automatic container (versions

equipped with Fix&Go Automatic);

❒ open the flap A pulling it outwards;

❒ introduce the adapter B in the filler

and refuel;

F1D0047

F1D0048

REFUELLING

PROCEDURE

46)

❒ after refuelling, remove the adapter

and close the flap, then reintroduce the

adapter in its casing and put it back

in the luggage compartment.

LPG versions

To access the LPG filler, open the

access flap A fig. 87 and undo the cap

Observe the following precautions

during the refuelling operation:

❒ switch off the engine;

❒ apply the handbrake;

❒ turn the ignition key to STOP;

❒ do not smoke;

❒ hand the special filler adapter A fig.

88 over to the qualified LPG refuelling

personnel.

F1D0114

101

IMPORTANT Depending on the country,

there are various types of adapters for

LPG refuelling pumps. Filler adapter,

supplied with the vehicle and located in

a special case, is specifically designed

for the country in which the vehicle is

sold. If you are in a different country,

find out what type of adaptor is used

there.

Natural Power versions

47)

To access filler B fig. 89, open the flap

and undo cap A turning it

counterclockwise.

The profile of filler B for refilling is the

universal type, compatible with Italian

and NGV1 standards. In some

European countries adapters are

considered ILLEGAL (e.g. in Germany).

WARNING

130) Do not apply any object/cap to the

end of the filler which is not provided

for the vehicle. The use of non-compliant

objects/caps could cause a pressure

increase inside the tank, resulting in

dangerous situations.

F1D0115

F1D0110

131) Do not bring naked flames or lit

cigarettes near to the fuel tank opening: fire

risk. Keep your face away from the fuel

filler to prevent breathing in harmful

vapours.

132) Do not use a mobile phone near the

refuelling pump: risk of fire.

WARNING

46) The vehicle must only be filled with

diesel fuel for motor vehicles, in

compliance with European Standard EN

590. The use of other products or mixtures

may damage the engine beyond repair

and consequently invalidate the warranty,

due to the damage caused. If you

accidentally refuel with another type of fuel,

do not start the engine, and drain the

tank. If the engine has run, even for a very

short time, you will need to have the entire

fuel supply system emptied in addition to

the tank.

47) The other plates (provided with the

vehicle documents) show the date when

the first cylinder inspection/test is due.

Methane refuelling stations are not

authorised to refill the cylinders when the

inspection date has expired.

IN AN EMERGENCY

A punctured tyre or a burnt-out bulb?

At times, a problem may interfere

with our journey.

The pages on emergencies can help

you to deal with critical situations

independently and with calm.

In an emergency we recommend that

you call the freephone number found in

the Warranty Booklet.

It is also possible to call the national or

international universal freephone

number to search for the nearest

Dealership.

HAZARD WARNING LIGHTS...........103

REPLACING A BULB ......................10

REPLACING FUSES........................109

CHANGING A WHEEL ....................112

"FIX&GO AUTOMATIC" KIT .............11

JUMP STARTING ............................117

FUEL CUT-OFF SYSTEM ................119

TOWING THE VEHICLE ..................119

102

IN AN EMERGENCY

HAZARD WARNING

LIGHTS

Press button A fig. 90 to switch the

lights on/off. Warning lights

and in

the instrument panel are lit up when

the lights are ON.

IMPORTANT The use of hazard warning

lights is governed by the highway

code of the country you are driving in:

comply with legal requirements.

Emergency braking

In the event of emergency braking the

hazard warning lights switch on

automatically as well as the

and

warning lights in the instrument

panel. The lights switch off

automatically when emergency braking

ceases.

REPLACING A BULB

133) 134) 48) 49)

GENERAL

INSTRUCTIONS

❒ Before changing a bulb check the

contacts for oxidation;

❒ burnt bulbs must be replaced by

others of the same type and power;

❒ after replacing a headlight bulb,

always check its alignment;

❒ when a light is not working, check

that the corresponding fuse is intact

before changing a bulb. For the location

of fuses, refer to the paragraph “If a

fuse blows” in this section;

IMPORTANT When the weather is cold

or damp or after heavy rain or washing,

the surface of headlights or rear lights,

may steam up and/or form drops of

condensation on the inside. This is

a natural phenomenon due to the

difference in temperature and humidity

between the inside and the outside

of the glass which does not indicate a

fault and does not compromise the

normal operation of lighting devices.

The mist disappears quickly when the

lights are turned on, starting from

the centre of the diffuser, extending

progressively towards the edges.

F1D0023

103

Bulbs Type Power

Dipped/main beam headlights H4 55 W

Front side lights/Day lights (DRL) P21/5W 21 W

Rear side lights P21/5W 5 W

Front direction indicators PY21W 21 W

Side direction indicators W5W 5 W

Rear direction indicators PY21W 21 W

Brake lights P21/5W 21 W

Third brake light LED -

Fog lights H11 55 W

Reverse W16W 16 W

Rear fog light W16W 16 W

Number plate C5W 5 W

104

IN AN EMERGENCY

FRONT LIGHT CLUSTERS

(except Panda Cross versions)

The bulbs are arranged inside the front

light cluster fig. 91 as follows:

A - Dipped beam/main beam

headlights/direction indicators;

B - Daytime running lights (DRL);

C - Fog lights.

FRONT LIGHT CLUSTERS

(Panda Cross versions)

On the Panda Cross versions, the bulbs

are arranged inside the front light

cluster fig. 92 as follows:

A - Dipped beam/main beam

headlights/direction indicators;

B - Fog lights;

C - Daytime Running Lights (DRL).

DIPPED/MAIN BEAM

HEADLIGHTS

To replace the bulb, proceed as follows:

❒ remove cover A fig. 93;

❒ push the connector + bulb holder

unit B fig. 94 downwards;

❒ remove the bulb C from connector D

and replace it;

❒ refit the new bulb on the connector

making sure that it is locked correctly,

then reinsert the connector unit and the

bulb holder B in its housing;

❒ then refit the cover A.

DIRECTION INDICATORS

Front

To replace the bulb, proceed as follows:

❒ remove cover B fig. 93;

❒ turn the bulb holder anticlockwise,

extract the bulb and replace it;

❒ refit the new bulb on the connector

making sure that it is locked correctly,

then reinsert the connector in its

housing rotating it clockwise;

F1D0134

F1D0117

F1D0079

F1D0080

105

❒ turn the bulb holder C anticlockwise,

extract the bulb and replace it;

❒ refit the bulb holder C in the lens and

turn it clockwise;

❒ refit the unit making sure that the

internal clip B clicks into position.

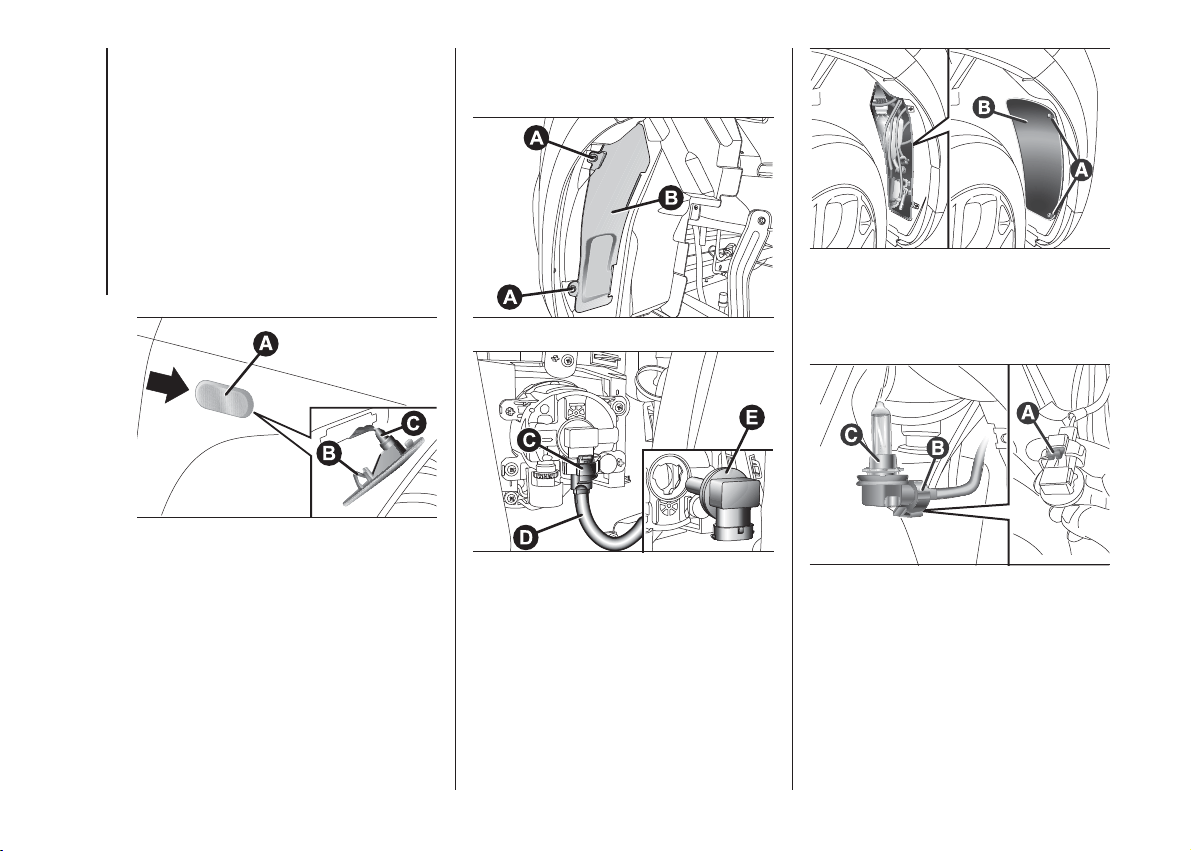

FOG LIGHTS

(for versions/markets, where provided -

except Panda Cross versions)

To replace the bulb, proceed as follows:

❒ steer the wheel completely inwards,

adjust the screws A fig. 96 and remove

the flap B;

❒ adjust the clip C fig. 97 and

disconnect the electrical connector D;

❒ rotate and remove the bulb holder

E, release and replace the bulb;

❒ refit the new lamp and carry out the

procedure described previously in

reverse.

FOG LIGHTS

(Panda Cross versions)

To change the fog light bulb, proceed

as follows:

❒ steer both the wheels completely,

loosen the screws A fig. 98 and remove

the guard flap B;

❒ locate the fog light unit, rotate it

anticlockwise by a quarter of a turn and

remove it;

❒ lift the lever A fig. 99 and disconnect

the connector B from the bulb-bulb

holder assembly C;

❒ replace the bulb-bulb holder

assembly C;

❒ reconnect the assembly to connector

B, reposition assembly C in its housing

by rotating it clockwise by a quarter of a

turn, until it clicks into the correct

position;

F1D0081

F1D0082

F1D0083

F1D0118

F1D0119

106

IN AN EMERGENCY

Side

To replace the bulb, proceed as follows:

❒ adjust the lens A fig. 95 to compress

in the clip B, then pull the cluster

outwards;

❒ reposition the guard door B fig. 98,

taking care that the tabs are positioned

in their housings and tighten the fixing

screws A.

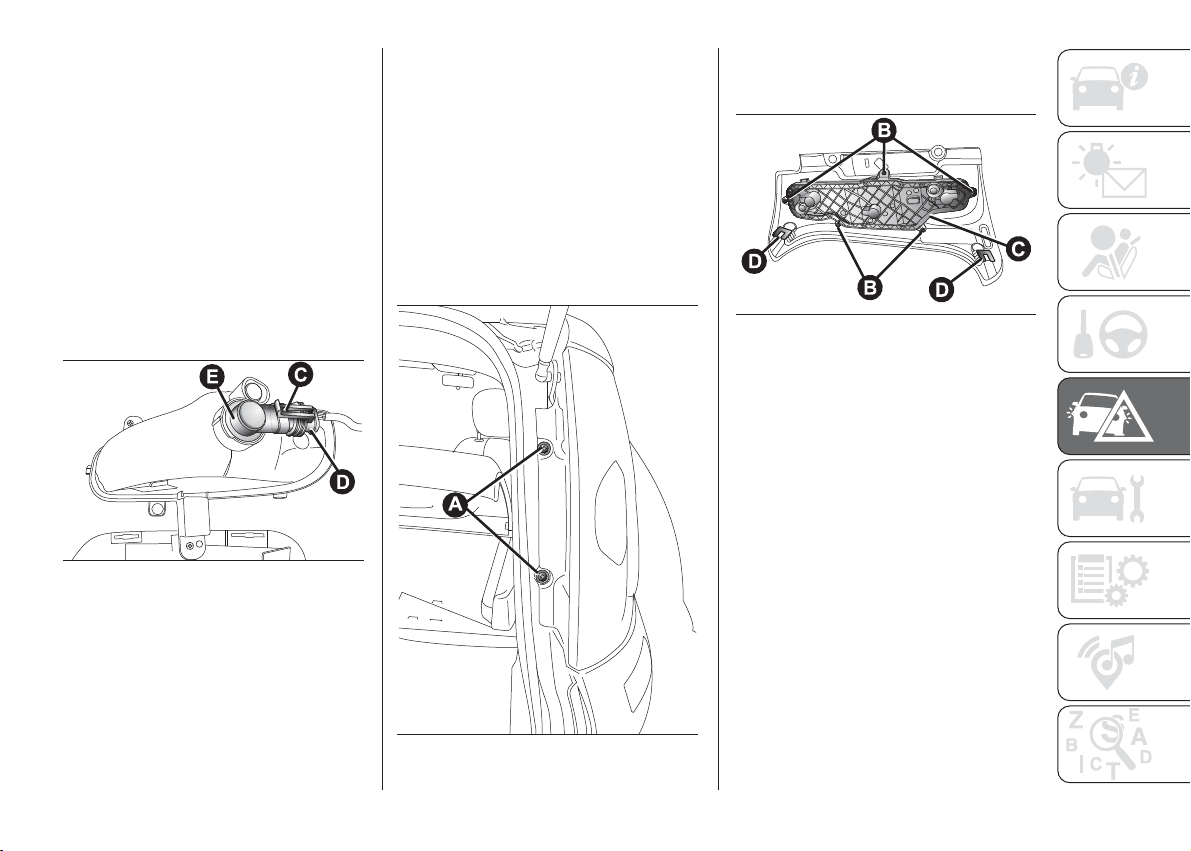

SIDE LIGHTS/DAYTIME

RUNNING LIGHTS (DRL)

(for versions/markets, where provided -

except Panda Cross versions)

To replace the bulb, proceed as follows:

❒ steer the wheel completely, adjust

the screws A fig. 96 and remove the

flap B;

❒ adjust the clip C fig. 100 and

disconnect the electrical connector D;

❒ rotate and remove the bulb holder

E, release and replace the bulb;

❒ refit the new lamp and carry out the

procedure described previously in

reverse.

DAYTIME RUNNING

LIGHTS (DRL)

(Panda Cross versions)

IMPORTANT To change LED DRLs

contact a Fiat Dealership.

REAR LIGHT CLUSTERS

These contain the bulbs for the side

lights, brake lights and direction

indicators.

To replace the bulb proceed as follows:

❒ undo the two screws A fig. 101

from their seats, pull gently outwards

until releasing the whole headlight from

the two clips (press-fitted D fig. 102 )

and release the connector;

❒ refit the new lamp and carry out the

procedure described previously in

reverse.

100

F1D0084

101

F1D0085

107

❒ undo the five screws B from their

seats and remove the bulb holder C;

❒ remove the bulbs, pushing them

slightly and turning them anti-

clockwise;

102

F1D0086

❒ adjust the clip C fig. 104 and

disconnect the electrical connector D;

❒ turn the bulb holder E and remove

it, extract the bulb and replace it;

❒ refit the new lamp and carry out the

procedure described previously in

reverse.

THIRD BRAKE LIGHTS

These are located in the tailgate and

are LED lights. For replacement,

contact a Fiat Dealership.

NUMBER PLATE LIGHTS

To replace the bulbs proceed as

follows:

❒ remove lens A fig. 105;

❒ replace the bulb A fig. 106, releasing

it from the side contacts;

❒ Insert the new bulb and make sure

that it is correctly clamped between the

contacts, then refit the lens A fig. 106.

WARNING

133) Modifications or repairs to the electric

system that are not carried out properly

or do not take the system technical

specifications into account can cause

malfunctions leading to the risk of fire.

134) Halogen bulbs contain pressurised

gas; in the case of breakage they may

burst.

135) Before replacing the bulb, wait for the

catalytic converter to cool down: RISK

OF BURNS.

103

F1D0087

104

F1D0088

105

F1D0089

106

F1D0090

108

IN AN EMERGENCY

REVERSING LIGHT/REAR

FOG LIGHT

135)

The reversing lights and rear fog lights

are located in the rear bumper.

To replace the bulb, proceed as follows:

❒ adjust the tabs A and remove the

flap B fig. 103

REPLACING FUSES

136) 137) 138) 139) 140) 141)

50)

INTRODUCTION

To facilitate fuse replacement, use the

pliers hooked inside the fuse box lid on

the dashboard left-hand side.

ENGINE COMPARTMENT

FUSE BOX

The fuse box is located next to the

battery: to access the fuses, undo

screw A fig. 107 and lift cover B

upwards.

The number identifying the electrical

component corresponding to each fuse

is shown on the cover. After replacing

the fuse, make sure you close cover

B on the junction unit.

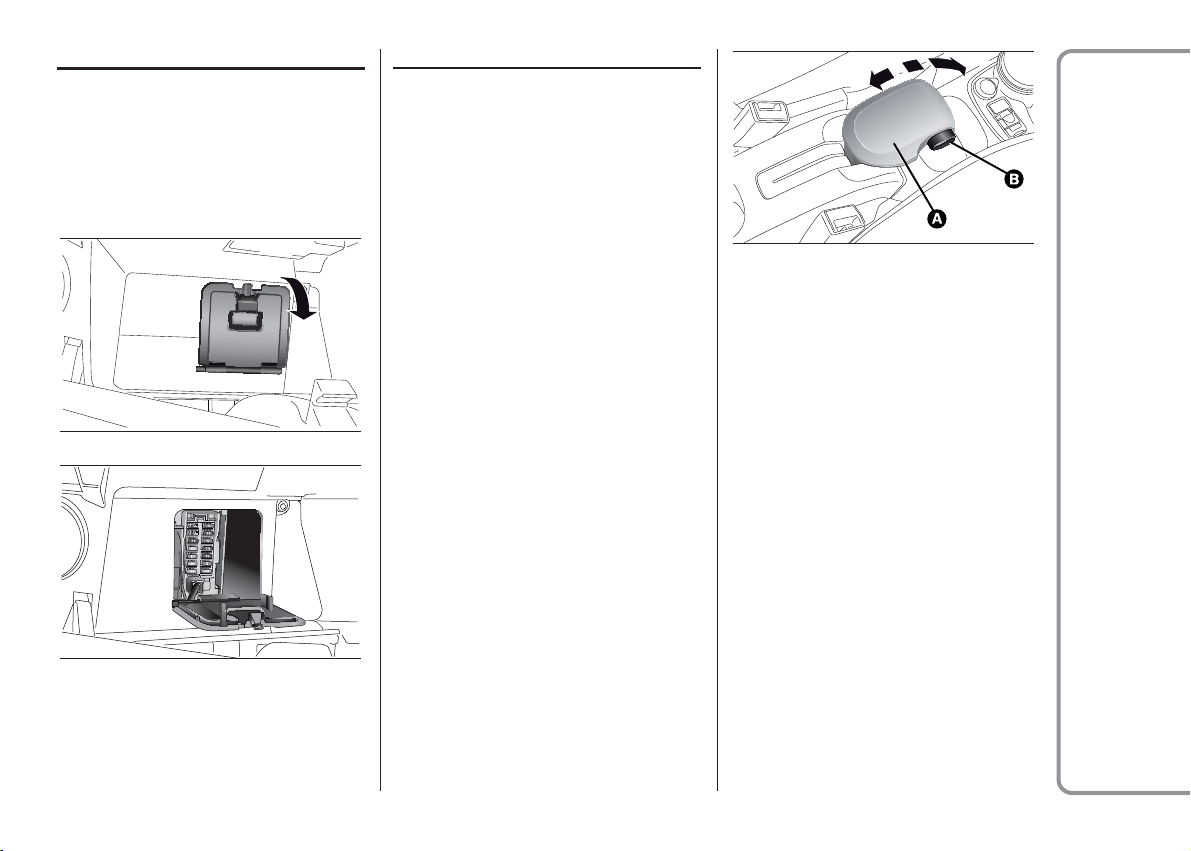

DASHBOARD FUSE BOX

The fuse box fig. 108 is located near

the left side of the steering column and

the fuses can be accessed easily from

the lower part of the dashboard.

107

F1D0091

108

F1D0093

109

WARNING

48) Halogen bulbs must be handled by

holding the metallic part only. Touching the

transparent part of the bulb with your

fingers may reduce the intensity of the

emitted light and even reduce the lifespan

of the bulb. In the event of accidental

contact, wipe the bulb with a cloth

moistened with alcohol and let the bulb

dry.

49) If possible, we recommend to have

bulbs replaced by a Fiat Dealership. The

correct operation and alignment of the

external lights are absolutely essential for

the safety of the vehicle and of compliance

with the law.

ENGINE COMPARTMENT FUSE BOX

fig. 107

DEVICES FUSE AMPERE

Body Computer node F01 60

Passenger compartment fan F08 40

Fog lights F09 15

Acoustic warnings F10 15

Main beam headlights F14 15

Heated windscreen F15 70

Air conditioning compressor F19 7.5

Front power socket (with or without cigar lighter) F20 15

Fuel pump F21 15

Blow-by F30 5

Electric roof motor F82 20

+15

(*) reversing lights

F87 5

Mirror demisting F88 7.5

Heated rear window F89 30

Battery charge status sensor F90 5

(*)+15 = ignition-operated positive pole

110

IN AN EMERGENCY

DASHBOARD FUSE BOX

fig. 108

DEVICES FUSE AMPERE

+15 (*) headlamp alignment corrector

F13 5

+15

(*) Ignition-operated control with inhibition during

engine starting

F31 5

+30

(**)

F36 10

+15

(*) brake pedal switch (NO)

F37 7.5

Door central locking F38 20

Two-way windscreen washer pump F43 20

Front electric window (driver side) F47 20

Front electric window (passenger side) F48 20

+15

(*)

F49 7.5

+15

(*)

F50 7.5

+15

(*)

F51 5

+30

(**)

F53 7.5

(*)+15 = ignition-operated positive pole

(**)+30 = battery direct positive pole (not ignition-operated)

111

WARNING

136) If the replaced fuse blows again,

contact a Fiat Dealership.

137) Never replace a blown fuse with metal

wires or other material.

138) Never replace a fuse with another with

a higher amp rating; DANGER OF FIRE.

139) If a general fuse (MEGA-FUSE,

MIDI-FUSE, MAXI-FUSE) cuts in, do not

attempt any repair and contact a Fiat

Dealership.

140) Before replacing a fuse, make sure

that the ignition key has been removed and

that all the other devices are switched off

and/or deactivated.

141) If a general protection fuse for safety

systems (airbag system, braking system),

power unit systems (engine system,

transmission system) or steering system

blows, contact a Fiat Dealership.

WARNING

50) If you need to wash the engine

compartment, take care not to directly hit

the fuse box and the window wiper motors

with the water jet.

CHANGING A WHEEL

142) 143) 144) 145) 146)

JACK

Important notes:

❒ the jack weight is 1.76 kg;

❒ the jack requires no adjustment;

❒ the jack cannot be repaired and in

the event of a fault it must be replaced

by another original one;

❒ no tool other than its cranking device

may be fitted on the jack.

CHANGING PROCEDURE

Proceed as follows:

❒ stop the vehicle in a position that is

not dangerous for oncoming traffic

where you can change the wheel safely.

The ground should be flat if possible,

and sufficiently firm;

❒ switch off the engine, pull up the

handbrake and engage the 1

gear or

reverse. Wear the reflective safety

jacket (compulsory by law) before

getting out of the vehicle;

❒ open the luggage compartment, pull

tab A fig. 109 and lift up the mat;

❒ using the wrench A fig. 110 located

in the tool box, loosen the locking

device, take the tool box B and place it

close to the wheel to be replaced.

Then take the space-saver wheel C.

For the Panda VAN and Panda 4x4

versions, the jack and the tools can be

located under the passenger side

front seat;

109

F1D0072

110

F1D0073

112

IN AN EMERGENCY

❒ take the wrench A fig. 111 and

loosen the fixing bolts by about one

turn;

❒ position the jack under the vehicle,

near the wheel to be changed;

❒ operate the device A fig. 112 to

extend the jack until the top of the jack

B fig. 113 fits correctly into the side

member C (next to the mark

on the

side member);

❒ alert any bystander that the vehicle is

about to be raised; all persons should

be kept away from the vehicle and

nobody must touch it until it has been

lowered;

❒ fit handle D fig. 112 into the housing

in device A, operate the jack and raise

the vehicle until the wheel is a few

centimetres from the ground;

❒ remove the wheel cap after loosening

the 3 fixing bolts and finally loosen the

fourth bolt and extract the wheel (only

for versions with wheel caps fixed

by bolts);

❒ make sure the contact surfaces

between space-saver wheel and hub

are clean so that the fastening bolts will

not come loose;

❒ fit the space-saver wheel by inserting

the first bolt for two threads into the

hole closest to the valve;

❒ take the wrench A fig. 111 and fully

tighten the fixing bolts;

❒ operate the jack handle D fig. 112 to

lower the vehicle. Then extract the jack;

❒ use the wrench A fig. 111, to fully

tighten the bolts, passing alternately

from one bolt to the opposite one;

❒ when replacing an alloy wheel rim it is

advisable to place it upside down,

with the aesthetic part facing upwards.

REFITTING THE

STANDARD WHEEL

51)

Following the procedure described

previously, raise the vehicle and remove

the space-saver wheel.

Versions with steel rims

Proceed as follows:

❒ make sure the contact surfaces

between standard wheel and hub are

clean so that the fastening bolts will not

come loose;

❒ fit the standard wheel by inserting the

first bolt by 2 threads into the hole

closest to the inflation valve;

❒ fit the hub cap, aligning the crescent

hole with the bolt already fitted, then

fit the other bolts;

❒ using the wrench provided, tighten

the fastening bolts;

111

F1D0074

112

F1D0075

113

F1D0076

113

❒ lower the vehicle and remove the

jack;

❒ use the wrench provided to fully

tighten the bolts, passing alternately

from one bolt to the opposite one.

Versions with alloy wheels

Proceed as follows:

❒ insert the wheel on the hub and using

the wrench provided tighten the bolts;

❒ lower the vehicle and remove the

jack;

❒ use the wrench provided to fully

tighten the bolts, passing alternately

from one bolt to the opposite one.

❒ reinsert the press-fitted hub cap,

making sure that the reference hole on

the wheel is aligned with the reference

pin on the cap.

IMPORTANT If it is not fitted properly,

the hub cap may detach itself when the

vehicle is running.

At the end of operation

❒ stow the space-saver wheel in the

compartment provided in the luggage

compartment;

❒ insert the jack and the other tools in

the container;

❒ arrange the container and tools on

the space-saver wheel;

❒ correctly reposition the boot mat.

WARNING

142) The space-saver wheel (for

versions/markets, where provided) is

specific to your vehicle, do not use it on

other models, or use the space-saver

wheel of other models on your vehicle. The

space-saver wheel must only be used in

the event of an emergency. It must only be

used for the distance necessary to reach

a service point and the vehicle speed must

not exceed 80 km/h. The space-saver

wheel has an orange label that

summarises the main cautions for use and

limitations. Never remove or cover the

label. The following information is provided

in four languages on the label: "Important!

For temporary use only! 80 km/h max!

Replace with a standard wheel as soon as

possible. Never cover this indication".

Never apply any hub cap to the

space-saver wheel.

143) Use your hazard lights, warning

triangle, etc to show that your vehicle is

stationary. Passengers should get out

of the vehicle, particularly if it is heavily

loaded, and wait for the wheel to be

changed away from the traffic. On hills or

uneven roads, use chocks or appropriate

objects to block the wheels of the vehicle.

144) The vehicle's driving characteristics

will be modified with the space-saver wheel

fitted. Avoid violent acceleration and

braking, abrupt steering and fast cornering.

The overall duration of the space-saver

wheel is about 3000 km, after which the

relevant tyre must be replaced with another

one of the same type. Never install a

traditional tyre on a rim designed to be

used as a space-saver wheel. Have the

wheel repaired and refitted as soon as

possible. Using two or more space-saver

wheels at the same time is forbidden.

Do not apply grease to the bolt threads

before fitting: they could come unscrewed.

145) The jack may be used to replace

wheels only on the vehicle that it comes

with, or other vehicles of the same model.

Never use the jack for other purposes,

such as lifting other vehicle models. Never

use it for repair operations under the

vehicle. Incorrect positioning of the jack

may cause the vehicle to fall. Do not use

the jack for loads higher than those shown

on the label. Never install snow chains

on the space-saver wheel; if a front tyre

(driving wheel) is punctured and you need

to use snow chains, use a standard wheel

from the rear axle and install the

space-saver wheel on the rear axle. In this

way, with two normal front drive wheels,

it is possible to use snow chains.

146) Incorrect hub cap assembly may

cause it to come off when the vehicle is

moving. Never tamper with the inflation

valve. Never introduce tools of any kind

between rim and tyre. Check tyre and

space-saver wheel pressures regularly,

complying with the values given in the

"Technical specifications" chapter.

IN AN EMERGENCY

WARNING

51) Contact a Fiat Dealership as soon as

possible to have the correct tightening

of the wheel bolts checked.

"Fix&Go Automatic"

kit

147) 148) 149) 150) 151) 152) 153) 154) 155)

52) 3)

DESCRIPTION

This is located in the luggage

compartment, inside a dedicated

container. The container also includes a

screwdriver and the tow hook.

The kit fig. 114 contains:

❒ a cylinder A containing sealing fluid

and fitted with: filling tube B and

adhesive label C with the wording

“max. 80 km/h” to be placed in a

clearly visible position (e.g. on

the dashboard) after repairing the tyre;

❒ a compressor D including a pressure

gauge and connections, found in the

compartment;

❒ instruction brochure, to be used for

prompt and correct use of the quick

tyre repair kit and then to be handed to

the personnel charged with handling

the treated tyre;

❒ a pair of protective gloves located in

the side compartment of the

compressor;

❒ adapters for inflating different

elements.

INFLATION PROCEDURE

Proceed as follows:

❒ Pull the handbrake. Unscrew the

tyre valve cap, take out the filler hose A

fig. 115 and tighten the ring nut B on

the tyre valve;

114

F1D0139

115

F1D0078

115

❒ make sure that the compressor

switch is in position 0 (off), start the

engine, plug into the power socket in

the central tunnel and operate the

compressor, turning switch A to

position I (on);

❒ inflate the tyre to the pressure

specified in the "Inflation pressure"

paragraph in the "Technical

specifications" section. Check tyre

pressure on gauge B with compressor

off to obtain a more precise reading;

❒ if after five minutes it is still impossible

to reach at least 1.8 bar, disengage

the compressor from the valve and

power socket, then move the vehicle

forwards by approx. ten metres in order

to distribute the sealing fluid inside the

tyre evenly, then repeat the inflation

operation;

❒ if after this operation you still cannot

reach at least 1.8 bar after 5 minutes

from switching on the compressor,

do not resume driving but contact a

Fiat Dealership;

❒ after driving for about 10 minutes

stop and check the tyre pressure again;

engage the handbrake and park

safely;

❒ if a pressure value of at least 1.8 bar

is detected, restore the correct

pressure (with the engine running and

the handbrake engaged), resume

driving and drive with great care to the

nearest Fiat Dealership.

WARNING

147) Give the instruction brochure to the

personnel charged with handling the

tyre treated with the quick tyre repair kit.

148) Punctures on the sides of the tyre

cannot be repaired. Do not use the quick

tyre repair kit if the tyre is damaged as

a result of driving with it deflated.

149) If the wheel rim has been damaged

(bent so as to cause air to leak), the wheel

cannot be repaired. Do not remove foreign

bodies (screws or nails) from the tyre.

150) Do not use the compressor for more

than 20 consecutive minutes. Risk of

overheating. Tyres repaired with the quick

tyre repair kit must only be used

temporarily, as the kit is not suitable for a

definitive repair.

IN AN EMERGENCY

151) The information required by current

regulations, regarding the chemical

substances for the protection of human

health and the environment and on the safe

use of the sealing fluid, are on the

packaging label. Compliance with the

indications on the label is an essential

condition to ensure the safety and

the effectiveness of the product.

Remember to carefully read the label

before use; the user of the product

is responsible for any damages caused by

improper use. The sealing fluid has an

expiry date. Replace the bottle if the

sealant has expired.

152) Put on the protective gloves provided

together with the quick tyre repair kit.

153) Apply the adhesive label where it can

be easily seen by the driver as a reminder

that the tyre has been treated with the

quick repair kit. Drive carefully, particularly

on bends. Do not exceed 80 km/h. Avoid

sudden acceleration or braking.

154) If the pressure has fallen below 1.8

bar, do not drive any further: the quick tyre

repair kit cannot guarantee the correct

hold because the tyre is too damaged.

Contact a Fiat Dealership.

155) Always indicate that the tyre was

repaired using the quick tyre repair kit. Give

the leaflet to the personnel charged with

handling the tyre treated with the tyre

repair kit.

WARNING

52) Punctures caused by foreign bodies

can be repaired if the damage does not

exceed 4 mm on the tread and on the

shoulder of the tyre.

WARNING

3) Dispose of the bottle and the sealant

properly. Have them disposed of in

compliance with national and local

regulations.

JUMP STARTING

If the battery is flat, a jump starting can

be performed using the battery and

the cables of another vehicle, or using a

booster battery.

IMPORTANT

When a booster battery is used, comply

with the utilisation and precaution

instructions specified by the producer.

Do not use the booster battery or

any other source of external supply with

a voltage above 12 V: the battery, the

starter, the alternator and the electrical

system of the vehicle could be

damaged.

Do not attempt jump starting if the

battery is frozen. The battery could

break and explode!

PREPARATION TO JUMP

STARTING

156) 157)

53) 54)

IMPORTANT The positive terminal (+) of

the battery is shielded by a protective

cover. Lift the cover to access the

positive terminal.

Proceed as follows:

❒ engage the handbrake, move the

Dualogic gear lever to P (Park) or,

for versions with manual gearbox, to

neutral and bring the ignition key to

STOP;

❒ switch off all the other electrical

devices in the vehicle;

❒ if another vehicle is ready for jump

starting, park the vehicle within the

reach of the cables to be used for

starting, operate the handbrake and

make sure that the ignition is

deactivated.

IMPORTANT Avoid contact between

the two vehicles since this could cause

a connection to earth and may result

in serious injury to any people nearby.

PROCEDURE FOR JUMP

STARTING

IMPORTANT If the procedure below is

carried out incorrectly, it can cause

severe injury to people or damage the

recharging system of one or both

vehicles. Carefully follow the

instructions given below.

Cable connection

Proceed as follows to carry out a jump

starting:

❒ connect one end of the cable used

for positive (+) to the positive terminal

(+) of the vehicle with flat battery;

117

❒ connect the other end of the cable

used for positive (+) to the positive

terminal (+) of the auxiliary battery;

❒ connect one end of the cable used

for negative (–) to the negative terminal

(–) of the auxiliary battery;

❒ Connect the other end of the cable

used for negative (–) to an engine earth

(the visible metal part of the vehicle

engine with flat battery) away from the

battery and the fuel injection system;

❒ start the vehicle engine with the

auxiliary battery, let it run for a

few minutes at idling. Start the engine

of the vehicle with flat battery.

Cable disconnection.

Once the engine has been started,

remove the cables proceeding as

follows:

❒ disconnect the end of the cable used

for negative (–) from the engine earth

of the vehicle with flat battery;

❒ disconnect the other end of the cable

used for negative (–) from the negative

terminal (–) of the auxiliary battery;

❒ disconnect the end of the cable used

for positive (+) from the positive terminal

(+) of the auxiliary battery;

❒ disconnect one end of the cable

used for positive (+) from the positive

terminal (+) of the vehicle with flat

battery;

If it is often necessary to perform a

jump starting, have the vehicle battery

and the recharging system checked

by a Fiat Dealership.

IMPORTANT Any accessories (e.g.

mobile phones, etc.) connected to the

vehicle power sockets draw current

even if they are not used. These

devices, if left connected too much time

with engine off, may cause the battery

to drain with following reduction of

its life and/or failure to start the engine.

WARNING

156) This procedure must be performed by

qualified personnel as incorrect actions

may cause high-intensity electrical

discharge. Furthermore, battery fluid is

poisonous and corrosive: avoid contact

with skin and eyes. Keep naked flames and

lighted cigarettes away from the battery

and do not cause sparks.

157) Remove any metal objects (e.g. rings,

watches, bracelets), that might cause an

accidental electrical contact and cause

serious injury.

WARNING

53) Do not connect the cable to the

negative terminal (–) of the flat battery. The

following spark could lead to battery

explosion and cause serious harm. Only

use the specific earth point; do not use any

other exposed metallic part.

54) Never use a fast battery-charger to

start the engine as this could damage the

electronic systems of your vehicle,

particularly the ignition and engine fuel

supply control units.

IN AN EMERGENCY

FUEL CUT-OFF

SYSTEM

158)

This intervenes in the case of an impact

causing:

❒ the interruption of the fuel supply with

the engine consequently cutting out;

❒ the automatic unlocking of the doors;

❒ the automatic switching on of the

interior lights

❒ the switching on of the hazard

warning lights.

IMPORTANT Carefully check the car for

fuel leaks, for instance in the engine

compartment, under the car or near the

tank area. After an impact, turn the

ignition key to STOP to prevent the

battery from running down.

To restore the correct operation of the

car, proceed as follows:

❒ turn the ignition key to the MAR

position;

❒ activate the right direction indicator;

❒ deactivate the right direction

indicator;

❒ activate the left direction indicator;

❒ deactivate the left direction indicator;

❒ activate the right direction indicator;

❒ deactivate the right direction

indicator;

❒ activate the left direction indicator;

❒ deactivate the left direction indicator;

❒ turn the ignition key to STOP and

then to MAR.

LPG versions: in the event of an

impact, petrol supply is immediately

cut-off, the LPG safety valves are

closed and the injection is interrupted,

switching off the engine.

Natural Power versions: in the event

of an impact, the power supply is

immediately cut off, causing engine

switching off.

WARNING

158) If, after an impact, you smell fuel or

notice leaks from the fuel system, do

not reactivate the system to avoid the risk

of fire.

TOWING THE

VEHICLE

159) 160) 161) 162) 163)

The tow hook, which is supplied with

the vehicle, is housed in the tool box,

under the carpet in the luggage

compartment.

ATTACHING THE TOW

HOOK

Manually remove cap A fig. 116 (front

bumper) or A fig. 117 (rear bumper),

pressing the lower part, take the tow

hook B from its housing in the tool box

and tighten it completely on the front

or rear threaded pin.

116

F1D0094

119

Versions with Dualogic gearbox

Make sure that the gearbox is in neutral

(N) (checking that the vehicle moves

when pushed) and proceed in the same

way as for towing a normal vehicle

with a manual gearbox. If the gearbox

cannot be put in neutral, do not tow the

vehicle and contact a Fiat Dealership.

Panda Cross and Panda 4x4

versions

The vehicle can only be towed in one of

the following ways (and always with

the engine off, gear set to neutral and

handbrake released):

❒ with all the wheels on the road

surface;

❒ with the front (or rear) wheels raised

or resting on an emergency vehicle and

the rear (or front) wheels resting on a

specific trolley;

❒ loaded on the flatbed of the rescue

vehicle with all the wheels on the

flatbed.

IMPORTANT For Panda Cross versions,

the tow hooks A fig. 118 the vehicle is

equipped with can only be used for

towing it in an emergency.

WARNING

159) Before starting towing operations,

turn the ignition key to MAR and then

to STOP, without extracting it. The steering

column will automatically lock when the

key is removed and the wheels cannot be

steered.

160) Before tightening the ring clean the

threaded housing thoroughly. Make sure

that the ring is fully fastened in the housing

before towing the vehicle.

161) Whilst towing, remember that as the

assistance of the brake servo and the

electric power steering is not available,

greater force needs to be exerted on the

brake pedal and more effort is required on

the steering wheel. Do not use flexible

cables when towing and avoid jerky

movements. While towing, make sure that

the trailer hitch does not damage any

components it is touching. When towing

the vehicle, you must comply with all

specific traffic regulations, both in terms of

the towing device and behaviour on the

road. Do not start the engine while towing

the vehicle.

162) The front and rear tow hooks should

be used only for emergencies on the road.

You are allowed to tow the vehicle for

short distances using an appropriate

device in accordance with the highway

code (a rigid bar), to move the vehicle on

the road in readiness for towing or

transporting via a breakdown vehicle. Tow

rings MUST NOT be used to tow vehicles

off the road or where there are obstacles

and/or for towing operations using cables

or other non-rigid devices. In compliance

with the above conditions, towing must

take place with the two vehicles (one

towing, the other towed) aligned as much

as possible along the same centre line.

163) Do not use tow hooks for securing the

vehicle on ships.

117

F1D0095

118

F1D0120

120

IN AN EMERGENCY

SERVICING AND MAINTENANCE

Correct maintenance permits the

performance of the vehicle to be

maintained over time, as well as limited

running costs and safeguarding the

efficiency of the safety systems.

This chapter explains how.

SCHEDULED SERVICING ...............12

ENGINE COMPARTMENT...............13

BATTERY RECHARGING ................137

WINDSCREEN/REAR WINDOW

WIPER ............................................139

LIFTING THE VEHICLE....................139

WHEELS AND TYRES.....................139

121

SCHEDULED

SERVICING

Correct servicing is crucial for

guaranteeing a long life for the vehicle

under the best conditions. For this

reason, Fiat has planned a series of

checks and services at fixed distance

intervals and, where provided, at fixed

time intervals, as described in the

Scheduled Servicing Plan.

Before each service, it is always

necessary to carefully follow the

instructions in the Scheduled Servicing

Plan (e.g. periodically check level of

fluids, tyre pressure, etc.).

Scheduled Servicing is offered by all

Fiat Dealerships according to a set time

schedule. If, during each operation, in

addition to the ones scheduled, the

need arises for further replacements or

repairs, these may be carried out with

your explicit agreement only. If your

vehicle is used frequently for towing,

the interval between one service

operation and the next should be

reduced.

IMPORTANT Scheduled Servicing

interventions are set out by the

Manufacturer. Failure to have them

carried out may invalidate the warranty.

It is advisable to inform a Fiat

Dealership of any small operating

irregularities without waiting for the next

service.

PERIODIC CHECKS

Every 1,000 km or before long

journeys, check and if necessary, top

up: engine coolant level; brake fluid

level; screen washer fluid level; tyre

inflation pressure and condition; lighting

system operation (headlights, direction

indicators, hazard warning lights, etc.);

screen washer/wiper system operation

and positioning/wear of windscreen/

rear window wiper blades.

Every 3,000 km, check and top up if

required: engine oil level.

HEAVY-DUTY USE OF THE

VEHICLE

If the vehicle is used under one of the

following conditions: towing a trailer

or motorhome; dusty roads; short (less

than 7-8 km) and repeated journeys

with sub-zero outside temperatures;

engine often idling or driving long

distances at low speed or long periods

of inactivity, the following checks must

be carried out more often than

indicated in the Scheduled Servicing

Plan:

❒ check front disc brake pad condition

and wear;

❒ check cleanliness of bonnet and

luggage compartment locks,

cleanliness and lubrication of linkage;

❒ visually inspect conditions of: engine,

gearbox, transmission, pipes and

hoses (exhaust/fuel system/brakes) and

rubber elements (gaiters/sleeves/

bushes, etc.);

❒ check battery charge and battery

fluid level (electrolyte);

❒ visually inspect conditions of the

auxiliary drive belts;

❒ check and, if necessary, change

engine oil and replace oil filter / pollen

filter / air cleaner.

SERVICING AND MAINTENANCE

SCHEDULED SERVICING PLAN (petrol versions)

The checks listed in the Scheduled Servicing Plan, after reaching 120,000 km/8 years, must be cyclically repeated starting from

the first interval, thus following the same intervals as before.

Thousands of miles 9 18 27 36 45 54 63 72 81 90

Thousands of kilometres 15 30 45 60 75 90 105 120 135 150

Years 12345678910

Check tyre condition/wear and adjust pressure, if

necessary; check “Fix&Go Automatic” kit recharge expiry

date (for versions/markets, where provided)

●●●●●●●●●●

Check operation of lighting system (headlights, direction

indicators, hazard warning lights, luggage compartment,

passenger compartment, glove compartment, instrument

panel warning lights, etc.)

●●●●●●●●●●

Check and, if necessary, top up fluid levels (engine

coolant, hydraulic clutch/brakes, windscreen washer,

battery, etc.)

●●●●●●●●●●

Check exhaust emissions/smokiness ●●●●●●●●●●

Use the diagnosis socket to check supply/engine

management systems operation, emissions and, for

versions/markets, where provided, engine oil degradation

●●●●●●●●●●

Visually inspect conditions of: exterior bodywork,

underbody protection, pipes and hoses (exhaust, fuel

system, brakes), rubber elements (gaiters, sleeves,

bushes, etc.)

●●●●●

Check windscreen/rear window wiper blade position/wear ●●●●●

123

Thousands of miles 9 18 27 36 45 54 63 72 81 90

Thousands of kilometres 15 30 45 60 75 90 105 120 135 150

Years 12345678910

Check operation of the windscreen wiper/washer system

and adjust jets, if necessary

●●●●●

Check cleanliness of bonnet and luggage compartment

locks, as well as cleanliness and lubrication of linkages

●●●●●

Check handbrake lever travel and adjust, if necessary ●●●●●

Check/adjust clutch pedal travel ●●●●●

Visually inspect condition and wear of front disc brake

pads and operation of pad wear indicator (for versions/

markets where provided)

●●●●●●●●●●

Visually inspect condition and wear of rear disc brake pads

and operation of pad wear indicator (for versions/markets

where provided)

●●●●●●●●●●

Visually inspect condition and wear of the rear drum brake

lining

●●●●●●●●●●

Visually inspect conditions of the accessory drive belt(s) ●

Check tension of accessory drive belt (versions without

automatic tensioner)

●●

Visually inspect condition of toothed timing drive belt (0.9

TwinAir 60 HP/65 HP and 0.9 TwinAir Turbo 80 HP/85 HP

versions excluded)

●

Check tappet clearance and adjust if necessary (1.2 8V

●●

124

SERVICING AND MAINTENANCE

69 HP versions)

Thousands of miles 9 18 27 36 45 54 63 72 81 90

Thousands of kilometres 15 30 45 60 75 90 105 120 135 150

Years 12345678910

Check manual gearbox oil level ●●

Check and, if necessary, top-up the Dualogic gearbox oil

level (1)

●●●●●

Check manual gearbox with drive transmission idler unit

(PTU) oil level (Panda Cross and Panda 4x4 versions only)

●●

Check rear differential oil level (Panda Cross and Panda

4x4 versions only)

●●

Visually inspect condition of: LPG pipes and connectors,

LPG tank fixing (LPG versions only)

●●●●●

Check fuel system operation and parameters using the

diagnosis socket (LPG versions only)

●●●●●

Visually inspect condition of: methane pipes and

connectors and methane cylinder fastening, restore if

necessary (Natural Power versions only)(2)

●●●●●

Check pressure regulator and replace internal filter, if

necessary (Natural Power versions only) (2)

●●●●●

Check fuel system operation and parameters using self-

diagnosis socket (Natural Power versions only)

●●●●●

Check torque tightening of cylinder fastening bands

(Natural Power versions only)

●●

(1) Check to be carried out every year for vehicles on the road in countries with particularly severe climates (cold countries).

(2) Or every year.

125

Thousands of miles 9 18 27 36 45 54 63 72 81 90

Thousands of kilometres 15 30 45 60 75 90 105 120 135 150

Years 12345678910

Check pressure regulator heating pipes sealing (Natural

Power versions only)

●●●●●

Check correct fitting of injectors (positioning, clip retention)

(Natural Power versions only)

●●●●●

Change engine oil and replace oil filter (3) ●●●●●

Replace spark plugs (1.2 8V 69 HP and 0.9 TwinAir Turbo

80 HP/85 HP versions)(2)

●●●●●

Replace spark plugs (0.9 TwinAir 60 HP/65 HP) ●●

Replace accessory drive belt(s) (4) ●

(3) If the vehicle is used mainly on urban routes or the annual distance travelled is less than 10,000 km, the engine oil and engine oil filter must be changed every

year.

(2) Or every year

(4) Areas that are not dusty: recommended maximum mileage 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years.

Dusty areas and/or demanding use of the vehicle (cold climates, town use, long periods of idling): advised maximum mileage 60,000 km. Regardless of the

mileage, the belt must be replaced every 4 years.

126

SERVICING AND MAINTENANCE

Thousands of miles 9 18 27 36 45 54 63 72 81 90

Thousands of kilometres 15 30 45 60 75 90 105 120 135 150

Years 12345678910

Visually inspect condition of toothed timing drive belt (0.9

TwinAir 60 HP/65 HP and 0.9 TwinAir Turbo 80 HP/85 HP

versions excluded)(4)

●

Replace air cleaner cartridge (5) ●●●●●

Change the brake fluid (6) ●●●●●

Replace filter inside the pressure regulator (LPG versions

only) (7)

●

Replace paper filter (LPG in gaseous state) (LPG versions

only)

●●●●●

Replace passenger compartment cleaner (5) (O) (●)O● O ● O ● O ● O ●

(4) Areas that are not dusty: recommended maximum mileage 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years.

Dusty areas and/or demanding use of the vehicle (cold climates, town use, long periods of idling): advised maximum mileage 60,000 km. Regardless of the

mileage, the belt must be replaced every 4 years.

(5) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km

(6) The brake fluid replacement has to be done every two years, irrespective of the mileage

(7) Replace the filter inside the pressure regulator every 6 years or 90,000 km

(O) Recommended operations

(●) Mandatory operations

127

DIESEL VERSIONS

The checks listed in the Scheduled Servicing Plan, after reaching 120,000 km/6 years, must be cyclically repeated starting from

the first interval, thus following the same intervals as before.

Thousands of miles 12 24 36 48 60 72 84 96 108 120

Thousands of kilometres 20 40 60 80 100 120 140 160 180 200

Years 12345678910

Check tyre condition/wear and adjust pressure, if

necessary; check “Fix&Go Automatic” kit recharge expiry

date (for versions/markets, where provided)

●●●●●●●●●●

Check operation of lighting system (headlights, direction

indicators, hazard warning lights, luggage compartment,

passenger compartment, glove compartment, instrument

panel warning lights, etc.)

●●●●●●●●●●

Check and, if necessary, top up fluid levels (engine

coolant, hydraulic clutch/brakes, windscreen washer,

battery, etc.)

●●●●●●●●●●

Check exhaust emissions/smokiness ●●●●●●●●●●

Use the diagnosis socket to check supply/engine

management systems operation, emissions and, for

versions/markets, where provided, engine oil degradation

●●●●●●●●●●

Visually inspect conditions of: exterior bodywork,

underbody protection, pipes and hoses (exhaust, fuel

system, brakes), rubber elements (gaiters, sleeves,

bushes, etc.)

●●●●●

Check windscreen/rear window wiper blade position/wear ●●●●●

128

SERVICING AND MAINTENANCE

Thousands of miles 12 24 36 48 60 72 84 96 108 120

Thousands of kilometres 20 40 60 80 100 120 140 160 180 200

Years 12345678910

Check operation of the windscreen wiper/washer system

and adjust jets, if necessary

●●●●●

Check cleanliness of bonnet and luggage compartment

locks, as well as cleanliness and lubrication of linkages

●●●●●

Check handbrake lever travel and adjust, if necessary ●●●●●

Visually inspect condition and wear of front disc brake

pads and operation of pad wear indicator (for versions/

markets where provided)

●●●●●●●●●●

Visually inspect condition and wear of rear disc brake pads

and operation of pad wear indicator (for versions/markets

where provided)

●●●●●●●●●●

Visually inspect condition and wear of the rear drum brake

lining

●●●●●●●●●●

Visually inspect conditions of the accessory drive belt(s) ●●

Check manual gearbox oil level ●●●

Check drive transmission idler unit (PTU) oil level (Panda

Cross and Panda 4x4 versions only)

●●●

Check rear differential oil level (Panda Cross and Panda

4x4 versions only)

●●●

129

Thousands of miles 12 24 36 48 60 72 84 96 108 120

Thousands of kilometres 20 40 60 80 100 120 140 160 180 200

Years 12345678910

Change engine oil and replace oil filter

(1)

Replace accessory drive belt(s) (2) ●

Replace fuel filter cartridge (3) ●●●

Replace air cleaner cartridge (4) ●●●●●

Change the brake fluid (5) ●●●●●

Replace passenger compartment cleaner (4) (O) (●)O● O ● O ● O ● O ●

(1) The actual interval for changing engine oil and replacing the engine oil filter depends on the vehicle usage conditions and is signalled by the warning light or

message in the instrument panel. In any case, it must never exceed 2 years.

If the vehicle is mainly used in towns and cities, change the engine oil and filter every year.

(2) Areas that are not dusty: recommended maximum mileage 120,000 km. Regardless of the mileage, the belt must be replaced every 6 years.

Dusty areas and/or demanding use of the vehicle (cold climates, town use, long periods of idling): advised maximum mileage 60,000 km. Regardless of the

mileage, the belt must be replaced every 4 years.

(3) If the vehicle runs on fuel with quality below the relevant European specification, this filter must be replaced every 20,000 km

(4) If the vehicle is used in dusty areas, this cleaner must be replaced every 20,000 km

(5) The brake fluid replacement has to be done every two years, irrespective of the mileage

(O) Recommended operations

(●) Mandatory operations

130

SERVICING AND MAINTENANCE

ENGINE COMPARTMENT

CHECKING LEVELS

164) 165) 55)

0.9 TwinAir/0.9 TwinAir Turbo versions

A. Engine oil plug/filler-–B.Engine oil dipstick-–C.Engine coolant-–D.Washer fluid for windscreen/rear window-–E.Brake fluid-–F.Battery

119

F1D0097

131

1.2 8V 69 HP versions

A. Engine oil plug/filler-–B.Engine oil dipstick-–C.Engine coolant-–D.Washer fluid for windscreen/rear window-–E.Brake fluid-–F.Battery

120

F1D0098

132

SERVICING AND MAINTENANCE

1.3 16V Multijet EURO 5 versions

A. Engine oil plug/filler-–B.Engine oil dipstick-–C.Engine coolant-–D.Washer fluid for windscreen/rear window-–E.Brake fluid-–F.Battery

121

F1D0099

133

1.3 16V Multijet EURO 6 versions

A. Engine oil plug/filler-–B.Engine oil dipstick-–C.Engine coolant-–D.Washer fluid for windscreen/rear window-–E.Brake fluid-–F.Battery

122

F1D0141

134

SERVICING AND MAINTENANCE

ENGINE OIL

56) 57) 4)

Check the oil level a few minutes (about

five) after the engine has stopped,

with the vehicle parked on level ground.

Check that the oil level is between the

MIN and MAX references on the

dipstick B. If the oil level is near or even

under the MIN mark, add oil using the

filler A to reach the MAX mark.

NOTE For the 0.9 TwinAir and 0.9

TwinAir Turbo versions, engine oil

dipstick B is integral with the cap A.

Take out the engine oil dipstick A, clean

it with a lint-free cloth and reinsert it.

Extract it again and check that the level

is between the MIN and MAX marks

on the dipstick.

Engine oil consumption

The maximum engine oil consumption

is usually 400 grams every 1000 km.

During the initial period of use the

engine oil consumption conditions

should be considered as having

stabilised after the first 5000 - 6000

km.

IMPORTANT After adding or changing

the oil, let the engine run for a few

seconds and wait a few minutes after

switching it off before checking the

level.

ENGINE COOLANT

166) 58)

The coolant level must be checked

when the engine is cold and must

range between the MIN and MAX

marks on the reservoir.

If the level is too low, unscrew reservoir

cap C and add the fluid described in

the "Technical Specifications" section.

WINDSCREEN/REAR

WINDOW WASHER FLUID

167)

If the level is too low, raise reservoir cap

D (see previous pages) and add the

fluid described in the chapter "Technical

Specifications".

BRAKE FLUID

168) 169) 59)

Check that the fluid is at the maximum

level (the fluid level in the reservoir

must not exceed the MAX mark). If the

fluid level in the reservoir is too low,

undo reservoir cap E and add the fluid

described in the "Technical

Specifications" chapter.

DUALOGIC GEARBOX

HYDRAULIC ACTIVATION

SYSTEM OIL

The fluid level should only be checked

at a Fiat Dealership.

BATTERY

170) 171) 172) 173)

60) 6)

Battery F does not require topping up

the electrolyte with distilled water. A

periodic check carried out at a Fiat

Dealership is, however, necessary to

check efficiency.

IMPORTANT After the battery is

disconnected, the steering must be

initialised. The

warning light on the

instrument panel switches on to

indicate this. To carry out this

procedure turn the steering wheel all

the way from one end to the other

or drive in a straight line for about a

hundred metres.

IMPORTANT If the charge level remains

under 50% for a long time, the battery

is damaged by sulphation, reducing

its capacity and efficiency at start-up.

CLIMATE CONTROL

SYSTEM MAINTENANCE

In winter, the climate control system

must be turned on at least once a

month for about 10 minutes. Before

summer, have the system checked at a

Fiat Dealership.

135

WARNING

164) Never smoke when performing

operations in the engine compartment.

Flammable gases and fumes may be

present and risk igniting.

165) Be very careful when working in the

engine compartment when the engine

is hot: you may get burnt.

166) The cooling system is pressurised. If

necessary, only replace the cap with

another original one or the operation of the

system may be adversely affected. Do

not remove the reservoir cap when the

engine is hot: risk of burns.

167) Do not travel with the washer fluid

reservoir empty: the washer operation

is essential for improving visibility. Some

commercial windscreen washer additives

are flammable. The engine compartment

contains hot components which may set it

on fire.

168) Brake fluid is poisonous and highly

corrosive. In the event of accidental

contact, immediately wash the affected

parts with water and mild soap. Then rinse

thoroughly. Call a doctor immediately if

swallowed.

169) The

symbol on the container

indicates a synthetic brake fluid, which is

different from a mineral fluid. Using a

mineral fluid will damage the special rubber

seals of the braking system beyond repair.

170) Battery fluid is poisonous and

corrosive. Avoid contact with the skin and

eyes. Keep naked flames and sources

of sparks away from the battery: risk of

explosion and fire.

171) Using the battery with insufficient

fluid irreparably damages the battery and

may cause an explosion.

172) If the vehicle is left for long periods in

very cold environments, remove the battery

and store it in a warm place to prevent

freezing.

173) Always wear the proper protective

eyewear when working on the battery

or near it.

WARNING

55) Be careful not to confuse the various

types of fluids while topping up: they

are not compatible with each other!

Topping up with an unsuitable fluid could

severely damage your vehicle.

56) The oil level should never exceed the

MAX mark.

57) Do not add oil with specifications other

than those of the oil already in the engine.

58) PARAFLU

anti-freeze is used in

the engine cooling system. Use the same

fluid as in the cooling system when topping

up. PARAFLU

cannot be mixed with

any other type of fluid. If this happens, do

not start the engine and contact a Fiat

Dealership.

59) Avoid allowing brake fluid, which is

extremely corrosive, to come into contact

with painted areas. Should it happen, wash

immediately with water.

60) Incorrect assembly of electrical and

electronic accessories may cause severe

damage to your vehicle. After purchasing

your vehicle, if you wish to install any

accessories (anti-theft, phone, etc.),

contact a Fiat Dealership, which

will suggest the most appropriate devices

for your vehicle, and will, most importantly,

advise you if a higher capacity battery

needs to be installed.

WARNING

4) Used engine oil and oil filters contain

substances which are harmful to the

environment. To change the oil and filters,

we advise you to contact a Fiat Dealership.

5) Used transmission fluid contains

substances that are harmful to the

environment. It is advisable to have the oil

changed by a Fiat Dealership where it

will be disposed of respecting the

environment and according to legal

requirements.

6) Batteries contain substances which are

very dangerous for the environment. For

battery replacement, contact a Fiat

Dealership.

136

SERVICING AND MAINTENANCE

BATTERY

RECHARGING

174) 175)

IMPORTANT After turning the ignition

key to STOP and having closed the

driver's side door, wait at least one

minute before disconnecting and then

reconnecting the battery electrical

supply.

IMPORTANT Charging should be slow

at a low ampere rating for

approximately 24 hours. Charging for a

longer time may damage the battery.

IMPORTANT The cables of the

electrical system must be correctly

reconnected to the battery, i.e. the

positive cable (+) to the positive

terminal and the negative cable (–) to

the negative terminal. The battery

terminals are marked with the positive

(+) and negative (–) symbols, and are

shown on the battery cover. The battery

terminals must also be corrosion-free.

IMPORTANT If a "quick-type" battery

charger is used with the battery fitted

on the vehicle, before connecting it

disconnect both cables of the battery

itself. Do not use a "quick-type" battery

charger to provide the starting voltage.

IMPORTANT The battery recharging

procedure is given as information only.

You are advised to contact a Fiat

Dealership to have this operation

performed.

VERSIONS WITHOUT

Start&Stop SYSTEM

(for versions/markets, where provided)

Charge the battery as follows:

❒ disconnect the negative battery

terminal;

❒ connect the charger cables to the

battery terminals, observing the polarity;

❒ turn on the charger;

❒ when it is recharged, turn the charger

off before disconnecting it from the

battery;

❒ reconnect the negative battery

terminal.

VERSIONS WITH

Stop/Start SYSTEM

(for versions/markets, where provided)

To recharge, proceed as follows:

❒ disconnect the connector A fig. 123

(pressing the button B) from the sensor

C monitoring the battery conditions,

on the negative pole D of the battery;

❒ connect the positive cable of the

battery charger to the positive battery

pole E and the negative cable to the

terminal of sensor D;

❒ turn on the battery charger. At the

end of the charging process, switch the

battery charger off;

❒ after having disconnected the

charging device, reconnect the

connector A to the sensor C.

123

F1D0136

137

WARNING

174) Battery fluid is poisonous and

corrosive: avoid contact with your skin and

eyes. The battery should be charged in a

well ventilated place, away from naked

flames or possible sources of sparks:

danger of explosion and fire.

175) Do not attempt to charge a frozen

battery: it must be thawed first, otherwise it

may explode. If freezing has occurred, the

battery should be checked by skilled

personnel to make sure that the internal

elements are not damaged and that the

body is not cracked, with the risk of leaking

poisonous and corrosive acid.

WINDSCREEN/REAR

WINDOW WIPER

176) 61)

REPLACING THE

WINDSCREEN WIPER

BLADES

❒ raise the wiper arm, press tab A fig.

124 of the attachment spring and

remove the blade from the arm;

❒ fit the new blade, inserting the tab

into the special slot in the arm, making

sure that it is locked;

❒ lower the wiper arm on the

windscreen.

REPLACING THE REAR

WINDOW WIPER BLADE

Proceed as follows:

❒ raise cover A fig. 125, undo nut B

and remove arm C;

❒ correctly position the new arm, fully

tighten the nut B then lower the cover

SPRAY NOZZLES

Windscreen washer

The windscreen washer jets can be

adjusted rotating the side notch with a

screwdriver. If there is no jet of fluid,

firstly check that there is fluid in the

reservoir (see "Checking fluid levels" in

this chapter). Then check that the

nozzle holes are not clogged; use a

needle to unblock them if necessary.

124

F1D0100

125

F1D0101

138

SERVICING AND MAINTENANCE

IMPORTANT In versions with a sun

roof, make sure that the sun roof is

closed before operating the window

washer jets.

Rear window washer

The rear window washer jets are fixed.

The nozzle holder is located above

the rear window.

WARNING

176) Driving with worn windscreen/rear

window wiper blades is a serious hazard,

because visibility is reduced in bad

weather.

WARNING

61) Do not operate the windscreen wiper

with the blades lifted from the windscreen.

LIFTING THE

VEHICLE

177)

If the vehicle needs to be jacked up, go

to a Fiat Dealership which is equipped

with workshop jacks and jack arms

fig. 126.

WARNING

177) Lift the vehicle exclusively by

positioning the jack arms or the workshop

jack in the points illustrated.

WHEELS AND TYRES

178)

62) 63) 64) 65)

SUGGESTIONS ABOUT

THE ROTATION OF THE

TYRES

The front and rear tyres are subject to

different loads and stress due to

steering, manoeuvres and braking. For

this reason they are subject to uneven

wear.

To resolve this problem, tyres should be

rotated at the appropriate time. This

operation is recommended for tyres

with a deep tread pattern, suitable both

for on-road and off-road driving.

Tyre rotation contributes to the

preservation of the grip and traction

performance on wet, muddy or snowy

roads, guaranteeing optimal driveability

of the vehicle.

In the case of irregular wear of the

tyres, the reason must be identified and

corrected before rotating them.

126

F1D0135

139

179)

WARNING

178) Do not cross switch the tyres if they

are the "unidirectional" type. In this case,

always take care not to fit the tyres with

a direction of rotation that is opposite

to that indicated: you would risk losing grip

and control of the vehicle.

179) Travelling with partially or completely

deflated tyres can cause safety problems

and irremediably damage the tyre.

WARNING

62) Road holding depends also on the

correct tyre inflating pressure.

63) If the pressure is too low the tyre

overheats and this can cause it serious

damage.

64) Do not cross switch the tyres, moving

them from the right of the vehicle to the left

and vice versa.

65) Never submit alloy rims to repainting

treatments requiring the use of

temperatures exceeding 150°C. The

mechanical properties of the wheels could

be impaired.

140

SERVICING AND MAINTENANCE

TECHNICAL SPECIFICATIONS

Everything you may find useful for

understanding how your vehicle

is made and works is contained in this

chapter and illustrated with data, tables

and graphics. For the enthusiasts and

the technician, but also just for those

who want to know every detail of their

vehicle.

IDENTIFICATION DATA....................142

ENGINE ..........................................143

WHEELS.........................................1

DIMENSIONS..................................155

WEIGHTS........................................1

SUPPLIES.......................................16

FLUIDS AND LUBRICANTS ............168

PERFORMANCE.............................171

FUEL CONSUMPTION ....................172

CO2 EMISSIONS ............................174

PRESCRIPTIONS FOR HANDLING

THE VEHICLE AT THE END OF ITS

LIFE ................................................175

141

IDENTIFICATION

DATA

VIN PLATE

This is applied on the left side of the

luggage compartment fig. 127 (lift the

mat for access) and bears the following

data:

Type-approval number.

Vehicle type identification code.

Chassis serial number.

Maximum permitted weight of vehicle

fully laden.

Maximum permitted weight of vehicle

fully laden plus trailer.

Maximum permitted weight on first

axle (front).

Maximum permitted weight on

second axle (rear).

Engine type.

Bodywork version code.

Spare part number.

Correct value of smoke coefficient

(for diesel engines).

BODYWORK PAINT

IDENTIFICATION PLATE

This is applied inside the bonnet (left

side) and bears the following data

fig. 128:

A Paint manufacturer.

B Colour name.

C Fiat colour code.

D Respray and touch up code.

CHASSIS MARKING

This is located on the right side of the

luggage compartment rear floor and

gives the following identification data:

❒ type of vehicle;

❒ chassis serial number.

ENGINE MARKING

It is stamped on the cylinder block and

includes the type and the engine serial

number.

127

F1D0142

128

F1D0128

142

TECHNICAL SPECIFICATIONS

ENGINE

EURO 5 VERSIONS

Versions 1.3 16V MultiJet 75 HP

1.3 16V MultiJet 80 HP

(*)

Type code 199A9000 312A8000

Cycle Diesel Diesel

Number and position of cylinders 4 in line 4 in line

Piston bore and stroke (mm) 69.6 x 82 69.6 x 82

Total displacement (cm³) 1248 1248

Compression ratio 16.8 16.8

Maximum power (EC) (kW) 55 59

Maximum power (EC) (HP) 75 80

corresponding engine speed (rpm) 4000 4000

Maximum torque (EC) (Nm) 190 190

Maximum torque (EC) (kgm) 19.4 19.4

corresponding engine speed (rpm) 1500 1500

Fuel

Diesel for motor vehicles (EN 590

Specification)

Diesel for motor vehicles (EN 590

Specification)

(*) For versions/markets, where provided

143

EURO 6 VERSIONS

Versions 1.2 8V 69 HP 1.2 8V 69 HP LPG

Type code 169A4000 169A4000

Cycle Otto Otto

Number and position of cylinders 4 in line 4 in line

Piston bore and stroke (mm) 70.8 x 78.86 70.8 x 78.86

Total displacement (cm³) 1242 1242

Compression ratio 11,1 11,1

LPG Petrol

Maximum power (EEC) (kW) 51 51 51

Maximum power (EEC) (HP) 69 69 69

corresponding engine speed (rpm) 5500 5500 5500

Maximum torque (EEC) (Nm) 102 102 102

Maximum torque (EEC) (kgm) 10,4 10,4 10,4

corresponding engine speed (rpm) 3000 3000 3000

Spark plugs

NGK ZKR7A-10 or

CHAMPION RA8MCX4

NGK ZKR7AI-8

Fuel

Unleaded petrol 95 RON (EN

228 specification)

LPG for motor vehicles

Unleaded petrol 95 RON (EN

228 specification)

144

TECHNICAL SPECIFICATIONS

Versions

0.9 TwinAir 60 HP

(*)

0.9 TwinAir 65 HP

0.9 TwinAir Turbo 80 HP

(*)

Type code 312A6000 312A4000 312A5000

Cycle Otto Otto Otto

Number and position of cylinders 2 in line 2 in line 2 in line

Piston bore and stroke (mm) 83.5x88 83.5x88 80.5x86

Total displacement (cm³) 964 964 875

Compression ratio 11.1 : 1 11.1 10

Maximum power (EEC) (kW) 44 48 59

Maximum power (EEC) (HP) 60 65 80

corresponding engine speed (rpm) 6250 6250 5500

Maximum torque (EEC) (Nm) 88 88 145

Maximum torque (EEC) (kgm) 8.9 8.9 14.8

corresponding engine speed (rpm) 3500 3500 1900

Spark plugs NGK T20182U NGK LKR7DI-12 NGK PLKR9C8

Fuel

Unleaded petrol 95 RON (EN

228 specification)

Unleaded petrol 95 RON (EN

228 specification)

Unleaded petrol 95 RON (EN

228 specification)

(*) For versions/markets, where provided

145

Versions 0.9 TwinAir Turbo 85 HP 0.9 TwinAir Turbo Natural Power

Type code 312A2000 312A2000

Cycle Otto Otto

Number and position of cylinders 2 in line 2 in line

Piston bore and stroke (mm) 80.5 x 86.0 80.5 x 86.0

Total displacement (cm³) 875 875

Compression ratio 10 10

Methane Petrol

Maximum power (EEC) (kW)

62.5 / 57

(*)

59 62.5

Maximum power (EEC) (HP)

85 / 77.5

(*)

80 85

corresponding engine speed (rpm) 5500 5500 5500

Maximum torque (EEC) (Nm)

145 / 100

(*)

140 145

Maximum torque (EEC) (kgm)

14.8 / 10.2

(*)

14.3 14.8

corresponding engine speed (rpm)

1900 / 2000

(*)

2500 1900

Spark plugs NGK ILKR9G8 NGK ILKR9G8

Fuel

Unleaded petrol 95 RON (EN

228 specification)

Methane for motor vehicles

Unleaded petrol 95 RON (EN

228 specification)

(*) With ECO button pressed

146

TECHNICAL SPECIFICATIONS

Versions

0.9 TwinAir Turbo 90 HP

(*)

1.3 16V MultiJet 95 HP 1.3 16V Multijet 80 HP

Type code 312A7000

312B1000 / 330A1000

(°) 312B2000 / 225A2000 (°°)

Cycle Otto Diesel Diesel

Number and position of cylinders 2 in line 4 in line 4 in line

Piston bore and stroke (mm) 80.5 x 86.0 69.6 x 82 69.6 x 82

Total displacement (cm³) 875 1248 1248

Compression ratio 10 16.8 16.8

Maximum power (EC) (kW)

66.2 / 57

(**)

70 59

Maximum power (EC) (HP)

90 / 77.5

(**)

95 80

corresponding engine speed (rpm) 5500 3750 3750

Maximum torque (EC) (Nm)

145 / 100

(**)

200 200

Maximum torque (EC) (kgm)

14.8 / 10.2

(**)

20.4 20.4

corresponding engine speed (rpm)

1900 / 2000

(**)

1500 1500

Spark plugs NGK ILKR9G8 - -

Fuel

Unleaded petrol 95 RON (EN

228 specification)

Diesel for motor vehicles (EN

590 Specification)

Diesel for motor vehicles (EN

590 Specification)

(*) For versions/markets, where provided

(°) Versioni Trekking, 4x4 and Cross

(°°) 4x4 versions

(**) With ECO button pressed

147

148

TECHNICAL SPECIFICATIONS

WHEELS

180) 181) 182)

RIMS AND TYRES PROVIDED

Panda versions

Versions Rims Tyres provided Snow tyres

Space-saver wheel

(*)

0.9 TwinAir 60 HP (*)

5.5J x 14H2 - ET35

175/65 R14 82T

(**)

175/65 R14 82Q (M+S) 135/80 R14 84M

0.9 TwinAir 65 HP

5.5J x 14H2 - ET35

175/65 R14 82T

(**)

175/65 R14 82Q (M+S) 135/80 R14 84M

5.5J x 14H2 - ET35

175/65 R14 82T

Goodyear Duragrip

(**)

(***)

175/65 R14 82Q (M+S) 135/80 R14 84M

6J x 15H2 - ET35

(****) 185/55 R15 82T (°)

185/55 R15 82Q (M+S) 135/80 R14 84M

0.9 TwinAir 80 HP

(*)

5.5J x 14H2 - ET35

175/65 R14 82T

(**)

175/65 R14 82Q (M+S) 135/80 R14 84M

(*) For versions/markets, where provided.

(**) The tyre can be fitted with reduced size snow chains: 9 mm.

(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.

(****) Alloy wheel rim.

(°) Not suitable for chains.

149

Versions Rims Tyres provided Snow tyres

Space-saver wheel

(*)

0.9 TwinAir Turbo

5.5J x 14H2 - ET35

175/65 R14 82T

(**)

175/65 R14 82Q (M+S) 135/80 R14 84M

5.5J x 14H2 - ET35

175/65 R14 82T

Goodyear Duragrip

(**)

(***)

175/65 R14 82Q (M+S) 135/80 R14 84M

6J x 15H2 - ET35

(****) 185/55 R15 82T (°)

185/55 R15 82Q (M+S) 135/80 R14 84M

0.9 TwinAir Turbo

Natural Power

6Jx15H2-ET35

(****) 175/65 R15 84T (°°°)

175/65 R15 84Q (M+S) -

1.2 8V 69 HP

5.5J x 14H2 - ET35

165/65 R14 79T

(*)

165/65 R14 79Q (M+S) 135/80 R14 84M

5.5J x 14H2 - ET35

165/70 R14 81T

(*)

165/70 R14 81Q (M+S) 135/80 R14 84M

5.5J x 14H2 - ET35

175/65 R14 82T

(**)

175/65 R14 82Q (M+S) 135/80 R14 84M

6J x 15H2 - ET35

(****) 185/55 R15 82T (°)

185/55 R15 82Q (M+S) 135/80 R14 84M

1.3 16V Multijet

(°°)

5.5J x 14H2 - ET35

165/65 R14 79T

(*)

165/65 R14 79Q (M+S) 135/80 R14 84M

5.5J x 14H2 - ET35

165/70 R14 81T

(*)

165/70 R14 81Q (M+S) 135/80 R14 84M

5.5J x 14H2 - ET35

175/65 R14 82T

(**)

175/65 R14 82Q (M+S) 135/80 R14 84M

6J x 15H2 - ET35

(****) 185/55 R15 82T (°)

185/55 R15 82Q (M+S) 135/80 R14 84M

1.3 16V Multijet

(#)

5.5J x 14H2 - ET35

175/65 R14 82T

(**)

135/80 R14 84M

6J x 15H2 - ET35 185/55 R15 82H 135/80 R14 84M

(*) For versions/markets, where provided.

(**) The tyre can be fitted with reduced size snow chains: 9 mm.

(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.

(****) Alloy wheel rim.

(°) Not suitable for chains.

(°°°) The tyre can be fitted with reduced size snow chains: 7 mm.

(°°) Euro 5 versions

(#) Euro 6 versions

85HP

175/65 R14 82Q (M+S)

185/55 R15 82Q

(M+S)

150

TECHNICAL SPECIFICATIONS

Panda Trekking versions

Versions Rims Tyres provided Snow tyres

Space-saver wheel

(*)

0.9 TwinAir Turbo

5.5J x 14H2 - ET35

175/65 R14 82T

(**)

175/65 R14 84Q (M+S) 135/80 R14 84M

5.5J x 14H2 - ET35

175/65 R14 82T

Goodyear Duragrip

(**)

(***)

175/65 R14 84Q (M+S) 135/80 R14 84M

6J x 15H2 - ET35

(****) 175/65 R15 84T (M+S) (°)

125/80 R15 95M

1.3 16V Multijet

(°°) 6J x 15H2 - ET35 (****) 175/65 R15 84T (M+S) (°)

125/80 R15 95M

1.3 16V Multijet

(°°°)

6J x 15H2 - ET35 (****) 175/65 R15 84T (°)

125/80 R15 95M

6J x 15H2 - ET35

(****) 175/65 R15 84T (M+S) (°)

125/80 R15 95M

(*) For versions/markets, where provided.

(**) The tyre can be fitted with reduced size snow chains: 9 mm.

(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.

(****) Alloy wheel rim.

(°) The tyre can be fitted with reduced size snow chains: 7 mm.

(°°) Euro 5 versions

(°°°) Euro 6 versions

85HP

175/65 R15 84T (M+S)

175/65 R15 84Q (M+S)

175/65 R15 84T (M+S)

151

Panda 4x4 versions

Versions Rims Tyres provided Snow tyres

Space-saver wheel

(*)

0.9 TwinAir Turbo

5.5J x 14H2 - ET35

175/65 R14 82T

(**)

175/65 R14 84Q (M+S) 135/80 R14 84M

5.5J x 14H2 - ET35

175/65 R14 82T

Goodyear Duragrip

(**)

(***)

175/65 R14 84Q (M+S) 135/80 R14 84M

6J x 15H2 - ET35

175/65 R15 84T (M+S)

(°)

125/80 R15 95M

6J x 15H2 - ET35

175/65 R15 84T

(°) (°°)

125/80 R15 95M

1.3 16V Multijet

6J x 15H2 - ET35

175/65 R15 84T (M+S)

(°)

125/80 R15 95M

6J x 15H2 - ET35

175/65 R15 84T

(°)

125/80 R15 95M

(*) For versions/markets, where provided.

(**) The tyre can be fitted with reduced size snow chains: 9 mm.

(***) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.

(°) The tyres can be fitted with reduced size snow chains: 7 mm.

(°°) Tyres available on request.

85HP

175/65 R15 84T (M+S)

175/65 R15 84Q (M+S)

175/65 R15 84T (M+S)

175/65 R15 84Q (M+S)

TECHNICAL SPECIFICATIONS

Panda Cross versions

Versions Rims Tyres provided Snow tyres

Space-saver wheel

(*)

0.9 TwinAir Turbo

6 J x 15H2 ET35

175/65 R15 84T (M+S)

(**)

125/80 R15 95M

6 J x 15H2 ET35

175/65 R15 84T (**)

125/80 R15 95M

6 J x 15H2 ET30

185/65 R15 88H (M+S)

(***)

125/80 R15 95M

6 J x 15H2 ET30

185/65 R15 88H (***)

125/80 R15 95M

1.3 16V Multijet

6 J x 15H2 ET35

175/65 R15 84T (M+S)

(**)

125/80 R15 95M

6 J x 15H2 ET35

175/65 R15 84T (**)

125/80 R15 95M

6 J x 15H2 ET30

185/65 R15 88H (M+S)

(***)

125/80 R15 95M

6 J x 15H2 ET30

185/65 R15 88H (***)

125/80 R15 95M

(*) For versions/markets, where provided.

(**) The tyre can be fitted with chains.

(***) Tyre not suitable for fitting snow chains.

Note For Panda Cross and Panda 4x4 versions if the space-saver wheel is used, the control unit for 4x4 drive detects its

presence (via the wheel speed signals) and reduces the intervention of the four-wheel drive to a minimum, while guaranteeing

the agility of the vehicle. No fault/alarm signal is displayed on the instrument panel or on the display.

COLD TYRE INFLATION PRESSURE (bar)

When the tyres are warm, add +0.3 bar to the pressure value prescribed. However, recheck that the value is correct with the

tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.

175/65 R15 84T (M+S)

175/65 R15 84Q (M+S)

185/65 R15 88Q (M+S)

175/65 R15 84T (M+S)

175/65 R15 84Q (M+S)

185/65 R15 88H (M+S)

185/65 R15 88Q (M+S)

Panda / Panda Trekking versions

Tyres

Unladen/medium load Full load

Space-saver

wheel

(*)

Front Rear Front Rear

165/65 R14 79T 2.5 2.2 2.7 2.4 2.8

165/70 R14 81T

(*)

2.3 2.0 2.5 2.2 2.8

175/65 R14 82T

2.2 / 2.5

(**)

2.0 / 2.5 (**) /

(***)

2.5 2.5 2.8

175/65 R15 84T (M+S)

(****)

2.2 2.1 2.5 2.5 4.2

185/55 R15 82T 2.2 2.0 2.5 2.5 2.8

185/55 R15 82H 2.2 2.0 2.5 2.5 2.8

(*) For versions/markets, where provided

(**) 0.9 TwinAir 60 HP/80 HP engines

(***)Natural Power versions

(****) For Trekking versions

153

Panda Cross / Panda 4x4 versions

Tyres

Unladen/medium load Full load

Space-saver

wheel

(°)

Front Rear Front Rear

175/65 R14 82T M+S

(*)

2.2 2.1 2.5 2.5 4.2

175/65 R15 84T (*)

2.2 2.1 2.5 2.5 4.2

175/65 R15 84T

(**)

2.4 2.2 2.7 2.7 4.2

185/65 R15 88H

(**)

2.4 2.2 2.7 2.7 4.2

(°) For versions/markets, where provided.

(*) For Panda 4x4 versions

(**) For Panda Cross versions

Note For Cross and 4x4 versions, do not drive deliberately for long distances with the tyres flat (not at the prescribed pressure)

and/or with greatly varying pressures between front axle and rear axle, in order to avoid any malfunction of the 4x4 drive.

2.1

SNOW CHAINS

183) 184) 185) 66)

Important

The use of snow chains should be in compliance with local regulations of each country. In certain countries, tyres marked with

code M+S (Mud and Snow) are considered as winter equipment; therefore their use is equivalent to that of the snow chains.

The snow chains may be applied only to the front wheel tyres.

Check the tension of the snow chains after the first few metres have been driven.

Using snow chains with tyres with non-original dimensions may damage the vehicle.

Using different size or type (M+S, snow, etc.) tyres between front and rear axle may adversely affect vehicle driveability, with the

risk of losing control of the vehicle and resulting accidents.

Snow chains cannot be fitted to the space-saver wheel (for versions/markets, where provided). If a front tyre is punctured,

replace a rear wheel with the space-saver wheel and move the rear wheel to the front axle. In this way, with two normal drive

wheels at the front, snow chains can be fitted.

154

TECHNICAL SPECIFICATIONS

WARNING

180) The maximum speed for snow tyres marked “Q” is 160 km/h, while it is 190 km/h for “T” tyres and 210 km/h for "H" tyres. The highway

code speed limits must however always be complied with.

181) 185/55 R15 82T tyres cannot be fitted with chains.

182) 175/65 R14 82T tyres can be fitted with reduced size snow chains: 9 mm.

183) 175/65 R15 84T tyres can be fitted with reduced size snow chains: 7 mm.

184) Keep your speed down when snow chains are fitted; do not exceed 50 km/h. Avoid potholes, steps and pavements and avoid driving

for long distances on roads not covered with snow to prevent damaging the vehicle and the road surface.

185) DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim

Protector. Use of unsuitable tyres and wheel caps may cause sudden loss of tyre pressure.

WARNING

66) When the snow chains are on, use the accelerator with extreme care to prevent, or to limit as much as possible, the driving wheels from

skidding. This could cause the chains to break, resulting in damage to the vehicle body or mechanical components.

155

DIMENSIONS

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with

vehicle unladen.

LUGGAGE COMPARTMENT CAPACITY Capacity (VDA standards) =225 litres

Panda versions

ABCDEFGH I

3653 747 2300 606

1551/1605

(*) 1407/1408(*)

1643

1409/1414

(*)

1882

(*) Natural Power versions.

129

F1D0103

156

TECHNICAL SPECIFICATIONS

Panda Trekking / Panda 4x4 versions

Panda Trekking

ABCDEFGH I

3686 765 2300 621 1605 1408 1672 1414 1882

Panda 4x4

ABCDEFGH I

3686 /

3653

(*)

765 / 747 2300

621 / 606

(*)

1605 1408

1672/1643

(*)

1411 1882

(*) VAN versions.

130

F1D0104

157

Panda Cross versions

ABCDEFGH I

3705 772.5 2300 632.5 1656.5 1406 1662 1403 1882

131

F1D0121

158

TECHNICAL SPECIFICATIONS

WEIGHTS

Panda/Panda Trekking EURO 5 versions

Weights (kg) 1.3 16V MultiJet 75 HP

Unladen weight (with all fluids, fuel tank 90% full and

without optional equipment):

1035

Payload including the driver:

(*)

480 (4-seater) / 500 (5-seater)

Maximum permitted loads

(**)

– front axle: 855

– rear axle: 760

– total: 1515 (4-seater) / 1535 (5-seater)

Towable loads

– braked trailer: 900

– non-braked trailer: 400

Maximum load on roof: 55

Maximum load on ball joint (braked trailer): 60

(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum

permitted loads.

(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

159

Panda/Panda Trekking EURO 6 versions

Weights (kg) 0.9 TwinAir 60 HP/65 HP

0.9 TwinAir Turbo 0.9 TwinAir Turbo

Natural Power

Unladen weight (with all fluids, fuel tank 90% full and

without optional equipment):

955 975 / 980 1080

Payload including the driver:

(*)

480 (4-seater) / 500

(5-seater)

480 (4-seater) / 500

(5-seater)

460 (4-seater) / 470

(5-seater)

Maximum permitted loads

(**)

– front axle: 770 855 875

– rear axle: 760 760 810

– total:

1435 (4-seater) / 1455

(5-seater)

1455 (4-seater) / 1460

(4-seater)

(°) / 1475

(5-seater) / 1480 (5-seater)

(°)

1540 (4-seater) / 1550

(5-seater)

Towable loads

– braked trailer: 800 800

(°°)

– non-braked trailer: 400 400

(°°)

Maximum load on roof: 55 55 55

Maximum load on ball joint (braked trailer): 60 60

(°°)

(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum

permitted loads.

(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

(°) Versions equipped with the "Dualogic" gearbox

(°°) IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.

8 0 HP/85 HP

160

TECHNICAL SPECIFICATIONS

Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG 1.3 16V MultiJet 80/95HP

Unladen weight (with all fluids, fuel tank 90% full and

without optional equipment):

940 980 1045

Payload including the driver:

(*)

480 (4-seater) / 500

(5-seater)

470

480 (4-seater) (1)/

Maximum permitted loads

(**)

– front axle: 770 770 855

– rear axle: 760 760 760

– total:

1420 (4-seater) / 1440

(5-seater)

1450

1515 (4-seater) / 1535

(5-seater)

Towable loads

– braked trailer: 800

(***)

900

– non-braked trailer: 400

(***)

400

Maximum load on roof: 55 55

55/60

(°)

Maximum load on ball joint (braked trailer): 60

(***)

(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum

permitted loads.

(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

(***) IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.

(°) Trekking versions

470 (4-seater) (2)/

500 (5-seater) (1)/

490 (5-seater) (2)

(1) 80HP

(2) 95HP

161

Panda Cross and Panda 4x4 EURO 5 versions

Weights (kg) 1.3 16V MultiJet 75 HP 1.3 16V MultiJet 80 HP

Unladen weight (with all fluids, fuel tank 90% full and

without optional equipment):

1115 1155

Payload including the driver:

(*)

480 (4-seater) / 500 (5-seater) 440 (4-seater) / 470 (5-seater)

Maximum permitted loads

(**)

– front axle: 875 875

– rear axle: 810 810

– total: 1595 (4-seater) / 1615 (5-seater) 1530 (4-seater) / 1585 (5-seater)

Towable loads

– braked trailer: 900 800

– non-braked trailer: 400 400

Maximum load on roof: 55

(***)

Maximum load on ball joint (braked trailer): 60 60

(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum

permitted loads.

(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

(***) Load evenly distributed

162

TECHNICAL SPECIFICATIONS

Panda Cross and Panda 4x4 EURO 6 versions

Weights (kg) 0.9 TwinAir Turbo 85 HP 0.9 TwinAir Turbo 90 HP 1.3 16V MultiJet 95 HP

Unladen weight (with all fluids, fuel tank 90% full and

without optional equipment):

1050 1090

1125

(°) / 1165 (°°)

Payload including the driver: (*)

480 (4-seater) / 500

(5-seater)

440 (4-seater) / 495

(5-seater)

470 (4-seater)

(°) / 430

(4-seater)

(°°) / 490

(5-seater)

(°) / 460

(5-seater)

(°°)

Maximum permitted loads (**)

– front axle: 875 875 875

– rear axle: 810 810 810

– total:

1530 (4-seater) / 1550

(5-seater)

1530 (4-seater) / 1585

(5-seater)

1595 (4-seater) / 1615

(5-seater)

(°) / 1625

(5-seater)

(°°)

Towable loads

– braked trailer: 800 800 900

– non-braked trailer: 400 400 400

Maximum load on roof: 55

(***) 60 (***) (°°)

Maximum load on ball joint (braked trailer): 60 60 60

(°) Panda 4x4 versions

(°°) Panda Cross versions

(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum

permitted loads.

(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

(***) Load evenly distributed

163

Panda VAN EURO 5 versions

Weights (kg) 1.3 16V MultiJet 75 HP 1.3 16V MultiJet 4x4 75 HP

Unladen weight (with all fluids, fuel tank

90% full and without optional

equipment):

1030 (2-seater) / 1050 (4-seater) 1100

Payload including the driver:

(*)

505 (2-seater) / 400 (2-seater) (**) / 490

(4-seater)

495

Maximum permitted loads

(***)

– front axle: 855 875

– rear axle: 770 (2-seater) / 780 (4-seater) 810

– total:

1535 (2-seater) / 1430 (2-seater)

(**) / 1530

(4-seater)

1595

Towable loads

– braked trailer: 900 900

– non-braked trailer: 400 400

Maximum load on roof: 60 55

Maximum load on ball joint (braked

trailer):

60 60

(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum

permitted loads.

(**)Versions with reduced capacity

(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

164

TECHNICAL SPECIFICATIONS

Panda VAN EURO 6 versions

Weights (kg) 0.9 TwinAir 65 HP

0.9 TwinAir Turbo 0.9 TwinAir Turbo 0.9 TwinAir Turbo

Natural Power

Unladen weight (with all fluids, fuel tank

90% full and without optional

equipment):

950 (2-seater) / 960

(4-seater)

980 1035 1075

Payload including the driver:

(*)

505 (2-seater) / 490

(4-seater)

500 (2-seater) / 490

(4-seater)

510

420

(°) / 460

Maximum permitted loads

(**)

– front axle: 770 855 875 875

– rear axle:

770 (2-seater) / 780

(4-seater)

770 (2-seater) / 780

(4-seater)

810 810

– total:

1455 (2-seater) / 1450

(4-seater)

1480 (2-seater) / 1470

(4-seater)

1545

1495

(°) / 1535

Towable loads

– braked trailer: 800 800 800

(***)

– non-braked trailer: 400 400 400

(***)

Maximum load on roof: 60 60 60 60

Maximum load on ball joint (braked

trailer):

60 60 60

(***)

(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum

permitted loads.

(°) Versions with reduced capacity

(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

(***) IMPORTANT A trailer cannot be towed so there are no provisions for fitting a tow hook.

85 HP 8 5 HP 4x4

165

Weights (kg) 1.2 8V 69 HP 1.2 8V 69 HP LPG

1.3 16V MultiJet 1.3 16V MultiJet 4x4

80 HP

Unladen weight (with all fluids, fuel tank

90% full and without optional

equipment):

935 (2-seater) / 945

(4-seater)

975

1040 (2-seater) / 1050

(4-seater)

1110

Payload including the driver:

(*)

505 (2-seater) / 490

(4-seater)

470

400 (2-seater)

(°) /

495 (2-seater) / 485

(4-seater)

485

Maximum permitted loads

(**)

– front axle: 770 770

855 (2-seater) / 875

(4-seater)

875

– rear axle:

770 (2-seater) / 780

(4-seater)

770

770 (2-seater) / 780

(4-seater)

810

– total:

1440 (2-seater) / 1435

(4-seater)

1445

1440 (2-seater)

(°)

1535 (2-seater) / 1535

(4-seater)

1595

Towable loads

– braked trailer: 800 800 900 900

– non-braked trailer: 400 400 400 400

Maximum load on roof: 60 60 60 -

Maximum load on ball joint (braked

trailer):

60 60 60 60

(*) If special equipment is fitted (sun roof, tow hitch, etc.) the unladen vehicle weight increases, thus reducing the specified payload in relation to the maximum

permitted loads.

(°) Versions with reduced capacity

(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the maximum permitted loads.

80HP

166

TECHNICAL SPECIFICATIONS

SUPPLIES

0.9 TwinAir 0.9 TwinAir

Turbo

1.2 8V 69 HP Prescribed fuels and original lubricants

Fuel tank (litres): 37

37/35

(*)

Unleaded petrol not less than 95 RON (EN 228

specification)

including a reserve of (litres): 5 ÷ 7 5 ÷ 7 5 ÷ 7

Engine cooling system (litres): 4.8 5.2 4.6

Mixture of 50% distilled water and 50%

PARAFLU

(**)

Engine sump (litres): 2.8 2.8 2.5

SELENIA DIGITEK P.E (0.9 TwinAir and 0.9

TwinAir Turbo versions) / SELENIA K P.E. (1.2 8V

69 HP versions) / SELENIA MULTIPOWER GAS

5W-40 (LPG versions)

Engine sump and filter (litres): 3.2 3.2 2.8

Differential/gearbox casing: 1.65 (litres)

1.65 (litres) /

(***)

1.65 (litres)

TUTELA TRANSMISSION TECHNYX (0.9

TwinAir, 0.9 TwinAir Turbo versions) / TUTELA

TRANSMISSION GEARFORCE (1.2 8V 69 HP,

LPG and Natural Power versions)

Rear differential (kg)

(***)

- 0.62 - TUTELA TRANSMISSION CROSS

Dualogic gearbox hydraulic

activation system (litres):

- 0.7 - TUTELA CS SPEED

Hydraulic brake circuit (litres): 0.55 0.55 0.55 TUTELA TOP 4

Windscreen and rear window

washer fluid reservoir (litres):

2.7 2.7 2.7

Mixture of water and TUTELA PROFESSIONAL

SC35

(*) Trekking versions.

(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU

and 40% demineralised water.

(***)Panda Cross and Panda 4x4 versions

1.7 (kg)

6 0 HP/65 HP

167

1.3 16V MultiJet

1.3 16V MultiJet Cross

/ 4x4

Prescribed fuels and original

lubricants

Fuel tank (litres):

37/35

(*)

Diesel for motor vehicles (EN 590

Specification)

including a reserve of (litres): 5 ÷ 7 5 ÷ 7

Engine cooling system (litres): 6.3 6.3

Mixture of demineralised water and

50% PARAFLU

(**)

Engine sump (litres):

SELENIA WR P.E. (Euro 5 versions) /

SELENIA WR FORWARD (Euro 6

versions)

Engine sump and filter (litres):

Gearbox casing/front differential (kg): 1.8 1.70

TUTELA TRANSMISSION

GEARFORCE

Drive transmission idler unit (PTU) (kg): - 0.39 TUTELA TRANSMISSION MULTIAXLE

Rear differential (kg): - 0.62 TUTELA TRANSMISSION CROSS

Hydraulic brake circuit (litres): 0.55 0.55 TUTELA TOP 4

Windscreen and rear window washer fluid

reservoir (litres):

2.7 2.7

Mixture of water and TUTELA

PROFESSIONAL SC35

(*) Trekking versions.

(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLU

and demineralised water.

2,8 2,8

3,7

(Euro 5)

(

Euro 6)

(Euro 5)

(

Euro 6)

3,7

3,0 3,0

3,9

(

Euro 6)

(

Euro 6)

3,9

(Euro 5)

168

TECHNICAL SPECIFICATIONS

FLUIDS AND LUBRICANTS

Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of

the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission

specifications. Lubricant quality is crucial for engine operation and duration.

67)

Use Characteristics Specification

Original fluids and

lubricants

Replacement interval

Lubricants for petrol

engines and 1.2 8V

69 HP

SAE 5W-40 ACEA C3 /

API SN.

9.55535-S2

SELENIA K P.E.

Contractual Technical

Reference No. F603.C07

According to Scheduled

Servicing Plan

Lubricants for petrol

engines 0.9 TwinAir

and 0.9 TwinAir

Turbo

SAE 0W-30 ACEA C2 /

API SN.

9.55535-GS1 or

MS.90048

SELENIA DIGITEK P.E.

Contractual Technical

Reference no. F020.B12

According to Scheduled

Servicing Plan

Lubricant for petrol/

methane engines

SAE 0W-30 ACEA C2 /

API SN.

9.55535-GS1 or

MS.90048

SELENIA DIGITEK P.E.

Contractual Technical

Reference no. F020.B12

According to Scheduled

Servicing Plan

Lubricant for petrol/

LPG engines

SAE 5W-40 ACEA C3 /

API SN.

9.55535-T2

SELENIA MULTIPOWER

GAS 5W-40

Contractual Technical

Reference No. F922.E09

According to Scheduled

Servicing Plan

Lubricants for diesel

engines (Euro 5

versions)

SAE 5W-30 ACEA C2. 955535-S1

SELENIA WR P.E.

Contractual Technical

Reference No. F510.D07

According to Scheduled

Servicing Plan

Lubricants for diesel

engines (Euro 6

versions)

SAE 0W-30 ACEA C2.

9.55535-DS1 or

MS.90047

SELENIA WR FORWARD

Contractual Technical

Reference No. F842.F13

According to Scheduled

Servicing Plan

WARNING

67) The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.

If lubricants conforming to the prescribed specifications are not available, products that meet the indicated specifications can

be used to top up; in this case optimal performance of the engine is not guaranteed.

For TwinAir engines only use lubricants with indicated SAE grade and specifications.

Use Characteristics Specification

Original fluids and

lubricants

Applications

Lubricants and

greases for drive

transmission

SAE 75W- 85 grade

synthetic lubricant.

9.55550-MX3

TUTELA TRANSMISSION

TECHNYX

Contractual Technical

Reference No. F010.B05

Manual gearbox and

differential (0.9 TwinAir and

0.9 TwinAir Turbo versions)

SAE 75W grade synthetic

lubricant.

9.55550-MZ6 or

MS.90030-M1

TUTELA TRANSMISSION

GEARFORCE

Contractual Technical

Reference no. F002.F10

Manual gearbox and

differential (1.3 16V Multijet,

LPG, 1.2 8V 69 HP and

Natural Power versions)

Fully synthetic oil with

dedicated additive.

9.55550-SA1 or

MS.90030-H1

TUTELA CS SPEED

Contractual Technical

Reference No. F005.F98

Dualogic gearbox hydraulic

activation system

Synthetic lubricant grade

SAE 75W-85.

9.55550 - DA4

TUTELA TRANSMISSION

CROSS

Contractual Technical

Reference No. F001.D12

Rear differential

(°)

SAE 75W-85 grade

synthetic lubricant, which

exceeds API GL5

specifications.

9.55550 - DA3

TUTELA TRANSMISSION

MULTIAXLE

Contractual Technical

Reference No. F426.E06

Drive transmission idler unit

(PTU)

(°)

Molybdenum disulphide

grease, for use at high

operating temperatures.

N.L.G.I. consistency 1-2.

9.55580 - GRASS II

TUTELA ALL STAR

Contractual Technical

Reference No. F702.G07

Wheel side constant

velocity joints

Specific grease for

constant velocity joints

with low friction coefficient.

N.L.G.I. consistency 0-1.

9.55580 - GRASS II

TUTELA STAR 700

Contractual Technical

Reference No. F701.C07

Differential-side constant

velocity joints

(°) Panda Cross and Panda 4x4 versions.

169

Use Characteristics Specification

Original fluids and

lubricants

Applications

Brake fluid

Synthetic fluid for brake

and clutch systems.

Exceeds specifications:

FMVSS no. 116 DOT 4,

ISO 4925 SAE J1704.

9.55597 or MS.90039

TUTELA TOP 4

Contractual Technical

Reference No. F001.A93

Hydraulic brakes and

hydraulic clutch controls

Protective agent for

radiators

Protective agent with

anti-freeze action and

organic formulation. CUNA

NC 956-16, ASTM D 3306

specifications.

9.55523 or MS.90032

PARAFLU

(*)

Contractual Technical

Reference No. F101.M01

Cooling circuits proportions

of use: 50% water 50%

PARAFLU

(**)

Diesel fuel additive

Additive for diesel with

antifreeze and protective

action for diesel engines

TUTELA DIESEL ART

Contractual Technical

Reference No. F601.L06

To be mixed with diesel (25

cc per 10 litres)

Windscreen/rear

window washer fluid

Mixture of spirits and

surfactants. Exceeds

CUNA NC 956-11

specifications.

9.55522 or MS.90043

TUTELA

PROFESSIONAL SC 35

Contractual Technical

Reference No. F201.D02

To be used diluted or

undiluted in screen

washer/wiper systems

(*) IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.

(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU

and 40% demineralised water.

170

TECHNICAL SPECIFICATIONS

PERFORMANCE

(*) For versions/markets, where provided

(**) For Trekking versions.

(°) Running on petrol

(°°) Running on methane

171

Versions km/h

0.9 TwinAir 60 HP (*)

158 in 4th gear

0.9 TwinAir 65 HP 160

0.9 TwinAir Turbo 80 HP

(*)

175

0.9 TwinAir Turbo 80 HP Dualogic

(*)

175

0.9 TwinAir Turbo 85 HP

177 - 170 in 4th gear

(**)

0.9 TwinAir Turbo 85 HP Dualogic (*)

177

0.9 TwinAir Turbo 85 HP 4x4 166

0.9 TwinAir Turbo 90 HP Cross 167

0.9 TwinAir Turbo Natural Power

170

(°)

/ 168

(°°)

1.2 8V 69 HP 164

1.2 8V 69 HP LPG 164

1.3 16V MultiJet 75 HP

168 / 161

(**)

1.3 16V MultiJet 75 HP 4x4 159

1.3 16V MultiJet 80 HP Cross 160

1.3 16V Multijet 80HP 170

1.3 16V Multijet 80HP 4x4 160

1.3 16V MultiJet 95 HP

182 / 173

(**)

Top speeds after the initial period of usage of the vehicle.

1.3 16V MultiJet 95 HP 4x4 167

1.3 16V MultiJet 95 HP Cross 168

172

TECHNICAL SPECIFICATIONS

FUEL CONSUMPTION

The fuel consumption figures given in the tables below are determined on the basis of the type-approval tests laid down by

specific European Directives.

IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the vehicle, trim

level/equipment/accessories, use of the climate control system, vehicle load, presence of roof racks and other situations that

adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The

fuel consumption will get more regular only after having driven the first 3000 km.

FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)

NOTE Consumption of methane-fuelled Natural Power versions is intended in m

/100 km.

Euro 5 versions

Versions Urban Extra-urban Combined

1.3 16V MultiJet 75 HP 4.7

3.5 / 3.8

(**) 3.9 / 4.1 (**)

1.3 16V MultiJet 75 HP 4x4 4.9 4.6 4.7

1.3 16V MultiJet 80 HP Cross 4.9 4.6 4.7

(**) For Trekking versions.

173

Euro 6 versions

Versions Urban Extra-urban Combined

0.9 TwinAir 60 HP (*)

4.5 3.4 3.8

0.9 TwinAir 65 HP

5.0 / 4.8

(*) 3.8 / 3.7 (*) 4.2 / 4.1 (*)

0.9 TwinAir Turbo 80 HP (*)

4.4 3.4 3.8

0.9 TwinAir Turbo 80 HP Dualogic

(*)

4.4 3.4 3.8

0.9 TwinAir Turbo 85 HP

5.0 / 5.2

(**) / 4.9 (*) 3.8 / 4.2 (**) /3.8 (*) 4.2 / 4.6 (**) / 4.2 (*)

0.9 TwinAir Turbo 85 HP Dualogic 4.8 3.7 4.1

0.9 TwinAir Turbo 85 HP 4x4 5.9 4.3 4.9

0.9 TwinAir Turbo 90 HP 5.9 4.3 4.9

0.9 TwinAir Turbo Natural Power

5.8

(°) / 6.0 (°°) 3.8 (°) / 4.0 (°°) 4.5 (°) / 4.7 (°°)

1.2 8V 69 HP

6.7 / 6.5

(*) / 5.9(*) 4.3 / 4.2 (*) / 4.0 (*) 5.2 / 5.0 (*) /4.7 (*)

1.2 8V 69 HP LPG

6.6

(°) / 6.9 (°°°) 4.3 (°) / 6.3 (°°°) 5.1 (°) / 6.5 (°°°)

1.3 16V Multijet 80 HP 4.3 3.2 3.6

1.3 16V Multijet 80 HP 4x4 4.7 4.3 4.4

1.3 16V MultiJet 95 HP

4.3 / 4.4

(**) 3.2 / 3.5 (**) 3.6 / 3.8 (**)

1.3 16V Multijet 95 HP 4x4 4.7 4. 4.

1.3 16V Multijet 95 HP Cross 4.8 4.4 4.8

(*) For versions/markets, where provided.

(**) For Trekking versions.

(°) Running on petrol

(°°) Running on methane

(°°°) Running on LPG

174

TECHNICAL SPECIFICATIONS

EMISSIONS

The CO

emission levels given in the following tables refer to combined consumption.

Euro 5 versions

Versions

EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE

(g/km)

1.3 16V MultiJet 75 HP

103 / 108

(**)

1.3 16V MultiJet 75 HP 4x4 124

1.3 16V MultiJet 80 HP Cross 124

(**) For Trekking versions.

Euro 6 versions

(*) For versions/markets, where provided.

(**) For Trekking versions.

(°) Running on petrol.

(°°) Running on methane.

Versions

EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE

(g/km)

0.9 TwinAir 60 HP (*)

0.9 TwinAir 65 HP

99/95

(*)

0.9 TwinAir Turbo 80 HP (*)

0.9 TwinAir Turbo 80 HP Dualogic

(*)

0.9 TwinAir Turbo 85 HP

99 / 105

(**) /97(*)

0.9 TwinAir Turbo 85 HP Dualogic 95

0.9 TwinAir Turbo 85 HP 4x4 114

0.9 TwinAir Turbo 90 HP Cross 114

0.9 TwinAir Turbo Natural Power

106

(°) /85(°°)

175

Versions

EMISSIONS ACCORDING TO CURRENT EUROPEAN DIRECTIVE

(g/km)

(*) For versions/markets, where provided.

(**) For Trekking versions.

(°) Running on petrol.

(°°) Running on methane.

(°°°) Running on LPG.

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF

ITS LIFE

FCA has been committed for many years to safeguarding the environment through the constant improvement of its production

processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service

in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of

their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without incurring any additional

costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any

expenses as a result of it having a zero or negative market value.

To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another

vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality

service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.

You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the

number in the Warranty Booklet or by consulting the websites of the various FCA brands.

1.2 8V 69 HP

120 / 117

(*) / 119 (*) /110 (*)

1.2 8V 69 HP LPG

119

(°) / 106 (°°°)

1.3 16V Multijet 80 HP 94

1.3 16V Multijet 80 HP 4x4 117

1.3 16V Multijet 95 HP

94 / 100

(**)

1.3 16V Multijet 95 HP 4x4 117

1.3 16V Multijet 95 HP Cross 119

MULTIMEDIA

This chapter describes the main

functions of the radio and Blue&Me™

that can be fitted on the vehicle.

RADIO.............................................177

BLUE&ME ......................................18

176

MULTIMEDIA

RADIO

186) 187)

The radio has been designed according

to the specifications of the passenger

compartment, with a personalised

design matching the style of the

dashboard perfectly.

TIPS

Road safety

Please, learn how to use all different

radio functions (e.g. save stations)

before beginning to drive.

Care and maintenance

Clean the cover with a soft antistatic

cloth only. Cleaning and polishing

products may damage the surface.

ANTI-THEFT

PROTECTION

The radio is equipped with an anti-theft

protection system based on the

exchange of information between the

radio and the electronic control unit

(Body Computer) on the car.

This system guarantees maximum

safety and prevents the secret code

from being entered each time the radio

power supply is disconnected.

If the check has a positive outcome, the

radio will start to function, whereas if

the comparison codes are not the

same or if the electronic control unit

(Body Computer) is replaced, the

device will ask the user to enter the

secret code according to the procedure

described in the paragraph below.

Entering the secret code

When the radio is switched on, if the

code is requested, the display will show

"Radio code" for about 2 seconds

followed by four dashes "----".

The code is made up of four numbers

from 1 to 6, each corresponding to one

of the dashes.

To enter the first digit of the code, press

the corresponding button of the

pre-selected stations (from 1 to 6).

Enter the other code digits in the same

way.

If the four digits are not entered within

20 seconds, the display will show

"Enter code----".Ifthis occurs, it is

not considered an incorrect code entry.

After entering the fourth digit (within

20 seconds), the car radio will start to

work.

If an incorrect code is entered, the radio

will emit a sound and the display

shows the text "Radio blocked/wait" to

notify the user of the need to enter

the correct code.

Each time the user enters an incorrect

code, the waiting time will gradually

increase (1 min, 2 min, 4 min, 8 min, 16

min, 30 min, 1 h, 2 h, 4 h, 8 h, 16 h,

24 h) up to a maximum of 24 hours.

The waiting time will be shown on the

display with the text "Radio blocked/

wait". After the text has disappeared it

is possible to start the code entering

procedure again.

Car radio passport

This document certifies the ownership

of the car radio. The car radio passport

shows the radio model, serial number

and secret code.

IMPORTANT Keep the radio passport in

a safe place so that you can give the

information to the relevant authorities if

the radio is stolen.

In the case of loss of the vehicle radio

passport, contact the Fiat Dealership,

taking an ID document and the vehicle

ownership documents.

177

QUICK GUIDE

132

F1D0105

178

MULTIMEDIA

MEDIA

CD/Media Player source selection (only with

Blue&Me™) / AUX (only with Blue&Me™, for versions/

markets, where provided)

short cyclical button press

Volume activation/deactivation (Mute/Pause) Short button press

Audio adjustments: low tones (BASS), high tones

(TREBLE), RH / LH balance (BALANCE), front / rear

balance (FADER)

Menu activation: short button press

Selection of type of adjustment: pressing

buttons

Adjustment of values: pressing

or buttons.

MENU Advanced functions adjustment

Menu activation: short button press

Selection of type of adjustment: pressing

buttons

Adjustment of values: pressing

or buttons.

Radio functions

Button Functions Mode

Radio station search:

❒ Automatic search

❒ Manual search

Automatic search: pressing

or buttons (long press

for fast forward)

Manual search: pressing

or buttons (long press

for fast forward)

123456

Store current radio station Long press on keys for preset/memory from 1 to 6

Stored station recall Brief press on keys for preset/memory from 1 to 6

179

General functions

Button Functions Mode

Switching on short button press

Switching off short button press

Volume adjustment LH/RH knob rotation

FM AS FM1, FM2, FM Autostore radio source selection short cyclical button press

AM MW1, MW2 radio source selection short cyclical button press

Play previous/next track Short or button press

Fast forwarding/rewinding CD track Long

or button press

Playing previous/next folder (for CD-MP3) Short or button press

Media Player functions (only with Blue&Me™)

Button Functions Mode

Select previous/next folder/artist/genre/album

depending on the active selection mode

Short button press

Play previous/next track Short button press

180

MULTIMEDIA

CD functions

Button Functions Mode

CD ejection Short button press

INTRODUCTION

The radio offers the following functions:

Radio section

❒ PLL tuning with FM/AM/MW

frequency bands;

❒ RDS (Radio Data System) with TA

(traffic alerts) function - TP (traffic

programmes) - EON (Enhanced Other

Network) - REG (regional programmes);

❒ AF: search selection for alternative

frequencies in RDS mode;

❒ provision for emergency alarm;

❒ automatic/manual tuning into

stations;

❒ FM Multipath detector;

❒ manual storing of 30 stations: 18 on

FM band (6 on FM1, 6 on FM2, 6 on

FMT), 12 on MW band (6 on MW1,

6 on MW2);

❒ automatic programming (Autostore

function) of 6 stations on dedicated FM

band;

❒ SPEED VOLUME function: automatic

volume adjustment according to the

car speed;

❒ automatic Stereo/Mono selection.

CD section

❒ Direct selection of the disc;

❒ Track selection (forward/back);

❒ Fast advance (forward/back) through

tracks;

❒ CD Display function: display of disc

name and time elapsed since the

start of the track;

❒ Playing of audio CD, CD-R and

CD-RW.

MP3 CD section

❒ MP3-Info function (ID3-TAG);

❒ Folder selection (previous/next);

❒ Track selection (forward/back);

❒ Fast advance (forward/back) through

tracks;

❒ MP3 Display function: display of

name of folder, ID3-TAG information,

time elapsed since the start of the

track, name of the file);

❒ Playing of audio or data CD, CD-R

and CD-RW.

Audio section

❒ Mute/Pause function;

❒ Soft-Mute function;

❒ Loudness function;

❒ 7-band graphic equaliser;

❒ Separate bass/treble adjustment;

❒ Right/left channel balance.

Media Player section (only with

Blue&Me™)

For the Media Player functions see, the

Blue&Me™ supplement.

AUX section (only with Blue&Me™)

(for versions/markets, where provided)

❒ AUX source selection;

❒ AUX Offset function: alignment of the

portable device volume with that of

the other sources;

❒ Portable player playback.

WARNING

186) High volume can be a risk for the

driver and for other road users. Always

adjust the volume so that you can still hear

background noises.

187) Multimedia CDs include data tracks in

addition to the audio tracks. Playing this

type of CD can cause hissing at a volume

that may jeopardise road safety as well

as cause damage to the final stages and

the speakers.

181

BLUE&ME™

188) 189) 190) 191) 192) 193) 194)

Fiat Blue&Me™ based on Microsoft Auto™ features hands-free, SMS message reader and Media Player functions. The

Blue&Me™ system is completely integrated with voice commands, buttons on the steering wheel and multifunction display to

facilitate operation without distracting the driver from the road or requiring them to take their hands off the steering wheel.

133

F1D0106

182

MULTIMEDIA

Button Short press (less than 1 second)

Long press (more than

1 second)

❒ Acceptance of incoming call

❒ Display of last calls made

❒ Passing from one telephone conversation to another in second call mode (call notification)

❒ Call selected or composed contact/number

❒ Activation of Blue&Me™ main menu

❒ Rejection of incoming call

❒ Ending of call in progress

❒ Activation of voice recognition

❒ Interruption of the voice message in order to give a new voice command

❒ Repetition of the last

voice message given by

the system

Pressing the centre of the left wheel:

❒ deactivation of voice recognition

❒ interruption of voice message

❒ interruption of SMS message reading

❒ exit from Blue&Me™ Main Menu

❒ exit from a submenu and return to previous menu option

❒ exit from the current selection without saving

❒ deactivate/reactivate the microphone during a phone conversation

❒ resetting of call tone volume for incoming call

❒ Media Player Pause on/off

+/-

Turning left wheel upwards or downwards:

❒ adjust the audio volume for Blue&Me™ system functions: hands-free, SMS message

reader, Media player, voice announcements

Turning right wheel upwards or downwards:

❒ Scrolling through the Blue&Me ™ menu

❒ Media Player track selection

❒ Scrolling through SMS messages in the list

183

Button Short press (less than 1 second)

Long press (more than

1 second)

SRC/OK

Pressing the centre of the right wheel:

❒ Selected menu option confirmation during manual interaction

❒ Transfer of phone conversation in progress from hands-free system to mobile phone and

vice versa

❒ Select audio sources (Radio, CD, Media Player, AUX)

❒ Selection of SMS message displayed

(*)

❒ Selection of previous/next folder/artist/genre/album depending on the mode selected

(*)

❒ Play previous/next track (Media Player mode)

(*)Radio buttons (for versions/markets, where provided)

❒ For both operating modes for the controls on the steering wheel (short or long press), the function is activated when the

button is released.

184

MULTIMEDIA

HANDS-FREE FUNCTION

QUICK GUIDE

To start using the hands-free function

with voice recognition and Bluetooth®

technology provided by Blue&Me™:

❒ Make sure that the ignition key is

turned to MAR

❒ Practise the voice commands

❒ Register your mobile phone

❒ Make a call.

Preparing your mobile phone

phonebook

Before pairing your mobile phone with

Blue&Me™, you must make sure

you have stored the names you want to

contact in the phonebook on your

mobile phone so that you can call them

using the car's hands-free system.

If your phonebook does not contain any

names, enter new names for the most

frequently used numbers. For further

details, consult your mobile phone

manual.

IMPORTANT

❒ Access to the phonebook copied to

Blue&Me™ is possible only when

the mobile phone from which it was

copied is connected.

❒ Entries stored in the SIM card or

mobile phone memory can be

transferred to Blue&Me™ with different

procedures, depending on your mobile

phone model.

Getting to know the voice

commands

When talking to the system, you can

always use the voice command "Help",

to obtain detailed instructions on the

voice commands available for each

stage of interaction.

To practise the "Help" command

proceed as follows:

❒ Press the

control on the steering

wheel.

❒ After Blue&Me™ has given an

acoustic signal to indicate that voice

recognition is active, say "Help".

Blue&Me™ will give the list of voice

commands available.

❒ At the end of the help message, say

"Settings" and, at the end of the

message, "Help". Blue&Me™ will give

the list of voice commands available

for the Settings menu.

❒ You can now give one of the available

commands and proceed with the

dialogue as you wish.

❒ If you need further help press

and

say "Help".

Pairing your mobile phone

IMPORTANT This operation should be

carried out only with the vehicle

stationary.

To pair your mobile phone, proceed as

follows:

❒ Press

and say "Settings" and

then, at the end of the message from

Blue&Me™, say "User pairing".

❒ The system will show a code number

(PIN) on the instrument panel display,

which is used for the pairing procedure.

For the two subsequent stages,

consult your mobile phone manual.

❒ Look for devices with Bluetooth®

technology on your mobile phone (the

setting on your mobile phone could

be called Search or New Device). Find

“Blue&Me” in this list (the name that

identifies the Blue&Me ™ system

in your vehicle) and select it.

❒ When prompted, enter the PIN code

displayed on the instrument panel

using your mobile phone keypad. If

pairing is successful, the system will

say "Connecting" and at the end the

display will show, as confirmation,

details of the mobile phone paired.

185

It is important to wait for this

confirmation message; if you press the

right

/ wheel before it appears,

you risk cancelling the pairing process.

If the registration fails, an error message

will appear; in this case, you will need

to repeat the procedure.

❒ After pairing your mobile phone, the

first time you connect, Blue&Me™

will say "Welcome". This message will

no longer be heard at subsequent

pairing or connecting procedures.

❒ Blue&Me™ asks you if you want to

copy the phonebook of the mobile

phone just paired onto the Blue&Me™

system. You are advised to copy it. To

proceed with copying, say "Yes"; if you

do not want to copy the phonebook,

say "No".

❒ On some mobile phones, the names

in the phonebook are not copied

automatically, but have to be

transferred by using the mobile phone

keypad. If Blue&Me™ asks you, carry

out this procedure by following the

specific instructions on your mobile

phone and press the right SRC/OK

wheel when you have finished.

Making a phone call

Imagine that "John" is one of the

names saved in your phonebook.

To call John, proceed as follows:

❒ Press the

control on the steering

wheel and say "Call John".

❒ If the system recognises the name

John, the relevant information will

be shown on the display.

If your phonebook has only one number

stored for John, the system will ask

you directly if you want to call him. To

make the call, say "Yes"; otherwise, say

"No".

If, on the other hand, there are several

phone numbers for John, the system

will ask which one you wish to call

(for example, "Call John work

or home?"). Respond by indicating

which number you want to call (for

example, "Home").

If John has several phone numbers but

the type of phone number is missing,

the system will display the selected

contact and a list of related phone

numbers. The hands-free system will

ask if you would like to call the phone

number displayed. If the number

displayed is the one you wish to call,

say "Yes"; otherwise, say “No". If

the person to contact is the correct

one, but the number is wrong, say

"Forward"or"Back" to see the other

phone numbers for this person.

To call the number displayed, say

"Call". You can also navigate through

this list manually by turning the right

/ wheel until you find the desired

number. At this point, press

to make

the call.

❒ To end the call, press

SMS MESSAGE READER

QUICK GUIDE

(only for phones which support this

function)

If your Bluetooth® phone supports

this function, when a new SMS mes-

sage is received Blue&Me™ will notify

you through an acoustic signal and ask

you if you want to read it.

❒ Say "Yes" or press the right SRC/OK

wheel, and the system will read the

last message received.

186

MULTIMEDIA

❒ Say "No" or press the right /

wheel and the system will store the

message so you can read it another

time.

MEDIA PLAYER QUICK

GUIDE

Proceed as follows to start playing the

digital audio stored on your USB

device:

❒ Copy the tracks to your USB device.

❒ For USB devices without a USB

cable, simply connect the device to the

USB port in the vehicle (directly or

with the help of an extension).

❒ For USB devices with a cable,

connect one end to your USB device

and the other to the USB port in the

vehicle.

❒ Turn the vehicle's ignition key to

MAR. Blue&Me™ will automatically

start to play your digital tracks,

selecting them from a library that is

created when you connect the USB

device.

❒ The time required by Blue&Me™ to

recognise your USB device and start

playback may depend on the type

of device, its capacity and its contents.

❒ After Blue&Me™ has created a

library of your digital audio files, you can

select and listen to tracks, albums,

artists and playlists, using manual or

vocal interaction with Blue&Me™.

Creating the library may require a few

minutes if your USB device contains

many files.

❒ You can also decide whether to play

audio files automatically when the

USB/iPod device is connected or to

play them only on your command.

LIST OF AVAILABLE

VOICE COMMANDS

The main Blue&Me™ available voice

commands are listed below.

Voice commands always available

❒ Help

❒ Cancel

❒ Repeat

Hands free voice commands

❒ Call number

❒ Call [Name]”/

❒ Phone

❒ Last call received

❒ Last call made

❒ Last call

SMS reader voice commands

❒ Read last

❒ Message reader

Media player voice commands

❒ Media player

❒ Play

❒ Stop

❒ Next

❒ Previous

❒ Shuffle on

❒ Shuffle off

❒ Loop on

❒ Loop off

❒ Automatic play on

❒ Automatic play off

❒ Now playing (track data)

Voice commands for the settings

functions

❒

Settings

❒ Multimedia file settings

❒ Exit

WARNING

188) Using some of the system functions

whilst driving can distract attention away

from the road, risking an accident or other

serious consequences; they should

therefore be used only when driving

conditions allow it and, if necessary, only

with the vehicle stationary.

187

189) IMPORTANT: looking at the system

when driving can divert attention from

the road, with the risk of accidents or other

serious consequences. Do not change

system settings or enter data non-verbally

(using the manual controls) while driving.

Stop the vehicle in a safe and legal manner

before carrying out these operations. This

is important since while setting up or

changing some functions your attention

may be distracted from the road and you

may have to remove your hands from

the wheel.

190) Voice commands: the system

functions can be carried out using only

voice commands. The use of voice control

commands when driving allows the system

to be managed without taking your hands

off the steering wheel.

191) Looking at the display for a long time:

while driving, do not use any function that

requires looking at the display for a long

time. Pull over in a safe and legal manner

before attempting to access a function

of the system that requires prolonged

attention. Even occasional short glances at

the display may be hazardous if your

attention is diverted from driving at a critical

moment.

192) Setting the volume: do not turn the

volume up too high. Keep the volume at a

level where you can still hear outside traffic

and emergency signals while driving.

Driving without being able to hear these

sounds can cause accidents.

193) Using the voice recognition: the voice

recognition software is based on a

statistical process that is subject to error. It

is your responsibility to monitor the

system's voice recognition functions and to

correct any errors.

194) Danger of distraction: the functions

may require manual settings (not using

voice commands). Performing these

settings or entering data when driving can

distract you significantly, causing accidents

or having other serious consequences.

Stop the vehicle in a safe and legal manner

before attempting these operations.

188

MULTIMEDIA

RIGHT HAND DRIVE VERSIONS

DASHBOARD (RIGHT-HAND DRIVE VERSION)

The presence and position of the controls, instruments and indicators may vary according to the different versions.

1. Adjustable and directable air diffusers 2. Exterior light control lever 3. Driver front airbag 4. Windscreen wiper/rear window wiper/trip computer

control lever 5. Adjustable and directable centre air diffusers 6. Passenger front airbag 7. Glove compartment (for versions/markets, where provided)

8. Car radio (for versions/markets, where provided) 9. Control buttons 10. Gear lever 11. Heating/ventilation/climate control system controls

12. Ignition device 13. Instrument panel 14. Electric front windows 15. ECO/ASR OFF buttons (for versions/markets, where provided)

F0W0476

189

190

RIGHT HAND DRIVE VERSIONS

CONTROL PANEL

AND INSTRUMENTS

The instrument background colour and type

may vary according to the version.

A. Speedometer (speed indicator) – B. Multifunction display – C. Rev counter

F0W0297

TOT

kmi

191

RIGHT HAND DRIVE VERSIONS

REPLACING FUSES

Dashboard fuse box

To access the fuses, remove the plastic

cover fig. 3. The fuses are located in

the fuse box shown in fig. 4.

F0W0294

F0W0295

FUSE LOCATION

PARKING

Switch off the engine and engage the

handbrake. Engage a gear (1

gear if parked

uphill or reverse if facing downhill) and leave

the wheels turned. If the car is parked on

a steep slope block the wheels with a wedge

or stone. Always remove the ignition key when

leaving the car.

HANDBRAKE

To engage the handbrake pull lever A f i g . 5

upwards until the car is secured. To

release the handbrake, raise lever

A slightly, hold down button B and

lower the lever.

If the car is parked on a steep slope, it

is also advisable to block the wheels

with a wedge or stone.

Never leave children alone in the

unattended car. Always remove the

ignition key when leaving the car and

take it with you.

F0W0296

IMPORTANT INFORMATION AND RECOMMENDATIONS

WARNING

INTERIOR FITTINGS

❒ Never travel with the glove compartment open: it could injure the passenger in the event of a crash.

❒ The cigar lighter gets very hot. Handle it carefully and make sure that children do not touch it: risk of fire and/or burns. Always check that

the cigar lighter plug has been released.

ROOF RACK/SKI RACK

❒ After travelling for a short distance, check that the fixing screws for the attachments are correctly tightened.

❒ Never exceed the maximum permitted loads (see chapter "Technical specifications").

❒ Evenly distribute the load and take into account, when driving, the increased responsiveness of the vehicle to side wind.

WIRING FOR RADIO SYSTEM

❒ If you wish to have a sound system installed after purchasing the vehicle, first contact a Fiat Dealership whose qualified personnel will give

you advise about a sound system that does not damage the battery charge. Excessive nonrunning consumption damages the battery and

may cause your battery warranty to be terminated.

PROTECTING THE ENVIRONMENT

❒ During normal service, the catalytic converter and the diesel particulate filter (DPF) reach high temperatures. Do not therefore park the

vehicle over inflammable materials (grass, dry leaves, pine needles, etc.): fire hazard.

INTERIORS

❒ Never use flammable products, such as petrol ether or rectified petrol to clean the inside of the vehicle. The electrostatic charges which are

generated by rubbing during the cleaning operation may cause a fire.

❒ Do not keep aerosol cans in the vehicle: they might explode. Aerosol cans must not be exposed to a temperature exceeding 50°C. When

the vehicle is exposed to sunlight, the internal temperature can greatly exceed this value.

POWER SUPPLY

❒ Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into

account can cause malfunctions leading to the risk of fire.

LOADING ADVICE (Panda VAN versions)

❒ Abrupt braking or occasional impacts may cause sudden movements of the load with consequent situations of hazard for the driver and

passengers: before setting off, secure the load tightly using the partition and, where provided, the appropriate hooks. For securing use

cables, ropes or belts strong enough to hold the items to be secured.

192

WARNING

ROOF RACK/SKI RACK

❒ Fully comply with the regulations in force concerning maximum clearance.

WIRING FOR RADIO SYSTEM

❒ For connection to the radio system set-up, contact a Fiat Dealership to prevent any problem that could impair vehicle safety.

BODYWORK

❒ In order to preserve the aesthetic appearance of the paint abrasive products and/or polishes should not be used for cleaning the vehicle.

❒ Avoid washing with rollers and/or brushes in washing stations. Wash the vehicle only by hand using neutral pH detergents; dry it with a wet

chamois leather. Abrasive products and/or polishes should not be used for cleaning the vehicle. Bird droppings must be washed off

immediately and thoroughly as the acid they contain is particularly aggressive. Avoid (if at all possible) parking the vehicle under trees; remove

vegetable resins immediately as, when dried, it may only be possible to remove them with abrasive products and/or polishes, which is highly

inadvisable as they could alter the typical opaqueness of the paint. Do not use pure screen washer fluid for cleaning the windscreen and

rear window; dilute it min. 50% with water. Only use pure screen washer fluid when strictly necessary due to outside temperature conditions.

INTERIORS

❒ Never use alcohol, petrols and derivatives to clean the dashboard and instrument panel lens.

WARNING

BODYWORK

❒ Detergents pollute the environment. Only wash your vehicle in areas equipped to collect and treat wastewater from this type of activity.

193

NOTE

INDEX

rd brake light (bulb

replacement)................................ 108

ABS (system) ................................ 61

Active safety systems..................... 61

Airbags .......................................... 85

ASR (system) ................................. 62

Battery (recharging)....................... 137

Blue&Me ........................................ 182

Bonnet........................................... 29

CBC system ................................. 67

Checking levels .............................. 131

Child protection systems................ 76

Climate control system................... 22

CO2 emissions............................... 174

Control panel and on-board

instruments .................................. 38

Dashboard.................................... 7

Daytime running lights (DRL)

– "Daytime Running Lights".......... 17

Dimensions .................................... 155

Dipped beam headlights

– control....................................... 17

Dipped/main beam headlights

(bulb replacement) ....................... 105

Direction indicators (changing a

bulb) ............................................ 105

Direction indicators

– control....................................... 17

Display........................................... 39

Doors............................................. 10

– door locking/unlocking .............. 10

Driving assistance systems ............ 66

DRL (Daytime Running Lights)........ 17

Dualdrive electric power steering.... 28

Dualogic gearbox........................... 94

Dusk sensor................................... 16

ECO function ................................ 29

Electric windows ............................ 26

Engine compartment...................... 131

Engine............................................ 143

ESC (system) ................................. 61

Exterior lights ................................. 16

Fiat CODE (system)....................... 10

Fix&Go Automatic kit...................... 115

Fluids and lubricants ...................... 1

Fog lights (bulb replacement) ......... 106

Fog lights/rear fog lights................. 18

Follow me home (device)................ 18

Front airbags.................................. 85

Front roof light................................ 19

Fuel consumption .......................... 172

Fuel cut-off system......................... 119

Fuses (replacement)....................... 109

Gear Shift Indicator ....................... 39

Handbrake.................................... 93

Hazard warning lights..................... 103

HBA (system) ................................. 62

Head restraints............................... 13

HH (system) ................................... 61

Ignition device ............................... 9

Important information and

recommendations ........................ 19

Interior lights .................................. 19

iTPMS............................................ 68

Jump starting................................ 117

Keys

– key without remote control ........ 8

– key with remote control ............. 8

Lifting the vehicle .......................... 139

Luggage compartment................... 31

Main beam headlights

– control....................................... 17

Manual gearbox ............................. 94

Mode selector................................ 98

Number plate lights (bulb

replacement)................................ 108

Occupant protection systems ....... 71

Parking lights ................................ 17

Parking sensors ............................. 96

Performance (top speed)................ 17

Prescriptions for handling the

vehicle at the end of its life ........... 175

Pretensioners................................. 74

Radio............................................ 1

Rear fog lights................................ 18

Rear light clusters (bulb

replacement) ................................ 107

Rear view mirrors ........................... 15

Refuelling the vehicle......................

Replacing a bulb ............................ 103

Reversing light/rear fog light ........... 10

SBR (Seat Belt Reminder)

system......................................... 72

Scheduled servicing ....................... 122

Seat belts....................................... 71

Seats ............................................. 11

– Adjustments .............................. 11

Side bags....................................... 88

Side lights/daytime running lights

(bulb replacement) ....................... 107

Snow chains .................................. 154

Starting the engine......................... 92

Steering lock.................................. 9

Steering wheel ............................... 14

Steering wheel stalks

– left stalk..................................... 16

– right stalk .................................. 20

Stop/Start system .......................... 96

Sun roof......................................... 26

Supplementary Restraint System

(SRS) - Airbag .............................. 85

Supplies......................................... 166

Symbols......................................... 4

Technical specifications ................ 141

The keys ........................................ 8

Towing the vehicle.......................... 119

Towing trailers ................................

TP system...................................... 66

Version with LPG system .............. 32

Version with methane system

(Natural Power) ............................ 34

Warning lights on panel ................ 41

Weights.......................................... 158

Wheel (changing)............................ 114

Wheels and tyres ........................... 139

Wheels........................................... 1

Window cleaning............................ 20

Windscreen/rear window wiper ...... 138

INDEX

FCA Italy S.p.A. – Mopar – Technical Services – Service Engineering

Largo Senatore G. Agnelli, 3 - 10040 Volvera - Turin (Italy)

Print no. 603.99.846 - 11/2015 - 1 Edition

We really know your car because we invented, designed and built it: we really know every single detail.

At Fiat Service authorised workshops you can find technicians directly trained by us,

offering quality and professionalism for all service operations.

Fiat workshops are always close to you for the regular servicing operations, season checks

and practical recommendations by our experts.

With Original Parts distributed by MOPAR

, you maintain the reliability, comfort

and performance features that you bought your new car for over time.

Always ask for Genuine Parts for the components used on our cars; we recommend them because

they come from our steady commitment in research and development of highly innovative technologies.

For all these reasons: rely on Genuine Parts, because they are the only ones designed

by FCA for your car.

SAFETY:

BRAKING SYSTEM

ENVIRONMENT: PARTICULATE FILTERS,

CLIMATE CONTROL MAINTENANCE

COMFORT: SUSPENSION

AND WINDSCREEN WIPERS

PERFORMANCE: SPARK PLUGS,

INJECTORS AND BATTERIES

LINEACCESSORI

ROOF RACK BARS, WHEEL RIMS

WHY CHOOSING

GENUINE PARTS

This Owner Handbook is intended to show the vehicle's operating conditions.

For the enthusiast user who wants to have insights, curiosities and detailed information about the characteristics and functions

of the vehicle, Fiat gives the opportunity to consult a dedicated section which is available in electronic format.

ONLINE VEHICLE OWNER HANDBOOK

The following symbol is reported within the text of the Owner Handbook, next to the subjects for which details are provided.

Go to the www.mopar.eu/owner

website and access your personal area.

The “Maintenance and care” page includes all the information about your vehicle and the link to access eLUM, where you will find

all the details of the Owner Handbook.

The eLUM website is free and will allow you, among many other things, to easily consult the on-board documents

of all the other vehicles of the Group.

Have a nice reading and happy motoring!

COP PANDA UM GB COMPAT QUAD 30/04/15 15:19 Pagina 2

The data contained in this publication is intended merely as a guide. Fiat Chrysler Automobiles reserves the right to modify

the models and versions described in this booklet at any time for technical and commercial reasons.

If you have any further questions please consult your FIAT dealer.

Printed in recycled paper without chlorine.

ENGLISH

OWNER HANDBOOK

FIATPANDA

COP PANDA UM GB COMPAT QUAD 30/04/15 15:19 Pagina 1

2016 Fiat Panda

Product's Documents

User Manual

Specifications

Fiat 2016 FIAT PANDA Questions and Answers

Related Products

2016 FIAT 500C

Smeg 500RDUS Beverage Center Adjustable Thermostat, Removable Holders, Two Sliding Doors and Fiat 500 Parts

Sealey VS7101 Engine Oil Funnel 4pc - BMW/Fiat/Ford/Mazda/Mercedes/Toyota/Lexus/VAG

Sealey VS2005 Diesel Injector Puller for Citroen, Peugeot, Fiat

FIAT 2023 500X sedan 2023 FIAT 500X

DRAPER 27211 Engine Timing Kit (Fiat, Citroen, Peugeot)
