User Manual

Installation Instructions

LOCATION

• Select a suitable location, making sure you have easy access to an electrical outlet (avoid the use of extension cords).
• Make sure there are no obstructions restricting airfl ow through the front air intake grill. Maintain a minimum clearance of at least 20 cm (8”) between adjacent walls and the back of the unit, to allow for proper air circulation and maximum effi ciency. To achieve maximum operating effi ciency from your dehumidifi er, the recommended (room ambient) operating temperatures should be between 5°C (41°F) and 35°C (95°F).
• It is important to remember the effi ciency of a dehumidifi er will be affected/infl uenced by the rate at which new humid air (moisture) is allowed to infi ltrate the same space/area. To maintain effi ciency, the dehumidifi er must be operated in an enclosed area. Keep all doors and windows closed.
• Do not use this unit outdoors. This dehumidifer is intended for indoor residential applications only. This dehumidifi er should not be used for commercial or industrial applications.
• Place the dehumidifi er on a smooth, level fl oor strong enough to support the unit with a full bucket of water.
• Place the unit where it has access to an electrical outlet.
• This unit has 4 castors which can move freely. Do not force castors to move over carpet, and refrain from moving the unit with water in the bucket (the unit may tip over and spill water). Protect wood fl oors from possible spillage or scratches when moving unit.
• Remove accessory bag from bucket and store it in a safe place.

FEATURES

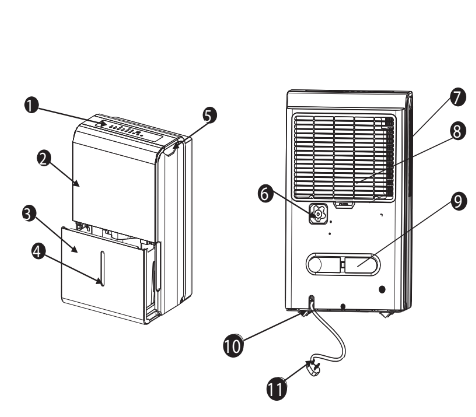

1. Control Panel
2. Front Panel
3. Water Bucket
4. Water Level Window
5. Carrying Handle (both sides)
6. Continuous Drain Hose Outlet
7. Air Outlet Grill
8. Air Filter
9. Power Cord Buckle
10. Caster
11. Power Cord and Plug

Operating Instructions

CASTOR INSTALLATION (some models)

Castor installation is recommended to avoid damage to fl oors.

CONTROL PANEL INSTRUCTIONS

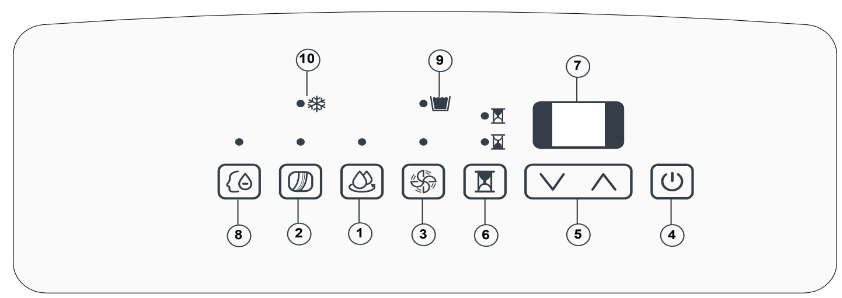

NOTE: The control panel of the unit you purchased may be slightly different depending on the model number.

When you push the button to change operation modes, the unit will make a beeping sound to indicate that it is changing modes.

INDICATOR LIGHT FUNCTIONS

Note: Depending on the humidity conditions of the surrounding environment, the dehumidifi er may not start automatically when the “on/off” button is pressed (see dehumidifying mode instructions for details).

9. Bucket Full Indicator Light: When the bucket is full and/or incorrectly positioned inside the cabinet, the bucket full light will turn on and remain on until the bucket is emptied and/or correctly re-positioned. This condition will result in the immediate shut down of the dehumidifying system (both compressor and fan motor operation are terminated). This is a safety feature. When the bucket is emptied and/or correctly re-positioned, the dehumidifi er will resume operation automat- ically. NOTE: It may take several minutes before operating conditions resume.

10. Auto-defrost: When frost builds on the evaporator coils, the compressor will cycle off and the fan will continue to run until the frost disappears.

NOTE:

Memory Setting: Each time the unit is disconnected / re-connected and/or in the event of a power failure, the electronic circuit board automatically defaults to the last program setting that was used. After the unit has stopped, it may take sev- eral minutes before operating conditions resume.

Auto-restart: If the unit shuts off unexpectedly due to a power outage, it will restart with the previous function settings automatically when the power resumes.

ERROR CODES

TIMER FUNCTIONS

Follow these steps to program the Auto-on or Auto-off feature using the control panel:

Auto-off:

Auto-on:

4. When the unit is off, and the TIMER button is pressed, the auto-on program is initiated. Set the auto-on time as in step above. Within 5 seconds of setting auto-on time, press the TIMER button again to complete the auto-on program.

NOTE: When the auto-on and auto-off times are set, within the same program sequence, TIMER ON OFF indicator lights illuminate indicating that both ON and OFF times are now programmed.

NOTE: Turning the unit ON or OFF at any time, changing the on/off timer setting to 0.0, and a P2 error code will cancel the Auto-on/off functions.

WATER TANK OPERATION

The water tank holds accumulated condensed water and, by means of a safety switch, controls both the water level and operation of the dehumidifi cation process.

When the water tank is full and/or accidentally displaced inside the cabinet, the fl oat switch actuator (inside the tank) breaks contact with the safety switch. This condition results in the immediate shut down of the compressor and fan motor system, preventing moisture from being condensed.

Note: On some models, the fan will continue to run for approximately 2-3 minutes after the unit has stopped and the bucket has been removed. As a result, water may drip from the tray onto the base of the unit, and then onto the fl oor. Please ensure that you protect your wood and carpet from such leakage.

DEHUMIDIFYING

Dehumidifying is a means of removing moisture from the air. A dehumidifi er will help to protect your home and valued possessions from damage due to swelling caused by moisture in the air. Essentially a dehumidifi er removes moisture from air as moist air passes over a dehumidifying (evaporator) coil. Moisture is condensed on the evaporator coil, drained, and collected inside an internal (removable) water tank located at the front of the unit. The exhausted air being returned into the room environment is elevated several degrees causing the surrounding air temperature to increase (slightly). This process also contributes to lowering the relative humidity of the surrounding air.

Note: For optimal performance, ensure that the unit is set at least 10% lower than the relative humidity level. It is normal for the humidity to vary by 5% above or below the set humidity. It is recommended that in normal conditions, the humidity be set at 40-45%.

DEHUMIDIFYING MODE INSTRUCTIONS

When the unit is fi rst connected to the electrical outlet, the power light will not light up until the “on/off” button is pressed. When the “on/off” button is pressed, the power light turns on and the dehumidifi er automatically defaults to:

Note: Depending on humidity conditions of the surrounding environment, the dehumidifi er may not start automatically under the default setting (this is an indication that the humidity level of the surrounding environment is lower than the default” setting of 40% RH). Therefore, it may be necessary to scroll through each of the different dehumidifi er settings until the “humidistat” (sensor) recognizes conditions that will allow the unit to operate.

Dehumidifying Mode Selection:

1. The unit enters dehumidify mode when the ON/OFF button is pressed.

2a. Press the buttons to select a desired RH operating value (35%-85%).

OR

2b. Press the continuous button. When continuous mode is selected, the humidistat (sensor) will be by-passed and the compressor will operate non-stop regardless of humidity conditions.

Fan Speed Selection:

3. You can choose a fan speed (normal/turbo) using the keypad. The speed you select is identifi ed by the (illuminated) indicator light located directly above the selection made.

AIR FILTER

Note: All the pictures in the manual are for explanatory purposes only. The actual shape of the unit you purchased may be slightly different, but the operation and functions are the same.

Your dehumidifier features a removable Air Filter. This filter is located at the front of the unit (behind the air intake grill) directly above the water tank compartment. The air filter plays an important role in helping to reduce (minimize) dust/ dirt particles from the surrounding environment. A blocked/clogged air filter reduces air intake, impacting negatively on operating efficiency. To maintain maximum operating efficiency, the filter must be checked and cleaned regularly (every 2 weeks). More frequent cleaning may be required depending upon indoor air quality.

IMPORTANT: Never operate the unit without the air filter in place.

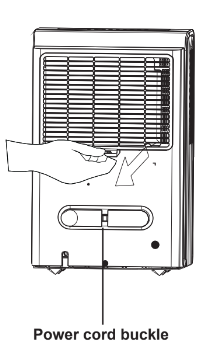

AIR FILTER REMOVAL:

REMOVING COLLECTED WATER

1. Pull out the bucket a little.

2. Hold both sides of the bucket with even strength and pull it out from the unit.

3. Pour the water out.

There are two ways to remove collected water:

1. Use the bucket

When the unit is off and the bucket is full, the unit will beep 8 times, the bucket full indicator light will flash, and the digital display shows P2. When the unit is on and the bucket is full, the compressor turns off and the fan turns off after drying the water off the condenser for 30 seconds. The unit will then beep 8 times and the bucket full indicator light will fl ash, and the digital display shows P2.

To empty the full bucket, slowly pull out the bucket. Grip the left and right handles securely, and carefully pull it straight out so water does not spill. Do not put the tank on the fl oor because the bottom of the bucket is uneven. Otherwise the bucket will fall and cause water to spill. Discard the water and return the bucket to the unit. The bucket must be placed and properly positioned for the dehumidifier to operate. The machine will restart when the bucket is restored in its correct position.

Note: When you remove the bucket, do not touch any parts inside of the unit. Doing so may damage the product. Be sure to push the bucket gently all the way into the unit. Banging the bucket against anything or failing to push it in securely may cause the unit not to operate. When you remove the bucket, if there is some water inside the unit you must dry it. The power button flashes when the bucket is not properly in place.

2. Continuous draining:

Water can be automatically emptied into a fl oor drain by attaching the unit to an ID ≥ 5/16” water hose with a ID:M=1 female threaded end (not included, a standard garden hose works well). Install the drain hose. Remove the plastic cover from the back drain outlet of the unit and set it aside.

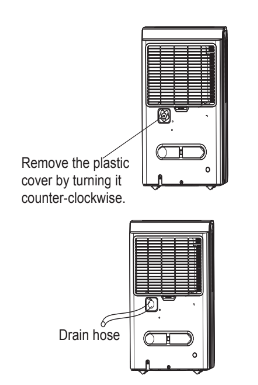

Install the female threaded end of the water hose into the adaptor A see B4), then lead the water hose to the fl oor drain or a suitable drain- age facility. Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the water from fl owing. Place the end of the hose into the drain and make sure the end of the hose is level or declining to let the water fl ow smoothly. Select the desired humidity setting and fan speed on the unit for continuous draining to start.

Care and Maintenance

CLEANING

1. Clean the grill and case

Use water and a mild detergent. Do not use bleach or abrasives. Do not splash water directly onto the main unit. Doing so may cause an electric shock, cause the insulation to deteriorate, or cause the unit to rust. The air intake and outlet grills become dirty easily, so use a vacuum attachment or brush to clean.

2. Clean the bucket

Every few weeks, clean the bucket to prevent growth of mold, mil- dew and bacteria. Partially fi ll the bucket with clean water and add a small amount of mild detergent. Swish it around in the bucket, empty and rinse. Note: Do not use a dishwasher to clean the bucket. After cleaning, the bucket must be placed and properly positioned for the dehumidifier to operate.

Caution: DO NOT operate the dehumidifier without a filter be- cause dirt and lint will clog it and affect performance.

Troubleshooting

Dehumidifier does not start

1. The dehumidifi er is un- plugged
2. The fuse is blown/circuit breaker is tripped
3. Dehumidifi er has reached its preset level or bucket is full
4. Bucket is not in the proper position
5. Power failure

• Make sure the plug is pushed completely into the outlet
• Check the house fuse/circuit breaker box and replace the fuse or reset the breaker
• The unit turns off automatically when either condition occurs. Change to a lower setting or empty the bucket and replace properly
• The bucket must be in place and securely seated for the unit to operate.
• There is a protective time delay (up to 3 minutes) to pre- vent tripping of the compressor overload. For this reason, the unit may not start normally for 3 minutes after it is turned back on.

Dehumidifier does not dry the air as it should

1. Did not allow enough time to remove the moisture
2. Airfl ow is restricted
3. Dirty filter
4. The humidity control may not be set low enough
5. Doors and windows may not be closed tightly
6. Clothes dryer may be blow- ing moisture-laden air into the room
7. Room temperature is too low

• When first installed, allow at least 24 hours to maintain the desired dryness
• Make sure there are no curtains, blinds or furniture block- ing the front or back of the dehumidifi er. See the “Loca- tion” section.
• See the “Air fi lter” section
• For drier air, press the ▼ button and set to a lower percent value (%)
• Check that all doors, windows and other openings are securely closed
• Install the dehumidifi er away from the dryer. The dryer should be vented to the outside.
• Moisture removal is best at higher room temperatures. Lower room temperatures will reduce the moisture remov- al rate. Modes are designed to be operated at tempera- tures above 5°C (41°F)

Dehumidifi er runs too much but does not collect water

1. Need to reset controller

• Set to 40% RH. Allow bucket to fi ll and then empty bucket. Adjust controller to desired % RH.

Dehumidifer runs too much collects water

1. Area to be dehumidifed is too large
2. Doors and windows are open

• The capacity of your dehumidifi er may not be adequate
• Close all doors and windows

Frost appears on the coils

1. Unit has been recently turned on, or room tempera- ture is below 5°C (41°F)

• This is normal. Frost will usually disappear within 60 min- utes. See the “Defrost” section

Controls cannot be set

1. The compressor will turn off and the fan will auto- matically continue to run for approx. 3 minutes at a fi xed setting

• This is normal. Wait approximately 3 minutes and set the fan as desired.

Fan noise

1. Air is moving through the dehumidifi er

• This is normal

Water on floor

1. Hose connection may be loose
2. Bucket used to collect wa- ter, but the hose is attached

• Check the hose connection. See “Continuous Drain” sec- tion
• Disconnect the hose if using the bucket to collect water, see “Continuous Drain” section.

LIMITED CARRY-IN APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer’s defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter “Danby”) or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.

First 24 months

During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor’s option, at no charge to the ORIGINAL purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1. Power failure.
2. Damage in transit or when moving the appliance.
3. Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4. Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature).
5. Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6. Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7. Service calls resulting in customer education.
8. Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application). Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.
