Aluminum Foil 17, 21, 23, 25, 30
Anti-Tip Device 2, 3, 35, 43, 44
Appliance Registration 2
Before You Call for Service 45, 46

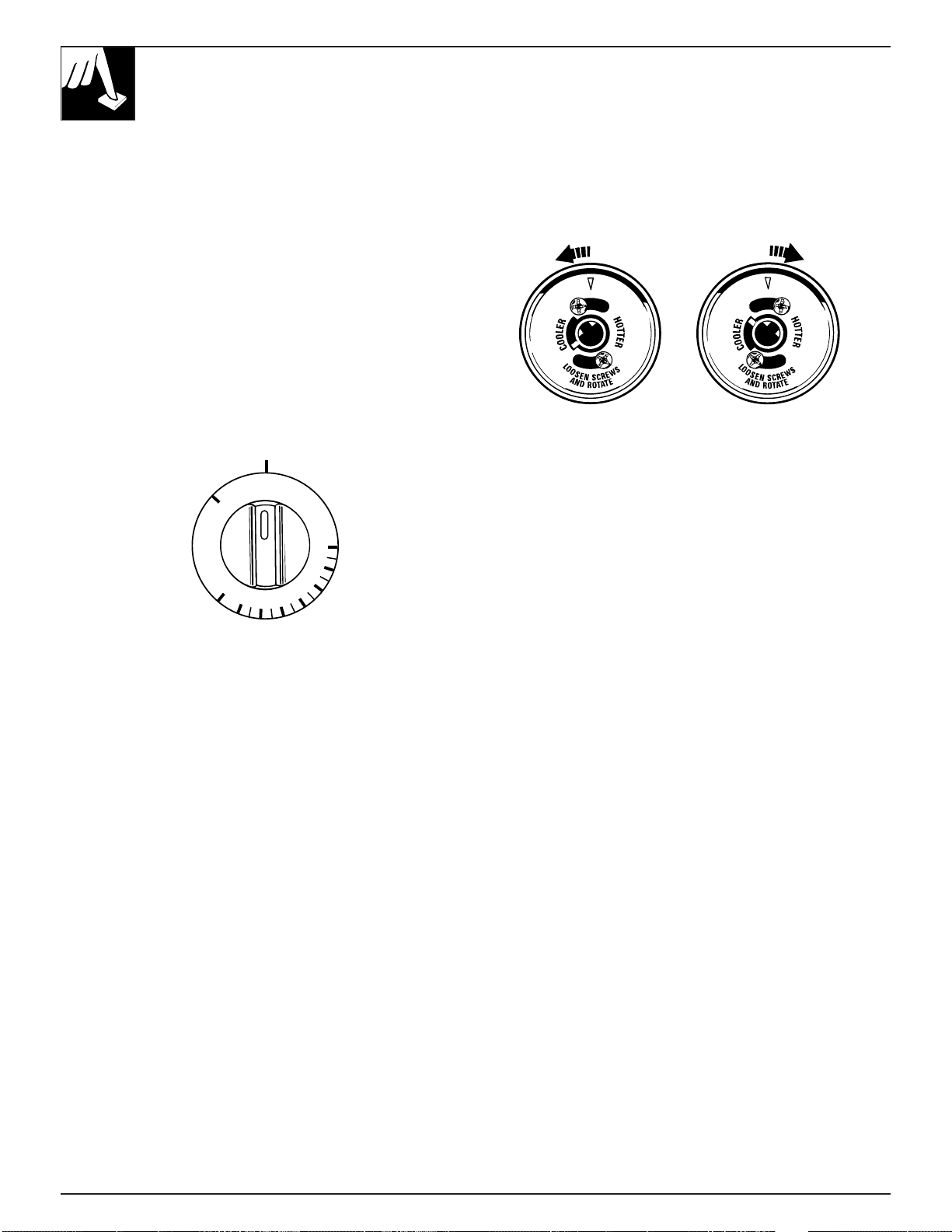

Thermostat Adjustment—
Do It Yourself 20
Care and Cleaning 28–33
Clock/Timer 12, 13
Consumer Services 47
Important Phone Numbers 47
Features 6, 7
Installation Instructions 34–44
Air Adjustment 42
Flooring Under Range 36
Leveling 43
LP 43
Model and Serial Numbers 2
Oven 14–27
Baking 16–19
Broiling/Broiling Guide 23, 24
Control Settings 11
Door Removal 31
Light; Bulb Replacement
14, 32
Oven Bottom 30
Oven Vents 15, 33
Roasting/Roasting Guide
21, 22
Self-Cleaning 25–27
Shelves 15, 16, 31
Power Outage 13
Safety Instructions 3–5
Surface Cooking 8–10
Burners 8–10
Control Settings 8, 9
Cooktop Comparison 8
Cookware Tips 10
Flame Size 9
Lighting Instructions 8
Warranty Back Cover
Models
LGB336
LGB356
Contents
Use and Care & Installation
of Your Gas Range
2
HELP US HELP YOU…
Read this guide carefully.
It is intended to help you operate and maintain your
new range properly.
Keep it handy for answers to your questions.
If you don’t understand something or need more help,
write (include your phone number):
Consumer Affairs
Appliance Park
Louisville, KY 40225
Write down the model and serial numbers.
Depending on your range, you’ll find the model and
serial numbers on a label on the front of the range,
behind the kick panel, storage drawer or broiler drawer.
These numbers are also on the Consumer Product
Ownership Registration Card that came with your
range. Before sending in this card, please write these
numbers here:
Model Number Serial Number
Use these numbers in any correspondence or service
calls concerning your range.
If you received a damaged range…
Immediately contact the dealer (or builder) that sold
you the range.
Save time and money.
Before you request service…
Check the Before You Call for Service section in the
back of this guide. It lists causes of minor operating
problems that you can correct yourself.
IF YOU NEED SERVICE
To obtain service, see the Consumer Services page in
the back of this guide.
To obtain replacement parts, contact GE/RCA
Service Centers.
We’re proud of our service and want you to be
pleased. If for some reason you are not happy with the
service you receive, here are three steps to follow for
further help.
FIRST, contact the people who serviced your
appliance. Explain why you are not pleased. In most
cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details—including your phone number—to:
Manager, Consumer Relations
Appliance Park
Louisville, KY 40225
FINALLY, if your problem is still not resolved, write:
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch; do
not use any phone in your building.
•Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
•If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
WARNING: If the information in this
guide is not followed exactly, a fire or
explosion may result causing property
damage, personal injury or death.
WARNING
• ALL RANGES
CAN TIP
• INJURY TO PERSONS
COULD RESULT
• INSTALL ANTI-TIP
DEVICES PACKED
WITH RANGE
• SEE INSTALLATION
INSTRUCTIONS
CANADIAN GAS ASSOCIATION
R
APPROVED
3
Important Safety Instructions
IMPORTANT SAFETY NOTICE
• The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of California
to publish a list of substances known to the state
to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers
of potential exposure to such substances.
Gas appliances can cause minor exposure to
four of these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused primarily
by the incomplete combustion of natural gas or
LP fuels. Properly adjusted burners, indicated by a
bluish rather than a yellow flame, will minimize
incomplete combustion. Exposure to these
substances can be minimized by venting with an
open window or using a ventilation fan or hood.
• Fluorescent light bulbs and safety valves on
standing pilot ranges contain mercury. If your
model has these features, they must be recycled
according to local, state and federal codes.
When You Get Your Range
• Have the installer show you the location of the
range gas cut-off valve and how to shut it off
if necessary.
• Have your range installed and properly
grounded by a qualified installer, in accordance
with the Installation Instructions. Any adjustment
and service should be performed only by qualified
gas range installers or service technicians.
•
Do not attempt to repair or replace any part of
your range unless it is specifically recommended
in this guide. All other servicing should be referred
to a qualified technician.
• Plug your range into a 120-volt grounded
outlet only. Do not remove the round grounding
prong from the plug. If in doubt about the grounding
of the home electrical system, it is your personal
responsibility and obligation to have an ungrounded
outlet replaced with a properly grounded, three-
prong outlet in accordance with the National
Electrical Code. In Canada, the appliance must be
electrically grounded in accordance with the
Canadian Electrical Code. Do not use an extension
cord with this appliance.
• Locate the range out of kitchen traffic path
and out of drafty locations to prevent pilot
outage (on standing pilot models) and poor
air circulation.
• Be sure all packing materials are removed from
the range before operating it to prevent fire or
smoke damage should the packing material ignite.
• Be sure your range is correctly adjusted by a
qualified service technician or installer for the
type of gas (natural or LP) that is to be used.
Your range can be converted for use with either
type of gas. See the Installation Instructions.
WARNING: These adjustments must be made by a
qualified service technician in accordance with the
manufacturer’s instructions and all codes and
requirements of the authority having jurisdiction.
Failure to follow these instructions could result in
serious injury or property damage. The qualified
agency performing this work assumes responsibility
for the conversion.
• After prolonged use of a range, high floor
temperatures may result and many floor
coverings will not withstand this kind of use.
Never install the range over vinyl tile or linoleum
that cannot withstand such type of use. Never
install it directly over interior kitchen carpeting.
Using Your Range
WARNING—All ranges
can tip and injury could result. To
prevent accidental tipping of the
range, attach it to the wall and floor by
installing the Anti-Tip device supplied.
To check if the device is installed and
engaged properly, carefully tip the
range forward. The Anti-Tip Device should engage
and prevent the range from tipping over.
If you pull the range out from the wall for any
reason, make sure the device is properly engaged
when you push the range back against the wall.
If it is not, there is a possible risk of the range
tipping over and causing injury if you or a child
stand, sit or lean on an open door.
Please refer to the Anti-Tip device information
in this guide. Failure to take this precaution could
result in tipping of the range and injury.
• Do not leave children alone or unattended
where a range is hot or in operation.
They could be seriously burned.
• For your safety, never use your appliance for
warming or heating the room.
(continued next page)
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
IMPORTANT SAFETY INSTRUCTIONS
(continued)
• CAUTION: ITEMS OF INTEREST TO
CHILDREN SHOULD NOT BE STORED IN
CABINETS ABOVE A RANGE OR ON THE
BACKSPLASH OF A RANGE—CHILDREN
CLIMBING ON THE RANGE TO REACH
ITEMS COULD BE SERIOUSLY INJURED.
• Do not allow anyone to climb, stand or hang
on the door, storage drawer or cooktop. They
could damage the range and even tip it over,
causing severe personal injury.
• Let the burner grates and other surfaces cool
before touching them or leaving them where
children can reach them.
• Never wear loose fitting or hanging garments
while using the appliance. Be careful when
reaching for items stored in cabinets over the
cooktop. Flammable material could be ignited if
brought in contact with flame or hot oven surfaces
and may cause severe burns.
• Do not use water on grease fires. Never pick up
a flaming pan. Turn the controls off. Smother a
flaming pan on a surface unit by covering the
pan completely with a well-fitting lid, cookie
sheet or flat tray. Use a multi-purpose dry
chemical or foam-type fire extinguisher.
Flaming grease outside a pan can be put out by
covering it with baking soda or, if available, by
using a multi-purpose dry chemical or foam-type
fire extinguisher.
Flame in the oven can be smothered completely
by closing the oven door and turning the oven off
or by using a multi-purpose dry chemical or foam-
type fire extinguisher.
• Do not store flammable materials in an oven,
a storage drawer or near a cooktop.
• DO NOT STORE OR USE COMBUSTIBLE
MATERIALS, GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN
THE VICINITY OF THIS OR ANY OTHER
APPLIANCE.
• Do not let cooking grease or other flammable
materials accumulate in or near the range.
• When cooking pork, follow the directions exactly
and always cook the meat to an internal temperature
of at least 170°F. This assures that, in the remote
possibility that trichina may be present in the meat,
it will be killed and the meat will be safe to eat.
Surface Cooking
• Always heat fat slowly, and watch as it heats.
• Always use the LITE position (on electric
ignition models) or the HI position (on standing
pilot models) when igniting the top burners and
make sure the burners have ignited.
• Never leave the surface burners unattended at
high flame settings. Boilovers cause smoking
and greasy spillovers that may catch on fire.
• Adjust the top burner flame size so it does not
extend beyond the edge of the cookware.
Excessive flame is hazardous.
• Use only dry pot holders—moist or damp pot holders
on hot surfaces may result in burns from steam.
• Do not let pot holders come near open flames
when lifting cookware. Do not use a towel or
other bulky cloth in place of a pot holder.
• To minimize the possibility of burns, ignition
of flammable materials and spillage, turn
cookware handles toward the side or back of the
range without extending over adjacent burners.
• Always turn the surface burners to off before
removing cookware.
• Carefully watch foods being fried at a high
flame setting.
• Never block the vents (air openings) of the
range. They provide the air inlet and outlet that
are necessary for the range to operate properly
with correct combustion. Air openings are located
at the rear of the cooktop, at the top and bottom of
the oven door, and at the bottom of the range
under the storage drawer or kick panel.
• Do not use a wok on models with sealed burners
if the wok has a round metal ring that is placed
over the burner grate to support the wok. This
ring acts as a heat trap, which may damage the
burner grate and burner head. Also, it may cause
the burner to work improperly. This may cause a
carbon monoxide level above that allowed by
current standards, resulting in a health hazard.
• Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh foods can
cause hot fat to bubble up and over the sides of the pan.
• Use the least possible amount of fat for effective
shallow or deep fat frying. Filling the pan too full
of fat can cause spillovers when food is added.
• Use a deep fat thermometer whenever possible to
prevent overheating fat beyond the smoking point.
• Never try to move a pan of hot fat, especially a
deep fat fryer. Wait until the fat is cool.
4
• When using glass cookware, make sure it is
designed for top-of-range cooking.
• If a combination of oils or fats will be used
in frying, stir together before heating or as fats
melt slowly.
• Use proper pan size—avoid pans that are
unstable or easily tipped. Select cookware having
flat bottoms large enough to properly contain food
and avoid boilovers and spillovers and large
enough to cover burner grate. This will both save
cleaning time and prevent hazardous accumulations
of food, since heavy spattering or spillovers left
on range can ignite. Use pans with handles that
can be easily grasped and remain cool.
• Keep all plastics away from the top burners.
• Do not leave plastic
items on the cooktop—
they may melt if left
too close to the vent.
• Do not leave any items on the cooktop.
The hot air from the vent may ignite flammable
items and will increase pressure in closed
containers, which may cause them to burst.
• To avoid the possibility of a burn, always be
certain that the controls for all burners are at
the off position and all grates are cool before
attempting to remove them.
• When flaming foods are under the hood, turn
the fan off. The fan, if operating, may spread
the flames.
• If range is located near a window, do not hang
long curtains that could blow over the top burners
and create a fire hazard.
• When a pilot goes out (on standing pilot models),
you will detect a faint odor of gas as your signal
to relight the pilot. When relighting the pilot,
make sure burner controls are in the off position,
and follow instructions in this guide to relight.
• If you smell gas, and you have already made sure
pilots are lit (on standing pilot models), turn off the
gas to the range and call a qualified service technician.
Never use an open flame to locate a leak.
Baking, Broiling and Roasting
• Do not use the oven for a storage area.
Items stored in the oven can ignite.
• Place the oven shelves in the desired position
while the oven is cool.
• Stand away from the range when opening the
door of a hot oven. The hot air and steam that
escapes can cause burns to hands, face and eyes.
• Keep the oven free from grease buildup.
• Pulling out the shelf to the shelf-stop is a
convenience in lifting heavy foods. It is also a
precaution against burns from touching hot
surfaces of the door or oven walls. The lowest
position “R” is not designed to slide.
• Do not heat unopened food containers. Pressure
could build up and the container could burst,
causing an injury.
• Do not use aluminum foil anywhere in the oven
except as described in this guide. Misuse could
result in a fire hazard or damage to the range.
• When using cooking or roasting bags in the
oven, follow the manufacturer’s directions.
• Use only glass cookware that is recommended
for use in gas ovens.
• Always remove the broiler pan from range as
soon as you finish broiling. Grease left in the pan
can catch fire if oven is used without removing
the grease from the broiler pan.
• When broiling, if meat is too close to the flame,
the fat may ignite. Trim excess fat to prevent
excessive flare-ups.
• Make sure the broiler pan is in place correctly
to reduce the possibility of grease fires.
• If you should have a grease fire in the broiler pan,
turn off oven control, and keep the oven door closed
to contain fire until it burns out.
Self-Cleaning Oven
• Clean only parts listed in this Use and Care Guide.
• Do not clean door gasket. The door gasket is
essential for a good seal. Care should be taken not
to rub, damage or move the gasket.
• Do not use oven cleaners. No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
Residue from oven cleaners will damage the inside
of the oven when the self-clean cycle is used.
• Before self-cleaning the oven, remove the shelves,
the broiler pan and grid and other cookware.
• Be sure to wipe up excess spillage before
starting the self-cleaning operation.
• If the self-cleaning mode malfunctions, turn
the oven off and disconnect the power supply.
Have it serviced by a qualified technician.
SAVE THESE
INSTRUCTIONS
Vent appearance and location vary.
5
Important Safety Instructions
6
FEATURES OF YOUR RANGE
Features and appearance vary.
Sealed Burners
Your range is equipped with one of the two types of surface burners shown above.
Standard Twin Burners
Burner Cap
Burner Head
Drip Pan
(on some
models)
Drip Pan
(on some
models)
Burner
COOK
TIME
ON/OFF
CLOCK
TIMER
ON/OFF
SET TIME
START
TIME
ON/OFF
OVEN
CYCLE
1 2 3 4
5
6
7
9
10
11
8
13
15
20
19
17
16
14
18
12
7
Features of Your Range
Feature Index Explained
(Not all models have all features. Appearance of features varies.) on page
1 OVEN SET Knob 11, 14, 16, 18, 19,
21, 23, 26, 27, 32
2 Clock and Minute Timer 12, 13, 18
3 OVEN CYCLE Light 11, 12
4 OVEN TEMP Knob 11, 14, 16, 18–21,
23, 26, 27, 32
5 Oven Vent 4, 5, 15, 33
6 Grates, Drip Pans (on some models) and Surface Burners 4, 8–10, 25, 28–30
7 Surface Burner Control Knobs 4, 8, 9, 28, 29, 32
8 Oven Door Latch Use for self-cleaning cycle only. 16, 18, 21, 23, 26, 27
9 Oven Shelf Supports 5, 15, 16, 21,
Shelf positions for cooking are suggested in the Baking, 24, 25, 31
Roasting and Broiling sections.
10 Oven Door Gasket 5, 25, 27, 31
11 Storage Drawer or Kick Panel (depending on model) 4, 32, 33
12 Broiler Pan and Grid 5, 21, 23–25, 31
13 Model and Serial Numbers 2, 36
On front frame of range, behind storage drawer or kick panel
(depending on model).
14 Lift-Off Oven Door Easily removed for oven cleaning. 23, 24, 31
15 Anti-Tip Device 2, 3, 35, 43
Lower right rear corner on range back. See the Installation Instructions.
16 Removable Oven Bottom 30
17 Oven Shelves Easily removed or repositioned on shelf supports. 5, 15, 16, 21,
24, 25, 31
18 Oven Interior Light 14, 25, 32
19 Oven Light On/Off Switch (on some models) 14
20 Cooktop 30, 33
Air Vents 4, 5, 15, 33
8
HOW DOES THIS COOKTOP COMPARE
TO YOUR OLD ONE?
Your new cooktop has gas burners. If you are used
to cooking with induction or other electric surface
units, you will notice some differences when you use
gas burners.
The best types of cookware to use, plus heat-up and
cool-down times, depend upon the type of burner or
surface unit you have.
The following chart will help you to understand the
differences between gas burner cooktops and any
other type of cooktop you may have used in the past.
Type of Cooktop Description How it Works
Gas Burners Regular or sealed Flames heat the pans directly. Pan flatness is not critical to cooking results, but
gas burners use pans should be well balanced. Gas burners heat the pan right away and change
either LP gas heat settings right away. When you turn the control off, cooking stops right away.
or natural gas.
Radiant Electric coils Heat travels to the glass surface and then to the cookware, so pans must be flat on
(Glass Ceramic) under a glass- the bottom for good cooking results. The glass cooktop stays hot enough to
Cooktop ceramic cooktop. continue cooking after it is turned off. Remove the pan from the surface unit if
you want cooking to stop.
Induction High frequency Pans must be made of ferrous metals (metal that attracts a magnet). Heat is
induction coils produced by a magnetic circuit between the coil and the pan. Heats up right away
under a glass and changes heat settings right away, like a gas cooktop. After turning the control
surface. off, the glass cooktop is hot from the heat of the pan, but cooking stops right away.
Electric Coil Flattened metal Heats by direct contact with the pan and by heating the air under the pan. For best
tubing containing cooking results, use good quality pans. Electric coils are more forgiving of
electric resistance warped pans than radiant or solid disks. Heats up quickly but does not change
wire suspended heat settings as quickly as gas or induction. Electric coils stay hot enough to
over a drip pan. continue cooking for a short time after they are turned off.
Solid Disk Solid cast iron Heats by direct contact with the pan, so pans must be flat on the bottom for good
disk sealed to the cooking results. Heats up and cools down more slowly than electric coils. The
cooktop surface. disk stays hot enough to continue cooking after it is turned off. Remove the pan
from the solid disk if you want the cooking to stop.
SURFACE COOKING
Lighting Instructions
Your surface burners are lighted by electric ignition,
eliminating the need for standing pilot lights with
constantly burning flames.
In case of a power failure, you can light the surface
burners on your range with a match. Hold a lighted
match to the burner, then turn the knob to the LITE
position. Use extreme caution when lighting
burners this way.
Surface burners in use when an electrical power
failure occurs will continue to operate normally.
The electrode of the spark igniter is exposed.
When one burner is turned to LITE, all the burners
spark. Do not attempt to disassemble or clean
around any burner while another burner is on.
An electric shock may result, which could cause
you to knock over hot cookware.
9
Surface Burner Controls
The knobs that turn the surface burners on and off are
located on the control panel in front of the burners.
The two knobs on the left control the left front and
left rear burners. The two knobs on the right control
the right front and right rear burners.
On ranges with sealed burners:
• The smaller burner (right rear position) will give
the best simmer results. It offers precise cooking
performance for delicate foods, such as sauces or
foods which need to cook over low heat for a
long time. It can be turned down to a very low
simmer setting.
• The right front burner is higher powered than the
others and will bring liquids to a boil quicker
(natural gas installations only).
Before Lighting a Burner To Light a Surface Burner
• If drip pans are supplied with your range,
they should be used at all times.
• Make sure all grates on the range are in place
before using any burner.

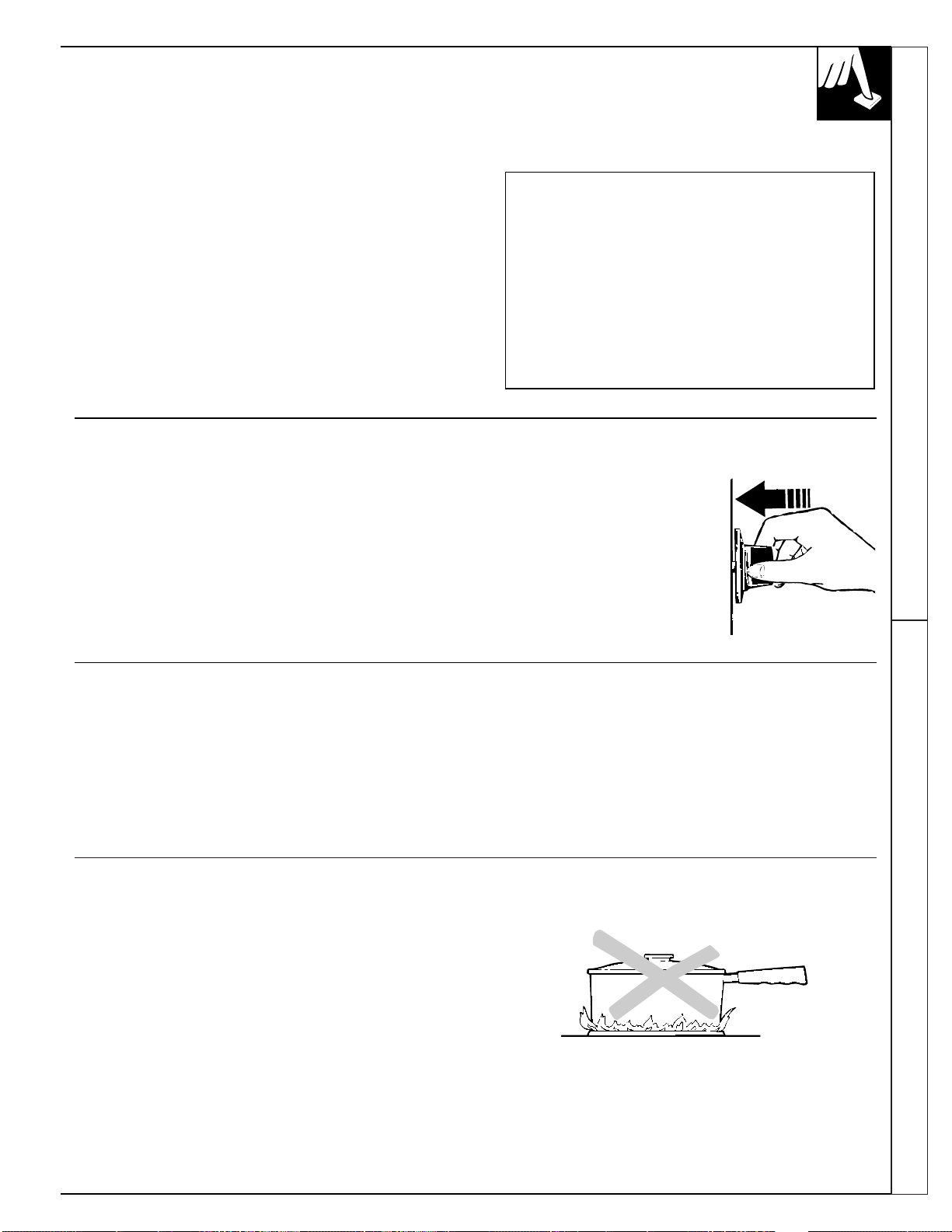

Push the control knob in
and turn it to LITE. You
will hear a little ‘‘clicking’’
noise—the sound of the electric
spark igniting the burner.
After Lighting a Burner
• After the burner ignites, turn the knob to adjust the
flame size.
• Check to be sure the burner you turned on is the one
you want to use.
• Do not operate a burner for an extended period of
time without cookware on the grate. The finish on the
grate may chip without cookware to absorb the heat.
• Be sure the burners and grates are cool before you
place your hand, a pot holder, cleaning cloths or
other materials on them.
How to Select Flame Size
Watch the flame, not the knob, as you reduce heat.
The flame size on a gas burner should match the
cookware you are using.
FOR SAFE HANDLING OF COOKWARE NEVER
LET THE FLAME EXTEND UP THE SIDES OF
THE COOKWARE.
Any flame larger than the bottom of the cookware is
wasted and only serves to heat the handle.
(continued next page)
Cooktop Comparison Surface Cooking
10
SURFACE COOKING
(continued)
Top-of-Range Cookware
Aluminum: Medium-weight cookware is
recommended because it heats quickly and evenly.
Most foods brown evenly in an aluminum skillet.
Use saucepans with tight-fitting lids when cooking
with minimum amounts of water.
Cast-Iron: If heated slowly, most skillets will give
satisfactory results.
Enamelware: Under some conditions, the enamel of
some cookware may melt. Follow cookware
manufacturer’s recommendations for cooking methods.
Glass: There are two types of glass cookware—those
for oven use only and those for top-of-range cooking
(saucepans, coffee and teapots). Glass conducts heat
very slowly.
Heatproof Glass Ceramic: Can be used for either
surface or oven cooking. It conducts heat very slowly
and cools very slowly. Check cookware manufacturer’s
directions to be sure it can be used on gas ranges.
Stainless Steel: This metal alone has poor heating
properties and is usually combined with copper,
aluminum or other metals for improved heat
distribution. Combination metal skillets usually work
satisfactorily if they are used with medium heat as the
manufacturer recommends.
Stove Top Grills
(on models with sealed burners)
Wok This Way
(on models with sealed burners)
Do not use stove top grills
on your sealed gas burners.
If you use the stove top
grill on the sealed gas
burner it will cause
incomplete combustion and
can result in exposure to
carbon monoxide levels
above allowable current
standards. This can be
hazardous to your health.
We recommend that you
use a flat-bottomed wok.
They are available at your
local retail store.
A traditional round bottom wok can be used with Wok
Holder accessory, model JXWK which can be ordered
from your appliance dealer. The Wok Holder fits on
top of the range grate to provide support and proper
air circulation for traditional round bottom woks only.
Do not use flat bottomed woks with the Wok Holder.
Do not use a wok on any
other support ring.
Placing the ring over the
burner grate may cause the
burner to work improperly,
resulting in carbon
monoxide levels above
allowable current standards. This could be dangerous
to your health. Do not try to use such woks without
the ring unless you are using the Wok Holder. You
could be seriously burned if the wok tipped over.
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
OVEN TEMP Control Knob
The OVEN TEMP control maintains the
temperature you set for normal oven operation
as well as for broiling. Push in and turn to set the
temperature or to set to the CLEAN position.
OFF—Shuts off power to the oven controls. The oven
will not operate. The OVEN TEMP knob should be
turned to OFF whenever the oven is not in use.
For normal oven operation, push in and turn the
knob to the desired temperature. It will normally take
30-90 seconds before the flame comes on.
After the oven reaches the selected temperature,
the oven burner cycles—off completely, then on with
a full flame—to keep the oven temperature controlled.
The OVEN CYCLE light will cycle on and off with
the burner.
C
L
E
A
N
O
F
F
W
A
R
M
2
0
0
3
0
0
4
0
0
5
0
0
B
R
O
I
L
OVEN TEMP
11
Surface Cooking Features of Your Oven Controls
FEATURES OF YOUR OVEN CONTROLS
OVEN SET Control Knob
The OVEN SET control knob has settings for
BAKE, BROIL, TIME BAKE and CLEAN.
When you turn the knob to the desired setting,
the proper burner is activated for that operation.
BAKE—Use this setting for all normal oven
operations—for example, for cooking roasts or
casseroles. Only the bottom oven burner operates
during baking.
TIME BAKE—Use this setting to turn the oven on
and off at specified times when you want cooking to
start and stop.
BROIL—Use this setting for broiling. Only the top
(broil) burner will operate.
CLEAN—Use this setting for the self-cleaning
function only. See the Operating the Self-Cleaning
Oven section.
B
A
K
E
B
R
O
I
L
C
L
E
A
N
T
I
M
E
B
A
K
E
OVEN SET
12
FEATURES OF YOUR OVEN CONTROLS,
CLOCK AND TIMER
(continued)
1. CLOCK. Press this pad before setting the
clock. To set the clock, first press the CLOCK
pad. Then press the UP or DOWN pads to change
the time of day.
2. COOK TIME ON/OFF. Turn the OVEN SET
knob to TIME BAKE and the OVEN TEMP knob
to the desired cooking temperature. Press the
COOK TIME ON/OFF pad and then press the UP
or DOWN pads to set the amount of time you want
your food to cook. The oven will shut off after
Cook Time has run out.
3. DISPLAY. Shows the time of day, the times set
for the timer, the times set for the automatic oven
operations and clean cycle.
4. UP. Short taps to this pad increase the time by
small amounts. Press and hold the pad to increase
the time by larger amounts.
5. OVEN CYCLE light. Cycles on and off with the
burner(s) to maintain the oven temperature.
6. DOWN. Short taps to this pad decrease the
time by small amounts. Press and hold the pad
to decrease the time by larger amounts.
7. START TIME ON/OFF. Press this pad to delay
the starting of your oven up to 11 hours and
59 minutes. Use the UP and DOWN pads
to set the desired start time.
8. TIMER ON/OFF. Press this pad to select the
timer feature. The timer does not control oven
operations. The timer can be set for 24 hours.
To set the timer, first press the TIMER ON/OFF
pad. Press the UP and DOWN pads to set the
amount of time you want.
To cancel the timer, press the TIMER ON/OFF pad.
COOK
TIME
ON/OFF
CLOCK
TIMER
ON/OFF
SET TIME
START
TIME
ON/OFF
OVEN
CYCLE
1 2
33
4 5
8 7 6
OVEN CONTROLS, CLOCK AND TIMER
Features of Your Controls, Clock and Timer Oven Controls, Clock and Timer
Clock
The clock must be set for the automatic oven timing functions to work
properly. The time of day cannot be changed during a Timed Baking or
a Self-Cleaning cycle.
Power Outage Timer
When power is restored, you will need to reset
the clock.
All other functions that were in operation when the
power went out will have to be programmed again.
The timer is a minute timer only; it does not control
oven operations. The maximum setting on the timer
is 24 hours.
To Set the Clock
1. Press the CLOCK pad. 2. Press the UP or DOWN pad
to set the time of day.
3. Press the CLOCK pad to start.
SET TIME
CLOCK
To Set the Timer To Reset the Timer
1. Press the TIMER ON/OFF pad.
2. Press the UP or DOWN pad to set the amount of
time on the timer.
To set the timer one minute at a time, tap the pads.
To set the timer ten minutes at a time press and
hold the pad.
The timer will start automatically within a few
seconds of releasing the UP or DOWN pad.
Press the UP or DOWN pad until the desired
time is set.
TIMER
ON/OFF
To Cancel the Timer End of Cycle Tones
Press the TIMER ON/OFF pad until the time
remaining is cleared.
The end of cycle tone is a series of three beeps.
Reminder beeps continue until the oven is turned off.
13
14
USING YOUR OVEN
Be sure you understand how to set the controls
properly. Practice removing and replacing the shelves
while the oven is cool. Read the information and tips
on the following pages. Keep this guide handy where
you can refer to it, especially during the first weeks of
using your new range.
Before Using Your Oven
Electric Ignition
The oven burner and broil burner are lighted by
electric ignition.
To light either burner, turn the OVEN SET knob to
the desired oven operation and the OVEN TEMP
knob to the desired temperature. The burner should
ignite within 30-90 seconds.
After the oven reaches the selected temperature, the
oven burner cycles—off completely, then on with a
full flame—to keep the oven temperature controlled.
Power Outage
CAUTION: Do not make any attempt to operate
the electric ignition oven during an electrical
power failure.
The oven or broiler cannot be lit during a power
failure. Gas will not flow unless the glow bar is hot.
If the oven is in use when a power failure occurs,
the oven burner shuts off and cannot be re-lit until
power is restored.
Oven Light
Use the switch on the control panel to turn the oven light on or off.
Oven Moisture
As your oven heats up, the temperature change of the
air in the oven may cause water droplets to form on the
door glass. These droplets are harmless and will
evaporate as the oven continues to heat up.
15
Using Your Oven
The oven is vented through duct openings at the rear
of the cooktop. See the Features section. Do not block
these openings when cooking in the oven—it is
important that the flow of hot air from the oven and
fresh air to the oven burners be uninterrupted.
• The vent openings and
nearby surfaces may
become hot. Do not
touch them.
• Do not leave plastic
items on the cooktop—
they may melt if left too
close to the vent.
• Handles of pots and pans on the cooktop may
become hot if left too close to the vent.
• Metal items will become very hot if they are left
on the cooktop and could cause burns.
• Do not leave any items on the cooktop. The hot air
from the vent may ignite flammable items and will
increase pressure in closed containers, which may
cause them to burst.
Vent appearance and location vary.
Oven Vents
Shelf Positions
The oven has five shelf supports for baking,
roasting and broiling identified in this illustration
as A (bottom), B, C, D and E (top). It also has a
special low shelf position (R) for roasting extra
large items, such as a large turkey—the shelf is not
designed to slide out at this position. Shelf positions
for cooking are suggested in the Baking, Roasting
and Broiling sections.
E
D
C
B
A
R
Oven Shelves
The shelves are designed with stop-locks so when
placed correctly on the shelf supports, they will
stop before coming completely out of the oven and
will not tilt when you are removing food from them
or placing food on them.
When placing cookware on a shelf, pull the shelf out
to the bump on the shelf support. Place the cookware
on the shelf, then slide the shelf back into the oven.
This will eliminate reaching into the hot oven.
To remove a shelf from the oven, pull it toward you,
tilt the front end upward and pull the shelf out.
To replace, place the shelf on the shelf support with
the stop-locks (curved extension of the shelf) facing
up and toward the rear of the oven. Tilt up the front
and push the shelf toward the back of the oven until it
goes past the bump on the shelf support. Then lower
the front of the shelf and push it all the way back.
Bump
BAKING
Do not lock the oven door with the latch during
baking. The latch is used for self-cleaning only.
Your oven temperature is controlled very accurately
using an oven control system. It is recommended that
you operate the oven for a number of weeks to
become familiar with your new oven’s performance.
If you think an adjustment is necessary, see the Adjust
the Oven Thermostat section. It gives easy
Do It
Yourself instructions on how to adjust the thermostat.
How to Set Your Range for Baking
To avoid possible burns, place the shelves in the
correct position before you turn the oven on.
1. Close the oven door. Turn the OVEN SET knob to
BAKE and then turn the OVEN TEMP knob to the
desired temperature.
2. Check the food for doneness at the minimum time
on the recipe. Cook longer if necessary.
3. Turn the OVEN TEMP knob to OFF and
then remove the food.
Oven Shelves
Arrange the oven
shelf or shelves in
the desired
locations while
the oven is cool.
The correct shelf
position depends
on the kind of
food and the
browning desired.
As a general rule,
place most foods in the middle of the oven, on
either shelf position B or C. See the chart for
suggested shelf positions.
Type of Food Shelf Position
Angel food cake A
Biscuits or muffins B or C
Cookies or cupcakes B or C
Brownies B or C
Layer cakes B or C
Bundt or pound cakes A or B
Pies or pie shells B or C
Frozen pies A (on cookie sheet)
Casseroles B or C
Roasting B or R
D
E
C
B
A
R
Preheating Pan Placement
Preheat the oven if the recipe calls for it. Preheat
means bringing the oven up to the specified
temperature before putting the food in the oven.
To preheat, set the oven at the correct temperature—
selecting a higher temperature does not shorten
preheat time.
Preheating is necessary for good results when baking
cakes, cookies, pastry and breads. For most casseroles
and roasts, preheating is not necessary. For ovens
without a preheat indicator light or tone, preheat 10
minutes. After the oven is preheated place the food
in the oven as quickly as possible to prevent heat
from escaping.
For even cooking and proper browning, there must be
enough room for air circulation in the oven. Baking
results will be better if baking pans are centered as
much as possible rather than being placed to the front
or to the back of the oven.
Pans should not touch each other or the walls of the
oven. Allow 1– to 1
1
⁄
2
–inch space between pans as
well as from the back of the oven, the door and the
sides. If you need to use two shelves, stagger the pans
so one is not directly above the other.
16
Baking
Baking Guides
When using prepared baking mixes, follow package recipe or
instructions for best baking results.
17
Cookies Aluminum Foil
When baking cookies,
flat cookie sheets
(without sides)
produce better-looking
cookies. Cookies
baked in a jelly roll
pan (short sides all
around) may have
darker edges and pale
or light browning may occur.
Do not use a cookie sheet so large that it touches
the walls or the door of the oven.
For best results, use only one cookie sheet in the oven
at a time.
Never entirely cover
a shelf with aluminum
foil. This will disturb
the heat circulation and
result in poor baking.
A smaller sheet of foil
may be used to catch a
spillover by placing it
on a lower shelf several
inches below the food.
Pies Cakes
For best results, bake pies in dark, rough or dull pans
to produce a browner, crisper crust. Frozen pies in foil
pans should be placed on an aluminum cookie sheet
for baking since the shiny foil pan reflects heat away
from the pie crust; the cookie sheet helps retain it.
When baking cakes, warped or bent pans will cause
uneven baking results and poorly shaped products.
A cake baked in a pan larger than the recipe
recommends will usually be crisper, thinner and drier
than it should be. If baked in a pan smaller than
recommended, it may be undercooked and batter may
overflow. Check the recipe to make sure the pan size
used is the one recommended.
Baking Pans Don’t Peek
Use the proper baking pan. The type of finish on
the pan determines the amount of browning that
will occur.
• Dark, rough or dull pans absorb heat resulting in a
browner, crisper crust. Use this type for pies.
• Shiny, bright and smooth pans reflect heat, resulting
in a lighter, more delicate browning. Cakes and
cookies require this type of pan.
• Glass baking dishes also absorb heat. When baking
in glass baking dishes, the temperature may need to
be reduced by 25°F.
Set the timer for the estimated cooking time and do
not open the door to look at your food. Most recipes
provide minimum and maximum baking times such
as “bake 30-40 minutes.”
DO NOT open the door to check until the minimum
time. Opening the oven door frequently during
cooking allows heat to escape and makes baking times
longer. Your baking results may also be affected.
18
TIMED BAKING
Automatic Oven Timer
How to Time Bake
Do not lock the oven door with the latch during
regular timed baking. The latch is used for self-
cleaning only.
Your oven can be set to turn on and off automatically.
NOTE: Before beginning, make sure the oven clock
shows the correct time of day.
To set the clock, first press the CLOCK pad.
Press the UP or DOWN pad until correct
time of day is displayed. Press the CLOCK
pad again to start.
CLOCK
To avoid possible burns, place the shelves in the
correct position before you turn the oven on.
The oven will turn on immediately and cook for a
selected length of time. At the end of Cook Time the
oven will turn off automatically.
1. Turn the OVEN SET knob to TIME BAKE.
2. Turn the OVEN TEMP knob to the desired
temperature.
3. Press the COOK TIME ON/OFF pad.
4. Set the desired amount of cooking time
using the UP and DOWN pads.
5. The oven will turn on. The display will show the
Cook Time remaining. When the oven reaches the
set temperature, a tone sounds. The oven will
continue to cook for the programmed amount of
time up to 11 hours and 50 minutes, then shut off
automatically.
6. When the oven automatically turns off, the
oven control will signal. Turn the oven off
to stop the signal.
7. Remove the food from the oven. Remember,
foods that are left in the oven continue cooking
after the controls are off.
NOTE: Foods that spoil easily, such as milk, eggs,
fish, stuffings, poultry and pork, should not be
allowed to sit for more than one hour before or after
cooking. Room temperature promotes the growth of
harmful bacteria. Be sure that oven light is off
because heat from the bulb will speed harmful
bacteria growth.
SET TIME
COOK
TIME
ON/OFF
C
L
E
A
N
O
F
F
W
A
R
M
2
0
0
3
0
0
4
0
0
5
0
0
B
R
O
I
L
OVEN TEMP
B
A
K
E
B
R
O
I
L
C
L
E
A
N
T
I
M
E
B
A
K
E
OVEN SET
How to Set Immediate Start and Automatic Stop
19
Timed Baking
How to Set Delay Start and Automatic Stop
To avoid possible burns, place the shelves in the
correct position before you program the oven.
You can set the oven control to turn the oven on
automatically, cook for a specific length of time and
turn off automatically.
For example: Let’s say it’s 2:00 and dinner time is
shortly after 7:00. The recipe suggests 3 hours baking
time at 325°F. Here’s how:
1. Turn the OVEN SET knob to TIME BAKE.
2. Turn the OVEN TEMP knob to the desired
temperature (in this example 325°F.).
3. Press the COOK TIME ON/OFF pad.
4. For 3 hours of cooking time,
press the UP pad until “3:00”
appears in the display.
5. Press the START TIME ON/OFF pad.
6. Press the UP pad until “4:00” appears in the
display. The timer is now set to start baking in
2 hours, at 4:00.
Once the oven begins cooking, the Cook Time
remaining will be displayed.
At the end of the 3 hour cooking time (7:00),
the oven will automatically turn off.
7. When the oven automatically turns off, the oven
control will signal. Turn the OVEN TEMP knob
to OFF to stop the signal. Remove the food from
the oven. Remember, even though the oven shuts
off automatically, foods continue cooking after the
controls are off.
NOTE:
• The low temperature zone of this range (between
150°F. and 200°F.) is available to keep hot cooked
foods warm. Food kept in the oven longer than two
hours at these low temperatures may spoil.
• Foods that spoil easily, such as milk, eggs, fish,
stuffings, poultry and pork, should not be allowed
to sit out for more than one hour before or after
cooking. Room temperature promotes the growth
of harmful bacteria. Be sure the oven light is off
because heat from the bulb will speed harmful
bacteria growth.
START
TIME
ON/OFF
COOK
TIME
ON/OFF
C
L
E
A
N
O
F
F
W
A
R
M
2
0
0
3
0
0
4
0
0
5
0
0
B
R
O
I
L
OVEN TEMP
B
A
K
E
B
R
O
I
L
C
L
E
A
N
T
I
M
E
B
A
K
E
OVEN SET
Quick Reminder
1. Turn the OVEN SET knob to TIME BAKE.
2. Turn the OVEN TEMP knob to the
desired temperature.
3. Press the COOK TIME ON/OFF pad.
4. Press the UP or DOWN pad to set the
desired length of cooking time.
5. Press the START TIME ON/OFF pad.
6. Press the UP or DOWN pad to set the
time of day you want cooking to start.
Questions and Answers
Q. Can I use the minute timer during oven cooking?
A. The minute timer can be used during any cooking function.
Q. Can I change the time of day on the clock while I’m Time Baking in
the oven?
A. The time of day on the clock should not be changed during any program
that uses the oven timer. You must either stop those programs or wait
until they are finished before changing the time.
20
You may feel that your new oven cooks differently
than the one it replaced. We recommend that you
use your new oven for a few weeks to become more
familiar with it, following the times given in your
recipes as a guide.
If you think your new oven is too hot or too cold,
you can adjust the thermostat yourself. If you think
it is too hot, adjust the thermostat to make it cooler.
If you think it is too cool, adjust the thermostat to
make it hotter.
We do not recommend the use of inexpensive
thermometers, such as those found in grocery stores,
to check the temperature setting of your new oven.
These thermometers may vary 20–40 degrees.
Front of the OVEN TEMP knob
To Adjust the Thermostat:
Note the position of the pointer to the screw
before making the adjustment.
Cooler Hotter
(appearance may vary)
Pull the OVEN TEMP knob off the range and look
at the back side.
To make adjustment, loosen (approximately one turn),
but do not completely remove, the two screws on the
back of the knob. With the back of the knob facing
you, hold the outer edge of the knob with one hand
and turn the front of the knob with the other hand.
To raise the oven temperature, move the top screw
toward the right. You’ll hear a click for each notch
you move the knob. To lower the temperature, move
the top screw toward the left. Each click will change
the oven temperature approximately 10°F. (Range is
plus or minus 60°F. from the arrow.)
We suggest that you make the adjustment one click
from the original setting and check oven performance
before making any additional adjustments.
After the adjustment is made, retighten screws so they
are snug, but be careful not to overtighten. Reinstall
the knob on the range and check performance.
C
L
E
A
N
O
F
F
W
A
R
M
2
0
0
3
0
0
4
0
0
5
0
0
B
R
O
I
L
OVEN TEMP
20
ADJUST THE OVEN THERMOSTAT—
DO IT YOURSELF!
ROASTING
Do not lock the oven door with the latch during
roasting. The latch is used for self-cleaning only.
Roasting is cooking by dry heat. Tender meat or
poultry can be roasted uncovered in your oven.
Roasting temperatures, which should be low and
steady, keep spattering to a minimum.
The oven has a special
low shelf (R) position
just above the oven
bottom. Use it when
extra cooking space is
needed, for example,
when roasting a large
turkey. The shelf is not
designed to slide out at
this position.
Roasting is really a baking procedure used for meats.
Therefore the oven controls are set for Baking or
Timed Baking. (You may hear a slight clicking sound
indicating the oven is working properly.) Timed
Baking will turn the oven on and off automatically.
Most meats continue to cook slightly while standing
after being removed from the oven. Recommended
standing time for roasts is 10 to 20 minutes. This
allows roasts to firm up and makes them easier to
carve. The internal temperature will rise about 5° to
10°F. If you wish to compensate for the temperature
rise, remove the roast from the oven when its internal
temperature is 5° to 10°F. less than the temperature
shown in the Roasting Guide.
Remember that food will continue to cook in the hot
oven and therefore should be removed when the
desired internal temperature has been reached.
1. Position the oven
at shelf (B) position
for small size roast
(3 to 5 lbs.) and at
(R) position for
larger roasts.
2. Check the weight of the roast. Place the meat
fat-side-up or the poultry breast-side-up on the
roasting grid in a shallow pan. The melting fat will
baste the meat. Select a pan as close to the size of
meat as possible. (The broiler pan with grid is a
good pan for this.)
3. Turn the OVEN SET knob to BAKE and the
OVEN TEMP knob to the desired temperature.
See the Roasting Guide for temperatures and
approximate cooking times.
4. When roasting is finished, turn the OVEN
TEMP knob to OFF and then remove the food
from the oven.
R
R
A
B
Dual Shelf Cooking Use of Aluminum Foil
This allows more than one food to be cooked at the
same time. For example: While roasting a 20-lb.
turkey on shelf position R, a second shelf (if so
equipped) may be added on position D so that
scalloped potatoes can be cooked at the same time.
Calculate the total cooking time to enable both dishes
to complete cooking at the same time. Allow 15-20
minutes of additional cooking time for the potatoes.
You can use aluminum foil to line the broiler pan.
This makes clean-up easier when using the pan for
marinating, cooking with fruits, cooking heavily
cured meats or basting food during cooking. Press
the foil tightly around the inside of the pan.
(continued next page)
21
Adjust the Oven Thermostat Roasting
22
ROASTING
(continued)
Q. Is it necessary to check for doneness with a
meat thermometer?
A. Checking the finished internal temperature at the
completion of cooking time is recommended.
Temperatures are shown in Roasting Guide. For
roasts over 8 lbs., check with thermometer at half-
hour intervals after half the time has passed.
Q. Why is my roast crumbling when I try to
carve it?
A. Roasts are easier to slice if allowed to cool 10 to
20 minutes after removing from oven. Be sure to
cut across the grain of the meat.
Q. Do I need to preheat my oven each time I cook
a roast or poultry?
A. It is not necessary to preheat your oven.
Q. When buying a roast, are there any special tips
that would help me cook it more evenly?
A. Yes. Buy a roast as even in thickness as possible,
or buy rolled roasts.
Q. Can I seal the sides of my foil “tent” when
roasting a turkey?
A. Sealing the foil will steam the meat. Leaving
it unsealed allows the air to circulate and brown
the meat.
Questions and Answers
ROASTING GUIDE
Frozen Roasts
Frozen roasts of beef, pork, lamb, etc., can be started
without thawing, but allow 15 to 25 minutes per pound
additional time (15 minutes per pound for roasts under
5 pounds, more time for larger roasts).
Make sure poultry is thawed before roasting.
Unthawed poultry often does not cook evenly.
Some commercial frozen poultry can be cooked
successfully without thawing. Follow directions
given on package label.
Oven Approximate Roasting Time Internal
Type Temperature Doneness in Minutes per Pound Temperature °F.
Meat 3 to 5 lbs. 6 to 8 lbs.
Tender cuts; rib, high quality sirloin 325° Rare: 24–35 18–25 140°–150°†
tip, rump or top round* Medium: 35–39 25–31 150°–160°
Well Done: 39–45 31–33 170°–185°
Lamb leg or bone-in shoulder* 325° Rare: 21–25 20–23 140°–150°†
Medium: 25–30 24–28 150°–160°
Well Done: 30–35 28–33 170°–185°
Veal shoulder, leg or loin* 325° Well Done: 35–45 30–40 170°–180°
Pork loin, rib or shoulder* 325° Well Done: 35–45 30–40 170°–180°
Ham, precooked 325° To Warm: 18–23 minutes per pound (any weight) 115°–125°
Poultry 3 to 5 lbs. Over 5 lbs.
Chicken or Duck 325° Well Done: 35–40 30–35 185°–190°
Chicken pieces 350° Well Done: 35–40 185°–190°
10 to 15 lbs. Over 15 lbs. In thigh:
Turkey 325° Well Done: 16–22 12–19 185°–190°
*For boneless rolled roasts over 6 inches thick, add 5 to 10 minutes per pound to times given above.
†The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F. means
some food poisoning organisms may survive.” (Source: Safe Food Book. Your Kitchen Guide. USDA Rev. June 1985.)
BROILING
23
Roasting Broiling
1. If the meat has fat or gristle around the edge, cut
vertical slashes through both about 2
″ apart. If
desired, the fat may be trimmed, leaving a layer
about 1/8″ thick.
2. Place the meat on the broiler grid in the broiler pan
which comes with the range. Always use the grid
so fat drips into the broiler pan; otherwise the juices
may become hot enough to catch fire.
3. Position the shelf on the recommended shelf
position as suggested in Broiling Guide.
4. Close the oven door but do not latch it. If the door
latch is moved to the right during a broil
operation the door may lock and you may not be
able to open it until the oven cools.
5. Turn the OVEN SET knob and the OVEN TEMP
knob to BROIL.
6. When broiling is finished, turn OVEN TEMP knob
to OFF. Remove the broiler pan from the range and
serve food immediately. Leave the pan outside the
range to cool.
Use of Aluminum Foil
You can use aluminum foil to line your broiler pan and
broiler grid. However, you must mold the foil tightly
to the grid and cut slits in it just like the grid.
Without the slits, the foil will prevent fat and meat
juices from draining to the broiler pan. The juices
could become hot enough to catch on fire. If you do
not cut the slits, you are frying, not broiling.
Questions and Answers
Q. When broiling, is it necessary to always use a
grid in the pan?
A. Yes. Using the grid suspends the meat over the
pan. As the meat cooks, the juices fall into the pan,
thus keeping meat drier. Juices are protected by the
grid and stay cooler, thus preventing excessive
spatter and smoking.
Q. Should I salt the meat before broiling?
A. No. Salt draws out the juices and allows them to
evaporate. Always salt after cooking. Turn the
meat with tongs; piercing the meat with a fork also
allows juices to escape. When broiling poultry or
fish, brush each side often with butter.
Q. Why are my meats not turning out as brown as
they should?
A. Check to see if you are using the recommended
shelf position. Broil for the longest period of time
indicated in the Broiling Guide. Turn the food only
once during broiling.
(continued next page)
Do not lock the oven door with the latch during
broiling. The latch is used for self-cleaning only.
Broiling is cooking food by direct heat from above the
food. Most fish and tender cuts of meat can be
broiled. Follow these directions to keep spattering and
smoking to a minimum.
The oven door should be closed during broiling.
Turn the food only once
during cooking. Time
the foods for the first
side according to the
Broiling Guide.
Turn the food, then use
the times given for the
second side as a guide to
the preferred doneness.
24
BROILING GUIDE
The oven door must be closed during broiling.
• Always use the broiler pan and grid that comes with
your range. It is designed to minimize smoking and
spattering by trapping juices in the shielded lower
part of the pan.
• For steaks and chops, slash the fat evenly around the
outside edges of the meat. To slash, cut crosswise
through the outer fat surface just to the edge of the
meat. Use tongs to turn the meat over to prevent
piercing the meat and losing the juices.
• If desired, marinate meats or chicken before broiling.
Or brush with barbecue sauce last 5 to 10 minutes only.
• When arranging food on the pan, do not let fatty
edges hang over the sides because dripping fat could
soil the oven.
• Broiler compartment does not need to be preheated.
However, for very thin foods, or to increase
browning, preheat if desired.
• Frozen steaks can be broiled by positioning the shelf
at next lowest shelf position and increasing cooking
time given in this guide 1
1
⁄
2
times per side.
Quantity and/or Shelf 1st Side 2nd Side
Food Thickness Position Minutes Minutes Comments
Bacon 1/2 lb. (about 8 C 4 3 Arrange in single layer.
thin slices)
Ground Beef 1 lb. (4 patties) D 10–11 7 Space evenly. Up to 8 patties take
1/2 to 3/4 inch thick about same time.
Beef Steaks
Rare 1 inch thick C 9 7 Steaks less than 1 inch thick will cook
Medium (1 to 1
1
⁄
2
lbs.) C 12 5–6 through before browning.
Well Done C 13 8–9
Rare 1 inch thick C 10 6–7 Slash fat.
Medium (2 to 2
1
⁄
2
lbs.) C 12–15 10–12
Well Done C 25 16–18
Chicken 1 whole B 30–35 15–20 Brush each side with melted butter. Broil skin-
(2 to 2
1
⁄
2
lbs.), side-down first.
split lengthwise
Bone-in
4 bone-in breasts B 25–30 10–15
Bakery Products
Bread (Toast) or 2 to 4 slices D 2–3 1/2–1 Space evenly. Place English muffins cut-
Toaster Pastries 1 pkg. (2) side-up and brush with butter if desired.
English Muffins 2, split D 3–5
Lobster Tails 2 to 4 C 13–16 Do not Cut through back of shell and spread open.
(6 to 8 oz. each) turn over. Brush with melted butter before broiling and
after half of time.
Fish 1-lb. fillets D 6 6 Handle and turn very carefully. Brush with lemon
1/4 to 1/2 inch thick butter before broiling and during broiling if
desired. Preheat broiler to increase browning.
Ham Slices 1 inch thick C 8 8
Precooked 1/2 inch thick D 6 6
Pork Chops 2 (1/2 inch thick) D 10 8 Slash fat.
Well Done 2 (1 inch thick), D 15 8
about 1 lb.
Lamb Chops
Medium 2 (1 inch thick), D 8 4–7 Slash fat.
Well Done about 10 to 12 oz. D 10 10
Medium 2 (1
1
⁄
2
inches thick), D 10 4–6
Well Done about 1 lb. D 17 12–14
Wieners 1-lb. pkg. (10) D 6 1–2 If desired, split sausages in half
similar precooked lengthwise; cut into 5- to 6-inch pieces.
sausages, bratwurst
25
Broiling Operating the Self-Cleaning Oven
OPERATING THE SELF-CLEANING OVEN
Normal Cleaning Time: 3 hours
Before a Clean Cycle
We recommend venting with an open window
or using a ventilation fan or hood during the first
self-clean cycle.
1. Remove the broiler pan, broiler grid, all cookware
and any aluminum foil from the oven—they cannot
withstand the high cleaning temperatures.
NOTE: Take the shelves out of the oven before
you begin the self-clean cycle.
2. Wipe up heavy soil on the oven bottom. If you
use soap, rinse thoroughly before self-cleaning
to prevent staining.
3. Clean spatters or spills on the oven front frame,
and the oven door outside the gasket with a
dampened cloth. The oven front frame and the
oven door outside the gasket do not get cleaned by
the self-clean cycle. On these areas use detergent
and hot water or a soap-filled steel wool pad. Rinse
well with a vinegar and water solution. This will
help prevent a brown residue from forming when
the oven is heated. Buff these areas with a dry
cloth. Do not clean the gasket.
Clean the top, sides and outside front of the oven
door with soap and water. Do not use abrasives or
oven cleaners.
Make sure the oven light bulb cover is in place.
Do not rub or clean the door gasket—
the fiberglass material of the gasket has an
extremely low resistance to abrasion. An intact
and well-fitting oven door gasket is essential for
energy-efficient oven operation and good baking
results. If you notice the gasket becoming worn,
frayed or damaged in any way or if it has become
displaced on the door, you should have it replaced.
4. Close the door and make sure the oven light is
off. If the oven light is not turned off, the life
of the bulb will be shortened or it may burn out
immediately.
CAUTION: The grates and drip pans (on
some models) should never be cleaned in the
self-cleaning oven.
Do not use commercial oven cleaners or oven
protectors in or near the self-cleaning oven.
A combination of any of these products plus the high
clean cycle temperatures may damage the porcelain
finish of the oven.
(continued next page)
Oven
front
frame
Oven door
gasket
Oven
light
Area
inside
gasket
Area
outside
gasket
26
OPERATING THE SELF-CLEANING OVEN
(continued)
How to Set the Oven for Cleaning
How to Adjust the Amount of Cleaning Time
To Stop a Clean Cycle
Turn the OVEN TEMP knob to the OFF position. This will stop the
cleaning cycle but you will not be able to open the door until the oven cools
below the locking temperature.
After a Clean Cycle
After a clean cycle, you may notice some white ash
in the oven. Just wipe it up with a damp cloth.
If white spots remain, remove them with a soap-
filled steel wool pad. Be sure to rinse thoroughly
with a vinegar and water mixture. These deposits
are usually a salt residue that cannot be removed by
the clean cycle.
If the oven is not clean after one cycle, the cycle
may be repeated.
NOTE:
• While the oven is self-cleaning, you can press the
CLOCK pad to display the time of day. To return to
the clean countdown, press the COOK TIME
ON/OFF pad.
• You cannot set the oven for cooking until the oven is
cool enough for the door to be unlatched.
1.
Turn the OVEN SET knob and the OVEN TEMP
knob to CLEAN. The controls will snap into the final
position when the CLEAN location is reached.
2. Slide the latch handle to the right
as far as it will go.
Never force the door latch handle. Forcing the
handle may damage the door lock mechanism.
The oven will now be set to clean
for its normal time of three hours.
3. When the clean cycle is complete,
you will be able to slide the door
latch handle to the left as far as it
will go and open the door.
Never force the door latch handle. If you cannot
slide the latch easily to unlock the door, allow
additional time for cooling.
Turn the OVEN TEMP knob to OFF.
C
L
E
A
N
O
F
F
W
A
R
M
2
0
0
3
0
0
4
0
0
5
0
0
B
R
O
I
L
OVEN TEMP
B
A
K
E
B
R
O
I
L
C
L
E
A
N
T
I
M
E
B
A
K
E
OVEN SET
The clean cycle is normally 3 hours. You can change
the clean time to any time between 2 and 4 hours
depending on the amount of soil in your oven.
1. Turn the OVEN SET knob and OVEN TEMP knob
to CLEAN. Slide the latch handle to the right as far
as it will go.
2. Press the UP or DOWN pad to set the desired
cleaning time.
You have one minute to change your clean time after
the normal cleaning time of 3 hours is displayed.
27
Operating the Self-Cleaning Oven
How to Delay Start of Cleaning
Questions and Answers
Q. If my oven clock is not set to the correct time
of day, can I still self-clean my oven?
A. If the clock is not set to the correct time of day,
you will not be able to set a delay clean to end
at a specific time.
Q. Can I use commercial oven cleaners on any part
of my self-cleaning oven?
A. No cleaners or coatings should be used around
any part of this oven. If you do use them and do
not thoroughly rinse the oven with water, wiping it
absolutely clean afterward, the residue can scar the
oven surface and damage metal parts the next time
the oven is automatically cleaned.
Q. Can I clean the woven gasket around the
oven door?
A. No, this gasket is essential for a good oven seal,
and care must be taken not to rub, damage or move
this gasket.
Q. What should I do if excessive smoking occurs
during cleaning?
A. This is caused by excessive soil, and you should
turn the OVEN TEMP knob to OFF. Open the
windows to rid the room of smoke. Allow the
oven to cool for at least one hour before opening
the door. Wipe up the excess soil and reset the
clean cycle.
Q. Is the ‘‘crackling’’ or “popping” sound I hear
during cleaning normal?
A. Yes. This is the metal heating and cooling during
both the cooking and cleaning functions.
Q. Should there be any odor during the cleaning?
A. Yes, there will be a slight odor during the first few
cleanings. Failure to wipe out excessive soil might
also cause an odor when cleaning.
Q. What causes the hair-like lines on the enamel
surface of my oven?
A. This is a normal condition resulting from heating
and cooling during cleaning. They do not affect
how your oven performs.
Q. Why do I have ash left in my oven after
cleaning?
A. Some types of soil will leave a deposit, which is
ash. It can be removed with a damp sponge or cloth.
Q. Can I cook food on the cooktop while the oven
is self-cleaning?
A. Yes. While the oven is self-cleaning, you can use
the cooktop just as you normally do. However, be
careful when standing in front of the range—oven
becomes very hot while self-cleaning.
You will have one minute to set a delayed start.
1. Turn the OVEN SET knob and the OVEN TEMP
knob to CLEAN. Slide the latch handle to the right
as far as it will go.
2. If you want to change the normal cleaning time,
press the UP or DOWN pad until the desired
amount of clean time is reached.
3. Press the START TIME ON/OFF pad.
4. Press the UP or DOWN pad to set the time you
want cleaning to start.
CARE AND CLEANING
Proper care and cleaning are important so your range
will give you efficient and satisfactory service. Follow
these directions carefully in caring for it to help assure
safe and proper maintenance.
BE SURE ELECTRICAL POWER IS
DISCONNECTED BEFORE CLEANING ANY
PART OF YOUR RANGE.
CAUTION: DO NOT OPERATE THE BURNER WITHOUT ALL BURNER PARTS AND DRIP PANS
(IF SO EQUIPPED) IN PLACE.
Turn all controls OFF before removing the
burner parts and drip pans (if so equipped).
The burner grates, caps, burner heads and drip
pans (if so equipped) can be lifted off, making them
easy to clean.
For proper ignition, make sure the small hole in
the section that fits over the electrode is kept open. A
sewing needle or wire twist-tie works well to unclog it.
The slits in the burner heads of your range
must be kept clean at all times for an even,
unhampered flame.
You should clean the surface burners routinely,
especially after bad spillovers, which could clog
these openings.
To remove burned-on food, soak the burner heads
in a solution of mild liquid detergent and hot water
for 20-30 minutes. For more stubborn stains, use a
toothbrush.
Before putting the burner head back, shake out
excess water and then dry it thoroughly by setting
it in a warm oven for 30 minutes.
Replace the burner caps. Make sure that caps are
replaced on the correct size burner. There is one
small, 2 medium and one large cap.
The electrode of
the spark igniter is
exposed when the
burner head is
removed. When one
burner is turned to LITE, all the burners spark.
Do not attempt to disassemble or clean around
any burner while another burner is on. An electric
shock may result, which could cause you to knock
over hot cookware.
Grate
Burner cap
Burner head
Drip pan
(on some models)
Electrode
Sealed Burner Assemblies
(on some models)
Burner Heads
(on sealed burners only)
Electrode
Burner Caps
Lift off when cool. Wash burner caps in hot, soapy water
and rinse with clean water. You may scour with a
plastic scouring pad to remove burned-on food particles.
Dry them in a warm oven or with a cloth—don’t
reassemble them wet. Replace the burner caps.
Front of Range
Make sure that caps are replaced on the correct size
burner. There is one small, 2 medium and one large cap.
small
large
medium
medium
medium
small
large
28
Care and Cleaning
CAUTION: DO NOT OPERATE THE BURNER WITHOUT ALL BURNER PARTS AND DRIP PANS
(IF SO EQUIPPED) IN PLACE.
Drip Pans (on some models)
Remove the grates and lift out the drip pans.
Drip pans can be cleaned in a dishwasher or by hand.
To get rid of burned-on food, p
lace them in a covered
container (or plastic bag) with 1/4 cup ammonia to
loosen the soil. Then scrub with a soap-filled scouring
pad if necessary.
When replacing the drip pans, make sure they are in
the correct position.
CAUTION: Do not clean the drip pans in a self-
cleaning oven.
(continued next page)
29
Standard Twin Burners
(on some models)
On models with standard twin burners, the
cooktop lifts up for easy access.
Turn all controls OFF before removing burner
parts and drip pans (if so equipped).
The burner grates, caps, burner heads and drip
pans (if so equipped) can be lifted off, making them
easy to clean.
The holes in the surface
burners of your range
must be kept clean at all
times for proper ignition
and an even,
unhampered flame.
You should clean the surface burners routinely,
especially after bad spillovers, which could clog
these holes.
Wipe off surface burners. If heavy spillover occurs,
remove the surface burners from the range. Burners
lift out for cleaning. Lift up the cooktop and then lift
out the surface burners.
To remove burned-on food, soak the surface burner
in a solution of mild liquid detergent and hot water.
Soak the surface burner for 20 to 30 minutes. For
more stubborn stains, use a cleanser like Soft Scrub
®
brand or Bon Ami
®
brand. Rinse well to remove any
traces of the cleanser that might clog the surface
burner openings. Do not use steel wool because it
will clog the surface burner openings and scratch the
surface burners. If the holes become clogged, clean
them with a sewing needle or twist-tie.
Before putting the surface burner back, shake out
excess water and then dry it thoroughly by setting it in
a warm oven for 30 minutes. Then place it back in the
range, making sure it is properly seated and level.
Check the flame pattern of each burner. If the flames
are “jumpy” (not steady), clean the holes again with a
sewing needle or twist-tie.
Grate
Drip pan
(on some models)
Surface burner
Clean these
holes
thoroughly
on each
burner.
CARE AND CLEANING
(continued)

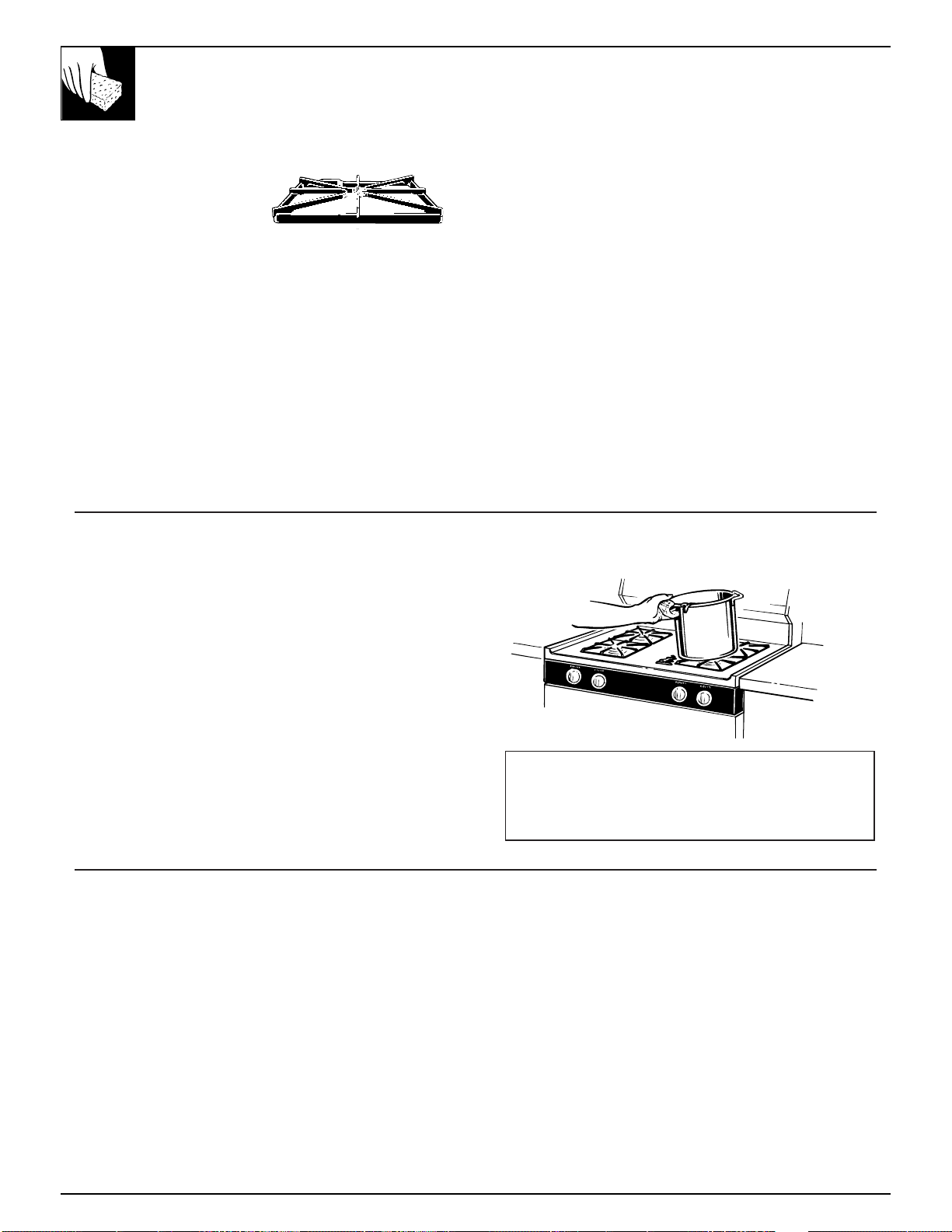

Burner Grates
30
Cooktop Surface
To avoid damaging the porcelain enamel surface of
the cooktop and to prevent it from becoming dull,
clean up spills right away. Foods with a lot of acid
(tomatoes, sauerkraut, fruit juices, etc.) or foods with
high sugar content could cause a dull spot if allowed
to set.
When the surface has cooled, wash and rinse. For
other spills such as fat spatterings, etc., wash with
soap and water once the surface has cooled. Then
rinse and polish with a dry cloth.
Do not store flammable materials in an oven or
near the cooktop. Do not store or use combustible
materials, gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Oven Bottom
The oven bottom has a porcelain enamel finish. To
make cleaning easier, protect the oven bottom from
excessive spillovers by placing a cookie sheet on the
shelf below the shelf you are cooking on. This is
particularly important when baking a fruit pie or other
foods with a high acid content.
We don’t recommend using aluminum foil on the
oven bottom. It can affect air flow if the holes are
blocked and it can concentrate heat at the bottom of
the oven, resulting in poor baking performance.
Hot fruit fillings or other foods that are highly acidic
(such as milk, tomatoes or sauerkraut, and sauces with
vinegar or lemon juice) may cause pitting and damage
to the porcelain enamel surface and should be wiped
up immediately. To clean up spillovers, use soap and
water, an abrasive cleaner or scouring pad. Rinse well
to remove any soap before self-cleaning.
Lift out when cool.
Grates should be washed
regularly and, of course,
after spillovers. Wash
them in hot, soapy water and rinse with clean water.
After cleaning, dry them thoroughly by putting them in
a warm oven for a few minutes. Don’t put the grates
back on the range while they are wet. When replacing
the grates, be sure they’re positioned securely over
the burners.
To prevent rusting on cast iron grates, apply a light
coating of cooking oil on the bottom of the grates.
To get rid of burned-on food, place the grates
in a covered container (or plastic bag) with 1/4 cup
ammonia to loosen the soil. Let sit overnight
(or approximately 12 hours), then scrub with a
soap-filled scouring pad if necessary. Rinse grates
thoroughly and dry completely before replacing
them on the range top.
Although they’re durable, the grates will gradually
lose their shine, regardless of the best care you can
give them. This is due to their continual exposure to
high temperatures. You will notice this sooner with
lighter color grates.
Do not operate a burner for an extended period of
time without cookware on the grate.
The finish on
the grate may chip without cookware to absorb the heat.
CAUTION: Do not clean the grates in a
dishwasher or in a self-cleaning oven.
Care and Cleaning
Lift-Off Oven Door
The oven door is removable,
but it is heavy. You may need help
removing and replacing the door.
To remove the door, open it a few
inches to the special stop position
that will hold the door open. Grasp
firmly on each side and lift the door
straight up and off the hinges.
NOTE: Be careful not to place
hands between the hinge and the
oven door frame as the hinge could
snap back and pinch fingers.
To replace the door, make sure the hinges are in the
special stop position. Position the slots in the bottom
of the door squarely over the hinges. Then lower the
door slowly and evenly over both hinges at the same
time. If the hinges snap back against the oven frame,
pull them back out.
TO CLEAN THE DOOR:
(Do not immerse the door in water.)
Inside of the door:
• Because the area inside the gasket is cleaned during
the self-clean cycle, you do not need to clean this
by hand. Any soap left on the liner causes additional
stains when the oven is heated.
• The area outside the gasket can be cleaned with
a scouring pad.
• Do not rub or clean the door gasket—the
fiberglass material of the gasket has an extremely
low resistance to abrasion. An intact and well-
fitting oven door gasket is essential for energy-
efficient oven operation and good baking results.
If you notice the gasket becoming worn, frayed or
damaged in any way or if it has become displaced
on the door, you should have it replaced.
Outside of the door:
• Use soap and water to thoroughly clean the top,
sides and front of the oven door. Rinse well. You
may also use a glass cleaner to clean the glass on
the outside of the door.
• Spillage of marinades, fruit juices, tomato sauces
and basting materials containing acids may cause
discoloration and should be wiped up immediately.
When the surface is cool, clean and rinse.
• Do not use oven cleaners, cleansing powders or
harsh abrasives on the outside of the door.
Inside gasket
Gasket
Outside gasket
31
Broiler Pan and Grid
After broiling, remove the
broiler pan from the oven.
Remove the grid from the
pan. Carefully pour out grease
from the pan into a proper
container. Wash and rinse the
broiler pan and grid in hot
water with a soap-filled or
plastic scouring pad.
If food has burned on, sprinkle the grid with detergent
while hot and cover with wet paper towels or a
dishcloth. Soaking the pan will remove burned-on foods.
The broiler pan may be cleaned with a commercial
oven cleaner. Do not use an oven cleaner on the grid.
Both the broiler pan and grid can also be cleaned in
the dishwasher.
Do not store a soiled broiler pan and grid anywhere
in the range.
Do not clean the broiler pan or grid in the
self-cleaning oven.
Grid
Pan
Oven Shelves
Clean the shelves with an abrasive cleanser or steel wool. After
cleaning, rinse the shelves with clean water and dry with a clean cloth.
NOTE: Take the shelves out of the oven before you begin the
self-clean cycle.
(continued next page)
Oven Light Replacement (on some models)
CARE AND CLEANING
(continued)
CAUTION: Before replacing your oven light bulb,
disconnect the electrical power to the range at the
main fuse or circuit breaker panel. Be sure to let
the light cover and bulb cool completely.
The oven light (bulb) is covered with a removable
glass cover that is held in place with a bail-shaped
wire. Remove the oven door, if desired, to reach
cover easily.
To remove:
1. Hold a hand under the
cover so it doesn’t fall
when released. With
fingers of the same
hand, firmly push back
the wire cover holder.
Lift off the cover.
DO NOT REMOVE ANY SCREWS TO
REMOVE COVER.
2. Do not touch hot bulb with a wet cloth. Replace
bulb with a 40-watt household appliance bulb.
To replace cover:
1. Place it into the groove of the light receptacle. Pull
the wire forward to the center of the cover until it
snaps into place. When in place, the wire holds the
cover firmly. Be certain the wire is in the
depression in the center of the cover.
2. Connect electrical power to the range.
Wire cover holder
Control Panel and Knobs
It’s a good idea to wipe the control panel after each
use of the oven. Clean with mild soap and water or
vinegar and water, rinse with clean water and polish
dry with a soft cloth.
Do not use abrasive cleansers, strong liquid cleaners,
plastic scouring pads or oven cleaners on the control
panel—they will damage the finish. A 50/50 solution
of vinegar and hot water works well.
The control knobs may
be removed for easier
cleaning. To remove knob,
pull it straight off the stem.
Wash the knobs in soap and
water or a vinegar and hot
water solution but do not soak.
Metal parts can be cleaned with soap and water.
Do not use steel wool, abrasives, ammonia, acids
or commercial oven cleaners. Dry with a soft cloth.
Removable Storage Drawer (on some models)
The storage drawer is a good place to store cookware
and bakeware. Do not store plastics and flammable
material in the drawer.
Do not overload the storage drawer. If the drawer is
too heavy, it may slip off the track when opened.
The storage drawer may be removed for cleaning
under the range. Clean the storage drawer with a
damp cloth or sponge. Never use harsh abrasives or
scouring pads.
To remove the storage drawer:
1. Pull the drawer straight
out until it stops.
2. Tilt the front of the
drawer up and free of
the range.
To replace the storage drawer:
1. Set the stops on the back of the drawer over the
stops in the range.
2. Slide the drawer evenly and straight back, so that
the rails in the range are engaged.
32
Clean the area under the cooktop often. Built-up soil,
especially grease, may catch on fire.
To make cleaning easier, the cooktop may be lifted up.
To raise the cooktop:
1. Be sure the burners are turned off.
2. Remove the grates.
3. Grasp the two front burner wells and lift up.
Some models have dual
support rods that will hold
the cooktop up while you
clean underneath it.
After cleaning under the
cooktop with hot, soapy
water and a clean cloth,
lower the cooktop. Be
careful not to pinch your fingers.
33
Care and Cleaning
Oven Air Vents
Never block the vents (air openings) of the range.
They provide the air inlet and outlet that are necessary
for the range to operate properly with correct
combustion. Air openings are located at the rear of the
cooktop, at the top and bottom of the oven door, and at
the bottom of the range, under the kick panel, storage
drawer or broiler drawer (depending on the model).
Vent appearance and location vary.
Lift-up Cooktop
(on models with standard twin burners)
Removable Kick Panel (on some models)
The kick panel may be removed for cleaning under
the range.
To remove, lift up the
bottom of the panel slightly
to disengage the panel from
the tabs at the base of the
range. Pull the bottom of the
panel forward until the spring
clips are released at the top of
the panel.
To replace, insert the two
slots at the bottom of the panel
onto the two tabs at the base
of the range and push the top
of the panel forward to engage
the spring clips.
Removable Broiler Drawer (on some models)
To remove:
1. When the broiler is cool, remove the grid and pan.
2. Pull the broiler drawer out until it stops, then push
it back in about one inch.
3. Grasp the handle, lift and pull the broiler drawer
out. Clean the broiler drawer with hot soapy water.
To replace:
Hold the broiler drawer in the raised position as you
slide it partway into the range. Then lower the drawer
and push it completely closed.
34
INSTALLATION INSTRUCTIONS
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don’t touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
CAUTION
Do not attempt to operate the oven
of this range during a power failure
(Electric Ignition models only).
IMPORTANT
Remove all packing material and
literature from oven before connecting
gas and electrical supply to range.
FOR YOUR SAFETY
Do not store or use combustible
materials, gasoline or other flammable
vapors and liquids in the vicinity of this
or any other appliance.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT: Save these instructions
for the local electrical inspector’s use.
INSTALLER: Leave these instructions
with the appliance after installation is
completed.
CONSUMER:
Keep this Use and Care
Guide and the Installation Instructions
for future use.
This appliance must be properly grounded.
WARNING
• Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage. Refer to
this guide. For assistance or additional
information, consult a qualified installer,
service agency, manufacturer (dealer) or
the gas supplier.
• Never reuse old flexible connectors.
The use of old flexible connectors can
cause gas leaks and personal injury.
Always use NEW flexible connectors
when installing a gas appliance.

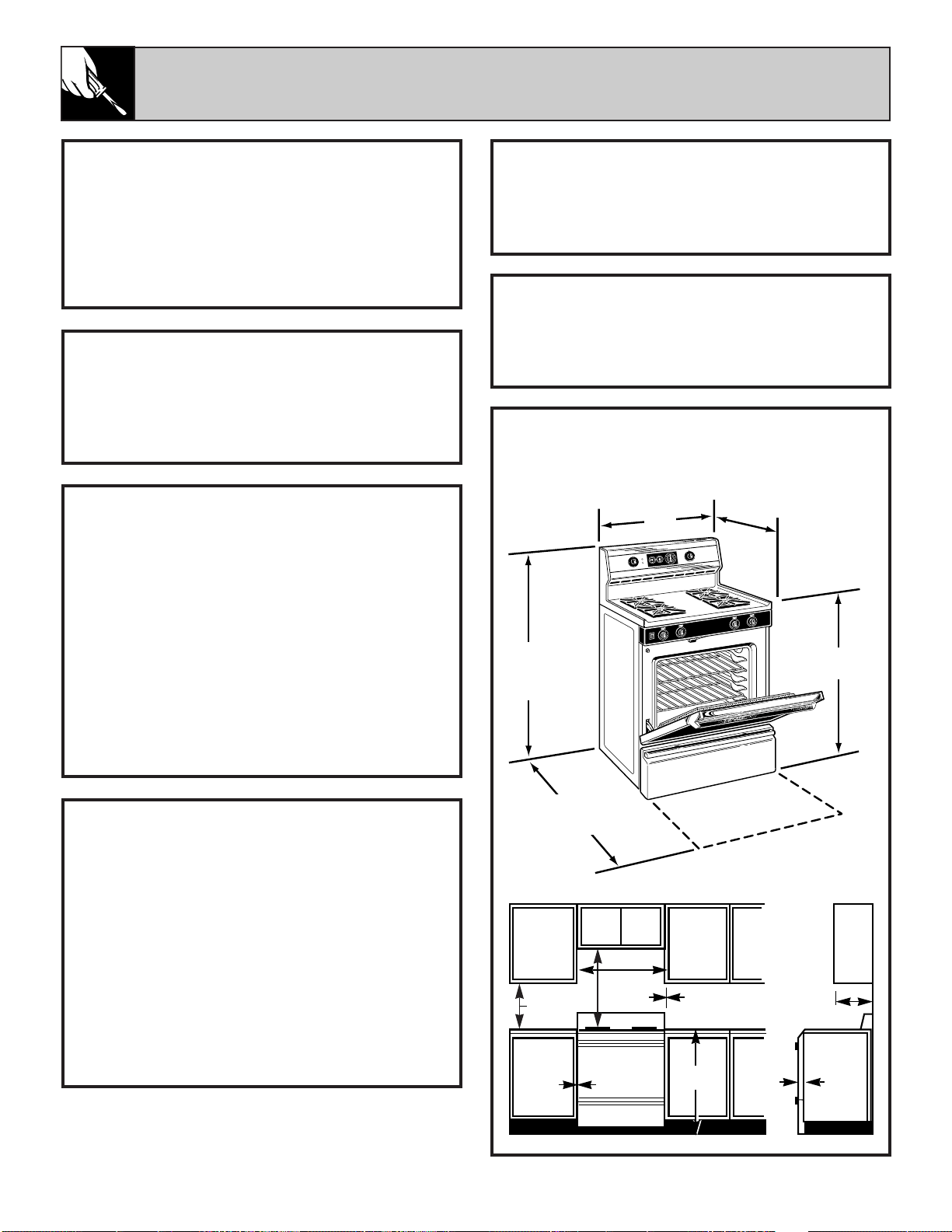

DIMENSIONS AND CLEARANCES
Provide adequate clearances between the range
and adjacent combustible surfaces.
MASK FOR SHELVES
O
F
F
˚
˚
˚
˚
˚
L
I
T
E
˚
˚
˚
H
I
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
L
O
W
LEFT
REAR
O
F
F
˚
˚
˚
˚
˚
L
I
T
E
˚
˚
˚
H
I
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
L
O
W
LEFT
FRONT
O
F
F
˚
˚
˚
˚
˚
L
I
T
E
˚
˚
˚
H
I
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
L
O
W
RIGHT
REAR
O
F
F
˚
˚
˚
˚
˚
L
I
T
E
˚
˚
˚
H
I
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
L
O
W
RIGHT
FRONT
PUSH TO TURN
12
3
9
6
STOP TIM
E
DELAY START
12
3
9
6
OFF
60
55
50
45
40
35
30
25
20
15
10
5
0
12
3
9
6
OVEN TEM
P
B
A
K
E
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
B
R
O
I
L
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
˚
C
L
E
A
N
˚
˚
˚
˚
˚
˚
˚
˚
˚
T
I
M
E
B
A
K
E
OVEN TEM
P
C
L
E
A
N
O
F
F
˚
˚
W
A
R
M
2
0
0
˚
˚
˚
3
0
0
˚
˚
˚
4
0
0
˚
˚
˚
5
0
0
B
R
O
I
L
Depth with Door Closed
(Includes Door Handle):
28
1
⁄
4
″
30″
Height
46
1
⁄
2
″
36
1
⁄
4
″±
1/4
″
Depth with
Door Open:
46
3
⁄
8
″
To cabinets
below cook-top
and at the range
back
30″
13″
30″
Minimum
1″ To wall on
either side
Maximum depth
for cabinets above
countertops
Front edge
of the range
side panel
forward
from
cabinet
18″
0″
1/4″
Minimum
to cabinets
on either
side of the
range
36″
35
• If cabinets are placed above the range, allow a
minimum clearance of 30″ between the cooking
surface and the bottom of unprotected cabinets.
• If a 30″ clearance between cooking surface
and overhead combustible material or metal
cabinets cannot be maintained, protect the
underside of the cabinets above the cooktop with
not less than 1/4″ insulating millboard covered
with sheet metal not less than 0.0122″ thick.
• Clearance between the cooking surface and
protected cabinets MUST NEVER BE LESS
THAN 24 INCHES. The vertical distance from
the plane of the cooking surface to the bottom of
adjacent overhead cabinets extending closer than
1″ to the plane of the range sides must not be
less than 18″. (See Dimensions and Clearances
illustration in this section.)
• CAUTION: Items of interest to children should
not be stored in cabinets above a range or on the
backsplash of a range—children climbing on the
range to reach items could be seriously injured.
WARNING
All ranges can tip and injury could
result. To prevent accidental tipping
of the range, attach an approved
Anti-Tip device to the wall. (See
Installing the Anti-Tip Device in this
section.) To check if the device is
installed and engaged properly,
carefully tip the range forward. The
Anti-Tip device should engage and prevent the
range from tipping over.
If you pull the range out from the wall for any
reason, make sure the Anti-Tip device is engaged
when you push the range back against the wall.
• For your safety, never use your range for
warming or heating the room. Your oven and
cooktop are not designed to heat your kitchen.
Top burners should not be operated without
cookware on the grate. Such abuse could result
in fire and damage to your range and will void
your warranty.
• Do not store or use combustible materials,
gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
Explosions or fires could result.
• Do not use oven for a storage area. Items
stored in the oven can ignite.
• Do not let cooking grease or other flammable
materials accumulate in or near the range.
IMPORTANT SAFETY INSTRUCTIONS
Installation of this range must conform with
local codes, or in the absence of local codes,
with the National Fuel Gas Code, ANSI
Z223.1, latest edition. In Canada, installation
must conform with the current Natural Gas
Installation Code, CAN/CGA-B149.1 or the
current Propane Installation Code, CAN/CGA-
B149.2, and with local codes where applicable.
This range has been design-certified by the
American Gas Association according to ANSI
Z21.1, latest edition and Canadian Gas Association
according to CAN/CGA-1.1 latest edition. As with
any appliance using gas and generating heat,
there are certain safety precautions you should
follow. You will find these precautions in the
Important Safety Instructions in the front of this
guide. Read them carefully.
• Have your range installed by a qualified installer.
• Your range must be electrically grounded in
accordance with local codes or, in the absence
of local codes, in accordance with the National
Electrical Code (ANSI/NFPA 70, latest edition).
In Canada, electrical grounding must be in
accordance with the current CSA C22.1 Canadian
Electrical Code Part 1 and/or local codes. See
Electrical Connections in this section.
• Before installing your range on linoleum or
any other synthetic floor covering, make sure
the floor covering can withstand 180°F. without
shrinking, warping or discoloring. Do not install
the range over carpeting unless a sheet of 1/4″
thick plywood or similar insulator is placed
between the range and carpeting.
• Make sure the wall coverings around the
range can withstand heat generated by the
range up to 200°F.
• Avoid placing cabinets above the range. To
reduce the hazard caused by reaching over the
open flames of operating burners, install a
ventilation hood over the range that projects
forward at least 5″ beyond the front of the cabinets.
• The ventilating hood must be constructed of
sheet metal not less than 0.0122″ thick. Install
above the cooktop with a clearance of not less
than 1/4″ between the hood and the underside
of the combustible material or metal cabinet.
The hood must be at least as wide as the
appliance and centered over the appliance.
Clearance between the cooking surface and the
ventilation hood surface MUST NEVER BE
LESS THAN 24 INCHES.
EXCEPTION: Installation of a listed microwave
oven or cooking appliance over the cooktop shall
conform to the installation instructions packed
with that appliance.
(continued next page)
36
INSTALLATION INSTRUCTIONS
(continued)
GENERAL
• See Dimensions and Clearances in this section
for all rough-in and spacing dimensions. These
dimensions must be met for safe use of your range.
The location of the electrical outlet and pipe opening
(see Gas Pipe and Electric Outlet Locations) may
be adjusted to meet specific requirements.
• The range may be placed with 0
″ clearance
(flush) at the back wall and side walls of the range.
LOCATION
Do not locate the range where it may be subject
to strong drafts. Any openings in the floor or wall
behind the range should be sealed. Make sure
the openings around the base of the range that
supply fresh air for combustion and ventilation
are not obstructed by carpeting or woodwork.
PROTECT YOUR FLOOR
Your range, like many other household items, is
heavy and can settle into soft floor coverings
such as cushioned vinyl or carpeting. Use care
when moving the range on this type of flooring.
It is recommended that the following simple and
inexpensive instructions be followed to protect
your floor.
The range should be installed on a sheet of plywood
(or similar material). When the floor covering ends
at the front of the range, the area that the range
will rest on should be built up with plywood to
the same level or higher than the floor covering.
This will allow the range to be moved for cleaning
or servicing. Also, make sure your floor covering
will withstand 180°F. (See the Important Safety
Instructions section of the Installation
Instructions.)
MODEL AND SERIAL NUMBER LOCATION
Depending on your range, you’ll find the
model and serial numbers on a label on the
front frame of the range, behind the storage
drawer or kick panel.
TOOLS YOU WILL NEED
• Phillips and flat-blade screwdrivers
• Pencil and ruler
• Two pipe wrenches (one for backup)
• 1
3
⁄
8
″ open-end or adjustable wrench
• Nut drivers or wrenches: 3/16″ and 1/4″
ADDITIONAL MATERIALS YOU MAY NEED
• Gas line shut-off valve
• Pipe joint sealant or UL-approved pipe thread
tape with Teflon* that resists action of natural
and LP gases
• Flexible metal appliance connector (1/2″ I.D.)
A 5-foot length is recommended for ease of
installation but other lengths are acceptable.
Never use an old connector when installing a
new range.
• Flare union adapter for connection to gas
supply line (3/4″ or 1/2″ NPT x 1/2″ I.D.)
• Flare union adapter for connection to pressure
regulator on range (1/2″ NPT x 1/2″ I.D.)
*Teflon: Registered trademark of DuPont
PREPARATION
• Remove all tape and packaging. Lift up the
cooktop (on models with standard twin burners)
and remove any packing material under it. Make
sure the standard twin burners are properly
seated and level.
• Take the accessory pack out of the oven.
• Check to be sure that no range parts have
come loose during shipping.
KITCHEN CABINETS
Make sure the wall coverings around your
range can withstand the heat generated (up
to 200°F) by the range. (See the Important
Safety Instructions section of the Installation
Instructions.)
37
CONNECT THE RANGE TO GAS
Shut off the main gas supply valve before
disconnecting the old range and leave it off until
new hook-up has been completed. Don’t forget
to relight the pilot on other gas appliances when
you turn the gas back on.
Because hard piping restricts movement of the
range, the use of an A.G.A.-certified flexible
metal appliance connector is recommended
unless local codes require a hard-piped connection.
Never use an old connector when installing a
new range. If the hard piping method is used,
you must carefully align the pipe; the range
cannot be moved after the connection is made.
To prevent gas leaks, put pipe joint compound
on, or wrap pipe thread tape with Teflon*
around, all male (external) pipe threads.
*Teflon: Registered trademark of DuPont
2
PROVIDE ADEQUATE GAS SUPPLY
Your range is designed to operate at a pressure
of 4″ of water column on natural gas or, if designed
for LP gas (propane or butane), 10″ of water
column. Make sure you are supplying your range
with the type of gas for which it is designed. This
range is convertible for use on natural or propane
gas. If you decide to use this range on LP gas,
conversion must be made by a qualified LP
installer before attempting to operate the range
on that gas.
For proper operation, the pressure of natural gas
supplied to the regulator must be between 4″ and
13″ of water column. For LP gas, the pressure
supplied must be between 10″ and 13″ of water
column. When checking for proper operation of
the regulator, the inlet pressure must be at least
1″greater than the operating (manifold) pressure
as given above. The pressure regulator located
at the inlet of the range manifold must remain in
the supply line regardless of whether natural or
LP gas is being used. A flexible metal appliance
connector used to connect the range to the gas
supply line should have an I.D. of 1/2″ and be
5 feet in length for ease of installation. In Canada,
flexible connectors must be single wall metal
connectors no longer than 6 feet in length.
1
(continued next page)
Gas Pipe and Electric Outlet Locations
for Models Equipped with Sealed Burners
Gas Pipe and Electric Outlet Locations for
Models Equipped with Standard Twin Burners
2
1
⁄2
"
6
1
⁄4
"
30
"
4
"
9
"
24
"
2
"
4
"
8
"
C
L
This area allows
for flush range
installation with
through-the-wall
connection of pipe
stub/shut-off valve
and rear wall
120V outlet.
Shortest
connection
from hard pipe
stub location to
range hookup.
This area allows for
flush range installation
with through-the-floor
connection of pipe
stub/shut-off valve.
2
1
⁄2
"
30
"
4
"
9
"
24
"
2
"
8
"
C
L
7
"
29
"
This area allows
for flush range
installation with
through-the-wall
connection of pipe
stub/shut-off valve
and rear wall
120V outlet.
Shortest
connection
from hard pipe
stub location to
range hookup.
This area allows
for flush range
installation with
through-the-floor
connection of pipe
stub/shut-off valve.
38
INSTALLATION INSTRUCTIONS
(continued)
Flexible Connector and Rigid Pipe Hookups for
Models Equipped with Standard Twin Burners
CONNECT THE RANGE TO GAS (continued)
Flexible Connector Hookup for Models
Equipped with Sealed Burners
Rigid Pipe Hookup for Models Equipped
with Sealed Burners
Pressure
Regulator
90° Elbow
(provided)
Gas Flow into Range
Flex
Connector
(6 ft. max.)
Adapter
Installer: Inform the
consumer of the
location of the gas
shut-off valve.
1/2
"
or 3/4
"
Gas Pipe
Adapter
Gas
Shut-off
Valve
Pressure
Regulator
90° Elbow
(provided)
Nipple
Union
90° Elbow
Black
Iron Pipe
Union
Nipple
Gas
Shut-off
Valve
1/2
"
or 3/4
"
Gas Pipe
Gas Flow into Range
Installer: Inform the
consumer of the
location of the gas
shut-off valve.
Installer: Inform the
consumer of the location
of the gas shut-off valve.
Manifold Pipe
Adapter
Flex Connector
(6 ft. max.)
Adapter
Pressure
Regulator
Gas Flow into Range
Flexible
Connector
Hookup
Union
90°
Elbow
Union
Nipple
Black Iron Pipe
Nipple
Rigid Pipe
Hookup
1/2
"
or 3/4
"
Gas Pipe
Gas
Shut-off
Valve
39
ELECTRICAL CONNECTIONS
(on some models)
Electrical Requirements
120-volt, 60 Hertz, properly grounded branch
circuit protected by a 15-amp or 20-amp circuit
breaker or time delay fuse.
Extension Cord Cautions
Because of potential safety hazards associated
with certain conditions, we strongly recommend
against the use of an extension cord. However,
if you still elect to use an extension cord, it is
absolutely necessary that it be a UL-listed,
3-wire grounding-type appliance extension cord
and that the current carrying rating of the cord
in amperes be equivalent to, or greater than,
the branch circuit rating.
Grounding
IMPORTANT—(Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE
MUST BE PROPERLY GROUNDED.
The power cord of this appliance is equipped
with a three-prong (grounding) plug which
mates with a standard three-prong grounding
wall receptacle
to minimize the
possibility of
electric shock
hazard from
this appliance.
The customer
should have the
wall receptacle
and circuit
checked by a
qualified electrician to make sure the receptacle
is properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the customer to have it replaced with
a properly grounded three-prong wall receptacle.
DO NOT, UNDER ANY CIRCUMSTANCES,
CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER CORD.
3
CONNECT THE RANGE TO GAS
(continued)
1. Install a manual gas line shut-off valve in the
gas line in an easily accessed location outside of
the range. Make sure everyone operating the
range knows where and how to shut off the gas
supply to the range.
2. Install male 1/2
″ flare union adapter to the
1/2″ NPT internal thread elbow at inlet of
regulator. On models equipped with
standard twin burners, install the male pipe
thread end of the 1/2″ flare union adapter to the
1/2″ NPT internal thread at inlet of pressure
regulator. Use a backup wrench on the regulator
fitting to avoid damage.
When installing the range from the front,
remove the 90° elbow for easier installation.
3. Install male 1/2″ or 3/4″ flare union adapter
to the NPT internal thread of the manual shut-
off valve, taking care to back-up the shut-off
valve to keep it from turning.
4. Connect flexible metal appliance connector
to the adapter on the range. Position range
to permit connection at the shut-off valve.
5. When all connections have been made, make
sure all range controls are in the off position and
turn on the main gas supply valve. Use a liquid
leak detector at all joints and connections to
check for leaks in the system.
When using test pressures greater than 1/2 psig
to pressure test the gas supply system of the
residence, disconnect the range and individual
shut-off valve from the gas supply piping. When
using test pressures of 1/2 psig or less to test the
gas supply system, simply isolate the range from
the gas supply system by closing the individual
shut-off valve.
CAUTION: DO NOT USE A FLAME TO
CHECK FOR GAS LEAKS.
2
PREFERRED
METHOD
Ensure proper
ground exists
before use
(continued next page)
40
INSTALLATION INSTRUCTIONS
(continued)
Usage Situations where Appliance Power
Cord will be Disconnected Frequently.
Do not use an adapter plug in these situations
because disconnecting of the power cord
places undue strain on the adapter and leads to
eventual failure of the adapter ground terminal.
The customer should have the two-prong
wall receptacle replaced with a three-prong
(grounding) receptacle by a qualified electrician
before using the appliance.
The installation of appliances designed for
mobile home installation must conform with
the Manufactured Home Construction and
Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile
Home Construction and Safety, Title 24, HUD,
Part 280) or, when such standard is not
applicable, the Standard for Manufactured
Home Installations, latest edition (Manufactured
Home Sites, Communities and Set-Ups), ANSI
A225.1, latest edition, or with local codes. In
Canada, mobile home installation must be in
accordance with the current CAN/CSA
Z240/MH Mobile Home Installation Code.
Electric Disconnect
1. Locate disconnect plug on the range back.
2. Pinch sides of connector and pull out of
range back.
B
Usage Situations where Appliance
Power Cord will be Disconnected Infrequently.
An adapter may be used only on a 15-amp
circuit. Do not use an adapter on a 20-amp
circuit. Where local codes permit, a
TEMPORARY CONNECTION may be
made to a properly grounded two-prong wall
receptacle by the use of a UL-listed adapter,
available at most hardware stores. The larger
slot in the adapter must be aligned with the
larger slot in the wall receptacle to provide
proper polarity in the connection of the
power cord.
When disconnecting the power cord from the
adapter, always hold the adapter with one hand.
If this is not done, the adapter ground terminal
is very likely to break with repeated use. Should
this happen, DO NOT USE the appliance until a
proper ground has again been established.
CAUTION: Attaching the adapter ground
terminal to the wall receptacle cover screw
does not ground the appliance unless the cover
screw is metal, and not insulated, and the wall
receptacle is grounded through the house
wiring. The customer should have the circuit
checked by a qualified electrician to make sure
the receptacle is properly grounded.
A
TEMPORARY METHOD
(Adapter plugs not
permitted in Canada)
Align large
prongs/slots
Ensure proper
ground and
firm connection
before use
ELECTRICAL CONNECTIONS (continued)
CHECK IGNITION OF OVEN BURNER
Your oven is designed to operate quietly and
automatically. To operate the oven, turn the OVEN
SET knob to BAKE and the OVEN TEMP knob
to a setting above 300°F. After 30-90 seconds, the
oven burner will ignite and burn until the set
temperature is reached. The oven burner will
continue to cycle on and off as necessary to
maintain the oven at the temperature indicated by
the OVEN TEMP knob.
To check ignition of the broil burner, turn the
OVEN SET knob to BROIL and the OVEN
TEMP knob to BROIL. After 30-90 seconds, the
broil burner will ignite.
Electric ignition models require electrical
power to operate. In case of a power outage, the
oven burners on these models cannot be lit
manually with a match. Gas will not flow unless
the glow bar is hot.
If the oven is in use when a power outage occurs,
the burner will shut off and cannot be re-lit until
power is restored.
6
41
SEAL THE OPENINGS
Seal any openings in the wall behind the range
and in the floor under the range when hookups
are completed.
4
(continued next page)
Quality of Flames
The combustion quality of burner flames needs
to be determined visually.
If burner flames look like (A), call for service.
Normal burner flames should look like (B) or
(C), depending on the type of gas you use.
With LP gas, some yellow tipping on outer
cones is normal.
(A) Yellow flames—
Call for service
(B) Yellow tips on
outer cones—
Normal for LP gas
(C) Soft blue flames—
Normal for natural gas
CHECK IGNITION OF SURFACE BURNERS
Operation of all cooktop and oven burners
should be checked after the range and gas
supply lines have been carefully checked
for leaks.
Electric Ignition Models
Select a top burner knob and simultaneously
push in and turn to LITE position. You will hear
a snapping sound indicating proper operation
of the spark module. Once the air has been
purged from the supply lines, burners should
light within 4 seconds. After burner lights,
rotate knob out of the LITE position. Try each
burner in succession until all burners have
been checked.
5
To determine if the bottom burner flames are
burning properly, remove the oven bottom.
Flames should have approximately 1″ blue cones
and, if range is supplied with natural gas, should
burn with no yellow tipping. (With most LP gas,
small yellow tips at the end of outer cones are
normal.) Flames should not lift off burner ports.
If lifting is observed, gradually reduce air shutter
opening until flames are stabilized.
To remove the oven
bottom:
1. Remove the
knurled screws
holding down rear
of the oven bottom.
2. Grasp the oven
bottom at finger slots
on each side.
3. Lift the rear of the oven bottom enough to
clear the lip of the range frame, then pull out.
ADJUST BROIL AND OVEN BURNER AIR
ADJUSTMENT SHUTTERS IF NECESSARY
Air adjustment shutters for the top and bottom
burners regulate the flow of air to the flames.
The air adjustment shutter for the top
(broil) burner is in the center of the rear
wall of the oven.
The shutter for the bottom (oven) burner is near
the back wall behind the storage drawer or the
kick panel (depending on the model). Remove
the drawer or panel. See the Care and Cleaning
section in this guide.
To adjust the flow of air to either burner, loosen
the Phillips head screw and rotate the shutter
toward open or closed position as needed.
The flames for the top (broil) burner should be
steady with approximately 1″ blue cones and should
not extend out over the edges of the burner baffle.
7
42
INSTALLATION INSTRUCTIONS
(continued)
LEVELING THE RANGE
1. Remove the storage
drawer or kick panel.
2. Use a 3/16″ open-end
or socket wrench to back
out both rear leveling legs
approximately two turns.
3. Use a 1
3
⁄
8
″ open-end or
adjustable wrench to back
out the front leveling legs
two turns.
4. Install the oven shelves
in the oven and position
the range where it will be
installed.
5. Check for levelness by placing a spirit level or
a cup, partially filled with water, on one of the
oven shelves. If using a spirit level, take two
readings—with the level placed diagonally first
in one direction and then the other.
6. Adjust the leveling legs until the range is level.
7. After the range is level, slide the range
away from the wall so that the Anti-Tip device
can be installed.
8
Air adjustment
shutter
Loosen
Loosen
Air adjustment
shutter
Oven bottom
43
For cement or concrete construction, you
will need a 1/4″ x 1
1
⁄
2
″ lag bolt and a 1/2″ O.D.
sleeve anchor, which are not provided. Drill
the recommended size hole for the hardware.
Install the sleeve anchor into the drilled hole
and then install the lag bolt through the device.
The bolts must be properly tightened as
recommended for the hardware.
5. Slide the range against the wall, and check
for proper installation by grasping the front edge
of the cooktop and carefully attempting to tilt the
range forward.
WHEN ALL HOOKUPS ARE COMPLETED:
MAKE SURE ALL CONTROLS ARE LEFT IN THE
OFF POSITION.
MAKE SURE THE FLOW OF COMBUSTION AND
VENTILATION AIR TO THE RANGE IS
UNOBSTRUCTED.
CONVERTING TO LP GAS
(or converting back to natural gas from LP)
This range leaves the factory set for use with
natural gas. If you want to convert to LP gas, the
conversion must be performed by a qualified LP
gas installer.
The conversion instructions, sticker and LP
orifices can be found attached to the range next
to the pressure regulator.
There is a second set of instructions included in
the envelope containing the product wiring
diagrams on the back of the range. Keep these
instructions and the orifices in case you want to
convert back to natural gas.
INSTALLING THE ANTI-TIP DEVICE
1. Mark the wall where the RIGHT EDGE of the
range is to be located. Be sure to allow for the
countertop overhang if you intend to install the
range next to cabinets.
2. Locate the outside edge of the device 2
1
⁄
8
″
toward the center of the range from the marked
edge of the range.
3. Using the device as a template, mark the
position of the hole for the screw.
4. For wood construction, drill a pilot hole at an
angle of 20 degrees from the horizontal. A nail
or awl may be used if a drill is not available.
Mount the Anti-Tip device with the screw
provided.
WARNING:
• Range MUST be secured with an
approved Anti-Tip device.
• Unless properly installed, the range could
be tipped by you or a child standing, sitting
or leaning on an open door.
• After installing the Anti-Tip device, verify
that it is in place by carefully attempting to
tilt the range forward.
• This range has been designed to meet all
recognized industry tip standards for all
normal conditions.
• The use of this device does not preclude
tipping of the range when not properly
installed.
• If the Anti-Tip device supplied with the
range does not fit this application, use the
universal Anti-Tip device WB02X7909.
9
Wood screw
Wallplate
Anti-tip
device
Back of
range
Wallboard
Marked edge
of range
Approx.
Slotted
head
screw
Anti-tip
device
Wallplate
20°
2
1
⁄
8
″
44
NOTES
45
Before You Call for Service
QUESTIONS?
BEFORE YOU CALL FOR SERVICE…
PROBLEM POSSIBLE CAUSE
TOP BURNERS DO NOT • Make sure electrical plug is plugged into a live power outlet.
LIGHT OR DO NOT
• Burner holes on the side or around the top of burner may be clogged. Remove
BURN EVENLY
burners (on models with standard twin burners) or burner heads (on models
with sealed burners) or burner caps on spill-proof models, and clean them
with a sewing needle or twist-tie. Make sure you do not enlarge the holes. On
spill-proof models, check electrode area for burned-on food or grease.
• Make sure the drip pans are installed correctly.
BURNER FLAMES VERY • If range is connected to LP gas, contact the person who installed your range
LARGE OR YELLOW or made the conversion.
SURFACE BURNERS • The oven gas shut-off valve may have accidentally been moved during
LIGHT BUT OVEN cleaning or moving.
DOES NOT
To check the oven gas shut-off valve on standard twin burner models, raise
the cooktop and look for the gas shut-off lever at the extreme right rear corner.
(Standing pilot models do not have a gas shut-off valve on the regulator.)
Follow the directions in box A or B that match your regulator type.
To check the oven gas shut-off valve on sealed burner models, remove the
storage drawer, broiler drawer or kick panel and look for the gas shut-off
lever at the back of the range.
Follow the directions in box A or B that match your regulator type.
CLOCK DOES NOT WORK • Range electrical plug must be securely seated in a live power outlet. Check for
blown fuse or tripped circuit breaker.
OVEN LIGHT DOES NOT • Bulb may be loose or burned out.
COME ON
• Electrical plug must be plugged into a live power outlet.
(continued next page)
Lever shown closed.
PULL TO OPEN.
Lever shown closed.
PULL TO OPEN.
Lever shown
closed. PULL
TO OPEN.
A
B
A B
Standard Twin Burner Models
Sealed Burner Models
Lever shown
closed. PULL
TO OPEN.
Sealed Burner Models
Standard Twin Burner Models
46
BEFORE YOU CALL FOR SERVICE…
(continued)
PROBLEM POSSIBLE CAUSE
OVEN WILL NOT WORK • Plug on range is not completely inserted in the electrical outlet.
• The circuit breaker in your house has been tripped, or a fuse has been blown.
• Oven controls not properly set.
• Door left in locked position after cleaning.
OVEN TEMPERATURE • The OVEN TEMP knob needs adjustment. See the Adjust the Oven
TOO HOT OR TOO COLD Thermostat—Do It Yourself section.
FOOD DOES NOT ROAST • Oven controls not properly set. See the Baking or Roasting section.
OR BAKE PROPERLY
• Shelf position is not correct.
• Incorrect cookware or cookware of improper size is being used.
• Clock not set correctly.
• Oven thermostat needs adjustment. See the Adjust the Oven Thermostat—
Do It Yourself section.
• Aluminum foil used improperly in the oven.
• Oven bottom not securely seated in position.
FOOD DOES NOT • Oven controls not properly set. See the Broiling section.
BROIL PROPERLY
• Oven door not closed.
• Improper shelf position being used. See the Broiling section.
• Food is being cooked on a hot pan.
• Cookware is not suited for broiling.
• Aluminum foil used on the broiler pan grid has not been fitted properly
and slit as recommended.
• Oven bottom not securely seated in position.
OVEN WILL NOT • Oven temperature is too high to set self-clean operation. Allow the range to cool
SELF CLEAN to room temperature and reset the controls.
• Door latch handle not moved all the way to the right.
OVEN DOOR WILL • Oven must cool below locking temperature. Do not lock the door with
NOT UNLOCK door latch except when using self-clean feature or the oven may lock.
OVEN NOT CLEAN AFTER • Oven controls not set properly. Review Operating the Self-Cleaning Oven section.
CLEAN CYCLE
• Heavily soiled oven requires 3
1
⁄
2
to 4 hours of cleaning time.
• Heavy spillovers should be cleaned up before starting clean cycle.
OVEN DOOR • Turn the OVEN SET knob to OFF. Allow the oven to cool and
ACCIDENTALLY LOCKED then unlatch the door.
WHILE BAKING
STRONG ODOR • Improper air/gas ratio in oven. Adjust oven burner air shutter.
• An odor from the insulation around the oven liner is normal for the first few
times oven is used. This is temporary.
Consumers with impaired hearing or speech who have
access to a TDD or a conventional teletypewriter may
call 800-TDD-GEAC (800-833-4322) to request
information or service.
We’ll Be There
With the purchase of your new RCA appliance, receive the assurance that if you ever need
information or assistance, we’ll be there. All you have to do is call—toll-free!
In-Home Repair Service
800-GE-CARES (800-432-2737)
Our consumer service professionals will provide expert repair service on your
RCA appliance, scheduled at a time that’s convenient for you. Many GE
Consumer Service company-operated locations offer you service today or
tomorrow, or at your convenience (7:00 a.m. to 7:00 p.m. weekdays, 9:00 a.m.
to 2:00 p.m. Saturdays). Our factory-trained technicians know your appliance
inside and out—so most repairs can be handled in just one visit.
Service Contracts
800-626-2224
You can have the secure feeling that GE Consumer Service will still be there
after your RCA product warranty expires. Purchase a GE contract while your
warranty is still in effect and you’ll receive a substantial discount. With a
multiple-year contract, you’re assured of future service at today’s prices.
Parts and Accessories
800-626-2002
Individuals qualified to service their own appliances
can have parts or accessories sent directly to
their home. Our parts system provides access to over
47,000 Genuine Renewal Parts…and all are fully
warranted. VISA, MasterCard and Discover cards
are accepted.
User maintenance instructions contained in this guide
cover procedures intended to be performed by any user.
Other servicing generally should be referred to qualified
service personnel. Caution must be exercised, since
improper servicing may cause unsafe operation.
For Customers With Impaired Hearing…
800-833-4322
Before You Call for Service Consumer Services
YOUR RCA RANGE WARRANTY
Save proof of original purchase date such as your sales slip or cancelled check to establish warranty period.
WHAT IS COVERED
FULL ONE-YEAR WARRANTY
For one year from date of original purchase, we
will provide, free of charge, parts and service labor
in your home to repair or replace
any part of the
Range that fails because of a manufacturing defect.
This warranty is extended to the original purchaser
and any succeeding owner for products purchased
for ordinary home use in the 48 mainland states,
Hawaii and Washington, D.C. In Alaska the
warranty is the same except that it is LIMITED
because you must pay to ship the product to the
service shop or for the service technician’s travel
costs to your home.
FOR SERVICE
We at RCA strive to provide the highest quality
products and service. Therefore we have designated
GE CONSUMER SERVICE, a leader in the service
industry, to fulfill your service needs.
Should your appliance need service, during
warranty period or beyond, call 800-GE-CARES
(800-432-2737) or an authorized RCA APPLIANCE
SERVICER.
In Canada, consult your telephone directory
for the Camco Service Center.
WHAT IS NOT COVERED
• Service trips to your home to teach you how to
use the product.
Read your Use and Care material. If you then have
any questions about operating the product, please
contact your dealer or
Manager—Consumer Affairs
RCA Appliances
Appliance Park
Louisville, KY 40225
• Improper installation.
If you have an installation problem, contact your
dealer or installer. You are responsible for providing
adequate electrical, gas, exhausting and other
connecting facilities as described in the Installation
Instructions provided with the product.
• Replacement of house fuses or resetting of
circuit breakers.
• Failure of the product if it is used for other than its
intended purpose or used commercially.
• Damage to product caused by accident, fire,
floods or acts of God.
WARRANTOR IS
NOT RESPONSIBLE FOR
CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not
apply to you. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state. To know
what your legal rights are in your state, consult your local or state
consumer affairs office or your state’s Attorney General.
Warrantor: RCA Appliances
If further help is needed concerning this
warranty, write:
Manager—Consumer Affairs
RCA Appliances
Appliance Park
Louisville, KY 40225
LGB336
LGB356
Part No. 183D5580P031
Pub No. 79-4103-B
1-97 CG
This book is printed on recycled paper.
Printed in Mexico
