Allow the following clearances for ease of installation, proper air circulation, and plumbing and electrical connections:
Your refrigerator should be positioned to allow easy access to a counter when removing food. For best use of refrigerator drawers and freezer baskets, the refrigerator should be in a position where both can be fully opened.
CAUTION
LED lighting
Your appliance is fitted with long life LED lighting. In the unlikely event the LED lights should fail, then the LED lights should be serviced by the service agent, to avoid a safety hazard. Refer to the warranty page for contact details.
Cabinet Leveling & Refrigerator Door Alignment (if necessary)
Guidelines for final positioning of your refrigerator:
To level the cabinet using the front rollers:
1. Slightly open freezer drawer if the toe grill is installed. Lift the toe grille and gently pull forward.
2. Make initial cabinet adjustments by using the front roller height adjusting screws. Use a 3/8 inch socket wrench to turn the adjustment screws (1 per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counter clockwise.
3. Ensure both doors are bind-free with their seals touching the cabinet on all four sides and that cabinet is stable.
4. After unit is leveled, lower anti-tip leg using a 3/8 inch socket wrench until it firmly contacts the floor.
To make final door height adjustments:
1. Open freezer drawer to make lower hinge visible.
2. Insert 6mm Allen wrench into the shaft of the lower hinge.
3. Adjust the height by turning clockwise or counterclockwise. Turning clockwise will lower the door. Turning counterclockwise will raise the door. Default setting is to the lowest height when you receive your appliance
Flipper Mullion
Adjust Flipper Mullion for proper connection with the mullion guide by ensuring the flipper mullion is folded and perpendicular to the fresh food door. If the mullion guide is not in the correct position, it could prevent the door from closing completely.
IMPORTANT
Ensure that your water supply line connections comply with all local plumbing codes.
Before Installing the Water Supply Line, You Will Need:
WARNING
Connect to potable water supply only. If using tank or bore water it is recommended to also use an external filter (not supplied).
The new hose-sets supplied with the appliances must be used and old hose-sets should not be reused.
Never connect the appliance to a hot water supply. Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection.

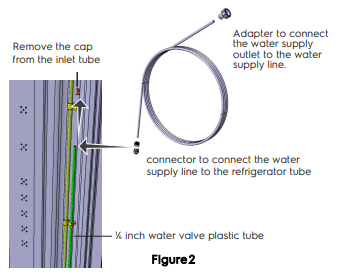

A - Adapter ½ to ¼ inch to connect the water supply outlet to the water supply line.
B - Water supply line ¼ inch with 3 meters in length.
C - ¼ inch connector to connect the water supply line to the refrigerator tube.
The water filter should not be used on water that is micro biologically unsafe or with water of unknown quality. The service life of the filter may be reduced in water supplies that contain an excess of particles or other impurities. Reduced flow rate is an indication that a new filter is required. Failure to replace the filter when required can affect the function of the ice maker. Service calls caused by a failure to replace the filter are not covered by warranty. Replacement water filters are available from Electrolux Home Products Spare Parts Centres and can be posted to you for your convenience (refer to spare parts contact numbers on the warranty page).
This chapter describes how to connect the smart appliance (fridge) to the Wi-Fi network and to link it to mobile devices. By this functionality you can receive notifications, control and monitor your fridge from your mobile devices.
To connect the appliance to enjoy the full range of features and services you need:
Frequency 2.412 - 2.472 GHz
Protocol IEEE 802.11b/g/n
Setting up your fridge*
Once you’ve downloaded the Electrolux Life App, simply plug in your fridge to a power supply and you’re ready to get set up.
Add your appliance
Tap on ‘Appliances’ on the bottom of the home screen.
Tap on ‘Add Appliance’ to get started and follow the prompts on screen.
*Set up will take 3 to 5 mins depending on your network speed.
Turn on your fridge Wi-Fi

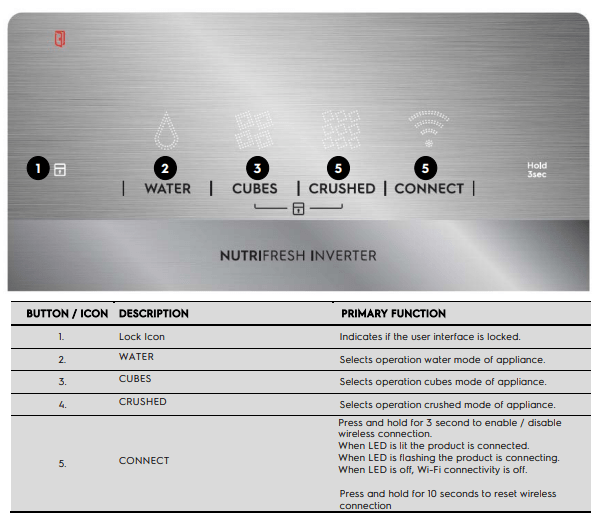

Press and hold the ‘CONNECT’ button for 3 seconds, until you see the Wi-Fi icon starts flashing.
Connect your appliance: iOS
Go to ‘SETTINGS’ on your phone and select your appliance’s Wi-Fi network, that begins with “AJ_”.
Return to the app screen for connection to next step. This may take up to a minute to display
Connect your appliance: Android
For Android devices, select your appliance’s Wi-Fi network from the drop-down box.
Connect your fridge to your home Wi-Fi*
You’ll need to select your Wi-Fi network name and input your password.
*For iOS devices, you will then be prompted go to ‘SETTINGS’ on your phone and select your Home Wi-Fi, then return to the Electrolux Life app.
Connection success!
Please proceed to the next screen to register the appliance.
Product registration
Simply add your fridge’s name and the purchase date.
Congratulations!
Now you’re all setup, you can start exploring the Electrolux Life App.

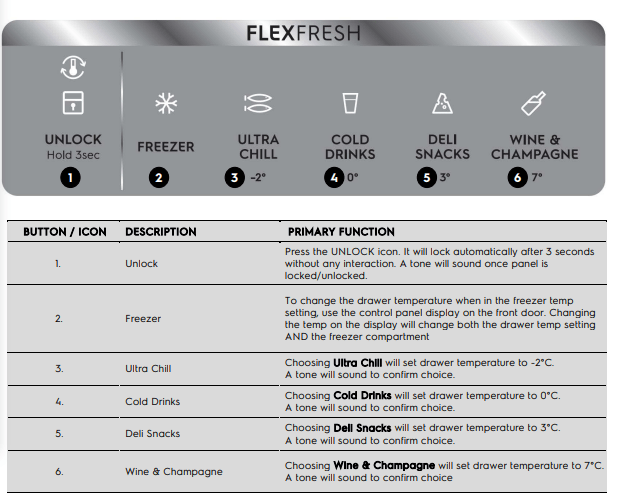

FlexFresh Drawer
Whether you are preparing the perfect frozen dessert or need that extra drink space, we make sure that your refrigerator is the ultimate secret to the perfect night of entertainment.
At the slide of a button, the convertible drawer can adjust from Freezer to +7°C*, with 5 predefined settings so that you can enjoy food at its finest. *within 2.5 hours
Useful Alerts on your App
Other Cool Features of your Fridge
TasteLock™ Easy Glide Crispers
Automatic humidity control ensures your fruit and vegetables are preserved in the optimal environment. Designed with your comfort in mind, the easy glide crispers open effortlessly and provide easy access even when they’re full.
SmartSplit Door Design
With optimally split doors you have more usable space in your refrigerator door and can effortlessly reach for larger items, saving you the need to open both doors every time.
Flip Up Shelves
With the ability to flip up some of the refrigerator shelving your taller Instagram worthy creations stay in one piece, ready for their big reveal.
IMPORTANT
If your product has food freezing in the fresh food compartment, increase the temperature setting 1 or 2 degrees.
If you place food within 1 inch in front of the air ports, there may be the chance of freezing food.
Water Filter
When illuminated, the water filter needs to be replaced. Change the water filter every 6 months or when 120 gallons of water has been dispensed. To reset, press and hold button for 3 seconds. Tone will sound once it has been reset.
Air Filter Installation
First operation the refrigerator need to installation the air filter which storage at crisper left side and follow installation method as below.
Carbon activated air filter
When illuminated, air filter needs to be replaced. Change the air filter every 6 months. To reset, press and hold button for 3 seconds. Tone will sounds once it has been reset.
Door Open
If a door has been left open for 5 minutes or more, an alarm will sound and the door open indicator will illuminate on the display. The alarm can be turned off by closing the door or pressing any key. Control panel will return to normal operations after the door is closed.
Error tone
An alarm will sound if the user tries to make a selection that is not available.
Using the ice maker after installation
Before making ice for the first time, be sure to prime the water supply system. Air in new plumbing lines can result in two or three empty ice maker cycles. Furthermore, if the system is not flushed, the first ice cubes may be discolored or have an odd flavor.
Priming the water supply system
CAUTION
For proper dispenser operation, recommended water supply pressure should fall between 30 psi and 100 psi. Excessive pressure may cause the system to malfunction.
Ice Maker Operation & care
After the refrigerator is installed properly and has cooled for several hours, the ice maker can produce ice within 24 hours. The ice maker will fill the ice bin from the rear. You must dispense some ice to force the ice forward in the bin. This will allow the bin to fill completely.
Ice Maker and storage bin capacity
This ice maker should produce 2.5 to 3 pounds of ice per 24 hours. The ice bin will hold about 4 pounds of ice.
IMPORTANT
Your ice maker is turned on at the factory so it can work as soon as you install your refrigerator. If you cannot connect a water supply, set the ice maker’s On/Off feature to Off; otherwise, the ice maker’s fill valve may make a loud chattering noise when it attempts to operate without water.
Ice production is controlled by the ice maker’s On/Off feature on the control panel. Pressing the On/Off feature turns the ice maker on & off.
NOTE: The ice maker also has a built-in plastic signal arm that automatically stops ice production when the ice bin is full. This signal arm should not be used to manually stop the ice maker.
IMPORTANT
Turning off the ice maker simply disables ice making.
You will still be able to dispense existing ice, and you will still be able to dispense water.
On occasion, unusually small ice cubes may be noticed in the bucket or in dispensed ice. This could occur in normal operation of the ice maker. If you start seeing these more frequently, it may be an indication of low water pressure "or that" the water filter needs to be replaced. As the water filter nears the end of its useful life and becomes clogged with particles, less water is delivered to the ice maker during each cycle.
Remember, if it has been six months or longer since you last changed your water filter, replace the water filter with a new one. Poor quality household water may require the filter to be changed more frequently.
Ice maker/Dispenser tips
CAUTION
If the water supply to your refrigerator is softened, be sure the softener is properly maintained. Chemicals from a water softener can damage the ice maker.
Cleaning the ice maker
Clean the ice maker and ice bin at regular intervals, especially prior to vacation or moving.
Remove and empty the ice bin if:
Remove the ice bin and shake to loosen the cubes or clean as explained above.
IMPORTANT When removing or replacing the ice bin, avoid rotating the auger in the ice bin. If the auger is accidentally rotated, you must realign the auger by turning it in 45 degree turns (see below) until the ice bin fits into place with the drive mechanism. If the auger is not properly aligned when replacing the ice bin, the refrigerator will not dispense ice. The fresh food door also may not close properly causing warm air to leak into the fresh food compartment.
CAUTION
To avoid personal injury or property damage, handle tempered glass shelves carefully. Shelves may break suddenly if nicked, scratched, or exposed to sudden temperature change. Allow the glass shelves to stabilize to room temperature before cleaning. Do not wash in dishwasher.
You can easily adjust shelf positions in the fresh food compartments to suit your needs. The shelves have mounting brackets that attach to slotted supports at the rear of each compartment.
To change a shelf position:
To adjust the flip shelf:
To adjust the slide-under/flip shelf:
1. Pull front half shelf forward until its back drops down, then gently push front half shelf back and under back half shelf
2. With front half fully below back half, lift front of shelf to flip it upwards toward the back of the cabinet.
Drawers
Your refrigerator includes a variety of storage drawers.
TasteLockTM Crisper (with automatic humidity control)
Crisper drawers are designed for storing fruits, vegetables, and other fresh produce. Crispers have an auto humidity control (with replaceable membrane) on the side of each crisper under the humidity control cover.
To remove the auto humidity control membrane:
To remove the TasteLockTM Crisper for cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the drawer.
Recessed SnackZone
This drawer is ideal for storage of deli meats and cheese.
Slide back the cover to allow access to the drawers.
Doors
Storage bins
The doors to your fresh food compartment use a system of modular storage bins. All of these bins are removable for easy cleaning. Bins can be adjusted to your needs. Door bins are ideal for storing jars, bottles, cans, and large drink containers. They also enable quick selection of frequently used items.
To move door bin along a rail:
To move door bin from rail to rail:
Freezer Features
To remove upper freezer basket:
1. Open freezer compartment completely.
2. Lift up and out to remove upper freezer basket.
Reverse the steps to reinstall basket.
Dividers
Grab hand hold on lower divider and pull up slightly to slide to next position. (The divider cannot be removed.)
WARNING
BEFORE CLEANING: Turn the refrigerator off at the power point and unplug the cord to prevent any chance of electrocuting yourself.
Doors and exterior (white and silver):
You should only clean the doors with lukewarm soapy water and a soft cloth.
Stainless Steel:
Your stainless steel refrigerator is manufactured from mark-resistant stainless steel. This stainless steel has a special advanced protective coating that eases the removal of marks such as fingerprints and water spots. To keep its appearance, clean it regularly with lukewarm soapy water and a soft cloth.
CAUTION
Never use stainless steel cleaners, abrasive pads or other cleaners that will scratch the surface. Damage to the appliance after delivery is not covered by your warranty.
Interior
Clean the inside of your refrigerator regularly with a soft cloth, unscented mild soap and lukewarm water. Thoroughly dry all surfaces and removable parts and avoid getting water on the controls. Replace removable parts, plug power cord in and switch the power on before returning the food.
Ice and water
Clean the components of the ice maker /water dispenser regularly with a soft cloth, unscented mild soap and rinsing thoroughly with lukewarm water. For further information on the care and cleaning of your Icemaker, Ice dispenser of water dispenser refer to the section "Ice and Water Models"
Door seals
Always keep door seals clean by washing them with a mild detergent and warm water, followed by a thorough drying. Sticky food and drink can cause seals to stick to the cabinet and tear when you open the door.
Never use hot water, solvents, commercial kitchen cleaners, aerosol cleaners, metal polishes, caustic or abrasive cleaners, or scourers to clean your refrigerator. Many commercially available cleaning products and detergents contain solvents that will damage your refrigerator. Use only a soft cloth with an unscented mild soap and lukewarm water.
CAUTION
To clean a crisper or freezer bin with telescopic extension slides, simply wipe with a damp cloth and warm soapy water. Never immerse the cover in water, as this could affect the operation of the slide.
Switching off your refrigerator
If you switch off your refrigerator for an extended period, follow these steps to reduce the chances of mould:
Changing the filter
Air Filter (select models)
The air filter is located in the top center of the fresh food compartment.
Replacing your Air Filter
To ensure optimal filtering of refrigerator odors, you should change the air filter six months (The filter status light on the Touch Panel prompts you to replace the filter after six month)
Water Filter (selected models)
Your refrigerator is equipped with a water filtering system. The water filtering system filters all dispensed drinking water, as well as the water used to produce ice. The water filter is located at the top right side of the fresh food compartment.
In general, you should change the water filter every six months to ensure the highest possible water quality. Water filter status on the user interface prompts you to replace the filter after a standard amount of water (125 gallons/473 liters) has flowed through the system.
If your refrigerator has not been used for a period of time (during moving for example), change the filter before reinstalling the refrigerator
Replacing the Water Filter
To Remove: Pull cover towards you and cover will drop down and allow access to filter.
To Reinstall: Push cover up towards liner and then push towards rear of cabinet. Filter cover will snap back into place.
It is not necessary to turn the water supply off to change the filter. Be ready to wipe up any small amounts of water released during the filter replacement.
In a modern frost free refrigerator / freezer, cold air is circulated around the various compartments through air vents using a high efficiency fan
Refrigerator is too warm.
Freezer is too warm.
Food is freezing in the refrigerator.
Unable to change temperature settings.
Your new refrigerator may make sounds that your old one didn’t make. Because the sounds are new to you, you might be concerned about them. Most of the new sounds are normal. Hard surfaces, like the floor, walls and cabinets, can make the sounds seem louder than they actually are. The following describes the kinds of sounds and what may be making them
Motor noise (compressor).
A clicking noise heard just before the compressor starts.
Occasional gurgling, similar to water boiling.
Airflow noise.
Rattling and other noises.
Excess moisture build up in crisper. It is normal for there to be some moisture and humidity in the crisper bin.
Crisper bin cannot be removed.
Freezing items in the crisper.
Appliance will not run It is normal for the freezer fan not to operate during the automatic defrost cycle, or for a short time after the appliance is switched on.
Compressor motor seems to run too long
At normal room temperatures, expect your motor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more often.
The variable speed compressor and fan that at start up and on warm days runs at a high speed to provide additional cooling. When less cooling is required the compressor and fan will run at a lower speed
The exterior of the appliance is warm or hot to touch
This is normal because the appliance transfers heat from the inside out through the outer panels and the divider between the doors.
User interface will not respond
To ensure settings are not accidentally changed the user interface will go into sleep mode when not in use.
Press any button to wake user interface
Alarms sounding
Frost build up
Odours
Lights not working
The LED lighting is designed to dim automatically if the door is left opened for more than 5 minutes and turn off completely if the door is open for more than 7 minutes. Closing the door will reset the timer.
The LED lighting is also designed to turn on gradually
Freezer door pops open.
Self close not working.
Door not sealing properly
Door difficult to open and close
Ice maker does not produce ice or not enough ice
The icemaker is designed to produce a tray of ice approximately every 3 hours, depending on room temperature and water temperature.
Ice has bad odour or taste
If you have a problem, and the problem persists after you have made the checks mentioned, contact your nearest
Electrolux approved Service Centre or the dealer you bought the refrigerator from. Be ready to quote the model number, the 9-digit PNC and 8-digit serial number, which is stated on the label inside the refrigerator compartment.
Reference file: Electrolux EHE6899SA 681L French Door Fridge
Additionally, the document applies to other Electrolux models: EHE6899
