OWNER'S MANUAL
FRIDGE&
FREEZER
Read this owner's manual thoroughly before operating the appliance and keep
it handy for reference at all times.
Copyright © 2019-2020 LG Electronics Inc. All Rights Reserved.
EN ENGLISH
TABLE OF CONTENTS
This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS .......................................................3
READ ALL INSTRUCTIONS BEFORE USE .............................................. 3
WARNING .................................................................................................. 3
CAUTION ................................................................................................... 9
INSTALLATION ......................................................................11
Before Installation ..................................................................................... 11

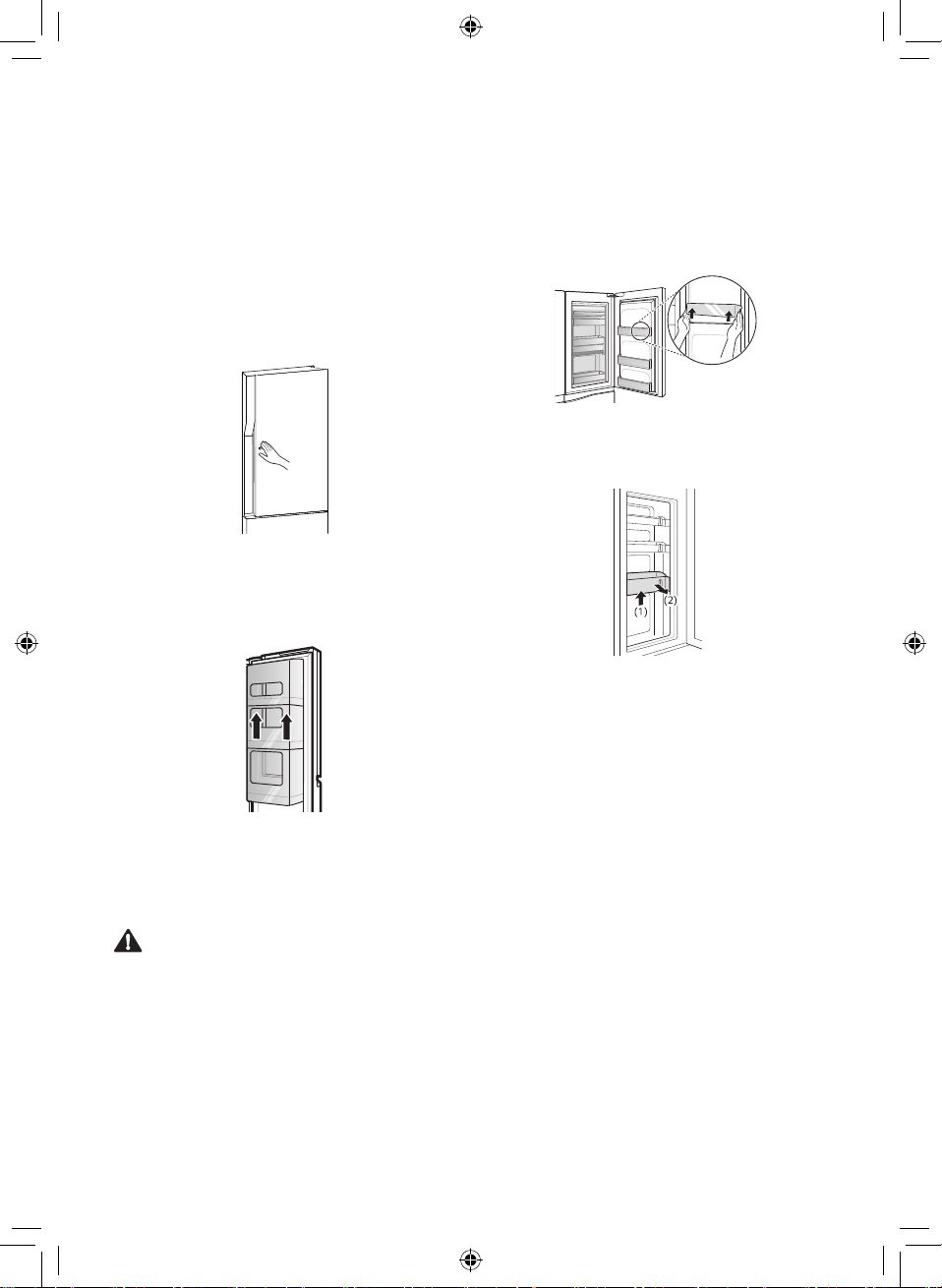

Removing the Door ................................................................................... 12
Refitting the Door ...................................................................................... 12

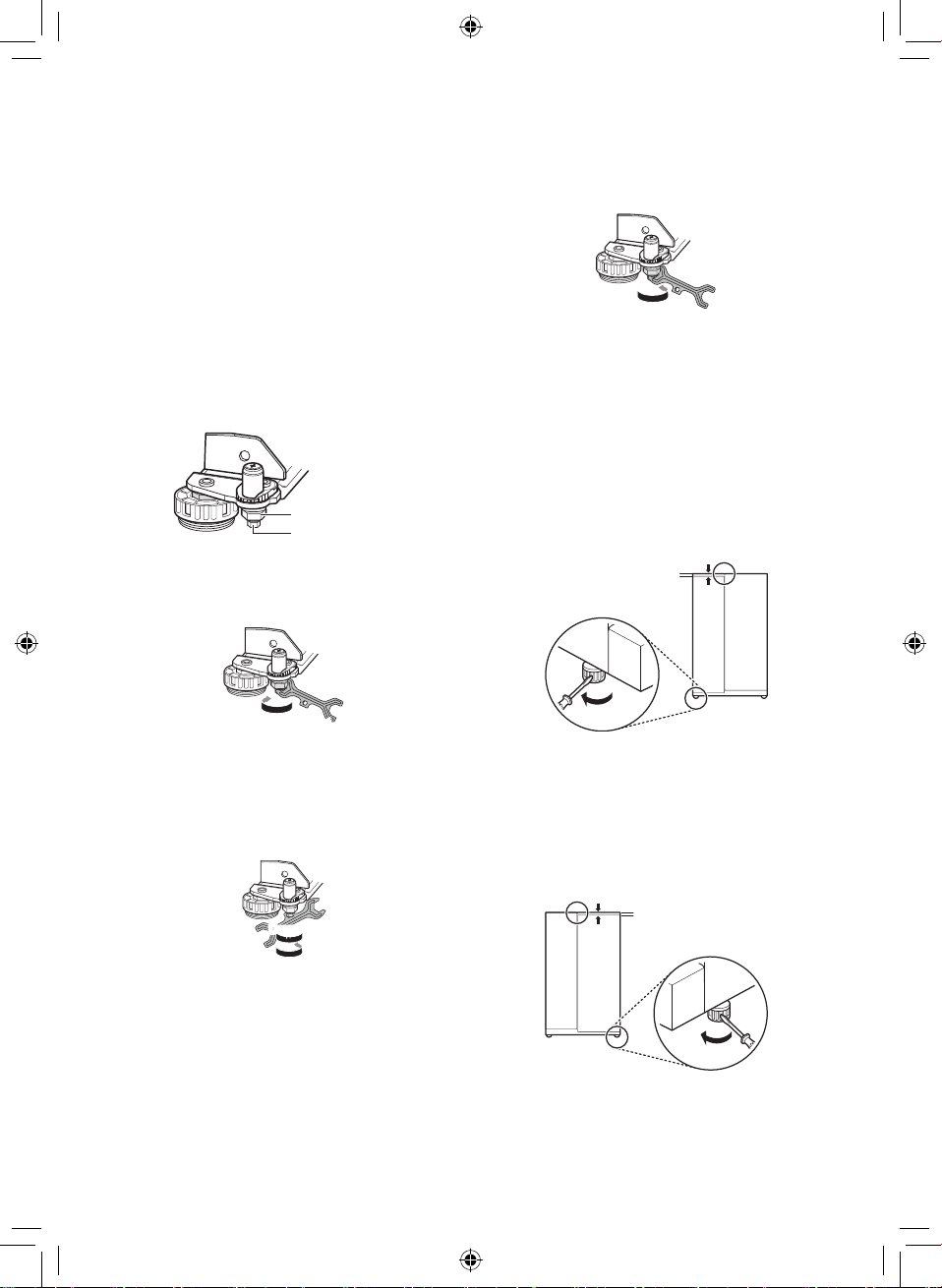

Adjusting the Height of the Door ............................................................... 13
Connecting the Appliance ......................................................................... 14
Moving the Appliance ............................................................................... 14
OPERATION ...........................................................................15

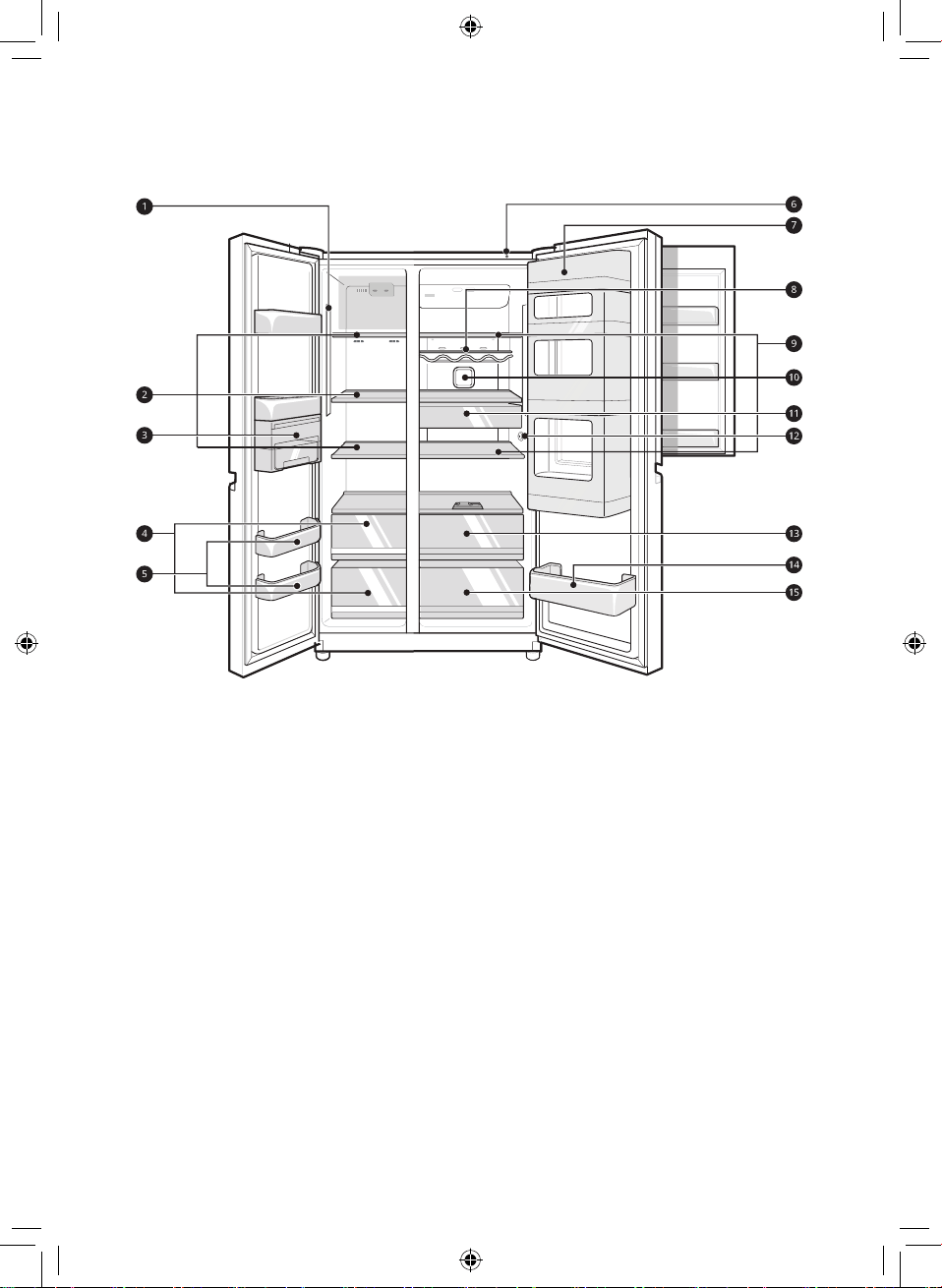

Parts and Functions .................................................................................. 15
Notes for Operation .................................................................................. 18
Using Control Panel .................................................................................. 20

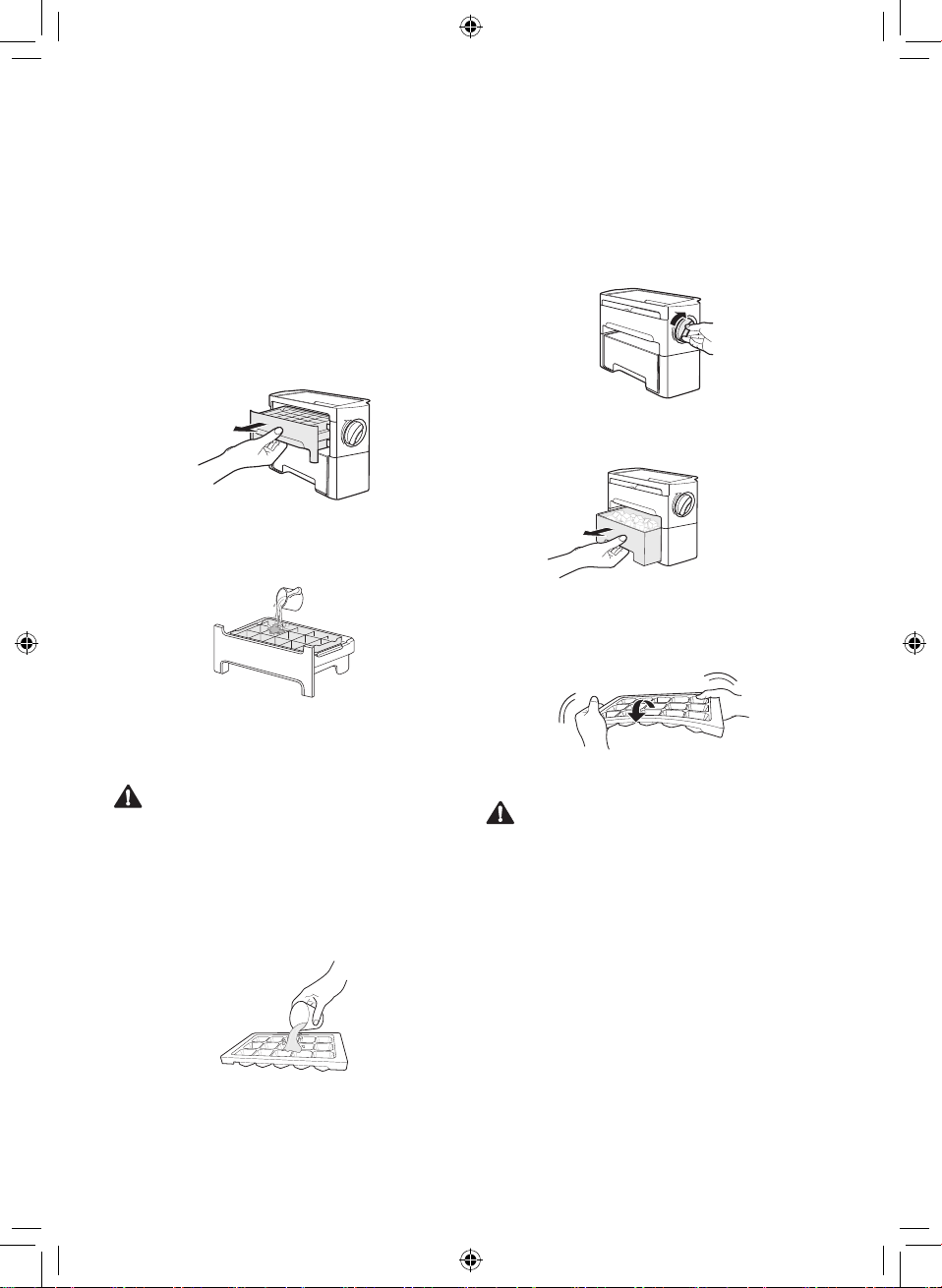

Icemaker* ................................................................................................ 22
Door in Door* ............................................................................................ 24
Fresh Vegetable Drawer* ......................................................................... 25
Other Functions ........................................................................................ 25
SMART FUNCTIONS .............................................................26
LG ThinQ Application ................................................................................ 26
Smart Diagnosis ....................................................................................... 26
MAINTENANCE ......................................................................27
Notes for Cleaning .................................................................................... 27
Cleaning the Condenser Cover ................................................................ 27

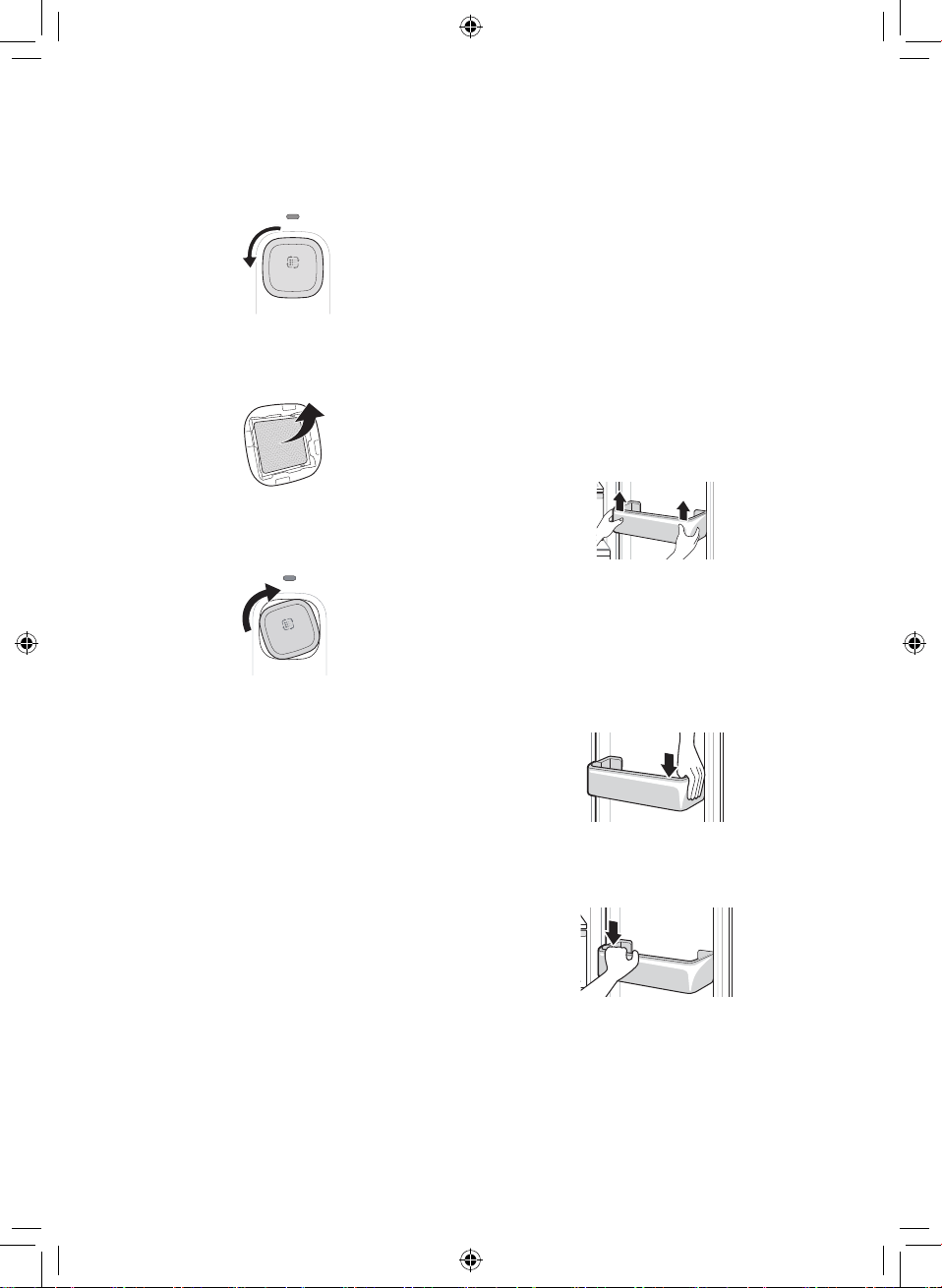

Replacing the Pure N Fresh Filter* ........................................................... 27
Cleaning the Door Basket ......................................................................... 28
Cleaning the Shelf .................................................................................... 29
Cleaning the Vegetable Drawer ................................................................ 29
TROUBLESHOOTING ...........................................................30
3
EN
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Safety Messages
The following safety guidelines are intended to prevent unforeseen risks
or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can cause
serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can cause the
minor injury or damage to the product.
WARNING
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product, follow
basic precautions, including the following:
Technical Safety
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
4
EN
• If the power cord is damaged or the hole of the outlet socket is loose,
do not use the power cord and contact an authorized service centre.
• Do not damage the refrigerant circuit.
• Do not use mechanical devices or other means to accelerate the
defrosting process.
• Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
• Do not use electrical appliances inside the refrigerator.
• The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult with service agent or a
similarly qualified person before disposing of them.
• This appliance is intended to be used in household and similar
applications only. It should not be used for commercial, or catering
purposes, or in any mobile application such as a caravan or boat.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
This symbol alerts you to flammable materials that can
ignite and cause a fire if you do not take care.
• This appliance contains a small amount of isobutane refrigerant
(R600a), but it is also combustible. When transporting and installing
the appliance, care should be taken to ensure that no parts of the
refrigerating circuit are damaged.
• When positioning the appliance, ensure the supply cord is not
trapped or damaged.
• Do not locate multiple portable outlet-sockets or portable power
supplies at the rear of the appliance.
• Disconnect the power cord before cleaning the appliance or replacing
the inside lamp (where fitted).
• Securely plug the power plug in the outlet socket after completely
removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the outlet socket.
5
EN
• Do not spray water or inflammable substances (toothpaste, alcohol,
thinner, benzene, flammable liquid, abrasive, etc.) over the interior or
exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service centre
should disassemble, repair, or modify the appliance. Contact an LG
Electronics customer information centre if you move and install the
appliance in a different location.
• Do not use a hair drier to dry the inside of the appliance or place a
candle inside to remove the odours.
• Do not tilt the appliance to pull or push it when transporting.
• Make sure not to get a body part such as a hand or foot stuck while
moving the appliance.
Risk of Fire and Flammable Materials
• If a leak is detected, avoid any naked flames or potential sources
of ignition and air the room in which the appliance is standing for
several minutes. In order to avoid the creation of a flammable gas
air mixture if a leak in the refrigerating circuit occurs, the size of the
room in which the appliance is used should correspond to the amount
of refrigerant used. The room must be 1 m² in size for every 8 g of
R600a refrigerant inside the appliance.
• Refrigerant leaking out of the pipes could ignite or cause an
explosion.
• The amount of refrigerant in your particular appliance is shown on the
identification plate inside the appliance.
Installation
• This appliance should only be transported by two or more people
holding the appliance securely.
• Install the appliance on a firm and level floor.
6
EN
• Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that is
subject to weathering conditions such as direct sunlight, wind, rain, or
temperatures below freezing.
• Do not place the appliance in direct sunlight or expose it to the heat
from heating appliances such as stoves or heaters.
• Be careful not to expose the rear of the appliance when installing.
• Install the appliance in a place where is easy to unplug the power
plug of the appliance.
• Be careful not to let the appliance door fall during assembly or
disassembly.
• Be careful not to pinch, crush, or damage the power cable during
assembly or disassembly of the appliance door.
• Do not plug the appliance into multiple outlet sockets, power boards,
or an extension power cable.
• Do not use an extension cord or double adapter.
• Be careful not to point the power plug up or let the appliance lean
against the power plug.
• Do not connect a plug adapter or other accessories to the power
plug.
• Do not modify or extend the power cable.
• Ensure that the outlet socket is properly grounded, and that the earth
pin on the power cord is not damaged or removed from the power
plug. For more details on grounding, inquire at an LG Electronics
customer information centre.
• This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate outlet socket that is installed and
grounded in accordance with all local codes and ordinances.
• Never start up an appliance showing any signs of damage. If in
doubt, consult your dealer.
• Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
7
EN
Operation
• Do not use the appliance for any purpose (storage of medical
or experimental materials or shipping) other than any domestic
household food storage use.
• If water penetrates electrical parts of the appliance, disconnect power
plug and contact an LG Electronics customer information centre.
• Unplug the power plug during a severe thunderstorm or lightening or
when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet hands.
• Do not bend the power cable excessively or place a heavy object on
it.
• Immediately unplug the power plug and contact an LG Electronics
customer information centre if you detect a strange sound, odour, or
smoke coming from the appliance.
• Do not place hands or metallic objects inside the area emitting the
cold air, cover or heat releasing grille on the back.
• Do not apply excessive force or impact to the back cover of the
appliance.
• Be careful of nearby children when you open or close the appliance
door. The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A
child trapped inside the appliance can cause suffocation.
• Do not put animals, such as pets into the appliance.
• Do not place heavy or fragile objects, containers filled with liquid,
combustible substances, flammable objects (such candles, lamps,
etc.), or heating devices (such as stoves, heaters, etc.) on the
appliance.
• Do not place any electronic appliance (such as heater and mobile
phone) inside the appliance.
8
EN
• If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the area
immediately. This appliance uses a refrigerant gas (isobutane,
R600a). Although it uses a small amount of the gas, it is still
combustible gas. Gas leakage during appliance transport, installation
or operation can cause fire, explosion or injury if sparks are caused.
• Do not use or store flammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, insecticide, air
freshener, cosmetics, etc.) near the appliance.
• Fill with potable water only into icemaker or dispenser water tank.
Maintenance
• Only qualified service personnel from LG Electronics service centre
should disassemble, repair, or modify the appliance. Contact an LG
Electronics customer information centre if you move and install the
appliance in a different location.
• Disconnect the power cord before cleaning the appliance or replacing
the inside lamp (where fitted).
• Securely plug the power plug in the outlet socket after completely
removing any moisture and dust.
• Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the outlet socket.
• Do not spray water or inflammable substances (toothpaste, alcohol,
thinner, benzene, flammable liquid, abrasive, etc.) over the interior or
exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.
Disposal
• When discarding the appliance, remove the door gasket while leaving
the shelves and baskets in place and keep children away from the
appliance.
9
EN
CAUTION
CAUTION
To reduce the risk of minor injury to persons, malfunction, or
damage to the product or property when using this product,
follow basic precautions, including the following:
Operation
• Do not touch frozen food or the metal parts in the freezer
compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those
containing carbonated drinks) in the freezer compartment, shelves or
ice bin that will be exposed to temperatures below freezing.
• The tempered glass on the front side of the appliance door or the
shelves can be damaged by an impact. If it is broken, do not touch it
with hands.
• Do not hang from the appliance doors, storage room, shelf or climb
up into it.
• Do not store an excessive amount of water bottles or containers for
side dishes on the door baskets.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates improperly,
stop using the appliance and contact an authorized service centre.
• Prevent animals from nibbling on the power cable or water hose.
• Never eat frozen foods immediately after they have been taken out in
the freezer compartment.
• Do not use a thin crystal cup or chinaware when dispensing.
• Make sure not to get a hand or foot stuck upon opening or closing the
appliance door or door in door.
10
EN
Maintenance
• Do not clean glass shelves or covers with warm water when they are
cold. They may break if exposed to sudden temperature changes.
• Do not insert the shelves upside down. The shelves may fall.
• To remove frost from the appliance, contact an LG Electronics
customer information centre.
• Dispose of the ice inside the ice bin in the freezer compartment
during an extended power outage.
• If the appliance is equipped with an LED lamp, do not remove lamp
cover and LED lamp in any attempt to repair or service it. Please,
contact an LG Electronics customer information centre.
11
EN
INSTALLATION
Before Installation
Dimensions and Clearances
Too small of a distance from adjacent items
may result in the degradation of freezing
capability and increased electricity costs. Allow
over 50 mm of clearance from each adjacent
wall when installing the appliance.
A
C
H
D E
F
G
B
- Size (mm)
A 912
B 1790
C 717
D 615
E 690
F 717
G 1040
H 1640
Ambient Temperature
• The appliance is designed to operate within a
limited range of ambient temperatures,
depending on the climate zone. Do not use
the appliance at a temperature exceeding the
limit.
• The internal temperature could be affected by
the location of the appliance, the ambient
temperature, the frequency of door opening
and so on.
• The climate class can be found on the rating
label.
Climate Class
Ambient Temperature
Range ºC
SN (Extended
Temperate)
+10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38
T (Tropical) +16 - +43 / +10 - +43*
*Australia, India, Kenya
NOTE
• The appliances rated from SN to T are
intended to be used at an ambient
temperature between 10 ºC and 43 ºC.
Accessories
*This feature is only available on some models.
a
Spanner A*
b
Spanner B*
12
EN
Removing the Door
When it is necessary to move the appliance
through a narrow opening, removing the doors
is the recommended procedure.
WARNING
• Disconnect the power cord, house fuse or
circuit breaker before installing or servicing the
appliance. Failure to follow these instructions
may result in death, fire or electric shock.
If your entrance door is too narrow for the
appliance to pass through, remove the
appliance doors and pass the appliance
laterally.
[For both freezer and fridge]
1
Remove the screw of the hinge cover on
top of the appliance by rotating it
counterclockwise.
2
While pressing (1) hook of the link of the
electrical connectors, remove the link by
pulling it in both directions.
3
Remove the hinge lever by tapping the end
of it toward the outside edge of the cabinet.
CAUTION
• When removing the upper hinge, be sure to
support the door as it will fall forwards. It is
recommended that two or more people carry
out the door removal and refitting.
1
Lift the upper hinge fixed between the
appliance and the appliance door and then
remove it.
Upper hinge
Door
2
Remove the freezer and fridge
compartment door by lifting it upward. At
this time, the door should be lifted enough
for the steel pipe to be completely pulled
out.
Refitting the Door
Mount the doors in the reverse sequence of
their removal once the appliance has been
passed through all access doors.
13
EN
Adjusting the Height of the
Door
If the door of the appliance is not level, adjust
the difference in the height of appliance door
using the following method.
NOTE
• Because the hinge pin may fall out, do not
adjust the height of the appliance door more
than 5 mm.
[Method1]
*Reference
Keeper nut
Adjustment hinge pin
1
Turn the keeper nut clockwise using the
spanner .
To loosen the nut
2
Adjust the difference in the height of the
appliance door by rotating the adjustment
hinge pin clockwise or counterclockwise
with an 8 mm spanner.
Up
Down
3
Fasten the keeper nut by turning it
counterclockwise.
To tighten the nut
If it is impossible to adjust the height of the
appliance door through the above method, level
the door according to the following guide.
[Method2]
If the freezer compartment door is lower
than the fridge compartment door
Level the door by inserting flat(-type) driver into
groove of the left height adjusting screw and
rotate it clockwise.
If the freezer compartment door is higher
than the fridge compartment door
Level the door by inserting flat(-type) driver into
groove of the right height adjusting screw and
rotate it clockwise.
14
EN
Connecting the Appliance
After installing the appliance, connect the power
plug into a socket outlet.
NOTE
• After connecting the power supply cord (or
plug) to the outlet, wait 2 or 3 hours before
you put food into the appliance. If you add
food before the appliance has cooled
completely, your food may spoil.
Moving the Appliance
1
Remove all food from inside the appliance.
2
Pull the power plug out, insert and fix it into
the power plug hook at the rear or on top of
the appliance.
3
Tape parts such as shelves and the door
handle to prevent from falling off while
moving the appliance.
4
Move the appliance with more than two
people carefully. When transporting the
appliance over a long distance, keep the
appliance upright.
5
After installing the appliance, connect the
power plug into a socket out to switch on
the appliance.
15
Parts and Functions
* means that this feature varies depending on the model purchased.
Exterior
a
Control Panel
To set the freezer and fridge temperatures.
b
Door in Door*
The Door in Door is a double layered door system. It can be opened individually or together
with the main door. You can conveniently locate and access your favourite snacks or food
items.
c
Door in Door Button*
Opens the Door in Door.
• The appearance or components of the appliance may differ from model to model.
OPERATION
EN
16
EN
Interior
a
LED Lamp
The LED lamps inside the appliance light up when you open the door.
b
Freezer Shelf*
This is where frozen foods such as meat, fish, and ice cream can be stored.
c
Icemaker*
This is where ice is manually produced and stored.
d
Freezer Drawer*
This is for long-term storage of frozen items.
e
Freezer Door Basket
This is where small packages of frozen food can be stored.
• Do not store ice cream or food which will be stored for a long period of time within these
baskets.
f
Smart Diagnosis Unit
Use this function when contacting LG Electronics customer information centre to help make an
accurate diagnosis when the appliance operates abnormally or a failure occurs.
17
EN
g
Door in Door*
This is where foods which are taken out frequently such as beverages and snacks are stored.
h
Bottle Rack*
This is where drinks tall bottles or containers are stored.
CAUTION
• Do not store short bottles or containers. The items may fall and cause an injury or appliance
damage.
i
Fridge Shelf
This is where refrigerated foods and other items are stored.
• The shelf height can be adjusted by inserting the shelf in another groove of different height.
• Store the foods with higher moisture content at the front of the shelf.
• The actual number of shelves will differ from model to model.
j
Pure N Fresh*
This function reduces and removes odors inside the fridge compartment.
k
Snack Drawer*
This is where small packages of refrigerated foods are stored.
l
Temperature Sensor
This sensor senses the temperature of the fridge compartment.
• Maintain the distance between the sensor and food to accurately sense the temperature.
m
Fresh Vegetable Drawer*
This is where fruits and vegetables are stored to help maintain freshness by adjusting the
humidity controller.
• Refrigerated foods and other food items can be stored on top of the vegetable box.
n
Fridge Door Basket
This is where small packages of refrigerated foods, drinks and sauce containers are stored.
o
Vegetable Drawer
This is where fruits and vegetables are stored to remain fresh for as long as possible.
• The actual number of drawers will differ from model to model.
18
EN
Notes for Operation
• Users should keep in mind that frost can form.
If the door is not closed completely, if the
humidity is high during the summer, or if the
freezer door is opened frequently.
• Ensure there is sufficient space between food
stored on the shelf or door basket to allow the
door to close completely.
• Opening the door for long periods can cause
a significant increase of the temperature in the
compartments of the appliance.
• If the refrigerating appliance is left empty for
long periods, switch off, defrost, clean, dry,
and leave the door open to prevent mould
developing within the appliance.
Suggestion for Energy Saving
• Ensure there is sufficient space between
stored foods. This allows cold air to be
circulated evenly and lowers electricity bills.
• Store hot food only after it has cooled in order
to prevent dew or frost.
• When storing food in the freezer compartment,
set the freezer temperature lower than the
temperature indicated on the food.
• Do not put food near the temperature sensor
of the fridge compartment. Keep a distance of
at least 3 cm from the sensor.
• Note that a temperature rise after defrosting
has a permissible range in the appliance
specifications. If you wish to minimise the
impact this may have on the food storage due
to a temperature rise, seal or wrap the stored
food in several layers.
• The automatic defrosting system in the
appliance ensures that the compartment
remains free of ice buildup under normal
operating conditions.
19
EN
Storing Foods Effectively
• Store frozen food or refrigerated food inside
sealed containers.
• Check the expiration date and label (storage
instructions) before storing food in the
appliance.
• Do not store food for a long period of time
(more than four weeks) if it spoils easily at a
low temperature.
• Place the refrigerated food or frozen food in
each fridge or freezer compartment
immediately after purchasing.
• Store raw meat and fish in suitable containers
in the refrigerator, so that it is not in contact
with or drip onto other food.
• Avoid refreezing any food which has been
completely thawed. Freezing any food which
has been completely thawed again will lower
its taste and nutrition.
• Do not wrap and store vegetables with
newspaper. Printing material of newspaper or
other foreign substances may smear and
contaminate food.
• Do not overfill the appliance. Cold air can not
circulate properly if the appliance is overfilled.
• If you set an excessively low temperature for
food, it may become frozen. Do not set a
temperature lower than the required
temperature for the food to be stored correctly.
• If there are chill compartments in the
appliance, do not store vegetables and fruits
with higher moisture content in the chill
compartments as they may freeze due to the
lower temperature.
Max Freezing Capacity
• The Express Freeze function will set the
freezer to its maximum freezing capacity.
• This generally takes up to 24 hours and
automatically switches off.
• If the maximum freezing capacity is to be
used, Express Freeze must be switched on for
seven hours before fresh produce is placed in
the freezer compartment.
Maximum Storage
• To get better air circulation, insert all drawers.
• If large quantities of food are to be stored, all
the freezer drawers shall be taken out of the
appliance and the food shall be stacked
directly on the freezer shelves in the freezer
compartment.
NOTE
• To remove the drawers, first pick the food out
of drawers. Then use the handle of drawers,
pull out the drawers carefully. It may cause
injury.
• The shape of each drawer may be different,
insert in the right position.
20
Using Control Panel
* means that this feature varies depending on the model purchased.
Units and Functions
<Type 1> <Type 1>
a
Icon Panel
• This shows the fridge and freezer target
temperatures.
• To display function settings, press any of
the buttons from
b - f .
b
Express Freeze
• This sets Express Freeze functions.
c
Freezer Temperature
• This sets the freezer target temperature.
d
Pure N Fresh*
• This sets the Pure N Fresh function.
• This function reduces and removes odors
inside the fridge compartment.
Door Alarm*
• This sets the alarm sound which is
activated when the appliance door is
opened.
e
Fridge Temperature
• This sets the fridge target temperature.
f
CHILD LOCK
• This locks the buttons on the control
panel.
NOTE
• The actual control panel may differ from model to model.
• The control panel will turn off automatically for energy saving.
• If there is any finger or skin contacts to the control panel while cleaning it, the button function may
operate.
EN
21
EN
Setting the Temperature
This sets the fridge temperature or freezer
temperature.
• Press the Fridge button or Freezer button to
adjust the temperature.
• The temperature can be adjusted.
− Fridge : from 1 °C to 7 °C
− Freezer : from -14 °C to -24 °C
• The actual inner temperature varies
depending on the food status, as the indicated
setting temperature is a target temperature,
not actual temperature within the appliance.
NOTE
• The default temperature setting may vary
depending on the appliance.
• Wait until two or three hours have passed
after connecting the appliance to the outlet
before storing food in the appliance.
• For ice making in normal climates, the freezer
temperature should be set to -19 °C or colder.
Setting Express Freeze
The function can quickly freeze a large amount
of ice or frozen foods.
• When you press the Express Freeze button,
the Express Freeze icon lights on the control
panel.
• The function is enabled and disabled in turn
each time you press the button.
• The Express Freeze function automatically
terminates after a specific period has passed.
Setting and Resetting Lock
This locks the buttons on the control panel.
• Press and hold the Lock button for 3 seconds
. When the Lock function is set, all buttons are
locked.
• When you press the Lock button for 3
seconds, the Lock/Unlock icon on the control
panel lights. The function is enabled and
disabled in turn each time you press the
button.
• If you press a button other than lock when the
lock is set, the button will not function.
• When you press a button other than lock
when the lock is set, the Lock/Unlock icon on
the control panel will flash 3 times.
• To change a setting, first press the Lock
button for three seconds to disable the
function.
22
EN
Icemaker*
* means that this feature varies depending on
the model purchased.
This is where ice is manually produced and
stored.
Making Ice
<Type 1>
1
Hold the handle of ice tray and pull it out.
2
Fill the ice tray with water so that all the
cubes are equally full.
3
Place the ice tray back to its position
carefully not to spill water on the floor.
CAUTION
• Be careful not to spill water when inserting the
ice tray after filling with water.
<Type 2>
Fill the icetray with water so that all the cubes
are equally full. And place it in the freezer
compartment.
Taking Out Ice
<Type 1>
1
Rotate the ice separation handle on the
icemaker clockwise.
2
Lift the ice storage bin slightly and remove.
<Type 2>
Hold the icetray at its ends and twist gently.
CAUTION
• If you open and close the freezer door
frequently, it may take longer for water to be
frozen.
• The time for water to be frozen may vary
according to the season. Until 24 hours after
initial installation, the temperature inside the
appliance may not be stabilized so that it may
take longer for water to be frozen.
• Make sure to be careful as the edges of the
ejected ice may be sharp.
NOTE
• (*) means that this feature varies depending
on the model purchased.
23
EN
• If ice cannot be detached easily, rotate the ice
separation handle of the icemaker once again.
• Please note that ice may stick together if you
rotate the ice separation handle of the
icemaker before the water has completely
frozen.
• It takes approximately three hours for water at
the temperature of -20 °C to be frozen
completely.
• When placing the ice storage bin back to its
original position after using, make sure to
check if it is inserted all the way in.
• The proper storage amount of the ice storage
bin is the amount of ice made three times. If
more than the amount of ice made for three
times is stored, the ice storage bin may not
come out and will become stuck. Do not store
more than three ejected ice trays of ice in the
ice storage bin.
Removing the Icemaker*
* means that this feature varies depending on
the model purchased.
1
Hold both edges of the freezer door basket
on top of the icemaker and remove it by
pulling it up.
2
Hold both edges of ice tray compartment
and remove it by pulling it up.
CAUTION
• Remove in this order. Removing the ice tray
first may cause damage.
• When separating the icemaker, hold and
remove it properly to prevent the ice tray from
falling off.
NOTE
• (*) means that this feature varies depending
on the model purchased.
Cleaning the Ice Tray
1
Hold the handle of ice tray and pull it out to
remove.
2
After cleaning, remove it back to its original
position.
CAUTION
• When cleaning, wipe all components with a
wet towel except for the ice tray and dry them
off completely before using. Failure to do so
may cause malfunctions.
24
EN
Door in Door*
* means that this feature varies depending on
the model purchased.
Press the button on the center left of the door
in door until it opens.
There is plenty of storage space inside the door
in door and its surrounding baskets, allowing
you to store food in an organized manner.
Removing the Case from the Door
in Door
Hold the case from inside the door in door with
both hands and remove it by lifting it upward.
Refitting the Door in Door Case
Mount them in the reverse order of the removal
process.
CAUTION
• Do not open the door of the appliance with the
door in door open, or do not open the door in
door while the door of the appliance is open.
The door in door may be struck by the edge
of the appliance and damaged.
Removing the Baskets from the
Door in Door
1
Hold both edges of the basket and remove
it by lifting it upward.
2
Lift the fixed basket up as shown in (1) and
remove it by pulling it out as shown in (2).
Refitting the Baskets to the Door
in Door
Mount them in the reverse order of the removal
process.
NOTE
• (*) means that this feature varies depending
on the model purchased.
25
Other Functions
Door Open Alarm*
* means that this feature varies depending on
the model purchased.
The alarm sounds 3 times in 30 second
intervals if the door (fridge compartment,
freezer compartment, Door-in-Door) is left open
or not completely closed for one minute.
• Contact the LG Electronics customer
information centre if the alarm sound
continues even after closing the door.
Failure Detection
The appliance can automatically detect
problems during the operation.
• If a problem is detected, the appliance may
not operate and an error code is displayed
even when any button is pressed.
• When this occurs, do not turn off the power
and immediately contact the LG Electronics
customer information centre. If you turn off
the power, the repair technician from the LG
Electronics customer information centre may
have difficulty finding the problem.
Fresh Vegetable Drawer*
* means that this feature varies depending on
the model purchased.
The Humidity in the vegetable crisper drawer
can be controlled by sliding the lever in either
direction.
If moved to the left side, the air guide will be
open and allow air to circulate through the
drawer for reduced humidity. And if moved to
the right side, the air guide will be closed and
will maintain any humidity that is currently in
the crisper drawer.
The closed state is recommended for storing
vegetables, and open state is recommended
for storing fruit.
Type 1 Type 2
EN
26
SMART FUNCTIONS
LG ThinQ Application
This feature is only available on models with the c
or d logo.
The LG ThinQ application allows you to
communicate with the appliance using a
smartphone.
LG ThinQ Application Feature
Communicate with the appliance from a smart
phone using the convenient smart features.
Smart Diagnosis
If you use the Smart Diagnosis function, you will
be provided with the useful information such as a
correct way of using the appliance based on the
pattern of use.
NOTE
• If you change your wireless router, Internet
service provider, or password, delete the
registered appliance from the LG ThinQ
application and register it again.
• The application is subject to change for
appliance improvement purposes without
notice to users.
• Functions may vary by model.
Installing the LG ThinQ
Search for the LG ThinQ application from the
Google Play Store or Apple App Store on a smart
phone.
• Follow instructions to download and install the
application.
• Run the LG ThinQ application and follow the
instructions in the application to register the
appliance.
Smart Diagnosis
This feature is only available on models with the c
or d logo.
Use this feature to help you diagnose and solve
problems with your appliance.
NOTE
• For reasons not attributable to LGE’s
negligence, the service may not operate due to
external factors such as, but not limited to, Wi-
Fi unavailability, Wi-Fi disconnection, local app
store policy, or app unavailability.
• The feature may be subject to change without
prior notice and may have a different form
depending on where you are located.
Using Audible Diagnosis to
Diagnose Issues
Follow the instructions below to use the audible
diagnosis method.
• Launch the LG ThinQ application and select
the Smart Diagnosis feature in the menu.
Follow the instructions for audible diagnosis
provided in the LG ThinQ application.
1
Press the Child Lock button to activate the
lock function.
• If the display has been locked for over 5
minutes, you must deactivate the lock and
then reactivate it.
2
Open the fridge door and then hold the phone
on the upper right speaker hole.
3
Press and hold the Freezer button for three
seconds or longer while continuing to hold
your phone to the speaker.
4
After the data transfer is complete, the
diagnosis will be displayed in the application
NOTE
• For best results, do not move the phone while
the tones are being transmitted.
EN
27
MAINTENANCE
EN
• For the appliance exterior, use a clean sponge
or soft cloth and a mild detergent in warm
water. Do not use abrasive or harsh cleaners.
Dry thoroughly with a soft cloth.
• Never clean the shelves or containers in the
dishwasher.
− The parts may become deformed due to the
heat.
• Clean regularly surfaces that can come in
contact with food and accessible drainage
systems.
Cleaning the Condenser
Cover
Use a vacuum cleaner with a brush to clean the
condenser cover and vents. Do not remove the
panel covering the condenser coil area.
Replacing the Pure N Fresh
Filter*
* means that this feature varies depending on
the model purchased.
To maintain the performance of the Pure N
Fresh filter, if a message indicating the filter
replacement is displayed, replace the filter as
soon as possible.
1
If Replace icon lights on the control panel,
replace the Pure N Fresh filter.
Notes for Cleaning
• When removing a shelf or drawer from inside
the appliance, remove all stored foods from
the shelf or drawer to prevent injury or
damage to the appliance.
− Otherwise, injury may occur due to the
weight of stored foods.
• If cleaning the outside air vents of the
appliance by means of vacuuming, then the
power cord should be unplugged from the
outlet to avoid any static discharge that can
damage the electronics or cause an electric
shock.
• Detach the shelves and drawers and clean
them with water, and then dry them
sufficiently, before replacing them.
• Regularly wipe the door gaskets with a wet
soft towel.
• Door basket spills and stains should be
cleaned as they can compromise storage
ability of the basket and could even be
damaged.
• After cleaning, check if the power cable is
damaged, warm or improperly plugged.
• Keep the air vents on the exterior of the
appliance clean.
− Blocked air vents can cause fire or appliance
damage.
• When cleaning the inside or outside of the
appliance, do not wipe it with a rough brush,
toothpaste, or flammable materials. Do not
use cleaning agents containing flammable
substances.
− This may cause discoloration or damage to
the appliance.
− Flammable substances: alcohol (ethanol,
methanol, isopropyl alcohol, isobutyl alcohol,
etc.), thinner, bleach, benzene, flammable
liquid, abrasive, etc.
28
EN
2
Hold and remove the Pure N Fresh filter
cover by rotating it counterclockwise.
3
Remove the filter inside the Pure N Fresh
filter cover and replace it with a new filter.
4
After replacing the filter, insert the Pure N
Fresh filter cover by rotating it clockwise.
5
To reset the filter replacement period, press
the Pure N Fresh button on the control
panel for more than three seconds. The
Replace icon on the control panel will turn
off.
6
It will operate after replacing the filter.
NOTE
• Do not insert your finger or other foreign
objects inside or its mounting. Doing so may
result in injuries or malfunctions.
• If the replacement period has passed, the
bacteria and odor removal performance may
deteriorate.
• Please note that if you wash the filter with
water, the filter performance may also
deteriorate.
• Caution should be taken not to change the
direction of the filter to be inserted into the
filter cover.
• When setting the appliance to On or Power
mode after replacing the filter, check if the
LED lamp near the filter is on.
• The filter can be purchased from an LG
Electronics customer information centre.
Cleaning the Door Basket
Removing the Fridge/Freezer
Door Basket
Hold both edges of the basket and remove it by
lifting it upward.
Refitting the Fridge/Freezer Door
Basket
1
Hold both edges of the door basket, gently
push one edge to assemble, and then in the
same manner assemble the other edge.
2
After assembling, tap the door basket gently
to fix it horizontally.
29
EN
Cleaning the Shelf
Removing the Fridge/Freezer
Shelf
Remove the shelf by pulling it out.
Refitting the Fridge/Freezer Shelf
Remove the shelf by pulling it out while slightly
lifting the rear edge of the fridge shelf.
Cleaning the Vegetable
Drawer
Removing the Vegetable Drawer
1
Remove the contents of the drawer. Hold
the handle of the vegetable drawer and pull
it out completely until it outward gently until
it stops.
2
Lift the vegetable drawer up and remove it
by pulling it out.
Refitting the Vegetable Drawer
1
If the vegetable drawer has a cover, lift it.
2
Insert the bottom of the vegetable drawer
into its original position and gently push it
back in while lowering it.
CAUTION
• Please note that injuries can be caused by the
weight of stored foods when removing the
vegetable drawer.
30
TROUBLESHOOTING
EN
Symptoms Possible Cause & Solution
There is no
refrigeration or
freezing.
Is there a power interruption?
• Check the power of other appliances.
If the power plug unplugged from the outlet?
• Plug the power plug in the outlet properly.
There is poor
refrigeration or
freezing.
Is the fridge or freezer temperature set to its warmest setting?
• Set the fridge or freezer temperature to 'Medium'.
Is the appliance in direct sunlight, or is it near a heat generating
object such as cooking oven or heater?
• Check the installation area and reinstall it away from heat generating
objects.
Did you store hot food without cooling it first?
• Cool the hot food first before putting it in the fridge or freezer
compartment.
Did you put in too much food?
• Maintain an appropriate space between food.
Are the appliance doors completely closed?
• Completely close the door and make sure that stored food is not
obstructing in the door.
Is there enough space around the appliance?
• Adjust the installation position to make enough space around the
appliance.
The appliance
contains a bad smell.
Is the fridge or freezer temperature set to 'Warm'?
• Set the fridge or freezer temperature to 'Medium'.
Did you put in food with a strong smell?
• Store foods with strong smells in a sealed containers.
Vegetables or fruit may have spoiled in the drawer?
• Throw away rotten vegetables and clean the vegetable drawer. Do not
store vegetables too long in the vegetable drawer.
The inside lamp in the
appliance does not
turn on.
Does the inside lamp in the appliance turn off?
• It is not possible for customers to replace the inside lamp in the
appliance as they are not serviceable. If the inside lamp does not turn
on, please contact the LG Electronics customer information centre.
31
EN
Symptoms Possible Cause & Solution
The appliance door is
not closed tightly.
Is the appliance leaning forward?
• Adjust the front feet to raise the front side slightly.
Were the shelves properly assembled?
• Refit the shelves if needed.
Did you close the door with excessive force?
• If you apply too much force or speed when closing the door, it may
remain briefly open before closing. Make sure that you do not slam the
door closed. Close without force.
It is difficult to open
the appliance door.
Did you open the door right after you closed it?
• If you try to open the appliance door within one minute after you closed
it, you may have difficulties because of the pressure inside the
appliance. Try to open the appliance door again in a few minutes so
that the internal pressure stabilizes.
There is condensation
inside the appliance
or on the bottom of
the vegetable drawer
cover.
Did you store hot food without cooling it first?
• Cool the hot food first before putting it in the fridge or freezer
compartment.
Did you leave the appliance door open?
• Although the condensation will disappear soon after you close the
appliance door, you can wipe it with a dry cloth.
Do you open and close the appliance door too frequently?
• Condensation can form due to the temperature difference from the
outside. Wipe out the dampness with a dry cloth.
Did you put warm or moist food inside without sealing it in a
container?
• Store food in a covered or sealed container.
Frost has formed in
the freezer
compartment.
Doors may not be closed properly?
• Check if the food item inside the appliance is blocking the door and
make sure that the door is tightly closed.
Did you store hot food without cooling it first?
• Cool the hot food first before putting it in the fridge or freezer
compartment.
32
EN
Symptoms Possible Cause & Solution
Frost has formed in
the freezer
compartment.
Is the air entry or exit of the freezer compartment blocked?
• Make sure that air entry or exit is not blocked so that the air can
circulate inside.
Is the freezer compartment overfilled?
• Maintain an appropriate space between items.
Frost or condensation
has formed inside or
outside the appliance.
Did you open and close the appliance door frequently or is the
appliance door improperly closed?
• Frost or condensation can form if the outside air penetrates inside the
appliance.
Is the installation environment humid?
• Condensation can appear on the exterior of the appliance if the
installation area is too humid or on a humid day such as a rainy day.
Wipe off any moisture with a dry cloth.
The appliance is noisy
and generates
abnormal sounds.
Is the appliance installed on a weak floor or improperly leveled?
• Install the appliance on a solid and flat area.
Does the rear of the appliance touch the wall?
• Adjust the installation position to allow enough clearance around the
appliance.
Are objects scattered behind the appliance?
• Remove the scattered objects from behind the appliance.
Is there an object on top of the appliance?
• Remove the object on top of the appliance.
The side or front of
the appliance is warm.
There are anti condensation pipes fitted to these areas of the
appliance to reduce condensation forming from around the door
area.
• The heat releasing pipe to prevent condensation is installed on the
front and side of the appliance. You may feel it particularly hot right
after the appliance is installed or during the summer. You can be
assured that this is not a problem and is quite normal.
There is water inside
or outside of the
appliance.
Is there water leakage around the appliance?
• Check if the water has leaked from a sink or another place.
Is there water on the bottom of the appliance?
• Check if the water is from the thawed frozen food or a broken or
dropped container.
33
EN
Symptoms Possible Cause & Solution
Clicking noises
The defrost control will click when the automatic defrost cycle
begins and ends. The thermostat control (or appliance control on
some models) will also click when cycling on and off.
• Normal Operation
Rattling noises
Rattling noises may come from the flow of appliance, the water line
on the back of the unit (for plumbed models only), or items stored
on top of or around the appliance.
• Normal Operation
Appliance is not resting evenly on the floor.
• Floor is weak or uneven or leveling legs need to be adjusted. See the
Door Alignment section.
Appliance with linear compressor was moved while operating.
• Normal operation. If the compressor does not stop rattling after three
minutes, turn the power to the appliance off and then on again.
Whooshing noises
Evaporator fan motor is circulating air through the fridge and freezer
compartments.
• Normal Operation
Air is being forced over the condenser by the condenser fan.
• Normal Operation
Gurgling noises
Appliance flowing through the cooling system
• Normal Operation
Popping noises
Contraction and expansion of the inside walls due to changes in
temperature.
• Normal Operation
Vibrating
If the side or back of the appliance is touching a cabinet or wall,
some of the normal vibrations may make an audible sound.
• To eliminate the noise, make sure that the sides and back do not make
any contact with any wall or cabinet.
Memo
Memo
