Display panel / Buttons Programme selector / Off
Empty the condensate container
Empty the container after each drying cycle.
1. Remove the container, holding it level.
2. Pour out the condensate.
3. Push the container back in until it clicks
into place.
If Í(Condensate container) flashes in the
display panel aWhat to do if..., page 11.
Clean fluff filter
Do not operate the dryer without a fluff filter or with
a defective fluff filter. A clean fluff filter minimises
energy consumption.
Clean the fluff filter after each drying cycle.
1. Open the door. Remove any fluff from
the door/around the door and pull out
the fluff filter.
2. Remove the fluff from the shaft of the
fluff filter.
3. Open the fluff filter and remove the fluff
(sweep your hand over the fluff filter). If
the fluff filter is very dirty or blocked,
rinse with warm water and dry
thoroughly.
4. Close and reinsert the fluff filter.
7
6
Programmes / Fabrics
Detailed overview of the programmes and fabrics
aProgramme overview, page 7.
Observe the care instructions on the care label.
L Cottons Hard-wearing fabrics.
I Synthetics Fabrics made from synthetic or blended
fabrics.
Dryness levels to select with the L Cottons and I Synthetics
programmes:
+: Extra Dry/Very Dry Thick and multi-layered fabrics.
+. Cupboard Dry Single-layered laundry.
| Iron Dry Laundry suitable for ironing after drying.
ZSportswear Functional clothing made of microfibre.
āAllergy Plus Cotton fabrics for drying in higher
temperatures.
1 Mixed Load A mixed load of fabrics made of cotton
and synthetic fabrics.
Timed program warm
All types of fabric; time programme.
Timed program cold
@ Super 15’ Cotton or linen fabrics that are still damp
and easy-care fabrics.
A Super 40’ Synthetics, cotton or blended fabrics.
W Down Wear Fabrics with down filling.
O Wool finish Woollen fabrics that are suitable for use in
washers.
Your new dryer
Congratulations - You have chosen a modern, high-quality Bosch
domestic appliance.
The condensation dryer is distinguished by its economical energy
consumption.
Every dryer which leaves our factory is carefully checked to ensure
that it functions correctly and is in perfect condition.
Should you have any questions, our after-sales service will be
pleased to help.
Disposal in an environmentally-responsible manner
Dispose of packaging in an environmentally-responsible manner.
This appliance is labelled in accordance with European
Directive 2012/19/EU concerning used electrical and electronic
appliances (waste electrical and electronic equipment - WEEE).
The guideline determines the framework for the return and recycling
of used appliances as applicable throughout the EU.
For further information about our products, accessories,
spare parts and services, please visit: www.bosch-home.com
Intended use
Preparation
Set and adjust the
programme individually
1
2
Drying
ʋexclusively for domestic use,
ʋonly for drying fabrics which have been washed using
water.
Keep children younger than 3 years old away from
the dryer.
Do not let children make the cleaning and
maintenance work on the dryer without supervision.
Do not leave children unsupervised near the dryer.
Keep pets away from the dryer.
The dryer may be operated by children from 8 years
of age, by persons who have limited physical,
sensory or mental abilities and by persons who
have inadequate experience or knowledge,
provided they are supervised or have been
instructed by a responsible person.
This appliance is intended for use up to a maximum
height of 4000 metres above sea level.
Drying
Display panel and settings
ʑ
Display panel (status indicators)
p
(Fluff filter/
Heat exchanger)
Clean the fluff filter apage 4/11
or clean the heat exchanger apage 8.
Í÷
(Condensate
container)
Empty the condensate container apage 4/11.
H|]+
- Æ-§Ê
(Programme
sequence)
These indicators show the programme progress in the next steps of the drying cycle:
H Drying;
|] Iron Dry;
+Cupboard Dry;
- Æ- Programme pause a if required;
§ÊProgramme end.
(
(Childproof lock)
You can lock the dryer to prevent the functions you have set from being changed inadvertently.
To activate/deactivate ((Childproof lock) start the programme and then press and hold
the $Start/Pause button for 5 seconds until a long acoustic signal is heard. The option
activated/deactivated a((Childproof lock) indicator light on/off.
[h:min]
(Remaining time)
When a programme is selected, the anticipated drying time (remaining time) for
the recommended load is displayed. While drying, the moisture sensors detect the actual load
and correct the programme length. This is shown by jumps in the remaining time in the display
panel.
ʑ
Settings (indicators lights and buttons)
Selected option activated/deactivated a indicator light on/off.
See the separate Energy-saving mode instructions.
Drying Time
Drying time, available only for timed programmes, can be selected from min. 0:20 h to
max. 3:00 h, in 10-minute steps.
y
Fine adjust
The dryness levels (e.g. Cupboard Dry) can be increased in three levels. The laundry is made
drier. Default = 0. Selectable values: 0, 1, 2, 3. After setting the level of the fine adjustment for
a programme, it is also retained for other programmes, until yFine adjust is changed again.
³¤- ¤
È Finished in
The time when the programme has to end can be set by selecting the È Finished in time.
The È Finished in time can be selected in one-hour steps, up to a maximum of 24 hours. Select
the È Finished in button repeatedly until the required number of hours is displayed. Then press
the $Start/Pause button to activate the È Finished in option. The programme ends after
the selected number of hours. Several minutes after activating È Finished in option the display
switches off to save energy. To switch it on select any button, close/open the door or turn
the programme selector.
V
Low Heat
Reduced temperature for delicate fabrics, e.g. polyacrylic, polyamide or elastane, with a longer
drying time.
4
Wrinkle Guard Plus
After the programme finishes, the drum moves at regular intervals to prevent creases.
Laundry remains loose and fluffy. The standard setting for each programme is 60 min.
Automatic anti-crease function can be extended by up to 60 min.
&ü
Buzzer
For switching the buzzer on and off. &Buzzer indicates program end if it is activated.
Other sounds are not influenced by this option.
Close the door
3
Contents Page
ʋPreparation . . . . . . . . . . . . . . . . . . . . . . 2
ʋControl panel . . . . . . . . . . . . . . . . . . . . . 2
ʋDrying . . . . . . . . . . . . . . . . . . . . . . . . .3/4
ʋDisplay panel and settings . . . . . . . . . . . 5
ʋNotes on laundry . . . . . . . . . . . . . . . . . . 6
ʋOverview of programmes . . . . . . . . . . . . 7
ʋCare and cleaning . . . . . . . . . . . . . . . . . 8
ʋInstallation . . . . . . . . . . . . . . . . . . . . . . . 9
ʋFrost protection / Transport . . . . . . . . . . 9
ʋOptional accessories . . . . . . . . . . . . . . 10
ʋTechnical data . . . . . . . . . . . . . . . . . . . 10
ʋConsumption rates . . . . . . . . . . . . . . . . 10
ʋAfter-sales service . . . . . . . . . . . . . . . 11
ʋWhat to do if ... . . . . . . . . . . . . . . . . 11/12
ʋSafety instructions. . . . . . . . . . . . . . . . . 13
Never start the dryer if it is damaged!
Inform your after-sales service!
Inspect the dryer
Sort the laundry
Remove all items from pockets,
especially cigarette lighters.
The drum must be empty prior to loading.
See programme overview on page 7.
See also separate instructions for “Woollens basket”
(depending on model).
Make sure your hands are dry.
Only grasp the plug by the plug
body.
Connect the
mains plug
End of the programme...
Interrupt the programme
1. Open the door or press the $Start/Pauseübutton;
the drying cycle is interrupted.
2. Add or remove laundry and close the door.
3. If required, select a new programme and additional
functions. Select the $Start/Pause button.
The remaining time is updated after a few minutes.
The drum and door may be hot!
Notes on laundry ...
Labelling of fabrics
Follow the manufacturer's care instructions.
hcSuitable for tumble drying.
(cDry at normal temperature.
'cDry at low temperature a in addition, select VLow Heat.
)cDo not tumble dry.
Do not tumble dry the following fabrics:
– Non-breathable fabrics (e.g. rubber-coated).
– Delicate materials (silk, curtains made from synthetic material) a these may crease.
– Oil-stained laundry.
Drying tips
– To ensure a consistent drying result, sort the laundry by fabric type and drying programme.
– Always dry very small fabrics (e.g. baby socks) together with large items of laundry
(e.g. towels).
– Close zips, hooks and eyelets, and button up covers. Tie cloth belts, apron strings, etc.
together or use a laundry bag.
– Do not over-dry easy-care laundry a risk of creasing. Allow laundry to finish drying
in the air.
– Do not dry woollens in the dryer. They may, however, be refreshed in the dryer apage 7,
OWool finish programme (depending on model).
– Do not iron laundry immediately after drying; fold items up and leave for a while a residual
moisture will then be distributed evenly.
– Knitted fabrics (e.g. T-shirts, jerseys) often shrink slightly the first time they are tumble-dried.
a Do not use the +: Extra Dry programme.
– Starched laundry is not always suitable for dryers a starch leaves behind a coating that
reduces the drying effect.
– When washing laundry that is to be tumble dried afterwards, use the correct amount of
fabric softener as specified in the manufacturer's instructions.
– For pre-dried, multi-layered fabrics or small, individual items of laundry, use the timed
programme. Also suitable for subsequent drying.
Environmental protection / Energy-saving tips
– Before drying, spin the laundry in the washing machine a higher spin speeds minimise
the drying time and reduce energy consumption.
– Use the maximum recommended capacity, but do not exceed it a Programme overview,
page 7.
– Make sure the room is well ventilated during drying.
– Clean the fluff filter after every drying cycle a Clean the fluff filter, page 4/11.
– Do not cover or seal the air inlet on the dryer.
Remove the laundry and switch off
the dryer
5
4

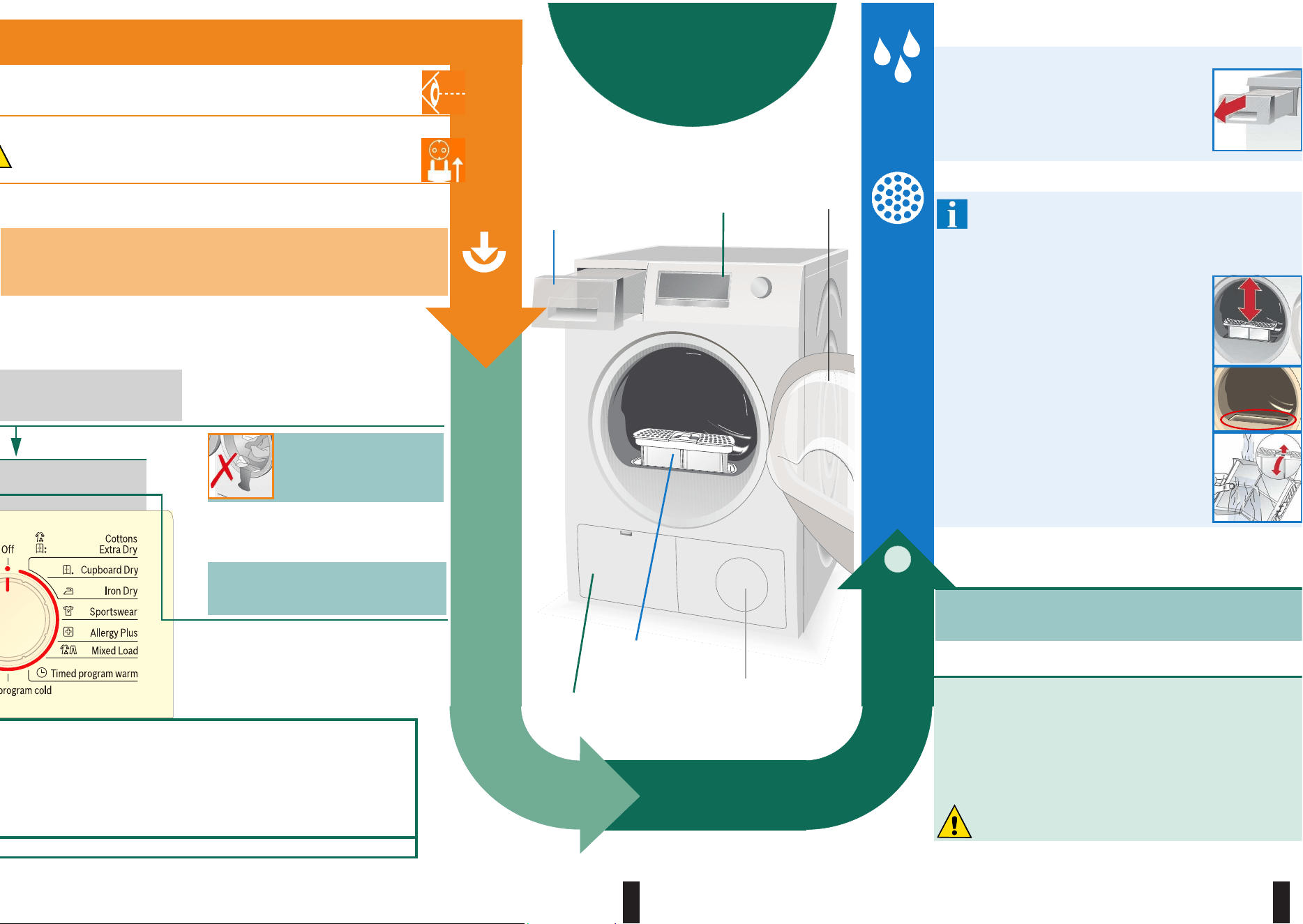

Control panel
Fluff filter
Select
$ Start/Pause
Door
Installation a page 9.
Observe the safety instructions on page 13.
Read these instructions and the separate
Energy-saving mode instructions
before operating the dryer.
Condensate
container
Air inlet
Programme sequence H|]+Drying Time Setting the drying time available only for timed programmes.
- Æ-§ÊyyFine adjust Fine adjustment of dryness level.
Childproof lock ( ³¤- ¤È Finished in Setting the programme end.
Condensate container ÍVLow Heat Low-heat drying - reduced temperature.
Fluff filter/Heat exchanger p4Wrinkle Guard Plus Extends the anti-crease function.
&Buzzer Buzzer on/off.
$Start/Pause Starts, pauses and continues the programme; activates or deactivates ((Childproof lock).
Programme selector for setting
the programme and switching the appliance
on/off. Can be turned in both directions.
Maintenance flap
Further information can
be found on page 5
`
7
Programme overview see also page 6.
Sort the laundry according to type of textile and fabric. Fabrics must be suitable for tumble drying.
After drying, laundry is to be ...
cironed lightly ironed @cnot ironed cmangled
PROGRAMMES TEXTILE TYPE AND INFORMATION
*L Cottons
max. 8 kg
Hard-wearing fabrics, boil-proof fabrics made of cotton or linen.
*ISynthetics
max. 3.5 kg
Non-iron laundry made of synthetic fibres and mixed fabric, easy-care cotton.
| Iron Dry c÷@c
The condition of the laundry means it is suitable for ironing (iron clothes in order to avoid creases).
+. Cupboard Dry @
Single-layered laundry.
+: Extra Dry/Very Dry @
Laundry with thick, multi-layered parts.
Z Sportswear
max. 1.5 kg
Fabrics with membrane coating, water-repellent fabrics, functional clothing, fleece fabrics (dry jackets/trousers with removable internal
lining separately).
ā Allergy Plus
max. 6 kg
Cotton fabrics for drying in higher temperatures to keep them more hygienic .
1÷Mixed Load
max. 3 kg
Mixed items of laundry made of cotton and synthetics (Mix).
Timed program warm
max. 3 kg
Suitable for pre-dried or slightly damp laundry and for drying off multi-layered, thick laundry.
Only dry wool, sports shoes and soft toys with the basket for woollens a Optional Accessories, page 10.
In the time programme, the laundry's residual moisture is not automatically detected. If the laundry is still too damp after the drying
programme, repeat the programme and, if required, extend the programme length.
Timed program cold
max. 3 kg
All types of fabrics. For freshening up or airing of items of laundry that have been worn for a short period of time.
@ Super 15’
max. 1 kg
For optimal drying result dry a maximum of 5 business shirts together. After drying, iron clothes or hang them out and leave for a while.
The remaining moisture will be distributed evenly.
A Super 40’
max. 2 kg
Laundry made of synthetic fibres, cotton or blended fabrics (for example) that needs to be dried quickly. The values may differ from the
those specified depending on the type of fabric, mixture of laundry to be dried, residual moisture in the fabric and loading capacity.
W Down Wear
max. 1.5 kg
Garments with down feather fillings, pillows and blankets. By non quilt loads - please add just 1 piece per drying.
O Wool finish
max. 3 kg
Woollen fabrics suitable for washers. Fabrics become fluffier but not dry. Remove fabrics once the programme has ended
and allow to dry.
*Dryness levels can be selected individually a +: Extra Dry/Very Dry, +. Cupboard Dry and | Iron Dry (depending on the model).
Degree of dryness can be finely adjusted; multi-layered textiles require a longer drying time than single-layered items of clothing. Recommendation: Dry separately.
9505 / 9001117698
*1117698*
Robert Bosch Hausgeräte GmbH
Carl-Wery-Str. 34
81739 München/Deutschland
WTB86200AU
Loading ...
Loading ...
Loading ...
