8 Intended use
2
Intended use
2
Safety instructions
2
Safety instructions
2
Children from 8 years of age or people whose physical sensory or mental abilities or their lack of experience or knowledge prevent them from using the appliance safely must not use this appliance without supervision or instruction by a responsible p
2
Before you switch ON the appliance
2
Please read the operating and installation instructions carefully They contain important information on how to install use and maintain the appliance
2
Retain all documents for subsequent use or for the next owner
2
Delivery
3
1 Check the packaging and dishwasher immediately for damage caused in transit Do not switch on a damaged appliance but contact your supplier
3
2 Please dispose of the packaging material in an environmentally friendly manner
3
3 Do not let children play with packaging and its parts There is a risk of suffocation from collapsible boxes and film
3
Installation
3
In daily use
4
Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents
4
Childproof lock door lock Door lock
4
The description of the childproof lock is at the back in the envelope
4
depending on model
4
Childproof lock button lock Button lock
4
You can secure your appliance from being unintentionally the programme terminated e g improper operation by children
4
Activating the button lock
4
1 Start the required programme
4
2 Hold down the button for approx 4 sec until this â â is indicated on the digital display
4
If any button is pressed while the programme is running this â â is indicated on the digital display It is not possible to end Reset the programme
4
Deactivating the button lock
5
When the programme ends ⠹ ⠹⠹ on the digital display the button lock is cancelled If there is a power failure the button lock is retained Whenever a programme is restarted the button lock must be reactivated
5
Damage
5
Disposal
5
1 Make redundant appliances unusable to prevent subsequent accidents
5
2 Dispose of the appliance in a n environmentally friendly manner
5
m Warning
5
Risk of injury
5
â To prevent injuries e g caused by stumbling open the dishwasher only briefly in order to load and unload the dishwasher
5
â Knives and other utensils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf
5
â Do not lean or sit on the open door
5
â In the case of free standing appliances ensure that the baskets are not overloaded
5
â If the appliance is not in a cavity and a side panel is accessible the door hinge area must be covered at the side for reasons of safety risk of injury The covers are available as optional accessories from customer service or specialist outlets
5
m Warning
5
Risk of explosion
5
m Warning
6
Risk of scalding
6
m Warning
6
Risks to children
6
â If fitted use the childproof lock An exact description can be found in the back of the enve lope
6
â Do not allow children to play with or operate the appliance
6
â Keep children away from detergents and rinse aid These may cause chemical burns in the mouth throat and eyes or asphyxiation
6
â Keep children away from open dishwasher The water in the rinsing compartment is not drinking water and could contain detergent residue
6
â Ensure that children do not place fingers in the tablet collecting tray 1 Small fingers could become caught in the slots
6
â When opening and closing the door on an eye level appliance ensure that children do not become jammed or crushed between the appliance door and the cupboard door below
6
â Children could become locked in the appliance danger of suffocation or get into another dangerous situation
6
7 Protection of the environment
7
Protection of the environment
7
Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials
7
Please dispose of the individual parts separated according to type
7
Please ask your dealer or inquire at your local authority about current means of disposal
7
Packaging
7
All plastic parts of the appliance are identified with internationally standardised abbreviations e g PS polystyrene Therefore plastic waste can be sorted out when the appliance is being disposed of
7
Please follow the safety instructions under â Deliveryâ
7
Old appliances
7
Please follow the safety instructions under â Disposal of your applianceâ
7
This appliance is labelled in accordance with European Directive 2012 19 EU concerning used electrical and electronic appliances waste electrical and electronic equipment WEEE The guideline determines the framework for the return and recycling o
7
Getting to know your appliance
7
Getting to know your appliance
7

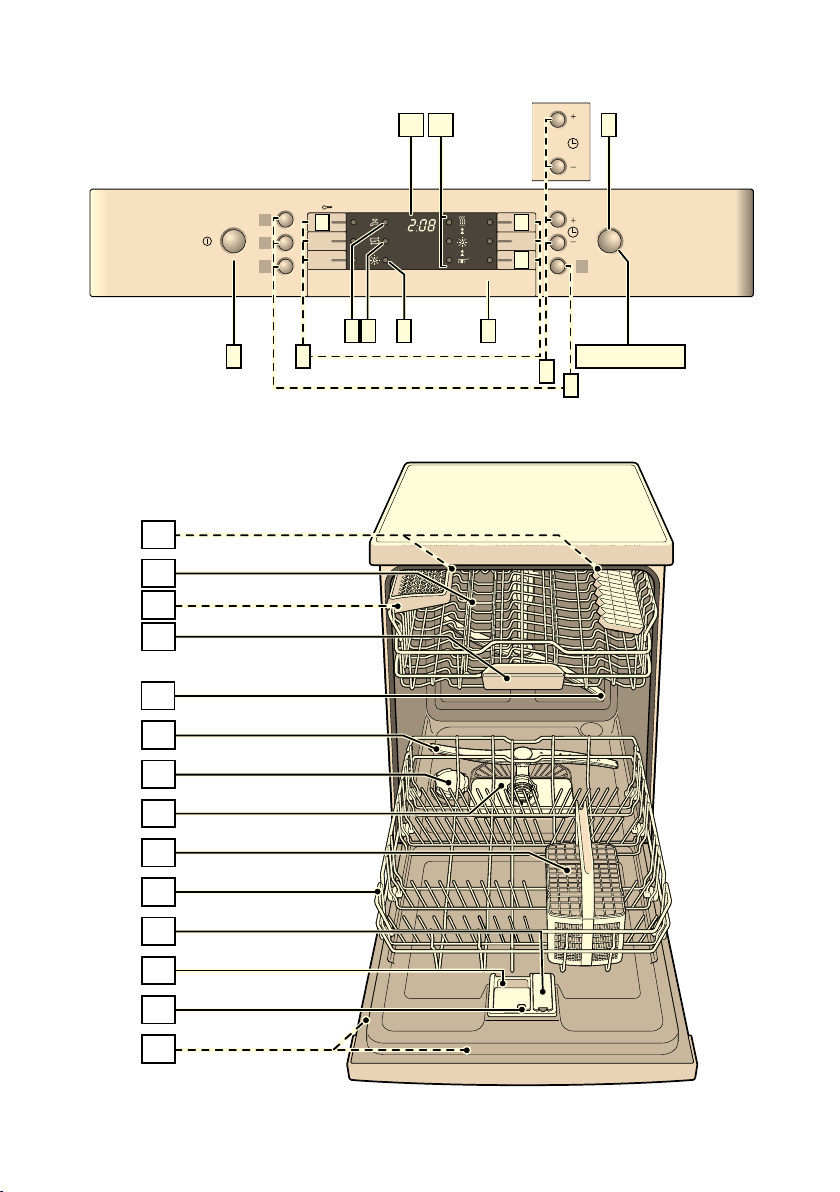

Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front
7
Individual positions are referred to in the text
7
Control panel
7
ON OFF switch
7
Programme buttons
7
Display â Check water supplyâ
7
Salt refill indicator
7
Rinse aid refill indicator
7
Door opener
7
Timer programming
7
Additional options
7
START button
7
Programme sequence indicator
7
Digital display
7
depending on model
7
Number depending on model
7
Appliance interior
8
Interior light
8
Top basket
8
Knife shelf
8
Tablet collecting tray
8
Top spray arm
8
Bottom spray arm
8
Dispenser for special salt
8
Filters
8
Cutlery basket
8
Bottom basket
8
Dispenser for rinse aid
8
Detergent dispenser
8
Lock for detergent dispenser
8
Rating plate
8
depending on model
8
Overview of menu
8
The settings can be found in the individual chapters
8
Water Hardness â ⠹⠹ â â ¹Ë
8
Intensive drying Š⠹⠹ Å â ¹â
8
Rinse aid  ⠹⠹  ⠹â
8
Hot water â ⠹⠹ â â ¹â
8
Automatic disconnection Ë â ¹â ¹ Ë â ¹Æ
8
Water softening system Special salt
8
Water softening system Special salt
8
To ensure good washing results the dishwasher requires soft water i e containing low amounts of lime otherwise white limescale will be deposited on the utensils and inner container
8
Tap water above 1 2 mmol l must be softened The water is softened with special salt regeneration salt in the water softening system of the dishwasher
8
The setting and therefore the required amount of salt depends on the degree of hardness of your tap water see table
8
Setting
8
The amount of salt dispensed can be set from â ⠹⠹ to â â ¹Ë
8
Salt is not required at the set value â ⠹⠹
8
1 Find out about the hardness value of your tap water Your water utility company will help you with this
8
2 Set value can be found in the water hardness table
8
3 Close the door
8
4 Switch on ON OFF switch
8
5 Hold down programme button and press START button h until â â ¹ is indicated on the digital display
8
6 Release both buttons
8
To change the setting
9
1 Press programme button 3
9
2 Press START button h
9

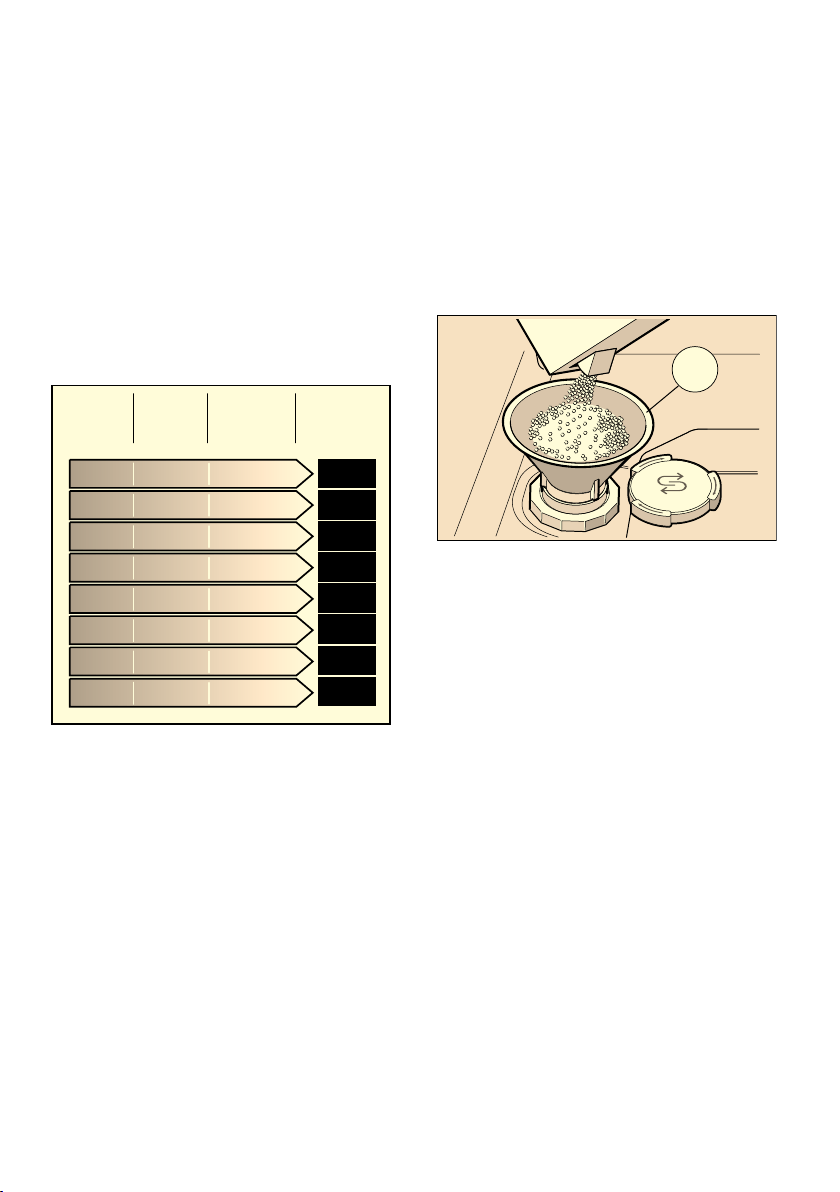

Water hardness table
9
Using special salt
9
Always refill with special salt immediately before switching on the appliance This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank
9
1 Open the screw type cap of the compartment 1R
9
2 Fill the tank with water only required when switching on the appliance for the first time
9
3 Then add dishwasher salt not table salt or tablets
9
As soon as the salt refill indicator on the fascia is lit top up the salt
9
depending on model
9
Using detergents with salt componentDetergents with salt component
9
If combined detergents with a salt component are used salt can usually be omitted up to a water hardness of 21Â dH 37Â fH 26Â Clarke 3 7 mmol l If the water hardness is over 21Â dH special salt must be used
9
Switching off salt refill indicator water softening systemSwitching off water softening system
9
If the salt refill indicator is impaired e g when using combined detergents containing salt component it can be switched off
9
m Caution
10
Rinse aid
10
Rinse aid
10
As soon as the rinse aid refill indicator H is lit on the fascia there is still a rinse aid reserve of 1 2 rinsing processes Refill with rinse aid
10
The rinse aid is required for stain free utensils and clear glasses Use only rinse aid for domestic dishwashers
10
Combined detergents with rinse aid component may be used up to a water hardness of 21Â dH 37Â fH 26Â Clarke 3 7 mmol l only If the water hardness is over 21Â dH rinse aid must be used
10
1 Open the dispenser 9 by pressing and lifting the plate on the cover
10
2 Carefully pour rinse aid up to the max mark in the filler opening
10
3 Close cover until it clicks shut
10
4 To prevent excessive foam formation during the next rinse cycle remove any rinse aid which has run over with a cloth
10
Setting amount of rinse aid
10
The amount of rinse aid can be set from  ⠹⠹ to  ⠹â Please set rinse aid on  ⠹â to obtain very good drying results  ⠹â is already set in factory
10
Change this setting only if streaks select lower setting or water stains select higher setting are left on the utensils
10
1 Close the door
10
2 Switch on ON OFF switch
10
3 Hold down programme button and press START button h until â â ¹ is indicated on the digital display
10
4 Release both buttons
10
5 Press programme button until the factory set value  ⠹â is indicated on the digital display
10
To change the setting
11
1 Press programme button 3
11
2 Press START button h
11
Switching off rinse aid refill indicator
11
If the rinse aid refill indicator H is impaired e g when using combined detergents containing rinse aid component it can be switched off
11
The rinse aid refill indicator H is now switched off
11
Utensils
11
Utensils
11
Not suitable
11
Aluminium and silver parts have a tendency to discolour and fade during the wash cycle Even some types of glass e g crystal glass objects may turn cloudy after many wash cycles
11
Glass and utensil damage
11
Causes
11
Recommendation
11
Loading the dishwasher
11
1 Remove large food remnants It is not necessary to prerinse utensils under running water
11
2 Place the utensils so that
11
Very small utensils should not be washed in the machine as they may fall out of the baskets
11
Unloading the dishwasher
12
To prevent water from dripping off the upper basket onto the utensils in the lower basket it is recommended to empty the appliance from the bottom up
12
Hot utensils are sensitive to shock Therefore when the programme ends leave the utensils to cool down in the dishwasher until they can be handled
12
Note
12
Cups and glasses
12
Top basket 1
12
Pans
12
Bottom basket 1j
12
Tip
12
Tip
12

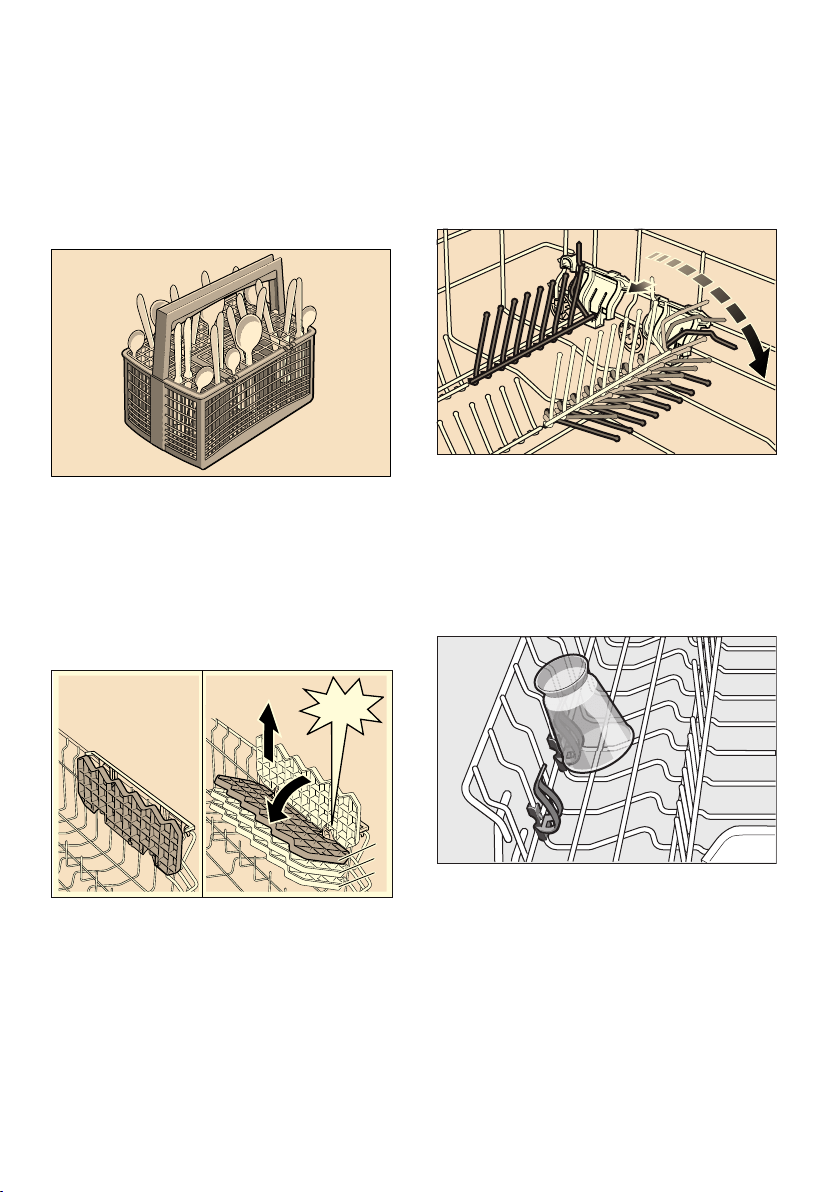

Cutlery basket
13
You should always place cutlery unsorted with the points downwards
13
To prevent injuries place long pointed implements and knives on the knife shelf
13
EtagereEtagere
13
The etagere and the space underneath can be used for small cups and glasses or for larger items of cutlery such as wooden spoons or serving cutlery The etagere can be folded up if not required
13
Depending on the model a 3 fold height adjustment is possible To do this first place the etagere vertically and pull up then place at a slight angle push down to the required height 1 2 or 3 and snap into place
13
Folding spikesFolding spikes
13
depending on model
13
The spikes can be folded down to improve arrangement of pans bowls and glasses
13
Small accessories holder Small accessories holder
13
depending on model
13
Light weight plastic accessories e g cups lids etc can be held securely in the small accessories holder
13
Knife shelf Knife shelf
14
depending on model
14
Long knives and other utensils can be arranged horizontally
14

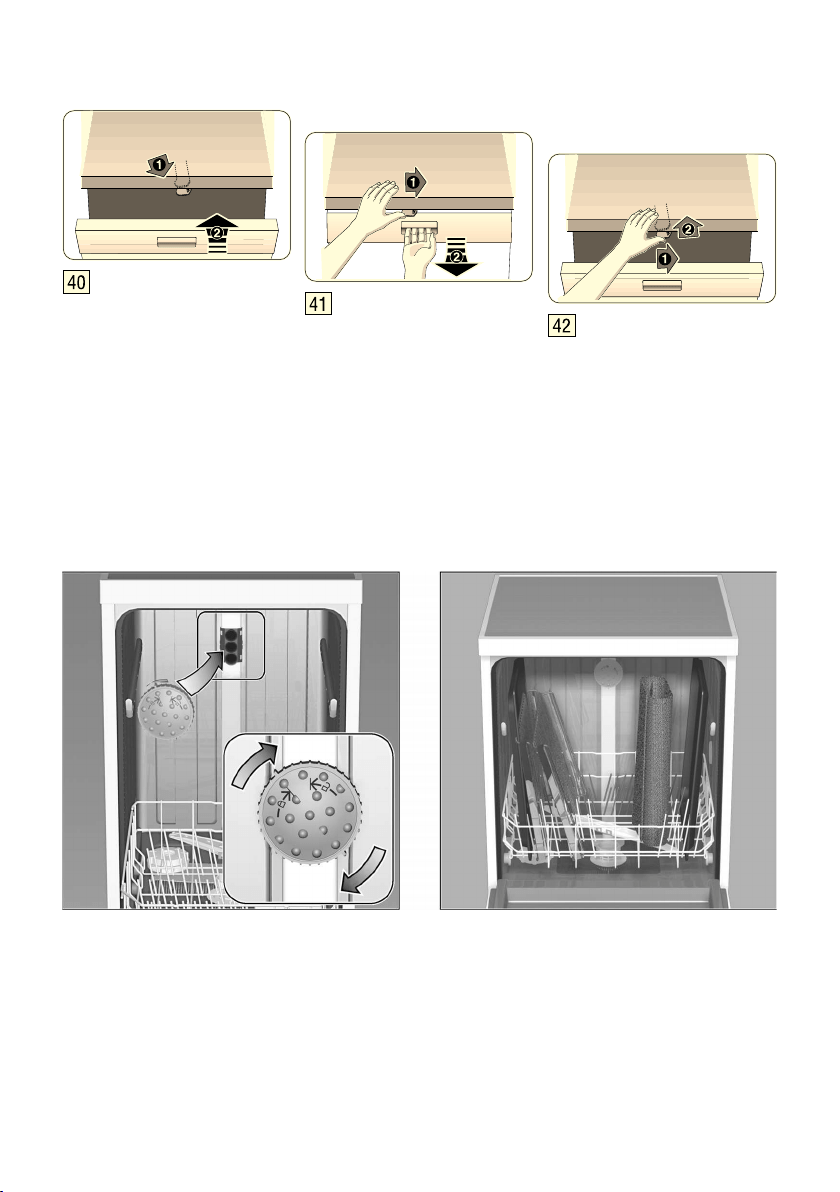

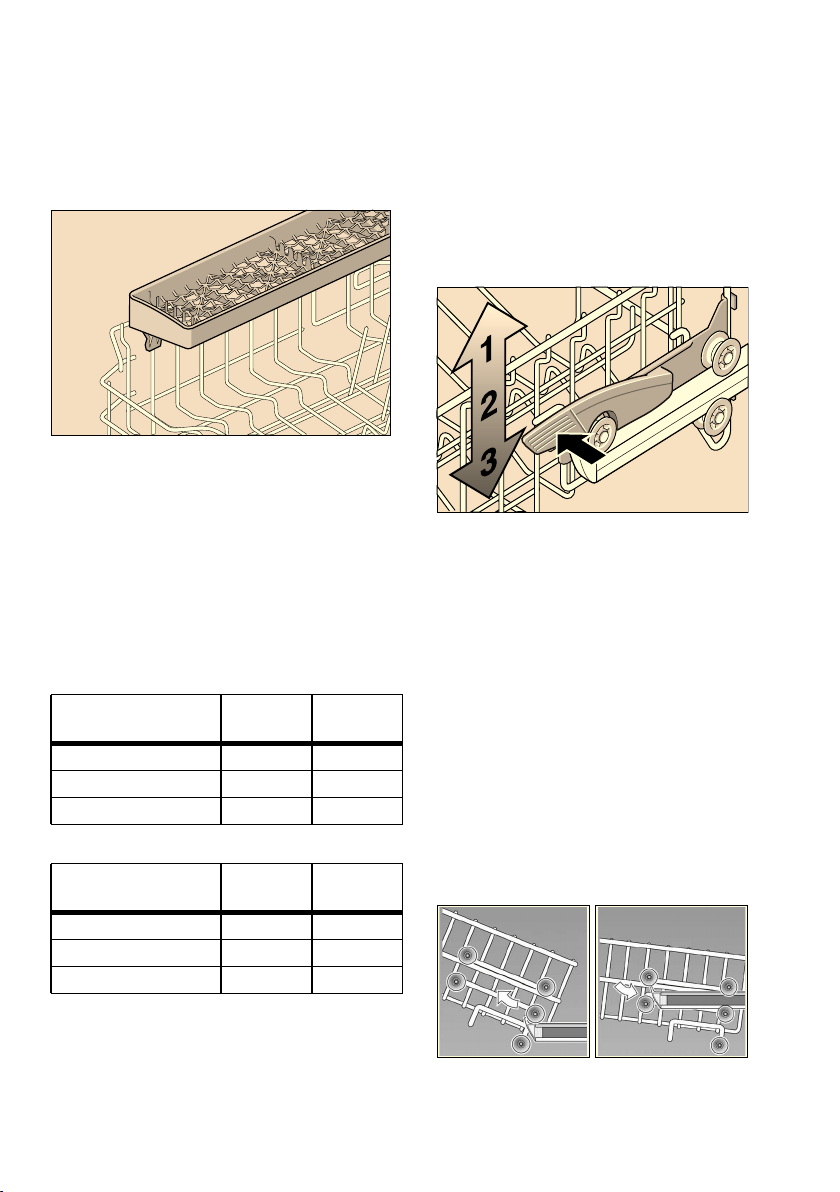

Adjusting the height of the basketAdjusting the height of the basket
14
depending on model
14
If required the height of the upper utensils basket 1 can be adjusted to provide more space for tall utensils either in the upper or lower basket
14
Appliance height 81 5 cm
14
22 cm
14
30 cm
14
24 5 cm
14
27 5 cm
14
27 cm
14
25 cm
14
Appliance height 86 5 cm
14
24 cm
14
33 cm
14
26 5 cm
14
30 5 cm
14
29 cm
14
28 cm
14
Select one of the two following procedures according to the design of the top basket for your appliance model
14
Top basket with side levers
14
1 Pull out the top basket 1 out
14
2 To lower the basket press in the left and then the right lever on the outside of the basket In doing so hold the sides of the basket along the upper edge to prevent it from suddenly dropping
14
3 To raise the basket hold the basket on the sides of the upper edge and lift it up
14
4 Before re inserting the basket again ensure that it is at the same height on both sides Otherwise the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit
14
Top basket with upper and lower roller pairs
14
1 Pull out the top basket 1 out
14
2 Remove the upper basket and re attach it to the upper stage 3 or lower stage 1 rollers
14
Detergent
15
Detergent
15
You can use tablets as well as powder or liquid detergents for dishwashers but never use washing up liquid The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling Tablets contain an adequately l
15
Note
15
m Warning
15

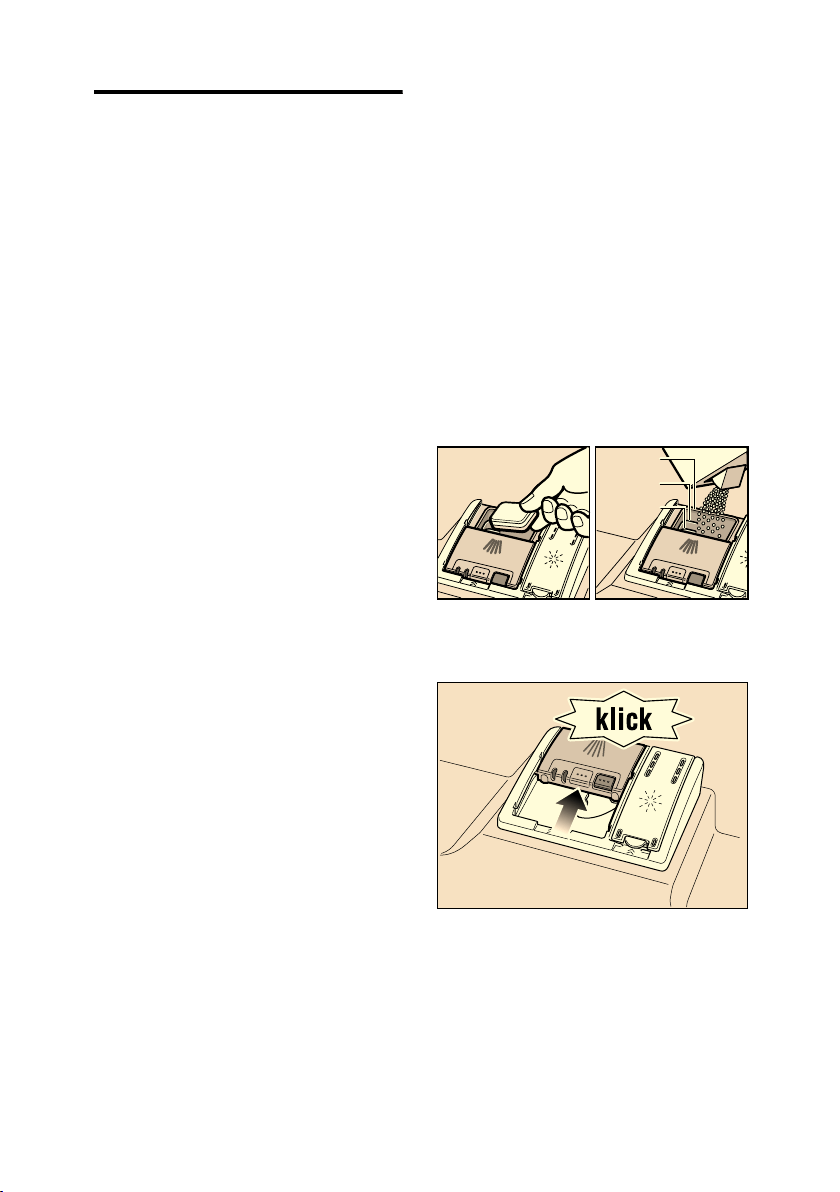

Adding detergent
15
1 If the detergent dispenser 9 is still closed press the lock 92 to open the detergent dispenser
15
2 Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty
15
Tip
16
Combination detergent
16
Apart from conventional detergents Solo a number of products are offered with additional functions These products contain not only the detergent but also rinse aid and salt replacement substances 3in1 and depending on the combination 4in1 5i
16
As soon as combined detergents are used the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result
16
m Warning
16
m Warning
16
Notes
16
Overview of programmes
17
Overview of programmes
17
The max possible number of programmes is illustrated in this overview The corresponding programmes and their arrangement can be found on the fascia
17
Type of utensils
17
Type of soiling
17
Programme
17
Possible additional options
17
Programme sequence
17
Programme selection
17
You can select a suitable programme according to the type of utensils and degree of soiling
17
Information for test institutes
18
Test institutes receive the information for comparability tests e g according to EN60436
18
These are the conditions for conducting the tests however these are not the results or consumption values
18
Request by e mail to
18
dishwasher test appliances com
18
The product number E no and the production number FD are required which you can find on the rating plate 9 on the appliance door
18
TurboSpeed 20 min TurboSpeed 20 min especially quick rinsing programme with one off preheating
18
depending on model
18
The appliance is heated up once approx 25 min then the appliance is loaded and several quick rinse cycles 20 min each can run in succession
18
Note
18
Please read the operation carefully the programme differs from the other programmes
18
1 Close the door
18
2 Switch on ON OFF switch
18
3 Select programme TurboSpeed 20 min
18
4 Press START button h
18
5 As soon as p p Load flashes open and load the appliance and start the rinsing phase by pressing the START button h
18
6 As soon as ⠹ ⠹⠹ is indicated on the digital display the rinse cycle has ended
18
7 Remove utensils
18
8 If more rinse cycles are required reload dishwasher and press the START button
18
9 If no more rinse cycles are required switch off ON OFF switch
18
0 Additional options
19
Additional options
19
depending on model
19
Additional options can be set with the buttons
19
Express Wash Speed Perfect VarioSpeed Å Express Wash Speed Perfect VarioSpeed
19
This function can reduce the running time by approx 20 to 50 depending on the selected rinse programme The change in the running time is indicated on the digital display To obtain optimum cleaning results at a reduced running time water and
19
Half load Half load
19
If you have only a few items to wash e g glasses cups plates you can switch to â half loadâ This will save water energy and time It is recommended to put a little less detergent in the detergent dispenser than for a full load
19
 Hygiene Hygiene
19
The temperature is increased during the cleaning process This increases the hygiene status This additional option is ideal for cleaning e g chopping boards and baby bottles
19
à Intensive zone Intensive zone
19
Perfect for a mixed load You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket The spray pressure in the lower basket is intensified the rinsing temperature is increased slightly
19
 Extra drying Extra drying
19
An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better There is a slight increase in the energy consumption
19
1 Operating the appliance
20
Operating the appliance
20
Programme data
20
The programme data consumption values can be found in the summary of instructions They refer to normal conditions and the water hardness set value â â ¹â Different influencing factors such as e g water temperature or line pressure may result
20
Aqua sensorAqua sensor
20
depending on model
20
The Aqua sensor is an optical measuring device light barrier which measures the turbidity of the rinsing water
20
The Aqua sensor is used according to the programme If the Aqua sensor is active â cleanâ rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3â 6 litres If the turbidity is greater the water is drai
20
Switching on the appliance
20
1 Turn on the tap fully
20
2 Switch on ON OFF switch
20
3 Press the START button h
20
Note
20
Programme TurboSpeed 20 min
20
When the START button h is pressed the first time the heating up phase approx 25 min irrespective of the initial situation of the appliance starts After the appliance has been opened loaded and closed the rinsing phase 20 min starts when
20
Programme sequence indicatorProgramme sequence indicator
21
Your dishes are being cleaned
21
Your dishes are being rinsed
21
Your dishes are being dried
21
Remaining running time display
21
When the programme is selected the remaining running time of the programme is indicated on the digital display
21
The running time is determined during the programme by the water temperature the number of utensils as well as the degree of soiling and may vary depending on the selected programme
21
Programme TurboSpeed 20 min
21
During the heating up phase â and the remaining running time are indicated alternately on the digital display at the end p flashes indicating that the appliance can be opened and loaded When the appliance has been restarted the remaining runnin
21
Timer programmingTimer programming
21
depending on model
21
You can delay the start of the programme in 1 hour steps up to 24 hours
21
1 Close the door
21
2 Switch on ON OFF switch
21
3 Press button X until the digital display jumps to Å â ¹â
21
4 Press X or â button until the displayed time corresponds with your requirements
21
5 Press START button h timer programming is activated
21
6 To delete timer programming press the X or â button until Š⠹⠹ is indicated on the digital display
21
End of programme
21
The programme has ended when the value ⠹ ⠹⠹ is indicated on the numerical display
21
The following applies to TurboSpeed 20 min
21
As soon as ⠹ ⠹⠹ is indicated on the digital display the rinse cycle has ended When the appliance door has been opened p is indicated on the digital display If no further rinse cycle is required switch off the appliance with the ON OFF s
21
Automatic switch off after end of programme or interior light Automatic switch off interior light
22
depending on model
22
To save energy the dishwasher can be automatically switched off 1 min or 120 min after the programme ends
22
The setting can be selected from Ë â ¹â ¹ to Ë â ¹Æ
22
Appliance does not switch off automatically
22
The interior light 1 comes on when the door is opened irrespective of whether the ON OFF switch is switched on or off When the door is closed the light is off If the door is open for longer than 60 min the light switches off automatically The
22
Appliance switches off after 1 min
22
Appliance switches off after 120 min
22
1 Close the door
22
2 Switch on ON OFF switch
22
3 Hold down programme button and press START button h until â â ¹ is indicated on the digital display
22
4 Release both buttons
22
5 Keep pressing programme button until the value Ë â ¹ is indicated on the numerical display
22
To change the setting
22
1 Press programme button 3
22
2 Press START button h
22
Switching off the appliance
22
Short time after the end of the programme
22
1 Switch off ON OFF switch
22
2 Turn off the tap not applicable if Aqua Stop fitted
22
3 Remove the utensils when they have cooled down
22
Note
22
In the case of the TurboSpeed 20 min programme switch off if no further rinse cycle is to follow
22
Interrupting the programme
23
1 Switch off ON OFF switch
23
2 To continue the programme switch on the ON OFF switch again
23
Terminating the programmeTerminating the programme Reset
23
1 Press START button h for approx 3 sec
23
2 The programme sequence lasts approx 1 min On the digital display is indicated ⠹ ⠹⠹
23
3 Switch off ON OFF switch
23
Changing the programme
23
When the START button h has been pressed the programme cannot be changed
23
The only way a programme can be changed is by Cancel programme Reset
23
Intensive drying
23
The final rinse uses a higher temperature which improves the drying result The running time may increase slightly Caution if utensils are delicate
23
1 Close the door
23
2 Switch on ON OFF switch
23
3 Hold down programme button and press START button h until the digital display â â ¹ is indicated
23
4 Release both buttons
23
5 Press programme button until the factory set value Š⠹⠹ is indicated on the digital display
23
To change the setting
23
1 Press the button 3 to switch the Intensive drying on Å â ¹â or off Š⠹⠹
23
2 Press START button h
23
2 Cleaning and maintenance
24
Cleaning and maintenance
24
A regular inspection and maintenance of your machine will help to prevent faults This saves time and prevents problems
24
Overall condition of the machine
24
If you find such deposits
24
Clean the appliance with detergents appliance cleaners which are particularly suitable for use with dishwashers
24
Never use a steam cleaner to clean your dishwasher The manufacturer is not liable for any consequential damage
24
Regularly wipe the front of the appliance and fascia with a damp cloth water and a little washing up liquid are adequate Do not use sponges with a rough surface or abrasive detergents as these could scratch the surfaces
24
Stainless steel appliances To prevent corrosion avoid using sponge cloths or wash them out thoroughly several times before using for the first time
24
m Warning
24
Health hazard
24
Special salt and rinse aid
24
Filters
25
The filters 1Z keep large foreign objects in the rinsing water away from the pump These foreign objects may occasionally block the filters
25
The filter system consists of a coarse filter a flat fine filter and a microfilter
25
1 After each washing cycle check the filters for residue
25

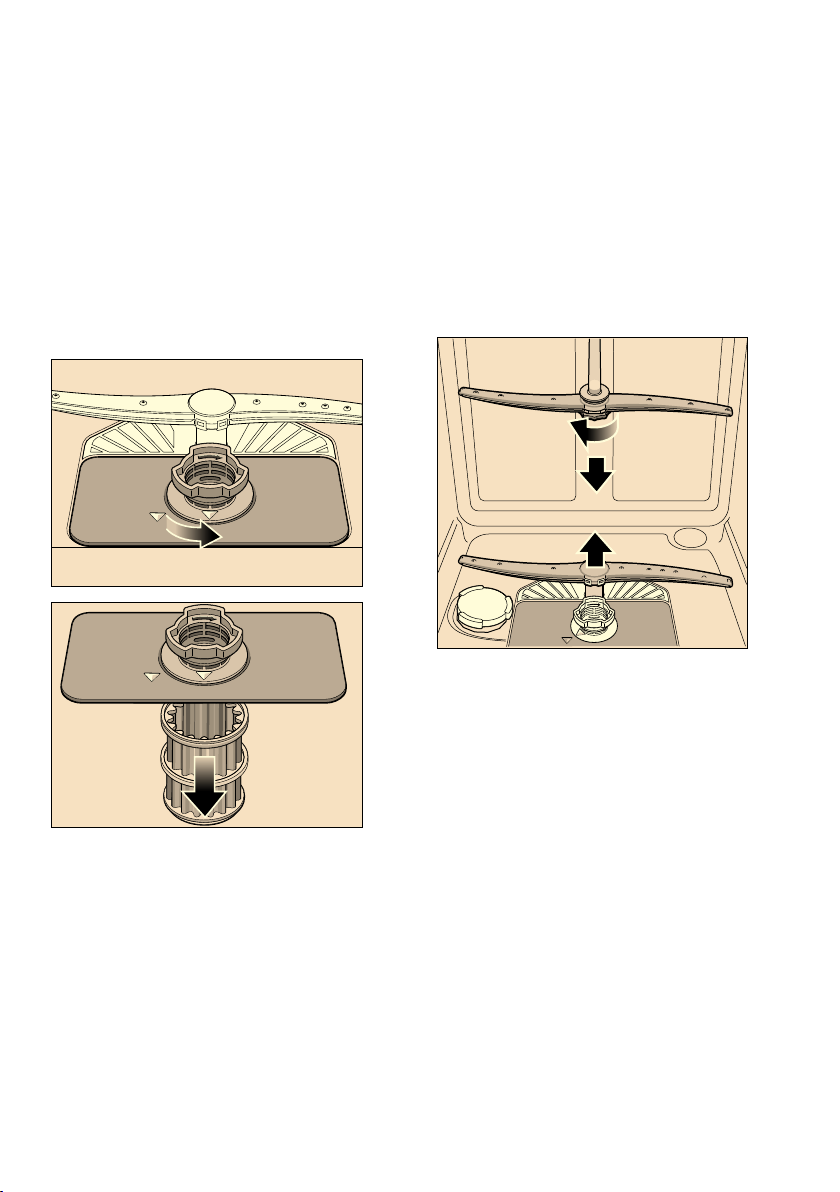

2 Unscrew filter cylinder as illustrated and take out filter system
25
3 Remove any residue and clean filters under running water
25
4 Re install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system
25
Spray arms
25
Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1B and 1J
25
1 Check outlet nozzles on the spray arms for blockages
25
2 Unscrew the upper spray arm 1B
25
3 Remove the lower spray arm 1J upwards
25
4 Clean spray arms under running water
25
5 Re engage or screw on spray arms
25
3 Fault what to do
26
Fault what to do
26
Experience has shown that you can rectify most faults which occur in daily operation yourself This ensures that the machine is quickly available to you again In the following overview you can find possible causes of malfunctions and helpful informa
26
Note
26
m Warning
26
Waste water pump
26
Large food remnants or foreign objects which were not captured by the filters may block the waste water pump The rinsing water will then be above the filter
26
m Warning
26
Risk of cuts
26
In this case
26
1 First always disconnect the appliance from the power supply
26
2 Take out top basket 1 and bottom basket 1j
26
3 Remove the filters 1Z
26
4 Scoop out water use a sponge if required
26

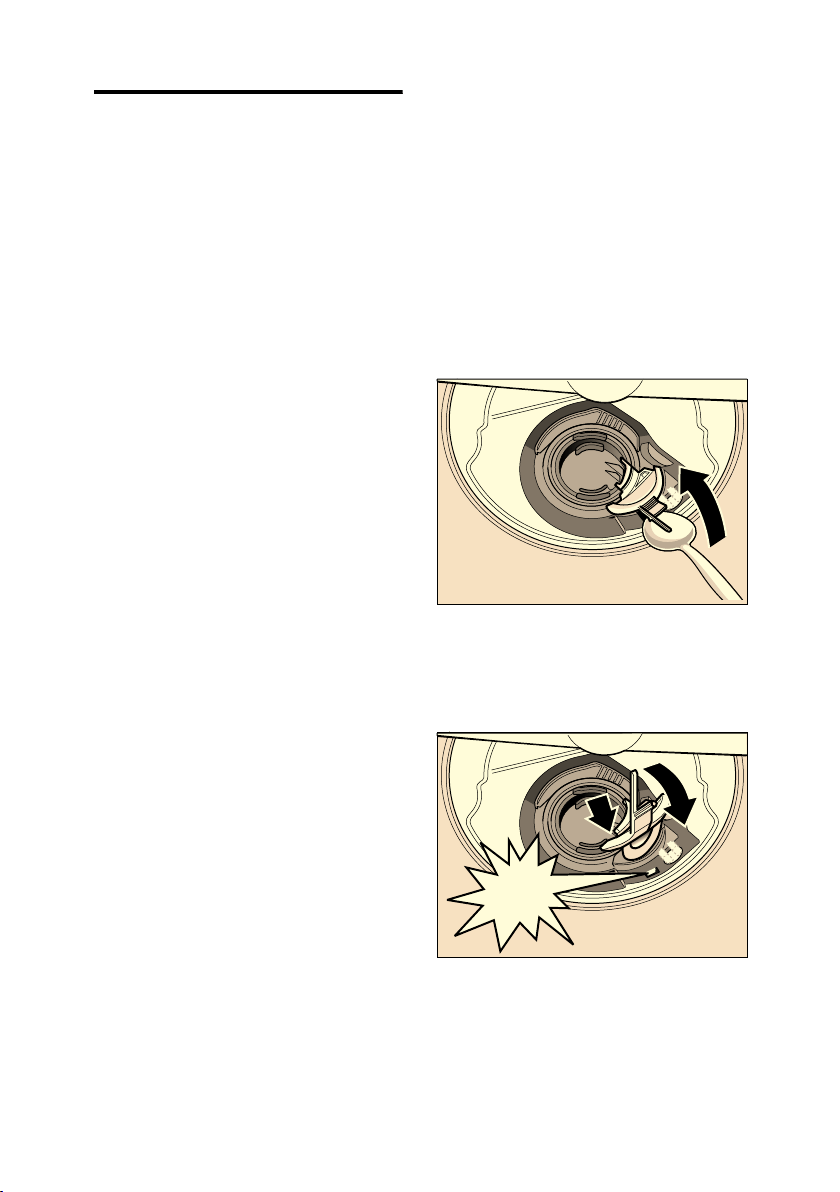

5 Prise out the white pump cover as illustrated using a spoon Grip the cover on the crosspiece and lift diagonally inwards Remove cover completely
26
6 Check impeller wheel and remove any foreign objects
26
7 Place cover in the original position and press down until it engages click
26
8 Install filters
26
9 Re insert baskets
26
Fault table
27
Fault
27
Cause
27
Remedial action
27
4 Customer service
35
Customer service
35
If you are unable to rectify the fault please contact your customer service We always find a suitable solution even to avoid unnecessary visits by technicians Contact information for your nearest customer service can be found on the back of these
35
Rely on the competence of the manufa cturer Contact us You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances
35
5 Installation and connection
35
Installation and connection
35
The dishwasher must be connected correctly otherwise it will not function properly The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragr
35
Install the appliance in the correct sequence
35
1 Checking appliance on delivery
35
2 Installing the appliance
35
3 Waste water connection
35
4 Drinking water connection
35
5 Electrical connection
35
Product package
35
If you have any complaints contact the dealer where you purchased the appliance or our customer service
35
depending on model
35
Safety instructions
35
Please follow the safety instructions under â Installationâ
35
Delivery
36
Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order This may cause small water stains These will disappear after the first wash cycle
36
Technical specifications
36
Weight
36
max 60 kg
36
Voltage
36
220â 240 V 50 Hz or 60 Hz
36
Connected load
36
2 0â 2 4 kW
36
Fuse
36
10 16 A UK 13A
36
Power input
36
switched off 0 10 W
36
not switched off 0 10 W
36
Water pressure
36
at least 0 05 MPa 0 5 bar maximum 1 MPa 10 bar At a higher water pressure connect pressure reducing valve ahead
36
Inlet rate
36
minimum 10 litres minute
36
Water temperature
36
cold water hot water max temperature 60 Â C
36
Capacity
36
12â 15 place settings depending on model
36
Installation
36
The required installation dimensions can be found in the installation instructions Level the appliance with the aid of the height adjustable feet Ensure that the appliance is situated securely on the floor
36
Waste water connection
36
1 The required work sequence can be found in the installation instructions If required fit a siphon with an drainage connection
36
2 Connect the waste water hose to the drainage connection of the siphon with the enclosed parts
36
Drinking water connection
37
1 Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts
37
2 When replacing the appliance always use a new water supply hose
37
Water pressure
37
At least 0 05 MPa 0 5 bar maximum 1 MPa 10 bar At a higher water pressure connect pressure reducing valve ahead
37
Inlet rate
37
Minimum 10 litres minute
37
Water temperature
37
Cold water hot water max temperature 60 Â C
37
Warm water connection Warm water connection
37
depending on model
37
The dishwasher can be connected to cold or hot water up to max 60 Â C
37
Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation e g solar heating system with circulation line
37
This will save energy and time
37
The hot water setting â â ¹â allows you to adjust your appliance optimally to operation with hot water
37
It is recommended to have a water temperature temperature of the incoming water of at least 40 Â C and no more than 60 Â C
37
It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler
37
Setting hot water
37
1 Close the door
37
2 Switch on ON OFF switch
37
3 Hold down programme button and press START button h until â â ¹ is indicated on the digital display
37
4 Release both buttons
37
5 Press programme button until the factory set value â ⠹⠹ is indicated on the digital display
37
To change the setting
37
1 By pressing the 3 button you can switch the hot water setting off â ⠹⠹ or on â â ¹â
37
2 Press START button h
37
Electrical connection
37
Removing the appliance
38
Also observe the sequence of worksteps here
38
1 Disconnect the appliance from the power supply
38
2 Turn off the water supply
38
3 Undo the waste water and drinking water connection
38
4 Loosen fastening screws for the furniture parts
38
5 If fitted remove the base panel
38
6 Pull out the appliance carefully pulling the hose behind
38
Transportation
38
Empty the dishwasher and secure loose parts
38
Drain the appliance according to the following steps
38
1 Turn on the tap
38
2 Close the door
38
3 Switch on ON OFF switch
38
4 Select programme with the highest temperature
38
5 Press START button h
38
6 After approx 4 minutes press the START button h until â ¹ â ¹â is indicated on the digital display
38
7 Switch off ON OFF switch
38
8 Turn off the tap disconnect supply hose and drain water
38
Transport appliance upright only
38
This prevents residual water from running into the machine control and damaging the programme sequence
38
Protection against frostProtection against frost Emptying the appliance
38
If the appliance is in a room where there is a risk of frost e g holiday home empty the appliance completely see Transportation
38
File type: PDF
File name: sms65e38gb-75.pdf
File size: 2.28 MB
File Language: English
Pages: 42
Author: Bosch
Updated: 2023-06-01
Download File
Specifications
Brand:
Bosch
Model: SMS65E38GB/75
Category:
Dishwashers
See other models:
KIL24V60/06
KGN39AW3P/01
SPU25CW00S/45
TKA6A047/01
TDA502412E/01
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch SMS68M38AU
Bosch SMS63M42GB
Bosch SMS63M32GB
Bosch SMS63M22GB
Bosch SMS68M02GB
Bosch SMS68MW05E
Bosch SMS63M38AU
Bosch SMS69M12GB/D4
Bosch HBA574BS0A
Bosch PKE611D17A
Bosch SHS863WD5N
Bosch PKN675DB1A
Bosch HDD80051UC/01
Bosch HMV5053U
Bosch WTG86400UC
Table of Contents
×
8 Intended use
2
Intended use
2
Safety instructions
2
Safety instructions
2
Children from 8 years of age or people whose physical sensory or mental abilities or their lack of experience or knowledge prevent them from using the appliance safely must not use this appliance without supervision or instruction by a responsible p
2
Before you switch ON the appliance
2
Please read the operating and installation instructions carefully They contain important information on how to install use and maintain the appliance
2
Retain all documents for subsequent use or for the next owner
2
Delivery
3
1 Check the packaging and dishwasher immediately for damage caused in transit Do not switch on a damaged appliance but contact your supplier
3
2 Please dispose of the packaging material in an environmentally friendly manner
3
3 Do not let children play with packaging and its parts There is a risk of suffocation from collapsible boxes and film
3
Installation
3
In daily use
4
Read and observe the safety information and instructions for use on the packaging for cleaning and rinsing agents
4
Childproof lock door lock Door lock
4
The description of the childproof lock is at the back in the envelope
4
depending on model
4
Childproof lock button lock Button lock
4
You can secure your appliance from being unintentionally the programme terminated e g improper operation by children
4
Activating the button lock
4
1 Start the required programme
4
2 Hold down the button for approx 4 sec until this â â is indicated on the digital display
4
If any button is pressed while the programme is running this â â is indicated on the digital display It is not possible to end Reset the programme
4
Deactivating the button lock
5
When the programme ends ⠹ ⠹⠹ on the digital display the button lock is cancelled If there is a power failure the button lock is retained Whenever a programme is restarted the button lock must be reactivated
5
Damage
5
Disposal
5
1 Make redundant appliances unusable to prevent subsequent accidents
5
2 Dispose of the appliance in a n environmentally friendly manner
5
m Warning
5
Risk of injury
5
â To prevent injuries e g caused by stumbling open the dishwasher only briefly in order to load and unload the dishwasher
5
â Knives and other utensils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf
5
â Do not lean or sit on the open door
5
â In the case of free standing appliances ensure that the baskets are not overloaded
5
â If the appliance is not in a cavity and a side panel is accessible the door hinge area must be covered at the side for reasons of safety risk of injury The covers are available as optional accessories from customer service or specialist outlets
5
m Warning
5
Risk of explosion
5
m Warning
6
Risk of scalding
6
m Warning
6
Risks to children
6
â If fitted use the childproof lock An exact description can be found in the back of the enve lope
6
â Do not allow children to play with or operate the appliance
6
â Keep children away from detergents and rinse aid These may cause chemical burns in the mouth throat and eyes or asphyxiation
6
â Keep children away from open dishwasher The water in the rinsing compartment is not drinking water and could contain detergent residue
6
â Ensure that children do not place fingers in the tablet collecting tray 1 Small fingers could become caught in the slots
6
â When opening and closing the door on an eye level appliance ensure that children do not become jammed or crushed between the appliance door and the cupboard door below
6
â Children could become locked in the appliance danger of suffocation or get into another dangerous situation
6
7 Protection of the environment
7
Protection of the environment
7
Both the packaging of new appliances and the old appliances themselves contain valuable raw materials and recyclable materials
7
Please dispose of the individual parts separated according to type
7
Please ask your dealer or inquire at your local authority about current means of disposal
7
Packaging
7
All plastic parts of the appliance are identified with internationally standardised abbreviations e g PS polystyrene Therefore plastic waste can be sorted out when the appliance is being disposed of
7
Please follow the safety instructions under â Deliveryâ
7
Old appliances
7
Please follow the safety instructions under â Disposal of your applianceâ
7
This appliance is labelled in accordance with European Directive 2012 19 EU concerning used electrical and electronic appliances waste electrical and electronic equipment WEEE The guideline determines the framework for the return and recycling o
7
Getting to know your appliance
7
Getting to know your appliance
7
Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front
7
Individual positions are referred to in the text
7
Control panel
7
ON OFF switch
7
Programme buttons
7
Display â Check water supplyâ
7
Salt refill indicator
7
Rinse aid refill indicator
7
Door opener
7
Timer programming
7
Additional options
7
START button
7
Programme sequence indicator
7
Digital display
7
depending on model
7
Number depending on model
7
Appliance interior
8
Interior light
8
Top basket
8
Knife shelf
8
Tablet collecting tray
8
Top spray arm
8
Bottom spray arm
8
Dispenser for special salt
8
Filters
8
Cutlery basket
8
Bottom basket
8
Dispenser for rinse aid
8
Detergent dispenser
8
Lock for detergent dispenser
8
Rating plate
8
depending on model
8
Overview of menu
8
The settings can be found in the individual chapters
8
Water Hardness â ⠹⠹ â â ¹Ë
8
Intensive drying Š⠹⠹ Å â ¹â
8
Rinse aid  ⠹⠹  ⠹â
8
Hot water â ⠹⠹ â â ¹â
8
Automatic disconnection Ë â ¹â ¹ Ë â ¹Æ
8
Water softening system Special salt
8
Water softening system Special salt
8
To ensure good washing results the dishwasher requires soft water i e containing low amounts of lime otherwise white limescale will be deposited on the utensils and inner container
8
Tap water above 1 2 mmol l must be softened The water is softened with special salt regeneration salt in the water softening system of the dishwasher
8
The setting and therefore the required amount of salt depends on the degree of hardness of your tap water see table
8
Setting
8
The amount of salt dispensed can be set from â ⠹⠹ to â â ¹Ë
8
Salt is not required at the set value â ⠹⠹
8
1 Find out about the hardness value of your tap water Your water utility company will help you with this
8
2 Set value can be found in the water hardness table
8
3 Close the door
8
4 Switch on ON OFF switch
8
5 Hold down programme button and press START button h until â â ¹ is indicated on the digital display
8
6 Release both buttons
8
To change the setting
9
1 Press programme button 3
9
2 Press START button h
9
Water hardness table
9
Using special salt
9
Always refill with special salt immediately before switching on the appliance This ensures that overrun special salt solution is immediately washed out and does not corrode the rinsing tank
9
1 Open the screw type cap of the compartment 1R
9
2 Fill the tank with water only required when switching on the appliance for the first time
9
3 Then add dishwasher salt not table salt or tablets
9
As soon as the salt refill indicator on the fascia is lit top up the salt
9
depending on model
9
Using detergents with salt componentDetergents with salt component
9
If combined detergents with a salt component are used salt can usually be omitted up to a water hardness of 21Â dH 37Â fH 26Â Clarke 3 7 mmol l If the water hardness is over 21Â dH special salt must be used
9
Switching off salt refill indicator water softening systemSwitching off water softening system
9
If the salt refill indicator is impaired e g when using combined detergents containing salt component it can be switched off
9
m Caution
10
Rinse aid
10
Rinse aid
10
As soon as the rinse aid refill indicator H is lit on the fascia there is still a rinse aid reserve of 1 2 rinsing processes Refill with rinse aid
10
The rinse aid is required for stain free utensils and clear glasses Use only rinse aid for domestic dishwashers
10
Combined detergents with rinse aid component may be used up to a water hardness of 21Â dH 37Â fH 26Â Clarke 3 7 mmol l only If the water hardness is over 21Â dH rinse aid must be used
10
1 Open the dispenser 9 by pressing and lifting the plate on the cover
10
2 Carefully pour rinse aid up to the max mark in the filler opening
10
3 Close cover until it clicks shut
10
4 To prevent excessive foam formation during the next rinse cycle remove any rinse aid which has run over with a cloth
10
Setting amount of rinse aid
10
The amount of rinse aid can be set from  ⠹⠹ to  ⠹â Please set rinse aid on  ⠹â to obtain very good drying results  ⠹â is already set in factory
10
Change this setting only if streaks select lower setting or water stains select higher setting are left on the utensils
10
1 Close the door
10
2 Switch on ON OFF switch
10
3 Hold down programme button and press START button h until â â ¹ is indicated on the digital display
10
4 Release both buttons
10
5 Press programme button until the factory set value  ⠹â is indicated on the digital display
10
To change the setting
11
1 Press programme button 3
11
2 Press START button h
11
Switching off rinse aid refill indicator
11
If the rinse aid refill indicator H is impaired e g when using combined detergents containing rinse aid component it can be switched off
11
The rinse aid refill indicator H is now switched off
11
Utensils
11
Utensils
11
Not suitable
11
Aluminium and silver parts have a tendency to discolour and fade during the wash cycle Even some types of glass e g crystal glass objects may turn cloudy after many wash cycles
11
Glass and utensil damage
11
Causes
11
Recommendation
11
Loading the dishwasher
11
1 Remove large food remnants It is not necessary to prerinse utensils under running water
11
2 Place the utensils so that
11
Very small utensils should not be washed in the machine as they may fall out of the baskets
11
Unloading the dishwasher
12
To prevent water from dripping off the upper basket onto the utensils in the lower basket it is recommended to empty the appliance from the bottom up
12
Hot utensils are sensitive to shock Therefore when the programme ends leave the utensils to cool down in the dishwasher until they can be handled
12
Note
12
Cups and glasses
12
Top basket 1
12
Pans
12
Bottom basket 1j
12
Tip
12
Tip
12
Cutlery basket
13
You should always place cutlery unsorted with the points downwards
13
To prevent injuries place long pointed implements and knives on the knife shelf
13
EtagereEtagere
13
The etagere and the space underneath can be used for small cups and glasses or for larger items of cutlery such as wooden spoons or serving cutlery The etagere can be folded up if not required
13
Depending on the model a 3 fold height adjustment is possible To do this first place the etagere vertically and pull up then place at a slight angle push down to the required height 1 2 or 3 and snap into place
13
Folding spikesFolding spikes
13
depending on model
13
The spikes can be folded down to improve arrangement of pans bowls and glasses
13
Small accessories holder Small accessories holder
13
depending on model
13
Light weight plastic accessories e g cups lids etc can be held securely in the small accessories holder
13
Knife shelf Knife shelf
14
depending on model
14
Long knives and other utensils can be arranged horizontally
14
Adjusting the height of the basketAdjusting the height of the basket
14
depending on model
14
If required the height of the upper utensils basket 1 can be adjusted to provide more space for tall utensils either in the upper or lower basket
14
Appliance height 81 5 cm
14
22 cm
14
30 cm
14
24 5 cm
14
27 5 cm
14
27 cm
14
25 cm
14
Appliance height 86 5 cm
14
24 cm
14
33 cm
14
26 5 cm
14
30 5 cm
14
29 cm
14
28 cm
14
Select one of the two following procedures according to the design of the top basket for your appliance model
14
Top basket with side levers
14
1 Pull out the top basket 1 out
14
2 To lower the basket press in the left and then the right lever on the outside of the basket In doing so hold the sides of the basket along the upper edge to prevent it from suddenly dropping
14
3 To raise the basket hold the basket on the sides of the upper edge and lift it up
14
4 Before re inserting the basket again ensure that it is at the same height on both sides Otherwise the appliance door cannot be closed and the upper spray arm will not be connected to the water circuit
14
Top basket with upper and lower roller pairs
14
1 Pull out the top basket 1 out
14
2 Remove the upper basket and re attach it to the upper stage 3 or lower stage 1 rollers
14
Detergent
15
Detergent
15
You can use tablets as well as powder or liquid detergents for dishwashers but never use washing up liquid The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling Tablets contain an adequately l
15
Note
15
m Warning
15
Adding detergent
15
1 If the detergent dispenser 9 is still closed press the lock 92 to open the detergent dispenser
15
2 Close the cover on the detergent dispenser by sliding it up until the lock engages without difficulty
15
Tip
16
Combination detergent
16
Apart from conventional detergents Solo a number of products are offered with additional functions These products contain not only the detergent but also rinse aid and salt replacement substances 3in1 and depending on the combination 4in1 5i
16
As soon as combined detergents are used the rinse programme is adjusted automatically to ensure the best possible rinsing and drying result
16
m Warning
16
m Warning
16
Notes
16
Overview of programmes
17
Overview of programmes
17
The max possible number of programmes is illustrated in this overview The corresponding programmes and their arrangement can be found on the fascia
17
Type of utensils
17
Type of soiling
17
Programme
17
Possible additional options
17
Programme sequence
17
Programme selection
17
You can select a suitable programme according to the type of utensils and degree of soiling
17
Information for test institutes
18
Test institutes receive the information for comparability tests e g according to EN60436
18
These are the conditions for conducting the tests however these are not the results or consumption values
18
Request by e mail to
18
dishwasher test appliances com
18
The product number E no and the production number FD are required which you can find on the rating plate 9 on the appliance door
18
TurboSpeed 20 min TurboSpeed 20 min especially quick rinsing programme with one off preheating
18
depending on model
18
The appliance is heated up once approx 25 min then the appliance is loaded and several quick rinse cycles 20 min each can run in succession
18
Note
18
Please read the operation carefully the programme differs from the other programmes
18
1 Close the door
18
2 Switch on ON OFF switch
18
3 Select programme TurboSpeed 20 min
18
4 Press START button h
18
5 As soon as p p Load flashes open and load the appliance and start the rinsing phase by pressing the START button h
18
6 As soon as ⠹ ⠹⠹ is indicated on the digital display the rinse cycle has ended
18
7 Remove utensils
18
8 If more rinse cycles are required reload dishwasher and press the START button
18
9 If no more rinse cycles are required switch off ON OFF switch
18
0 Additional options
19
Additional options
19
depending on model
19
Additional options can be set with the buttons
19
Express Wash Speed Perfect VarioSpeed Å Express Wash Speed Perfect VarioSpeed
19
This function can reduce the running time by approx 20 to 50 depending on the selected rinse programme The change in the running time is indicated on the digital display To obtain optimum cleaning results at a reduced running time water and
19
Half load Half load
19
If you have only a few items to wash e g glasses cups plates you can switch to â half loadâ This will save water energy and time It is recommended to put a little less detergent in the detergent dispenser than for a full load
19
 Hygiene Hygiene
19
The temperature is increased during the cleaning process This increases the hygiene status This additional option is ideal for cleaning e g chopping boards and baby bottles
19
à Intensive zone Intensive zone
19
Perfect for a mixed load You can wash very soiled pots and pans in the lower basket together with normally soiled utensils in the upper basket The spray pressure in the lower basket is intensified the rinsing temperature is increased slightly
19
 Extra drying Extra drying
19
An increased temperature during the final rinse and an extended drying phase ensure that even plastic parts dry better There is a slight increase in the energy consumption
19
1 Operating the appliance
20
Operating the appliance
20
Programme data
20
The programme data consumption values can be found in the summary of instructions They refer to normal conditions and the water hardness set value â â ¹â Different influencing factors such as e g water temperature or line pressure may result
20
Aqua sensorAqua sensor
20
depending on model
20
The Aqua sensor is an optical measuring device light barrier which measures the turbidity of the rinsing water
20
The Aqua sensor is used according to the programme If the Aqua sensor is active â cleanâ rinsing water can be transferred to the next rinse bath and water consumption can be reduced by 3â 6 litres If the turbidity is greater the water is drai
20
Switching on the appliance
20
1 Turn on the tap fully
20
2 Switch on ON OFF switch
20
3 Press the START button h
20
Note
20
Programme TurboSpeed 20 min
20
When the START button h is pressed the first time the heating up phase approx 25 min irrespective of the initial situation of the appliance starts After the appliance has been opened loaded and closed the rinsing phase 20 min starts when
20
Programme sequence indicatorProgramme sequence indicator
21
Your dishes are being cleaned
21
Your dishes are being rinsed
21
Your dishes are being dried
21
Remaining running time display
21
When the programme is selected the remaining running time of the programme is indicated on the digital display
21
The running time is determined during the programme by the water temperature the number of utensils as well as the degree of soiling and may vary depending on the selected programme
21
Programme TurboSpeed 20 min
21
During the heating up phase â and the remaining running time are indicated alternately on the digital display at the end p flashes indicating that the appliance can be opened and loaded When the appliance has been restarted the remaining runnin
21
Timer programmingTimer programming
21
depending on model
21
You can delay the start of the programme in 1 hour steps up to 24 hours
21
1 Close the door
21
2 Switch on ON OFF switch
21
3 Press button X until the digital display jumps to Å â ¹â
21
4 Press X or â button until the displayed time corresponds with your requirements
21
5 Press START button h timer programming is activated
21
6 To delete timer programming press the X or â button until Š⠹⠹ is indicated on the digital display
21
End of programme
21
The programme has ended when the value ⠹ ⠹⠹ is indicated on the numerical display
21
The following applies to TurboSpeed 20 min
21
As soon as ⠹ ⠹⠹ is indicated on the digital display the rinse cycle has ended When the appliance door has been opened p is indicated on the digital display If no further rinse cycle is required switch off the appliance with the ON OFF s
21
Automatic switch off after end of programme or interior light Automatic switch off interior light
22
depending on model
22
To save energy the dishwasher can be automatically switched off 1 min or 120 min after the programme ends
22
The setting can be selected from Ë â ¹â ¹ to Ë â ¹Æ
22
Appliance does not switch off automatically
22
The interior light 1 comes on when the door is opened irrespective of whether the ON OFF switch is switched on or off When the door is closed the light is off If the door is open for longer than 60 min the light switches off automatically The
22
Appliance switches off after 1 min
22
Appliance switches off after 120 min
22
1 Close the door
22
2 Switch on ON OFF switch
22
3 Hold down programme button and press START button h until â â ¹ is indicated on the digital display
22
4 Release both buttons
22
5 Keep pressing programme button until the value Ë â ¹ is indicated on the numerical display
22
To change the setting
22
1 Press programme button 3
22
2 Press START button h
22
Switching off the appliance
22
Short time after the end of the programme
22
1 Switch off ON OFF switch
22
2 Turn off the tap not applicable if Aqua Stop fitted
22
3 Remove the utensils when they have cooled down
22
Note
22
In the case of the TurboSpeed 20 min programme switch off if no further rinse cycle is to follow
22
Interrupting the programme
23
1 Switch off ON OFF switch
23
2 To continue the programme switch on the ON OFF switch again
23
Terminating the programmeTerminating the programme Reset
23
1 Press START button h for approx 3 sec
23
2 The programme sequence lasts approx 1 min On the digital display is indicated ⠹ ⠹⠹
23
3 Switch off ON OFF switch
23
Changing the programme
23
When the START button h has been pressed the programme cannot be changed
23
The only way a programme can be changed is by Cancel programme Reset
23
Intensive drying
23
The final rinse uses a higher temperature which improves the drying result The running time may increase slightly Caution if utensils are delicate
23
1 Close the door
23
2 Switch on ON OFF switch
23
3 Hold down programme button and press START button h until the digital display â â ¹ is indicated
23
4 Release both buttons
23
5 Press programme button until the factory set value Š⠹⠹ is indicated on the digital display
23
To change the setting
23
1 Press the button 3 to switch the Intensive drying on Å â ¹â or off Š⠹⠹
23
2 Press START button h
23
2 Cleaning and maintenance
24
Cleaning and maintenance
24
A regular inspection and maintenance of your machine will help to prevent faults This saves time and prevents problems
24
Overall condition of the machine
24
If you find such deposits
24
Clean the appliance with detergents appliance cleaners which are particularly suitable for use with dishwashers
24
Never use a steam cleaner to clean your dishwasher The manufacturer is not liable for any consequential damage
24
Regularly wipe the front of the appliance and fascia with a damp cloth water and a little washing up liquid are adequate Do not use sponges with a rough surface or abrasive detergents as these could scratch the surfaces
24
Stainless steel appliances To prevent corrosion avoid using sponge cloths or wash them out thoroughly several times before using for the first time
24
m Warning
24
Health hazard
24
Special salt and rinse aid
24
Filters
25
The filters 1Z keep large foreign objects in the rinsing water away from the pump These foreign objects may occasionally block the filters
25
The filter system consists of a coarse filter a flat fine filter and a microfilter
25
1 After each washing cycle check the filters for residue
25
2 Unscrew filter cylinder as illustrated and take out filter system
25
3 Remove any residue and clean filters under running water
25
4 Re install filter system in reverse sequence and ensure that the arrow marks are opposite each other after closing the filter system
25
Spray arms
25
Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1B and 1J
25
1 Check outlet nozzles on the spray arms for blockages
25
2 Unscrew the upper spray arm 1B
25
3 Remove the lower spray arm 1J upwards
25
4 Clean spray arms under running water
25
5 Re engage or screw on spray arms
25
3 Fault what to do
26
Fault what to do
26
Experience has shown that you can rectify most faults which occur in daily operation yourself This ensures that the machine is quickly available to you again In the following overview you can find possible causes of malfunctions and helpful informa
26
Note
26
m Warning
26
Waste water pump
26
Large food remnants or foreign objects which were not captured by the filters may block the waste water pump The rinsing water will then be above the filter
26
m Warning
26
Risk of cuts
26
In this case
26
1 First always disconnect the appliance from the power supply
26
2 Take out top basket 1 and bottom basket 1j
26
3 Remove the filters 1Z
26
4 Scoop out water use a sponge if required
26
5 Prise out the white pump cover as illustrated using a spoon Grip the cover on the crosspiece and lift diagonally inwards Remove cover completely
26
6 Check impeller wheel and remove any foreign objects
26
7 Place cover in the original position and press down until it engages click
26
8 Install filters
26
9 Re insert baskets
26
Fault table
27
Fault
27
Cause
27
Remedial action
27
4 Customer service
35
Customer service
35
If you are unable to rectify the fault please contact your customer service We always find a suitable solution even to avoid unnecessary visits by technicians Contact information for your nearest customer service can be found on the back of these
35
Rely on the competence of the manufa cturer Contact us You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your domestic appliances
35
5 Installation and connection
35
Installation and connection
35
The dishwasher must be connected correctly otherwise it will not function properly The specifications for the inlet and outlet as well as the electrical connected loads must correspond with the required criteria as specified in the following paragr
35
Install the appliance in the correct sequence
35
1 Checking appliance on delivery
35
2 Installing the appliance
35
3 Waste water connection
35
4 Drinking water connection
35
5 Electrical connection
35
Product package
35
If you have any complaints contact the dealer where you purchased the appliance or our customer service
35
depending on model
35
Safety instructions
35
Please follow the safety instructions under â Installationâ
35
Delivery
36
Your dishwasher has been checked thoroughly in the factory to ensure that it is in working order This may cause small water stains These will disappear after the first wash cycle
36
Technical specifications
36
Weight
36
max 60 kg
36
Voltage
36
220â 240 V 50 Hz or 60 Hz
36
Connected load
36
2 0â 2 4 kW
36
Fuse
36
10 16 A UK 13A
36
Power input
36
switched off 0 10 W
36
not switched off 0 10 W
36
Water pressure
36
at least 0 05 MPa 0 5 bar maximum 1 MPa 10 bar At a higher water pressure connect pressure reducing valve ahead
36
Inlet rate
36
minimum 10 litres minute
36
Water temperature
36
cold water hot water max temperature 60 Â C
36
Capacity
36
12â 15 place settings depending on model
36
Installation
36
The required installation dimensions can be found in the installation instructions Level the appliance with the aid of the height adjustable feet Ensure that the appliance is situated securely on the floor
36
Waste water connection
36
1 The required work sequence can be found in the installation instructions If required fit a siphon with an drainage connection
36
2 Connect the waste water hose to the drainage connection of the siphon with the enclosed parts
36
Drinking water connection
37
1 Fasten the drinking water connection to the tap according to the installation instructions using the enclosed parts
37
2 When replacing the appliance always use a new water supply hose
37
Water pressure
37
At least 0 05 MPa 0 5 bar maximum 1 MPa 10 bar At a higher water pressure connect pressure reducing valve ahead
37
Inlet rate
37
Minimum 10 litres minute
37
Water temperature
37
Cold water hot water max temperature 60 Â C
37
Warm water connection Warm water connection
37
depending on model
37
The dishwasher can be connected to cold or hot water up to max 60 Â C
37
Connection to hot water is recommended if the hot water can be supplied by energetically favourable means and from a suitable installation e g solar heating system with circulation line
37
This will save energy and time
37
The hot water setting â â ¹â allows you to adjust your appliance optimally to operation with hot water
37
It is recommended to have a water temperature temperature of the incoming water of at least 40 Â C and no more than 60 Â C
37
It is not recommended to connect the appliance to hot water if the water is supplied from an electric boiler
37
Setting hot water
37
1 Close the door
37
2 Switch on ON OFF switch
37
3 Hold down programme button and press START button h until â â ¹ is indicated on the digital display
37
4 Release both buttons
37
5 Press programme button until the factory set value â ⠹⠹ is indicated on the digital display
37
To change the setting
37
1 By pressing the 3 button you can switch the hot water setting off â ⠹⠹ or on â â ¹â
37
2 Press START button h
37
Electrical connection
37
Removing the appliance
38
Also observe the sequence of worksteps here
38
1 Disconnect the appliance from the power supply
38
2 Turn off the water supply
38
3 Undo the waste water and drinking water connection
38
4 Loosen fastening screws for the furniture parts
38
5 If fitted remove the base panel
38
6 Pull out the appliance carefully pulling the hose behind
38
Transportation
38
Empty the dishwasher and secure loose parts
38
Drain the appliance according to the following steps
38
1 Turn on the tap
38
2 Close the door
38
3 Switch on ON OFF switch
38
4 Select programme with the highest temperature
38
5 Press START button h
38
6 After approx 4 minutes press the START button h until â ¹ â ¹â is indicated on the digital display
38
7 Switch off ON OFF switch
38
8 Turn off the tap disconnect supply hose and drain water
38
Transport appliance upright only
38
This prevents residual water from running into the machine control and damaging the programme sequence
38
Protection against frostProtection against frost Emptying the appliance
38
If the appliance is in a room where there is a risk of frost e g holiday home empty the appliance completely see Transportation
38
Search:
×
Search
