Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Å Draining the condensation water 15
3
Y The main points in brief 17
3
* Getting to know your appliance 18
3
Z Laundry 21
3
/ Programmes and buttons 22
3
1 Operating the appliance 25
3
M Setting the signal and current 29
3
D Cleaning 30
3
3 Faults and what to do about them 32
3
J After-sales service 34
3
[ Consumption values 35
3
J Technical data 36
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
5
: Warning
5
Risk of electric shock/fire/ material damage/damage to the appliance!
5
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of fire/material damage/ damage to the appliance!
6
: Warning
6
Risk of injury/material damage/damage to the appliance!
6
: Warning
7
Risk of injury!
7
Operation
7
: Warning
7
Risk of explosions/fire!
7
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of poisoning/material damage!
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of injury!
9
: Warning
9
Risk of burns!
9
Caution!
9
Material damage/damage to the appliance
9
Do not exceed the maximum load capacity of dry laundry. Make sure you comply with the maximum load capacities specified for each of the programs. ~ Page 22
9
Do not operate the appliance without a fluff filter, or with a fluff filter that is defective.
9
Keep these away from the appliance.
9
Do not dry laundry items that contain foam or foam rubber in the appliance.
9
Use detergents/care products/cleaning agents and softeners in accordance with the manufacturers' instructions.
10
Make sure that the appliance's air inlet is never obstructed when the appliance is in operation, and that the area around the appliance is adequately ventilated.
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
Note:
13
Note:
13
If in doubt, have the appliance connected by a specialist.
13
Optional accessories
14
Transport and frost protection
14
1. Use the programme selector to select any programme.
14
2. Press the Start button.
14
3. Wait for 5 minutes.
14
Note:
14
4. Empty the condensate container again.
14
5. Switch off the dryer.
14
Caution!
14
Any residual water may leak out and cause material damage.
14
Å Draining the condensation water
15
Draining the condensation water
15
1. Remove the accessories from the dryer drum.
15

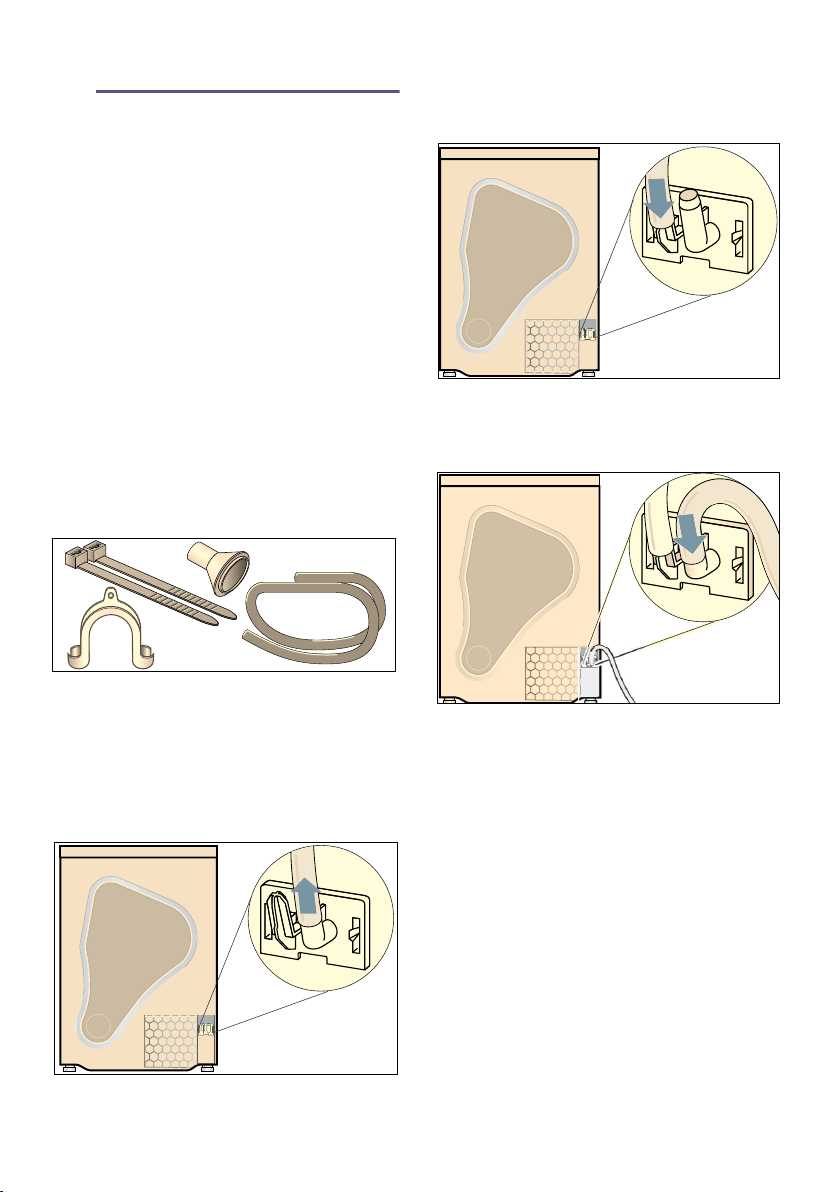

2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
15
3. Detach the condensation hose from the socket.
15
4. Place the condensation hose in the "parked" position.
15
5. Take the drain hose from the accessories and secure it to the free connecting piece.
15
6. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
16
Caution!
16
Accumulated water can be drawn back into the dryer and may cause material damage.
16
Check that the water drains away from the wash basin quickly. The drain must not be sealed or blocked.
16
Caution!
16
Material damage due to leaks or draining water.
16
Secure the drain hose so that it cannot slip out.Do not kink the drain hose. Ensure that a height difference of max. 100 cm and min. 80 cm between the installation surface and the drain is maintained for drainage into a siphon.
16
The condensation water is now discharged via the drain hose into the waste-water system or into a washbasin.
16
Note:
16
If you want to drain the condensation water back into the condensation container, reverse these steps.
16
Y The main points in brief
17
The main points in brief
17
* Getting to know your appliance
18
Getting to know your appliance
18
Dryer
18
Control panel
19
Display panel
20
Buttons in the display panel
20
Display panel
20
Z Laundry
21
Laundry
21
Preparing the laundry
21
: Warning
21
Risk of explosion/fire!
21
Caution!
21
The dryer drum and fabrics could be damaged.
21
Notes
21
Sorting washing according to:
21
Note:
21
Do not load laundry from the washing machine directly into the tumble dryer. Sort the spun laundry before placing it in the dryer drum.
21
Caution!
21
Possibility of material damage to the dryer or laundry.
21
Do not tumble-dry the following fabrics:
21
/ Programmes and buttons
22
Programmes and buttons
22
Programmes
22
Programme and fabrics
22
Maximum load and programme settings/info
22
Notes
23
Buttons
24
Buttons
24
Explanations and notes
24
Note:
24
Note:
24
1 Operating the appliance
25
Operating the appliance
25
Loading laundry and switching on the dryer
25
Note:
25
The dryer must be correctly positioned and connected, ~ Page 13.
25
1. Place the laundry in the drum.
25
2. Turn the programme selector to any programme to switch the dryer on.
25
3. Close the dryer door.
25
Caution!
25
Possibility of material damage to the dryer or laundry.
25
Setting a programme
25
Note:
25
If you have activated the childproof lock, you must deactivate it before you can set a programme, see ~ Page 24.
25
1. Select the required programme; detailed information on the programmes can be found from ~ Page 22 onwards.
25
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
25
Note:
25
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 24 onwards.
25
Starting the programme
25
Note:
25
If you want to lock the programme to prevent it from being adjusted inadvertently, you can select the childproof lock, see ~ Page 24.
25
Programme sequence
25
Note:
25
When a programme is selected, the expected drying time for the recommended load is displayed. During drying moisture sensors detect the remaining moisture in the load and adjust the programme length (except timed programmes). This is visible via the ...
25
Changing the programme or adding laundry
26
1. To pause the programme, open the dryer door or press the Start button.
26
2. Add or remove laundry.
26
3. Select another programme or an additional function, if required.
26
4. Close the dryer door.
26
5. Press the Start button.
26
Note:
26
The programme duration in the display panel is updated depending on the load and residual moisture in the laundry. The values displayed may change after the programme is changed or the load is adapted.
26
Cancelling the programme
26
Caution!
26
Risk of fire. Laundry may catch fire.
26
Programme end
26
Removing laundry and switching off the dryer
26
1. Remove the laundry.
26
2. Turn the programme selector to the "off" position.
26
Clean the fluff filter
27
Note:
27
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is blocked or dirty, this reduces the flow of air, which prevents the dryer from achieving its maximum performance. Clean fluff filters also reduce ene...
27
1. Open the dryer door and remove all fluff from the door.
27
2. Remove the fluff filter.
27
3. Remove the fluff from the recess in the fluff filter.
27
Note:
27
4. Open the fluff filter and remove all the fluff.
27
5. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
27
6. Dry the fluff filter, close it and reinsert the fluff filter.
27
Caution!
27
The dryer may be damaged.
27
Emptying the condensate container
28
1. Pull out the condensate container horizontally.
28
2. Pour out the condensation water.
28
Caution!
28
Dirty condensation water may be harmful to your health and cause material damage.
28
Condensation water is not suitable for drinking and may be contaminated with fluff. Do not drink the condensation water or reuse it.
28
3. Push in the condensate container until you feel it lock back into place in the dryer.
28
M Setting the signal and current
29
Setting the signal and current
29
Note:
29
Activating setting mode
29
1. Switch the dryer on.
29
2. Select the "Cottons" programme in position 1 and wait for five seconds.
29
Setting mode is now activated. The symbols go out in the display panel and the programme duration is displayed.
29
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
29
2. The spin speed is shown in the display.
29
3. Press the "Ready in" time button or the drying time button to change the spin speed.
29
4. Turn the programme selector clockwise to position 3.
29
5. The volume of the audible signal at the end of the programme is shown in the display.
29
6. Press the "Ready in" time button or the drying time button to change the volume.
29
7. Turn the programme selector clockwise to position 4.
29
8. The volume for the audible button signal is shown in the display.
29
9. Press the "Ready in" time button or the drying time button to change the volume.
29
10. Turn the programme selector clockwise to position 5.
29
11. The current is shown in the display.
29
12. Press the "Ready in" time button or the drying time button to change the current.
29
D Cleaning
30
Cleaning
30
Cleaning the dryer and the control panel
30
: Warning
30
Risk of death!
30
Cleaning the heat exchanger
30
Notes
30
1. Allow the dryer to cool down and place an absorbent cloth beneath the maintenance flap.
30
Note:
30
2. Open the maintenance flap fully.
30
3. Turn both locking levers towards each other.
30
4. Remove the top cap from the heat exchanger.
30
5. Remove the heat exchanger.
30
6. Flush water through the heat exchanger from all sides to completely remove all fluff.
30
Caution!
30
There is a risk of damage to the heat exchanger.
30
Only use water to clean the heat exchanger, and do not use any hard objects or objects with sharp edges to remove the fluff.
30
7. Remove all fluff from the seals on the dryer and on the heat exchanger.
30
8. Allow all the water to drip off.
30
9. First insert the heat exchanger, and then fit the heat exchanger's top cap in place.
31
10. Turn both locking levers back and close the maintenance flap until it locks into place.
31
11. Close the maintenance flap and press on it until you feel it click in place.
31
Cleaning the moisture sensor
31
Note:
31
The dryer is equipped with a stainless-steel moisture sensor. The moisture sensor measures how damp the laundry is.
31
After long periods of usage the moisture sensor may become covered by a fine layer of limescale or residues of detergents and care products. Such residues must be removed regularly as the sensor function and in consequence the drying result may be im...
31
Caution!
31
Moisture sensor may be damaged.
31
3 Faults and what to do about them
32
Faults and what to do about them
32
Faults
32
Cause/remedy
32
Note:
32
Note:
33
If you cannot rectify the fault yourself by turning the dryer off and on, please contact our after-sales service.
33
J After-sales service
34
After-sales service
34
[ Consumption values
35
Consumption values
35
Consumption values table
35
8 kg
35
4 kg
35
8 kg
35
4 kg
35
10 / 16 A
35
10 / 16 A
35
10 / 16 A
35
10 / 16 A
35
1400 rpm
35
140 min. / 108 min.
35
95 min. / 65 min.
35
3.97 kWh/ 3.84 kWh
35
2.29 kWh/ 2.22 kWh
35
1000 rpm
35
158 min. / 126 min.
35
106 min. / 76 min.
35
4.76 kWh/ 4.61 kWh
35
2.68 kWh/ 2.59 kWh
35
800 rpm
35
176 min. / 144 min.
35
117 min. / 87 min.
35
5.49 kWh/ 5.31 kWh
35
3.30 kWh/ 3.20 kWh
35
1400 rpm
35
116 min. / 86 min.
35
86 min. / 56 min.
35
2.40 kWh/ 2.30 kWh
35
1.54 kWh/ 1.49 kWh
35
1000 rpm
35
135 min. / 103 min.
35
97 min. / 67 min.
35
3.65 kWh/ 3.53 kWh
35
2.37 kWh/ 2.30 kWh
35
800 rpm
35
153 min. / 121 min.
35
110 min. / 80 min.
35
4.11 kWh/ 3.96 kWh
35
2.70 kWh/ 2.62 kWh
35
3.5 kg
35
3.5 kg
35
800 rpm
35
52 min. / 46 min.
35
1.46 kWh/ 1.42 kWh
35
600 rpm
35
65 min. / 56 min.
35
1.79 kWh/ 1.74 kWh
35
Most efficient programme for cotton fabrics
36
Standard programmes for cottons in accordance with current EU regulation 932/2012
36
Programme
36
Load
36
Energy consumption
36
Programme length
36
J Technical data
36
Technical data
36
File type: PDF
File name: wtg84260ee-11.pdf
File size: 2.3 MB
File Language: English
Pages: 40
Author: Bosch
Published: 2020-02-15 00:00:00
Updated: 2023-05-28
Download File
Specifications
Brand:
Bosch
Model: WTG84260EE/11
Category:
Washers & Dryers
See other models:
MUM4426/04
PIE645BB1E/02
SPV50E70EU/40
TCC78K750/94
SMV46NX01E/65
Photos
Download User Manual
Bosch in United States
1-800-944-2904
Twitter
Website
Related Products
Bosch WTW84361BY/23
Bosch WTE86302EE/17
Indesit IDPE 845 A1 ECO
Bosch WTG86260EE/04
Bosch WTG864H2/01
Bosch WTG86401UC/01
Bosch WTG86400UC/01
Bosch WTG86402UC/01
Bosch PGQ7B5B90/01
Bosch SHX878WD5N
Bosch WTW87566AU
Bosch SHX4ATF5UC/14
Bosch SMP66MX01A
Bosch SHE878ZD6N
Bosch SHX45P05UC/64
Table of Contents
×
Your new tumble dryer
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
Contentsen Installation and operating instructions
3
8 Intended use 4
3
( Safety instructions 4
3
7 Environmental protection 12
3
5 Installation and connection 13
3
Å Draining the condensation water 15
3
Y The main points in brief 17
3
* Getting to know your appliance 18
3
Z Laundry 21
3
/ Programmes and buttons 22
3
1 Operating the appliance 25
3
M Setting the signal and current 29
3
D Cleaning 30
3
3 Faults and what to do about them 32
3
J After-sales service 34
3
[ Consumption values 35
3
J Technical data 36
3
8 Intended use
4
Intended use
4
( Safety instructions
4
Safety instructions
4
Children/people/pets
4
: Warning
4
Risk of death!
4
: Warning
5
Risk of death!
5
: Warning
5
Risk of suffocation!
5
: Warning
5
Risk of poisoning!
5
: Warning
5
Eye/skin irritation!
5
Installation
5
: Warning
5
Risk of electric shock/fire/ material damage/damage to the appliance!
5
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
: Warning
6
Risk of fire/material damage/ damage to the appliance!
6
: Warning
6
Risk of injury/material damage/damage to the appliance!
6
: Warning
7
Risk of injury!
7
Operation
7
: Warning
7
Risk of explosions/fire!
7
: Warning
8
Risk of explosions/fire!
8
: Warning
8
Risk of fire/material damage/ damage to the appliance!
8
: Warning
8
Risk of poisoning/material damage!
8
: Warning
8
Risk of poisoning!
8
: Warning
9
Risk of injury!
9
: Warning
9
Risk of burns!
9
Caution!
9
Material damage/damage to the appliance
9
Do not exceed the maximum load capacity of dry laundry. Make sure you comply with the maximum load capacities specified for each of the programs. ~ Page 22
9
Do not operate the appliance without a fluff filter, or with a fluff filter that is defective.
9
Keep these away from the appliance.
9
Do not dry laundry items that contain foam or foam rubber in the appliance.
9
Use detergents/care products/cleaning agents and softeners in accordance with the manufacturers' instructions.
10
Make sure that the appliance's air inlet is never obstructed when the appliance is in operation, and that the area around the appliance is adequately ventilated.
10
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
11
Risk of injury/material damage/damage to the appliance!
11
Caution!
11
Material damage/damage to the appliance
11
7 Environmental protection
12
Environmental protection
12
Packaging/old appliance
12
Energy-saving tips
12
Note:
12
5 Installation and connection
13
Installation and connection
13
Scope of delivery
13
Installing and connecting the dryer
13
: Warning
13
Risk of death!
13
: Warning
13
Children could lock themselves in the dryer, putting their lives at risk!
13
Caution!
13
Risk of injury
13
Caution!
13
Risk of material damage to the dryer or fabrics
13
Note:
13
Note:
13
If in doubt, have the appliance connected by a specialist.
13
Optional accessories
14
Transport and frost protection
14
1. Use the programme selector to select any programme.
14
2. Press the Start button.
14
3. Wait for 5 minutes.
14
Note:
14
4. Empty the condensate container again.
14
5. Switch off the dryer.
14
Caution!
14
Any residual water may leak out and cause material damage.
14
Å Draining the condensation water
15
Draining the condensation water
15
1. Remove the accessories from the dryer drum.
15
2. When the dryer is delivered from the factory, the hose for discharging the condensation into the condensation container is fastened to the connecting piece.
15
3. Detach the condensation hose from the socket.
15
4. Place the condensation hose in the "parked" position.
15
5. Take the drain hose from the accessories and secure it to the free connecting piece.
15
6. Fasten the other end of the drain hose with the remaining accessories, depending on the connection situation (A, B or C).
16
Caution!
16
Accumulated water can be drawn back into the dryer and may cause material damage.
16
Check that the water drains away from the wash basin quickly. The drain must not be sealed or blocked.
16
Caution!
16
Material damage due to leaks or draining water.
16
Secure the drain hose so that it cannot slip out.Do not kink the drain hose. Ensure that a height difference of max. 100 cm and min. 80 cm between the installation surface and the drain is maintained for drainage into a siphon.
16
The condensation water is now discharged via the drain hose into the waste-water system or into a washbasin.
16
Note:
16
If you want to drain the condensation water back into the condensation container, reverse these steps.
16
Y The main points in brief
17
The main points in brief
17
* Getting to know your appliance
18
Getting to know your appliance
18
Dryer
18
Control panel
19
Display panel
20
Buttons in the display panel
20
Display panel
20
Z Laundry
21
Laundry
21
Preparing the laundry
21
: Warning
21
Risk of explosion/fire!
21
Caution!
21
The dryer drum and fabrics could be damaged.
21
Notes
21
Sorting washing according to:
21
Note:
21
Do not load laundry from the washing machine directly into the tumble dryer. Sort the spun laundry before placing it in the dryer drum.
21
Caution!
21
Possibility of material damage to the dryer or laundry.
21
Do not tumble-dry the following fabrics:
21
/ Programmes and buttons
22
Programmes and buttons
22
Programmes
22
Programme and fabrics
22
Maximum load and programme settings/info
22
Notes
23
Buttons
24
Buttons
24
Explanations and notes
24
Note:
24
Note:
24
1 Operating the appliance
25
Operating the appliance
25
Loading laundry and switching on the dryer
25
Note:
25
The dryer must be correctly positioned and connected, ~ Page 13.
25
1. Place the laundry in the drum.
25
2. Turn the programme selector to any programme to switch the dryer on.
25
3. Close the dryer door.
25
Caution!
25
Possibility of material damage to the dryer or laundry.
25
Setting a programme
25
Note:
25
If you have activated the childproof lock, you must deactivate it before you can set a programme, see ~ Page 24.
25
1. Select the required programme; detailed information on the programmes can be found from ~ Page 22 onwards.
25
2. Use the programme selector to set the required programme. The default programme settings for the selected programme appear in the display panel.
25
Note:
25
3. If required, adjust the default programme settings. You can find detailed information on this from ~ Page 24 onwards.
25
Starting the programme
25
Note:
25
If you want to lock the programme to prevent it from being adjusted inadvertently, you can select the childproof lock, see ~ Page 24.
25
Programme sequence
25
Note:
25
When a programme is selected, the expected drying time for the recommended load is displayed. During drying moisture sensors detect the remaining moisture in the load and adjust the programme length (except timed programmes). This is visible via the ...
25
Changing the programme or adding laundry
26
1. To pause the programme, open the dryer door or press the Start button.
26
2. Add or remove laundry.
26
3. Select another programme or an additional function, if required.
26
4. Close the dryer door.
26
5. Press the Start button.
26
Note:
26
The programme duration in the display panel is updated depending on the load and residual moisture in the laundry. The values displayed may change after the programme is changed or the load is adapted.
26
Cancelling the programme
26
Caution!
26
Risk of fire. Laundry may catch fire.
26
Programme end
26
Removing laundry and switching off the dryer
26
1. Remove the laundry.
26
2. Turn the programme selector to the "off" position.
26
Clean the fluff filter
27
Note:
27
During drying, fluff and hair from the laundry is trapped by the fluff filter. If the fluff filter is blocked or dirty, this reduces the flow of air, which prevents the dryer from achieving its maximum performance. Clean fluff filters also reduce ene...
27
1. Open the dryer door and remove all fluff from the door.
27
2. Remove the fluff filter.
27
3. Remove the fluff from the recess in the fluff filter.
27
Note:
27
4. Open the fluff filter and remove all the fluff.
27
5. Rinse away the fluff under running water or clean the fluff filter in the dishwasher.
27
6. Dry the fluff filter, close it and reinsert the fluff filter.
27
Caution!
27
The dryer may be damaged.
27
Emptying the condensate container
28
1. Pull out the condensate container horizontally.
28
2. Pour out the condensation water.
28
Caution!
28
Dirty condensation water may be harmful to your health and cause material damage.
28
Condensation water is not suitable for drinking and may be contaminated with fluff. Do not drink the condensation water or reuse it.
28
3. Push in the condensate container until you feel it lock back into place in the dryer.
28
M Setting the signal and current
29
Setting the signal and current
29
Note:
29
Activating setting mode
29
1. Switch the dryer on.
29
2. Select the "Cottons" programme in position 1 and wait for five seconds.
29
Setting mode is now activated. The symbols go out in the display panel and the programme duration is displayed.
29
1. Press and hold the Start button and, at the same time, turn the programme selector clockwise to position 2.
29
2. The spin speed is shown in the display.
29
3. Press the "Ready in" time button or the drying time button to change the spin speed.
29
4. Turn the programme selector clockwise to position 3.
29
5. The volume of the audible signal at the end of the programme is shown in the display.
29
6. Press the "Ready in" time button or the drying time button to change the volume.
29
7. Turn the programme selector clockwise to position 4.
29
8. The volume for the audible button signal is shown in the display.
29
9. Press the "Ready in" time button or the drying time button to change the volume.
29
10. Turn the programme selector clockwise to position 5.
29
11. The current is shown in the display.
29
12. Press the "Ready in" time button or the drying time button to change the current.
29
D Cleaning
30
Cleaning
30
Cleaning the dryer and the control panel
30
: Warning
30
Risk of death!
30
Cleaning the heat exchanger
30
Notes
30
1. Allow the dryer to cool down and place an absorbent cloth beneath the maintenance flap.
30
Note:
30
2. Open the maintenance flap fully.
30
3. Turn both locking levers towards each other.
30
4. Remove the top cap from the heat exchanger.
30
5. Remove the heat exchanger.
30
6. Flush water through the heat exchanger from all sides to completely remove all fluff.
30
Caution!
30
There is a risk of damage to the heat exchanger.
30
Only use water to clean the heat exchanger, and do not use any hard objects or objects with sharp edges to remove the fluff.
30
7. Remove all fluff from the seals on the dryer and on the heat exchanger.
30
8. Allow all the water to drip off.
30
9. First insert the heat exchanger, and then fit the heat exchanger's top cap in place.
31
10. Turn both locking levers back and close the maintenance flap until it locks into place.
31
11. Close the maintenance flap and press on it until you feel it click in place.
31
Cleaning the moisture sensor
31
Note:
31
The dryer is equipped with a stainless-steel moisture sensor. The moisture sensor measures how damp the laundry is.
31
After long periods of usage the moisture sensor may become covered by a fine layer of limescale or residues of detergents and care products. Such residues must be removed regularly as the sensor function and in consequence the drying result may be im...
31
Caution!
31
Moisture sensor may be damaged.
31
3 Faults and what to do about them
32
Faults and what to do about them
32
Faults
32
Cause/remedy
32
Note:
32
Note:
33
If you cannot rectify the fault yourself by turning the dryer off and on, please contact our after-sales service.
33
J After-sales service
34
After-sales service
34
[ Consumption values
35
Consumption values
35
Consumption values table
35
8 kg
35
4 kg
35
8 kg
35
4 kg
35
10 / 16 A
35
10 / 16 A
35
10 / 16 A
35
10 / 16 A
35
1400 rpm
35
140 min. / 108 min.
35
95 min. / 65 min.
35
3.97 kWh/ 3.84 kWh
35
2.29 kWh/ 2.22 kWh
35
1000 rpm
35
158 min. / 126 min.
35
106 min. / 76 min.
35
4.76 kWh/ 4.61 kWh
35
2.68 kWh/ 2.59 kWh
35
800 rpm
35
176 min. / 144 min.
35
117 min. / 87 min.
35
5.49 kWh/ 5.31 kWh
35
3.30 kWh/ 3.20 kWh
35
1400 rpm
35
116 min. / 86 min.
35
86 min. / 56 min.
35
2.40 kWh/ 2.30 kWh
35
1.54 kWh/ 1.49 kWh
35
1000 rpm
35
135 min. / 103 min.
35
97 min. / 67 min.
35
3.65 kWh/ 3.53 kWh
35
2.37 kWh/ 2.30 kWh
35
800 rpm
35
153 min. / 121 min.
35
110 min. / 80 min.
35
4.11 kWh/ 3.96 kWh
35
2.70 kWh/ 2.62 kWh
35
3.5 kg
35
3.5 kg
35
800 rpm
35
52 min. / 46 min.
35
1.46 kWh/ 1.42 kWh
35
600 rpm
35
65 min. / 56 min.
35
1.79 kWh/ 1.74 kWh
35
Most efficient programme for cotton fabrics
36
Standard programmes for cottons in accordance with current EU regulation 932/2012
36
Programme
36
Load
36
Energy consumption
36
Programme length
36
J Technical data
36
Technical data
36
Search:
×
Search
