CDI-E084-010 XX02XXX © 2003 CANON INC. PRINTED IN JAPAN
DIGITAL CAMERA
Camera User Guide
Camera User Guide
ENGLISH
Please read the Read This First section (p. 7).
Please refer to the Software Starter Guide for information on
installing the software and downloading images.
Please also read the printer user guide included with your Canon
printer.
Flowchart and Reference Guides
This digital camera is designed to perform optimally when used with
genuine Canon-brand digital camera accessories (“Canon Brand
Accessories”).
You may use non-Canon brand accessories with this digital camera.
However, Canon makes no warranties concerning, and is not
responsible for damages resulting from, use of non-Canon brand
accessories.
1
Camera Body Temperature
If your camera is used for prolonged periods, the camera body may become
warm. Please be aware of this and take care when operating the camera for
an extended period.
About the LCD Monitor
The LCD monitor is produced with extremely high-precision manufacturing
techniques. More than 99.99% of the pixels operate to specification. Less
than 0.01% of the pixels may occasionally misfire or appear as red or black
dots. This has no effect on the recorded image and does not constitute a
malfunction.
Video Format
Please set the camera’s video signal format to the one used in your region
before using it with a TV monitor (p. 146).
Charging the Date/Time Battery
• The camera has a built-in rechargeable lithium battery that maintains the
date, time and other camera settings. This battery recharges when the
main battery pack is inserted into the camera. When you first purchase the
camera, place a charged battery pack in it or use the AC adapter kit (sold
separately) for at least 4 hours to charge the date/time battery. It will
charge even when the camera power is set to Off.
• If the Date/Time menu appears when the camera power is turned on, it
means that the date/time battery charge is depleted. Recharge it as
described above.
2
About This Guide
Conventions Used in the Text
Question? Look Here First
How do I navigate the menus?
See Selecting Menus and Settings (p. 44).
What settings are available under each function?
and
Will my settings remain in effect even after I’ve turned the camera off?
See Functions Available in Each Shooting Mode (p. 188).
How do I go about printing?
See About Printing (p. 116).
What functions are available through the menu?
See FUNC. Menu (p. 148).
See Rec. Menu (p. 150).
See Play Menu (p. 152).
See Set up Menu (p. 154).
See My Camera Menu (p. 158).
In this guide SD memory card (Secure Digital, a copyright protection
system) is referred to as SD card.
Icons on the right end of title bars show the applicable operating modes.
As in the example below, the procedure can be performed in (Auto),
(Manual), (Manual/Stitch Assist) or (Movie) mode.
: This mark denotes issues that may affect the camera’s operation.
: This mark denotes additional topics that complement the basic
operating procedures.
Using the Self-timer
3
Thumb Index
Quick Start 14
Preparing the Camera 16
Basic Functions 32
Shooting 58
Replaying 93
Erasing 113
Printing/Image Transfer Settings 116
Connecting the Camera to a Computer/TV
142
Lists of Menu Options and Messages
148
Appendices 166
Troubleshooting 168
Specifications 172
4
Table of Contents
Items marked with are lists or charts that summarize camera functions or
procedures.
Read This First .................................................. 7
Please Read ..........................................................................................7
Safety Precautions................................................................................8
Preventing Malfunctions.....................................................................13
Quick Start ......................................................14
Components Guide ............................................16
Preparing the Camera .........................................21
Charging the Battery Pack ..................................................................21
Installing the Battery Pack ..................................................................23
Installing the SD Card.........................................................................25
Setting the Date and Time...................................................................28
Setting the Language..........................................................................30
Basic Functions.................................................32
Turning the Power On/Off...................................................................32
Using the LCD Monitor .......................................................................34
Information Displayed on the LCD Monitor ........................................36
Using the Viewfinder...........................................................................40
Using the Zoom ..................................................................................41
Pressing the Shutter Button................................................................42
Selecting Menus and Settings ............................................................44
Customizing the Camera (My Camera Settings)...........53
Changing My Camera Settings............................................................53
Registering My Camera Settings ........................................................55
Shooting .........................................................58
Shooting in Auto Mode.......................................................................58
Reviewing an Image Right after Shooting...........................................60
Changing Resolution/Compression Settings.......................................61
Using the Flash..............................................................................63
/ Shooting Close-Ups/Infinity Shots..........................................65
Using the Digital Zoom .......................................................................67
Continuous Shooting ....................................................................68
Using the Self-timer......................................................................69
Shooting in Manual Mode...................................................................70
5
Shooting a Movie ............................................................................... 71

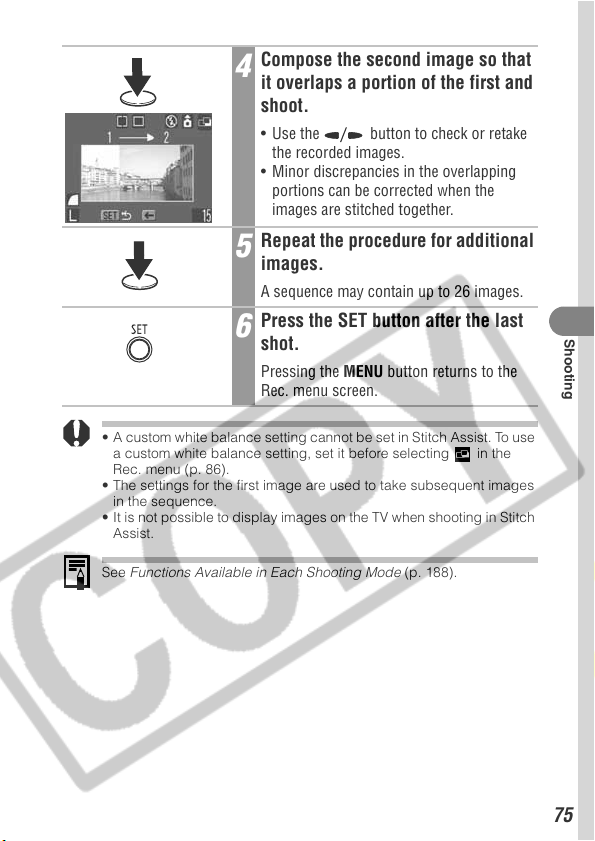

Shooting in Stitch Assist .................................................................... 73
Locking the Focus (AF Lock) .............................................................. 76
Locking the Exposure Setting (AE Lock) ............................................ 78
Locking the Flash Exposure Setting (FE Lock).................................... 79
Switching between Autofocus Modes ................................................ 80
Switching between Light Metering Modes.................................... 81
Adjusting the Exposure Compensation............................................... 82

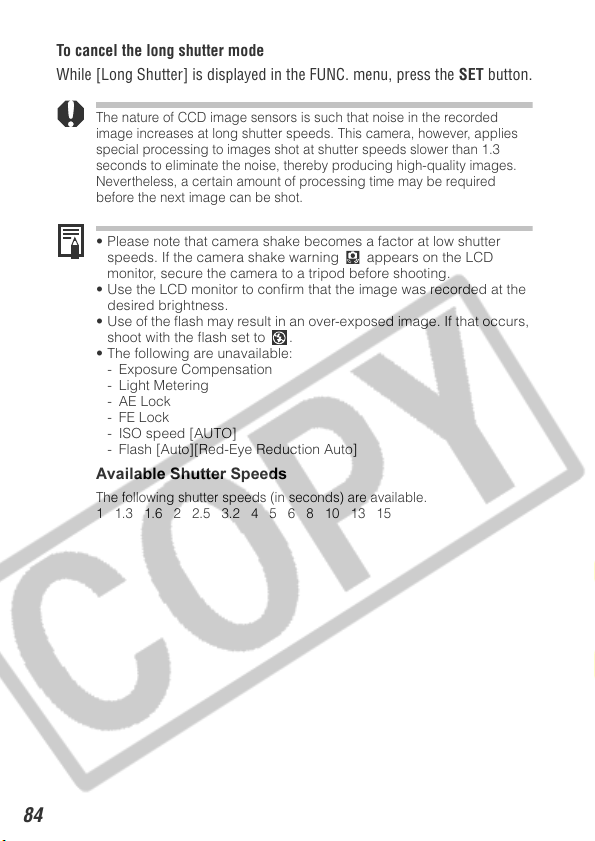

Shooting in Long Shutter Mode ......................................................... 83
Setting the White Balance .................................................................. 85
Changing the Photo Effect.................................................................. 88
Adjusting the ISO Speed .................................................................... 89
Setting the Auto Rotate Function........................................................ 90

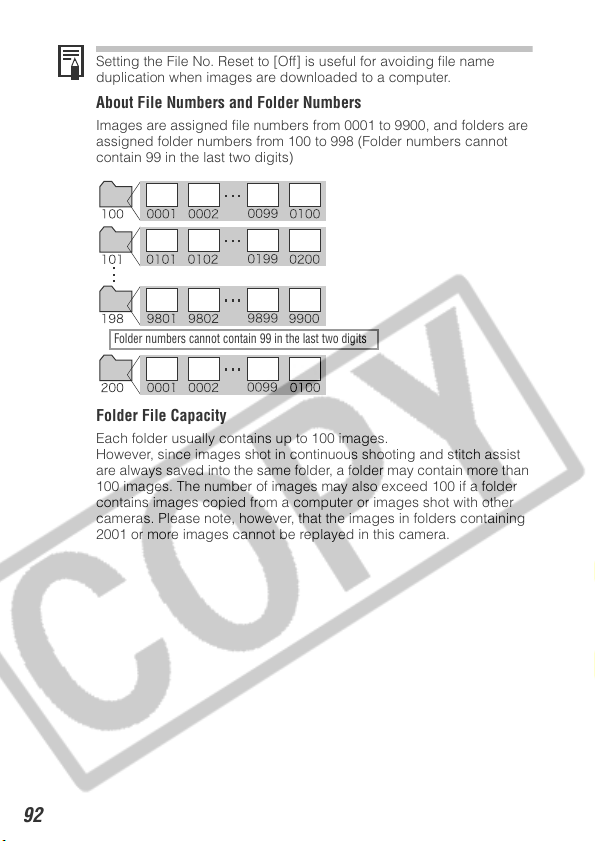

Resetting the File Number .................................................................. 91
Replaying ..................................................... 93
Displaying Images Individually........................................................... 93
Magnifying Images....................................................................... 94
Viewing Images in Sets of Nine (Index Replay)............................ 95
Viewing Movies .................................................................................. 97
Editing Movies.................................................................................. 100

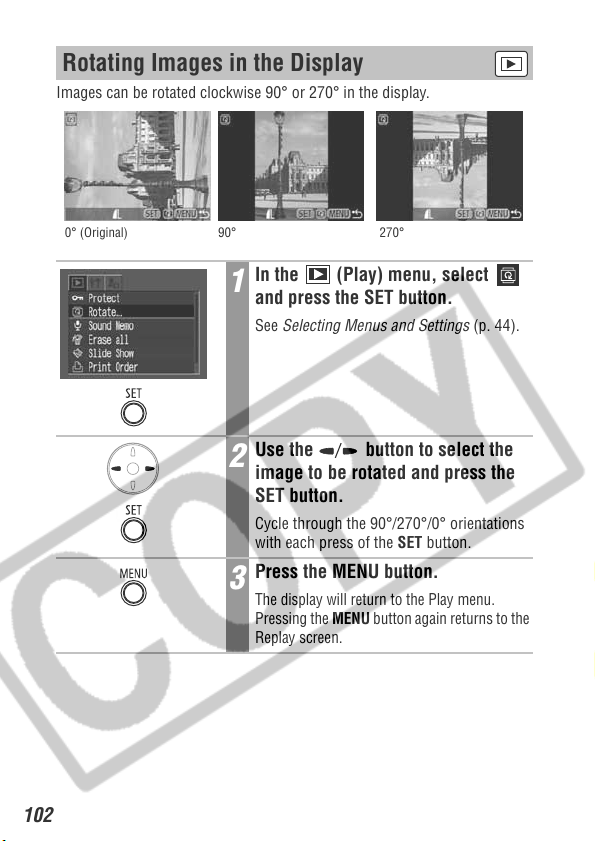

Rotating Images in the Display......................................................... 102
Attaching Sound Memos to Images ................................................. 104

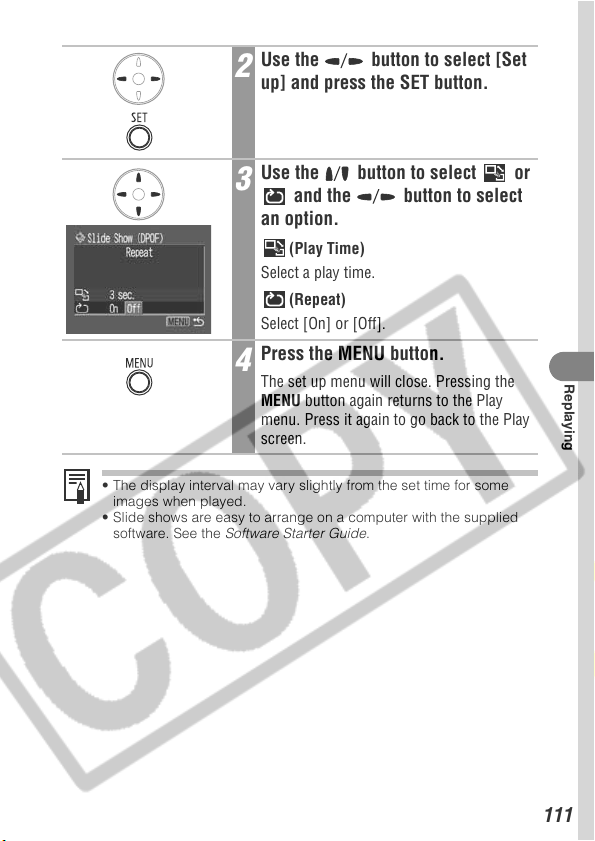

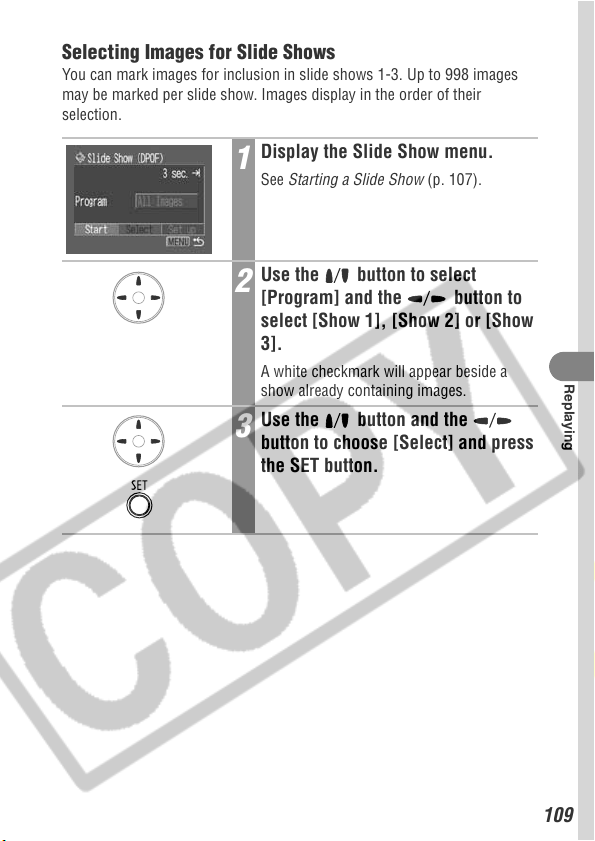

Automated Playback (Slide Shows).................................................. 107
Protecting Images ............................................................................ 112
Erasing ......................................................... 113
Erasing Single Images................................................................ 113
Erasing All Images ........................................................................... 114
Formatting SD Cards........................................................................ 115
Printing ........................................................ 116
About Printing .................................................................................. 116

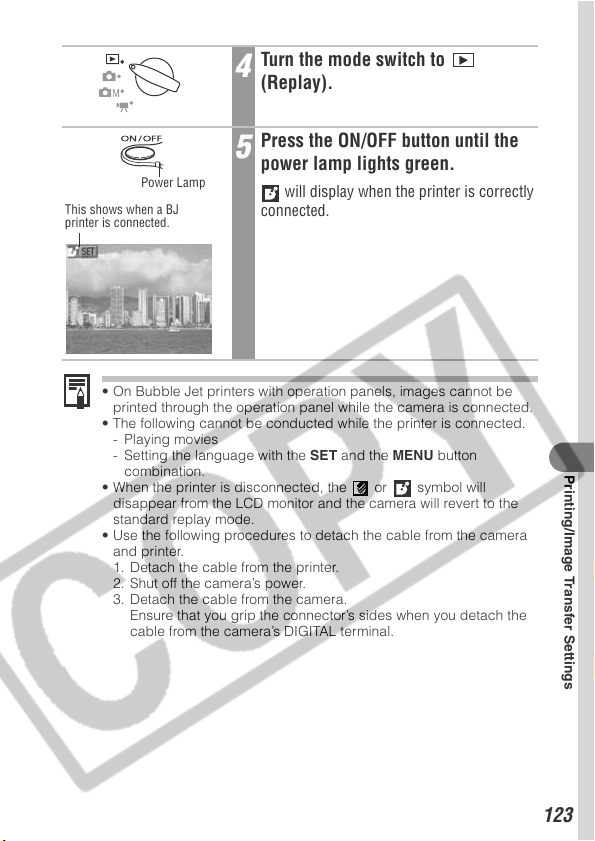

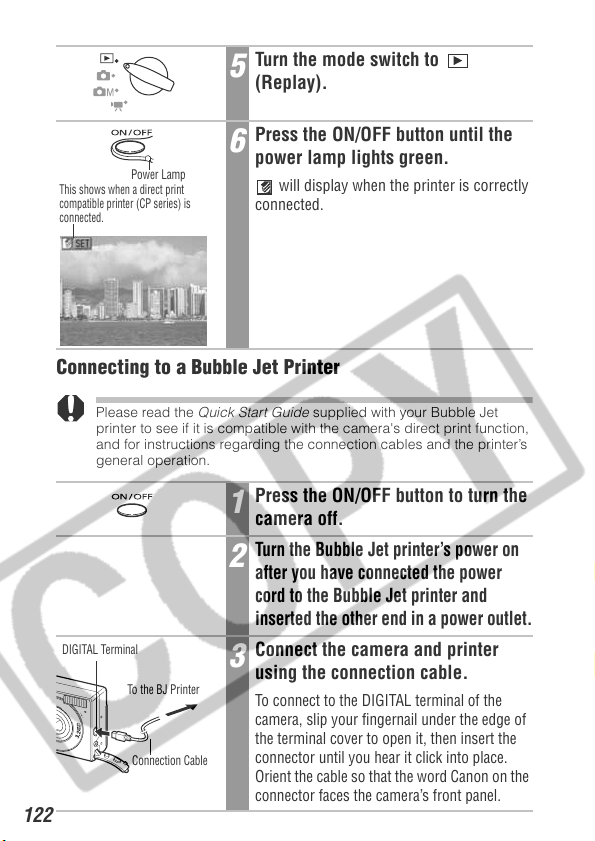

Connecting a Printer......................................................................... 120
Printing ............................................................................................ 124

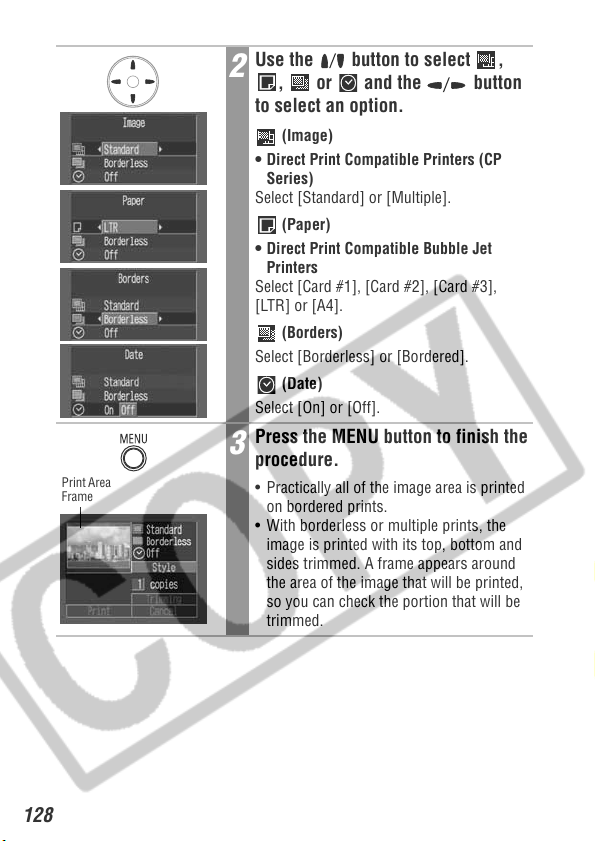

Setting the Print Settings (Direct Print Function) ............................. 126

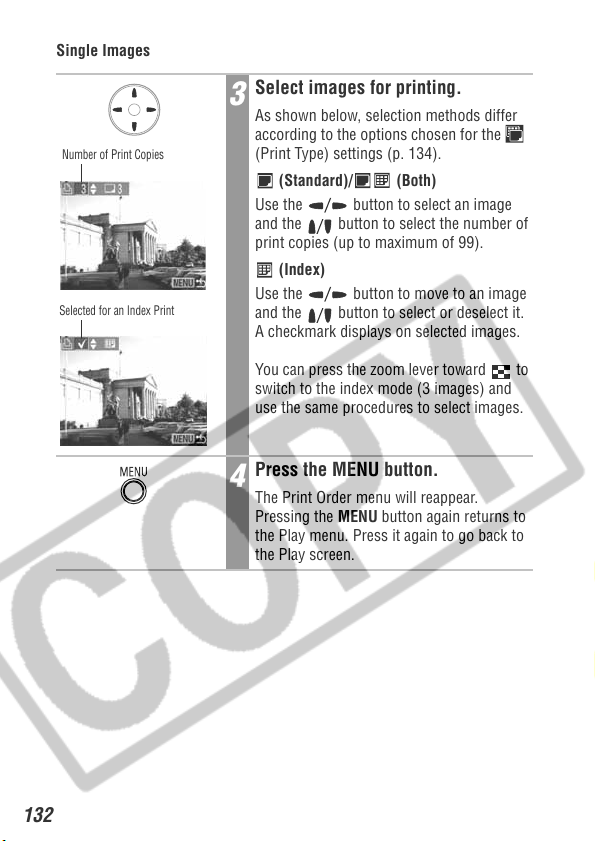

Setting the DPOF Print Settings ....................................................... 131
Image Transmission Settings (DPOF Transfer Order) .. 140
Selecting Images for Transferring .................................................... 140
6

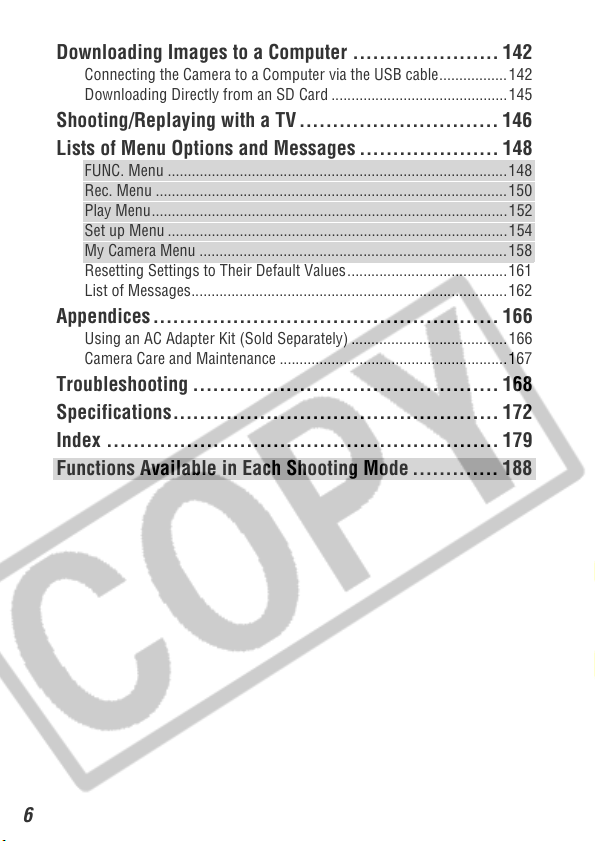

Downloading Images to a Computer ...................... 142
Connecting the Camera to a Computer via the USB cable.................142

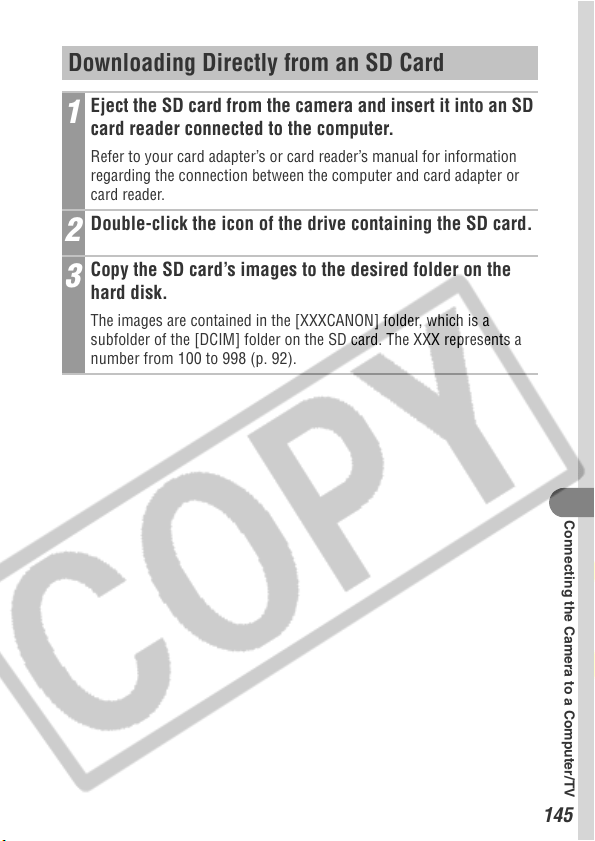

Downloading Directly from an SD Card ............................................145
Shooting/Replaying with a TV .............................. 146
Lists of Menu Options and Messages ..................... 148
FUNC. Menu .....................................................................................148
Rec. Menu ........................................................................................150
Play Menu.........................................................................................152
Set up Menu .....................................................................................154
My Camera Menu .............................................................................158
Resetting Settings to Their Default Values........................................161

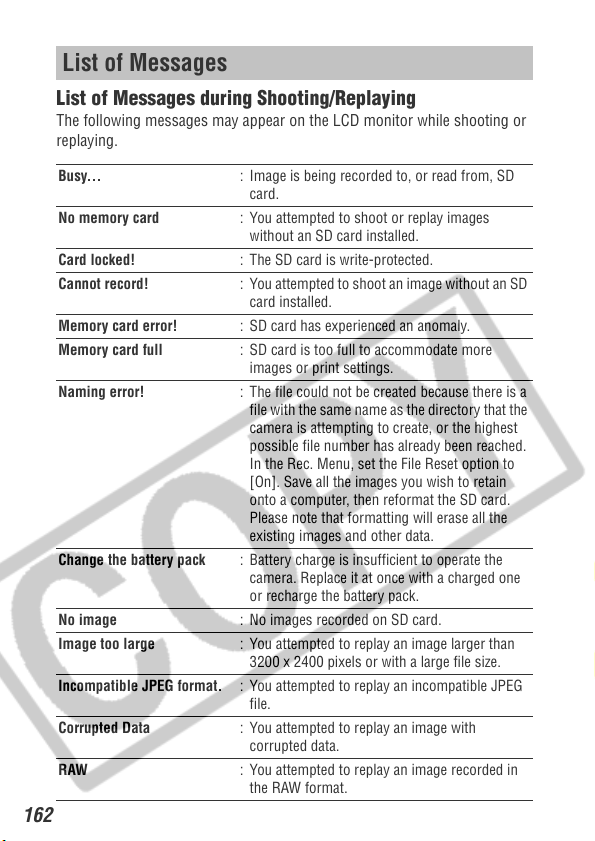

List of Messages...............................................................................162
Appendices.................................................... 166
Using an AC Adapter Kit (Sold Separately) .......................................166

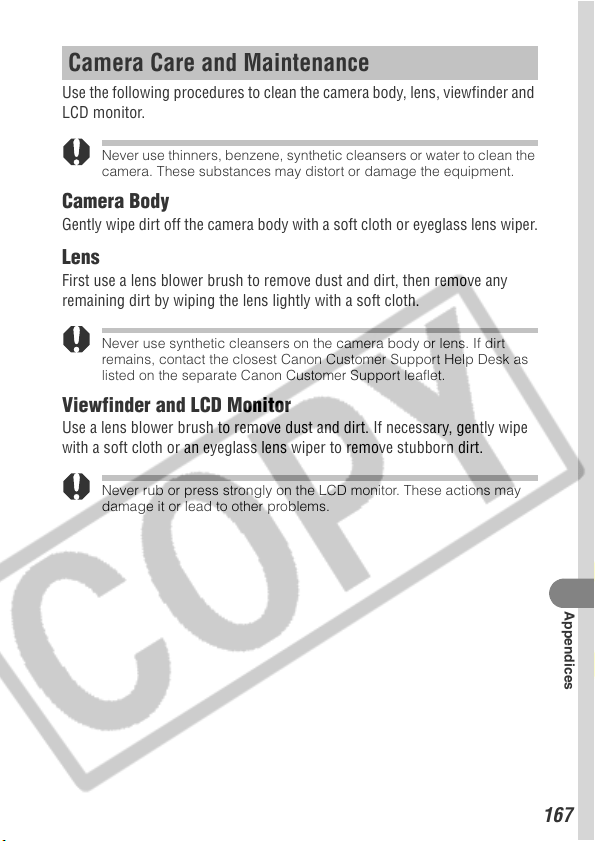

Camera Care and Maintenance .........................................................167
Troubleshooting .............................................. 168
Specifications................................................. 172
Index ........................................................... 179
Functions Available in Each Shooting Mode ............. 188
7
Read This First
Test Shots
Before you try to photograph important subjects, we highly recommend that
you shoot several trial images to confirm that the camera is operating and
being operated correctly.
Please note that Canon, its subsidiaries and affiliates, and its distributors
are not liable for any consequential damages arising from any malfunction
of a camera or accessory, including SD memory cards, that results in the
failure of an image to be recorded or to be recorded in a format that is
machine readable.
Warning Against Copyright Infringement
Please note that Canon digital cameras are intended for personal use and
should never be used in a manner that infringes upon or contravenes
international or domestic copyright laws and regulations. Please be advised
that in certain cases the copying of images from performances, exhibitions,
or commercial properties by means of a camera or other device may
contravene copyright or other legal rights even if the image was shot for
personal use.
Warranty Limitations
This camera’s warranty is only effective in the country of sale. If a problem
arises while the camera is in use abroad, please convey it back to the
country of sale before proceeding with a warranty claim to a Canon
Customer Support Help Desk.
For Canon Customer Support contacts, please see the Canon Limited
Warranty supplied with your camera.
Please Read
8
• Before using the camera, please ensure that you read and understand the
safety precautions described below. Always ensure that the camera is
operated correctly.
• The safety precautions noted on the following pages are intended to
instruct you in the safe and correct operation of the camera and its
accessories to prevent injuries or damage to yourself, other persons and
equipment.
• In the next few pages, the term equipment refers primarily to the camera
and its power supply accessories, such as the battery charger and
compact power adapter (sold separately).
Warnings
Safety Precautions
• Do not aim the camera directly into the sun or at other intense light
sources that could damage your eyesight.
• Do not trigger the flash in close proximity to human or animal eyes.
Exposure to the intense light produced by the flash may damage eyesight.
In particular, remain at least one meter (39 inches) away from infants
when using the flash.
• Store this equipment out of the reach of children and infants. Accidental
damage to the camera or batteries by a child could result in serious injury.
In addition, placement of the strap around the child’s neck could result in
asphyxiation.
• Do not attempt to disassemble or alter any part of the equipment that is
not expressly described in this guide. Disassembly or alteration may
result in high-voltage electrical shock. Internal inspections, alterations and
repairs should be conducted by qualified service personnel authorized by
your camera distributor or a Canon Customer Support Help Desk.
Storing SD cards
Store the SD memory card out of the reach of children and infants. It
may be swallowed accidentally. If this occurs, consult a doctor
immediately.
9
• To avoid the risk of high-voltage electrical shock, do not touch the flash
portion of the camera if it has been damaged. Similarly, never touch
internal portions of the equipment that become exposed as a result of
damage. There is a risk of high-voltage electrical shock. Please take the
first opportunity to consult your camera distributor or the closest Canon
Customer Support Help Desk.
• Stop operating the equipment immediately if it emits smoke or noxious
fumes. Failure to do so may result in fire or electrical shock. Immediately
turn the camera power off, remove the camera battery or unplug the
power cable from the power outlet. Confirm that smoke or fume
emissions have ceased. Please consult your camera distributor or the
closest Canon Customer Support Help Desk.
• Stop operating the equipment if it is dropped or the casing is damaged.
Failure to do so may result in fire or electrical shock. Immediately turn the
camera power off, remove the camera battery or unplug the power cable
from the power outlet. Please consult your camera distributor or the
closest Canon Customer Support Help Desk.
• Do not allow the equipment to come into contact with, or become
immersed in, water or other liquids. Do not allow liquids to enter the
interior. The camera has not been waterproofed. If the exterior comes into
contact with liquids or salt air, wipe it dry with a soft, absorbent cloth. If
water or other foreign substances enter the interior, immediately turn the
camera power off and remove the camera battery or unplug the power
cable from the power outlet. Continued use of the equipment may result in
fire or electrical shock. Please consult your camera distributor or the
closest Canon Customer Support Help Desk.
• Do not use substances containing alcohol, benzene, thinners or other
flammable substances to clean or maintain the equipment. The use of
these substances may lead to fire.
• Remove the power cable on a regular periodic basis and wipe away the
dust and dirt that collects on the plug, the exterior of the power outlet
and the surrounding area. In dusty, humid or greasy environments, the
dust that collects around the plug over long periods of time may become
saturated with humidity and short-circuit, leading to fire.
10
• Do not cut, damage, alter or place heavy items on the power adapter
cable. Any of these actions may cause an electrical short circuit, which
may lead to fire or electrical shock.
• Do not handle the power cable if your hands are wet. Handling it with
wet hands may lead to electrical shock. When unplugging the cable,
ensure that you hold the solid portion of the plug. Pulling on the flexible
portion of the cable may damage or expose the wire and insulation,
creating the potential for fires or electrical shocks.
• Use only recommended power accessories. Use of power sources not
expressly recommended for this equipment may lead to overheating,
distortion of the equipment, fire, electrical shock or other hazards.
• Do not place the batteries near a heat source or expose them to direct
flame or heat. Neither should you immerse them in water. Such exposure
may damage the batteries and lead to the leakage of corrosive liquids, fire,
electrical shock, explosion or serious injury.
• Do not attempt to disassemble, alter or apply heat to the batteries.
There is serious risk of injury due to an explosion. Immediately flush with
water any area of the body - including the eyes and mouth, or clothing -
that comes into contact with the inner contents of a battery. If the eyes or
mouth contact these substances, immediately flush with water and seek
medical assistance.
• Avoid dropping or subjecting the batteries to severe impacts that could
damage the casings. It could lead to leakage and injury.
• Do not short-circuit the battery terminals with metallic objects, such as
key holders. It could lead to overheating, burns and other injuries. Use
the supplied terminal cover to transport or store the battery pack.
• Before you discard a battery, cover the terminals with tape or other
insulators to prevent direct contact with other objects. Contact with the
metallic components of other materials in waste containers may lead to
fire or explosions. Discard the batteries in specialized waste facilities if
available in your area.
• Use only recommended batteries and accessories. Use of batteries not
expressly recommended for this equipment may cause explosions or
leaks, resulting in fire, injury and damage to the surroundings.
11
• Use the specified battery charger to charge Battery Pack NB-3L. Use of
other chargers may lead to overheating, distortion of the equipment, fire
or electrical shock.
• Disconnect the battery charger and compact power adapter from both
the camera and the power outlet after recharging and when they are not
in use to avoid fire and other hazards. Continuous use over a long period
may cause a unit to overheat and distort, resulting in fire.
• The camera terminal of the supplied compact power cord is designed
for exclusive use with your camera. Do not use it with other products or
batteries. There is a risk of fire and other hazards.
Caution about magnetic fields
Keep objects that are sensitive to magnetic fields (such as credit cards)
away from the speaker of the camera. Such items may lose data or stop
working.
12
Cautions
• Avoid using, placing or storing the equipment in places subject to
strong sunlight or high temperatures, such as the dashboard or trunk
(boot) of a car. Exposure to intense sunlight and heat may cause the
batteries to leak, overheat or explode, resulting in fire, burns or other
injuries. High temperatures may also cause deformation of the casing.
Ensure that there is good ventilation when using the compact power
adapter to charge the battery pack or power the camera.
• Do not store the equipment in humid or dusty areas. Storage in such
areas could lead to fire, electrical shock or other damage.
• Be careful not to bang the camera or subject it to strong impacts or
shocks that could lead to injury or damage the equipment when
wearing or holding it by the strap.
• Be careful not to cover the flash with your fingers when shooting. In
addition, do not touch the surface of the flash after taking several pictures
in rapid succession. Either action could result in burns.
• Do not operate the flash with dirt, dust or other items stuck to its lens.
The resulting heat build-up could damage the flash.
• Ensure that the battery charger is plugged into a power outlet of the
specified rating, not over the specified rating. The plug of the battery
charger varies according to region.
• Do not use the battery charger if the cable or plug is damaged, or if the
plug is not fully inserted into the power outlet.
• Do not allow metal objects (such as pins or keys) or dirt to contact the
charger terminals or plug.
• If your camera is used for prolonged periods, the camera body may
become warm. Please take care when operating the camera for extended
periods as your hands may experience a burning sensation.
13
Avoid Strong Magnetic Fields
Never place the camera in close proximity to electric motors or other
equipment generating strong electromagnetic fields. Exposure to strong
magnetic fields may cause malfunctions or corrupt image data.
Avoid Condensation Related Problems
Moving the equipment rapidly between hot and cold temperatures may
cause condensation (water droplets) to form on its external and internal
surfaces. You can avoid this by placing the equipment in an airtight,
resealable plastic bag and letting it adjust to temperature changes slowly
before removing it from the bag.
If Condensation Forms Inside the Camera
Stop using the camera immediately if you detect condensation. Continued
use may damage the equipment. Remove the SD card and battery or
Compact Power Adapter (if connected) from the camera and wait until the
moisture evaporates completely before resuming use.
Extended Storage
When not using the camera for extended periods of time, remove the
battery pack and store the equipment in a safe place. Storing the camera for
extended periods with a battery pack installed will run down the battery
pack and may damage the camera. Please note, however, that the date, time
and other camera settings may reset to the default settings if the battery
pack has been removed for more than three weeks. Follow the instructions
in this guide to reset the desired settings.
Preventing Malfunctions
14
Quick Start
Quick Start
1
Charge the Battery Pack (p. 21)
Charge the battery pack using the supplied
battery charger. The charging is complete
when the charge indicator turns from
orange to green.
2
Install the Battery Pack (p. 23)
Slide the SD card slot/battery cover open
and press the battery lock while you insert
the battery pack.
3
Install the SD Card (p. 25)
• Insert the SD card as shown on the
bottom of the camera until you hear it
click into place.
• Do not touch or allow metal objects to
contact the terminals.
4
Turn the mode switch to (Auto)
(p. 20)
5
Turn on the power (p. 32)
Press the ON/OFF button until the power
lamp lights.
Charge Indicator
Battery Lock
Back
Terminals
Power Lamp
15
Quick Start
To Immediately Delete the Displayed Image
1. Press the button while the image is
displayed.
2. Confirm that [Erase] is selected and
press the SET button.
•
Set the date and time if
the Date/Time
menu appears (p. 28).
• You can change the language in which menus are displayed
(p. 30).
• To view the other images you have photographed, refer to the
Replaying section (p. 93).
• After you finish using the camera, press the ON/OFF button to shut
the power off.
6
Focus (p. 42)
Aim the camera and lightly press (halfway)
the shutter button. Two beeps will sound
when the autofocus is set.
7
Shoot (p. 43)
Press the shutter button fully. The shutter
sound will sound when the shot is
complete.
8
View the Recorded Image (p. 60)
The recorded image displays for
approximately 2 seconds. To continue
displaying the image, keep the shutter
button pressed or hold the shutter button
until you press the SET button and then
release both.
16
Components Guide
Front View
Viewfinder Window (p. 40)
AF-assist Beam (p. 43)
Red-Eye Reduction Lamp (p. 63)
Self-timer Lamp (p. 69)
Flash (p. 63)
DIGITAL Terminal
(pp. 121, 143)
A/V OUT (Audio/Visual
OUT) Terminal (p. 146)
Terminal Cover
Lens
Microphone (p. 104)
The following cables are used to connect the camera to a computer or
printer.
• Computer (p. 143)
USB Interface Cable IFC-300PCU (supplied with camera)
• Direct Print Compatible Printer (CP series, sold separately) (p. 121)
Direct Interface Cable DIF-100
(supplied with direct print compatible printers)
• Direct Print Compatible Bubble Jet Printer (sold separately) (p. 122)
Please refer to your Bubble Jet printer Quick Start Guide.
Please refer to the System Map supplied with the camera for direct print
compatible printers.
17
Preparing the Camera
* Be careful not to wave the camera about or catch it on other items when
dangling it from the wrist strap.
Back View
Viewfinder (p. 40)
Wrist Strap Mount
LCD Monitor (p. 34)
Tripod Socket
SD Card Slot/
Battery Cover (pp. 23, 25)
DC Coupler Terminal Cover (p. 166)
Attaching the Wrist Strap
*
Speaker
18
Operation Panel
Power Lamp
Lights when the power is on or transmission preparations
are complete when connected to a computer
Mode Switch (p. 20)
Zoom Lever
Shooting: (Telephoto)/
(Wide Angle)
(p. 41)
Replay: (Magnify)/
(Index)
(pp. 94, 95)
Shutter Button (p. 42)
ON/OFF Button (p. 32)
DISP. (Display) Button (p. 34)
SET Button
MENU Button (p. 46)
(Light Metering)/ Button (p. 81)
FUNC. (Function)/ (Single Image Erase) Button
(pp. 44, 113)
(Macro)/ (Infinity)/ Button (p. 65)
(Continuous)/ (Self-timer)/ Button (pp. 68, 69)
(Flash)/ Button (p. 63)
Indicators (p. 19)
19
Preparing the Camera
The indicators beside the viewfinder light or blink when the ON/OFF button
or shutter button is pressed.
Upper Indicator
Green: Ready to shoot
Blinking Green: Recording to SD card/Reading SD card/Erasing from SD
card/Transmitting data (during a computer connection)
Orange: Ready to shoot (flash on)
Blinking Orange: Ready to shoot (camera shake warning)
Lower Indicator
Yellow: Macro mode/Infinity mode/Focus lock (Method 2, p. 76)
Blinking Yellow: Focusing difficulty (1 beep sounds)
Although you can press the shutter button, you are
recommended to use the focus lock (p. 76)
Indicators
20
Use the mode switch to select the camera’s operating mode.
Shooting Mode
(Auto)
Most settings are automatically selected by the camera (p. 58)
.
(Manual)
The exposure compensation, white balance, photo effect and other settings
can be manually selected (p. 70)
.
(Movie)
Shoots movie clips (p. 71)
.
Replay Mode
(Replay)
• Replay or delete images from the SD card (pp. 93, 113)
.
• Download and display images on a connected computer (p. 142)
.
• Print images directly to a connected printer (p. 116).
• The or icon displays on the LCD monitor when a connection
to a printer (sold separately) is opened.
• The LCD monitor shuts off while a computer is connected.
Mode Switch
21
Preparing the Camera
Preparing the Camera
Use the following procedures to charge the battery pack the first time you
use the camera or when the “Change the battery pack” message displays.
To protect the battery pack and prolong its life, do not charge it for
longer than 24 hours continuously.
• Since this is a lithium ion battery pack, you need not completely
discharge it before recharging. It can be recharged at any point.
• It takes approximately 95 minutes to fully charge the battery pack from a
fully discharged state (based on Canon’s testing standard). Charging it
within a temperature range of 5° to 40 °C (41° to 104 °F) is recommended.
• Charge times may vary according to the ambient temperature and
the battery pack’s charge state.
•See Battery Capacity (p. 175).
• You may hear a noise during charging. This is not a malfunction.
Charging the Battery Pack
1
Insert the battery pack into the
battery charger.
Align the battery pack according to the
arrows on the battery and the charger.
Insert the battery securely.
2
Battery charger model names and types
vary by region
(For CB-2LU)
Plug the battery charger into a
power outlet.
(For CB-2LUE)
Attach the power cord to the battery
charger and plug it into a power outlet.
• The charge indicator will light orange
while the battery pack is charging. It will
change to green when the charge is
complete.
• After charging, unplug the battery charger
and remove the battery pack.
Charge Indicator
22
Handling Precautions
Keep the battery pack terminals ( ) clean at all times. Dirty
terminals may cause poor contact between the battery pack and camera.
Polish the terminals with a tissue or a dry cloth before charging or using
the battery pack.
Do not rapidly overturn or wave the battery charger around when it
contains the battery pack. The battery pack could fly out.
At low temperatures, battery pack performance may be reduced and the
low battery icon may appear earlier than usual. Under these conditions,
resuscitate the battery pack by warming it in a pocket immediately before
use. However, ensure that there are no metallic items in the pocket that
could cause a short circuit, such as a key holder, etc.
Do not place anything, such as tablecloths, carpets, bedding or cushions,
on top of the battery charger while it is charging. Heat will build up and
could result in a fire.
Do not charge batteries other than Battery Pack NB-3L in this charger.
The battery pack continues to discharge a minimal portion of its power
while installed in the camera, even with the power off, or in the charger.
This will shorten battery life.
Do not allow any metal objects
such as key rings to touch the
and terminals (Fig. A), as this
can damage the battery pack. To
carry the battery pack or store it
during periods of disuse, always
replace the terminal cover (Fig. B)
and store it in a cool, dry place.
Recharge it fully before using it
again.
Even charged battery packs
continue to discharge naturally. You are advised to charge the battery on
the day of use, or one day before, to ensure a full charge.
Since storing a fully charged battery pack for long periods of time (about 1
year) can shorten its life cycle or affect performance, you are
recommended to use the battery pack in the camera until it is completely
discharged and to store it at normal temperature (23 °C/73 °F) or lower. If
you do not use the battery pack for long periods of time, charge it fully and
discharge it fully in the camera at least once a year before returning it to
storage.
If the performance of the battery pack diminishes substantially even when it
is fully charged, its life has been exceeded and it should be replaced.
Fig. A Fig. B
23
Preparing the Camera
Install Battery Pack NB-3L (supplied).
Please recharge the battery pack (p. 21)
before you use it for the first
time.
Installing the Battery Pack
1
Slide the SD card slot/battery cover
in the direction of the arrows.
2
Press the battery lock while
inserting the battery pack all the
way in until the lock clicks.
• Insert the battery pack correctly by
aligning the arrows on the camera and the
battery pack.
• To remove the battery pack, press the
battery lock and pull the battery pack out.
3
Slide the SD card slot/battery cover
closed.
1
2
Battery Lock
1
2
24
• Do not turn off the power or open the SD card slot/battery cover
while the upper indicator beside the viewfinder blinks green. The
camera is writing, reading, erasing or transmitting an image to or
from the SD card.
• Remove the battery pack when the camera is not in use. Please
note, however, that the date, time and other camera settings may
reset to the default settings if the battery pack has been removed for
more than three weeks.
Please use an AC Adapter Kit ACK900 (sold separately) for extended
use of the camera (p. 166)
.
Battery Pack Charge
The following icons and messages will display when the battery pack charge
is low.
See Battery Capacity (p. 175).
Battery pack charge is low. Recharge it as soon as possible
before it is required for an extended period.
When the LCD monitor is off, this icon will display when you
press the , / , / ,
DISP.
, ( mode) or
FUNC.
button.
Change the
battery pack
Battery charge is insufficient to operate the camera. Replace
the battery pack immediately.
25
Preparing the Camera
Write Protect Tab
The SD card has a write protect tab. Sliding the tab downward prevents
recording of data and protects existing data (e.g. images). When recording
to, erasing from or formatting the SD card, slide the tab upward.
Turn the camera power off and insert the SD card with the following
procedures.
Installing the SD Card
1
Slide the SD card slot/battery cover
in the direction of the arrows.
2
Insert the SD card.
• Insert the SD card as shown on the
bottom of the camera until you hear it
click into place.
• Do not touch or allow metal objects to
contact the terminals.
Writing/Erasing possible Writing/Erasing impossible
Write Protect Tab
1
2
Back
Terminals
26
To remove the SD card
Push in the SD card until you hear it click, then release it.
• Since the camera is writing, reading, erasing or transmitting data to
or from the SD card when the upper indicator beside the viewfinder
blinks green, never perform the following actions during this time. It
could corrupt the image data.
- Subject the camera body to vibration or shocks.
- Turn the camera’s power off, or open the SD card slot/battery
cover.
• Please note that SD cards formatted with other manufacturers’
cameras or a computer, or formatted or edited with application
programs, may slow down writing to the SD card or may not operate
correctly in the camera.
• You are recommended to use SD cards that have been formatted in
your camera (p. 115). The card supplied with the camera may be
used without further formatting.
3
Slide the SD card slot/battery cover
closed.
1
2
27
Preparing the Camera
See SD Cards and Estimated Capacities (p. 176).
Handling Precautions for SD Cards
SD cards are high-precision electronic devices. Do not bend them, apply
force to them, or subject them to shocks or vibration.
Do not attempt to disassemble or alter the SD card.
Do not allow dirt, water or foreign objects to contact the terminals on the
back of the card. Do not touch the terminals with your hands or metal
objects.
Do not peel away the original label on the SD card or cover it with another
label or sticker.
When writing on the SD card, use a soft point pen (e.g. felt-tip pen). Using
a sharp point pen (e.g. ball-point pen) or pencil may damage the SD card or
corrupt the recorded data.
Since some or all of the data recorded on the SD card may be corrupted or
erased by electrical noise, static electricity or card malfunction, making a
backup copy of important data is recommended.
Moving an SD card rapidly between temperature extremes will cause
condensation to form in the card and lead to a malfunction. To avoid
condensation, place the SD card in a sealed plastic bag before moving it
into a different temperature zone and allow it to adjust slowly to the new
temperature.
If condensation forms on the SD card, store it at room temperature until the
water droplets have evaporated naturally.
Do not use or store SD cards in the following types of locations.
- Locations subject to dust or sand
- Locations subject to high humidity and high temperatures
Precaution for Multi Media Cards
This camera is designed to perform optimally when used with genuine
Canon-brand SD cards. You may use multi media cards with this
camera. However, Canon makes no warranties concerning the use of
multi media cards.
28
The Date/Time menu will appear the first time the camera power is turned
on or whenever the built-in rechargeable lithium battery charge is low. Start
from Step 5 to set the date and time.
Setting the Date and Time
1
Press the ON/OFF button until the
power lamp lights green.
2
Press the MENU button.
The (Rec.) or (Play) menu is
displayed.
3
Use the button to select the
(Set up) menu.
4
Use the button to select and
press the SET button.
Power Lamp
29
Preparing the Camera
• Please note that the date and time settings may reset to the default
settings if the camera battery has been removed for more than three
weeks. Reset them when this occurs.
• Setting the date and time settings does not cause the date/time
stamp to appear on images.
• Charging the Date/Time Battery
- The camera has a built-in rechargeable lithium battery for saving
settings such as the date and time. This battery is recharged by
the battery pack while it is in the camera. Right after purchasing
the camera, leave a charged battery pack in the camera, or plug
in AC Adapter Kit ACK900 (sold separately), for about 4 hours to
charge the date/time battery. It will charge even when the camera
power is turned off.
- If the Date/Time menu appears when the camera power is turned
on, the date/time battery charge is low. Use the above method to
recharge it.
• You can print the date on images (p. 126).
5
Set the date and time.
• Use the button to select a field
(year, month, day, hour, minute and date
format).
• Use the button to change its value.
6
Press the SET button.
The setting is complete.
7
Press the MENU button.
The display will return to the Rec. or Play
screen.
30
Use this function to select the language the LCD monitor displays.
Setting the Language
1
Press the ON/OFF button until the
power lamp lights green.
2
Press the MENU button.
The (Rec.) or (Play) menu is
displayed.
3
Use the button to select the
(Set up) menu.
4
Use the button to select and
press the SET button.
Power Lamp
31
Preparing the Camera
The Language menu can also be displayed in replay mode by holding
down the SET button and pressing the MENU button. This function
cannot be used while a movie clip is replayed, or a direct print
compatible printer (CP series, sold separately) or a direct print
compatible Bubble Jet printer (sold separately) is connected to the
camera.
5
Use the button to select a
language and press the SET button.
6
Press the MENU button.
The display will return to the Rec. or Play
screen.
32
Basic Functions
To turn the power off
Press the ON/OFF button again.
• If the “Card locked!” message appears right after the power is
turned on, the SD card cannot record (p. 25).
• The Date/Time menu will appear the first time the camera power is
turned on or whenever the built-in rechargeable lithium battery
charge is low. Reset the date and time when this occurs (p. 28).
• If the Auto Power Down function activates, press the ON/OFF button
to restore power.
• The start-up sound will sound and the start-up image will display in
the LCD monitor when the power is turned on. (To change the start-
up sound and image, see pp. 33, 53, 158)
• The start-up image does not display when the LCD monitor is turned
off in shooting mode or when the camera is connected to a TV via
the A/V OUT terminal.
Turning the Power On/Off
Press the ON/OFF button until the
power lamp lights green.
• The lens extends when the mode switch is
set to , or .
• The lens retracts approximately 1 minute
after setting the mode switch from ,
or to .
• When the mode switch is set to or
, the LCD monitor turns on. (When the
mode switch is set to , the upper
indicator beside the viewfinder blinks
green.)
Power Lamp
33
Basic Functions
Turning Off the Start-Up Sound and Start-Up Image
Hold the SET button down while turning on the power.
Auto Power Down Function
This camera is equipped with an Auto Power Down function.
The power will automatically shut down under the following
circumstances when this function is set to [On]. Press the ON/OFF
button to restore power.
Shooting Mode: Powers down approximately 3 minutes after the last
control is accessed on the camera.
The LCD monitor automatically turns off 3 minutes after
the last control is accessed even if this function is set to
[Off].
(Press any button except the ON/OFF button to turn
the LCD monitor back on.)
Replay Mode: Powers down approximately 5 minutes after the last
control is accessed on the camera.
Connected to a Printer (sold separately):
Powers down
approximately 5 minutes
after the last control is
accessed on the camera or
something is printed on a
connected printer.
• The Auto Power Down function will not activate during a slide
show or while the camera is connected to a computer.
• The camera’s settings can be changed to turn off the Auto
Power Down function (p. 154).
34
The LCD monitor can be used to compose images while shooting, adjust
settings menus and replay images.
The image in the LCD monitor will darken in strong sunlight or bright
light. This does not constitute a malfunction.
Shooting Mode ( , , )
Using the LCD Monitor
Press the DISP. button.
The display mode changes as follows with
each press.
Standard (No Information)
Detailed (Information View)
Off
35
Basic Functions
• The LCD monitor setting (On or Off) is saved by the camera when
the power is turned off so that the same setting is automatically
available when the power is turned on again. However, the setting
may be lost when the power has been turned off after the “Change
the battery pack” message has displayed, while the LCD monitor
was on in shooting mode.
• In the mode, the LCD monitor turns on regardless of its On/Off
setting.
Replay Mode ( )
When the mode switch is set to , the LCD monitor will turn on.
Press the DISP. button.
The display mode changes as follows with
each press.
Standard
Detailed
No Display
You cannot switch the display to Detailed in
index replay mode (p. 95).
36
When a shooting setting is changed, information about the settings displays
on the LCD monitor for approximately 6 seconds even if the LCD monitor is
set to Off or to the No Display mode. (It may not display under some
circumstances, depending on the selected settings.)
You may set the flash, continuous mode, self-timer, macro, infinity and
metering mode settings while this information is displayed.
• After you press the shutter button and take a shot, the recorded
image appears on the LCD monitor for 2 to 10 seconds (1-second
increments). It will continue to display if you press the SET button
while it is shown on the screen. See Changing the Review Duration
(p. 60).
• While a recorded image is displayed on the LCD monitor, you can
check the exposure with the graph (See Histogram Function (p. 39)).
that shows the distribution of the brightness data. If the exposure
requires adjustment, set the exposure compensation and reshoot.
(Press the DISP. button if the histogram and other information is not
shown)
A slow shutter speed has likely been selected because of insufficient
lighting if the upper indicator beside the viewfinder blinks orange after
the metering preparations are complete and the camera shake icon
displays in the LCD monitor. Set the flash to or , or affix the
camera to a tripod to shoot.
Information Displayed on the LCD Monitor
Shooting Mode
37
Basic Functions
* Appears regardless of the selected display mode.
Zoom powers indicate the combined optical and digital amount of zoom.
These figures appear when the digital zoom is activated.
Exposure Compensation (p. 82)
Long Shutter Mode (p. 83)
White Balance (p. 85)
ISO Speed (p. 89)
Photo Effect (p. 88)
Compression (p. 61)
Resolution (p. 61)
Low Battery (p. 24)
Metering Mode (p. 81)
Shooting Method (pp. 68, 69)
Macro/Infinity (p. 65)
Flash (p. 63)
Auto Rotate (p. 90)
Shooting Mode (pp. 20, 73)
Movie Recording (p. 71)
AE Lock (p. 78)
FE Lock (p. 79)
Focus Lock (p. 76)
Camera Shake Warning (p. 36)
Spot AE Point Frame ( Mode)
AF Frame (p. 80)
Recordable Images or
Recordable Movie Time (sec.)
2.6x 3.2x 4.0x 4.9x 6.4x
Digital Zoom*(p. 67)
*
(Red)*
*
38
Protection Status (p. 112)
Compression (Still Images) (p. 61)
Resolution (Still Images) (p. 61)
Movie (p. 97)
WAVE Format Sound (p. 104)
Long Shutter Mode (p. 83)
Shooting Mode (pp. 20, 73)
Exposure Compensation (p. 82)
White Balance (p. 85)
Photo Effect (p. 88)
ISO Speed (p. 89)
Resolution (Movies) (p. 61)
Flash (p. 63)
Macro/Infinity (p. 65)
Metering Mode (p. 81)
Movie Length Shown on
Movie Files (p. 71)
File Number
Shooting DateImage Number
Replay Mode (Detailed Display)
Replay Mode (Standard Display)
Histogram
39
Basic Functions
The following information may also be displayed with some images.
The image information may not display correctly if images shot with
this camera are replayed on other cameras or images from other
cameras are replayed on this camera.
Histogram Function
The histogram is a graph that allows you to judge the brightness of the
recorded image. The greater the bias toward the left, the darker the
image. The more it trends to the right, the brighter the image. If the
image is dark, adjust the exposure to a positive value. Similarly, adjust
the exposure to a negative value to darken a bright image (p. 82).
A sound file in a format other than the WAVE format is attached or the
file format is not recognized.
JPEG file with format not conforming to Design rule for Camera File
System Standards
RAW format file
File with unrecognized format
Histogram Examples
Balanced ImageDark Image Bright Image
40
The viewfinder can be used to conserve power by setting the LCD monitor
to Off (p. 34) while shooting.
About the Autofocus Function
This camera employs AiAF (artificial intelligence autofocus)
technology which uses a broad metering field to calculate the focal
distance with high precision. It delivers a crisp focus even when the
photographic subject is slightly off-center.
The AiAF function can be turned off so that the autofocus is metered
from a fixed AF frame at the center of the field to accommodate
difficult shooting conditions (p. 80).
Image Seen in Viewfinder vs. Recorded Image
Usually the recorded image is wider than the image seen in the
viewfinder. Confirm the actual image size with the LCD monitor.
The image recorded may differ from the image seen in the viewfinder
due to the distance between the viewfinder and lens (especially with
close-ups). If you use the viewfinder to take close-up shots, portions of
the close-up subject may not appear in the recorded image. Use the
LCD monitor when taking close-up shots.
Using the Viewfinder
Shows the center of the image
Viewfinder
41
Basic Functions
The zoom can be adjusted from 35 mm to 70 mm in 35 mm film equivalent
terms.
Telephoto/Wide Angle
Digital Zoom
When the LCD monitor is on, you can shoot with a combined optical and
digital zoom factor of up to approximately 6.4 (p. 67).
The digital zoom is unavailable in some modes (p. 188).
Images become coarser the more they are digitally zoomed.
Using the Zoom
Press the zoom lever toward or
.
• Press the zoom lever toward to zoom
in (telephoto).
• Press the zoom lever toward to zoom
out (wide angle).
42
The shutter button features a two-stage action.
Pressing Halfway
Pressing halfway automatically sets the exposure, focus and white balance.
Pressing the Shutter Button
Press the shutter button halfway.
Indicator Status
Upper Indicator
• Green: Metering complete
(two beeps sound)
• Orange: Flash will fire
• Blinking Orange: Camera shake warning/
Insufficient exposure
Lower Indicator
• Yellow: Macro mode/Infinity
mode/Focus lock
(Method 2, p. 76)
• Blinking Yellow: Focusing difficulty
*
(single beep sounds).
* When the indicator blinks yellow, lock the focus
before shooting (p. 76).
AF Frame Status (LCD Monitor On)
AiAF On (p. 80)
• Green Frame: Metering complete (AF
frame when focus
achieved)
• No Frame: Focusing difficulty
AiAF Off (p. 80) (Center AF Frame)
• Green Frame: Metering complete
• Yellow Frame: Focusing difficulty
Indicator
43
Basic Functions
Pressing Fully
Pressing the shutter button down fully activates the shutter and causes the
shutter sound to sound.
Shots cannot be taken while the flash is charging.
AF-assist Beam
• The AF-assist Beam will sometimes emit when the shutter button is
pressed halfway to assist focusing in certain conditions, i.e., dark
conditions.
• The AF-assist Beam can be turned off (p. 150).
For example, if animals are your subject, turn off the beam when
shooting in the dark to avoid startling them.
However, please keep in mind the following facts.
- Turning the AF-assist Beam off may make it more difficult for the
camera to focus.
- The red-eye reduction lamp may emit when the flash is set to
or even if the AF-assist Beam is turned off.
Press the shutter button fully.
While the image is being recorded to the SD
card, the indicator beside the viewfinder
blinks green.
44
Menus are used to adjust shooting and replay settings, as well as other
camera settings like the Date/Time and sounds. Menus are displayed by
pressing the FUNC. or MENU button according to the circumstances. Use
the LCD monitor to perform the following procedures. See Menu Settings
and Factory Defaults (p. 50) for the menu items and options.
Selecting Menu Settings with the FUNC. Button
(Shooting Mode only)
Selecting Menus and Settings
1
Press the FUNC. button.
The icons of the items that can be adjusted
appear at the LCD monitor’s left edge.
2
Use the button to select an
item.
3
Use the button to select an
option.
• The icon changes to the icon of the
selected option.
• Some menu items can only be selected
after pressing the SET button to display
the next menu. Press the SET button again
to confirm the setting.
• You can shoot right after performing these
steps. The menu displays again after the
shot, allowing you to change the settings
easily.
45
Basic Functions
4
Press the FUNC. button.
The menu will close.
46
Selecting Menu Settings with the MENU Button
1
Press the MENU button.
In Shooting mode, the (Rec.) menu
appears.
In Replaying mode, the (Play) menu
appears.
2
Use the buttons to select the
Rec./Play, Set up, or My Camera
menu.
• Select the menu with the / , or
icon in the upper left of the LCD
monitor selected.
• The zoom lever lets you select the menu
even if the / , or icon is
not selected.
3
Use the button to select an
item.
4
Use the button to select an
option.
Some menu items can only be selected after
pressing the SET button to display the next
menu. Press the SET button again to
confirm the setting.
5
Press the MENU button.
• The menu will close.
• In Shooting mode, the menu can be
closed by pressing the shutter button
halfway.
47
Basic Functions
See Print Menu Settings (p. 118) for the procedures for the (Print
Order) item in the Play menu.
48
Selecting Menus and Settings (Cont’d)
Selects the mode • Switches between the
Rec./
Play menu, the Set up menu
and the My Camera menu
• Selects items and options
Selecting Menu Settings with the FUNC. Button
Selecting Menu Settings with the MENU Button
Shooting Mode
Shooting Mode
Replay Mode
Play Menu
Set up Menu
Rec. Menu
FUNC. Menu
(The menu will appear slightly different
when the mode switch is set to or )
49
Basic Functions
Turns the FUNC. menu on/off.
Turns the menu (other than the FUNC.
menu) on/off.
Sets items and options.
: Shooting Mode
: Replay Mode
(Selects item, Sets item)
(Selects item)
(Sets item)
When the My camera menu is displayed, pressing the
button returns to the Rec./Play menu.
When the Rec./Play menu is displayed, pressing the
button displays the My Camera menu.
My Camera Menu
50
Menu Settings and Factory Defaults
This chart shows the options and default settings for each menu.
Items Set with the FUNC. Button
Items Set with the MENU Button
Menu Item Available Settings
Reference
Page
Exposure
Compensation
-2 to ±0* to +2 p. 82
Long Shutter 1* to 15 seconds p. 83
White Balance
Auto*/ Daylight/ Cloudy/ Tungsten/
Fluorescent/ Fluorescent H/ Custom
p. 85
ISO Speed Auto/50*/100/200/400 p. 89
Photo Effect
Effect Off*/ Vivid/ Neutral/
Low Sharpening/ Sepia/ BW
p. 88
Compression
(Still images)
Superfine/ Fine*/
Normal
p. 61
Resolution
(Still images)
2048 x 1536*/ 1600 x 1200/
1024 x 768/ 640 x 480
p. 61
Resolution
(Movie)
640 x 480/ 320 x 240*/
160 x 120
Menu Item Available Settings
Reference
Page
Rec.
Menu
AiAF On*/Off p. 80
Self-Timer */ p. 69
AF-assist Beam On*/Off
p. 43
p. 150
Digital Zoom On/Off* p. 67
Image Review Off or 2* to 10 sec. p. 60
Long Shutter On/Off* p. 83
Stitch Assist
Images are shot in overlapping series
to create single panoramic images.
p. 73
51
Basic Functions
Menu Item Available Settings
Reference
Page
Play
Menu
Protect Turns image protection On/Off. p. 112
Rotate Rotates the image in the display. p. 102
Sound Memo
Adds a sound memo to the image in
the display.
p. 104
Erase all Erases all images on the SD card. p. 114
Slide Show
Replays selected images in a slide
show.
p. 107
Print Order Sets the print settings. p. 131
Transfer Order Sets the transfer settings. p. 140
Set up
Menu
Beep On*/Off p. 154
LCD Brightness -7 to 0* to +7 p. 154
Auto Power Down On*/Off p. 33
Date/Time Sets the date and time. p. 28
Format Formats (initializes) the SD card. p. 115
Shutter Volume Off/1/2*/3/4/5 p. 155
Playback Vol. Off/1/2*/3/4/5 p. 155
Start-up Vol. Off/1/2*/3/4/5 p. 155
Operation Vol. Off/1/2*/3/4/5 p. 156
Selftimer Vol. Off/1/2*/3/4/5 p. 156
File No. Reset On/Off* p. 91
Auto Rotate On*/Off p. 90
Language
English* /Deutsch / Français /
Nederlands / Dansk / Suomi /
Italiano / Norsk / Svenska / Español /
Chinese / Japanese
p. 30
Video System NTSC/PAL p. 146
52
* Default setting. Default video system setting varies between regions.
• Some menu items are not available in certain shooting modes.
• You can apply a desired image and sound to and in the My
Camera menu. For details, see Registering My Camera Settings or the
Software Starter Guide.
• With the exception of the [Date/Time], [Language] and [Video System]
settings, all the other menu settings and changes made with the camera
buttons can be reset to the default values in a single operation (p. 161).
Menu Item Available Settings
Reference
Page
My
Camera
Menu
Theme / */ / p. 53
Start-up Image / */ / p. 53
Start-up Sound / */ / p. 53
Operation Sound / */ / p. 53
Selftimer Volume / */ / p. 53
Shutter Sound / */ / p. 53
53
Basic Functions
Customizing the Camera (My Camera Settings)
My Camera allows you to customize the start-up image and start-up,
shutter, operation and self-timer sounds. Each menu item has three choices.
The option features science fiction related images and sounds. The
option features animals.
Changing My Camera Settings
1
Select the (My Camera) menu.
See Selecting Menus and Settings (p. 44).
2
Use the button to select an
item.
3
Use the button to select an
option.
Example: Start-up Image
54
• If you select (Theme) in Step 2, you can select a consistent
theme for each of the My Camera settings.
• If the Beep option in the (Set up) menu is set to [On], the beep
sounds even if each sound item is individually set to (Off) in the
My Camera menu (p. 160).
4
Press the MENU button.
• The menu will close.
• In Shooting mode, the menu can be
closed by pressing the shutter button
halfway.
55
Basic Functions
Images recorded onto the SD card and newly recorded sounds can be
added as My Camera settings to the and menu items. You can also
use the supplied software to upload your computer’s images and sounds to
the camera.
Registering SD Card Images and Sounds
Registering My Camera Settings
1
Turn the mode switch to (Replay).
2
Select the (My Camera) menu.
See Selecting Menus and Settings (p. 44).
3
Use the button to select an
item.
4
Use the button to select
or .
The icon will display.
5
Press the DISP. button.
56
• Sounds recorded with the movie and sound memo functions cannot
be added as My Camera settings.
• The prior setting is erased when a new My Camera setting is added.
6
Select an image or record a sound.
Start-up Image
Use the button to select the image
you wish to register and press the SET
button.
Start-up, Operation, Self-timer and
Shutter Sounds
• Use the button to select and
press the SET button. Recording will start
and automatically stop when the time is
exceeded.
• After recording, use the button to
select and press the SET button.
• Select to return to the My Camera
Menu without registering.
• Select to play the recorded sound.
7
Use the button to select [OK]
and press the SET button.
To cancel the change, select [Cancel].
57
Basic Functions
File Format of My Camera Settings
My Camera settings should conform to the below file formats. However, SD
card images shot with this camera can be registered as My Camera settings
regardless of the below formats.
Start-up Image
• Recording Format: JPEG (Baseline JPEG)
• Sampling Rate: 4:2:0 or 4:2:2
• Dimensions: 320 x 240 pixels
• File Size: 20 KB or less
Start-up, Operation, Self-timer and Shutter Sounds
• Recording format: WAVE (monaural)
• Quantization Bits: 8 bit
• Sampling Frequency: 11.025 kHz or 8.000 kHz
• Recorded Length
* Any file formats other than those described above cannot be used with this camera.
An example of this function is to record “Say Cheese” as a self-timer sound
so that the camera will replay this sound 2 seconds before the photo is
taken. You could also record cheerful music to bring out the natural smiles
of your subjects, or so they can strike a pose fitting the music. In these
ways you can customize your camera by creating and adding new My
Camera settings.
See the supplied Software Starter Guide for more information on
creating and adding to the My Camera files.
11.025 kHz 8,000 kHz
Start-up Sound 1.0 sec. or less 1.3 sec. or less
Operation Sound 0.3 sec. or less 0.4 sec. or less
Selftimer Sound 2.0 sec. or less 2.0 sec. or less
Shutter Sound 0.3 sec. or less 0.4 sec. or less
58
Shooting
In this mode, all you have to do is press the shutter button and let the
camera do everything else.
Shooting in Auto Mode
1
Turn the mode switch to (Auto).
2
Aim the camera at the subject.
3
Use the zoom lever to achieve the
desired composition (relative subject
size in the viewfinder) (p. 41).
4
Press the shutter button halfway
(p. 42).
• Two beeps will sound when the camera
has finished metering, and the upper
indicator beside the viewfinder will light
green or orange. If the LCD monitor is on,
the AF frame will appear green.
• If the subject is difficult to focus on, the
lower indicator beside the viewfinder will
blink yellow and the beep will sound one
time.
5
Press the shutter button fully
(p. 43).
• You will hear the sound of the shutter
when the shutter activates.
• The picture appears for two seconds on
the LCD monitor.
59
Shooting
•See Functions Available in Each Shooting Mode (p. 188).
• With the Review function, you can change the length of time images
show on the LCD monitor after shooting, or set it so they do not show
at all (p. 60).
Icons on the right end of title bars show the applicable operating modes.
As in the example below, the procedure can be performed in (Auto),
(Manual), (Manual/Stitch assist) or (Movie) mode.
Using the Self-timer
Conventions Used in the Text
60
Right after a shot is taken, the image appears in the LCD monitor for 2
seconds even if you release the shutter button regardless of whether the
LCD monitor is on or off.
You can also review it with the following procedures.
• By keeping the shutter button pressed after a shot.
• By pressing the SET button while the image is displayed on the LCD
monitor.
Press the shutter button halfway to stop displaying it so that you can shoot the
next frame.
You can do the following while the image is displayed.
- Check the image brightness in the histogram (p. 39).
- Erase the image (p. 113).
- Magnify the image in the display (p. 94).
Changing the Review Duration
The default review time is 2 seconds. The review function can be set to [Off] or
changed to any time in the range of 2 to 10 seconds in one-second increments.
Reviewing an Image Right after Shooting
1
In the (Rec.) menu, select .
See Selecting Menus and Settings (p. 44).
2
Use the button to select review
setting and press the MENU button.
• With the [Off] option, the image will not
automatically display.
• In the [2 sec.] to [10 sec.] range, the
image will continue to display for the
specified time even if the shutter button is
released.
• Holding the shutter button down after a
shot holds the image in the display
regardless of the setting.
61
Shooting
You can change the resolution and compression (excluding movies)
settings to suit the purpose of the image you are about to shoot.
Movies can be shot with the following resolution.
Changing Resolution/Compression Settings
Resolution Purpose
(Large) 2048 x 1536 pixels Large
• Print up to A4 size* 210 x 297
mm (8.3 x 11.7 in.) prints
• Print up to Letter size* 216 x
279 mm (8.5 x 11 in.) prints
(Medium 1) 1600 x 1200 pixels
• Print postcard size 148 x 100
mm (6 x 4 in.) prints
• Print L-size 119 x 89 mm (4.7 x
3.5 in.) prints
(Medium 2) 1024 x 768 pixels
• Print card size 86 x 54 mm (3.4
x 2.1 in.) prints
(Small) 640 x 480 pixels Small
• Send images as e-mail
attachments
• Shoot more images
* Paper sizes vary according to region.
Compression Purpose
Superfine
High
Quality
• Shoot higher quality images
Fine • Shoot normal quality images
Normal Normal •
Shoot more images
Resolution
640 x 480 pixels
320 x 240 pixels
160 x 120 pixels
62
•See Functions Available in Each Shooting Mode (p. 188).
•See Image File Sizes (Estimated) (p. 177).
•See SD Cards and Estimated Capacities (p. 176).
1
In the FUNC. menu, select
*
or
*
.
See Selecting Menus and Settings (p. 44).
* The current setting is displayed.
2
Use the button to select an
option.
Compression (Excluding Movies)
Select , or .
Resolution (Still Images)
Select , , or .
Resolution (Movies)
Select , or .
You can shoot right after selecting an
option. The menu displays again after the
shot, allowing you to change the settings
easily.
3
Press the FUNC. button.
The display will return to the Rec. screen.
63
Shooting
Using the Flash
Auto The flash fires automatically as required by the light level.
Red-Eye
Reduction
Auto
The red-eye reduction lamp fires with each shot,
automatically adjusting the intensity to suit lighting levels.
Flash On The flash fires with every shot.
Flash Off The flash will not fire.
Slow-
Synchro
The flash timing is adjusted to slow shutter speeds. This
reduces the chance that the background will be dark when
shots are taken at night or in rooms with artificial lighting.
The red-eye reduction lamp fires with each shot.
Use of a tripod is recommended.
Setting available
Can be selected for the
first image only.
–
–
–
–
1
Press the button to switch
between flash modes.
The selected flash mode appears on the LCD
monitor.
64
• When you use flash photography at higher ISO speeds, the chances
of white streaks appearing in the image increase the closer you
approach to the subject.
• Since a slow shutter speed is selected in dark places when the flash
is set to Off or Slow-Synchro, take care to avoid blurring the image.
- Shooting in Mode
Be careful to hold the camera still to avoid camera shake.
- Shooting in , Mode
Fix the camera to a tripod to shoot in these modes since the
shutter speed will be slower than in the mode. If an image is
dark in mode, reshooting it in mode will make it brighter.
• The flash can be fired when the upper indicator beside the
viewfinder lights a steady orange after pressing the shutter button
halfway.
• The flash may take up to approximately 10 seconds to charge. The
recharging time will vary with such factors as the shooting
conditions and battery charge. Shots cannot be taken while the flash
is charging.
• The flash fires twice. The main flash follows a preparatory pre-flash.
The exposure reading obtained from the subject with the pre-flash is
used to set the optimal flash intensity for the main flash, which is
used to capture the image.
Red-Eye Reduction
• Light reflecting back from eyes can make them appear red when the
flash is used in dark areas. Under these conditions, use the red-eye
reduction mode. For this mode to be effective, the subject must be
looking right at the red-eye reduction lamp. Try asking them to look
directly at the lamp. Even better results can be obtained by shooting
with the lens set to a wide angle, increasing the lighting in indoor
settings or approaching closer to the subject.
• The shutter will not activate for approximately 1 second after the red-
eye reduction lamp fires in order to improve the effect. If you want a
more immediate shutter response, set the flash to , or .
65
Shooting
To cancel the macro/infinity mode
Press the
/ button to remove or
from the display.
/
Shooting Close-Ups/Infinity Shots
Macro
Use this mode to record subjects in the range of 10 to
47 cm (3.9 in. to 1.5 ft.) from the lens tip when at wide-
angle end and in the range of 23 to 47 cm (9.0 in. to 1.5
ft.) when at the telephoto end setting.
Infinity
Use this mode to record landscapes and distant
objects.
It can also be used for compositions combining both
near and distant objects.
Setting available
Can be selected for
the first image only.
–
1
Press the / button to select the
macro/infinity mode.
The selected macro/infinity mode appears
on the LCD monitor.
66
• Use the LCD monitor to compose close-ups in macro mode since
images composed with the viewfinder may be off-center (p. 40).
• The exposure may not be optimal when the flash is used in macro mode
in the range of 10 to 27 cm (3.9 to 10.6 in.).
Image Area in Macro Mode
When the zoom is set between the telephoto end and the wide-angle
end, the distance from lens to subject is the same as when the zoom is
set to the telephoto end.
Distance from Lens to
Subject
Image Area
Telephoto End 23 cm (9 in.) 115 x 86 mm (4.5 x 3.4 in.)
Wide-Angle End 10 cm (3.9 in.) 100 x 75 mm (3.9 x 3.0 in.)
67
Shooting
When the LCD monitor is on, images can be zoomed to approximately 2.6,
3.2, 4.0, 4.9 or 6.4 times with the combined optical and digital zoom
functions.
The digital zoom cannot be used when the LCD monitor is turned off.
Images become coarser the more they are digitally zoomed.
Using the Digital Zoom
1
Press the DISP. button to turn the
LCD monitor on.
2
In the (Rec.) menu, select .
See Selecting Menus and Settings (p. 44).
3
Use the button to select [On]
and press the MENU button.
The display will return to the Rec. screen.
4
Press the zoom lever toward .
• The combined optical and digital zoom
factor appears in the upper right of the
LCD monitor.
• When you press the zoom lever toward ,
the zoom stops when the lens reaches the
maximum optical telephoto setting.
Press the zoom lever toward again to
activate the digital zoom and further zoom
the image digitally.
• Press the zoom lever toward to zoom
out.
68
In this mode, the camera shoots continuously at approximately 2.2 images
per second
*
(Large/Fine, LCD monitor off) while the shutter button is held
down. Recording ceases when the shutter button is released.
* This figure reflects standard shooting criteria established by Canon. Actual figures may vary
according to the subject and shooting conditions.
To cancel the continuous shooting
Press the / button to display .
• The interval between shots may lengthen slightly when the camera’s
built-in memory fills.
• If the flash is firing, the interval between shots will lengthen to
accommodate the flash’s charging requirements.
Continuous Shooting
1
Press the / button to display
.
69
Shooting
To cancel the self-timer
Press the / button to display .
Changing the Self-timer Countdown Time
The self-timer sound can be changed with the Selftimer Sound item in
the (My Camera) menu (p. 159).
Using the Self-timer
1
Press the / button to display
or .
• When the shutter button is pressed fully,
the self-timer will activate and the self-
timer lamp will blink.
• When the self-timer is set to ( ),
the shutter activates 10 (2) seconds after
the shutter button is pressed fully.
1
In the (Rec.) menu, select .
See Selecting Menus and Settings (p. 44).
2
Use the button to select
(10 sec.) or (2 sec.) and
press the MENU button.
• The display will return to the Rec. screen.
• When is selected, the self-timer
sounds and the blinking gets faster 2
seconds before the shutter activates.
• When is selected, the self-timer
sounds at the same time as the shutter
button is pressed. The shutter activates in
2 seconds.
70
In this mode, you can change various settings and shoot as you wish.
Shooting in Manual Mode
1
Turn the mode switch to
(Manual).
2
Change the settings.
See Functions Available in Each Shooting
Mode (p. 188).
3
Shoot (p. 58).
If the subject is difficult to focus on when
the shutter button is pressed halfway, the
beep will sound one time and the lower
indicator beside the viewfinder will blink
yellow. The AF frame will also appear yellow.
(If the AiAF option is set to [On] (p. 80), the
AF frame will not appear.)
71
Shooting
Select a resolution in the FUNC. menu from the (640 x 480), (320 x
240, Default) and (160 x 120) options (p. 61).
Shooting a Movie
1
Turn the mode switch to (Movie).
The LCD monitor turns on and displays the
maximum recording time (in seconds).
2
Press the shutter button fully.
• Shooting and sound recording starts
simultaneously.
• During shooting the recording time (in
seconds) and a red circle appear on the
LCD monitor.
3
Press the shutter button fully again
to stop recording.
The maximum length of a movie clip (at
approximately 15 frames/sec.) is
approximately 30 sec*. ( ), 3 min. ( )
or 3 min. ( ) (According to Canon’s
standardized tests).
* When using the separately sold SDC-128M SD card
(not sold in some regions). When using the SD card
supplied with the camera, the maximum length is
approximately 13 sec.
These times may vary with the subject and
shooting conditions. Recording will
automatically stop when the maximum is
reached or when the SD card runs out of
free capacity.
72
• Although the recording time may not display properly during
shooting, the movie will be recorded correctly.
• Filming may stop unexpectedly with certain types of SD cards (slow-
recording cards, cards formatted on a different camera or a
computer, or cards which have had images recorded and erased
repeatedly).
• You are recommended to use an SD card that has been formatted in
your camera to shoot movies (p. 115). The card supplied with the
camera may be used without further formatting. When shooting
movies at (640 x 480), you are recommended to use the
separately sold SDC-128M SD card (not sold in some regions).
• Be careful not to touch the microphone while recording.
• The AE, AF, white balance and zoom settings remain fixed for
subsequent frames at the values selected for the first frame.
• After a clip is shot, the upper indicator beside the viewfinder will
blink green while the clip is being written to the SD card. You cannot
shoot again until the blinking stops.
•See Functions Available in Each Shooting Mode (p. 188).
• Sound is recorded monaurally.
• The shutter sound will not sound when you fully press the shutter
button to record a movie clip.
• QuickTime 3.0 or later is required to replay movie files (AVI/Motion
JPEG) on a computer. QuickTime (for Windows) is included on the
Canon Digital Camera Solution Disk. On the Macintosh platform, this
program is generally bundled with Mac OS 8.5 or later operating
systems.
73
Shooting
Stitch Assist can be used to shoot overlapping images that can later be
merged (stitched) to create one panoramic image on a computer.
To merge the images on a computer, use PhotoStitch, one of the
supplied programs.
Framing a Subject
The PhotoStitch program detects the overlapping portions of adjoining
images and merges them. When shooting, try to include a distinctive item
(landmark) in the overlapping portions.
• Compose each frame so that it overlaps 30 - 50% of the adjoining image. Try
to keep the vertical misalignment to less than 10% of the image height.
• Do not include moving items in the overlap.
• Do not try to stitch images that include both distant and close items.
These items may appear warped or doubled up in the merged image.
• Make the brightness in each image consistent. The final image will appear
unnatural if the contrast in brightness is too great.
• To shoot landscapes, swivel (pan) the camera around its own vertical axis.
Shooting in Stitch Assist
The overlapping seams of
several adjacent images
can be joined into a single
panoramic image.
74
• To shoot close-ups, slide the camera over the subject, keeping it parallel to
the subject as you move it.
Shooting
Images can be shot in two sequences in Stitch Assist.
Left to right horizontally
Right to left horizontally
1
In the (Rec.) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select the
sequence direction and press the
SET button.
Pressing the MENU button returns to the
Rec. menu screen.
3
Shoot the first frame in the
sequence.
The exposure and white balance are set and
locked with the first image.
75
Shooting
• A custom white balance setting cannot be set in Stitch Assist. To use
a custom white balance setting, set it before selecting in the
Rec. menu (p. 86).
• The settings for the first image are used to take subsequent images
in the sequence.
• It is not possible to display images on the TV when shooting in Stitch
Assist.
See Functions Available in Each Shooting Mode (p. 188).
4
Compose the second image so that
it overlaps a portion of the first and
shoot.
• Use the button to check or retake
the recorded images.
• Minor discrepancies in the overlapping
portions can be corrected when the
images are stitched together.
5
Repeat the procedure for additional
images.
A sequence may contain up to 26 images.
6
Press the SET button after the last
shot.
Pressing the MENU button returns to the
Rec. menu screen.
76
It may be difficult to focus on the following types of subjects. Use the focus
lock in these situations.
• Subjects with extremely low contrast to the surroundings
• Subjects with extremely bright objects at the center of the composition
• Subjects that are moving quickly
• Subjects through glass:
Try to shoot as close to the glass as possible to reduce the chances of
light reflecting back off the glass.
Shooting with the Focus Lock
Method 1
Method 2
Locking the Focus (AF Lock)
1
Aim the camera so that an object at
the same focal distance as the main
subject is centered in the AF frame
in the viewfinder or LCD monitor.
2
Press the shutter button halfway
and wait until two beeps sound.
The focal distance to the object is locked.
3
Re-aim the camera to compose the
shot as desired and press the
shutter button fully.
1
Press the DISP. button to turn the
LCD monitor on.
2
Aim the camera so that an object at
the same focal distance as the main
subject is centered in the AF frame.
77
Shooting
To release the focus lock
Press the / button.
• The focus lock method 1 can be used in any shooting mode.
• When shooting with the focus lock using the LCD monitor, setting the
AiAF to Off (p. 80) is recommended since the camera focuses using
the center AF frame only.
• Method 2 is convenient because you can let go of the shutter button
to recompose the image. Moreover, the focus remains locked after
the picture is taken, allowing you to capture a second image with the
same focus.
• In Method 2, pressing the zoom lever, MENU button or DISP. button,
or changing the shooting mode also releases the focus lock.
3
Press and hold the shutter button
halfway until two beeps sound.
Without releasing your finger, press
the / button.
• The focal distance to the object is locked.
• The icon will display and the lower
indicator beside the viewfinder will light
yellow.
4
Re-aim the camera to compose the
shot as desired and press the
shutter button fully.
78
You can set the exposure and focus separately. This is effective when the
contrast is too strong between the subject and background or when a
subject is backlit.
You must set the flash to . The AE lock cannot be set if the flash
fires.
To release the AE lock
Press the button.
The AE lock may release if you press any button other than the
button.
Locking the Exposure Setting (AE Lock)
1
Press the DISP. button to turn the
LCD monitor on.
2
Focus on the part of the subject on
which you wish to lock the exposure
setting.
3
Press and hold the shutter button
halfway until two beeps sound.
Without releasing your finger, press
the button.
• The exposure setting is locked.
• The icon will display.
4
Re-aim the camera to compose the
shot as desired and press the
shutter button fully.
79
Shooting
You can lock the flash exposure so that the exposure settings are correctly
set for a particular portion of your subject.
To release the FE lock
Press the button.
The FE lock may release if you press any button other than the
button.
Locking the Flash Exposure Setting (FE Lock)
1
Press the DISP. button to turn the
LCD monitor on.
2
Press the button to set the flash
to .
3
Focus on the part of the subject on
which you wish to lock the flash
exposure setting.
4
Press and hold the shutter button
halfway until two beeps sound.
Without releasing your finger, press
the button.
• The flash will fire a pre-flash and lock the
flash exposure to the required intensity to
illuminate the subject.
• The icon will display.
5
Re-aim the camera to compose the
shot as desired and press the
shutter button fully.
80
Although the autofocus function is preset to the AiAF setting (nine AF
frames), you can set it to the center AF frame.
When center AF frame is selected, the AF frame will appear in the LCD
monitor if it is turned on (p. 34).
The symbol represents the AF frames as they appear in the LCD monitor.
The center AF frame mode is used when the digital zoom is activated.
Switching between Autofocus Modes
No frame On
The camera detects the subject and highlights the AF frames,
from 9 available points, that it will use to determine the focus.
Off
The camera focuses using the center AF frame. This is
convenient for focusing on a specific part of a subject with
greater certainty.
1
In the (Rec.) menu, select .
See Selecting Menus and Settings (p. 44).
2
Use the button to select [On]
or [Off].
You can shoot right after selecting an
option.
3
Press the MENU button.
The display will return to the Rec. screen.
81
Shooting
You can switch between metering modes to shoot.
Switching between Light Metering Modes
Evaluative
Light
Metering
Appropriate for standard shooting conditions,
including backlit scenes. The camera divides images
into several zones for light metering. It evaluates
complex lighting conditions, such as the position of
the subject, the brightness, the direct light, and the
backlighting, and adjusts the settings to the correct
exposure for the main subject.
Center-
Weighted
Averaging
Averages the light metered from the entire frame,
but gives greater weight to the subject matter at the
center.
Spot AE Point
Meters the area within the spot AE point at the center
of the LCD monitor. Use this mode when the subject
is backlit or surrounded by strong light.
1
Press the button to switch
between metering modes.
The selected metering mode appears on the
LCD monitor.
82
Adjust the exposure compensation setting to avoid making the subject too dark
when it is backlit or shot against a bright background or to avoid making lights
appear too bright in night shots.
To reset the exposure compensation
Return the setting to 0.
Adjusting the Exposure Compensation
1
In the FUNC. menu, select
*
.
See Selecting Menus and Settings (p. 44).
* The current setting is displayed.
2
Use the button to adjust the
exposure compensation.
• The settings can be adjusted in 1/3 steps
in the range -2 to +2.
• You can confirm the effect of the setting in
the LCD monitor when it is on.
• You can shoot right after selecting an
option. The menu displays again after the
shot, allowing you to change the settings
easily.
3
Press the FUNC. button.
83
Shooting
You can set the shutter speed to a slow setting to make dark subjects
appear brighter.
Shooting in Long Shutter Mode
1
In the (Rec.) menu, select .
See Selecting Menus and Settings (p. 44).
2
Use the
button to select [On]
and press the MENU button.
The display will return to the Rec. screen.
3
In the FUNC. menu, select
*
and
press the SET button.
See Selecting Menus and Settings (p. 44).
* The current setting is displayed.
4
Use the button to select a
shutter speed.
• The higher the value, the brighter the
image and the lower the value, the darker
the image.
• You can shoot right after selecting a value.
The menu displays again after the shot,
allowing you to change the settings easily.
5
Press the FUNC. button.
84
To cancel the long shutter mode
While [Long Shutter] is displayed in the FUNC. menu, press the SET button.
The nature of CCD image sensors is such that noise in the recorded
image increases at long shutter speeds. This camera, however, applies
special processing to images shot at shutter speeds slower than 1.3
seconds to eliminate the noise, thereby producing high-quality images.
Nevertheless, a certain amount of processing time may be required
before the next image can be shot.
• Please note that camera shake becomes a factor at low shutter
speeds. If the camera shake warning appears on the LCD
monitor, secure the camera to a tripod before shooting.
• Use the LCD monitor to confirm that the image was recorded at the
desired brightness.
• Use of the flash may result in an over-exposed image. If that occurs,
shoot with the flash set to .
• The following are unavailable:
- Exposure Compensation
- Light Metering
- AE Lock
- FE Lock
-ISO speed [AUTO]
- Flash [Auto][Red-Eye Reduction Auto]
Available Shutter Speeds
The following shutter speeds (in seconds) are available.
1 1.3 1.6 2 2.5 3.2 4 5 6 8 10 13 15
85
Shooting
When the white balance mode is set to match the light source, the camera
reproduces colors more accurately.
Setting the White Balance
Auto
The camera sets the white balance automatically according
to shooting conditions.
Daylight For recording outdoors on a bright day.
Cloudy
For recording under overcast, shady or twilight skies.
Tungsten
For recording under tungsten and bulb-type 3-wavelength
fluorescent lighting.
Fluorescent
For recording under warm-white, cool-white or warm-
white (3-wavelength) fluorescent lighting.
Fluorescent H
For recording under daylight fluorescent, or daylight
fluorescent-type 3-wavelength fluorescent lighting.
Custom
For setting a custom value with a white sheet of paper, etc.,
to obtain the optimal white balance for the conditions.
1
In the FUNC. menu, select
*
.
See Selecting Menus and Settings (p. 44).
* The current setting is displayed.
2
Use the button to select an
option.
•See Setting a Custom White Balance
(p. 86).
• You can confirm the effect of the setting in
the LCD monitor when it is on.
• You can shoot right after selecting an
option. The menu displays again after the
shot, allowing you to change the settings
easily.
3
Press the FUNC. button.
86
This setting cannot be adjusted when the (Sepia) or (B/W)
photo effects are selected.
Setting a Custom White Balance
You can set a custom white balance to obtain the optimal setting for the
shooting conditions by having the camera evaluate an object, such as a
piece of white paper or cloth, or a photo-quality gray card that you wish to
establish as the standard white color.
Especially in the following cases, as the white balance may not be adjusted
in
(Auto), shoot after reading the white balance data in (Custom).
• Shooting close-ups
• Shooting subjects of monotone color (such as sky, sea or forest)
• Shooting with a peculiar source of light (such as a mercury-vapor lamp)
1
In the FUNC. menu, select
*
.
See Selecting Menus and Settings (p. 44).
* The current setting is displayed.
2
Use the button to select .
87
Shooting
• You are recommended to set the shooting mode to and the
exposure compensation setting to zero (±0) before setting a custom
white balance. The correct white balance may not be obtained when
the exposure setting is incorrect (image appears completely black
or white).
• Shoot with the same settings as when reading the white balance
data. If the settings differ, the optimal white balance may not be set.
Especially the following should not be changed.
-Flash
Setting the flash to on or off is recommended. If the flash fires
when reading the white balance data with the flash set to or
, make sure that you also use the flash when you shoot.
- ISO Speed
• It is also advisable to use the LCD monitor to compose the shot and
to zoom to the telephoto end setting. Also, the digital zoom should
be set to [Off].
• Since the white balance data cannot be read in stitch assist, preset
the white balance before selecting in the Rec. menu.
3
Aim the camera at the white paper,
cloth or gray card and press the SET
button.
• Aim the camera so that the white paper,
cloth or gray card completely fills the
frame on the LCD monitor or the entire
viewfinder before pressing the SET
button. The camera reads the white
balance data when you press the SET
button.
• You can shoot right after selecting an
option. The menu displays again after the
shot, allowing you to change the settings
easily.
4
Press the FUNC. button.
88
You can shoot with different photo effects.
Changing the Photo Effect
Photo Effect Off Records with no effect.
Vivid
Emphasizes the contrast and color saturation to
record bold colors.
Neutral
Tones down the contrast and color saturation to record
neutral hues.
Low Sharpening Records subjects with softened outlines.
Sepia Records in sepia tones.
B/W Records in black and white.
1
In the FUNC. menu, select
*
.
See Selecting Menus and Settings (p. 44).
* The current setting is displayed.
2
Use the button to select an
effect.
• You can confirm the photo effect in the
LCD monitor when it is on.
• You can shoot right after selecting an
option. The menu displays again after the
shot, allowing you to change the settings
easily.
3
Press the FUNC. button.
89
Shooting
Raise the ISO speed when you wish to reduce camera shake or turn the
flash off when shooting in a dark area, or use a fast shutter speed.
•
Higher ISO speeds increase image noise. To take clean images, use as
low an ISO speed as possible.
• Although the AUTO setting selects the optimal speed, it will
automatically raise the speed when the shooting condition limits are
reached. It will also raise the speed when the light from the flash is
insufficient to illuminate the subject matter.
Adjusting the ISO Speed
1
In the FUNC. menu, select
*
.
See Selecting Menus and Settings (p. 44).
* The current setting is displayed.
2
Use the button to select a
speed.
You can shoot right after selecting an
option. The menu displays again after the
shot, allowing you to change the settings
easily.
3
Press the FUNC. button.
90
Your camera is equipped with an Intelligent Orientation sensor that detects
the orientation of an image shot with the camera held vertically and
automatically rotates it to the correct viewing orientation in the display. You
can set this function on/off.
• When the camera is held vertically to shoot, the Intelligent
Orientation sensor judges the upper end to be “up” and the lower
end to be “down.” It then regulates the optional white balance,
exposure and focus for vertical photography. This function operates
regardless of the On/Off status of the Auto Rotate function.
• When changing the camera’s orientation between the horizontal and
vertical positions, you may hear noise coming from the orientation
detection mechanism. This is not a malfunction.
• This function may not operate correctly when the camera is pointed
straight up or down. Check that the arrow is pointing in the right
direction and if it is not, then set the Auto Rotate function to [Off].
• Even if the Auto Rotate function is set to [On], the orientation of
images downloaded to a computer will depend upon the software
used to download the images.
Setting the Auto Rotate Function
1
In the (Set up) menu, select .
See Selecting Menus and Settings (p. 44).
2
Use the
button to select [On]
and press the MENU button.
• The display will return to the Rec. screen.
• When the Auto Rotate function is set to
[On] and the LCD monitor is set to the
detailed display mode, the icon
(normal), icon (right end is down) or
icon (left end is down) will appear in
the upper right of the display.
91
Shooting
You can select the way file numbers are assigned.
Resetting the File Number
On
The file number is reset to the start (100-0001) each time a new SD
card is inserted. New images recorded on SD cards with existing files
are assigned the next available number.
Off
The file number of the last image to be shot is memorized so that
images recorded to a new SD card start from the next number.
1
In the (Set up) menu, select .
See Selecting Menus and Settings (p. 44).
2
Use the button to select [On]
or [Off] and press the MENU button.
The display will return to the Rec. screen.
92
Setting the File No. Reset to [Off] is useful for avoiding file name
duplication when images are downloaded to a computer.
About File Numbers and Folder Numbers
Images are assigned file numbers from 0001 to 9900, and folders are
assigned folder numbers from 100 to 998 (Folder numbers cannot
contain 99 in the last two digits)
Folder File Capacity
Each folder usually contains up to 100 images.
However, since images shot in continuous shooting and stitch assist
are always saved into the same folder, a folder may contain more than
100 images. The number of images may also exceed 100 if a folder
contains images copied from a computer or images shot with other
cameras. Please note, however, that the images in folders containing
2001 or more images cannot be replayed in this camera.
Folder numbers cannot contain 99 in the last two digits
93
Replaying
Replaying
Displaying Images Individually
1
Turn the mode switch to
(Replay).
The last recorded image will appear in the
display (single image replay).
2
Use the button to move
between the images.
Use the button to move to the previous
image and the button to move the next
image.
Holding the button down advances the
images more rapidly, but the images will not
appear as clearly.
94
To cancel the magnified display
Press the zoom lever toward .
Movie frames and index replayed images cannot be magnified.
Magnifying Images
1
Press the zoom lever toward .
• Images can be magnified up to
approximately 10 times.
•Hold the
SET
but
ton down and press the
zoom lever toward to cycle through
each setting, from approximately 2.5
times, to approximately 5
and 10 times.
•Hold the SET button down and press the
zoom lever toward to cycle back
through the levels of magnification from
approximately 5 times, to 2.5 times and
the standard view.
2
Use the button to move
around the image.
Approximate Location
of the Magnified Area
95
Replaying
To return to single image replay
Press the zoom lever toward .
Viewing Images in Sets of Nine (Index Replay)
1
Press the zoom lever toward .
Up to nine images can be viewed at once in
index replay.
2
Use the button to change
the image selection.
Selected Image
Movie
96
Switching between Sets of Nine Images
To return to index replay
Press the zoom lever toward .
1
Press the zoom lever toward
while in index replay.
The jump bar will display.
2
Use the button to move to the
previous set or the next set.
Hold the SET button down and press the
button to jump to the first or last set.
Jump Bar
97
Replaying
Movie clips can be replayed with the following procedures.
Movies cannot be played in the index replay mode.
Viewing Movies
1
Use the button to select a
movie.
Images with a icon are movies.
2
Press the SET button.
• The movie control panel will display.
• Use the button to adjust the sound
volume.
3
Use the button to select
(Play) and press the SET button.
• The movie and sound will play.
• When playback ends, the movie stops at
the last frame displayed. Press the SET
button to display the movie control panel.
Press the SET button again to play from
the beginning.
Volume Level
Movie Control
Panel
98
Pausing and Resuming Play
Press the SET button during
playback.
The movie playback pauses. Press it again
to resume.
99
Replaying
Operating the movie control panel
Use the television’s controls to adjust the volume when playing a
movie on a TV set (p. 146).
• You may experience frame dropping and audio breakup when
replaying a movie on a computer with insufficient system resources.
• Movies shot with other cameras may not replay on this camera. See
List of Messages (p. 162).
1
Select a movie and press the SET
button (p. 97).
The movie control panel will display.
2
Use the button to select one
of the following and press the SET
button.
: Return to single image replay
(Pressing the Menu button also returns
to single image replay.)
:Play
: First Frame
: Previous Frame
(Rewinds if the
SET
button is held down)
: Next Frame
(Fast Forwards if the
SET
button is held down)
: Last Frame
: Switch to Movie Editing Mode (p. 100)
100
Selecting (Edit) in the movie control panel enables you to cut unwanted
portions at the start or end of a movie clip.
Protected movies and movies less than 1 second in duration cannot
be edited.
Editing Movies
1
Switch to the movie editing mode.
•See Operating the movie control panel (p.
99).
• The movie editing panel and the movie
editing bar will display.
2
Use the button to select or
and the button to set the
portion to which the cut is applied.
: Cut Beginning
: Cut End
: Cursor
3
Use the button to select
(Play) and press the SET button.
• A preview of the temporarily edited movie
clip plays.
• To stop it, press the SET button again.
4
Use the button to select
(Save) and press the SET button.
Selecting cancels the edits and returns
to the movie control panel display.
101
Replaying
• The minimum duration of an edited movie is 1 second.
• It may take approximately 3 minutes to save an edited movie. If the
battery pack runs out of charge partway through, edited movie clips
cannot be saved. When editing movies, use a fully charged battery
pack or the separately sold AC Adapter Kit ACK900 (p. 166).
5
Use the button to select [New
File] or [Overwrite] and press the
SET button.
• [New File] saves the edited movie under a
new file name. The pre-edit data is left
unchanged.
• [Overwrite] saves the edited movie with its
original file name. The pre-edit data is lost.
• When the SD card lacks sufficient space to
create a new file, only [Overwrite] can be
selected. A small
symbol will appear in
the time display on the movie in that case.
102
Images can be rotated clockwise 90° or 270° in the display.
Rotating Images in the Display
1
In the (Play) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select the
image to be rotated and press the
SET button.
Cycle through the 90°/270°/0° orientations
with each press of the SET button.
3
Press the MENU button.
The display will return to the Play menu.
Pressing the
MENU
button again returns to the
Replay screen.
0° (Original) 90° 270°
103
Replaying
• Movies cannot be rotated.
• When images are downloaded to a computer, the orientation of
images rotated by the camera will depend upon the software used
to download the images.
• Images can be magnified when rotated (p. 94).
• Images taken vertically with Auto Image Rotate (p. 90) set to [On]
will automatically be rotated to the vertical position when viewed on
the camera’s LCD monitor.
104
In replay mode (including single image replay, index replay, and magnifying
replay), you can attach sound memos (up to 60 seconds) to an image. The
sound data is saved in WAVE format.
Exiting the Sound Memos
Press the MENU button.
Attaching Sound Memos to Images
1
In the (Play) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select an
image and press the SET button.
The sound memo control panel will display.
3
Use the button to select
and press the SET button.
• The recording starts and the elapsed time
is displayed. Speak towards the
microphone of the camera.
• Press the SET button again to stop
recording. To resume recording, press the
SET button again.
• Up to 60 seconds of recordings may be
added to any one image.
• To return to the previous screen, select
and press the SET button.
105
Replaying
Playing/Erasing Sound Memos
1
Display an image with a sound
memo attached (p. 104) and press
the SET button.
• Images with sound memos attached have
a symbol displayed on them in the
LCD monitor.
• The sound memo control panel will
display.
2
Use the button to select
or and press the SET button.
(Play)
• The sound memo will play. Playback will
stop when you press the SET button.
Press the SET button again to resume
playback.
• Use the button to adjust the sound
volume.
(Erase)
• A confirmation menu will display. Use the
button to select [Erase] and press
the SET button.
To return the playback to the beginning,
select (Stop) while stopped and press
the SET button.
106
• You cannot attach sound memos to movies.
• The “Memory card full” message will display when the SD card is full
and you will be unable to record sound memos to that card.
• If an incompatible sound memo is attached to an image, you will be
unable to record or play sound memos for that image, and the
“Incompatible WAVE format” message will display. You can erase
incompatible sound data using the camera.
• Sound memos for protected images cannot be erased.
The volume can be adjusted in the (Set up) menu (p. 155).
107
Replaying
Starting a Slide Show
A selection of images or all the images on an SD card can be displayed one-
by-one in an automated slide show.
Slide show image settings are based on DPOF standards (p. 131).
Automated Playback (Slide Shows)
All Images Plays all images on the SD card in order.
Slide Show 1-3
Plays the images selected for each slide show in
order (p. 109).
1
In the (Play) menu, select
and press the SET button.
•See Selecting Menus and Settings (p. 44).
• The Slide Show menu will display.
2
Use the button to select
[Program] and the button to
select [All Images], [Show 1],
[Show 2] or [Show 3].
See p.109 from step 3, for selecting the
playback images in slide shows 1-3.
3
Use the button to select [Start]
and press the SET button.
The slide show starts. The Slide Show menu
will reappear after the playback ends.
108
• Movies play for their entire recorded length regardless of the time
set in the slide show settings.
• The power-saving function does not activate during a slide show
(p. 33).
Pausing/Resuming a Slide Show
Fast Forwarding/Rewinding a Slide Show
Stopping a Slide Show
4
Press the MENU button.
The display will return to the Play menu.
Pressing the MENU button again returns to
the Replay screen.
Press the SET button.
The slide show pauses. Press the SET
button again to restart it.
Press the button.
The previous or next image displays. Hold
down the button to advance through the
images more rapidly.
Press the MENU button.
The slide show stops and the Slide Show
menu reappears.
109
Replaying
Selecting Images for Slide Shows
You can mark images for inclusion in slide shows 1-3. Up to 998 images
may be marked per slide show. Images display in the order of their
selection.
1
Display the Slide Show menu.
See Starting a Slide Show (p. 107).
2
Use the button to select
[Program] and the button to
select [Show 1], [Show 2] or [Show
3].
A white checkmark will appear beside a
show already containing images.
3
Use the button and the
button to choose [Select] and press
the SET button.
110
Adjusting the Play Time and Repeat Settings
You can change the play time for all the images in a show and have the
show repeat continuously.
4
Select images for the Slide Show
• Use the button to move between
images and the button to select or
deselect them. Selected images display a
number corresponding to their selection
order and a white checkmark .
• You can press the zoom lever toward
to switch to the index mode (3 images)
and use the same procedures to select
images.
• While in index replay, pressing the SET
button displays the menu for selecting or
deselecting all images. Use the
button to select [Select all] or [Clear all]
and press the SET button.
5
Press the MENU button.
The image selection screen will close.
Pressing the MENU button again returns to
the Play menu. Press it again to go back to
the Play screen.
Play Time
Sets the duration that each image displays. Choose
between 3-10 seconds, 15 seconds, 30 seconds and
Manual.
Repeat
Sets whether the slide show stops when all the slides have
been displayed or continues until stopped.
1
Display the Slide Show menu.
See Starting a Slide Show (p. 107).
111
Replaying
• The display interval may vary slightly from the set time for some
images when played.
• Slide shows are easy to arrange on a computer with the supplied
software. See the Software Starter Guide.
2
Use the button to select [Set
up] and press the SET button.
3
Use the button to select or
and the button to select
an option.
(Play Time)
Select a play time.
(Repeat)
Select [On] or [Off].
4
Press the MENU button.
The set up menu will close. Pressing the
MENU button again returns to the Play
menu. Press it again to go back to the Play
screen.
112
You can protect important images from accidental erasure.
To cancel protection
After step 1, select an image to remove protection from and press the SET
button.
Please note that formatting (initializing) an SD card erases all data,
including protected images.
Protecting Images
1
In the (Play) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select an
image to protect and press the SET
button.
• The icon appears on protected images.
• You can make the selection of images
easier by toggling between single image
replay and index replay by pressing the
zoom lever toward or .
3
Press the MENU button.
The Play menu displays again. Press it again
to return to the Play screen.
Protection Icon
113
Erasing
Erasing
• Please note that erased images cannot be recovered. Exercise
adequate caution before erasing a file.
• Protected images cannot be erased with this function.
Erasing Single Images
1
Turn the mode switch to
(Replay).
2
Use the button to select an
image for deletion and press the
button.
3
Use the button to select
[Erase] and press the SET button.
To exit instead of erasing, select [Cancel].
114
• Please note that erased images cannot be recovered. Exercise
adequate caution before erasing a file.
• Protected images cannot be erased with this function.
Erasing All Images
1
In the (Play) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select [OK]
and press the SET button.
To exit instead of erasing, select [Cancel].
115
Erasing
New SD cards must be formatted with the following procedures before use.
Please note that formatting (initializing) an SD card erases all data,
including protected images and other file types.
• When the camera is malfunctioning, a corrupted SD card might be
the cause. Reformatting the SD card may solve the problem.
• When a non-Canon brand SD card is malfunctioning, reformatting it
may solve the problem.
• SD cards formatted in other cameras, computers, or peripheral
devices may not operate correctly in this camera. When that
happens, reformat the SD card with this camera. If formatting in the
camera does not work properly, turn the camera off and re-insert the
SD card. Then turn the camera back on and format again.
Formatting SD Cards
1
In the (Set up) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select [OK]
and press the SET button.
• To exit instead of formatting, select
[Cancel].
• The capacity of the SD card displayed after
formatting will be less than the rated
capacity of the SD card. This is not a
malfunction of the SD card or camera.
116
Printing
This camera supports direct printing. By connecting the camera to a direct
print compatible printer (CP series, sold separately)*
1
or Bubble Jet printer
(sold separately) that supports the camera’s direct print function, you can
send the images from the SD card directly to the printer using the camera
buttons. In addition, you can have prints made to specification by a photo
developing service by sending your SD card with the DPOF*
2
print settings
set in advance on your camera. Please refer to the System Map supplied
with your camera for direct print compatible printer information.
*1
The direct print icon appears on direct print compatible CP series printers.
*2
Digital Print Order Format
About Printing
Bubble Jet Printer
(Compatible with the
direct print function)
Card Photo Printer
(Compatible with the
direct print function,
CP series)
Photo Lab
Print
SD Card
117
Printing/Image Transfer Settings
Please refer to the System Map supplied with your camera for direct print
compatible printer (CP series) information.
See Selecting Images for Printing (p. 131).
Set the number of print copies (pp. 132, 133)
See Setting the Print Style (p. 134).
• Standard/Index/Both
• Date: On/Off
• File Numbers: On/Off
Select the images to download to a computer (p. 140)
DPOF Print Settings
DPOF Transfer Order
See Setting the Number of Print Copies (p. 126).
See Setting the Print Style (p. 126).
• Standard/Multiple
(Direct Print Compatible Printer, CP Series)
• Paper: Card #1/Card #2/Card #3/LTR/A4
(Direct Print Compatible Bubble Jet Printer)
• Bordered/Borderless
• Date: On/Off
See Setting the Printing Area (Trimming) (p. 129).
Setting Print Settings for Direct Printing
118
Printing (Cont’d)
Print Menu Settings
Use the Print menu to set print related settings. The following diagrams
illustrate how to use the Print menu.
Direct Print Function
Set the Mode Switch to
DPOF Print Settings
Set the Mode Switch to
Print Order menu
119
Printing/Image Transfer Settings
Turns the menu on/off.
Selects items and settings.
Sets items and settings.
Style
Trimming (p. 129)
Image (p. 126)
Paper (p. 127)
Borders (p.126, p. 127)
Date (p.126, p. 127)
Order
Set up
Reset (p. 136)
Print Type (p. 134)
Date (p. 134)
File Number (p. 134)
Number of Copies (p. 131)
Number of Copies (p. 126)
120
You can make clear prints swiftly and easily when you connect the camera
to a direct print compatible printer (CP series, sold separately) or a direct
print compatible Bubble Jet printer (sold separately). You can also print
using DPOF print settings.
You are recommended to use the AC Adapter Kit ACK900 (sold
separately) rather than the battery pack to power the camera when it
is connected to a printer. If you do use a battery pack, ensure that it is
fully charged and monitor the battery charge while printing.
• Please refer to the System Map supplied with your camera for direct
print compatible printer (CP series) information.
• Please see your printer’s user guide for information about installing
paper and ink cassettes/tanks.
Connecting a Printer
121
Printing/Image Transfer Settings
Connecting to a Direct Print Compatible Printer (CP Series)
Your printer should come equipped with two direct interface cables. To
connect to this camera, please use the cable (DIF-100) that has the
symbol on its connector.
1
Press the ON/OFF button to turn the
camera off.
2
Attach the power cable to the
printer and insert its plug into a
power outlet, or install the printer’s
rechargeable battery.
Depending on the type of printer you have, it
may or may not use rechargeable batteries.
Refer to your printer's user guide.
3
Connect the camera and printer
using the direct interface cable.
To connect to the DIGITAL terminal of the
camera, slip your fingernail under the edge
of the terminal cover to open it, then insert
the connector until you hear it click into
place.
Orient the cable so that the connector’s
symbol faces the camera’s back panel.
4
Press the printer’s ON/OFF button to
turn on its power.
If you are using Card Photo Printer CP-10,
the printer’s power will turn on in Step 2
when the printer and power cable are
connected.
To a Power Outlet
Direct Interface
Cable (DIF-100)
DIGITAL Terminal
122
Connecting to a Bubble Jet Printer
Please read the Quick Start Guide supplied with your Bubble Jet
printer to see if it is compatible with the camera's direct print function,
and for instructions regarding the connection cables and the printer’s
general operation.
5
Turn the mode switch to
(Replay).
6
Press the ON/OFF button until the
power lamp lights green.
will display when the printer is correctly
connected.
1
Press the ON/OFF button to turn the
camera off.
2
Turn the Bubble Jet printer’s power on
after you have connected the power
cord to the Bubble Jet printer and
inserted the other end in a power outlet.
3
Connect the camera and printer
using the connection cable.
To connect to the DIGITAL terminal of the
camera, slip your fingernail under the edge of
the terminal cover to open it, then insert the
connector until you hear it click into place.
Orient the cable so that the word Canon on the
connector faces the camera’s front panel.
This shows when a direct print
compatible printer (CP series) is
connected.
Power Lamp
Connection Cable
DIGITAL Terminal
To the BJ Printer
123
Printing/Image Transfer Settings
• On Bubble Jet printers with operation panels, images cannot be
printed through the operation panel while the camera is connected.
• The following cannot be conducted while the printer is connected.
- Playing movies
- Setting the language with the SET and the MENU button
combination.
• When the printer is disconnected, the or symbol will
disappear from the LCD monitor and the camera will revert to the
standard replay mode.
• Use the following procedures to detach the cable from the camera
and printer.
1. Detach the cable from the printer.
2. Shut off the camera’s power.
3. Detach the cable from the camera.
Ensure that you grip the connector’s sides when you detach the
cable from the camera’s DIGITAL terminal.
4
Turn the mode switch to
(Replay).
5
Press the ON/OFF button until the
power lamp lights green.
will display when the printer is correctly
connected.
This shows when a BJ
printer is connected.
Power Lamp
124
* The following illustrations show examples from a direct print compatible printer
(CP series). Options for the Style category will differ slightly for Bubble Jet printers.
Print images displayed in single image replay or index replay mode.
Printing
1
Use the button to select the
images you wish to print and press
the SET button.
2
Specify the number of print copies,
print style and print area as
required.
•See Setting the Number of Print Copies
(p. 126).
•See Setting the Print Style (p. 126).
•See Setting the Printing Area (Trimming)
(p. 129).
3
Use the button to select
[Print] and press the SET button.
• To quit the procedure instead, select
[Cancel].
• The image will start to print. When it is
finished printing, the replay screen will
reappear.
125
Printing/Image Transfer Settings
Movies cannot be printed.
Canceling Printing
•Press the SET button to stop printing. A confirmation message will
display. Use the button to select [OK] and press the
SET
button.
- Direct Print Compatible Printers (CP Series)
A print in progress cannot be stopped. The printer will stop after
the current print is complete and the camera will display its replay
screen at that point.
- Direct Print Compatible Bubble Jet Printers
The printer will stop printing the current image and eject the paper.
Printing Errors
• An error message will display if an error occurs while printing (pp.
164, 165). Use the button to select [Stop] or [Resume] and
press the SET button. (With a Bubble Jet printer, the print will
automatically restart if the error is resolved.)
- Direct Print Compatible Printers (CP Series)
The [Resume] option may not appear with some types of error. In
that case, select [Stop].
- Direct Print Compatible Bubble Jet Printers
- [Continue] or [Cancel] may appear with some types of error.
- On Bubble Jet printers with operation panels, an error code
displays on the panel. See the printer’s user guide for the
recommended course of action for each error type.
126
Setting the Number of Print Copies
Setting the Print Style
You can select from among the following print styles.
Direct Print Compatible Printers (CP Series)
* This option is only available for printing on card-size paper.
Setting the Print Settings (Direct Print Function)
1
In the Replay mode, press the SET
button and use the button to
select [Copies].
2
Use the button to specify the
desired number of copies.
Up to 99 copies may be specified.
Standard Prints one image per page.
Multiple*
Prints eight copies of the same image on one
page.
Borders
Borderless Prints right to the edges of the paper.
Bordered Prints with a border.
Date Prints the image’s creation date.
127
Printing/Image Transfer Settings
Direct Print Compatible Bubble Jet Printer
If you are using a direct print compatible printer (CP series), the date
and borders settings cannot be selected when the [Multiple] option is
selected (Images are printed without a date or border.).
Paper
Select a paper size from the following:
Card #1, Card #2, Card #3, LTR and A4. See the
Bubble Jet printer's user guide for its media
specifications.
Borders
Borderless Prints right to the edges of the paper.
Bordered Prints with a border.
Date Prints the image’s creation date.
1
In the Replay mode, press the SET
button and use the button to
select [Style]. Then press the SET
button.
Current print style selection
128
2
Use the button to select ,
, or and the button
to select an option.
(Image)
• Direct Print Compatible Printers (CP
Series)
Select [Standard] or [Multiple].
(Paper)
• Direct Print Compatible Bubble Jet
Printers
Select [Card #1], [Card #2], [Card #3],
[LTR] or [A4].
(Borders)
Select [Borderless] or [Bordered].
(Date)
Select [On] or [Off].
3
Press the MENU button to finish the
procedure.
• Practically all of the image area is printed
on bordered prints.
• With borderless or multiple prints, the
image is printed with its top, bottom and
sides trimmed. A frame appears around
the area of the image that will be printed,
so you can check the portion that will be
trimmed.
Print Area
Frame
129
Printing/Image Transfer Settings
Setting the Printing Area (Trimming)
You can print a portion of an image.
• The shape of the trimming frame is determined by the print style
selection (image, paper, borders, date). Set the print style before
setting the printing area (p. 126).
• Please use the LCD monitor to set the printing area. The trimming
frame may not display correctly on a TV monitor.
1
In the Replay mode, press the SET
button and use the button to
select [Trimming]. Then press the
SET button.
130
• The trimming frame will appear on images that have already had one
assigned.
• Trimming settings can only be set for one image.
• Trimming settings are canceled with the following operations:
- When the MENU button is pressed.
- When the trimming settings are set for another image.
- When the print mode is closed (camera power shut off, mode
switch turned, or direct interface cable or connection cable
detached).
- When the zoom lever is pressed further toward
with the
trimming frame at its maximum.
2
Trim the image.
Changing the Size of the Trimming Frame
• Press the zoom lever toward or .
• The trimming frame can be resized to
approximately half the image size at
minimum and practically as large as the
image at maximum.
• You can cancel the trimming setting by
sliding the zoom lever toward again
when the trimming frame is already set to
the maximum size.
• When printing an image that has been
magnified using the trimming option, the
image quality may become coarser and
grainier depending on the magnifying rate.
With direct print compatible printers (CP
series), the trimming frame displays in
red.
Moving the Trimming Frame
Use the button to set the
trimming frame’s position.
Rotating the Trimming Frame
Press the DISP. button to rotate the
trimming frame.
3
Press the SET button to close the
setting menu.
Trimming Frame
131
Printing/Image Transfer Settings
You can select images on an SD card for printing and specify the number of
print copies in advance using the camera. This is extremely convenient for
sending the images to a photo developing service or for printing on a direct
print compatible printer (CP series) or a direct print compatible Bubble Jet
printer.
Selecting Images for Printing
There are two ways to select images.
•Singly
• All images on an SD card (the number of print copies is set to one per
image)
Setting the DPOF Print Settings
1
In the (Play) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select
[Order] and press the SET button.
132
Single Images
3
Select images for printing.
As shown below, selection methods differ
according to the options chosen for the
(Print Type) settings (p. 134).
(Standard)/ (Both)
Use the button to select an image
and the button to select the number of
print copies (up to maximum of 99).
(Index)
Use the button to move to an image
and the button to select or deselect it.
A checkmark displays on selected images.
You can press the zoom lever toward to
switch to the index mode (3 images) and
use the same procedures to select images.
4
Press the MENU button.
The Print Order menu will reappear.
Pressing the MENU button again returns to
the Play menu. Press it again to go back to
the Play screen.
Number of Print Copies
Selected for an Index Print
133
Printing/Image Transfer Settings
All the Images on an SD Card
• The symbol will display on images that have had print settings
set by other DPOF-compliant cameras. These settings will be
overwritten by those set by your camera.
• The output of some printers or photo developing services may not
reflect the specified print settings.
• Print settings cannot be set for movie images.
3
Press the zoom lever toward .
The display switches to index replay (3
images).
4
Press the SET button.
5
Use the button to select [Mark
all] and press the SET button.
• One copy is set to print for each image.
• When the print type is set to
(Standard) or (Both), the number
of print copies can be set individually for
each image. When (Index) is selected,
the print settings can be deleted.
• You can cancel all the settings by selecting
[Clear all].
6
Press the MENU button.
The Print Order menu will reappear.
Pressing the MENU button again returns to
the Play menu. Press it again to go back to
the Play screen.
134
• Images are printed in order from oldest to newest by the shooting
date.
• A maximum of 998 images can be selected per SD card.
• When [Both] is selected, the number of print copies can be set, but
it applies to Standard prints only. The Index setting only produces
one print copy.
• Print settings can also be assigned to images with the bundled
software on a computer.
Setting the Print Style
Set the print style after selecting the image to print. The following print
settings can be selected.
Print Type
Standard Prints one image per page.
Index
Prints the selected images together at a
reduced size in an index format.
Both
Prints the images in both the standard and
index formats.
Date Adds the date to the print.
File No. Adds the file number to the print.
1
In the (Play) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
135
Printing/Image Transfer Settings
The date prints in the format specified in the Date/Time menu (p. 28).
When the print type is set to [Index], only one or the other of the [Date]
and [File No.] options can be set to [On] at the same time.
2
Use the button to select [Set
up] and press the SET button.
3
Use the button to select ,
or and the button to
select an option.
(Print Type)
Select [Standard], [Index] or [Both].
(Date)
Select [On] or [Off].
(File No.)
Select [On] or [Off].
4
Press the MENU button.
The Print Order menu will reappear.
Pressing the MENU button again returns to
the Play menu. Press it again to go back to
the Play screen.
136
Resetting the Print Settings
The print settings can all be removed at once. The print type resets to
Standard and the Date and File No. options to Off.
1
In the (Play) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select
[Reset] and press the SET button.
3
Use the button to select [OK]
and press the SET button.
To exit without resetting, select [Cancel].
137
Printing/Image Transfer Settings
Printing with DPOF Print Settings
The DPOF print settings can be used to print on a direct print compatible
printer (CP series) or a direct print compatible Bubble Jet printer.
1
In the (Play) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select
[Print] and press the SET button.
3
Set the print style as required.
• Use the button to select
[Style] and press the SET button.
•See Setting the Print Style (p. 126).
138
• To include the date in the prints, set the Date setting in the Set up
menu in Step 2 on the previous page to [On]. You cannot set the
date to print with the Style menu in Step 3 on the previous page.
Please note however, that the date will not print if the print type is set
to Index even if it is turned On in Step 2.
• When the print type is set to [Both], it is possible to have both the
[Date] and [File No.] options set to [On], but only the file number will
print on the Index print. (Bubble Jet printers cannot print the date or
file number on Index prints.)
• When the print type is set to [Standard], file numbers will not be
printed even if they are set to [On].
4
Use the button to select
[OK] and press the SET button.
The image will start to print and, when it is
successfully concluded, the replay screen
will reappear.
139
Printing/Image Transfer Settings
The maximum number of images printed on one page in the Index
print type depends upon the selected paper size.
(Please refer to your Bubble Jet printer Quick Start Guide for an
explanation of the number of images printed with a Bubble Jet printer.)
• Card Size : 20 images
• L Size : 42 images
• Postcard Size : 63 images
See Canceling Printing (p. 125).
Restarting Printing
• In the Print Order menu, use the button to select [Resume]
and press the SET button. The remainder of the selected images will
print. Printing may not restart correctly when the SD card is write-
protected.
• Printing cannot be resumed under the following circumstances:
- If the print settings were changed before printing is restarted.
- If images with print settings were deleted before printing is
restarted.
- If there was insufficient spare capacity on the SD card when
printing was halted.
Under these circumstances, you can select [OK] in the Print menu
and reprint starting from the first image.
If printing was stopped because of a low battery charge, you are
recommended to resume printing using the AC Adapter Kit ACK900
(sold separately). If you do use a battery pack, ensure that it is fully
charged. Remember to turn the camera power on again before
printing.
See Printing Errors (p. 125).
140
Image Transmission Settings (DPOF Transfer Order)
You can use the camera to specify settings for images before downloading
to a computer.
The settings used on the camera comply with the Digital Print Order Format
(DPOF) standards.
The symbol will display on images that have had transmission
settings set by other DPOF-compliant cameras. These settings will be
overwritten by those set by your camera.
Selecting Images for Transferring
1
In the (Play) menu, select
and press the SET button.
See Selecting Menus and Settings (p. 44).
2
Use the button to select
[Order] and press the SET button.
Selecting [Reset] cancels the transfer
settings for all images on the SD card.
141
Printing/Image Transfer Settings
• Images are transferred in order from oldest to newest by the
shooting date.
• A maximum of 998 images can be selected per SD card.
3
Use the button to move
between images and the button
to select or deselect them.
• A checkmark displays on selected images.
• You can press the zoom lever toward
to switch to the index mode (3 images)
and use the same procedures to select
images.
• While in index replay, pressing the SET
button displays the menu for selecting or
deselecting all images. Use the
button to select [Select all] or [Clear all]
and press the SET button.
4
Press the MENU button.
The Transfer Order menu reappears.
Pressing the MENU button again returns to
the Play menu. Press it again to go back to
the Play screen.
Selected for Transfer
142
Downloading Images to a Computer
Download images taken with the camera to a computer in one of the
following ways:
• Connect the camera to a computer with the USB cable
You can then download images directly from the camera to a computer.
• Directly from the SD card
Using a laptop computer or a card reader, you can download images
directly from the SD card.
After the software is installed, you can use it to easily download images and
print them or send them by email.
The camera will not operate correctly if you connect it to your
computer before installing the driver and software. If this happens,
please refer to the Troubleshooting section of the Software Starter
Guide.
Connecting the Camera to a Computer via the USB cable
1
Install the driver and the software applications bundled
on the Canon Digital Camera Solution Disk.
Please see the Software Starter Guide for information on system
requirements and installation instructions.
IMPORTANT
You must install the software and driver bundled on the supplied
Canon Digital Camera Solution Disk onto your computer if you are
using any of the following operation systems:
Windows 98 (including Second Edition)/Windows 2000/Windows Me/
Mac OS 9.0 - 9.2
143
Connecting the Camera to a Computer/TV
• You do not need to turn off the computer or camera when making a
USB connection.
• Please refer to your computer’s manual for information regarding the
location of the USB port.
2
Connect the supplied USB interface
cable to the computer’s USB port
and the camera’s DIGITAL terminal.
To connect to the DIGITAL terminal of the
camera, slip your fingernail under the edge
of the terminal cover to open it, then insert
the connector until you hear it click into
place.
1
Turn the camera’s mode switch to
(Replay).
2
Press the ON/OFF button until the
power lamp lights green.
The LCD monitor will turn on in replay mode
and then blank out when the connection to
the computer is complete.
Please refer to the Software Starter Guide for the subsequent
procedures.
USB Port
USB Cable
DIGITAL
Terminal
USB Cable
Power Lamp
144
Ensure that you grip the connector’s sides
when you detach the cable from the
camera’s DIGITAL terminal.
• It is recommended to power the camera from a household power
outlet with the AC Adapter Kit ACK900 (sold separately) when
connected to a computer (p. 166).
• If the USB cable is detached while the camera power is on, the
camera will power down.
• All procedures performed with a connection to a USB 2.0 compliant
board are not guaranteed.
Downloading Images without Installing the Software
(Windows XP and Mac OS X (v10.1/10.2) only)
If you are using the Windows XP or Mac OS X (v10.1/10.2), you can use
the software distributed with these operating systems to download
images (JPEG format only) without installing the software bundled on
the Canon Digital Camera Solution Disk. This is useful for downloading
images to a computer in which the software is not installed.
However, please note that there are certain limitations to downloading
with this method. For more details, please refer to the supplied For
Windows XP and Mac OS X Users leaflet.
1
Connect the supplied USB interface cable to the
computer's USB port and the camera’s DIGITAL
terminal (p.143, step 2).
2
Follow the onscreen instructions to download the
images.
145
Connecting the Camera to a Computer/TV
Downloading Directly from an SD Card
1
Eject the SD card from the camera and insert it into an SD
card reader connected to the computer.
Refer to your card adapter’s or card reader’s manual for information
regarding the connection between the computer and card adapter or
card reader.
2
Double-click the icon of the drive containing the SD card.
3
Copy the SD card’s images to the desired folder on the
hard disk.
The images are contained in the [XXXCANON] folder, which is a
subfolder of the [DCIM] folder on the SD card. The XXX represents a
number from 100 to 998 (p. 92).
146
Shooting/Replaying with a TV
You can use a video-compatible television as a monitor to shoot or replay
images when it is connected to the camera with the supplied AV Cable AVC-
DC100.
Shooting/Replaying with a TV
1
Press the ON/OFF button to turn the
camera off.
Also turn the television off.
2
Connect the AV cable to the
camera’s A/V OUT terminal.
Slip your fingernail under the edge of the
terminal cover to open it and insert the cable
securely.
3
Plug the other ends of the AV cable
to the VIDEO IN and AUDIO IN jacks
on the TV.
4
Turn on the TV and switch it to
Video mode.
5
Turn the mode switch to select
Shooting mode or Replay mode.
VIDEO
AUDIO
IN
Yellow
Black
147
Connecting the Camera to a Computer/TV
• A TV set cannot be used in stitch assist.
• No image will appear on the LCD monitor when the camera is
connected to a TV.
• If the TV is a stereo model, you can plug the audio plug into either
the left or right Audio In jack. Please refer to the TV’s manual for
details.
The video output signal can be switched (NTSC or PAL) to
accommodate different regional standards. The default setting varies
between regions.
- NTSC: Japan, U.S.A., Canada, Taiwan, etc.
- PAL: Europe, Asia (excluding Taiwan), Oceania, etc.
If the video system is set incorrectly, the camera output may not
display properly.
6
Press the ON/OFF button until the
power lamp lights green.
• The image will appear on the TV. Shoot or
replay images as usual.
• If the images are not appearing on the TV
when shooting, press the DISP. button.
Power Lamp
148
Lists of Menu Options and Messages
The following charts list the various menu contents. See Selecting Menus
and Settings (p. 44) to learn how to select a setting.
*Default setting
FUNC. Menu
Item/Menu Screen Options
Reference
Page
Exposure Compensation Sets the exposure compensation.
• -2 to ±0* to +2
p. 82
Long Shutter Sets the shutter speed.
• 1* to 15 seconds
p. 83
p. 151
White Balance Sets the white balance option.
• Auto*
• Daylight
•Cloudy
• Tungsten
• Fluorescent
• Fluorescent H
• Custom
p. 85
ISO Speed Sets the sensitivity at which images are
recorded.
•AUTO
•50*
•100
•200
•400
p. 89
149
Lists of Menu Options and Messages
Photo Effect Sets the photo effect.
• Effect Off*
• Vivid
• Neutral
• Low Sharpening
•Sepia
•BW
p. 88
Compression (Stills) Sets the relative compression ratio
used for images.
• Superfine
• Fine*
•Normal
p. 61
Resolution (Stills) Sets the number of pixels used for
images.
• (Large)* 2048 x 1536 pixels
• (Medium 1) 1600 x 1200 pixels
• (Medium 2) 1024 x 768 pixels
• (Small) 640 x 480 pixels
p. 61
Resolution (Movies) Sets the number of pixels used for
movies.
• 640 x 480 pixels
• 320 x 240 pixels*
• 160 x 120 pixels
Item/Menu Screen Options
Reference
Page
150
*Default setting
Rec. Menu
Item/Menu Screen Options
Reference
Page
AiAF Sets whether or not the camera
automatically selects the AF frame or a
fixed center AF frame.
•On*
•Off
p. 80
Self-timer Sets the duration of the self-timer
delay.
• 10 seconds*
• 2 seconds
p. 69
AF-assist Beam Sets the AF-assist Beam to on or off.
•On*
•Off
p. 43
Digital Zoom Sets whether or not the optical zoom is
supplemented by digital processing.
•On
• Off*
p. 67
151
Lists of Menu Options and Messages
Review Sets the duration images display on
the LCD monitor after the shutter
button releases.
•Off
• 2* to 10 seconds (1-second
increments)
p. 60
Long Shutter Sets the shutter speed to slow
settings.
•On
• Off*
p. 83
Stitch Assist Images are shot in overlapping series
to create single panoramic images.
• Left to right*
• Right to left
p. 73
Item/Menu Screen Options
Reference
Page
152
Play Menu
Item/Menu Screen Options
Reference
Page
Protect Protects images from accidental
erasure.
p. 112
Rotate Rotates images clockwise 90° or 270°
in the display.
p. 102
Sound Memo Adds sound memos to images.
p. 104
Erase all Deletes all images from an SD card
(except for protected images).
p. 114
Slide Show Plays images in automated slide
shows.
p. 107
153
Lists of Menu Options and Messages
Print Order Selects images and the number of print
copies for output to a direct print
compatible printer or photo developing
service.
p. 131
Transfer Order Specifies settings for images before
downloading to a computer.
p. 140
Item/Menu Screen Options
Reference
Page
154
*Default setting
Set up Menu
Item/Menu Screen Options
Reference
Page
Beep Sets whether or not a beep sounds
when the shutter button is pressed or
when a menu operation is performed.
See also "How the Beep in the (Set
up) Menu and Sound in the (My
Camera) Menu Interact" (p. 160).
•On*
•Off
(Still beeps to warn of an error even
when set to Off.)
–
LCD Brightness Adjust the LCD brightness of the LCD
monitor.
• -7 to 0* to +7
Use the button to adjust the
brightness. If you press the
button, the display returns to the Set
up menu. You can check the
brightness in the LCD monitor while
you are adjusting the setting.
–
Auto Power Down Sets whether or not the camera
automatically powers down after a set
period of time elapses without
something being pressed.
•On*
•Off
p. 33
Date/Time Sets the date and time and the date
format.
p. 28
155
Lists of Menu Options and Messages
Format Formats (initializes) SD cards.
p. 115
Shutter Volume Adjusts the volume of the sound
played when the shutter releases. The
shutter sound does not play when a
movie is recording.
•(Off)
•(1)
•(2)*
•(3)
•(4)
•(5)
p. 43
Playback Vol. Adjusts the volume of movie sounds
and sound memos.
•(Off)
•(1)
•(2)*
•(3)
•(4)
•(5)
p. 97
p. 104
Start-up Vol. Adjusts the volume of the start-up
sound when the camera power is
turned on.
•(Off)
•(1)
•(2)*
•(3)
•(4)
•(5)
p. 32
Item/Menu Screen Options
Reference
Page
156
Operation Vol. Adjusts the volume of the operation
sound that beeps when any button
other than the shutter button is
pressed.
• (Off)
•(1)
•(2)*
•(3)
•(4)
•(5)
–
Selftimer Vol. Adjusts the volume of the self-timer
sound played 2 sec. before the shutter
is released.
• (Off)
•(1)
•(2)*
•(3)
•(4)
•(5)
p. 69
File No. Reset Sets how file numbers are assigned to
images when new SD cards are
inserted.
•On
• Off*
p. 91
Auto Rotate Sets whether or not images shot with
the camera held vertically are
automatically rotated in the display.
•On*
•Off
p. 90
Item/Menu Screen Options
Reference
Page
157
Lists of Menu Options and Messages
Language Sets the language used in menus and
messages on the LCD monitor.
• English* • Italiano
• Deutsch • Norsk
• Français • Svenska
• Nederlands • Español
• Dansk • Chinese
• Suomi • Japanese
You can also change the language in
replay mode by holding the SET button
and pressing the MENU button.
p. 30
Video System Sets the video output signal standard.
•NTSC
•PAL
p. 146
Item/Menu Screen Options
Reference
Page
158
You can select the theme, start-up image and sound, shutter sound,
operation sound and selftimer sound used on this camera.
These are called the My Camera settings. You can also customize the
and options for each item with images recorded on the SD card and
newly recorded sounds or by using the supplied software.
See the Software Starter Guide for details.
*Default setting
My Camera Menu
Item/Menu Screen Options
Reference
Page
Theme Selects a common theme for each My
Camera settings item.*
1
• Off
•*
•
•
p. 53
Start-up Image Sets the image displayed when the
camera power is turned on.
• Off
•*
•
•
p. 53
Start-up Sound Sets the sound emitted when the
camera power is turned on.*
1
• Off
•*
•
•
p. 53
Operation Sound Sets the sound emitted when any
button other than the shutter button is
pressed.*
1
• Off
•*
•
•
p. 53
159
Lists of Menu Options and Messages
*
1
For more information, see How the Beep in the (Set up) Menu and Sounds in the
(My Camera) Menu Interact (p. 160).
Selftimer Sound Sets the sound emitted 2 seconds
before the shutter releases in self-timer
mode.*
1
• Off
•*
•
•
p. 53
Shutter Sound Sets the sound emitted when the
shutter button is pressed. There is no
shutter sound for movies.*
1
• Off
•*
•
•
p. 53
Item/Menu Screen Options
Reference
Page
160
• How the Beep in the (Set up) Menu and Sounds in the (My
Camera) Menu Interact
To turn off each sound, such as the start-up sound, shutter sound,
operation sound and selftimer sound, the beep must first be set to [Off] in
the (Set up) menu and then each sound item must be set individually to
[Off]. If the beep is set to [On], a beep will sound for each item even if it is
set to [Off] in the (My Camera) menu.
For details, see the table below.
Sound emitted
– Sound not emitted
Beep Settings in the (Set up) Menu
On Off
Sounds in the (My Camera) Menu
(Start-up, shutter, operation, self-timer)
[] (Beep) – (Off)
[] [] []
[] [] []
[] [] []
161
Lists of Menu Options and Messages
You can reset the menu and button settings to the default settings in one
operation except for the Date/Time, Language and Video System settings.
• Settings cannot be reset when the camera is connected to a
computer, to a direct print compatible printer (CP series, sold
separately) or to a direct print compatible Bubble Jet printer (sold
separately).
• The following cannot be reset.
- White balance data recorded with the custom white balance
function (p. 86).
- Newly added My Camera settings (p. 55)
Resetting Settings to Their Default Values
1
Press the ON/OFF button until the
power lamp lights green.
Set the mode switch to any position.
2
Press and hold the MENU button for
more than 5 seconds.
3
Use the button to select [OK]
and press the SET button.
To exit without resetting, select [Cancel].
Power Lamp
162
List of Messages during Shooting/Replaying
The following messages may appear on the LCD monitor while shooting or
replaying.
List of Messages
Busy... : Image is being recorded to, or read from, SD
card.
No memory card : You attempted to shoot or replay images
without an SD card installed.
Card locked! : The SD card is write-protected.
Cannot record! : You attempted to shoot an image without an SD
card installed.
Memory card error! : SD card has experienced an anomaly.
Memory card full : SD card is too full to accommodate more
images or print settings.
Naming error! : The file could not be created because there is a
file with the same name as the directory that the
camera is attempting to create, or the highest
possible file number has already been reached.
In the Rec. Menu, set the File Reset option to
[On]. Save all the images you wish to retain
onto a computer, then reformat the SD card.
Please note that formatting will erase all the
existing images and other data.
Change the battery pack : Battery charge is insufficient to operate the
camera. Replace it at once with a charged one
or recharge the battery pack.
No image : No images recorded on SD card.
Image too large : You attempted to replay an image larger than
3200 x 2400 pixels or with a large file size.
Incompatible JPEG format. : You attempted to replay an incompatible JPEG
file.
Corrupted Data : You attempted to replay an image with
corrupted data.
RAW : You attempted to replay an image recorded in
the RAW format.
163
Lists of Menu Options and Messages
Unidentified Image : You attempted to replay an image that was
recorded in a special format (proprietary format
used by the camera of another manufacturer,
etc.) or a movie clip recorded by another
camera.
Cannot magnify! : You attempted to magnify an image which was
photographed with another camera, recorded in
a different format, or edited on a computer.
Cannot rotate : You attempted to rotate an image which was
photographed with another camera, recorded in
a different format, or edited on a computer.
Incompatible WAVE format : A sound memo cannot be added to this image
since the format of the existing sound memo is
incorrect.
Cannot register this image! : You attempted to add a start-up image that was
created with another camera.
Protected! : You attempted to erase a protected image.
Too many marks : Too many images have been marked with print
settings, transfer settings or slide show
settings. Cannot process any more.
Unselectable image : You attempted to set the print settings for a
non-JPEG file.
Exx: : (xx: number) Camera malfunction. Turn the
power off and then back on, then shoot or
replay. A problem exists if the error code
reappears. Note the number and contact your
Canon Customer Support Help Desk. If an error
code displays directly after taking a picture, the
shot may not have been recorded. Check image
in replay mode.
164
List of Messages Displayed while a Direct Print
Compatible Printer (CP Series) is Connected
The following messages may appear on the camera’s LCD monitor while a
direct print compatible printer (sold separately) is connected. “Camera”
refers to “digital camera or digital camcorder” throughout this section.
(Some messages may not appear on some models.)
No Paper : Paper cassette is empty or incorrectly installed.
Paper feed may not be operating correctly.
No Ink : The ink cassette is empty or missing.
Incompatible paper size : You attempted to print with a paper size
incompatible with this camera.
Incompatible ink size : You attempted to print with an ink cartridge
type incompatible with this camera.
Ink Cassette Error : There is a problem with the ink cassette.
Paper and ink do not match : The paper and ink are from different sets.
Paper Jam : Paper jammed during printing.
Paper has been changed : The paper size was changed between the time
the Print Style menu was displayed and the time
printing started.
Recharge the printer battery : The printer’s battery is out of power.
Communication Error : A communication error has occurred.
Readjust trimming : You attempted to print the image with a
different style than the one used when the
trimming settings were set.
Cannot print! : You attempted to print an image shot by a
different camera, one recorded in an
incompatible format, or one downloaded to and
edited with a computer.
Could not print XX images : You attempted to print XX number of images
with DPOF print settings that were shot by a
different camera, recorded in an incompatible
format, or downloaded to and edited with a
computer.
165
Lists of Menu Options and Messages
List of Messages Displayed while a Direct Print
Compatible Bubble Jet Printer is Connected
The following messages may appear on the camera's LCD monitor while a
direct print compatible Bubble Jet printer (sold separately) is connected.
On Bubble Jet Printers with operation panels, check the error number
displayed on the panel and refer to the Bubble Jet Printer Quick Start
Guide.
(Messages and error numbers may not appear on some models.)
Printer in use : Printer is busy printing from a memory card in
computer or printer.
: Printer will automatically start printing from
camera when the current print queue empties.
Printer warming up : Printer is warming up. When it is ready, the
printer will start printing automatically.
No printhead : No printhead installed in printer.
Printer cover open : Secure the printer front cover.
Media type error : You selected a paper type incompatible with the
printer. Select a compatible paper type in the
Print Style menu.
Paper lever error : Adjust the paper thickness lever to the proper
position.
Low ink level : Ink tank needs replacement soon. Prepare a
new ink tank. Select [Continue] in the error
message to resume printing.
(This message will not appear on some models.)
Waste tank full : Restart printing by pressing RESUME/CANCEL
button on printer, but request a replacement
waste ink tank from a service center (see
printer Quick Start Guide or the Contact List
provided with the printer) soon.
Printer error : Turn printer off and on again. If error persists,
consult service center listed in printer Quick
Start Guide or in the Contact List provided with
the printer.
166
Appendices
It is best to power the camera with AC Adapter Kit ACK900 (sold separately)
when you are using it for long periods of time or connecting it to a
computer.
Turn the camera power off before connecting or disconnecting the AC
adapter.
Use of an AC adapter kit other than ACK900 (sold separately) may
cause a malfunction in the camera or kit.
Using an AC Adapter Kit (Sold Separately)
1
Connect the power cord to the
compact power adapter first and
then plug the other end into the
power outlet.
2
Open the SD slot/battery cover, then
insert the DC coupler until it is
locked.
• Insert the DC coupler while pressing the
battery lock as the arrow shows.
• Slide the SD card slot/battery cover
closed.
3
Open the DC coupler terminal cover
and attach the cord to the DC
terminal.
After you have finished using the camera,
unplug the AC adapter from the power
outlet.
Compact Power Adapter
CA-PS500
Battery Lock
DC
Coupler
DR-900
167
Appendices
Use the following procedures to clean the camera body, lens, viewfinder and
LCD monitor.
Never use thinners, benzene, synthetic cleansers or water to clean the
camera. These substances may distort or damage the equipment.
Camera Body
Gently wipe dirt off the camera body with a soft cloth or eyeglass lens wiper.
Lens
First use a lens blower brush to remove dust and dirt, then remove any
remaining dirt by wiping the lens lightly with a soft cloth.
Never use synthetic cleansers on the camera body or lens. If dirt
remains, contact the closest Canon Customer Support Help Desk as
listed on the separate Canon Customer Support leaflet.
Viewfinder and LCD Monitor
Use a lens blower brush to remove dust and dirt. If necessary, gently wipe
with a soft cloth or an eyeglass lens wiper to remove stubborn dirt.
Never rub or press strongly on the LCD monitor. These actions may
damage it or lead to other problems.
Camera Care and Maintenance
168
Troubleshooting
Problem Cause Solution
Camera will not
operate
Power is not turned
on
• Press the ON/OFF button for a
moment.
SD card slot/battery
cover is open
• Confirm that SD card slot/battery
cover is securely closed.
Insufficient battery
voltage
• Insert a fully charged battery into
the camera.
• Use the AC Adapter Kit ACK900
(sold separately).
Poor contact
between camera and
battery terminals
• Wipe the terminals with a clean
dry cloth.
Camera will not
record
Mode switch is set
to (Replay)
• Set the mode switch to ,
or .
Flash is charging • Wait until the flash charges. You
can press the shutter button
when the upper indicator beside
the viewfinder lights orange.
SD card is full • Insert a new SD card.
• If required, download the images
to a computer and erase them
from the SD card to make space.
SD card is not
formatted correctly
• Format SD card.
(See Formatting SD Cards (p.
115).)
• If reformatting does not work, the
SD card logic circuits may be
damaged. Consult the nearest
Canon Customer Support Help
Desk.
The SD card is
write-protected.
• Slide the write protect tab of the
SD card upward (p. 25).
169
Troubleshooting
Lens will not retract SD card slot/battery
cover was opened
with power on
• First close the SD card slot/battery
cover and then turn the power off.
SD card slot/battery
cover was opened
while recording to
the SD card
(warning signal
sounds)
• First close the SD card slot/
battery cover and then turn the
power off.
Battery pack
consumed quickly
Battery life exceeded
if battery pack loses
its charge quickly at
normal temperature
(23 °C/73 °F)
• Replace the battery pack with a
new one.
Battery pack will not
charge
Battery pack life
exceeded
• Replace the battery pack with a
new one.
Poor contact
between battery
pack and battery
charger
• Insert battery pack securely into
battery charger.
• Ensure that battery charger plug
is securely plugged into the
power outlet.
Image is blurred or
out of focus
Camera moved • Be careful not to move the
camera while pressing the shutter
button.
Autofocus function
hampered by
obstruction to AF-
assist Beam
• Be careful not to block the AF-
assist Beam with fingers or other
items.
AF-assist Beam is
set to [Off]
• Set the AF-assist Beam to [On]
(p. 150).
Problem Cause Solution
170
Image is blurred or
out of focus
Subject is out of
focal range
• Ensure there is at least 47 cm
(1.5 ft.) between the camera lens
and subject.
• Use the Macro mode to shoot
close-ups between 23 and 47 cm (9
in. to 1.5 ft.) from the lens (10 cm
(3.9 in.) when set to wide angle).
• Use the Infinity mode to shoot
distant subjects.
The subject is hard
to focus on
• Use the focus lock to shoot.
(See Locking the Focus (AF
Lock) (p. 76).)
Subject in recorded
image is too dark
Insufficient light for
shooting
• Set the flash to on.
Subject is dark in
contrast to the
background
• Set the exposure compensation
to a positive (+) setting or use the
spot metering function.
Subject is too far
away for flash to
reach
• Shoot within 3 m (9.8 ft.) of the
subject at the maximum wide
angle or 2 m (6.6 ft.) of the
subject at the telephoto end
setting when using the flash.
Subject in recorded
image is too bright
Subject is too close,
making the flash too
strong
• When using the flash, stay at
least 47 cm (1.5 ft.) from the
subject.
Subject is bright in
contrast to the
background
• Set the exposure compensation
to a negative (-) setting or use the
spot metering function.
Light is shining
directly on the
subject or reflected
off the subject into
the camera
• Change the shooting angle.
Flash is set to on • Set the flash to off.
Problem Cause Solution
171
Troubleshooting
A bar of light (red,
purple) appears on
the LCD monitor
Subject is too bright • This is a normal occurrence in
devices containing CCDs and
does not constitute a
malfunction. (This bar of light will
not be recorded when shooting
still photos, but it will be recorded
when shooting movies.)
White dots appear
on the image
Light from the flash
has reflected off
dust particles or
insects in the air.
(This is especially
noticeable when
shooting at wide
angle.)
• This is a phenomenon that occurs
with digital cameras and does not
constitute a malfunction.
Flash does not fire Flash is set to off • Set the flash to on.
Image not showing
on TV monitor
Incorrect video
system setting
• Set the video system to the
appropriate setting, NTSC or PAL,
for your TV (p. 157).
Shooting in stitch
assist
• The output will not appear on a
TV in stitch assist. Cancel the
stitch assist.
Zoom does not work Zoom lever pressed
during movie
recording
• Adjust the zoom before shooting
a movie.
Reading images
from SD card is
slow
SD card was
formatted in another
device
•
Use an SD card formatted in your
camera.
(
See Formatting SD Cards (p.
115).)
Recording images to
SD card takes a long
time
Problem Cause Solution
172
Specifications
All data is based on Canon’s standard testing methods. Subject to change
without notice.
PowerShot SD100 DIGITAL ELPH / DIGITAL IXUS II
Camera Effective Pixels : Approx. 3.2 million
Image Sensor: : 1/2.7 in. CCD (Total number of pixels: approx. 3.3
million)
Lens : 5.4(W) - 10.8(T) mm
(35 mm film equivalent: 35-70 mm)
F2.8 (W) - 3.9 (T)
Digital Zoom : Maximum approx. 3.2 x
(Maximum approx. 6.4 x with optical zoom)
Optical Viewfinder : Real-image optical zoom viewfinder
LCD Monitor : 1.5 in. low-temperature polycrystalline silicon TFT
color LCD, approx. 118,000 pixels
Autofocus : TTL 9-point AiAF/TTL 1-point center AF
Focus lock possible
Focusing Range
(From end of lens)
: Normal: 47 cm (1.5 ft.) -
∞
Macro AF: 10-47 cm (3.9 in. - 1.5 ft.) (W)
23-47 cm (9 in. - 1.5 ft.) (T)
Shutter : Mechanical + electronic
Shutter Speed : 15-1/1500 sec.
• 15-1 sec. possible in long shutter mode
• Noise reduction processing on speeds between 15-
1.3 sec.
Light Metering System : Evaluative metering/Center-weighted averaging/
Spot metering
Exposure Control : Program AE
Exposure Compensation : +/- 2 stops in 1/3-stop increments
Sensitivity : Auto/ISO 50/100/200/400 equivalents
White Balance : TTL auto/preset (daylight, cloudy, tungsten,
fluorescent, fluorescent H) or custom white balance
Flash : Red-eye reduction auto/auto/on/off/slow-synchro
173
Specifications
Flash Shooting Range
: Normal mode: 47 cm - 3.0 m (1.5 - 9.8 ft.) (W)
47 cm - 2.0 m (1.5 - 6.7 ft.) (T)
Macro Mode: 27-47 cm (10.6 in. - 1.5 ft.) (W/T)
Shooting Modes : Auto/manual/stitch assist/movie
Continuous Shooting : Approx. 2.2 images/sec. (Large/Fine mode, LCD
monitor off)
Self-timer : Shoots after approx. 10 sec. or approx. 2 sec.
PC Connected Shooting : Available (USB connection only. Exclusive software
program “RemoteCapture” is included in the camera
kit.)
Recording Media : SD memory card
File Format
: Design rule for Camera File System, DPOF-compliant
Image Recording Format
: Still images: JPEG (Exif 2.2)
*1
: Movies: AVI -Image data: Motion JPEG
-Audio data: WAVE (monaural)
Compression : Superfine/fine/normal
Number of Recording
Pixels
: Still images:
Large: 2048 x 1536 pixels
Medium 1: 1600 x 1200 pixels
Medium 2: 1024 x 768 pixels
Small: 640 x 480 pixels
: Movies:
640 x 480 pixels (Approx. 30 sec.)*
2
320 x 240 pixels (Approx. 3 min.)
160 x 120 pixels (Approx. 3 min.)
Approx. 15 frames/sec. The data in parentheses
refer to the maximum movie length per clip.
Replay Modes : Single image replay/index replay (9 thumbnails)/
magnified replay (LCD monitor zooms images up to
10 x)/slide show/printing with Card Photo Printer
CP-100, CP-10 or Bubble Jet Printer (Direct Print)
Display Languages : English, Deutsch, Français, Nederlands, Dansk,
Suomi, Italiano, Norsk, Svenska, Español, Chinese
and Japanese
(W): wide angle (T): telephoto
174
*1 This digital camera supports Exif 2.2 (also called “Exif Print”). Exif Print is a
standard for enhancing the communication between digital cameras and printers.
By connecting to an Exif Print-compliant printer, the camera’s image data at the
time of shooting is used and optimized, yielding extremely high quality prints.
*2 Maximum recording time per movie clip when using the separately sold SDC-
128M SD card (not sold in some regions).
My Camera Settings
(Customizing)
: Start-up image, start-up sound, operation sound,
self-timer sound and shutter sound can be
customized with the following procedures.
1.Using the images and sounds recorded on the
camera.
2.Using the downloaded data from your computer
using the supplied software.
Interface : USB (mini-B, PTP (Picture Transfer Protocol)),
Audio/Video output (NTSC or PAL selectable,
Monaural audio)
Power Source :
Rechargeable Lithium-ion battery (type: NB-3L)
AC Adapter Kit ACK900
Operating Temperatures : 0 to 40 °C (32 to 104 °F)
Operating Humidity : 10 to 90 %
Dimensions
(w x h x d)
: 85.0 x 56.0 x 23.9 mm (3.3 x 2.2 x 0.9 in.)
(excluding protrusions)
Weight : Approx. 165 g (5.8 oz.) (camera body only)
175
Specifications
Battery Capacity
Battery Pack NB-3L (fully charged)
* Excludes movie data.
* At low operating temperatures, battery pack performance may be reduced
and the low battery icon may appear earlier than usual. Under these
conditions, resuscitate the battery pack by warming it in a pocket
immediately before use.
Test Criteria
Shooting: Normal temperature (23
°C/73 °F), alternating between wide
angle and telephoto every 20 seconds, flash used once in four
shots, power turned off and on again after every eighth shot, LCD
monitor set to default brightness.
Replaying: Normal temperature (23
°C/73 °F), continuous replay at 3
seconds per image, LCD monitor set to default brightness.
Number of
recordable images
LCD monitor on Approx. 180 images
LCD monitor off Approx. 480 images
Replay Approx. 150 minutes
176
SD Cards and Estimated Capacities
• The maximum movie clip length is approximately : 30 sec*.,
: 3 min., : 3 min. The times shown are the maximum continuous
recording times.
* When using the separately sold SDC-128M SD card (not sold in some
regions)
• (Large), (Medium 1), (Medium 2), (Small),
, and indicate the recording resolution.
• (Superfine), (Fine) and (Normal) indicate the compression
setting.
SDC-16M SDC-128M
(2048 x 1536 pixels)
876
15 136
30 269
(1600 x 1200 pixels)
13 121
24 216
46 411
(1024 x 768 pixels)
23 211
41 372
73 651
(640 x 480 pixels)
51 460
80 711
126 1117
Movie
(640 x 480 pixels) 13 seconds 123 seconds
(320 x 240 pixels) 40 seconds 355 seconds
(160 x 120 pixels) 98 seconds 869 seconds
177
Specifications
Image File Sizes (Estimated)
SD Memory Card
Battery Pack NB-3L
Resolution
Compression
(2048 x 1536) 1602 KB 893 KB 445 KB
(1600 x 1200) 1002 KB 558 KB 278 KB
(1024 x 768) 570 KB 320 KB 170 KB
(640 x 480) 249 KB 150 KB 84 KB
Movies
(640 x 480) 990 KB/sec.
(320 x 240) 330 KB/sec.
(160 x 120) 120 KB/sec.
Interface
: Compatible with SD memory card standard
Dimensions : 32.0 x 24.0 x 2.1 mm (1.3 x 0.9 x 0.1 in.)
Weight : Approx. 2 g (0.1 oz.)
Type
: Rechargeable Lithium Ion Cell
Nominal Voltage
: 3.7 V
Typical Capacity
: 790 mAh
Cycle Life
: Approx. 300 times
Operating Temperatures
: 0 to 40 °C (32 to 104 °F)
Dimensions
: 32.0 x 44.8 x 9.0 mm (1.3 x 1.8 x 0.4 in.)
Weight
: Approx. 22 g (0.8 oz.)
178
Battery Charger CB-2LU/CB-2LUE
Compact Power Adapter CA-PS500
(Included with the separately sold AC Adapter Kit ACK900)
Rated Input
: 100-240 V AC (50/60 Hz)
0.085 A (100 V)-0.05 A (240 V)
Rated Output
: 4.2 V DC/0.7 A
Charging Time
: Approx. 95 minutes
Operating Temperatures
: 0 to 40 °C (32 to 104 °F)
Dimensions
: 52.0 x 71.0 x 25.8 mm (2.0 x 2.8 x 1.0 in.)
Weight
: Approx. 56 g (2.0 oz.) (CB-2LU)
: Approx. 58 g (2.0 oz.) (CB-2LUE)
Rated Input
: 100-240 V AC (50/60 Hz)
0.16 A (100 V)-0.11 A (240 V)
Rated Output
: 4.3 V DC/1.5 A
Operating Temperatures
: 0 to 40 °C (32 to 104 °F)
Dimensions
: 42.6 x 104.4 x 31.4 mm (1.7 x 4.1 x 1.2 in.)
Weight
: Approx. 180 g (6.3 oz.)
179
Index
A
AC Adapter Kit ACK900 ............ 166
AE Lock ...................................... 78
AF Frame .................................... 42
AF-assist Beam........................... 43
AiAF............................................ 40
Autofocus ............................. 40, 80
Auto Power Down ...................... 33
Auto Rotate ................................ 90
AV Cable AVC-DC100 ............... 146
B
Battery
Charging ............................... 21
Capacity .............................. 175
Handling ............................... 22
Installing............................... 23
C
Compression .............................. 61
Continuous Shooting.................. 68
Custom White Balance ............... 86
D
Date/Time................................... 28
DIGITAL Terminal............. 121, 143
Digital Zoom......................... 41, 67
Direct Interface Cable ......... 16, 121
Direct Print Compatible Bubble Jet
Printer ...................................... 122
Direct Print Compatible Printer
(CP Series) ............................... 121
Downloading Images to a Computer
................................................. 142
DPOF ........................................ 116
DPOF Print Order...................... 131
Printing............................... 137
Print Style ........................... 134
Resetting ............................ 136
Selecting Images ................ 131
DPOF Transfer Order .......... 140
E
Erasing
All Images........................... 114
Single Images..................... 113
Exposure .................................... 82
F
FE Lock ...................................... 79
Flash........................................... 63
Focus Lock................................. 76
FUNC. Menu ............................. 148
H
Histogram .................................. 39
I
Image File Sizes ....................... 177
Index Replay .............................. 95
Indicators ................................... 19
ISO Speed .................................. 89
L
Language ................................... 30
LCD Monitor
Information Displayed .......... 36
Using the LCD Monitor ......... 34
M
Macro/Infinity Mode................... 65
Magnifying ................................. 94
Messages
List of Messages Displayed while
a Direct Print Compatible Bubble
Jet Printer is Connected.........165
List of Messages Displayed while
a Direct Print Compatible Printer
(CP series) is Connected........164
List of Messages during
Shooting/Replaying ............ 162
Metering Modes ......................... 81
180
Mode Switch...............................20
Movie
Shooting ...............................71
Replaying ..............................97
My Camera Menu
Changing...............................53
Registering............................55
My Camera Settings....................53
File Format ............................57
O
ON/OFF Button............................32
P
Photo Effect ................................88
Play Menu.................................152
Power Lamp ...............................32
Print Settings (Direct Print Printers)
Number of Print Copies.......126
Print Area (Trimming) .........129
Print Style ...........................126
Protect ......................................112
R
Rec. Menu ................................150
Red-Eye Reduction Function.......64
Reply Mode.................................20
Resolution ..................................61
Review Duration .........................60
Rotate .......................................102
S
SD Card
Capacities............................176
Formatting...........................115
Handling................................27
Installing ...............................25
Self-Timer...................................69
Set up Menu .............................154
Shooting Mode ...........................20
Functions Available in Each
Shooting Mode ...................188
Shutter Button ............................42
Pressing Fully .......................43
Pressing Halfway ..................42
Shutter Speed.............................83
Single Image Replay ...................93
Slide Show................................107
Play Time ............................110
Repeat Settings...................110
Spot AE Point Frame.............37, 81
Stitch Assist................................73
T
Telephoto....................................41
U
USB Cable.................................143
V
Video Output System ................147
Viewfinder...................................40
W
White Balance .............................85
Wide Angle .................................41
Wrist Strap .................................17
181
MEMO
182
MEMO
183
MEMO
184
MEMO
185
MEMO
186
Trademark Acknowledgments
• Canon, PowerShot and Bubble Jet are trademarks of Canon, Inc.
• iBook and iMac are trademarks of Apple Computer, Inc.
• Macintosh, PowerBook, Power Macintosh and Quick Time are trademarks
of Apple Computer, Inc., registered in the United States and other
countries.
• Microsoft, Windows and Windows NT are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other
countries.
• SD is a trademark.
• Other names and products not mentioned above may be registered
trademarks or trademarks of their respective companies.
Copyright © 2003 Canon Inc. All rights reserved.
Disclaimer
• While every effort has been made to ensure that the information
contained in this guide is accurate and complete, no liability can be
accepted for any errors or omissions. Canon reserves the right to
change the specifications of the hardware and software described
herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language in any
form, by any means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or
lost data due to a mistaken operation or malfunction of the camera,
the software, SD memory cards (SD cards), personal computers,
peripheral devices, or use of non-Canon SD cards.
187
Canadian Radio Interference Regulations
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE
CANADIAN INTERFERENCE CAUSING EQUIPMENT REGULATIONS.
Réglementation canadienne sur les interférences radio
CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES
DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.
FCC Notice
(Digital Camera, Model PC1035)
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions;
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for
Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The cable with the ferrite core provided with the digital camera must be used with
this equipment in order to comply with Class B limits in Subpart B of Part 15 of the
FCC rules.
Do not make any changes or modifications to the equipment unless otherwise
specified in the manual. If such changes or modifications should be made, you
could be required to stop operation of the equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516) 328-5600
188
Functions Available in Each Shooting Mode
The chart below is a reference for the settings available for various shooting
conditions. The settings selected in each shooting mode are saved after you
finish shooting.
Function
Auto Manual
Stitch
Assist
Movie
Reference
Page
Resolution
Large * * *–
p. 61
Medium 1
–
Medium 2
–
Small
–
Movie – – –
Movie – – –
*
Movie – – –
Compression
Superfine –
p. 61Fine * * *–
Normal
–
Flash
Auto
––
p. 63
Red-Eye Reduction Auto
* *– –
On –
–
Off
*
Slow-Synchro
– –
Macro Mode p. 65
Infinity Mode – p. 65
Focus Lock – – – p. 76
AE Lock – – – p. 78
FE Lock – – – p. 79
Shooting
Method
Single * * * *–
Continuous shooting
– – – p. 68
10-sec. self-timer
p. 69
2-sec. self-timer
Autofocus Modes –
– – p. 80
AF-assist Beam p. 43
Digital Zoom
– – p. 67
Exposure Compensation –
p. 82
189
* Default setting
Setting available
Setting can only be selected for the first image.
(Shaded Area): Setting is memorized even when the camera power is
shut off.
(1)
The ISO speed is automatically set.
With the exception of the [Date/Time], [Language] and [Video System]
settings, all the other menu settings and changes made with the camera
buttons can be reset to the default values in a single operation (p. 161).
Light
Metering
Method
Evaluative –
*– –
p. 81
Center-Weighted
Averaging
–
––
Spot Metering – ––
Long Shutter –
– – p. 83
White Balance –
p. 85
Photo Effect –
p. 88
ISO Speed –
(1)
–
(1)
–
(1)
p. 89
Auto Rotate
–p. 90
Function
Auto Manual
Stitch
Assist
Movie
Reference
Page
