For over sixty eight years, Dualit toasters have reflected an attitude that’s fundamentally
British. They are a symbol of the fact that it’s the simple things in life that are the most
rewarding and the most important.
Dualit toasters can turn out hundreds of crisp,
golden slices per hour. They are gleaming, sturdy
and tough as old boots. And as much a part of
British life as toast itself.
It should come as no surprise that the man who
invented the Dualit toaster was an engineer. In
1946, Max Gort-Barten produced the original
Dualit toaster from his workshop just off
London’s Old Kent Road.
Combining strength, versatility and ingenuity it
was a toaster that set new standards, soon
followed by a commercial toaster, incorporating
a time switch among its many (entirely) original
features.
Manually operated and designed for heavy-duty use, each Dualit toaster is a blend of the
simple and highly sophisticated. Each toaster is assembled by hand, much as it always was.
The assembler’s individual number will be found on the base plate.
In an age in which so much becomes obsolete overnight, the Dualit toaster is built without
compromise. It remains one of the few objects to survive the passing of the years with
grace and style.
TOASTING SINCE 1945
2
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 2
CONTENTS
3
Safety precautions
Before first use
Knowing your toaster
Accessories
Sandwich Cage
Warming Rack
Toasting tips
Setting up
The Selector
Toasting
Toasting frozen bread
Making toasted sandwiches
Cleaning and care
Replacement parts
Replacing elements
Troubleshooting
Guarantee
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 3
4
SAFETY pRECAuTIONS
READ ALL
INSTRUCTIONS
BEFORE uSING ThE TOASTER
KEEp ThESE INSTRuCTIONS FOR
FuTuRE REFERENCE
•
THIS IS AN ATTENDED APPLIANCE.
Do not leave unattended during
use, unplug after each use (risk
of fire if an unattended appliance is left
operating).
• Should the neon light remain
illuminated after using appliance
immediately unplug the toaster and call
service centre for a new timer.
• If the timer sticks, unplug and do not
use. Spare timers are available from
www.dualit.com and must be fitted by a
qualified electrical engineer.
• We recommend that the toaster is
plugged into a socket that has no other
appliance connected to it.
Failure to do this may cause an
overload, trip a circuit breaker or blow
a fuse. preferably the socket outlet
should be protected by a Residual
Current device (RCD)
• Before plugging in, check that the
voltage on the rating label is the same
as the mains supply.
• To protect against electric shock, do
not immerse any part of this product
in water or other liquid.
• unplug from outlet when not in use
and before cleaning. Allow to cool
before putting on or taking off parts.
• Do not operate the appliance with a
damaged cord or plug.
• Do not allow cable to touch hot
surfaces, or to hang over edge of a
table or counter top.
• When in use a fire may occur if the
toaster is covered or touching
flammable material.
• Do not attempt to dislodge bread
when the toaster is plugged in.
• Bread may burn. Therefore toasters
must not be used near or below
curtains and other combustible
materials.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning
use of the appliance by a person
responsible for their safety.
• Children should be supervised to
ensure that they do not play with this
appliance.
• Do not store or use toaster in an
appliance garage or under cupboards.
• Do not use outdoors.
• The toaster is not intended to be
operated by means of an external timer
or separate remote-control system.
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 4
5
• Accessible surfaces of the toaster may
get hot during use.
• NOTE: Any plug cut from power
supply cord should be disposed of
immediately. Inserting any cut off plug
into a 13A socket-outlet is hazardous.
• Never use the plug without the fuse
cover fitted. Ensure replacement fuse is
the same current value as original.
• Replacement fuses should be ASTA
approved to BS 1362.
• Do not operate any appliance with a
damaged lead or plug, or after the
appliance malfunctions, or has been
damaged in any manner.
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: This appliance must be
earthed.
SAVE THESE
INSTRUCTIONS

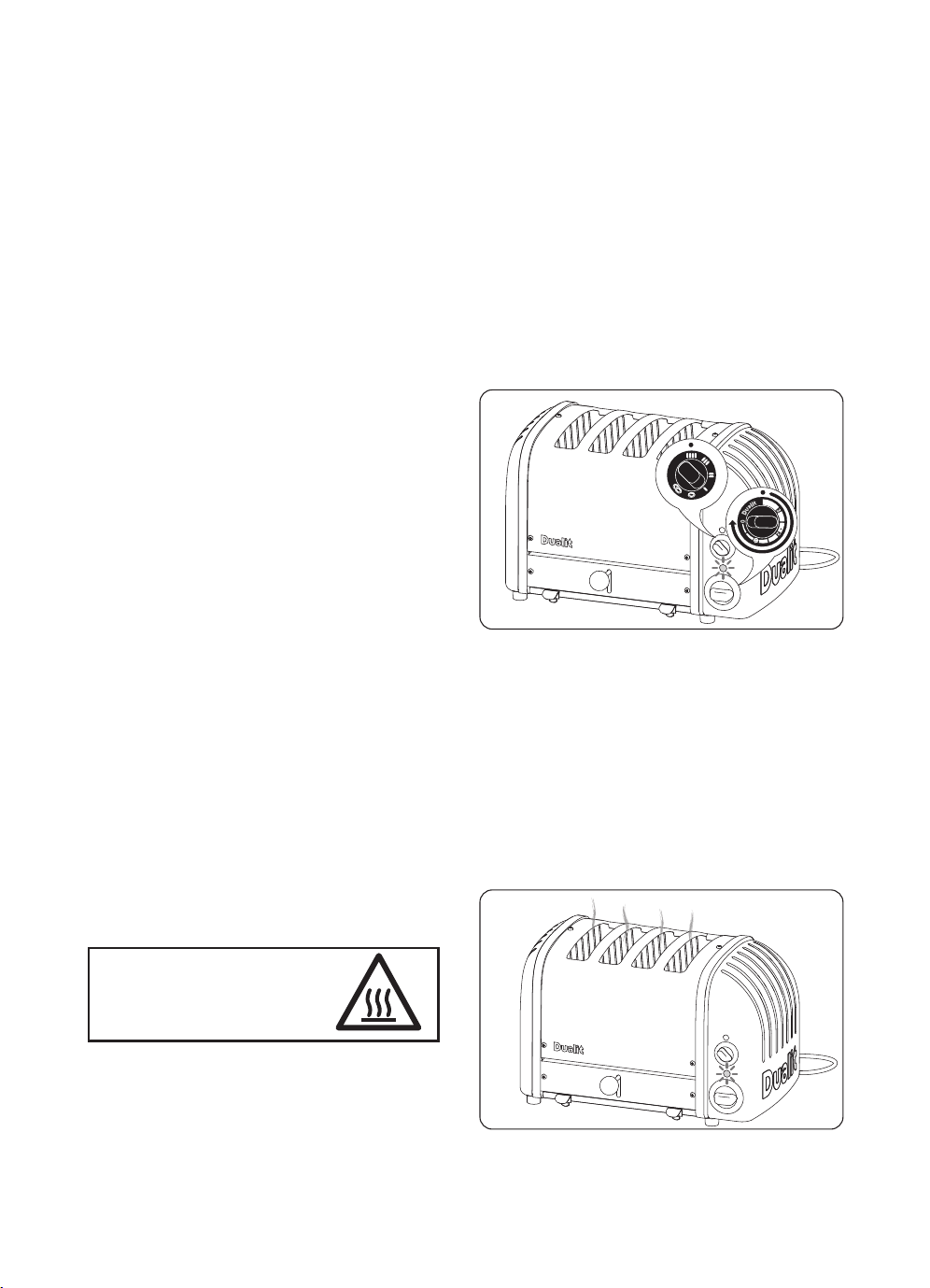

Accessible surfaces of
the toaster may get
hot during use.
In the interest of improving products, Dualit Ltd. reserves the right
to change the product specification without prior notice.
Your Dualit toaster has patented proheat
elements. These elements need to be
conditioned before toasting for the very first
time. Then continue to toast as per the
instructions.
Set the selector switch so ALL the slots
are active, with NO bread in the slots, turn
the timer all the way round and let it run
back to the off position.
Some smoke may vent from the slots,
THIS IS NOT A FAULT and is perfectly
safe. There may be a slight popping crinkling
sound, this is due to heat expansion of the
elements and is perfectly normal.
Your toaster is now conditioned and ready
for use.
IMpORTANT -
BEFORE uSING
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 5
6

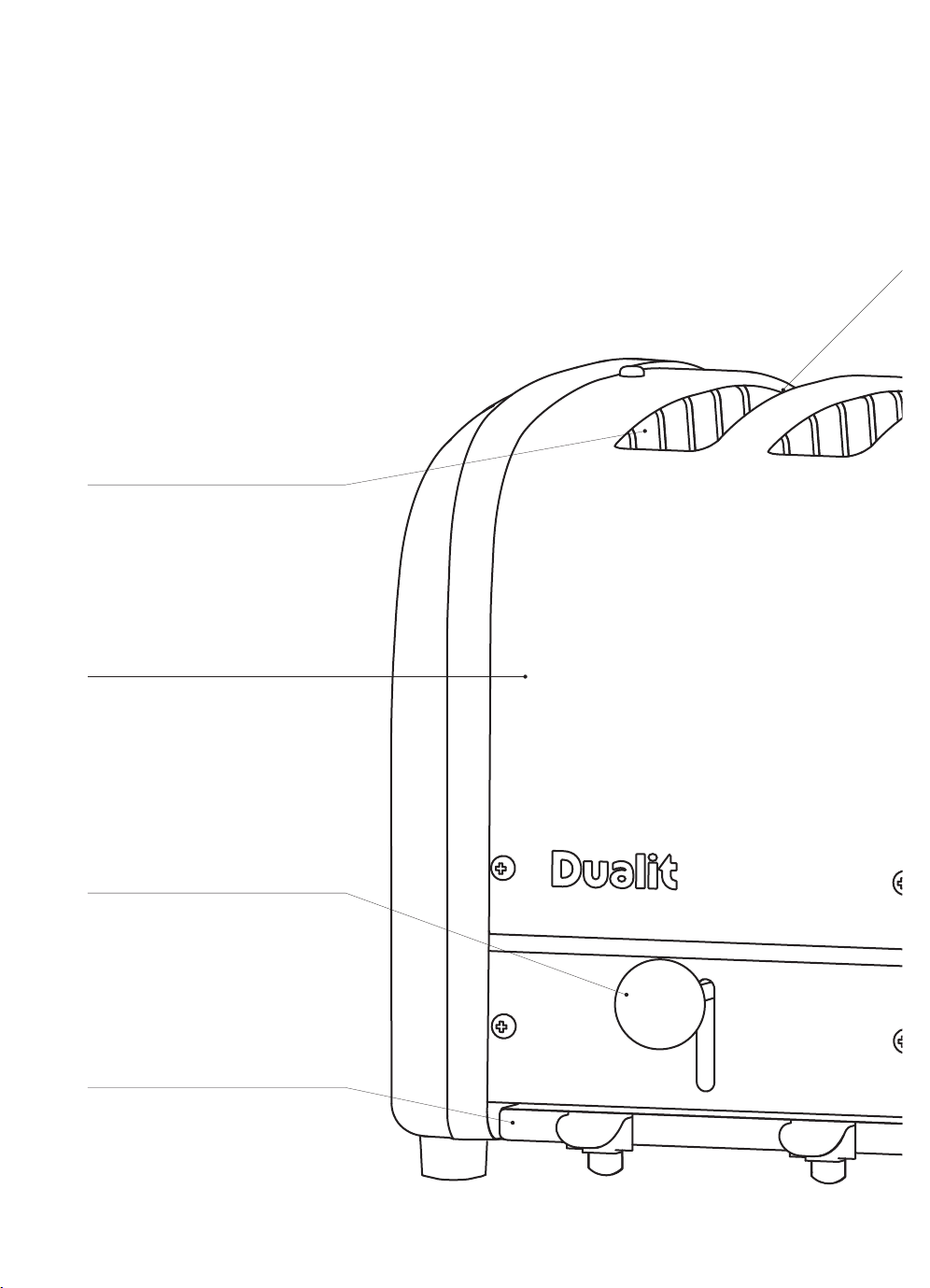

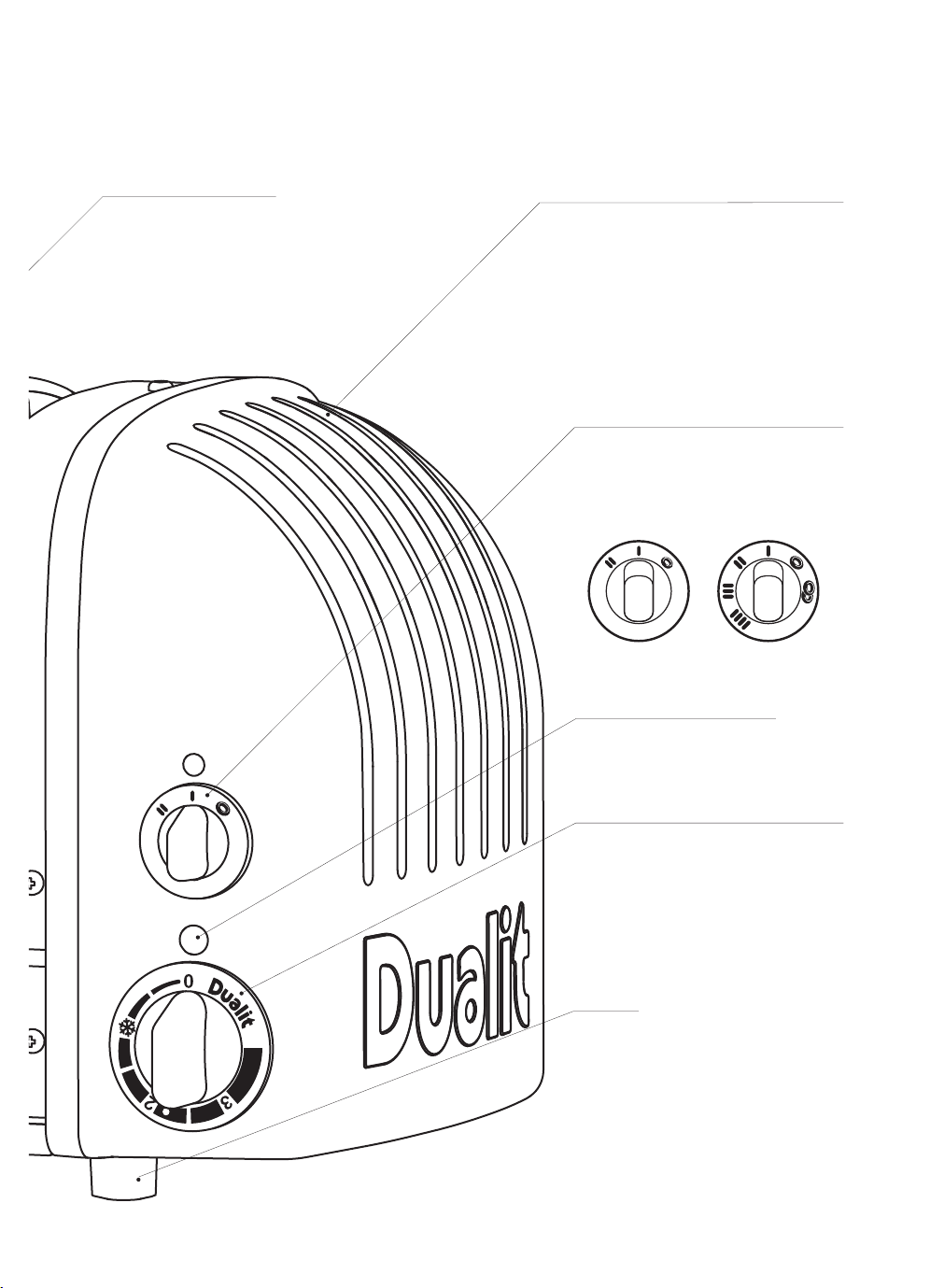

KNOW YOuR TOASTER
unpack the box with care, keeping all the packaging
materials until you are satisfied everything is present and in
working order. Once satisfied remove any tags from the
toaster and recycle the packaging appropriately.
MANuAL EjECTOR
Mechanical peek & pop ejector
for greater toasting control.
CRuMB TRAY
Keeps your work surfaces clear
of crumbs.
STAINLESS STEEL
COvER
pROhEAT
ELEMENTS
patented heavy duty
replaceable elements.
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 6
7
SELECTOR SWITCh
Select number of slices or buns
you are toasting.
ALuMINIuM CASTINGS
heavy duty cast aluminium castings.
pOWER NEON
Illuminates when power on.
MEChANICAL TIMER
WITh DEFROST
Timer controlled defrost and
toasting.
FEET
Compensate for uneven
surfaces.
WIDE SLOTS
Wide slots to fit thick bread,
buns and sandwich cages.
All illustrations are for representation only, your
model may have a different selector switch and
number of slots from illustrations shown.
2 Slot model 4 Slot model
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 7
8

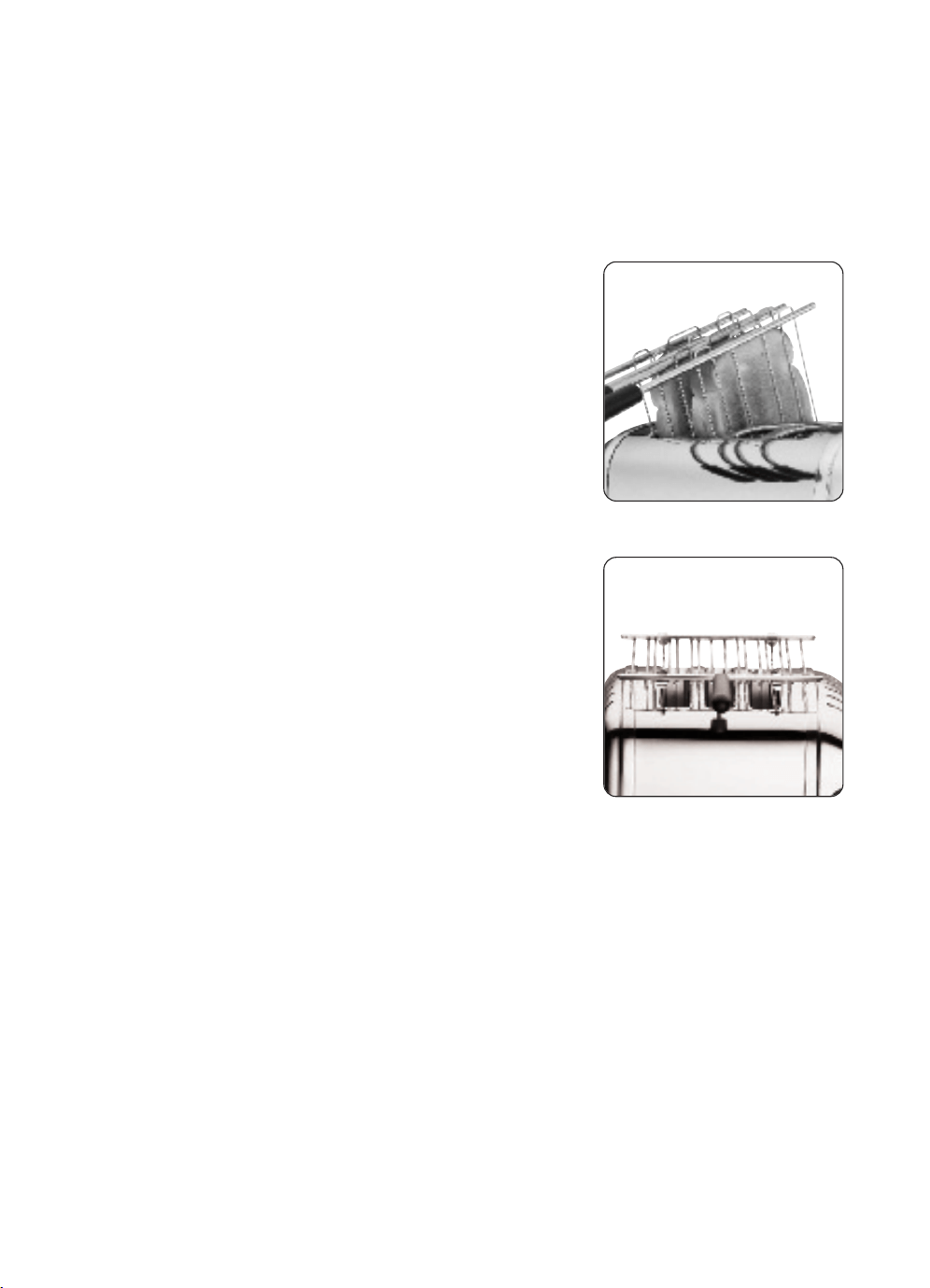

ThE SANDWICh CAGE
Convert your toaster into a toasted sandwich maker with
this quick and easy to use accessory.
using a cage also offers greater toasting control, for
toasting smaller items such as crumpets, scones, teacakes
or muffins.
ThE WARMING RACK
The ‘warming rack’ is a universal accessory for all Dualit
NewGen Toasters.
perfect for warming or lightly toasting any bread product
that will not fit inside the slots. Such as croissants, scones,
pastries or tortillas.
use for a maximum of 3 minutes and then allow to cool
between each use.
ACCESSORIES - SOLD SEpARATELY
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 8
• FULLy LOAD ALL HEATED UP SLOTS. If a slot is heated but no bread is
inserted, the bread in the adjacent slot will toast unevenly.
• ALwAyS LOAD yOUR SLOTS STARTINg FROm THE LEFT.
• DIFFERENT bREADS wILL TOAST AT DIFFERENT RATES, wholemeal
bread takes longer than white bread, fresh bread will take longer than day old bread.
Remember to adjust your timer to allow for your particular type of bread.
• After the first round of toast, the elements and toaster body will be at full operating
temperature, subsequent rounds will take less time to toast.
• use the bagel setting to toast burger buns, bagels, muffins or tea cakes, this setting
toasts one side whilst gently warming the other.
• The thickest slice of bread that will fit in your toaster is 28mm thick. Forcing bread
which is too thick or too long into the slots will be difficult to eject once toasted.
• You may find it easier to use a ‘sandwich cage’ to toast smaller items. Inserting,
checking and removing will all be easier (sold separately).
• When hand cutting a fresh loaf, cut the slices as evenly as possible. uneven slices will
toast unevenly.
• Keep elements free from breadcrumbs and broken pieces of bread. If left these may
burn out the elements. With the toaster unplugged use a soft brush to clean inside
your toaster, do not use a knife!
• To reheat recently made toast set timer to ‘defrost’ symbol.
• Cancel toasting manually at any time by rotating the timer back to ‘O’.
This will not damage your timer.
• Always unplug your toaster from the wall socket after use.
9
TOASTING TIpS
here are a few tips to help get the best out of your toaster.
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 9
10

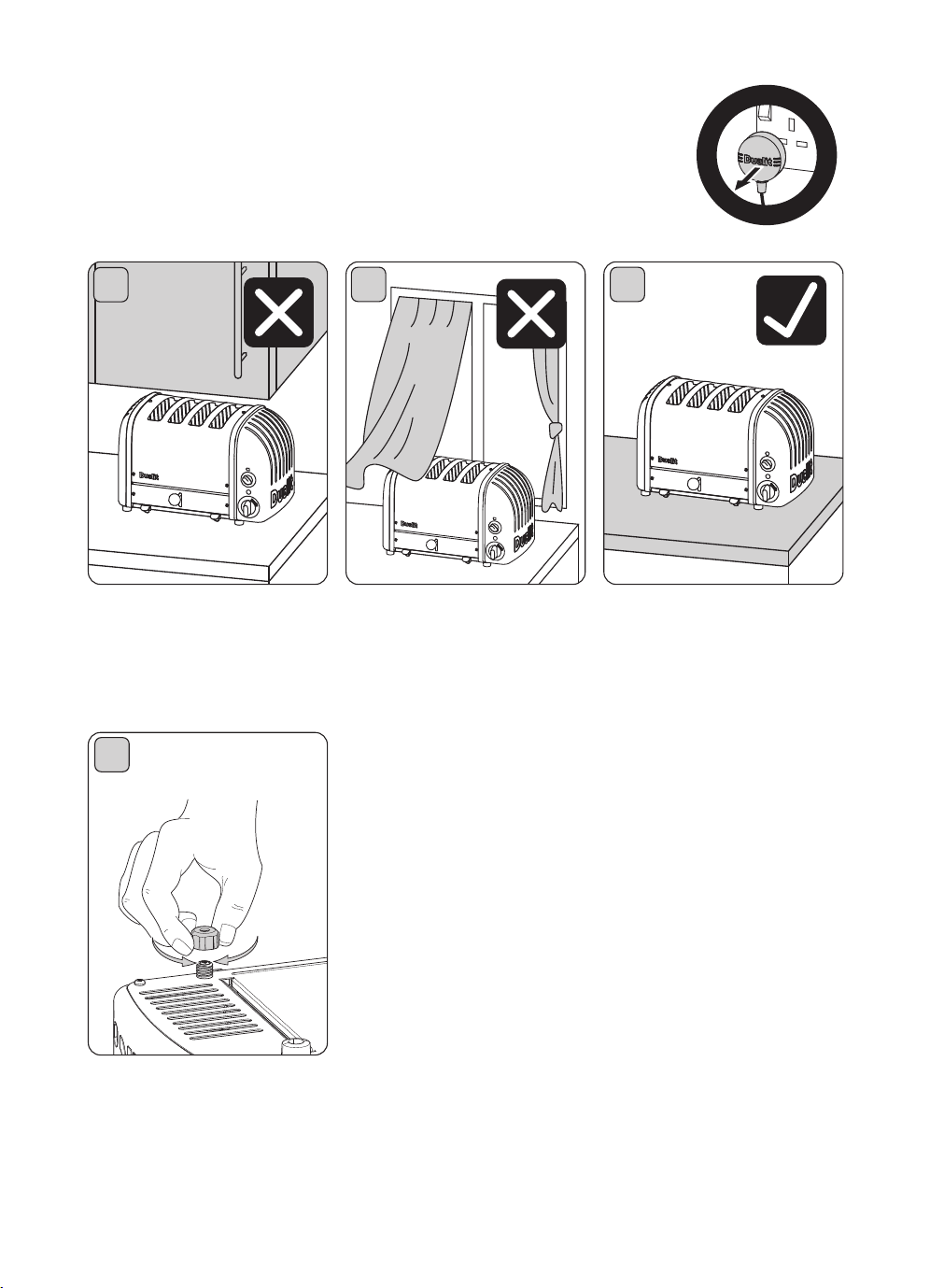

SETTING up
U
N
P
L
U
G
W
H
E
N
N
O
T
I
N
U
S
E
1
DO NOT STORE OR uSE
YOuR TOASTER IN AN
AppLIANCE GARAGE OR
uNDER CupBOARDS.
2
DO NOT STORE OR uSE
YOuR TOASTER CLOSE
TO CuRTAINS OR
FLAMMABLE MATERIAL.
3
place the toaster on a open
level surface.
Your toaster is fitted with one adjustable
foot which may be raised or lowered to
compensate for unevensurfaces. The
adjustable foot is located on the base of
the toaster and is hexagonal in shape,
rotate it to adjust the height.
4
ADjuST FOR
uNEvEN SuRFACES
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 10
11

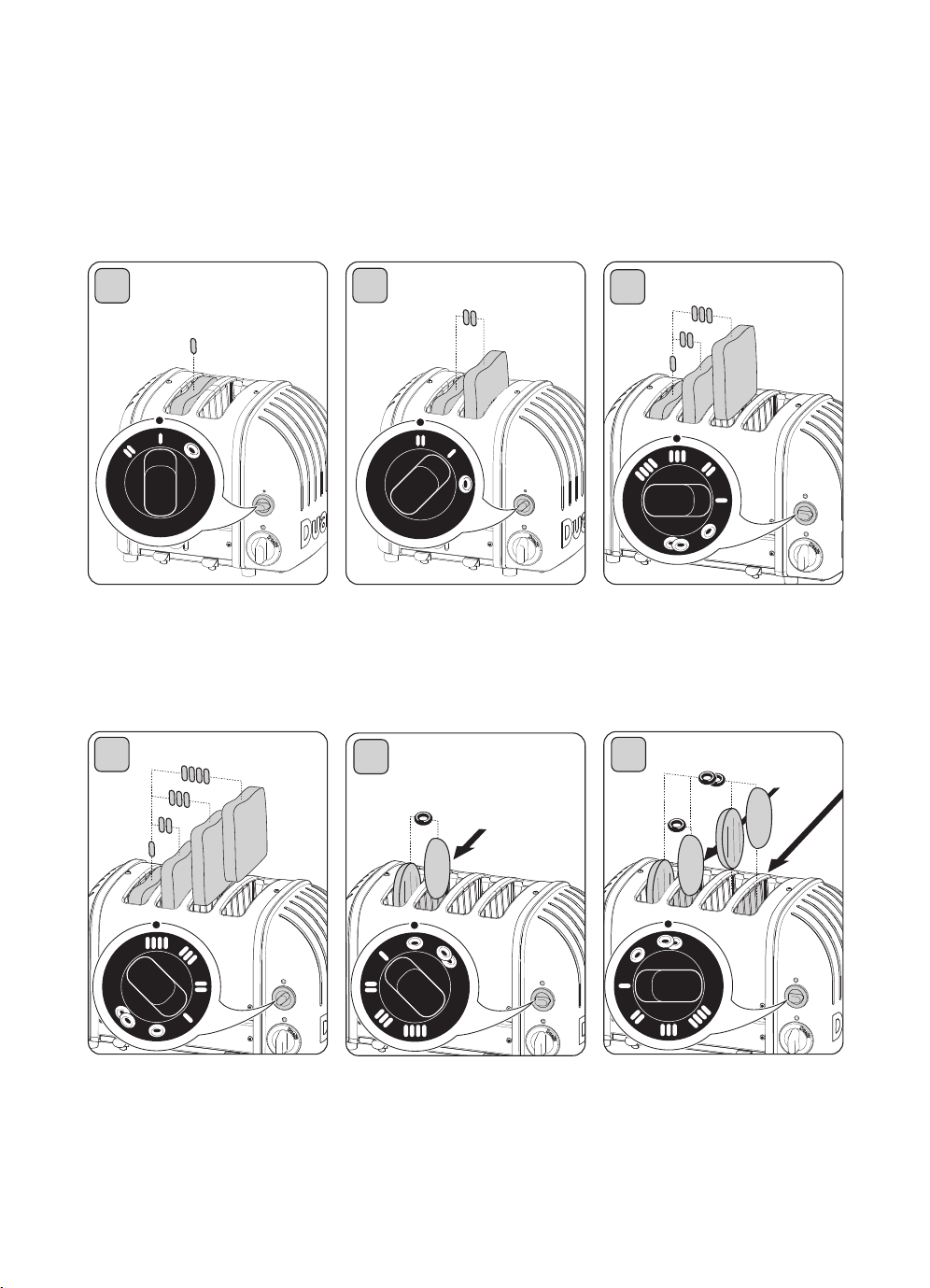

ThE SELECTOR
ONLy HEAT UP SLOTS yOU ARE gOINg TO USE.
This avoids uneven toasting and saves energy at the same time.
ACTIVE
ELEMENT
ACTIVE
ELEMENT
ACTIVE
ELEMENTS
A
CTIVE
E
LEMENT
ACTIVE
ELEMENT
ACTIVE
ELEMENTS
2 & 4 slot models:
Rotate
the ‘selector switch’ anti-
clockwise to the one bagel
symbol. Only the second
element from the left will
heat up.
4 slot model:
Rotate the
‘selector switch’ anti-clock-
wise to the two bagel
symbol. Only the second
and forth element from the
left will heat up.
5
6
ONE BAGEL
TWO BAGEL
2 & 4 slot models:
Rotate
the ‘selector switch’ clock-
wise to the one slice indica-
tor. The left hand slot will
heat up on both sides.
ACTIVE
ELEMENT
ACTIVE
ELEMENT
ACTIVE
ELEMENTS
ACTIVE
ELEMENT
ACTIVE
ELEMENT
ACTIVE
ELEMENTS
ACTIVE
E
LEMENT
ACTIVE
ELEMENT
ACTIVE
ELEMENTS
ACTIVE
E
LEMENT
ACTIVE
E
LEMENT
ACTIVE
ELEMENTS
4 slot model:
Rotate the
‘selector switch’ clockwise to
the three slice indicator. The
first three slots from the left
will toast on both sides.
2 & 4 slot models:
Rotate to
the two slice indicator. The
first two slots from the left
will toast on both sides.
4 slot model:
Rotate the
‘selector switch’ clockwise
to the four slice indicator.
All slots will heat up.
1
2
3
4
ONE SLICE
TWO SLICE
ThREE SLICE
FOuR SLICE
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 11
IN
TOAST
TOASTING
This is an attended appliance. Do not leave unattended during use. unplug after each use
(risk of fire if an unattended appliance is left operating).

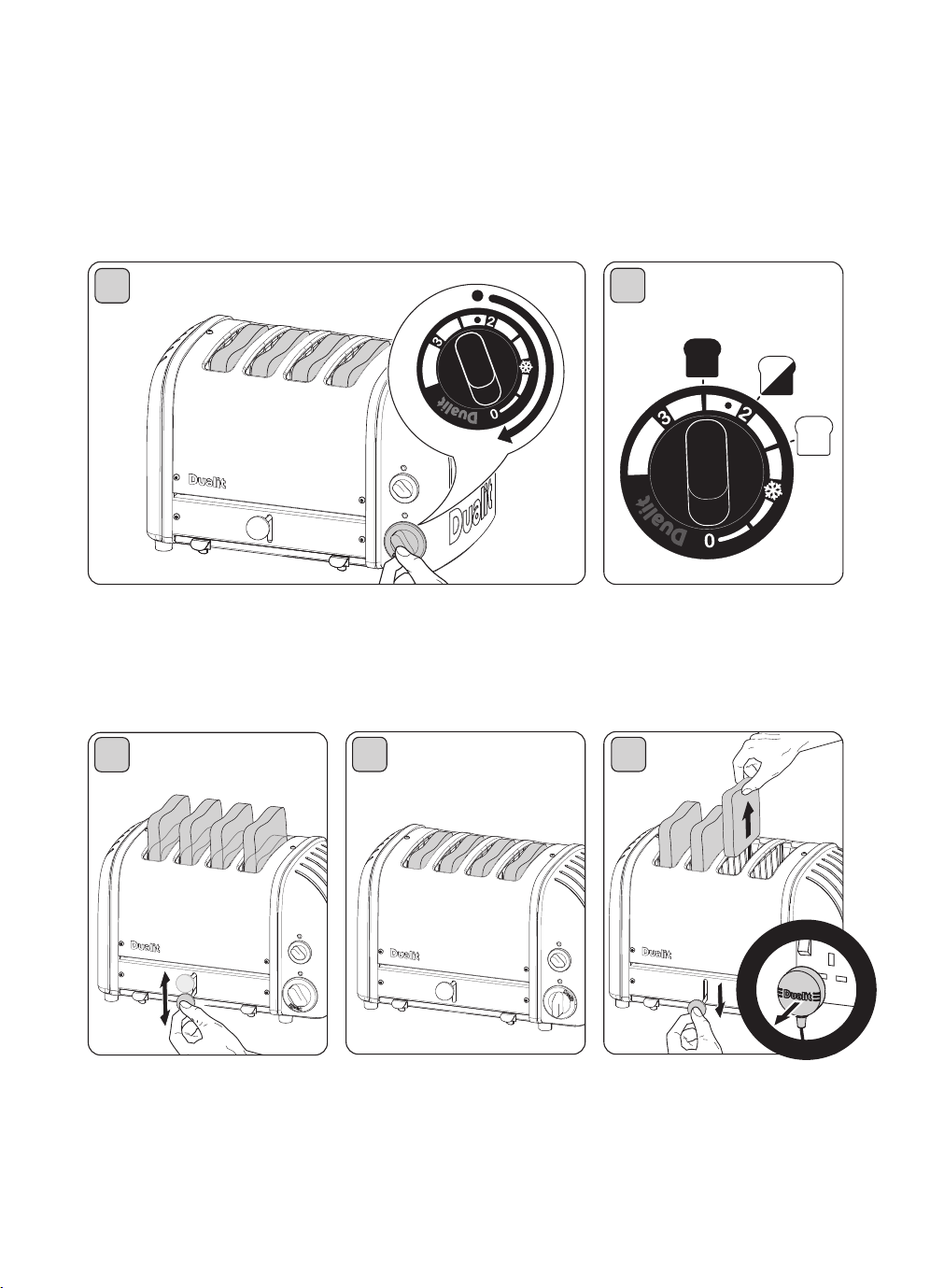

When the toaster is cold and being used for the first time
set the ‘timer’ to the ‘circle’ indicator, the extra time is
because the metal body will absorb some heat. After the
toaster has warmed up, slightly reduce the toasting time to
give consistent results.
IN
TOAST
IN
TOAST
IN
TOAST
IN
TOAST
Check the progress of your
toast at any time by pushing
down on the ‘ejector knob’.
If you remove your toast
before the cycle is complete,
cancel timer and unplug.
Set ‘timer’ to desired level.
1.5 = Lightly toasted
2.0 = Medium toast
2.5 = Well done toast.
The ‘timer’ will click off to ‘O’
position. To cancel toasting
manually rotate the ‘timer’ to ‘O’.
If neon light remains illuminated
after use immediately unplug the
toaster & call service centre.
The toast will not pop up,
but will keep warm inside
the toaster. press down the
‘ejector knob’ and the toast
will pop up ready for
serving.
1
2
3
4 5
FROM COLD
FuRThER ROuNDS
pEEK & pOp
STOp TOASTING
EjECT
U
N
P
L
U
G
W
H
E
N
N
O
T
I
N
U
S
E
12
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 12
13

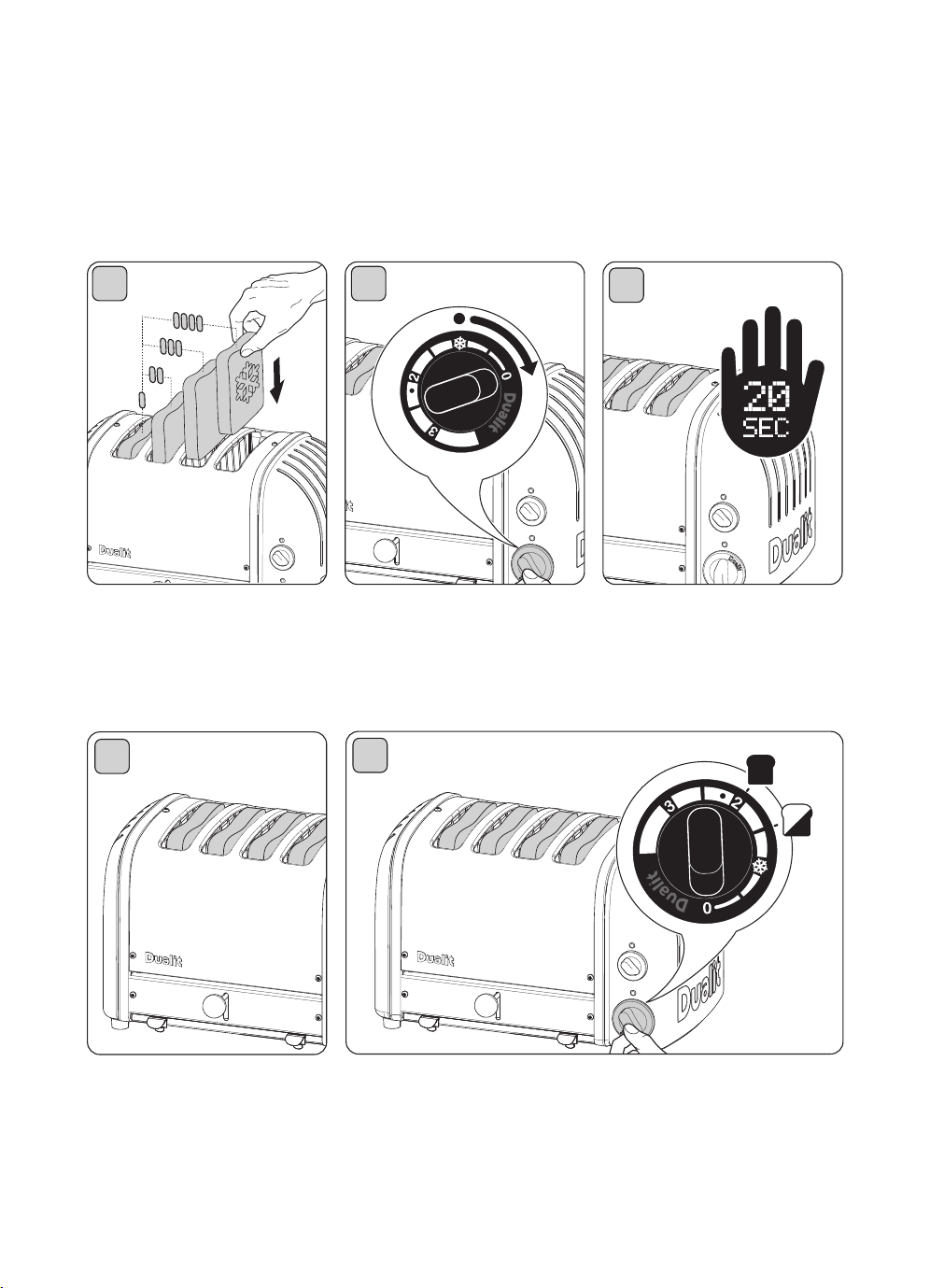

TOASTING FROZEN BREAD
Toast bread directly from the freezer with this handy setting.
TOAST
TOAST
TOAST
TOAST
1 2
Rotate the ‘selector switch’
clockwise to the desired
number slots you require
and insert your frozen slices
of bread.
Rotate the ‘timer’ to the
defrost symbol and let the
timer wind down to ‘0’.
SELECTOR
DEFROST
TOAST
TOAST
When the timer stops wait
20 seconds.
TOAST
TOAST
Your bread will now be
defrosted and ready for
toasting.
3
WAIT
4
READY
Wind the ‘timer’ to the ‘2’ indicator for well done toast
or ‘1.5’ for medium toast.
Then continue to toast as if toasting fresh bread as shown
on previous page.
TOAST
TOAST
5
AFTER DEFROSTED
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 13

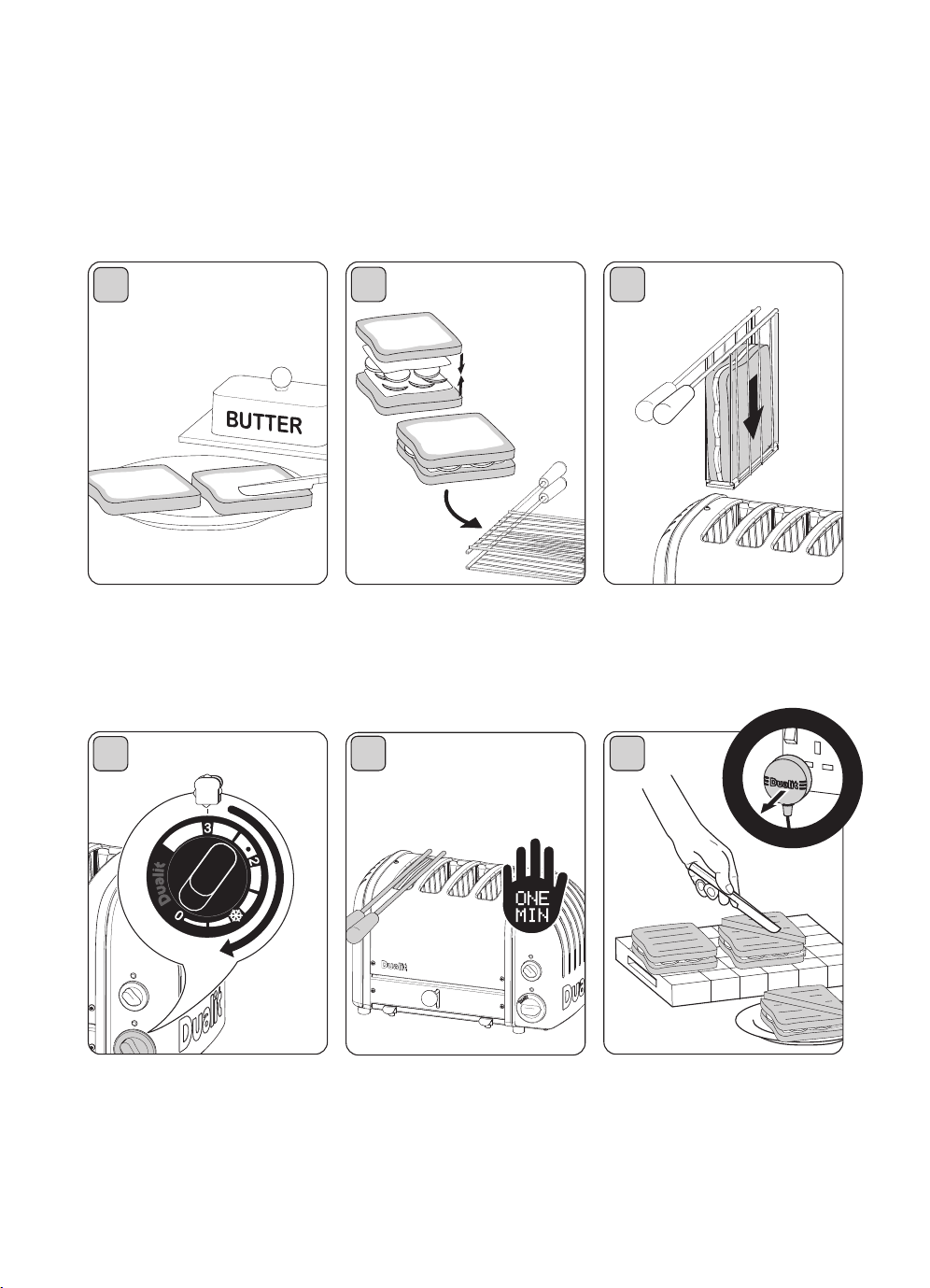

MAKING TOASTED SANDWIChES
The sandwich cage accessory will transform your toaster into a versatile sandwich toaster.
OUTSIDE
OUTSIDE
OUTSIDE
OUTSIDE
OUTSIDE
OUTSIDE
1
2 3
4
5 6
use medium sliced bread,
lightly butter the OUT-
SIDE OF EACH SLICE.
Toast until the sandwich is
golden. Setting 3 on the
‘timer’. Adjust for your
bread type.
place your fillings between
the unbuttered sides.
DO NOT OVERFILL
THE SANDwICH.
place sandwich in cage.
Allow to rest for a further minute
inside the toaster to allow fillings
to fully warm.
If neon light
remains illuminated after use
immediately unplug the
toaster & call the service
centre.
Set ‘selector’ and starting
from the left insert cage into
the slots. push down until
clamped tightly shut.
Remove, cut and serve.
CAUTION: FILLINgS
CAN bE HOT.
BuTTER BREAD
CREATE
INSERT
TOAST
REST
SERvE
U
N
P
L
U
G
W
H
E
N
N
O
T
I
N
U
S
E
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 14
15
CLEANING & CARE
ImPORTANT: ENSURE THE TOASTER IS UNPLUggED AND
ALLOwED TO FULLy COOL bEFORE STARTINg TO CLEAN.
1
2
3
4

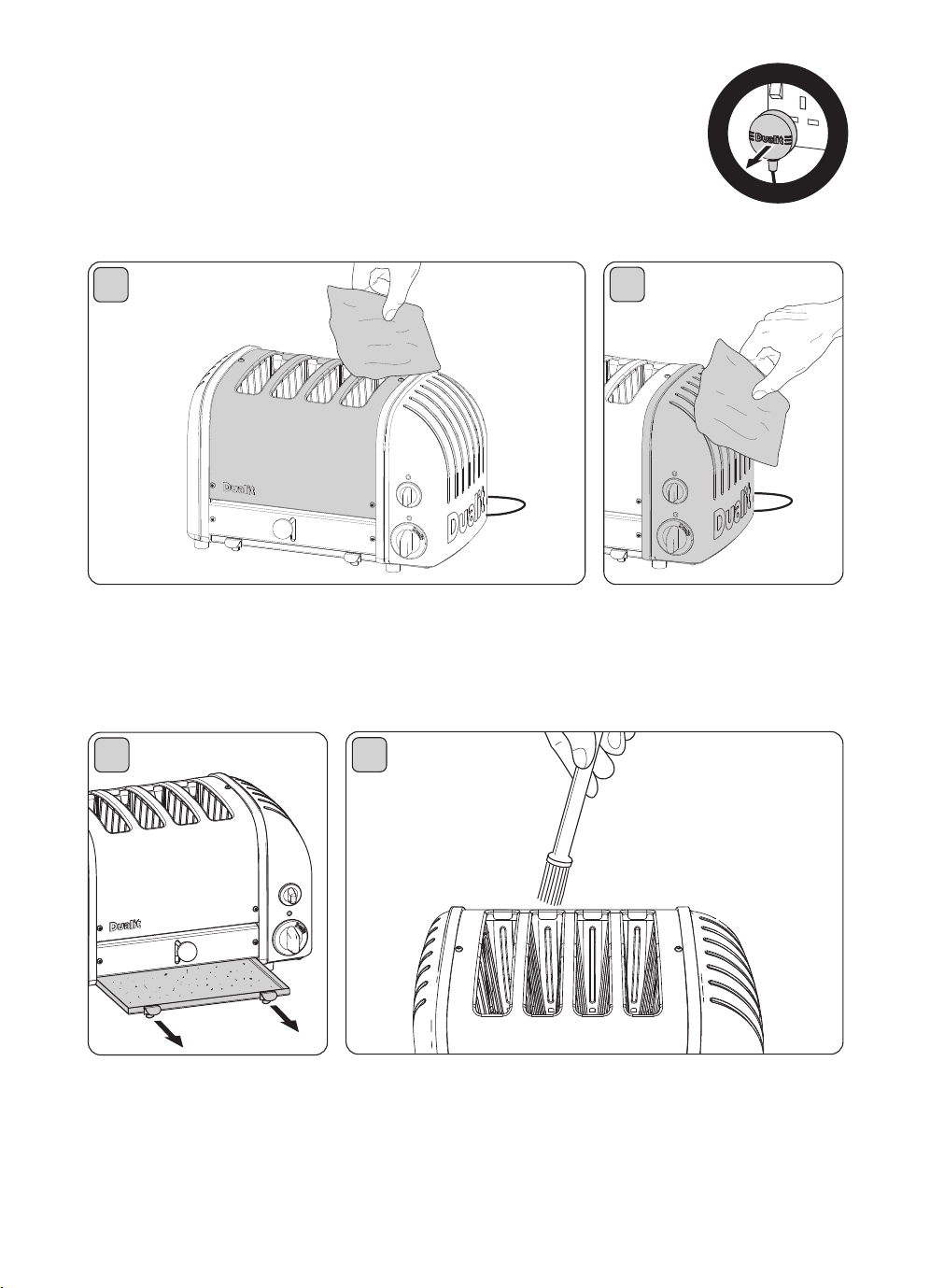

AFTER EACH USE
Wipe the ‘stainless steel cover’ with a non-abrasive cloth.
A stainless steel cleaner can be used to restore shine to the
cover only, but do not use an aggressive cleaner or one that
contains ammonia.
With the toaster unplugged use a SOFT bRUSH to
clean inside your toaster, do not use a sharp or metal
utensil! Crumbs should be carefully brushed off the
elements using only a soft brush, the toaster can be
turned upside down and excess crumbs be shaken out.
Wipe the aluminium end
castings with a damp cloth.
Do not use a chemical or
abrasive cleaner.
Empty the ‘crumb tray’ on a
regular basis. Daily if being
used in a commercial
kitchen.
ThE COvER
ThE CASTINGS
ThE CRuMB TRAY
ThE INTERNALS
U
N
P
L
U
G
W
H
E
N
N
O
T
I
N
U
S
E
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 15
16
REpLACEMENT pARTS
The NewGen toaster is also kind on the environment,
all parts are repairable or replaceable. You don’t throw
away a Dualit NewGen toaster, for a nominal cost we fix it
for you!
Dualit repairs department regularly receive toasters over
40 years old. They are fixed and go back to the owner in
full working order. If your toaster needs a repair, simply
contact our helpline on 01293 652 500 for repair or
servicing advice.
ALL SERVICINg mUST bE CARRIED OUT by A
qUALIFIED ELECTRICIAN OR REPAIRER.
For your own protection only use original Dualit spares in
your toaster.
• Fitting of non Dualit parts will invalidate the
guarantee.
ELEMENT SPARES
• When replacing proheat elements, only use genuine
Dualit elements (stamped “DuALIT”).
• The safety and the performance of the toaster cannot be
guaranteed if inferior elements are used.
TIMER SPARES
• When replacing the timer, only use a genuine
Dualit timer.
• The safety and the performance of the toaster cannot be
guaranteed if an inferior timer is used.
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 16
17
6
M
M
6
M
M
2
-END
D
UALIT
6
M
M
6
M
M
2-END
DUALIT
6
M
M
6
M
M
2-END
DUALIT
6
MM
6
M
M
2-END
DUALIT
6
M
M
6
M
M
2
-END
DUALIT
1
2 3
4
5
unplug and place toaster on
a soft cloth. Remove crumb
tray and unscrew feet
to remove the base plate.
Bend brass links and wires
away from the element.
Loosen locking nuts on
retaining plate using a 6.5mm
spanner and slide back.
Ensure that the retaining plate
is correctly in position when
reassembling.

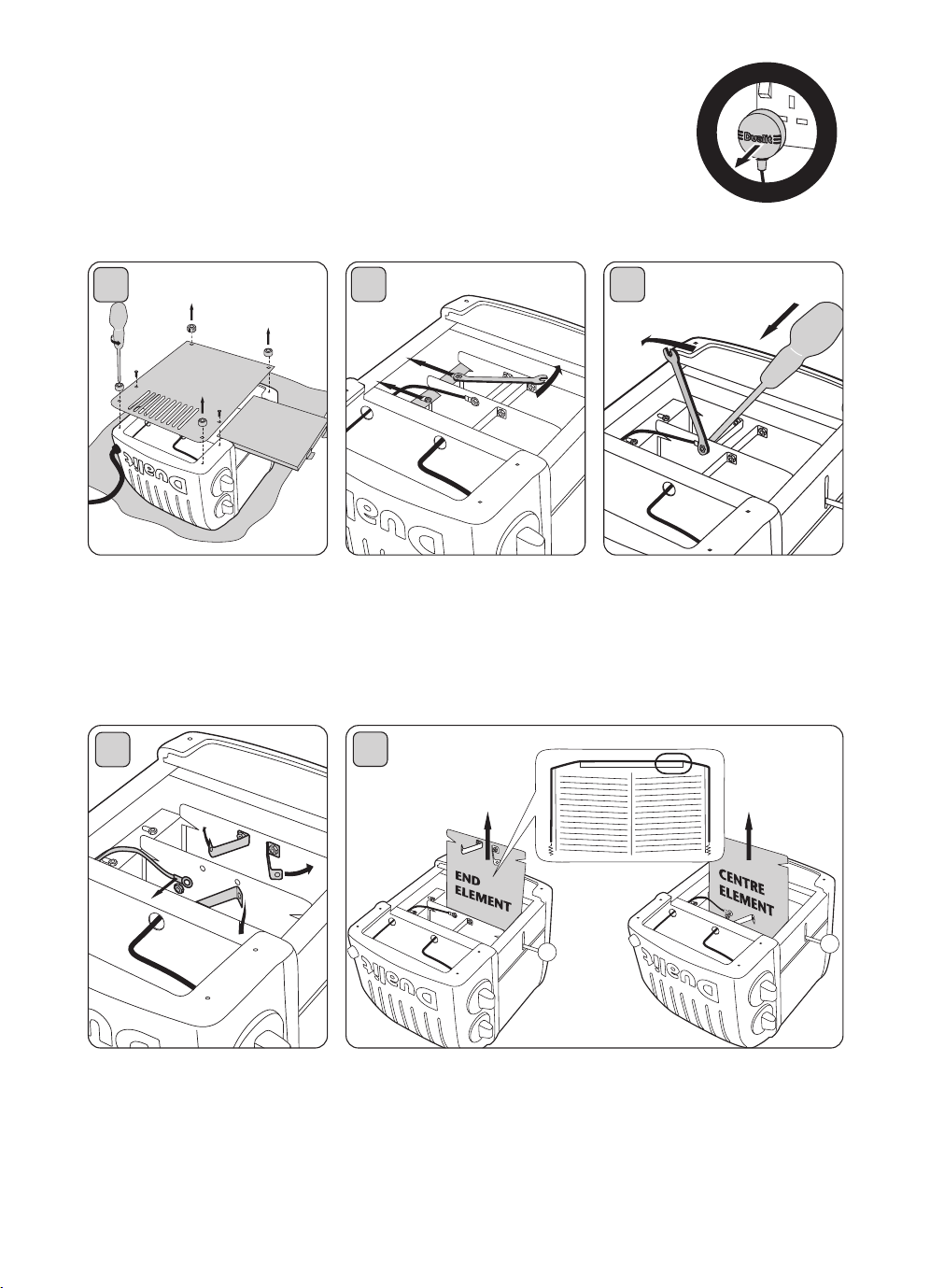

Remove element. To reassemble, reverse procedure ensur-
ing wires and parts are correctly positioned. Ensure new
element is marked the same as the one removed.
The element heats on both sides and can be inserted facing
either way. Check it is seated correctly in the channels
either side. portable Appliance Tested before use.
unscrew brass links and
wires.
REpLACING ELEMENTS
ALL SERVICINg mUST bE CARRIED OUT by A qUALIFIED
ELECTRICIAN OR REPAIRER & PORTAbLE APPLIANCE TESTED.
U
N
P
L
U
G
W
H
E
N
N
O
T
I
N
U
S
E
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 17
my TOASTER IS NOT wORkINg:
• Check the toaster is plugged in.
• Check if the ‘neon’ is glowing red.
If yes, your elements or ‘selector’ switch
may need replacing.
If no, your plug fuse may have blown
or your timer may need replacing.
I gET UNEVEN TOASTINg:
• Check the selector switch is set for the
number of slots being used.
• Starting from the left, ensure you have
loaded all heated up slots.
• The heavy duty proheat elements can
take a few moments to reach optimum
toasting temperature. preheating the
slots prior to inserting your bread will
eliminate this. Rotate the ‘timer’ all the
way round, let it wind down to the
circle indicator then insert your bread
into the active slots.
• Ensure size and type of bread being
toasted is the same.
• End elements take a little longer to
warm up than centre elements, once
toaster is at optimum operating
temperature this will no longer occur.
• The timer is noticably slow, unplug and
do not use the toaster. Spare timers
are available from www.dualit.com and
must be fitted by a qualified electrical
engineer
my TOASTER wObbLES ON my
wORk SURFACE:
• use the adjustable foot under the
toaster to compensate for uneven
surfaces.
TROuBLEShOOTING
my TOAST gETS STUCk wHEN I
EjECT FROm THE TOASTER:
• Slices thicker than 28mm will get stuck.
• hand cut slice must be cut evenly
• using a ‘sandwich cage’ can make
toasting thicker items eaiser.
ONE SIDE OF my bREAD IS NOT
TOASTINg:
• Check the ‘selector’ switch is set
correctly. If set to Bagel setting only
one side will toast and remember to
insert bread from the very left hand
slot.
• One or more of the elements may
need replacing, call the helpline or visit
www.dualit.com for replacements.
SmOkE COmINg OUT OF THE
SLOTS
• If this is the first time using your toaster,
this is normal, your elements are being
conditioned.
• Empty the crumb tray. A build up of
crumbs can burn or cause a fire.
• Some crumbs or pieces of bread may
be stuck in the toaster. unplug, remove
the crumb tray then turn the toaster
upside down over a sink or bin and
gently shake the crumbs out or use a
soft brush to clean inside your toaster.
my TImER IS NOTICAbLy SLOw
OR STICkINg
• unplug and do not use the toaster.
Replace the timer immediately. Spare
timers are available from
www.dualit.com and must be fitted by a
qualified electrical engineer.
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 18
19
This Guarantee covers both parts and
labour. Carriage is not included.
Your guarantee period is as follows:
• 1 years on parts
• 2 years on proheat elements
This Guarantee provides benefits which are
additional to, and do not affect, your
statutory rights. This guarantee does not
cover the cost of returning the product to
the dealer from whom it was purchased or
to ourselves. This guarantee applies only to
products sold and located in mainland
Great Britain. It does not cover liability in
respect of or replacement of plugs, cables
or fuses and also does not cover defects
due to:
• Failure to use or maintain product in
accordance with Dualit's instructions.
• The product being connected to an
unsuitable electricity supply.
• Accidental damage to or abuse or
misuse of the product.
• The product has not been modified
except by Dualit or approved agent.
• Dismantling of or interference with the
product.
• Theft or attempted theft of the
product.
Before returning any product under this
guarantee, please check that:
• You have followed the product
instructions correctly.
• Your mains electricity supply is
functional.
• The defect is not due to a blown fuse.
If you wish to claim under this guarantee
you should:
• Send the product, postage or carriage
paid, to the dealer from whom it was
purchased or to Dualit direct.
• Ensure that the product is clean and
packed carefully (preferably in its
original carton).
• Enclose details of your name, address
and telephone number and when and
where the product was purchased,
together with proof of purchase (e.g. a
till receipt).
• Give exact details of the nature of the
defect.
This Guarantee does not cover any other
claims whatsoever, including, without
limitation, any liability for incidental, indirect
or consequential damage, nor does it cover
any claims for conversion or modification or
for the costs of repair carried out by any
third party without the prior consent of
Dualit. If replacement parts are fitted to the
product this will not extend the period of
the guarantee.
For further advise contact the Dualit
customer helpline on +44 (0)1293 652 500
(09:00 to 17:00 Monday to Friday).
Alternatively, email Dualit at
[email protected] or visit www.dualit.com.
GuARANTEE
This appliance is of excellent quality and construction. however, if any defects in materials
or workmanship do appear during the relevant guarantee period, we will, at our discretion,
either repair or replace the defective parts, free of charge, subject to the terms and
conditions of our Guarantee shown below.
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 19
Dualit Limited County Oak Way Crawley West Sussex Rh11 7ST
Telephone: +44 (0)
1293 652 500
Facsimile: +44 (0) 1293 652 555
Email: info
@
dualit.com Web: www.dualit.com
NewGenGB0513
IB-NewGen-C_Layout 1 21/01/2014 16:23 Page 20
