User guide
Xperia L2
H3311/H3321/H4311/H4331
Contents
Getting started..............................................................................6
About this User guide.......................................................................6
Overview........................................................................................... 7
Assembly – Single SIM......................................................................8
Assembly – Dual SIM.........................................................................8
Screen protection..............................................................................9
Starting your device for the first time.............................................. 9
Why do I need a Google account?..................................................10
Device security............................................................................. 11
Ensuring your device is protected................................................... 11
Screen lock....................................................................................... 11
Unlocking your device automatically..............................................12
Fingerprint Manager........................................................................12
SIM card protection......................................................................... 13
Using multiple SIM cards.................................................................13
Finding the IMEI number(s) of your device.....................................14
Finding, locking, or erasing a lost device ...................................... 15
Using Location Services...................................................................15
Learning the basics...................................................................... 17
Using the touchscreen.....................................................................17
Turning the screen on or o............................................................19
Smart backlight control...................................................................19
Homescreen.................................................................................... 19
Application screen.......................................................................... 22
Navigating Applications..................................................................23
Widgets........................................................................................... 25
Shortcuts and folders......................................................................26
Background and themes.................................................................27
Taking a screenshot........................................................................ 27
Notifications.................................................................................... 27
Icons in the status bar.................................................................... 30
Applications overview.....................................................................32
Battery and Maintenance........................................................... 34
Charging your device......................................................................34
Battery and power management................................................... 35
Updating your device......................................................................37
Maintenance Using a Computer.....................................................38
Storage and memory...................................................................... 39
Backing up and restoring content.................................................. 41
2
Downloading applications..........................................................44
Downloading applications from Google Play................................ 44
Downloading applications from other sources............................. 44
Internet and networks.................................................................45
Browsing the web...........................................................................45
Internet and MMS settings ............................................................ 45
Wi-Fi................................................................................................ 46
Sharing your cellular data connection........................................... 48
Controlling Data Usage...................................................................49
Selecting a SIM card for data trac............................................... 50
Selecting cellular networks............................................................. 51
Synchronizing data on your device............................................ 52
Synchronizing with Online Accounts..............................................52
Synchronizing with Microsoft Exchange ActiveSync......................52
Basic settings.............................................................................. 54
Accessing settings.......................................................................... 54
Volume, vibration, and sound........................................................ 54
Silence your device with Do not disturb........................................ 55
Screen settings................................................................................56
Screen Pinning................................................................................ 57
Application settings........................................................................ 57
Resetting Your Applications........................................................... 58
Language Settings..........................................................................59
Date and time................................................................................. 59
Enhancing the Sound Output.........................................................60
Multiple User Accounts...................................................................60
Typing text...................................................................................63
On-Screen Keyboards..................................................................... 63
Editing text......................................................................................64
Calling..........................................................................................65
Making calls.................................................................................... 65
Receiving calls.................................................................................66
Forwarding calls.............................................................................. 67
Blocking a number..........................................................................68
Contacts.......................................................................................69
Adding and editing contacts.......................................................... 69
Transferring contacts...................................................................... 70
Backing up contacts........................................................................ 71
Messaging and chat.................................................................... 72
Reading and sending messages.................................................... 72
Messaging settings......................................................................... 73
Video Chat....................................................................................... 74
3
Setting Up Email..............................................................................74
Music and FM Radio.................................................................... 75
Transferring music to your device.................................................. 75
Listening to music...........................................................................75
Listening to the radio...................................................................... 77
Camera.........................................................................................79
Getting to know your camera.........................................................79
Exposure, color, and light conditions............................................. 82
Setting the right focus.................................................................... 85
People, selfies, and smiling faces.................................................. 85
Moving objects............................................................................... 86
Resolution and memory.................................................................86
Diagnosing your camera................................................................ 88
Additional camera settings............................................................ 88
Photos and videos in Album...................................................... 90
Viewing photos and videos............................................................90
Album home screen menu............................................................. 91
Sharing and managing photos and videos....................................92
Hiding photos and videos...............................................................93
Connectivity.................................................................................94
Connecting Your Device to USB Accessories................................. 94
NFC (Near Field Communication)................................................... 94
Bluetooth wireless technology.......................................................96
Smart Apps and Features That Save You Time.......................... 99
Google Feed....................................................................................99
Using your device as a wallet.........................................................99
Xperia Actions.................................................................................99
Clock and Calendar.................................................................... 101
Calendar......................................................................................... 101
Clock...............................................................................................101
Accessibility............................................................................... 104
Magnification................................................................................ 104
Font size........................................................................................ 104
Display Size....................................................................................104
Color correction............................................................................. 104
TalkBack.........................................................................................104
Mono audio................................................................................... 105
Switch Access................................................................................ 105
Support and Legal..................................................................... 106
Support application.......................................................................106
Restarting, Resetting, and Repairing........................................... 106
4
Getting started
About this User guide
This is the Xperia L2 User Guide for the Android™ 7.1 software version. If you're
not sure which software version your device is running, you can check it in the
Settings menu.
System and application updates can present the features in your device in another way than
described in this User Guide. The Android™ version might not be aected in an update. For
more information about software updates, see
Updating your device
on the 37 page.
To check the current software version and model number of your device
1 Find and tap Settings > About phone.
2 The current software version is displayed under Build number. The current
model number is displayed under Model.
Limitations to Services and Features
Some of the services and features described in this User Guide may not be
supported in all countries or regions, or by all networks or service providers. The
GSM International Emergency Number can always be used in all countries, regions,
networks and by all service providers, provided that the device is connected to the
cellphone network. Please contact your network operator or service provider to
determine the availability of any specific service or feature and whether additional
access or usage fees apply.
The use of certain features and applications described in this guide may require
access to the internet. You may incur data connection charges when you connect
to the internet with your device. Contact your wireless service provider for more
information.
6
This is an internet version of this publication. © Print only for private use.

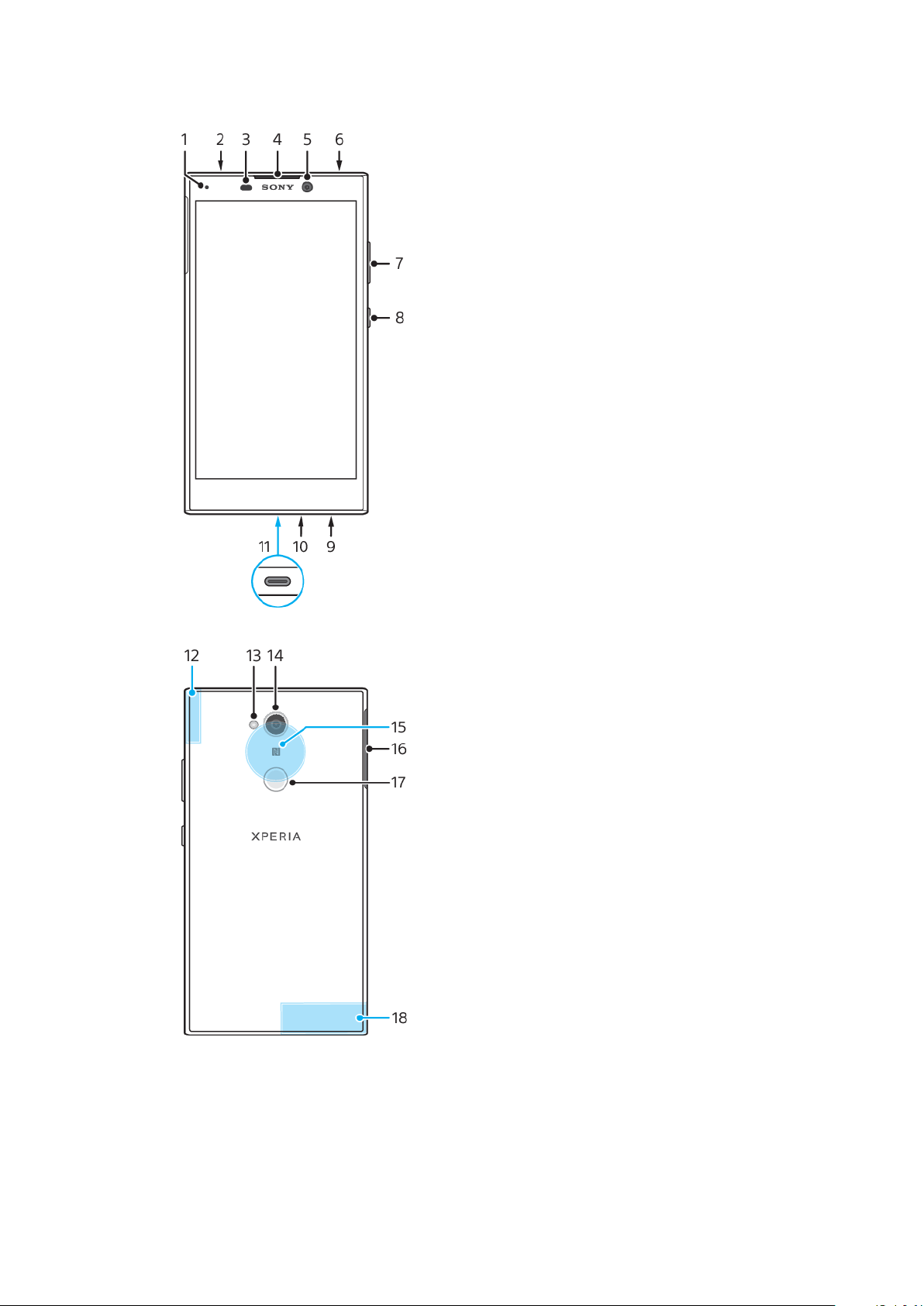

Overview
7
This is an internet version of this publication. © Print only for private use.
1. Charging/Notification light
2. Headset jack
3. Proximity sensor
4. Ear speaker
5. Front camera
6. Secondary microphone
7. Volume/Zoom key
8. Power key
9. Loudspeaker
10. Main microphone
11. Charger/USB Type-C™ cable port
12. Wi-Fi/GPS/Bluetooth® antenna area
13. Flash LED
14. Main camera lens
15. NFC™ detection area
16. Nano SIM/memory card slot
17. Fingerprint sensor
18. Main antenna area
Assembly – Single SIM
Your device only supports nano SIM cards. Single SIM devices allow you to use one
SIM card and a memory card.
The nano SIM card and the memory card have separate slots. Make sure you don't
confuse the two.
For information on how to check if your device is Single SIM or Dual SIM, see
Finding the IMEI number(s) of your device
on page 14.
To prevent data loss, be sure to turn o your device or unmount the memory card before
you drag out the holder to remove the nano SIM card or memory card from the device.
To insert a nano SIM card and a memory card
Do not cut your SIM card, as this may damage your device.
1
Drag out the SIM card tray.
2 Place the memory card in the correct orientation into the memory card slot,
as shown in the illustration.
3 Place the SIM card securely in the SIM card tray, as shown in the illustration.
4 Gently push the tray back into the slot until it fits into place.
Assembly – Dual SIM
Your device only supports nano SIM cards. Dual SIM devices support the use of one
or two nano SIM cards and a memory card.
Dual SIM devices are not available in all markets or from all operators.
8
This is an internet version of this publication. © Print only for private use.
For information on how to check if your device is Single SIM or Dual SIM, see
Finding the IMEI number(s) of your device
on page 14.
To prevent data loss, be sure to turn o your device or unmount the memory card before
you drag out the holder to remove the nano SIM card (or cards) or memory card from the
device.
To insert the nano SIM cards and the memory card
Do not cut your SIM card, as this may damage your device.
1 Drag out the SIM card tray.
2 Insert the memory card in the correct orientation into the memory card slot,
as shown in the illustration.
3 Place the main SIM card (SIM1) securely in the SIM card tray, as shown in the
illustration.
4 Place the second SIM card (SIM2) securely in the SIM card tray, as shown in
the illustration.
5 Gently push the tray back into the slot until it fits into place.
Screen protection
Before using your device, remove all protection films to enable full functionality.
Screen covers and protectors may help you to protect your device against damage.
We recommend that you use only those screen covers intended for your Xperia
device. The use of third-party screen protection accessories may prevent your
device from working correctly by covering sensors, lenses, speakers, or
microphones, and can invalidate the warranty.
Starting your device for the first time
It is recommended that you charge the battery for at least 30 minutes before
starting up your device for the first time. You can still use your device while it is
charging, see
Charging your device
on page 34.
The first time you start your device, a setup guide helps you to configure basic
settings, personalize your device, and sign in to your accounts, for example a
Google™ account.
When you buy your device, a basic screen swipe lock is already set. This means
you have to swipe left or upward on the screen to unlock it. You can change the
security settings later and add other kinds of screen locks.
9
This is an internet version of this publication. © Print only for private use.
To turn on the device
Be sure to use the provided USB Type-C cable when charging your device. It is
recommended that you charge the battery for at least 30 minutes before you turn on the
device for the first time.
1 Press and hold down the power key until the device vibrates.
2 Enter your SIM card PIN when requested, then tap .
3 Wait a moment for the device to start.
Your SIM card PIN is initially supplied by your service provider, but you can change it later
from the Settings menu.
To Turn o the Device
1 Press and hold down the power key
until the options menu opens.
2 In the options menu, tap Power o.
It may take a while for the device to shut down.
Why do I need a Google account?
Your Xperia device from Sony runs on the Android platform developed by Google.
A range of Google applications and services is available on your device when you
purchase it, for example, Gmail™, Google Maps™, YouTube™, and the Play
Store™. To get the most out of these services, you need a Google account. For
example, a Google account enables you to do the following:
• Download and install applications from Google Play™.
• Synchronize your email, contacts, and calendar using Gmail.
• Chat with friends using the Duo™ application.
• Synchronize your browsing history and bookmarks using the Google Chrome™
web browser.
• Identify yourself as the authorized user after a software repair using Xperia
Companion.
• Remotely find, lock, or clear a lost or stolen device using the Find my device
services.
For more information about Android and Google, go to
http://support.google.com
.
It is crucial to remember your Google account username and password, since in some
situations, you may need it to identify yourself for security reasons. If you fail to give your
Google username and password in such situations, your device is locked. Also, if you have
more than one Google account, be sure to enter the details for the relevant account.
To set up a Google account on your device
1 Find and tap Settings > Users > Add user, then tap OK.
2 Follow the registration wizard to add a new user. Tap on
to access the
settings for the New user and the Guest account. You can also share your call
and SMS history.
You can also create a Google account using the setup guide when you
first start your
device, or go online later and create an account at
https://myaccount.google.com/
.
To remove a Google account
1 Find and tap Settings > Users.
2 Tap
to select which user you want to remove.
3 Tap Remove user, then tap delete.
If you remove your Google account, any security features that are linked to your Google
account will no longer be available.
10
This is an internet version of this publication. © Print only for private use.
Device security
Ensuring your device is protected
Your device includes security options, strongly recommended in case of loss or
theft.
When using a security option to protect your device, it is crucial to remember the details
provided at setup.
Screen lock
Set a secure screen lock on your device using a PIN, password, pattern, or
fingerprint to prevent others using your device without permission. Once the
screen lock is set, it is not possible to unlock the screen or erase the content via a
Factory Data Reset without providing the screen lock information.
If you add your contact information on the screen lock, for example your email, this
information can be used to get your device back if you lose it.
Google account
Add a Google account so that you can use the Find my device service. In some
situations, you may also need to identify yourself for security reasons using your
Google account.
Find my device
Use the Find my device service to remotely locate, lock, unlock, or erase the
content on a lost device. After you have signed in to your Google account, Find my
device is turned on by default.
SIM card lock
Lock your SIM cards with a PIN to protect your subscription against misuse. The PIN
is required every time you restart your device.
IMEI number
Keep a copy of the IMEI number. If your device is stolen, some network providers
can use this number to stop the device from accessing the network in your country
or region.
Dual SIM devices have two IMEI numbers.
Backup
Back up the content on your device in case your device is damaged, lost, or stolen.
See
Backing up and restoring content
on page 41.
Screen lock
When the screen is locked you have to unlock it with a swipe gesture or with your
personal pattern, PIN, password, or fingerprint. Initially, the unprotected screen
swipe is set, but it is recommended to use a more secure screen lock to protect
your device.
The security level of each lock type is listed below in order of weakest to strongest:
• Swipe – no protection, but you have quick access to the Homescreen.
• Pattern – draw a simple pattern with your finger to unlock your device.
• PIN – enter a numeric PIN of at least four digits to unlock your device.
• Password – enter an alpha-numeric password to unlock your device.
• Fingerprint – place your registered finger on the sensor to unlock your device.
11
This is an internet version of this publication. © Print only for private use.
Fingerprints need to be registered with Fingerprint Manager before use. To
configure the notifications on the lockscreen, see
Notifications
on page 27.
To create or change a screen lock
It is very important that you remember your screen lock when using a pattern, PIN, or
password. If you forget this information, it may not be possible to restore important data,
such as contacts and messages. See troubleshooting tips for your device at
http://support.sonymobile.com
.
1 Find and tap Settings > Lock screen & security > Screen lock.
2 If requested, confirm your current screen lock.
3 Choose an option and follow the on-screen instructions.
4 When a secure screen lock is used, you can set the power button to lock the
screen, set the screen lock activation time, and create a lock screen message
by pressing
.
If you use a Microsoft Exchange ActiveSync (EAS) account, the EAS security settings may
limit the lockscreen type to only a PIN or password. Contact your network administrator to
check the implemented network security policies.
Unlocking your device automatically
The Smart Lock feature lets you set your device to unlock automatically in certain
situations, for example, when connected to a Bluetooth device or carrying it with
you.
The Smart Lock feature is available in most markets, countries, or regions.
Go to
http://www.support.google.com/
and search “smart lock” for more
information about the Smart Lock feature.
To Enable Smart Lock
1 Set a pattern, PIN, or password as a screen lock if you have not already done
so.
2 Find and tap Settings > Lock screen & security > Trust agents.
3 Tap the Smart Lock (Google) slider to enable the function.
4 Tap
.
5 Find and tap Smart Lock.
6 Enter your pattern, PIN, or password. You need to enter these credentials to
change your Smart Lock settings.
7 Select a Smart Lock type.
Fingerprint Manager
Register your fingerprint to use it as an additional security method for unlocking
your device or authenticating purchases. You can register up to 5 fingerprints on
your device.
The pattern, PIN, or password screen lock serves as a backup unlock method when
a fingerprint is used as a screen lock. Before registering your fingerprint, ensure
the sensor is clean and without any visible moisture.
To register a fingerprint for the first time
1 Find and tap Settings > Lock screen & security > Fingerprint Manager.
2 Tap NEXT. If prompted confirm your pattern, PIN, or password, or select your
backup screen lock method and follow the on-screen instructions to set it
up.
3 Tap NEXT and follow the on-screen instructions to complete fingerprint
registration.
12
This is an internet version of this publication. © Print only for private use.
To register additional fingerprints
1 Find and tap Settings > Lock screen & security > Fingerprint Manager.
2 Confirm your pattern, PIN, or password.
3 Tap , then follow the on-screen instructions.
To delete a registered fingerprint
1 Find and tap Settings > Lock screen & security > Fingerprint Manager.
2 Confirm your pattern, PIN, or password.
3 Tap the registered fingerprint, then tap DELETE > DELETE.
To rename a registered fingerprint
1 Find and tap Settings > Lock screen & security > Fingerprint Manager.
2 Select a registered fingerprint in the list, then enter a name and tap OK.
SIM card protection
You can lock and unlock each SIM card you use in your device with a PIN. When a
SIM card is locked, the subscription linked to the card is protected against misuse,
meaning you have to enter a PIN every time you start your device.
If you enter the PIN incorrectly too many times, your SIM card will get blocked. You
then need to enter your PUK (Personal Unblocking Key) and a new PIN. Your PIN
and PUK are supplied by your service provider.
To set up a SIM card lock
1 Find and tap Settings > Lock screen & security > Set up SIM card lock.
2 Dual SIM users, select a SIM card.
3 Tap the slider beside Lock SIM card to enable.
4 Enter the SIM card PIN and tap OK. The SIM card lock is now active and you
will be prompted to enter your PIN every time you restart your device.
To change the SIM card PIN
1 Find and tap Settings > Lock screen & security > Set up SIM card lock.
2 Dual SIM users, select a SIM card.
3 Tap Change SIM PIN.
4 Enter the old SIM card PIN and tap OK.
5 Enter the new SIM card PIN and tap OK.
6 Re-type the new SIM card PIN and tap OK.
To Unlock a Blocked SIM Card Using the PUK Code
1 Enter the PUK code and tap
.
2 Enter a new PIN code and tap .
3 Re-enter the new PIN code and tap .
If you enter an incorrect PUK code too many times, you need to contact your network
operator to get a new SIM card.
Using multiple SIM cards
This function only applies for Dual SIM devices.
Dual SIM devices work with either one or two SIM cards inserted. You can get
incoming communication to both SIM cards and select which number to place
outgoing communication from. Before using multiple SIM cards, you need to
enable them and select a SIM card which will handle data trac.
You can forward calls that come in on SIM 1 to SIM 2 when SIM 1 is unreachable,
and vice versa. This function is called Dual SIM reachability. You must enable it
manually. See
Forwarding calls
on the 67 page.
13
This is an internet version of this publication. © Print only for private use.
To enable or disable the use of two SIM cards
1 Find and tap Settings > Dual SIM.
2 Tap the SIM1 and SIM2 sliders to enable or disable the SIM cards.
To rename a SIM card
1 Find and tap Settings > Dual SIM.
2 Select a SIM card and enter a new name for it.
3 Tap OK.
To select which SIM card handles data trac
1 Find and tap Settings > Dual SIM > Mobile data trac.
2 Select the SIM card you want to use for data trac.
For higher data speeds, select the SIM card that supports the fastest cellular network, for
example, LTE.
Finding the IMEI number(s) of your device
Your device has one or two unique identification numbers that are referred to as
IMEI or Product ID. You should keep a copy of this. You may require it if your device
is stolen or when contacting support.
Dual SIM devices only: Your device has two IMEI numbers, one for each SIM card
slot.
To view your IMEI number(s) using the dialpad
1 Find and tap
.
2 Tap .
3 Enter *#06# into the dialpad. The IMEI number(s) are displayed
automatically.
To view your IMEI number(s) on the label strip
1 Drag out the SIM/Memory card tray.
2 Drag the strip outward using your fingernail. The strip displays the IMEI
number(s).
14
This is an internet version of this publication. © Print only for private use.
Finding, locking, or erasing a lost device
Google oers a location and security web service called Find my device. After you
have signed in to a Google account, Find my device is turned on by default. If you
lose your device, you can use Find my device to:
• Find and show where your device is located on a map.
• Lock your device and present a message on the lockscreen.
• Unlock your device and reset it by erasing its content.
• Activate the ringer, even if the sound is turned o.
Your device must be turned on, have an internet connection, and have the location
service activated. The Find my device service may not be available in all countries
or regions.
For additional information about Find my device, go to
https://www.support.google.com/
and search for “Find my device.”
If you erased the content on your device using Find my device, you must enter the
username and password for a Google account in order to use your device again. This can be
any Google account you have set up on your device as an owner. If you can’t provide this
information during the setup, you won’t be able to use your device at all after a reset.
To verify that your device can be found
• Go to
https://www.google.com/android/find
and sign in using your Google
account.
Using Location Services
Location services allow applications such as Maps and the camera to use
information from your cellphone or Wi-Fi network as well as Global Positioning
System (GPS) information to determine your approximate location. If you're not
within a clear line of sight of GPS satellites, your device can determine your
location using the Wi-Fi function. And if you're not within range of a network, your
device can determine your location using your cellphone network.
In order to use your device to find out where you are, you need to enable location
services.
You may incur data connection charges when you connect to the internet from your device.
To enable or disable location services
• Find and tap Settings > Google > Location. Tap the slider to enable or
disable location services.
To enable or disable Google Location Sharing
1 Find and tap Settings > Google > Location.
2 Tap Google Location Sharing >
.
3 Select the time span you want to have the function turned on for and choose
an option to select the contact you want to share your location with. You can
also choose the way to share your location by tapping More.
You can also keep track of your location history under Google Location History.
Improving GPS accuracy
The first time you use the GPS function in your device, it can take a few minutes for
your location to be found. To help the search, be sure to not cover the GPS
antenna, as highlighted in the image. GPS signals can pass through clouds and
plastic, but not through most solid objects like buildings and mountains. If your
location isn't found after a few minutes, move to another location.
15
This is an internet version of this publication. © Print only for private use.
16
This is an internet version of this publication. © Print only for private use.
Learning the basics
Using the touchscreen
Tapping
• Open or select an item.
• Mark or unmark a checkbox or option.
• Enter text using the on-screen keyboard.
Touching and holding
• Move an item.
17
This is an internet version of this publication. © Print only for private use.
• Activate an item-specific menu.
• Activate selection mode, for example, to select several items from a list.
Pinching in and out
• Pinch in and out on web pages, photos and maps, and when you’re taking photos
or shooting videos.
Swiping
• Scroll up or down a list.
• Scroll left or right, for example, between Homescreen panes.
• Swipe left or right to reveal more options.
18
This is an internet version of this publication. © Print only for private use.
Flicking
• Scroll quickly, for example, in a list or on a web page. You can stop the scrolling
movement by tapping the screen.
Turning the screen on or o
When your device is on and left idle for a set period of time, the screen dims and
turns o to save battery power. You can change how long your screen stays active
before it turns o.
When your screen is turned o, your device can be locked or unlocked, depending
on your screen lock setting. See
Screen lock
on page 11.
To turn the screen on or o
• Briefly press the power key .
To adjust the idle time before the screen turns o
1 Find and tap Settings > Display > Sleep.
2 Select an option.
Smart backlight control
The smart backlight control keeps the screen on as long as the device is held in
your hand. Once you put down the device, the screen turns o according to your
sleep setting.
To enable or disable the Smart backlight control function
1 Find and tap Settings > Display > Smart backlight control.
2 Tap the slider to enable or disable the function.
Homescreen
The Homescreen is the starting point for using your device. It's similar to the
desktop on a computer screen. The number of Homescreen panes is represented
by a series of dots on the lower part of the Homescreen. The highlighted dot
shows the pane that is currently displayed.
19
This is an internet version of this publication. © Print only for private use.
Homescreen overview
1 Welcome to Xperia widget — Tap to open the widget and select a task like copying content from
your old device or setting up Xperia services
2 Dots – Represents the number of Homescreen panes
To go to the Home screen
• Press .
To browse the Home screen
Homescreen panes
You can delete panes or add new ones to your Homescreen (up to a maximum of
twenty panes).
20
This is an internet version of this publication. © Print only for private use.
To set a pane as the main Homescreen pane
1 Touch and hold an empty area on your Homescreen until the device vibrates.
2 Flick left or right to browse to the pane that you want to set as your main
Homescreen pane, then tap
.
When Google Feed is enabled, the left-most pane is reserved for this service and the main
Homescreen pane cannot be changed. For more information, see
Google Feed
on page 99.
To add a pane to your Homescreen
1 Touch and hold an empty area on your Homescreen until the device vibrates.
2 To browse the panes, flick all the way to the right or left, then tap
.
When Google Feed is enabled, the left-most pane is reserved for this service and additional
panes cannot be added to the left. For more information, see
Google Feed
on page 99.
To delete a pane from your Homescreen
1 Touch and hold an empty area on your Homescreen until the device vibrates.
2 Flick left or right to browse to the pane that you want to delete, then tap
in the upper right corner of the pane.
Homescreen Settings
To disable or uninstall an application from the Homescreen
Disabling a pre-installed app deletes all data, but the app can be enabled again from
Settings > Apps. Only downloaded apps can be fully uninstalled.
1 Touch and hold the application you want to disable or uninstall.
2 All applications that can be disabled or uninstalled are indicated by
.
3 Tap the relevant application, then tap Disable if the app came pre-installed
on your device or OK if the app was downloaded and you'd like to uninstall
it.
To adjust the size of icons on your Homescreen
1 Touch and hold an empty area on your Homescreen until the device vibrates,
then tap
.
2 Tap Icon size, then select an option.
21
This is an internet version of this publication. © Print only for private use.
Application screen
The Application screen, which you open from the Homescreen, contains the
applications that come pre-installed on your device as well as applications you
download.
To view all applications on the Application screen
1 Tap .
2 Flick left or right on the Application screen.
You can also search for recently viewed apps by swiping left from the Application screen.
To enable or disable the recommended apps listings
1 Touch and hold an empty area on your Homescreen, then tap
.
2 Tap the App recommendations slider.
To Open an Application from the Application Screen
• When the Application screen is open, flick left or right to find the application,
and then tap the application.
To search for an application from the Application screen
1 When the Application screen is open, tap Search applications.
2 Enter the name of the application you want to search for.
You can also search for applications by swiping down or right from the Application screen.
To Arrange Applications on the Application Screen
1 When the Application screen is open, tap .
2 Tap Sort apps, then select an option.
To Add an Application Shortcut to the Homescreen
1 On the Application screen, touch and hold an application icon until the
device vibrates, and then drag the icon to the top of the screen. The
Homescreen opens.
2 Drag the icon to the desired location on the Homescreen, and then release
your finger.
22
This is an internet version of this publication. © Print only for private use.
To Move an Application on the Application Screen
1 When the Application screen is open, tap .
2 Make sure Own order is selected under Sort apps.
3 Touch and hold the application until the device vibrates, and then drag it to
the new location.
To disable or uninstall an application from the Application screen
Whether an app can be uninstalled or disabled depends on the app, and if it was pre-
installed on your device or downloaded. Downloaded apps can be uninstalled. Pre-installed
apps cannot be uninstalled, only disabled if the app supports this. If you disable a pre-
installed app, you can enable it again under Settings > Apps.
1 Touch and hold the application you want to uninstall or disable.
2 Tap > DISABLE to disable an app, or OK to uninstall it.
Navigating Applications
You can navigate between applications using the navigation keys and the recently
used applications window, which lets you switch easily between all recently used
applications. The navigation keys are the Back key, the Home key, and the Recent
apps key. You can also pop open two applications on the screen at once using the
split screen mode, if the application supports multi-window function. Some
applications get closed when you press the Home key
to exit while others are
paused or continue to run in the background. If an application is paused or
running in the background, you can continue where you left o the next time you
open the application.
Navigating applications overview
1
Clear all – Close all the recently used applications
2 Recently used applications window – Open a recently used application
3 Recent apps key – Open the recently used applications window and the favorites bar
4 Home key – Exit an application and go back to the Home screen
5 Back key - Go back to the previous screen within an application or close the application
To open the recently used applications window
• Press .
23
This is an internet version of this publication. © Print only for private use.
To quickly switch between recently used applications
• Quickly press twice.
To close all the recently used applications
• Press and then tap CLEAR ALL.
To open a menu in an application
• While using an application, tap or .
Menus are not available in all applications.
Split screen mode
Split screen mode enables you to view two applications at once, for example, if
you want to view your email inbox and a web browser at the same time.
Split screen overview
1 Application 1
2 Split screen border – Drag to resize windows
3 Application 2
4 Split screen key – Select a recently used application
5 Home key – Go back to the Home screen
6 Back key – Go back to the previous screen within an application or close the application
Not all applications support split screen mode.
24
This is an internet version of this publication. © Print only for private use.
To use split-screen mode
1 Make sure that the two applications that you want to use in split screen
mode are open and running in the background.
2 Open the application that you would like to use in split screen mode, then
tap and hold . The application will be assigned to the first part of the split
screen.
3 Select the second desired application from the thumbnail list.
4 If you want to resize the split screen windows, drag the split screen border in
the center.
5 To exit Split Screen mode, tap and hold
while the split screen windows are
displayed.
One-handed operations
You can activate the one-handed operation mode to use your device with one
hand.
To enable or disable one-handed operations
1 From your Home screen, tap
> Settings > One-handed operations.
2 Tap the Resize screen slider to enable or disable the function.
3 Tap , then drag your thumb from the right corner to the center of the
screen.
Tap the Optimized apps slider to customize the options for One-handed operations.
To adjust the position of the screen
1 To move the screen to the left side or to the right side, tap or
accordingly.
2 To move the screen upward or downward, drag the horizontal stripes.
3 To resize the screen, drag the three diagonal stripes.
To return to using the full screen, tap
.
Widgets
Widgets are small applications that you can use directly on your Homescreen. They
also function as shortcuts. For example, the Weather widget allows you to see
basic weather information directly on your Homescreen. When you tap the widget,
the full Weather application opens. You can download additional widgets from
Google Play.
To add a widget to the Home screen
1 Touch and hold any empty area on your Home screen until the
customization menu appears, then tap Widgets.
2 Find and tap the widget that you want to add.
To resize a widget
1 Touch and hold a widget until the device vibrates, and then release it.
2 If the widget can be resized, the Resize option appears. For example, the
Calendar widget is one that can be resized.
3 Tap Resize and drag the dots to shrink or expand the widget.
4 To confirm the new size, tap anywhere on the Home screen.
To Move a Widget
• Touch and hold the widget until the device vibrates, and then drag it to the
new location.
To Remove a Widget
• Touch and hold the widget until the device vibrates, and then drag it to
Remove from home screen.
25
This is an internet version of this publication. © Print only for private use.
Shortcuts and folders
Use shortcuts and folders to manage your applications and keep your Home
screen tidy.
Shortcuts and folders overview
1 Access an application using a shortcut
2 Access a folder containing applications
To add an application shortcut to your Home screen
1 Touch and hold an empty area on your Home screen until the device
vibrates.
2 In the customization menu, tap Widgets > Shortcuts.
3 Scroll through the list and select an application. The selected application
gets added to the Home screen.
To Move an Item on the Homescreen
• Touch and hold the item until the device vibrates, and then drag the item to
the new location.
To Remove an Item from the Homescreen
• Touch and hold the item until the device vibrates, and then drag the item to
Remove from home screen at the top of the screen.
To Create a Folder on the Homescreen
• Touch and hold an application icon or a shortcut until the device vibrates,
and then drag and drop it on top of another application icon or shortcut.
To Add Items to a Folder on the Homescreen
• Touch and hold an item until the device vibrates, and then drag the item to
the folder.
To rename a folder on the Home screen
1 Tap the folder to open it.
2 Tap the folder's title bar to show the Folder name field.
3 Enter the new folder name and tap DONE.
26
This is an internet version of this publication. © Print only for private use.
Background and themes
Your device comes with a default background, but you can adapt the Homescreen
and lockscreen to your own style using wallpapers and themes featuring dierent
colors and patterns.
A wallpaper may be used without changing any of the other elements of your
Homescreen and lockscreen.
Themes can include a wallpaper, a screensaver, title bars, and a sound scheme
that all fit together to create a unique look and feel for your device.
To change your wallpaper
1 Tap Settings > Wallpaper > Xperia Home.
2 Select a wallpaper and tap Apply. Select an option.
You can also use a photo as your wallpaper. Instead of selecting a wallpaper from the
option shown, tap Photos or Album. Choose a photo and tap Set wallpaper.
To set a theme
1 Touch and hold an empty area on your Home screen until the device
vibrates.
2 Tap Themes.
3 Choose an option:
• To use an existing theme, select the theme, then tap APPLY THEME.
• To download a new theme, tap GET MORE THEMES.
When you change a theme, the background also changes in some applications.
Taking a screenshot
You can capture still images of any screen on your device as a screenshot.
Screenshots you take are automatically saved in the Album application.
To take a screenshot
1 Long-press the power key
until a prompt window appears.
2 Tap .
You can also take a screenshot by pressing and holding the power key and volume down
key at the same time.
To view your screenshot
1 Double-tap the status bar to display the Notification panel.
2 Tap the screenshot.
Notifications
Notifications inform you of events such as new messages and calendar
notifications, as well as activities in progress like file downloads. Notifications
appear in the following places:
• The status bar
• The notification panel
• The lock screen
• The app icon
27
This is an internet version of this publication. © Print only for private use.
To open or close the Notification panel
1 To open the Notification panel, drag the status bar downward, or simply
double-tap it.
2 To close the Notification panel, drag or flick the panel upward.
After opening the Notification panel, you can access the Quick Settings panel by dragging
the status bar down again.
To Take Action on a Notification in the Notification Panel
• Tap the notification.
You can directly reply to chat or email messages in the Notification panel.
To Dismiss a Notification from the Notification Panel
• Swipe the notification left or right.
Not all notifications can be dismissed.
To change settings for notifications, simply drag the notification slowly to the left or right,
then tap .
To expand a notification on the Notification panel
• Drag the notification downward to expand and view more information about
the notification without opening the app.
Not all
notifications are expandable.
To clear all notifications from the Notification panel
• Tap CLEAR ALL.
If there is a long list of
notifications, scroll down to find the CLEAR ALL button.
To Take Action on a Notification from the Lockscreen
• Double-tap the notification.
28
This is an internet version of this publication. © Print only for private use.
To Dismiss a Notification from the Lockscreen
• Swipe the notification left or right.
To Expand a Notification on the Lockscreen
• Drag the notification downward.
Not all notifications are expandable.
Notification Display Options on the Lockscreen
Show all notification
content
Get all notifications on the lockscreen. When you have this setting
turned on, all content (including the content of incoming email and chat
messages) will be visible on your lockscreen.
Don't show notifications
at all
You won't get any notifications on the lockscreen.
To select the notifications to display on the lock screen
1 Find and tap Settings > Notifications.
2 Tap , and then tap On the lock screen.
3 Select an option.
You can keep notifications on the lock screen until you swipe to dismiss them. To enable
this feature, tap the Keep notifications on lock screen slider.
Setting the notification level for an app
Block all
Block all notifications from the selected app.
Sounds and vibrations o Block sound and screen notifications.
Interrupts Priority only Receive notifications from this app even when Do not disturb is set to
Priority only.
You can set notification channels to categorize notification levels. Long-press a notification
to change the notification categories.
To set the notification level for an app
1 Find and tap Settings > Notifications.
2 Select the desired app.
3 Tap the sliders to adjust notification settings as desired.
Notification Light
The notification light informs you about battery status and some other events. For
example, a flashing white light means there is a new message or a missed call. The
notification light is enabled by default but can be disabled manually.
When the
notification light is disabled, it only lights up when there is a battery status
warning, such as when the battery level falls below 15 percent.
To enable or disable the notification light
1 Find and tap Settings > Notifications >
.
2 Tap the slider beside Notification light to enable or disable the function.
29
This is an internet version of this publication. © Print only for private use.
Icons in the status bar
Status icons
No SIM card
Signal strength
No signal
Roaming
Sending and downloading LTE data
Sending and downloading GPRS data
Sending and downloading EDGE data
Sending and downloading 3G data
Sending and downloading HSPA+ data
Cellular data is disabled
A Wi-Fi connection is enabled and data is being transmitted
A Wi-Fi connection is enabled but there is no internet connection.
This icon also appears when you are trying to connect to a secured Wi-Fi
network. After a successful login, the cross mark disappears.
If Google is blocked in your area, the cross mark may appear even when
the device is connected to a Wi-Fi network and there is a working internet
connection.
Battery status
The battery is charging
Airplane mode is activated
The Bluetooth function is activated
The microphone is muted
The speakerphone is on
Do Not Disturb mode is activated
Vibrate mode
An alarm is set
GPS is activated
Synchronization is ongoing
Problem with sign-in or synchronization
Depending on your service provider, network, or region, the functions or services
represented by some icons in this list may not be available.
To manage status bar icons
1 Find and tap Settings > Display > System icons.
2 Mark the checkboxes for the system icons that you want to appear in the
status bar.
30
This is an internet version of this publication. © Print only for private use.
Notification icons
New text message or multimedia message
Ongoing call
Missed call
Call on hold
Single SIM device: Call forwarding is turned on
Dual SIM device: Call forwarding is turned on
New voicemail message
New email message
Downloading data
Uploading data
Cellular data is disabled
Perform a basic setup of your device
A software update is available
System updates are available
Downloading system updates
Tap to install the downloaded system updates
STAMINA mode is activated
Ultra STAMINA mode is activated
Battery Care is activated
Screenshot captured
Video chat with friends using the Duo™ application
A song is playing
The device is connected to a computer via a USB cable
Internal storage is 75% full—tap to transfer data to a memory card
Warning
More undisplayed notifications
Not all icons that may appear on your device are listed here. This list is for reference
purposes only, and changes may be made without notice.
To block an application from sending notifications
1 Find and tap Settings > Notifications.
2 Select an application.
3 Tap the Block all slider.
31
This is an internet version of this publication. © Print only for private use.
Applications overview
Manage, view, and edit your photos and videos using the Album
application.
Use the Amazon Shopping application to browse, search, and buy
thousands of products right from your device.
Explore, shop, and read books on your device.
Protect your device against viruses, malware, spyware, phishing attempts,
and online exploitation.
Use the Calculator application to perform basic calculations.
Keep track of events and manage your appointments.
Take photos and record video clips.
Use the Chrome web browser to navigate and view web pages, text, and
images, and to manage bookmarks.
Set various alarms and timers.
Manage phone numbers, emails, and other contact information.
Use the Files application to access your downloaded applications,
documents, and pictures.
Browse and listen to FM radio stations.
Use the Duo application to make video calls.
Create, edit, and collaborate with others on documents using Google Docs.
Save your documents and files for easy access from any device, share them
with your friends, and collaborate with coworkers using the Google Drive
application.
Send and receive emails through both personal and work accounts.
Use the Facebook™ application for social networking with friends, family
members, and coworkers around the world.
Read, write, and organize email messages.
Search for information on your device and on the web.
Enjoy music, movies, apps, and games on your device, and get exclusive
access to unique content available only with Xperia devices.
View your current location, find other locations, and plan routes using
Google Maps.
Use the Messages application to send and receive text and multimedia
messages.
The Movie Creator automatically creates short video collages using your
existing photo and video collection.
Use the Music application to organize and play music and audio books.
View news stories from News Suite.
Make phone calls by dialing the number manually or by using the smart
dial function.
Organize, search, or browse through all your photos and videos.
32
This is an internet version of this publication. © Print only for private use.
Use the Google Play Movies & TV application to watch movies and TV
shows purchased or rented on Google Play.
Discover and play thousands of songs with the Google Play Music
application.
Use the Play Store application to find applications to buy or download for
free.
Stay connected with your gaming friends and the games you love to play,
shop on the PlayStation® Store, and more.
Optimize settings to suit your own requirements.
Create, edit, and collaborate with others on spreadsheets using the Google
Sheets application.
Use the Sketch application to create and explore images, then share them
with your friends.
Create, edit, and collaborate with others on presentations.
Use the Support application to access user support on your device. For
example, you can access the User guide and troubleshooting information,
plus tips and tricks.
Play videos on your device and share content with your friends.
Play videos on your device and share content with your friends using the
Video & TV SideView application.
Use the Weather application to view weather forecasts.
Watch videos from users around the world, and share your own.
Some applications may not be included on your device or may not be supported by all
carriers or service providers in all areas.
33
This is an internet version of this publication. © Print only for private use.
Battery and Maintenance
Charging your device
Always use an original Sony charger and USB Type-C cable intended for your
specific Xperia model. Other chargers and cables may increase charging time, not
charge at all, or may even damage your device. Ensure all USB ports and
connectors are completely dry before inserting the cable.
If the battery is depleted, it may take up to 30 minutes for your device to respond
to the charging. During this time, the screen may remain completely dark, not
showing the charging icon. It can take up to 4 hours for a completely drained
battery to be fully charged.
Your device has an embedded, rechargeable battery that can only be replaced by an
authorized Sony repair center. Never try to open or take apart the device yourself. Doing so
can cause damage and void your warranty.
A wall socket charger will charge your device faster than charging via computer. You can
still use your device while charging.
To charge your device
34
This is an internet version of this publication. © Print only for private use.
1 Connect one end of the USB cable to the charger (or to the USB port of a
computer).
2 Connect the other end of the cable to the USB Type-C port on your device.
The notification light illuminates when charging begins.
3 When the device is fully charged, disconnect the cable from your device by
pulling it straight out. Be sure to not bend the connector.
It is important to use a USB Type-C cable (provided), since other types of USB cables can
damage your device.
If the battery is completely depleted, it may take a few minutes before the notification light
illuminates and the charging icon appears.
Battery notification light status
Green Battery is charging, charge level is greater than 90%
Orange Battery is charging, charge level is 15-90%
Red Battery is charging, charge level is less than 15%
Battery and power management
Your device has an embedded battery. To get the most use from it, keep track of
the power consumed by dierent apps and features. You can also use Battery Care
to increase the battery's lifetime. Background power saving features are activated
by default to help you further reduce battery consumption, and additional power
saving modes are available to help you reduce battery consumption when
necessary.
Power saving features lower the priority of certain non-essential device functions.
If you do not want an application to be aected, you can make it exempt in the
Battery optimization menu. Phone calls and SMS are not aected.
System updates may change the power saving features available on your device.
To view battery consumption, estimated time, and power-saving tips
1 Find and tap Settings > Battery. An overview appears showing the battery
percentage and an estimated battery time.
2 Tap SHOW BATTERY USAGE to view a list of features and services that have
consumed battery power since the last charging cycle. Tap an item to get
information on how to reduce its battery consumption.
To view battery consumption for applications
1 Find and tap Settings > Apps.
2 Select an application and review its battery consumption under Battery
usage.
General usage tips to improve battery performance
The following tips can help you improve battery performance:
• Lower the screen brightness level, see
Screen settings
on page 56.
• Turn o Bluetooth, Wi-Fi and location services when you don't need these
features.
• Turn o your device or use Airplane mode if you are in an area with no or low
network coverage. Otherwise, your device repeatedly scans for available networks,
and this consumes power.
• Use a Wi-Fi network instead of roaming when abroad. Roaming is scanning for
your home network and puts additional demands on your battery as your device
must transmit with a higher output power, see
Wi-Fi
on page 46.
• Change the synchronization settings for your email, calendar, and contacts, see
Synchronizing with Online Accounts
on page 52.
35
This is an internet version of this publication. © Print only for private use.
• Check the applications that have a high battery consumption and consider the
battery saving tips provided on your device for these applications.
• Change the notification level for an application, see
Notifications
on page 27.
• Turn o the location-sharing permission for an application, see
Application
settings
on page 57.
• Uninstall applications that you are not using, see
Application screen
on page 22.
• Use a Sony original handsfree device to listen to music. Handsfree devices
consume less battery than your device's loudspeakers.
• Restart your device every now and then.
To make specific applications exempt from optimization
1 Find and tap Settings > Battery.
2 Tap
and select Battery optimization. You will see a list of applications
that are not optimized.
3 To add or remove applications from this list, tap APPS and select or de-
select an application from the list to edit its optimization settings.
4 The list of applications that are not optimized will get updated according to
your settings.
You cannot exempt applications from being optimized by Ultra STAMINA mode.
You can also configure Battery optimization from Settings > Apps > > Special access.
STAMINA mode
Depending on the STAMINA level, dierent features will be restricted or disabled in
order to reduce battery consumption. These include rendering performance,
animation and screen brightness, image enhancement, background app data
syncing, vibration except for incoming calls, streaming and GPS while the screen is
o.
appears in the status bar.
If you are sharing a device with multiple users, you may need to log in as the owner, that is,
the primary user, to activate or deactivate STAMINA mode.
To activate or deactivate STAMINA mode
1 Find and tap Settings > Battery.
2 Tap STAMINA mode and tap the slider to activate or deactivate the function.
When STAMINA mode is activated you can select additional options, for
example you can adjust the Auto-start percentage according to your
preferences.
You can exempt applications from being optimized by STAMINA mode in the Battery
Optimization menu.
Ultra STAMINA mode
Your battery time is extensively prolonged, but available apps are limited, and
mobile data and Wi-Fi are disabled. Calling and SMS are still available. Your
Homescreen is changed and
appears in the status bar.
If you are sharing a device with multiple users, you may need to log in as the owner, that is,
the primary user, to activate or deactivate Ultra STAMINA mode.
To activate Ultra STAMINA mode
1 Find and tap Settings > Battery.
2 Tap Ultra STAMINA mode and then tap Activate.
3 Tap OK
You cannot exempt applications from being optimized by Ultra STAMINA mode.
36
This is an internet version of this publication. © Print only for private use.
To deactivate Ultra STAMINA mode
1 Drag down the status bar to access the Notification panel.
2 Tap the notification Ultra STAMINA mode active.
3 Tap OK.
Deactivating Ultra STAMINA mode will restart your device.
Battery Care
Use Battery Care to increase the lifespan of your battery. This feature detects your
charging patterns and estimates the start and end times of your regular charging
period. The rate of charging is controlled so that your battery reaches 100% just
before you disconnect the charger.
Battery Care will not control the charging rate until it detects a regular charging cycle of at
least 4 hours over a period of several days.
To enable or disable Battery Care
1 Find and tap Settings > Battery > Battery Care.
2 Tap the slider to enable or disable Battery Care.
Learned patterns of the regular charging cycle are saved by Battery Care. Even if the
function has been disabled, it adopts to the learned patterns after enabling the function
again.
Updating your device
You should update the software on your device to get the latest functionality,
enhancements, and bug fixes in order to ensure optimal performance. When a
software update is available, appears in the status bar. You can also check for
new updates manually, or schedule an update.
The easiest way to install a software update is to do it wirelessly from your device.
However, some updates are not available for wireless download. You then need to
use the Xperia Companion software on a PC or on an Apple Mac
®
computer to
update your device.
Before updating your device, consider the following:
• Ensure you have sucient storage capacity before attempting to update.
• If you are using a device with multiple users, you must log in as the owner, that is,
the primary user, to update the device.
• System and application updates can present the features on your device in another
way than described in this User Guide. The Android™ version might not be
aected after an update.
For more information about software updates, go to
http://
support.sonymobile.com/software/
.
To check for new software
1 If you are using a device with multiple users, make sure you are logged in as
the owner.
2 Find and tap Settings > About phone > Software update.
If no new software is available, it’s possible that you may not have enough free memory on
your device. If your Xperia device has less than 500 MB of free internal memory available,
you do not receive any information about new software. In this case, you receive a warning
in the Notification panel: “Storage space running out. Some system functions may not
work.” If you receive this notification, you must free up internal memory to get notifications
about new available software.
Updating Your Device Wirelessly
Use the Software update application to update your device software wirelessly. The
updates you can download over a cellphone network depend on your service
37
This is an internet version of this publication. © Print only for private use.
provider. It is recommended to use a Wi-Fi network instead of a cellphone network
to download new software so you can avoid data trac costs.
To install a system update
1 If you are sharing a device with multiple users, make sure you are logged in
as the owner.
2 Find and tap Settings > About phone > Software update.
3 If a system update is available, tap CONTINUE, then tap INSTALL NOW.
To schedule a system update
1 If you are sharing a device with multiple users, make sure you are logged in
as the owner.
2 Find and tap Settings > About phone > Software update.
3 If a system update is available, tap CONTINUE, then tap the Schedule
installation slider.
4 Tap OK > Set time.
5 Set the desired time for the software update, then tap OK.
6 Your device will be updated at the set time automatically.
To set up automatic download of system updates
1 Find and tap Settings > About phone > Software update.
2 Tap
, then tap Settings > Auto download system updates.
3 Select an option.
To enable or disable automatic updates for applications
1 Find and tap Settings > About phone > Software update.
2 Tap
, then tap Settings > Auto-update apps.
3 Select the preferred option.
To update your device using a computer
1 Using a USB Type-C cable, connect your device to the computer.
2 Make sure that the screen of your device is unlocked, and that the USB
connection mode on the device is set to Transfer files.
3 Open Xperia Companion, if it is not automatically launched.
4 Be sure the computer can access the internet.
5 Computer: If a new software update is detected, a pop-up window appears.
Follow the on-screen instructions to run the relevant software updates.
If you don’t have the Xperia Companion software installed on the relevant computer,
connect your device to the computer and follow the on-screen installation instructions.
Make sure you are using the USB Type-C cable that came with your device and it is properly
connected to the device and computer.
Maintenance Using a Computer
Xperia Companion
Xperia Companion is a software service which provides a collection of tools and
applications you can use when you connect your device to a computer. With Xperia
Companion, you can:
• Update or repair your device’s software.
• Transfer your content from an old device using Xperia Transfer.
• Back up and restore content on your computer.
• Sync multimedia content—photos, videos, music, and playlists—between your
device and computer.
• Browse files on your device.
To use Xperia Companion, you need an internet-connected computer running one
of the following operating systems:
• Microsoft® Windows® 7 or later
38
This is an internet version of this publication. © Print only for private use.
• Mac OS® X 10.11 or later
Learn more and download Xperia Companion for Windows or Mac at
http://support.sonymobile.com/global-en/xperia-companion/
.
Managing files using a computer
Use a USB Type-C cable connection between a Windows computer and your device
to transfer and manage your files.
Once the two devices are connected, you can choose if you want to charge your
device, transfer files, or use it for MIDI input. Your computer will detect your device
when you select the Transfer files connection mode. The default connection mode
is set to Charge this device.
With Xperia Companion, you can access the file system of your device. If you do
not have Xperia™ Companion installed, you are requested to install it when you
connect your device to the computer.
Always use a USB cable intended for your specific Xperia model and make sure it is
completely dry.
USB Connection Mode
You can use the Transfer files connection mode for managing files and updating
device software. This USB mode is used with Microsoft
®
Windows
®
computers.
Charging is enabled by default.
Using the Use device as MIDI mode, your device can function as a MIDI input for
musical instrument apps.
To change USB connection mode
1 Attach a USB connector to your device.
2 Drag down the Status bar, and then tap Charge this device.
3 Select an option.
Storage and memory
Your device has several dierent storage and memory options:
• The internal storage stores downloaded or transferred content along with personal
settings and data.
• You can use a removable memory card to get more storage space. Media files can
be moved to this type of memory to free up internal storage.
39
This is an internet version of this publication. © Print only for private use.
• The dynamic memory (RAM) cannot be used for storage. RAM is used to handle
running applications and the operating system.
You can purchase a memory card separately.
Improving Memory Performance
Your device memory tends to fill up as a result of normal usage. If the device starts
to slow down, or applications suddenly shut down, you should consider the
following:
• Always try to keep at least 500 MB of free internal storage available.
• Close running applications that you are not using.
• Clear the cache memory for all applications.
• Uninstall downloaded applications that you don't use.
• Move applications to the memory card if the internal storage is full.
• Transfer photos, videos, and music from the internal memory to the memory card.
• If your device can't read content on the memory card, you may need to format the
card. Note that all content on the card gets erased when you format it.
If you are sharing a device with multiple users, you must log in as the owner, that is, the
primary user, to be able to perform certain actions, such as transferring data to the memory
card and formatting the memory card.
To view the memory status
• Find and tap Settings > Storage & memory.
To view the amount of free and used RAM
1 Find and tap Settings > Storage & memory.
2 Tap
, then tap Advanced > Memory.
To clear the cache memory for all applications
1 Find and tap Settings > Storage & memory.
2 Tap
, then tap Advanced > Storage, then find and tap Cached data > OK.
If you have a memory card inserted, select Internal shared storage after
tapping Storage.
When you clear the cache memory, you don't lose any important information or settings.
To transfer media files to the memory card
1 Make sure you have a memory card inserted into your device.
2 Find and tap Settings > Storage & memory > Transfer data.
3 Mark the files that you want to transfer to the memory card.
4 Tap Transfer.
To stop applications and services from running
1 Find and tap Settings > Apps.
2 Select an application or service, and then tap FORCE STOP > OK.
To format the memory card
1 Find and tap Settings > Storage & memory.
2 Tap
, then tap Advanced > Storage > SD Card > , then tap Storage
settings > Format > Erase & format.
All content on the memory card gets erased when you format it. Be sure you
first make
backups of all data you want to save. To back up your content, you can copy it to a
computer. For more information, see
Managing files using a computer
on the 39 page.
Smart Cleaner
Using Smart cleaner, you can improve device performance by automatically
optimizing storage and memory depending on the frequency of app use.
40
This is an internet version of this publication. © Print only for private use.
To enable or disable Smart cleaner
1 Find and tap Settings > Assist > Smart cleaner.
2 Tap the slider beside Smart cleaner.
You can also modify, copy, or delete files manually under Settings > Storage & memory >
Free up space.
Backing up and restoring content
Generally, you should not save photos, videos, and other personal content solely
on the internal memory of your device. If your device is damaged, lost or stolen,
the data stored on its internal memory may be impossible to recover. It is
recommended to use the Xperia Companion software to make backups which save
your data safely to an external device. This method is especially recommended if
you are updating your device software to a newer Android version.
With the Google Backup & Restore application, you can back up data to a Google
server.
Backing up data to a computer
Use the Xperia Companion software to back up data from your device to a PC or an
Apple Mac
®
computer. You can back up the following types of data:
• Call logs
• Text messages
• Calendar
• Settings
• Media files such as music and videos
• Photos and images
To back up your data using a computer
1
Be sure that
Xperia Companion
is installed on your PC or Mac
®
.
2 Connect your device to the computer using a USB cable.
3 Computer: Open the Xperia Companion software if it is not automatically
launched. After a few moments, the computer detects your device.
4 Click
Backup
on the Xperia Companion main screen.
5 Follow the on-screen instructions to back up data from your device.
To restore your data using a computer
1 Unlock the screen of your device and connect it to the computer using a USB
Type-C cable.
2 Open the Xperia Companion software on your computer if it is not
automatically launched. After a few moments, the computer detects your
device. Make sure to select Transfer files mode on your device.
3 Click
Restore
on the Xperia Companion main screen.
4 Select a backup file from the backup records, then click Next and follow the
on-screen instructions to restore data to your device.
If you do not have Xperia™ Companion installed, you are requested to install it when you
connect your device to the computer.
Backing up data with the Xperia Backup & Restore application
Using the Xperia Backup & Restore application, you can make an online or a local
data backup. You can do so manually or turn on the automatic backup function to
save data periodically.
The Xperia Backup & Restore application is recommended for backing up data
before you do a factory data reset. With this application, you can back up the
following types of data to an online account or an SD card that you have
connected to your device:
41
This is an internet version of this publication. © Print only for private use.
• Contacts
• Conversations
• Call log
• Calendar
• Email accounts
• Wi-Fi accounts
• Device settings
• Applications
• Xperia Home layout
To set up the automatic backup function
1 If you are backing up to an SD card, make sure that the SD card is mounted
properly into your device. If you are backing up content to an online account,
make sure you have signed in to your Google account.
2 Find and tap Settings > Backup & reset.
3 Under Xperia™ Backup & restore, tap Automatic backup.
4 To enable the automatic backup function, tap the slider.
5 Select where to save backup files.
6 If desired, select a backup frequency, when to back up, and the specific data
to back up. Otherwise, the backup is completed according to the default
settings.
7 To save your settings, tap
.
To back up content manually
1 If you are backing up to an SD card, make sure the SD card is properly
inserted into your device. If you are backing up content to an online account,
make sure you have signed in to your Google account.
2 Find and tap Settings > System > Xperia™ Backup & restore.
3 Tap More.
4 Tap Manual backup, then select a backup destination and the data that you
want to back up.
5 Tap BACK UP.
6 After the data is backed up, tap Finish.
To edit or delete a backup file
1 Find and tap Settings > Backup & reset.
2 Under Xperia™ Backup & restore, tap More.
3 Tap Edit backup file, then select a backup source and the data types that
you want to delete.
4 Tap Delete data.
5 Tap OK to confirm.
6 After the data is deleted, tap Finish.
To restore backed-up content
1 If you are restoring content from an SD card, make sure that the SD card is
properly inserted into your device. If you are restoring content from Xperia
Backup & Restore service, make sure you have signed in to your Google
account.
2 Find and tap Settings > Backup & reset.
3 Under Xperia™ Backup & restore, tap Restore data, then select a restore
source and the data you want to restore.
4 Tap Restore data.
5 After the content is restored, tap Finish.
Any changes made to your data or settings after you create a backup will be deleted during
any subsequent restore procedures. This includes newly installed apps.
42
This is an internet version of this publication. © Print only for private use.
Backing Up Data With the Google Backup & Restore Application
Using the Google Backup & restore application, you can back up data to a Google
server. You can also turn on the automatic restore function to restore application
data and settings when you reinstall an application.
With this application you can back up the following types of data:
• Applications
• Bookmarks
• Wi-Fi networks
• Other settings
To back up data to a Google account
1 Find and tap Settings > Backup & reset.
2 Under Google™ Backup & restore, tap Back up my data, then tap the
slider.
To enable or disable automatic restore when you reinstall an application
1 Find and tap Settings > Backup & reset.
2 Under Google™ Backup & restore, tap the Automatic restore slider.
43
This is an internet version of this publication. © Print only for private use.
Downloading applications
Downloading applications from Google Play
Google Play is the ocial online Google store for downloading applications,
games, music, movies, and books. It includes both free and paid applications.
Before you start downloading from Google Play, be sure that you have a working
internet connection, preferably over Wi-Fi to limit data trac charges. For more
information, see
Updating your device
on page 37.
To use Google Play, you need to have a Google account. Google Play may not be available
in all countries or regions.
To download an application from Google Play
1 Find and tap Play Store.
2 Find an item you wish to download by browsing categories, or by using the
search function.
3 Tap the item to view its details. Follow the on-screen instructions to
complete the installation.
Some applications may need to access data, settings, and various functions on your device
in order to work properly. Only install and give permissions to applications that you trust.
You can view the permissions granted to a downloaded application under Settings > Apps.
Downloading applications from other sources
When your device is set to allow downloads from sources other than Google Play,
you can download applications directly from other websites by following the
relevant download instructions.
Installing applications of unknown or unreliable origin can damage your device. Download
applications only from reliable sources. Contact the application provider if you have any
questions or concerns.
If you are using a device with multiple users, only the owner, that is, the primary user, can
allow downloads from sources other than Google Play. Changes made by the owner aect
all other users.
To enable or disable the downloading of applications from other sources
1 Find and tap Settings > Lock screen & security.
2 Tap the Unknown sources slider to enable or disable.
44
This is an internet version of this publication. © Print only for private use.
Internet and networks
Browsing the web
The Google Chrome web browser for Android devices comes pre-installed in most
markets. Go to
http://support.google.com/chrome
to get more detailed
information about how to use this web browser.
To browse the web
1 Find and tap .
2 If you are using Google Chrome for the first time, select to either sign in to a
Google account or browse with Google Chrome anonymously.
3 Enter a search term or web address in the search and address field, then tap
on the keyboard.
Internet and MMS settings
To access the internet, or send multimedia messages without Wi-Fi, you need a
cellular data connection with correct internet and Multimedia Messaging Service
(MMS) settings. Here are some tips:
• For most cellular networks and operators, these settings come pre-installed on
your device so you can start using the internet and sending multimedia messages
right away.
• You can manually check for updates to the internet and MMS settings. If you
change or delete an internet or MMS setting by mistake, download the internet
and MMS settings again.
• Refer to troubleshooting tips for your device at
http://support.sonymobile.com
for
network coverage, cellular data, and MMS issues.
• If the Battery time preferred setting of STAMINA mode is activated to save power,
all cellular data trac gets paused when the screen is o. If this causes connection
problems, try excluding some applications and services from being paused, or
deactivate STAMINA mode temporarily.
• If you are sharing a device with multiple users, only the owner, that is, the primary
user, can download internet and messaging settings from the Settings menu, but
the downloaded settings are applicable to all users.
To download internet and MMS settings
1 Find and tap Settings > More > Internet settings.
2 Tap ACCEPT. Once the settings are downloaded successfully,
appears in
the status bar and cellular data trac is turned on automatically.
If the settings cannot be downloaded to your device, check the signal strength of your
cellular or Wi-Fi network connections. Move to an open location free from obstructions or
get close to a window and then try again.
To add internet and MMS settings
1 Find and tap Settings > More > Mobile networks.
2 Dual SIM users, select a SIM card.
3 Tap Access Point Names >
.
4 Tap Name and enter a name of your choice, then tap OK.
5 Tap APN and enter the access point name, then tap OK.
6 Enter all other required information. If you don't know what information is
required, contact your network operator for more details.
7 When you're done, tap
, and then tap Save.
45
This is an internet version of this publication. © Print only for private use.
To view downloaded internet and MMS settings
1 Find and tap Settings > More > Mobile networks.
2 Dual SIM users, select a SIM card.
3 Tap Access Point Names.
4 To view more details, tap any of the available items.
Wi-Fi
Use Wi-Fi to surf the internet, download applications, or send and receive emails.
Once you have connected to a Wi-Fi network, your device remembers the network
and automatically connects to it the next time you come within range.
Some Wi-Fi networks require you to log in to a web page before you can get
access. Contact the relevant Wi-Fi network administrator for more information.
Available Wi-Fi networks may be open or secured:
• Open networks are indicated by
next to the Wi-Fi network name.
• Secured networks are indicated by
next to the Wi-Fi network name.
Some Wi-Fi networks do not show up in the list of available networks because they do not
broadcast their network name (SSID). If you know the network name, you can add it
manually to your list of available Wi-Fi networks.
To turn Wi-Fi on or o
1 Find and tap Settings > Wi-Fi.
2 Tap the slider to enable or disable Wi-Fi.
It may take a few seconds before Wi-Fi is enabled.
To connect to a Wi-Fi network
1 Find and tap Settings > Wi-Fi.
2 Tap the slider to turn on Wi-Fi. All available Wi-Fi networks are displayed.
3 Tap a Wi-Fi network to connect to it. For secured networks, enter the relevant
password.
is displayed in the status bar once you are connected.
To search for new available networks, tap Wi-Fi. If you cannot connect to a Wi-Fi network
successfully, refer to the relevant troubleshooting tips for your device at
http://support.sonymobile.com
.
To add a Wi-Fi network manually
1 Find and tap Settings > Wi-Fi.
2 Scroll down and tap
.
3 Enter the Network name (SSID) information.
4 To select a security type, tap the Security field.
5 If required, enter a password.
6 To edit advanced options, such as proxy and IP settings, tap Advanced
options and then edit the options as desired.
7 Tap Save.
Contact your Wi-Fi network administrator to get the network SSID and password.
46
This is an internet version of this publication. © Print only for private use.
Increasing Wi-Fi signal strength
There are a number of things you can do to improve Wi-Fi reception:
• Move your device closer to the Wi-Fi access point.
• Move the Wi-Fi access point away from any potential obstructions or interference.
• Don’t cover the Wi-Fi antenna area of your device (the highlighted area in the
illustration).
Wi-Fi Settings
When you are connected to a Wi-Fi network or when there are Wi-Fi networks
available in your vicinity, you can view the status of these networks. You can also
enable your device to notify you whenever an open Wi-Fi network is detected.
To enable or disable Wi-Fi network notifications
1 Make sure that Wi-Fi turned on for your device.
2 Find and tap Settings > Wi-Fi.
3 Tap
, then tap the Network notification slider to enable or disable.
To view detailed information about a connected Wi-Fi network
1 Find and tap Settings > Wi-Fi.
2 Tap the Wi-Fi network you are currently connected to. Detailed network
information is displayed.
To add a Wi-Fi sleep policy
1 Find and tap Settings > Wi-Fi.
2 Tap
> Keep Wi-Fi on during sleep.
3 Select an option.
To find the MAC address for your device
1 Find and tap Settings > Wi-Fi.
2 Tap
> MAC address is displayed in the list.
Wi-Fi Protected Setup™
Wi-Fi Protected Setup is a wireless networking standard that helps you establish
secure wireless network connections. Wi-Fi Protected Setup makes it easy for you
to set up WPA™ (Wi-Fi Protected Access®) encryption to secure your network. You
can also add new devices to an existing network without entering long passwords.
Use one of these methods to enable Wi-Fi Protected Setup:
47
This is an internet version of this publication. © Print only for private use.
• Push-button method – simply push a button on a Wi-Fi Protected Setup-supported
device, for example, a router.
• PIN method – your device creates a random PIN, which you enter on the Wi-Fi
Protected Setup-supported device.
To connect to a Wi-Fi network using a Wi-Fi Protected Setup button
1 Find and tap Settings > Wi-Fi.
2 Turn on Wi-Fi if it is not already on.
3 Tap > More features > WPS Push Button, then press the Wi-Fi Protected
Setup button on the Wi-Fi Protected Setup-supported device.
To connect to a Wi-Fi network using a Wi-Fi Protected Setup PIN
1 Find and tap Settings > Wi-Fi.
2 Turn on Wi-Fi if it is not already on.
3 Tap
> More features > WPS PIN Entry.
4 On the Wi-Fi Protected Setup-supported device, enter the PIN that appears
on your device.
Sharing your cellular data connection
You can share your cellular data connection with other devices in several ways:
• USB tethering: Share your cellular data connection with a single computer using a
USB cable.
• Portable hotspot: Share your cellular data connection with up to 10 other devices
simultaneously, including devices that support Wi-Fi Protected Setup technology.
• One-touch portable hotspot: Touch devices to start sharing your cellular
connection over Wi-Fi.
• Bluetooth tethering: Share your cellular data connection with up to four other
devices via Bluetooth.
To share your data connection using a USB cable
1 Connect your device to a computer, using the USB cable that came with it.
2 Find and tap Settings > More > Tethering & portable hotspot.
3 Tap the USB tethering slider, then tap OK if prompted.
is displayed in the
status bar once you are connected.
4 To stop sharing your data connection, tap the USB tethering slider or
disconnect the USB cable.
You cannot share your device's data connection and SD card over a USB cable at the same
time.
To share your mobile connection by One-touch portable hotspot
1 Ensure both devices have the NFC function turned on, and that both screens
are active.
2 Find and tap Settings >More > Tethering & portable hotspot.
3 Tap One-touch portable hotspot > OK. Hold the devices together so that
the NFC detection areas of each device touch, then tap CONNECT.
This function only works with devices that also support NFC Wi-Fi tethering.
48
This is an internet version of this publication. © Print only for private use.
To share your cellular data connection with another Bluetooth device
1 Make sure that your device and the other Bluetooth device are paired with
each other and that cellular data trac is activated on your device.
2 Your device: Find and tap Settings > More > Tethering & portable hotspot.
Tap the Bluetooth tethering slider to enable the function.
3 Bluetooth device: Set up the device so that it obtains its network
connection using Bluetooth. If the device is a computer, refer to the relevant
instructions to complete the setup. If the device runs on the Android
operating system, tap the settings icon beside the name of the device that it
is paired with under Settings > Bluetooth > Paired devices, then mark the
Internet access checkbox.
4 Your device: Wait for
to appear in the status bar. Once it appears, the
setup is complete.
5 Tap the Bluetooth tethering slider again to disable the function.
The Bluetooth tethering function is turned o every time you turn o your device or turn
o the Bluetooth function.
To use your device as a portable Wi-Fi hotspot
1 Find and tap Settings > More > Tethering & portable hotspot.
2 Tap Portable hotspot settings > Configure hotspot.
3 Enter the Network name (SSID) information.
4 To select a security type, tap the Security field. If required, enter a password.
5 Tap Save.
6 Tap
and tap the Portable hotspot slider to enable the function.
7 If prompted, tap OK to confirm. appears in the status bar when the
portable Wi-Fi hotspot is active.
8 To stop sharing your data connection via Wi-Fi, tap the Portable hotspot
slider to disable the function.
To allow a Wi-Fi Protected Setup-supported device to use your cellular data
connection
1 Ensure your device is functioning as a portable Wi-Fi hotspot.
2 Find and tap Settings > More > Tethering & portable hotspot > Portable
hotspot settings.
3 Under Configure hotspot, ensure your portable hotspot is secured by a
password.
4 Tap WPS Push Button, then follow the on-screen instructions. Alternatively,
tap
> WPS PIN Entry, then enter the PIN that appears on the Wi-Fi
Protected Setup-supported device.
To rename or secure your mobile hotspot
1 Find and tap Settings > More > Tethering & portable hotspot.
2 Tap Portable hotspot settings > Configure hotspot.
3 Enter the Network name (SSID) information.
4 To select a security type, tap the Security field.
5 If required, enter a password.
6 Tap Save.
Controlling Data Usage
You can keep track of the amount of data transferred to and from your device over
your cellular data or Wi-Fi connection during a given period. For example, you can
view the amount of data used by individual applications. For data transferred over
your cellular data connection, you can also set data usage warnings and limits to
avoid additional charges.
If you are using a device that has multiple users, only the owner (that is, the primary user)
can adjust data usage settings. Adjusting data usage settings can help you keep greater
control over data usage but cannot guarantee the prevention of additional charges.
49
This is an internet version of this publication. © Print only for private use.
To help reduce data usage
1 Find and tap Settings > Data usage > Data Saver.
2 Tap the slider to enable or disable the function.
To turn data trac on or o
1 Find and tap Settings > Data usage.
2 Tap the Mobile data trac slider to turn data trac on or o.
When data trac is turned o, your device can still establish Wi-Fi and Bluetooth
connections.
To set a data usage warning
1 Make sure that cellular data trac is turned on.
2 Find and tap Settings > Data usage > Billing cycle.
3 Tap the slider beside Set data warning, then tap Data warning, enter the
desired data limit and tap SET. You receive a warning notification when the
amount of data trac reaches the level you set.
To set a cellular data limit
1 Make sure that cellular data trac is turned on.
2 Find and tap Settings > Data usage.
3 Tap Billing cycle and tap the slider beside Set data limit, then tap OK.
4 To set the data usage limit, tap Data limit, enter the desired data limit and
tap SET.
Once your cellular data usage reaches the set limit, cellular data trac on your device gets
turned o automatically.
To control the data usage of individual applications
1 Find and tap Settings > Apps.
2 Tap the application that you want to control, then tap Data usage.
The performance of individual applications may be aected if you change the related data
usage settings.
To check your data usage
1 Find and tap Settings > Data usage.
2 To view information about the amount of data transferred via cellular data
connection, tap Cellular data usage.
3 To view information about the amount of data transferred via Wi-Fi
connection, tap the Wi-Fi data usage under Data usage.
Selecting a SIM card for data trac
This function only applies for Dual SIM devices.
If you are using a Dual SIM device, you can select which SIM card handles data at
any given time. You can do this during the initial setup of your device, or you can
select or change it later via the Settings menu.
To change the SIM card used for data trac
1 Find and tap Settings > Dual SIM > Mobile data trac.
2 Select the SIM card you want to use for data trac.
For higher data speeds, select the SIM card that supports the fastest cellular network, for
example, 4G.
50
This is an internet version of this publication. © Print only for private use.
Selecting cellular networks
Your device supports the use of up to three dierent networks at the same time.
You can select from the following network mode combinations:
• One WCDMA network
• One GSM network
• One WCDMA and one GSM network
• One LTE, one WCDMA, and one GSM network
Your device automatically switches between cellphone networks depending on
which cellphone networks are available where you are. You can also manually set
your device to use a particular cellular network mode, like WCDMA or GSM. If you
are using a Dual SIM device, this applies to each SIM card.
Dierent status icons are displayed in the status bar depending on the type or
mode of network that you are connected to. Refer to
Status icons
on page 30 to
see what the dierent status icons look like.
To select a network mode
1 Find and tap Settings > More > Mobile networks.
2 Dual SIM users, select a SIM card.
3 Tap Preferred network type, then select a network mode.
To select another network manually
1 Find and tap Settings > More > Mobile networks.
2 Dual SIM users, select a SIM card.
3 Tap Service providers > Search networks.
4 Select a network.
If you select a network manually, your device will not search for other networks, even if you
move out of range of the manually selected network.
To activate automatic network selection
1 Find and tap Settings > More > Mobile networks.
2 Dual SIM users, select a SIM card.
3 Tap Service providers > Search mode > Automatic.
51
This is an internet version of this publication. © Print only for private use.
Synchronizing data on your device
Synchronizing with Online Accounts
Synchronize your device with contacts, email, calendar events, and other
information from online accounts, for example, email accounts such as Gmail™
and Exchange ActiveSync, Facebook™, and Flickr™. You can synchronize data
automatically for such accounts by activating the auto-sync function, or you can
synchronize each account manually.
To set up an online account for synchronization
1 Tap Settings > Accounts & sync > Add account, then select the account that
you want to add.
2 Follow the on-screen instructions to create or sign in to an account.
To synchronize manually with an online account
1 Find and tap Settings > Accounts & sync.
2 Tap the name of the account that you want to synchronize with. A list
appears showing what can be synchronized with the account.
3 Tap the slider next to the item that you want to synchronize.
To remove an online account
1 Find and tap Settings > Accounts & sync.
2 Select the account, then tap
> Remove account.
3 Tap Remove account again to confirm.
Synchronizing with Microsoft Exchange ActiveSync
If your company uses a Microsoft Exchange ActiveSync account, you can access
your corporate email messages, calendar appointments, and contacts directly on
your device. After setup, you can find your information in the Email, Calendar, and
Contacts applications.
If you have set up a Microsoft Exchange ActiveSync (EAS) account on your Xperia device,
the EAS security settings may limit the lockscreen type to only a PIN or password. This
occurs when your network administrator specifies a lockscreen type for all EAS accounts for
enterprise security reasons. Contact the network administrator of your company or
organization to check what network security policies are implemented for cellular devices.
To set up an EAS account for synchronization
1 Find and tap Settings > Accounts & sync > Add account > Exchange
ActiveSync.
2 Enter your corporate email address and password.
3 Tap NEXT. If a failure occurs, enter the domain and server details for your
account manually and then tap NEXT.
4 Follow the on-screen instructions to complete the setup.
5 Tap Show more sync options to select a synchronization method, a
synchronization interval, and the data you want to sync with your device.
6 Tap NEXT, then select how you want to be notified when a new email
arrives.
7 Tap NEXT, enter a name for the corporate account, then tap Finish setup.
8 If prompted, activate the device administrator to allow your corporate server
to set certain security rules on your device, like disabling voice recording and
using storage encryption.
52
This is an internet version of this publication. © Print only for private use.
To remove an EAS account
1 Find and tap Settings > Accounts & sync.
2 Tap Exchange ActiveSync, then select the EAS account that you want to
remove.
3 Tap Remove account.
4 Tap Remove account again to confirm.
53
This is an internet version of this publication. © Print only for private use.
Basic settings
Accessing settings
View and change settings for your device from the Settings menu. The Settings
menu is accessible from both the Application screen and the Quick settings panel.
To open the device settings menu from the Application screen
• Find and tap Settings.
To view information about your device
• Find and tap Settings > About phone.
To Access the Quick Settings Panel
• Drag the status bar downward using two fingers.
To Select Which Settings to Display on the Quick Settings Panel
1 Using two fingers, drag the status bar fully downward, then tap
.
2 To add a setting to the Quick settings panel, drag and drop the icon into the
upper part of the screen. To remove a setting, drag and drop the icon into
the lower part of the screen.
To Rearrange the Quick Settings Panel
1 Drag the status bar fully downward, then tap
.
2 Touch and hold an icon, and then move it to the desired position.
To Turn On the Flashlight
1 Drag the status bar downward using two fingers.
2 Tap
.
Volume, vibration, and sound
The volume and vibration can be changed either by using the volume keys or by
changing a setting. Sounds and tones can only be changed from a setting.
App settings can override the selected volume, vibration, and sound settings.
Volume and vibration
You can use the volume key to quickly change the ring, media, or alarm volumes.
Additionally, you can set your device to vibrate or activate a Do not disturb
option
to mute sounds and vibrations. For more information about Do not
disturb, see
Silence your device with Do not disturb
on the 55 page.
The ring volume
aects incoming calls and notifications, and the media volume
aects music, videos, games, and other media. For example, if you change the
volume while watching a video, the media volume is changed. The alarm volume is
indicated with
.
To change the volume
1 Press the volume key up or down. This changes the ring and notification
volume.
2 To change the media or alarm volumes, tap
. Use the sliders to adjust the
volumes.
Tap a volume icon to quickly turn the volume on or
o.
54
This is an internet version of this publication. © Print only for private use.
To activate vibration or Do not disturb mode
1 Press and hold the volume key down until appears to activate vibrate
mode.
2 Release the volume key and press it down again to activate Do not disturb
mode.
To set your device to vibrate for incoming calls
1 Find and tap Settings > Sound.
2 Tap the Also vibrate for calls slider to enable the function.
Sounds and tones
To set the ringtone
1 Find and tap Settings > Sound > Phone ringtone.
2 Dual SIM users, select a SIM card.
3 Select an option from the list or tap
and select a music file that is saved on
your device.
4 To confirm, tap DONE.
To set a specific ringtone for a contact, see
Adding and editing contacts
on the 69 page.
Dual SIM users can set dierent ringtones for each SIM card.
To set the notification sound
1 Find and tap Settings > Sound > Notification sound.
2 Select a sound from the list or select None to turn o all notification sounds
and set your notifications to vibrate only.
3 To select a music file that is saved on your device, tap
.
4 To confirm, tap DONE.
You can change your app settings to allow a sound from a specific app even when the
notification sound is set to None. See
Notifications
on the 27 page.
To enable touch tones
1 Find and tap Settings > Sound > Other sounds.
2 Tap the sliders to enable or disable the dierent touch tones as desired.
Silence your device with Do not disturb
Activate Do not disturb to mute sounds and limit vibrations and visual indications
for situations in which you do not want to be disturbed, for example at night.
To activate Do not disturb
1 Using two fingers, drag the status bar fully downward to access the Quick
Settings panel.
2 Tap
.
3 Select the limitation level by tapping Total silence, Alarms only, or Priority
only.
4 Set how long you want Do not disturb to be activated, and tap DONE.
Do not disturb can also be activated by pressing the volume key down when your device is
in vibrate mode .
To deactivate Do not disturb
1 Press the volume key up.
2 If Priority only is set, tap End now.
Do not disturb can also be deactivated by tapping
or from the Quick settings panel.
55
This is an internet version of this publication. © Print only for private use.
Limitation levels
Total silence
All vibrations and all ring, media, and alarm sounds are turned o.
Alarms only
The ring sound is turned o. Alarm and media sounds are still on.
Priority only
You only receive the notifications and calls you have selected. Alarm and
media sounds are still on.
To set up Priority only
1 Find and tap Settings > Sound > Do not disturb > Allowed in Priority only.
2 Tap the sliders to activate one or more options.
You can allow certain apps to bypass the priority. See
Notifications
on the 27 page.
To block visual disturbances
1 Find and tap Settings > Sound > Do not disturb > Block visual
disturbances.
2 Tap the sliders to activate one or more options.
Automatic rules
You can set automatic rules to activate Do not disturb mode for specific times or
events.
To set an automatic rule
1 Find and tap Settings > Sound > Do not disturb.
2 Tap Automatic rules, then select an automatic rule, for example Weekend.
3 Tap the options to set the rule name, time, and behaviors as desired.
4 Tap the slider to activate the rule.
To create a new rule, tap Add rule, and follow the on-screen instructions.
Screen settings
You can change the screen’s brightness, quality, viewing size, and behavior. For
example, select a bigger font or display size for easier reading or change the icons
you see in the status bar.
If you want to change your background and theme, see
Background and themes
on page 27. To change how long you want to have the screen on before it is turned
o, see
Turning the screen on or o
on page 19.
To change a screen setting
1 Find and tap Settings > Display.
2 Tap the setting you want to change.
3 Use the sliders, checkboxes, or additional menus to adjust.
Brightness
Adjust the brightness level with the slider. You can also enable Adaptive brightness
to automatically optimize brightness based on surrounding light.
White balance
Use the sliders to adjust the white balance of your display. To revert to the default
setting, tap
.
56
This is an internet version of this publication. © Print only for private use.
Screen saver
Set up a screen saver that displays colors or a photo slideshow when your device is
charging or the screen is idle. If your device has multiple users, each user can have
individual screen saver settings.
Screen rotation
Set the screen to rotate automatically when the device is turned, or set it to stay in
portrait view.
Screen Pinning
Use screen pinning to set your device to display only the screen for a specific
application. For example, if you are playing a game and you accidentally touch the
Home navigation key, the screen pinning feature prevents the active game app
screen from being minimized. You can also use this feature when you lend your
device to another person to make it harder for them to access more than one
application. For example, you can lend your device to somebody to take a photo
and pin the screen to the Camera application so that the person can't easily use
other apps such as Email.
Screen pinning is not a security feature and does not fully prevent other users from
unpinning a screen and accessing your device. To protect your data, you should set up your
device to request a screen lock PIN, password, or pattern before someone can unpin the
screen.
To enable or disable screen-pinning
1 Find and tap Settings > Lock screen & security > Screen pinning.
2 Tap the slider to enable or disable the function.
A pattern, PIN, or password is not mandatory for screen pinning to work.
To pin a screen
1 Ensure screen pinning is activated on your device.
2 Open an app and go to the screen you want to pin.
3 Tap
.
4 To display the screen pinning icon, swipe upward and tap .
5 In the window that appears, tap Got it.
To unpin a screen
• On the pinned screen, touch and hold
and until the screen is unpinned.
If you selected a security option when you activated the screen pinning function, you have
to enter your pattern, PIN, or password to unlock the device before the screen can be
unpinned.
Application settings
Some apps will ask for permissions once you start using them. You can allow or
deny permissions individually for each app, either from the Settings menu or from
the Permission confirm dialog. Permission requirements depend on the app’s
design.
Allowing or denying permissions
You can choose whether to allow or deny permissions when the dialog is shown. If
you have used another Android version previously, most apps will have already
been granted the necessary permissions.
57
This is an internet version of this publication. © Print only for private use.
To allow a permission
• To allow a permission, tap Allow. You can mark the Don't ask again
checkbox if you wish.
To deny a permission
• To deny a permission, tap Deny when the dialog is shown.
Some applications can still be used even if you have denied permissions.
Critical permissions
Some permissions are mandatory for apps to work as intended. In such cases, a
dialog will inform you.
To configure applications
1 Find and tap Settings > Apps >
.
2 Select a configuration option, for example App permissions, then choose an
application that you want to configure.
To allow critical permissions
1 Find and tap Settings > Apps.
2 Tap an app and then tap Permissions.
3 Select an option, then tap the relevant slider to adjust permissions.
Allowing or denying automatic application updates
If the automatic update feature is enabled, your applications get updated without
you being asked, so you may not realize that large volumes of data are being
downloaded. In order to avoid potentially high data transfer costs, you can disable
automatic updates or enable automatic updates only over Wi-Fi connection. You
have to disable the automatic update feature in the Play Store app to avoid the
automatic updating of apps.
To enable or disable automatic updates for all applications in the Play Store
1 Find and tap
.
2 Tap , then tap Settings > Auto-update apps.
3 Select the preferred option.
Application linking
Your device can determine the default app to handle a particular web link. This
means that if the link is set, you don’t need to select an app each time you open a
link. You can change the default app any time you want.
To manage app links from the Settings menu
1 Find and tap Settings > Apps.
2 Tap
and find Opening links.
3 Select an app, and adjust the settings as desired.
Resetting Your Applications
You can reset an application or clear application data if your application stops
responding or causes issues with your device.
To reset application preferences
1 Find and tap Settings > Apps.
2 Tap
, then tap Reset app preferences > RESET APPS.
Resetting application preferences does not delete any application data from your device.
58
This is an internet version of this publication. © Print only for private use.
To clear application data
1 Find and tap Settings > Apps.
2 Select an application or service, then tap Storage > CLEAR DATA > OK.
When you clear application data, data for the selected application is deleted from your
device permanently. The option to clear application data is not available for every
application or service.
To clear application cache
1 Find and tap Settings > Apps.
2 Select an application or service, and then tap Storage > CLEAR CACHE.
The option to clear the application cache is not available for every application or service.
To clear the application default setting
1 Find and tap Settings > Apps.
2 Select an application or service, and then tap Open by default > CLEAR
DEFAULTS.
The option to clear the application default setting is not available for every application or
service.
Language Settings
You can select a default language for your device and change it again at a later
time. You can also change the writing language for text input.
To change the language
1 Find and tap Settings > Languages & input > Languages.
2 To change the language, drag and drop the desired language to the top of
the list. If the desired language is not currently listed, tap
to add it.
If you select the wrong language and cannot read the menu texts, find and tap
. Then,
select the text beside and select the first entry in the menu that opens. You can then
select the language you want.
Date and time
You can change the date and time on your device.
To set the date manually
1 Find and tap Settings > Date & time.
2 Disable the Automatic date & time function by tapping the slider.
3 Tap Set date.
4 Flick left or right, or use the arrows to set the desired date.
5 Tap OK.
To set the time manually
1 Find and tap Settings > Date & time.
2 Disable the Automatic date & time function by tapping the slider.
3 Tap Set time.
4 Select the relevant values for the hour and minute.
5 Tap OK.
To set the time zone
1 Find and tap Settings > Date & time.
2 Disable the Automatic time zone function by tapping the slider.
3 Tap Select time zone.
4 Select an option.
59
This is an internet version of this publication. © Print only for private use.
Enhancing the Sound Output
You can enhance the sound of your device by manually enabling individual sound
settings such as Equalizer and Surround sound. You can enable the Dynamic
normalizer to minimize volume dierences between songs or videos. You can also
improve the quality of compressed music files to near high-resolution audio
quality when you are using wired headphones.
To enhance the sound output automatically
1 Find and tap Settings > Sound > Audio settings.
2 Enable the ClearAudio+ function by tapping the slider.
To adjust the sound settings manually using the Equalizer
1 Find and tap Settings > Sound > Audio settings.
2 If the ClearAudio+ function is enabled, tap the slider to disable it.
3 Tap Sound eects > Equalizer.
4 To adjust the sound manually, drag the frequency band buttons. To choose a
preset arrangement, tap
, select an arrangement, then tap OK to confirm.
The manual adjustment of sound output settings has no eect on voice communication
applications. For example, there is no change in the voice call sound quality.
To turn on the Surround sound feature in the Music app
1 Find and tap .
2 Tap
> Settings > Audio settings > Sound eects > Surround sound (VPT).
3 Flick left or right to select a setting, then tap OK to confirm.
To minimize volume dierences using the Dynamic normalizer
1 Find and tap Settings > Sound > Audio settings.
2 Enable the Dynamic normalizer function by tapping the slider.
Multiple User Accounts
Your device supports multiple user accounts so that dierent users can log in
separately to the device and use it. Multiple user accounts work well in situations
where you share the same device with other people or lend your device to
someone to use for a while. The user who sets up the device for the first time
becomes the owner of the device. Only the owner can manage the accounts of
other users. Apart from the owner account, there are two dierent types of
accounts:
• Regular User: This account type is suitable for someone who regularly uses your
device.
• Guest User: Enable the guest account option for someone who just wants to use
your device temporarily.
Some features are only available to the owner. For example, only the owner can allow
downloads from sources other than Google Play™.
About the Regular User Account
By adding Regular User accounts, you can allow dierent users to have dierent
homescreens, wallpapers, and general settings. They also get separate access to
applications and memory storage for files such as music and photos. You can add
up to seven Regular User accounts on your device.
60
This is an internet version of this publication. © Print only for private use.
To add a regular user account
1 Make sure you are logged in as the owner, that is, the user who set up the
device for the first time.
2 Find and tap Settings > Users > Add user.
3 Tap OK. The new account is now created.
4 Tap SET UP NOW. The screen locks and an icon representing the newly
added user appears in the top-right corner.
5 Unlock the screen by swiping upwards.
6 Follow the on-screen instructions to set up the account for the user.
You can also add a regular user account from the status bar on any screen. Just drag the
status bar fully downward and tap the user icon, and then tap Add user.
To delete a regular user account from your device
1 Make sure you are logged in as the owner.
2 Find and tap Settings > Users.
3 Tap
beside the name of the user who you want to delete, and then tap
Remove user > Delete.
About the Guest User Account
If someone just wants to use your device temporarily, you can enable a guest
account for that user. In Guest mode, your device starts up as a freshly installed
system with only the preinstalled apps. Once your guest is finished using your
device, you can wipe the session clean so that the next guest can start fresh. The
Guest User account is preinstalled and cannot be deleted.
To activate the guest user account
1 Ensure you are logged in as the owner, that is, the user who set up the
device for the first time.
2 Drag the status bar downward using two fingers and tap
.
3 Tap Add guest.
To clear the guest session data
1 Make sure you are logged in to the guest account.
2 Find and tap Settings > Users.
3 Find and tap Remove guest.
4 Tap Remove.
You can also clear the guest session from the status bar on any screen as long as you are
logged in to the guest account. Just drag the status bar downward and tap the user icon,
and then tap Remove guest.
Switching between Multiple User Accounts
To switch between multiple user accounts
1 To view the list of users, drag the status bar downward using two fingers,
then tap
.
2 Tap the icon representing the user account that you want to switch to. The
lock screen for that user account appears.
When you switch to the guest account, tap Start over if you want to wipe the previous
session or tap Yes, continue to continue the previous session.
Settings for Multiple User Accounts
There are three dierent types of settings on devices with multiple users:
• Settings that can be changed by any user and aect all users. Examples include
language, Wi-Fi, Airplane mode, NFC, and Bluetooth®.
• Settings that only aect an individual user account. Examples include automatic
data syncing, screen lock, various accounts added, and wallpaper.
61
This is an internet version of this publication. © Print only for private use.
• Settings that are only visible to the owner and aect all users, for example, VPN
settings.
62
This is an internet version of this publication. © Print only for private use.
Typing text
On-Screen Keyboards
There are a number of pre-installed text entry providers on your device.
The default text entry provider may depend on the regional or language settings you use.
One or more text entry providers might not be available in your region.
SwiftKey
®
keyboard
You can enter text using the on-screen keyboard by tapping each letter
individually, or you can use the SwiftKey
®
flow feature and slide your finger from
letter to letter to form words.
1 Switch between lower case, upper case, and all caps
2 Display numbers and symbols
3 Tap to enter a comma
4 Enter a space
5 Enter punctuation
6 Tap to enter a carriage return, or touch and hold to access smileys
7 Delete
For more information about SwiftKey, go to
https://swiftkey.com/
.
To display the on-screen keyboard to enter text
• Tap a text entry field.
To use the on-screen keyboard in landscape orientation
• When the on-screen keyboard is displayed, turn the device sideways.
You may need to adjust the settings in some applications to enable landscape orientation.
To switch between dierent on-screen keyboard options
1 Find and tap Settings > Languages & input > On-screen keyboard.
2 Tap Manage keyboards, then tap the slider to enable or disable the
keyboard.
63
This is an internet version of this publication. © Print only for private use.
To enter text character by character
1 To enter a character visible on the keyboard, tap the character.
2 To enter a character variant, touch and hold a regular keyboard character to
get a list of available options, then select from the list. For example, to enter
"é," touch and hold "e" until other options appear, then, while keeping your
finger pressed on the keyboard, drag to and select "é."
To enter a full stop
• After you enter a word, double-tap the space bar.
To Enter Text Using the Gesture Input Function
1 When the on-screen keyboard is displayed, slide your finger from letter to
letter to trace the word you want to write.
2 After you finish entering a word, lift up your finger. A word suggestion
appears based on the letters you have traced.
3 If the word that you want does not appear, tap
to see other options and
select accordingly. If the desired option does not appear, delete the entire
word and trace it again, or enter the word by tapping each letter individually.
Editing text
You can select, cut, copy and paste text as you write. You can access the editing
options by double-tapping the entered text. The editing options then become
available via an application bar.
Application bar
The following actions are available on the selected text:
• Cut
• Copy
• Paste
• Share
• Select all
The Paste option only appears when you have text saved on the clipboard.
To Select Text
1 Double-tap a word to highlight it.
2 You can drag the tabs on both sides of the highlighted word to select more
text.
To Edit Text
1 Double-tap a word to make the application bar appear.
2 Select the text you want to edit, and then use the application bar to make
your desired changes.
To use the magnifier
• When you enter text, tap and hold on the text field to view the text
magnified and to place the cursor where you want within the text field.
64
This is an internet version of this publication. © Print only for private use.
Calling
Making calls
You can make a call by dialing a phone number manually, or use the smart dial
function to quickly find numbers from your contacts list and call logs. To make a
video call, you can use the Duo video chat application on your device.
Dual SIM users can set a default SIM card for placing calls, or you can choose to
select the SIM card each time you place a call. Find and tap Settings > Dual SIM >
Calls to select an option.
Making calls overview
1 Back to call log
2 Delete
3 Dialpad
4 Call button
To open the dialpad
1 Find and tap .
2 If the dialpad does not appear, tap
.
To dial a phone number
1 Find and tap .
2 If the call log appears, tap
to display the dialpad.
3 Enter the phone number, and tap .
4 Dual SIM users, select a SIM card if prompted.
To make a call using smart dial
1 Find and tap
.
2 If the call log appears, tap to display the dialpad.
3 Use the dialpad to enter letters or numbers that correspond to the contact
you want to call. As you enter each letter or number, a list of possible
matches appears.
4 Tap the contact that you want to call.
5 Dual SIM users, select a SIM card if prompted.
65
This is an internet version of this publication. © Print only for private use.
To make an international call
1 Find and tap . The call log is displayed.
2 Tap to display the dialpad.
3 Touch and hold 0 until a "+" sign appears.
4 Enter the country code and the area code without the initial zeros, followed
by the phone number. Then tap .
5 Dual SIM users, select a SIM card if prompted.
To add a direct dial number to your Homescreen
1 Touch and hold an empty area on your Home screen.
2 In the customization menu, tap Widgets > Shortcuts.
3 Scroll through the list of applications and select Direct dial.
4 Select the contact and the number that you want to use as the direct dial
number.
To show or hide your phone number during outgoing calls
1 Find and tap
.
2 Tap > Settings.
3 Dual SIM users, tap Calling accounts, and select a SIM card. Single SIM
users, tap Calls.
4 Tap Additional settings > Caller ID, and choose an option.
This option may not be provided by every operator.
Receiving calls
If you receive an incoming call when the device is in sleep mode or the screen is
locked, the phone application opens in full-screen format. For Dual SIM devices, a
SIM icon indicates which SIM card the call is for.
If you receive an incoming call when the screen is active, the incoming call is
displayed as a floating notification, that is, in a minimized window that floats at
the top of whatever screen is open. For Dual SIM devices, SIM1 or SIM2 indicates
which SIM card the call is for. When the notification arrives, you can choose to
answer the call and open the phone application screen, or you can reject the call
and stay on the current screen.
To Answer a Call When the Screen is Inactive
• When a call comes in, drag
to the right.
To answer a call when the screen is active
• When a call comes in, in the heads-up notification that appears at the top of
the screen, tap ANSWER.
Instead of answering the call, you can go to the main phone application screen by tapping
the heads-up notification window. Using this method, you get more options to manage the
call. For example, you can decide to reject the call with a message.
To Reject a Call When the Screen Is Inactive
• When a call comes in, drag to the left.
To Reject a Call When the Screen is Active
• When a call comes in, in the heads-up notification that appears at the top of
the screen, tap DECLINE.
Instead of rejecting the call, you can go to the main phone application screen by tapping
the heads-up notification window. This way you get more options to manage the call. For
example, you can decide to reject the call with a message.
To mute the ringtone for an incoming call
• When you receive the call, press the volume key.
66
This is an internet version of this publication. © Print only for private use.
Rejecting a Call with a Text Message
You can reject a call with a text message, sent automatically to the caller and
stored in the Messaging conversation with the contact.
You can select from a number of predefined messages available on your device, or
you can create a new message. You can also create your own personalized
message by edit the predefined ones.
To Reject a Call with a Text Message When the Screen Is Inactive
1 When an incoming call arrives, tap RESPONSE OPTIONS.
2 Select a predefined message or tap Write new message.
To Reject a Call With a Text Message When the Screen is Active
1 When an incoming call arrives, tap the heads-up notification window where
the phone number or the name of the contact is displayed.
2 Tap RESPONSE OPTIONS.
3 Select a predefined message or tap Write new message.
To Reject a Second Call with a Text Message
1 When you hear repeated beeps during a call, tap RESPONSE OPTIONS.
2 Select a predefined message or tap Write new message.
To edit the text message used to reject a call
1 Find and tap
.
2 Tap
> Settings.
3 Dual SIM users, tap Calling accounts, and select a SIM card. Single SIM
users, tap Calls.
4 Tap Reject call with message.
5 Tap the message that you want to edit, then make the necessary changes.
6 Tap OK.
Forwarding calls
You can direct calls to a dierent recipient, such as to another phone number or
another device.
If you are using a Dual SIM device, you can also forward calls that come in on SIM
card 1 to SIM card 2 when SIM card 1 is unreachable, and vice versa. This function is
called Dual SIM reachability. You must enable it manually.
To forward calls
1 Find and tap
.
2 Tap > Settings.
3 Dual SIM users, tap Calling accounts, and select a SIM card. Single SIM
users, tap Calls.
4 Tap Call forwarding > Voice, then select an option.
5 Enter the number you want to forward calls to, then tap Turn on.
To turn o call forwarding
1 Find and tap
.
2 Tap > Settings.
3 Dual SIM users, tap Calling accounts, and select a SIM card. Single SIM
users, tap Calls.
4 Tap Call forwarding > Voice.
5 Select an option, then tap Turn o.
To enable the Dual SIM reachability function
This function only applies for Dual SIM devices.
67
This is an internet version of this publication. © Print only for private use.
1 Find and tap Settings > Dual SIM > Dual SIM reachability.
2 Tap the slider to enable the function.
3 Tap CONTINUE.
4 Follow the on-screen instructions to complete the procedure.
If the Dual SIM reachability function does not work after you enable it, check you have
entered the phone numbers correctly for each SIM card. In some cases, the numbers are
detected automatically during setup. Otherwise, you are prompted to enter them manually.
Blocking a number
You can block certain numbers from calling you and from sending you messages.
Select from stored numbers or type in a number yourself.
To block a stored number
1 Find and tap
.
2 Touch and hold the number you want to block.
3 Tap Block number, then tap BLOCK. Calls and texts from this number are
blocked.
To block a number by typing the number
1 Find and tap
.
2 Tap
> Settings > Block numbers > Add a number.
3 Enter the phone number you want to block, then tap BLOCK. Calls and texts
from this number are blocked.
To unblock a blocked number
1 Find and tap
.
2 Tap
> Settings > Block numbers.
3 Tap next to the phone number you want to unblock, then tap UNBLOCK.
Calls and texts from this number are no longer blocked.
68
This is an internet version of this publication. © Print only for private use.
Contacts
Adding and editing contacts
You can add, edit or delete contacts on your device and from synchronized
accounts. Add contact pictures or set individual ringtones to personalize contacts.
You can also edit contact information about yourself.
To add a contact
1 Find and tap .
2 Tap .
3 If you're adding a contact for the first time and have multiple accounts
synchronized to your device, select an account. This becomes the default
account for saving your contacts. Later, you can select where to save the
contact by tapping
> Saving to.
4 Enter or select the desired information for the contact.
5 When you’re done, tap Save.
To move an existing contact to a new account, you must create the contact again and save
it to the new account.
If you add a plus sign and the country code before a contact's phone number, you do not
have to edit the number again when you make calls from abroad.
To edit a contact
1 Find and tap .
2 Tap the contact that you want to edit, then tap .
3 Edit the desired information.
4 When you are done, tap Save.
Some synchronization services do not allow you to edit contact details.
To add or remove a contact picture
1 Find and tap .
2 Tap the contact that you want to edit, then tap
.
3 Tap , then select an option.
4 After the picture is updated, tap Save.
You can also add a picture to a contact directly from the Album application. If you want to
add a picture that is saved to an online account, you must download the picture first.
To personalize the ringtone for a contact
1 Find and tap .
2 Tap the contact that you want to edit, then tap .
3 Tap
> Set ringtone.
4 Select a ringtone or tap to select a music file saved on your device, then
tap DONE.
5 Tap Save.
To delete contacts
1 Find and tap
.
2 Touch and hold the contact that you want to delete.
3 To delete several or all contacts, mark the checkboxes beside the contacts
that you want to delete.
4 Tap
, then tap Delete contact.
5 Tap DELETE to confirm.
69
This is an internet version of this publication. © Print only for private use.
To edit contact information about yourself
1 Find and tap .
2 Tap ME, then tap .
3 Enter the new information or make the changes you want.
4 When you are done, tap Save.
To create a new contact from a text message
1 Find and tap .
2 Tap the icon next to the phone number, then tap Add Contact.
3 Select an existing contact, or tap Create new contact.
4 Edit the contact information and tap Save.
Transferring contacts
There are several ways to transfer contacts to your new device. You can sync
contacts from an online account or import contacts directly from another device.
If you sync the contacts in your old device with an online account, you can transfer
your contacts to your new device using that account.
You can also copy contacts to a memory card, use Bluetooth technology, or save
contacts to a SIM card. For more specific information about transferring the
contacts from your old device, refer to the relevant User guide.
Find out more about choosing a transfer method at
http://
support.sonymobile.com/
.
To synchronize contacts on your new device with a synchronization account
1 Find and tap .
2 Tap
, then tap Manage accounts.
3 Select the account that you want to sync your contacts with, then tap >
Sync now.
You need to be signed in to the relevant sync account before you can sync your contacts
with it.
To import contacts from a SIM card
1 Find and tap .
2 Tap , then tap Import/export.
3 Single SIM users, tap Import from SIM card. Dual SIM users, select a SIM
card.
4 Select where to store your contacts.
5 To import individual contacts, find and tap each contact. To import all
contacts, tap
, then tap Import all.
To import contacts from a memory card
1 Find and tap
.
2 Tap
, then tap Import/export > Import from SD card or internal storage
(.vcf file).
3 Select where to store your contacts.
4 Tap
> SD Card.
5 Select the files you want to import by tapping them.
70
This is an internet version of this publication. © Print only for private use.
To import contacts using Bluetooth technology
1 Ensure you have the Bluetooth function turned on and that your device is set
to visible.
2 When you are notified of an incoming file to your device, drag the status bar
downward and tap the notification to accept the file transfer.
3 Tap Accept to start the file transfer.
4 Drag the status bar downward. When the transfer is complete, tap the
notification.
5 Tap the received file and select where to store your contacts.
Backing up contacts
You can use internal storage, a memory card, or a SIM card to back up contacts.
To export all contacts to internal storage
1 Find and tap
.
2 Tap , then tap Import/export > Export to SD card or internal storage (.vcf
file).
3 Tap
, then tap your device's model number beside .
4 Select a destination folder or simply tap Save.
To export all contacts to a memory card
1 Find and tap
.
2 Tap
, then tap Import/export > Export to SD card or internal storage (.vcf
file).
3 Tap > SD Card.
4 Select a destination folder, then tap Save.
To export contacts to a SIM card
1 Find and tap
.
2 Tap > Import/export.
3 Single SIM users, tap Export to SIM card. Dual SIM users, select a SIM card to
export to.
4 Tap OK.
5 Select contacts to export, then tap Export.
6 Select an option, then tap OK.
When you export contacts to a SIM card, not all information may get exported. This is due to
memory limitations on SIM cards.
71
This is an internet version of this publication. © Print only for private use.
Messaging and chat
Reading and sending messages
The Messages application shows your messages as conversations, which means all
messages to and from a particular person are grouped together.
The number of characters you can send in a single message varies depending on the
provider and the language you use. The maximum size of a multimedia message, which
includes the size of added media files, is also provider-dependent. Contact your service
provider for more information.
Messaging overview
1 Go back to the list of conversations
2 Call the message sender
3 View more options
4 Sent and received messages
5 Send a completed message
6 Add attachments
72
This is an internet version of this publication. © Print only for private use.
To create and send a message
1 Find and tap .
2 Tap .
3 Enter the recipient's name or phone number, then select from the
suggestions that appear. If the recipient is not listed as a contact, enter the
recipient's number manually.
4 If you want to send a group message, tap to add more recipients.
5 Dual SIM users, tap to select the SIM card you wish to use.
6 Enter your message text. If you want to add an attachment, tap and select
the relevant attachment option.
7 To send the message, tap
.
If you exit a message before sending, it gets saved as a draft. The conversation gets tagged
with the word Draft.
To read a received message
1 Find and tap
.
2 Tap the desired conversation.
3 If the message has not been downloaded yet, tap it.
All received messages are saved by default to the device memory.
To reply to a message
1 Find and tap .
2 Tap the conversation containing the message.
3 Dual SIM users, tap
to select the SIM card you wish to use.
4 Enter your reply and tap
.
To forward a message
1 Find and tap .
2 Tap the conversation containing the desired message.
3 Dual SIM users, tap
to select the SIM card you wish to use.
4 Touch and hold the desired message, then tap
.
5 Select a recent contact from the list or tap NEW MESSAGE and enter the
recipient's name or phone number, then select from the suggestions that
appear. If the recipient is not listed as a contact, enter the recipient's number
manually.
6 Edit the message if necessary, then tap
.
To save a file contained in a received message
1 Find and tap .
2 If the message has not been downloaded yet, tap it.
3 Touch and hold the file you want to save, then select the desired option.
Messaging settings
You can change message notification settings and select whether to enable
message delivery reports.
To change your message notification settings
1 Find and tap
.
2 Tap
, then tap Settings.
3 Dual SIM users, tap General.
4 To set a notification sound, tap Notification sound, and then select an
option or tap
and select a music file that is saved on your device.
5 To confirm, tap DONE.
6 To adjust additional notification settings, tap the sliders.
73
This is an internet version of this publication. © Print only for private use.
To enable or disable delivery reports for outgoing messages
1 Find and tap .
2 Tap , then tap Settings.
3 Dual SIM users, select a SIM card. Single SIM users, tap Advanced.
4 Tap the Get SMS delivery reports slider to enable or disable the function.
After delivery reports are turned on, the text “Delivered” is displayed for messages that are
successfully delivered.
Video Chat
You can use the Google Duo™ video chat application on your device to chat with
friends who also use the application on Android™ and iOS devices.
Go to
https://support.google.com/duo/
to get more detailed information about
how to use this application.
The video call function only works on devices with a front camera.
To use the Duo application
• To use the video chat application, find and tap
.
Setting Up Email
Use the email application on your device to send and receive email messages
through your email accounts. You can have one or several email accounts at the
same time, including corporate Microsoft Exchange ActiveSync accounts.
To set up an email account
1 Find and tap
.
2 Follow the instructions that appear on the screen to complete the setup.
For some email services, you may need to contact your email service provider for
information on detailed settings for the email account.
To add an extra email account
1 Find and tap .
2 Tap , then tap Settings > Add account.
3 Follow the on-screen instructions. If the settings for the email account
cannot be downloaded automatically, complete the setup manually.
4 When you are done, tap NEXT.
74
This is an internet version of this publication. © Print only for private use.
Music and FM Radio
Transferring music to your device
There are two ways to transfer music from a computer to your device:
• Connect your device to a computer using a USB Type-C cable. Select Transfer files
on your device and then copy and paste or drag and drop the files using the
computer. See
Managing files using a computer
on page 39.
• You can use the Xperia Companion software to transfer your media files between
the computer and your device. Learn more and download Xperia Companion for
Windows or Mac at
http://support.sonymobile.com/global-en/xperia-
companion/
.
The Music application may not support all music file formats.
Listening to music
Use the Music application to listen to your favorite music.
Music player overview
1 Minimize the full screen player
2 Search all songs saved to your device
3 View the play queue
4 View menu options
5 Album art (if available)
6 Add or remove a song as a favorite
7 Elapsed time of current song
8 Add a song to a playlist
9 Progress indicator—drag or tap along the line to fast-forward or rewind
10 Length of current song
75
This is an internet version of this publication. © Print only for private use.
11 Repeat the current song or all songs in the play queue
12 Tap to go to the next song, touch and hold to fast-forward the current song
13 Play or pause a song
14 Tap to go to the previous song, touch and hold to rewind the current song
15 Shue songs in the play queue
Music homescreen
1
Tap to open the Music menu
2 Scroll up or down to view content
3 Tap to start playing a song in the play queue
4 Play all songs in shue mode
5 Go to the music player screen
To play a song using the Music application
1 Find and tap
.
2 Tap .
3 Select a music category.
4 Tap a song to play it.
You might not be able to play copyright-protected items. Make sure you have the necessary
rights for the content you wish to use.
To edit music information and download album art
1 While a song is playing in the Music application, tap the album art in the
music player screen and then tap Edit music info.
2 Edit the information as desired.
3 To set or download album art, tap
, then select an option.
4 When you are finished, tap Save.
You can also set album art to download automatically in the Music menu, under Settings.
To Adjust the Audio Volume
• Press the volume key up or down.
76
This is an internet version of this publication. © Print only for private use.
To Minimize the Music Application
• When a song is playing, tap to go to the Home screen. The Music
application keeps running in the background.
To open the Music application when it is playing in the background
• While a song is playing in the background, drag the status bar downward
and tap the Music notification.
• Alternatively, find and tap .
Listening to the radio
The FM radio in your device works like any FM radio. For example, you can browse
and listen to FM radio stations and save them as favorites. You must connect a
wired headset or headphones to your device before you can use the radio. This is
because the headset or headphones act as an antenna. After one of these devices
is connected, you can then switch the audio to the speaker, if desired.
FM radio overview
1 Favorites list
2 Radio on/o button
3 View menu options
4 Tuned frequency
5 Save or remove a channel as a favorite
6 Tuning dial
7 Frequency band – drag left or right to move between channels
8 Move up the frequency band to search for a channel
9 A saved favorite channel
10 Move down the frequency band to search for a channel
77
This is an internet version of this publication. © Print only for private use.
To listen to the FM radio
1 Connect a headset or a set of headphones to your device.
2 Find and tap . The available channels appear as you scroll through the
frequency band.
When you start the FM radio, available channels appear automatically. If a channel has RDS
information, it appears a few seconds after you start listening to the channel.
To Move between Radio Channels
• Drag the frequency band left or right.
• Alternately, tap the arrows on either side of the band to jump to the next
clear radio signal.
To start a new search for radio channels
1 When the radio is open, tap
.
2 Tap Search for channels. The radio scans the whole frequency band and
marks all available channels.
To switch the radio sound to the speaker
1 When the radio is open, tap
.
2 Tap Play in speaker.
To switch the sound back to the wired headset or headphones, tap
and tap Play in
headphones.
78
This is an internet version of this publication. © Print only for private use.
Camera
Getting to know your camera
1 Front camera lens
2 Switch between the front and main camera
3 Select the capturing mode
4 Use the volume keys to zoom in or out
5 Tap the thumbnail to view, share, or edit photos and videos
6 Save your location
7 Use the shutter button to take photos or record videos
8 Go back or exit the camera
9 Capturing mode settings
10 Flash settings
Basic camera tips
• Be sure the lens is clean. A fingerprint or a little dirt can diminish photo quality.
• Use the self-timer when you need extra time to prepare, or to avoid blurred
photos.
• Check your device's memory status often. High-resolution photos and videos
consume more memory.
• Read more about
Xperia Camera Photography
.
To launch the camera
• Swipe
from the lockscreen or tap from the Application screen.
Capturing modes
Your camera is equipped with three capturing modes. Two are for taking photos:
the Auto mode and the Manual mode.
Auto optimizes settings automatically for many dierent scenarios. Manual mode
is useful when you want more creative control.
Available settings depend on the capturing mode selected.
79
This is an internet version of this publication. © Print only for private use.
Capturing modes overview
Manual
Take photos and manually adjust camera settings
Auto
Take photos with settings automatically optimized
Video
Record videos
To select a capturing mode
• When using the camera, swipe the screen to select a photo or video mode.
To switch between the main and front camera
• When using the camera, tap
to switch between the main and front
camera.
To use the zoom
• When using the camera, pinch in or out on the camera screen or use the
volume key to zoom.
If you zoom in three or more times, this can aect image quality. Instead, take the photo
without zoom, then crop it.
To take a photo
• When using the camera, tap the shutter button to take a photo.
To record a video
1 When using the camera, swipe the screen to select
.
2 Tap the shutter button to start or stop recording.
The maximum recording time is 6 hours.
To launch the camera and take a photo at the same time
1 When using the camera, tap , then tap More > Quick launch > Launch and
capture.
2 Close the settings menu and exit the camera. The setting is saved for all
capturing modes.
3 Swipe
from the lockscreen to launch the camera and take a photo.
This feature can also be used for videos. When using the camera, tap
, then tap More >
Quick launch > Launch and record video.
To take a photo by tapping the screen
1 When using the camera, tap , then tap More > Touch capture > On or Only
front camera.
2 Close the settings menu. The setting is saved in all capturing modes.
3 Tap anywhere on the screen to take a photo or record a video.
This feature can also be used for videos.
To take a photo when recording a video
• When recording a video, tap
. The photo is taken as soon as you release
the shutter button.
Self-timer
Use the Self-timer to get more time to prepare for a photo. It also helps to keep
your device steady and avoid blurred photos.
80
This is an internet version of this publication. © Print only for private use.
To use the self-timer with the main camera
1 When using the main camera, select a photo capturing mode and tap .
2 Tap Self-timer and select the delay time.
3 Close the settings menu. The Self-timer setting is saved.
4 Tap the shutter button to take a photo. A series of beeps marks the
countdown until the photo is taken.
When using the front camera, tap to set the Self-timer.
Shutter button
The shutter button is used dierently depending on the capturing mode and
activated features.
Shutter button overview
Take a photo
Record a video/Resume recording
Pause a video
Stop recording a video
Self-timer is activated
Touch capture is activated
Touch capture and Self-timer are activated
To adjust camera settings
1 When using the camera, tap .
2 Select a setting or press More.
3 When More is selected, swipe the list to view the available settings.
Available settings depend on the capturing mode selected.
To view, share, or edit photos and videos
1 When using the camera, tap the thumbnail to open a photo or video.
2 Flick left or right to view your photos and videos.
3 Tap the screen to edit a photo or video.
Your photos and videos are stored in the Album application. See
Viewing photos and
videos
on page 90 for more options.
81
This is an internet version of this publication. © Print only for private use.
Exposure, color, and light conditions
Good exposure for your photos requires the right amount of light. The camera
automatically detects and adjusts to ambient light conditions.
Dierent exposures are required, for example, when taking photos of faces,
moving objects, or in low light.
Optimizing light conditions
• Look for light with direction and color that gives a scene shape and depth. This
type of light occurs just before sunrise and at sunset. Natural light from a window
is also good.
• For higher quality photos in low light, you need to keep the camera steady. You
can place the camera on a solid surface and use the self-timer.
• Even if light conditions are poor, try to take photos with and without the flash.
Sometimes the quality is better without the flash.
To use the flash
1 When using the camera, tap the flash icon displayed on the screen, for
example
.
2 If required, change the flash setting.
3 Tap the shutter button to take a photo or record a video.
Available settings depend on the capturing mode selected.
When the background is brighter than the object, use Fill flash to remove unwanted dark
shadows.
Color, brightness, and exposure value
Your camera automatically adjusts the color, brightness, and exposure value by
detecting the light conditions and estimating the color temperature of ambient
light. Digital cameras can only estimate the color temperature, so you may need to
adjust the settings to get it correct.
If you experience yellow-colored photos in indoor environments or bluish photos
when using the flash, try adjusting the color in Auto mode.
To achieve better exposures in low light environments, change the brightness
when using Auto and Video modes, or change the exposure value when using
Manual mode.
To adjust the color and brightness
1 When using the camera, tap
.
2 Tap Color and brightness.
3 Drag the sliders to adjust the color and brightness.
4 Tap the shutter button to take a photo or record a video.
5 Tap
to reset and close the color setting.
This setting is only available in Auto and Video modes.
When using the camera, you can also adjust the color and brightness by simply tapping the
screen. To enable this function, make sure Object tracking is turned o.
To adjust the exposure value
1 When using the camera, tap .
2 Tap EV and drag the slider to adjust the exposure value.
3 Close the settings menu. The setting is saved.
4 Tap the shutter button to take a photo.
This setting is only available in Manual mode.
82
This is an internet version of this publication. © Print only for private use.
Shutter speed
Shutter speed refers to how long the shutter is open and the camera sensor is
exposed to light.
A fast shutter speed helps to freeze motion, while a slow shutter speed can create
an eect called "motion blur," where moving objects appear blurred along their
line of motion.
The shutter speed is automatically adjusted in Auto and Video modes.
To adjust the shutter speed
1 When using the camera, tap
.
2 Tap SS and drag the slider to adjust the shutter speed.
3 Close the settings menu. The setting is saved.
4 Tap the shutter button to take the photo.
This setting is only available in Manual mode for the main camera.
ISO
ISO determines how sensitive your camera is to light. A low ISO number means
lower sensitivity, and a high ISO number means higher sensitivity. Higher
sensitivity can add blur to your photos.
Choose a higher ISO value when taking photos of moving objects or when taking
photos in low light without the flash.
If there is too much light, use the lowest ISO setting to achieve a higher image
quality.
ISO is automatically adjusted in Auto and Video modes.
To adjust the ISO value
1 When using the camera, tap
.
2 Tap ISO and select an ISO value.
3 Close the settings menu. The setting is saved.
4 Tap the shutter button to take a photo.
This setting is only available in Manual mode for the main camera.
Strong backlight (HDR)
In Auto mode, strong backlight is automatically adjusted and indicated with
. You
can adjust for strong backlight manually in Manual mode.
To adjust toward a strong backlight
1 When using the camera, tap
.
2 Tap the HDR slider to enable the function.
3 Close the settings menu. The setting is saved.
4 Tap the shutter button to take a photo.
This setting is only available in Manual mode.
White balance
In Auto and Video modes, white balance adjustments are automatic. You can
adjust the white balance manually in Manual mode.
83
This is an internet version of this publication. © Print only for private use.
To adjust the white balance
1 When using the camera, tap .
2 Tap WB and select one of the pre-defined light conditions, for example .
3 Close the settings menu. The setting is saved.
4 Tap the shutter button to take a photo.
This setting is only available in Manual mode.
White balance settings
Auto
Adjust the color balance automatically
Cloudy
Adjust the color balance for a cloudy sky
Daylight
Adjust the color balance for sunny outdoor conditions
Fluorescent
Adjust the color balance for fluorescent lighting
Incandescent
Adjust the color balance for warm lighting conditions, like under light bulbs
Optimizing exposure
Exposure metering measures the amount of light that strikes an object, to optimize
exposure.
Exposure metering is automatically adjusted in Auto and Video modes. You can
adjust the exposure manually in Manual mode for the main camera, for example to
change the exposure for a specific part of the photo.
To adjust the exposure with metering
1 When using the camera, tap
.
2 Tap More > Metering.
3 Select an exposure option and close the settings menu. The setting is saved.
4 Tap the shutter button to take a photo.
This setting is only available in Manual mode for the main camera.
Metering settings
Face
Measures the amount of light on a face, and adjusts the exposure so that the face
is neither too dark nor too bright
Center
Determines the center of the image, and sets the exposure based on the
brightness of the object
Spot
Adjusts the exposure for a very small part of the object
Touch
Allows you to touch the screen to determine the object or area where exposure
should be optimized
84
This is an internet version of this publication. © Print only for private use.
Setting the right focus
The camera automatically sets the focus and detects faces in all capturing modes.
It can also detect and track a moving object. A yellow frame indicates the face or
moving object that is in focus.
You can also tap the screen to focus on a specific area, or set a specific focus
distance. These options are only available for the main camera and depend on the
capturing mode selected.
To set the focus distance
1 Tap .
2 Tap
.
3 Tap the slider to adjust the focus distance.
4 Close the settings menu. The setting is saved.
5 Tap the shutter button to take a photo.
This setting is only available in Manual mode for the main camera.
People, selfies, and smiling faces
Faces in focus are indicated with a colored frame. Tap any frame to select a face to
focus on.
Use Smile Shutter to automatically take a photo when a person smiles. If you are
recording a video, a photo is taken each time a smile is detected.
Use the super wide-angle front camera feature
to fit more into your shot.
Taking photos and videos of people
• Consider the camera orientation. Use portrait for close-up photos, to fill the frame.
Use landscape for close-up group photos, or to capture an object in the
background.
• Place the camera on a solid surface and use the self-timer
to prevent blurred
photos.
To focus on another face
• Before taking a photo or recording a video, tap one of the frames to select a
face to focus on.
85
This is an internet version of this publication. © Print only for private use.
To take a photo when someone smiles
1 When using the camera, tap .
2 Tap More > Auto capturing or Auto capturing (video) > Smile Shutter.
3 Close the settings menu. The setting is saved for the capturing mode
selected.
4 When a smile is detected, the camera automatically takes a photo.
To take a selfie
1 When using the camera, select a photo or video capturing mode for your
selfie.
2 Tap
to activate the front camera.
3 Tap to select normal angle or tap to select wide angle.
4 Tap if you want to use the self-timer.
5 Tap the shutter button to take a selfie.
Turn on the Soft skin eect to soften skin tones when taking selfies.
Moving objects
When taking photos and recording videos of moving objects, timing is important
for good results.
Object tracking can track a moving object automatically.
Capturing moving objects
• Try not to follow the object. Instead, find a position where the object has to pass in
front of you.
• Consider changing the exposure to a faster shutter speed or a higher ISO to freeze
motion.
To track an object
1 When using the main camera, tap
.
2 Tap More and tap the Object tracking slider to enable.
3 Close the settings menu. The setting is saved.
4 Select an object to track by touching it in the viewfinder.
5 Tap the shutter button to take a photo or record a video.
Resolution and memory
The number of photos and videos you can store depends on the resolution or MP
(megapixel) value used and video length.
High-resolution photos and videos take up more memory, so keep in mind that a
lower resolution can be suitable for everyday use.
Check the memory status from time to time. When the memory is full, you can
transfer photos and videos to another storage device to free up memory. See
Managing files using a computer
on page 39.
Choose whether to store photos and videos on your device's internal storage or on
an SD card using the Data storage option in the camera settings menu.
To change the resolution
1 When using the camera, tap
.
2 Tap Resolution or Video resolution.
3 Select the resolution and close the settings menu. The setting is saved for
the selected capturing mode.
You can set the resolution separately for each capturing mode.
86
This is an internet version of this publication. © Print only for private use.
Photo resolutions
Main camera:
13MP
4224×3136 (4:3). 13 MP resolution with 4:3 aspect ratio. Suitable for photos you
want to view on non-widescreen displays or print in high resolution.
10MP
4208×2368 (16:9). 10 MP resolution with 16:9 aspect ratio. Suitable for photos
you want to view on widescreen displays.
Front camera:
8MP
3264×2448 (4:3). 8 MP resolution with 4:3 aspect ratio. Suitable for photos you
want to view on non-widescreen displays or print in high resolution.
5.8MP
3200×1808 (16:9). 5.8 MP resolution with 16:9 aspect ratio. Suitable for photos
you want to view on widescreen displays.
Video resolutions
HD refers to high definition, while fps refers to frames per second. A higher fps rate
provides a smoother video, at the cost of a larger file size. The aspect ratio is the
relationship between the width and the height, where the width is the first
number.
Main camera:
Full HD (30 fps)
1920×1080 (16:9). Full HD format with 30 fps and 16:9 aspect ratio.
HD
1280×720 (16:9). HD format with 16:9 aspect ratio.
VGA
640×480 (4:3). VGA (Video Graphics Array) format with 4:3 aspect ratio.
MMS
176×144 (11:9). MMS (Multimedia Messaging Service) format with 11:9 aspect
ratio. Record videos suitable for sending in multimedia messages. The recording
time of this video format is limited so that video files can fit in a multimedia
message.
Front camera:
Full HD
1920×1080 (16:9). Full HD format with 16:9 aspect ratio.
HD
1280×720 (16:9). HD format with 16:9 aspect ratio.
VGA
640×480 (4:3). VGA (Video Graphics Array) format with 4:3 aspect ratio.
87
This is an internet version of this publication. © Print only for private use.
MMS
176×144 (11:9). MMS (Multimedia Messaging Service) format with 11:9 aspect
ratio. Record videos suitable for sending in multimedia messages. The recording
time of this video format is limited so that video files can fit in a multimedia
message.
Diagnosing your camera
If your camera isn’t working properly, you can run a diagnostics test to identify if
there is a problem with the main camera, front camera, or flash.
To run a diagnostics test of your camera
1 Be sure you are connected to the internet. When using the camera, tap .
2 Tap More.
3 Tap Help and select Camera, Front camera or Flash.
4 Follow the instructions that appear on your screen.
Additional camera settings
Geotagging
You can save your photos and videos with the location where they were taken—
this is called geotagging. The option to geotag your photos and videos requires a
wireless network and that the GPS function is enabled.
To turn on geotagging
1 When using the camera, tap
.
2 Tap More and tap the Save location slider to enable. The setting is saved.
Geotagging status icons
The geographical position is saved.
The geographical position has not been found.
Grid lines
With Grid lines, you can apply the "Rule of Thirds" and place important objects
along the grid lines or their intersections. By not always having the object in the
middle of the frame, you can make your photos and videos more interesting.
88
This is an internet version of this publication. © Print only for private use.
To activate or deactivate the grid lines
1 When using the camera, tap .
2 Tap More and tap the Grid lines slider to enable or disable. The setting is
saved.
Photo preview settings
You can choose to preview photos as soon as you take them.
To activate or deactivate previewing
1 When using the camera, tap .
2 Tap More > Auto photo preview and select an option. The setting is saved.
Previewing settings
On After you take a photo, a preview appears in the lower right corner
of the screen for three seconds before it is saved.
Only front
camera
After you take a photo with the front camera, a preview appears in
the lower right corner of the screen for three seconds before it is
saved.
O No preview appears. The photo is saved directly.
Dierent ways to use the volume key
You can change the way you use the volume key.
To change how the volume key is used
1 When using the camera, tap
.
2 Tap More > Use Volume key as and select an option. The setting is saved.
Volume key settings
Zoom Use the volume key to zoom in or out.
Volume The volume key is deactivated for the camera.
Shutter Use the volume key as a shutter button for photos and videos.
Sound
When Sound is activated, the camera makes a sound when you take a photo or
when you start or stop a video recording. Additionally, when you use the self-timer
the countdown is indicated by a series of beeps.
To activate or deactivate sound
1 When using the camera, tap
.
2 Tap More and tap the Sound slider to enable or disable. The setting is
saved.
89
This is an internet version of this publication. © Print only for private use.
Photos and videos in Album
Viewing photos and videos
Use the Album application to view photos and play videos that you've taken with
your camera, or to view similar content that you've saved to your device. All photos
and videos are displayed in a chronologically ordered grid.
Album overview
1
Tap to open the Album home screen menu
2 View menu options
3 View a slideshow of your photos and videos
4 Drag the left edge of the screen to the right to open the Album home screen menu
5 View the date of items in the group
6 Tap a photo or video to view it
7 Scroll up or down to view content
To view photos and videos
1 Find and tap Album.
2 Tap a photo or video that you want to view. If prompted, tap
.
3 Flick left to view the next photo or video. Flick right to view the previous
photo or video.
The Album application may not support all
file formats.
You can set the screen to rotate automatically when your device is turned sideways. To
enable or disable this feature, find and tap Settings > Display > When device is rotated.
To change the size of the thumbnails
• When viewing thumbnails of photos and videos in Album, spread two
fingers apart to zoom in, or pinch two fingers together to zoom out.
To zoom a photo
• When you are viewing a photo, spread two fingers apart to zoom in, or pinch two
fingers together to zoom out.
90
This is an internet version of this publication. © Print only for private use.
To Watch a Slideshow of Your Photos
1 When you are viewing a photo, tap the screen to display the toolbars, then
tap > Slideshow to start playing all the photos in an album.
2 Tap a photo to end the slideshow.
To Play a Video
1 In Album, find and tap the video you want to play.
2 Tap .
3 If the playback controls are not displayed, tap the screen to display them. To
hide the controls, tap the screen again.
To Pause a Video
1 When a video is playing, tap the screen to display the controls.
2 Tap
.
To Fast-Forward and Rewind a Video
1 When a video is playing, tap the screen to display the controls.
2 Drag the progress bar marker left to rewind, or right to fast-forward.
To Adjust the Sound Volume of a Video
• Press the volume key up or down.
Album home screen menu
From the Album home screen menu, you can browse your photo albums, including
photos and videos taken using special eects, as well as content that you have
shared online via services such as Picasa™ and Facebook. Once you are logged in
to such platforms, you can manage content and view online images. From the
Album application, you can also add geotags to photos, perform basic editing
tasks, and use methods like Bluetooth wireless technology and email to share
content.
Album menu overview
1
Return to the Album application home screen to view all content
2 View all photos and videos taken with your device's camera
3 View all photos and videos saved on your device in dierent folders
4 View all videos saved on your device
5 View your photos on a map or in Globe view
91
This is an internet version of this publication. © Print only for private use.
6 View your favorite photos and videos
7 View photos and videos that you have hidden from view
8 View short movies of your photos
9 Open the Settings menu for the Album application
10 Open web support
To view photos from online services in Album
1 Find and tap Album, then tap .
2 Tap the desired online service, then follow the on-screen instructions to get
started. All available online albums that you have uploaded to the service
are displayed.
3 Tap any album to view its content, and then tap a photo in the album.
4 Flick left to view the next photo or video. Flick right to view the previous
photo or video.
Sharing and managing photos and videos
You can share photos and videos that are saved on your device. You can also
manage photos in batches or link photos to contacts. To free up space and avoid
unpredictable data loss, regularly transfer your photos and videos to a computer or
external storage device. See
Managing files using a computer
on page 39.
You might not be able to copy, send, or transfer copyright-protected items. Some items may
not send if the file size is too large.
To Share a Photo or Video
1 In Album, find and tap the photo or video you want to share.
2 Tap the screen to display the toolbars, then tap .
3 Tap the application you want to use to share the photo, then follow the steps
to send it.
To use a photo as a contact picture
1 When you are viewing a photo, tap the screen to display the toolbars, then
tap
> Use as > Contact photo.
2 Select a contact, then edit the photo as desired.
3 Tap Save.
To use a photo as wallpaper
1 When you are viewing a photo, tap the screen to display the toolbars, then
tap
> Use as > Wallpaper.
2 Select an option, then edit the photo as desired.
3 Tap Save.
To Rotate a Photo
1 When you are viewing a photo, tap the screen to display the toolbars, then
tap
.
2 Tap Rotate, and then select an option. The photo is saved in the new
orientation.
To Delete a Photo or Video
1 When you are viewing a photo, tap the screen to display the toolbars, then
tap
.
2 Tap DELETE.
92
This is an internet version of this publication. © Print only for private use.
To Work with Batches of Photos or Videos in Album
1 When viewing thumbnails of photos and videos in Album, touch and hold an
item until it’s highlighted.
2 Tap other items you want to work with to select them. If you want to select
all items, tap , then tap Select all.
3 Use the tools in the toolbar to work with your selected items.
Hiding photos and videos
You can hide any photos and videos from the Album homescreen. Once photos
and videos are hidden from the Album homescreen, they can only be viewed from
the Hidden folder.
To Hide a Photo or Video
1 In Album, find and tap the photo or video you want to hide.
2 Tap the screen to display the toolbars, then tap
.
3 Tap Hide > OK.
To View Your Hidden Photos and Videos
1 In Album, tap
, then tap Hidden.
2 Tap a photo or video to view it.
3 Flick left to view the next photo or video. Flick right to view the previous
photo or video.
To Unhide a Photo or Video
1 In Album, tap
, then tap Hidden.
2 Tap a photo or video that you want to unhide.
3 Tap the screen to display the toolbars, then tap
.
4 Tap Don't hide.
93
This is an internet version of this publication. © Print only for private use.
Connectivity
Connecting Your Device to USB Accessories
You can use a USB Type-C host adapter to connect your device to USB accessories
such as USB mass storage devices, game controllers, USB keyboards, and USB
mice. If the USB accessory has a USB Type-C connector, a USB Type-C host adapter
is not necessary.
USB Type-C host adapters are sold separately. Sony does not guarantee that all
USB accessories are supported by your device.
This device has a capless USB Type-C port. If your device gets exposed to water, ensure that
the port is completely dry before connecting a USB Type-C cable.
To access content on a USB mass storage device using a USB Type-C host
adapter
1 Attach the USB Type-C host adapter to your device, then connect the adapter
to the USB mass storage device.
2 Find and tap Settings > Device connection > USB Connectivity.
3 To access files and folders on the USB storage device, use a file manager app
such as File Commander.
You can also open the relevant media application on your device to view content directly.
For example, you can open the Album application to view photos stored on USB mass
storage devices.
To disconnect a USB mass storage device
1 To open the Notification Panel, drag the status bar downward.
2 Tap the drop-down arrow beside Android System.
3 Tap EJECT in the drop-down list.
4 Detach the USB Type-C™ host adapter from your device.
If the notification does not appear, tap Settings > Storage & memory >
> Advanced >
Storage > next to Portable storage.
To connect a USB accessory using a USB Type-C host adapter
1 Attach the USB Type-C host adapter to your device, then connect the adapter
to the USB accessory.
2 Find and tap Settings > Device connection > USB Connectivity.
Additional steps or software may be required to set up game controllers, USB audio, and
USB Ethernet accessories. Sony does not guarantee that all USB accessories are supported
by your device.
To connect a USB Type-C accessory using a USB Type-C connector
1 Attach the USB Type-C connector of the USB Type-C accessory to your
device.
2 Find and tap Settings > Device connection > USB Connectivity.
Sony does not guarantee that all USB Type-C accessories with a USB Type-C connector are
supported by your device.
NFC (Near Field Communication)
Use NFC (Near Field Communication) to share data with other devices, like videos,
photos, web page addresses, music files, or contacts. You can also use NFC to scan
tags that give you more information about a product or service, and tags that
activate certain functions on your device.
NFC is a wireless technology with a maximum range of one centimeter, so the
devices sharing data must be held close to each other. Before you can use NFC,
94
This is an internet version of this publication. © Print only for private use.
you must first turn on the NFC function, and the screen of your device must be
active and unlocked.
The NFC detection area is located on the back of the device. Hold your device close
to another device or an NFC reader so that the NFC detection areas touch.
NFC may not be available in all countries or regions. Using certain apps, some NFC functions
can be enabled even when the device is switched o. Note that not all devices support this
feature.
To enable or disable the NFC function
1 Find and tap Settings > More.
2 Tap the slider to enable or disable NFC.
To share a contact with another device using NFC
1 Make sure that both devices have the NFC function turned on, and that both
screens are active and unlocked.
2 To view contacts, find and tap
.
3 Tap the contact that you want to share.
4 Hold your device and the receiving device close to each other so that the
NFC detection areas of each device touch. When the devices connect, a
thumbnail of the contact appears.
5 Tap the thumbnail to start the transfer.
6 When the transfer is done, the contact information is saved on the receiving
device and displayed on its screen.
To share a music file with another device using NFC
1 Make sure that both your device and the receiving device have the NFC
function turned on, and that both screens are active and unlocked.
2 To open the Music application, find and tap
.
3 Select a music category and browse to the track you want to share.
4 Tap the track to play it. You can then tap to pause the track. The transfer
works whether the track is playing or paused.
5 Make sure the track is displayed on full screen.
6 Hold your device and the receiving device close to each other so the NFC
detection areas of each device touch. When the devices connect, a
thumbnail of the track appears.
7 Tap the thumbnail to start the transfer.
8 When the transfer is done, the music file is saved on the receiving device.
9 To display the music file, drag down the status bar to open the Notification
panel, and then tap Beam complete.
95
This is an internet version of this publication. © Print only for private use.
To share a photo or video with another device using NFC
1 Make sure that both devices have the NFC function turned on, and that both
screens are active and unlocked.
2 To view photos and videos on your device, find and tap Album.
3 Tap the photo or video that you want to share.
4 Hold your device and the receiving device close to each other so that the
NFC detection areas of each device touch. When the devices connect, a
thumbnail of the photo or video appears.
5 Tap the thumbnail to start the transfer.
6 When the transfer is done, the photo or video is saved on the receiving
device.
7 To display the photo or video, drag down the status bar to open the
Notification panel, and then tap Beam complete.
To Share a Web Address With Another Device Using NFC
1 Make sure that both devices have the NFC function turned on, and that both
screens are active and unlocked.
2 To open the web browser, find and tap
.
3 Load the web page that you want to share.
4 Hold your device and the receiving device close to each other so that the
NFC detection areas of each device touch. When the devices connect, a
thumbnail of the web page appears.
5 Tap the thumbnail to start the transfer.
6 When the transfer is done, the web page is displayed on the screen of the
receiving device.
Scanning NFC Tags
Your device can scan various kinds of NFC tags to receive additional information,
such as a web address. For example, it can scan embedded tags on a poster, on a
billboard advertisement, or beside a product in a retail store.
To Scan an NFC Tag
1 Make sure your device has the NFC function turned on and the screen is
active and unlocked.
2 Place your device over the tag so the NFC detection area touches it. Your
device scans the tag and displays the content collected. Tap the content of
the tag to open it.
Connecting to an NFC-Compatible Device
You can connect your device to other NFC-compatible devices produced by Sony,
such as a speaker or a headphone. When establishing this kind of connection, refer
to the User Guide of the compatible device for more information.
You may need to have Wi-Fi or Bluetooth activated on both devices for the connection to
work.
Bluetooth wireless technology
Use the Bluetooth function to send files to other Bluetooth-compatible devices, or
to connect to handsfree accessories. Bluetooth connections work better within 33
feet (10 meters), with no solid objects in between. In some cases, you have to
manually pair your device with other Bluetooth devices.
Interoperability and compatibility among Bluetooth devices can vary.
If you are using a device with multiple users, each user can change the Bluetooth settings,
and the changes aect all users.
96
This is an internet version of this publication. © Print only for private use.
To turn the Bluetooth function on or o
1 Find and tap Settings > Bluetooth.
2 Tap the Bluetooth slider to enable or disable the function.
You can also turn Bluetooth on or o from the Quick settings panel.
Naming your device
You can give your device a name. This name is shown to other devices after you
have turned on the Bluetooth function and your device is set to visible.
To give your device a name
1 Make sure that the Bluetooth function is turned on.
2 Find and tap Settings > Bluetooth.
3 Tap
> Rename this device.
4 Enter a name for your device.
5 Tap RENAME.
Pairing with another Bluetooth device
When you pair your device with another device, you can, for example, connect
your device to a Bluetooth headset or a Bluetooth car kit, and use these other
devices to share music.
Once you pair your device with another Bluetooth device, your device remembers
this pairing. When pairing your device with a Bluetooth device for the first time,
you may need to enter a passcode. Your device will automatically try the generic
passcode 0000. If this does not work, refer to the user guide for your Bluetooth
device to get the device passcode. You do not need to re-enter the passcode the
next time you connect to a previously paired Bluetooth device.
Some Bluetooth devices, for example, most Bluetooth headsets, require you to both pair
and connect with the other device.
You can pair your device with several Bluetooth devices, but you can only connect to one
Bluetooth profile at the same time.
To pair your device with another Bluetooth device
1 Make sure that the device you want to pair with has the Bluetooth function
activated and is visible to other Bluetooth devices.
2 Find and tap Settings > Bluetooth.
3 Tap the Bluetooth slider to enable the function. A list of the available
Bluetooth devices appears.
4 Tap the Bluetooth device that you want to pair with.
5 Enter a passcode, if required, or confirm the same passcode on both devices.
6 Tap PAIR.
To connect your device to another Bluetooth device
1 Find and tap Settings > Bluetooth.
2 Tap the Bluetooth device that you want to connect to.
To unpair a Bluetooth device
1 Find and tap Settings > Bluetooth.
2 Under Paired devices, tap
beside the name of the device that you want to
unpair.
3 Tap FORGET.
Sending and receiving items using Bluetooth technology
Use Bluetooth technology to share items with other Bluetooth compatible devices
like phones or computers. You can send and receive the following kinds of items:
• Photos and videos
97
This is an internet version of this publication. © Print only for private use.
• Music and other audio files
• Web pages
To send items using Bluetooth
1 Ensure the Bluetooth function is turned on for the receiving device, and that
the device is visible to other Bluetooth devices.
2 Open the application on the sending device that contains the item that you
want to send. Scroll to the item.
3 Depending on the app and the item you want to send, you may need to
touch and hold or open the item, then tap .
4 Select Bluetooth.
5 Turn on Bluetooth if prompted.
6 Tap the name of the receiving device.
7 On the receiving device, accept the connection if prompted.
8 On the sending device, confirm the transfer to the receiving device, if
prompted.
9 Accept the incoming item on the receiving device.
To receive items using Bluetooth
1 Ensure the Bluetooth function is on and is visible to other Bluetooth devices.
2 The sending device now starts sending data to your device.
3 If prompted, enter the same passcode on both devices, or confirm the
suggested passcode.
4 When you are notified of an incoming file to your device, drag the status bar
downward and tap the notification to accept the file transfer.
5 Tap Accept to start the file transfer.
6 To view the progress of the transfer, drag the status bar downward.
7 To open a received item, drag the status bar downward and tap the relevant
notification.
To view files you have received using Bluetooth
1 Find and tap Settings > Bluetooth.
2 Tap
and select Show received files.
98
This is an internet version of this publication. © Print only for private use.
Smart Apps and Features That Save
You Time
Google Feed
Use the Google app to search the internet. You can also enable a feed for regular
updates, for example, you can get trac information before commuting to work,
find popular restaurants in your area, see your favorite team's current score, and
more. The app can be accessed by tapping in the application list, or you can
reserve a pane on your Home screen for quick access and easy reading.
To reserve a pane on the Home screen for Google Feed
1 Touch and hold any area on your Home screen.
2 Tap
, then tap the Google feed slider.
3 You can now swipe to the left-most pane on the Home screen to access the
Google Feed interface.
If you reserve the left-most pane for Google Feed, the main Home screen pane cannot be
changed and additional panes cannot be added to the left. Only the left-most pane can be
reserved.
To enable or disable data usage for Your feed
1 Find and tap Settings > Google > Search > Your feed.
2 Tap the Data Saver slider to enable or disable data usage for Your feed.
Using your device as a wallet
You can use your device to pay for goods without reaching for your real wallet and
manage all payment services in one place. When making a payment, remember to
turn on the NFC function before you touch your device to a card reader. For more
information about NFC, see
NFC (Near Field Communication)
on page 94.
Mobile payment services may not be available in your region. For Dual SIM devices, NFC-
initiated payments are only supported for an NFC-enabled SIM card inserted in SIM card slot
1.
To manage payment services
1 Make sure NFC is enabled on your device.
2 Find and tap Settings > More > Tap & pay. A list of payment services
appears.
3 Manage the payment services as desired. For example, you can change your
default payment service.
Xperia Actions
Use Xperia Actions to customize phone settings for dierent circumstances. You
can select and schedule separate phone settings for nighttime, specific days,
hours, or locations, and when you travel abroad. For example, have your device
automatically turn on Flight or Do Not Disturb mode for times when you do not
want to receive notifications. You can also set which apps use data when roaming,
or have STAMINA mode automatically turn on when you travel abroad.
99
This is an internet version of this publication. © Print only for private use.
To activate Good night actions
1 Find and tap Settings > Assist > Xperia™ Actions.
2 Tap Good night.
3 Tap the time interval. Select the time interval you want to edit, or tap to
add a new time interval. Select the desired days and time, then tap DONE.
4 Tap , then tap and mark the checkboxes as desired.
5 Tap Save.
6 Tap the sliders to enable or disable the functions.
You can also add your location for a more accurate experience.
To activate Focus actions
1 Find and tap Settings > Assist > Xperia™ Actions.
2 Tap Focus.
3 Tap the time interval. Select the time interval you want to edit, or tap
to
add a new time interval. Select the desired days and time, then tap DONE.
4 Tap
, then tap and mark the checkboxes as desired.
5 Tap Save.
6 Tap the sliders to enable or disable the functions.
You can also add your location for a more accurate experience.
To activate Commute actions
1 Find and tap Settings > Assist > Xperia™ Actions.
2 Tap Commute.
3 Tap the time interval. Select the time interval you want to edit, or tap
to
add a new time interval. Select the desired days and time, then tap DONE.
4 Tap
, then tap and mark the checkboxes as desired.
5 Tap Save.
6 Tap the sliders to enable or disable the functions.
You can also add your location for a more accurate experience.
To activate Gaming actions
1 Find and tap Settings > Assist > Xperia™ Actions.
2 Tap Gaming.
3 Tap
and mark the checkboxes as desired, then tap No apps selected and
select the games you wish to use the settings for.
4 Tap Save.
5 Tap the sliders to enable or disable the functions.
To activate Abroad actions
1 Find and tap Settings > Assist > Xperia™ Actions.
2 Tap Abroad.
3 Tap
and mark the checkboxes as desired.
4 Tap Save.
5 Tap the sliders to enable or disable the functions.
100
This is an internet version of this publication. © Print only for private use.
Clock and Calendar
Calendar
Use the Calendar application to manage your time schedule. If you have signed in
to and synchronized your device with one or several online accounts that include
calendars, like your Google account, then calendar events from these accounts will
also appear in the Calendar application. You can select which calendars you want
to integrate into the combined Calendar view.
When an appointment time approaches, your device plays a notification sound to
remind you. Also,
appears in the status bar.
Calendar overview
1
Select a view type and the calendars you want to view
2
Access an overview of the current month
3
Return to the current date
4
Access other options
5
Scroll up or down to browse the calendar
6
Add a calendar entry
To Learn More about Calendar
• When the Calendar application is open, tap , then find and tap Help &
feedback.
Clock
You can set one or several alarms and use any sound saved on your device as the
alarm signal. The alarm does not sound if your device is turned o.
The alarm time format displayed is the same as the format you select for your
general time settings, for example, 12 hour or 24 hour.
101
This is an internet version of this publication. © Print only for private use.
Clock overview
1
Access the Alarm tab
2
Access the World clock tab
3
Access the Stopwatch tab
4
Access the Timer tab
5
View options for the current tab
6
Open date and time settings
7
Turn an alarm on or o
8
Add a new alarm
To set a new alarm
1 Find and tap Clock.
2 Tap
.
3 Tap Time and select the desired value.
4 Tap OK.
5 If desired, edit other alarm settings.
6 Tap Save.
To snooze an alarm when it sounds
• When the alarm sounds, tap SNOOZE.
To Turn O an Alarm When It Sounds
• Drag
to the right.
To turn
o a snoozed alarm, you can drag down the status bar to open the Notification
panel, then tap .
To Edit an Existing Alarm
1 Find and tap Clock, then tap the alarm that you want to edit.
2 Make the desired changes.
3 Tap Save.
102
This is an internet version of this publication. © Print only for private use.
To Turn an Alarm On or O
• Find and tap Clock, and then tap the slider for the alarm you want to turn on
or o.
To Delete an Alarm
1 Find and tap Clock, and then touch and hold the alarm you want to delete.
2 Tap Delete alarm, and then tap YES.
To set the sound for an alarm
1 Find and tap Clock, then tap the alarm that you want to edit.
2 Tap Alarm sound and select an option, or tap and select a music file.
3 Tap DONE, then tap Save.
To Adjust the Volume Level for an Alarm
1 Find and tap Clock, then tap the alarm that you want to edit.
2 Drag the volume slider under Alarm volume to the desired position.
3 Tap Save.
To Set a Recurring Alarm
1 Find and tap Clock, then tap the alarm that you want to edit.
2 Tap Repeat.
3 Mark the checkboxes for the relevant days, and then tap OK.
4 Tap Save.
To Activate the Vibrate Function for an Alarm
1 Find and tap Clock, then tap the alarm that you want to edit.
2 Tap the Vibrate slider to enable or disable the function.
3 Tap Save.
To Set the Side Keys Behavior
1 Find and tap Clock, and then select the alarm you want to edit.
2 Tap Side keys behavior, and then select the desired behavior of side keys
when they are pressed during the alarm.
3 Tap Save.
103
This is an internet version of this publication. © Print only for private use.
Accessibility
Magnification
Magnification gesture allows you to zoom in to parts of the screen by tapping an
area of the touchscreen three times in succession.
To enable or disable magnification gesture
1 Find and tap Settings > Accessibility > Magnification gesture.
2 Tap the slider under Magnification gesture.
To Magnify an Area and Pan Across the Screen
1 Make sure Magnification gesture is enabled.
2 To temporarily magnify an area, tap it three times.
3 Move the area by dragging it with two or more fingers.
4 To exit zoom mode, tap the area three times again.
With certain applications, you can also zoom in or out by pinching an area.
Font size
You can enable the Font size option to increase the default size of text displayed
on your device.
To set Font size
1 Find and tap Settings > Accessibility.
2 Tap Font size, and then set the desired font size by tapping the scale.
Display Size
You can use the Display size setting to increase or decrease all elements on your
screen, not just text.
To set display size
1 Find and tap Settings > Accessibility.
2 Tap Display size, and then set the desired display size by tapping the scale.
Color correction
The Color correction setting adjusts how colors are displayed on the screen for
users who are color blind or have diculty distinguishing between colors.
To enable or disable Color correction
1 Find and tap Settings > Accessibility > Color correction.
2 Tap the slider under Color correction to enable or disable the function.
3 Tap Correction mode, and then select the appropriate color sensitivity.
Color correction is currently an experimental feature and may
aect device performance.
TalkBack
TalkBack is a screen reader service for visually impaired users. TalkBack uses
spoken feedback to describe any events or actions performed on your Android
device. TalkBack describes the user interface and reads out software errors,
notifications, and messages.
104
This is an internet version of this publication. © Print only for private use.
To enable TalkBack
1 Find and tap Settings > Accessibility > TalkBack.
2 Tap the slider and then tap OK.
To change speech, feedback, and touch preferences for TalkBack, tap Settings, then tap the
screen twice.
TalkBack launches a tutorial immediately after you enable the feature. To exit the tutorial,
tap , then tap the screen twice.
To disable TalkBack
1 Find and tap Settings, then tap anywhere on the screen twice.
2 Find and tap Accessibility by scrolling through the list with two or more
fingers, then tap anywhere on the screen twice.
3 Find and tap TalkBack by scrolling through the list with two or more fingers,
then tap anywhere on the screen twice.
4 Tap the on-o switch, and then tap anywhere on the screen twice.
5 Tap OK, and then tap anywhere on the screen twice.
Mono audio
The Mono audio setting plays back both the left and right audio channels
simultaneously when playing audio. Using Mono instead of Stereo playback is
most useful for users with certain types of hearing loss or for safety reasons, for
example when you need to listen to your surroundings.
To enable or disable Mono audio
1 Find and tap Settings > Accessibility.
2 Tap the slider beside Mono audio to enable or disable this function.
Switch Access
With Switch Access, you can interact with your Xperia device using one or more
switches. A switch is a device used to send a keystroke signal to your Android
device. These can be helpful for users with mobility limitations. For more
information about Switch Access, see Settings > Accessibility > Switch Access >
SETTINGS > Help & feedback.
To enable or disable Switch Access
1 Find and tap Settings > Accessibility > Switch Access.
2 Tap the slider to enable or disable the function, then tap OK.
3 Follow the on-screen instructions, then tap Finish.
105
This is an internet version of this publication. © Print only for private use.
Support and Legal
Support application
Use the Support app to find device and software information. You can read
support topics, troubleshoot, or use helpful apps like the device test. Visit our web
support directly from the app to read User guides and knowledge articles, or visit
the Support forum.
Support contact information is available from the Contact us menu even without a network
connection.
To access the Support app
• Find and tap Settings >
.
Connect to the internet when using the Support application for the best available support.
Restarting, Resetting, and Repairing
You can force your device to restart or shut down if it stops responding or won't
restart normally. No settings or personal data get deleted.
You can also reset your device to its original factory settings. This action is
sometimes necessary if your device stops functioning properly, but note that if you
want to keep any important data, you should first back up this data to a memory
card or other non-internal memory. For more information, see
Backing up and
restoring content
on page 41.
If your device fails to turn on or you want to reset your device’s software, you can
use Xperia Companion to repair your device. For more information on using Xperia
Companion, see
Xperia Companion
on page 38.
If you are sharing a device with multiple users, you may need to log in as the owner, that is,
the primary user, to reset your device to its original factory settings.
To Restart Your Device
Your device may fail to restart if the battery level is low. Connect your device to a charger
and try restarting again.
1 Press and hold down the power key .
2 In the menu that opens, tap Restart. The device restarts automatically.
To force your device to shut down
• Press and hold the power key
and the volume key at the same time for 6
seconds. Your device vibrates once and shuts down.
To perform a factory data reset
To avoid permanent damage to your device, do not interrupt a factory data reset procedure.
1 Back up any important data that is saved on the internal memory of your
device to a memory card or other non-internal memory. If you have any
encrypted files stored on an SD card, you should also remove the encryption
to ensure you can still access them after the reset.
2 Find and tap Settings > Backup & reset > Factory data reset.
3 Tap Reset phone.
4 If required, draw your screen unlock pattern or enter your screen unlock
password or PIN to continue.
5 To confirm, tap Erase everything.
Your device does not revert to an earlier software version of Android™ when you perform a
factory data reset.
106
This is an internet version of this publication. © Print only for private use.
Repairing the device software
If you forget your screen unlock password, PIN, or pattern, you can use the device
repair feature in Xperia Companion to erase the security layer. You need to provide
your Google account login details to perform this operation. By running the repair
feature, you reinstall software for your device and you may lose some personal
data in the process.
If your device seems to have frozen, restarts repeatedly, or doesn’t start at all after
you’ve updated the Xperia software or after you’ve performed a software repair or
a factory data reset, try forcing the device to shut down then try turning it back on.
If the problem still exists, force the device to shut down, then perform a software
repair.
To find out the recovery time, visit Google’s support page
http://support.google.com
.
When you receive a new Google account username or password, you might not be able to
use them to log in.
To repair the device software using Xperia Companion
Before performing a software repair, make sure you know your Google account username
and password. Depending on your security settings, you may need to enter them in order to
restart the device after a software repair.
1 Ensure Xperia Companion is installed on your PC or Mac.
2 Open the Xperia Companion software on the computer and click Software
repair on the main screen.
3 Follow the instructions that appear on the screen to reinstall the software
and complete the repair.
Warranty, SAR, and usage guidelines
For information about warranty, SAR (Specific Absorption Rate), and safety
guidelines, please read the Important information provided under Settings > About
phone > Legal information on your device.
Legal information
Sony H3311/H3321/H4311/H4331
This User guide is published by Sony Mobile Communications Inc. or its local aliated company, without
any warranty. Improvements and changes to this User guide necessitated by typographical errors,
inaccuracies of current information, or improvements to programs and/or equipment, may be made by
Sony Mobile Communications Inc. at any time and without notice. Such changes will, however, be
incorporated into new editions of this user guide. All illustrations are for illustrative purposes only and may
not accurately depict the actual device.
All product and company names mentioned herein are the trademarks or registered trademarks of their
respective owners. All other trademarks are property of their respective owners. Any rights not expressly
granted herein are reserved. Visit
www.sonymobile.com/us/legal/
for more information.
This User guide may reference services or applications provided by third parties. Use of such programming
or services may require separate registration with the third-party provider, payment of fees, or provision of
credit card information, as well as be subject to additional terms of use, change, interruption, or
discontinuance at any time. For applications accessed on or through a third-party website, please review
such websites' terms of use and applicable privacy policy in advance. Sony does not warrant or guarantee
the availability or performance of any third-party application, websites, or oered services.
Your device has the capability to download, store, and forward additional content, for example, ringtones.
The use of such content may be restricted or prohibited by rights of third parties, including, but not limited
to, restriction under applicable copyright laws. You, and not Sony, are entirely responsible for additional
content that you download to or forward from your device. Prior to your use of any additional content,
please verify that your intended use is properly licensed or is otherwise authorized. Sony does not
guarantee the accuracy, integrity or quality of any additional content or any other third-party content.
Under no circumstances will Sony be liable in any way for your improper use of additional content or other
third-party content.
This product is licensed under the MPEG-4 visual and AVC patent portfolio licenses for the personal and
non-commercial use of a consumer for; (i) encoding video in compliance with the MPEG-4 visual standard
("MPEG-4 video") or the AVC standard ("AVC video"); and/or (ii) decoding MPEG- 4 or AVC video that was
encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a
video provider licensed by MPEG LA to provide MPEG-4 and/or AVC video. No license is granted or shall be
implied for any other use. Additional information, including that relating to promotional, internal and
commercial uses and licensing may be obtained from MPEG LA, L.L.C. See
www.mpegla.com
. MPEG Layer-3
audio decoding technology licensed from Fraunhofer IIS and Thomson.
SONY MOBILE WILL NOT BE LIABLE FOR ANY LOSS, DELETION AND/OR DATA OVERWRITING OF PERSONAL
DATA OR FILES STORED ON YOUR DEVICE (INCLUDING BUT NOT LIMITED TO CONTACTS, MUSIC TRACKS, AND
107
This is an internet version of this publication. © Print only for private use.
PICTURES) ARISING OUT OF ANY UPDATE OF YOUR DEVICE BY ANY OF THE METHODS DESCRIBED IN THIS
USER GUIDE OR DOCUMENTATION. IN NO EVENT WILL SONY MOBILE OR ITS SUPPLIERS’ TOTAL LIABILITY TO
YOU FOR ANY AND ALL DAMAGES, LOSSES AND CAUSES OF ACTION (WHETHER IN CONTRACT OR TORT,
INCLUDING, BUT NOT LIMITED TO NEGLIGENCE OR OTHERWISE) EXCEED THE AMOUNT ACTUALLY PAID BY
YOU FOR YOUR DEVICE.
© 2018 Sony Mobile Communications Inc.
All rights reserved.
108
This is an internet version of this publication. © Print only for private use.
