SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT.
Plasma Display
September 2004 Digital Media Division
YK
No.013E
SERVICE MANUAL
32PD7800
42PD7800
(PW2)
Be sure to read this manual before servicing. To assure safety from fire, electric shock, injury, harmful radiation
and materials, various measures are provided in this HITACHI Plasma display.
Be sure to read cautionary items described in the manual to maintain safety before servicing.
Caution
1. Features --------------------------------------------------3
2. Specifications --------------------------------------------4
3. Service point ---------------------------------------------5
4. Component names -------------------------------------6
5. New adoption technology -----------------------------7

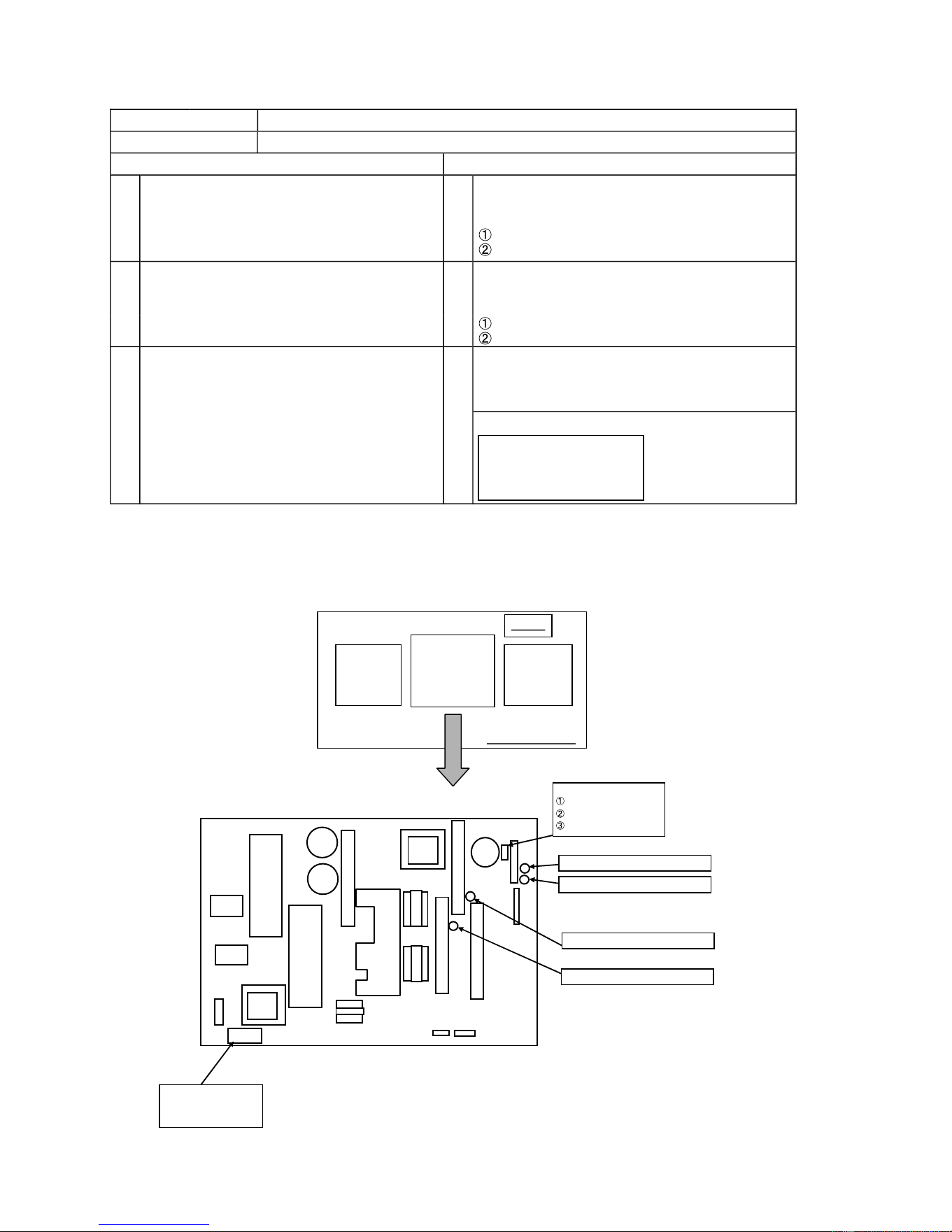

6. Adjustment --------------------------------------------- 11

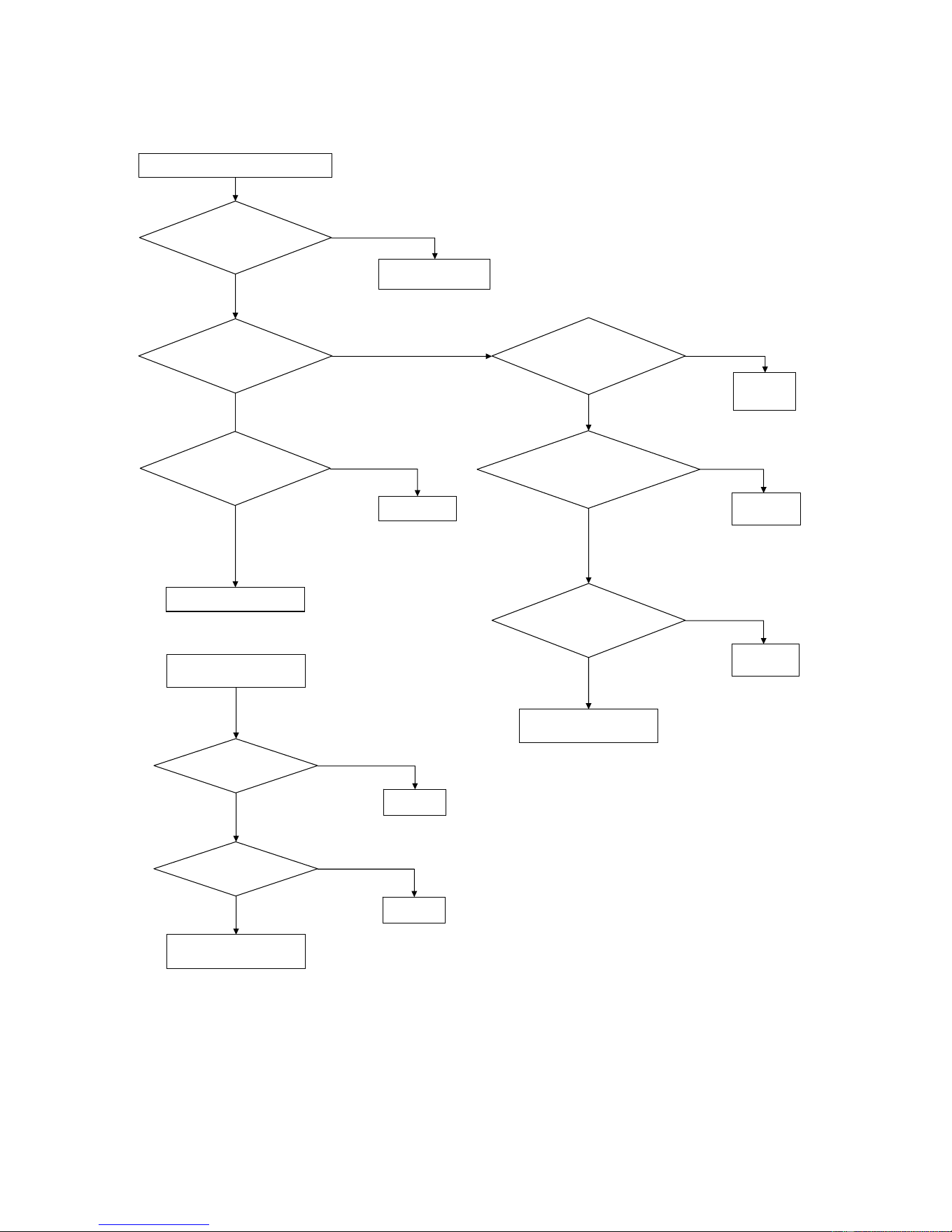

7. Troubleshooting --------------------------------------- 31
8. Self-diagnosis function ------------------------------ 41

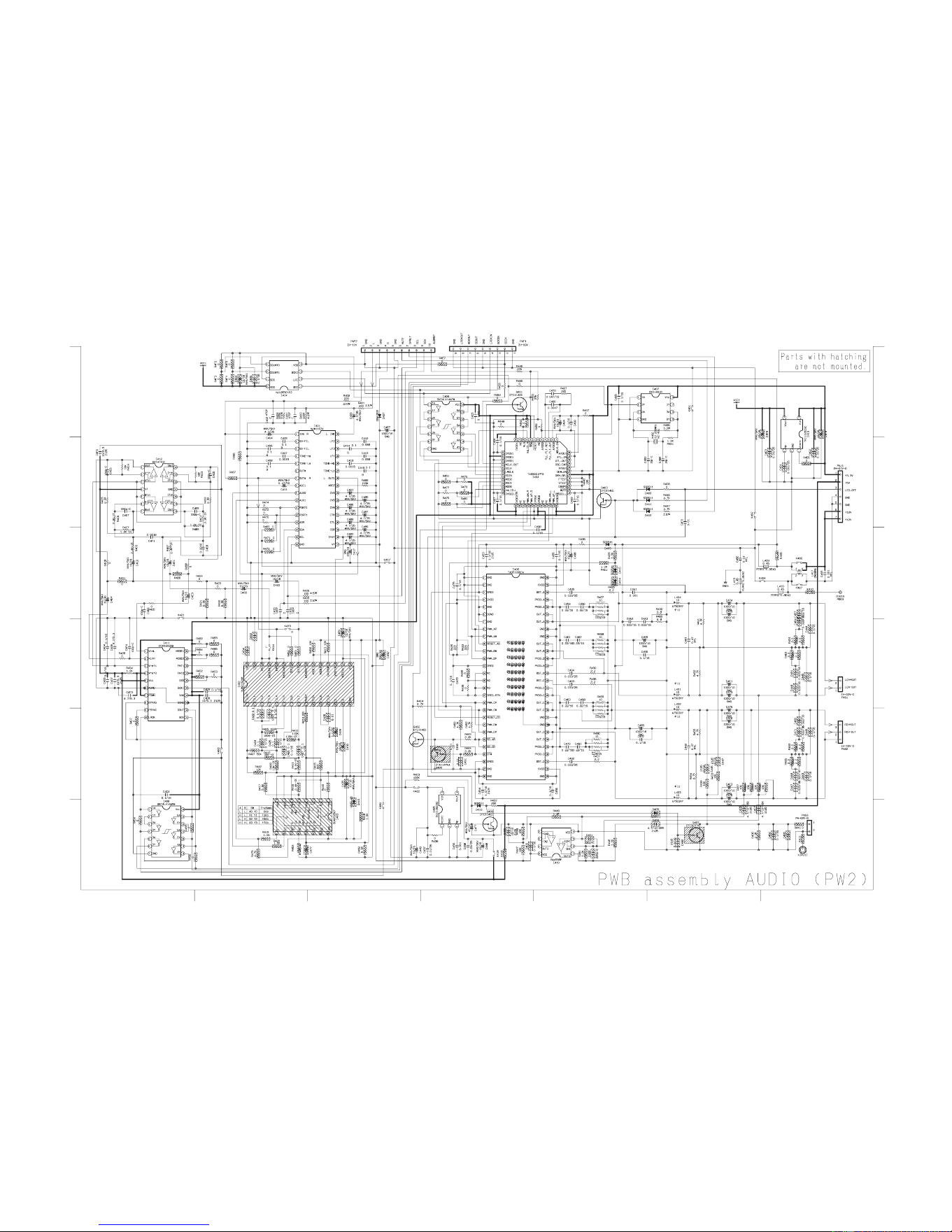

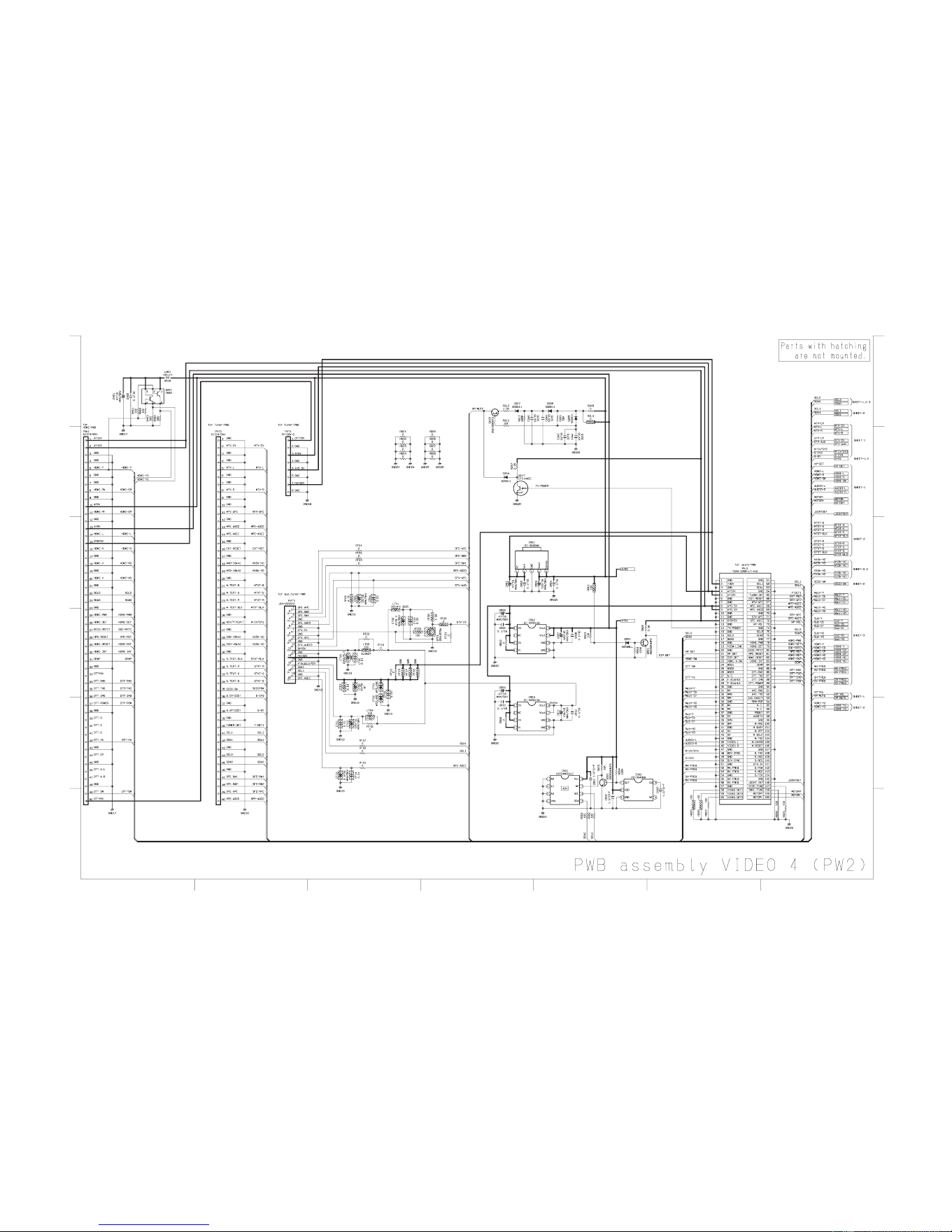

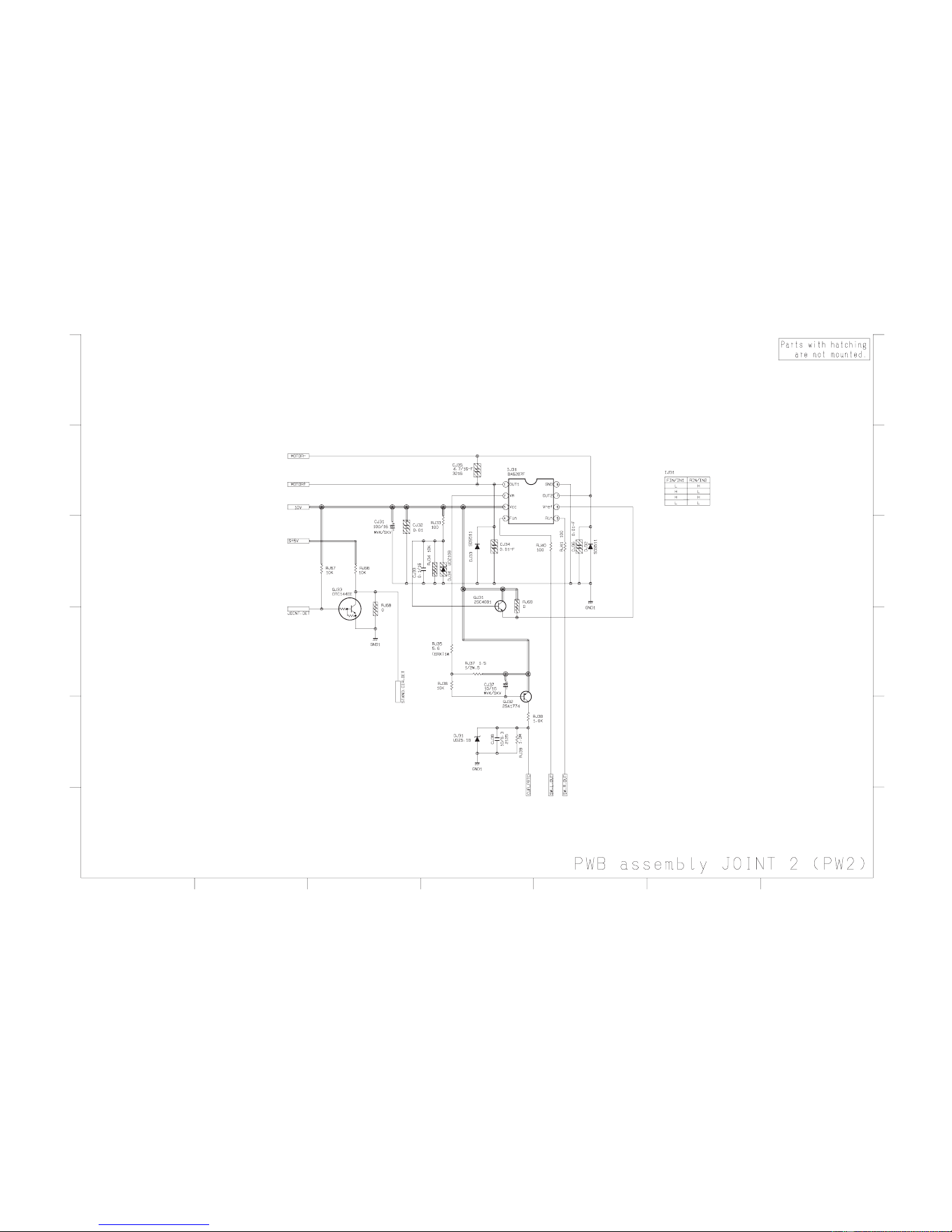

9. Basic circuit diagram --------------------------------- 43

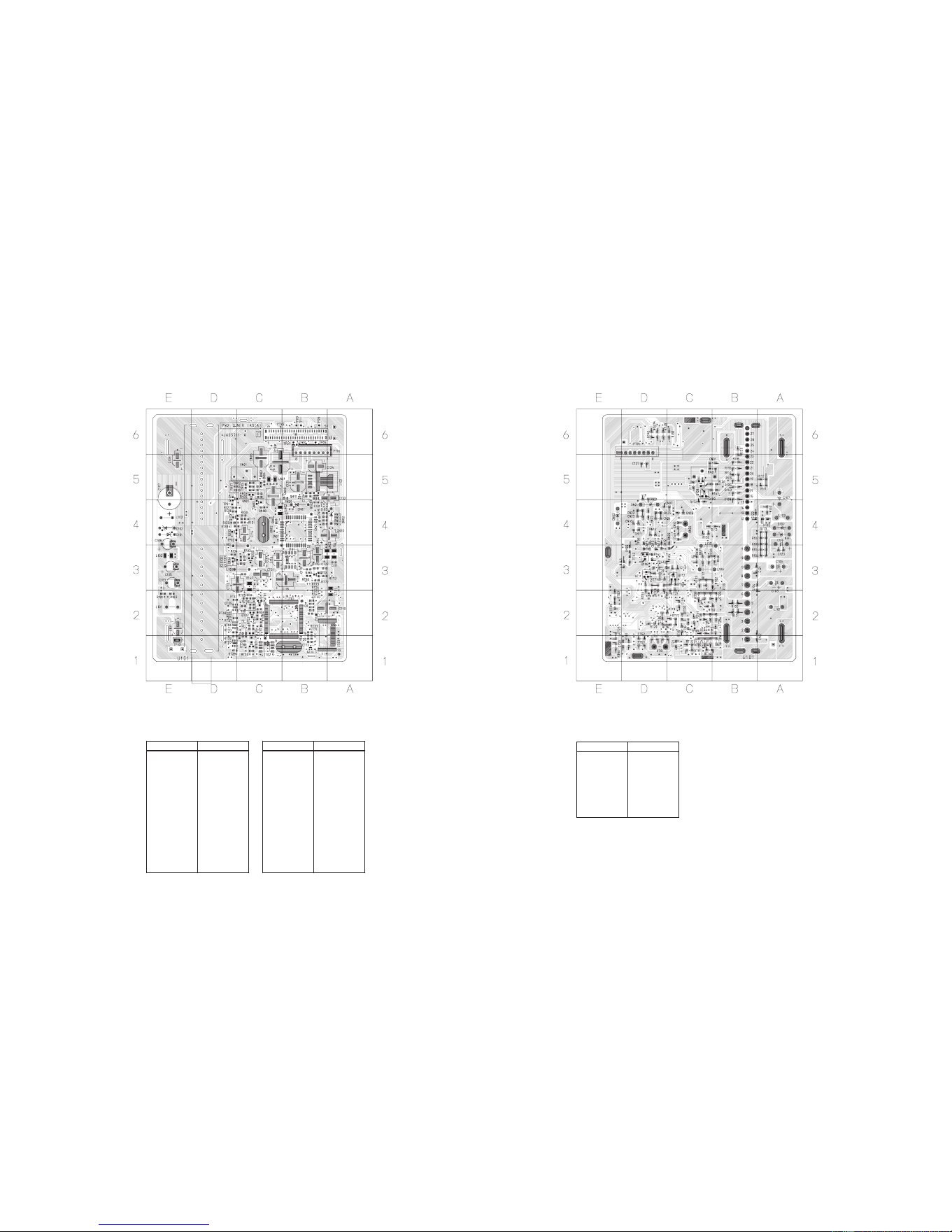

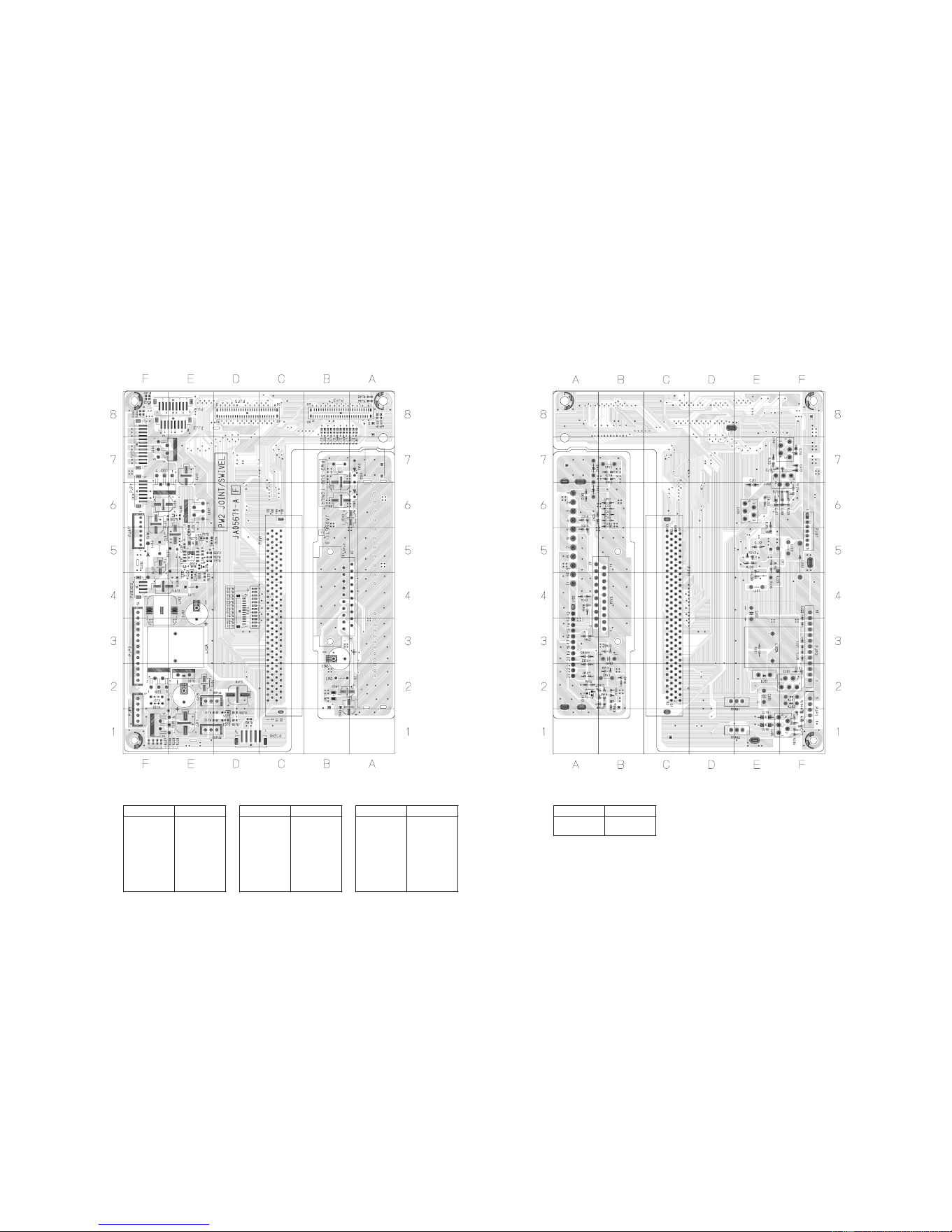

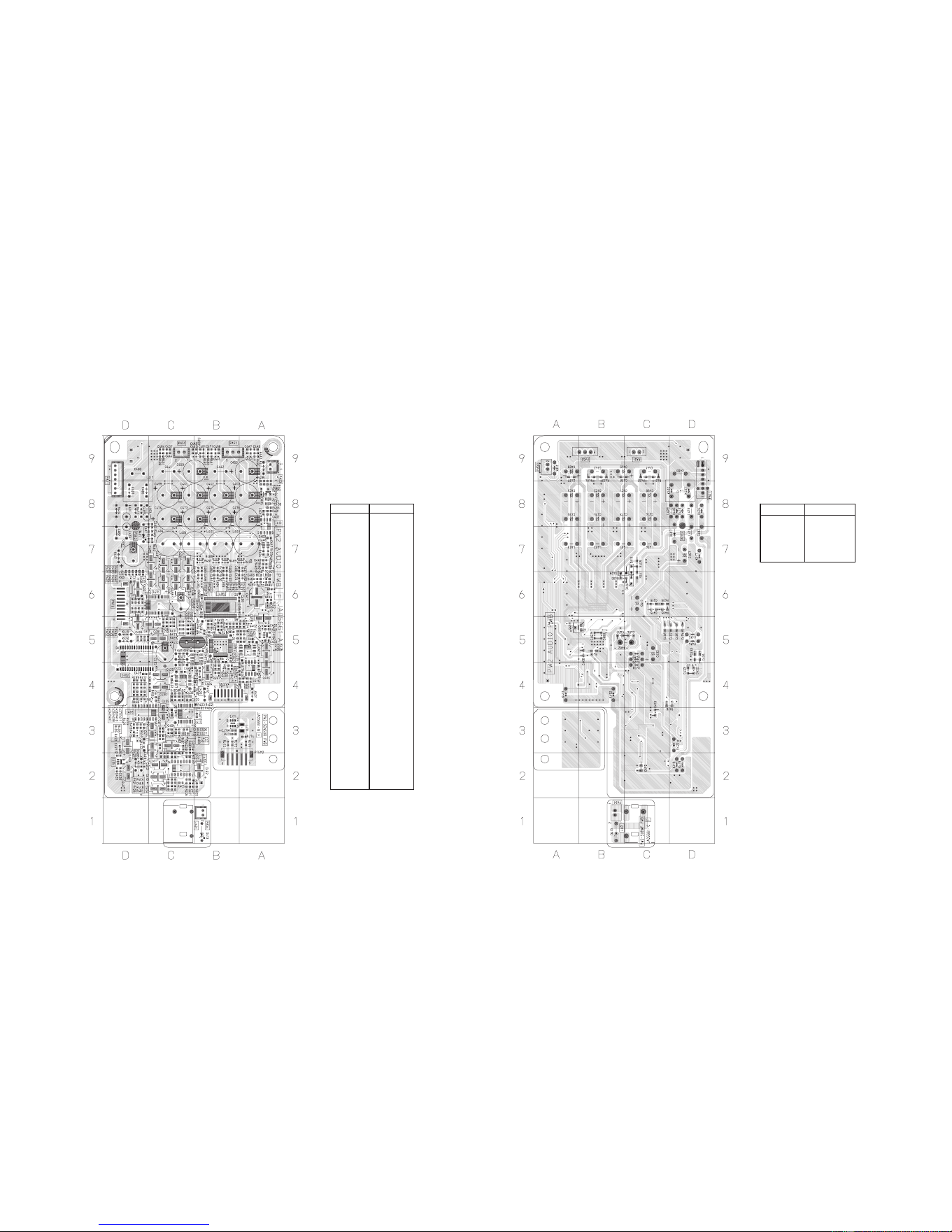

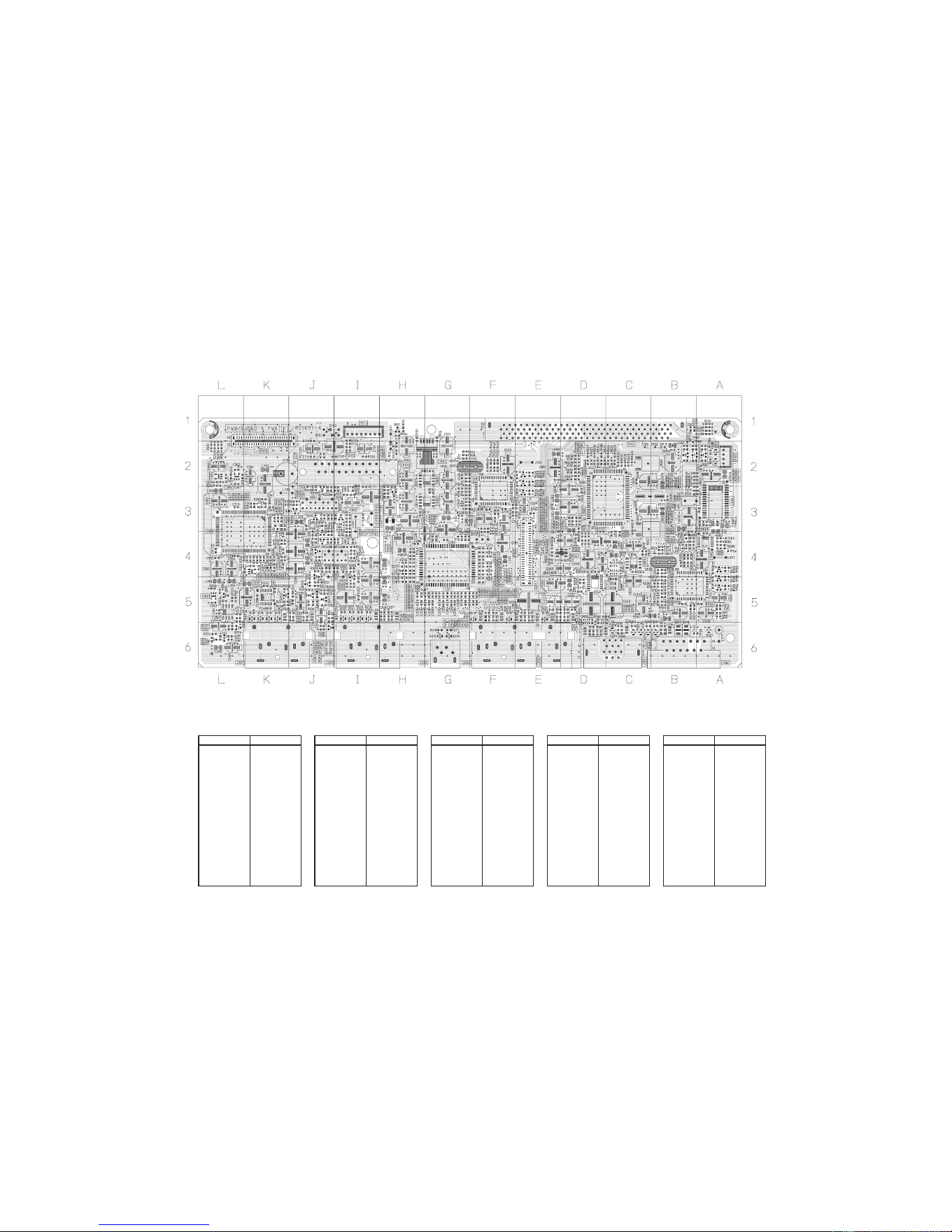

10. Printed wiring board diagram ---------------------- 55

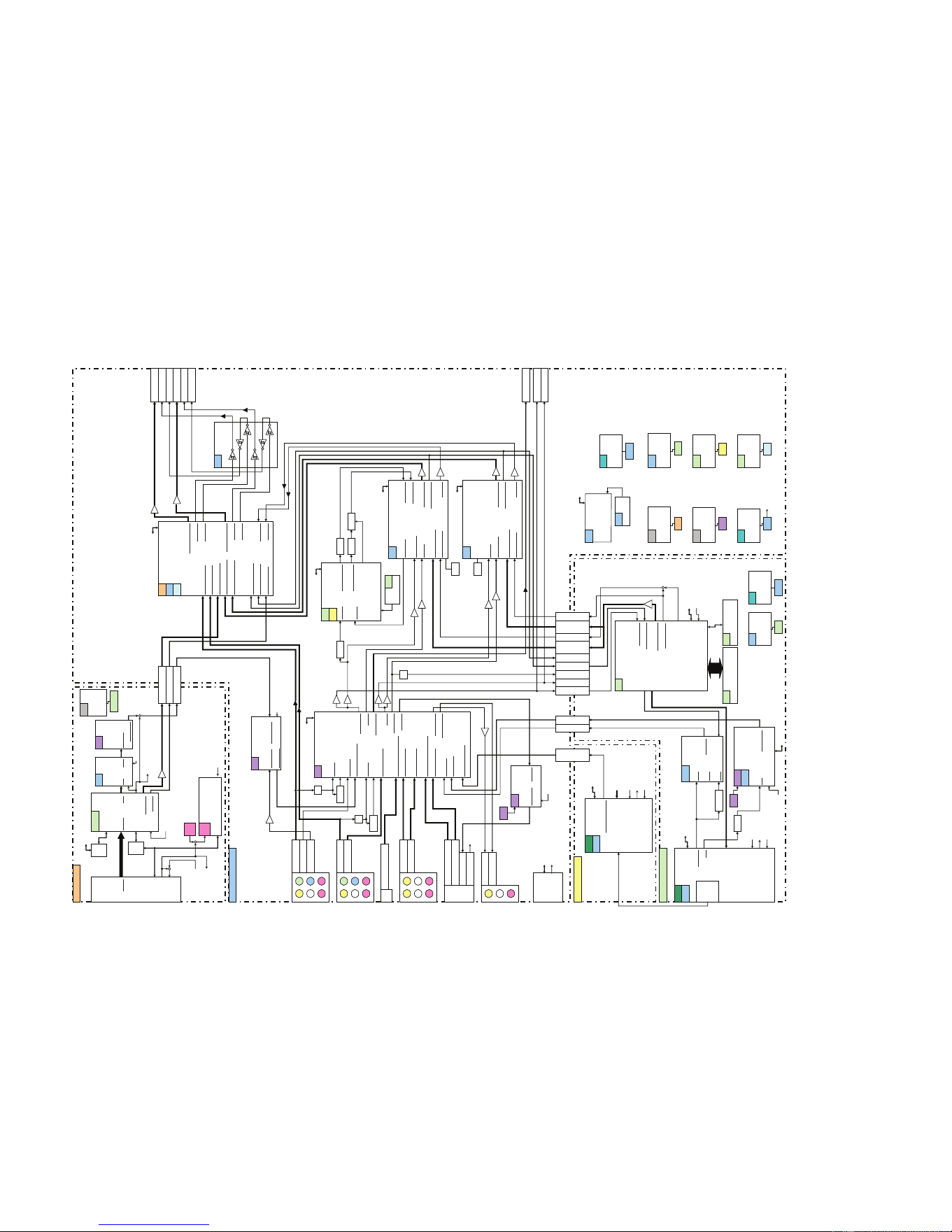

11. Block diagram ----------------------------------------- 61

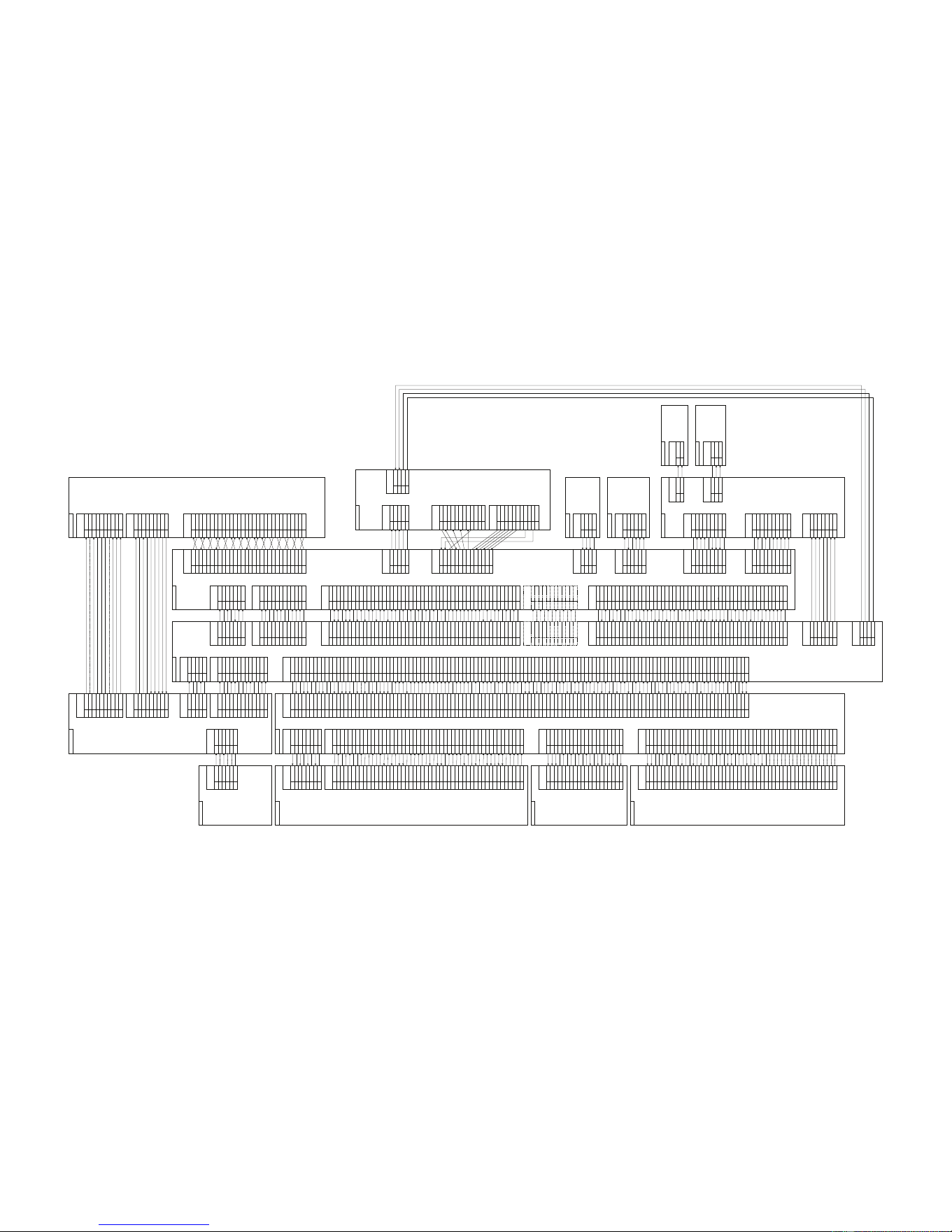

12. Connection diagram --------------------------------- 62

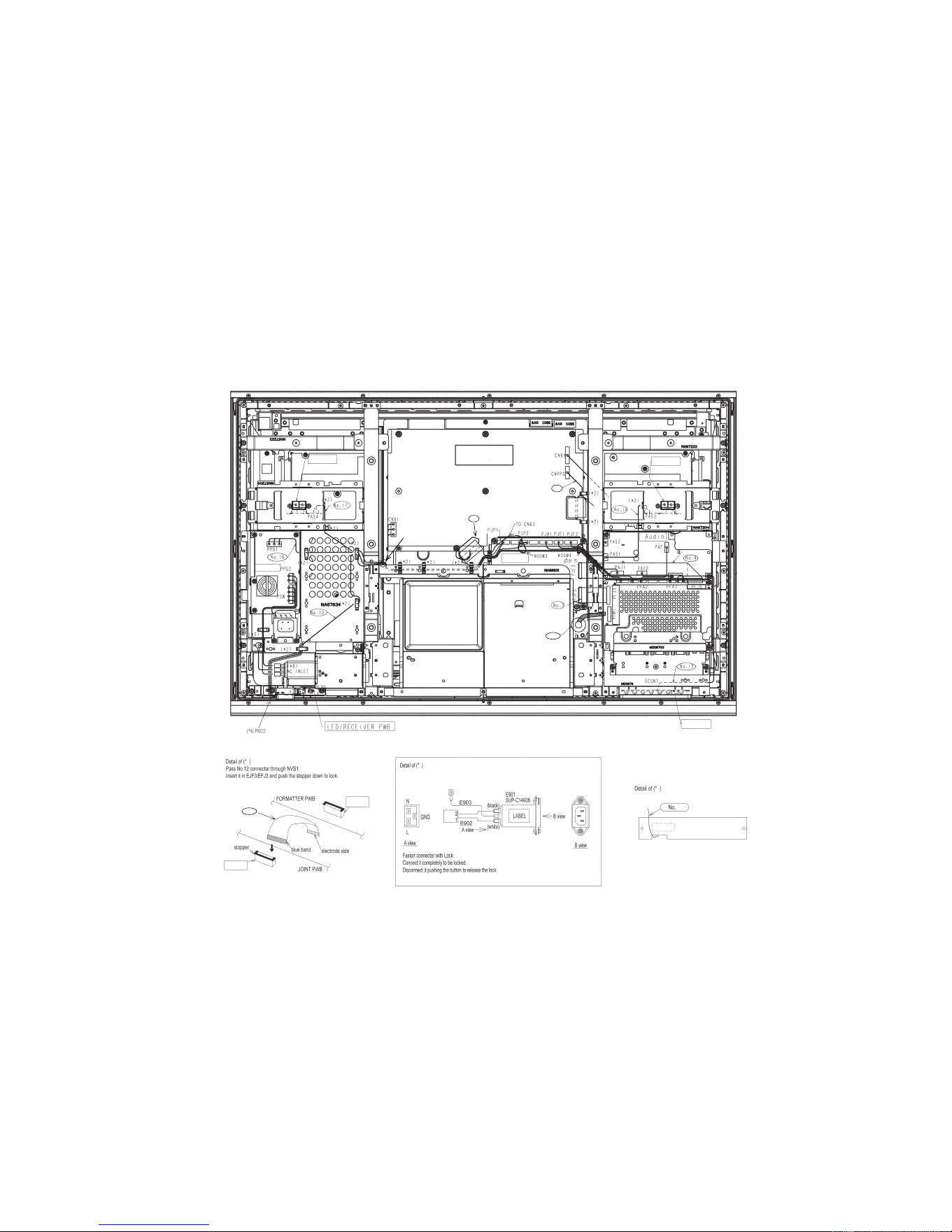

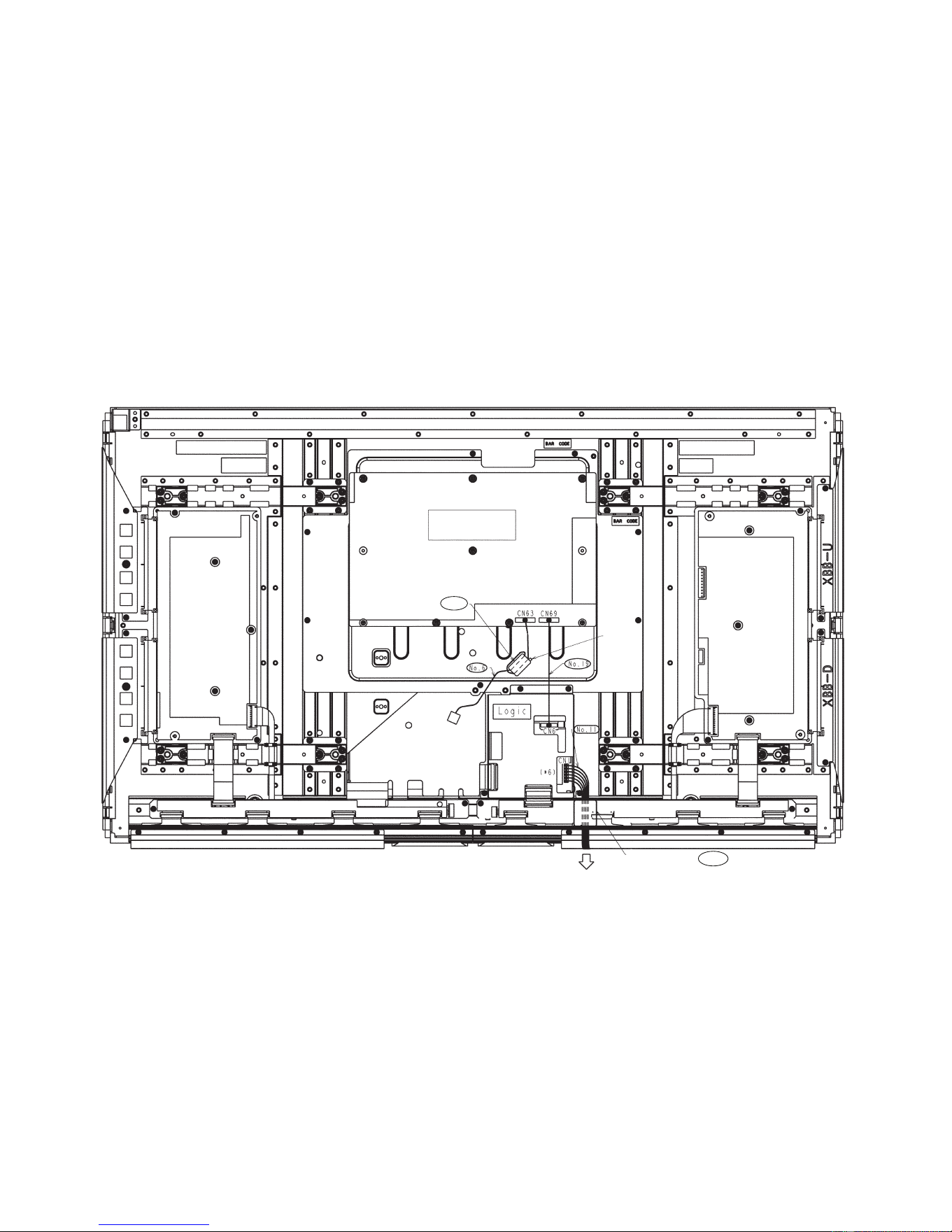

13. Wiring diagram ---------------------------------------- 63

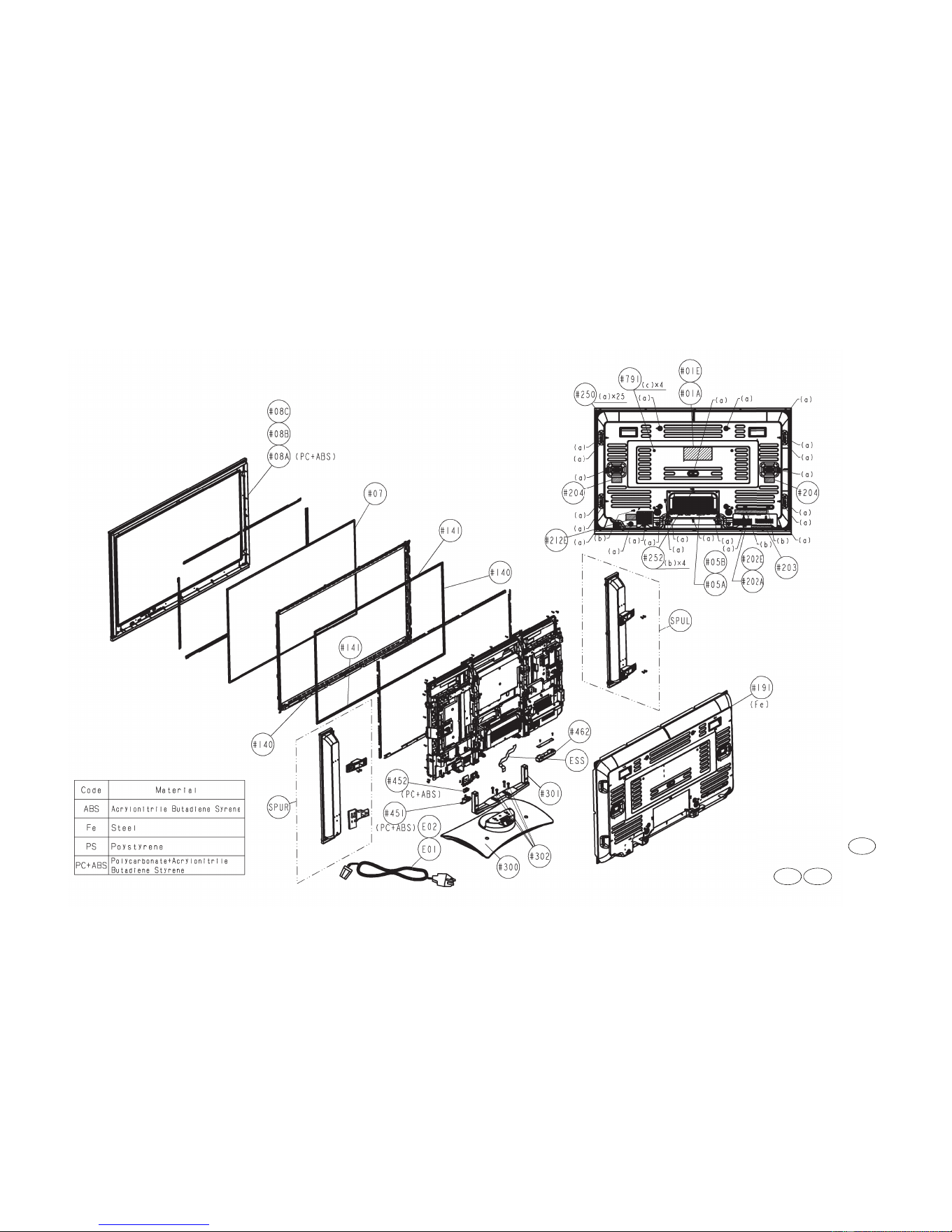

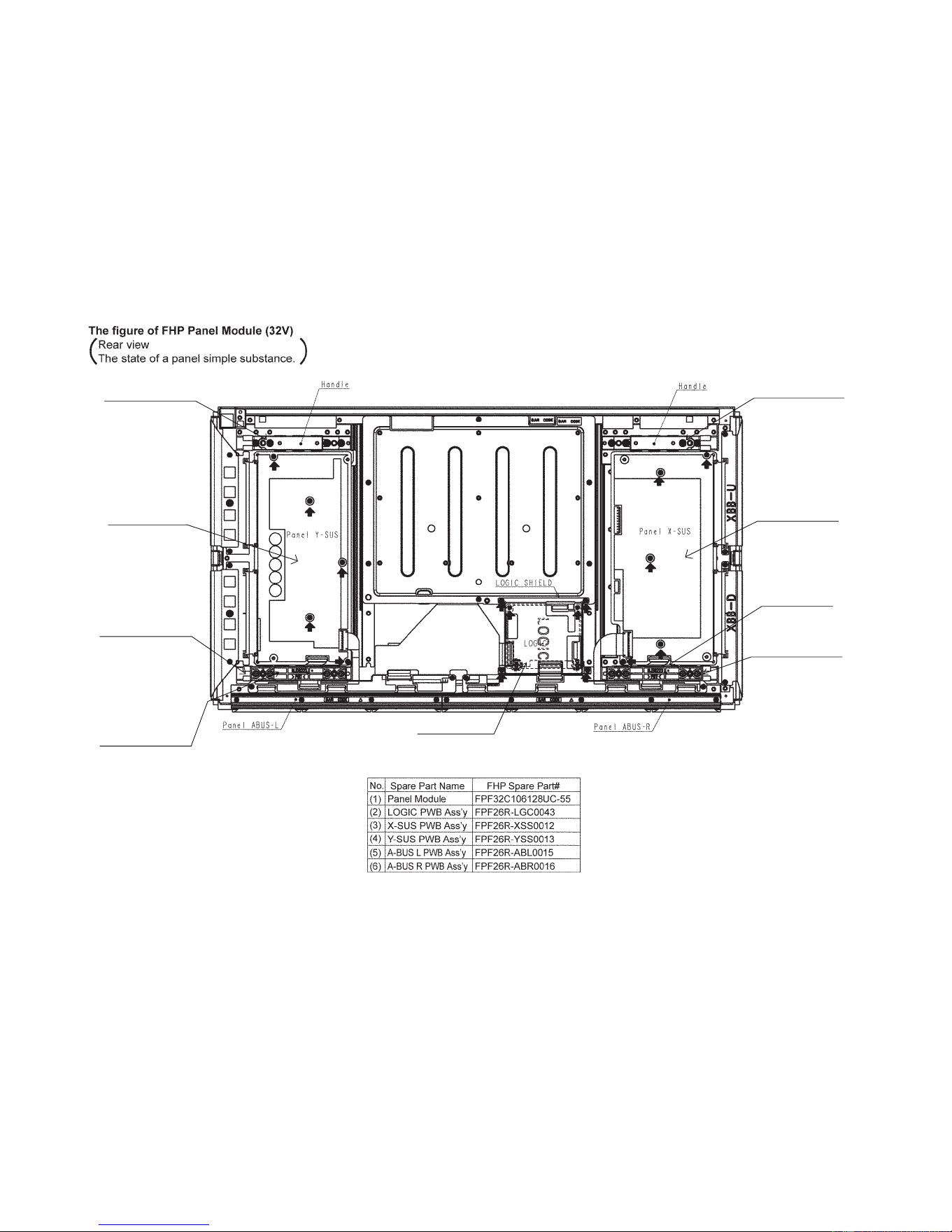

14. Disassembly diagram -------------------------------- 67
15. Replacement parts list ------------------------------- 73
Contents
1. Since Panel Module and front Filter are made of glass, handling the broken Module and Filter shall be
taken care sufficiently in order not to be injured.
2. Replacing work shall be started after the Panel Module and the AC/DC Power supply become sufficiently
cool.
3. Special care shall be taken to the display area in order not to damage its surface.
4. The Panel Module shall not be touched with bare hand to protect its surface from stains.
5. It is recommended to use clean soft gloves during the replacing work in order to protect not only the dis
-
play area of the Panel Module but also a serviceman himself.
6. The Chip Tube of Panel Module (located upper left of the back and surrounded by frame) and flexible
cables connecting Panel glasses to drive circuit PWBs are very weak, so shall be taken care sufficiently
not to break. If you break Chip Tube, the Panel doesn’t display anything forever.
Service Warning
Downloaded from www.ManualsFile.com manuals search engine
2
32PD7800/42PD7800 (PW2)
CAUTION FOR SAFETY
Please read this page before repair the monitor.
This page explains to following items for keep the safety of set and prevent to accident during
repair work.
We explain by symbol at happen the damage or injury when took wrong repair.
Warning
This symbol means "possible to die or heavy damage"
Caution
This symbol means "possible to damage or something will break"
We made the symbol as below, which are kind of following items.
This symbol means "CAUTION"
This symbol means "POSSIBLE to
ELECTRIC SHOCK"
This symbol means "MUST"
This symbol means "DO NOT"
Should be follows to instructions.
We indicates to cabinet, chassis and parts
by label, which are special attention part.
Please follow to note and [Safety Instructions]
of User’s Manual.
Prevent the electric shock.
Please take care during working because
monitor has high voltage part and power
supply part.
Possible to die if you tough to these place
by miss take.
Please disconnect power plug during
overhaul, reassemble or change parts.
You will die or take damage by electric
shock if you touch to live part.
Use recommended components.
Please use to same characteristic compo-
nent, which is same as previous for your
safety and keep reliability especially marked
by in parts list and circuit diagram.
It is reason of electric shock or fire if you
use non-recommended component.
Should be kept same style of wiring or component.
Monitor uses tubes or tapes, which made
by insulator, and some components are
keep distance from surface of PWB for
safety.
Internal leads kept from hot part or high voltage
part by clamper or styling, so please return to
original condition for prevent to electric shock
or fire.
Should be done safety check after finished.
Every part (removed screws, component
and wiring) should be returned to previous
condition.
Check around repair position for make
damage by miss take and measure the
insulated impedance by meg-ohm meter.
Confirm the value of impedance, that
value is more than 4M ohm.
It is reason for electric shock or fire if that
value is less than 4M ohm.
Nobody can check and repair to the code
and combination circuit of HDCP.
Never remove the shield case, which is
assembled to the code and combination
circuit of HDCP.
WARNING
Downloaded from www.ManualsFile.com manuals search engine
3
32PD7800/42PD7800 (PW2)
PRECAUTIONS
How to clean the plasma screen panel of the monitor
Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet.
To prevent scratching or damaging the plasma screen face, do not knock or rub the surface with sharp or hard
objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not
enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners.
How to clean the cabinet of the monitor
Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral
detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth.
Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax,
glass cleaner, etc. especially because they would cause discoloration, scratches or cracks.
1. Features
Large-screen, high-definition plasma display panel
The 42-inch color plasma display panel, with a resolution of 1024 (H) x 1024 (V) pixels, and the 32-inch color plasma
display panel with a resolution of 852(H) x 1024(V) pixels, creates a high-definition, large-screen(aspect ratio : 16:9)
and low-profile flat display. Free from electromagnetic interferences from geomagnetic sources and ambient power
lines, the panel produces high-quality display images free from color misconvergence and display distortion.
High Performance Digital Processor
A wide range of input signals can be handed,including composite, component,and HDMI.High Definition Digital Pro-
cessor creates the fine-textured image with dynamic contrast. In addition, it corresponds to a broad array of per-
sonal computer signals, from 640 x 400 and 640 x 480 VGA to 1600 x 1200 UXGA.(Analog Input)
Easy-to-use remote control and on screen display system
The remote control included eases the work of setting display controls. Further, the on-screen display system,
displays the status of signal reception and display control settings in an easy-to-view fashion.
Power saving system
The International ENERGY STAR power saver feature saves power consumption automatically when input sig-
nals are not available.
When connected to a VESA DPMS-compliant PC, the monitor cuts its power consumption while it is idle.
Connecting to an Audio Visual Device
• Two composite/S terminal*
1
,three composite terminal*
2
, two component terminal*
2
, a HDMI terminal and
a photo input terminal(42 only) have been added. A composite video output terminal is also provided as a
monitoring output.
*1
A composite/S terminal = A side input
*2
Two composite terminal and two component terminal are used at the same time. The component terminal
would govern.
• A wide range of devices other than personal computers can also be connected.
• A RGB input is possible to switch to component signal from the Menu screen.
Power Swivel Feature
It allows to turn the plasma display left or right within ± 30 degree using the remote control.
Downloaded from www.ManualsFile.com manuals search engine
4
32PD7800/42PD7800 (PW2)
2. Specifications
Panel
Ambient
conditions
Po
wer supply
Po
wer consumption/at standby
Audio output
(RGB input)
Input terminals
Input terminals
Input terminals
RF Video System
Input signals
Input signals
Sync signals
Recommended signal
Recommended signal
(RF input)
(Video input)
Output Signal
Temperature
Relative humidity
Net dimensions
(excluding Speakers/Stand)
Net weight
(excluding Speakers/Stand)
Resolution
Display
dimensions
Approx. 32 inches (716 (H) x 399 (V) mm,
diagonal 820mm
)
852 (H) x 1024 (V) pixels
850 (W) x 545 (H) x 110 (D) mm
Operating : 5˚C to 35˚C, Storage : 0˚C to 40˚C
Operating : 20% to 80%, Storage : 20% to 90% (non-condensing)
AC100 - 240V, 50/60Hz
speaker 12W + 12W (6Ω)
RGB1 DVI input terminal (DVI-D)
RGB1 audio input terminal (3.5mm Stereo Mini Jack)
RGB2 analog RGB input terminal (D-sub 15-pin)
RGB2 audio input terminal (3.5mm Stereo Mini Jack)
0.7 V/1.0 Vp-p, analog RGB (Recommended Signal)
480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/60
H/V separate, TTL level [2KΩ]
H/V composite, TTL level [2KΩ]
Sync on green, 0.3 Vp-p [75 Ω]
ANT : 75Ω Unbalanced
PA
L B, G, H / I / D, K
SECAM B, G / D, K / K1
NTSC-M
AV
1: composite video input terminal (RCA)
AV1: Y/ PB/ PR video input terminal (RCA)
AV1: L/R audio input terminal (RCA)
AV
2: composite video input terminal (RCA)
AV2: Y/ P
B
/ P
R
video input terminal (RCA)
AV2: L/R audio input terminal (RCA)
AV
3: composite video input terminal (RCA)
AV3: S video input terminal
AV3: L/R audio input terminal (RCA)
AV4: composite video / L/R audio input terminal (RCA)
AV5=AV3
AV6=HDMI input terminal
AV1: PAL, SECAM, NTSC3.58, NTSC4.43
AV1: 480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/60
AV2: PAL, SECAM, NTSC4.43, NTSC3.58
AV2: 480i, 576i, 480p, 576p, 1080i/50, 1080i/60, 720p/60
AV3: PAL, SECAM, NTSC4.43, NTSC3.58,
AV4: PAL, SECAM, NTSC4.43, NTSC3.58,
AV5=AV3
OUTPUT (MONITOR): composite video monitor-output terminal (RCA)
OUTPUT (MONITOR): L/R audio monitor- output terminal (RCA)
OUTPUT (HEADPHONE): L/R audio monitor- output terminal (3.5mm Stereo Mini Jack)
1050 (W)
x 676 (H) x 110 (D) mm
1024(H)
x 1024 (V) pixels
Approx. 42 inches (922
(H) x 522 (V) mm,
diagonal 1059mm)
25.5kg
37.0kg
245W / <3W
380W / <3
W
speaker 12W + 12W (6 Ω)
44 modes
AV6=HDMI input signal
23 modes
Photo input terminal (42 Model)
Applicable video signals for each input terminal
Terminal
RCA
DVI
D-sub
Signal
CVBS
S-video
Component
RGB
PC
STB
RGB
Component
AV1
AV2
AV3
AV4
AV5
AV6
( :Available)
HDMI
RGB1
RGB2
Downloaded from www.ManualsFile.com manuals search engine
5
32PD7800/42PD7800 (PW2)
3. Service points
Lead free solder
This product uses lead free solder (unleaded) to help preserve the environment. Please read these instructions
before attempting any soldering work.
Caution: Always wear safety glasses to prevent fumes or molten solder from getting into the eyes. Lead free
solder can splatter at high temperatures (600˚C).
Lead free solder indicator
Printed circuit boards using lead free solder are engraved with an "F."
Properties of lead free solder
The melting point of lead free solder is 40-50˚C higher than leaded solder.
Servicing solder
Solder with an alloy composition of Sn-3.0Ag-0.5Cu or Sn-0.7Cu is recommended.
Although servicing with leaded solder is possible, there are a few precautions that have to be taken. (Not taking
these precautions may cause the solder to not harden properly, and lead to consequent malfunctions.)
Precautions when using leaded solder
Remove all lead free solder from soldered joints when replacing components.
If leaded solder should be added to existing lead free joints, mix in the leaded solder thoroughly after the lead
free solder has been completely melted (do not apply the soldering iron without solder).
Servicing soldering iron
A soldering iron with a temperature setting capability (temperature control function) is recommended.
The melting point of lead free solder is higher than leaded solder. Use a soldering iron that maintains a high
stable temperature (large heat capacity), and that allows temperature adjustment according to the part being
serviced, to avoid poor servicing performance.
Recommended soldering iron:
Soldering iron with temperature control function (temperature range: 320-450˚C)
Recommended temperature range per part:
Part Soldering iron temperature
Mounting (chips) on mounted PCB 320˚C±30˚C
Mounting (chips) on empty PCB 380˚C±30˚C
Chassis, metallic shield, etc. 420˚C±30˚C

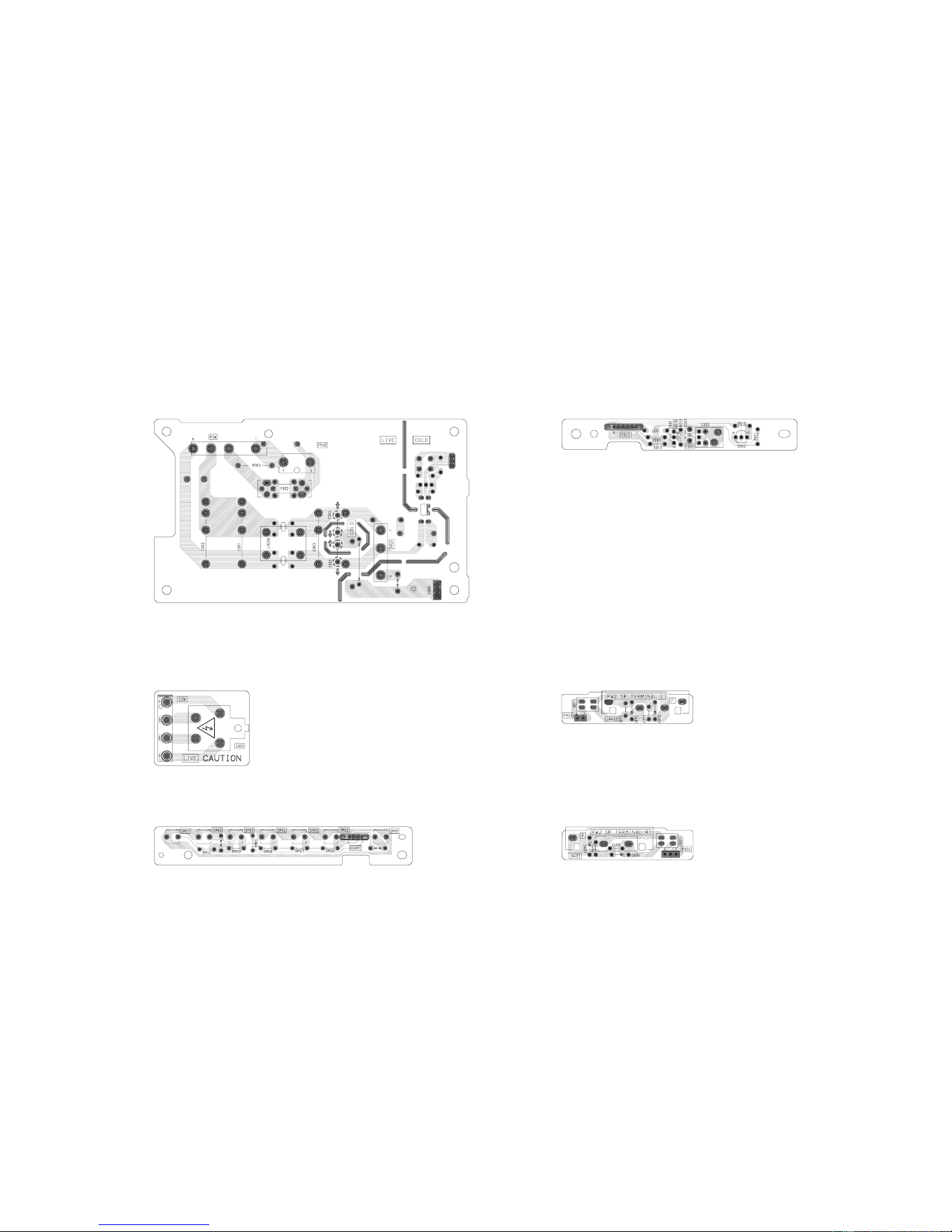

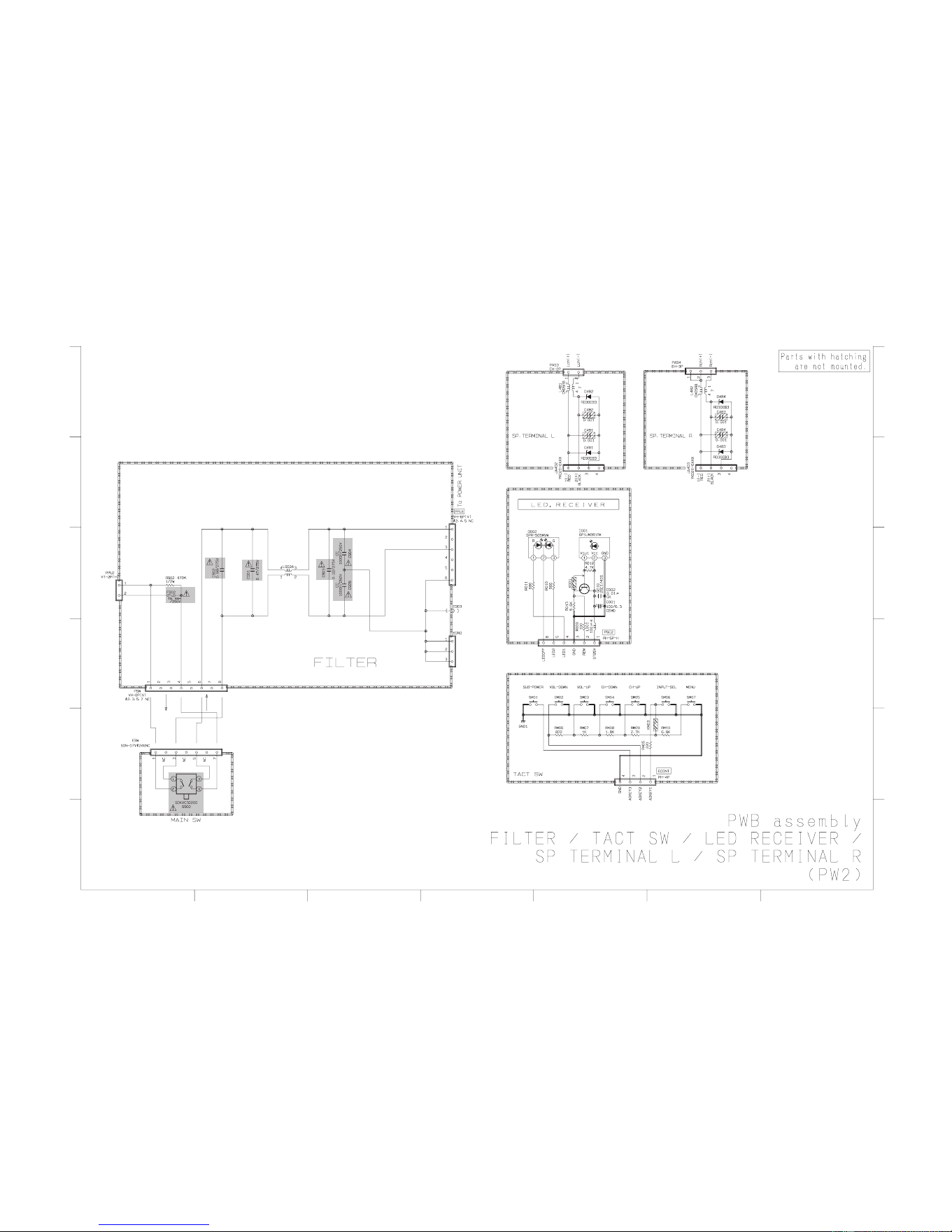

FILTER PWB, SW PWB, LED/RECEIVER PWB, SP TERMINAL(L/R) PWB
AUDIO PWB, JOINT PWB, Swievel PWB, HDHI PWB, control PWB
VIDEO PWB
TUNER PWB
The PWB assembly which has used lead free solder
Readjustment Power supply voltage
When a PANEL or a Power Unit is exchanged, power supply voltage needs to be adjusted. Please adjust to
make the values of Va and Vs of as should on the label currently stuck on the panel back upper parts.Adjust
-
ment is performed by VR in the power supply unit. Please refer to the procedures of “Va” and “Vs” adjustments
on 23page.
Downloaded from www.ManualsFile.com manuals search engine
6
32PD7800/42PD7800 (PW2)
4. Component names
[Main unit]
[Remote control]
Control panel
• Adjustment buttons are located
on the bottom.
• The back cover is provided
with indications to distinguish
the adjustment buttons.
MENU button
SUB-POWER button
VOLUME
UP/DOWN
buttons
( ADJUST
buttons)
INPUT SELECT button
(OK button)
SELECT button
SELECT button
• ( ) indicates the function while the MENU is displayed on the screen.
(32")
(42")
Remote-control
re
ceiver
Indicating lamp
• The main power switch is located at the back, on the
lower surface.
Main power switch
+
-
POWER button
INPUT SELECT buttons
MENU
button
OK button
SOUND MODE button
VOLUME UP/DOWN button
PROGRAM SELECT buttons
(TV)
MULTI MODE button
RECALL button
FUNCTION
SELECT button
DVD CONTROL buttons
FREEZE/RETURN button
SELECT/ADJUST button
PICTURE MODE button
CH I/CH II button (TV)
CHANNEL UP/DOWN button (TV)
MUTE button
MULTI PICTURE button
PHOTO INPUT button
s
SWIVEL button
T/TEXT button
(TV)
CLE-960
Downloaded from www.ManualsFile.com manuals search engine
7
32PD7800/42PD7800 (PW2)
5. New adoption technology
[System control micom I001(M3062)]
Pin function table
No. PIN MANE I/O
1
VREF (+5.0V) I
2
+5.0V I
3
NC I/O
4
OSD_DATA I/O
5
OSD_CLK I/O
6
HP_VOL
I/O
7
FE.AGC_O(M) I/O
8 DATA_OUT(FC)
I/O
9 DATA_IN(FC)
I/O
10 CLK(FC)
I/O
11
EDID_PROTECT I/O
12
TRAP_MAIN I/O
13
GND I
14
CNVSS(FLASH) I
15
DSUB COMP I/O
16
RGBSW I/O
17
RESET I
18
16MHz oscillation O
19
GND I
20
16MHz oscillation I
21
+5.0V I
22
NMI(+5.0V) I
23
RMCON(AVC) I/O
24
V.FREQ_2(VIDEO) I/O
25
V.FREQ_1/3 I/O
26
SCV.SYNC I/O
27
IRQ
�PM-IRQ) I/O
28
MCV.SYNC I/O
29
POWER_LED I/O
30
H.FREQ_2(VIDEO) I/O
31
PDP_WVGA_LCD_SW_2 I/O
32
H.FREQ_1/_3 I/O
33
PDWN
I/O
34
RXD2 I/O
35
TXD2 I/O
36
TXD1(RS232C/FLASH) I/O
37
I
38
RXD1(RS232C/FLASH) I/O
39
I
40
SCLK(FLASH) I/O
41
BUSY(FLASH) I/O
42
TXD0(PDP) I/O
43
RXD0(PDP) I/O
44
SDA4(panel) I/O
45
SCL4(panel) I/O
46
M_ENABLE I/O
47
M_SCLK I/O
48
M_SDA I/O
49
M_WAKEUP I/O
50
PDPGO(PM_ON) I/O
5V
NC
OSD DATA
OSD CLK
GND
CNVSS(FLASH)
TRAP-MAIN
FUNCTION
5V
Head Phone Volume
Memory Protect
AGC Voltage(F/E)
FC DATA
FC CLOCK
FC DATA
SYNC-SW
SYNC-SW
RESET
OSC-OUT
GND
OSC-IN
5V
5V PULL UP
IR Signal
TA1370(LA7213), COMPONENT2
TA1370(LA7213), COMPONENT(Main)/ DSUB COMPONENT
CVBS for SYNC Detection(Sub Picture)
PANEL MODULE Condition(L:Normal,H:Erroe)
CVBS for SYNC Detection(Main Picture)
L�LED ON(Power Save)
TA1370(LA7213), COMPONENT2
PDP/42WVGA/LCD detection
TA1370(LA7213), COMPONENT1(Main), D-SUB
RESERVE(LVDS Power Down mode(PANEL))
DTT
DATA(RS-232C)
5V
DATA(RS-232C)
DTT
GND
CLOCK(FRASH MEMORY Writing)
BUSY(FRASH MEMORY Writing)
I
2
C-BUS Contorol DATA
Ether Net
Ether Net
I
2
C-BUS Contorol CLOCK
Media Enable
Media Clock
Media Data
Media Wakeup
PDP PALEL Contorol
Downloaded from www.ManualsFile.com manuals search engine
8
32PD7800/42PD7800 (PW2)
No. PIN MANE I/O FUNCTION
51
CPUGO(PM_CPU) I/O
52
EPM (FLASH) I/O
53
VIDEO.DET_1 I/O
54
SCL1 I/O
55
SDA1 I/O
56
HDMI-RESET I/O
57
HDMI-HPD_RESET I/O
58
VIDEO.DET_2 I/O
59
VIDEO.DET_3 I/O
60
TUNER.DET_1 I/O
61
CE (FLASH) I/O
62
STAND.CIR_DET I/O
63
SW_L_OUT I/O
64
SW_R_OUT I/O
65
M_SW I/O
66
INITIALIZE I/O
67
D.RESET(DARST) I/O
68
DVI-PD I/O
69
SCDT I/O
70
HS-DJTR I/O
71
DVI-SW I/O
72
CUR_PRTCT I/O
73
SPRLY I/O
74
MUTE I/O
75
ASEL1 I/O AUDIO Signal SW
76
ASEL2 I/O AUDIO Signal SW
77
SDA2 I/O
78
SCL2 I/O
79
D-SUB COMP_SYNC.SW I/O
80
BM_SW I/O
81
RGB_BLK_2 I/O NC
82
RGB_BLK_3 I/O NC
83
AUD RST I/O
84
PDP_WVGA_LCD_SW_1 I/O
85
+5.0V I
86
RGB1_DET I/O NC
87
GND I
88
WSS_1 I/O NC
89
WSS_2 I/O NC
90
WSS_3 I/O NC
91
TV.AFC(S) I/O AFC Voltage(Sub TUNER)
92
TV.AFC(M) I/O
93
FE_AGC_I(M) I/O AGC Voltage(Main TUNER)
94
FE_AGC_I(S) I/O
95
HP_DETECT I/O
96
HDMI_DET I/O
97
INT_HDMI I/O
98
NC I/O NC
99
COMP_SW I/O
100
DEMP_OUT I/O
PDP PALEL Contorol
FRASH MEMORY Writing
Detecting VIDEO PWB
I2C
�to PWB TUNER side� FE/MSP3455or MSP3415G/SAA5361/TB1274(Sub)/M306V7/M62320P
I2C
�to PWB TUNER side� FE/MSP3455or MSP3415G/SAA5361/TB1274(Sub)/M306V7/M62320P
HDMI-Reset
Hot Plug Detect Reset
Detecting VIDEO PWB
Detecting VIDEO PWB
Detecting TUNER PWB
FRASH MEMORY Writing
Detecting SWIVEL PWB
SWIVEL(L-output)
SWIVEL(R-output)
Discriminate terminal of bridge media circuit connecting.
Initializing EEPROM
RESET(DVI)
DVI Contorol
DVI Contorol
DVI Contorol
DVI Contorol
Detecting Powre-SWIVEL
SP ON/OFF Relay Control
MUTE
GND
I2C(NJW1163,AD7414,TA1370)
I2C(NJW1163,AD7414,TA1370)
SYNC-SW
PDP/42WVGA/LCD detection
RESET for LIPSYNC IC
BM switch
AFC Voltage(Main TUNER)
HEAD PHONE DETECT
HDMI 5V DET
AFC Voltage(Sub TUNER)
INT(HDMI)
Component SW Main
� DSUB
deemphasis control output for HDMI
Downloaded from www.ManualsFile.com manuals search engine
9
32PD7800/42PD7800 (PW2)
No. PIN MANE I/O FUNCTION
101
CONTROL I/O
102
SCL0 I/O
103
SDA0 I/O
104
SCL3(EEPROM) I/O
105
SDA3(EEPROM) I/O
106
HDMI_CIR_DET I/O
107
EXT_RESET I/O
108
OSD_CS I/O
109
FC_ENABLE I/O
110
NC I/O
111
NC I/O
112 IRQ_DTT
I/O
113 DTT_POWER
I/O
114 DISPEN
I/O
115
HDMI_A_SW I/O
116
SCL5 I/O
117
SDA5 I/O
118 FUNC_1
I/O
119 FUNC_2
I/O
120 NC
I/O NC
121
AD_KEY3 I/O
122
AD_KEY2 I/O
123
AD_KEY1 I/O
124
TV.POWER I/O
125
DIP.DET I/O
126
POWER_SAVE I/O
127
GND I
128
FAN_ALARM *1 I/O
Function 1
Function 2
LCD PANEL
I
2
C-BUS Contorol CLOCK
I
2
C-BUS Contorol DATA
I2C-BUS Contorol CLOCK
I2C-BUS Contorol DATA
Detecting HDMI circuit connection
OSD CS
FC ENABLE
NC
EXTERNAL RESET
FAN ALARM
AD KEY1(INPUT)
POWRE ON/OFF(H:ON
�L:STANDBY)
DIP DET
POWRE ON/OFF(L
�ON(STANDBY�POWRE SAVE), H�OFF)
NC
HDMI AUDIO SW
AD KEY3**
GND
AD KEY2*
DTT IRQ
DTT POWER
DISPEN
I
2
C-BUS Contorol CLOCK
I
2
C-BUS Contorol DATA
Downloaded from www.ManualsFile.com manuals search engine
11
32PD7800/42PD7800 (PW2)
6. Adjustment
● How to get to Adjustment mode
Using the front control buttons with the set turned off (standby) can activate it.
Press the SUB-POWER( ) button, INPUT SELECT( ) button and button at the same time, and hold for
more than 5 seconds.
The set turns on in adjustment mode with OSD.
● Changing data and Selecting Adjustment code
When the set is in adjustment mode, the cursor , , , and OK buttons of the remote control or front panel
may be used as the adjustment keys.
, buttons are used for selecting adjustment code.
, buttons are used for changing data values.
OK button is used for confirming the data.
After finishing the necessary adjustment press MENU button. Adjustment mode is released and the set returns to
normal condition.
● Memory Initialize operation
NOTE: The execution of this function returns the adjustment codes to the preset values, therefore, adjustment
data will be lost.
Procedure
(1) Enter Adjustment Mode.
(2) Select MEMORY INIT adjustment code (No.658) and change the data value from 0 to 1.
(3) Activate MEMORY INIT by pressing OK button for more than 3 seconds.
(4) Select No.525 and change data value from 1 to 0.
(5) Check that the receiving channel goes to P1. Unit is set to preset values.
Downloaded from www.ManualsFile.com manuals search engine
12
32PD7800/42PD7800 (PW2)
Service
adjustment items by I
2
C-bus control (MAIN Part)
��should be followed previous data
ADJ Function Max. Default
No value FORMATTER VIDEO TUNER PDP
A
DJ. Items Mode PWB PWB PWB PANEL
0 SUB
_
CONTRAST
(
RF
)
Main 15 8
1 SUB
_
CONTRAST
(
AV1
)
Main/Sub Com
p
osite mode 15 8
2 SUB
_
CONTRAST
(
AV2
)
Main/Sub Com
p
osite mode 15 8
3 SUB
_
CONTRAST
(
AV3
)
Main/Sub Com
p
osite mode 15 8
4 SUB
_
CONTRAST
(
AV4
)
Main/Sub Com
p
osite mode 15 8
5 SUB
_
CONTRAST
(
AV5
)
Main/Sub Com
p
osite mode 15 8
6 SUB
_
CONTRAST
(
RF
)
Sub 15 8
7 Sub Color Main 15 8
8 Sub Color Sub 15 8
9 TINT
�RF
)
Main 63 33
10 TINT
�VIDEO
)
Main 63 33
11 TINT�RF
)
Sub 63 33
12 TINT
�VIDEO
)
Sub 63 33
13
A
GC ad
j
ustment
(
MFE
)
Main 63 50
14
A
GC ad
j
ustment
(
SFE
)
Sub 63 50
15
A
GC INPUT
(
MFE
)
Main - -
16
A
GC INPUT
(
SFE
)
Sub - -
17 Reference Am
p
litude
(
RGB
_
AMP
)
RF/VIDEO 254 127
18 Reference Am
p
litude
(
RGB
_
AMP
)
PC 254 127
19 Reference Am
p
litude
(
RGB
_
AMP
)
Multi Picture mode 254
20 Dis
p
la
y
for Max. Am
p
litude Level Main - -
21 Dis
p
la
y
for Max. Am
p
litude Level Sub - -
22 Offset Value
(
+/-
)
of U
pp
er Limit
(
for FC :RGB-AMP
)
Multi Picture mode 18 2
23 Offset Value
(
+/-
)
of U
pp
er Limit
(
for TB1274:SUB-CONT
)
Sin
g
le Picture mode 18 2
24 Offset Value
(
+/-
)
of U
pp
er Limit
(
for TB1274:Sub Color
)
18 2
25 Ter
g
et value of White
p
eak Ad
j
. Sin
g
le Picture mode 237 235
26 Ter
g
et value of Color Level Ad
j
.
(
for TB1274:Sub Color
)
237 235
27 Set Blue Gamma
g
ain On/Off 0:Off, 1:On
(
For 55V
)
For 55V 1 1
28 Contrast mode<D
y
namic> SW
(
TV
)
0:D
y
namic, 1:D
y
namic+Auto RF 1 1
29 Select for WIDE Mode 1 1
30 PinP Function
(
for PC
)
0:PinP, 1:Infomation1, 2:Infomaiton S
p
lit 2 0
31 Black Level
(
RGB
_
AMP
)
RF/VIDEO 254 127
32 Black Level
(
RGB
_
AMP
)
PC 254 127
33 Black Level
(
RGB
_
AMP
)
HDMI 254 127
34 Black Level
(
RGB
_
AMP
)
For USA NTSC/480i 254 127
35 YNR In
p
ut Level for AV1-5 Mode RF 7 7
36 YNR In
p
ut Level for AV1-5 Mode VIDEO 7 7
37 YNR In
p
ut Level for AV1-5 Mode Scart-RGB
(
50/60Hz
)
7 7
38 YNR In
p
ut Level for AV1-5 Mode 480i/576i 7 7
39 YNR In
p
ut Level for AV1-5 Mode 480
p
/576
p
7 7
40 YNR In
p
ut Level for AV1-5 Mode 1080i-50/60/720
p
7 7
41 YNR In
p
ut Level for DVI-STV Mode 480i/480
p
/576i/576
p
/VGA 7 7
42 YNR In
p
ut Level for DVI-STV Mode 1080i-50/60/720
p
7 7
43 CNR In
p
ut Level at Low level for AV1-5 Mode RF/VIDEO 7 3
44 CNR In
p
ut Level at Low level for AV1-5 Mode Scart-RGB
(
50/60Hz
)
7 3
45 CNR In
p
ut Level at Low level for AV1-5 Mode 480i/576i 7 3
46 CNR In
p
ut Level at Low level for AV1-5 Mode 480
p
/576
p
7 3
47 CNR In
p
ut Level at Low level for AV1-5 Mode 1080i-50/60/720
p
7 3
48 CNR In
p
ut Level at Low level for DVI-STV Mode 480i/480
p
/576i/576
p
/VGA 7 2
49 CNR In
p
ut Level at Low level for DVI-STV Mode 1080i-50/60/720
p
7 2
50 CNR In
p
ut Level at Low level for Dsub Com
p
. Mode 480i/576i 7 2
51 CNR In
p
ut Level at Low level for Dsub Com
p
. Mode 480
p
/576
p
7 2
52 CNR In
p
ut Level at Low level for Dsub Com
p
. Mode 1080i-50/60/720
p
7 2
53 main/sub YFRNR level
[
MYNRP0
]
NTSC/PAL
/
�Multi
p
icture 7 1
54 main/sub YFRNR level
[
MYNRP5
]
NTSC/PAL-VIDEO 7 0
55 main/sub YFRNR level
[
MYNRP6'
]
Scart-RGB
(
50/60Hz
)
7 0
56 main/sub YFRNR level
[
MYNRP6
]
480i/576i 7 0
57 main/sub YFRNR level
[
MYNRP7
]
480
p
/576
p
7 0
58 main/sub YFRNR level
[
MYNRP8
]
1080i-50/60/720
p
7 0
59 main/sub CFRNR level
[
MCNRP0
]
NTSC/PAL
/
��� 7 2
60 main/sub CFRNR level
[
MCNRP5
]
NTSC/PAL-VIDEO 7 2
61 main/sub CFRNR level
[
MCNRP6'
]
Scart-RGB
(
50/60Hz
)
7 2
62 main/sub CFRNR level
[
MCNRP6
]
480i/576i 7 2
63 main/sub CFRNR level
[
MCNRP7
]
480
p
/576
p
7 2
64 main/sub CFRNR level
[
MCNRP8
]
1080i-50/60/720
p
7 0
65 B-Y/B�R-Y/R
(
VER. Enhancer Gain
) [
CVEG0
]
NTSC/PAL/480i/576i/�Multi
p
icture 15 15
66 B-Y/B�R-Y/R
(
VER. Enhancer Gain
) [
CVEG1
]
480
p
/576
p
/1080i-50/60/720
p
15 9
67 DSB Gain of Vertical for B-Y/B�R-Y/R
[
CVDSBG0
]
NTSC/PAL/480i/576i/�Multi
p
icture 3 0
68 DSB Gain of Vertical for B-Y/B
�R-Y/R
[
CVDSBG1
]
480
p
/576
p
/1080i-50/60/720
p
3 0
69 DSB corin
g
of Vertical for B-Y/B�R-Y/R
[
CVDSBC0
]
NTSC/PAL/480i/576i/�Multi
p
icture 7 0
70 DSB corin
g
of Vertical for B-Y/B�R-Y/R
[
CVDSBC1
]
480
p
/576
p
/1080i-50/60/720
p
7 0
71 B-Y/B
�R-Y/R
(
VRE. Enhancer
)
CLIP 0:CTI
[
CVECLP0
]
NTSC/PAL/480i/576i/�Multi
p
icture 1 0
72 B-Y/B
�R-Y/R
(
VRE. Enhancer
)
CLIP 0:CTI
[
CVECLP1
]
480
p
/576
p
/1080i-50/60/720
p
1 0
73 Horizontal HPF Peek Fre
q
. SW for B-Y/B,R-Y/R
[
CHHPF0
]
NTSC/PAL/480i/576i/�Multi
p
icture 3 2
74 Horizontal HPF Peek Fre
q
. SW for B-Y/B,R-Y/R
[
CHHPF1
]
480
p
/576
p
/1080i-50/60/720
p
3 2
75 Horizontal Enhancer Gain for B-Y/B,R-Y/R
[
CHEG0
]
NTSC/PAL/480i/576i/�Multi
p
icture 15 15
76 Horizontal Enhancer Gain for B-Y/B,R-Y/R
[
CHEG1
]
480
p
/576
p
/1080i-50/60/720
p
15 9
77 Horizontal DSB Gain for B-Y/B,R-Y/R
[
CHDSBG0
]
NTSC/PAL/480i/576i/�Multi
p
icture 3 0
78 Horizontal DSB Gain for B-Y/B,R-Y/R
[
CHDSBG1
]
480
p
/576
p
/1080i-50/60/720
p
3 0
79 Horizontal DSB Corin
g
for B-Y/B,R-Y/R
[
CHDSBC0
]
NTSC/PAL/480i/576i/�Multi
p
icture 7 0
80 Horizontal DSB Corin
g
for B-Y/B,R-Y/R
[
CHDSBC1
]
480
p
/576
p
/1080i-50/60/720
p
7 0
81 Horizontal Enhancer Cli
p
for B-Y/B,R-Y/G 0:CTI
[
CHECLP0
]
NTSC/PAL/480i/576i/�Multi
p
icture 1 0
82 Horizontal Enhancer Cli
p
for B-Y/B,R-Y/G 0:CTI
[
CHECLP1
]
480
p
/576
p
/1080i-50/60/720
p
1 0
83 B-Y Clam
p
offset NTSC/PAL/480i/576i/480
p
/576
p
255
84 R-Y Clam
p
offset NTSC/PAL/480i/576i/480
p
/576
p
255 128
85 B-Y Clam
p
offset 1080i-50/60 255 128
86 R-Y Clam
p
offset 1080i-50/60 255 128
87 B-Y Clam
p
offset 720
p
255 128
88 R-Y Clam
p
offset 720
p
255 128
89 B-Y Clam
p
offset
[
DVI-STB
]
480i/576i/480
p
/576
p
/VGA 255 128
90 R-Y Clam
p
offset
[
DVI-STB
]
480i/576i/480
p
/576
p
/VGA 255 128
91 B-Y Clam
p
offset
[
DVI-STB
]
1080i-50/60 255 128
92 R-Y Clam
p
offset
[
DVI-STB
]
1080i-50/60 255 128
93 B-Y Clam
p
offset
[
DVI-STB
]
720
p
255 128
94 R-Y Clam
p
offset
[
DVI-STB
]
720
p
255 128
95 P/N ID Main 1 0
96 P/N ID Sub 1 0
97 Shar
p
ness Gain
(
RF/NR
)
Main/Sub 15 2
98 Free
Changed Component
128
130
: should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
13
32PD7800/42PD7800 (PW2)
��should be followed previous data
ADJ Function Max. Default
No value FORMATTER VIDEO TUNER PDP
A
DJ. Items Mode PWB PWB PWB PANEL
Changed Component
99 Free
100 Free
101 Free
102 Free
103 Free
104 Free
105 Free
106 Free
107 Free
108 Free
109 Free
110 Shar
p
ness Gain
(
RF
)
BG/DK/I Sub 15 8
111 Shar
p
ness Gain
(
RF
)
M Sub 15 8
112 Shar
p
ness Gain
(
RF
)
L Sub 15 8
113 Shar
p
ness Gain
(
RF
)
L' Sub 15 8
114 Shar
p
ness Gain
(
VIDEO
)
PAL Sub 15 8
115 Shar
p
ness Gain
(
VIDEO
)
NTSC3.58 Sub 15 8
116 Shar
p
ness Gain
(
VIDEO
)
SECAM,B/W Sub 15 8
117 Shar
p
ness Gain
(
VIDEO
)
NTSC4.43 Sub 15 8
118 Shar
p
ness Gain
(
VIDEO
)
N-PAL Sub 15 8
119 Shar
p
ness Gain
(
VIDEO
)
M-PAL Sub 15 8
120 Shar
p
ness Gain
(
S.VIDEO
)
Sub 15 10
121 Free
122 Shar
p
ness f0
(
RF
)
BG/DK/I Main/Sub 3 2
123 Shar
p
ness f0
(
RF
)
M Main/Sub 3 2
124 Shar
p
ness f0
(
RF
)
L Main/Sub 3 2
125 Shar
p
ness f0
(
RF
)
L' Main/Sub 3 2
126 Shar
p
ness f0
(
VIDEO
)
PAL Main/Sub 3 2
127 Shar
p
ness f0
(
VIDEO
)
NTSC3.58 Main/Sub 3 2
128 Shar
p
ness f0
(
VIDEO
)
SECAM,B/W Main/Sub 3 2
129 Shar
p
ness f0
(
VIDEO
)
NTSC4.43 Main/Sub 3 2
130 Shar
p
ness f0
(
VIDEO
)
N-PAL Main/Sub 3 2
131 Shar
p
ness f0
(
VIDEO
)
M-PAL Main/Sub 3 2
132 Free
133 Y Out Level M
(
4.5
)
Main 63 15
134 Y Out Level B/G
(
5.5
)
Main 63 13
135 Y Out Level D/K
(
6.5
)
Main 63 16
136 Y Out Level I
(
6.0
)
Main 63 14
137 Y Out Level L
(
6.5
)
Main 63 13
138 Y Out Level L'
(
6.5
)
Main 63 16
139 Y Out Level
(
VIDEO
)
Main 63 15
140 Y Out Level
(
TEXT
)
Main 63 15
141 Free
142 Y Out Level M
(
4.5
)
Sub 63 19
143 Y Out Level B/G
(
5.5
)
Sub 63 13
144 Y Out Level D/K
(
6.5
)
Sub 63 12
145 Y Out Level I
(
6.0
)
Sub 63 13
146 Y Out Level L
(
6.5
)
Sub 63 12
147 Y Out Level L'
(
6.5
)
Sub 63 15
148 Y Out Level
(
VIDEO
)
Sub 63 13
149 Y Out Level
(
TEXT
)
Sub 63 15
150 Free
151 C Out Level M
(
4.5
)
Main 63 7
152 C Out Level B/G
(
5.5
)
Main 63 7
153 C Out Level D/K
(
6.5
)
Main 63 7
154 C Out Level I
(
6.0
)
Main 63
155 C Out Level L
(
6.5
)
Main 63 8
156 C Out Level L'
(
6.5
)
Main 63 8
157 C Out Level
(
VIDEO
)
Main 63 10
158 C Out Level
(
TEXT
)
Main 63 8
159 Free
160 C Out Level M
(
4.5
)
Sub 63 3
161 C Out Level B/G
(
5.5
)
Sub 63 8
162 C Out Level D/K
(
6.5
)
Sub 63 8
163 C Out Level I
(
6.0
)
Sub 63 7
164 C Out Level L
(
6.5
)
Sub 63 7
165 C Out Level L'
(
6.5
)
Sub 63 7
166 C Out Level
(
VIDEO
)
Sub 63 10
167 C Out Level
(
TEXT
)
Sub 63 13
168 Free
169 BPF
_
Q
(
4.43MHz
)
Main/Sub 3 3
170 BPF
_
f0
(
4.43MHz
)
Main/Sub 3 1
171 C
_
TRAP
_
SW
(
COMB=OFF-PAL/NTSC4.43/NTSC3.58
)
Main/Sub 1 0
172 LPF Main/Sub 1 0
173 SECAM D-Tra
p
Main/Sub 1 1
174 FILTER SW
(
RF
)
Main/Sub 1 0
175 Y
_
DL
(
4.5MHz
)
Main 10 6
176 Y
_
DL
(
5.5MHz PAL/NTSC4.43
)
Main 10 4
177 Y
_
DL
(
5.5MHz SECAM
)
Main 10 0
178 Y
_
DL
(
6.0PAL/NTSC4.43
)
Main 10 8
179 Y
_
DL
(
6.0SECAM
)
Main 10 9
180 Y
_
DL
(
6.5PAL/NTSC4.43
)
Main 10 6
181 Y
_
DL
(
6.5SECAM
)
Main 10 10
182 Y
_
DL
(
L
)
Main 10 5
183 Y
_
DL
(
L'
)
Main 10 5
184 Y
_
DL
(
VIDEO�PAL/NTSC4.43
)
Main 10 6
185 Y
_
DL
(
VIDEO�SECAM
)
Main 10 8
186 Y
_
DL
(
VIDEO�NTSC
)
Main 10 6
187 Y
_
DL
(
4.5MHz
)
Sub 10 5
188 Y
_
DL
(
5.5MHz PAL/NTSC4.43
)
Sub 10 2
189 Y
_
DL
(
5.5MHz SECAM
)
Sub 10 0
190 Y
_
DL
(
6.0PAL/NTSC4.43
)
Sub 10 7
191 Y
_
DL
(
6.0SECAM
)
Sub 10 5
192 Y
_
DL
(
6.5PAL/NTSC4.43
)
Sub 10 5
193 Y
_
DL
(
6.5SECAM
)
Sub 10 5
194 Y
_
DL
(
L
)
Sub 10 5
195 Y
_
DL
(
L'
)
Sub 10 5
196 Y
_
DL
(
VIDEO�PAL/NTSC4.43
)
Sub 10 5
197 Y
_
DL
(
VIDEO�SECAM
)
Sub 10 5
5
: should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
14
32PD7800/42PD7800 (PW2)
��should be followed previous data
ADJ Function Max. Default
No value FORMATTER VIDEO TUNER PDP
A
DJ. Items Mode PWB PWB PWB PANEL
Changed Component
198 Y
_
DL
(
VIDEO�NTSC
)
Sub 10 5
199 NTSC Comb
(
Comb off
)
Sub 1 1
200 Cb offset1 Main 15 8
201 Free
202 Cr offset1 Main 15 8
203 Free
204 Cb offset1 Sub 15 8
205 Free
206 Cr offset1 Sub 15 8
207 Free
208 MVM
�VIDEO
)
� 1 0
209
A
FC
_
GAIN
(
AV00
)
� 3 0
210
A
FC
_
GAIN
(
AV1
)
� 3 0
211
A
FC
_
GAIN
(
AV2
)
� 3 0
212
A
FC
_
GAIN
(
AV3
)
� 3 0
213
A
FC
_
GAIN
(
AV4
)
� 3 0
214
A
FC
_
GAIN
(
AV5
)
3 0
215
A
FC
_
GAIN
(
Exce
p
t AV00
)
3 0
216 S
_
B-Y
_
ADJ Main 15 8
217 S
_
R-Y
_
ADJ Main 15 8
218 S
_
B-Y
_
ADJ Sub 15 8
219 S
_
R-Y
_
ADJ Sub 15 8
220 BELL
_
f0 Main/Sub 1 0
221 S
_
INHBT � 1 0
222 S
_
ID � 1 0
223 S
_
GP � 3 0
224 S
_
V
_
ID � 1 0
225 BELL/HPF
� 3 3
226 HS Phase Main 1 0
227 HS Phase Sub 1 0
228 Bandwidth 1 NTSC/PAL/480i/576i 3 2
229 Bandwidth 1 480
p
/576
p
3 2
230 Bandwidth 1 1080i-50/60/720
p
3 0
231 Bandwidth 2 NTSC/PAL/480i/576i 3 2
232 Bandwidth 2 480
p
/576
p
3 2
233 Bandwidth 2 1080i-50/60/720
p
3 0
234 Sub Contrast 1 Exce
p
t HDMI 15 0
235 Sub Contrast 1 HDMI 15 0
236 Sub Contrast 2 Exce
p
t HDMI 15 0
237 Sub Contrast 2 HDMI 15 0
238 Sub Color 1 Exce
p
t HDMI 15 0
239 Sub Color 1 HDMI 15 0
240 Sub Color 2 Exce
p
t HDMI 15 0
241 Sub Color 2 HDMI 15 0
242 HV THRU 1 NTSC/PAL/480i/576i/480
p
/576
p
1 0
243 HV THRU 1 1080i-50/60/720
p
1 0
244 HV THRU 2 NTSC/PAL/480i/576i/480
p
/576
p
1 0
245 HV THRU 2 1080i-50/60/720
p
1 0
246 H
_
SEP 1 RF/VIDEO 1 0
247 H
_
SEP 1 480i/576i 1 0
248 H
_
SEP 1 480
p
/576
p
1 0
249 H
_
SEP 1 1080i
_
50 1 0
250 H
_
SEP 1 1080i
_
60/720
p
1 0
251 H
_
SEP 2 RF/VIDEO 1 0
252 H
_
SEP 2 480i/576i 1 0
253 H
_
SEP 2 480
p
/576
p
1 0
254 H
_
SEP 2 1080i
_
50 1 0
255 H
_
SEP 2 1080i
_
60/720
p
1 0
256 V
_
SEP 1 RF/VIDEO 1 0
257 V
_
SEP 1 480i/576i 1 0
258 V
_
SEP 1 480
p
/576
p
1 0
259 V
_
SEP 1 1080i
_
50 1 0
260 V
_
SEP 1 1080i
_
60/720
p
1 0
261 V
_
SEP 2 RF/VIDEO 1 0
262 V
_
SEP 2 480i/576i 1 0
263 V
_
SEP 2 480
p
/576
p
1 0
264 V
_
SEP 2 1080i
_
50 1 0
265 V
_
SEP 2 1080i
_
60/720
p
1 0
266
A
FC MODE 1 RF 3 0
267
A
FC MODE 1 VIDEO 3 0
268
A
FC MODE 2 RF 3 0
269
A
FC MODE 2 VIDEO 3 0
270 N
_
LVL 1 RF 1 0
271 N
_
LVL 1 VIDEO 1 0
272 N
_
LVL 2 RF 1 0
273 N
_
LVL 2 VIDEO 1 0
274 Free
275 HD POSITION 1 480i/576i 15 0
276 HD POSITION 1 480
p
/576
p
15 0
277 HD POSITION 1 1080i
_
50 15 0
278 HD POSITION 1 1080i
_
60/720
p
15 0
279 Free
280 HD POSITION 2 480i/576i 15 0
281 HD POSITION 2 480
p
/576
p
15 0
282 HD POSITION 2 1080i
_
50 15 0
283 HD POSITION 2 1080i
_
60/720
p
15 0
284 Y LPF 1 RF 1 1
285 Y LPF 1 VIDEO 1 1
286 Y LPF 2 RF 1 1
287 Y LPF 2 VIDEO 1 1
288 Gain 1 1 1
289 Gain 2 1 1
290 YCS MODE NTSC3.58 3 0
291 3D DET 7 7
292
A
FC Gain NTSC3.58 3 0
293 2D-CNR k 3 0
294 2D-CNR Lim 3 0
295 GMCON 1 0
296 Y-NC 1 0
: should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
15
32PD7800/42PD7800 (PW2)
��should be followed previous data
ADJ Function Max. Default
No value FORMATTER VIDEO TUNER PDP
A
DJ. Items Mode PWB PWB PWB PANEL
Changed Component
297 Y-NC Lim 3 0
298 2D-YNR k 3 0
299 2D-YNR Gain 3 0
300 2D-YNR Lim 3 0
301 BLK EXP 3 0
302 CKILL 1 0
303 Out
p
ut Clam
p
1 0
304 In
p
ut Clam
p
auto 1 1
305 Int Clam
p
Manual 1 0
306 C-ENH
A
1 0
307 YC-MI
X
1 0
308 dumm
y
30
8
- -
309 HSWINV 1 0
310 dumm
y
310 - -
311 V-ENHA Gain NTSC3.58 3 2
312 V-ENHA NL NTSC3.58 3 2
313 H-ENHA Gain NTSC3.58 3 1
314 3DNR Corr for 3DYCS 1 0
315 Burst ON for 2DYCS???? 1 0
316 MDMPL
� 1 0
317 MDMBL
� 1 0
318 H-MaskOut
� 7 0
319 V-MaskOut � 7 0
320 In
p
ut Y-Dela
y (
Main RF mode
)
for 3DYCS 7 4
321 In
p
ut Y-Dela
y (
Main Video mode
)
for 3DYCS 7 4
322 Out
p
ut-Y-Dela
y (
Main RF Mode
)
for 3DYCS 15 8
323 Out
p
ut-Y-Dela
y (
Main Video Mode
)
for 3DYCS 15 8
324 V-ENHA Core NTSC3.58 3 0
325 In
p
ut Clam
p
Ke
y
NTSC3.58 1 1
326 Burst Gate Ke
y
NTSC3.58 1 1
327 S
y
nc se
p
LPF NTSC3.58 1 0
328 H-WST NTSC3.58 7 3
329 HD Am
p
1 NTSC3.58 7 6
330 HD Gain V NTSC3.58 31 13
331 HD Am
p
2 NTSC3.58 7 1
332 HD Gain 1 NTSC3.58 31 8
333 HD Am
p
3 NTSC3.58 7 5
334 HD Gain 2 NTSC3.58 31 4
335
A
CMSLP NTSC3.58 3 1
336
A
CSSLP NTSC3.58 3 2
337
A
YMSLP NTSC3.58 3 2
338
A
YSSLP NTSC3.58 3 2
339
A
CMESE
T
NTSC3.58 3 3
340
A
CMFSET NTSC3.58 3 3
341
A
CSESE
T
NTSC3.58 3 2
342
A
CSFSET NTSC3.58 3 2
343
A
YMESE
T
NTSC3.58 3 3
344
A
YMFSE
T
NTSC3.58 3 3
345
A
YSESE
T
NTSC3.58 3 1
346
A
YSFSET NTSC3.58 3 3
347 BCMSLP NTSC3.58 3 3
348 BCSSLP NTSC3.58 3 3
349 BYMSLP NTSC3.58 3 3
350 BYSSLP NTSC3.58 3 2
351 BCMESE
T
NTSC3.58 3 2
352 BCMFSET NTSC3.58 3 2
353 BCSESE
T
NTSC3.58 3 2
354 BCSFSET NTSC3.58 3 2
355 BYMESE
T
NTSC3.58 3 3
356 BYMFSE
T
NTSC3.58 3 3
357 BYSESE
T
NTSC3.58 3 3
358 BYSFSET NTSC3.58 3 3
359 BCMUP NTSC3.58 1 1
360 CECMP NTSC3.58 7 4
361 CSCMP NTSC3.58 15 0
362 F1HER NTSC3.58 3 1
363 F1VER NTSC3.58 3 1
364 MREF NTSC3.58 15 2
365 CDEYE NTSC3.58 3 2
366 YDEYE NTSC3.58 3 2
367 MDS NTSC3.58 1 0
368 F-TBC OFF MDMPL NTSC3.58 1 0
369 REC:C
_
DEC Exce
p
t NTSC3.58 1 0
370 V-ENHA Gain Exce
p
t NTSC3.58 3 2
371 V-ENHA NL Exce
p
t NTSC3.58 3 1
372 H-ENHA Gain Exce
p
t NTSC3.58 3 1
373 3D-CNR Lim for 2DYCS 7 0
374 3D-CNR k for 2DYCS 3 0
375 3D-CNR Gain for 2DYCS 7 0
376 3D-YNR Lim for 2DYCS 7 0
377 3D-YNR k for 2DYCS 3 0
378 3D-YNR Gain for 2DYCS 7 0
379 YCS MODE Exce
p
t NTSC3.58 3 0
380
A
FC Gain Exce
p
t NTSC3.58 3 0
381 dumm
y
381 - -
382 dumm
y
382 - -
383 V-ENHA Core Exce
p
t NTSC3.58 3 0
384 In
p
ut Clam
p
Ke
y
Exce
p
t NTSC3.58 1 1
385 Burst Gate Ke
y
Exce
p
t NTSC3.58 1 1
386 S
y
nc se
p
LPF Exce
p
t NTSC3.58 1 0
387 H-WST Exce
p
t NTSC3.58 7 3
388 HD Am
p
1 Exce
p
t NTSC3.58 7 6
389 HD Gain V Exce
p
t NTSC3.58 31 13
390 HD Am
p
2 Exce
p
t NTSC3.58 7 1
391 HD Gain 1 Exce
p
t NTSC3.58 31 8
392 HD Am
p
3 Exce
p
t NTSC3.58 7 5
393 HD Gain 2 Exce
p
t NTSC3.58 31 4
394
A
CMSLP Exce
p
t NTSC3.58 3 2
395
A
CSSLP Exce
p
t NTSC3.58 3 2
: should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
16
32PD7800/42PD7800 (PW2)
��should be followed previous data
ADJ Function Max. Default
No value FORMATTER VIDEO TUNER PDP
A
DJ. Items Mode PWB PWB PWB PANEL
Changed Component
396
A
YMSLP Exce
p
t NTSC3.58 3 0
397
A
YSSLP Exce
p
t NTSC3.58 3 0
398
A
CMESE
T
Exce
p
t NTSC3.58 3 3
399
A
CMFSET Exce
p
t NTSC3.58 3 3
400
A
CSESE
T
Exce
p
t NTSC3.58 3 2
401
A
CSFSET Exce
p
t NTSC3.58 3 2
402
A
YMESE
T
Exce
p
t NTSC3.58 3 3
403
A
YMFSE
T
Exce
p
t NTSC3.58 3 3
404
A
YSESE
T
Exce
p
t NTSC3.58 3 1
405
A
YSFSET Exce
p
t NTSC3.58 3 3
406 BCMSLP Exce
p
t NTSC3.58 3 3
407 BCSSLP Exce
p
t NTSC3.58 3 3
408 BYMSLP Exce
p
t NTSC3.58 3 3
409 BYSSLP Exce
p
t NTSC3.58 3 2
410 BCMESE
T
Exce
p
t NTSC3.58 3 2
411 BCMFSET Exce
p
t NTSC3.58 3 2
412 BCSESE
T
Exce
p
t NTSC3.58 3 2
413 BCSFSET Exce
p
t NTSC3.58 3 2
414 BYMESE
T
Exce
p
t NTSC3.58 3 3
415 BYMFSE
T
Exce
p
t NTSC3.58 3 3
416 BYSESE
T
Exce
p
t NTSC3.58 3 3
417 BYSFSET Exce
p
t NTSC3.58 3 3
418 BCMUP Exce
p
t NTSC3.58 1 1
419 CECMP Exce
p
t NTSC3.58 7 4
420 CSCMP Exce
p
t NTSC3.58 15 0
421 F1HER Exce
p
t NTSC3.58 3 1
422 F1VER Exce
p
t NTSC3.58 3 1
423 MREF Exce
p
t NTSC3.58 15 2
424 CDEYE Exce
p
t NTSC3.58 3 2
425 YDEYE Exce
p
t NTSC3.58 3 2
426 MDS Exce
p
t NTSC3.58 1 0
427 F-TBC OFF MDMPL Exce
p
t NTSC3.58 1 0
428 SEPA
_
LEVEL
_
DSUB 480i/576i 3 2
429 SEPA
_
LEVEL
_
DSUB 480
p
/576
p
3 2
430 SEPA
_
LEVEL
_
DSUB 1080i
_
50 3 2
431 SEPA
_
LEVEL
_
DSUB 1080i
_
60/720
p
3 2
432 HD-PHASE
_
DSUB 480i/576i 63 20
433 HD-PHASE
_
DSUB 480
p
/576
p
63 20
434 HD-PHASE
_
DSUB 1080i
_
50 63 20
435 HD-PHASE
_
DSUB 1080i
_
60/720
p
63 20
436 Heat APC function
(
HAPC
)
available 1 1
437
�
-select
(
0:1.0, 1:2.2, 2:2.8
)
RF/VIDEO 2 1
438
�
-select
(
0:1.0, 1:2.2, 2:2.8
)
DVI-PC/DVI-STB/DSUB-RGB 2 1
439 Select for APC function 1 0
440 CCFMD function RF/VIDEO 1 0
441 CCFMD function DVI-PC/DVI-STB/DSUB-RGB 1 0
442 NTSC/EBU
(
CCFORM
)
SD
(
YCbCr
)
/Scart-RGB 1 0
443 NTSC/EBU
(
CCFORM
)
HD
(
YPbPr
)
1 0
444 NTSC/EBU
(
CCFORM
)
DVI-PC/DVI-STB/DSUB-RGB 1 0
445 Correction for Trackin
g (
DCBON
)
RF/VIDEO-Color Tem
p
. Cool 1 1
446 Correction for Trackin
g (
DCBON
)
RF/VIDEO-Color Tem
p
. Nor/War 1 1
447 Correction for Trackin
g (
DCBON
)
DVI-PC/DVI-STB/DSUB-RGB 1 1
448 Color Tem
p
. Correction 3 2
449 Bri
g
htness Limitted Function of PANEL
[
APSON
]
1 1
450 D
y
namic Back Li
g
ht Correction For LCD 1 1
451 D
y
namic Contrast Correction 1 1
452 Histo
g
ram Color Mana
g
ement 1 1
453 Histo
g
ram Gradation Am
p
. 1 1
454 Histo
g
ram Enhancer 1 1
455 D
y
namic Enhancer 1 1
456 FC6 THROUGH 0:OFF, 1:THROUGH ON 1 0
457
A
PL Enhancer 0:OFF, 1:ON For D
y
namic mode 1 1
458
A
TC INPUT RED SELECT 1 0
459 HD/VD OUTPUT LEVEL 1 1
460 ISM Control for WVGA For WVGA 1 1
- -
462 WVGA
�BRIGHTNESS For WVGA 1 0
463 Black insert function 0:Not available, 1:Available For LCD D
y
namic mode or Da
y
1 0
464 D
y
namic Backli
g
ht function 0:No, 1:Yes For LCD 1 1
465 DVI-STB Setu
p
0:None VGA/Others Yes, 1:All none 2:All have DVI-STB 2 0
466 HSYNC De-Jitter 0:Low
(
Disabled
)
, 1:Hi
g
h
(
Enabled
)
DVI-PC 1 0
467 HSYNC De-Jitter 0:Low
(
Disabled
)
, 1:Hi
g
h
(
Enabled
)
DVI-STB 1 0
468 dumm
y
46
8
469
A
UTO
_
FM/AM
(
D11-D8
)
� 15 2
470
A
UTO
_
FM/AM
(
D 7-D0
)
� 254 189
471
A
2
_
THRESHOLD
(
D11-D8
)
� 15 0
472
A
2
_
THRESHOLD
(
D 7-D0
)
� 254 112
473 PRE_AM
Except 4.5MHz (Except Dual/Stereo
mode
)
254 17
474 VOL
_
SCART1
(
D15-D8
)
� 254 115
475 VOL
_
SCART1
(
D 7-D5
)
� 7 0
476 PRE
_
SCAR
T
� 254 31
477 PRE
_
FM 4.5MHz
(
JAPAN
)
254 34
478 PRE
_
FM 4.5MHz
(
Exce
p
t BTSC-SAP mode
)
254 32
479 PRE
_
FM 4.5MHz
(
BTSC-SAP
)
254 60
480 PRE_FM
4.5MHz(Except KORE
A
�
Dual/Stereo mode
)
254
481 PRE
_
FM 4.5MHz
(
KORE
A
�Dual/Stereo
)
254 34
482 PRE_FM
Except 4.5MHz(Except Dual/Stereo
mode
)
254 17
483 PRE
_
FM Exce
p
t 4.5MHz
(
Dual/Stereo mode
)
254 27
484 PRE
_
NICAM � 254 57
485 CM
_
THRESHOLD
(
D15-D8
)
� 254 0
486 CM
_
THRESHOLD
(
D7 -D0
)
� 254 36
487
A
GC
_
LEVEL AGCL 3 0
488 TEXT H s
y
nc dela
y
� 127
489 TEXT V s
y
nc dela
y
� 127 50
490 TEXT
_
H
_
POSITION � 254
491 TEXT
_
V
_
POSITION � 254
461 SWIVEL DEMO ON
50
0
36
42
39
0
: should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
17
32PD7800/42PD7800 (PW2)
��should be followed previous data
ADJ Function Max. Default
No value FORMATTER VIDEO TUNER PDP
A
DJ. Items Mode PWB PWB PWB PANEL
Changed Component
492 Select for APC out
p
ut
[
Exce
p
t Euro
p
e model
]
Main RF 2 1
493 L
_
PLL.GAIN 1 0
494 dumm
y
494 - -
495 HDMI EDID WRITE ENABLE 0:Disenable, 1:Enable 1 0
496 BPMA : Back Porch Mode,Field2 1 1
497 VCORA : VCO ran
g
e select 3 0
498 CRNTA : chan
g
e
p
um
p
current select 7 0
499 TESTA : Matchin
g
Test to allow increment of stabilit
y
counter. 1 1
500 PRMB :
p
reamble criteria 31 6
501 HDCP : HDCP enable criteria 31 12
502 SMPLING For CCD 255 0
503 POLLING For CCD 255 15
504 START For CCD 7 2
505 TIMEOUT For CCD 30 5
506 STATUS For CCD 7 2
507 CCD-HP For CCD 79 40
508 CCD-CLK For CCD 79 57
509 Horizontal Position of OSD 15 7
510 Vertical Position of OSD 15 7
511 Free
512 T
yp
ical Value of Contrast OSD DYNAMIC 31 31
513 Free
514 Tem
p
erature for Fun start
(
Tem
p_
Hi
g
h
)
254 58
515 Tem
p
erature for Fun sto
p (
Tem
p_
Low
)
254 55
516 Dis
p
la
y
of internal tem
p
erature �
(
Tem
p
erature
)
125 -
517 Dis
p
la
y
of Panel ma
p
version 255 -
518
A
ccumulation time for Panel
(
hours
)
65535 -
519 Reset function of accumulation time for WVGA/LCD Panel 0:Normal 1:Reset 1 0
520 Power Save/Screen Saver On/Off Setting at Initialize, Reset and Shipping
P.S/S.S
0:Off/20m
1:On/Off
2:Off/Off
2 0
521 PC Power Save function
(
0:Im
p
ossible, 1:Possible
)
1 1
522 Screen Saver-Picture shift amount 0:1
p
ixel�1:2
p
ixel�2:3
p
ixel 2 0
523 Screen Saver-Picture shift Direction 0:dia /1:cross /2:u
p
/down /3:left/ri
g
ht 3 0
524 Waite Time for POWER SAVE function
(
s
)
VIDEO/PC 254 15
525 BURN-IN enable/ disenable 0:Disenable, 1:Enable 1 1
526 BURN-IN mode 2 2
527 Recover
y
to an error of OSC fre
q
uenc
y
of Ceramic resonator for timer 62 34
528 dumm
y
52
8
- -
529 Set Sound S
y
stem at Auto mode of Sound S
y
s.
(
0:auto, 1:4.5MHz
)
Main 1 0
530
Power condition at power save mode of PC mode
after done RESET function
0:Keep last condition,
1:Return to normal condition
1 0
531
Select Wide mode for Europe model
(
Normal= 5mode/ For Service= 10 mode
)
0:Normal, 1:For service 1 0
532 Thermo sensor function available or not 0:None, 1:Yes 1 0
533 Video In
p
ut function available or not at RGB1 & RGB2 mode 0:Not Available, 1:Available 1 1
534 dumm
y
534 - -
535 Remote Function available 0:NO, 1:YES 1 1
536 Ke
y
Function available 0:NO, 1:YES 1 1
537 DVI-STB/RGB-COMPONENT Function available 0:NO, 1:YES 1 0
538 Terminal Mode Function available 0:Not Available, 1:Available RS232C 1
539 Select color control
(
0:Asia, 1:South America
)
Main/Sub 1 0
540 Lan
g
ua
g
e
(
Refer to below
)
6 0
541 Hotel Mode
(
0:No, 1:Yes
)
2 0
542
A
nalo
g
Data
(
0:Kee
p
EEPROM, 1:Not Kee
p
to EEPROM
)
1 0
543 Maximum Volume Limi
t
63 63
544 Power Mode
(
0:Last mode, 1:Pos1, 2-7:V1-6, 8-9:RGB1-2
)
9 0
545 dumm
y
54
5
- -
546 Channel Select
(
0:CCIR, 1:CHINA
)
1 0
547
A
uto
_
sound 4.5
(
0:Korea, 1:BTSC, 2:Ja
p
an
)
2 0
548 T/TEXT
(
0:None, 1:Yes
)
1 1
549 dumm
y
54
9
- -
550 Channel Preset
(
0:VESTEL, 1:GIFU, 2:HAMA, 3:HFDM, 4:AUSTRALIA
)
4 1
551 V FREQ 60Hz Force
(
0:None, 1:Yes
)
1 0
552 Offset value of ad
j
usted TINT For COMPAL factor
y
20 11
553 Use "TINT Offset�" 0:No, 1:Yes For COMPAL factor
y
1 0
554 PDP-BLK ON/OFF 1:ON, 0:OFF 1 0
555 IIC BUS Data/Clock O
p
en
(
0:Close, 1:O
p
en
)
1 0
556 Protect for Ima
g
e Retention 0:Off, 1:7%, 2:14%, 3:21%, 4:AUTO D
y
namic mode 4 4
557 Protect for Ima
g
e Retention 0:Off, 1:7%, 2:14%, 3:21%, 4:AUTO Natural mode 4 4
558 Protect for Ima
g
e Retention 0:Off, 1:7%, 2:14%, 3:21%, 4:AUTO Cinema mode 4 4
559 Dis
p
ersion Time of Sustain current 0:2 Times, 1:4 times For D
y
namic mode 1 0
560 Dis
p
ersion Time of Sustain current 0:2 Times, 1:4 times For Natural mode 1 1
561 Dis
p
ersion Time of Sustain current 0:2 Times, 1:4 times For Cinema mode 1 1
562 Dis
p
ersion Time of Sustain current 0:2 Times, 1:4 times For PC mode 1 1
563 Dis
p
ersion Time of Sustain current 0:2 Times, 1:4 times For PC-Movie mode 1 1
564 Q mode 0:Freeze, 1:Move 1, 2:Move 2 For 50Hz
[
D
y
namic
]
mode 2 1
565 Q mode 0:Freeze, 1:Move 1, 2:Move 2 For 50Hz
[
Natural
]
mode 2 1
566 Q mode 0:Freeze, 1:Move 1, 2:Move 2 For 50Hz
[
Cinema
]
mode 2 1
567 Q mode 0:Freeze, 1:Move 1, 2:Move 2 For 60Hz
[
D
y
namic
]
mode 2 1
568 Q mode 0:Freeze, 1:Move 1, 2:Move 2 For 60Hz
[
Natural
]
mode 2 1
569 Q mode 0:Freeze, 1:Move 1, 2:Move 2 For 60Hz
[
Cinema
]
mode 2 1
570 Q mode 0:Freeze, 1:Move 1, 2:Move 2 For 70Hz
(
PC
)
2 0
571 dumm
y
571 - -
572 dumm
y
572 - -
573 dumm
y
57
3
- -
574 dumm
y
574 - -
575 dumm
y
57
5
- -
576 Gra
y
level of BM Index 31 4
577 Dis
p
la
y
of BM version 127 -
578 TA1391: SYNC SW Chan
g
e
0:SYNC, 1:HDVD1&2
1 0
579 Free
580 Free
581 Countin
g
time for discrimination of fH
(
M30625/TA1370
)
� 31 2
582 Countin
g
time for discrimination of fV
(
M30625/TA1370
)
� 31 2
583 Countin
g
time for discrimination of fV
(
TB1274
)
� 31 2
584 Lower Limits value for S
y
nc Detect of 2ms interval For AFC at TV mode 254 25
585 Lower Limits value for S
y
nc Detect of 2ms interval For Free Runnin
g
at TV mode 254 30
1
: should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
18
32PD7800/42PD7800 (PW2)
��should be followed previous data
ADJ Function Max. Default
No value FORMATTER VIDEO TUNER PDP
A
DJ. Items Mode PWB PWB PWB PANEL
Changed Component
586
Lower Limits value for S
y
nc Detect of 2ms interval For AUTO OFF at TV mode
254 25
587
Lower Limits value for S
y
nc Detect of 2ms interval For Free Runnin
g
at AV mode
254 30
588
Lower Limits value for S
y
nc Detect of 2ms interval For Power Save at AV mode
254 5
589
U
pp
er Limits Value for S
y
nc Detect of 2ms interval For AFC at TV mode
254 40
590
U
pp
er Limits Value for S
y
nc Detect of 2ms interval For Free Runnin
g
at TV mode
254 45
591
U
pp
er Limits Value for S
y
nc Detect of 2ms interval For AUTO OFF at TV mode
254 35
592
U
pp
er Limits Value for S
y
nc Detect of 2ms interval For Free Runnin
g
at AV mode
254 45
593
U
pp
er Limits Value for S
y
nc Detect of 2ms interval For Power Save at AV mode
254 200
594
V detection
(
Format PWB � 0:out of ran
g
e, 128:NO V
(
or out of s
p
ec
)
, 255:interru
p
t 50/60
(
Hz
)
255 -
595
H detection
(
Format PWB � 0:out of ran
g
e, 128:NO H
(
or out of s
p
ec
)
, 255:interru
p
t 15/28/31/33/45
(
kHz
)
255 -
596
V detection
(
VideoPWB � 0:out of ran
g
e, 128:NO V
(
or out of s
p
ec
)
, 255:interru
p
t 50/60
(
Hz
)
255 -
597
H detection
(
Video PWB � 0:out of ran
g
e, 128:NO H
(
or out of s
p
ec
)
, 255:interru
p
t 15/28/31/33/45
(
kHz
)
255 -
598
COLOR SYSTEM CONTROL-MODE
(
0:BW, 2:3.58NTSC, 3:4.43NTSC, ���
)
Main
- -
599
COLOR SYSTEM CONTROL-MODE
(
0:BW, 2:3.58NTSC, 3:4.43NTSC, ���
)
Sub
- -
600
Countin
g
Value of 2ms S
y
nc.Detect Main
- -
601
Countin
g
Value of 2ms S
y
nc.Detect Sub
- -
602
TB1274 Read Data
(
00h
)
Main
- -
603
TB1274 Read Data
(
01h
)
Main
- -
604
TB1274 Read Data
(
00h
)
Sub
- -
605
TB1274 Read Data
(
01h
)
Sub
- -
606
MSP Read Data
(
CNTROL
) (
D15-D8
)
- -
607
MSP Read Data
(
CNTROL
) (
D 7-D0
)
- -
608
MSP Read Data
(
STANDARD
_
RES
) (
D15-D8
)
- -
609
MSP Read Data
(
STANDARD
_
RES
) (
D 7-D0
)
- -
610
MSP Read Data
(
STATUS
) (
D15-D8
)
- -
611
MSP Read Data
(
STATUS
) (
D 7-D0
)
- -
612
TA1391FG Read Data
(
00h
)
- -
613
TA1391FG Read Data
(
01h
)
- -
614
TA1391FG Read Data
(
02h
)
- -
615
TA1391FG Read Data
(
03h
)
- -
616
TA1391FG Read Data
(
04h
)
- -
617
TA1391FG Read Data
(
05h
)
- -
618
TA1391FG Read Data
(
06h
)
- -
619
TA1391FG Read Data
(
07h
)
- -
620
TA1370G Read Data
(
00h
)
- -
621
TA1370G Read Data
(
01h
)
- -
622
SiI9993 Read Data SYNC1 : VSYNC/Clock detect/S
y
nc detect 1
- -
623
SiI9993 Read Data NHRDL1 : N hardware value 1
- -
624
SiI9993 Read Data NHRDM1 : N hardware value 1
- -
625
SiI9993 Read Data NHRDH1 : N hardware value 1
- -
626
SiI9993 Read Data CHRDL1 : CTS hardware value 1
- -
627
SiI9993 Read Data CHRDM1 : CTS hardware value 1
- -
628
SiI9993 Read Data CHRDH1 : CTS hardware value 1
- -
629
SiI9993 Read Data ACR1 : ACR PLL hardware value 1
- -
630
SiI9993 Read Data ACRS1 : ACR PLL hardware value 1
- -
631
SiI9993 Read Data SFREQ1 : "Extracted Sampling Frequency 1
channel status b24-27
(
same value at 0x30
)
"
- -
632
SiI9993 Read Data CLKFRQ1: Clock Accurac
y
/Sam
p
lin
g
Fre
q
uenc
y
1
- -
633
SiI9993 Read Data ALNG1 : Audio len
g
th/Audio len
g
th max 1
- -
634
SiI9993 Read Data MT
_
MD1 : AV mute/HDMI mode 1
- -
635
SiI9993 Read Data VTYP1 : AVI infoframe t
yp
e code 1
- -
636
SiI9993 Read Data VVER1 : AVI infoframe version code 1
- -
637
SiI9993 Read Data VINFO11: AVI infoframe data 1
- -
638
SiI9993 Read Data VINFO21:
- -
639
SiI9993 Read Data VINFO31:
- -
640
SiI9993 Read Data VINFO41:
- -
641
SiI9993 Read Data VINFO51:
- -
642
SiI9993 Read Data ATYP1 : AUDIO InfoFrame T
yp
e Code 1
- -
643
SiI9993 Read Data AVER1 : AUDIO InfoFrame Version Code 1
- -
644
SiI9993 Read Data AINFO11: AUDIO InfoFrame Data B
y
tes 1
- -
645
SiI9993 Read Data AINFO21:
- -
646
SiI9993 Read Data AINFO31:
- -
647
SiI9993 Read Data AINFO41:
- -
648
SiI9993 Read Data AINFO51:
- -
649
Initialize function for EEPROM of Video PWB board
1 0
650 Check condition of EEPROM of Video PWB board
0:Normal, 1:Abnormal(Fail or no
assembl
y)
1 -
651
W/B Initialize
1 -
652
Gain ad
j
ustment of RGB am
p
lifier
(
FLAON
)
Main
- -
653
Gain ad
j
ustment of RGB am
p
lifier Sub
- -
654
A
utomatic White Peak Ad
j
. Sin
g
le Picture mode
- -
655
A
utomatic Color Level Ad
j
.
(
TB1274BF
)
Main PAL/NTSC
(
COMPOSITE
- -
656
A
utomatic Color Level Ad
j
.
(
TB1274BF
)
Sub PAL/NTSC
(
COMPOSITE
- -
657
A
utomatic White Peak Ad
j
. Multi Picture mode
- -
658
EEPROM Initialize
(
0:No, 1:Yes
)
1 0
659
Enter to SUB ad
j
ust menu
- -
660 Enter to service menu of FC sub mi-con - -
: should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
19
32PD7800/42PD7800 (PW2)
Service
adjustment items by I
2
C-bus control (SUB adjust menu)
(*The change to a sub menu. press “ok” key after no.659 with a main menu)
��should be followed previous data
ADJ Function Max. Default
No. Value FORMATTER VIDEO TUNER PDP
ADJ. Items Mode PWB PWB PWB PANEL
0 R DRIVE1
[
RF/VIDEO/DSUB-COMP
]
COOL 255 255 � �
1 G DRIVE1
[
RF/VIDEO/DSUB-COMP
]
COOL 255 255 � �
2 B DRIVE1
[
RF/VIDEO/DSUB-COMP
]
COOL 255 255 � �
3 R DRIVE2
[
RF/VIDEO/DSUB-COMP
]
NORMAL 255 255 � �
4 G DRIVE2
[
RF/VIDEO/DSUB-COMP
]
NORMAL 255 255 � �
5 B DRIVE2
[
RF/VIDEO/DSUB-COMP
]
NORMAL 255 255 � �
6 R DRIVE3
[
RF/VIDEO/DSUB-COMP
]
WARM 255 255 � �
7 G DRIVE3
[
RF/VIDEO/DSUB-COMP
]
WARM 255 255 � �
8 B DRIVE3
[
RF/VIDEO/DSUB-COMP
]
WARM 255 255 � �
9 R DRIVE4
[
RF/VIDEO/DSUB-COMP
]
BLACK & WHITE 255 255 � �
10 G DRIVE4
[
RF/VIDEO/DSUB-COMP
]
BLACK & WHITE 255 255 � �
11 B DRIVE4
[
RF/VIDEO/DSUB-COMP
]
BLACK & WHITE 255 255 � �
12 R DRIVE1
[
DVI-PC/DVI-STB/DSUB-RGB
]
COOL 255 255 � �
13 G DRIVE1
[
DVI-PC/DVI-STB/DSUB-RGB
]
COOL 255 255 � �
14 B DRIVE1
[
DVI-PC/DVI-STB/DSUB-RGB
]
COOL 255 255 � �
15 R DRIVE2
[
DVI-PC/DVI-STB/DSUB-RGB
]
NORMAL 255 255 � �
16 G DRIVE2
[
DVI-PC/DVI-STB/DSUB-RGB
]
NORMAL 255 255 � �
17 B DRIVE2
[
DVI-PC/DVI-STB/DSUB-RGB
]
NORMAL 255 255 � �
18 R DRIVE3
[
DVI-PC/DVI-STB/DSUB-RGB
]
WARM 255 255 � �
19 G DRIVE3
[
DVI-PC/DVI-STB/DSUB-RGB
]
WARM 255 255 � �
20 B DRIVE3
[
DVI-PC/DVI-STB/DSUB-RGB
]
WARM 255 255 � �
21 R DRIVE4
[
DVI-PC/DVI-STB/DSUB-RGB
]
BLACK & WHITE 255 255 � �
22 G DRIVE4
[
DVI-PC/DVI-STB/DSUB-RGB
]
BLACK & WHITE 255 255 � �
23 B DRIVE4
[
DVI-PC/DVI-STB/DSUB-RGB
]
BLACK & WHITE 255 255 � �
24 Bri
g
htness Center
(
CM
)
NTSC/PAL
/
�Multi
p
icture 254 128
25 Bri
g
htness Center
(
CM
)
Scart-RGB
(
50/60Hz
)
254 128
26 Bri
g
htness Center
(
CM
)
480i/576i/480
p
/576
p
254 128
27 Bri
g
htness Center
(
CM
)
1080i-50/60/720
p
254 124
28 Bri
g
htness Center
(
CM
)
DVI-PC 254 128
29 Bri
g
htness Center
(
CM
)
DVI-STB 254 128
30 Bri
g
htness Center
(
CM
)
DSUB-RGB 254 128
31 Bri
g
htness Center
(
CM
)
Ex
p
and DSUB-RGB
(
Reserved
)
254 128
32 Bri
g
htness Center
(
CM
)
HDMI 254 128
33 Bri
g
htness center
(
CM
)
offse
t
A
V1 254 127
34 Bri
g
htness center
(
CM
)
offse
t
A
V2 254 127
35 Bri
g
htness center
(
CM
)
offse
t
A
V3 254 127
36 Bri
g
htness center
(
CM
)
offse
t
A
V4 254 127
37 Bri
g
htness center
(
CM
)
offse
t
A
V5 254 127
38 Bri
g
htness center
(
CM
)
offse
t
DSUB-COMP 254
39 Color Center
(
CM
)
SD
(
YCbCr
)(
50Hz
)
127 72
40 Color Center
(
CM
)
SD
(
YCbCr
)(
60Hz
)
127 68
41 Color Center
(
CM
)
Scart-RGB
(
50/60Hz
)
127 50
42 Color Center
(
CM
)
HD
(
YPbPr
)(
50/60Hz
)
127 70
43 Color Center
(
CM
)
DVI-PC 127 64
44 Color Center
(
CM
)
DVI-STB
(
480i/576i/480
p
/576
p)
127 62
45 Color Center
(
CM
)
DVI-STB
(
1080i-50/60/720
p)
127 62
46 Color Center
(
CM
)
DVI-STB
(
VGA
)
127 62
47 Color Center
(
CM
)
DSUB-RGB 127 64
48 Tint Center
(
CM
)
PAL 254 � �
49 Tint Center
(
CM
)
Scart-RGB
(
50Hz
)
254 140 � �
50 Tint Center
(
CM
)
Scart-RGB
(
60Hz
)
254 120 � �
51 Tint Center
(
CM
)
SD
(
YCbCr
)(
50Hz
)
254 � �
52 Tint Center
(
CM
)
SD
(
YCbCr
)(
60Hz
)
254 � �
53 Tint Center
(
CM
)
HD
(
YPbPr
)(
50/60Hz
)
254 135 � �
54 Tint Center
(
CM
)
DVI-PC 254 128 � �
55 Tint Center
(
CM
)
DVI-STB
(
480i/576i/480
p
/576
p)
254 128 � �
56 Tint Center
(
CM
)
DVI-STB
(
1080i-50/60/720
p)
254 128 � �
57 Tint Center
(
CM
)
DVI-STB
(
VGA
)
254 128 � �
58 Tint Center
(
CM
)
DSUB-RGB 254 128 � �
59 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
RF 31 10
60 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
VIDEO 31 15
61 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
Scart-RGB
(
50/60Hz
)
31 14
62 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
480i/576i 31 10
63 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
480
p
/576
p
31 15
64 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
720
p
31 6
65 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
1080i-50/60 31 10
66 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
TEXT
(
for s
p
lit
)
31 19
67 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
DVI-STB
(
480i/576i
)
31 14
68 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
DVI-STB
(
480
p
/576
p)
31 10
69 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
DVI-STB
(
720
p)
31 6
70 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
DVI-STB
(
1080i-50/60
)
31 10
71 Center of Shar
p
ness
(
Y-Enhancer Gain for HV
)
DVI-STB
(
VGA
)
31 10
72 Contrast Center
(
CM
)
RF 254 137
73 Contrast Center
(
CM
)
A
V1 254 137
74 Contrast Center
(
CM
)
A
V2 254 137
75 Contrast Center
(
CM
)
A
V3 254 137
76 Contrast Center
(
CM
)
A
V4 254 137
77 Contrast Center
(
CM
)
A
V5 254 137
78 Contrast Center
(
CM
)
DVI-PC 254 128
79 Contrast Center
(
CM
)
DVI-STB
(
With Setu
p)
254 149
80 Contrast Center
(
CM
)
DVI-STB
(
Without Setu
p)
254 128
81 Contrast Center
(
CM
)
DSUB-RGB 254 128
82 Contrast Center
(
CM
)
Ex
p
and DSUB-RGB
(
Reserved
)
254 128
83 Contrast Center
(
CM
)
DSUB-COMP 254 137
84 Maximum Value of Contrast at REAL/NORMAL mod
e
254 188
85 Offset Value of Contrast data at SPLIT mode 120 53
86 Offset value of
g
ain for Black Stretch function Exce
p
t OFF/LOW/HIGH mode 63
87 Horizontal Enhanc
e
TEXT 3 3
88 Vertical Enhance TEXT 3 3
89 Horizontal filter SW
[
HHPF0
]
NTSC/480i 1 0
90
(
Enhancer Gain
) [
HHPF1
]
PAL/576i 1 0
91
[
HHPF2
]
480
p
/576
p
/1080i-50/60/720
p
1 0
Changed Component
126
125
123
130
32
��should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
20
32PD7800/42PD7800 (PW2)
��should be followed previous data
ADJ Function Max. Default
No. Value FORMATTER VIDEO TUNER PDP
ADJ. Items Mode PWB PWB PWB PANEL
Changed Component
92 Horizontal Corin
g
Level
[
HECOR1
]
NTSC-RF 15 3
93
(
Enhancer Gain
) [
HECOR2
]
PAL-RF
/
�Multi
p
icture 15 2
94
[
HECOR3
]
NTSC-VIDEO 15 1
95
[
HECOR4
]
PAL-VIDEO 15 1
96
[
HECOR5'
]
Scart-RGB
(
50/60Hz
)
15 0
97
[
HECOR5
]
480i/576i 15 2
98
[
HECOR6
]
480
p
/576
p
15 1
99
[
HECOR7
]
1080i-50/60/720
p
15 1
100
[
HECORPC
]
PC 15 1
101 Vertical Corin
g
Level
[
VECOR1
]
NTSC-RF 15 1
102
(
Enhancer Gain
) [
VECOR2
]
PAL-RF
/
�Multi
p
icture 15 8
103
[
VECOR3
]
NTSC-VIDEO 15 1
104
[
VECOR4
]
PAL-VIDEO 15 1
105
[
VECOR5'
]
Scart-RGB
(
50/60Hz
)
15 1
106
[
VECOR5
]
480i/576i 15 0
107
[
VECOR6
]
480
p
/576
p
15 15
108
[
VECOR7
]
1080i-50/60/720
p
15 15
109
[
VECORPC
]
PC 15 0
110 Enhancer
g
ain of VH for
C
TEXT 31 0
111 Corin
g
Am
p
litude for Y/G
[
YC0R0
]
NTSC/PAL-RF
/
�Multi
p
icture 7 7
112
[
YC0R1
]
NTSC/PAL-VIDEO 7 5
113
[
YC0R2
]
480i/576i/Scart-RGB
(
50/60Hz
)
7 4
114
[
YC0R3
]
480
p
/576
p
7 1
115
[
YC0R4
]
1080i-50/60/720
p
7 1
116
[
YC0R5
]
NTSC/PAL �-in
p
u
t
7 4
117 Corin
g
Am
p
litube for B-Y/B,R-Y/R
[
CC0R0
]
NTSC/PAL/480i/576i/�Multi
p
icture 7 1
118
[
CC0R1
]
480
p
/576
p
/1080i-50/60/720
p
7 1
119 YFRNR in
p
ut Gain
(
Main
)
2
p
ictures
[
MYNRG0
]
HD-exce
p
t HD 7 1
120 HD-NTSC, HD-PAL
(
sub
) [
MYNRG1
]
HD-HD 7 4
121 4
p
ictures
[
MYNRG2
]
NT-* /PAL-* 7 1
122
[
MYNRG3
]
HD-* 7 4
123 YFRNR in
p
ut Gain
(
Sub
) [
YCNRG0
]
2
p
ictures 7 4
124
[
YCNRG1
]
4
p
ictures/12
p
ictures 7 1
125 CFRNR in
p
ut Gain
(
Main
)
2
p
ictures
[
MCNRG0
]
HD-exce
p
t HD 7 3
126 HD-NTSC, HD-PAL
(
SUB
) [
MCNRG1
]
HD-HD 7 4
127
[
MCNRG2
]
NT-* /PAL-* 7 4
128
[
MCNRG3
]
HD-* 7 4
129 CFRNR in
p
ut Gain
(
Sub
) [
SCNRG0
]
2
p
ictures 7 3
130
[
SCNRG1
]
4
p
ictures/12
p
ictures 7 4
131 Vertical Enhancer Gain for Y/G
[
YVEG0
]
NTSC/PAL
(
-exce
p
t RF
)
/480i/576i 15 15
132
[
YVEG1
]
480
p
/576
p
15 4
133
[
YVEG2
]
1080i-50/60/720
p
15 15
134
[
YVEG3
]
PAL
(
-RF
)
/�Multi
p
icture 15 15
135 Vertical DSB Gain for Y/G
[
YVDSBG0
]
NTSC/PAL/480i/576i/�Multi
p
icture 3 3
136
[
YVDSBG1
]
480
p
/576
p
3 0
137
[
YVDSBG2
]
1080i-50/60/720
p
3 2
138 Vertical DSB Corin
g
for Y/G
[
YVDSBC0
]
NTSC/PAL/480i/576i/�Multi
p
icture 7 7
139
[
YVDSBC1
]
480
p
/576
p
/1080i-50/60/720
p
7 0
140 Vertical Enhancer Cli
p
for Y/G 0:LTI
[
YVECLP0
]
NTSC/PAL/480i/576i/�Multi
p
icture 1 1
141
[
YVECLP1
]
480
p
/576
p
/1080i-50/60/720
p
1 0
142 Vertical Cli
p
Offset Level
[
YVECLPL0
]
NTSC/PAL/480i/576i/�Multi
p
icture 15 15
143
[
YVECLPL1
]
480
p
/576
p
/1080i-50/60/720
p
15 8
144 Vertical Non Linear Peakin
g
for Y/G
[
YVNLP0
]
NTSC/PAL/480i/576i/�Multi
p
icture 63 0
145
[
YVNLP1
]
480
p
/576
p
/1080i-50/60/720
p
63 0
146 Horizontal Enhancer Gain for Y/R
[
YHEG0
]
NTSC/PAL
(
-exce
p
t RF
)
/480i/576i 15 15
147
[
YHEG1
]
480
p
/576
p
15 15
148
[
YHEG2
]
1080i-50/60/720
p
15 15
149
[
YHEG3
]
PAL
(
-RF
)
/�Multi
p
icture 15 15
150 Horizontal DSB Gain for Y/R
[
YHDSBG0
]
NTSC/PAL/480i/576i/�Multi
p
icture 3 2
151
[
YHDSBG1
]
480
p
/576
p
3 0
152
[
YHDSBG2
]
1080i-50/60/720
p
3 2
153 Horizontal DSB Corin
g
for Y/R
[
YHDSBC0
]
NTSC/PAL/480i/576i/�Multi
p
icture 7 7
154
[
YHDSBC1
]
480
p
/576
p
/1080i-50/60/720
p
7 7
155 Horizontal Enhancer Cli
p
for Y/R 0:LTI
[
YHDSBC0
]
NTSC/PAL/480i/576i/�Multi
p
icture 1 0
156
[
YHDSBC1
]
480
p
/576
p
/1080i-50/60/720
p
1 0
157 Horizontal Cli
p
Offset Level for Y/R
[
YHECLPL0
]
RF/�Multi
p
icture 15 4
158
[
YHECLPL1
]
NTSC/PAL-VIDEO 15 4
159
[
YHECLPL3
]
480i/576i/Scart-RGB
(
50/60Hz
)
15 10
160
[
YHECLPL2
]
480
p
/576
p
/1080i-50/60/720
p
15 0
161 Horizontal Non Linear Peakin
g
for Y/G
[
YHNLP0
]
NTSC/PAL/480i/576i/�Multi
p
icture 63 0
162
[
YHNLP1
]
480
p
/576
p
/1080i-50/60/720
p
63 0
163 Horizontal HPF Peak Fre
q
. SW for Y/R
[
YHHPF0
]
NTSC/PAL/480i/576i/�Multi
p
icture 3 2
164
[
YHHPF1
]
480
p
/576
p
3 2
165
[
YHHPF2
]
1080i-50/60/720
p
3 2
166 Initial value of Contrast Extend 1 of Panel Life function 127 93
167 Interval time of correction time Extend 1 of Panel Life function 127 10
168
A
dditional value of Contrast Extend 1 of Panel Life function 127 1
169 Initial value of Contrast Extend 2 of Panel Life function 127 63
170 Interval time of correction time Extend 2 of Panel Life function 127 6
171
A
dditional value of Contrast Extend 2 of Panel Life function 127 1
172 Menu Init. Contrast
(
-31
[
0
]
�+40
[
71
])
For D
y
namic 71 62
173 Menu Init. Contrast
(
-31
[
0
]
�+40
[
71
])
For Natural 71 62
174 Menu Init. Contrast
(
-31
[
0
]
�+40
[
71
])
For Cinema 71 51
175 Menu Init. Bri
g
htness
(
-31
[
0
]
�+31
[
62
])
For D
y
namic 62 31
176 Menu Init. Bri
g
htness
(
-31
[
0
]
�+31
[
62
])
For Natural 62 31
177 Menu Init. Bri
g
htness
(
-31
[
0
]
�+31
[
62
])
For Cinema 62 33
178 Menu Init. Color
(
-31
[
0
]
�+31
[
62
])
For D
y
namic 62 36
179 Menu Init. Color
(
-31
[
0
]
�+31
[
62
])
For Natural 62 31
180 Menu Init. Color
(
-31
[
0
]
�+31
[
62
])
For Cinema 62 21
181 Menu Init. Shar
p
ness
(
-15
[
0
]
�+15
[
30
])
For D
y
namic 30 20
182 Menu Init. Shar
p
ness
(
-15
[
0
]
�+15
[
30
])
For Natural 30 15
183 Menu Init. Shar
p
ness
(
-15
[
0
]
�+15
[
30
])
For Cinema 30 10
��should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
21
32PD7800/42PD7800 (PW2)
��should be followed previous data
ADJ Function Max. Default
No. Value FORMATTER VIDEO TUNER PDP
ADJ. Items Mode PWB PWB PWB PANEL
Changed Component
184 Menu Init. Color Tem
p
.
(
Cool
[
0
]
/Normal
[
1
]
/Warm
[
2
]
/B&W
[
3
])
For D
y
namic 3 0
185 Menu Init. Color Tem
p
.
(
Cool
[
0
]
/Normal
[
1
]
/Warm
[
2
]
/B&W
[
3
])
For Natural 3 1
186 Menu Init. Color Tem
p
.
(
Cool
[
0
]
/Normal
[
1
]
/Warm
[
2
]
/B&W
[
3
])
For Cinema 3 2
187 Menu Init. Black stretch
(
Off
[
0
]
/Low
[
1
]
/Mid.
[
2
]
/Hi
g
h
[
3
])
For D
y
namic 3 1
188 Menu Init. Black stretch
(
Off
[
0
]
/Low
[
1
]
/Mid.
[
2
]
/Hi
g
h
[
3
])
For Natural 3 1
189 Menu Init. Black stretch
(
Off
[
0
]
/Low
[
1
]
/Mid.
[
2
]
/Hi
g
h
[
3
])
For Cinema 3 0
190 Menu Init. YNR
(
Off
[
0
]
/Low
[
1
]
/Hi
g
h
[
2
])
For D
y
namic 2 0
191 Menu Init. YNR
(
Off
[
0
]
/Low
[
1
]
/Hi
g
h
[
2
])
For Natural 2 0
192 Menu Init. YNR
(
Off
[
0
]
/Low
[
1
]
/Hi
g
h
[
2
])
For Cinema 2 0
193 Menu Init. LTI
(
Off
[
0
]
/Low
[
1
]
/Mid.
[
2
]
/Hi
g
h
[
3
])
For D
y
namic 3 2
194 Menu Init. LTI
(
Off
[
0
]
/Low
[
1
]
/Mid.
[
2
]
/Hi
g
h
[
3
])
For Natural 3 1
195 Menu Init. LTI
(
Off
[
0
]
/Low
[
1
]
/Mid.
[
2
]
/Hi
g
h
[
3
])
For Cinema 3 0
196 Center of Shar
p
ness
(
HV Enhancer Gain for Y
)
HDMI
(
480i/576i
)
31 10
197 Center of Shar
p
ness
(
HV Enhancer Gain for Y
)
HDMI
(
480
p
/576
p)
31 20
198 Center of Shar
p
ness
(
HV Enhancer Gain for Y
)
HDMI
(
720
p)
31 15
199 Center of Shar
p
ness
(
HV Enhancer Gain for Y
)
HDMI
(
1080i-50/60
)
31 7
200 Center of Shar
p
ness
(
HV Enhancer Gain for Y
)
HDMI
(
VGA
)
31 10
201 Color Center
(
CM
)
HDMI-YCbCr
(
50Hz:576i/576
p)
127 65
202 Color Center
(
CM
)
HDMI-YCbCr
(
60Hz:480i/480
p)
127 65
203 Color Center
(
CM
)
HDMI-YPbPr
(
1080i-50/60/720
p)
127 65
204 Tint Center
(
CM
)
HDMI-YCbCr
(
50Hz:576i/576
p)
254 126
205 Tint Center
(
CM
)
HDMI-YCbCr
(
60Hz:480i/480
p)
254 126
206 Tint Center
(
CM
)
HDMI-YPbPr
(
1080i-50/60/720
p)
254 126
207 Shar
p
ness Gain
(
RF
)
BG/DK/I Main 15
208 Shar
p
ness Gain
(
RF
)
M Main 15 8
209 Shar
p
ness Gain
(
RF
) L
Main 15 8
210 Shar
p
ness Gain
(
RF
)
L
'
Main 15 8
211 Shar
p
ness Gain
(
VIDEO
)
PA
L
Main 15 8
212 Shar
p
ness Gain
(
VIDEO
)
NTSC3.58 Main 15 10
213 Shar
p
ness Gain
(
VIDEO
)
SECAM,B/W Main 15 8
214 Shar
p
ness Gain
(
VIDEO
)
NTSC4.43 Main 15 8
215 Shar
p
ness Gain
(
VIDEO
)
N-PA
L
Main 15 8
216 Shar
p
ness Gain
(
VIDEO
)
M-PA
L
Main 15 8
217 Shar
p
ness Gain
(
S.VIDEO
)
Main 15 8
5(42),8(32)
��should be adjusted
Downloaded from www.ManualsFile.com manuals search engine
22
32PD7800/42PD7800 (PW2)
The Expression of input signal mode (format)
PAL1: RF, S and Composite of PAL/SECAM
PAL2: Component of PAL (YCBCR)
PAL3: Component of PAL (YPBPR)
PAL4: Component of PAL (YCBCR-SCART)
PAL: PAL1-4
NT1: S and Composite of NTSC
NT2: Component of NTSC (YCBCR)
NT3: Component of NTSC (YPBPR)
NT4: Component of NTSC (YCBCR-SCART)
NTSC: NTSC1-4
HD1-6: Component (shown in the table )
HD7: Component of 1080i/50 (YPBPR)
HD8: Component of 1080i/50 (YCBCR)
HD9: Component of 576p (YPBPR)
HD10: Component of 576p (YCBCR)
HD: HD1-10 of Component
TV: NTSC / HD
PC: PC signal
Video
Input
Judgment of
H.Frequency
Video Input
Setup
Mode
AV1
AV2
15.75kHz
(576i)
Auto PAL2
SDTV/DVD PAL2
HDTV PAL3
15.75kHz
(480i)
Auto NT2
SDTV/DVD NT2
HDTV NT3
31.25kHz
(576p)
Auto HD10
SDTV/DVD HD10
HDTV HD9
31.50kHz
(480p)
Auto HD3
SDTV/DVD HD3
HDTV HD2
45.00kHz
(720p)
Auto HD5
SDTV/DVD HD6
HDTV HD5
28.125kHz
(1080i)
Auto HD7
SDTV/DVD HD8
HDTV HD7
33.75kHz
(1080i)
Auto HD1
SDTV/DVD HD4
HDTV HD1
Factory Reset
After all of the adjustments of main chassis are finished, perform FACTORY RESET.
Press the SUB-POWER( ) button, INPUT SELECT( ) button and button at the same time, and hold for
more than 5 seconds.
The unit is set to factory settings.
Downloaded from www.ManualsFile.com manuals search engine
23
32PD7800/42PD7800 (PW2)
Item Power Unit Vs, Va Adjustment
Applicable Model All models
Preparation Procedure
(1) Turn on the set and perform
pre-heat run more than 1 min
on burn-in screen.
(1)
Turn Vs ADJ to adjust Vs voltage
to be within ±0.1V of the value
specified in the label on the panel.
Adjust within ± 1V at Vs1
Adjust within ± 0.1V at Vs2
(2)
Receive full back pattern signal
(or Video silence signal;
but it will be automatically turned off
after a few seconds by power save function.)
(2)
Tu
rn Va ADJ to adjust Va voltage
to be within ±0.2V of the value specified
in the label on the panel.
Adjust within ± 1V at Va1
Adjust within ± 0.2V at Va2
(3) Connect voltmeter leads to Vs
(or Va) and GND test points of the power unit.
(3
)
Label example
<LOT>N6
Vs= 80.0V Va=60.0V
Vw=140.0V Vx=60.0V
Power
Supply
Unit
X-sus
Y-sus
(Rear View)
Panel Module
Label
Reconfirm that Vs voltage remains within
±0.1V of the specified value.
Readjust if it’s outside of the margin.
n
iP
tseT
aV
/
sV
99N
C
sV
aV
DNG
RV tnemtsujda esraoc sV:1sV
RV tnemtsujda enif sV:2sV
RV tnemtsujda enif aV:2aV
R
V
t
n
em
tsuj
da
e
sra
o
c aV
:1
a
V
51
4
7FP
M
atar
u
M
**
**
*
**
* N/
S
MADE IN THAILAND
Downloaded from www.ManualsFile.com manuals search engine
24
32PD7800/42PD7800 (PW2)
Item AGC Adjustment (Main)
Applicable Model All models
Preparation Procedure
(1)
Turn on the set and perform pre-heat run
more than 20 min.
(1)
(2) Receive AGC adjustment signal.
CCIR ch-5: (175.25MHz)
PAL B/G PHILIPS
Field : -50dBm
(2)
(3)
(4)
AGC POINT
AGC Voltag
e
AGC Max.
AG
C
Adj. point
Receive AGC adjustment signal.
Indicate Service Adjustment menu (Main).
Display the following signals at the same time.
Service Adjustment No.13 (AGC Adjustment)
No.15 (AGC Input)
Raise No.13 data value until No.15 data is
saturated(This point: AGC-MAX)
With monitoring No.15
reduce No.13 data value and press [OK] key
at the point when No.15 data
comes down.
Downloaded from www.ManualsFile.com manuals search engine
25
32PD7800/42PD7800 (PW2)
Item AGC Adjustment (Sub)
Applicable Model All models
Preparation Procedure
(1)
Turn on the set and perform pre-heat run
more than 20 min.
(1)
(2) Receive AGC adjustment signal.
CCIR ch-5: (175.25MHz)
PAL B/G PHILIPS
Field : -50dBm
(2)
(3)
(4)
AGC POINT
AGC Voltag
e
AGC Max.
AG
C
Adj. point
Receive AGC adjustment signal.
Indicate Service Adjustment menu (Sub).
Display the following signals at the same time.
Service Adjustment No.14 (AGC Adjustment)
No.16 (AGC Input)
Raise No.14 data value until No.16 data is
saturated(This point: AGC-MAX)
With monitoring No.16
reduce No.14 data value and press [OK] key
at the point when No.16 data comes down.
Downloaded from www.ManualsFile.com manuals search engine
26
32PD7800/42PD7800 (PW2)
Item
Applicable Model All models
Preparation Procedure
(1) Input 576p or 480p adjustment signal
into AV1 terminal.
(1) Receive 576p or 480p adjustment signal on AV1
terminal input.
Indicate Service Adjustment Menu.
(2)
(3)
Select No.652 (RGB amplitude gain adjustment
Main) of Service Adjustment Menu.
Press [OK] key more than 2 seconds to start the
automatic adjustment
.
The adjustment completes when the indication
[Auto Mode] at the bottom of the screen
disappears.
[Note] Never adjust without use of the specified signal.
If that were done by mistake, the picture would become abnormal in black level, contrast and color.
In this case, it will be recovered by re-adjustment in the specified way.
Black pattern: Set pedestal level.
Characters must not be inserted
into this signal.
Black
White
0.7V
RGB Amplitude Adjustment (Main/Sub)
Select No.653 (RGB amplitude gain adjustment
Sub) of Service Adjustment Menu.
Press [OK] key more than 2 seconds to start the
automatic adjustment.
The adjustment completes when the indication
[Auto Mode] at the bottom of the screen
disappears.
[Note] Never adjust without use of the specified signal.
If that were done by mistake, the picture would become abnormal in black level, contrast and color.
In this case, it will be recovered by re-adjustment in the specified way.
Item
Applicable Model All models
Preparation Procedure
(1)
(1)
(2)
Black pattern: Set pedestal level.
Characters must not be inserted
into this signal.
Black
White
0.7V
RGB Amplitude Adjustment (PC D-Sub input)
Input RGB amplitude adjustment signal of VGA
(60Hz) into RGB2 [D-sub] terminal.
Receive PC signal (VGA [60Hz]), and indicate
Service Adjustment Menu.(Main)
Select No.652 of Service Adjustment Menu.
Press [OK] key more than 2 seconds to start the
automatic adjustment.
The adjustment completes when the OSD
reappears.
Downloaded from www.ManualsFile.com manuals search engine
27
32PD7800/42PD7800 (PW2)
Item
Applicable Model All models
Preparation Procedure
(1) Receive color amplitude adjustment
signal.
Switch to AV1 and receive PAL color
amplitude adjustment signal.
(1)
(2)
TV/Video Color Amplitude Adjustment (Main/Sub)
Select No.655 (Automatic Color Level Adj.
Single) of Service Adjustment Menu.
Press [OK] key more than 2 seconds to
start the automatic adjustment.
The adjustment completes when the
indication [Auto Mode]
at the bottom side o the screen disappears.
Select No.656 (Automatic Color Level Adj.
Multi) of Service Adjustment Menu.
Press [OK] key more than 2 seconds to
start the automatic adjustment.
The adjustment completes when the
indication [Auto Mode]
at the bottom side of the screen disappears.
Downloaded from www.ManualsFile.com manuals search engine
28
32PD7800/42PD7800 (PW2)
Item
Applicable Model All models
(1)
(1)
(2)
(3)(3)
(4) (4)
Video Color Temperature Adjustment (Cool)
Set the signal generator output as All White.
Picture Menu is set as [RESET].
After receiving the video signal, step down the two
(or one) among adjustment No. 0, 1, 2 and adjust
the values as shown below.
Note)
At least one of the data shoud be 255.
Ensure that the service adjustment
menu (sub menu) No. 0, 1, 2, are all set as 255.
Confirm that the mode is set as Factory
Adjustment mode.
Perform the following adjustment with the remote
control
Set the CRT color analyzer (CA100) at the center
of the panel.
Component signal (480i)
Vi
deo level : 0.700Vp-p
Sync level : 0.300Vp-p
Setup level : 0V
Adjustment Preparations
Adjustment Procedures
(2)
Specification
Vi
deo color temperature (Cool)
x=0.258±0.005
y=0.273±0.005
Downloaded from www.ManualsFile.com manuals search engine
29
32PD7800/42PD7800 (PW2)
Item
Applicable Model
All models
Preparation Procedure
(1) Set signal generator output as
All White (Window ratio: 100%).
(1)
(2) Component signal (480i)
Video level : 0.700Vp-p
Sync level : 0.300Vp-p
Setup level : 0V
(2)
<Specification>
Video color Color temperature (Normal)
x=0.285 0.005
y=0.293 0.005
(3)
(4)
Check that Picture Menu is set as [RESET]
mode.
(3)
(4)
Video Color Temperature Adjustment (Normal)
Perform the following adjustment with the remote
control.
Set the CRT Color Analyzer (CA-100) at the center
of the panel.
Ensure that service adjustment
menu (sub) No. 3, 4, 5 are all set as 255.
After receiving the video signal, step down
the two (or one) among adjustment No. 3, 4, 5 and
adjust the values as shown below.
(Note)
At least one of the data should be 255.
Item
Applicable Model All models
Preparation Procedure
(1) Set signal generator output as
All White (Window ratio: 100%).
(1)
(2) Component signal (480i)
Vi
deo level : 0.700Vp-p
Sync level : 0.300Vp-p
Setup level : 0V
(2)
<Specification>
Video color Color temperature (Warm)
x=0.314 0.005
y=0.327 0.005
(3)
(4)
Check that Picture Menu is set as [RESET]
mode.
(3)
(4)
Video Color Temperature Adjustment (Warm)
Perform the following adjustment with the remote
control.
Set the CRT Color Analyzer (CA100) at the center
of the panel.
Ensure that service adjustment
menu (submenu) No. 6, 7, 8 are all set as 255.
After receiving the video signal, step down
the two (or one) among adjustment No. 6, 7, 8 and
adjust the values as shown below.
(Note)
At least one of the data should be 255.
Set into Factory Adjustment mode.
Set into Factory Adjustment mode.
Downloaded from www.ManualsFile.com manuals search engine
30
32PD7800/42PD7800 (PW2)
Item
Applicable Model All models
Preparation Procedure
(1) Set signal generator output as All White
(Window ratio: 100%).
(1)
(2) Component signal (480i)
Vi
deo level : 0.700Vp-p
Sync level : 0.300Vp-p
Setup level : 0V
(2)
(3)
(4)
Check that Picture Menu is set as
[RESET] mode.
(3)
(4)
Video Color Temperature Adjustment (B&W)
Perform the following adjustment with
the remote control.
Set the CRT Color Analyzer (CA-100) at
the center of the panel.
Ensure that service adjustment
menu (sub menu) No. 9, 10, 11 are all set as 255.
After receiving the video signal, step down
the two (or one) among adjustment No. 9,
10, 11 and adjust the values as shown
below.
(Note)
At least one of the data should be 255.
<Specification>
Video color Color temperature (B&W)
x=0.335 0.005
y=0.343 0.005
Set into Factory Adjustment mode.
Item
Applicable Model All models
(1)
(1)
PC Color Temperature Adjustment
Perform after the video color temperature
adjustment.
Wr
ite the results of the video color temp.adjustment
(Dynamic/Normal/Warm/B&W) No. 12, 13, 14, 15,
16, 17, 18, 19, 20, 21, 22, 23 data into Adjustment
No. 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 data.
* at service Adjustment sub menu.
Ex.)
Video adjustment PC adjustment
No.0 data → No.12 data
No.1 data → No.13 data
No.2 data → No.14 data
Perform the following adjustment with the remote
control
Set into Factory Adjustmentmode.
Preparations
Procedures
(2)
(2)
Downloaded from www.ManualsFile.com manuals search engine
31
32PD7800/42PD7800 (PW2)
7. Troubleshooting
How to get to Burn-in mode
This mode displays the test patterns of some single color raster in turn. These signals are from built-in generator
of PDP panel. So it can be presumed that maybe the panel has some trouble when the screen of Burn-in mode
is abnormal.
Using the front control buttons with the set turned off (standby) can activate this mode.
Press the SUB-POWER( ) button, INPUT SELECT( ) button and VOLUME DOWN( ) button at the same
time, and hold for more than 5 seconds.
The set turns on with single color raster and the OSD of [BURN IN: ON].
To escape from this mode, press the SUB-POWER( ) button, INPUT SELECT( ) button and button at the
same time, and hold for more than 5 seconds. Burn-in mode will be released.
How to recover the remote and front key function
If remote and front key cannot operate after miss set special function by front keys, these functions can recover
by below method.
Press the SUB-POWER( ) button, INPUT SELECT( ) button and button at the same time, and hold for
more than 5 seconds.
The set turns on the service menu mode.
Select No.535 and data set from [0] to [1].
Or
Press the SUB-POWER( ) button and button at the same time, and hold for more than 5 seconds
How to check method of the use accumulation time for panel.
Select No.518 of Service Adjustment Menu.
Downloaded from www.ManualsFile.com manuals search engine
32
32PD7800/42PD7800 (PW2)
[Power]
No
Yes
Power cannot be turned on (LED does not light)
Is the input voltage
applied to Pow
er supply unit?
(
CN61
,
)
AC inlet
Power switch
AC Fuse
F901 T6.3AH 250V
Are the voltages
applied to CN63
pins
and CNPPS
pins
of Pow
er supply unit ?
[CN63]
+5V [CNPPS]
+30V
+3.3V
+ 5V
+12V
+10V
Joint / Formatter PWB
Power supply unit
No
Yes
Filter PWB
*Re-adjustment is reqired.
Plese refer to 23 page.
Downloaded from www.ManualsFile.com manuals search engine
33
32PD7800/42PD7800 (PW2)
[Teletext Circuit]
No Teletext
Are waveforms at
QT03(E),QT04(E)
and QT05(E)
Are waveforms at
pin 46,47,48 of
IT01
No
No
Is waveforms at
pin 31 of IT01
(TV,CV)?
No
Is waveform at
pin 25 of PTV2
(
TV
,
CV
)
?
Check Video PWB
No
Yes
Yes
Yes
Yes
Check PTV2 connector
or Video PWB
Check QT03,QT04,QT05
Check around IT01
Check around
QT01,QT02
Downloaded from www.ManualsFile.com manuals search engine
34
32PD7800/42PD7800 (PW2)
[Signal Circuit]
No Picture of TV (Main)
Is waveform at
pin 49 of PTV2
(TV,CV?)
Is waveform at
pin 7 of I101
(
TV
,
CV
)
?
No
No
Is waveform at
pin 18 of U101
(TV,CV)?
No
Is waveform at
pin 8 of PTV3
(
TV
,
CV
)
?
Check U101
No
Yes
Yes
Yes
Check
Video PWB
Check Q106
Check around
Q101,Q102,Q103
Check Q1A1
No Picture of TV (Sub)
Is waveform at
pin 18 of U102
Yes
Yes
Check U102
No
Downloaded from www.ManualsFile.com manuals search engine
35
32PD7800/42PD7800 (PW2)
[Sound Circuit]
No sound of TV (Main)
Are waveforms at
pin 30,31 of
IN01(L,R)?
Is waveforms at
pin 2 of IN01
(SIF)?
NO
No
Is waveforms at
pin 22 of U101
(SIF)?
No
Check U101
No
Yes
Yes
Yes
Yes
Check PTV2 connector
or Video PWB
Check arpund
QN01,QN02
Check
Video PWB
Is voltage at
pin 2205 of IN01
(
"H"
)
?
Dose voltage of pin 22
change for Low to
Hi
g
h
Check
around
IN01
Yes
How about base of
QK02?
No
No
Check
QK02,QK03
Yes
Check I001 of
Formatter PWB
No
Check
QK02,QK03
No Sound of TV
(Sub)
Is waveform at
pin12 of PTV3?
Yes
Is waveform at
pin14 ofU102
Check U102
Check
R1C8
No
Yes
Downloaded from www.ManualsFile.com manuals search engine
36
32PD7800/42PD7800 (PW2)
[VIDEO PWB Circuit]
No picture, no color or dark
? Trouble of Sub picture
Sub picture ?
Yes(Sub picture)
Are waveforms at
TP65(Y), TP66(Cb)
and TP67(Cr) ?
No
(Single picture or Main
Check Formatter PWB
Yes
No
Are waveforms at
64pin(Y), 62pin(Cb)
and 60pin(Cr) of I601?
Check Q603, Q604 and Q605
Yes
No
Component Input ?
Check I601 and Input terminals
Yes (Component Video)
No
(RF/Composite Video/
S-Video/HDMI)
Are waveforms at
72pin(Y), 74pin(Cb)
and 76pin(Cr) of I601?
Check I601
Yes
No
Are waveforms at
21pin(Y), 22pin(Cb)
and 23pin(Cr) of I501?
Check Q508, Q509 and Q510
Yes
No
NTSC or PAL ?
<RF/Composite Video>
Yes (NTSC/PAL<RF/Composite Video>)
No
(S-Video/SECAM)
SECAM ?
<RF/Composite Video>
Yes (SECAM<RF/Composite Video>)
No
(S-Video)
Are waveforms at
5pin(Y) and 7pin(C) of
I501?
Check I501
Are waveforms at
TP32(Y) and
TP33(C)?
Yes
No
Check Q304, Q305, Q306, Q307,
Q308, Q309,Q501,Q503
Yes
No
HDMI Input ?
Yes (HDMI)
No
(RF/Composite Video/S-
Video
)
Are waveforms at
25pin(Y), 27pin(Cb)
and 29pin(Cr) of I601?
Check I601
Check HDMI PWB
Yes
No
Is waveform at
44pin(CV) of I501?
Check I501
Yes
No
Is waveform at
44pin(CV) of I201?
Is waveform at
TP31(CV) ?
Check I302
Yes
No
Check Q211, Q301, Q302, Q303
RF Input ?
Yes
NO
Check I201 and TUNER PWB
Yes (RF)
No
(Composite Video)
Check I201 and Input terminal
Are waveforms at
44pin(Y) and 43pin(C)
of I501?
Check I501
Are waveforms at
44pin(Y) and 47pin(C)
of I201?
Yes
No
Check Q211, Q504
and Q505
Check I201 and Input terminal
Yes
No
Is waveform at
44pin(CV) of I201?
Check Q211 and Q504
Yes
NO
Downloaded from www.ManualsFile.com manuals search engine
37
32PD7800/42PD7800 (PW2)
Trouble of Sub picture
Are waveforms at
TP68(Y), TP69(Cb)
and TP6A(Cr) ?
Check Formatter PWB
Yes
No
Are waveforms at
42pin(Y), 44pin(Cb)
and 46pin(Cr) of I601?
Check Q607, Q608 and Q609
Yes
No
Component Input ?
Check I601 and Input terminals
YES (Component Video)
No
(RF/Composite Video/
S-Video/HDMI)
Are waveforms at
78pin(Y), 80pin(Cb)
and 2pin(Cr) of I601?
Check I601
Yes
No
Are waveforms at
21pin(Y), 22pin(Cb)
and 23pin(Cr) of I502?
Check Q508, Q509 and Q510
Yes
No
RF Input or Composite
Video Input ?
YES (RF/Composite Video)
No
(S-Video)
HDMI Input ?
Yes (HDMI)
No
(RF/Composite Video/S-Video)
Are waveforms at
25pin(Y), 27pin(Cb)
and 29pin(Cr) of I601?
Check I601
Check HDMI PWB
Yes
No
Is waveform at
1pin(CV) of I502?
Check I502
Yes
No
Is waveform at
53pin(CV) of I201?
Check Q209 and Q511
RF Input ?
Yes
No
Check I201 and SUB-TUNER PWB
Yes (RF)
No
(Composite Video)
Check I201 and Input terminal
Are waveforms at
44pin(Y) and 43pin(C)
of I502?
Check I502
Are waveforms at
56pin(Y) and 58pin(C)
of I201?
Yes
No
Check Q512 and Q513
Check I201 and Input terminal
Yes
No
Downloaded from www.ManualsFile.com manuals search engine
38
32PD7800/42PD7800 (PW2)
Synchronization
[VIDEO PWB Circuit]
No Sync or Invalid Sync
Trouble of Sub picture
Sub picture ?
Yes (Sub picture)
Are waveforms at
TP61(H) and
TP62(V)?
No
(Single picture or Main picture)
Check Formatter PWB
Yes
No
Are waveforms at
61pin(H) and 58pin(V)
of I601?
Check I602
Yes
No
Component Input ?
Check I601 and Input terminals
Yes (Component Video)
No
(RF/Composite Video/
S-Video/HDMI)
Are waveforms at
31pin(H) and 32pin(V)
of I601?
Check I601
Yes
No
NTSC or PAL ?
<RF/Composite Video>
YES (NTSC/PAL<RF/Composite Video>)
No
(S-Video/SECAM)
SECAM ?
<RF/Composite Video>
YES (SECAM<RF/Composite Video>)
No
(S-Video)
HDMI Input ?
Yes (HDMI)
No
(RF/Composite Video/S-Video)
Is waveform at
25pin(Y) of I601?
Check I601
Check HDMI PWB
Yes
No
Is waveform at
44pin(Y) of I501?
Check I501 and Q211
Is waveform at
44pin(Y) of I201?
Yes
No
Check Q504 and Q211
Check I201 and Input terminal
Yes
No
Is waveform at 5pin(Y)
of I501?
Check I501
Is waveform at
TP32(Y)?
Yes
No
Check Q304, Q305 and Q306
Yes
No
Is waveform at
44pin(CV) of I501?
Check I501
Yes
No
Is waveform at
44pin(CV) of I201?
Is waveform at
TP31(CV) ?
Check I302
Yes
No
Check Q211, Q301, Q302, Q303
RF Input ?
Yes
No
Check I201 and TUNER PWB
Yes (RF)
No
(Composite Video)
Check I201 and Input terminal
Is waveform at
44pin(CV) of I201?
Check Q211 and Q504
Yes
No
Downloaded from www.ManualsFile.com manuals search engine
39
32PD7800/42PD7800 (PW2)
Trouble of Sub picture
Are waveforms at
TP63(H) and
TP64(V)?
Check Formatter PWB
Yes
No
Are waveforms at
45pin(H) and 48pin(V)
of I601?
Check I602
Yes
No
Component Input ?
Check I601 and Input terminals
Yes (Component Video)
No
(RF/Composite Video/
S-Video/HDMI)
Are waveforms at
33pin(H) and 34pin(V)
of I601?
Check I601
Yes
No
RF Input or Composite
Video Input ?
YES (RF/Composite Video)
No
(S-Video)
HDMI Input ?
Yes (HDMI)
No
(RF/Composite Video/S-Video)
Is waveform at
25pin(Y) of I601?
Check I601
Check HDMI PWB
Yes
No
Is waveform at
1pin(CV) of I502?
Check I502
Yes
No
Is waveform at
53pin(CV) of I201?
Check Q209 and Q511
RF Input ?
Yes
No
Check I201 and SUB-TUNER PWB
Yes (RF)
No
(Composite Video)
Check I201 and Input terminal
Is waveform at
44pin(Y) of I502?
Check I502 and Q209
Is waveform at
56pin(Y) of I201?
Yes
No
Check Q512 and Q209
Check I201 and Input terminal
Yes
No
Downloaded from www.ManualsFile.com manuals search engine
40
32PD7800/42PD7800 (PW2)
No picture, no color or dark
Are waveforms at
QH20<E>(Y),
QH21<E>(Cb) and
QH22<E>(Cr)?
Check ETV3 and VIDEO PWB
Check IH13
Are waveforms at
12pin(Y), 15pin(Cb)
and 7pin(Cr) of IH13?
Check QH20, QH21 and QH22
Yes
No
Yes
No
No sound
Are waveforms at
37pin(L) and 35pin(R)
of PHV1?
Check ETV3 and VIDEO PWB
Are waveforms at
7pin(L) and 8pin(R) of
IH14?
Yes
No
Check IH15
Are waveforms at
26pin(SCK), 32pin(BCK),
30pin(DATA) and
31pin(LRCK) of IH13?
Yes
No
Check IH14
Check IH13
Yes
No
[HDMI PWB Circuit]
Downloaded from www.ManualsFile.com manuals search engine
41
32PD7800/42PD7800 (PW2)
8. Self-Diagnosis Function
This chassis has 2 modes of self-diagnosis function.
(1) PDP panel check mode: It indicates the one latest record of the PDP panel failure with blinking of the power
indication light (LED).
(2) Signal circuit check mode: It indicates the check result on some points of the signal circuit and the history of
them with On-Screen Display (OSD).
PDP panel self-diagnosis function
This function is for a PDP panel failure with no picture.
To enter to this Self-Diagnosis mode, follow the next steps:
Preparation:
1) The Power Cord should be connected to AC line and the Main Power switch should be turned on.
2) Turn the power off by the SUB-POWER( ) button of the monitor or the remote control.
Procedure:
1) Press the SUB-POWER( ) button and button on the bottom of the monitor at the same time, and keep it for
more than 5 seconds after the power turned on.
2) It generates red blinking series of the power indicator light.
3) Any operation would cancel the Self -Diagnosis mode.
4) The next table shows the PDP PWB in which failure most probably would be allocated according to the
number of blinks.
Number of red blinks Presumed failing PWB
of power indication light of PDP panel
1 Logic
2 X-SUS
3 Y-SUS, SDM SDM: Scan Driver Module
4 X-SUS, Y-SUS, SDM, PSU PSU: Power Supply Unit
5 ABUS, ADM, PSU ADM: Address Driver Module
6 ADM temperature
7 ADM temperature
8 All of above-mentioned
PWB’s Note) SDM is permanently contacted to glass part
[Blinking condition of power indication light]
Ex. 2 blinks
1 sec 1 sec 2 sec OFF Repeat
Downloaded from www.ManualsFile.com manuals search engine
42
32PD7800/42PD7800 (PW2)
Code stored up in
failure history
Self checking
item
Problem Phenomenon Cause
C10 No sync. (Snow noise) OSD of “ ! Check Antenna ”
appears.
No connection of ANT cable
Preset tuning is not y
et
H11 Tuner problem Cannot receive the main
signal from antenna
Communication error of U101
H15 Composite video SW IC
problem
Cannot receive picture and
audio
Cannot change input mode
Communication error of I201
H16 Component video SW IC
problem
No component picture
Cannot change input mode
Communication error of I202
H31 Color demodulator IC
problem
Abnormal color
Dark picture
Communication error of I501
H32 Sync. separator IC
problem
Unsynchronized picture Communication error of I601
H33 3D Y/C separator IC
problem
Abnormal color
Dark picture / No picture
Communication error of I302
F63
I
2
C-bus latch problem Cannot store setting data
(Ex. Channel, Volume etc.)
SCL3/SDA3 latched up
Latest error code
Self Check
H11: OK H15: OK
H16: OK H31: OK
H32: OK H33: OK
F63 F63 - - - - - - - - -
Self check result area
Failure history area
Check result
Check item
[OSD]
Signal circuit self-diagnosis function
This function is for the failure of the signal circuit, for example the phenomenon as below:
"Sometimes power turns off abnormally." "Sometimes picture disappears abnormally."
To enter to this Self-Diagnosis mode, follow the next steps:
Preparation:
1) The Power Cord should be connected to AC line and the Main Power switch should be turned on.
2) Turn the power off by the SUB-POWER( ) button of the monitor or the remote control.
Procedure:
1) Press the SUB-POWER( ) button and button on the bottom of the monitor at the same time, and keep it for
more than 5 seconds after the power turned on.
2)
The monitor will be turned on, and it will display On-Screen Display of the Self-check result and the failure history as below.
3) Any operation would cancel the Self -Diagnosis mode.
4) The following table shows the OSD symbols and contents of failure PWB in which failure most probably would
be allocated according to the number of blinks.
If you clear history of failure, make FACTORY RESET: enter the factory setting mode; press the SUB-POWER( )
button, INPUT SELECT( ) button and button on the bottom of the monitor at the same time. And keep it for
more than 5 seconds after the power turned on.
Downloaded from www.ManualsFile.com manuals search engine
43
32PD7800/42PD7800 (PW2)
9. Basic circuit diagram

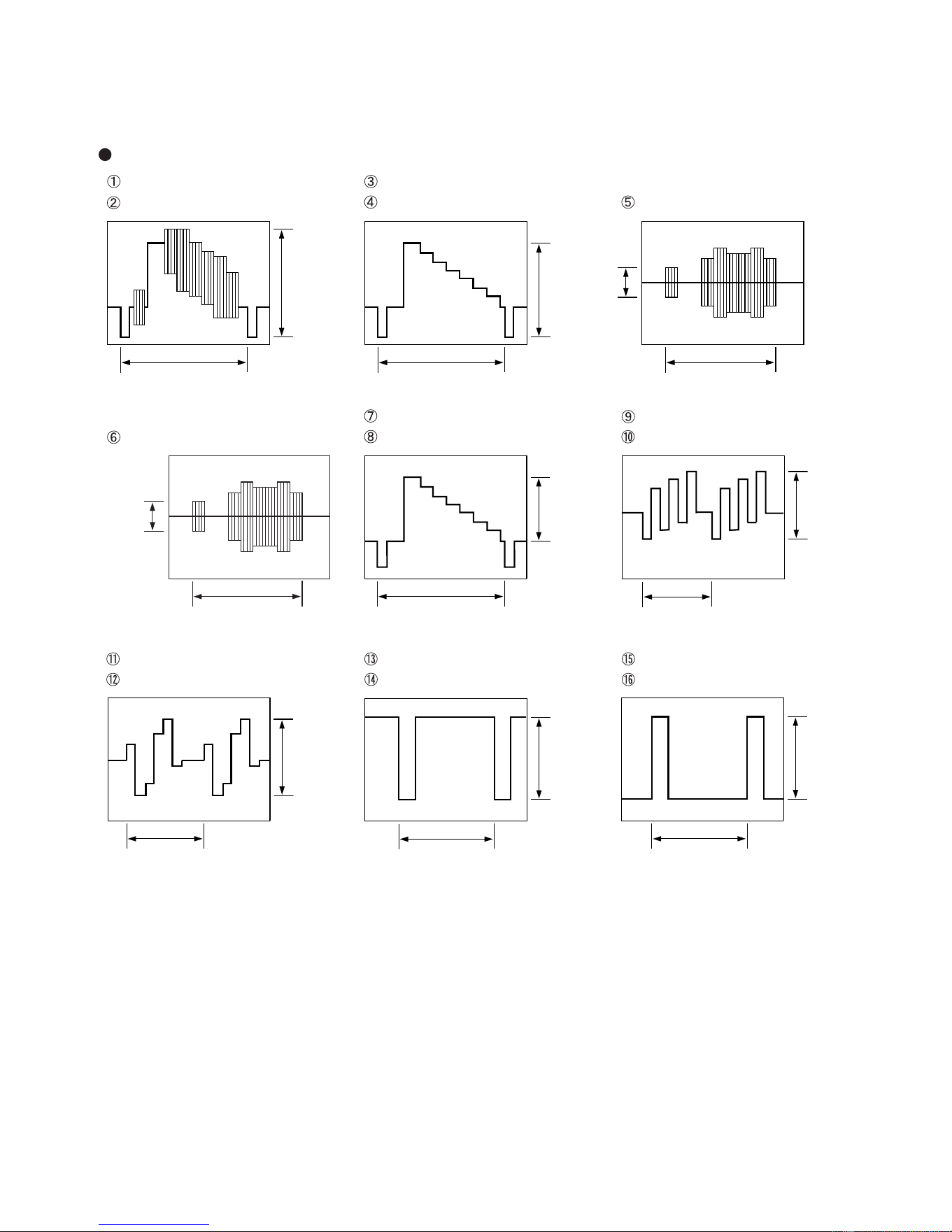

Waveform
I201(SUB.V)(53) PIN
I201(MAIN.V)(44) PIN
I501 YIN(3L)(44) PIN
I501 CIN(3L)(43) PIN
I501 YIN(3D)(5) PIN
I501 CIN(3D)(7) PIN
PYM(MY)(1)PIN
PYS(SY)(1)PIN
PYM(MPB)(3)PIN
PYS(SPB)(3)PIN
PYS(SPR)(5)PIN
PYM(MPR)(5)PIN TP01(MH)
5.0Vp-p
TP03(SH) TP04(SV)
TP02(MV)
1V
1H
0.286Vp-p
1H
2Vp-p
1H
1.0Vp-p
1H
1.4Vp-p
1H
1. 2Vp-p
1H
1H
1. 2Vp-p
1H
5.0Vp-p
0.3Vp-p
Downloaded from www.ManualsFile.com manuals search engine
44
32PD7800/42PD7800 (PW2)
FILTER/TACT SW/LED RECEIVER/
SP. TERMINAL L/SP. TERMINAL R board ............................
45

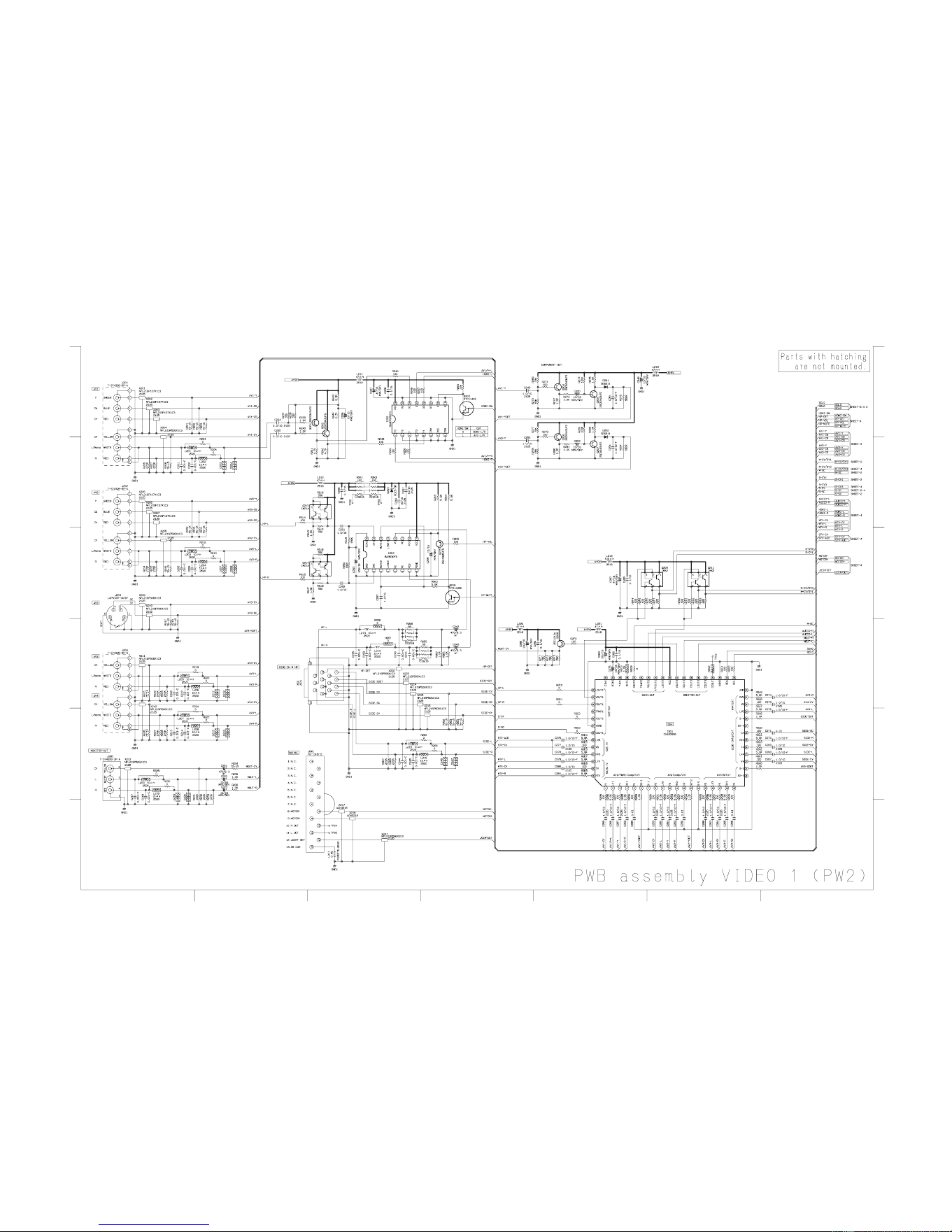

VIDEO board 1 ....................................................................... 46

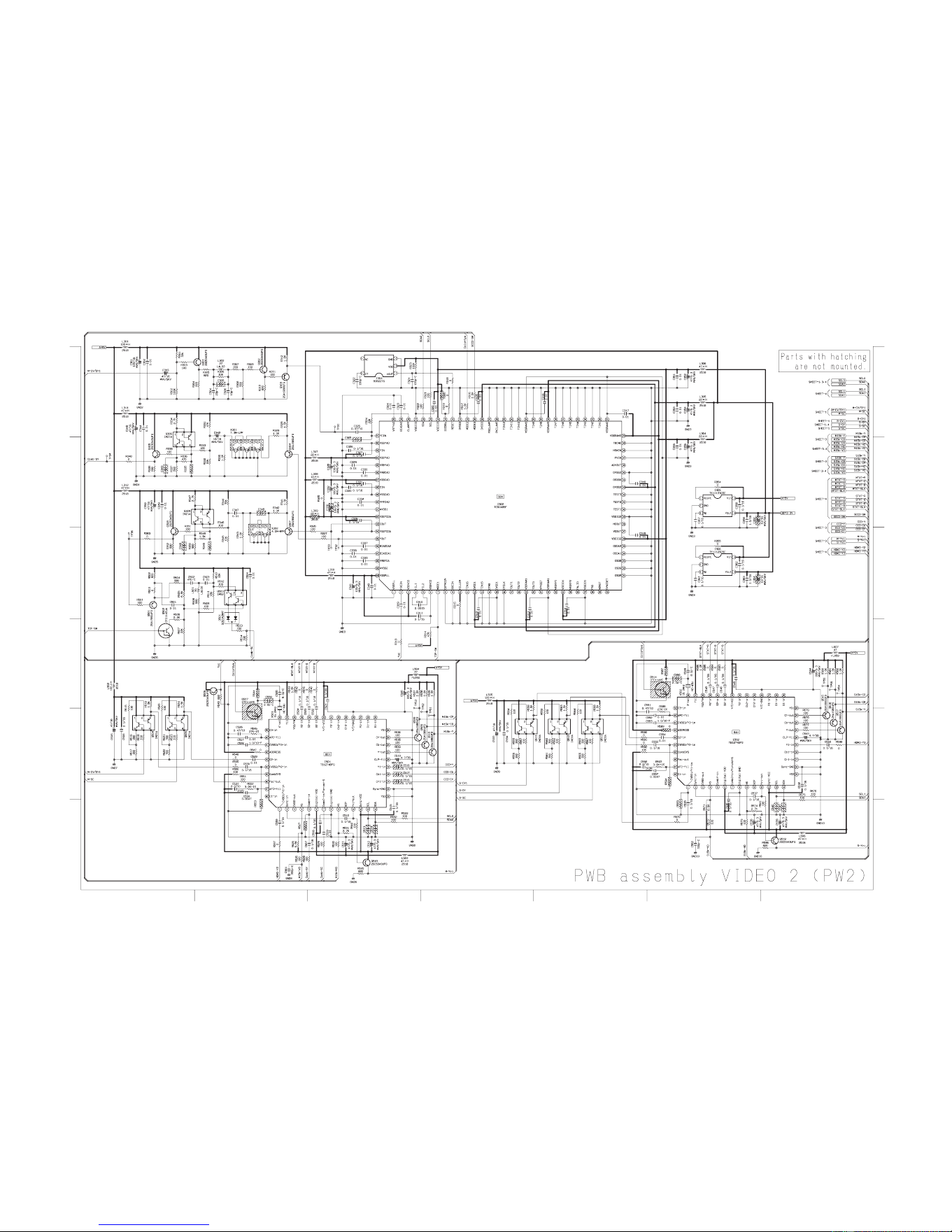

VIDEO board 2 ....................................................................... 47

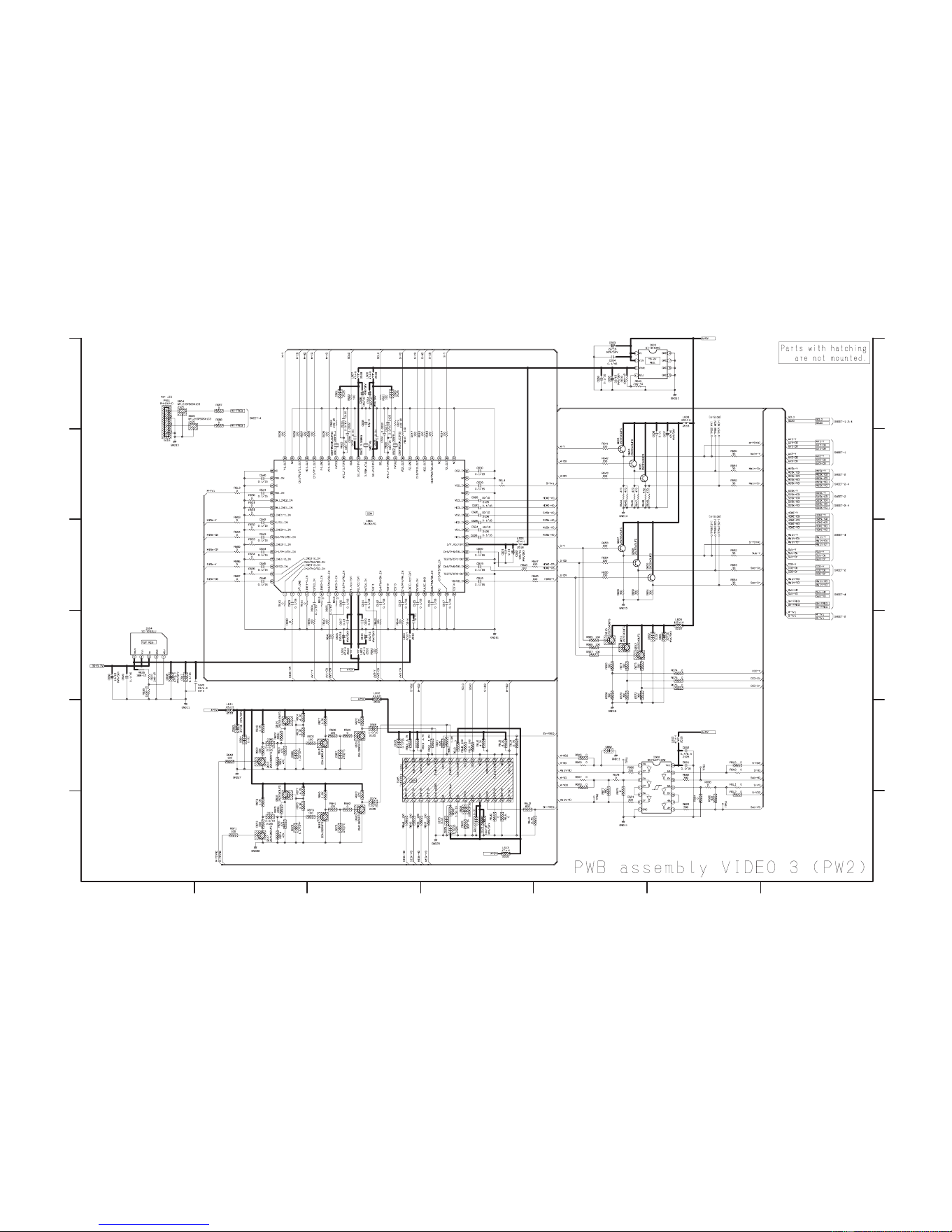

VIDEO board 3 ....................................................................... 48
VIDEO board 4 ....................................................................... 49

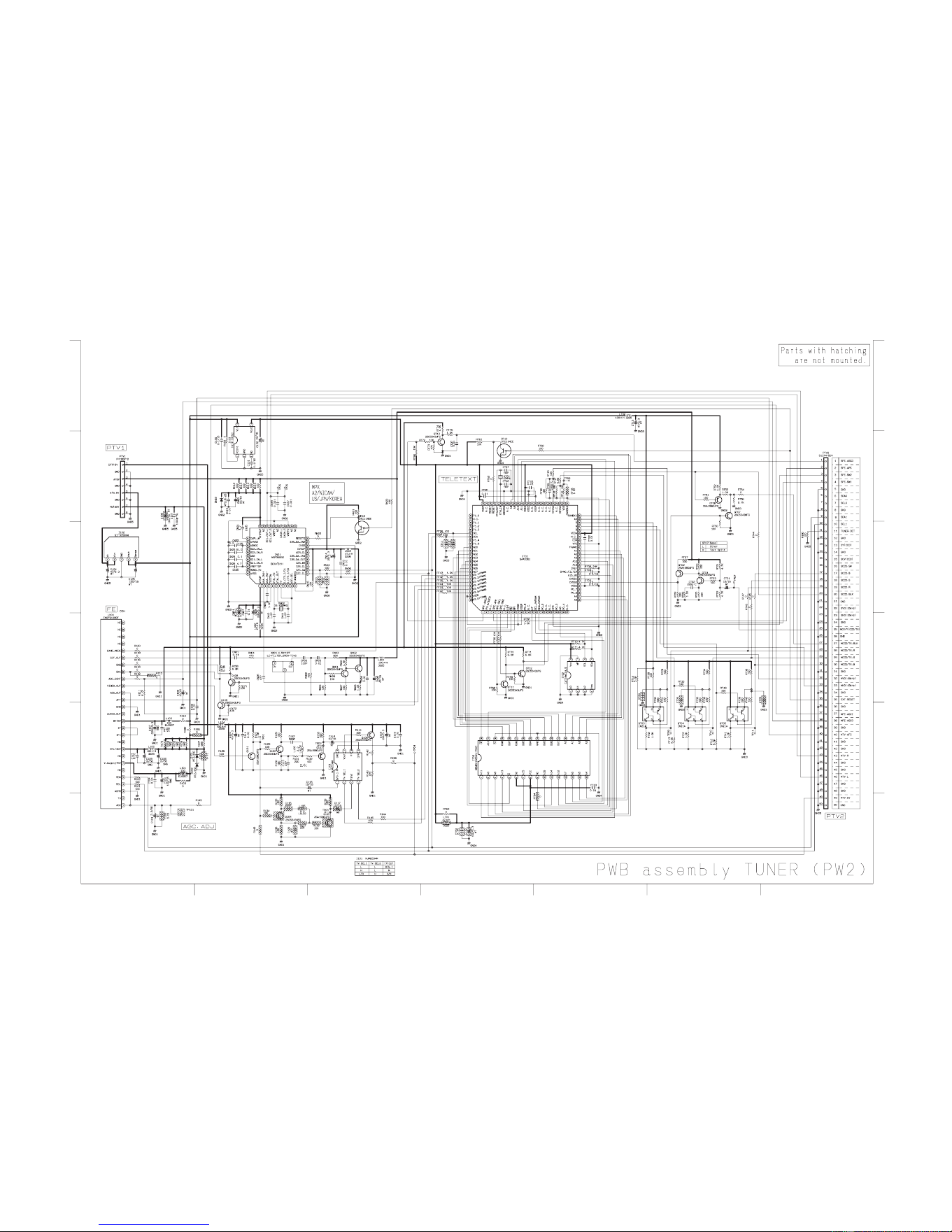

TUNER board ......................................................................... 50

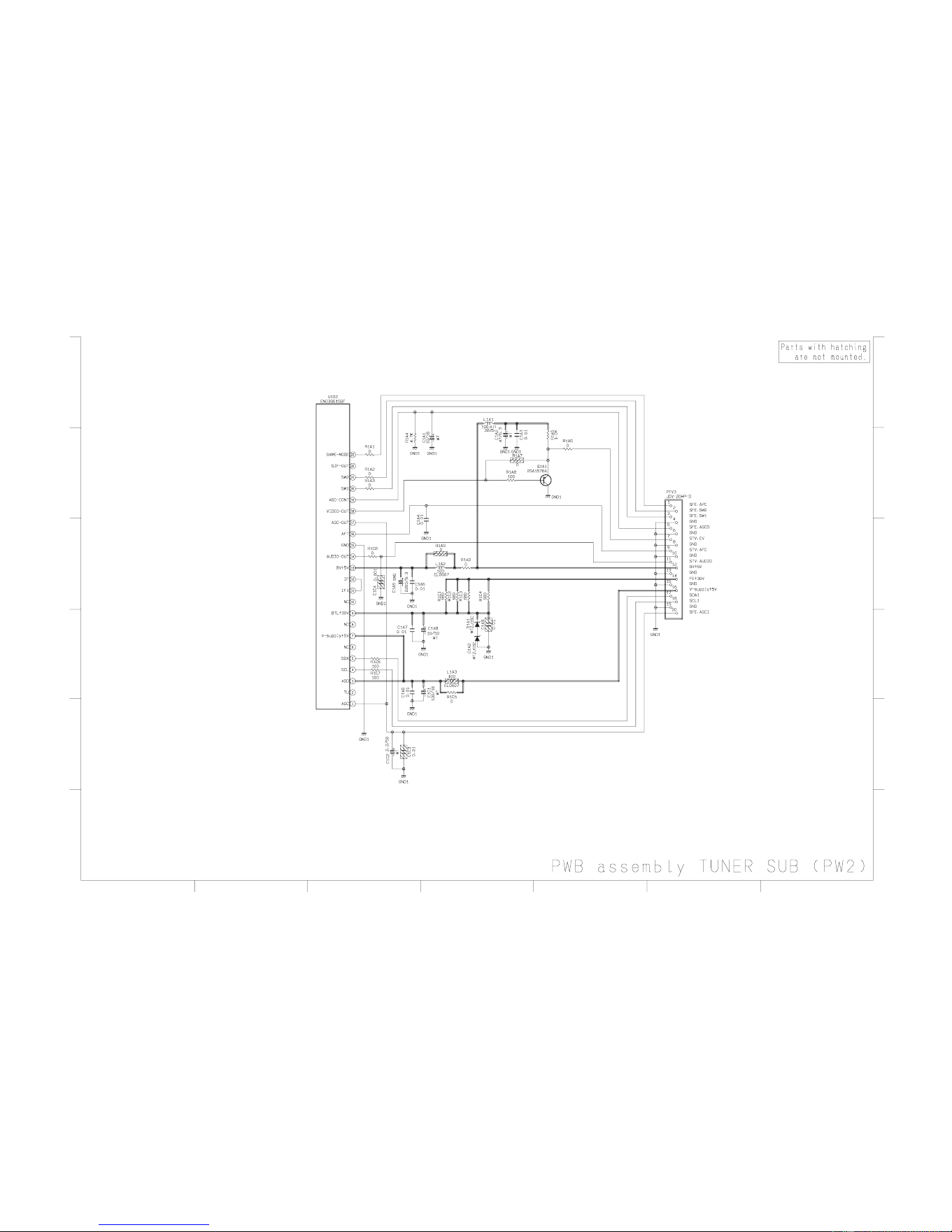

TUNER board sub .................................................................. 51

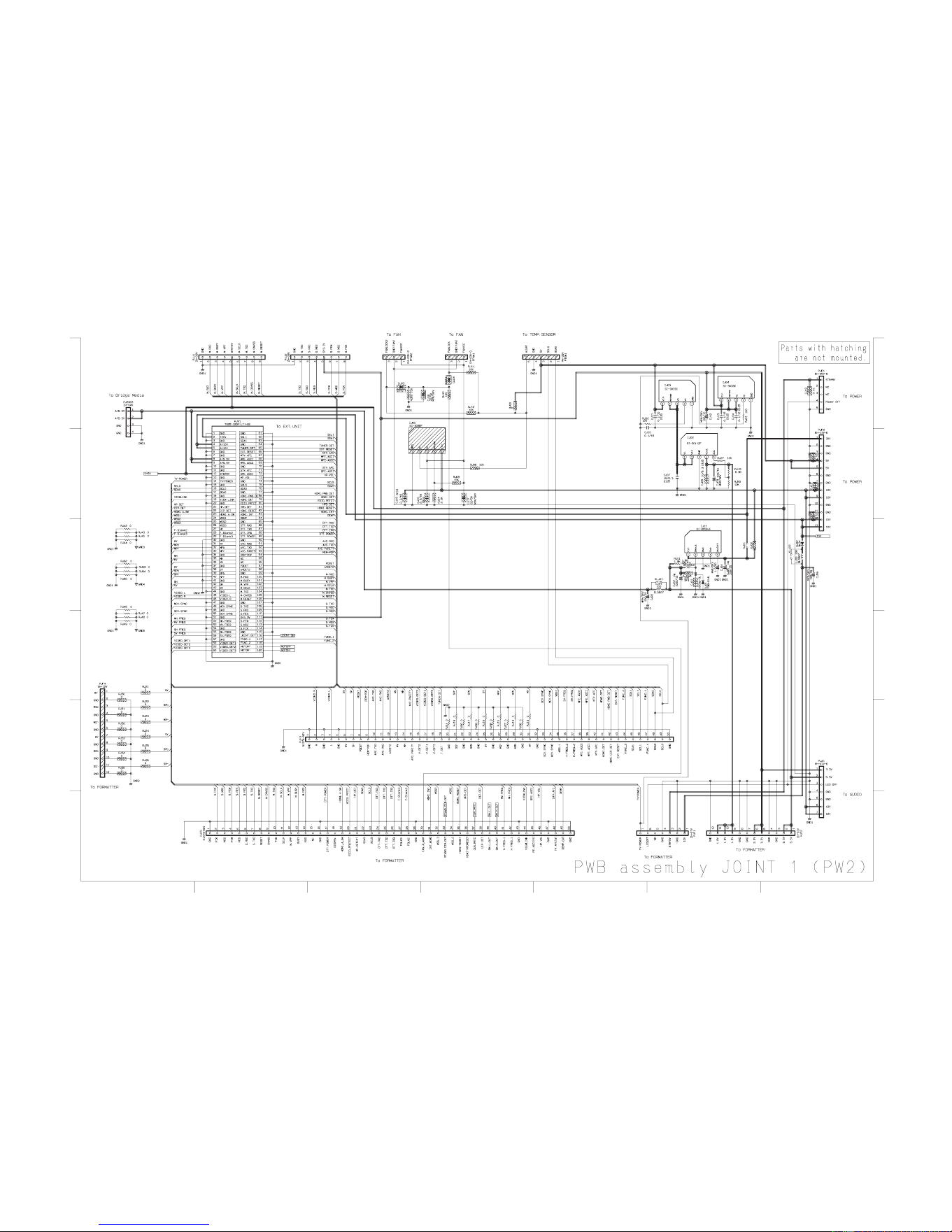

JOINT board 1 ........................................................................
52
JOINT board 2 ........................................................................
53
AUDIO board .......................................................................... 54
Basic circuit diagram list
Downloaded from www.ManualsFile.com manuals search engine
56
32PD7800/42PD7800
reference table
Mainly chip parts
reference table
Mainly chip parts
CIR.No. Position
D405 A8
D408 C5
D410 C3
D411 C5
D412 C5
D413 A6
I401 C6
I402 D5
I403 D3
I404 B5
I405 D2
I406 B6
I407 B5
I408 C4
I409 A5
I410 A8
I411 C3
I412 C2
I413 A5
I414 A4
IJ71 B3
LJ71 A3
PAF1 B4
PAF2 D6
PTEM2 B2
Q401 B4
Q402 A5
Q403 B5
Q407 A8
Q408 A6
Cir.No. Position
D409 B6
D414 C6
D415 C7
Q409 A5
AUDIO / SENSOR / SUB-WOOFER board ( side-A )
AUDIO / SENSOR / SUB-WOOFER board ( side-B )
Downloaded from www.ManualsFile.com manuals search engine
57
32PD7800/42PD7800
JOINT board / TUNER SUB board ( side-A )
JOINT board / TUNER SUB board ( side-B )
Mainly chip parts reference table
Mainly chip parts reference table
Cir.No. Position Cir.No. Position Cir.No. Position
DJ03 D1 LJ02 F4 PJJ2 E8
DJ04 D1 PJB303 F4 PTEM1 D1
DJ31 E4 PJF1 F6 QJ31 E5
DJ32 E5 PJF2 F7 QJ32 E5
DJ33 E5 PJF3 B8 QJ33 E6
DJ34 E5 PJF4 D4
IJ31 E5 PJF5 D8
L1A1 B2 PJJ1 E8
Cir.No. Position
Q1A1 A2
Downloaded from www.ManualsFile.com manuals search engine
58
32PD7800/42PD7800

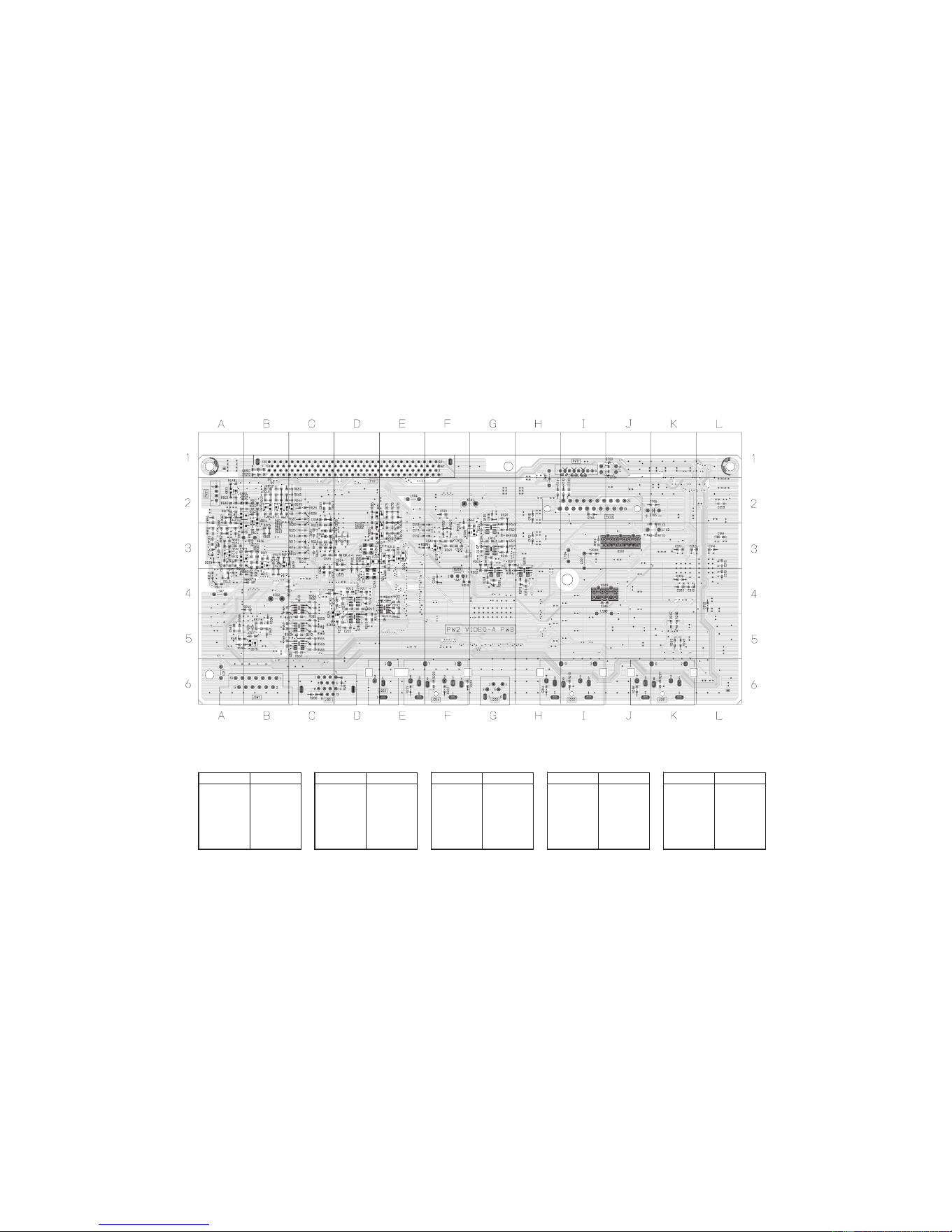

VIDEO board ( side-A )
Mainly chip parts reference table
Cir. No. Position Cir.No. Position Cir.No. Position Cir.No. Posit ion Cir.No. Position
D201 L6 I601 C3 L208 E5 L305 L5 L605 C4
D202 J5 I602 A4 L209 D5 L306 L3 L606 B3
D203 C5 I603 C4 L210 E5 L307 J4 L607 B2
D501 I3 I604 D4 L211 K5 L308 J4 L608 B2
I001 L5 I605 A3 L212 C4 L309 J3 L609 E2
I002 L5 IR01 G2 L213 D6 L310 K2 L610 A4
I201 G4 IR02 G2 L214 D6 L311 H4 L611 A2
I202 K5 IR03 G3 L215 C6 L312 H5 L612 A3
I203 D5 L201 J5 L216 B6 L502 H3 L613 B3
I302 L4 L202 K5 L218 L6 L503 G3 LH01 D5
I304 K4 L203 H5 L219 H4 L505 B5 LT01 H3
I305 L2 L204 I5 L220 F4 L506 B5 PVH1 E4
I306 L2 L205 F5 L221 G3 L602 E3 PVT2 K2
I501 F3 L206 F5 L301 H5 L603 E3 Q001 L5
I502 B5 L207 E5 L304 L5 L604 D3
Downloaded from www.ManualsFile.com manuals search engine
59
32PD7800/42PD7800
VIDEO board ( side-B )
Mainly chip parts reference table
Cir.No. Positi on Cir.No. Position Cir.No. Position Cir.No. Position Cir.No. Position
D204 E3 Q214 D5 Q512 C5 Q610 E3 Q617 B3
D205 D3 Q215 D5 Q513 C4 Q611 E2 Q618 B3
D206 D3 Q218 E3 Q518 F3 Q612 E3 Q619 B3
D207 E3 Q504 G3 Q519 B5 Q613 A2 Q620 A3
Q209 H4 Q505 G3 Q603 C2 Q614 B2 QH01 E4
Q211 G4 Q506 G3 Q604 B2 Q615 B2
Q213 D4 Q511 C5 Q605 B2 Q616 B3
Downloaded from www.ManualsFile.com manuals search engine
60
32PD7800/42PD7800
TUNER board ( Side-B )TUNER board ( Side-A )
Mainly chip parts reference table
Cir. No. Position Cir.No. Position
I101 B3 LT02 C3
I102 B5 PTV2 B6
I103 B5 Q101 D5
IN01 B4 Q102 D4
IT01 B2 Q103 D4
IT02 C1 Q104 D3
IT03 B2 Q105 C3
L102 E3 QN01 C5
L104 A3 QN02 C4
LN01 C5 QN10 B5
LN02 C4 QT01 C2
LN03 B3 QT02 C2
LT01 A2 QT03 D1
Cir.No. Position
Q106 B3
Q108 C5
Q109 C5
QT11 B3
QT12 C3
TP04 B4
TP08 C2
Mainly chip parts reference table
Downloaded from www.ManualsFile.com manuals search engine
61
32PD7800/42PD7800
11. Block diagram
AV SW
CXA2069Q
HDMI
HDMI
Receiver
SiI9993
Audio
DAC
PCM1754
DDC EEPROM
CAT24WC02JI
Amp
BA4558F
HDMI PWB
+3.3V Reg
SI-8033JD
S
Asia Main FE
TUNER-Asia PWB
MSP
MSP3455G
Teletext
Decoder
SAA5361
IF
Splitter
EEPROM
CAT24WC04JI
SRAM
M5M5V108DKV-70HI
+5
V
Reg
SI-3050KM
LPF
G.D.C.
CV.OU
T
S.I
F
MTV . L/R
TEXT-R/G/B
EXT.RESET
Main-CV/
Y
Main-HD/VD
AV1-CV
AV2-CV/L/R
AV3-CV/L/R
Side-CV/L/R
AV3-SY/SC/S.DET
Side-SY/SC/S.DET
AV1-Y/Cb/Cr
MTV-CV
MTV-L/R
STV-CV/Audio
Component SW
Sync. Sepa./DET
TA1391FG
3D/3L YCS
TC90A88F
VCD (Main)
TB1274BF
LPF LPF
BPF TOF
AV1-CV
AV2-Y/Cr/Cr
AV2-CV/L/R
AV3-SY/SC/S.DET
AV3-CV/L/R
Side-SY/SC/S.DET
M.OUT-CV
MTV.CV
MTV . L/ R
Main- C V/ SY
M.TEXT-
R/G/B
EXT.RESET
SCL1/SDA1
SW
NJM2534M
Vin1
Vin2
Vin3
MTV.CV
SW1/SW2
SCL1/SDA1
MFE.APC/SW1/SW2
TxYs.SW
VIDEO-Asia PWB
M-CV/S
Y
M-SC
Video-L/R
S-C
V
M.OUT-C
V
M.OUT-L/R
M.OUT-L/R
S-SY/SC
CV-IN
CombY-IN
CombC-IN
SCL0/SDA0
SCL0/SDA0
CV/SY-IN
SC-IN YCbCr-OU
T
HD/VD-OU
T
AV1-Y
AV2-Y
CombY-OU
T
CombC-OU
T
fsc-OUT
fsc-IN
TV.SEL1/TV.SEL2
TEXT-R/G/B
VCD (Sub)
TB1274BF
CV-IN
YCbCr-OU
T
HD/VD-OU
T
TEXT-R/G/B
SY/SC-IN
SCL1/SDA1
SCL0/SDA0
TOF.SW
Main-Y/Cb/Cr
Video . L/R
SUB-Y/Cb/Cr
MH
SH
SCL0/SDA0
AV1-Y/Cb/Cr
AV2-Y/Cb/Cr
HDMI-Y/Cb/Cr
M.VCD-Y/Cb/Cr
S.VCD-Y/Cb/Cr
Main-C
V
Sub-C
V
Main-Y/Cb/Cr
Sub-Y/Cb/Cr
Main-HD
Sub-HD
M.VCD-HD/VD
S.VCD-HD/VD
HDMI-HD/VD
-6
-6
-6
-6
MTV-AFC
S.TEXT-
R/G/B
Sub- HD/ VD
Sub- SY
HDMI . Y/Cb/Cr
HDMI . H/V
HDMI . L/R
SCL5/SDA5
HDMI.INT
HPD.RESET
HDMI.DET
I2SI2S L/R L/R-IN
L/R-OU
T
MUTE
INT
TMDSTMDS
SCL/SDA
SCL/SDA
DSCL/
DSDA
Y/Cb/Cr
HD/VD
+5V
HPD
EDID.PROTECT
WP
DEMP
5V
3.3V
RESET
H+3.3V
STB
+5V
5V
8V
5V
2V
EEPROM
CAT24WC04JI
WP
Reset
PST3642
5V
5V
SCL0/SDA0
9V
3.3V
2.5V
Reset
BD4729G
RESET
3.3V
5V
5V
DET
DET
AV2-YDET
AV1-YDET
Y
Y
10V
H+3.3V
3.3V
3.3V
T+5V
T+5V
5.5V
8.2V
T+5V
SIF
M.TEXT-Blank
S.TEXT- Blank
TEXT-Blank
TEXT-Blank
TEXT-Blank
MFE.AG
MFE.AGCO
SCL1/SDA1 SFE.APC/SW1/SW2
T+5V
30V
GAME-MODE/
SW1/SW2
AFT
AGC
AGC-CONT
+5
V
Reg
SI-3050LSA
5V
5.5V
+9V
Reg
SI-3090KM
10V
9V
+3.3V
Reg
TK11133CS
+2.5
V
Reg
TK11125CS
3.3V
2.5V
3.3V
5V
8V
+8V
Reg
SI-3012KS
10V
+2
V
Reg
SI-3012LU
2V
3.3V
X' tal
X' tal
INVERTER
SN74ACT14
5V
Main-VD
Sub-VD
MD
SV
Asia Sub FE
TV.S-CV/Audio
SFE.AGCI
SCL1/SDA1
STV-AFC
SFE.AGCO
TS+5
V
30V
AFT
AGC
AGC-CONT
Sub-TUNER PWB
SFE.APC/
SFE.SW1/ SFE.SW2
GAME-MODE/
SW1 / SW2
STV . C
V
/A udio
TUNER.DET: <L>
VIDEO.DET1: <H> / VIDEO.DET2: <H> / VIDEO.DET3: <L>
HDMI.PWB : <L>
SWIVEL
MCV.Sync
SCV.Sync
DIP.DET
5V
3.3V
5V
9V
MOTOR+ / MOTOR-
JOINT.DET
3.3V
SW
BU4052BCFV
9V
HDMI-L/R
AV1-L/R
AV1(HDMI)-L/R
L/R-OUT
SW
AV1-L/R
HDMI.SW
AV4-CV/L/R
AV4-CV/L/R
HP-L/R
HP-Amp
BA3530FS
9V
HP-L/R
Side-CV/L/R
Side
Input
L/R-InL/R-Out
Sub- CV
HDMI.RESET
Main- HD/ V D
HP.DET
HP.DET
I302
I501
I502
I601
I602
I304
I202
I201
I203
I001
I002
IR01
IR02
+5V
Reg
SI-3050LSA
TS+5
V
5.5V
IR03
I603
I604
I305
I306
J201
J202
J203
J204
JSD1
J205
JSW1
IT01
IT03 IT02
+3.3
V
Reg
TK11133CS
3.3V
5V
IR01 I102
I101
IN01
U101
U102
JH11
IH13
IH14 IH15
IHR1
IH11
HP.VOL
5.6V
S
Y
Yvi-out
Yvi-out
CSCL/
CSDA
9V
SFE.AGCO
Downloaded from www.ManualsFile.com manuals search engine
62
32PD7800/42PD7800
12. Connection diagram
1
2
3
4
5
6
7
8
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
1
2
3
4
5
6
7
8
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
TUNER VIDEO
1
2
30V
GND
3
4
GND
5V
5V
5
GND
12V
GND
10V
6
7
8
9
10
11
12
13
GND
12V
GND
10V
1
2
STB 5V
N.C.
3
4
N.C.
GND
Power Off
5
1
2
STB 5V
N.C.
3
4
STB3.3V
GND
Power Off
5
1
2
30V
GND
3
4
GND
5V
5V
5
GND
12V
GND
10V
6
7
8
9
10
11
12
13
GND
12V
GND
10V
JOINT
PJP1
B5B-EH
PJP2
B13B-EH
PTV1
PH-8P
PTV1
PH-8P
CN63
B5B-EH
CNPPS
B13B-EH
FORMAT
1
2
Va
NC
3
4
Vcc
GND
GND
5
NC
Vs
6
7
8
9
10
GND
Vs
Vs
1
2
Va
NC
3
4
Vcc
GND
GND
5
NC
Vs
6
7
8
9
10
GND
Vs
Vs
B10P-VH
CN64
B10P-VH
1
2
Vcc
GND
3
4
Vpr2
Vra
GND
5
6 Vrs
1
2
Vcc
GND
3
4
Vpr2
Vra
GND
5
6 Vrs
B6B-PH
CN69
B9B-PH
Vcego
PFCgo
Vsago
7
8
9
7
8
9
Vcego
PFCgo
Vsago
POWER
1
2 RA-
GND(LVDS)
3
4 RA+
RB-
SCL
5
RB+
RC-
RC+
RCLK-
RCLK+
RD+
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
GND
SDA
GND(LVDS)
CPUGO
PDPGO
IRQ
RD-
PDWN
GND(LVDS)
RE-
24
25
26
27
28
29
30
RE+
GND
GND
GND
GND
GND
GND
GND
GND
PFM1
DF13-30DS
CN1
DF13-30DS
1
2
RA-
GND(LVDS)
3
4
RA+
RB-
SCL
5
RB+
RC-
RC+
RCLK-
RCLK+
RD+
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
GND
SDA
GND(LVDS)
CPUGO
PDPGO
IRQ
RD-
PDWN
GND(LVDS)
RE-
24
25
26
27
28
29
30
RE+
GND
GND
GND
GND
GND
GND
GND
GND
PANEL
AUDIO
1
2
3
4
5
6
1
2
AC(L)
N.C.
3
4
AC(N)
N.C.
N.C.
5
6 FG
CN61
B6P-VH
PPU1
VH-6P
AC(L)
N.C.
AC(N)
N.C.
N.C.
FG
FILTER
1
2
LCH+
LCH-
PAS1
EH-2P
PSA1
EH-2P
1
2
LCH+
LCH-
2
3
RCH+
RCH-
PAS2
EH-3P
PSA2
EH-3P
2
3
RCH+
RCH-
SPEAKER (L)
SPEAKER (R)
1 NC
1
2
STB5V
REM
3
4
GND
LED2(G)
LED1(R)
5
6 LEDOFF
1
2
3
4
5
6
PFL1
SH-6P
1
2
ADKEY1
ADKEY2
3
4
ADKEY3
GND
1
2
3
4
PKF1
PH-4P
PFK1
SH-4P
ADKEY1
ADKEY2
ADKEY3
GND
LED/REM
KEY
PLF1
PH-6P
STB5V
REM
GND
LED2(G)
LED1(R)
LEDOFF
1 NC
2
3
GND
GND
4
5
+12V
+12V
6
7
PJA1
PH-7P
PAJ1
PH-7P
4
5
6
7
GND
GND
+12V
+12V
5.5V
LEDOFF
5.5V
LEDOFF
2
3
22
21
20
19
29
30
31
32
18
17
16
15
33
34
35
36
14
13
12
37
38
39
11
10
9
8
40
41
42
43
7
6
44
45
5
4
3
2
46
47
48
49
50
1
1
50
PTV2
50P
PTV2
50P
50
49
48
47
46
WSS_1
45
44
43
42
41
40
MCV.SYNC
SCV.SYNC
GND
GND
T.DET1
V.DET3
V.DET1
V.DET2
11
10
9
8
7
6
L
R
5
4
3
2
1
GND
GND
GND
AVC.PARITY
MH
MV
AVC.RXD
REM-PDP
AVDET2
AVC.TXD
PDDET
SH
SV
MY
MCb
MCr
GND
GND
GND
SY
SCb
SCr
GND
GND
GND
1
2
3
4
5
6
7
8
9
10
11
12
PJF3
50P
PJF4
SH-12P
1
2
6V
6V
3
4
GND
3.3V
GND
5
GND
1.8V
1.8V
6
7
8
9
10
11
3.3V
GND
1.8V
PFJ2
ZH-12P
PJF2
ZH-12P
10V1
STB5V
(PDPGO)
TV-POWER
2
3
4
5
6
7
GND
GND
LEDOFF
PFJ1
ZH-7P
PJF1
ZH-7P
10V1
STB5V
(PDPGO)
TV-POWER
2
3
4
5
6
7
GND
GND
LEDOFF
1
2
6V
6V
3
4
GND
3.3V
GND
5
GND
1.8V
1.8V
6
7
8
9
10
11
3.3V
GND
1.8V
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
PFJ3
50P
MY
MCb
MCr
GND
GND
GND
SY
SCb
SCr
GND
GND
GND
1
2
3
4
5
6
7
8
9
10
11
12
PFJ4
SH-12P
20
19
18
17
16
15
14
13
12
30
29
28
27
26
25
24
23
22
21
39
38
37
36
35
34
33
32
31
HDMI_DET
GND
SCL0
SDA0
SCL1
FUNC_1
FUNC_2
HDMI_CIR_DE
T
TV.AFC(M)
FE.AGC_O(M)
V.FREQ_2
SDA1
EXT.RESET
FE.AGC_I(M)
H.FREQ_2
GND12 12 GND
50
49
48
47
46
WSS_3
45
44
43
42
41
40
INT_HDMI
FAN_ALARM
FBLK2
GND
IRQ_DTT
FBLK3
ETHER TX
ETHER RX
SCL5
SDA5
HP_DETEC
EDID_PROTECT
HDMI_A_SWG
ND
BACKLIGHT
11
10
9
8
7
6
5
4
3
2
1
DTT_POWER
GND
EVOLUME
PJF5
50P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
PFJ5
50P
20
19
18
17
16
15
14
13
12
30
29
28
27
26
25
24
23
22
21
39
38
37
36
35
34
33
32
31
V.FREQ_1
GND
DEMP_OUT
TV.AFC(S)
HP.VOL
GND
N.C.
H.FREQ_1
SW_R_OUT
DIP.DET
HDMI-HPDRESET
FE.AGC_I(S)
GND
SW_L_OUT
CUR_PRTCT
HDMI-RESET
WSS_2
STAND.CIR_DE
T
RXD
BUSY
VPP
TXD
SCLK
CNVSS
37
38
39
40
41
42
RESET 43
S.TXD
S.RXD
RES
MD2
FEW
FCK
44
45
46
47
48
49
GND 50
GND
BCK IN
GND
BCK OUT
GND
1
2
3
4
5
6
7
8
9
SD IN
LRCK IN
SD OUT
LRCK OUT
PFA1
SH-9P
PAF1
ZH-9P
1
2
3
4
5
6
7
8
9
GND
BCK IN
GND
BCK OUT
GND
SD IN
LRCK IN
SD OUT
LRCK OUT
L
R
MUTE
SCL
2
3
4
5
6
7
8
GND
GND
SPRLY
SDA
PFA2
SH-10P
PAF2
ZH-10P
2
3
4
5
6
7
8
9
L
R
MUTE
SCL
GND
GND
SPRLY
SDA9
1 GND 1 GND
10 AUDRST 10 AUDRST
5
6
7
8
9
10
11
12
2
3
4
P301
ZH-1 2P
P301
SH-14P
1
2
3
4
5
P103
ZH-5P
BM_H
BM_DET
BM_V
1
2
EN
3
4
DATA
CLK
GND
5
WKP
Y
Pb
6
7
8
10
11
12
GND
GND13
14
Pr
5
6
BRIDGE MEDIA
7
EN
GND
DATA
CLK
GND
WKP
Y
Pb
GND
GND
GND
GND
Pr
GND
P501
ZH- 11P
1
2
3
4
5.5V
5.5V
GND
GND
9 GND
1 GND
8
9
10
11
H
GND
V
GND
P303
ZH-4P
1
2
3
4
5.5V
5.5V
GND
GND
USB 5V
DP
GND
DM
GND
PJB303
ZH-4P
1
2
3
4
5.5V
5.5V
GND
GND
SCr
GND
MY
MCb
GND
GND
GND
MCr
SY
SCb
GND
7
WSS_1
MCV.SYNC
SCV.SYNC
T.DET1
V.DET3
V.DET1
V.DET2
L
R
GND
GND
GND
AVC.PARITY
MH
MV
AVC.RXD
REM-PDP
AVDET2
AVC.TXD
PDDET
SH
SV
HDMI_DET
GND
SCL0
SDA0
SCL1
FUNC_1
FUNC_2
HDMI_CIR_DE
T
TV.AFC(M)
FE.AGC_O(M)
V.FREQ_2
SDA1
EXT.RESET
FE.AGC_I(M)
H.FREQ_2
WSS_3
INT_HDMI
FAN_ALARM
FBLK2
GND
IRQ_DTT
FBLK3
ETHER TX
ETHER RX
SCL5
SDA5
HP_DETEC
EDID_PROTECT
HDMI_A_SWG
ND
BACKLIGHT
DTT_POWER
GND
EVOLUME
V.FREQ_1
GND
DEMP_OUT
TV.AFC(S)
HP.VOL
GND
N.C.
H.FREQ_1
SW_R_OUT
DIP.DET
HDMI-HPDRESET
FE.AGC_I(S)
GND
SW_L_OUT
CUR_PRTCT
HDMI-RESET
WSS_2
STAND.CIR_DE
T
RXD
BUSY
VPP
TXD
SCLK
CNVSS
RESET
S.TXD
S.RXD
RES
MD2
FEW
FCK
GND
3.3V1
GND
GND
SCr
GND
MY
MCb
GND
GND
GND
MCr
SY
SCb
GND
1
2
3
4
5
P103
SH- 5P
USB 5V
DP
GND
DM
GND
1 3.3V
FE+30V
GND
A+9V
GND
A+5.5V
GND
GND
MTV.CV
MTV.L
MTV.R
MTV.AFC
GND
GND
GND
GND
GND
MFE.AGCO
MFE.AGCI
EXT.RESET
GND
MVD(15kHz
MHD(15kHz
MCCD/TX.B
GND
MCCD/TX.G
MCCD/TX.R
MCCD/TX.B
GND
MCV/Y(CC
GND
SHD(15kHz
SVD(15kHz
GND
SCCD.BLK
SCCD.R
SCCD.G
SCCD.B
SCCD.SW
SCV(CCD)
GND
SY(CCD)
GND
TUNER.DET
GND
SCL1
SDA1
GND
SCL0
SDA0
GND
SFE.SW1
SFE.SW2
SFE.APC
SFE.AGCO
GND
GND
GND
DTT+5V
FE+30V
GND
A+9V
GND
A+5.5V
GND
GND
MTV.CV
MTV.L
MTV.R
MTV.AFC
GND
GND
GND
GND
GND
MFE.AGCO
MFE.AGCI
EXT.RESET
GND
MVD(15kHz
MHD(15kHz
MCCD/TX.B
GND
MCCD/TX.G
MCCD/TX.R
MCCD/TX.B
GND
MCV/Y(CC
GND
SHD(15kHz
SVD(15kHz
GND
SCCD.BLK
SCCD.R
SCCD.G
SCCD.B
SCCD.SW
SCV(CCD)
GND
SY(CCD)
GND
TUNER.DET
GND
SCL1
SDA1
GND
SCL0
SDA0
GND
SFE.SW1
SFE.SW2
SFE.APC
SFE.AGCO
GND
GND
GND
DTT+5V
PVT3
20P
SCL1
SDA1
SFE.SW1
SFE.SW2
SFE.APC
STV.CV
GND
STV.AUDIO
GND
STV.AFC
GND
GND
SFE.AGCO
SFE.AGCI
GND
GND
FE+30V
GND
BV+5V
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
V-Supply+5V
PVH1
50P
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
50
HDMI.Pb
GND
DTT.RXD
DTT.TXD
DTT.IRQ
GND
GND
DTT.R
DTT.G
DTT.B
DTT.Ys
GND
DTT.CV
GND
DTT.A.L
DTT.A.R
GND
DTT.SW
(DTT+5V)
(DTT+9V)
DTT.POWE
HDMI.Y
GND
A+10V
GND
A+10V
SCL5
SDA5
HDMI.DET
HPD.RESET
HDMI.RESET
HDMI.INT
EDID.PRTCT
DEMP
HDMI.PWB.
GND
GND
HDMI.Pr
GND
HDMI.H
HDMI.V
GND
HDMI.L
HDMI.R
STB+5V
GND
GND
A+5V
GND
A+9V
SUB.TUNER
PTV3
20P
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
SCL1
SDA1
GND
SFE.SW1
SFE.SW2
SFE.APC
STV.CV
GND
STV.AUDIO
GND
STV.AFC
GND
GND
SFE.AGCO
SFE.AGCI
GND
FE+30V
GND
BV+5V
V-supply+5V
HDMI
HDMI.Pb
PHV1
50P
GND
DTT.RXD
DTT.TXD
DTT.IRQ
GND
GND
DTT.R
DTT.G
DTT.B
DTT.Ys
GND
DTT.CV
GND
DTT.A.L
DTT.A.R
GND
DTT.SW
(DTT+5V)
(DTT+9V)
DTT.POWE
HDMI.Y
GND
A+10V
GND
A+10V
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
50
1
SCL5
SDA5
HDMI.DET
HPD.RESE
HDMI.RESE
HDMI.INT
EDID.PRTC
DEMP
HDMI.PWB.DET
GND
GND
HDMI.Pr
GND
HDMI.H
HDMI.V
GND
HDMI.L
HDMI.R
STB+5V
GND
GND
A+5V
GND
A+9V
11
12
GND
STB+5V
13
14
GND
GND
TV-POWER
15
SDA0
N.C.
HP.DET
HDMI.A.SW
WSS2
F.Blank3
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
41
42
43
SCL0
GND
GND
DIP.DET
WSS1
WSS3
N.C.
F.Blank2
GND
GND
44
45
46
47
48
49
50
51
52
53
54
55
SV
SH
VIDEO.L
GND
VIDEO.R
GND
MCV.SYNC
GND
SCV.SYNC
GND
MH.FREQ
MV.FREQ
56
57
58
59
60
61
62
63
64
65
MTV-AFC
MFE.AGCO
66
67
68
69
70
EXT.RESET
MFE.AGCI
GND
GND
SH.FREQ
SV.FREQ
GND
VIDEO.DET1
VIDEO.DET3
SCL1
VIDEO.DET2
GND
SCL2
GND
TUNER.DET
11
12
GND
STB+5V
13
14
GND
GND
TV-POWER
15
SDA0
N.C.
HP.DET
HDMI.A.SW
WSS2
F.Blank3
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
SCL0
GND
GND
DIP.DET
WSS1
WSS3
N.C.
F.Blank2
GND
GND
34
35
36
37
38
39
40
41
42
43
44
45
SV
SH
VIDEO.L
GND
VIDEO.R
GND
MCV.SYNC
GND
SCV.SYNC
GND
MH.FREQ
MV.FREQ
46
47
48
49
50
51
52
53
54
55
MTV-AFC
MFE.AGCO
56
57
58
59
60
EXT.RESET
MFE.AGCI
GND
GND
SH.FREQ
SV.FREQ
GND
VIDEO.DET1
VIDEO.DET3
SCL1
VIDEO.DET2
GND
SCL2
GND
TUNER.DET
GND1
GND
A+10V
2
3
4
5
+30V
A+10V
GND1
GND
A+10V
2
3
4
5
+30V
A+10V
PJV1
120P
PVJ1
120P
GND6 GND6
GND7 GND7
A+5.5V8 A+5.5V8
A+5.5V9 A+5.5V9
GND10 GND10
31
32
33
MY
34
35
36
37
38
39
40
MPr
MPb
MH
GND
MV
GND
SY
SPb
SPr
31
32
33
34
35
36
37
38
39
40 SPr
71
72
73
74
75
GND
HDMI.DET
76
77
78
79
80
SDA5
HDMI.PWB.DET
EDID.PRTCT
SFE.AGCI
STV.AFC
HP.VOL
GND
SCL5
51
52
53
54
55
56
57
58
59
60
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
31
32
33
MY
34
35
36
37
38
39
MPr
MPb
MH
GND
MV
GND
SY
SPb
71
72
73
74
75
GND
HDMI.DET
76
77
78
79
80
SDA5
HDMI.PWB.DET
EDID.PRTCT
SFE.AGCI
STV.AFC
HP.VOL
GND
SCL5
81
HPD.RESET
81
HPD.RESET
82
HDMI.RESET
82
HDMI.RESET
84 DEMP 84 DEMP
83 HDMI.INT 83 HDMI.INT
86 DTT.RXD 86 DTT.RXD
85 GND 85 GND
88 DTT.IRQ 88 DTT.IRQ
87 DTT.TXD 87 DTT.TXD
90 GND 90 GND
89 DTT.POWE 89 DTT.POWE
92 AVC.TXD 92 AVC.TXD
91 AVC.RXD 91 AVC.RXD
94 REM-PDP 94 REM-PDP
93
AVC.PARITY
93
AVC.PARITY
96 N.C. 96 N.C.
95 N.C. 95 N.C.
98 AVDET2 98 AVDET2
97 PDDET 97 PDDET
100 M.RXD 100 M.RXD
99 GND 99 GND
102 M.VPP 102 M.VPP
101 M.BUSY 101 M.BUSY
104 M.TXD 104 M.TXD
103 M.SCLK 103 M.SCLK
106 M.RESET 106 M.RESET
105 M.CNVSS 105 M.CNVSS
108 S.TXD 108 S.TXD
107 GND 107 GND
110 S.RES 110 S.RES
109 S.RXD 109 S.RXD
112 S.FEW 112 S.FEW
111 S+3.3V 111 S+3.3V
114 S.FCK 114 S.FCK
113 S.MD2 113 S.MD2
116 JOINT.DET 116 JOINT.DET
115 GND 115 GND
118 FUNC_2 118 FUNC_2
117 FUNC_1 117 FUNC_1
120 MOTOR- 120 MOTOR-
119 MOTOR+ 119 MOTOR+
Downloaded from www.ManualsFile.com manuals search engine
64
32PD7800/42PD7800

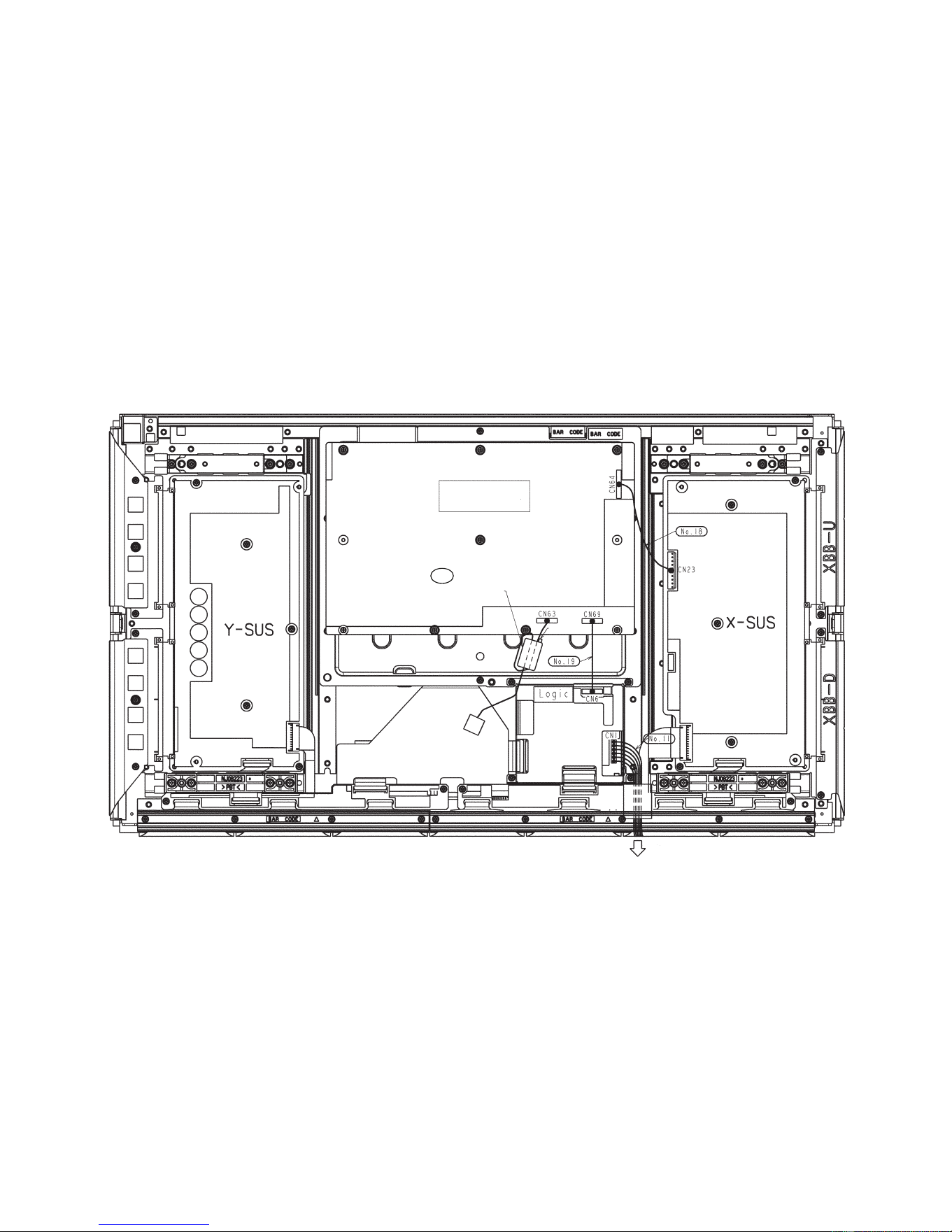

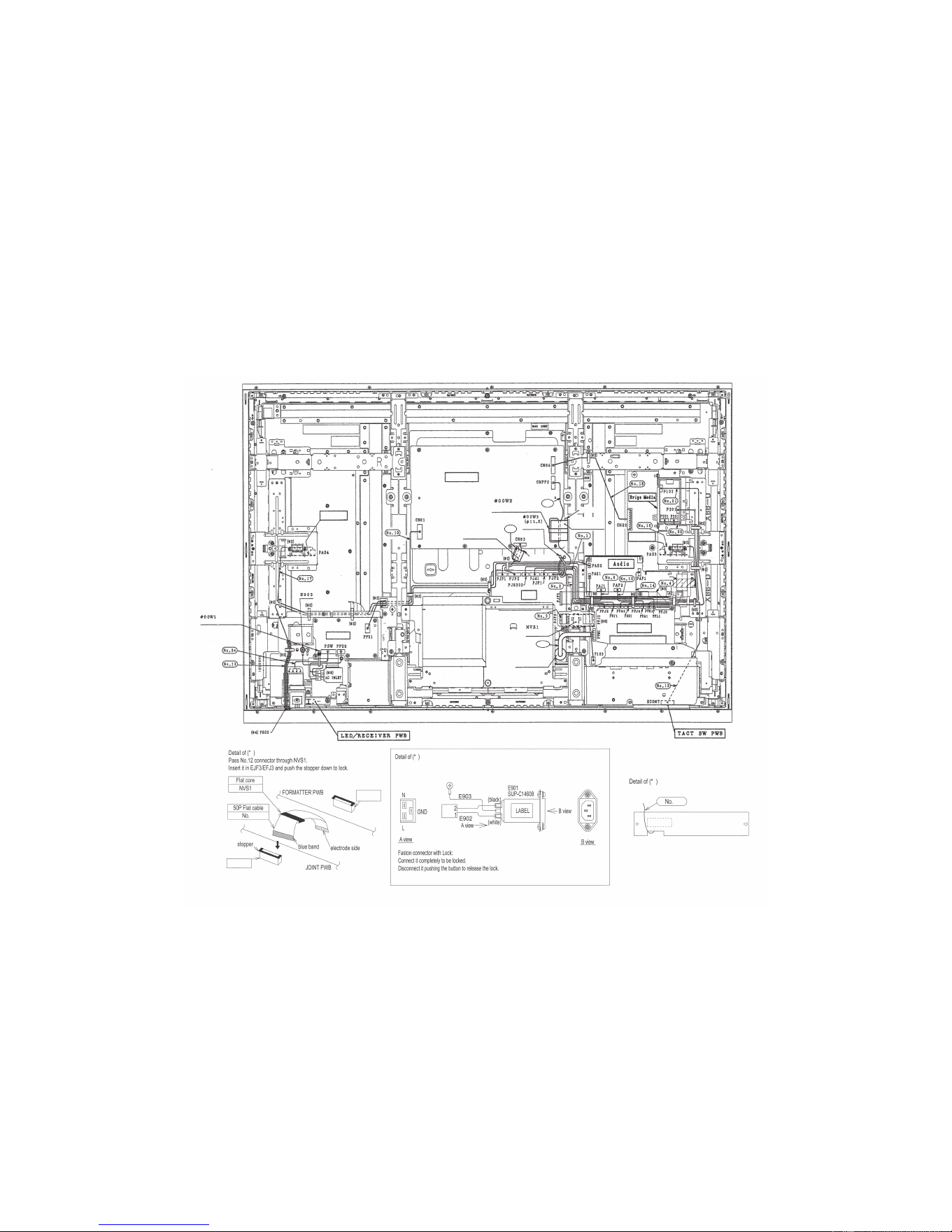

wiring diagram for 32PD7800 2/2
SK
Binder
FERRITE CORE
No.7
No.6
SP terminal L
SP terminal R
PWB FILTER
Power SW
JOINT
No.11
#00W5
PURSE LOCK Ø85
PFJ3
PJF3
FFC CABLE
TACT SW
POWER UNIT
13
4
PSC2
8
9
PURSE LOCK
(*9)
50p Flat cable
No.3
Detail (*2)
Clamp the wire as wirig diagram.
Downloaded from www.ManualsFile.com manuals search engine
66
32PD7800/42PD7800
wiring diagram for 42PD7800 2/2
POWER UNIT
No.11
FERRITE CORE
FERRITE CORE
No.6
PURSE LOCK
SK Binder
SK Binder
Joint
FERRITE CORE
SP terminal R
SP terminal L
FILTER
SK Binder
POWER
SW
FORMATER
13
4
PSC2
PFJ3
PJF3
FERRITE CORE
SK Binder side
No.7
FERRITE CORE
8
9
3
Detail (*2)
Clamp the wire as wiring diagram.
Downloaded from www.ManualsFile.com manuals search engine
68
32PD7800/42PD7800

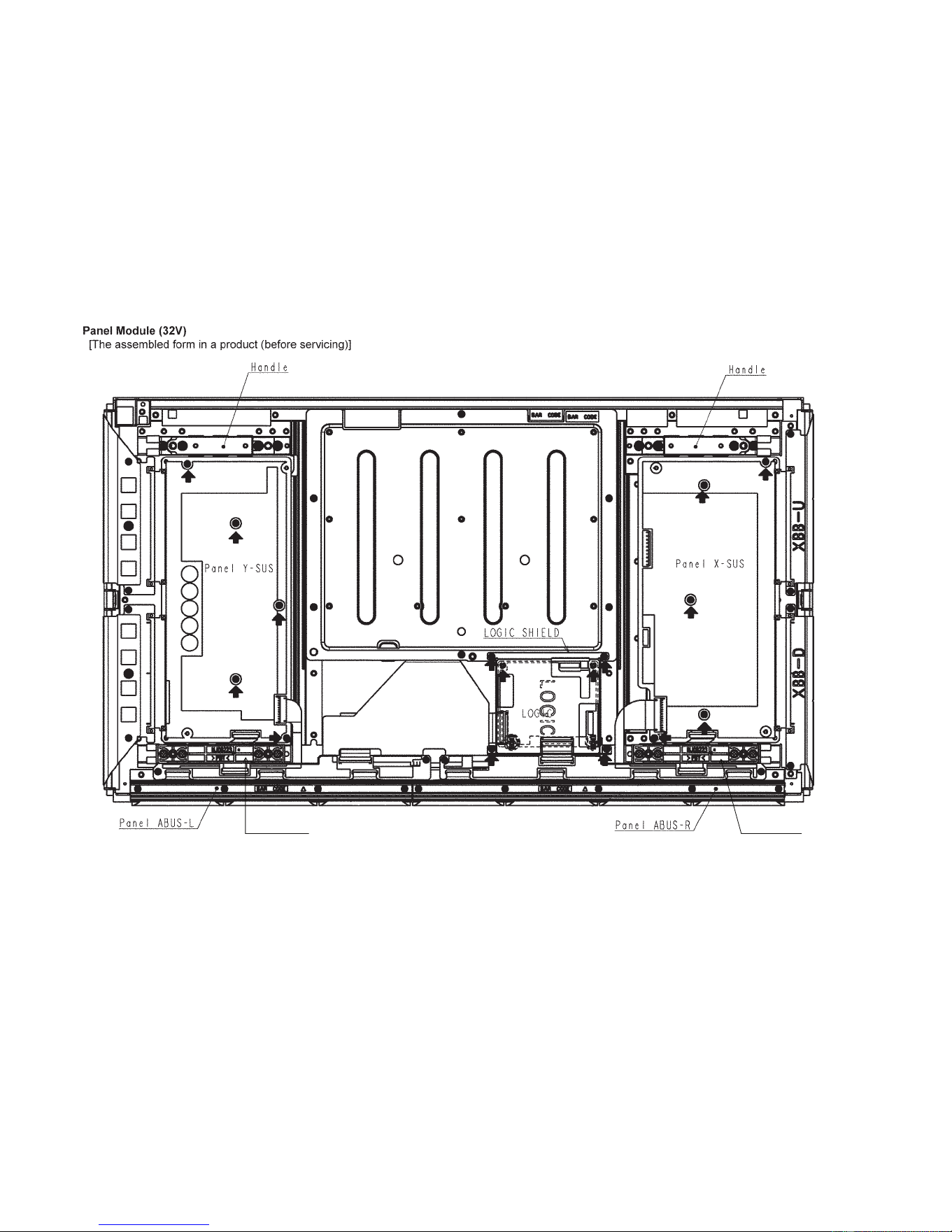

Manufactured at FHP factory.
Attachment for packing
*Apply it before packing
this panel module.
Handle for packing
*Apply it before packing
this panel module.
Attachment for packing
*Apply it before packing
this panel module.
X-SUS PWB ASS'Y
Manufactured at
FHP factory
(3)
(6)
(2)
Manufactured at FHP factory.
LOGIC PWB ASS'Y
Manufactured at FHP factory.
(5)
(4)
Attachment for packing
*Apply it before packing
this panel module.
Attachment for packing
*Apply it before packing
this panel module.
Handle for packing
*Apply it before packing
this panel module.
Y-SUS PWB ASS'Y
Manufactured at
FHP factory
Downloaded from www.ManualsFile.com manuals search engine
71
32PD7800/42PD7800

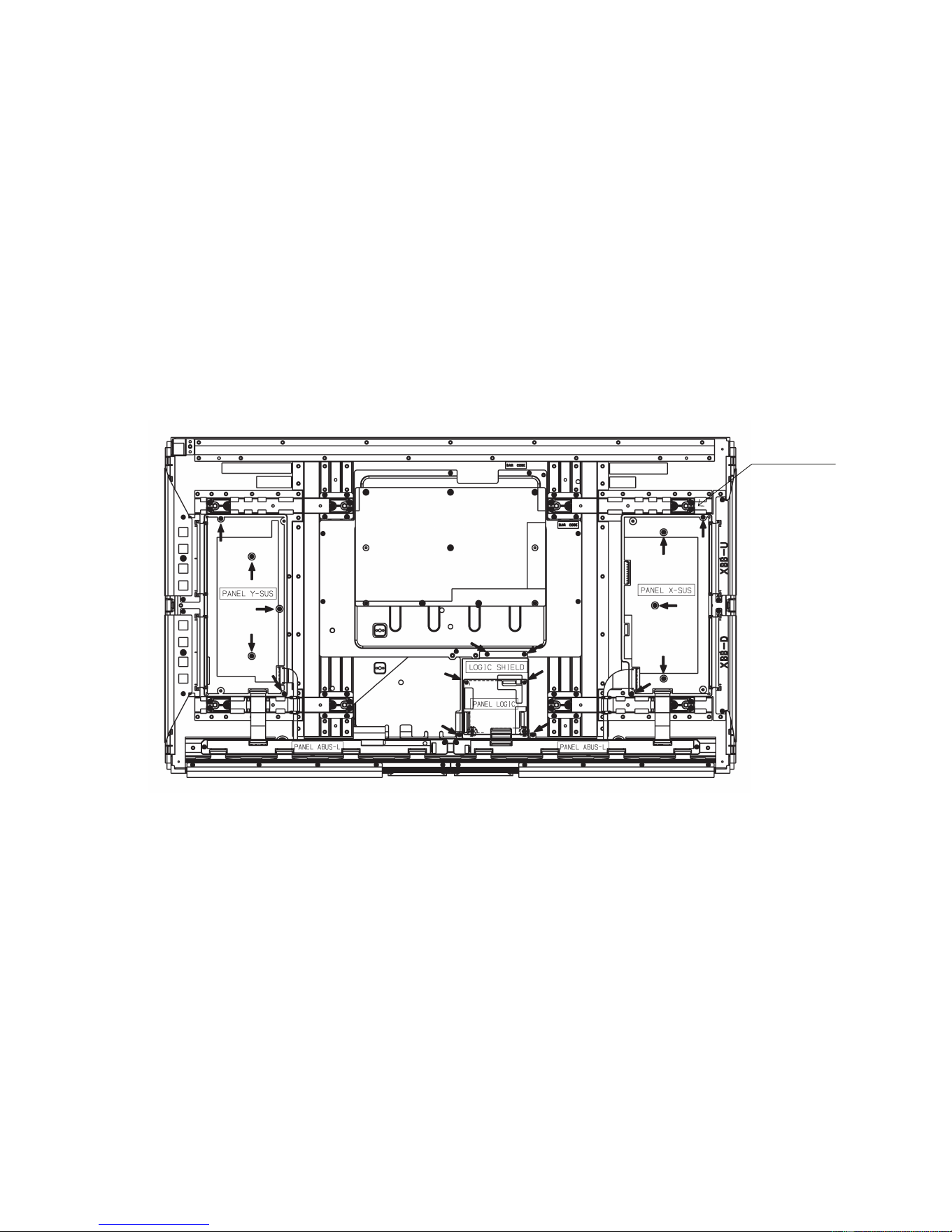

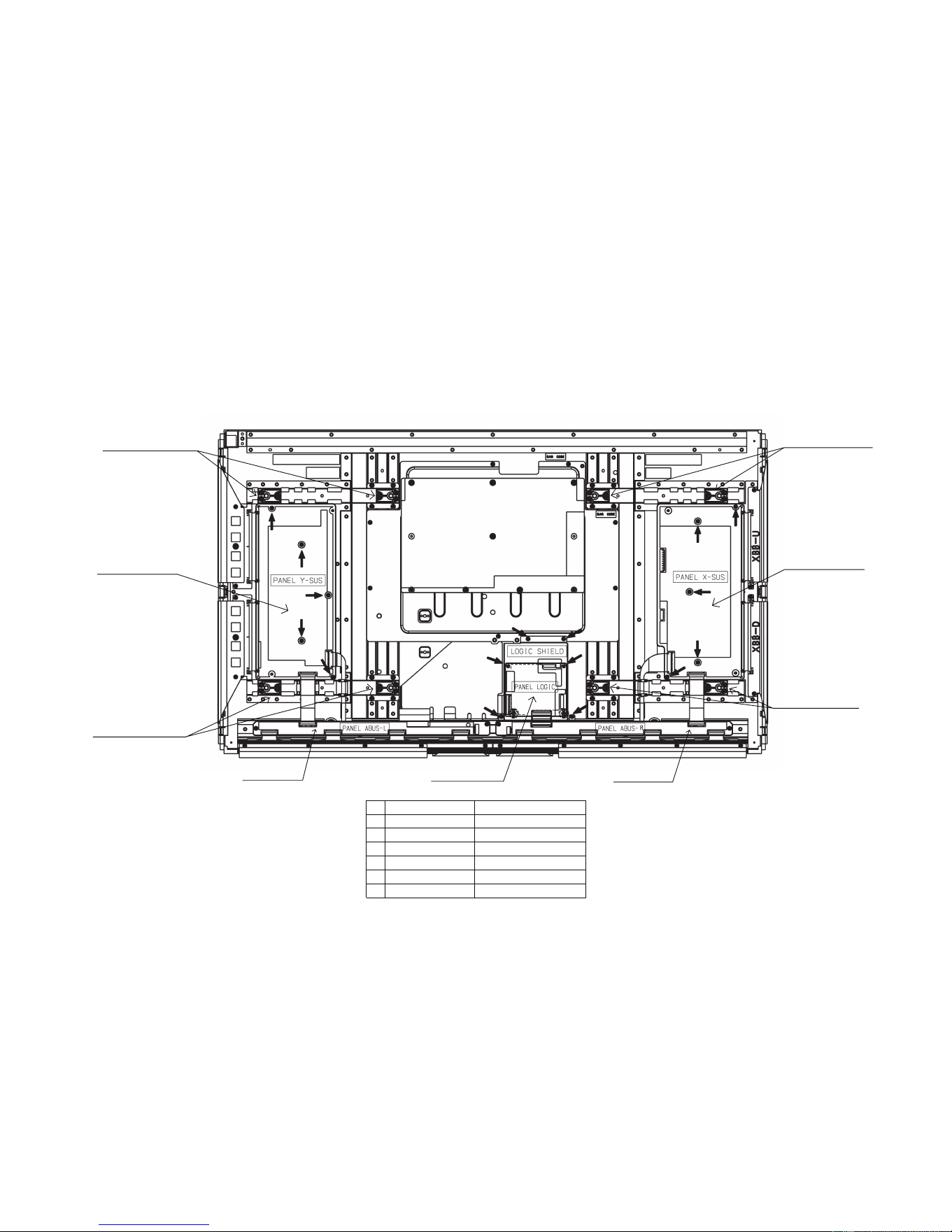

The figure of FHP Panel Module (42V)
Rear view
The state of a panel simple substance.
㧔ޓޓޓޓޓޓޓ㧕
No.
(1)
(2)
(3)
(4)
(5)
(6)
Spare Part Name
Panel Module
LOGIC PWB Ass’y
X-SUS PWB Ass’y
Y-SUS PWB Ass’y
A-BUS L PWB Ass’y
A-BUS R PWB Ass’y
FPF42C128128UD-55
FPF28R-LGC0045
FPF28R-XSS0026
FPF28R-YSS0027
FPF28R-ABL0019
FPF28R-ABR0020
FHP Spare Part#
Manufactured at FHP factory.
Attachment for packing
*Apply it before packing
this panel module.
Attachment for packing
*Apply it before packing
this panel module.
X-SUS PWB ASS'Y
Manufactured at
FHP factory
(3)
(6)
(2)
Manufactured at FHP factory.
LOGIC PWB ASS
Manufactured at FHP factory.
(5)
(4)
Attachment for packing
*Apply it before packing
this panel module.
Attachment for packing
*Apply it before packing
this panel module.
Y-SUS PWB ASS'Y
Manufactured at
FHP factory
Panel ABUS-R
Panel ABUS-L
Downloaded from www.ManualsFile.com manuals search engine
73
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
NOTE : This parts list is applied to the products mode in Japan.
ABBREVIATIONS Capacitors���������CD:Ceramic Disk, PF:Polyester Film, EL:Electrolytic, PP:Polypropylene,
PR:Paper, TA:Tantalum, TM:Trimer.
Resistors����������CF:Carbon film, WW:Wire Would, FR:Fuse Resistor, MG:Metal Glazzed,
VR:Variable resistor, CC:Carbon Composition, MF:Metal Oxide Film.
Semiconductors����TR:Transistor, DI:Diode, ZD:Zener Diode, VA:Varistor, TH:Thermistor.

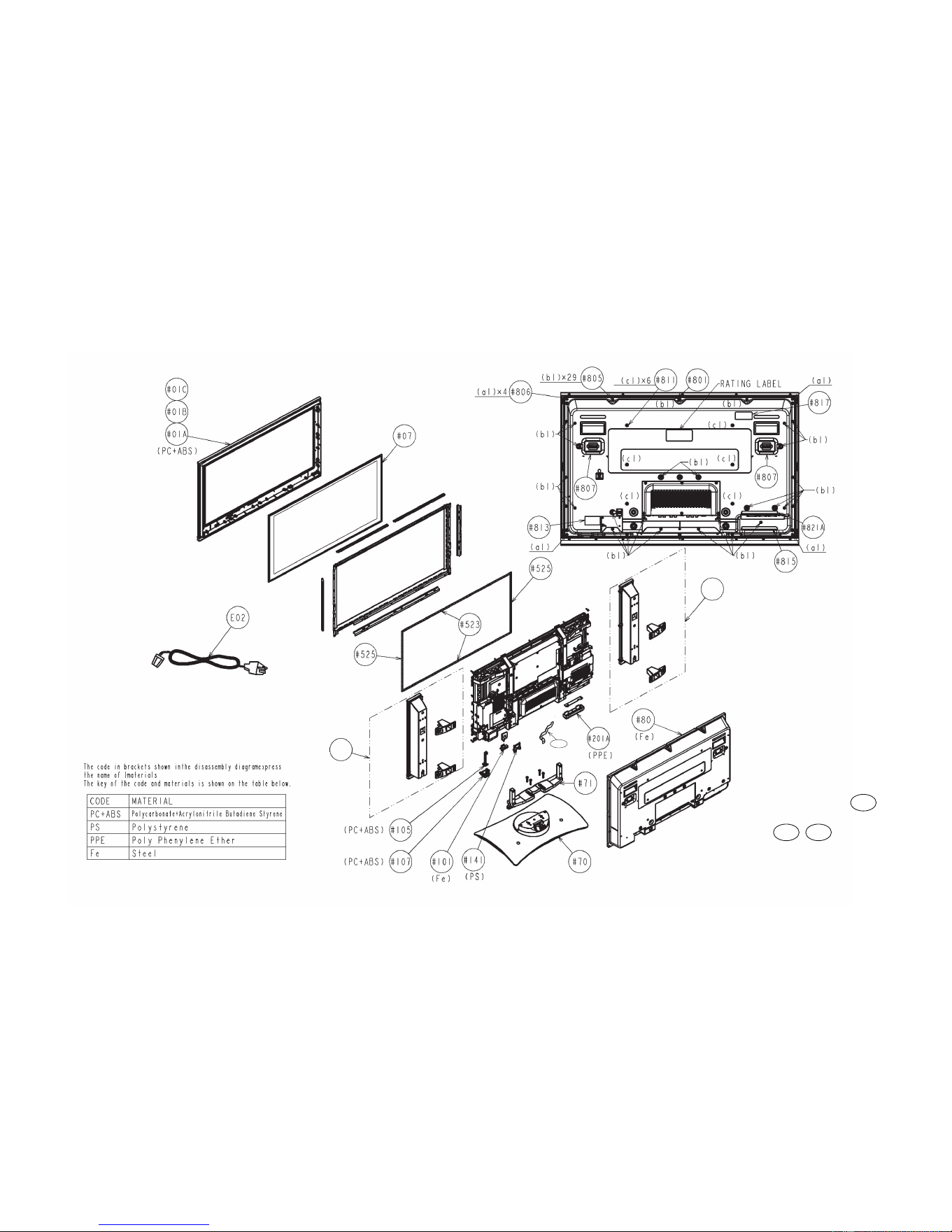

SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
#011A 86994102 SCREW BT BIND HEAD 3X10 #70 QJ01531 STAND ASS'Y
#013 4525404 SCREW M3X10 T #701 4527829 BOLT M6X18 WITH WASHER
#01A QD39256 BEZEL ASS'Y (DARK SILVER) (for TA) #71 ND00853 STAND SUPPORT
#01C QD39254 BEZEL ASS'Y (LIGHT SILVER) (for TA-S) #72 4527828 BOLT M6X40 WITH WASHER
#023 4525404 SCREW M3X10 T #80 QA02874 BACK COVER
#025 4525404 SCREW M3X10 T #801 3705264 CABLE CLAMP
#027 86994102 SCREW BT BIND HEAD 3X10 #803 PH31101 BACK COVER GRIP
#029 4525401 SCREW M3X8 #804 4518383 SCREW M4X8
#041 4518276 SCREW M3*8 DT (BLACK) #805 MJ03131 SCREW D3 4X10 BIND CP-GRIP
#05A QL25501 EXTEND LABEL #806 4520232 SCREW 4X16 DT
#07 KS09081 FRONT FILTER #807 QL23872 SPEAKER LABEL
#103 4522885 SCREW 3X8 CE CP-GRIP #809 4527829 BOLT M6X18 WITH WASHER
#105 PC05783 POWER BUTTON #811 MJ02101 SCREW 6X12
#107 PC05792 POWER BUTTON COVER #813 QL21001 AC LABEL
#115 MJ00926 SCREW M3X12 #815 QL23981 KEY SW LABEL
#123 MJ02993 SCREW M3X8 3P CP-GRIP #817 QL21403 TEMP CAUTION LABEL
#125 4341293 SCREW M3X10 CP-GRIP #821A QL24253 FORMATER LABEL
#127 MJ02993 SCREW M3X8 3P CP-GRIP #850 QN04971 ARROW MARK LABEL
#129 4522885 SCREW 3X8 CE CP-GRIP A11 JP08051 PWB ASS'Y AUDIO
#131 4522885 SCREW 3X8 CE CP-GRIP A11 JP08081 PWB ASS'Y VIDEO
#201A NJ08552 CONTROL BUTTON HOLDER ASS'Y A21 JP08061 PWB ASS'Y JOINT/SWIVEL
#205 86994102 SCREW BT BIND HEAD 3X10 A21 JP08101 PWB ASS'Y TUNER
#213 MJ02993 SCREW M3X8 3P CP-GRIP A31 JP08071 PWB ASS'Y FILTER
#223 MJ02993 SCREW M3X8 3P CP-GRIP A31 JP08121 PWB ASS'Y HDMI
#225 MJ02993 SCREW M3X8 3P CP-GRIP A41 CS00873 FORMATER UNIT HCP223 ASS'Y
#230 MJ03351 SCREW D-SUB C001 AA01101R CAPACITOR CHIP 1MF +-10% 10V
#303 MJ02722 SCREW M4X10 AL-TI CP-GRIP C001 0800324R EL 100MF 6.3V
#305 4520882 SCREW M3 WITH WASHER C002 AA01101R CAPACITOR CHIP 1MF +-10% 10V
#307 4341291 SCREW M3X10 C002 02441712 CD 0.01MF +80-20% 50V
#31 MM00181 GRIP JOINT(CARTON BOX) C003 AA01101R CAPACITOR CHIP 1MF +-10% 10V
#315 86994102 SCREW BT BIND HEAD 3X10 C101 AD00476R EL CHIP 2.2MF 50V
#325 MJ02993 SCREW M3X8 3P CP-GRIP C103 08003262 EL 100MF 16V
#327 4518275 SCREW M3X6 DT C104 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#409 MJ02981 SCREW PAN HEAD M5X16 WITH WASHER C105 08002942 EL 10MF 50V
#411 4520232 SCREW 4X16 DT C106 08002942 EL 10MF 50V
#413 4522885 SCREW 3X8 CE CP-GRIP C107 08003652 EL 2200MF 6.3V
#415 4522885 SCREW 3X8 CE CP-GRIP C108 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#419 MN06421 EDGE COVER C109 AD00436R EL CHIP 10MF 16V
#421 MJ02722 SCREW M4X10 AL-TI CP-GRIP C110 AD00415R EL CHIP 47MF 6.3V
#422 8815126 WASHER LOCKING 4 C111 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#509 4518275 SCREW M3X6 DT C112 0893134R CAPACITOR CHIP 390PF +-5% 50V
#521 4519501 SCREW T 3*10 B C113 0893122R CAPACITOR CHIP 47PF +-5% 50V
#523 MN03551 AIR FILTER C114 AD00436R EL CHIP 10MF 16V
#525 MN03556 AIR FILTER C116 AD00436R EL CHIP 10MF 16V
#601 4522885 SCREW 3X8 CE CP-GRIP C118 AD00416R EL CHIP 100MF 6.3V
#603 4519501 SCREW T 3*10 B C119 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#611 4522885 SCREW 3X8 CE CP-GRIP C121 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#613 4522885 SCREW 3X8 CE CP-GRIP C122 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
15. Replacement Parts list
• 32PD7800
Downloaded from www.ManualsFile.com manuals search engine
74
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
C124 AD00415R EL CHIP 47MF 6.3V C261 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C125 AD00441R EL CHIP 100MF 16V C262 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C127 0893175R CAPACITOR CHIP 1000PF +-5% 50V C263 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C130 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C264 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C131 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C265 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C132 AD00436R EL CHIP 10MF 16V C266 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C1A0 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C267 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C1A1 AD00436R EL CHIP 10MF 16V C268 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1A2 AD00415R EL CHIP 47MF 6.3V C269 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C1A3 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C270 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1A4 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C271 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C1A5 08003652 EL 2200MF 6.3V C272 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1A6 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C273 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C1A7 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C274 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1A8 AD00479R EL CHIP 10MF 50V C275 AD00629R EL CHIP 10MF 16V
C1C1 AD00441R EL CHIP 100MF 16V C276 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1C2 AD00476R EL CHIP 2.2MF 50V C277 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C201 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C278 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C202 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C279 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C205 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C280 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C206 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C281 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C209 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C282 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C210 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C283 AD00658R EL CHIP 100MF 50V
C213 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C284 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C214 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C285 AD00658R EL CHIP 100MF 50V
C217 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C286 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C218 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C287 AD00632R EL CHIP 47MF 16V
C221 AD00421R EL CHIP 470MF 6.3V C288 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C222 AD00629R EL CHIP 10MF 16V C289 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C223 AD00629R EL CHIP 10MF 16V C290 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C224 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V C291 AA01144R CAPACITOR CHIP 1MF +-10% 16V
C225 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V C292 AA01144R CAPACITOR CHIP 1MF +-10% 16V
C226 AD00629R EL CHIP 10MF 16V C293 AD00658R EL CHIP 100MF 50V
C227 AD00632R EL CHIP 47MF 16V C295 AD00629R EL CHIP 10MF 16V
C228 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C296 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C238 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C297 AA01144R CAPACITOR CHIP 1MF +-10% 16V
C239 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C2A0 AA00937R CAPACITOR CHIP 10MF +-10% 10V
C240 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C2A1 AA00937R CAPACITOR CHIP 10MF +-10% 10V
C241 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C2A2 AA00699R CAPACITOR CHIP 10MF +-10% 16V
C242 AD00421R EL CHIP 470MF 6.3V C2A3 AA00699R CAPACITOR CHIP 10MF +-10% 16V
C243 AD00421R EL CHIP 470MF 6.3V C2A4 AA00699R CAPACITOR CHIP 10MF +-10% 16V
C244 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C2A5 AA00699R CAPACITOR CHIP 10MF +-10% 16V
C245 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C301 AD00658R EL CHIP 100MF 50V
C248 AD00629R EL CHIP 10MF 16V C302 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C249 AA00931R CAPACITOR CHIP 1MF +-10% 10V C303 AD00632R EL CHIP 47MF 16V
C250 AD00629R EL CHIP 10MF 16V C304 0893117R CAPACITOR CHIP 22PF +-5% 50V
C251 AA01101R CAPACITOR CHIP 1MF +-10% 10V C306 0893113R CAPACITOR CHIP 10PF +-0.25PF 50V
C252 AA00931R CAPACITOR CHIP 1MF +-10% 10V C309 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C253 AD00629R EL CHIP 10MF 16V C310 0893211R CAPACITOR CHIP 1500PF +-10% 50V
C254 AA01101R CAPACITOR CHIP 1MF +-10% 10V C311 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C255 AA00931R CAPACITOR CHIP 1MF +-10% 10V C312 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C256 AA01101R CAPACITOR CHIP 1MF +-10% 10V C313 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C257 AA00931R CAPACITOR CHIP 1MF +-10% 10V C314 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C258 AA01101R CAPACITOR CHIP 1MF +-10% 10V C315 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C259 AA00931R CAPACITOR CHIP 1MF +-10% 10V C316 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C260 AA01101R CAPACITOR CHIP 1MF +-10% 10V C317 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
Downloaded from www.ManualsFile.com manuals search engine
75
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
C318 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C416 0893129R CAPACITOR CHIP 180PF +-5% 50V
C319 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C417 08003442 EL 330MF 16V
C320 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C418 0893211R CAPACITOR CHIP 1500PF +-10% 50V
C321 0893126R CAPACITOR CHIP 100PF +-5% 50V C419 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C322 0893129R CAPACITOR CHIP 180PF +-5% 50V C420 AD00638R EL CHIP 4.7MF 35V
C323 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C421 AD00638R EL CHIP 4.7MF 35V
C324 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C437 0893193R CAPACITOR CHIP 0.01MF +-10% 25V
C325 AA01121R CAPACITOR CHIP 0.47MF +-10% 10V C438 0893193R CAPACITOR CHIP 0.01MF +-10% 25V
C326 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C439 0893208R CAPACITOR CHIP 1000PF +-10% 50V
C327 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C441 0880203R PF 0.47MF +-5% 50V
C328 AD00623R EL CHIP 100MF 6.3V C442 0880203R PF 0.47MF +-5% 50V
C329 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C448 AD00629R EL CHIP 10MF 16V
C330 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C449 AD00629R EL CHIP 10MF 16V
C331 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C450 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C332 AD00623R EL CHIP 100MF 6.3V C453 AA00951R CAPACITOR CHIP 1.0MF +-10% 16V
C333 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C454 AA00951R CAPACITOR CHIP 1.0MF +-10% 16V
C334 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C455 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C335 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C456 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C337 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C458 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C338 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C459 08003612 EL 1000MF 16V
C339 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C460 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C340 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C461 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C341 AD00623R EL CHIP 100MF 6.3V C462 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C342 AD00629R EL CHIP 10MF 16V C463 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C344 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C467 08003612 EL 1000MF 16V
C345 AD00632R EL CHIP 47MF 16V C468 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C347 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C469 08003612 EL 1000MF 16V
C349 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C470 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C350 AD00632R EL CHIP 47MF 16V C471 0893184R CAPACITOR CHIP 0.022MF +-10% 16V
C351 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C472 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C352 AD00622R EL CHIP 47MF 6.3V C473 0800359R EL 1000MF 10V
C353 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C474 0800359R EL 1000MF 10V
C354 AD00622R EL CHIP 47MF 6.3V C475 0800359R EL 1000MF 10V
C355 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C476 0800359R EL 1000MF 10V
C356 AD00622R EL CHIP 47MF 6.3V C478 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C357 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C479 0893188R CAPACITOR CHIP 0.047MF +-10% 16V
C358 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C480 0893217R CAPACITOR CHIP 4700PF +-10% 50V
C359 AA01144R CAPACITOR CHIP 1MF +-10% 16V C482 08800092 PF 0.01MF +-10% 50V
C361 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C483 08800032 PF 1000PF +-10% 50V
C362 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C484 AD00629R EL CHIP 10MF 16V
C363 AA01144R CAPACITOR CHIP 1MF +-10% 16V C485 AD00638R EL CHIP 4.7MF 35V
C401 0893135R CAPACITOR CHIP 470PF +-5% 50V C486 AD00638R EL CHIP 4.7MF 35V
C402 0893135R CAPACITOR CHIP 470PF +-5% 50V C487 AD00638R EL CHIP 4.7MF 35V
C403 AD00638R EL CHIP 4.7MF 35V C488 AD00638R EL CHIP 4.7MF 35V
C404 AD00638R EL CHIP 4.7MF 35V C489 AD00638R EL CHIP 4.7MF 35V
C405 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C490 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C406 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C491 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C407 0893211R CAPACITOR CHIP 1500PF +-10% 50V C492 AA01811R CAPACITOR CHIP 0.033MF +-10% 25V
C408 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C493 AA01811R CAPACITOR CHIP 0.033MF +-10% 25V
C409 AD00629R EL CHIP 10MF 16V C494 AA01811R CAPACITOR CHIP 0.033MF +-10% 25V
C410 AD00629R EL CHIP 10MF 16V C495 AA01811R CAPACITOR CHIP 0.033MF +-10% 25V
C411 AD00647R EL CHIP 0.47MF 50V C496 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C412 0893177R CAPACITOR CHIP 0.068MF +-10% 16V C497 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C413 0893177R CAPACITOR CHIP 0.068MF +-10% 16V C498 AD00629R EL CHIP 10MF 16V
C414 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C499 0800359R EL 1000MF 10V
C415 0893129R CAPACITOR CHIP 180PF +-5% 50V C4A1 0893208R CAPACITOR CHIP 1000PF +-10% 50V
Downloaded from www.ManualsFile.com manuals search engine
76
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
C4A2 0893184R CAPACITOR CHIP 0.022MF +-10% 16V C527 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C4A3 0893184R CAPACITOR CHIP 0.022MF +-10% 16V C528 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C4B3 0893116R CAPACITOR CHIP 18PF +-5% 50V C529 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C4B4 0893116R CAPACITOR CHIP 18PF +-5% 50V C530 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4B5 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C531 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V
C4C1 0800359R EL 1000MF 10V C532 0893217R CAPACITOR CHIP 4700PF +-10% 50V
C4C2 0800359R EL 1000MF 10V C533 AD00632R EL CHIP 47MF 16V
C4C3 0800359R EL 1000MF 10V C534 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4C4 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C535 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4C5 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C536 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4D4 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V C537 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4D5 AA01115R CAPACITOR CHIP 4.7MF +-10% 6.3V C538 AD00622R EL CHIP 47MF 6.3V
C4D6 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V C539 AD00622R EL CHIP 47MF 6.3V
C4D7 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V C542 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4D8 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V C543 AD00638R EL CHIP 4.7MF 35V
C4D9 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V C544 AD00661R EL CHIP 220MF 6.3V
C4E1 AD00629R EL CHIP 10MF 16V C545 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4E2 AD00629R EL CHIP 10MF 16V C546 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4E3 AD00629R EL CHIP 10MF 16V C547 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4E4 AD00629R EL CHIP 10MF 16V C548 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4E5 0893126R CAPACITOR CHIP 100PF +-5% 50V C549 0893111R CAPACITOR CHIP 8PF +-0.25% 50V
C4E6 0893126R CAPACITOR CHIP 100PF +-5% 50V C551 AA01121R CAPACITOR CHIP 0.47MF +-10% 10V
C4E7 0893133R CAPACITOR CHIP 330PF +-5% 50V C552 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C4E8 0893212R CAPACITOR CHIP 1800PF +-10% 50V C553 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C4E9 0893133R CAPACITOR CHIP 330PF +-5% 50V C554 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C4F1 0893212R CAPACITOR CHIP 1800PF +-10% 50V C555 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4F2 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V C556 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V
C4F3 AA01115R CAPACITOR CHIP 4.7MF +-10% 6.3V C557 0893217R CAPACITOR CHIP 4700PF +-10% 50V
C4F4 0893126R CAPACITOR CHIP 100PF +-5% 50V C559 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4F5 0893126R CAPACITOR CHIP 100PF +-5% 50V C560 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4F6 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C561 0893133R CAPACITOR CHIP 330PF +-5% 50V
C4G6 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C562 0893133R CAPACITOR CHIP 330PF +-5% 50V
C4G7 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C603 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4G8 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C604 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4G9 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C605 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C501 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C606 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C502 0893122R CAPACITOR CHIP 47PF +-5% 50V C607 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C503 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C608 AD00658R EL CHIP 100MF 50V
C504 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C609 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C505 AD00632R EL CHIP 47MF 16V C610 AD00658R EL CHIP 100MF 50V
C506 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C611 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C507 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C612 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C508 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C613 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C509 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C614 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C510 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C615 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C511 AD00622R EL CHIP 47MF 6.3V C616 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C512 AD00622R EL CHIP 47MF 6.3V C617 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C515 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C618 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C519 AD00638R EL CHIP 4.7MF 35V C619 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C520 AD00661R EL CHIP 220MF 6.3V C620 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C521 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C621 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C522 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C622 AD00658R EL CHIP 100MF 50V
C523 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C623 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C524 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C624 AA00937R CAPACITOR CHIP 10MF +-10% 10V
C525 0893111R CAPACITOR CHIP 8PF +-0.25% 50V C625 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C526 AA01121R CAPACITOR CHIP 0.47MF +-10% 10V C626 AA00937R CAPACITOR CHIP 10MF +-10% 10V
Downloaded from www.ManualsFile.com manuals search engine
77
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
C627 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH30 08002942 EL 10MF 50V
C628 AA00937R CAPACITOR CHIP 10MF +-10% 10V CH31 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C629 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH32 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C630 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH33 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C631 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V CH34 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C632 0893213R CAPACITOR CHIP 2200PF 50V CH35 0893208R CAPACITOR CHIP 1000PF +-10% 50V
C633 0893222R CAPACITOR CHIP 0.01MF +-10% 50V CH36 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C634 AD00658R EL CHIP 100MF 50V CH37 08002942 EL 10MF 50V
C635 0893114R CAPACITOR CHIP 12PF +-5% 50V CH38 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C636 AD00658R EL CHIP 100MF 50V CH39 0893188R CAPACITOR CHIP 0.047MF +-10% 16V
C637 0893222R CAPACITOR CHIP 0.01MF +-10% 50V CH40 AA00937R CAPACITOR CHIP 10MF +-10% 10V
C638 0893213R CAPACITOR CHIP 2200PF 50V CH41 0800303R EL 22MF 50V
C639 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V CH42 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C640 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH43 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C641 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH44 08003262 EL 100MF 16V
C642 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH45 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C643 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH46 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C644 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH47 0800303R EL 22MF 50V
C645 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH48 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C646 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH49 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C647 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH50 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C649 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH51 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C650 AD00629R EL CHIP 10MF 16V CH52 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C651 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH53 08003262 EL 100MF 16V
C652 AA00966R CAPACITOR CHIP 4.7MF +-20% 3.6V CH54 08002942 EL 10MF 50V
C653 AD00631R EL CHIP 22MF 16V CH55 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C654 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH56 08003522 EL 470MF 10V
C655 AD00631R EL CHIP 22MF 16V CH57 08002942 EL 10MF 50V
C656 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH58 0893131R CAPACITOR CHIP 220PF +-5% 50V
C657 AD00632R EL CHIP 47MF 16V CH59 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C658 0893222R CAPACITOR CHIP 0.01MF +-10% 50V CH60 08003522 EL 470MF 10V
C690 AA00753R CAPACITOR CHIP 22MF +-20% 6.3V CH61 0893122R CAPACITOR CHIP 47PF +-5% 50V
C901 AN01447S CAPACITOR ACROSS 0.47MF +-10% 250V CH62 0800279R EL 1MF 50V
C902 AN01448S CAPACITOR ACROSS 0.68MF +-10% 250V CH63 0893208R CAPACITOR CHIP 1000PF +-10% 50V
C903 AN01445S CAPACITOR ACROSS 0.22MF +-10% 250V CH64 08002942 EL 10MF 50V
C904 AJ00581 CD 1000PF +-20% 250V CH65 0893131R CAPACITOR CHIP 220PF +-5% 50V
C905 AJ00581 CD 1000PF +-20% 250V CH66 0893122R CAPACITOR CHIP 47PF +-5% 50V
CH01 AD00632R EL CHIP 47MF 16V CH67 0800279R EL 1MF 50V
CH02 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH68 0893208R CAPACITOR CHIP 1000PF +-10% 50V
CH11 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH69 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
CH13 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH70 08003262 EL 100MF 16V
CH14 08003262 EL 100MF 16V CH71 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
CH15 0800303R EL 22MF 50V CH72 08003262 EL 100MF 16V
CH16 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH80 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
CH17 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH81 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
CH18 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH98 AA02451R VARISTOR CHIP 1.1PF
CH19 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH99 AA02451R VARISTOR CHIP 1.1PF
CH20 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CHA1 0893232R CAPACITOR CHIP 0.1MF +80% -20% 25V
CH21 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CHR1 AL01833R EL 1000MF 6.3V
CH22 08002942 EL 10MF 50V CHR2 AL01833R EL 1000MF 6.3V
CH23 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CHR3 0893208R CAPACITOR CHIP 1000PF +-10% 50V
CH24 0893208R CAPACITOR CHIP 1000PF +-10% 50V CHR5 AL01848R EL 470MF 16V
CH26 08002942 EL 10MF 50V CHR6 AL01848R EL 470MF 16V
CH27 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CJ01 AD00658R EL CHIP 100MF 50V
CH28 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CJ02 AL01456R EL 1000MF 10V
CH29 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CJ04 AD00649R EL CHIP 2.2MF 50V
Downloaded from www.ManualsFile.com manuals search engine
78
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
CJ05 AL01429R EL 330MF 35V CT21 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
CJ06 AD00658R EL CHIP 100MF 50V CT22 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
CJ07 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V CT23 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
CJ09 AD00658R EL CHIP 100MF 50V CT27 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
CJ10 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V D002 2343561 LED SPR-54MVW
CJ11 0893008 CAP. CERAMIC CHIP 0.1MF +-10% 16V D101 2348213M DIODE MTZJ-15C
CJ12 AD00658R EL CHIP 100MF 50V D102 2348213M DIODE MTZJ-15C
CJ13 0893008 CAP. CERAMIC CHIP 0.1MF +-10% 16V D1A1 2348213M DIODE MTZJ-15C
CJ14 0893008 CAP. CERAMIC CHIP 0.1MF +-10% 16V D1A2 2348213M DIODE MTZJ-15C
CJ31 AD00658R EL CHIP 100MF 50V D201 CC01891R DIODE CHIP SDS511 PF
CJ33 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V D202 CC01891R DIODE CHIP SDS511 PF
CJ37 AD00629R EL CHIP 10MF 16V D203 CC00823R DIODE ZENER CHIP UDZ 5.6B
CJ38 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V D204 CC01891R DIODE CHIP SDS511 PF
CN01 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D205 CC01891R DIODE CHIP SDS511 PF
CN02 0893126R CAPACITOR CHIP 100PF +-5% 50V D206 CC01891R DIODE CHIP SDS511 PF
CN03 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D207 CC01891R DIODE CHIP SDS511 PF
CN04 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D407 CH00151M DIODE DSM1SD2
CN05 AD00439R EL CHIP 47MF 16V D408 CC01891R DIODE CHIP SDS511 PF
CN06 0893122R CAPACITOR CHIP 47PF +-5% 50V D409 CC01891R DIODE CHIP SDS511 PF
CN07 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D411 CC01891R DIODE CHIP SDS511 PF
CN08 AD00418R EL CHIP 220MF 6.3V D412 CC01891R DIODE CHIP SDS511 PF
CN09 0893102R CAPACITOR CHIP 1PF +-0.25PF 50V D481 2334304 DIODE ZENER RD30EB3
CN10 0893102R CAPACITOR CHIP 1PF +-0.25PF 50V D482 2334304 DIODE ZENER RD30EB3
CN11 0893102R CAPACITOR CHIP 1PF +-0.25PF 50V D483 2334304 DIODE ZENER RD30EB3
CN14 AD00413R EL CHIP 22MF 6.3V D484 2334304 DIODE ZENER RD30EB3
CN15 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D501 CC01921R DIODE SDS142WKF_PF
CN17 0893208R CAPACITOR CHIP 1000PF +-10% 50V DH11 CC01891R DIODE CHIP SDS511 PF
CN18 0893208R CAPACITOR CHIP 1000PF +-10% 50V DH12 CC00824R DIODE ZENER CHIP UMD2 6.2B
CN19 0893222R CAPACITOR CHIP 0.01MF +-10% 50V DH14 CC01891R DIODE CHIP SDS511 PF
CN20 AD00425R EL CHIP 22MF 10V DH16 CC01911R DIODE SDS142WAF_PF
CN21 AA00941R CAPACITOR CHIP 4.7MF +80% -20% 10V DH21 CC01891R DIODE CHIP SDS511 PF
CN22 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V DH22 CC01891R DIODE CHIP SDS511 PF
CN23 AA01111R CAPACITOR CHIP 1MF +-10% 6.3V DH23 CC01731R DIODE CHIP BAT254
CN24 0893179R CAPACITOR CHIP 0.1MF +-10% 16V DH24 CC01891R DIODE CHIP SDS511 PF
CN25 AA00941R CAPACITOR CHIP 4.7MF +80% -20% 10V DHR1 CC01651R DIODE SFPB-66
CR01 AD00632R EL CHIP 47MF 16V DJ01 CH00871 DIODE FMB-G14L
CR02 0893179R CAPACITOR CHIP 0.1MF +-10% 16V DJ02 CH01042M DIODE RK34
CR03 AD00658R EL CHIP 100MF 50V DJ31 CC00822R DIODE ZENER CHIP UDZ 5.1B
CR04 0893179R CAPACITOR CHIP 0.1MF +-10% 16V DJ32 CC01891R DIODE CHIP SDS511 PF
CR05 AD00632R EL CHIP 47MF 16V DJ33 CC01891R DIODE CHIP SDS511 PF
CR06 0893179R CAPACITOR CHIP 0.1MF +-10% 16V DN02 2348152M DIODE MTZ-J8.2B TA
CR07 AD00658R EL CHIP 100MF 50V DR01 2339612M DIODE ZENER HZS3BLL
CR08 0893179R CAPACITOR CHIP 0.1MF +-10% 16V E01 EV01964 CORD POWER SUPPLY
CR09 AD00632R EL CHIP 47MF 16V E04 EW08352 CORD RS-232C
CR10 0893179R CAPACITOR CHIP 0.1MF +-10% 16V E07 UK07732 INPUT BASE ACCESSORY
CR11 AD00658R EL CHIP 100MF 50V E901 EP00014 JACK 3P
CR12 0893179R CAPACITOR CHIP 0.1MF +-10% 16V EFE EF23892 CONNECTOR 1P
CT01 AD00436R EL CHIP 10MF 16V ESS EF22294 CONNECTOR 13P
CT02 0893131R CAPACITOR CHIP 220PF +-5% 50V ETV2 EK01108 WIRE (PROCESSED) 50P
CT03 0893179R CAPACITOR CHIP 0.1MF +-10% 16V ETV3 EK01188 CONNECTOR FFC 50P
CT04 0893179R CAPACITOR CHIP 0.1MF +-10% 16V F902 FN00439 FUSE HT 250V 6.3A 5.2X20MM
CT05 0893133R CAPACITOR CHIP 330PF +-5% 50V HH11 BE00303R LC FILTER CHIP
CT06 0893123R CAPACITOR CHIP 56PF +-5% 50V HH12 BE00303R LC FILTER CHIP
CT07 0893123R CAPACITOR CHIP 56PF +-5% 50V HH13 BE00303R LC FILTER CHIP
CT13 AD00415R EL CHIP 47MF 6.3V I001 CK35891R IC CAT24WC04J1
CT20 0893222R CAPACITOR CHIP 0.01MF +-10% 50V I001 CZ01171 IC GP1UM281RK
Downloaded from www.ManualsFile.com manuals search engine
79
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
I002 CK37353R IC PST3642NR K406 2784381A TAPED JUMP.WIRE 0.60MM
I101 CK39271R IC NJM2534M-TE1 K407 2784381A TAPED JUMP.WIRE 0.60MM
I102 CK38376R IC SI-3050KM-TL K411 2784381A TAPED JUMP.WIRE 0.60MM
I103 CK37216R IC TK11133CSCL K414 2784381A TAPED JUMP.WIRE 0.60MM
I201 CK30941U IC CXA2069Q K415 2784381A TAPED JUMP.WIRE 0.60MM
I202 CK16272R IC BU4052BCFV-E2 K417 2784381A TAPED JUMP.WIRE 0.60MM
I203 CK31031R IC BA3530FS K419 2784381A TAPED JUMP.WIRE 0.60MM
I302 CK50541U IC TC90A88F K420 2784381A TAPED JUMP.WIRE 0.60MM
I304 CK38443R IC BD5227G K421 2784381A TAPED JUMP.WIRE 0.60MM
I305 CK37216R IC TK11133CSCL K422 2784381A TAPED JUMP.WIRE 0.60MM
I306 CK37212R IC TK11125CSCL K480 2784381A TAPED JUMP.WIRE 0.60MM
I401 CK50501R IC NJW1163V
I404 CK50481R IC TAS5001PFBR
I405 CK37218R IC TK11150CSCL
KJ01
2784381A
TAPED JUMP.WIRE 0.60MM
I406 CK50471R IC TAS5122DCA
KLJ01
2784381A
TAPED JUMP.WIRE 0.60MM
I407 CK01481R IC TC7WU04F
KLJ03
2784381A
TAPED JUMP.WIRE 0.60MM
I408 CK34401R IC SN74LV14APWR
I409 CK34401R IC SN74LV14APWR
L001
2123116M
LAL AXIAL COIL 100UH
I411 CK50491R IC PCM1802DBR
L102
BA00714R
COIL CHIP 100UH
I412 CK04121R IC BA14741F-T1
L103
21237812
FILTER COIL
I501 CK34953U IC TB1274BFG
L104
BA00714R
COIL CHIP 100UH
I502 CK34953U IC TB1274BFG
L105
2123415M
AXIAL COIL 2.2MH
I601 CK50551U IC TA1391FG
L1A1
BA00714R
COIL CHIP 100UH
I602 CK34991R IC SN74ACT14PWR
L1A2
21237812
FILTER COIL
I603 CK37406R IC SI-3012KS-TL
L211
BA00892R
COIL CHIP 47UH +-20% 150MA
I604 CK37396R IC SI-3012LU
L212
BA00892R
COIL CHIP 47UH +-20% 150MA
IH11 CK35895R IC CAT24WC02J1
L213
BA00864R
COIL CHIP 10UH
IH13 CK39811U IC SII9993CTG100
L214
BA00864R
COIL CHIP 10UH
IH14 CK39821R IC PCM1754DBQR
L217
BZ01421R
COIL FERRITE BEAD BL02RN1-R62T4
IH15 CK07141R IC BA4558F-E2
L218
BA00892R
COIL CHIP 47UH +-20% 150MA
IHR1 CK37162R IC SI-8033JD
L219
BA00894R
COIL CHIP 100MH 100MA
IJ01 CP03922F IC SI-805S
L220
BA00892R
COIL CHIP 47UH +-20% 150MA
IJ02 CP08521F IC SI-3011ZF
L221
BA00892R
COIL CHIP 47UH +-20% 150MA
IJ03 CP06541F IC SI-3033C
L301
BA00894R
COIL CHIP 100MH 100MA
IJ04 CP06541F IC SI-3033C
L302
2123108M
LAL02 AXIAL COIL 27MH
IJ31 CK50461R IC BA6287F-E2
L304
BA00889R
COIL CHIP 22UH
IN01 CK37711U IC MSP3455G
L305
BA00889R
COIL CHIP 22UH
IR01 CK38377R IC SI-3090KM-TL
L306
BA00892R
COIL CHIP 47UH +-20% 150MA
IR02 CK37194R IC SI-3050LSA-TL
L307
BA00889R
COIL CHIP 22UH
IR03 CK37194R IC SI-3050LSA-TL
L308
BA00887R
COIL CHIP 10UH +-20% 300 MA
IT01 CK50561U IC SAA5361
L310
BA00892R
COIL CHIP 47UH +-20% 150MA
IT02 CK35891R IC CAT24WC04J1
L311
BA00892R
COIL CHIP 47UH +-20% 150MA
IT03 CK50741U IC M5M5V108DKV-70HI
L312
BA00892R
COIL CHIP 47UH +-20% 150MA
J201 EQ00641 JACK 6P
L401
BH01812R
INDUCTOR FHA7503CY
J202 EQ00641 JACK 6P
L402
BH01812R
INDUCTOR FHA7503CY
J203 EY02051 JACK S TERMINAL WITH SW
L403
BH01812R
INDUCTOR FHA7503CY
J204 EQ00642 JACK 6P
L404
BH01812R
INDUCTOR FHA7503CY
J205 EQ00631 JACK 3P
L409
BZ01421R
COIL FERRITE BEAD BL02RN1-R62T4
JA402 ER00062 SPEAKER TERMINAL
L410
BZ01421R
COIL FERRITE BEAD BL02RN1-R62T4
JA403 ER00062 SPEAKER TERMINAL
L413
BZ01421R
COIL FERRITE BEAD BL02RN1-R62T4
JH11 EA01791U CONNECTOR HDMI 19P
L481
BZ05521
CHOKE COIL 7UH 2A
JSD1 EQ00681 JACK D TERMINAL 14P
L482
BZ05521
CHOKE COIL 7UH 2A
JSW1 ED04241 CONNECTOR 13P
L501
2123111M
LAL AXIAL COIL 39MH KB
K401 2784381A TAPED JUMP.WIRE 0.60MM
L502
BA00894R
COIL CHIP 100MH 100MA
K402 2784381A TAPED JUMP.WIRE 0.60MM
L503
BA00892R
COIL CHIP 47UH +-20% 150MA
K404 2784381A TAPED JUMP.WIRE 0.60MM
L504
BH00693R
COIL 47MH
Downloaded from www.ManualsFile.com manuals search engine
80
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
L505 BA00894R COIL CHIP 100MH 100MA Q109 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L506 BA00892R COIL CHIP 47UH +-20% 150MA Q1A1 CA00122R TRANSISTOR CHIP 2SA1576A(R)50V
L507 BH00693R COIL 47MH Q201 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L602 BA00892R COIL CHIP 47UH +-20% 150MA Q202 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L603 BA00892R COIL CHIP 47UH +-20% 150MA Q203 CA00981R TRANSISTOR CHIP DTC114EE TL
L604 BA00892R COIL CHIP 47UH +-20% 150MA Q204 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L605 BA00892R COIL CHIP 47UH +-20% 150MA Q205 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L606 BA00892R COIL CHIP 47UH +-20% 150MA Q206 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L607 BA00892R COIL CHIP 47UH +-20% 150MA Q207 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L608 BA00894R COIL CHIP 100MH 100MA Q208 2320663 TRANSISTOR 2SC1213AC
L610 BA00892R COIL CHIP 47UH +-20% 150MA Q209 CA00142R TRANSISTOR CHIP IMX2T108(T)
L902A BZ05761 LINE FILTER 1MH Q211 CA00142R TRANSISTOR CHIP IMX2T108(T)
LH01 BA00894R COIL CHIP 100MH 100MA Q213 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
LH13 BM00289R FERRITE BEADS CHIP Q214 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
LH14 BM00289R FERRITE BEADS CHIP Q215 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LH15 BM00289R FERRITE BEADS CHIP Q216 CA00983R TRANSISTOR,CHIP DTC144EE TL
LH16 BM00289R FERRITE BEADS CHIP Q217 CA00983R TRANSISTOR,CHIP DTC144EE TL
LH17 BH00683R COIL 8.2UH Q218 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LH18 BM00289R FERRITE BEADS CHIP Q301 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
LH19 BM00289R FERRITE BEADS CHIP Q302 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
LH20 BM00289R FERRITE BEADS CHIP Q303 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LH22 BA00894R COIL CHIP 100MH 100MA Q304 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LH23 BA00894R COIL CHIP 100MH 100MA Q305 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
LHR1 2125797N COIL 10MH Q306 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
LHR2 BH01851 COIL 100UH Q307 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LJ02A BV01171 COIL SF 110UH Q308 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
LN01 BA00714R COIL CHIP 100UH Q309 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
LN02 BA00712R COIL CHIP 47UH Q401 CA00981R TRANSISTOR CHIP DTC114EE TL
LN03 BA00712R COIL CHIP 47UH Q402 CA00981R TRANSISTOR CHIP DTC114EE TL
LT02 BA00714R COIL CHIP 100UH Q403 CA00981R TRANSISTOR CHIP DTC114EE TL
N03 EK01108 WIRE (PROCESSED) 50P Q501 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
N04 EK01186 CONNECTOR FFC 50P Q502 CA11163R TRANSISTOR CHIP DTC144EUA
N06 EF24213C CONNECTOR 5P WITH CORE Q503 CA00142R TRANSISTOR CHIP IMX2T108(T)
N07 EF24197C CONNECTOR 13P WITH CORE Q504 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
N11 EF24199C CONNECTOR 30P WITH CORE Q505 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
NF902 FP00031R FUSE HOLDER Q506 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
PHV1 EA01652R CONNECTOR FPC 50P Q508 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PJF2 EA01252R CONNECTOR 12P Q509 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PJF3 EA01652R CONNECTOR FPC 50P Q510 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PJF5 EA01652R CONNECTOR FPC 50P Q511 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
PJV1 ED04581U CONNECTOR 120P Q512 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
PPU2 ED02801 PLUG 2P Q513 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
PSW ED02811 PLUG 8P Q515 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PTV2 EA01652R CONNECTOR FPC 50P Q516 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PTV3 ED01812 CONNECTOR JDV 20P Q517 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PVH1 EA01652R CONNECTOR FPC 50P Q518 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
PVJ1 ED04571U CONNECTOR 120P Q519 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
PVT2 EA01652R CONNECTOR FPC 50P Q603 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
PVT3 ED01822 CONNECTOR JDV 20P Q604 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q001 CA02142R TRANSISTOR CHIP 2SC5343UFG PF Q605 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q010 2325721 TRANSISTOR 2SC1740S Q607 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q101 CA02132R TRANSISTOR CHIP 2SA1980UFG PF Q608 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q102 CA02142R TRANSISTOR CHIP 2SC5343UFG PF Q609 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q103 CA02132R TRANSISTOR CHIP 2SA1980UFG PF QH01 CA00142R TRANSISTOR CHIP IMX2T108(T)
Q106 CA02142R TRANSISTOR CHIP 2SC5343UFG PF QH11 CA01011R TRANSISTOR CHIP 2SK3018 T106
Q108 CA02142R TRANSISTOR CHIP 2SC5343UFG PF QH12 CA01011R TRANSISTOR CHIP 2SK3018 T106
Downloaded from www.ManualsFile.com manuals search engine
81
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
QH13 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R112 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH14 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R114 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH15 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R116 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH16 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R118 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH17 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R120 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH18 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R126 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QH19 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R127 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
QH20 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R128 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QH21 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R129 0790027R RESISTOR CHIP 180 OHM +-5% 1/16W
QH22 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R130 0790027R RESISTOR CHIP 180 OHM +-5% 1/16W
QH30 CA00981R TRANSISTOR CHIP DTC114EE TL R131 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
QH31 CA00981R TRANSISTOR CHIP DTC114EE TL R132 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QH32 CA01011R TRANSISTOR CHIP 2SK3018 T106 R133 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
QH33 CA01011R TRANSISTOR CHIP 2SK3018 T106 R141 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QH34 CA00981R TRANSISTOR CHIP DTC114EE TL R142 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH35 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R143 0790029R RESISTOR CHIP 270 OHM +-5% 1/16W
QH40 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R144 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QJ31 2316244R TRANSISTOR CHIP 2SC4081 T106 R R145 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QJ32 1323294R TRANSISTOR CHIP 2SA1774 TL (R/S) R149 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QJ33 CA00983R TRANSISTOR,CHIP DTC144EE TL R156 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QN01 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R157 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
QN02 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R158 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
QN10 CA00981R TRANSISTOR CHIP DTC114EE TL R171 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
QR01 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R172 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
QT01 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R180 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QT02 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R182 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT03 CA00331R TRANSISTOR CHIP IMZ1A T108(T) R183 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT04 CA00331R TRANSISTOR CHIP IMZ1A T108(T) R1A0 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT05 CA00331R TRANSISTOR CHIP IMZ1A T108(T) R1A1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT06 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R1A2 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT07 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R1A3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT10 CA00981R TRANSISTOR CHIP DTC114EE TL R1A4 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
QT11 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R1A5 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
QT12 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R1A6 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT13 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R1A8 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R001 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R1C1 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R002 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R1C2 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R003 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W R1C3 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R004 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R1C4 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R007 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R1C5 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R008 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R1C6 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R009 0700027M CF 100 OHM +-5% 1/16W R1C7 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R009 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R1C8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R010 07000372 CF 560 OHM +-5% 1/16W R201 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R011 07000382 CF 680 OHM +-5% 1/16W R202 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R012 07000492 CF 4.7K OHM +-5% 1/16W R203 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R013 07000512 CF 5.6K OHM +-5% 1/16W R204 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R101 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R205 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R102 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R206 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W
R103 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R207 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W
R104 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R208 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R105 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R209 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R106 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R210 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R107 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R211 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R110 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R212 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R111 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R213 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
82
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
R214 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R276 0790074R RESISTOR CHIP 560K OHM +-5% 1/16W
R215 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R277 0790057R RESISTOR CHIP 33K OHM +-5% 1/16W
R216 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R278 0790062R RESISTOR CHIP 68K OHM +-5% 1/16W
R217 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R279 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R218 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R280 0790038R RESISTOR CHIP 1.2K OHM +-5% 1/16W
R219 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R281 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R220 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R282 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
R221 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R283 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R222 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R284 0790074R RESISTOR CHIP 560K OHM +-5% 1/16W
R223 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R285 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R224 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R286 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R225 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R287 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R226 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R288 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R227 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R289 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R228 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R290 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R229 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R291 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R230 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R292 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R231 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R293 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R232 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R294 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R233 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R295 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R234 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R296 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R235 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R297 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R236 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R298 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R237 0790061R RESISTOR CHIP 56K OHM +-5% 1/16W R299 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R238 0790061R RESISTOR CHIP 56K OHM +-5% 1/16W R2A0 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R239 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2A1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R240 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2A2 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R241 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R2A3 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R242 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R2A4 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R243 0790045R RESISTOR CHIP 3.9K OHM +-5% 1/16W R2A5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R244 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R2A6 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R245 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2A7 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R246 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2A8 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R247 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2A9 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R248 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2C0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R249 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2C1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R250 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2C8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R251 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W R2E0 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R258 AQ00022R RESISTOR CHIP 68 OHM +-5% 1/16W (4R) R2E1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R259 AQ00022R RESISTOR CHIP 68 OHM +-5% 1/16W (4R) R2E2 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R260 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2E3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R261 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2E4 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R262 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R2E5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R263 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R2E6 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R264 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R2E7 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R265 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R2E8 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R266 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R2E9 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R267 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R2F0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R268 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R2F1 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R269 0790057R RESISTOR CHIP 33K OHM +-5% 1/16W R2F2 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R270 0790062R RESISTOR CHIP 68K OHM +-5% 1/16W R2F3 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R271 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2F4 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R272 0790038R RESISTOR CHIP 1.2K OHM +-5% 1/16W R2F5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R273 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2F6 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
R274 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R2F7 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
R275 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2G0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
83
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
R2G1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R331 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W
R2G2 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R332 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W
R2G3 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R333 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R2G6 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R334 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W
R2G7 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R336 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W
R2J1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R337 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R2J2 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R338 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R2J3 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W R339 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R2J4 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R340 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R2J5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R341 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R2J6 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R342 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R2J7 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W R343 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R2J8 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R344 0790058R RESISTOR CHIP 39K OHM +-5% 1/16W
R2J9 0790066R RESISTOR CHIP 150K OHM +-5% 1/16W R345 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
R2K0 0790066R RESISTOR CHIP 150K OHM +-5% 1/16W R346 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R2K1 AQ00024R RESISTOR CIHP 100 OHM +-5% 1/16W R347 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W
R2K2 AQ00024R RESISTOR CIHP 100 OHM +-5% 1/16W R349 0790041R RESISTOR CHIP 1.8K OHM +-5% 1/16W
R2K3 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W R350 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R2K4 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W R351 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R2K5 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W R352 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R2K6 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R353 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R2K7 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W R354 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R2K8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R355 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R2K9 0790061R RESISTOR CHIP 56K OHM +-5% 1/16W R401 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
R2L0 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W R402 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
R2L1 0790075R RESISTOR CHIP 680K OHM +-5% 1/16W R403 0790068R RESISTOR CHIP 220K OHM +-5% 1/16W
R2L2 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R404 0790068R RESISTOR CHIP 220K OHM +-5% 1/16W
R301 0790057R RESISTOR CHIP 33K OHM +-5% 1/16W R405 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R302 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R406 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R303 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R423 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R304 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R424 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R305 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R426 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
R306 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W R427 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
R307 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W R429 0790002R RESISTOR CHIP 2.2 OHM +-5% 1/16W
R308 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R430 0790002R RESISTOR CHIP 2.2 OHM +-5% 1/16W
R309 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R432 0790008R RESISTOR CHIP 6.8 OHM +-5% 1/16W
R310 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R436 0790002R RESISTOR CHIP 2.2 OHM +-5% 1/16W
R311 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R437 0790002R RESISTOR CHIP 2.2 OHM +-5% 1/16W
R312 0790041R RESISTOR CHIP 1.8K OHM +-5% 1/16W R438 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R313 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R439 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R314 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W R443 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W
R315 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R445 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W
R316 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R446 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
R317 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R447 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
R318 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R448 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
R319 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R449 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R321 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R452 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
R322 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R461 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R323 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R465 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R324 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W R468 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
R325 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R470 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R326 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R472 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R327 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R474 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R328 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W R476 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R329 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R477 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R330 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R480 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
84
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
R482 0790008R RESISTOR CHIP 6.8 OHM +-5% 1/16W R522 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R486 0790077R RESISTOR CHIP 1M OHM +-5% 1/16W R523 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R487 AQ00011R RESISTOR CHIP 10 OHM +-5% 1/16W R524 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R488 AQ00011R RESISTOR CHIP 10 OHM +-5% 1/16W R525 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
R489 AQ00011R RESISTOR CHIP 10 OHM +-5% 1/16W R526 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R490 AQ00011R RESISTOR CHIP 10 OHM +-5% 1/16W R528 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R491 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R529 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R492 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R530 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R493 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R531 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W
R494 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R532 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R495 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R533 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R496 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R534 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R497 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R535 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4B2 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R536 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4B4 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R537 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R4B7 AQ00204R RESISTOR CHIP 5.6K OHM +-1% 1/16W R538 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R4B8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R539 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R4B9 AQ00196R RESISTOR CHIP 1.2K OHM +-1% 1/16W R540 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C1 AQ00207R RESISTOR CHIP 3.3K OHM +-1% 1/16W R541 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C2 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W R542 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C3 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W R543 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R4C4 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W R545 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
R4C5 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W R546 AQ00232R RESISTOR CHIP 27K OHM +-1% 1/16W
R4C6 AQ00207R RESISTOR CHIP 3.3K OHM +-1% 1/16W R547 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C7 AQ00196R RESISTOR CHIP 1.2K OHM +-1% 1/16W R548 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R549 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C9 AQ00204R RESISTOR CHIP 5.6K OHM +-1% 1/16W R550 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
R4D3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R551 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4D4 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R552 AQ00206R RESISTOR CHIP 3K OHM +-1% 1/16W
R4D5 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R554 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4D6 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R555 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R4D8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R556 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R4E4 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R557 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4E5 0790056R RESISTOR CHIP 27K OHM +-5% 1/16W R558 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R4E8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R559 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R501 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R560 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R502 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R561 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R503 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R562 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R504 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R563 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R505 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W R564 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R506 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W R565 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R507 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W R566 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R508 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R567 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R509 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R568 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R510 0790053R RESISTOR CHIP 15K OHM +-5% 1/16W R570 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R511 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W R571 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
R512 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R572 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R513 0790026R RESISTOR CHIP 150 OHM +-5% 1/16W R573 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R514 0790027R RESISTOR CHIP 180 OHM +-5% 1/16W R574 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W
R515 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R575 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R516 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W R576 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R517 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W R577 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R518 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R578 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R519 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W R579 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R520 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R580 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R521 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W R581 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
85
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
R582 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R650 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R583 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R651 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R584 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R652 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R585 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R653 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R586 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R654 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R588 AQ00232R RESISTOR CHIP 27K OHM +-1% 1/16W R655 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R590 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R659 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R591 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R660 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R592 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W R661 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R593 AQ00206R RESISTOR CHIP 3K OHM +-1% 1/16W R662 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R595 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R663 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R596 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R664 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R597 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R678 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R598 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R680 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R5A0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R681 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R5A1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R682 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R610 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R683 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R611 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R685 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R612 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R691 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R613 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R693 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R614 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R694 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R615 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R695 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R616 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R696 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R617 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R697 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R618 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R698 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R619 AQ00185R RESISTOR CHIP 470 OHM +-1% 1/16W R699 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R620 AQ00221R RESISTOR CHIP 10K OHM +-1% 1/16W R6A0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R621 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R622 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A2 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R623 AQ00221R RESISTOR CHIP 10K OHM +-1% 1/16W R6A3 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R624 AQ00185R RESISTOR CHIP 470 OHM +-1% 1/16W R6A4 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R625 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R626 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A6 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R627 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A7 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R628 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6K5 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R629 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6K7 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R630 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R6K9 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R631 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R6L1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R632 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R6L3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R633 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R6L4 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R634 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R902 AT03661M MG 470K OHM +-5% 1/2W
R635 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RG01 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R636 AQ00235R RESISTOR CHIP 36K OHM +-1% 1/16W RG02 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R637 AQ00231R RESISTOR CHIP 24K OHM +-1% 1/16W RG03 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R638 AQ00247R RESISTOR CHIP 100K OHM +-1% 1/16W RG04 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R639 AQ00251R RESISTOR CHIP 130K OHM +-1% 1/16W RG05 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R640 AQ00231R RESISTOR CHIP 24K OHM +-1% 1/16W RG06 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R641 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RG07 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R642 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RG08 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R643 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RH01 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R644 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH02 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R645 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH03 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
R646 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH04 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
R647 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH11 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R648 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH12 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R649 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH14 0790019R RESISTOR CHIP 47 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
86
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
RH15 0790019R RESISTOR CHIP 47 OHM +-5% 1/16W RH80 0790049R RESISTOR CHIP 8.2K OHM +-5% 1/16W
RH16 0790073R RESISTOR CHIP 470K OHM +-5% 1/16W RH81 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH17 0790073R RESISTOR CHIP 470K OHM +-5% 1/16W RH82 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH20 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RH83 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
RH21 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RH84 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W
RH26 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RH85 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH27 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RH86 AQ00228R RESISTOR CHIP 20K OHM +-1% 1/16W
RH29 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RH87 AQ00233R RESISTOR CHIP 30K OHM +-1% 1/16W
RH30 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RH88 0790049R RESISTOR CHIP 8.2K OHM +-5% 1/16W
RH31 AQ00183R RESISTOR CHIP 390 OHM +-1% 1/16W RH89 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
RH32 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH90 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W
RH33 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH91 0790015R RESISTOR CHIP 22 OHM +-5% 1/16W
RH34 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH93 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH35 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH94 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
RH36 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH95 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH37 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH96 0790015R RESISTOR CHIP 22 OHM +-5% 1/16W
RH38 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH98 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH39 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH99 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
RH40 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W RHA1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH41 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RHA2 0790015R RESISTOR CHIP 22 OHM +-5% 1/16W
RH42 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RHA4 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH43 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RHA5 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
RH44 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W RHA6 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH45 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC1 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH46 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC2 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH47 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC3 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH48 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC4 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH49 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC7 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH50 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC8 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH51 AQ00165R RESISTOR CHIP 82 OHM +-1% 1/16W RHC9 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH52 AQ00142R RESISTOR CHIP 11 OHM +-1% 1/16W RHE1 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH53 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W RHE2 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH54 AQ00209R RESISTOR CHIP 3.9K OHM +-1% 1/16W RHE3 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH55 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHE4 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W
RH56 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHE5 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W
RH57 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHF1 AQ00421R RESISTOR CHIP 0 OHM +-5% 1/16W
RH58 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHF2 AQ00421R RESISTOR CHIP 0 OHM +-5% 1/16W
RH59 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHF3 AQ00421R RESISTOR CHIP 0 OHM +-5% 1/16W
RH60 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RHF4 AQ00421R RESISTOR CHIP 0 OHM +-5% 1/16W
RH61 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RHF5 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RH62 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RHF7 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH63 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RHF8 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH64 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RHF9 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH65 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RHG1 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH66 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RHG2 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH67 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RHG3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH68 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RHG4 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH69 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RHR1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH70 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RJ01 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
RH71 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RJ02 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH72 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RJ03 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH75 0790068R RESISTOR CHIP 220K OHM +-5% 1/16W RJ13 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH76 0790068R RESISTOR CHIP 220K OHM +-5% 1/16W RJ14 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH77 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RJ15 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH78 AQ00228R RESISTOR CHIP 20K OHM +-1% 1/16W RJ16 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH79 AQ00233R RESISTOR CHIP 30K OHM +-1% 1/16W RJ17 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
87
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
RJ18 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RR02 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ19 AQ00216R RESISTOR CHIP 6.8K OHM +-1% 1/16W RR03 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RJ20 AQ00221R RESISTOR CHIP 10K OHM +-1% 1/16W RR04 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
RJ27 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RR05 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ33 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W RR06 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ35 AT01049S RESISTOR CHIP 5.6 OHM +-5% 1W RT01 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ36 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT01 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
RJ37 0188093M CF 1.5 OHM +-5% 1/2W RT02 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ38 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RT02 0790045R RESISTOR CHIP 3.9K OHM +-5% 1/16W
RJ39 0790077R RESISTOR CHIP 1M OHM +-5% 1/16W RT03 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ40 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT03 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RJ41 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT04 0790026R RESISTOR CHIP 150 OHM +-5% 1/16W
RJ42 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT05 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RJ43 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT06 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RJ44 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT07 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RJ45 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT08 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RJ46 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT09 0196102R RESISTOR CHIP 24K OHM +-5% 1/16W
RJ47 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT10 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ48 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT10 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
RJ49 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT11 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
RJ56 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT12 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ57 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT12 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ58 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT13 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ59 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT14 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ60 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT15 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RJ61 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT16 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ62 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT17 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ63 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT17 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ64 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT18 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ65 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT18 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W
RJ66 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT19 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ67 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT19 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RM05 07000322 CF 220 OHM +-5% 1/16W RT20 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W
RM06 07000392 CF 820 OHM +-5% 1/16W RT21 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RM07 0700041M CF 1K OHM +-5% 1/16W RT22 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RM08 07000442 CF 1.8K OHM +-5% 1/16W RT22 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RM09 07000462 CF 2.7K OHM +-5% 1/16W RT23 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RM10 07000522 CF 6.8K OHM +-5% 1/16W RT24 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RN01 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RT25 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RN02 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RT26 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN03 0790063R RESISTOR CHIP 82K OHM +-5% 1/16W RT27 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN04 0790052R RESISTOR CHIP 12K OHM +-5% 1/16W RT28 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN05 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT29 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RN06 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W RT30 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
RN07 0790026R RESISTOR CHIP 150 OHM +-5% 1/16W RT31 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN08 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RT32 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RN09 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT33 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN10 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT34 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RN12 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT35 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
RN13 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT36 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN14 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT37 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RN15 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT38 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RN16 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT39 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
RN20 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT40 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN21 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT41 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RN22 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT42 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
88
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
RT43 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W X214 BK00191R CERAMIC FILTER CHIP
RT44 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X215 BK00191R CERAMIC FILTER CHIP
RT45 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X216 BK00191R CERAMIC FILTER CHIP
RT46 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X217 BE00412R LC FILTER CHIP
RT47 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X218 BE00412R LC FILTER CHIP
RT48 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W X221 BK00191R CERAMIC FILTER CHIP
RT50 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W X222 BK00191R CERAMIC FILTER CHIP
RT51 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W X223 BK00191R CERAMIC FILTER CHIP
RT52 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W X301 BJ00711 LC FILTER 6M LPF
RT53 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W X302 BJ00701 LC FILTER 4M BPF
RT54 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X402 BP01071 CRYSTAL HC-49/U-S
RT56 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W X501 BP00891 OSCILLATOR CRYSTAL 16.2MHZ
RT60 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W X502 BP00891 OSCILLATOR CRYSTAL 16.2MHZ
RT61 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W X601 BL00611R CERAMIC RESONATOR 512KHZ
RT62 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X602 BL00611R CERAMIC RESONATOR 512KHZ
RT63 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X603 BL01441R CRYSTAL OSCILLATOR 3.58MHZ
RT65 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W XN01 BJ00691 HIGH PASS FILTER 4.5MHZ TCV2
RT66 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W XN02 BP01371 OSCILLATOR CRYSTAL 18.432MHZ 3.5L
RT67 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W XT01 BP01321 OSCILLATOR CRYSTAL 12MHZ
RT68 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RT69 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RT70 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
RT71 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
RT72 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RT73 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W
RT74 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RT75 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RT80 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
S900 FG00251 POWER SWITCH
SM01 FE00001R PUSH SWITCH
SM02 FE00001R PUSH SWITCH
SM03 FE00001R PUSH SWITCH
SM04 FE00001R PUSH SWITCH
SM05 FE00001R PUSH SWITCH
SM06 FE00001R PUSH SWITCH
SM07 FE00001R PUSH SWITCH
SPUAC UK07702 SPEAKER ACCESSORY
SPUL GM01571 SPEAKER UNIT LEFT
SPUR GM01572 SPEAKER UNIT RIGHT
U001 HL02121 R.C.T. CLE-960
U1 HA01481 POWER UNIT MPF7415
U101 HC00566 FRONTEND ENGF9108GF
U102 HC00576 FRONTEND ENG39615GF
X201 BK00193R CERAMIC FILTER 100MHZ
X202 BK00193R CERAMIC FILTER 100MHZ
X203 BK00193R CERAMIC FILTER 100MHZ
X204 BK00191R CERAMIC FILTER CHIP
X205 BK00193R CERAMIC FILTER 100MHZ
X206 BK00193R CERAMIC FILTER 100MHZ
X207 BK00193R CERAMIC FILTER 100MHZ
X208 BK00191R CERAMIC FILTER CHIP
X209 BK00191R CERAMIC FILTER CHIP
X210 BK00191R CERAMIC FILTER CHIP
X211 BK00191R CERAMIC FILTER CHIP
X212 BK00191R CERAMIC FILTER CHIP
X213 BK00191R CERAMIC FILTER CHIP
Downloaded from www.ManualsFile.com manuals search engine
89
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
NOTE : This parts list is applied to the products mode in Japan.
ABBREVIATIONS Capacitors���������CD:Ceramic Disk, PF:Polyester Film, EL:Electrolytic, PP:Polypropylene,
PR:Paper, TA:Tantalum, TM:Trimer.
Resistors����������CF:Carbon film, WW:Wire Would, FR:Fuse Resistor, MG:Metal Glazzed,
VR:Variable resistor, CC:Carbon Composition, MF:Metal Oxide Film.
Semiconductors����TR:Transistor, DI:Diode, ZD:Zener Diode, VA:Varistor, TH:Thermistor.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
#00W2 3763752 SK BINDER #709 4341293 SCREW M3X10 CP-GRIP
#011A 86994102 SCREW BT BIND HEAD 3X10 #710 4522885 SCREW 3X8 CE CP-GRIP
#013 4525404 SCREW M3X10 T #711 4522885 SCREW 3X8 CE CP-GRIP
#023 4525404 SCREW M3X10 T #721 4522885 SCREW 3X8 CE CP-GRIP
#025 4525404 SCREW M3X10 T #722 4522885 SCREW 3X8 CE CP-GRIP
#027 86994102 SCREW BT BIND HEAD 3X10 #730 4522885 SCREW 3X8 CE CP-GRIP
#029 4525401 SCREW M3X8 #731 4522885 SCREW 3X8 CE CP-GRIP
#041 4518276 SCREW M3*8 DT (BLACK) #732 MJ00926 SCREW M3X12
#05A QL25501 EXTEND LABEL #733 4522885 SCREW 3X8 CE CP-GRIP
#07 KS09083 FRONT FILTER #734 4522885 SCREW 3X8 CE CP-GRIP
#08A QD39232 BEZEL ASS'Y (DARK SILVER)(for TA) #735 MJ02992 SCREW M3X8 3P CP-GRIP
QD39235 BEZEL ASS'Y (LIGHT SILVER)(for TA-S) #736 4519501 SCREW T 3*10 B
#118L QN04614 BEZEL CAUTION LABEL L GRAY S #741 MJ03351 SCREW D-SUB
#125 4522881 SCREW 3X8 CE KNURL #751 MJ02722 SCREW M4X10 AL-TI CP-GRIP
#135 4522883 SCREW 3X6 CE KNURL #751A 8815126 WASHER LOCKING 4
#140 MN06552 AIR FILTER 10-5-572 #761 MJ02981 SCREW PAN HEAD M5X16 WITH WASHE
R
#141 MN06551 AIR FILTER 10-5-966 #790 MJ03041 BOLT M6X25 WITH WASHER
#155 4522885 SCREW 3X8 CE CP-GRIP #791 MJ02101 SCREW 6X12
#191 QA02686 BACK COVER #792 4522885 SCREW 3X8 CE CP-GRIP
#202 QL23974 FORMATER LABEL A11 JP08051 PWB ASS'Y AUDIO
#203 QL23981 KEY SW LABEL A11 JP08081 PWB ASS'Y VIDEO
#204 QL21193 SPEAKER LABEL A21 JP08061 PWB ASS'Y JOINT/SWIVEL
#205 PH31101 BACK COVER GRIP A21 JP08101 PWB ASS'Y TUNER
#210 QL21403 TEMP CAUTION LABEL A31 JP08071 PWB ASS'Y FILTER
#212E QL21001 AC LABEL A31 JP08121 PWB ASS'Y HDMI
#215 3705264 CABLE CLAMP A41 CS00871 FORMATER UNIT HCP221 ASS'Y
#216 MJ03131 SCREW D3 4X10 BIND CP-GRIP C001 AA01101R CAPACITOR CHIP 1MF +-10% 10V
#250 MJ03131 SCREW D3 4X10 BIND CP-GRIP C001 0800324R EL 100MF 6.3V
#300 QJ01531 STAND ASS'Y C002 AA01101R CAPACITOR CHIP 1MF +-10% 10V
#301 ND00851 STAND SUPPORT C002 02441712 CD 0.01MF +80-20% 50V
#302 4527828 BOLT M6X40 WITH WASHER C003 AA01101R CAPACITOR CHIP 1MF +-10% 10V
#31 MM00181 GRIP JOINT(CARTON BOX) C101 AD00476R EL CHIP 2.2MF 50V
#451 PH31142 POWER BUTTON PANEL C103 08003262 EL 100MF 16V
#452 PC05361 POWER BUTTON C104 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#462 NJ08552 CONTROL BUTTON HOLDER ASS'Y C105 08002942 EL 10MF 50V
#492A 4522885 SCREW 3X8 CE CP-GRIP C106 08002942 EL 10MF 50V
#615 4522885 SCREW 3X8 CE CP-GRIP C107 08003652 EL 2200MF 6.3V
#642 4522885 SCREW 3X8 CE CP-GRIP C108 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#700 MJ02993 SCREW M3X8 3P CP-GRIP C109 AD00436R EL CHIP 10MF 16V
#701 MJ02993 SCREW M3X8 3P CP-GRIP C110 AD00415R EL CHIP 47MF 6.3V
#702 MJ02993 SCREW M3X8 3P CP-GRIP C111 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#704 MJ02993 SCREW M3X8 3P CP-GRIP C112 0893134R CAPACITOR CHIP 390PF +-5% 50V
#704A 4341293 SCREW M3X10 CP-GRIP C113 0893122R CAPACITOR CHIP 47PF +-5% 50V
#704B 4522885 SCREW 3X8 CE CP-GRIP C114 AD00436R EL CHIP 10MF 16V
#705 MJ02993 SCREW M3X8 3P CP-GRIP C116 AD00436R EL CHIP 10MF 16V
#706 86994102 SCREW BT BIND HEAD 3X10 C118 AD00416R EL CHIP 100MF 6.3V
#707 86994102 SCREW BT BIND HEAD 3X10 C119 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#708 4520882 SCREW M3 WITH WASHER C121 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
#08C
• 42PD7800
Downloaded from www.ManualsFile.com manuals search engine
90
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
C122 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C260 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C124 AD00415R EL CHIP 47MF 6.3V C261 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C125 AD00441R EL CHIP 100MF 16V C262 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C127 0893175R CAPACITOR CHIP 1000PF +-5% 50V C263 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C130 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C264 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C131 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C265 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C132 AD00436R EL CHIP 10MF 16V C266 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C1A0 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C267 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C1A1 AD00436R EL CHIP 10MF 16V C268 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1A2 AD00415R EL CHIP 47MF 6.3V C269 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C1A3 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C270 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1A4 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C271 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C1A5 08003652 EL 2200MF 6.3V C272 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1A6 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C273 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C1A7 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C274 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1A8 AD00479R EL CHIP 10MF 50V C275 AD00629R EL CHIP 10MF 16V
C1C1 AD00441R EL CHIP 100MF 16V C276 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C1C2 AD00476R EL CHIP 2.2MF 50V C277 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C201 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C278 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C202 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C279 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C205 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C280 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C206 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C281 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C209 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C282 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C210 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C283 AD00658R EL CHIP 100MF 50V
C213 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C284 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C214 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C285 AD00658R EL CHIP 100MF 50V
C217 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C286 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C218 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C287 AD00632R EL CHIP 47MF 16V
C221 AD00421R EL CHIP 470MF 6.3V C288 AA00931R CAPACITOR CHIP 1MF +-10% 10V
C222 AD00629R EL CHIP 10MF 16V C289 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C223 AD00629R EL CHIP 10MF 16V C290 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C224 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V C291 AA01144R CAPACITOR CHIP 1MF +-10% 16V
C225 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V C292 AA01144R CAPACITOR CHIP 1MF +-10% 16V
C226 AD00629R EL CHIP 10MF 16V C293 AD00658R EL CHIP 100MF 50V
C227 AD00632R EL CHIP 47MF 16V C295 AD00629R EL CHIP 10MF 16V
C228 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C296 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C238 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C297 AA01144R CAPACITOR CHIP 1MF +-10% 16V
C239 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C2A0 AA00937R CAPACITOR CHIP 10MF +-10% 10V
C240 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C2A1 AA00937R CAPACITOR CHIP 10MF +-10% 10V
C241 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C2A2 AA00699R CAPACITOR CHIP 10MF +-10% 16V
C242 AD00421R EL CHIP 470MF 6.3V C2A3 AA00699R CAPACITOR CHIP 10MF +-10% 16V
C243 AD00421R EL CHIP 470MF 6.3V C2A4 AA00699R CAPACITOR CHIP 10MF +-10% 16V
C244 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C2A5 AA00699R CAPACITOR CHIP 10MF +-10% 16V
C245 AA00822R CAPACITOR CHIP 1000PF +-5% 50V C301 AD00658R EL CHIP 100MF 50V
C248 AD00629R EL CHIP 10MF 16V C302 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C249 AA00931R CAPACITOR CHIP 1MF +-10% 10V C303 AD00632R EL CHIP 47MF 16V
C250 AD00629R EL CHIP 10MF 16V C304 0893117R CAPACITOR CHIP 22PF +-5% 50V
C251 AA01101R CAPACITOR CHIP 1MF +-10% 10V C306 0893113R CAPACITOR CHIP 10PF +-0.25PF 50V
C252 AA00931R CAPACITOR CHIP 1MF +-10% 10V C309 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C253 AD00629R EL CHIP 10MF 16V C310 0893211R CAPACITOR CHIP 1500PF +-10% 50V
C254 AA01101R CAPACITOR CHIP 1MF +-10% 10V C311 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C255 AA00931R CAPACITOR CHIP 1MF +-10% 10V C312 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C256 AA01101R CAPACITOR CHIP 1MF +-10% 10V C313 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C257 AA00931R CAPACITOR CHIP 1MF +-10% 10V C314 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C258 AA01101R CAPACITOR CHIP 1MF +-10% 10V C315 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C259 AA00931R CAPACITOR CHIP 1MF +-10% 10V C316 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
Downloaded from www.ManualsFile.com manuals search engine
91
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
C317 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C415 0893129R CAPACITOR CHIP 180PF +-5% 50V
C318 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C416 0893129R CAPACITOR CHIP 180PF +-5% 50V
C319 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C417 08003442 EL 330MF 16V
C320 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C418 0893211R CAPACITOR CHIP 1500PF +-10% 50V
C321 0893126R CAPACITOR CHIP 100PF +-5% 50V C419 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C322 0893129R CAPACITOR CHIP 180PF +-5% 50V C420 AD00638R EL CHIP 4.7MF 35V
C323 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C421 AD00638R EL CHIP 4.7MF 35V
C324 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C437 0893193R CAPACITOR CHIP 0.01MF +-10% 25V
C325 AA01121R CAPACITOR CHIP 0.47MF +-10% 10V C438 0893193R CAPACITOR CHIP 0.01MF +-10% 25V
C326 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C439 0893208R CAPACITOR CHIP 1000PF +-10% 50V
C327 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C441 0880203R PF 0.47MF +-5% 50V
C328 AD00623R EL CHIP 100MF 6.3V C442 0880203R PF 0.47MF +-5% 50V
C329 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C448 AD00629R EL CHIP 10MF 16V
C330 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C449 AD00629R EL CHIP 10MF 16V
C331 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C450 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C332 AD00623R EL CHIP 100MF 6.3V C453 AA00951R CAPACITOR CHIP 1.0MF +-10% 16V
C333 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C454 AA00951R CAPACITOR CHIP 1.0MF +-10% 16V
C334 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C455 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C335 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C456 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C337 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C458 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C338 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C459 08003612 EL 1000MF 16V
C339 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C460 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C340 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C461 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C341 AD00623R EL CHIP 100MF 6.3V C462 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C342 AD00629R EL CHIP 10MF 16V C463 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C344 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C467 08003612 EL 1000MF 16V
C345 AD00632R EL CHIP 47MF 16V C468 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C347 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C469 08003612 EL 1000MF 16V
C349 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C470 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C350 AD00632R EL CHIP 47MF 16V C471 0893184R CAPACITOR CHIP 0.022MF +-10% 16V
C351 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C472 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C352 AD00622R EL CHIP 47MF 6.3V C473 0800359R EL 1000MF 10V
C353 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C474 0800359R EL 1000MF 10V
C354 AD00622R EL CHIP 47MF 6.3V C475 0800359R EL 1000MF 10V
C355 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C476 0800359R EL 1000MF 10V
C356 AD00622R EL CHIP 47MF 6.3V C478 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C357 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C479 0893188R CAPACITOR CHIP 0.047MF +-10% 16V
C358 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C480 0893217R CAPACITOR CHIP 4700PF +-10% 50V
C359 AA01144R CAPACITOR CHIP 1MF +-10% 16V C482 08800092 PF 0.01MF +-10% 50V
C361 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C483 08800032 PF 1000PF +-10% 50V
C362 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C484 AD00629R EL CHIP 10MF 16V
C363 AA01144R CAPACITOR CHIP 1MF +-10% 16V C485 AD00638R EL CHIP 4.7MF 35V
C401 0893135R CAPACITOR CHIP 470PF +-5% 50V C486 AD00638R EL CHIP 4.7MF 35V
C402 0893135R CAPACITOR CHIP 470PF +-5% 50V C487 AD00638R EL CHIP 4.7MF 35V
C403 AD00638R EL CHIP 4.7MF 35V C488 AD00638R EL CHIP 4.7MF 35V
C404 AD00638R EL CHIP 4.7MF 35V C489 AD00638R EL CHIP 4.7MF 35V
C405 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C490 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C406 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C491 AA01143R CAPACITOR CHIP 0.22MF +-10% 16V
C407 0893211R CAPACITOR CHIP 1500PF +-10% 50V C492 AA01811R CAPACITOR CHIP 0.033MF +-10% 25V
C408 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C493 AA01811R CAPACITOR CHIP 0.033MF +-10% 25V
C409 AD00629R EL CHIP 10MF 16V C494 AA01811R CAPACITOR CHIP 0.033MF +-10% 25V
C410 AD00629R EL CHIP 10MF 16V C495 AA01811R CAPACITOR CHIP 0.033MF +-10% 25V
C411 AD00647R EL CHIP 0.47MF 50V C496 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C412 0893177R CAPACITOR CHIP 0.068MF +-10% 16V C497 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C413 0893177R CAPACITOR CHIP 0.068MF +-10% 16V C498 AD00629R EL CHIP 10MF 16V
C414 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C499 0800359R EL 1000MF 10V
Downloaded from www.ManualsFile.com manuals search engine
92
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
C4A1 0893208R CAPACITOR CHIP 1000PF +-10% 50V C526 AA01121R CAPACITOR CHIP 0.47MF +-10% 10V
C4A2 0893184R CAPACITOR CHIP 0.022MF +-10% 16V C527 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C4A3 0893184R CAPACITOR CHIP 0.022MF +-10% 16V C528 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C4B3 0893116R CAPACITOR CHIP 18PF +-5% 50V C529 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C4B4 0893116R CAPACITOR CHIP 18PF +-5% 50V C530 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4B5 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C531 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V
C4C1 0800359R EL 1000MF 10V C532 0893217R CAPACITOR CHIP 4700PF +-10% 50V
C4C2 0800359R EL 1000MF 10V C533 AD00632R EL CHIP 47MF 16V
C4C3 0800359R EL 1000MF 10V C534 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4C4 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C535 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4C5 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C536 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4D4 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V C537 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4D5 AA01115R CAPACITOR CHIP 4.7MF +-10% 6.3V C538 AD00622R EL CHIP 47MF 6.3V
C4D6 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V C539 AD00622R EL CHIP 47MF 6.3V
C4D7 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V C542 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4D8 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V C543 AD00638R EL CHIP 4.7MF 35V
C4D9 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V C544 AD00661R EL CHIP 220MF 6.3V
C4E1 AD00629R EL CHIP 10MF 16V C545 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4E2 AD00629R EL CHIP 10MF 16V C546 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4E3 AD00629R EL CHIP 10MF 16V C547 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4E4 AD00629R EL CHIP 10MF 16V C548 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4E5 0893126R CAPACITOR CHIP 100PF +-5% 50V C549 0893111R CAPACITOR CHIP 8PF +-0.25% 50V
C4E6 0893126R CAPACITOR CHIP 100PF +-5% 50V C551 AA01121R CAPACITOR CHIP 0.47MF +-10% 10V
C4E7 0893133R CAPACITOR CHIP 330PF +-5% 50V C552 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C4E8 0893212R CAPACITOR 1800PF +-10% 50V C553 AA01101R CAPACITOR CHIP 1MF +-10% 10V
C4E9 0893133R CAPACITOR CHIP 330PF +-5% 50V C554 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C4F1 0893212R CAPACITOR 1800PF +-10% 50V C555 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4F2 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V C556 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V
C4F3 AA01115R CAPACITOR CHIP 4.7MF +-10% 6.3V C557 0893217R CAPACITOR CHIP 4700PF +-10% 50V
C4F4 0893126R CAPACITOR CHIP 100PF +-5% 50V C559 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4F5 0893126R CAPACITOR CHIP 100PF +-5% 50V C560 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4F6 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C561 0893133R CAPACITOR CHIP 330PF +-5% 50V
C4G6 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C562 0893133R CAPACITOR CHIP 330PF +-5% 50V
C4G7 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C603 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4G8 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C604 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C4G9 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C605 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C501 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C606 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C502 0893122R CAPACITOR CHIP 47PF +-5% 50V C607 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C503 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C608 AD00658R EL CHIP 100MF 50V
C504 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C609 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C505 AD00632R EL CHIP 47MF 16V C610 AD00658R EL CHIP 100MF 50V
C506 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C611 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C507 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C612 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C508 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C613 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C509 0893222R CAPACITOR CHIP 0.01MF +-10% 50V C614 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C510 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C615 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C511 AD00622R EL CHIP 47MF 6.3V C616 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C512 AD00622R EL CHIP 47MF 6.3V C617 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C515 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C618 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C519 AD00638R EL CHIP 4.7MF 35V C619 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C520 AD00661R EL CHIP 220MF 6.3V C620 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C521 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C621 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C522 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C622 AD00658R EL CHIP 100MF 50V
C523 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C623 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C524 0893179R CAPACITOR CHIP 0.1MF +-10% 16V C624 AA00937R CAPACITOR CHIP 10MF +-10% 10V
C525 0893111R CAPACITOR CHIP 8PF +-0.25% 50V C625 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
Downloaded from www.ManualsFile.com manuals search engine
93
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
C626 AA00937R CAPACITOR CHIP 10MF +-10% 10V CH29 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C627 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH30 08002942 EL 10MF 50V
C628 AA00937R CAPACITOR CHIP 10MF +-10% 10V CH31 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
C629 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH32 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C630 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH33 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C631 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V CH34 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C632 0893213R CAPACITOR CHIP 2200PF 50V CH35 0893208R CAPACITOR CHIP 1000PF +-10% 50V
C633 0893222R CAPACITOR CHIP 0.01MF +-10% 50V CH36 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C634 AD00658R EL CHIP 100MF 50V CH37 08002942 EL 10MF 50V
C635 0893114R CAPACITOR CHIP 12PF +-5% 50V CH38 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C636 AD00658R EL CHIP 100MF 50V CH39 0893188R CAPACITOR CHIP 0.047MF +-10% 16V
C637 0893222R CAPACITOR CHIP 0.01MF +-10% 50V CH40 AA00937R CAPACITOR CHIP 10MF +-10% 10V
C638 0893213R CAPACITOR CHIP 2200PF 50V CH41 0800303R EL 22MF 50V
C639 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V CH42 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C640 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH43 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C641 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH44 08003262 EL 100MF 16V
C642 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH45 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C643 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH46 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C644 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH47 0800303R EL 22MF 50V
C645 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH48 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C646 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH49 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C647 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH50 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C649 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH51 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C650 AD00629R EL CHIP 10MF 16V CH52 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C651 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH53 08003262 EL 100MF 16V
C652 AA00966R CAPACITOR CHIP 4.7MF +-20% 3.6V CH54 08002942 EL 10MF 50V
C653 AD00631R EL CHIP 22MF 16V CH55 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C654 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH56 08003522 EL 470MF 10V
C655 AD00631R EL CHIP 22MF 16V CH57 08002942 EL 10MF 50V
C656 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH58 0893131R CAPACITOR CHIP 220PF +-5% 50V
C657 AD00632R EL CHIP 47MF 16V CH59 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
C658 0893222R CAPACITOR CHIP 0.01MF +-10% 50V CH60 08003522 EL 470MF 10V
C690 AA00753R CAPACITOR CHIP 22MF +-20% 6.3V CH61 0893122R CAPACITOR CHIP 47PF +-5% 50V
C901 AN01447S CAPACITOR ACROSS 0.47MF +-10% 250V CH62 0800279R EL 1MF 50V
C902 AN01448S CAPACITOR ACROSS 0.68MF +-10% 250V CH63 0893208R CAPACITOR CHIP 1000PF +-10% 50V
C903 AN01445S CAPACITOR ACROSS 0.22MF +-10% 250V CH64 08002942 EL 10MF 50V
C904 AJ00581 CD 1000PF +-20% 250V CH65 0893131R CAPACITOR CHIP 220PF +-5% 50V
C905 AJ00581 CD 1000PF +-20% 250V CH66 0893122R CAPACITOR CHIP 47PF +-5% 50V
CH01 AD00632R EL CHIP 47MF 16V CH67 0800279R EL 1MF 50V
CH02 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH68 0893208R CAPACITOR CHIP 1000PF +-10% 50V
CH11 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH69 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
CH13 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH70 08003262 EL 100MF 16V
CH14 08003262 EL 100MF 16V CH71 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
CH15 0800303R EL 22MF 50V CH72 08003262 EL 100MF 16V
CH16 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH80 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
CH17 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH81 0893179R CAPACITOR CHIP 0.1MF +-10% 16V
CH18 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH98 AA02451R VARISTOR CHIP 1.1PF
CH19 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CH99 AA02451R VARISTOR CHIP 1.1PF
CH20 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CHA1 0893232R CAPACITOR, CHIP 0.1MF +80% -20% 25V
CH21 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CHR1 AL01833R EL 1000MF 6.3V
CH22 08002942 EL 10MF 50V CHR2 AL01833R EL 1000MF 6.3V
CH23 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CHR3 0893208R CAPACITOR CHIP 1000PF +-10% 50V
CH24 0893208R CAPACITOR CHIP 1000PF +-10% 50V CHR5 AL01848R EL 470MF 16V
CH26 08002942 EL 10MF 50V CHR6 AL01848R EL 470MF 16V
CH27 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CJ01 AD00658R EL CHIP 100MF 50V
CH28 0893179R CAPACITOR CHIP 0.1MF +-10% 16V CJ02 AL01456R EL 1000MF 10V
Downloaded from www.ManualsFile.com manuals search engine
94
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
CJ04 AD00649R EL CHIP 2.2MF 50V CT20 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
CJ05 AL01429R EL 330MF 35V CT21 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
CJ06 AD00658R EL CHIP 100MF 50V CT22 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
CJ07 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V CT23 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
CJ09 AD00658R EL CHIP 100MF 50V CT27 0893222R CAPACITOR CHIP 0.01MF +-10% 50V
CJ10 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V D002 2343561 LED SPR-54MVW
CJ11 0893008 CAPACITOR CERAMIC CHIP 0.1MF +-10% 16
V
D101 2348213M DIODE MTZJ-15C
CJ12 AD00658R EL CHIP 100MF 50V D102 2348213M DIODE MTZJ-15C
CJ13 0893008 CAPACITOR CERAMIC CHIP 0.1MF +-10% 16
V
D1A1 2348213M DIODE MTZJ-15C
CJ14 0893008 CAPACITOR CERAMIC CHIP 0.1MF +-10% 16
V
D1A2 2348213M DIODE MTZJ-15C
CJ31 AD00658R EL CHIP 100MF 50V D201 CC01891R DIODE CHIP SDS511 PF
CJ33 AA01141R CAPACITOR CHIP 0.1MF +-10% 16V D202 CC01891R DIODE CHIP SDS511 PF
CJ37 AD00629R EL CHIP 10MF 16V D203 CC00823R DIODE ZENER CHIP UDZ 5.6B
CJ38 AA00968R CAPACITOR CHIP 10MF +-20% 6.3V D204 CC01891R DIODE CHIP SDS511 PF
CN01 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D205 CC01891R DIODE CHIP SDS511 PF
CN02 0893126R CAPACITOR CHIP 100PF +-5% 50V D206 CC01891R DIODE CHIP SDS511 PF
CN03 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D207 CC01891R DIODE CHIP SDS511 PF
CN04 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D407 CH00151M DIODE DSM1SD2
CN05 AD00439R EL CHIP 47MF 16V D408 CC01891R DIODE CHIP SDS511 PF
CN06 0893122R CAPACITOR CHIP 47PF +-5% 50V D409 CC01891R DIODE CHIP SDS511 PF
CN07 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D411 CC01891R DIODE CHIP SDS511 PF
CN08 AD00418R EL CHIP 220MF 6.3V D412 CC01891R DIODE CHIP SDS511 PF
CN09 0893102R CAPACITOR CHIP 1PF +-0.25PF 50V D481 2334304 DIODE ZENER RD30EB3
CN10 0893102R CAPACITOR CHIP 1PF +-0.25PF 50V D482 2334304 DIODE ZENER RD30EB3
CN11 0893102R CAPACITOR CHIP 1PF +-0.25PF 50V D483 2334304 DIODE ZENER RD30EB3
CN14 AD00413R EL CHIP 22MF 6.3V D484 2334304 DIODE ZENER RD30EB3
CN15 0893222R CAPACITOR CHIP 0.01MF +-10% 50V D501 CC01921R DIODE SDS142WKF_PF
CN17 0893208R CAPACITOR CHIP 1000PF +-10% 50V DH11 CC01891R DIODE CHIP SDS511 PF
CN18 0893208R CAPACITOR CHIP 1000PF +-10% 50V DH12 CC00824R DIODE ZENER CHIP UMD2 6.2B
CN19 0893222R CAPACITOR CHIP 0.01MF +-10% 50V DH14 CC01891R DIODE CHIP SDS511 PF
CN20 AD00425R EL CHIP 22MF 10V DH16 CC01911R DIODE SDS142WAF_PF
CN21 AA00941R CAPACITOR CHIP 4.7MF +80% -20% 10V DH21 CC01891R DIODE CHIP SDS511 PF
CN22 AA00934R CAPACITOR CHIP 2.2MF +-10% 10V DH22 CC01891R DIODE CHIP SDS511 PF
CN23 AA01111R CAPACITOR CHIP 1MF +-10% 6.3V DH23 CC01731R DIODE CHIP BAT254
CN24 0893179R CAPACITOR CHIP 0.1MF +-10% 16V DH24 CC01891R DIODE CHIP SDS511 PF
CN25 AA00941R CAPACITOR CHIP 4.7MF +80% -20% 10V DHR1 CC01651R DIODE SFPB-66
CR01 AD00632R EL CHIP 47MF 16V DJ01 CH00871 DIODE FMB-G14L
CR02 0893179R CAPACITOR CHIP 0.1MF +-10% 16V DJ02 CH01042M DIODE RK34
CR03 AD00658R EL CHIP 100MF 50V DJ31 CC00822R DIODE ZENER CHIP UDZ 5.1B
CR04 0893179R CAPACITOR CHIP 0.1MF +-10% 16V DJ32 CC01891R DIODE CHIP SDS511 PF
CR05 AD00632R EL CHIP 47MF 16V DJ33 CC01891R DIODE CHIP SDS511 PF
CR06 0893179R CAPACITOR CHIP 0.1MF +-10% 16V DN02 2348152M DIODE MTZ-J8.2B TA
CR07 AD00658R EL CHIP 100MF 50V DR01 2339612M DIODE ZENER HZS3BLL
CR08 0893179R CAPACITOR CHIP 0.1MF +-10% 16V E01 EV01964 CORD POWER SUPPLY
CR09 AD00632R EL CHIP 47MF 16V E04 EW08351 CORD RS-232C
CR10 0893179R CAPACITOR CHIP 0.1MF +-10% 16V E07 UK07731 INPUT BASE ACCESSORY
CR11 AD00658R EL CHIP 100MF 50V E901 EP00014 JACK 3P
CR12 0893179R CAPACITOR CHIP 0.1MF +-10% 16V EFE EF23892 CONNECTOR 1P
CT01 AD00436R EL CHIP 10MF 16V ESS EF22294 CONNECTOR 13P
CT02 0893131R CAPACITOR CHIP 220PF +-5% 50V ETV2 EK01108 WIRE (PROCESSED) 50P
CT03 0893179R CAPACITOR CHIP 0.1MF +-10% 16V ETV3 EK01188 CONNECTOR FFC 50P
CT04 0893179R CAPACITOR CHIP 0.1MF +-10% 16V F902 FN00439 FUSE HT 250V 6.3A 5.2X20MM
CT05 0893133R CAPACITOR CHIP 330PF +-5% 50V HH11 BE00303R LC FILTER CHIP
CT06 0893123R CAPACITOR CHIP 56PF +-5% 50V HH12 BE00303R LC FILTER CHIP
CT07 0893123R CAPACITOR CHIP 56PF +-5% 50V HH13 BE00303R LC FILTER CHIP
CT13 AD00415R EL CHIP 47MF 6.3V I001 CK35891R IC CAT24WC04J1
Downloaded from www.ManualsFile.com manuals search engine
95
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
I001 CZ01171 IC GP1UM281RK K404 2784381A TAPED JUMP.WIRE 0.60MM
I002 CK37353R IC PST3642NR K406 2784381A TAPED JUMP.WIRE 0.60MM
I101 CK39271R IC NJM2534M-TE1 K407 2784381A TAPED JUMP.WIRE 0.60MM
I102 CK38376R IC SI-3050KM-TL K414 2784381A TAPED JUMP.WIRE 0.60MM
I103 CK37216R IC TK11133CSCL K415 2784381A TAPED JUMP.WIRE 0.60MM
I201 CK30941U IC CXA2069Q K417 2784381A TAPED JUMP.WIRE 0.60MM
I202 CK16272R IC BU4052BCFV-E2 K419 2784381A TAPED JUMP.WIRE 0.60MM
I203 CK31031R IC BA3530FS K420 2784381A TAPED JUMP.WIRE 0.60MM
I302 CK50541U IC TC90A88F K421 2784381A TAPED JUMP.WIRE 0.60MM
I304 CK38443R IC BD5227G K422 2784381A TAPED JUMP.WIRE 0.60MM
I305 CK37216R IC TK11133CSCL K480 2784381A
TAPED JUMP.WIRE 0.60MM
I306 CK37212R IC TK11125CSCL
I401 CK50501R IC NJW1163V
I404 CK50481R IC TAS5001PFBR
KJ01 2784381A TAPED JUMP.WIRE 0.60MM
I405 CK37218R IC TK11150CSCL
KLJ01 2784381A TAPED JUMP.WIRE 0.60MM
I406 CK50471R IC TAS5122DCA
KLJ03 2784381A TAPED JUMP.WIRE 0.60MM
I407 CK01481R IC TC7WU04F
I408 CK34401R IC SN74LV14APWR
L001 2123116M LAL AXIAL COIL 100UH
I409 CK34401R IC SN74LV14APWR
L102 BA00714R COIL CHIP 100UH
I411 CK50491R IC PCM1802DBR
L103 21237812 FILTER COIL
I412 CK04121R IC BA14741F-T1
L104 BA00714R COIL CHIP 100UH
I501 CK34953U IC TB1274BFG
L105 2123415M AXIAL COIL 2.2MH
I502 CK34953U IC TB1274BFG
L1A1 BA00714R COIL CHIP 100UH
I601 CK50551U IC TA1391FG
L1A2 21237812 FILTER COIL
I602 CK34991R IC SN74ACT14PWR
L211 BA00892R COIL CHIP 47UH +-20% 150MA
I603 CK37406R IC SI-3012KS-TL
L212 BA00892R COIL CHIP 47UH +-20% 150MA
I604 CK37396R IC SI-3012LU
L213 BA00864R COIL CHIP 10UH
IH11 CK35895R IC CAT24WC02J1
L214 BA00864R COIL CHIP 10UH
IH13 CK39811U IC SII9993CTG100
L217 BZ01421R COIL FERRITE BEAD BL02RN1-R62T4
IH14 CK39821R IC PCM1754DBQR
L218 BA00892R COIL CHIP 47UH +-20% 150MA
IH15 CK07141R IC BA4558F-E2
L219 BA00894R COIL CHIP 100MH 100MA
IHR1 CK37162R IC SI-8033JD
L220 BA00892R COIL CHIP 47UH +-20% 150MA
IJ01 CP03922F IC SI-805S
L221 BA00892R COIL CHIP 47UH +-20% 150MA
IJ02 CP08521F IC SI-3011ZF
L301 BA00894R COIL CHIP 100MH 100MA
IJ03 CP06541F IC SI-3033C
L302 2123108M LAL02 AXIAL COIL 27MH
IJ04 CP06541F IC SI-3033C
L304 BA00889R COIL CHIP 22UH
IJ31 CK50461R IC BA6287F-E2
L305 BA00889R COIL CHIP 22UH
IN01 CK37711U IC MSP3455G
L306 BA00892R COIL CHIP 47UH +-20% 150MA
IR01 CK38377R IC SI-3090KM-TL
L307 BA00889R COIL CHIP 22UH
IR02 CK37194R IC SI-3050LSA-TL
L308 BA00887R COIL CHIP 10UH +-20% 300 MA
IR03 CK37194R IC SI-3050LSA-TL
L310 BA00892R COIL CHIP 47UH +-20% 150MA
IT01 CK50561U IC SAA5361
L311 BA00892R COIL CHIP 47UH +-20% 150MA
IT02 CK35891R IC CAT24WC04J1
L312 BA00892R COIL CHIP 47UH +-20% 150MA
IT03 CK50741U IC M5M5V108DKV-70HI
L401 BH01812R INDUCTOR FHA7503CY
J201 EQ00641 JACK 6P
L402 BH01812R INDUCTOR FHA7503CY
J202 EQ00641 JACK 6P
L403 BH01812R INDUCTOR FHA7503CY
J203 EY02051 JACK S TERMINAL WITH SW
L404 BH01812R INDUCTOR FHA7503CY
J204 EQ00642 JACK 6P
L409 BZ01421R COIL FERRITE BEAD BL02RN1-R62T4
J205 EQ00631 JACK 3P
L410 BZ01421R COIL FERRITE BEAD BL02RN1-R62T4
JA402 ER00062 SPEAKER TERMINAL
L413 BZ01421R COIL FERRITE BEAD BL02RN1-R62T4
JA403 ER00062 SPEAKER TERMINAL
L481 BZ05521 CHOKE COIL 7UH 2A
JH11 EA01791U CONNECTOR HDMI 19P
L482 BZ05521 CHOKE COIL 7UH 2A
JSD1 EQ00681 JACK D TERMINAL 14P
L501 2123111M LAL AXIAL COIL 39MH KB
JSW1 ED04241 CONNECTOR 13P
L502 BA00894R COIL CHIP 100MH 100MA
K401 2784381A TAPED JUMP.WIRE 0.60MM
L503 BA00892R COIL CHIP 47UH +-20% 150MA
K402 2784381A TAPED JUMP.WIRE 0.60MM
L504 BH00693R COIL 47MH
Downloaded from www.ManualsFile.com manuals search engine
96
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
L505 BA00894R COIL CHIP 100MH 100MA Q106 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L506 BA00892R COIL CHIP 47UH +-20% 150MA Q108 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L507 BH00693R COIL 47MH Q109 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L602 BA00892R COIL CHIP 47UH +-20% 150MA Q1A1 CA00122R TRANSISTOR CHIP 2SA1576A(R)50V
L603 BA00892R COIL CHIP 47UH +-20% 150MA Q201 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L604 BA00892R COIL CHIP 47UH +-20% 150MA Q202 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L605 BA00892R COIL CHIP 47UH +-20% 150MA Q203 CA00981R TRANSISTOR CHIP DTC114EE TL
L606 BA00892R COIL CHIP 47UH +-20% 150MA Q204 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L607 BA00892R COIL CHIP 47UH +-20% 150MA Q205 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L608 BA00894R COIL CHIP 100MH 100MA Q206 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L610 BA00892R COIL CHIP 47UH +-20% 150MA Q207 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
L902A BZ05761 LINE FILTER 1MH Q208 2320663 TRANSISTOR 2SC1213AC
LH01 BA00894R COIL CHIP 100MH 100MA Q209 CA00142R TRANSISTOR CHIP IMX2T108(T)
LH13 BM00289R FERRITE BEADS CHIP Q211 CA00142R TRANSISTOR CHIP IMX2T108(T)
LH14 BM00289R FERRITE BEADS CHIP Q213 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
LH15 BM00289R FERRITE BEADS CHIP Q214 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
LH16 BM00289R FERRITE BEADS CHIP Q215 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LH17 BH00683R COIL 8.2UH Q216 CA00983R TRANSISTOR,CHIP DTC144EE TL
LH18 BM00289R FERRITE BEADS CHIP Q217 CA00983R TRANSISTOR,CHIP DTC144EE TL
LH19 BM00289R FERRITE BEADS CHIP Q218 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LH20 BM00289R FERRITE BEADS CHIP Q301 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
LH22 BA00894R COIL CHIP 100MH 100MA Q302 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
LH23 BA00894R COIL CHIP 100MH 100MA Q303 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LHR1 2125797N COIL 10MH Q304 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LHR2 BH01851 COIL 100UH Q305 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
LJ02A BV01171 COIL SF 110UH Q306 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
LN01 BA00714R COIL CHIP 100UH Q307 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
LN02 BA00712R COIL CHIP 47UH Q308 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
LN03 BA00712R COIL CHIP 47UH Q309 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
LT02 BA00714R COIL CHIP 100UH Q401 CA00981R TRANSISTOR CHIP DTC114EE TL
N03 EK01433 CONNECTOR 50P FFC Q402 CA00981R TRANSISTOR CHIP DTC114EE TL
N04 EK01187 CONNECTOR FFC 50P Q403 CA00981R TRANSISTOR CHIP DTC114EE TL
N06 EF24212C CONNECTOR 5P WITH CORE Q501 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
N07 EF24198C CONNECTOR 13P WITH CORE Q502 CA11163R TRANSISTOR CHIP DTC144EUA
N11 EF24231C CONNECTOR 30P WITH CORE Q503 CA00142R TRANSISTOR CHIP IMX2T108(T)
NF902 FP00031R FUSE HOLDER Q504 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
NVS1 BZ10611 FERRITE CORE Q505 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
NVS2 GX00405 FERRITE CORE Q506 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
PHV1 EA01652R CONNECTOR FPC 50P Q508 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PJF2 EA01252R CONNECTOR 12P Q509 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PJF3 EA01652R CONNECTOR FPC 50P Q510 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PJF5 EA01652R CONNECTOR FPC 50P Q511 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
PJV1 ED04581U CONNECTOR 120P Q512 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
PPU2 ED02801 PLUG 2P Q513 CA00331R TRANSISTOR CHIP IMZ1A T108(T)
PSW ED02811 PLUG 8P Q515 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PTV2 EA01652R CONNECTOR FPC 50P Q516 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PTV3 ED01812 CONNECTOR JDV 20P Q517 CA02132R TRANSISTOR CHIP 2SA1980UFG PF
PVH1 EA01652R CONNECTOR FPC 50P Q518 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
PVJ1 ED04571U CONNECTOR 120P Q519 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
PVT2 EA01652R CONNECTOR FPC 50P Q603 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
PVT3 ED01822 CONNECTOR JDV 20P Q604 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q001 CA02142R TRANSISTOR CHIP 2SC5343UFG PF Q605 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q010 2325721 TRANSISTOR 2SC1740S Q607 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q101 CA02132R TRANSISTOR CHIP 2SA1980UFG PF Q608 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q102 CA02142R TRANSISTOR CHIP 2SC5343UFG PF Q609 CA02142R TRANSISTOR CHIP 2SC5343UFG PF
Q103 CA02132R TRANSISTOR CHIP 2SA1980UFG PF QH01 CA00142R TRANSISTOR CHIP IMX2T108(T)
Downloaded from www.ManualsFile.com manuals search engine
97
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART SYMBOL PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
QH11 CA01011R TRANSISTOR CHIP 2SK3018 T106 R110 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH12 CA01011R TRANSISTOR CHIP 2SK3018 T106 R111 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
QH13 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R112 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH14 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R114 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH15 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R116 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH16 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R118 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH17 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R120 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH18 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R126 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QH19 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R127 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
QH20 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R128 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QH21 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R129 0790027R RESISTOR CHIP 180 OHM +-5% 1/16W
QH22 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R130 0790027R RESISTOR CHIP 180 OHM +-5% 1/16W
QH30 CA00981R TRANSISTOR CHIP DTC114EE TL R131 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
QH31 CA00981R TRANSISTOR CHIP DTC114EE TL R132 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QH32 CA01011R TRANSISTOR CHIP 2SK3018 T106 R133 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
QH33 CA01011R TRANSISTOR CHIP 2SK3018 T106 R141 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QH34 CA00981R TRANSISTOR CHIP DTC114EE TL R142 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QH35 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R143 0790029R RESISTOR CHIP 270 OHM +-5% 1/16W
QH40 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R144 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QJ31 2316244R TRANSISTOR CHIP 2SC4081 T106 R R145 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QJ32 1323294R TRANSISTOR CHIP,2SA1774 TL (R/S) R149 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QJ33 CA00983R TRANSISTOR,CHIP DTC144EE TL R156 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QN01 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R157 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
QN02 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R158 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
QN10 CA00981R TRANSISTOR CHIP DTC114EE TL R171 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
QR01 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R172 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
QT01 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R180 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
QT02 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R182 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT03 CA00331R TRANSISTOR CHIP IMZ1A T108(T) R183 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT04 CA00331R TRANSISTOR CHIP IMZ1A T108(T) R1A0 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT05 CA00331R TRANSISTOR CHIP IMZ1A T108(T) R1A1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT06 CA02132R TRANSISTOR CHIP 2SA1980UFG PF R1A2 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT07 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R1A3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT10 CA00981R TRANSISTOR CHIP DTC114EE TL R1A4 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
QT11 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R1A5 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
QT12 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R1A6 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
QT13 CA02142R TRANSISTOR CHIP 2SC5343UFG PF R1A8 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R001 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R1C1 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R002 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R1C2 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R003 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W R1C3 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R004 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R1C4 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R007 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R1C5 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R008 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R1C6 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R009 0700027M CF 100 OHM +-5% 1/16W R1C7 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R009 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R201 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R010 07000372 CF 560 OHM +-5% 1/16W R202 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R011 07000382 CF 680 OHM +-5% 1/16W R203 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R012 07000492 CF 4.7K OHM +-5% 1/16W R204 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R013 07000512 CF 5.6K OHM +-5% 1/16W R205 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R101 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R206 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W
R102 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R207 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W
R103 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R208 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R104 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R209 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R105 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R210 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R106 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R211 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W
R107 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R212 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
98
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
R213 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R275 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R214 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R276 0790074R RESISTOR CHIP 560K OHM +-5% 1/16W
R215 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R277 0790057R RESISTOR CHIP 33K OHM +-5% 1/16W
R216 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R278 0790062R RESISTOR CHIP 68K OHM +-5% 1/16W
R217 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R279 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R218 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R280 0790038R RESISTOR CHIP 1.2K OHM +-5% 1/16W
R219 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R281 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R220 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R282 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
R221 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R283 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R222 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R284 0790074R RESISTOR CHIP 560K OHM +-5% 1/16W
R223 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R285 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R224 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R286 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R225 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R287 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R226 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R288 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R227 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R289 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R228 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R290 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R229 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R291 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R230 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R292 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R231 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R293 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R232 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R294 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R233 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R295 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R234 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R296 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R235 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R297 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R236 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R298 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R237 0790061R RESISTOR CHIP 56K OHM +-5% 1/16W R299 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R238 0790061R RESISTOR CHIP 56K OHM +-5% 1/16W R2A0 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R239 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2A1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R240 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2A2 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R241 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R2A3 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R242 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R2A4 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R243 0790045R RESISTOR CHIP 3.9K OHM +-5% 1/16W R2A5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R244 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R2A6 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R245 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2A7 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R246 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2A8 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R247 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2A9 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R248 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2C0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R249 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2C1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R250 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2C8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R251 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W R2E0 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R258 AQ00022R RESISTOR CHIP 68 OHM +-5% 1/16W (4R) R2E1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R259 AQ00022R RESISTOR CHIP 68 OHM +-5% 1/16W (4R) R2E2 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R260 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2E3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R261 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2E4 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R262 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R2E5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R263 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R2E6 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R264 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W R2E7 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R265 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R2E8 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R266 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R2E9 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
R267 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R2F0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R268 0790069R RESISTOR CHIP 270K OHM +-5% 1/16W R2F1 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R269 0790057R RESISTOR CHIP 33K OHM +-5% 1/16W R2F2 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R270 0790062R RESISTOR CHIP 68K OHM +-5% 1/16W R2F3 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R271 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R2F4 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R272 0790038R RESISTOR CHIP 1.2K OHM +-5% 1/16W R2F5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R273 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R2F6 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
R274 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R2F7 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
99
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
R2G0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R330 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R2G1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R331 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W
R2G2 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R332 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W
R2G3 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R333 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R2G6 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R334 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W
R2G7 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R336 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W
R2J1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R337 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R2J2 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R338 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R2J3 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W R339 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R2J4 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R340 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R2J5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R341 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R2J6 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R342 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R2J7 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W R343 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R2J8 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R344 0790058R RESISTOR CHIP 39K OHM +-5% 1/16W
R2J9 0790066R RESISTOR CHIP 150K OHM +-5% 1/16W R345 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
R2K0 0790066R RESISTOR CHIP 150K OHM +-5% 1/16W R346 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R2K1 AQ00024R RES.CIHP 100 OHM +-5% 1/16W R347 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W
R2K2 AQ00024R RES.CIHP 100 OHM +-5% 1/16W R349 0790041R RESISTOR CHIP 1.8K OHM +-5% 1/16W
R2K3 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W R350 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W
R2K4 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W R351 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R2K5 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W R352 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
R2K6 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R353 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R2K7 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W R354 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R2K8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R355 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R2K9 0790061R RESISTOR CHIP 56K OHM +-5% 1/16W R401 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
R2L0 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W R402 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
R2L1 0790075R RESISTOR CHIP 680K OHM +-5% 1/16W R403 0790068R RESISTOR CHIP 220K OHM +-5% 1/16W
R2L2 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R404 0790068R RESISTOR CHIP 220K OHM +-5% 1/16W
R301 0790057R RESISTOR CHIP 33K OHM +-5% 1/16W R405 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R302 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R406 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R303 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R423 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R304 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R424 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R305 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R426 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
R306 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W R427 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W
R307 0790028R RESISTOR CHIP 220 OHM +-5% 1/16W R429 0790002R RESISTOR CHIP 2.2 OHM +-5% 1/16W
R308 0790034R RESISTOR CHIP 560 OHM +-5% 1/16W R430 0790002R RESISTOR CHIP 2.2 OHM +-5% 1/16W
R309 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R432 0790008R RESISTOR CHIP 6.8 OHM +-5% 1/16W
R310 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R436 0790002R RESISTOR CHIP 2.2 OHM +-5% 1/16W
R311 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R437 0790002R RESISTOR CHIP 2.2 OHM +-5% 1/16W
R312 0790041R RESISTOR CHIP 1.8K OHM +-5% 1/16W R438 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R313 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R439 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R314 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W R443 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W
R315 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R445 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W
R316 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R446 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
R317 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R447 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
R318 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R448 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
R319 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R449 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R321 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R452 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
R322 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R461 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R323 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W R465 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R324 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W R468 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
R325 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R470 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R326 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R472 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R327 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R474 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R328 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W R476 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R329 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R477 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
100
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
R480 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R521 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R482 0790008R RESISTOR CHIP 6.8 OHM +-5% 1/16W R522 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R486 0790077R RESISTOR CHIP 1M OHM +-5% 1/16W R523 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R487 AQ00011R RESISTOR CHIP 10 OHM +-5% 1/16W R524 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R488 AQ00011R RESISTOR CHIP 10 OHM +-5% 1/16W R525 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
R489 AQ00011R RESISTOR CHIP 10 OHM +-5% 1/16W R526 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R490 AQ00011R RESISTOR CHIP 10 OHM +-5% 1/16W R528 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R491 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R529 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R492 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R530 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R493 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R531 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W
R494 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R532 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R495 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R533 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R496 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R534 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R497 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R535 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4B2 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R536 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4B4 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R537 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R4B7 AQ00204R RESISTOR CHIP 5.6K OHM +-1% 1/16W R538 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R4B8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R539 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R4B9 AQ00196R RESISTOR CHIP 1.2K OHM +-1% 1/16W R540 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C1 AQ00207R RESISTOR CHIP 3.3K OHM +-1% 1/16W R541 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C2 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W R542 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C3 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W R543 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
R4C4 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W R545 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
R4C5 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W R546 AQ00232R RESISTOR CHIP 27K OHM +-1% 1/16W
R4C6 AQ00207R RESISTOR CHIP 3.3K OHM +-1% 1/16W R547 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C7 AQ00196R RESISTOR CHIP 1.2K OHM +-1% 1/16W R548 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R549 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R4C9 AQ00204R RESISTOR CHIP 5.6K OHM +-1% 1/16W R550 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
R4D3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R551 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4D4 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R552 AQ00206R RESISTOR CHIP 3K OHM +-1% 1/16W
R4D5 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R554 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4D6 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R555 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R4D8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R556 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R4E4 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W R557 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R4E5 0790056R RESISTOR CHIP 27K OHM +-5% 1/16W R558 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R4E8 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R559 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R501 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R560 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R502 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R561 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R503 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R562 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R504 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R563 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R505 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W R564 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R506 0790042R RESISTOR CHIP 2.2K OHM +-5% 1/16W R565 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R507 0790055R RESISTOR CHIP 22K OHM +-5% 1/16W R566 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R508 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W R567 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R509 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R568 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
R510 0790053R RESISTOR CHIP 15K OHM +-5% 1/16W R570 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R511 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W R571 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
R512 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R572 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R513 0790026R RESISTOR CHIP 150 OHM +-5% 1/16W R573 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R514 0790027R RESISTOR CHIP 180 OHM +-5% 1/16W R574 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W
R515 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R575 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R516 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W R576 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R517 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W R577 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R518 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R578 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R519 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W R579 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R520 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R580 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
101
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
R581 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R649 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W
R582 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R650 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R583 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R651 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R584 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R652 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R585 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R653 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R586 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W R654 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R588 AQ00232R RESISTOR CHIP 27K OHM +-1% 1/16W R655 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R590 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R659 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R591 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R660 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R592 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W R661 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R593 AQ00206R RESISTOR CHIP 3K OHM +-1% 1/16W R662 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R595 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R663 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R596 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W R664 0790018R RESISTOR CHIP 39 OHM +-5% 1/16W
R597 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R678 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R598 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R680 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R5A0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R681 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R5A1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R682 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R610 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R683 0790032R RESISTOR CHIP 390 OHM +-5% 1/16W
R611 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R685 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R612 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R691 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R613 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R693 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R614 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R694 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R615 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R695 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R616 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R696 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R617 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R697 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R618 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R698 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R619 AQ00185R RESISTOR CHIP 470 OHM +-1% 1/16W R699 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R620 AQ00221R RESISTOR CHIP 10K OHM +-1% 1/16W R6A0 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R621 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A1 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R622 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A2 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R623 AQ00221R RESISTOR CHIP 10K OHM +-1% 1/16W R6A3 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R624 AQ00185R RESISTOR CHIP 470 OHM +-1% 1/16W R6A4 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R625 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A5 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R626 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A6 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R627 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6A7 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R628 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6K5 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R629 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W R6K7 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R630 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R6K9 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R631 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R6L1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R632 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R6L3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R633 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R6L4 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R634 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W R902 AT03661M MG 470K OHM +-5% 1/2W
R635 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RG01 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R636 AQ00235R RESISTOR CHIP 36K OHM +-1% 1/16W RG02 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R637 AQ00231R RESISTOR CHIP 24K OHM +-1% 1/16W RG03 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R638 AQ00247R RESISTOR CHIP 100K OHM +-1% 1/16W RG04 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R639 AQ00251R RESISTOR CHIP 130K OHM +-1% 1/16W RG05 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R640 AQ00231R RESISTOR CHIP 24K OHM +-1% 1/16W RG06 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R641 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RG07 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R642 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RG08 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R643 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RH01 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R644 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH02 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
R645 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH03 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
R646 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH04 0790036R RESISTOR CHIP 820 OHM +-5% 1/16W
R647 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH11 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
R648 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RH12 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
102
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
RH14 0790019R RESISTOR CHIP 47 OHM +-5% 1/16W RH79 AQ00233R RESISTOR CHIP 30K OHM +-1% 1/16W
RH15 0790019R RESISTOR CHIP 47 OHM +-5% 1/16W RH80 0790049R RESISTOR CHIP 8.2K OHM +-5% 1/16W
RH16 0790073R RESISTOR CHIP 470K OHM +-5% 1/16W RH81 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH17 0790073R RESISTOR CHIP 470K OHM +-5% 1/16W RH82 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH20 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RH83 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
RH21 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RH84 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W
RH26 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RH85 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH27 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RH86 AQ00228R RESISTOR CHIP 20K OHM +-1% 1/16W
RH29 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RH87 AQ00233R RESISTOR CHIP 30K OHM +-1% 1/16W
RH30 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RH88 0790049R RESISTOR CHIP 8.2K OHM +-5% 1/16W
RH31 AQ00183R RESISTOR CHIP 390 OHM +-1% 1/16W RH89 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
RH32 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH90 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W
RH33 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH91 0790015R RESISTOR CHIP 22 OHM +-5% 1/16W
RH34 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH93 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH35 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH94 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
RH36 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH95 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH37 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH96 0790015R RESISTOR CHIP 22 OHM +-5% 1/16W
RH38 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH98 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH39 0790006R RESISTOR CHIP 4.7 OHM +-5% 1/16W RH99 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
RH40 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W RHA1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH41 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RHA2 0790015R RESISTOR CHIP 22 OHM +-5% 1/16W
RH42 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RHA4 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH43 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RHA5 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W
RH44 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W RHA6 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH45 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC1 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH46 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC2 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH47 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC3 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH48 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC4 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH49 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC7 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH50 AQ00164R RESISTOR CHIP 75 OHM +-1% 1/16W RHC8 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH51 AQ00165R RESISTOR CHIP 82 OHM +-1% 1/16W RHC9 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH52 AQ00142R RESISTOR CHIP 11 OHM +-1% 1/16W RHE1 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH53 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W RHE2 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH54 AQ00209R RESISTOR CHIP 3.9K OHM +-1% 1/16W RHE3 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH55 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHE4 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W
RH56 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHE5 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W
RH57 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHF1 AQ00421R RESISTOR CHIP 0 OHM +-5% 1/16W
RH58 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHF2 AQ00421R RESISTOR CHIP 0 OHM +-5% 1/16W
RH59 0790017R RESISTOR CHIP 33 OHM +-5% 1/16W RHF3 AQ00421R RESISTOR CHIP 0 OHM +-5% 1/16W
RH60 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RHF4 AQ00421R RESISTOR CHIP 0 OHM +-5% 1/16W
RH61 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RHF5 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RH62 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RHF7 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH63 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RHF8 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH64 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RHF9 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH65 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RHG1 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RH66 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RHG2 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH67 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RHG3 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH68 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RHG4 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH69 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W RHR1 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH70 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RJ01 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
RH71 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RJ02 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH72 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RJ03 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RH75 0790068R RESISTOR CHIP 220K OHM +-5% 1/16W RJ13 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH76 0790068R RESISTOR CHIP 220K OHM +-5% 1/16W RJ14 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH77 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RJ15 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RH78 AQ00228R RESISTOR CHIP 20K OHM +-1% 1/16W RJ16 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
103
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
RJ17 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RN22 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ18 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RR02 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ19 AQ00216R RESISTOR CHIP 6.8K OHM +-1% 1/16W RR03 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RJ20 AQ00221R RESISTOR CHIP 10K OHM +-1% 1/16W RR04 0790064R RESISTOR CHIP 100K OHM +-5% 1/16W
RJ27 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RR05 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ33 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W RR06 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ35 AT01049S RES.CHIP 5.6 OHM +-5% 1W RT01 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ36 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT01 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
RJ37 0188093M CF 1.5 OHM +-5% 1/2W RT02 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ38 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RT02 0790045R RESISTOR CHIP 3.9K OHM +-5% 1/16W
RJ39 0790077R RESISTOR CHIP 1M OHM +-5% 1/16W RT03 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ40 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT03 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RJ41 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT04 0790026R RESISTOR CHIP 150 OHM +-5% 1/16W
RJ42 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT05 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RJ43 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT06 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RJ44 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT07 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RJ45 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT08 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RJ46 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT09 0196102R RESISTOR CHIP 24K OHM +-5% 1/16W
RJ47 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT10 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ48 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT10 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
RJ49 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT11 0790046R RESISTOR CHIP 4.7K OHM +-5% 1/16W
RJ56 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT12 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ57 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT12 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ58 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT13 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ59 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT14 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ60 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT15 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RJ61 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT16 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ62 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT17 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ63 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT17 0790047R RESISTOR CHIP 5.6K OHM +-5% 1/16W
RJ64 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT18 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ65 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W RT18 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W
RJ66 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT19 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RJ67 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT19 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RM05 07000322 CF 220 OHM +-5% 1/16W RT20 0790054R RESISTOR CHIP 18K OHM +-5% 1/16W
RM06 07000392 CF 820 OHM +-5% 1/16W RT21 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RM07 0700041M CF 1K OHM +-5% 1/16W RT22 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W
RM08 07000442 CF 1.8K OHM +-5% 1/16W RT22 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RM09 07000462 CF 2.7K OHM +-5% 1/16W RT23 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RM10 07000522 CF 6.8K OHM +-5% 1/16W RT24 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RN01 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RT25 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RN02 0790033R RESISTOR CHIP 470 OHM +-5% 1/16W RT26 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN03 0790063R RESISTOR CHIP 82K OHM +-5% 1/16W RT27 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN04 0790052R RESISTOR CHIP 12K OHM +-5% 1/16W RT28 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN05 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT29 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RN06 0790039R RESISTOR CHIP 1.5K OHM +-5% 1/16W RT30 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
RN07 0790026R RESISTOR CHIP 150 OHM +-5% 1/16W RT31 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN08 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W RT32 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RN09 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT33 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN10 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT34 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RN12 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT35 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
RN13 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT36 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN14 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT37 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RN15 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT38 0790031R RESISTOR CHIP 330 OHM +-5% 1/16W
RN16 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT39 0790035R RESISTOR CHIP 680 OHM +-5% 1/16W
RN20 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W RT40 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W
RN21 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W RT41 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
Downloaded from www.ManualsFile.com manuals search engine
104
32PD7800/42PD7800 (PW2)
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety.
Before replacing any of there components,read carefully,the CAUTION FOR SAFETY of this Service Manual.
Don't degrade the safety of the receiver through improper servicing.
SYMBOL SYMBOL
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
RT42 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W X212 BK00191R CERAMIC FILTER CHIP
RT43 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W X213 BK00191R CERAMIC FILTER CHIP
RT44 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X214 BK00191R CERAMIC FILTER CHIP
RT45 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X215 BK00191R CERAMIC FILTER CHIP
RT46 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X216 BK00191R CERAMIC FILTER CHIP
RT47 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X217 BE00412R LC FILTER CHIP
RT48 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W X218 BE00412R LC FILTER CHIP
RT50 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W X221 BK00191R CERAMIC FILTER CHIP
RT51 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W X222 BK00191R CERAMIC FILTER CHIP
RT52 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W X223 BK00191R CERAMIC FILTER CHIP
RT53 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W X301 BJ00711 LC FILTER 6M LPF
RT54 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X302 BJ00701 LC FILTER 4M BPF
RT56 0790043R RESISTOR CHIP 2.7K OHM +-5% 1/16W X402 BP01071 CRYSTAL HC-49/U-S
RT60 0790024R RESISTOR CHIP 100 OHM +-5% 1/16W X501 BP00891 OSCILLATOR CRYSTAL 16.2MHZ
RT61 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W X502 BP00891 OSCILLATOR CRYSTAL 16.2MHZ
RT62 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X601 BL00611R CERAMIC RESONATOR 512KHZ
RT63 0790001R RESISTOR CHIP 0 OHM +-5% 1/16W X602 BL00611R CERAMIC RESONATOR 512KHZ
RT65 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W X603 BL01441R CRYSTAL OSCILLATOR 3.58MHZ
RT66 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W XN01 BJ00691 HIGH PASS FILTER 4.5MHZ TCV2
RT67 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W XN02 BP01371 OSCILLATOR CRYSTAL 18.432MHZ 3.5L
RT68 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W XT01 BP01321 OSCILLATOR CRYSTAL 12MHZ
RT69 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RT70 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
RT71 0790048R RESISTOR CHIP 6.8K OHM +-5% 1/16W
RT72 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
RT73 0790059R RESISTOR CHIP 47K OHM +-5% 1/16W
RT74 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RT75 0790037R RESISTOR CHIP 1K OHM +-5% 1/16W
RT80 0790051R RESISTOR CHIP 10K OHM +-5% 1/16W
S900 FG00251 POWER SWITCH
SM01 FE00001R PUSH SWITCH
SM02 FE00001R PUSH SWITCH
SM03 FE00001R PUSH SWITCH
SM04 FE00001R PUSH SWITCH
SM05 FE00001R PUSH SWITCH
SM06 FE00001R PUSH SWITCH
SM07 FE00001R PUSH SWITCH
SPUAC UK07682 SPEAKER ACCESSORY
SPUL GM01551 SPEAKER UNIT LEFT
SPUR GM01552 SPEAKER UNIT RIGHT
U001 HL02121 R.C.T. CLE-960
U1 HA01481 POWER UNIT MPF7415
U101 HC00566 FRONTEND ENGF9108GF
U102 HC00576 FRONTEND ENG39615GF
U2 CS00852 BRIDGE MEDIA UNIT HCM012 ASS'Y
X201 BK00193R CERAMIC FILTER 100MHZ
X202 BK00193R CERAMIC FILTER 100MHZ
X203 BK00193R CERAMIC FILTER 100MHZ
X204 BK00191R CERAMIC FILTER CHIP
X205 BK00193R CERAMIC FILTER 100MHZ
X206 BK00193R CERAMIC FILTER 100MHZ
X207 BK00193R CERAMIC FILTER 100MHZ
X208 BK00191R CERAMIC FILTER CHIP
X209 BK00191R CERAMIC FILTER CHIP
X210 BK00191R CERAMIC FILTER CHIP
X211 BK00191R CERAMIC FILTER CHIP
Downloaded from www.ManualsFile.com manuals search engine
