Safety & Troubleshooting
Safety and Troubleshooting Information
Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other
Related Information
Safety precautions and maintenance
WARNING: Use of controls, adjustments, or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards, and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
● Disconnect the monitor from the power supply if the monitor is not to be used for an
extended period of time.
● Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The
back cover should only be removed by qualified service personnel.
● Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them
and prevent proper cooling of the monitor's electronic devices.
● To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain
or excessive moisture.
● Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a
slightly damp cloth. Disconnect the monitor from the power supply before cleaning.
● When positioning the monitor, make sure the power plug and outlet are easily accessible.
Consult a service technician if the monitor does not operate normally when operating instructions of
this manual are followed.
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/SAFETY.HTM7/19/2004 4:10:35 PM
About This Electronic User's Manual
About This Electronic User's Manual
About This Guide • Other Documents You May Need • Notational Descriptions
About This Guide
This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes
the monitor's features, setup, operation and all other information, which is the same exact
information described in our printed version.
The sections are as follows:
● Safety and Troubleshooting Information provides tips and solutions for common problems,
and other related information you may need.
● About This Electronic User's Manual gives overview of what information are included as well
as notation icon descriptions and other documentation you can refer to.
● Product Information gives an overview of the monitor's features and as well as the technical
specifications for this monitor.
● Installing Your Monitor describes the initial setup process and gives an overview of how to
use the monitor.
● On Screen Display provides information on adjusting the settings on your monitor.
● Customer Care and Warranty is a list of worldwide Philips consumer information centers
along with the help desk phone numbers and information on the applicable warranty of your
product..
● Glossary provides more information for technical terms.
● Download allows users to install the entire manual on their hard drive.
● Frequently Asked Questions provides answers to commonly asked questions.
RETURN TO TOP OF THE PAGE
Other Documents You May Need
In addition to this Electronic User's Guide, you may need to refer to the following documentation:
file:///D|/EDFU/crt_19/edoc/english/201B/ABOUT/ABOUT.HTM (1 of 3)7/19/2004 4:10:36 PM
About This Electronic User's Manual
● Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the
monitor. This is included with this product.
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in
italic type. These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: This icon indicates important information and tips that help you make
better use of your computer system.
CAUTION: This icon indicates information that tells you how to avoid either
potential damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how
to avoid the problem.
SMART HELP: This icon indicates helpful information when adjusting the On
Screen Display of your monitor.
Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such
cases, the specific presentation of the warning is mandated by regulatory authority.
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/201B/ABOUT/ABOUT.HTM (2 of 3)7/19/2004 4:10:36 PM
About This Electronic User's Manual
©2001 Koninklijke Philips Electronics N.V.
All rights reserved. Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or
broadcasting in whole or in part is prohibited without written consent of Philips Electronics N.V.
file:///D|/EDFU/crt_19/edoc/english/201B/ABOUT/ABOUT.HTM (3 of 3)7/19/2004 4:10:36 PM
201B Product Information
Product Information
Product Features • Technical Specifications • Automatic Power Saving • Physical Specification • Pin
Assignment • Product Views
Product Features
Model Regulation Color
201B40 TCO'03 Gray
201B4:
● 21-inch (20.0" VIS) color monitor with excellent front of screen performance for use with MACs, PCs or
Workstations
● Autoscan covers horizontal frequencies up to 115 kHz offering a maximum resolution of 2048 x 1536 with
flicker free display of 1600 x 1200 at up to 85 Hz
● Flat square Super High Contrast CRT with high-resolution 0.25 mm pitch (0.21 hdp)
● Auto Calibrate extends the useful life of the monitor by automatically adjusting color and luminance to
original values.
● XSD-Xtra Space Design for large screen display in a small footprint: World's shortest 21-inch monitor
with maximum depth of only 467 mm/18.4"
● sRGB for true on screen color representation.
● FCC, CE (in selected countries only) and ISO9241, ISO14001 certified
RETURN TO TOP OF THE PAGE
Technical Specifications*
CRT
• Size and
deflection
21 inch / 51 cm ; 90° deflection angle
• Dot pitch /
Grille pitch
0.25 mm
• Horizontal pitch 0.21 mm
• Tube type
Shadow mask, flat square, super high contrast, anti-glare, anti-static, anti
reflection
file:///D|/EDFU/crt_19/edoc/english/201B/PRODUCT/PRODUCT.HTM (1 of 5)7/19/2004 4:10:37 PM
201B Product Information
• Phosphor P22
• Recommended
display area
15.4" x 11.6" / 392 x 294 mm
• Maximum
display area
16.0" x 12.0" / 406 x 305 mm
SCANNING
• Horizontal
scanning
30 - 115 KHz
• Vertical
scanning
50 - 160 Hz
VIDEO
• Video dot rate 320 MHz
• Input
impedance
- Video 75 ohm
- Sync 4.7 kOhm
• Input signal
levels
0.7 Vpp
• Sync input
signal
Separate sync
Composite sync
• Sync polarities Positive and negative
WHITE COLOR TEMPERATURE
Chromaticity CIE coordinates:
• at 9300 K
degrees
x = 0.283 / y = 0.297
• at 6500 K
degrees
x = 0.313 / y = 0.329
• at 5500 K
degrees
x = 0.332 / y = 0.347
sRGB
file:///D|/EDFU/crt_19/edoc/english/201B/PRODUCT/PRODUCT.HTM (2 of 5)7/19/2004 4:10:37 PM
201B Product Information
sRGB is a standard for ensuring correct exchange of colors between different devices (e.g. digital
cameras, monitors, printers, scanners, etc.)
Using a standard unified color space, sRGB will help represent pictures taken by an sRGB
compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are
calibrated and you can rely on the correctness of the colors shown on your screen.
Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a
predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting in
the monitor's OSD.
To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down
button to go to Color temperature and press OK again. Then move the down button to go to sRGB
and press OK again.
Exit this OSD.
After this, please don't change the brightness or contrast setting of your monitor. If you change
either of these, the monitor will exit the sRGB mode and go to a color temperature setting of 9300K.
For more information on sRGB, please visit:
www.srgb.com
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Automatic Power Saving
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can
automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or other
input device is detected, the monitor will automatically "wake up". The following table shows the power
consumption and signaling of this automatic power saving features:
Power Management Definition
VESA's Mode Video H-sync V-sync Power Used
Power
Saving (%)
LED color
file:///D|/EDFU/crt_19/edoc/english/201B/PRODUCT/PRODUCT.HTM (3 of 5)7/19/2004 4:10:37 PM
Installing your Monitor
Contrast hotkey. When the UP arrow is pressed, the adjustment
controls for the CONTRAST will show up.
UP and DOWN buttons are used when adjusting the OSD of your
monitor
Brightness hotkey. When the RIGHT arrow is pressed ,the
adjustment controls for BRIGHTNESS will show up.
LEFT and RIGHT buttons, like the UP and DOWN buttons, are also
used in adjusting the OSD of your monitor.
By pressing both the UP and OK buttons, you can easily access the
Input Signals A and/or B.
RETURN TO TOP OF THE PAGE
Rear View
file:///D|/EDFU/crt_19/edoc/english/INSTALL_4/INSTALL.HTM (2 of 4)7/19/2004 4:10:38 PM
Installing your Monitor
1. D-Sub Port - Attach the D-Sub connector that comes with your monitor here.
Other end connects to your PC.
2. Power in - Attach power cable here.
file:///D|/EDFU/crt_19/edoc/english/INSTALL_4/INSTALL.HTM (3 of 4)7/19/2004 4:10:38 PM
On-Screen Display
On-Screen Display
Description of the On-Screen Display • The OSD Tree • The OSD Controls
Description of the On Screen Display
What is the On-Screen Display?
This is a feature in all Philips monitors which allows an end-user to adjust screen performance of
monitors directly though an on-screen instruction window. The user interface provides user-
friendliness and ease-of-use when operating the monitor.
Basic and simple instruction on the control keys.

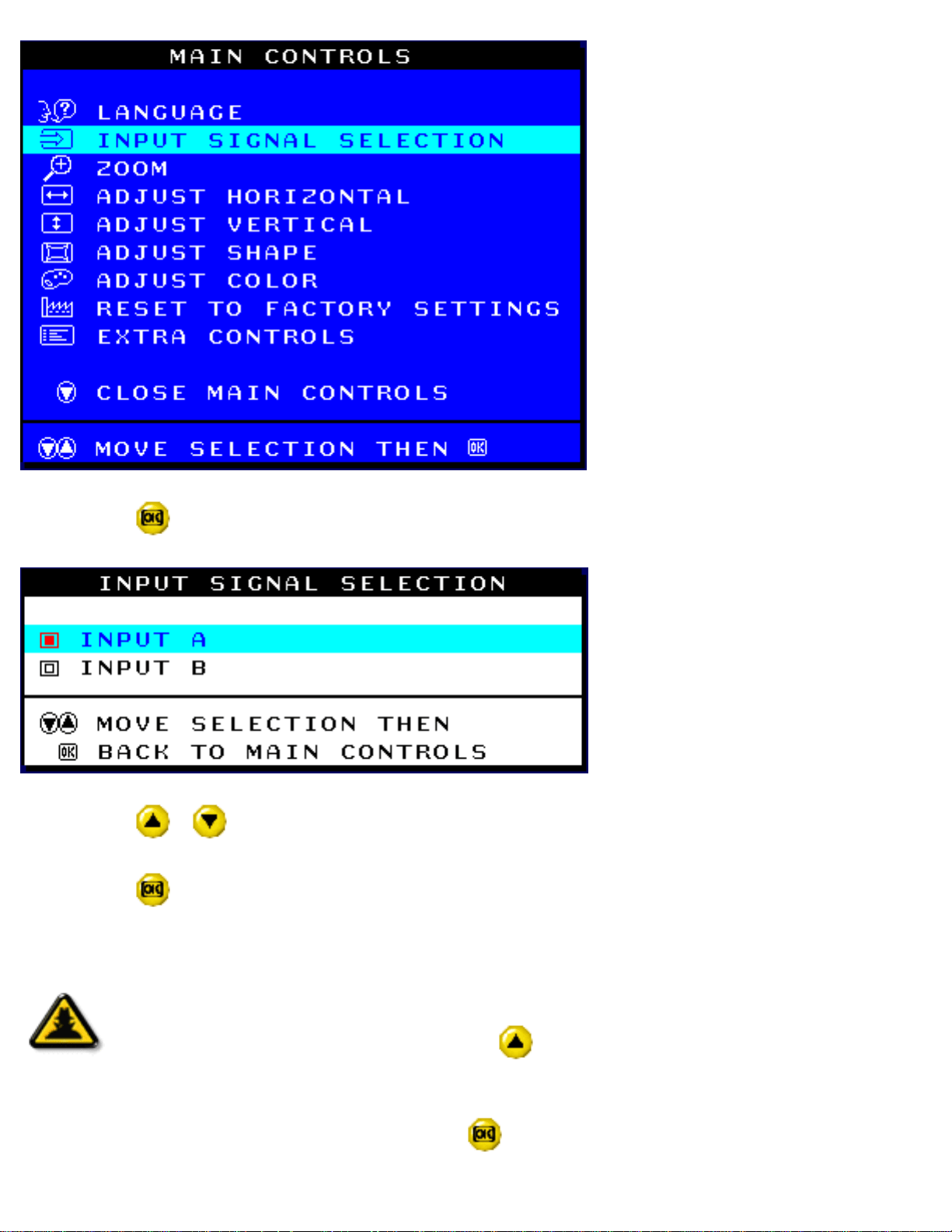

On the front controls of your monitor, once you press the
button, the On Screen Display (OSD)
Main Controls window will pop up and you can now start making adjustments to your monitor's
various features. Use the
or the keys to make your adjustments within.
file:///D|/EDFU/crt_19/edoc/english/OSD/OSDDESC.HTM (1 of 4)7/19/2004 4:10:38 PM
On-Screen Display
RETURN TO TOP OF THE PAGE
The OSD Tree
Below is an overall view of the structure of the On-Screen Display. You can use this as reference
when you want to later on work your way around the different adjustments.
Your monitor may not include all the items in the OSD tree shown below.
file:///D|/EDFU/crt_19/edoc/english/OSD/OSDDESC.HTM (2 of 4)7/19/2004 4:10:38 PM
On-Screen Display
file:///D|/EDFU/crt_19/edoc/english/OSD/OSDDESC.HTM (3 of 4)7/19/2004 4:10:38 PM
Customer Care and Warranty
Customer Care & Warranty
PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED:
WESTERN EUROPE:
Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •
Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden •
Switzerland • Spain • United Kingdom
EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey • Bulgaria
LATIN AMERICA: Antilles • Argentina • Brazil • Chile • Colombia • Mexico • Paraguay •
Peru • Uruguay • Venezuela
NORTH AMERICA:USA & Canada
PACIFIC: Australia • New Zealand
ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •
Pakistan • Philippines • Singapore • Taiwan • Thailand
AFRICA: Morocco • South Africa
MIDDLE EAST: Dubai • Egypt
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/WARRANTY.HTM7/19/2004 4:10:39 PM
Frequently Asked Questions
Energy Saving:
MPRII: No requirement.
TCO92: Standby mode < 30W, Off mode < 8W
TCO95: Standby mode < 30W, Off mode < 8W
TCO99: Standby mode < 15W, Off mode < 5W
TCO'03:Standby mode < 15W, Off mode < 5W
Visual Ergonomics:
MPRII: No requirement.
TCO92: No requirement.
TCO95: Set ergonomic rules including minimum contrast level, flicker and jitter.
TCO99: Tightened TCO95 rules.
TCO'03: Tighten TCO99 rule for CRT and new requirement of screen color for TFT LCD Monitors.
Ecology:
MPRII: No requirement.
TCO92: No requirement.
TCO95: Set general ecological standards including recycling preparation, environmental policy and
environmental certification.
TCO99: Further tightened TCO95 norms.
TCO'03:Require the recycling information to users.
10. How do I enable the energy saving function?
Go to 'My Computer' and select 'Control Panel' followed by 'Monitor Control.' Select "All default selection'
and choose your Philips monitor model from the default driver list. Plug and Play will automatically enable
the EPA tick box for you. In DOS or Windows 3.1, you must first make sure your PC supports power
saving.
11. What is refresh rate?
file:///D|/EDFU/crt_19/edoc/english/FAQ.HTM (3 of 14)7/19/2004 4:10:41 PM
Frequently Asked Questions
"Refresh rate" describes the number of times an entire screen is vertically scanned each second. In other
words: If a monitor's refresh rate is 85 Hz, its screen is refreshed - or vertically scanned - 85 times per
second. A higher the refresh rate means better image stability and less flicker. A high refresh rate helps
users who work long hours in front of a monitor avoid eye fatigue and stress. To change the refresh rate,
go into "Start/Settings / Control Pannel / Display / Properties / Setting/Advance/Adaptor" Windows settings
of the computer, the monitor will automatically adjust itself to the video card.
12. Why does the picture on the screen appear to flicker?
A low refresh rate or electrical interference typically causes flickering in the picture. Possible solutions
include the following:
● Verify that the proper drivers are installed for your video card
● Make sure that all electrical devices (such as mobile phones) are at least 1m from the monitor
● Place the monitor in another physical location away from electrical interference
● Adjust the refresh rate to 75hz or higher.
13. How do I adjust my monitor's resolution?
Available resolutions are determined by the capabilities of your video card and graphic driver. Under
Windows '95, you may select the desired available resolution through the 'Display properties/Settings'
menu.
14. How can I adjust the size, position and rotation of my screen?
Depending on the model you own, you can use your CustoMax Software, On Screen Display (OSD) or
control knobs located on the monitor.
15. What if I get lost when making monitor adjustments?
file:///D|/EDFU/crt_19/edoc/english/FAQ.HTM (4 of 14)7/19/2004 4:10:41 PM
Frequently Asked Questions
Simply press OK button then select "Reset to factory settings" to restore all settings.
16. What is LightFrame
?
LightFrame
is a Philips technology breakthrough which offers a unique and revolutionary solution for
boosting a monitor 's brightness and sharpness. With LightFrame
TM
, the user experiences TV quality
performance for video or photos without deterioration to the monitor 's performance in windows used for
other applications.
17. How does LightFrame
work?
LightFrame
consists of a software application and an Integrated Circuit (IC) embedded in the monitor.
Together, they boost brightness and sharpness in a user defined window or screen area. Unique
LightFrame
TM
technology dramatically improves photo and video display quality.
18. Why is LightFrame
important to me?
With LightFrame
, selected Philips monitors deliver TV quality video and photo display while maintaining
monitor performance for text-based applications. The result is that movies and other video are brighter and
livelier; photos are more vibrant and lifelike.
file:///D|/EDFU/crt_19/edoc/english/FAQ.HTM (5 of 14)7/19/2004 4:10:41 PM
Frequently Asked Questions
26. Which models can be incorporated with the Multimedia Base?
The following models can be incorporated with the Multimedia Base: 109B5, 109E5,109F5, 107B5,
107E5,107F5, 107S5, 107T5.
27. What are Philips Multimedia Base's specifications?
See detailed Multimedia Base specifications on the product information page.
28. Why is a Multimedia Base better than separate speakers?
The major advantage of the Multimedia Base is its minimal space requirements. In fact, it hardly uses any
extra space at all: monitor depth and width are unchanged. Only the monitor's height is increased by only
3 centimeters.
29. Where can I buy a multimedia base to incorporate with my Philips monitor?
Please contact your dealer/reseller for details.
30. What does Auto Calibrate do?
It makes your monitor perform better and last longer. As a monitor becomes older, brightness gradually
deteriorates and its colors change. This well-known process effects all monitors. Eventually after a number
file:///D|/EDFU/crt_19/edoc/english/FAQ.HTM (8 of 14)7/19/2004 4:10:41 PM
Frequently Asked Questions
Auto Calibrate is currently available in the new 201P, 201B and 109P.
35. The Main Menu displays OSD MAIN MENU LOCKED . Pressing the front control panels hasno
effect. How can I unlock this function?
Press and hold the OSD menu key for about 10 seconds until picture displays "OSD MAIN MENU
UNLOCKED"
36. My screen shows NO SYNC INPUT , how can I get rid of this?
Check the following for possible solutions:
● Bent pins on the video cable
● Make sure the computer is turned on
● Ensure the VGA Cable is properly connected
● Ensure the BNC/D-Sub connector on the rear of the monitor is in the correct position, newer
models have this option in the On Screen Display under Input Signal Selection.
● Video card may be not a VESA standard (try the monitor with another computer)
37. Why does my monitor display "Out of Range"?
The video card installed in your computer may be too high for the monitor 's specifications. Please contact
your computer manufacturer for details on how to lower resolution for your operating system.

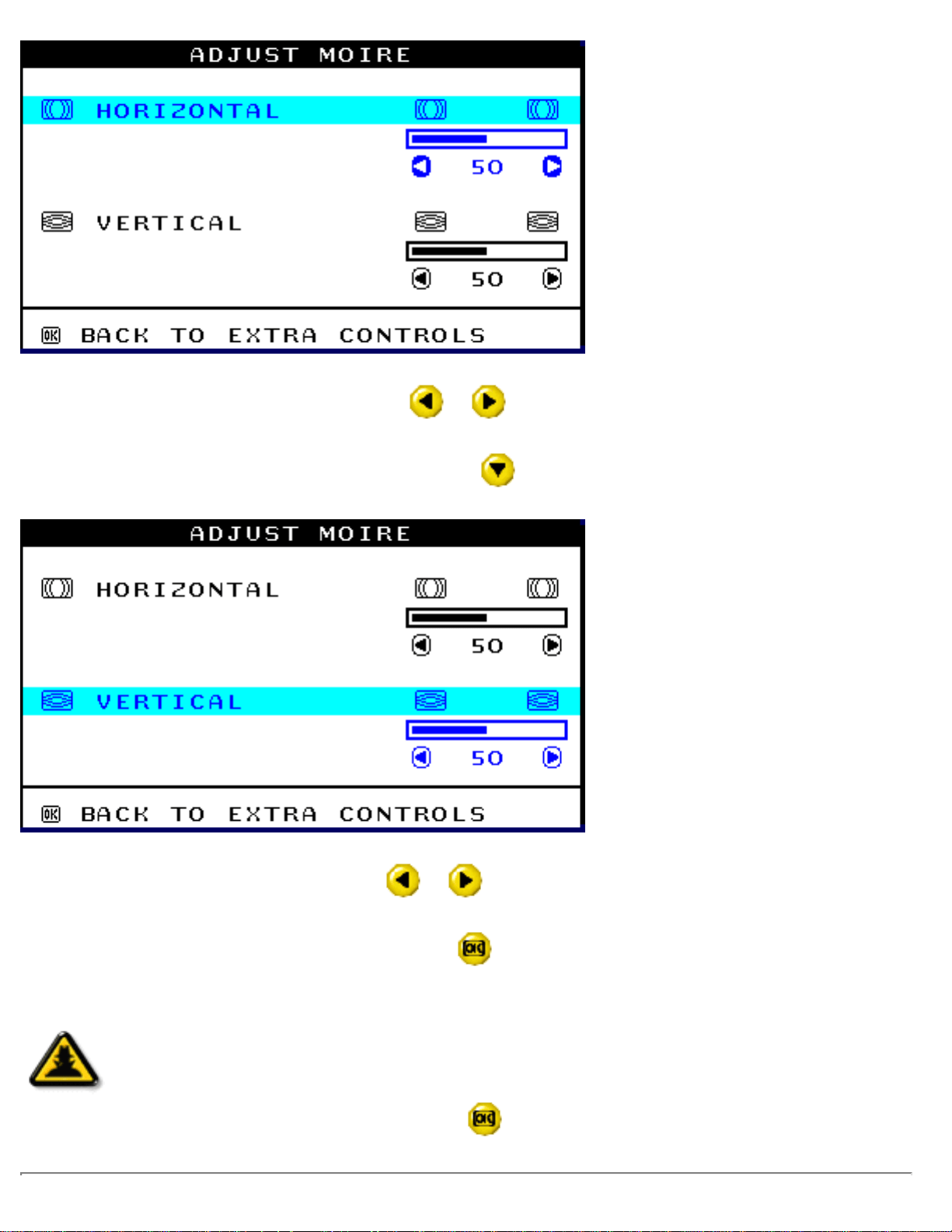

38. What is Moire? Why does my monitor have this wavy phenomenon?
Moire is a natural effect or phenomenon of CRT that has the appearance of a wavy pattern, which is
repetitive and superimposed on the screen as ripple images. These are a few suggestions to help reduce
or minimize the effects:
file:///D|/EDFU/crt_19/edoc/english/FAQ.HTM (10 of 14)7/19/2004 4:10:41 PM
Frequently Asked Questions
42. How do I adjust the picture on the screen?
Please perform the following to correct the picture image:

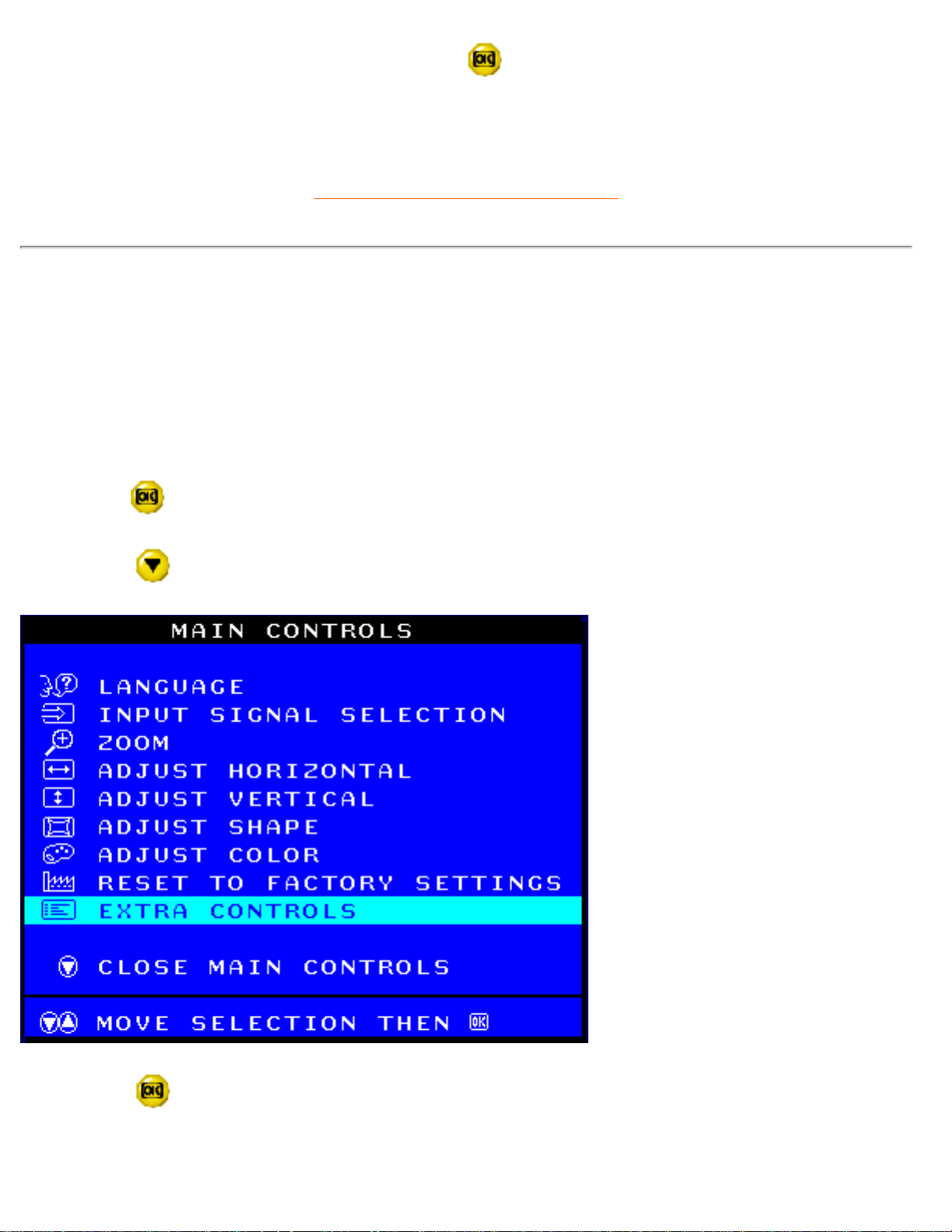

● Reset your monitor via the OSD menu

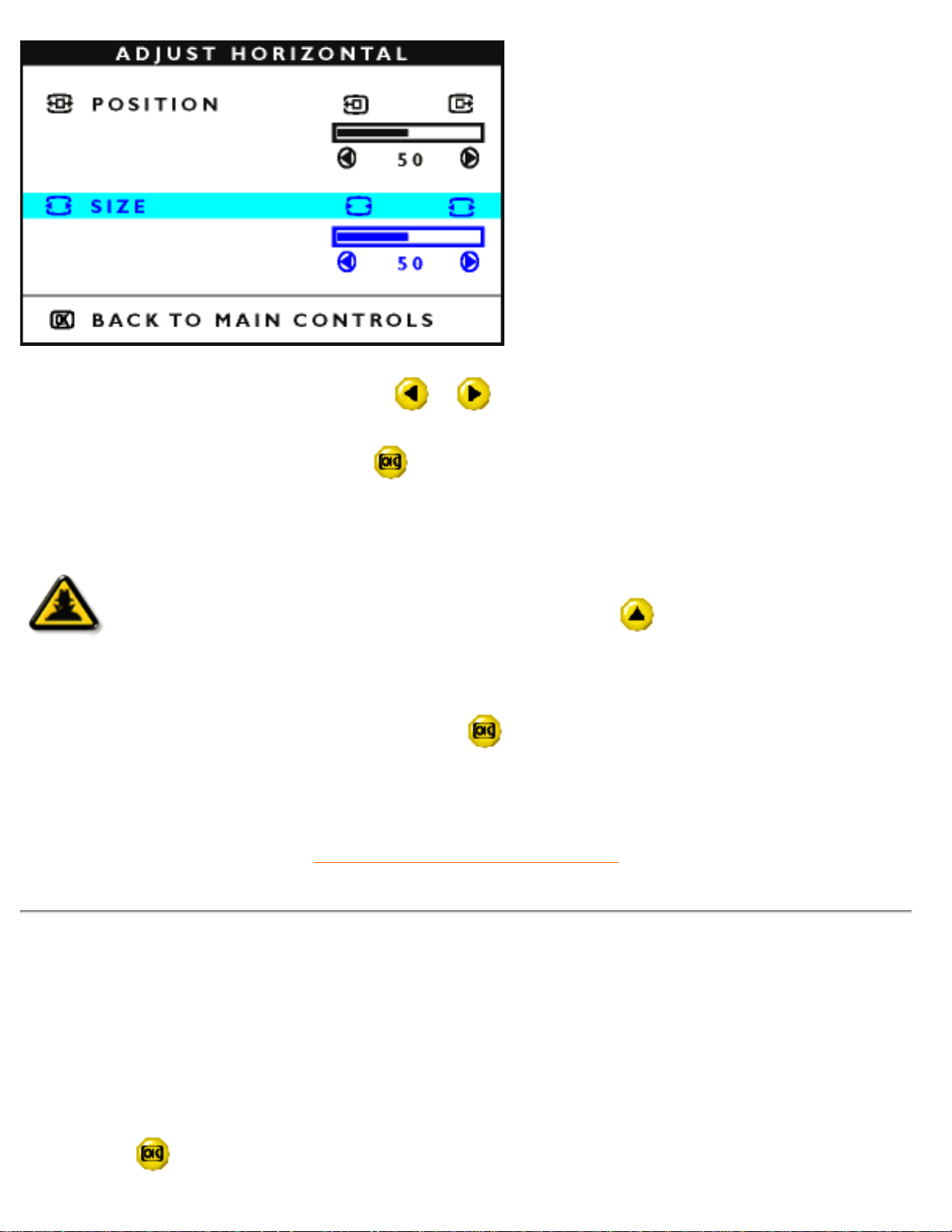

● Adjust the Horz (width) and/or Vert size (height) in the OSD
● Change monitor timing to work at the recommended resolution
43. The edge of the picture on the screen appears to be distorted. How can I correct this?
Please perform the following to correct the picture image:
● A magnetic or electrical interference typically causes poor geometry in the picture. Place the
monitor in a different physical location
● Reset the monitor to the factory preset via the OSD menu
● Access the Geometry Menu in the OSD of the Monitor and perform the necessary adjustments
● Change the monitor timing to the recommended resolution
44. The picture appears too dim. How can I correct this?
Adjust Brightness and/or Contrast via the monitor 's OSD. Some models have a Video Input Select
under Advanced Controls in the monitor 's OSD. Most computers require it to be set at 0.7V.
Please review the following for possible solutions:
● If the OSD menu is also dim, please contact service for repair
● Reset the monitor via the OSD menu

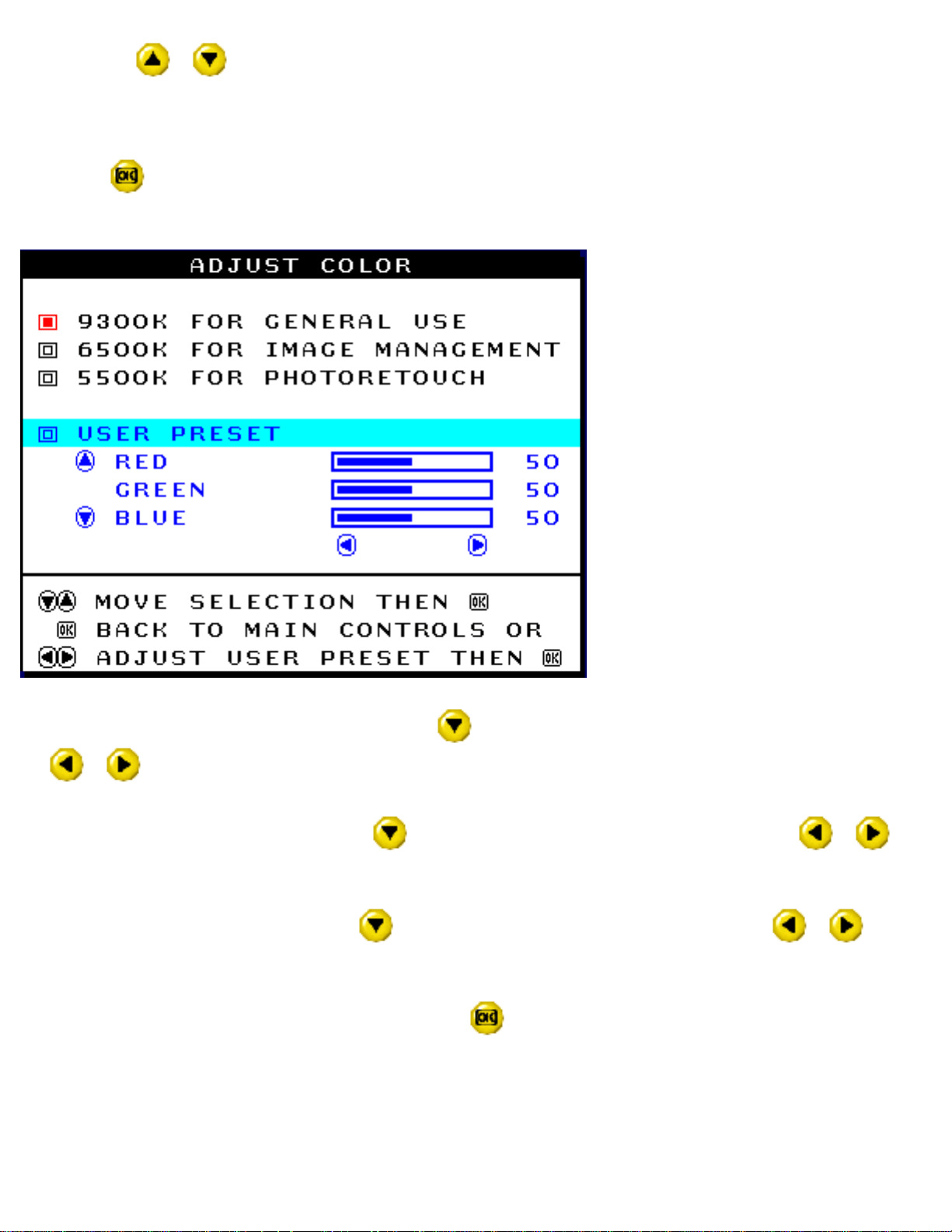

● Change the color temperature settings to 9300 color coordination via the OSD menu
● Set the Contrast to maximum level (100) and Brightness to middle level (50)
Video card could be defective (try the monitor with another computer)
file:///D|/EDFU/crt_19/edoc/english/FAQ.HTM (12 of 14)7/19/2004 4:10:41 PM
Glossary
Glossary
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
A
Autoscan
A microprocessor-based feature of Philips Brilliance monitors is able to detect automatically
horizontal and vertical frequencies of input signals with those of the installed video card. An
autoscan monitor can thus operate with a wide range of video cards. MultiSync, a registered
trademark of NEC, provides a similar function.
RETURN TO TOP OF THE PAGE
B
Balanced pincushion
See Geometric distortion
BNC connection
A special construction of connector used in some monitors with higher horizontal scanning
frequency. The BNC connection can provide the optimum shielding and matching characteristic
impedance of video signal path to ensure the best video performance.
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (1 of 22)7/19/2004 4:10:43 PM
Glossary
RETURN TO TOP OF THE PAGE
C
CE Mark
CE mark is displayed on products per EMC and LV ( low Voltage Device ) directives in compliance
with European Community safety, EMI and EMS requirements and is compulsory on products for
sale in the European Community.
Color temperature
A way of describing the color of a radiating source in terms of the temperature (in degrees Kelvin) of
a black body radiating with the same dominant frequency as the source.
Most Philips monitors offer the possibility of setting the color temperature to any desired value.
Contrast
The ratio between the brightness of the brightest and darkest parts of a picture. The darkest part of
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (2 of 22)7/19/2004 4:10:43 PM
Glossary
a picture is set by the brightness of the unexcited phosphor, which is governed by the degree with
which ambient light is reflected. Contrast is therefore reduced in conditions of high ambient light
levels. Black Matrix tubes reflect less ambient light so exhibit higher contrast than other tubes.
Convergence error
Bean misalignment causing one or more of the three beams passing through the wrong aperture in
the shadow mask and striking a phosphor dot in the wrong triad.
Convergence error is expressed in mm often at three well-defined points on the screen, designated
A, B and C (see figure ). Also known as misconvergence.
Points where convergence error is specified
.
Convergence-error correction
A method of correcting for convergence error to insure that all three beams land simultaneously in
the same triad. This is usually accomplished by means of special convergence-error correction coils
in the deflection yoke.
CRT
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (3 of 22)7/19/2004 4:10:43 PM
Glossary
DDC 1/2B
See DDC.
DDC 2Bi
See DDC.
Degaussing
The procedure of demagnetizing the shadow mask and associated metal parts of a picture tube at
switch-on to minimize picture distortion. This is usually accomplished by means of a special
degaussing coil through which a decaying alternating current is passed to generate an alternating
magnetic field that gradually decays to demagnetize the tube. Some monitors offer a manual
degaussing facility that can be activated at any time.
Digital control
Microprocessor-based digital control of picture parameters and video modes for complete control of
picture settings and modes and instant recall of all settings at the push of a button. This is a very
advanced feature that allows the user to switch to any required mode at any instant without having
to spend time readjusting the picture. It is currently available in most Philips monitors.
Dot pitch
The shortest distance between two phosphor dots of the same color on the screen. The smaller the
dot pitch, the better the resolution of the monitor.
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (5 of 22)7/19/2004 4:10:43 PM
Glossary
Dot rate
Frequency in MHz of the dot clock. It is a measure of the speed with which data is transferred
between the video card and subsequent processing circuitry.
Also known as video dot rate.
RETURN TO TOP OF THE PAGE
E
Electromagnetic radiation standards
International standards set to limit electromagnetic emissions from monitors. There are currently
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (6 of 22)7/19/2004 4:10:43 PM
Glossary
two important standards both derived from regulations originally laid down by Swedish authorities.
MPR-II
The standard originally proposed by the Swedish National Board of Measurement and Testing. It
set maximum levels of electromagnetic radiation emitted by monitors, and has now been adopted
as a world standard. MPR-II defines maximum permitted electrostatic, magnetic and electric field
levels measured at a distance of 50 cm from the center of the monitor (see table).
TCO
In 1991, the Swedish Tjänstemannens Central Organization (TCO, Swedish confederation of
Professional Employees ) set a standard even more severe than MPR-II, especially for alternating
electric fields (AEF). The TCO standard is more severe since not only are the permitted field levels
reduced compared with MPR-II, but the measuring distance is also reduced (see table).
Electromagnetic radiation standards
EMI (Electrical Magnetic Interference)
The electrical and/or magnetic radiation coming from the working electrical or electronic equipment.
EMS (Electrical Magnetic Sustainment)
The ability of electrical or electronic equipment to function properly in the environment with electrical
and/or magnetic interference.
RETURN TO TOP OF THE PAGE
F
Flicker
Very rapid variations in picture intensity caused by the finite time required for the electron beam to

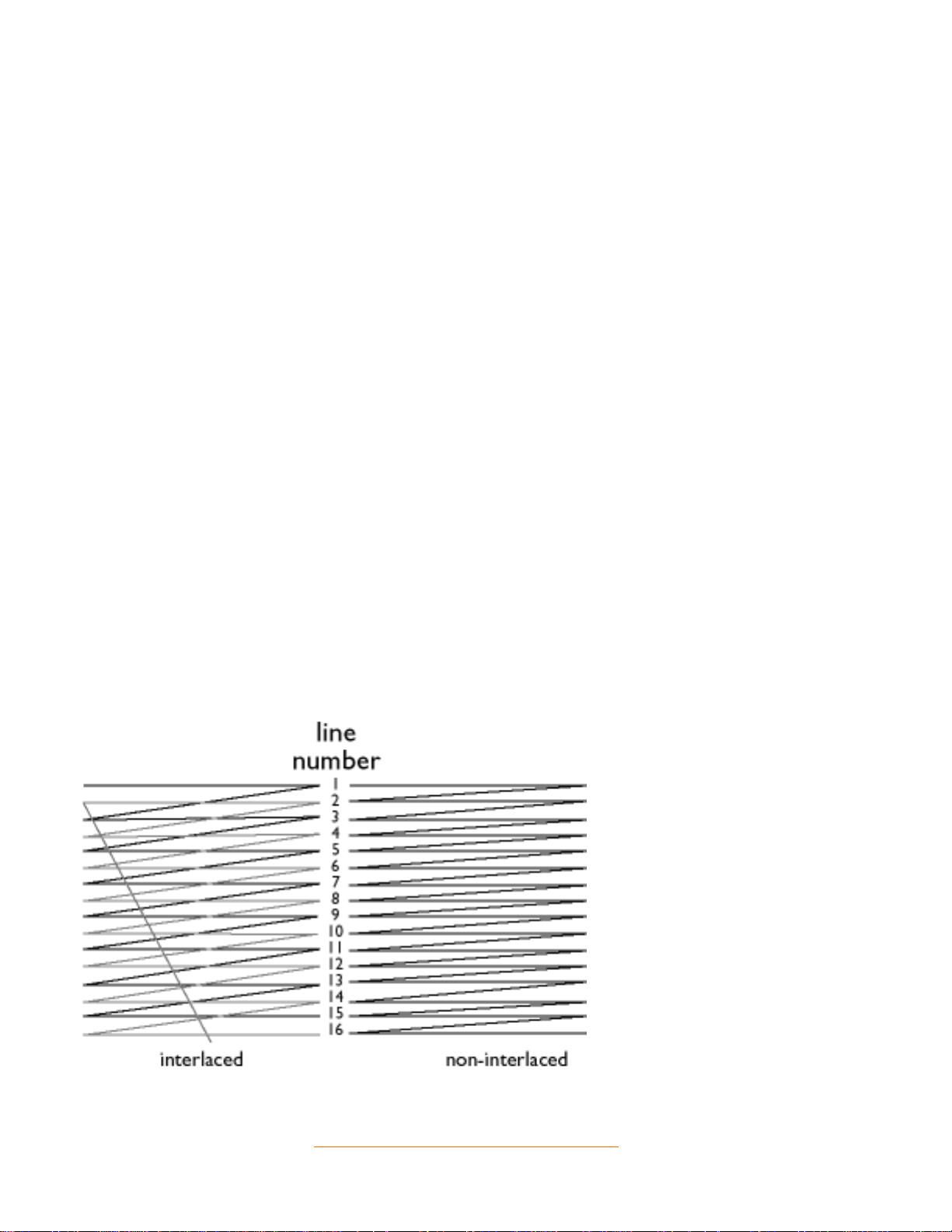

scan a picture onto the screen. Two kinds of flicker occur: line flicker caused by the electron beam
scanning-in each line of the picture; and frame flicker (or field flicker if the picture is interlaced)
caused by the frame repetition rate of 50 frames/second. Frame flicker is noticeable with GUI and
DTP software (which have a light background), and can be very disturbing, especially for those who
work regularly with displays - contributing to eye strain, headaches, visual blurring, stress, etc. The
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (7 of 22)7/19/2004 4:10:43 PM
Glossary
problem can, however, be eliminated by increasing the refresh rate (number of frames/second) of
the monitor to a value above around 70 Hz. Sensitivity to flicker appears to diminish with increasing
age.
RETURN TO TOP OF THE PAGE
H
Hertz
The unit of frequency named after the physicist Heinrich Hertz (1857-1894). 1 hertz (Hz) is equal to
1 cycle/second.
Horizontal dot pitch
See Dot pitch.
Horizontal scanning frequency
Also called line frequency and expressed in kHz, it is the number of video lines written on the
screen every second (from left to right). The higher the horizontal scanning frequency, the better the
resolution (i.e., the higher the resolution and/or the higher the refresh rate).
RETURN TO TOP OF THE PAGE
I
INF File
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (8 of 22)7/19/2004 4:10:43 PM
Glossary
INF file (Information File)
Information (INF) files store information in a specific format. The set-up functions retrieve
information from the INF file to use when performing installation operations. Examples of the type of
information stored in an INF file include INI and registry changes, file names, and locations of the
source files on source media.
Interlaced/non-interlaced
Interlaced.
The method of writing a picture on the screen by initially writing all even lines and subsequently
writing all odd lines of the picture. Result: The complete picture is composed of two interlaced half
pictures (or fields). With interlacing, a vertical (or field) frequency of 50 Hz means a picture (or
frame) frequency of 25 Hz.
Non-interlaced.
The method of writing a picture on the screen by successive video lines of the picture so that a full
frame is written onto the screen in one vertical sweep of the beams. With a non-interlaced display, a
vertical frequency of 50 Hz means a picture (or frame) frequency of 50 Hz. At any given resolution,
non-interlaced modes are preferable to interlaced modes; however, generation of non-interlaced
modes is more expensive.
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (9 of 22)7/19/2004 4:10:43 PM
Glossary
Alternating fields generated by the deflection yoke. These are subject to increasing attention,
notably by governing authorities, the trade and the press. Although there is no scientific evidence
that monitor emissions are harmful, much effort has gone into reducing emissions on the principle
of better safe than sorry. Currently, there are two areas of interest: very-low frequency (VLF)
electric and magnetic fields extending from 2 kHz to 400 kHz, and extreme low frequency (ELF)
fields extending from 5 Hz to 2 kHz.
See also Electromagnetic radiation standards.
RETURN TO TOP OF THE PAGE
M
Moiré effect
A fringe pattern arising from the interference between two superimposed line patterns.
In a monitor it comes from the interference between the shadow mask pattern and the video
information (video moiré), and between the shadow mask pattern and the horizontal line pattern
(scan moiré). It shows itself as wavy patterns on the screen and becomes more noticeable as
monitor resolution increases. Since the video signal varies continuously, little can be done about
video moiré. Scan moiré depends on the horizontal scanning frequency and can be alleviated by
appropriate choice of frequency. Autoscan (MultiSync) monitors, which operate over a range of
scanning frequencies, may sometimes exhibit moiré in certain video modes.
MPR
See Electromagnetic radiation standards.
MultiSync monitor
See Autoscan monitor.
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (11 of 22)7/19/2004 4:10:43 PM
Glossary
N
Non-interlaced
See Interlaced/non-interlaced.
RETURN TO TOP OF THE PAGE
O
OSD (On Screen Display)
The feature that allows an end user to adjust screen performance and parameters of monitors
directly through an on-screen instruction window. See CustoMax in CrystalClear section.
Overscan
The practice in which areas without useful video information are scanned outside the visible screen
area in order to make maximum use of the screen for display of active video information. This
practice is occasionally necessary because some video cards generate a video pattern that is
smaller than the visible screen area, resulting in an image that is smaller (and less legible) than it
needs to be.
RETURN TO TOP OF THE PAGE
P
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (12 of 22)7/19/2004 4:10:43 PM
Glossary
Parallelogram Distortion
See Geometric distortion.
Phosphor
Generic name for the class of substances that exhibit luminescence. To produce a picture on
screen, phosphors are deposited on the inner surface of the picture-tube screen and excited into
luminescence by the electron beam. Typical examples of phosphors are P22 medium short-
persistence phosphor and EBU high-color-saturation phosphor.
Pin-cushion Distortion
See Geometric distortion.
Pixel
Abbreviation for picture element, the smallest element of the picture that can be displayed on the
screen. The smaller the pixel size, the better the resolution of the monitor. Pixel size is determined
by the size of the electron spot on the screen and not necessarily by the phosphor dot pitch (the
size of the triad). Thus, a monitor with a large electron spot covering several triads can exhibit poor
resolution even though its dot pitch is small.
Pixel frequency
The number of pixels that can be written in a video line per second.
Pixel rate
See pixel frequency
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (13 of 22)7/19/2004 4:10:43 PM
Glossary
Plug-and-Play
See DDC. See USB section.
RETURN TO TOP OF THE PAGE
R
Raster
The area on screen that electron beam can reach.
Refresh rate
See Vertical scanning frequency.
Resolution
The number of pixels that can be displayed on the screen. The resolution is specified as the
number of pixels in a line multiplied by the number of horizontal lines.
See also video graphic adapter.
Rotation function
The feature that allows users to adjust the whole screen rotating to be horizontal.
Because of the magnetic field of earth, the screen of monitor will be tilt when the screen faces
toward the different direction.
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (14 of 22)7/19/2004 4:10:43 PM
Glossary
ARAS is one of the most effective anti-reflection/anti-static screen treatments currently available. It
is composed of a multi-layer structure of transparent dielectric material that suppresses specular
reflections by broadband interference effects at the screen surface. Anti-static properties are
provided by a single conductive layer within the multi-layer structure.
With ARAS, the intensity of reflected light is reduced from around 4.5% of the incident light (the
reflectivity of uncoated screens) to less than 0.5%. ARAS also has a major advantage over other
screen treatments: It doesn't diffuse or scatter reflected light, so picture contrast and sharpness
remain completely unimpaired. It's also easy to clean and tough enough to withstand commercially
available cleaning agents.
The ARAS coating reflects only about 0.5% of the incident light.
AGRAS (Anti-Glare anti-Reflection Anti-Static) coating.
A combined anti-reflection, anti-glare, anti-static coating.
Self-test function
A monitor equipped with hardware or software to automatically detect cable connection status.
Shape
Deviation of a reproduced picture from its intended shape. The following types of distortion are most
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (16 of 22)7/19/2004 4:10:43 PM
Glossary
T
TCO
See Electromagnetic radiation standards.
Tilt function
See rotation function.
Trapezoid distortion
See Geometrical distortion.
TTL signal
A TTL (Transistor-transistor-logic) signal is a digital signal level for controlling the screen colors.
With TTL driving, the red, green and blue signals can only be switched on or off or provided with an
intensity signal. A TTL-driven monitor can thus display a maximum of 64 colors. Video standards
such as MDA, CGA and EGA are based on TTL level.
RETURN TO TOP OF THE PAGE
U
USB or Universal Serial Bus
A smart plug for PC peripherals. USB automatically determines resources (like driver software and
bus bandwidth) required by peripherals. USB makes necessary resources available without user
intervention.
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (18 of 22)7/19/2004 4:10:43 PM
Glossary
for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and
logical.

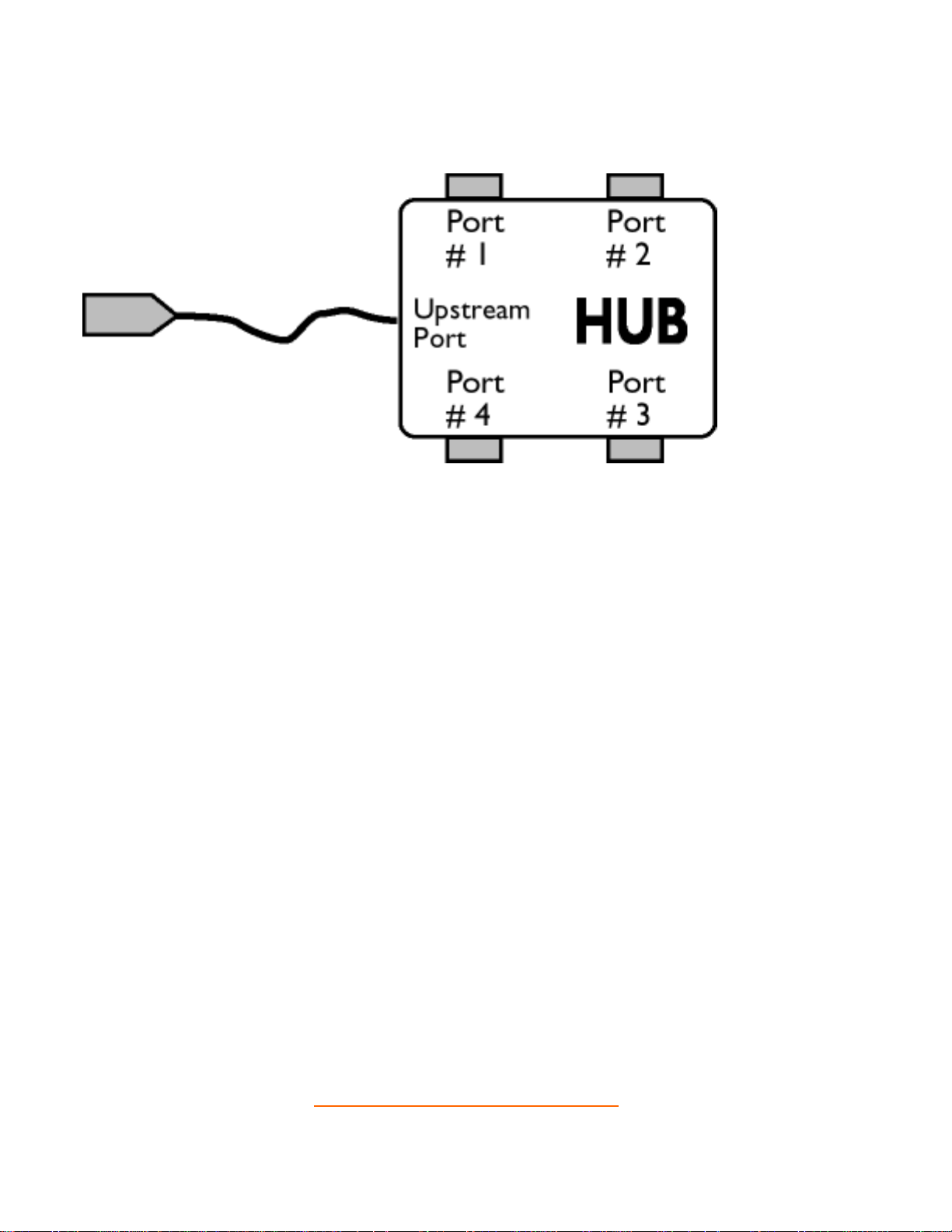

Downstream
The direction of data flow from the host or away from the host. A downstream port is the port on a
hub electrically farthest from the host that generates downstream data traffic from the hub.
Downstream ports receive upstream data traffic.
Upstream
The direction of data flow towards the host. An upstream port is the port on a device electrically
closest to the host that generates upstream data traffic from the hub. Upstream ports receive
downstream data traffic.
UPS (Universal Power Supply)
The monitor with UPS feature can work in different countries with various mains voltage.
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (20 of 22)7/19/2004 4:10:43 PM
Glossary
V
Vertical dot pitch
See Dot pitch.
Vertical scanning frequency
Expressed in Hz, this is the number of fields written to the screen every second in interlaced mode.
In non-interlaced mode vertical scanning frequency is the number of frames (complete pictures)
written to the screen every second (also known as refresh rate).
Vertical sync pulses
A train of square shaped waveforms that define the start of a new frame.
VESA
Video Electronic Standards Association, a consortium of manufacturers formed to establish and
maintain industry-wide standards for video cards and monitors. VESA was instrumental in the
introduction of the Super VGA and Extended VGA video graphics standards (see Video graphics
adapters) with a refresh rate of 70 Hz, minimizing flicker and helping to reduce operator eyes
fatigue and stress.
Video dot rate
See Dot rate.
Video graphics adapters
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (21 of 22)7/19/2004 4:10:43 PM
Glossary
A card equipped with a character or graphic generator and video memory, which maps to the
screen. A microprocessor scans video memory and translates bit information from the computer
into displayable video signals for the monitor. These cards comply with various standards that
determine the nature and quality of the display.
VGA (Video Graphics Array), introduced in 1987, was the first analog card. It offered still higher
resolution than EGA: 640 X 480 pixels for graphics and 720 x 400 pixels for text, and a color palette
of 256 colors. VGA could also emulate EGA and CGA.
Super VGA, devised by VESA in 1989, offers a resolution of 800 x 600 pixels.
Extended VGA, introduced by VESA in 1991, offers a top resolution of 1024 x 768 pixels (non-
interlaced) and a refresh rate slightly higher than IBM's XGA 8514A.
High-end, graphics adapters, introduced over the last three years for professional workstations,
offer top resolutions from 1280 x 1024 to 1600 x 1280, horizontal line frequencies up to 90 kHz and
bandwidths up to 200 MHz.
VIS (Viewable Image Size)
The real screen dimensions that users can see measured diagonally. The VIS of a monitor is
always less than the so called screen size of a monitor. For example, the VIS of a 17-inch monitor
is only about 16 inches. It depends on the useful screen size of CRT and the opening of a monitor's
front cabinet.
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/GLOSSARY/GLOSSARY.HTM (22 of 22)7/19/2004 4:10:43 PM
Download and Print
Download and Print
This page provides an option to read the manual in .pdf format. PDF files can be downloaded into
your hard disk, then viewed and printed with Acrobat Reader or through your browser.
If you do not have Adobe¨ Acrobat Reader installed, click on the link to install the application.
Adobe® Acrobat Reader for PC / Adobe® Acrobat Reader for Mac.
Download instructions:
To download the file:
1. Click-and-hold your mouse over the icon below. (Win95/98 users right-click)
2. From the menu that appears, choose 'Save Link As...', 'Save Target As...' or 'Download Link to
Disk'.
3. Choose where you would like to save the image; click 'Save' (if prompted to save as either 'text'
or 'source', choose 'source').
Printing instructions:
To print the manual:
1. With the manual file open, follow your printer's instructions and print the pages you need.
109B.pdf
English language manual
109E.pdf
109F.pdf
109P.pdf
201B.pdf
file:///D|/EDFU/crt_19/edoc/english/DOWNLOAD/DOWNLOAD.HTM (1 of 2)7/19/2004 4:10:43 PM
Troubleshooting
Troubleshooting
Safety Precautions and Maintenance • Troubleshooting • Regulatory Information• Other
Related Information
Common Problems
Having trouble? Something not working? Before calling for help, try these suggestions.
Having this
problem?
Check these items
No Picture
(Power LED not lit)
● Make sure the Power cable is plugged into the power outlet
and back of the monitor.
● Power button on the front of your monitor should be in the
ON position.
● Disconnect the monitor from the power outlet for about one
minute.
No Picture
(Power LED is yellow)
● Make sure the computer is turned on.
● Make sure the monitor cable is properly connected to your
computer.
● Check to see if the monitor cable has bent pins.
● The Energy Saving feature may be activated
No Picture
(Power LED is green)
● Make sure the Brightness and Contrast controls are set
correctly.
● Make sure the monitor cable is properly connected to your
computer.
● Check to see if the monitor cable has bent pins.
● Make sure the computer Power button is on.
Screen doesn't show
when you turn on the
monitor
● Make sure the monitor cable is properly connected to your
computer. (Also refer to the Quick Start Guide).
● Check to see if the monitor cable has bent pins.
● Make sure the computer is turned on.
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/saf_troub.htm (1 of 3)7/19/2004 4:10:58 PM
Regulatory Information
Regulatory Information
TCO'99 Information • TCO'99 Environmental Requirements • TCO'03 Information •
Recycling Information for Customers • CE Declaration of Conformity • Energy Star
Declaration • Federal Communications Commission (FCC) Notice (U.S. Only) • Commission
Federale de la Communication (FCC Declaration) • EN 55022 Compliance (Czech Republic
Only) • VCCI Class 2 Notice (Japan Only) • MIC Notice (South Korea Only) • Polish Center
for Testing and Certification Notice • North Europe Information (Nordic Countries) • BSMI
Notice (Taiwan Only) • Ergonomie Hinweis (nur Deutschland) • Philips End-of-Life Disposal
• Information for UK only
Safety Precautions and Maintenance • Troubleshooting • Other Related Information
TCO '99 Information (For TCO Model Only)
Congratulations!
You have just purchased a TCO' 99approved and labeled product! Your choice has provided you
with a product developed for professional use. Your purchase has also contributed to reducing the
burden on the environment and also to the further development of environmentally adapted
electronics products.
Why do we have environmentally labeled computers?
In many countries, environmental labeling has become an established method for encouraging the
adaptation of goods and services to the environment. The main problem, as far as computers and
other electronics equipment are concerned, is that environmentally harmful substances are used
both in the products and during their manufacture. Since it is not so far possible to satisfactorily
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (1 of 17)7/19/2004 4:11:00 PM
Regulatory Information
recycle the majority of electronics equipment, most of these potentially damaging substances
sooner or later enter nature.
There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (internal) and natural (external) environments. Since
all methods of electricity generation have a negative effect on the environment (e.g. acidic and
climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in
offices is often left running continuously and thereby consumes a lot of energy.
What does labeling involve?
This product meets the requirements for the TCO' 99 scheme which provides for international and
environmental labeling of personal computers. The labeling scheme was developed as a joint effort
by the TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens
Energimyndighet (The Swedish National Energy Administration).
Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission
of electric and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands impose restrictions on the presence and use of heavy metals,
brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other
things. The product must be prepared for recycling and the manufacturer is obliged to have an
environmental policy which must be adhered to in each country where the company implements its
operational policy.
The energy requirements include a demand that the computer and/or display, after a certain period
of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length
of time to reactivate the computer shall be reasonable for the user.
Labeled products must meet strict environmental demands, for example, in respect of the reduction
of electric and magnetic fields, physical and visual ergonomics and good usability.
Below you will find a brief summary of the environmental requirements met by this product. The
complete environmental criteria document may be ordered from:
TCO Development
SE-114 94 Stockholm, Sweden
Fax: +46 8 782 92 07
Email (Internet): [email protected]
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (2 of 17)7/19/2004 4:11:00 PM
Regulatory Information
Current information regarding TCO' 99 approved and labeled products may also be obtained
via the Internet, using the address: http://www.tco-info.com/
RETURN TO TOP OF THE PAGE
Environmental Requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their
purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer
casing can consist of flame retardant substances. Most flame retardants contain bromine or
chloride, and those flame retardants are chemically related to another group of environmental
toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are
suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds
and mammals, due to the bio-accumulative* processes. Flame retardants have been found in
human blood and researchers fear that disturbances in fetus development may occur.
The relevant TCO' 99 demand requires that plastic components weighing more than 25 grams must
not contain flame retardants with organically bound bromine or chlorine. Flame retardants are
allowed in the printed circuit boards since no substitutes are available.
Cadmium**
Cadmium is present in rechargeable batteries and in the color-generating layers of certain computer
displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99
requirement states that batteries, the color-generating layers of display screens and the electrical or
electronics components must not contain any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and
is toxic in high doses. The relevant TCO' 99 requirement states that batteries may not contain any
mercury. It also demands that mercury is not present in any of the electrical or electronics
components associated with the labeled unit.
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (3 of 17)7/19/2004 4:11:00 PM
Regulatory Information
CFCs (freons)
The relevant TCO' 99 requirement states that neither CFCs nor HCFCs may be used during the
manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed
circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere,
causing increased reception on earth of ultraviolet light with increased risks e.g. skin cancer
(malignant melanoma) as a consequence.
Lead**
Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the
nervous system and in higher doses, causes lead poisoning. The relevant TCO' 99 requirement
permits the inclusion of lead since no replacement has yet been developed.
* Bio-accumulative is defined as substances which accumulate within living organisms.
** Lead, Cadmium and Mercury are heavy metals which are bio-accumulative.
RETURN TO TOP OF THE PAGE
TCO' 03 Information (For TCO Model Only)
Congratulations!
The display you have just purchased carries the TCO'03
Displays label. This means that your display is designed,
manufactured and tested according to some of the strictest
quality and environmental requirements in the world. This
makes for a high performance product, designed with the
user in focus that also minimizes the impact on our natural
environment.
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (4 of 17)7/19/2004 4:11:00 PM
Regulatory Information
For more information, please visit
www.tcodevelopment.com
RETURN TO TOP OF THE PAGE
Recycling Information for Customers
Philips establishes technically and economically viable objectives to optimize the environmental
performance of the organization's product, service and activities.
From the planning, design and production stages, Philips emphasizes the important of making
products that can easily be recycled. At Philips, end-of-life management primarily entails
participation in national take-back initiatives and recycling programs whenever possible, preferably
in cooperation with competitors.
There is currently a system of recycling up and running in the European countries, such as The
Netherlands, Belgium, Norway, Sweden and Denmark.
In U.S.A., Philips Consumer Electronics North America has contributed funds for the Electronic
Industries Alliance (EIA) Electronics Recycling Project and state recycling initiatives for end-of-life
electronics products from household sources. In addition, the Northeast Recycling Council (NERC)
- a multi-state non-profit organization focused on promoting recycling market development - plans to
implement a recycling program.
In Asia Pacific, Taiwan, the products can be taken back by Environment Protection Administration
(EPA) to follow the IT product recycling management process, detail can be found in web site
www.
epa.gov.tw
For help and service, please contact Consumers Information Center or F1rst Choice Contact
Information Center in each country or the following team of Environmental specialist can help.
Mr. Job Chiu - Environment manager
Philips Electronics Industries (Taiwan) Ltd, Monitor Business Unit
E-mail:
Tel: +886 (0) 3 454 9839
Mr. Maarten ten Houten - Senior Environmental Consultant
Philips Consumer Electronics
E-mail:
Tel: +31 (0) 40 27 33402
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (6 of 17)7/19/2004 4:11:00 PM
Regulatory Information
Ms. Delmer F. Teglas
Philips Electronics North America
E-mail: [email protected]
Tel: +1 865 521 4322
RETURN TO TOP OF THE PAGE
CE Declaration of Conformity
●
Philips Consumer Electronics declare under our responsibility that the product is in
conformity with the following standards
- EN60950:1992+A1+A2+A3+A4+A11 (Safety requirement of Information Technology
Equipment)
- EN55022:1998 (Radio Disturbance requirement of Information Technology Equipment)
- EN55024:1998 (Immunity requirement of Information Technology Equipment)
- EN61000-3-2:1995 (Limits for Harmonic Current Emission)
- EN61000-3-3:1995 (Limitation of Voltage Fluctuation and Flicker)
following provisions of directives applicable
- 73/23/EEC (Low Voltage Directive)
- 89/336/EEC (EMC Directive)
- 93/68/EEC (Amendment of EMC and Low Voltage Directive)
and is produced by a manufacturing organization on ISO9000 level.
●
The product also comply with the following standards
- ISO9241-3, ISO9241-7, ISO9241-8 (Ergonomic requirement for Visual Display)
- ISO13406-2 (Ergonomic requirement for Flat panels)
- GS EK1-2000 (GS specification)
- prEN50279:1998 (Low Frequency Electric and Magnetic fields for Visual Display)
- MPR-II (MPR:1990:8/1990:10 Low Frequency Electric and Magnetic fields)
- TCO95, TCO99, TCO03 (Requirement for Environment Labelling of Ergonomics, Energy,
Ecology and Emission,
TCO: Swedish Confederation of Professional Employees) for TCO versions
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (7 of 17)7/19/2004 4:11:00 PM
Regulatory Information
Energy Star Declaration
PHILIPS
201B4*
This monitor is equipped with a function for saving energy which supports the VESA Display
Power Management Signaling (DPMS) standard. This means that the monitor must be
connected to a computer which supports VESA DPMS to fulfill the requirements in the NUTEK
specification 803299/94. Time settings are adjusted from the system unit by software.
NUTEK VESA State LED Indicator Power Consumption
Normal operation ON Green Typical 104W
Power Saving
Alternative2
One Step
OFF Yellow < 1W
As an ENERGY STAR
®
Partner, PHILIPS has determined that this product
meets the
ENERGY STAR
®
guidelines for energy efficiency.
We recommend you switch off the monitor when it is not in use for quite a long time.
RETURN TO TOP OF THE PAGE
Federal Communications Commission (FCC) Notice (U.S. Only)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (8 of 17)7/19/2004 4:11:00 PM
Regulatory Information
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a
computer device.
To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or
excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE-CAUSING EQUIPMENT REGULATIONS.
RETURN TO TOP OF THE PAGE
Commission Federale de la Communication (FCC Declaration)
Cet équipement a été testé et déclaré conforme auxlimites des appareils numériques
de class B,aux termes de l'article 15 Des règles de la FCC. Ces limites sont conçues
de façon à fourir une protection raisonnable contre les interférences nuisibles dans le
cadre d'une installation résidentielle. CET appareil produit, utilise et peut émettre des
hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes
données, peuvent causer des interférences nuisibles aux communications radio.
Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une
installation particulière. Si cet appareil est la cause d'interférences nuisibles pour la
réception des signaux de radio ou de télévision, ce qui peut être décelé en fermant
l'équipement, puis en le remettant en fonction, l'utilisateur pourrait essayer de
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (9 of 17)7/19/2004 4:11:00 PM
Regulatory Information
VCCI Notice (Japan Only)
This is a Class B product based on the standard of the Voluntary Control Council for Interference
(VCCI) for Information technology equipment. If this equipment is used near a radio or television
receiver in a domestic environment, it may cause radio Interference. Install and use the equipment
according to the instruction manual.
Class B ITE
RETURN TO TOP OF THE PAGE
MIC Notice (South Korea Only)
Class B Device
Please note that this device has been approved for non-business purposes and may be used in any
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (11 of 17)7/19/2004 4:11:00 PM
Regulatory Information
environment, including residential areas.
RETURN TO TOP OF THE PAGE

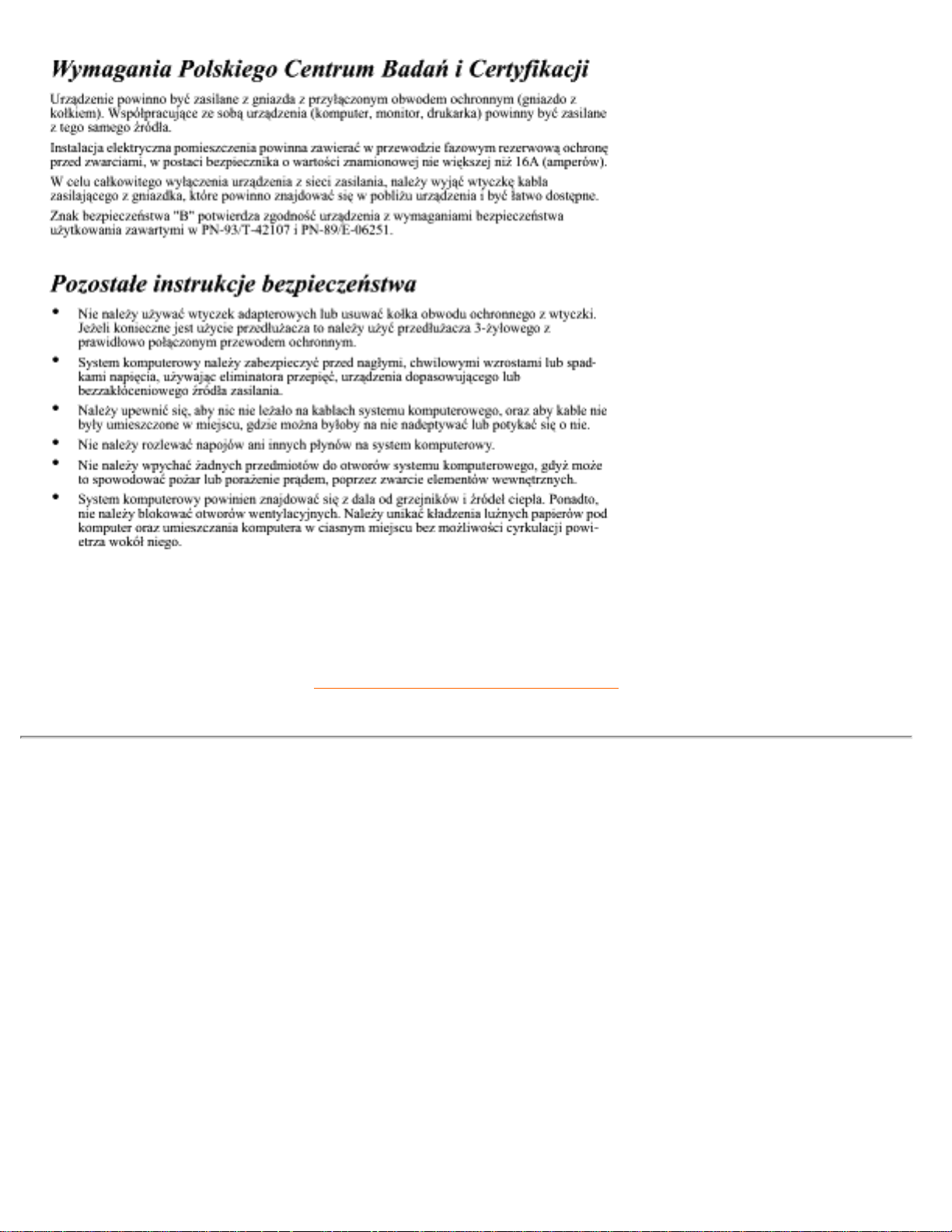

Polish Center for Testing and Certification Notice
The equipment should draw power from a socket with an attached protection circuit (a three-prong
socket). All equipment that works together (computer, monitor, printer, and so on) should have the
same power supply source.
The phasing conductor of the room's electrical installation should have a reserve short-circuit
protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
To completely switch off the equipment, the power supply cable must be removed from the power
supply socket, which should be located near the equipment and easily accessible.
A protection mark "B" confirms that the equipment is in compliance with the protection usage
requirements of standards PN-93/T-42107 and PN-89/E-06251.
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (12 of 17)7/19/2004 4:11:00 PM
Regulatory Information
RETURN TO TOP OF THE PAGE
North Europe Information (Nordic Countries)
Placering/Ventilation
VARNING:
FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR
DU STÄLLER DIN UTRUSTNING PÅPLATS.
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (13 of 17)7/19/2004 4:11:00 PM
Regulatory Information
Placering/Ventilation
ADVARSEL:
SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT
ER NEMT TILGÆNGELIGE.
Paikka/Ilmankierto
VAROITUS:
SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI
IRROTTAA PISTORASIASTA.
Plassering/Ventilasjon
ADVARSEL:
NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR
STØMTILFØRSEL ER LETTE Å NÅ.
RETURN TO TOP OF THE PAGE
BSMI Notice (Taiwan Only)
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (14 of 17)7/19/2004 4:11:00 PM
Regulatory Information
RETURN TO TOP OF THE PAGE
Ergonomie Hinweis (nur Deutschland)
Der von uns gelieferte Farbmonitor entspricht den in der "Verordnung über den Schutz vor Schäden
durch Röntgenstrahlen" festgelegten Vorschriften.
Auf der Rückwand des Gerätes befindet sich ein Aufkleber, der auf die Unbedenklichkeit der
Inbetriebnahme hinweist, da die Vorschriften über die Bauart von Störstrahlern nach Anlage III ¤ 5
Abs. 4 der Röntgenverordnung erfüllt sind.
Damit Ihr Monitor immer den in der Zulassung geforderten Werten entspricht, ist darauf zu achten,
daß
1. Reparaturen nur durch Fachpersonal durchgeführt werden.
2. nur original-Ersatzteile verwendet werden.
3. bei Ersatz der Bildröhre nur eine bauartgleiche eingebaut wird.
Aus ergonomischen Gründen wird empfohlen, die Grundfarben Blau und Rot nicht auf dunklem
Untergrund zu verwenden (schlechte Lesbarkeit und erhöhte Augenbelastung bei zu geringem
Zeichenkontrast wären die Folge).
Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger.
ACHTUNG: BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß
NETZSTECKER UND NETZKABELANSCHLUß LEICHT ZUGÄNGLICH SIND.
RETURN TO TOP OF THE PAGE
End-of-Life Disposal
Your new monitor contains materials that can be recycled and reused. Specialized companies can
recycle your product to increase the amount of reusable materials and to minimize the amount to be
disposed of.
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (15 of 17)7/19/2004 4:11:00 PM
Regulatory Information
Please find out about the local regulations on how to dispose of your old monitor from your local
Philips dealer.
RETURN TO TOP OF THE PAGE
Information for UK only
WARNING - THIS APPLIANCE MUST BE
EARTHED.
Important:
This apparatus is supplied with an approved
moulded 13A plug. To change a fuse in this type
of plug proceed as follows:
1. Remove fuse cover and fuse.
2. Fit new fuse which should be a BS 1362 5A,A.
S.T.A. or BSI approved type.
3. Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate 3-
pin plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 5A. If a plug without a fuse is
used, the fuse at the distribution board should
not be greater than 5A.
Note: The severed plug must be destroyed to
avoid a possible shock hazard should it be
inserted into a 13A socket elsewhere.
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/regs/regulat.htm (16 of 17)7/19/2004 4:11:00 PM
Other Related Information
Other Related Information
Safety Precautions and Maintenance • Troubleshooting • Regulatory Information •
Information for Users in the U. S. • Information for Users Outside the U.S
Information for Users in the U. S.
For units set at 115 V :
Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord
a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.
For units set at 230 V:
Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord
a maximum of 15-feet long and a tandem blade, grounding type attachment plug rated 15 A, 250 V.
Information for Users outside the U.S.
For units set at 230 V:
Use a Cord Set rated minimum 5 A, 250 V ( for units set at 230V ) or 10A, 125V (for units set at
115V). The Cord Set should have the appropriate safety approvals for the country in which the
equipment will be installed.
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/201B/SAFETY/saf_other.htm7/19/2004 4:11:01 PM
The OSD Controls
The OSD Controls
Description of the On-Screen Display • The OSD Tree
The OSD Controls : Brightness (HotKey) • Contrast (HotKey) • Language • Input Signal
Selection • Zoom • Adjust Horizontal • Adjust Vertical • Adjust Shape • Adjust Color • Reset
to Factory Settings • Extra Controls • Close Main Controls
BRIGHTNESS
To adjust your screen's brightness, follow the steps below. Brightness is the overall intensity of the
light coming from the screen. A 50% brightness is recommended.
1) Press the
or button on the monitor. The BRIGHTNESS window appears.
2) Press the or button to adjust the brightness.
3) When the brightness is adjusted to the level desired, stop pressing the
or button and
after three seconds the BRIGHTNESS window will disappear with the new adjustment saved.
Smart
Help
After the BRIGHTNESS window has disappeared, to continue to the
CONTRAST window, follow the steps under CONTRAST.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (1 of 27)7/19/2004 4:11:18 PM
The OSD Controls
RETURN TO TOP OF THE PAGE
CONTRAST
To adjust your screen's contrast, follow the steps bellow. Contrast is the difference between the
light and dark areas on the screen. A 100% contrast is recommended.
1) Press the
or button on the monitor. The CONTRAST window appears.
2) Press the or button to adjust the contrast.
3) When the contrast is adjusted to the level desired, stop pressing the
or button and after
three seconds the CONTRAST window will disappear with the new adjustment saved.
Smart
Help
After the CONTRAST window has disappeared, to continue to the MAIN
CONTROLS, follow the steps under LANGUAGE
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (2 of 27)7/19/2004 4:11:18 PM
The OSD Controls
LANGUAGE
The ON SCREEN DISPLAY shows its settings in one of five languages. The default is English, but
you can select French, Spanish, German, or Italian.
1) Press the
button on the monitor. The MAIN CONTROLS window appears. LANGUAGE
should be highlighted.
2) Press the
button again. The LANGUAGE window appears.
3) Press the or button until the desired language is highlighted.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (3 of 27)7/19/2004 4:11:18 PM
The OSD Controls
4) Press the button to confirm your selection and return to MAIN CONTROLS window. CLOSE
MAIN CONTROLS will be highlighted...
Smart
Help
After returning to MAIN CONTROLS . . .
. . . to continue to INPUT SIGNAL SELECTION, press the button until
INPUT SIGNAL SELECTION is highlighted. Next, follow steps 3 - 5 under
INPUT SIGNAL SELECTION.
. . . to exit completely, press the
button
RETURN TO TOP OF THE PAGE
INPUT SIGNAL SELECTION (Not available in all models)
INPUT SIGNAL SELECTION determines what you see on the screen. The default setting is INPUT
A, but if the video input signal is different that the output signal, you may want to change it to INPUT
B.?
1) Press the
button on the monitor. The MAIN CONTROLS window appears.
2) Press the
button until INPUT SIGNAL SELECTION is highlighted.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (4 of 27)7/19/2004 4:11:18 PM
The OSD Controls
3) Press the button. The INPUT SIGNAL SELECTION window appears.
4) Press the or button to highlight INPUT B or INPUT A.
5) Press the
button to confirm your selection and return to the MAIN CONTROLS window.
CLOSE MAIN CONTROLS will be highlighted.
Smart
Help
After returning to MAIN CONTROLS . . .
. . . to continue to ZOOM, press the button until ZOOM is highlighted.
Next, follow steps 3 - 5 under ZOOM.
. . . to exit completely, press the
button
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (5 of 27)7/19/2004 4:11:18 PM
The OSD Controls
RETURN TO TOP OF THE PAGE
ZOOM
ZOOM increases or decreases the size of the images on your screen. To adjust the ZOOM follow
the steps below.
1) Press the
button on the monitor. The MAIN CONTROLS window appears.
2) Press the
button until ZOOM is highlighted.
3) Press the button. The ZOOM window appears.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (6 of 27)7/19/2004 4:11:18 PM
The OSD Controls
3) Press the button. The ADJUST HORIZONTAL window appears. POSITION should be
highlighted.
4) Press the or button to move the image to the left or right.
5) When the position is adjusted, press the
button to return to MAIN CONTROLS window, or
press the
to highlight SIZE.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (8 of 27)7/19/2004 4:11:18 PM
The OSD Controls
6) To adjust the horizontal size, press the or button.
7) When the size is adjusted, press the
button to return to MAIN CONTROLS window. CLOSE
MAIN CONTROLS will be highlighted.
Smart
Help
After returning to MAIN CONTROLS . . .
. . . to continue to ADJUST VERTICAL, press the button until ADJUST
VERTICAL is highlighted. Next, start with step 3 under ADJUST VERTICAL
and follow the directions.
. . . to exit completely, press the
button
RETURN TO TOP OF THE PAGE
ADJUST VERTICAL
ADJUST POSITION under ADJUST VERTICAL shifts the image on your screen either up or down.
Use this feature if your image does not appear centered. ADJUST SIZE under ADJUST VERTICAL
expands or controls the image on your screen, pushing it out toward the top or bottom or pulling it in
toward the center.
1) Press the
button on the monitor. The MAIN CONTROLS window appears.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (9 of 27)7/19/2004 4:11:18 PM
The OSD Controls
2) Press the button until ADJUST VERTICAL is highlighted.
3) Press the button. The ADJUST VERTICAL window appears. POSITION should be
highlighted.
4) Press the or button to move the image up or down.
5) When the position is adjusted, press the
button to return to MAIN CONTROLS window, or
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (10 of 27)7/19/2004 4:11:18 PM
The OSD Controls
press the to highlight SIZE.
6) To adjust the vertical size, press the or button.
7) When the size is adjusted, press the
button to return to MAIN CONTROLS window. CLOSE
MAIN CONTROLS will be highlighted.
Smart
Help
After returning to MAIN CONTROLS . . .
. . . to continue to ADJUST SHAPE, press the button until ADJUST
SHAPE is highlighted. Next, start with step 3 under ADJUST SHAPE and
follow the directions.
. . . to exit completely, press the
button
RETURN TO TOP OF THE PAGE
ADJUST SHAPE
ADJUST SIDE CURVE
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (11 of 27)7/19/2004 4:11:18 PM
The OSD Controls
ADJUST SIDE CURVE under ADJUST SHAPE allows you to adjust two of the five preset options.
These two options are PINCUSHION and BALANCED pincushion. Note: use these features only
when the picture is not square.
1) Press the
button on the monitor. The MAIN CONTROLS window appears.
2) Press the
button until ADJUST SHAPE is highlighted.
3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be
highlighted.
4) Press the button. The SIDE CURVE window appears. PINCUSHION should be highlighted.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (12 of 27)7/19/2004 4:11:18 PM
The OSD Controls
8) To adjust the parallelogram, press the or button.
9) When the parallelogram is adjusted, press the
button to return to the ADJUST SHAPE
window. BACK TO MAIN WINDOWS will be highlighted.
10) Press the
button to return to the MAIN CONTROLS window, or press the button until
ROTATE IMAGE is highlighted.
Smart
Help
After returning to MAIN CONTROLS . . .
...to continue to ROTATE IMAGE, start with step 5 under ROTATE IMAGE and
follow the directions.
...to exit completely, press the
button twice.
...to adjust only the PARALLELOGRAM, follow steps 1 - 4 above, then press
the
button, and follow steps 7 - 9.
ROTATE IMAGE (Not available in all models)
ROTATE IMAGE under ADJUST SHAPE allows you to adjust one of the five preset options. These
two options are PINCUSHION and BALANCED pincushion. Note: use this feature only when the
picture is not square.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (16 of 27)7/19/2004 4:11:18 PM
The OSD Controls
1) Press the button on the monitor. The MAIN CONTROLS window appears.
2) Press the
button until ADJUST SHAPE is highlighted.
3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be
highlighted.
4) Press the
arrow until ROTATE IMAGE is highlighted.
5) Press the button. The ROTATE IMAGE window appears. ROTATE should be highlighted.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (17 of 27)7/19/2004 4:11:18 PM
The OSD Controls
6) To adjust the rotation, press the or button.
7) When the rotation is adjusted, press the
button to return to the ADJUST SHAPE window.
BACK TO MAIN CONTROLS should be highlighted.
8) Press the
button to return to MAIN CONTROLS.
Smart
Help
After returning to MAIN CONTROLS . . .
. . . to continue to ADJUST COLOR, press the button until ADJUST
COLOR is highlighted. Next, start with step 3 under ADJUST COLOR and
follow the directions.
...to exit completely, press the
button twice.
RETURN TO TOP OF THE PAGE
ADJUST COLOR
Your monitor has three preset options you can choose from. The first option is for GENERAL USE,
which is fine for most applications. The second option is for IMAGE MANAGEMENT, which includes
projects such as desktop publishing, viewing a DVD from your DVD player or pictures on the World
Wide Web, and playing video games. The third option is for PHOTO RETOUCH, which is for
working with pictures you have imported into your computer and want to alter. When you select one
of these options, the monitor automatically adjusts itself to that option. There is also a fourth option,
USER PRESET, which allows you to adjust the colors on your screen to a setting you desire.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (18 of 27)7/19/2004 4:11:18 PM
The OSD Controls
4) Press the or button to highlight 9300K for GENERAL USE, 6500K for IMAGE
MANAGEMENT, 5500K for PHOTO RETOUCH, or USER PRESET.
5) Once you have highlighted GENERAL USE, IMAGE MANAGEMENT, or PHOTO RETOUCH,
press the button to confirm you selection and return to the MAIN CONTROLS window. CLOSE
MAIN CONTROLS will be highlighted.
6a) If USER PRESET is highlighted, press the button to highlight RED. Next, press
the
or button to adjust the color red.
6b) When finished with RED, press the
button to highlight GREEN. Next, press the or
button to adjust the color green.
6c) When finished GREEN, press the
button to highlight BLUE. Next, press the or
button to adjust the color blue.
6d) When all adjustments are complete, press the
button to confirm your adjustments and
return to the MAIN CONTROLS window. CLOSE MAIN CONTROLS will be highlighted.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (20 of 27)7/19/2004 4:11:18 PM
The OSD Controls
3) Press the button. The RESET TO FACTORY SETTINGS window appears.
4) Press the
or button to select YES or NO. NO is the default. YES returns all settings to
their original factory adjustments.
5) Press the button to confirm your selection and return to the MAIN CONTROLS window.
CLOSE MAIN CONTROLS will be highlighted.
Smart
Help
After returning to MAIN CONTROLS . . .
. . . to continue to EXTRA CONTROLS, press the button until EXTRA
CONTROLS is highlighted. Next, start with step 3 under EXTRA CONTROLS.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (22 of 27)7/19/2004 4:11:18 PM
The OSD Controls
. . . to exit completely, press the button.
RETURN TO TOP OF THE PAGE
EXTRA CONTROLS
DEGAUSS
EXTRA CONTROLS is a set of three features, including DEGAUSS. Degaussing removes
electromagnetic build up that may distort the color on your screen.
1) Press the
button on the monitor. The MAIN CONTROLS window appears.
2) Press the
button until EXTRA CONTROLS is highlighted.
3) Press the button. The EXTRA CONTROLS window appears. MOIRE will be highlighted.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (23 of 27)7/19/2004 4:11:18 PM
The OSD Controls
2) Press the DOWN CURSOR button until EXTRA CONTROLS is highlighted.
3) Press the button. The EXTRA CONTROLS window appears. ADJUST MOIRE will be
highlighted.
4) Press the button. The ADJUST MOIRE window appears. HORIZONTAL will be highlighted.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (25 of 27)7/19/2004 4:11:18 PM
The OSD Controls
5) To adjust the horizontal moire, press the or button.
6) When the horizontal moire is adjusted, press the
button to highlight VERTICAL.
7) To adjust the vertical moire, press the or button.
8) When the vertical moire is adjusted, press the
button to return to the EXTRA CONTROLS
window. BACK TO MAIN CONTROLS will be highlighted.
Smart
Help
After returning to MAIN CONTROLS . . .
. . . to exit completely, press the button.
file:///D|/EDFU/crt_19/edoc/english/OSD/osd_cont.htm (26 of 27)7/19/2004 4:11:18 PM
F1rst Choice Warranty
Having the following information available will also help speed up the process:
● Your proof of purchase indicating: date of purchase, dealer name, model and product serial
number.
● The full address to which the faulty monitor has to be collected and the swap model should
be delivered.
Philips' customer help desks are located worldwide. Click here to access the
F1rst Choice Contact
Information.
Or you can reach us via:
Website:
http://www.philips.com/support
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/war_1st.htm (3 of 3)7/19/2004 4:11:23 PM
International Guarantee
Your International Guarantee
Dear Customer,
Thank you for purchasing this Philips product which has been designed and manufactured to the
highest quality standards.
If, unfortunately, something should go wrong with this product Philips guarantees free of charge
labor and replacement parts irrespective of the country where it is repaired during a period of 12
months from date of purchase. This international Philips guarantee complements the existing
national guarantee obligations to you of dealers and Philips in the country of purchase and does not
affect your statutory rights as a customer.
The Philips guarantee applies provided the product is handled properly for its intended use, in
accordance with its operating instructions and upon presentation of the original invoice or cash
receipt, indicating the date of purchase, dealer's name and model and production number of the
product.
The Philips guarantee may not apply if:
● the documents have been altered in any way or made illegible;
● the model or production number on the product has been altered, deleted, removed or made
illegible;
● repairs or product modifications and alterations have been executed by unauthorized service
organizations or persons;
● damage is caused by accidents including but not limited to lightning, water or fire, misuse or
neglect.
Please note that the product is not defective under this guarantee in the case where modifications
become necessary in order for the product to comply with local or national technical standards
which apply in countries for which the product was not originally designed and/or manufactured.
Therefore always check whether a product can be used in a specific country.
In case your Philips product is not working correctly or is defective, please contact your Philips
dealer. In the event you require service whilst in another country a dealer address can be given to
you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can
be found in the relevant part of this booklet.
In order to avoid unnecessary inconvenience, we advise you to read the operating instructions
carefully before contacting your dealer. If you have questions which your dealer cannot answer or
any related question please contact the
Philips Consumer Information Centers or via:
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/war_intl.htm (1 of 2)7/19/2004 4:11:24 PM
United States Guarantee
This warranty gives you specific legal rights. You may have other rights which vary from state/
province to state/province.
Before contacting Philips, please prepare the following details so we can solve your problem
quickly.
● Philips type number
● Philips serial number
● Purchase date (copy of purchase may be required)
● PC environment Processor:
❍ 286/386/486/Pentium Pro/Internal memory
❍ Operating system (Windows, DOS, OS/2, MAC)
❍ Fax/Modem/Internet program?
● Other cards installed
Having the following information available will also help speed up the process:
● Your proof of purchase indicating: date of purchase, dealer name, model and product serial
number.
● The full address to which the faulty monitor has to be collected and the swap model should
be delivered.
Just a phone call away
Philips' customer help desks are located worldwide. Within the U.S. you can contact Philips
customer care Monday-Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from
10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers.
For more information on this and more great Philips products visit our website at:
Website:
http://www.philipsusa.com
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/WAR_USA.HTM (4 of 4)7/19/2004 4:11:24 PM
F1rst Choice Contact Information
F1rst Choice Contact Information
Telephone numbers:
Austria 01 546 575 603
Belgium 02 275 0701
Cyprus 800 92256
Denmark 35 25 87 61
France 03 8717 0033
Germany 0696 698 4712
Greece 00800 3122 1223
Finland 09 2290 1908
Ireland 01 601 1161
Italy 02 48 27 11 53
Luxembourg 026 84 3000
The Netherlands 053 482 9800
Norway 22 70 82 50
Portugal 0800 831 363
Sweden 08 632 0016
Switzerland 02 23 10 21 16
Spain 09 17 45 62 46
United Kingdom 0207 949 0069
* Calls charged at local
rates
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warfirst.htm7/19/2004 4:11:48 PM
Consumer Information Centers
Consumer Information Centers
Antilles • Argentina • Australia • Bangladesh • Brasil • Canada • Chile • China • Colombia •
Czech Republic • Dubai • Egypt • Hong Kong • Hungary • Slovakia• Slovenia •
India• Indonesia • Japan • Korea • Malaysia • Mexico • Morocco • New Zealand • Pakistan •
Paraguay • Peru • Philippines • Poland • Russia • Singapore • South Africa • Taiwan •
Thailand • Turkey • Uruguay • Venezuela
Eastern Europe
CZECH REPUBLIC
Xpectrum
Lužná 591/4
CZ - 160 00 Praha 6
Tel: 800 100 697
Email:[email protected]
www.xpectrum.cz
HUNGARY
Serware Szerviz
Vizimolnár u. 2-4
HU - 1031 Budapest
Tel: +36 1 2426331
Email: [email protected]
www.serware.hu
SLOVAKIA
Datalan Servisne Stredisko
Puchovska 8
SK - 831 06 Bratislava
Tel: +421 2 49207155
Email: [email protected]
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (1 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
SLOVENIA
PC HAND
Brezovce 10
SI - 1236 Trzin
Tel: +386 1 530 08 24
Email: [email protected]
POLAND
Zolter
ul.Zytnia 1
PL - 05-500 Piaseczno
Tel:+48 22 7501766
Email: [email protected]
www.zolter.com.pl
RUSSIA
Tel: +7 095 961-1111
Tel: 8-800-200-0880
Web-site: www.philips.ru
TURKEY
Türk Philips Ticaret A.S.
Yukari Dudullu Org.San.Bolgesi
2.Cadde No:22
34776-Umraniye/Istanbul
Tel: (0800)-261 33 02
Latin America
ANTILLES
Philips Antillana N.V.Kaminda A.J.E. Kusters 4
Zeelandia, P.O. box 3523-3051
Willemstad, Curacao
Phone: (09)-4612799
Fax : (09)-4612772
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (2 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
ARGENTINA
Vedia 3892 Capital Federal
CP:1430 Buenos Aires
Phone: (011)-4544 2047
Fax: (011)-4544 2928
BRASIL
Philips da Amazonia Ind. Elet.Ltda.
Av.Luis Carlos Berrini,
1400-Sao Paulo-SP
Phone: 0800-7010-203
CHILE
Philips Chilena S.A.
Avenida Santa Maria 0760
P.O. box 2687Santiago de Chile
Phone: (02)-730 2000
Fax : (02)-777 6730
COLOMBIA
Industrias Philips de Colombia
S.A.-Division de Servicio
CARRERA 15 Nr. 104-33
Bogota, Colombia
Phone: (01)-8000-111001 (toll free)
Fax : (01)-619-4300/619-4104
MEXICO
Consumer Information Centre
Norte 45 No.669
Col. Industrial Vallejo
C.P.02300, -Mexico, D.F.
Phone: (05)-3687788 / 9180050462
Fax : (05)-7284272
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (3 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
PARAGUAY
Philips del Paraguay S.A.
Avenida Artigas 1513
Casilla de Correos 605
Asuncion
Phone: (021)-211666
Fax : (021)-213007
PERU
Philips Peruana S.A.
Customer Desk
Comandante Espinar 719
Casilla 1841
Limab18
Phone: (01)-2136200
Fax : (01)-2136276
URUGUAY
Ind.Philips del Uruguay S.A.
Lius Alberto de Herrera 1248-P:10
Customer Help Desk 11300 Montevideo
Phone: (02)-6281111
Fax : (02)-6287777
VENEZUELA
Industrias Venezolanas Philips S.A.
Apartado Postal 1167
Caracas 1010-A
Phone: (02) 2377575
Fax : (02) 2376420
Canada
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (4 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
CANADA
Philips Electronics Ltd.
281 Hillmount Road Markham Ontario,
L6C 2S3
Phone: 800- 479-6696
Fax:905-887-3974
Pacific
AUSTRALIA
Philips Consumer Service.
Customer Information Centre.
3 Figtree Drive
Homebush Bay NSW 2140
Phone: CIC:1300 363 391, PCE Service:1 300-361 392
Fax:+61 2 9947 0063
NEW ZEALAND
Philips New Zealand Ltd.
Consumer Help Desk
2 Wagener Place, Mt.Albert
P.O. box 1041
Auckland
Phone: 0800 477 999 (Toll Free)
Fax:0800 288 588
Asia
BANGLADESH
Philips Service Centre
100 Kazi Nazrul Islam
Avenue Kawran Bazar C/A
Dhaka-1215
Phone: (02)-812909
Fax : (02)-813062
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (5 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
CHINA
SHANHAI
No. 1102 wuding road, jing an district,
200040 Shanghai,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
NANJING
No. 12-2 dong da ying bei, zhu jiang road,
210018 Nanjing,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
HANGZHOU
No. 20 jiao gong road,
310012 Hangzhou,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
BEIJING
No. 171-3 hai dian road, hai dian district,
100086 Beijing,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
SHENYANG
No. 84-1 san hao street,
110003 Shenyang
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
XIAN
No. 6-9 yan ta road south part,
710061 Xian,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
GUANGZHOU
No. 15-17 long kou dong road, tian he district,
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (6 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
510070 Guangzhou,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
SHENZHEN
Room 603, electronic BLD, No. 30 Shen nan zhong road,
518031 Shenzhen,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
CHANGSHA
Room 18, He yi computer city, chao yang road,
Changsha,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
WUHAN
No. 60-66 gui yuan road, hong shan district,
430070 Wuhan,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
CHENGDU
Chengdu Sience-technolege university service BLD, No. 24 nan yi duan of
Yi huan road,
410061 Chengdu,
P.R. China
Phone: 800 820 5128 (Toll Free)
Fax:21-65610647
HONG KONG
Philips Hong Kong Limited
Consumer Information Centre
16/F Hopewell Centre
17 Kennedy Road, WANCHAI
Phone: 2619-9663
Fax: 2481 5847
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (7 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
INDIA
BOMBAY
Philips India
Customer Relation Centre
Bandbox House
254-D Dr. A Besant Road, Worli
Bombay 400 025
Phone: (020)-712 2048 ext 2765
Fax:(020)-712 1558
CALCUTTA
Customer Relation Centre
7 justice Chandra Madhab Road
Calcutta 700 020
Phone: (020)-712 2048 ext 2765
Fax:(020)-712 1558
MADRAS
Customer Relation Centre
3, Haddows Road
Madras 600 006
Phone: (020)-712 2048 ext 2765
Fax:(020)-712 1558
NEW DELHI
Customer Relation Centre
68, Shivaji Marg
New Dehli 110 015
Phone: (020)-712 2048 ext 2765
Fax:(020)-712 1558
INDONESIA
Philips Group of Companies in Indonesia
Consumer Information Centre
Jl.Buncit Raya Kav. 99-100
12510 Jakarta
Phone: (021)-7940040
/7984255 Ext 1612
Fax : (021)-7947511 / 7947539
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (8 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
Fax:(021)-772 1167
PHILIPPINES
Philips Electronics and Lighting Inc.
106 Valero St., Salcedo Village
Makati, Metro Manilla.
Phone: (02)-888 0572 , Domestic Toll Free:1-800-10-PHILIPS or 1-800-10-744 5477
Fax:(02)-888 0571
SINGAPORE
Philips Singapore Private Ltd.
Consumer Service Dept.
Lorong 1,Toa Payoh., P.O. box 340
Singapore 1231
Phone:6882 3999
Fax:6250 8037
TAIWAN
Philips Taiwan Ltd.
Consumer Information Centre
13F, No. 3-1 Yuan Qu St., Nan Gang Dist.,
Taipei, 115, Taiwan
Phone: 0800-231-099
Fax:(02)-3789 2641
THAILAND
Philips Electronics (Thailand) Ltd.
Philips Service Centre
209/2 Sanpavut Road,
Bangna, Bangkok 10260
Phone : (02)-652 8652
Fax:(02)-614 3531
Africa
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (10 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
MOROCCO
Philips Electronique Maroc
304,BD Mohamed V
Casablanca
Phone: (02)-302992
Fax : (02)-303446
SOUTH AFRICA
South African Philips.
S.V. Div. 195 Main R.D.
Martindale., Johannesburg
P.O.box 58088
Newville 2114
Phone: (011)-4715000
Fax : (011)-4715020
Middle East
DUBAI
Philips Middle East B.V.
Consumer Information Centre
P.O.Box 7785
DUBAI
Phone: (04)-3353666
Fax : (04)-3353999
EGYPT
Philips Egypt
Consumer Information Centre
10, Abdel Rahman El Rafei
Mohandessin - Cairo, P.O.Box 242
DOKKI
Phone: (02)-3313993
Fax : (02)-3492142
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (11 of 12)7/19/2004 4:11:55 PM
Consumer Information Centers
file:///D|/EDFU/crt_19/edoc/english/WARRANTY/warcic.htm (12 of 12)7/19/2004 4:11:55 PM
It Takes Only A Moment To
PROTECT YOUR INVESTMENT.
Congratulations on investing in a Philips product. It’s an important and intelligent decision that’s sure to reward you
for many years to come. To ensure you’ll get all of the privileges and protection that come with your purchase,
please complete your Warranty Registration Card within the next ten days.
SIMPLY MAIL THE CARD BELOW TO RECEIVE ALL
OF THESE BENEFITS TO WHICH YOU’RE ENTITLED.
WARRANTY VERIFICATION
Your prompt registration verifies your right to protection
under the terms and conditions of your warranty.
OWNER CONFIRMATION
Your completed Warranty Registration Card serves as confirmation
of ownership in the event of product loss or theft.
MODEL REGISTRATION
Returning the attached card right away guarantees you’ll receive
all information and special offers for which your purchase makes you eligible. So please act today!
www.philipsusa.com
DETACH AND MAIL PORTION BELOW.
3135 015 07803 rev. 7/02
Mail This Card Today To Get The Most From Your Purchase!
❏
No, I do not want to receive personalized offers about Philips products or other information from Philips in the future.
Registering your product is an essential step to ensure that you receive all of the benefits you are entitled to as a
Philips customer. So complete the information below in ink, and drop this card in the nearest mailbox.
WARRANTY
REGISTRATION CARD
IMPORTANT - RETURN WITHIN TEN DAYS
Month
Day Year
PHILIPS Warranty Card 8/16/02 12:38 PM Page 1
RETURN THE ATTACHED CARD WITHIN
TEN DAYS TO ENSURE YOUR:
✓ Warranty Verification
✓ Owner Confirmation
✓ Model Registration
See Inside For
Valuable
Benefits!
Warranty
Registration Card
PO BOX 1533
DEPOSIT NY 13754-1533
PLEASE
APPLY FIRST
CLASS
STAMP
TIME-DATED
MATERIAL
Please Open
Promptly!
a
!1375415338!
IMPORTANT
PHILIPS Warranty Card 8/16/02 12:38 PM Page 2
