French Door Bottom Freezer
La Porte-fenêtre Congélateur Inférieur
Use & Care Guide
Manual de Uso y Cuidado
Guide d’utilisation et d’entretien
English / Español / Français
Models/Modelos/Modèles: 253.7034*, 7044*
P/N 808157702 (1405)
Sears Brands Management Corporation
Homan Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
®
Kenmore
* = Color number, número de color, le numéro de couleur
Congelador Inferior de Puerta Doble
®
2
Record Model/Serial
Numbers
Please Read and Save these
Instructions
This Use & Care Guide provides specic
operating instructions for your model. Use
your unit only as instructed in this Use &
Care Guide. These instructions are not
meant to cover every possible condition and
situation that may occur. Common sense and
caution must be practiced when installing,
operating and maintaining any appliance.
Please record your model and serial
numbers below for future reference. This
information is found on the serial plate
located inside the refrigerator compartment.
Model Number:
Serial Number:
Purchase Date:
Record Model/Serial Numbers ....................2
Important Safety Instructions ...................2-4
Warranty Information ................................5
Master Protection Agreements ....................6

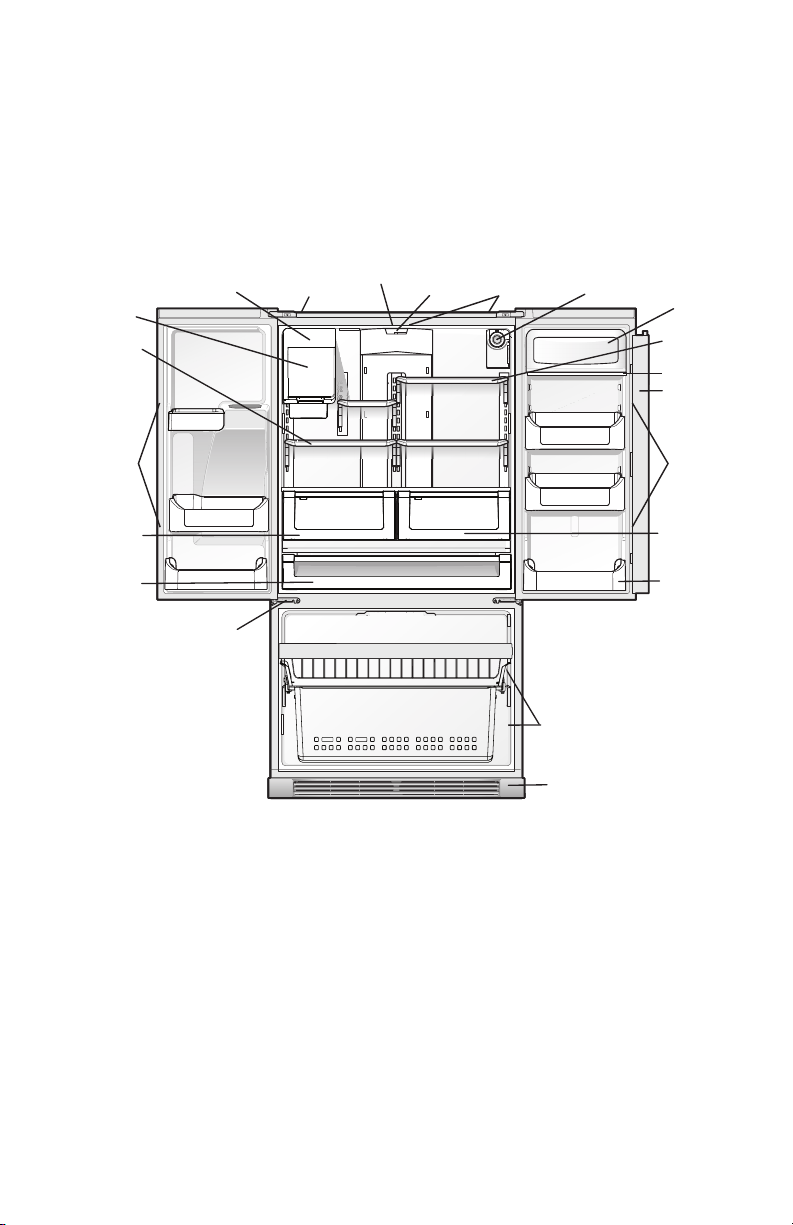

Features at a Glance ...................................7
Installation ..........................................8-11
Door Removal .....................................12-13
Installing Door Handles ............................14
Connecting the Water Supply ................15-16
Controls ............................................. 17-19
Automatic Ice & Water Dispenser .......... 20-22
Storage Features .................................23-26
Storing Food and Saving Energy ................27
Normal Operating Sounds and Sights ........28
Changing the Filter ..................................29
Care & Cleaning .................................. 30-34
Before You Call ...................................35-39
Table of Contents
For Your Safety
WARNING
Please read all safety instructions before
using your new appliance.
Safety Precautions
Do not attempt to install or operate
your unit until you have read the safety
precautions in this manual. Safety items
throughout this manual are labeled with a
Danger, Warning, or Caution based on the
risk type.
Denitions
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
IMPORTANT
Use only soap and water to clean serial plate.
Important Safety
Instructions
IMPORTANT
Indicates installation, operation, or
maintenance information which is
important but not hazard-related.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
WARNING
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
3
Important Safety Instructions (Continued)
Proper Disposal of Your Appliance
Risk of Child Entrapment
Child entrapment and suocation are
not problems of the past. Junked or
abandoned appliances are still dangerous
– even if they will sit for “just a few days.”
If you are getting rid of your appliance,
please follow the instructions below to
help prevent accidents.
Before You Throw Away Your Old Unit:
• Remove doors.
• Leave shelves in place so children may not
easily climb inside.
WARNING
These guidelines must be followed to
ensure that safety mechanisms in this
unit will operate properly.
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a
cooling system that used CFCs or
HCFCs (chlorouorocarbons or
hydrochlorouorocarbons). CFCs and
HCFCs are believed to harm stratospheric
ozone if released to the atmosphere. Other
refrigerants may also cause harm to the
environment if released to the atmosphere.
If you are throwing away your old
refrigerator, make sure the refrigerant is
removed for proper disposal by a qualied
technician. If you intentionally release
refrigerant, you may be subject to nes
and imprisonment under provisions of
environmental legislation.
• Do not store or use gasoline, or other
ammable liquids in the vicinity of this or
any other appliance. Read product labels
for warnings regarding ammability and
other hazards.
• Do not operate the unit in the presence of
explosive fumes.
• Remove and discard any spacers used to
secure the shelves during shipping. Small
objects are a choke hazard to children.
• Remove all staples from the carton.
Staples can cause severe cuts, and also
destroy nishes if they come in contact
with other appliances or furniture.
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately
after the unit is unpacked. Children should
NEVER use these items to play. Cartons
covered with rugs, bedspreads, plastic
sheets or stretch wrap may become airtight
chambers, and can quickly cause suocation.
4
Important Safety Instructions (Continued)
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Electrical Information
• The appliance must be plugged into
its own dedicated 115 Volt, 60 Hz., AC
only electric outlet. The power cord
of the appliance is equipped with a
three-prong grounding plug for your
protection against electrical shock
hazards. It must be plugged directly
into a properly grounded three-prong
receptacle. The receptacle must be
installed in accordance with local codes
and ordinances. Consult a qualied
electrician. Do not use an extension cord
or adapter plug.
• If the power cord is damaged, it should
be replaced by the manufacturer, service
technician, or a qualied person.
• Never unplug the unit by pulling on the
power cord. Always grip the plug rmly,
and pull straight out from the receptacle
to prevent damaging the power cord.
• Unplug the unit before cleaning and
before replacing a light bulb to avoid
electrical shock.
• Performance may be aected if the
voltage varies by 10% or more. Operating
the unit with insucient power can
damage the compressor. Such damage is
not covered under your warranty.
• Do not plug the unit into an outlet
controlled by a wall switch or pull cord
to prevent the unit from being turned
o accidentally.
• Avoid connecting unit to a Ground Fault
Interrupter (GFI) circuit.
5
Warranty Information
5
Warranty Information
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in
material or workmanship when it is installed, operated and maintained according to all
supplied instructions.
WITH PROOF OF SALE, a defective product will receive free repair or replacement at
option of seller. To arrange for warranty service, call 1-800-4-MY-HOME
®
If this appliance is ever used for other than private family purposes, this warranty applies
for only 90 days from sale date in the United States, and is void in Canada.
This warranty covers ONLY defects in material and workmanship, and
will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to
lters, belts, bags and screw-in base light bulbs.
2. A service technician to instruct the user in correct product installation, operation
or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained
according to all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use
for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners,
chemicals or utensils other than those recommended in all instructions supplied with
the product.
7. Damage to or failure of parts or systems resulting from unauthorized modications
made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair as
provided herein. Implied warranties, including warranties of merchantability or tness for
a particular purpose, are limited to one year or the shortest period allowed by law. Sears
shall not be liable for incidental or consequential damages. Some states and provinces do
not allow the exclusion or limitation of incidental or consequential damages, or limitation
on the duration of implied warranties of merchantability or tness, so these exclusions or
limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada*.
This warranty gives you specic legal rights, and you may also have other rights which vary
from state to state.
* In-home repair service is not available in all Canadian geographical areas, nor will this
warranty cover user or servicer travel and transportation expenses if this product is located in a
remote area (as dened by Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Homan Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
6
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore® product is designed
and manufactured for years of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time. That’s when having a
Master Protection Agreement can save you money and aggravation. The Master
Protection Agreement also helps extend the life of your new product. Here’s what the
Agreement* includes:
• Parts and labor needed to help keep products operating properly under normal
use, not just defects. Our coverage goes well beyond the product warranty. No
deductibles, no functional failure excluded from coverage – real protection.
• Expert service by a force of more than 10,000 authorized Sears service technicians,
which means someone you can trust will be working on your product.
• Unlimited service calls and nationwide service, as often as you want us, whenever
you want us.
• “No-lemon” guarantee – replacement of your covered product if four or more
product failures occur within twelve months.
• Product replacement if your covered product can’t be xed.
• Annual Preventive Maintenance Check at your request – no extra charge.
• Fast help by phone – we call it Rapid Resolution – phone support from a Sears
representative on all products. Think of us as a “talking owner’s manual”.
• Power surge protection against electrical damage due to power uctuations.
• $250 Food Loss Protection annually for any food spoilage that is the result of
mechanical failure of any covered refrigerator or freezer.
• Rental reimbursement if repair of your covered product takes longer than promised.
• 25% discount o the regular price of any non-covered repair service and related
installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule
service. You can call anytime day or night, or schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel for any reason
during the product warranty period, we will provide a full refund. Or, a prorated
refund anytime after the product warranty period expires. Purchase your Master
Protection Agreement today!
Some limitations and exclusions apply. For prices and additional information in the
U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full details call Sears Canada at
1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage door openers, water
heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME®.
7
Features at a Glance
*Features may vary according to model
Ice Bin
*Fresh Food
Ice Maker
Flipper
Guide
*Incandescent
Light
Water
Filter
Dairy
Compartment
Spill-Proof
®
Shelves
Flipper
Mullion
Crisper
Drawer
*Door
Bin
Freezer
Baskets
Adjustable
Hinges
Deli
Drawer
Crisper
Drawer
Spill-
Proof
®
Shelves
Toe Grille
*LED Cluster
Light
*LED
Cluster
Light
*LED
Cluster
Light
*LED Cluster
Light
*Air Filter
8
CAUTION
Do not install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside
the refrigerator.
Do not block the toe grille on the lower
front of your refrigerator. Sucient air
circulation is essential for the proper
operation of your refrigerator.
Installation
This Use & Care Guide provides general
installation and operating instructions for
your model. We recommend using a service
or kitchen contracting professional to install
your refrigerator. Use the refrigerator only
as instructed in this Use & Care Guide.
Before starting the refrigerator, follow these
important rst steps.
Location
• Choose a place that is near a grounded,
non-GFCI, electrical outlet. Do Not use an
extension cord or an adapter plug.
• If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher, or other heat sources.
• The refrigerator must be installed on a
oor that is level and strong enough to
support a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic
ice maker.
Installation
• Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top ⅜ inch (9.5 mm)
Back 1 inch (25.4 mm)
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have
to allow additional space so the door can
be opened wider.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw

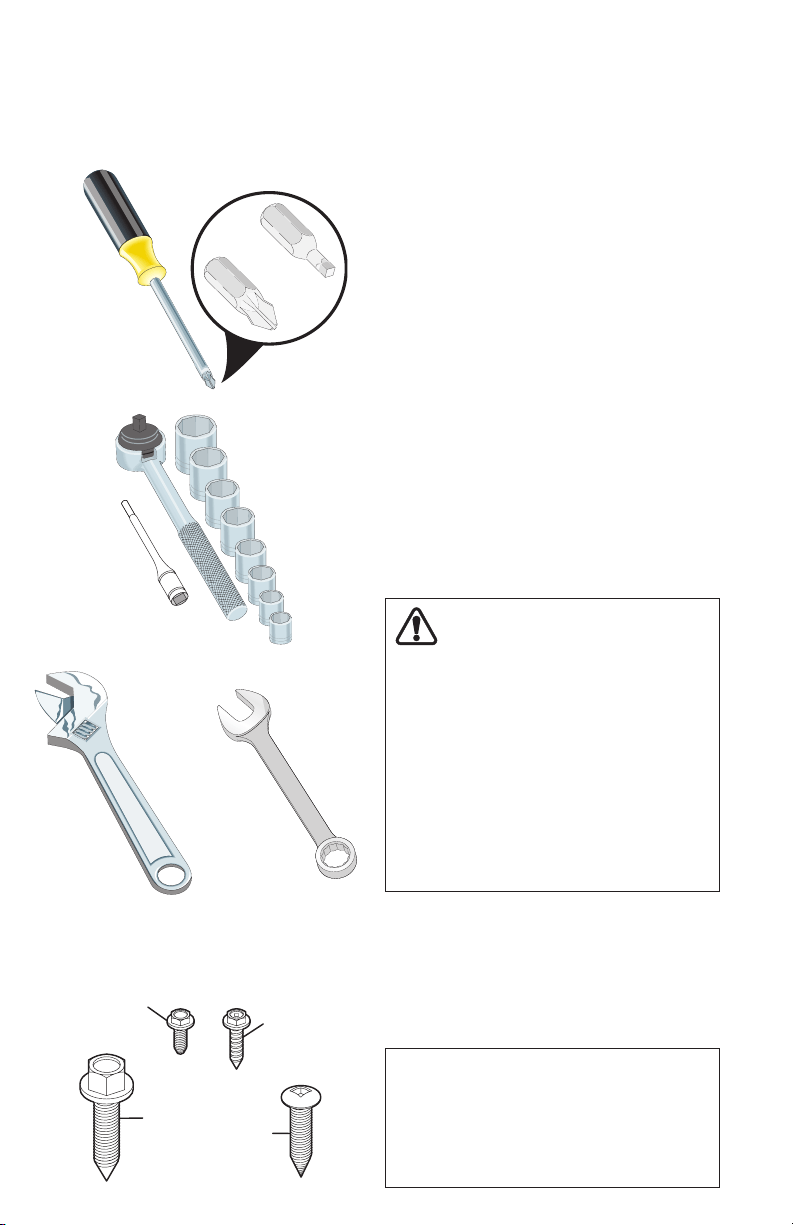

Components Provided:
Door Removal/Reversal
Phillips Head
or
#2 Square
Drive Head
(OR)
Tools Necessary:
3/8" Fixed
Wrench
Adjustable
Wrench
Socket
Wrench Set
9
Door Opening
Installation
A
B
Grab
Drawer
at Center
from Both
Sides
Then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
4. Tighten four drawer screws.
5. Recheck gasket seal.

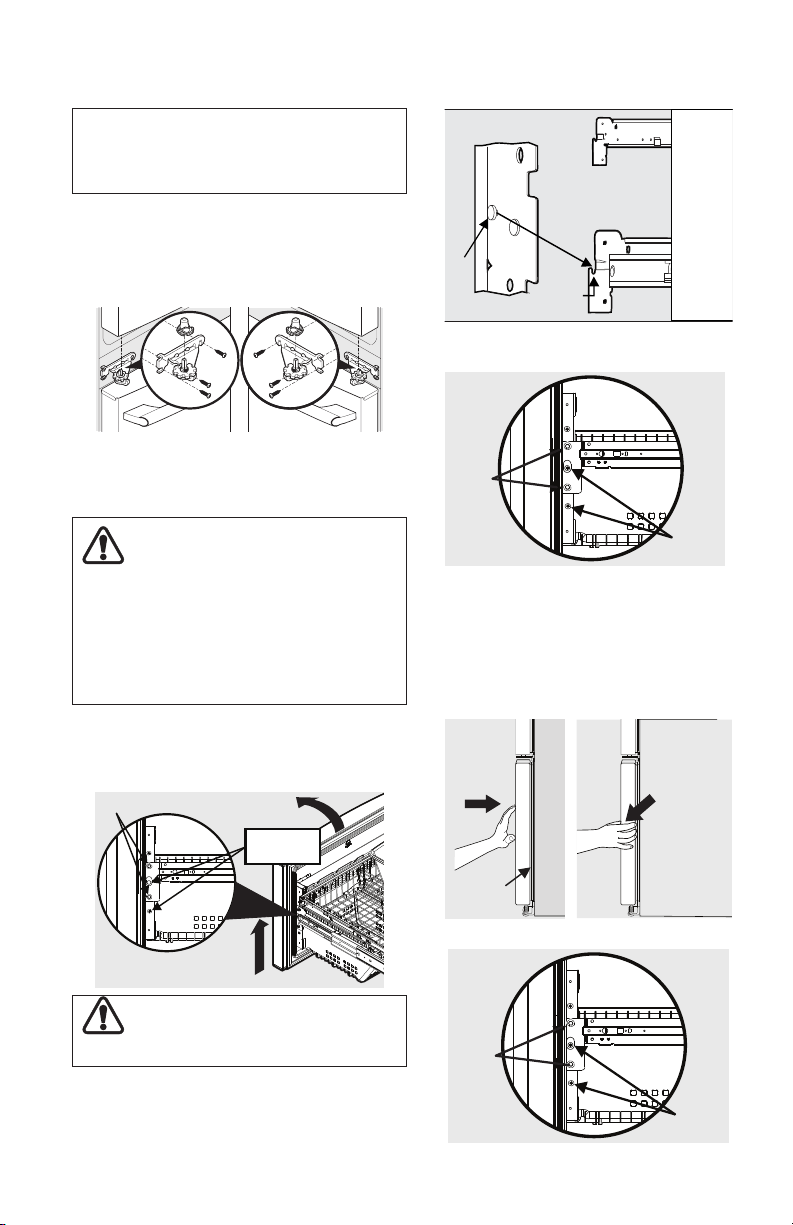

Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for nal positioning of your
refrigerator:
• All four corners of the cabinet must rest
rmly on the oor.
• The sides should tilt ¼ inch (6 mm) from
front to back (to ensure that doors close
and seal properly).
• Doors should align with each other and
be level.
Most of these conditions can be met by
raising or lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1. Slightly open freezer drawer. Lift the
toe grille and gently pull forward
(see illustration).
2. You can raise or lower each door. Use
a ⅜ inch socket wrench to turn the
adjustment screws (one per side).
Toe Grille Must
Fit in Slot on
Anti-tip Bracket
Screw/Washer
Assembly
(3) Retaining Clips
To raise: turn adjustment screw
clockwise.
To lower: turn adjustment screw
counterclockwise.
3. Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
Leveling Freezer Door (if necessary)
To level the freezer door:
1. Check gasket seal around top,
bottom, and sides of freezer door.
2. If gasket is not sealed, open door and
slightly loosen four door screws (two
on each side) to allow door to rotate.
3. Close door and recheck the seal on
the gasket. Open door by grabbing
in the center sides of the door. Be
careful not to rotate door when
opening.
Do NOT
Remove
Remove
NOTE
The refrigerator doors are designed to
shut by themselves within a 20 degree
opening.
Your refrigerator should be positioned
to allow easy access to a counter when
removing food. For best use of refrigerator
drawers and freezer baskets, the refrigerator
should be in a position where both can be
fully opened.
10
Installation (Continued)
4. After unit is leveled, lower anti-tip leg
until it contacts the oor.
Raise
Lower
Anti-tip
Leg
Door
Door
5. Install the toe grille by tting into place.
NOTE
View shown is looking up at the bottom of
the refrigerator door.
To adjust the door stop:
Door stop is adjustable between 85 to
145 degrees.
1. Open door to provide access to screw.
2. Loosen screw.
3. Adjust door to desired location.
4. Rotate door stop until it makes contact
with the lower hinge.
5. Retighten screw.
6. Ensure door stops in desired location
before resuming normal use.
Rotate
Door to Desired
Location
Adjusting Door
Retighten Screw
Adjustable Door Stop
Door
Stop
Screw
Lower
Hinge
Min
Open
Max
Open
Rotate
Door Stop
11
To level the doors using the adjustable
lower hinge (select models):
1. Remove all food items from door bins
on door being adjusted.
2. Open doors to 90 degrees.
Open
Door
90
Degrees
Bottom of Door
Installation (Continued)
NOTE
Adjustable hinge should only be used
after doors have been leveled with rollers.
Flipper
Mullion
Screw
Flipper
Mullion
Hinge
To adjust the ipper mullion:
1. Loosen the screw located on the ipper
mullion hinge.
3. Lift the door while adjusting the
washer. To raise the door, rotate washer
clockwise (when viewed from the
bottom). To lower door, rotate washer
counterclockwise (when viewed from
the bottom).
Hinge
Washer
Raise
Door
Lower
Door
Raising/Lowering Door
Adjusting Flipper Mullion Screw
2. Adjust ipper mullion height. For
proper connection with the ipper
mullion guide, there should be a
separation about the thickness of a coin
(0.060inches, or 1.5mm) between the
guide and ipper mullion.
3. Retighten screw.
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
12
NOTE
DO NOT remove the ground screw
from hinge.

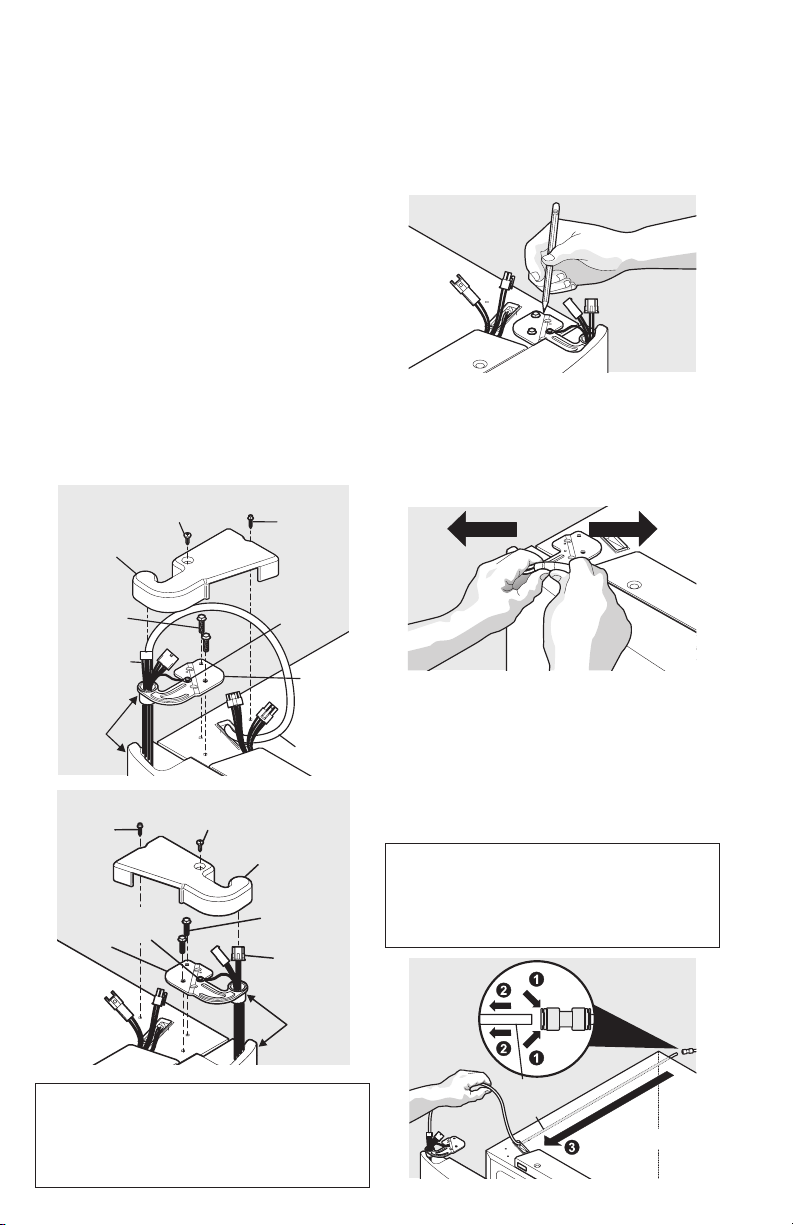

Door Removal Instructions
Press
Press
Approximately
5 feet
Water
Line
To remove the refrigerator doors:
1. Trace lightly around the door’s top
hinges with a pencil. This makes
reinstallation easier.
2. Disconnect the harness by grasping
both sides of the connector rmly,
depress the latch, and pull apart.
Remove the two screws from the top
hinge. Lift the door o of the bottom
hinge and set it aside.
3. Detach the water tube from the
connector located behind the refrigerator
and pull the tube back out to the front
of the unit. The connector releases when
you press inward on the outer sleeve while
pushing the tube toward the connector
then while continuing to hold in the sleeve,
pull the tube away.
Getting Through Narrow Spaces
If your refrigerator will not t through an
entrance area, you can remove the doors.
Check rst by measuring the entrance.
To prepare for removing the doors:
1. Make sure the electrical power cord is
unplugged from the wall outlet.
2. Open the freezer drawer and remove
the toe grille (see “Installation” section).
3. Remove any food from the door shelves
and close the doors.
To remove the top hinge covers:
1. Remove the two screws from each
cover over the top door hinges.
2. Lift inside edge of hinge cover and
tilt back.
Rear
Cover
Screw
Ground
Screw
Top
Hinge
Top Hinge
Cover
Hinge
Screws
Multi-wire
Cables
Leave
Hinge
With
Door
Front
Cover Screw
Water
Line
Rear
Cover
Screw
Front
Cover Screw
Top Hinge
Cover
Hinge
Screws
Two Wire
Cables
Leave
Hinge
With
Door
Top
Hinge
Ground
Screw
NOTE
Use care while pulling the water tube
from the unit to be sure you do not kink it.
13
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and cause
personal injury, or damage to the doors or
handles. When reinserting the water tube
and replacing the top hinge cover, use
care to be sure you do not kink the tube.
NOTE
You will be pulling approximately ve feet of
water tube from the back of the refrigerator.
Door Removal Instructions (Continued)
Once both doors are in place, ensure they
are aligned with each other and level (Please
see the “Installation” section for more details),
and replace the top hinge cover.
Lower Hinge Removal
4. Unscrew the three lower hinge screws
and hinge if necessary.
To reinstall the right door, reverse the
above steps.
Removing Freezer Door
1. Open freezer door.
2. Remove door screws on right and left
sides (two screws on each side).
3. Lift door up and out to remove.
Installing Freezer Door
1. With lower slides pulled out, hang
door onto slide brackets ensuring pins
on each side are fully inserted into
slots on each side.
5. Tighten large bolts.
2. Reinstall screws (two per side), fully
nger tighten, and close door.
Grab
Door
at Center
from Both
Sides
Then
Pull
Door
Out
Push
Against
Freezer
Door
Check
Seal
Slot
Cabinet
Pin
Door
3. Check gasket seal around top,
bottom, and sides of freezer door. If
gasket is not sealed, rotate door until
the gasket is sealed.
4. Open door by grabbing in the center
sides of the door. Be careful not to
rotate door when opening.
Do NOT
Remove
Remove
CAUTION
Door is heavy. Use caution when lifting.
6. Recheck gasket seal.
7. Install the toe grille by tting into place.
Do
NOT
Remove
Fully
tighten
large
bolts
Do
NOT
Remove
Reinstall
and
tighten
till
finger
tight
14
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these
handles. The rounded end of the handles may be sharp.
NOTE
All set screws should be tightened so that the screw is below the surface of the handle.
The handles should be drawn tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time. If this happens, tighten the set screws on
the handles.

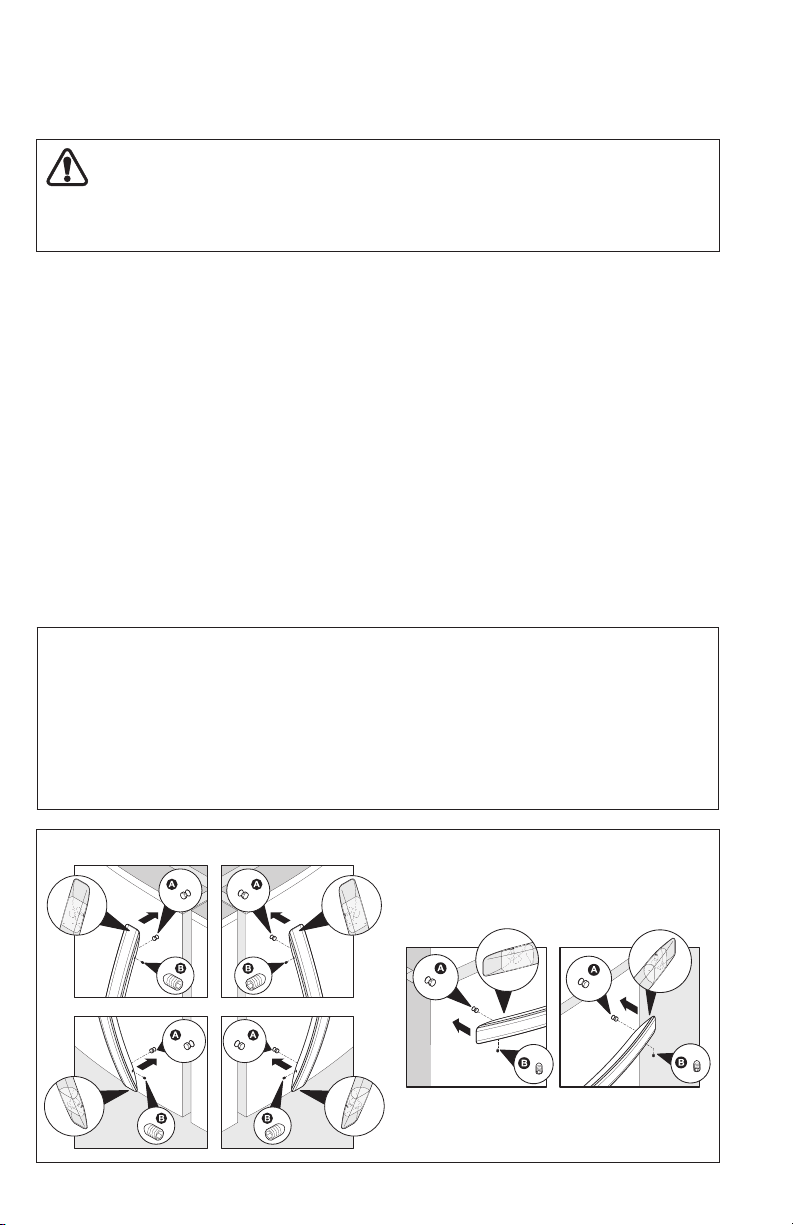

Installing Door Handles
Mounting Freezer HandlesMounting Refrigerator Handles
1. Remove handles from carton and any other protective packaging.
2. Position fresh food handle end over upper and lower pre-installed shoulder bolts
(A) that are fastened into the doors ensuring the holes for the set screws are facing
towards the opposite door.
3. While holding handle rmly against door, fasten upper and lower Allen set screws (B)
with supplied Allen wrench.
4. Repeat steps two and three to install opposite handle. Ensure the holes for the set
screws are facing towards the rst door.
5. Position freezer handle end over left and right pre-installed handle mounts that are
fastened to the door, ensuring the holes for the set screws are facing down.
6. While holding handle rmly against door, loosely tighten far right Allen set screw (B)
with supplied Allen wrench until there is no gap between handle and door.
7. Still holding the handle rmly to the door, rmly tighten far left Allen set screw (B) with
supplied Allen wrench.
8. Return to the far right Allen set screw (B) and rmly tighten with supplied Allen wrench.
Door Handle Mounting Instructions
15
IMPORTANT
Ensure that your water supply line
connections comply with all local
plumbing codes.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply
line. Water supply tubing made of ¼
inch plastic is not recommended to be
used. Plastic tubing greatly increases
the potential for water leaks, and the
manufacturer will not be responsible for
any damage if plastic tubing is used for
the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
softener can damage the ice maker.
If the ice maker is connected to soft
water, ensure that the softener is
maintained and working properly.
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from electrical
power before connecting a water supply
line to the refrigerator.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator.
Connecting the Water Supply
Before Installing The Water Supply Line,
You Will Need:
• Basic Tools: adjustable wrench, at-blade
screwdriver, and Phillips
TM
screwdriver
• Access to a household cold water line with
water pressure between 30 and 100 psi.
• A water supply line made of ¼ inch
(6.4 mm) OD, copper or stainless steel
tubing. To determine the length of tubing
needed, measure the distance from the
To Connect Water Supply Line To Ice Maker
Inlet Valve
1. Disconnect refrigerator from electric
power source.
2. Place end of water supply line into sink
or bucket. Turn ON water supply and
ush supply line until water is clear. Turn
OFF water supply at shuto valve.
3. Remove plastic cap from water valve
inlet and discard cap.
4. If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water
supply line into water valve inlet as far
as it will go (¼ inch/6.4 mm). Slide
ferrule (sleeve) into valve inlet and nger
tighten compression nut onto valve.
Tighten another half turn with a wrench;
DO NOT overtighten. See Figure 1.
If you use stainless steel tubing - The
nut and ferrule are already assembled
on the tubing. Slide compression nut
onto valve inlet and nger tighten
compression nut onto valve. Tighten
another half turn with a wrench; DO
NOT overtighten. See Figure 2.
ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then
add approximately 7 feet (2.1 meters),
so the refrigerator can be moved out for
cleaning (as shown).
• A shuto valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing type
shuto valve.
• Do not reuse compression tting or use
thread seal tape.
• A compression nut and ferrule (sleeve) for
connecting a copper water supply line to
the ice maker inlet valve.
16
Connecting the Water Supply
Steel
Clamp
Stainless
Steel
water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft. Stainless Steel water line
from household water supply
Plastic Water Tubing
to Ice Maker
Fill Tube
Figure 2
Figure 1
Plastic Water Tubing
to Ice Maker
Fill Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop to
allow moving refrigerator out
for cleaning)
IMPORTANT
After connecting the water supply, refer to
“How to Prime the Water Supply System”
for important information about priming
an empty water supply system.
Your refrigerator’s water supply system
includes several tubing lines, a water
lter, a water valve, and a water tank. To
ensure that your water dispenser works
properly, this system must be completely
lled with water when your refrigerator
is rst connected to the household water
supply line.
5. With steel clamp and screw, secure
water supply line (copper tubing only) to
rear panel of refrigerator as shown.
6. Coil excess water supply line (copper
tubing only), about 2½ turns, behind
refrigerator as shown and arrange coils
so they do not vibrate or wear against
any other surface.
7. Turn ON water supply at shuto valve
and tighten any connections that leak.
8. Reconnect refrigerator to electrical
power source.
17

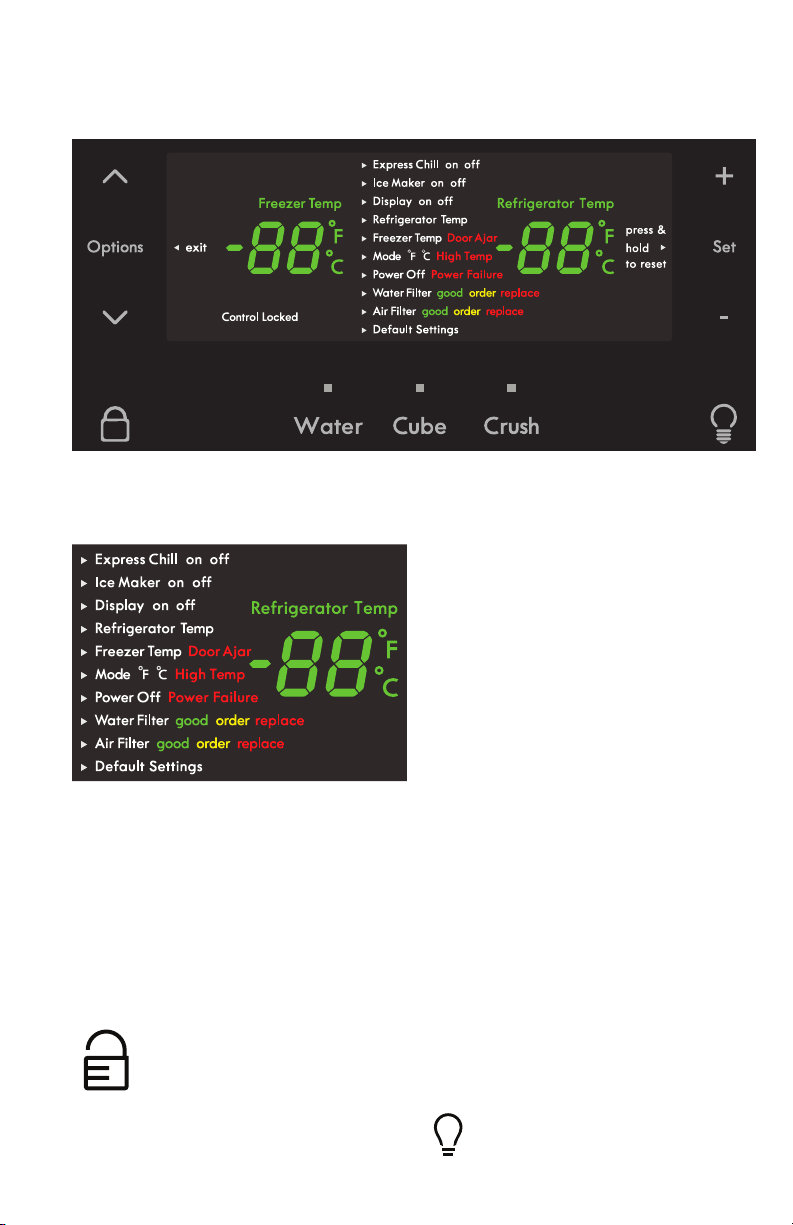

Controls
User Interface (options may vary)
Enlarged view of user interface
display menu (options may vary)
options
(∧ or ∨)
Used to enter and exit the
options menu and make
selections.
exit Toggles the options and
run modes.
control
locked
While in the locked
state, you will not be
able to change any
settings on the display nor
dispense ice and water.
The “Control Locked”
indicator will ash and an
audible warning tone is
played.
Options May Vary
Express
Chill
on o
Activates a faster rate
for freezing food and
increases ice production
in the freezer. Deactivates
after 12 hours.
ice maker
on o
Toggles the ice maker
in the refrigerator
compartment “ON” or
“OFF”. In the “O” state,
the indicator will blink
when ice is dispensed.
display
on o
Toggles the temperature
displays On and O.
refrigerator
temp
Allows the temperature
set-points to be adjusted.
Control temperatures
range from +33°F / +1°C
to +47°F / +8°C.
freezer
temp
Allows the temperature
set-points to be adjusted.
Control temperatures
range from -6°F / -21°C
to +6°F / -15°C.
mode
°F °C
Toggles display from
Fahrenheit to Celsius.
light Toggles dispenser light On
and O.
18
Controls (Continued)
Setting cooling temperatures
1. Down (
v
) and Up (
^
) indicators
are located beside the displayed
temperatures.
2. Press the (
v
) or (
^
) indicator to adjust
the temperature to the desired setting.
The temperature display will begin
to blink with the rst touch. After ve
seconds of inactivity, the display will
beep to accept the new temperature.
After 10 seconds, the display times
out and returns to the basic display.
Your refrigerator is equipped with a touch
control panel. It is only necessary to
gently touch the control panel. There are
three dispenser modes:
1. Water
2. Ice Cubes
3. Crushed Ice
An indicator light will be illuminated
above the active feature.
IMPORTANT
Pressing the power on/o icon does not
turn o power to your refrigerator. You
must unplug the power cord from the
wall outlet.
power o Press and hold for
three seconds to turn
o the cooling system.
It also turns o the ice
maker and all dispenser
functions. The display will
read “powero”.
water lter Displays the current status
of the water lter (Good,
Order, or Replace). To
reset the lter status to
“Good”, press and hold
the “set” key for three
seconds.
air lter Displays the current status
of the air lter (Good,
Order, or Replace). To
reset the lter status to
“Good”, press and hold
the “set” key for three
seconds.
default
settings
While in the default
option, press and hold the
set key for three seconds
to reset all refrigerator
settings to their factory
default settings.
set (+ or -) Selects the current menu
selection option.
water Press the “water” key to
select water. An indicator
light will be illuminated
above the active feature.
cube Press the “cube” key to
select cubed ice. An
indicator light will be
illuminated above the
active feature.
crush Press the “crush” key to
select crushed ice. An
indicator light will be
illuminated above the
active feature.
Options May Vary
19
NOTE
Although you have entered the Sabbath
Mode, the ice maker will complete the
cycle it had already initiated. The ice cube
compartment will remain cold and new ice
cubes can be made with standard trays.
Sabbath Mode
The Sabbath Mode is a feature that
disables portions of the refrigerator and its
controls in accordance with observance of
the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
pressing and holding both the freezer “
v
”
and refrigerator “
^
” indicators for ve
seconds. The display shows “Sb” while in
Sabbath mode.
In the Sabbath Mode, the High Temp
alarm is active for health reasons. If a high
temperature alarm is activated during this
time, for example due to a door left ajar,
the alarm will sound intermittently for about
10 minutes. The alarm will then silence on its
own and a red high temperature icon will
display. The high temp icon will continue to
display, even if the door is closed, until the
Sabbath mode is exited and the icon reset.
The refrigerator will function normally once
the door is closed, without any violation of
the Sabbath/Holidays.
For further assistance, guidelines
for proper usage and a
complete list of models with the
Sabbath feature, please visit the
web at http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the lights,
dispenser, nor the control panel will work
until Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode after
power failure recovery. It must be deactivated
with the buttons on the control panel.
Alarms
Power Failure
In the event of a power failure, the power
fail alert will be illuminated. Press alarm
reset to acknowledge the alarm. Other
modes may be turned o until the alarm
is acknowledged. When the power fail
alert is acknowledged, the refrigerator
will resume normal operation. The high
temp alarm may also be illuminated until
a safe operating range temperature has
been reached.
Freezer Temp
If the freezer temperature reaches 26°F
or greater, the alarm will sound and the
temperature will ash. You can disable
the alarm by pressing the set key but the
“High Temp” indicator will illuminate until
the temperature goes below 26°F.
Fresh Food Temp
If the fresh food temperature reaches
55°F or greater, the alarm will sound and
the temperature will ash. You can disable
the alarm by pressing the set key but the
“High Temp” indicator will illuminate until
the temperature goes below 55°F.
Door Ajar
If the freezer or fresh food doors have
been left open for ve minutes or more,
an alarm will sound and the door ajar
indicator will illuminate on the display.
Press the set key to reset any system
alarms.
Flapper
When “Cube” or “Crush” is selected, if the
apper (or ice chute door) is being held
open by a jammed ice cube, an alarm
will sound for two minutes. The alarm will
reset after two minutes or when the ice
cube is removed and the set key is pressed
to reset.
Controls (Continued)
20
Automatic Ice & Water Dispenser
Priming the Water Supply System
1. Begin lling the tank by pressing and
holding a drinking glass against the
water dispenser paddle.
2. Keep the glass in this position until
water comes out of the dispenser. It
may take about 1½ minutes.
3. Continue dispensing water for about
three minutes to ush the system
and plumbing connections of any
impurities (stopping to empty the glass
as necessary).
Ice Maker Operation & Care
After the refrigerator is installed properly
and has cooled for several hours, the ice
maker can produce ice within 24 hours. The
ice maker will ll the ice bin from the rear.
You must dispense some ice to force the ice
forward in the bin. This will allow the bin to
ll completely.
Using the Ice Maker after Installation
Before making ice for the rst time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three
empty ice maker cycles. Furthermore, if the
system is not ushed, the rst ice cubes may
be discolored or have an odd avor.
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30 psi and 100 psi.
Excessive pressure may cause water
lter to malfunction.
NOTE
The water dispenser has a built-in device
that shuts o the water ow after three
minutes of continuous use. To reset
this shuto device, simply release the
dispenser paddle.
IMPORTANT
Your ice maker is turned on at the factory
so it can work as soon as you install your
refrigerator. If you cannot connect a
water supply, set the ice maker’s On/O
icon to O and turn o the water supply
valve; otherwise, the ice maker’s ll valve
may make a loud chattering noise when it
attempts to operate without water.
Turning the Fresh Food Ice Maker
On and O
Ice production is controlled by the ice
maker’s On/O icon on the control panel.
Press and hold the “Ice O” icon for three
seconds to turn the ice maker “ON” or
“OFF”. The ice maker is turned o when the
LED above the “Ice O” icon is illuminated.
IMPORTANT
Turning o the ice maker will disable
the ice dispenser. You will still be able to
dispense water.
IMPORTANT
Turning o the ice maker will result in
existing ice melting in the bin.
NOTE
The ice maker also has a built-in plastic
signal bale arm that automatically stops
ice production when the ice bin is full.
This signal arm should not be used to
manually stop the ice maker.
21
Automatic Ice & Water Dispenser (Continued)
Ice Maker/Dispenser Tips
• If your refrigerator is not connected to a
water supply or the water supply is turned
o, turn o the ice maker by holding the
On/O soft-touch icon for three seconds.
• The following sounds are normal when the
ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• When dispensing ice, you will hear a
snapping or clicking sound when the ice
chute opens and closes.
• If you need a large quantity of ice at one
time, it is best to get cubes directly from
the ice bin.
• Ice cubes stored too long may develop
an odd avor. Empty the ice bin as
explained below.
• When dispensing cubed ice, it is normal
to have a small quantity of little pieces
along with the whole cubes.
Removing Ice Bin
Cleaning the Ice Maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or moving.
1. Turn o
the ice
maker.
2. Remove
the ice bin
by pulling
straight
out.
3. Empty
and
carefully
clean the
ice bin
with mild detergent. Do not use harsh or
abrasive cleaners. Rinse with clear water.
4. Allow the ice bin to dry completely
before replacing in the freezer.
5. Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour or
longer) causes ice cubes in the ice bin to
melt and freeze together, jamming the
dispenser mechanism.
• You do not use the ice dispenser frequently.
Ice cubes will freeze together in the bin,
jamming the dispenser mechanism.
Remove the ice bin and shake to loosen the
cubes or clean as explained above.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water
softener can damage the ice maker.
CAUTION
NEVER use an ice pick or similar
sharp instrument to break up the ice.
This could damage the ice bin and
dispenser mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure it
is completely dry.
IMPORTANT
On occasion, unusually small ice cubes may
be noticed in the bucket or in dispensed ice.
This could occur in normal operation of the
ice maker. If you start seeing these more
frequently, it may be an indication of low
water pressure or the water lter needs to
be replaced. As the water lter nears the
end of its useful life and becomes clogged
with particles, less water is delivered to the
ice maker during each cycle. Remember, if
it’s been six months or longer since you last
changed your water lter, replace the water
lter with a new one. Poor quality household
water may require the lter to be changed
more frequently.
22
Adjusting Ice Bin Auger
Auger
IMPORTANT
When removing or replacing the ice bin,
DO NOT rotate the auger in the ice bin.
If the auger is accidentally rotated, you
must realign the auger by turning it in 45
degree turns (see below) until the ice bin
ts into place with the drive mechanism.
If the auger is not properly aligned when
replacing the ice bin, the refrigerator will
not dispense ice. The fresh food door also
may not close properly causing warm air
to leak into the fresh food compartment.
Automatic Ice & Water Dispenser (Continued)
23
Storage Features
Your refrigerator includes Spill-Proof
TM
glass
shelves that are designed to catch and hold
accidental spills.
You can easily adjust shelf positions in the
fresh food compartments to suit your needs.
The shelves have mounting brackets that
attach to slotted supports at the rear of
each compartment.
To Change the Position of a Shelf:
1. Remove all food from shelf.
2. Lift the front edge up and pull the
shelf out.
3. Replace by inserting the mounting
bracket hooks into the desired
support slots.
4. Lower the shelf and lock into position.
Shelf features
Drawers
Your refrigerator includes a variety of
storage drawers. These drawers are located
in xed positions at the bottom of the fresh
food compartment.
Crispers
Crisper drawers are designed for storing
fruits, vegetables, and other fresh produce.
Crisper Humidity Control
Crisper drawers include a sliding control
for adjusting the humidity inside the crisper.
Leafy vegetables keep best when stored
with the Humidity Control set on Higher
Humidity. Fresh fruits keep best when
stored with the Humidity Control set on
Lower Humidity.
Half Spill-Proof
TM
Shelf
Full Spill-Proof
TM
Shelf
Opening Crisper Drawer
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change. Allow the glass
shelves to stabilize to room temperature
before cleaning. Do not wash in dishwasher.
NOTE
Features may vary according to model.
24
To Remove the Crisper Drawer for Cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the
drawer.
Adjusting Crisper Humidity
Removing Crisper Drawer
Higher
Humidity
Lower
Humidity
humidity control
Storage Features (continued)
Deli Drawer
Ideal for storage of deli meats and cheese.
Doors
Storage Bins
The doors to your fresh food compartment
use a system of modular storage bins. All of
these bins are removable for easy cleaning.
Some of them have xed positions, while
others can be adjusted to your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used items.
To change the position of an adjustable
door bin:
1. Remove all food from door bin.
2. Grip the bin rmly with both hands and
lift it upward.
3. Remove the bin.
4. Place the bin just above desired position.
5. Lower the bin onto supports until locked
in place.
Adjustable Door Bin
25
Storage Features (Continued)
Dairy Compartment
Freezer Features (varies by model)
To Remove Upper Basket
1. Remove all items from basket.
2. Remove basket by pulling baskets out
to their full extension and lift out.
Removing Upper Basket
To reinstall upper basket, position basket
onto the retainer clips making sure the front
of the basket rests in the retainer clips on the
stabilizer bar.
To reinstall lower basket, insert basket into
retainer clips.
NOTE
If basket is not resting on stabilizer
bar retainer clips, the drawer will not
close properly.
To Remove Lower Basket
1. Remove all items from basket.
2. Remove the basket by tilting it forward
and lifting it from the retainer clips.
Accessories (varies by model)
Dairy Compartment
Use the dairy compartment, at the top of the
fresh food compartment door, for short-term
storage of cheese, spreads, or butter. The
dairy compartment is designed to be warmer
than the open area and includes a lift-up
cover and a dairy divider (select models).
Two Freezer Baskets
Stabilizer Bar
Basket
Retainer
Clips
Removing Lower Basket
Basket
Retainer
26
Storage Features (Continued)
Dividers
Lift up on the front of the divider and pull out.
Basket Divider
Basket Divider
Retainers
Stabilizer
Bar
To reposition the pivoting divider (some
models), lift up and slide to desired
location. The pivoting divider is not
designed to be removed.
Lower Basket Pivoting Divider
(some models)
Lower Basket
Divider
NOTE
Spill Guard Tray should be hand
washed in warm water.
27
Storing Food and Saving Energy
Ideas for Storing Foods
Fresh Food Storage
• Keep the fresh food compartment
between 34°F and 40°F with an optimum
temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation and
causes uneven cooling.
Fruits and Vegetables
• Store fruits and vegetables in crisper drawers,
where trapped moisture helps preserve food
quality for longer time periods.
• Wash items and remove excess water.
• Wrap any items that have strong odors or
high moisture content.
Meat
• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or surfaces.
• Use the deli drawer to store meat/poultry
for short-term storage. Any meat to be kept
longer than two days should be frozen.
Frozen Food Storage
• Keep the freezer compartment at 0°F
or lower.
• A freezer operates most eciently when it
is at least ⅔
full.
Packaging Foods for Freezing
• To minimize food dehydration and quality
deterioration, use aluminum foil, freezer
wrap, freezer bags, or airtight containers.
Force as much air out of the packages as
possible and seal them tightly. Trapped air
can cause food to dry out, change color,
and develop an o-avor (freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the Freezer
• Prior to grocery shopping, activate
“quick freeze” so that on your return
you can ensure your newly purchased
food designated for the freezer will be
preserved as quickly as possible.
• Activating “quick freeze” also will help
your freezer more eciently maintain the
selected temperature after placing new
purchases with pre-existing frozen foods.
• Avoid adding too much warm food to the
freezer at one time. This overloads the
freezer, slows the rate of freezing, and
can raise the temperature of frozen foods.
• Leave a space between packages, so cold
air can circulate freely, allowing food to
freeze as quickly as possible.
Ideas for Saving Energy
Installation
• Locate the refrigerator in the coolest part
of the room, out of direct sunlight, and
away from heating ducts or registers.
• Do not place the refrigerator next to heat-
producing appliances such as a range, oven,
or dishwasher. If this is not possible, a section
of cabinetry or an added layer of insulation
between the two appliances will help the
refrigerator operate more eciently.
• Level the refrigerator so that the doors
close tightly.
Temperature Settings
• Refer to the “Controls” section for
procedures on temperature settings.
Food Storage
• Avoid overcrowding the refrigerator or
blocking cold air vents. Doing so causes
the refrigerator to run longer and use
more energy.
• Cover foods and wipe containers dry
before placing them in the refrigerator.
This cuts down on moisture build-up inside
the unit.
• Organize the refrigerator to reduce door
openings. Remove as many items as
needed at one time and close the door as
soon as possible.
• Do not place a hot container directly on
a cold shelf. Remember, such an extreme
temperature change may damage the glass.
28

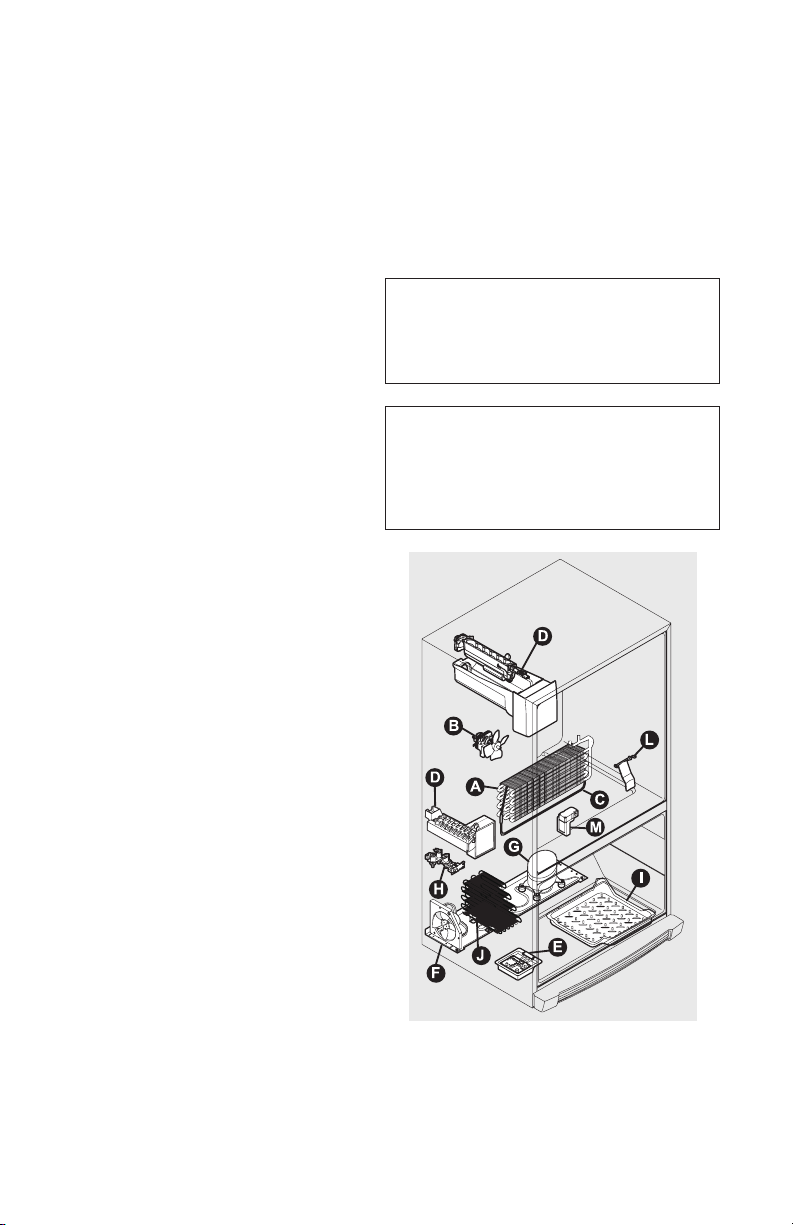

Understanding the Sounds You
May Hear
Your new, high-eciency refrigerator may
introduce unfamiliar sounds. These sounds
normally indicate your refrigerator is
operating correctly. Some surfaces on oors,
walls, and kitchen cabinets may make these
sounds more noticeable.
The following is a list of major components
in your refrigerator and the sounds they
can cause:
A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear air
being forced through the refrigerator
by the evaporator fan.
C Defrost heater During defrost cycles,
water dripping onto the defrost heater
may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
D Automatic ice maker When ice has
been produced, you will hear ice cubes
falling into the ice bin. Ice maker fan
and water valve activation may create
sounds from its operation. (Freezer ice
maker in select models only).
E Electronic control & automatic defrost
control These parts can produce
a snapping or clicking sound when
turning the cooling system on and o.
F Condenser fan You may hear air being
forced through the condenser.
G Compressor Modern, high-eciency
compressors run much faster than older
models. The compressor may have a
high-pitched hum or pulsating sound.
H Water valve Makes a buzzing sound
each time it opens to ll the ice maker.
I Drain pan (not removable) You may
hear water dripping into the drain pan
during the defrost cycle.
J Condenser May create minimal sounds
from forced air.
Normal Operating Sounds and Sights
NOTE
Energy ecient foam in your refrigerator
is not a sound insulator.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your
freezer compartment is normal.
L Ice dispensing paddle When
dispensing ice, you will hear a
snapping, clicking, or popping sound
when the solenoid opens and closes the
ice chute.
M Motorized damper May produce a
light humming during operation.
29
Changing the Filter
Locating the Filters
Your refrigerator is equipped with water
ltering system. The water lter system lters
all dispensed drinking water, as well as the
water used to produce ice.
Water Filter
The water lter is located at the top right
side of the fresh food compartment.
Ordering Replacement Filters
To order your replacement lters, please
visit the dealer where you purchased your
refrigerator. Sears recommends that you
order extra lters when you rst install your
refrigerator, and that you replace your lters
at least once every six months.
Here is the product number to request
when ordering:
Kenmorepure!
TM
Water Filter
Part #9999
Replacing the Water Filter
In general, you should change the water
lter every six months to ensure the highest
possible water quality. Water Filter Status
on the user interface prompts you to replace
the lter after a standard amount of water
(200 gallons/757 liters for Kenmorepure!
TM
)
has owed through the system.
If your refrigerator has not been used
for a period of time (during moving
for example), change the lter before
reinstalling the refrigerator.
Filter Cartridge
Do not use with water that is
microbiologically unsafe or of unknown
quality without adequate disinfection before
or after the system. Systems certied for
cyst reduction may be used on disinfected
waters that may contain lterable cysts.
Test & Certication Results:
• Rated Capacity - 200 gallons/757 liters
for Kenmorepure!
TM
ice and water lter
• Rated service ow - .50 gallons per minute
• Operating Temp.: Min. 33°F, Max. 100°F
• Maximum Rated Pressure - 100 pounds
per square inch
• Recommended Minimum Operating
Pressure: 30 pounds per square inch
To Replace your Kenmorepure!
TM
Water Filter:
It is not necessary to turn the water supply
o to change the lter. Be ready to wipe up
any small amounts of water released during
the lter replacement.
1. Turn O the ice maker power switch.
2. Remove the lter by pushing on the end/
face of the lter.
3. Slide the old water lter cartridge straight
out of the housing and discard it.
4. Unpackage the new lter cartridge. Using
the alignment guide, slide it gently into the
lter housing until it stops against the snap-
in connector at the back of the housing.
5. Push rmly until the cartridge snaps into
place (you should hear a click as the
cartridge engages the snap-in connector).
6. Press a drinking glass against the water
dispenser while checking for any leaks at
the lter housing. Any spurts and sputters
that occur as the system purges air out of
the dispenser system are normal.
7. After lling one glass of water, continue
ushing the system for about four minutes.
8. Turn On the ice maker.
9. Press and hold the Water Filter button on
the Ice & Water Dispenser control panel
for three seconds. When the display
changes from Red to Green, the status
has been reset.
The Kenmorepure!
TM
ice and water
lter system is tested and certied to
NSF/ANSI Standards 42 and 53 for
the reduction of claims specied on
the performance data sheet.
More about your Advanced Water Filter
NOTE
When ordering your replacement lter,
please reorder the same lter type that is
currently in your refrigerator.
30
Care & Cleaning
Protecting Your Investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up.
Wipe up any spills immediately and clean the freezer and fresh food compartments at
least twice a year.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments
which can scratch the appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will work
correctly. This will prevent the oor from being damaged.
Refer to the guide on the next page for details on caring and cleaning specic areas of
your refrigerator.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions
on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely
drain the water supply system. Failure to do so could result in water leaks when the
refrigerator is put back into service. Contact a service representative to perform this
operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side
may damage ooring. Be careful not to move the refrigerator beyond the
plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces
with wet or damp hands.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, ammable
uids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use
paper towels, scouring pads, or other abrasive cleaning materials.
NOTE
If you set your temperature controls to turn o cooling, power to lights and other
electrical components will continue until you unplug the power cord from the wall outlet.
31
Care and Cleaning Tips
Part Cleaning Agents Tips and Precautions
Interior &
Door Liners
• Soap and water
• Baking soda
and water
• Use two tablespoons of baking soda in one
quart of warm water.
• Be sure to wring excess water out of sponge
or cloth before cleaning around controls,
light bulb or any electrical part.
Door Gaskets • Soap and water • Wipe gaskets with a clean soft cloth.
Drawers
& Bins
• Soap and water • Use a soft cloth to clean drawer runners
and tracks.
• Do not wash any removable items (bins,
drawers, etc.) in dishwasher.
Glass Shelves • Soap and water
• Glass cleaner
• Mild liquid sprays
• Allow glass to warm to room temperature
before immersing in warm water.
Toe Grille • Soap and water
• Mild liquid sprays
• Vacuum
• Remove toe grille (see Installation Instructions).
• Vacuum both sides and wipe with sudsy cloth
or sponge. Rinse and dry.
Exterior &
Handles
• Soap and water
• Non abrasive
glass cleaner
• Do not use commercial household cleaners
containing ammonia, bleach or alcohol to
clean handles.
• Use a soft cloth to clean smooth handles.
• Do not use a dry cloth to clean smooth doors.
Exterior &
Handles
(Stainless
Steel Models
Only)
• Soap and water
• Stainless steel
cleaners
• Never use CHLORIDE or cleaners with bleach
to clean stainless steel.
• Clean stainless steel front and handles with
non-abrasive soapy water and a dishcloth.
Rinse with clean water and a soft cloth.
• Use a non-abrasive stainless steel cleaner.
These cleaners can be purchased at most
home improvement or major department
stores. Always follow manufacturer’s
instruction. Do not use household cleaners
containing ammonia or bleach.
• NOTE: Always clean, wipe and dry with
grain to prevent scratching.
• Wash the rest of the cabinet with warm
water and mild liquid detergent. Rinse well
and wipe dry with a clean soft cloth.
Care & Cleaning (continued)
32
Care & Cleaning (continued)
Ice Chute
Extension
(some models)
The ice chute
extension is
designed to better
direct ice ow
into containers.
Push Upward Until the
Extension Snaps in Place
Pull Down
Press Here
Firmly
Installing the Ice Chute Extension
1. Turn the refrigerator o using the
button on the control panel (refer to the
“Controls” section of this Manual).
2. Align the extension with the ice chute
so that the snap clips are just inside the
front edge of the chute.
3. Push upward until the extension snaps
into place.
4. Turn your refrigerator back on.
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of three weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker o and empty ice bucket, even if you will
only be gone a few days.
Long
Vacations
• Remove all food and ice if you will be gone one month or more.
• Turn the cooling system o (see “Controls” section for location of On/
O button) and disconnect power cord.
• Turn water supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block
doors open if necessary.
Moving • Remove all food and ice.
• If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
Vacation and Moving Tips
Removing the Ice Chute Extension
For Cleaning
1. Turn the refrigerator o using the
button on the control panel (refer to the
“Controls”
section
of this
Manual).
2. Press
inward
rmly on
the front of
the chute
and pull
down.
3. Turn your
refrigerator back on.
33
Care & Cleaning (continued)
Replacing LED Lights (select
models)
The fresh food compartments of your
refrigerator may have LED lights. Always
use Frigidaire parts for replacement.
To Replace LED Lights:
1. Unplug your refrigerator’s power
cord.
2. Remove light cover by pushing up
and out.
3. Hold the LED cover with one hand
and pull the connector with the other
hand while pressing the connector
latch.
4. Replace LED light and snap in place
assuring the light is facing in toward
the unit (inside fresh food).
NOTE
LED lights are in series so if one is bad
or unplugged, several lights may not
light up.
Ordering Replacement LED Lights
Order new LEDs through the dealer where
you bought the refrigerator.
LED Light Board Removal
Lens Removal
34
Care & Cleaning (continued)
Ordering Replacement LED Lights
Order new LEDs through the dealer where
you bought the refrigerator.

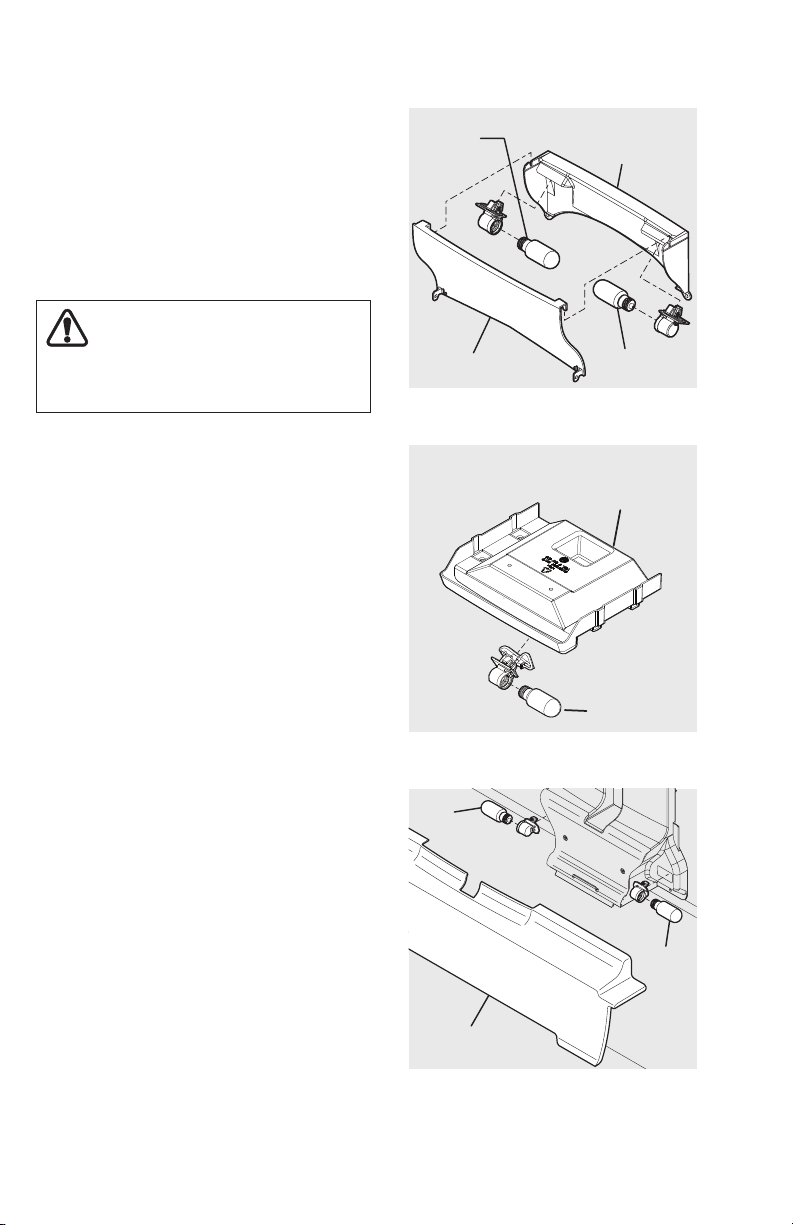

Replacing Light Bulbs (select models)
Both the freezer and fresh food
compartments of your refrigerator include
incandescent light bulbs that will need
replacing from time-to-time. Some lights
have covers that need to be removed before
replacing the bulbs. Always use bulbs that
are designed for appliance lighting.
To Replace Light Bulbs:
1. Unplug your refrigerator’s power cord.
2. Wear protective gloves.
3. Remove light cover, if necessary.
4. Unscrew and replace old bulb with an
appliance bulb of the same type and
wattage (normally 40 watts).
5. Replace light cover, if necessary.
6. Plug in the refrigerator’s power cord.
Back Wall Lights
Light
Bulb
Rear Deli Pan
Light Cover
Light
Bulb
CAUTION
Wear gloves when replacing incandescent
light bulbs to avoid getting cut.
Freezer Light
Light Socket
Located in Upper
Freezer Section
Light Bulb
Refrigerator Light
Light
Bulb
Light Sockets
Located Behind
Glass Shelves
Light
Bulb
Refigerator
Light Cover
35
Before You Call
CONCERN POTENTIAL CAUSE COMMON SOLUTION
AUTOMATIC ICE MAKER
Ice maker is
not making
any ice.
• Ice maker is turned o.
• Refrigerator is not
connected to water
line or water valve is
not open.
• The water supply line is
kinked.
• The water lter is not
seated properly.
• The water lter may be
clogged with foreign
material.
• Freezer ice maker wire
signal arm is being
held up by an item not
allowing it to go in the
on or down position.
• Turn on ice maker. For the fresh food
ice maker, press and hold the “Ice
O” button for three seconds until the
indicator light is o. For the freezer
ice maker, lower the wire signal arm.
• Connect the unit to the household
water supply and ensure the water
valve is open.
• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.
• Remove and re-install the water lter.
Be sure to push the lter rmly so that
you hear it lock solidly into position.
• If water dispenses slowly or not at
all, or if the lter is six months old or
older, it should be replaced.
• Move any item or frozen ice cubes
that may block the signal arm from
being in the on or down position. See
Automatic Ice Maker-Freezer section
in manual.
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you
expect.
• The water lter may be
clogged with foreign
material.
• The water supply line is
kinked.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Heavy trac, opening
or closing of the doors
excessively.
• Freezer control is set
too warm (freezer ice
maker).
• The fresh food and freezer ice makers
will each produce approximately
2.5 pounds of ice every 24 hours
depending on usage conditions.
• If water dispenses slower than normal,
or if the lter is six months old or
older, it should be replaced.
• Ensure that the supply line does not
kink when the refrigerator is pushed
into place against the wall.
• Turn o household water line valve.
Remove valve. Ensure that valve is not
a self-piercing saddle valve. Clean
valve. Replace valve if necessary.
• Press Fast Freeze to temporarily
increase ice production rate.
• Set freezer control to colder setting
to improve performance of the ice
maker (freezer ice maker). Allow 24
hours for temperature to stabilize.
36
Before You Call (continued)
CONCERN POTENTIAL CAUSE COMMON SOLUTION
AUTOMATIC ICE MAKER (continued)
Freezer ice
maker will
not stop
making
ice (select
models).
• Ice maker wire
signal arm is being
held down by some
package in the freezer
that has fallen against
the ice maker.
• Move any item or frozen ice cubes
that may block the signal arm from
being in the o or upward position.
See Automatic Ice Maker-Freezer
section in manual.
Ice cubes
are freezing
together.
• Ice cubes are not
being used frequently
enough or interruption
of power for prolonged
time.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow
cubes break open in
the bin and leak their
water onto existing
ice, which causes it to
freeze together.
• Remove ice container and discard
ice. The ice maker will produce fresh
supply. Ice should be used at least
twice weekly to keep the cubes
separated.
• This generally occurs when the ice
maker does not get enough water. This
is usually the result of a clogged water
lter or restricted water supply. Replace
the water lter and if the condition still
occurs check for a Saddle Valve, water
valve not turned on all the way or
kinked water supply line.
DISPENSER (Ice & Water)
Dispenser will
not dispense
ice.
• Dispenser lock out is
engaged.
• There is no ice in the
bin to be dispensed.
• The refrigerator doors are
not completely closed.
• Dispenser paddle has
been pressed too long
and the dispenser
motor has overheated.
• Press and hold control lock for three
seconds.
• See the “Ice maker is not making any
ice” section above.
• Be sure the refrigerator doors are
completely closed.
• The motor overload protector will
reset in about three minutes and then
ice can be dispensed.
Ice dispenser
is jammed.
• Ice has melted and
frozen around auger
due to infrequent
use, temperature
uctuations, and/or
power outages.
• Ice cubes are jammed
between ice maker and
back of ice container.
• Remove ice container, thaw, and
empty the contents. Clean container,
wipe dry, and replace in proper
position. When new ice is made,
dispenser should operate.
• Remove ice cubes that are jamming
the dispenser.
37
CONCERN POTENTIAL CAUSE COMMON SOLUTION
DISPENSER (Ice & Water) (continued)
Dispenser will
not dispense
water.
• Dispenser lock out is
engaged.
• Water lter not seated
properly.
• Water lter is clogged.
• Household water line
valve is not open.
• Press and hold control lock for three
seconds.
• Remove and reinstall the water lter.
Be sure to push the lter rmly so that
you hear it lock solidly into position.
• Replace lter cartridge. Be sure to
remove protective caps and push the
lter rmly so that you hear it lock
solidly into position.
• Open household water line valve. See
CONCERN column AUTOMATIC ICE
MAKER.
Water has
an odd taste
and/or odor.
• Water has not been
dispensed for an
extended period of time.
• Unit not properly
connected to cold
water line.
• Draw and discard 10-12 glasses of
water to freshen the supply.
• Connect unit to cold water line that
supplies water to the kitchen faucet.
Water
pressure is
extremely
low.
• Cut-o and cut-on
pressures are too low
(well systems only).
• Reverse osmosis system
is in regenerative
phase.
• Have someone turn up the cut-o and
cut-on pressure on the water pump
system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during the
regenerative phase.
Water not
cold enough.
• As warmer tap water
goes through the
lter and enters the
water supply system
the chilled water is
pushed through to the
dispenser. Once the
chilled water is used up
it will take several hours
to bring the freshly
replaced water to a
cooler temperature.
• Add ice to cup or container before
dispensing water.
Before You Call (continued)
38
CONCERN POTENTIAL CAUSE COMMON SOLUTION
OPENING/CLOSING OF DOORS/DRAWERS
Door(s) will
not close.
• Door was closed too
hard, causing other
door to open slightly.
• Refrigerator is not
level. It rocks on the
oor when moved
slightly.
• Refrigerator is touching
a wall or cabinet.
• Close both doors gently.
• Ensure oor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping oor.
• Ensure oor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping oor.
Drawers are
dicult to
move.
• Food is touching shelf
on top of drawer.
• Track that drawers
slide on is dirty.
• Remove top layer of items in drawer.
• Ensure drawer is properly installed on track.
• Clean drawer, rollers, and track. See
Care & Cleaning.
RUNNING OF REFRIGERATOR
Compressor
does not run.
• Freezer control is set to
“OF” or “0”.
• Refrigerator is in
defrost cycle.
• Plug at electrical outlet
is disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• Set freezer control.
• This is normal for a fully automatic defrost
refrigerator. The defrost cycle occurs
periodically, lasting about 30 minutes.
• Ensure plug is tightly pushed into
outlet.
• Check/replace fuse with a 15 amp
time-delay fuse. Reset circuit breaker.
• Check house lights. Call local
electric company.
Refrigerator
runs too much
or too long.
• Room or outside
weather is hot.
• Doors are opened too
frequently or too long.
• Fresh Food/freezer
door may be slightly
open.
• Freezer control is set
too cold.
• Fresh Food/freezer
gasket is dirty, worn,
cracked, or poorly
tted.
• Condenser is dirty.
• It’s normal for the refrigerator to work
longer under these conditions.
• Warm air entering the refrigerator causes
it to run more. Open doors less often.
• Ensure refrigerator is level. Keep food
and contains from blocking door.
See CONCERN column OPENING/
CLOSING OF DOORS/DRAWERS.
• Set Fresh Food control to warmer
setting until refrigerator temperature
is satisfactory. Allow 24 hours for
temperature to stabilize.
• Clean or change gasket. Leaks in
door seal will cause refrigerator
to run longer in order to maintain
desired temperatures.
• Clean condenser. See Care & Cleaning.
Before You Call (continued)
39
Before You Call (continued)
CONCERN POTENTIAL CAUSE COMMON SOLUTION
DIGITAL TEMPERATURE DISPLAY
Digital
temperature
displays are
ashing.
• Electronic control
system has detected a
performance problem.
• Call your Frigidaire service
representative, who can interpret any
messages or number codes ashing
on the digital displays.
WATER/MOISTURE/FROST INSIDE REFRIGERATOR
Moisture
collects on
inside of
refrigerator
walls.
• Weather is hot and
humid.
• Door is slightly open.
• The rate of frost buildup and internal
sweating increases.
• See CONCERN column OPENING/
CLOSING OF DOORS/DRAWERS.
Water collects
on bottom
side of
drawer cover.
• Vegetables contain
and give o moisture.
• It is not unusual to have moisture on
the bottom side of the cover.
• Move humidity control (some models)
to lower setting.
Water collects
in bottom of
drawer.
• Washed vegetables
and fruit drain while in
the drawer.
• Dry items before putting them in the
drawer. Water collecting in bottom of
drawer is normal.
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Moisture
collects on
outside of
refrigerator
or between
doors.
• Weather is humid.
• Door is slightly open,
causing cold air from
inside refrigerator to meet
warm air from outside.
• This is normal in humid weather.
When humidity is lower, the moisture
should disappear.
• See CONCERN column OPENING/
CLOSING OF DOORS/DRAWERS.
