ELECTRIC OR GAS DRYER USE AND CARE GUIDE

CHECK YOUR VENT SYSTEM FOR GOOD AIRFLOW

Good airflow

• Along with the heat, dryers require good air flow to efficiently dry laundry. Proper venting will reduce your drying times and improve your energy savings. See Installation Instructions.
• The venting system attached to the dryer plays a big role in good air flow.
• Service calls caused by improper venting are not covered by the warranty and will be paid by the customer, regardless of who installed the dryer.

Maintain good air flow:

• Clean your lint screen before each load.
• Replace plastic or foil vent material with 4" (102 mm) diameter heavy, rigid vent material.

• Use the shortest length of vent possible.
• Use no more than four 90° elbows in a vent system; each bend and curve reduces airflow.

• Remove lint and debris from the exhaust hood.
• Remove lint from the entire length of the vent system at least every 2 years. When cleaning is complete, be sure to follow the Installation Instructions supplied with your dryer for final product check.
• Clear away items from the front of the dryer.

USE ACCUDRY™AUTOMATIC DRY CYCLES FOR BETTER FABRIC CARE AND ENERGY SAVINGS

Use the ACCUDRYTM/Automatic Dry cycles to provide the most energy savings and enhanced fabric care from the dryer.

During ACCUDRYTM/Automatic Dry cycles, drying air temperature or moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer shuts off when the load reaches the selected dryness. The Energy Preferred cycle will provide optimal energy savings.

With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to overdrying.

Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.

CONTROL PANEL & FEATURES

1. WRINKLE SHIELDTM Feature (on some models)

When you are unable to remove a load of clothes from the dryer as soon as it stops, wrinkles can form. The Wrinkle ShieldTM feature periodically tumbles, rearranges, and fluffs the load to help keep wrinkles from forming.

• Get 90 minutes of heat-free, periodic tumbling at the end of a cycle. Turn the Wrinkle ShieldTM knob to On or Off at any time before the cycle has ended.

2. DRYER CYCLE KNOB

Use your Dryer Cycle knob to select available cycles on your dryer. Turn the knob to select a cycle for your laundry load. See “Cycle Guide” for detailed descriptions of cycles.

• TIMED DRY

Will run the dryer for the specified time on the control.

On models with a selectable temperature knob, you may choose a setting based on the fabrics in your load. Drying time and temperature will depend on your dryer model.

• ACCUDRYTM/AUTOMATIC DRY

Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.

Gives the best drying in the shortest time. Drying time will vary based on fabric type, load size, and dryness setting.

3. TEMPERATURE

Select a drying temperature based on the fabrics in your load. If you are unsure of the temperature to select for a load, select the lower setting rather than the higher setting.

NOTE: The No Heat temperature setting (on some models) is not available on ACCUDRYTM cycles.

4. CYCLE SIGNAL/PUSH TO START

The Cycle Signal produces an audible sound when the drying cycle is finished. Promptly removing clothes at the end of the cycle reduces wrinkling.

• Turn the Cycle Signal knob to select the desired setting (On or Off). Press the PUSH to START knob to start the dryer.

NOTE: When the Wrinkle ShieldTM setting is selected and the Cycle Signal is on, the tone will sound every minutes until the clothes are removed or the Wrinkle Shield™ setting ends.

CYCLE GUIDE - ACCUDRY™/Automatic Dry Cycles

Cycle Guide – Timed Dry Cycles

Setting the Drying Temperature

If your dryer has multiple heat settings:

• A High temperature setting may be used for drying heavyweight items such as towels and work clothes.
• A Low to Medium temperature setting may be used for drying medium-weight items such as sheets, blouses, dresses, underwear, permanent press fabrics, and some knits.
• Use the No Heat setting for foam, rubber, plastic, or heat- sensitive fabrics.
• Line dry bonded or laminated fabrics.

NOTE: If you have questions about drying temperatures for various loads, refer to the care label directions.

HOW TO USE

1. Clean the lint screen Clean the lint screen before each load. Pull the lint screen out of its holder. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Push the lint screen firmly finished back into place. For additional cleaning information, see “Dryer Care”.
2. Load the dryer Place laundry in the dryer. Close the door. NOTE: Your model may have a different door than the one shown. Some models have drop down doors. Do not tightly pack the dryer; clothes should be able to tumble freely.
3. Select the desired cycle Select the desired cycle for your load. See the “Cycle Guide” for more information about each cycle. ACCUDRYTM/Automatic Dry Cycles You can select a different dryness level, depending on your load, by turning the knob to dryness level. Selecting More or Very Dry, ENERGY PREFERRED, or Less Dry automatically adjusts the dryness level at which the dryer will shut off. Once a dry level is set, it cannot be changed without stopping the cycle. ACCUDRYTM/AUTOMATIC DRY cycles give the best drying in the shortest time. Drying time varies based on fabric type, load size, and dryness setting. NOTE: More or Very Dry removes more load moisture. ENERGY PREFERRED is used for a starting point for ACCUDRYTM cycles. Choose ENERGY PREFERRED for optimal energy savings. Less Dry removes less moisture and is used for loads you may want to put on a hanger to complete drying.
4. Set cycle settings and options Select cycle settings and options by turning the knob to the desired position. NOTE: Not all options and settings are available with all cycles. Temperature Turn the Temperature knob to change the drying temperature setting. See “Setting the Drying Temperature”. Wrinkle ShieldTM feature (on some models) n Get 90 minutes of heat-free, periodic tumbling at the end of a cycle. Turn the Wrinkle ShieldTM knob to select on or off at any time before the cycle has ended. n Some models with a Wrinkle ShieldTM cycle will automatically get 40 minutes of heat-free, periodic tumbling at the end of a cycle.
5. Select Cycle Signal (if desired) Turn the Cycle Signal knob to select the desired setting On or Off). The Cycle Signal produces an audible sound when the drying cycle is finished. Promptly removing clothes at the end of the cycle reduces wrinkling. NOTE: When the Wrinkle ShieldTM setting is selected and the Cycle Signal is On, the tone will sound every 5 minutes until the clothes are removed, or the Wrinkle ShieldTM setting ends.
6. Press PUSH to START to begin cycle Push and hold the PUSH to START knob to begin the cycle. Promptly remove garments after cycle has completed to reduce wrinkling. Use the Wrinkle ShieldTM feature to avoid wrinkling when you are unable to remove a load from the dryer as soon as it stops.

CARE & MAINTENANCE

Cleaning the dryer interior

To clean dryer drum

1. Apply a liquid, nonflammable household cleaner to the stained area of the drum and rub with a soft cloth until stain is removed.
2. Wipe drum thoroughly with a damp cloth.
3. Tumble a load of clean cloths or towels to dry the drum.

NOTE: Garments that contain loose dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry these items inside out to avoid drum staining.

Removing accumulated lint

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualified servicer.

From the Exhaust Vent

Lint should be removed every 2 years, or more often, depending on dryer usage.

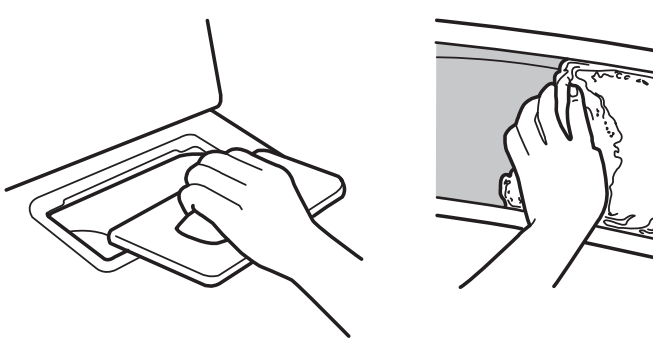

Cleaning the lint screen

Every load cleaning

The lint screen is located in the dryer. A screen blocked by lint can increase drying time.

To clean:

1. Pull the lint screen out of its holder. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove.

2. Push the lint screen firmly back into place.

IMPORTANT:

• Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics.
• If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint.

As needed cleaning

Laundry detergent and fabric softener residue can build up on the lint screen. This buildup can cause longer drying times for your clothes, or cause the dryer to stop before your load is completely dry. The screen is probably clogged if lint falls off while the screen is in the dryer.

Clean the lint screen with a nylon brush every 6 months, or more frequently, if it becomes clogged due to a residue buildup.

To wash:

1. Roll lint off the screen with your fingers.
2. Wet both sides of lint screen with hot water.
3. Wet a nylon brush with hot water and liquid detergent. Scrub lint screen with the brush to remove residue buildup.
4. Rinse screen with hot water.
5. Thoroughly dry lint screen with a clean towel. Reinstall screen in dryer.

Vacation, storage, and moving care

Non-Use or Storage Care

Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should:

1. Unplug dryer or disconnect power.
2. For gas dryers only): Close shut-off valve to gas supply line.
3. Clean lint screen. See “Cleaning the Lint Screen.”

Moving Care

For power supply cord-connected dryers:

1. Unplug the power supply cord.
2. Make sure leveling legs are secure in dryer base.
3. Use tape to secure dryer door.

Changing the drum light (on some models)

1. Unplug dryer or disconnect power.
2. Open the dryer door. Locate the light bulb cover on the back wall of the dryer. Using a Phillips-head screwdriver, remove the screw located in the lower right-hand corner of the cover. Remove the cover.
3. Turn bulb counterclockwise. Replace the bulb with a 10-watt appliance bulb only. Replace the cover and secure with the screw.
4. Plug into a grounded outlet or reconnect power.
