Contents
49
EN
1 Instructions 50
1.1 General safety instructions 50
1.2 Appliance purpose 55
1.3 Manufacturer liability 55
1.4 This user manual 55
1.5 Identification plate 55
1.6 Disposal 55
1.7 How to read the user manual 56
2 Description 57

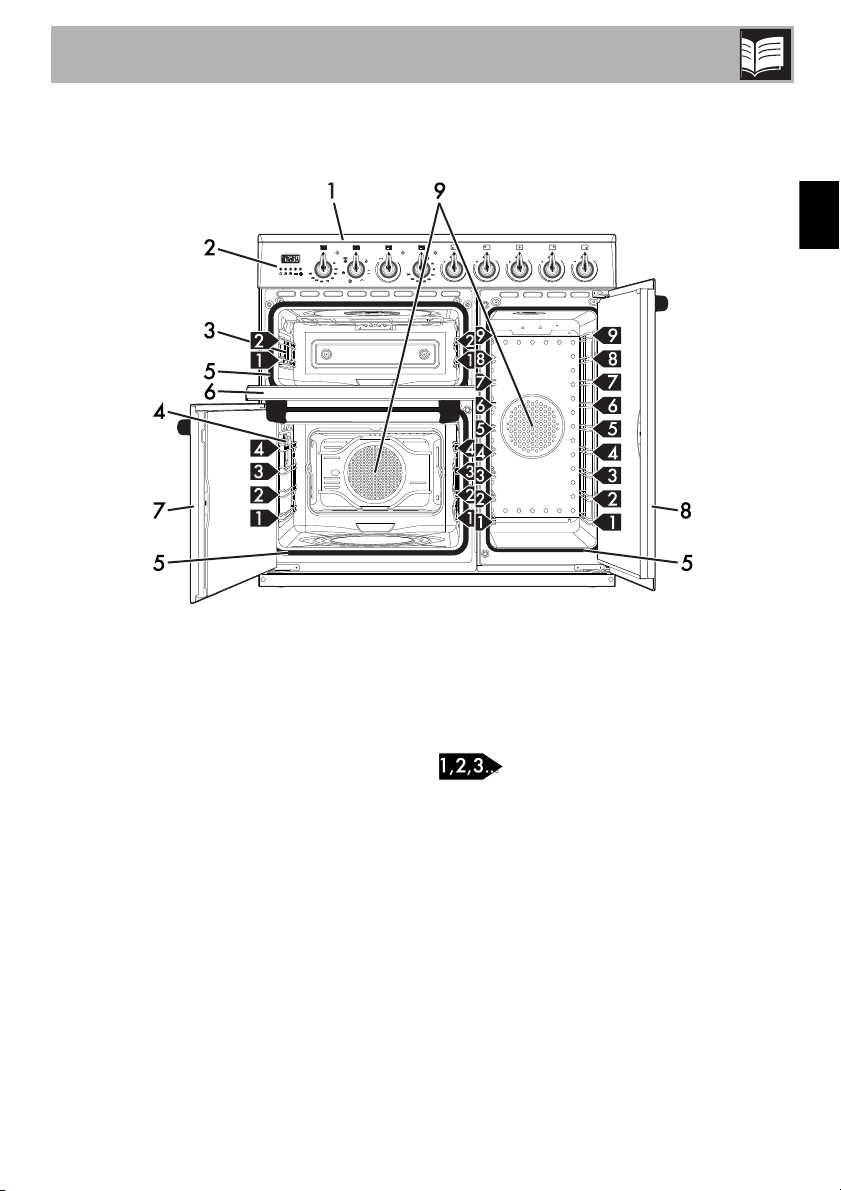

2.1 General Description 57
2.2 Cooking hob 58
2.3 Control panel 59
2.4 Other parts 60
2.5 Available accessories 60
3 Use 62
3.1 Instructions 62
3.2 First use 63
3.3 Using the accessories 63
3.4 Using the hob 65
3.5 Using the ovens 70
3.6 Cooking advice 73
3.7 Programmer clock 74
4 Cleaning and maintenance 80
4.1 Instructions 80
4.2 Cleaning the appliance 80
4.3 Removing the door of the auxiliary oven 82
4.4 Cleaning the door glazing 82

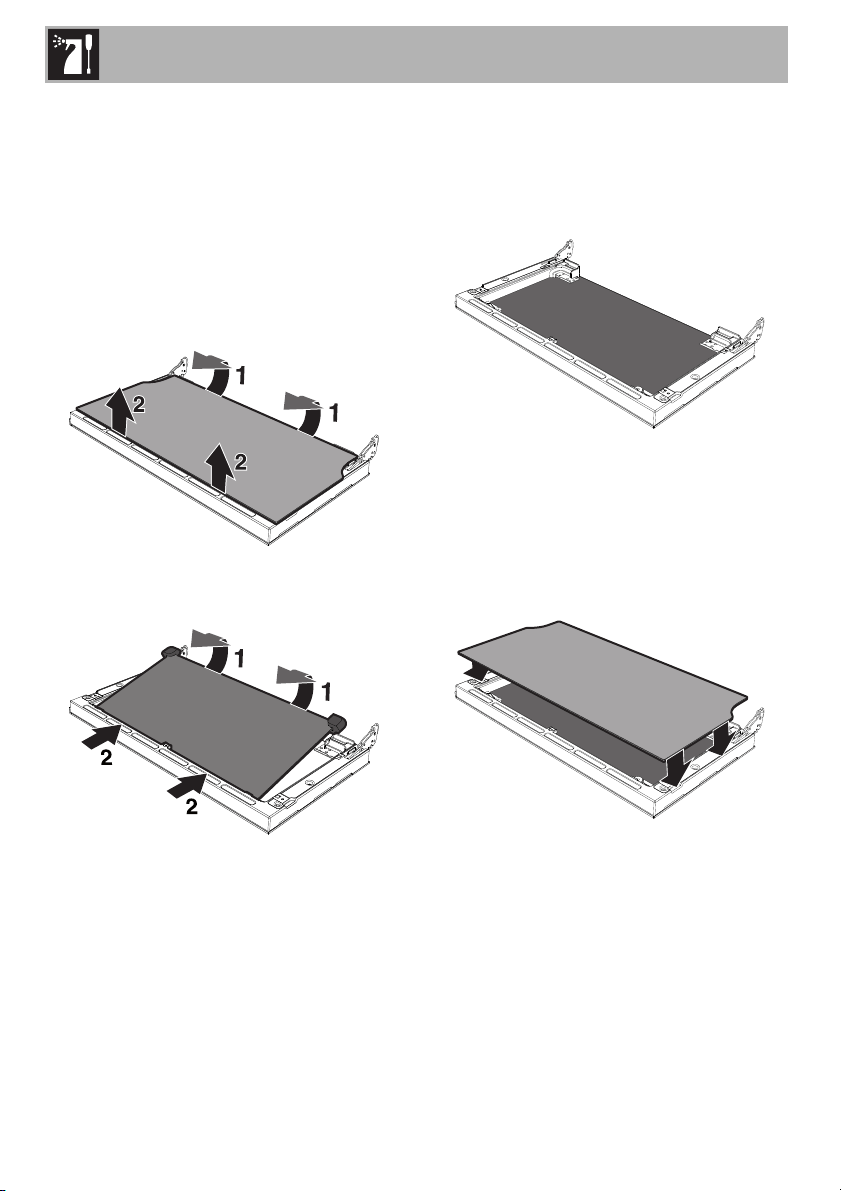

4.5 Removing the internal glass panes 83

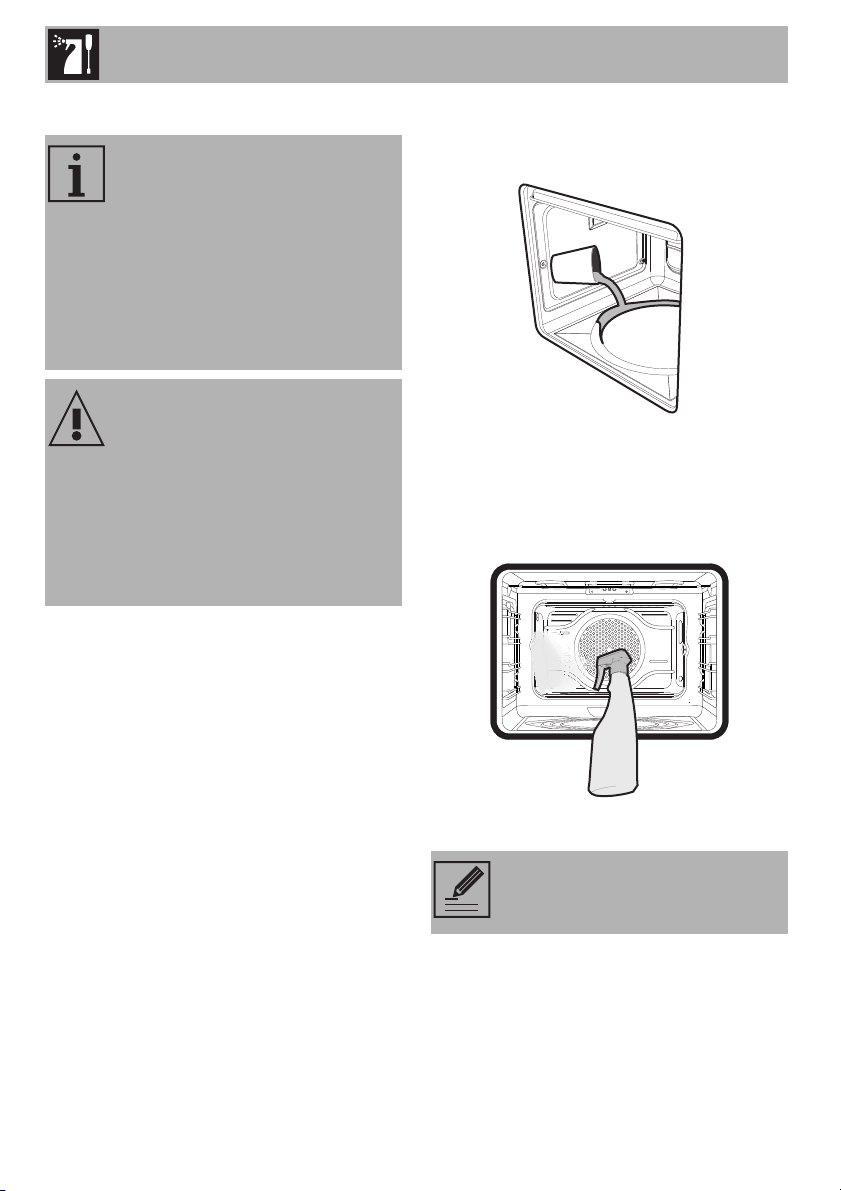

4.6 Vapor Clean (main oven only) 86
4.7 Extraordinary maintenance 87
5 Installation 89

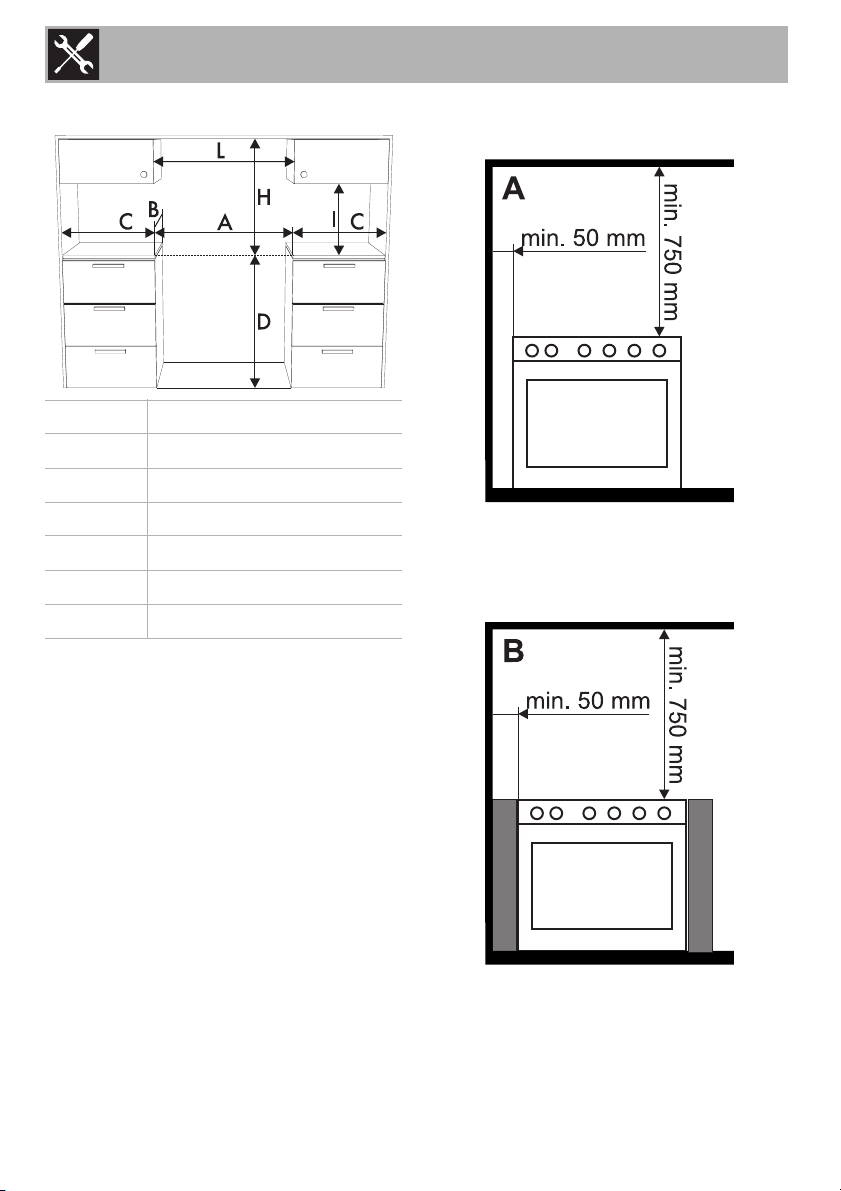

5.1 Positioning 89
5.2 Electrical connection 92
5.3 Instructions for the installer 94
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
Instructions
50
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• This appliance may be used by
children aged at least 8 and by
people of reduced physical,
sensory or mental capacity, or
lacking in experience in the use of
electrical appliances, provided
that they are supervised or
instructed by adults who are
responsible for their safety.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
Instructions
51
EN
• The cooking process must always
be monitored. A short cooking
process must be continuously
monitored.
• Do not place metal objects, such
as dishes or cutlery, on the hob
surface during use as they may
overheat.
• Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not pour water directly onto
very hot trays.
• Keep the oven door closed
during cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• Do not use or store flammable
materials in the storage
compartment (where applicable)
or near the appliance.
• Do not use aerosols in the vicinity
of this appliance whilst it is in use.
• Switch off the appliance
immediately after use.
• Do not modify this appliance.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Instructions
52
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Racks and trays should be
inserted as far as they will go into
the side guides. The mechanical
safety locks that prevent them from
being removed must face
downwards and towards the
back of the oven cavity.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these could
then heat up and catch fire. Be
very careful.
• Never leave objects on the
cooking surface.
• Do not use the appliance to heat
rooms for any reason.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or
containers in the oven.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays
directly on the bottom of the oven
cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to rest
pans or trays on the internal glass
pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.
Instructions
53
EN
• If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash removable parts
such as the hob grids, flame-
spreader crowns and burner caps
in a dishwasher.
Installation
• This appliance must not be
installed in a boat or caravan.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the oven door when open.
• Do not use the handle to lift or
move the appliance.
• To avoid potential overheating,
the appliance must not be
installed behind a decorative
door or a panel.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.
Instructions
54
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the
screws of the terminal supply
wires must be 1.5 - 2 Nm.
For this appliance
• After use, switch off the plates.
Never rely solely on the
cookware detector.
• Supervise children carefully as
they cannot readily see the
residual heat indication. After use
the cooking zones remain hot for
a certain period of time even if
they have been turned off. Keep
children away from the cooking
zones.
• The glass ceramic surface is
highly resistant to impact.
However, prevent hard, solid
objects from falling on the
cooking surface as they may
cause it to break if they are sharp.
• The glass ceramic cooking
surface must not be used as a
surface for placing objects.
• If cracks or fissures form, or if the
glass ceramic cooking surface
breaks, turn off the appliance
immediately. Disconnect the
power supply and call Technical
Support.
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on
the open door of the appliance.
• Take care that no objects are
stuck in the doors.
• People who have pacemakers or
other similar devices fitted must
make sure that the operation of
these devices is not jeopardised
by the inductive field, whose
frequency range is between 20
and 50 kHz.
• In conformity with the provisions
regarding electromagnetic
compatibility, the electromagnetic
induction cooking hob comes
under group 2 and class B (EN
55011).
Instructions
55
EN
1.2 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered improper.
• The appliance is not designed to
operate with external timers or
with remote-control systems.
1.3 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified;
• Failure to comply with the
instructions in the user manual;
• Tampering with any part of the
appliance;
• The use of non-original spare
parts.
1.4 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user’s reach for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Instructions
56
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice
Description
57
EN
2 Description
2.1 General Description
1 Cooking hob
2 Control panel
3 Light (on some models only)
4 Oven light
5 Seal
6 Auxiliary oven door
7 Main oven door
8 Side oven door
9 Fan
Rack/tray support frame shelf
Description
58
2.2 Cooking hob
* Power levels are approximate and can vary according to the pan used or the settings made.
Advantages of induction cooking
• Energy saving thanks to the direct
transmission of energy to the pan
(suitable magnetisable cookware is
required) compared to traditional
electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the hob.
• High level of energy transmitted from the
induction cooking zone to the base of
the pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of
the pan; foods which overflow do not
stick.
Zone Outside diameter (mm) Max. power draw (W)*
Power draw in booster
function (W) *
1180 1300 1400
2210 2300 3000
3270 2300 3000
The hob is equipped with an
induction generator for each
cooking zone. Each generator
located under the glass ceramic
cooking surface creates an
electromagnetic field which
induces a thermal current in the
base of the pan. This means the
heat is no longer transmitted from
the hob to the pan but created
directly inside the pan by the
inductive current.
Description
59
EN

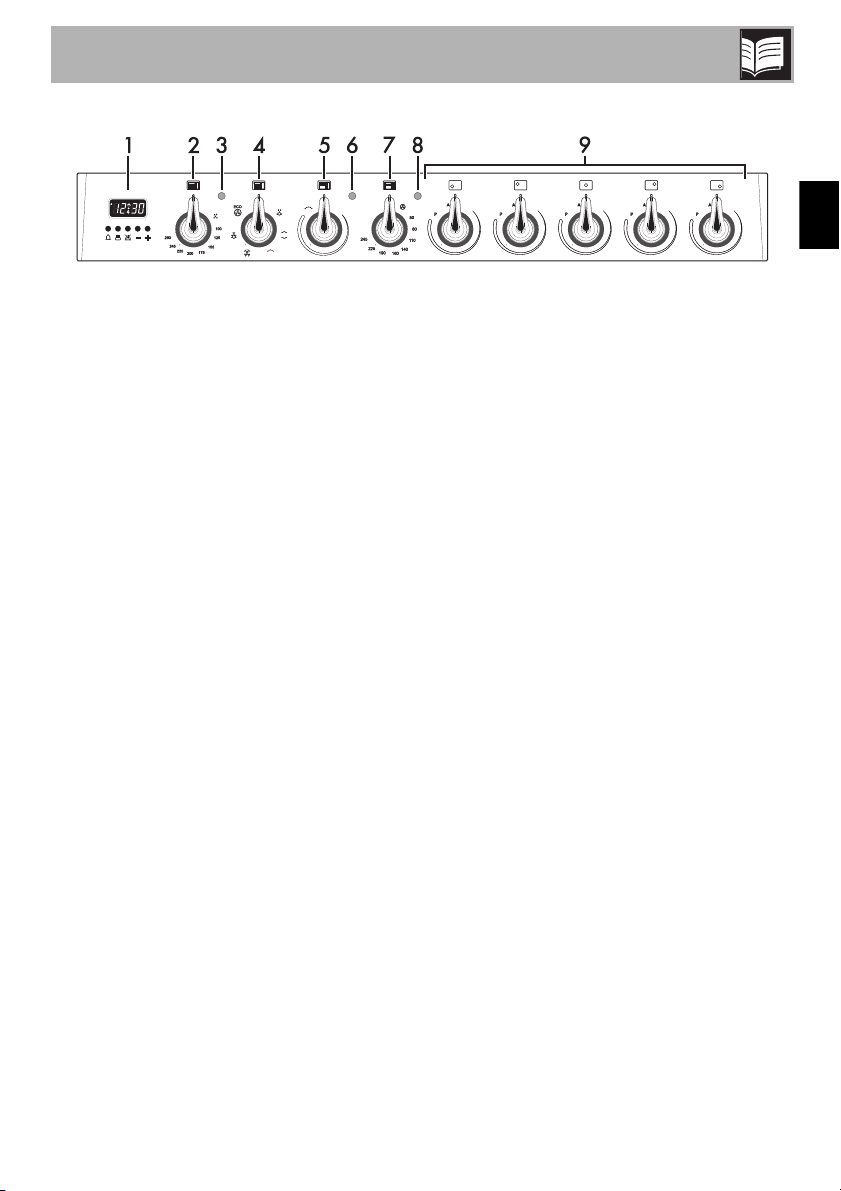

2.3 Control panel
1 Programmer clock
Useful for displaying the current time, setting
programmed cooking operations and
programming the minute minder timer.
2 Main oven temperature knob
Turns on the light inside the oven or starts the
circulaire heating element to a temperature
ranging from a minimum of 50°C to a
maximum of 260°C.
3 Main oven indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
4 Main oven function knob
The oven’s various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
5 Auxiliary oven variable grill knob
Turns on the light inside the oven (if the door
has glass) or starts the grill heating element
to a temperature ranging approximately
from a minimum of 50°C to a maximum of
300°C.
6 Auxiliary oven variable grill indicator light
The indicator light comes on to indicate that
the auxiliary oven is heating up. It turns off
as soon as it reaches the set temperature. It
flashes regularly to indicate that the
temperature set inside the oven is kept
constant.
7 Side oven temperature knob
Turns on the light inside the oven or starts the
circulaire heating element to a temperature
ranging from a minimum of 50°C to a
maximum of 245°C.
8 Side oven indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
Description
60
9 Hob cooking zone knobs
Useful for controlling the cooking zones of
the induction hob.
Turn the knobs clockwise to adjust the
operating power of the hot plate from a
minimum of 1 to a maximum of 9.
The working power is indicated on the
display on the hob.
2.4 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is activated.
Cooling fan
The fan cools the oven and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.

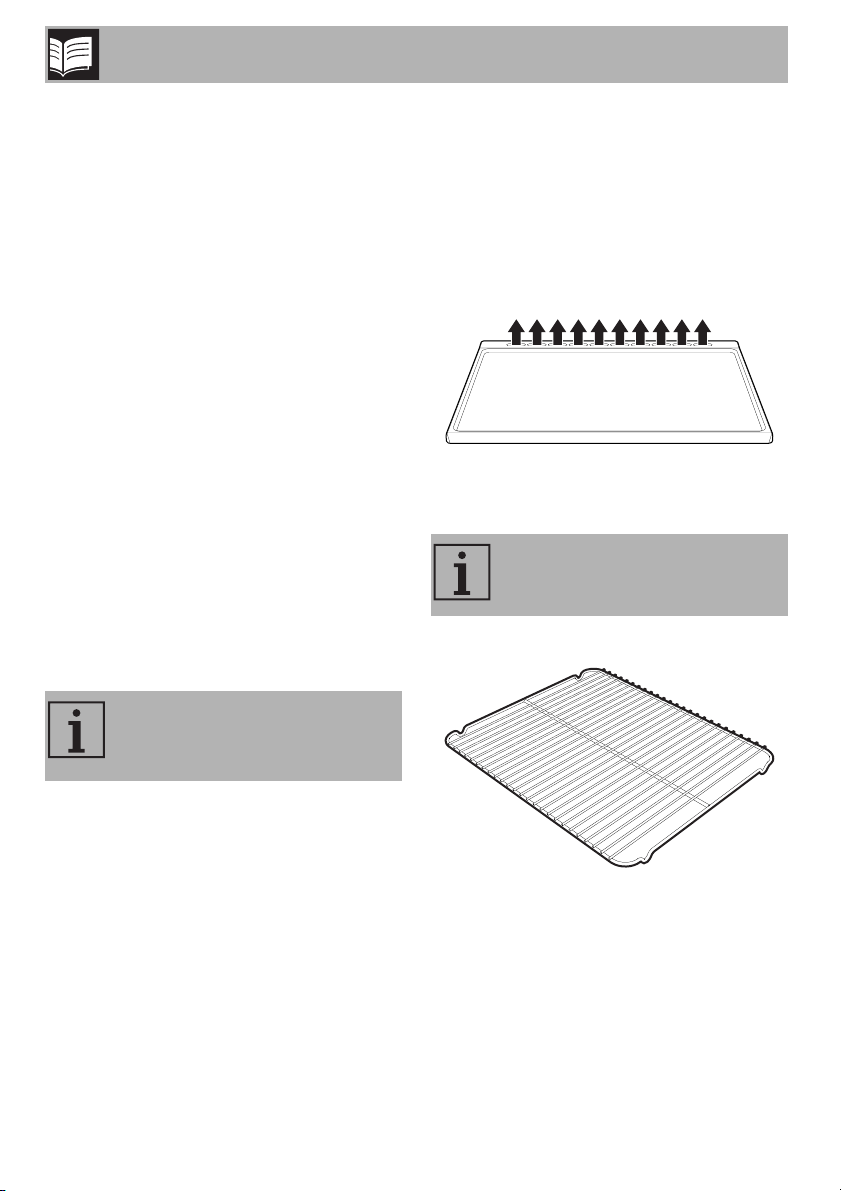

2.5 Available accessories
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
When the door is open, it is not
possible to turn off the interior
lighting.
Some models are not provided
with all accessories.
Description
61
EN

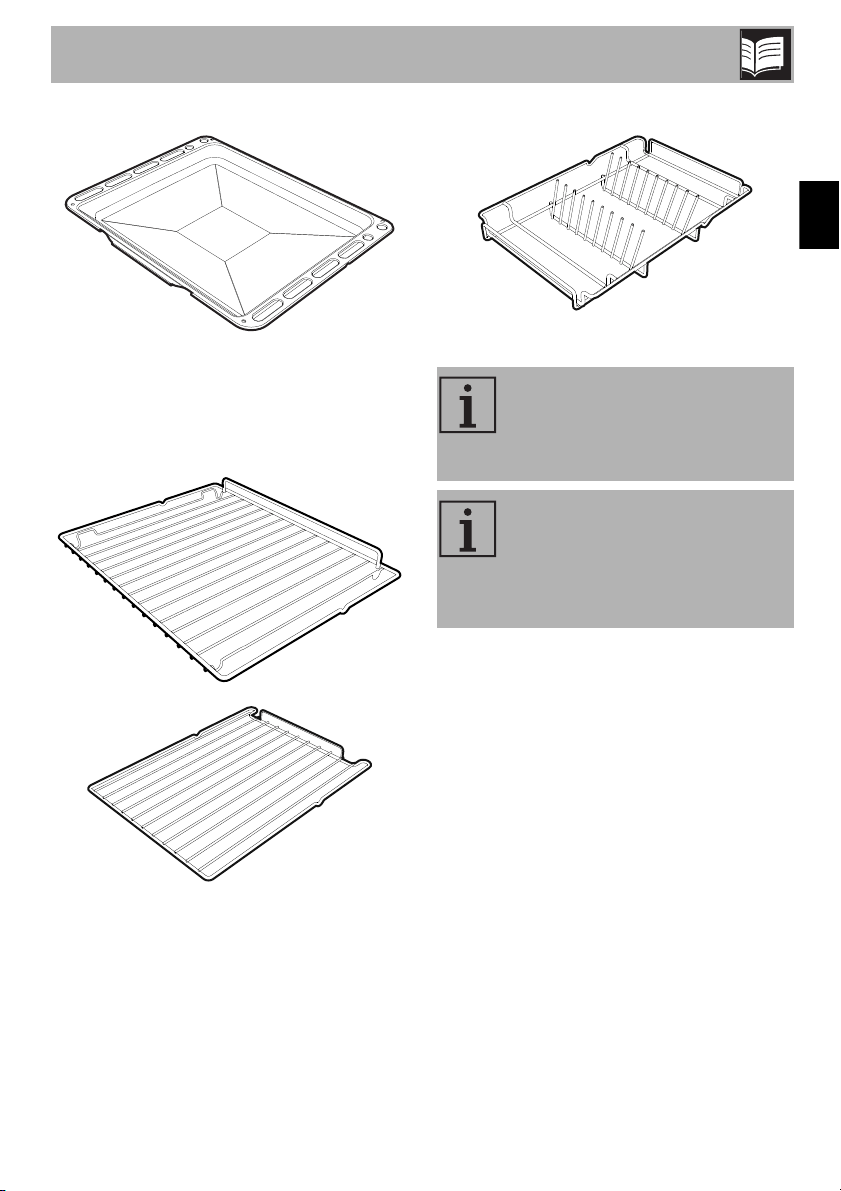

Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Rack
Useful for supporting containers with food
during cooking.
Plate rack
To be used for warming plates.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.
Use
62
3 Use
3.1 Instructions
High temperatures during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly onto very hot
trays.
• Keep children under the age of 8 away
from the appliance when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
Improper use
Danger of burns
• Do not touch or clean the hob surface
during operation or when the residual
heat indicator lights are still on.
• Activate the controls lock when you
have children or pets which could reach
the hob.
• After use the cooking zones remain hot
for a certain period of time after they
have been turned off. Do not touch the
hob surfaces.
• Oils and fats could catch fire if
overheated. Be very careful.
High temperatures during use
Danger of fire or explosion
• Do not spray any spray products near
the appliance.
• Do not use or leave flammable materials
near the appliance or the storage
compartment.
• Do not use plastic cookware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Use
63
EN
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the oven cavity.
3. Remove and wash all the appliance's
accessories (see 4 Cleaning and
maintenance).
4. Heat the empty appliance to the
maximum temperature to burn off any
residues left by the manufacturing
process.
3.3 Using the accessories

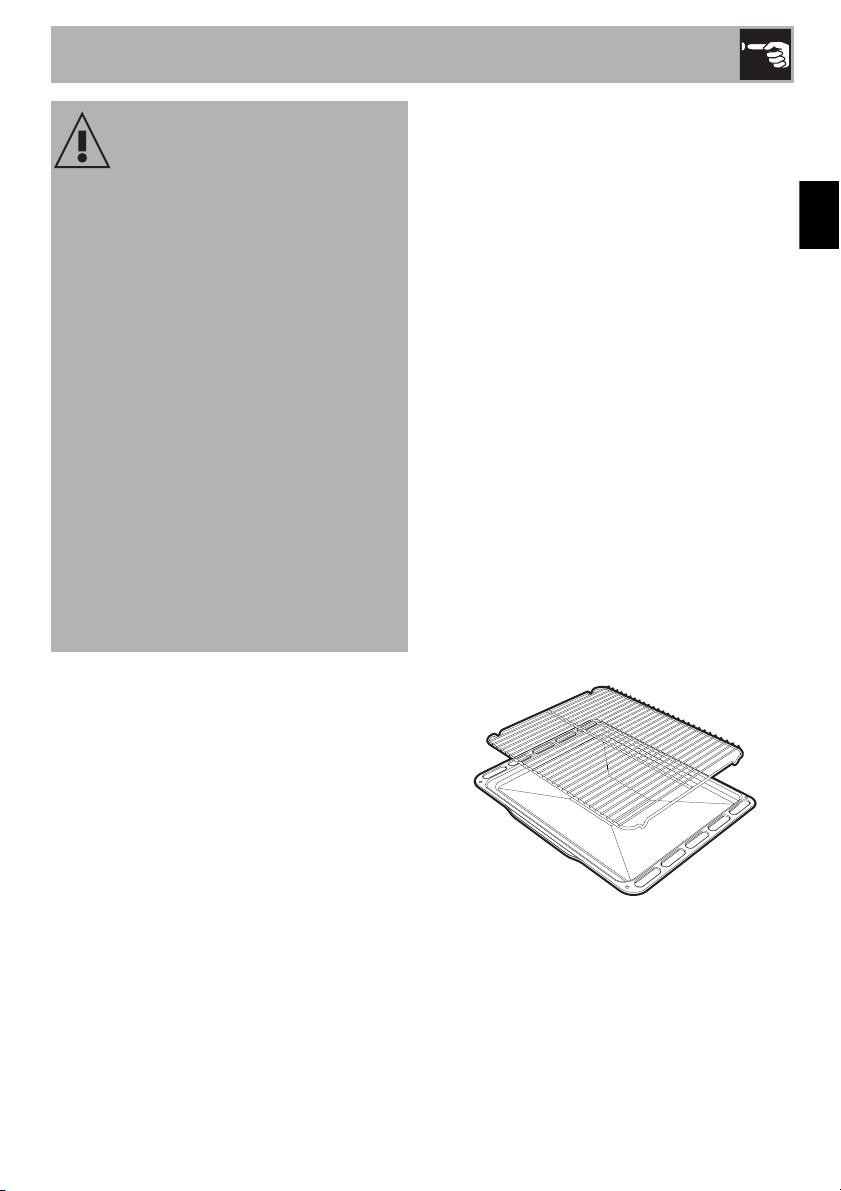

Tray rack
The tray rack has to be inserted into the tray.
In this way fat can be collected separately
from the food which is being cooked.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to rest pans or
trays on the internal glass pane.
• Do not pour water directly onto very hot
trays.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
Use
64
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
• The mechanical safety locks that prevent
the rack from being taken out
accidentally must face downwards and
towards the back of the oven cavity.
Plate rack
1. Insert the plate rack without plates on the
first shelf of the side oven.
2. Position the plates as shown in the figure.
3. Heat the oven to a temperature no
greater than 50°C for no more than 15
minutes.
4. After heating, extract the support slightly,
leaving it on the rails.
5. Ensure that the support is stable and
balanced, then remove the plates.
Gently insert racks and trays into
the oven until they come to a stop.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
Use oven gloves when handling
hot plates.
Use
65
EN
3.4 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The relevant cooking zone is
indicated next to each knob.
Just turn the knob clockwise to the required
power setting.
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with
magnetic properties and a sufficiently large
base.
Suitable cookware:
• Enamelled steel cookware with thick
bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel,
ferritic stainless steel and aluminium with
a special base.
Unsuitable cookware:
• Copper, stainless steel, aluminium,
fireproof glass, wood, ceramic and
terracotta cookware.
To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted,
the pan is suitable for induction cooking. If
you do not have a magnet, you can put a
small amount of water in the pan, place it
on a cooking zone and start the hot plate. If
the symbol appears on the display, it
means the pan is not suitable.
On first connection to the electrical
mains, an automatic check will be
carried out that will switch on all
indicator lights for a few seconds.
After use, turn off the hot plates
used by returning the appropriate
knob to the O position. Never rely
solely on the cookware detector.
Use only cookware with a
perfectly flat bottom which is
suitable for induction hot plates.
Using cookware with an irregular
bottom could jeopardise the
efficiency of the heating system
and prevent cookware from being
detected on the cooking zone.
Use
66
Cookware recognition
When there is no saucepan on a cooking
zone or if the saucepan is too small, no
energy will be transmitted and the symbol
will appear on the display.
If there is a suitable saucepan on the
cooking zone, the recognition system
notices it and turns on the hob to the power
level set using the knob. Energy transmission
is also interrupted when the saucepan is
removed from the cooking zone (the
symbol will be shown on the display).
If the cookware recognition function is
activated in spite of the saucepan or frying
pan on the cooking zone being smaller
than the zone itself, only the necessary
energy will be transmitted.
Cookware recognition limits: The minimum
diameter of the pan base is indicated by a
circle inside the cooking zone. Pans with
smaller diameters risk not being detected
and therefore not activating the inductor.
Limiting the cooking duration
The hob has an automatic device which
limits the duration of use.
If the cooking zone settings are not
changed, the maximum duration of
operation for each zone depends on the
power level selected.
When the device for limiting the duration of
use is activated, the cooking zone turns off,
a short alert sounds and, if the zone is hot,
the symbol appears on the display.
Protection from overheating
If the hob is used on full power for a long
period, the electronics will have trouble
cooling down if the room temperature is
high.
To avoid excessively high temperatures
forming in the electronics, the power to the
cooking zone is reduced automatically.
Set power level
Maximum cooking
duration in hours
1 8
26
3 - 4 5
54
6 - 7 - 8 - 9 1 ½
Use
67
EN
Advice on energy-saving
• The diameter of the base of the pan must
correspond to the diameter of the
cooking zone.
• When buying a pan, check whether the
diameter indicated is that of the base or
the top of the pan, as the top is almost
always larger than the base.
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also makes it possible to preserve
the vitamins in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker and
the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
Power levels
The power in the cooking zone can be
adjusted to various levels. The table shows
the levels suitable for various types of
cooking.
* see booster function
Under certain circumstances, if the
hob and the oven are being used
at the same time, the maximum
power limit that can be used by the
electrical system might be
exceeded.
Set power
level
Suitable for:
0OFF setting
1 - 2
Cooking small amounts of
food (minimum power)
3 - 4 Cooking
5 - 6
Cooking large quantities of
food, roasting larger portions
7 - 8
Roasting, slow frying with
flour
9Roasting
P
Roasting / browning,
cooking (maximum power)
Use
68
Residual heat
If the cooking zone is still hot after being
switched off, the symbol will be
displayed on the display. The symbol clears
once the temperature drops below 60°C.
Heating accelerator
This function allows the selected power to
be achieved in the shortest amount of time.
1. Turn the knob anti-clockwise to position
A and then release it. The display shows
the symbol .
2. Select the required heating power (1 - 8)
within 3 seconds. The selected power
and symbol will flash alternately on
the display.
The power level can be increased at any
moment. The “maximum power” period will
automatically be modified.
Once the acceleration period is over the
power level will remain the same as the one
previously selected.
Improper use
Danger of burns
• Supervise children carefully as they
cannot easily see the residual heat
indicator. The cooking zones remain hot
for a certain period of time even after
they have been turned off. Make sure
that children never touch the hob.
Each cooking zone is equipped
with a heating accelerator that
allows the maximum power to be
delivered for a time that is
proportional to the selected
power.
If the power is reduced, by turning
the knob anti-clockwise, the
heating accelerator will
automatically be disabled.
Use
69
EN
Booster function
• Turn the knob clockwise to the P position
for two seconds and then release.
The display shows the symbol . After 5
minutes the Booster function will
automatically be disabled and cooking will
continue at power level 9 (on zones 2 and
3 only).
Power control
The hob is fitted with a power control
module that optimises/limits consumption. If
the overall set power level exceeds the
maximum limit permitted, the electronic
circuit board will automatically manage the
power supplied by the hot plates.
The module tries to maintain the maximum
deliverable power levels. Levels set by the
automatic control will appear on the
display.
The flashing of a power level indicates that
it will be automatically limited to a new level
selected by the power control module.
The booster function allows the
cooking zone to be activated at
maximum power for as long as 5
minutes. It can be used to bring a
large quantity of water to a boil
rapidly or to broil meat.
The Booster function has priority
over the heating accelerator
function.
Priority is given to the last zone set.
Use
70

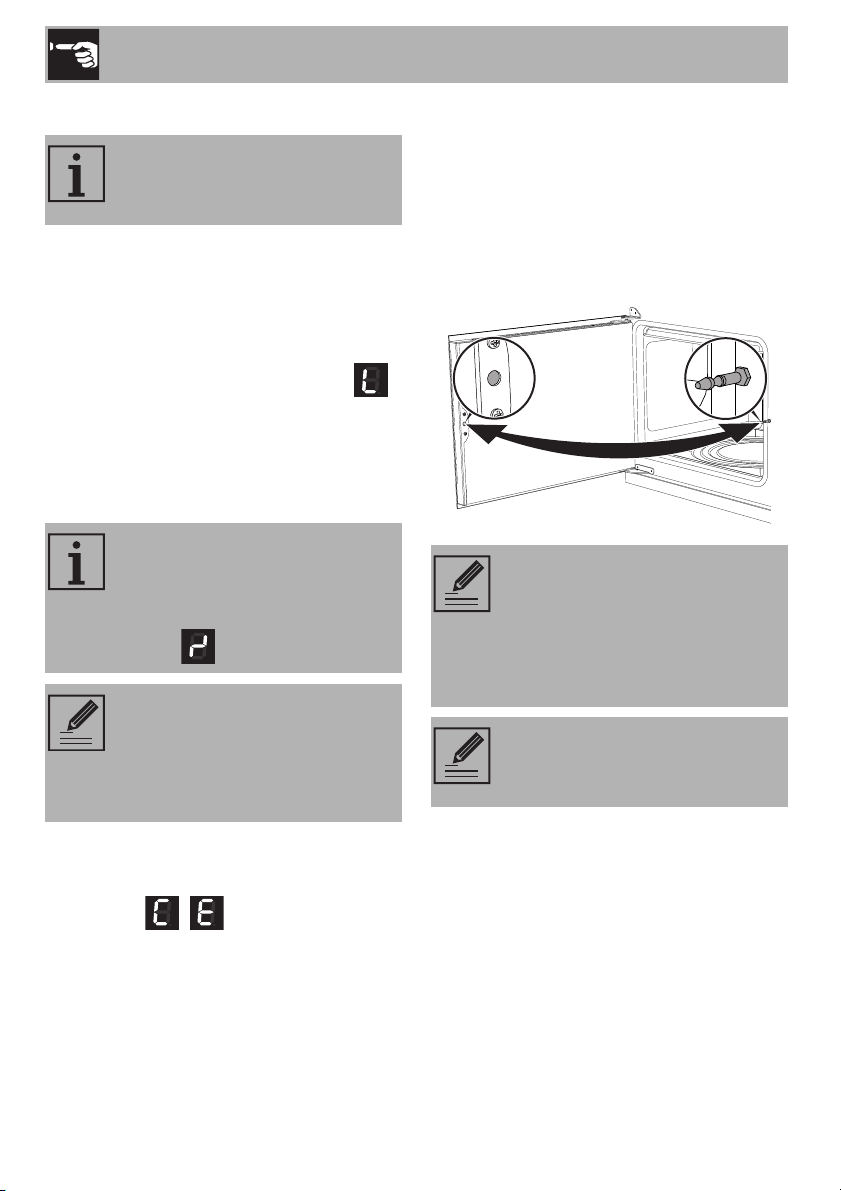

Controls lock
1. With all cooking zones off,
simultaneously turn counterclockwise the
two knobs - among those for cooking
control - for the front and rear left
cooking zones (position A).
2. Keep them turned until the symbols
appear on the display.
3. Release the knobs.
In order to remove the control lock repeat
the same operations described previously.
Error codes
If the display shows one of the following
error codes , , contact Technical
Assistance.
3.5 Using the ovens
Opening and closing the doors of the
main/side ovens
The main and side ovens are equipped with
a swing door. To open, pull the door
handle towards you. To close, push the
doors until you hear a mechanical “click”.
The controls lock is a device that
protects the appliance from
accidental or inappropriate use.
If the knobs have been kept turned
to the A position for more than 30
seconds, the following fault
message appears on the
display
After a prolonged period of
interruption to the power supply,
the control lock will be
deactivated. If this is the case, turn
it back on as described above.
The doors are not held in place
when open and may tend to
reclose. During use, pay attention
not to come into contact with the
internal glass pane to prevent
burns.
Over time the swing doors might
get difficult to open and close.
Grease the hinges.
Use
71
EN
Switching on the main oven
To switch on the main oven:
1. Select the cooking function using the
function knob.
2. Select the temperature using the main
oven temperature knob. The temperature
ranges from a minimum of 50°C to a
maximum of 260°C.
Switching on the auxiliary oven
To switch on the auxiliary oven:
• Select the temperature using the variable
grill knob. The temperature ranges,
approximately, from a minimum of 50°C
to a maximum of 300°C.
Switching on the side oven
To switch on the side oven:
• Select the temperature using the side
oven temperature knob. The temperature
ranges from a minimum of 50°C to a
maximum of 245°C.
Functions list
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the keys and at the
same time to reset the programmer
clock.
Depending on the oven which has
been switched on, the
corresponding indicator light will
come on to indicate that the oven
is in the pre-heating phase. Once
the temperature has been
reached, the indicator light
switches off.
Lower element
The heat coming just from the
bottom allows you to complete the
cooking of foods that require a
higher bottom temperature, without
affecting their browning. Perfect for
cakes, pies, tarts and pizzas.
Static
As the heat comes from above and
below at the same time, this system
is particularly suitable for certain
types of food. Traditional cooking,
also known as static cooking, is
suitable for cooking just one dish at
a time. Perfect for all types of roasts,
bread and cakes, and in any case,
particularly suitable for fatty meats
such as goose and duck.
Use
72
Fan with grill
The air produced by the fan softens
the strong heatwave generated by
the grill, grilling perfectly even very
thick foods. Perfect for large cuts of
meat (e.g. shin of pork).
Fan + lower element
The combination of the fan with just
the lower heating element allows
cooking to be completed more
rapidly. This system is
recommended for sterilising or for
finishing off the cooking of foods
which are already well-cooked on
the surface, but not inside, which
therefore need a little more heat.
Perfect for any type of food.
Grill
The heat coming from the grill
element gives perfect grilling results
above all for thin and medium
thickness meat and, in combination
with the rotisserie (where fitted),
gives the food an even browning at
the end of cooking. Perfect for
sausages, spare ribs and bacon.
This function enables large
quantities of food, particularly meat,
to be grilled evenly.
Fan with circulaire
The combination of the fan and the
circulaire heating element
(incorporated in the rear of the
oven) allows you to cook different
foods on several levels, as long as
they need the same temperatures
and same type of cooking. Hot air
circulation ensures instant and even
distribution of heat. It will be
possible, for instance, to cook fish,
vegetables and biscuits
simultaneously (on different levels)
without odours and flavours
mingling.
ECO
Depending on the function it is
combined with, this ensures the
greatest possible energy savings
during cooking.
When using the ECO function,
avoid opening the door during
cooking.
Cooking (and preheating) times
are longer with the ECO function.
Use
73
EN
3.6 Cooking advice
General advice
• Use a fan assisted function to achieve
consistent cooking at several levels.
• It is not possible to shorten cooking times
by increasing the temperature (the food
could be overcooked on the outside and
undercooked on the inside).
• For the same total weight, cooking time
will be greater for cooking a whole
piece than when it is cut into smaller
pieces.
Advice for cooking meat
• Cooking times vary according to the
thickness and quality of the food and to
consumer taste.
• Use a meat thermometer when roasting
meat, or simply press on the roast with a
spoon. If it is hard, it is ready; If not, it
needs another few minutes cooking.
Advice for cooking with the Grill
• Meat can be grilled even when it is put
into the cold oven or into the preheated
oven if you wish to change the effect of
the cooking.
• With the Fan with grill function, we
recommend that you preheat the oven
before grilling.
• With the Fan with grill function, we
recommend positioning food on the
second or third shelf, where possible.
• We recommend placing the food at the
centre of the rack.
Advice for cooking desserts/pastries and
biscuits
• Use dark metal moulds: They help to
absorb the heat better.
• The temperature and the cooking time
depend on the quality and consistency
of the dough.
• When cooking on multiple levels, food
should ideally be positioned on the
second and fourth shelves; increase
cooking time by a few minutes and only
used fan functions.
• To check whether the dessert is cooked
right through: At the end of the cooking
time, put a toothpick into the highest point
of the dessert. If the dough does not stick
to the toothpick, the dessert is cooked.
• If the dessert collapses when it comes
out of the oven, on the next occasion
reduce the set temperature by about
10°C, selecting a longer cooking time if
necessary.
• The cooking time for meringues and
choux pastry will vary depending on the
size.
Advice for defrosting and proving
• Place frozen foods without their
packaging in a lidless container on the
first shelf of the oven.
• Avoid overlapping the food.
Use
74
• To defrost meat, use the rack placed on
the second level and a tray on the first
level. In this way, the liquid from the
defrosting food drains away from the
food.
• Bread and fruit, if divided into pieces,
will take the same amount of time to
defrost, regardless of the total weight
and quantity.
• The most delicate parts can be covered
with aluminium foil.
• For successful proving, a container of
water should be placed in the bottom of
the oven.
To save energy
• Stop cooking a few minutes before the
time normally used. Cooking will
continue for the remaining minutes with
the heat which has accumulated inside
the oven.
• Reduce any opening of the door to a
minimum to avoid heat dispersal.
• Keep the inside of the appliance clean
at all times.
3.7 Programmer clock
Minute minder timer key
Cooking duration key
End of cooking key
Decrease key
Increase key
The programmer clock controls
only the main oven at the bottom
left and has no control over the
other ovens.
Ensure that the programmer clock
shows the cooking duration
symbol , otherwise it will not
be possible to turn on the oven.
Press the keys and at the
same time to reset the programmer
clock.
Use
75
EN
Setting the time
On the first use, or after a power failure, the
digits will be flashing on the
appliance’s display.
1. Press the keys and at the same
time. The dot between the hours and the
minutes flashes.
2. The time can be set using the key or
. Keep the key pressed in to increase
or decrease rapidly.
3. Press the key or wait 5 seconds. The
dot between the hours and the minutes
stops flashing.
4. The symbol on the display indicates
that the appliance is ready to start
cooking.
Adjusting the buzzer volume
The buzzer volume can be set to 3 different
levels. When the buzzer is in operation,
press the key to change the setting.
Timed cooking
1. After selecting a cooking function and
temperature, press the key . The
display will show the digits
and the symbol displayed between
the hours and the minutes.
2. Use the key or to set the
required minutes.
3. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
4. At the end of cooking the heating
elements will be deactivated. On the
display, the symbol turns off, the
symbol flashes and the buzzer
sounds.
If the time is not set, the oven will
not switch on.
Timed cooking is the function
which allows a cooking operation
to be started and then ended after
a specific length of time set by the
user.
Use
76
5. To turn off the buzzer just press any key
of the programmer clock.
6. Press the keys and at the same
time to reset the programmer clock.
Programmed cooking
1. Set the cooking time as described in the
previous section “Timed cooking”.
2. Press the key . The sum of the current
time plus the pre-set cooking duration
will appear on the display.
3. Use the key or to set the
required minutes.
4. Wait approx. 5 seconds without pressing
any key in order for the function to
activate. The current time and the
symbols and will appear on the
display.
5. At the end of cooking the heating
elements will be deactivated. On the
display, the symbol turns off, the
symbol flashes and the buzzer
sounds.
It is not possible to set a cooking
time of more than 10 hours.
After the setting, to display the
cooking time left press the key .
To reset the set program, press the
keys and at the same
time and switch off the oven
manually.
Programmed cooking is the
function which allows a cooking
operation to be started at a set
time and then ended after a
specific length of time set by the
user.
Use
77
EN
6. To turn off the buzzer just press any key
of the programmer clock.
7. Press the keys and at the same
time to reset the programmer clock.
Deleting the set data
Press the keys and at the same
time to reset the programs set.
8. Then switch off the oven manually if
cooking is in progress.
Minute minder timer
The minute minder timer can be activated at
any time.
1. Press the key . The display shows the
digits and the indicator light
flashing between the hours and the
minutes.
2. Use the key or to set the
required minutes.
3. Wait approx. 5 seconds without pressing
any key to finish setting the minute
minder. The current time and the
symbols and appear on the
display.
After the setting, to display the
cooking time left press the key .
To display the end of cooking time,
press the key .
The minute minder timer does not
stop the cooking operation but
rather informs the user when the set
time has run out.
It is not possible to set a cooking
time of more than 24 hours.
After the minute minder timer has
been programmed, the display will
go back to showing the current
time. Press the key to display
the remaining time.
Use
78
Main oven cooking information table
Food
Weight
(Kg)
Function
Runner position
from the
bottom
Temperature
(°C)
Time
(minutes)
Roasted veal 2 Circulaire 2 180 - 190 90 - 100
Pork loin 2 Circulaire 2 180 - 190 70 - 80
Roast beef 1 Circulaire 2 200 40 - 45
Roast rabbit 1.5 Circulaire 2 180 - 190 70 - 80
Turkey breast 3 Circulaire 2 180 - 190 110 - 120
Roast pork neck 2 - 3 Circulaire 2 180 - 190 170 - 180
Roast chicken 1.2 Circulaire 2 180 - 190 65 - 70
Salmon trout 1.2 Circulaire 2 150 - 160 35 - 40
Monkfish 1.5 Circulaire 2 160 60 - 65
Turbot 1.5 Circulaire 2 160 45 - 50
Pizza 1 Circulaire 2 245 8 - 9
Bread 1 Circulaire 2 190 - 200 25 - 30
Focaccia 1 Circulaire 2 180 - 190 20 - 25
Bundt cake 1 Circulaire 2 160 55 - 60
Jam tart 1 Circulaire 2 160 35 - 40
Ricotta cake 1 Circulaire 2 160 - 170 55 - 60
Jam tarts 1 Circulaire 2 160 20 - 25
Paradise cake 1.2 Circulaire 2 160 55 - 60
Profiteroles 1.2 Circulaire 2 180 80 - 90
Sponge cake 1 Circulaire 2 150 - 160 55 - 60
Rice pudding 1 Circulaire 2 160 55 - 60
Brioches 0.6 Circulaire 2 160 30 - 35
The times indicated in the table do not include preheating times and are provided only as a guide.
Use
79
EN
Auxiliary oven cooking information table
Side oven cooking information table
Food
Weight
(Kg)
Function
Runner
position from
the bottom
Temperature
(°C)
Time
(minutes)
Sausages 1.5 Grill 2 MAX 13 - 15
1
st
surface 2
nd
surface
Pork chops 1.5 Grill 2 MAX 15 5
Spare ribs 1.5 Grill 2 MAX 10 10
Bacon 0.7 Grill 2 MAX 7 8
Pork fillet 1.5 Grill 2 MAX 10 5
Beef fillet 1 Grill 2 MAX 10 7
The times indicated in the table do not include preheating times and are provided only as a guide.
Food
Weight
(Kg)
Function
Runner
position from
the bottom
Temperature
(°C)
Time
(minutes)
Roast chicken 1.1 x 4 Circulaire 2-4-6-8 190 80
Frozen pizza x 4 Circulaire 2-4-6-8 230 10
The times indicated in the table do not include preheating times and are provided only as a guide.
Cleaning and maintenance
80
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
Recommendations for cleaning the hob
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Ordinary daily cleaning
Always and only use specific products that
do not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges and sharp
scrapers as they will damage the surface.
Use normal, non-abrasive products and a
wooden or plastic tool, if necessary. Rinse
thoroughly and dry with a soft cloth or a
microfibre cloth.
Do not allow residues of sugary foods (such
as jam) to set inside the oven. If left to set for
too long, they might damage the enamel
lining of the oven.
Cleaning the glass ceramic hob
Light coloured marks from pans with
aluminium bases can be easily cleaned off
with a cloth moistened in vinegar.
After cooking, remove any burnt-on residue
after cooking; rinse with water and dry
thoroughly with a clean cloth.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring powders, stain
removers and metallic sponges) on
glass parts.
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash removable parts such as
the hob grids, flame-spreader crowns
and burner caps in a dishwasher.
We recommend the use of
cleaning products distributed by
the manufacturer.
Cleaning and maintenance
81
EN
Dirt which may have fallen on the hob
while cleaning lettuce or potatoes can
scratch the hob when moving pans.
Consequently, remove any dirt from the
cooking surface immediately.
Changes in colour do not affect the
operation and stability of the glass. These
are not alterations to the material of the hob
but just residues which have not been
removed and have then carbonised.
Shiny surfaces can form due to the bases
of pans, especially aluminium ones, rubbing
on the surface, and due to the use of
unsuitable detergents. They are difficult to
remove using conventional cleaning
products. It may be necessary to repeat the
cleaning process several times. Use of
corrosive detergents or rubbing of pan
bases can wear away the decoration on
the hob over time and contribute to the
formation of stains.
Weekly cleaning
Clean and maintain the hob once a week
using an ordinary glass ceramic cleaning
product. Always follow the manufacturer’s
instructions. The silicon in these products
creates a protective, water-repellent
membrane which also resists dirt. All marks
stay on the membrane and can therefore be
removed easily. After cleaning, dry the
surface with a clean cloth. Make sure that
there is no detergent left on the cooking
surface as it might undergo an aggressive
reaction when heated up and could modify
the structure of the cooking surface.
Cleaning the oven cavity
In order to keep your oven in the best
possible condition, clean it regularly after
letting it cool down.
Avoid letting food residue dry inside the
oven cavity, as this could damage the
enamel.
Take out all removable parts before
cleaning.
For easier cleaning, we recommend
removing:
• The door
• The rack/tray support frames
• The seal.
In the event you are using specific
cleaning products, we recommend
running the oven at maximum
temperature for 15-20 minutes in
order to eliminate any residue.
Cleaning and maintenance
82

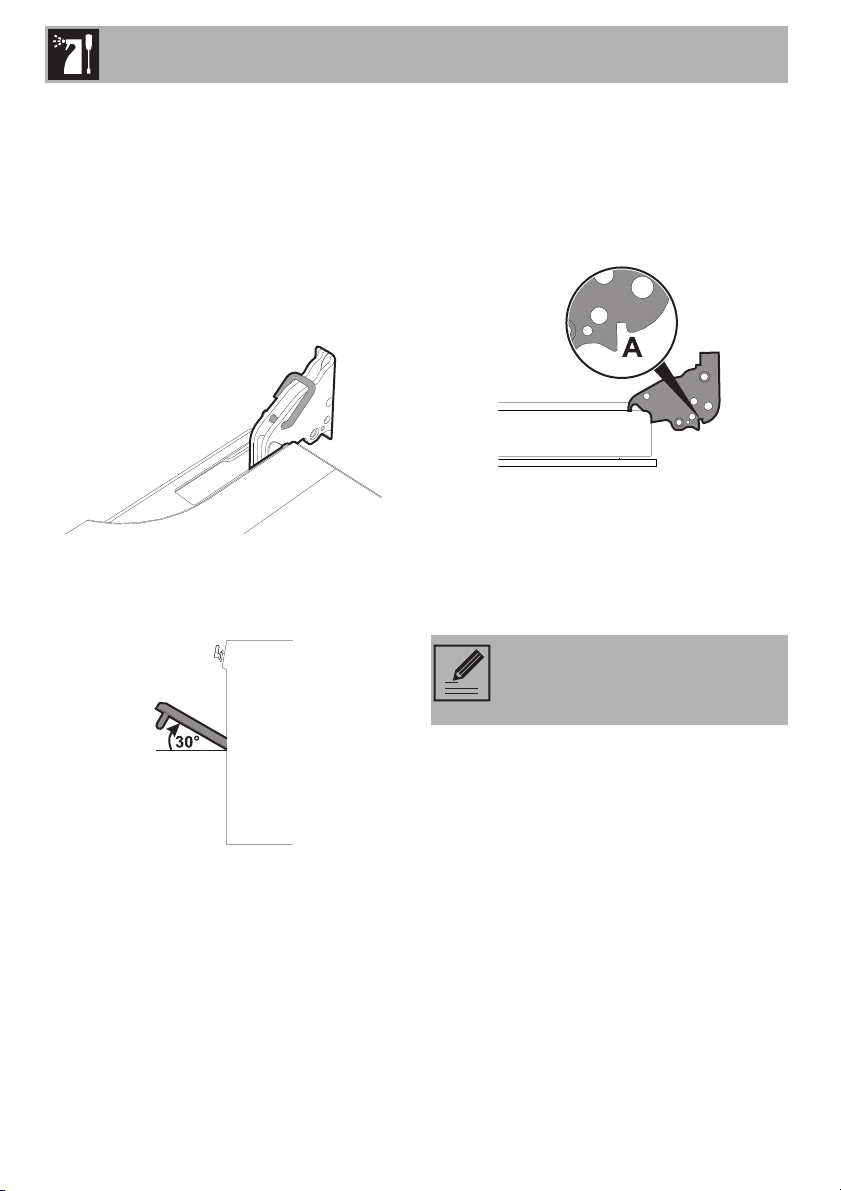

4.3 Removing the door of the
auxiliary oven
For easier cleaning it is recommended to
remove the door and place it on a tea
towel.
To remove the door proceed as follows:
1. Open the door completely and insert two
pins into the holes on the hinges
indicated in the figure.
2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
4.4 Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
We recommend the use of
cleaning products distributed by
the manufacturer.
Cleaning and maintenance
83
EN

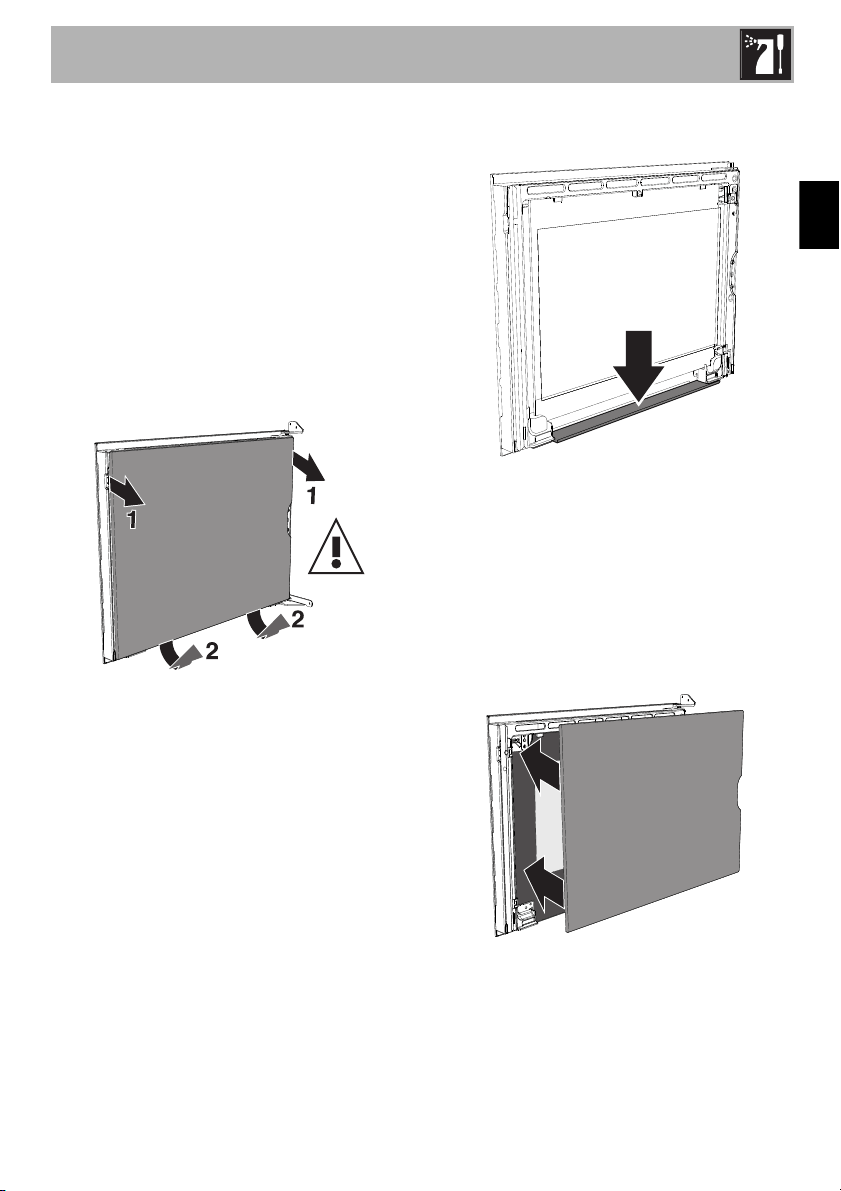

4.5 Removing the internal glass panes
For easier cleaning the internal glass panes
of the door can be removed.
Main/side oven doors
1. Remove the internal glass pane by
pulling the top part gently, following the
movement indicated by the arrows (1).
2. Then, pull the bottom part upwards (2).
This way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. After removing the inner glass it is
possible to access the drip catcher strip.
Use kitchen paper to clean. In case of
stubborn dirt, wash with a damp sponge
and an ordinary detergent.
4. Reposition the internal glass pane. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
Cleaning and maintenance
84
Auxiliary oven door
1. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). This
way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. Remove the intermediate glass pane by
lifting it upwards.
4. Clean the external glass pane and the
panes removed previously. Use
absorbent kitchen roll. In case of
stubborn dirt, wash with a damp sponge
and neutral detergent.
5. Refit the panes in the reverse order in
which they were removed.
6. Reposition the internal glass pane. Take
care to centre and insert the 4 pins into
their housings in the oven door by
applying slight pressure.
Cleaning and maintenance
85
EN

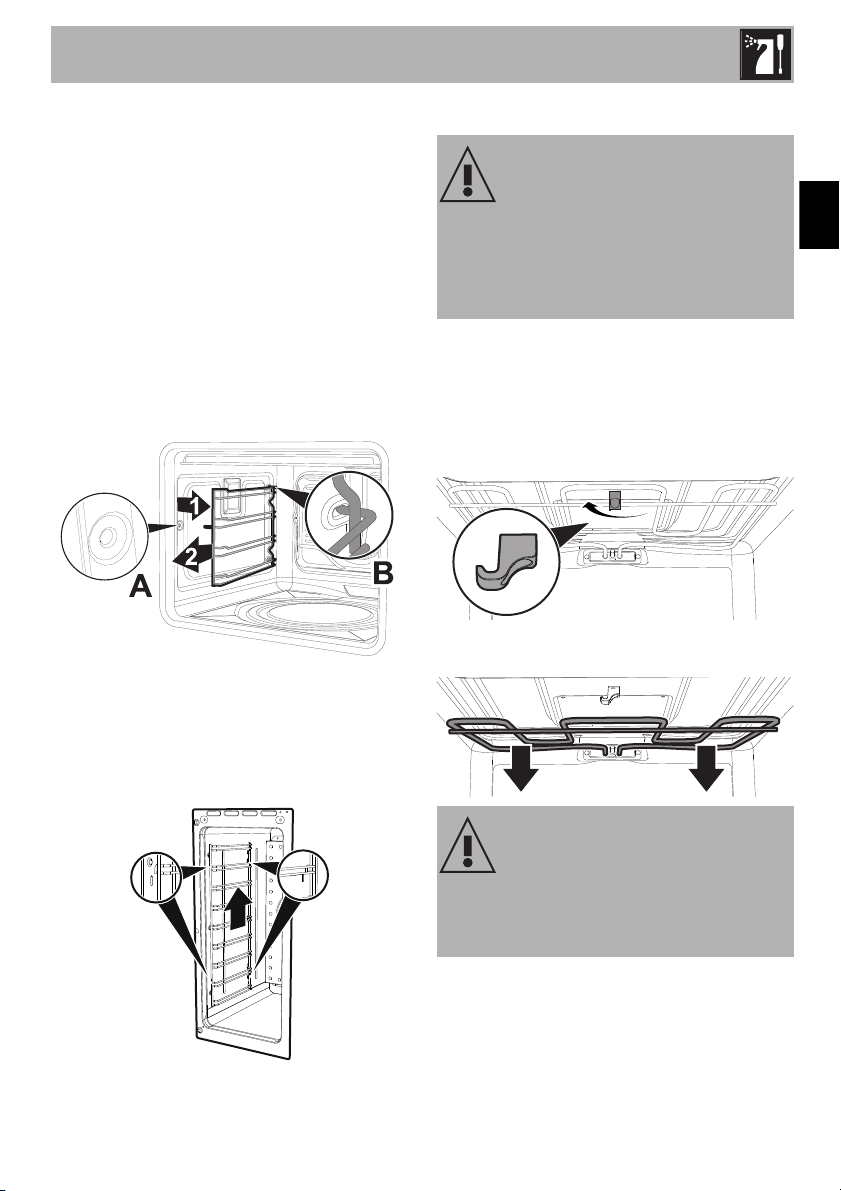

Removing racks/trays support frames
Removing the guide frames enables the
sides to be cleaned more easily. This
operation should be performed each time
the automatic cleaning cycle is used (on
some models only).
To remove the guide frames: Pull the frame
towards the inside of the oven to unhook it
from its groove A, then slide it out of the
seats B at the back.
When cleaning is complete, repeat the
above procedures to put the guide frames
back in.
Removing the side oven racks/trays
support frames
Pull the frame upwards to remove it from its
side housings. Replace the frame correctly
when you have finished cleaning.
Cleaning the top section
The appliance is equipped with a tilting grill
element that allows for easy cleaning of the
upper part of the oven cavity.
1. Free the upper heating element by gently
lifting it and rotating its retaining latch by
90 degrees.
2. Gently lower the heating element until it
stops.
3. When you have finished cleaning, place
the heating element back in position and
turn the retaining latch to lock it in place.
High temperature inside the oven
during use
Danger of burns
• The following operations must be
performed only with the oven switched
off and completely cool.
Improper use
Risk of damage to the appliance
• Do not excessively flex the element
during cleaning.
Cleaning and maintenance
86
4.6 Vapor Clean (main oven only)
Preliminary operations
Before starting the Vapor Clean cleaning
cycle:
• Completely remove all accessories from
inside the oven.
• Pour approx. 40 cc of water onto the
floor of the oven. Make sure it does not
overflow out of the cavity.
• Spray a water and washing up liquid
solution inside the oven using a spray
nozzle. Direct the spray against the side
walls, upwards, downwards and
towards the deflector.
• Close the door.
Vapor Clean is an assisted
cleaning procedure which
facilitates the removal of dirt.
Thanks to this process, it is possible
to clean the inside of the oven very
easily. The dirt residues are
softened by the heat and water
vapour for easier removal
afterwards.
Improper use
Risk of damage to surfaces
• Remove any food residues or large spills
from previous cooking operations from
the inside of the oven.
• Carry out assisted oven cleaning
operations only when the oven is cold.
We recommend spraying approx.
20 times at the most.
Cleaning and maintenance
87
EN
Vapor Clean cycle setting
1. Turn the function knob to the symbol
and the temperature knob to the
symbol .
2. Set a cooking time of 18 minutes using
the programmer clock.
3. At the end of the cooking time, the timer
will switch the oven heating elements off
and the buzzer will start to sound.
End of the Vapor Clean cycle
4. Open the door and wipe away the less
stubborn dirt with a microfibre cloth.
5. Use a non-scratch sponge with brass
filaments on hard to remove deposits.
6. In case of grease residues use specific
oven cleaning products.
7. Remove the residual water inside the
oven.
For improved hygiene and to avoid food
being affected by any unpleasant odours,
we recommend that the oven is dried using
a fan assisted function at 160°C for
approximately 10 minutes.
4.7 Extraordinary maintenance
Installing and removing the oven seal
(auxiliary oven only)
To remove the seal:
Unhook the clips in the 4 corners then pull
the seal outwards.
To refit the seal:
• Hook the clips in the 4 corners onto the
seal.
Seal maintenance tips
The seal should be soft and elastic.
• To keep the seal clean, use a non-
abrasive sponge and wash with
lukewarm water.
We recommend wearing rubber
gloves for these operations.
We recommend removing the
door in order to make the manual
cleaning of the parts that are
difficult to reach easier.
Cleaning and maintenance
88

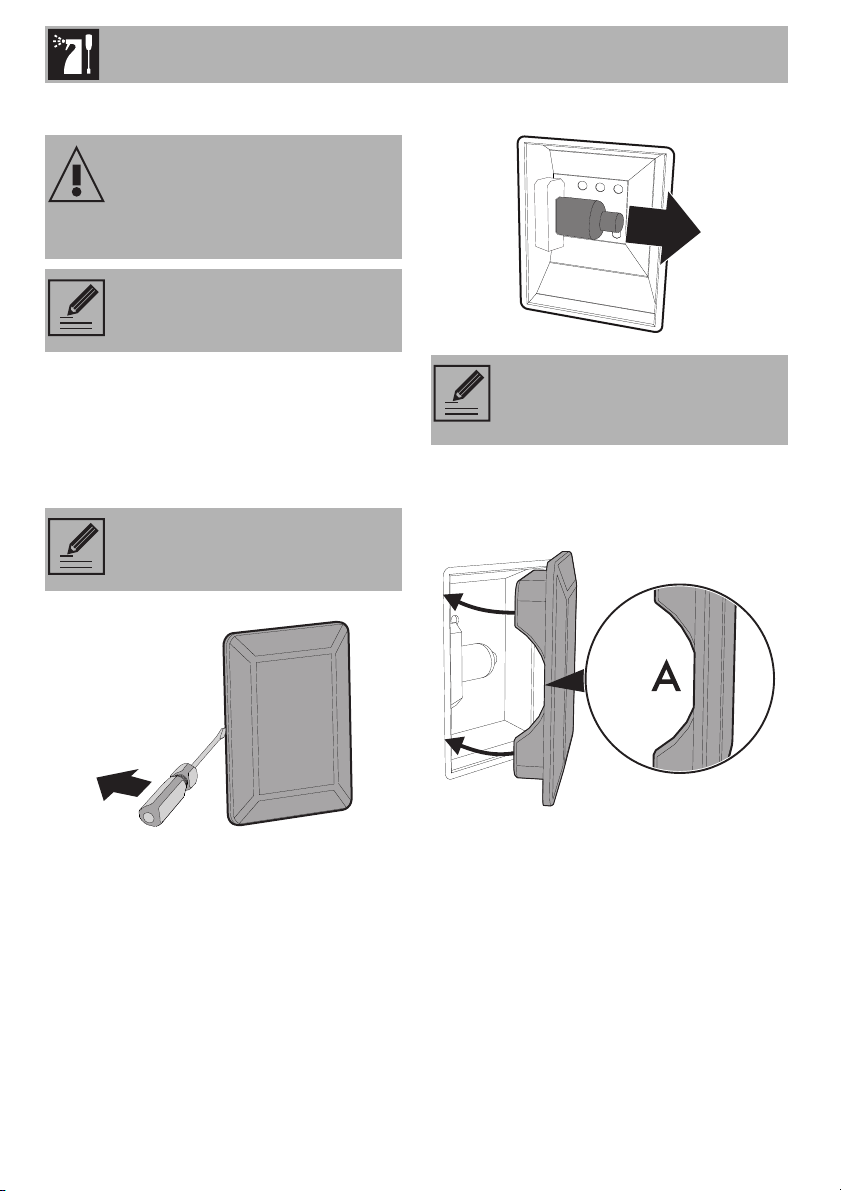

Replacing the internal light bulb
1. Completely remove all accessories from
inside the oven.
2. Remove the rack/tray support frames.
3. Remove the bulb cover using a tool (e.g.
a screwdriver).
4. Slide out and remove the light bulb.
5. Fit the new light bulb.
6. Refit the cover. Ensure the moulded part
of the glass (A) is facing the door.
7. Press the cover completely down so that
it attaches perfectly to the bulb support.
Live parts
Danger of electrocution
• Unplug the appliance.
The oven is fitted with a 40W light
bulb.
Pay attention not to scratch the
oven cavity enamel.
Do not touch the halogen light
bulb directly with your fingers, but
wrap it in insulating material.
Installation
89
EN
5 Installation
5.1 Positioning
General information
This appliance may be installed next to
walls, one of which must be higher than the
worktop, at a minimum distance of 50 mm
from the side of the appliance, as shown in
figures A and C relative to the installation
classes.
Any wall units positioned above the
worktop must be at a minimum distance of
at least 750 mm. If a hood is installed
above the hob, refer to the hood instruction
manual to ensure the correct clearance is
left.
Appliance dimensions
Position of gas and electrical connections.
Heavy appliance
Crushing hazard
• Position the appliance into the cabinet
cut-out with the help of a second person.
Pressure on the door
Risk of damage to the appliance
• Never use the oven door to lever the
appliance into place when fitting.
• Avoid exerting too much pressure on the
oven door when open.
• Do not use the handle to lift or move the
appliance.
Heat production during appliance
operation
Risk of fire
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (not less than
90°C).
Installation
90
Dimensions
1
Minimum distance from side walls or other
flammable material.
2
Minimum cabinet width (=A).
Depending on the type of installation, this
appliance belongs to classes:
A - Class 1
(Free-standing appliance)
B - Class 2 subclass 1
(Built-in appliance)
A 900 mm
B 600 mm
C
1
500 mm
D 900 mm
H 750 mm
I 450 mm
L
2
900 mm
Installation
91
EN
C - Class 2 subclass 1
(Built-in appliance)
Mounting the toe skirt
The toe skirt must always be positioned and
secured correctly on the appliance.
1. Place the toe skirt in the front bottom part
of the appliance.
2. Screw the two side screws to fasten the
toe skirt to the appliance.
3. Cover the holes of the toe skirt with the
plugs provided.
The appliance must be installed by
a qualified technician and
according to the regulations in
force.
The toe skirt provided is an integral
part of the product; it must be
fastened to the appliance prior to
installation.
Installation
92
Positioning and levelling
The appliance must sit level on the floor to
ensure stability.
• After making the gas and electrical
connections, level and stabilise the
appliance on the floor by screwing the
foot in or out.
5.2 Electrical connection
General information
Check the grid characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
Perform the ground connection using a wire
that is 20 mm longer than the other wires.
Heavy appliance
Risk of damage to the appliance
• Insert the front feet first and then the rear
ones.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised technical
personnel.
• Use personal protective equipment.
• The appliance must be connected to
earth in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
• Do not pull the cable to remove the
plug.
• Use cables withstanding a temperature
of at least 90°C.
• The tightening torque of the screws of
the terminal supply wires must be 1.5 -
2 Nm.
Installation
93
EN

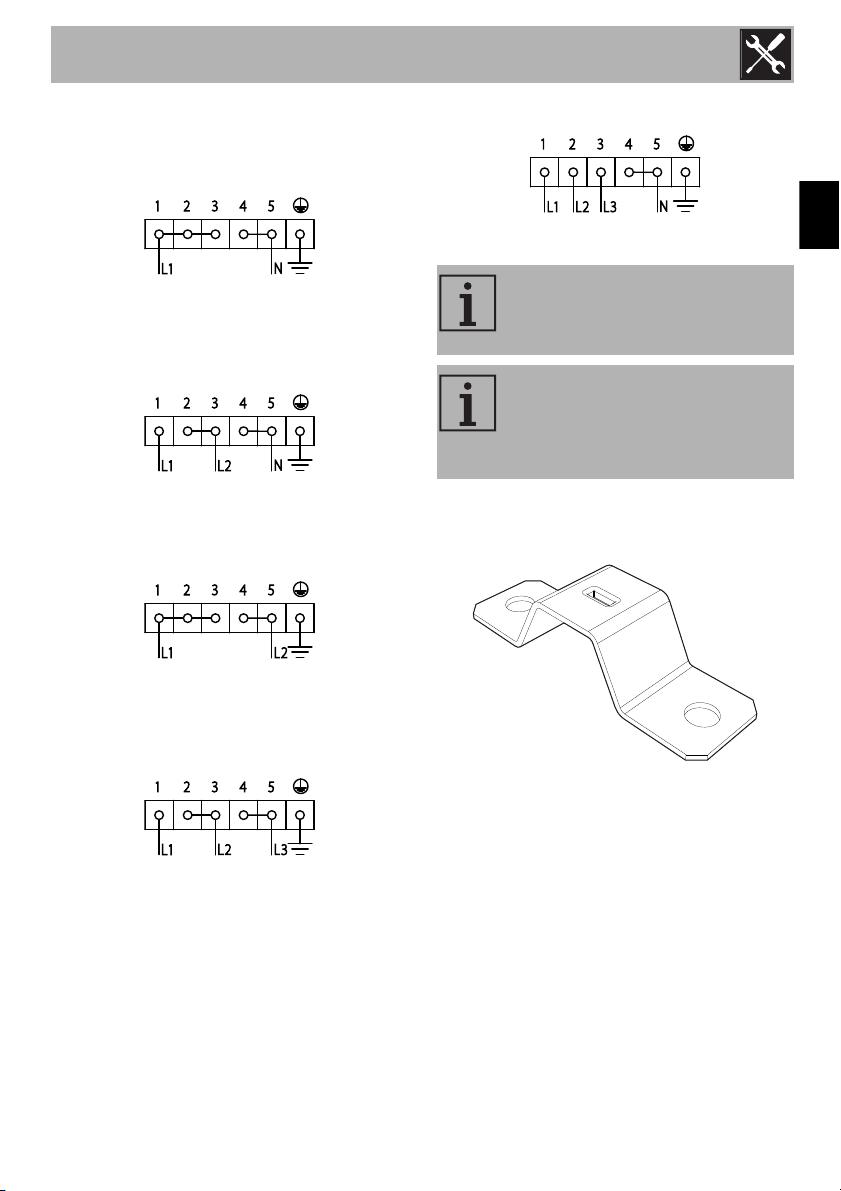

The appliance can work in the following
modes:
• 220-240 V 1N~
3 x 10 mm² three-core cable.
• 380-415 V 2N~
4 x 6 mm² four-core cable.
• 220-240 V 2~
3 x 10 mm² three-core cable.
• 220-240 V 3~
4 x 6 mm² four-core cable.
• 380-415 V 3N~
5 x 4 mm² five-core cable.
Replacement clamp
In the event of connection to a two- or
three-phase supply, the installed clamp must
be replaced with the one supplied in order
to ensure correct fastening of the cable.
The values indicated refer to the
cross-section of the internal
conductor.
The aforementioned power cables
are sized taking into account the
coincidence factor (in compliance
with standard EN 60335-2-6).
Installation
94
Fixed connection
Fit the power line with an omnipolar circuit
breaker in compliance with installation
regulations.
The circuit breaker should be located near
the appliance and in an easily reachable
position.
Connection with plug and socket
Make sure that the plug and socket are of
the same type.
Avoid using adapters and shunts as these
could cause overheating and a risk of
burns.
5.3 Instructions for the installer
• The plug must be accessible after
installation. Do not bend or trap the
power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
