User Manual Bosch PIM611B18E/01 Serie 4 Electric cooktop

Documents for Bosch PIM611B18E/01

User Manual

For PIM611B18E/01. Also, The document are for others Bosch models: PIM...B...

• [en] Instructions for installation and use1
  • PIM...B...2
• Ú Table of contents[en] Instructions for installation and use3
  • Installation instructions4
  • Assembly4
  • Important notes6
    • Note6

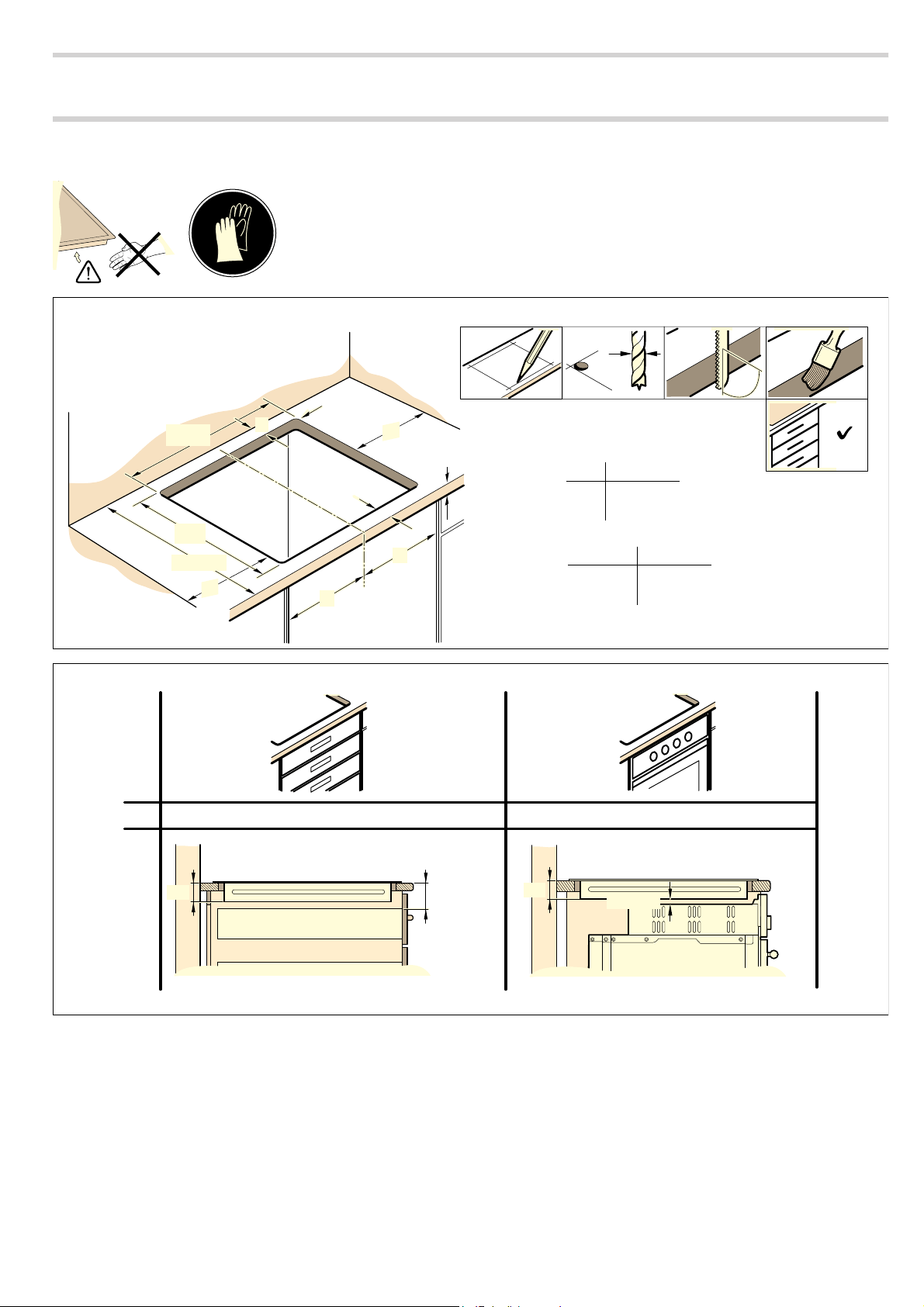

  • Preparation of assembly kitchen units, figures 1/2/3/46
    • Assembly over drawer, figure 2a6
    • Assembly over oven, figure 2b7
    • Note7

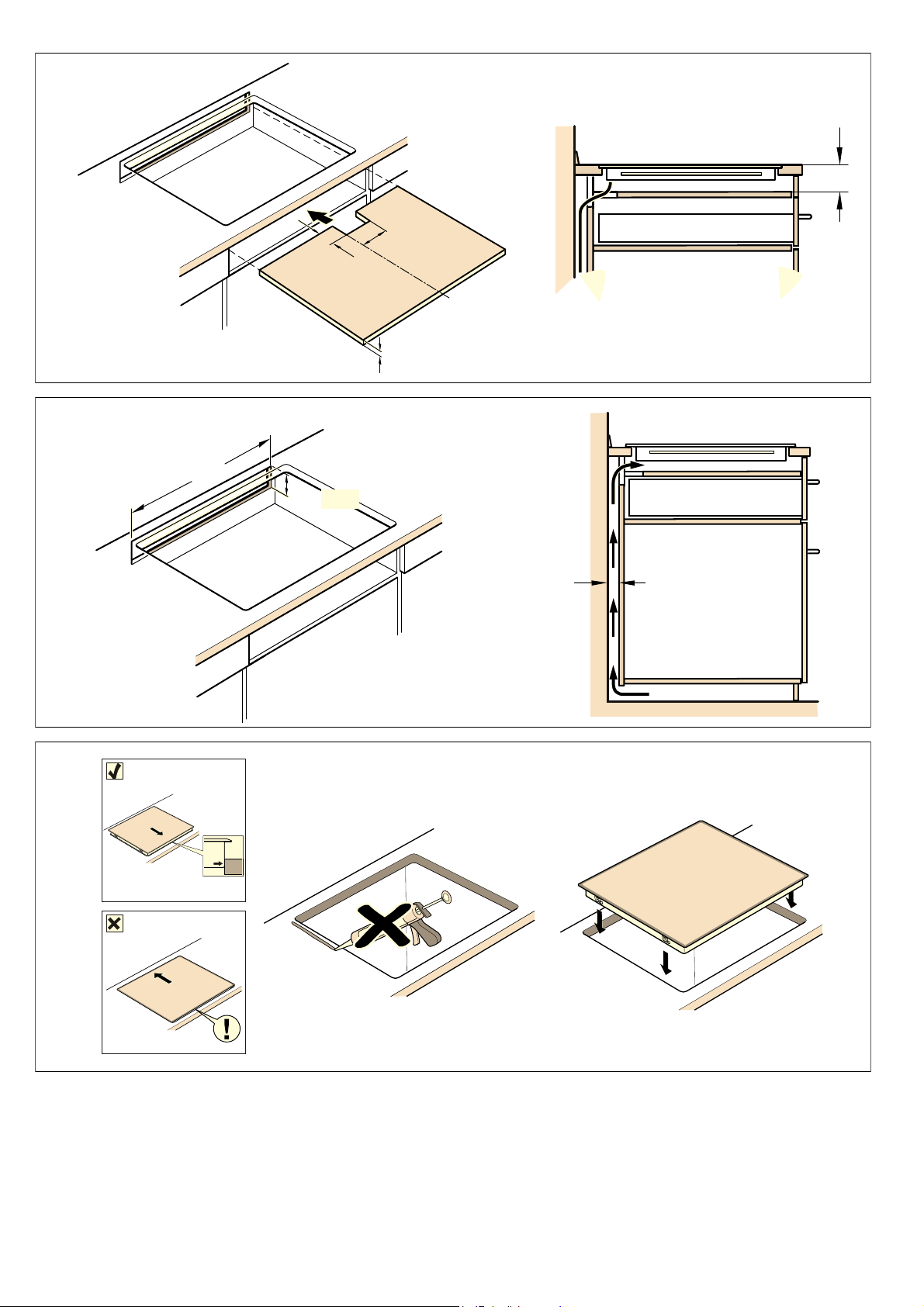

      • Installation above the dishwasher7
      • Ventilation, figure 47
  • Installing the appliance, figures 5/67
    • Note7

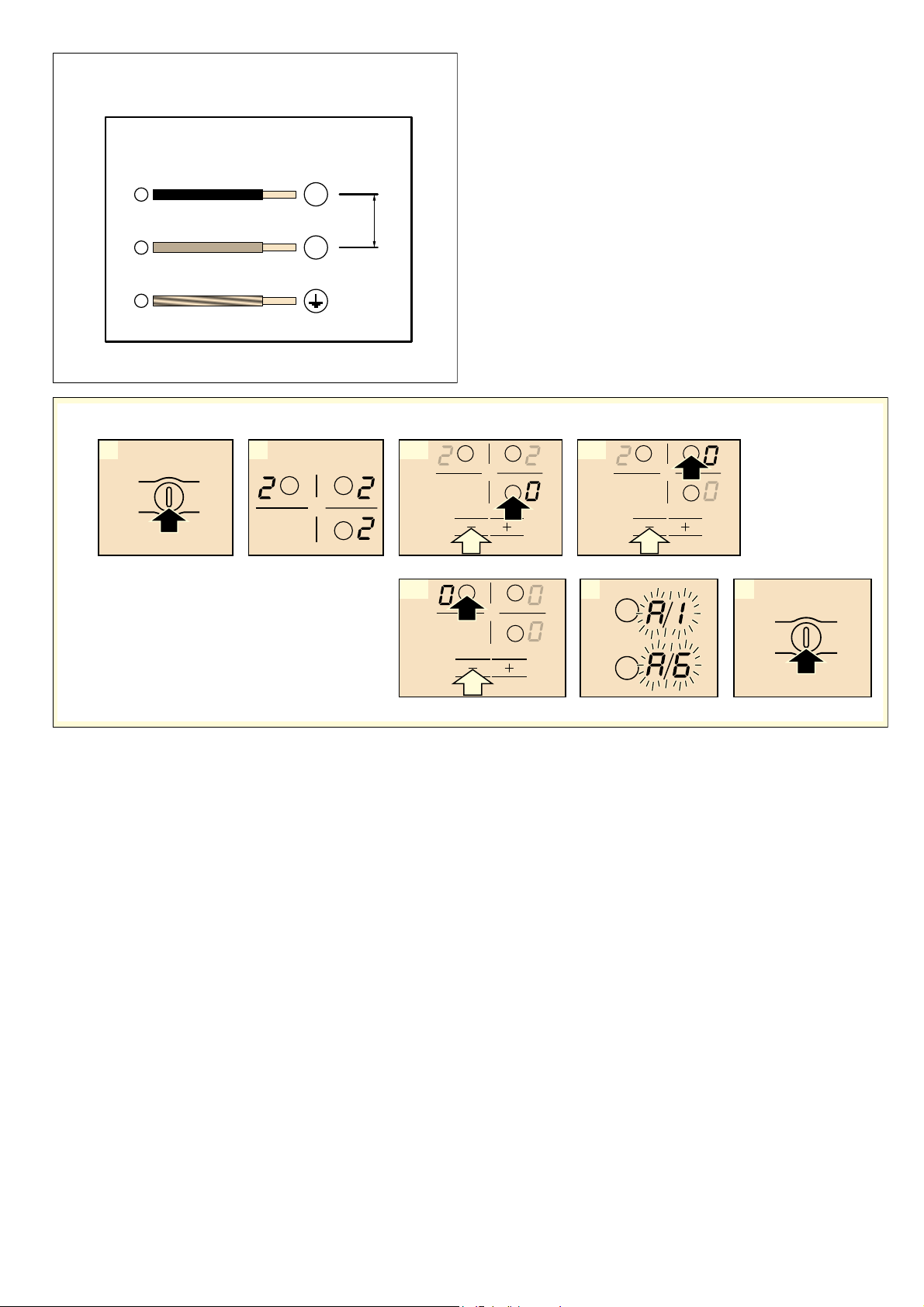

  • Changing the intensity of the 13 / 16 / 20 Amp connection current, figure 77
    • 1. Turn on the hob with the main switch. Do not place any pans on the hotplates7
    • 2. Within the following 60 seconds, adjust all hotplates to the desired power level according to the required connection current (see table).7
    • 3. Turn off all the hotplates in sequence, starting from the lower right and continuing counter-clockwise.7
    • 4. The selected connection current is indicated in the display of the right-hand lateral hotplates.7
    • 5. Turn off the hob with the main switch.7
  • Uninstalling the appliance7
    • Caution!7
• Instruction manual8
  • Produktinfo8
  • : Safety precautions8
    • Please read this manual carefully. Please keep the instruction and installation manual as well as the appliance certificate in a safe place for later use or for subsequent owners.8
    • Check the appliance after removing it from the packaging. If it has suffered any damage in transport, do not connect the appliance, contact the Technical Assistance Service and provide written notification of the damage caused, otherwise you will los...8
    • This appliance must be installed according to the installation instructions included.8
    • This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.8
    • Do not use covers. These can cause accidents, due to overheating, catching fire or materials shattering, for example.8
    • Do not use inappropriate child safety shields or hob guards. These can cause accidents.8
    • This appliance is not intended for operation with an external clock timer or a remote control.8
    • This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...8
    • Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.8
    • Keep children below the age of 8 years old at a safe distance from the appliance and power cable.8
    • We advise that you exercise caution using or standing near an induction hob while it is in operation, if you wear a pacemaker or a similar medical device. Consult your doctor or the device manufacturer concenring its conformity or any possible incomp...8
  • Risk of fire!8
    • ■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar.8
    • Risk of fire!8
      • ■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob.8
    • Risk of fire!8
      • ■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob.8
    • Risk of fire!8
      • ■ The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service.8
  • Risk of burns!8
    • ■ The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance.8
    • Risk of burns!8
      • ■ The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service.8
    • Risk of burns!8
      • ■ Metal objects on the hob quickly become very hot. Never place metal objects (such as knives, forks, spoons and lids) on the hob.8
    • Risk of fire!!8
      • ■ After each use, always turn off the hob at the main switch. Do not wait until the hob turns off automatically after the pan is removed.8
  • Risk of electric shock!9
    • ■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker...9
    • Risk of electric shock!9
      • ■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.9
    • Risk of electric shock!9
      • ■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.9
    • Risk of electric shock!9
      • ■ Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service.9
  • Malfunction risk!9
    • The hob is equipped with a fan in the lower section. If there is a drawer under the hob it should not be used to store small objects or paper, since they could damage the fan or interfere with the cooling if they are sucked into it.9
    • There should be a minimum of 2 cm between the contents of the drawer and fan intake.9
  • Risk of injury!9
    • ■ When cooking in a bain marie, the hob and cooking container could shatter due to overheating. The cooking container in the bain marie must not directly touch the bottom of the water-filled pot. Only use heat-resistant cookware.9
    • Risk of injury!9
      • ■ Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry.9
    • Elements that may damage the appliance9
      • Caution!9
      • Overview9

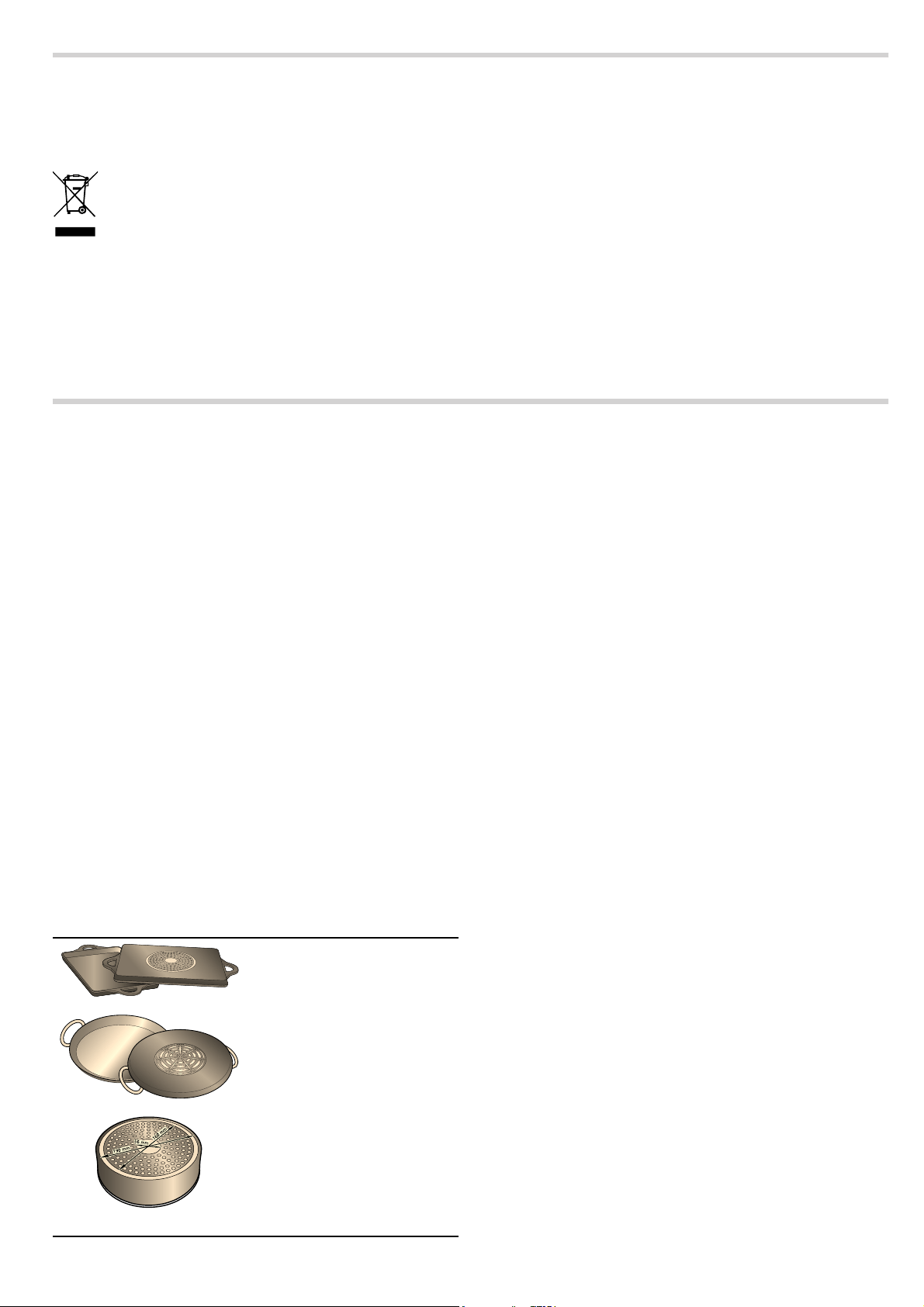

      • Protecting the environment10
        • Environmentally-friendly disposal10
    • Energy-saving advice10
      • Induction cooking10
        • Advantages of induction cooking10
    • Cookware10
      • Unsuitable pans10
      • Characteristics of the pan base10
      • Absence of pan or unsuitable size10
      • Empty pans or those with a thin base10
      • Pan detection10
      • Getting to know your appliance11
        • The control panel11
          • Control panels11
      • Note11
    • The hotplates11
    • Residual heat indicator11
      • Programming the hob12
        • Turning the hob on and off12
          • Notes12
    • Set the hotplate12
      • Selecting the hotplate and the power level12
        • 1. Select the hotplate with the $ symbol.12
        • 2. Within the next 10 seconds, press the + or - symbol. The basic setting appears:12
        • + symbol = power level 912
        • - symbol = power level 412
      • Changing the power level12
      • To switch off the hotplate12
      • Notes12
    • Cooking guidelines table12
      • Childproof lock13
        • Activating and deactivating the childproof lock13
    • Childproof lock13
      • Activating and deactivating13
      • Powerboost function14
        • To activate14
          • 1. Select a hotplate.14
          • 2. Press the boostG symbol.14
      • Note14
    • To deactivate14
      • 1. Select a hotplate.14
      • 2. Press the symbol boostG.14
      • Note14
        • Time programming function14
          • Turning off a hotplate automatically14
            • Programming the cooking time.14
              • 1. Select the required hotplate and power level.14
              • 2. Press the 0 symbol. The Ú indicator on the hotplate lights up. ‹‹ is displayed on the time program function display.14
              • 3. Press the + or - symbol. The basic setting appears:14
              • + symbol: 30 minutes.14
              • - symbol: 10 minutes.14
                • 4. Press the + or - symbol until the required cooking time appears.14
      • Note14
        • Changing or cancelling the time14
        • Once the time has elapsed14
        • Notes14
    • The timer14
      • How to program14
      • 1. The timer can be selected in two different ways:14
        • 2. Press the + or - symbol. The basic setting appears.14
        • + symbol: 10 minutes.14
          • 3. Set the desired time using the + or - symbols.14
        • Changing or cancelling the time14
        • Once the time has elapsed14
      • Automatic time limitation15
      • Basic settings15
        • Accessing the basic settings16
          • 1. Switch on the hob.16
          • 2. Within the next 10 seconds, press and hold the D symbol for 4 seconds approximately.16
          • 3. Press the D symbol several times until the desired function indicator appears.16
          • 4. Then select the required setting with the + and - symbols.16
          • 5. Press the D symbol again for approximately 4 seconds.16
          • Quit16
      • Care and cleaning16
        • Hob16
          • Cleaning16
    • Hob frame16
      • Fixing malfunctions16
        • Normal noise while the appliance is working17
      • After-sales service17
        • To book an engineer visit and product advice17
      • Tested dishes18
        • Ø 14.5 cm18
