INSTALLATION GUIDE
for the
SBX-POL-RZR19RSUB/10TW3
SKU# 94796
2019 - 2024 Polaris RZR Pro XP, & Turbo R 4-Seat
• Installation requires appropriate tools and safety equipment.
Professional installation is recommended.
• If you prefer to perform your own installation, please read this
installation guide completely before beginning.
• Before cutting or drilling, check for potential obstacles behind
mounting surfaces.
• Mount this product securely to prevent damage or injury in
severe conditions.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
2 HOURS
Enclosure Type: Sealed
Driver Type: 10TW3-D8
Nominal Impedance: 4 ohms
Continuous Power Handling: 400 watts (RMS method)
Continued on Next Page
3
5
OUT
OF
SBX-POL-RZR19RSUB/10TW3 INSTR_SKU# 011796
INCLUDED HARDWARE
2
3
4
1
Continued on Next Page
Page 2 • JL Audio, Inc., 2025
SBX-POL-RZR19RSUB/10TW3 INSTR_SKU# 011796

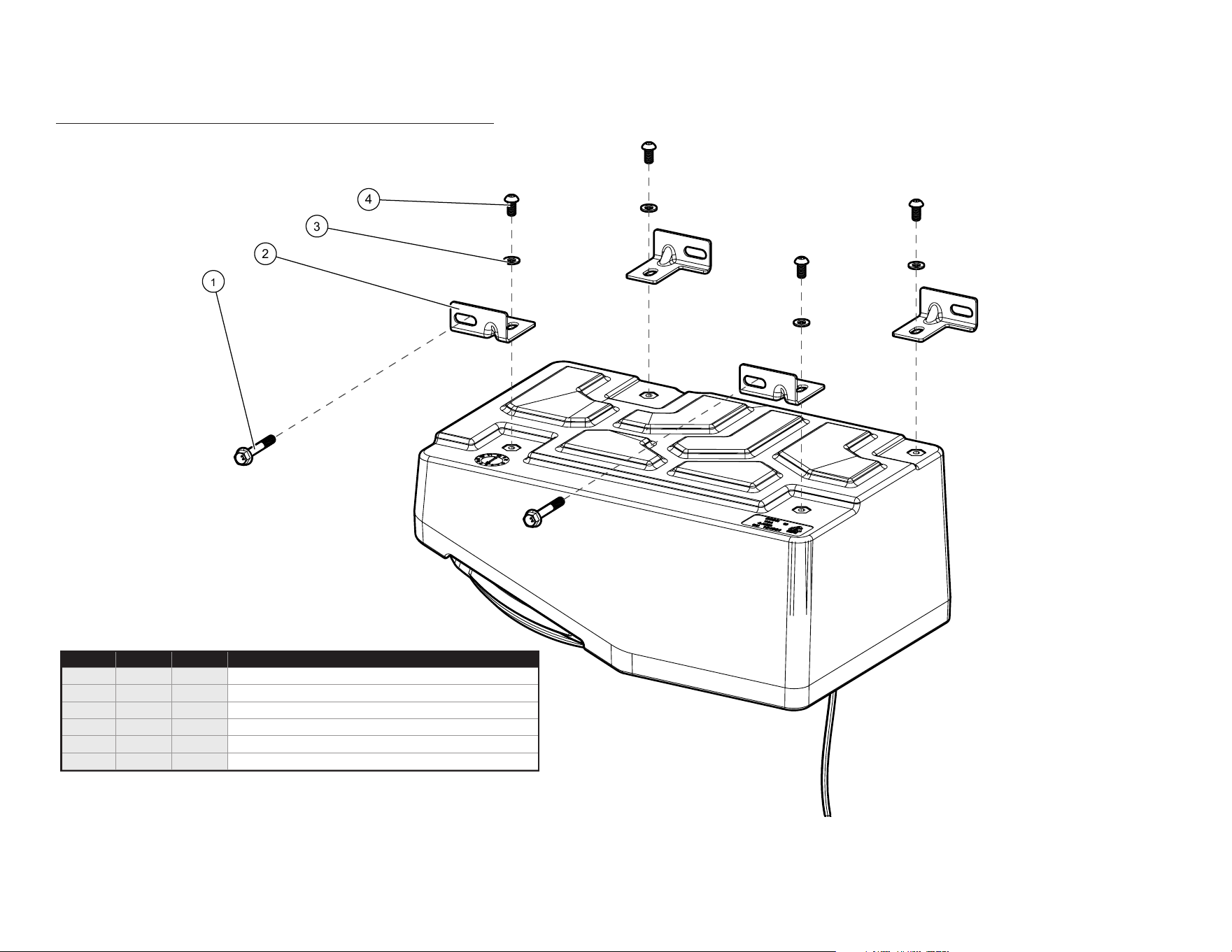

BOM ID Qty SKU Description
1 2 155407 Yellow Zinc Plated M8 x 55mm Hex Flange Bolt
2 4 155288 Polaris RZR Rear Subwoofer Bracket
3 4 154209 M8 Flat Washer
4 4 155406 M8 x 16mm Torx Button Head Screw
- 1 194157 Vibra-Tite 132 (not shown)
- 1 150249 Foam Tape (not shown)
Page 3 • JL Audio, Inc., 2025 Continued on Next Page

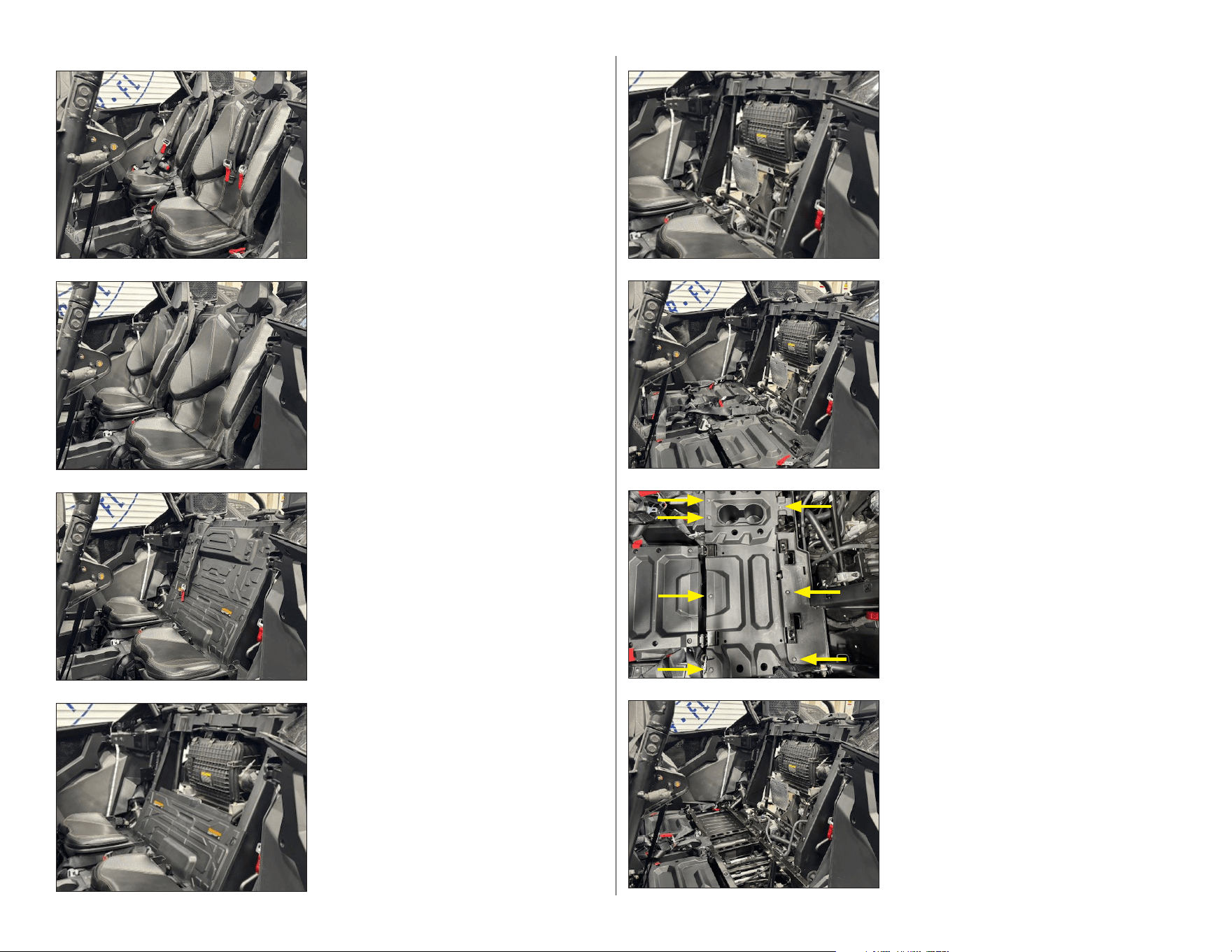

STEP 8
Remove the under seat cover panel.
STEP 7
Remove the indicated screws from the under
seat cover panel, and repeat for the opposite
side. Note the position of each screw for proper
reassembly.
STEP 6
Fold the seat bottoms forward.
STEP 5
Unclip and remove the lower cover panel.
STEP 4
Unclip and remove the upper cover panel.
STEP 3
Unlatch and remove the rear seat backs.
STEP 2
Undo the straps, release the seat belt buckles,
and pass the seat belts through the openings
in the seats.
STEP 1
Empty the rear seat area.
SBX-POL-RZR19RSUB/10TW3 INSTR_SKU# 011796
Page 4 • JL Audio, Inc., 2025 Continued on Next Page

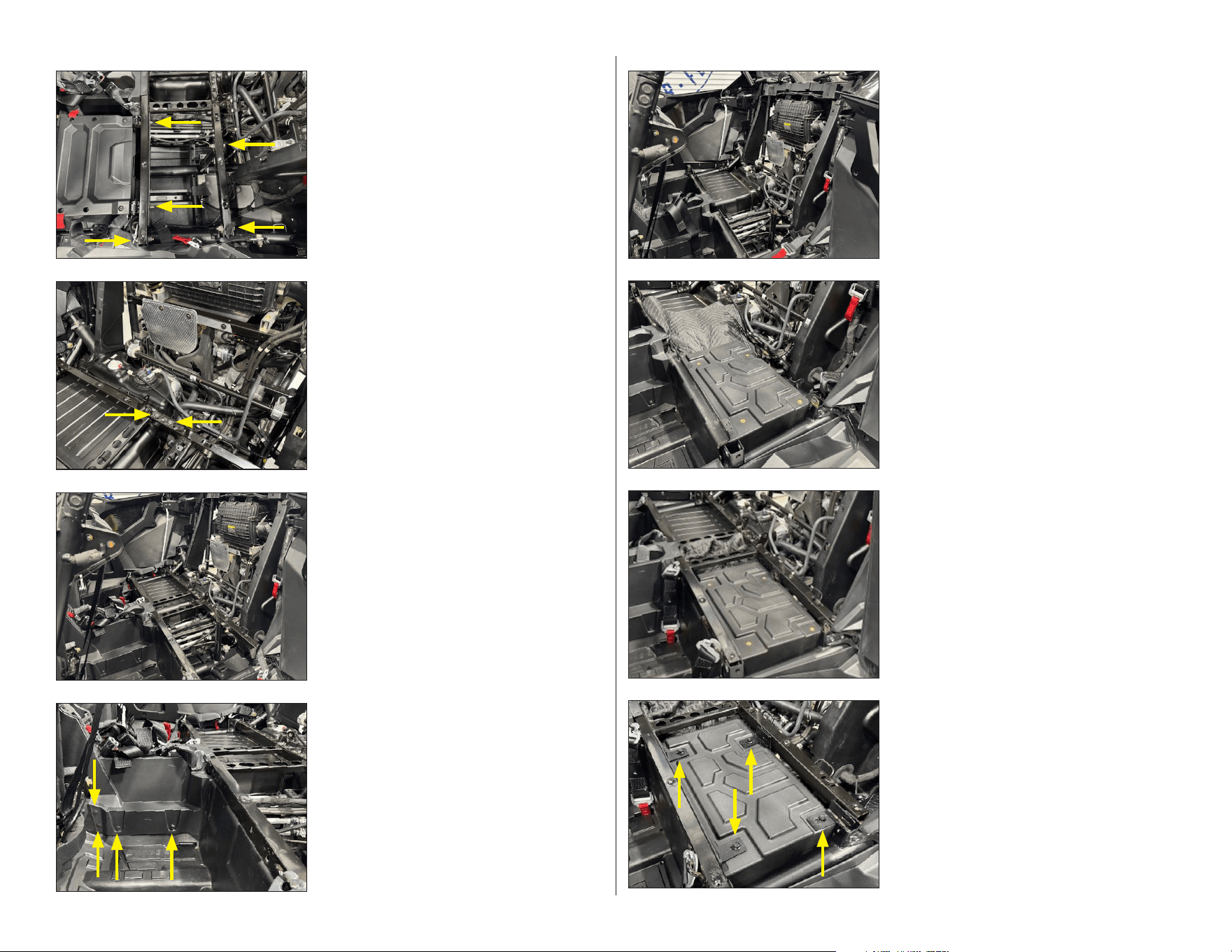

STEP 16
Align each of the four Enclosure Brackets at the
top of the enclosure, as shown. Slide an M8 Flat
Washer over an M8 x 16mm Torx Button Head
Screw. Apply Vibra-Tite 132 to the screw, and
pass the assembly through the lower slot in an
Enclosure Bracket, into the threaded insert on
top of the enclosure, and hand tighten.
Repeat for all four Enclosure Brackets.
STEP 15
Carefully set the seat frame back into
position.
STEP 14
Place a blanket in the cavity to protect the
enclosure, then carefully place the enclosure
into position, as shown.
STEP 13
Carefully lift and remove the seat frame from
the vehicle.
STEP 12
Remove the two screws and two clips from the
base of the center console, and repeat for the
opposite side.
STE P 11
Remove the seat bottoms from the seat frame,
and move the seat belts away from the frame.
STEP 10
Remove the indicated screws from the seat
frame.
STEP 9
Remove the indicated bolts and nuts from the
seat frame, and repeat for the opposite side.
SBX-POL-RZR19RSUB/10TW3 INSTR_SKU# 011796
Page 5 • JL Audio, Inc., 2025
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!

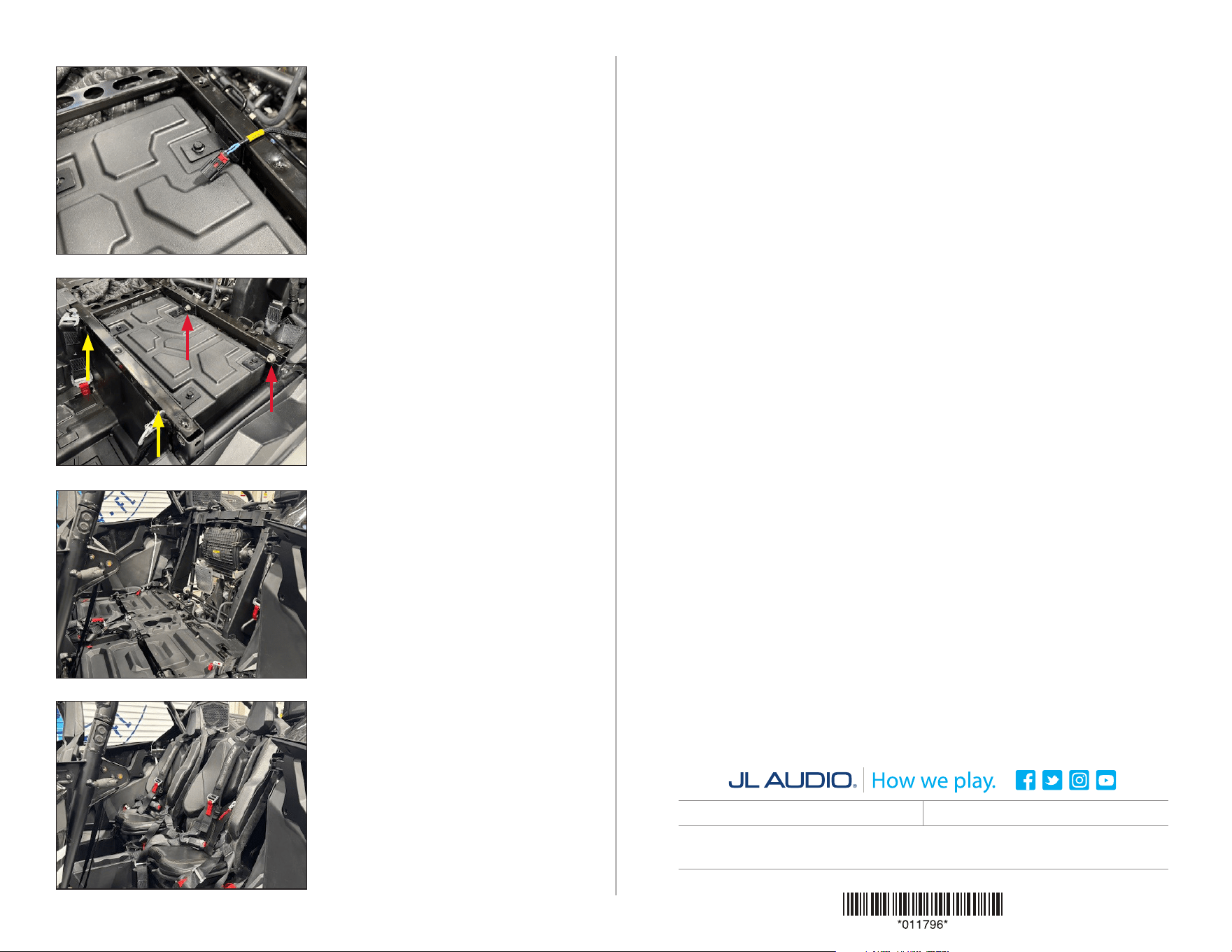

STEP 18
At the red arrow locations, reinstall two factory
bolts through the rear Enclosure Brackets and
seat frame. At the yellow arrow locations,
reinstall the seat bottom using the included
Yellow Zinc Plated M8 x 55mm Flanged
Hex Bolts through the seat frame and front
Enclosure Brackets.
Reinstall the remaining factory seat frame
hardware. Fully tighten all the Enclosure
Bracket hardware.
STEP 17
For vehicles equipped with a SlamPak® system,
plug the Molex connector from the enclosure
harness into the mating connector of the
SlamPak® harness.
For all other vehicles, cut the Molex connector
from the enclosure harness, and connect the
subwoofer wires to the amplifier.
Light Blue = Subwoofer Positive (+)
Light Blue / Black = Subwoofer Negative (-)
