HelloBaby HB6231 3.2'' Video Baby Monitor Camera and Audio User Manual

2.4GHz Digital Wireless Video Baby Monitor

User Manual

www.hellobaby.net.cn

service@hellobaby.net.cn

Model: HB32

Charging LED

Power LED

Sound Level Indicator

Power key

3.2'' Diagonal TFT LCD

Exit/Two Way Talk

Menu/OK

Zoom / View / Scan

MIC

Right Key

Up key

Down Key

Left Key

Speaker

DC-jack

Stand

Reset Key

(behind the stand)

Antenna

RESET

20674-HB32RX

2AF2R-HB32RX

INPUT:DC6V 600mA

Made i n China

Model: HB32RX

Parent Unit

S/N: 19000001RX

--------

Signal Strength

Alarm

--------

Volume

--------

Brightness

--------

Zoom

--------

Two-Way Talk

--------

Lullaby

--------

Camera

--------

Battery Level

--------

T e m p e r a t u r e

--------

Night vision

--------

VOX

7. KEY OPERATION

7.1 POWER SAVE/SCREEN OFF

Short press the power key to turn on / off the screen.

7.2 VOLUME ADJUSTMENT

Press the ▲ key to increase the volume; Press the ▼ key to decrease the volume;

7.3 BRIGHTNESS ADJUSTMENT

Press the key to decrease the brightness; Press the key to increase the brightness;◀ ▶

.4 CAMERA VIEW / SCAN7

Press Scankey to view / scan camera;During scan mode, the scan icon will be

displayed on the top of screen. And each camera's' video will be stay on the LCD around

10 seconds then change to next camera;

.5 DIGITAL ZOOM & PAN / TILT7

Press and hold thekey around 2 seconds to operate Zoom in / out; At the Zoom mode ,

press the ◀ key to Pan left; press ▶key to Pan right; press ▲ key to tilt up; press ▼key

to tilt down;During digital zoom mode, the zoom icon will be displayed on the top of

screen.

Warm reminder: If you want to adjust the volume/Brightness, you have to exit the Zoom

mode before you operate it.

.6 TALK TO BABY7

Press and hold key to enter two way talk mode.A microphone icon will be displayed

on the top of the LCD screen while this function is working.Release the button when you

have finished talking and listening to the sound from the baby's room again.

Note: When you are in the two-way talk mode, the parent unit speaker is muted.

.7 INFRARED NIGHT VISION (Automatic)7

The infrared night vision function allows the camera to pick up images of your baby or

the monitored area in dark or low light conditions.In this mode, only black and white

images will be displayed on the monitor, the optimum image is 6 feet distance between

baby unit and object.When the camera is in night vision mode, the icon will be

displayed on the top of screen.

8. MENU OPERATION

8.1 PAIRING THE CAMERA AND MONITOR

The baby unit is pre-registered to your parent unit. You do not need to register it again

unless the baby unit loses its link with the parent unit. To re-register your baby unit, or

Camera icon with "*" means it is well registered. You should select and pair with the Note :

camera icon without "*" sign.

1.Press the MEN U key then the menu will pop up;

2.Press the ◀ / ▶ key until the camera icon is highlighted, then press ▲/ ▼ key to

select your desired camera;

3. Press O K key enter into sub-menu;

4. Press ▲/ ▼ key to select A DD CAM then press OK key;

5. While the “Pairing” dialogue displayed on theLCD screen, press the PAIR button on the

back of camera;

6. Once paired, it will display “pair is succeed” on the LC D screen.

7. If unsuccessful, please repeat the above steps.

8. Press the key to Exit.

.2 DELETTING A CAMERA8

1. Press the MENU key and the menu will pop up;

2. Press the ◀ / ▶ key until the camera icon is highlighted then press ▲/ ▼ key to

select your desired camera;

3. Press O K key, enter into sub-menu;

4. Press ▲/ ▼ key to select D EL CAM then press OK key;

5. Press ▲/ ▼ key to select ;

6. Press O K key to confirm the option.

7. Press the key to Exit.

.3 VOX SETTING8

This option in the parent unit menu allows you to set the microphone sensitivity of the baby

unit. The microphone sensitivity determines what noise level the baby unit picks up, e.g.

you will want to hear when your baby cries, but you may be less interested in its babbling.

1. Press the MENU key and the menu will pop up;

2. Press the ◀ / ▶ key until the icon VOX is highlighted, then press ▲/ ▼ key to select

desired level;

3. Press O K key to confirm;

4. Press the key to Exit.

Note: VOX-Lo is Low sensitivity level;

Note: VOX-Hi is High sensitivity level;

.4 TEMPERATURE UNIT SETTIN8 G

1. Press the MENU/OK key and the menu will pop up;

2. Press the ◀ / ▶key until the temperature icon is highlighted;

3. Press ▲ / ▼key to select between ℉or ℃;

Charging LED

Power LED

Sound Level Indicator

Power key

Antenna

Baby Monitor Model:HB24RX

S/N:19000001RX

FCC ID :2AF2R-HB24RX

IC : 20674-HB24RX

MADE IN CHINA

INPUT: DC6V 600mA

Use only power adapters listed

in the user instructions.

Li-ion Battery 3.7V, 950mAh

reset

2.4'' Diagonal TFT LCD

Exit/Two Way Talk

Menu/OK

Zoom / View / Scan

MIC

Right Key

Up key

Down Key

Left Key

Speaker

DC-jack

Stand

Reset Key

(behind the stand)

5. 2 BABY UNIT OVERVIEW:

CMOS sensor

Light sensor

MIC

Infrared LEDs

Power LED

Antenna

Speaker

Pair key

DC-Jack

Temperature

sensor

Baby camera Model:HB32TX

S/N: 19000001TX

monitor,theoptimumimageis6ft(2m)distancebetweenbabyunitandobject.When

the camera is in night vision mode, the icon will be displayed on the top of screen.

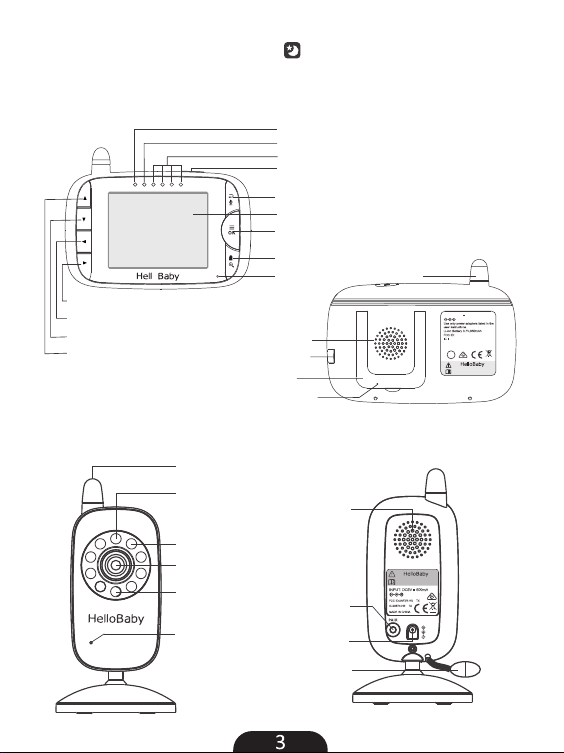

6.PRODUCT OVERVIEW

.1 6 PARENT UNIT OVERVIEW:

6. 3 ICO NS OVERVIEW:

9. TROUBLE SHOOTING

10. TECH NICA L DATA

4. Press O K key to confirm;

5. Press the key to Exit.

Note: For this unit,The environment test temperature range is 0~50 ℃.

temperature alarm settingRoom

1. Enter the temperature selection interface, press ▼ direction key, choose Alert, then

press OK key to enter setup;

2. Open the environment temperature alarm function, select ON, press OK key to confirm;

close the environment temperature alarm function, select OFF; press OK key to confirm;

3. Set alarm temperature value Choose ON, then press OK to confirm, enter the setup

interface of high and low temperature; Now, the Hight value appears red box, press the

▲ / ▼ key to adjust the maximum environment temperature alarm value, after it is set,

press OK key to confirm; When the highest temperature alarm value is set, it will

automatically jump into the lowest temperature alarm value set; When the Low

temperature alarm value appears red box, press ▲ / ▼ key to make lowest environment

temperature alarm value adjustment, then press OK key to confirm and the system

returns to the superior directory automatically ; If you don't want to change, press the

Return key to return to the superior directory;

Note: the High temperature alarm range is 20-40 ℃, and the Low temperature alarm

range is 0-19 ℃.

8.5 LULLABY SETTING

ou can soothe the baby to sleep by playing a gentle lullaby from the baby unit. Y

1 . Press the MENU key and the menu will pop up;

2. Press the ◀ / ▶ key until the lullaby icon is highlighted;

3. Press ▲ / ▼ key to select one of the 8 available lullabies, silence or loop playing ;

4. Press O K key to confirm;

5. Press the key to Exit.

Note 1: nce the lullaby is turned on, the lullaby icon will display on the top of the O

screen.

Note 2: he lullaby default setting is OFF.T

Note 3: ullaby loop playing function is, play all the lullabies one time. L

8.6 ALARM SETTING

ou can use the alarm to remind yourself to feed your baby / change diaper / sleeping, etc.Y

1. Press the MENU key and the menu will pop up;

2. Press the ◀ / ▶ key until the alarm icon is highlighted;

3. Press ▲ key to decrement or press ▼ key to increment ;

4. Press O K key to confirm;

5. Press the key to Exit.

Note 1: he minimum unit is 0.5 hour. The maximum setting is 4 hours (8 levels).T

Note 2: nce the alarm is turned on, alarm icon will display on top of the screen.O

Note 3: he alarm default setting is OFF.T

Note 4: hen the alarm is ringing, press any key to answer it.W

Thank you for purchasing the HB24. Now you can see and hear your baby sleeping in another

room or you can monitor your older children in their play room.

Please retain your original dated sales receipt for your records. For warranty service of your

HelloBaby product, you will need to provide a copy of your dated sales receipt to confirm

warranty status. Registration is not required for warranty coverage.

Please make sure the following included in your package

Parent unit x 1 Camera unit x 1 Power Adapter x 2

User manual x 1 Wall-mounting kit x 1

1. SAFETY INSTRUCTIOINS

CAUTION: Keep the device away from children.

Strangulation Hazard: Children have STR ANGLED in cords. Keep this cord out of the reach of

children (more than 3ft (0.9m) away). Never use extension cords with AC Adapters. Only use

the AC Adapters provided.

Choking hazard : This product contains small parts, please be careful when unpack and

assemble the product.

All the safety and operating in structions should be read Read and keep to instructions:

before the video baby monitor is operated. This product cannot replace responsible adult

supervision.

Water and moisture: This product is designed for indoor use only. The unit should not be

exposed to rain, moisture, dripping or splashing. No objects filled with liquid should be

placed on top of, or beside the product, such as a glass or vase. This item should not be used

near water.

DO NOT: Use the appliance if the cord or plug is damaged. If your baby monitor is not

operating properly or has suffered any damage, contact “HelloBaby” service center to request

inspection and repair of the appliance in order to avoid any possible risk.

DO NOT: Do not attempt to repair or adjust. ..... of the unit. Otherwise, the guarantee will be

made void.

Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface that

may block the ventilation openings, or be placed in an enclosed area such as a bookcase or

drawer that may impede air flow.

Keep away from sources of heat: This unit should not be exposed to direct heat sources

such as a candle, radiator, heat register, stove or other appliance that emits heat. The unit

should not be left in direct sunlight.

Power source: This unit should only be used with the AC power adapters included in this

package (rated 6V 600mA/ ).

Damage requiring service: This unit should be serviced by qualified personnel only when:

.  Objects have fallen or liquid has been spilled into the product;

.  The units have been exposed to rain;

.  The units do not appear to operate normally or exhibits a distinct change in performance;

. The units have been dropped or the enclosure damaged;

2. WARRANTY TERMS

We offer one-year warranty from the original purchase date against defects in workmanship

and materials. If you have warranty or support issues, please contact our after-sales service

via email.

3.INSTALLATION GUIDELINES

* To use your parent unit and camera unit together, you have to establish a radio

link between them, and the range will be affected by environmental conditions.

* Any large metal object, like a refrigerator, a mirror, a filling cabinet, metallic doors or

reinforced concrete between the baby and parent unit may block the radio signal.

* The signal strength may also be reduced by other solid structures, like walls, or by radio

or electrical equipment, such as T V, computers, cordless or mobile phones, fluorescent

lights or dimmer switches.

* Use of other 2.4G Hz product, such as wireless networks (Wi-Fi routers), Bluetooth

systems, or microwave ovens, may cause interference with this product, so keep the baby

monitor away at least 5ft (1.5m) from these types of products, or turn them off if they

cause interferences.

4. PLACEMENT OF THE BABY MONITOR

The camera can be placed on the desktop or mounted on the wall. Don't place baby monitor

on soft quiltsor blankets or in the corners of cupboards, shelves, etc; Place the baby monitor

away from heat sources such as radiators, chimneys, cookers and direct sunlight; Place the

baby unit away from TV sets, microwave oven and radios. If interference occurs, move the

camera to other location;

*Place the camera within6 feet (2 meters) of the area being monitored for optimum

performance.

5. GE TTI NG START ED

5.1 TURN ON THE BABY UNIT:

1. Insert the DC plug of the power adapter into the DC jack in the rear of the Baby Unit;

2. Insert the other end of the power adapter into a suitable electrical outlet;

3. Once the adapter is connected, the power L ED will light up;

.2 TURN ON THE PARENT UNIT: 5

1. Insert the DC plug of the power adapter into the DC jack in the side of the parent Unit;

2.Insert the other end of the power adapter into a suitable electrical outlet;

3. Press and hold the power key on the top of the parent unit;

4.Once parent unit is on, the power LE D will light upand the image will display on the LCD;

5.3 INFRARE D NI GHT VISION (AUTOM ATIC)

The infrared night vision function allows the camera to pick up images in dark or low

light conditions. In this mode, only black and white images will be displayed on the

Ver: 1.3

Made in China

www.hellobaby.net.cn

Part No: 20040093B

No reception on the

monitor

Frozen Picture on

Screen

Audio feedback

(high pitched noise)

Interference or poor

recetion

* The power adapters may not be properly connected;

* Confirm that the camera and monitor are ON;

* Camera may be far away from the monitor;

* Camera and monitor may not be properly paired; follow PAIRING instructions;

* Move the monitor close to the camera;

* The camera or monitor may be placed too close to many metal objects;

* Other electronic devices may be interfering with the signal;

* The battery power may be too low;

* The camera and monitor may be too close together;

* The volume on the monitor may be set too high;

* Repower the baby unit (plug out the adapter, then plug it into the

socket again);

* Press the RESET key at the back of parent unit ( behind the

support stand )

uncontrolled environment.

Cet équipement est conforme à l'exposition aux rayonnements Industry Canada limites

établies pour un environnement non contrôlé.

FCC/IC RF Radiation Exposure Statement Caution: This Transmitter must be installed to

provide a separation distance of at least 20 cm from all persons.

IC Radiation Déclaration d'exposition Attention: Cet émetteur doit être installé pour

fournir une distance de séparation d'au moins 20 cm de toute personne.

EU Declaration of Conformity (DoC)

Hereby, HelloBaby Technology (HK) Limited declares that the radio equipment type

(Digital Video Baby Monitor HB32) is in compliance with RED Directive 2014/53/EU.

The full text of the EU declaration of conformity is available on the website:

www.hellobaby.net.cn

Trade Name : Hellobaby

Model: HB32

Responsible Party: Startline LLC

Add: 22 Hazelwood Drive, Jericho, NY 11753

Tel: 1-516-681-3729

Shenzhen Videotimes Technology Co.,Ltd

Rm 601, 6/F, T o w e r B, United Financial Building, No.1

Shihua Road, Futian Free T r a d e Zone, Shenzhen, China

Improper or incorrect use of batteries may cause corrosion or battery leakage, which

could cause personal injury or damage to property.Use only the types of the batteries

which are indicated in this manual.

CAUTION: Risk of Fire and Burns. Do Not Open, Crush, Heat Above 45 degree C or Incinerate.

Follow Manufacturer's Instructions.

12. DISPOSAL GUIDE FOR BATTERY AND PRODUCT

* Do not attempt to repair or adjust any of the electrical or mechanical functions of the

unit;

* Remember to dispose of the product in an environmentally responsible way;

* For proper collection and processing of these products, take them to the collection

points designated by local authorities. You can also contact the store where you

purchased the product.

FCC AND IC REGULATIONS

FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

FCC Caution:

Changes or modifications not expressly approved by the part responsible for compliance

could void the user's authority to operate the equipment.

FCC Statement:

"This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or tel evision reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

—Consult the dealer or an experienced radio/TV technician for help."

Industry Canada

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that

may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil

ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le

fonctionnement.

This equipment complies with Industry Canada radiation exposure limits set forth for an

Product tested against En62471

 WARNING IR emitted from this product. Do not stare at operating lamp

Risk Group 1

Strangulation Hazard: Children have STRANGLED

in cords. Keep this cord out of the reach of children

(more than 3 ft (0.9 m) away). Do not remove this tag.

WARNING

DANGER D’ÉTRANGLEMENT: Des enfants se sont

ÉTRANGLÉS avec des cordons électriques. Garde

le cordonélectrique hors de la portée des enfants(à

plus de 0.9m/3 pi du lit d’enfant). Ne pas enlever

cette étiquette.

AVERTISSEMENT

9 10

Focus on Mom & Baby Care !

2400~2483.5MHz

Frequency

Power adapter

Input

Parent Unit: Input: 100-240VAC 50/60Hz

Output: 6VDC 600mA

Camera Unit: Input: 100-240VAC 50/60Hz

Output: 6VDC 600mA

Operation

environment

Up to 1000ft (300m) outdoor line of sight

Up to 165ft (50m) indoor

Operating Range

Display

3.2'' TFT LCD

Battery (Parent Unit)

Battery Life

Li-ion 3.7V 950mAh (3.515Wh)

Up to 8 hours

Temperature : +32F- +104F( 0℃ -40℃ )

RelativeHumidity:15%-85%

Camera unit and parent

unit RF power ( for CE)

less than 20dBm

11. MAINTENANCE

*Cleanyourbabymonitorwithaslightlydamporanti-staticcloth.

*Neverusecleaningagentsorsolvents.

该文档是极速PDF编辑器生成，

如果想去掉该提示,请访问并下载：

http://www.jisupdfeditor.com/
