INSTALLATION AND OPERATING INSTRUCTIONS
for all Hydrocarbon
BZ Refrigerator Models
3779 CHAMPION BLVD, WINSTON-SALEM, NC 27105
Phone: (888) 845-9800 | Fax: (800) 253-5168 | Web: beverage-air.com
809-236A Rev. D. 02/09/2026
SEE BACK COVER FOR
WARRANTY REGISTRATION
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air2
WELCOME
Contents
Safety ........................................................................................................................................................................3
Important Information ..........................................................................................................................................5
Product Information ..............................................................................................................................................6
Clearance and Placement ......................................................................................................................................7
Unpacking and Set Up ........................................................................................................................................... 8
Shelf Installation ..................................................................................................................................................... 9
Electrical ..................................................................................................................................................................10

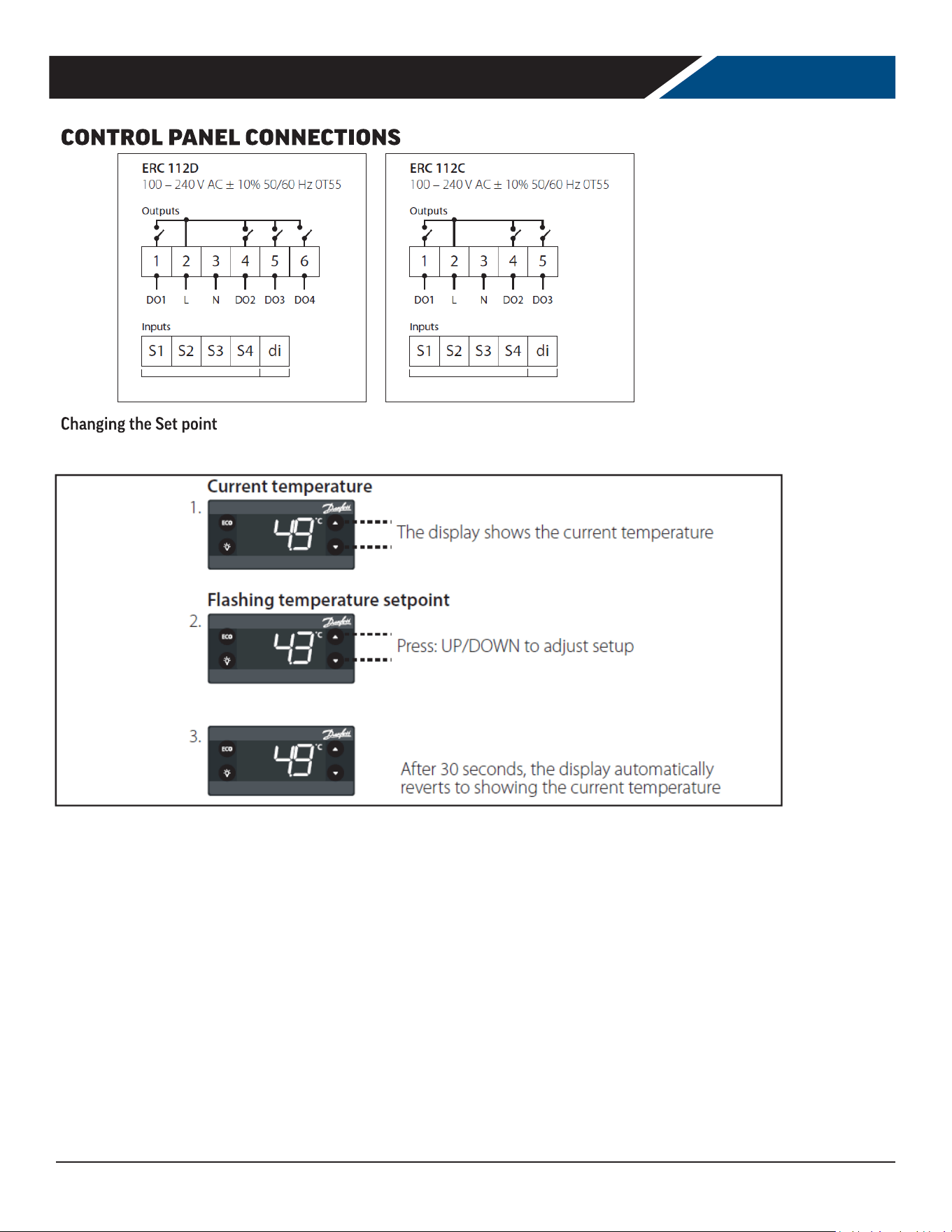

Using The Unit - Danfoss Contoller ...................................................................................................................11

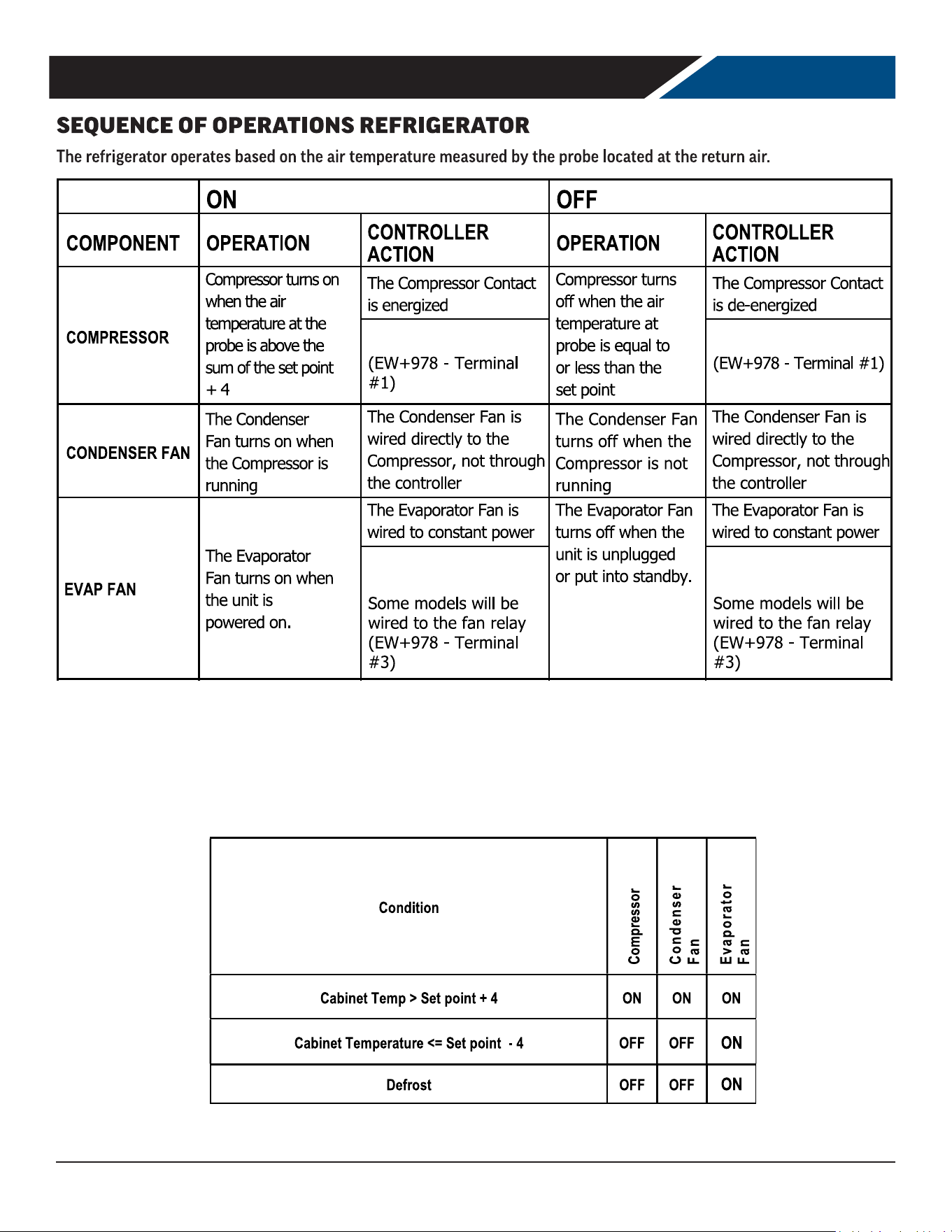

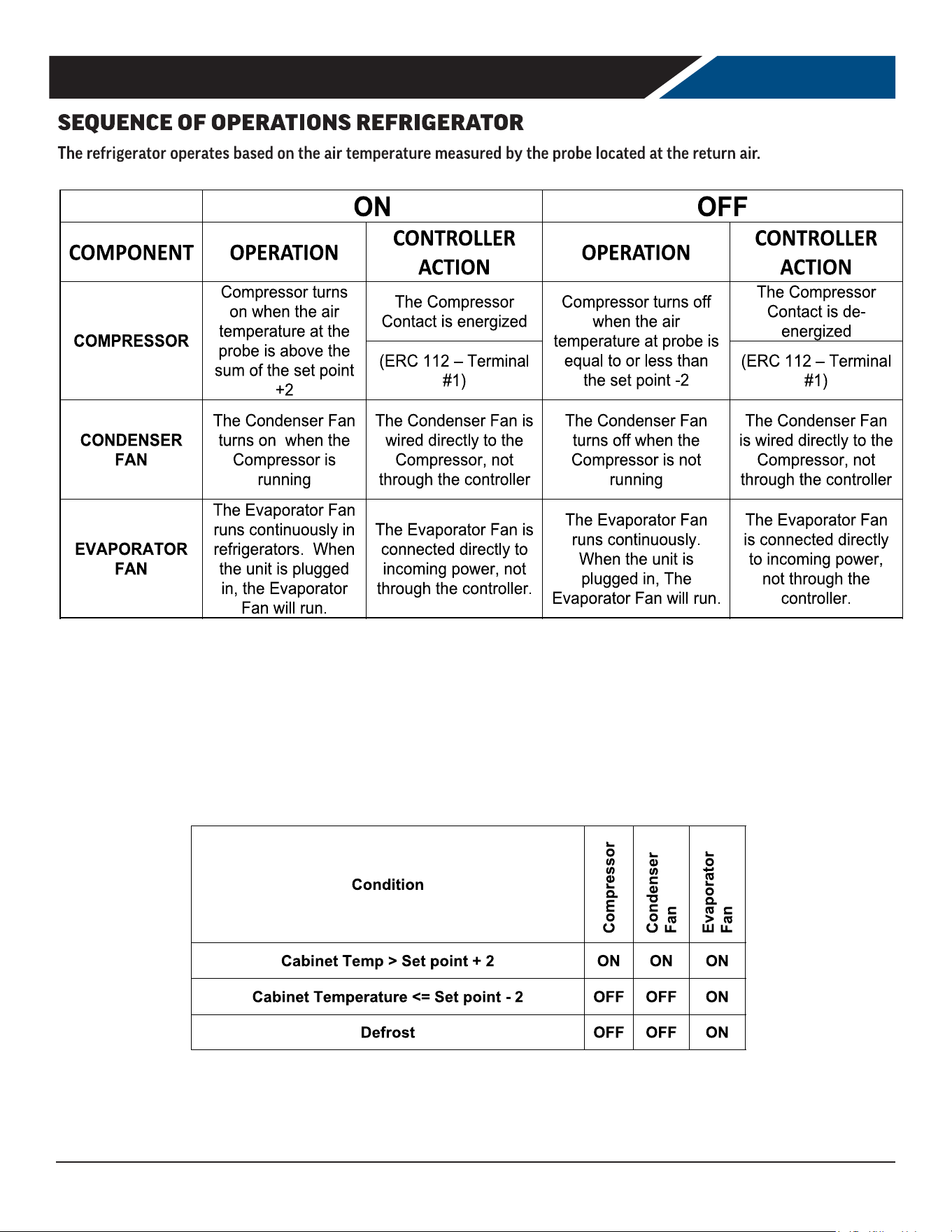

Sequence of Operations Refrigerator......................................................................................................12

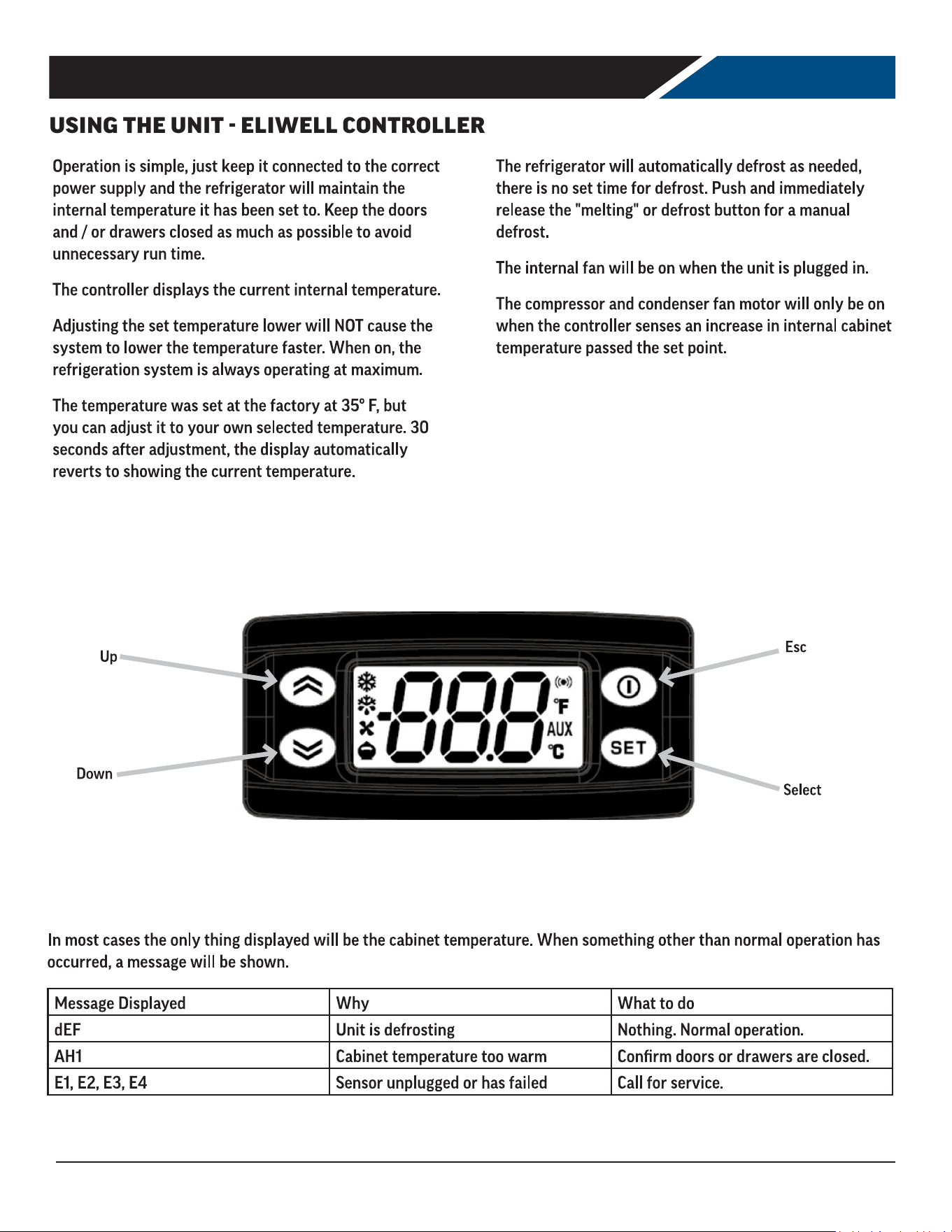

Using The Unit - Eliwell Contoller ......................................................................................................................16
Sequence of Operations Refrigerator......................................................................................................17
Cleaning and Maintenance ................................................................................................................................20
Condenser Cleaning ...............................................................................................................................................21
Methods For Cleaning Exerior Finish ...............................................................................................................22
Help ..........................................................................................................................................................................23
For The Service Tech - R290 .............................................................................................................................24

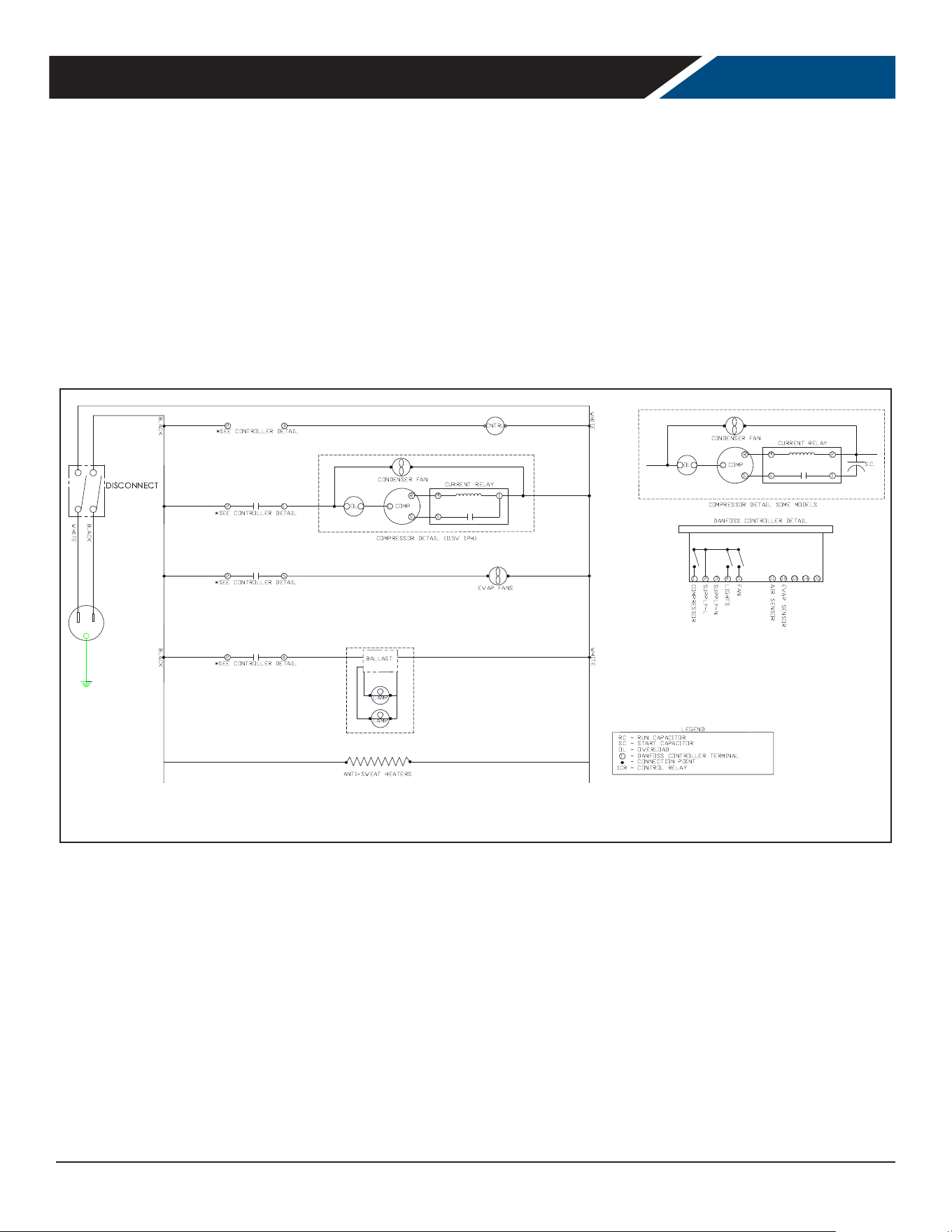

For The Service Tech - Wiring Diagram ...........................................................................................................25
Limited Warranty .................................................................................................................................................26
Limited Warranty (continued) ...........................................................................................................................27
Replacement Parts ...............................................................................................................................................28
Important Information
• PLEASE READ THESE INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR USING, IF RECOMMENDED
PROCEDURES ARE NOT FOLLOWED, WARRANTY
CLAIMS MAY BE DENIED.
• Your warranty registration information is located
within this manual. Please complete the card
and submit it to Beverage-Air within TEN days of
installation. Failure to properly register equipment
may limit or void the warranty.
• Beverage-Air reserves the right to change
specications and product design without
notice. Such revisions do not entitle the buyer to
corresponding changes, improvements, additions, or
replacements for previously purchased equipment.
Thank you for purchasing a Beverage-Air cabinet. This
series has passed our strict quality control inspection and
meets the high standards set by Beverage-Air! You have
made a quality investment that with proper maintenance
will give you many years of reliable service!
Please read the following installation and maintenance
instructions before installing or using your unit.
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 3
SAFETY
This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However,
safe operation and maintenance are your responsibilities.
Use: When using this unit, please:
• Move it carefully. If on casters be sure the casters
do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move
with enough help to avoid tipping or dropping the
cabinet.
• Prevent children from playing in or on the cabinet.
Persons unable to use this product must be
prevented access.
• Follow all instructions. There are many safety
labels and directions on the unit. Heed them.
• Watch your ngers. There may be pinch points near
the door hinges.
Maintenance
Do NOT:
• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.
• Store gasoline, kerosene or any other ammable
material near the cabinet.
Do ALWAYS
• Use a Beverage-Air recommended technician certied
to repair R290 equipment.
• Use ONLY Beverage-Air factory service parts. Use of
non OEM parts can be dangerous because of the design
changes needed to safely use R290.
Observe the Caution and Warning notices. They are indicators of
important safety information. Keep this manual for future reference.
Important Information to Add
Record the model number, serial number and the date of installation here for future reference. The model and serial
numbers are on the unit's serial number dataplate, which is located on the left inside wall.
Model Number
Serial Number
Date of Installation
Purchased From
CAUTION
WARNING
CAUTION
CAUTION
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air4
CAUTION: If it is necessary to move the Refrigerator after removal from the skid,
remove all doors and carefully push the unit at a point of no more than 36” from the
bottom to avoid damage.
CAUTION
SAFETY
Push ONLY below the 36 inch / .91 meter height
Do NOT push in this area.
0112ÿ456789ÿÿ967ÿ4ÿ1ÿ
2ÿÿ6 !ÿ00""0ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
#6$%9#&7ÿÿÿ6'(69#&7
)*+,-+./+0123.45,*123167.5618-.93./1-18167:.
;;;<+6+073-8,0<7=/>?2-.
ÿABCDEFDGHEIJKÿGLCÿKMNOCDHÿHIÿDPGJQCÿREHPIMHÿBLEILÿJIHEDCSÿÿTCUSÿVWXWV
YZY[\ZY%][^ÿ_]Z`^a][^ÿbÿ%44Z^Y[Z
ÿdefHCLEILÿFJEKPÿEKÿPCGUghiMHgÿKHCCjÿREHPÿGÿRPEHCÿNGkCiÿIJÿiML
GNjCÿ
DIGHEJQ
ÿdlJHCLEILÿEKÿRPEHCÿDIGHCiÿKHCCj
ÿdmMLUCiÿiCKEQJÿREHPÿIBCJÿnLIJH
ÿdlJHCLEILÿjEQPHEJQÿBLIUEiCKÿHRIÿLCDCKKCiÿEJHCLEILÿjEQPHKÿnILÿoGf
EoMoÿ
BLIiMDHÿUEKENEjEHg
ÿdpPLCCÿqrsÿCBIfgÿDIGHCiÿKPCjUCK
ÿdAEiCÿKPECjiÿHIÿoGfEoEtCÿBLIiMDHÿiEKBjGg
ÿd uIiCLJÿQLEjjCÿEKÿCGKgÿHIÿLCoIUCÿnILÿDjCGJEJQÿGJiÿKCLUEDEJQ
ÿdvLEQPHjgÿjEQPHCiÿKEQJÿBGJCjÿKHGJiGLi
ÿd wLGUEHghxjIÿILQGJEtCLÿKHGJiGLi
ÿdmCLHEFCiÿnILÿNIHHjCiÿNCUCLGQCÿyÿBGDkGQCiÿnIIiÿBLIiMDHK
ÿdzKCKÿCJUELIJoCJHGjjgÿnLECJijg{ÿCJCLQgÿC|DECJHÿTW}~ÿLCnLEQCLG
JH{ÿ
GJiÿoCCHKÿGjjÿLCQMjGHILgÿLCMELCoCJHKÿnILÿmTv{ÿA{ÿeÿyÿ
oILC
ÿdMHIoGHED{ÿJIJhCjCDHLEDÿiCnLIKH
ÿdeBIfgÿDIGHCiÿCUGBILGHILÿDIEj
ÿd uGEJHGEJKÿBLIiMDHÿHCoBCLGHMLCÿNCHRCCJÿrWxÿGJiÿ~x
`^Z!
04
ÿdvjGDkÿCfHCLEILÿFJEKPCKÿGUGEjGNjC
ÿdvjGDkÿiEUEiCLK
ÿdvjGDkÿKPCjUCK
ÿdTIjjCLÿkEH
ÿdmMKHIoÿQLGBPEDKÿGJiÿKEQJGQC
04ÿ^aZ%[Yÿ4Y]%[!ÿ]ZÿYZZZ
ÿÿ
ÿÿ
ÿÿ
¡¢¢£¤ÿ
¡¡¥ÿ
¦¦¥ÿ
4%[Z]ÿ4^]Y4][^
0ÿ_6#ÿa6#§6(#ÿ6##6¨
%996ÿÿ_6#ÿ478##ÿ6##6¨ÿ
ÿ
^aZ%[Yÿ4Y]%[ÿÿ
v©Vrªmÿ«PEHCÿuCLDPGJiEKCLÿACLECKÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
ªgiLIDGLNIJÿACLECK
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 5
IMPORTANT INFORMATION
This unit is intended to be used in a commercial application. That includes bars and restaurants.
If installed in a residence some commercial service companies may not be able to service it on site.
The manufacturer has designed and produced this machine with the nest in materials. The manufacturer assumes no
liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.
Limitations
The machine is designed for use indoors in a controlled
environment. It must be kept dry, not overheated or
subjected to excessive cold. May only be connected to
a dedicated electrical circuit. Extension cords are not
permitted.
Minimum Maximum
Voltage 103.5 126.5
Room Air Temp 60º F 80º F
Air Flow
Agency Approvals
These marks appear on the dataplate or serial tag, located
in the inside of the left wall. The dataplate also contains
the model and serial numbers as well as electrical
requirements.
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
DRAWN
CHK'D
APPV'D
MFG
Q.A
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
FINISH:
DEBURR AND
BREAK SHARP
EDGES
NAME
SIGNATURE
DATE
MATERIAL:
DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:1:20
SHEET 1 OF 1
A3
WEIGHT:
AMK
03/19/18
BZ13
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air6
Model
Cabinet Dimensions
w x d x h (Inches)
Full Load
Amps
Power Cord
Plug (NEMA)
Refrigerant Type / Charge
(g) / Charge (oz)
BZ13HC-1 30 x 32 3/4 x 54 3/8 9.1 5-15P R-290 / 145 / 5.12
PRODUCT INFORMATION
• All models will maintain product temperature between 32 and 40 degrees F. at the factory setting of 38.
0
F.
• All models are 115 volts, 60 Hz AC.
• ALWAYS REFERENCE YOUR EQUIPMENT DATA PLATE AMPS, REFRIGERANT AND REFRIGERANT CHARGE FOR THE
MOST UP TO DATE AND ACCURATE VALUES.
• There are no access valves on the refrigeration system.
• Exterior nish is heavy duty steel with durable, baked on black or white coating.
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 7
CLEARANCE AND PLACEMENT
Placement
Consider the following when selecting a location for your Refrigerator:
Clearance:
• 6.0 in. at the top
• 3.0 in. at the rear
• 0.0 in. at the left side
• 0.0 in. at the right side
• 0.0 in at the bottom
Floor Load: the oor on which the Refrigerator is located must be even and level, free from vibrations, and strong enough
to support the combined weights of the unit and maximum product load.
Ventilation: Grille area at front must be free and clear of any object or wall.
Power Outlet: Dedicated power outlet is located within the length of the unit's power cord.
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
DRAWN
CHK'D
APPV'D
MFG
Q.A
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
FINISH:
DEBURR AND
BREAK SHARP
EDGES
NAME
SIGNATURE
DATE
MATERIAL:
DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:1:20
SHEET 1 OF 1
A3
WEIGHT:
AMK
03/19/18
BZ13
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
DRAWN
CHK'D
APPV'D
MFG
Q.A
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
FINISH:
DEBURR AND
BREAK SHARP
EDGES
NAME
SIGNATURE
DATE
MATERIAL:
DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:1:20
SHEET 1 OF 1
A3
WEIGHT:
AMK
03/19/18
BZ13
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
6"
TOP
MINIMUM
CLEARANCE
0"
LEFT/RIGHT SIDE
MINIMUM
CLEARANCE
0"
BOTTOM
MINIMUM
CLEARANCE
3"
REAR
MINIMUM
CLEARANCE
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air8
UNPACKING AND SET UP
CAUTION
Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is
suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim.
Do NOT contact the manufacturer.
Uncrating
Tools Needed: ¾” box wrench, adjustable wrench, level,
at head screw driver, and box cutter.
1. Cut the stretch wrap along a corner post and remove
the cardboard top capping and the corner posts.
2. Discard stretch wrap and any cardboard that will not
be recycled.
Note: additional clear plastic protective wrap is
applied directly to any product with a glass door.
3. Move unit as close to nal position as possible before
removing the skid.
Note: The skid must be removed before the casters or
legs can be attached.
Do NOT tip unit on its front or sides. If tipped onto the
back, unit must not be started for 3 hours.
Skid Removal and Caster Attachment
Tip the unit forward and remove the skid.
Risk of personal injury.
Unit must be securely supported
while attaching casters or legs.
WARNING
1. Remove the shipping bolts using the ¾” box wrench
while cabinet is held in one direction. Repeat the process
while the cabinet is held in the opposite direction.
2. None of the threads on the leg or caster stem should
be visible once screwed in.
3. Tilt the cabinet in one direction approximately 8” and
block it securely with pieces of 2x4 lumber or other
suitable material.
4. Thread the stem casters or legs into the ½ -13 holes in
the bottom of the cabinet. Tighten by hand as much
as possible.
5. Once the caster or leg cannot be turned any further,
use a 3/4 inch wrench to tighten the nut in between
the mounting plate and the wheel of the caster until
snug.
6. Repeat this procedure with unit secured in the
opposite direction so as to access the remaining legs/
casters
7. If plate casters or legs are installed instead of stem
casters or legs, then repeat step 3 above and secure
the plate with either #14 AB screws, or ¼-20 screws,
depending upon which are required.
Leveling:
Cabinets must be leveled when installed. Level should be
measured on the headrail.
Note: If no casters, legs or levelers are to be installed,
the oor below the equipment must be level
Failure to level your cabinet may result in door not
sealing, closing correctly, or condensed water draining not
draining properly.
For cabinets with legs, rotate the foot of the leg with an
adjustable wrench to achieve desired height for leveling.
For cabinets with casters, leveling can be achieved by
placing large washers in between the ½’ stud and the
holes located on the bottom of the case.
Do NOT loosen casters to level the cabinet. Casters MUST
be tightly secured to cabinet for full strength.
Install or attach any accessories
that will be used
Remove any plastic covering the
stainless steel.
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 9
1. Determine the proper location for the shelf clips.
The reference numbers on the pilaster can serve as a
guide to ensure all clips are properly located.
2. Insert the top tab of the shelf clip into the desired
hole of the pilaster. The retaining tab MUST be facing
up as shown.
3. Rotate the clip downwards and insert the bottom tab
into the matching hole in the pilaster. The clip may
need to be squeezed slightly during installation.
4. Install all remaining clips.
5. Install shelves onto clips with the product retention
bar facing up. Be careful not to dislodge clips during
installation.
6. Place shelves so that the retaining tab on the clip
captures the shelf as shown.
7. Conrm that the shelf is resting on ALL 4 clips and
that the clips are securely attached to the pilasters.
8. Improper shelf clip installation could cause the shelf
and / or the product on it to fall, resulting in damage
to the unit and possible bodily injury.
9. Do NOT overload the shelves. The unit is designed to
use all shelves that are supplied in an equally spaced
manner. Contact Beverage-Air customer service if
fewer shelves or a dierent conguration to ensure
shelf overloading will not occur.
SHELF INSTALLATION
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air10
This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the
machine to conrm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.
Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to
unsafe cabinet temperature when GFI device trips from moisture.
Power Cord
This 115 volt model is equipped with a cord and 5-15P plug.
If the power cord becomes damaged, it must be replaced
with the identical cord.
Follow All National and Local Codes
This Unit Must Be Grounded. Do not use extension cords
and do not disable or by-pass ground prong on electrical
plug.
Initial Start Up
Plug the power cord into the proper power supply.
The cabinet will soon begin to blow warm air out of the
top area, and cool air will ow from the inside blower.
The cabinet temperature has been set at the factory and
should not need adjustment, however if it was changed,
the standard setting is 38º F.
Cautions
Care must be taken whenever moving or servicing the
unit. The refrigerant is contained in a sealed system, but if
released it may be ammable.
ELECTRICAL
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 11
38.0
o
F
USING THE UNIT - DANFOSS CONTROLLER
Operation is simple, just keep it connected to the correct
power supply and the refrigerator will maintain the
internal temperature it has been set to. Keep the doors
and / or drawers closed as much as possible to avoid
unnecessary run time.
The controller displays the current internal temperature.
Adjusting the set temperature lower will NOT cause the
system to lower the temperature faster. When on, the
refrigeration system is always operating at maximum.
The temperature was set at the factory at 38
º
F, but
you can adjust it to your own selected temperature. 30
seconds after adjustment, the display automatically
reverts to showing the current temperature.
The Refrigerator will automatically defrost as needed,
there is no set time for defrost. Push and immediately
release the "melting" or defrost button for a manual
defrost.
Note: Holding the defrost button in too long will shut the
controller o.
The internal fan will be on when the compressor is on and
when the doors are closed.
The compressor and condenser fan motor will only be on
when the controller senses an increase in internal cabinet
temperature passed the set point.
Select
Defrost
Increase
Decrease
In most cases the only thing displayed will be the cabinet temperature. When something other than normal operation has
occurred, a message will be shown.
Message Displayed Why What to do
dEF
Unit is defrosting Nothing. Normal operation.
Hi
Cabinet temperature too warm Conrm doors or drawers are closed.
User Manual for MMR Refrigerators Beverage-Air
Rev. 12/21Beverage-Air12
38.0
o
F
USING THE UNIT - DANFOSS CONTROLLER
Operation is simple, just keep it connected to the correct
power supply and the refrigerator will maintain the
internal temperature it has been set to. Keep the doors
and / or drawers closed as much as possible to avoid
unnecessary run time.
The controller displays the current internal temperature.
Adjusting the set temperature lower will NOT cause the
system to lower the temperature faster. When on, the
refrigeration system is always operating at maximum.
The temperature was set at the factory at 38
º
F, but
you can adjust it to your own selected temperature. 30
seconds after adjustment, the display automatically
reverts to showing the current temperature.
The Refrigerator will automatically defrost as needed,
there is no set time for defrost. Push and immediately
release the "melting" or defrost button for a manual
defrost.
Note: Holding the defrost button in too long will shut the
controller o .
The internal fan will be on when the compressor is on and
when the doors are closed.
The compressor and condenser fan motor will only be on
when the controller senses an increase in internal cabinet
temperature passed the set point.
If equipped with glass doors, holding the SC button in will
turn the cabinet light on or o .
Select
Defrost
Increase
Decrease
In most cases the only thing displayed will be the cabinet temperature. When something other than normal operation has
occurred, a message will be shown.

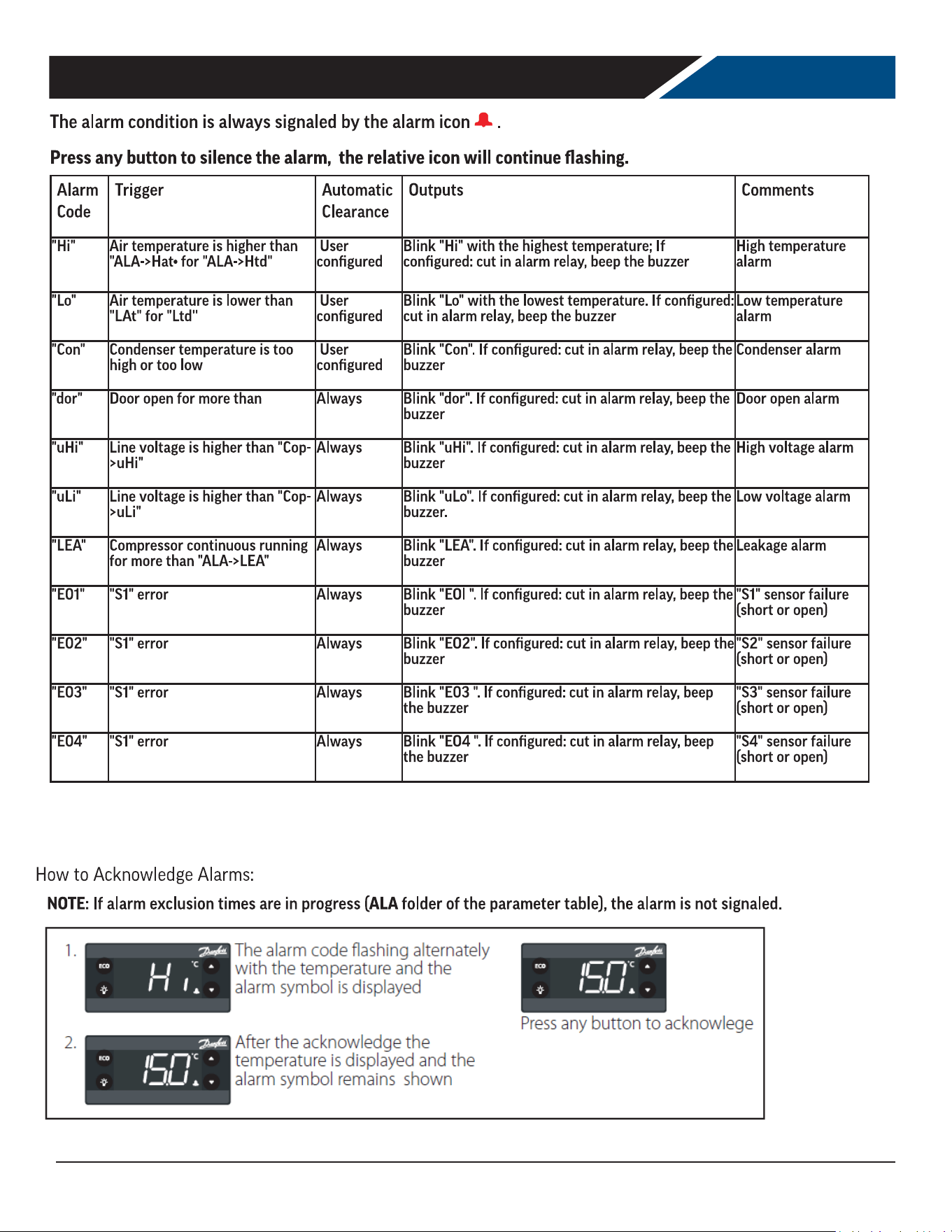

Message Displayed Why What to do
dEF
Unit is defrosting Nothing. Normal operation.
Hi
Cabinet temperature too warm Con rm doors or drawers are closed.
dOr
Door is open Close door, if message does not
change, call for service.
LEA
Compressor run time too long Check doors closed. If yes, call for
service.
E01, E02, E03, E04
Sensor unplugged or has failed Call for service.
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air12
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
'()*(+,(ÿ./ÿ.0(1234.+'ÿ1(/145(123.1
678ÿ:8;:<=8:>?@:ÿ@A8:>?8BÿC>B8Dÿ@Eÿ?78ÿ><:ÿ?8FA8:>?G:8ÿF8>BG:8DÿCHÿ?78ÿA:@C8ÿI@J>?8Dÿ>?ÿ?78ÿ:8?G:Eÿ><:Kÿÿ
LMLNN
OLPQLMRM6 LQRST6ULMOLM6SLVVRSÿTO6ULMLQRST6ULMOLM6SLVVRSÿTO6ULM
OLPQSRWWLS
O@FA:8BB@:ÿ?G:EBÿ
@EÿX78Eÿ?78ÿ><:ÿ
?8FA8:>?G:8ÿ>?ÿ?78ÿ
A:@C8ÿ<Bÿ>C@Y8ÿ?78ÿ
BGFÿ@;ÿ?78ÿB8?ÿA@<E?ÿ
Z[
678ÿO@FA:8BB@:ÿ
O@E?>J?ÿ<Bÿ8E8:=<\8D
O@FA:8BB@:ÿ?G:EBÿ
@]ÿX78Eÿ?78ÿ><:ÿ
?8FA8:>?G:8ÿ>?ÿA:@C8ÿ<Bÿ
8^G>Iÿ?@ÿ@:ÿI8BBÿ?7>Eÿ?78ÿ
B8?ÿA@<E?ÿ_[
678ÿO@FA
:8BB@:ÿ
O@E?>J?ÿ<BÿD8_
8E8:=<\8D
`RSOÿ%%[ÿaÿ68:F<E>Iÿb%c
`RSOÿ%%[ÿaÿ68:F<E>Iÿ
b%c
OLMdRMWRSÿNTM
678ÿO@ED8EB8:ÿN>Eÿ
?G:EBÿ@EÿÿX78Eÿ
?78ÿO@FA:8BB@:ÿ<Bÿ
:GEE<E=
678ÿO@ED8EB8:ÿN>Eÿ
<BÿX<:8DÿD<:8J?IHÿ?@ÿ
?78ÿO@FA:8BB@:eÿE@?ÿ
?7:@G=7ÿ?78ÿJ@E?:@II8:
678ÿO@ED8EB8:ÿN>Eÿ
?G:EBÿ@]ÿX78Eÿ?78ÿ
O@FA:8BB@:ÿ<BÿE@?ÿ
:GEE<E=
678ÿO@ED8EB8:ÿN>Eÿ
<BÿX<:8DÿD<:8J?IHÿ?@ÿ
?78ÿO@FA:8BB@:eÿE@?ÿ
?7:@G=7ÿ?78ÿJ@E?:@II8:
RfTQLST6LSÿ
NTM
678ÿRY>A@:>?@:ÿN>Eÿ
:GEBÿJ@E?<EG@GBIHÿ<Eÿ
:8;
:<=8:>?@:BKÿg78Eÿ
?78ÿGE<?ÿ<BÿAIG==8Dÿ
<Eeÿ?78ÿRY>A@:>?@:ÿ
N>EÿX<IIÿ:GEK
678ÿ8Y>A@:>?@:ÿN>Eÿ<Bÿ
J@EE8J?8DÿD<:8J?IHÿ?@ÿ
<EJ@F<E=ÿA@X8:eÿE@?ÿ
?7:@G=7ÿ?78ÿJ@E?:@II8:
678ÿRY>A@:>?@:ÿN>Eÿ
:GEBÿJ@E?<EG@GBIHÿ<Eÿ
:8;:<=8:>?@:BKÿg78Eÿ?78ÿ
GE<?ÿ<BÿAIG==8Dÿ<Eeÿ?78ÿ
RY>A@:>?@:ÿN>EÿX<IIÿ:GE
678ÿ8Y>A@:>?@:ÿN>Eÿ<Bÿ
J@EE8J?8DÿD<:8J?IHÿ?@ÿ
<EJ@F<E=ÿA@X8:eÿE@?ÿ
?7:@G=7ÿ?78ÿJ@E?:@II8:K
O@ED<?<@E
O@FA:8BB@:
O@ED8EB8:ÿN>E
RY>A@:>?@:ÿ
N>E
V<=7?B
O>C<E8?ÿ68FAÿhÿW8?ÿA@<E?ÿZÿ[LMLMLMLMÿ@:ÿLNN
O>C<E8?ÿ68FA8:>?G:8ÿijÿW8?ÿA@<E?ÿ_ÿ[LNNLNNLMLMÿ@:ÿLNN
¶ÿ¦ÿÿ
»¼½¾¹ÿ
}~ÿ~ÿ¦ÿÿÿ
¦~ÿ~ÿÿÿÿÿ
ÿÿ¦~ÿ
~ÿÿÿÿ
¦~ÿÿ³ÿ
}~ÿ¿~ÿ¥ÿÿ
ªÿ
}~ÿ~ÿ¦ÿÿÿ
¦~ÿ~ÿÿÿÿÿ
ÿÿ¦~ÿ~ÿ
ÿÿÿ¦~ÿÿ
³ÿ
}~ÿ¿~ÿ¥
»
®¯¥ÿ°°©ÿ±ÿ}ÿ
²À³ÿ
®¯¥ÿ°°©ÿ±ÿ}
²À³ÿ
ÿ
ÿ
ÿ
ÿ
ÿ
ÿ
ÿ
ÿ
¡rpÁyxyrpÿ
¡rÂuvmzzrvÿ
¡rpÁmpzmvÿ
wpÿ
¤Ãwurvwxrvÿ
wpÿ
»y|Äxzÿ
¡wÅypmxÿ¹mÂuÿÆÿlmxÿurypxÿÇÿÈÿ
tÿ tÿ tÿ tÿrvÿtÿ
¡wÅypmxÿ¹mÂumvwxovmÿÉÊÿlmxÿurypxÿËÿÈÿ tÿ tÿ tÿ tÿrvÿtÿ
´msvrzxÿ
tÿ tÿ tÿ tÿrvÿtÿ
ÿ
ÍÎÏÐÎÑÒÎÿÓÔÿÕÖÎ×ØÙÚÓÑÛÿÜÎÔ×ÚÝÎ×ØÙÓ×ÿ
ÿ
Þßàÿâàãâäåàâæçèâÿèéàâæçàêÿëæêàìÿèíÿçßàÿæäâÿçàîéàâæçïâàÿîàæêïâàìÿëðÿçßàÿéâèëàÿñèòæçàìÿæçÿçßàÿ
âàçïâíÿæäâóÿÿÿ
ÿ
ÿ
ÿ
Õôÿ Õõõÿ
ö÷øù÷úûúüÿ ÷ùûþÿü
0
÷úÿ
ö÷úüþ÷
11
ûþÿ
ÿöü
0
÷úÿ
÷ùûþÿü
0
÷úÿ
ö÷úüþ÷
11
ûþÿ
ÿöü
0
÷úÿ
2
Õ
34
Ü
5
ÍÍÕÜÿ
6
èîéâàêêèâÿçïâíêÿ
èíÿ
7
ßàíÿçßàÿæäâÿ
çàîéàâæçïâàÿæçÿçßàÿ
éâèëàÿäêÿæëè
8
àÿçßàÿ
êïîÿèãÿçßàÿêàçÿéèäíçÿ
9
ÿ
Þßàÿ
6
èîéâàêêèâÿ
6
èíçæòçÿäêÿàíàâåä
àìÿ
6
èîéâàêêèâÿçïâíêÿèããÿ
7
ßàíÿçßàÿæäâÿ
çàîéàâæçïâàÿæçÿéâèëàÿäêÿ
à
ïæñÿçèÿèâÿñàêêÿçßæíÿ
çßàÿêàçÿéèäíçÿ
ÿ
Þßàÿ
6
èîéâàêêèâÿ
6
èíçæòçÿäêÿìà
àíàâåä
àìÿ
6
ÿ
ÿ
ÿÞàâîäíæñÿ
ÿ
6
ÿ
ÿ
ÿÞàâîäíæ
ñÿ
ÿ
2
Õô
5
ôÍ
5
Üÿ
õ
ôÿ
Þßàÿ
6
èíìàíêàâÿ
æíÿ
çïâíêÿèíÿÿ
7
ßàíÿçßàÿ
6
èîéâàêêèâÿäêÿ
âïííäíåÿ
Þßàÿ
6
èíìàíêàâÿ
æíÿäêÿ
7
äâàìÿìäâàòçñðÿçèÿçßàÿ
6
èîéâàêêèâ
ÿíèçÿ
çßâèïåßÿçßàÿòèíçâèññàâÿ
Þßàÿ
6
èíìàíêàâÿ
æíÿ
çïâíêÿèããÿ
7
ßàíÿçßàÿ
6
èîéâàêêèâÿäêÿíèçÿ
âïííäíåÿ
Þßàÿ
6
èíìàíêàâÿ
æí
ÿ
äêÿ
7
äâàìÿìäâàòçñðÿçèÿçßà
ÿ
6
èîéâàêêèâ
ÿíèçÿ
çßâèïåßÿçßàÿòèíçâèññà
âÿ
54
ÕÜ
ÕÜÿ
õ
ôÿ
Þßàÿ
8
æéèâæçèâÿ
æíÿ
âïíêÿòèíçäíïèïêñðÿäíÿ
âàãâäåàâæçèâêóÿÿ
ßàíÿ
çßàÿïíäçÿäêÿéñïååàìÿ
äí
ÿçßàÿ
8
æéèâæçèâÿ
æíÿ
7
äññÿâïíóÿ
Þßàÿ
8
æéèâæçèâÿ
æíÿäêÿ
òèííàòçàìÿìäâàòçñðÿçèÿ
äíòèîäíåÿéè
7
àâ
ÿíèçÿ
çßâèïåßÿçßàÿòèíçâèññàâóÿ
Þßàÿ
8
æéèâæçèâÿ
æíÿ
âïíêÿòèíçäíïèïêñðóÿÿ
ßàíÿçßàÿïíäçÿäêÿ
éñïååàìÿäí
ÿÞßàÿ
8
æéèâæçèâÿ
æíÿ
7
äññÿâïíóÿ
Þßàÿ
8
æéèâæçèâÿ
æí
ÿ
äêÿòèííàòçàìÿìäâàòçñð
ÿ
çèÿäíòèîäíåÿéè
7
àâ
ÿ
íèçÿçßâèïåßÿçßàÿ
òèíçâèññàâóÿ
ÿ
Þßàÿñäåßçÿ
7
äññÿçïâíÿèíÿ
7
ßàíÿçßàÿÿÿÿäêÿ
éâàêêàìÿ
èâÿ
7
ßàíÿ
çßàÿìèèâÿäêÿèéàíàìÿ
7
äçßÿêèñäìÿìèèâê
ÿ
Þßàÿ
äåßçÿ
6
èíçæòçÿäêÿ
àíàâåä
àìÿ
Þßàÿñäåßçÿ
7
äññÿçïâíÿèããÿ
7
ßàíÿçßàÿÿÿÿäêÿ
éâàêêàìÿ
èâÿ
7
ßàíÿçßàÿ
ìèèâÿäêÿòñèêàìÿ
7
äçßÿêèñäìÿ
ìèèâê
ÿ
Þßàÿ
äåßçÿ
6
èíçæòçÿäêÿ
ìà
àíàâåä
àìÿ
6
ÿ
ÿ
ÿÞàâîäíæñÿ
!
ÿ
6
ÿ
ÿ
ÿÞàâîäíæñÿ
!
ÿ
ÿ
ÿ
ÿ
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 13
User Manual for BZ Refrigerators Beverage-Air
Rev. 12/21 Beverage-Air 13
Note: When the controller is in a Standby Mode, a
blue dot will be displayed as shown here. To switch
out of Standby Mode, push and hold the Defrost
button until the display reads ON.
.
Electronic Controller
Control Panel Display
Defrost LED
Alarm LED
On fixed: Defrost active On fixed: ALARM Present
Off: Defrost is off Flashing: ALARM Silenced
Off: No Alarm
Fan LED
Compressor LED
On fixed:
Fan active
On fixed: Compressor active
Off:
Fan Off
Flashing: Delay, protection or activation blocked
Off: No Alarm
Keyboard Functions
UP
Quickpressandrelease
•
IncreasesSetPoint
Longpressandrelease
•
Increasesdisplaybrightness
DOWN
Quickpressandrelease
•
DecreasesSetPoint
Longpressandrelease
•
Decreasesdisplaybrightness
DEFROST(ESC)
Quickpressandrelease
•
Activatesmanualdefrost
Longpressandrelease
•
Controllerenterstand‐bymode
SET(ENTER)
Quickpressandrelease
•
NoFunction
Longpressandrelease
•
Togglesdisplay°F/°C
UP
DOWN
DEFROST
(
ESC
)
SELECT
(
OK
)
NOTE:Whenswitchedon,theinstrumentpanelperformsalamptestforafewseconds.
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air14
0123ÿ567869ÿ3ÿÿ9ÿ59ÿ923ÿ223623
ÿ !"!#$%!&'(#)*
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 15
Alarm
Code
Trigger Automatic
Clearance
Outputs Comments
"Hi" Air temperature is higher than
"ALA->Hat• for "ALA->Htd"
User
congured
Bl ink "Hi" with the highest temperature; If
congured: cut in alarm relay, beep the buzzer
High temperature
alarm
"Lo" Air temperature is lower than
"LAt" for "Ltd''
User
congured
Blink "Lo" with the lowest temperatu re. If
congured: cut in alarm relay, beep the buzzer
Low temperature
alarm
"Con" Condenser temperature is too
high or too low
User
congured
Blink "Con". If congured: cut in alarm relay, beep the
buzzer
Condenser alarm
"dor" Door open for more than Always Blink "dor". If congured: cut in alarm relay, beep the
buzzer
Door open alarm
"uHi" Line voltage is higher than "Cop-
>uHi"
Always Blink "uHi". If congu red: cut in alarm relay, beep the
buzzer
High voltage alarm
"uLi" Line voltage is higher than "Cop-
>uLi"
Always Blink "ulo". If congured: cut in alarm relay, beep the
buzzer.
Low voltage alarm
"LEA" Compressor cont inuous running
for more than "ALA->LEA"
Always Blink "LEA". If congured: cut in alarm relay, beep the
buzzer
Leakage alarm
"E01" "S1" error Always Blink "SOl ". lf congured: cut in alarm relay, beep the
buzzer
"S1" sensor failure
(short or open)
"E02" "S1" error Always Blink "SO2". lf congured: cut in alarm relay, beep the
buzzer
"S2" sensor failure
(short or open)
"E03" "S1" error Always Blink "S03 ". lf congured: cut in alarm relay, beep
the buzzer
"S3" sensor failure
(short or open)
"E04" "S1" error Always Blink "SO4 ". lf congured: cut in alarm relay, beep
the buzzer
"S4" sensor failure
(short or open)
SEQUENCE OF OPERATIONS REFRIGERATOR
The refrigerator operates based on the air temperature measured by the probe located at the return air.
ON OFF
COMPONENT OPERATION CONTROLLER ACTION OPERATION CONTROLLER ACTION
0123ÿ567869ÿ3ÿÿ223623
ÿ !"#$% &'
()*+,ÿ./ÿ01023ÿ4561789:;ÿ<9348ÿ024ÿ9;ÿ=2:>2488ÿ?@A@ÿ/:1C42ÿ:/ÿ<D4ÿ=02034<42ÿ<0E14FGÿ<D4ÿ01023ÿ98ÿ;:<ÿ89>;014CH
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air16
0123ÿ567869ÿ3ÿÿ9ÿ59ÿ923ÿ223623
ÿ !"!#$%!&'(#)*
+,-./ÿ123ÿ+.-1ÿ4ÿ35-6355ÿ78.1985539
0123ÿ567869ÿ3ÿÿ9ÿ59ÿ923ÿ223623
ÿ !"!#$%!&'(#)*
+,-./ÿ123ÿ+.-1ÿ4ÿ35-6355ÿ78.1985539
0123ÿ567869ÿ3ÿÿ9ÿ59ÿ923ÿ223623
ÿ !"!#$%!&'(#)*
+,-./ÿ123ÿ+.-1ÿ4ÿ35-6355ÿ78.1985539
USING THE UNIT - ELIWELL CONTROLLER
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 17
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&
'()*(+,(ÿ./ÿ.0(1234.+'ÿ
567ÿ97:9;<79=>?9ÿ?@79=>7AÿB=A7Cÿ?Dÿ>67ÿ=;9ÿ>7E@79=>F97ÿE7=AF97CÿBGÿ>67ÿ@9?B7ÿH?I=>7Cÿ=>ÿ>67ÿ97>F9Dÿ=;9Jÿ
ÿ
LMÿLOOÿ
PLQRLMSMTÿLRSUVTWLMÿ
PLMTULXXSUÿ
VPTWLMÿ
LRSUVTWLMÿ
PLMT
ULXXSUÿ
VPTWLMÿ
PLQRUSYYLUÿ
Z?E@97AA?9ÿ>F9DAÿ?Dÿ
[67Dÿ>67ÿ=;9ÿ
>7E@79=>F97ÿ=>ÿ>67ÿ
@9?B7ÿ;Aÿ=B?\7ÿ>67ÿ
AFEÿ?:ÿ>67ÿA7>ÿ@?;D>ÿ
]ÿ^ÿ
567ÿZ?E@97AA?9ÿZ?D>=I>ÿ
;Aÿ7D79<;_7Cÿ
Z?E@97AA?9ÿ>F9DAÿ
?::ÿ[67Dÿ>67ÿ=;9ÿ
>7E@79=>F97ÿ=>ÿ
@9?B7ÿ;Aÿ7`F=Hÿ>?ÿ
?9ÿH7AAÿ>6=Dÿ>67ÿ
A7>ÿ@?;D>ÿ
567ÿZ?E@97AA?9ÿZ?D>=I>ÿ
;AÿC7a7D79<;_7Cÿ
bcd]efgÿaÿ579E;D=Hÿ
hijÿ
bcd]efgÿaÿ579E;D=Hÿhijÿ
PLMkSMYSUÿOVMÿ
567ÿZ?DC7DA79ÿ
l=Dÿ>F9DAÿ?Dÿ[67Dÿ
>67ÿZ?E@97AA?9ÿ;Aÿ
9FDD;D<ÿ
567ÿZ?DC7DA79ÿl=Dÿ;Aÿ
[;97CÿC;97I>HGÿ>?ÿ>67ÿ
Z?E@97AA?9mÿD?>ÿ>69?F
<
6ÿ
>67ÿI?D>9?HH79ÿ
567ÿZ?DC7DA79ÿl=Dÿ
>F9DAÿ?::ÿ[67Dÿ>67ÿ
Z?E@97AA?9ÿ;AÿD?>ÿ
9FDD;D<ÿ
567ÿZ?DC7DA79ÿl=Dÿ;Aÿ
[;97CÿC;97I>HGÿ>?ÿ>67ÿ
Z?E@97AA?9mÿD?>ÿ>69?F
<
6ÿ
>67ÿI?D>9?HH79ÿ
SnVRÿOVMÿ
567ÿc\=@?9=>?9ÿ
l=Dÿ>F9DAÿ?Dÿ[67Dÿ
>67ÿFD;>ÿ;Aÿ
@?[797Cÿ?DJÿ
567ÿc\=@?9=>?9ÿl=Dÿ;Aÿ
[;97Cÿ>?ÿI?DA>=D>ÿ@?[79ÿ
567ÿc\=@?9=>?9ÿl=Dÿ
>F9DAÿ?::ÿ[67Dÿ>67ÿ
FD;>ÿ;AÿFD@HF<<7Cÿ
?9ÿ@F>ÿ;D>?ÿA>=DCBGJÿ
567ÿc\=@?9=>?9ÿl=Dÿ;Aÿ
[;97Cÿ>?ÿI?DA>=D>ÿ@?[79ÿ
o?E7ÿE?C7HAÿ[;HHÿB7ÿ
[;97Cÿ>?ÿ>67ÿ:=Dÿ97H=Gÿ
bcd]efgÿaÿ579E;D=Hÿ
hpjÿ
o?E7ÿE?C7HAÿ[;HHÿB7ÿ
[;97Cÿ>?ÿ>67ÿ:=Dÿ97H=Gÿ
bcd]efgÿaÿ579E;D=Hÿ
hpjÿ
XWqrTÿ
567ÿH;<6>ÿ[;HHÿ>F9Dÿ?Dÿ
[67Dÿ>67ÿC?[Dÿ
BF>>?Dÿ;Aÿ
@97AA7Cÿb?9ÿ[67Dÿ>67ÿ
C??9ÿ;Aÿ?@7D7Cÿ[;>6ÿ
A?H;CÿC??9Ajÿ
567ÿs;<6>ÿZ?D>=I>ÿ;Aÿ
7D79<;_7Cÿ
567ÿH;<6>ÿ[;HHÿ>F9Dÿ
?::ÿ[67Dÿ>67ÿC?[Dÿ
BF>>?Dÿ;Aÿ
@97AA7Cÿb?9ÿ[67Dÿ>67ÿ
C??9ÿ;AÿIH?A7Cÿ[;>6ÿ
A?H;CÿC??9Ajÿ
567ÿs;<6>ÿZ?D>=I>ÿ;AÿC7a
7D79<;_7Cÿ
bc[]efgÿtÿ579E;D=Hÿhujÿbc[]efgÿtÿ579E;D=Hÿhujÿ
ÿ
ÿ
£¤¥¦§¨¤¦©ª«¦ÿ§ª®ÿ¯°§¤°°ÿ±«²ª¦«°°¤ÿ ³¤´¤¦©¨¤µ¶§ÿ
öõ
òÿ
ÓÔÕÿæÙÚÔÜÿùÙææÿÜä×âÿÝâ
ùÔÕâÿÜÔÕÿáÝùâÿ
àäÜÜÝâÿÙßÿ
Þ×ÕßßÕáÿ
0
Ý×ÿùÔÕâÿÜÔÕÿ
áÝÝ×ÿÙßÿÝÞÕâÕáÿùÙÜÔÿ
ßÝæÙáÿáÝÝ×ß
8
ÿ
ÓÔÕÿ
ÙÚÔÜÿøÝâÜÛçÜÿÙßÿ
ÕâÕ×ÚÙýÕáÿ
ÓÔÕÿæÙÚÔÜÿùÙææÿÜä×âÿ
ÝØØÿùÔÕâÿÜÔÕÿáÝùâÿ
àäÜÜÝâÿÙßÿ
Þ×Õ
áÝÝ×ÿÙßÿçæÝßÕáÿùÙÜÔÿ
ßÝæÙáÿáÝÝ×ß
8
ÿ
ÓÔÕÿ
ÙÚ
ÕâÕ×ÚÙý
01
ùû
345
ÿ
ÿÓÕ×ãÙâÛæÿ
68 01
ùû
34
ÿ
ÿ
ÿ
î
ÿ
î
ÿ
î
ÿÿÿÿ
í
ÿÿÿÿÿÿÿÿÿÿÿÿÿ
ñ
ÿ
í
ÿ
9!
ÿ
ÿ
í
"#9
ÿ
ÿ
9
ÿ
ÿ
î
$
ÿò
ÿ
%
ÿ÷
ÿ
ÿ
&
ÿ
'
ÿ
êëÿêëÿêëÿêííÿêëÿêëÿ
î
$
ÿò
(
ÿ
)*
ÿ÷
ÿ
ÿÿ
+
ÿ
'
ÿ
êííÿêííÿêííÿêííÿêííÿêëÿ
9!
ÿ
êííÿêííÿêííÿêëÿêííÿêëÿ
>?@AÿCDECÿ FGHGIJKGLMNIÿ
PQRSQTUQÿWXÿWYQZ[\]WTPÿZQXZ]^QZ[\WZ
_`aÿcadcefacghicÿijacghakÿlgkamÿinÿh`aÿgecÿhaojacghpcaÿoagkpcamÿlqÿh`aÿjcilaÿrisghamÿghÿh`aÿcahpcnÿgectÿÿ
î
ÿ
î
ÿÿÿÿ
í
ÿÿÿÿÿÿÿÿÿÿÿÿÿ
ñ
ÿ
í
ÿ
9!
ÿ
ÿ
ÿ
&
ÿ
'
ÿêëÿêëÿêëÿêííÿ
ÿ
ÿÿ
+
ÿ
'
ÿêííÿêííÿêííÿêííÿ
êííÿêííÿêííÿêëÿ
FGHGIJKGLMNIÿ
î
ÿ
î
ÿÿÿÿ
í
ÿÿÿÿÿÿÿÿÿÿÿÿÿ
ñ
ÿ
í
ÿ
9!
ÿ
ÿ
ÿ
&
ÿ
'
ÿêëÿêëÿêëÿêííÿ
ÿ
ÿÿ
+
ÿ
'
ÿêííÿêííÿêííÿêííÿ
êííÿêííÿêííÿêëÿ
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air18
Refrigerator with Eliwell Controlle
r
Beverage-Ai
r
Electronic Controller
Controller Symbols
Controller Buttons
Reduced SET / Economy
Permanently on: Energy Saving Mode
Flashing: Reduced Set Mode
Quick Flashing: Access to level 2 parameters
AUX
Permanently on: Aux Active
Flashing: Deep Cooling Cycle Active
Compressor
Permanently On: Compressor Active
Flashing: Delay, protection or blocked start-up
Defrost
Permanently on: Defrost Active
Flashing: Manual or D.I. activation
Alarm
Permanently on: Alarm Active
Flashing: Alarm Acknowledged
Fan
Permanently on: Fans Active
Celsius
Permanently On: C Setting
Fahrenheit
Permanently on: F Setting
Up
Press and release
Scrolls through menu items
Increases Values
Press for at least 5 seconds
Activates the manual defrost
Stand-by
Press and release
Returns to the previous menu
level
Confirm parameter value
Press for at least 5 seconds
Activates the stand-by function
Down
Press and release
Scrolls through menu items
Decreases values
Press for at least 5 seconds
No Function
Set (Enter)
Press and release
Displays alarms
Opens the machine status menu
Press for at least 5 seconds
Opens the programming menu
Confirms commands
Refrigerator with Eliwell Controlle
r
Beverage-Ai
r
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 19
0123ÿ567869ÿ3ÿ5ÿ9ÿ59ÿ923ÿ3
ÿ !"#$%&

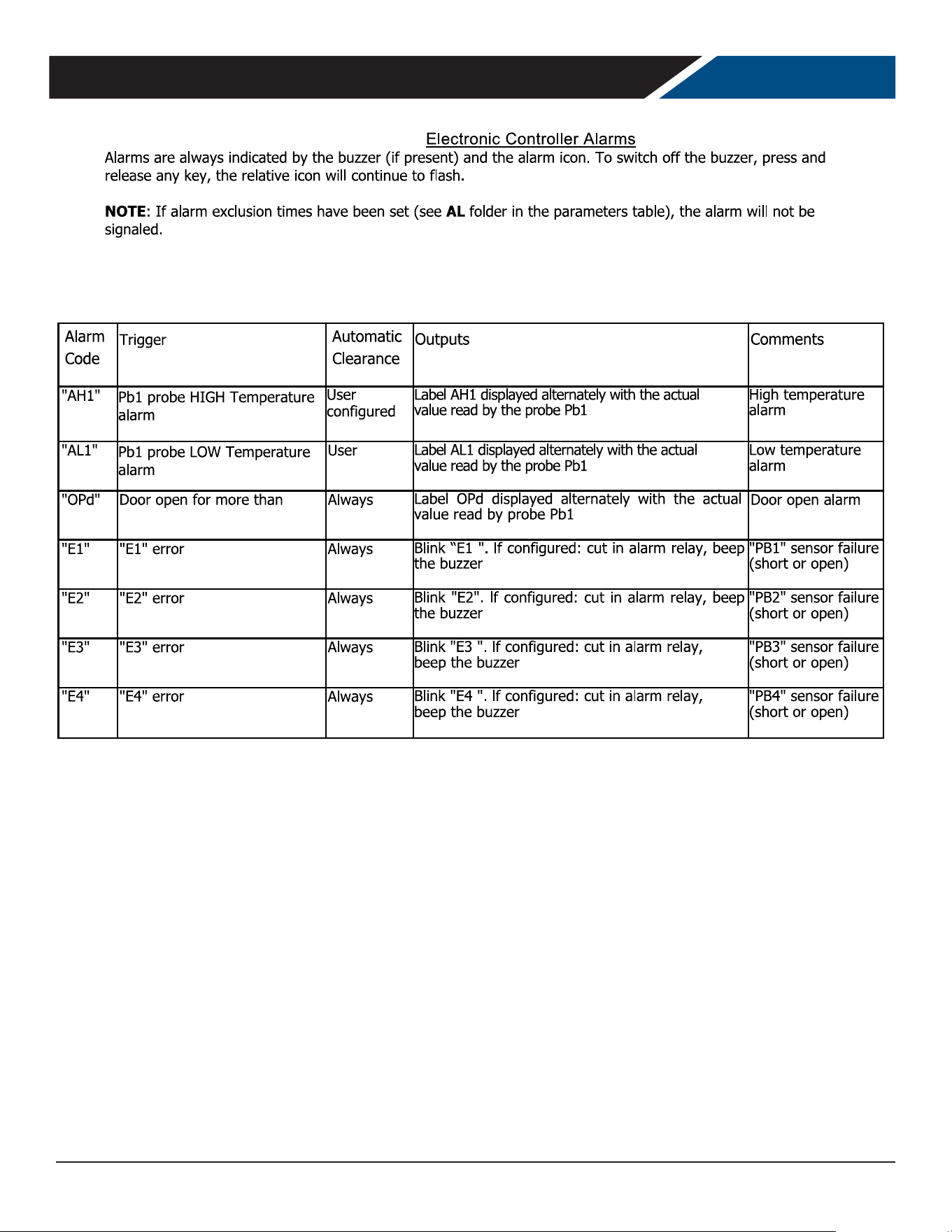

'()*+,-./*ÿ1-.+,-((),ÿ2(3,45ÿÿ
6789:;ÿ89=ÿ87>8?;ÿ@AB@C8D=BÿE?ÿDF=ÿEGHH=9ÿI@JÿK9=;=ADLÿ8ABÿDF=ÿ8789:ÿ@CMANÿOMÿ;>@DCFÿMJJÿDF=ÿEGHH=9PÿK9=;;ÿ8ABÿ
9=7=8
;=ÿ8A?ÿQ=?PÿDF=ÿ9=78D@R=ÿ@CMAÿ>@77ÿCMAD@AG=ÿDMÿJ78;FNÿÿ
ÿ
TUVWXÿYJÿ8789:ÿ=ZC7G;@MAÿD@:=;ÿF8R=ÿE==Aÿ;=DÿI;==ÿ[\ÿJM7B=9ÿ@AÿDF=ÿK898:=D=9;ÿD8E7=LPÿDF=ÿ8789:ÿ>@77ÿAMDÿE=ÿ
;@^A8
7=BNÿÿ
ÿ
ÿ
ÿ
ÿ
ÿ
ÿ
ÿ
6789:ÿ
_MB=ÿ
O9@^^=9ÿ
6GDM:8D@Cÿ
_7=898AC=ÿ
`GDKGD;
ÿ_
M::=AD;ÿ
a6bcaÿ
dEcÿK9ME=ÿbYebÿO=:K=98DG9=ÿ
8789:ÿÿ
ÿ
f;=9ÿ
CMAJ@^G9=Bÿ
g8E=7ÿ6bcÿB@;K78?=Bÿ87D=9A8D=7?ÿ>@DFÿDF=ÿ8CDG87ÿ
R87G=ÿ9=8BÿE?ÿDF=ÿK9ME=ÿdEcÿ
b@^FÿD=:K=98DG9=ÿ
8789:ÿ
a6gcaÿ
dEcÿK9ME=ÿg`hÿO=:K=98DG9=ÿ
8789:ÿÿ
f;=9ÿ
g8E=7ÿ6gcÿB@;K78?=Bÿ87D=9A8D=7?ÿ>@DFÿDF=ÿ8CDG87ÿ
R87G=ÿ9=8BÿE?ÿDF=ÿK9ME=ÿdEcÿ
gM>ÿD=:K=98DG9=ÿ
8789:ÿ
a`dBaÿiMM9ÿMK=AÿJM9ÿ:M9=ÿDF8Aÿ67>8?;ÿ
g8E=7ÿ`dBÿB@;K78?=Bÿ87D=9A8D=7?ÿ>@DFÿDF=ÿ8CDG87ÿ
R87G=ÿ9=8BÿE?ÿK9ME=ÿdEcÿ
iMM9ÿMK=Aÿ8789:ÿ
ajcaÿajcaÿ=99M9ÿ67>8?;ÿ
k7@AQÿljcÿaNÿ7JÿCMAJ@^G9=BXÿCGDÿ@Aÿ8789:ÿ9=78?PÿE==Kÿ
DF=ÿEGHH=9ÿ
adkcaÿ;=A;M9ÿJ8@7G9=ÿ
I;FM9DÿM9ÿMK=ALÿ
ajmaÿajmaÿ=99M9ÿ67>8?;ÿ
k7@AQÿajmaNÿ7JÿCMAJ@^G9=BXÿCGDÿ@Aÿ8789:ÿ9=78?PÿE==Kÿ
DF=ÿEGHH=9ÿ
adkmaÿ;=A;M9ÿJ8@7G9=ÿ
I;FM9DÿM9ÿMK=ALÿ
ajnaÿajnaÿ=99M9ÿ67>8?;ÿ
k7@AQÿajnÿaNÿ7JÿCMAJ@^G9=BXÿCGDÿ@Aÿ8789:ÿ9=78?Pÿ
E==KÿDF=ÿEGHH=9ÿ
adknaÿ;=A;M9ÿJ8@7G9=ÿ
I;FM9DÿM9ÿMK=ALÿ
ajoaÿajoaÿ=99M9ÿ
67>8?;ÿ
k7@AQÿajoÿaNÿ7JÿCMAJ@^G9=BXÿCGDÿ@Aÿ8789:ÿ9=78?Pÿ
E==KÿDF=ÿEGHH=9ÿ
adkoaÿ;=A;M9ÿJ8@7G9=ÿ
I;FM9DÿM9ÿMK=ALÿ
ÿ
pqrstuqsvwxsÿztw{ÿ|}tzq}}ÿ~xwsx}}qÿÿqqsvuqtÿ
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air20
CLEANING AND MAINTENANCE
Cleaning Schedule:
Cabinet
Daily wipe down
Weekly interior
Condenser coil
Quarterly cleaning
Gaskets
Daily inspection, check
that hinges are tight to
the cabinet.
Routine maintenance
Annually
Daily Exterior Cleaning
It is much easier to clean on a regular basis than to have to remove stains once they have built up.
1. Wash with a clean sponge and a mild detergent that
does not contain chlorine.
2. Rinse with clean water.
3. Dry with a soft cloth.
4. Polish with a soft cloth, wiping with the grain.
5. Wipe weekly with stainless steel cleaner.
Weekly Interior Cleaning
1. Remove all food, food related items and shelves. Store
the food at a safe temperature.
2. Disconnect power to the unit (unplug it or switch the
breaker o).
3. Remove all loose food particles from the inside walls,
oor, door liner and ceiling.
4. Scrub all interior surfaces and door gaskets with a
warm (100
o
F to 110
o
F) detergent solution and a soft
scrub brush.
5. Rinse with clean water and allow to air dry.
6. Return the shelves to the unit and secure them.
7. Restore power.
8. Return food to the unit when it has reached a safe
temperature.
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 21
CONDENSER CLEANING
Keeping the condenser coil clean is critical to ecient
operation.
1. Unplug unit from power supply.
2. Remove the single Phillips head screw at the bottom
of the front panel
3. Lift upwards on the front panel to remove
4. Examine condenser surface, if dusty, brush and
vacuum the dust and lint from the surface of the
coil. Brush up and down to avoid damaging the ns.
Use care to not disturb the wires connected to the
controller.
__________________________________________
Note: If the coil is greasy, the coil will need to be cleaned
with coil cleaner and that should be left to an experienced
technician.
__________________________________________
5. To reinstall the front panel line up the keeper screws
behind the panel and rmly pull downwards
6. Reinstall the Phillips head screw
7. Return grill to unit.
Note: Air lters are not recommended as they restrict
the ow of cooling air.
Rotating fan blade can cause
personal injury.
Unplug unit from power supply
before beginning to clean
condenser
CAUTION
Push Panel Up to Release
From Screw Heads Behind
Panel
Remove Screw
Condenser Surface
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air22
Cleaning Needed Cleaning Agent Method of Application Aect on Finish
Smears and ngerprints
Areal 20, Lac-O-Nu, Lumin Wash
O’Cedar Cream Polish, Stainless
Shine.
Rub with cloth as directed
on the package.
Satisfactory for use on all
nishes.
Provides barrier lm to
minimize prints.
Stubborn Spots and
Stains, and Other
Light Discolorations
Allchem Concentrated Cleaner.
Apply with damp sponge or
cloth.
Rub with damp cloth.
Use in direction of polish lines
on No. 4 (polished) nish. May
scratch No.
2 (mill) and Nos. 7 and 8
(polished) nishes.
Samae, Twinkle or Cameo Copper
Cleaner
Rub with damp cloth.
Grade FFF Italian pumice, whiting,
or talc.
Rub with dry cloth.
Liquid NuSteel
Paste NuSteel or DuBois Temp.
Copper’s Stainless Steel Cleaner
Revere Stainless Cleaner
Household cleansers, such as
Old Dutch, Lighthouse, Sunbrite,
Wyandotte, Bab-O, Gold Dust,
Sapolio, Bon Ami, Ajax, or Comet
Grade F Italian Pumice, Steel
Bright, Lumin Cleaner, Zud,
Restore, Sta-Clean, or Highlite.
Penny-Brite or Copper-Brite.
Use small amount of cleaner.
Rub with dry cloth using a
small amount of cleaner.
Apply with damp sponge or
cloth.
Rub with a damp cloth. May
contain chlorine bleaches.
Rinse
thoroughly after use.
Rub with a damp cloth.
Rub with a dry cloth using a
small amount of cleaner.
Heat tint or
discoloration
Penny-Brite or Copper-Brite.
Past NuSteel, DuBois Temp,
or Tarnite. Revere Stainless Steel
Cleaner. Allen Polish, Steel Bright,
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains Wyandotte,
Bab-O or Zud.
Rub with a dry cloth.
Rub with a dry cloth or stain-
less steel wool.
Apply with damp sponge or
cloth.
Rub with a damp cloth.
Grease Fatty Acids,
Milkstone (where
swabbing or rubbing
is not practical)
Easy-O, De-Grease-It, 4 to 6%
hot solution of such agents as
trisodium phosphate or sodium
tripolyphosphate or 5 to 15% caustic
soda solution
Apply generous coating. Allow
to stand for 10-15 minutes.
Rinse.
Repeated application may be
necessary.
Excellent removal, satisfactory
for use on all nishes.
Tenacious Deposits,
Rusty Discolorations,
Industrial
Atmospheric Stains
Oakite No. 33, Dilac Texo 12, Texo NY,
Flash-Klenz, Caddy Cleaner,
Turco Scale 4368 or Permag 57.
Swab and soak with clean
cloth.
Let stand 15 minutes or more
according to directions on
package, then rinse and dry.
Satisfactory for use on all
nishes
Hard Water Spots
and Scale
Vinegar.
5% oxalic acid, 5% sulfamic acid, 5 to
10% phosphoric acid, or Dilac, Oakite
No. 33, Texo 12, Texo N.Y.
Swab or wipe with cloth. Rinse
with water and dry.
Swab or soak with cloth. Let
stand 10-15 minutes. Always
follow with neutralizer rinse,
and dry.
Satisfactory for all nishes.
Satisfactory for all nishes.
Eective on tenacious deposits
or where scale
has built up.
METHODS FOR CLEANING EXTERIOR BAKED ON FINISH
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 23
HELP
Trouble Diagnosis for the User
Malfunction Possible Cause Likely Solution
No cooling - unit is silent
Unit not plugged in.
Fuse or circuit breaker tripped.
Power cord plug loose in outlet.
Connect to proper voltage circuit Replace
fuse or reset breaker.
Check outlet for loose connection, replace
as needed
Unit cools but seems to be on all the time Dirty condenser Clean condenser
Space temperature too high
Dirty condenser
Evaporator iced over Unit in high
temperature environment
Clean condenser Defrost evaporator
Reduce temperature of room
Space temperature too low Temperature control Adjust or replace control
Trouble Diagnosis for the Technician
No cooling - compressor does not hum Temp control stuck in open position Replace temp control.
No cooling - compressor hums but does not
start
Low voltage to unit.
Compressor starting system failure
Check voltage, correct as needed. Check
start relay and start capacitor. See next
step.
No cooling - compressor starts but shuts
o
Compressor start relay failure Compressor
start capacitor failure
Replace relay. Replace capacitor.
No cooling - compressor cycles on and o Overheating weak overload
Clean condenser, check fan motor and
blade. Check refrigerant charge. Replace
overload.
Unit cools, but is slow to pull cabinet
temperature down
Evaporator fan not turning
Check fan(s), on multiple fan units one fan
may be turning slowly and will need to be
replaced.
Unit cools but turns on and o frequently
No product in cabinet. Temperature control
defective Refrigeration issue
Fill cabinet Replace control
Have system checked
Makes excessive noise
Tubing rattle Loose parts
Bent or broken fan blade Noisy fan motor
Check tubing for routing Check for loose
components Replace fan blade
Replace fan motor
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air24
FOR THE SERVICE TECH - R290
Refrigeration service should only be attempted by a trained trade professional certied to work on R290 systems.
Here are some critical service items.
This list does not qualify anyone to service the unit. It is a
reminder and checklist for the service tech. Keep these in
mind for R290 service:
• Wire nuts are NOT to be used when changing an
electrical part.
• The switches in this product are sealed, only exact
replacements may be used.
• The process tubes are to be used for service access.
• Cut out (with tubing cutter) refrigeration components
that are to be replaced. Do NOT un-braze.
• Because R290 can be vented into the air during
service, the venting MUST be in an area free from
ame or spark. It must be near an opened window or
door.
• A sign noting service of a system containing propane
must be attached to the unit during refrigeration
service.
• A combustible gas leak detector must be used to
inform anyone in the area when propane is present in
the air.
Other Information:
Evacuation: It is critical that a refrigeration system be
leak free and internally dry. A thorough evacuation with
a good vacuum pump with a micron gauge attached is the
only way to ensure that the system is dry and ready for a
charge of refrigerant.
Charging: The system is critically charged and the proper
type and amount MUST be weighed in.
Overcharge symptoms: Unit will cool properly but
the suction line temperature will be unusually cold.
Compressor run time will be longer than normal.
Undercharge symptoms: Long run time, poor cooling and
a hot compressor dome are the main symptoms of an
undercharge.
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 25
FOR THE SERVICE TECH - WIRING DIAGRAM DANFOSS
01234
5
6
789
49ÿ9
44ÿ3884ÿ43928
5
44ÿ3884ÿ43928
01234
789
789
01234
4ÿ43928ÿ66ÿ61
44ÿ9
8
43ÿ489
6
4ÿ43928ÿ4ÿ48
43ÿ489
5
44ÿ9
8
6
6
5
5
9ÿ3884ÿ43928
4
88
8
82 13
6
2
84 4
ÿÿÿ9923
ÿÿ393ÿ9923
8ÿÿ489
ÿÿÿÿ9ÿ3884ÿ34298
ÿÿÿÿ432ÿ23
ÿÿÿÿ38ÿ489
6
6
92ÿ4
5
44ÿ3884ÿ43928
798893
89
49ÿ4
38
!"#$%&&'$(
44ÿ3884ÿ43928
5
89
9
9320493ÿ14934
)))))))))))))))))))))))ÿÿ+,-ÿ./ÿ0+1ÿ)))))))))))))))))))))))
2
3435367ÿ9:7:6;:ÿ<=9ÿ>9=?@A53=4
BBCBDCEFEF
GH
2IJ
EFEF'KFLDM
0+1
0+1NON.,ÿ0+P.0-
-QR+
ST
PUV
+P,Wÿ,.W
!
$
H
2
2
H
$
!
B
E
D
X
Y
L
Z
[
[
Z
L
Y
X
D
E
B
(\'ÿ"&^%_I2("%&ÿ$%&(2"&'!ÿ"&ÿ(\"#
!_2`"&aÿ"#ÿ(\'ÿ#%b'ÿc_%c'_(dÿ%^
H'e'_2a'K2"_ÿ$%_c%_2("%&fÿÿ2&dÿ
_'c_%!g$("%&ÿ"&ÿc2_(ÿ%_ÿ2#ÿ2ÿÿ
`\%b'ÿ`"(\%g(ÿ(\'ÿ`_"(('&ÿ
c'_I"##"%&ÿ%^ÿH'e'_2a'K2"_ÿ
$%_c%_2("%&ÿ"#ÿc_%\"H"('!f
h0.h0N+RQ0TÿQ,-ÿP.,/N-+,RNQi
!"I'&#"%&#ÿ2_'ÿ"&ÿ"&$\'#
(%b'_2&$'#j
2&agb2_jÿÿ
ÿÿE
ÿ
%&'ÿcb2$'ÿ!'$"I2bÿÿ
ÿfFLF
(`%ÿcb2$'ÿ!'$"I2bÿÿ
ÿfFDF
(\_''ÿcb2$'ÿ!'$"I2bÿ
ÿfFBF
!_2`&
$\'$J'!
'&aÿ2cc_f
I^aÿ2cc_f
kf2f
$%II'&(#j
!2('
&2I'
lmnmopqmrpso
("(b'j
#"t'
S
!`afÿÿ&%f
_'e
`'"a\(jÿ
#$2b'jÿBjE
g&b'##ÿ%(\'_`"#'ÿ#c'$"^"'!j
2
2IJ
BECFYCBM
`"_"&aÿ!"2a_2IÿKÿHtBD\$
#\''(ÿBÿ%^ÿE
37uvwxy?
(\"_!ÿ2&ab'ÿc_%G'$("%&
H_%%Je"bb'zÿc2
`"&#(%&K#2b'Izÿ&$
{|}|~|K~f
'&a"&''_"&aÿ_'kg"_I'&(#
#cBFF
I%!'b
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air26
LIMITED WARRANTY
WARRANTY (Warranty valid in USA and Canada)
THREE (3) YEAR PARTS AND LABOR WARRANTY:
Beverage-Air Corporation warrants to the original
purchaser of Beverage-Air branded equipment,
including all parts thereof, that such equipment is
free from defects in material and workmanship, under
normal use, proper maintenance, and service as
indicated by Beverage-Air installation and operation
instructions, for a period of three (3) years from the
date of installation, or thirty-nine (39) months from the
date of shipment from the manufacturer, whichever is
earlier.
ADDITIONAL TWO (2) YEAR COMPRESSOR PART
WARRANTY*:
In addition to the warranty set forth above, Beverage-
Air warrants the hermetically/semi-hermetically
sealed compressor (part only) for an additional TWO
(2) years beyond the rst THREE (3) years warranty
period; not to exceed sixty-three (63) months from the
date of shipment from Beverage-Air, provided upon
receipt of the compressor, manufacturer examination
shows the sealed compressor to be defective. This
extended warranty does not cover freight for the
replacement compressor or freight for the return of the
failed compressor.
* Units shipped after 07/01/2024. Previous warranty
applies to units shipped prior.
EXCEPTIONS:
• CT96 and CF3 models carry a ONE (1) year parts
and labor warranty, limited to fteen (15) months
from date of shipment from Beverage-Air. These
are excluded from additional compressor warranty.
• SR/SF (Slate) models carry a TWO (2) year parts
and labor warranty, limited to twenty-seven (27)
months from date of shipment from Beverage-Air.
• BZ, VM, CDR, DPCR, MT and Blast Chillers carry
a THREE (3) year parts and labor warranty;
additional TWO (2) years compressor part only.
• Units installed in Residential applications will
be not covered under this warranty. Units are
intended for Commercial use only.
Also, this compressor-part only warranty does NOT
apply to any electrical controls, condenser, evaporator,
fan motors, overload switch, starting relay, capacitors,
temperature control, lter/drier, accumulator,
refrigeration tubing, wiring harness, labor charges, or
supplies which are covered by the warranty above.
Note: 3rd party extended warranties are not covered
by this warranty statement.
Normal wear parts, as deemed by Beverage-Air, such
as but not exclusive to, light bulbs/lamps and gaskets
are not covered by this warranty. For the purpose of
this warranty, the original purchaser shall be deemed
to mean the individual or company for who the
product was originally installed.
Units that utilize variable speed compressor
technology can experience nuisance tripping on Class
A GFCI outlets which have a trip limit of 4 mA to 6
mA. To avoid this issue in a location that requires GFCI
circuit protection, Beverage-Air & Victory recommends
using a HUBBELL Model Number GFRST83W 20A
Heavy Duty Hospital Grade Self-Test GFCI Receptacle.
Nuisance tripping not covered under warranty.
Our obligation under this warranty shall be limited to
repairing or replacing, including labor, any part of such
product, which proves thus defective. Beverage-Air
reserves the right to examine any product claimed to
be defective and request photos of the unit prior to
dispatching service. Moisture or water damage is not
covered under warranty. If service is deemed non-
warranty, Beverage-Air reserves the right to bill the
end user for service.
The labor warranty shall be for self-contained units
only and for standard straight time, which is dened
as normal service rate time, for service performed
during normal working hours. All warranty labor will
be covered at standard time. Any service requested
outside of a servicer's normal working hours including
weekends and any additional overtime will be at
the responsibility of the equipment purchaser. Any
part or accessory determined to be defective in the
product should be returned to the company within
thirty (30) days under the terms of this warranty
and must be accompanied by a record of the cabinet
model, serial number, and identied with a return
material authorization number (RMA#) issued by the
manufacturer.
Special installation/applications, including remote
locations, are limited in coverage by this warranty.
Any installation that requires extra work, and/or
travel, to gain access to the unit for service is the sole
responsibility of the equipment purchaser.
Improper operation resulting from factors, including
but not limited to, improper or negligent cleaning
and maintenance, improper installation, low voltage
conditions, inadequate wiring, outdoor use (unless
otherwise specied) and accidental damage are
not manufacturing defects and are strictly the
responsibility of the purchaser.
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 27
LIMITED WARRANTY (CONT'D)
With the exception of Blast Chillers, the product
is designed for maintaining temperature and not
bringing food to a desired temperature and therefore
cannot be held responsible for this function under
warranty. Units must be in a conditioned environment
or warranty will be void. Non-standard use of unit can
also be subject to reduced or voided warranty.
Condensing coils must be cleaned at regular intervals
as a part of preventative maintenance for optimal
performance. Failure to do so is subject to a voided
warranty. Although cleaning requirements vary
in accordance with operation of various products,
Beverage-Air recommends a minimum monthly
cleaning.
NO CLAIMS CAN BE MADE AGAINST THIS WARRANTY
FOR SPOILAGE OF FOOD, PRODUCTS, LOSS OF SALES
OR CONSEQUENTIAL DAMAGES.
THE FOREGOING WARRANTIES ARE EXPRESSLY
GIVEN IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS, IMPLIED, OR STATUTORY, INCLUDING
THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE,
WHICH ARE HEREBY DISCLAIMED, ALL OTHER
OBLIGATIONS OR LIABILITIES ON OUR PART, AND
WE NEITHER ASSUME, NOR AUTHORIZE ANY OTHER
PERSON TO ASSUME FOR US, ANY OBLIGATION OR
LIABILITY IN CONNECTION WITH THE SALE OF SAID
REFRIGERATION UNITS OR ANY PARTS THERE OF.
This warranty shall not be assignable and shall be
honored only in so far as the original purchaser. This
warranty does not apply outside the limits of the
United States of America and Canada, nor does it apply
to any part that has been subject to misuse, neglect,
alteration, accident, or to any damage caused by
transportation, ood, re, acts of terrorism, or acts of
God.
LIMITATION OF LIABILITY:
Beverage-Air Corporation or their aliates shall
not be liable for any indirect, incidental, special or
consequential damages, or losses of a commercial
nature arising out of malfunction equipment or its
parts components thereof, as a result of defects in
material or workmanship.
THE ORIGINAL OWNER'S SOLE AND EXCLUSIVE
REMEDY AND BEVERAGE-AIR'S SOLE AND
EXCLUSIVE LIABILITY SHALL BE LIMITED TO
THE REPAIR OR REPLACEMENT OF PARTS OR
COMPONENTS CONTAINED IN THE EQUIPMENT
IDENTIFIED ABOVE WHICH UNDER NORMAL USE
AND SERVICE MALFUNCTION AS A RESULT OF
DEFECTS IN MATERIAL OR WORKMANSHIP, SUBJECT
TO THE APPLICABLE PROVISIONS AND LIMITATIONS
STATED ABOVE.
Note: Additional Terms and Conditions of sale may
apply. Notice: Specications are subject to change
without notice. Contact Beverage-Air for specic
model agency approval. All prices are ex-works
Brookville, PA. July 1, 2024
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26Beverage-Air28
REPLACEMENT PARTS
Part # Description
1 50A33-308D-01AA (Black Sign Well)
50A33-308D-01AB (White Sign Well)
Top Grille (1)
2 409-467D-** (Last 2 Digits Will Vary) Sign Insert for Top Grille (1)
3 403-761D Pilaster (2)
4 403-168A Pilaster Clips (6)
5 403-749D-01 (White Wire)
403-749D-02 (Black Wire)
Shelves (3)
6 403-750D-01 (White)
403-750D-02 (Black)
20 oz. Divider (3)
7 59D33-032D-01AB (White) Rear Pilasters (2)
8 44A11-931D-01AA (Black)
44A11-931D-01AB (White)
Front Grille (1)
1
2
5
6
8
3
4
7
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26 Beverage-Air 29
Part # Description
9 305-471D Condenser Coil (1)
10 501-192D-03 Condenser Fan (1)
11 49A51-214D Capillary Tube (1)
12 305-172C Evaporator Coil (1)
13 501-190D-05 Evaporator Fans (2)
14 312-213D Compressor (1)
15 303-241D Dryer (1)
9
10
11
12
14
15
16
13
User Manual for BZ Refrigerators Beverage-Air
Rev. 02/26
Warranty Registration
Register your product online at beverage-air.com/parts-service or ll out and mail the form below.
Cabinet Model Number: _____________________________________________ Date Of Installation: _________________
Cabinet Serial Number: _____________________________________________
Location Of Product
Business Name: ____________________________________________________
Business Street: ____________________________________________________
Business City: ____________________________________ State: _________ Postal Code:___________
Mail to: Beverage-Air, 3779 Champion Blvd, Winston-Salem, NC 27105
