Duo Portable Air Conditioner
MAP
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
Download the app
& activate product
the
MAP12S1TBL
MAP14S1TBL
MAP12S1TBL-A
MAP14S1TBL-A
(Heat Model) MAP14HS1TBL
(Heat Model) MAP14HS1TBL-A
2
THANK YOU FOR CHOOSING MIDEA!
Before using your new Midea product, please review this manual thoroughly to ensure safe and effective
operation of its features and functions.
CONTENTS
CONTENTS ...................................................................................................................................2
SAFETY PRECAUTIONS ........................................................................................................3
PRODUCT INSTALLATION ...................................................................................................12
OPERATION INSTRUCTIONS ..............................................................................................20
REMOTE CONTROL AND APP INSTRUCTIONS ..........................................................24
CLEANING AND MAINTENANCE......................................................................................37
TROUBLESHOOTING TIPS ..................................................................................................38
WARRANTY ................................................................................................................................39
3
SAFETY PRECAUTIONS
Read safety precautions before operation and installation:
To prevent death or injury to the user, or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may
cause damage, harm or death.
Installation must be performed according to the installation instructions. Improper
installation can cause water leakage, electrical shock, or fire.
Use only the included accessories and parts, and specified tools for the installation.
Using non-standard parts can cause water leakage, electrical shock, fire, and injury or
property damage.
Ensure the outlet is grounded and matches the required voltage. The power cord features
a three-prong grounding plug for shock protection. Voltage details are on the unit's
nameplate.
The unit must be used with a properly grounded wall receptacle. If the receptacle is not
adequately grounded or protected by the correct fuse or circuit breaker (as specified by
the unit's maximum current on the nameplate), have a qualified electrician install the
appropriate receptacle.
Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive
noise and vibration.
The unit must be kept free from obstruction to ensure proper function and to mitigate
safety hazards.
Do not modify the length of the power cord or use an extension cord to power the unit.
Do not share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
Do not install the air conditioner in a wet room, such as a bathroom or laundry room.
Excessive exposure to water can cause electrical components to short circuit.
Do not install the unit in a location that may be exposed to combustible gas, as this could
cause fire.
The unit has wheels to facilitate moving. Make sure not to use the wheels on thick carpet
or to roll over objects, as these could cause tipping.
Do not operate a unit that it has been dropped or damaged.
The appliance with electric heater shall have at least 1 meter space to the combustible
materials.
Do not touch the unit with wet or damp hands or when barefoot.
main power supply immediately. Visually inspect the unit to ensure there is no damage.
If damage is suspected, contact a technician or customer service for assistance.
WARNING
WARNING CAUTION
This symbol indicates a risk of property
damage or serious consequences.
This symbol indicates a risk of personal
injury or serious harm.
lightning.
4
All wiring must be performed strictly in accordance with the wiring diagram located inside
of the unit.
The unit's circuit board (PCB) is designed with a fuse to provide overcurrent protection.
The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
When the water drainage function is not in use, keep the upper and the lower drain plug
firmly to the unit to get rid of choking. When the drain plug is not in use, keep it carefully
to prevent children from choking.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Prior to cleaning or other maintenance, the appliance must be disconnected from the
supply mains.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if
it has been dropped or damaged.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
area and where it will not be tripped over.
Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit
or return to an authorized service facility for examination and/or repair.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
The appliance shall be installed in accordance with national wiring regulations.
Contact the authorized service technician for repair or maintenance of this unit.
Contact the authorized installer for installation of this unit.
Do not cover or obstruct the inlet or outlet grilles.
Do not use this product for functions other than those described in this instruction manual.
Disconnect the power if strange sounds, smell, or smoke are present.
Do not press the control panel buttons with anything other than fingers.
Do not remove any fixed covers. Never use this appliance if it is not working properly, or if
it has been dropped or damaged.
Do not operate or stop the unit by inserting or pulling out the power cord plug.
The air conditioner should be used in such a way that it is protected from moisture. (i.e.
condensation, splashed water, etc.) Do not place or store the air conditioner where it can
fall or be pulled into water or any other liquid. Unplug immediately if it occurs.
This unit is not intended for use by persons (including childern) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the appliance.
Children must be supervised around the unit at all times.
CAUTION
5
Main Control
Compressor
Fan Motor
Display
Power
Supply
L/AC L/L1/L-IN
N/AC N/L2/N-IN
Other
Electronic Type
Do not use hazardous chemicals to clean or come into contact with the unit. Do not use
the unit in the presence of inflammable substances or vapor such as alcohol, insecticides,
petrol, etc.
Always transport the air conditioner in a vertical position and stand on a stable, level
surface during use.
Always contact a qualified person to carry out repairs. If the damaged power supply cord
must be replaced with a new power supply cord obtained from the product manufacturer
and not repaired.
Hold the plug by the head of the power plug when taking it out.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition sources
(i.e. open flames, an operating gas appliance or an operating electric heater).
Do not pierce or burn.
Be aware that the refrigerants may not contain an odor.
No open fire or device like switch which may generate spark/arcing shall be around
appliance to avoid causing ignition of the flammable refrigerant used. Please follow the
instructions carefully when storing or maintaining the appliance to prevent mechanical
damage from occurring.
The unit shall be installed, operated and stored in a room with a floor area larger than 4 m
2
.
The unit shall not be installed in an unvertilated space, if that space is smaller than 4 m
2
.
The unit should be installed, operated and stored in a room with a floor area according
to the amount of refrigerant to be charged. For specific information on the type of gas and
between the label and the manual on the Min. room area description, the description on the
label shall prevail.
WARNING for Using R32 Refrigerant

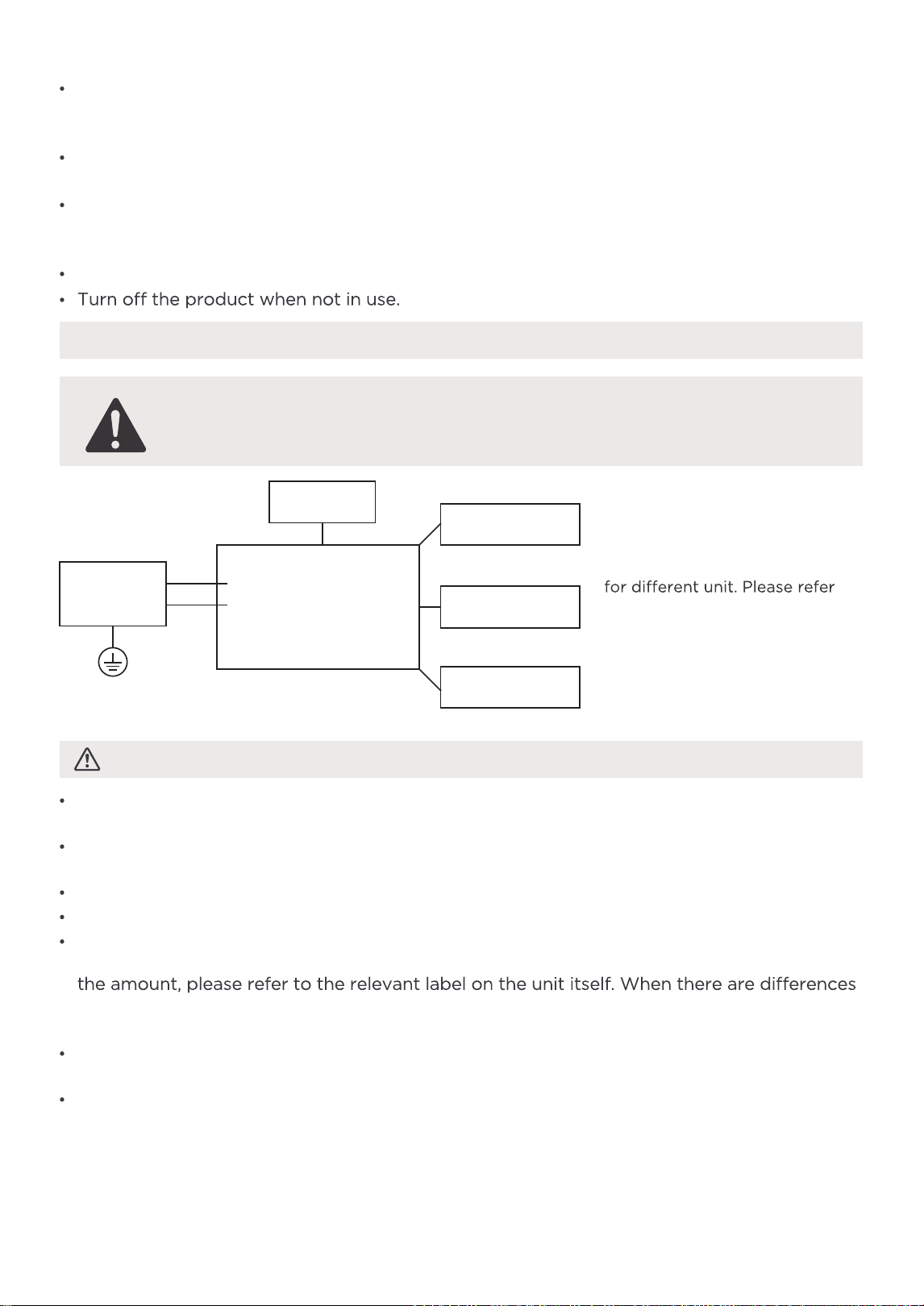

Electronic Work
WARNING:
BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE
MAIN POWER TO THE SYSTEM.
Please strictly follow the wiring
label attached to the machine
for all wiring connections.
The wiring diagram may vary
to the wiring diagram on the
unit.
The above wiring diagram is a
simplified version for preliminary
illustration purposes only.
6
WARNING
- Servicing shall only be performed as recommended by the equipment manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel shall be carried
out under the supervision of the person competent in the use of flammable refrigerants.
- DO NOT modify the length of the power cord or use an extension cord to power the unit.
- DO NOT share a single outlet with other electrical appliances. Improper power supply can
cause fire or electrical shock.
- Please follow the instruction carefully to handle, install, clear, service the appliance to avoid
any damage or hazard.
- When maintaining or disposing the appliance, the refrigerant shall be recovered properly,
shall not discharge to air directly.
- Compliance with national gas regulations shall be observed.
- Keep ventilation openings clear of obstruction.
- The appliance shall be stored so as to prevent mechanical damage from occurring.
- A warning that the appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
- Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certificate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an industry
recognised assessment specification. All training shall follow the ANNEX HH requirements
of UL 60335-2-40 4th Edition.
Examples for such working procedures are:
• Breaking into the refrigerating circuit;
• Opening of sealed components;
• Opening of ventilated enclosures.
CAUTION:
Risk of fire
flammable materials
Explanation of symbols displayed on the unit
CAUTION
This symbol indicates that the operation manual should be
read carefully.
CAUTION
This symbol indicates that a service personnel should be handling
this equipment with reference to the installation manual.
CAUTION
This symbol indicates that information is available such as the
operating manual or installation manual.
7
See transport regulations.
1. Transport of equipment containing flammable refrigerants
See local regulations.
2. Marking of equipment using signs
See national regulations.
3. Disposal of equipment using flammable refrigerants
The storage of the unit should be in accordance with the applicable regulations
or instructions, whichever is more stringent.
4. Storage of equipment/appliances
Storage package protection should be constructed such that mechanical damage to
the equipment inside the package will not cause a leak of the refrigerant charge. The
maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
5. Storage of packed (unsold) equipment
6. Information on servicing
Prior to beginning work on systems containing flammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating
system, the following precautions shall be complied with prior to conducting work on the
system.
1) Checks to the area
Work shall be undertaken under a controlled procedure so as to minimize the risk of a
flammable gas or vapor being present while the work is being performed.
2) Work procedure
of work being carried out. Work in confined spaces shall be avoided. The area around the
made safe by control of flammable material.
3) General work area
The area shall be checked with an appropriate refrigerating detector prior to and during
work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that
the leak detection equipment being used is suitable for use with flammable refrigerants.
(i.e. non-sparking, adequately sealed or intrinsically safe)
4) Checking for presence of refrigerant
If any hot work is to be conducted on the refrigeration equipment or any associated parts,
appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or
CO
2
fire extinguisher adjacent to the charging area.
5) Presence of fire extinguisher
No person carrying out work in relation to a refrigerating system which involves exposing
any pipe work that contains or has contained flammable refrigerant shall use any sources
of ignition in such a manner that it may lead to the risk of fire or explosion. All possible
site of installation, repairing, removing and disposal, during which flammable refrigerant
can possibly be released to the surrounding space. Prior to work taking place, the area
around the equipment is to be surveyed to make sure that there are no flammable hazards
or ignition risks. "No Smoking" signs shall be displayed.
6) No ignition sources
Ensure that the area is in the open or that it is adequately ventilated before breaking into
the system or conducting any hot work. A degree of ventilation shall continue during the
period that the work is carried out. The ventilation should safely disperse any released
refrigerant and preferably expel it externally into the atmosphere.
7) Ventilated area
8
7. Sealed electrical components shall be replaced.
8. Intrinsically safe components must be replaced.
9. Cabling
Where electrical components are being changed, they shall be fit for the purpose and to
the correct specifications. At all times the manufacturer's maintenance and service
guidelines shall be followed. If in doubt consult the manufacturer's technical department
for assistance. The following checks shall be applied to installations using flammable
refrigerants: the actual refrigerant charge is in accordance with the room size within which
the refrigerant containing parts are installed; the ventilation machinery and outlets are
operating adequately and are not obstructed; if an indirect refrigerating circuit is being
used, the secondary circuit shall be checked for the presence of refrigerant; marking to the
equipment continues to be visible and legible.
Markings and signs that are illegible shall be corrected; and refrigerating pipe or
components are installed in a position where they are unlikely to be exposed to any
substance which may corrode refrigerant containing components, unless the components
are constructed of materials which are inherently resistant to being corroded or are
suitably protected aga
inst being so corroded.
8) Checks to the refrigerating equipment
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the
fault cannot be corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used.
This shall be reported to the owner of the equipment so all parties are advised. Initial
safety checks shall include: That capacitors are discharged: this shall be done in a safe
manner to avoid possibility of sparking; that there no live electrical components and
wiring are exposed while charging, recovering or purging the system; that there is
continuity of earth bonding.
9) Checks to electrical devices
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
fans.
10. Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked flame)
shall not be used.
The following leak detection methods are deemed acceptable for systems containing
flammable refrigerants. Electronic leak detectors shall be used to detect flammable
refrigerants, but the sensitivity may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the
detector is not a potential source of ignition and is suitable for the refrigerant used. Leak
detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be
calibrated to the refrigerant employed and the appropriate percentage of gas (25%
maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants
but the use of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
flames shall be removed/ extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of
be according to Removal and evacuation.
9
When breaking into the refrigerant circuit to make repairs—or for any other purpose -
conventional procedures shall be used. However, for flammable refrigerants it is important
that best practice be followed, since flammability is a consideration. The following
procedure shall be adhered to:
-Safely remove refrigerant following local and national regulations;
-Evacuate;
-Purge the circuit with inert gas (optional for A2L);
-Evacuate (optional for A2L);
-Continuously flush or purge with inert gas when using flame to open circuit; and
-Open the circuit.
The refrigerant charge shall be recovered into the correct recovery cylinders if venting is
not allowed by local and national codes. For units containing flammable refrigerants,
the system shall be purged with oxygen-free nitrogen to render the appliance safe for
flammable refrigerants. This process may need to be repeated several times. Do not use
compressed air or oxygen to purge refrigerant systems.
For units containing flammable refrigerants, refrigerants purging shall be achieved
by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill
until the working pressure is achieved, then venting to atmosphere, and finally pulling
down to a vac
uum (optional for A2L).
This process shall be repeated until no refrigerant is within the system (optional for A2L).
When the final oxygen-free nitrogen charge is used, the system shall be vented down to
atmospheric pressure to enable work to take place. The outlet for the vacuum pump shall
not be close to any potential ignition sources, and ventilation shall be available.
11. Removal and evacuation
In addition to conventional charging procedures, the following requirements shall be
followed.
equipment.
Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained
in them.
Cylinders shall be kept in an appropriate position according to the instructions. Ensure that
the refrigeration system is earthed prior to charging the system with refrigerant. Label the
system when charging is complete (if not already). Extreme care shall be taken not to
overfill the refrigeration system. Prior to recharging the system it shall be pressure tested
with OFN. The system shall be leak tested on completion of charging but prior to
commissioning. A follow up leak test shall be carried out prior to leaving the site.
12. Charging procedures
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants
are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in case
analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical
power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that: Mechanical handling equipment is
available, if required, for handling refrigerant cylinders; all personal protective equipment
is available and being used correctly; the recovery process is supervised at all times by a
competent person; recovery equipment and cylinders conform to the appropriate
standards.
d) Pump down refrigerant system, if possible.
13. Decommissioning
10
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from
various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure
that the cylinders and the equipment are removed from site promptly and all isolation
k) Recovered refrigerant shall not be charged into another refrigeration system unless it
has been cleaned and checked.
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the
equipment stating the equipment contains flammable refrigerant.
14. Labeling
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely. When transferring
refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are
employed. Ensure that the correct number of cylinders for holding the total system
charge is available. All cylinders to be used are designated for the recovered refrigerant
and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).
good working order. Empty recovery cylinders are evacuated and, if possible, cooled
before recovery occurs. The recovery equipment shall be in good working order with a
set of instructions concerning the equipment that is at hand and shall be suitable for the
recovery of the flammable refrigerant. If in doubt, the manufacturer should be consulted.
In addition, a set of calibrated weighing scales shall be available and in good working
order. Hoses shall be complete with leak-free disconnect couplings and in good condition.
The recovered refrigerant shall be processed according to local legislation in the correct
recovery cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants
in recovery units and especially not in cylinders. If compressors or compressor oils are to
be removed, ensure that they have been evacuated to an acceptable level to make certain
that flammable refrigerant does not remain within the lubricant. The compressor body
shall not be heated by an open flame or other ignition sources to accelerate this process.
When oil is drained from a system, it shall be carried out safely.
15. Recovery
11

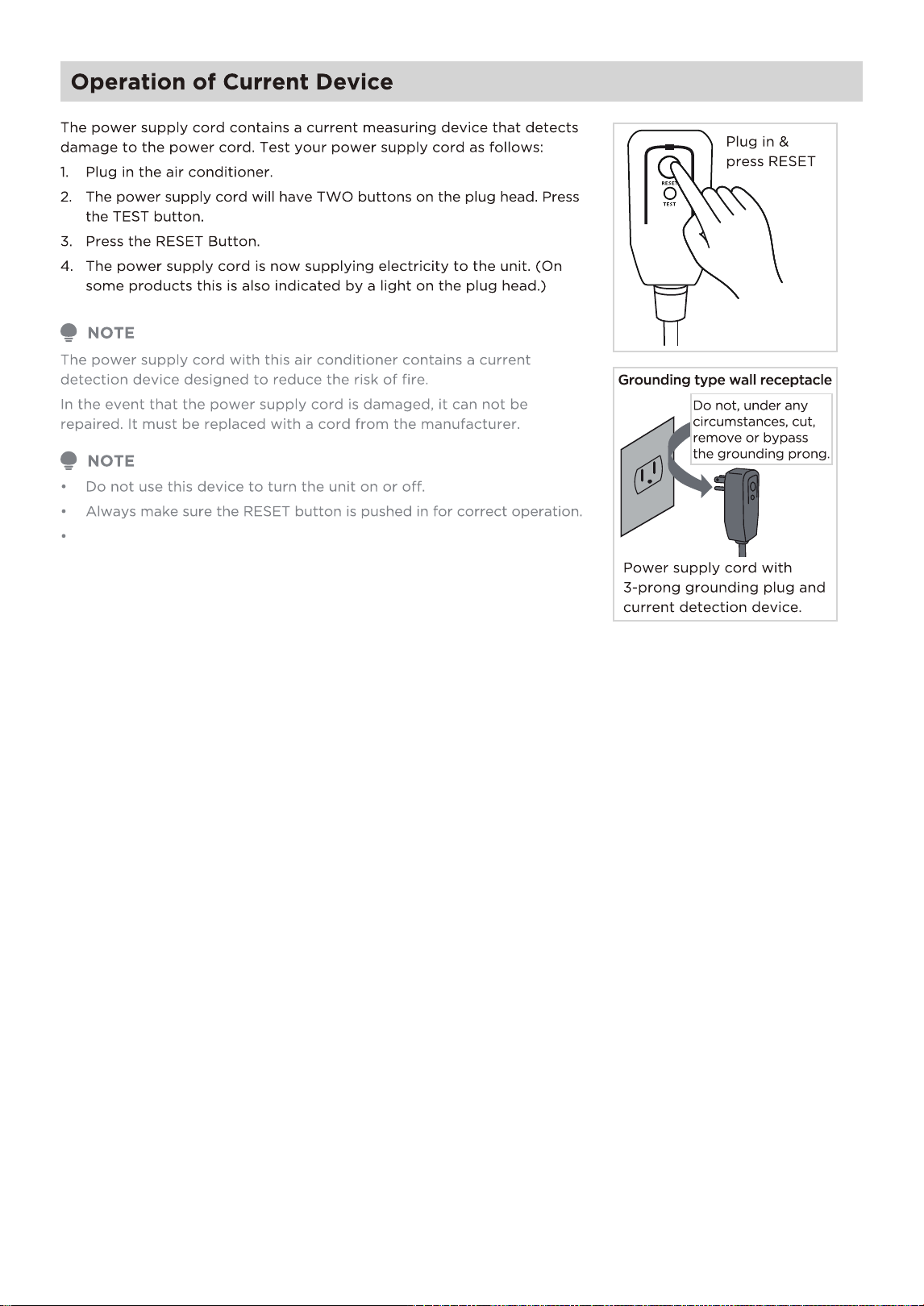

A click will be heard as the RESET button pops out.
A click will be heard as the button engages.
If the power supply cord does not reset when the TEST button is
pressed or cannot be reset, it must be replaced. Please contact
customer service for assistance.
PRODUCT INSTALLATION
Recommended Installation
All the illustrations in the manual are for explanation purpose only.
The unit may be slightly different.
NOTE

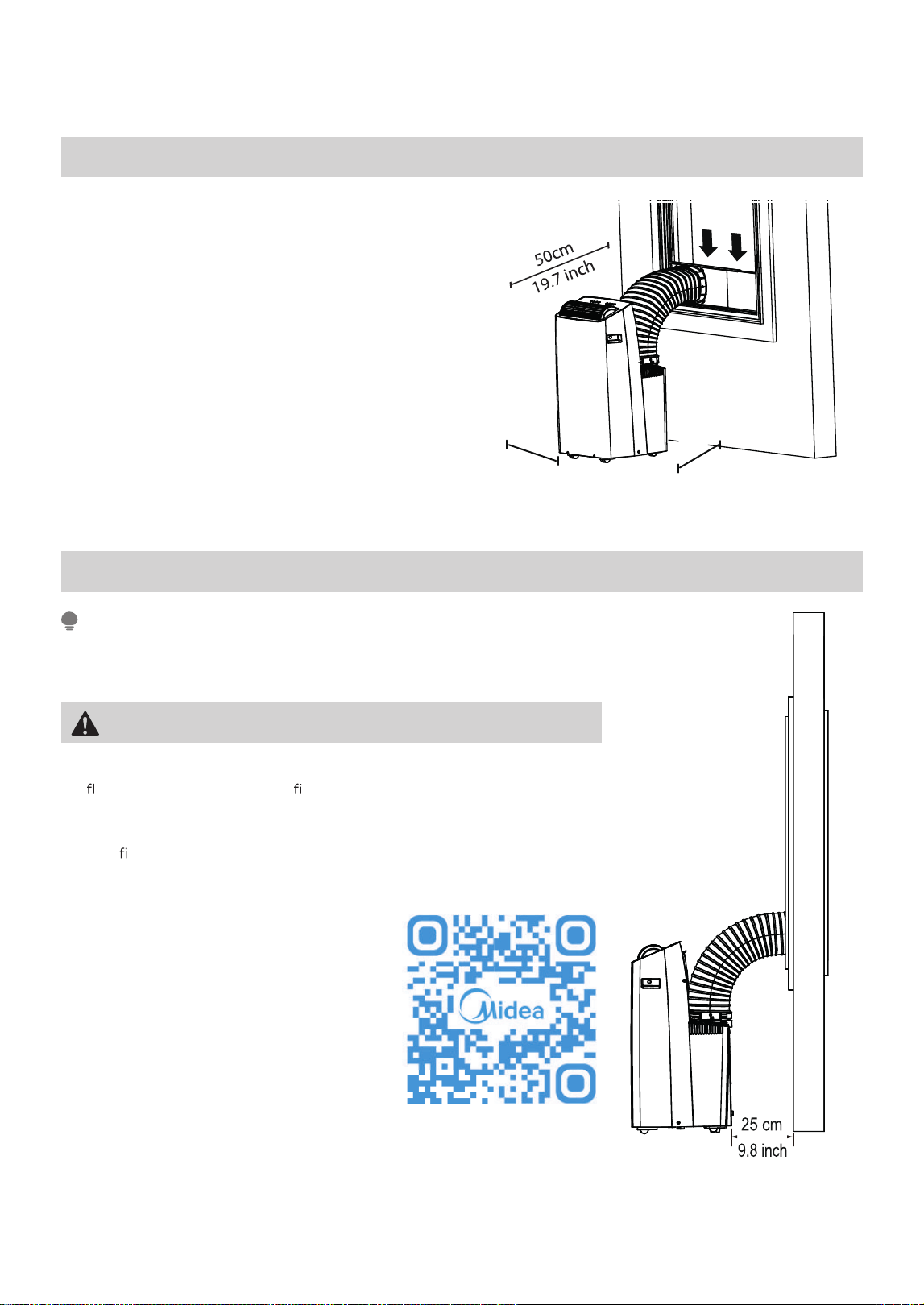

Choosing the Right Location
The installation location should meet the following
requirements:
• Make sure to install the unit on a level surface to
minimize noise and vibration.
• The unit must be installed near a grounded plug, and
the Collection Tray Drain (found on the back of the
unit) must be accessible.
• The unit should be located at least 9.8” (25cm) from
the nearest wall to ensure proper air conditioning.
• DO NOT cover the Intakes, Outlets or Remote Signal
Receptor of the unit, as this could cause damage to
the unit.
WARNING
• This air-conditioning unit is a hermetically sealed unit that contains
uorinated gasses. For speci c information on the type of gas and the
amount, please refer to the relevant label on the unit itself.
• Service, maintenance or repair of this unit must be performed by a
certi ed technician.
• Product recycling must be done according to local regulations.
Scan this QR code to watch an installation
video for the Midea Duo Portable Air
Conditioner:
Fig. 2
25 cm
9.8 inch
9.8 inch
25 cm
50 cm
19.7 inch
Fig. 1
12

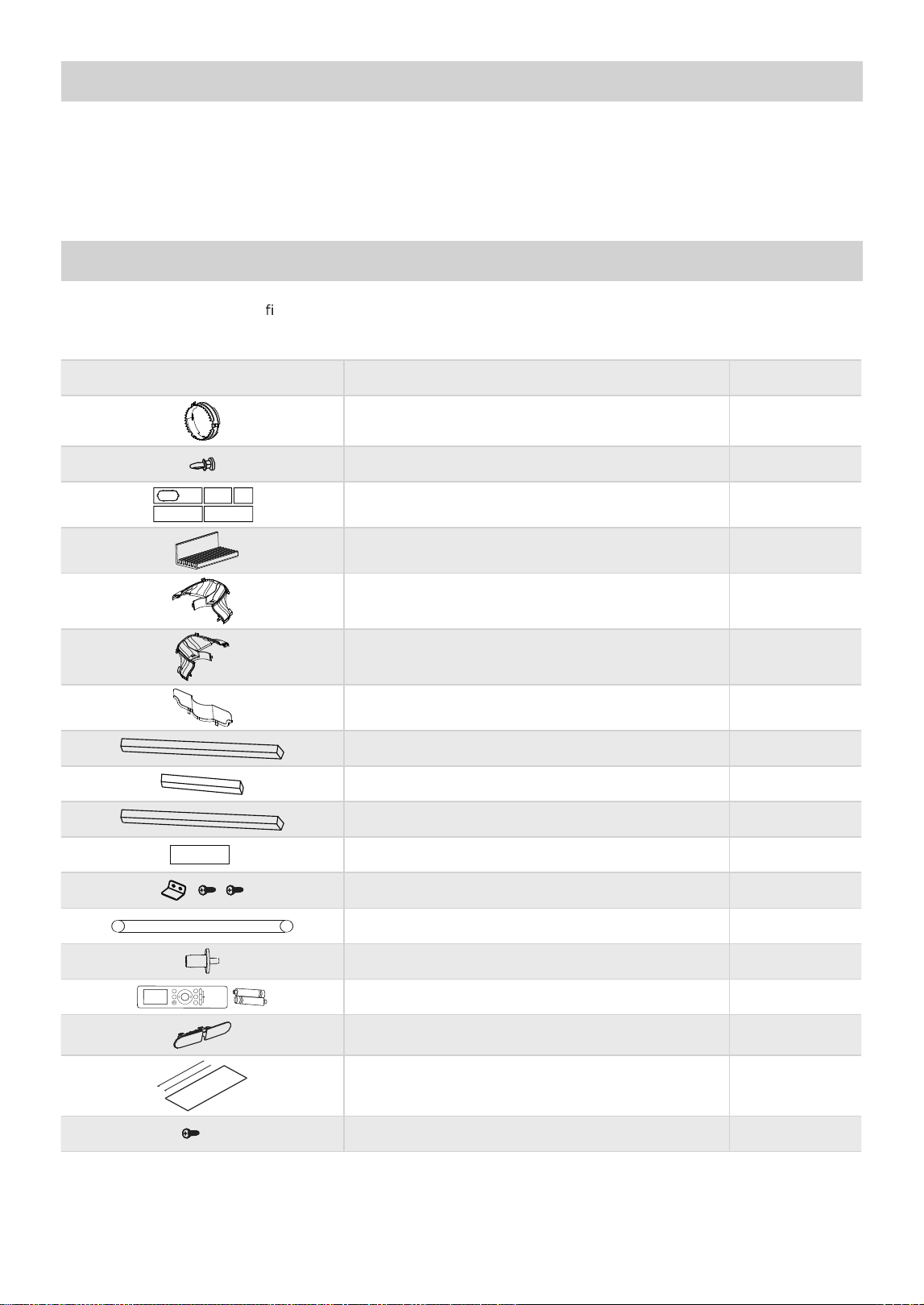

Tools Needed
Accessories
Part Description Quantity
Air exhaust adapter 1 pc
Bolt 8 pc
Window Sliders 5 pc
Window Kit Brace 1 pc
Sliding Window Adapter – Front 1 pc
Sliding Window Adapter – Rear 1 pc
Sliding Window Adapter – Air Divider 1 pc
Foam seal A (adhesive) 4 pc
Foam seal B (adhesive) 2 pc
Foam seal C (Non-adhesive) 2 pc
Window Slider Foam (adhesive) 2 pc
Security bracket and 2 screws 1 set
Drain hose 1 pc
Drain hose adaptor (For heat pump model only) 1 pc
Remote controller and battery 1 set
Power Cord Buckle (For cooling only model) 1 pc
1 Screw (on exhaust adaptor) 1 pc
• Phillips screwdriver
• Tape measure or ruler
• Knife or scissors
• Saw (optional, to shorten window adaptor for narrow windows).
The Window Installation Kit
ts windows 19.1’’ - 63.8’’ (48.4-162 cm). Please doublecheck all packaging
materials to make sure accessories do not get accidentally thrown away.
Heat pump hose insulation foam (For heat pump
model only)
1 set
13

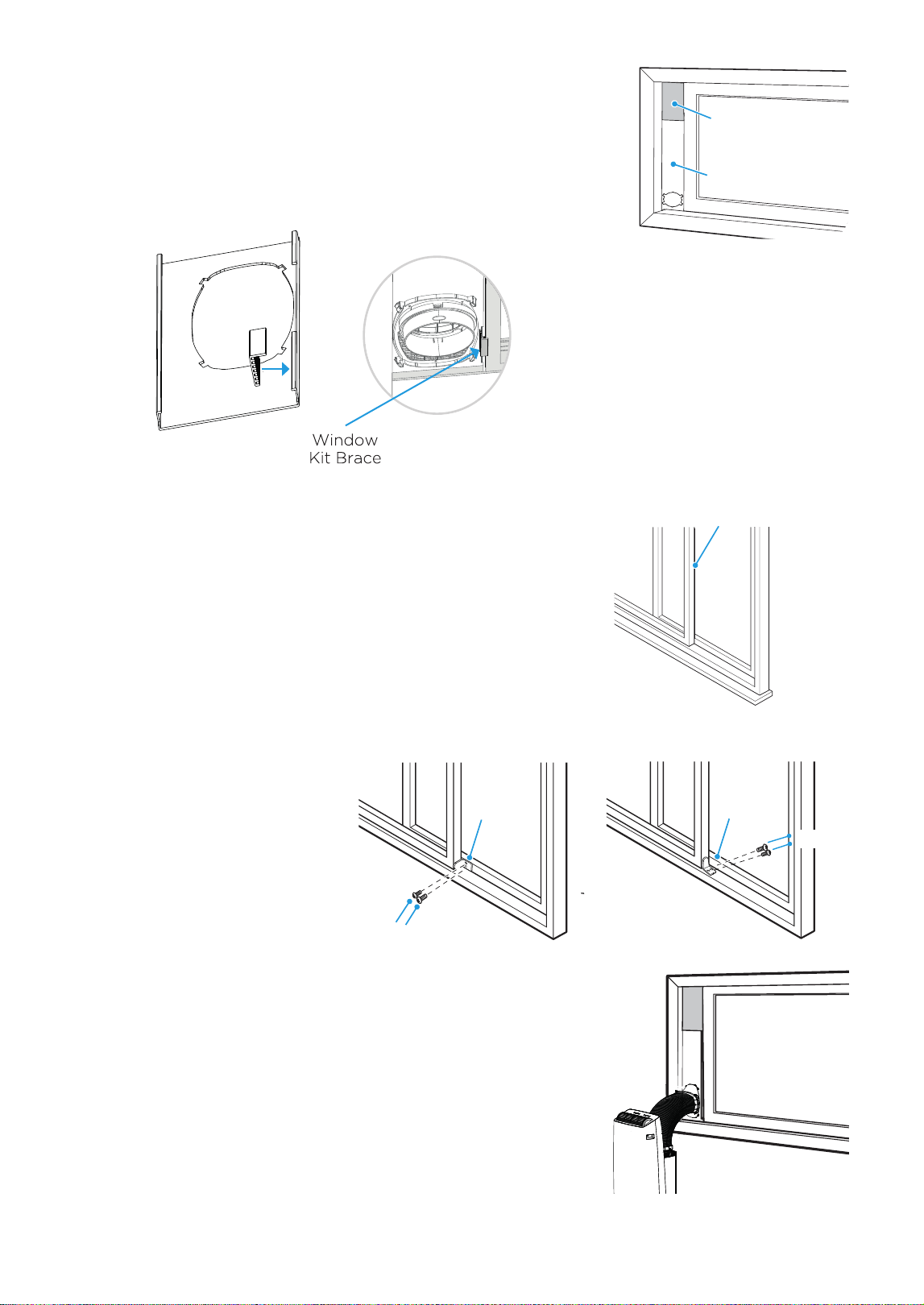

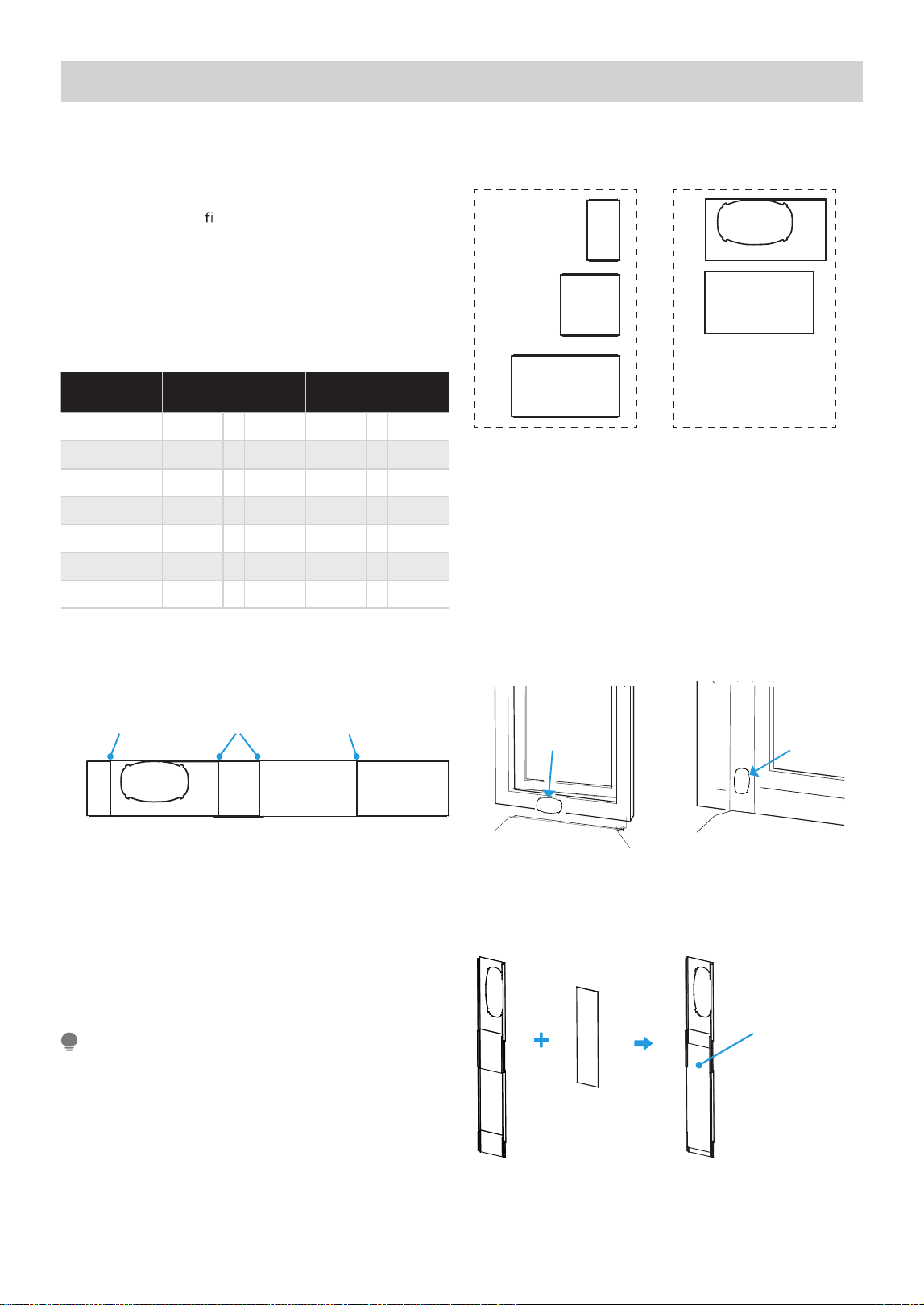

Window Installation Kit
Preparing the adjustable window slider
1. Depending on the size of the window, adjust the
size of the window slider. Use the combination of
panels that best ts the window opening.
2. If the length of the window requires two or more
window sliders, use the bolt to fasten the window
sliders once they are adjusted to the proper length.
a
c
e
b
d
Three window sliders
with side holes
Use the table below to determine what combination
of window sliders is correct for the window:
Two window sliders
without side holes
window
slider
window
dimension (mm)
window
dimension (inch)
a+b 484
~
592 19.1
~
23.3
b+c 592
~
696 23.3
~
27.4
a+b+c 696
~
802 27.4
~
31.6
b+e 802
~
896 31.6
~
35.3
a+b+e 896
~
998 35.3
~
39.3
a+b+c+d 998
~
1210 39.3
~
47.6
a+b+c+d+e 1210
~
1620 47.6
~
63.8
3. If installing in a sliding window, bolts should be
installed on both sides of the window sliders.
bolt
a b c d e
bolt bolt
Fig.
Windows Type
Window
slider
Window
slider
Hung Window Sliding Window
4. Applying insulation to the window slider
After assembling the window slider to the proper
dimension, cut and apply the foam insulation sheets
to the exterior side of the window slider.
Window
Slider Foam
Window
Slider Foam
Once the Exhaust Hose assembly and Adjustable
Window Slider are prepared, choose from one of
the following two installation methods.
NOTE
14
3
Fig. 4
Fig. 5
15
Fig. 8
Window
slider A
Window
slider B
(if required)
Fig. 9
Foam seal C
(Non-adhesive type)
Foam seal B
(Adhesive type-shorter)
Foam
seal A
(Adhesive
type)
Fig. 7

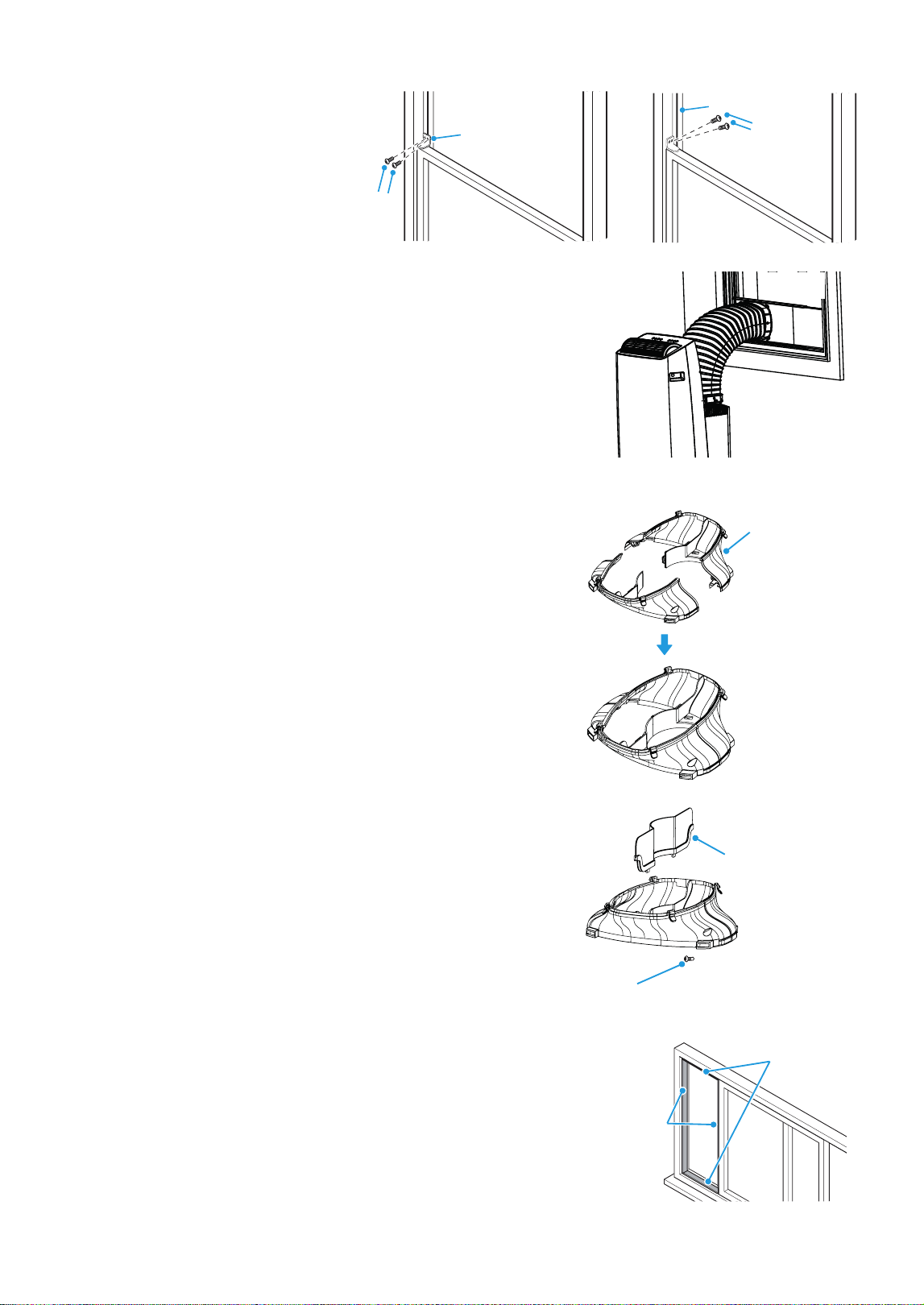

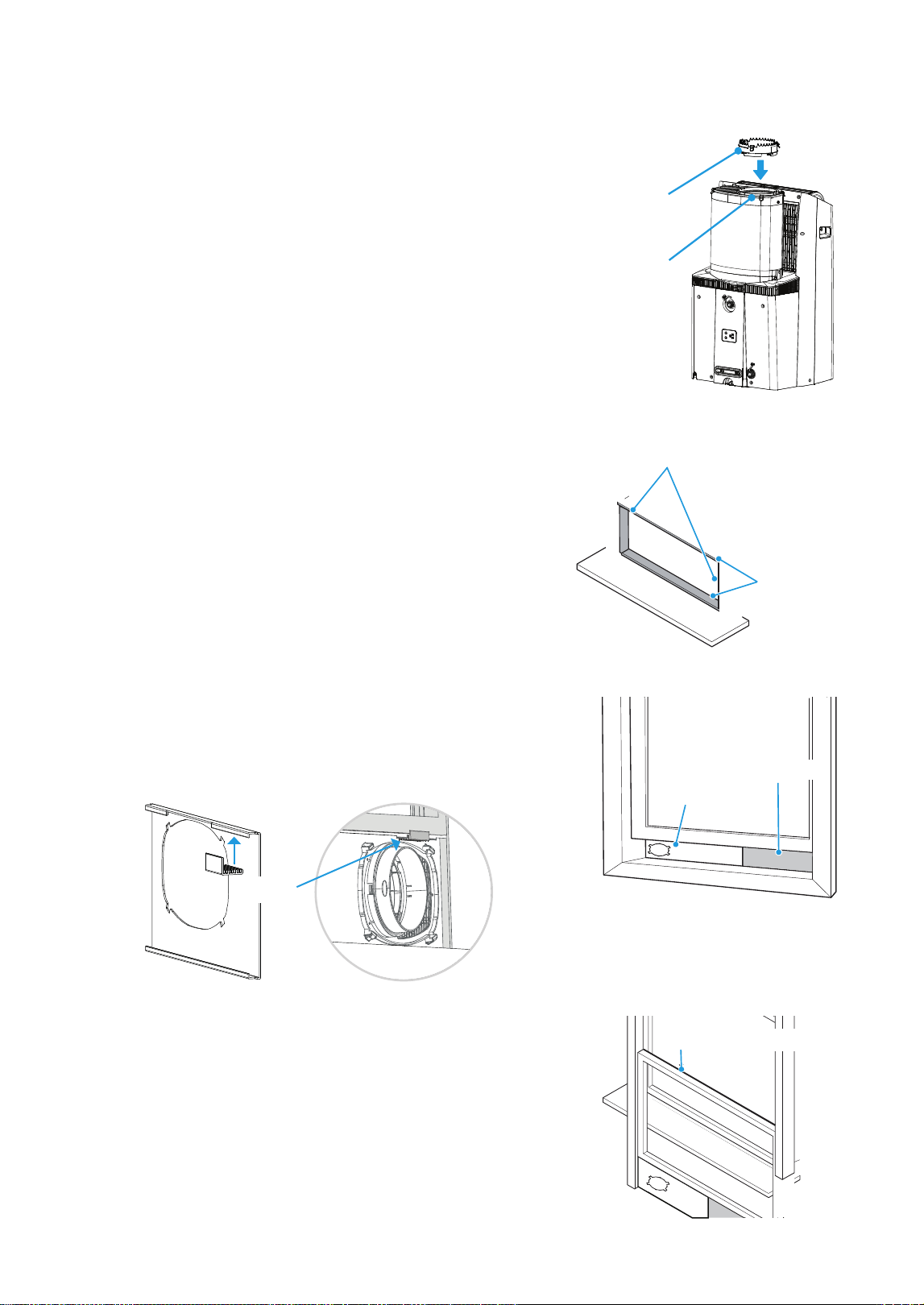

Type 1: Hung window installation
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
Insert the window slider assembly into the window track. If the hose
opening is covered by the lip of the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window Kit
Brace to the back of the hose panel to brace against the window so
the window slider panels do not lean inward.
Cut the non-adhesive foam seal C strip to match the width of the
window. Insert the seal between the glass and the window frame to
prevent air and insects from getting into the room.
Window
Kit Brace
2.
3.
4.
1. For Hung Window types only
Insert the Air Exhaust Adapter into the exhaust of the hose (the
circular opening) for optimal performance. Rotate the adapter
clockwise until the locking tabs click and it no longer rotates.
Skip this step if installing into a horizontal sliding window.
The Air Exhaust adapter may interfere with some window screens,
and can be removed if desired (Please note this may slightly
decrease performance).
Air Exhaust
Adapter
Exhaust
Hose
Fig. 6
16
Attach the hose to the window slider panel by inserting the end of
the hose into the opening on the slider.
If desired, install the security bracket with 2 screws as shown.
Fig. 11
Type 2: Sliding window Installation (Optional)
Fig. 12
Foam seal B
(Adhesive
type-shorter)
Foam seal A
(Adhesive
type)
5.
6.
Cut the adhesive foam seal A and B strips to the proper lengths,
and attach them to the window sash and frame as shown.
2.
1. Assembling the Sliding Window Adapter (Only needed for
Sliding Window applications): Align both halves of the sliding
window adapter and connect them. Then, attach the air divider
to the newly formed window adapter on the outdoor side. The
fully assembled adapter should look like the image at the right.
(attach the adapter to the hose ).
Sliding
Window
Adapter
(Front + Rear)
Air
Divider
1 screw
Fig. 13
Fig. 10
Security Bracket
2 Screws
or
Fig. 10
Security Bracket
2 Screws
Fig. 15
Foam seal C
(Non-adhesive type)
Fig. 14
Window slider A
Window slider B
(if required)
3. Insert the window slider assembly into the window track. If the
hose opening is covered by the window frame, rotate the panel
so the thicker side faces the window frame. Attach the Window
Kit Brace to the back of the hose panel to brace against the
window so the window slider panels do not lean inward.
4. Be sure bolts are installed in both sides of the window slider for
improved rigidity.
5. Cut the non-adhesive foam seal C strip to match the window height.
Insert the foam seal between the glass and the window frame to
prevent air and insects from getting into the room.
6. If desired, install the security bracket with 2 screws as shown.
7.
into the hole of the window slider.
Fig. 17
Insert the window slider adapter
Security
Bracket
2 Screws
Fig. 16A
or
2 Screws
Security
Bracket
Fig. 16B
17
18
To ensure proper function, DO NOT overextend or bend the hose. Make sure that there are no objects
within 20-inch (~500mm) of the inlet and outlet hose.
All illustrations in this manual are for explanation purposes only, the air conditioner may be slightly
different than shown.
NOTE

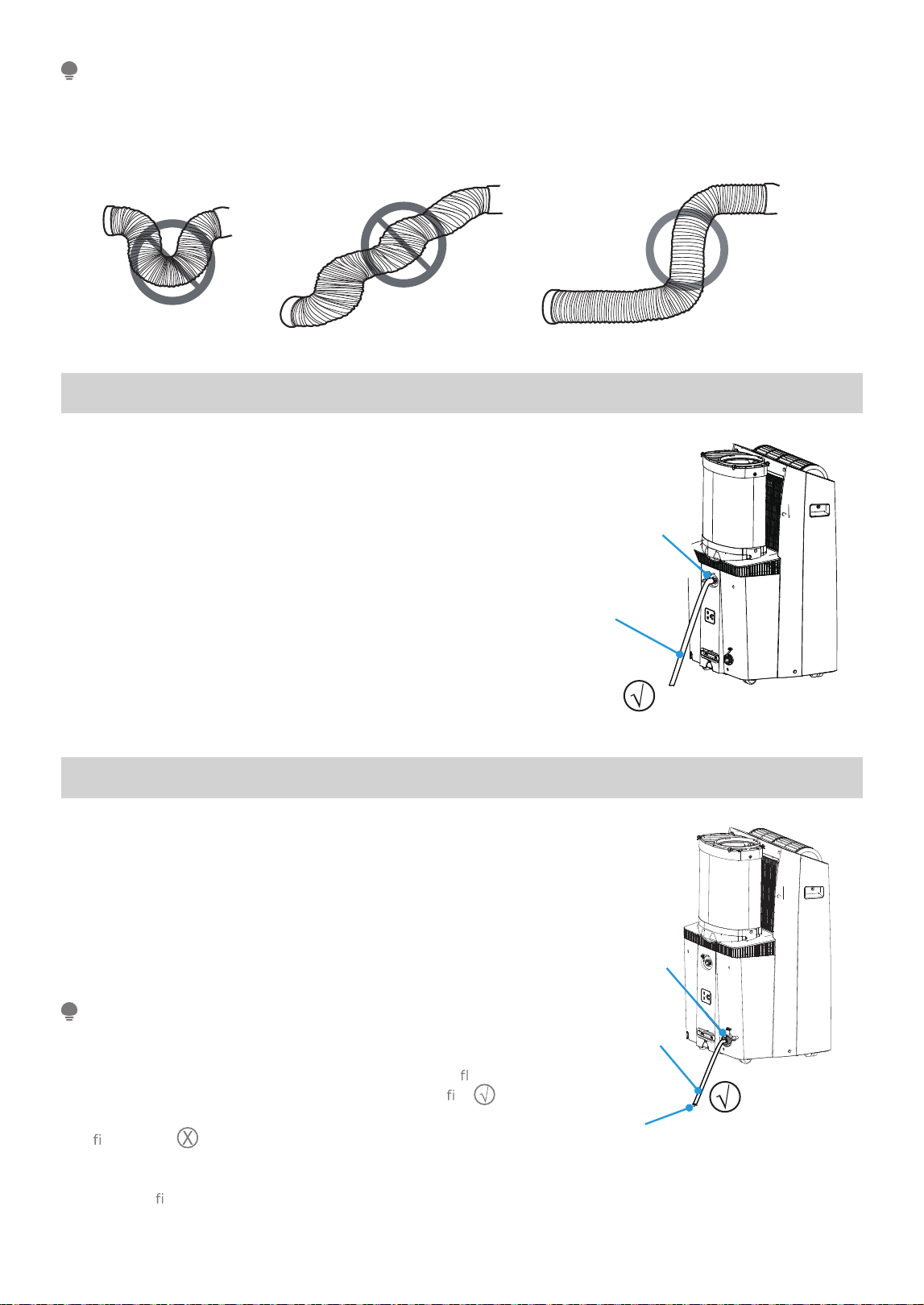

Water Drainage
• In dry mode, remove the upper drain plug from the
back of the unit and install the drain hose.
For models without drain connector, just attach the drain
hose to the hole. Place the end of the hose directly in the
drain area.
Remove the
upper drain plug
Continuous
drain hose
Fig. 19
Fig. 18

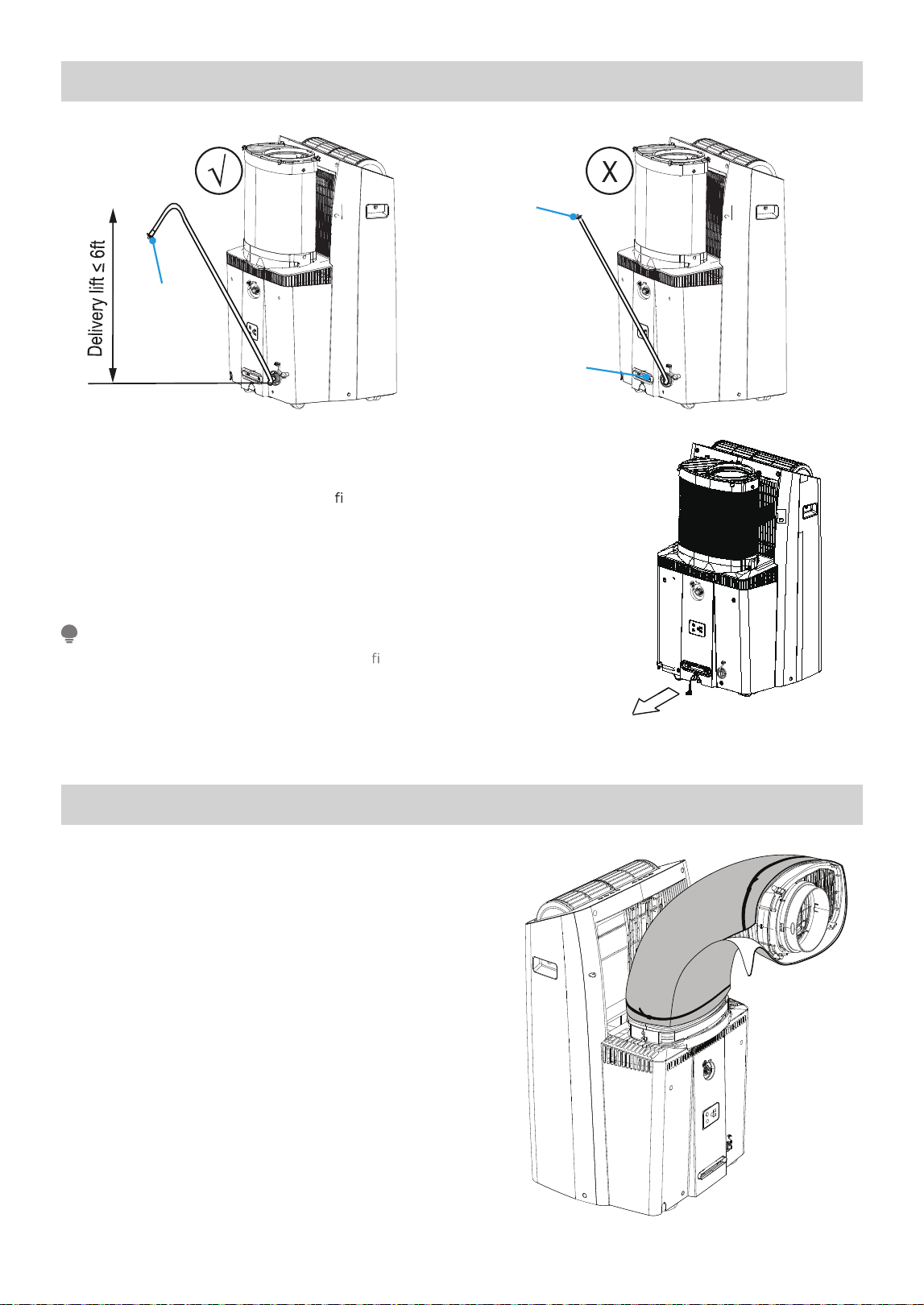

Because this unit contains a condensate pump, the drain hose can
be elevated up to 6 ft. (1.8 m). Direct the hose toward the drain,
making sure there are no kinks that will restrict water
ow. Make
sure the end of the hose is directed downward (see g.
with
check mark symbol).
The
gure with
symbol is not recommended as the end of the
hose is not directed downward. When the continuous drain hose
is not used, ensure that the corresponding drain plug and knob
are installed rmly to prevent leaks.
NOTE
Water Drainage (For Heating Mode)
• While operating in heat pump mode, the unit will produce
condensate that must be drained. Drain hose must be installed
when operating in heat mode. To install the drain hose, remove
the plug from the drain port and attach the included hose.
The universal drain adaptor can be attached to the end of the
included hose. A 3/4” hose (not included) can be attached to the
adaptor if a longer hose length is required. Place the end of the
hose in the drain area.
Remove
the middle
drain plug
Continuous
drain hose
Drain hose
adaptor
Fig. 20
19
Be sure to reinstall the bottom drain plug
rmly to prevent leakage
before using the unit.
NOTE
• When the water level of the bottom tray reaches a predetermined
level, the unit beeps 8 times. The digital display shows “P1.” At this
time the air conditioning/dehumidi cation process will immediately
stop. However, the fan motor will continue to operate (this is
normal). Carefully move the unit to a drain location, remove the
bottom drain plug and let the water drain away. Reinstall the bottom
drain plug and restart the machine until the “P1” symbol disappears.
If the error repeats, call for service.
Fig. 22
Heat Pump Hose Insulation Foam
Should condensation occur on the outer section of the hose
during heating operation, it is recommended to apply the
included heat pump insulation foam to the exterior of the hose.
Use the included zip ties to secure the foam around the hose.
Fig. 23
Water Drainage (For Heating Mode) cont.
Remove the bottom drain plug to drain the water away.
Drain
hose
adaptor
Drain hose
adaptor
Press the power
cord buckle into
the rear cover
Fig. 21
OPERATION INSTRUCTIONS
Mode Temperature Range
Cool 60°F ~ 95°F (16°C ~ 35°C)
Dry 55°F ~ 95°F (13°C ~ 35°C)
Heat Pump 41°F ~ 86°F (5°C ~ 30°C)
Unit Operating Temperature Range:

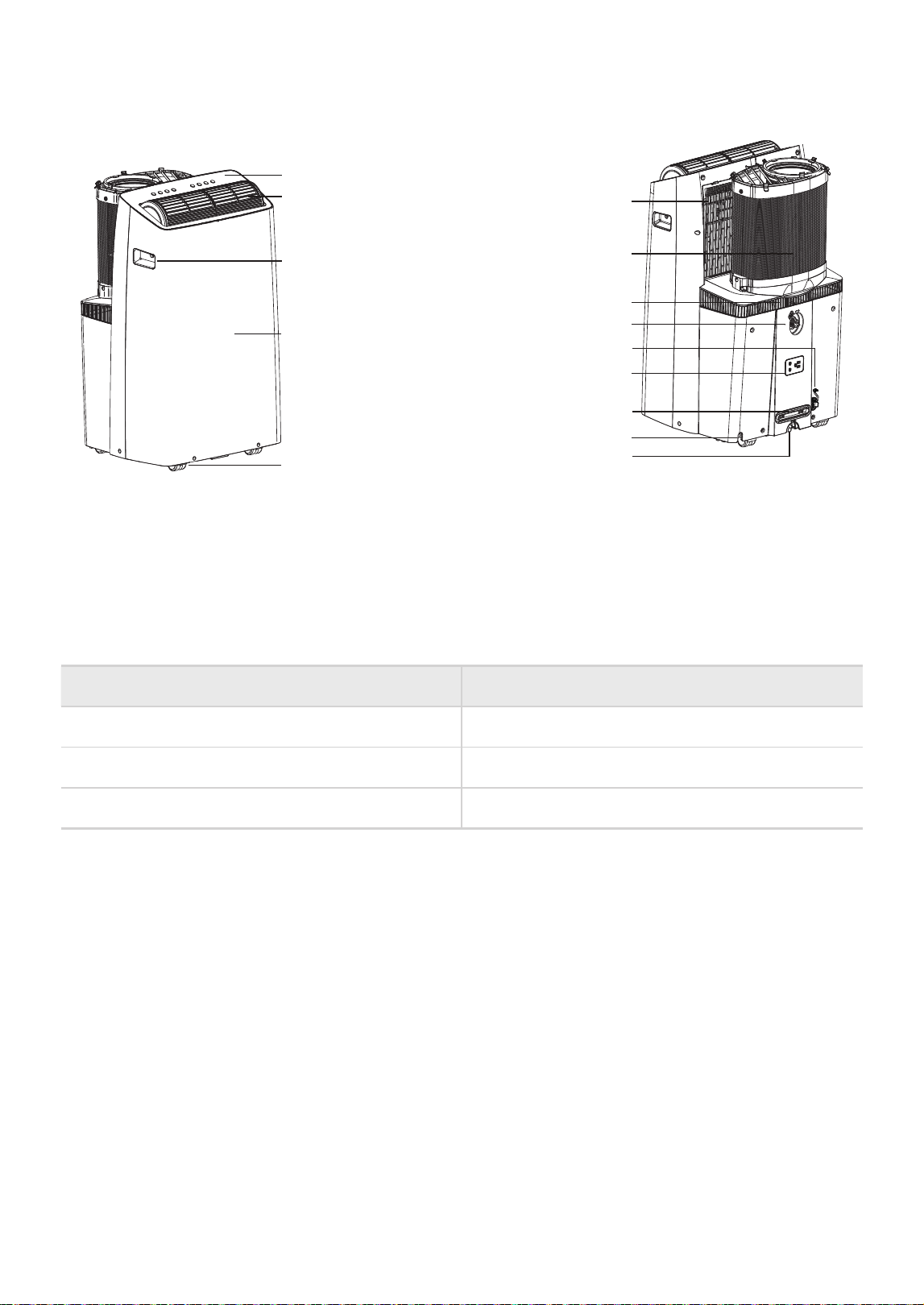

front
Handle
(both sides)
Outlet louver
(automatic swing)
Caster
Control panel
Panel
Power plug storage
Power cord storage
Upper air filter
(behind the grille)
Inlet and outlet
air hose
Air inlet
Drain Outlet (dry mode)
Drain Outlet (heating mode)
Power cord outlet
Drain Outlet
(excess condensate)
rear
(outdoor)
20

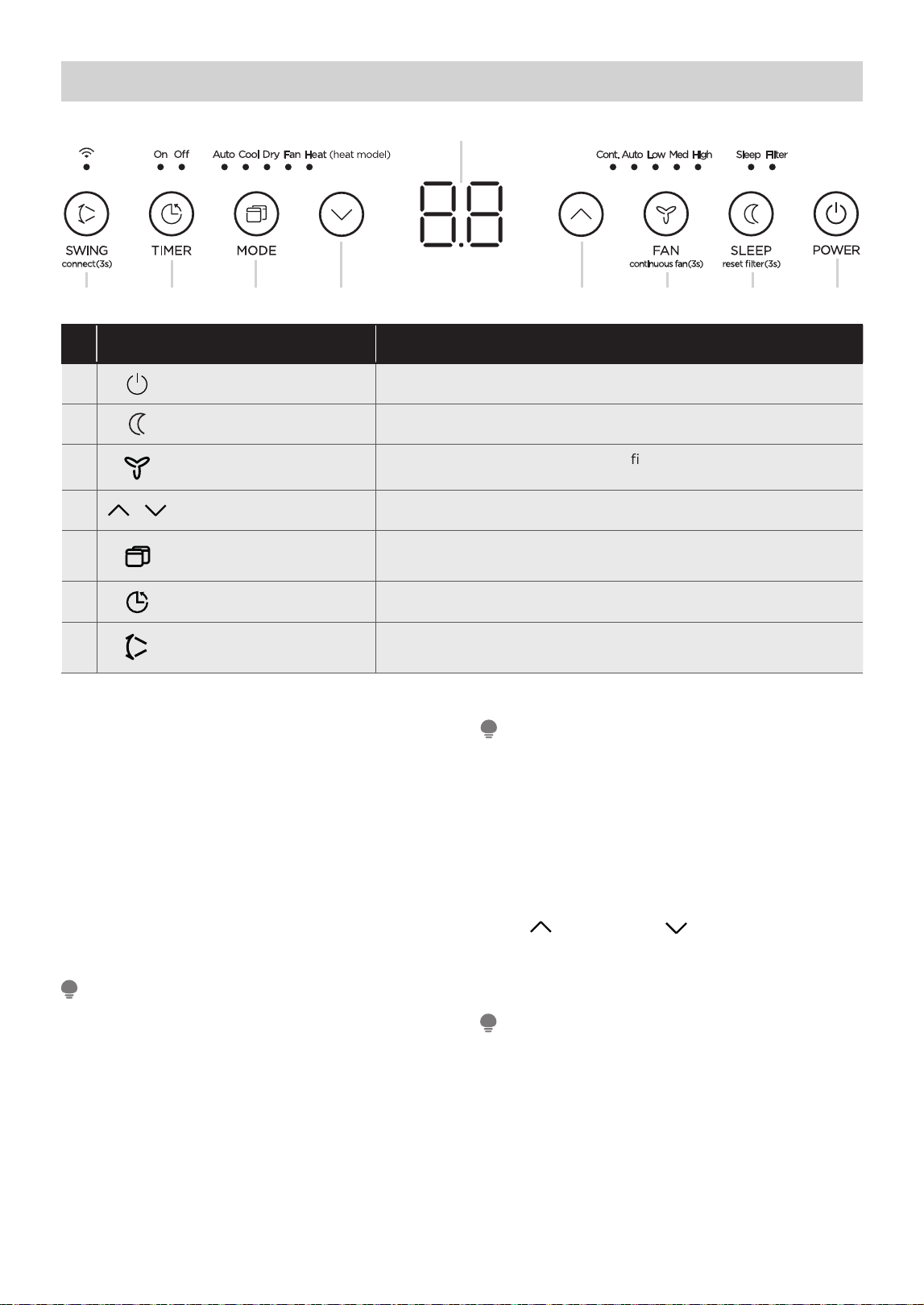

Control Panel Features
156 237 44
LED Display
Description
1 ON / OFF • Press to turn unit on or off.
2
Sleep Function • Press to initiate the sleep mode.
3
Fan Speed
• Press to select the Fan Speed in
ve steps - Cont, Auto, Low,
Med or High.
4
UP / DOWN
Button • Press to change temperature setting.
5 Mode Fuctions
• Press to choose operating mode in a sequence that goes from
Auto, Cool, Dry, Fan and Heat (on some models).
6 Timer Feature • Press to turn unit Auto Start/Stop.
7
Swing / Connect Feature
• Press to initiate the auto swing feature.
• Press for 3 sec to initiate smart connection mode.
1. POWER BUTTON (ON/OFF):
Press Power button to turn unit on or off.
2. SLEEP BUTTON:
Pressing this button will increase (in COOL mode)
or decrease (in HEAT mode, applicable models)
2°F/1°C after 30 minutes. The temperature will
again increase (cooling) or decrease (heating) by
another 2°F/1°C after an additional 30 minutes.
This new temperature will be maintained for
7 hours before returning to the originally selected
temperature. This ends the Sleep mode and the unit
will continue to operate as originally programmed.
The SLEEP operation feature is unavailable in FAN or
DRY mode.
NOTE
3. FAN BUTTON:
Applicable to models with the Continuous Fan feature.
In COOL or DRY mode, press the Fan button for 3
seconds to turn on or off the continuous fan function.
When the function is turned on, the continuous fan light
will illuminate, indicating the fan will run continuously.
When the function is turned off, the continuous fan light
will go out, indicating that the fan will stop when the
compressor stops.
NOTE
To change between °F or °C, simultaneously press
and hold the Up and Down buttons for 3 seconds.
NOTE
4. UP ( ) AND DOWN ( ) BUTTONS:
Increase/decrease temperature settings in 1°
increments in a range of 60°F/16°C to 86°F/30°C or
the TIMER setting in a range of 0 ~ 24hrs.
21
Controls the fan speed. Press to control the fan
speed in LOW, MED, HIGH, AUTO, or CONT.
The selected fan speed light (except AUTO) will
illuminate.

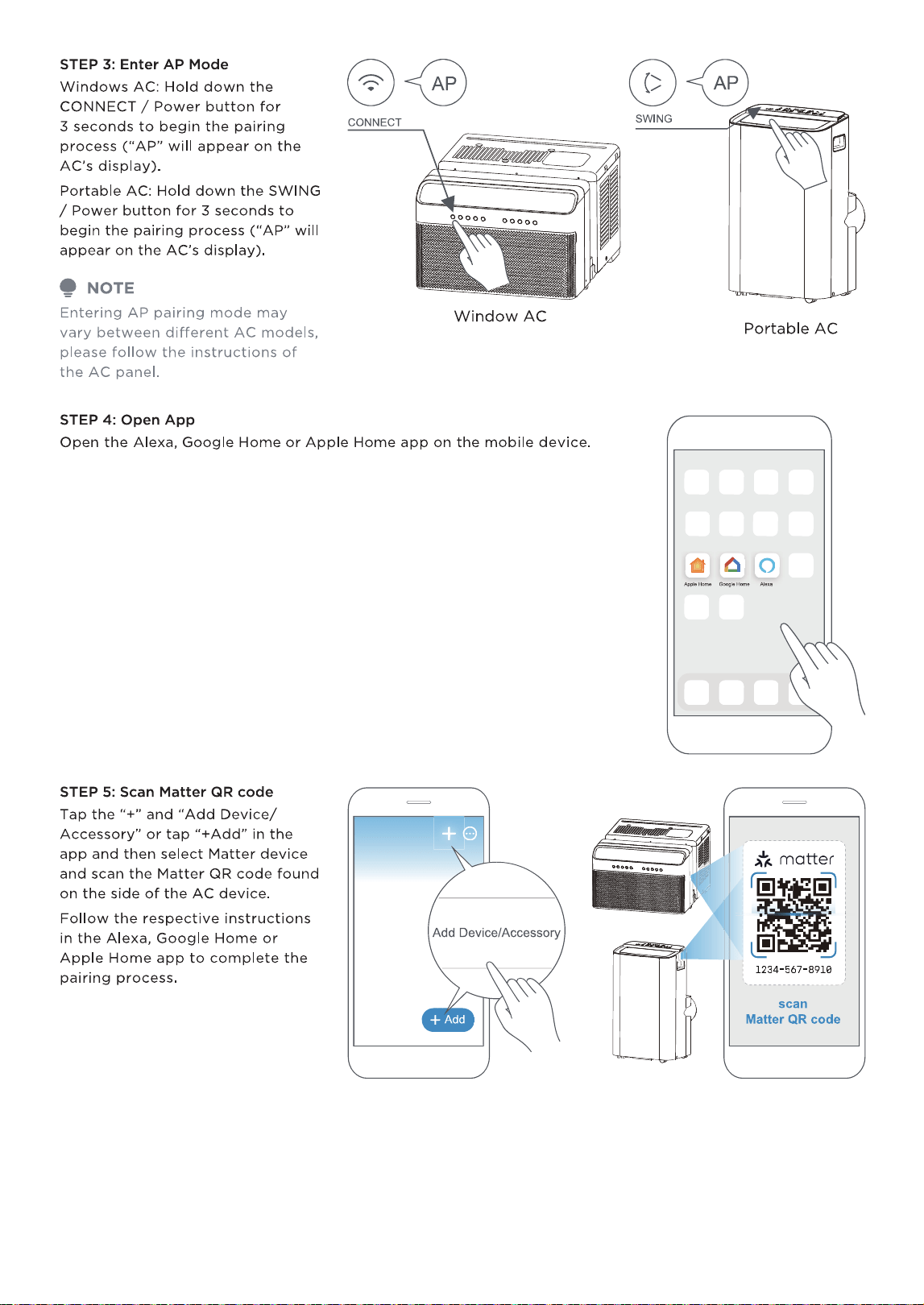

The wireless connection process must be completed
within 8 minutes after powering the air conditioner on.
NOTE
5. MODE BUTTON:
Select the desired operating mode. Pressing the
button selects a mode in the following sequence:
AUTO, COOL, DRY, FAN, and HEAT (for heat
models only). The mode light illuminates and
indicates the selected mode.
6. TIMER BUTTON:
Used to initiate the AUTO ON start time and AUTO
OFF stop time program. The timer on or off light
will illuminate depending on the selected setting.
7. SWING BUTTON:
Press to initiate the Auto Swing feature. When the
operation is ON, pressing the SWING button can
stop the louver at the desired angle.
The swing button is also used to initiate the wireless
connection mode. To initiate the wireless connection
mode, power on the air conditioner then press the
SWING button for 3 seconds. The LED DISPLAY
will show ‘AP’ to indicate the unit is in wireless
connection mode. Refer to the app connection
instr
e connection process. If the
connection is successful, the unit will illuminate the
wireless LED.
If the connection fails, the unit will exit wireless
connection mode automatically after 8 minutes and
the wireless LED does not illuminate.
COOL Operation
• Press the “MODE” button until the “COOL”
indicator lights up.
• Press the ADJUST buttons Up or Down to
select the desired room temperature. The
temperature can be set within a range of
60°F~86°F/16°C~30°C.
• Press the “FAN SPEED” button to choose the fan
speed.
HEAT Operation (on some models)
• Press the “MODE” button until the “HEAT”
indicator lights up.
• Press the ADJUST buttons Up or Down to
select the desired room temperature. The
temperature can be set within a range of
60°F~86°F/16°C~30°C.
• Press the “FAN SPEED” button to choose the
fan speed.
• When entering HEAT mode, the fan may start
slower than expected. For some models, the fan
speed cannot be adjusted while in HEAT mode.
DRY Operation
• Press the “MODE” button until the “DRY”
indicator lights up.
• While in this mode, fan speed cannot be selected.
The fan motor operates at AUTO speed.
•
Keep windows and doors closed for the best
dehumidifying effect.
AUTO Operation
• When the unit is set to AUTO mode, it will
automatically select cooling, heating (Heat
models only) or fan only operation depending
on the current set temperature.
• The air conditioner will control room
temperature automatically according to the
set temperature.
• Under AUTO mode, fan speed cannot be
selected.
FAN Operation
• Press the “MODE” button until the "FAN"
indicator lights up.
• Press the “FAN SPEED” button in choose the
fan speed. The temperature cannot be adjusted.
• Do not connect the duct to a window.
TIMER: Auto Start/Stop Operation
• When the unit is on, pressing the Timer button
will initiate the Auto stop program. The TIMER
OFF indicator light illuminates.
Press the Up (
) or Down ( ) button to select the
desired time. Press the TIMER button again within
5 seconds. The Auto start program is initiated and
the TIMER ON indicator light illuminates. Press the
Up ( ) or Down ( ) button to select the desired
Auto start time.
• When the unit is off, press the Timer button to
initiate the Auto start program. Pressing it again
within ve seconds will initiate the Auto stop
program.
• Press or hold the Up (
) or Down ( ) button to
change the Auto time by 0.5 hour increments,
up to 10 hours, then at 1 hour increments up to
24 hours. The control will count down the time
remaining until start.
• The system will automatically revert back to
display the previous temperature setting if there
is no operation within 5 seconds.
• Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel the
Auto Start/Stop timer program.
• Should a malfunction occur, the Auto Start/Stop
timed program will also be cancelled.
22
This feature is unavailabe under FAN or DRY mode.
NOTE
Other Features
COMFORTSENSE FEATURE
This feature can ONLY be activated from the remote
control. The remote control serves as a remote
thermostat allowing for the precise temperature
control at its location, which must be within 26 feet
of the air conditioner. To activate the ComfortSense
feature, point the remote control towards the unit
and press the SET button to select. The remote's
display will show the actual temperature at its
location (as long as it is within the 26 feet of the air
conditioner). The remote control will send this signal
to the air conditioner every 3 minutes until the
C-Sense button is select again. If the unit does not
receive the ComfortSense signal during any 7 minutes
interval, the unit will exit the ComfortSense mode.
AUTO-RESTART
If the unit shuts off unexpectedly due to a power
outage, it will restart with the previously set function
automatically when the power resumes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it cannot be restarted until
3 minutes time has elapsed. This is to protect the unit.
Operation will automatically resume after 3 minutes.
When one of these error codes occurs, turn off the
unit and check for any obstructions. Restart the
Unit. If the malfunction persists, turn off the unit,
unplug the power cord and contact customer service
at 1-866-646-4332.
NOTE
LED Display
It shows the set temperature in °F (Degrees Fahrenheit)
or °C (Degrees Celsius) and the Auto-timer settings.
While in DRY and FAN modes, it shows the room
temperature.
Shows Error codes and protection code:
E1 - Room temperature sensor error.
E2 - Evaporator temperature sensor error.
E3 - Condenser temperature sensor error (on some
models).
E4 - Display panel communication error.
P1 - Bottom tray is full - Connect the drain hose
to drain the water collected. If protection code
repeats, call for service.
23
For optimum product performance:
• Do not mix old and new batteries, or batteries of different types.
• Remove batteries from the remote control if the device will not be used for more than two months.
BATTERY NOTES
REMOTE CONTROL AND APP INSTRUCTIONS
Handling the Remote Control
Inserting and Replacing Batteries
LOCATION OF THE REMOTE CONTROL

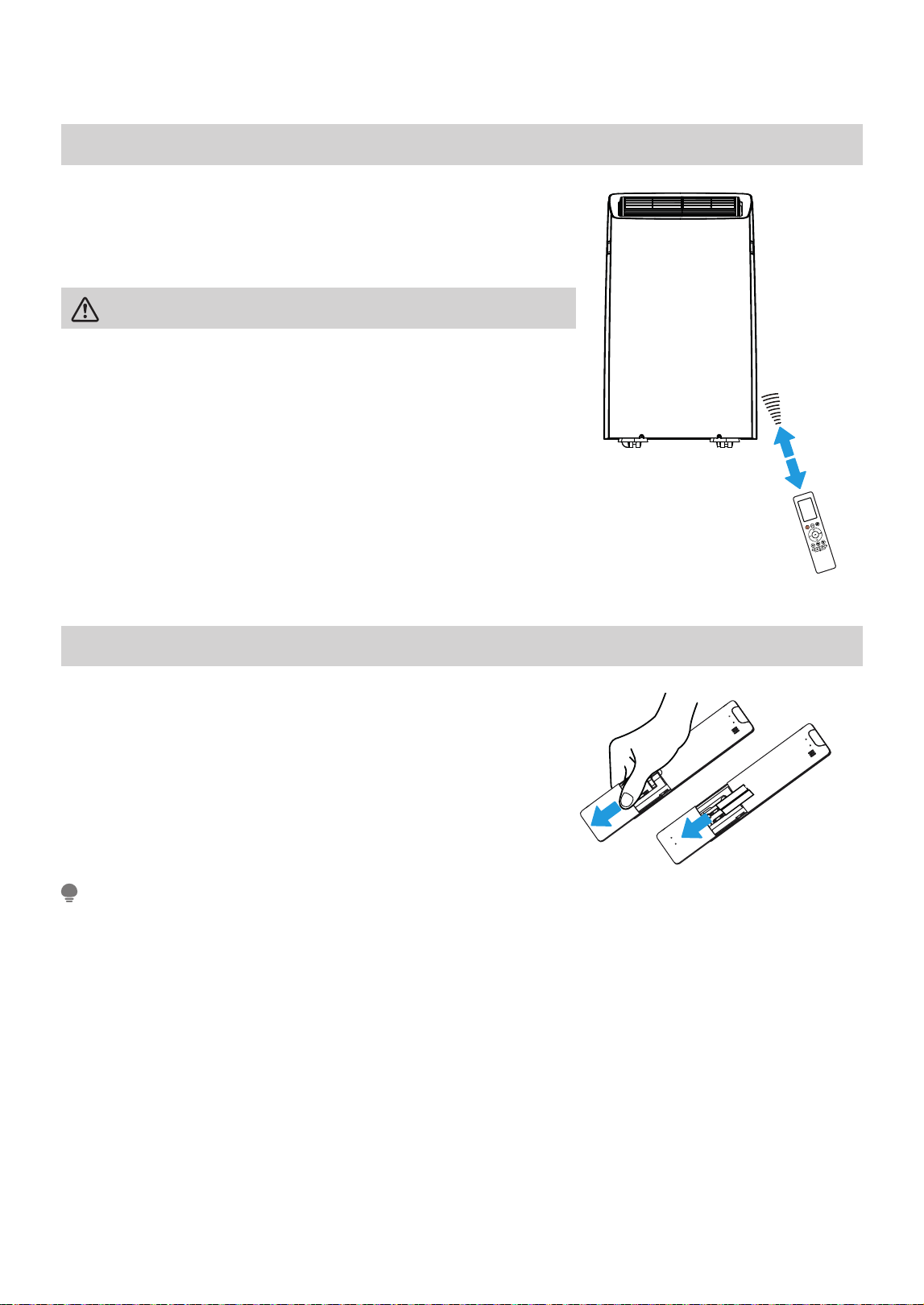

Use the remote control within a distance of 26 ft. (8m) from the air
conditioner, pointing it towards the unit. The unit will beep when it
receives a signal.
BATTERY DISPOSAL
Ensure used batteries are disposed of properly.
TIPS FOR USING REMOTE CONTROL
In order to properly transmit a command, the ON/OFF indicator must be illuminated on the remote’s
display. (See the Remote LED Screen Indicators section for more informations.)
The unit may come with two batteries AAA (some units).
Put the batteries in the remote control before use.
1. Slide the back cover from the remote control downward,
exposing the battery compartment.
2. Insert the batteries, paying attention to match up the (+) and
(-) ends of the batteries with the symbols inside the battery
compartment.
3. Slide the battery cover back into place.
CAUTION
• The air conditioner will not operate if curtains, doors or other
materials block the signals from the remote control to the unit.
• Prevent any liquids from spilling onto the remote control. Do not
expose the remote control to direct sunlight or heat.
• If the infrared signal receiver on the indoor unit is exposed to direct
sunlight, the air conditioner may not function properly. Use curtains
to prevent the sunlight from falling on the receiver.
• If other electrical appliances react to the remote control, either
move these appliances or consult the local dealer.
26 ft
(8 meters)
24
25

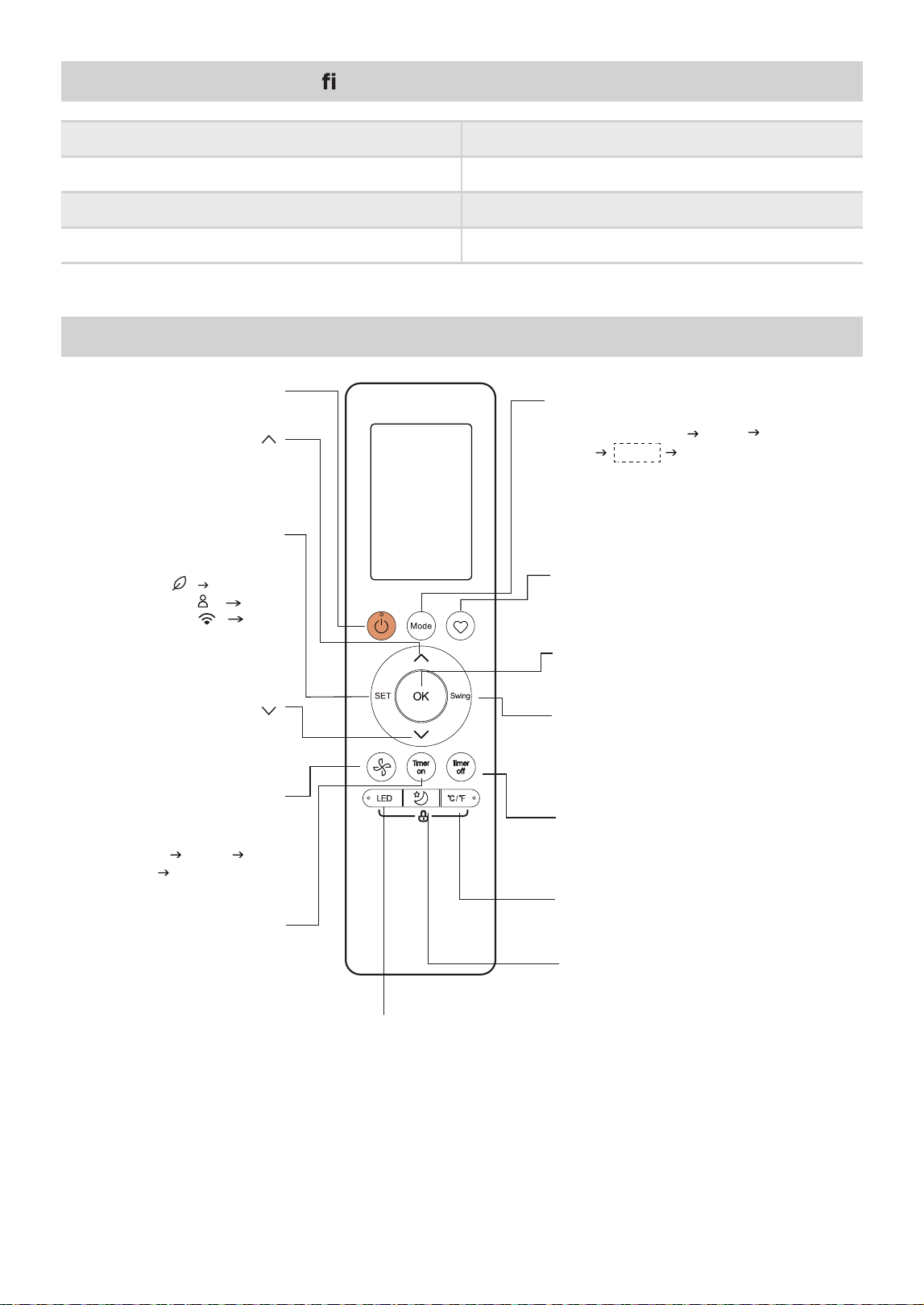

Function Buttons
Remote Control Speci cations
Model
Rated Voltage 3.0V ( Dry batteries R03/LR03x2)
Signal Receiving Range 26 ft (8 m)
Environment -5°C ~ 60°C (23°F ~ 140°F)
Fresh( )
I SENSE ( )
AP mode( ) Fresh...
Model:
Increase temperature in
1°F (1°C) increments.
Max. temperature is
86°F (30°C).
Decrease temperature
in 1°F(1°C) increments.
Min. temperature is
60°F(16°C).
Scroll through operation
functions as follows:
The selected symbol will
flash on the display area,
press the OK button to
confirm.
AUTO LOW
MED HIGH
Select fan speed in
the following order:
Turn indoor unit’s LED display and
air conditioner buzzer on or off
(model dependent), which creates a
comfortable and quiet environment.
LED
°C/°F
The temperature display
between the °C & °F.
SLEEP
Save energy during sleeping
hours.
ON/OFF
SET
MODE
OK
Scroll through operation modes
as follows:
AUTO
COOL
DRY
HEAT
FAN
TIMER ON
TIMER OFF
TEMP
TEMP
functions
Press to confirm the selected
(see How to Use Basic
Functions for instructions).
Set timer to turn unit
on (see How to Use Basic
Functions for instructions).
SHORTCUT
Press to restore the current
settings or resume previous
settings.
SWING
FAN SPEED
Start and stop the horizontal
louver movement. Hold down
for 2 seconds to initiate vertical
louver auto swing feature.
NOTE: Please do not select
HEAT mode if the machine
purchased is cooling only type.
Heat mode is not supported by
the cooling only appliance.
RG10F2(B2)/BGEFU1, RG10F3(B2)/BGCEFU1
RG10F2(B2)/BGEFU1
RG10F3(B2)/BGCEFU1
Turn the unit on or off.
Set timer to turn unit off
26

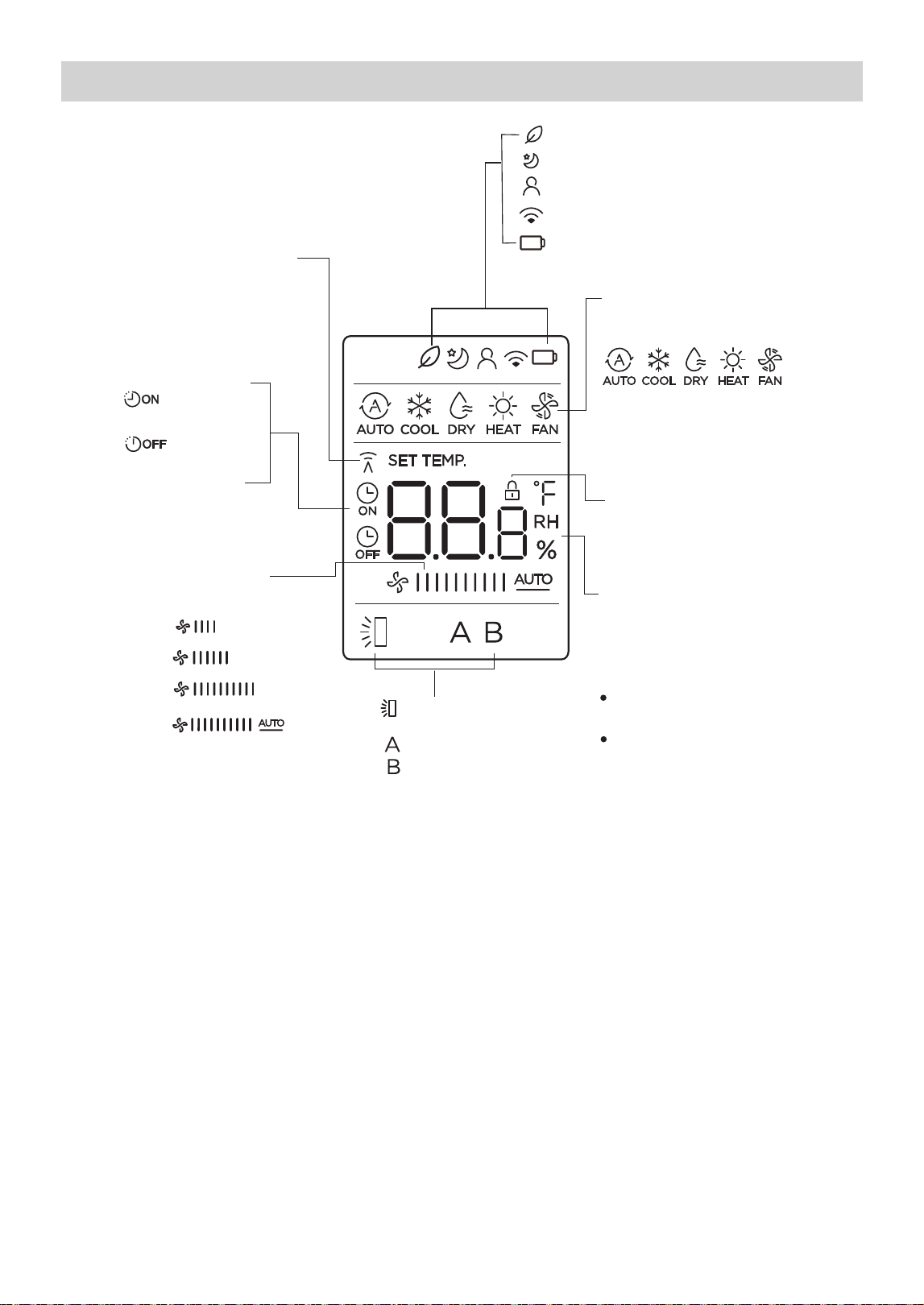

Remote Screen Indicators
Transmission Indicator
MODE
display
TIMER ON
display
FAN SPEED
display
TIMER OFF
display
LOCK
display
Not available for
this unit
Temperature/Timer/Fan speed
display
Fresh feature display
Sleep mode display
I Sense feature display
Wireless control feature display
Low battery detection display
(If flashes)
Note:
All indicators shown in the figure are for the purpose of clear presentation. But during the actual
operation, only the relative function signs are shown on the display window.
Displays when LOCK feature
is activated.
Lights up when remote
sends signal to indoor
unit
Displays the current mode,
including:
(on heat model)
Displays the set temperature
by default, or fan speed or
timer setting when using
TIMER ON/OFF functions.
Temperature range:
16-30°C/60-86°F
Timer setting range:
0-24 hours
This display is blank when
operating in FAN mode.
Horizontal louver
auto
swing display
LOW
MED
HIGH
AUTO
Displays selected fan speed:
This fan speed can not be
adjusted in AUTO or DRY
mode.
27
Setting the TIMER
TIMER ON/OFF
TIMER ON SETTING
TIMER OFF SETTING
Set the time for the device to turn on/off automatically.
Press TIMER ON button to
initiate the ON time
sequence.
Press TIMER OFF button to
initiate the OFF time
sequence.
Press up or down button for
multiple times to set the desired
time to turn on the unit.
Press up or down button for
multiple times to set the desired
time to turn off the unit.
Point remote to unit and wait
1 second, the TIMER ON will be
activated.
Point remote to unit and wait
1 second, the TIMER OFF will be
activated.
1secx5
1secx10
1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each press,
up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (i.e. press 5 times to get 2.5h,
and press 10 times to get 5h,). The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.
NOTE
28

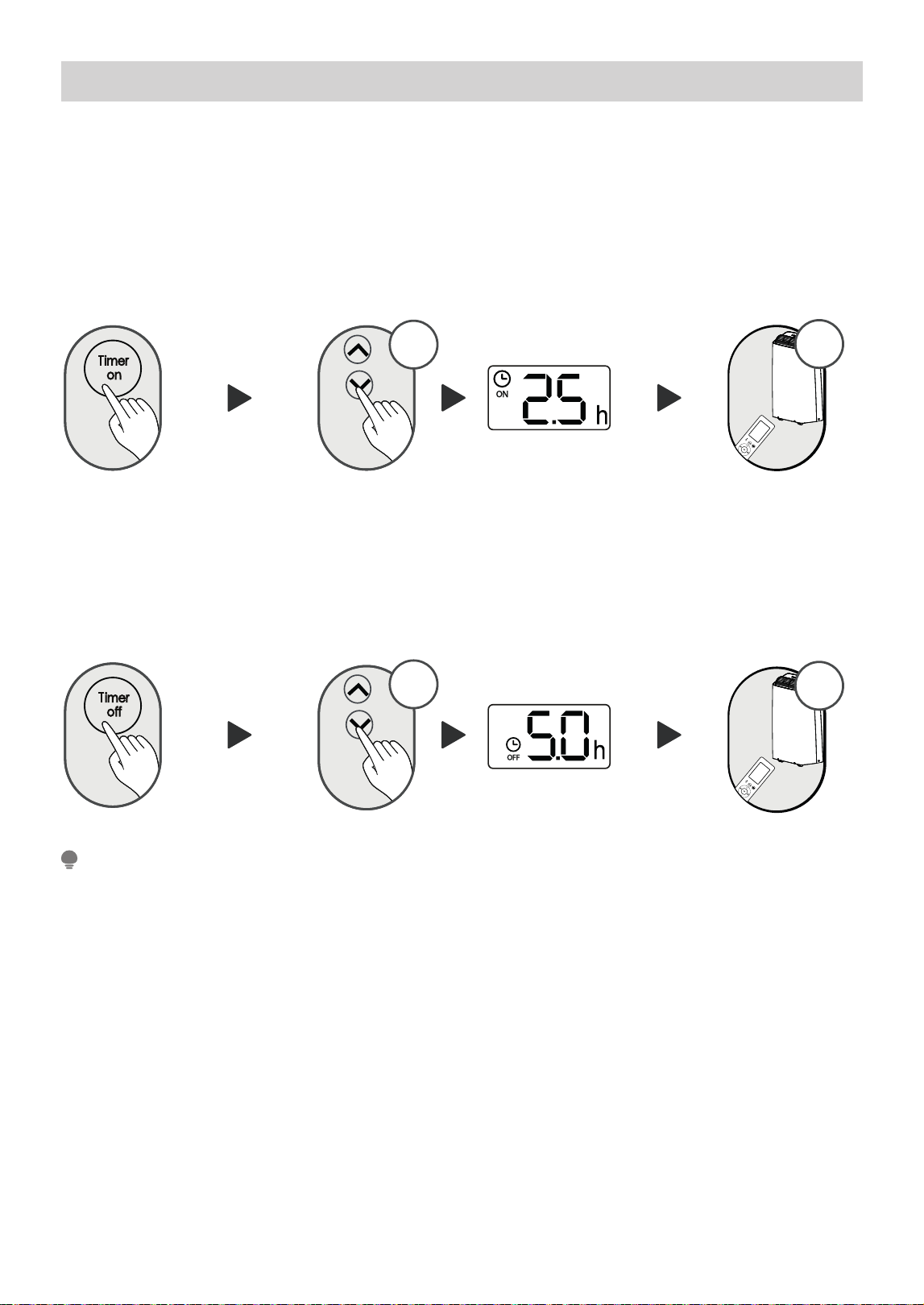

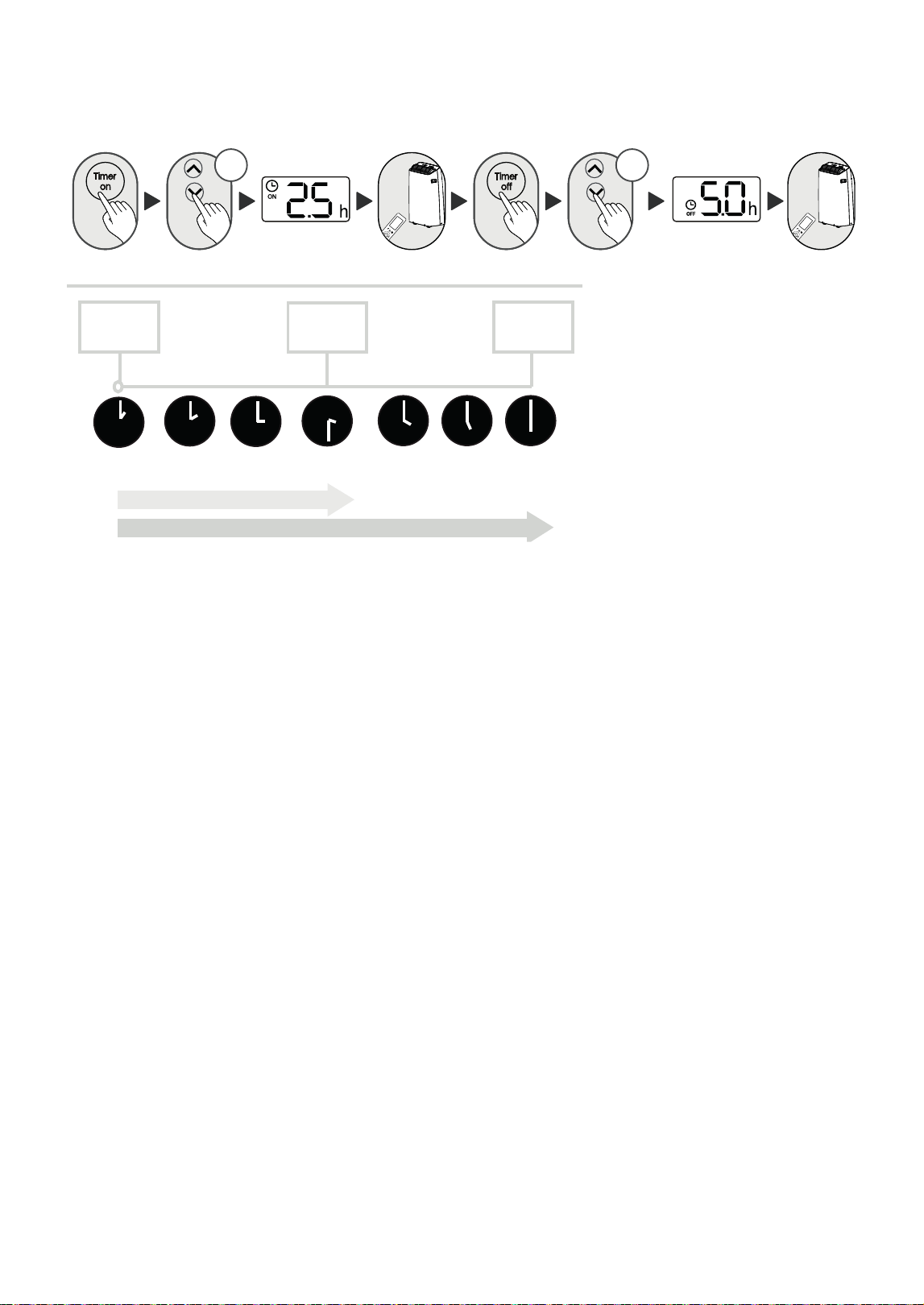

TIMER ON & OFF SETTING (example)
Please note that the time periods set for both functions refer to hours from the current time.
xn
Timer
starts
2.5 hours later
5 hours later
Current
time 1PM
2:00PM 3:00PM 3:30PM 4PM 5PM 6PM
Unit turns
ON
Unit turns
OFF
xn
Example: If current time is 1:00PM,
to set the timer as above steps,
the unit will turn on 2.5h later
(3:30PM) and turn off at 6:00PM.
NOTES
• Button design is based on a typical model and may slightly vary from the actual unit.
• This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference;
(2) This device must accept any interference received, including interference that
may cause undesired operation.
• This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may ca
us
e
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a
circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- Changes or modifications not approved by the party responsible for compliance
could void users authority to operate the equipment.
Battery Warning:
Do not mix old and new batteries and Do not mix alkaline, standard (carbon-zinc)
or rechargeable (ni-cad, ni-mh, etc.) batteries.
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Unique Identifier: Midea RG10F2(B2)/BGEFU1, RG10F3(B2)/BGCEFU1
Responsible Party U.S. Contact Information
Midea America Corporation
300 Kimball Dr
Parsippany NJ
07054
Telephone number or internet contact information: Midea.com/us
29

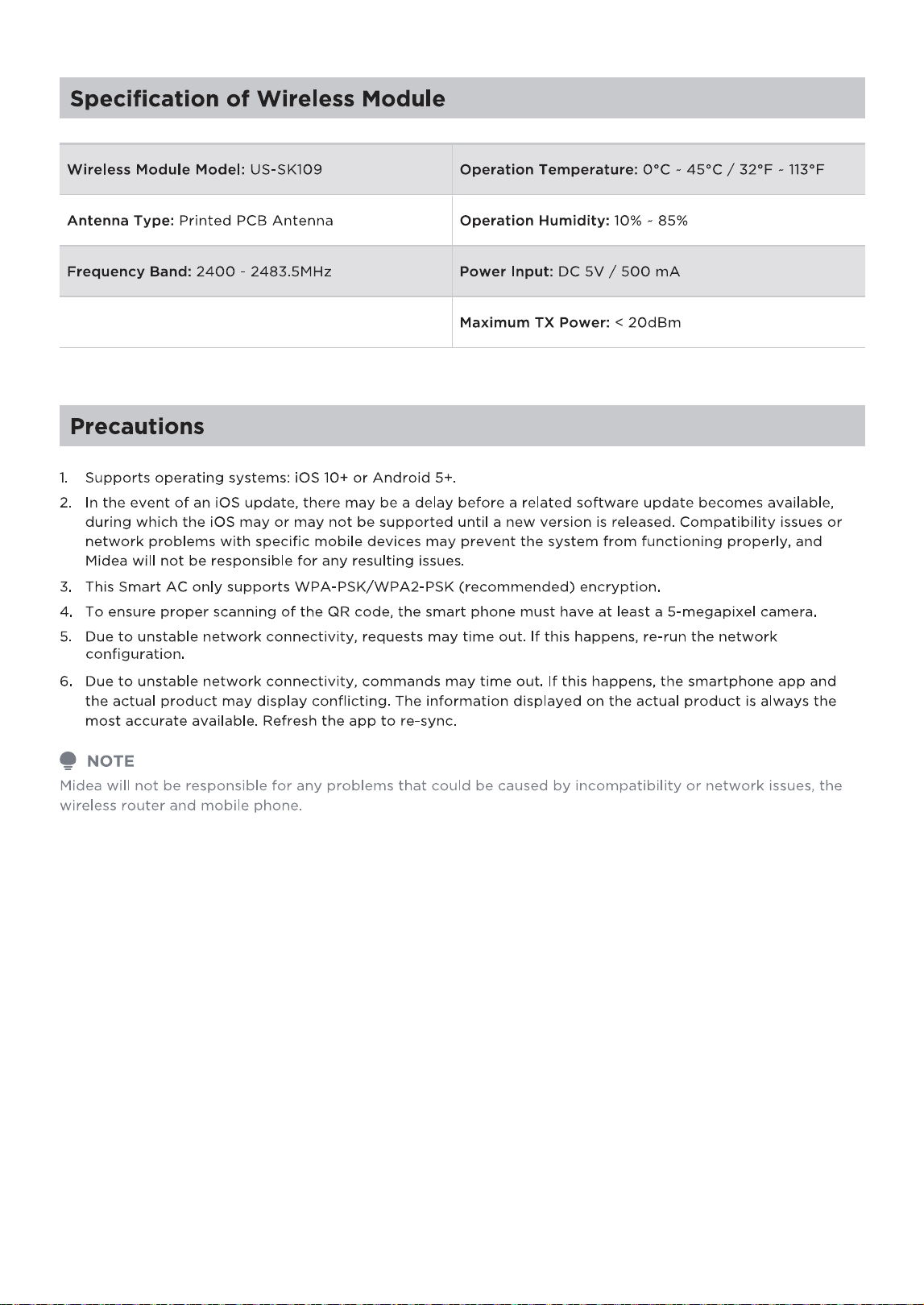

30

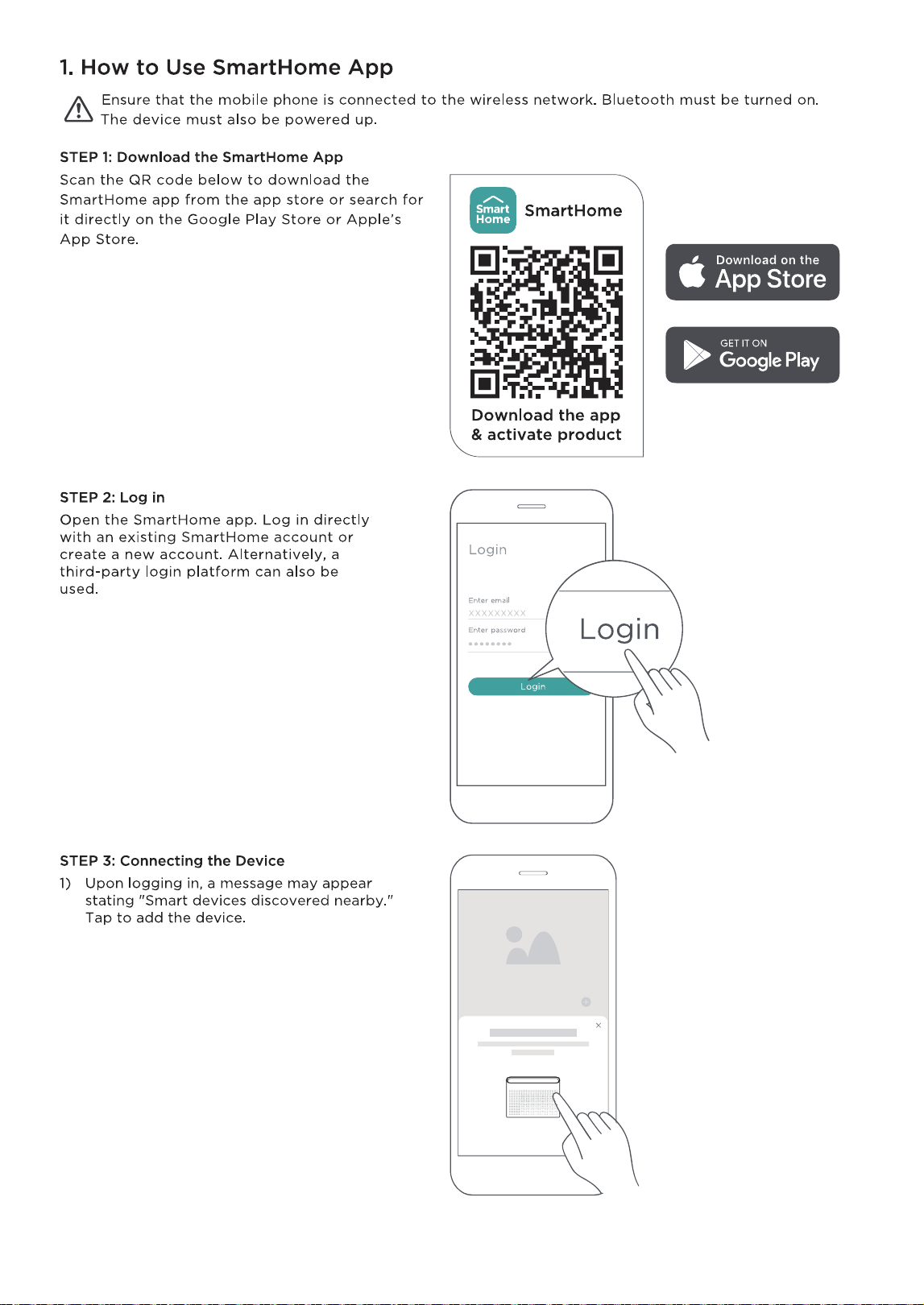

31

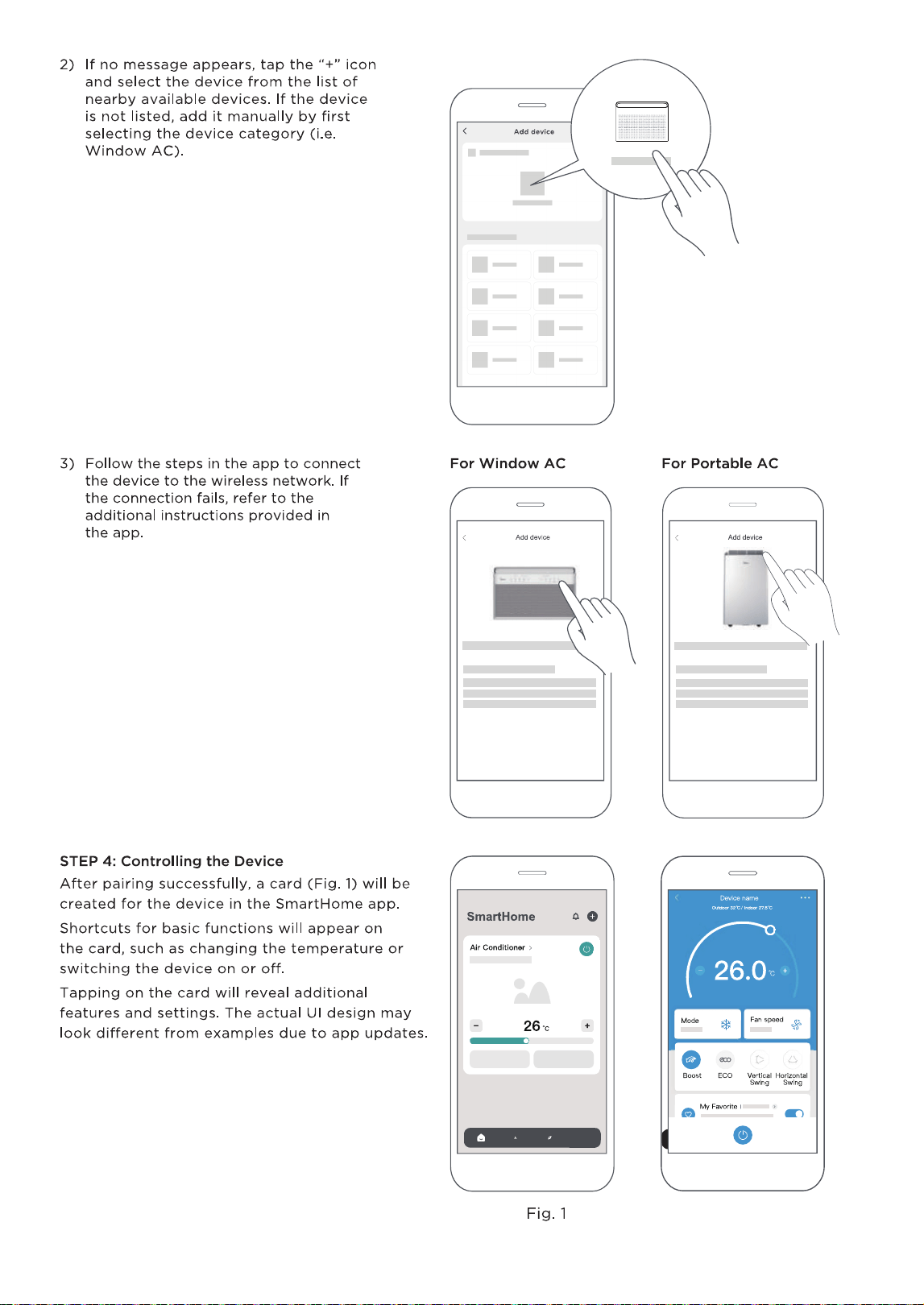

32

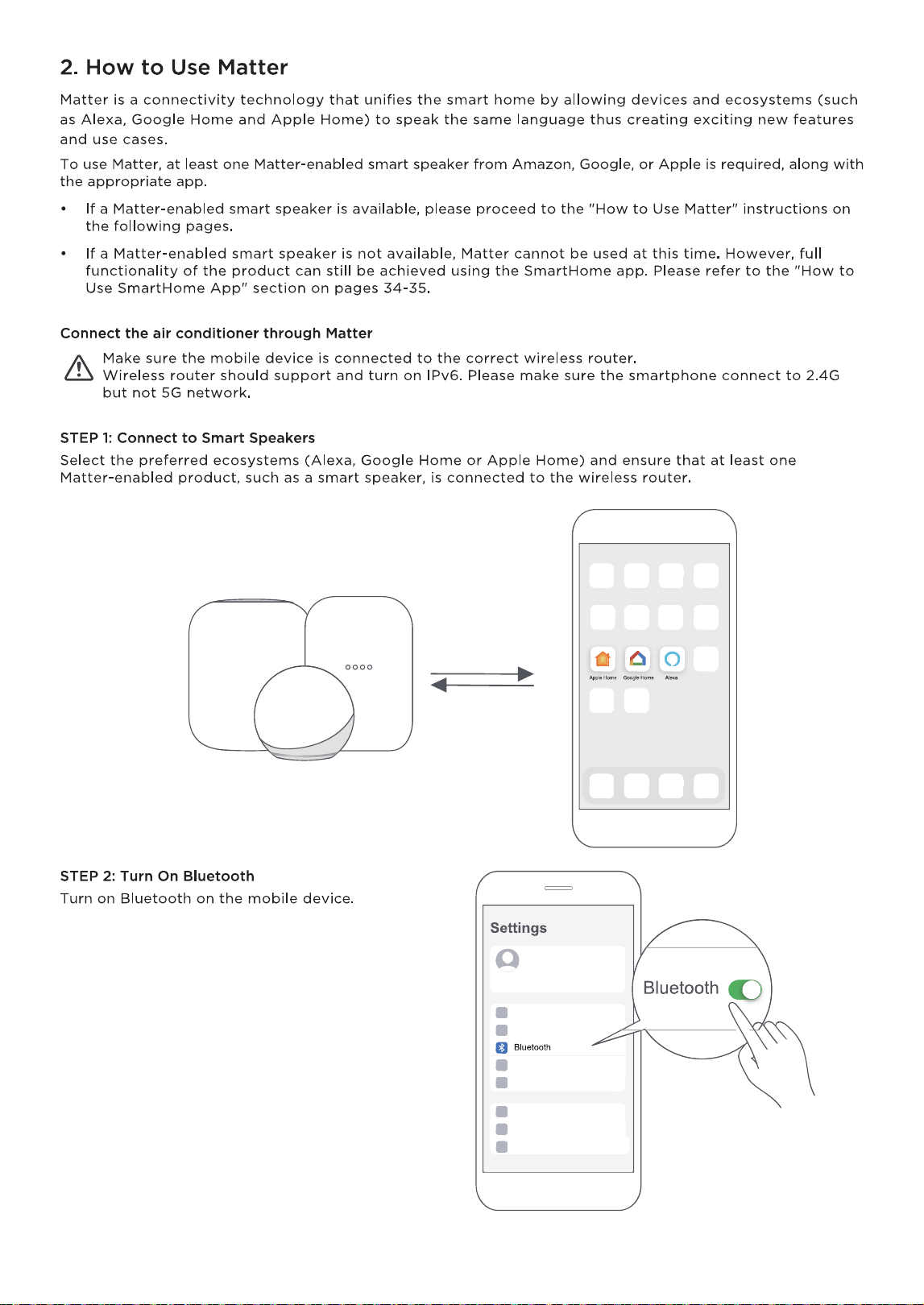

33
34

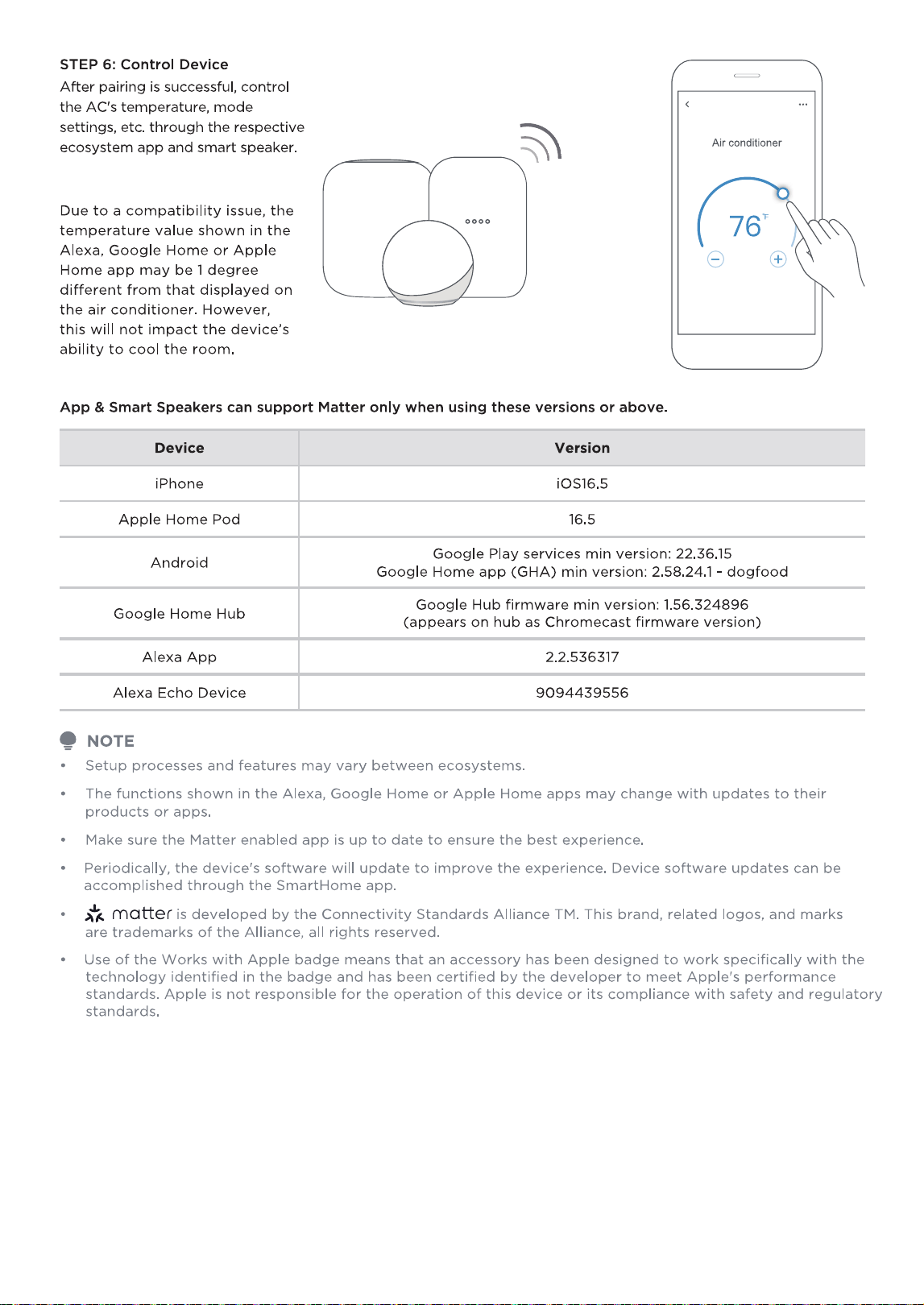

35
36

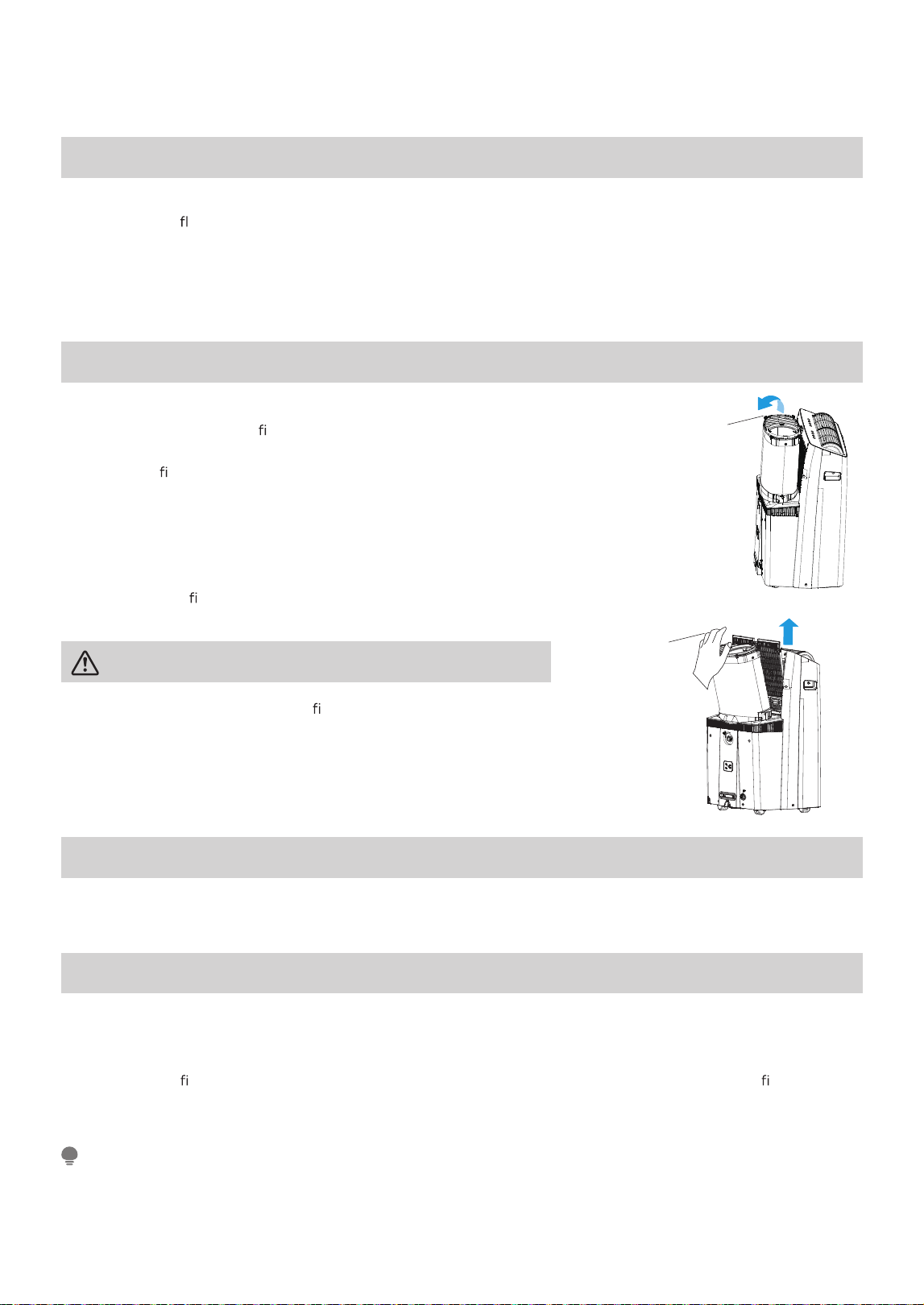

CLEANING AND MAINTENANCE
Safety Precautions
Air Filter Cleaning
Unit Cleaning
Store the Unit When Not in Use
• Always unplug the unit before cleaning or servicing.
• DO NOT use ammable liquids or chemicals to clean the unit.
• DO NOT wash the unit under running water. Doing so causes electrical danger.
• DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord
must be replaced with a new cord from the manufacturer.
• Drain the unit’s water collection tray according to the instructions in the following section.
• Run the unit in FAN mode for 12 hours in a warm room to dry it and prevent mold.
• Turn off the unit and unplug it.
• Clean the air
lter according to the instructions in the previous section. Reinstall the clean, dry lter before
storing.
• Remove the batteries from the remote control.
Clean with a soft cloth only. Do not use strong detergents containing waxes or thinner as this may damage the product.
CAUTION
DO NOT operate the unit without lter because dirt and lint will
clog it and reduce performance.
Be sure to store the unit in a cool, dark place. Exposure to direct sunlight or extreme heat can shorten the
lifespan of the unit.
NOTE
Maintenance Tips:
• Be sure to clean the air lter every 2 weeks for optimal
performance.
• Clean the lter using water and ensure it is dry before
reinstalling.
• The water collection tray should be drained immediately after
"P1" error occurs, and before storage to prevent mold.
• In households with pets, it is advisable to periodically wipe down
the grille to prevent blocked airflow from pet hair.
• Notice the air
lter is integrated with the removable grille
cover.
37
Upper filter
(take out)
Hold and push backward
slightly, then lift it up
TROUBLESHOOTING TIPS
Problem Solution
Unit does not turn on when
pressing ON/OFF button.
Display "P1" Error Code means the water collection tray is full. Turn off the
unit, drain the water from the water collection tray, and restart the unit.
If room temperature is lower than the set temperature in COOL mode, reset
the temperature.
Unit does not cool well.
The air lter is blocked with dust or animal hair. Turn off the unit and clean the
lter according to the instructions.
Exhaust hose is not connected or is blocked. Turn off the unit, disconnect the
hose, check for blockage and reconnect the hose.
Temperature setting is too high; decrease the set temperature.
Make sure all windows and doors are closed.
Check the room for possible heat sources and remove them if possible.
The unit is noisy and/or
vibrates too much
The oor is not level. Place the unit on a at, level surface.
The air lter is blocked with dust or animal hair. Turn off the unit and clean the
lter according to the instructions.
The unit makes a gurgling
sound.
This sound is caused by the flow of refrigerant inside the unit, and it's normal.
The device cannot connect to
a wireless network or the
application does not work
(on some models).
For additional support and troubleshooting tips, visit the “Help” tab within the
The top of the window kit
leans forward out of the
window track.
Ensure the Window Kit brace is installed properly.
In heating mode, the
fan speed is lower than
expected.
It is normal for the fan speed to start low in heating mode. The fan speed
should reach the desired setting after a few minutes of operation.
In heating mode, condensation
collects on the outside of the
hose.
Apply the included hose insulation foam as shown on the page 13.
Before scheduling a service call, please consult the chart below. It is designed to help identify common issues
that are not attributable to defects in workmanship or materials. Reviewing this chart may assist in resolving
problems more efficiently and cost-effectively.
Do not add extension to the exhaust hose(s)!
NOTE
The room area could be too large; double-check the cooling area.
SmartHome app.
38
WARRANTY
Air Conditioner Limited Warranty
This unit is protected by this Limited Warranty:
Warranty service must be obtained from Midea Consumer Services or an authorized Midea servicer.
Warranty
•
Midea, through its authorized servicers will:
• Pay all costs for reparing or replacing parts of this appliance which prove to be defective in materials
or workmanship.
Consumer will be responsible for:
• Diagnostics, removal, transportation and reinstallation cost required because of service.
• Costs of service calls that are a result of items listed under NORMAL RESPONSABILITIES OF
THE CONSUMER**
Midea replacement parts shall be used and will be warranted only for the original warranty.
NORMAL RESPONSABILITIES OF THE CONSUMER**
This warranty applies only to products in ordinary household use, and the consumer is responsible for
the items listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep the good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with
the unit and in accordance with all local plumbing, electrical and/or gas codes.
4. Proper connection to a grouded power supply of sufficient voltage, replacement of blown fuses, repair of
loosen connections or defects in house wirin
g.
5. Expenses for making the unit accessible for servicing.
6. Damages to finish after installation.
EXCLUSIONS
This warranty does not cover the following:
1) Failures resulting from damage to the unit while in possession (excluding damage due to defects or
malfunctions), improper installation, or unreasonable use of the unit are not covered. This includes, but
is not limited to, failure to perform necessary maintenance or to adhere to the provided "Installation and
Operating Instructions".
2) Damages caused by services performed by persons other than those authorized by Midea customer
service; or external causes such as abuse, misuse, inadequate power supply or acts of God.
3) If the unit is utilized for commercial, business, rental, or any application beyond consumer use, no warranties
are provided, whether express or implied. This includes, but is not limited to, any implied warranty of
merchantability or fitness for a particular use or purpose.
4) Products without original serial numbers or products that have serial numbers which have been altered
or cannot be readily determined.
NOTICE: Some states do not allow the exclusions or limitation of incidental or consequential damages.
So this limitation or exclusion may not apply.
IF SERVICE IS NEEDED...
Keep the bill of sale, delivery slip, or some other appropriate payment Record.
The date on the bill establishes the warranty period, should service be required.
If service is performed, it is best to obtain and keep record of all receipts.
This written warranty does not confer any specific legal rights. Rights may vary depending on the state or
jurisdiction.
Service under this warranty must be obtained by following these steps, in order:
1) Contact Midea Consumer Services or an authorized Midea services at 1 866 646 4332.
2) If there is a question as to where to obtain service, contact our consumer relations Departament.
39
One Year Limited Warranty from the date of delivery or the purchase date, whichever is later.
The date of delivery establishes the warranty period, should service be required.
•
2026
CP001UI-PT
16122000A84669
20260122
