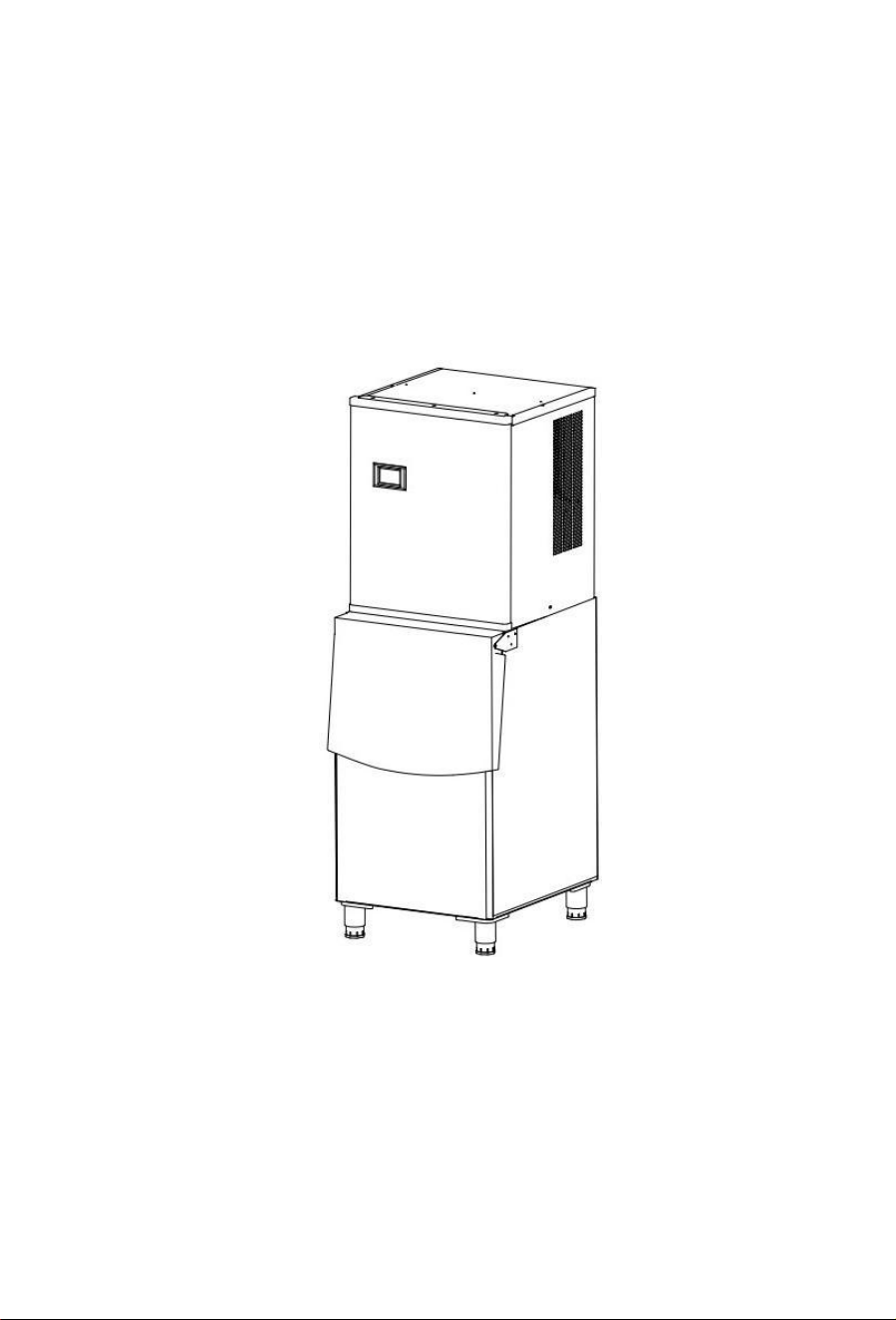

COMMERCIAL ICE MAKER
INSTRUCTION MANUAL
Image for reference only. Please refer to the actual product. Please carefully read this manual
before using the appliance and retain it for future reference.
Email Address:support@tittla.com
Phone Number:+1(510)228-4672
MADE IN CHINA
1
SAFETY PRECAUTIONS
Before using the appliance,please read the manual carefully.To
reduce the risk of fire,electrical shock,or injury when using the
appliance,follow these basic precautions,including:
DANGER:
Read all instructions before using the ice maker.
Plug into a grounded 3-prong outlet.Do not remove the grounding
prong,use an adapter,or use an extension cord.
It is recommended that a separate circuit,serving only your appliance,
be provided.Use an outlet that is not controlled by a switch.
Never clean appliance parts with flammable fluids,as the fumes can
create a fire hazard or cause an explosion.Do not store or use gasoline
or other flammable vapors and liquids near this or any other appliance,
as the fumes pose a fire hazard or explosion risk.
Unplug the unit before cleaning or maintenance.
Do not connect or disconnect the electric plug when your hands are
wet.
Unplug the appliance or disconnect power before cleaning or servicing.
Failure to do so can result in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it
is specifically recommended in this material.All other servicing should
be referred to a qualified technician.
To prevent a child from being entrapped,keep it out of reach of children
and away from the ice maker.Remove the door but leave the shelves
in place so that children may not easily climb inside.
Never allow children to operate,play with,or crawl inside the appliance.
Warning:
This machine should be operated only by professionals or trained
personnel and must be properly grounded for safety.
Use the power supply that matches the specifications listed on the
nameplate, and the voltage fluctuation should be within±10%of the
rated voltage.Wiring must be performed by qualified professionals.
2
If the supply cord is damaged,it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a
hazard.
Before performing maintenance,be sure to disconnect the power.Do
not allow water or other liquids to come into contact with the plugs,
motors,or other electrical components to prevent electric shock.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical,sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.Children should not play with the
appliance.Cleaning and user maintenance shall not be made by
children without supervision.
FLAMMABLE REFRIGERANT
For your safety observe the following recommendations.
This appliance contains a small quantity of R290 refrigerant which is
environmentally friendly,but flammable.It does not damage the ozone
layer, nor does it increase the greenhouse effect.
During transportation and installation,ensure that the tubing of the
refrigerant circuit is not damaged.
When handling,moving,and using the refrigerator or freezer,take care
to avoid damaging the refrigerant tubing or increasing the risk of a leak.
Avoid using or manipulating sharp objects near the appliance.
Leaking refrigerant can ignite and may cause eye injuries.
In the event any damage does occur,avoid exposure to open fires and
any device which creates a spark.Disconnect the appliance from the
mains power.
Thoroughly ventilate the room for several minutes.
Contact Customer Service for further instructions and assistance.
The amount of refrigerant in this appliance is listed above in grams;it is
also noted on the Rating Plate of the appliance.
3
▶ WARNING: During use, servicing, and disposal of the
appliance, please pay attention to the symbol similar
to the one on the left side,which is located on rear of
appliance (rear panel or compressor)and with yellow
or orange color. This is a fire risk warning symbol.
There are flammable materials in refrigerant pipes
and compressor. Stay away from fire sources during
use, servicing, and disposal.
Note:
Please keep water or other conductive liquids away from the ice maker.
When moving the ice maker,keep it at an angle of less than 45 degrees.
Do not bend the water discharge or supply pipes to avoid damaging
the pipes and causing water leaks.
The distance between the air outlets and the wall should be over 11.81
in(30 cm).Besides,keep good ventilation and ensure the ice maker is
dry and clean.
4
QUICK USAGE INSTRUCTIONS
Installation Requirements:
1.The surface of the ice maker is covered with a metal protective film,which
must be removed before use.
2.To extend the service life of the ice maker,it must be placed upright for at
least 6 hours before being turned on.
3.The main unit of the ice maker should be positioned directly above the ice
storage bin,ensuring that the left,right,and back sides are properly aligned.
4.Pay attention to personal safety when placing the main unit of the ice
maker. The main unit should not tilt more than 15 degrees and must be
at least 11.81 in (30 cm)away from obstacles.
5.Please install the water inlet and outlet pipes of the ice maker host
according to the installation diagram located on the back of the host.
6.The ambient temperature for this product should not exceed 38°C,and the
inlet water temperature should not exceed 32°C.
7.If an E04 alarm occurs,please check the ambient temperature and water
temperature promptly and make corresponding adjustments.

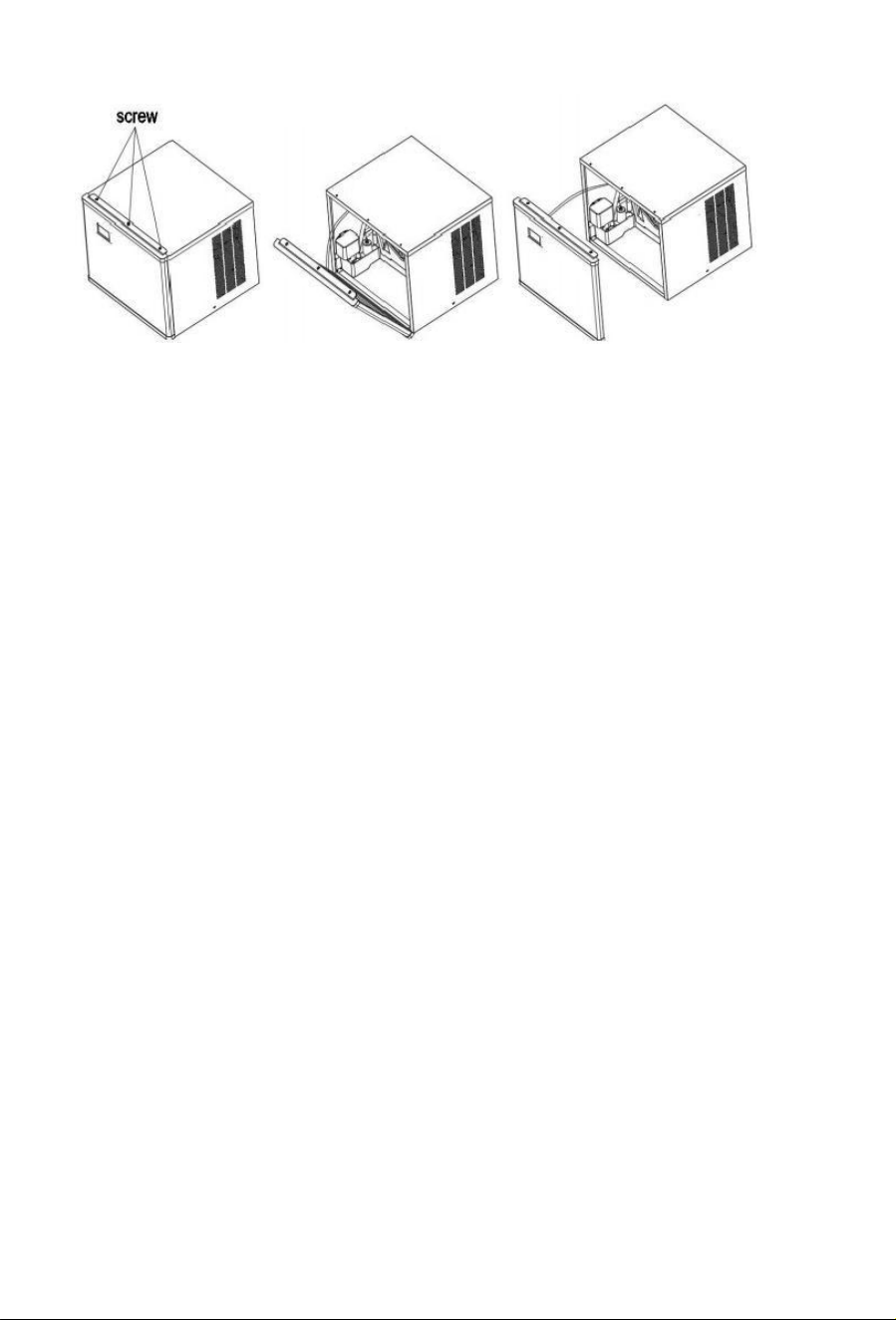

8.Before use,the protective tape must be removed.The specific steps are
as follows:
Step 1:Loosen the screws.
Step 2:Remove the tape.
5

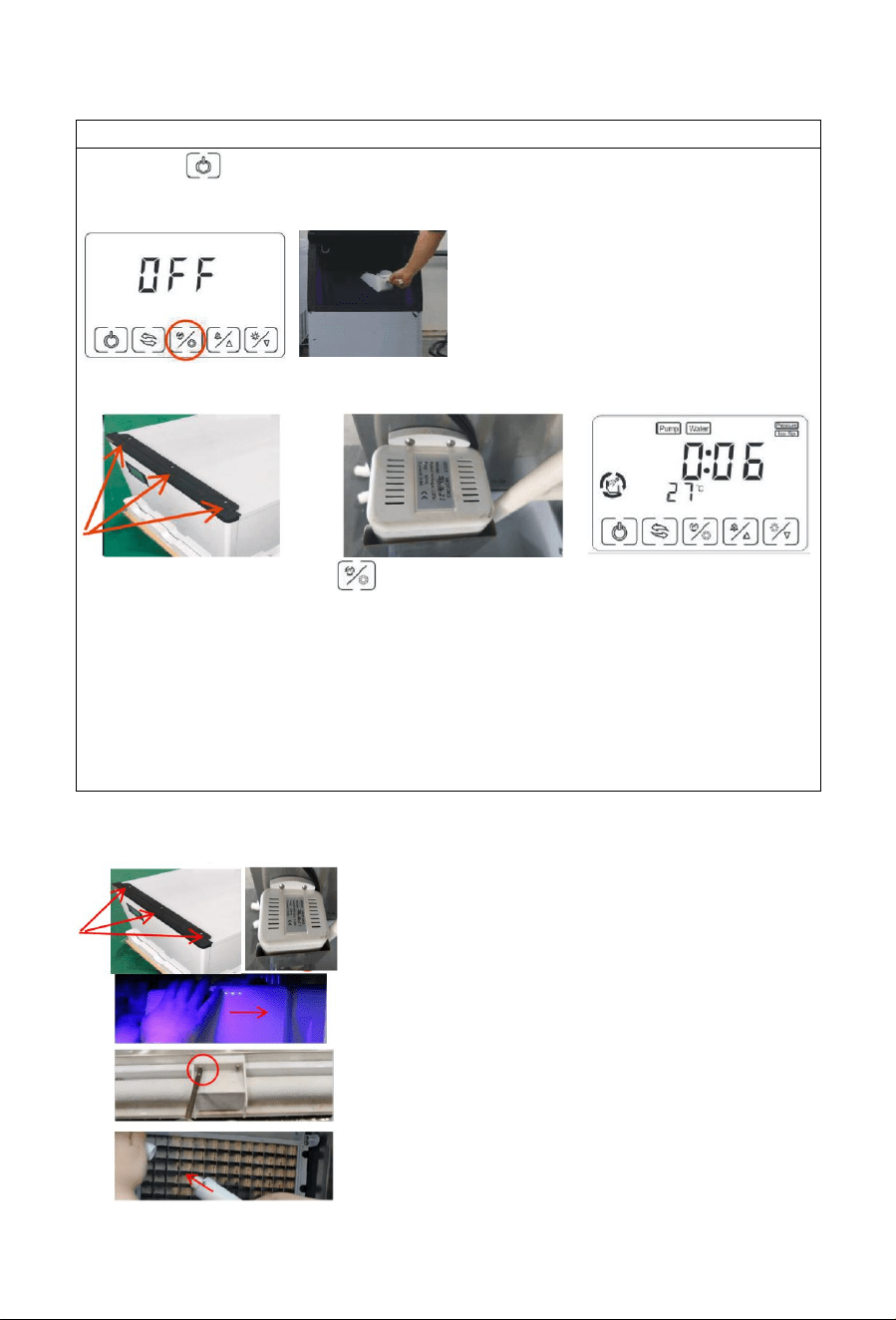

CLEANING REQUIREMENTS:
1.Due to significant differences in water quality among different regions, it is
recommended to install a water filter at the inlet to prevent impurities from
depositing and clogging pipelines.
2.Adding a water purification device to the water pipe may cause impurities
to deposit and block the water path. This is not a product quality issue.
Please clean the ice maker regularly.
3.It is recommended to clean the main water system(sink,water pump,water
pipe) every 10-14 days.

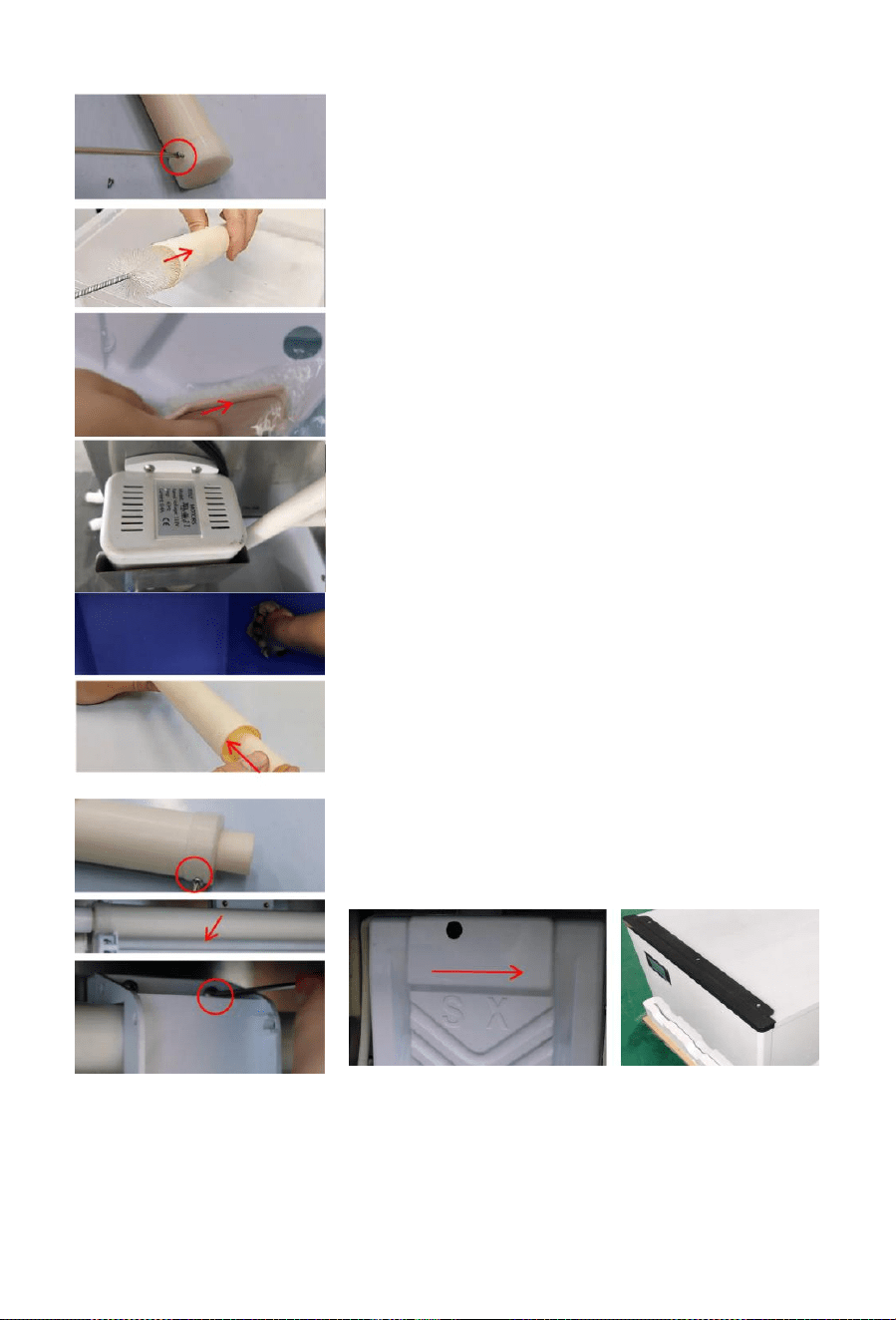

4.Before initiating the manual cleaning mode,add a prepared cleaning
solution to the water tank.Then,clean for about 40 minutes.

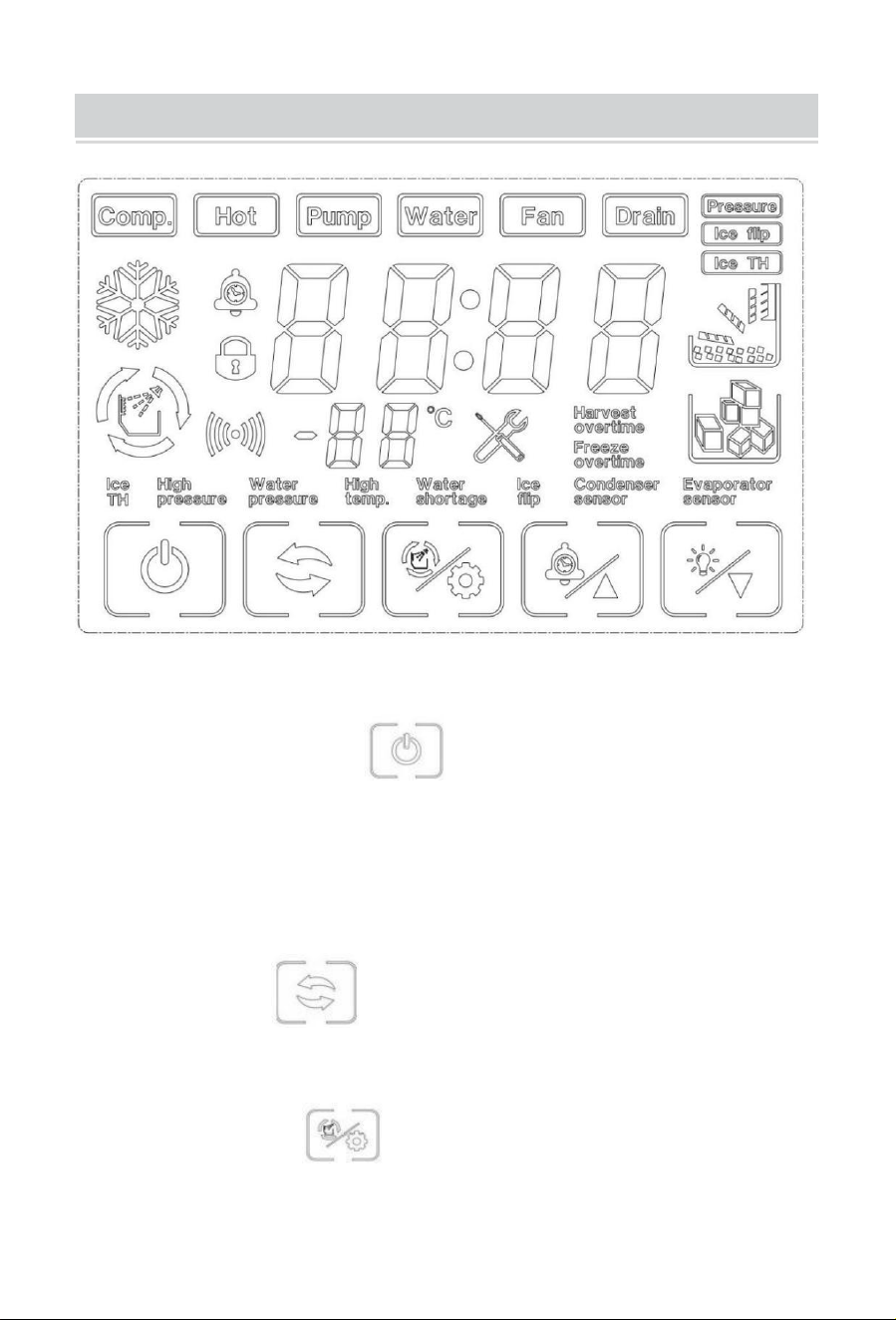

Function Description:
1.Ice Thickness Setting Function:Press the 'Reservation/Addition' button
twice in the startup state to enter the ice thickness adjustment mode.At
this time, you can adjust the ice thickness according to the actual ice
thickness by pressing the 'Reservation/Addition' and 'Lighting/Reduction'
buttons.Do not set the ice thickness below the minimum level.
2.Cleaning Function: Press the 'Switch' button to turn the display OFF,
then press the 'Clean/Set' button to enter the cleaning mode.The cleaning
time in this mode is about 40 minutes.
6
SAVE THESE INSTRUCTIONS

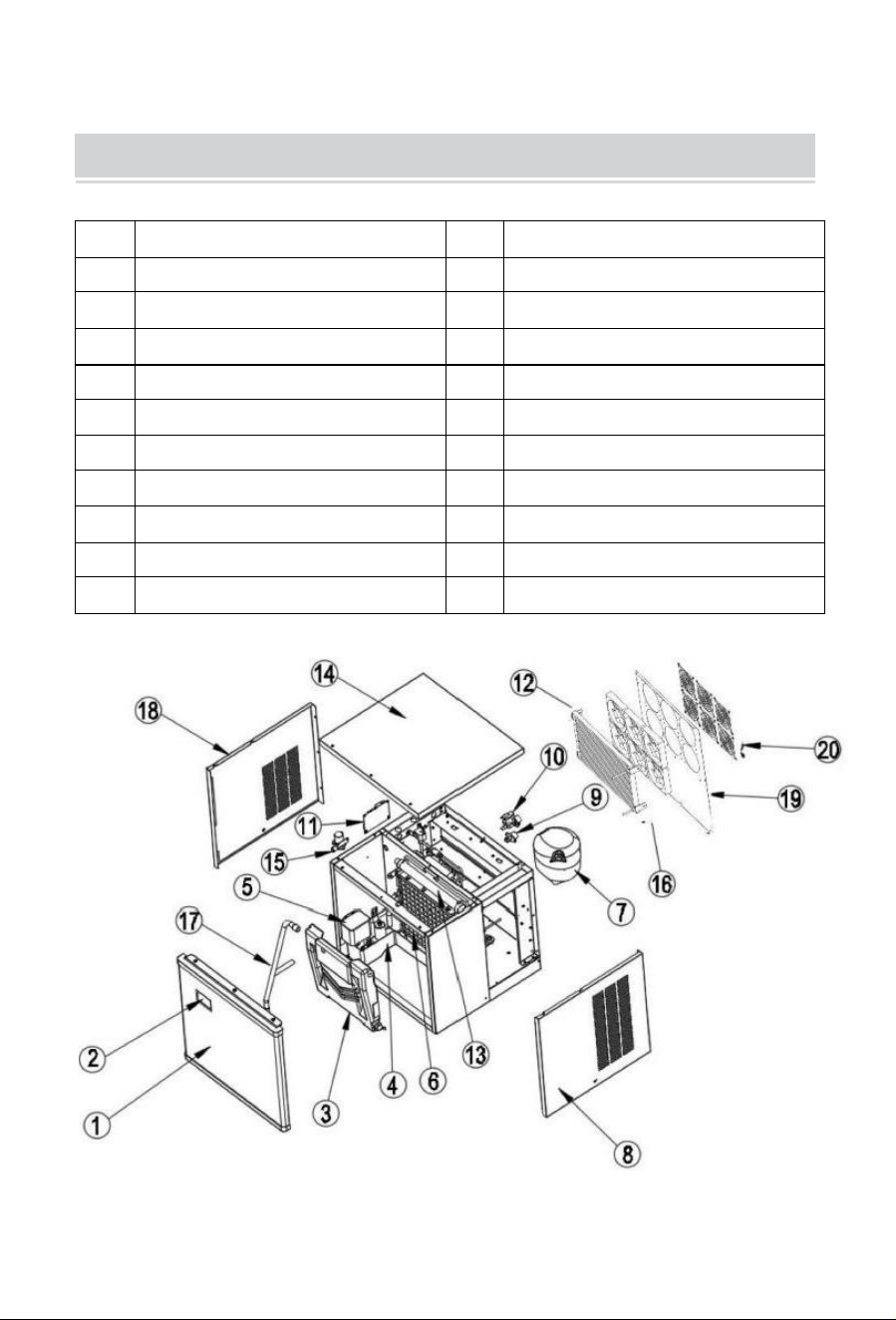

BASIC STRUCTURE
Split type

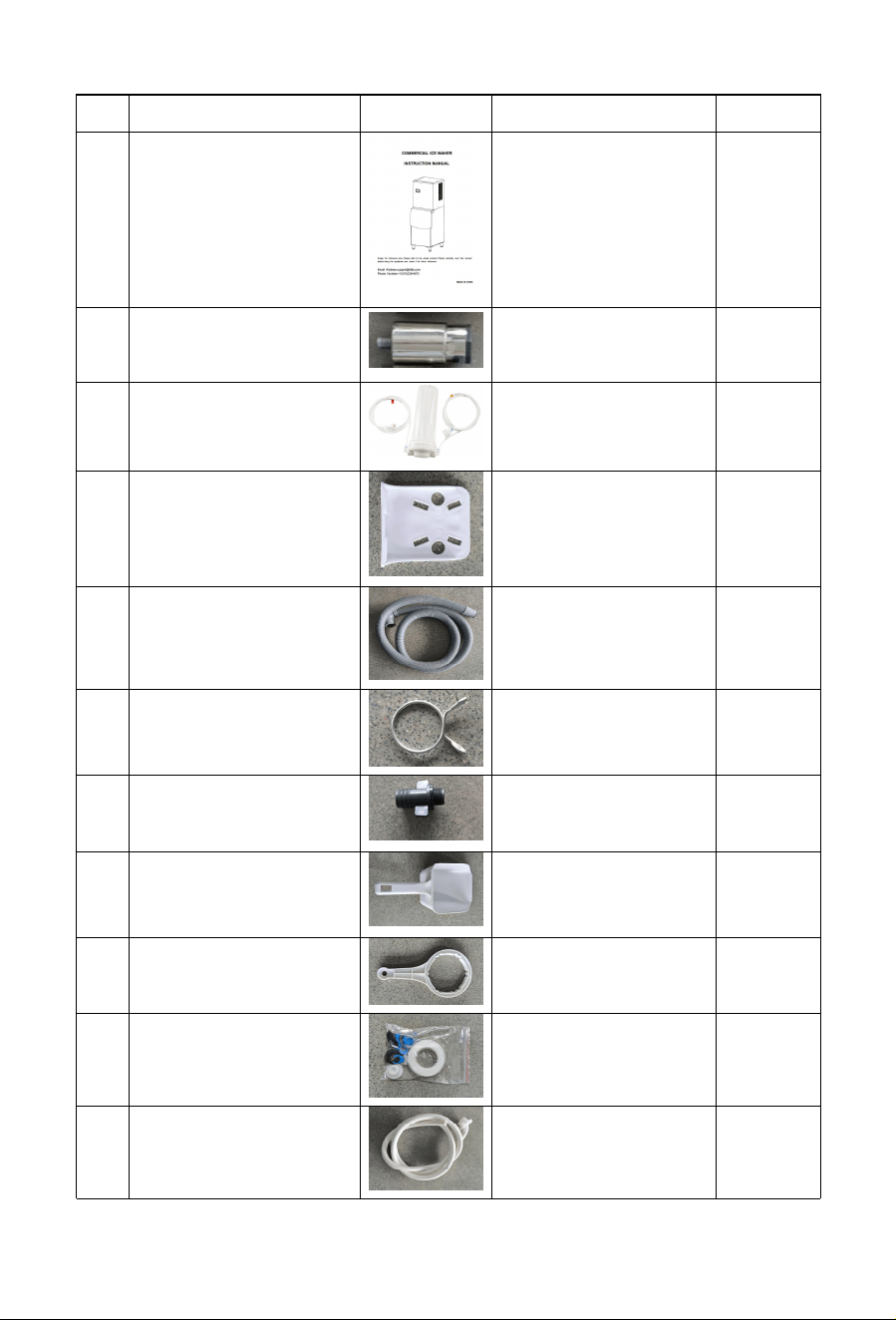

No.
Name
No.
Name
1
Front Panel
11
Electric Control Panel
2
Control Panel
12
Fan Motor
3
Evaporator Cover
13
Spray Pipe
4
Water Storage Tank
14
Top Panel
5
Water Pump
15
Drain Valve
6
Evaporator
16
Condenser
7
Compressor
17
Water Pump Outlet Pipe
8
Right Panel
18
Left Panel
9
Outfall
19
Back Shroud
10
Water Supply Valve
20
Fan Guard
7
No.
Name
Purpose
Quantity
1
Manual
Machine operating
instructions
1PCS
2
Adjustable feet
Assemble before
using
4PCS
3
Assembled filter
Filter water
1SET
4
Mounted panel
Fix the filter
1PCS
5
Ice Bin Drain Hose
Drain
1PCS
6
Hoop
Fix drain hose
1PCS
7
Drain hose
connector
Connect the drain
hose and ice bin
1PCS
8
Ice spoon
Take ice
1PCS
9
Wrench
Loosen the filter
1PCS
10
Accessory kit
If needed
1PCS
11
Water intake hose
Intake water
1PCS
8

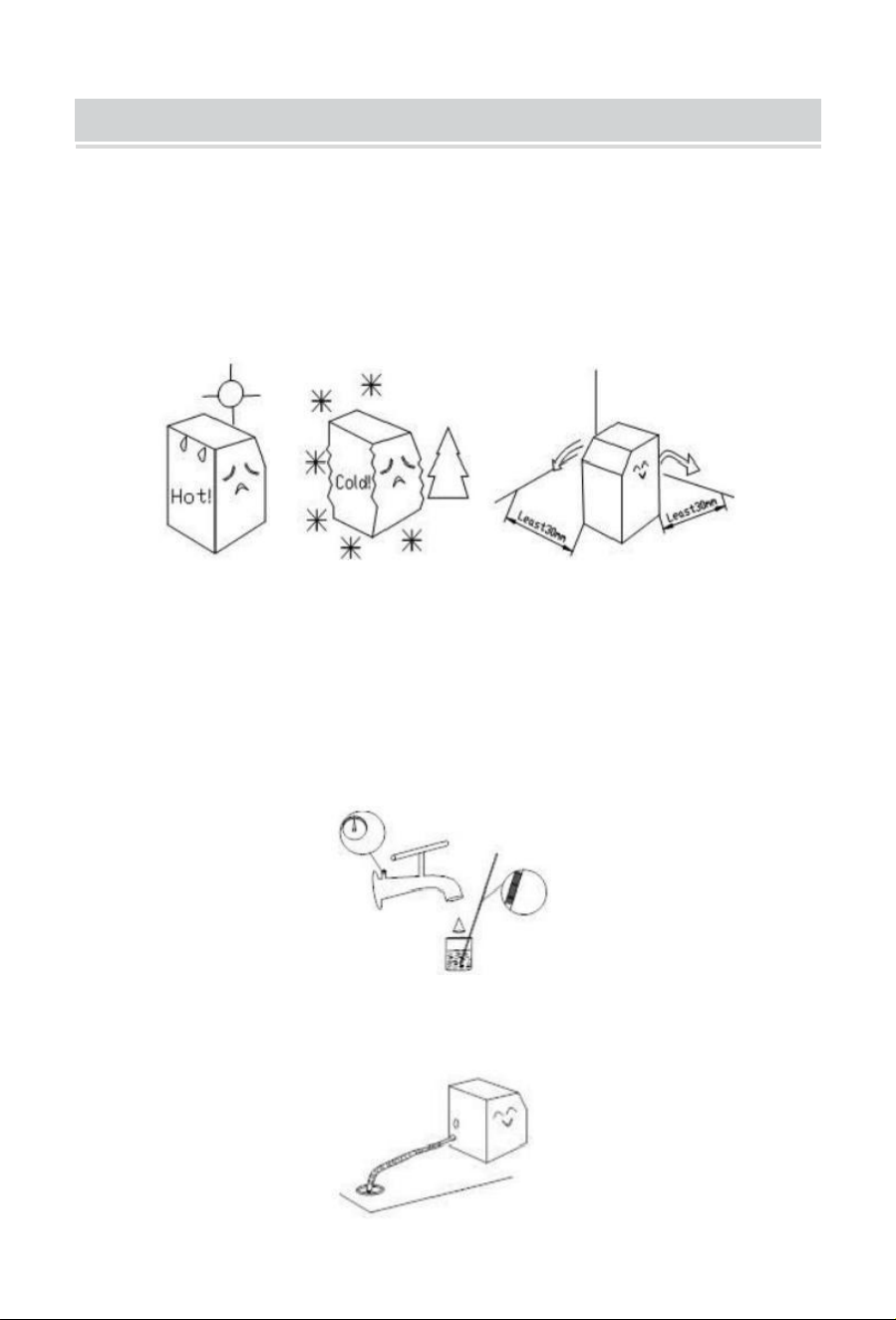

INSTALLATION
1.Open the case,move the ice maker to an appropriate location.Check the
packing list against the contents.If there are discrepancies,please contact
your dealer.
2.Operating environment
A.Environment temperature:SN/N:10℃~38℃
Environment humidity:relative humidity ≤90%
The distance between the air outlets and the wall should be at least 11.81
in (30 cm).Besides,keep good ventilation and ensure the ice maker is dry
and clean.The position to place the ice maker must be far away from the
heat source,such as a bake oven,electric cooker,etc.
B.The water source must meet sanitary standards. The water temperature
and pressure is suitable. For getting the biggest efficiency, the inlet
water temperature value should be 0.6~32℃, and the pressure should be
0.13 to 0.552MPa.
C.There should be a sewer. While working,some of the water will be
discharged, so the sewer is necessary. Furthermore, the sewer must be
kept unblocked.
9
POWER SUPPLY
1.Select the proper power supply according to the voltage and power on
the nameplate.
2..Connect the power wire and supply, ensuring the yellow and green wires
are firmly connected to the ground wire.
Caution:
a.For safety,ensure the ground connection is in good condition.
b.All external wiring and appliances must conform to national
standards.
3.If the voltage fluctuation range is extensive (±10%over the rated voltage),
it will cause many faults, such as startup failure of the ice maker, the
electronic control board is damaged, or the compressor being damaged.
Therefore, you must use a suitable automatic voltage regulator.

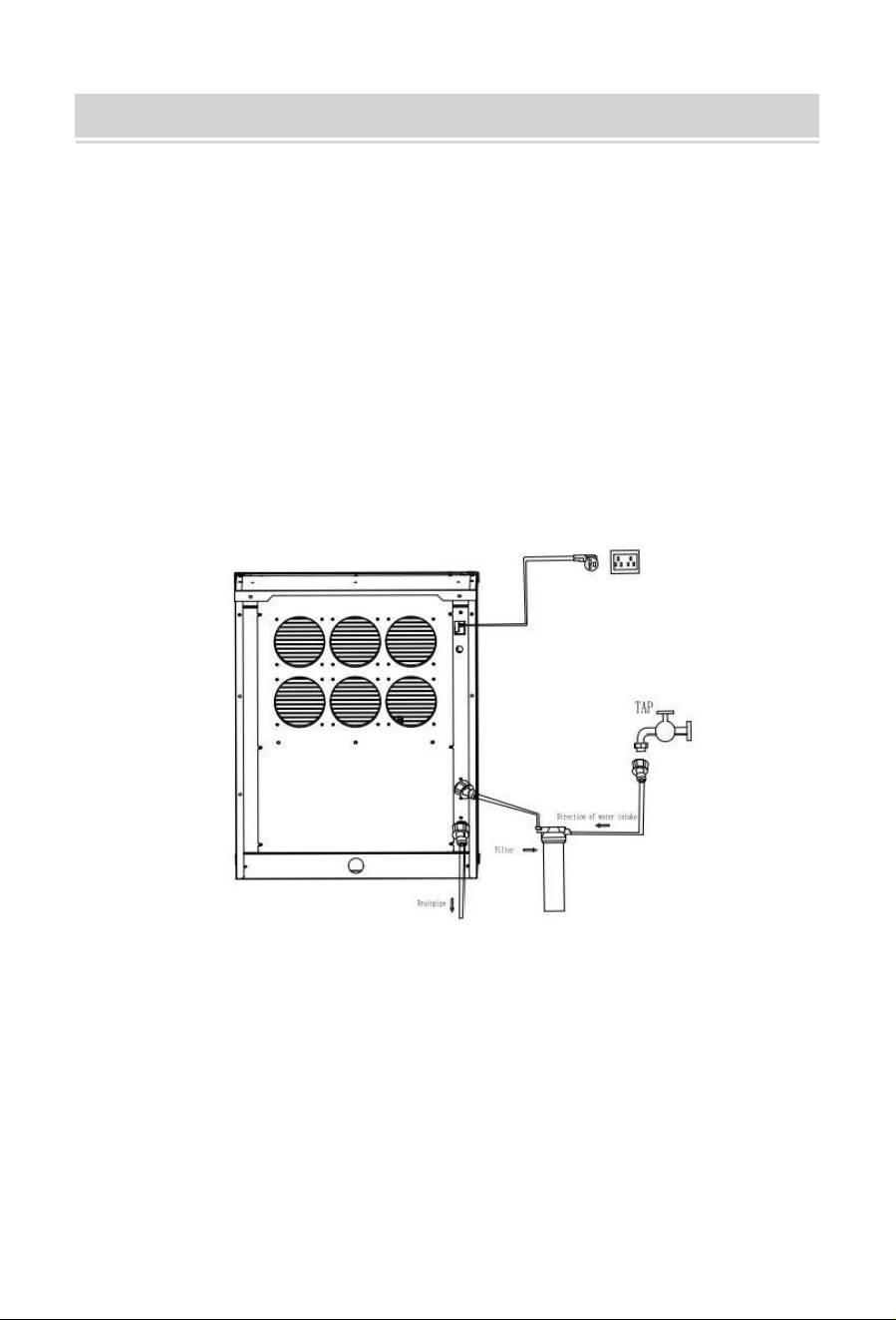

4.Remove the water supply hose from the accessory bag and connect it
between the water supply valve and the faucet. First, attach connector 1
to the water faucet. Then, join one end of the water supply pipe, which
has steel balls, to connector 1(ensure the end of the water supply pipe is
attached before releasing it from connector 1). Next, connect the other
end, which has a screw attachment, to the water supply valve. The valve
also has a screw at its end; tighten the valve clockwise. After completing
the installation, check the connections for leaks. You should connect the
water pipes according to the diagram on the rear panel. The flow rate of
condensate water is adjustable based on the customer's needs. (Note:
Condensate flow is related to the speed of ice production.
Warning: The water used to make edible ice must be drinking
water. Furthermore, The water temperature must be between
0.6℃ and 32℃. and the pressure range should be from
0.138Mpa to 0.552Mpa.
10
5.Connect the water discharge pipe
The water discharge pipe is situated at the back of the ice maker,
extended pipe's end to the sewer.
Attention:In order to keep the water discharged smoothly,
discharge pipe's lowest point must be above the highest point
of the sewer, so as to prevent the discharge water from flowing
back.

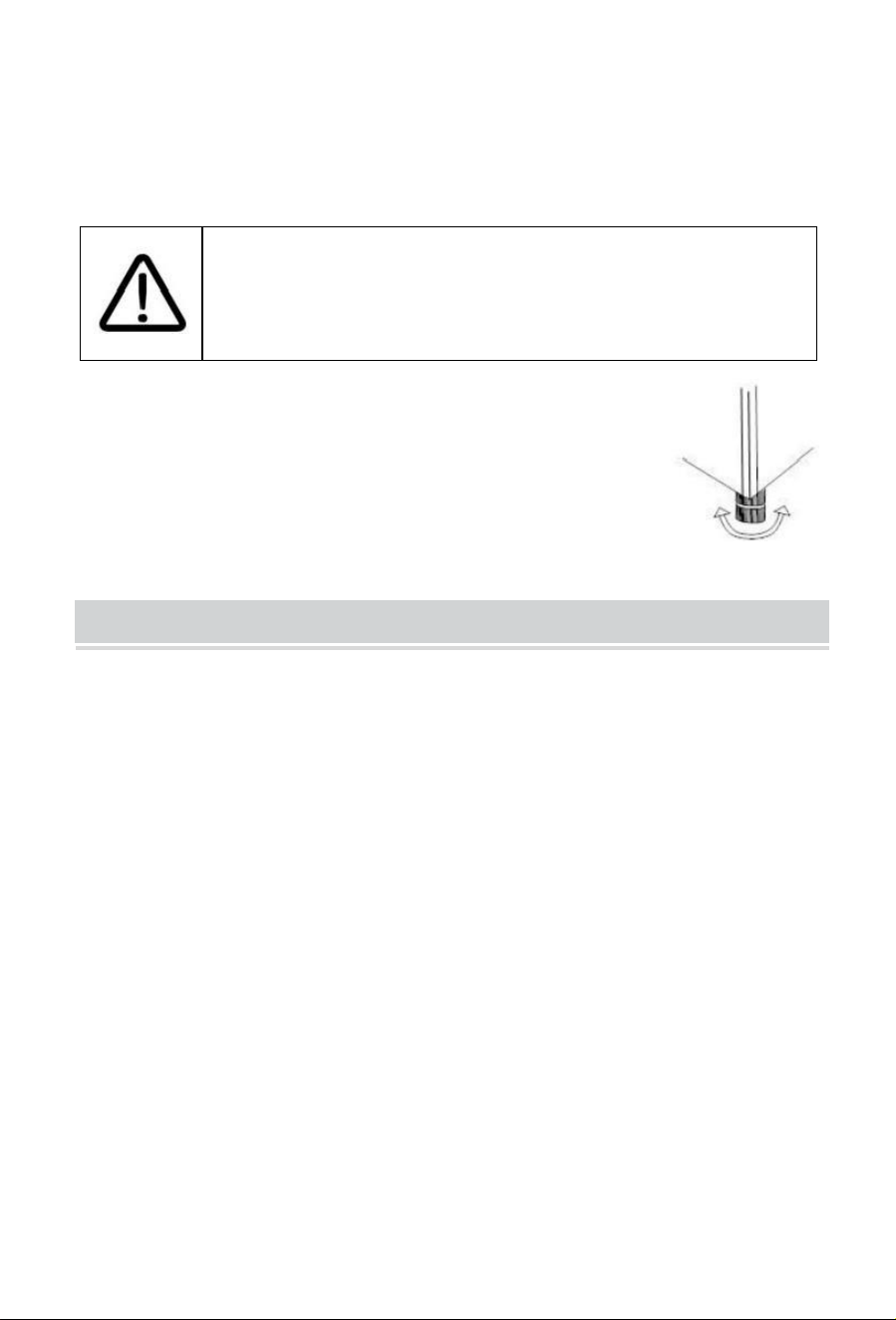

6.Ensure the main body is level
Ensure the main body is level for proper operation of the ice
maker.First,screw down the two adjustable legs into the ice
maker's nuts.You can adjust the two legs properly if the main
body is not level.
SERVICE INSTRUCTION
1.Operation Process
Turn on the water supply valve, faucet, and power. Fill the sink with an
appropriate amount of water, then turn off the faucet.
2.Ice-Making Process
After several minutes, the water pump will start working,evenly pumping
water through the ice mold. Eventually, ice forms in the mold. When the
ice thickness sensor detects the regulated thickness of ice, the ice begins
to drop.
3.Ice-Drop Process
The water pump stops working, the water supply valve opens, and water
flows into the sink. The heating valve is turned on, leading refrigerant gas
into the ice mold. The ice root melts,and after about 2 minutes, the ice
block drops into the ice cabinet. The falling ice block hits the retaining
board (which triggers an inductive switch fixed on the right side of the
11
retaining board). At this point, one cycle is complete, and a new ice-
making cycle will start.
4.Auto-Stop
When the ice cabinet is filled with ice blocks, any additional falling ice
blocks will be trapped between the retaining board and the evaporator.
The retaining board will continue to open and cannot return to its original
position. After several seconds,the ice maker will automatically stop
working. Once the ice block trapped between the retaining board and
evaporator is removed, the retaining board will return to its original
position, and the ice maker will restart to make more ice.
5.Running Check
A.During the ice-making process, a sudden interruption of the water supply
can prevent the sink from being filled with the appropriate amount of water.
The ice maker will enter a standby mode and not produce ice as usual.
Once the water supply is restored and the ice maker is restarted, it can
resume normal operation.
B.The fan motor for the condenser is temperature-controlled. When the
condenser's surface temperature is low, the fan motor will stop to save
power. When the surface temperature rises, the fan motor will work again,
so the fan motor operates intermittently during the ice-making process.
C.When operating the commercial ice maker in a low ambient temperature,
the ice-drop process may be delayed. If this happens three times
consecutively, the ice maker will stop automatically, and the red light and
the other four lights in the electrical box will flash alternately. After
restarting the ice maker, it will return to normal operation. It is
recommended not to use the ice maker in low ambient temperatures.
—12—
12
LCD FULL PAGE DISPLAY
6.Buttons on display board
Power On/Power Off:
Press and hold for 3 seconds to turn off the ice maker.
Press the On/Off button to turn on the ice maker when it is off.
Press the On/Off button to exit setting under ice thickness setting and
filling water adjust status.
Mode button:
Switch
the ice making program
Clean /Set Button:
Press
to
enter cleaning mode when the ice maker is turned off.
13
+/
Reservation
Button:
Press to adjust ice thickness during pressure equilibrium, ice making,
unloading, or ice full status.
Press to increase the value by 1.Long press the button to increase
continuously under ice thickness adjust status.
Click to set the reservation time while the ice maker is turned off.
-/Light Button:
Press to decrease the value by 1. Long press the button to decrease
continuously
under ice thickness adjust status.
Instruction: when the ice maker is in the “lack-water protection” condition,
it can restart automatically after the sink is filled with appropriate water. If
other faults cause the ice maker to stop,wait for 45 minutes, then press the
start button or reconnect the power to restart the ice maker.
14
Daily Cleaning and Maintenance
Clean
Warning
Before cleaning or maintaining the ice maker,unplug the ice maker from the power
supply network.
Do not spray water directly on the ice maker.
Attention
When using neutral or sodium hypochlorite solutions ,be sure to read and
understand the accompanying instructions to avoid potential health problems.
[a] Ice maker and refrigerator housing
Wipe the ice maker's shell with a clean, soft cloth at least once a week, and wipe
grease and dirt with a damp cloth containing a neutral cleaner.
Attention
Do not use a hard brush, wire brush, do not use detergent powder, gasoline,
banana water, acetone and other organic solutions, do not use boiling water or
containing strong acids, alkali cleaning agents to clean the ice machine.
Do not wash the ice maker directly with water, to avoid affecting the electrical
insulation.
[b] Ice machine cleaning and disinfection(recommended more than 2 times per
month)
Note: Some areas may need to be cleaned and disinfected more frequently due to
different water quality.
Attention
Before cleaning,at the end of the ice machine cycle, all the ice cubes slide behind,
shut down, open the front panel, and remove all the ice cubes in the ice machine
and ice storage bucket.
Do not use tools to peel the ice from the ice mold,otherwise it may cause damage
to the ice mold.
Do not use any liquid containing alcohol to clean or disinfect the ice machine,or it
may cause cracks in the plastic parts.
Attention
During the cleaning and disinfection process, please pay attention to protection,
wear goggles and gloves, if the cleaning agent or disinfectant on the skin or eyes
may cause inflammation. In case of accidental contamination, please follow the
precautions of the medicine.
During cleaning,attention should be paid to ventilation. Chlorine gas produced by
disinfectants is a health hazard. Please handle it in a ventilated place.
Cleaning and disinfection sequence
Please clean and disinfect in the following order.
order of use
Pharmaceutical species
use
1
Citric acid detergent (dilution ratio refer to detergent
instructions)
rinse
2
Disinfectant(dilution ratio refer to disinfectant instructions)
sterilize
15
Cleaning and disinfection procedures
Daily cleaning and maintenance methods(10-15 days)
1.Click the" "button on the display screen after the ice maker finishes all the ice
sliding. The display screen displays "off". Open the ice bucket door and remove all
the ice.
2.Open the front panel, put the dissolved detergent (or disinfectant) into the water
storage tank, and then close the front panel.
3.In the "off"state, press the " ". When you see that the key flashes, release it
and enter the cleaning mode.
4.After entering the cleaning procedure, the equipment will follow the instructions:
(1)Water inlet → (2)cleaning for 15 minutes → (3)drainage for 1 minute → (4)Water
inlet → (5)rinsing for 3 minutes → (6)drainage →Repeat steps(4)to(6)for 5 times
→End. After completing the above steps,the cleaning procedure is over.
Note:Detergent (or disinfectant) should be adjusted according to its own use
instructions. After entering the cleaning program, it will run automatically without
operation. Do not add disinfectant and cleaning agent to the sink at the same time.
Note:If cleaning and disinfecting steps are performed at the same time, please
follow the above steps twice.
Deep cleaning and maintenance methods (2 months)
Step 1 : Turn off the switch and unplug the
power cord.
Step 2 : Remove the top three screws of the
door frame
Step 3 : Open the door panel and flip to the
top of the machine
Step 4 : Remove the plug under the water
storage tank and drain the water
from the water storage tank.
Step 5 : Remove evaporator cover. (Pry open
the evaporator cover slightly to the
right.)
Step 6 : Remove water pipe retaining cover
and water pipe.
16
Step 7 : Remove the screw top of the water
pipe and take out the inner and outer
water pipes.
Step 8 : Use a small brush to clean the inside
and outside walls of the pipe.
Step 9 : Use a small brush to clean the inside
and outside of the evaporator cover.
Step 10:Remove the screws that secure the
water pump, and remove the pump
water pipe.
Step 11:Remove the two screws from the
water level sensor.
Step 12:Use a small brush to clean the bottom of
the pump.
Step 13:Use a small brush to clean under the
water level sensor.
Step 14:Use a clean, soft cloth to clean the
inside surface of the ice maker, the
surface of the evaporator, the surface of
the sink, and the inside of the ice
bucket.
install
Step 1 : Install the water pipe and tighten the
screws at both ends of the water pipe
(note: that the direction of the water
outlet hole of the inner water pipe is
opposite to that of the outer water pipe).
Step 3 : Install water pipe retaining cover, water
pump, water level sensor.
Step 4 : Close the front pane, Tighten the two
side screws.
Note: After the ice machine is cleaned, the pre-made 5 sheets of ice should not be
eaten. Cleaning and maintenance cycle please adjust according to the local
water quality, recommended Daily cleaning and maintenance methods (10-15 days),
Deep cleaning and maintenance methods (2 months), if there is serious scale,
please first follow the deep maintenance cleaning,and check the filter condition.
17
Troubleshooting FAQ
LED
Panel
LCD
Panel
Possible Cause
Solution
E01
Ice flip
1.De-icing plate is
missing or misplaced;
2.The polarity of the
magnetic induction
element is reversed;
3.Abnormal ice full
switch;
1.Reset the ice removal plate;
2.Replace the ice removal
plate/full ice sensor;
3.Contact after-sales service
/visual trouble guidance
/confirm the fault point;
E03
Harvest
overtime
1.The ice cube setting
is too thin;
2.The water tank is
insufficient;
3.The ambient
temperature is too low;
4.De-icing solenoid
valve failure;
1.Check and set the water
thickness parameters
(Recommended gears 0-2);
2.Check the water inlet
system, or check if the water
supply is sufficient;
3.Use membrane materials to
block the ventilation inlet area
proportionally;
4.Check if the ice is stuck;
5.Check if the ice maker is
placed horizontally;
6.Contact after-sales service
for video guidance and fault
confirmation;
E04
High
Temp
1.The ambient
temperature is too
high;
2.The cooling effect of
the condensing system
is poor;
3.The cooling fan is
damaged;
1.Relocate the ice maker to a
better-ventilated area, or turn
on air conditioning;
2.Clean the condenser;
3.The distance between the
ice maker and the obstruction
should be at least 11.81 in
(30cm);
4.Inspect whether the fan is
18
operating properly;
5.Contact after-sales /confirm
the point of failure;
E05
Water
Pressure
1.No water supply;
2.The water supply
pressure is too low;
3.Water tank leaks;
4.The water level
sensor fails;
5.Malfunction of the
inlet valve;
1.Check the water source or
whether the water filter is
blocked;
2.Check the water supply
pressure or whether the water
filter is blocked;
3.Check whether the bottle
cap at the bottom of the water
tank is tightened and sealed;
4.Check for scale on the water
level switch;
5.Contact after-sales/video
guidance/confirm the point of
failure;
E06
High
Pressure
1.The condenser
temperature is too
high;
2.The refrigeration
system is blocked;
3.Pressure switch
failure;
4.The main control
board is abnormal;
1.Improve environmental
ventilation or relocate the
appliance, or tum on air
conditioning;
2.Check the condenser and its
heat dissipation system;
3.Contact after-sales/video
guidance/confirm the point of
failure;
E11
1.The ring temperature
is too high;
2.Poor dissipation
effect of the
condensing system;
3.Leakage of
refrigeration system;
1.Check if the water pump is
started and running;
2.Clean the condenser;
3.The distance between the
ice maker and the obstruction
should be at least 11.81 in (30
cm);
4.Contact after-sales service
for video guidance and fault
confirmation;
19
TECHNICAL PARAMETER AND WIRING DIAGRAM
A.Technology parameters are on the nameplate.
B.The electrical schematic diagram is on the inner side of the board.
AFTER-SALE SERVICE
1.If you experience any issues,you can always contact our customer
service team via email at support@tittla.com.
2.Regarding any product problems or issues you encounter,our customer
service will guide you through the entire service process.We reserve the
right to re-inspect damaged or returned products.
3.If you have any warranty questions,please contact us at
Email Address:[email protected]
Phone Number:+1(510)228-4672
