Temporary power outlet panel
Model：YD-20AX2
Input voltage：AC125V 60HZ
GFCI socket current：20Amp*2
WARNING: ELECTRICAL SHOCK AND FIRE HAZARD!
The outlet is not to be connected to power prior to
installation.Failure to comply with this instruction could result
in an electrical failure, fire and electrocution.
IMPORTANT: Installation of this power outlet box and
related wiring must be done by a qualified electrician in
compliance with all applicable electrical codes, When being
used power a structure, this outlet must be used in
conjunction with a transfer switch, Not for indoor use,When
using an engine driven generator, locate away from doors
and windows to avoid the build-up of carbon monoxide from
the engine exhaust in enclosed areas.
Installing the Power Outlet Box :
Mount the power outlet box on the outside of the building in
a convenient location, using the three holes provided in the
back of the cabinet, Using copper wire only and approved
wiring methods, run the wiring through one of the knockouts
in the cabinet to a junction box located near the transfer
switch, lf using conduit, pull at least four colors.
Wire Gauge: 6AG~10AWG.Strip the wire insulation
3/5"(15mm,FlG1)(do not tin conductors) and connect the
wires in the power outlet box as follows. Making sure there
ls no wire insulation in any terminal ancthe outlet terminal
screws are tightened to 35 inch-pounds torque
using Electric flat Screwdriver.
NOTICE: If you want to charge an electric vehicle, you must
have a grounding wire.

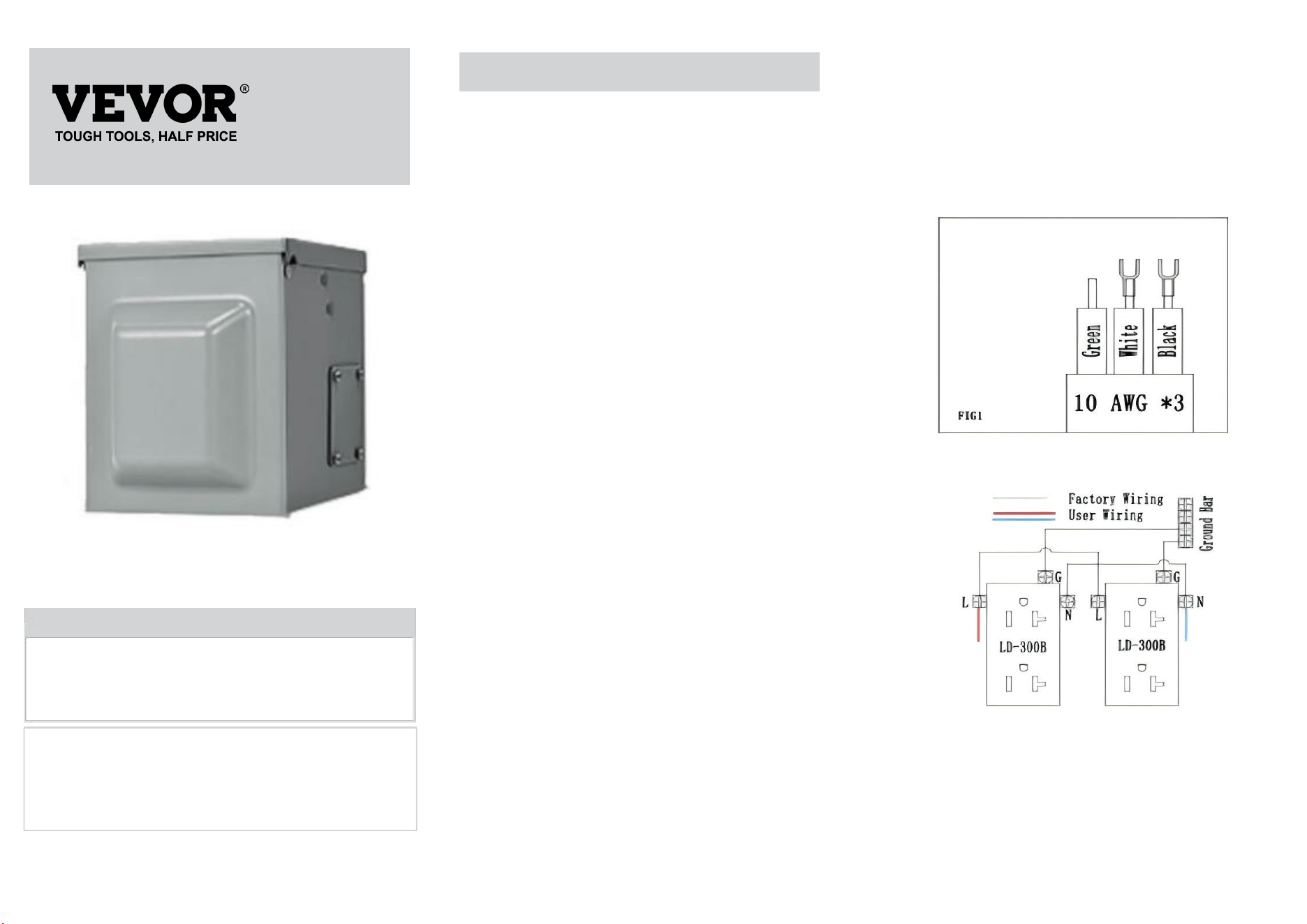

Wiring diagram
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please
feel free to contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of
our user manual. The appearance of the product shall be subject to
the product you received. Please forgive us that we won't inform you
again if there are any technology or software updates on our product.
YD-20AX2
Cable Color Scheme:
Black=Load (125 Vlot),the terminals marked
“Black”
White=W-Neutral Conductor connected to “White"mark
ing terminal”

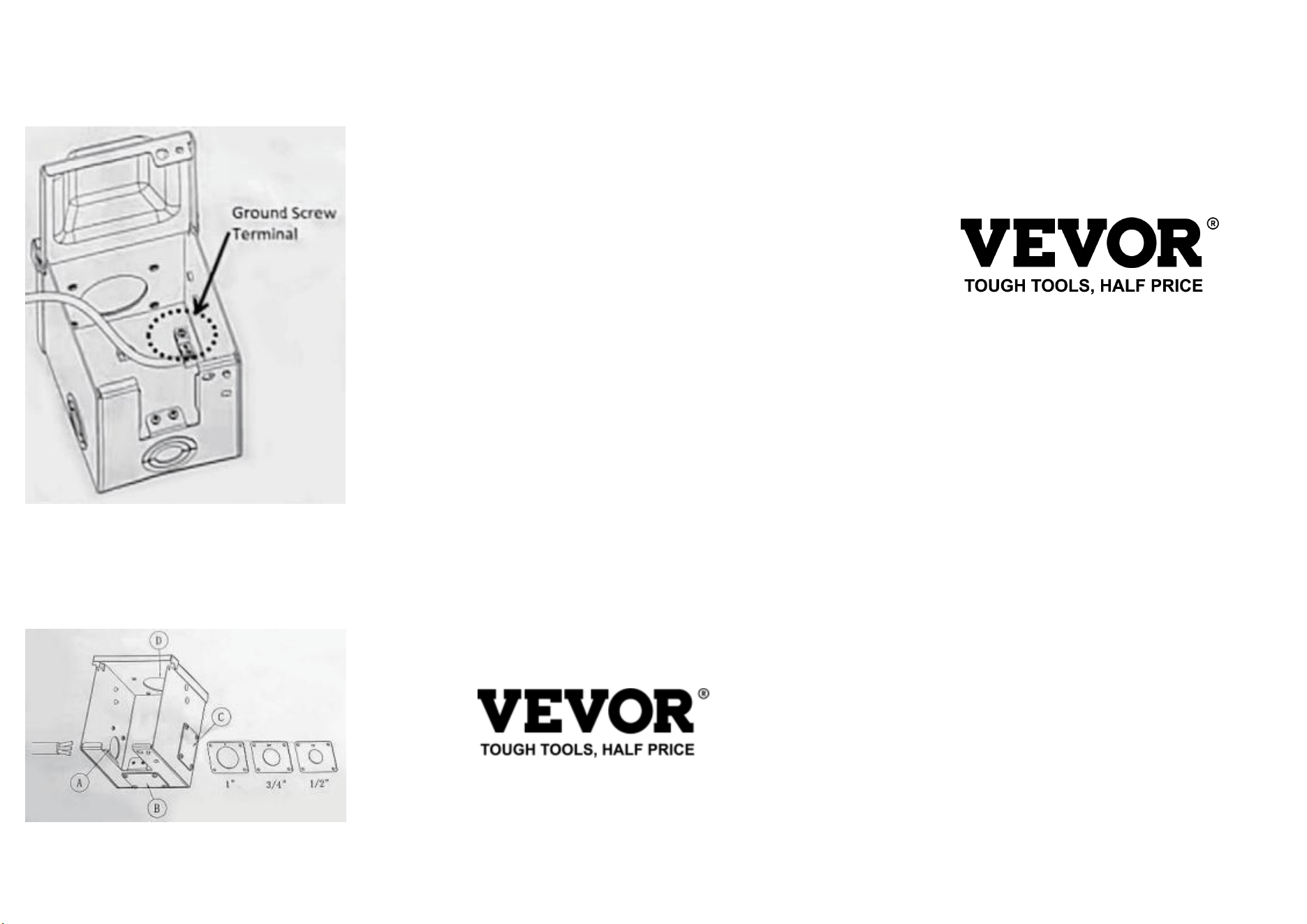

Green=Green power inlet wire to green ground screw
terminal on inside of cabinet. If required, green wire to
green ground screw terminal on inside of cabinet.(-FIG2)
INSTRUCTIONS
(The picture is for reference only, please refer to the actual object)
FIG2
01
03
02
Temporary power outlet panel
User Manual
MODEL:YD-20AX2
We continue to be committed to provide you tools with
competitive price. "Save Half", "Half Price" or any other
similar expressions used by us only represents an
estimate of savings you might benefit from buying certain
tools with us compared to the major top brands and does
not necessarily mean to cover all categories of tools
offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually
saving half in comparison with the top major brands.
Enter installation considerations:
Choose one threading hole that suits you the best.
(A,B,C,or D)
Technical Support and E-Warranty Certificate
www.vevor.com/support
04
