Smart Pet Clipper
User Manual
Model: PC02
www.dogcare.net
❶ ❷
❸
❹
❺
5
In the Box
5
In the Box
❻ ❼
❽ ❾
❶ Clipper oil
❷ Cleaning brush
❸ USB cable
❹ Grooming comb
❺ Grooming scissors
❻ 1/8” attachment comb
❼ 1/4” attachment comb
❽ 1/3” attachment comb
❾ 1/2” attachment comb
Installing the attachment combs
Align the blades with the recess
of the attachment comb
Press the end of the attachment
comb firmly into the slot on the
back of the blades until it clicks
Click

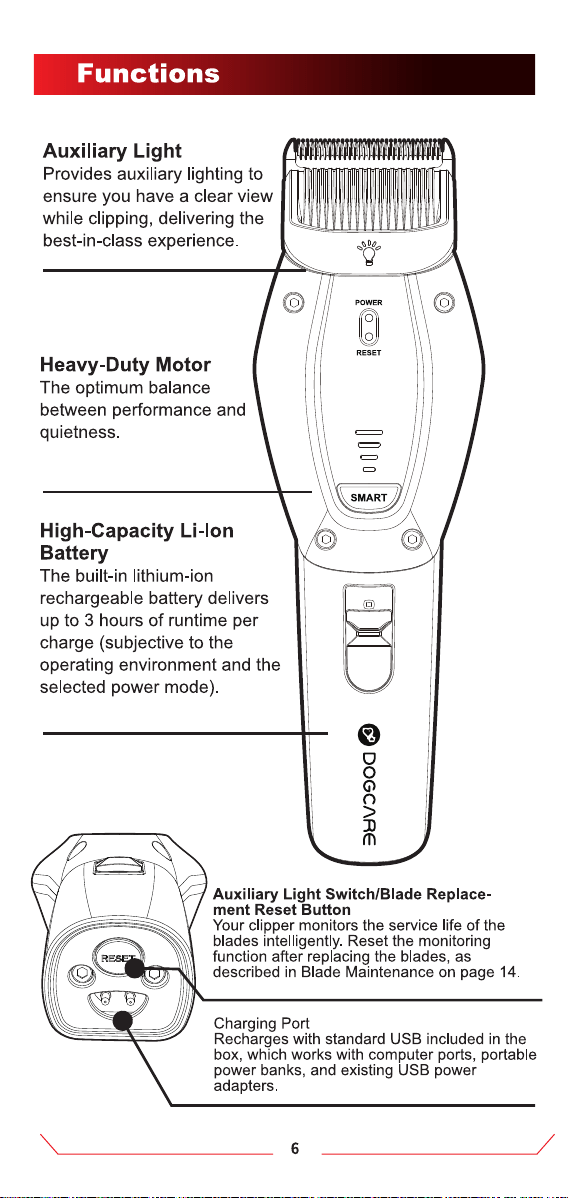

Functions
6
Illumination Fine Skip Tooth
The precise stainless steel and
titanium alloy blades create a quiet,
smooth, and safe grooming experi-
ence. Illumination enabled by the
blades’ unique light-penetration
design offers optimized precision.
Detachable for easy maintenance.

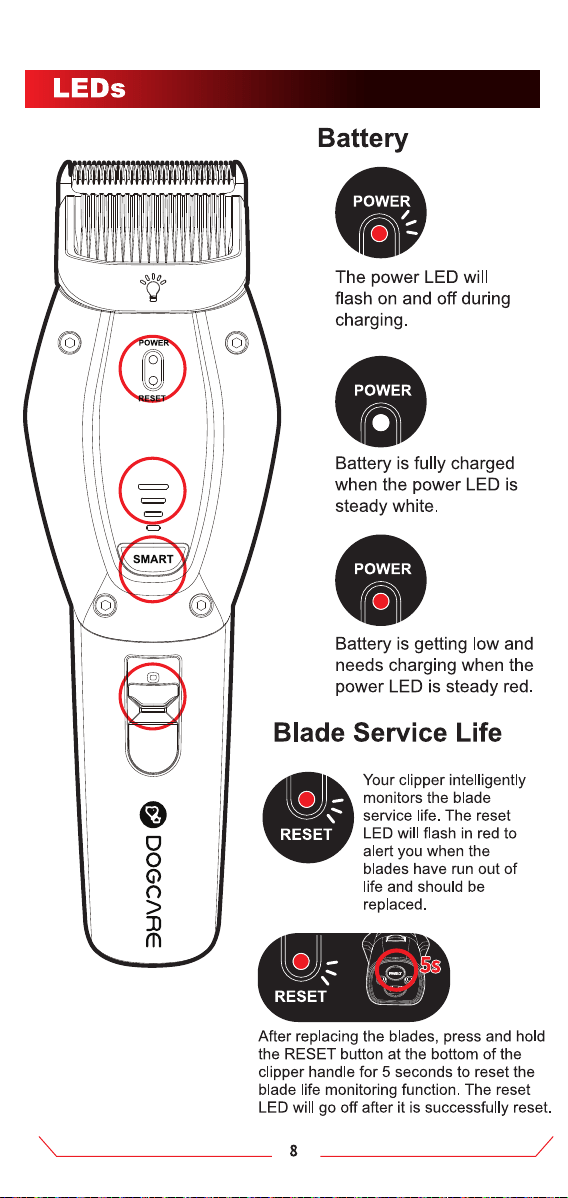

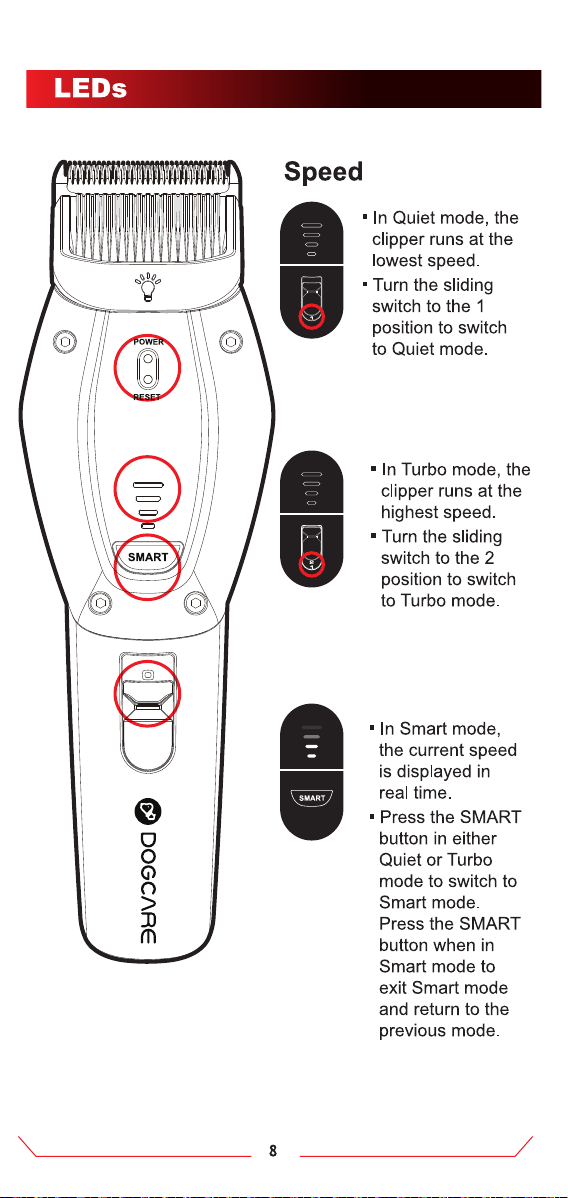

LEDs
Your clipper is equipped with
powerful algorithms that intelligent-
ly monitor the blade service life
and automatically remind you to oil
the blades. All these incredible
features and the current working
status are displayed in real-time.
Smart Mode
Easily change to DogCare's
original Smart mode by using the
SMART button. Senses the level
and thickness of hair, then
automatically adjusts to the
optimal clipping speed.

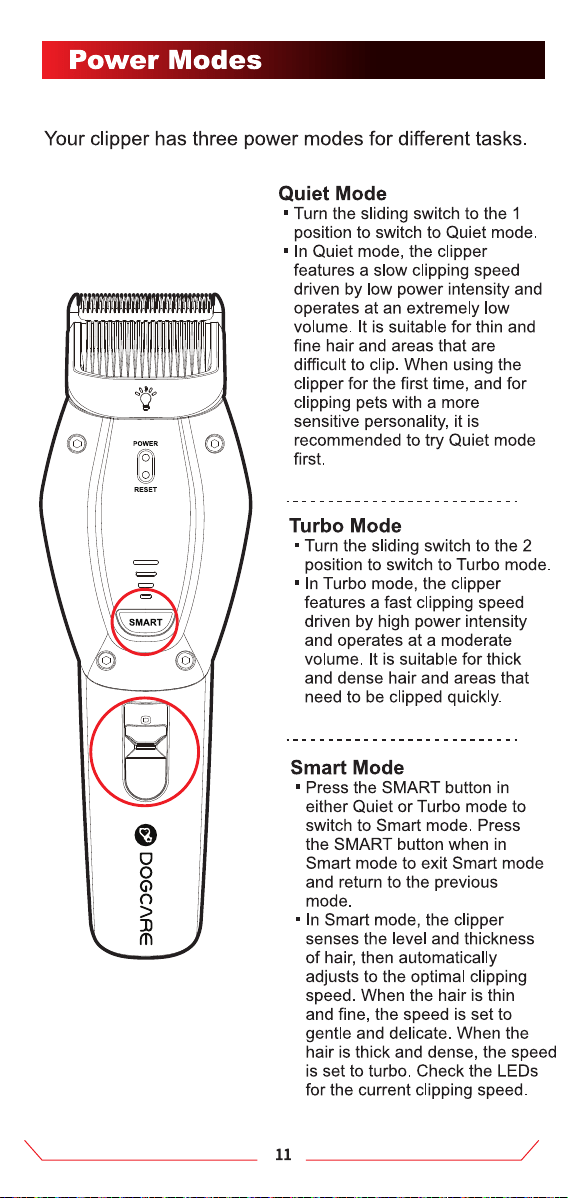

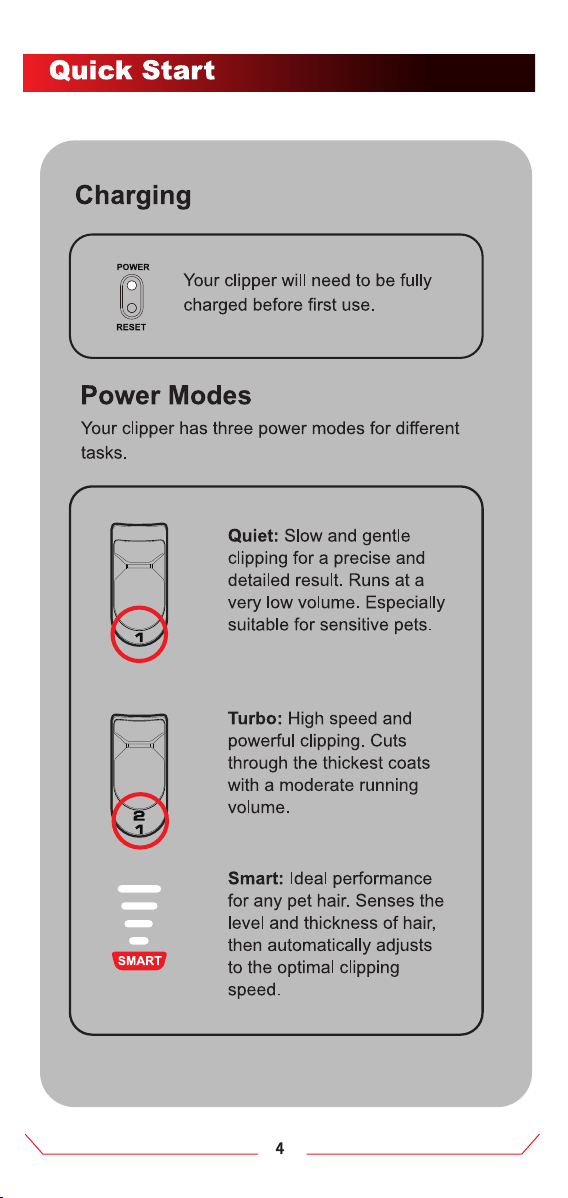

Power Switch/Quiet
Mode/Turbo Mode
Easily switch between Quiet mode
and Turbo mode using the sliding
switch.
1
2
1/8″
1/2”
12

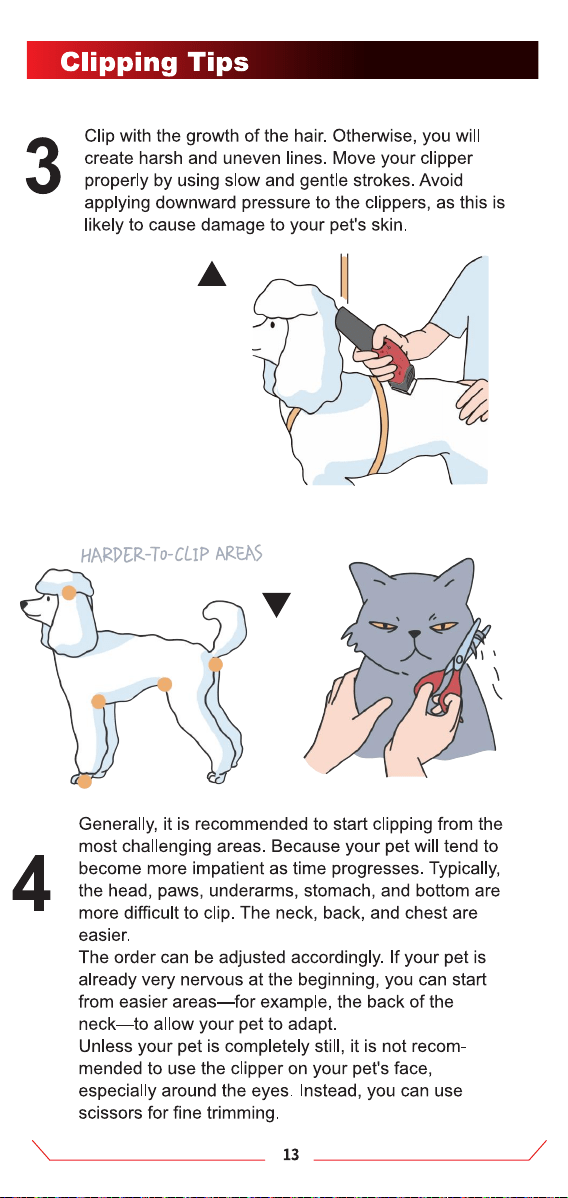

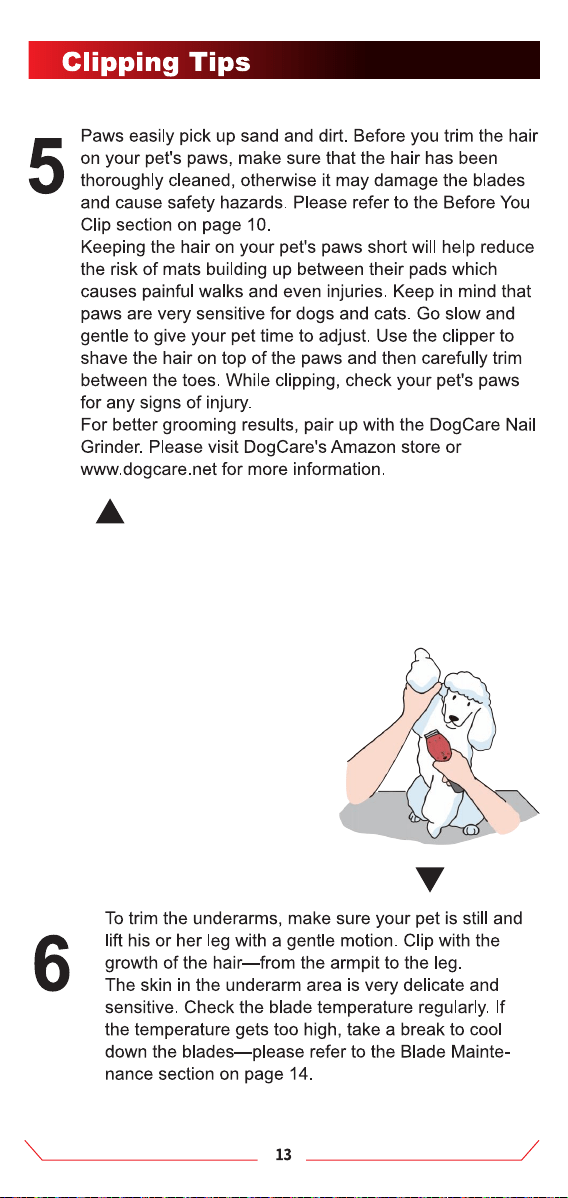

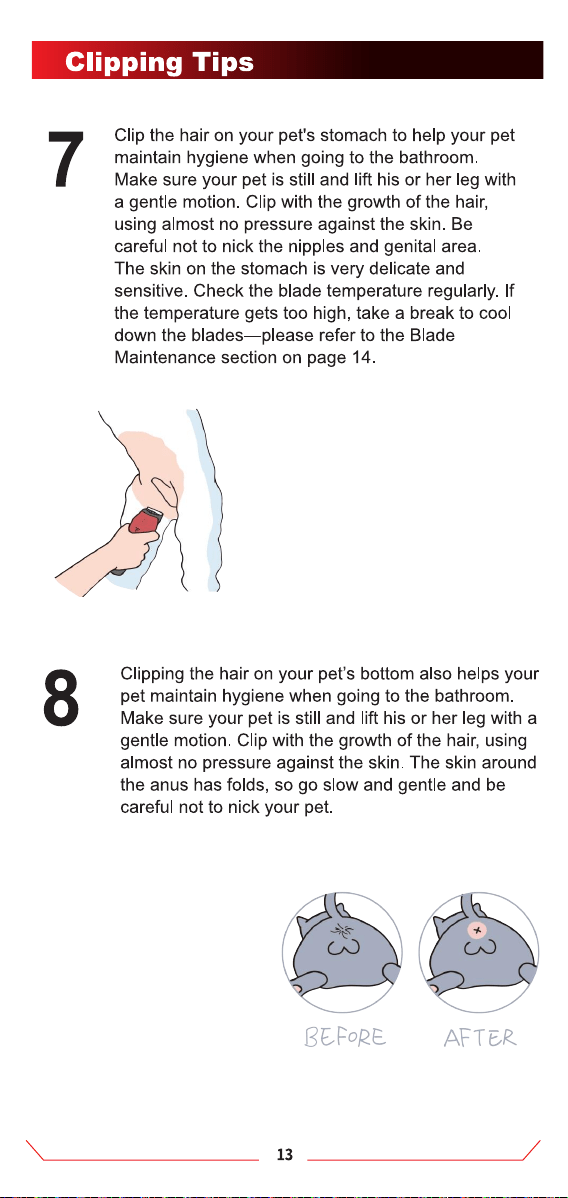

Clipping Tips
Select a power mode according to your pet's hair
condition, grooming area, and your pet's personality.
When using the clipper for the first time, and for clipping
pets with a more sensitive personality, it is recommend-
ed to try Quiet mode first.
There are 4 sizes of attachment combs included in the
box to trim the hair to different lengths. From the largest
to the smallest:
The 1/2” comb leaves hair approximately 1/2”.
The 1/3” comb leaves hair approximately 1/3”.
The 1/4” comb leaves hair approximately 1/4”.
The 1/8” comb leaves hair approximately 1/8”.
For help with installing the attachment combs, please
refer to the In the Box section on page 5.
When using the clipper for the first time, if you are
unsure of how long each comb leaves the hair, start by
placing the largest comb and make your way down if the
desired length is shorter.
15
Compatible Blades
All DogCare blades are compatible with your
clipper. You can purchase replacement blades by
visiting DogCare's Amazon store or www.dog-
care.net.
Heatproof Fine Tooth
▪
Stay cooler for longer to protect your pet from
extreme heat
▪
Provide a smoother and cleaner cut and make your
pet’s coat feel softer
▪
Ideal for grooming and a finishing touch
Illumination Fine Tooth
▪
Provide a smoother and cleaner cut and make your pet’s
coat feel softer
▪
Ideal for grooming and a finishing touch
▪
Work best on dogs with fine or thin hair as well as cats
16
Compatible Blades
Heatproof Skip Tooth
▪
Default with DogCare PC01 clipper
▪
Stay cooler for longer to protect your pet from
extreme heat
▪
Best for cutting through thick, curly, or matted hair
▪
Ideal for a quick overall cut
▪
Can come in handy for grooming bigger dogs
Illumination Skip Tooth
▪
Default with DogCare PC02 clipper
▪
Best for cutting through thick, curly, or matted hair
▪
Ideal for a quick overall cut
▪
Can come in handy for grooming bigger dogs
17

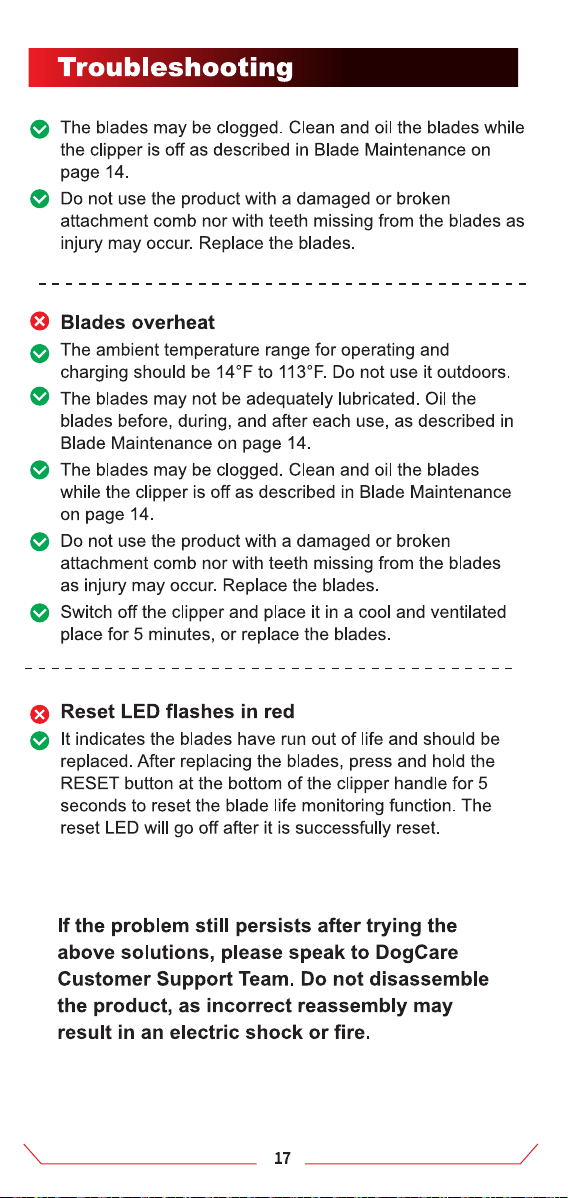

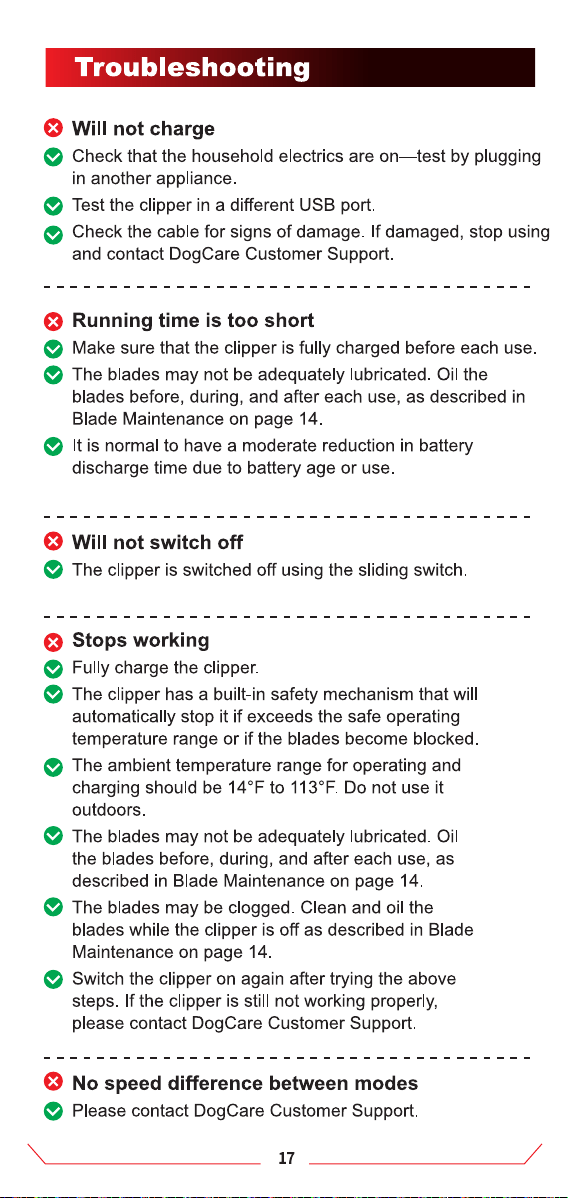

Troubleshooting
Unusual noise
The level of sound from your clipper will vary depending on
the power mode selected. To decrease the noise, use the
sliding switch to select Quiet Mode.
If the noise is louder than usual, clean and oil the blades

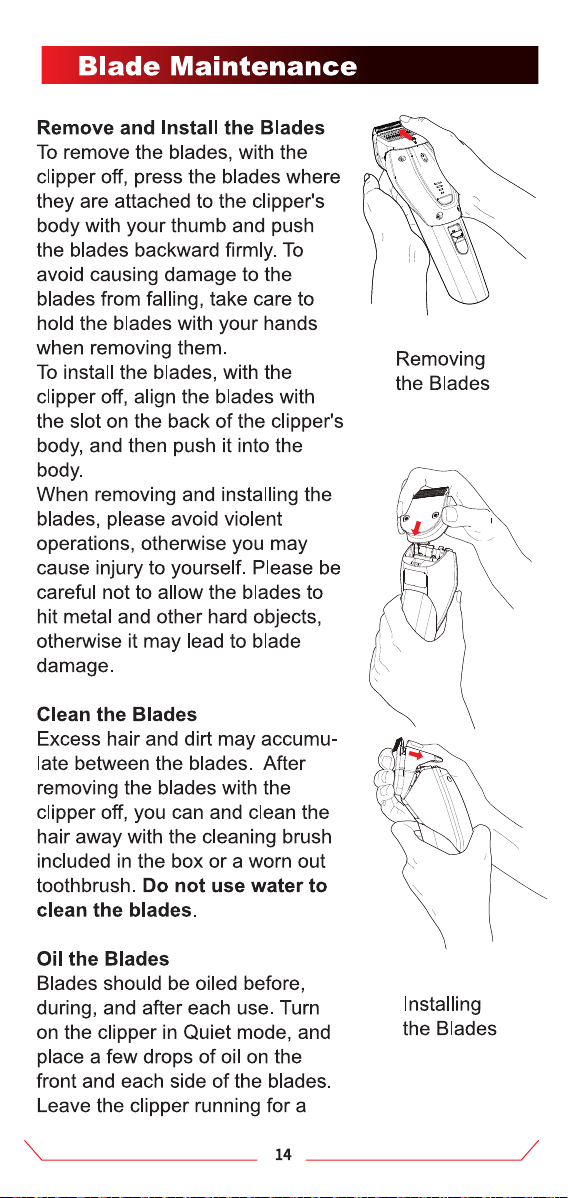

with the clipper off as described in Blade Maintenance on
page 14.
Do not use the product with a damaged or broken
attachment comb nor with teeth missing from the blades as
injury may occur. Replace the blades.
Clipper body overheats
The ambient temperature range for operating and charging
should be 14°F to 113°F. Do not use it outdoors.
The blades may not be adequately lubricated. Oil the
blades before, during, and after each use, as described in
Blade Maintenance on page 14.
The blades may be clogged. Clean and oil the blades
while the clipper is off as described in Blade Maintenance
on page 14.
Do not use the product with a damaged or broken
attachment comb nor with teeth missing from the blades
as injury may occur. Replace the blades.
Titanium alloy moving blade does not move
Fully charge the clipper.
The blades may be clogged. Clean and oil the blades
while the clipper is off as described in Blade Maintenance
on page 14.
Do not use the product with a damaged or broken
attachment comb nor with teeth missing from the blades
as injury may occur. Replace the blades.
Blades pull hair or cut unevenly
Make sure your pet's hair is dry. The clipper does not clip
wet hair properly.
The blades may not be adequately lubricated. Oil the
blades before, during, and after each use, as described in
Blade Maintenance on page 14.
17
Live Chat
Live chat with us 24/7 on
www.dogcare.net or on Facebook @dogcareglobal.
Phone
1-833-220-1900
Our helpline hours:
▪ 9am - 9pm EST, 6am - 6pm PST
▪ 7 days a week
Email
To help us address your inquiry as quickly as
possible, please include the following in your email:
▪ Order number
▪ Your name
▪ Phone number
▪ Product name or model number
We will respond to your inquiry within 12 hours.
Contact Us
Scan the QR code to access
18

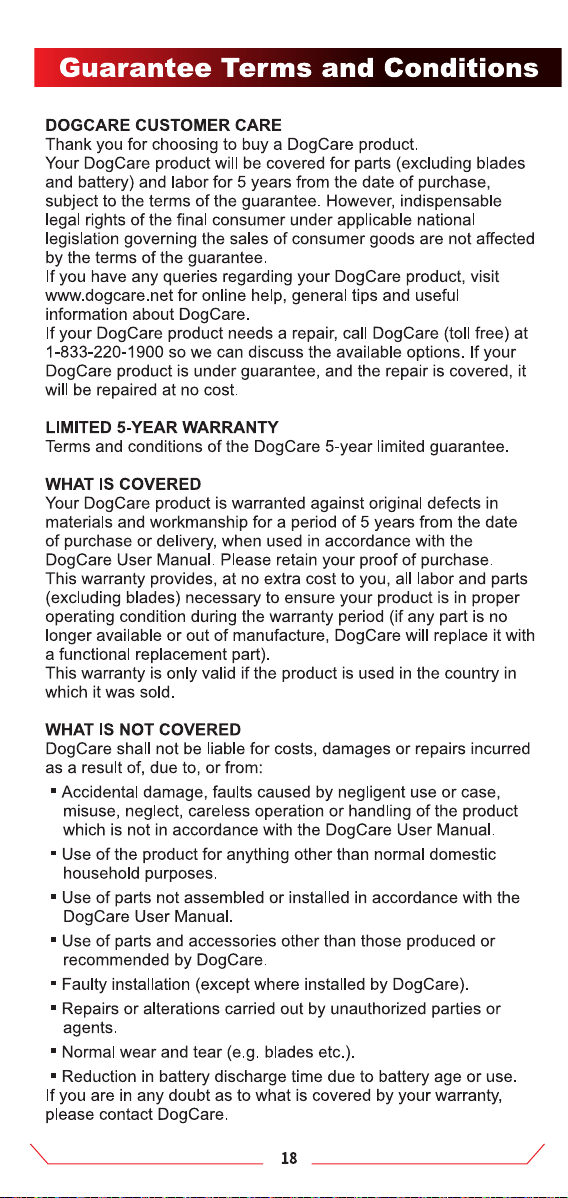

Guarantee Terms and Conditions
DOGCARE CUSTOMER CARE
Thank you for choosing to buy a DogCare product.
Your DogCare product will be covered for parts (excluding blades
and battery) and labor for 5 years from the date of purchase,
subject to the terms of the guarantee. However, indispensable
legal rights of the final consumer under applicable national
legislation governing the sales of consumer goods are not affected
by the terms of the guarantee.
If you have any queries regarding your DogCare product, visit
www.dogcare.net for online help, general tips and useful
information about DogCare.
If your DogCare product needs a repair, call DogCare (toll free) at
1-833-220-1900 so we can discuss the available options. If your
DogCare product is under guarantee, and the repair is covered, it
will be repaired at no cost.
LIMITED 5-YEAR WARRANTY
Terms and conditions of the DogCare 5-year limited guarantee.
WHAT IS COVERED
Your DogCare product is warranted against original defects in
materials and workmanship for a period of 5 years from the date
of purchase or delivery, when used in accordance with the
DogCare User Manual. Please retain your proof of purchase.
This warranty provides, at no extra cost to you, all labor and parts
(excluding blades) necessary to ensure your product is in proper
operating condition during the warranty period (if any part is no
longer available or out of manufacture, DogCare will replace it with
a functional replacement part).
This warranty is only valid if the product is used in the country in
which it was sold.
WHAT IS NOT COVERED
DogCare shall not be liable for costs, damages or repairs incurred
as a result of, due to, or from:
▪
Accidental damage, faults caused by negligent use or case,
misuse, neglect, careless operation or handling of the product
which is not in accordance with the DogCare User Manual.
▪
Use of the product for anything other than normal domestic
household purposes.
▪
Use of parts not assembled or installed in accordance with the
DogCare User Manual.
▪
Use of parts and accessories other than those produced or
recommended by DogCare.
▪
Faulty installation (except where installed by DogCare).
▪
Repairs or alterations carried out by unauthorized parties or
agents.
▪
Normal wear and tear (e.g. blades etc.).
▪
Reduction in battery discharge time due to battery age or use.
If you are in any doubt as to what is covered by your warranty,
please contact DogCare.
18
Guarantee Terms and Conditions

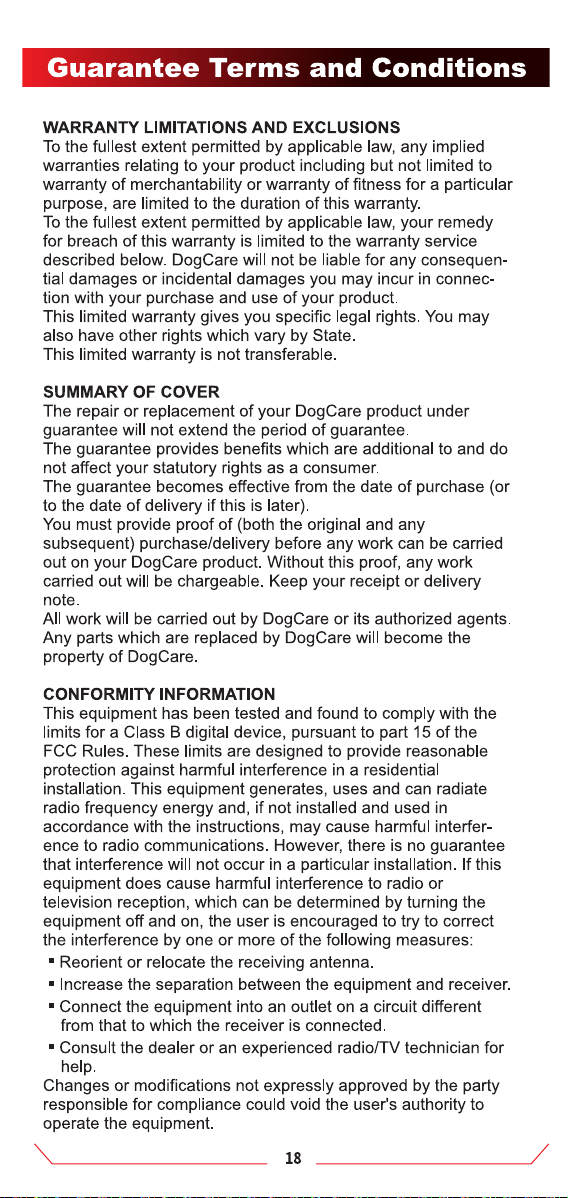

WARRANTY LIMITATIONS AND EXCLUSIONS
To the fullest extent permitted by applicable law, any implied
warranties relating to your product including but not limited to
warranty of merchantability or warranty of fitness for a particular
purpose, are limited to the duration of this warranty.
To the fullest extent permitted by applicable law, your remedy
for breach of this warranty is limited to the warranty service
described below. DogCare will not be liable for any consequen-
tial damages or incidental damages you may incur in connec-
tion with your purchase and use of your product.
This limited warranty gives you specific legal rights. You may
also have other rights which vary by State.
This limited warranty is not transferable.
SUMMARY OF COVER
The repair or replacement of your DogCare product under
guarantee will not extend the period of guarantee.
The guarantee provides benefits which are additional to and do
not affect your statutory rights as a consumer.
The guarantee becomes effective from the date of purchase (or
to the date of delivery if this is later).
You must provide proof of (both the original and any
subsequent) purchase/delivery before any work can be carried
out on your DogCare product. Without this proof, any work
carried out will be chargeable. Keep your receipt or delivery
note.
All work will be carried out by DogCare or its authorized agents.
Any parts which are replaced by DogCare will become the
property of DogCare.
CONFORMITY INFORMATION
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
▪
Reorient or relocate the receiving antenna.
▪
Increase the separation between the equipment and receiver.
▪
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
▪
Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
19

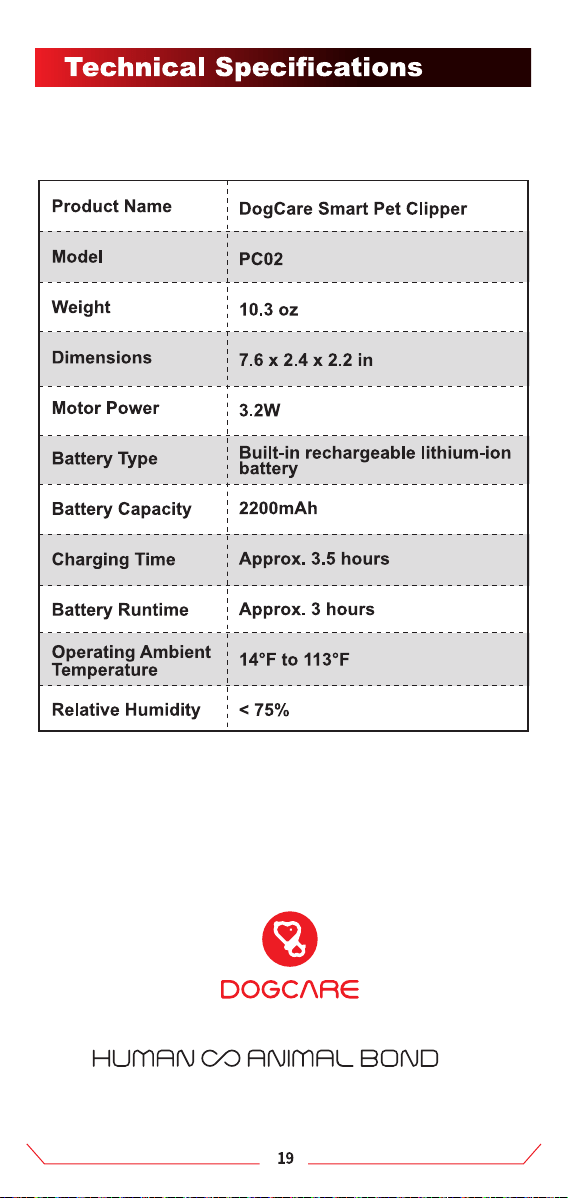

Technical Specifications
Product Name
Model
Weight
Dimensions
Motor Power
Battery Type
Battery Capacity
Charging Time
Battery Runtime
Operating Ambient
Temperature
Relative Humidity
DogCare Smart Pet Clipper
PC02
10.3 oz
7.6 x 2.4 x 2.2 in
3.2W
Built-in rechargeable lithium-ion
battery
2200mAh
Approx. 3.5 hours
Approx. 3 hours
14°F to 113°F
< 75%
