USER GUIDE & SERVICE MANUAL
Model: UONP115-SS01C
USER GUIDE & SERVICE MANUAL
Table of Contents
Click on any section below to jump directly there
Intro
Safety
Safety and Warning
Disposal And Recycling
Installation
Environmental Requirements
Electrical
Cutout & Product Dimensions
Water Hookup
Drain
General Installation

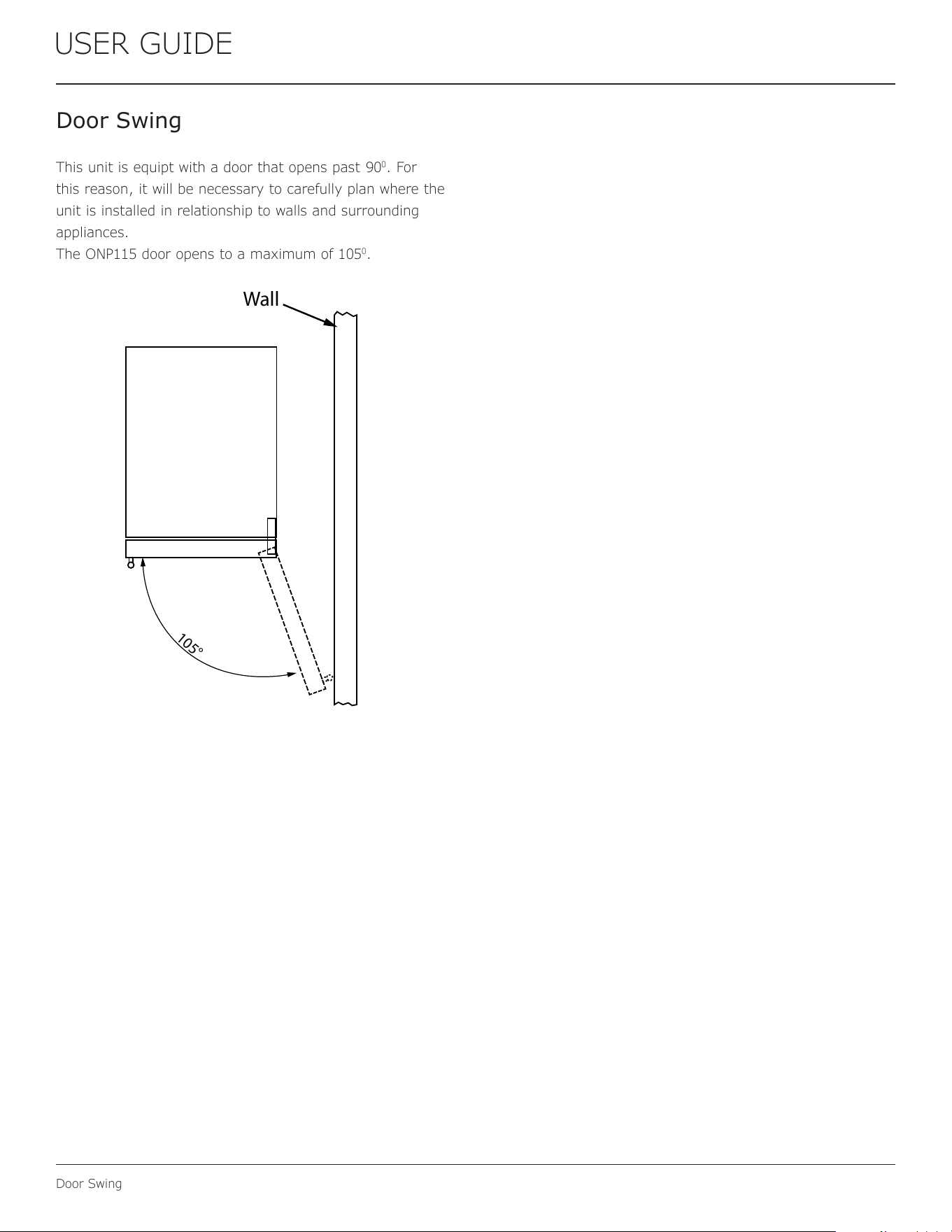

Door Swing
Door Adjust

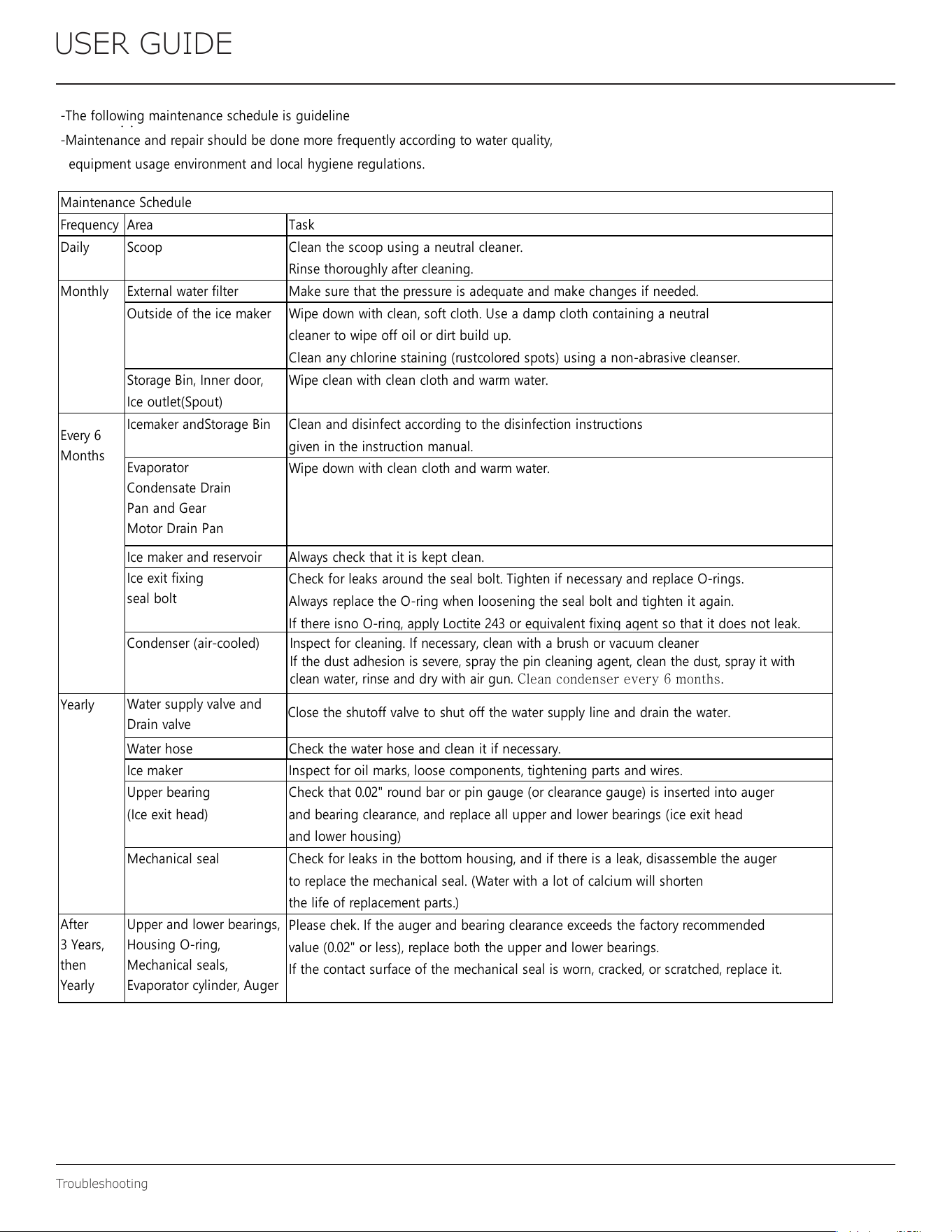

Maintenance
Cleaning
Cleaning Condenser
Operating Instructions
First Use
Control Operation
Ice

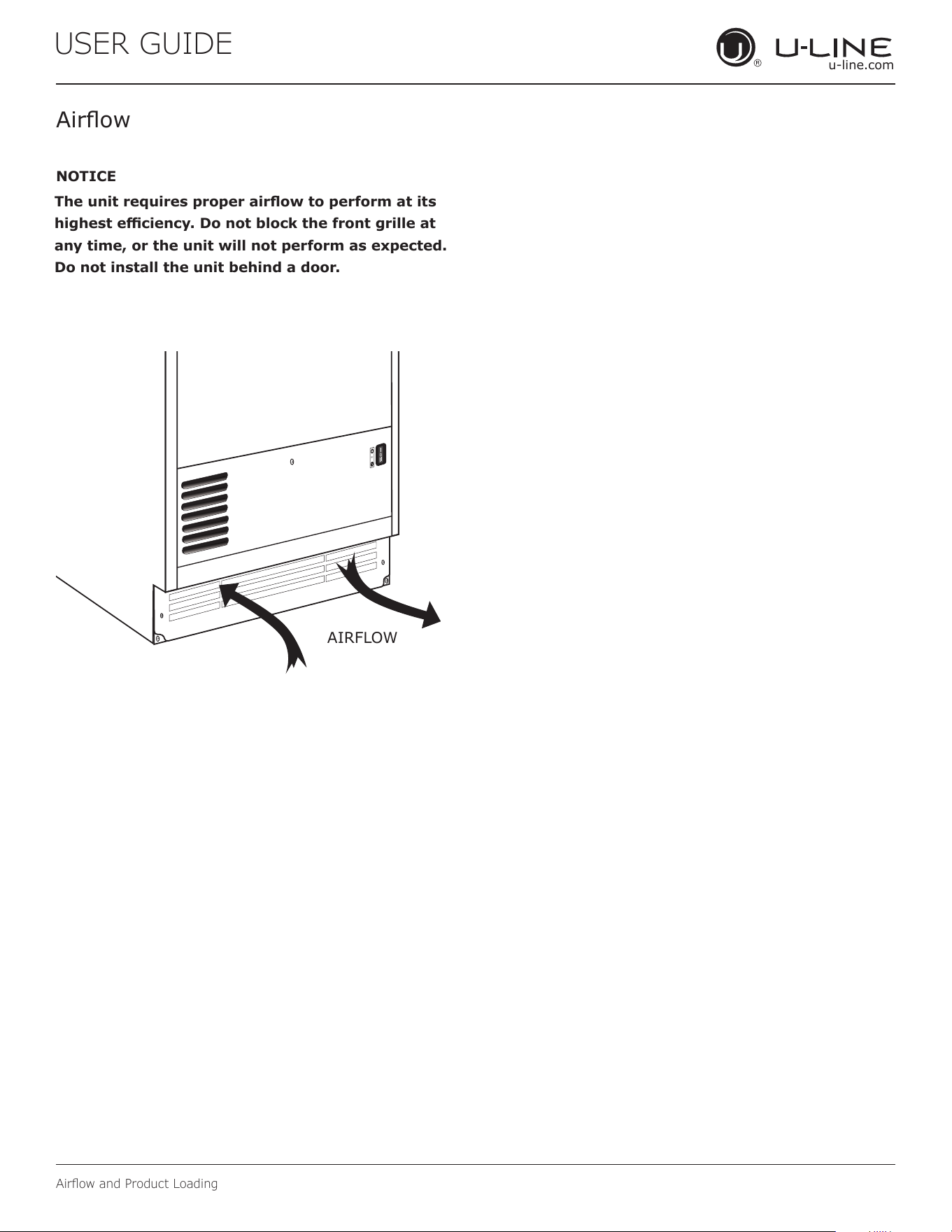

Airflow and Product Loading
Service
Troubleshooting
Wire Diagram
Product Liability
Parts

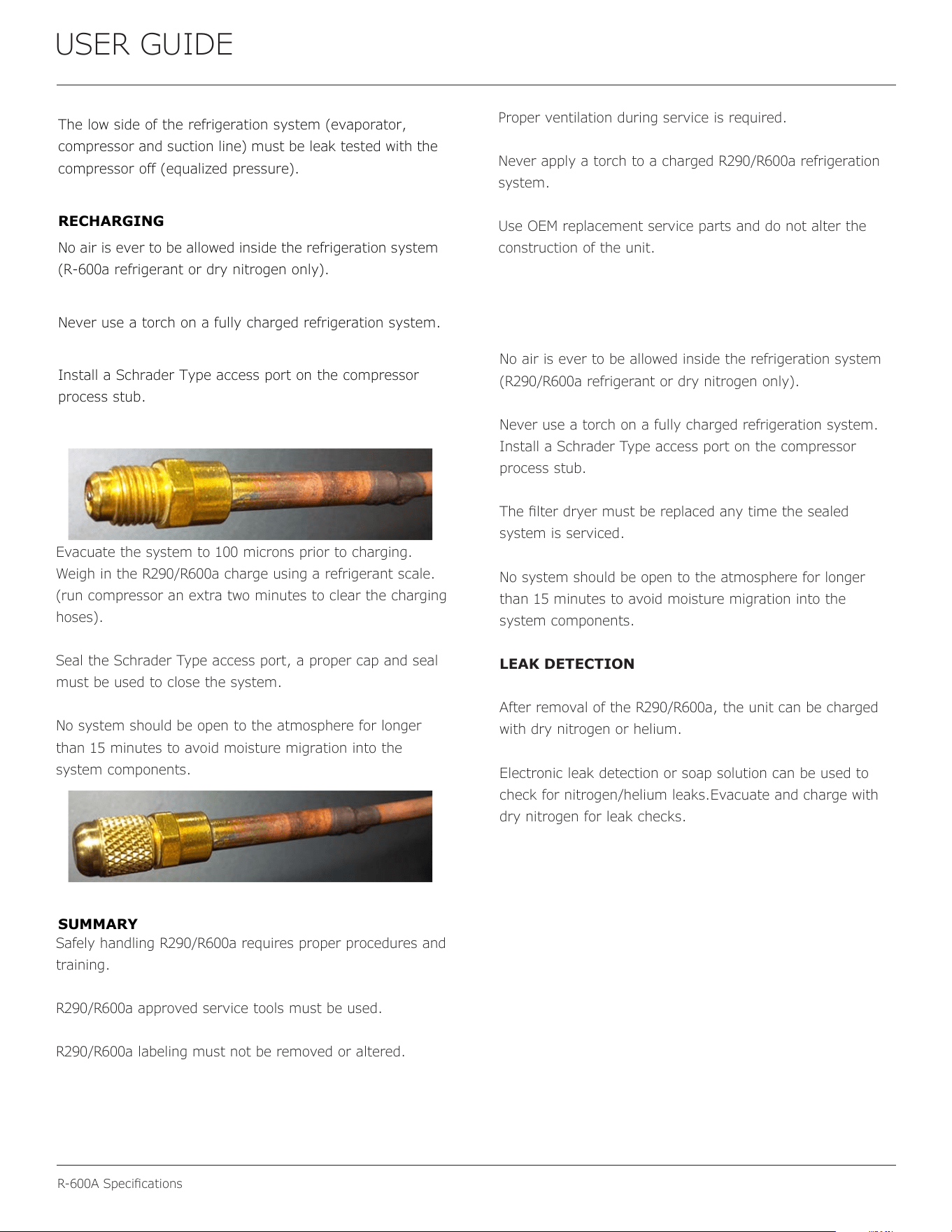

R600a Specifications
Compressor Specifications
Warranty
USER GUIDE
u-line.com

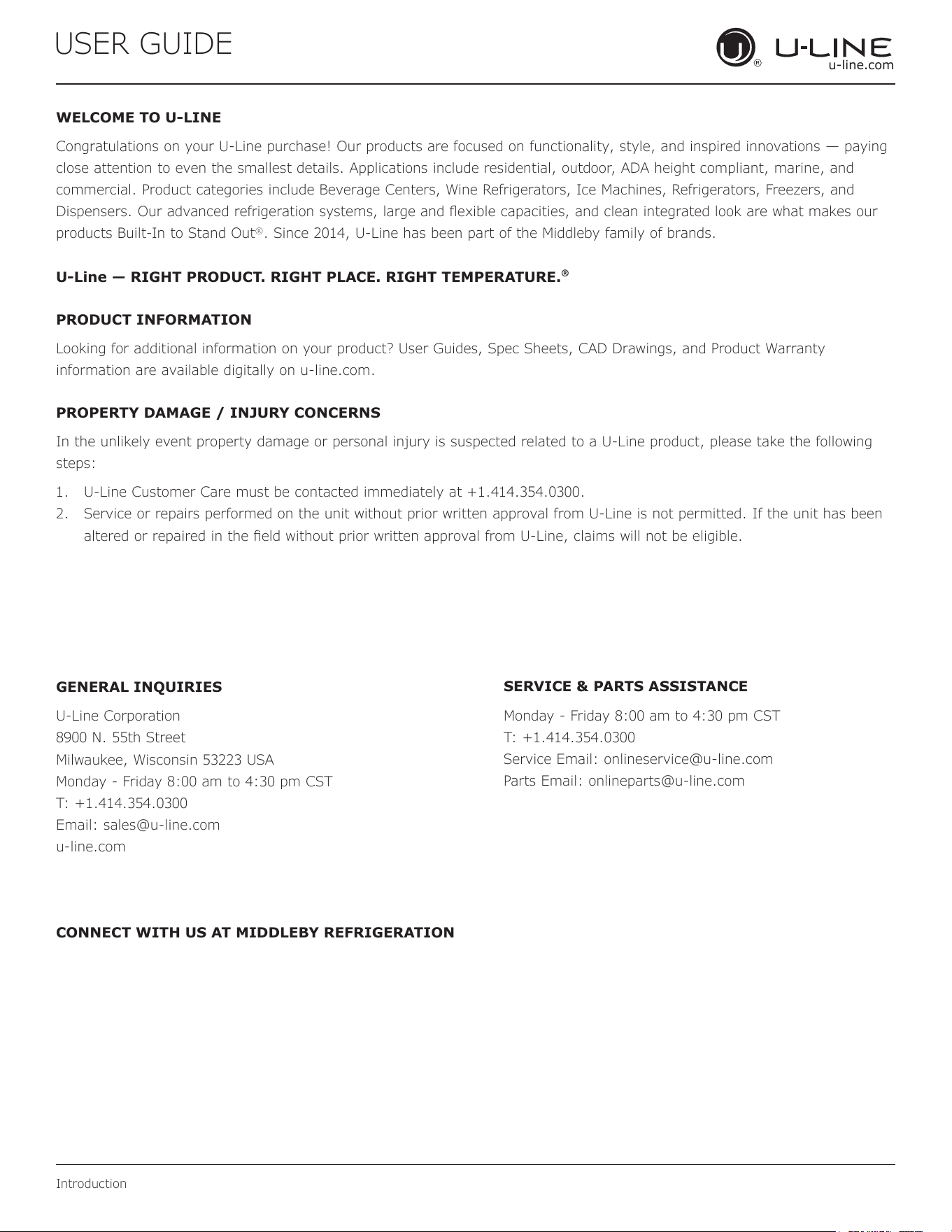

Introduction
WELCOME TO U-LINE
Congratulations on your U-Line purchase! Our products are focused on functionality, style, and inspired innovations — paying
close attention to even the smallest details. Applications include residential, outdoor, ADA height compliant, marine, and
commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines, Refrigerators, Freezers, and
Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean integrated look are what makes our
products Built-In to Stand Out
®
. Since 2014, U-Line has been part of the Middleby family of brands.
U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.
®
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty
information are available digitally on u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: sales@u-line.com
u-line.com
CONNECT WITH US AT MIDDLEBY REFRIGERATION
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Service Email: onlineservice@u-line.com
Parts Email: onlineparts@u-line.com
3
USER GUIDE

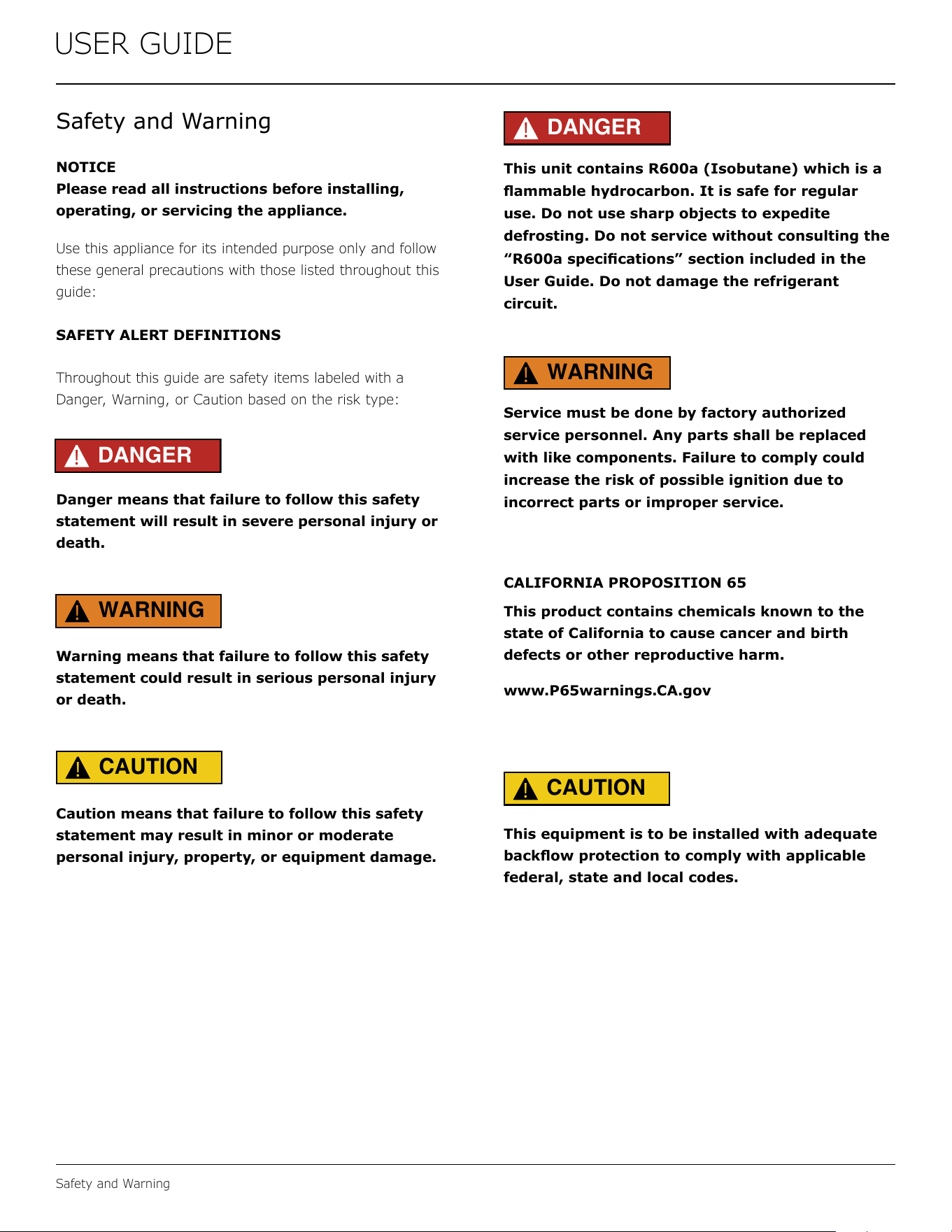

Safety and Warning
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
4
USER GUIDE

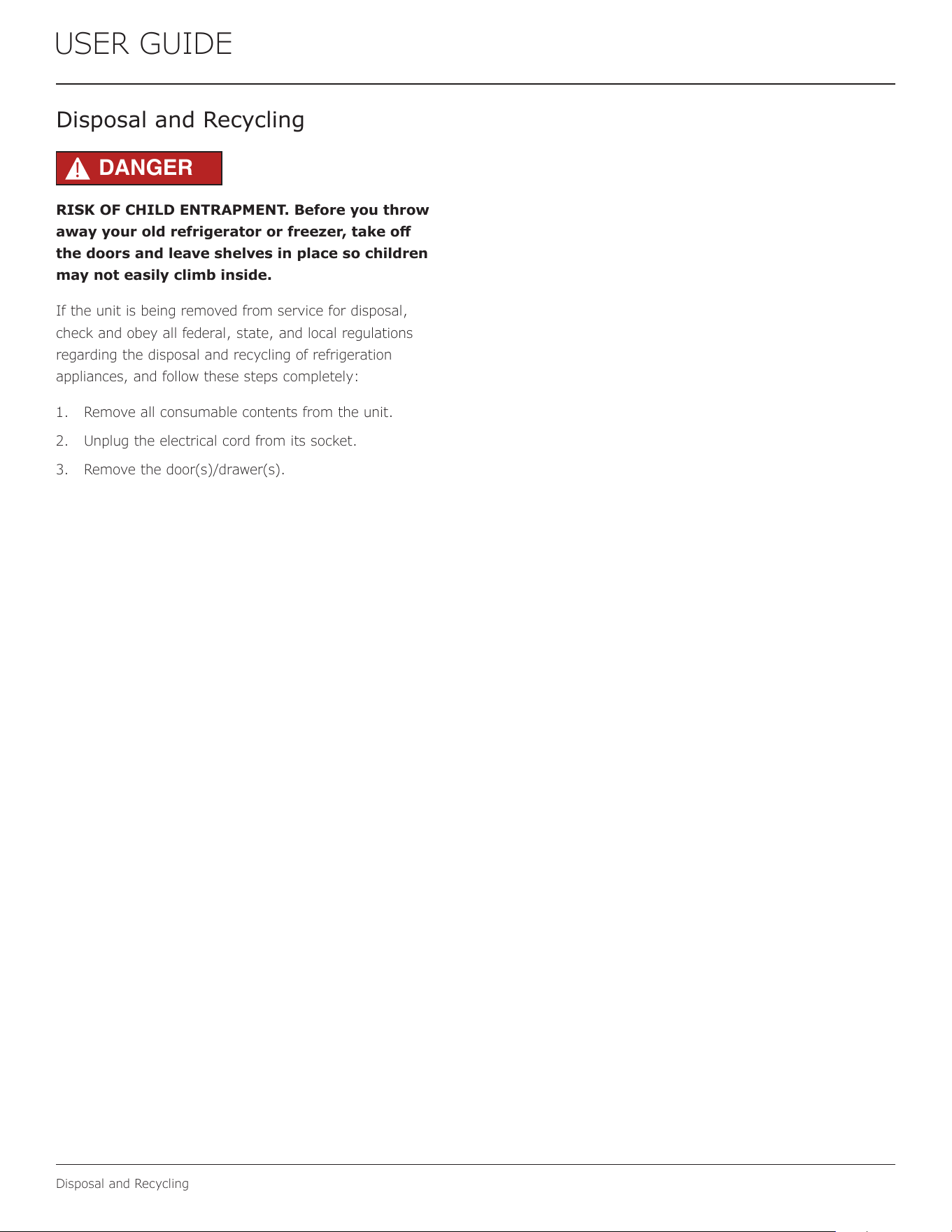

Disposal and Recycling
Disposal and Recycling
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take o
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state, and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
DANGER
!
5
USER GUIDE

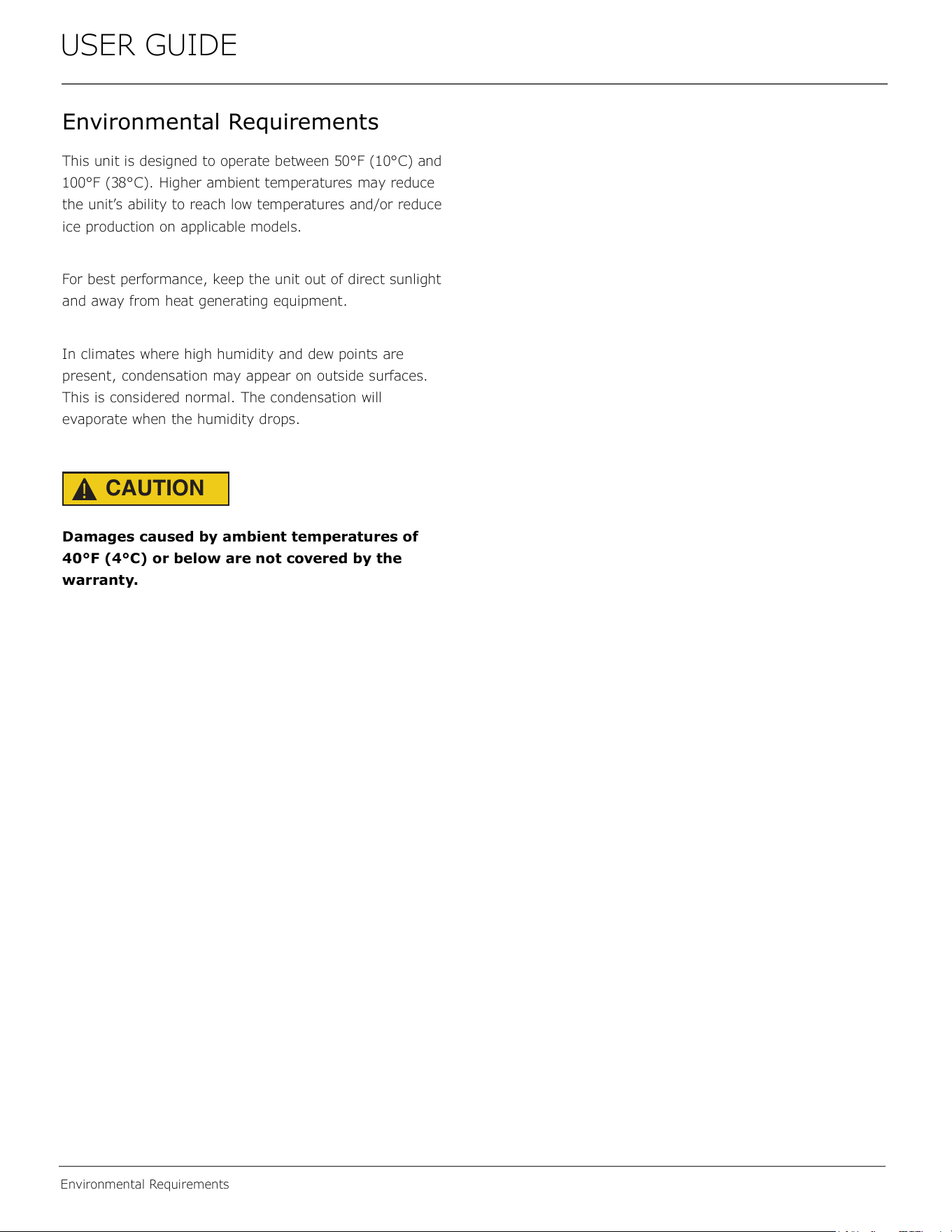

Environmental Requirements
Environmental Requirements
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
6
USER GUIDE

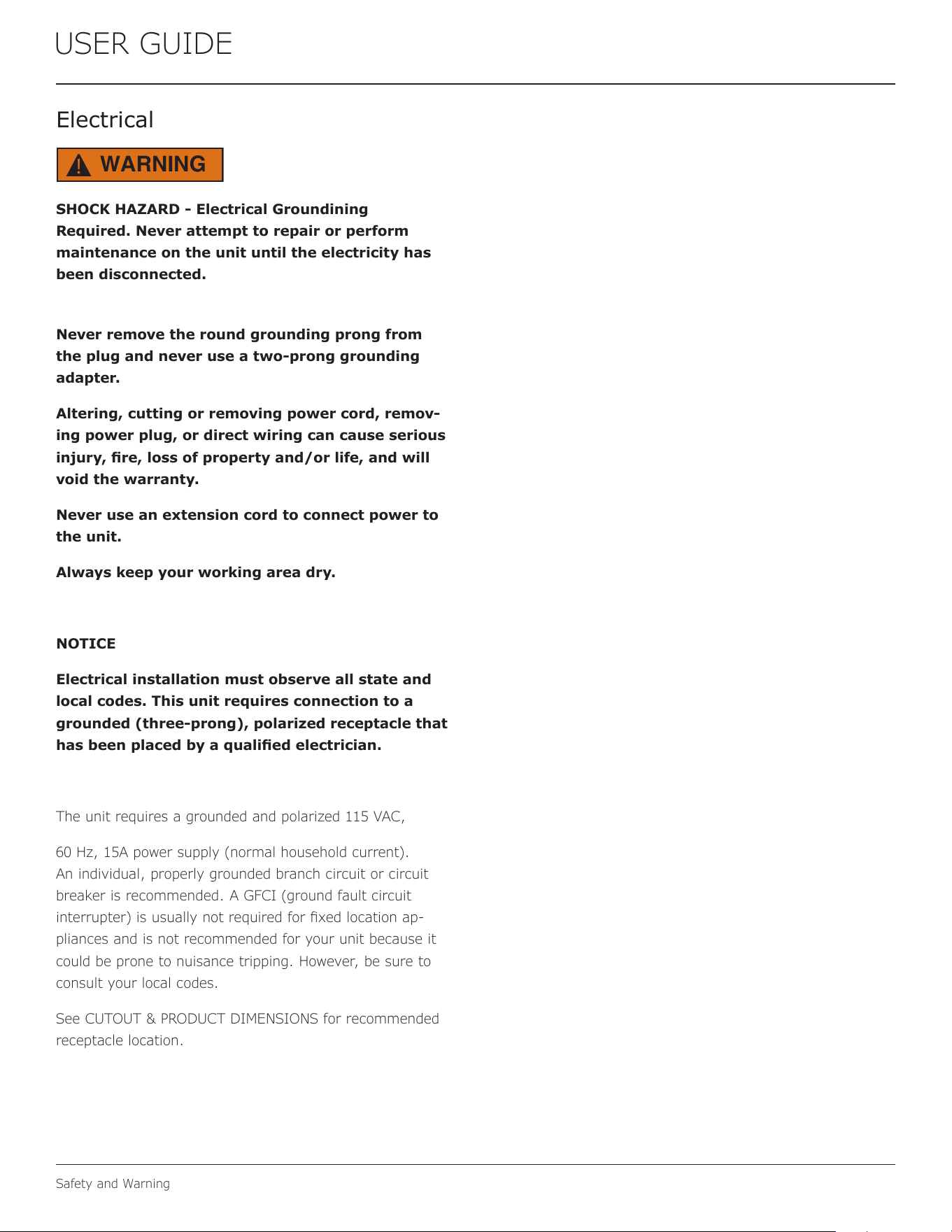

Safety and Warning
Electrical
SHOCK HAZARD - Electrical Groundining
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord, remov-
ing power plug, or direct wiring can cause serious
injury, re, loss of property and/or life, and will
void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle that
has been placed by a qualied electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current).
An individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for xed location ap-
pliances and is not recommended for your unit because it
could be prone to nuisance tripping. However, be sure to
consult your local codes.
See CUTOUT & PRODUCT DIMENSIONS for recommended
receptacle location.
WARNING
!
7
USER GUIDE

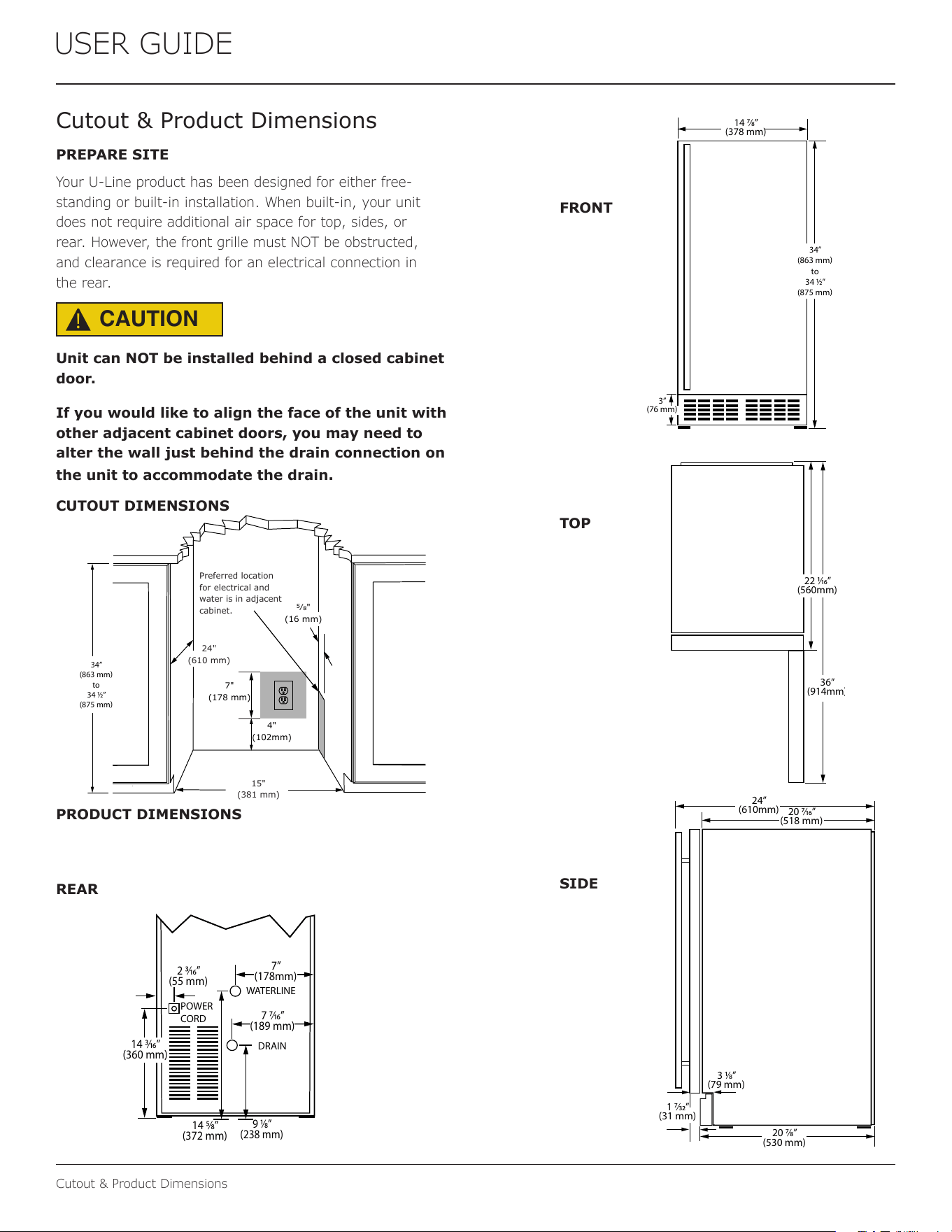

Cutout & Product Dimensions
Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
Unit can NOT be installed behind a closed cabinet
door.
If you would like to align the face of the unit with
other adjacent cabinet doors, you may need to
alter the wall just behind the drain connection on
the unit to accommodate the drain.
CUTOUT DIMENSIONS
PRODUCT DIMENSIONS
REAR
FRONT
TOP
SIDE
CAUTION
!
14 7⁄8”
(378 mm)
34”
(863 mm
)
to
34 1⁄2”
(875 mm
)
3”
(76 mm)
24”
(610mm)
20 7⁄8”
(530 mm)
3 1⁄8”
(79 mm)
1 7⁄32”
(31 mm)
20 7⁄16”
(518 mm)
36”
(914mm)
22 1⁄16”
(560mm)
4"
(102mm)
7"
(178 mm)
15"
(381 mm)
Preferred location
for electrical and
water is in adjacent
cabinet.
24"
(610 mm)
5⁄8"
(16 mm)
34”
(863 mm)
to
34 1⁄2”
(875 mm)
9 1⁄8”
(238 mm)
14 3⁄16”
(360 mm)
14 5⁄8”
(372 mm)
7”
(178mm)
7 7⁄16”
(189 mm)
WATERLINE
DRAIN
POWER
CORD
2 3⁄16”
(55 mm)
8
USER GUIDE

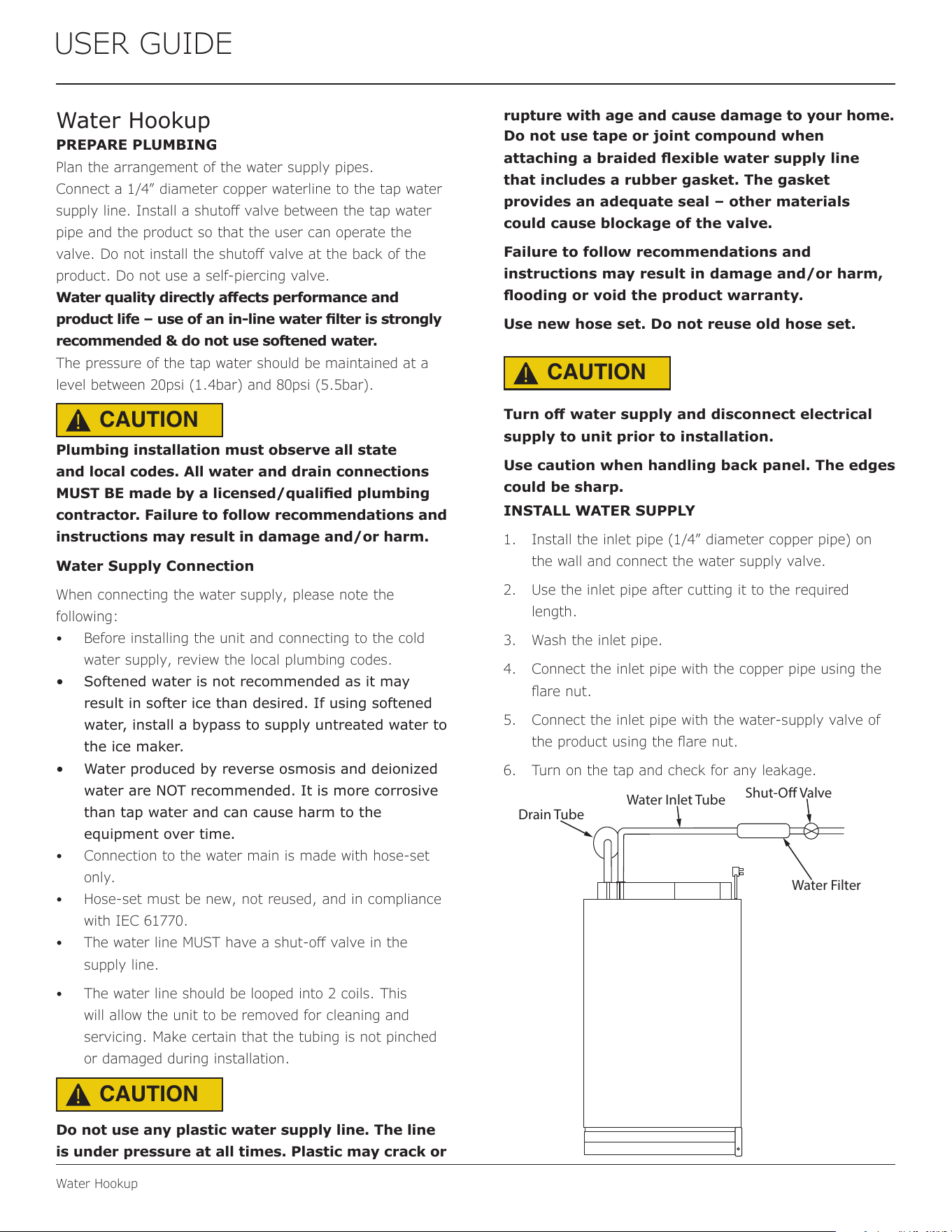

Water Hookup
Water Hookup
PREPARE PLUMBING
Plan the arrangement of the water supply pipes.
Connect a 1/4” diameter copper waterline to the tap water
supply line. Install a shuto valve between the tap water
pipe and the product so that the user can operate the
valve. Do not install the shuto valve at the back of the
product. Do not use a self-piercing valve.
Water quality directly aects performance and
product life – use of an in-line water lter is strongly
recommended & do not use softened water.
The pressure of the tap water should be maintained at a
level between 20psi (1.4bar) and 80psi (5.5bar).
Plumbing installation must observe all state
and local codes. All water and drain connections
MUST BE made by a licensed/qualied plumbing
contractor. Failure to follow recommendations and
instructions may result in damage and/or harm.
Water Supply Connection
When connecting the water supply, please note the
following:
• Before installing the unit and connecting to the cold
water supply, review the local plumbing codes.
• Softened water is not recommended as it may
result in softer ice than desired. If using softened
water, install a bypass to supply untreated water to
the ice maker.
• Water produced by reverse osmosis and deionized
water are NOT recommended. It is more corrosive
than tap water and can cause harm to the
equipment over time.
• Connection to the water main is made with hose-set
only.
• Hose-set must be new, not reused, and in compliance
with IEC 61770.
• The water line MUST have a shut-o valve in the
supply line.
• The water line should be looped into 2 coils. This
will allow the unit to be removed for cleaning and
servicing. Make certain that the tubing is not pinched
or damaged during installation.
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack or
rupture with age and cause damage to your home.
CAUTION
!
CAUTION
!
CAUTION
!
Shut-O Valve
Water Filter
Drain Tube
Water Inlet Tube
Do not use tape or joint compound when
attaching a braided exible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
ooding or void the product warranty.
Use new hose set. Do not reuse old hose set.
Turn o water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The edges
could be sharp.
INSTALL WATER SUPPLY
1. Install the inlet pipe (1/4” diameter copper pipe) on
the wall and connect the water supply valve.
2. Use the inlet pipe after cutting it to the required
length.
3. Wash the inlet pipe.
4. Connect the inlet pipe with the copper pipe using the
are nut.
5. Connect the inlet pipe with the water-supply valve of
the product using the are nut.
6. Turn on the tap and check for any leakage.
9
USER GUIDE

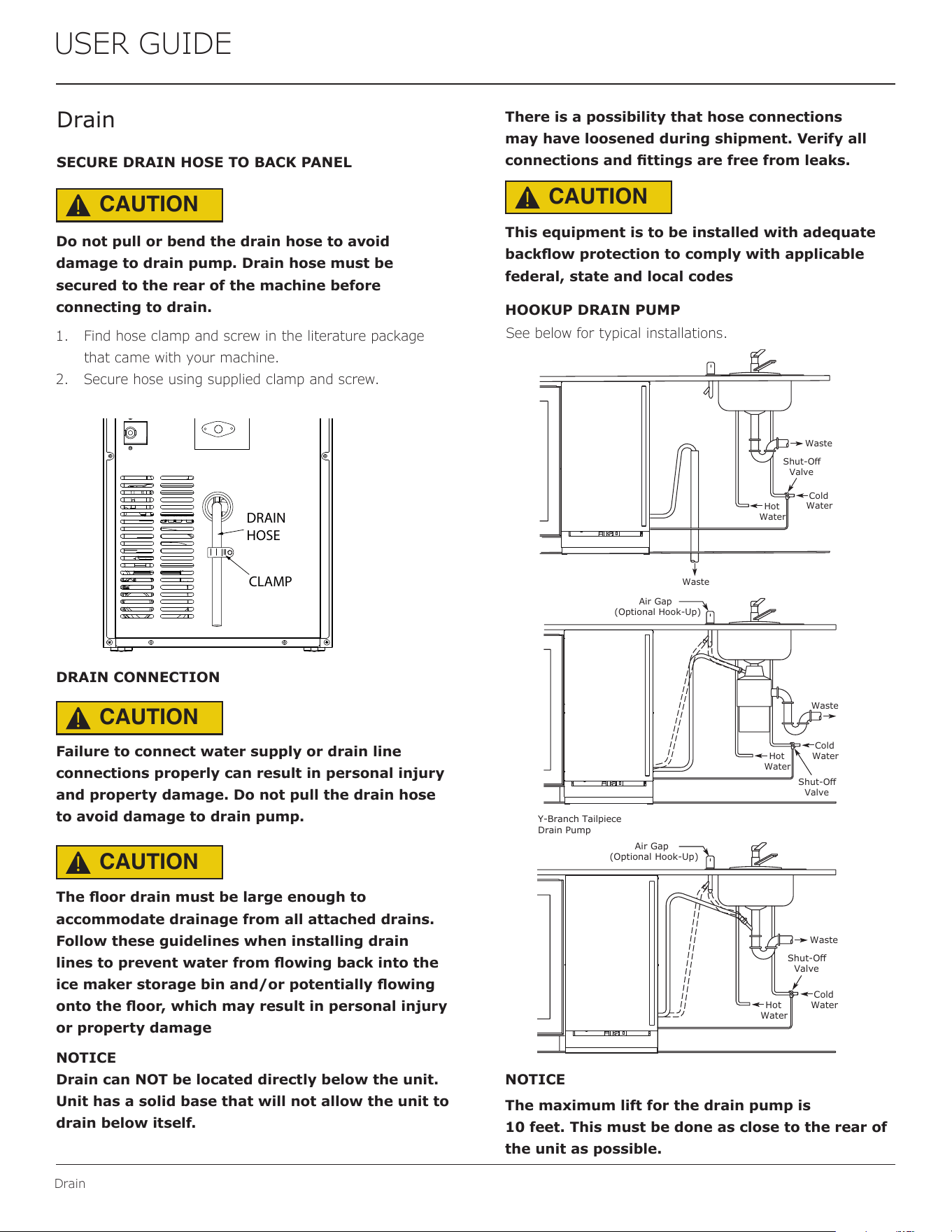

Drain
The oor drain must be large enough to
accommodate drainage from all attached drains.
Follow these guidelines when installing drain
lines to prevent water from owing back into the
ice maker storage bin and/or potentially owing
onto the oor, which may result in personal injury
or property damage
Do not pull or bend the drain hose to avoid
damage to drain pump. Drain hose must be
secured to the rear of the machine before
connecting to drain.
1. Find hose clamp and screw in the literature package
that came with your machine.
2. Secure hose using supplied clamp and screw.
Failure to connect water supply or drain line
connections properly can result in personal injury
and property damage. Do not pull the drain hose
to avoid damage to drain pump.
There is a possibility that hose connections
may have loosened during shipment. Verify all
connections and ttings are free from leaks.
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes
SECURE DRAIN HOSE TO BACK PANEL
DRAIN CONNECTION
NOTICE
Drain can NOT be located directly below the unit.
Unit has a solid base that will not allow the unit to
drain below itself.
Drain
CAUTION
!
CAUTION
!
CAUTION
!
CAUTION
!
See below for typical installations.
HOOKUP DRAIN PUMP
Cold
Water
Hot
Water
Waste
Waste
Shut-Off
Valve
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
Shut-Off
Valve
The maximum lift for the drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
NOTICE
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Y-Branch Tailpiece
Drain Pump
DRAIN
HOSE
CLAMP
10
USER GUIDE
u-line.com
General Installation
General Installation

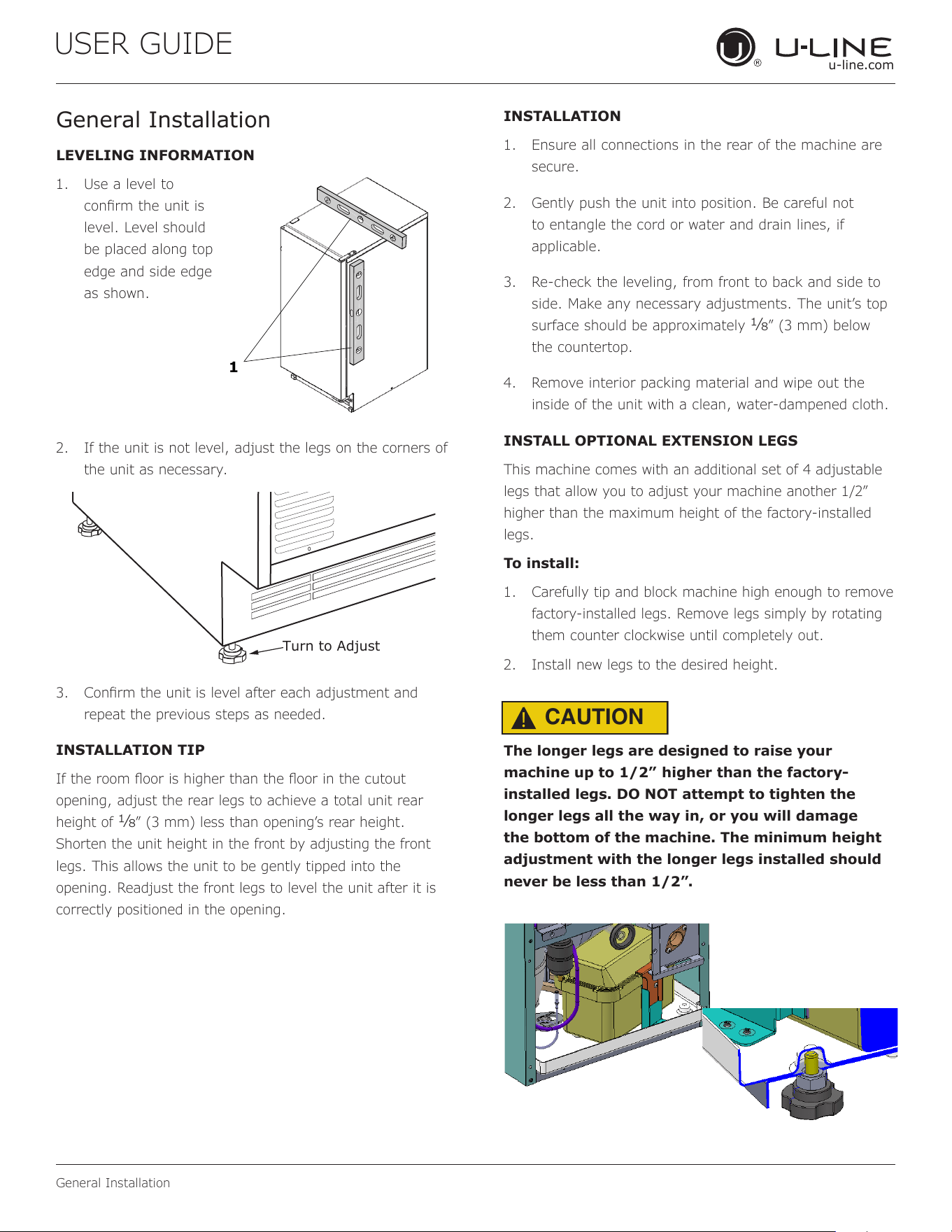

LEVELING INFORMATION
1. Use a level to
conrm the unit is
level. Level should
be placed along top
edge and side edge
as shown.
2. If the unit is not level, adjust the legs on the corners of
the unit as necessary.
3. Conrm the unit is level after each adjustment and
repeat the previous steps as needed.
INSTALLATION TIP
If the room oor is higher than the oor in the cutout
opening, adjust the rear legs to achieve a total unit rear
height of 1⁄8” (3 mm) less than opening’s rear height.
Shorten the unit height in the front by adjusting the front
legs. This allows the unit to be gently tipped into the
opening. Readjust the front legs to level the unit after it is
correctly positioned in the opening.
INSTALLATION
1. Ensure all connections in the rear of the machine are
secure.
2. Gently push the unit into position. Be careful not
to entangle the cord or water and drain lines, if
applicable.
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1⁄8” (3 mm) below
the countertop.
4. Remove interior packing material and wipe out the
inside of the unit with a clean, water-dampened cloth.
INSTALL OPTIONAL EXTENSION LEGS
This machine comes with an additional set of 4 adjustable
legs that allow you to adjust your machine another 1/2”
higher than the maximum height of the factory-installed
legs.
To install:
1. Carefully tip and block machine high enough to remove
factory-installed legs. Remove legs simply by rotating
them counter clockwise until completely out.
2. Install new legs to the desired height.
The longer legs are designed to raise your
machine up to 1/2” higher than the factory-
installed legs. DO NOT attempt to tighten the
longer legs all the way in, or you will damage
the bottom of the machine. The minimum height
adjustment with the longer legs installed should
never be less than 1/2”.
1
Turn to Adjust
CAUTION
!
11
USER GUIDE
Door Swing
Door Swing
This unit is equipt with a door that opens past
90
0
. For
this reason, it will be necessary to carefully plan where the
unit is installed in relationship to walls and surrounding
appliances.
The ONP115 door opens to a maximum of 105
0
.
105°
Wall
12
USER GUIDE

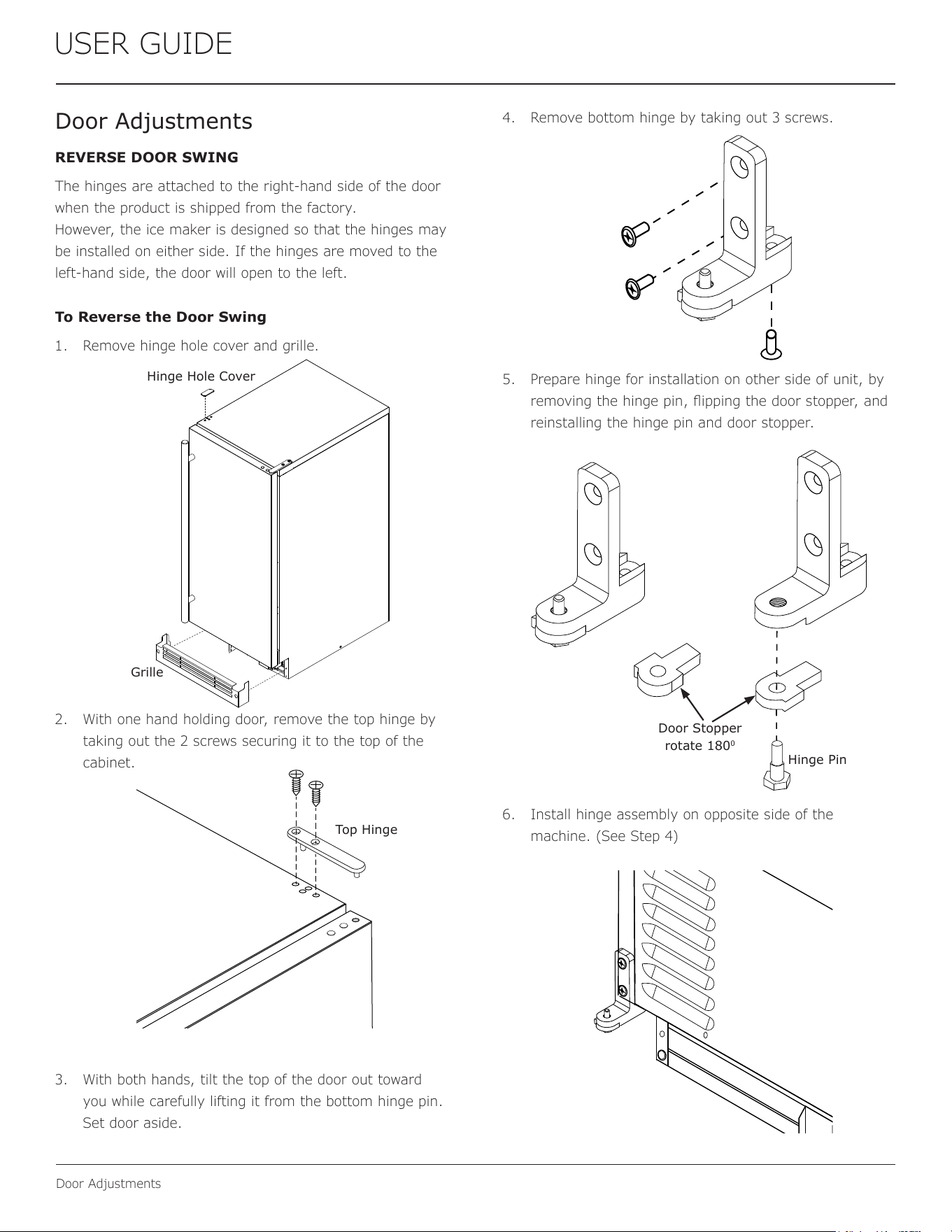

Door Adjustments
Door Adjustments
REVERSE DOOR SWING
The hinges are attached to the right-hand side of the door
when the product is shipped from the factory.
However, the ice maker is designed so that the hinges may
be installed on either side. If the hinges are moved to the
left-hand side, the door will open to the left.
To Reverse the Door Swing
1. Remove hinge hole cover and grille.
2. With one hand holding door, remove the top hinge by
taking out the 2 screws securing it to the top of the
cabinet.
3. With both hands, tilt the top of the door out toward
you while carefully lifting it from the bottom hinge pin.
Set door aside.
4. Remove bottom hinge by taking out 3 screws.
5. Prepare hinge for installation on other side of unit, by
removing the hinge pin, ipping the door stopper, and
reinstalling the hinge pin and door stopper.
6. Install hinge assembly on opposite side of the
machine. (See Step 4)
Hinge Hole Cover
Grille
Door Stopper
rotate 180
0
Hinge Pin
Top Hinge
13
USER GUIDE
Door Adjustments

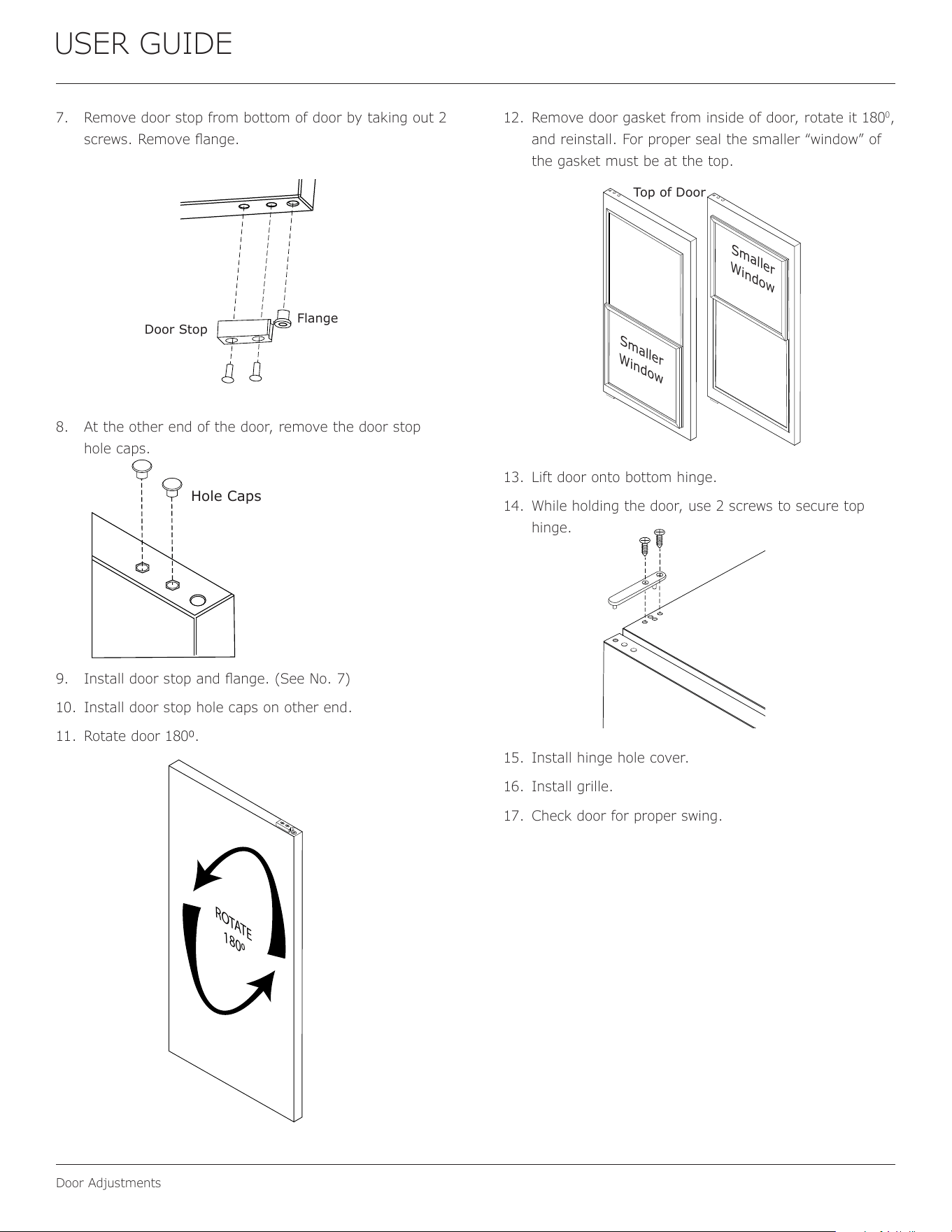

7. Remove door stop from bottom of door by taking out 2
screws. Remove ange.
8. At the other end of the door, remove the door stop
hole caps.
9. Install door stop and ange. (See No. 7)
10. Install door stop hole caps on other end.
11. Rotate door 1800.
12. Remove door gasket from inside of door, rotate it 180
0
,
and reinstall. For proper seal the smaller “window” of
the gasket must be at the top.
13. Lift door onto bottom hinge.
14. While holding the door, use 2 screws to secure top
hinge.
15. Install hinge hole cover.
16. Install grille.
17. Check door for proper swing.
Hole Caps
Flange
Door Stop
ROTATE
1800
Top of Door
Smaller
Window
Smaller
Window
14
USER GUIDE
First Use
First Use

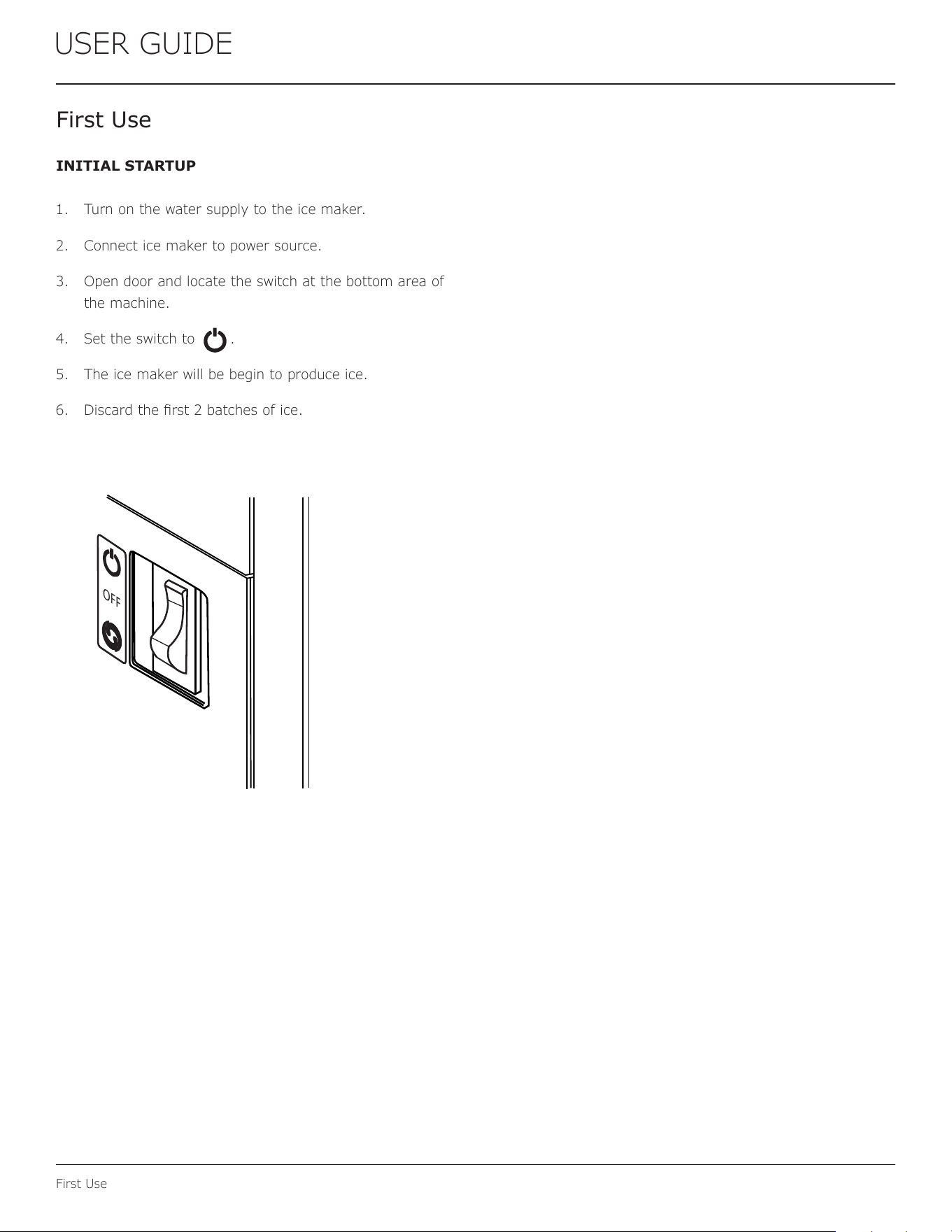

INITIAL STARTUP
1. Turn on the water supply to the ice maker.
2. Connect ice maker to power source.
3. Open door and locate the switch at the bottom area of
the machine.
4. Set the switch to .
5. The ice maker will be begin to produce ice.
6. Discard the rst 2 batches of ice.
OFF
15
USER GUIDE
Control Operation

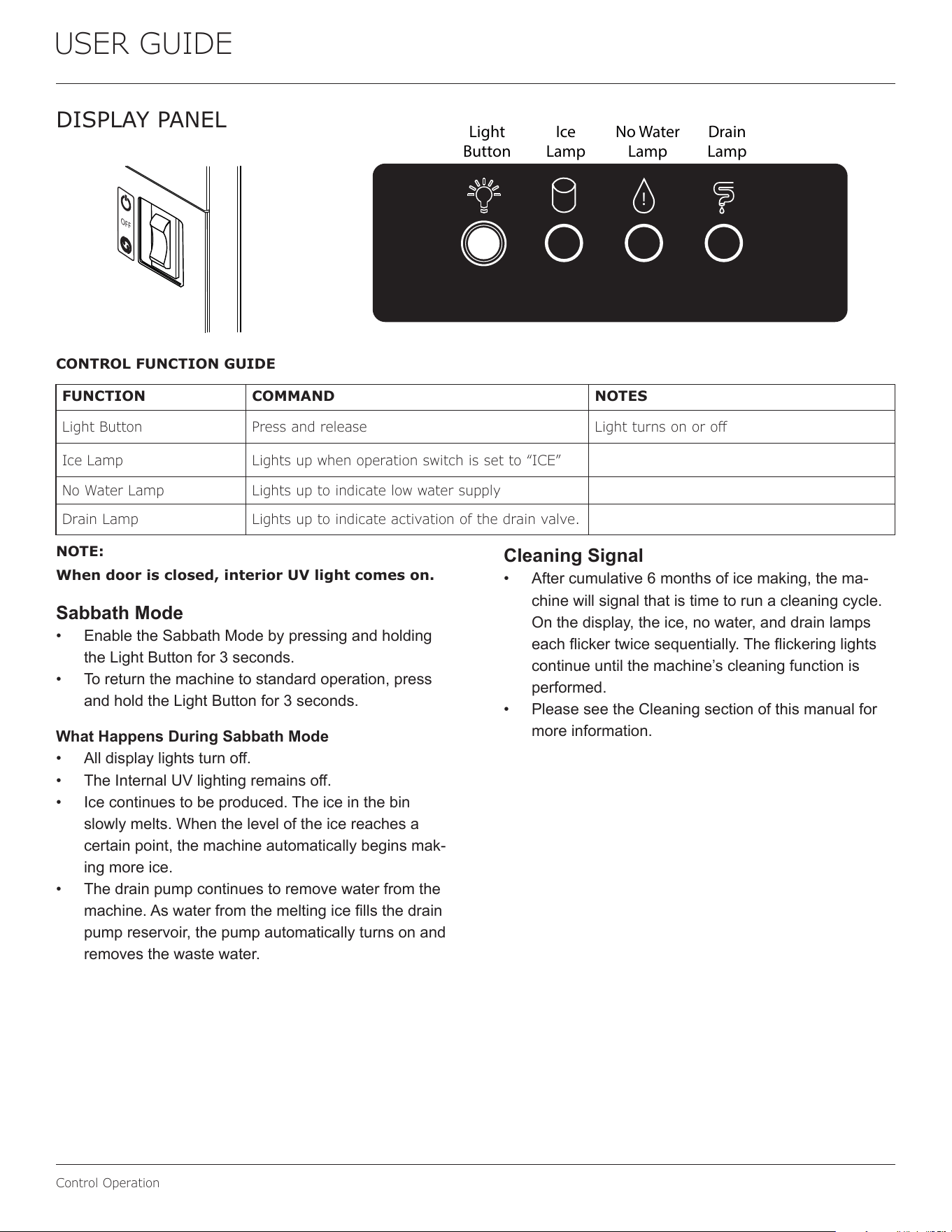

DISPLAY PANEL
CONTROL FUNCTION GUIDE
NOTE:
When door is closed, interior UV light comes on.
Sabbath Mode
• Enable the Sabbath Mode by pressing and holding
the Light Button for 3 seconds.
• To return the machine to standard operation, press
and hold the Light Button for 3 seconds.
What Happens During Sabbath Mode
• All display lights turn o.
• The Internal UV lighting remains o.
• Ice continues to be produced. The ice in the bin
slowly melts. When the level of the ice reaches a
certain point, the machine automatically begins mak-
ing more ice.
• The drain pump continues to remove water from the
machine. As water from the melting ice lls the drain
pump reservoir, the pump automatically turns on and
removes the waste water.
Cleaning Signal
• After cumulative 6 months of ice making, the ma-
chine will signal that is time to run a cleaning cycle.
On the display, the ice, no water, and drain lamps
each icker twice sequentially. The ickering lights
continue until the machine’s cleaning function is
performed.
• Please see the Cleaning section of this manual for
more information.
FUNCTION COMMAND NOTES
Light Button Press and release Light turns on or o
Ice Lamp Lights up when operation switch is set to “ICE”
No Water Lamp Lights up to indicate low water supply
Drain Lamp Lights up to indicate activation of the drain valve.
OFF
!
Light
Button
Ice
Lamp
No Water
Lamp
Drain
Lamp
16
USER GUIDE

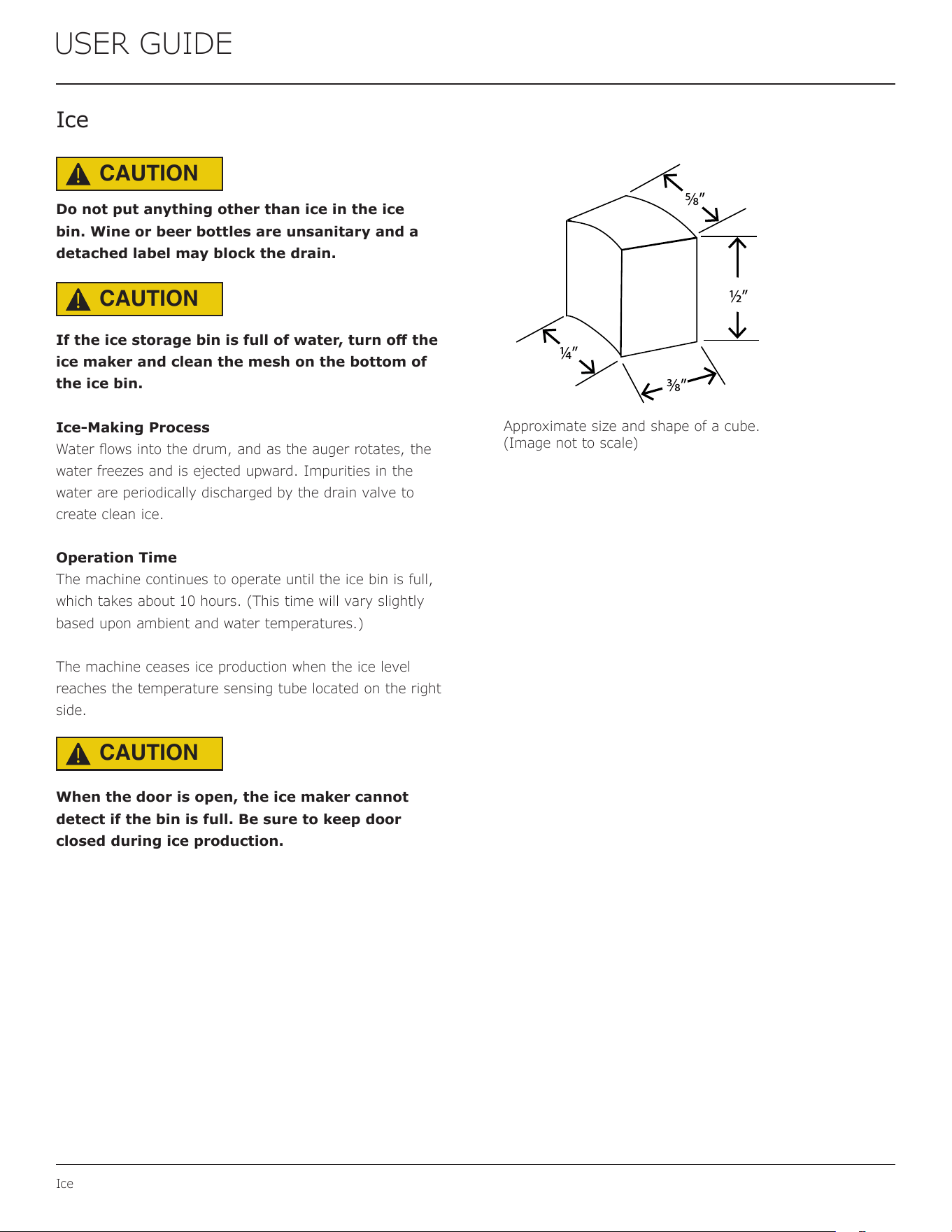

Ice
Ic e
Do not put anything other than ice in the ice
bin. Wine or beer bottles are unsanitary and a
detached label may block the drain.
If the ice storage bin is full of water, turn o the
ice maker and clean the mesh on the bottom of
the ice bin.
Ice-Making Process
Water ows into the drum, and as the auger rotates, the
water freezes and is ejected upward. Impurities in the
water are periodically discharged by the drain valve to
create clean ice.
Operation Time
The machine continues to operate until the ice bin is full,
which takes about 10 hours. (This time will vary slightly
based upon ambient and water temperatures.)
The machine ceases ice production when the ice level
reaches the temperature sensing tube located on the right
side.
When the door is open, the ice maker cannot
detect if the bin is full. Be sure to keep door
closed during ice production.
CAUTION
!
CAUTION
!
CAUTION
!
5⁄8”
1⁄2”
3⁄8”
1⁄4”
Approximate size and shape of a cube.
(Image not to scale)
17
USER GUIDE
u-line.com
Airow and Product Loading
The unit requires proper airow to perform at its
highest eciency. Do not block the front grille at
any time, or the unit will not perform as expected.
Do not install the unit behind a door.
NOTICE
Airow
OFF
AIRFLOW
18
USER GUIDE

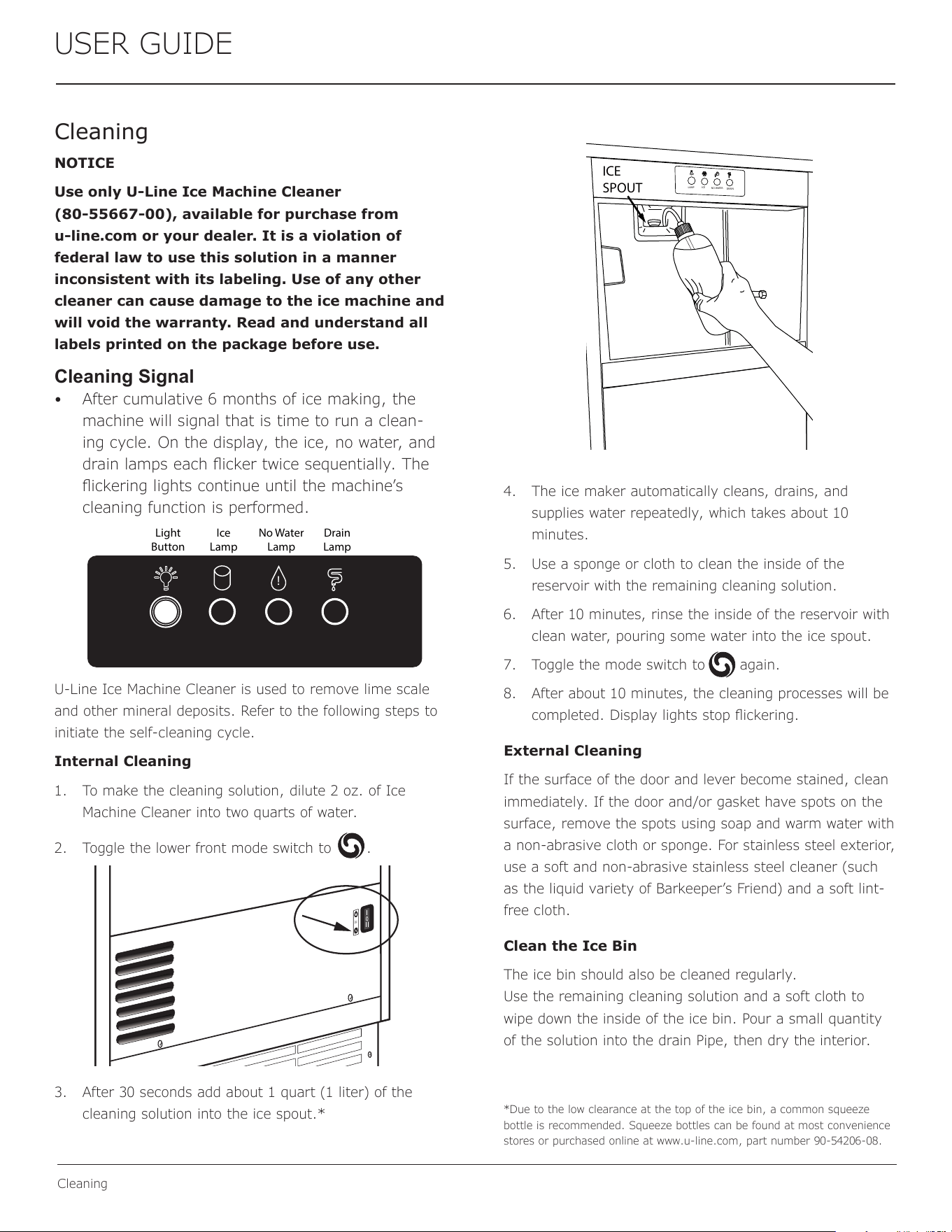

Cleaning
Cleaning
NOTICE
Use only U-Line Ice Machine Cleaner
(80-55667-00), available for purchase from
u-line.com or your dealer. It is a violation of
federal law to use this solution in a manner
inconsistent with its labeling. Use of any other
cleaner can cause damage to the ice machine and
will void the warranty. Read and understand all
labels printed on the package before use.
Cleaning Signal
• After cumulative 6 months of ice making, the
machine will signal that is time to run a clean-
ing cycle. On the display, the ice, no water, and
drain lamps each icker twice sequentially. The
ickering lights continue until the machine’s
cleaning function is performed.
U-Line Ice Machine Cleaner is used to remove lime scale
and other mineral deposits. Refer to the following steps to
initiate the self-cleaning cycle.
Internal Cleaning
1. To make the cleaning solution, dilute 2 oz. of Ice
Machine Cleaner into two quarts of water.
2. Toggle the lower front mode switch to .
3. After 30 seconds add about 1 quart (1 liter) of the
cleaning solution into the ice spout.*
4. The ice maker automatically cleans, drains, and
supplies water repeatedly, which takes about 10
minutes.
5. Use a sponge or cloth to clean the inside of the
reservoir with the remaining cleaning solution.
6. After 10 minutes, rinse the inside of the reservoir with
clean water, pouring some water into the ice spout.
7. Toggle the mode switch to again.
8. After about 10 minutes, the cleaning processes will be
completed. Display lights stop ickering.
External Cleaning
If the surface of the door and lever become stained, clean
immediately. If the door and/or gasket have spots on the
surface, remove the spots using soap and warm water with
a non-abrasive cloth or sponge. For stainless steel exterior,
use a soft and non-abrasive stainless steel cleaner (such
as the liquid variety of Barkeeper’s Friend) and a soft lint-
free cloth.
Clean the Ice Bin
The ice bin should also be cleaned regularly.
Use the remaining cleaning solution and a soft cloth to
wipe down the inside of the ice bin. Pour a small quantity
of the solution into the drain Pipe, then dry the interior.
*Due to the low clearance at the top of the ice bin, a common squeeze
bottle is recommended. Squeeze bottles can be found at most convenience
stores or purchased online at www.u-line.com, part number 90-54206-08.
OFF
LAMP
ICE
NO WATER
DRAIN
ICE
SPOUT
!
Light
Button
Ice
Lamp
No Water
Lamp
Drain
Lamp
19
USER GUIDE

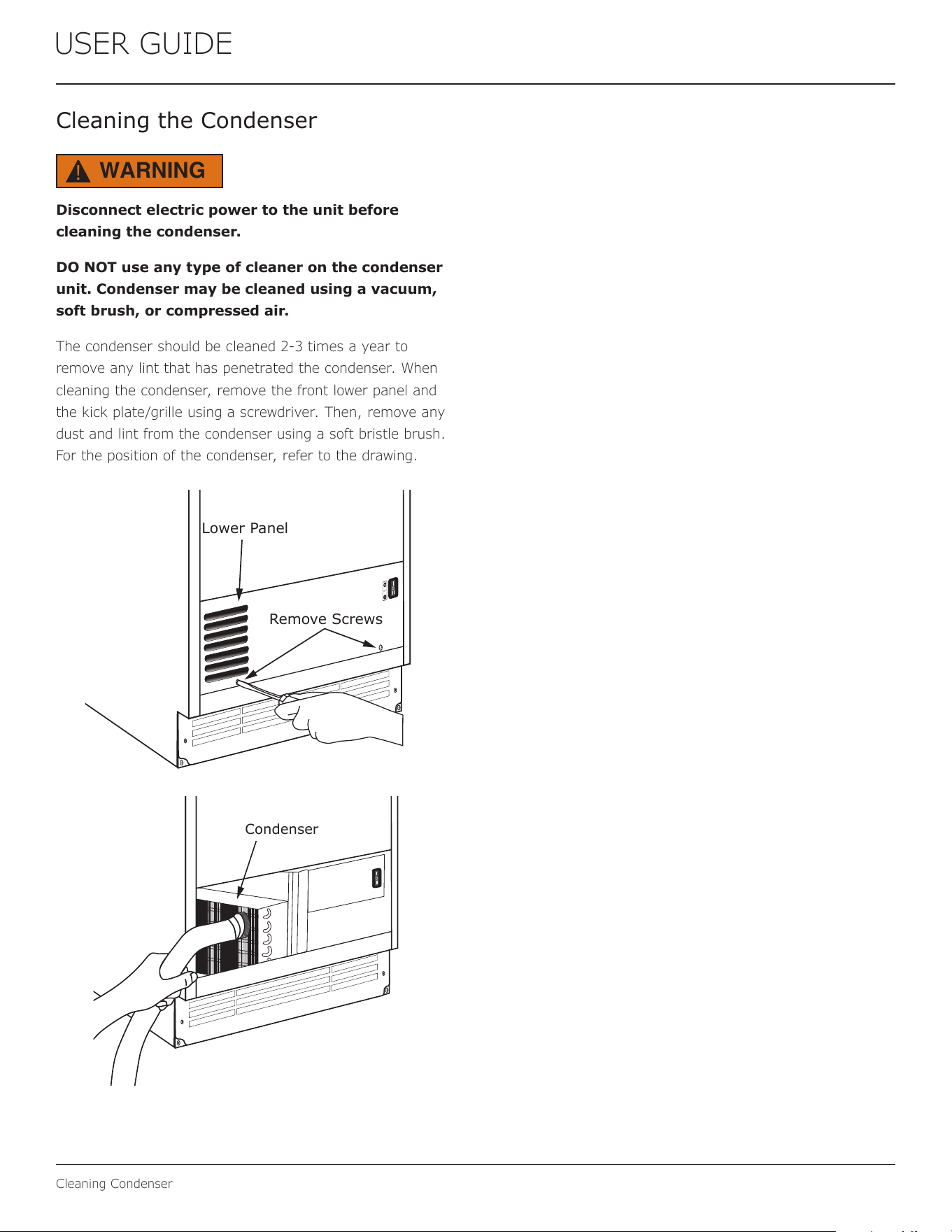

Cleaning Condenser
Cleaning the Condenser
Disconnect electric power to the unit before
cleaning the condenser.
DO NOT use any type of cleaner on the condenser
unit. Condenser may be cleaned using a vacuum,
soft brush, or compressed air.
The condenser should be cleaned 2-3 times a year to
remove any lint that has penetrated the condenser. When
cleaning the condenser, remove the front lower panel and
the kick plate/grille using a screwdriver. Then, remove any
dust and lint from the condenser using a soft bristle brush.
For the position of the condenser, refer to the drawing.
WARNING
!
OFF
Remove Screws
Lower Panel
Condenser
20
USER GUIDE

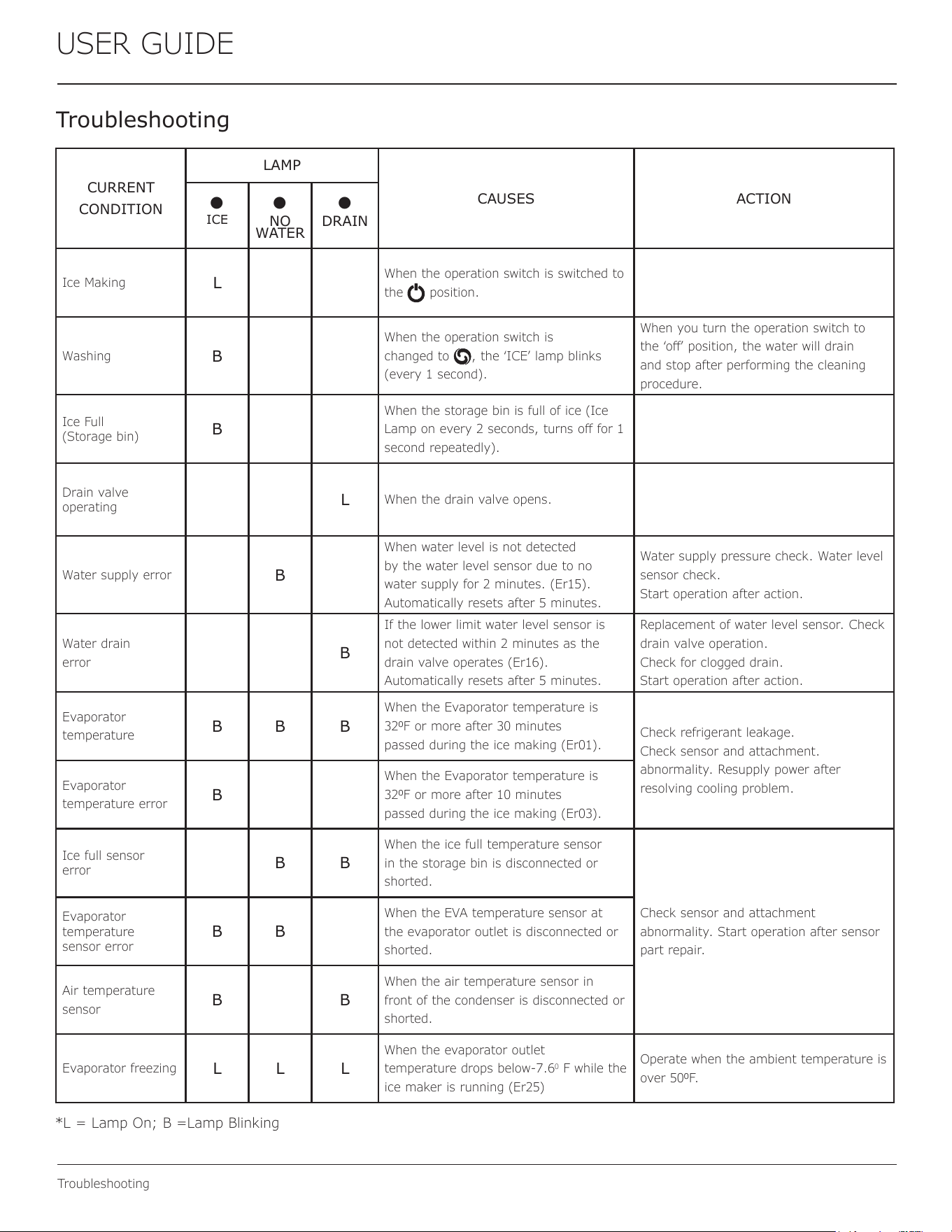

Troubleshooting
Troubleshooting
CURRENT
CONDITION
LAMP
CAUSES ACTION
•
ICE
•
NO
WATER
•
DRAIN
Ice Making
L
When the operation switch is switched to
the position.
Washing
B
When the operation switch is
changed to , the ‘ICE’ lamp blinks
(every 1 second).
When you turn the operation switch to
the ‘o’ position, the water will drain
and stop after performing the cleaning
procedure.
Ice Full
(Storage bin)
B
When the storage bin is full of ice (Ice
Lamp on every 2 seconds, turns o for 1
second repeatedly).
Drain valve
operating
L
When the drain valve opens.
Water supply error
B
When water level is not detected
by the water level sensor due to no
water supply for 2 minutes. (Er15).
Automatically resets after 5 minutes.
Water supply pressure check. Water level
sensor check.
Start operation after action.
Water drain
error
B
If the lower limit water level sensor is
not detected within 2 minutes as the
drain valve operates (Er16).
Automatically resets after 5 minutes.
Replacement of water level sensor. Check
drain valve operation.
Check for clogged drain.
Start operation after action.
Evaporator
temperature
B B B
When the Evaporator temperature is
320F or more after 30 minutes
passed during the ice making (Er01).
Check refrigerant leakage.
Check sensor and attachment.
abnormality. Resupply power after
resolving cooling problem.
Evaporator
temperature error
B
When the Evaporator temperature is
320F or more after 10 minutes
passed during the ice making (Er03).
Ice full sensor
error
B B
When the ice full temperature sensor
in the storage bin is disconnected or
shorted.
Check sensor and attachment
abnormality. Start operation after sensor
part repair.
Evaporator
temperature
sensor error
B B
When the EVA temperature sensor at
the evaporator outlet is disconnected or
shorted.
Air temperature
sensor
B B
When the air temperature sensor in
front of the condenser is disconnected or
shorted.
Evaporator freezing
L L L
When the evaporator outlet
temperature drops below-7.6
0
F while the
ice maker is running (Er25)
Operate when the ambient temperature is
over 500F.
*L = Lamp On; B =Lamp Blinking
21
USER GUIDE
Troubleshooting
1188
8. Maintenance Schedule
-The following maintenance schedule is guideline
-Maintenance and repair should be done more frequently according to water quality,
equipment usage environment and local hygiene regulations.
Maintenance Schedule
Frequency Area Task
Daily Scoop Clean the scoop using a neutral cleaner.
Rinse thoroughly after cleaning.
Monthly External water filter Make sure that the pressure is adequate and make changes if needed.
Outside of the ice maker
Wipe down with clean, soft cloth. Use a damp cloth containing a neutral
cleaner to wipe off oil or dirt build up.
Clean any chlorine staining (rust colored spots) using a non-abrasive cleanser.
Storage Bin, Inner door, Wipe clean with clean cloth and warm water.
Ice outlet(Spout)
Icemaker and Storage Bin Clean and disinfect according to the disinfection instructions
given in the instruction manual.
Wipe down with clean cloth and warm water.
Ice maker and reservoir Always check that it is kept clean.
Check for leaks around the seal bolt. Tighten if necessary and replace O-rings.
Always replace the O-ring when loosening the seal bolt and tighten it again.
If there is no O-ring, apply Loctite 243 or equivalent fixing agent so that it does not leak.
Yearly
Close the shutoff valve to shut off the water supply line and drain the water.
Water hose Check the water hose and clean it if necessary.
Condenser (air-cooled)
Inspect for cleaning. If necessary, clean with a brush or vacuum cleaner
If the dust adhesion is severe, spray the pin cleaning agent, clean the dust, spray it with
clean water, rinse and dry with air gun. Clean condenser every 6 months.
Ice maker Inspect for oil marks, loose components, tightening parts and wires.
Upper bearing Check that 0.02" round bar or pin gauge (or clearance gauge) is inserted into auger
(Ice exit head) and bearing clearance, and replace all upper and lower bearings (ice exit head
and lower housing)
Mechanical seal Check for leaks in the bottom housing, and if there is a leak, disassemble the auger
to replace the mechanical seal. (Water with a lot of calcium will shorten
the life of replacement parts.)
Please chek. If the auger and bearing clearance exceeds the factory recommended
value (0.02" or less), replace both the upper and lower bearings.
If the contact surface of the mechanical seal is worn, cracked, or scratched, replace it.
Every 6
Months
After
3 Years,
then
Yearly
Evaporator
Condensate Drain
Pan and Gear
Motor Drain Pan
Ice exit fixing
seal bolt
Water supply valve and
Drain valve
Upper and lower bearings,
Housing O-ring,
Mechanical seals,
Evaporator cylinder, Auger
1188
8. Maintenance Schedule
-The following maintenance schedule is guideline
-Maintenance and repair should be done more frequently according to water quality,
equipment usage environment and local hygiene regulations.
Maintenance Schedule
Frequency Area Task
Daily Scoop Clean the scoop using a neutral cleaner.
Rinse thoroughly after cleaning.
Monthly External water filter Make sure that the pressure is adequate and make changes if needed.
Outside of the ice maker
Wipe down with clean, soft cloth. Use a damp cloth containing a neutral
cleaner to wipe off oil or dirt build up.
Clean any chlorine staining (rust colored spots) using a non-abrasive cleanser.
Storage Bin, Inner door, Wipe clean with clean cloth and warm water.
Ice outlet(Spout)
Icemaker and Storage Bin Clean and disinfect according to the disinfection instructions
given in the instruction manual.
Wipe down with clean cloth and warm water.
Ice maker and reservoir Always check that it is kept clean.
Check for leaks around the seal bolt. Tighten if necessary and replace O-rings.
Always replace the O-ring when loosening the seal bolt and tighten it again.
If there is no O-ring, apply Loctite 243 or equivalent fixing agent so that it does not leak.
Yearly
Close the shutoff valve to shut off the water supply line and drain the water.
Water hose Check the water hose and clean it if necessary.
Condenser (air-cooled)
Inspect for cleaning. If necessary, clean with a brush or vacuum cleaner
If the dust adhesion is severe, spray the pin cleaning agent, clean the dust, spray it with
clean water, rinse and dry with air gun. Clean condenser every 6 months.
Ice maker Inspect for oil marks, loose components, tightening parts and wires.
Upper bearing Check that 0.02" round bar or pin gauge (or clearance gauge) is inserted into auger
(Ice exit head) and bearing clearance, and replace all upper and lower bearings (ice exit head
and lower housing)
Mechanical seal Check for leaks in the bottom housing, and if there is a leak, disassemble the auger
to replace the mechanical seal. (Water with a lot of calcium will shorten
the life of replacement parts.)
Please chek. If the auger and bearing clearance exceeds the factory recommended
value (0.02" or less), replace both the upper and lower bearings.
If the contact surface of the mechanical seal is worn, cracked, or scratched, replace it.
Every 6
Months
After
3 Years,
then
Yearly
Evaporator
Condensate Drain
Pan and Gear
Motor Drain Pan
Ice exit fixing
seal bolt
Water supply valve and
Drain valve
Upper and lower bearings,
Housing O-ring,
Mechanical seals,
Evaporator cylinder, Auger
1188
8. Maintenance Schedule
-The following maintenance schedule is guideline
-Maintenance and repair should be done more frequently according to water quality,
equipment usage environment and local hygiene regulations.
Maintenance Schedule
Frequency Area Task
Daily Scoop Clean the scoop using a neutral cleaner.
Rinse thoroughly after cleaning.
Monthly External water filter Make sure that the pressure is adequate and make changes if needed.
Outside of the ice maker
Wipe down with clean, soft cloth. Use a damp cloth containing a neutral
cleaner to wipe off oil or dirt build up.
Clean any chlorine staining (rust colored spots) using a non-abrasive cleanser.
Storage Bin, Inner door, Wipe clean with clean cloth and warm water.
Ice outlet(Spout)
Icemaker and Storage Bin Clean and disinfect according to the disinfection instructions
given in the instruction manual.
Wipe down with clean cloth and warm water.
Ice maker and reservoir Always check that it is kept clean.
Check for leaks around the seal bolt. Tighten if necessary and replace O-rings.
Always replace the O-ring when loosening the seal bolt and tighten it again.
If there is no O-ring, apply Loctite 243 or equivalent fixing agent so that it does not leak.
Yearly
Close the shutoff valve to shut off the water supply line and drain the water.
Water hose Check the water hose and clean it if necessary.
Condenser (air-cooled)
Inspect for cleaning. If necessary, clean with a brush or vacuum cleaner
If the dust adhesion is severe, spray the pin cleaning agent, clean the dust, spray it with
clean water, rinse and dry with air gun. Clean condenser every 6 months.
Ice maker Inspect for oil marks, loose components, tightening parts and wires.
Upper bearing Check that 0.02" round bar or pin gauge (or clearance gauge) is inserted into auger
(Ice exit head) and bearing clearance, and replace all upper and lower bearings (ice exit head
and lower housing)
Mechanical seal Check for leaks in the bottom housing, and if there is a leak, disassemble the auger
to replace the mechanical seal. (Water with a lot of calcium will shorten
the life of replacement parts.)
Please chek. If the auger and bearing clearance exceeds the factory recommended
value (0.02" or less), replace both the upper and lower bearings.
If the contact surface of the mechanical seal is worn, cracked, or scratched, replace it.
Every 6
Months
After
3 Years,
then
Yearly
Evaporator
Condensate Drain
Pan and Gear
Motor Drain Pan
Ice exit fixing
seal bolt
Water supply valve and
Drain valve
Upper and lower bearings,
Housing O-ring,
Mechanical seals,
Evaporator cylinder, Auger
1188
8. Maintenance Schedule
-The following maintenance schedule is guideline
-Maintenance and repair should be done more frequently according to water quality,
equipment usage environment and local hygiene regulations.
Maintenance Schedule
Frequency Area Task
Daily Scoop Clean the scoop using a neutral cleaner.
Rinse thoroughly after cleaning.
Monthly External water filter Make sure that the pressure is adequate and make changes if needed.
Outside of the ice maker
Wipe down with clean, soft cloth. Use a damp cloth containing a neutral
cleaner to wipe off oil or dirt build up.
Clean any chlorine staining (rust colored spots) using a non-abrasive cleanser.
Storage Bin, Inner door, Wipe clean with clean cloth and warm water.
Ice outlet(Spout)
Icemaker and Storage Bin Clean and disinfect according to the disinfection instructions
given in the instruction manual.
Wipe down with clean cloth and warm water.
Ice maker and reservoir Always check that it is kept clean.
Check for leaks around the seal bolt. Tighten if necessary and replace O-rings.
Always replace the O-ring when loosening the seal bolt and tighten it again.
If there is no O-ring, apply Loctite 243 or equivalent fixing agent so that it does not leak.
Yearly
Close the shutoff valve to shut off the water supply line and drain the water.
Water hose Check the water hose and clean it if necessary.
Condenser (air-cooled)
Inspect for cleaning. If necessary, clean with a brush or vacuum cleaner
If the dust adhesion is severe, spray the pin cleaning agent, clean the dust, spray it with
clean water, rinse and dry with air gun. Clean condenser every 6 months.
Ice maker Inspect for oil marks, loose components, tightening parts and wires.
Upper bearing Check that 0.02" round bar or pin gauge (or clearance gauge) is inserted into auger
(Ice exit head) and bearing clearance, and replace all upper and lower bearings (ice exit head
and lower housing)
Mechanical seal Check for leaks in the bottom housing, and if there is a leak, disassemble the auger
to replace the mechanical seal. (Water with a lot of calcium will shorten
the life of replacement parts.)
Please chek. If the auger and bearing clearance exceeds the factory recommended
value (0.02" or less), replace both the upper and lower bearings.
If the contact surface of the mechanical seal is worn, cracked, or scratched, replace it.
Every 6
Months
After
3 Years,
then
Yearly
Evaporator
Condensate Drain
Pan and Gear
Motor Drain Pan
Ice exit fixing
seal bolt
Water supply valve and
Drain valve
Upper and lower bearings,
Housing O-ring,
Mechanical seals,
Evaporator cylinder, Auger
22
USER GUIDE

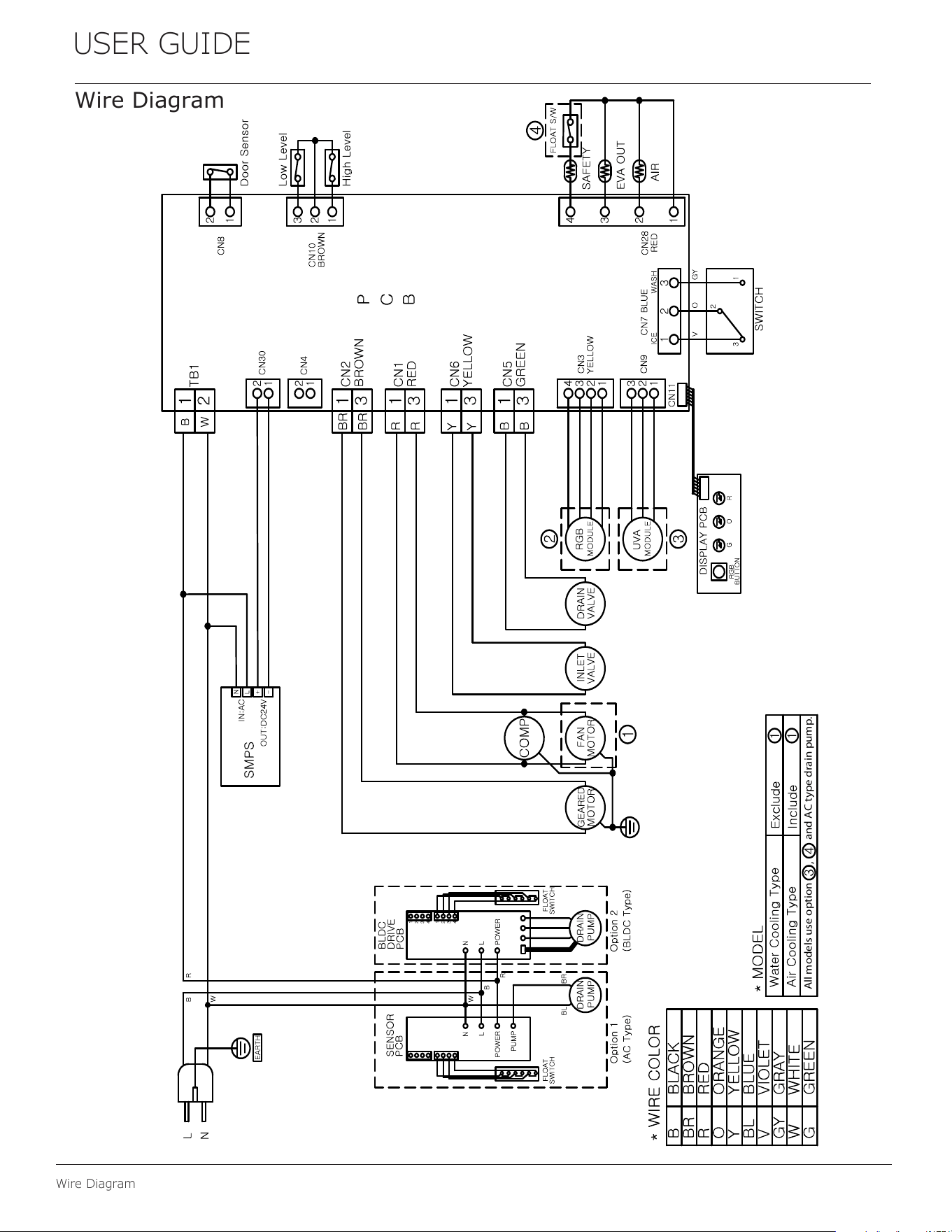

Wire Diagram
Wire Diagram
All models use option and AC type drain pump.
,
23
USER GUIDE

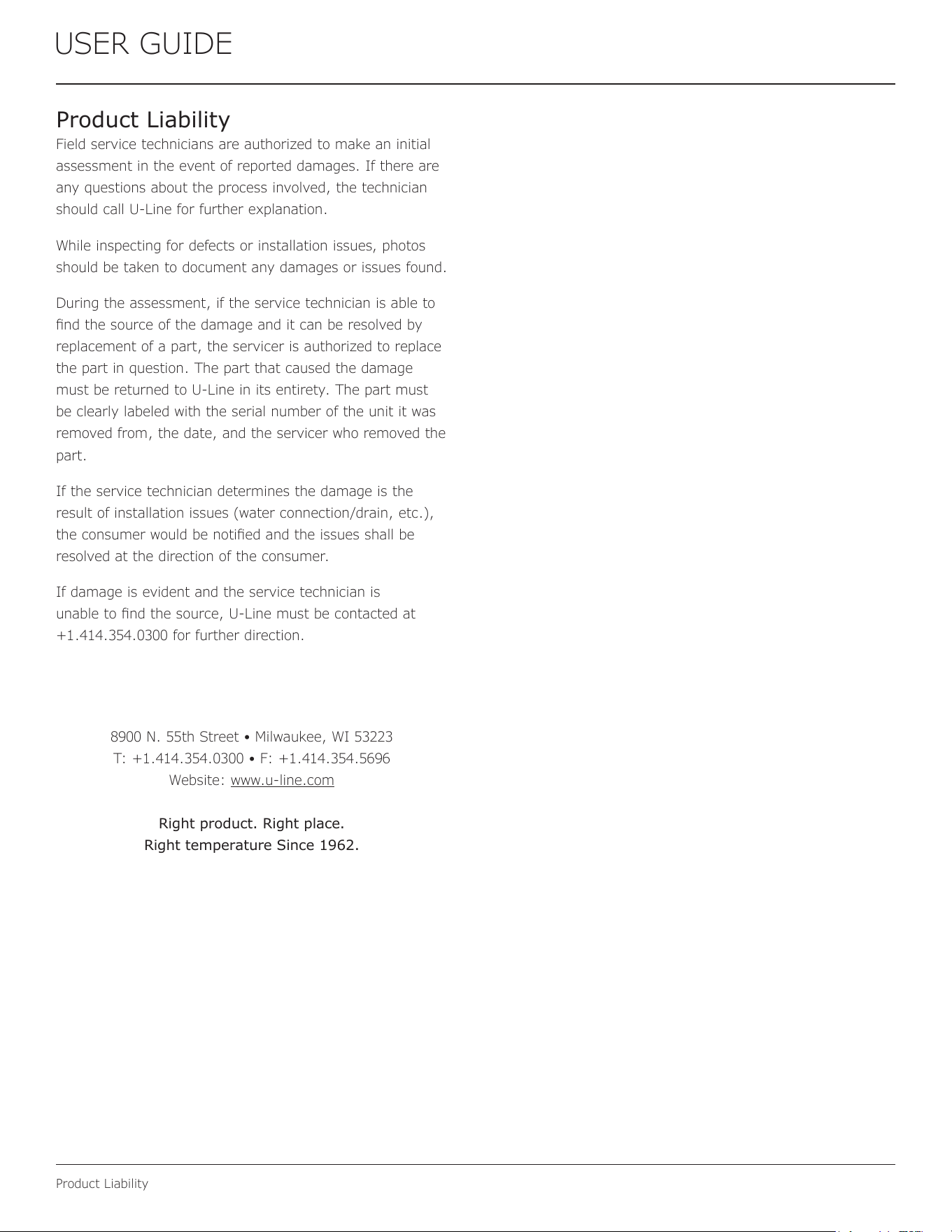

Product Liability
Product Liability
Field service technicians are authorized to make an initial
assessment in the event of reported damages. If there are
any questions about the process involved, the technician
should call U-Line for further explanation.
While inspecting for defects or installation issues, photos
should be taken to document any damages or issues found.
During the assessment, if the service technician is able to
nd the source of the damage and it can be resolved by
replacement of a part, the servicer is authorized to replace
the part in question. The part that caused the damage
must be returned to U-Line in its entirety. The part must
be clearly labeled with the serial number of the unit it was
removed from, the date, and the servicer who removed the
part.
If the service technician determines the damage is the
result of installation issues (water connection/drain, etc.),
the consumer would be notied and the issues shall be
resolved at the direction of the consumer.
If damage is evident and the service technician is
unable to nd the source, U-Line must be contacted at
+1.414.354.0300 for further direction.
8900 N. 55th Street • Milwaukee, WI 53223
T: +1.414.354.0300 • F: +1.414.354.5696
Website: www.u-line.com
Right product. Right place.
Right temperature Since 1962.
24
USER GUIDE
Parts

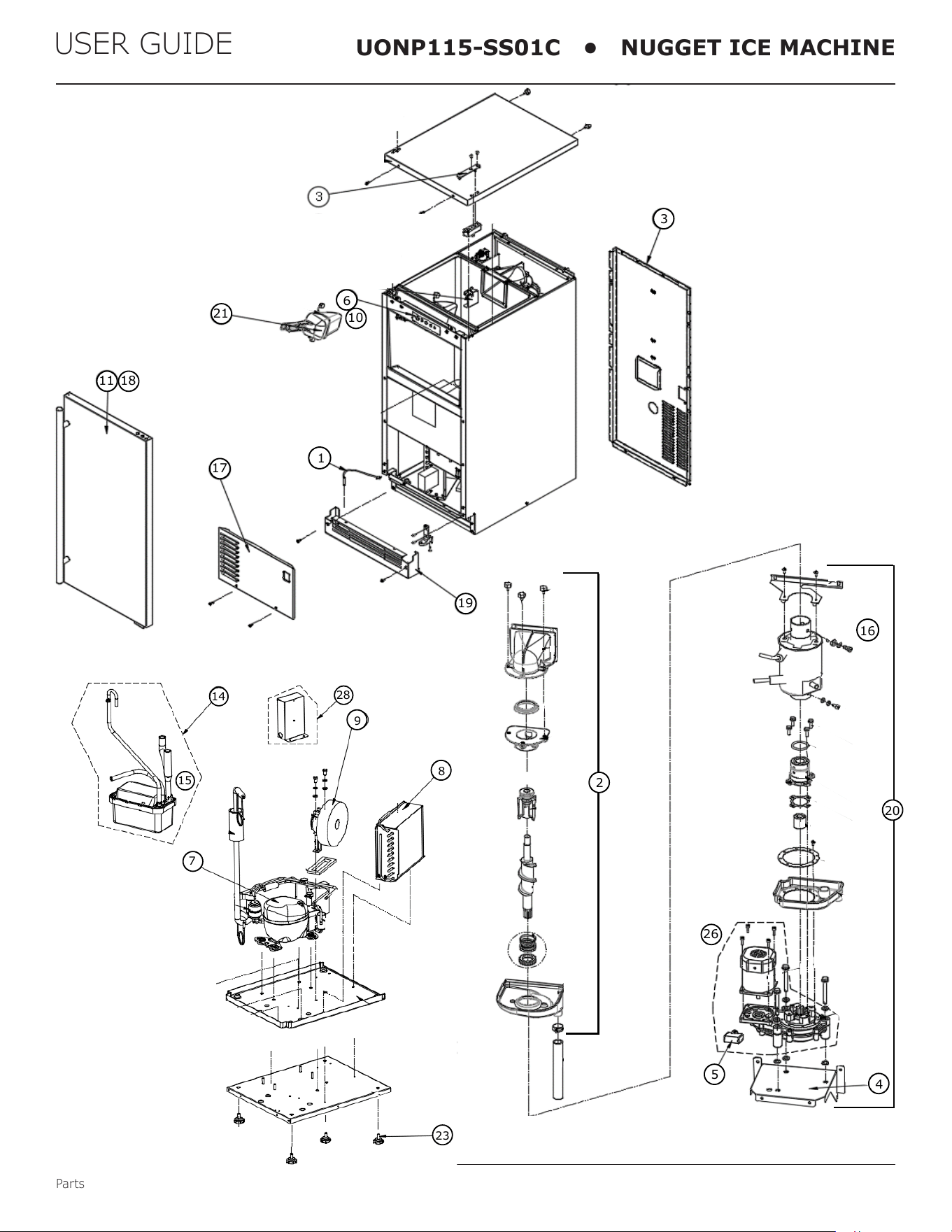

UONP115-SS01C • NUGGET ICE MACHINE
7
8
28
14
15
9
23
1
3
6
10
11 18
17
19
21
2
4
5
26
16
20
25
USER GUIDE
Parts
UONP115-SS01C • NUGGET ICE MACHINE

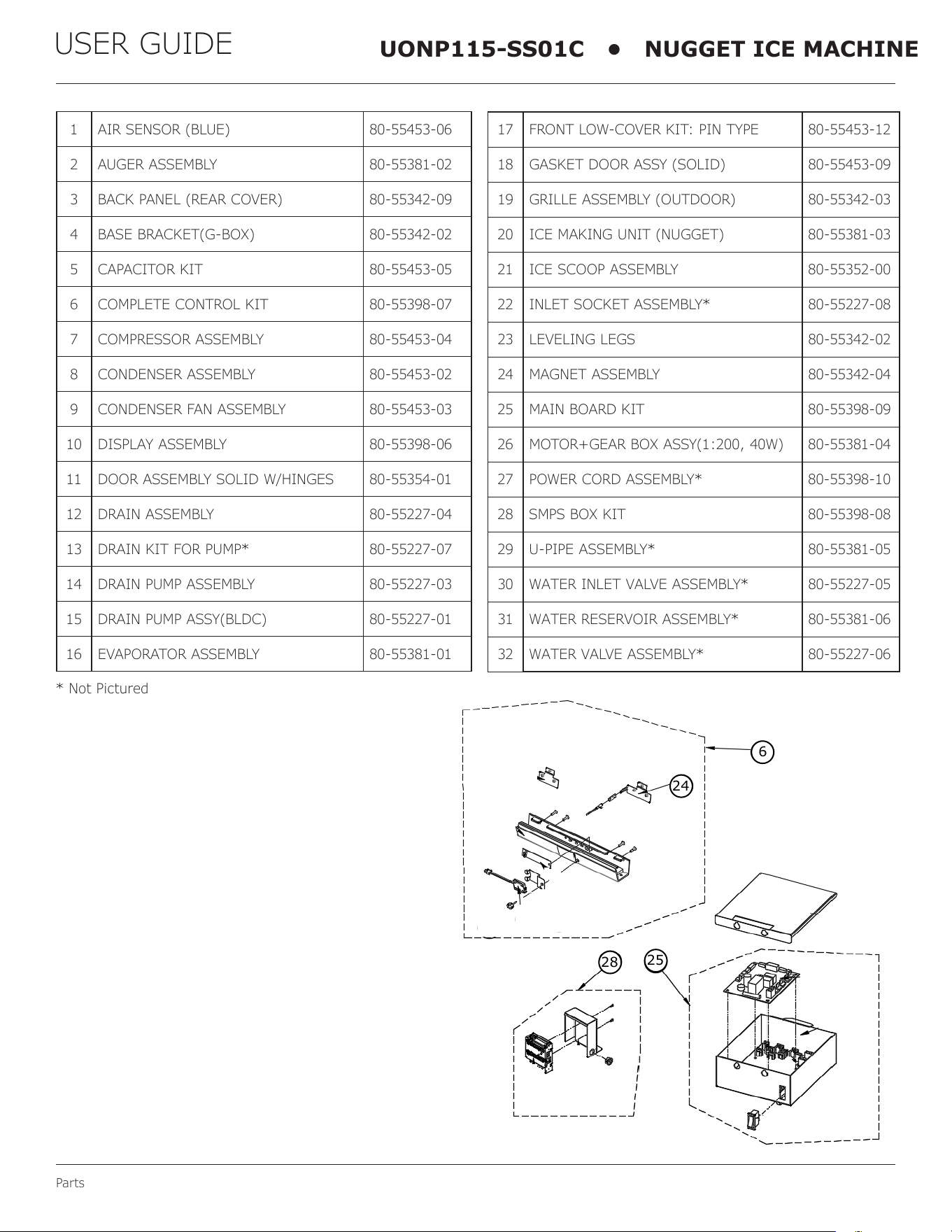

1 AIR SENSOR (BLUE) 80-55453-06
2 AUGER ASSEMBLY 80-55381-02
3 BACK PANEL (REAR COVER) 80-55342-09
4 BASE BRACKET(G-BOX) 80-55342-02
5 CAPACITOR KIT 80-55453-05
6 COMPLETE CONTROL KIT 80-55398-07
7 COMPRESSOR ASSEMBLY 80-55453-04
8 CONDENSER ASSEMBLY 80-55453-02
9 CONDENSER FAN ASSEMBLY 80-55453-03
10 DISPLAY ASSEMBLY 80-55398-06
11 DOOR ASSEMBLY SOLID W/HINGES 80-55354-01
12 DRAIN ASSEMBLY 80-55227-04
13 DRAIN KIT FOR PUMP* 80-55227-07
14 DRAIN PUMP ASSEMBLY 80-55227-03
15 DRAIN PUMP ASSY(BLDC) 80-55227-01
16 EVAPORATOR ASSEMBLY 80-55381-01
17 FRONT LOW-COVER KIT: PIN TYPE 80-55453-12
18 GASKET DOOR ASSY (SOLID) 80-55453-09
19 GRILLE ASSEMBLY (OUTDOOR) 80-55342-03
20 ICE MAKING UNIT (NUGGET) 80-55381-03
21 ICE SCOOP ASSEMBLY 80-55352-00
22 INLET SOCKET ASSEMBLY* 80-55227-08
23 LEVELING LEGS 80-55342-02
24 MAGNET ASSEMBLY 80-55342-04
25 MAIN BOARD KIT 80-55398-09
26 MOTOR+GEAR BOX ASSY(1:200, 40W) 80-55381-04
27 POWER CORD ASSEMBLY* 80-55398-10
28 SMPS BOX KIT 80-55398-08
29 U-PIPE ASSEMBLY* 80-55381-05
30 WATER INLET VALVE ASSEMBLY* 80-55227-05
31 WATER RESERVOIR ASSEMBLY* 80-55381-06
32 WATER VALVE ASSEMBLY* 80-55227-06
* Not Pictured
28
24
25
6
26
USER GUIDE
R-600A Specications
USER GUIDE
R-600A Specifications 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
R-600A Specifications
For R-600a refrigerant service tips and more videos, go
to: www.u-line.com/videos.
WARNING
!
Flammability warnings for a pure-iso-butane
refrigerant.
Technician m ust observe all fe deral, state an d local laws regard ing refrigerant s.
Gloves and Eye Protection must be used.
R-600a is considered non-toxic, but is flammable
when mixed with air.
Keep a dry powder type fire extinguisher in the
work area.
R-600a is heavier than air, do not allow any
leakage/migration to low areas such as
basements and stairs.
Never use a torch on a fully charged
refrigeration system.
Never substitute U-Line OEM replacement parts
or methods of construction.
R-600a must be stored and transported in
approved containers.

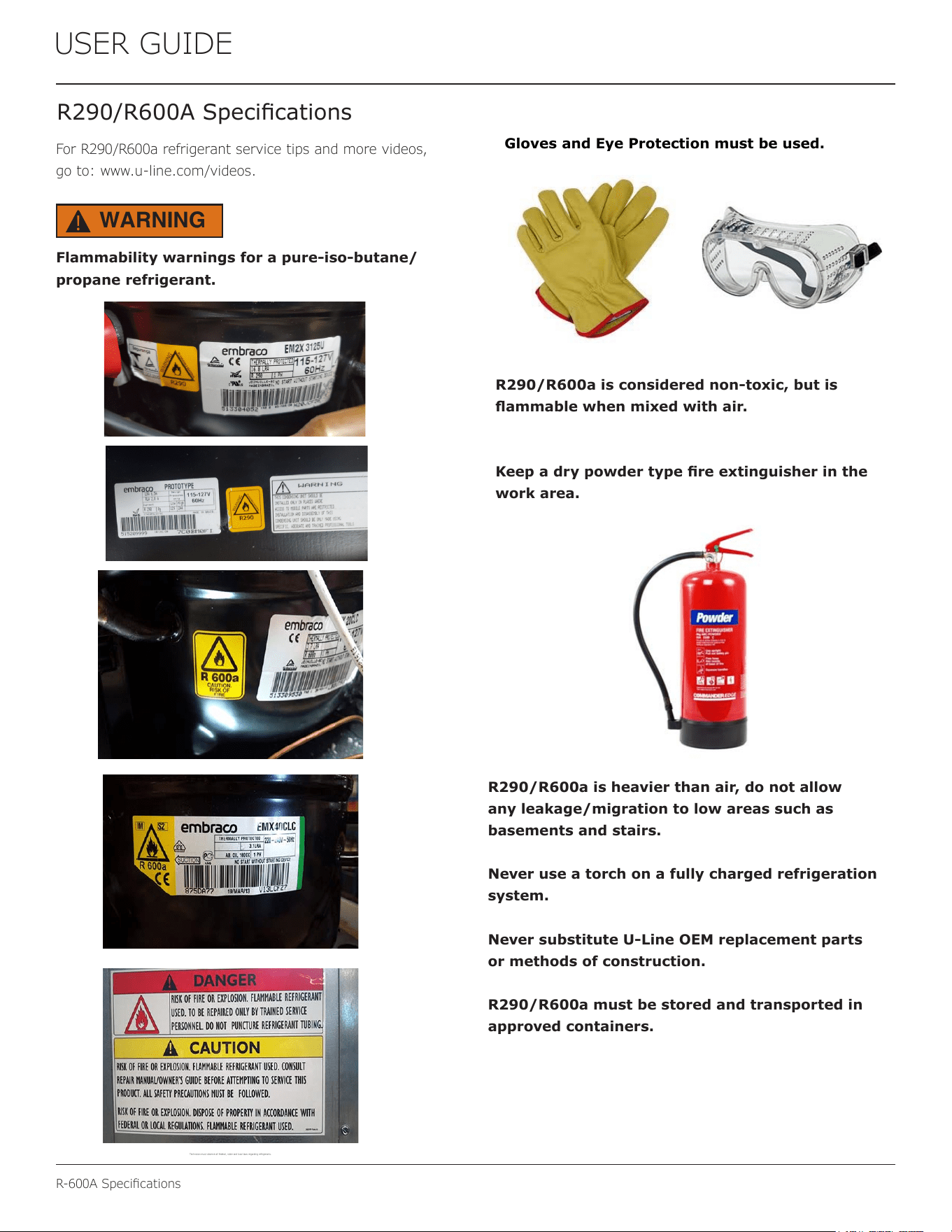

R290/R600A Specications
For R290/R600a refrigerant service tips and more videos,
go to: www.u-line.com/videos.
Flammability warnings for a pure-iso-butane/
propane refrigerant.
USER GUIDE
R-600A Specifications 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
R-600A Specifications
For R-600a refrigerant service tips and more videos, go
to: www.u-line.com/videos
.
WARNING
!
Flammability warnings for a pure-iso-butane
refrigerant.
Technician m ust observe all federa l, state and local la ws regarding refrig erants.
Gloves and Eye Protection must be used.
R-600a is considered non-toxic, but is flammable
when mixed with air.
Keep a dry powder type fire extinguisher in the
work area.
R-600a is heavier than air, do not allow any
leakage/migration to low areas such as
basements and stairs.
Never use a torch on a fully charged
refrigeration system.
Never substitute U-Line OEM replacement parts
or methods of construction.
R-600a must be stored and transported in
approved containers.
WARNING
!
R290/R600a is considered non-toxic, but is
ammable when mixed with air.
Keep a dry powder type re extinguisher in the
work area.
R290/R600a is heavier than air, do not allow
any leakage/migration to low areas such as
basements and stairs.
Never use a torch on a fully charged refrigeration
system.
Never substitute U-Line OEM replacement parts
or methods of construction.
R290/R600a must be stored and transported in
approved containers.
27
R-600A Specications
USER GUIDE

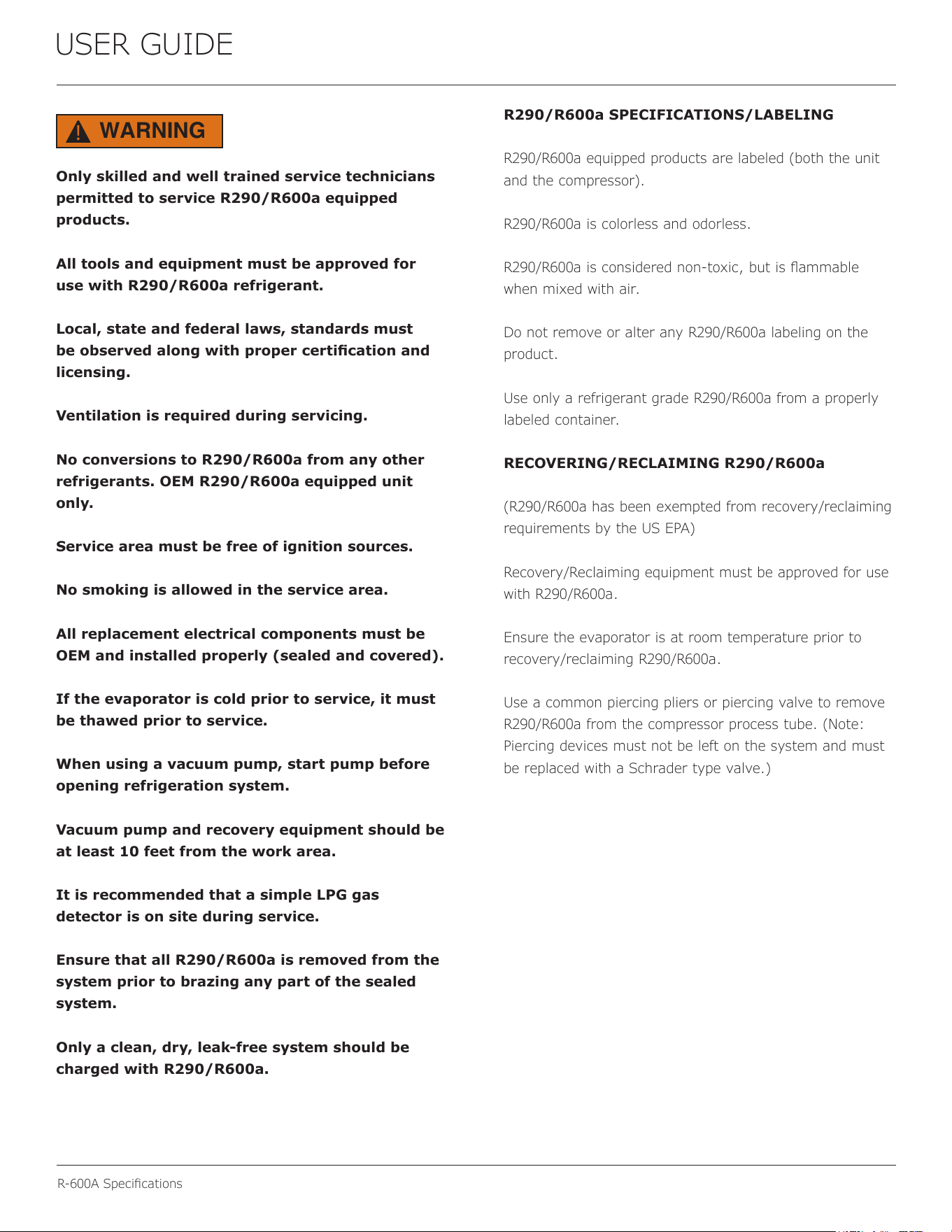

Only skilled and well trained service technicians
permitted to service R290/R600a equipped
products.
All tools and equipment must be approved for
use with R290/R600a refrigerant.
Local, state and federal laws, standards must
be observed along with proper certication and
licensing.
Ventilation is required during servicing.
No conversions to R290/R600a from any other
refrigerants. OEM R290/R600a equipped unit
only.
Service area must be free of ignition sources.
No smoking is allowed in the service area.
All replacement electrical components must be
OEM and installed properly (sealed and covered).
If the evaporator is cold prior to service, it must
be thawed prior to service.
When using a vacuum pump, start pump before
opening refrigeration system.
Vacuum pump and recovery equipment should be
at least 10 feet from the work area.
It is recommended that a simple LPG gas
detector is on site during service.
Ensure that all R290/R600a is removed from the
system prior to brazing any part of the sealed
system.
Only a clean, dry, leak-free system should be
charged with R290/R600a.
R290/R600a SPECIFICATIONS/LABELING
R290/R600a equipped products are labeled (both the unit
and the compressor).
R290/R600a is colorless and odorless.
R290/R600a is considered non-toxic, but is ammable
when mixed with air.
Do not remove or alter any R290/R600a labeling on the
product.
Use only a refrigerant grade R290/R600a from a properly
labeled container.
RECOVERING/RECLAIMING R290/R600a
(R290/R600a has been exempted from recovery/reclaiming
requirements by the US EPA)
Recovery/Reclaiming equipment must be approved for use
with R290/R600a.
Ensure the evaporator is at room temperature prior to
recovery/reclaiming R290/R600a.
Use a common piercing pliers or piercing valve to remove
R290/R600a from the compressor process tube. (Note:
Piercing devices must not be left on the system and must
be replaced with a Schrader type valve.)
WARNING
!
28
USER GUIDE
R-600A Specications
USER GUIDE
R-600A Specifications 3
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

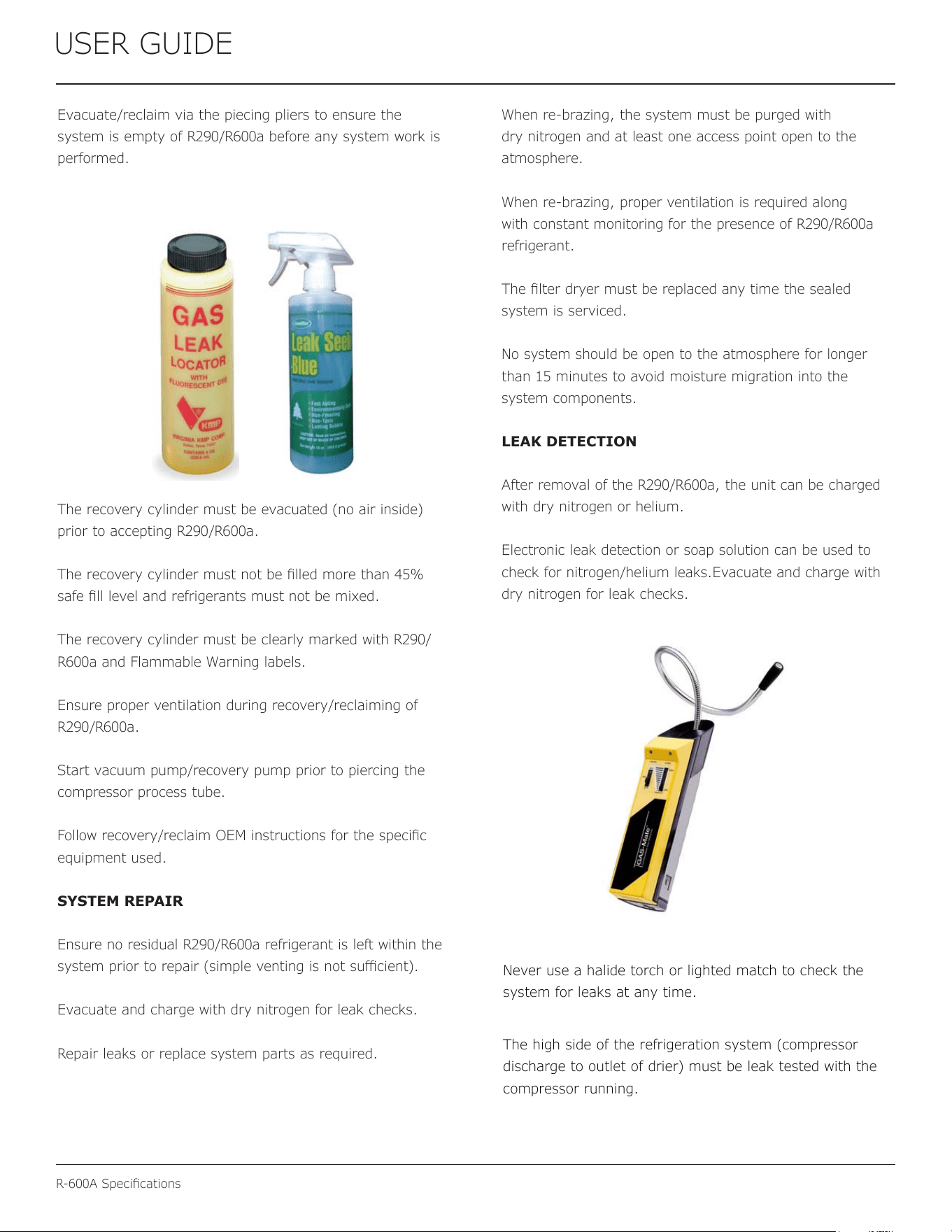

Evacuate/reclaim via the piecing pliers to ensure the
system is empty of R-600a before any system work is
performed.
The recovery cylinder must be evacuated (no air inside)
prior to accepting R-600a.
The recovery cylinder must not be filled more than 45%
safe fill level and refrigerants must not be mixed.
The recovery cylinder must be clearly marked with R-
600a and Flammable Warning labels.
Ensure proper ventilation during recovery/reclaiming of R-
600a.
Start vacuum pump/recovery pump prior to piercing the
compressor process tube.
Follow recovery/reclaim OEM instructions for the specific
equipment used.
SYSTEM REPAIR
Ensure no residual R-600a refrigerant is left within the
system prior to repair (simple venting is not sufficient).
Evacuate and charge with dry nitrogen for leak checks.
Repair leaks or replace system parts as required.
When re-brazing, the system must be purged with dry
nitrogen and at least one access point open to the
atmosphere.
When re-brazing, proper ventilation is required along with
constant monitoring for the presence of R600a refrigerant.
The filter dryer must be replaced any time the sealed
system is serviced.
No system should be open to the atmosphere for longer
than 15 minutes to avoid moisture migration into the
system components.
LEAK DETECTION
After removal of the R-600a, the unit can be charged with
dry nitrogen or helium.
Electronic leak detection or soap solution can be used to
check for nitrogen/helium leaks.
Never use a halide torch or lighted match to check the
system for leaks at any time.
The high side of the refrigeration system (compressor
discharge to outlet of drier) must be leak tested with the
compressor running.
Evacuate/reclaim via the piecing pliers to ensure the
system is empty of R290/R600a before any system work is
performed.
The recovery cylinder must be evacuated (no air inside)
prior to accepting R290/R600a.
The recovery cylinder must not be lled more than 45%
safe ll level and refrigerants must not be mixed.
The recovery cylinder must be clearly marked with R290/
R600a and Flammable Warning labels.
Ensure proper ventilation during recovery/reclaiming of
R290/R600a.
Start vacuum pump/recovery pump prior to piercing the
compressor process tube.
Follow recovery/reclaim OEM instructions for the specic
equipment used.
SYSTEM REPAIR
Ensure no residual R290/R600a refrigerant is left within the
system prior to repair (simple venting is not sucient).
Evacuate and charge with dry nitrogen for leak checks.
Repair leaks or replace system parts as required.
When re-brazing, the system must be purged with
dry nitrogen and at least one access point open to the
atmosphere.
When re-brazing, proper ventilation is required along
with constant monitoring for the presence of R290/R600a
refrigerant.
The lter dryer must be replaced any time the sealed
system is serviced.
No system should be open to the atmosphere for longer
than 15 minutes to avoid moisture migration into the
system components.
LEAK DETECTION
After removal of the R290/R600a, the unit can be charged
with dry nitrogen or helium.
Electronic leak detection or soap solution can be used to
check for nitrogen/helium leaks.Evacuate and charge with
dry nitrogen for leak checks.
29
R-600A Specications
USER GUIDE
USER GUIDE
R-600A Specifications 4
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
The low side of the refrigeration system (evaporator,
compressor and suction line) must be leak tested with the
compressor off (equalized pressure).
RECHARGING
No air is ever to be allowed inside the refrigeration system
(R-600a refrigerant or dry nitrogen only).
Never use a torch on a fully charged refrigeration system.
Install a Schrader Type access port on the compressor
process stub.
Evacuate the system to 100 microns prior to charging.
Weigh in the R-600a charge using a refrigerant scale. (run
compressor an extra two minutes to clear the charging
hoses).
Seal the Schrader Type access port, a proper cap and seal
must be used to close the system.
SUMMARY
Safely handling R-600a requires proper procedures and
training.
R-600a approved service tools must be used.
R-600a labeling must not be removed or altered.
Proper ventilation during service is required.
Never apply a torch to a charged R-600a refrigeration
system.
Use OEM replacement service parts and do not alter the
construction of the unit.
No air is ever to be allowed inside the refrigeration system
(R290/R600a refrigerant or dry nitrogen only).
Never use a torch on a fully charged refrigeration system.
Install a Schrader Type access port on the compressor
process stub.
The lter dryer must be replaced any time the sealed
system is serviced.
No system should be open to the atmosphere for longer
than 15 minutes to avoid moisture migration into the
system components.
LEAK DETECTION
After removal of the R290/R600a, the unit can be charged
with dry nitrogen or helium.
Electronic leak detection or soap solution can be used to
check for nitrogen/helium leaks.Evacuate and charge with
dry nitrogen for leak checks.
Evacuate the system to 100 microns prior to charging.
Weigh in the R290/R600a charge using a refrigerant scale.
(run compressor an extra two minutes to clear the charging
hoses).
Seal the Schrader Type access port, a proper cap and seal
must be used to close the system.
No system should be open to the atmosphere for longer
than 15 minutes to avoid moisture migration into the
system components.
Safely handling R290/R600a requires proper procedures and
training.
R290/R600a approved service tools must be used.
R290/R600a labeling must not be removed or altered.
Proper ventilation during service is required.
Never apply a torch to a charged R290/R600a refrigeration
system.
Use OEM replacement service parts and do not alter the
construction of the unit.
30
USER GUIDE

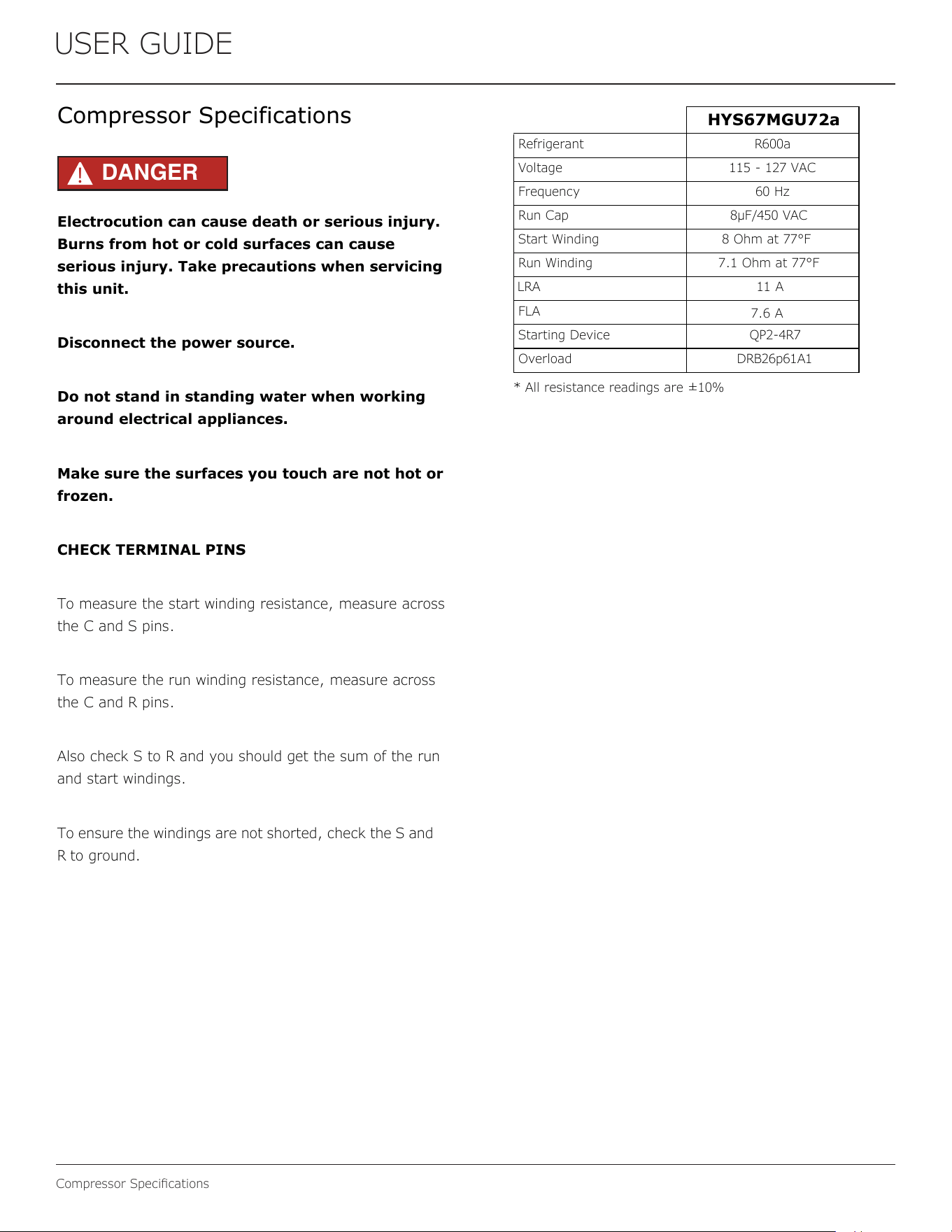

Compressor Specications
USER GUIDE
Compressor Specifications
Compressor Specifications
DANGER
!
Electrocution can cause death or serious injury.
Burns from hot or cold surfaces can cause
serious injury. Take precautions when servicing
this unit.
Disconnect the power source.
Do not stand in standing water when working
around electrical appliances.
Make sure the surfaces you touch are not hot or
frozen.
CHECK TERMINAL PINS
To measure the start winding resistance, measure across
the C and S pins.
To measure the run winding resistance, measure across
the C and R pins.
Also check S to R and you should get the sum of the run
and start windings.
To ensure the windings are not shorted, check the S and
R to ground.
* All resistance readings are ±10%
HYS67MGU72a
Refrigerant R600a
Voltage 115 - 127 VAC
Frequency 60 Hz
Run Cap 8μF/450 VAC
Start Winding 8 Ohm at 77°F
Run Winding 7.1 Ohm at 77°F
LRA 11 A
FLA
7.6 A
Starting Device QP2-4R7
Overload DRB26p61A1
31
Copyright U-Line Corporation. All Rights Reserved. | Publication Number 30379 | 3/2024 Rev. Q
U-Line Corporation (U-Line) Limited Warranty
One Year Limited Warranty
For one year from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Two Year Limited Warranty (5 Class Product)
For two years from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Available Second & Third Year Limited Warranty
In addition to the standard one and two year warranties outlined above, U-Line offers a one year extension of the warranties from the date
of purchase, free of charge. To take advantage of this extension, you must register your product with U-Line within 60 days from the date
of purchase at u-line.com and provide proof of purchase.
Five Year Sealed System Limited Warranty
For five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to be
defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service provided by U-Line
under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service
provided during normal business hours.
Terms
These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the ten
provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or improper use,
maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be installed, operated, and
maintained in accordance with your product’s User Guide.
The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under any
warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from the breach of
these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. These warranties give you specific legal
rights, and you may also have other rights which vary from state to state.
Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability or any
warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration for the parts
described in the section related to the five year limited warranty above. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you.
• The warranties only apply to the original purchaser and are non-transferable.
• The second, third, and five year warranties cover products installed and used for normal residential or designated marine use only.
• The warranties apply to units operated outside only if designed for outdoor use by model and serial number.
• U-Line Commercial products are covered by the one year and 5 year limited warranties and are not eligible for the second and
third year limited warranties.
• Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.
• The start of U-Line’s obligation is limited to four years after the shipment date from U-Line.
• In-home instruction on how to use your product is not covered by these warranties.
• Food, beverage, and medicine loss are not covered by these warranties.
• If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip
charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and expense.
• Units purchased after use as floor displays, and/or certified reconditioned units, are covered by the limited one year warranty only
and no coverage is provided for cosmetic defects.
• Signal issues related to Wi-Fi connectivity are not covered by these warranties.
For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line:
8900 N. 55
th
Street, Milwaukee, WI 53223 • u-line.com • onlineservice@u-line.com • +1.414
.354.0300
32
