OWNER’S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.4900
ITEM # 93520
3PC RATTAN WICKER PATIO SET
SAFETY INFORMATION
1

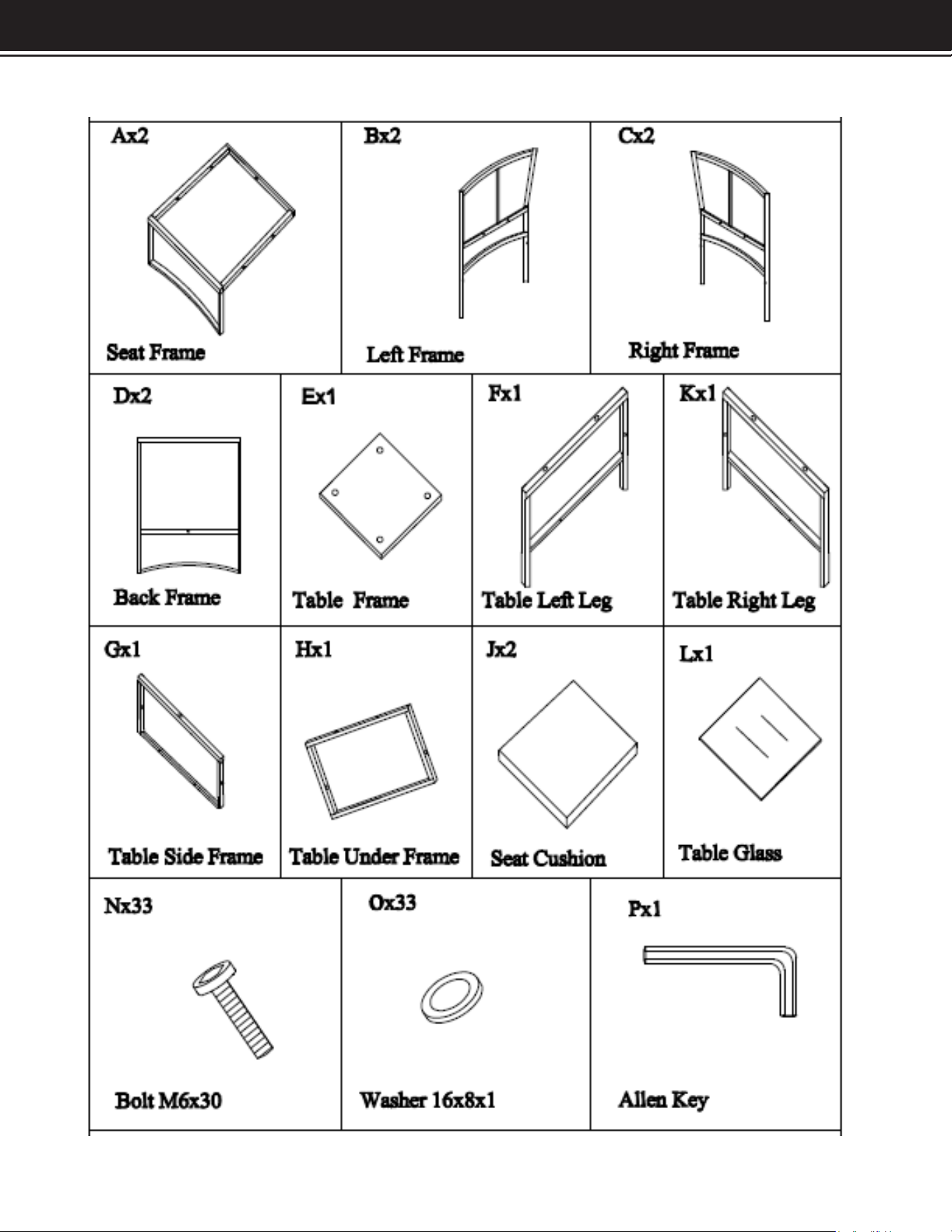

PARTS LIST AND HARDWARE
2
SAFETY INFORMATION
1
ASSEMBLY
2

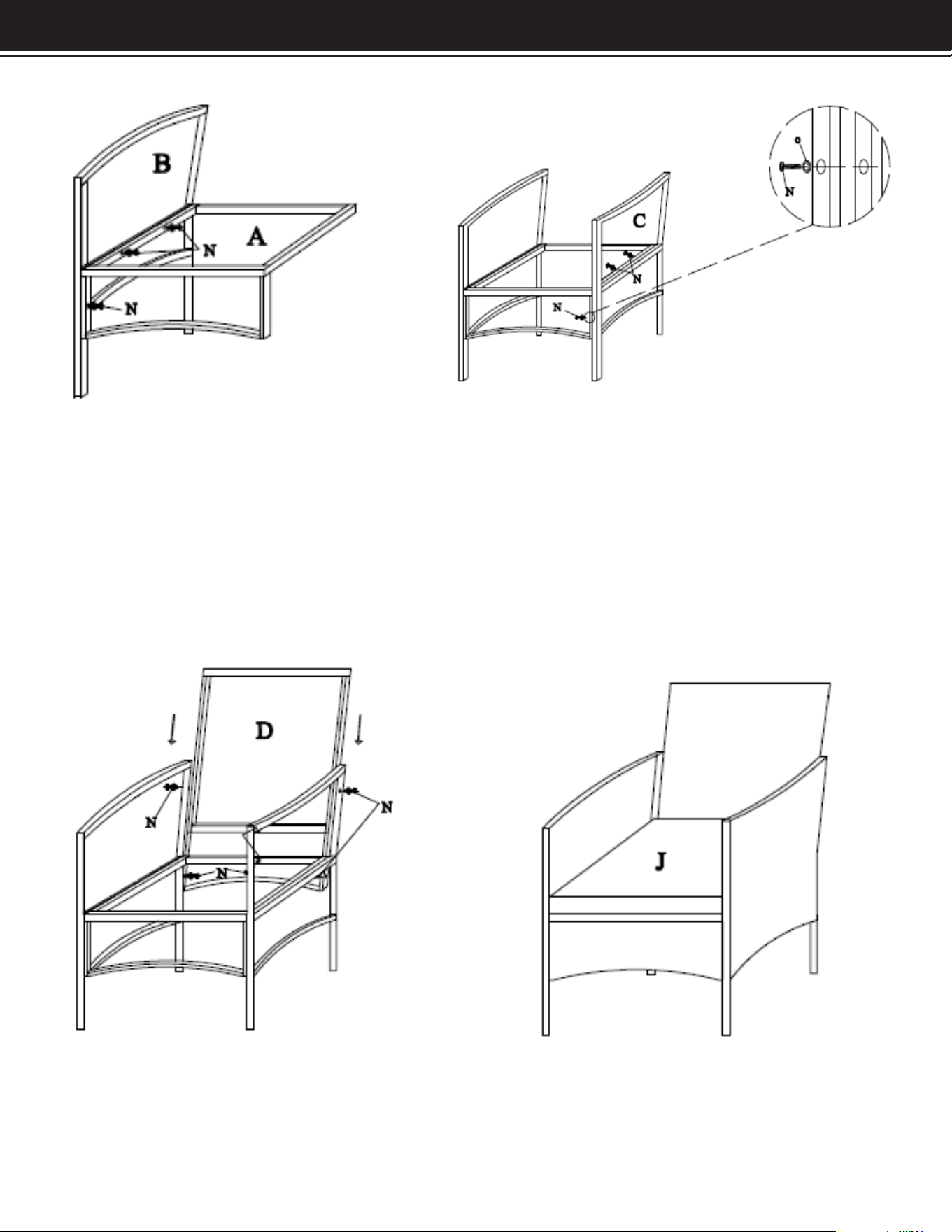

STEP 1:
Connect left frame B and seat frame A
with bolt N and secure wit the allen key.
STEP 2:
Connect the parts from step 1 to the right frame C
with bolt N and secure it with an allen wrench.
STEP 3:
Connect the parts from step 2 and back
frame D with bolt N with an allen key.
STEP 4:
Put on the seat cushion J to nish assembly of
the chair.
SAFETY INFORMATIONASSEMBLY
3

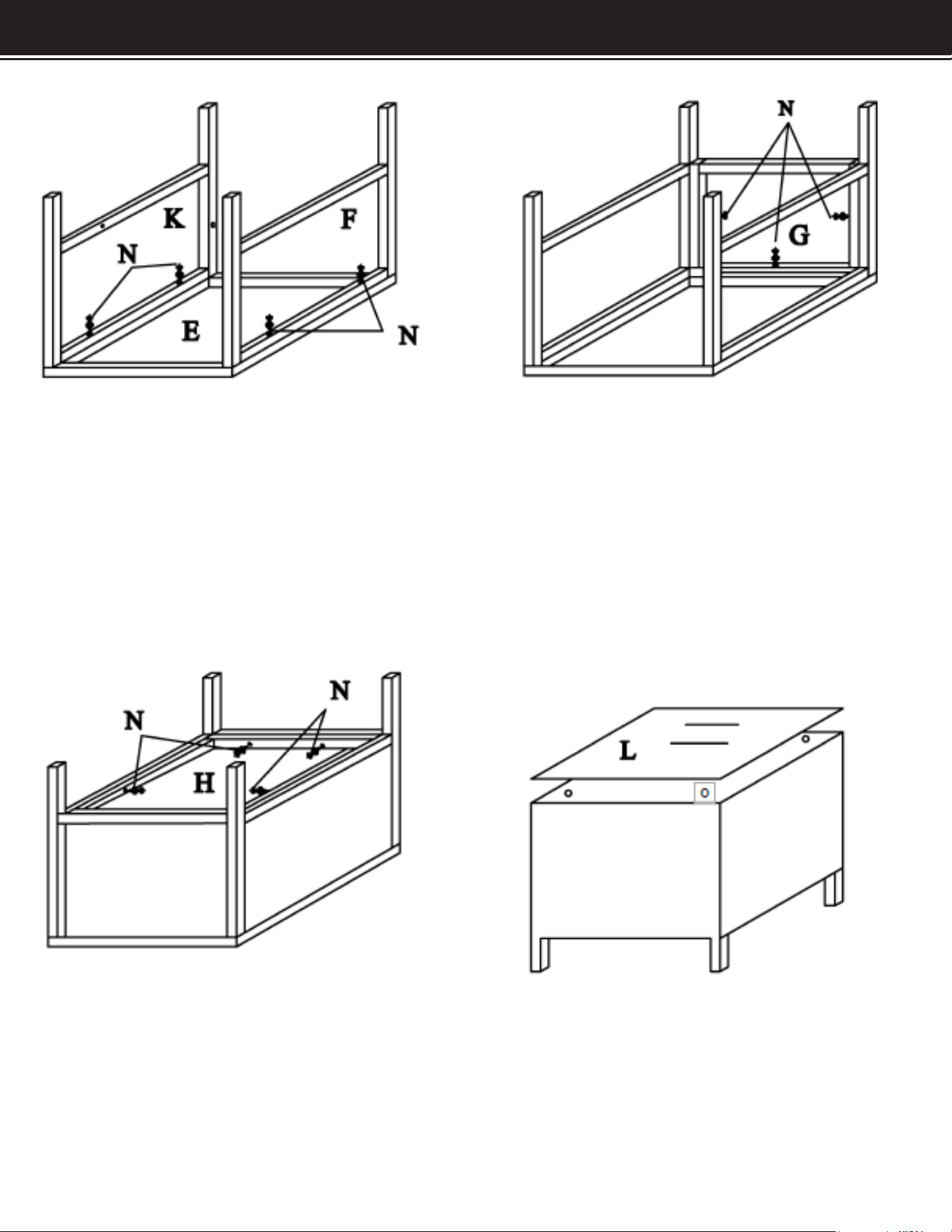

STEP 5:
Connect Table frame F, K & table Tabletop
frame B with bolt N with allen key
STEP 6:
Connect the part :from step S and table Side
frame O with bolt N with alien key
STEP 7:
Connect the part from step 6 and table under
frame H with bolt N with a1len key
STEP 8:
Put on Table Glass L to nish Table
4
3
4
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
MADE IN VIETNAM
