BG-UHD-VW2X2
2X2 4K 18Gbps UHD HDMI Video Wall Processor/Controller with
Audio Extraction
User Manual
BZBGEAR BG-UHD-VW2X2 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-UHD-VW2X2 PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
IR Remote 7
Output Modes 8
Application Example 9
Tech Support 10
Limited Product Warranty Terms 10
Mission Statement 10
Copyright 10
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-UHD-VW2X2 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● To avoid damage from drops, make sure this unit is placed on a stable and solid surface.
● Only connect the unit with the included power supply.
● Disconnect power cord by connector only - Do not pull on the cable.
● Do not place or drop heavy/sharp-edged objects on the power cord. A damaged cord
can cause fire or electrical shock hazards. Regularly check power cord for excessive
wear or damage to avoid possible fire / electrical hazards.
● Ensure the unit is properly always grounded to prevent electrical shock hazard.
● Turn off the unit if a malfunction occurs. Disconnect everything before moving the unit.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● Unplug this device during lightning storms
● Clean only with a soft dry microfiber cloth.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
● Only use accessories specified by the manufacture
● Product specifications may be subject to technical upgrades without further notice.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-UHD-VW2X2 PRODUCT MANUAL
Introduction
The BG-UHD-VW2X2 is a 4-port HDMI video wall processor with 4K@60 4:4:4 input
support. Featuring 4 1080p HDMI video wall outputs, this unit can function as a dedicated
2x2 video wall at 4K resolution or it can be used at 1080p with the other various screen
layouts. Layouts include 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, and 4x1. The BG-UHD-VW2X2
features one RCA and one TOSLINK output for audio extraction. It can be controlled by the
included IR Remote, front panel buttons, or via RS232 commands.
Features
● HDCP 2.2 Compliant
● Input resolutions up to 4K@60Hz 4:4:4
● Multiple layout modes
● Edge Shielding (2x2 only)
● Mirror function
● AUX and TOSLINK audio outputs
● Controllable via front-panel buttons, IR remote, and RS232 control
● HDMI Local loop out
● Metal housing
● Plug and play
Packing List
● 1x BG-UHD-VW2X2
● 1x DC Power Supply
● 1x Remote control
● 1x User Manual
● 1x Phoenix plugs for RS232 cable
termination
● 1x User Manual
● 1x Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-UHD-VW2X2 PRODUCT MANUAL
Specifications
DMI resolution
Input: Up to 4k@60Hz 4:4:4
Loop Out: Up to 4k@60Hz 4:4:4
Video Wall Output: Up to 1080p@60Hz
HDMI version
HDMI 2.0, HDCP 2.2
Support video color format
36-bit Deep Color all channels maximum
Audio output
HDMI: PCM 2CH
L\R: Stereo audio
Toslink: PCM 2CH
Max bandwidth per channel
600MHz
Max baud rate per display
18Gbps (Input)
Input/Output TMDS signal
0.5~1.5V p-p (TTL)
Input/Output DDC signal
5V p-p (TTL)
Input cable distance
≤16ft/ 5m 24 AWG HDMI high speed Cable at 1080P@60Hz
Output cable distance
≤50ft/15m 24 AWG HDMI high speed Cable at 1080P@60Hz
Operating Temperature range
5°F to 131°F / -15°C to 55°C
Operating Humidity range
5% to 90% RH (No Condensation)
Max working current
1A
External Power Supply
DC12V/2A
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-UHD-VW2X2 PRODUCT MANUAL

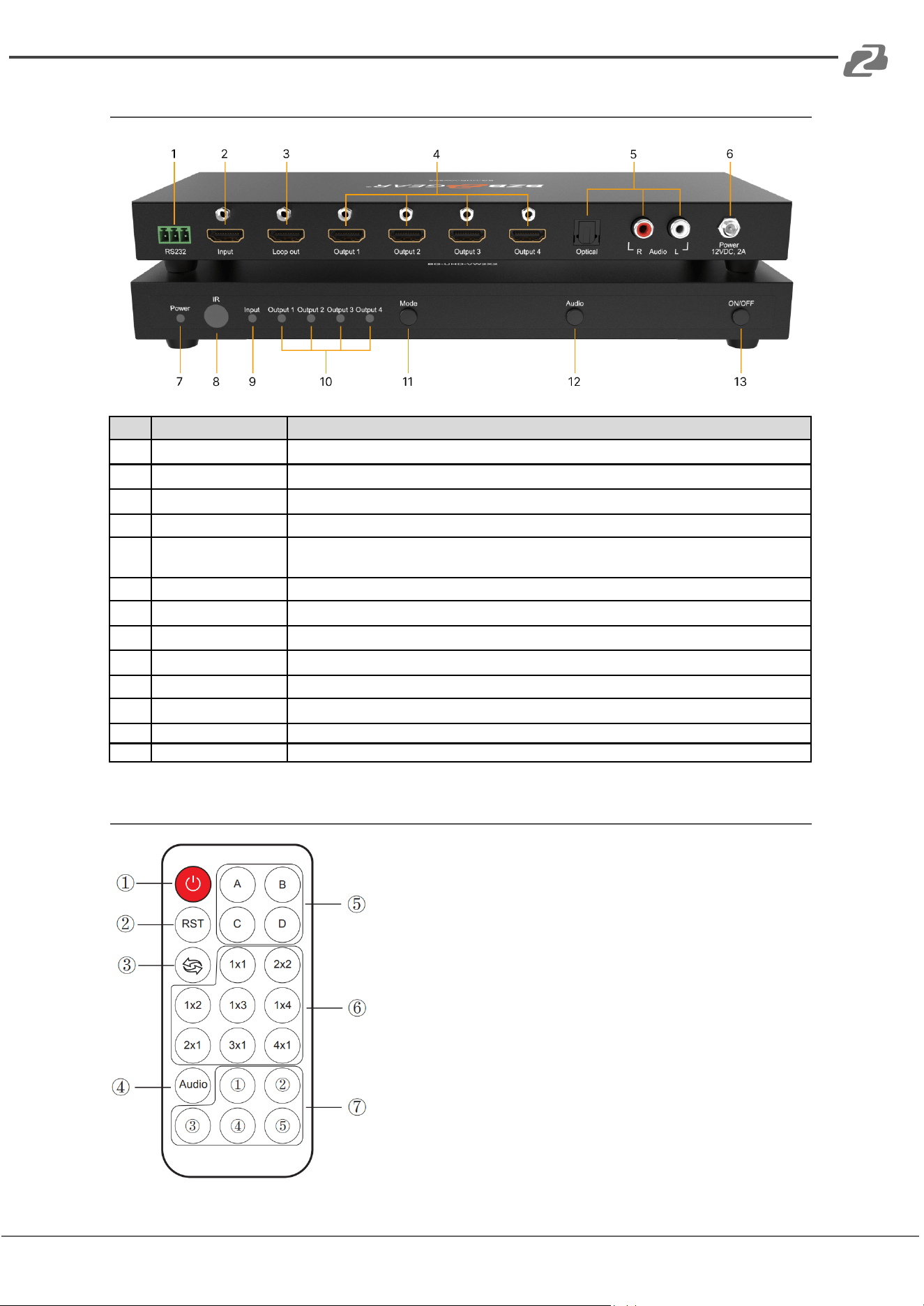

Operation Controls and Functions
NO.
Name
Function Description
1
RS232
RS232 control Port.
2
HDMI Input
Connect to the HDMI output of your source equipment such as a media player or PC.
3
HDMI Loopout
Connect to a local monitor to display the full signal of the source device.
4
HDMI Output 1-4
Connect to the display devices to show the split signal of the source device.
5
AUX and TOSLINK
audio output
Connect to an audio system or amplifier.
6
Power
Connect to the 12V DC.
7
Power LED indicator
Power On/Off indicator.
8
IR
Remote control sensor.
9
Input LED Indicator
HDMI input LED indicator.
10
Output 1 - Output 4
HDMI output LED indicators.
11
Mode switch
Press the “Mode” button to switch the Layout mode.
12
Audio switch
Press the “Audio” button to switch the audio output from L\R or Optical.
13
ON/OFF
Power ON/OFF button.
IR Remote
1. ON\OFF: Power ON\OFF.
2. RST: Restore Factory Defaults.
3. Rotate: Change the Output port order.
4. Audio: Switch the audio output from L\R or
Optical.
5. Mirror mode: Enable\Disable Mirror mode
(Rotation 180°). Note: Used in 2x2 mode only.
6. Layout mode: Switch between different layout
modes.
7. Edge Shielding level: Switch between different
Edge Shielding levels (higher the level, the more
pixels are shielded from the edge). Note: Used in
2x2 mode only.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-UHD-VW2X2 PRODUCT MANUAL

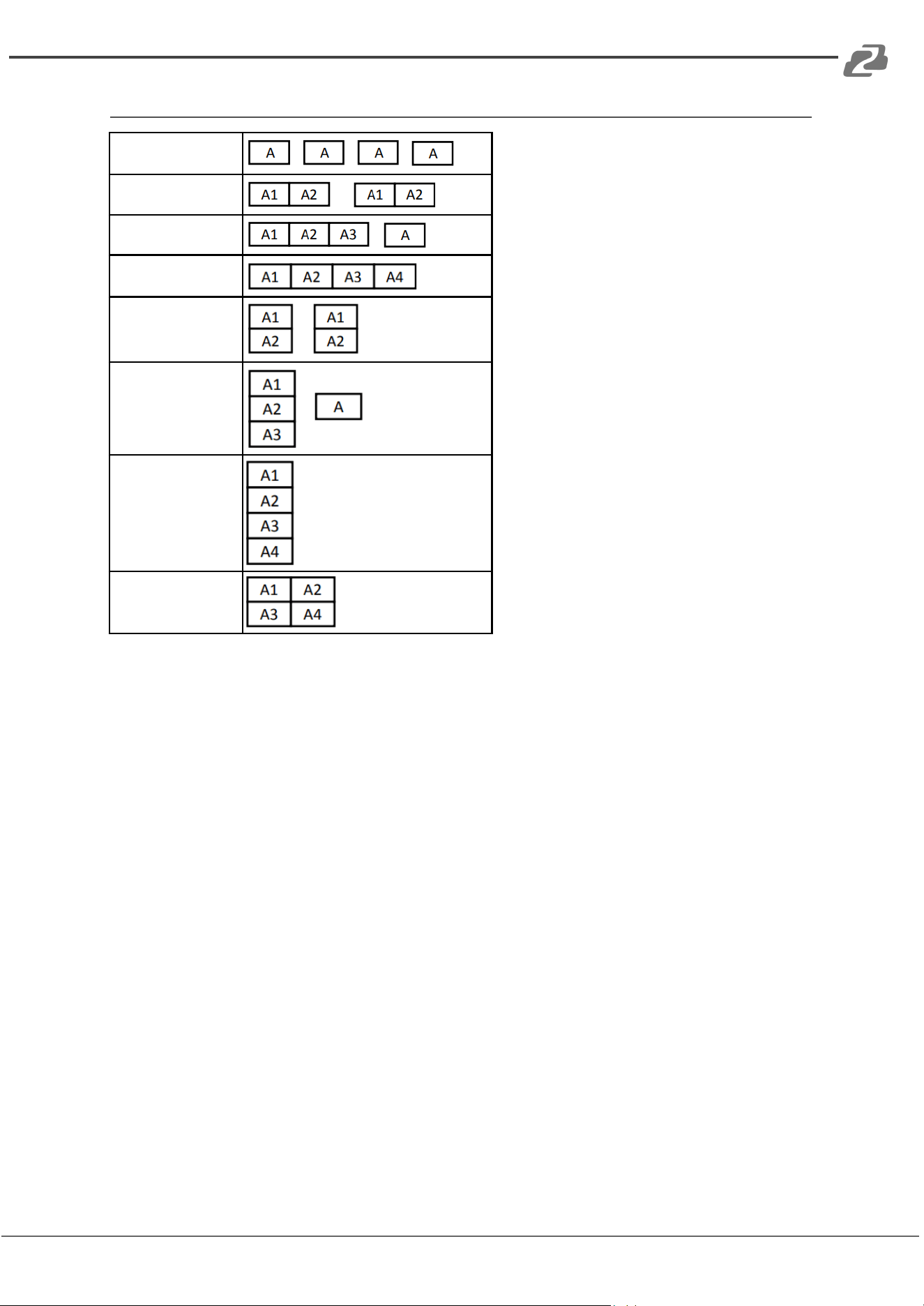

Output Modes
1x1
1x2(H)
1x3(H)
1x4(H)
2x1(V)
3x1(V)
4x1(V)
2x2
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-UHD-VW2X2 PRODUCT MANUAL

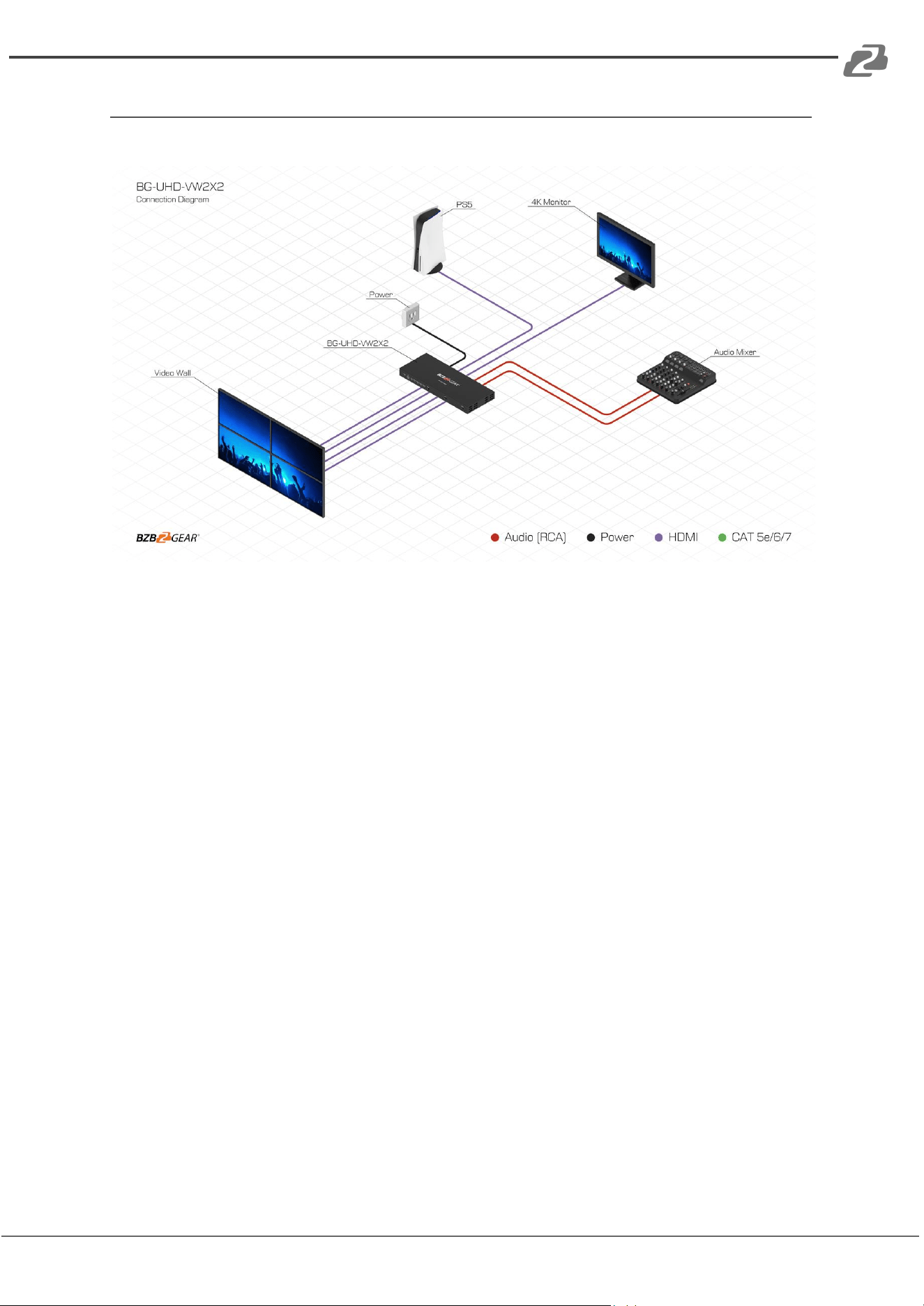

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-UHD-VW2X2 PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
