User Guide
base unit freezer
20250415
7086664 - 01
SUIG 1514
Contents
1 Appliance at a glance............................................ 2
1.1 Description of appliance and equipment................. 2
1.2 Appliance range of use............................................... 2
1.3 Conformity..................................................................... 3
1.4 SVHC substances according to REACH
regulation*.................................................................... 3
1.5 EPREL database*......................................................... 3
1.6 Spare parts.................................................................... 3
1.7 Saving energy............................................................... 3
2 General safety instructions.................................. 3
3 Controls and displays............................................ 5
3.1 Operating and control elements................................ 5
3.2 Temperature display.................................................... 5
4 Putting into operation........................................... 5
4.1 Transporting the appliance........................................ 5
4.2 Installing the appliance.............................................. 5
4.3 Disposing of packaging............................................... 6
4.4 Switching on the appliance........................................ 6
5 Control................................................................... 6
5.1 Child proofing............................................................... 6
5.2 Door alarm..................................................................... 6
5.3 Temperature alarm....................................................... 6
5.4 Freezing food................................................................ 7
5.5 Thawing food................................................................ 7
5.6 Setting the temperature............................................. 7
5.7 SuperFrost..................................................................... 7
5.8 Drawers.......................................................................... 8
5.9 Shelves.......................................................................... 8
5.10 VarioSpace.................................................................... 8
6 Maintenance.......................................................... 8
6.1 Manual defrosting........................................................ 8
6.2 Cleaning the appliance............................................... 8
6.3 Customer service......................................................... 9
7 Malfunctions......................................................... 9
8 Decommissioning.................................................. 11
8.1 Switching off the appliance....................................... 11
8.2 Taking the appliance out of service.......................... 11
9 Disposal................................................................. 11
9.1 Preparing appliance for disposal.............................. 11
9.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 11
The manufacturer works constantly on the further develop‐
ment of all the types and models. Therefore please under‐
stand that we have to reserve the right to make design,
equipment and technical modifications.
To get to know all the benefits of your new appliance,
please read the information contained in these instructions
carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked
with an asterisk (*).
Instructions are marked with a , and results are marked
with a .
1 Appliance at a glance
1.1 Description of appliance and equip‐
ment

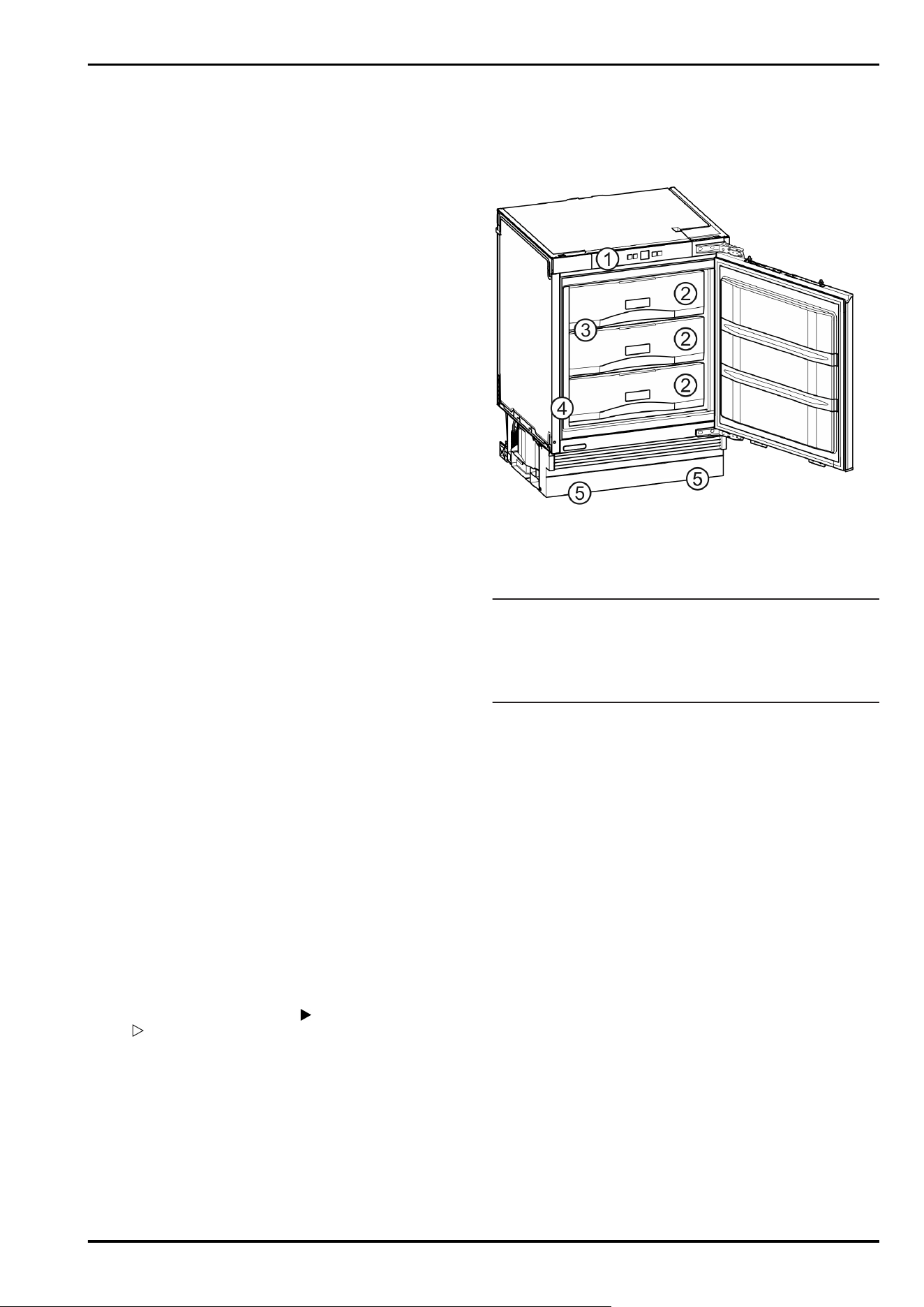

Fig.1
(1)
Operating and control
elements
(4) Model plate
(2) Drawers (5) Adjusting feet
(3) VarioSpace
Note
► Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
1.2 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is suitable for integrating
under counters.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Appliance at a glance
2 * Depending on model and options
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
►Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
The appliance will work properly down to a
lower ambient temperature of 5°C.
1.3 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable safety
regulations and with the corresponding directives.
For the EU
market:
The appliance complies with directive
2014/53/EU.
For the GB
market:
The appliance complies with Radio
Equipment Regulations 2017 SI 2017 No.
1206.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
1.4 SVHC substances according to
REACH regulation*
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
1.5 EPREL database*
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.*
1.6 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.
1.7 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight or near
radiators or similar sources of heat.
-
If the appliance is installed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.2 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
If there is a thick layer of frost in the appliance: defrost
the appliance.
2 General safety instructions
Please keep these instructions in a safe
place and pass them on to any subsequent
owners.*
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.*
If you pass the appliance on, please hand
these operating instructions to the next user.*
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they are
supervised or have received instruction in
the safe use of this device, and about the
resulting hazards.
Children must not play with this appliance.
Cleaning and user maintenance work must
not be carried out by children without adult
supervision. Children aged between 3 and
8 are allowed to load and unload the appli‐
ance. Children below the age of 3 must be
kept away from the appliance unless they
are under continuous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
General safety instructions
* Depending on model and options 3
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.*
-
Repairs, interventions on the appliance and
the replacement of mains connection line
may only be carried out by AfterSales
Service or other suitably trained specialist
personnel.
-
Only install, connect and dispose of the
appliance according to the instructions.
-
Only use the appliance when is installed.
-
Special lights, such as LED lights on the
appliance, are used to illuminate the inte‐
rior of the appliance and are not suitable
for room lighting.*
Fire hazard:
-
This appliance contains a refrigerant
which is environmentally friendly, but flam‐
mable. Leaking refrigerant may ignite. It
is hazardous for anyone other than an
Authorised Service Person to service this
appliance. In Queensland, the authorised
Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants,
to carry out Servicing or repairs where the
gas system is being opened or charged.*
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
WARNING: Keep ventilation openings, in
the appliance enclosure or in the built-in
structure, clear of obstruction.*
-
WARNING: Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.*
-
WARNING: Do not damage the refrigerant
circuit.*
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
-
Do not consume ice cream, water ice or
ice cubes immediately and do not consume
them too cold.*
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.
Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
General safety instructions
4 * Depending on model and options
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
3 Controls and displays
3.1 Operating and control elements

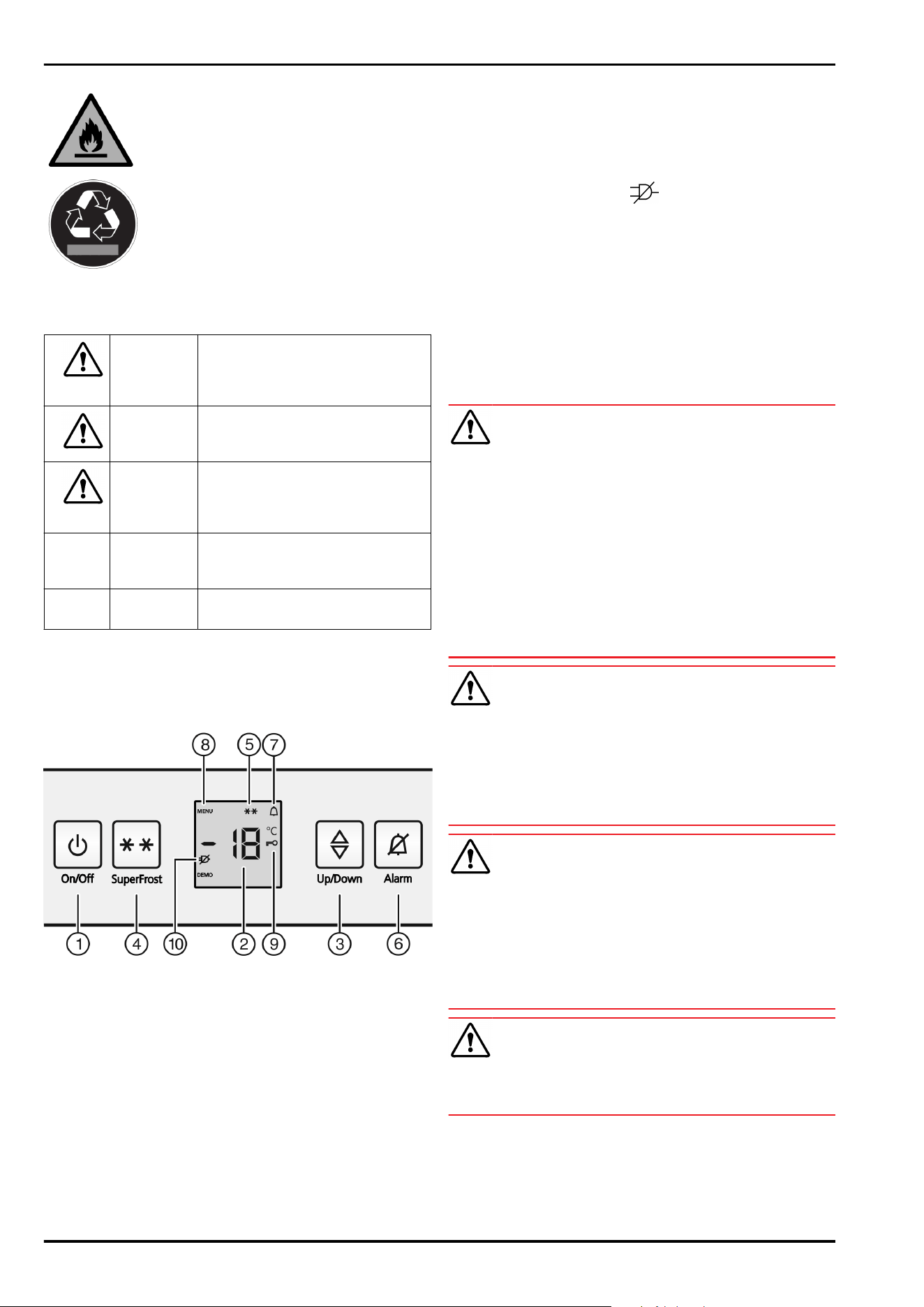

Fig.2
(1)
On/Off button (6) Alarm button
(2) Temperature display (7) Alarm symbol
(3) Up/Down button (8) Menu symbol
(4) SuperFrost button (9) Child lock symbol
(5) SuperFrost symbol (10) Power failure symbol
3.2 Temperature display
During normal operation, the display shows:
-
the freezer temperature setting
The temperature display flashes if/when:
-
You change the temperature setting
-
The appliance is not cold enough after switching on
-
The temperature rises by several degrees
The following displays indicate a fault. Possible causes and
solutions: (see7Malfunctions) .
-
F0 to F9
-
The power failure symbol flashes.
4 Putting into operation
4.1 Transporting the appliance
► Transport the appliance only in suitable packaging.
► Transport the appliance upright.
► Do not transport the appliance on your own.
4.2 Installing the appliance
WARNING
Danger of fire due to incorrect positioning!
If the mains cable or plug touches the back of the appli‐
ance, the vibration can damage the mains cable or the plug
resulting in a short circuit.
► Make sure the mains cable is not trapped under the appli‐
ance when you position the appliance.
► Stand the appliance so that it is not touched by connec‐
tors or main cables.
► Do not connect any appliances to sockets in the area of
the back of the appliance.
► Do not place and operate multi-sockets/power distribu‐
tors and other electronic devices (such as halogen trans‐
formers) at the back of the appliances.
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
► The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
► Only use the appliance when it is installed.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
WARNING
Fire hazard and danger of damage!
► Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
Controls and displays
* Depending on model and options 5
NOTICE
Covered vents!
Damage. Appliance can overheat, which can reduce the
service life of various parts of the appliance and lead to
operational impairments.
► Always make sure there is good ventilation.
► Always keep vents or ventilation grids in the appliance
housing and in the kitchen furniture (fully integrated
appliance) unobstructed.
► Always keep the fan air vents unobstructed.
❑
In the event that the appliance is damaged, contact the
supplier immediately before connecting to the mains.
❑
The floor at the site must be flat and level.
❑
Do not install the appliance in a location where it is
exposed to direct radiation of the sun, next to a cooker,
heater and similar.
❑
Do not install the appliance alone: it is best to work
together with two or more people.
❑
The more refrigerant there is in the appliance, the larger
the space that it is installed in must be. If the space is
too small, any leak may create a flammable mixture of
gas and air. For every 8 g of refrigerant, the installation
space must be at least 1 m
3
. Information regarding the
coolant can be found on the type plate inside the appli‐
ance.
❑
If the appliance is installed in a very damp environment,
condensed water may form on the outside of the appli‐
ance. Always make sure that there is good ventilation -
both at air inlet and outlet - at the site of installation.
After installation:
► Remove protective films, adhesive tapes and transport
lock parts etc.
Note
► Clean the appliance (see Operating Instructions, Chapter
"Cleaning the appliance").
4.3 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic
film!
► Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
► Take the packaging material to an official collecting
point.
4.4 Switching on the appliance
►
Open the door.
► Press the On/Off button Fig.2(1).
▷ The temperature display lights up. The appli‐
ance is switched on.
▷ If “DEMO” is displayed, demo mode is acti‐
vated. Please contact the after sales service.
5 Control
5.1 Child proofing
The child-proofing function enables you to make
sure that the appliance is not inadvertently
switched off by playing children.
5.1.1 Setting the child lock
To switch on the function:
► Activate setting mode: press the SuperFrost button
Fig.2(4) for approx.5seconds.
▷ The Menu symbol Fig.2(8) is shown on the display.
▷
c flashes on the display.
► Briefly confirm with the SuperFrost button, Fig.2(4).
▷
c1 appears in the display.
► Briefly confirm with the SuperFrost button, Fig.2(4).
▷ The child lock symbol Fig.2(9), lights up on the
display.
▷
c flashes on the display.
▷
The child lock function is switched on.
If setting mode is to be terminated:
► Briefly press the On/Off button Fig.2(1).
-or-
► Wait for 5 minutes.
▷ The temperature display shows the temperature again.
To switch off the function:
► Activate setting mode: press the SuperFrost button
Fig.2(4) for approx.5seconds.
▷ The Menu symbol Fig.2(8) is shown on the display.
▷
c flashes on the display.
► Briefly confirm with the SuperFrost button, Fig.2(4).
▷
c0 appears in the display.
► Briefly confirm with the SuperFrost button, Fig.2(4).
▷ The child lock symbol Fig.2(9) goes out.
▷
c flashes on the display.
▷ The child lock function is switched off.
If setting mode is to be terminated:
► Briefly press the On/Off button Fig.2(1).
-or-
► Wait for 5 minutes.
▷ The temperature display shows the temperature again.
5.2 Door alarm
An audible warning sounds if the door is open for
longer than 60 seconds.
The audible warning stops automatically when
the door is closed.
5.2.1 Muting the door alarm
The audible alarm can be muted when the door is open. The
sound switch-off function is active as long as the door is
left open.
► Press alarm button Fig.2(6).
▷ The door alarm is silenced.
5.3 Temperature alarm
The audible alarm sounds if the freezer tempera‐
ture is not cold enough.
The temperature display and the alarm symbol
Fig.2(7) flash at the same time.
Control
6 * Depending on model and options
The cause of the temperature being too high may be:
-
warm fresh food was placed inside
-
too much warm ambient air flowed in when rearranging
and removing food
-
Prolonged power outage
-
the appliance is faulty
The audible alarm is automatically silenced, the alarm
symbol Fig.2(7) goes out and the temperature display stops
flashing when the temperature is sufficiently cold again.
If the alarm status persists: (see7Malfunctions) .
Note
Food may be spoilt if the temperature is not cold enough.
► Check the quality of the food. Do not consume spoiled
food.
5.3.1 Muting the temperature alarm
The audible alarm can be muted. When the temperature is
sufficiently cold again, the alarm function is active again.
► Press alarm button Fig.2(6).
▷ The audible alarm is silenced.
5.4 Freezing food
The rating plate indicates the maximum quantity of fresh
food you can freeze within 24 hours (see 1 Appliance at a
glance) under “Freezing capacity ... kg/24h”.
Each drawer can hold a max. of 25 kg of frozen food.
The shelves can each be loaded with 35 kg of frozen food.
A vacuum is generated after the door is closed. After closing
the door, wait for about 1 minute and then it opens more
easily.
CAUTION
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
► Do not freeze bottles and cans containing drinks!
► Depending on the amount of food items you want to
freeze, you should switch on SuperFrost well in advance.
► If storing a smaller amount of items, switch on 6 hours
before freezing.
► If storing the maximum amount of items, switch on 24
hours before freezing.
So that the food is rapidly frozen through to the core, do not
exceed the following quantities per pack
- Fruit, vegetables up to 1 kg
- Meat up to 2.5 kg
► Pack the food in portions in freezer bags, reusable
plastic, metal or aluminium containers
5.5 Thawing food
- in the refrigerator compartment
- in a microwave oven
- in a conventional or fan oven
- at room temperature
► Remove only as much food as is required. Use thawed
food as quickly as possible.
► Food once thawed should be re-frozen only in exceptional
cases.
5.6 Setting the temperature
The temperature depends on the following factors:
-
the frequency of opening the door
-
how long the door is open for
-
the room temperature of the installation location
-
the type, temperature and quantity of the food
Recommended temperature setting: -18°C
The temperature is changed sequentially. Once the -28 °C
setting is reached, the sequence starts again at -14°C.
► Call up the temperature function by pressing
the adjustment button Fig.2(3) once.
▷ The previously-set value will flash in the
temperature display.
► Change temperature in 1 °C steps: press the
setting button Fig. 2 (3) until the required
temperature is indicated in the temperature
display.
► Change temperature continually: hold down setting
button.
▷ During adjustment the value flashes on the display.
▷ The new setting is adopted approx. 5 seconds after the
last time the button was pressed and the set temper‐
ature displayed again. The temperature in the interior
gradually adjusts to the new value.
5.7 SuperFrost
With this function you can freeze fresh food
quickly through to the core. The appliance oper‐
ates with maximum refrigeration. The noise of the
refrigeration unit may be temporarily louder as a
result.
In addition, frozen food already in storage is given a “cold
reserve”. The food stays frozen longer as a result when you
defrost the appliance.
You can freeze as many kilograms of fresh food within
24 hrs as is indicated on the type plate under “Freezing
capacity ... kg/24hrs”. This maximum freezing quantity can
vary depending on model and climate class.
You have to activate SuperFrost in good time, depending on
how much fresh food is to be frozen: about 6 hours before
placing the food inside in case of small amounts and about
24 hours in advance in case of the maximum amount of food
to be frozen.
Wrap produce and spread it out as far as possible. Do not
allow produce to be frozen to touch produce that is already
frozen to prevent the latter thawing.
You do not have to activate SuperFrost in the following
cases:
-
when placing frozen food in the freezer
-
when freezing up to approx. 2 kg fresh food daily
5.7.1 Freezing with SuperFrost
► Briefly press the SuperFrost button Fig.2(4).
▷ The SuperFrost symbol Fig.2(5) shines.
▷ The freezer temperature drops, the appliance operates
with the maximum refrigerating capacity.
In case of a small amount of food to be frozen:
► wait approx.6h.
► Place wrapped produce in the bottom drawers.
In case of the maximum amount of food to be frozen (see
type plate):
► wait about 24 h.
► Remove bottom drawer and place produce directly in the
appliance so that it touches the base or sides.
▷ SuperFrost is automatically deactivated after about 65 h.
▷ TheSuperFrost button Fig.2(5)extinguishes once freezing
is completed.
▷ The temperature range set for the normal mode shines in
the temperature display.
► Place produce in the drawer and then push the drawer
back in again.
Control
* Depending on model and options 7
▷ The appliance continues to operate in the energy-saving,
normal mode.

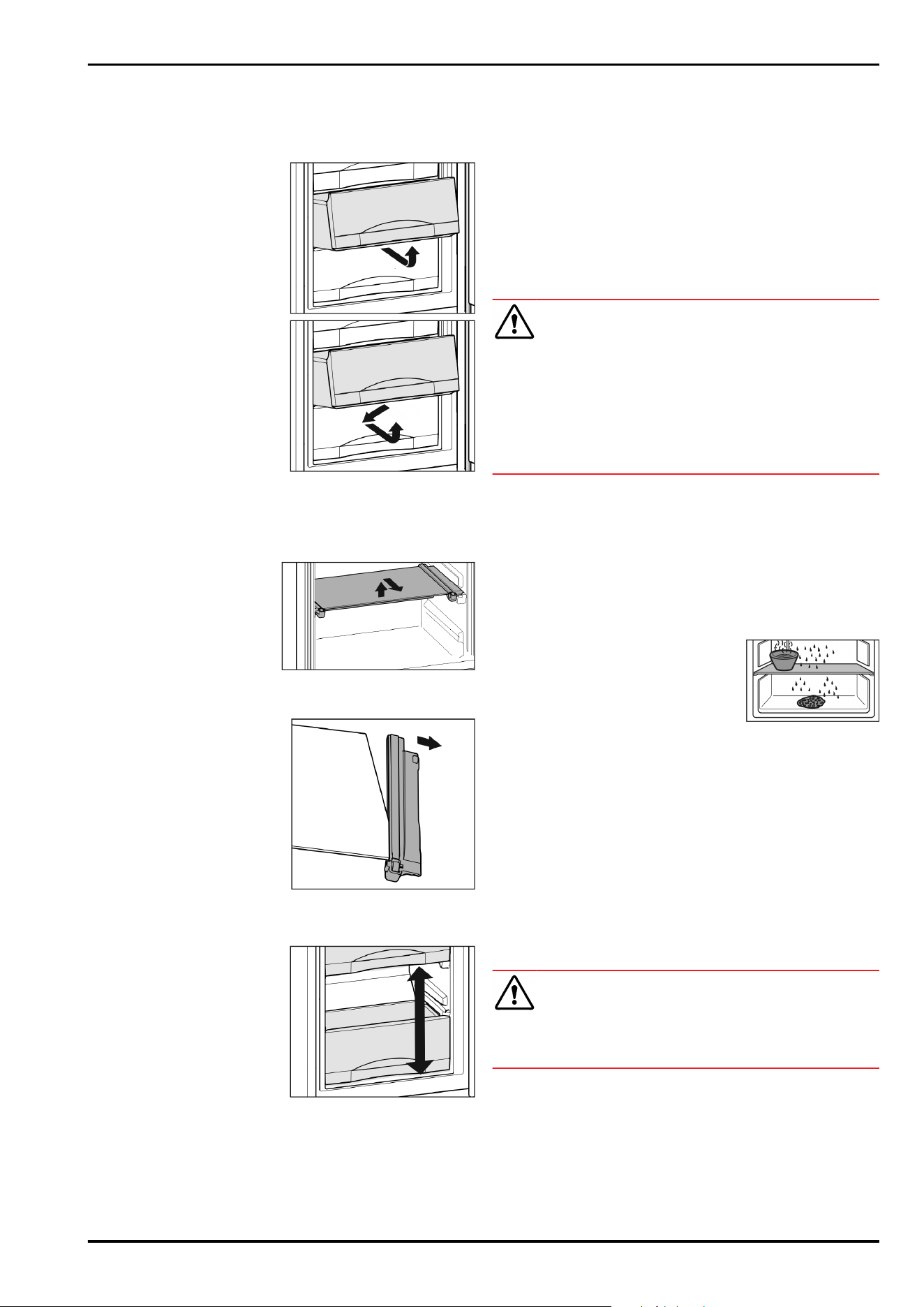

5.8 Drawers
► To store frozen food
directly on the shelves pull
the drawer forward and lift
it out.
► To remove the drawers at a
door angle of 90°:
► As you pull out the
drawers, push slightly to
the side then pull them up
and out.
5.9 Shelves
5.9.1 Moving shelves
► To remove the shelf: lift
up at the front and pull
out.
► To put the shelf back:
simply push in as far as
it will go.
5.9.2 Removing shelves
► The shelves may be
removed for cleaning.
5.10 VarioSpace
You can remove the shelves
and drawers. This leaves
more room for larger food
items such as poultry, meat,
large game and tall baked
goods, which can be frozen
whole before further prepara‐
tion.
► Each drawer can hold max. 25 kg of frozen food.
► The shelves can each be loaded with 35 kg of frozen
food.
6 Maintenance
6.1 Manual defrosting
After a long period of operation, a layer of frost or ice can
build up inside the appliance.
The layer of frost or ice builds up faster if the appliance
is opened often or if the food is warm when placed inside.
However, a thick layer of ice will increase the appliance‘s
energy consumption. You should therefore defrost the appli‐
ance regularly.
Thawing process:
WARNING
Improper defrosting of the appliance!
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
► Switch on SuperFrost one day before defrosting.
▷ The frozen goods are provided with a “cold reserve”.
► Switch off the appliance.
▷ The temperature display goes out.
▷ If the temperature display does not go out, the child lock
function (see 5.1 Child proofing) is active.
► Pull out the power plug or switch off the fuse.
► If possible, put the frozen goods in the freezer drawer,
wrapped in newspaper or a blanket, and store in a cool
place.
► Place a pan with hot, not boiling
water on a middle shelf.
-or-
► Half-fill the two lower drawers with
lukewarm water and put them in
the appliance.
▷ Defrosting is speeded up.
▷ Defrost water is collected in the drawers.
► Leave the door of the appliance open while defrosting.
► Remove detached pieces of ice.
► Pay attention that the defrost water does not run into the
kitchen unit.
► If necessary, pick up defrost water several times, using a
sponge or cloth.
► Clean the appliance (see 6.2 Cleaning the appliance) and
rub dry.
6.2 Cleaning the appliance
Clean the appliance regularly.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
Maintenance
8 * Depending on model and options
NOTICE
Incorrect cleaning damages the appliance!
► Do not use cleaning agents in concentrated form.
► Do not use any scouring or abrasive sponges or steel
wool.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Do not use chemical solvents.
► Do not damage or remove the type plate on the inside of
the appliance. It is important for the customer service.
► Do not pull off, bend or damage cables or other compo‐
nents.
► Do not allow any cleaning water to enter the drain
channel, ventilation grille or electrical parts.
► Please use soft cleaning cloths and a universal pH-
neutral cleaning agent.
► Please use cleaning and care products suitable for
contact with foodstuffs in the appliance interior.
► Empty appliance.
► Pull out the power plug.
►
Clean plastic outer and inner surfaces with lukewarm
water and a little washing-up liquid.
► Most of the parts can be dismantled for cleaning: see the
relevant chapter.
► Clean drawers by hand with lukewarm water and a little
washing up liquid.
► Clean other items of equipment by hand with lukewarm
water and a little washing-up liquid.
After cleaning:
► Wipe dry the appliance and items of equipment.
► Connect the appliance and switch it on again.
► Switch on SuperFrost (see 5.7SuperFrost) .
When the temperature is sufficiently cold:
► Put the food back inside.
6.3 Customer service
First check whether you can rectify the fault yourself
(see 7 Malfunctions) . If you cannot rectify the problem,
contact Customer Services. You can find the address in the
enclosed Customer Service Directory.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see6 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.

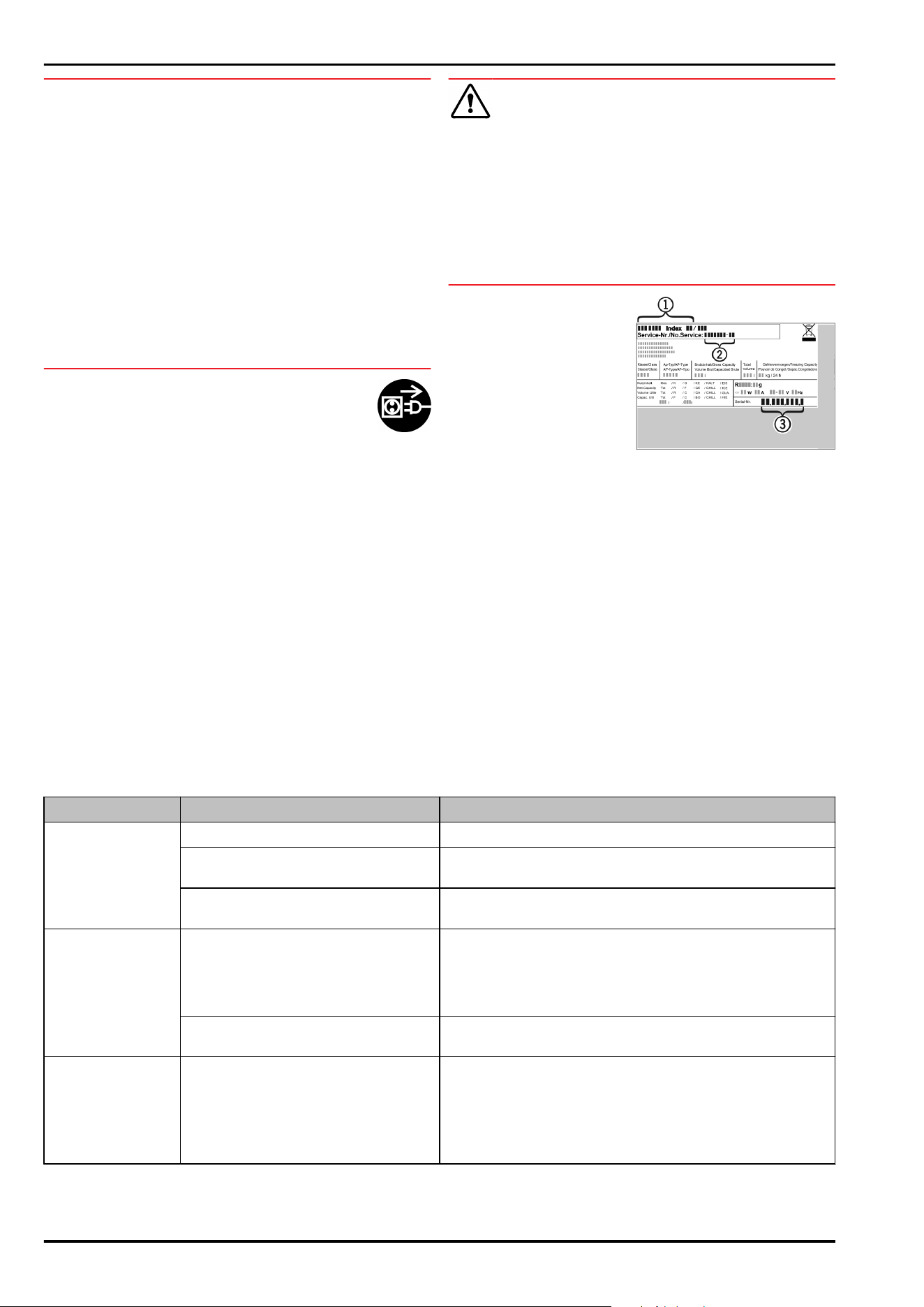

► Read the appli‐
ance designation
Fig. 3 (1), service
No. Fig. 3 (2) and
serial No. Fig. 3 (3)
off the model plate
located inside the
appliance on the
left-hand side.
Fig.3
► Notify the customer service, specifying the fault, appli‐
ance designation Fig.3(1), service No. Fig.3(2) and serial
No. Fig.3(3).
▷ This will help us to provide you with a faster and more
accurate service.
► Keep the appliance closed until the customer service
arrives.
▷ The food will stay cool longer.
► Pull out the mains plug (not by pulling the connecting
cable) or switch off the fuse.
7 Malfunctions
Your appliance is designed and manufactured for a long
life span and reliable operation. If a malfunction nonethe‐
less occurs during operation, check whether it is due to a
handling error. In this case you will have to be charged for
the costs incurred, even during the warranty period. You
may be able to rectify the following faults yourself:
Defect
Cause Remedy
Appliance does not
work.
→ The appliance is not switched on. ► Switching on the appliance.
→ The power plug is not properly
inserted in the wall socket.
► Check power plug.
→ The fuse of the wall socket is not in
order.
► Check fuse.
The compressor
runs for a long
time.
→ The compressor switches to a
low speed when little cold is
needed. Although the running time
is increased as a result, energy is
saved.
► This is normal in energy-saving models.
→ SuperFrost is activated. ► The compressor runs for longer in order to rapidly cool
the food. This is normal.
A LED on the
bottom rear of
the appliance (at
the compressor)
flashes repeatedly
every 5 seconds*.
→ There is a fault. ► Please contact the after-sales service (see 6 Mainte‐
nance) .
Malfunctions
* Depending on model and options 9
Defect Cause Remedy
Excessive noise.
→ Due to the various speed steps,
speed-regulated* compressors can
generate different running noises.
► The sound is normal.
A bubbling and
gurgling noise.
→ This noise comes from the refrig‐
erant flowing in the refrigeration
circuit.
► The sound is normal.
A quiet clicking
noise.
→ The noise is produced whenever
the refrigeration unit (motor) auto‐
matically switches on or off.
► The sound is normal.
A hum. It is briefly
a little louder
when the refrig‐
eration unit (the
motor) switches
on.
→ The refrigeration increases auto‐
matically when the SuperFrost,
function is activated, fresh food
has just been placed in the appli‐
ance or the door has been left open
for a while.
► The sound is normal.
→ The ambient temperature is too
high.
► Solution: (see1.2 Appliance range of use)
A low hum.
→ The sound is produced by air flow
noise of the fan.
► The sound is normal.
Vibration noises
→ The appliance is not standing
firmly on the floor. As a result
objects and adjacent units start
to vibrate when the refrigerator is
running.
► Check the installation and realign the appliance.
The temperature
display indicates:
F0 to F9
→ There is a fault. ► Please contact the after-sales service (see 6 Mainte‐
nance) .
Power failure
flashes in
the temperature
display . The
highest tempera‐
ture reached
during power
failure is indicated
in the temperature
display.
→ The freezer temperature rose too
high over the last hours or days
due to a power failure or power
interruption. When the power inter‐
ruption is over, the appliance will
continue to operate in the last
temperature setting.
► To cancel the display of the warmest temperature: press
alarm button Fig.2(6).
► Check the quality of the food. Do not consume spoiled
food. Do not re-freeze thawed food.
DEMO shines in
the temperature
display.
→ The demo mode is activated. ► Please contact the after-sales service (see 6 Mainte‐
nance) .
The outer surfaces
of the appliance
are warm*.
→ The heat of the refrigeration circuit
is used to prevent condensate from
forming.
► This is normal.
The temperature is
not cold enough.
→ The door of the appliance is not
properly closed.
► Close the door of the appliance.
→ Insufficient ventilation. ► Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
► Solution: (see1.2 Appliance range of use) .
→ The appliance was opened too
frequently or for too long.
► Wait to see whether the appliance reaches the required
temperature by itself. If not, please contact the after
sales service (see6 Maintenance) .
→ Too much fresh food was placed
inside without SuperFrost.
► Solution: (see 5.7SuperFrost)
→ The temperature is incorrectly set. ► Set the temperature to a colder setting and check after
24 hours.
Malfunctions
10 * Depending on model and options
Defect Cause Remedy
→ The appliance is too close to a
source of heat (stove, heater etc).
► Change the position of the appliance or the source of
heat.
→ The appliance was not inserted
properly into the recess.
► Check whether the appliance was inserted correctly and
the door closes properly.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service (see6 Maintenance) :
The unit has iced
up or condensation
has formed.
→ The door seal may have also
slipped out of its groove.
► Check to ensure that the door seal is seated properly in
the groove.
8 Decommissioning
8.1 Switching off the appliance
► Press On/Off button Fig. 2 (1) for
approx.2seconds.
▷ A long beep is emitted. The temperature
display is dark. The appliance is switched off.
▷ If the appliance cannot be switched off, the
child lock function is active (see 5.1 Child
proofing) .
8.2 Taking the appliance out of service
► Empty the appliance.
► Switch off the appliance (see8Decommissioning) .
► Remove mains connector.
► Clean the appliance (see6.2 Cleaning the appli‐
ance) .
►
Leave the door open to prevent odour.
9 Disposal
9.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
► Take the appliance out of operation. (see 8.2 Taking the
appliance out of service)
► Appliances with batteries: remove the batteries. For
description, see Maintenance chapter.
► If possible: remove lamps without destroying them.
9.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany:* You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.*
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
(see4.1 Transporting the appliance)
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
Decommissioning
* Depending on model and options 11
Liebherr-Hausgeräte Marica EOOD
4202 Radinovo
Bezirk Plovdiv
Bulgarien
home.liebherr.com
