OUTDOOR DOUBLE BURNER STOVE
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 95537
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628-0880 MON-FRI 9AM TO 3PM PST
IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric re and/or serious injury. Save all warnings and instructions for future reference.
SAFETY
Read these instructions for use carefully. Familiarise yourself with the appliance before connecting it to
a gas cylinder. Keep these instructions for future reference. This instruction manual contains important
information necessary for the proper assembly and safe use of the appliance. Follow all warnings and
instructions when using the appliance. If you have questions about assembly, operation, servicing or
repair of this product, please call Customer Service at 909.628.0880.
1
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
DO NOT allow persons to operate or assemble the product until they have read this manual and have
developed a thorough understanding of how it works.
DO NOT modify this product in any way. Unauthorized modication may impair the function and/or
safety and could affect the life of the product. There are specic applications for which the product was
designed.
NEVER operate this appliance unattended.
NEVER operate this appliance within 10 ft (3 m) of any structure, combustible material or other gas
cylinder.
NEVER operate this appliance within 25 ft (7.5 m) of any ammable liquid.
DO NOT leave this appliance unattended while in use. The user must remain in the immediate area of
the product and have a clear view of the product at all times during operation.
Keep children and pets away from burners at all times.
For use with a 20lb Propane Tank only, not for use with natural gas or other gas source. Any alterations
may cause severe injury or even death.
For OUTDOOR use only. DO NOT use in a building, garage or any other enclosed area. DO NOT use in
or on recreational vehicles or boats. NEVER use this appliance as a heater.
DO NOT operate appliance under ANY overhead construction. Keep a minimum clearance of 10 feet (3
m) from the sides, front and back of appliance to ANY construction. Keep the area clear of all combustible
material and ammable liquids, including wood, dry plants and grass, brush, paper, and canvas.
In case there is a re, call the local re department or dial 911. Stay clear from ames. DO NOT attempt
to extinguish an oil or grease re with water.
Use only accessories, such as cooking vessels recommended by the manufacturer, to allow safe and
proper performance of the product. Never use a cooking vessel larger than the capacity and diameter
recommended by the manufacturer.
This product is not intended for commercial use.
IMPORTANT SAFETY INFORMATION
2
Use ONLY on a level, stable non-combustible surface like bricks, concrete or dirt. DO NOT use this
appliance on any surface that will burn or melt like wood, asphalt, vinyl, or plastic.
Keep the fuel supply hose away from any heated surfaces.
To prevent accidental res, before using the appliance ensure that the hose is not damaged and all joints
and connections are not leaking by turning on the cylinder valve, leave the burner valve closed, and apply
a soapy solution to the joints and connections. If a continuous hissing sound is heard, or if the soapy
solution bubbles, there is a leak. DO NOT use the appliance if there is a leak. Replace the faulty parts.
Extinguish all open ames before connecting the gas supply to the appliance and before checking for
leaks.
Use appliance only with LP (propane) gas and the regulator/valve assembly supplied. • Installation must
conform with local codes, or in their absence with National Fuel Gas Code, NFPA 54/ANSI Z223.1.
Handling and storage of LP cylinders must conform to LP Gas Code NFPA/ANSI 58. Appliance is not
for use in or on recreational vehicle and/or boats.
Before opening LP tank valve, check the coupling nut for tightness. When appliance is not in use, turn off
control knob and LP tank valve on supply cylinder.
NEVER use LP tank if visibly rusted, damaged, or out of date.
If you notice grease or other hot material dripping from appliance onto valve, hose or regulator, turn off
gas supply at once. Determine the cause, correct, clean and inspect valve, hose and regulator before
continuing. Perform a leak test.
Clean and inspect the hose before each use of the appliance. If there is evidence of abrasion, wear, cuts
or leaks, the hose must be replaced prior to the appliance being put into operation. See product sheet for
hose & regulator information.
DO NOT block holes in bottom or sides of appliance.
ALWAYS close LP tank valve and remove coupling nut before moving LP tank form specied operating
position.
NEVER store a spare LP tank under or near appliance or in enclosed areas. NEVER ll the cylinder
beyond 80% full. An overlled spare LP tank is hazardous due to possible gas released from the safety
relief valve. Failure to follow these instructions exactly could cause a re resulting in death or serious
injury.
If you see, smell, or hear escaping gas, immediately get away from the LP tank/appliance and call your
re department.
Combustion by-products produced when using this product contain chemicals known to the State of
California to cause cancer, birth defects, or other reproductive harm.
Turn OFF all control knobs and LP tank valve. Turn coupling nut counterclockwise by hand only – DO
NOT use tools to disconnect. Install safety cap onto LP tank valve. ALWAYS use cap and strap supplied
with valve. Failure to use safety cap as directed may result in serious personal injury and/or property
A disconnected LP tank in storage or being transported must have a safety cap installed (as shown).
DO NOT store an LP tank in enclosed spaces such as a carport garage, porch, covered patio or other
building. NEVER leave an LP tank inside a vehicle, which may become overheated by the sun.
Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the
appliance.
3
IMPORTANT SAFETY INFORMATION
The LP tank used with your appliance must meet the following requirements: Purchase LP tanks
only with these required measurements: 12” (30.5cm) (diameter) x 18” (45.7cm) (tall) with 20 lb. (9
kg.) capacity maximum. Be constructed and marked in accordance with specications for LP tank of
the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinders,Spheres and Tubes for the Transportation of Dangerous Goods. The propane cylinder used
with this appliance must include a collar to protect the cylinder valve.
LP tank valve must have: Type 1 outlet compatible with regulator or appliance. Safety relief valve. • UL
listed Overll Protection Device (OPD). This OPD safety feature is identied by a unique triangular hand
wheel. Use only tanks equipped with this type of valve. LP tank must be arranged for vapor withdrawal.
LP gas is non-toxic, odorless and colorless when produced. For Your Safety, LP gas has been given an
odor (similar to rotten cabbage) so that it can be smelled.
LP gas is highly ammable and may ignite unexpectedly when mixed with air.
Leak test must be repeated each time LP tank is exchanged or relled. DO NOT smoke during leak test.
DO NOT use an open ame to check for gas leaks.
Appliance must be leak checked outdoors in well-ventilated area, away from ignition sources such as gas
red or electrical appliances. During leak test, keep appliance away from open ames or sparks.
Use a clean paintbrush and 50/50 soap and water solution. Use mild soap and water. DO NOT use
household cleaning agents. Damage to gas train components can result. Brush soapy solution onto all
weld seams and entire valve area.
SAVE THESE WARNINGS
NEVER use a stove of any kind to heat your home.
NEVER attempt to move the grill while it is lit. Turn off and disconnect propane prior to moving grill. Failure
to do so may cause a leak in the connections and could easily cause a re or explosion with future use.
DISCONTINUE USE IF THERE IS ANY SIGNS OF DAMAGE OR WEARING THAT MAY BE UNSAFE,
Including but not limited to wearing on the regulator or hose, wearing or damage to plate support, damage
or loose wheels/base.
Inspect and test folding tables on the side to make sure they are locked in place and secure prior to
putting weight on them.
NEVER put more than 10 pounds on the side table. This is not a seat or resting area, never sit on the
side tables.
NEVER Leave the grill unattended while in use.
PRODUCT INFORMATION
4
PRODUCT INFORMATION
Barton Outdoor Camping Propane Double Burner Stove 2 Folding Cook Cooking Sta-
tion Stand Picnic BBQ Grill 58,000 BTU
The Barton Outdoor Camping Propane Double Burner Stove Station features twin 58,000 BTU propane
stoves and convenient drop-down side tables made to be compact and portable for a diverse selection of
outdoor cooking applications. This outdoor cooking stove is perfect for on-the-go cooking when bringing
friends or family for some outdoor camping and adventure fun. Easily transport the double burner stove on
and off the camp site using its built-in swivel caster wheels for quick mobility and easy transport.
FEATURES
58,000 BTU
Double burners with large temperature controlling knobs for adjustable ame and quick heating
Large 4 swivel caster wheels provide quick mobility and easy transport for on-the-go outdoor cooking
Mounted propane burner design lets you easily secure propane gas tanks safely underneath the burners
Compatible for use with stainless steel griddle or at top grills attachments (sold separately)
4 hook utensil holder helps hold your grilling tools like gloves, spatula, tongs and handy grill scraper
Perfect cooking stove specially designed to be portable and lightweight for outdoor cooking when
camping, picnicking, backpacking, and various outdoor applications
Primary Material: Cast Iron Propane Fuel: LPG Ignition Type: Manual
Maximum BTU: 58,000 Cooking Area: 496 sq. ft.
Certication: CSA
Overall Dimensions: 56 in. x 17 in. x 29 in.
5

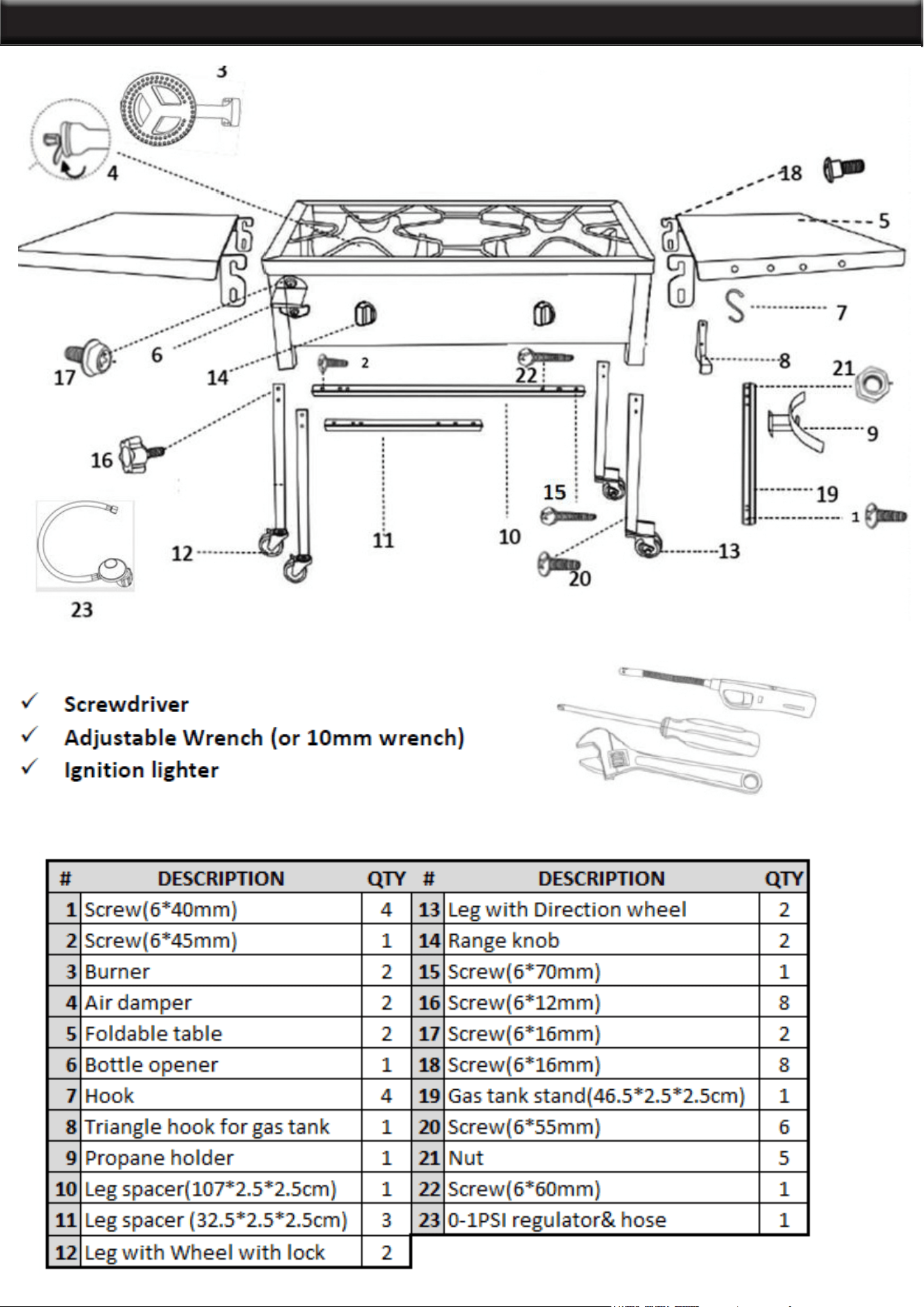

PARTS
Tools needed for assembly
Parts List

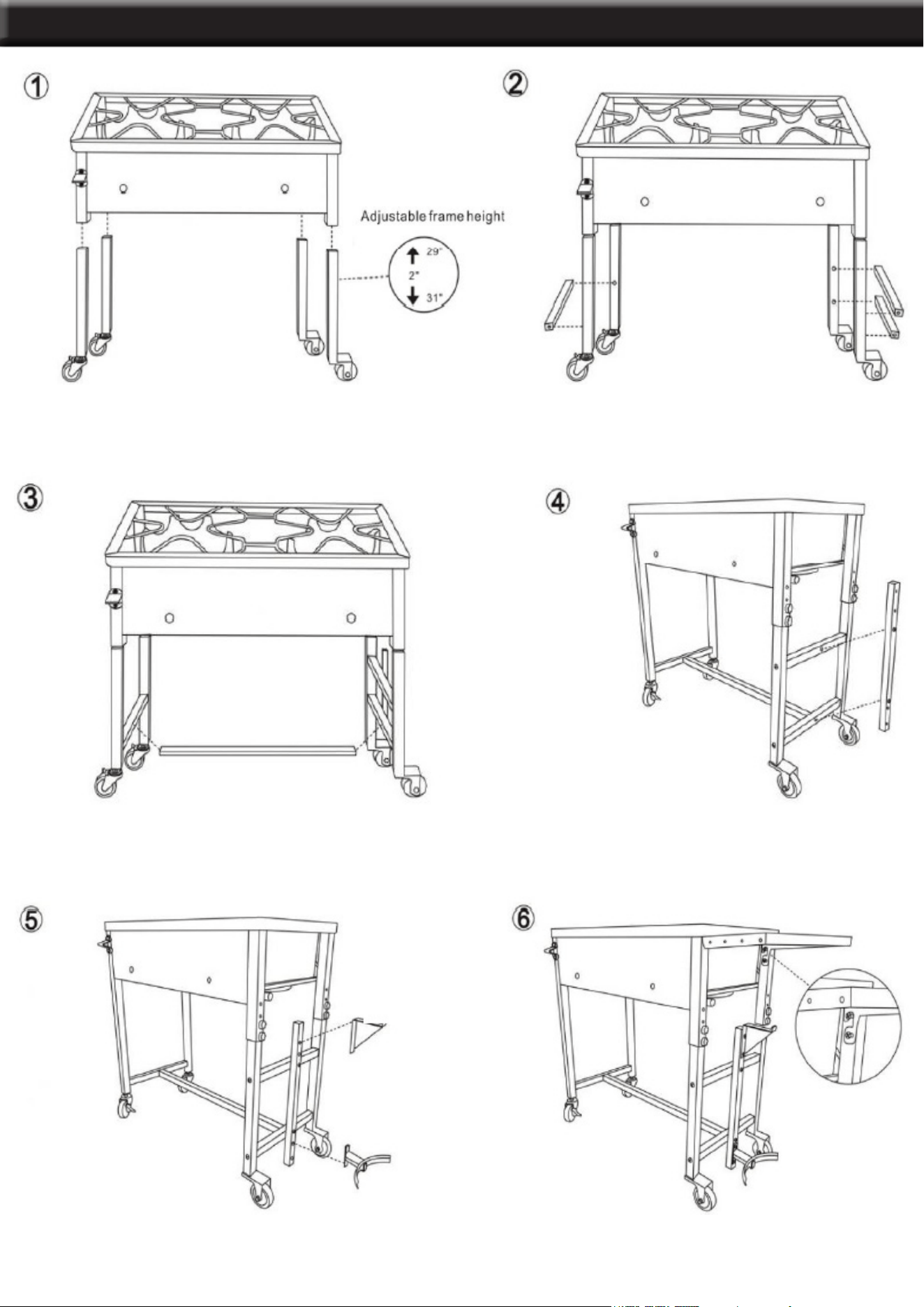

ASSEMBLY
6
ASSEMBLY
7

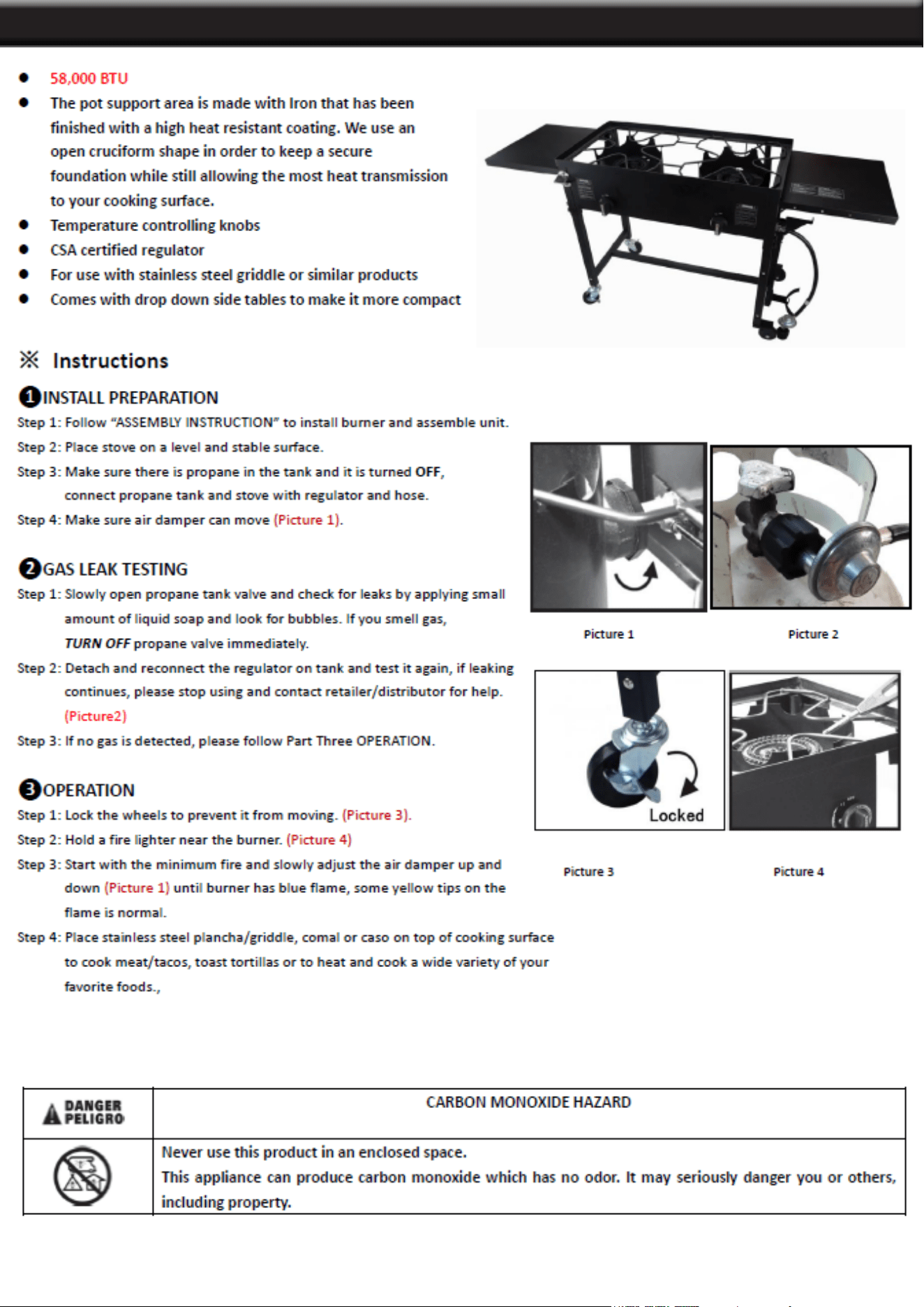

OPERATION
OF NOTE
8
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually as
replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
DISCLAIMER
PRODUCT MADE IN CHINA
