Sencor SSG 4301BK Slicer User Manual

ELECTRIC FOOD SLICER AND

GRATER

Translation of the original manual

SSG 4300WH

SSG 4301BK

SSG 4300WH

SSG 4301BK

- 1 -

Revision 05/2023

EN Electric food slicer and grater

Important safety instructions

READ CAREFULLY AND STORE FOR FUTURE USE.

General warnings

• This appliance may not be used by children. Keep the

appliance and its power cord away from children.

• The appliance may be used by persons with reduced

physical, sensory or mental capabilities or with alack of

experience and knowledge, if they are supervised or have

been instructed to use the appliance in asafe manner and

understand the potential dangers.

• Children must not play with the appliance. Cleaning and

maintenance must not be performed by children.

• In the event that the power cord is damaged, have it

repaired at aprofessional service centre to prevent causing

adangerous situation. It is forbidden to use the appliance if

it has adamaged power cord.

• This appliance must be used with the food carriage and

food pusher in their position unless this is impossible due

to the shape or size of the food, if the appliance is equipped

with such a part.

Warning:

Incorrect use may result in a risk of injury.

- 2 -

Revision 05/2023

• It is necessary to be careful when handling the

attachments, especially when removing, cleaning and

reinstalling them, so as not to injure yourself on their sharp

blades.

• Always disconnect the appliance from the power supply

when leaving it without supervision and before assembly,

disassembly or cleaning.

• Prior to replacing accessories or accessible parts that

move during use, turn off the appliance and disconnect it

from the el. power supply.

Electrical safety

• Before connecting this appliance to apower socket, make sure that the voltage stated on its rating label corresponds to the voltage in your power

socket.

• Never connect the appliance to apower socket until it is properly assembled. Fully unwind the power cord before connecting it.

• Connect the appliance only to aproperly grounded socket. Do not use an extension cord.

• Ensure that the power plug contacts do not come into contact with water or any other liquid. If precisely this happens, carefully dry the power plug

before using it again.

• Do not place heavy items on the power cord. Make sure the power cord does not hang over the edge of atable and that it is not touching ahot

surface or sharp objects.

• Do not disconnect the appliance from the power socket by pulling on the power cord. This could damage the power cord or the power socket.

Disconnect the power cord from the power socket by pulling on the plug.

• Do not connect and disconnect the power cord to and from the power socket with wet hands.

• Do not wind the power cord around the appliance.

• To avoid the danger of injury by electrical shock, do not repair the appliance yourself or make any adjustments to it. The appliance does not contain

any components repairable by the user. Have all repairs or adjustments of the appliance performed at an authorised service centre. Tampering with

the appliance during the warranty period may void the warranty.

• To prevent the risk of injury by electrical shock, never submerge the base unit of the appliance and its power cord in water or any other liquid, or

wash these parts under running water.

• In the event that the appliance falls into water, under no condition reach for it, rather, immediately disconnect the power cord from the power socket.

Never use an appliance that has been submerged in water. Hand it over to an authorised service centre for inspection.

• Always turn off the appliance and disconnect it from the power socket when you have finished using it.

Safety during use

• This appliance is designed only for household use and constructed for processing the usual amount of food in ahousehold. Do not use this

appliance for commercial purposes.

• Do not use the appliance in an industrial environment or outdoors. Do not use it for any other purposes than those intended.

• The appliance is intended for domestic use and similar locations such as:

– kitchens in stores; offices and other workplaces;

– in agriculture;

– for guests of hotels, motels and other similar locations;

– in bed and breakfast establishments.

• This appliance is not intended to be operated using an external timer switch or aremote control system that would enable this appliance to be

turned on automatically.

• Use the appliance and its accessories in accordance with the instructions contained in this user’smanual.

• Only use the appliance with the original accessories that came with it.

• Before every use, check the selected accessory for damage. Never use the appliance with adamaged accessory.

• Do not place the appliance or its accessories on an electric or gas stove or in its vicinity, on the edge of atable or on an unstable surface. Only place

the appliance on an even, dry and stable surface.

• Do not expose the appliance and its accessories to the outdoor environment, extreme temperatures, direct sunlight, excessive humidity or

excessively dusty environments.

• Do not place the appliance and its accessories near heaters, open fires or other sources of heat.

• Make sure that the appliance is correctly assembled before putting it into operation.

• Do not use the appliance if it has fallen on the floor, if it was submerged in water, if it is not functioning correctly or if it is damaged in any other way.

• The appliance may run continuously for no longer than 2 minutes. Before starting it again, allow it to cool down for approximately 5 minutes.

• Do not turn on the appliance when it is empty. Incorrect use of the appliance may negatively affect its lifetime. Do not leave arunning appliance

without supervision.

• Do not touch moving parts during operation. Otherwise, this could result in injury.

- 3 -

Revision 05/2023

• Do not use the appliance for crushing bones, ice cubes, nut shells or hard peels, see chapter PURPOSE OF USE AND FEATURES OF THE

APPLIANCE.

• Prior to using this appliance, remove any peels, nuts-stones, stems, etc. from the ingredients.

• To prevent the appliance from clogging, push down gently on the pusher when adding the ingredients into the feed tube.

• Always use the pusher that was supplied with the appliance. Never use your fingers or other items to push ingredients through the feed tube while

the appliance is running.

• Before disassembly and installation of any accessories, always turn off the appliance and check that the rotating parts have stopped..

• When the appliance is running, watch out for children and household pets.

• Do not perform any maintenance on the appliance other than cleaning the individual components as described in chapter Cleaning and

maintenance.

• Pay increased attention whenever handling any grating or slicing attachments to prevent injury on the blades.

• The surfaces of the appliance or its accessories that come into contact with food must always be cleaned according to the instructions in this

user’smanual.

• Store the appliance in adry environment.

- 4 -

Revision 05/2023

BEFORE FIRST USE

• Prior to using this appliance, please read the user'smanual

thoroughly, even in cases, when one has already familiarised

themselves with previous use of similar types of appliances. Only use

the appliance in the manner described in this user’smanual. Keep this

user'smanual in asafe place where it can be easily retrieved for future

use. In the event that you hand this appliance over to somebody else,

make sure to also include this user'smanual.

• We recommend saving the original cardboard box, packaging material,

purchase receipt and responsibility statement of the vendor or warranty

card for at least the duration of the legal liability for unsatisfactory

performance or quality. In the event of transportation, we recommend

that you pack the appliance in the original box from the manufacturer.

• Carefully unpack the appliance and take care not to throw away any

part of the packaging before you find all the parts of the appliance.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES

A1 Pusher

A2 Feed tube

A3 Fastening pin for securing the

centre of the attachment to

the shaft

A4 Coarse grating cone

Suitable for grating vegetables

for soups, for preparing

hashbrowns or for grating

fruits and vegetables for

salads, etc.

A5 Fine grating cone

Suitable for making fruit and

vegetable salads or cheese

and vegetable spreads, etc.

A6 Grinding cone (very fine

grating)

Suitable for grinding/grating

coconut, almonds, nuts and

for making breadcrumbs from

hard baked goods, etc.

A7 Slicing cone for long straight

slices

Suitable for slicing potatoes

for making fried chips, or fruit

and vegetables for garnishing

of various meals, etc.

A8 Slicing cone for thick wavy

slices

Suitable for slicing fruit and

vegetables for garnishing

various meals, etc.

A9 Mounting hole

A10 On/Off switch

A11 Handle

A12 Motor unit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PURPOSE OF USE AND APPLIANCE FEATURES

• The electric food slicer and grater is intended for processing

standard types of vegetables, fruit and other foods in the household.

When using the ice cream set, it is able to also process frozen fruit,

vegetables or yoghurt.

• Do not use the electric food slicer and grater for mincing meat,

crushing bones, for processing nut shells or hard fruit stones contained

for example in mangoes or avocados, frozen or other very hard

ingredients such as coffee beans, nutmeg, etc.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BEFORE FIRST USE

• Before using it, wash all removable parts (A1 to A10, and B1 to B4) that

come into contact with food in hot water using asmall amount of kitchen

detergent, then rinse with clean water and wipe dry.

• Wipe the outer surface of the motor unit using asoft sponge dipped in

warm water with asmall amount of kitchen detergent and wipe it dry.

Attention:

When cleaning the attachments A6 to A10, be very

careful not to injure yourself on their sharp edges.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GRATING AND SLICING

• The slicing and grating set (parts A1-A5 and attachments A6-

A10) are intended for processing almost all types of fruits and

vegetables, and other types of foods, that are normally used in

households, see table in chapter SELECTING ATTACHMENTS.

Selecting attachments

• The following table lists the most common types of food that can be

processed using this appliance. However, you can also use it for other

types of food, for which it generally applies that it can be cut using

akitchen knife.

Food

Coarse

grating

cone

(A6)

Fine

grating

cone

(A7)

Grinding

cone

(very fine

grating)

(A8)

Slicing

cone

for long

straight

slices (A9)

Slicing

cone for

thick wavy

slices (A10)

FRUIT

Apples

   

Peaches and

nectarines

(without

stones)

 

Apricots

(without

stones)

 

Pears

 

Strawberries

 

Coconut

 

VEGETABLES

Carrot

   

Zucchini

   

Cucumbers

  

Celery

   

Potatoes

 

Onion

  

Radish

   

Red and

white

cabbage

   

Rutabaga

  

Capsicum

   

OTHER FOODS

Hard cheese

    

Chocolate

  

Nuts (without

shells) and

almonds



Hard baked

goods



Electric food slicer and grater

User’smanual

- 5 -

Revision 05/2023

Note:

The provided table only recommends the suitable

attachment type for the given type of food. If necessary, it

is possible to use your preferred attachment for the given

type of food.

Assembling the appliance

• Place the motor unit A14 on an even dry and stable surface.

• Select an attachment that is appropriate for the intended type of work

and insert it into the large feed tube A3. Secure it in place using the

locking collar A5.

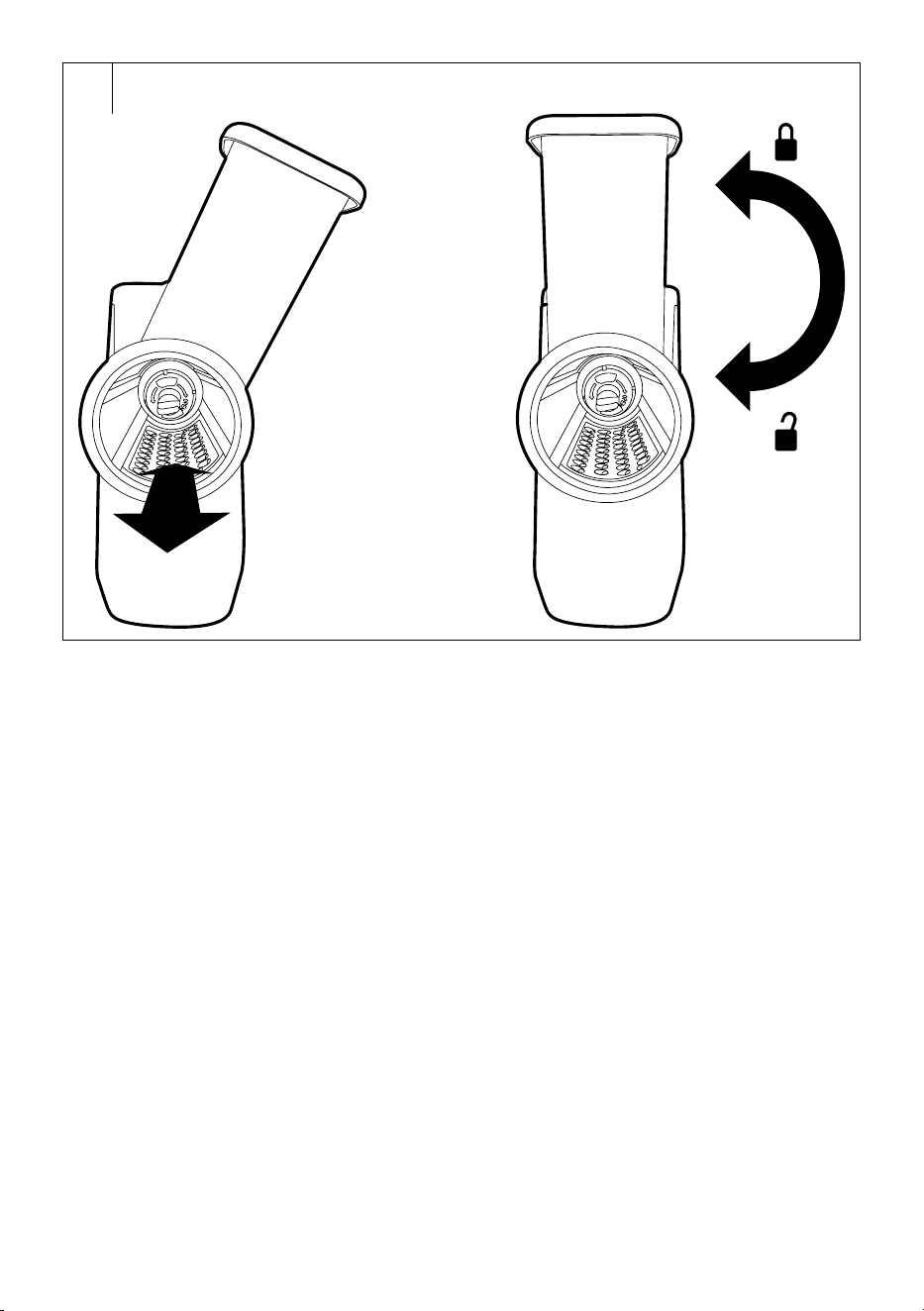

• Once assembled in this way, tilt the feed tube clockwise (fig. B and

slide it into the hole A11 in the motor unit) Then turn the feed tube

anticlockwise so that it slides into its place in the hole.

• Insert the outlet spout A4 on to the front side of the feed tube.

• Insert the small pusher A1 into the large pusher A2. Apusher that

is assembled in this way is suitable for larger-sized ingredients (e.g.

potatoes) or for larger amounts of ingredients. If you are intending to

process smaller-sized ingredients (cucumber, carrot, etc.), it is possible

to insert the large pusher into the feed tube and then use the small

pusher to push in the ingredients.

Operation

• Prepare the food and cut it into pieces that will pass through the feed

tube A2. Kernels and stones may need to be removed from certain

types of fruit and vegetables.

• Insert the power plug into an electrical power socket. Underneath the

outlet spout, place asuitable container, which will catch the processed

ingredients.

• Set the switch A12 to the ON position and start to gradually insert the

ingredients into the feed tube opening. Use the supplied pusher to

push ingredients through the feed tube.

Warning:

Do not use fingers or other items to push food in.

Always use the pusher A1 designed for this purpose.

The maximum continuous operating time is

2minutes. Before turning it on again, allow the

appliance to cool down for at least 5minutes. After

performing 10 such cycles, allow the appliance to

cool down for at least 30minutes.

• The pusher is intended for gradually moving the ingredients into

the area of the attachment. Always insert the individual pieces of

ingredients, and with appropriate force gently push down on the

pusher. During operation, ensure that the ingredients are passing

through the attachment by looking into the feed tube. Never fill

the feed tube up to its top edge with ingredients. Processing large

amounts of ingredients at once may overload the motor unit.

• To turn off the appliance, set the switch A12 to the OFF position.

Useful tips

• Check the suitability of the individual attachments for specific food

types in the SELECTING ATTACHMENTS table.

• To achieve the best possible results, process fresh not overly ripened

fruit. The same applies to vegetables.

• Softer fruit such as strawberries can be put into the freezer for afew

minutes prior to processing.

• Semi-hard cheese will be processed better if placed it in arefrigerator

over night or in afreezer for 30 minutes.

• We do not recommend processing soft or already grated cheese as

this could clog up the feed tube.

• When using the fine grating cone A7 or the slicing cone for long

straight slices A9, push the ingredients through the feed tube gently.

When using the coarse grating cone A6 or the slicing cone for thick

wavy slices A10, it is necessary to push the ingredients through with

greater force.

Removing the set from the appliance

• Remove the outlet spout A4 and the pushers A1 andA2 from the set.

Turn the feed tube clockwise and slide it out of the hole in the motor

unit (fig. B).

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING

Problem Possible solution

When the appliance

is started using switch

A12, it runs only

intermittently or it does

not start up at all

Turn off the appliance and disconnect it from

the power socket and wait for the rotating

parts to come to astop. Check that you have

assembled the appliance correctly according

to the instructions in chapter ASSEMBLING

THE APPLIANCE.

The appliance will

not start.

Unless there is apower outage, evidently the

switch A12 or power cord is faulty. Contact

the supplier or professional service centre.

The feed tube keeps

clogging up.

The ingredients that are processed are too

big. Cut the food into smaller pieces.

You are inserting the ingredients too quickly

into the feed tube or pushing down too hard

on the pusher. Insert the ingredients more

slowly and push gently on the pusher.

Pieces of food may have become stuck

to the attachment and clogged the feed

tube. If this happens, turn off the appliance

and disconnect it from the power socket

and wait for the rotating parts to come

to astop. Remove the feed tube and the

attachment, and clean everything according

to the instructions in chapter Cleaning and

maintenance.

It is necessary to exert

greater force to push

the ingredients through

the feed tube

Harder ingredients such as potatoes or hard

cheese need to be pushed through the feed

tube with greater force. This is completely

normal. Take a5-minute break after every

2minutes of operation.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CLEANING AND MAINTENANCE

Attention:

Prior to any cleaning or maintenance, always

disconnect the appliance from the power grid.

Note:

Certain types of food such as carrot, may cause

discolouration of plastic parts of the appliance.

If this occurs, dip akitchen paper towel in asmall amount of

cooking oil and apply it on to the

discoloured part of the appliance as soon as possible. Then

clean this part according to the procedure described below.

The discolouration of the accessories has not effect on the

function of the appliance and does not constitute grounds

for making aclaim.

• If the appliance is used for an extended period of time, it is possible

that the motor unit may be hot to touch. Allow it to cool down before

cleaning it.

• Clean the appliance and its parts immediately after every use.

• Disassemble the grating set or the ice cream making set into its

individual parts as described in the respective chapter. Disassemble

the sets into their individual parts and carefully clean away any

food remains, wash in warm water with dish washing detergent and

rinse under clean running water. Then allow them to dry naturally or

dry them out thoroughly using awiping cloth. Do not use abrasive

cleaning products.

- 6 -

Revision 05/2023

Attention:

When cleaning the attachments A6 to A10, be very

careful not to injure yourself on their sharp edges.

• Wipe the outer surface of the motor unit using asoft sponge dipped in

warm water with asmall amount of kitchen detergent and wipe it dry.

Attention:

The motor unit and its power cord are not intended

for washing in adishwasher. Do not spray these parts

with water or any other liquid or submerge them in

water or any another liquid.

Never use chemicals, dishwashing wool, steel wool

or cleaning agents with an abrasive component

since these may seriously damage the surface of the

motor unit.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STORAGE

• Before storing it, the appliance must be completely cool, turned off

and disconnected from the power supply and cleaned. The individual

grating and ice cream making sets must also be clean.

• Store the appliance and its accessories in aclean, dry place out of

children'sreach. Keep the stored appliance and its accessories away

from extreme temperatures, direct sunlight and excessive humidity

and do not store it in an overly dusty environment.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TECHNICAL SPECIFICATIONS

Rated voltage range .............................................................................220−240 V~

Rated frequency ...........................................................................................50/60Hz

Rated power input ...............................................................................................150W

Weight ......................................................................................................................1.2kg

Electrical shock protection class ............................................................................... II

Noise level ........................................................................................................ 85dB(A)

The declared noise emission level is lower than 85dB(A), which

represents alevel Aof sound power with respect to areference sound

power of 1pW.

Explanation of technical terminology

Safety class for electrical shock protection:

Class II – Electrical shock protection is provided by double or

heavy-duty insulation.

Changes to text and technical parameters are reserved.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF

USED PACKAGING MATERIALS

Dispose of used packaging material at asite designated for waste in your

municipality.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on products or original documents means that

used electric or electronic products must not be added to

ordinary municipal waste. For proper disposal, renewal and

recycling, hand these products over to determined collection

points. Alternatively, in some European Union states or other

European countries you may return your appliances to the

local retailer when buying an equivalent new appliance.

Correct disposal of this product helps save valuable natural

resources and prevents potential negative effects on the environment and

human health, which could result from improper waste disposal. Ask your

local authorities or collection facility for more details.

In accordance with national regulations penalties may be imposed for the

incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic devices, ask your retailer or

supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this

product, request the necessary information about the correct disposal

method from the local council or from your retailer.

This product meets all the basic requirements of EU

directives related to it.

FAST ČR, a.s.

U Sanitasu 1621

CZ-251 01 Říčany

Sencor SSG 4301BK Slicer

Product's Documents

User Manual

Specifications

Sencor SSG 4301BK Questions and Answers
