EN
Operating instructions Page 2

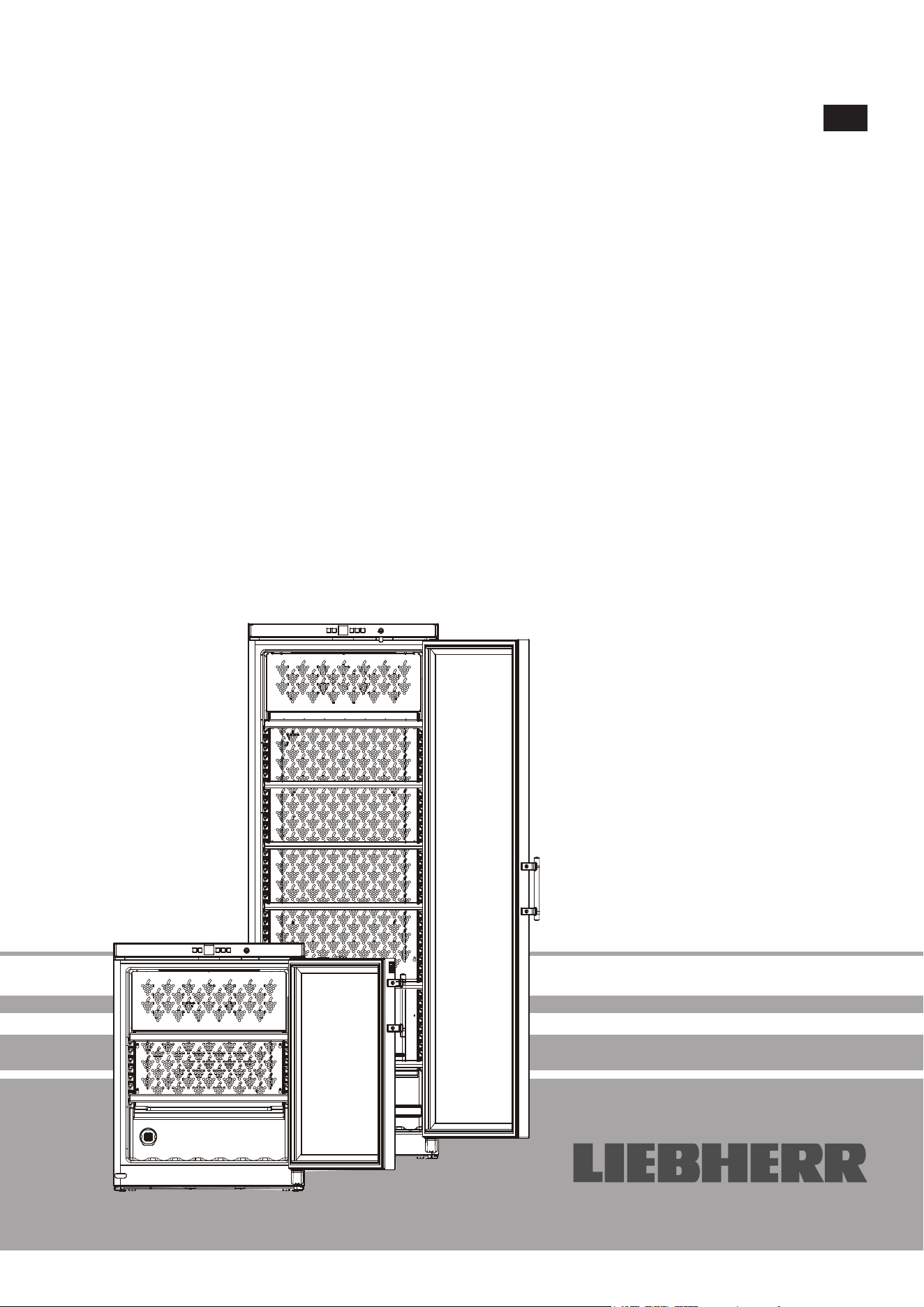

Wine Chiller
7084 750-03
WKb 1712 / WKb 4112 / WKb 4612
2
Many thanks for your trust.
Congratulations on your purchase of this wine chiller. In
buying this product, which is distinguished by its perfect
user-friendliness, impeccable reliability and high quality,
you have chosen a top class appliance. We wish you a
lot of pleasure with your new wine chiller – and a lot of
enjoyment from your wines.
The fewer the grapes produced in an area,
the better the wine.
Poor, well-drained soils are best for good wine. The prop-
erties of the soil inuence the vitality of the vine, which
in turn aects the quality of the grape. Climate is another
factor that is important for wine. Because light and air
humidity are important for the development of the avour
of the wine.
The right environment for your wines.
A vine is an extremely sensitive plant. From the time it is
planted to its maturing period and the time the grapes are
harvested and the wine is made, it is dependent on three
factors: light, air humidity and ambient temperature. This
sensitivity continues even once the wine is bottled. To
allow the avour of the wine to fully develop or preserve
the excellent aroma, the wine has to be stored perfectly –
and your wine cooler oers the best conditions for this.
Range of appliance use.
The appliance is suited only for storing wine. In the case
of commercial food cooling, the pertinent statutory regula-
tions have to be observed.The appliance is not suited
for storing and cooling pharmaceutical, blood plasma,
laboratory preparations or similar substances and prod-
ucts. Any misuse of the appliance may result in damage
to or spoilage of the stored goods. Furthermore, the appli-
ance is unsuited for use in areas exposed to an explosion
hazard.
IMPORTANT
The appearance of condensation on the glass door is a natural occurrence due to high humidity, which can occur in
high-heat environments, like in hot summer months. Warm and humid ambient air comes in contact with the cooler
surface of the glass door, causing moisture from the warm air to condense on the surface of the glass. During periods
of considerable condensation, wipe access moisture o of the glass in order to avoid water dripping onto the oor.
Condensation on the glass door does not represent a malfunction of the product
EN
3
EN
Contents Page
Safety instructions and warnings .................................................................................................... 4
General information ......................................................................................................................... 4
Electrical requirements .................................................................................................................... 4
Dimension ..................................................................................................................................... 4
Setting up........................................................................................................................................ 5
Operating and control elements........................ .............................................................................. 5
Switching the appliance on and o................................................................................................. 5
Setting the temperature.................................................................................................................. 5
Ventilation....................................................................................................................................... 6
Audible warning signal.................................................................................................................... 6
Additional function ......................................................................................................................... 6
Equipment .................................................................................................................................... 7
Defrosting........................................................................................................................................ 7
Cleaning.......................................................................................................................................... 7
Malfunction .................................................................................................................................... 7
Shutting your appliance down......................................................................................................... 7
Disposal notes.................................................................................................................................. 7
Operating and
control elements
Interior light
Bottle grid
Activated carbon filter
Type plate
Adjustable - height feet
Description of appliance and equipment
4
Safety instructions and warnings
• This appliance is not intended for use by person (including
children) with reduced physical, sensory or mental capabili-
ties or lack of experience and knowledge unless they have
been given initial supervision or instruction concerning use
of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied per-
sons in oder to avoid a hazard.
• WARNING : Keep ventilation openeings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
• WARNING : Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
• WARNING : Do not damage the refrigerant circuit.
• WARNING : Do not use electrical appliances inside the
food storage compartments of the appliance.
• Do not store explosive substances such as aerosol cans
with a ammable propellant in this appliance.
• WARNING : Risk of re / ammable materials.
• The appliance is suited only for storing wine. In the case of
commercial food cooling, the pertinent statutory regulations
have to be observed. The appliance is not suited for storing
and cooling pharmaceutical, blood plasma, laboratory pre-
parations or similar substances and products. Any misuse
of the appliance may result in damage to or spoilage of the
stored goods. Furthermore, the appliance is unsuited for
use in areas exposed to an explosian hazard.
• To prevent injury damage to the unit, the appliance should
be unpacked and set up by at least two people.
• In the event that appliance is damaged on delivery, contact
the supplier immediately before connecting to the mains.
• Disconnect the appliance from the mains if any fault occurs
by pulling out the plug.
• When disconnecting the appliance, pull on the plug, not on
the cable.
• Any repairs and work on the appliance should only be ca-
rried out by the customer service department , as unautho-
rized work could prove highly dangerous for the user. The
same applies to changing the mains power cable and lamp.
• Do not stand on the plinth, drawers or doors or use them to
support anything else.
• Avoid prolonged skin contact with cold surfaces or chilled/
frozen food. This could cause pain, numbness be taken,
e.g glovesshould be worn.
• If you have a lockable applince, do not keep the key near
the appliance or within reach of children.
• Do not allow naked ames or ignition sources to enter the
appliance. When transporting and cleaning the appliance
ensure that the refrigerant circuit is not damaged. In the
event of damage, make sure that there are no ignition sour-
ces nearby and keep the room well ventilated.
Electrical requirement
Power supply (AC) and voltage at operating point must comply
with the details on the type plate. The socket must be fused with
a 10 A fuse or higher, it must be away from the rear the appli-
ance and must be easily accessible.
Dimensions
WKb 1712: height: 850mm, width: 660mm, depth: 670mm
WKb 4112: height: 1644mm, width: 660mm, depth: 670 mm
WKb 4612 : height: 1841mm, width: 660mm, depth: 670 mm
General information
The refrigerant circuit has been tested for leaks.
The appliance is radio-suppressed to EN 55014 and thus com-
plies with EC directive 87/308/EEC.
All types and models are subject to continuous improvement
and the manufacturer therefore reserves the right to make modi-
cations to the sharp, equipment and technology.
EN
5
Setting up
• Avoid locating the appliance in direct sunlight or near heat
sources such as an oven or a radiator.
• The oor should be level and even. You can compensate for
an uneven oor by adjusting the adjustable feet.
• Standard EN 378 species that the room in which you
install your appliance must have a volume of 1 m³ per 8 g
of R600a (R 290) refrigerant used in the appliance, so as to
avoid the formation of inammable gas/air mixtures in the
room where the appliance is located in the event of a leak
in the refrigerant circuit, The quantity of refrigerant used in
your appliance is indicated on the type plate on the inside of
the appliance.
• The appliance is set to operate within specic ambient tem-
perature limits according to its climate rating. These tem-
perature limits should not be exceeded. The correct climate
rating for your appliance is indicated on the type plate.
SN - ST = +10 ° C to +38 °C
SN – T = +10 °C to +43 °C
Switching the appliance on and o
You are recommended to clean the appliance before switching it
on for the rst time (see “Cleaning”). Connect the appliance to
the mains – the appliance is on.
• To switch the appliance o : Keep ON/OFF button pressed
for 3 sec. so that the temperature display goes out.
• To switch the appliance on : Press the ON/OFF button until
the Display lights up.
Operating and control elements
Temperature display
Temperature setting button
Audible warning on/o button
Interior light on/o button
Child - proof lock
On/o button
Ventilation on/o button
Setting the temperature
To reduce the temperature : Press the button.
To increase the temperature : Press the button.
• While you are entering
the temperature, the set
temperature will ash on
the display.
• You can change the
settings in increments of
1
o
C briey pressing the
button again.
• The electronic controls
will switch over automatically about 5 seconds after the last
time you pressed the button, and the actual temperature
will be displayed.
• Factory temperature setting is +12
o
C.
If F1appears in the display, the appliance has a fault. Consult
your nearest customer service point.
EN
6
Ventilation
Thereby a climate which corresponds to that of a wine cellar is
achieved inside the wine cooler. Corks are prevented from dry-
ing out due to an increased level of humidity.
To switch on: Press the button and button
until symbol appears on the display.
To switch o: Press the button and button
until symbol disappears on the display.
Audible warning signal
The audible warning signal helps to protect your wine againts
excessive temperature uctuations.
• It sound when the door has been left open for longer than
about 60 seconds. The audible warning device is switched
o by pressing the Alarm button.
• It sound when the interior gets too
warm or too cold. The temperature
display will also ash. The audible
warning device is switched o by
presssing the Alarm button. The tem-
perature diaplay will continue to ash
until the cause of the alarm has been
rectied.
Additional functions
In set-up mode you can set the child-proof lock and adjust the
brightness of the display. The child-proof lock is designed to
protect the appliance from being switched o accidentally by
children.
Activating set-up mode :
• Press Ventilation
button for approx. 5
secs - the Ventilation
button ashes - the
display shows c for child-proof lock.
Note : the value to be altered ashes.
• Select the required function by pressing the Up/Down but-
ton :
c = child-proof lock, h = brightness of the display.
• Now select /acknowledge function by
pressing Ventilation button briey :
• For c = chold-proof lock,
press the Up/Down button to select
c1 = child-proof lock on or
c0 = child-proof lock o and ac-
knowledge with the Ventilation but-
ton. When the symbol is lit, the
child-proof lock is activated.
• for h = brightness, press Up/Down
button to select
h1 = minimum to
h5 = maximum brightness and acknowledge with
Ventilation button.
Exit set-up mode :
• Exit the set-up mode by pressing the On/O button; after 2
min. the electronic system switches over automatically. The
normal operating mode is activated again.
EN
7
Equipment
Labels
The appliance is supplied with a
label holder with labels for each
shelf. Use these to label the type of
wine stored on each shelf. Addi-
tional labels can be obtained from
your dealer.
Installation : Click the label holder
into place and slide the label in from the side.
Air exchange with activated carbon lter.
The way in which wines continue to mature depends on the am-
bient conditions. The quality of the air is therefore decisive for
preserving the wine. An activated carbon lter has been tted
in the lower area of the rear wall of the appliance to ensure that
the air throughput remains at an optimum quality.
We recommend that you replace the lter once a year. Filter
can be obtained from your
dealer.
Changing the lter : Take the
lter by the handle. Turn it 90
o
to the left or right and remove.
Inserting the lter ; Insert with
the handle in a vertical position.
Turn it 90
o
to the left or right
until it clips into place.
Cleaning
Before cleaning always switch o the appliance. Pull out
the mains plug.
Never use abrasive or acidic cleaning agents or chemical
solvents.We recommend the use of an all-purpose cleaner with
neutral pH.
Do not use steam cleaners because of the risk of injury and
damage.
• Do not use abrasive sponges or scourers, do not use
concentrated cleaning agents and these would damage the
surfaces and could cause corrosion.
• Use a glass cleaner to clean the glass surfaces and com-
mercially available stainless-steel cleaning agent for the
stainless-steel surfaces.
• Clean the inside and equipment with lukewarm water and
little detergent, with the exception of the wooden trims on
the grid shelves.
• Ensure that no cleaning water penetrate into the electrical
components.
• Dry all parts well with a cloth.
• Do not remove the type plate from the inside of the appli-
ance; it is important for after-sales servicing.
Defrosting
The appliance defrosts automatically. The water that forms on
the rear wall drains into a reservoir at the back of the appliance
and evaporates automatically through the compressor heat.
Malfunctions
Your appliance is designed and manufactured for lengthy,
reliable operating life with no malfunctions. If a malfunction
nonetheless occurs during operation, check whether it is due to
an operating error. Please note that even during the warranty
period the resultant servicing costs in this case will have to be
borne by the owner.
You may be able to rectify the following faults by checking
the possible causes yourself:
• Appliance does not function:
₋ Check that the appliance is properly connected to the ma-
ins
₋ Is the socket fuse intact?
• Loud running noise:
₋ Check that the appliance is standing rmly on the ground.
Please note that it is impossible to avoid owing noises in
the refrigeration circuit.
• The temperature inside your wine cooler is too warm:
₋ Check the setting in accordance with the section “Setting
the temperature”
₋ Does the separately installed digital temperature controller
show the correct reading?
₋ Is the air extraction working properly?
₋ Is the wine cooler too close to heat source?
• Please note that, as can happen with other forms of stora-
ge, slight mould may form depending on the type of adhesi-
ve on the labels. This can be rectied by carefully cleaning
any adhesive residues o the bottles.
If none of the above cause apply and
you cannot rectify the fault yourself,
contact the nearest customer service
department stating the type ① of
appliance, index ② and appliance
number ③ as indicated on the type
plate. The type plate is located in the
refrigerator compartment on the left-
hand lower side.
Shutting your appliance down
If your appliance is to be down any length of time, switch it o
and disconnect the plug. Clean the appliance and leave the
door open in order to prevent unpleasant smells.
Disposal notes
• Keep packaging materials away from children – polythene
sheets and bags can suocate!
• Please return the packaging material to an ocial collection
point.
Your old appliance: This contains some reusable
materials and should be disposed of properly – not
simply with unsorted household refuse.
• Disable discard appliances by removing the
plug and cutting through the connection cable.
Render the catch unusable so that children
cannot become trapped inside.
• Make sure that the refrigerant circuit of an appliance that
is not longer need is not damaged before it is collected or
handed at a municipal collection point.
• Details of the refrigerant used can be found on the type
plate.
• Information on collection dates or collection points can be
obtained from the waste disposal authorities or local council.
EN
8
Storage diagram
For 750 ml Bordeaux bottles
WKb 1712 : 63 bottles.
WKb 4112 : 168 bottles.
WKb 4612 : 193 bottles.
WKb 1712
WKb 4112
WKb 4612
EN
No.7 Jln Firma 2 , Kaw.Perind.Kluang ll, KM7, Jln Mersing, 86007 Kluang, Johor, West Malaysia.
www.liebherr.com.my
No.7 Jln Firma 2 , Kaw.Perind.Kluang ll, KM7, Jln Mersing, 86007 Kluang, Johor, West Malaysia.
www.liebherr.com.my
Liebherr Appliances Kluang Sdn Bhd (153177-U)
