User Guide
freezer
20220916
7088213 - 00
(S)GN(es)
Contents
1 Appliance at a glance............................................ 2
1.1 Overview of the appliance and its equipment........ 2
1.2 Appliance range of use............................................... 2
1.3 Conformity..................................................................... 3
1.4 EPREL database*......................................................... 3
1.5 Installation dimensions............................................... 3
1.6 Saving energy............................................................... 3
1.7 SmartGrid...................................................................... 4
1.8 Smart device ................................................................ 4
2 General safety instructions.................................. 4
3 Controls and displays............................................ 5

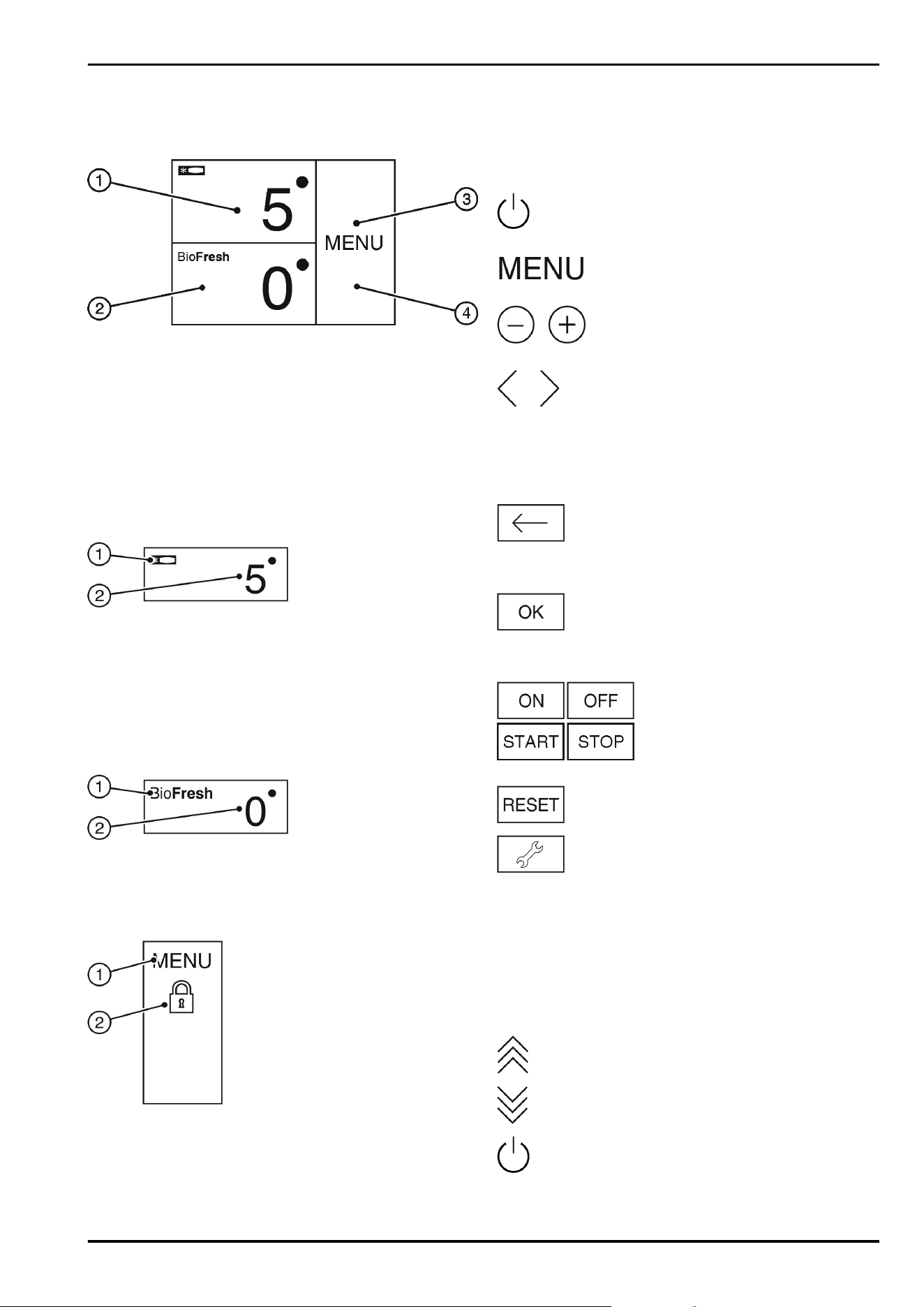

3.1 Home screen................................................................. 5
3.2 Operating structure..................................................... 5
3.3 Navigation..................................................................... 5
3.4 Display symbols........................................................... 6
3.5 Appliance options........................................................ 6
4 Putting into operation........................................... 6
4.1 Transporting the appliance........................................ 6
4.2 Installing the appliance.............................................. 6

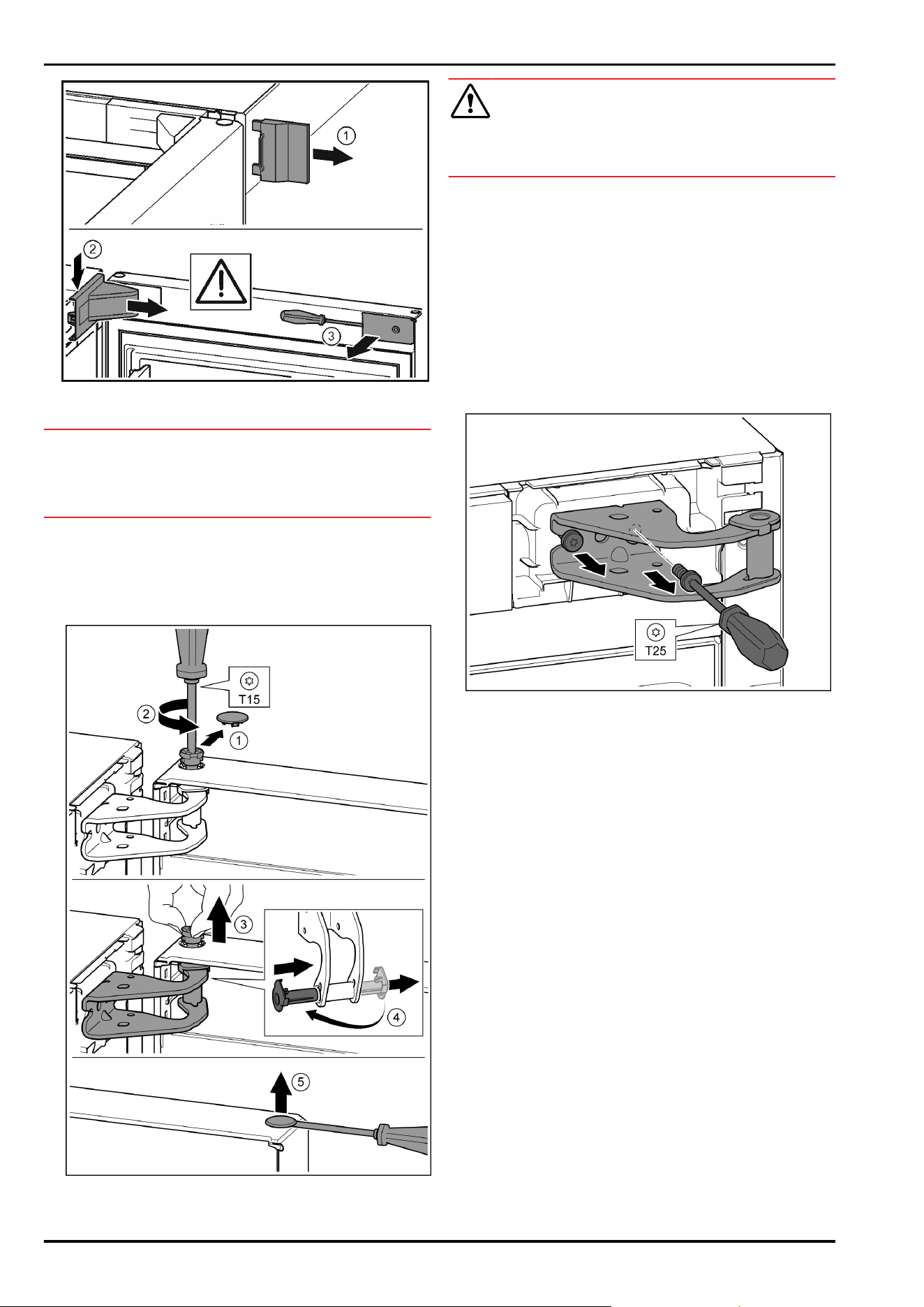

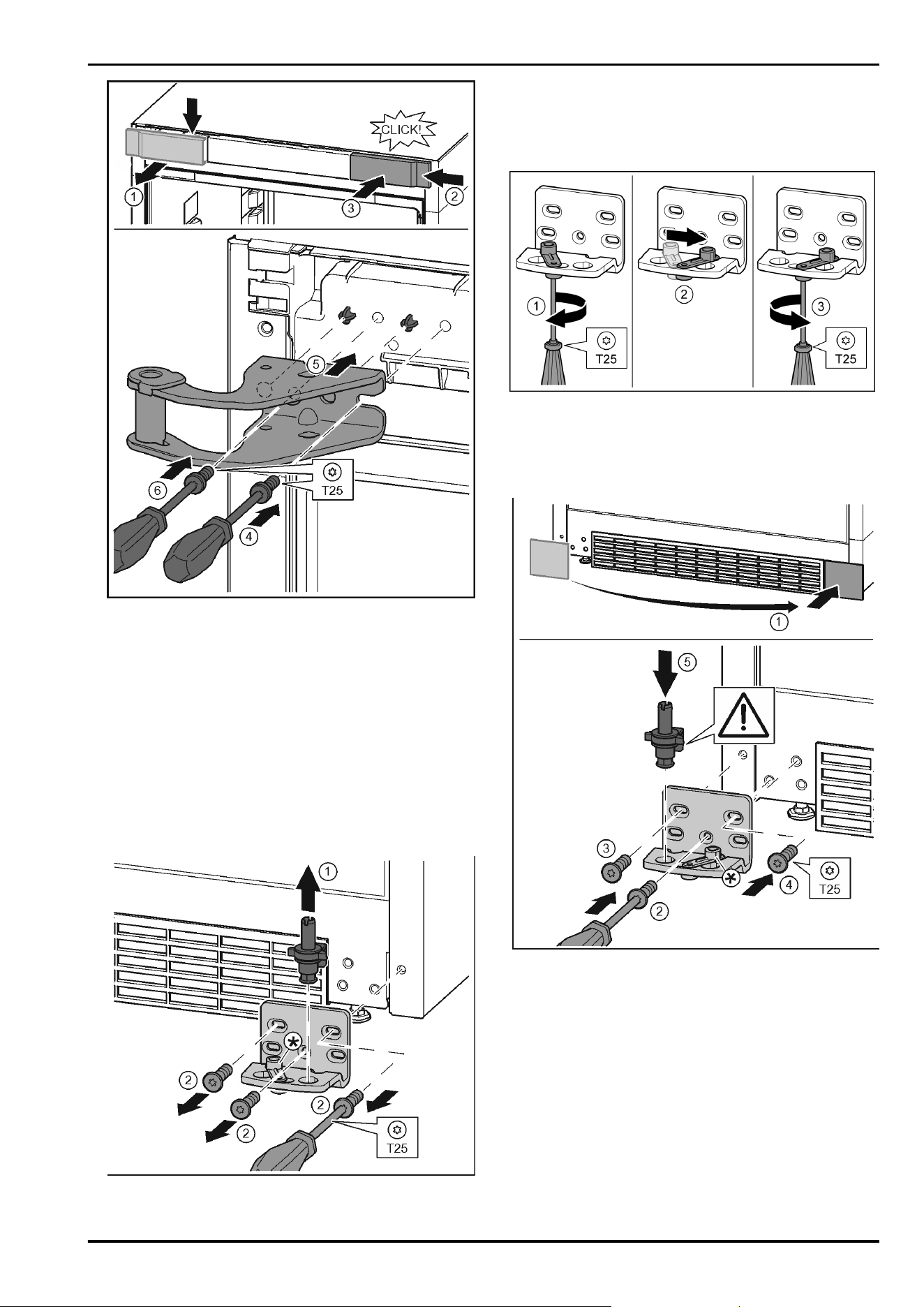

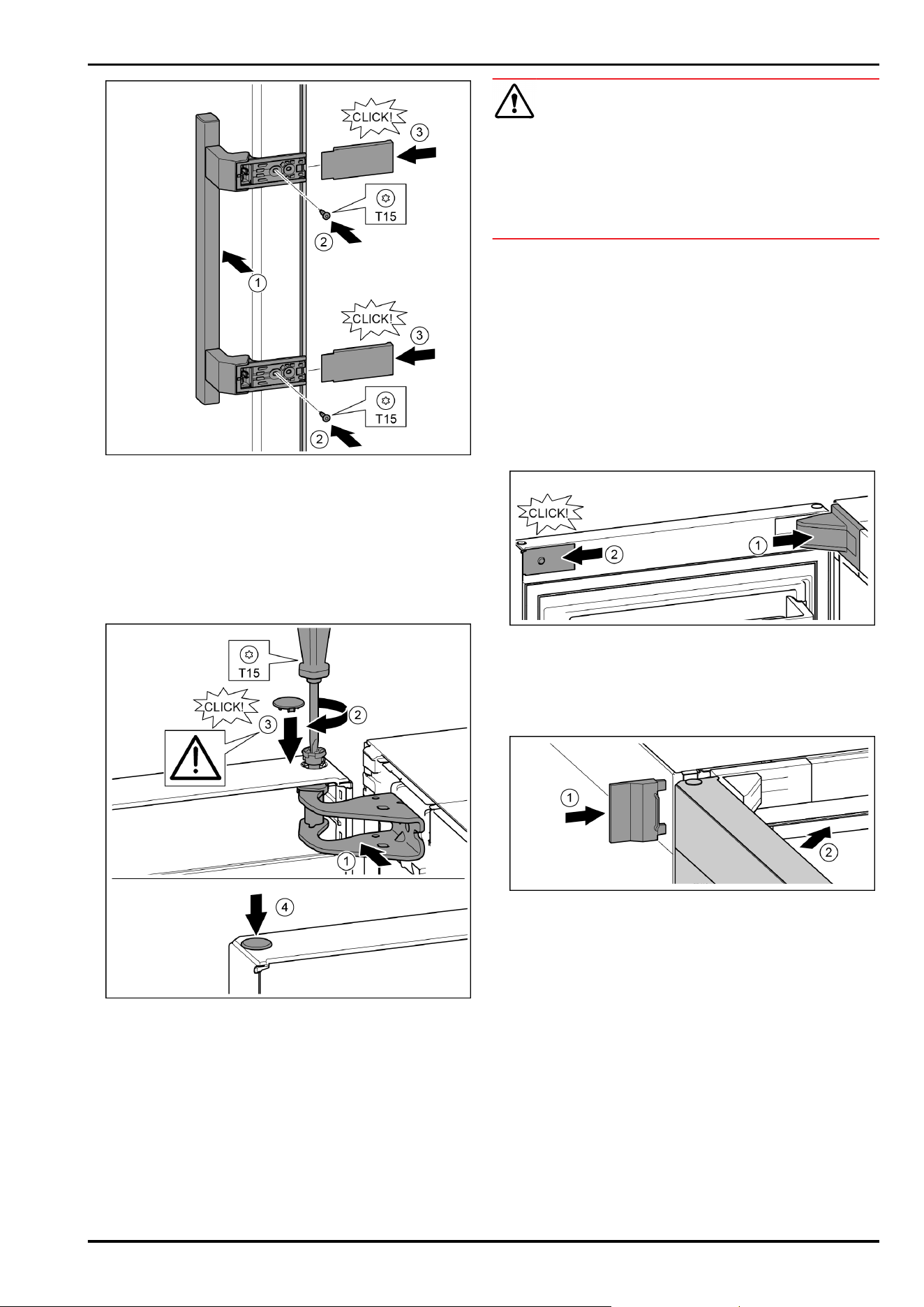

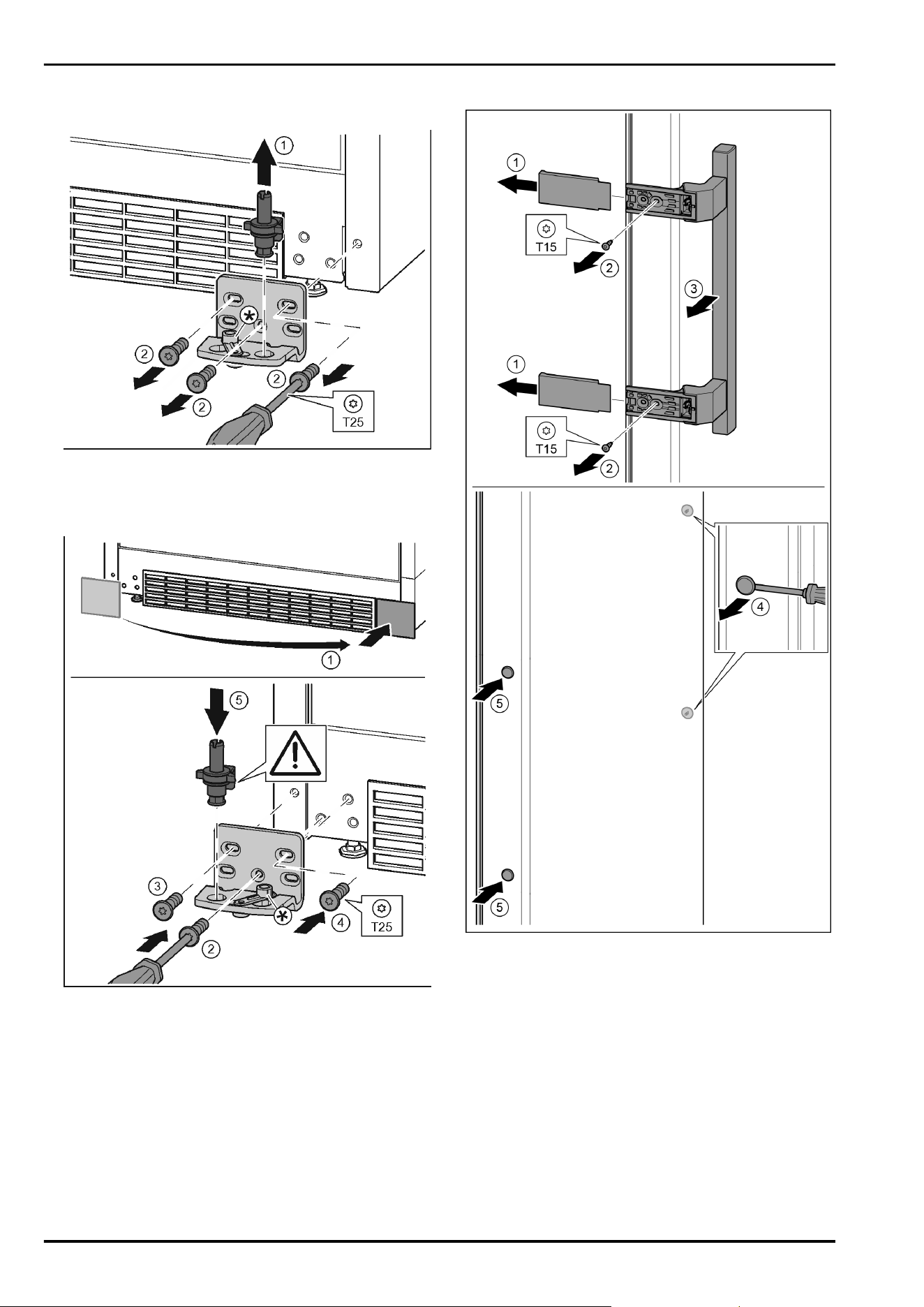

4.3 Reversing the door....................................................... 7
4.4 Water connection......................................................... 13

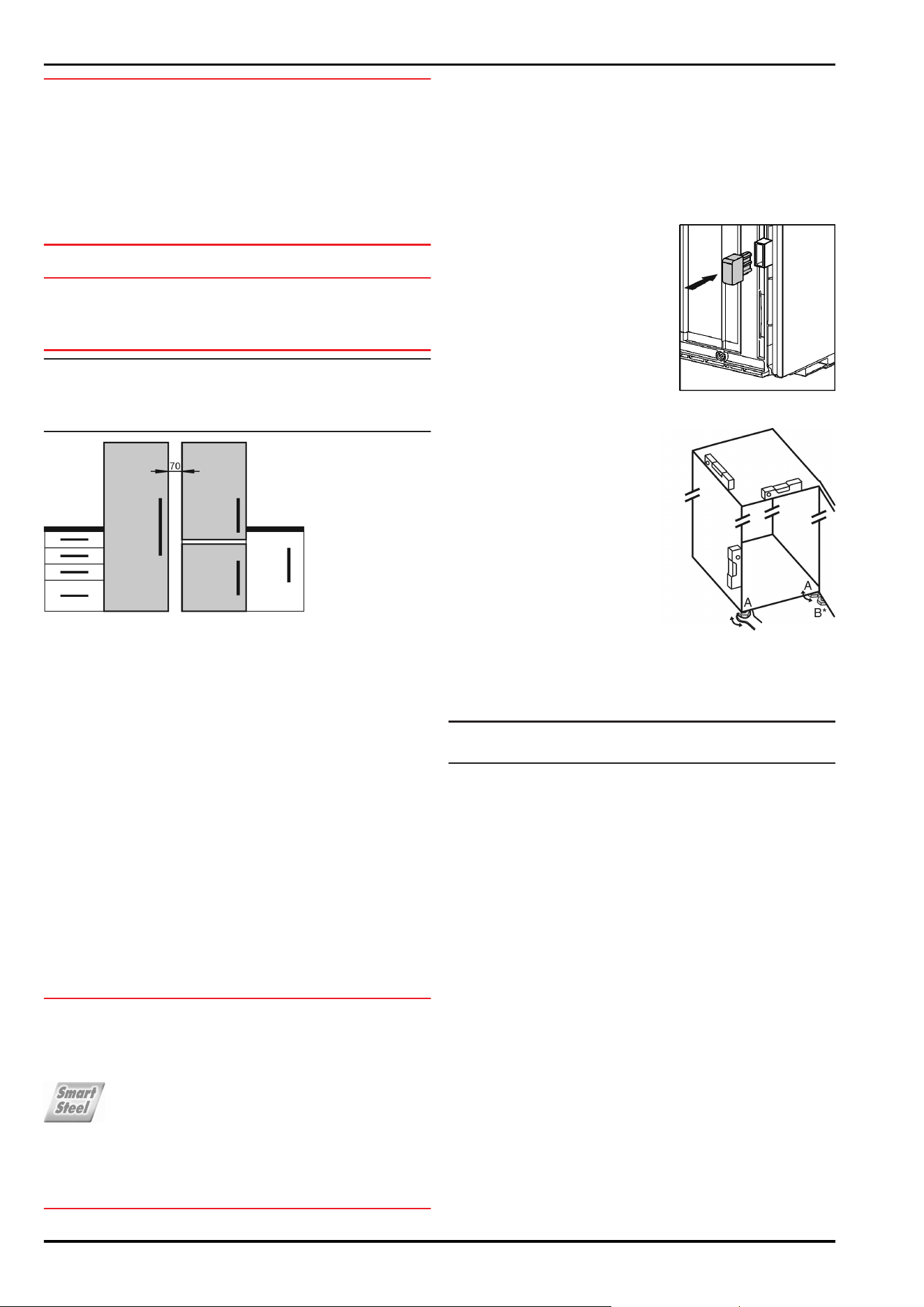

4.5 Sliding into the row of units....................................... 14
4.6 Disposing of packaging............................................... 15
4.7 Connecting the appliance........................................... 15
4.8 Switching on the appliance........................................ 15
4.9 SmartDevice box.......................................................... 16
4.10 Setting the clean ventilation grid timer................... 16
5 Control................................................................... 16
5.1 Changing the temperature unit................................. 16
5.2 Child proofing............................................................... 17
5.3 SabbathMode................................................................ 17
5.4 Freezing food................................................................ 17
5.5 Storage life.................................................................... 17
5.6 Thawing food................................................................ 17
5.7 Setting the temperature............................................. 18
5.8 Status display............................................................... 18
5.9 SuperFrost..................................................................... 18
5.10 Drawers.......................................................................... 18
5.11 Shelves.......................................................................... 19
5.12 VarioSpace.................................................................... 19
5.13 Extractor rails*............................................................. 19
5.14 Ice cube tray................................................................. 19
5.15 Freezer pack.................................................................. 19
5.16 IceMaker........................................................................ 19
6 Maintenance.......................................................... 21
6.1 Defrosting with NoFrost.............................................. 21
6.2 Cleaning the ventilation grid...................................... 21
6.3 Cleaning the appliance............................................... 21
6.4 Cleaning the IceMaker................................................. 21
6.5 Customer service......................................................... 22
6.6 Energy efficiency class lighting*.............................. 22
7 Malfunctions......................................................... 22
8 Messages............................................................... 25
9 Decommissioning.................................................. 26
9.1 Switching the appliance off....................................... 26
9.2 Taking the appliance out of service.......................... 26
10 Disposal................................................................. 26
10.1 Preparing appliance for disposal.............................. 26
10.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 26
The manufacturer works constantly on the further develop‐
ment of all the types and models. Therefore please under‐
stand that we have to reserve the right to make design,
equipment and technical modifications.
To get to know all the benefits of your new appliance,
please read the information contained in these instructions
carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked
with an asterisk (*).
Instructions are marked with a , and results are marked
with a .
1 Appliance at a glance

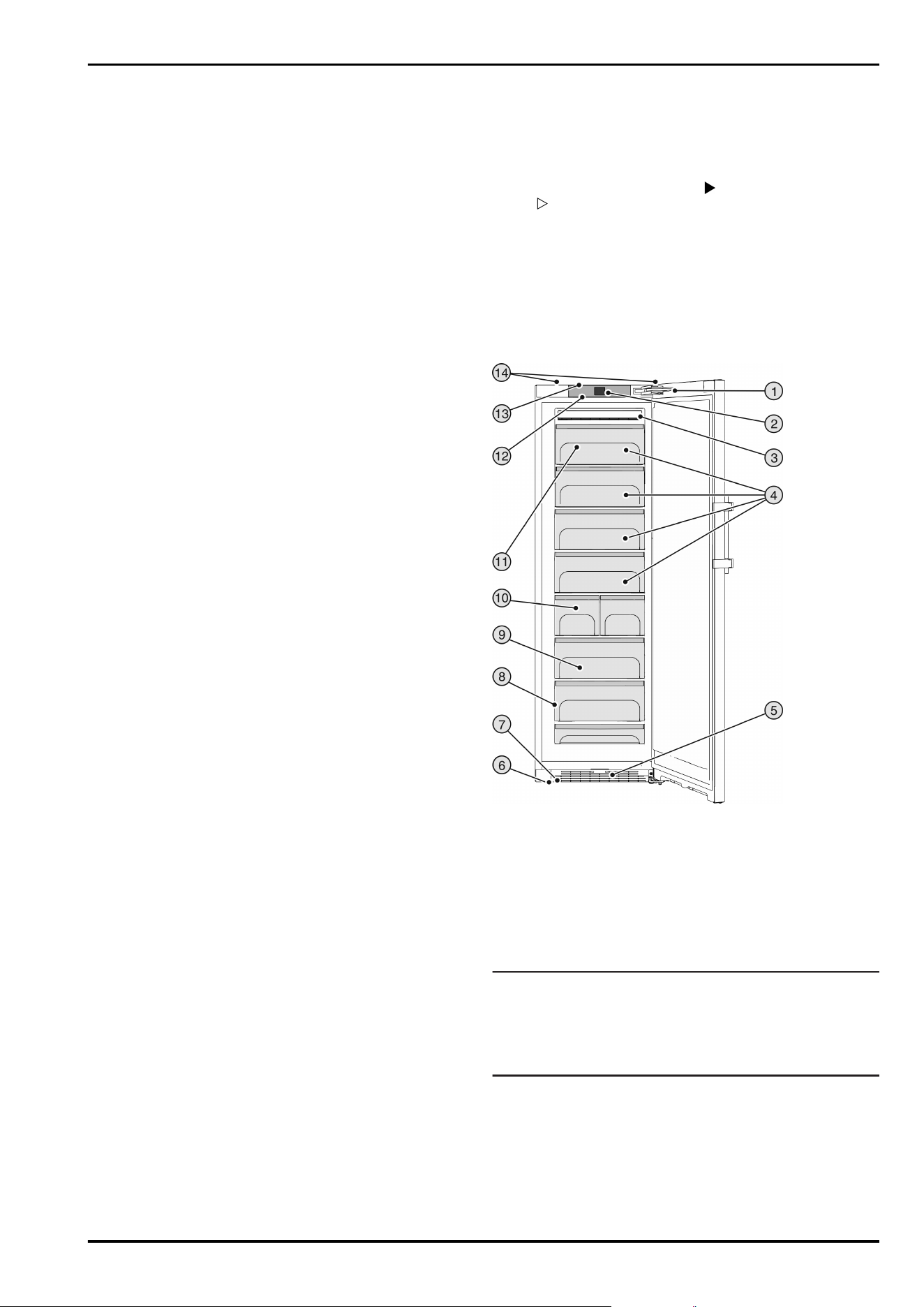

1.1 Overview of the appliance and its
equipment

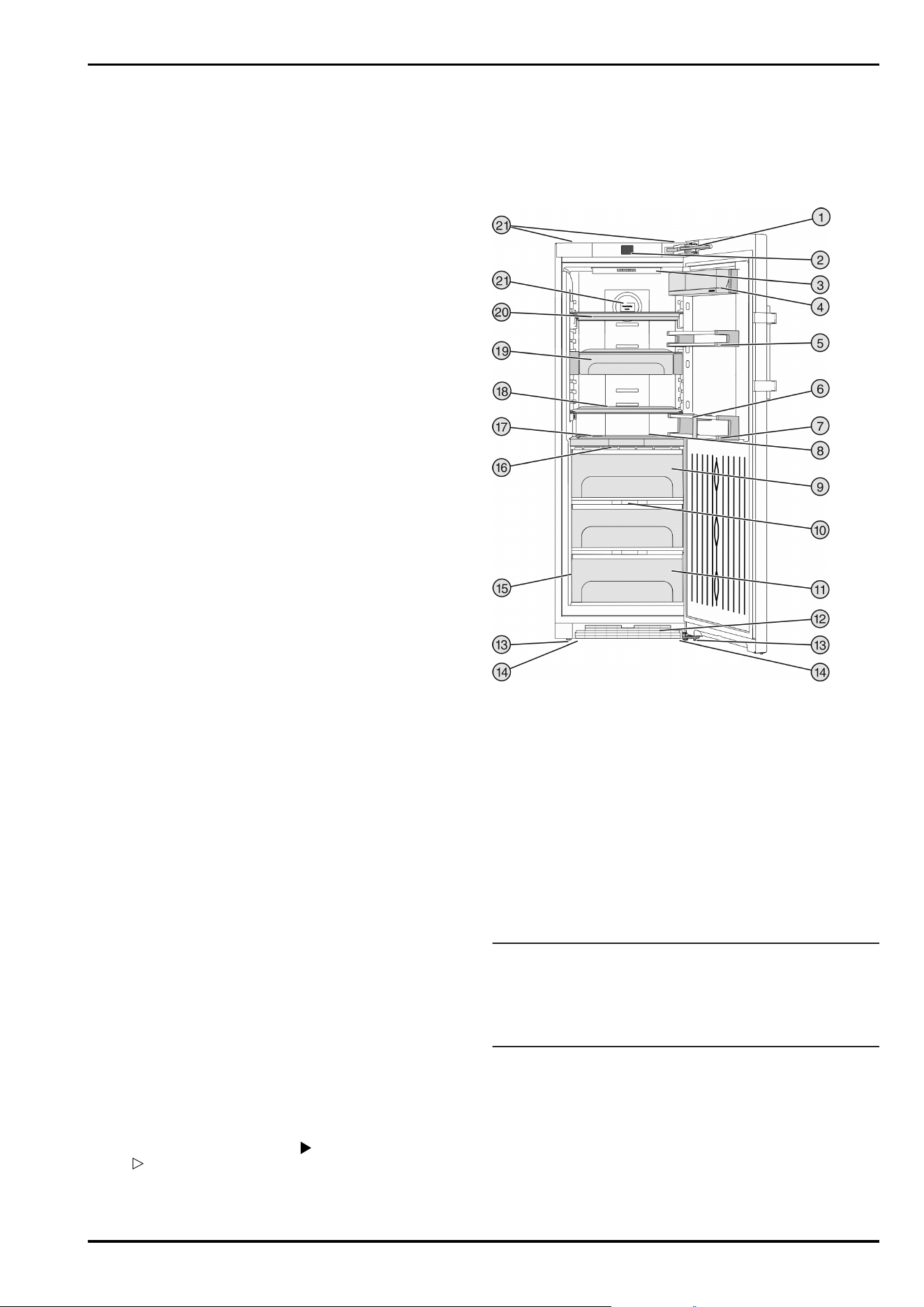

Exemplary illustration of the appliance model
Fig. 1
(1)
Soft closing fittings* (8) Rating plate
(2) Operating and control
elements
(9) VarioSpace
(3) No frost mechanism (10) IceMaker*
(4) Freezer compartment (11) Freezer pack
(5) Ventilation grid (12) LED interior lighting
(6) Adjusting feet (13) Status display*
(7) Front transport
handles, rear transport
castors
(14) Rear transport handles
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
1.2 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
Appliance at a glance
2 * Depending on model and options
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is not suitable as a built-in
unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in outdoor areas with very high
humidity
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures
SN, N to 32 °C
ST to 38 °C
T to 43 °C
The appliance will work properly down to a
lower ambient temperature of 5 °C.
1.3 Conformity
The refrigerant circuit has been tested for leaks. This
device complies with the applicable safety regulations and
with the directives 2014/35/EU, 2014/30/EU, 2009/125/EC,
2011/65/EU, 2010/30/EU and 2014/53/EU.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
1.4 EPREL database*
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.*

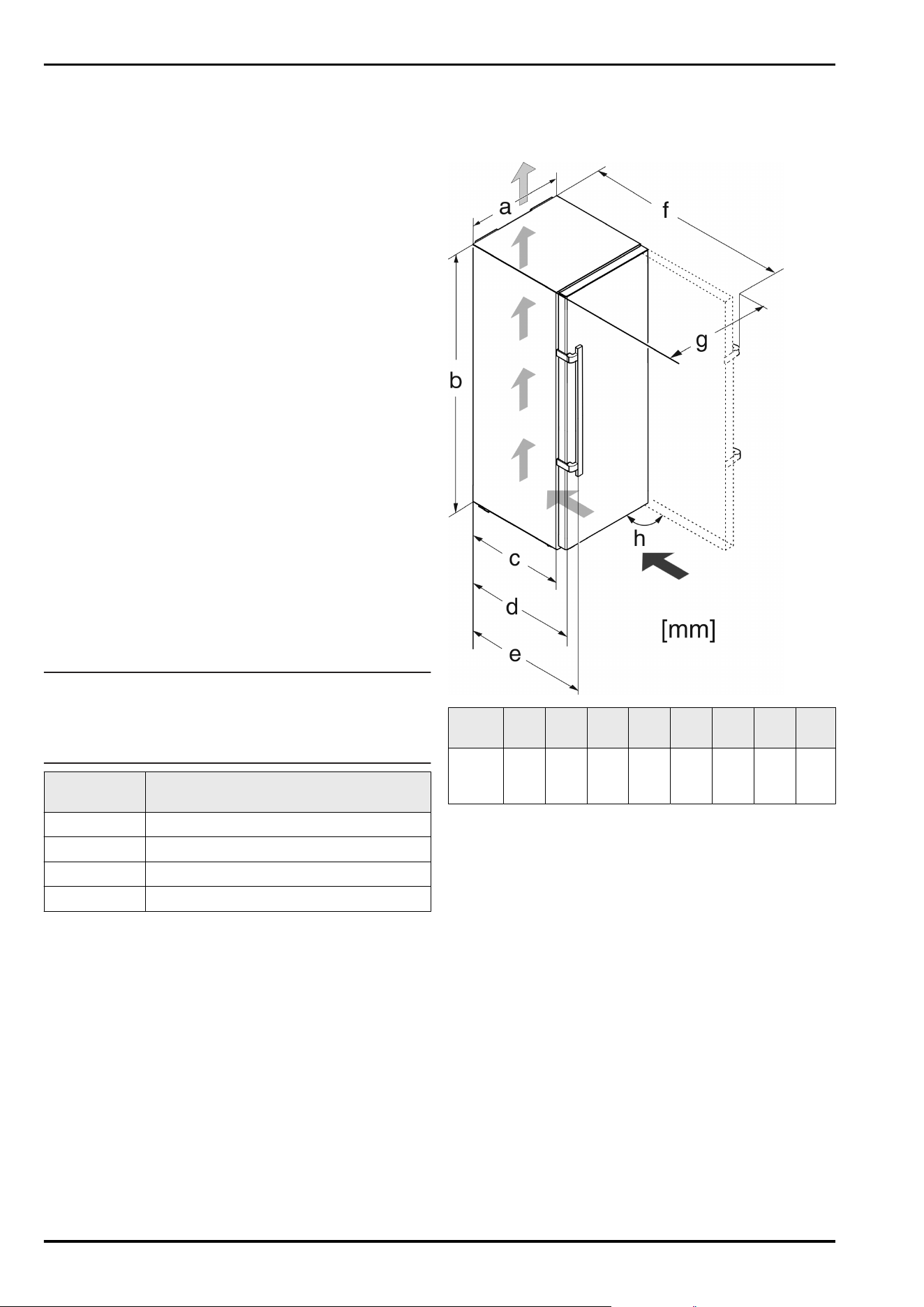

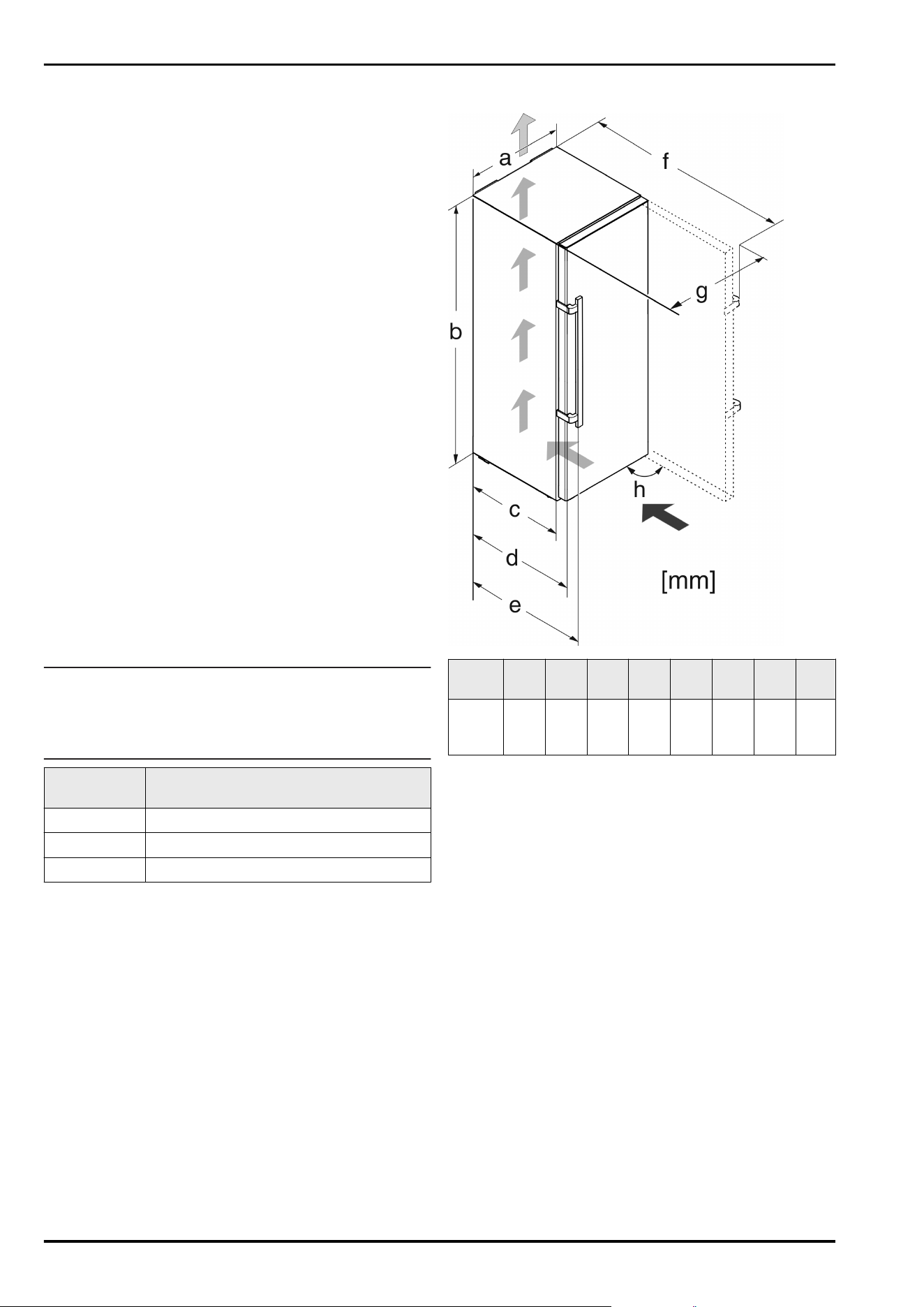

1.5 Installation dimensions
Fig. 2
Model
a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
f
[mm]
g
[mm]
h [°]
(S)GN(
es)
43..
600 1850 600
x
665
x
709
x
1223
x
640 90
x
When using wall spacers, the dimensions increase by
15 mm (see 4.2 Installing the appliance) .
1.6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.2 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
Appliance at a glance
* Depending on model and options 3
1.7 SmartGrid
Depending on model and options, your
appliance is prepared for the advanced
"SmartGrid" technology.
SmartGrid is a future option for reducing household elec‐
tricity costs via an intelligent meter supplied by the energy
provider. In the event of surplus energy being generated, for
instance, by regenerative sources, households are supplied
with low-cost electricity. SmartGrid-ready upright freezers
are prepared for this future technology. With an appropriate
additional module, you will be in a position to optimise your
electricity costs.
For more information about the benefits, requirements
and operating principle visit the homepage of your energy
provider and www.liebherr.com.
1.8 Smart device
The appliance is ready for integration into a
smart home and for extended services. With a
SmartDevice Box, you can activate this and other
options. This is activated via the MyLiebherr
customer portal.
Note
The SmartDevice Box is available for purchase from the
Liebherr Household Store (home.liebherr.com).
You will find more information about availability and
prerequisites and the individual options on the website,
www.smartdevice.liebherr.com.
2 General safety instructions
Please keep these instructions in a safe place and pass
them on to any subsequent owners.*
Please keep these operating instructions in a safe place so
you can refer back to them at any time.*
If you pass the appliance on, please hand these operating
instructions to the next user.*
Read these operating instructions carefully before use to
ensure safe and correct use of the appliance. Follow the
instructions, safety instructions and warning messages
included at all times. They are important for ensuring you
can operate and install the appliance safely and without any
problems.
Danger for the user:
-
This device can be used by children and people with
impaired physical, sensory or mental abilities or with a
lack of experience and knowledge provided that they are
supervised or have received instruction in the safe use
of this device, and about the resulting hazards. Children
must not play with this appliance. Cleaning and user
maintenance work must not be carried out by children
without adult supervision. Children aged between 3 and
8 are allowed to load and unload the appliance. Children
below the age of 3 must be kept away from the appliance
unless they are under continuous adult supervision.
-
The socket must be easily accessible so that the appli‐
ance can be disconnected quickly from the electricity in
an emergency. It must not be located in the area behind
the appliance.
-
When disconnecting the appliance from the supply,
always take hold of the plug. Do not pull the cable.
-
In the event of a fault pull out the mains plug or deacti‐
vate the fuse.
-
Do not damage the mains power cable. Do not operate
the appliance with a defective mains power cable.
-
If the supply cord is damaged, it must be replaced by a
special cord or assembly available from the manufacturer
or its service agent.*
-
Only customer service or other specially trained staff
may repair or perform other operations on the appliance.
-
Only assemble, connect and dispose of the appliance
according to the instructions.
-
Special lights, such as LED lights on the appliance, are
used to illuminate the interior of the appliance and are
not suitable for room lighting.*
-
The manufacturer is not liable for damage caused by a
faulty fixed water connection.
Fire hazard:
-
This appliance contains a refrigerant which is environ‐
mentally friendly, but flammable. Leaking refrigerant may
ignite. It is hazardous for anyone other than an Author‐
ised Service Person to service this appliance. In Queens‐
land, the authorised Service Person MUST hold a Gas
Work Authorisation for hydrocarbon refrigerants, to carry
out Servicing or repairs where the gas system is being
opened or charged.*
-
The coolant used (information on the model plate) is
ecofriendly but also flammable. Any leaking coolant may
ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not handle ignition sources inside the appliance.
•
Do not use electrical appliances inside the appliance
(e.g. steam cleaners, heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer services.
-
Do not store explosives or sprays using combustible
propellants such as butane, propane, pentane, etc. in the
appliance. To identify these spray cans, look for the list of
contents printed on the can, or a flame symbol. Gases
possibly escaping may ignite due to electrical compo‐
nents.
-
Keep burning candles, lamps and other items with naked
flames away from the appliance so that they do not set
the appliance on fire.
-
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruc‐
tion.*
-
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.*
-
WARNING: Do not damage the refrigerant circuit.*
-
Please be sure to store alcoholic drinks or other pack‐
aging containing alcohol in tightly closed containers.
Any alcohol that leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc. as a step or
for support. This applies particularly to children.
Danger of food poisoning:
-
Do not consume food which has been stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or refri‐
gerated/frozen goods or take protective measures, e.g
wear gloves.
-
Do not consume ice cream, water ice or ice cubes imme‐
diately and do not consume them too cold.*
General safety instructions
4 * Depending on model and options
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use electrical
heating or steam cleaning equipment, open flames or
defrosting sprays to defrost.
-
Do not use sharp implements to remove the ice.
Risk of crushing:
-
Do not hold the hinge when opening and closing the door.
Fingers may get caught.

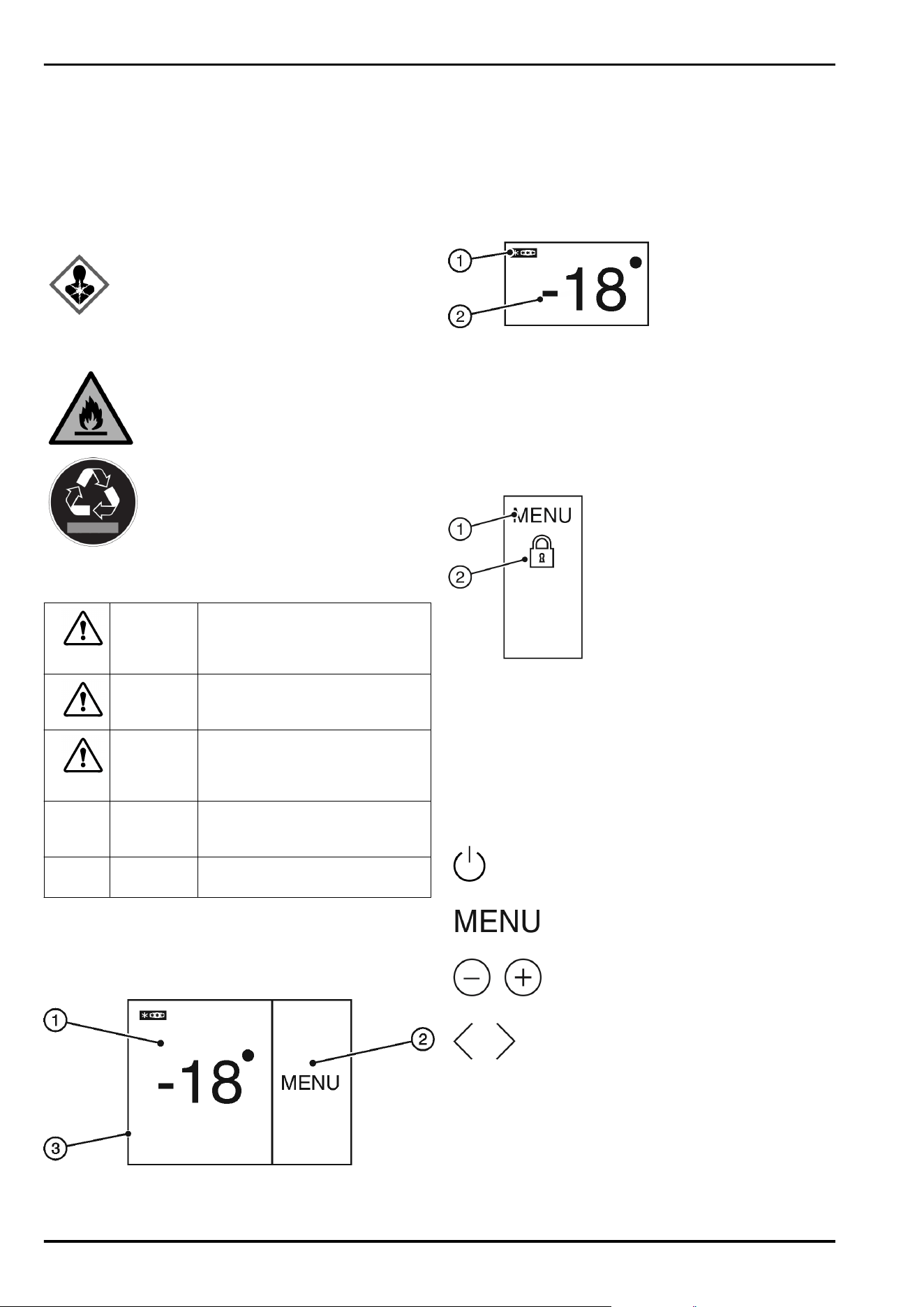

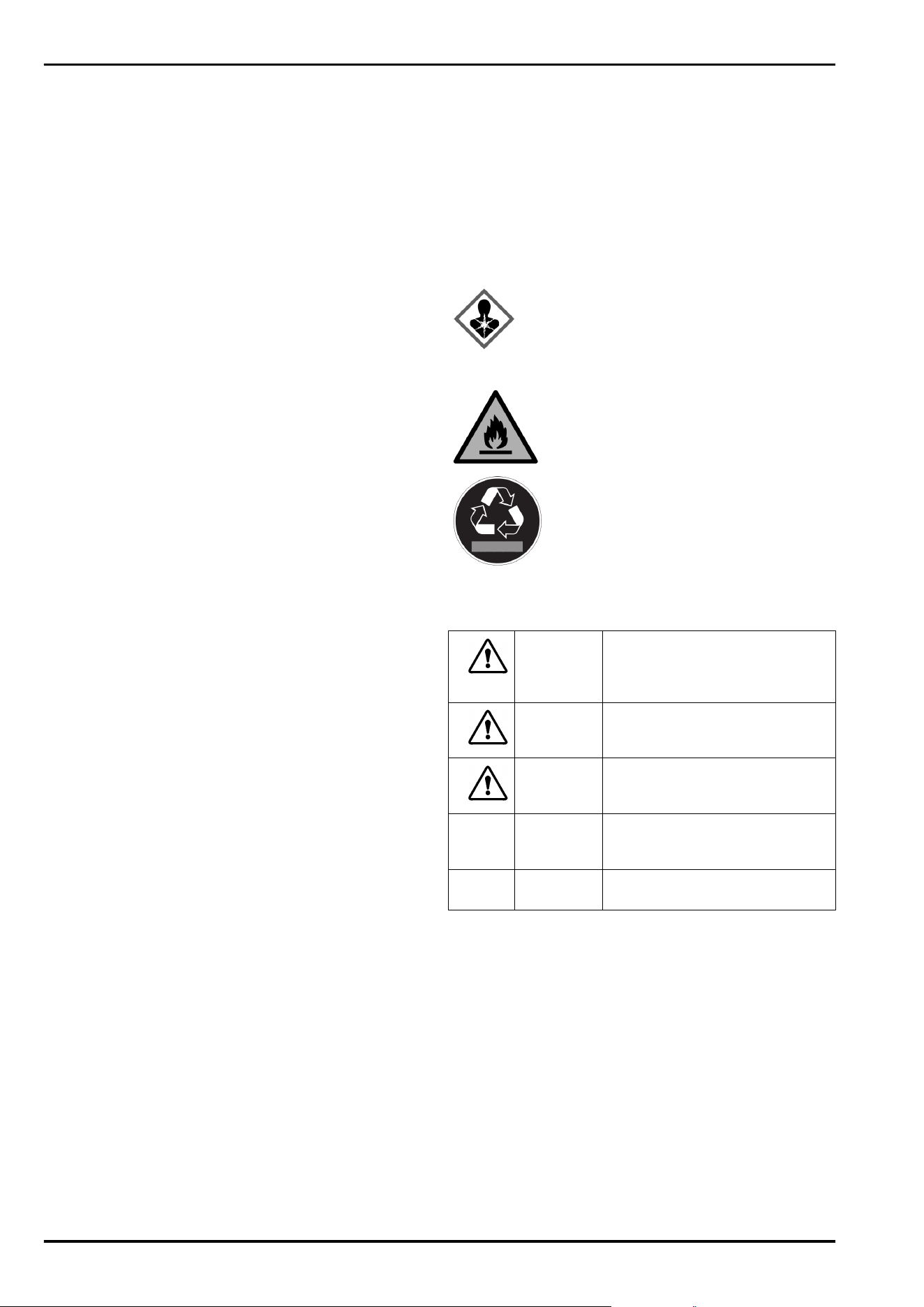

Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. It refers to
the foam-padded panels in the door and/or
the housing. This advice is only relevant to
recycling. Do not remove the sticker.
Please note the warning messages and other specific
advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
3 Controls and displays
3.1 Home screen
Fig. 3
(1)
Freezer compartment
field
(3) Screen
(2) Menu field
The home screen is the first screen the user sees. All
settings can be made from there.
All functions can be called up by touching the screen and
values can be changed.
3.2 Operating structure
Freezer compartment field
Fig. 4
(1)
Freezer compartment
symbol
(2) Freezer compartment
temperature display
The freezer compartment temperature is displayed in the
freezer compartment field.
The following settings can be entered:
-
Temperature settings
-
Switch off appliance. Screen remains functional.
Menu field
Fig. 5
(1)
Main menu (2) Option selected
The menu field gives access to the appliance options and
settings. Selected options are also displayed.
3.3 Navigation
Touch the menu to access the individual options. An audible
signal sounds after confirming an option or a setting. The
display switches to the home screen.
The appliance is operated using the following symbols:
Standby:
Switches the appliance or tempera‐
ture zone on.
Menu:
Calls up options.
Minus / Plus:
Changing settings (e.g. adjusting
temperatures).
Left/right navigation arrow:
Selects options and navigates
through the menu.
You can scroll through the indi‐
vidual options using the navigation
arrows. The first option is displayed
again after the last one.
Controls and displays
* Depending on model and options 5
Back:
Cancels the selection.
The display switches to the next
higher level or to the home screen
OK:
Confirms the selection.
After confirmation the display
switches to the home screen.
ON / OFF, START / STOP
Starts/ stops options.
After selecting or cancelling an
option the display switches to the
home screen.
RESET:
Resets timer.
Access to customer service
Note
If no selection is made after 1 minute the display
switches to the home screen.

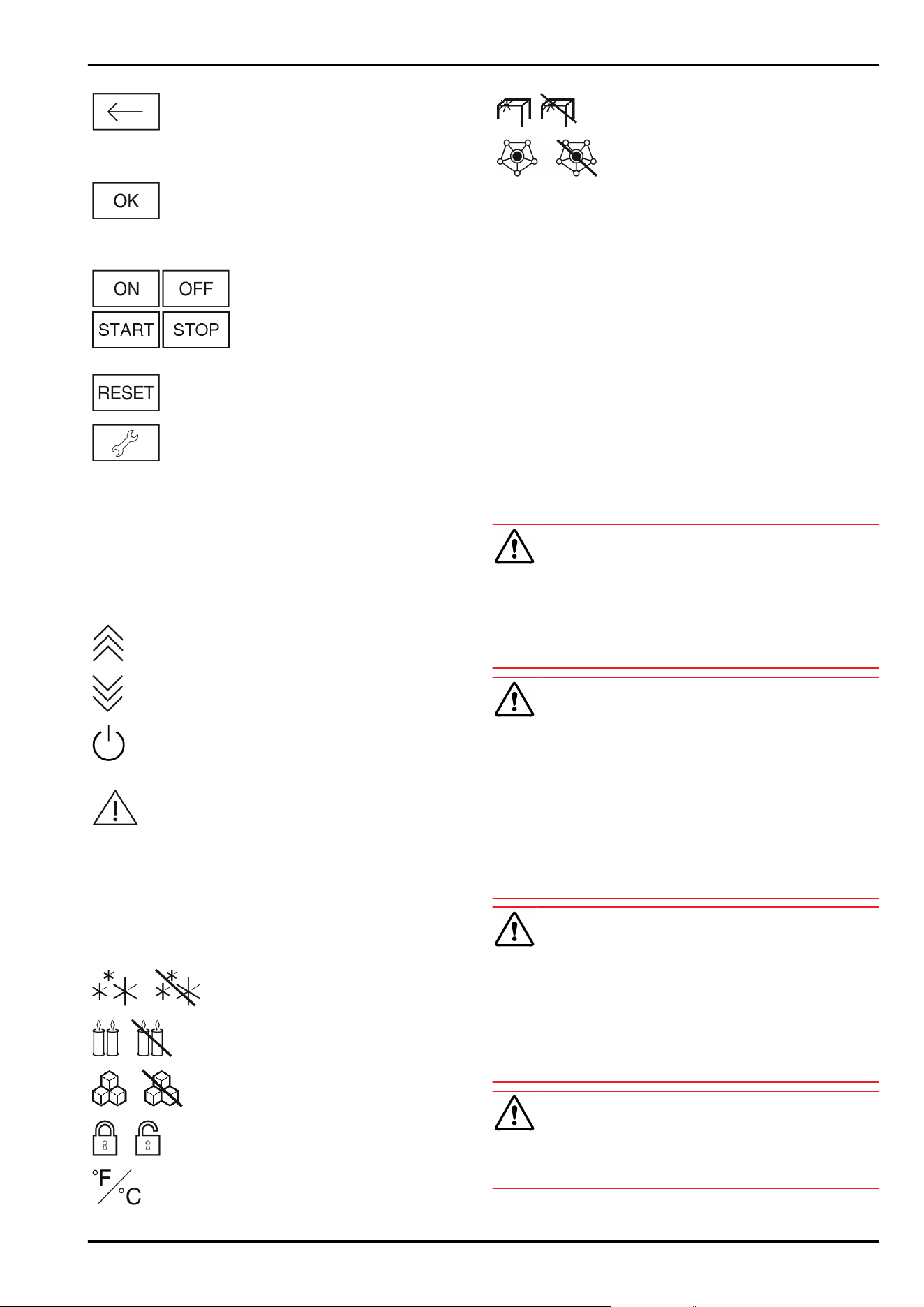

3.4 Display symbols
Display symbols provide information on the current appli‐
ance status:
Up arrows:
The temperature increases.
Down arrows:
The temperature reduces.
Standby:
The appliance or temperature zone
is switched off.
Messages:
There are active error messages
and reminders.
3.5 Appliance options
You can select or set the following options; explanations
and setting options, (see 5 Control) :
Symbol
Option
SuperFrost
x
SabbathMode
IceMaker
x
Child safety device
x
Temperature unit
Status display
x
Smart Grid
x
x
If the option is selected, the relevant symbol is displayed
in the menu field.
If more than 6 selected options are selected only 4 options
are displayed in the menu field. The other options are
displayed by pressing the bottom navigation arrow. Pressing
the navigation arrow repeatedly takes you back to the home
screen.
The symbol disappears if the option ends or is disabled.
4 Putting into operation
4.1 Transporting the appliance
u
Transport the appliance only in suitable packaging.
u
Transport the appliance upright.
u
Do not transport the appliance on your own.
4.2 Installing the appliance
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
u
The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Improper use!
Fire. If a mains cable/plug comes into contact with the back
of the appliance, the mains cable/plug can be damaged by
appliance vibrations and this may result in a short circuit.
u
Stand the appliance so that it is not touched by connec‐
tors or main cables.
u
Do not connect any appliances to sockets in the area of
the back of the appliance.
u
Multi-sockets/power distributors and other electronic
appliances (such as halogen transformers) may not be
placed and operated at the back of appliances.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
WARNING
Fire hazard and danger of damage!
u
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
Putting into operation
6 * Depending on model and options

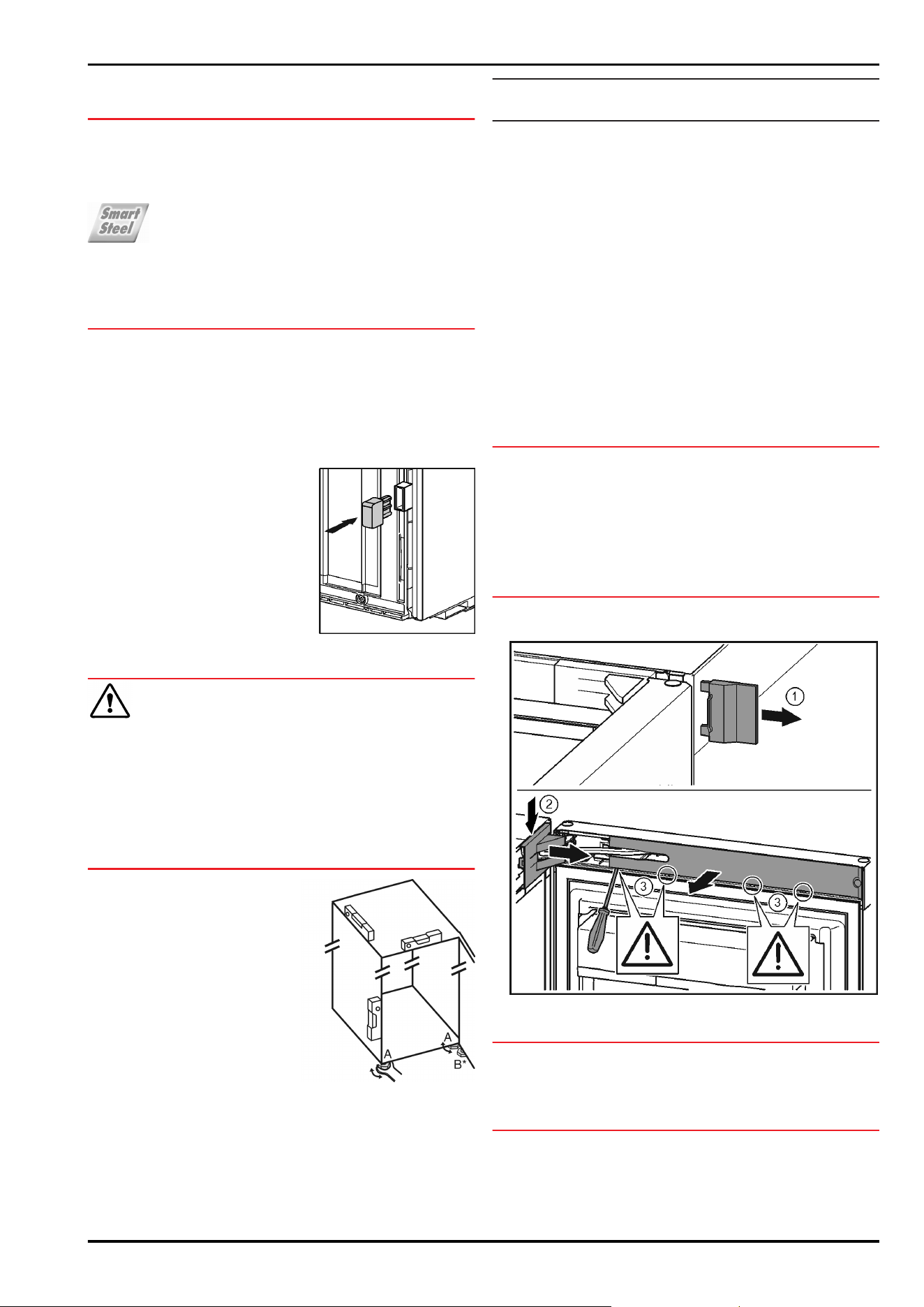

NOTICE
Covered vents!
Damage. Appliance can overheat, which can reduce the
service life of various parts of the appliance and lead to
operational impairments.
u
Always make sure there is good ventilation.
u
Always keep vents or ventilation grids in the appliance
housing and in the kitchen furniture (fully integrated
appliance) unobstructed.
u
Always keep the fan air vents unobstructed.

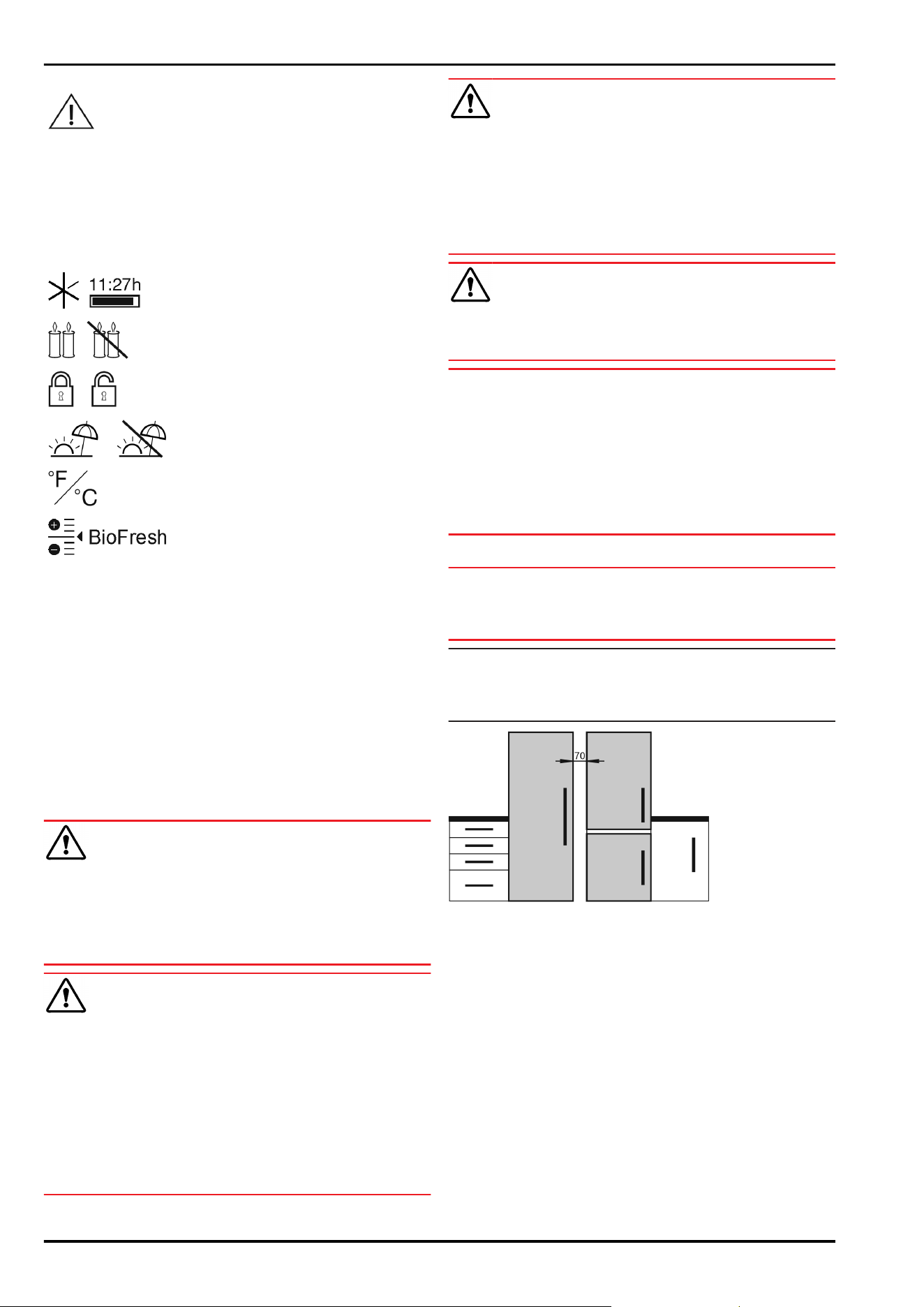

If your appliance is not a side-by-side (SBS) appliance:*
NOTICE
Risk of damage due to condensate!
u
Do not install the appliance directly alongside a further
refrigerator/freezer.
Note
If you have several appliances next to one another, leave a
gap of 70mm between appliances. Otherwise condensation
will build up between the units.*
Fig. 6 *
q
Before you connect the appliance, report any damage
immediately to the delivery company.
q
The floor of the installation site must be horizontal and
even.
q
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
q
The best place for installation is a dry and well ventilated
room.
q
Install the appliance with the rear panel up against the
wall and always use the supplied wall spacers (see
below).
q
Only ever move the appliance when it is empty.
q
The surface supporting the appliance must be at the
same level as the surrounding floor.
q
Do not install the appliance on your own.
q
The more coolant there is in the appliance, the larger
the room in which the appliance is installed must be. If
the room is too small, any leak may create a flammable
mixture of gas and air. For each 8 g of coolant the instal‐
lation space must be at least 1 m
3
. Information on the
coolant is on the model plate inside the appliance.
u
Remove the protective film from the outside of the appli‐
ance.*
NOTICE
Risk of damage from stainless steel care products!
The stainless steel doors and stainless steel side panels
are treated with a premium surface finish.
Stainless steel care products attack these surfaces.
u
Only use a soft, clean cloth to wipe down finished door
and side panel surfaces and painted door and side panel
surfaces. To remove heavy dirt, use a little water or
neutral detergent. Alternatively, you can use a micro-fibre
cloth.
u
Remove the protective film from the decorative trims and
drawer fronts.
u
Remove all transit supports.
Spacers must be used to achieve the declared energy
consumption and to prevent condensation in the event of
high surrounding humidity. This increases the appliance
depth by about 15 mm. The appliance will work perfectly
well without the spacers but will have a slightly higher
energy consumption.
u
If your appliance comes with
wall spacers, mount these on
the back of the appliance,
bottom left and right.
u
Dispose of packaging material (see 4.6 Disposing of
packaging) .
u
Align the appliance so that it
stands firmly and on a level
by applying the accompa‐
nying spanner to the adjust‐
able-height feet (A) and
using a spirit level.
When a Side-by-Side appliance (S…) is fitted together
with a second appliance (as a SBS combination):*
u
Proceed according to the Side-by-Side combined fridge-
freezer installation instructions. (Accessories bag of the
SBS freezer/appliance with freezer compartment)*
Note
u
Clean the appliance (see 6.3 Cleaning the appliance) .
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
u
Always see to good ventilation at the installation site.
4.3 Reversing the door
If necessary, you can change the way the door opens:
Ensure that the following tools are available:
q
Torx® 25 (T25)
q
Torx® 15 (T15)
q
Slotted screwdriver
q
Open-ended wrench SW10
q
Spirit level
q
Open-ended wrench supplied with the T25 tool
q
If necessary, a cordless screwdriver
q
Get a stepladder if necessary
q
If necessary, a second person for assembly
For appliances with the soft stop mechanism these
sections apply:*
q
For appliances with the soft stop mechanism
q
For all appliances
Putting into operation
* Depending on model and options 7
For appliances without the soft stop mechanism these
sections apply:*
q
For appliances without the soft stop mechanism
q
For all appliances
NOTICE
Risk of condensation damage for Side-by-Side appliances!*
Certain appliances can be set up as Side-by-Side combina‐
tions (two appliances next to each other).
If your appliance is a Side-by-Side (SBS) appliance:
u
Set up the SBS combination in accordance with the
enclosed document.
If the positioning of the devices is stipulated:
u
Do not change the door hinges over.

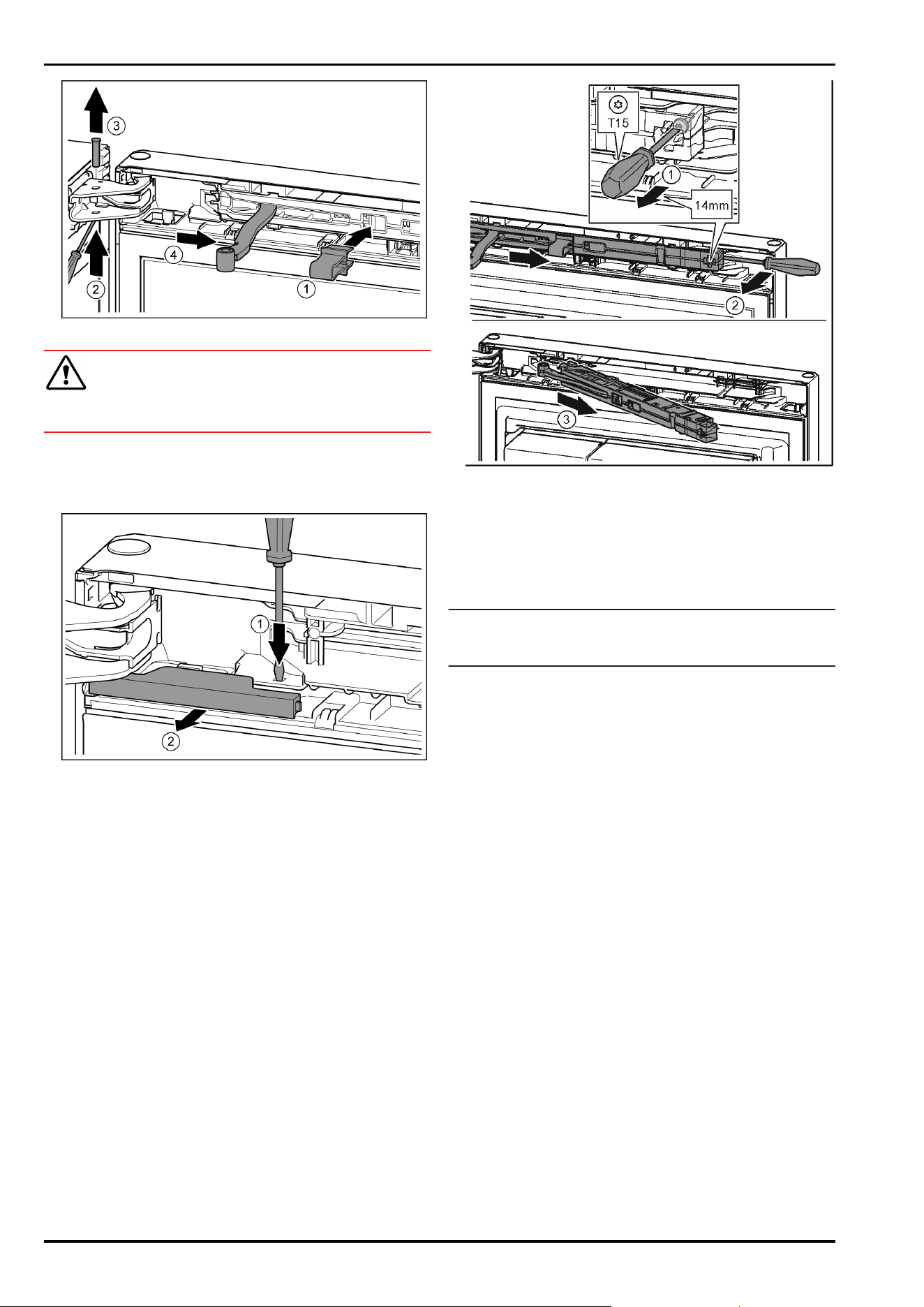

4.3.1 Remove the soft stop mechanism*
For appliances with the soft stop mechanism:*

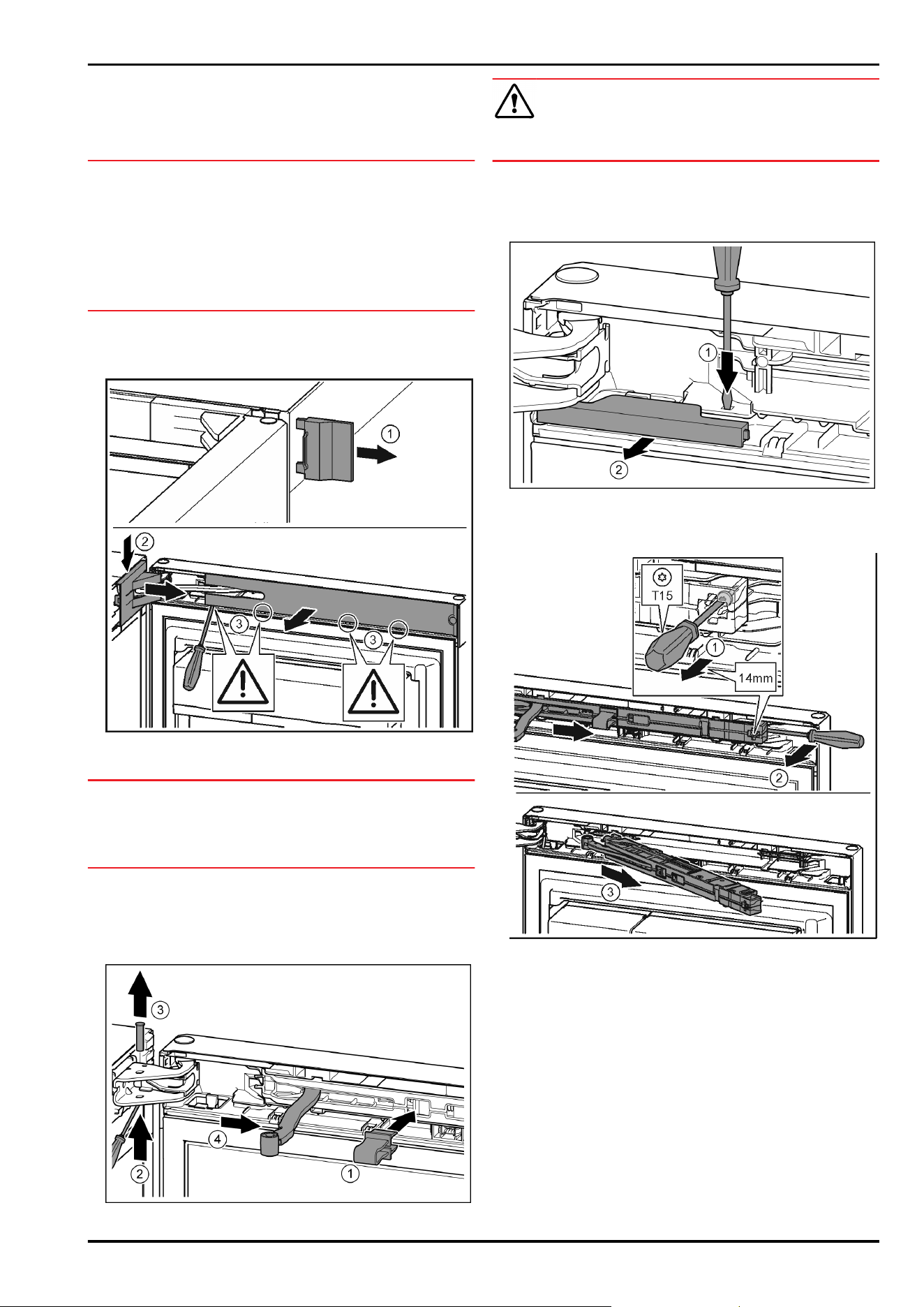

Fig. 7
u
Open the door.
NOTICE
Risk of damage!
If the door seal is damaged, the door may fail to close prop‐
erly and the cooling will be inadequate.
u
Do not damage the door seal with the screwdriver!
u
Remove the outer cover. Fig. 7 (1)
u
Disengage and release the bearing bracket cover.
Remove the bearing bracket cover. Fig. 7 (2)
u
Unlatch the panel with a slotted screwdriver and swivel it
to one side. Fig. 7 (3)
Fig. 8
CAUTION
Crushing hazard by joint folding up!
u
Engage safety device.
u
Engage the locking device in the opening. Fig. 8 (1)
u
Unscrew the bolt with a screwdriver. Fig. 8 (2)
u
Remove the bolt in an upward direction. Fig. 8 (3)
u
Turn the hinge in the direction of the door. Fig. 8 (4)
Fig. 9
u
Press the tab with the slotted screwdriver. Fig. 9 (1)
u
Pull cover out of the catch mechanism. Fig. 9 (2)
Fig. 10

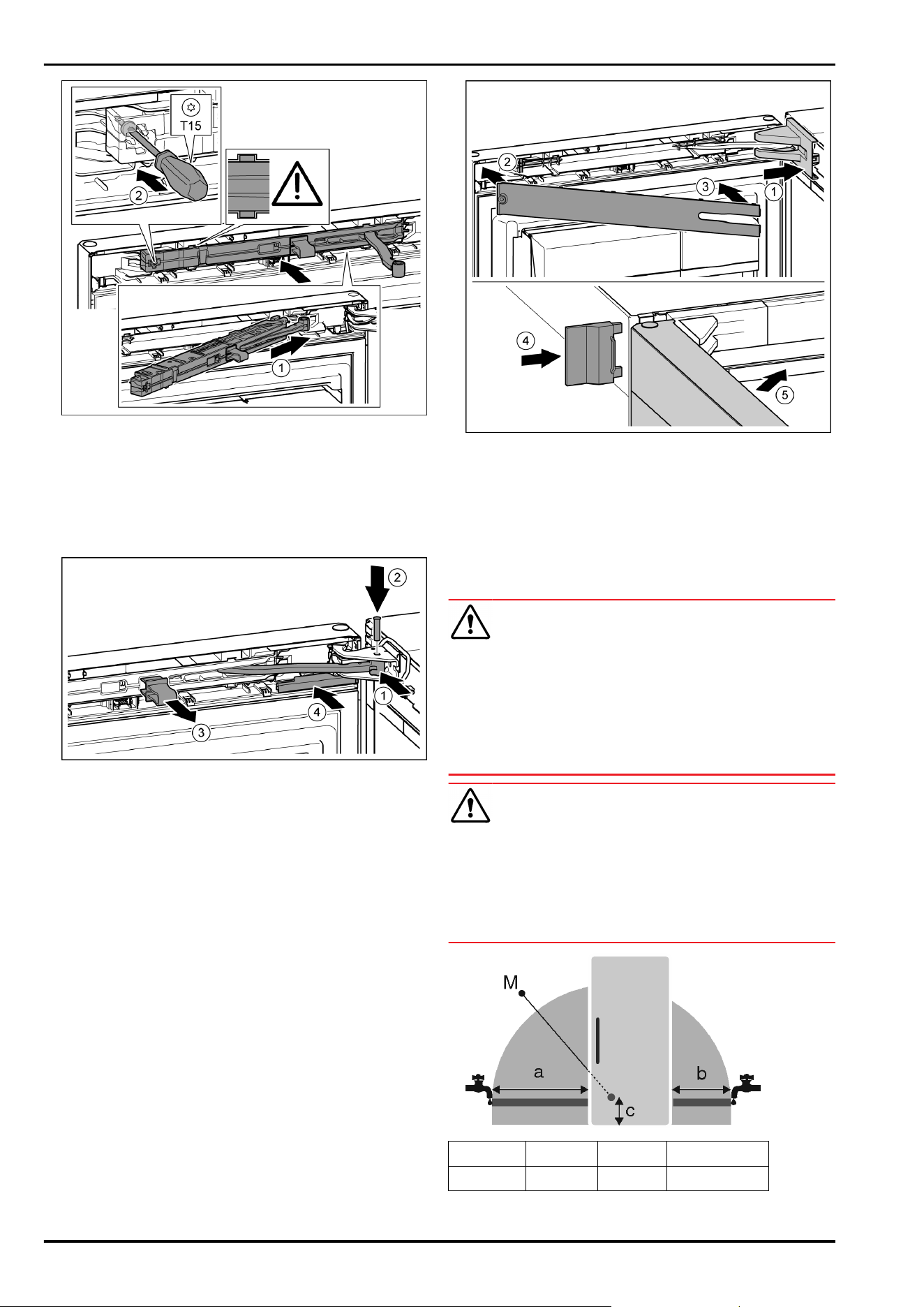

u
Undo the soft stop mechanism screw with a T15 screw‐
driver approx. 14 mm. Fig. 10 (1)
u
Insert a screwdriver behind the soft stop mechanism on
the handle side and rotate forwards. Fig. 10 (2)
u
Remove the soft stop mechanism. Fig. 10 (3)
4.3.2 Remove the door
For appliances without a soft top mechanism:*
Putting into operation
8 * Depending on model and options
Fig. 11 *
u
Open the door.*
NOTICE
Risk of damage!*
If the door seal is damaged, the door may fail to close prop‐
erly and the cooling will be inadequate.
u
Do not damage the door seal with the screwdriver!
u
Remove the outer cover. Fig. 11 (1) *
u
Disengage and release the bearing bracket cover.
Remove the bearing bracket cover. Fig. 11 (2) *
u
Unlatch the panel with a slotted screwdriver and swivel it
to one side. Fig. 11 (3) *
For all appliances:*
Fig. 12
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u

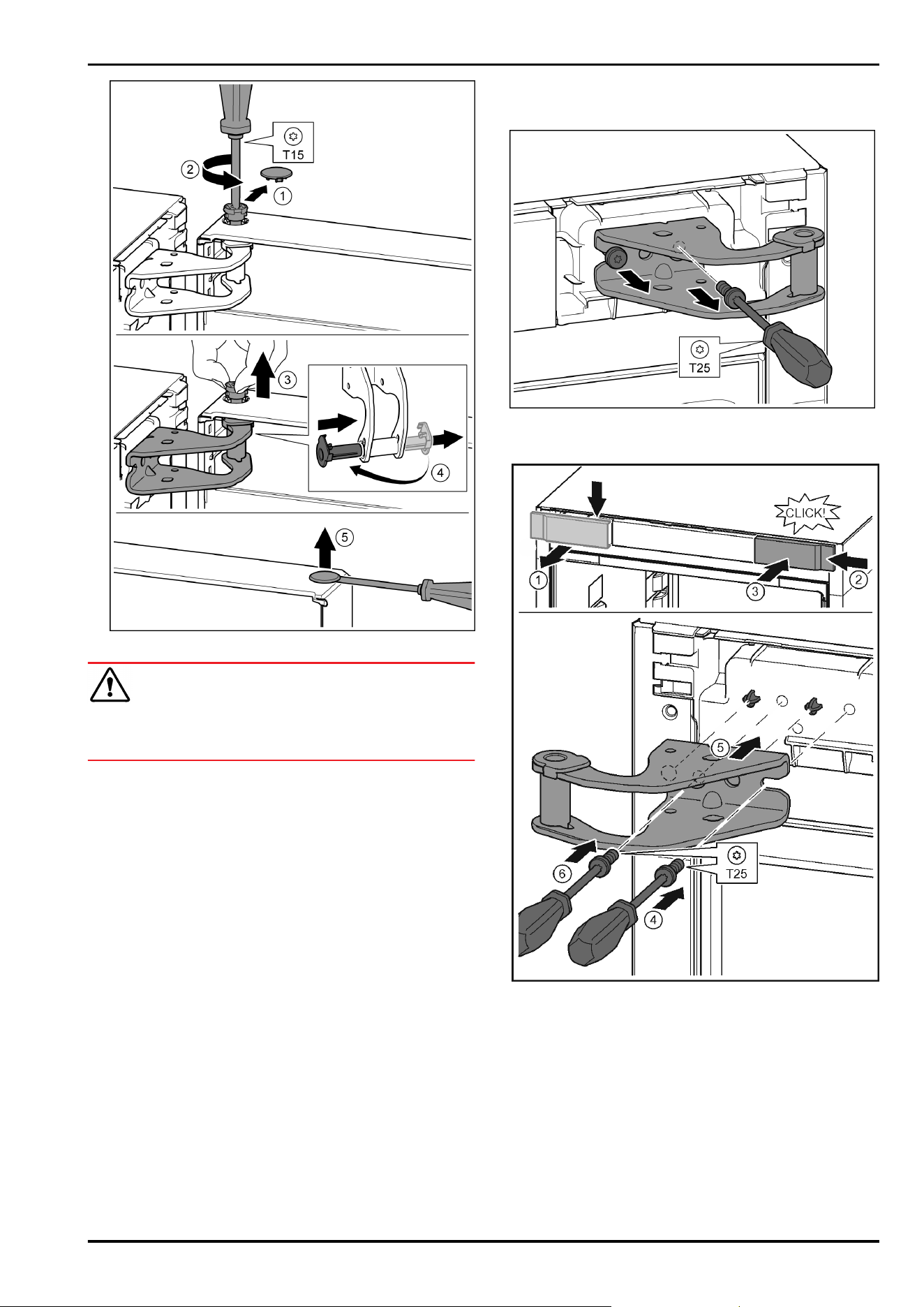

Carefully remove the protective cover. Fig. 12 (1)
u
Undo the bolt a little with a T15 screwdriver. Fig. 12 (2)
u
Hold the door and remove the bolts with your fingers.
Fig. 12 (3)
u
Pull the bearing bush out of the guide. Insert from the
other side and click into place. Fig. 12 (4)
u
Lift the door and set it aside.
u
Carefully lift the plugs out of the door bearing bush with
a slotted screwdriver and remove. Fig. 12 (5)
4.3.3 Moving the upper bearing parts to the
other side
For all appliances:*
Fig. 13
u
Remove both screws with the T25 screwdriver.
u
Lift and remove the bearing bracket.
Putting into operation
* Depending on model and options 9
Fig. 14
u
Release the cover and remove from the side. Fig. 14 (1)
u
Rotate the cover 180° and clip onto the other side from
the right. Fig. 14 (2)
u
Click the cover into place. Fig. 14 (3)
u
Position the screw with a T25 screwdriver. Fig. 14 (4)
u
Position the upper bearing bracket. Fig. 14 (5)
w
Place the pins in the provided screw holes.
u
Tighten the screw. Fig. 14 (4)
u
Insert the screw with a T25 screwdriver and tighten.
Fig. 14 (6)
4.3.4 Moving the lower bearing parts to the
other side
For all appliances:*
Fig. 15
u
Lift the bearing pin completely upward and remove.
Fig. 15 (1)
u
Undo the screws with a T25 screwdriver and remove the
bearing bracket Fig. 15 (2)
For appliances without a soft top mechanism:*
Fig. 16 *
u
Loosen the screw using a T25 screwdriver. Fig. 16 (1) *
u
Lift the door closure aid and turn it 90° to the right in the
hole. Fig. 16 (2) *
u
Tighten the screw using a T25 screwdriver. Fig. 16 (3) *
For all appliances:*
Fig. 17
u
Remove the cover and fix it on the other side. Fig. 17 (1)
u
Place the bearing bracket on the other side and screw in
with the aid of a T25 screwdriver. Start with screw 2 at
the bottom in the middle. Fig. 17 (2)
u
Screw in screws 3 and 4. Fig. 17 (3, 4)
u
Insert the bearing pin completely. Make sure that the
catch mechanism is pointing to the rear. Fig. 17 (5)
4.3.5 Moving the door bearing parts to the
other side
For appliances without a soft top mechanism:*
Putting into operation
10 * Depending on model and options
Fig. 18 *
u
Underside of door faces upwards: Turn the door.*
u
Push the tab downwards with a slotted screwdriver.
Fig. 18 (1) *
u
Pull the door latch out of the guide. Fig. 18 (2) *
u
Push the door latch into the guide on the other side.
Fig. 18 (3) *
u
Upper side of door faces upwards: Turn the door.*

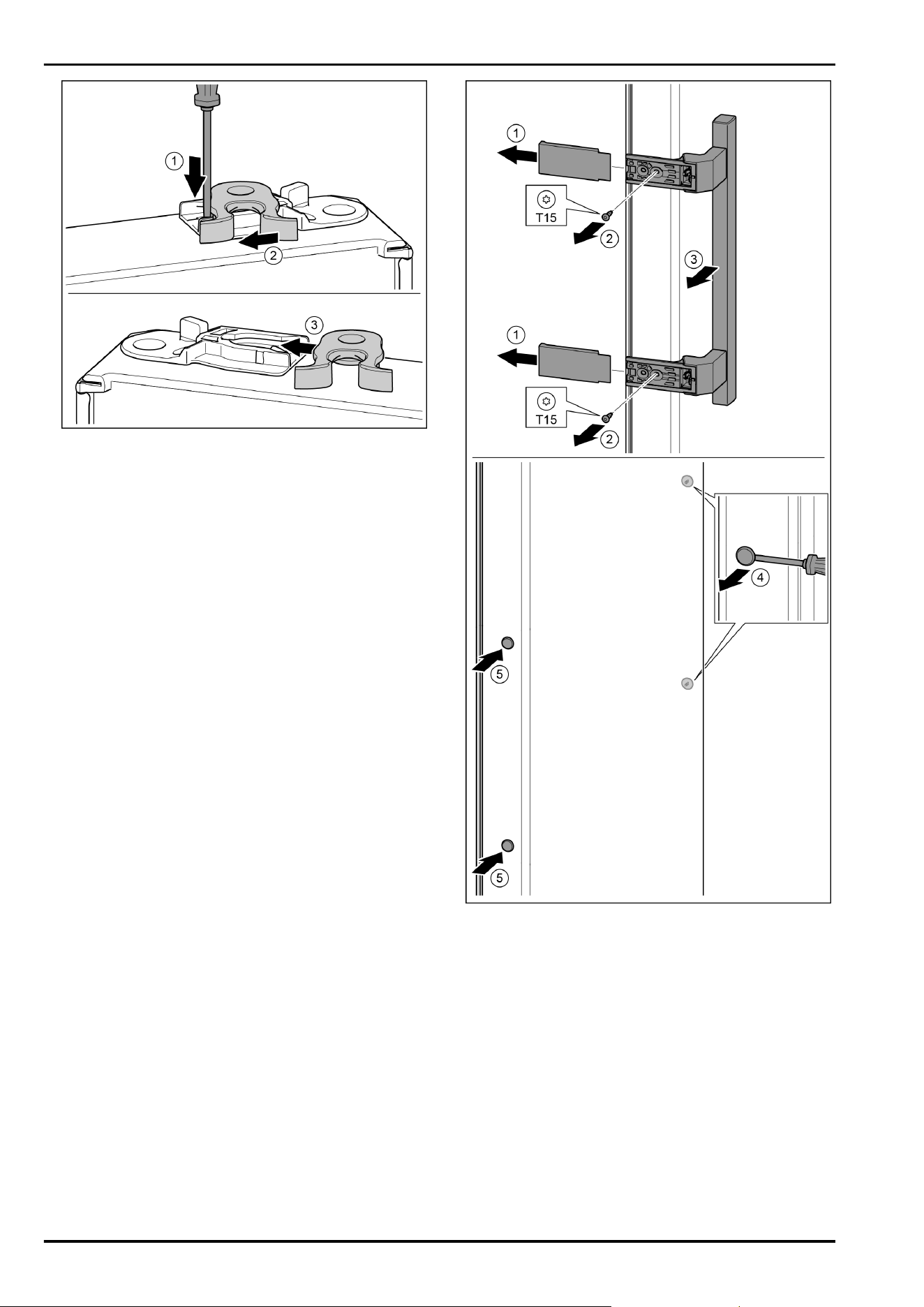

4.3.6 Moving the handles to the other side
For all appliances:*

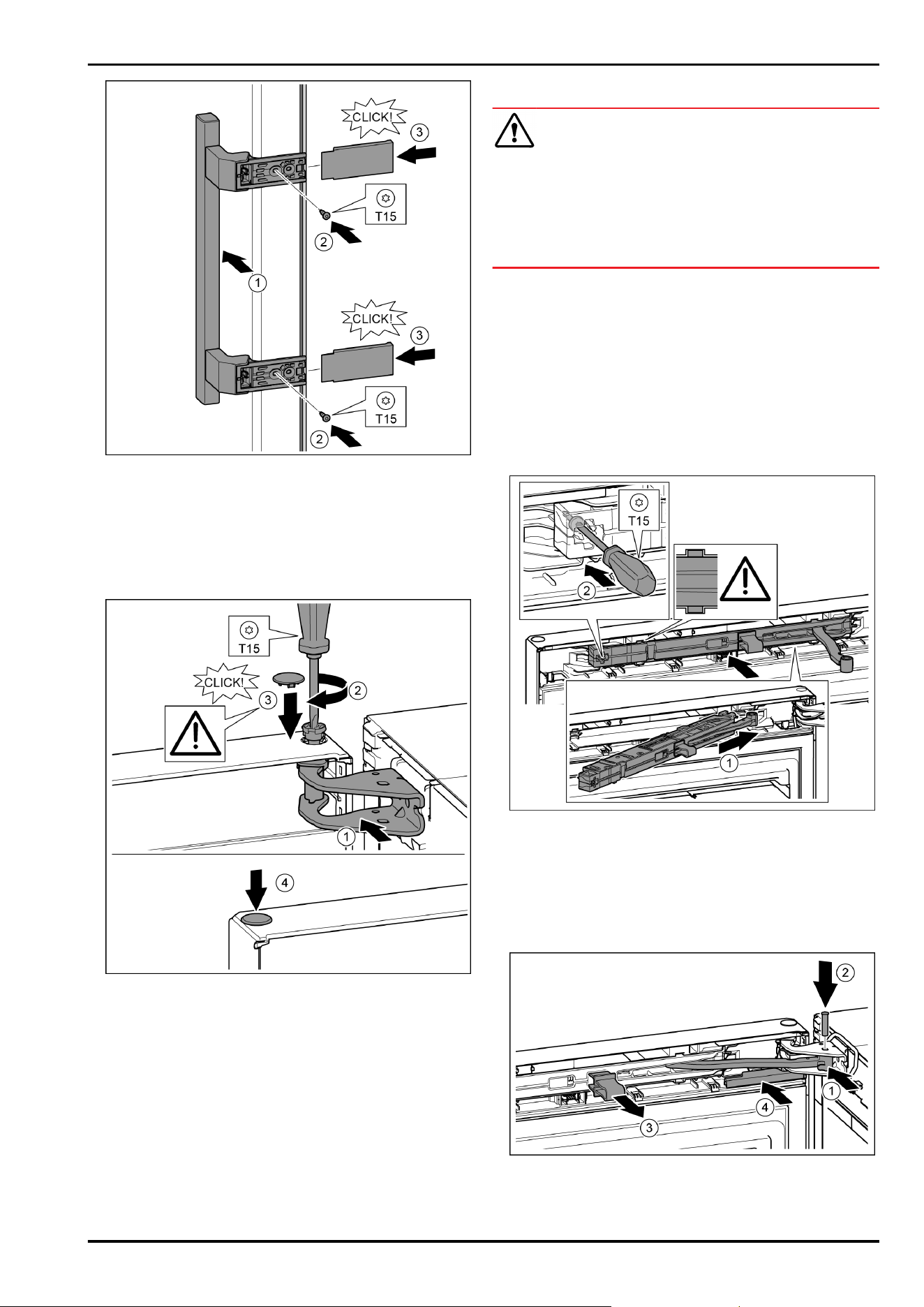

Fig. 19
u
Pull off the cover. Fig. 19 (1)
u
Remove the screws with the T15 screwdriver. Fig. 19 (2)
u
Remove the handle. Fig. 19 (3)
u
Carefully lift up the side plugs with a slotted screwdriver
and pull them out. Fig. 19 (4)
u
Insert the plugs again on the other side. Fig. 19 (5)
Putting into operation
* Depending on model and options 11
Fig. 20
u
Position the handle on the other side. Fig. 20 (1)
w
The screw holes must be exactly above each other.
u
Tighten the screws with the T15 screwdriver. Fig. 20 (2)
u
Position the covers on the side and push in. Fig. 20 (3)
w
Ensure that it clicks into place.
4.3.7 Fitting the door
For all appliances:*
Fig. 21
u
Place the door on the lower bearing pins.
u
Align the top of the door with opening in the bearing
bracket. Fig. 21 (1)
u
Insert the bolt and tighten with a T15 screwdriver.
Fig. 21 (2)
u
Fit the protective cover to protect the door: Insert the
protective cover and check that it is attached to the door.
If not, insert the bolt fully. Fig. 21 (3)
u
Insert the plugs. Fig. 21 (4)
4.3.8 Aligning the door
For all appliances:*
WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly
enough, the door may drop out. This may lead to severe
injuries. What is more, the door may not close and therefore
the appliance may fail to cool properly.
u
Screw the turn hinges firmly into place with 4 Nm.
u
Check all of the screws and retighten if necessary.
u
Align the doors flush with the appliance housing using
the two oblong holes in the lower bearing bracket if
needed. To do this undo the middle screw in the bottom
bearing bracket with the T25 tool supplied. Undo the
remaining screws a little with the T25 tool or with a T25
screwdriver and align using the slotted holes.
u
Support the door: Take off the adjustable foot on the
bearing bracket using the open-ended wrench SW10 until
it comes into contact with the floor, then turn an addi‐
tional 90°.
4.3.9 Fit the covers*
For appliances without a soft top mechanism:*
Fig. 22
The door is open 90°.
u
Position the bearing bracket and engage. If necessary
push apart carefully. Fig. 22 (1)
u
Position the panel on the side and click into place.
Fig. 22 (2)
Fig. 23
u
Slide on the external cover. Fig. 23 (1)
u
Close the upper door. Fig. 23 (2)
4.3.10 Fit the soft stop mechanism*
For appliances with the soft stop mechanism:*
Putting into operation
12 * Depending on model and options
Fig. 24
u
Slide the soft stop mechanism on the bearing bracket
side at an angle into the slot as far as the limit stop.
Fig. 24 (1)
u
Slide the unit in fully.
w
The unit is positioned correctly when the rib on the soft
stop mechanism is in the guide in the housing.
u
Tighten the screw with the T15 screwdriver. Fig. 24 (2)
Fig. 25
The door is open 90°.
u
Turn the hinge in the bearing bracket. Fig. 25 (1)
u
Insert the bolt in the bearing bracket and hinge. Make
sure that the catch mechanism is sitting correctly in the
groove. Fig. 25 (2)
u
Remove the locking device. Fig. 25 (3)
u
Slide on the cover. Fig. 25 (4)
Fig. 26
u
Position the bearing bracket and engage. If necessary
push apart carefully. Fig. 26 (1)
u
Position the panel. Fig. 26 (2)
u
Swing in the panel and click into place. Fig. 26 (3)
u
Slide on the external cover. Fig. 26 (4)
u
Close the upper door. Fig. 26 (5)
4.4 Water connection
WARNING
Electricity in combination with water!
Electric shock.
u
Before connecting to the water pipe: Disconnect the
appliance from the mains.
u
Before connecting to water supply lines: Shut off the
water supply.
u
The connection to the drinking water mains may only be
carried out by a qualified gas and water engineer.
WARNING
Risk of poisoning!
u
The water quality has to comply with the drinking water
ordinance of the respective country (e.g. 98/8
u
Connect to the drinking water supply only.
u
The IceMaker serves exclusively for making ice cubes in
household quantities and has to be operated with water
suitable for the purpose.
Fig. 27
a
b c M
~ 1100 mm ~ 700 mm ~ 110 mm Solenoid valve
Putting into operation
* Depending on model and options 13
- The water pressure must be between 0.15 MPa and
0.6 MPa (1.5 bar - 6 bar).
- The water must be connected to the appliance via a cold
water pipe that can withstand the operating pressure and
complies with hygiene standards.
Use the stainless steel hose supplied (length 1.5 m).
Do not reuse old hoses. A 3 m hose is available as an
optional extra. This must be professionally installed.
A filter with a seal is located in the hose connector.
- A stopcock must be provided between the hose line
and the domestic water connection to cut off the water
supply if necessary.
- The stopcock must be located outside the back of the
appliance and be within easy reach so that the appliance
can be inserted as deeply as possible and the stopcock
can be turned off quickly. Stick to the clearances.
- All devices and equipment used to supply water must
comply with the regulations in force in the respective
country.
- Do not damage or kink the water supply line during
installation.

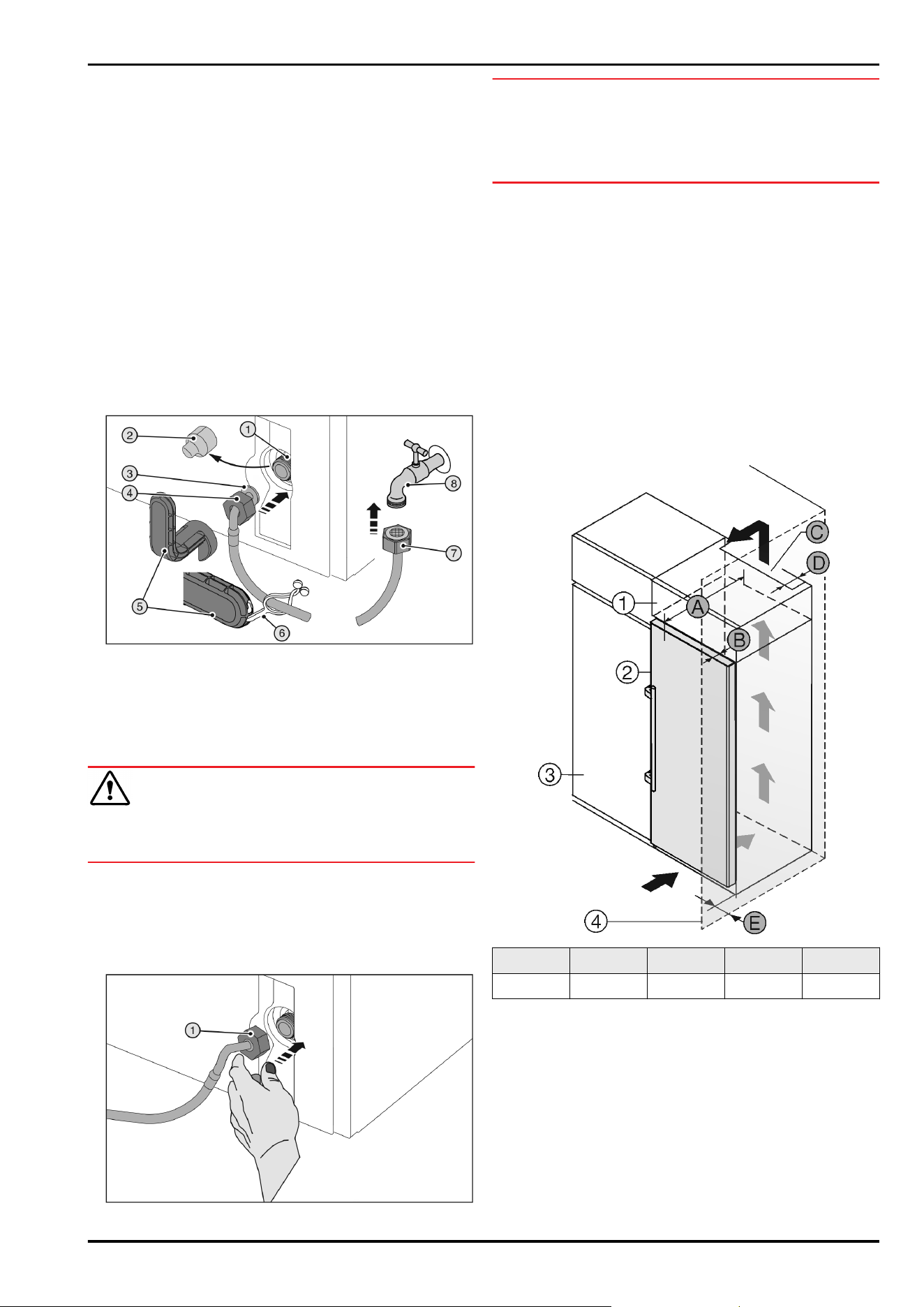

Fig. 28
The solenoid valve is located at the bottom on the back of
the appliance. It has a R3/4 connecting thread.
For specialist staff:
Connecting the stainless steel hose: The back of the appli‐
ance must be accessible.
WARNING
Broken auxiliary tool Fig. 28 (5).
Cuts.
u
Only use an auxiliary tool Fig. 28 (5) at room temperature.
Connecting the hose to the appliance:
u
Remove the cover Fig. 28 (2).
u
Easy to fit: Place the straight end of the hose Fig. 28 (7)
to the left on the floor.
u
Slide the nut Fig. 28 (4) over the angled end of the hose
Fig. 28 (3) up to the end and secure.
Fig. 29
NOTICE
Damaged solenoid thread pitch.
The solenoid leaks: Water may leak out.
u
Position the nut Fig. 29 (1) carefully and screw it directly
onto the thread with two fingers until it is seated
securely.
u
Tighten the nut Fig. 29 (1)clockwise with the auxiliary
tool Fig. 28 (5) until maximum torque is reached and the
auxiliary tool Fig. 28 (5) overtightens.
Connecting the hose to the stopcock:
u
Screw the nut Fig. 28 (7) onto the stopcock Fig. 28 (8).
u
Tighten the nut Fig. 28 (7)clockwise with the auxiliary
tool Fig. 28 (5) until maximum torque is reached and the
auxiliary tool Fig. 28 (5) overtightens.
u
Turn the water supply stopcock Fig. 28 (8) on and check
the whole water system for leaks.
u
Flushing the IceMaker: Turning the IceMaker on chapter
(see 5.16.2 Switch the IceMaker on.) .
u
Hook the clip Fig. 28 (6) into the auxiliary tool Fig. 28 (5)
and fix it to the stainless steel pipe to store it.
4.5 Sliding into the row of units

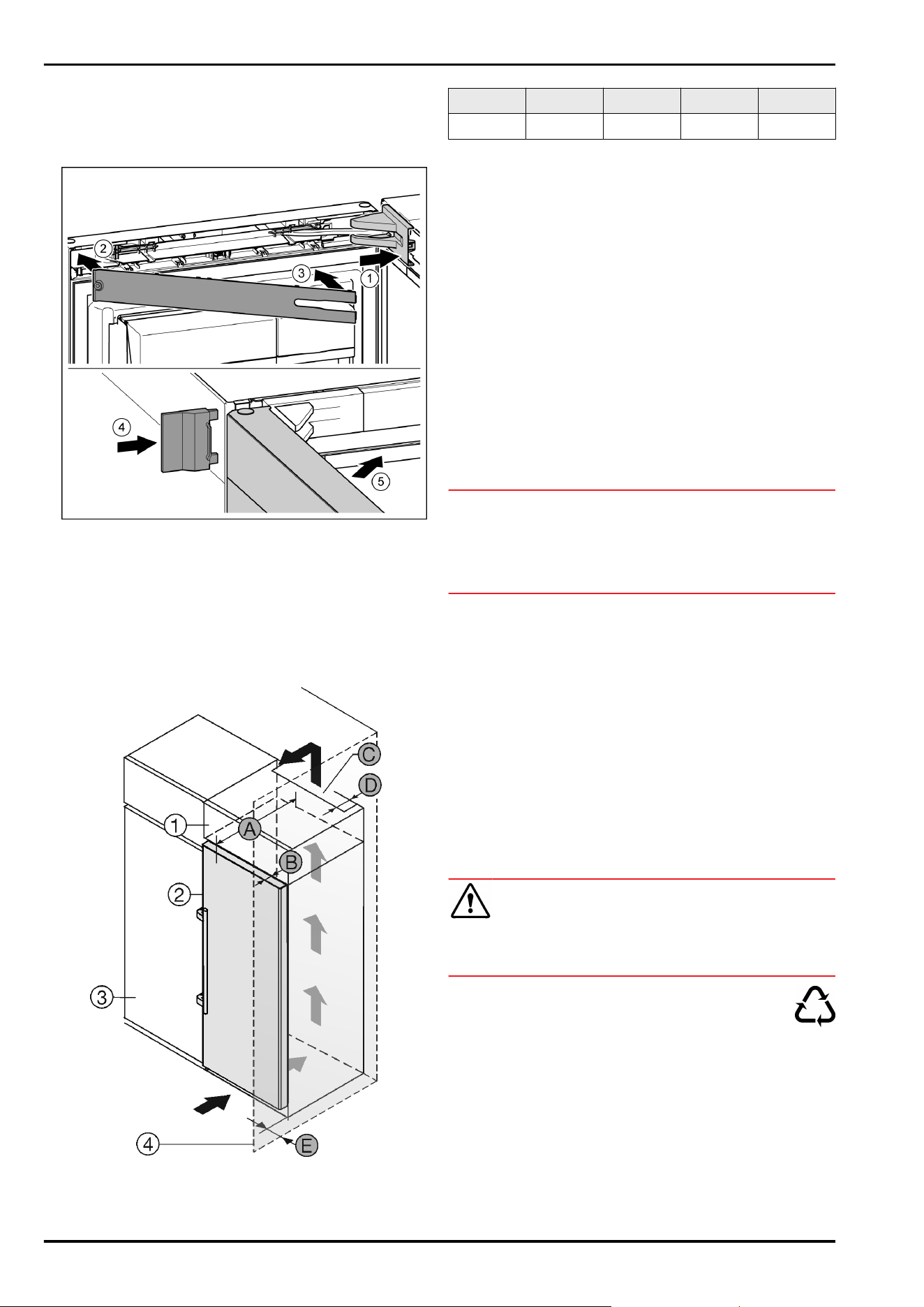

Fig. 30
A [mm]
B [mm]
C [cm
2
]
D [mm] E [mm]
665
x
65 min. 300 min. 50 min. 46
x
If using wall spacers, add 15 mm (see 4.2 Installing the
appliance) .
These dimensions apply to an opening angle of 90°. Clear‐
ances vary depending on the opening angle.
Please contact Customer Services to purchase a kit to
limit the door opening angle to 90° for appliances with soft-
closing devices.*
The appliance can be built into kitchen units. A top
cupboard Fig. 30 (2) can be added above the appliance in
order to bring the appliance Fig. 30 (1) up to the height of
the fitted kitchen units.
Putting into operation
14 * Depending on model and options
When inserting the appliance into the kitchen unit, there
must be a circumferential distance of at least 5cm.
If the appliance is positioned directly next to a kitchen
cabinet Fig. 30 (3), a distance of at least 5 cm from the
appliance is necessary. The appliance must protrude by
the depth Fig. 30 (B) from the front of the cabinet so that
the doors can be opened fully. The appliance may protrude
further depending on the depth of the kitchen cabinets and
whether wall spacers are used.
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
u
Take care to ensure adequate air ventilation.
u
Observe the ventilation requirements.
Ventilation requirements:
-
There are spacer fins at the back of the appliance to
provide adequate ventilation. Make sure these do not end
up in recesses or openings.
-
At the back of the top cabinet, there must be an air outlet
shaft with depth Fig. 30 (D), spanning the entire width.
-
The ventilation shaft Fig. 30 (C) must be observed under
the ceiling.
-
The wider the ventilation clearance, the more efficiently
the appliance will run.
If the appliance is installed with the hinges next to a wall
Fig. 30 (4), the distance Fig. 30 (E) between the appliance
and the wall must be observed. This is how far the handle
protrudes when the door is open.
4.6 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic
film!
u
Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
u
Take the packaging material to an official collecting
point.
4.7 Connecting the appliance
WARNING
Failure to connect properly
Fire hazard.
u
Do not use an extension cable.
u
Do not use distributor blocks.
NOTICE
Failure to connect properly
Damage to the electronics.
u
Do not connect the appliance to a stand-alone inverter,
e.g. solar power systems and petrol generators.
u
Do not use an energy saving plug.
Note
Only use the power connection lead supplied.
u
A longer power connection lead can be ordered from
Customer Service.

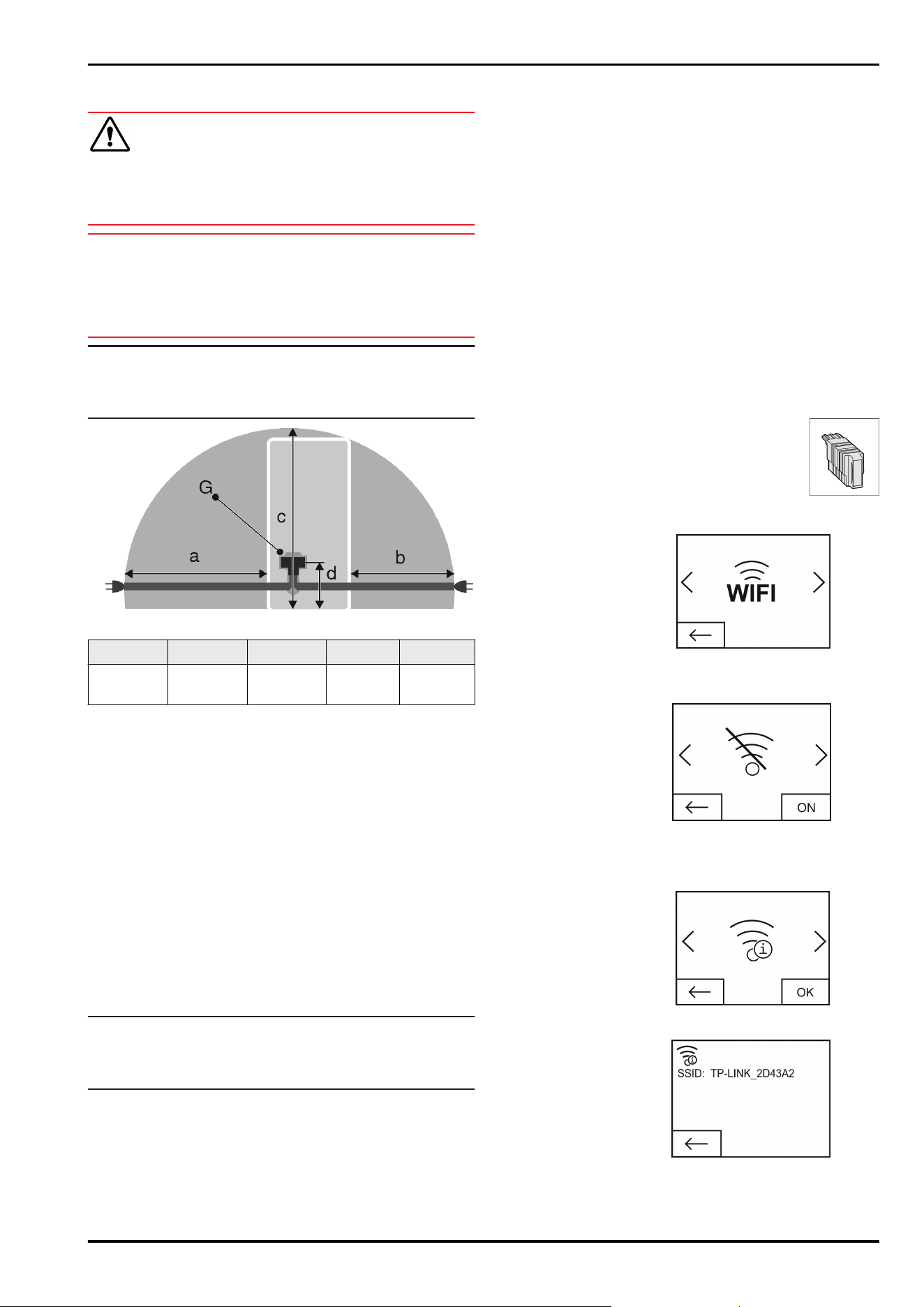

Fig. 31
a
b c d G
~ 1800 mm ~ 1400 mm ~ 2100 mm ~ 200 mm Appliance
plugs
Ensure that the following conditions are met:
- The type of current and voltage at the installation
site correspond to the information on the model plate
(see 1 Appliance at a glance) .
- The socket is earthed according to the regulations and
fused.
- The fuse tripping current is between 10 and 16 A.
- The socket is easily accessible.
- The socket is outside the back of the appliance area in
the specified area Fig. 31 (a, b, c).
u
Check the electrical connection.
u
Insert the appliance plug Fig. 31 (G) into the back of the
appliance. Ensure that it clicks into place.
u
Connect the power plug to the power supply.
w
The Liebherr logo appears on the screen.
w
The display switches to the standby symbol.
4.8 Switching on the appliance
Note
If the appliance is in demo mode, DEMO appears on the
homescreen.
u
Disable demo mode (see 7 Malfunctions) .
Note
The manufacturer recommends:
u
Store frozen produce at -18 °C or colder.
Connect and switch on appliance approx. 8 hours before
loading it for the first time.
4.8.1 Switch on appliance
If the standby symbol is displayed over the whole screen:
u
Press the standby symbol.
w
The appliance is switched on. The display switches to the
home screen.
w
The appliance sets itself to the displayed temperature.
This is shown by down arrows.
If the standby symbol is displayed in the freezer compart‐
ment field:
u
Press the standby symbol.
w
The appliance is switched on.
w
The appliance sets itself to the displayed temperature.
This is shown by down arrows.
If the screen is black:
u
Touch the screen.
w
The standby symbol appears on the whole screen.
Putting into operation
* Depending on model and options 15
u
Press the standby symbol.
w
The appliance is switched on. The display switches to the
home screen.
w
The appliance sets itself to the displayed temperature.
This is shown by down arrows.

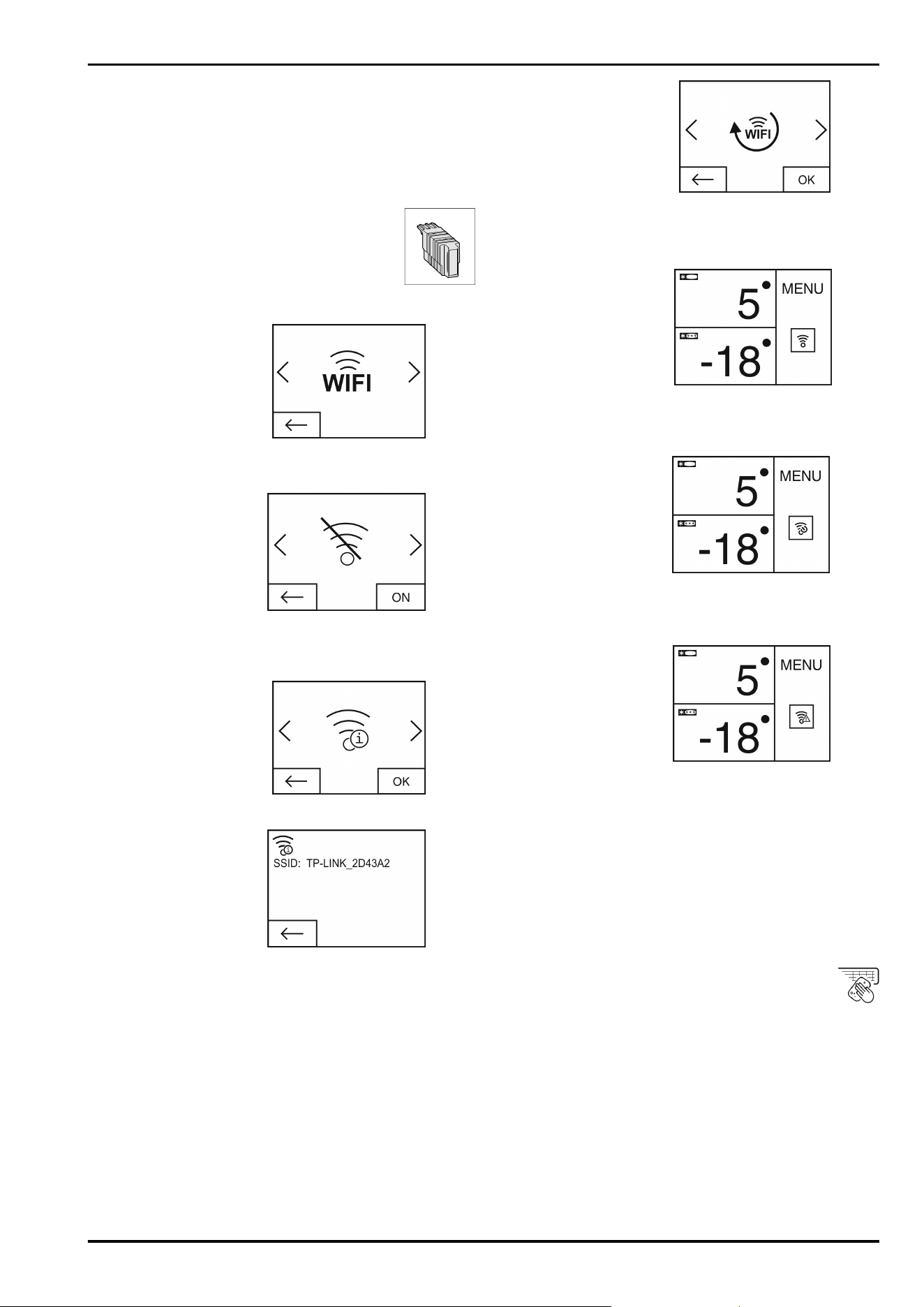

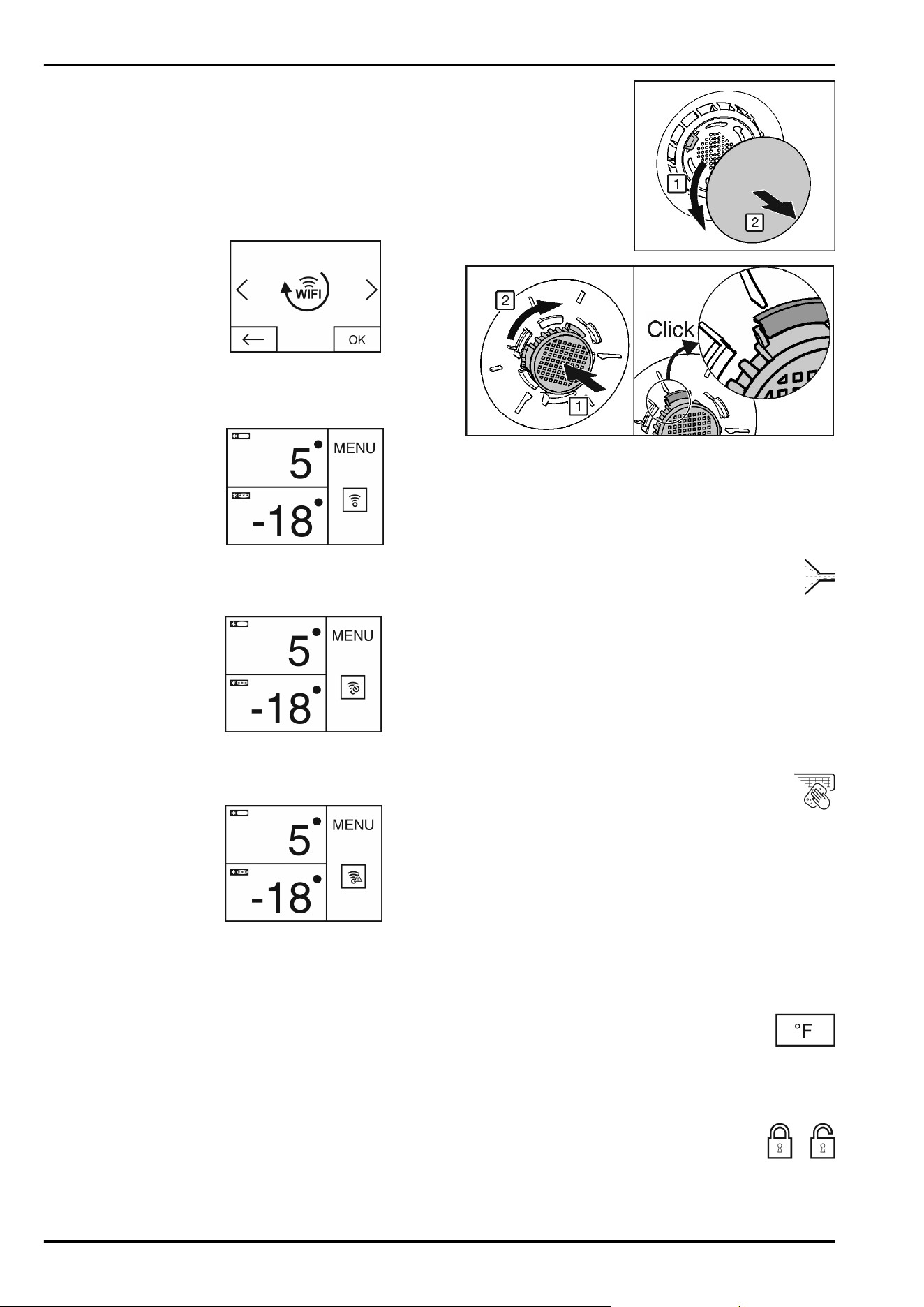

4.9 SmartDevice box
SmartDevice box: Start-up instruc‐
tionswww.smartdevice.liebherr.com/install
If the SmartDevice box (SDB) is inserted correctly the menu
below appears. The device is supplied with WLAN activated.
To use more WiFi options,
open the WIFI menu.
Fig. 32
u
Press WIFI.
w
The WIFI menu opens.
Turning on/off WiFi
Fig. 33
u
Use the slider at the bottom right to turn on/off WIFI
w
Slider to OFF = WIFIis disabled.
w
Slider to ON = WIFIis enabled.
WIFI INFO
Call up the status of the
SmartDevice box.
Fig. 34
u
Press the OK button.
w
The WIFI INFO screen opens.
w
The following statuses
can be displayed:
Fig. 35
w
SSID: ***WPS*** = The SmartDevice box is in WPS mode
for 3 minutes. An automatic connection to the SmartDe‐
vice box can be established via the router.
w
SSID: LHSDB_xxxxxxxxx = the SmartDevice box is in
manual connection mode for 30 minutes. The SmartDe‐
vice box transmits a private network to which you can
connect to send WLAN data.
w
SSID: empty = The SmartDevice box is in sleep mode.
Please reset the WIFI and connect your SmartDevice box
to the home network.
w
SSID: TP-LINK_2D43A2 or Fritz!Box7069 = The SmartDe‐
vice box is connected to the home network.
WIFI RESET
Resetting the
SmartDevice
box to the default settings.
Fig. 36
u
Confirm with OK.
w
The SmartDevice box is reset to the default settings.
Showing the WiFi status on the Home screen
Status: WiFi on & connected
Fig. 37
u
The WiFi indicator is white.
w
WiFi is on.
w
The home network and the Liebherr server are connected.
Status: WiFi on & connecting
u
The WiFi display shows
a clock.
Fig. 38
w
WiFi is on.
w
There is no connection to the home network and/or the
Liebherr server.
Status: WiFi on & disconnected
u
The WiFi display shows
a warning sign.
Fig. 39
w
WiFi is on.
w
The SmartDevice box is either not connected to a
network or the SmartDevice box is connected to a
network but the network cannot be found, e.g. switched
off at night.
4.10 Setting the clean ventilation grid
timer
The ventilation grid must be cleaned at least once a year for
sufficient ventilation. The timer can be set as a reminder.
u
Press menu.
u
Press the navigation arrows until the ventilation
grid is displayed.
u
Press the ventilation grid symbol.
u
Press ON.
w
The timer is set. After the interval has expired a message
prompts you to clean the ventilation grid.
5 Control
5.1 Changing the temperature unit
The temperature display can be switched from °C to °F.
u
Press menu.
u
Press the navigation arrow until °C is displayed.
Control
16 * Depending on model and options
u
Press °F.
w
The temperature is displayed in °F.
Switch from °F to °C in the same way.
5.2 Child proofing
The child-proofing function enables you to make
sure that the appliance is not inadvertently
switched off by playing children.
5.2.1 Switching on the child safety device
u
Press menu.
u
Press the navigation arrows until the child safety
device is displayed.
u
Press ON.
w
The child safety device is switched on.
5.2.2 Switching the child safety device off
u
Press menu.
u
Press the navigation arrows until the child safety
device is displayed.
u
Press OFF.
w
The child safety device is switched off.
5.3 SabbathMode
This function meets the religious requirements on the
Sabbath or Jewish festivals. Turn on SabbathMode to
switch off certain controls. After setting up SabbathMode,
you no longer need to worry about indicator lights, figures,
symbols, displays, alarms or fans. The thawing cycle only
works for the specified time without taking account of
fridge use. After a power cut the appliance automatically
returns to SabbathMode.
There is a list of Star-K certified appliances at www.star-
k.org/appliances.
WARNING
Danger of food poisoning.
If there is a power cut while the appliance is in
SabbathMode, this message is not saved. Once power is
restored, the appliance continues in SabbathMode. When
this mode is over no message about the power cut is
displayed on the temperature display.
If there was a power cut during SabbathMode:
u
Check the food for quality. Do not eat the food if it has
thawed.
-
All functions are locked until SabbathMode is switched
off.
-
If functions such as SuperFrost, SuperCool, Ventilation,
etc. are activated when SabbathMode is on, they remain
active.
-
The IceMaker does not work.
-
No audible signals are emitted and the temperature
display does not indicate any warnings or settings (such
as a temperature alarm or door alarm).
-
The internal light is off.*
5.3.1 Switching SabbathMode on.
u
Press menu.
u
Press the navigation arrow until SabbathMode is
displayed.
u
Press ON.
w
SabbathMode is switched on. Only the
SabbathMode symbol appears on the screen.
SabbathMode switches off automatically after 120 hours if
it has not already been switched off manually. The display
switches to the home screen.
5.3.2 Switch off the SabbathMode
u
Touch the screen.
u
Press OFF.
w
SabbathMode is switched off.
5.4 Freezing food
The rating plate indicates the maximum quantity of fresh
food you can freeze within 24 hours (see 1 Appliance at a
glance) under “Freezing capacity ... kg/24h”.
The top drawer can be loaded with a max. of 15 kg, the
bottom drawer with a max. of 10 kg and the other drawers
each with a max. of 25 kg.
The shelves can each be loaded with 35 kg of frozen food.
Closing the door creates a vacuum. After closing, wait for
around 1 minute, then the door will be easier to open.
CAUTION
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
u
Do not freeze bottles and cans containing drinks!
So that the food is rapidly frozen through to the core, do not
exceed the following quantities per pack
- Fruit, vegetables up to 1 kg
- Meat up to 2.5 kg
u
Pack the food in portions in freezer bags, reusable
plastic, metal or aluminium containers
5.5 Storage life
Standard values for the storage life of various types of
food in the freezer compartment:
Ice-cream 2 to 6 months
Sausage, ham 2 to 6 months
Bread, bakery products 2 to 6 months
Game, pork 6 to 10 months
Fatty fish 2 to 6 months
Lean fish 6 to 12 months
Cheese 2 to 6 months
Poultry, beef 6 to 12 months
Vegetables, fruit 6 to 12 months
The values indicated for storage life are standard ones.
5.6 Thawing food
- in the refrigerator compartment
- in a microwave oven
- in a conventional or fan oven
- at room temperature
u
Remove only as much food as is required. Use thawed
food as quickly as possible.
u
Food once thawed should be re-frozen only in exceptional
cases.
Control
* Depending on model and options 17
5.7 Setting the temperature
The temperature depends on the following factors:
-
the amount of times the door is opened
-
how long the door is open for
-
the room temperature of the installation site
-
the type, temperature and amount of food
The temperature can be set from -28 °C to -14 °C.
Recommended temperature setting: -18 °C
u
Press the freezer compartment field.
w
The following screen is displayed:

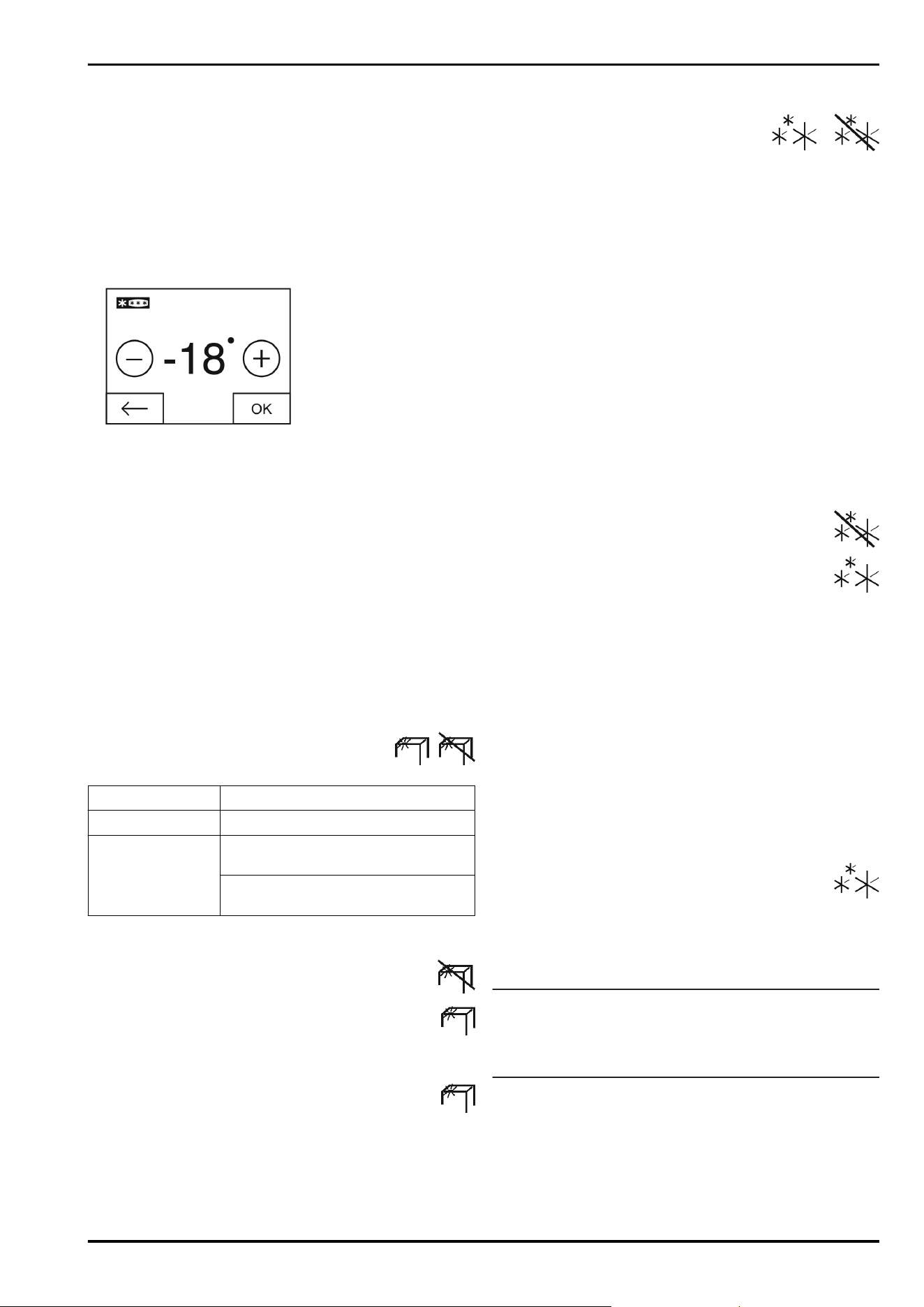

Fig. 40
Setting a higher temperature:
u
Press plus.
Setting a lower temperature:
u
Press minus.
The minus symbol is greyed out when the coldest tempera‐
ture is selected.
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
Confirm the required temperature with OK.
w
The display switches to the home screen.
w
The selected temperature is displayed.
w
Up or down arrows indicate the change in temperature.
The arrows are greyed out when the target temperature
is reached.
5.8 Status display
The status display shows you the status of
the appliance when the door is closed. If the
door is open the status display is greyed out.
Status Description
Blue light The appliance is working perfectly.
Red pulsating light Temperature alarm (see 8.2 Tempera‐
ture alarm)
Appliance faults (see 8.4 Appliance
faults)
5.8.1 Switching the status display on
u
Press menu.
u
Press the navigation arrows until the status
display appears.
u
Press ON.
w
The status display is switched on.
5.8.2 Switching the status display off
u
Press menu.
u
Press the navigation arrows until the status
display appears.
u
Press OFF.
w
The status display is switched off.
5.9 SuperFrost
With this function you can freeze fresh
food quickly through to the core. The
appliance operates with maximum refrig‐
eration. The noise of the refrigeration unit
may be temporarily louder as a result.
You can freeze as many kilograms of fresh food within
24 hrs as is indicated on the type plate under “Freezing
capacity ... kg/24hrs”. This maximum freezing quantity can
vary depending on model and climate class.
You have to activate SuperFrost in good time, depending on
how much fresh food is to be frozen: about 6 hours before
placing the food inside in case of small amounts and about
24 hours in advance in case of the maximum amount of food
to be frozen.
Wrap produce and spread it out as far as possible. Do not
allow produce to be frozen to touch produce that is already
frozen to prevent the latter thawing.
You do not have to activate SuperFrost in the following
cases:
-
when placing frozen food in the freezer
-
when freezing up to approx. 1 kg fresh food daily
5.9.1 Switching SuperFrost on.
u
Press menu.
u
Press the navigation arrow until SuperFrost is
displayed.
u
Press ON.
w
SuperFrost is switched on.
w
The freezer temperature goes down and the
appliance works at maximum cooling capacity.
If there is a small amount of frozen food:
u
wait about 6 hours.
u
Place packaged food in the top drawers.
With the maximum amount of frozen food (see model
plate):
u
wait about 24 hours.
u
Remove top drawers and place food directly on the upper
shelves.
w
SuperFrost switches itself off automatically after about
65 hours.
w
The SuperFrost symbol is greyed out.
u
Put the food in the drawers and close them again.
w
The appliance works in normal mode again.
5.9.2 Switching off SuperFrost
u
Press menu.
u
Press the navigation arrow until SuperFrost is
displayed.
u
Press OFF.
w
SuperFrost is switched off.

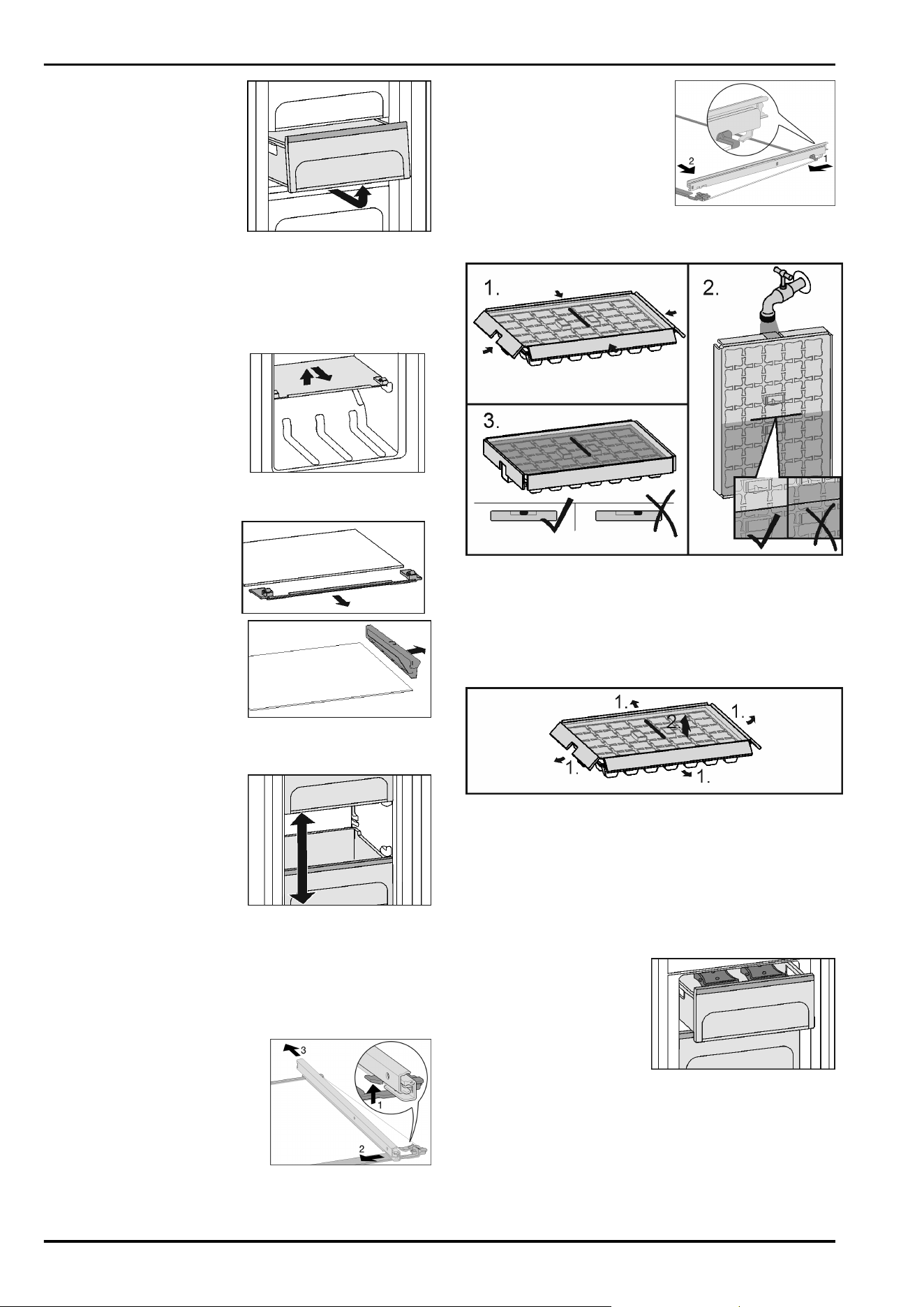

5.10 Drawers
Note
The energy consumption increases and the cooling perform‐
ance reduces if the air ventilation is insufficient.
u
Ensure that the air slits of the fan on the rear wall are
always kept free!
Control
18 * Depending on model and options
u
To store frozen food
directly on the shelves pull
the drawer forward and lift
it out.*
u
To store frozen food directly on the shelves Lift the
drawer at the back, pull it forwards to remove.*
5.11 Shelves
5.11.1 Moving shelves
u
To remove the shelf: lift up
at the front and pull out.
u
To put the shelf back:
simply push in as far as it
will go.
*
5.11.2 Removing shelves
*
u
The shelves may be
removed for cleaning.*
5.12 VarioSpace
You can remove the shelves
and drawers. This leaves more
room for larger food items
such as poultry, meat, large
game and tall baked goods,
which can be frozen whole
before further preparation.
u
The top drawer can be loaded with a max. of 15 kg,
the bottom drawer with a max. of 10 kg and the other
drawers each with a max. of 25 kg.
u
The shelves can each be loaded with 35 kg of frozen
food.

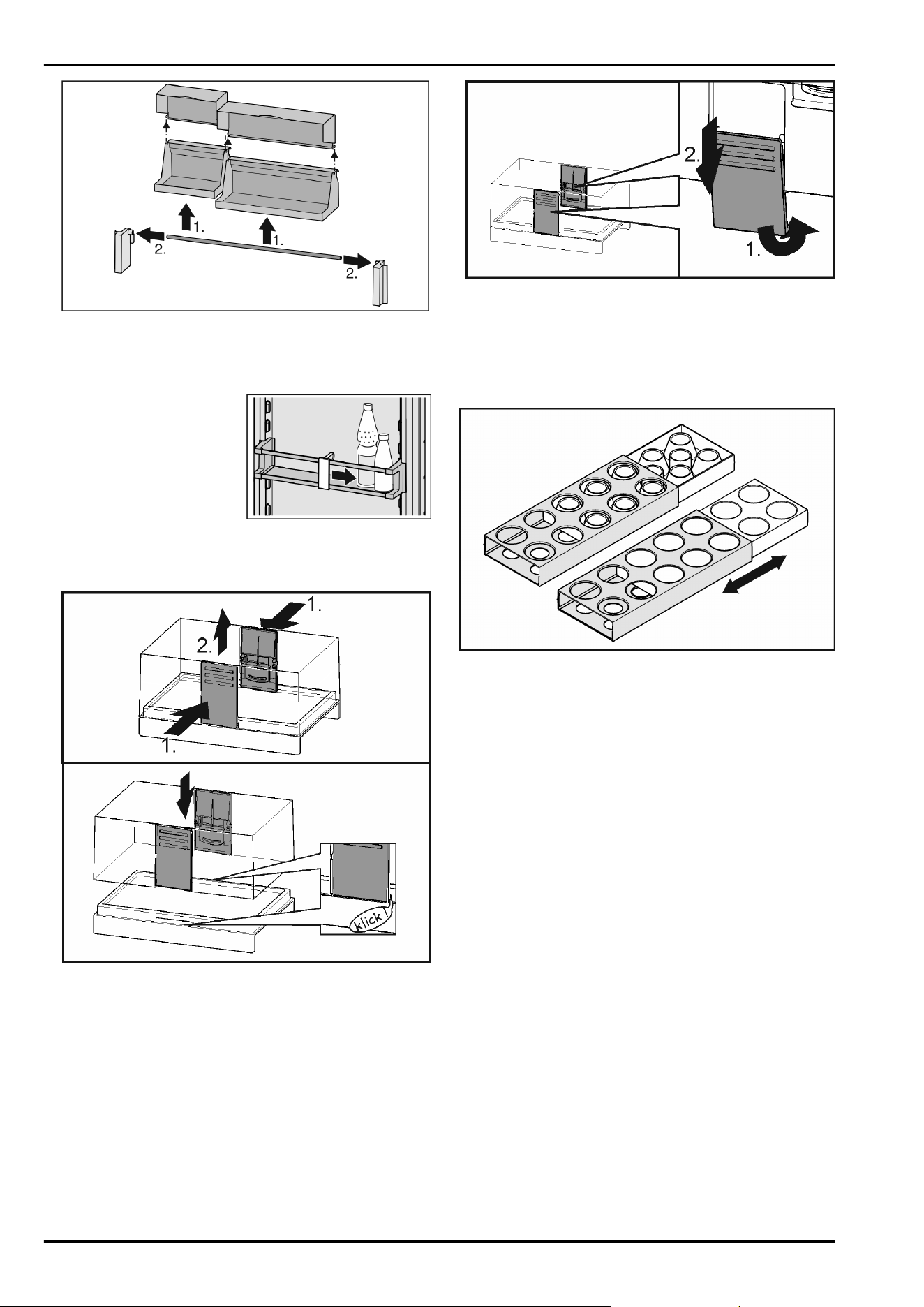

5.13 Extractor rails*
u
To clean the glass racks,
remove the retractable rails:
press front support hooks
upwards (1), slide the retract‐
able rail away to one side (2)
and backwards (3).
u
Replacing the retractable rail:
attach hook at back (1) and
engage at front (2).
5.14 Ice cube tray
Fig. 41
When the water is frozen:
u
Hold ice cube tray under hot water for a short time.
u
Remove the lid.
u
Gently turn the ends of the ice cube tray in opposite
directions and release the cubes.
Dismantling the ice cube tray
Fig. 42
u
You can take the ice cube tray apart for cleaning.
5.15 Freezer pack
Freezer packs prevent the temperature rising too quickly
should there be a power cut.
5.15.1 Using freezer packs
u
Put the fully frozen freezer
packs on the frozen food in
the top front section of the
freezer compartment.
5.16 IceMaker
The IceMaker is in the fifth drawer from the top on the left.
Make certain that the following conditions are met:
-
The appliance is level.
-
The appliance is connected.
-
The IceMaker is connected to the water supply.
Control
* Depending on model and options 19
5.16.1 Producing ice cubes
The production capacity depends on the freezer tempera‐
ture. The lower the temperature, the more ice cubes can be
produced in a specific period.
The ice cubes drop from the IceMaker into the drawer. When
a certain filling level has been reached, no further ice cubes
are produced. The IceMaker does not fill the drawer right up
to the brim.
Distribute the ice cubes evenly in the drawer to increase the
capacity.
If large quantities of ice cubes are needed, the complete
IceMaker drawer can be exchanged for the adjacent drawer.
When the drawer is closed, the IceMaker automatically re-
commences production.
Once the IceMaker has been switched on for the first time,
it may take up to 24 hours until the first ice cubes are
produced.
Note
When the appliance is used for the first time and if it has
been out of use for a long time, particles may collect in the
IceMaker and/or water conduit.
u
Do not use or consume ice cubes that have been made
24 hours after the first ice cubes are made.
5.16.2 Switch the IceMaker on.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press ON.
w
The IceMaker is switched on.
Note
u
The IceMaker only makes ice cubes when the drawer is
completely closed.
Flushing
Flushing function to rinse out the water pipe when used for
the first time.
Note
The water pipe can only be rinsed out if the temperature is
above 0 °C.
u
Only use the Flushing option if the temperatures in the
appliance are above 0 °C.
NOTICE
Blocked IceMaker and water outlet.
Risk of damage to the IceMaker and the drawer outlet.
u
Put containers with a maximum height of 7 cm in the
drawer under the IceMaker.
Ensure that the IceMaker drawer is empty.
u
Do not place containers taller than 7 cm in the drawer
under the IceMaker.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press the navigation arrows until flushing is
displayed.
u
Press ON.
w
Water pipes are rinsed and at the same
time the ice cube tray is turned back to the
cleaning position.
u
Do not operate the screen during this procedure.
Flushing function terminated: The symbol appears.
u
Press OK.
u
Remove the drawer and the container.
u
Clean the drawer and, if necessary, remove excess water
from the drawer.
5.16.3 IceMaker holiday function
The IceMaker holiday function is suitable for short phases
when no ice cubes are to be made, for example, when you
are on holiday.
Switching the IceMaker holiday function on.
The IceMaker drawer must be emptied and pushed in.
u
Press menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press the navigation arrows until the IceMaker
holiday function is displayed.
u
Press ON.
w
The ice cube tray moves to the cleaning position.
The IceMaker switches to holiday function.
w
The IceMaker holiday function symbol appears in
the menu area.
u
Remove the drawer.
u
Clean the ice cube tray and drawer with a soft cleaning
cloth and warm water. If necessary use a mild detergent.
Then rinse out.
u
Push the drawer in.
Switching the IceMaker holiday function off
NOTICE
Sickness caused by dirty ice compartment.
u
After the IceMaker has been switched off for a long time,
clean the ice cube tray.
NOTICE
Rinse agent residue in the ice compartment and drawer.
Nausea or irritation of the mucous membrane.
u
Remove rinse agent residue: Discard the first three
batches of ice cubes.
u
Remove the drawer.
u
Clean the ice cube tray and drawer with a soft cleaning
cloth and warm water. If necessary use a mild detergent.
Then rinse out.
u
Push the drawer in.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press OFF.
w
The ice cube tray moves to the operating position. The
IceMaker switches on.
w
The IceMaker symbol appears in the menu field instead of
the IceMaker holiday function symbol.
5.16.4 Switching off the IceMaker
If no ice cubes are required, the IceMaker can be switched
off independently of the freezer compartment.
When the IceMaker is switched off, the drawer of the
IceMaker can also be used for freezing and storing food.
u
Cleaning the IceMaker (see 6.4 Cleaning the IceMaker) .
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press OFF.
w
The IceMaker is switched off.
u
If necessary, food can now be frozen in the drawer up to
a maximum height of 7 cm.
Control
20 * Depending on model and options
6 Maintenance
6.1 Defrosting with NoFrost
The NoFrost system automatically defrosts the appliance.
The moisture condenses on the evaporator, is periodically
defrosted and evaporates.
u
The appliance does not have to be manually defrosted.
6.2 Cleaning the ventilation grid
The ventilation grid ensures that the appliance works prop‐
erly due to optimum aeration and ventilation.
u
Clean the ventilation grid regularly with a vacuum
cleaner.
u
Remove stubborn stains with a soft cloth.
When the timer is set a message on the display
prompts you to clean it. The clean ventilation grid
symbol appears on the screen.
u
Press the clean ventilation grid symbol.
w
The display switches to the home screen.
The message can be displayed again by pressing the menu
field until it has been cleaned and this has been confirmed.
(see 8 Messages) .
Confirming that the ventilation grid has been cleaned
u
Press menu.
u
Press the navigation arrows until the ventilation
grid is displayed.
u
Press the ventilation grid symbol.
u
Press the navigation arrows until clean ventila‐
tion grid is displayed.
u
Press RESET.
w
The timer is reset. The cleaning interval starts all
over again.
Turning the timer off
If the reminder function is to be switched off the timer can
be turned off.
u
Press menu.
u
Press the navigation arrows until the ventilation
grid is displayed.
u
Press the ventilation grid symbol.
u
Press OFF.
w
The timer is turned off.
6.3 Cleaning the appliance
Clean the appliance regularly.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
Do not use any steam cleaners!
NOTICE
Incorrect cleaning damages the appliance!
u
Do not use cleaning agents in concentrated form.
u
Do not use any scouring or abrasive sponges or steel
wool.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
u
Do not use chemical solvents.
u
Do not damage or remove the type plate on the inside of
the appliance. It is important for the customer service.
u
Do not pull off, bend or damage cables or other compo‐
nents.
u
Do not allow any cleaning water to enter the drain
channel, ventilation grille or electrical parts.
u
Please use soft cleaning cloths and a universal pH-
neutral cleaning agent.
u
Please use cleaning and care products suitable for
contact with foodstuffs in the appliance interior.
u
Empty appliance.
u
Pull out the power plug.
u
Clean plastic outer and inner surfaces with lukewarm
water and a little washing-up liquid.
u
Only use a soft clean cloth to wipe side walls with a
paint finish. In the case of heavy soiling, use lukewarm
water with neutral cleaning agent.*
NOTICE
Risk of damage from stainless steel care products!
The stainless steel doors and stainless steel side panels
are treated with a premium surface finish.
Stainless steel care products attack these surfaces.
u
Only use a soft, clean cloth to wipe down finished door
and side panel surfaces and painted door and side panel
surfaces. To remove heavy dirt, use a little water or
neutral detergent. Alternatively, you can use a micro-fibre
cloth.
Do not treat the lettering on the painted door surfaces with
harsh, abrasive agents. Wipe off any dirt with a soft cloth
and some water or neutral cleaner.*
u
Most of the parts can be dismantled for cleaning: see the
relevant chapter.
u
Clean drawers by hand with lukewarm water and a little
washing up liquid.
u
All the other fittings can be put in the dishwasher.
u
Only use a damp cloth to clean the telescopic rails. The
grease in the runners is for lubrication purposes and
must not be removed.*
After cleaning:
u
Wipe dry the appliance and items of equipment.
u
Connect the appliance and switch it on again.
u
Switch on SuperFrost (see 5.9 SuperFrost) .
When the temperature is sufficiently cold:
u
Put the food back inside.
6.4 Cleaning the IceMaker
The IceMaker drawer must be emptied and pushed in. The
IceMaker must be switched on.
u
Press Menu.
u
Press the navigation arrows until the IceMaker is
displayed.
u
Press the IceMaker symbol.
u
Press the navigation arrow until the cleaning
position is displayed.
Maintenance
* Depending on model and options 21
u
Press ON.
w
The ice cube tray moves to the cleaning position.
The screen cannot be used during this process.
w
OFF appears: The rotary movement stops and the
IceMaker switches off for cleaning.
u
Remove the drawer.
u
Clean the ice cube tray and drawer with a soft cleaning
cloth and warm water. If necessary use a mild detergent.
Then rinse out.
u
Push the drawer in.
u
Press OFF.
w
The ice cube tray moves to the operating position.
NOTICE
Rinse agent residue in the ice compartment and drawer.
Nausea or irritation of the mucous membrane.
u
Remove rinse agent residue: Discard the first three
batches of ice cubes.
u
Leave the IceMaker switched on.
-or-
u
Switch the IceMaker off (see 5 Control)
6.5 Customer service
First check whether you can rectify the fault yourself
(see 7 Malfunctions) . If you cannot rectify the problem,
contact Customer Services. You can find the address in the
enclosed Customer Service Directory.
WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see 6 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.

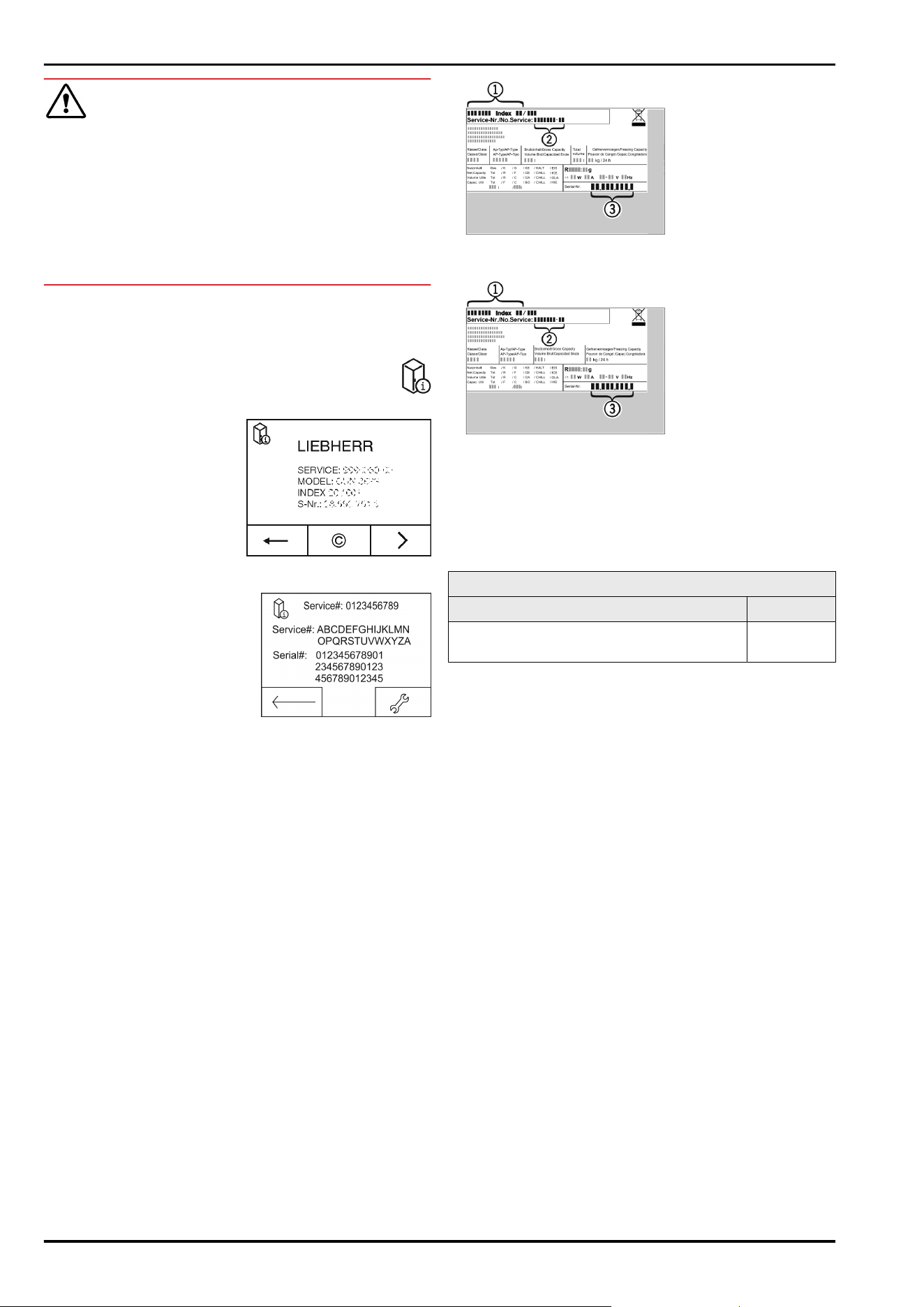

Call up the appliance designation (model and index),
service no. (service), serial no. (s-no.) as well as the
expanded functions on the screen:
u
Press menu.
u
Press the navigation arrows until the appliance
information symbol is displayed.
u
Press the appliance information symbol.
w
The appliance information is displayed.
u
Note down the appliance
information.
u
To return to the home
screen press the Back
symbol.
u
To access the customer menu, press it until the key
symbol appears.
u
Enter the numerical code 151 to select the customer
menu.
Customer menu
The following functions can be called up in the customer
menu:
- Self diagnostics
The appliance carries out self diagnostics and checks all
electrical components.
- RESET
The appliance is reset to the factory settings.
- Manual defrosting
Manual defrosting starts.
- Water supply time
This function is active for appliances with an ice cube
maker. The size of the ice cubes is determined by the
water supply time.
u
Close the door.
u
Contact customer service and give them the required
appliance information.
w
This will help us to provide you with a faster, more accu‐
rate service.
u
Follow any further instructions given by Customer Serv‐
ices.
Alternatively you can read off the appliance information
from the model plate:
The model plate is inside the appliance on the left-hand
side.
Fig. 43
(1)
Appliance description* (3) Serial no.*
(2) Service no.*
Fig. 44
(1)
Appliance description* (3) Serial no.*
(2) Service no.*
Licence agreements:
Licences used can be viewed at ©.
u
Press ©.
6.6 Energy efficiency class lighting*
Lighting
Energy efficiency class
1
Light source
This product contains an energy efficiency
class G light source
LED
1 The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
7 Malfunctions
Your appliance is designed and manufactured for a long
life span and reliable operation. If a malfunction nonethe‐
Malfunctions
22 * Depending on model and options
less occurs during operation, check whether it is due to a
handling error. In this case you will have to be charged for
the costs incurred, even during the warranty period. You
may be able to rectify the following faults yourself:
Defect Cause Remedy
Appliance does not
work.
→ The appliance is not switched on.
u
Switching on the appliance.
→ The power plug is not properly
inserted in the wall socket.
u
Check power plug.
→ The fuse of the wall socket is not in
order.
u
Check fuse.
→ The appliance plug does not fit the
appliance properly.
u
Check the appliance plug.
The compressor
runs for a long
time.
→ The compressor switches to a
low speed when little cold is
needed. Although the running time
is increased as a result, energy is
saved.
u
This is normal in energy-saving models.
→ SuperFrost is activated.
u
The compressor runs for longer in order to rapidly cool
the food. This is normal.
Excessive noise.
→ Due to the various speed steps,
speed-regulated* compressors can
generate different running noises.
u
The sound is normal.
A bubbling and
gurgling noise.
→ This noise comes from the refrig‐
erant flowing in the refrigeration
circuit.
u
The sound is normal.
A quiet clicking
noise.
→ The noise is produced whenever
the refrigeration unit (motor) auto‐
matically switches on or off.
u
The sound is normal.
A hum. It is briefly
a little louder
when the refrig‐
eration unit (the
motor) switches
on.
→ The refrigeration increases auto‐
matically when the SuperFrost,
function is activated, fresh food
has just been placed in the appli‐
ance or the door has been left open
for a while.
u
The sound is normal.
→ The ambient temperature is too
high.
u
Solution: (see 1.2 Appliance range of use)
A low hum.
→ The sound is produced by air flow
noise of the fan.
u
The sound is normal.
Vibration noises
→ The appliance is not standing
firmly on the floor. As a result
objects and adjacent units start
to vibrate when the refrigerator is
running.
u
Align the appliance using the adjustable feet.
Flow sound at the
soft stop mecha‐
nism.*
→ The noise is produced when the
door is opened and closed.
u
The sound is normal.
The DEMO symbol
appears on the
screen. In addition
some time elapses.
→ DEMO mode is activated.
u
OFF Press .
DEMO is displayed
in the top right
corner of the
screen.
→ DEMO mode is activated.
u
Unplug the appliance.
u
Plug the appliance in again.
w
The DEMO symbol appears on the screen. In addition
some time elapses.
u
OFF Press .
The outer surfaces
of the appliance
are warm*.
→ The heat of the refrigeration circuit
is used to prevent condensate from
forming.
u
This is normal.
Malfunctions
* Depending on model and options 23
Defect Cause Remedy
The IceMaker
cannot be
switched on.
→ The appliance and therefore the
IceMaker are not connected.
u
Connect the appliance to the mains (see 4 Putting into
operation) .
The IceMaker does
not make any ice
cubes.
→ The IceMaker is not switched on.
u
Switch on the IceMaker.
→ The drawer of the IceMaker is not
properly closed.
u
Close the drawer properly.
→ The water connection is not open.
u
Open the water connection.
Functions in the
IceMaker submenu
do not start.
→ Ice cube tray rotates.
u
Try again after 1 minute.
The temperature is
not cold enough.
→ The door of the appliance is not
properly closed.
u
Close the door of the appliance.
→ Insufficient ventilation.
u
Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
u
Solution: (see 1.2 Appliance range of use) .
→ The appliance was opened too
frequently or for too long.
u
Wait to see whether the appliance reaches the required
temperature by itself. If not, please contact the after
sales service (see 6 Maintenance) .
→ Too much fresh food was placed
inside without SuperFrost.
u
Solution: (see 5.9 SuperFrost)
→ The temperature is incorrectly set.
u
Set the temperature to a colder setting and check after
24 hours.
→ The appliance is too close to a
source of heat (stove, heater etc).
u
Change the position of the appliance or the source of
heat.
The status display
does not light up.
→ The status display is switched off.
u
Switch the status display on .
→ The door is open.
u
Close the door.
→ The appliance is switched off.
u
Switch the appliance on.
→ LED is faulty.
u
Contact Customer Services (see 6 Maintenance) .
The internal light
does not come on.*
→ The appliance is not switched on.
u
Switch the appliance on.
→ The door was open for longer than
15 minutes.
u
The internal light switches itself off automatically after
about 15 minutes if the door is open.
→ The LED illumination is faulty or the
cover is damaged:
WARNING
Risk of injury due to electric shock!
There are live electrical parts under the cover.
u
Only ever have the inside LED light replaced or repaired
by customer service or trained personnel.
WARNING
Risk of injury from LED bulb!
The light intensity of the LED light corresponds to hazard
group RG 2.
If the cover is defective:
u
Do not look directly into the light from close range. It
cause injury to the eyes.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
u
Contact Customer Service (see 6 Maintenance) :
→ The door seal may have also
slipped out of its groove.
u
Check to ensure that the door seal is seated properly in
the groove.
Malfunctions
24 * Depending on model and options
Defect Cause Remedy
The unit has iced
up or condensation
has formed.
8 Messages
Error messages and reminders are displayed by an
audible signal and a message on the screen. The
audible signal gets louder and louder when error
messages appear. It only stops when the message
is confirmed. Highest priority messages are displayed
first if several occur at the same time. Each message
must be cleared separately.
The message stays in the menu field as long as it is active
or the fault is not eliminated.
Note
Details on the message can be displayed again via the menu
field.
u
Press menu.
u
Press the message symbol.
u
The display switches to the next message when you
press one. After the last active message the display
switches to the home screen.
Door alarm
An audible warning sounds if the door is open for
longer than 60 seconds. The door alarm symbol
appears on the display. The audible warning stops
automatically when the door is closed.
The audible warning can be switched off when the
door is open. The audible alarm is switched off
while the door is open.
u
Press the door alarm symbol.
w
The door alarm stops.
w
The display switches to the home screen.
u
Close the door.
Temperature alarm
An audible signal sounds if the temperature is
not cold enough. The temperature alarm symbol
appears on the display.
Appliances with a status display: When the status
display is active and the door is closed, a red light
appears at the same time.
The temperature had risen too high during the last
few hours or days. When the fault is eliminated the
appliance continues to work at the last temperature
setting.
The reason for too high a temperature may be:
-
hot, fresh food was inserted
-
too much warm room air flowed in when rearranging and
removing food
-
the power was cut off for a while
-
the appliance is faulty
u
Open the door.
w
Appliances with a status display: When the status
display is activated, the pulsing red light goes out.
u
Press the temperature alarm symbol.
w
The audible signal stops. The warmest temperature
reached during the malfunction is displayed on the
screen.
u
Press the screen or wait for 30 seconds.
w
The display switches to the home screen. Arrows and the
temperature alarm symbol appear in the relevant temper‐
ature field . In addition the messages symbol is
displayed in the menu field .
u
Check the food for quality. Do not consume spoiled food.
Do not re-freeze defrosted food,
u
Close the door.
w
The symbols are greyed out when the target temperature
is reached.
w
Appliances with a status display: While the status display
is activated, this lights up blue.
If the alarm status persists or the temperature cannot be
reset independently:
(see 7 Malfunctions) .
Power cut
An audible warning sounds. The power cut symbol
appears on the display.
The temperature had risen too high over the last
few hours or days due to a power cut or power
interruption. When the power is restored the appli‐
ance continues to work at the last temperature
setting. Activated reminders are retained.
u
Open the door.
u
Press the power cut symbol.
w
The audible signal stops. The warmest temperature
reached in the freezer compartment during the power cut
is displayed on the screen.
u
Press the screen or wait for 30 seconds.
w
The display switches to the home screen. Arrows and the
symbol temperature alarm appear in the relevant temper‐
ature field . The messages symbol is also shown in
the menu field .
u
Check the food for quality. Do not consume spoiled food.
Do not re-freeze defrosted food,
u
Close the door.
w
The symbols are greyed out when the target temperature
is reached.
Appliance faults
An audible warning sounds. The appliance fault
symbol appears on the display with the relevant
error code.
Appliances with a status display: When the status
display is activated and the door is closed, a red
light pulses at the same time.
An appliance component indicates a fault.
u
Open the door.
u
Note down the fault code.
u
Press the appliance fault symbol.
w
The audible signal stops. The display switches to the
home screen.
u
Close the door.
w
Appliances with a status display: While the status display
is activated, this lights up blue.
u
Contact Customer Services (see 6 Maintenance) .
Water inlet fault
An audible warning sounds. The appliance fault
symbol appears on the display with the WATER
error code.
Messages
* Depending on model and options 25
The water connection to the IceMaker is not open, the water
feed is interrupted or the filter in the water inlet hose
connection is blocked.
u
Open the door.
u
Press the appliance fault symbol.
w
The audible signal stops. The display switches to the
home screen. The IceMaker switches off.
u
Close the door.
u
Open the water connection.
-or-
u
Check the water connection and the hoses (see 4 Putting
into operation) .
-or-
u
Clean the filter.
u
Switch the IceMaker on (see 5.16.2 Switch the IceMaker
on.) .
u
Contact Customer Service if the message persists
(see 6 Maintenance) .
Other messages
Clean the ventilation grille (see 6 Mainte‐
nance)
Open, close IceMaker drawer
9 Decommissioning
9.1 Switching the appliance off
Note
If the appliance cannot be switched off, the child safety
device is enabled.
u
Switch the child safety device off (see 5.2.2 Switching
the child safety device off) .
9.1.1 Switch off the appliance from the menu
The whole appliance is switched off. The screen goes black.
u
Press menu.
u
Press the navigation arrows until the standby
symbol is displayed.
u
Press OK.
w
The standby symbol flashes on the whole screen. The
whole appliance is switched off.
w
After 10 minutes the standby symbol goes out.
9.1.2 Switching the appliance off via the
freezer compartment field.
The screen remains on.
u
Press the freezer compartment field.
u
Press plus.
w
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
Press OK.
w
The standby symbol appears in the freezer compartment
field.
w
The appliance is switched off and the screen remains
switched on
9.2 Taking the appliance out of service
u
Empty the appliance.
u
Put the IceMaker in the cleaning position (see 6 Mainte‐
nance) .
u
Switch off the appliance (see 9 Decommissioning) .
u
Remove mains connector.
u
Remove appliance connector if required:
Remove and move from left to right at the same
time.
u
Clean the appliance (see 6.3 Cleaning the appli‐
ance) .
u
Leave the door open to prevent odour.
10 Disposal
10.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation. (see 9.2 Taking the
appliance out of service)
u
Appliances with batteries: remove the batteries. For
description, see Maintenance chapter.
u
If possible: remove lamps without destroying them.
10.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany:* You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.*
Decommissioning
26 * Depending on model and options
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Disposal
* Depending on model and options 27
Liebherr-Hausgeräte Ochsenhausen GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland
home.liebherr.com
User Guide
fridge with BioFresh
20220719
7088214 - 00
(S)KB(es) 43..
Contents
1 Appliance at a glance............................................ 2
1.1 Overview of the appliance and its equipment........ 2
1.2 Appliance range of use............................................... 2
1.3 Conformity..................................................................... 3
1.4 EPREL database*......................................................... 3
1.5 Installation dimensions............................................... 3
1.6 Saving energy............................................................... 3
1.7 Example of contents arrangement........................... 4
1.8 Smart device ................................................................ 4
2 General safety information................................... 4
3 Controls and displays............................................ 6
3.1 Home screen................................................................. 6
3.2 Operating structure..................................................... 6
3.3 Navigation..................................................................... 6
3.4 Display symbols........................................................... 6
3.5 Appliance options........................................................ 7
4 Putting into operation........................................... 7
4.1 Transporting the appliance........................................ 7
4.2 Installing the appliance.............................................. 7
4.3 Reversing the door....................................................... 8
4.4 Sliding into the row of units....................................... 13
4.5 Disposing of packaging............................................... 13
4.6 Connecting the appliance........................................... 14
4.7 Switching on the appliance........................................ 14
4.8 SmartDevice box.......................................................... 14
4.9 Inserting the FreshAir filter. ...................................... 15
4.10 Setting the clean ventilation grid timer................... 15
5 Control................................................................... 15
5.1 Changing the temperature unit................................. 15
5.2 Child proofing............................................................... 15
5.3 SabbathMode................................................................ 16
5.4 Refrigerator compartment.......................................... 16
5.5 BioFresh compartment................................................ 19
6 Maintenance.......................................................... 21
6.1 Change the FreshAir filter........................................... 21
6.2 Defrosting...................................................................... 22
6.3 Cleaning the ventilation grid...................................... 22
6.4 Cleaning the appliance............................................... 22
6.5 Customer service......................................................... 22
6.6 Energy efficiency class lighting*.............................. 23
7 Malfunctions......................................................... 23
8 Messages............................................................... 24
9 Decommissioning.................................................. 25
9.1 Switching the appliance off....................................... 25
9.2 Taking the appliance out of service.......................... 25
10 Disposal................................................................. 25
10.1 Preparing appliance for disposal.............................. 25
10.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 25
The manufacturer works constantly on the further develop‐
ment of all the types and models. Therefore please under‐
stand that we have to reserve the right to make design,
equipment and technical modifications.
To get to know all the benefits of your new appliance,
please read the information contained in these instructions
carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked
with an asterisk (*).
Instructions are marked with a
, and results are marked
with a .
1 Appliance at a glance
1.1 Overview of the appliance and its
equipment
Exemplary illustration of the appliance model
Fig. 1
(1)
Closing damper (12) Ventilation grid
(2) Operating and control
elements
(13) Adjusting feet
(3) LED interior lighting (14) Front transport handles,
rear transport castors
(4) Box shelf (15) Rating plate
(5) Can rack (16) BioFresh compartment
LED lighting
(6) Bottle rack (17) Adjustable bottle shelf
(7) Bottle shelf (18) Shelf
(8) LED interior lighting (19) VarioSafe
(9) Biofresh compartment,
Drysafe
(20) Shelf, can be split
(10) Fruit & Vegetable safe
cover
(21) Retainer for fresh air
filter
(11) Fruit & Vegetable safe (22) Rear transport handles
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
1.2 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
Appliance at a glance
2 * Depending on model and options
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is not suitable for freezing
food;
The appliance is not suitable as a built-in
unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in outdoor areas with very high
humidity
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
1.3 Conformity
The refrigerant circuit has been tested for leaks. This
device complies with the applicable safety regulations and
with the directives 2014/35/EU, 2014/30/EU, 2009/125/EC,
2011/65/EU, 2010/30/EU and 2014/53/EU.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
The BioFresh compartment meets the requirements of a
cold storage compartment as set out in DIN EN 62552:2020.
1.4 EPREL database*
Details about energy labelling and ecodesign requirements
will be available on the European product database (EPREL)
from 1st March 2021. You can access the product database
at the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the nameplate.*
1.5 Installation dimensions
Fig. 2
Model
a
[mm]
b
[mm]
c
[mm]
d
[mm]
e
[mm]
f
[mm]
g
[mm]
h [°]
(S)KB(
es)
43..
600 1850 600
x
665
x
709
x
1223
x
640 90
x
When using wall spacers, the dimensions increase by
15 mm (see 4.2 Installing the appliance) .
1.6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.2 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Sort your food: home.liebherr.com/food.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it
doesn’t warm up too much.
Appliance at a glance
* Depending on model and options 3
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
Use the holiday function if you intend to be away for an
extended period (see 5.4.4 Holiday mode) .

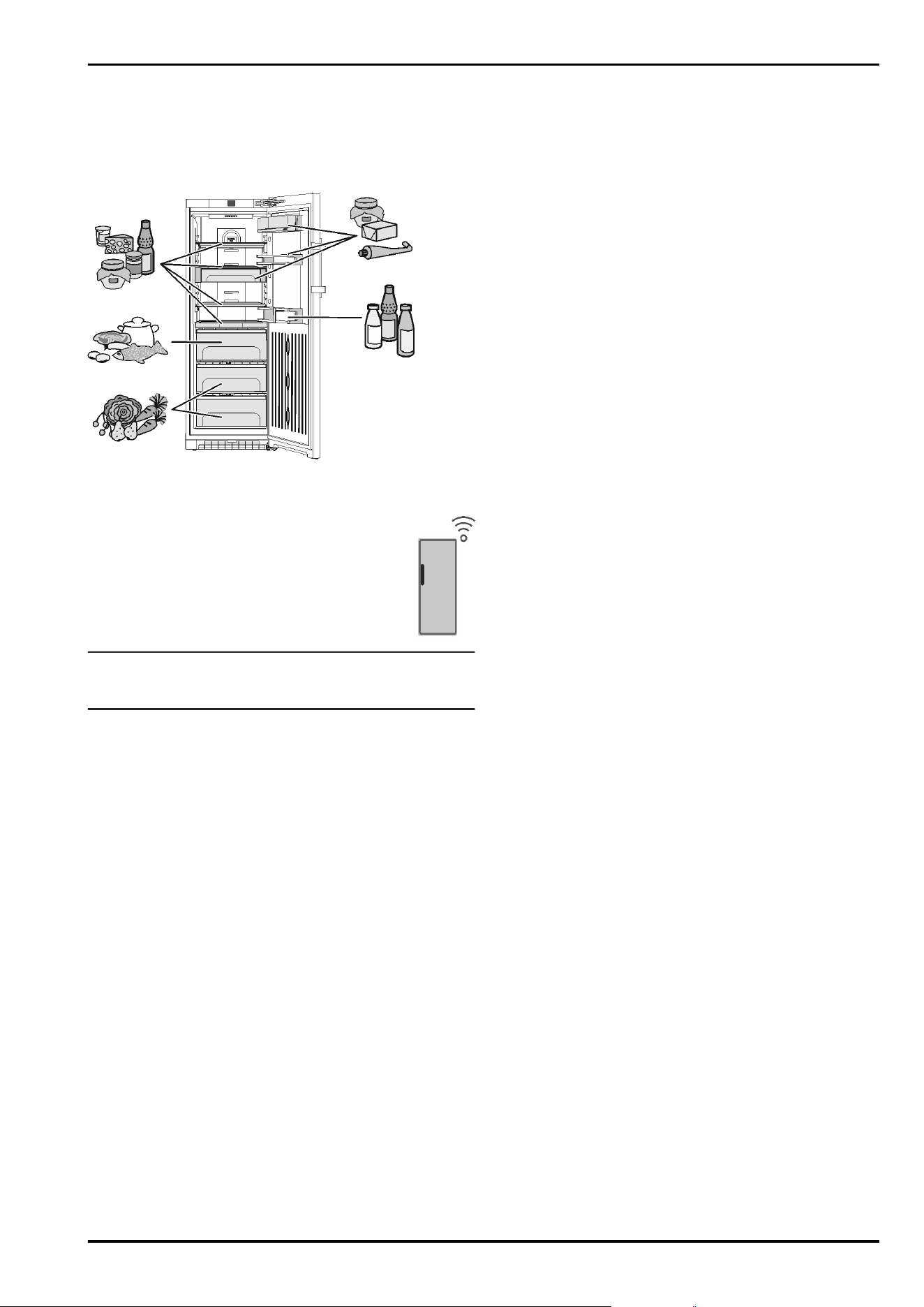

1.7 Example of contents arrangement
Fig. 3
1.8 Smart device
The appliance is ready for integration into a
smart home and for extended services. With a
SmartDevice Box, you can activate this and other
options. This is activated via the MyLiebherr
customer portal.
Note
The SmartDevice Box is available for purchase from the
Liebherr Household Store (home.liebherr.com).
You will find more information about availability and
prerequisites and the individual options on the website,
www.smartdevice.liebherr.com.
2 General safety information
Please keep these instructions in a safe
place and pass them on to any subsequent
owners.*
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.*
If you pass the appliance on, please hand
these operating instructions to the next user.*
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they
are supervised or have received instruction
in the safe use of this device, and about
the resulting hazards. Children must not
play with this appliance. Cleaning and user
maintenance work must not be carried out
by children without adult supervision. Chil‐
dren aged between 3 and 8 are allowed
to load and unload the appliance. Children
below the age of 3 must be kept away from
the appliance unless they are under contin‐
uous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
If the supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacturer or its
service agent.*
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
-
Special lights, such as LED lights on the
appliance, are used to illuminate the inte‐
rior of the appliance and are not suitable
for room lighting.*
Fire hazard:
-
This appliance contains a refrigerant
which is environmentally friendly, but flam‐
mable. Leaking refrigerant may ignite. It
is hazardous for anyone other than an
Authorised Service Person to service this
appliance. In Queensland, the authorised
Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants,
to carry out Servicing or repairs where the
gas system is being opened or charged.*
-
The coolant used (information on the model
plate) is eco-friendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
General safety information
4 * Depending on model and options
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.*
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.*
-
WARNING: Keep ventilation openings, in
the appliance enclosure or in the built-in
structure, clear of obstruction.*
-
WARNING: Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.*
-
WARNING: Do not damage the refrigerant
circuit.*
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
-
Do not consume ice cream, water ice or
ice cubes immediately and do not consume
them too cold.*
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not reach into the hinge when opening
and closing the door. Fingers may get
trapped.
Symbols on the appliance:
The symbol can be located on the
compressor. It refers to the oil in the
compressor and indicates the following
danger: Swallowing or inhaling can be fatal.
This is only relevant for recycling. There is
no danger in normal operation.
This symbol is found on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
A sticker to this effect may be applied to
the rear of the appliance. It refers to the
foam-padded panels in the door and/or the
housing. This is only relevant for recycling.
Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
identifies a situation involving
direct danger which, if not obvi‐
ated, may result in death or severe
bodily injury.
WARNING identifies a dangerous situation
which, if not obviated, may result
in death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result
in minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result
in damage to property.
Note identifies useful instructions and
tips.
General safety information
* Depending on model and options 5
3 Controls and displays
3.1 Home screen
Fig. 4
(1)
Fridge compartment
field
(3) Menu field
(2) BioFresh field (4) Screen
The home screen is the first screen the user sees. All
settings can be made from there.
All functions can be called up by touching the screen and
values can be changed.
3.2 Operating structure
Fridge compartment field
Fig. 5
(1)
Fridge compartment
symbol
(2) Fridge compartment
temperature display
The fridge compartment temperature is displayed in the
fridge compartment field.
The following settings can be entered:
-
Temperature settings
-
Switch off appliance. Screen remains functional.
BioFresh field
Fig. 6
(1)
BioFresh symbol (2) BioFresh temperature
display
Setting the Biofresh temperature
(see 5.5 BioFresh compartment) .
Menu field
Fig. 7
(1)
Main menu (2) Option selected
The menu field gives access to the appliance options and
settings. Selected options are also displayed.
3.3 Navigation
Touch the menu to access the individual options. An audible
signal sounds after confirming an option or a setting. The
display switches to the home screen.
The appliance is operated using the following symbols:
Standby:
Switches the appliance or tempera‐
ture zone on.
Menu:
Calls up options.
Minus / Plus:
Changing settings (e.g. adjusting
temperatures).
Left/right navigation arrow:
Selects options and navigates
through the menu.
You can scroll through the indi‐
vidual options using the navigation
arrows. The first option is displayed
again after the last one.
Back:
Cancels the selection.
The display switches to the next
higher level or to the home screen
OK:
Confirms the selection.
After confirmation the display
switches to the home screen.
ON / OFF, START / STOP
Starts/ stops options.
After selecting or cancelling an
option the display switches to the
home screen.
RESET:
Resets timer.
Access to customer service
Note
If no selection is made after 1 minute the display
switches to the home screen.
3.4 Display symbols
Display symbols provide information on the current appli‐
ance status:
Up arrows:
The temperature increases.
Down arrows:
The temperature reduces.
Standby:
The appliance or temperature zone
is switched off.
Controls and displays
6 * Depending on model and options
Messages:
There are active error messages
and reminders.
3.5 Appliance options
You can select or set the following options; explanations
and setting options, (see 5 Control) :
Symbol Option
SuperCool
x
SabbathMode
Child safety device
x
Holiday function
Temperature unit
BioFresh
x
If the option is selected, the relevant symbol is displayed
in the menu field.
The symbol disappears if the option ends or is disabled.
4 Putting into operation
4.1 Transporting the appliance
u
Transport the appliance only in suitable packaging.
u
Transport the appliance upright.
u
Do not transport the appliance on your own.
4.2 Installing the appliance
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
u
The appliance is designed for use in enclosed areas. Do
not operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
WARNING
Improper use!
Fire. If a mains cable/plug comes into contact with the back
of the appliance, the mains cable/plug can be damaged by
appliance vibrations and this may result in a short circuit.
u
Stand the appliance so that it is not touched by connec‐
tors or main cables.
u
Do not connect any appliances to sockets in the area of
the back of the appliance.
u
Multi-sockets/power distributors and other electronic
appliances (such as halogen transformers) may not be
placed and operated at the back of appliances.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
WARNING
Fire hazard and danger of damage!
u
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
NOTICE
Covered vents!
Damage. Appliance can overheat, which can reduce the
service life of various parts of the appliance and lead to
operational impairments.
u
Always make sure there is good ventilation.
u
Always keep vents or ventilation grids in the appliance
housing and in the kitchen furniture (fully integrated
appliance) unobstructed.
u
Always keep the fan air vents unobstructed.
If your appliance is not a side-by-side (SBS) appliance:*
NOTICE
Risk of damage due to condensate!*
u
Do not install the appliance directly alongside a further
refrigerator/freezer.
Note
If you have several appliances next to one another, leave a
gap of 70mm between appliances. Otherwise condensation
will build up between the units.*
Fig. 8 *
q
Before you connect the appliance, report any damage
immediately to the delivery company.
q
The floor of the installation site must be horizontal and
even.
q
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
q
Install the appliance with the rear panel up against the
wall and always use the supplied wall spacers (see
below).
q
Only ever move the appliance when it is empty.
q
The surface supporting the appliance must be at the
same level as the surrounding floor.
q
Do not install the appliance on your own.
q
The more coolant there is in the appliance, the larger
the room in which the appliance is installed must be. If
the room is too small, any leak may create a flammable
mixture of gas and air. For each 8 g of coolant the instal‐
lation space must be at least 1 m
3
. Information on the
coolant is on the model plate inside the appliance.
Putting into operation
* Depending on model and options 7
u
Remove the protective film from the outside of the appli‐
ance.*
NOTICE
Risk of damage from stainless steel care products!
The stainless steel doors and stainless steel side panels
are treated with a premium surface finish.
Stainless steel care products attack these surfaces.
u
Only use a soft, clean cloth to wipe down finished door
and side panel surfaces and painted door and side panel
surfaces. To remove heavy dirt, use a little water or
neutral detergent. Alternatively, you can use a micro-fibre
cloth.
u
Remove the protective film from the decorative trims.
u
Remove all transit supports.
Spacers must be used to achieve the declared energy
consumption and to prevent condensation in the event of
high surrounding humidity. This increases the appliance
depth by about 15 mm. The appliance will work perfectly
well without the spacers but will have a slightly higher
energy consumption.
u
If your appliance comes with
wall spacers, mount these on
the back of the appliance,
bottom left and right.
u
Dispose of packaging material (see 4.5 Disposing of
packaging) .
CAUTION
Risk of injury or damage from the appliance tipping or the
door falling open!
If the additional adjustable foot on the base support is not
correctly positioned on the floor, there is a risk of the door
falling open or the appliance tipping. This can lead to injury
or property damage.
u
Unscrew the additional adjustable foot on the support
until it reaches the floor.
u
Then turn it another 90°.
u
Align the appliance so that it
stands firmly and on a level
by applying the accompa‐
nying spanner to the adjust‐
able-height feet (A) and
using a spirit level.
u
Then support the door: Use saddle wrench SW10 to
unscrew the base on mounting block (B) until it makes
contact with the ground, then continue turning it for a
further 90°.
When a Side-by-Side appliance (S…) is fitted together
with a second appliance (as a SBS combination):*
u
Proceed according to the Side-by-Side combined fridge-
freezer installation instructions. (Accessories bag of the
SBS freezer/appliance with freezer compartment)*
Note
u
Clean the appliance (see 6.4 Cleaning the appliance) .
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
u
Always see to good ventilation at the installation site.
4.3 Reversing the door
If necessary, you can change the way the door opens:
Ensure that the following tools are available:
q
Torx® 25 (T25)
q
Torx® 15 (T15)
q
Slotted screwdriver
q
Open-ended wrench SW10
q
Spirit level
q
Open-ended wrench supplied with the T25 tool
q
If necessary, a cordless screwdriver
q
Get a stepladder if necessary
q
If necessary, a second person for assembly
NOTICE
Risk of condensation damage for Side-by-Side appliances!*
Certain appliances can be set up as Side-by-Side combina‐
tions (two appliances next to each other).
If your appliance is a Side-by-Side (SBS) appliance:
u
Set up the SBS combination in accordance with the
enclosed document.
If the positioning of the devices is stipulated:
u
Do not change the door hinges over.
4.3.1 Remove the soft stop mechanism
Fig. 9
u
Open the door.
NOTICE
Risk of damage!
If the door seal is damaged, the door may fail to close prop‐
erly and the cooling will be inadequate.
u
Do not damage the door seal with the screwdriver!
u
Remove the outer cover. Fig. 9 (1)
u
Disengage and release the bearing bracket cover.
Remove the bearing bracket cover. Fig. 9 (2)
u
Unlatch the panel with a slotted screwdriver and swivel it
to one side. Fig. 9 (3)
Putting into operation
8 * Depending on model and options
Fig. 10
CAUTION
Crushing hazard by joint folding up!
u
Engage safety device.
u
Engage the locking device in the opening. Fig. 10 (1)
u
Unscrew the bolt with a screwdriver. Fig. 10 (2)
u
Remove the bolt in an upward direction. Fig. 10 (3)
u
Turn the hinge in the direction of the door. Fig. 10 (4)
Fig. 11
u
Press the tab with the slotted screwdriver. Fig. 11 (1)
u
Pull cover out of the catch mechanism. Fig. 11 (2)
Fig. 12
u
Undo the soft stop mechanism screw with a T15 screw‐
driver approx. 14 mm. Fig. 12 (1)
u
Insert a screwdriver behind the soft stop mechanism on
the handle side and rotate forwards. Fig. 12 (2)
u
Remove the soft stop mechanism. Fig. 12 (3)
4.3.2 Remove the door
Note
u
Remove any food from the door racks before removing
the door, so that no food falls out.
Putting into operation
* Depending on model and options 9
Fig. 13
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Carefully remove the protective cover. Fig. 13 (1)
u
Undo the bolt a little with a T15 screwdriver. Fig. 13 (2)
u
Hold the door and remove the bolts with your fingers.
Fig. 13 (3)
u
Pull the bearing bush out of the guide. Insert from the
other side and click into place. Fig. 13 (4)
u
Lift the door and set it aside.
u
Carefully lift the plugs out of the door bearing bush with
a slotted screwdriver and remove. Fig. 13 (5)
4.3.3 Moving the upper bearing parts to the
other side
Fig. 14
u
Remove both screws with the T25 screwdriver.
u
Lift and remove the bearing bracket.
Fig. 15
u
Release the cover and remove from the side. Fig. 15 (1)
u
Rotate the cover 180° and clip onto the other side from
the right. Fig. 15 (2)
u
Click the cover into place. Fig. 15 (3)
u
Position the screw with a T25 screwdriver. Fig. 15 (4)
u
Position the upper bearing bracket. Fig. 15 (5)
w
Place the pins in the provided screw holes.
u
Tighten the screw. Fig. 15 (4)
u
Insert the screw with a T25 screwdriver and tighten.
Fig. 15 (6)
Putting into operation
10 * Depending on model and options
4.3.4 Moving the lower bearing parts to the
other side
Fig. 16
u
Lift the bearing pin completely upward and remove.
Fig. 16 (1)
u
Undo the screws with a T25 screwdriver and remove the
bearing bracket Fig. 16 (2)
Fig. 17
u
Remove the cover and fix it on the other side. Fig. 17 (1)
u
Place the bearing bracket on the other side and screw in
with the aid of a T25 screwdriver. Start with screw 2 at
the bottom in the middle. Fig. 17 (2)
u
Screw in screws 3 and 4. Fig. 17 (3, 4)
u
Insert the bearing pin completely. Make sure that the
catch mechanism is pointing to the rear. Fig. 17 (5)
4.3.5 Moving the handles to the other side
Fig. 18
u
Pull off the cover. Fig. 18 (1)
u
Remove the screws with the T15 screwdriver. Fig. 18 (2)
u
Remove the handle. Fig. 18 (3)
u
Carefully lift up the side plugs with a slotted screwdriver
and pull them out. Fig. 18 (4)
u
Insert the plugs again on the other side. Fig. 18 (5)
Putting into operation
* Depending on model and options 11
Fig. 19
u
Position the handle on the other side. Fig. 19 (1)
w
The screw holes must be exactly above each other.
u
Tighten the screws with the T15 screwdriver. Fig. 19 (2)
u
Position the covers on the side and push in. Fig. 19 (3)
w
Ensure that it clicks into place.
4.3.6 Fitting the door
Fig. 20
u
Place the door on the lower bearing pins.
u
Align the top of the door with opening in the bearing
bracket. Fig. 20 (1)
u
Insert the bolt and tighten with a T15 screwdriver.
Fig. 20 (2)
u
Fit the protective cover to protect the door: Insert the
protective cover and check that it is attached to the door.
If not, insert the bolt fully. Fig. 20 (3)
u
Insert the plugs. Fig. 20 (4)
4.3.7 Aligning the door
WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly
enough, the door may drop out. This may lead to severe
injuries. What is more, the door may not close and therefore
the appliance may fail to cool properly.
u
Screw the turn hinges firmly into place with 4 Nm.
u
Check all of the screws and retighten if necessary.
u
Align the doors flush with the appliance housing using
the two oblong holes in the lower bearing bracket if
needed. To do this undo the middle screw in the bottom
bearing bracket with the T25 tool supplied. Undo the
remaining screws a little with the T25 tool or with a T25
screwdriver and align using the slotted holes.
u
Support the door: Take off the adjustable foot on the
bearing bracket using the open-ended wrench SW10 until
it comes into contact with the floor, then turn an addi‐
tional 90°.
4.3.8 Fit the soft stop mechanism
Fig. 21
u
Slide the soft stop mechanism on the bearing bracket
side at an angle into the slot as far as the limit stop.
Fig. 21 (1)
u
Slide the unit in fully.
w
The unit is positioned correctly when the rib on the soft
stop mechanism is in the guide in the housing.
u
Tighten the screw with the T15 screwdriver. Fig. 21 (2)
Fig. 22
The door is open 90°.
u
Turn the hinge in the bearing bracket. Fig. 22 (1)
Putting into operation
12 * Depending on model and options
u
Insert the bolt in the bearing bracket and hinge. Make
sure that the catch mechanism is sitting correctly in the
groove. Fig. 22 (2)
u
Remove the locking device. Fig. 22 (3)
u
Slide on the cover. Fig. 22 (4)
Fig. 23
u
Position the bearing bracket and engage. If necessary
push apart carefully. Fig. 23 (1)
u
Position the panel. Fig. 23 (2)
u
Swing in the panel and click into place. Fig. 23 (3)
u
Slide on the external cover. Fig. 23 (4)
u
Close the upper door. Fig. 23 (5)
4.4 Sliding into the row of units
Fig. 24
A [mm]
B [mm]
C [cm
2
]
D [mm] E [mm]
665
x
65 min. 300 min. 50 min. 46
x
If using wall spacers, add 15 mm (see 4.2 Installing the
appliance) .
These dimensions apply to an opening angle of 90 °. Clear‐
ances vary depending on the opening angle.
Please contact Customer Services to purchase a kit to
limit the door opening angle to 90° for appliances with soft-
closing devices.
The appliance can be built into kitchen units. A top
cupboard Fig. 24 (2) can be added above the appliance in
order to bring the appliance Fig. 24 (1) up to the height of
the fitted kitchen units.
When inserting the appliance into the kitchen unit, there
must be a circumferential distance of at least 5cm.
If the appliance is positioned directly next to a kitchen
cabinet Fig. 24 (3), a distance of at least 5 cm from the
appliance is necessary. The appliance must protrude by
the depth Fig. 24 (B) from the front of the cabinet so that
the doors can be opened fully. The appliance may protrude
further depending on the depth of the kitchen cabinets and
whether wall spacers are used.
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
u
Take care to ensure adequate air ventilation.
u
Observe the ventilation requirements.
Ventilation requirements:
-
There are spacer fins at the back of the appliance to
provide adequate ventilation. Make sure these do not end
up in recesses or openings.
-
At the back of the top cabinet, there must be an air outlet
shaft with depth Fig. 24 (D), spanning the entire width.
-
The ventilation shaft Fig. 24 (C) must be observed under
the ceiling.
-
The wider the ventilation clearance, the more efficiently
the appliance will run.
If the appliance is installed with the hinges next to a wall
Fig. 24 (4), the distance Fig. 24 (E) between the appliance
and the wall must be observed. This is how far the handle
protrudes when the door is open.
4.5 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic
film!
u
Do not allow children to play with packing material.
The packaging is made of recyclable materials:
-
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
u
Take the packaging material to an official collecting
point.
Putting into operation
* Depending on model and options 13
4.6 Connecting the appliance
WARNING
Failure to connect properly
Fire hazard.
u
Do not use an extension cable.
u
Do not use distributor blocks.
NOTICE
Failure to connect properly
Damage to the electronics.
u
Do not connect the appliance to a stand-alone inverter,
e.g. solar power systems and petrol generators.
u
Do not use an energy saving plug.
Note
Only use the power connection lead supplied.
u
A longer power connection lead can be ordered from
Customer Service.
Fig. 25
a
b c d G
~ 1800 mm ~ 1400 mm ~ 2100 mm ~ 200 mm Appliance
plugs
Ensure that the following conditions are met:
- The type of current and voltage at the installation
site correspond to the information on the model plate
(see 1 Appliance at a glance) .
- The socket is earthed according to the regulations and
fused.
- The fuse tripping current is between 10 and 16 A.
- The socket is easily accessible.
- The socket is outside the back of the appliance area in
the specified area Fig. 25 (a, b, c).
u
Check the electrical connection.
u
Insert the appliance plug Fig. 25 (G) into the back of the
appliance. Ensure that it clicks into place.
u
Connect the power plug to the power supply.
w
The Liebherr logo appears on the screen.
w
The display switches to the standby symbol.
4.7 Switching on the appliance
Note
If the appliance is in demo mode, DEMO appears on the
homescreen.
u
Disable demo mode (see 7 Malfunctions) .
Connect and switch on appliance approx. 10 hours before
loading it for the first time.
4.7.1 Switch on appliance
If the standby symbol is displayed over the whole screen:
u
Press the standby symbol.
w
The appliance is switched on. The display switches to the
home screen.
w
The appliance sets itself to the displayed temperature.
This is shown by down arrows.
If the standby symbol is displayed in the fridge compart‐
ment and biofresh field:
u
Press the standby symbol.
w
The appliance is switched on.
w
The appliance sets itself to the displayed temperature.
This is shown by down arrows.
If the screen is black:
u
Touch the screen.
w
The standby symbol appears on the whole screen.
u
Press the standby symbol.
w
The appliance is switched on. The display switches to the
home screen.
w
The appliance sets itself to the displayed temperature.
This is shown by down arrows.
4.8 SmartDevice box
SmartDevice box: Start-up instruc‐
tionswww.smartdevice.liebherr.com/install
If the SmartDevice box (SDB) is inserted correctly the menu
below appears. The device is supplied with WLAN activated.
To use more WiFi options,
open the WIFI menu.
Fig. 26
u
Press WIFI.
w
The WIFI menu opens.
Turning on/off WiFi
Fig. 27
u
Use the slider at the bottom right to turn on/off WIFI
w
Slider to OFF = WIFIis disabled.
w
Slider to ON = WIFIis enabled.
WIFI INFO
Call up the status of the
SmartDevice box.
Fig. 28
u
Press the OK button.
w
The WIFI INFO screen opens.
w
The following statuses
can be displayed:
Fig. 29
w
SSID: ***WPS*** = The SmartDevice box is in WPS mode
for 3 minutes. An automatic connection to the SmartDe‐
vice box can be established via the router.
Putting into operation
14 * Depending on model and options
w
SSID: LHSDB_xxxxxxxxx = the SmartDevice box is in
manual connection mode for 30 minutes. The SmartDe‐
vice box transmits a private network to which you can
connect to send WLAN data.
w
SSID: empty = The SmartDevice box is in sleep mode.
Please reset the WIFI and connect your SmartDevice box
to the home network.
w
SSID: TP-LINK_2D43A2 or Fritz!Box7069 = The SmartDe‐
vice box is connected to the home network.
WIFI RESET
Resetting the SmartDevice
box to the default settings.
Fig. 30
u
Confirm with OK.
w
The SmartDevice box is reset to the default settings.
Showing the WiFi status on the Home screen
Status: WiFi on & connected
Fig. 31
u
The WiFi indicator is white.
w
WiFi is on.
w
The home network and the Liebherr server are connected.
Status: WiFi on & connecting
u
The WiFi display shows
a clock.
Fig. 32
w
WiFi is on.
w
There is no connection to the home network and/or the
Liebherr server.
Status: WiFi on & disconnected
u
The WiFi display shows
a warning sign.
Fig. 33
w
WiFi is on.
w
The SmartDevice box is either not connected to a
network or the SmartDevice box is connected to a
network but the network cannot be found, e.g. switched
off at night.
4.9 Inserting the FreshAir filter.
The supplied FreshAir filter can be used for optimum air
quality.
The intake is located at the top of the appliance,
(see 1 Appliance at a glance)
u
Remove cover.
Fig. 34
u
FreshAir-Insert the filter in the cover and turn it clock‐
wise.
u
Ensure that the filter clicks into place.
u
Replace the cover again.
Setting the timer
u
Press menu.
u
Press the navigation arrows until the FreshAir filter
is displayed.
u
Press the FreshAir filter symbol.
u
Press ON.
w
The timer is set. After the interval has expired a message
prompts you to change the FreshAir filter.
4.10 Setting the clean ventilation grid
timer
The ventilation grid must be cleaned at least once a year for
sufficient ventilation. The timer can be set as a reminder.
u
Press menu.
u
Press the navigation arrows until the ventilation
grid is displayed.
u
Press the ventilation grid symbol.
u
Press ON.
w
The timer is set. After the interval has expired a message
prompts you to clean the ventilation grid.
5 Control
5.1 Changing the temperature unit
The temperature display can be switched from °C to °F.
u
Press menu.
u
Press the navigation arrow until °C is displayed.
u
Press °F.
w
The temperature is displayed in °F.
Switch from °F to °C in the same way.
5.2 Child proofing
The child-proofing function enables you to make
sure that the appliance is not inadvertently
switched off by playing children.
Control
* Depending on model and options 15

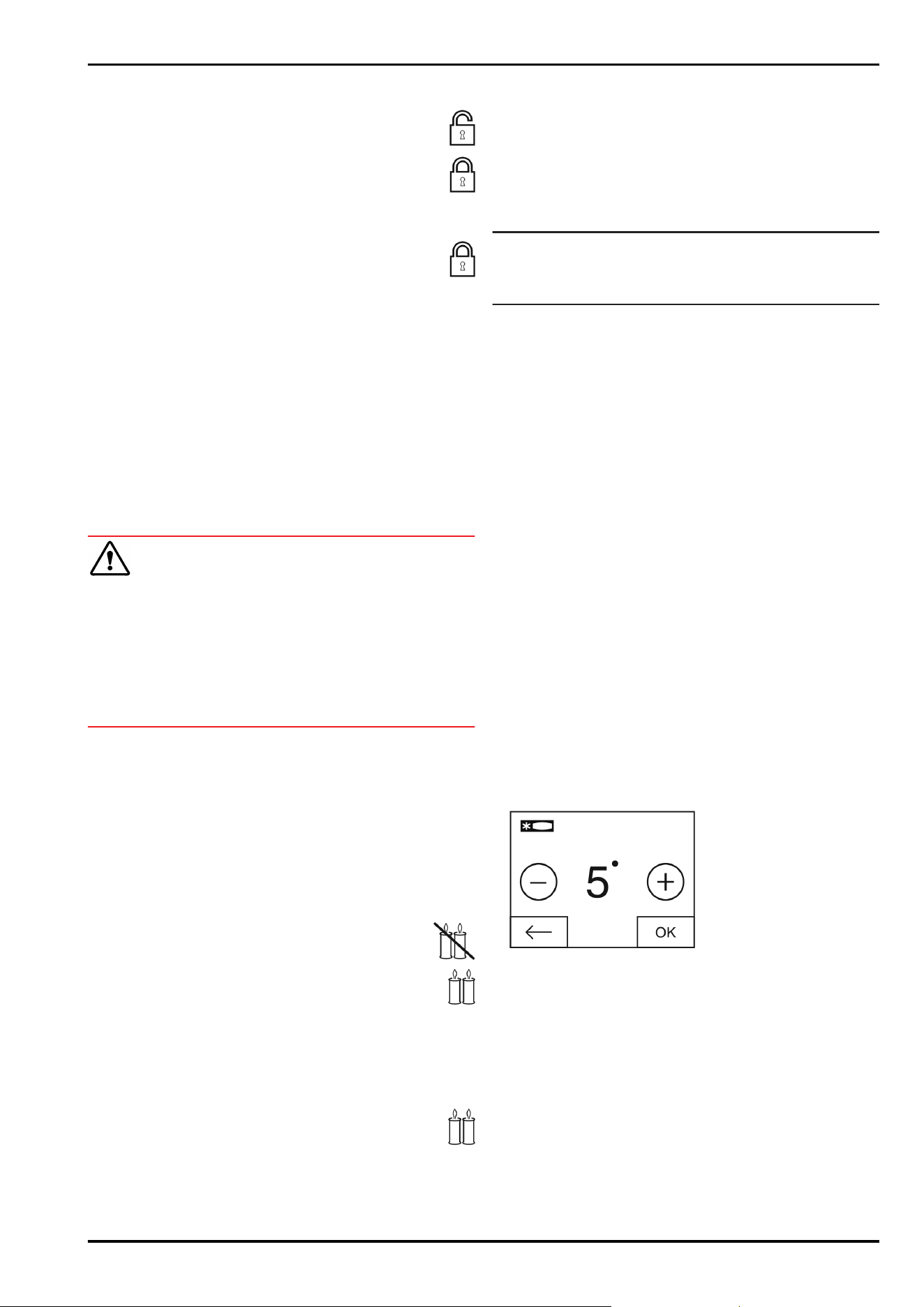

5.2.1 Switching on the child safety device
u
Press menu.
u
Press the navigation arrows until the child safety
device is displayed.
u
Press ON.
w
The child safety device is switched on.
5.2.2 Switching the child safety device off
u
Press menu.
u
Press the navigation arrows until the child safety
device is displayed.
u
Press OFF.
w
The child safety device is switched off.
5.3 SabbathMode
This function meets the religious requirements on the
Sabbath or Jewish festivals. Turn on SabbathMode to
switch off certain controls. After setting up SabbathMode,
you no longer need to worry about indicator lights, figures,
symbols, displays, alarms or fans. The thawing cycle only
works for the specified time without taking account of
fridge use. After a power cut the appliance automatically
returns to SabbathMode.
There is a list of Star-K certified appliances at www.star-
k.org/appliances.
WARNING
Danger of food poisoning.
If there is a power cut while the appliance is in
SabbathMode, this message is not saved. Once power is
restored, the appliance continues in SabbathMode. When
this mode is over no message about the power cut is
displayed on the temperature display.
If there was a power cut during SabbathMode:
u
Check the food for quality. Do not eat the food if it has
thawed.
-
All functions are locked until SabbathMode is switched
off.
-
If functions such as SuperFrost, SuperCool, Ventilation,
etc. are activated when SabbathMode is on, they remain
active.
-
No audible signals are emitted and the temperature
display does not indicate any warnings or settings (such
as a temperature alarm or door alarm).
-
The internal light is off.
5.3.1 Switching SabbathMode on.
u
Press menu.
u
Press the navigation arrow until SabbathMode is
displayed.
u
Press ON.
w
SabbathMode is switched on. Only the
SabbathMode symbol appears on the screen.
SabbathMode switches off automatically after 120 hours if
it has not already been switched off manually. The display
switches to the home screen.
5.3.2 Switch off the SabbathMode
u
Touch the screen.
u
Press OFF.
w
SabbathMode is switched off.
5.4 Refrigerator compartment
Different temperature ranges are set in the fridge compart‐
ment because of the natural air circulation. The coldest area
is directly above the separating plate between the fridge
compartment and the Biofresh area. The warmest area is at
the top front and in the door.
5.4.1 Refrigerating food
Note
The energy consumption increases and the cooling perform‐
ance decreases if the ventilation is inadequate.
u
Always keep the air slits of the fan free.
u
Place butter and preserves in the top area and in the
door. (see 1 Appliance at a glance)
u
Use reuseable plastic, metal, aluminium, glass containers
and foil wrap to store food.
u
Always store raw meat and fish in clean, sealed
containers on the bottom shelf of the refrigerator, to
prevent them coming into contact with or dripping onto
other foods.
u
Foods that easily absorb or give off smell or taste, as
well as liquids, should be stored in sealed containers or
covered.
u
Use the front area of the base shelf only to tempora‐
rily set down refrigerated foods, for example while rear‐
ranging or sorting the contents. Remember not to leave
refrigerated foods here as they could shift to the back or
tip over when you close the door.
u
Do not pack foods too closely together, as the air needs
to circulate.
5.4.2 Setting the temperature
The temperature depends on the following factors:
-
the frequency of opening the door
-
how long the door is open for
-
the room temperature of the installation location
-
the type, temperature and quantity of the food
The temperature can be set from 9 °C to 2 °C.
Recommended temperature setting: 5 °C
u
Press the fridge compartment field.
w
The following screen is displayed:
Fig. 35
Setting a higher temperature:
u
Press plus.
Setting a lower temperature:
u
Press minus.
The minus symbol is greyed out when the coldest tempera‐
ture is selected.
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
Confirm the required temperature with OK.
w
The display switches to the home screen.
w
The selected temperature is displayed.
w
Up or down arrows indicate the change in temperature.
The arrows are greyed out when the target temperature
is reached.
Control
16 * Depending on model and options

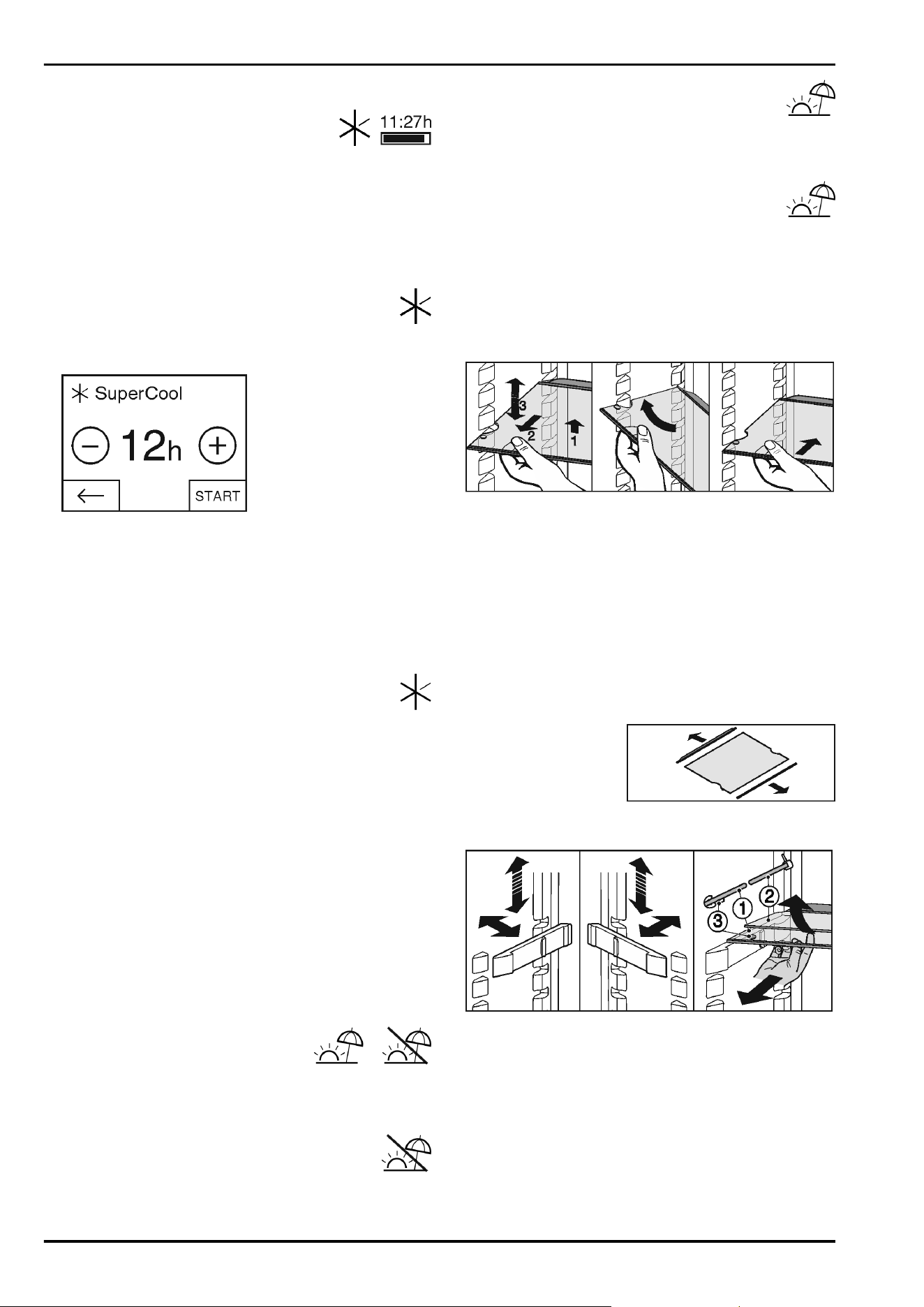

5.4.3 SuperCool
With SuperCool you switch to the highest
cooling performance to reach lower cooling
temperatures. Use SuperCool, to rapidly cool
large amounts of food.
When SuperCool is activated, the fan* may run. The appli‐
ance operates with maximum cooling performance, which
means that the noise of the refrigeration unit may be
temporarily louder.
The SuperCool function uses slightly more energy.
Switching on SuperCool
u
Press menu.
u
Press the navigation arrow until SuperCool is
displayed.
u
Press the SuperCool symbol.
w
The following screen is displayed:
Fig. 36
The running time can be set to four levels.
Setting the running time:
u
Press plus or minus.
The minus symbol is greyed out when the lowest level is
selected.
The plus symbol is greyed out when the highest level is
selected.
u
Confirm the required running time with START.
w
The display switches to the home screen.
w
SuperCool is selected.
w
The remaining running time and the SuperCool
symbol are displayed in the fridge compartment
field.
w
The lowered temperature is shown by the down
arrows.
w
After the remaining running time has elapsed the
appliance returns to normal mode. The temperature
is set to the preset value again. Up arrows show
the temperature increase.
Switching SuperCool off ahead of schedule
u
Press menu.
u
Press the navigation arrow until SuperCool and the
remaining running time are displayed.
u
Press on the remaining running time.
u
Press STOP.
w
SuperCool is switched off.
w
The temperature is set to the preset value again. Up
arrows show the temperature increase.
5.4.4 Holiday mode
The holiday mode saves energy and
prevents odour from occurring when the
door of the refrigerator compartment
stays closed for a lengthy period.
Switching on the Holiday function
u
Remove all food as otherwise it will spoil.
u
Press menu.
u
Press the navigation arrow until you see the
Holiday function.
u
Press ON.
w
The Holiday function is on.
w
The Holiday function symbol appears in the fridge
compartment field and the biofresh field.
Switching off the Holiday function
u
In the fridge compartment field, press the
Holiday function symbol.
w
The Holiday function is off.
w
The temperature is set to the preset value again.
Down arrows show the temperature reduction.
5.4.5 Shelves
Moving or removing shelves
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig. 37
u
Lift the shelf and pull forward a little.
u
Adjust the height of the shelf. To do this move the slots
along the supports.
u
In order to remove the shelf fully, place it at a slant and
pull out towards the front.
u
Insert shelf with the raised edge pointing upwards at the
back.
w
The food does not freeze onto the rear wall.
w
Food is prevented from falling out.
When storing and removing food on the top shelf, please
pay attention to the fold-out interior lighting.
Dismantling shelves
u
The shelves can
be dismantled for
cleaning.
5.4.6 Using the sectioned shelf
Fig. 38
Adjusting the height:
u
Pull the glass plates out forwards one by one.
u
Remove the support from the catch mechanism and click
into place at the required height.
Using both shelves:
u
Lift the top glass plate and pull the bottom glass plate
forwards.
w
The glass plate (1) with the pull out stops must be at the
front so that the stops (3) point downward.
Control
* Depending on model and options 17
5.4.7 Using adjustable bottle shelf
At the base of the refrigerator compartment, the integrated
bottle shelf or alternatively the glass shelf can be used:
u
Using the bottle shelf: to
save space, store the glass
shelf under the bottle
shelf.
u
Place the bottles with the
base pointing backwards
facing the rear wall.
If the bottles project
beyond the bottle shelf:
u
set the lower door rack one
position higher.
5.4.8 VarioSafe
The VarioSafe provides space for small items of food and
packages, tubes and jars.
Using VarioSafe
Fig. 39
u
The VarioSafe drawer can be taken out and pushed in at
two different heights.
u
The VarioSafe can also be
height-adjusted as a whole.
u
To remove them completely,
set them at an angle and pull
towards you.
Dismantling VarioSafe
Fig. 40
u
The VarioSafe can be dismantled for cleaning.
5.4.9 Door racks
Moving the storage rack
Fig. 41
The boxes can be removed
and placed on the table as a
single unit.
Either one or both the boxes can be used. If particularly tall
bottles are to be stored, hang only a single box above the
bottle rack.
u
Re-positioning the boxes:
Lift them for removal
and re-position them as
required.
Note
Food items in the upper door area that are too tall can lead
to contact with the interior lighting.
When closing the door, take care to ensure
u
that the lid of the package rack is closed, or
u
that when food is stored on the upper door rack a
distance of 30 mm to the appliance ceiling is maintained.
Dismantling door racks
Fig. 42
Control
18 * Depending on model and options
Fig. 43
u
The door racks can be dismantled for cleaning.
5.4.10 Using the bottle holder
u
To avoid the bottles tipping
over, push the bottle holder
along.
5.4.11 Butter dish
Opening/closing the butter dish
Fig. 44
Dismantling the butter dish
Fig. 45
u
You can take the butter dish apart for cleaning.
5.4.12 Egg tray
You can take out and rotate the egg tray. You can use the
two parts of the egg tray to mark different use-by dates, for
example.
u
Use the top part to store e.g. chicken eggs.
u
Use the bottom part to store quails' eggs.
5.5 BioFresh compartment
In the BioFresh section, certain fresh foods can be kept
fresh for longer compared to conventional cooling methods.
For food with an indicated best before date, the date speci‐
fied on the packaging always applies.
If the temperature falls below 0 °C, foodstuffs can freeze.
5.5.1 DrySafe
The DrySafe is suitable for storing dry or wrapped food
(e.g. dairy products, meat, fish, sausages). A relatively dry
storage climate is established here.
5.5.2 Fruit & Vegetable safe
The humidity in the Fruit & Vegetable safe depends on the
moisture content of the items being stored and the number
of times the door is opened. You can set the humidity your‐
self.
On the high moisture setting, the Fruit & Vegetable safe is
suitable for storing loose salad, vegetables and fruit with
a high moisture content. A well-stocked drawer is stored in
absolute freshness.
Control
* Depending on model and options 19

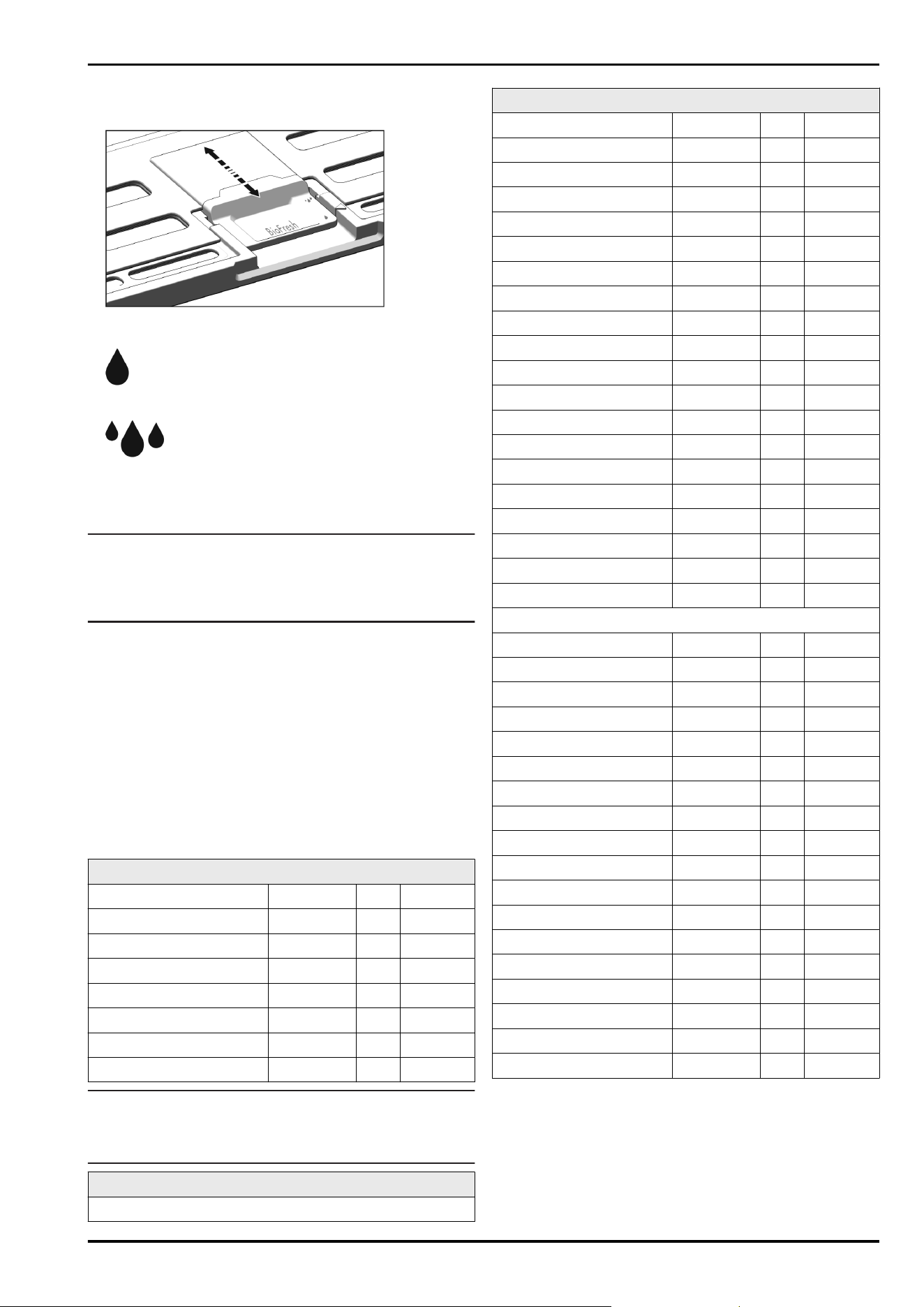

5.5.3 Setting the moisture level in the Fruit &
Vegetable safe
Fig. 46
You can choose any moisture setting for the Fruit & Vege‐
table safe.
u
Low humidity: Slide the slide bar backwards.
w
The openings in the cover are partially or fully open. The
moisture levels drop in the Fruit & Vegetable safe.
u
High humidity: Slide the slide bar forwards.
w
The openings in the cover are partially or fully closed. The
moisture levels rise in the Fruit & Vegetable safe.
5.5.4 Storing food
Note
u
Do not put the following in the BioFresh section: cold-
sensitive vegetables including cucumbers, aubergines,
tomatoes, courgettes and any cold-sensitive tropical
fruits.
u
To prevent food spoilage due to transfer of germs: Store
unwrapped animal and vegetable products separate from
one another in the drawers. This also applies to different
sorts of meat.
If food has to be stored together due to lack of space:
u
wrap the food.
u
Storing high-moisture content foods: shake off the mois‐
ture beforehand.
If there is too much moisture in the compartment:
u
select the low moisture setting.
-or-
u
Remove any excess moisture with a cloth.
5.5.5 Storage times
Guideline for the shelf-life with low air humidity at 0 °C
Butter up to 90 days
Hard cheese up to 110 days
Milk up to 12 days
Cold meats up to 9 days
Poultry up to 6 days
Pork up to 7 days
Beef up to 7 days
Game up to 7 days
Note
u
Please note that protein-rich food deteriorates faster, i.e.
shellfish and crustaceans deteriorate faster than fish,
fish faster than meat.
Guideline for the shelf-life with high air humidity at 0 °C
Vegetables, salads
Guideline for the shelf-life with high air humidity at 0 °C
Artichokes up to 14 days
Celery up to 28 days
Cauliflower up to 21 days
Broccoli up to 13 days
Chicory up to 27 days
Leaf lettuce up to 19 days
Peas up to 14 days
Kale up to 14 days
Carrots up to 80 days
Garlic up to 160 days
Cabbage up to 55 days
Round lettuce up to 13 days
Herbs up to 13 days
Leeks up to 29 days
Mushrooms up to 7 days
Radishes up to 10 days
Sprouts up to 20 days
Asparagus up to 18 days
Spinach up to 13 days
Savoy cabbage up to 20 days
Fruit
Apricots up to 13 days
Apples up to 80 days
Pears up to 55 days
Blackberries up to 3 days
Dates up to 180 days
Strawberries up to 7 days
Figs up to 7 days
Blueberries up to 9 days
Raspberries up to 3 days
Red currants up to 7 days
Cherries, sweet up to 14 days
Kiwis up to 80 days
Peaches up to 13 days
Plums up to 20 days
Cranberries up to 60 days
Rhubarb up to 13 days
Gooseberries up to 13 days
Grapes up to 29 days
5.5.6 Setting the temperature in the BioFresh
compartment.
Recommended refrigerator setting: 5 °C. The BioFresh
temperature is controlled automatically and is between 0 °C
and 3 °C.
Control
20 * Depending on model and options
The temperature can be set slightly colder or slightly
warmer. The temperature can be set from level 1 (lowest
temperature) to level 9 (highest temperature). The default
setting is level 5. With levels 1 - 4 the temperature can drop
to below 0 °C so that the food can freeze.
u
Press menu.
u
Press the navigation arrow until BioFresh is
displayed.
u
Press .
w
The following screen is displayed:
Fig. 47
u
Setting the level: Press plus or minus.
The minus symbol is greyed out when the lowest level is
selected.
The plus symbol is greyed out when the highest level is
selected.
u
Confirm the required level with OK.
w
The display switches to the home screen.
w
The BioFresh temperature is changed to the new value.
5.5.7 Drawers with cushioners
Fig. 48
u
Pull out the drawer, lift it at the back and draw it
forwards for removal.
u
Push the rails in again!
Fig. 49
u
Push the rails in.
u
Attach the drawer and push it in until it engages audibly
at the back.
5.5.8 Fruit & Vegetable safe cover
Fig. 50
u
Removing the Fruit & Vegetable safe cover: After pulling
out the drawers, carefully pull the cover towards you and
down.
u
Replacing the Fruit & Vegetable safe cover: Guide the
ridges on the cover into the rear brackets Fig. 50 (1) and
click it into the front bracket Fig. 50 (2).
6 Maintenance
6.1 Change the FreshAir filter.
The FreshAir filter guarantees optimum air quality. It should
be changed every 12 months. When the timer is set a
message on the display prompts you to change it. The Fres‐
hAir filter can be ordered from the specialist dealer.
Change FreshAir filter is displayed.
u
Press the change FreshAir filter symbol
w
The display switches to the home screen.
The message can be displayed again by pressing on the
menu field until the filter has been changed and confirmed.
(see 8 Messages) .
Fig. 51
u
Remove cover.
Fig. 52
u
Remove the FreshAir filter.
u
Insert the new filter in the reverse order.
u
Ensure that the filter clicks into place.
u
Replace the cover again.
Confirming the filter change
u
Press menu.
u
Press the navigation arrows until the FreshAir filter
is displayed.
u
Press the FreshAir filter symbol.
u
Press the navigation arrows until change FreshAir
filter is displayed.
u
Press RESET.
w
The timer is reset. The change interval starts all
over again.
Turning the timer off
If a new FreshAir filter is not inserted the timer can be
turned off
u
Press menu.
u
Press the navigation arrows until the FreshAir filter
is displayed.
u
Press the FreshAir filter symbol.
u
Press OFF.
w
The timer is turned off.
Maintenance
* Depending on model and options 21
6.2 Defrosting
6.2.1 Defrosting refrigerator compartment
The fridge compartment defrosts automatically. The
defrosted water will evaporate. Water drops or a thin layer
of frost or ice can form on the back wall; this is a completely
normal part of the machine’s function.
6.3 Cleaning the ventilation grid
The ventilation grid ensures that the appliance works prop‐
erly due to optimum aeration and ventilation.
u
Clean the ventilation grid regularly with a vacuum
cleaner.
u
Remove stubborn stains with a soft cloth.
When the timer is set a message on the display
prompts you to clean it. The clean ventilation grid
symbol appears on the screen.
u
Press the clean ventilation grid symbol.
w
The display switches to the home screen.
The message can be displayed again by pressing the menu
field until it has been cleaned and this has been confirmed.
(see 8 Messages) .
Confirming that the ventilation grid has been cleaned
u
Press menu.
u
Press the navigation arrows until the ventilation
grid is displayed.
u
Press the ventilation grid symbol.
u
Press the navigation arrows until clean ventila‐
tion grid is displayed.
u
Press RESET.
w
The timer is reset. The cleaning interval starts all
over again.
Turning the timer off
If the reminder function is to be switched off the timer can
be turned off.
u
Press menu.
u
Press the navigation arrows until the ventilation
grid is displayed.
u
Press the ventilation grid symbol.
u
Press OFF.
w
The timer is turned off.
6.4 Cleaning the appliance
Clean the appliance regularly.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
Do not use any steam cleaners!
NOTICE
Incorrect cleaning damages the appliance!
u
Do not use cleaning agents in concentrated form.
u
Do not use any scouring or abrasive sponges or steel
wool.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
u
Do not use chemical solvents.
u
Do not damage or remove the type plate on the inside of
the appliance. It is important for the customer service.
u
Do not pull off, bend or damage cables or other compo‐
nents.
u
Do not allow any cleaning water to enter the drain
channel, ventilation grille or electrical parts.
u
Please use soft cleaning cloths and a universal pH-
neutral cleaning agent.
u
Please use cleaning and care products suitable for
contact with foodstuffs in the appliance interior.
u
Empty appliance.
u
Pull out the power plug.
u
Clean plastic outer and inner surfaces with lukewarm
water and a little washing-up liquid.
u
Only use a soft clean cloth to wipe side walls with a
paint finish. In the case of heavy soiling, use lukewarm
water with neutral cleaning agent.*
NOTICE
Risk of damage from stainless steel care products!
The stainless steel doors and stainless steel side panels
are treated with a premium surface finish.
Stainless steel care products attack these surfaces.
u
Only use a soft, clean cloth to wipe down finished door
and side panel surfaces and painted door and side panel
surfaces. To remove heavy dirt, use a little water or
neutral detergent. Alternatively, you can use a micro-fibre
cloth.
Do not treat the lettering on the painted door surfaces with
harsh, abrasive agents. Wipe off any dirt with a soft cloth
and some water or neutral cleaner.*
u
Most of the parts can be dismantled for cleaning: see the
relevant chapter.
u
Clean drawers by hand with lukewarm water and a little
washing up liquid.
u
Clean the Fruit & Vegetable safe cover by hand using
lukewarm water and a small amount of detergent.
u
All the other fittings can be put in the dishwasher.
u
Only use a damp cloth to clean the telescopic rails. The
grease in the runners is for lubrication purposes and
must not be removed.
After cleaning:
u
Wipe dry the appliance and items of equipment.
u
Connect the appliance and switch it on again.
When the temperature is sufficiently cold:
u
Put the food back inside.
6.5 Customer service
First check whether you can rectify the fault yourself
(see 7 Malfunctions) . If you cannot rectify the problem,
contact Customer Services. You can find the address in the
enclosed Customer Service Directory.
Maintenance
22 * Depending on model and options

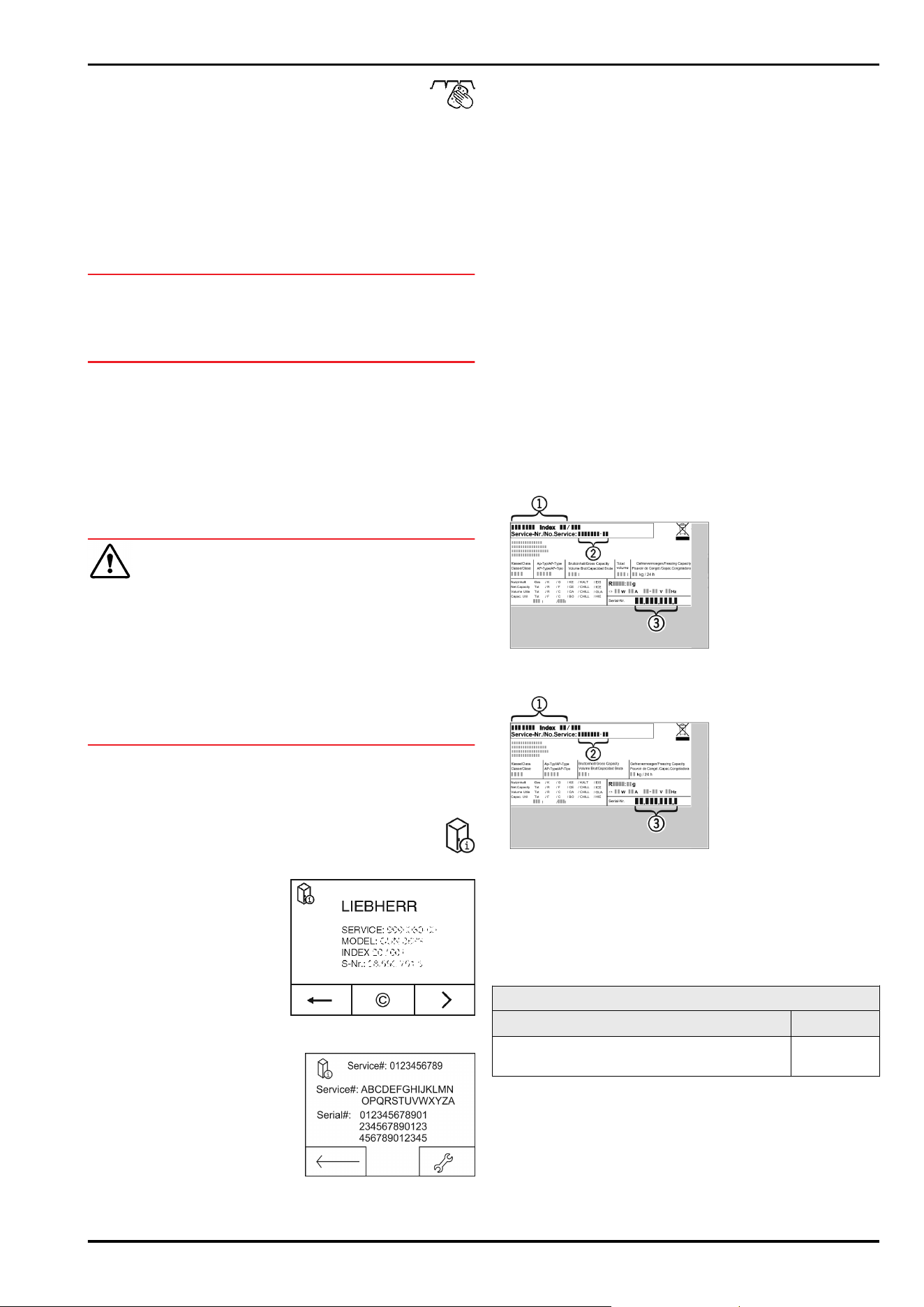

WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see 6 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.
Call up the appliance designation (model and index),
service no. (service), serial no. (s-no.) as well as the
expanded functions on the screen:
u
Press menu.
u
Press the navigation arrows until the appliance
information symbol is displayed.
u
Press the appliance information symbol.
w
The appliance information is displayed.
u
Note down the appliance
information.
u
To return to the home
screen press the Back
symbol.
u
To access the customer menu, press it until the key
symbol appears.
u
Enter the numerical code 151 to select the customer
menu.
Customer menu
The following functions can be called up in the customer
menu:
- Self diagnostics
The appliance carries out self diagnostics and checks all
electrical components.
- RESET
The appliance is reset to the factory settings.
u
Close the door.
u
Contact customer service and give them the required
appliance information.
w
This will help us to provide you with a faster, more accu‐
rate service.
u
Follow any further instructions given by Customer Serv‐
ices.
Alternatively you can read off the appliance information
from the model plate:
The model plate is inside the appliance on the left-hand
side.
Fig. 53 *
(1) Appliance description (3) Serial no.
(2) Service no.
Fig. 54 *
(1)
Appliance description (3) Serial no.
(2) Service no.
Licence agreements:
Licences used can be viewed at ©.
u
Press ©.
6.6 Energy efficiency class lighting*
Lighting
Energy efficiency class
1
Light source
This product contains an energy efficiency
class G light source
LED
1 The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
7 Malfunctions
Your appliance is designed and manufactured for a long
life span and reliable operation. If a malfunction nonethe‐
less occurs during operation, check whether it is due to a
handling error. In this case you will have to be charged for
the costs incurred, even during the warranty period. You
may be able to rectify the following faults yourself:
Appliance does not work.
→
The appliance is not switched on.
u
Switching on the appliance.
→
The power plug is not properly inserted in the wall
socket.
u
Check power plug.
→
The fuse of the wall socket is not in order.
u
Check fuse.
→
The appliance plug does not fit the appliance properly.
u
Check the appliance plug.
The compressor runs for a long time.
→
The compressor switches to a low speed when little cold
is needed. Although the running time is increased as a
result, energy is saved.
u
This is normal in energy-saving models.
→
SuperCool is activated.
u
The compressor runs for longer in order to rapidly cool
the food. This is normal.
Malfunctions
* Depending on model and options 23
Excessive noise.
→
Due to the various speed steps, speed-regulated*
compressors can generate different running noises.
u
The sound is normal.
A bubbling and gurgling noise.
→
This noise comes from the refrigerant flowing in the
refrigeration circuit.
u
The sound is normal.
A quiet clicking noise.
→
The noise is produced whenever the refrigeration unit
(motor) automatically switches on or off.
u
The sound is normal.
A hum. It is briefly a little louder when the refrigeration
unit (the motor) switches on.
→
The refrigeration increases automatically when the
SuperCool function is activated, fresh food has just been
placed in the appliance or the door has been left open
for a while.
u
The sound is normal.
→
The ambient temperature is too high.
u
Solution: (see 1.2 Appliance range of use)
A low hum.
→
The sound is produced by air flow noise of the fan.
u
The sound is normal.
Vibration noises
→
The appliance is not standing firmly on the floor. As a
result objects and adjacent units start to vibrate when
the refrigerator is running.
u
Align the appliance using the adjustable feet.
u
Keep bottles and jars apart.
Flow sound at the soft stop mechanism.
→
The noise is produced when the door is opened and
closed.
u
The sound is normal.
The DEMO symbol appears on the screen. In addition some
time elapses.
→
DEMO mode is activated.
u
OFF Press .
DEMO is displayed in the top right corner of the screen.
→
DEMO mode is activated.
u
Unplug the appliance.
u
Plug the appliance in again.
w
The DEMO symbol appears on the screen. In addition
some time elapses.
u
OFF Press .
The outer surfaces of the appliance are warm*.
→
The heat of the refrigeration circuit is used to prevent
condensate from forming.
u
This is normal.
The temperature is not cold enough.
→
The door of the appliance is not properly closed.
u
Close the door of the appliance.
→
Insufficient ventilation.
u
Keep ventilation grille clear, and clean it.
→
The ambient temperature is too high.
u
Solution: (see 1.2 Appliance range of use) .
→
The appliance was opened too frequently or for too long.
u
Wait to see whether the appliance reaches the required
temperature by itself. If not, please contact the after
sales service (see 6 Maintenance) .
→
The temperature is incorrectly set.
u
Set the temperature to a colder setting and check after
24 hours.
→
The appliance is too close to a source of heat (stove,
heater etc).
u
Change the position of the appliance or the source of
heat.
The internal light does not come on.
→
The appliance is not switched on.
u
Switch the appliance on.
→
The door was open for longer than 15 minutes.
u
The internal light switches itself off automatically after
about 15 minutes if the door is open.
→
The LED illumination is faulty or the cover is damaged:
WARNING
Risk of injury due to electric shock!
There are live electrical parts under the cover.
u
Only ever have the inside LED light replaced or repaired
by customer service or trained personnel.
WARNING
Risk of injury from LED bulb!
The light intensity of the LED light corresponds to hazard
group RG 2.
If the cover is defective:
u
Do not look directly into the light from close range. It
cause injury to the eyes.
The door seal is defective or needs to be replaced for
another reason.
→
The door seal can be replaced. It can be replaced
without the need for special tools.
u
Contact Customer Service (see 6 Maintenance) :
The unit has iced up or condensation has formed.
→
The door seal may have also slipped out of its groove.
u
Check to ensure that the door seal is seated properly in
the groove.
8 Messages
Error messages and reminders are displayed by an
audible signal and a message on the screen. The
audible signal gets louder and louder when error
messages appear. It only stops when the message
is confirmed. Highest priority messages are displayed
first if several occur at the same time. Each message
must be cleared separately.
The message stays in the menu field as long as it is active
or the fault is not eliminated.
Note
Details on the message can be displayed again via the menu
field.
u
Press menu.
u
Press the message symbol.
u
The display switches to the next message when you
press one. After the last active message the display
switches to the home screen.
Door alarm
An audible warning sounds if the door is open for
longer than 60 seconds. The door alarm symbol
appears on the display. The audible warning stops
automatically when the door is closed.
The audible warning can be switched off when the
door is open. The audible alarm is switched off
while the door is open.
u
Press the door alarm symbol.
w
The door alarm stops.
w
The display switches to the home screen.
u
Close the door.
Messages
24 * Depending on model and options
Appliance faults
An audible warning sounds. The appliance fault
symbol appears on the display with the relevant
error code.
An appliance component indicates a fault.
u
Open the door.
u
Note down the fault code.
u
Press the appliance fault symbol.
w
The audible signal stops. The display switches to the
home screen.
u
Close the door.
u
Contact Customer Services (see 6 Maintenance) .
Other messages
FreshAirChange filter (see 6 Maintenance)
Clean the ventilation grille (see 6 Mainte‐
nance)
9 Decommissioning
9.1 Switching the appliance off
Note
If the appliance cannot be switched off, the child safety
device is enabled.
u
Switch the child safety device off (see 5.2.2 Switching
the child safety device off) .
9.1.1 Switch off the appliance from the menu
The whole appliance is switched off. The screen goes black.
u
Press menu.
u
Press the navigation arrows until the standby
symbol is displayed.
u
Press OK.
w
The standby symbol flashes on the whole screen. The
whole appliance is switched off.
w
After 10 minutes the standby symbol goes out.
9.1.2 Switching the appliance off via the fridge
compartment field.
The biofresh compartment automatically switches off when
the fridge compartment is turned off. The screen remains
on.
The screen remains on.
u
Press the fridge compartment field.
u
Press plus.
w
The plus symbol is greyed out if it is pressed again after
selecting the hottest temperature. The standby symbol is
displayed on the screen.
u
Press OK.
w
The standby symbol is displayed in the fridge compart‐
ment and BioFresh compartment fields.
w
The appliance is switched off and the screen remains
switched on
9.2 Taking the appliance out of service
u
Empty the appliance.
u
Switch off the appliance (see 9 Decommissioning) .
u
Remove mains connector.
u
Remove appliance connector if required:
Remove and move from left to right at the same
time.
u
Clean the appliance (see 6.4 Cleaning the appli‐
ance) .
u
Leave the door open to prevent odour.
10 Disposal
10.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation. (see 9.2 Taking the
appliance out of service)
u
Appliances with batteries: remove the batteries. For
description, see Maintenance chapter.
u
If possible: remove lamps without destroying them.
10.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany:* You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.*
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Decommissioning
* Depending on model and options 25
Liebherr-Hausgeräte Ochsenhausen GmbH
Memminger Straße 77-79
88416 Ochsenhausen
Deutschland
home.liebherr.com
