Rain Bird Control Zone Kits give
you the components necessary
for on/o control, ltration, and
pressure regulation—all in one
single package.
Convenient
Simple to order and easy to install
Innovative
Contains cutting-edge products such as the
Low Flow Valve and Flow Indicating Basket Filter.
Every kit uses the revolutionary PR Filter which
combines the lter and pressure regulator into
one unit
Flexible
Provides options compatible with a variety of
control systems
Comprehensive
The most complete line of Control Zone Kits on
the market, giving contractors and speciers the
ability to meet every need from 0.2 to 60 gpm

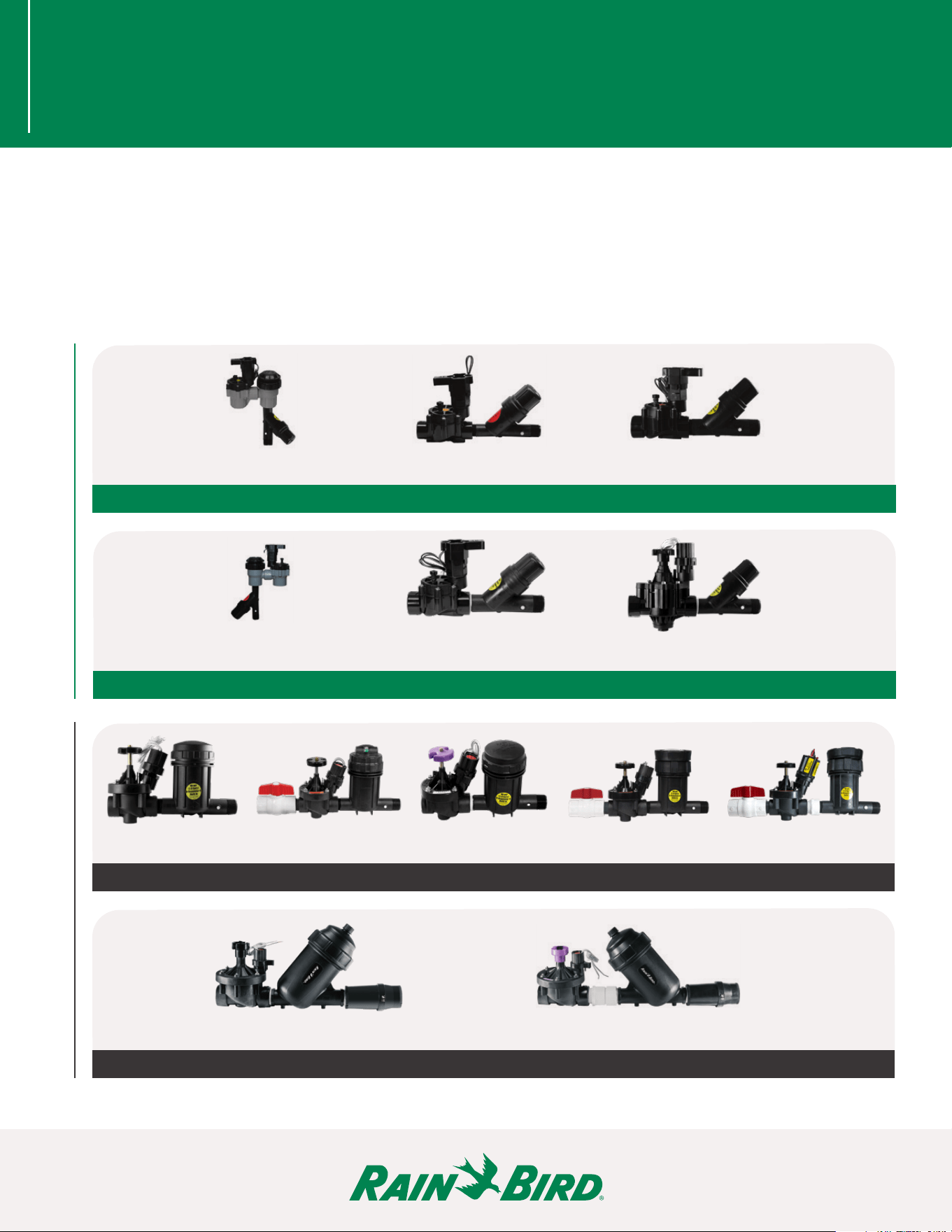

RESIDENTIAL CONTROL ZONE KITSCOMMERCIAL CONTROL ZONE KITS
Commercial Wide Flow: 0.3 - 20 gpm
XCZ-100-FLOW
FLOW: 0.3 - 20 gpm
XCZ-100-PRB-COM
FLOW: 0.3 - 20 gpm
XCZ-100-PRB-R
FLOW: 0.3 - 20 gpm
XCZ-100-PRB-LC
FLOW: 0.3 - 20 gpm
XCZ-100-IVM
FLOW: 0.3 - 20 gpm
Commercial High Flow: 15 - 62 gpm
XCZ-150-LCS
FLOW: 15 - 62 gpm
XCZ-150-LCDR
FLOW: 15 - 62 gpm
Residential Medium Flow: 3 - 15 gpm
XCZPGA-100-PRF
FLOW: 3 - 15 gpm
XACZ-100-PRF
FLOW: 3 - 15 gpm
XCZ-100-PRF
FLOW: 3 - 15 gpm
Residential Low Flow: 0.2 - 10 gpm
XACZ-075-PRF
FLOW: 0.2 - 5 gpm
XCZ-075-PRF
FLOW: 0.2 - 5 gpm
XCZLF-100-PRF
FLOW: 0.2 - 10 gpm
Control Zone Kit Selection Guide
LANDSCAPE DRIP
rainbird.com
Registered Trademark of Rain Bird Corporation
© 2021 Rain Bird Corporation 10/28
D42029
Model
Operating Flow
Range
Minimum
Diagnostic
Flow
Flow Rate
Capability
(0.9 gph dripline
with 12” emitter
spacing)
Inlet /
Outlet
Valve
Controller Compatibility3
Inlet Pressure
Regulated
Pressure
Filter Type Size
Minimum
Valve Box Size
Traditionally Wired
TBOS/DC
IVM
2-Wire Decoders
RESIDENTIAL LOW FLOW
XACZ-075-PRF¹
0.2 to 5 gpm
(0.8 to 18.9 l/m)
N/A
13 to 300 ft
of dripline
3/4" x 3/4"
NPT
ASVLFV075
Y Y Y N
20 to 150 psi
(1.4 to 10.3 bar)
30 psi
(2.1 bar)
Stainless steel
screen lter
200 mesh
(75 micron)
14”
Height
Above Ground
XCZ-075-PRF
LFV075
10”
Length
Mini-Standard
or 10” Round
XCZLF-100-PRF
0.2 to 10 gpm
(0.8 to 37.85 l/m)
13 to 650 ft
of dripline
1" x 1"
NPT
LFV100
RESIDENTIAL MEDIUM FLOW
XACZ-100-PRF¹
3 to 15 gpm
(11.4 to 56.8 l/m)
N/A
200 to 1,000 ft
of dripline
1" x 1"
NPT
100ASV
Y Y Y
N
20 to 150 psi
(1.4 to 10.3 bar)
40 psi
(2.8 bar)
Stainless steel
screen lter
200 mesh
(75 micron)
14”
Height
Above Ground
XCZ-100-PRF
100DV
10”
Length
Mini-Standard
or 10” Round
XCZPGA-100-PRF
100PGA Y
11”
Length
COMMERCIAL WIDE FLOW
XCZ-100-PRB-LC
0.3 to 20 gpm
(1.13 to 75.7 l/m)
N/A
20 to 1,300 ft
of dripline
1" x 1"
NPT
100PEB
Y Y Y Y
15 to 150 psi
(1 to 10.3 bar)
40 psi
(2.8 bar)
Basket Filter
200 mesh
(75 micron)
12”
Length
Mini-Standard
Rectangular
XCZ-100-PRB-COM
0.3 to 20 gpm
(1.13 to 75.71 l/m)
3 gpm 100PESB
Quick-Check Basket
Filter
200 mesh
(75 micron)
14”
Length
XCZ-100-PRB-R²
0.3 to 20 gpm
(1.13 to 75.7 l/m)
N/A 100PESBR
Basket Filter
200 mesh
(75 micron)
10.5”
Length
XCZ-100-FLOW
0.3 to 20 gpm
(1.13 to 75.71 l/m)
3 gpm 100PESB
Flow-Indicating
Basket Filter
150 mesh
(100 micron)
14”
Length
XCZ-100-IVM
Y Y
15.5”
Length
Standard
Rectangular
HIGH FLOW
XCZ-150-LCS
15 to 62 gpm
(56.8 to 234.7 l/m)
N/A
1,000 to 4,000 ft
of dripline
1.5” x 1.5”
NPT
150PEB
Y Y Y Y
15 to 115 psi
(1 to 7.9 bar)
40 psi
(2.8 bar)
Large capacity
screen lter
120 mesh
(130 micron)
20.5”
Length
Jumbo
Rectangular
XCZ-150-LCDR²
1,000 to 4,000 ft
of dripline
150PESBR
Large capacity
disc lter
120 mesh
(130 micron)
23.5”
Length
1with Anti-Siphon
2for Reclaimed Water
3Controller Compatibility Denitions - Bold represents compatibility out of the box.
• Compatible with traditionally-wired controllers with traditional solenoid.
• Compatible with TBOS / DC controller when used with DC latching solenoid.
• Compatible with IVM controllers (ESP-LXIVM/LXIVMP) when used with IVM SOL.
• Compatible with 2-wire decoder systems like ESP-LXD controller.
Use the chart below to compare components and identify the
most appropriate Control Zone Kit for your application.
WATER SAVING TIP:
Combine a Xerigation® Control Zone Kit with a Rain Bird
controller product to precisely regulate zone watering times.
