POWERPIPE X SERIES CONFIGURATION GUIDE
Sonance PowerPipe X Series Congifuration Guide assists in identifying the installation surface and desired
finish to select the required components to complete a project.
IN-CEILING
PPX RUBBER STRAP | 93826
Suspend between joists
(24” L x 2” W x 0.172” D)
SELECT A SUBWOOFER (ONE REQUIRED)
IN CABINET | IN CLOSET | BEHIND WALL
APPLICATION
PARTS FOR SUCCESSFUL INSTALL
FIND YOUR FINISH
PPX8 | 93785
BUTYL TAPE
Seal openings
PPX10 | 93786 PPX15 | 93788
PPX STRAIGHT TOEKICK
CONNECTOR AND GRILLE
PPX-3.5X16-2-STR | 93790
PPX 8” XPC-STYLE GRILLE CONNECTOR
PPX-8R | 93796
PPX 6” XPC-STYLE GRILLE CONNECTOR
PPX-6R | 93795
PPX 4” XPC-STYLE GRILLE CONNECTOR*
PPX-4R | 93794
*only compatible with PPX8 and PPX10 models
TOEKICK FINISH
(select one)
PPX 90-DEGREE TOEKICK
CONNECTOR AND GRILLE
PPX-3.5X16-2-90 | 93789
90-DEGREE ADAPTER
PPX-6-90-ADAPTER | 93793
For 6” pipe installs using PPX12 or PPX15
PPX12 | 93787
MICRO TRIM TRIMLESSTRUFIG FLUSH
XPC-STYLE FINISH
(select one connector and one grille)
or or
4TO6 90-DEGREE ADAPTER
PPX-4TO6-90-ADAPTER | 93792
For 4” pipe installs using PPX8 or PPX10
4TO6 STRAIGHT ADAPTER
PPX-4-6-STR-ADAPTER | 93791
For 4” pipe installs using PPX8 or PPX10
OPTIONAL
(not available from Sonance)
OPTIONAL

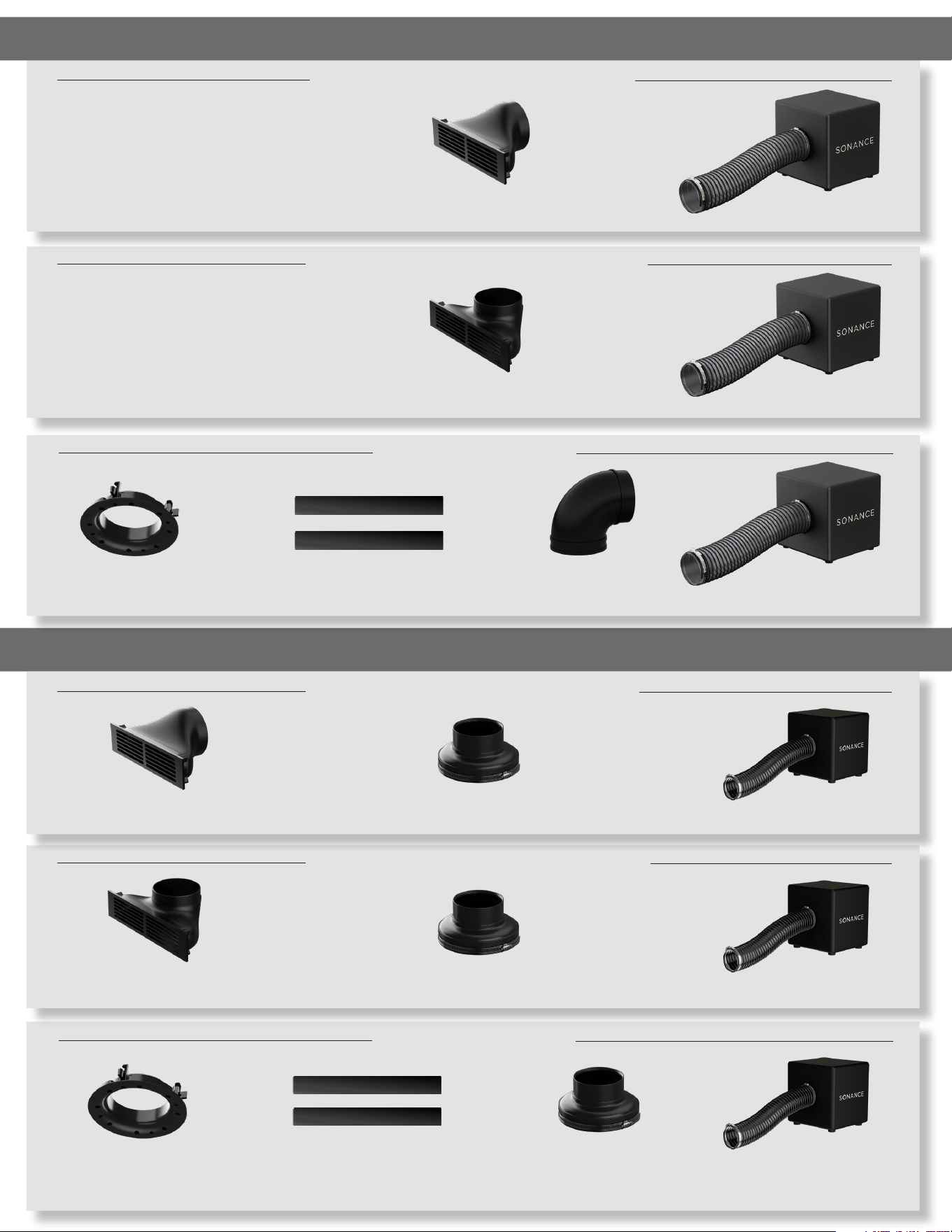

PPX12 | PPX15 INSTALLS (6” PIPE MODELS)
+
+
90-DEGREE TOEKICK MOUNT
STRAIGHT TOEKICK MOUNT
PPX-3.5x16-2-STR CONNECTOR
AND GRILLE | 93790
PPX-3.5x16-2-90 CONNECTOR
AND GRILLE | 93789
PPX-6-90
ADAPTER | 93793
PPX8 | PPX10 INSTALLS (4” PIPE MODELS)
+
CEILING MOUNT
PPX-6R CONNECTOR | 93795
PPX-8R CONNECTOR | 93796
(Requires XPC round or square grille)
PPX RUBBER STRAP | 93826
+
+
+
90-DEGREE TOEKICK MOUNT
STRAIGHT TOEKICK MOUNT
PPX-3.5x16-2-STR CONNECTOR
AND GRILLE | 93790
PPX-3.5x16-2-90 CONNECTOR
AND GRILLE | 93789
CEILING MOUNT
PPX RUBBER STRAP | 93826
+ +
PPX-4-6-STR
ADAPTER | 93791
PPX10 | 93786
PPX8 | 93785
PPX10 | 93786
PPX8 | 93785
PPX10 | 93786
PPX8 | 93785
+
PPX-4-6-STR
ADAPTER | 93791
+
+
PPX-4-6-STR
ADAPTER | 93791
PPX12 | 93787
PPX15 | 93788
PPX-4R CONNECTOR | 93794
PPX-6R CONNECTOR | 93795
PPX-8R CONNECTOR | 93796
(Requires XPC round or square grille)
+
PPX12 | 93787
PPX15 | 93788
PPX12 | 93787
PPX15 | 93788
