SAFETY PRECAUTIONS
ALWAYS Learn the machine’s applications, limitations, and the specific potential hazards
peculiar to it. Read and become familiar with the entire operating manual.
ALWAYS wear suitable protective clothing, gloves and goggles, manufactured to the latest
European Safety Standards. Everyday eye glasses are not safety glasses.
ALWAYS clean off any accidental splashes of degreaser on the skin, seek medical attention
immediately if necessary.
ALWAYS follow degreaser manufacturer’s instructions carefully.
ALWAYS check for damage. Before using the washer, any damaged part, should be checked to
ensure that it will operate properly, and perform its intended function. Any damage should be
properly repaired or the part replaced. If in doubt, DO NOT use the machine. Consult your local
dealer.
ALWAYS disconnect the washer from the power supply before carrying out any maintenance or
cleaning of the parts washer.
ALWAYS keep work area clean. Cluttered areas and benches invite accidents, mop up
accidental spillages of degreaser immediately.
ALWAYS ensure that adequate lighting is available. A minimum intensity of 300 lux should be
provided. Ensure that lighting is placed so that you will not be working in your own shadow.
ALWAYS keep children away. All visitors should be kept a safe distance from the work area,
especially whilst operating the machine.
ALWAYS maintain machine in top condition. Keep washer clean for the best and safest
performance. Follow maintenance instructions.
ALWAYS ensure the switch is off before plugging in to mains. Avoid accidental starting.
ALWAYS concentrate on the job in hand, no matter how trivial it may seem. Be aware that
accidents are caused by carelessness due to familiarity.
ALWAYS keep your proper footing and balance at all times don’t over reach. For best footing,
wear rubber soled footwear. keep floor clear.
2
AS WITH ALL MACHINERY, THERE ARE CERTAIN HAZARDS INVOLVED WITH THEIR OPERATION
AND USE. EXERCISING RESPECT AND CAUTION WILL CONSIDERABLY LESSEN THE RISK OF
PERSONAL INJURY.
HOWEVER, IF NORMAL SAFETY PRECAUTIONS ARE OVERLOOKED OR IGNORED, PERSONAL
INJURY TO THE OPERATOR OR DAMAGE TO PROPERTY, MAY RESULT.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.

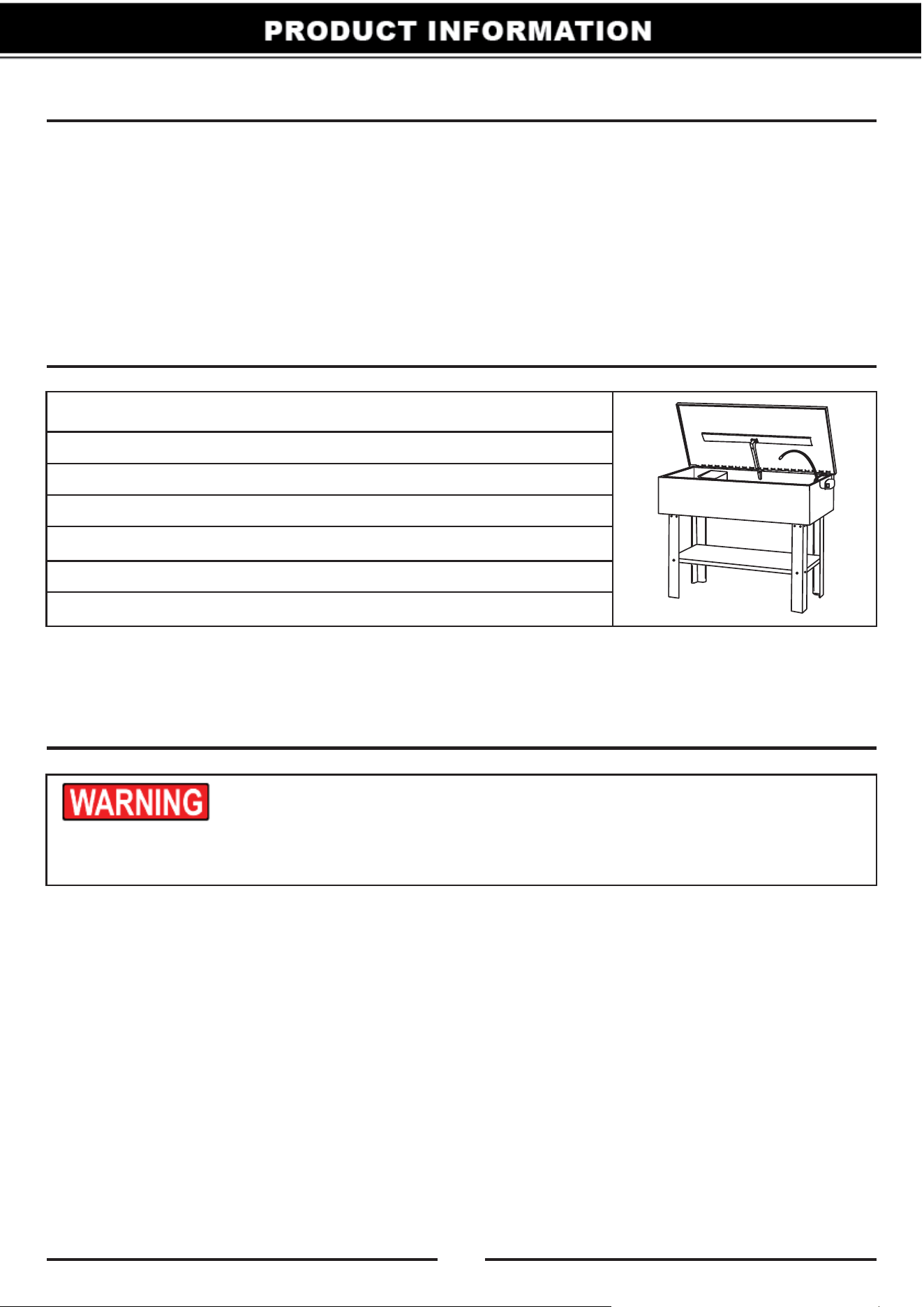

FEATURES
SPECIFICATIONS
• Extra large tank with component shelf, plus small parts tray.
• Accepts all common degreasing fluids.
• Fusible link automatically closes lid in case of fire.
• Built in replacement filter.
• Easy maintenance solvent pump.
3
Item Name PW40G
ELECTRICAL CONNECTIONS
WARNING! Read these electrical safety instructions thoroughly before connecting the prod-
uct to the mains supply.
Before switching the product on, make sure that the voltage of your electricity supply is the same as
that indicated on the rating plate. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug,
the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used
until a suitable replacement is obtained.
Tank capacity：40 Gallon
Solvent capacity: 24 Gallon
Max. pump output: 2.7-3.6 L/min
Electrical Requirement：120V, 60Hz / 240V, 50Hz
INSTALLATION & ASSEMBLY
OPERATION
4
ENVIRONMENTAL PROTECTION
Do not dispose of this product or damaged components with general household waste. All tools,
accessories and packaging should be sorted, taken to a recycling centre and disposed of
appropriately.
One of the most damaging sources of environmental pollution is oil products. Never throw away used
oil with domestic refuse or flush it down a sink or drain. Collect any oil in a leak proof container and
take it to your local waste disposal site.
1. Choose a firm, flat and level surface to site the machine on, in a well ventilated area and away from
any naked flames.
2. Assemble the legs and shelf to the parts washer as shown in the diagram on page 6, using the
screws and nuts supplied.
3. Remove the pump housing cover plate (2 self tapping screws) and dispose of any packaging
around the pump.
4. Replace the cover plate and mount the pump housing through the slot in the side of the tank. The
switch housing protrudes through the slot with its underside hooking over the edge of the tank.
5. Ensure all packaging is removed before filling with parts washer fluid.
1. Fill only with a non-flammable degreaser or cleaning agent, such as parts washer fluid, to just
below the level of the parts shelf.
DO NOT fill with flammable solvents such as paraffin,
thinners, etc.
2. Open the lid, switch the pump on and hold the part to be cleaned under the nozzle, slowly rotate
the component until clean.
3. When clean, leave to drain on the tray or in a small component container until dry.
4. Switch off the pump and close the lid and disconnect the power supply.
5. Remove gloves and goggles, store safely.
Note: Any spillages should be mopped up immediately, so as not to cause a safety
hazard.
IMPORTANT:
1. The Lid Stay incorporates a safety device in the form of a fusible link, which closes the lid in the
event of fire. The link is non-resetting and must be replaced should it be activated.
2. Clean the pump filter regularly, by sliding it away from the pump housing and rinsing it in clean
degreaser.
3. Do not allow the level of liquid in the parts washer to fall below the pump inlet, as damage to the
pump can result.
N.O. DESCRIPTION

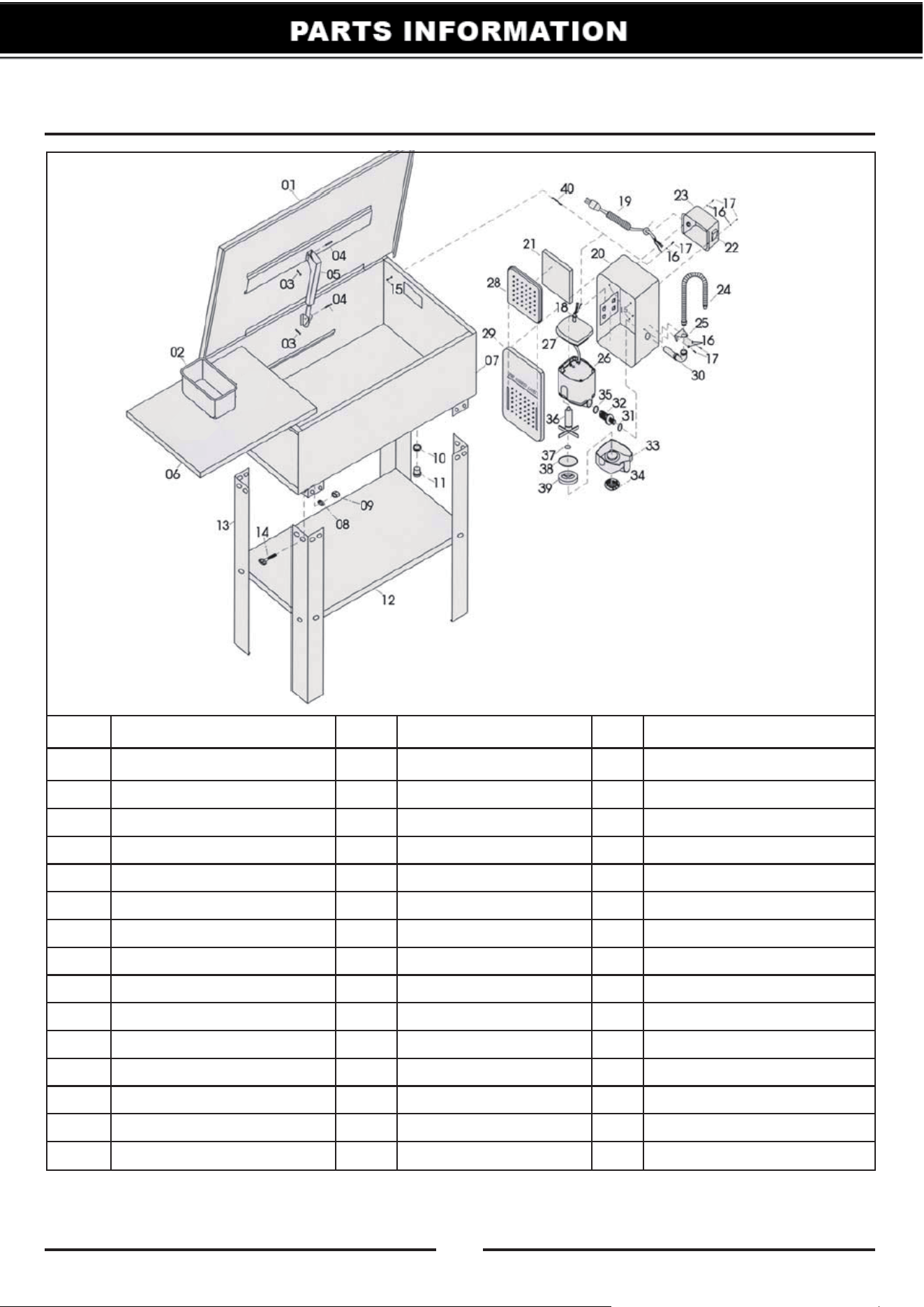

PARTS DIAGRAM
5
PARTS LIST
Lid
Small Parts Container
Spring Pin
Rivet
Lid Stay c/w Fusible Link
Work Shelf
Tank
Spring Washer
Nut
'O'-Ring
Plug
Shelf
Leg
Screw
Nut
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
N.O. DESCRIPTION
Spring Washer
Screw
Grommet
Power Cable & Plug
Pump Housing
Screen
Switch
Switch Box
24 Flexible Pipe
25 Elbow Seat
Pump Body*
Pump Cover*
Filter Cover
Pump Housing Cover
Elbow
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
N.O. DESCRIPTION
31
32
33
34
35
36
37
38
39
40
*
'O'-Ring
Spigot
Pump Housing*
Pump Filter*
Sealing Ring
Pump Impeller*
Pump Shim Washer*
Pump Sealing Ring*
Pump Impeller Holder*
Pyrocondensation Pipe
Pump Assy complete
