Thank you for purchasing this Marantz product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

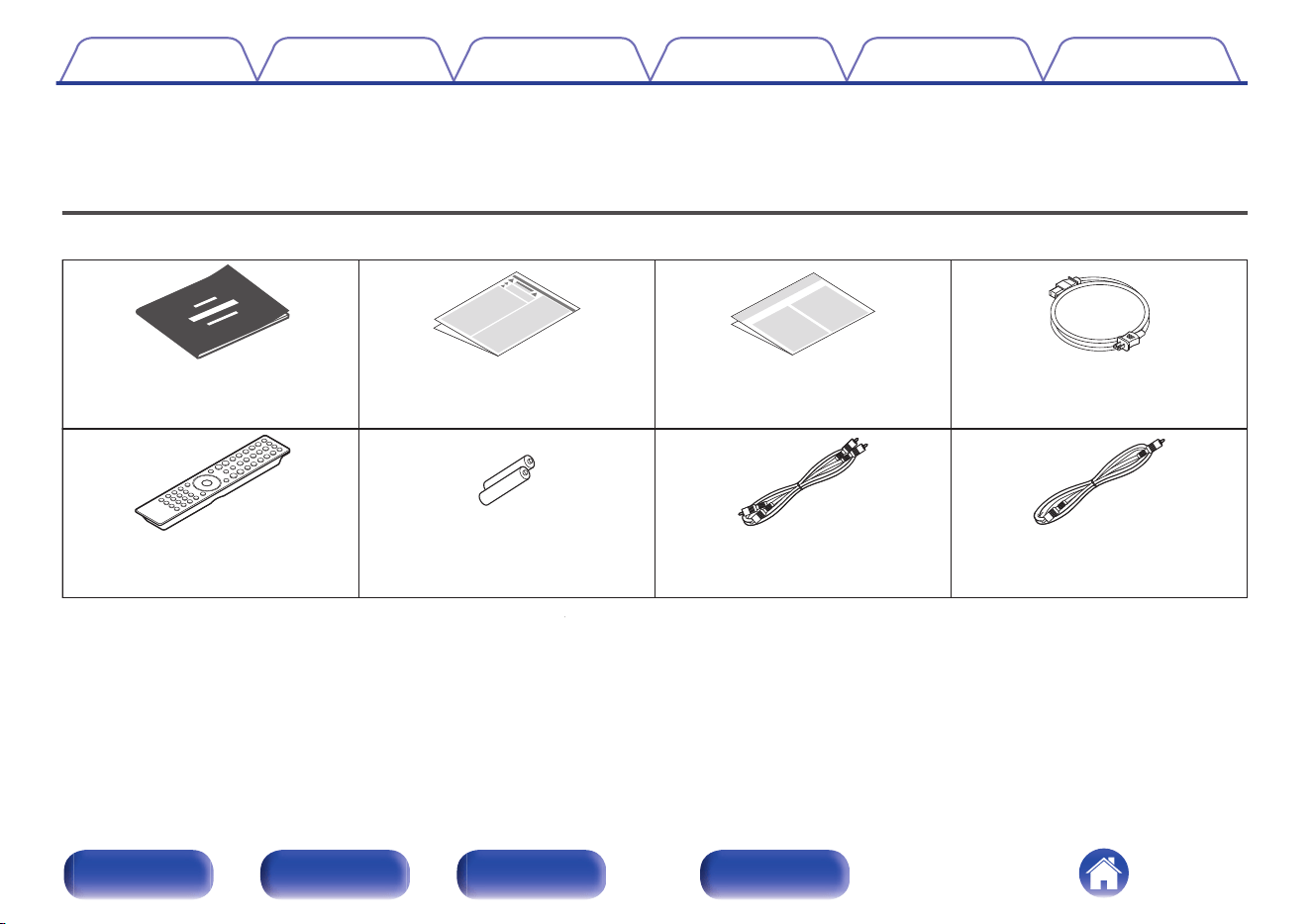

Accessories
Check that the following parts are supplied with the product.
Power cordWarranty
(for North America model only)
Safety InstructionsQuick Start Guide
Remote connector cable
Audio cable
2× R03/AAA batteries
Remote control unit
(RC004PMND)
Contents Connections Playback Settings Tips Appendix
5
Front panel Rear panel Remote control
unit
Index

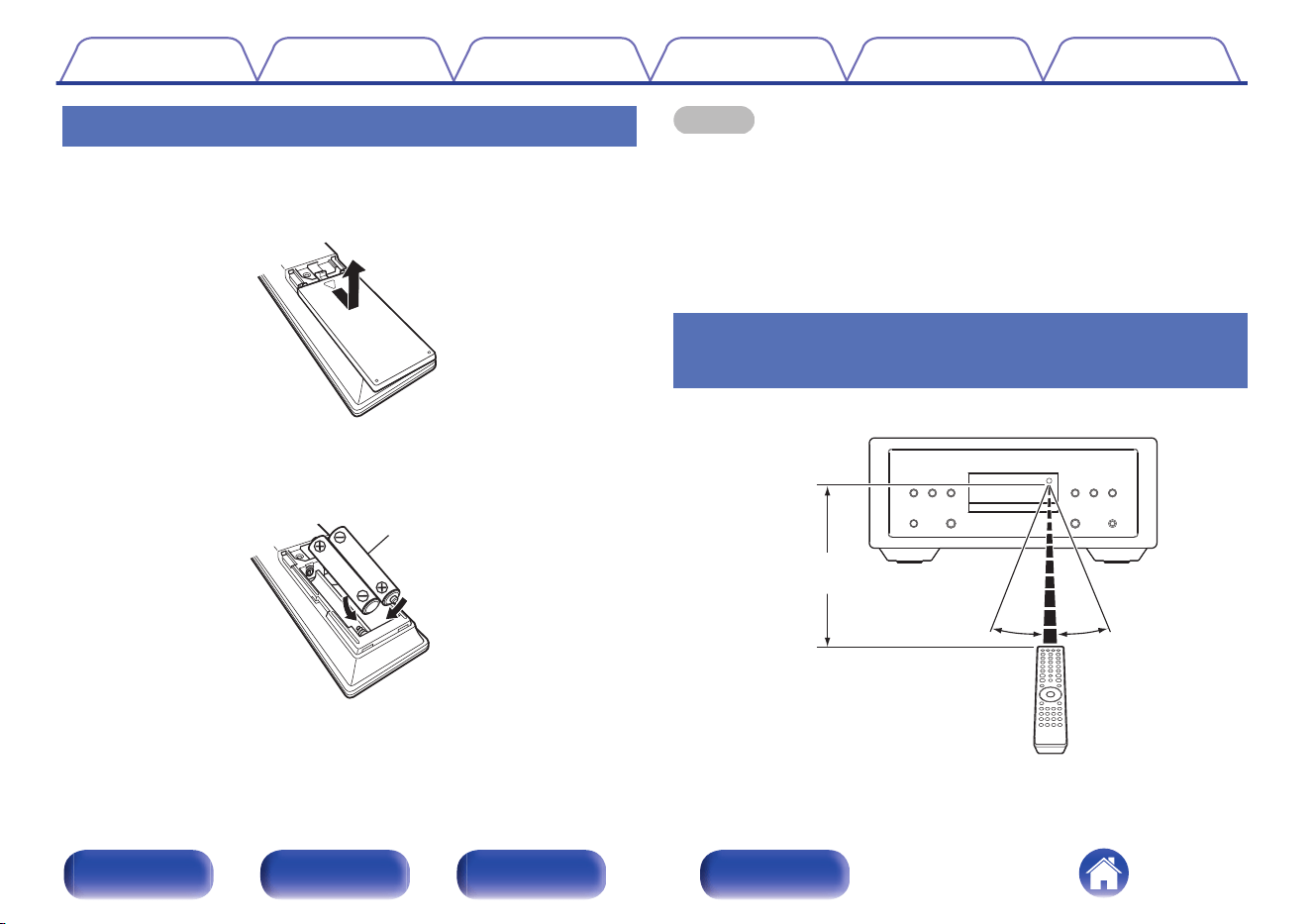

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
2
Insert two batteries correctly into the battery
compartment as indicated.
Batteries
3
Put the rear lid back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
Approx. 23 ft/7 m
30° 30°
Contents
Connections Playback Settings Tips Appendix
6
Front panel Rear panel Remote control
unit
Index

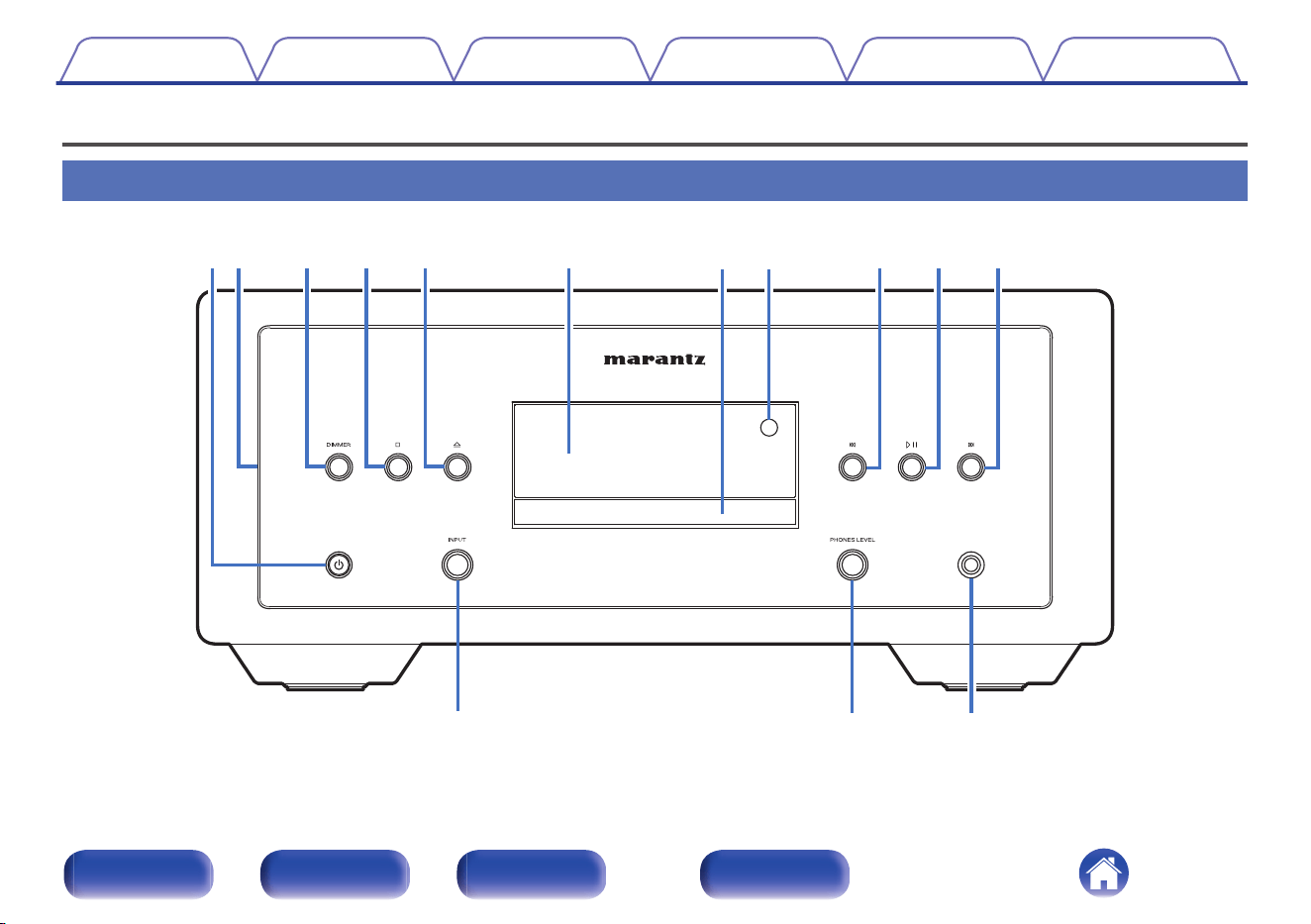

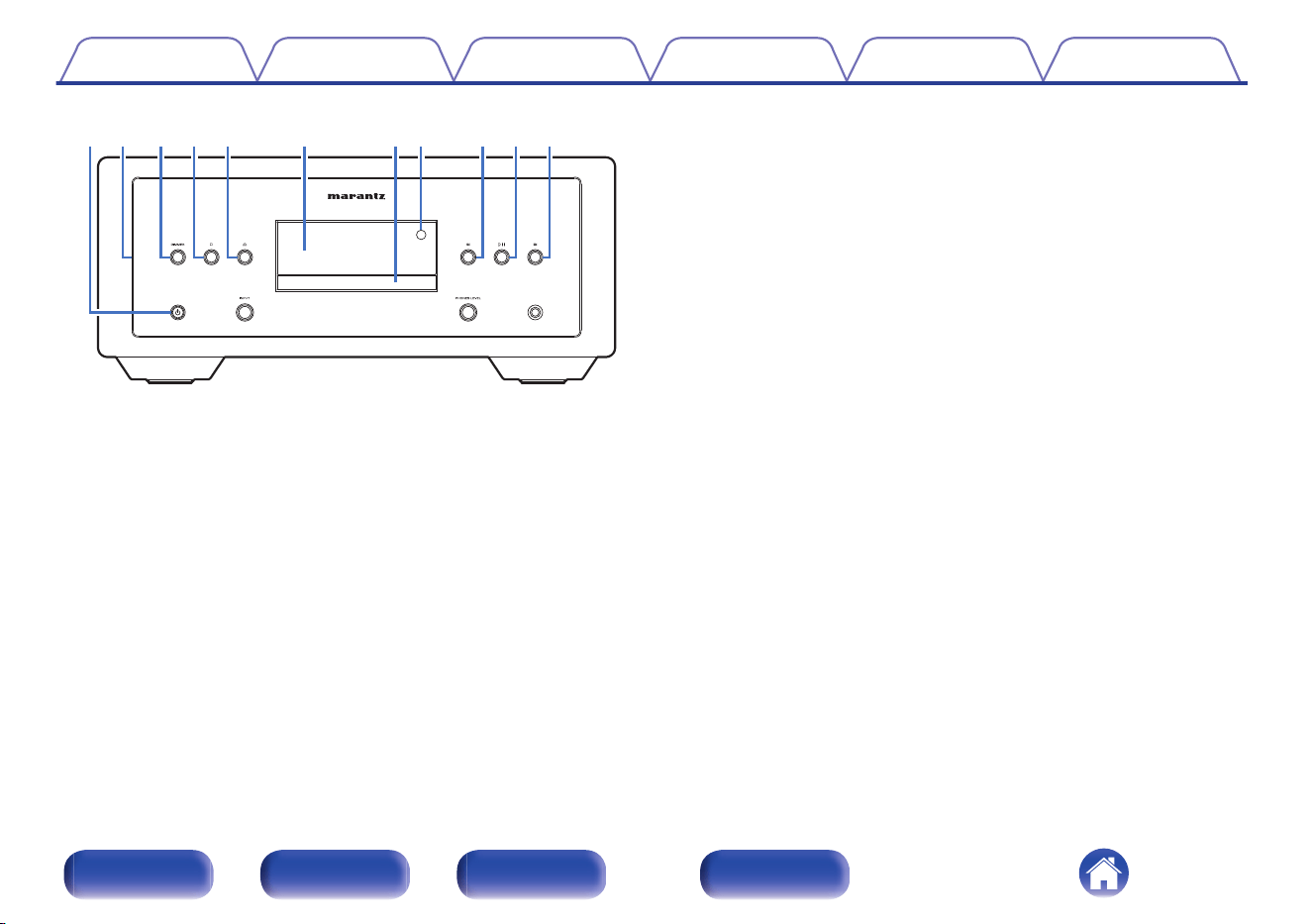

iyewqrt oQ0 Q1u
A
Power (X) button/indicator
0
This turns the power on/off (standby). (v p. 30)
0
This is lit as follows according to the power status:
0
Power on : White
0
Standby : Off
0
When the protection circuit is activated : Orange (blinking)
B
Illumination
This illuminates when the power is turned on. Brightness can be
changed and lighting turned off.
0
“Turning the illumination and display on/off” (v p. 32)
0
“Illumination” (v p. 58)
C
DIMMER button
This switches the brightness of the display. (v p. 31)
D
Stop button (i)
Press this button to stop during playback.
E
Disc tray open/close button (q)
Opens and closes the disc tray. (v p. 33)
F
Display
Various information is displayed here.
G
Disc tray
Used to insert a disc.
H
Remote control sensor
This receives signals from the remote control unit. (v p. 6)
I
Reverse-skip button (k)
Press this button during playback to restart the current track or play the
previous track.
J
Play/Pause button (p)
Press this button to pause during playback. If pressed while paused or
stopped, resumes playback.
K
Forward-skip button (j)
Press this button during playback to play the next track.
Contents
Connections Playback Settings Tips Appendix
8
Front panel Rear panel Remote control
unit
Index

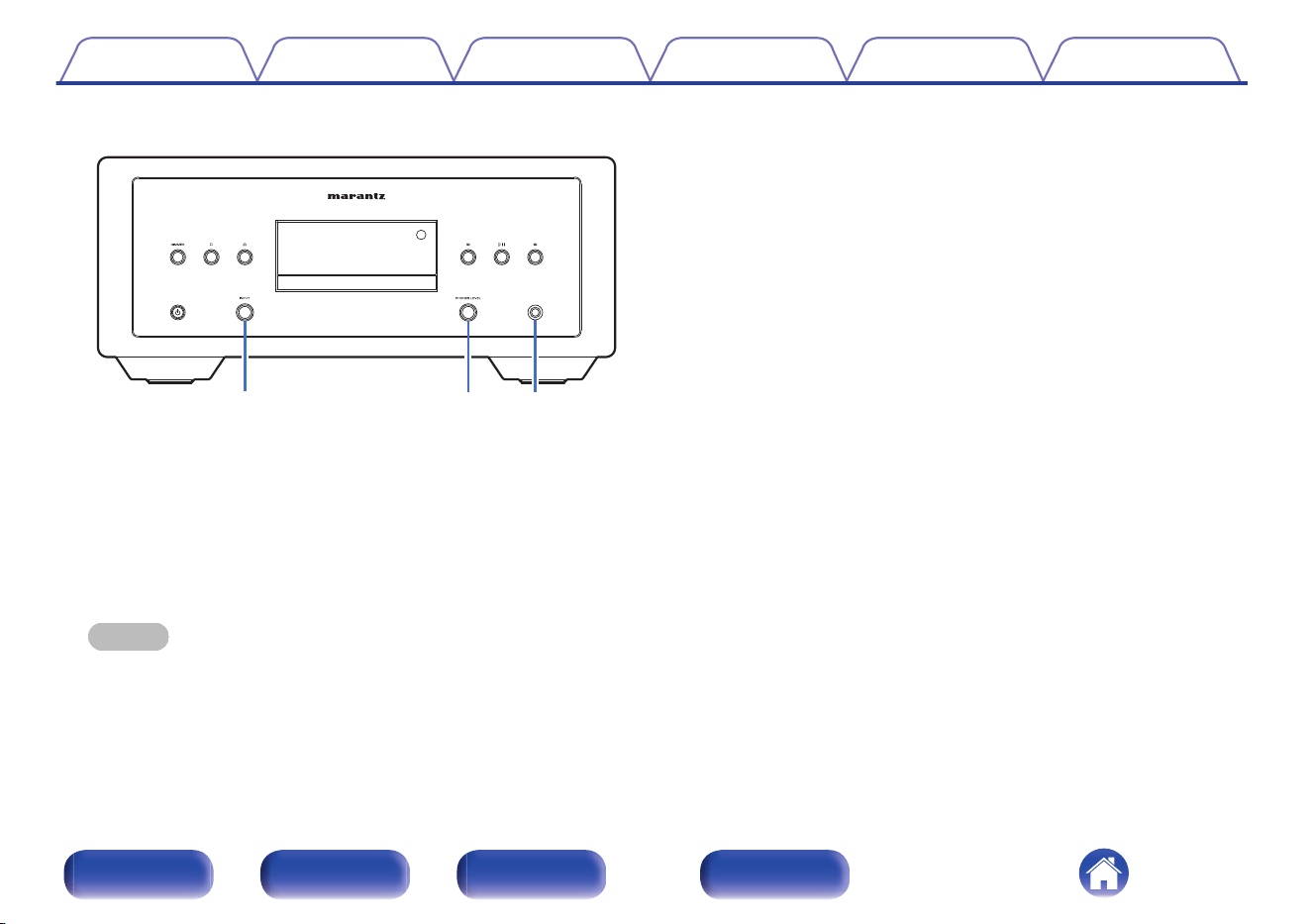

Q2 Q3 Q4
L
INPUT selector knob
This selects the input source. (v p. 31)
M
Headphone volume control knob (PHONES LEVEL)
Adjusts the headphone volume.
N
Headphones jack
Used to connect headphones.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
Contents Connections Playback Settings Tips Appendix
9
Front panel Rear panel Remote control
unit
Index

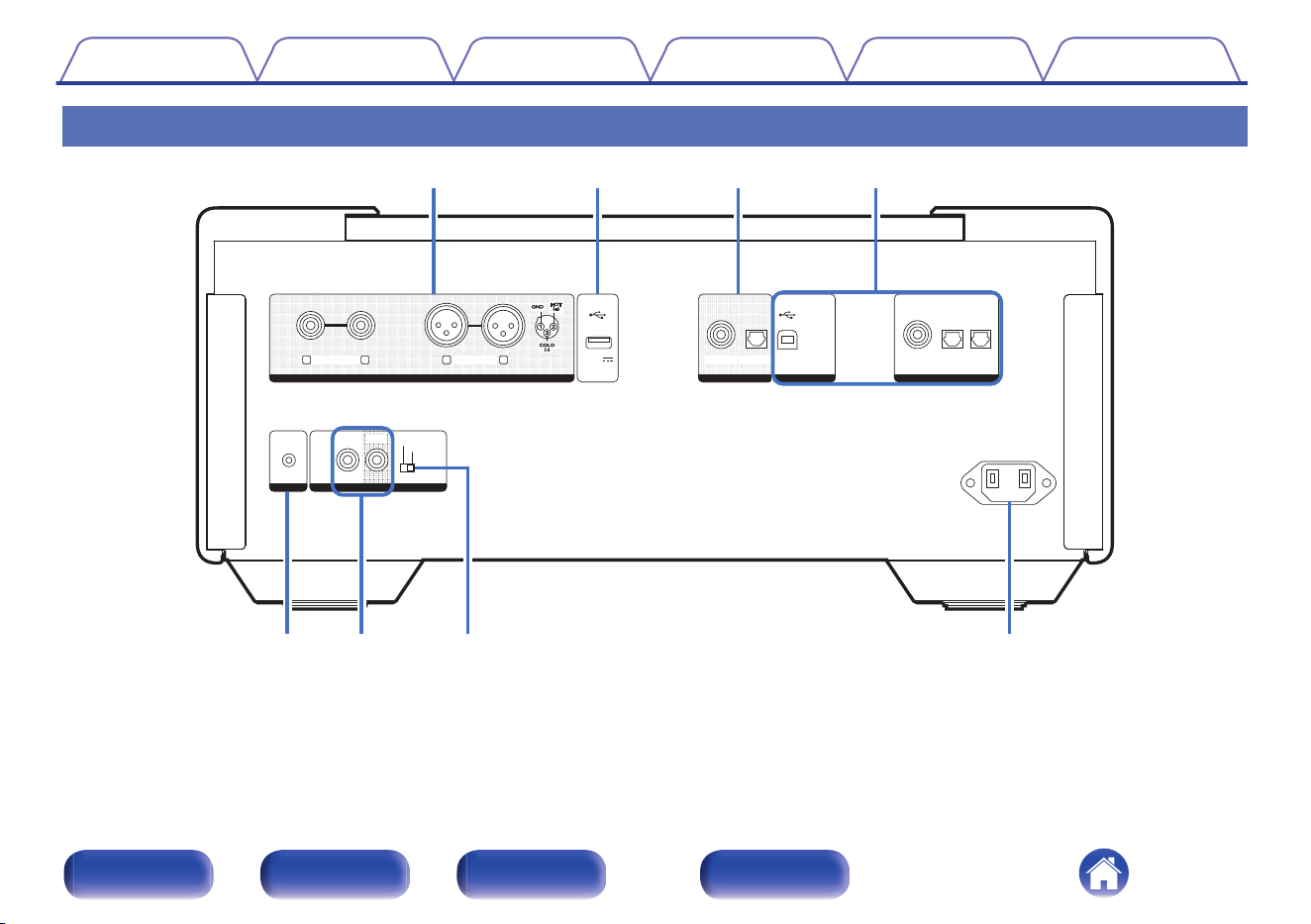

Rear panel
IR
IR
IN
IN
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
FLASHER
FLASHER
REMOTE CONTROL
REMOTE CONTROL
BALANCED
BALANCED
LINE OUT
LINE OUT
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB-DAC
USB-DAC
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
DIGITAL AUDIO IN
DIGITAL AUDIO IN
R L R L
5V/1A
5V/1A
UNBALANCED
UNBALANCED
COAXIAL
COAXIAL
AC IN
AC IN
AC IN
AC IN
wqre
uyti
For details, see the next page.
Contents
Connections Playback Settings Tips Appendix
10
Front panel Rear panel Remote control
unit
Index
IR
IR
IN
IN
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
FLASHER
FLASHER
REMOTE CONTROL
REMOTE CONTROL
BALANCED
BALANCED
LINE OUT
LINE OUT
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB-DAC
USB-DAC
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
DIGITAL AUDIO IN
DIGITAL AUDIO IN
R L R L
5V/1A
5V/1A
UNBALANCED
UNBALANCED
COAXIAL
COAXIAL
AC IN
AC IN
AC IN
AC IN
wqre
uyti

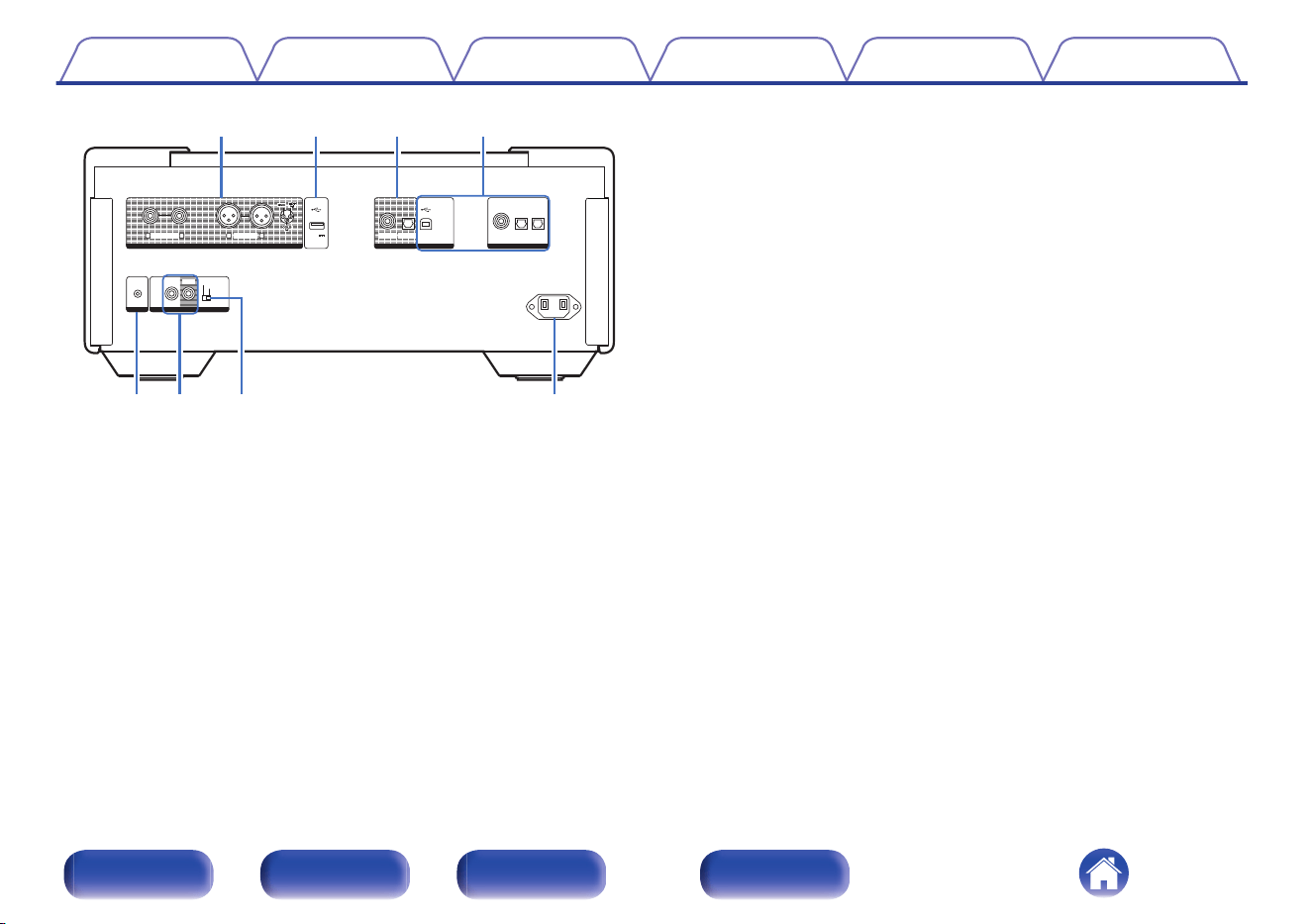

A
LINE OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external amplifier. (v p. 19)
B
USB port (T)
This is used to connect USB storages (such as USB flash drives).
(v p. 24)
C
DIGITAL AUDIO OUT connectors (COAXIAL/OPTICAL)
Used to connect an amplifier or D/A converter that has a digital input
connectors. (v p. 21)
D
DIGITAL AUDIO IN connectors
0
Used to connect devices equipped with digital audio output
connectors. (v p. 22)
0
Used to connect a computer. (v p. 23)
E
FLASHER IR IN jack
Used to connect a control box, etc. (v p. 25)
F
Remote control input/output connectors (REMOTE CONTROL)
Used to connect to a Marantz audio device that is compatible with the
remote control function. (v p. 26)
G
EXTERNAL/INTERNAL switch
Turn this switch to “EXTERNAL” to operate the unit by pointing the
remote control at the amplifier connected to this unit using the remote
control connection. (v p. 26)
H
AC inlet (AC IN)
Used to connect the power cord. (v p. 28)
Contents
Connections Playback Settings Tips Appendix
11
Front panel Rear panel Remote control
unit
Index

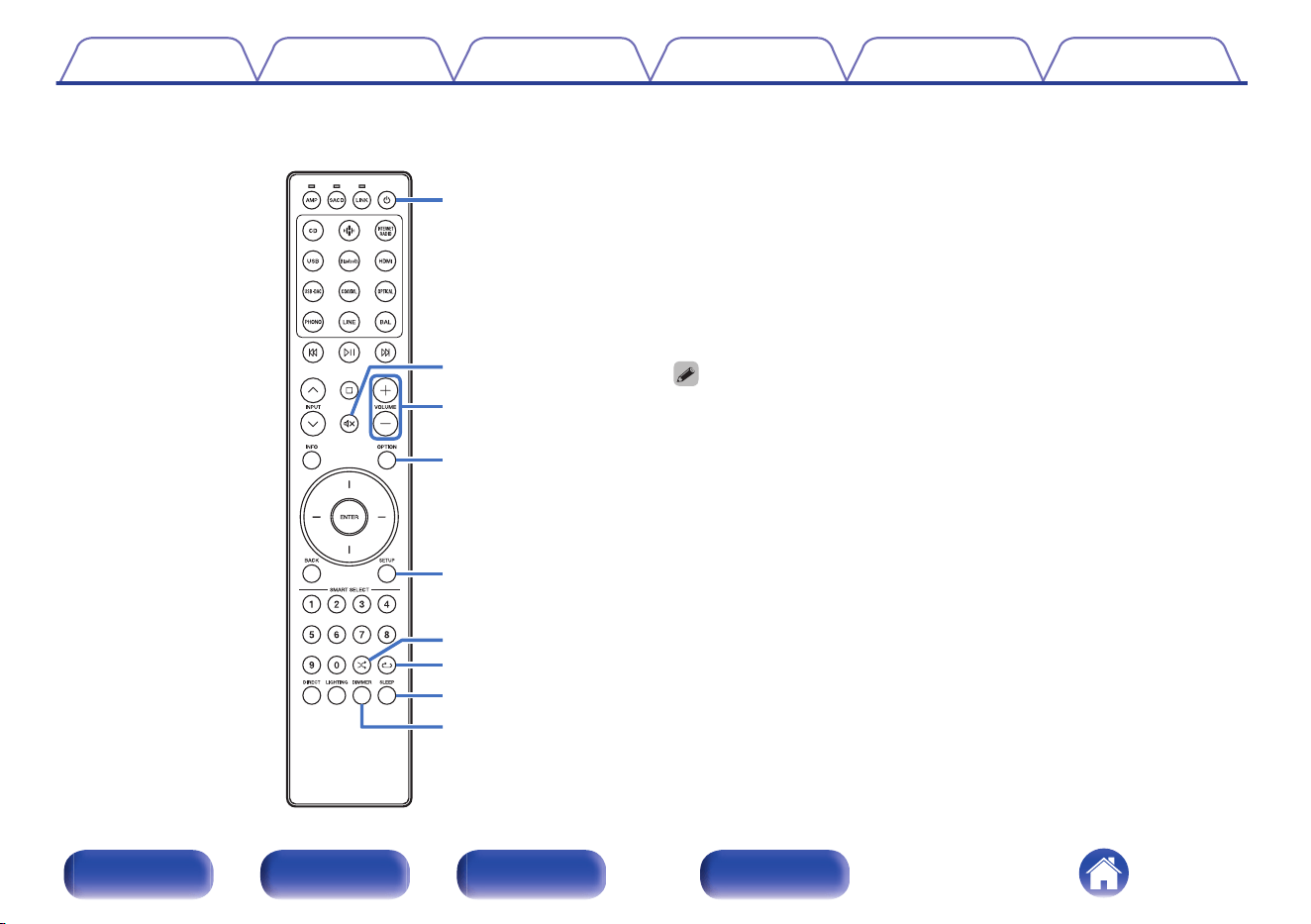

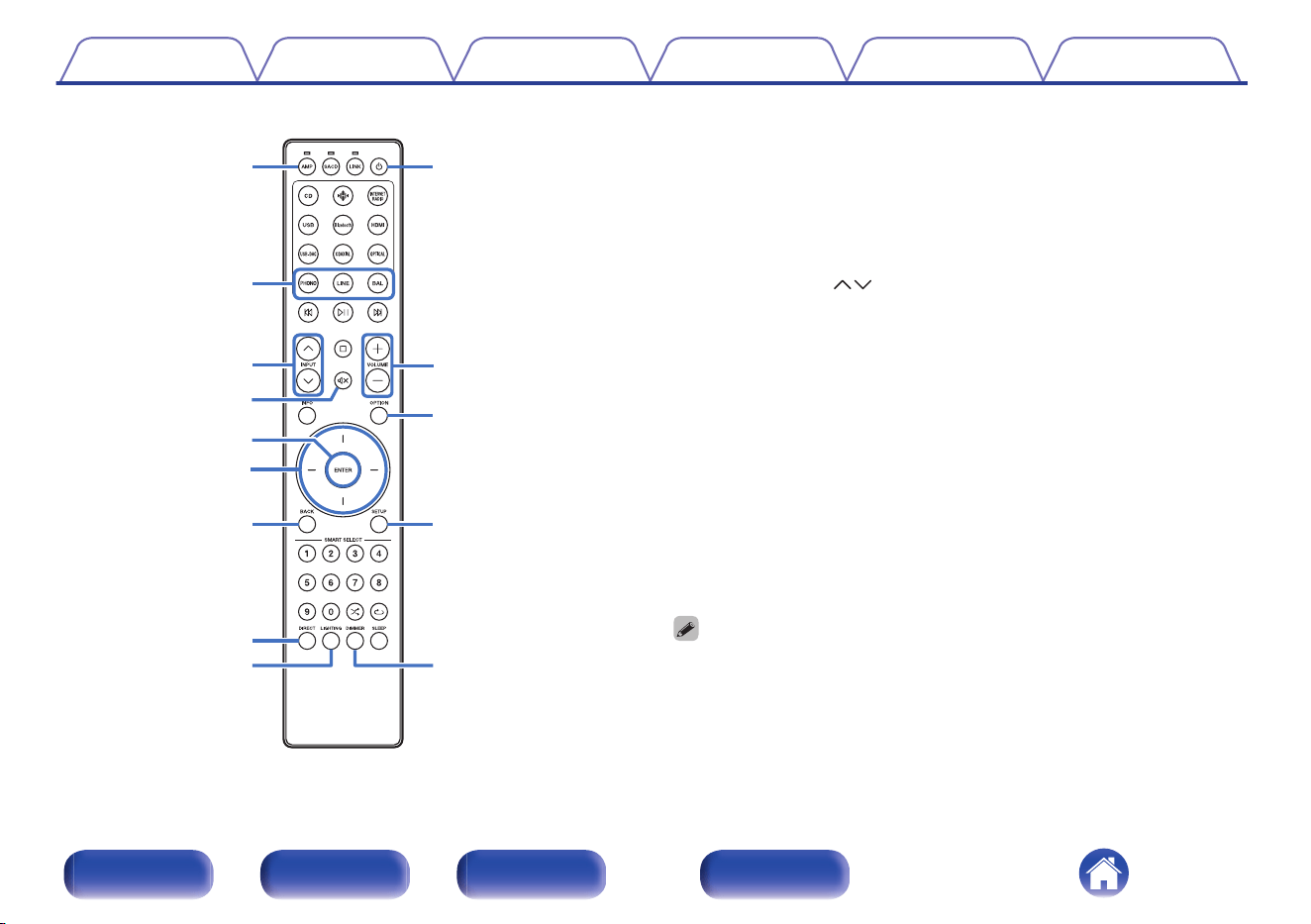

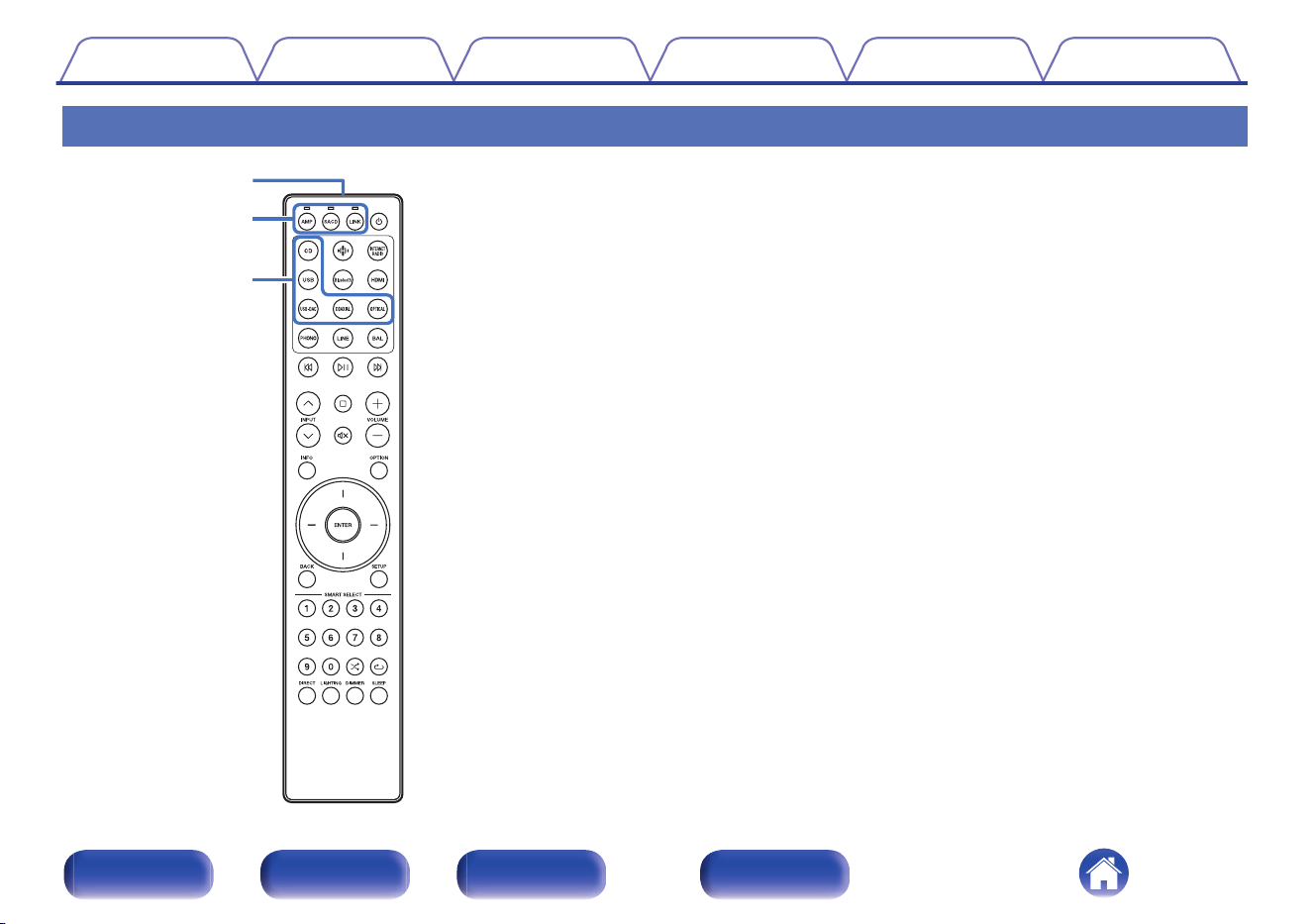

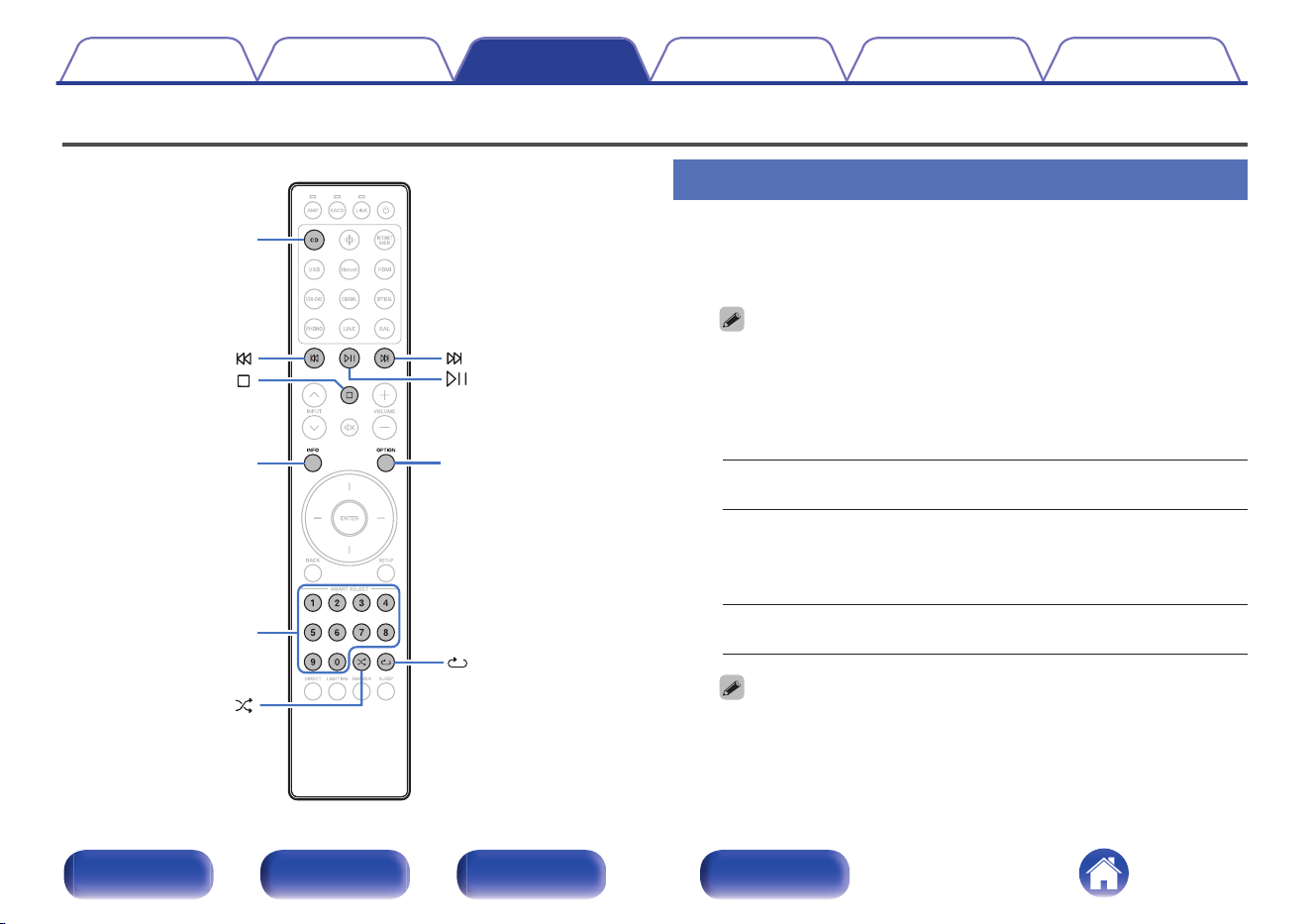

Remote control unit
e
q
w
The remote control provided with this unit can control a Marantz amplifier
and streaming preamplifier.
0
“Amplifier operations” (v p. 15)
0
“Streaming preamplifier operations” (v p. 16)
o
Operating this unit
To operate this unit, press SACD button to switch the remote control
operating mode to this unit.
A
Remote control signal transmitter
This transmits signals from the remote control unit. (v p. 6)
B
Remote mode select buttons/indicators (AMP/SACD/LINK)
0
These switch the remote control operating mode (AMP/SACD/LINK).
0
The indicator will light up according to the device being operated.
C
Input source select buttons (CD/USB/USB-DAC/COAXIAL/
OPTICAL)
This selects the input source. (v p. 31)
Contents Connections Playback Settings Tips Appendix
12
Front panel Rear panel Remote control
unit
Index
y
o
i
t
u
r
D
System buttons
These perform playback related operations.
0
Play/Pause button (p)
Press this button to pause during playback. If pressed while paused
or stopped, resumes playback.
0
Forward-skip button (j)
Press this button during playback to play the next track.
0
Reverse-skip button (k)
Press this button during playback to restart the current track or play
the previous track.
0
Stop button (i)
Press this button to stop during playback.
E
INPUT buttons (
)
This selects the input source. (v p. 31)
F
Information button (INFO)
This switches the track information shown in the display during
playback.
G
ENTER button
This determines the selection.
H
Cursor buttons
These select items.
I
BACK button
Returns to the previous item.
Contents
Connections Playback Settings Tips Appendix
13
Front panel Rear panel Remote control
unit
Index

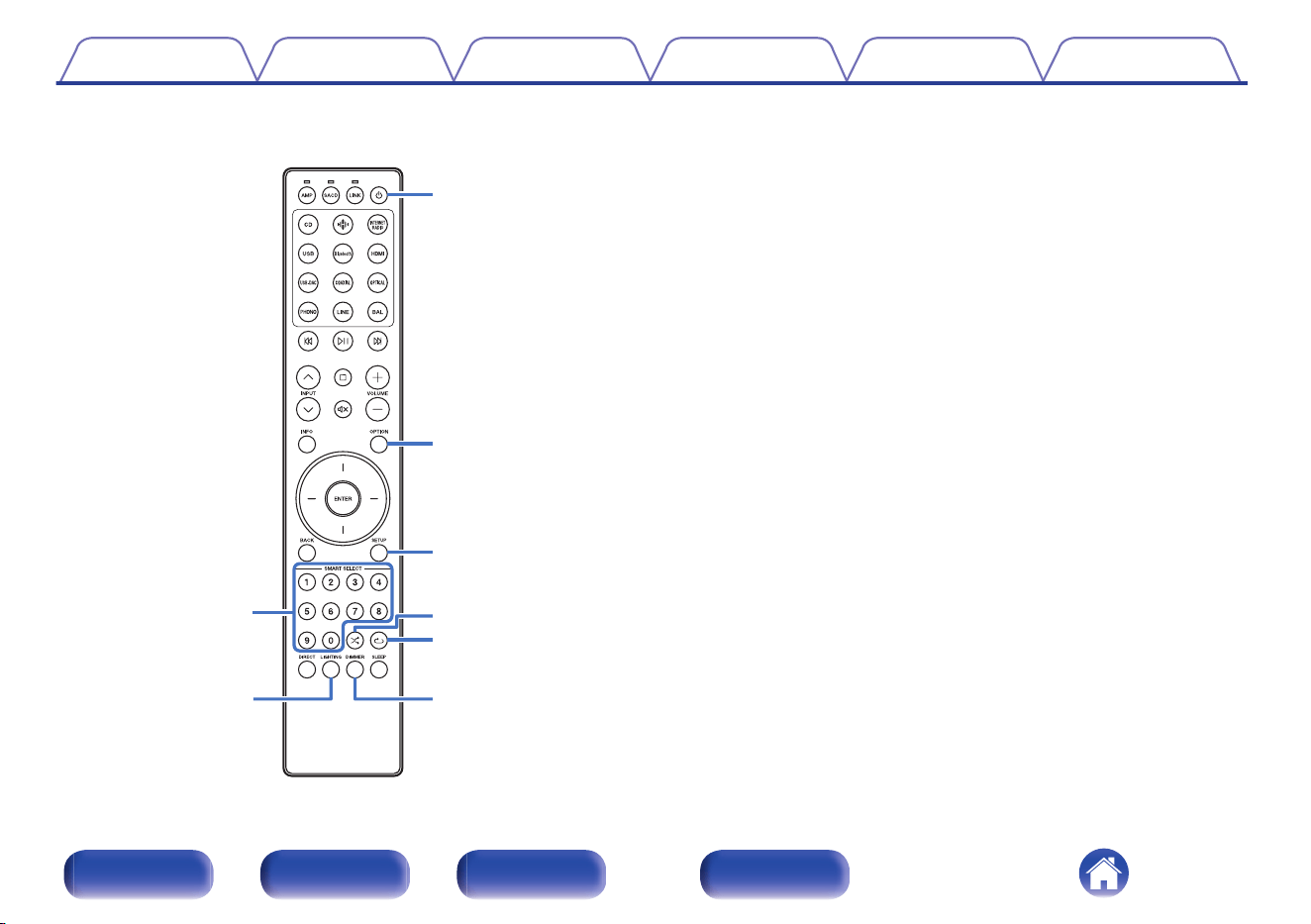

Q2
Q3
Q4
Q6
Q5
Q7
Q0
Q11
J
Number buttons (0 – 9)
These enter numbers into the unit.
K
LIGHTING button
This turns the illumination and display on/off. (v p. 32)
L
Power (X) button
This turns the power on/off (standby). (v p. 30)
M
OPTION button
0
Selects the top priority playback layer for Super Audio CDs.
(v p. 36)
0
Selects the playback range of the data CD/DVD. (v p. 39)
0
Selects the playback range of the USB flash drive. (v p. 42)
N
SETUP button
The setting menu is displayed on the display. (v p. 54)
O
Random button (s)
Switches the random playback.
P
Repeat button (r)
Switches to the repeat playback.
Q
DIMMER button
Adjust the display brightness of this unit. (v p. 31)
Contents
Connections Playback Settings Tips Appendix
14
Front panel Rear panel Remote control
unit
Index
Q0
u
i
o
Q2
Q3
Q4
Q1
q
e
w
r
t
y
o
Amplifier operations
A Marantz amplifier can be operated.
To operate amplifier, press AMP button to switch the remote control to
the amplifier operation mode.
A
Remote mode select button (AMP)
B
Input source select buttons (PHONO/LINE/BAL)
C
INPUT buttons (
)
D
Mute button (:)
E
ENTER button
F
Cursor buttons
G
BACK button
H
DIRECT button
I
LIGHTING button
J
Power (X) button
K
VOLUME buttons (no)
L
OPTION button
M
SETUP button
N
DIMMER button
0
The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
15
Front panel Rear panel Remote control
unit
Index
w
q
t
i
u
o
Q0
Q1
r
e
y
o

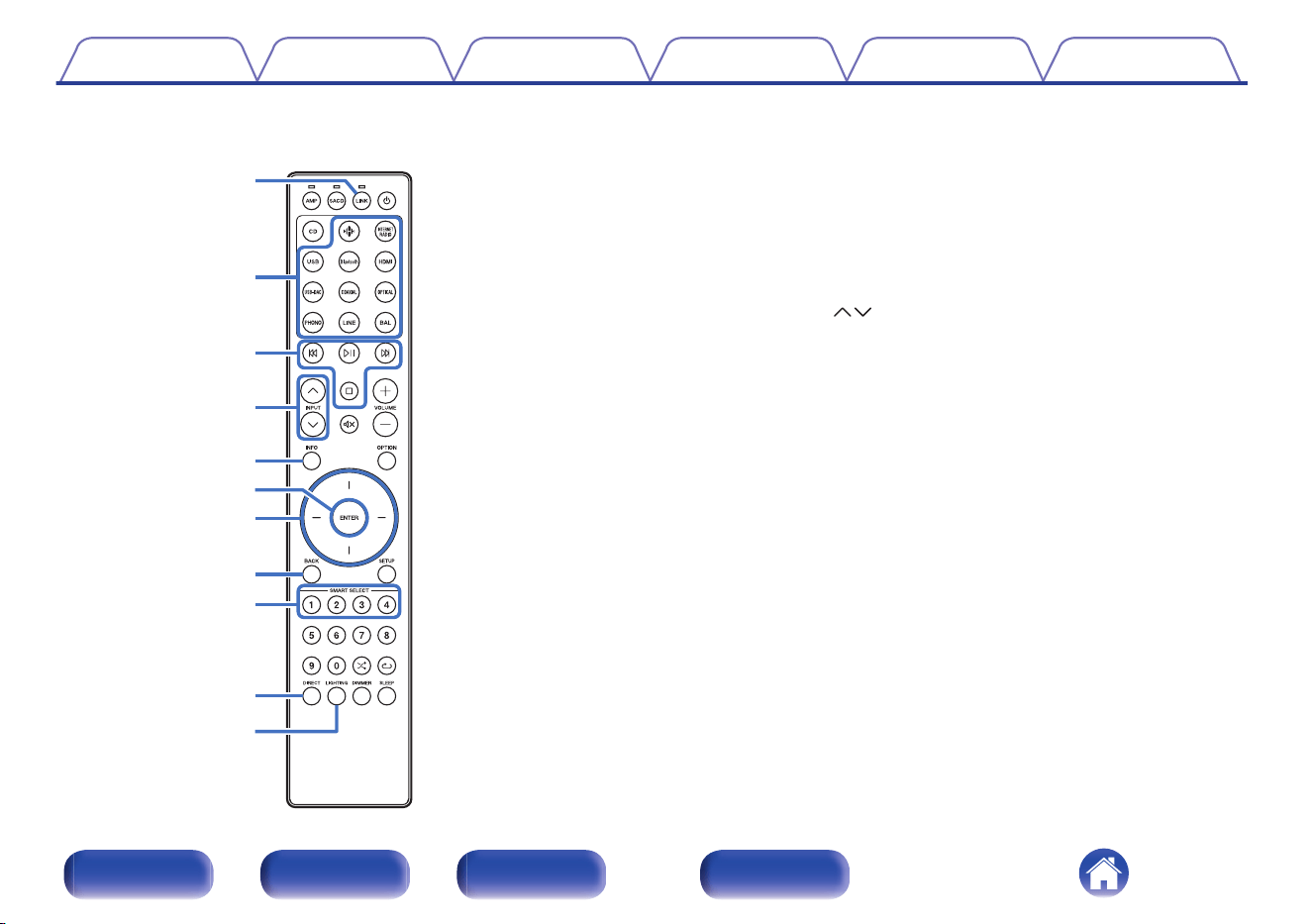

Streaming preamplifier operations
A Marantz streaming preamplifier can be operated.
To operate streaming preamplifier, press LINK button to switch the
remote control to the streaming preamplifier operation mode.
A
Remote mode select button (LINK)
B
Input source select buttons
C
System buttons
D
INPUT buttons (
)
E
Information button (INFO)
F
ENTER button
G
Cursor buttons
H
BACK button
I
SMART SELECT 1 - 4 buttons
J
DIRECT button
K
LIGHTING button
Contents Connections Playback Settings Tips Appendix
16
Front panel Rear panel Remote control
unit
Index
Q2
Q3
Q4
Q5
Q6
Q8
Q9
Q7
W0
L
Power (X) button
M
Mute button (:)
N
VOLUME buttons (no)
O
OPTION button
P
SETUP button
Q
Random button (s)
R
Repeat button (r)
S
SLEEP button
T
DIMMER button
0
The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
17
Front panel Rear panel Remote control
unit
Index
o
Contents
Connecting an amplifier
19
Connecting to a device with digital audio input connectors
21
Connecting to a device with digital audio output connectors
22
Connecting a PC or Mac
23
Connecting a USB flash drive to the USB port
24
Connecting an external control device
25

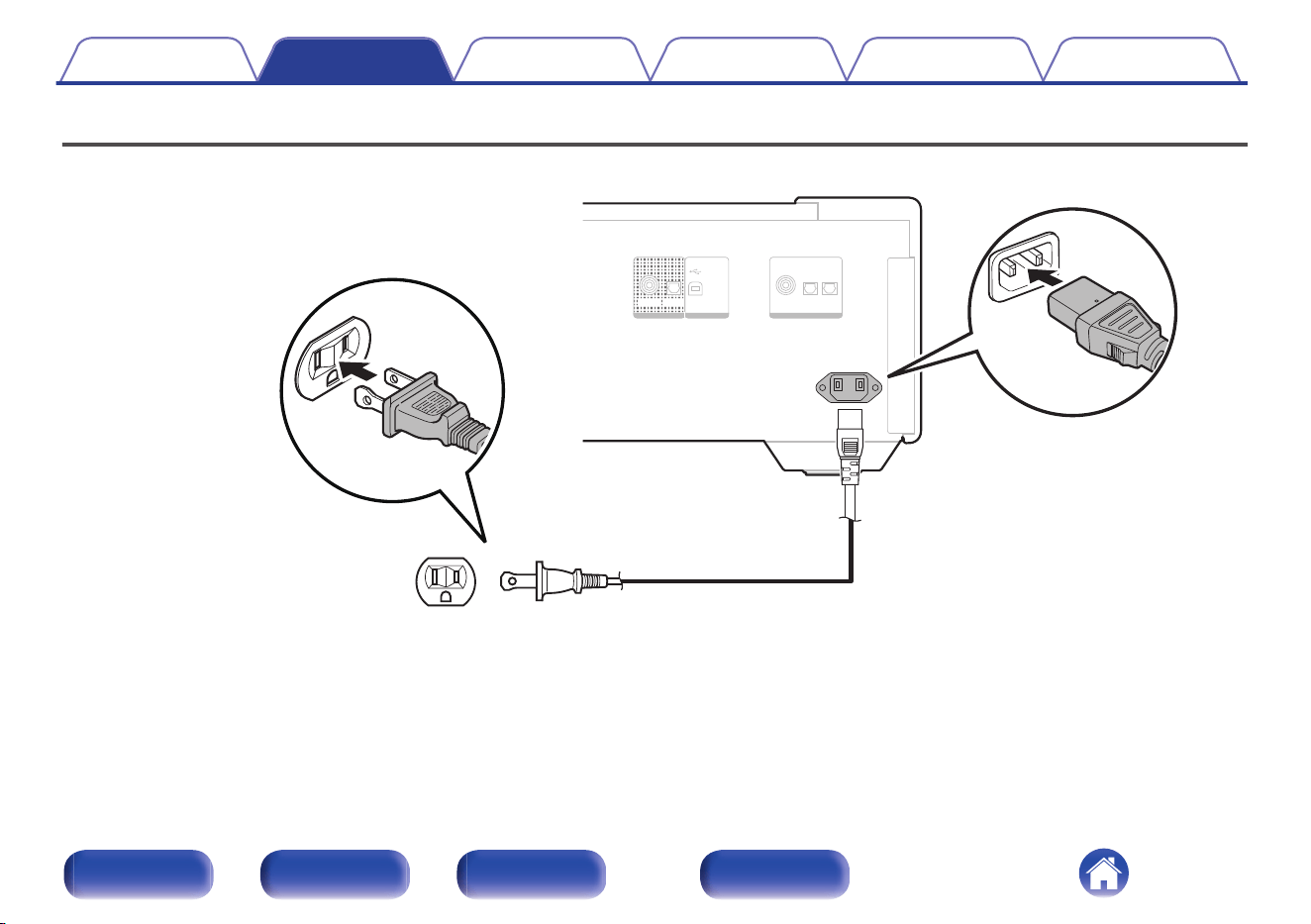

Connecting the power cord
28
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
o

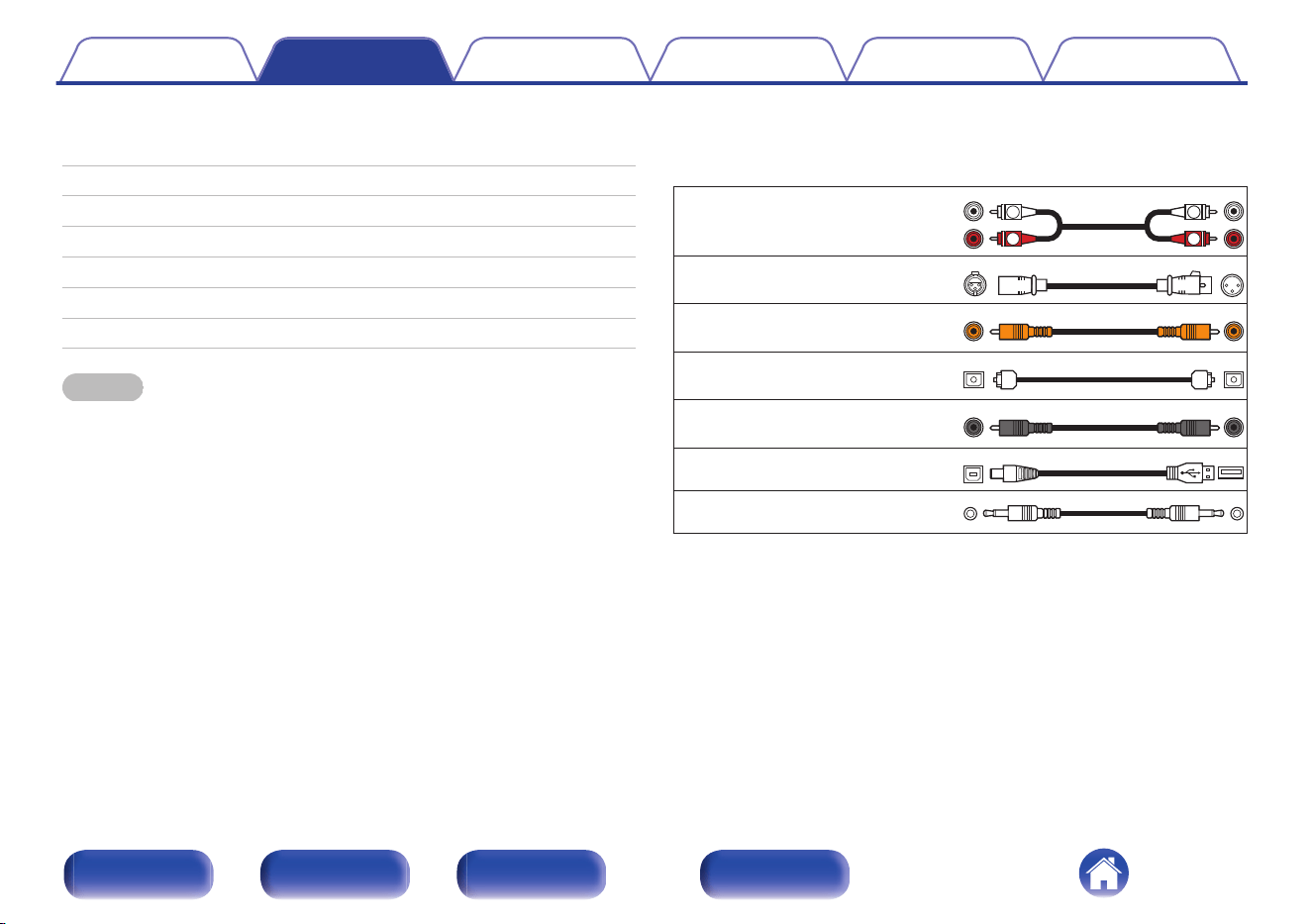

Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Audio cable
(included)
R
L
R
L
Balance cable
(not included)
Remote connector cable
(included)
Optical cable
(not included)
Coaxial digital cable
(not included)
USB cable
(not included)
Monaural mini-plug cable
(not included)
Contents Connections Playback Settings Tips Appendix
18
Front panel Rear panel Remote control
unit
Index

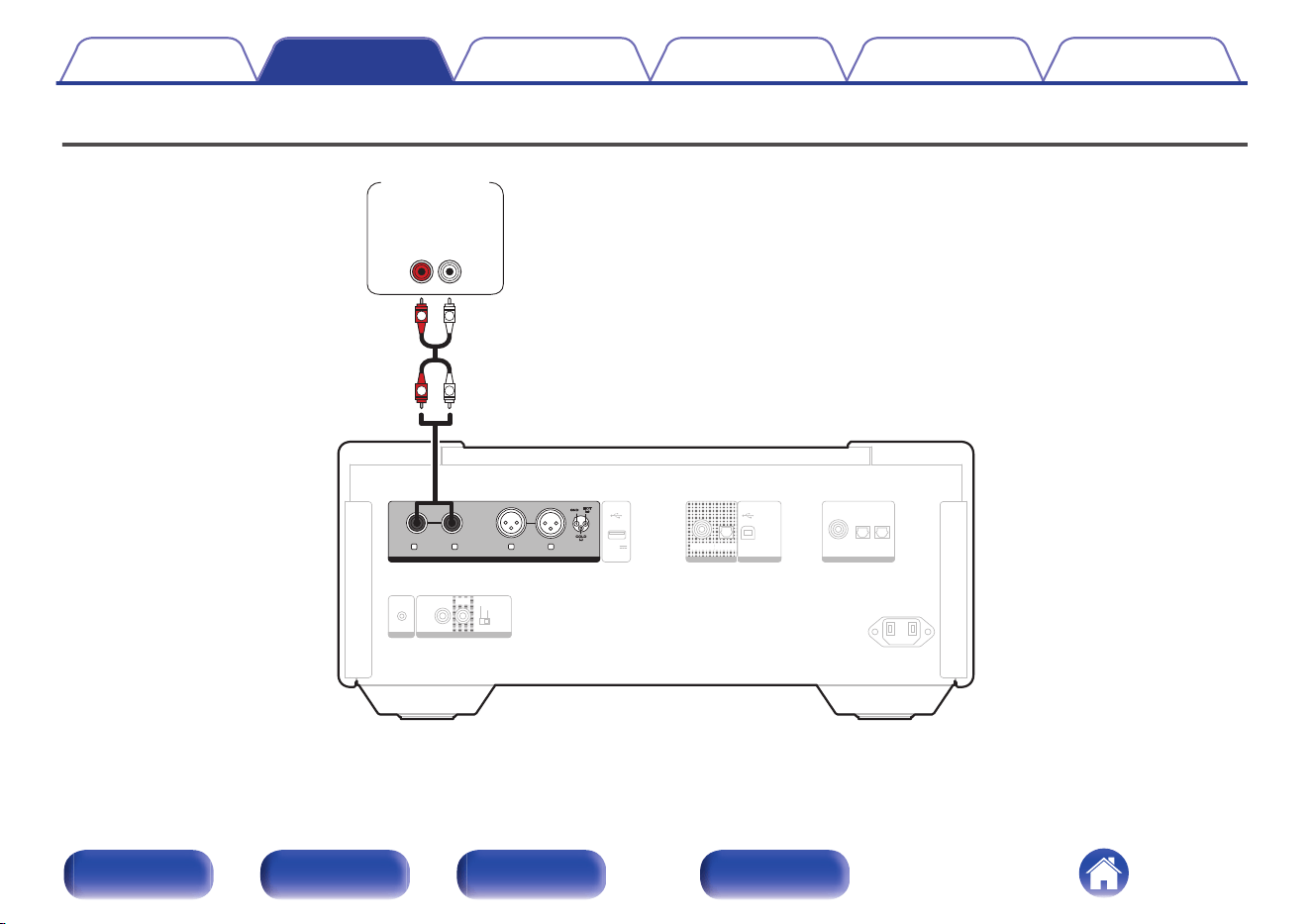

Connecting an amplifier
IR
IR
IN
IN
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
FLASHER
FLASHER
REMOTE CONTROL
REMOTE CONTROL
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB-DAC
USB-DAC
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
DIGITAL AUDIO IN
DIGITAL AUDIO IN
5V/1A
5V/1A
COAXIAL
COAXIAL
AC IN
AC IN
AC IN
AC IN
BALANCED
BALANCED
LINE OUT
LINE OUT
R L R L
UNBALANCED
UNBALANCED
R
L
R
L
AUDIO
LR
IN
Amplifier
Contents Connections Playback Settings Tips Appendix
19
Front panel Rear panel Remote control
unit
Index
o
About balanced connectors
This unit has both unbalanced and balanced connectors. The
balanced connectors have three pins, making it possible to transmit
audio signals as a balanced signal, reducing the effect of external
noise. They also have a removable lock mechanism, which reduces
shaking in the connector area, making the connection highly reliable.
0
The balanced connection is an all-stage balanced configuration.
IR
IR
IN
IN
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
FLASHER
FLASHER
REMOTE CONTROL
REMOTE CONTROL
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB- DAC
USB-DAC
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
DIGITAL AUDIO IN
DIGITAL AUDIO IN
5V/1A
5V/1A
COAXIAL
COAXIAL
AC IN
AC IN
AC IN
AC IN
BALANCED
BALANCED
LINE OUT
LINE OUT
R L R L
UNBALANCED
UNBALANCED
LR
AUDIO
IN
Amplifier
o

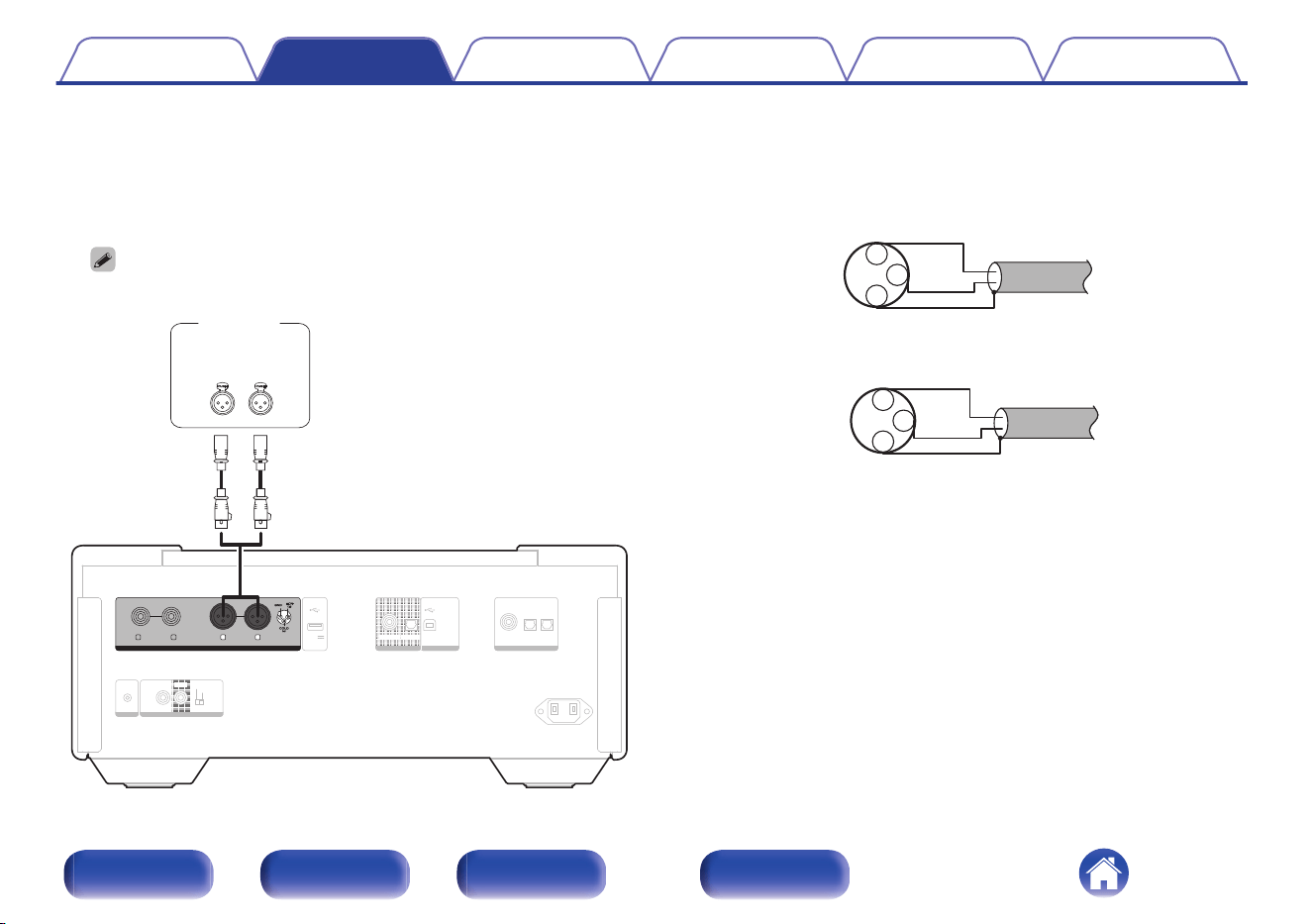

Phases of the balanced connectors
The XLR connector is internally wired in either of the following two
systems. This unit employs the European system.
0
European system (2 PIN=HOT/ 3 PIN=COLD)
1
2
3 COLD
HOT
GND
0
USA system (2 PIN=COLD / 3 PIN=HOT)
1
2
3 HOT
COLD
GND
If a product that employs the USA system is connected with this unit
via a balanced cable, the output signal may be phase-inverted. To
correct the inversion, connect the one side XLR connector reversing
the 2 PIN and 3 PIN.
Contents
Connections Playback Settings Tips Appendix
20
Front panel Rear panel Remote control
unit
Index
Connecting to a device with digital audio input connectors
You can enjoy digital audio playback by connecting an amplifier or D/A converter that has a digital audio connector to this unit.
NOTE
0
Digital audio output stops during playback of the DSD signals and linear
PCM signals with a sampling frequency of 352.8/384 kHz using this unit’s
USB-DAC.
0
Digital audio output stops during playback of the DSD files via USB flash
drive, Data CDs and Data DVDs.
0
Digital audio output stops during playback of the HD layer of Super Audio
CDs.
0
Digital audio output can be set on/off using “Digital Out” in the setup
menu. (v p. 56)
0
To connect recorder that has a digital audio connector isn't
recommended.
IR
IR
IN
IN
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
FLASHER
FLASHER
REMOTE CONTROL
REMOTE CONTROL
BALANCED
BALANCED
LINE OUT
LINE OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB-DAC
USB-DAC
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
DIGITAL AUDIO IN
DIGITAL AUDIO IN
R L R L
5V/1A
5V/1A
UNBALANCED
UNBALANCED
AC IN
AC IN
AC IN
AC IN
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
COAXIAL
COAXIAL
OPTICAL
IN
COAXIAL
IN
or
Amplifier /
D/A converter
Contents
Connections Playback Settings Tips Appendix
21
Front panel Rear panel Remote control
unit
Index

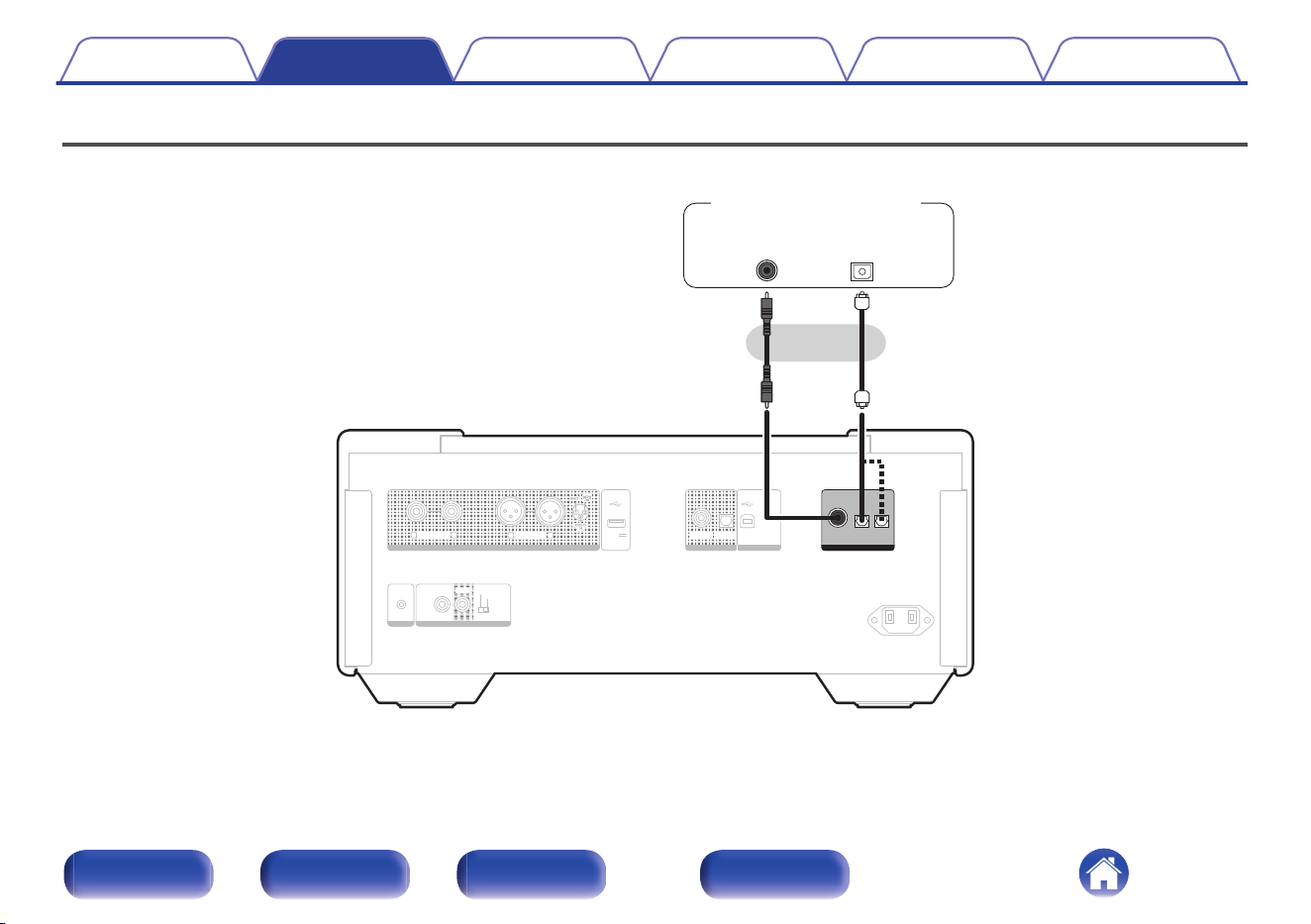

Connecting to a device with digital audio output connectors
Use this connection to input digital audio signals to this unit, and convert the signals for playback using the D/A converter of this unit. (v p. 43)
IR
IR
IN
IN
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
FLASHER
FLASHER
REMOTE CONTROL
REMOTE CONTROL
BALANCED
BALANCED
LINE OUT
LINE OUT
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
USB-DAC
USB-DAC
DIGITAL AUDIO IN
DIGITAL AUDIO IN
R L R L
5V/1A
5V/1A
UNBALANCED
UNBALANCED
COAXIAL
COAXIAL
AC IN
AC IN
AC IN
AC IN
DIGITAL AUDIO IN
DIGITAL AUDIO IN
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
OUT
COAXIAL
OUT
OPTICAL
or
CD transport / Digital device
o
Specifications of supported audio formats
See “Digital input” (v p. 82).
Contents
Connections Playback Settings Tips Appendix
22
Front panel Rear panel Remote control
unit
Index

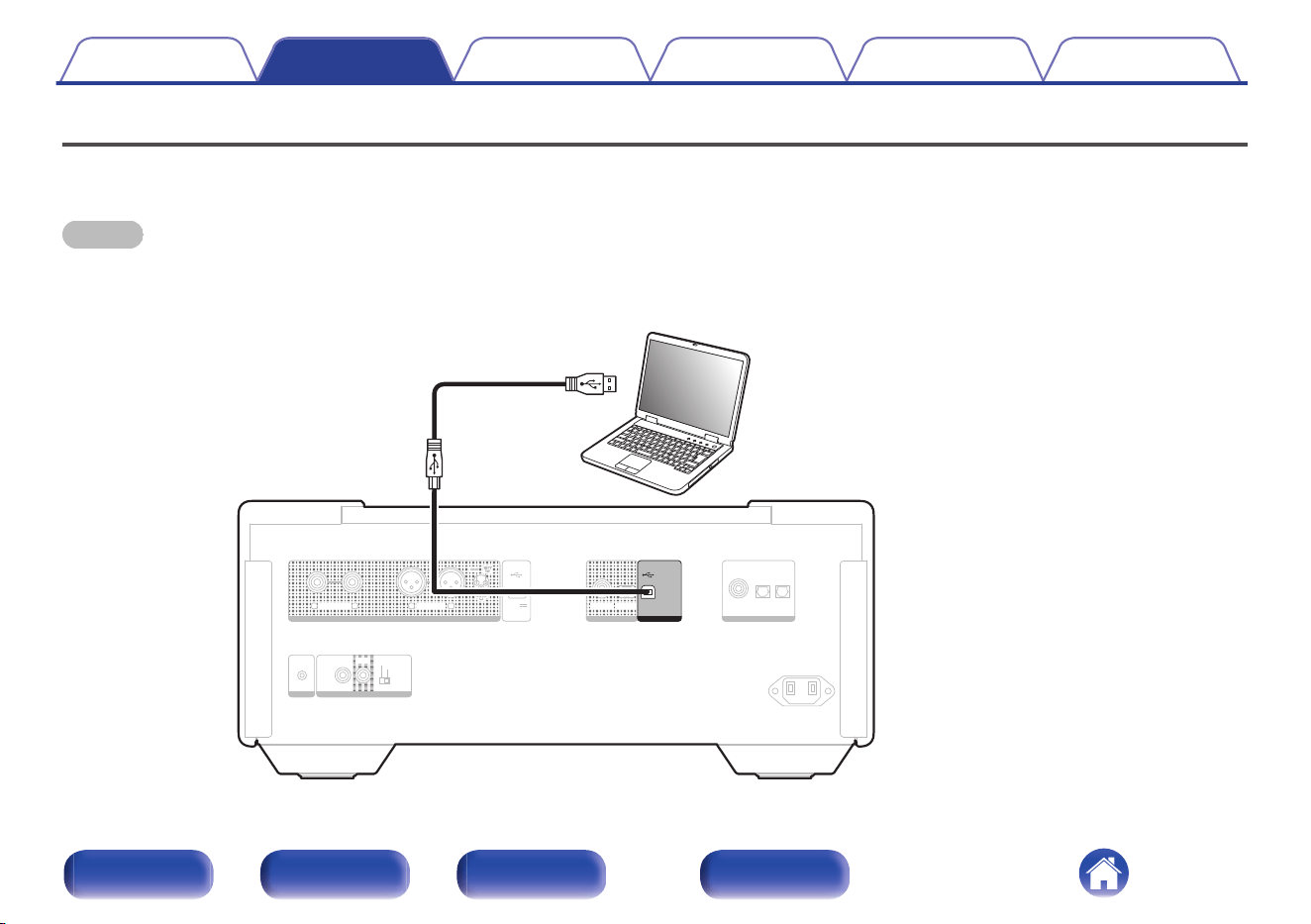

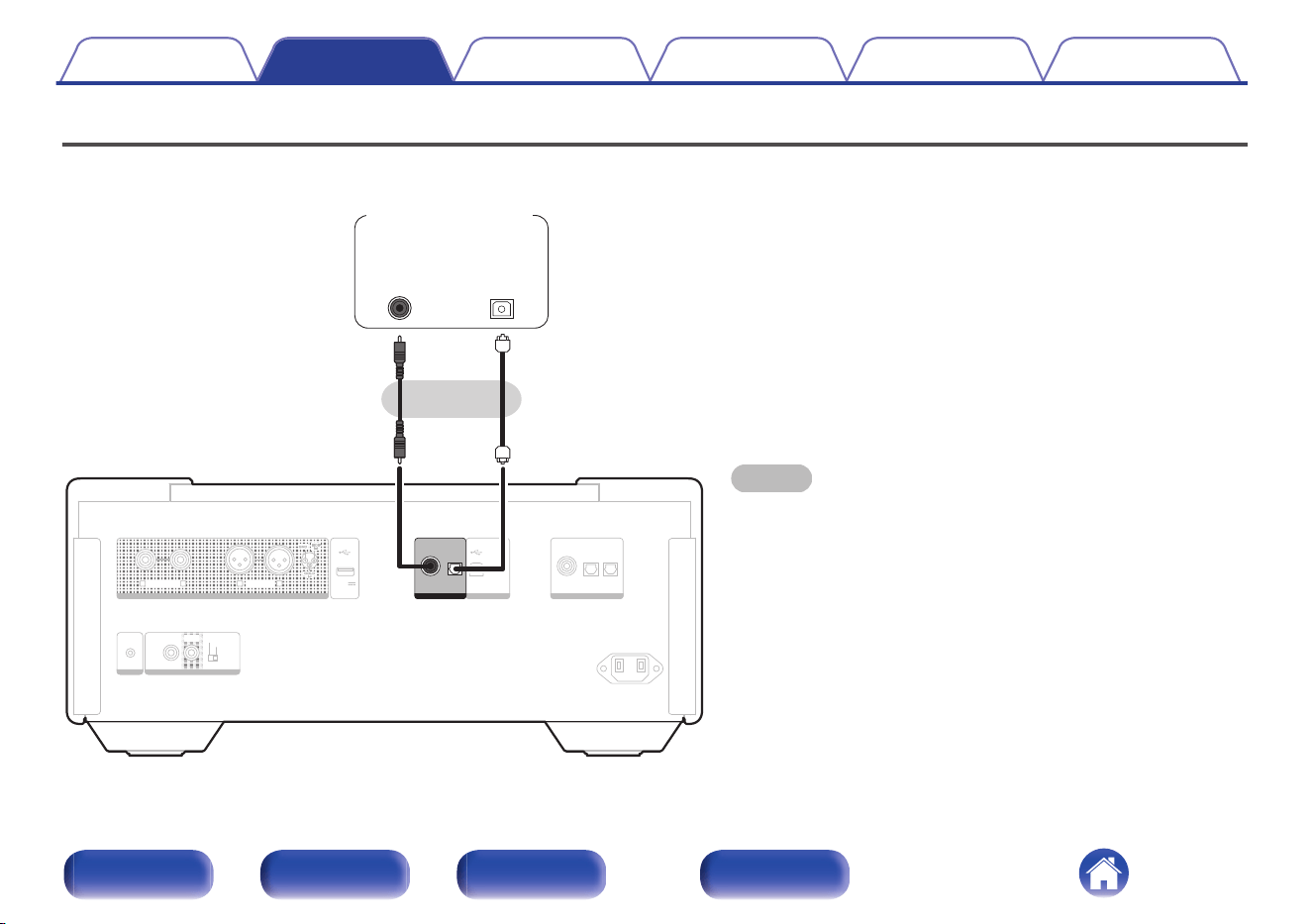

Connecting a PC or Mac
By connecting a computer to the USB-DAC port on the rear panel of this unit using a commercially available USB connecting cable, this unit can be used
as a D/A converter. (v p. 43)
NOTE
0

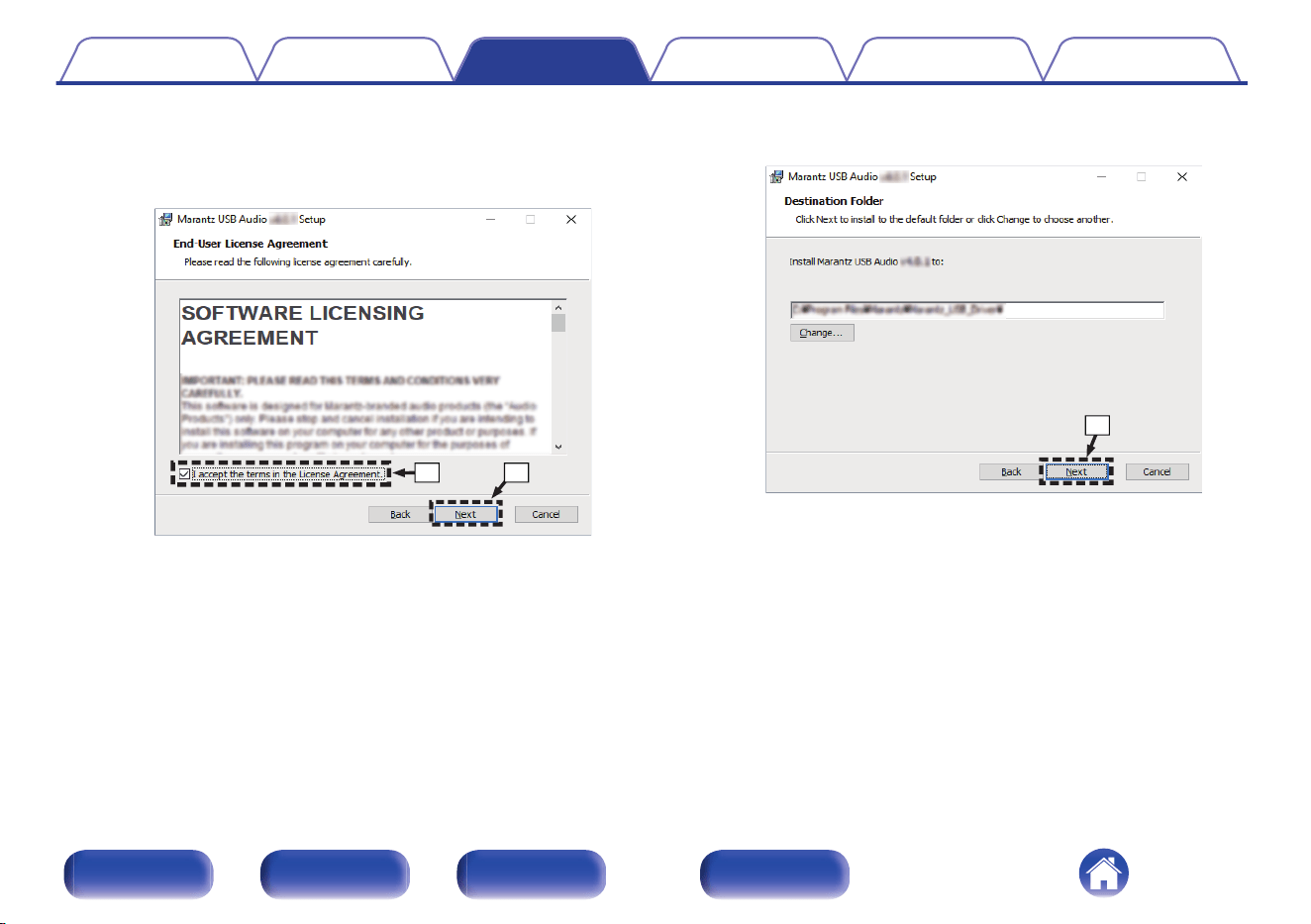

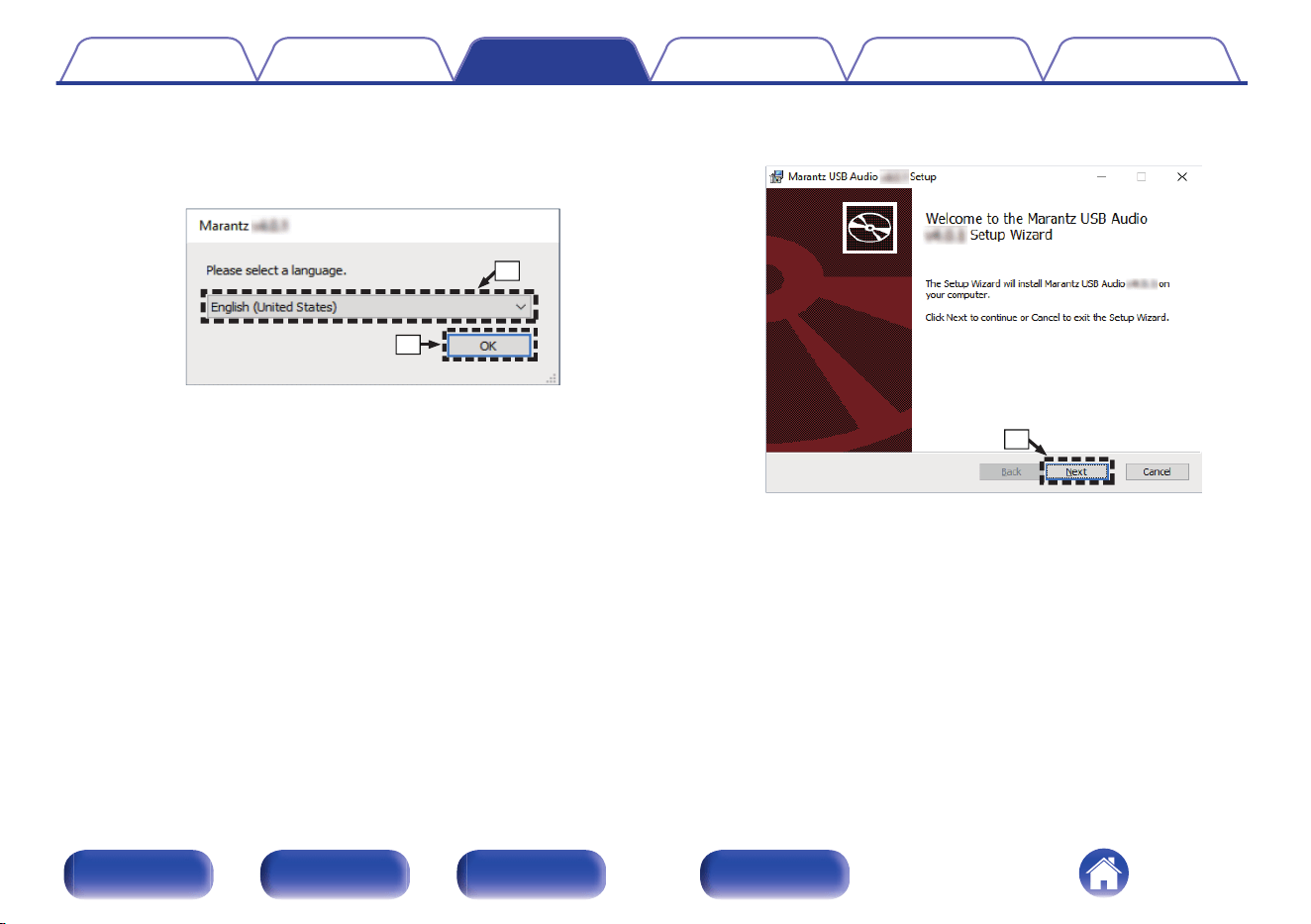

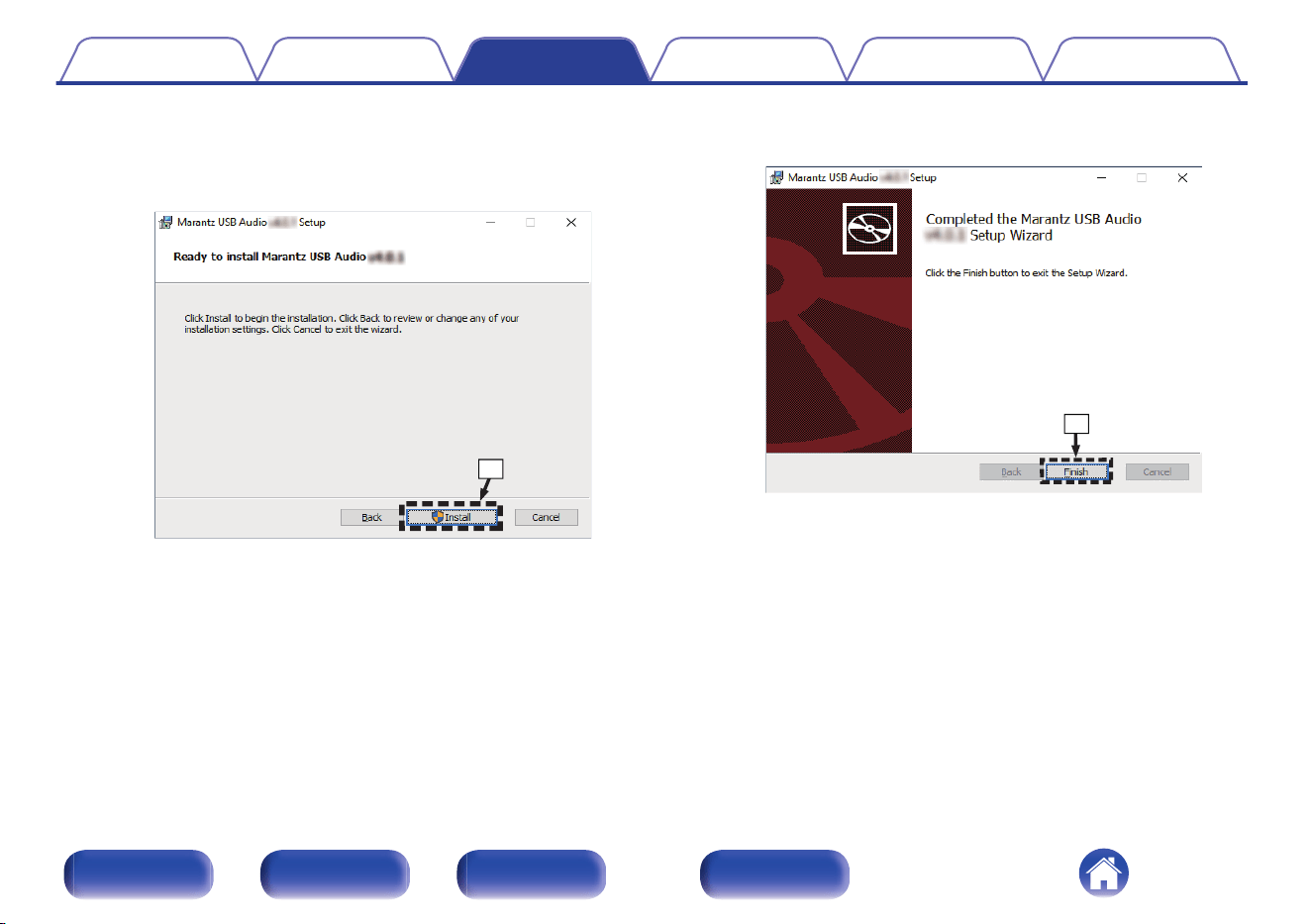

Before USB connecting this unit to your computer, install the driver software in your computer. (v p. 44)
0
Download the driver software from the SACD 10 page of the Marantz website.
0
Use a cable that is 10 ft (3 m) or less to connect to the computer.
IR
IR
IN
IN
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
FLASHER
FLASHER
REMOTE CONTROL
REMOTE CONTROL
BALANCED
BALANCED
LINE OUT
LINE OUT
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
R L R L
5V/1A
5V/1A
UNBALANCED
UNBALANCED
COAXIAL
COAXIAL
AC IN
AC IN
AC IN
AC IN
USB-DAC
USB-DAC
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB 2.0 cable
(not included)
Ty p e B
Computer on which the driver software and
audio player software are installed
Contents Connections Playback Settings Tips Appendix
23
Front panel Rear panel Remote control
unit
Index
Connecting a USB flash drive to the USB port

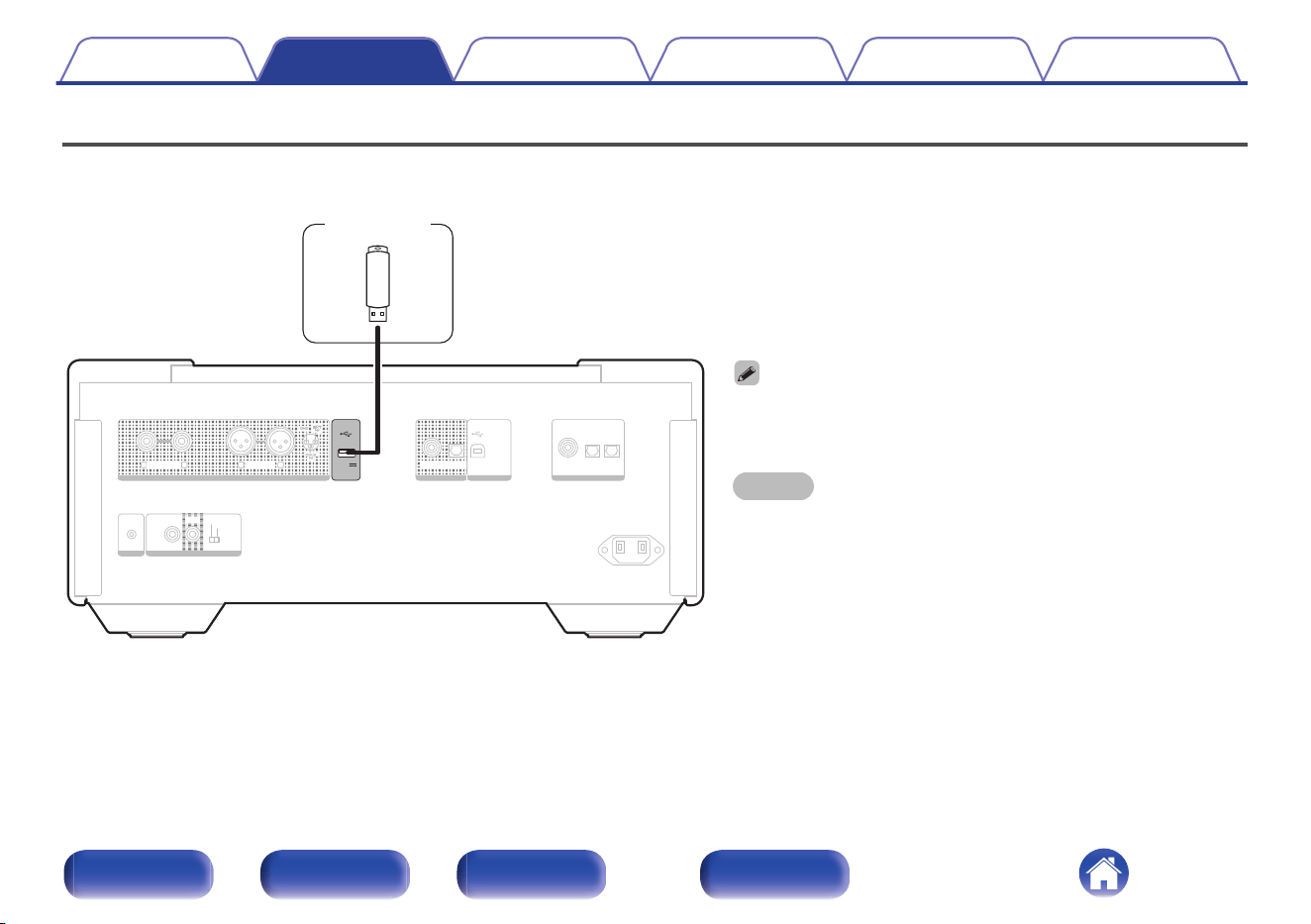

For operating instructions see “Playing a USB flash drive”. (v p. 40)
0
Marantz does not guarantee that all USB flash drives will operate or
receive power. When using a portable USB hard disk drive (HDD) which
came with an AC adapter, use that device’s supplied AC adapter.
NOTE
0
USB flash drives will not work via a USB hub.
0
It is not possible to use this unit by connecting the rear panel’s USB port
to a PC via a USB cable. Connection to a computer is possible via the
digital input USB-DAC port (Type B) on the rear panel.
0
Do not use an extension cable when connecting a USB flash drive. This
may cause radio interference with other devices.
IR
IR
IN
IN
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
FLASHER
FLASHER
REMOTE CONTROL
REMOTE CONTROL
BALANCED
BALANCED
LINE OUT
LINE OUT
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB-DAC
USB-DAC
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
DIGITAL AUDIO IN
DIGITAL AUDIO IN
R L R L
UNBALANCED
UNBALANCED
COAXIAL
COAXIAL
AC IN
AC IN
AC IN
AC IN
5V/1A
5V/1A
USB flash
drive
Contents Connections Playback Settings Tips Appendix
24
Front panel Rear panel Remote control
unit
Index

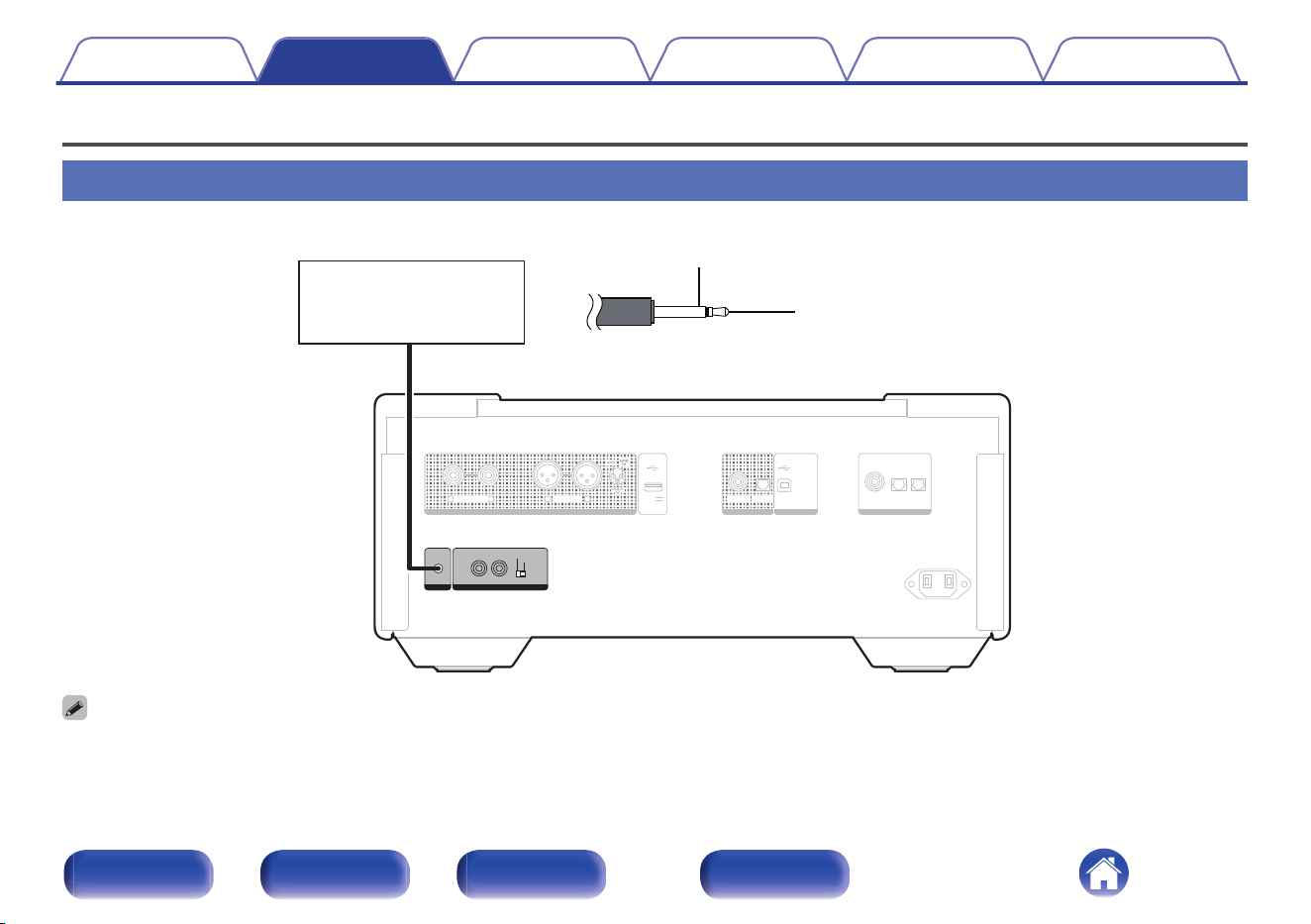

Connecting an external control device
FLASHER IR IN jack
This unit can be controlled by connecting a control box or other control device to this unit.
BALANCED
BALANCED
LINE OUT
LINE OUT
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB-DAC
USB-DAC
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
DIGITAL AUDIO IN
DIGITAL AUDIO IN
R L R L
5V/1A
5V/1A
UNBALANCED
UNBALANCED
COAXIAL
COAXIAL
AC IN
AC IN
AC IN
AC IN
IR
IR
IN
IN
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
FLASHER
FLASHER
REMOTE CONTROL
REMOTE CONTROL
Control box
or
control device
GND
Signal
Monaural mini-plug cable
(not included)
0
To use the FLASHER IR IN jack, set the EXTERNAL/INTERNAL switch to “INTERNAL”.
Contents Connections Playback Settings Tips Appendix
25
Front panel Rear panel Remote control
unit
Index
REMOTE CONTROL connectors
When this unit is connected in combination with MODEL 10 and LINK 10n,
the following functions will be available.
0
A function that transmits remote control signals received by the MODEL
10 or LINK 10n to this unit
0
Synchronizing the power operations of this unit, MODEL 10 and LINK
10n
0
When this unit is turned on, MODEL 10 and LINK 10n will also be
turned on.
0
When this unit power is set to standby, MODEL 10 and LINK 10n
power will also be set to standby.
Next, configure the “Connection” and “Setting”.
o
Connection
Use the included remote connector cable to connect the REMOTE
CONTROL IN connector of this unit to REMOTE CONTROL OUT
connector of MODEL 10 or LINK 10n.
o
Setting
1. Turn the EXTERNAL/INTERNAL switch on this unit to
“EXTERNAL”.
0
This setting will disable remote sensor reception of this unit.
2. Turn the EXTERNAL/INTERNAL switch on MODEL 10 or LINK 10n
to “INTERNAL”.
0
To operate the unit, point the remote control at the remote sensor
of MODEL 10 or LINK 10n.
0
To use this unit by itself without connecting an amplifier, turn the switch to
“INTERNAL”.
Contents Connections Playback Settings Tips Appendix
26
Front panel Rear panel Remote control
unit
Index

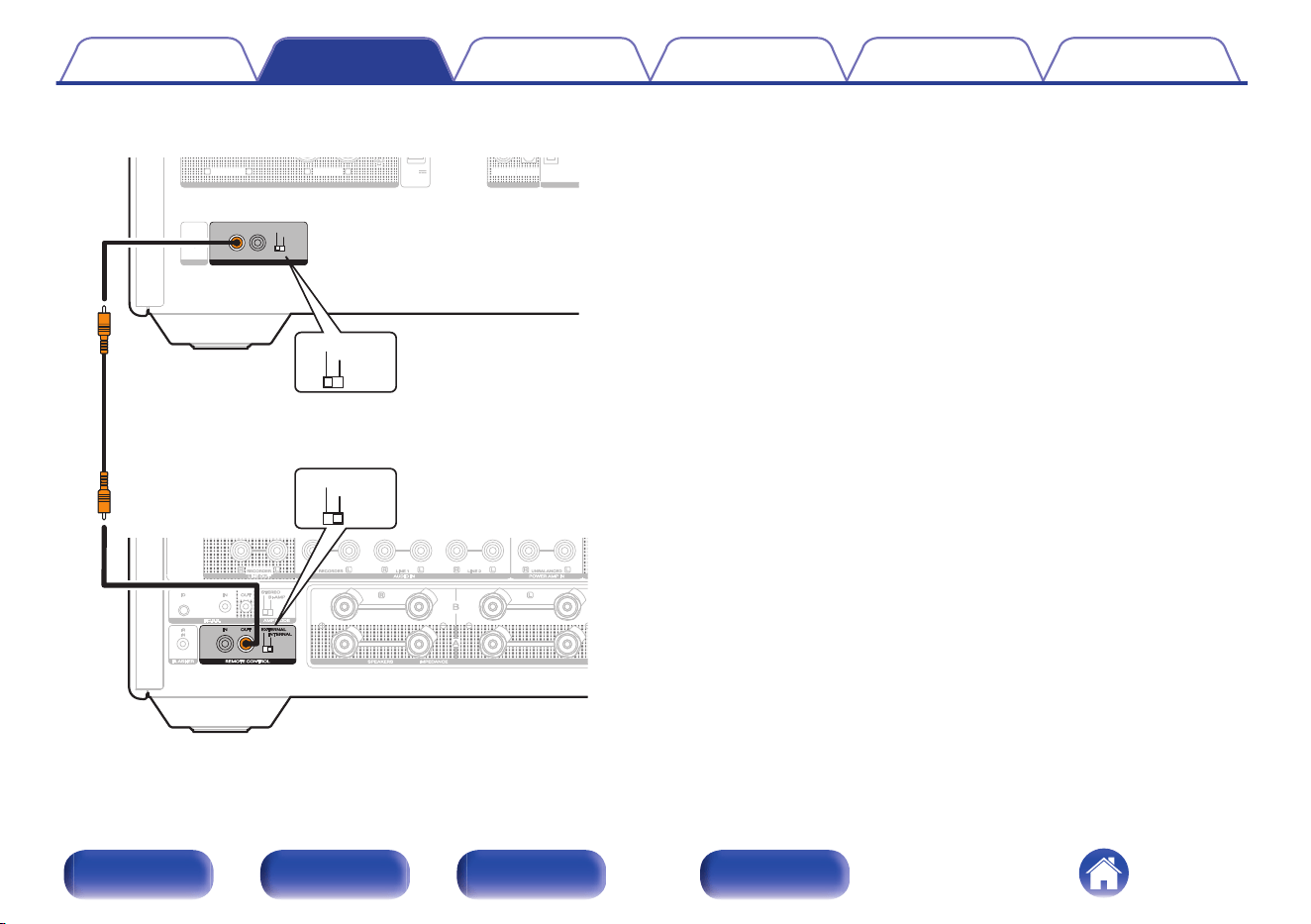

IR
IR
IN
IN
FLASHER
FLASHER
BALANCED
BALANCED
LINE OUT
LINE OUT
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
USB-DAC
USB-DAC
DIGITAL AUDIO
IDIGITAL AUDIO IN
R L R L
5V/1A
5V/1A
UNBALANCED
UNBALANCED
COAXIAL
COAXIAL
IN
IN
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
OUT
OUT
REMOTE CONTROL
REMOTE CONTROL
This unit
Set to
“EXTERNAL”.
Set to
“INTERNAL”.
Amplifier
Remote
connector cable
(included)
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
EXTERNAL
EXTERNAL
INTERNAL
INTERNAL
Contents Connections Playback Settings Tips Appendix
27
Front panel Rear panel Remote control
unit
Index
Connecting the power cord
After completing all the connections, insert the power plug into the power outlet.
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
DIGITAL AUDIO IN
DIGITAL AUDIO IN
USB-DAC
USB-DAC
COAXIAL
COAXIAL
OPTICAL
OPTICAL
1 2
DIGITAL AUDIO IN
DIGITAL AUDIO IN
COAXIAL
COAXIAL
AC IN
AC IN
AC IN
AC IN
To household power outlet
(AC 120 V, 60 Hz)
Power cord (included)
Contents Connections Playback Settings Tips Appendix
28
Front panel Rear panel Remote control
unit
Index

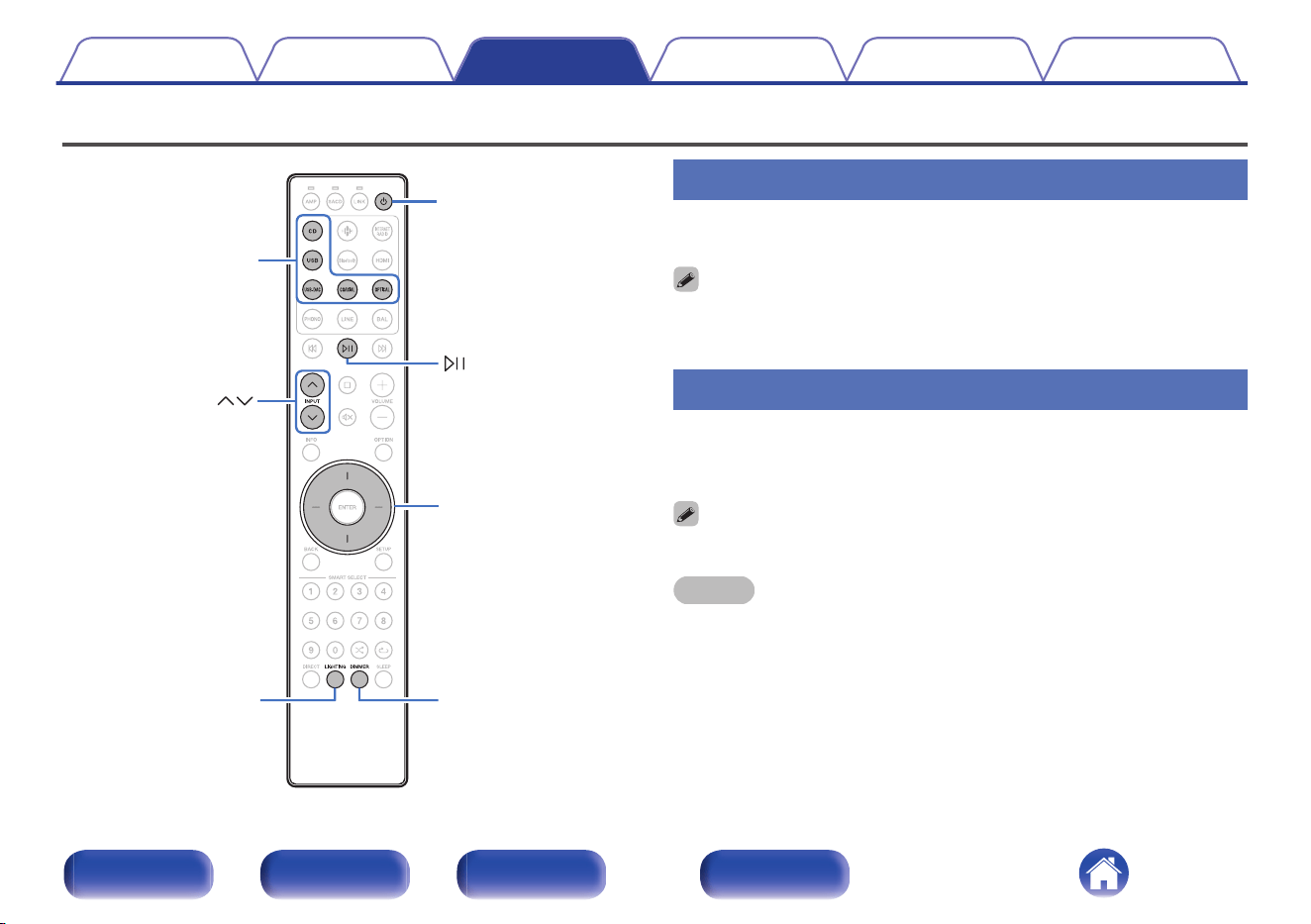

Basic operation
X
DIMMER
LIGHTING
INPUT
Cursor Up/Down
Input source
select buttons
Turning the power on
1
Press X to turn on power to the unit.
0
You can also press X on the main unit to turn on power from standby mode.
0
You can also press p to turn on power from standby mode.
Switching the power to standby
1
Press X.
The unit switches to standby mode.
0
You can also switch the power to standby by pressing X on the main unit.
NOTE
0
Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, unplug the power cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
30
Front panel Rear panel Remote control
unit
Index
Selecting the input source
1
Press input source select buttons (CD/USB/USB-DAC/
COAXIAL/OPTICAL) to be played back.
The selected input source appears on the display.
0
You can also select the input source by turning INPUT selector on the main unit.
0
This unit switches between Optical 1 and Optical 2 each time OPTICAL is pressed.
0
You can also select the input source by using INPUT
.
Switching the display’s brightness
The display brightness can be adjusted from 100 % to Off (0 %) in steps of
5 %. Switching the display off reduces a source of noise that affects sound
quality, enabling higher sound quality playback.
1
Press DIMMER.
The dimmer menu screen is displayed on the display.
2
Use Cursor Up/Down buttons to adjust the brightness
of the display.
0
You can also adjust the brightness by pressing DIMMER.
0
The display brightness is set to 100 % by default.
0
If buttons are operated when the display is off, information is temporarily displayed
at 100 %.
0
The display brightness setting is synchronized with the “Illumination” - “Display”
setting in the settings menu. (v p. 58)
0
DIMMER does not work when LIGHTING is pressed and turned off.
Contents Connections Playback Settings Tips Appendix
31
Front panel Rear panel Remote control
unit
Index
Turning the illumination and display
on/off
Turn on/off the illumination and display. Switching the illumination and
display off reduces a source of noise that affects sound quality, enabling
higher sound quality playback.
1
Press LIGHTING.
0
Each time the button is pressed, the illumination and display are
turned on/off.
0
In the Settings menu, “Illumination” allows you to set the brightness of the
illumination and display. (v p. 58)
0
When LIGHTING is pressed and lit, the illumination and display light up to the
brightness set in “Illumination” in the Settings menu. (v p. 58)
Contents
Connections Playback Settings Tips Appendix
32
Front panel Rear panel Remote control
unit
Index

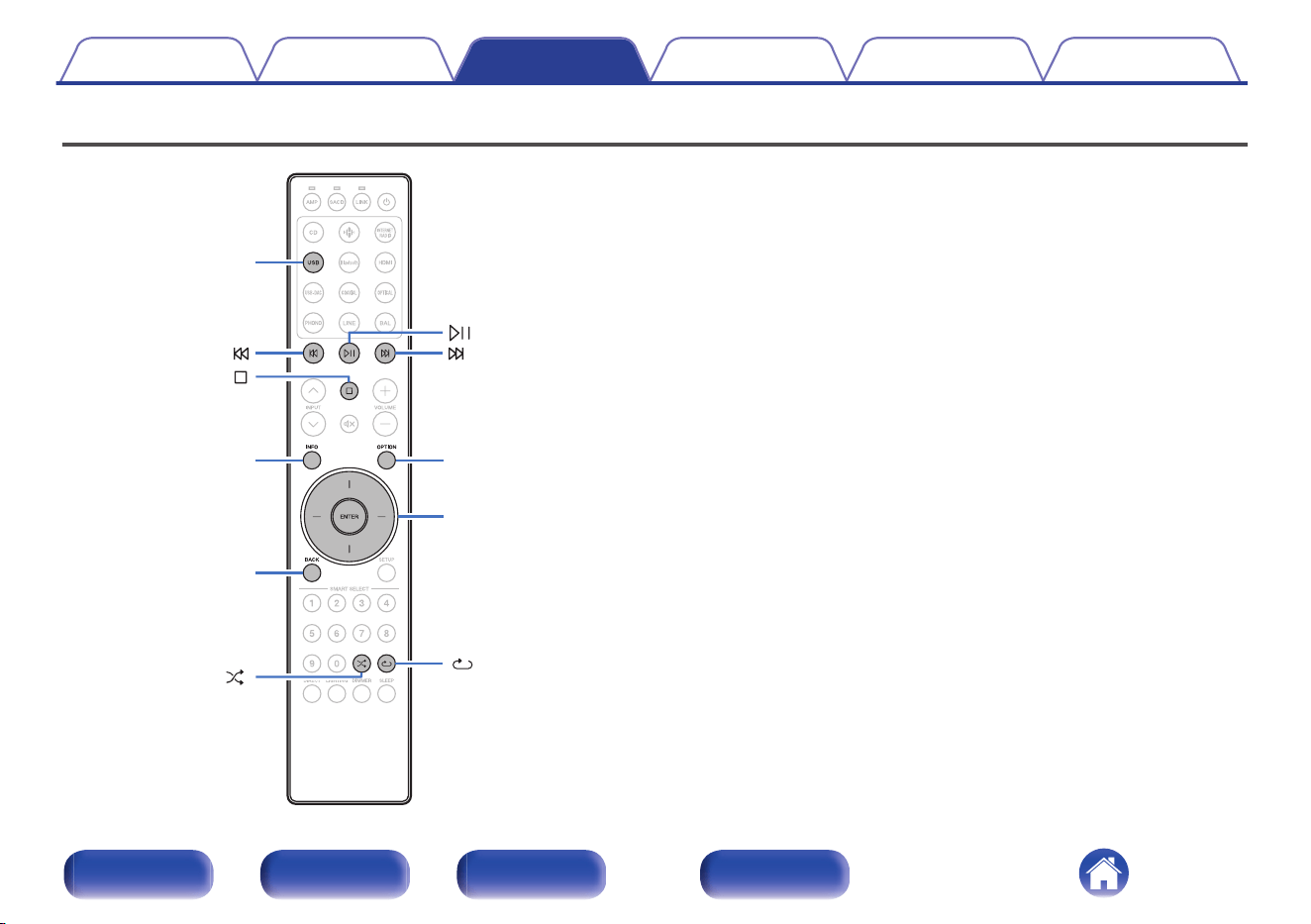

Playing CDs/Super Audio CDs
0 – 9
OPTION
INFO
CD
Playing CDs and Super Audio CDs
1
Press CD to switch the input source to “CD”.
2
Press q on the main unit to insert a disc.
0
You can also close the disc tray by pressing p. This automatically starts
playback.
3
When playing back a Super Audio CD, press OPTION to
set the playback layer.
STEREO
(Default):
Plays back the 2-channel area of the
Super Audio CD.
MULTI:
Plays back the multi-channel area of the
Super Audio CD.
The analog output of this unit outputs a
down-mixed 2-channel signal.
CD:
Plays back the CD layer of the Super
Audio CD.
0
If this operation is not performed, reading begins automatically based on
the top priority playback layer setting. (v p. 36)
Contents Connections Playback Settings Tips Appendix
33
Front panel Rear panel Remote control
unit
Index
4
Press p.
The 1 indicator lights on the display. Playback starts.
NOTE
0
Do not place any foreign objects in the disc tray. Doing so could damage the unit.
0
Do not push the disc tray in by hand when the power is turned off. Doing so could
damage the unit.

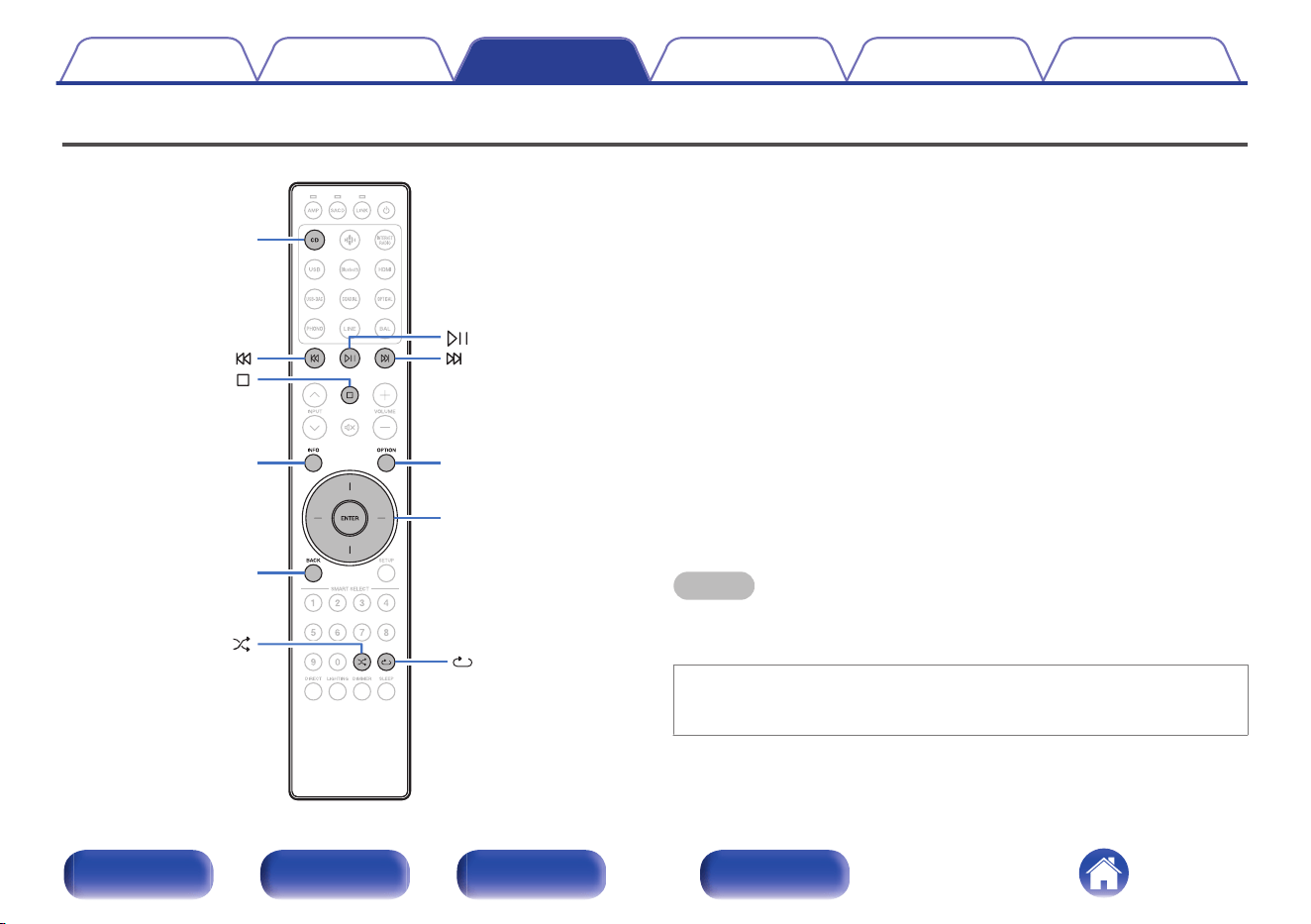

Operation buttons
Function
p
Playback / Pause
i
Stop
k j
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
0 - 9 Select the track
s
Random playback
r
Repeat playback
0
Switching between All-track repeat and
Single-track repeat.
INFO
Time display switching
0
Switching between elapsed time of the
current track, remaining time of the
current track and remaining time of all
tracks.
0
Text information recorded on the Super
Audio CD appears in the display.
OPTION
Switching the playback layer of the Super
Audio CD
Contents Connections Playback Settings Tips Appendix
34
Front panel Rear panel Remote control
unit
Index
o
Switching the display
Press INFO.
Displays text and time information stored on media.
0
The text information is only displayed for Super Audio CD.
0
Any characters that cannot be displayed are replaced with “.”
(period).
o
Discs that can be played back
0
See “Playing back Discs” (v p. 74).
o
Playing a specific track (Direct searching)
1
Use 0 – 9 to select the tracks.
GExampleH
Track 4 :
Press number 4 to select track 4.
Track 12 :
Press numbers 1 and 2 consecutively to select track 12.
0
The number you enter is set about 1.5 seconds after you press the
number buttons. To enter a two-digit number, be sure to press the
two number buttons, one immediately after the other.
Contents
Connections Playback Settings Tips Appendix
35
Front panel Rear panel Remote control
unit
Index
Setting the top priority playback layer
for Super Audio CDs
The layer that is played with priority when the disc is loaded can be set.
1
Press CD to switch the input source to “CD”.
2
Check that no disc is loaded.
0
If the layer is switched while the disc is being loaded, the
playback layer switches for that disc, but the top priority playback
layer setting itself does not change.
3
Press OPTION and switch to the layer you want to set.
STEREO
(Default):
Plays back the 2-channel area of the
Super Audio CD.
MULTI:
Plays back the multi-channel area of the
Super Audio CD.
The analog output of this unit outputs a
down-mixed 2-channel signal.
CD:
Plays back the CD layer of the Super
Audio CD.
0
When a disc is loaded after the setting has been made, the contents recorded on
the set layer are displayed.
0
If a disc that does not contain the layer set for top priority playback is loaded, the
contents recorded on another layer are displayed automatically.
0
This setting is stored in the memory and is not cleared even when the disc holder
is opened or closed or the power is turned off. To change the setting, repeat the
procedure above.
0
The priority playback layer cannot be set when a disc is inserted or “Open” is
shown on the display.
0
If the area and layer have not been set for a disc, the priority playback order is as
follows:
A
STEREO
B
MULTI
C
CD
Contents Connections Playback Settings Tips Appendix
36
Front panel Rear panel Remote control
unit
Index
Playing Data CDs and Data DVDs
OPTION
INFO
BACK
CD
ENTER
Cursor
Up/Down
0
This section explains how to playback music files that are recorded onto
a CD-R/-RW or DVD-R/-RW/+R/+RW.
0
There are many music distribution sites on the Internet allowing you to
download music files. The music (files) downloaded from such sites can
be stored on CD-R/-RW or DVD-R/-RW/+R/+RW discs and played on
this unit.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playable files” for details. (v p. 75)
0
MP3
0
WMA
0
AAC
0
WAV
0
FLAC
0
Apple Lossless
0
AIFF
0
DSD
NOTE
0
Copyright-protected files cannot be played.
0
Note that depending on the software used for burning and other conditions, some
files may not play or display correctly.
“Windows Media” and “Windows” are the trademarks or registered
trademarks of Microsoft Corporation in the United States and other
countries.
Contents Connections Playback Settings Tips Appendix
37
Front panel Rear panel Remote control
unit
Index
Playing files
1
Press CD to switch the input source to “CD”.
2
Press q on the main unit to insert a CD-R/-RW or DVD-
R/-RW/+R/+RW disc containing music files.
3

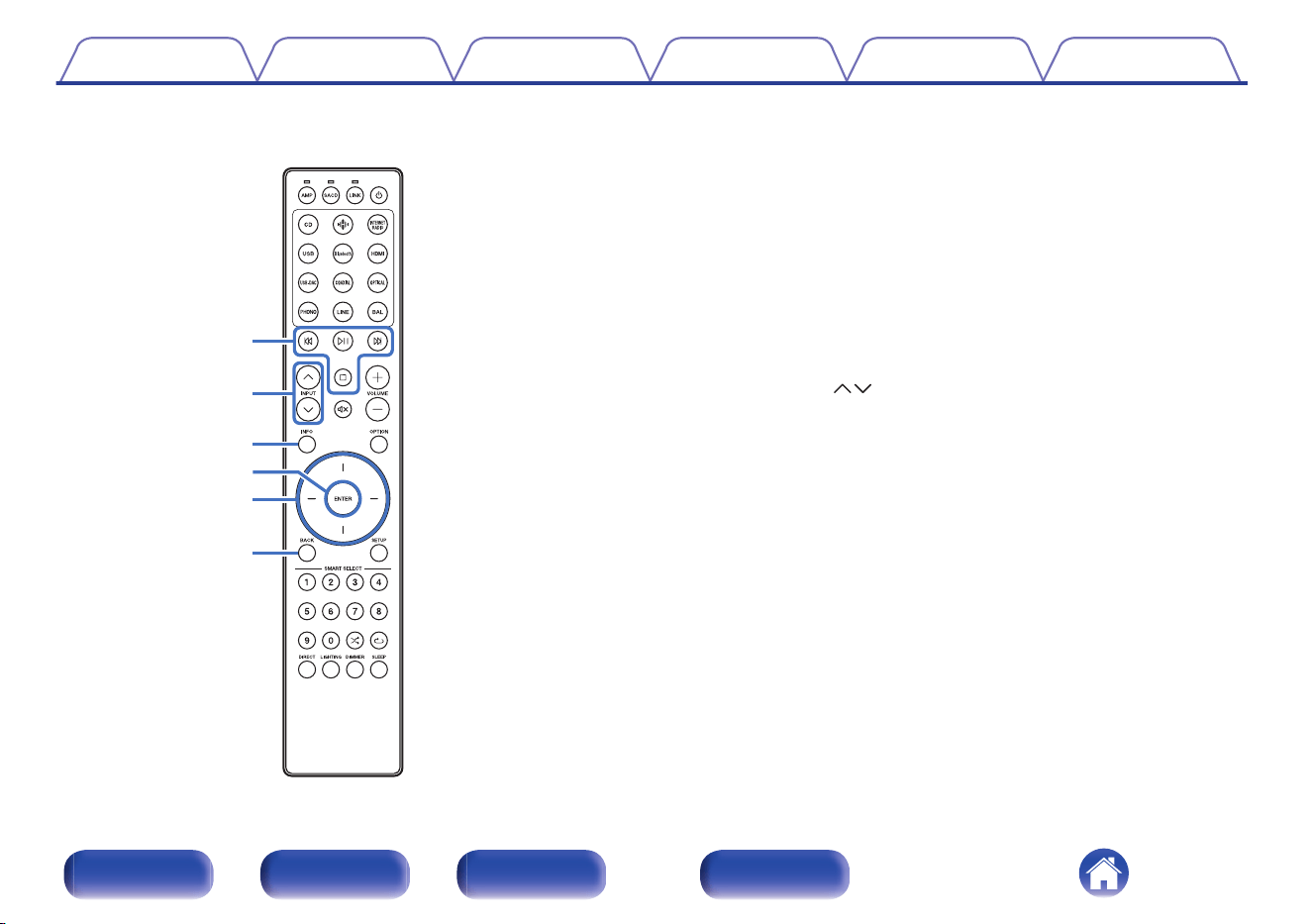

Use Cursor Up/Down and BACK buttons to select the
folder to be played, then press ENTER.
4
Use Cursor Up/Down buttons to select the file to be
played, then press ENTER.
Playback starts.
Operation buttons
Function
p
Playback / Pause
i
Stop
k j
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
BACK Moving up a level in the hierarchy
Cursor Up/Down Select the item
ENTER Enter the selected item / Playback
OPTION Select the playback range
s
Random playback
r
Repeat playback
0
Switching between All-track repeat and
Single-track repeat.
INFO
Switch the display between the album
name and the file format
0
To start playing another file during playback of a CD-R/-RW or DVD-R/-RW/+R/
+RW, first press BACK to display the file tree. Next, use Cursor Up/Down buttons
to select the file to be played and press ENTER.
Contents Connections Playback Settings Tips Appendix
38
Front panel Rear panel Remote control
unit
Index
o
Switching the display
During playback, press INFO.
0
Switch the display between the album name and the file format.
0
If a file does not support text information or no track information is
recorded, the file name is displayed.
0
Any characters that cannot be displayed are replaced with “.”
(period).
o
Files that can be played back
0
See “Playable files”. (v p. 75)
o
Switching the playback range
In the stop mode, press OPTION.
0
The playback range of a track can be set.
Folder playback mode:
All the files in the selected folder are
played. is displayed on the display at
this time.
All playback mode: All the files in the disc are played.
0
The folder hierarchy is not displayed when “All playback mode” is set as the
playback range.
Contents Connections Playback Settings Tips Appendix
39
Front panel Rear panel Remote control
unit
Index
Playing a USB flash drive
USB
INFO
BACK
ENTER
Cursor
Up/Down
OPTION
0
Playing back music files stored on a USB flash drive.
0
Only USB flash drives conforming to mass storage class standards can
be played on this unit.
0
This unit is compatible with USB flash drives in “FAT16” or “FAT32”
format.
0
The audio format types and specifications supported by this unit for
playback are as follows.
For details, see “Playing back a USB flash drives” (v p. 77).
0
WMA
0
MP3
0
WAV
0
MPEG-4 AAC
0
FLAC
0
Apple Lossless
0
AIFF
0
DSD
Contents
Connections Playback Settings Tips Appendix
40
Front panel Rear panel Remote control
unit
Index
Playing files stored on USB flash drives
1
Connect the USB flash drive to the USB port.
(v p. 24)
2
Press USB to switch the input source to “USB”.
0
When the setup menu’s “Resume Play” (v p. 57) is on, playback starts
automatically.
3
Press BACK button.
The file/folder list appears in the display of this unit.
0
The file/folder list can also be displayed by pressing i to stop the playback.
4
Use Cursor Up/Down buttons to select the folder to be
played, then press ENTER.
5
Use Cursor Up/Down buttons to select the file to be
played, then press ENTER.
Playback starts.
Operation buttons
Function
p
Playback / Pause
i
Stop
k j
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
BACK Moving up a level in the folder tree
Cursor Up/Down Select the item
ENTER Enter the selected item / Playback
OPTION Select the playback range
s
Random playback
r
Repeat playback
0
Switching between All-track repeat and
Single-track repeat.
INFO
Switch the display between the album
name and the file format
0
To start playing another file during playback of a USB flash drive, first press BACK
to display the file tree. Next, use Cursor Up/Down buttons to select the file to be
played and press ENTER.
Contents Connections Playback Settings Tips Appendix
41
Front panel Rear panel Remote control
unit
Index
NOTE
0
Note that Marantz will accept no responsibility whatsoever for any problems
arising with the data on a USB flash drive when using this unit in conjunction with
the USB flash drive.
0
When a USB flash drive is connected to this unit, the unit loads all of the files on
the USB flash drive. Loading may take a while if the USB flash drive contains a
large number of folders and/or files.
o
Switching the playback range
Press OPTION.
0
The playback range of a track can be set.
Folder playback mode:
All the files in the selected folder are
played. is displayed on the display at
this time.
All playback mode:
All the files in the USB flash drive are
played.
Contents Connections Playback Settings Tips Appendix
42
Front panel Rear panel Remote control
unit
Index
Using as a D/A converter
X
OPTICAL
USB-DAC
COAXIAL
Digital audio signals input from an external device or computer into this
unit can be converted and output as analog signals using this unit’s D/A
converter. (D/A converter function)
0
DSD is a registered trademark.
0
Microsoft, Windows 10 and Windows 11 are either registered
trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
0
ASIO is a trademark and software of Steinberg Media Technologies
GmbH.
0
Apple, Macintosh and macOS are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Contents Connections Playback Settings Tips Appendix
43
Front panel Rear panel Remote control
unit
Index
Connecting and playing back from a
computer (USB-DAC)
You can enjoy high-quality audio playback from the D/A converter built in
to this unit by inputting music files into this unit from a computer via USB
connection.
0
Before USB connecting this unit to your computer, install the driver
software in your computer.
0
Drivers do not need to be installed for macOS.
0
Also, you can use whichever commercially available or downloadable
player software you like to playback files on your computer.
o
Computer (system requirements)
OS
0
Windows 10 or Windows 11
0
macOS 13 or 14
USB
0
USB 2.0: USB High speed/USB Audio Class Ver. 2.0
NOTE
0
This unit was checked the operation using the system requirements by us, but
it does not guarantee the operation of all systems.
Windows
OS
Installing the dedicated driver (v p. 44)
macOS
Audio Device Settings (v p. 50)
o
Installing the dedicated driver
(Windows OS only)
n
Installing the driver software
1
Disconnect the USB cable between your PC and the
unit.
0
The driver software cannot be installed correctly if your PC is
connected to the unit by a USB cable.
0
If the unit and your computer are connected by a USB cable and
the computer is switched on before installation, disconnect the
USB and restart the computer.
2
Download the dedicated driver from the “Download”
section of the SACD 10 page of the Marantz website
onto your PC.
3
Unzip the downloaded file, and double-click the exe
file.
Contents Connections Playback Settings Tips Appendix
44
Front panel Rear panel Remote control
unit
Index
G
Click “Install” on the installation start dialog.
0
The installation starts. Do not perform any operation on the PC
until the installation is completed.
u
H
When the installation is completed, click “Finish”.
i
5
With the unit power off, connect the unit and PC using
a USB cable (not included).
0
For the connection procedure, refer to the “Connecting a PC or
Mac” section. (v p. 23)
Contents
Connections Playback Settings Tips Appendix
47
Front panel Rear panel Remote control
unit
Index
6
Press X.
0
When the unit power is turned on, the PC automatically finds and
connects to the unit.
7
Press USB-DAC to switch the input source to “USB-
DAC”.
8
Checking the installed driver.
A
Open the “Control Panel” on the PC.
0
The control panel setting list is displayed.
B
Click “Sound”.
0
The sound menu window is displayed.
C
Check that there is a checkmark next to “Default Device” under in
“SACD 10” of the “Playback” tab.
0
When there is a checkmark for a different device, click “SACD
10” and “Set Default”.
9

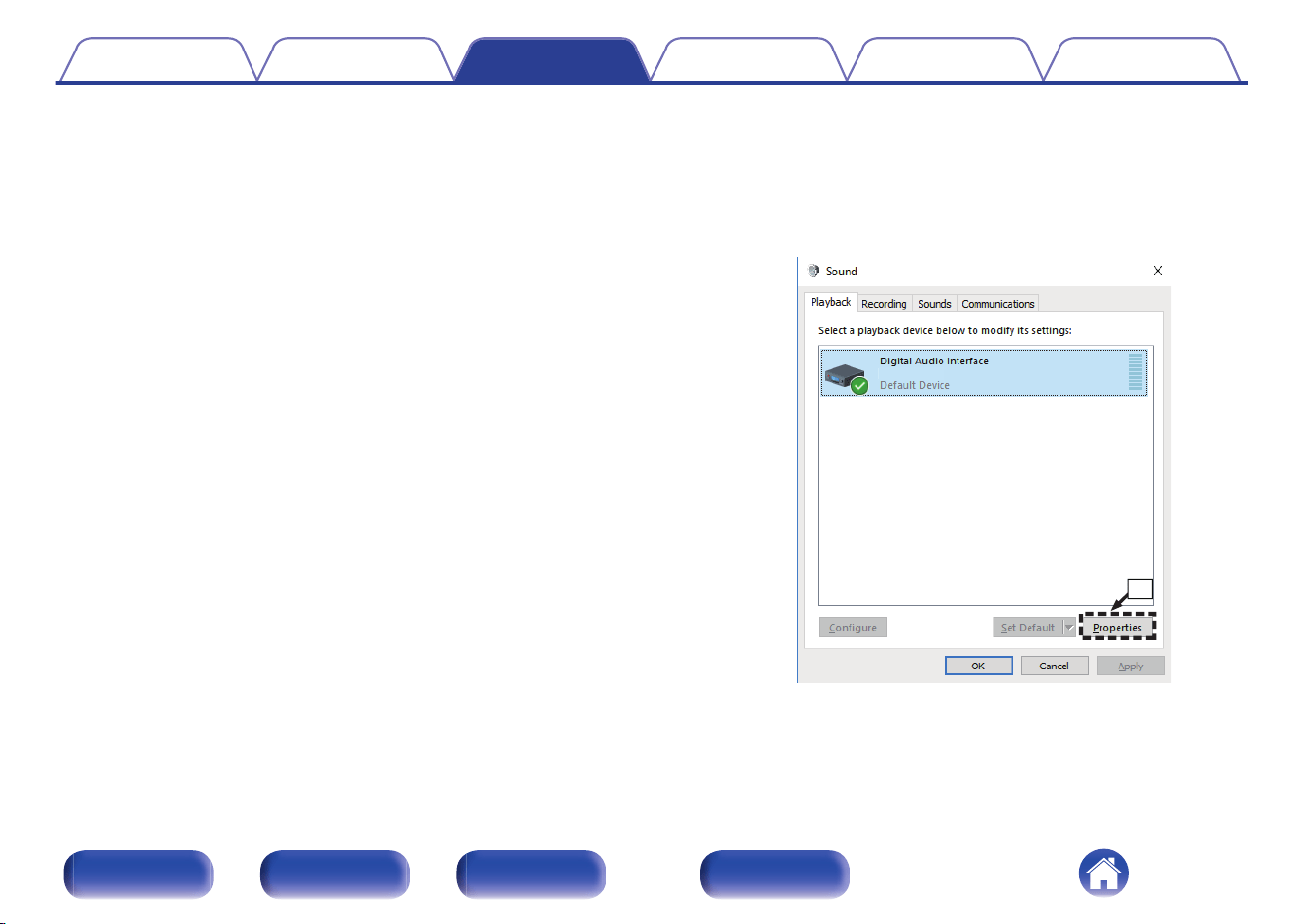

Checking audio output.
Outputs a TEST signal from the PC and checks the audio output
from the USB-DAC function.
A
Select “SACD 10” and click “Properties”.
0
The Properties window is displayed.
q
SACD 10
Contents Connections Playback Settings Tips Appendix
48
Front panel Rear panel Remote control
unit
Index
B
Click the “Advanced” tab.
C

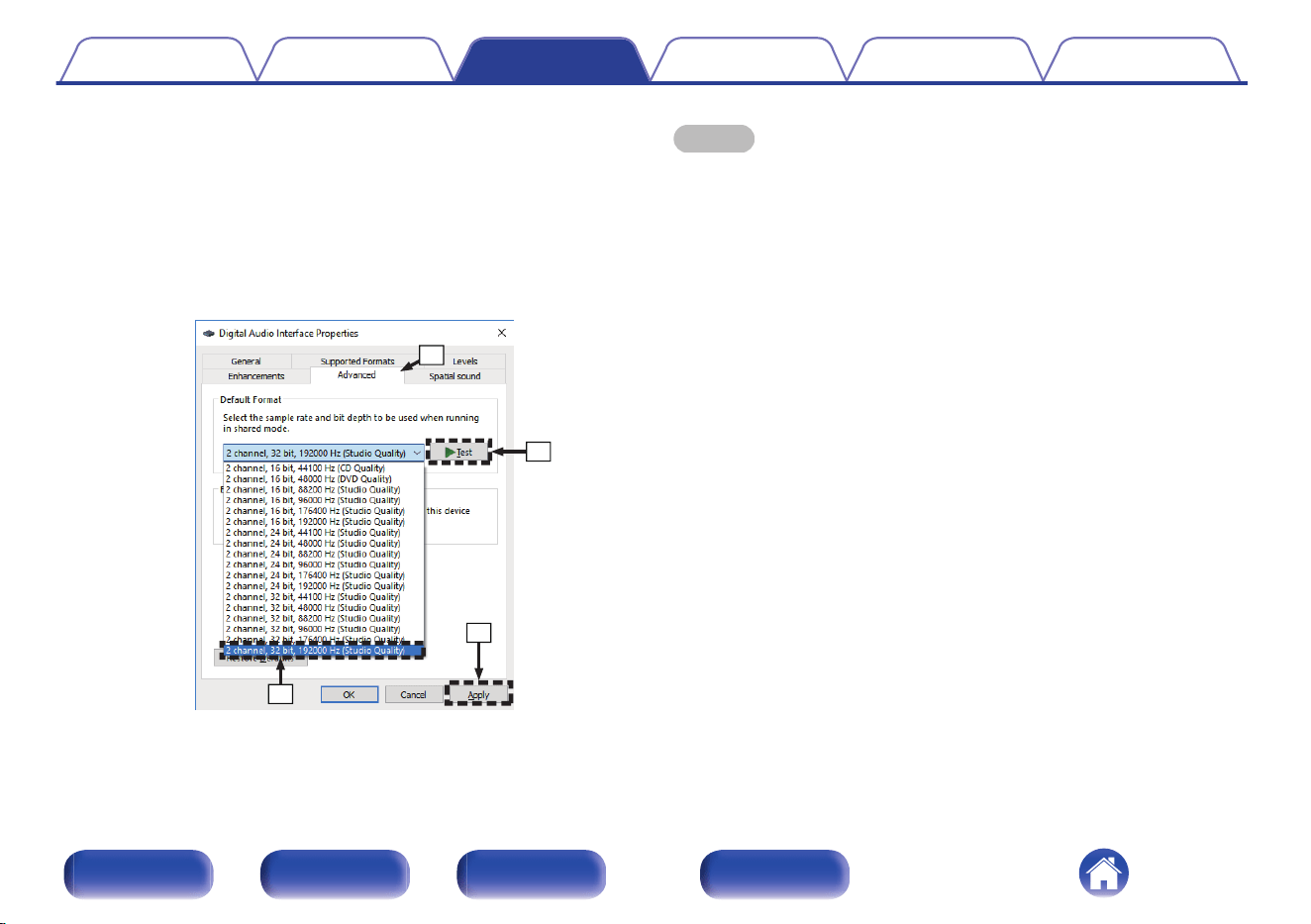

Select the sampling rate and bit rate to be applied to the D/A
converter.
0
It is recommended that “2 channel, 32 bit, 192000 Hz (Studio
Quality)” is selected.
D
Click “Apply”.
E
Click “Test”.
0
Check that audio from this unit is output from the PC.
w
e
r
t
NOTE
0
The dedicated driver must be installed in the PC before this unit is connected to a
PC. Operation will not occur correctly if connected to the PC before the dedicated
driver has been installed.
0
Player software supporting the Audio Stream Input Output (ASIO) driver is
required to play files with a sampling frequency of 352.8 kHz/384 kHz without
downsampling. Check your player software before playing files with the ASIO
driver.
0
Operation may fail in some PC hardware and software configurations.
0
Please see the FAQ at www.marantz.com if you experience any issues getting
audio to play from your computer through the this unit. You may also want to check
the support pages for your audio player application.
Contents Connections Playback Settings Tips Appendix
49
Front panel Rear panel Remote control
unit
Index
o
Audio device settings (macOS only)
A
With the unit power off, connect the unit and Mac using a USB cable
(not included).
0
For the connection procedure, refer to the “Connecting a PC or Mac”
section. (v p. 23)
B
Press X.
C
Press USB-DAC to switch the input source to “USB-DAC”.
D
Move the cursor to “Go” on the computer screen, and then click
“Utilities”.
0
The utility list is displayed.
E
Double-click “Audio MIDI Setup”.
0
The “Audio Devices” window is displayed.

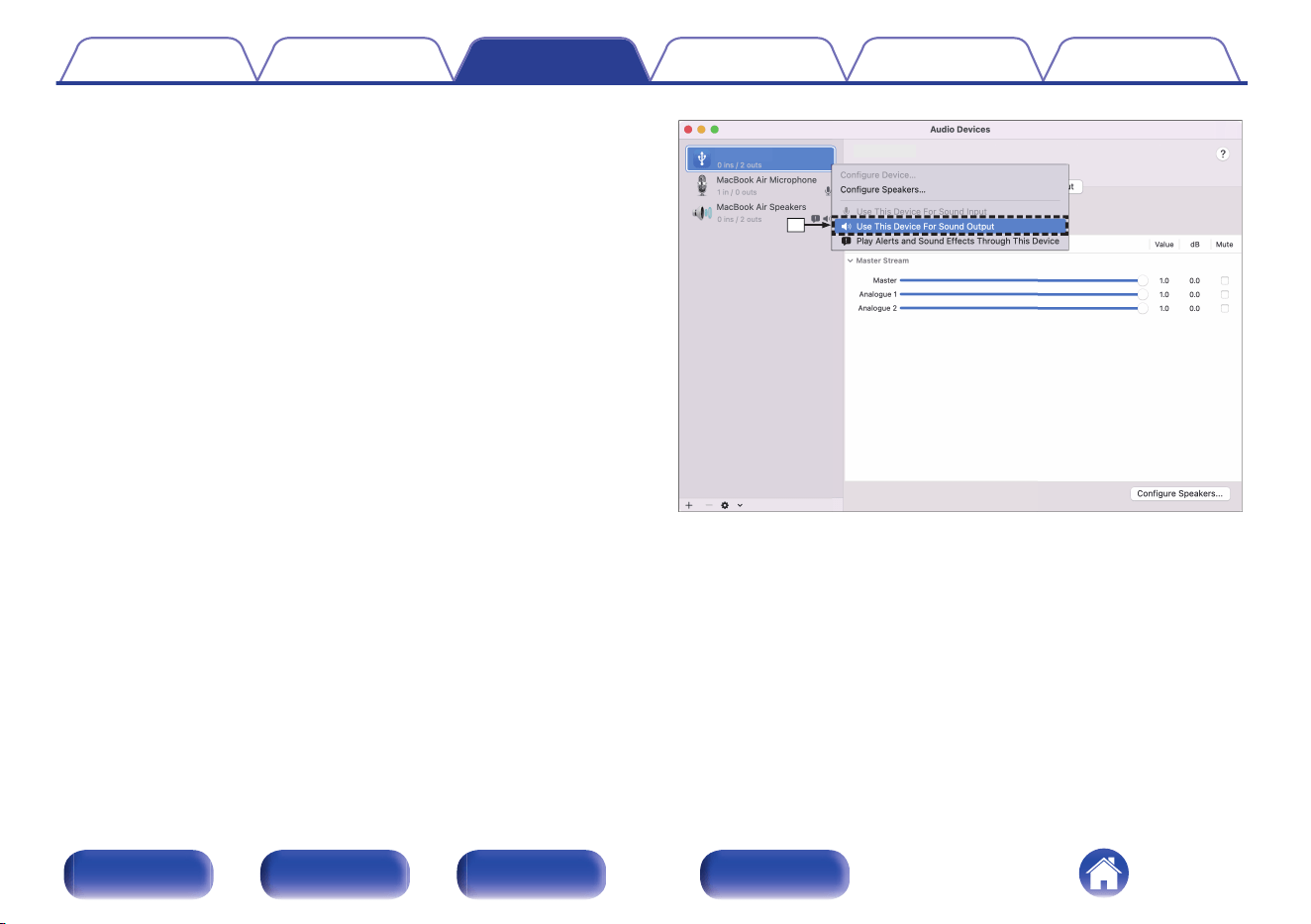

F
Secondary click on “SACD 10”, and then check that “Use This Device
For Sound Output” is checked.
0
If a different device is checked, select and “secondary click” on
“SACD 10”, and then select “Use This Device For Sound Output”.
⑥
SACD 10
SACD 10
Contents
Connections Playback Settings Tips Appendix
50
Front panel Rear panel Remote control
unit
Index

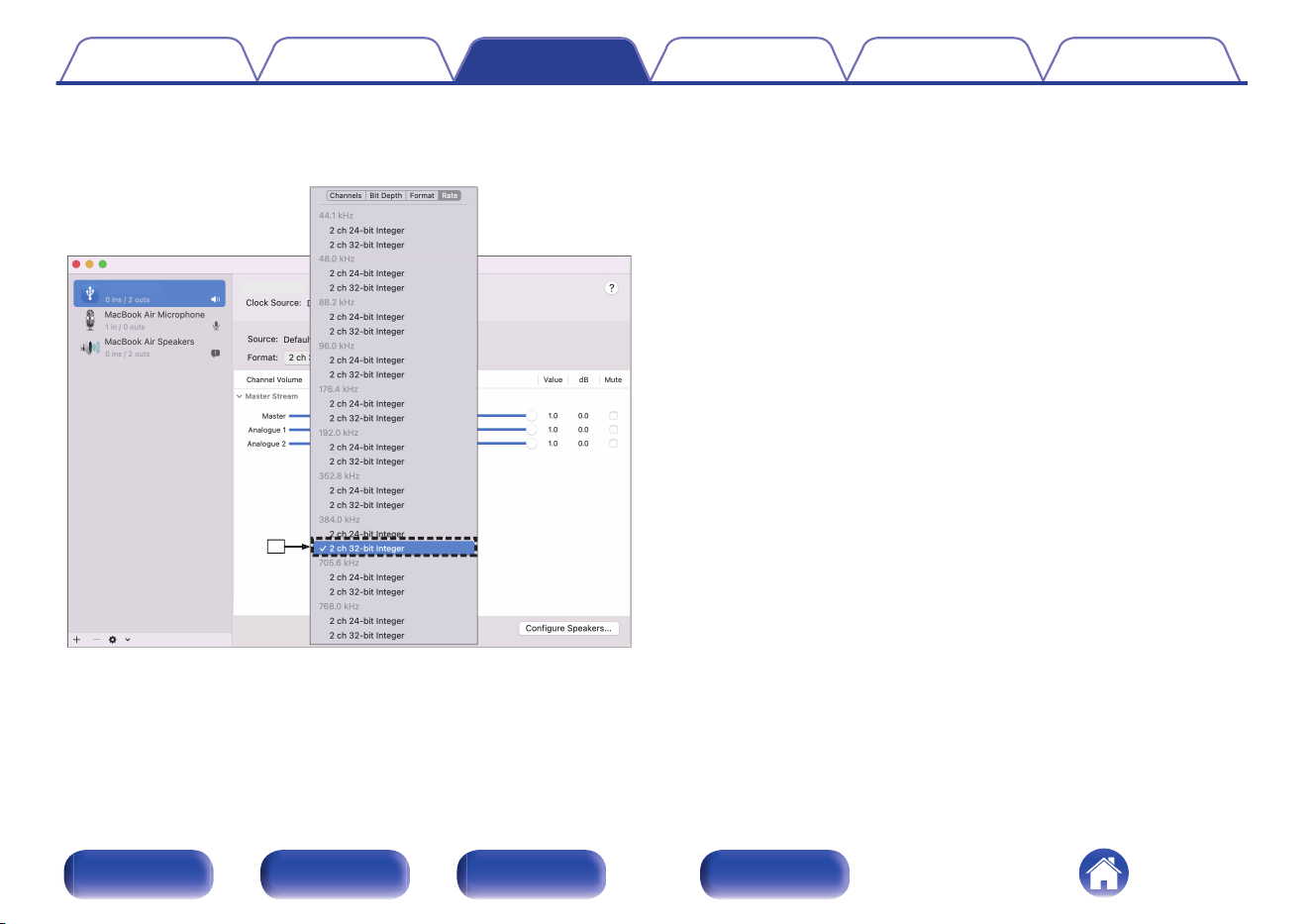

G
Select the “SACD 10” format.
0
It is normally recommended to set the format to “2 ch 32-bit Integer
384.0 kHz”.
⑦
SACD 10
SACD 10
H
Quit Audio MIDI Setup.
o
Playback
Install the desired player software on your computer beforehand.
Use the rear panel USB-DAC port to connect this unit to a computer.
(v p. 23)
1
Press USB-DAC to switch the input source to “USB-
DAC”.
Start playback on the computer’s player software.
0
If the sampling frequency cannot be detected, “Signal Unlock” will
be displayed.
0
“Unsupported” is displayed when audio signals that are not
supported by this unit are input.
o
Specifications of supported audio formats
See “Digital input” (v p. 82).
Contents
Connections Playback Settings Tips Appendix
51
Front panel Rear panel Remote control
unit
Index
NOTE
0
Perform operations such as playback and pause on the computer. At this time, you
cannot perform operations with buttons on this unit or the remote control.
0
When this unit is functioning as a D/A converter, sound is not output from the
computer’s speakers.
0
If the computer is disconnected from this unit while the computer music playback
software is running, the playback software may freeze. Always exit the playback
software before disconnecting the computer.
0
When an error occurs on the computer, disconnect the USB cable and restart the
computer.
0
The sampling frequency of the music playback software and sampling frequency
displayed on this unit may differ.
0
Use a cable that is 10 ft (3 m) or less to connect to the computer.
Connecting and playing back from a
digital device (Coaxial/Optical 1/Optical
2)
1
Connect digital device to this unit. (v p. 22)
2
Press COAXIAL or OPTICAL to switch the input source
to “Coaxial”, “Optical 1” or “Optical 2”.
0
Pressing OPTICAL changes the input source to “Optical 1” or
“Optical 2”.
3
Play the component connected to this unit.
0
If the sampling frequency cannot be detected, “Signal Unlock” will
be displayed.
0
“Unsupported” is displayed when audio signals that are not
supported by this unit are input.
o
Specifications of supported audio formats
See “Digital input” (v p. 82).
NOTE
0
Do not input non-PCM signals, such as Dolby Digital, DTS and AAC. This causes
noise and could damage the speakers.
Contents Connections Playback Settings Tips Appendix
52
Front panel Rear panel Remote control
unit
Index
Menu map
For menu operations, see the following page.
By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences.
Setting items Detailed items Description Page
Audio Filter
This unit is equipped with a sound quality adjusting function which allows users to enjoy
the desired playback sound quality.
55
Dither
This function adds audio data to minimize quantization error. Audio data to be added
can be set on this unit. The sound quality changes. Set as desired.
55
Noise Shaper
Improves linearity and noise characteristics in the audible range using digital feedback.
The measurements are the same but the sound quality changes. Set as desired.
56
Digital Out
Stopping digital audio output reduces a source of noise that affects sound quality,
enabling higher sound quality playback.
56
HP Amplifier Gain
Set the gain of the headphone amplifier. 57
Resume Play
When the input source is switched, the USB flash drive is disconnected and then
connected, or the power is turned off and then back on during USB flash drive playback,
the unit memorizes the point where playback stopped so that playback can resume from
the beginning of that track.
57
General Illumination
This function adjusts the illumination of the front panel and the brightness of the display.
It also enables linkage of the front panel illumination to the brightness of the display.
When the brightness is turned “Off”, the noise source affecting the sound quality is
suppressed, and high-quality sound playback is possible.
58
Auto-Standby
Sets whether to automatically switch the unit to the standby mode when there is no
audio input and no operations are performed for more than 15 minutes.
58
Contents Connections Playback Settings Tips Appendix
53
Front panel Rear panel Remote control
unit
Index

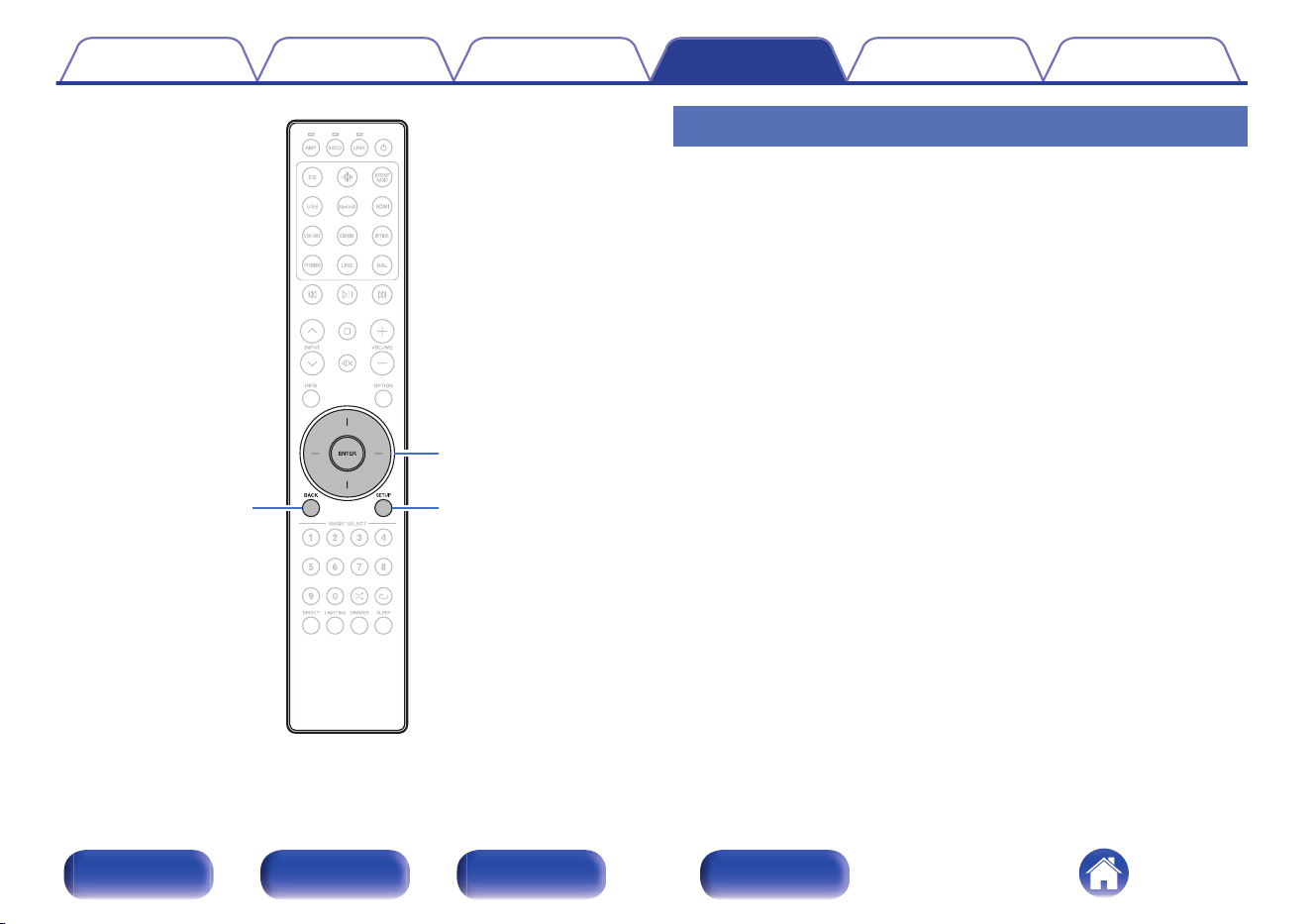

BACK
SETUP
ENTER
Cursor Up/Down
Menu operation
1
Press SETUP.
The setup menu is displayed on the display.
2
Use Cursor Up/Down buttons to select the menu to be
set or operated, then press ENTER.
3
Use Cursor Up/Down buttons to change to desired
setting.
4
Press ENTER to enter the setting.
0
To return to the previous item, press BACK.
0
Exiting the Menu, press SETUP while the setup menu is
displayed. The display returns to the normal display.
Contents Connections Playback Settings Tips Appendix
54
Front panel Rear panel Remote control
unit
Index
Audio
Filter
This unit is equipped with a sound quality adjusting function which allows
users to enjoy the desired playback sound quality. The unit supports PCM
signal.
Filter 1
(Default):
Offers a short impulse response for both
pre-echo and post-echo. Large amount of
audio information clearly reproduces deep
stereo imaging and the relative position of
the sound source.
Filter 2:
This characteristic is known as
asymmetrical impulse response. The post
echo is slightly longer than the pre-echo.
The sound characteristics is more analog
like.
Dither
Dither is used to avoid artifacts of digital signal processing. Side effect of
dither is that Signal/Noise ratio is slightly reduced or artifacts do not
completely disappear. Set as desired.
Dither 1
(Default):
This is a Marantz developed dither that
reduces digital artifacts while reducing SNR
only very little.
Dither 2:
Classic dither that reduces all artifacts but
also reduces SNR.
Off:
Highest SNR but digital artifacts may
slightly influence soundstage or colorate
the sound.
NOTE
0
The Dither function does not work when playing a Super Audio CD or DSD audio
source.
Contents Connections Playback Settings Tips Appendix
55
Front panel Rear panel Remote control
unit
Index
Noise Shaper
Improves linearity and noise characteristics in the audible range using
digital feedback. The following degrees and methods can be set. The
measurements are the same but the sound quality changes. Set as
desired.
Balanced
(Default):
This is the best compromise between
highest signal to noise ratio and most open
and detailed sound stage.
Natural:
This gives high SNR for natural instruments
but may reduce some resolution.
Dynamic Music:
This improves the SNR but this cost
resolution in sound stage. Highest possible
dynamics for wideband music content in
this setting.
Dynamic Voice:
Even higher SNR but only up to 5 kHz. This
gives highest possible dynamics for natural
instruments and voices.
NOTE
0
The Noise Shaper function does not work when playing a Super Audio CD or DSD
audio source.
Digital Out
Stopping digital audio output reduces a source of noise that affects sound
quality, enabling higher sound quality playback.
On
(Default):
Use the digital audio output connector.
Off: Do not use the digital audio output connector.
Contents Connections Playback Settings Tips Appendix
56
Front panel Rear panel Remote control
unit
Index
HP Amplifier Gain
Set the gain of the headphone amplifier. Set this according to the
impedance of the connected headphones. It is recommended that this is
set on the “Low” side if the headphones have low impedance and on the
“High” side if they have high impedance.
High:
Set the gain of the headphone amplifier to
“High”. Set this if the volume is too low at the
factory default setting.
Mid
(Default):
Set the gain of the headphone amplifier to
“Mid”.
Low:
Set the gain of the headphone amplifier to
“Low”. Set this if the volume is too high at the
factory default setting.
NOTE
0
The headphone volume varies depending on the “HP Amplifier Gain” setting.
Decrease the volume or mute the audio first if changing this setting while listening
to audio.
Resume Play
When the input source is switched, the USB flash drive is disconnected
and then connected, or the power is turned off and then back on during
USB flash drive playback, the unit memorizes the point where playback
stopped (resume information) so that playback can resume from after that
point.
On
(Default):
Resume playback is set.
Off: Resume playback is not set.
NOTE
0
Resume playback works even if the USB flash drive is disconnected and then
reconnected. However, if a different USB flash drive is connected, the resume
information for the previous USB flash drive is deleted.
0
The resume information may be deleted when the USB flash drive is removed and
files are added or deleted.
0
Press i while playback is stopped to delete the resume information. “Resume Off”
is displayed.
Contents Connections Playback Settings Tips Appendix
57
Front panel Rear panel Remote control
unit
Index
General
Illumination
This function adjusts the illumination of the front panel and the brightness
of the display. It also enables linkage of the front panel illumination to the
brightness of the display. When the brightness is turned “Off”, the noise
source affecting the sound quality is suppressed, and high-quality sound
playback is possible.
o
Display
100 – 5 (Default: 100)
Off
0
The display brightness setting is synchronized with the Dimmer menu setting.
(v p. 31)
o
Front Panel
Sync
(Default):
The brightness of the illumination is
linked to the brightness of the display.
100 – 5
Off
Auto-Standby
Sets whether to automatically switch the unit to the standby mode when
the unit remains in the stop mode for more than 15 minutes.
Off
(Default):
Disable Auto Standby mode.
On: Enable Auto Standby mode.
Contents Connections Playback Settings Tips Appendix
58
Front panel Rear panel Remote control
unit
Index

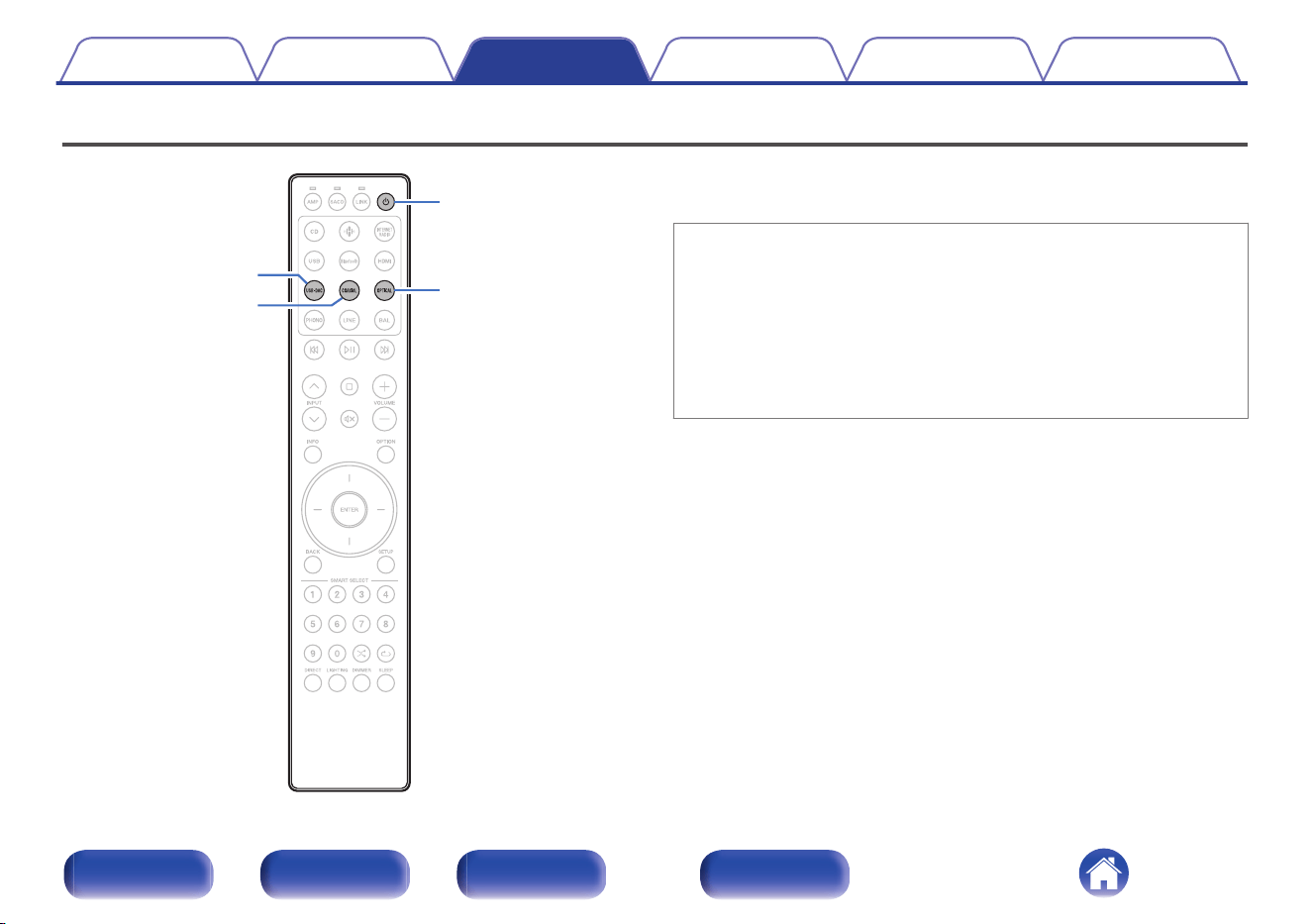

Disabling amplifier/streaming preamplifier operating mode on remote
control
SETUP
AMP
LINK
Remote mode
select indicators
If you do not want to use this unit in combination with MODEL 10 or LINK
10n, you can disable the remote control operating mode of the device that
you are not using. By default, all remote control operating modes are
enabled.
0
When remote control operating mode is enabled, be sure to check the operation of
your device.
Contents Connections Playback Settings Tips Appendix
59
Front panel Rear panel Remote control
unit
Index
Disabling amplifier operating mode
1
Press and hold AMP and SETUP simultaneously until
the remote mode select indicators flash green.
0
Each time you perform Step 1, the amplifier operating mode is
toggled between enabled/disabled.
Disabling streaming preamplifier
operating mode
1
Press and hold LINK and SETUP simultaneously until
the remote mode select indicators flash green.
0
Each time you perform Step 1, the streaming preamplifier
operating mode is toggled between enabled/disabled.
Contents Connections Playback Settings Tips Appendix
60
Front panel Rear panel Remote control
unit
Index

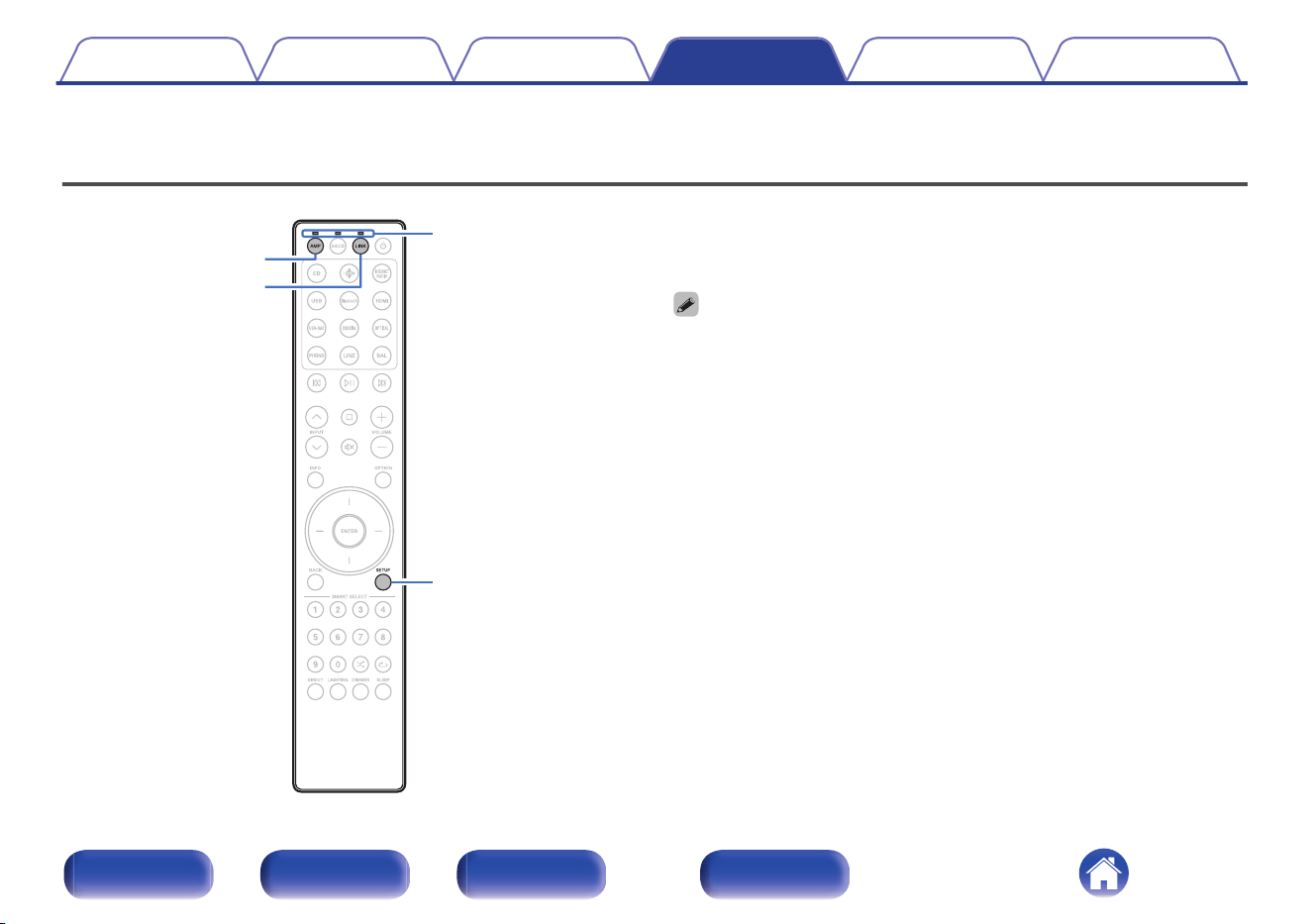

Setting the device to be operated by the volume buttons on the remote
control
ENTER
1 – 2
If you use this unit in combination with a Marantz amplifier or streaming
preamplifier, you can specify the device to be operated by the volume
buttons so that you can adjust the volume of the Marantz amplifier or
streaming preamplifier while the included remote control remains in SACD
player operating mode.
0
After setting the device to be operated by the volume buttons on the remote
control, be sure to check the operation of your device.
0
Switching the device to be operated affects the VOLUME no and : buttons on
the remote control.
Contents
Connections Playback Settings Tips Appendix
61
Front panel Rear panel Remote control
unit
Index
Setting the device to be operated by
the volume buttons in SACD player
operating mode
If you use a Marantz amplifier or streaming preamplifier in combination
with this unit, you can switch the device to be operated by the volume
buttons while the included remote control is set to SACD player operating
mode.
By default, the device to be operated is set to “Amplifier”.
o
Set the device to be operated by the volume
buttons to the amplifier
1
Press and hold ENTER and 1 on the remote control
simultaneously for 5 seconds or more.
The AMP indicator will flash green.
o
Set the device to be operated by the volume
buttons to the streaming preamplifier
1
Press and hold ENTER and 2 on the remote control
simultaneously for 5 seconds or more.
The LINK indicator will flash green.
Contents Connections Playback Settings Tips Appendix
62
Front panel Rear panel Remote control
unit
Index
o
Contents
Tips
I want to switch the filter to change the desired sound quality 64
I want to enjoy analog output audio at higher quality 64
I want to display Super Audio CD text 64
I want to play the multi-channel area of a Super Audio CD is played 64
I want to playback just the specified folder 64
I want to randomly play back all tracks on a DVD-R/-RW/+R/+RW
or CD-R/-RW 64
I want to playback high resolution music files 64
I want to stop the USB flash drive from automatically starting
playback 65
Simple operations in the power off state 65
I want to operate a Marantz amplifier and streaming preamplifier
using the remote control of this unit 65
Troubleshooting
Power does not turn on / Power is turned off 67
Operations cannot be performed through the remote control unit 68
Display on this unit shows nothing 69
No sound comes out 69
Sound is interrupted or noise occurs 70
Desired sound does not come out 70
USB flash drives cannot be played back 71
Cannot playback Discs 72
There is a delay before the disc tray starts to open 72
Music files on PC or Mac cannot be played back (USB-DAC) 73
Audio from digital devices cannot be played back (Coaxial/Optical) 73
Contents Connections Playback Settings Tips Appendix
63
Front panel Rear panel Remote control
unit
Index
Tips
I want to switch the filter to change the desired sound quality
0
Switch the filter characteristics. (v p. 55)
I want to enjoy analog output audio at higher quality
0
Set “Digital Out” on the setup menu to “Off”. (v p. 56)
0
Press the DIMMER button to turn the display off. (v p. 31)
0
Press the LIGHTING button to turn the display and lighting LED on the front panel off. (v p. 32)
I want to display Super Audio CD text
0
This unit supports Super Audio CD text. Press the INFO button to switch the display information. (v p. 33)
I want to play the multi-channel area of a Super Audio CD is played
0
This unit can play multi-channel audio by downmixing to two channels. Press the OPTION button and set “MULTI”. (v p. 36)
I want to playback just the specified folder
0
Press the OPTION button to set the playback mode to folder playback mode. (v p. 39)
I want to randomly play back all tracks on a DVD-R/-RW/+R/+RW or CD-R/-RW
0
Before playback, press the OPTION button to set the playback mode to “All playback mode”, then press the s button for random playback. (v p. 39)
I want to playback high resolution music files
0
This unit can playback high resolution music files that are stored on a USB flash drive. (v p. 77)
Contents
Connections Playback Settings Tips Appendix
64
Front panel Rear panel Remote control
unit
Index
I want to stop the USB flash drive from automatically starting playback
0
Set “Off” to the “Resume Play”. (v p. 57)
Simple operations in the power off state
0
Press the p button to automatically turn the unit’s power supply on and start playback of the last selected input source.
I want to operate a Marantz amplifier and streaming preamplifier using the remote control of this unit
0
Marantz amplifier and streaming preamplifier can also be operated with the remote control of this unit. Also refer to the amplifier and streaming
preamplifier instruction manuals for those players. (v p. 15)
Contents Connections Playback Settings Tips Appendix
65
Front panel Rear panel Remote control
unit
Index
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
0
If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem.
Continue pressing the X button on the unit until “Restart” appears in the display, or remove and re-insert the power cord of the unit.
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Contents Connections Playback Settings Tips Appendix
66
Front panel Rear panel Remote control
unit
Index
Power does not turn on / Power is turned off
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. (v p. 28)
0
This unit is in standby mode. Press the X button on the main unit or the X button on the remote control. (v p. 30)
Power automatically turns off.
0
The auto standby mode setting is on. The auto standby mode automatically switches the unit to standby if there are no operations for more than 15
minutes. To disable the Auto Standby mode, set “Auto-Standby” on the menu to “Off”. (v p. 58)
When the power is turned on, the power indicator flashes in orange.
0
The protection circuit has been activated due to an error in the internal power supply. Unplug the power cord and contact our customer service center.
Contents Connections Playback Settings Tips Appendix
67
Front panel Rear panel Remote control
unit
Index
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
0
Batteries are worn out. Replace with new batteries. (v p. 6)
0
Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 6)
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks. (v p. 6)
0
The unit’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the
remote control sensor will not be exposed to strong light.
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV
and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not
affect operations from the remote control unit of this unit.
0
Press the SACD button to switch the remote control operating mode to SACD player operating mode. (v p. 12)
0
Remote control SACD player operating mode is disabled. Press and hold the SACD and SETUP buttons simultaneously for 3 seconds or more to
enable SACD player operating mode.
0
The device to be operated by the VOLUME no and : buttons is a Marantz streaming preamplifier. If the remote control is set to SACD player
operation mode and the volume of the Marantz amplifier connected to this unit cannot be adjusted, switch the operating device to the amplifier.
(v p. 61)
0
The device to be operated by the VOLUME no and : buttons is a Marantz amplifier. If the remote control is set to SACD player operation mode and
the volume of the Marantz streaming preamplifier connected to this unit cannot be adjusted, switch the operating device to the streaming
preamplifier. (v p. 61)
0
When using this unit independently, set the switch to “INTERNAL”. (v p. 26)
Contents
Connections Playback Settings Tips Appendix
68
Front panel Rear panel Remote control
unit
Index
Display on this unit shows nothing
Display is off.
0
Press the DIMMER button, and change the setting to anything other than off. (v p. 31)
0
Set “Illumination” - “Display” on the setup menu to something other than “Off”. (v p. 58)
0
Press the LIGHTING button to turn on the lighting. (v p. 32)
No sound comes out
No sound is produced. Or sound is distorted.
0
Check the connections for all devices. (v p. 18)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check the amplifier’s functions and controls and adjust as necessary.
0
When connecting to a device with digital audio input connectors, set “Digital Out” to “On”. (v p. 56)
0
Digital audio output stops when playing the HD layer of a Super Audio CD or a file with a DSD signal or a linear PCM signal with a sampling frequency
of 352.8 kHz or higher.
Contents
Connections Playback Settings Tips Appendix
69
Front panel Rear panel Remote control
unit
Index
Sound is interrupted or noise occurs
During playback from the CD-R/-RW or DVD-R/-RW/+R/+RW, sound is occasionally interrupted.
0
The sound may skip during playback of a CD-R/-RW containing a high-resolution audio source.
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly recorded disc.
During playback from the USB flash drive, sound is occasionally interrupted.
0
When the transfer speed of the USB flash drive is slow, sound may occasionally be interrupted.
Sound is interrupted during playback of tracks saved on a computer.
0
Do not start applications other than the player software while playing music on your computer.
0
The sound may be interrupted depending on the hardware or software configuration of the computer being used.
Desired sound does not come out
Headphone volume is low.
0
Switch “HP Amplifier Gain” to “High” if using headphones with high impedance or low sensitivity. “HP Amplifier Gain” (v p. 57)
Contents
Connections Playback Settings Tips Appendix
70
Front panel Rear panel Remote control
unit
Index
USB flash drives cannot be played back
USB flash drive is not recognized.
0
Disconnect and reconnect the USB flash drive. (v p. 24)
0
Mass storage class compatible USB flash drives are supported.
0
This unit does not support a connection through a USB hub. Connect the USB flash drive directly to the USB port.
0
The USB flash drive must be formatted to FAT16 or FAT32.
0
Not all USB flash drives are guaranteed to work. Some USB flash drives are not recognized. When using a type of portable hard disc drive compatible
with the USB connection that requires power from an AC adapter, use the AC adapter that came with the drive.
Files on the USB flash drive are not displayed.
0
Files of a type not supported by this unit are not displayed. (v p. 77)
0
This unit can display a file structure with up to 8 levels, up to 1,000 folders and up to 2,000 files in 1 folder. Modify the folder structure of the USB flash
drive.
0
When multiple partitions exist on the USB flash drive, only files on the first partition are displayed.
iOS and Android devices are not recognized.
0
The USB port of this unit does not support playback from iOS and Android devices.
Files on a USB flash drive cannot be played.
0
Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 77)
0
You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.
0
Playback may not be possible if the album art file size exceeds 2 MB.
Contents
Connections Playback Settings Tips Appendix
71
Front panel Rear panel Remote control
unit
Index
Cannot playback Discs
Cannot playback when the play button is pressed, or cannot correctly playback a specific part of the disc.
0
The disc is dirty or scratched. Either clean the disc, or insert a different disc. (v p. 81)
Cannot playback CD-R/-RW or DVD-R/-RW/+R/+RW.
0
Discs cannot be played back unless they have been finalized. Use a finalized disc. (v p. 74)
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly recorded disc.
0
Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 75)
“No Disc” is displayed.
0
“No Disc” is displayed if the disc is loaded upside-down, if no disc is loaded, when the inserted disc cannot be read because it is not compatible with
this unit or is dirty or scratched.
“System Error” is displayed.
0
“System Error” is displayed when an error not caused by disc, format, etc., occurs. Contact our customer service center.
“Wrong Format” is displayed.
0
“Wrong Format” is displayed for files created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 75)
There is a delay before the disc tray starts to open
There is a delay before the disc tray starts to open.
0
When an input source other than “CD” is selected, the power to the CD drive mechanism is turned off in order to improve the sound quality. This occurs
because the power to the mechanism is turned off, it is not a malfunction.
Contents
Connections Playback Settings Tips Appendix
72
Front panel Rear panel Remote control
unit
Index
Music files on PC or Mac cannot be played back (USB-DAC)
This unit is not recognized on the computer.
0
Reconnect the USB cable to the USB port on your computer. When this unit is still not recognized after reconnection, connect to a different USB port.
(v p. 23)
0
Restart your computer.
0
Check the OS of your computer. (v p. 44)
0
When your computer is running on Windows, a dedicated driver software should be installed. (v p. 44)
This unit is not selected as the playback device.
0
Select this unit as the playback device in the sound settings on the computer. (v p. 44)
“Signal Unlock” is displayed.
0
When digital audio signals cannot be detected properly, “Signal Unlock” is displayed. (v p. 51)
“Unsupported” is displayed.
0
“Unsupported” is displayed when audio signals that are not supported by this unit are input. Check the settings on your computer or player software.
(v p. 51)
0
If the computer you use is macOS, please check if the SACD 10 format is set below 384.0 kHz using the Audio MIDI Setup. (v p. 50)
Audio from digital devices cannot be played back (Coaxial/Optical)
“Signal Unlock” is displayed.
0
When digital audio signals cannot be detected properly, “Signal Unlock” is displayed. (v p. 52)
“Unsupported” is displayed.
0
“Unsupported” is displayed when audio signals that are not supported by this unit are input. Check the audio output signal format from your digital
device. (v p. 52)
Contents
Connections Playback Settings Tips Appendix
73
Front panel Rear panel Remote control
unit
Index

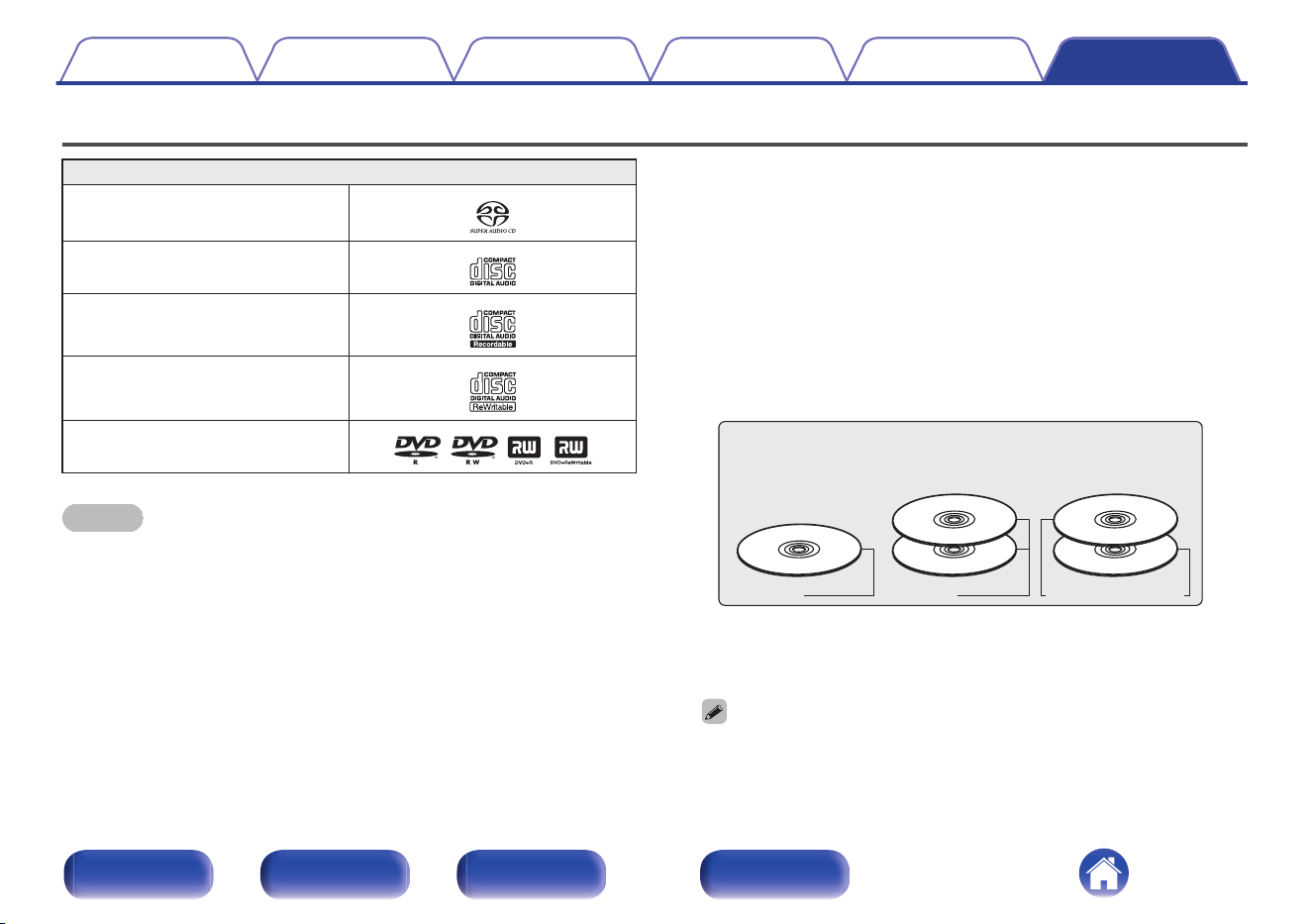

Playing back Discs
Playable media
Super Audio CD
CD
CD-R
CD-RW
DVD-R/-RW/+R/+RW
NOTE
0
Some discs and some recording formats cannot be played.
0
Non-finalized discs cannot be played.
o
Super Audio CD
There are three types of Super Audio CDs:
A
Single layer disc
Single layer Super Audio CD with just an HD layer.
B
Dual layer disc
Super Audio CD with two HD layers. Enables long playback at a
high audio quality.
C
Hybrid disc
Two-layer Super Audio CD with an HD layer and a CD layer.
The signals on the CD layer can be played on a regular CD player.
Types of Super Audio CDs
Single layer disc Dual layer disc
Hybrid disc
HD layer
HD layer HD layer
CD layer
The HD layer is a layer of high density signals for Super Audio CDs.
The CD layer is the layer of signals that can be read on a regular CD
player.
0
When “MULTI” is selected, down-mixed audio is output to the L and R
channels.
Contents Connections Playback Settings Tips Appendix
74
Front panel Rear panel Remote control
unit
Index
o
Playable files
Sampling frequency Bit rate
Bit length
Playable discs
Extension
CD-R/-RW DVD-R/-RW DVD+R/+RW
MP3 44.1/48 kHz 32 – 320 kbps -
P P P
.mp3
WMA 44.1/48 kHz 48 – 320 kbps -
P P P
.wma
AAC 44.1/48 kHz 16 – 320 kbps -
P P P
.aac/
.m4a
WAV
44.1/48/88.2/
96/176.4/192 kHz
- 16/24 bits
P
z
2
P P
.wav
FLAC
44.1/48/88.2/
96/176.4/192 kHz
- 16/24 bits
P
z
2
P P
.flac
Apple Lossless
z
1
44.1/48/
88.2/96 kHz
- 16/24 bits
P
z
2
P P
.m4a
AIFF
44.1/48/88.2/
96/176.4/192 kHz
- 16/24 bits
P
z
2
P P
.aif/
.aiff
DSD 2.8/5.6 MHz - 1 bit –
P P
.dsf/
.dff
z1
The Apple Lossless Audio Codec（ALAC） decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
z2
This item can only be used to play files with a sampling frequency of 44.1/48 kHz.
o
Maximum number of playable files and folders
Maximum number of folders : 1,000
Maximum number of files in 1 folder : 2,000
Contents
Connections Playback Settings Tips Appendix
75
Front panel Rear panel Remote control
unit
Index
NOTE
0
Be sure to give files the extension. Files with any other extensions or files with
no extensions cannot be played.
0
Recordings you have made should only be used for your personal enjoyment,
and as per copyright laws may not be used in other ways without permission of
the copyright holder.
0
Only music files that are not copyright-protected can be played on this unit.
0
Content downloaded from pay sites on the Internet are copyright protected.
Also, files encoded in WMA format when ripped from a CD, etc. on a
computer may be copyright protected, depending on the computer’s
settings.
0
The maximum number of files and folders that can be played differs
depending on conditions such as the length of the file name or folder name or
the number of levels in the folder hierarchy.
Contents Connections Playback Settings Tips Appendix
76
Front panel Rear panel Remote control
unit
Index
Playing back a USB flash drives
o
USB-compatible file systems
FAT16 or FAT32
0
If the USB memory device is divided into multiple partitions, only the top drive can be selected.
o
Maximum number of playable files and folders
Maximum number of folders : 1,000
Maximum number of files in 1 folder : 2,000
o
Tag data
ID3-TAG (Ver.1.x and 2.x)
WMA-TAG
(The title, artist, and album tag data are supported)
Contents
Connections Playback Settings Tips Appendix
77
Front panel Rear panel Remote control
unit
Index
o
Compatible formats
Sampling frequency Bit rate Bit length Extension
MP3
44.1/48 kHz 32 – 320 kbps – .mp3
WMA
44.1/48 kHz 48 – 320 kbps – .wma
AAC
44.1/48 kHz 16 – 320 kbps –
.aac/
.m4a
WAV
44.1/48/88.2/96/176.4/192 kHz – 16/24 bits .wav
FLAC
44.1/48/88.2/96/176.4/192 kHz – 16/24 bits .flac
Apple Lossless *
44.1/48/88.2/96/176.4/192 kHz – 16/24 bits .m4a
AIFF
44.1/48/88.2/96/176.4/192 kHz – 16/24 bits
.aif/
.aiff
DSD
2.8/5.6 MHz – 1 bit
.dsf/
.dff
z
The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
NOTE
0
Be sure to give files the extension. Files with any other extensions or files with no extensions cannot be played.
0
Recordings you have made should only be used for your personal enjoyment, and as per copyright laws may not be used in other ways without permission of the copyright
holder.
0
It is not compatible with an MP3 player, digital camera, a USB device for a mobile phone, etc.
0
The unit does not support a card reader, USB extension cable, or USB hub.
0
Only music files that are not copyright-protected can be played on this unit.
0
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be
copyright protected, depending on the computer’s settings.
0
The maximum number of files and folders that can be played differs depending on conditions such as the length of the file name or folder name or the number of levels in the
folder hierarchy.
Contents Connections Playback Settings Tips Appendix
78
Front panel Rear panel Remote control
unit
Index

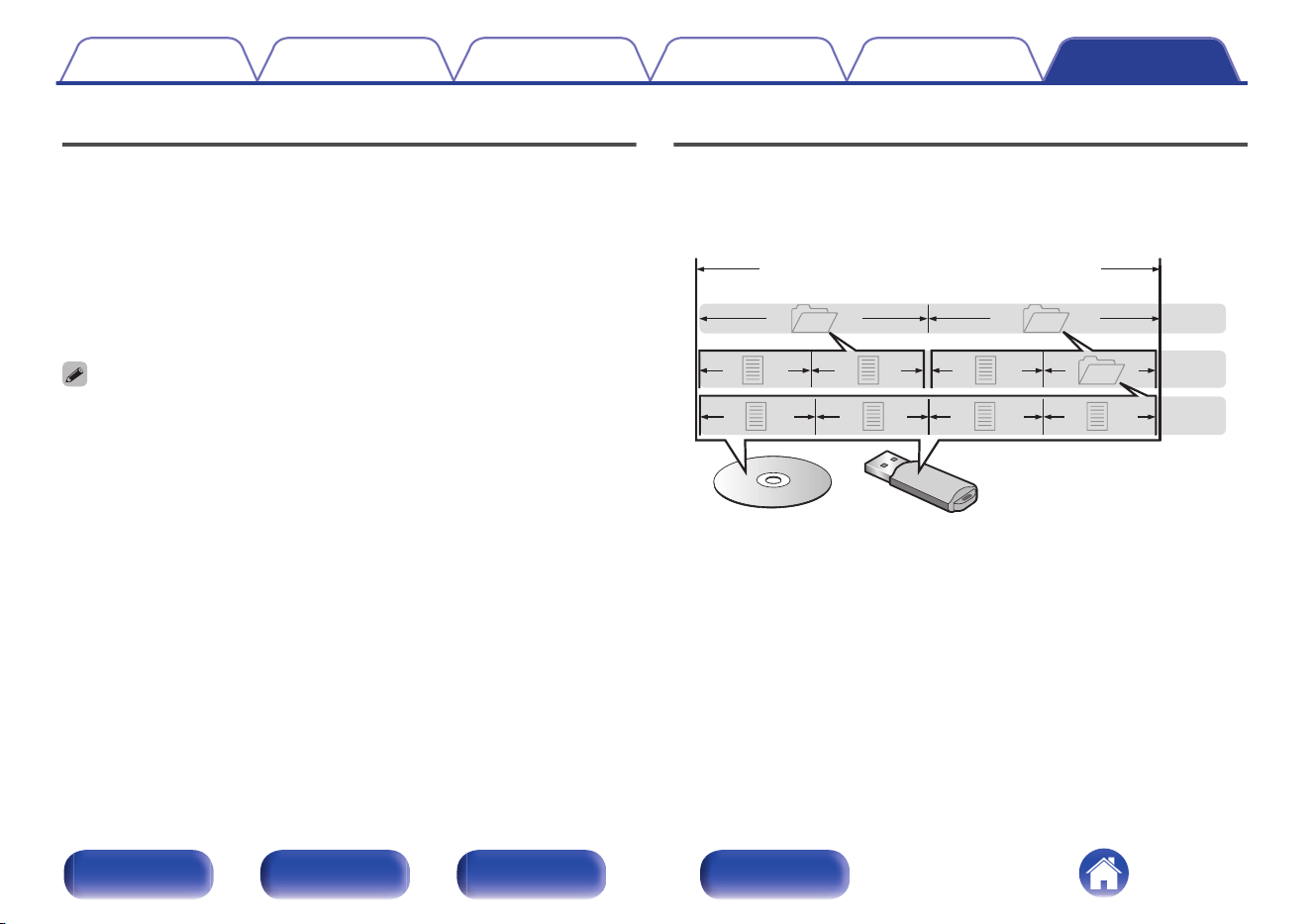

Playback order of music files
When there are multiple folders containing music files, the playback order
of folders is automatically set when this unit reads the media. The files in
each folder are played back in the order in which the files were recorded
on the media, from the oldest date and time.
CD-R/-RW, DVD-R/-RW/+R/+RW and USB flash drive
For playback of files on CD-R/-RW, DVD-R/-RW/+R/+RW or USB flash
drive, files in all folders on the first layer are played first, next on the
second layer, then next on the third layer, and so on in this order.
0
The playback order displayed on a PC may differ from the actual playback order.
0
The playback order with a CD-R/-RW and DVD-R/-RW/+R/+RW may differ,
depending on the writing software.
0
The playback order may differ from the order in which the folders or files were
recorded if you delete or add a folder or file on USB. This occurs because of data
recording specifications and is not a malfunction.
About discs and files
Music files recorded on CD-R/-RW, DVD-R/-RW/+R/+RW and USB flash
drive are divided into large segments (folders) and small segments (files).
Files are stored in folders, and folders can be placed for storage in a
hierarchy. The unit can recognize up to 8 levels of folders.
Folder 1 Folder 2
1st level
2nd level
3rd level
File 1 File 2 File 3 Folder 3
File 4 File 5 File 6 File 7
CD-R/CD-RW or USB flash drive
0
When writing music files on a CD-R/-RW or DVD-R/-RW/+R/+RW disc,
set the writing software’s format to “ISO9660”. The files may not play
properly if they are recorded in other formats. For details, refer to the
instructions of your writing software.
Contents
Connections Playback Settings Tips Appendix
79
Front panel Rear panel Remote control
unit
Index

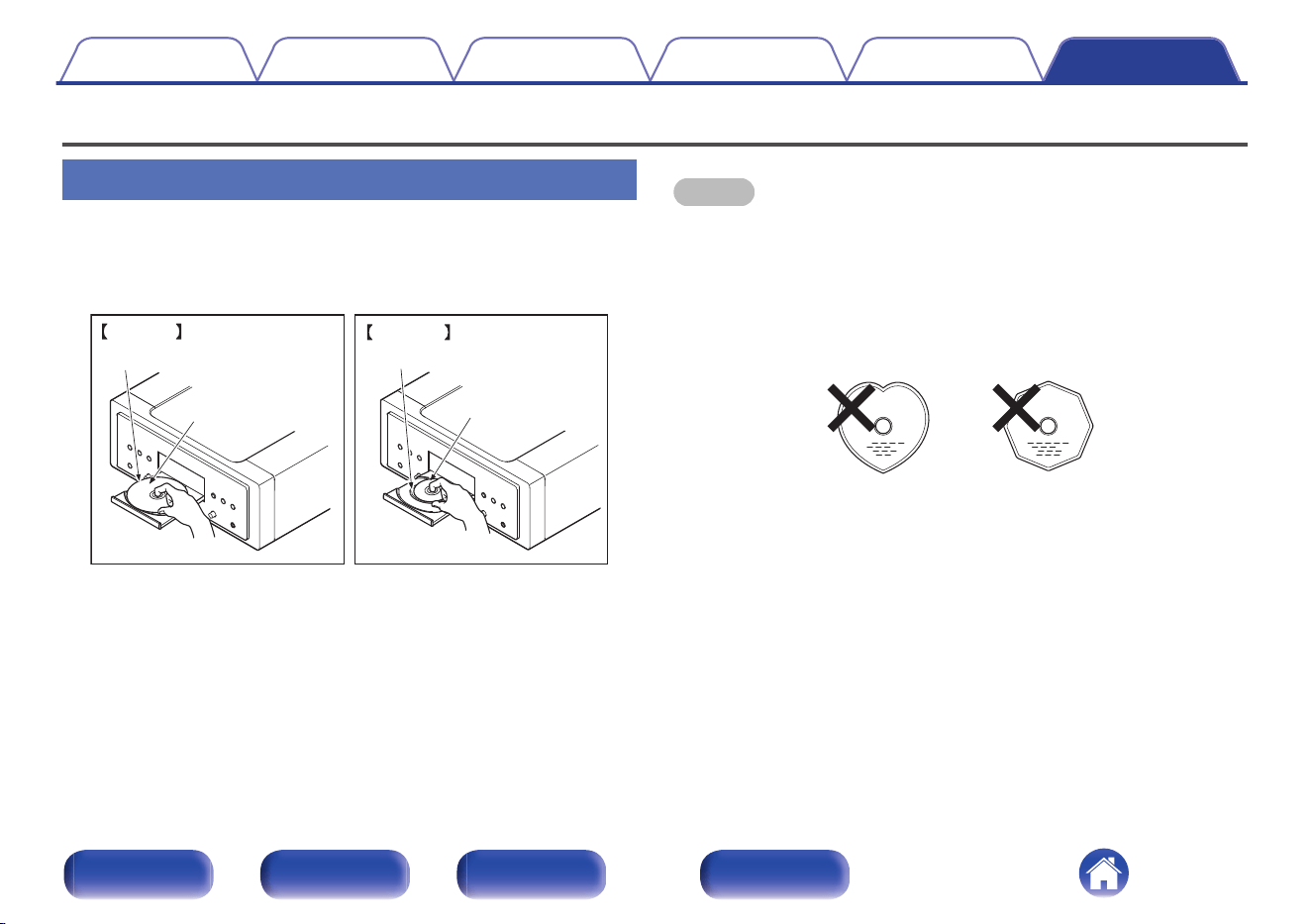

Cautions on using media
Loading discs
0
Set the disc in the tray label side up.
0
Make sure the disc tray is fully open when inserting the disc.
0
Place the discs flatly, 5 inch/12 cm discs in the outer tray guide (Figure
1), 3 inch/8 cm discs in the inner tray guide (Figure 2).
Outer tray guide
5 inch/12 cm disc
Inner tray guide
3 inch/8 cm disc
Figure 2
Figure 1
0
Place 3 inch/8 cm discs in the inner tray guide without using an adapter.
NOTE
0
Only load one disc at a time. Loading two or more discs can damage the unit or
scratch the discs.
0
Do not use cracked or warped discs or discs that have been repaired with
adhesive, etc.
0
Do not use discs on which the sticky part of cellophane tape or labels is exposed
or on which there are traces of where labels have been removed. Such discs can
get caught inside the player and damage it.
0
Do not use discs in special shapes, as they may damage the unit.
0
Do not push the disc tray in by hand when the power is off. Doing so could
damage the unit.
0
If the unit is left in a room full of smoke from cigarettes, etc., for long periods of
time, the surface of the optical pickup may get dirty, preventing it from receiving
signals properly.
Contents
Connections Playback Settings Tips Appendix
80
Front panel Rear panel Remote control
unit
Index

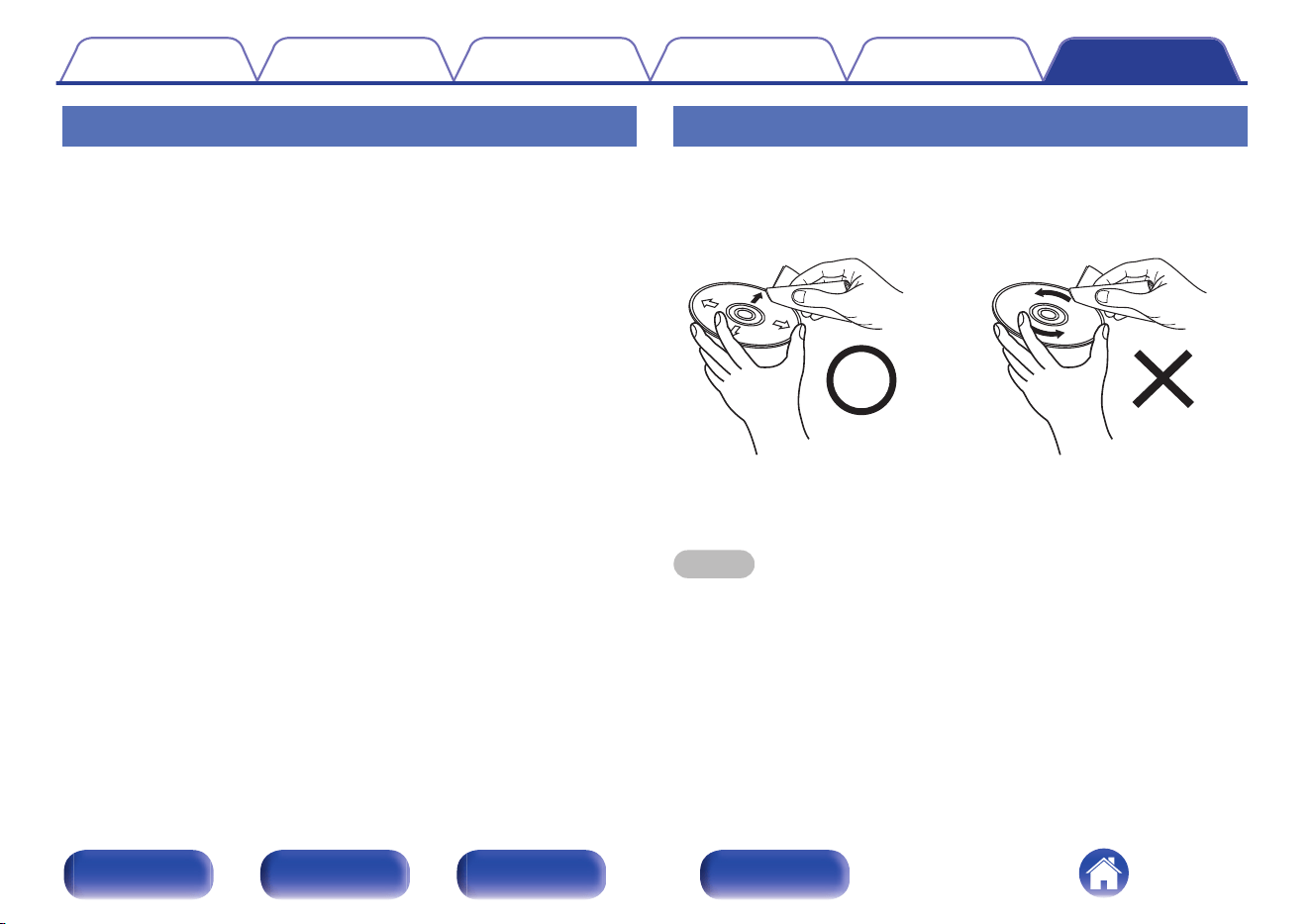

How to handle media
0
Do not get fingerprints, oil or dirt on discs.
0
Take special care not to scratch discs when removing them from their
cases.
0
Do not bend or heat discs.
0
Do not enlarge the hole in the center.
0
Do not write on the labeled (printed) surface with ball-point pens,
pencils, etc., or stick new labels on discs.
0
Condensation may form on discs if they are moved suddenly from a
cold place (outdoors for example) to a warm place, but do not try to dry
discs with a hairdryer, etc.
0
Do not eject a USB flash drive or turn off the unit while a USB flash drive
is being played. This may result in malfunction or loss of the USB flash
drive’s data.
0
Do not attempt to open or modify a USB flash drive.
0
USB flash drive and files can be damaged by static electricity. Do not
touch the metal contacts of a USB flash drive with your fingers.
0
Do not use warped USB flash drive.
0
After use, be sure to remove any disc or USB flash drive, and store it in
its proper case, to avoid dust, scratches and deformation.
0
Do not store discs in the following places:
1. Places exposed to direct sunlight for long periods of time
2. Dusty or humid places
3. Places exposed to heat from heaters, etc.
Cleaning discs
0
If there are fingerprints or dirt on a disc, wipe them off before using the
disc.
0
Use a commercially available disc cleaning set or a soft cloth to clean
discs.
Gently wipe the disc from the
inside towards the outside.
Do not wipe with a circular
motion.
NOTE
0
Do not use record spray, antistatic agents, benzene, thinner or other solvents.
Contents Connections Playback Settings Tips Appendix
81
Front panel Rear panel Remote control
unit
Index
Digital input
o
Specifications of supported audio formats
n
USB-DAC
Sampling frequency Bit length
DSD
(2-channel)
2.8/5.6/
11.2 MHz
1 bit
Linear PCM
(2-channel)
44.1/48/88.2/96/
176.4/192/352.8/
384 kHz
16/24/32
bits
0
Digital audio output stops during playback of the DSD files and linear PCM signals
with a sampling frequency of 352.8/384 kHz.
n
Coaxial/Optical
Sampling frequency Bit length
Linear PCM
(2-channel)
44.1/48/88.2/96/
176.4/192 kHz
16/24 bits
Contents Connections Playback Settings Tips Appendix
82
Front panel Rear panel Remote control
unit
Index
Explanation of terms
AIFF （Audio Interchange File Format）
This is an uncompressed and lossless format for digital audio. Use AIFF
files to burn high-quality audio CDs from imported songs. AIFF files use
approximately 10 MB of disk space per minute.
Apple Lossless Audio Codec
This is a codec for lossless audio compression method developed by
Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data
compressed to approximately 60 – 70 % can be decompressed to exactly
the same original data.
DSD （Direct-Stream Digital）
One of the audio data recording methods, it is the signal aspect used to
store audio signals on a super audio CD, and is Δ-Σ modulated digital
audio.
FLAC (Free Lossless Audio Codec)
FLAC stands for Free lossless Audio Codec, and is a lossless free audio
file format. Lossless means that the audio is compressed without any loss
in quality.
The FLAC license is as shown below.
Copyright （C） 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008,
2009 Josh Coalson
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
0
Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
0
Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
0
Neither the name of the Xiph.org Foundation nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES （INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION） HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT （INCLUDING NEGLIGENCE
OR OTHERWISE） ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Contents
Connections Playback Settings Tips Appendix
83
Front panel Rear panel Remote control
unit
Index
MP3 （MPEG Audio Layer-3）
This is an internationally standardized audio data compression scheme,
using the “MPEG-1” video compression standard. It compresses the data
volume to about one eleventh its original size while maintaining sound
quality equivalent to a music CD.
MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4
These are the names for digital compression format standards used for
the encoding of video and audio. Video standards include “MPEG-1
Video”, “MPEG-2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio
standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”.
WMA (Windows Media Audio)
This is audio compression technology developed by Microsoft
Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications authorized by Microsoft
Corporation. If you use an unauthorized application, the file may not work
properly.
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Dynamic range
The difference between the maximum undistorted sound level and the
minimum discernible level above the noise emitted by the device.
Downmix
This function converts the number of channels of surround audio to a
lower number of channels and plays back according to the system’s
configuration.
Bit rate
This is the amount of audio data recorded on a disc that is read in one
second.
Finalizing
This process enables DVD/CD recorded with a recorder to be played by
other players.
Linear PCM
This is an uncompressed PCM (Pulse Code Modulation) signal. Unlike
lossy compression audio sources such as MP3, no audio quality or
dynamic range deteriorates.
Protection circuit
This is a function to prevent damage to devices within the power supply
when an abnormality such as an overload, excess voltage occurs or over
temperature for any reason.
Contents
Connections Playback Settings Tips Appendix
84
Front panel Rear panel Remote control
unit
Index
Specifications
o
Audio performance
0
Analog output [Super Audio CD] [CD]
Channels: 2-channels 2-channels
Playable frequency range: 2 Hz – 100 kHz 2 Hz – 20 kHz
Playable frequency response: 2 Hz – 50 kHz (-3 dB) 2 Hz – 20 kHz (±1 dB)
S/N: 118 dB (Audible range) 116 dB
Dynamic range: 112 dB (Audible range) 98 dB
Harmonic distortion: 0.0004 % (1 kHz, Audible range) 0.0015 % (1 kHz)
Wow & flutter: Crystal accuracy Crystal accuracy
0
Output level
Unbalanced: 2.5 V (10 kΩ/kohms) 2.0 V (10 kΩ/kohms)
Balanced: 5.0 V (10 kΩ/kohms) 4.0 V (10 kΩ/kohms)
Headphone output: 130 mW/32 Ω/ohms (variable maximum) 130 mW/32 Ω/ohms (variable maximum)
0
Digital output
Coaxial: - 0.5 Vp-p / 75 Ω/ohms
Optical: - –19 dBm
0
Optical readout system
Laser: AlGaAs AlGaAs
Wave length: 650 nm 780 nm
Signal type: 1-bit DSD 16-bit linear PCM
Sampling frequency: 2.8224 MHz 44.1 kHz
Contents Connections Playback Settings Tips Appendix
85
Front panel Rear panel Remote control
unit
Index
o
General
Power supply: AC 120 V, 60 Hz
Power consumption: 55 W
Power consumption in standby mode: 0.3 W or less
Operating temperature: 41 °F - 95 °F (5 °C - 35 °C)
Operating humidity: 5 – 90 % (without dew)
For the purpose of improvement, the specifications and design are subject to change without notice.
Contents Connections Playback Settings Tips Appendix
86
Front panel Rear panel Remote control
unit
Index

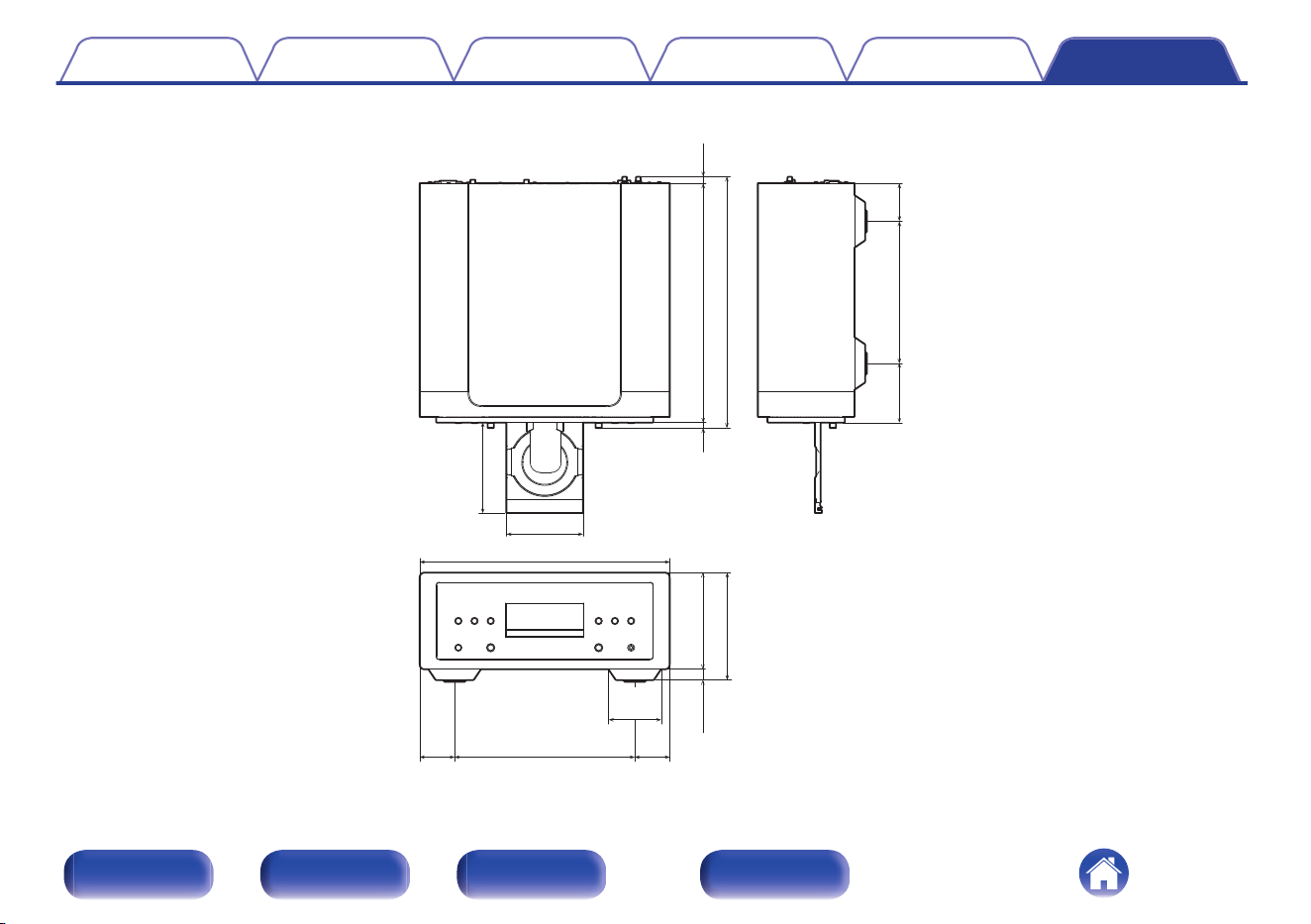

o
Dimensions (Unit : in. (mm))
0.4
(9)
16.6 (422)
0.4
(11)
17.4 (442)
9.8 (250)
2.7
(68)
4.1 (104)
2.4
(62)
0.9 (22) 6.7 (170)
7.6 (192)
2.4
(62)
12.5 (316)
17.3 (440)
5.3 (135)
3.7
(94)
6.3 (159)
o
Weight : 72 lbs 12 oz (33.0 kg)
Contents Connections Playback Settings Tips Appendix
87
Front panel Rear panel Remote control
unit
Index
Index
v A
Amplifier ................................................... 19, 21
Auto-Standby ................................................. 58
v C
CD .................................................................. 33
v D
D/A converter ................................................. 21
DATA CD ....................................................... 37
DATA DVD ..................................................... 37
Display’s brightness ....................................... 31
v F
Front panel ....................................................... 7
v R
Rear panel ...................................................... 10
Remote control unit ........................................ 12
v S
Super Audio CD ............................................. 33
v T
Tips ................................................................ 64
Troubleshooting ............................................. 66
v U
USB flash drive ......................................... 24, 40
Contents
Connections Playback Settings Tips Appendix
88
Front panel Rear panel Remote control
unit
Index
3520 10986 00AS
© 2024 Masimo. All Rights Reserved.
89
