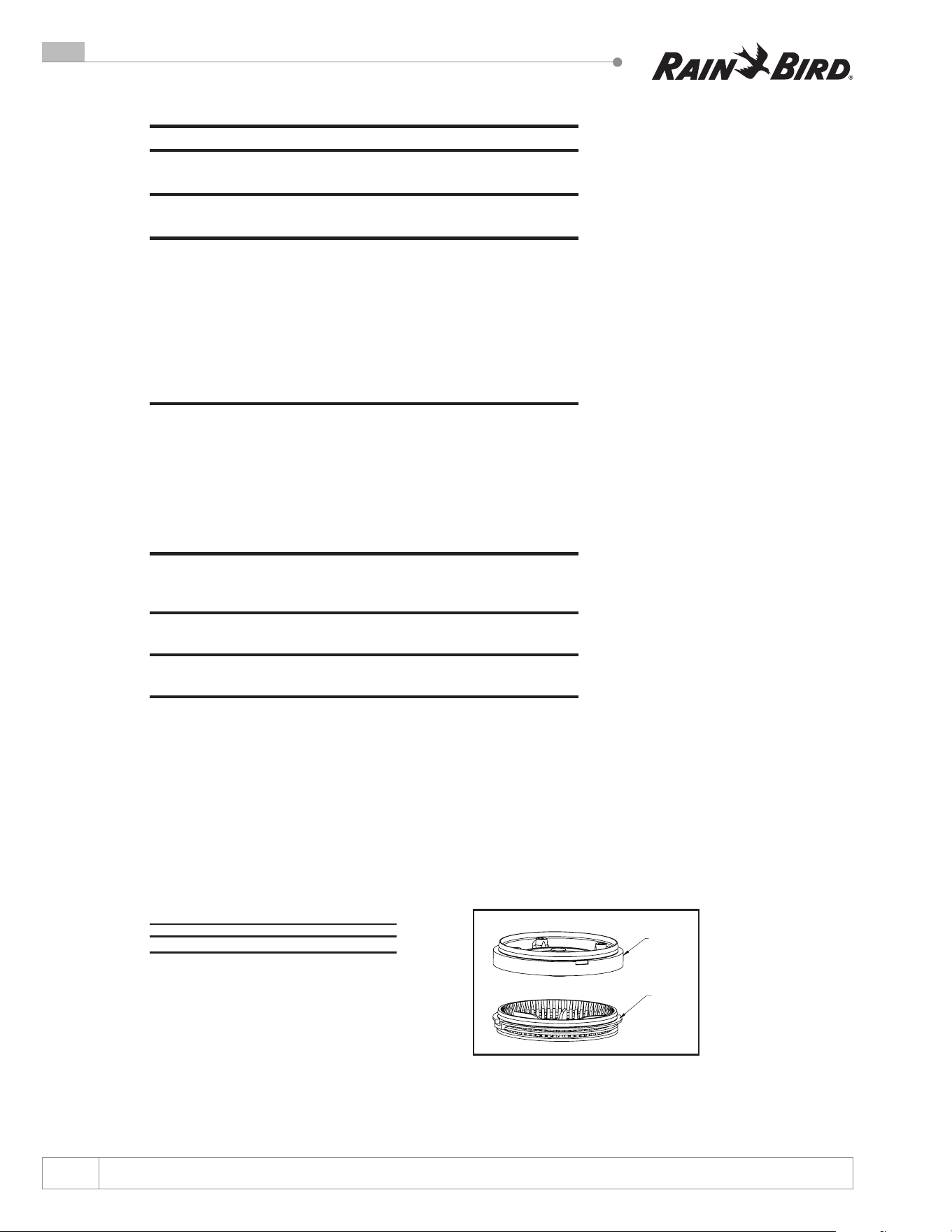

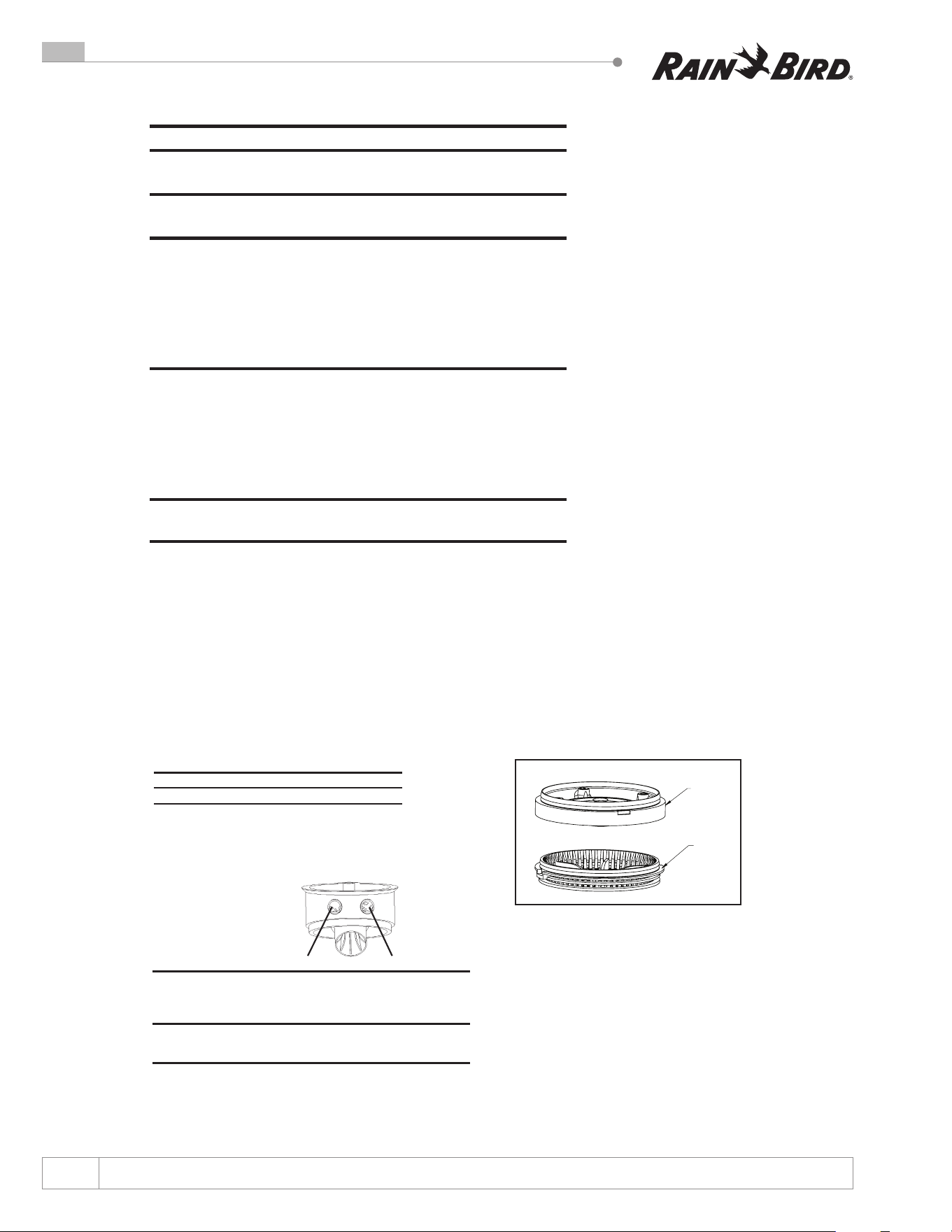

Ref. Part Description Qty. Part No.
1 EAGLE'S NEST Rotor Adaptors 1 211579
2 Screw,
3
/
4
" Self Tapping #10 Thd. 3 (211487)
3 Cover, Eagle's Nest 1 (211482)
4 Snap Ring, Eagle's Nest 47/51 1 21113301
5 Adaptor, Eagle's Nest 1 —
6 Seal, U-cup (Red) 1 (211239)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 1
Catalog Number 002

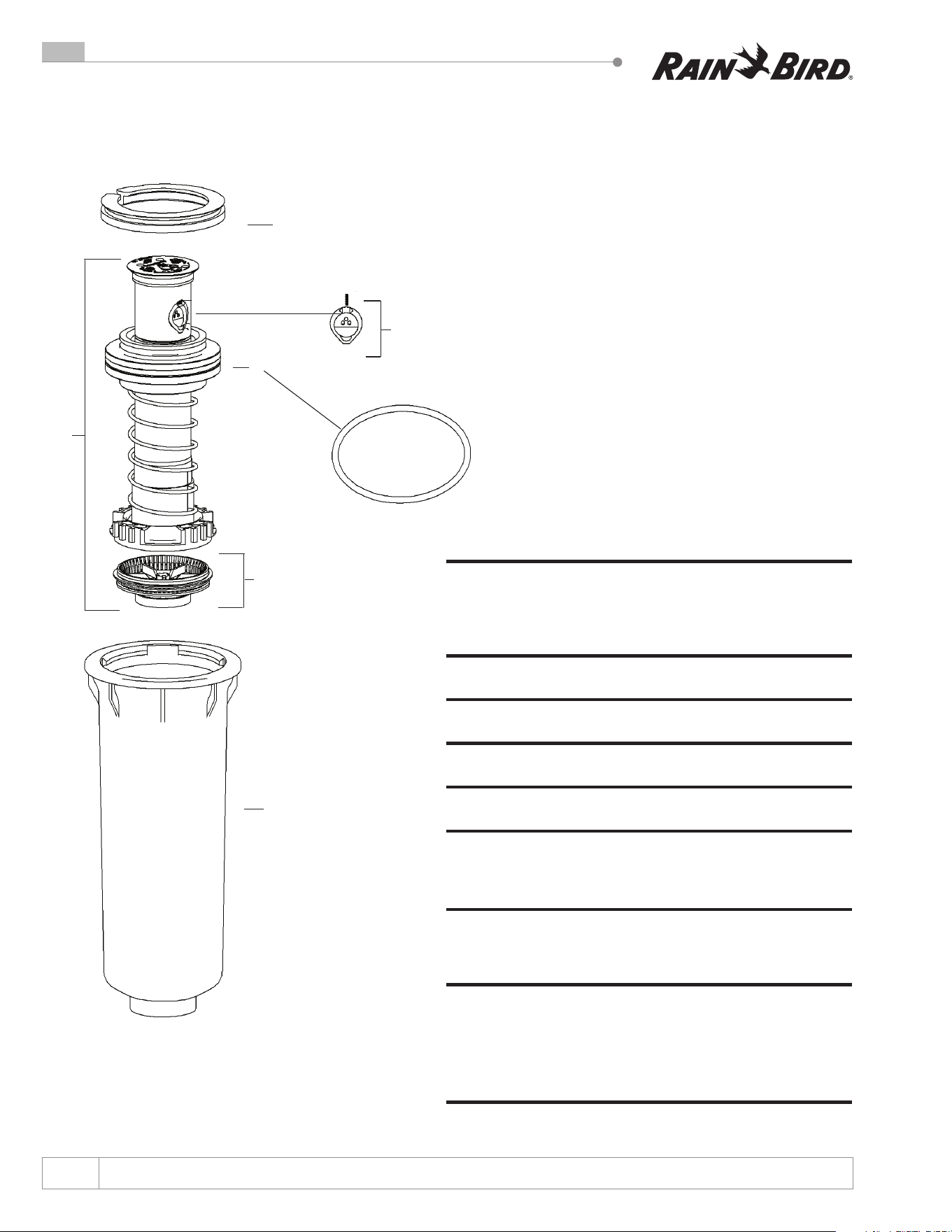

Rotor Adapter

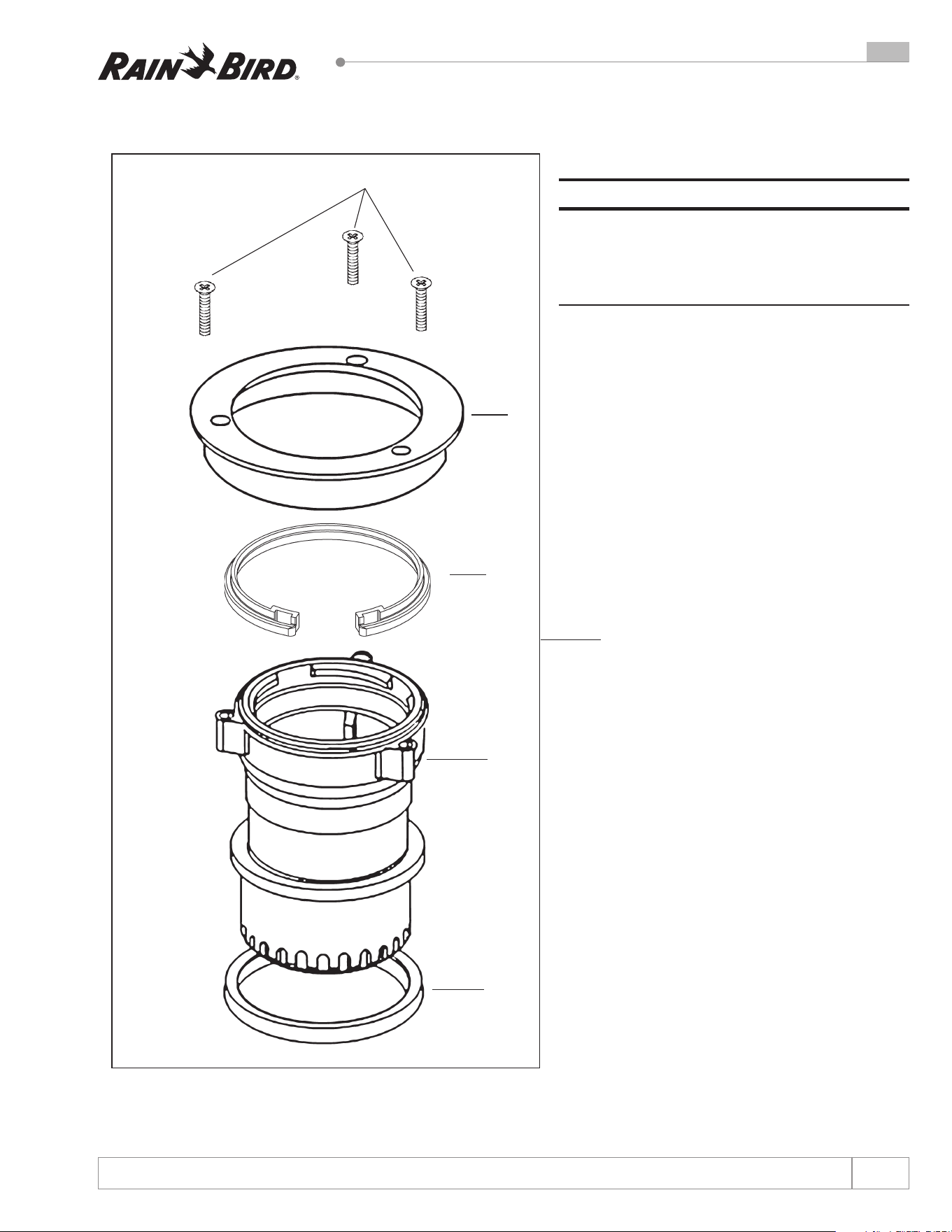

EAGLE’S NEST™ ROTOR ADAPTORS
FOR 47/51DR SERIES ROTORS
1
6
2
3
4
5
Ref. Part Description Qty. All Models
SNAP RINGS
1 Snap Cover, Black 1 21192101
1 Snap Cover, Yellow 1 21192102
1 Snap Cover, White 1 21192103
1 Snap Cover, Purple 1 21192104
INTERNAL ASSEMBLY
2 Internal Assembly (Does not include nozzle)(A)(B) 1 21291101
NOZZLES
3 Nozzle Kit (C) 1 212913xx
BEARING ASSEMBLY
4 Bearing Guide O-Ring 1 211242
FILTER ASSEMBLY
5 Screen and Check Valve Assy Kit 1 212914
CASE
6 Case (NPT) 1 (21148901)
6 Case (BSP) 1 (21148902)
6 Case (ACME) 1 21148903
ACCESSORIES/TOOLS
– Support Tool 1 232693S
– Flat-Head Rotor Tool 1 Y05100
(A) Order nozzle kit if necessary - Part#212913xx
(B) For Non-potable applications use Standard Part and Purple Snap Ring - Part
#21192104.
(C) Specify Nozzle Kit when Ordering - XX = 02 (Includes 18M, 26M, 30M and 36M
Nozzles); 22 (Includes 18S, 22S and 26S Nozzles); 36 (Includes 30S, 36S, and 40
Nozzles); 48 (Includes 44, 48, and 54 Nozzles).
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 1

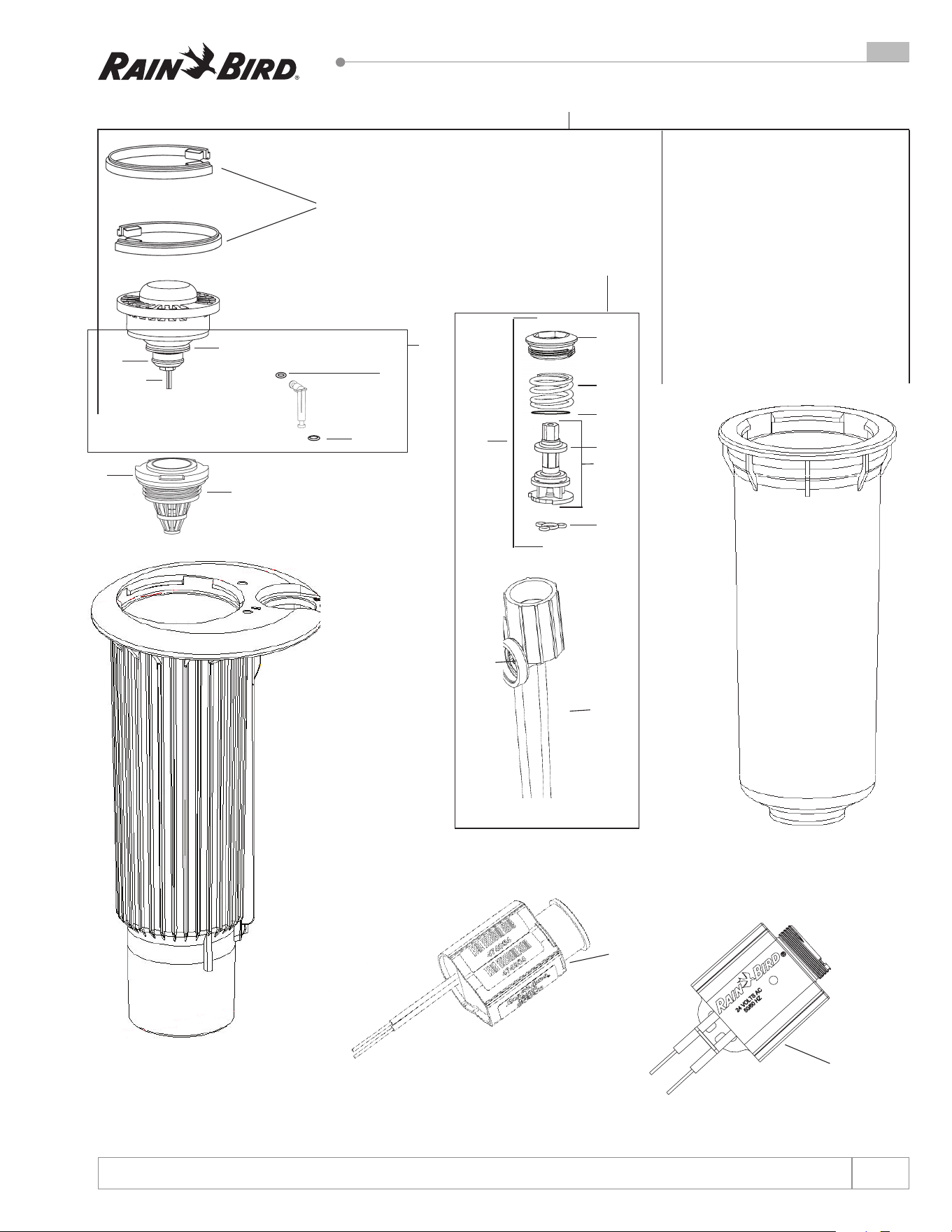

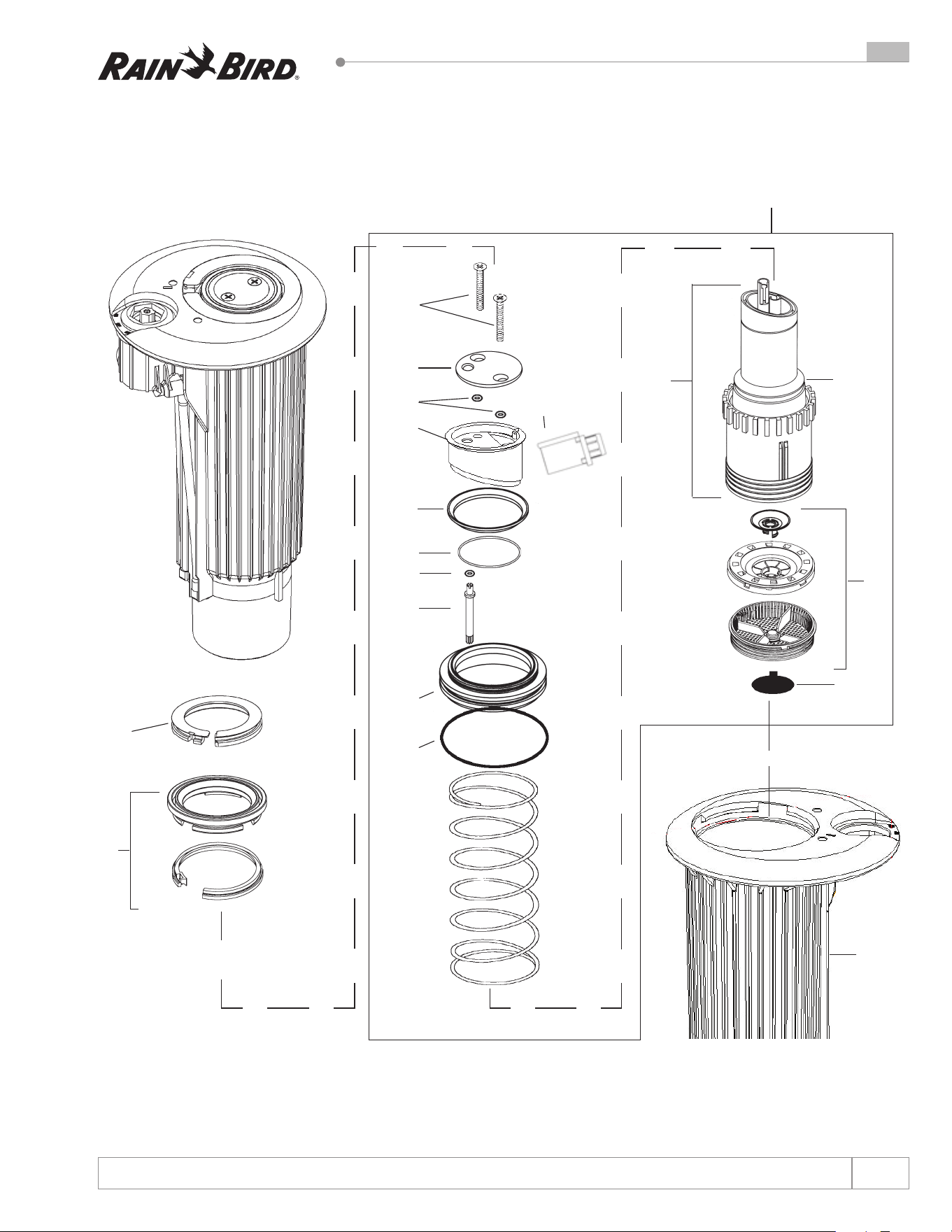

003 Catalog Number

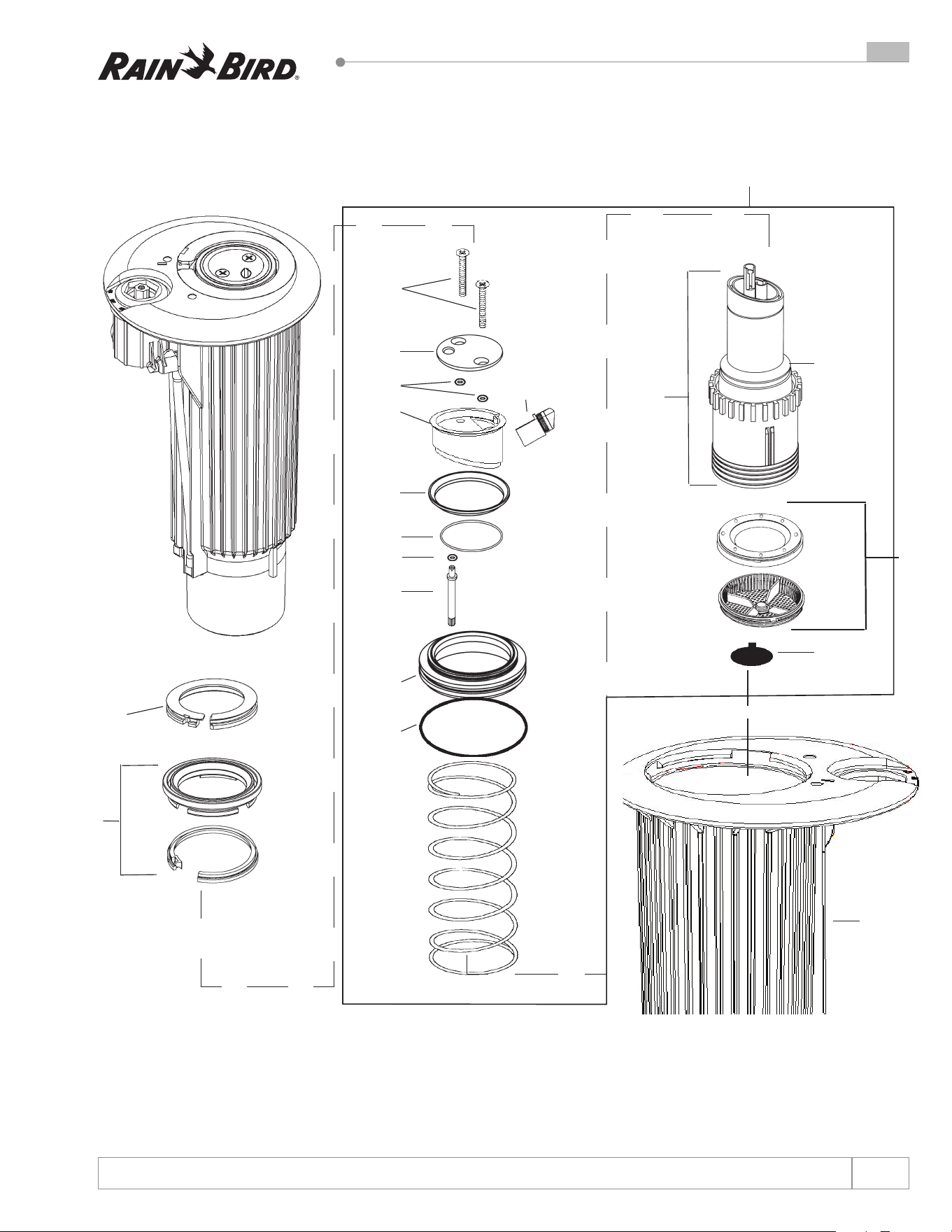

Part/Full Circle Rotor
EAGLE™ 351
3
4
5
8
9
10
1
13
6
7
16
14
or
17
2
12
11
15
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2

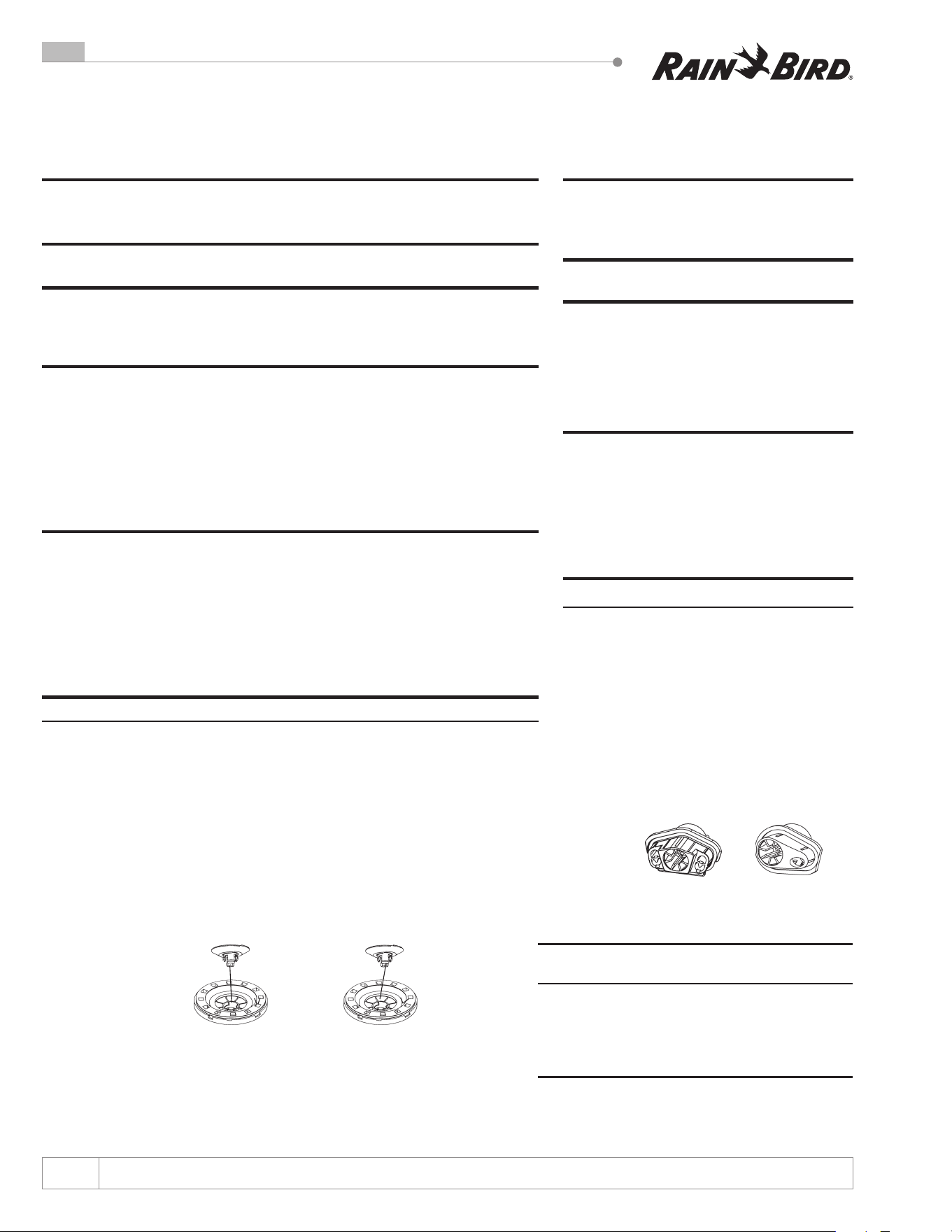

Catalog Number 004

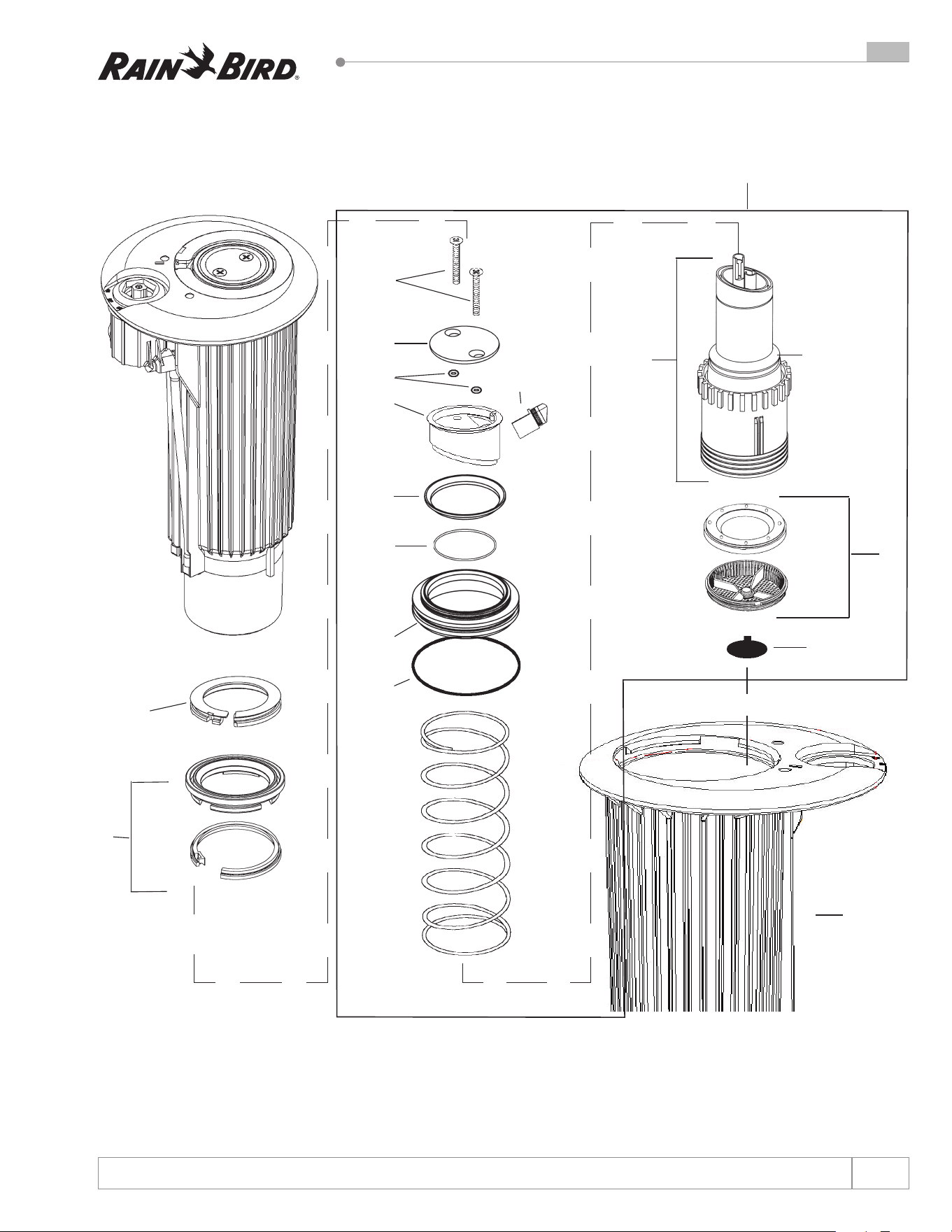

Full Circle Rotor
EAGLE™ 500 INTERNAL ASSEMBLY
Stator / Poppet Configurations
Color Number Electric Pressure Setting Hyd,
psi (bars) SAM,
60 (4,1) 70 (4,8) 80 (5,5) 100 (6,9) B
Black #51 S4 S4 S4 S4 S4
Beige #52 S4 S4 S4 S4 S4
Gray #53 S4 S4 S4 S4 S4
Red #54 S8 S8 S8 S8 S8
S4 = Stator with 4 Holes S8 = Stator with 8 Holes
Stator with 4 Holes Stator with 8 Holes
Ref. KITS & Accessories Qty. P/N
1 Snap-Cover, Black 21192101
1 Snap-Cover, Yellow 21192102
1 Snap-Cover, White 21192103
1 Snap-Cover, Purple (Non-Potable) 21192104
5 Cover, Yardage Marker Blank (Black) (21175201)
- Sod Cup Kit #212613
Ref. Part Description Qty. 500-E/IC 500-S/H 500B
SNAP RINGS
1 Snap Cover 1 see chart see chart see chart
2 Rubber Cover Kit 1 (212551) (212551) (211355)
INTERNAL ASSEMBLY
3 Internal Assembly (A)
1 214751XX 211580xx (B)211580xx
COVER ASSEMBLY
4 Self-Tapping Screw 2 210974 210974 210974
5 Housing Cover 1 (211282) (211282) (211282)
6 Screw O-Ring 2 211236 211236 211236
NOZZLES
7 Nozzle Housing - Black (C) 1 21035602 21035602 21035602
8 Range Nozzle Assembly (A) 1 213500xx 213500xx 213500xx
9 Retract Seal 1 210354 210354 210354
15 Stator / Screen Kit 1 21040301 21040301 21040301
16 Seal-a-Matic
™
Sreen Assy 1 — — 211292
BEARING / RISER-MOTOR ASSEMBLY
10 Nozzle Housing O-Ring 1 210366 210366 210366
11 Bearing Guide Assy, STD 1 211147 — —
11 Bearing Guide Assy, LO-FLOW (D) 1 — 211263 211263
12 Bearing Guide O-Ring 1 211147 211147 211147
13 Riser Motor Assembly 1 21470000 21470000 21470000
14 Pop-up Seal (White) 1 210399 210399 210399
17 CASE ASSEMBLY See Catalog No. 010
(A) Specify Nozzle Size when ordering. Available in # 51, 52, 53, 54.
(B) Also reqires Seal-a-Matic
™
Sreen Assy Part # 211292
(C) For non-potable applications use standard part and purple snap ring, part # 21192104
(D) The LO-FLOW Bearing Guide #211263 may also be used on the 500 Series Electric rotor
(E) For smooth case rotors use part # 211602
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
004 Catalog Number
Full Circle Rotor

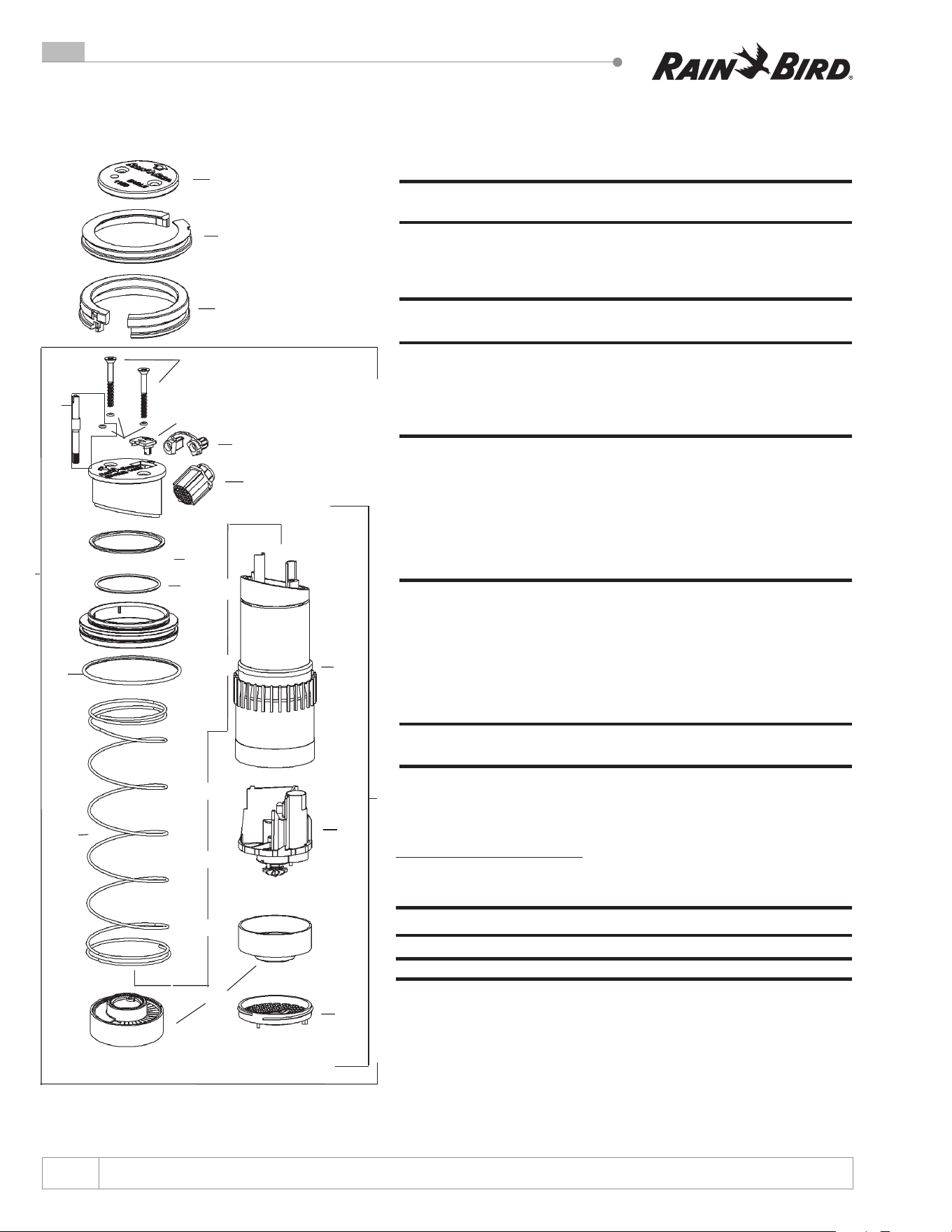

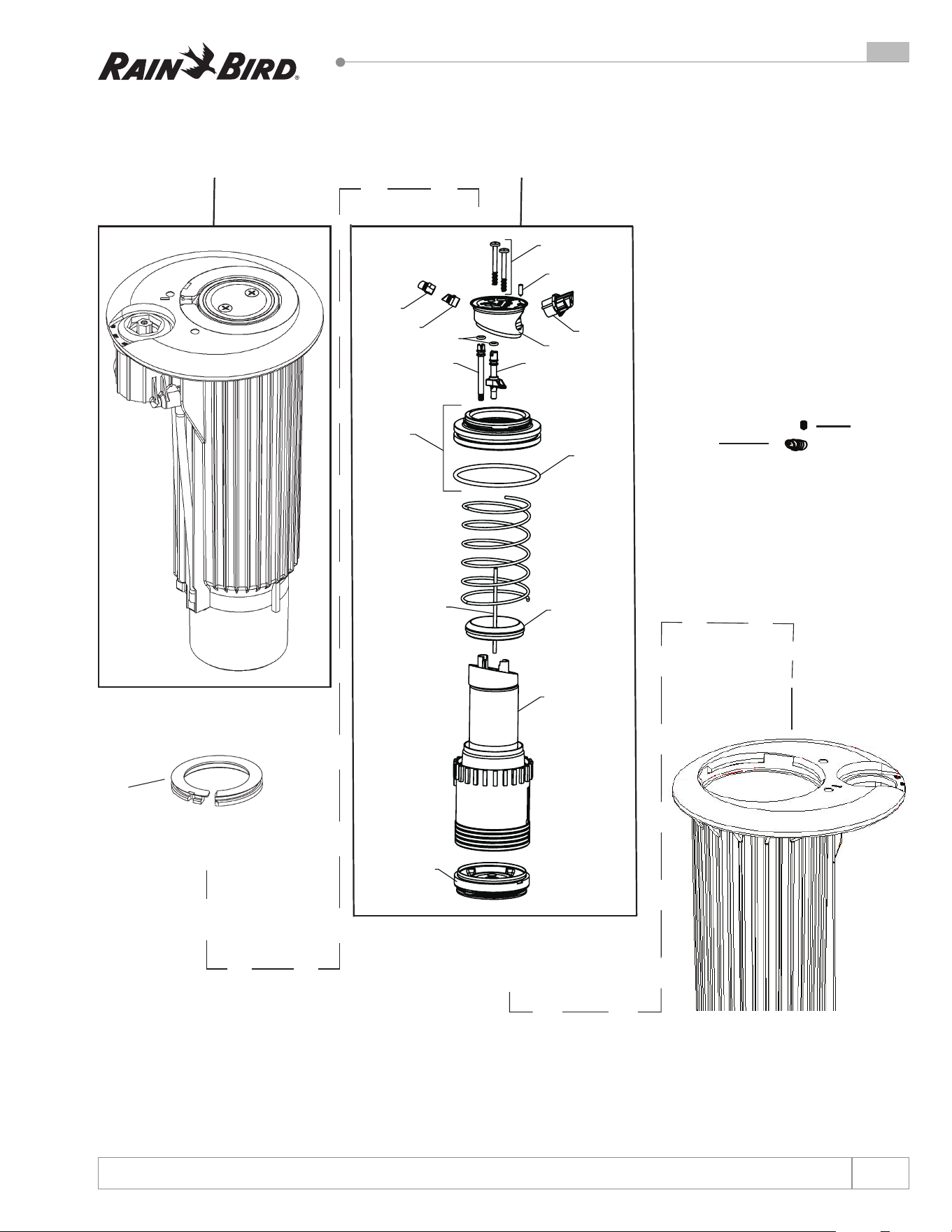

EAGLE™ 500 INTERNAL ASSEMBLY
14
13
4
5
8
9
10
15
6
7
17
18
16
3
11
12
1
or
2
19
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2

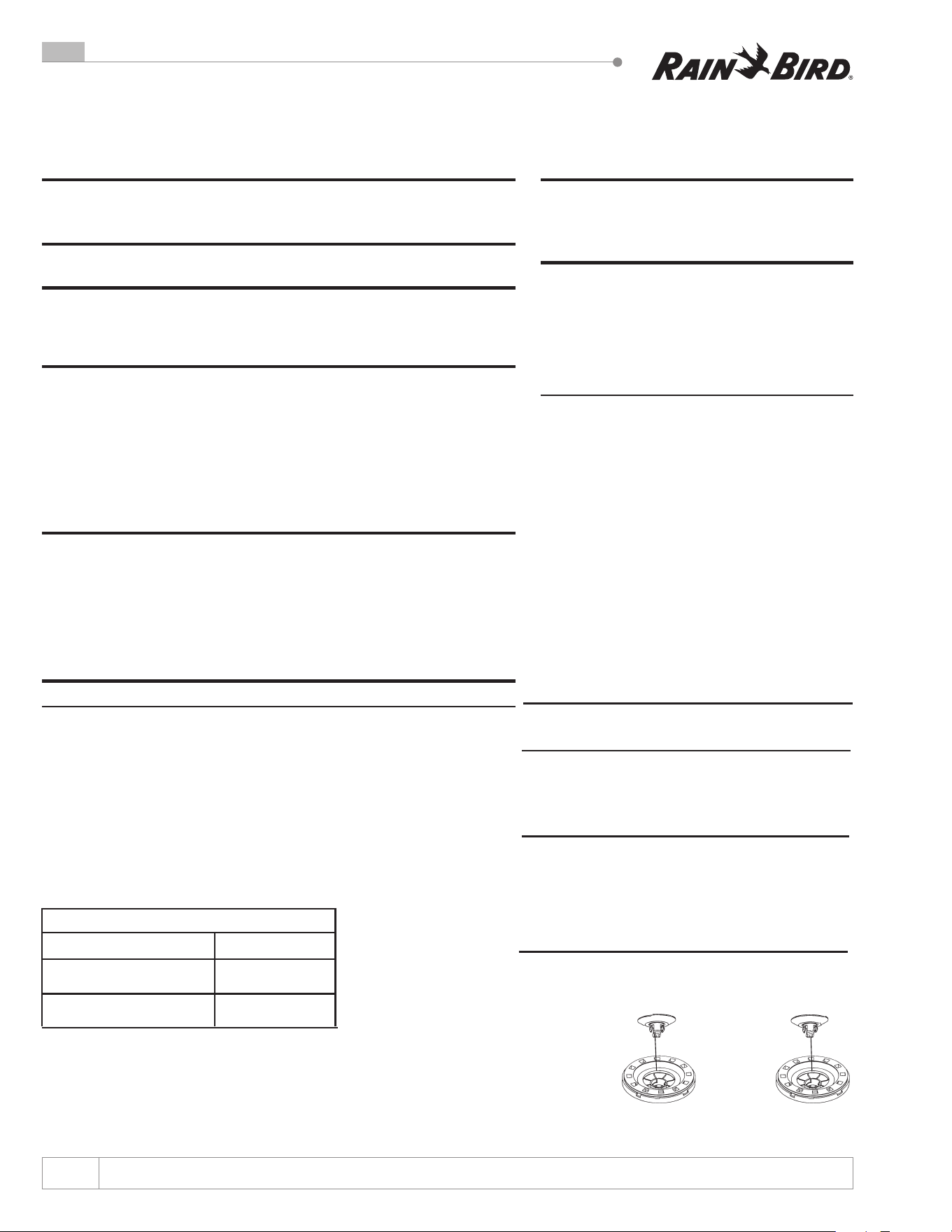

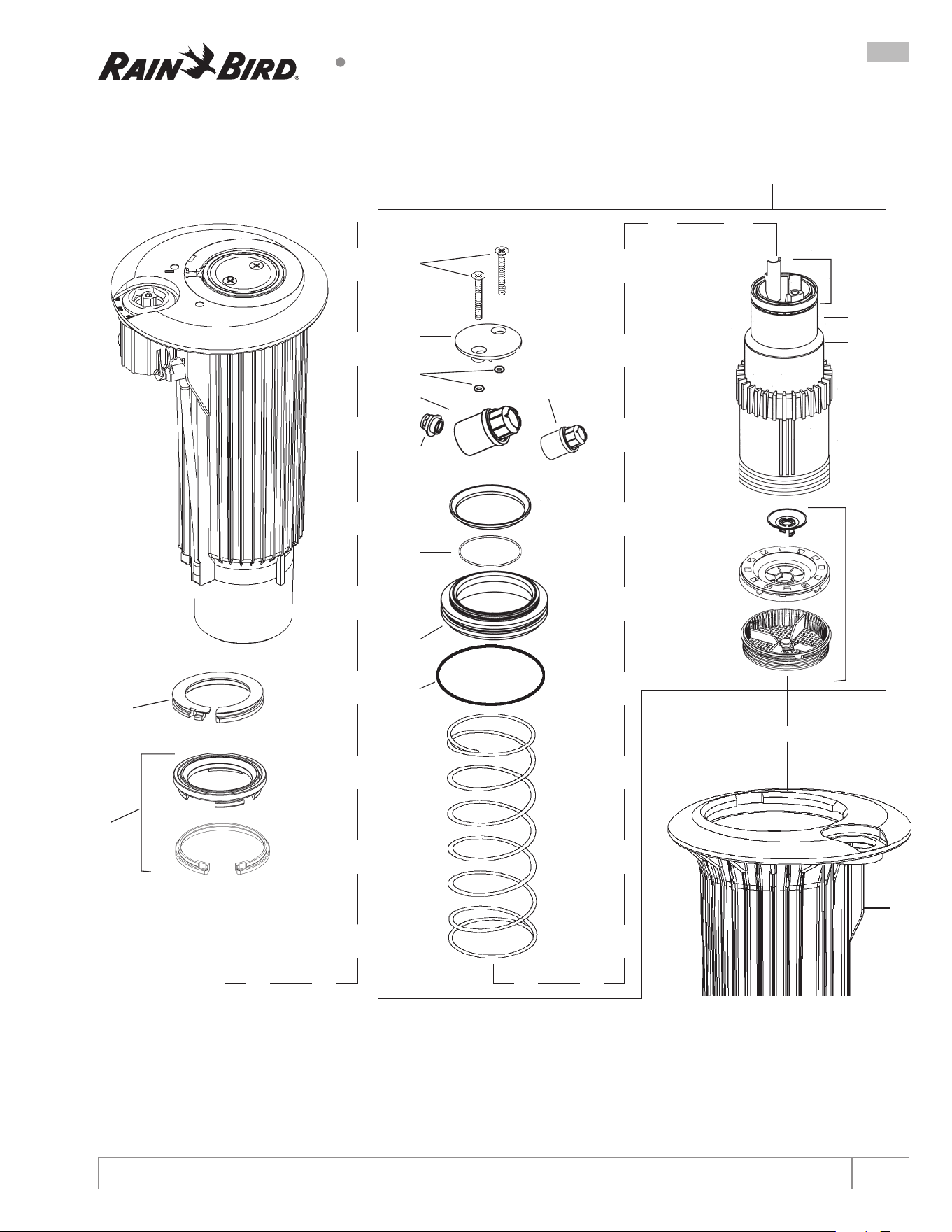

Catalog Number 005
Full Circle Rotor

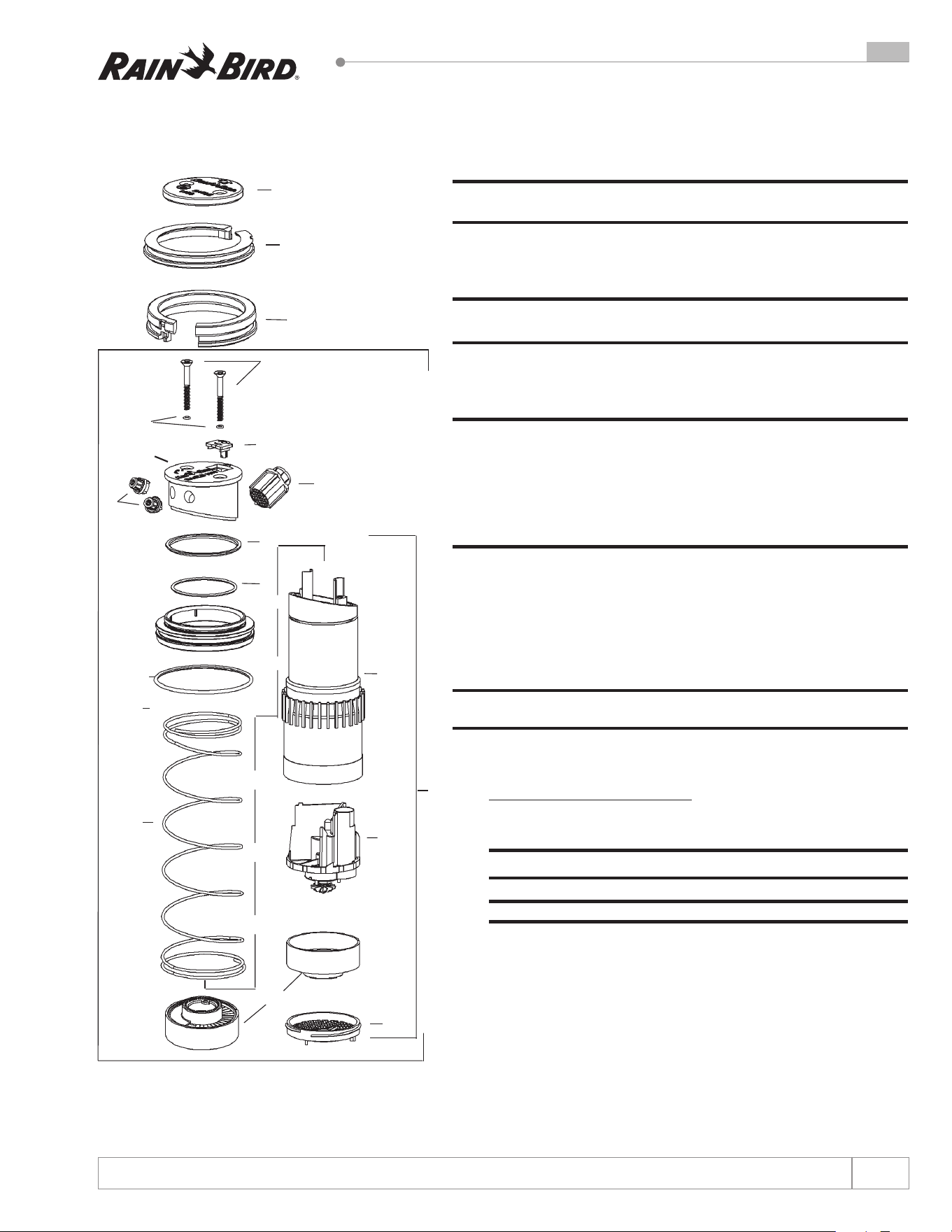

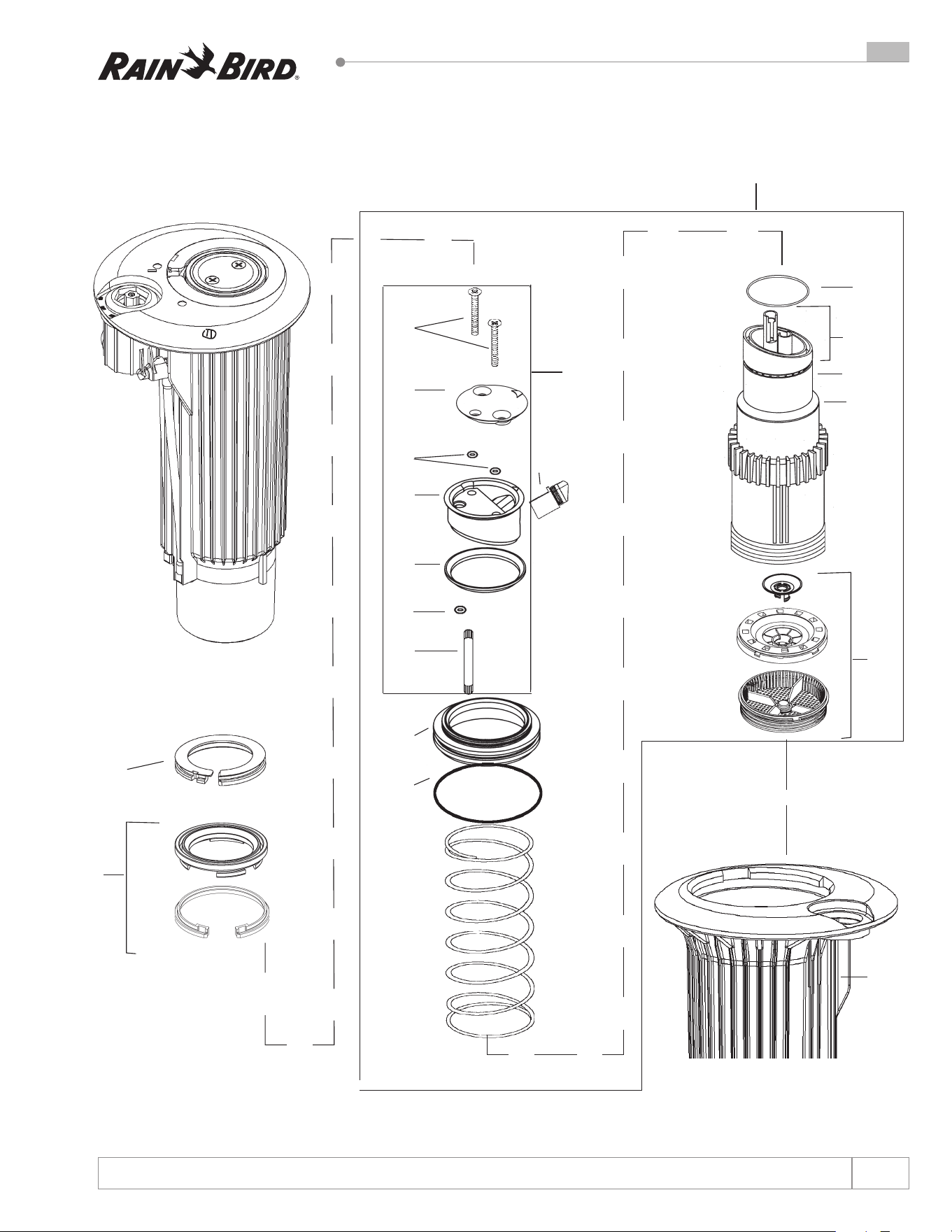

EAGLE™ 550 INTERNAL ASSEMBLY
Ref. KITS & Accessories Qty. P/N
1 Snap-Cover, Black 21192101
1 Snap-Cover, Yellow 21192102
1 Snap-Cover, White 21192103
1 Snap-Cover, Purple (Non-Potable) 21192104
5 Cover, Yardage Marker Blank (White) (21199603)
Cover, Yardage Marker Blank (Black) (21199601)
Diffuser Screw Kit (#52 & 53 only) (21196452)
– (Includes modified Range Nozzle) (21196453)
7 Nozzle Housing, Drilled & Tapped 1
8 Range Nozzle Assy, Modified 1
– Diffuser Screw (not shown) 1
5 Cover, (Notched) 1
9 Retract Seal 1
6 Screw O-Ring 2
- Sod Cup Kit 212613
Ref. Part Description Qty. 550-E/IC 550-S/H 550B
SNAP RINGS
1 Snap Cover 1 21192101 21192101 21192101
2 Rubber Cover Kit 1 (212551) (212551) (211355)
INTERNAL ASSEMBLY
3 Internal Assembly (A)
1 214551xx (B) 214551xx (B) 214751xx
COVER ASSEMBLY
4 Self-Tapping Screw 2 210974 210974 210974
5 Housing Cover 1 (211281) (211281) (211281)
6 Screw O-ring 2 211236 211236 211236
NOZZLES
7 Nozzle Housing- Black (C) 1 21035601 21035601 21035601
8 Range Nozzle Assembly (A) 1 213500xx 213500xx 21500-xx
9 Retract Seal (D) 1 210354 210354 210354
17 Stator / Screen Kit 1 21040301 21040301 21040301
18 Seal-a-Matic
™
Screen Assy 1 — — 211292
BEARING / RISER-MOTOR ASSEMBLY
10 Nozzle Housing O-Ring 1 210366 210366 210366
11 Arc Adjustment Stem O-Ring 1 211236 211236 211236
12 Arc Adjustment Stem 1 210420 210420 210420
13 Bearing Guide Assy, STD 1 211147 — —
13 Bearing Guide Assy, LO-FLOW 1 — (211263) (211263)
14 Bearing Guide O-Ring 1 211242 211242 211242
15 Riser Motor Assembly 1 (210535) (210535) (210535)
16 Pop-up Seal (White) 1 210399 210399 210399
20 CASE ASSEMBLY See Catolog No. 010
(A) Specify Nozzle Size when ordering. Available in # 51, 52, 53, 54.
(B) Also requires Seal-a-Matic
™
Screen Assy Part # 211292
(C) For non-potable applications use standard part and purple snap ring part # 21192104
(D) Obsolete as of year end 2016.
Stator / Poppet Configurations
Color Number Electric Pressure Setting Hyd,
psi (bars) SAM,
60 (4,1) 70 (4,8) 80 (5,5) 100 (6,9) B
Black #51 S4 S4 S4 S4 S4
Beige #52 S4 S4 S4 S4 S4
Gray #53 S4 S4 S4 S4 S4
Red #54 S8 S8 S8 S8 S8
S4 = Stator with 4 Holes S8 = Stator with 8 Holes
Stator with 4 Holes Stator with 8 Holes
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
005 Catalog Number
Part Circle Rotor
EAGLE™ 550 INTERNAL ASSEMBLY
13
12
3
2
4
5
9A
8
10
11
1
6
7
15
16
17
9B
or
18
14
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2

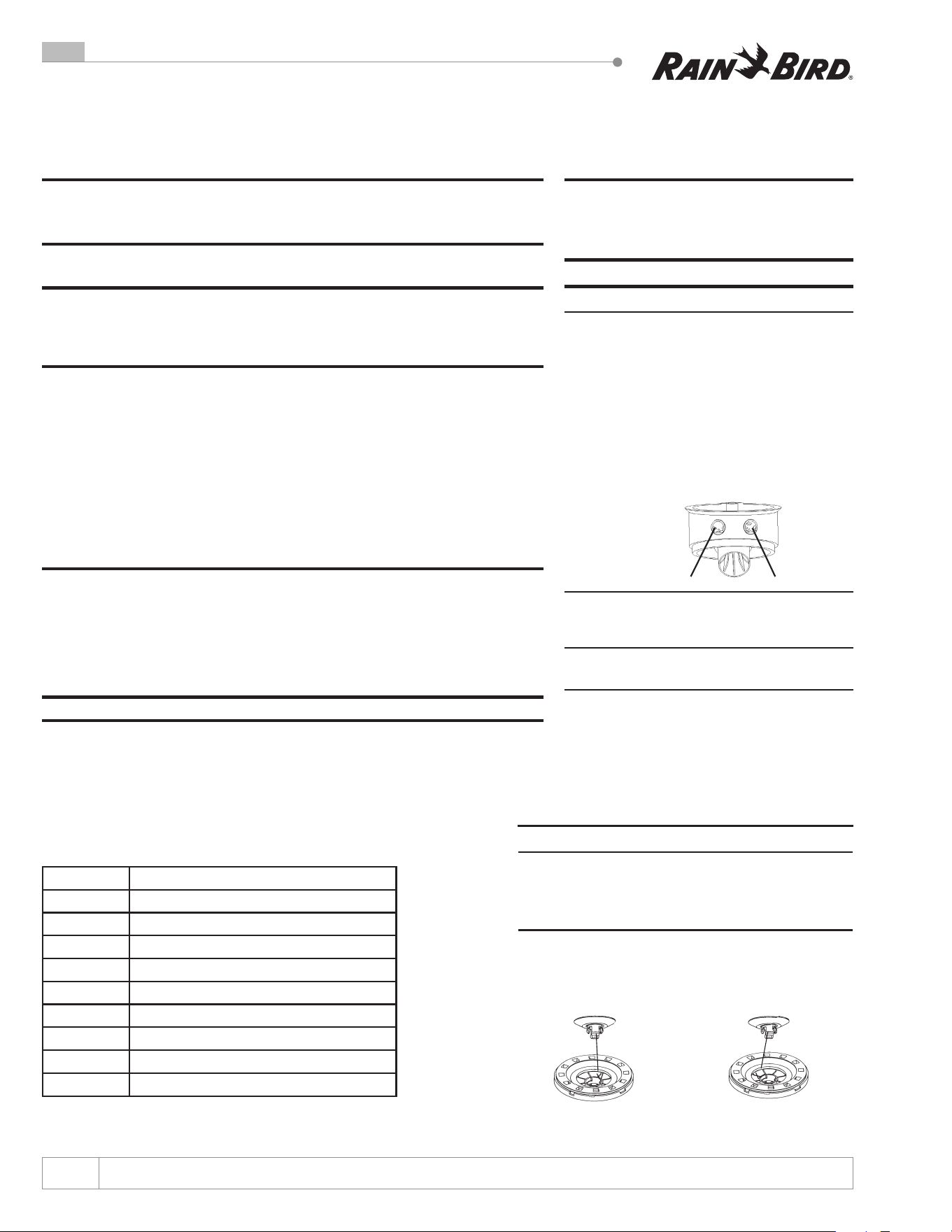

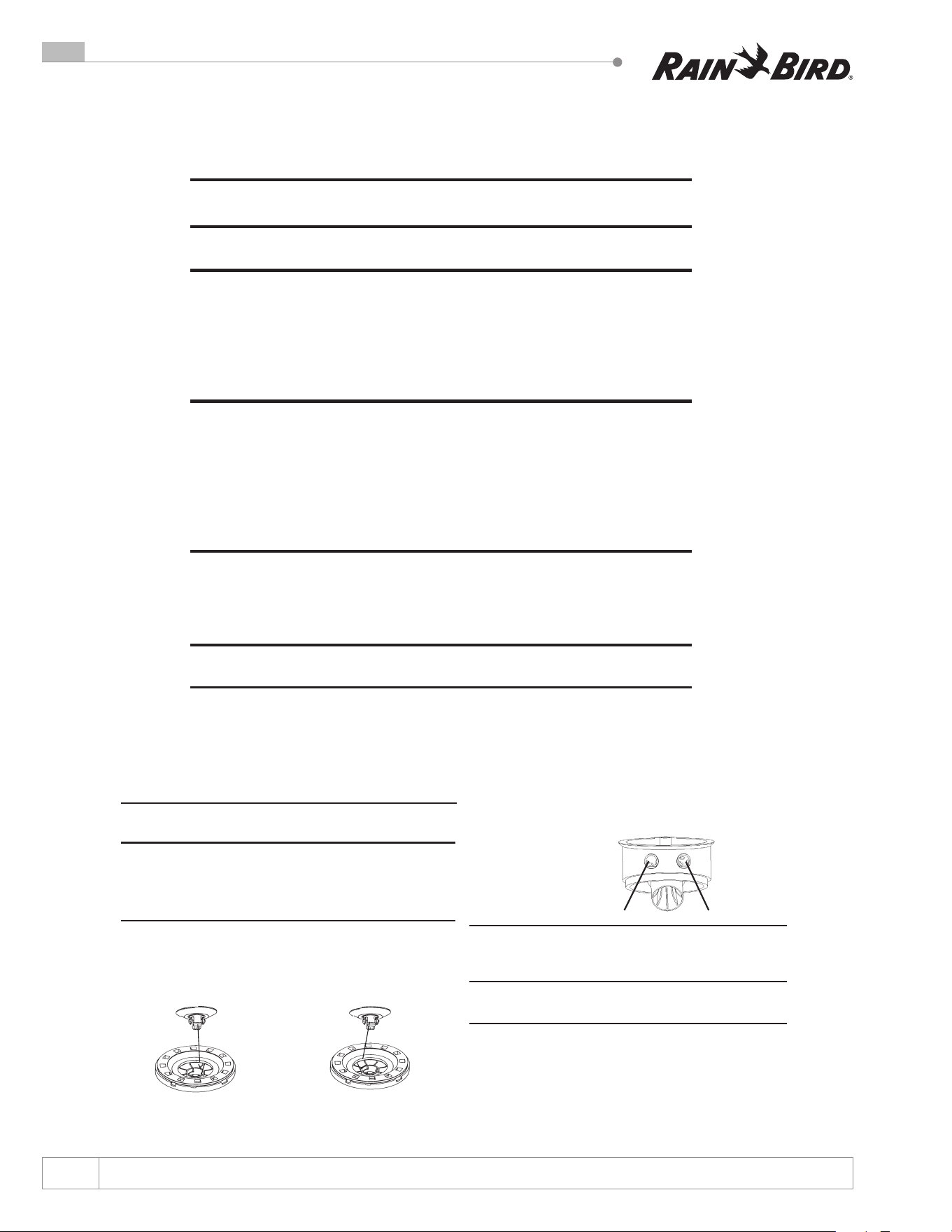

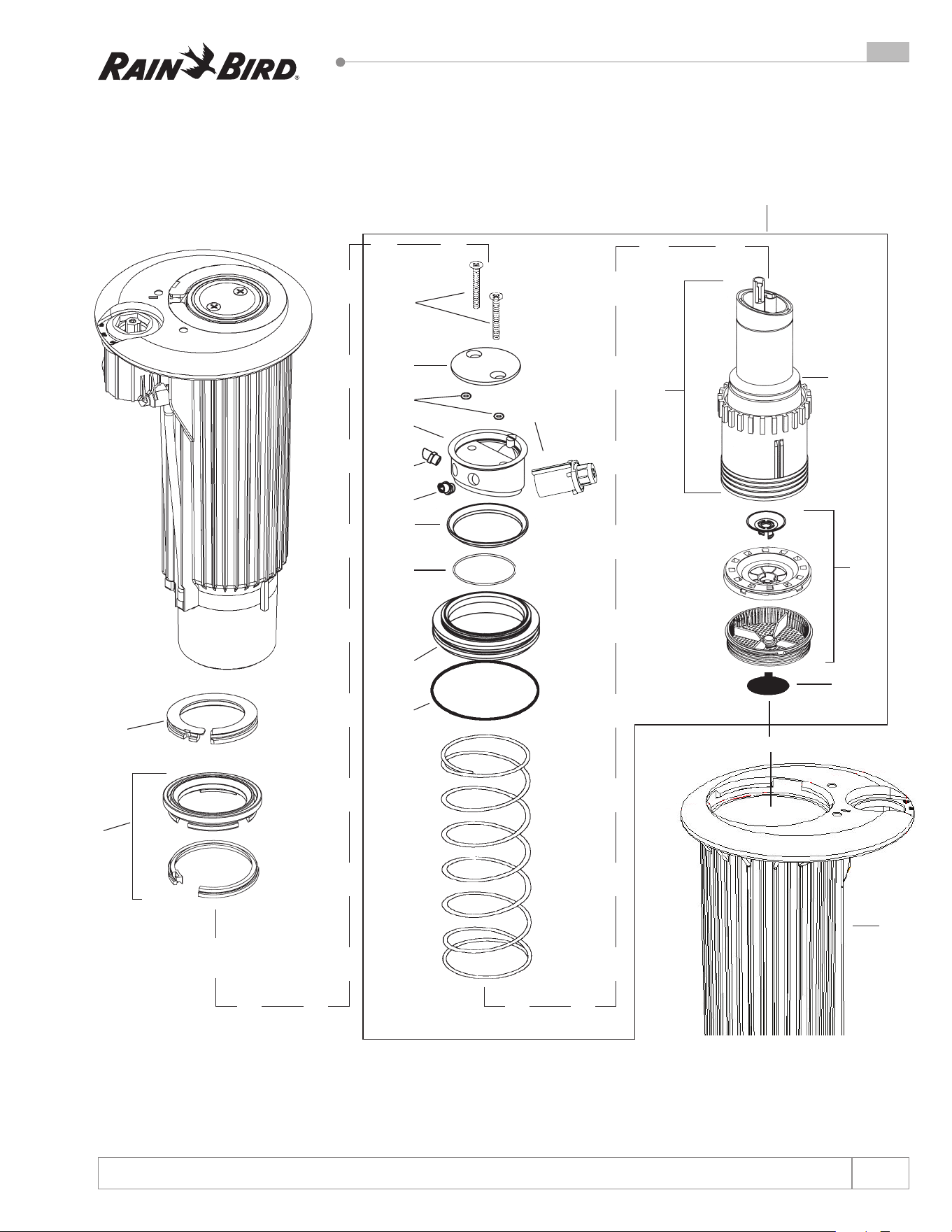

Catalog Number 006
Full Circle Rotor

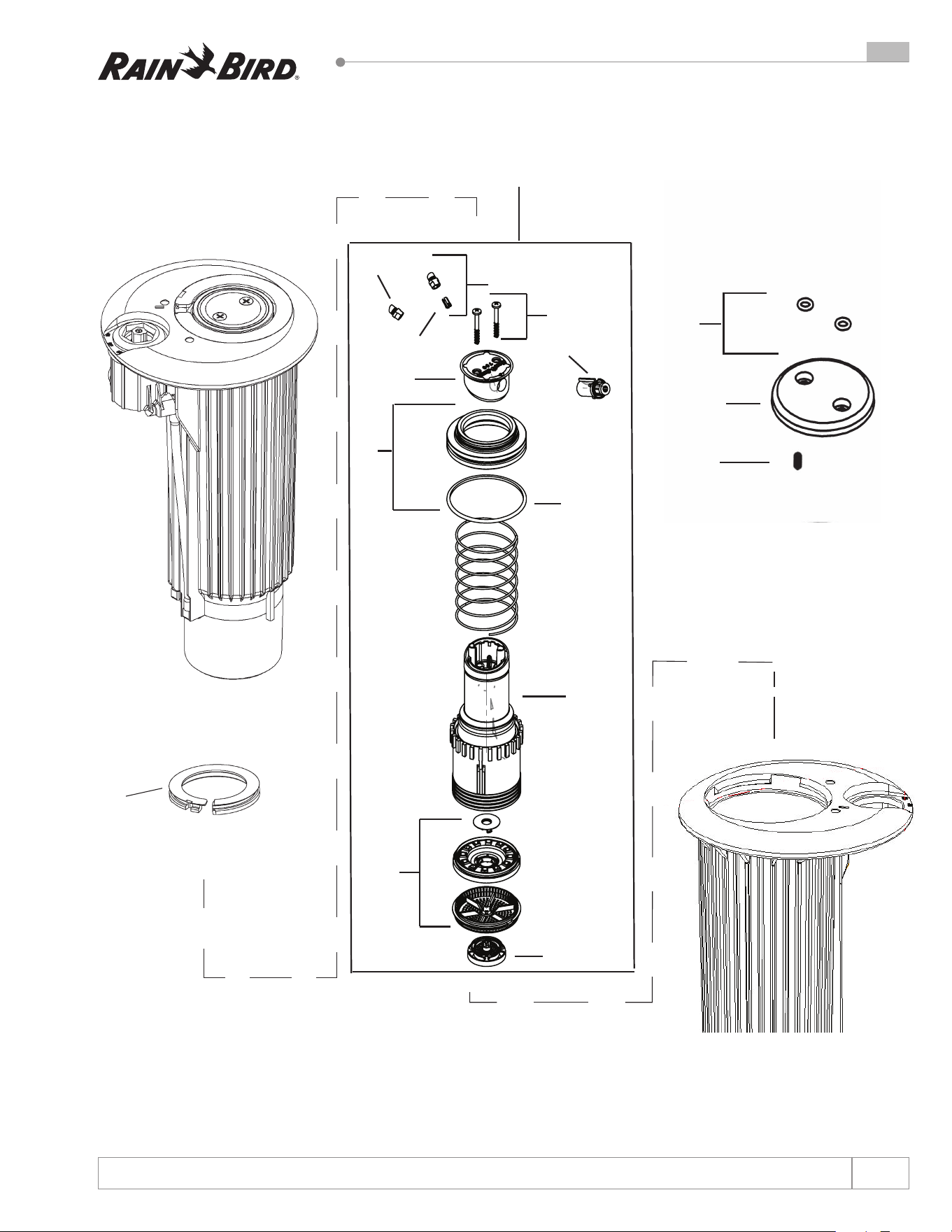

EAGLE™ 700 INTERNAL ASSEMBLY
Ref. KITS & Accessories Qty. P/N
1 Snap-Cover, Black 21192101
1 Snap-Cover, Yellow 21192102
1 Snap-Cover, White 21192103
1 Snap-Cover, Purple (Non-Potable) 21192104
5 Cover, Yardage Marker Blank (Black) (21175201)
- Sod Cup Kit 212613
Ref. Part Description Qty. 700-E/IC 700-S/H 700B
SNAP RINGS
1 Snap Cover 1 21192101 21192101 21192101
2 Rubber Cover Kit 1 (212551) (212551) (211355)
INTERNAL ASSEMBLY
3 Internal Assembly (A)(B)(C) 1 (E) 214700xx (E) 214700xx (E) 214600xx
COVER ASSEMBLY
4 Self-Tapping Screw 2 210974 210974 210974
5 Housing Cover 1 213710 213710 213710
6 Cover Screw O-Ring 2 211236 211236 211236
NOZZLES
7 Dual Spreader Nozzle Housing - Black (B) (D) 1 213710 213710 213710
8 Range Nozzle Assembly (A) 1 213700xx 213700xx 213700xx
9A Mid-Range Spreader Nozzle 1 See Diagram Below
9B Close-in Spreader Nozzle 1 See Diagram Below
10 Retract Seal 1 210354 210354 210354
15 Stator/Screen Kit 1 21040301 21040301 21040301
-Stator 1 — — —
-Poppet 1 — — —
-Screen 1 — — —
16 Seal-a-Matic Screen Assy 1 — — 211292
BEARING / RISER-MOTOR ASSEMBLY
11 Nozzle Housing O-Ring 1 210366 210366 210366
12 Bearing Guide Assy, STD 1 211147 — —
12 Bearing Guide Assy, LO-FLOW (E) 1 — (211263) (211263)
13 Bearing Guide O-Ring 1 211242 211242 211242
14 Riser Motor Assembly 1 21470000 21470000 21470000
17 Pop-up Seal (White) 1 210399 210399 210399
18 CASE ASSEMBLY See Catolog No. 010
(A) Specify Nozzle Size when ordering. Available in # 28, 32, 36, 40, 44, 48.
(B) For Non-Potable applications, use standard part and purple snap ring (Part # 21192104)
(C) Replacement Internal Assembly - upgrade to Rain Bird 700
(D) Replacement Dual Spreader Nozzle Housing upgrade to Rain Bird 700 Nozzle Housing.
Requires two (2) 700/751 Nozzle Housing Screws (Part # 214754).
(E) Also requires Seal-a-Matic™ Screen Assy (Part # 211292).
Stator / Poppet Configurations - Dual Spreader & Cascade
Color Number Electric Pressure Setting Hyd,
psi (bars) SAM,
60 (4,1) 70 (4,8) 80 (5,5) 100 (6,9) B
White #28 / 14C SPC SPC SPC SPC SPC
Blue #32 / 16C SPO SPO SPO SPO SPO
Yellow #36 / 18C SPO SPO SPO SPO SPO
Orange #40 / 20C SNP SNP SNP SNP SNP
Green #44 / 22C SNP SNP SNP SNP SNP
Black #48 / 24C N/R SNP SNP SPR SNP
SPC = Stator with Poppet Closed SO = Screen Only
SPO = Stator with Poppet Open SPR = Spacer and Screen
SNP = Stator No Poppet N/R = Not a Recommended Pressure
and Nozzle Setting
Stator with Poppet Closed Stator with Poppet Open
Should be tight when snapped in Should be loose when snapped in
Part # Description
211562 Spreader Nozzle - Blue
213705 Spreader Nozzle - Blue W/Diuser
211417 Spreader Nozzle - Black
211452 Spreader Nozzle - Black W/Diuser
213701 Spreader Nozzle - Green
212291 Spreader Nozzle - Red
213702 Spreader Nozzle - Orange
211593 Spreader Nozzle Plug
213703 White Diuser Insert - 500/550/700/750/751
Mid-Range nozzle (9A)
Close-In nozzle (9B)
Dual Spreader: #28-36 Blue Always Black With
Part No.: 211562 White Cascade Insert
#40-48 Black w/o insert Part No.: 211452
Part No.: 211417
Cascade: Plugged With White Cascade
Part No.: 211593 Insert Always Black
Part No.: 211452
Original: Black w/o insert Plugged
Part No.: 211417 Part No.: 211593
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
006 Catalog Number
Full Circle Rotor
EAGLE™ 700 INTERNAL ASSEMBLY
14
13
4
5
8
9
10
1
6
7
17
18
16
3
or
19
11
12
2
15
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2

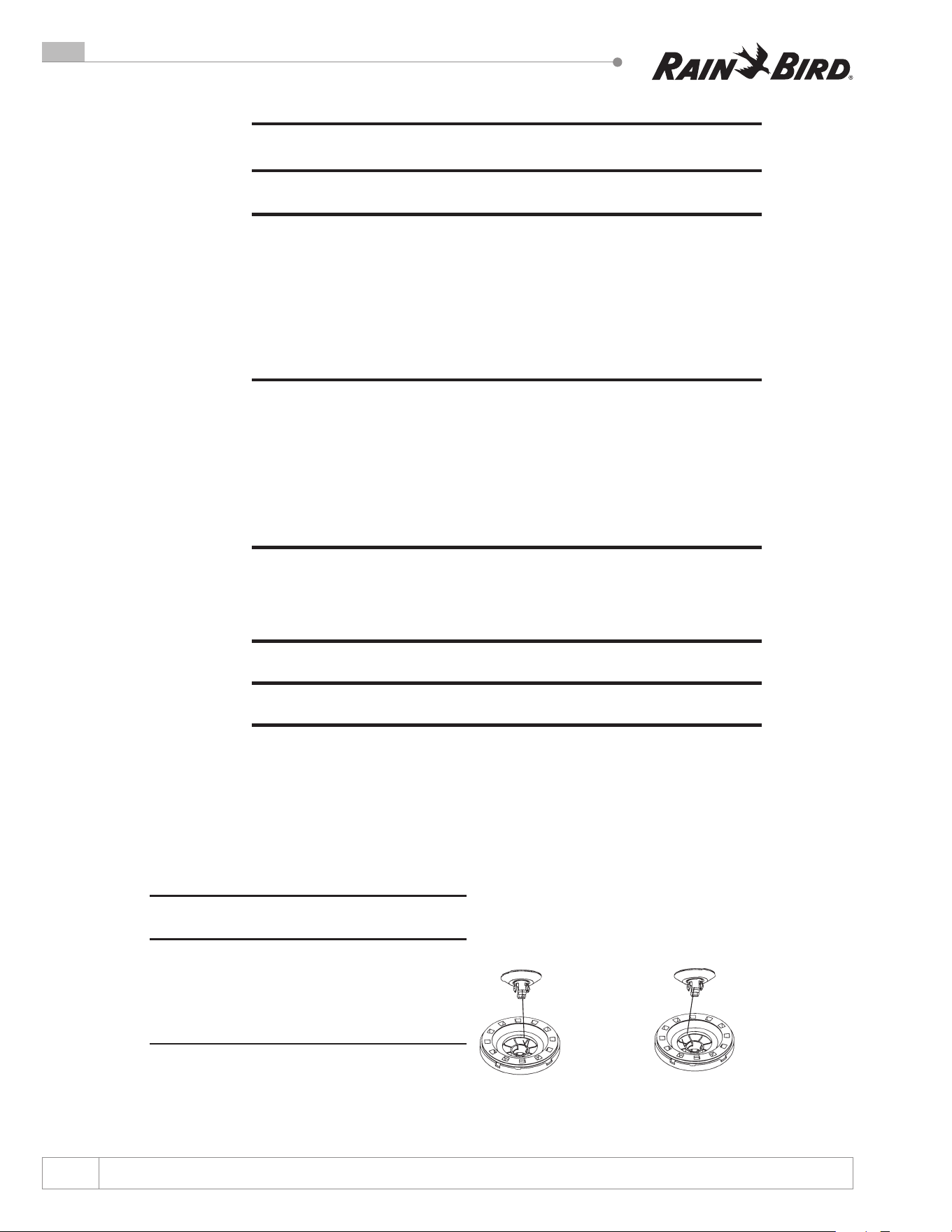

Catalog Number 007
Part Circle Rotor
EAGLE™ 750 INTERNAL ASSEMBLY
Ref. KITS & Accessories Qty. P/N
1 Snap-Cover, Black 21192101
1 Snap-Cover, Yellow 21192102
1 Snap-Cover, White 21192103
1 Snap-Cover, Purple (Non-Potable) 21192104
5 Cover, Yardage Marker Blank (White) (21199603)
5 Cover, Yardage Marker Blank (Black) (21199601)
Diffuser Screw Kit, Dual Spreader (B) 212295
(Without Nozzle)
7 Nozzle Housing, Drilled & Tapped 1
– Diffuser Screw (not shown) 1
5 Housing Cover (Notched) 1
9 Retract Seal 1
6 Cover Screw O-Ring 2
EAGLE’S TAIL KITS
– Dual-Spreader (without nozzle) (Black) 212287
7 Housing, Nozzle, Drilled in back 1
– Close-in Spreader Nozzle, 700 1 211452
5 Housing Cover 1
9 Retract Seal 1
6 Cover Screw O-Ring 2
– EAGLE's Tail Instruction Sheet 1
- Sod Cup Kit 212613
Ref. Part Description Qty. 750-E/IC 750-S/H 750B
SNAP RINGS
1 Snap Cover 1 21192101 21192101 21192101
2 Rubber Cover Kit 1 (212552) (212552) (211355)
INTERNAL ASSEMBLY
3 Internal Assembly (A) 1
(E) 214751xx (E) 214751xx (E) 214751xx
COVER ASSEMBLY
4 Self-Tapping Screw 2 210974 210974 210974
5 Housing Less Nozzle (D) 1 213760 213760 213760
6 Cover Screw O-Ring 2 211236 211236 211236
NOZZLES
7 Dual-Spreader
™
Nozzle Housing(B)(C) 1 21198201 21198201 21198201
8 Range Nozzle Assembly (A) 1 213750xx 213750xx 213750xx
9 Retract Seal 1 210354 210354 210354
17 Stator/Screen Kit 1 21040301 21040301 21040301
-Stator 1 — — —
-Poppet 1 — — —
-Screen 1 — — —
18 Seal-a-Matic
™
Screen Assy 1 — — 211292
BEARING / RISER-MOTOR ASSEMBLY
10 Nozzle Housing O-Ring 1 210366 210366 210366
11 Arc Adjustment Stem O-Ring 1 211236 211236 211236
12 Arc Adjustment Stem 1 210420 210420 210420
13 Bearing Guide Assy, STD 1 211147 — —
13 Bearing Guide Assy, LO-FLOW 1 — 211263 (211263)
14 Bearing Guide O-Ring 1 211242 211242 211242
15 Riser Motor Assembly 1 21475100 21475100 21475100
16 Pop-up Seal (White) 1 210399 210399 210399
19 CASE ASSEMBLY See Catolog No. 010
(A) Specify Nozzle Size when ordering. Available in # 28, 32, 36, 40, 44, 48.
To replace cascade nozzles (#14-24), double the nozzle number and upgrade to dual
spreader nozzles. (eg. for #18 cascade, order #36 dual spreader.)
(B) For non-potable applications use standard part and purple snap ring (Part # 21192104)
(C) For casade nozzle housing upgrade to Dual-Spreader
™
nozzle housing - Part # 21198201
and Nozzle - part # 213750xx
(D) Replacement housing - upgrade to Rain Bird 751.
(E) Also requires Seal-a-Matic™ Screen Assy (Part # 211292).
Stator / Poppet Configurations - Dual-Spreader & Cascade
Color Number Electric Pressure Setting Hyd,
psi (bars) SAM,
60 (4,1) 70 (4,8) 80 (5,5) 100 (6,9) B
White 28/14C SPC SPC SPC SPC SPC
Blue 32/16C SPO SPO SPO SPO SPO
Yellow 36/18C SPO SPO SPO SPO SPO
Orange 40/20C SNP SNP SNP SNP SNP
Green 44/22C SNP SNP SNP SNP SNP
Black 24C SNP SPR SPR SPR SNP
Black #48 SPR SPR SPR SPR SNP
SPC = Stator with Poppet Closed SPR = Spacer and Screen
SPO = Stator with Poppet Open N/R =Not a Recommended Pressure
SNP = Stator No Poppet and Nozzle Setting
Stator with Poppet Closed Stator with Poppet Open
Should be tight when snapped in Should be loose when snapped in
750 Dual-Spreader Nozzle
750 Cascade Nozzle
(obsolete)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
007 Catalog Number
Part Circle Rotor

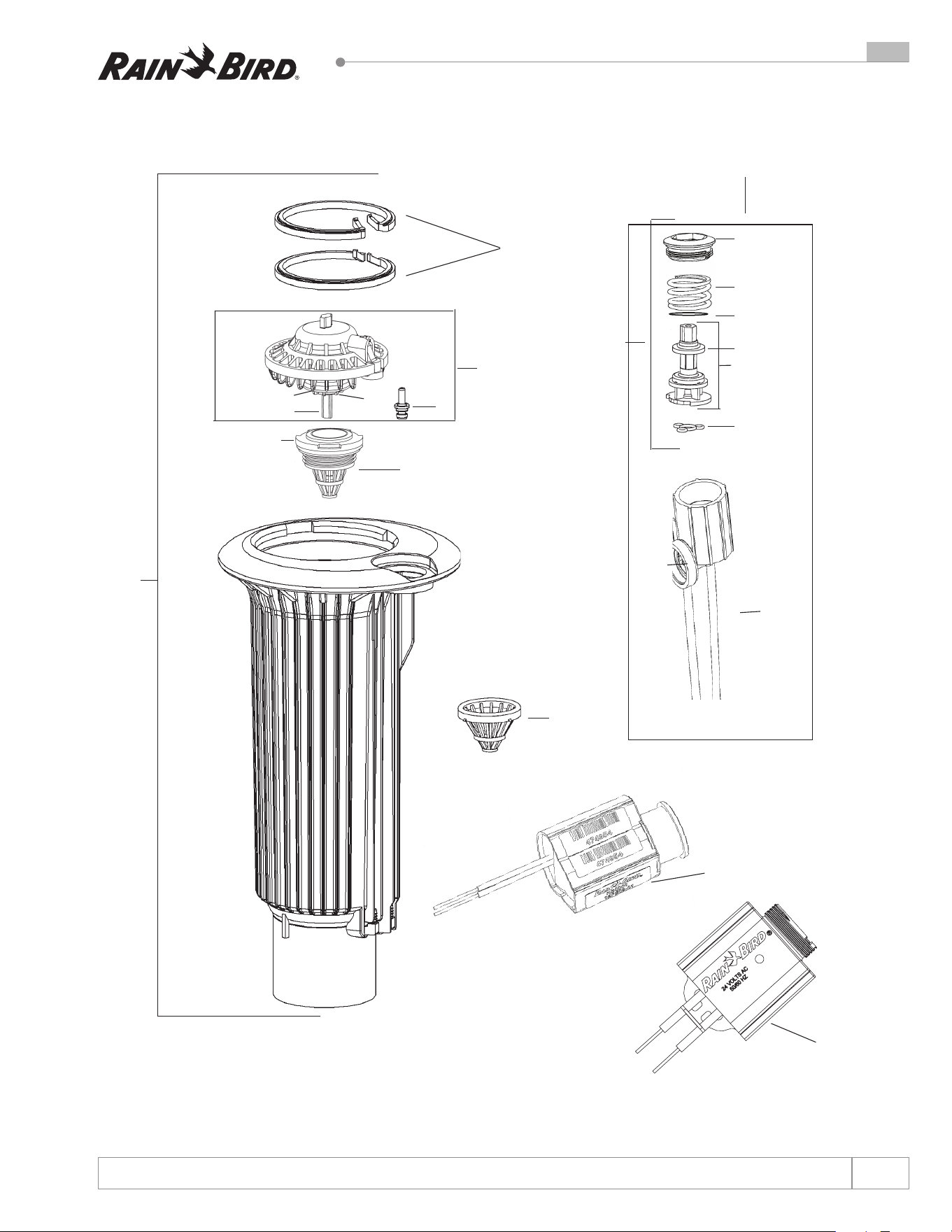

EAGLE™ 750 INTERNAL ASSEMBLY
13
12
2
4
5
9
8
10
11
1
14
16
3
6
17
15
7
or
18
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2
Catalog Number 008
Full Circle Rotor

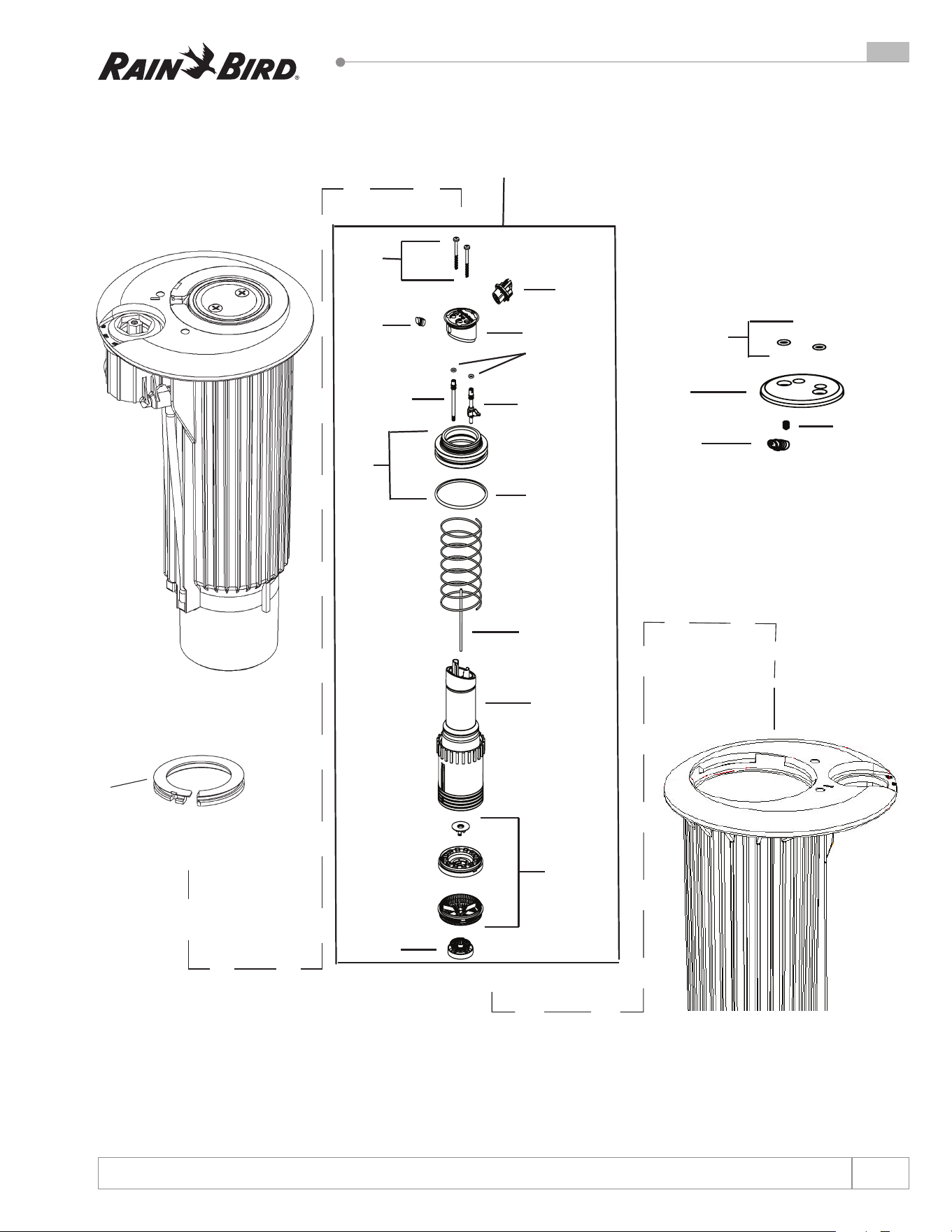

EAGLE™ 900 INTERNAL ASSEMBLY
Ref. KITS & Accessories Qty. P/N
1 Snap-Cover, Black 21192101
1 Snap-Cover, Yellow 21193402
1 Snap-Cover, White 21193403
1 Snap-Cover, Purple (Non-Potable) 21193404
Diffuser Screw Kit (B) 212144
(For high performance nozzeles 44-64)
7 Nozzle Housing, Drilled & Tapped 1
– Diffuser Screw, installed 1
5 Cover, (Notched) 1
9 Spreader Nozzle Assembly 1
10 Retract Seal 1
6 Screw O-Ring 2
Ref. Part Description Qty. 900-E/IC 900-S/H
SNAP RINGS
1 Snap Cover (all models) 1 21193401 21193401
2 Rubber Cover kit 1 (212553) (212553)
INTERNAL ASSEMBLY
3 Internal Assembly (A)(B) 1 210786xx 210786xx
COVER ASSEMBLY
4 Self-Tapping Screw 2 210975 210975
5 Housing Cover 1 211966 211966
6 Screw O-Ring 2 209778 209778
NOZZLES
7 Nozzle Housing - Black (B)(C) 1 211967 211967
8 Range Nozzle Assembly 1 213900xx 213900xx
9 Spreader Nozzle Assembly 1 See chart Below
10 Retract Seal 1 210231 210231
17 Stator/Screen Kit 1 210232 210232
- Poppet 1 — —
- Screen 1 — —
- Stator 1 — —
BEARING / RISER-MOTOR ASSEMBLY
11 Nozzle Housing O-Ring 1 210168 210168
12 Bearing Guide Assy, STD 1 211460 —
12 Bearing Guide Assy, LO-FLOW 1 — (211461)
13 Bearing Guide O-Ring 1 212383 212383
14 Riser Motor Assembly 1 209836 209836
15 Nozzle Base Replacement Kit w/seals 1 212060 212060
16 Pop-up Seal (White) 1 209781 209781
18 CASE ASSEMBLY See Catalog No. 011
(A) Specify Nozzle Size when ordering. Available in High Performance nozzle sizes # 44, 48,
52, 56, 60, 64.
(B) For Non-Potable applications, use standard part and purple snap ring - Part # 21193404
(C) The Nozzle Housing was changed 8/99 to accomodate the new Spreader for the
High Performance nozzles. All 900 rotors and Nozzle/Housings manufactured after
8/99 have the new Nozzle Housing. Upgrade to High Performance Nozzle.
Stator / Poppet Configurations - High Performance and Standard Nozzles
Color Number Electric Pressure Setting Hyd,
psi (bars) SAM,
60 (4,1) 70 (4,8) 80 (5,5) 100 (6,9) B
Blue #44 SPC SPC SPC SPC SPC
Yellow #48 SPC SPC SPC SPO SPC
Orange #52 SPC SPO SPO SPO SPO
Green #56 N/R SNP SNP SNP SNP
Black #60 N/R SNP SPR SPR SPR
Red #64 N/R N/R SPR SPR SPR
White #18C SPC SPC SPC SPC SPC
Gray #20C SPC SPC SPC SPC SPC
Blue #22C SPC SPC SPC SPC SPC
Yellow #24C SPC SPC SPO SPO SPO
Orange #26 SPO SPO SPO SPO SPO
Green #28 N/R SNP SPR SPR SPR
Black #30 N/R SNP SPR SPR SPR
Brown #32 N/R N/R SPR SPR SPR
SPC = Stator with Poppet Closed SPR = Spacer
SPO = Stator with Poppet Open N/R= Not a Recommended Pressure
SNP = Stator No Poppet and Nozzle Setting
Stator with Poppet Closed Stator with Poppet Open
Should be tight when snapped in Should be loose when snapped in
Spreader Nozzles
If Range Nozzle is: then use:
44 - 48 Part No.: 213904
(Blue)
52 - 64 Part No.: 213905
(Black)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
008 Catalog Number
Full Circle Rotor
EAGLE™ 900 INTERNAL ASSEMBLY
15
14
3
6
10
11
12
1
16
17
19
18
9
or
20
4
8
7
13
2
5
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2

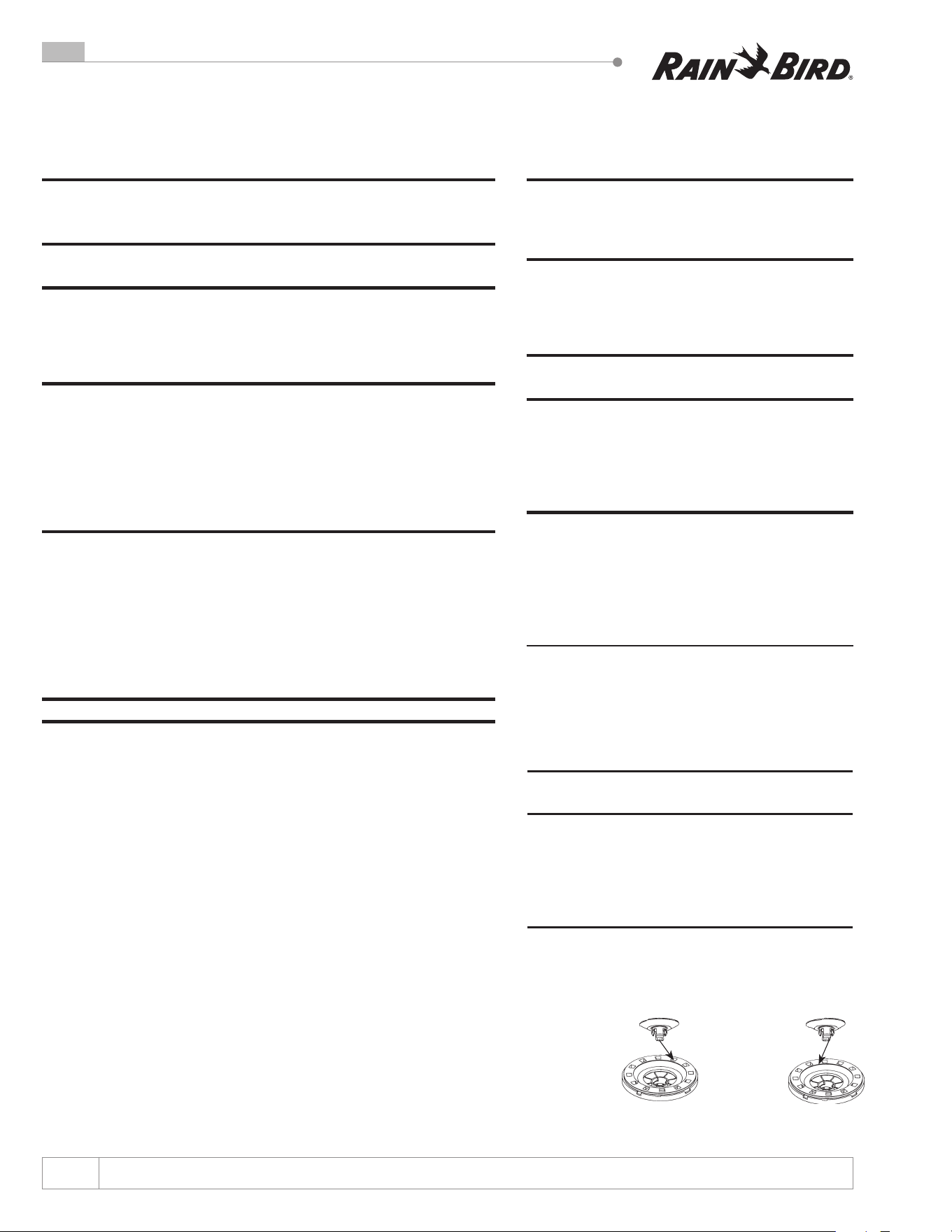

Catalog Number 009
Part Circle Rotor

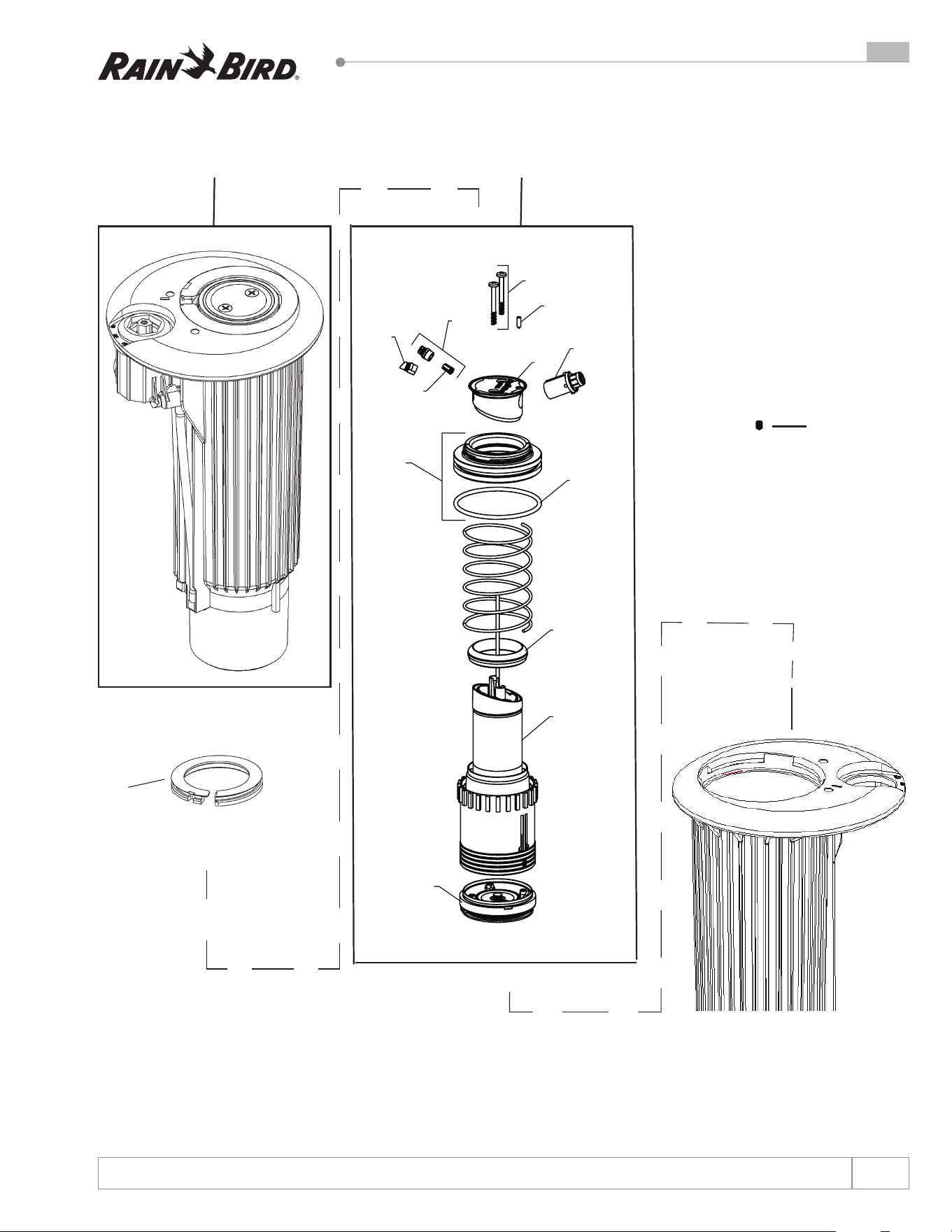

EAGLE™ 950 INTERNAL ASSEMBLY
Ref. KITS & Accessories Qty. P/N
1 Snap-Cover, Black 21192101
1 Snap-Cover, Yellow 21193402
1 Snap-Cover, White 21193403
1 Snap-Cover, Purple (Non-Potable) 21193404
Rubber Cover Kit (E)212554
- Snap Ring Rubber cover 1
- Upper snap ring 1
- Housing Rubber cover 1
- Rubber Case Cover 1
5 Cover, Yardage Marker Blank (White) (A) (21214103)
5 Cover, Yardage Marker Blank (Black) (A) (21214101)
Diffuser Screw Kit (B)212145
9 Nozzle Housing, Drilled & Tapped 1
– Diffuser Screws 2
5 Cover, Notched 1
11 Retract Seal 1
8 Screw O-Ring 2
EAGLE's TAIL KIT (Black) (B)211900
9 Housing, Nozzle, Drilled in back 1
– Close-in Spreader Nozzle, 700 1 211452
5 Housing cover 1
11 Retract Seal 1
8 Screw O-Ring 2
EAGLE's Tail Instruction Sheet 1
Ref. Part Description Qty. 950-E/IC 950-S/H
SNAP RINGS
1 Snap Cover (all models) 1 21193401 21193401
2 Rubber Cover Kit 1 212554 212554
INTERNAL ASSEMBLY
3 Internal Assembly (B,C) 1 211442xx 211442xx
COVER ASSEMBLY
4 Self-Tapping Screw 2 210975 210975
5 One Piece Arc Adjust Conversion Kit(A)(B) 1 212893 212893
6 Housing Cover (on &after 11/06) (A) 1 (21282001) (21282001)
8 Screw O-ring 2 209778 209778
NOZZLES
9 Nozzle Housing-Black(on & after 11/06)(A)(B) 1 212822 212822
10 Range Nozzle Assembly (C) 1 213950xx 213950xx
11 Retract Seal 1 210231 210231
19 Stator/Screen Kit 1 210232 210232
- Poppet — —
- Stator — —
- Screen — —
BEARING / RISER-MOTOR ASSEMBLY
12 Nozzle Housing O-Ring 1 210436 210436
13 Adjustment Stem (on & after 11/06) (A) 1 — —
14 Bearing Guide Assy, STD 1 211460 —
14 Bearing Guide Assy, LO-FLOW 1 — (211461)
15 Bearing Guide O-Ring 1 212383 212383
16 Riser Motor Assembly 1 210439 210439
17 Nozzle Base Replacement Kit w/seals 1 212061 212061
18 Pop-up Seal (White) 1 209781 209781
20 CASE ASSEMBLY See Catolog No. 011
(A) One Piece Arc Adjust incorporated 11/06. Prior to 11/06.
Upgrade to the One Piece Arc Adjust Kit. Part # 212893.
(B) For non-potable applications, use standard part and purple snap ring -
Part # 21193404.
(C) Specify Nozzle Size when ordering. Available in # 18, 20, 22, 24,26,28,30,32
Stator / Poppet Configurations - Cascade & Non-Cascade
Color Number Electric Pressure Setting Hyd,
psi (bars) SAM
60 (4,1) 70 (4,8) 80 (5,5) 100 (6,9)
White #18C SPC SPC SPC SPC SPC
Gray #20C SPC SPC SPC SPC SPC
Blue #22C SPC SPC SPC SPC SPC
Yellow #24C SPC SPC SPO SPO SPO
Orange #26 SPO SPO SPO SPO SPO
Green #28 N/R SNP SO SO SPR
Black #30 N/R SNP SO SO SPR
Brown #32 N/R N/R SO SO SPR
SPC = Stator with Poppet Closed SPR = Spacer and Screen
SPO = Stator with Poppet Open SO = Screen Only
SNP = Stator No Poppet N/R= Not a Recommended Pressure
and Nozzle Setting
Stator with Poppet Closed Stator with Poppet Open
Should be tight when snapped in Should be loose when snapped in
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
009 Catalog Number
Part Circle Rotor
EAGLE™ 950 INTERNAL ASSEMBLY
1
BLOCK CASE
ELECTRIC CASE
19
17
18
23
24
20
22
21
19
(D)
2
3
4
5
6
7
8
12
25
26
9
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2
Catalog Number 010
Case Assembly
EAGLE™ 500 / 550 / 700 / 750 SERIES
Ref. Part Description Qty. Electric SAM/Hydraulic B case IC
CASE ASSEMBLIES
EAGLE™ 700 / 750
1 Case Assembly (NPT) 1 (A) (A) (A) (A)
– Case Assembly (BSP) 1 (B) (H) (H) (I) (H)
– Case Assembly (ACME) 1 (B) 21246602C 212468 21148903 (B) 21338902
EAGLE™ 500 / 550
1 Case Assembly (NPT) 1 (A) (A)
(J) —
– Case Assembly (BSP) 1 (A) (B,C,H) (I) —
– Case Assembly (ACME) 1 (B,C) 212468 21148903 —
2 PRS/Selector Housing Assy (>6/95) 1 211418 — — —
3 Selector Cap 1 (D) — — —
4 Stem Cover O-Ring 1 (D) — — —
5 Compression Spring 1 (D) — — —
6 Selector Spring Washer 1 (D) — — —
7 PRS Cartridge, Upper Stem (Black) 1 (D) — — —
8 Selector Seal (Green) 1 (D,F) 212244 — — —
9 Solenoid Base O-Ring 1 211237 — — —
10 Base Nut 1 (602606) — — —
11 Plunger Core Tube Assy 1 (G) (21297201S) — — —
12 Tubing 2 (E)211607 (E)211607 — —
13 Solenoid Assy 1 213462C — — —
14 U-Frame 1 (212124S) — — —
15 Encapsulated Coil 1 602118 — — —
16 Solenoid Retainer 1 (627167) — — —
17 Lower Snap Ring 2 210470 210470 — —
18 Valve Assembly (700 / 750 Series) 1 211468 212322 — —
18 Valve Assembly (500 / 550 Series) 1 212089S 212322 — —
19 Probe O-Ring 2 211238 211238 — —
20 Universal Filter 1 20609202 — — —
21 Inlet Rubber Seal 1 212328S (212221) — —
22 Seal Nut 1 211174 — — —
23 Top-Serviceable Rock Screen
(TSRS) (>4/98) (White) 1 21171401 21171401 — —
24 O-Ring for TSRS (Yellow) 1 210366 210366 — —
25 ICM Assembly 1 214010 — — —
9 Solenoid and ICM O-Ring 1 211237 — — —
26 GBS25 (Golf Black Solenoid 25kv) 1 213462C — — —
KITS
– Tubing Repair Kit (E) 1 211607 — — —
– Quick Connects for Tube Cuts 1 212159 212159 — —
– Rubber Cover Kit (B case Only) 1 — — 211355 —
– Rubber Cover Kit (500/550/700/750) -
Smooth Case Rotor 1 (211602) (211602) — —
– Rubber Cover Kit (500/550/700/750) -
Ribbed Case Rotor 1 (212551) (212551) — —
- Sod Cup Kit 212613 212613 212613 212613
TOOLS - For use on 500/550/700/750 Rotors
– Selector Service Tool Key (Orange Tool) 1 B41720 — — —
– 7" Selector Valve Key 1 D02215 — — —
– 18" Selector Valve Key 1 D02221 — — —
– Snap Ring Pliers 1 D02236 D02236 — —
– Valve Insertion Tool 1 B41710 B41710 — —
– Installation Socket for TSRS 1 D02237 D02237 — —
– Universal Hose Adaptor 1 D05205 D05205 — —
(A) 1 1/4" NPT cases not available. Upgrade to
ACME case w/NPT to ACME adatper (212947S).
(B) Case assembly will come with a 70psi
(4.8 bars) pressure setting
(C) Use EAGLE™ 700/750 case assembly and
replace valve with 500/550 valve assembly
(212089S)
(D) Included in PRS/Selector Repair Kit: Pre 4/01
use # 213366 (includes rust seal.), Post 4/01 use
#212150 (includes green seal).
(E) Tubing Repair Kit includes 20 tubes, ferrules
and metal barbs.
(F) Selector Seal, Rust (<4/01) #211663
(G) For salt water Plunger Core Tube Assy - use
Part # 212732
(H) 1 1/4" BSP cases not available. Upgrade to
ACME case w/ BSP to ACME adapter - Use part #
(21337102)
(I) 1" BSP cases not available. Upgrade to ACME
case w/ BSP to ACME adapter - Use part #
(21337101)
(J) 1" NPT cases not available. Upgrade to
ACME case w/ NPT to ACME adapter - use part #
21337001
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
010 Catalog Number
Case Assembly
EAGLE™ 500 / 550 / 700 / 750 SERIES
26
17
18
23
1
25
21
22
19
24
20
27
(D)
2
3
4
5
6
7
8
12
9
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2
Catalog Number 011
Case Assembly
EAGLE™ 900 / 950 / 1100 / 1150 / 115-E SERIES
Ref. Part Description Qty. Electric SAM / Hydraulic IC
CASE ASSEMBLIES
1 Case Assembly (NPT) 1 (A) 21246903 (B) —
1 Case Assembly (BSP) 1 (G) (G) (G)
1 Case Assembly (ACME) 1 (C) 21247503C 212477(C) (C) 21339003
2 PRS/Selector Housing Assy (>6/95) 1 (C) 21247503C — —
3 Selector cap 1 (D) — —
4 Stem Cover O-Ring 1 (D) — —
5 Compression Spring 1 (D) — —
6 Selector Washer 1 (D) — —
7 PRS Cartridge 1 (D) — —
8 Selector Seal (Green) 1 (D)(F) 212244 — —
9 Solenoide Base O-Ring 1 211237 — —
10 Base Nut 1 (602606) — —
11 Plunger Core Tube Assy 1 — — —
12 Tubing 2 (E)211607 (E)211607 —
13 Solenoid Assembly Kit 1 213462C — —
14 Solenoid Retainer 1 (627167) — —
15 Solenoid U-Frame 1 (212124S) — —
16 Encapsulated Coil 1 602118 — —
17 Lower Snap Ring (White) 2 208396 208396 —
18 HPDV Valve Assembly 1 211266 212323 —
19 Seal Nut (White) 1 211174 — —
20 Rubber Inlet Seal 1 (211197) 212220S —
21 Universal Filter 1 20609202 — —
22 Probe & O-ring Assembly (Grey) 1 20740201 20740201 —
– Probe O-Ring (Yellow) 1 211238 211238 —
23 Top-Serviceable Rock Screen (>9/98) 1 21171402 21171402 —
24 Rock Screen O-ring (Grey) 1 210366 210366 —
25 Inlet Screen (<9/98) 1 — — —
26 ICM Assembly 1 214010 — —
9 Solenoid and ICM O-Ring 1 211237 — —
27 GBS25 (Golf Black Solenoid 25kv) 1 213462C — —
KITS
– Tubing Repair Kit (E) 1 211607 — —
– Quick Connect for Tube Cuts 1 212159 212159 —
– Rubber Cover Kit 950 - Ribbed Case 1 212554 212554 —
TOOLS - For use on 900/950/1100/1150/115E Rotors
– Selector Service Took Key (Orange Toll) 1 B41720 — —
– 7" Selector Valve Key 1 D02215 — —
– 18" Selector Valve Key 1 D02221 — —
– Snap Ring Pliers 1 D02203 D02203 —
– Valve Insertion Tool 1 B41700 B41700 —
– Installation Socket for TSRS 1 D02237 D02237 —
– Universal Hose Adapter 1 D05205 D05205 —
(A) Only available in 80psi (5,5bars)
(B) 1 1/2" NPT Case not available. Upgrade to ACME case
w/NPT to ACME adaptor - use part# 212948S
(C) Case Assemblies will be set to 80 psi (5.5 bars).
(D) Included in PRS/Selector Repair Kit: Pre 4/01 use Part #
213366 (includes rust color seal), Post 4/01 use Part # 212150
(E) Tubing repair Kit includes 20 tubes, ferrules and metal
barbs.
(F) Selector Seal, Rust (<4/01) - part # 211663.
(G) 1 1/2" BSP cases not available. Upgrade to ACME case w/
BSP to ACME adapter - Use part # (21337103)
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
011 Catalog Number
Case Assembly
EAGLE™ 900 / 950 / 1100 / 1150 / 115-E SERIES
Ref. Part Description Qty 1100-E 1100-S 1100-H
SNAP RINGS
1 Snap Cover (all models) 1 (21220401) (21220401) (21220401)
RUBBER COVER KIT 1 (212607) (212607) (212607)
2 Rubberized Snap Cover 1 —
— —
21 Rubber Cover, Housing 1 (21226
6S)
(21226
6S)
(21226
6S)
6 Screw O-Ring 2 209778 209778 209778
INTERNAL ASSEMBLY
3 Internal Assembly 1 (212438xx) (212438xx) (212438xx)
COVER ASSEMBLY
4 Self Tapping Screw 2 210975 210975 210975
5 Diffuser Housing Insert 1 — — —
6 Screw O-Ring 2 209778 209778 209778
NOZZLES (Please specify nozzle size when ordering - See below)
- Nozzle/Housing Kit 1 (212602xx) (212602xx) (212602xx)
7 Nozzle Housing 1 — — —
8 Range Nozzle Assembly 1 (212604xxs) (212604xxs) (212604xxs)
9 Spreader Dual Nozzle Assembly 1 (212605xx) (s212605xx) (s212605xxs)
10 Retract Seal (Nozzle Housing) 1 — — —
18 Riser Screen 1 — — —
BEARING/RISER-MOTOR ASSEMBLY
11 O-Ring Nozzle Housing 1 (212255S) (212255S) (212255S)
13 Bearing Guide O-Ring 1 212383 212383 212383
14 Retract Spring 1 (212162S) (212162S) (212162S)
15 Riser Motor Assembly 1 — — —
16 Riser - Seal Pop-Up 1 (212172) (212172) (212172)
17 Motor Housing (Replacement) 1 — — —
20 Stator Assembly - Common 1 (212606) (212606) (212606)
CASE ASSEMBLY (Please refer to EAGLE™ 900/950/1100/1150/115-E Series, catalog
number 466)
Stator Setting Configurations Factory
Number Color of Range Nozzle Electric Case Pressure Setting Hyd/SAM
Psi (bars)
80(5,5) 100(6,9) 120 (8,3) Set per Base Psi*
#48 Blue 10 11 12 10 - 12
#57 Yellow 11 12 13 11 - 13
#63 Orange 13 15 16 13 - 16
#66 Green 14 16 16 14 - 16
* Factory stator set for 80psi base pressure
Note: Stator settings to a lower number than factory will speed up rotation speed
and shorten radius. Stator settings to a larger number than factory will slow
rotation speed or cause non-rotation.
16
8
5
17
18
14
13
11
10
9
6
4
1
21
2
3
15
20
Top View
Bottom View
7
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 1
Catalog Number 012
EAGLE™ 1100 SERIES INTERNAL ASSEMBLY
Ref. Part Description Qty 1150-E 1150-S 1150-H
SNAP RINGS
1 Snap Cover (all models) 1 (21220401) (21220401) (21220401)
RUBBER COVER KIT 1 (212608S) (212608S) (212608S)
2 Rubberized Snap Cover 1 — — —
21 Housing Rubber Cover 1 — — —
6 Screw O-Ring 2 209778 209778 209778
INTERNAL ASSEMBLY
3 Internal Assembly 1 (21243966S) (21243966S) (21243966S)
COVER ASSEMBLY
4 Self Tapping Screw 2 210975 210975 210975
5 Diffuser Housing Insert 1 — — —
22 Arc Adjustment Shaft Assembly 1 — — —
6 Screw O-Ring 3 209778 209778 209778
NOZZLES (Please specify nozzle size when ordering - See below)
- Nozzle/Housing Kit 1 (212609xx) (212609xx) (212609xx)
- Nozzle/Housing Kit (Purple) 1 (21261066) (21261066) (21261066)
7 Nozzle Housing 1 — — —
8 Range Nozzle Assembly 1 (212604xxs) (212604xxs) (212604xxs)
9 Spreader Dual Nozzle Assembly 1 (212611S) (212611S) (212611S)
10 Retract Seal (Nozzle Housing) 1 — — —
18 Riser Screen 1 — — —
BEARING/RISER-MOTOR ASSEMBLY
11 O-Ring Nozzle Housing 1 (212255S) (212255S) (212255S)
13 Bearing Guide O-Ring 1 212383 212383 212383
14 Retract Spring 1 212162S 212162S 212162S
15 Riser Motor Assembly 1 (212436S) (212436S) (212436S)
16 Seal, Riser-Pop-Up 1 212172 212172 212172
17 Motor Housing (Replacement) 1 — — —
20 Stator Assembly - Common 1 (212606) (212606) (212606)
CASE ASSEMBLY (Please refer to EAGLE™ 900/950/1100/1150/11-E Series, catalog
number 011)
Stator Setting Configurations Factory
Number Color of Range Nozzle Electric Case Pressure Setting Hyd/SAM
Psi (bars)
80(5,5) 100(6,9) 120 (8,3) Set per Base Psi*
#48 Blue 6 7 8 6 - 8
#57 Yellow 8 9 10 8 - 10
#63 Orange 10 11 12 10 - 12
#66 Green 12 13 14 12 - 14
* Factory stator set for 80psi base pressure
Note: Stator settings to a lower number than factory will speed up rotation speed and
shorten radius. Stator settings to a larger number than factory will slow rotation
speed or cause non- rotation.
21
1
2
10
11
13
14
22
4
5
9
6
8
17
16
15
20
Bottom View
Top View
18
3
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 1
013 Catalog Number
Part Circle Rotor
EAGLE™ 1150 SERIES INTERNAL ASSEMBLY
1
5
4
3
7
8
9
10
11
12
13
2
14
15
16
6
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2
Catalog Number 014
Full Circle Rotor
RAIN BIRD 700 INTERNAL ASSEMBLY
Ref. Part Description Qty. 700-E/IC 700-S/H 700B
SNAP RINGS
1 Snap Cover 1 21192101 21192101 21192101
INTERNAL ASSEMBLY
2 Rain Bird 700 Internal Assembly (A) (B) 1 214700xx 214700xx 214600xx
NOZZLE HOUSING AND NOZZLES
3 700 / 751 Nozzle Housing Screw 2 214754 214754 214754
4 Blue Spreader Nozzle Standard (C) 1 211562 211562 211562
5 Black with White Diffuser Standard (C) 1 211452 211452 211452
6 White Diffuser 1 213703 213703 213703
7 700 Nozzle Housing Less Nozzles 1 213710 213710 213710
8 Range Nozzle and O-ring Assembly (A) 1 213700xx 213700xx 213700xx
BEARING GUIDE / MOTOR ASSEMBLY
9 Bearing Guide Assembly, Standard 1 211147 — —
9 Bearing Guide Assembly, Low Flow 1 — 211263 211263
10 Bearing Guide O-ring 1 211242 211242 211242
11 Rain Bird 700 Riser Motor Assembly 1 21470000 21470000 21470000
12 700 / 750 / 751 Stator / Screen Kit 1 21040301 21040301 21040301
13 SAM Screen Kit Block Models 1 — — 211292
17 Pop-up Seal (White) 1 210399 210399 210399
KITS AND ACCESSORIES
1 Snap Cover, Yellow 1 21192102 21192102 21192102
1 Snap Cover, White 1 21192103 21192103 21192103
1 Snap cover, Purple 1 21192104 21192104 21192104
- Sod Cup Kit 1 212613 212613 212613
DIFFUSER SCREW
16 700 / 751 Diffuser Screw Only 1 214757 214757 214757
(A) Specify Nozzle Size when ordering. Available in # 28, 32, 36, 40, 44, or 48.
(B) For Non-Potable applications, use standard part and purple snap ring (Part # 21192104)
(C) Optional Spreader Nozzles 213701 (Green), 213702 (Orange), 213705 (Blue w/Diffuser),
212291 (Red), and 211417 (Black)
Stator / Poppet Configurations - Dual Spreader
Color Number Electric Pressure Setting Hyd,
psi (bars) SAM,
60 (4,1) 70 (4,8) 80 (5,5) 100 (6,9) B
White #28 SPC SPC SPC SPC SPC
Blue #32 SPO SPO SPO SPO SPO
Yellow #36 SPO SPO SPO SPO SPO
Orange #40 SNP SNP SNP SNP SNP
Green #44 SNP SNP SNP SNP SNP
Black #48 N/R SNP SNP SPR SNP
SPC = Stator with Poppet Closed SO = Screen Only
SPO = Stator with Poppet Open SPR = Spacer and Screen
SNP = Stator No Poppet N/R = Not a Recommended Pressure
and Nozzle Setting
Stator with Poppet Closed Stator with Poppet Open
Should be tight when snapped in Should be loose when snapped in
Mid-Range nozzle (9A)
Close-In nozzle (9B)
Dual Spreader: #28-36 Blue Always Black With
Part No.: 211562 White Cascade Insert
#40-48 Black w/o insert Part No.: 211452
Part No.: 211417
Cascade: Plugged With White Cascade
Part No.: 211593 Insert Always Black
Part No.: 211452
Original: Black w/o insert Plugged
Part No.: 211417 Part No.: 211593
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
014 Catalog Number
Full Circle Rotor
RAIN BIRD 700 INTERNAL ASSEMBLY
1
2
7
16
17
3
6
4
5
7
9
8
10
11
12
13
14
15
18
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2
Catalog Number 015
Full and Part Circle Rotor
RAIN BIRD 551 / 751 INTERNAL ASSEMBLY
Ref. Part Description Qty.
E/IC S/H B
SNAP RINGS
1 Snap Cover 1 21192101 21192101 21192101
INTERNAL ASSEMBLY
2 Rain Bird Internal Assembly (A) (B) 1 214751xx 214751xx 214651xx
NOZZLE HOUSING AND NOZZLES
3 Nozzle Housing Screw 2 214754 214754 214754
4 Nozzle plug 1 211593 211593 211593
5 Nozzle Housing Less Nozzle 1 213760 213760 213760
6 Standard Range Nozzle and O-Ring Assembly (C) 1 213750xx 213750xx 213750xx
6 Short Throw Range Nozzle and O-Ring Assembly (D) 1 213751xx 213751xx 213751xx
7 O-Ring (Cover, Adjust, & Lever) 2 211236 211236 211236
8 FC/PC Arm-Lever Assembly 1 214752 214752 214752
9 Arc Adjust Stem 1 210420 210420 210420
BEARING GUIDE / MOTOR ASSEMBLY
10 Bearing Guide Assembly, Standard 1 211147 — —
10 Bearing Guide Assembly, Low Flow 1 — (211263) (211263)
11 Bearing Guide O-ring 1 211242 211242 211242
12 FC-PC Trip Rod 1 214753 214753 214753
13 Rain Bird 751 Riser Motor Assembly 1 21475100 21475100 21475100
14 Stator/Screen Kit 1 21040301 21040301 21040301
15 SAM Screen Kit Block Models 1 — — 211292
19 Pop-up Seal (White) 1 (201399) (201399) (201399)
KITS AND ACCESSORIES
1 Snap Cover, Yellow 1 21192102 21192102 21192102
1 Snap Cover, White 1 21192103 21192103 21192103
1 Snap cover, Purple 1 21192104 21192104 21192104
- Sod Cup Kit 1 212613 212613 212613
DIFFUSER SCREW
17 Diffuser Screw Only 1 214757 214757 214757
SPREADER NOZZLES
18 Rear Spreader Nozzles 1 (E) (E) (E)
(A) Specify Nozzle Size when ordering. Available in # 20, 22, 28, 32, 36, 40, 44, or 48.
(B) For Non-Potable applications, use standard part and purple snap ring (Part # 21192104)
(C) Specify Nozzle Size (28, 32, 36, 40, 44, or 48)
(D) Sprcify Nozzle Size (22 or 24)
(E) Optional Spreader Nozzles 213701 (Green), 213702 (Orange), 213705 (Blue w/Diffuser),
212291 (Red), and 211417 (Black)
Stator / Poppet Configurations - Dual Spreader
Color Number Electric Pressure Setting Hyd,
psi (bars) SAM,
60 (4,1) 70 (4,8) 80 (5,5) 100 (6,9) B
Gray #20 S4 S4 S4 S4 S4
Red #22 S8 S8 S8 S8 S8
White #28 SPC SPC SPC SPC SPC
Blue #32 SPO SPO SPO SPO SPO
Yellow #36 SPO SPO SPO SPO SPO
Orange #40 SNP SNP SNP SNP SNP
Green #44 SNP SNP SNP SNP SNP
Black #48 N/R SNP SNP SPR SNP
S4 = 4 Hole S8 = 8 Hole
SPC = Stator with Poppet Closed SO = Screen Only
SPO = Stator with Poppet Open SPR = Spacer and Screen
SNP = Stator No Poppet N/R = Not a Recommended Pressure
and Nozzle Setting
Stator with Poppet Closed Stator with Poppet Open
Should be tight when snapped in Should be loose when snapped in
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
015 Catalog Number
Full and Part Circle Rotor
RAIN BIRD 551 / 751 INTERNAL ASSEMBLY
Full and Part Circle Rotor
RAIN BIRD 752 INTERNAL ASSEMBLY
16
15
14
16
12
9
11
10
8
6
5
19
18
7
4
13
2
3 1
17
18
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2
Catalog Number 016
Ref. Part Description Qty.
752-E, IC
1 Case Assembly
SNAP RINGS
2 Snap Cover (Excluding BRC) 1 21192101
INTERNAL ASSEMBLY
3 Rain Bird 752 Internal Assembly (A) (B) 1 215752xx
NOZZLE HOUSING AND NOZZLES
4 Nozzle Housing Screw 2 215003
5 Nozzle plug 1 211593
6 Nozzle Housing Less Nozzle 1 215760
7 Standard Range Nozzle and O-Ring Assembly (C) 1 213750xx
7 Short Throw Range Nozzle and O-Ring Assembly (D) 1 213751xx*
8 O-Ring (Cover, Adjust, & Lever) 2 211236
9 FC/PC Arm-Lever Assembly 1 214752
10 Arc Adjust Stem 1 210420
BEARING GUIDE / MOTOR ASSEMBLY
11 Bearing Guide Assembly, Standard 1 211147
11 Bearing Guide Assembly, Low Flow 1 —
12 Bearing Guide O-ring 1 211242
13 FC-PC Trip Rod 1 214753
14 Rain Bird 752 Riser Motor Assembly 1 21575200
15 Self-Adjusting Stator Kit 1 21500000
16 Pop-up Seal (White) 1 (201399)
KITS AND ACCESSORIES
2 Snap Cover, White 1 21192103
2 Snap cover, Purple 1 21192104
DIFFUSER SCREW
17 Diffuser Screw Only 1 214757
SPREADER NOZZLES
18 Rear Spreader Nozzles 1 (E)
(A) Specify Nozzle Size when ordering. Available in # 18, 20, 22, 24, 26, 28, 32, 36, 40, 44, 48, 50.
(B) For Non-Potable applications, use standard part and purple snap ring (Part # 21192104)
(C) Specify Nozzle Size (28, 32, 36, 40, 44, 48, 50)
(D) Specify Nozzle Size (18, 20, 22, 24, 26)
(E) Optional Spreader Nozzles 211417 (Black), 211452 (Black w/Diffuser), 211562 (Blue),
212291 (Red), 213701 (Green), 213702 (Orange), and 213705 (Blue w/Diffuser)
* Requires low-flow valve in case assembly
Stator Configuration Settings
Model Nozzle Pressure Electric IC
752 Any Any SAS SAS
SAS = Self Adjusting Stator
SELF-ADJUSTING
STATOR
ELECTRIC/IC
SCREEN
21500000
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
016 Catalog Number
RAIN BIRD 752 INTERNAL ASSEMBLY
2
3 1
15
Full and Part Circle Rotor
RAIN BIRD 702 INTERNAL ASSEMBLY
4
16
5
7
6
9
8
11
10
12
14
13
14
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
1 of 2
Catalog Number 017
Ref. Part Description Qty.
702-E, IC
1 Case Assembly
SNAP RINGS
2 Snap Cover (Excluding BRC) 1 21192101
INTERNAL ASSEMBLY
3 Rain Bird 702 Internal Assembly (A) (B) 1 215702xx
NOZZLE HOUSING AND NOZZLES
4 Nozzle Housing Screw 2 215003
5 Blue Spreader Nozzle Standard (C) 1 211562
6 Black with White Diffuser Standard (C) 1 211452
7 White Diffuser 1 213703
8 702 Nozzle Housing Less Nozzles 1 215710
9 Range Nozzle and O-Ring Assembly (A) 1 213700xx
BEARING GUIDE / MOTOR ASSEMBLY
10 Bearing Guide Assembly, Standard 1 211147
10 Bearing Guide Assembly, Low Flow 1 —
11 Bearing Guide O-ring 1 211242
12 Rain Bird 702 Riser Motor Assembly 1 21570200
13 Self-Adjusting Stator Kit - Electric 1 21500000
14 Pop-up Seal (White) 1 (201399)
DIFFUSER SCREW
15 Diffuser Screw Only 1 214757
(A) Specify Nozzle Size when ordering. Available in # 28, 32, 36, 40, 44, 48.
(B) For Non-Potable applications, use standard part and purple snap ring (Part # 21192104)
(C) Optional Spreader Nozzles 213701 (Green), 213702 (Orange), 213705 (Blue W/Diffuser),
211417 (Black), and 212291 (Red)
RAIN BIRD 702 INTERNAL ASSEMBLY
Mid-Range nozzle
Close-In nozzle
Dual Spreader: #28-36 Blue Always Black With
Part No.: 211562 White Cascade Insert
#40-48 Black w/o insert
Part No.: 211452
Part No.: 211417
Cascade: Plugged With White Cascade
Part No.: 211593 Insert Always Black
Part No.: 211452
Original: Black w/o insert Plugged
Part No.: 211417 Part No.: 211593
Stator Configuration Settings
Model Nozzle Pressure Electric IC
702 Any Any — —
SAS = Self Adjusting Stator
SELF-ADJUSTING
STATOR
ELECTRIC/IC
SCREEN
21500000
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Page
2 of 2
017 Catalog Number
