Page
1 of 2
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM

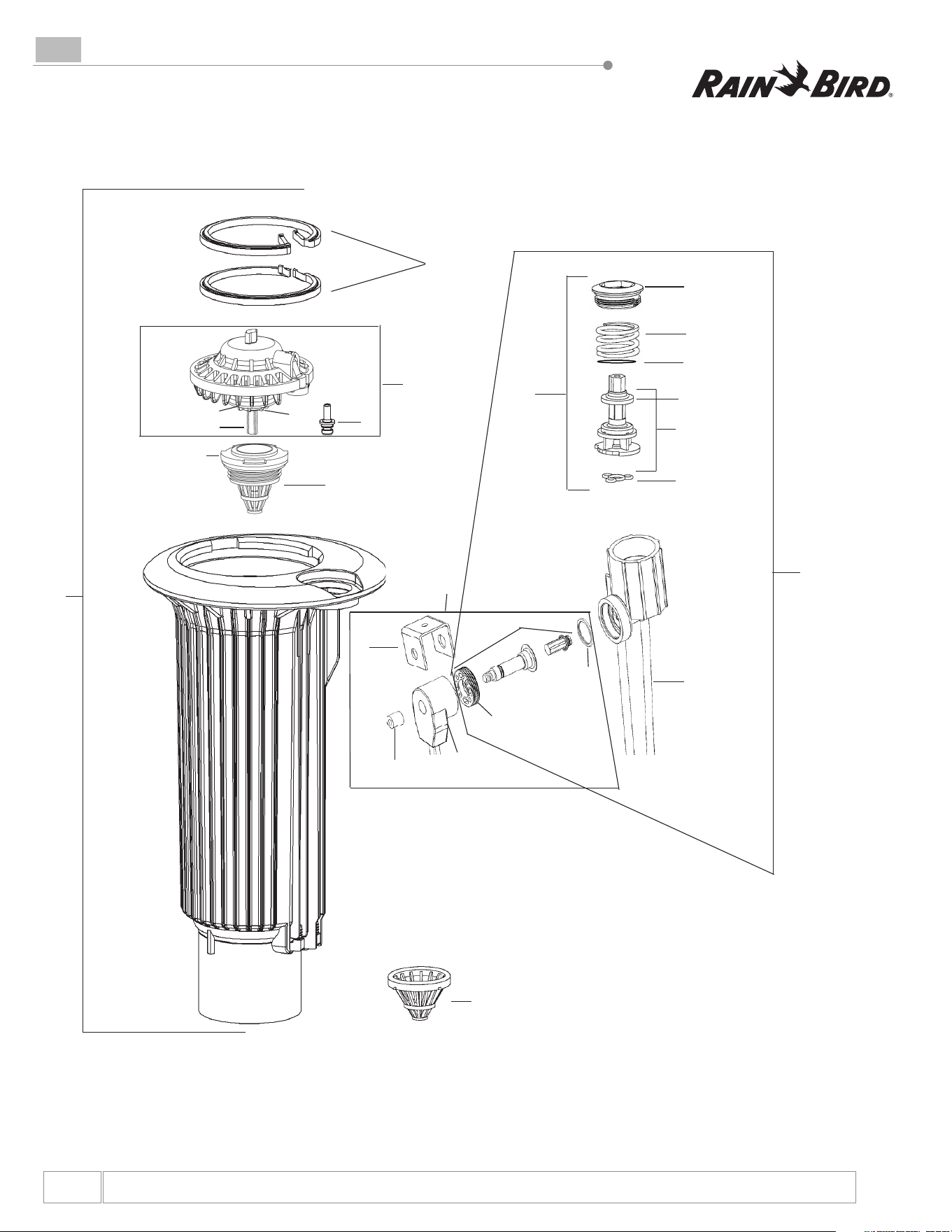

Case Assembly
460 Catalog Number
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
EAGLE 900 / 950 / 1100 / 1150 / 115-E SERIES
(D)
14
15
16
17
18
23
11
9
8
7
6
5
4
3
12
10
Inside
1
2
25
21
22
19
24
20
11
15
14
16
9
12
10
13
Page
2 of 2
TO BUY GENUINE RAIN BIRD PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR VISIT OUR ONLINE STORE AT WWW.RAINBIRD.COM
Case Assembly
Catalog Number 460
Note: Part numbers enclosed in brackets ( ) are not available individually, but may be sold in assemblies or kits.
EAGLE 900 / 950 / 1100 / 1150 / 115-E SERIES
Ref. Part Description Qty. Electric SAM/Hydraulic
CASE ASSEMBLIES
1 Case Assembly (NPT) 1 (A) 212469-03 (B) –
1 Case Assembly (BSP) 1 (C) 212472-xx –
1 Case Assembly (ACME) 1 (C) 212475-xx 212477
2 PRS/Selector Housing Assy (>6/95) 1 211418 –
3 Selector cap 1 (D) –
4 Stem Cover O-Ring 1 (D) –
5 Compression Spring 1 (D) –
6 Selector Washer 1 (D) –
7 PRS Cartridge 1 (D) –
8 Selector Seal (Green) 1 (D)(F) 212244 –
9 Base Nut 1 602606 –
10 Solenoid Base O-Ring 1 211237 –
11 Plunger Core Tube Assy 1 (G)212972-01S –
12 Tubing 2 (E)211607 (E)211607
13 Solenoid Assembly Kit 1 206920-01 –
14 Solenoid Retainer 1 627167 –
15 Solenoid U-Frame 1 212124S –
16 Encapsulated Coil 1 602118 –
17 Lower Snap Ring (White) 2 208396 208396
18 HPDV Valve Assembly 1 211266 212323
19 Seal Nut (White) 1 211174 –
20 Rubber Inlet Seal 1 211197 212220S
21 Universal Filter 1 206092-02 –
22 Probe & O-ring Assembly (Grey) 1 207402-01 207402-01
– Probe O-Ring (Yellow) 1 211238 211238
23 Top-Serviceable Rock Screen (>9/98) 1 211714-02 211714-02
24 Rock Screen O-ring (Grey) 1 210366 210366
25 Inlet Screen (<9/98) 1 209923 209923
KITS
– ACME Case (with elbows and TSRS only) 1 212482 –
– Tubing Repair Kit (E) 1 211607 –
– Quick Connect for Tube Cuts 1 212159 212159
– Rubber Cover Kit 900 - Smooth Case 1 211598 211598
– Rubber Cover Kit 900 - Ribbed Case 1 211553 211553
– Rubber Cover Kit 950 - Smooth Case 1 211599 211599
– Rubber Cover Kit 950 - Ribbed Case 1 212554 212554
TOOLS - For use on 900/950/1100/1150/115E Rotors
– Selector Service Took Key (Orange Toll) 1 B41720 –
– 7" Selector Valve Key 1 D02215 –
– 18" Selector Valve Key 1 D02221 –
– Snap Ring Pliers 1 D02203 D02203
– Valve Insertion Tool 1 B41700 B41700
– Installation Socket for TSRS 1 D02237 D02237
– Universal Hose Adapter 1 D05205 D05205
(A) Only available in 80psi (5,5bars)
(B) 1 1/2" NPT Case not available. Upgrade to ACME case w/NPT to ACME adaptor - use part# 212948S
(C) For Electric Case Assemblies specify pressure setting when ordering. -02 corresponds to 70psi (4,8bars);
-03 = 80 psi (5,5 bars); -04 = ~100psi (~6.9bars).
(D) Included in PRS/Selector Repair Kit part # 212150 (after 4/01)
(E ) Tubing repair Kit includes 20 tubes, ferrules and metal barbs.
(F) Selector Seal, Rust (<4/01) part # 211663.
(G) For Salt Water Plunger Core Tube Assy - Use part # 212732
