CAR689
6.8” 2 DIN CAPACITIVE TOUCH SCREEN
MULTIMEDIA MECHLESS RECEIVER
AM-FM-RDS SXM-READY
USB Multimedia Player
Front / Rear Camera Inputs
INSTALLATION &
OWNER’S MANUAL
W AT T S
Front & Rear
Camera
CAR689
2
INFORMATION
Apple CarPlay is a trademark of Apple Inc. / Use of the Apple CarPlay logo means
that a vehicle user interface meets Apple performance standards. Apple is not
responsible for the operation of this vehicle or its compliance with safety and
regulatory standards.
Please note that the use of this product with iPhone, iPod, or iPad may eect
wireless performance.
iPhone, and Apple are trademarks of Apple Inc., registered in the U.S. and other
countries.
Availability of Android Auto™ may vary depending upon your country and phone
model. Please visit android.com/auto for more information.
Android, Android Auto, Google and other marks are trademarks of Google Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc.
SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc. All
rights reserved.
Other trademarks and trade names are those of their respective owners.
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Copyright and Trademark
3
CAR689 INFORMATION

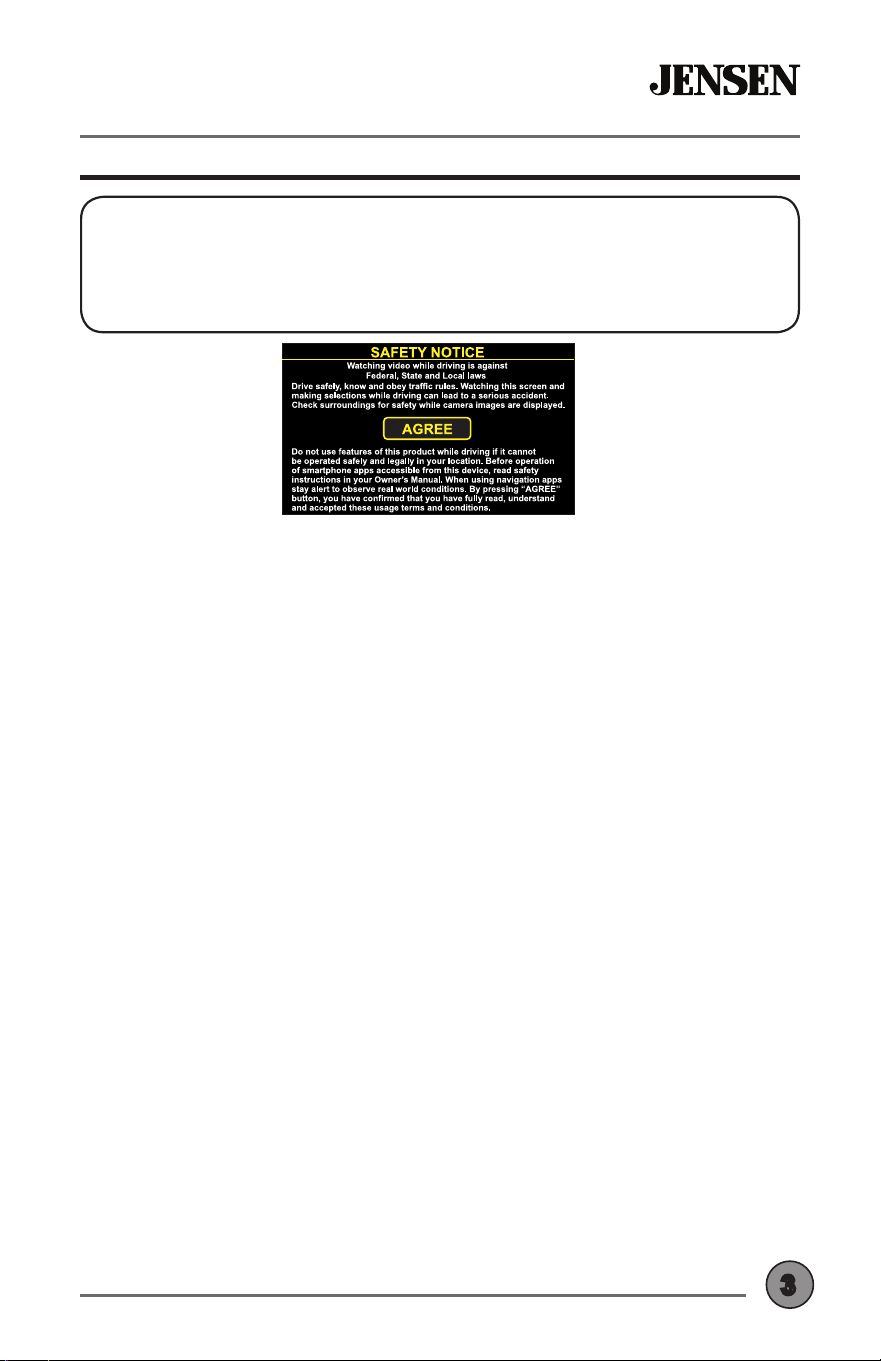

Video / movie playback will not operate while the vehicle is moving.
This is a safety feature to prevent driver distraction. In-dash video / movie
functions will only operate when vehicle is in Park and the parking brake is
engaged. It is illegal in most jurisdictions for the driver to view video while
the vehicle is in motion.
The SAFETY NOTICE is reminder to drive responsibly and safely while using your
mobile phone device, or any APP’s that are compatible with this unit.
it is highly recommended that your JENSEN CAR689 is installed by a professional
installer or an authorized dealer.
This product is only for use in vehicles with 12VDC negative ground only.
To prevent damage or injury:
• Make sure to ground the unit securely to the vehicle chassis ground.
• Do not remove the top or bottom covers of the unit.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or the
possibility of water splashing.
• Do not subject the unit to excessive shock.
• When replacing a fuse, only use a new one with the correct rating. Using a fuse with
the wrong rating may cause the unit to malfunction.
• To prevent short circuits when replacing a fuse, disconnect the wiring harness rst.
• Use only the provided hardware and wire harness.
• If you experience problems during installation, consult your nearest JENSEN dealer.
• If the unit malfunctions, reset the unit as described. If the problem still persists,
consult your nearest JENSEN dealer or call tech assistance @ 1-888-921-4088.
• To clean the monitor, wipe only with a dry silicone cloth or soft cloth. Do not use
a sti cloth, or solvents such as paint thinner and alcohol. They can scratch the
surface of the panel and/or remove the printing.
• When the temperature of the unit falls (as in winter), the liquid crystal inside the
screen will become darker than usual. Normal brightness will return after the unit is
in use for a while.
• When extending the ignition, battery or ground wiring, make sure to use
automotive-grade wiring with an a minimum AWG 16 or more to prevent voltage
drops.
• Do not touch the liquid crystal uid if the LCD is damaged or broken. The liquid
crystal uid may be hazardous to your health or fatal. If the liquid crystal uid from
the LCD contacts your body or clothing, wash it o with soap immediately.
Safety Notice
INSTALLATIONCAR689
4
Please read and understand entire manual before installation.
Consult a qualied technician for detailed instructions or installation
assistance.
Before You Start
• Disconnect negative battery terminal.
• Avoid installing the unit where it would be subject to high
temperatures, such as from direct sunlight, or where it would be
subject to dust, dirt or excessive vibration.
Getting Started
• Unpack unit from its protective packaging.
• Connect vehicle wiring harness and antenna to this receivers
harness. See wiring instructions. Consult a qualied technician if you
are unsure.
• Certain vehicles may require an installation dash kit and/or wiring
harness adapter (sold separately).
• Reconnect battery negative terminal.
• Test for correct operation and secure back into dashboard.
• Snap trim ring into place if needed.

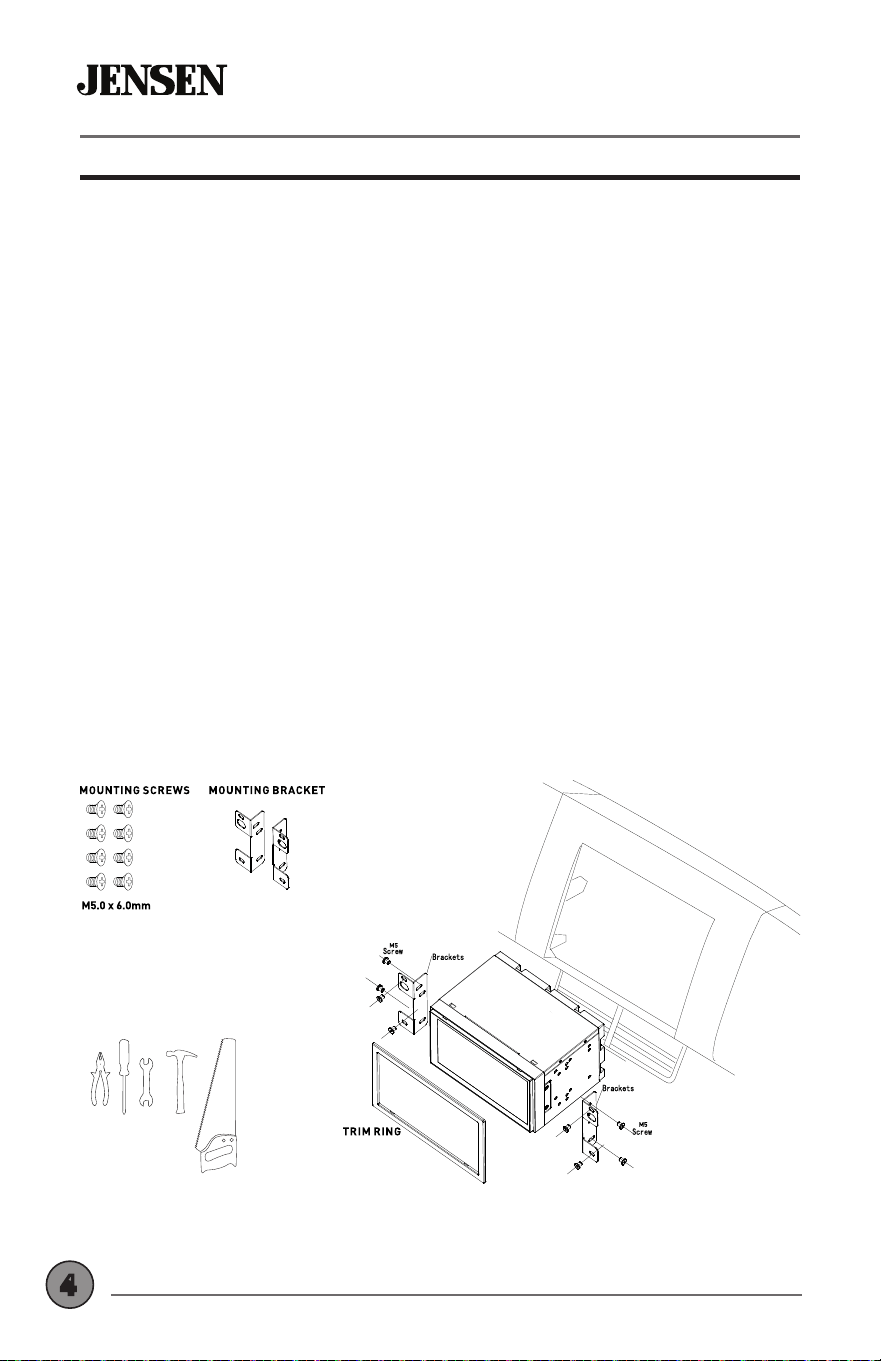

Typical ISO-DIN Installation
Tools Required
Preparation
5
CAR689 INSTALLATION
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
When replacing a fuse, make sure to use the correct type and
amperage. Using an incorrect fuse could cause damage. The unit uses
(1) 15 amp ATO blade-type fuse located on the back of the unit.
Wiring Notes:
Front / Rear camera inputs
Up to two cameras (not included) can be used.
We recommend optional JENSEN Backup Camera Part # BUCAM200J
for FRONT CAMERA and BUCAM300AJ or BUCAM400AJ for REAR
CAMERA
SiriusXM
For more information on how to install the SiriusXM Connect Vehicle
tuner, consult the installation guide included with the tuner.
(SiriusXM connect tuner and subscription sold separately)

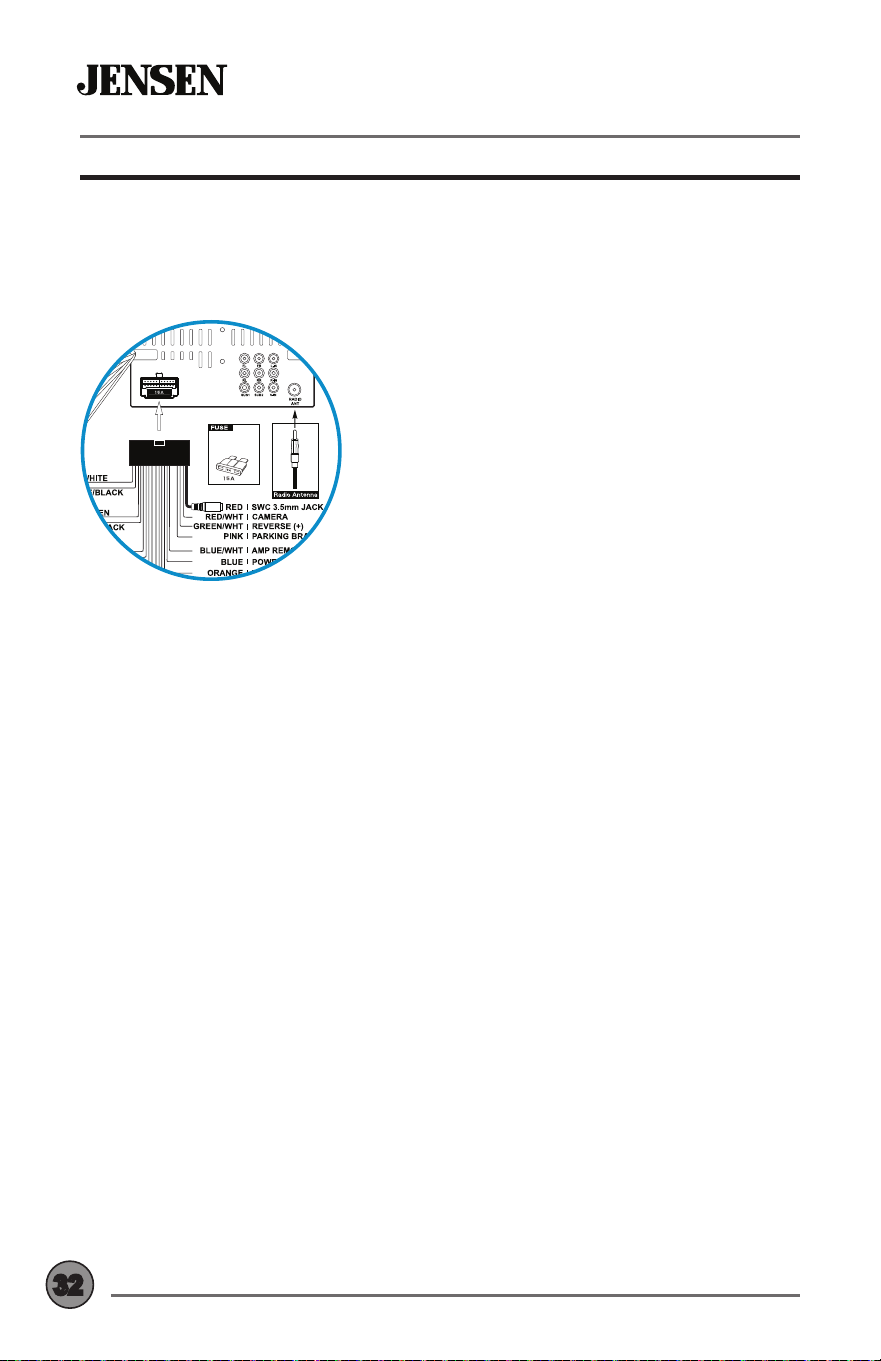

POWER
MAXIMUM OUTPUT 500mA
YELLOW
YELLOW
BLACK
Replace with
ATO Type fuse
Only

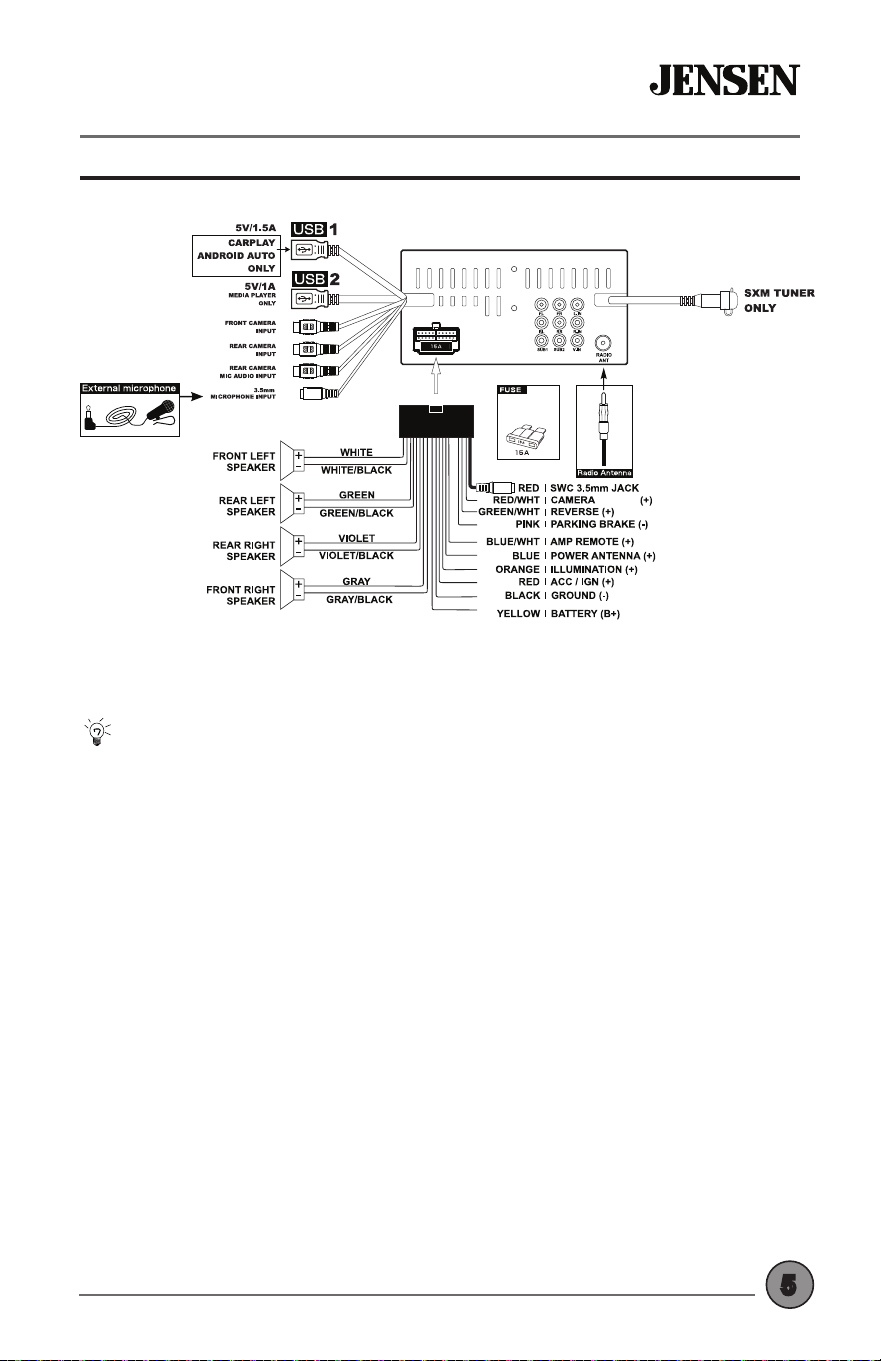

Input / Output Wiring Diagram
OPERATIONCAR689
6

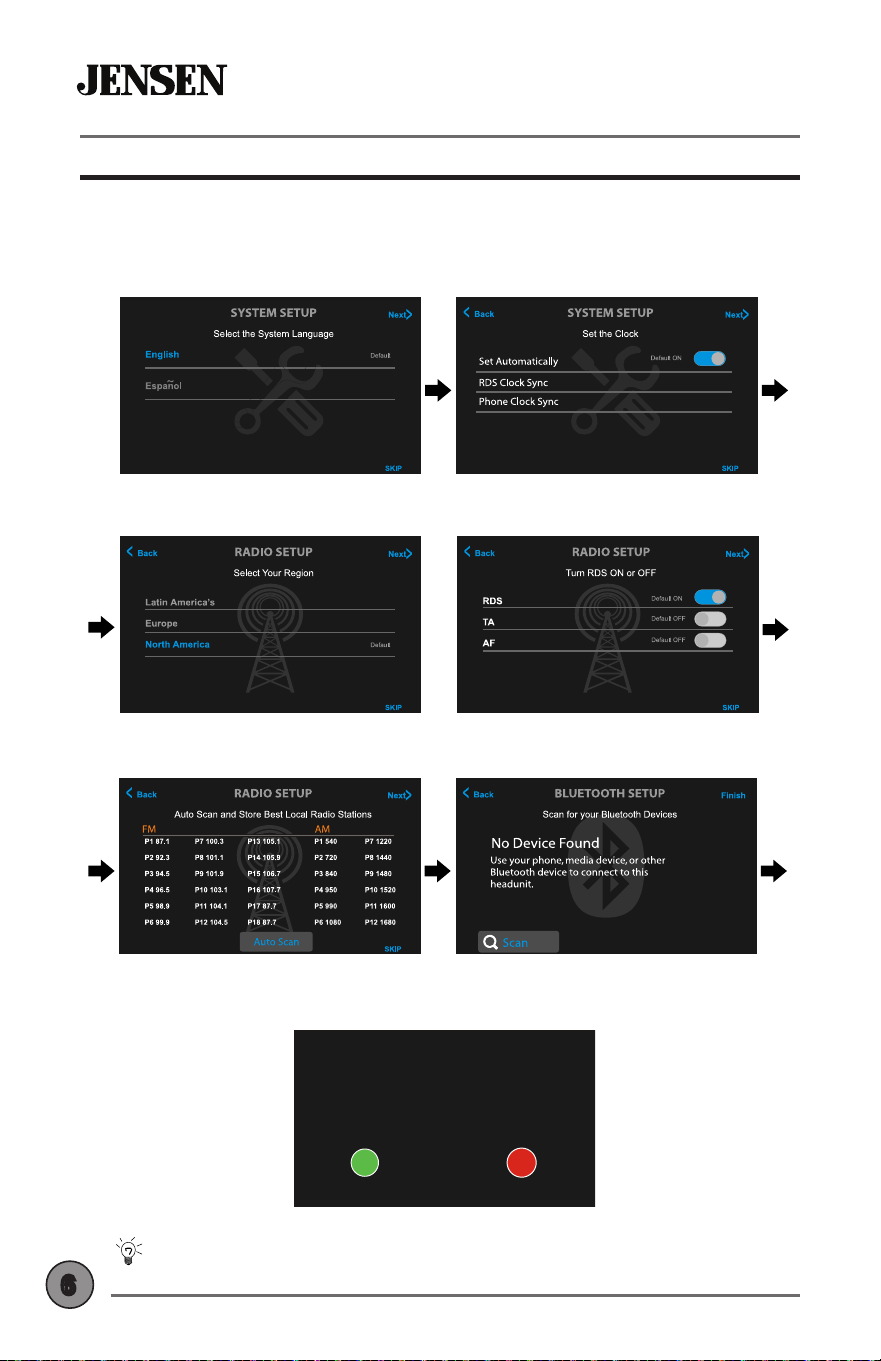

Getting Started - First Time Setup Wizard
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
Select Language Set the Clock
Set Radio Region
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
Set RDS Functions
Auto Store Presets Pair Bluetooth
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
The rst time the unit is powered ON, the SETUP WIZARD will help
guide you through the main radio system settings and connect to your
Bluetooth Device.
To rerun the WIZARD again, press RESET button with a paperclip for 3 seconds.
STEP 1 STEP 2
STEP 3 STEP 4
STEP 5 STEP 6
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
The SETUP WIZARD can be skipped at any time.
A random BLUETOOTH
PASSCODE will be
generated, follow the
on-screen instructions,
press Ok on your Device
Allow connection?
Check number on mobile device
XXXXXX
YES NO
Conrm PASSCODE
FINAL STEP
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
7
OPERATIONCAR689

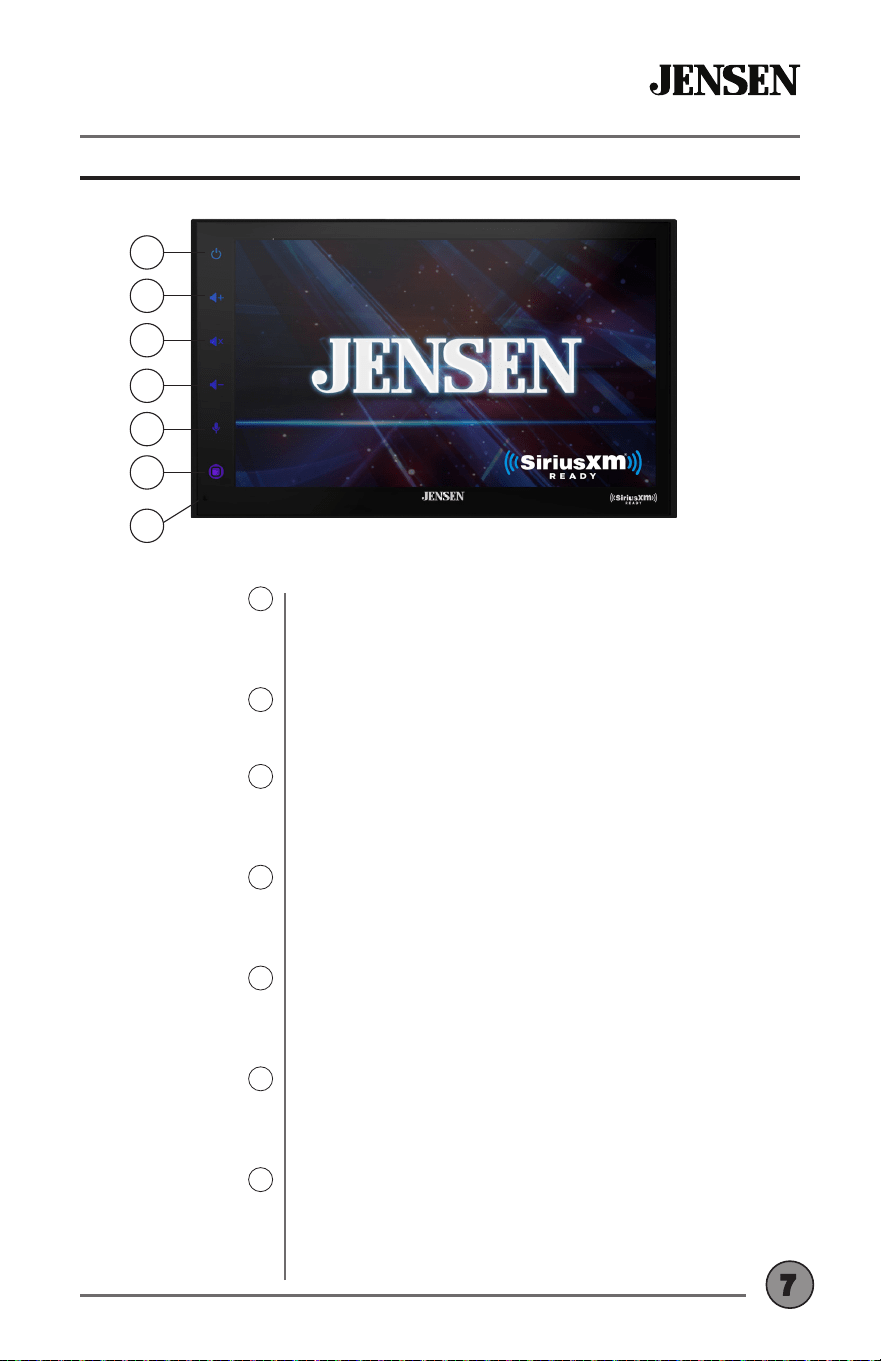

Main Control Locations
Press any button to turn the unit on. Press
and hold to turn the unit o
Press volume + to increase the volume level
Press to silence the audio. Momentarily press again
to return to the previously selected volume. Pressing
volume + / - while muted will also cancel the mute
function
Press volume - to decrease the volume level
Carplay / Android Auto USB Connection required or
compatible iOS / Android Bluetooth connection
Press SRC to access available modes: Radio, SiriusXM,
USB, Bluetooth Handsfree, Bluetooth Audio, AV In 1,
Front / Rear Camera and Settings Menu
To reset all settings (except SXM), use a Paperclip to
press for 3 seconds
Power On/Off
1
Volume Up
2
Mute
3
Volume Down
4
PTT Voice
Assistant
5
Source Menu
6
System RESET
7
1
2
3
4
5
6
7
OPERATIONCAR689
8

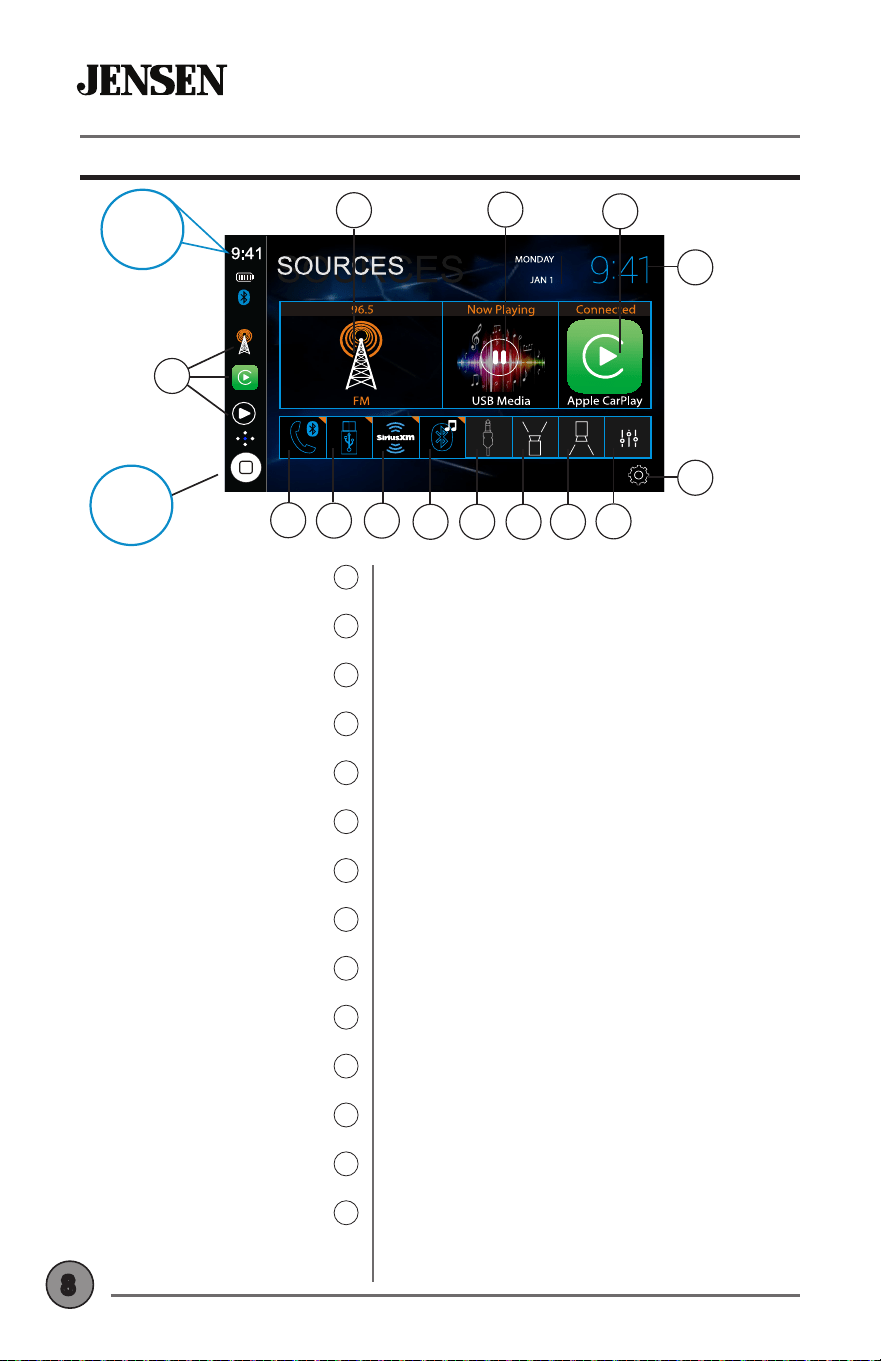

Source Menu Operation
Press for Top 3 Sources in use
Radio Tuner Direct Access
Main Media Player Direct Access
Apple CarPlay or Android Auto Direct Access
Press for full screen Clock -> press anywhere
again to return to previous mode
Equalizer Settings for current audio source
Rear Camera Direct Input Access
Front Camera Direct Input Access
AV Direct Input Access
BT Media Player Direct Access
SXM Radio Direct Access (Optional tuner required)
USB Media Player Direct Access
Handsfree Calling Direct Access
Direct access to System Setup Menu
Quick Select Sources
1
Radio
2
Media Player
3
Carplay | Android Auto
4
Full Screen Clock
5
EQ
6
Rear Camera
7
Front Camera
8
Auxiliary AV Input
9
BT Music
10
SXM Radio
11
USB Media Port
12
BT Handfree Calling
13
Settings Menu
14
13
12
5
6
4
2
3
11
10 9 8 7
14
1
Home
Source
Menu
Full
Screen
Clock
9
OPERATIONCAR689

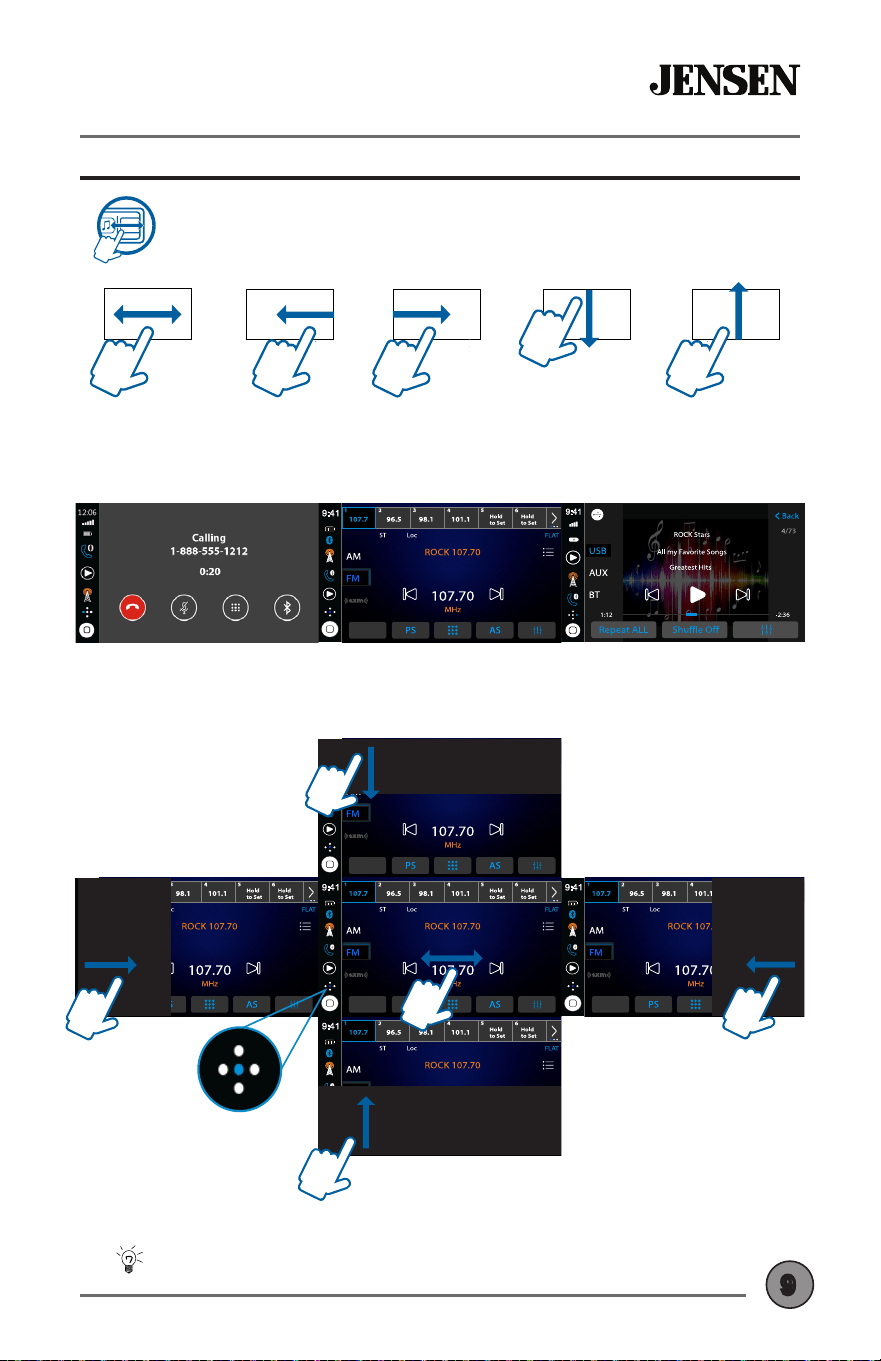

Gesture Source Ribbon Operation
W A T T S
Front & Rear
Camera
While in any MAIN SOURCE - RADIO | BLUETOOTH HANDSFREE |
MEDIA PLAYER (other than Apple CarPlay or Android Auto) you can
quickly and safely SWIPE select the most common SOURCE from
simple LEFT | RIGHT | UP | DOWN SWIPE GESTURE controls.
W AT T S
Front & Rear
Camera
SWIPE FROM
RIGHT SIDE
SWIPE LEFT
or RIGHT
SWIPE FROM
LEFT SIDE
SWIPE DOWN
FROM TOP
SWIPE UP
FROM BOTTOM
GESTURE SWIPE EXAMPLES
Loc/Dx
Media Pl
W AT T S
Front & Rear
Camera
Loc/Dx
Loc/Dx
ndsfree
W AT T S
Front & Rear
Camera
Loc/Dx
Rear Camera
W AT T S
Front & Rear
Camera
Loc/Dx
CarPlay or
Android Auto
W AT T S
Front & Rear
Camera
SOURCE RIBBON LAYOUT
RADIOHANDSFREE
MEDIA PLAYER
Loc/Dx
W AT T S
Front & Rear
Camera
CarPlay | Android Auto cannot use SWIPE GESTURES
once into their respective modes. Use HOME button to
return to MAIN MENU.
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
Ribbon Mode
Indicator
OPERATIONCAR689
10

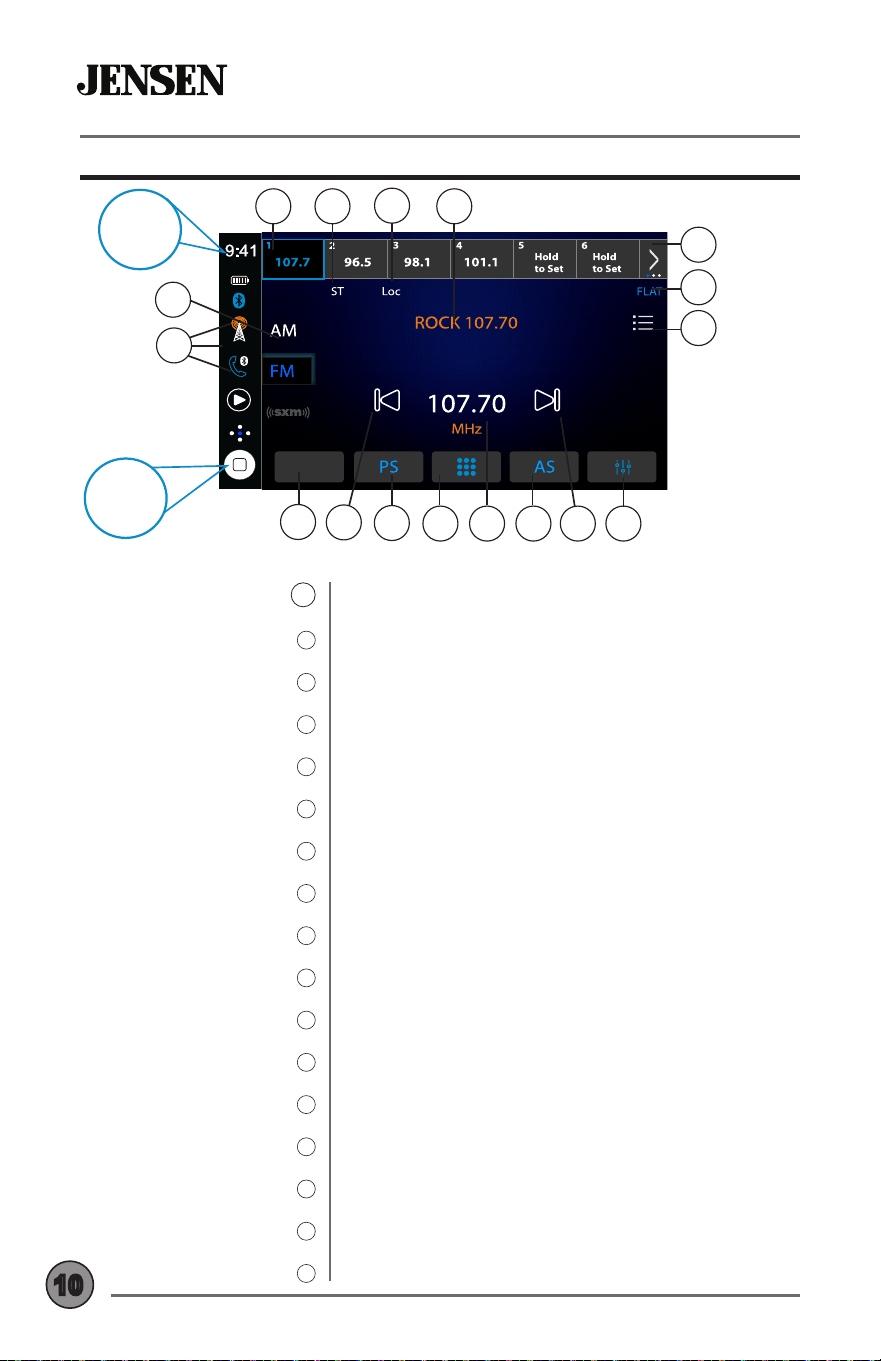

AM/FM Tuner Operation
Loc/Dx
17
16
7
8
9
10
3 4
5
6
15
14 13 12 11
1
Home
Source
Menu
Quick Select Sources
1
BAND Selector
2
BAND 1 2 3 Presets 1~18
3
Stereo | Mono
4
Local | Distance
5
Station RBDS Information
6
Quick Select BAND 1 2 3
7
EQ Info
8
Additional Options
9
Direct Equalizer
10
Next
11
Direct Channel Entry
12
Station
13
Direct Station Entry
14
Preset Scan
15
Previous
16
Local | Distance
17
Press for Top 3 Sources in use
Press for AM | FM | SXM Radio (Optional SXM Tuner required)
To store Channel Presets - Press and HOLD 3 seconds
Stereo | Mono Indicator
Local | Distance Indicator
Station RBDS RT Data String Indicator
Press for BAND 1 | BAND 2 | BAND 3
EQ Current Status Indicator
Press for additional RBDS Settings
Press for EQ Control
Press for to SEEK UP Next Channel
Press to Auto Store Stations
Current Station Indicator
Press for Direct Station Entry
Press to Scan Presets
Press for to SEEK DOWN Previous Channel
Press for change to Local or Distance
2
Full
Screen
Clock
11
OPERATIONCAR689

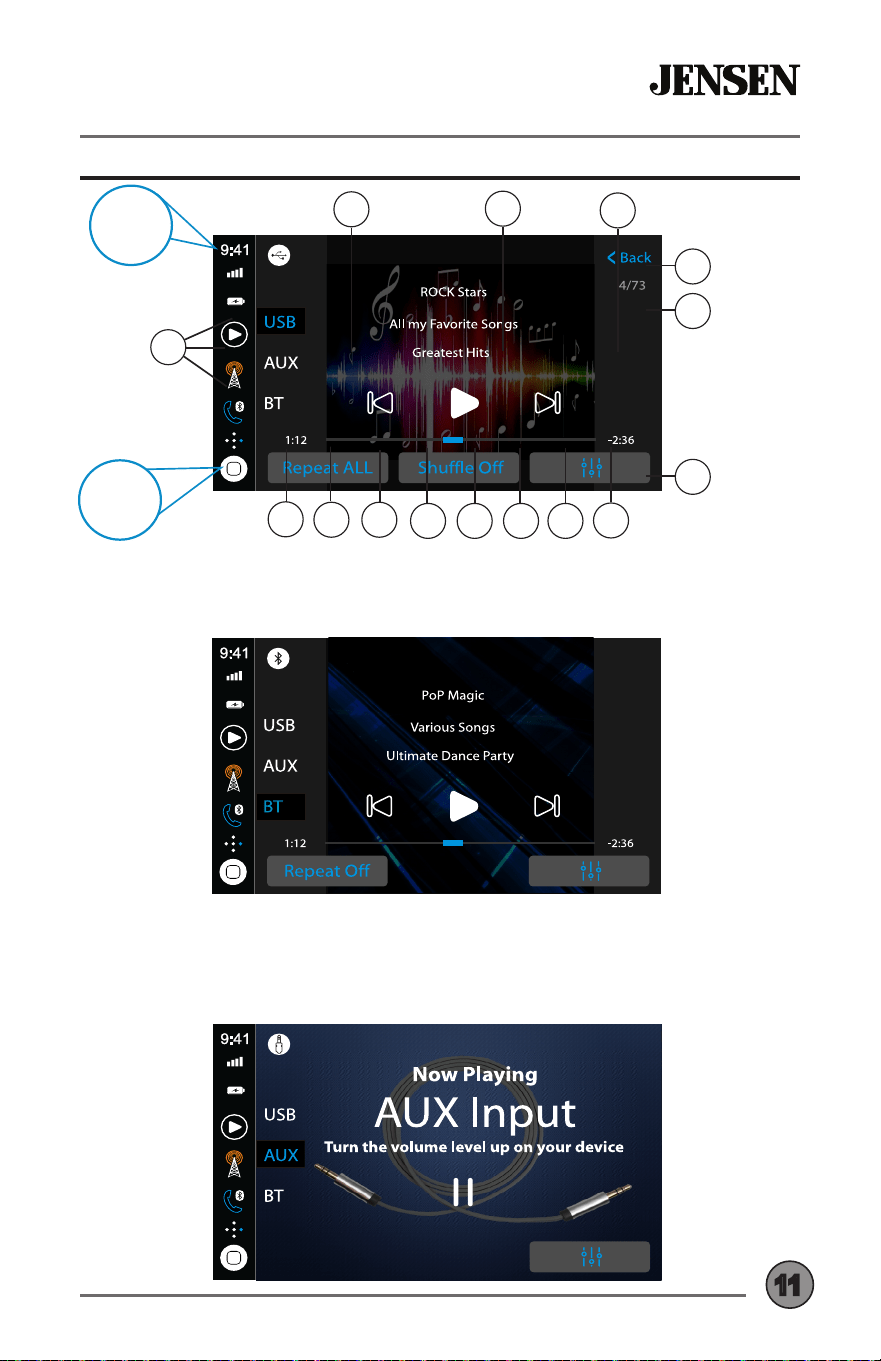

Media Player - USB / BT Music / AV AUX Input
13
12
5
5
6
4
2
3
11
10 9 8 7
14
1
Home
Source
Menu
Media Player - BT Music
Media Player - AV AUX Input
Press to MUTE
Audio
Full
Screen
Clock
OPERATIONCAR689
12
SiriusXM
®
Radio
Activating
SiriusXM
®
Radio
Accessing
SiriusXM
®
Radio
Only SiriusXM
®
Satellite Radio brings you more of what you love
to listen to, all in one place. Get over 140 channels, including
commercial-free music plus the best sports, news, talk, comedy
and entertainment. Welcome to the world of satellite radio. A
SiriusXM Vehicle Tuner and Subscription are required. For more
information, visit www.siriusxm.com.

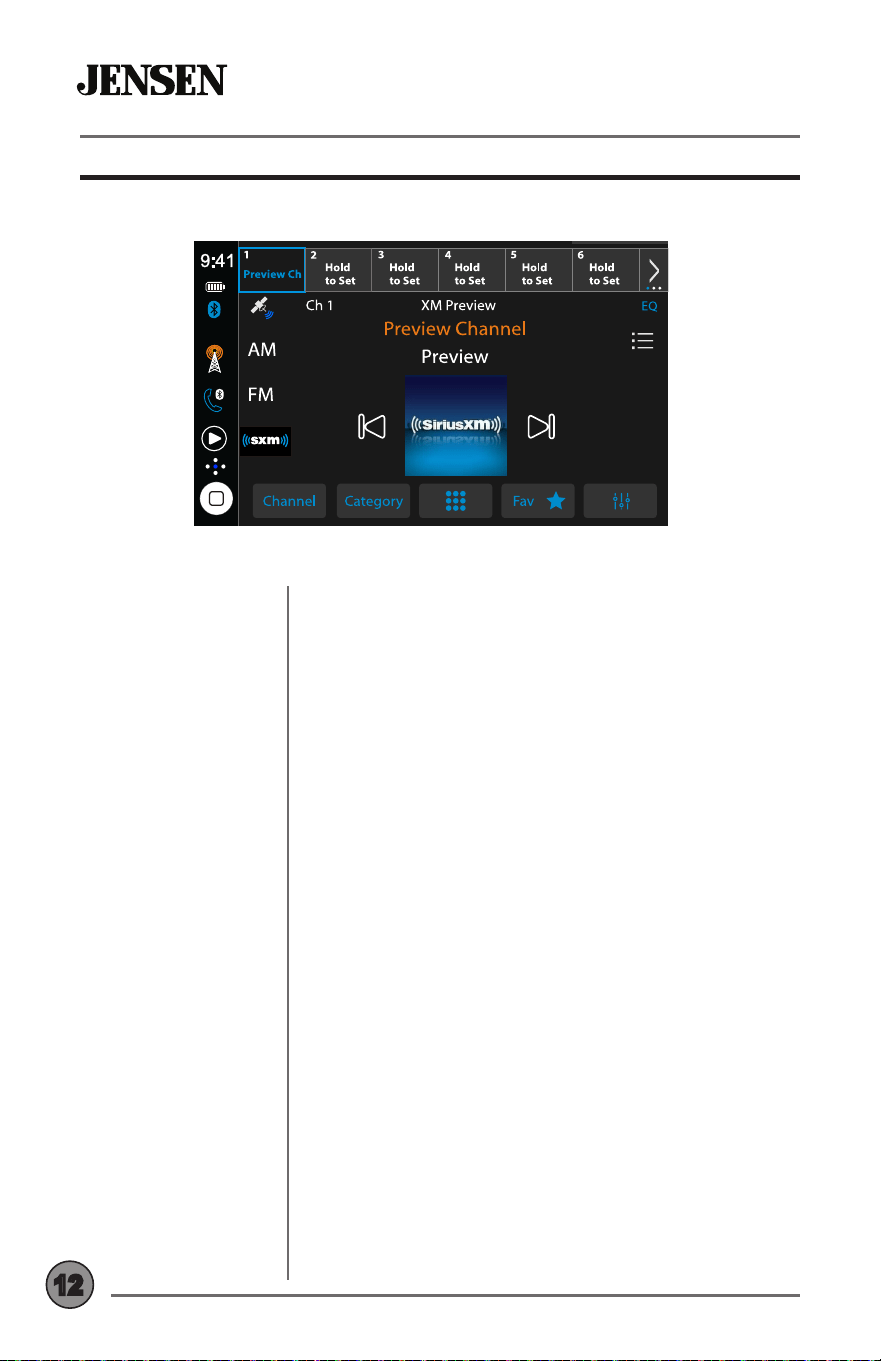

After installing your SiriusXM Connect Vehicle Tuner and antenna,
power on your radio and select SiriusXM mode. You should be
able to hear the SiriusXM preview channel on Channel 1. After you
can hear the Preview channel, tune to Channel 0 to nd the Radio
ID of your tuner. The Radio ID is also located on the bottom of the
SiriusXM Connect Vehicle Tuner and its packaging.
Note: SiriusXM Radio ID does not include the letters I, O, S or F.
In the USA, activate online or by calling SiriusXM Listener care:
• Visit www.siriusxm.com/activatenow
• Call SiriusXM Listener Care at 1-866-635-2349
For Canadian Subscriptions, please contact:
• Visit www.siriusxm.ca/activatexm
• Call XM customer Care at 1-877-438-9677
Activation typically takes 10-15 minutes, but may take up to one
hour.
It is recommended to leave your vehicle on until the “Subscription
Updated” message appears. Your radio will need to be powered
on and receiving the SiriusXM signal to receive the activation
message.
Once activated, you can tune to channels in your subscription
plan.
From the Main Menu, touch the SiriusXM icon to begin operation.
SiriusXM
®
Satellite Radio Activation
13
OPERATIONCAR689

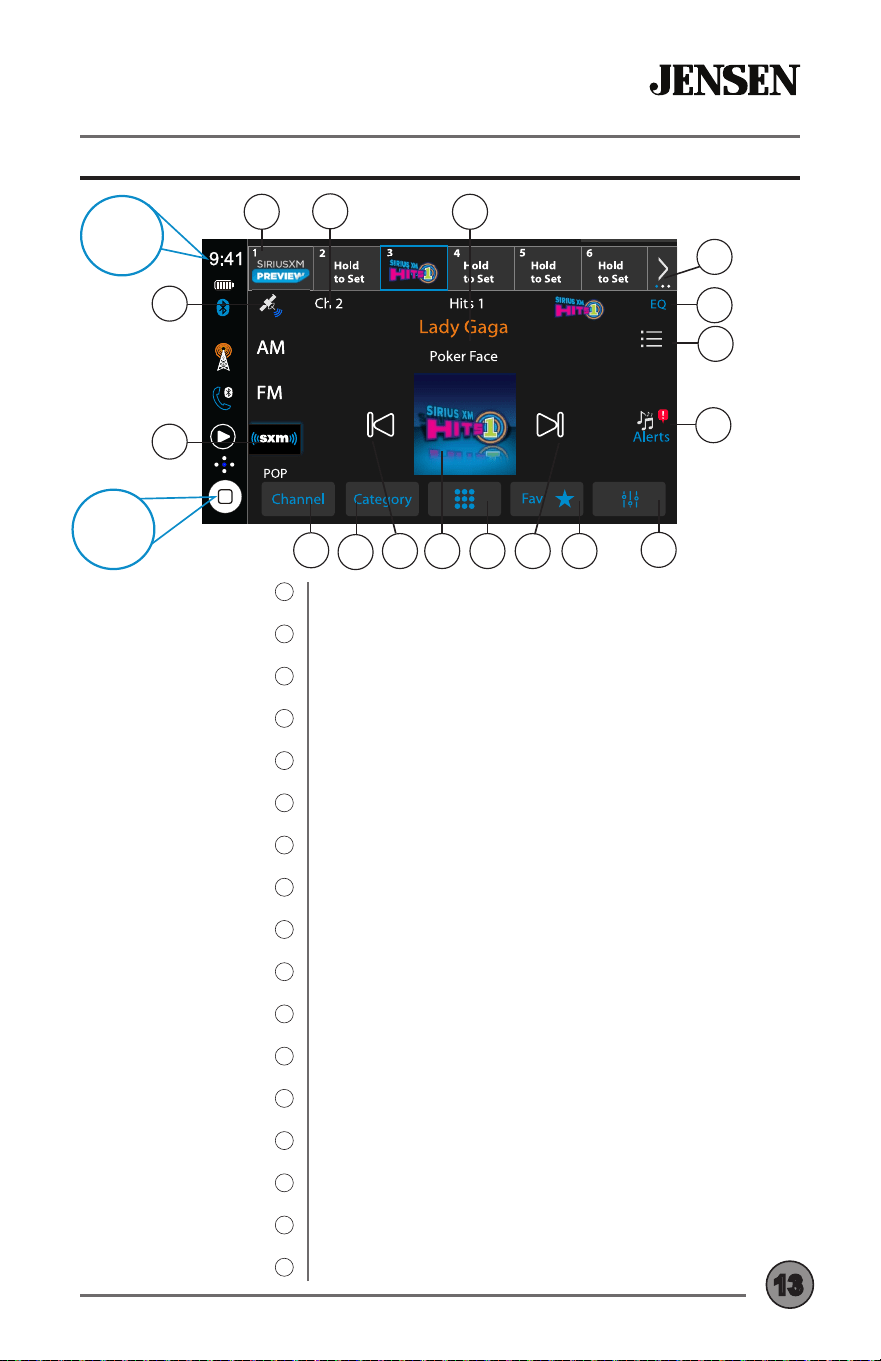

Band Selector
1
Satellite Strength
2
BAND Presets 1~6
3
Channel Info
4
File Information
5
Quick Select Bands
6
EQ Info
7
Additional Options
8
Favorites Alert
9
Direct Equalizer
10
Favorites Manager
11
Next
12
Direct Channel Entry
13
Channel / Album Artwork
14
Previous
15
Category Manager
16
Channel Manager
17
Press for SXM Band 1 | Band 2 | Band 3
Satellite Signal Strength Indicator
To store Channel Presets - Press and HOLD 3 seconds
Current Channel number Indicator
Displays information about the current song; including
Channel Name, Artist Name, Song Title and Album Artwork
Press to quick select Bands 1~3
EQ Current Status Indicator
Press to enter for Password | Parent Control | Version
Favorite Artist or Song Alert Indicator
Press for EQ Control
Press to enter Favorites Manager Lists
Press for Next Channel
Press for Direct Channel Entry
Channel / Album Artwork
Press for Previous Channel
Press to enter Category Manager
Press to enter Channel Manager
17
6
10
3 5
16
15 13 12 11
1
4
2
9
7
8
14
SiriusXM
®
Satellite Radio Operation - Part 1
Home
Source
Menu
Full
Screen
Clock
OPERATIONCAR689
14
3
5
4

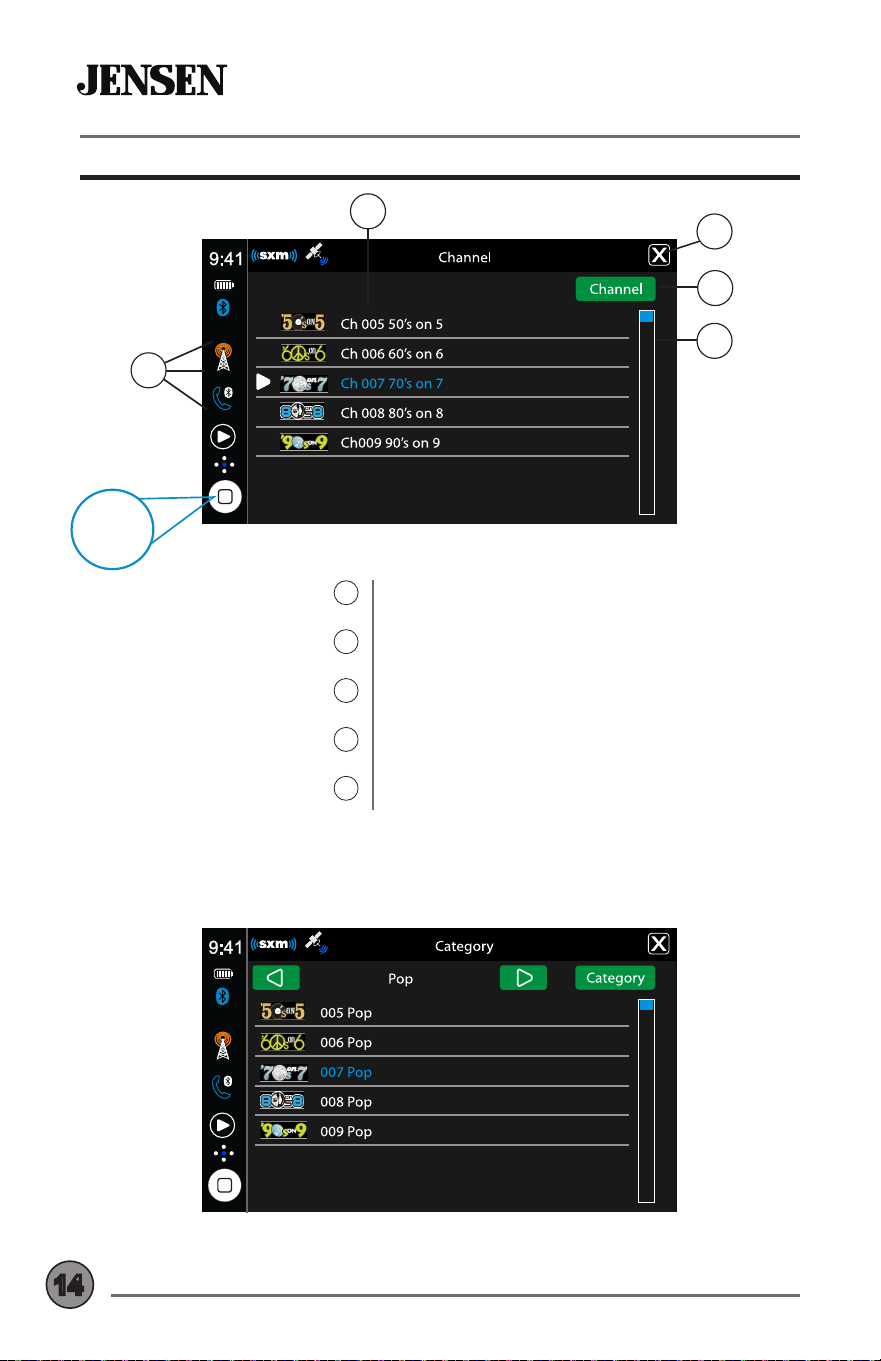

SiriusXM
®
Radio Operation - Part 2
Home
Source
Menu
Press for any of Top 3 Sources in use
Channel Information
Press to return to SXM mode
Channel | Artist | Song | Info
Drag up or down for quick page scrolling
Quick Select Sources
1
Channel List
2
Media Player
3
Info Selection
4
Page Scrolling
5
1
Category Manager
Channel Manager
2
15
OPERATIONCAR689
SiriusXM
®
Radio Operation - Part 3
3
5
4
Home
Source
Menu
Press for any of Top 3 Sources in use
Stored Favorites List
Press to return to SXM mode
Press to select Artist | Song
Delete Content from list
Quick Select Sources
1
Favorites List
2
Exit
3
Content Selection
4
Edit
5
1

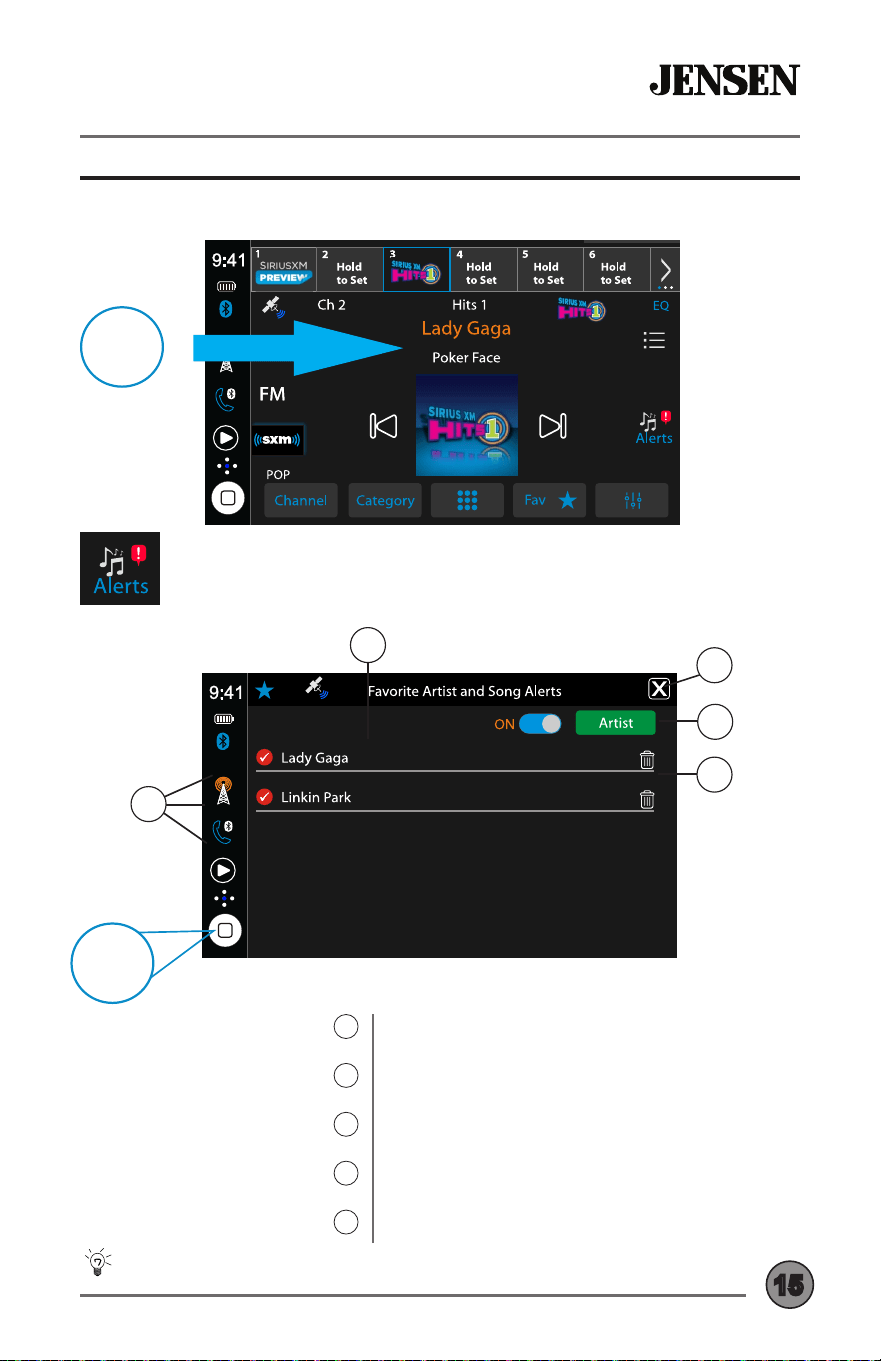

Favorites Manager
2
Up to 50 Songs and 50 Artists can be stored as Favorites
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
Alert is active when a Favorite Song or Artist is available
Favorite Selection
Press
here to
select
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
OPERATIONCAR689
16
SiriusXM
®

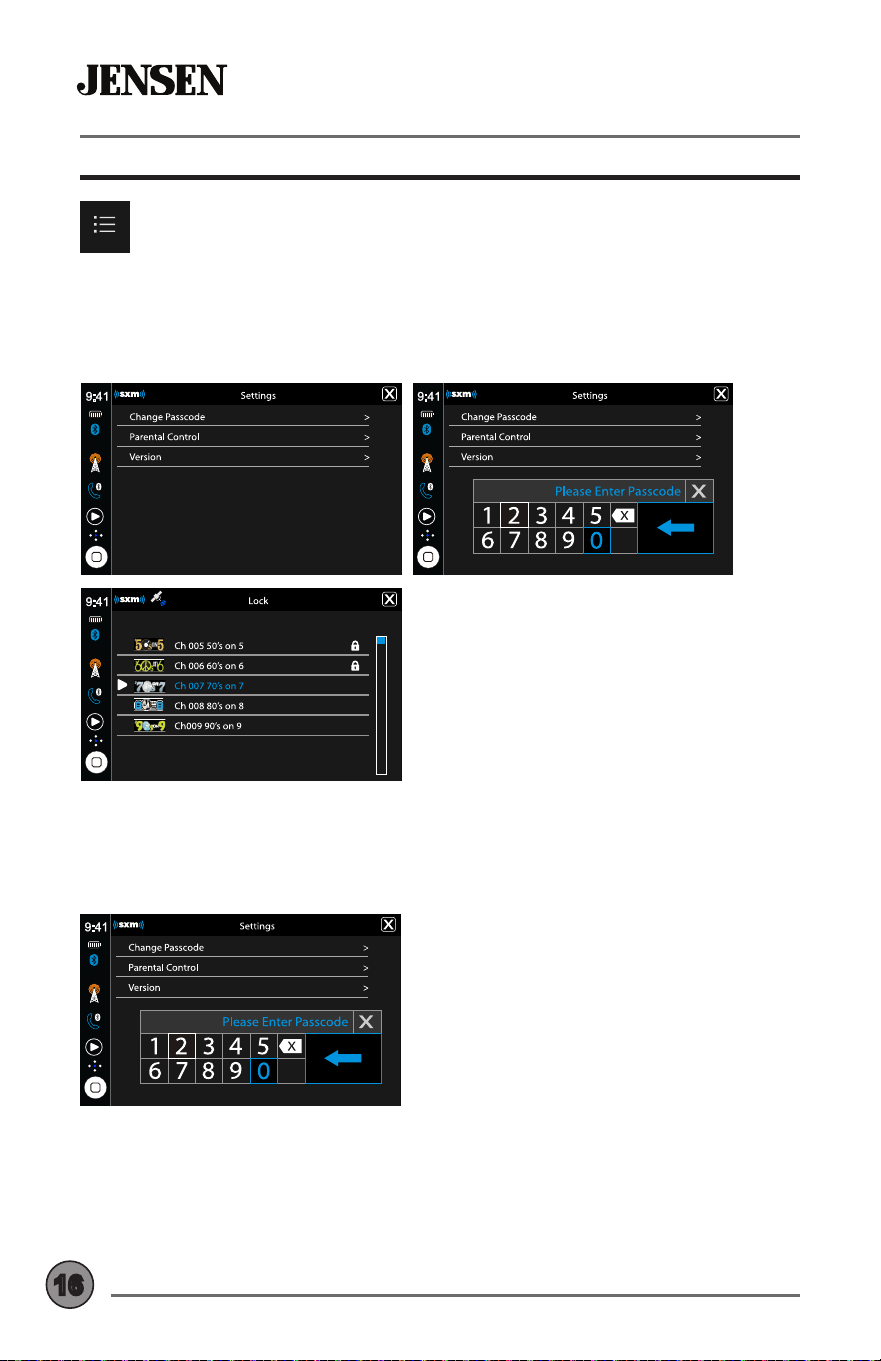

Parental Control
1. On the SirusXM menu touch Parental Control.
The Enter password Screen appears.
2. Enter your 4-digit password. The following screen appears:
Lock / Unlock Screen
3. Touch to Station lock, touch lock icon to unlock, the icon will disappear.
Channel is unlocked.
The Change Password option allows you to change the password from the default or
current custom password to another password.
NOTE:The default password is 0 0 0 0.
To Change password:
1. Enter into Settings menu. Go to SXM to change password.
2. Enter your 4-digit password and press the OK icon.
3. Enter the new 4-digit password and press the OK icon. The new password is set.
Settings Menu
17
OPERATIONCAR689
SiriusXM
®

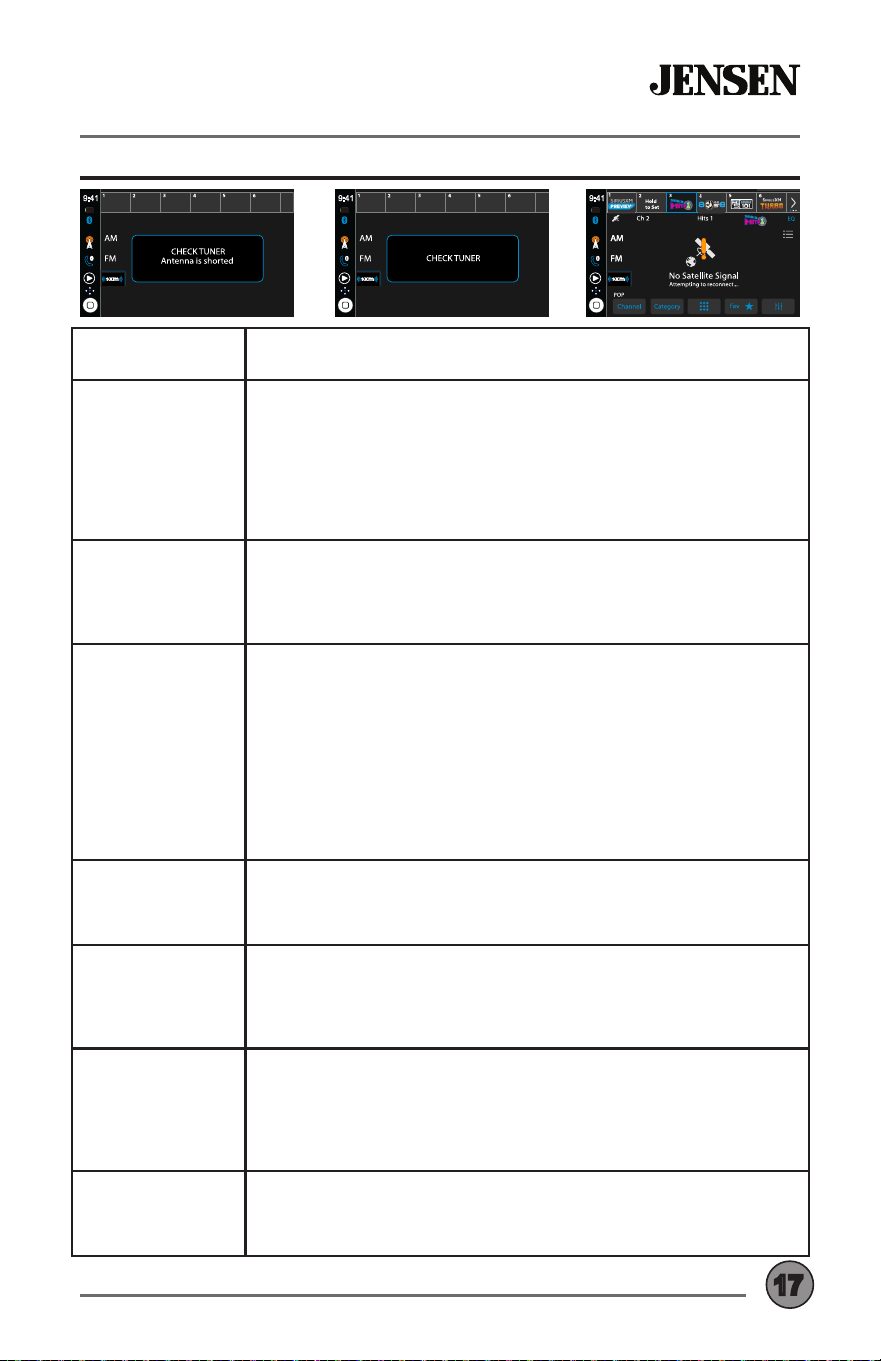

Radio Advisory Messages
SiriusXM
Advisory Message
Recommendation
Check Antenna
1. The radio has detected a fault with the SiriusXM antenna. The
antenna cable may be either disconnected or damage.
2. Verify that the antenna cable is connected to the SiriusXM Connect
Vehicle Tuner.
3. Inspect the antenna cable for damage and kinks. Replace the
antenna if the cable is damaged.
4. SiriusXM products are available at your local car audio retailer or
online at www.shop.siriusxm.com.
Check Tuner
1. The radio is having diculty communicating with the SiriusXM
Connect Vehicle Tuner. The tuner may be disconnected or
damaged.
2. Verify that the SiriusXM Connect Vehicle Tuner cable is securely
connected to the radio
No Signal
1. The SiriusXM Connect Vehicle Tuner is having diculty receiving
the SiriusXM satellite signal.
2. Verify that your vehicle is outdoors with a clear view of the sky.
3. Verify that the SiriusXM magnetic mount antenna is mounted on a
metal surface on the outside of the vehicle.
4. Move the SiriusXM antenna away from any obstructions.
5. Inspect the antenna cable for damages and kinks.
6. Consult the SiriusXM Connect Vehicle tuner installation manual for
more information on antenna installation. Replace the antenna if the
cable is damaged. SiriusXM products are available at your local car
audio retailer or online at www.shop.siriusxm.com.
Subscription
Updated
This channel is not included in your SiriusXM® subscription plan. In the
USA, visit www.siriusxm.com or call 1-866-635-2349 if you have questions
about your subscription. In Canada, visit www.siriusxm.ca or call 1-877-
438-9677 if you have questions about your subscription.
Channel Unavailable
The channel that you have requested is not a valid SiriusXM channel or
the channel that you were listening to is no longer available. You may
also see this message briey when rst connecting a new SiriusXM
Connect Vehicle tuner. Visit www.siriusxm.com for more information
about the SiriusXM channel lineup.
Channel
Unsubscribed
The channel that you have requested is not included in your SiriusXM
subscription package or is no longer included in your SiriusXM
subscription package. In the USA, visit www.siriusxm.com or call 1-866-
635-2349 if you have questions about your subscription. In Canada, visit
www.siriusxm.ca or call 1-877-438-9677 if you have questions about your
subscription.
Channel Locked
The channel that you have requested is locked by the radio’s Parental
Control feature. Refer to the SiriusXM® Satellite Radio Operation section
for more information on the Mature Channel Lock feature and how to
access.
OPERATIONCAR689
18

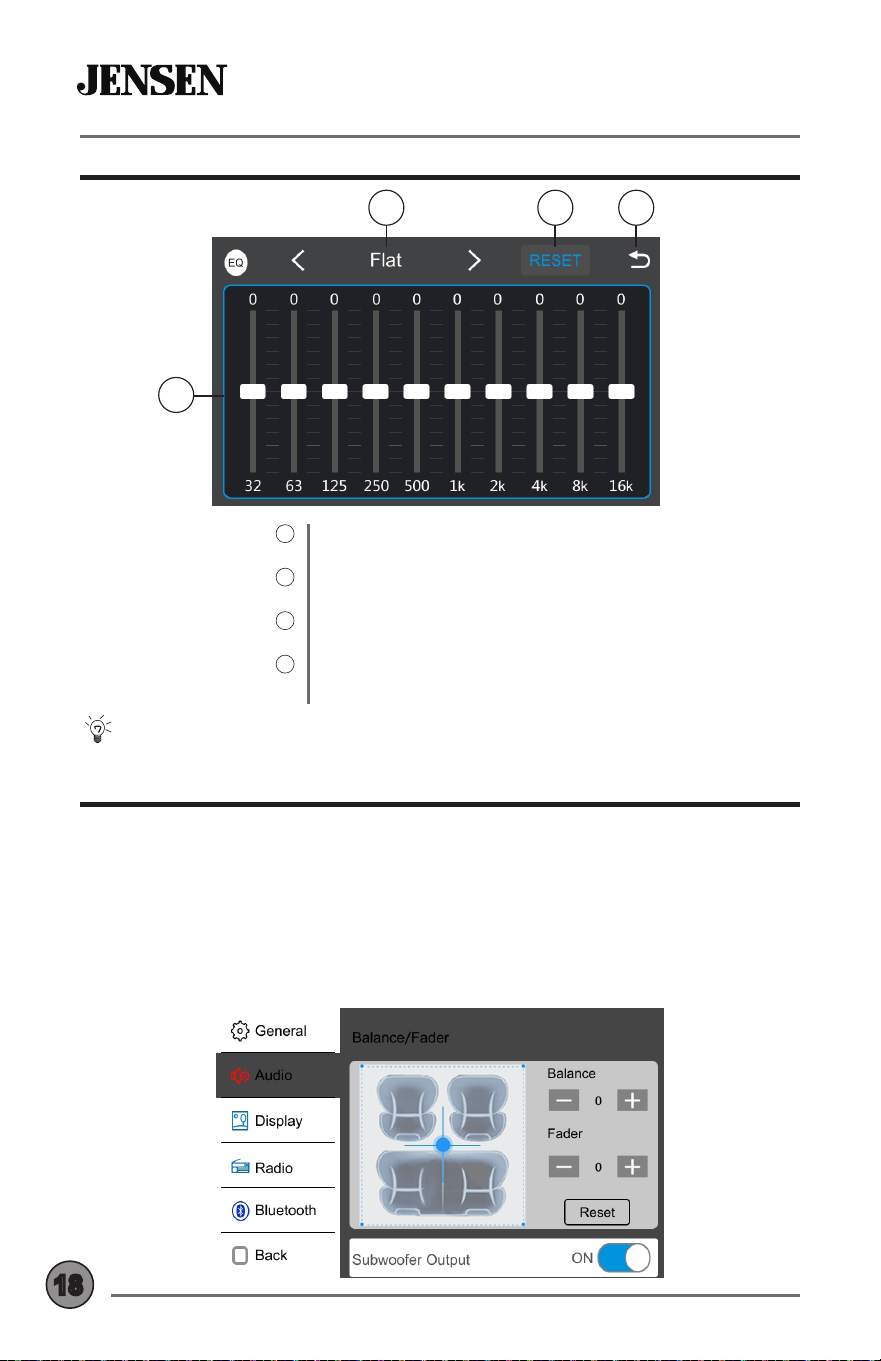

10-BAND Equalizer
2 3 4
1
10-Band Sliders
1
7 Presets + 1 Custom
2
RESET
3
Exit EQ
4
Press to custom adjust frequencies
Flat | R&B | Rock | Pop | HipHop | Jazz | Custom
RESET all frequencies to Flat
Press to return to previous Source Mode
System Audio Settings
Addition System Audio settings are in the System Settings/Audio
Balance: Left | Right
Fader: Front | Rear
SUB: ON/OFF
SUB Crossover Filter: OFF | 50Hz | 80Hz | 120Hz | 160Hz
Equalizer (Aects same settings as from current SOURCE)
Loudness: ON/OFF
Each SOURCE will remember their respective EQ settings
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
19
OPERATIONCAR689

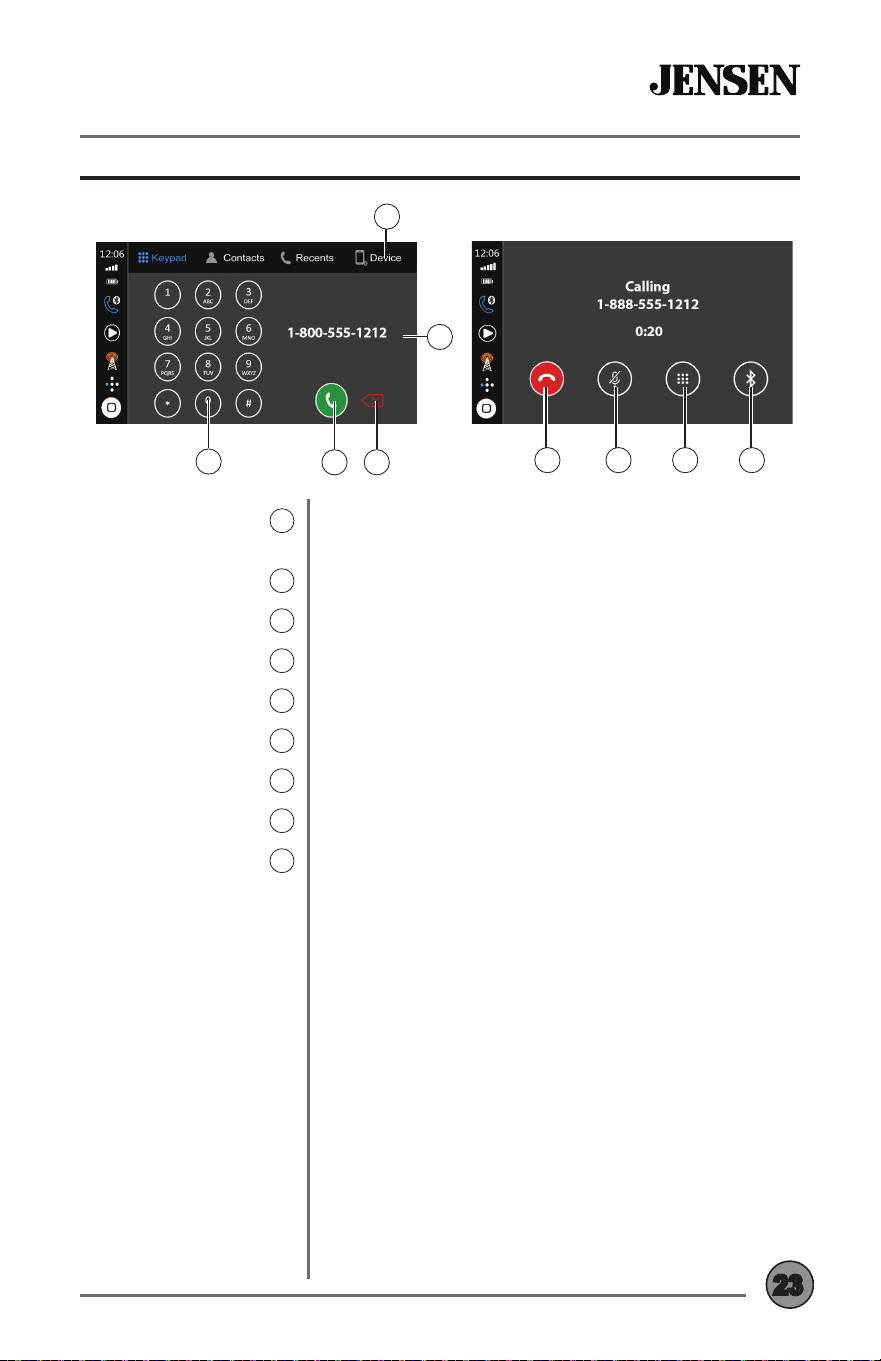

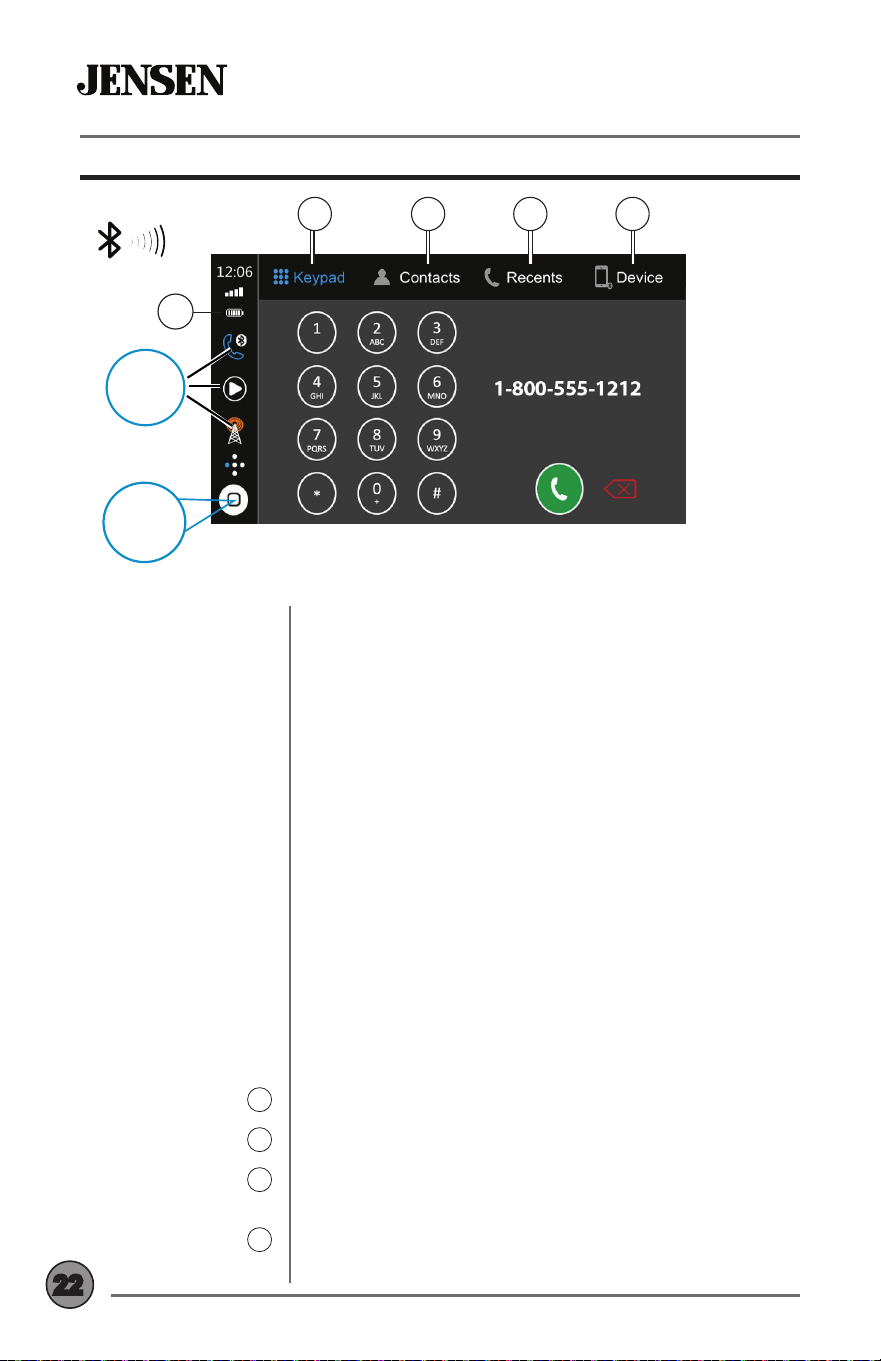

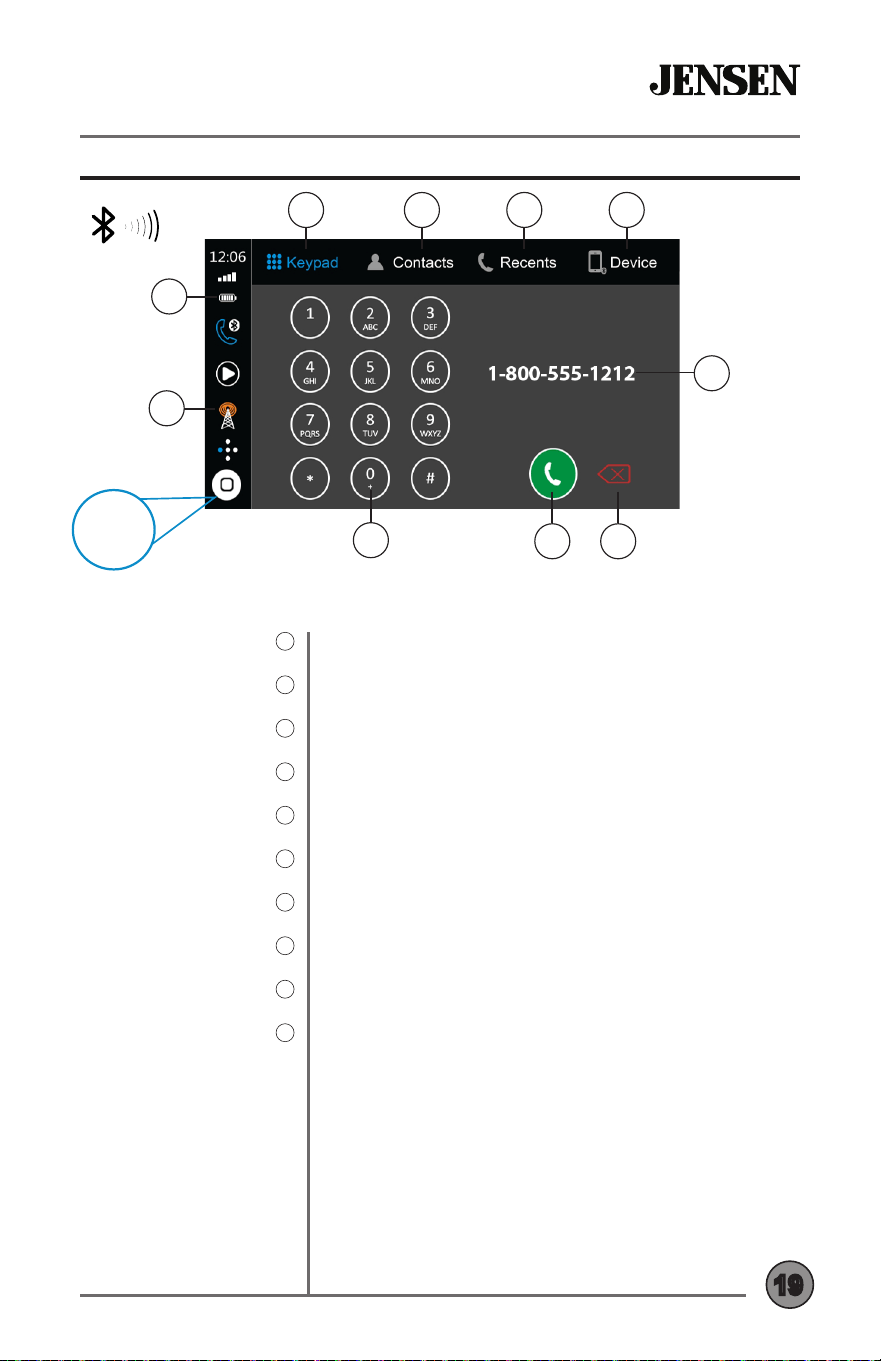

Bluetooth - Handsfree Operation
89
10
3 4
5 6
2
1
7
Home
Source
Menu
Top Used Sources
1
Signal Strength
2
Keypad
3
Contacts
4
Recent Calls
5
Device
6
Phone Number
7
Backspace
8
Dial Out
9
Keypad
10
Press for Direct Access to Top Sources
Carrier Signal Strength Indicator
Press to Dial the Call
Press to see Contact List
Press to see most recent Received / Missed Call List
Press for Device Setup
Number to Dial
Press for Corrections
Press to Dial Out
Press to Dial a Call
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
OPERATIONCAR689
20

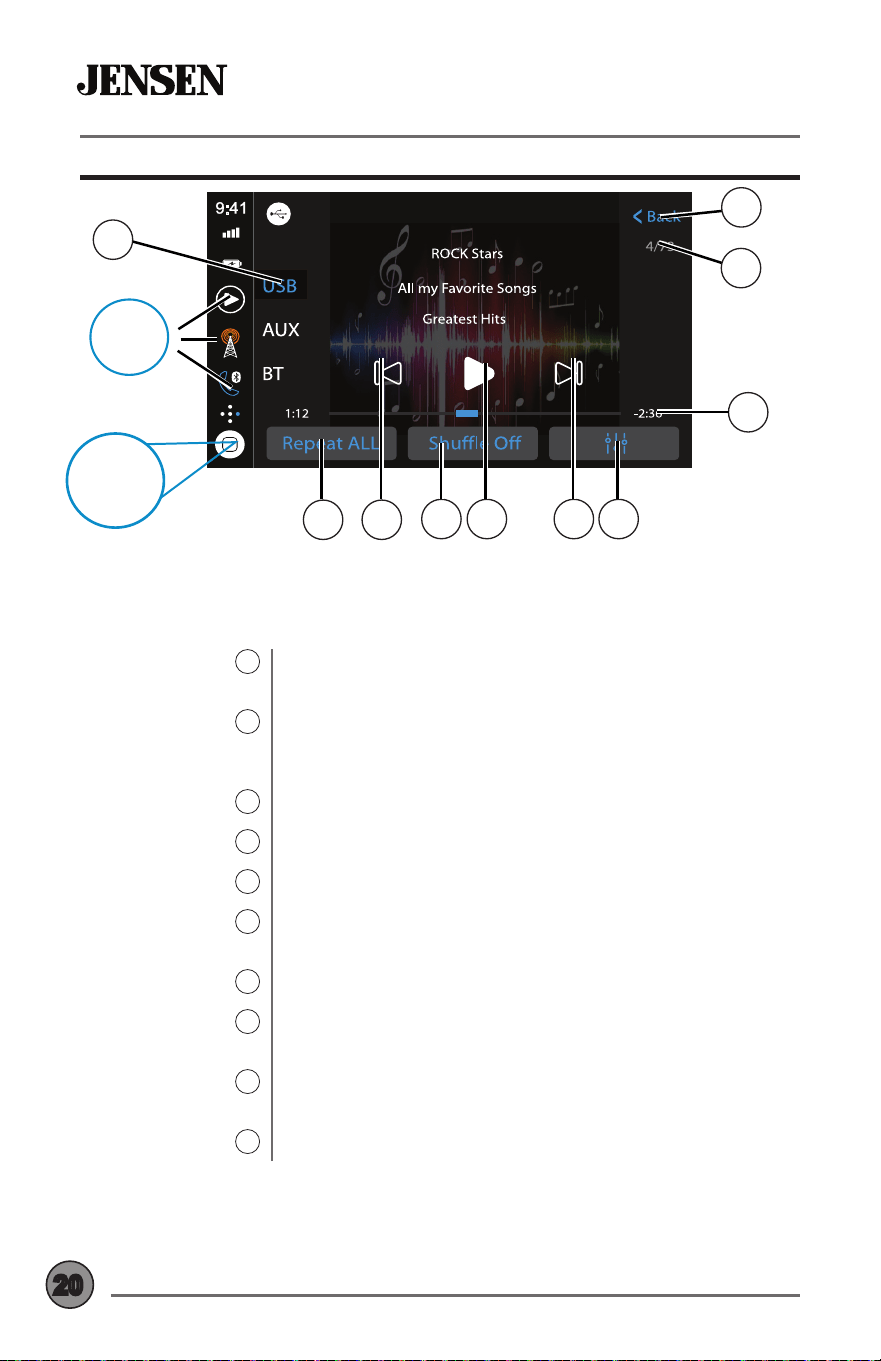

Media Player - USB
Source Selector
1
File/Folder List
2
Track Number
3
Elapsed Time
4
Audio
5
Tune/Track Up
6
Play/Pause
7
Shue
8
Tune/Track Down
9
Repeat
10
Press desired option to select between audio sources for
the media player: USB, Auxiliary Input or Bluetooth Music.
Press to display all les/folders on the device (Music or
Pictures). Press any le to begin playback. File/folder list is
only available for USB playback.
Displays the current track number/total number of tracks.
Displays the elapsed and total time for the current track.
Press to access and adjust audio settings.
Press to advance to the next track. Press and hold to fast
forward through the current track.
Press to pause or resume playback.
Press to turn the Shue feature On or O. Shue feature is
for USB playback only.
Press to return to the previous track. Press and hold to fast
reverse through the current track.
Press to select one of the following repeat options: Repeat
Track, Repeat Folder or Repeat All.
8 567
4
10 9
1
2
3
Home
Source
Menu
Media Player
USB Playback
Sources
Top 3
21
OPERATIONCAR689

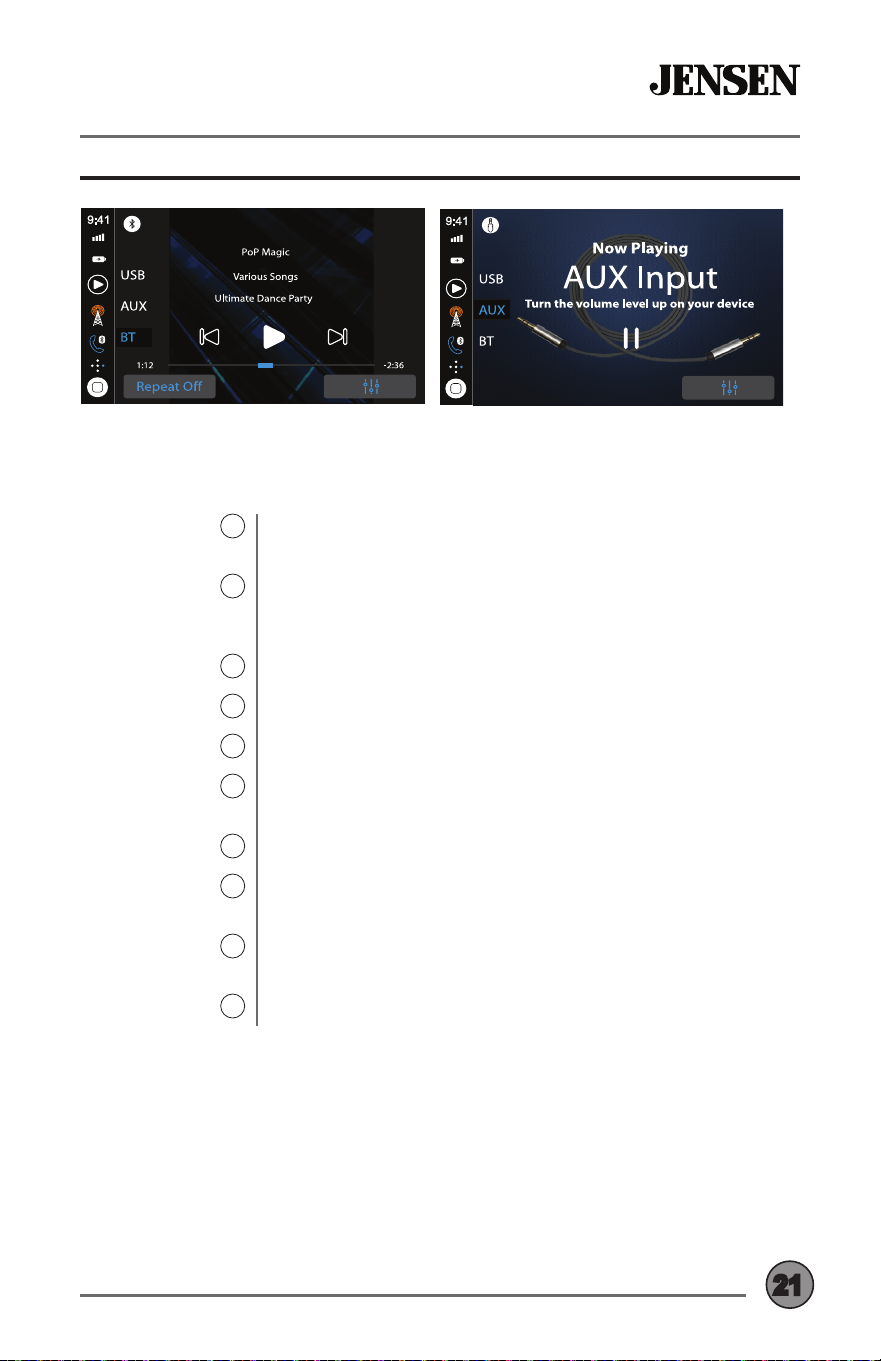

Media Player - BT Music / AV AUX Input
Media Player - Bluetooth Music
Media Player - Auxiliary Input
Source Selector
1
File/Folder List
2
Track Number
3
Elapsed Time
4
Audio
5
Tune/Track Up
6
Play/Pause
7
Shue
8
Tune/Track Down
9
Repeat
10
Press desired option to select between audio sources for
the media player: USB, Auxiliary Input or Bluetooth Music.
Press to display all les/folders on the device (Music or
Pictures). Press any le to begin playback. File/folder list is
only available for USB playback.
Displays the current track number/total number of tracks.
Displays the elapsed and total time for the current track.
Press to access and adjust audio settings.
Press to advance to the next track. Press and hold to fast
forward through the current track.
Press to pause or resume playback.
Press to turn the Shue feature On or O. Shue feature is
for USB playback only.
Press to return to the previous track. Press and hold to fast
reverse through the current track.
Press to select one of the following repeat options: Repeat
Track, Repeat Folder or Repeat All.
OPERATIONCAR689
22
Bluetooth - Handsfree Operation
1
Preparation
Pairing a New
Device
Connecting a
Paired Device
Bluetooth Phone
Signal Strength
1
Keypad
2
Contacts
3
Recent Calls
4
Before you can use a Bluetooth device, it must be
paired and connected. Make sure that Bluetooth
is activated on your device before you begin the
pairing process.
The unit broadcasts the pairing signal constantly
when no devices are currently connected. Complete
the pairing sequence from your Bluetooth device.
Refer to the owner’s manual for your device for
more details. The device name is “JENSENBT”. The
unit can be in any mode of operation when pairing is
performed. On certain phones, pairing may need to
be done more than once.
Most Bluetooth devices support the auto-connect
feature and will connect automatically if the device
is in range when the unit is powered-on. If your
device was previously paired but does not connect,
enter the Bluetooth setup menu and turn Auto
Connect on.
To access the phone, select Bluetooth Phone from
the Main Menu or from any operational mode.
Displays the strength of the current signal.
Press to display the keypad.
Press to display stored contacts. Press any contact
to dial that number.
Press to display a list of recent calls. Press any
number to dial.
Sources
1
Top 3
Home
Source
Menu
2 3 4 5
23
OPERATIONCAR689
Bluetooth - Handsfree Operation
Device Manager
5
Keypad
6
Talk
7
Backspace
8
Phone Number
9
End Call
10
Mute
11
Display Keypad
12
Transfer Audio
13
Press to display a list of paired devices, and
select desired device to connect.
Use the keypad to dial a number.
Press to connect a call to the number entered.
Press to backspace when using the keypad.
Displays the number dialed.
Press to end a call.
Press to mute call audio.
Press to return to the keypad.
Press to transfer call audio between the unit and
the mobile phone.
7
6
9
10 11 12 13
5
8
OPERATIONCAR689
24

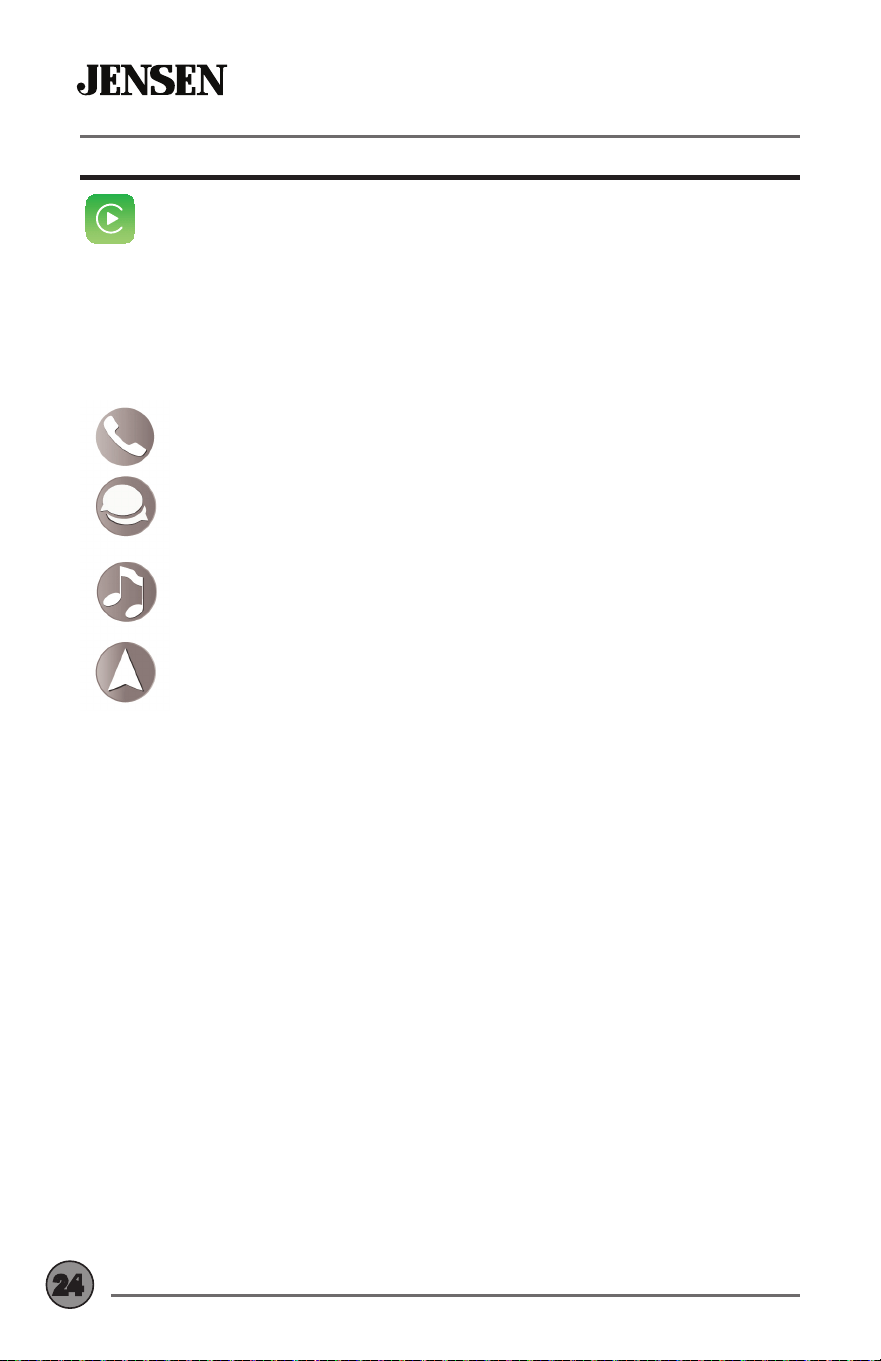

Connected Mobile Devices - Apple CarPlay
Apple CarPlay.
The ultimate copilot.
CarPlay is a smarter, safer way to use your iPhone in the car. CarPlay takes the
things you want to do with your iPhone while driving and puts them right on your
display. You can voice control via Siri directions, make calls, send and receive
messages, and listen to music, all in a way that allows you to stay focused on the
road. Just connect your iPhone and go.
iPhone 11 Pro Max
iPhone 11 Pro
iPhone 11
iPhone XS
iPhone XS Max
iPhone XR
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
For best results
• Always use an Apple Certied USB-A Lightning cable
• A car mount for your phone is recommended
CarPlay is compatible with these iPhone models.
Some features, applications, and services are not available in all areas.
Phone - Use Siri to make calls, return missed calls, listen to voicemail
messages, and view the caller ID on the receiver’s screen.
Messages - Ask Siri to send, read, and reply to text messages. This
hands free operation minimizes distraction and allows you to keep
hands on the wheel and eyes on the road.
Music - Access music by artist, song, play list, and more through the
receiver’s touchscreen or via Siri. The receiver will mirror the iPhone
screen with artist and track information.
Maps - Use Siri to request turn-by-turn directions – search by address
or points of interest. Apple Maps will be mirrored on the screen,
including trac information and estimated time to destination.
For more information on how to use Carplay,
visit https://www.apple.com/ios/carplay/
Note: Certain iPhone functions may be illegal while driving in your location. Be sure
to familiarize yourself with local and state laws regarding mobile devices. When in
doubt, stop and park your vehicle before using any devices.
25
OPERATIONCAR689

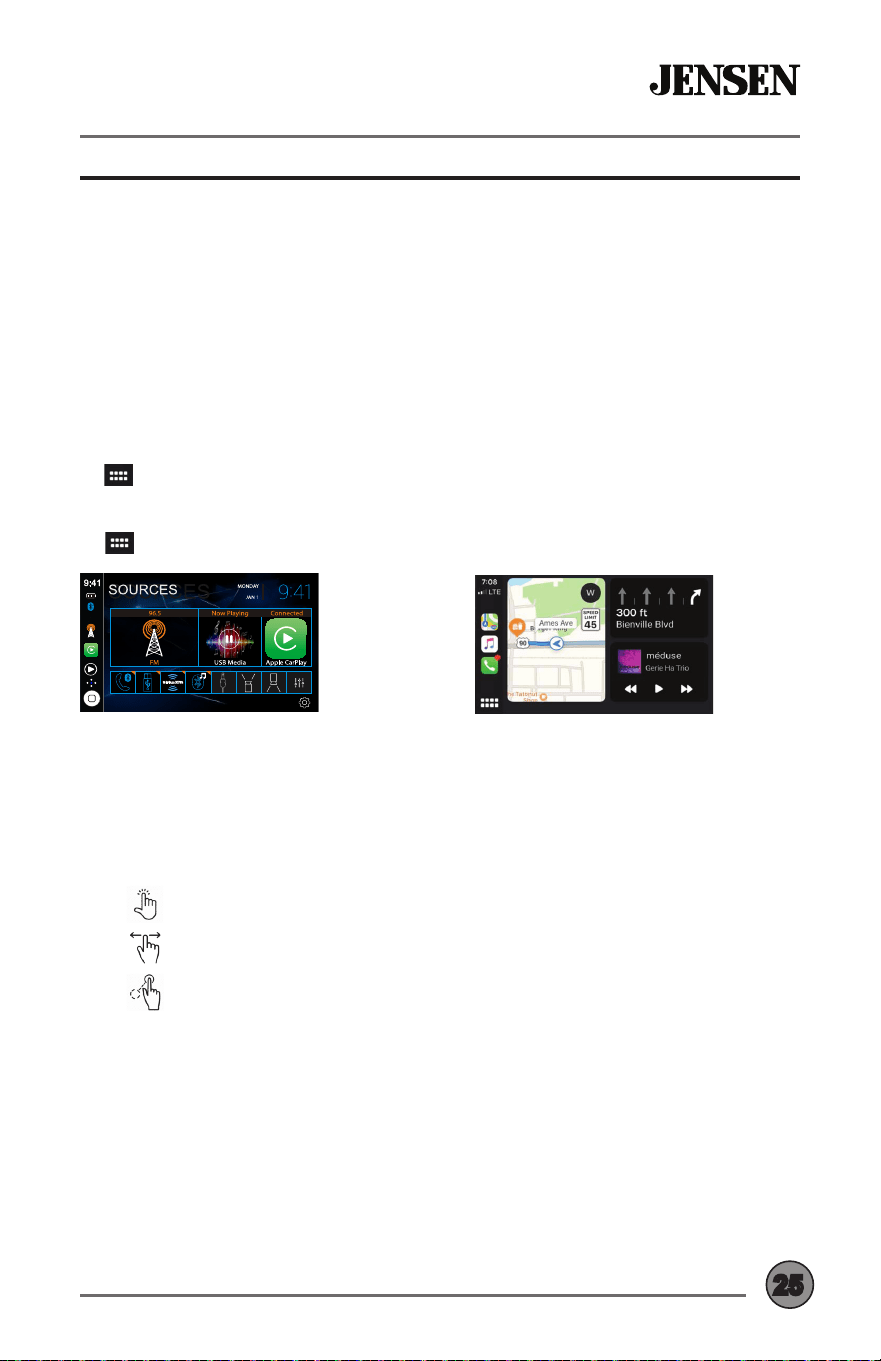

CarPlay - Operation
OPERATION
Starting CarPlay
Connect an iPhone to the receiver’s USB port using a Apple Certied Lightning cable
(not included). Apple CarPlay will launch automatically. Familiar applications will
appear on the on screen.
Note: For safety reasons, CarPlay features are limited while driving and will vary with
each CarPlay-enabled app. Available functions are determined by each individual
app provider. .
Touch - Briey press the desired option.
Swipe - Briey swipe in the desired direction.
Drag - Press, hold and drag to the desired location.
Press any Application button on the main CarPlay menu to access that operation
directly. The toolbar on the left side of the screen displays the time, signal strength
and shortcuts to the most popular applications - Phone, Music and Navigation - so
they can be accessed quickly and easily without returning to the main menu.
Note: There is no need to pair Bluetooth to your iPhone when using CarPlay. Phone
calls will occur automatically when connecting an iPhone to the unit’s USB port.
Note: When CarPlay is in use, the unit’s Bluetooth will turn o automatically and
hands-free functionality will operate through the CarPlay feature. Any other devices
connected via Bluetooth will be disconnected during CarPlay use.
Exit CarPlay
Disconnecting your iPhone will automatically exit CarPlay mode. To exit CarPlay
manually while your phone is still connected, press the SOURCE button
momentarily, and the unit’s main SOURCE menu will be displayed.
Controlling CarPlay
The following basic controls will operate many standard CarPlay features.
When the CarPlay menu is displayed, the home button in the lower left corner work
just like the HOME button on your iPhone.
Press and hold to activate Siri and begin your voice commands, you can also
press the units PTT button while in CarPlay.
At any time during CarPlay operation, you can press HOME button
momentarily to return to the main CarPlay menu screen.
OPERATIONCAR689
26
Connected Mobile Devices - Android Auto
Android Auto brings the most useful apps to your phone screen
or units display, in a format that makes it easy for you to keep
your main focus on driving. You can control things like navigation
and maps, calls and text messages, and music. With larger touch
targets, a simplied interface, and your Google Assistant, it’s designed to minimize
distraction so you can stay focused on the road.
For more information on how to use and download Android Auto, visit
https://www.android.com/auto/faq
Availability of Android Auto may vary depending upon your country and phone
model.
Compatible Devices
What are the requirements to run Android Auto on my phone screen?
An Android phone running Android 5.0 (Lollipop) and up with a data plan. For best
performance, we recommend Android 6.0 (Marshmallow) and up. You can check your
phone’s software version by looking at the About Device section under Settings
Warning:
Certain uses of the smartphone may not be legal while driving in your jurisdiction,
so you must be aware of and obey any such restrictions. If in doubt as to a particular
function, only perform it while the car is parked. No feature should be used unless it
is safe to do so under the driving conditions you are experiencing.
Google Assistant
With your Google Assistant on Android Auto, you can keep your eyes on the road
and your hands on the wheel while using your voice to help you with your day.
Simply say, “Ok Google,” or in compatible cars, long press the voice control button
on your steering wheel.
Navigation
Get real-time trac alerts to avoid hazards, speed traps, and nd the fastest route.
Or take a break and nd a bite along the way.
Calls & Messages
Your Google Assistant lets you stay connected while you’re driving. Your Assistant
can help you call phone numbers from your contacts, chat with your favorite apps,
read your messages aloud and text back, keeping your hands on the wheel.
For best results
• Use an OEM USB cable
• A car mount for your phone (optional but recommended).
27
OPERATIONCAR689

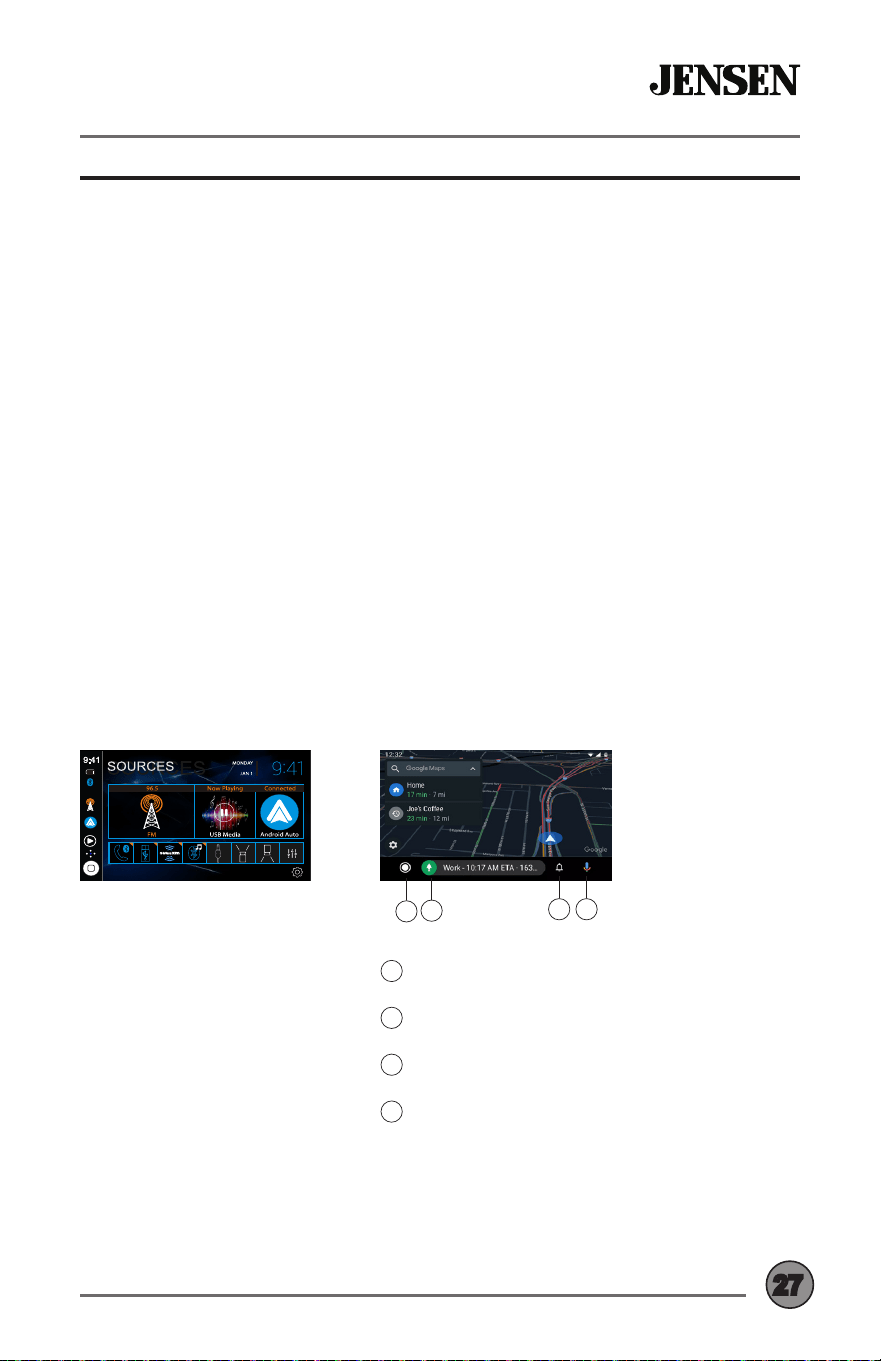

Exit Android Auto
To exit Android Auto, press the Exit button. Disconnecting your Android phone will
also automatically exit Android Auto mode.
1
Android Auto Home Screen
2
Maps and Music
3
Notications
4
“OK”Google Assistant
Using Android Auto
The Android Auto home screen displays personalized information, like time to your
destination, reminders, recent calls incoming messages, the song you’re listening to,
and Google Now cards.
When the Android Auto menu is displayed, you can say “OK Google” or select the
microphone to talk to Google. You can also press the units PTT button while in
Android Auto.
Starting Android Auto
Connect an Android Auto compatible device to the unit via USB cable. Android Auto
will launch automatically, or it can be accessed at any time from the main menu.
Note: When the device for Android Auto is connected to this unit, the device is also
connected via Bluetooth at the same time. If ve devices are already paired, the
message conrming whether to delete the registered device is displayed. If you want
to delete the device, touch [Agree]. If you want to delete other device, touch [BT
Settings] and delete the devices manually.
Note: If Android Auto is turned on during a call on a cellular phone other than the
Android Auto compatible device, the Bluetooth connection will switch to the Android
Auto compatible device after the call.
43
2
1
OPERATIONCAR689
28
Cameras & Auxiliary Input
Rear Camera
Front Camera
Auxiliary Input
Connect an optional rear camera to the Rear Camera
inputs (Yellow RCA connector for video and Black
RCA connector for audio). Refer to the wiring diagram
for details.
Manual selection - Touch the REAR CAMERA icon
from the Main Menu or from any operational mode
(when enabled) to select camera mode. Touch the top
left area on the screen to exit camera mode.
Note: The manual mode is for dedicated cameras
that are ALWAYS on while driving, it is not meant for
cameras that are connected to the vehicle’s reverse
light.
The unit will automatically select camera mode when
connected to the reverse lamp circuitry.
Note: The external video output is not active when
using the rear camera input.
Connect an optional front camera to the Front
Camera inputs (Yellow RCA connector for video;
there is no audio connection for a front camera. Refer
to the wiring diagram for details.
Connect an optional audio source into the rear RCA
input.
Select AUX IN from the Main Menu to listen to audio.
Adjust volume on the external audio source as
needed (if connected to the headphone output of the
device).
29
OPERATIONCAR689
Media Compatibility
13
DMCPA11BT OPERATION
DMCPA11BT.indd 13 2019/9/23 15:46:22
29
The following types of files are not compatible:
• MP3 PRO format, MP3 playlists
• RM format
• WAV format
• WMV format
• AAC, protected AAC, M4A format
MP3 playback sequence begins in the root folder of the USB
drive. Any folders that do not include MP3/JPG files are skipped.
ISO9660 standards:
• Maximum nested folder depth is 8 (including the root folder).
• Valid characters for folder/file names are letters A-Z (all caps),
numbers 0-9, and “_” (underscore). Some characters may not
be displayed correctly, depending on the character type.
Some files may not play, depending on sampling rates and bit
rates. For best results, use the following settings when ripping
MP3 files: 128kbps or higher constant bit rate; 44.1kHz or higher
sampling frequency.
Media
Compatibility
Playback Order
Compatible
Recording
Formats
Notes
File Type MP3
File System FAT
FAT 12 X
FAT 16/FAT 32
File
Extension
.mp3/.MP3/.Mp3/.mP3
.rmp/.m4 a X
MPEG
Format
MPEG 1
MPEG 2
MPEG 2.5
Sampling
Frequency
MPEG 1 32/44.1/48kHz
MPEG 2 12/16/22.05/24kHz
MPEG 2.5 8/11.025/12kHz
Bitrate
MPEG 1 32 ~ 320kbps
MPEG 2 8 ~ 160kbps
MPEG 2.5 8 ~ 160kbps
Other
Information
Directory Depth Unlimited
File Name Length 32 bytes
Total File Number 2000 files
Total Folder Number 200 folders
File Number via Folder 2000 files
MP3 ID3 TAG
ver.1.x
ver.2.x
Title, Artist, Album
Notes:
• For USB mode, it is not possible to view JPG files on the in-dash monitor while the
vehicle is moving. This is a safety feature to prevent driver distraction.
• The JPG image viewer function will only operate when vehicle is in park and th
parking brake is engaged.
OPERATIONCAR689
30
Settings Menu
From the Main Menu, press the gear icon to access the Setup menu and
adjust the following: General, Audio, Display, Radio and Bluetooth.
General:
• Timeimi
• Date -
me - Pres set the time.
Press to set the date.
• Time Zone - Press to select time zone.
• Daylight Savings Time - Press to turn Daylight Savings Time on or off.
• Clock Sync
• Language -
• Beep -KKey
Automatically - Press to select RDS, Phone or Off.
Press to set the language to English or Spanish.
e urn the key beep on or off.
• Power Off Delay - Turn the power off delay on or off.
• Factory Reset - Press to reset unit to factory default settings.
Audio:
• Balance/Fader - Adjust balance and fader levels.
• Subwoofer
• Subwoofer
• EQ Pres --
Output - Turn subwoofer output on or off.
Filter - Select between 50Hz, 80Hz, 120Hz, 160Hz or Off.
s to adjust EQ levels.
• Loudness - Turn Loudness feature on or off.
• Volume - Adjust volume levels for Main Volume, BT Ringer, BT Call,
Navi Mix and Device Mix.
• Source Level - Set desired volume level for each audio source.
• Amp - Turn internal amp on or off.
Display:
• Screen - Turn illumination control on or off, and adjust levels for
Gamma Day, Gamma Night, Day Brightness and Night Brightness.
• LED - Turn animation effect on or off, select desired illumination color,
select day/night colors and adjust day/night brightness levels.
• Wallpaper - Select from available wallpaper options.
Swipe down for
more settings
31
OPERATIONCAR689

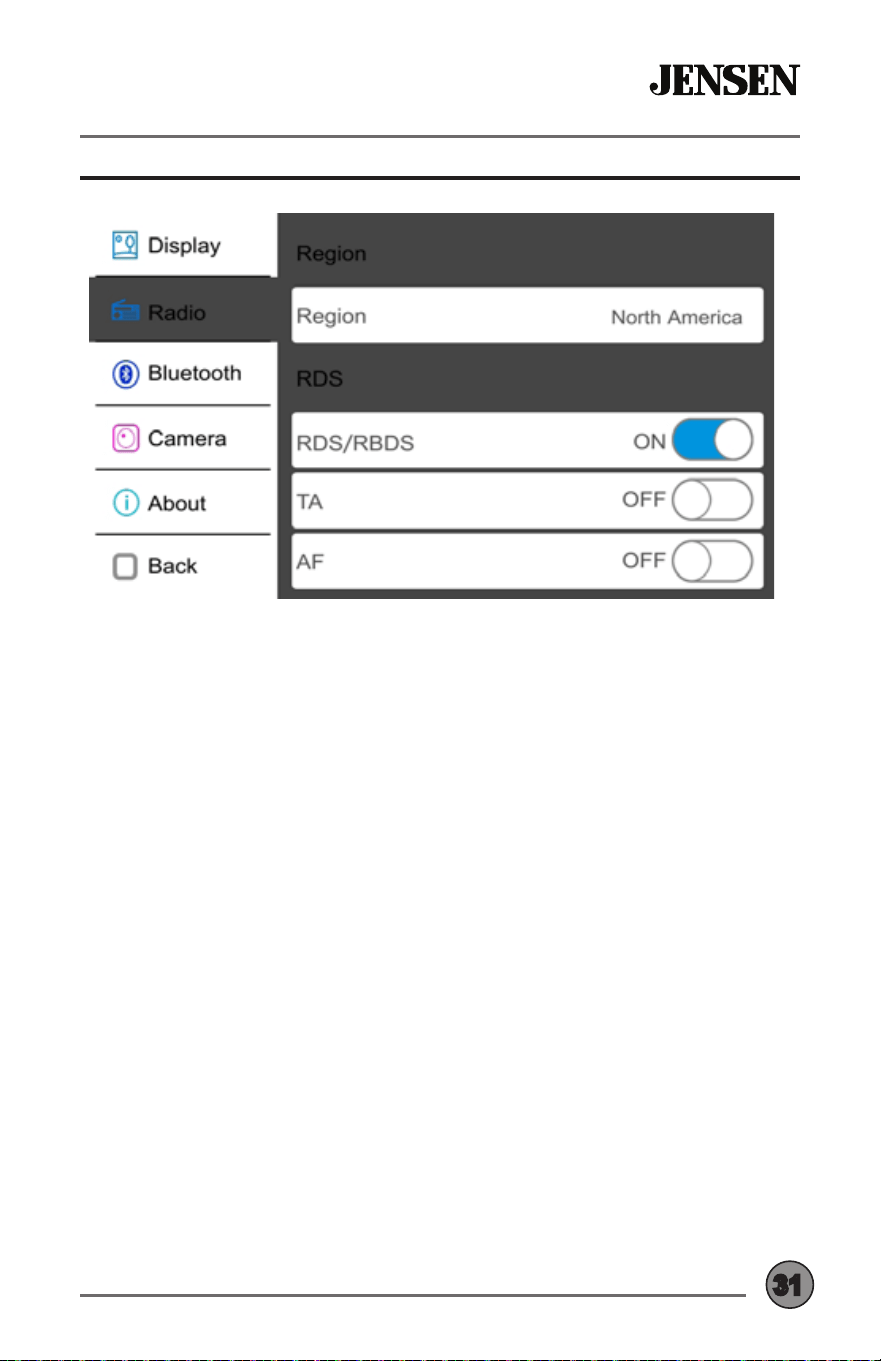

Settings Menu
Radio:
• Radio Region - Select North America, Europe or Latin America.
• RDS/RBDS - Enable or disable this feature.
• Traffic Announcements - Enable or disable this feature.
• Alternate Frequencies - Enable or disable this feature.
Bluetooth:
• Bluetooth - Turn Bluetooth signal on or off.
• Auto Answer - Turn auto answer feature on or off.
• Auto Connect - Turn auto connect feature on or off.
• Device Name, BT Address & BT Profile - Displays unit information.
CAR689
32
OPTIONS
Steering Wheel Controls
We recommend the PAC SWI-RC .
1. Set "Radio Select Switch". Set the SWI-RC to position 7 - "Pioneer/Other/Sony".
2. To program, use the Pioneer/Sony/Other radio function mapping order.
3. When programming the SWI-RC, if a function is not supported (or not desired),
then the function MUST be skipped as per the PAC SWI-RC instructions.
4. The SWC function MUST be programmed in the correct order per the PAC SWI-RC
radio function mapping order instructions.
A third-party adapter must be used in order for the CAR689 to be compatible with
any OEM steering wheel controls.
The CAR689 has a built-in 3.5mm SWC interface that compatible with many popular
3rd party SWC control modules, such as PAC, METRA, and others.
The following controls are available for most vehicles.
Volume +
Volume -
Mute
Seek / Track +
Seek / Track -
Band
Mode
BT Talk
BT End Call
Note: Not all OE steering wheel functions may be supported by the CAR689
POWER
MAXIMUM OUTPUT 500mA
YELLOW
YELLOW
BLACK
Replace with
ATO Type fuse
Only
3.5mm SWC port located on the rear of the unit, on the
MAIN POWER I/O Harness
33
CAR689 WARRANTY
Limited One Year Warranty
This warranty gives you specic legal rights. You may also have other rights which
vary from state to state.
Namsung America Inc. warrants this product to the original purchaser to be free
from defects in material and workmanship for a period of one year from the date of
the original purchase.
Namsung America Inc. agrees, at our option, during the warranty period, to repair
any defect in material or workmanship or to furnish an equal new, renewed or
comparable product (whichever is deemed necessary) in exchange without charges,
subject to verication of the defect or malfunction and proof of the date of purchase.
Subsequent replacement products are warranted for the balance of the original
warranty period.
Who is covered?
This warranty is extended to the original retail purchaser for products purchased
from an authorized Dual dealer and used in the U.S.A.
What is covered?
This warranty covers all defects in material and workmanship in this product. The
following are not covered: software, installation/removal costs, damage resulting
from accident, misuse, abuse, neglect, product modication, improper installation,
incorrect line voltage, unauthorized repair or failure to follow instructions supplied
with the product, or damage occurring during return shipment of the product.
Specic license conditions and copyright notices for the software can be found via
www.jensenmobile.com
What to do?
1. Before you call for service, check the troubleshooting guide in your owner’s
manual. A slight adjustment of any custom controls may save you a service call.
2. If you require service during the warranty period, you must carefully pack the
product (preferably in the original package) and ship it by prepaid transportation
with a copy of the original receipt from the retailer to an authorized service center.
3. Please describe your problem in writing and include your name, a return UPS
shipping address (P.O. Box not acceptable), and a daytime phone number with your
shipment.
4. For more information and for the location of the nearest authorized service center
please contact us by one of the following methods:
• Call us toll-free at 1-888-921-4088
• E-mail us at cs@dualav.com
Exclusion of Certain Damages: This warranty is exclusive and in lieu of any
and all other warranties, expressed or implied, including without limitation the
implied warranties of merchantability and tness for a particular purpose and any
obligation, liability, right, claim or remedy in contract or tort, whether or not arising
from the company’s negligence, actual or imputed. No person or representative is
authorized to assume for the company any other liability in connection with the sale
of this product. In no event shall the company be liable for indirect, incidental or
consequential damages.
CAR689
34
GENERAL
General
PROBLEM CAUSE ACTION
Unit will not
turn on
(no power)
Red and/or Yellow wire not connected or
incorrect voltage
Check connections for proper voltage
(11~16VDC)
Black wire not connected Check ground connection
Blown fuse on unit or vehicle Replace fuse(s)
Unit has power
(but no sound)
Speaker wires not connected Check all connections, including speakers
Speakers are blown Replace speakers
One or more speaker wires touching each
other or touching chassis ground
Insulate all bare speaker wires from each
other and chassis ground
Unit blows
fuse(s)
Yellow or red wire touching chassis ground Check for pinched or shorted wires
Speaker wires touching chassis ground Check for pinched or shorted wires
Incorrect fuse rating Use fuse with correct rating
Unit has audio
(but no video)
Parking brake safety circuit not connected
Parking brake not applied
Check connections at parking brake
Apply parking brake as described in
manual
Video Playback Codec is not supported See Media Codec Support section
Please keep your original sales receipt and be
prepared to provide this receipt in the event
you require service, as your original receipt
is considered the best proof of purchase and
indicates the date you purchased your JENSEN
product.
Dealer Name:
Dealer Phone:
Purchase Date:
For Your Records
Dealer Info
Trouble Shooting
Customer Support
1-888-921-4088
(Monday-Friday, 9AM-5PM EST)
Visit https://www.jensenmobile.com
35
CAR689 GENERAL
Specications
87.5MHz-107.9MHz
87.50MHz-108.00MHz
8.5dBf
10dBf
30dB
30Hz-13kHz
530kHz-1710kHz
<42dBu
30Hz-2.2kHz
4.1 + EDR
HFP / A2DP / PBAP
Up to 33ft / 10m
500 nit
1024x600
LED
Capacitive
Specications
11~16VDC
1.5A
1.0A
4~8 ohms
4 Volts RMS
5” x 7” x 4” (126D x 178W x 101H mm)
FM Tuner
US Tuning Range:
EU Tuning Range:
Usable Sensitivity:
50dB Quieting Sensitivity:
Stereo Separation@ 1kHz:
Frequency Response:
AM Tuner
Tuning Range:
Usable Sensitivity:
Frequency Response:
Bluetooth
Version:
Proles:
Range:
Monitor
Brightness:
TFT Resolution:
TFT Backlighting:
Touch Screen Type:
General
Operation Voltage Input:
USB 1 Charge Output:
USB 2 Charge Output:
Speaker Nominal Impedance:
Line Output Voltage:
Dimensions:
CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 16 Watts RMS x 4 channels at 4 ohms and 1% THD+N
Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)
Design and specications subject to change without notice.
CAR689
INSTALLATION &
OWNER’S MANUAL
Customer Support
1-888-921-4088
(Monday-Friday, 9AM-5PM EST)
Visit https://www.jensenmobile.com
Designed and Engineered in USA
W AT T S
Front & Rear
Camera
NSA1119-v01
Printed in China
Namsung America Inc.
©2019 Namsung America Inc.
All rights reserved.
All rights reserved. No part of this publication may be
reproduced, distributed, or transmitted in any form or
by any means, including photocopying, recording, or
other electronic or mechanical methods, without the
prior written permission of NAMSUNG AMERICA INC.
