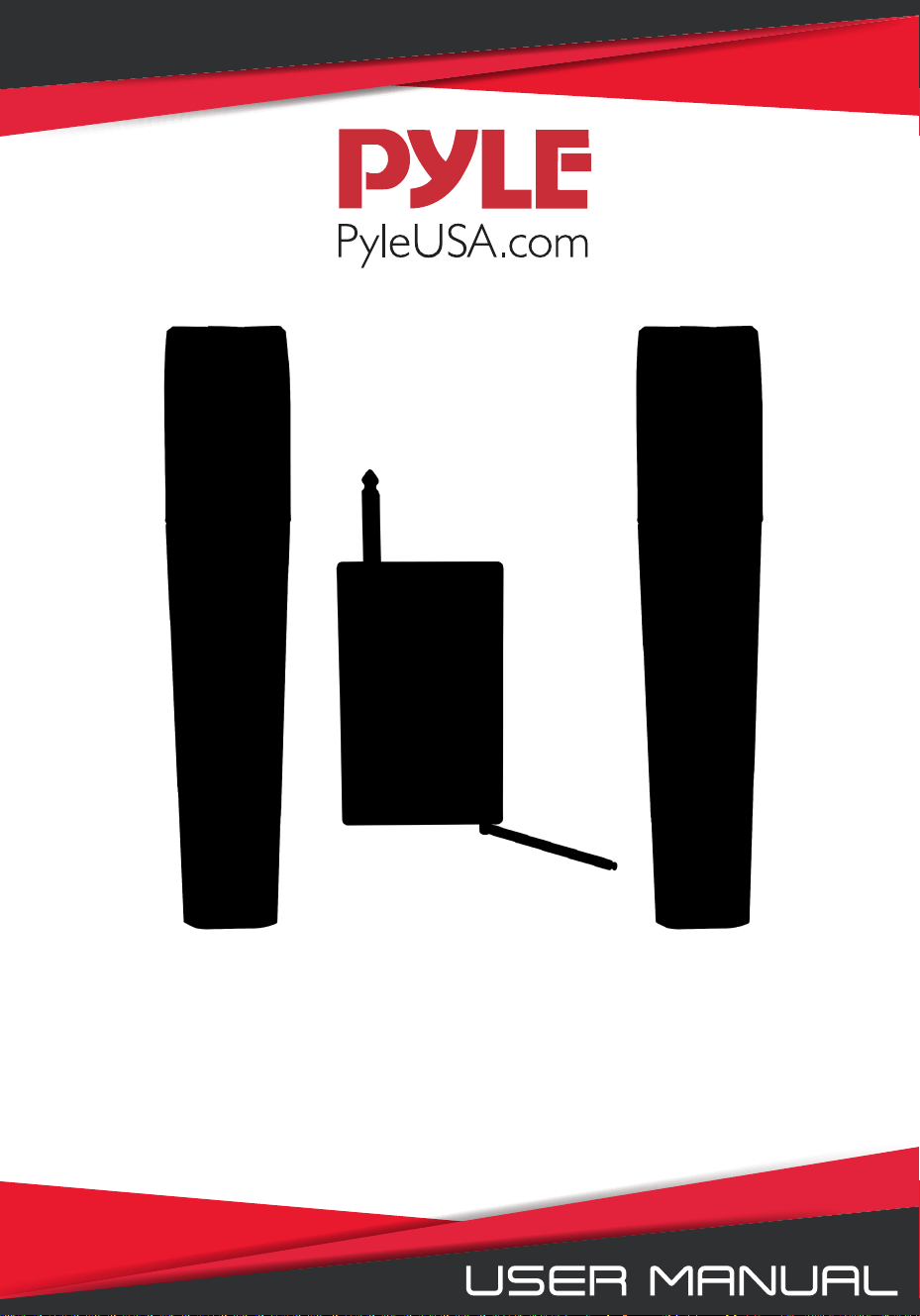

PDWM2234
Wireless BT Streaming UHF Mic System
Adjustable Volume Controls, Includes (2) Handheld Mics
www.PyleUSA.com
1
1. Please read this manual before using this equipment in order to avoid
damage through incorrect operation and to get the best performance from
your purchase.
2. Keep the manual for future reference.
3. Please pay due attention to the following symbols to help you use the product
safely and properly and to avoid any personal injury or damage to the product.
4. Please read the entire manual strictly and follow these steps to use you product.
5. No user serviceable parts inside transmitter or receiver - refer servicing to
qualied service personnel.

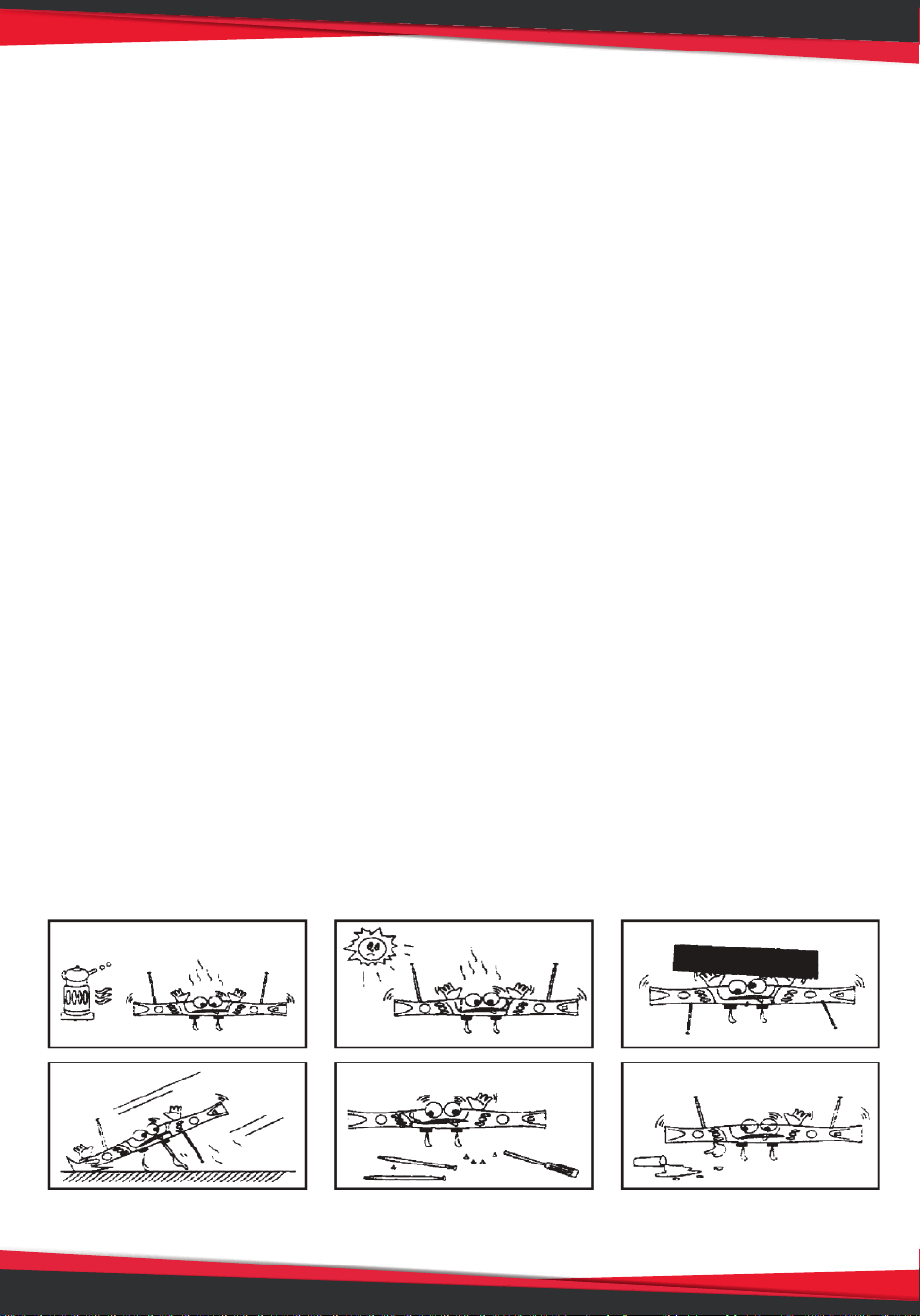

6. To prevent the risk of re or electric shock, do not expose any of the components
to rain or moisture.
7. Please keep a good ventilation and dry environment around the entire unit.
8. Keep this system far away from hot object.
9. Ensure that the correct adapter is used with adequate current rating and that the
mains voltage is as stated on the adapter.
10. Keep the system away from any ignition source such as the replace, heaters or
candles.
11. Do not throw used batteries into a re or garbage bin with domestic rubbish.
Be sure to dispose of used batteries in accordance with local waste disposal
rules.
12. Do not place heavy objects or liquid on top of the system
13. Equipment can be used in tropical or temperate zone
14. Do not leave batteries where they are exposed to direct sunlight, or high
temperatures. Doing so may result in overheating, explosion or re.
15. Pull out the power plug for disconnecting the system. Don’t use the system
under the environment as follow.
Only the certied technician may disassemble the product.
www.PyleUSA.com
2
www.PyleUSA.com
3
Receiver with Bluetooth Features and Operation
7. RF Indicator for A Mic: When turned on the transmitter, indicator light is lit.
8. RF Indicator for B Mic: When turned on the transmitter, indicator light is lit.
9. Battery Indicator: LOW BAT Indicator light is lit then you will hear a “bee”
sound, means you need to recharge it.
10. Battery Charging Indicator: Indicator light is lit while recharging the battery
and turns OFF when fully charged.
11. USB Port for charging: 5v, 1000mA
1. Power ON/OFF: Press Power ON, the
receiver indicator light (12) is ready.
2. Antenna: Lightly lift up the antenna.
Caution: it can’t be turned round.
3. Audio Output: Connect the 6.3mm
Audio Output Plug to the MIC input of
the amplier or directly to the mixer, or
using the attached extra cable to
connect it to a 3.5mm Audio input.
4. Bluetooth ON/OFF: Turn ON the
Bluetooth. Press and hold the Bluetooth
button for 2 seconds. Bluetooth indica
tor (13) blinks. Open the Bluetooth of
your mobile and search for the receiver
Bluetooth Network Name: 'PyleUSA’
and enter Bluetooth Password: '0000' to
pair. A “bee” sound means the
Bluetooth pairing is successful, then
you can play music from your mobile.
5. Volume: Adjust the volume
6. Echo: Adjust ECHO if needed
4
www.PyleUSA.com
HANDHELD TRANSMITTER FEATURES AND OPERATION
1. Power ON/OFF: Press to power ON. Press and hold for 2 seconds to turn OFF.
2. LCD Display
3. Channel Sync
4. Battery Capacity Indicator: Indicator light blinks which means you need to
recharge it.
5. Cartridge Grille: This protects the microphone cartridge and helps reduce
breath sounds and wind noise. Do not cover grille with hand.
6. Battery Charging Indicator: Indicator light is lit while recharging the battery
and turns OFF when fully charged.
7. USB Port for charging: 5v, 1000mA
A charging device with the same labeled voltage and current must be used
when charging.
www.PyleUSA.com
5
PDWM2234
Wireless BT Streaming UHF Wireless Microphone System
Adjustable Volume Controls, Includes (2) Handheld Mics
System Features:
• Bluetooth
• VHF Narrow Band Receiver System
• Dual Frequency Design (Channel A/B)
• High Signal/Noise Ratio Performance
• Broad Frequency Response Range & Low Distortion
• Independent Adjustable Volume Control
• Dual Independent Channel Antennas
• RF Signal and AF Signal LED Indicators
• Radio Frequency and Audio Frequency
• Built-in Rechargeable Battery up to 5 Hours Life
• Working Distance Up to 160’ Feet
Bluetooth Connectivity:
• Built-in Bluetooth for Wireless Streaming
• Works with All of Your Favorite Devices
(Smartphone, Tablet, Laptop, Computer, etc.)
• Bluetooth Network Name: 'PyleUSA’
• Bluetooth Password: '0000'（U-7298）
• Bluetooth Wireless Range: 65'+ Ft.（10meters）
• Bluetooth Version: 2.0（4.1）
6
What's in the Box:
• Receiver Base
• (2) Handheld Microphones
Handheld Microphones:
• RF Power Output: >10dBm
• Modulation Pattern: Digital
• Battery Powered, Transmitters Rechargeable 640mA Lithium Battery
System Receiver:
• Sensitivity: -94dBm (S/N:12dB)
• RF Image Rejection:≥70dB
• Audio Dynamic Range:96dB
• T.H.D.: <1%
• S/N Ratio:70dB
• Neighboring Channel / Interference: 60dBc
• Power: Receiver with 1800mA Rechargeable Lithium Battery
• Receiver Dimensions (L x W x H): 6.89’’ x 1.96’’ x 0.86’’ -inches
