Liebherr IXRF 5175 PEAK BIOFRESH NOFROST data-next-head> User Manual

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Contents

1 Appliance at a glance............................................ 3

1.1 Scope of delivery.......................................................... 3

1.2 Overview of appliances and equipment................... 3

1.3 SmartDevice.................................................................. 3

1.4 Appliance range of use............................................... 4

1.5 Conformity..................................................................... 4

1.6 SVHC substances according to REACH regulation. 4

1.7 EPREL database........................................................... 4

1.8 Spare parts.................................................................... 4

2 General safety instructions.................................. 4

3 Functionality of the Touch&Swipe display......... 6

3.1 Navigation and symbol explanation......................... 6

3.2 Menus............................................................................. 6

3.3 Sleep mode................................................................... 7

4 Putting into operation........................................... 7

4.1 Switching on appliance (first use)............................ 7

4.2 Starting the IceMaker for the first time................... 7

5 Storage.................................................................. 7

5.1 Information regarding storage................................... 7

5.2 Freezer compartment.................................................. 8

5.3 Storage times............................................................... 8

6 Saving energy........................................................ 9

7 Controls................................................................. 9

7.1 Controls and displays.................................................. 9

7.1.1 Status display..............................................................9

7.1.2 Display symbols.......................................................... 9

7.2 Appliance functions..................................................... 9

7.2.1 Notes on the appliance functions............................9

Switching the appliance off and on........................9

WiFi............................................................................ 10

Temperature.............................................................. 11

Temperature unit...................................................... 11

SuperFrost................................................................. 11

Start defrosting cycle..............................................12

PartyMode ................................................................ 12

SabbathMode............................................................12

EnergySaver .............................................................13

IceMaker / MaxIce .................................................. 13

IceMaker water supply............................................15

TubeClean .................................................................15

Display brightness...................................................15

Door alarm.................................................................16

Input lock...................................................................16

Language...................................................................16

Device information...................................................17

Software.....................................................................17

Reminder....................................................................17

Demo mode............................................................... 17

Resetting to factory settings.................................18

7.3 Messages...................................................................... 19

7.3.1 Overview of warnings...............................................19

7.3.2 Ending warnings........................................................19

7.3.3 Overview of reminders.............................................20

7.3.4 Ending reminders..................................................... 20

8 Features................................................................. 20

8.1 Drawers.......................................................................... 20

8.2 Pull-out board with IceTower..................................... 22

8.3 Glass shelves................................................................ 23

8.4 IceMaker........................................................................ 24

8.5 VarioSpace.................................................................... 25

8.6 Freezer pack.................................................................. 25

8.7 Flexible ice compartment divider.............................. 25

9 Maintenance.......................................................... 25

9.1 Disassembling / assembling pull-out systems...... 25

9.2 Defrosting the appliance............................................ 28

9.3 Cleaning the appliance............................................... 28

10 Customer help....................................................... 28

10.1 Technical specifications............................................. 28

10.2 Operating noises.......................................................... 29

10.3 Technical fault.............................................................. 29

10.4 Customer Service......................................................... 31

10.5 Model plate................................................................... 31

11 Shutting down....................................................... 31

12 Disposal................................................................. 31

12.1 Preparing appliance for disposal.............................. 31

12.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 31

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

Symbol

Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

2 * Depending on model and options

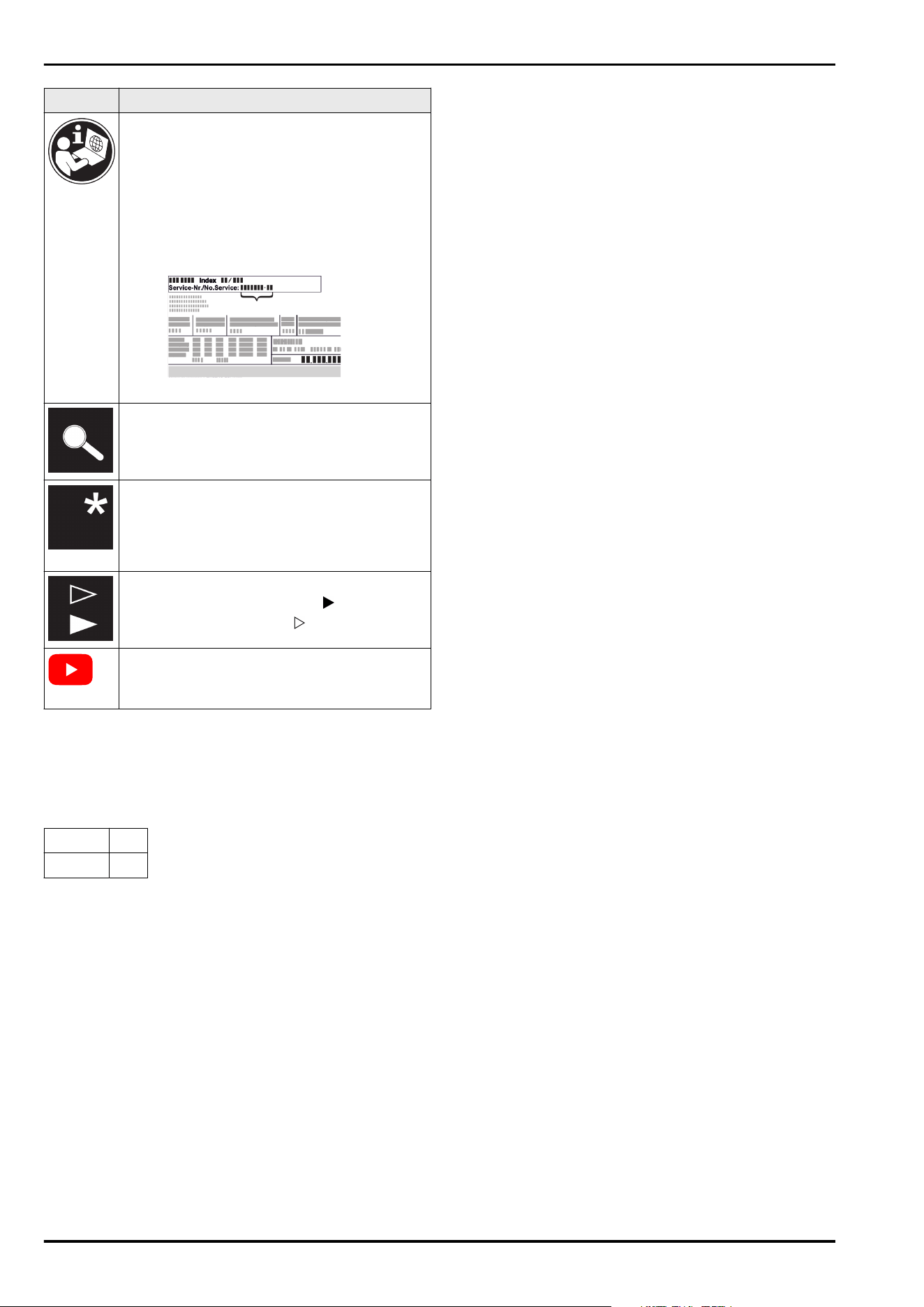

Symbol Explanation

Additional information on the Internet

The digital manual with additional informa‐

tion and in other languages can be found

via the QR code on the front of the

manual or by entering the service number at

home.liebherr.com/fridge-manuals.

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here: home.liebherr.com/

open-source-licences

These operating instructions apply to:

SIFN..i

5188

SIFNbsdi 5188

Note

If your appliance has an N in its appliance designation, it is

a NoFrost appliance.

1 Appliance at a glance

1.1 Scope of delivery

Check all parts for transport damage. Contact your

dealer or customer service in the event of complaints.

(see 10.4 Customer Service)

Your new appliance comes with the following parts:

Built-in appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

“Installation Guide”

Service Brochure

1.2 Overview of appliances and equip‐

ment

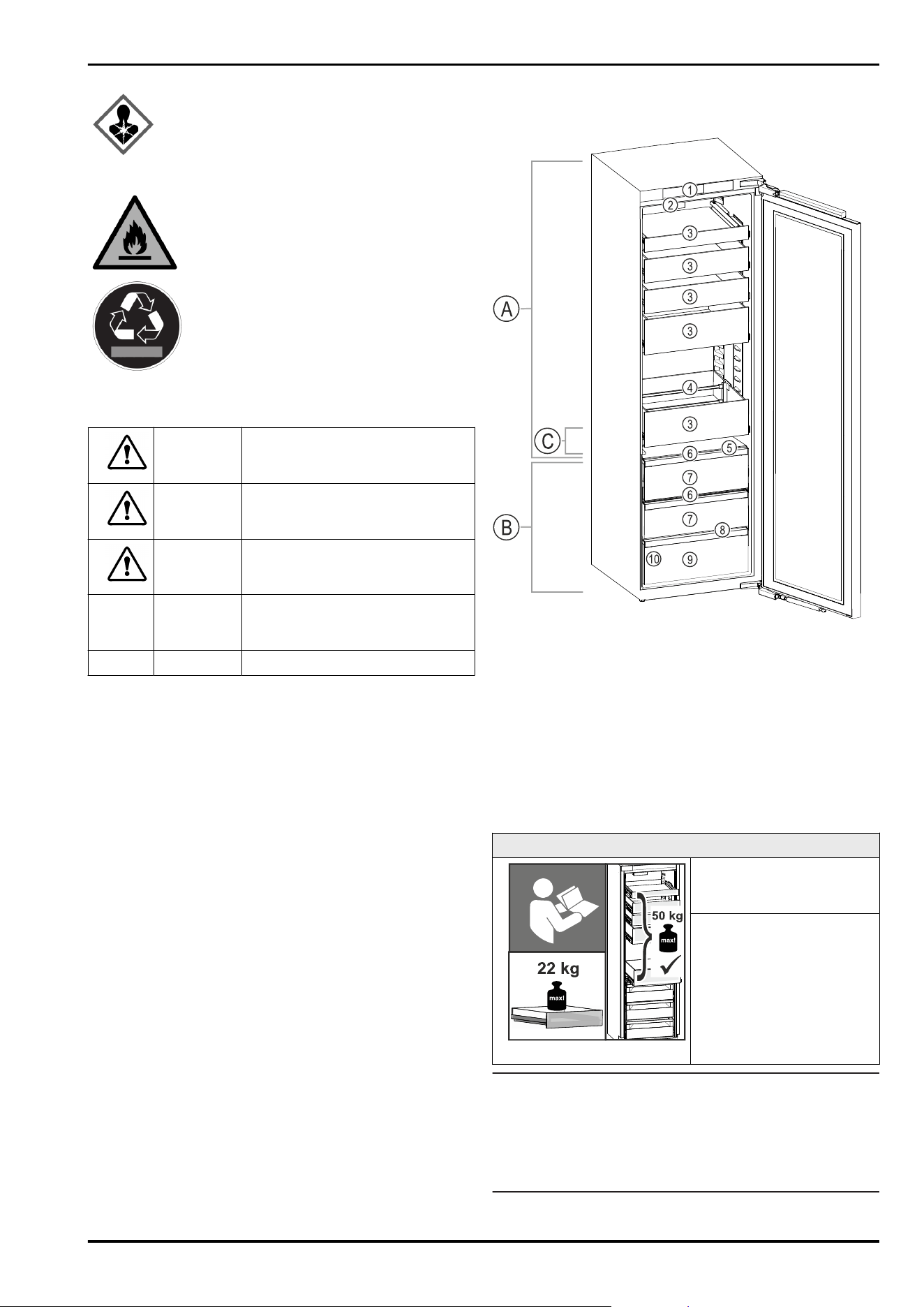

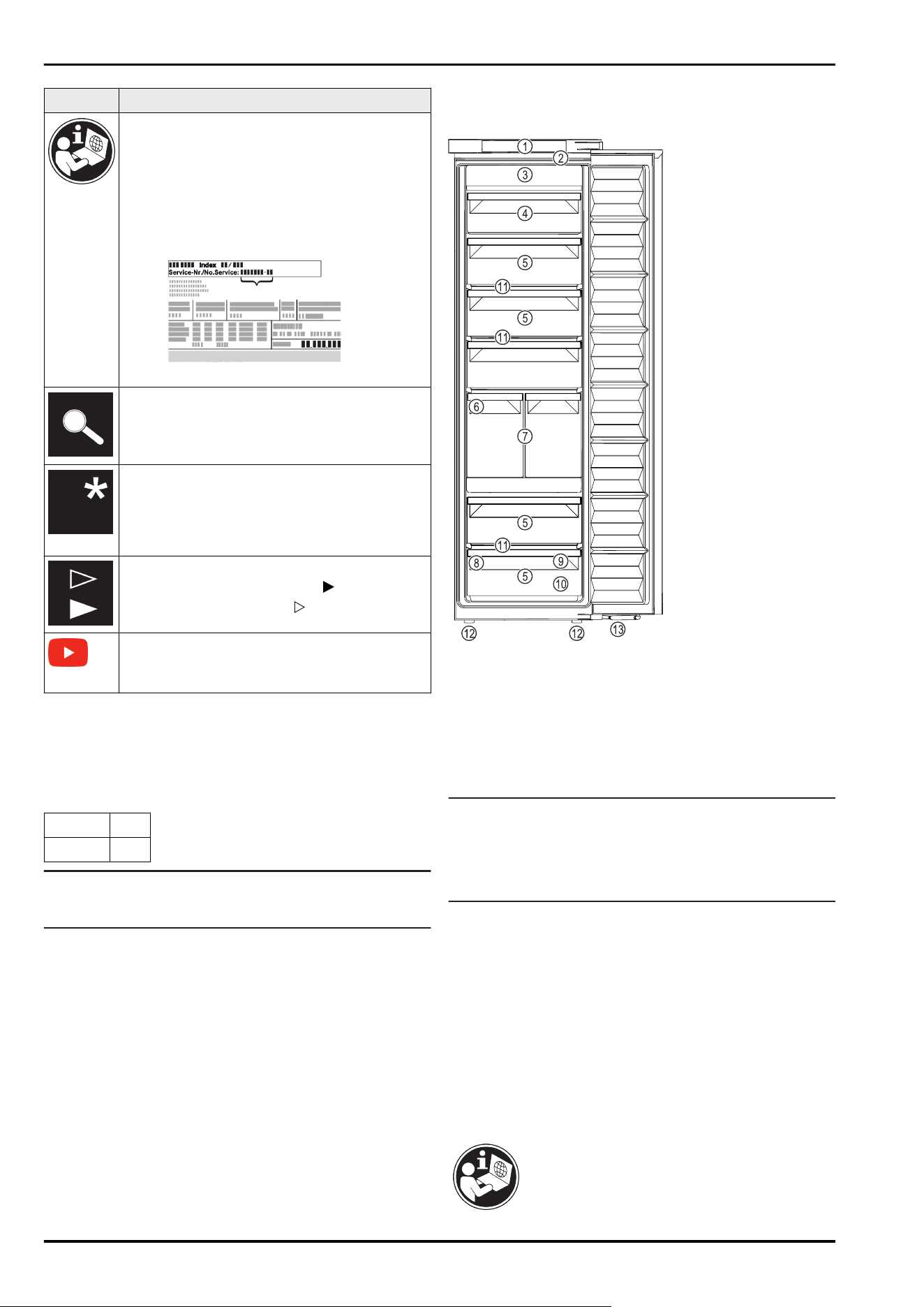

Fig. 1 Example illustration

(1)

Controls (8) Type plate

(2) Lighting (9) Freezer tray, cold storage

accumulator

(3) NoFrost (10) Ice cube scoop

(4) Tilting drawer (11) VarioSpace

(5) Drawer (12) Adjusting feet

(6) IceMaker (13) Soft-closing mechanism

(7) IceTower

Note

► Shelves, drawers and baskets are arranged for optimum

energy efficiency when the appliance is delivered.

Changing how the shelves, for example, are inserted in

the fridge compartment does not have any impact on

energy consumption.

1.3 SmartDevice

SmartDevice is the networking solution for your freezer.

If your appliance SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your

WiFi. With the SmartDevice app, you can operate your appli‐

ance from a mobile device. Additional functions and setting

options are available in the SmartDevice SmartDevice app.

SmartDevice-

enabled appliance:

Your appliance is capable of being a

SmartDevice. To be able to connect

your device to WiFi, you need to

download the SmartDevice app.

Appliance at a glance

* Depending on model and options 3

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Downloading the

SmartDevice app:

After installing and configuring the

SmartDevice, you can connect your

appliance to the WiFi using the

SmartDevice app and the WiFi appli‐

ance function (seeWiFi) .

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

1.4 Appliance range of use

Intended use

The appliance is only suitable for cooling

food products in a domestic or household-like

environment. This includes, for example, use:

in staff kitchens, bed and breakfast estab‐

lishments,

by guests in country houses, hotels, motels

and other accommodation,

for catering and similar services in the

wholesale trade.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly

forbidden:

Storing and refrigerating medicines, blood

plasma, laboratory preparations or similar

substances and products based on the

Medical Device Directive 2007/47/EC

Use in areas at risk of explosions

Misusing the appliance may lead to damage

to the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the

appliance is designed to operate in restricted

ambient temperatures. The climate classifica‐

tion applying to your appliance is printed on

the rating plate.

Note

►Keep to the specified ambient tempera‐

tures in order to guarantee that the appli‐

ance works properly.

Climate clas‐

sification

for ambient temperatures of

SN 10°C to 32°C

N 16°C to 32°C

Climate clas‐

sification

for ambient temperatures of

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

1.5 Conformity

The refrigerant circuit has been tested for leaks. When

installed, the appliance complies with the applicable safety

regulations and with the corresponding directives.

For the EU

market:

The appliance complies with directive

2014/53/EU.

For the GB

market:

The appliance complies with Radio

Equipment Regulations 2017 SI 2017 No.

1206.

The full text of the EU Declaration of Conformity is available

on the following website: www.Liebherr.com

1.6 SVHC substances according to

REACH regulation

You can check whether your appliance contains SVHC

substances according to REACH regulation at the following

link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐

haltigkeit/umwelt/scip/scip.html

1.7 EPREL database

Details about energy labelling and ecodesign requirements

will be available on the European product database (EPREL)

from 1st March 2021. You can access the product database

at the following link: https://eprel.ec.europa.eu/ You will be

asked to enter the model ID. You can find the model ID on

the nameplate.

1.8 Spare parts

The spare parts availability for functional parts and stock‐

able parts of the equipment is 15 years.

2 General safety instructions

Please keep these operating instructions in a

safe place so you can refer back to them at

any time.

If you pass the appliance on, please hand

these operating instructions to the next user.

Read these operating instructions carefully

before use to ensure safe and correct use of

the appliance. Follow the instructions, safety

instructions and warning messages included

at all times. They are important for ensuring

you can operate and install the appliance

safely and without any problems.

Danger for the user:

This device can be used by children and

people with impaired physical, sensory or

General safety instructions

4 * Depending on model and options

mental abilities or with a lack of experi‐

ence and knowledge provided that they are

supervised or have received instruction in

the safe use of this device, and about the

resulting hazards.

Children must not play with this appliance.

Cleaning and user maintenance work must

not be carried out by children without adult

supervision. Children aged between 3 and

8 are allowed to load and unload the appli‐

ance. Children below the age of 3 must be

kept away from the appliance unless they

are under continuous adult supervision.

The socket must be easily accessible so

that the appliance can be disconnected

quickly from the electricity in an emer‐

gency. It must not be located in the area

behind the appliance.

When disconnecting the appliance from the

supply, always take hold of the plug. Do not

pull the cable.

In the event of a fault pull out the mains

plug or deactivate the fuse.

Do not damage the mains power cable. Do

not operate the appliance with a defective

mains power cable.

Only customer service or other specially

trained staff may repair or perform other

operations on the appliance.

Only install, connect and dispose of the

appliance according to the instructions.

Only use the appliance when is installed.

The manufacturer is not liable for damage

caused by a faulty fixed water connection.

Fire hazard:

The coolant used (information on the model

plate) is ecofriendly but also flammable.

Any leaking coolant may ignite.

•

Do not damage the refrigerant circuit

pipes.

•

Do not handle ignition sources inside the

appliance.

•

Do not use electrical appliances inside

the appliance (e.g. steam cleaners,

heaters, ice cream makers, etc.).

•

If the refrigerant leaks: remove any naked

flames or ignition sources from the

vicinity of the leakage point. Properly air

the room. Inform customer services.

Do not store explosives or sprays using

combustible propellants such as butane,

propane, pentane, etc. in the appliance. To

identify these spray cans, look for the list

of contents printed on the can, or a flame

symbol. Gases possibly escaping may ignite

due to electrical components.

Keep burning candles, lamps and other

items with naked flames away from the

appliance so that they do not set the appli‐

ance on fire.

Please be sure to store alcoholic drinks

or other packaging containing alcohol in

tightly closed containers. Any alcohol that

leaks out may be ignited by electrical

components.

Danger of tipping and falling:

Do not misuse the plinth, drawers, doors

etc. as a step or for support. This applies

particularly to children.

Danger of food poisoning:

Do not consume food which has been

stored too long.

Danger of frostbite, numbness and pain:

Avoid prolonged skin contact with cold

surfaces or refrigerated/frozen goods or

take protective measures, e.g wear gloves.

Danger of injury and damage:

Hot steam can lead to injury. Do not use

electrical heating or steam cleaning equip‐

ment, open flames or defrosting sprays to

defrost.

Do not use sharp implements to remove the

ice.

Risk of crushing:

Do not hold the hinge when opening and

closing the door. Fingers may get caught.

Symbols on the appliance:

This symbol may be located on the

compressor. It relates to the oil in the

compressor and makes reference to the

risk that: Swallowing or inhaling can be

fatal. This advice is only relevant to recy‐

cling. There is no danger in normal opera‐

tion.

This symbol is located on the compressor

and indicates the danger of flammable

materials. Do not remove the sticker.

This or a similar sticker may be located

on the rear of the appliance. This sticker

indicates that there are vacuum insulation

panels (VIP) or perlite panels in the door

and/or housing. This advice is only relevant

to recycling. Do not remove the sticker.

Please note the warning messages and other

specific advice in the other chapters:

DANGER

indicates an immediately

hazardous situation which will

lead to death or serious injuries if

it is not avoided.

General safety instructions

* Depending on model and options 5

WARNING indicates a hazardous situation

which may lead to death or serious

injuries if it is not avoided.

CAUTION indicates a hazardous situation

which may lead to minor or

moderate injuries if it is not

avoided.

NOTICE indicates a hazardous situation

which may lead to damage to

property if it is not avoided.

Note indicates useful instructions and

tips.

3 Functionality of the

Touch&Swipe display

You operate your appliance using the Touch & Swipe display.

You select appliance functions in the Touch & Swipe display

(hereafter referred to as display) by tapping them. If you

do not perform any action on the display for 10 seconds,

the display either jumps back to the higher-level menu or

directly to the status display.

3.1 Navigation and symbol explanation

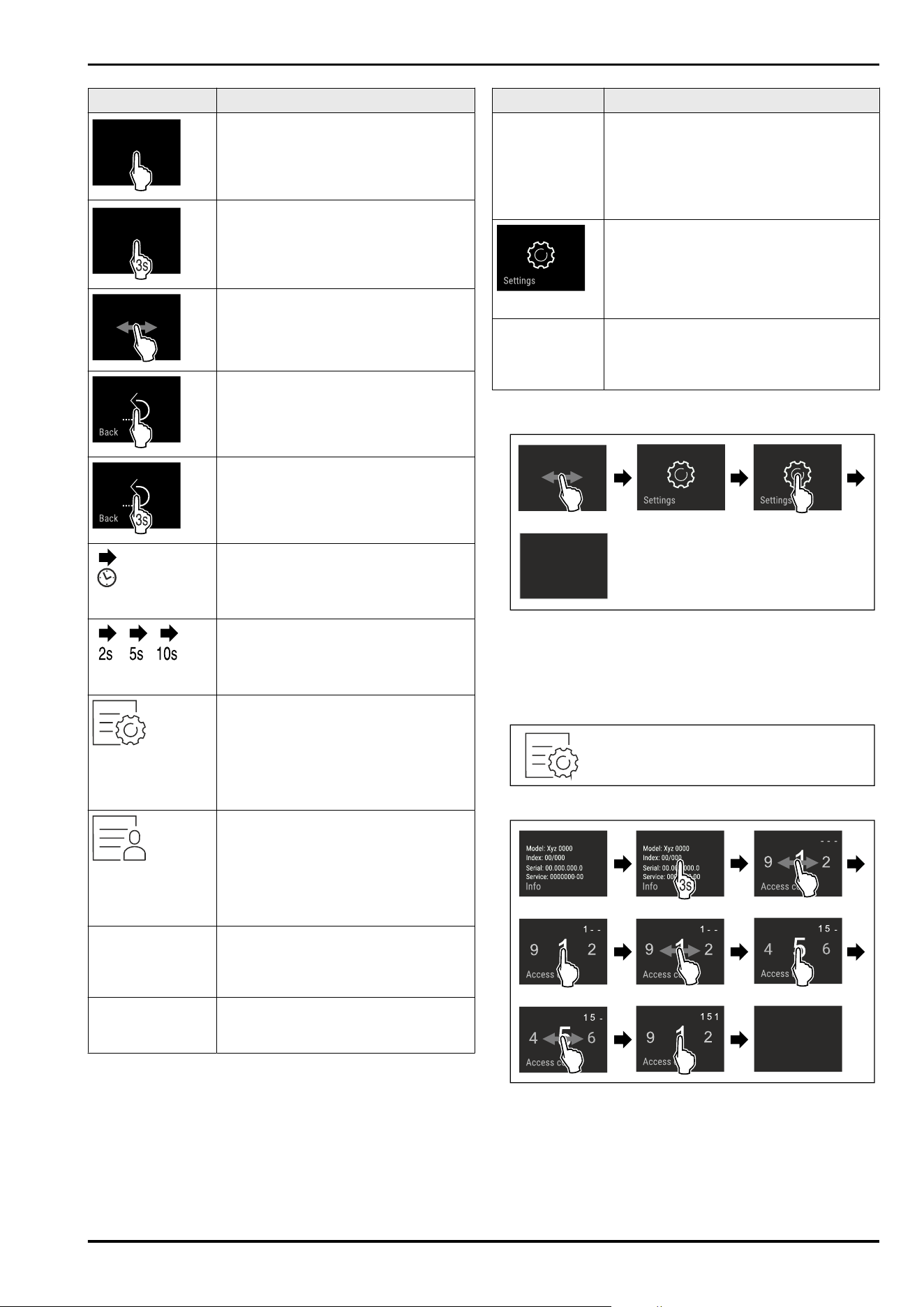

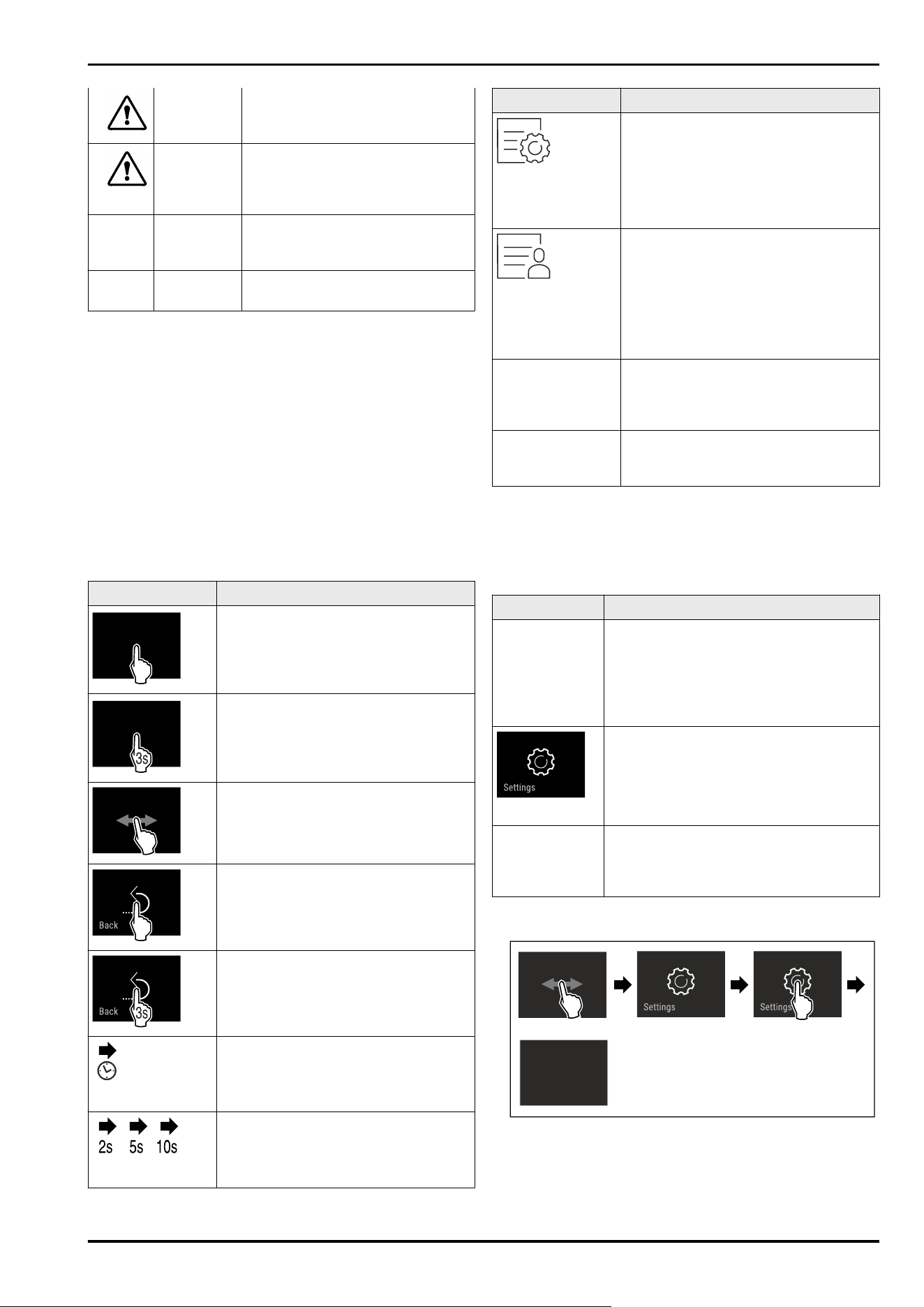

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Symbol

Description

Briefly touch the display:

Activates/deactivates function.

Confirms selection.

Opens submenu.

Touch the display for a specified time

(e.g. 3seconds):

Activates/deactivates function or

value.

Swipe left or right:

Navigate in the menu.

Briefly touch the Back symbol:

Jumps back one menu level.

Press and hold the Back symbol for

3seconds:

Jumps back to the status display.

Arrow with clock:

It takes more than 10 seconds for the

following message to appear in the

display.

Arrow with a time indication:

It takes the specified amount of time

until the following message appears in

the display.

Symbol Description

“Open Settings menu” symbol:

Navigates to the Settings menu and

opens the settings menu.

If necessary: Navigate to the desired

function in the Settings menu.

(see 3.2.1 Opening the Settings menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu and

opens the advanced menu.

If necessary: Navigate to the desired

function in the Advanced menu.

(see 3.2.2 Opening the expanded

menu)

No action for

10seconds

If you do not perform any action on

the display for 10 seconds, the display

either jumps back to the higher-level

menu or directly to the status display.

Open door and

close it again.

If you open the door and immedi‐

ately close it again, the display jumps

directly back to the status display.

Note: Illustrations of the display are shown in the English

version.

3.2 Menus

The appliance functions are distributed over various menus:

Description

Main menu When you switch the appliance on, you

are automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced

menu.

Settings menu

The Settings menu contains additional

appliance functions for setting up your

appliance.

Advanced menu The advanced menu contains special

appliance functions for setting up your

appliance. Access to the Advanced menu

is protected by the numerical code 151.

3.2.1 Opening the Settings menu

Fig. 2 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

Functionality of the Touch&Swipe display

6 * Depending on model and options

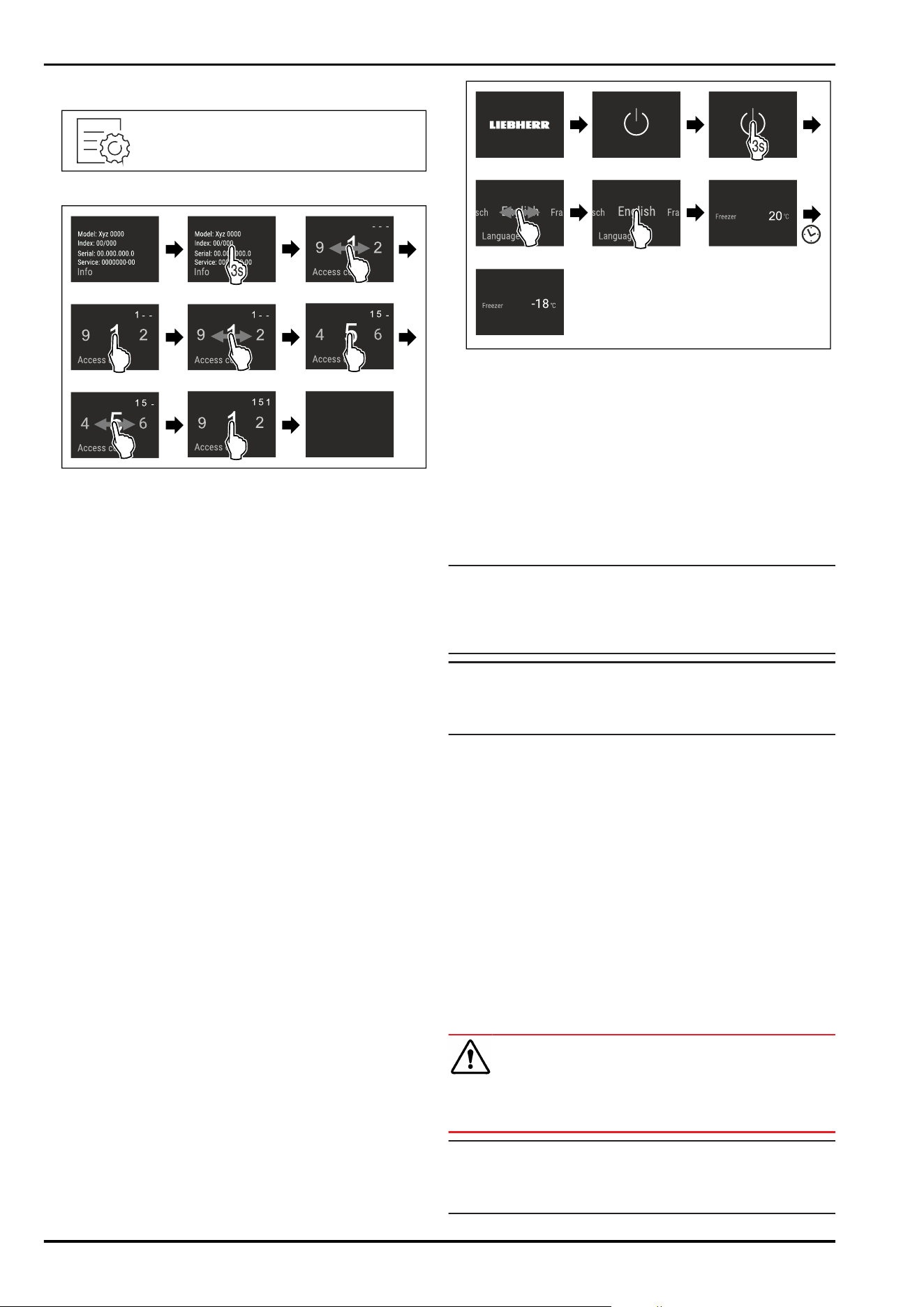

3.2.2 Opening the expanded menu

Fig.3

Fig. 4 Example illustration, access with numerical code 151

► Carry out action steps according to the illustration.

▷ The expanded menu is open.

► If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

3.3.1 Ending sleep mode

► Touch the display briefly with your finger.

▷ Sleep mode is ended.

4 Putting into operation

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected

according to the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the

Touch & Swipe display. (see 3 Functionality of the

Touch&Swipe display)

Switch on the appliance using the Touch&Swipe display:

► If the display is in sleep mode: Briefly touch the display.

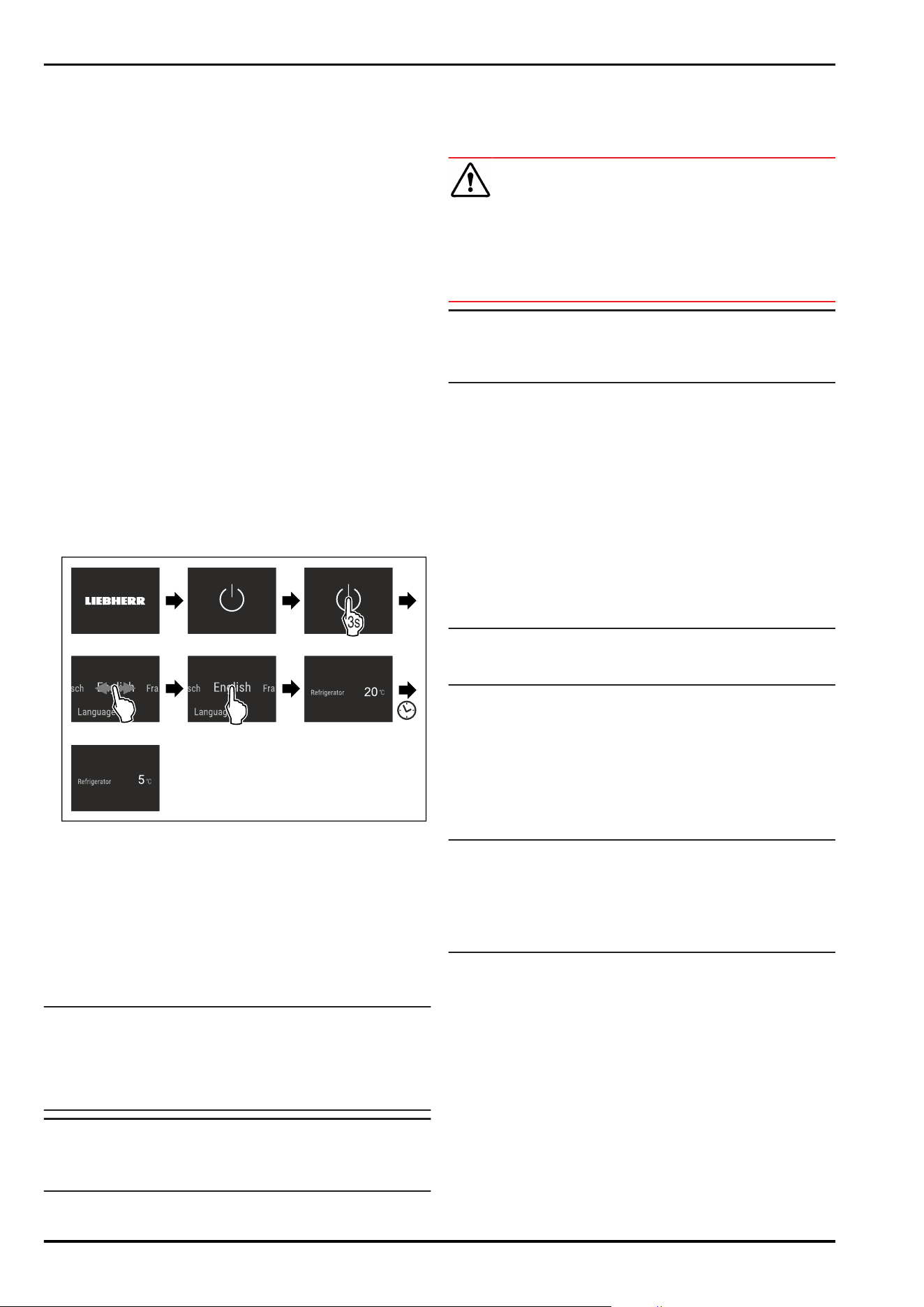

► Carry out action steps according to the illustration.

Fig. 5 Example illustration

▷ Status display appears.

▷ The appliance cools to the temperature set at the factory.

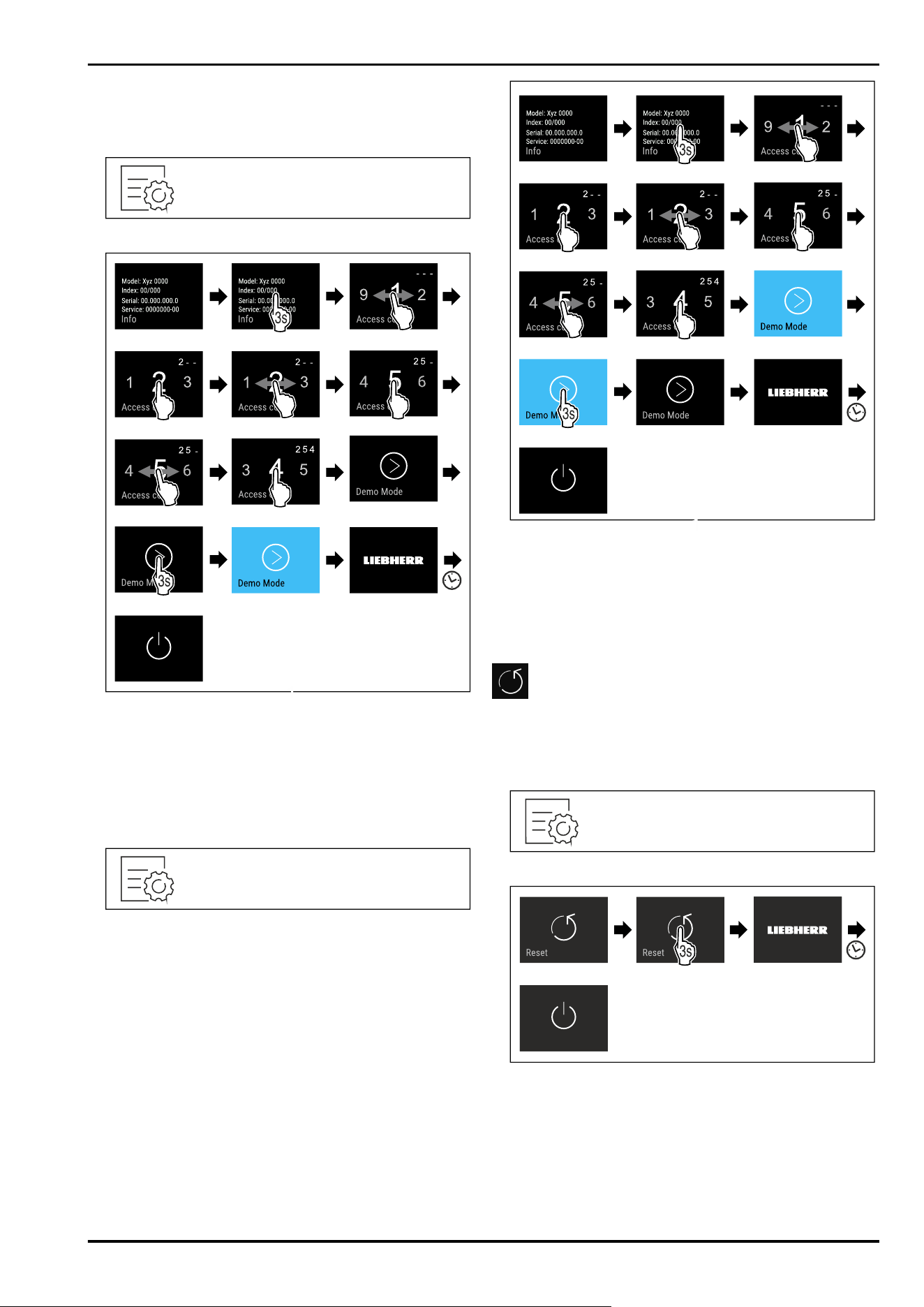

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

Start the IceMaker for the first time. (see 4.2 Starting the

IceMaker for the first time)

Start the SmartDevice for the first time. (see 1.3 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Store frozen foods at -18°C or colder.

► Observe the notes on storing food. (see 5.1 Information

regarding storage)

Note

Accessories can be purchased from the Liebherr-

Hausgeräte store at home.liebherr.com/shop/de/deu/

zubehor.html.

4.2 Starting the IceMaker for the first

time

If your appliance is equipped with IceMaker, you must clean

the IceMaker before using it for the first time.

Make sure that the following requirements are fulfilled:

❑

The water supply has been connected. See Installation

Guide or mounting instructions.

❑

The appliance is properly installed and connected.

► Clean the IceMaker. (see 9.3.4 Cleaning the IceMaker)

5 Storage

5.1 Information regarding storage

WARNING

Risk of fire

► Do not use any electrical appliances in the food area of

the appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep air slots clear.

Putting into operation

* Depending on model and options 7

Observe the following specifications for storage:

Package food properly.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

5.2 Freezer compartment

Here, a dry, frosty storage climate is created at -18 °C. The

frosty storage climate is suitable for storing frozen food for

several months, for making ice cubes or freezing fresh food.

5.2.1 Freezing food

Freezing quantity

The maximum amount of fresh food that you can

freeze within 24 hours is specified on the type plate

(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.

To ensure that food quickly freezes through, adhere to the

following quantities per package:

Fruit and vegetables up to 1 kg

Meat up to 2.5 kg

Freezing food using SuperFrost

Depending on the quantity to be frozen, you can activate

SuperFrost before freezing in order to achieve lower freezing

temperatures. (see SuperFrost)

► Activate SuperFrost if the amount of food you have to

freeze is more than approx. 2 kg.

The time at which you activate SuperFrost depends on the

amount of food you have to freeze:

Freezing quan‐

tity

Time at which you should activate

SuperFrost

Small amount of

food to freeze

Activate SuperFrost about 6 hours

before freezing.

You can place the food in the freezer

as soon as the appliance automatically

deactivates SuperFrost.

Maximum

amount of food

to freeze

Activate SuperFrost about 24 hours

before freezing.

You can place the food in the freezer

as soon as the appliance automatically

deactivates SuperFrost.

Arranging your food properly

CAUTION

Risk of injury from broken glass!

Bottles and cans with beverages can burst during freezing.

This applies in particular to carbonated beverages.

► Only freeze bottles and cans with beverages if you have

activated the BottleTimer function in the SmartDevice

app.

Appliance height <1220mm

Freezing quantity Arranging your food properly

Small amount of

food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the

back of the drawer near the rear wall.

Maximum amount

of food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the

back of the drawer near the rear wall.

Appliance height ≥1220mm

Freezing quantity Arranging your food properly

Small amount of

food to freeze

Distribute packaged groceries

throughout all drawers, but do not

place any groceries in the top

drawer.

Maximum amount

of food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the

back of the drawer near the rear

wall.

5.2.2 Defrosting food

WARNING

Risk of food poisoning!

► Do not re-freeze thawed food.

► Use defrosted foodstuff as soon as possible.

You can defrost food in several ways:

In a fridge

In the microwave

In the oven/fan-assisted oven

At room temperature

► Take out only as much food as necessary.

5.2.3 Freezer tray

You can freeze berries, herbs, vegetables and other small

frozen food in the freezer tray without it all freezing

together. The frozen food is less likely to get squashed and

subsequent portioning is easier.

In addition, you can store the cold storage accumulators in

the freezer tray to save space.

► Distribute food on the freezer tray without packaging and

well spaced out.

5.3 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

Recommended storage period for various types of food

Ice cream at -18°C 2 to 6 months

Sausages, ham at -18°C 2 to 3 months

Bread, baked goods at -18°C 2 to 6 months

Game, pork at -18°C 6 to 9 months

Fatty fish at -18°C 2 to 6 months

Storage

8 * Depending on model and options

Recommended storage period for various types of food

Lean fish at -18°C 6 to 8 months

Cheese at -18°C 2 to 6 months

Poultry, beef at -18°C 6 to 12 months

Vegetables, fruit at -18°C 6 to 12 months

6 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature (see 1.4 Appliance

range of use) . A warmer ambient temperature can

increase the energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Keep all food properly packed and covered. This prevents

frost from forming.

Inserting warm food: allow to cool down to room temper‐

ature first.

7 Controls

7.1 Controls and displays

7.1.1 Status display

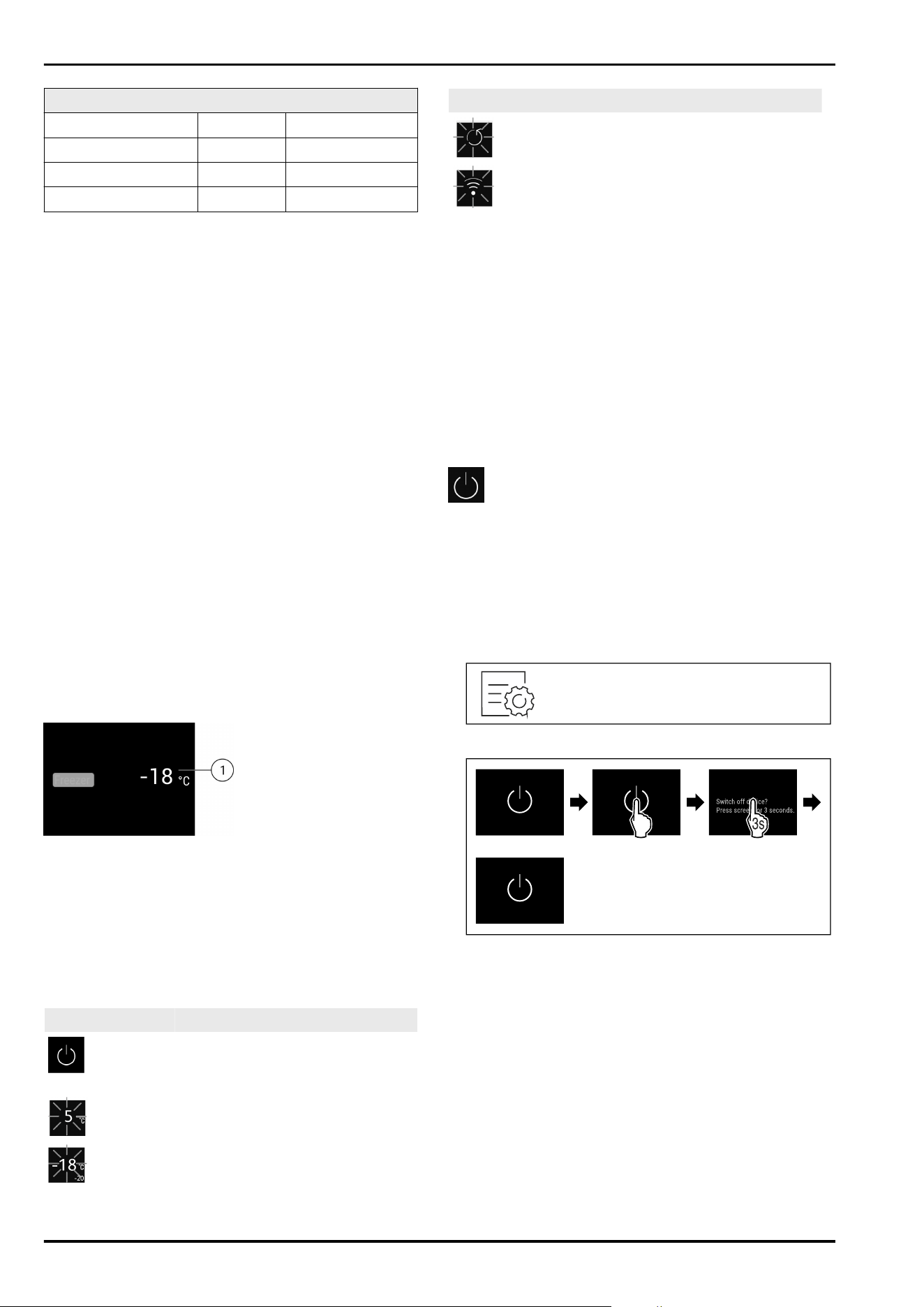

Fig. 6 The status display shows the actual temperature.

(1)

Temperature display

The status display shows the actual temperature and is the

initial display. Navigation to the functions takes place from

there.

7.1.2 Display symbols

Display symbols provide information on the current appli‐

ance status:

Symbol

Appliance status

Standby

The appliance or temperature zone

is switched off.

Flashing number

Appliance is working. Temperature

flashes until the set temperature is

reached.

Symbol Appliance status

Flashing symbol

Appliance is working. Setting is

made.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the device functions,

make sure that the following requirements are met:

❑

You have read and understood the descriptions of

how the display works. (see 3 Functionality of the

Touch&Swipe display)

❑

You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously

saved settings are saved.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see 11 Shutting down) are carried

out.

Fig.7

Fig.8

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ The standby symbol appears in the display.

▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Briefly touch the display.

Saving energy

* Depending on model and options 9

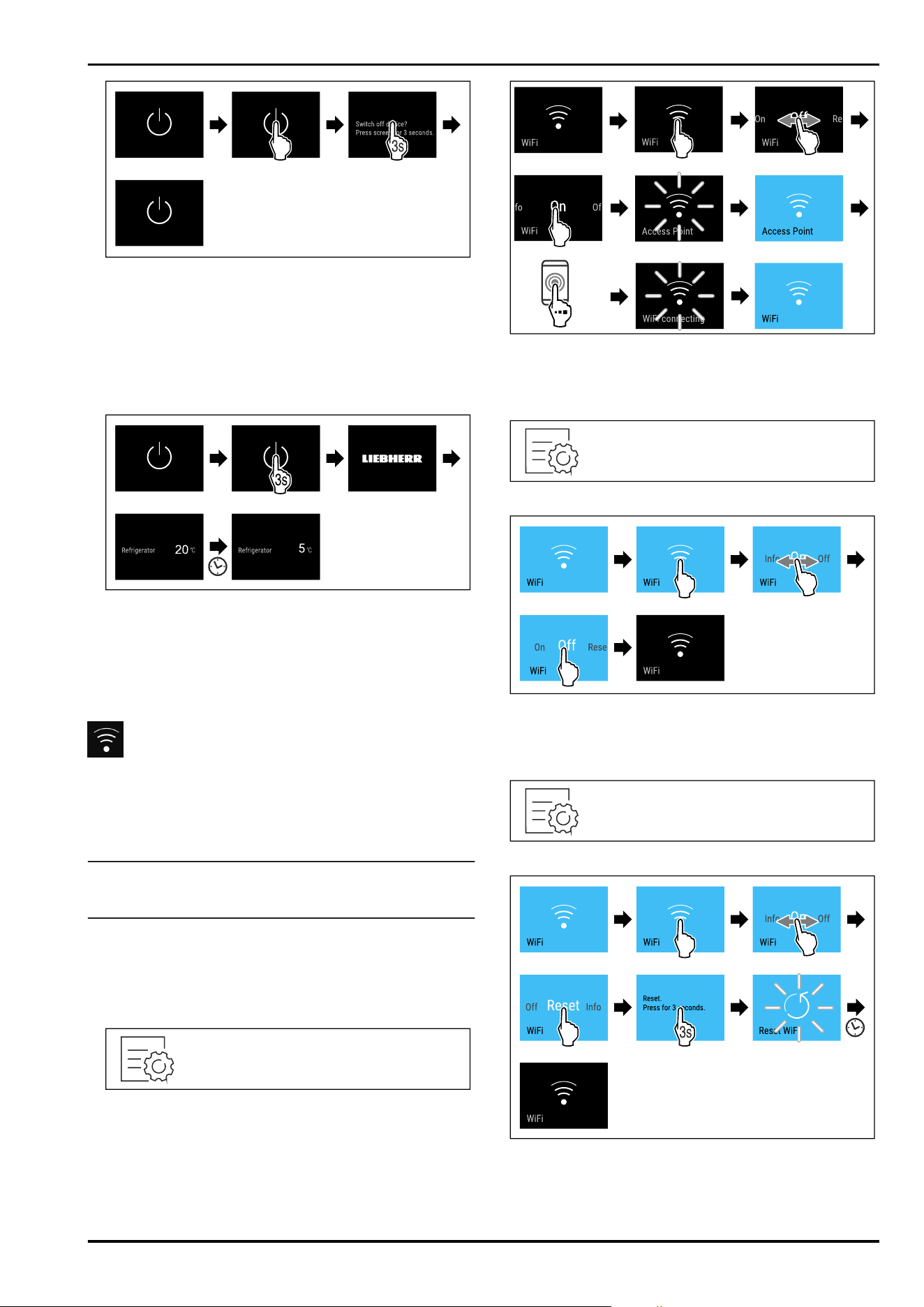

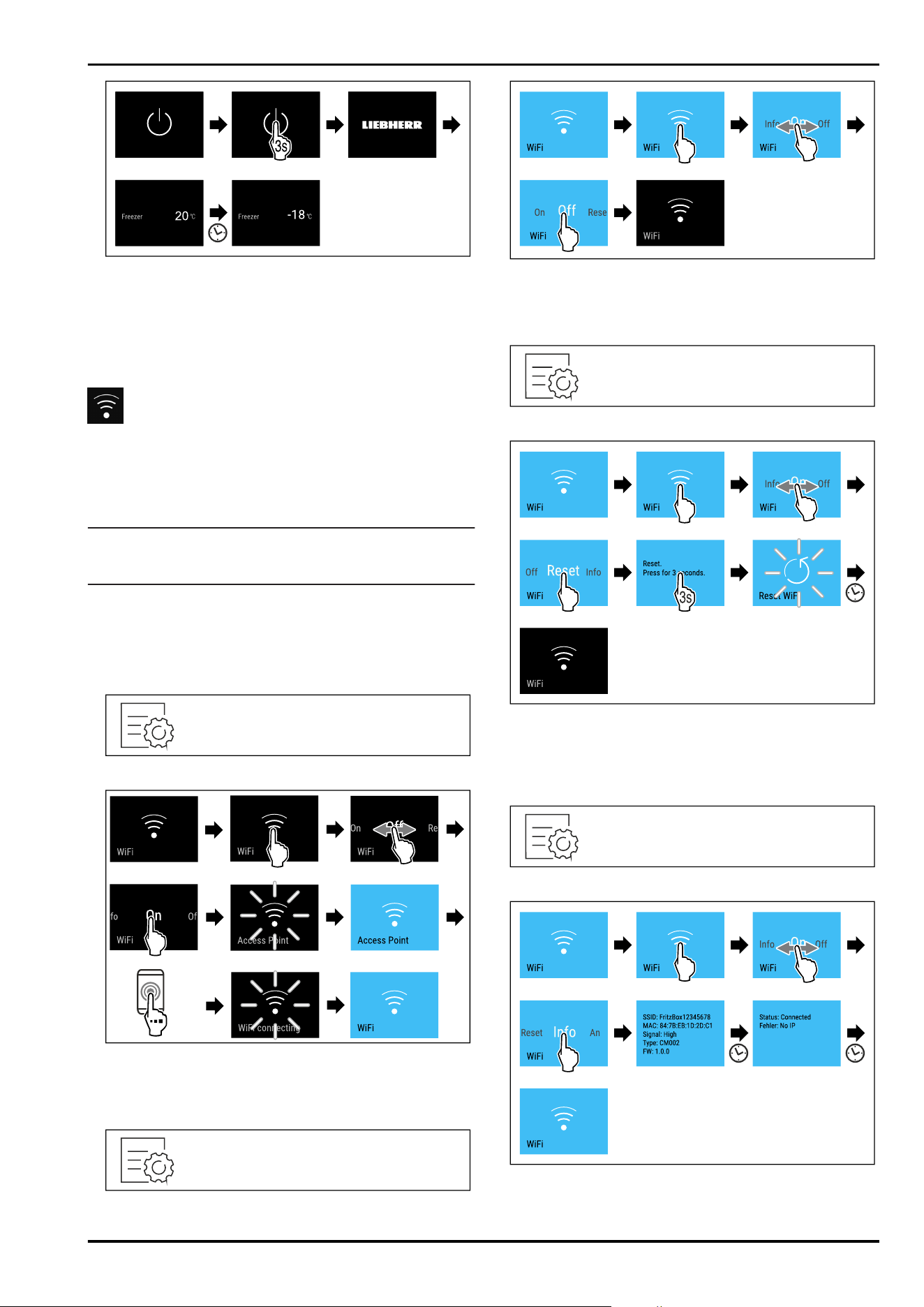

Fig. 9 Example illustration

► Carry out action steps according to the illustration.

When the appliance starts in demo mode:

► Deactivating demo mode. (see Deactivating demo mode)

▷ The appliance is switched on.

▷ Previous settings are restored.

▷ The appliance cools to the target temperature set.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

More information on the SmartDevice: (see 1.3 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig. 10

Fig.11

► Carry out action steps according to the illustration.

▷ Connection is established.

Disconnecting from the WiFi

Fig.12

Fig.13

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

Fig. 14

Fig. 15

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Showing information about the WiFi connection

Fig. 16

Fig.17

► Carry out action steps according to the illustration.

Controls

10 * Depending on model and options

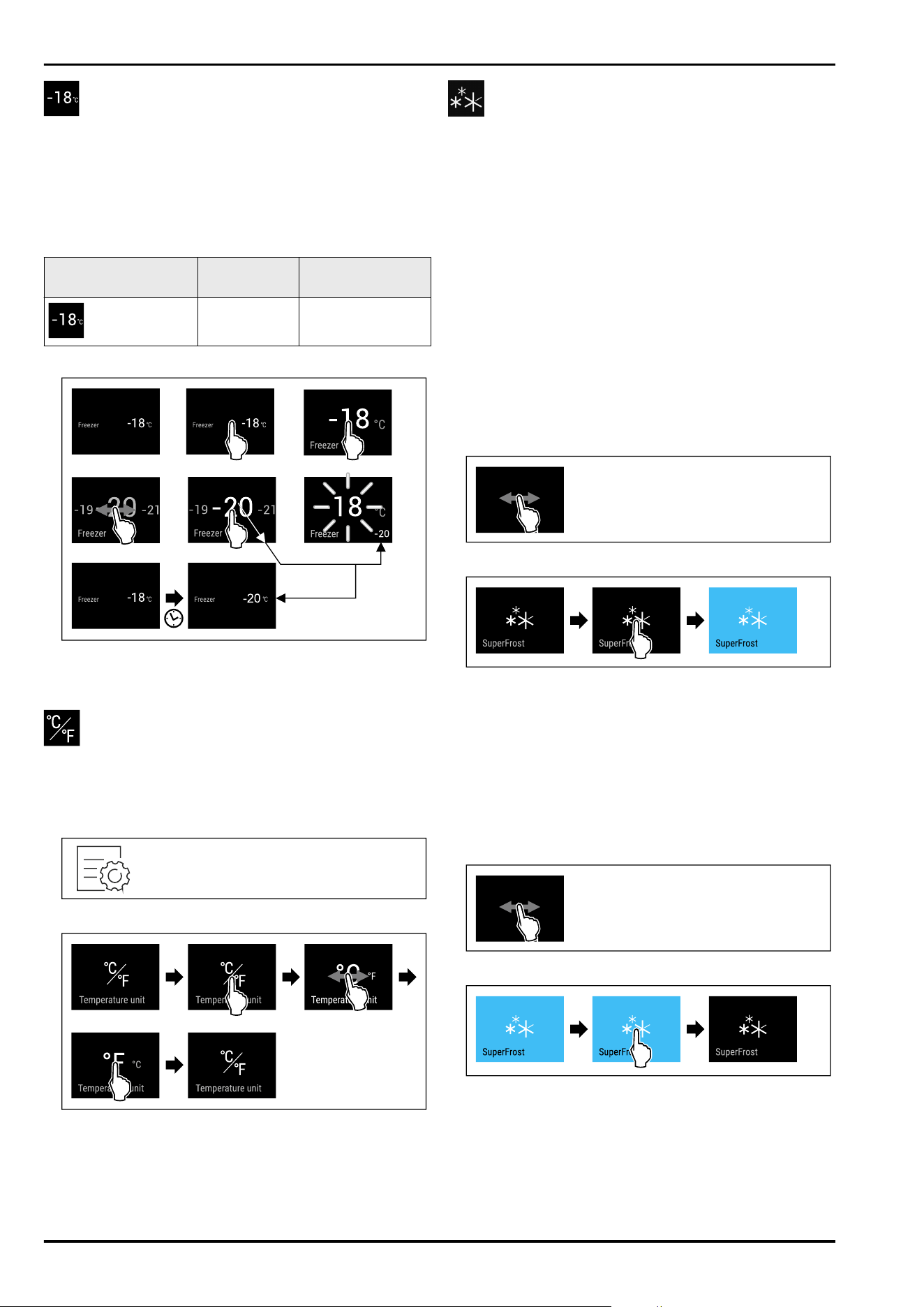

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Freezer compartment Factory-set

temperature

Recommended

setting

-18°C -18°C

Setting the temperature

Fig. 18 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

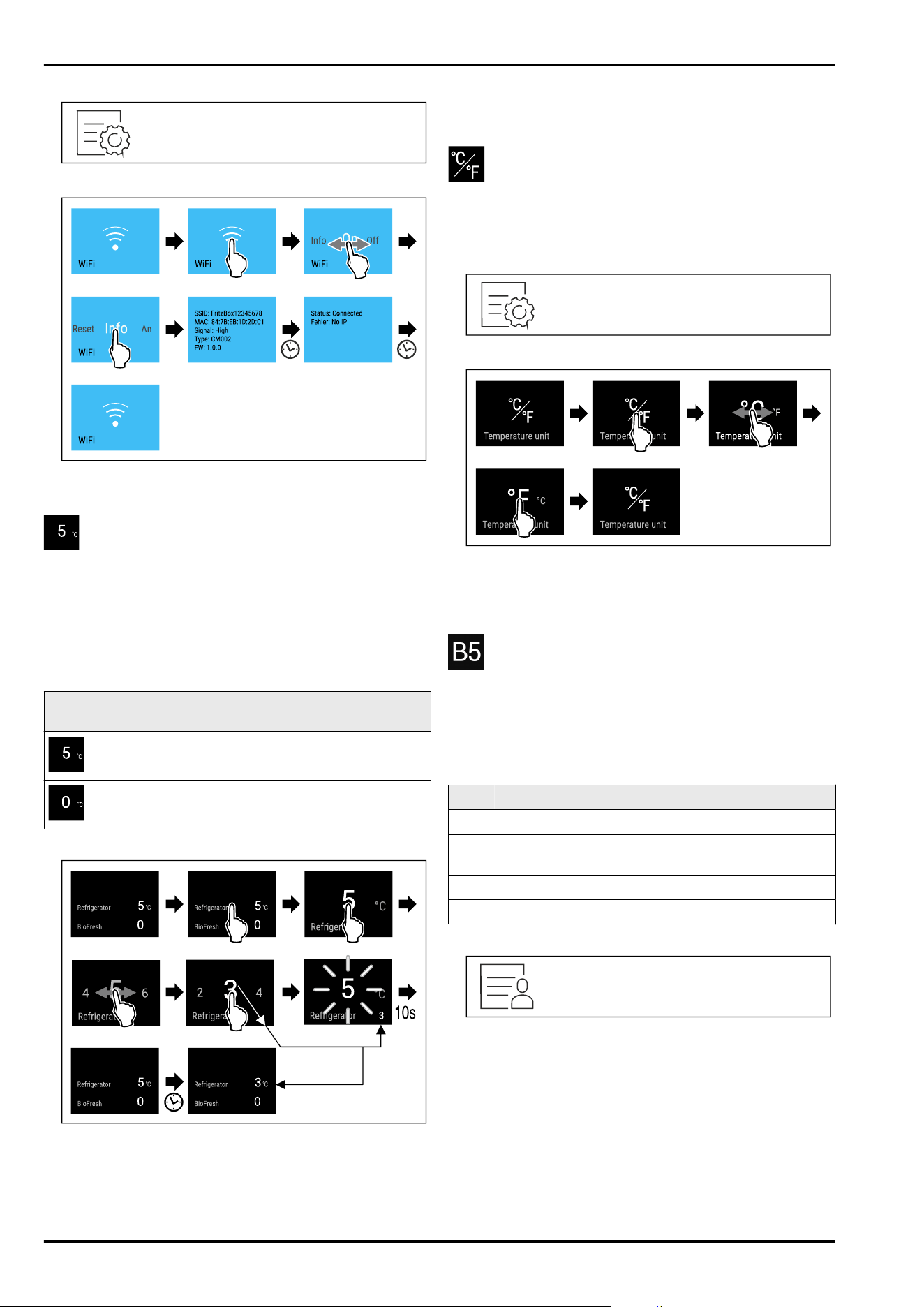

Temperature unit

Use this function to set the temperature unit. You can set

degrees Celsius or degrees Fahrenheit as the temperature

unit.

Setting the temperature unit

Fig. 19

Fig. 20 Example illustration: Switch from degreesCelsius

to degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ The temperature unit is set.

SuperFrost

You can use this function to activate or deactivate

SuperFrost. If SuperFrost is activated, then the appliance

increases the freezing capacity. It allows you to achieve

lower freezing temperatures.

Application:

Quickly freeze fresh food through to the core.

This ensures that the nutrition, appearance and taste of

frozen food is maintained.

Increase the cold reserve in stored frozen food before

defrosting the appliance.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Activating SuperFrost

Make sure that the following requirements are fulfilled:

❑

Freezing quantity and time for activation of SuperFrost

are taken into account. (see Freezing food using

SuperFrost)

Fig.21

Fig.22

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ SuperFrost is activated.

▷ The temperature display turns blue.

Deactivating SuperFrost

SuperFrost is automatically deactivated after 56 to 72 hours

depending on the quantity of the food inserted. However,

you can also deactivate SuperFrost manually at any time:

Fig.23

Fig. 24

► Carry out action steps according to the illustration.

-or-

► Deactivate with the SmartDevice app.

▷ SuperFrost is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

Controls

* Depending on model and options 11

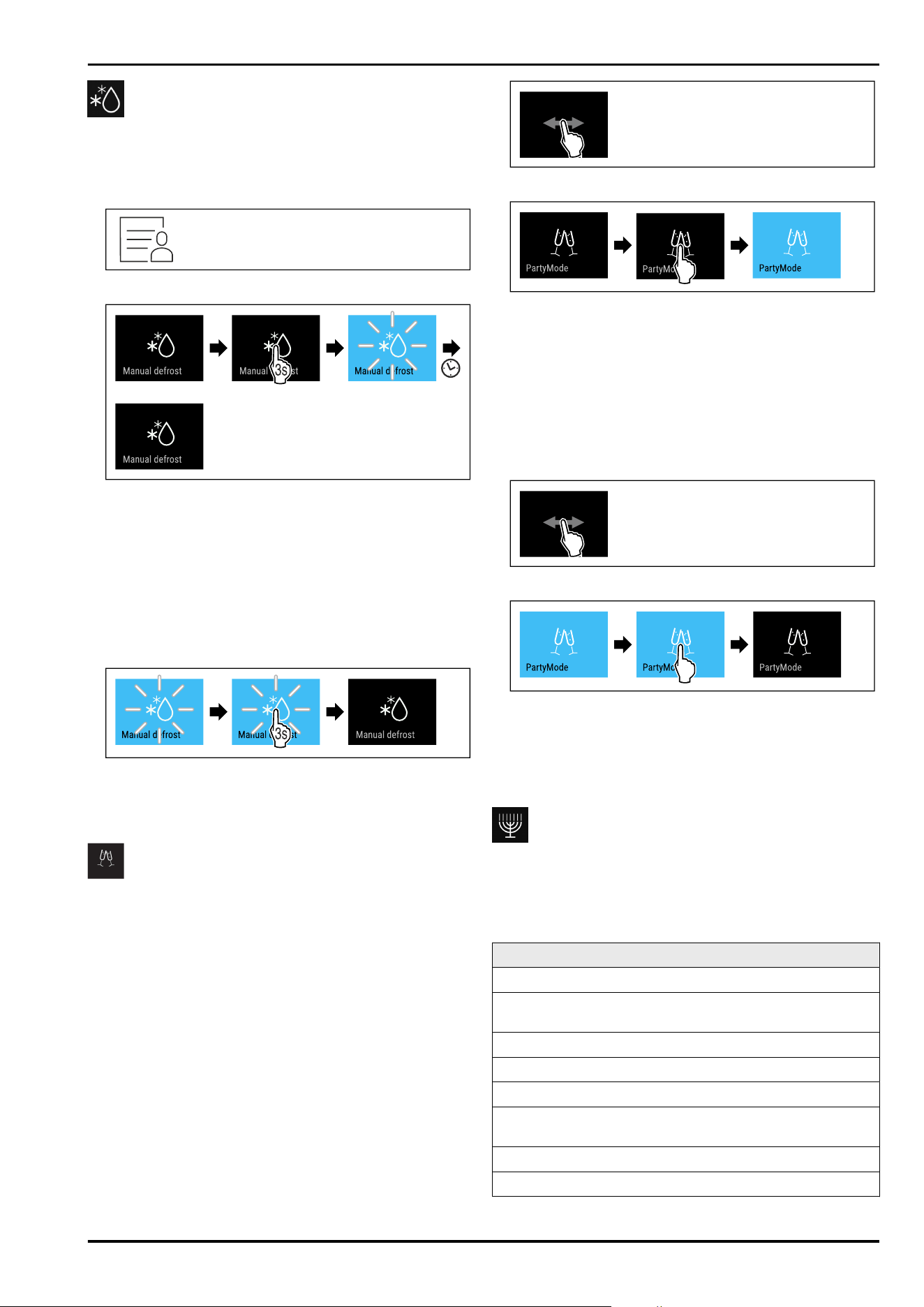

Start defrosting cycle

Use this function to start the automatic defrosting cycle

manually if it does not start automatically in the event of a

fault.

Starting defrosting cycle

Fig.25

Fig. 26

► Carry out action steps according to the illustration.

▷ Defrosting cycle has started: Icon flashes until defrosting

cycle is automatically completed.

▷ When defrosting cycle is finished: The device continues

to run in normal mode.

Cancelling defrosting cycle

The defrosting cycle will be stopped automatically. However,

you can also cancel the defrosting cycle at any time during

the defrosting process:

Fig.27

► Carry out action steps according to the illustration.

▷ Defrosting cycle is cancelled.

▷ The device continues to run in normal mode.

PartyMode

You can use this function to activate or deactivate Party‐

Mode. PartyMode activates various functions that are useful

for a party.

PartyMode activates the following functions:

SuperFrost (see SuperFrost)

IceMaker with MaxIce (see IceMaker / MaxIce )

You can adjust all listed functions individually and flexibly.

When you deactivate PartyMode, all changes are discarded.

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating PartyMode

Make sure that the following requirements are fulfilled:

❑

The IceMaker has been started. (see 4.2 Starting the

IceMaker for the first time)

Fig.28

Fig.29

► Carry out action steps according to the illustration.

▷ PartyMode and the associated functions are activated.

▷ The temperature display turns blue.

▷ The current temperature flashes until the target tempera‐

ture is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after

24 seconds. However, you can also deactivate PartyMode

manually at any time:

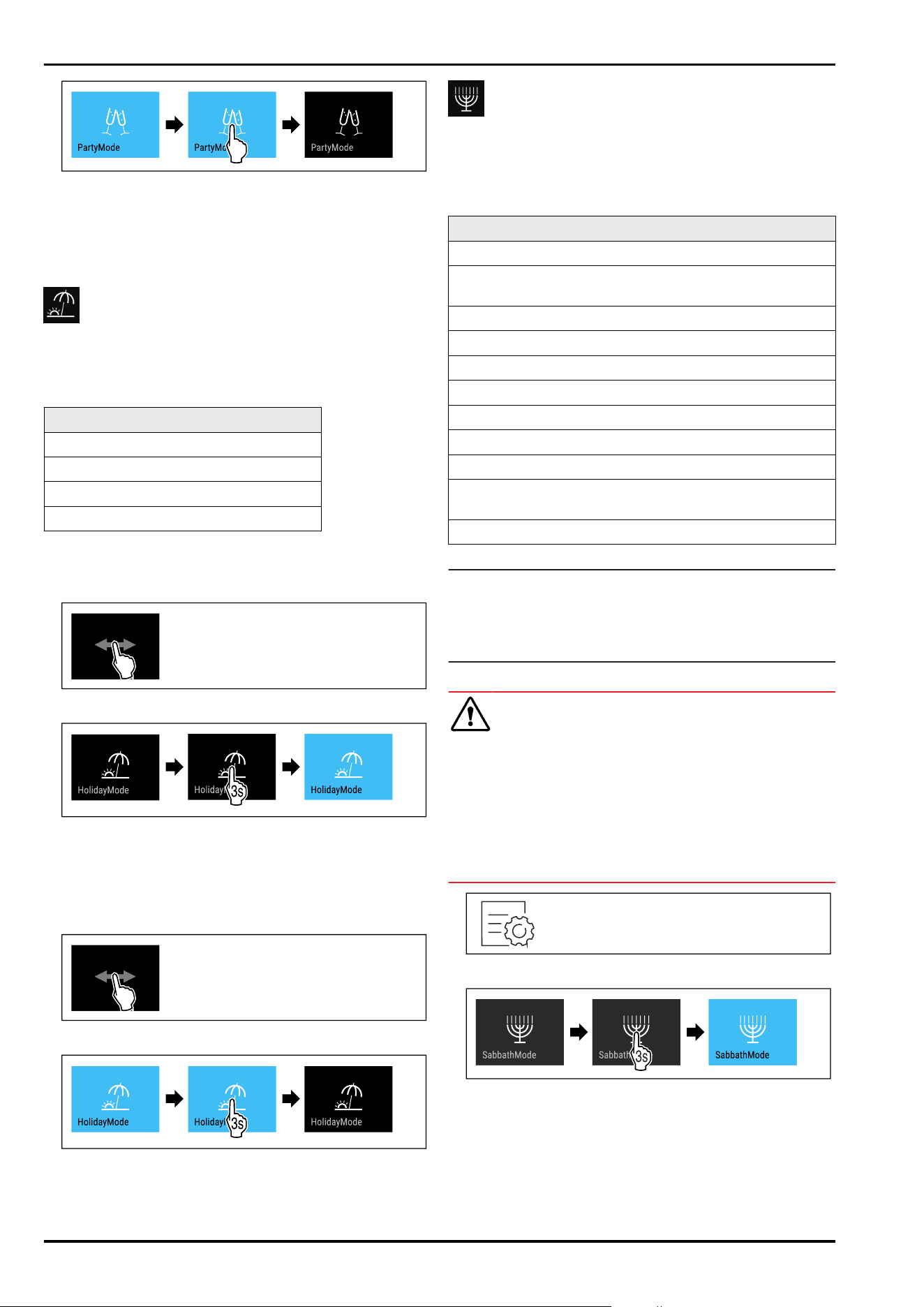

Fig.30

Fig.31

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance cools to the temperature set previously:

The current temperature flashes until the target tempera‐

ture is reached.

SabbathMode

You can use this function to activate or deactivate

SabbathMode. If you activate this function, some electronic

functions are switched off. As a result, your device meets

the religious requirements for Jewish holidays such as

Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the

Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Reminders are not implemented. The set time interval

stops.

Reminders and warnings are not displayed.

There is no door alarm.

Controls

12 * Depending on model and options

Device status when SabbathMode is active

There is no temperature alarm.

The IceMaker is switched off.

The defrosting cycle operates only for the specified time,

without considering the appliance consumption.

After a power failure, the appliance returns to

SabbathMode.

Device status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

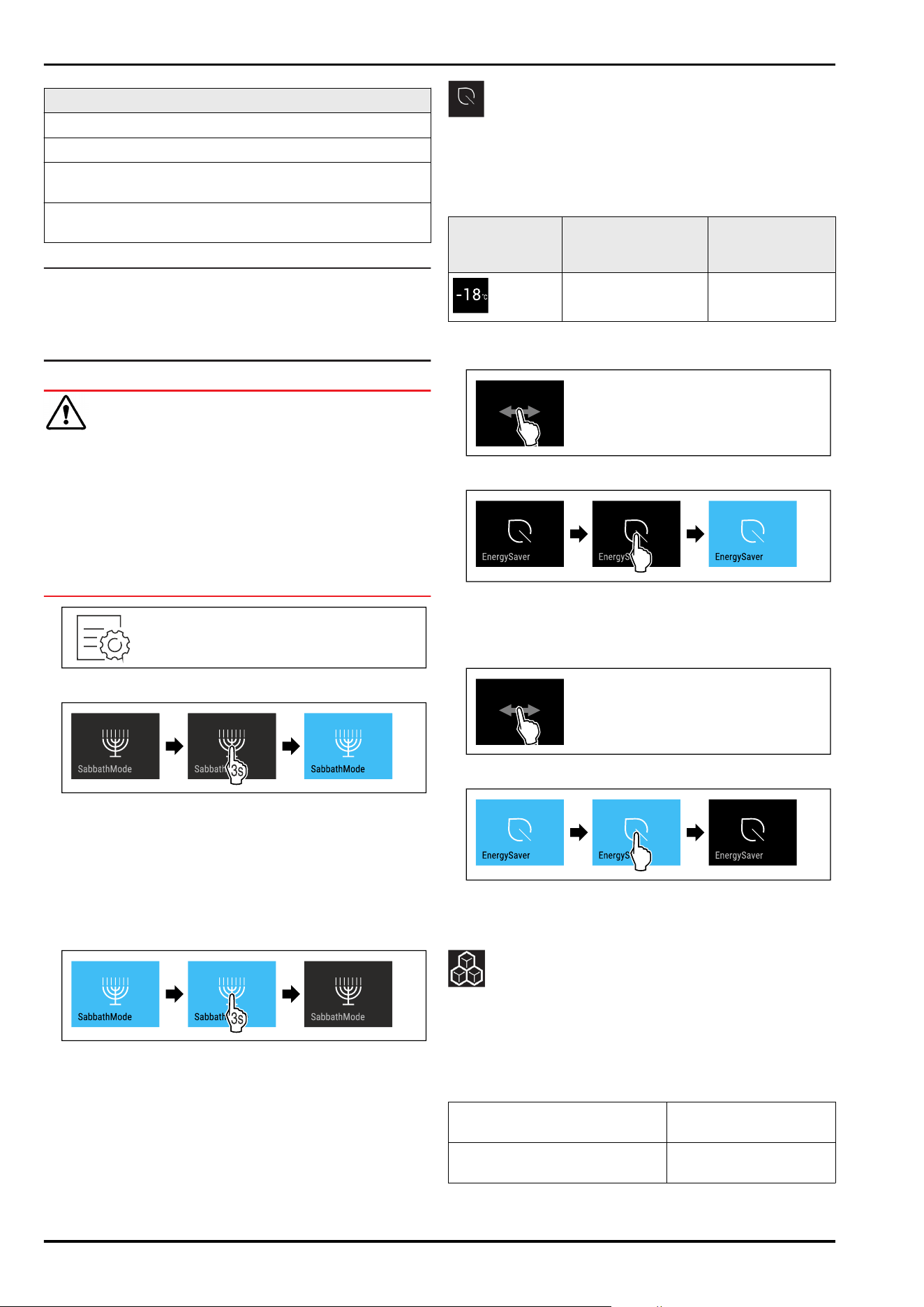

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that was frozen and has thawed

out.

Fig.32

Fig.33

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after

80 hours. However, you can also deactivate SabbathMode

manually at any time:

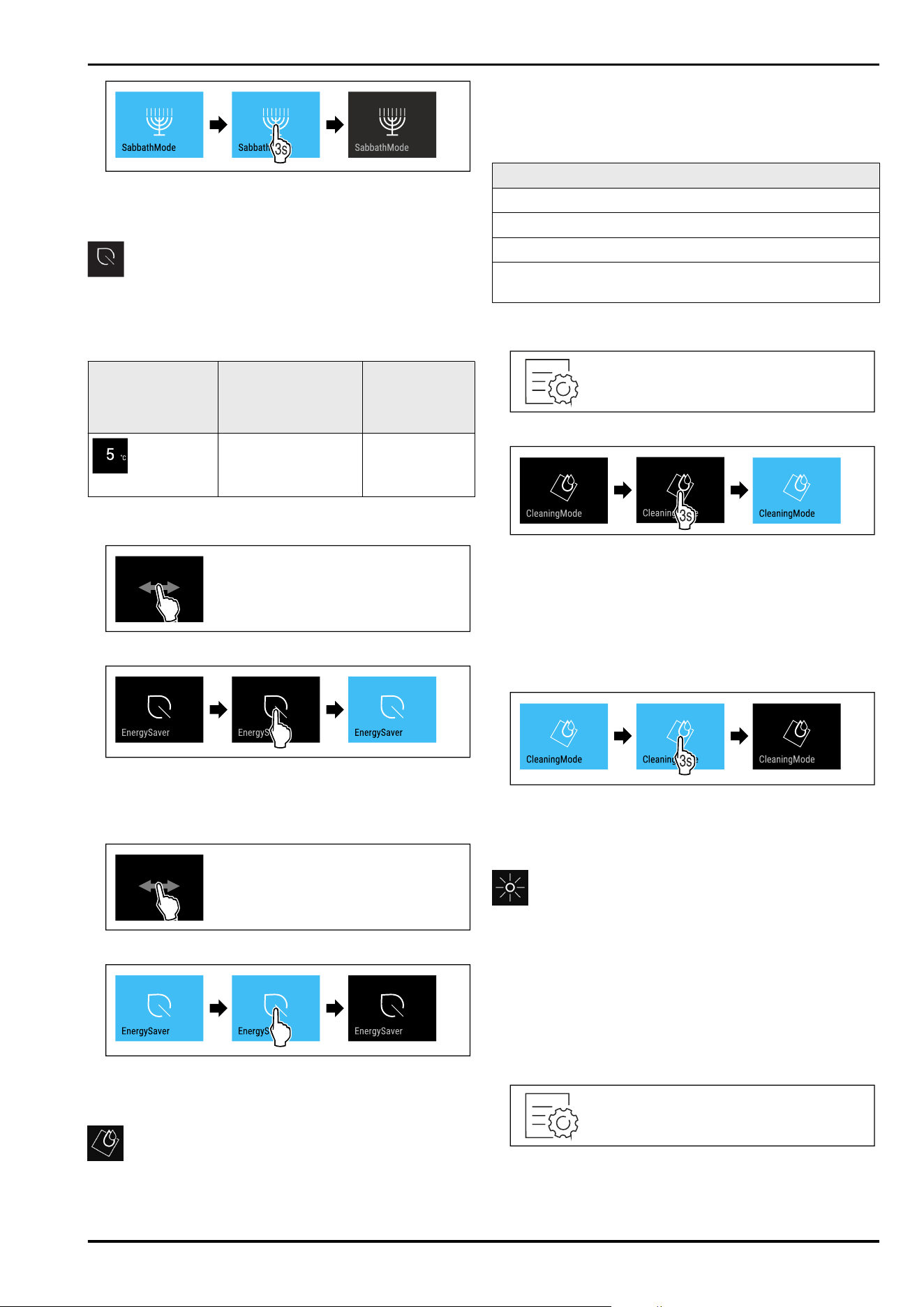

Fig.34

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

EnergySaver

You can use this function to activate or deactivate Energy

saving mode. If energy saving mode is activated, the energy

consumption decreases and the temperature in the device

increases. The food remains fresh, but the shelf life is short‐

ened.

Temperature

zone

Recommended

setting (see Setting

the temperature)

Temperature

with active Ener‐

gySaver

-18°C -16°C

Temperatures

Activating EnergySaver

Fig.35

Fig.36

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating EnergySaver

Fig.37

Fig.38

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

IceMaker / MaxIce

Use the IceMaker function to activate or deactivate the

production of ice cubes. Use the MaxIce function to

increase the amount of ice cubes produced by the IceMaker.

MaxIce is automatically deactivated after 48 hours.

However, you can also deactivate MaxIce manually at any

time: (see Deactivating MaxIce)

More information on the number

of ice cubes:

(see 10.1 Technical spec‐

ifications)

Further information on the

IceMaker water supply:

(see IceMaker water

supply)

Controls

* Depending on model and options 13

More information on cleaning

the lines of the IceMaker:

(see TubeClean )

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating IceMaker

Make sure that the following requirements are fulfilled:

❑

The water supply is established at the fixed water

connection. See installation instructions.

❑

IceMaker is put into operation. (see8.4 IceMaker)

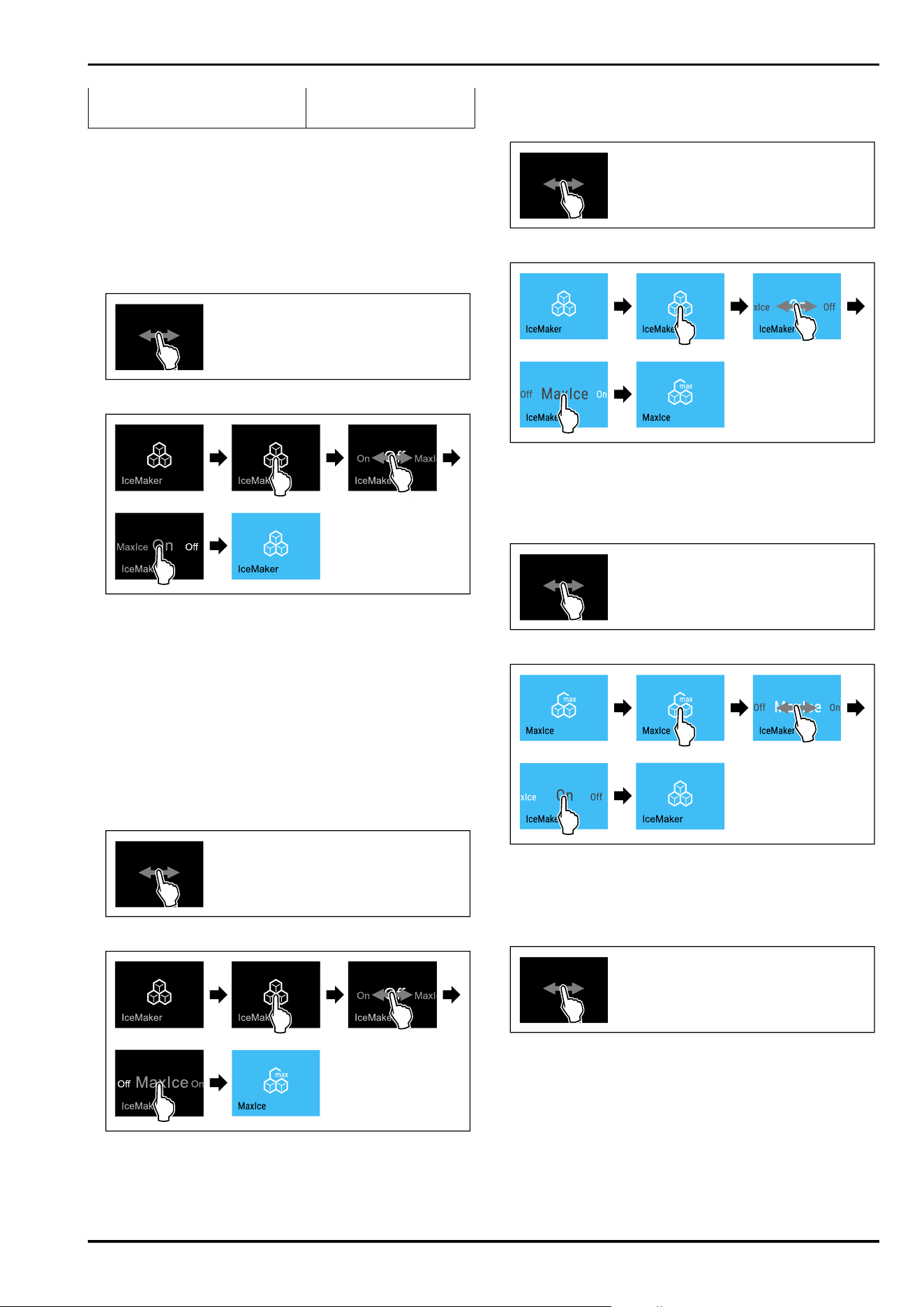

Fig. 39

Fig.40

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ IceMaker is activated. It can take up to 24 hours for the

IceMaker to produce the first ice cubes.

Activating the IceMaker with MaxIce

If you have not activated the IceMaker function before,

make sure that the following requirements are met:

❑

The water supply is established at the fixed water

connection. See installation instructions.

❑

IceMaker is put into operation. (see8.4 IceMaker)

Fig. 41

Fig. 42

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ The IceMaker is activated with MaxIce.

Changing between the IceMaker and MaxIce

If you have activated the IceMaker and would like to change

to MaxIce:

Fig.43

Fig.44

► Carry out action steps according to the illustration.

▷ The IceMaker is activated with MaxIce.

If you have activated MaxIce and would like to change to the

IceMaker:

Fig.45

Fig.46

► Carry out action steps according to the illustration.

▷ IceMaker is activated.

▷ MaxIce is deactivated.

Deactivating the IceMaker and MaxIce

Fig. 47

Controls

14 * Depending on model and options

Fig. 48 Example illustration of the active IceMaker function

► Carry out action steps according to the illustration.

-or-

► Deactivate with the SmartDevice app.

▷ IceMaker and MaxIce are deactivated.

▷ If ice cubes are currently being made, the system

completes the process.

▷ The IceMaker goes off automatically.

Deactivating MaxIce

► Activate the IceMaker. (see Activating IceMaker )

▷ MaxIce is deactivated.

▷ IceMaker is activated.

▷ To deactivate the IceMaker and MaxIce: (see Deactivating

the IceMaker and MaxIce)

IceMaker water supply

Use this function to set the water supply. The water supply

regulates the amount of water supplied. The water supply

can be changed if it does not match the water pressure and

the ice cube size dispensed.

The water supply is pre-set to value 4 as delivered. A value

from 1 (smallest inflow volume) to 8 (largest inflow volume)

can be selected.

Setting water supply

Make sure that the following requirements are fulfilled:

❑

The IceMaker has been started. (see 4.2 Starting the

IceMaker for the first time)

❑

IceMaker is activated. (see IceMaker / MaxIce )

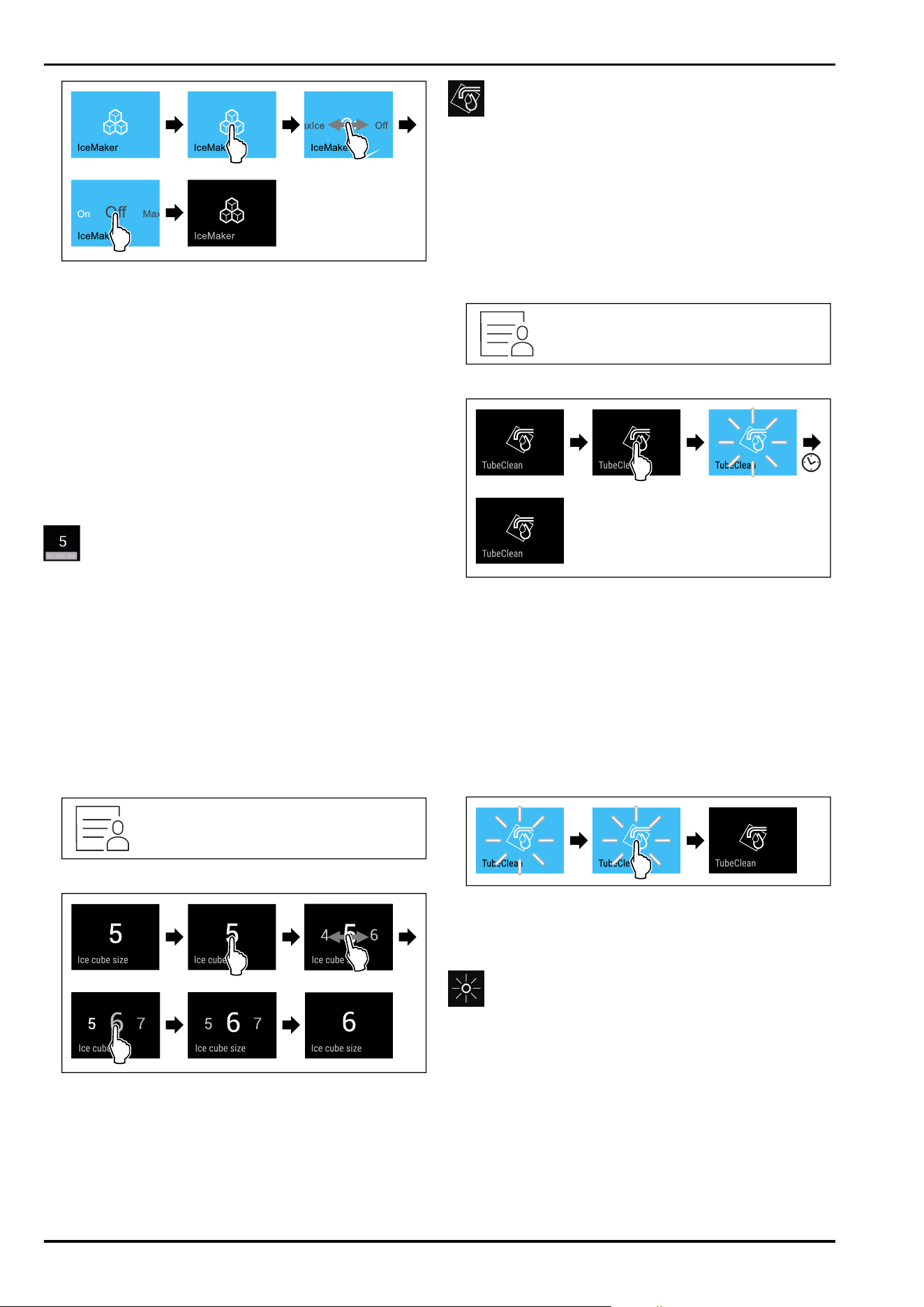

Fig. 49

Fig. 50 Example illustration: Switch from value 5 to

value6.

► Carry out action steps according to the illustration.

▷ The water supply is set.

TubeClean

You can use this function to activate or deactivate Tube‐

Clean. If TubeClean is activated, it cleans the IceMaker lines.

Activating TubeClean

Make sure that the following requirements are fulfilled:

❑

IceMaker cleaning is prepared. (see 9.3.4 Cleaning the

IceMaker)

❑

Empty container with a capacity of 1.5 l and with a

maximum height of 10cm is ready.

► Place the container in the drawer under the IceMaker.

Fig.51

Fig.52

► Carry out action steps according to the illustration.

▷ TubeClean is activated.

▷ The cleaning process has started: Icon flashes until

the cleaning process is automatically completed after

60 minutes.

▷ When the cleaning process is complete: The device

continues to run in normal mode.

Deactivating TubeClean

TubeClean is automatically ended after 60 minutes.

However, TubeClean can also be deactivated at any time

during the cleaning process:

Fig.53

► Carry out action steps according to the illustration.

▷ TubeClean is deactivated: Cleaning process is aborted.

▷ The device continues to run in normal mode.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Controls

* Depending on model and options 15

Setting the brightness

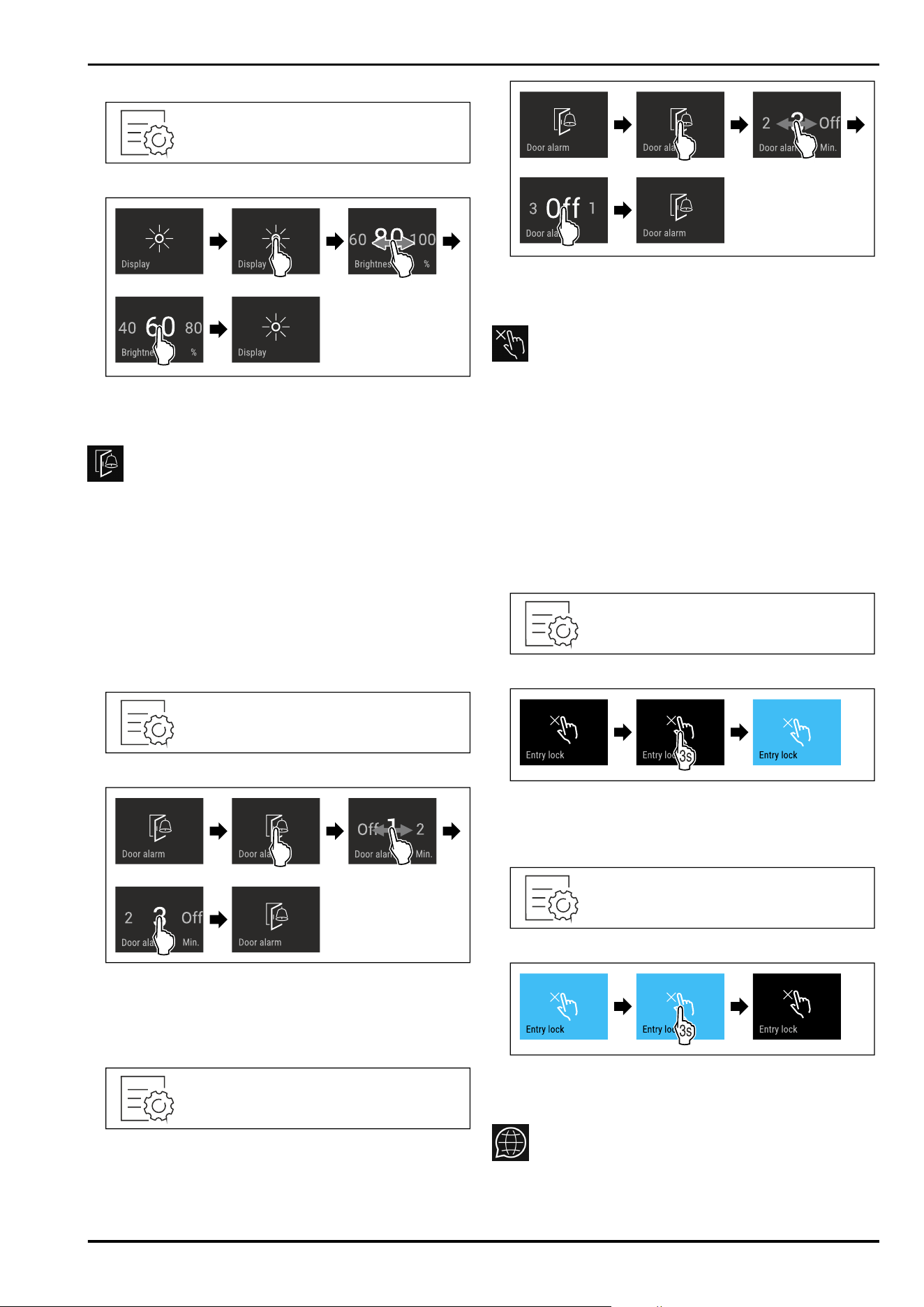

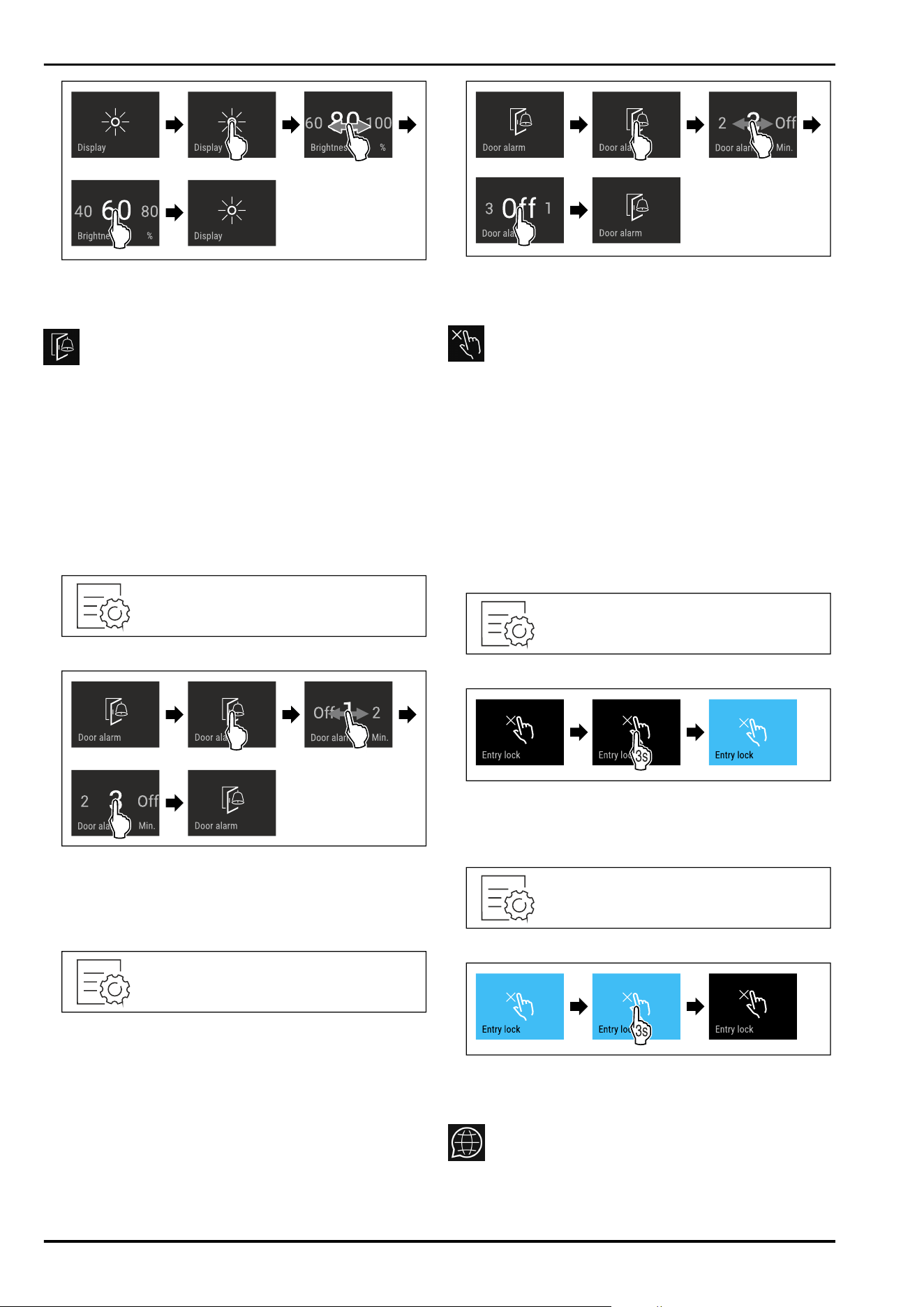

Fig.54

Fig. 55 Example illustration: Switch from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ The brightness is set.

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated on delivery. You can set how long

the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig.56

Fig. 57 Example illustration: Change door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ The door alarm is set.

Deactivating the door alarm

Fig. 59

Fig.60

► Carry out action steps according to the illustration.

▷ The door alarm is deactivated.

Input lock

You can use this function to activate or deactivate the input

lock. The input lock prevents the appliance being operated

accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus but you cannot select or change other func‐

tions.

Fig.61

Fig. 62

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig.63

Fig.64

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Language

Use this function to set the display language.

Controls

16 * Depending on model and options

You can select the following languages:

Deutsch

English

Français

Español

Italiano

Nederlands

Čeština

Polski

Português

Bulgarian

Русский

温度单位

Setting the language

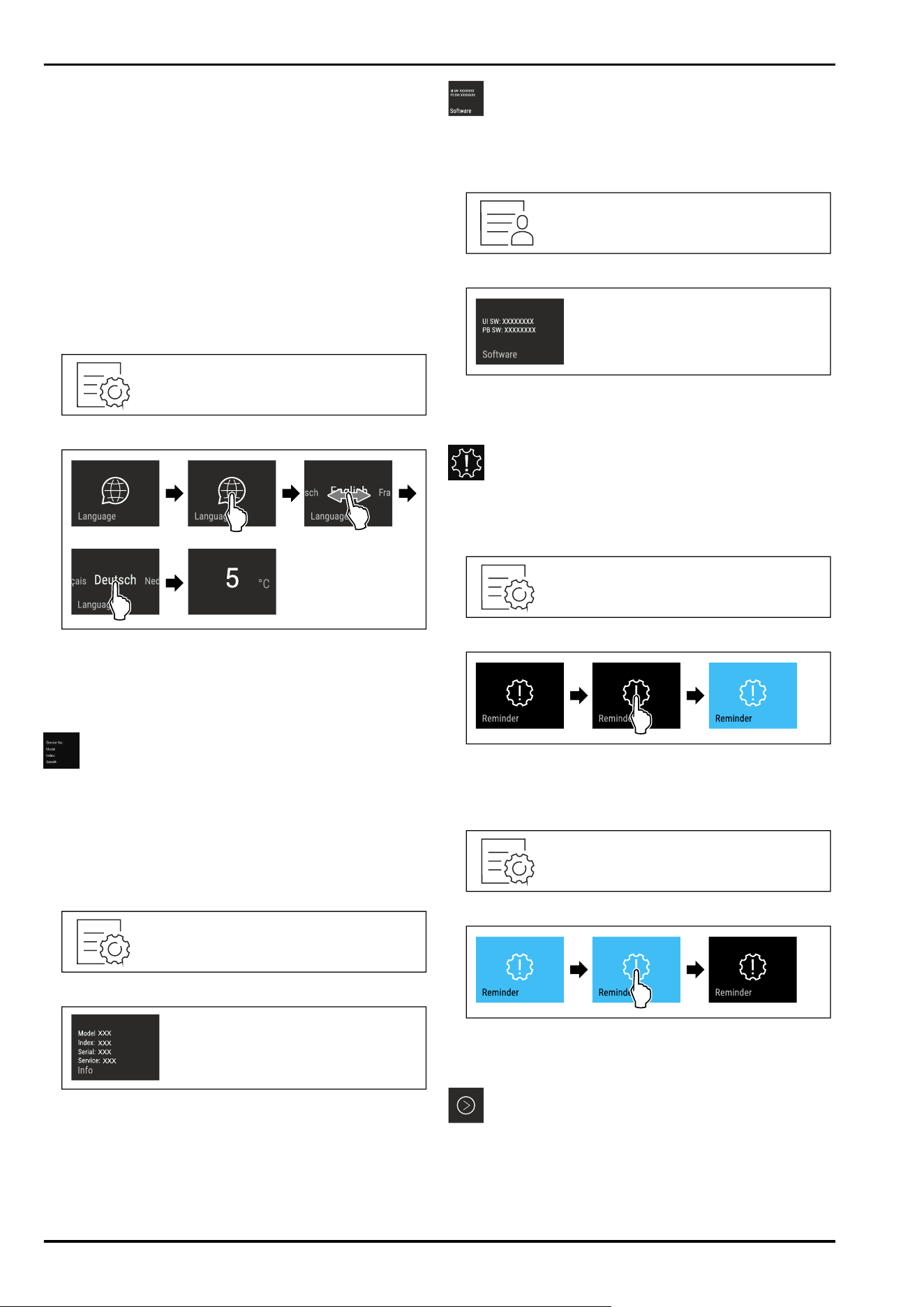

Fig.65

Fig. 66 Example illustration depending on the language

and temperature

► Carry out action steps according to the illustration.

▷ The language is set.

▷ The display returns to the status display.

Device information

Use this function to indicate the model name, index, serial

number and service number of your device. You will need

the device information when you contact customer service.

(see 10.4 Customer Service)

This function also opens the Advanced menu. (see 3 Func‐

tionality of the Touch&Swipe display)

Indicating the device information

Fig. 67

Fig.68

► Carry out action steps according to the illustration.

▷ Display indicates device information.

Software

Use this function to indicate the software version of your

device.

Indicating the software version

Fig. 69

Fig.70

► Carry out action steps according to the illustration.

▷ Display indicates software version.

Reminder

Use this function to activate or deactivate the reminders.

The function is activated on delivery.

Activating the reminder

Fig.71

Fig.72

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Deactivating the reminder

Fig.73

Fig. 74

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the

status display, then demo mode is already activated.

Controls

* Depending on model and options 17

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig.75

Fig. 76

► Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig.77

Fig.78

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults.

All settings you have made so far are reset to their original

settings.

Performing a reset

Fig.79

Fig.80

► Carry out action steps according to the illustration.

▷ Device is reset.

▷ Device is switched off.

► Restart the device. (see 4.1 Switching on appliance (first

use))

Controls

18 * Depending on model and options

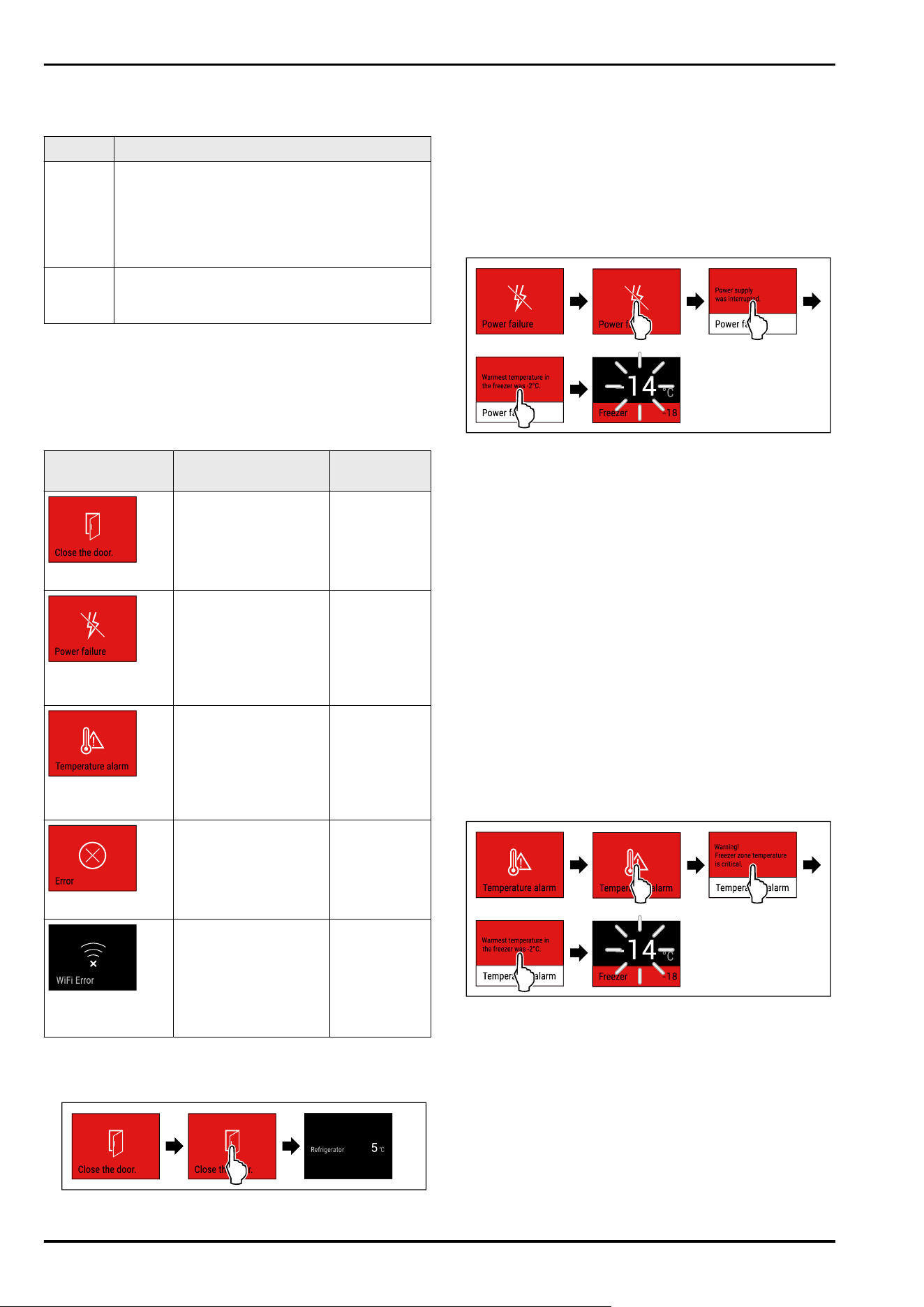

7.3 Messages

There are two categories of messages:

Category Importance

Warning Warnings appear in the event of a door alarm or

malfunction.

Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must

contact customer service. (see 10.4 Customer

Service)

Reminder Reminders remind you of general processes.

You can carry out these operations to end the

message.

7.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

Warning appears in red on the display.

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Cause Exit the

message

Door alarm

The message appears

if the door is open for

too long.

Carry out

action steps

(see Door

alarm) .

Power outage

alarm

The message appears

if the freezing temper‐

ature has risen due to

a power failure.

Carry out

action steps

(see Power

outage

alarm) .

Temperature

alarm

The message appears

if the freezing temper‐

ature does not corre‐

spond to the set

temperature.

Carry out

action steps

(see Tempera‐

ture alarm) .

Error

The message appears

if there is an appliance

error. A component of

the appliance has a

fault.

Carry out

action steps

(see Error) .

WLAN error

The message appears

if the appliance could

not be connected to

the WLAN. (see Estab‐

lishing the WiFi

connection for the

first time)

Carry out

action steps

(see WLAN

error) .

7.3.2 Ending warnings

Door alarm

Fig. 81 Example illustration

►

Carry out action steps according to the illustration.

-or-

► Close the door.

▷ The display returns to the status indicator.

You can set how long the door may be open before the door

alarm sounds. (see Setting the door alarm)

Power outage alarm

When the power failure has ended, the appliance cools

down to the previously set target temperature.

Fig. 82 Example illustration

► Briefly touch the display.

▷ Display shows information about the warning.

► Briefly touch the display.

▷ Warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9 °C: Food can

still be consumed.

If the freezing temperature has risen above -9°C:

► Check the food.

► Briefly touch the display.

▷ The display returns to the status indicator: Current

temperature and target temperature are displayed.

Temperature alarm

Temperature differences can be caused by:

You have put in warm, fresh food.

Too much warm air has got in while you were sorting out

the freezer or removing items.

There has been a longer power failure.

The appliance is faulty.

► Eliminate causes.

▷ The appliance cools to the target temperature set previ‐

ously.

Fig. 83 Example illustration

► Briefly touch the display.

▷ Display shows information about the warning.

► Briefly touch the display.

▷ Warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9 °C: Food can

still be consumed.

If the freezing temperature has risen above -9°C:

► Check the food.

► Briefly touch the display.

▷ The display returns to the status indicator: Current

temperature and target temperature are displayed.

Controls

* Depending on model and options 19

Error

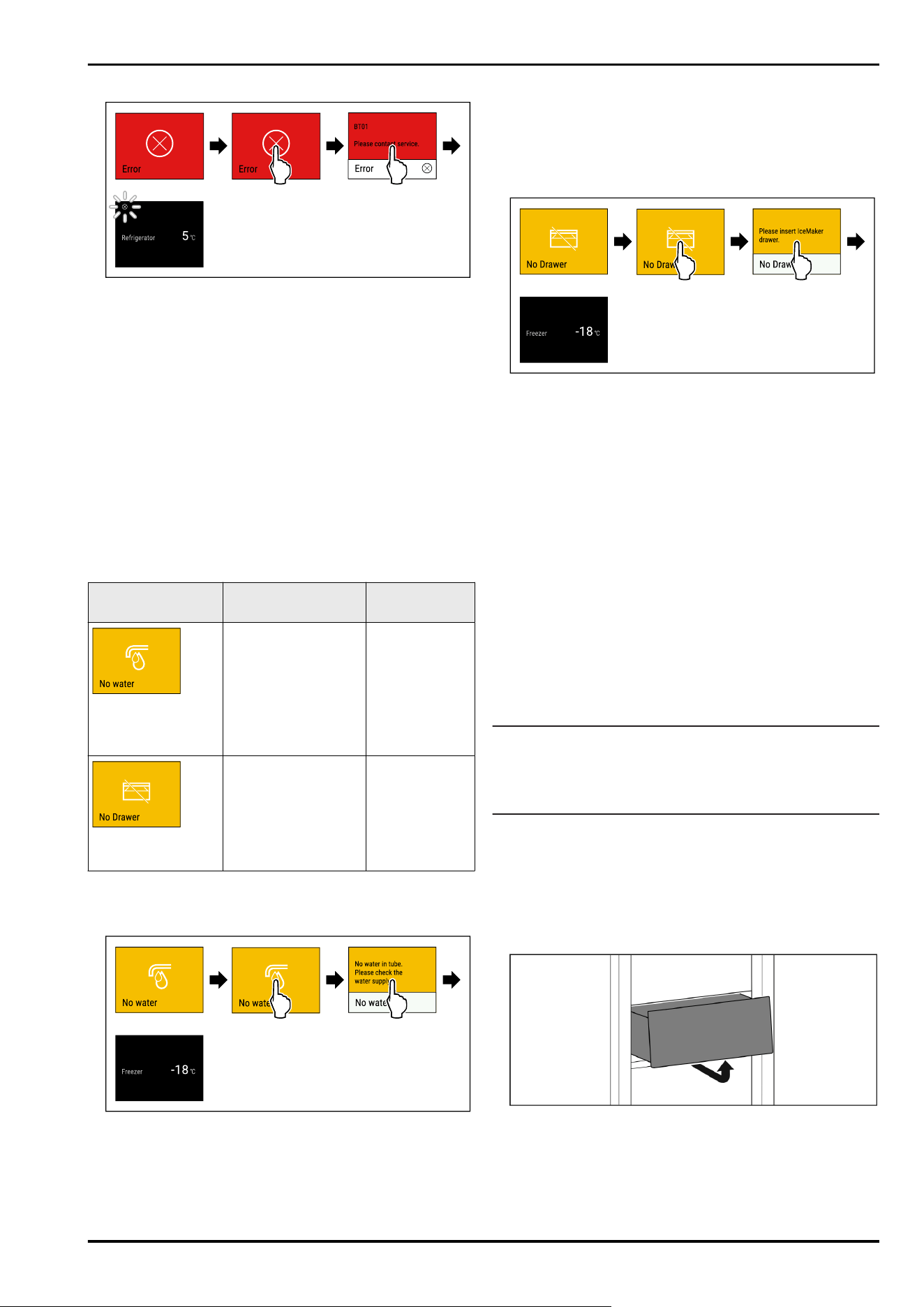

Fig. 84 Example illustration

► Briefly touch the display.

▷ Error code is displayed.

► Note the error code.

► Briefly touch the display.

▷ The display returns to the status indicator.

► Contact Customer Service. (see 10.4 Customer Service)

WLAN error

► Check WLAN connection.

► Reconnect the appliance to the WLAN. (seeWiFi)

7.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Reminder appears yellow on the display.

Alarm tone sounds.

The interior lighting pulsates for some reminders.

Message

Cause Exit the

message

Check the water

connection

The message

appears if the

IceMaker is acti‐

vated but the

IceMaker is not

being supplied with

water via the fixed

water connection.

Carry out

action steps

(see Check the

water connec‐

tion) .

Insert the

IceMaker drawer

The message

appears if the

IceMaker is acti‐

vated but the

IceMaker drawer is

open.

Carry out

action steps

(see Insert the

IceMaker

drawer) .

7.3.4 Ending reminders

Check the water connection

Fig. 85 Example illustration

► Briefly touch the display

▷ Display shows reminder information.

► Briefly touch the display

► Check the water connection.

-or-

►

Deactivate IceMaker. (see Deactivating the IceMaker and

MaxIce)

If water connection is checked and IceMaker is activated:

► Clean the IceMaker. (see 9.3.4 Cleaning the IceMaker)

▷ IceMaker produces ice cubes.

Insert the IceMaker drawer

Fig. 86 Example illustration

► Briefly touch the display.

▷ Display shows reminder information.

► Briefly touch the display.

► Insert the IceMaker drawer.

-or-

► Deactivate IceMaker. (see IceMaker / MaxIce )

▷ If IceMaker drawer is inserted and IceMaker is activated:

IceMaker produces ice cubes.

8 Features

8.1 Drawers

You can remove the drawers for cleaning.

You can remove the drawers to use VarioSpace.

The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various

pull-out systems.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Leave the bottom drawer in the appliance!

► Always leave the fan air vents clear on the back wall!

8.1.1 Drawer on appliance base or glass shelf

The drawer runs directly on the appliance base or on a glass

shelf. There are no rails.

When you remove the drawers, you can use the glass

shelves below them as storage shelves.

Removing drawer

Fig. 87

► Remove drawer as shown in the illustration.

Features

20 * Depending on model and options

Inserting drawer

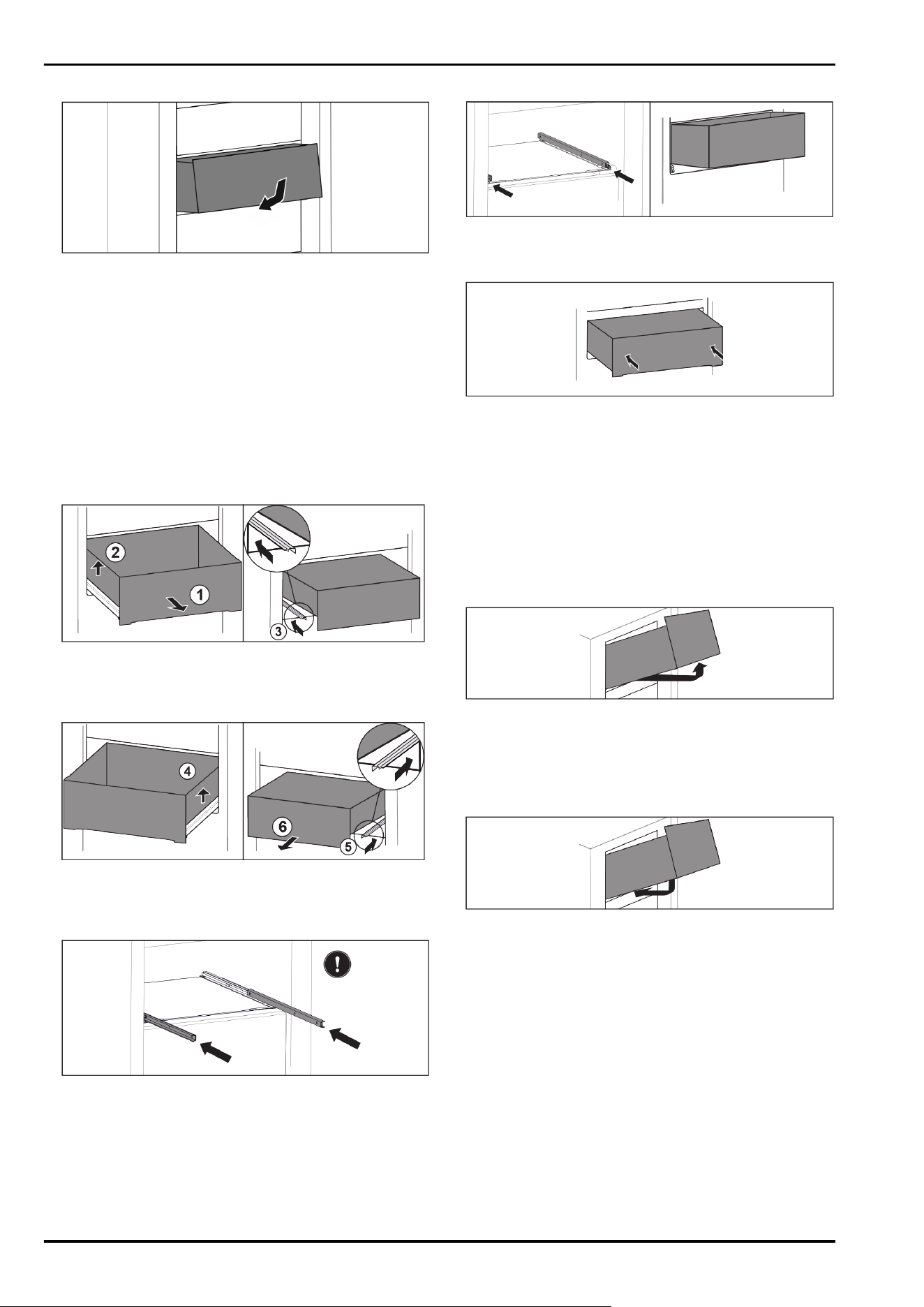

Fig.88

► Insert drawer as shown in the illustration.

8.1.2 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There

are fully extendible telescopic rails and telescopic rails with

partial pull-out. Drawers which are fully extendible can be

pulled out fully from the appliance. Drawers with partial

pull-out cannot be removed fully from the appliance. The

system in your appliance depends on the type of appliance.

Drawer on glass shelf

The drawer guided on a glass shelf is a partial pull-out.

Removing drawer

Fig.89

► Pull out drawer as far as it will go. Fig.89(1)

► Lift drawer on the left. Fig.89(2)

► Insert left rail. Fig.89(3)

Fig.90

► Lift drawer on the right. Fig.90(4)

► Insert right rail. Fig.90(5)

► Remove drawer to the front. Fig.90(6)

Fig. 91

If the rails are not yet fully inserted after removing the

drawer:

► Push rails in completely.

Inserting drawer

Fig.92

► Slide rails in.

► Place drawer on rails at an angle.

Fig. 93

► Lower drawer.

► Slide in drawer to the back.

8.1.3 Top tilting drawer

When you pull out the top drawer, it tilts forward. This gives

you a better view into the drawer. The function depends on

the height of the appliance.

When you remove the tilting drawers, you can use the glass

shelf below them as a storage shelf.

Removing drawer

Fig. 94

► Pull out drawer as far as it will go.

► Lift drawer up at the front and at the same time push up

at the back from below.

► Remove drawer to the front.

Inserting drawer

Fig.95

► Position drawer as shown.

▷ The drawer rests on the glass panel.

► Lift drawer slightly from below at the back and slide over

the lip.

► Slide in drawer to the back.

8.1.4 Drawer on moulded rib

The drawer runs directly on the moulded rib. There are no

rails.

Features

* Depending on model and options 21

Removing drawer

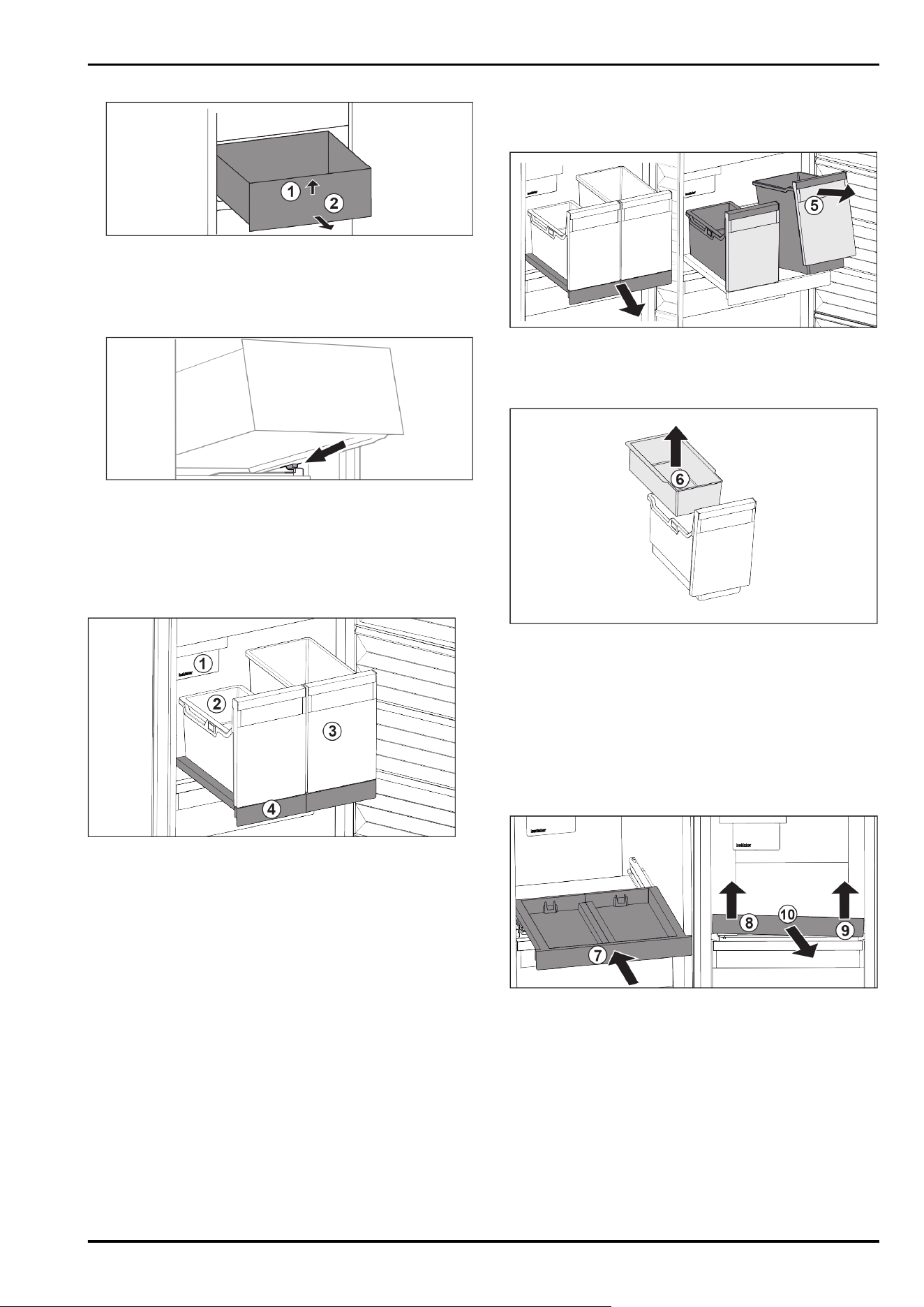

Fig.96

► Pull out drawer as far as it will go.

► Lift up drawer at the front. Fig.96(1)

► Remove drawer to the front. Fig.96(2)

Inserting drawer

Fig.97

► Place drawer at an angle behind the stoppers on the

moulded rib. (see Fig.97)

► Lower drawer.

► Slide in drawer to the back.

8.2 Pull-out board with IceTower

Fig. 98 Pull-out board with IceTower

(1)

IceMaker (3) Container for pizza or

alcoholic beverages, for

example

(2) Hang-on tray for ice

cubes

(4) Pull-out board

There are two high (IceTower) containers on the pull-out

board. Ice cubes from the IceMaker are collected and stored

in the Fig. 98 (2) container. The container Fig. 98 (3) is suit‐

able for storing tall foodstuffs or beverages such as pizzas

or alcoholic drinks.

The pull-out board with IceTower is mounted on a glass

shelf with pull-out rails. You can dismantle the pull-out

board for cleaning.

8.2.1 Dismantling the pull-out board with

IceTower

Removing the container

Fig.99

► Pull out the pull-out board.

► Lift the container Fig.99(5) at the front.

► Remove the container.

Fig. 100

► Remove the hang-on tray Fig. 100(6).

► If there are ice cubes in the hang-on tray: Empty the

hang-on tray.

▷ The container and hang-on tray have been removed and

you can clean them. (see 9.3.3 Clean the components)

Removing the pull-out board

Ensure that the following conditions are met:

❑

Containers have been removed. (see Removing the

container)

Fig. 101

► Slide in the pull-out board. Fig. 101(7)

► Lift the pull-out board on the front left. Fig. 101(8)

► Lift the pull-out board on the front right. Fig. 101(9)

▷ Pull-out board is detached from the attachment at the

front.

► Take out the pull-out board to the front. Fig. 101(10)

▷ The pull-out board has been removed and you can clean

it. (see 9.3.3 Clean the components)

Removing the glass shelf from under the pull-out board

(see 8.3 Glass shelves)

Features

22 * Depending on model and options

8.2.2 Inserting the pull-out board with IceTower

Inserting the glass shelf from under the pull-out board

(see 8.3 Glass shelves)

Inserting the pull-out board

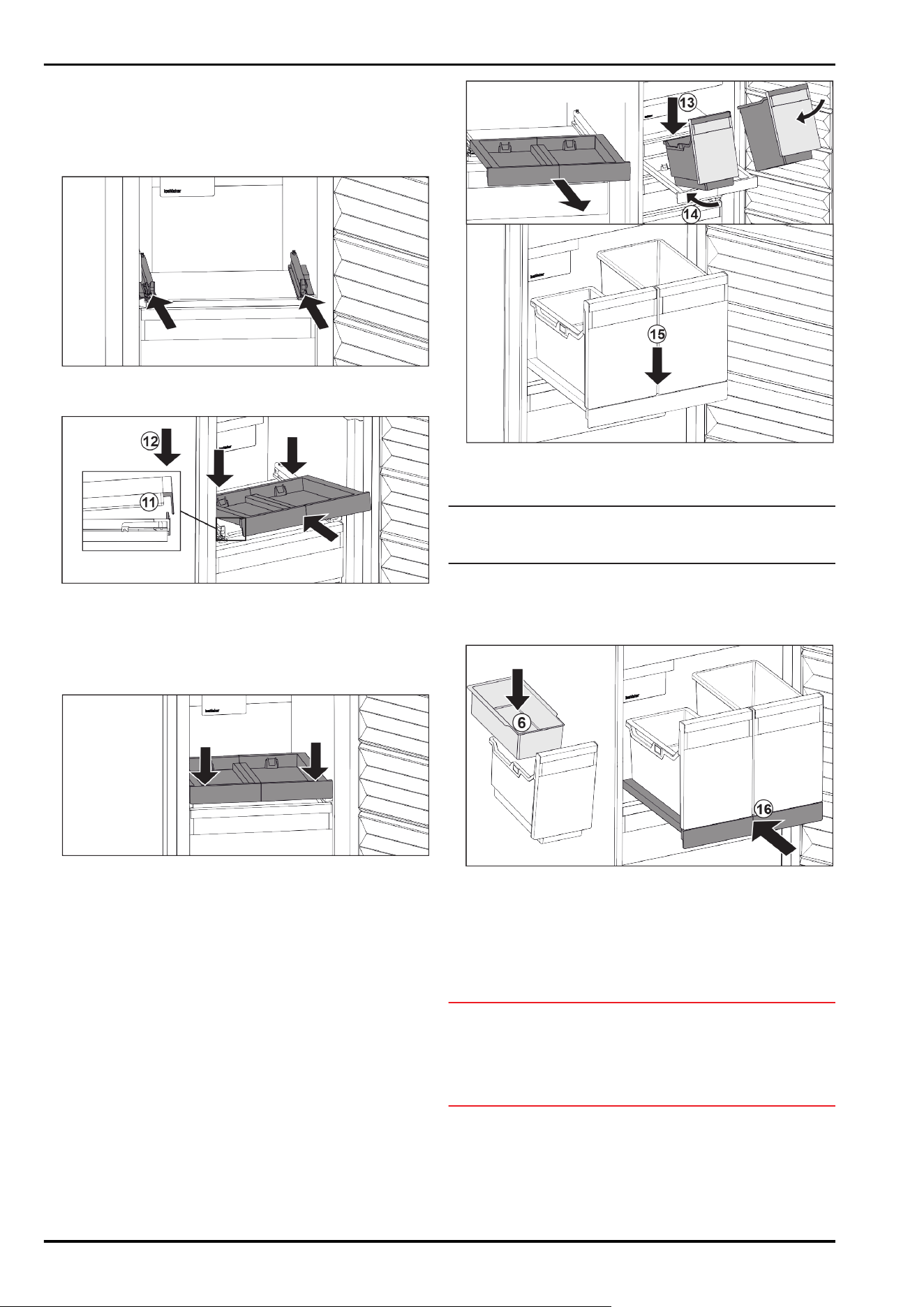

Fig. 102

► Slide the rails in.

Fig. 103

► Place the pull-out board in at an angle behind the front

lug.

► Slide in at an angle. Make sure that the stop is behind the

lug on both sides. Fig. 103(11)

► Lower the pull-out board at the front. Fig. 103(12)

Fig. 104

► Push the pull-out board down at the front.

▷ Pull-out board clicks into place.

Inserting the container

Ensure that the following conditions are met:

❑

The pull-out board is inserted. (see Inserting the pull-out

board)

Fig. 105

► Pull out the pull-out board.

► Hold the pull-out board with one hand.

Note

The containers are shaped in a way that they cannot be

interchanged.

► Place the container at an angle on the pull-out board.

Fig. 105(13)

► Slide the container to the back at an angle. Fig. 105(14)

► Place container in the front. Fig. 105(15)

Fig. 106

► Insert hang-on tray Fig. 106(6) for ice cubes.

► Slide in the pull-out board with (IceTower) container.

Fig. 106(16)

▷ Pull-out shelf with IceTower is fully inserted.

8.3 Glass shelves

NOTICE

Impermissible removal of the glass panel above the

IceTower!

Damage to the IceMaker. The IceMaker is attached to the

glass panel above the IceTower.

► Do not remove the glass panel above the IceTower.

You can remove the glass shelves under the drawers for

cleaning.

You can remove the glass shelves under the drawers to use

VarioSpace.

Features

* Depending on model and options 23

8.3.1 Removing / inserting the glass shelf

under the tilting drawer

The glass shelf is located under the top tilting drawer.

Make sure that the following requirements are fulfilled:

❑

Drawer has been removed. (see 8.1.3 Top tilting drawer)

Removing glass shelf

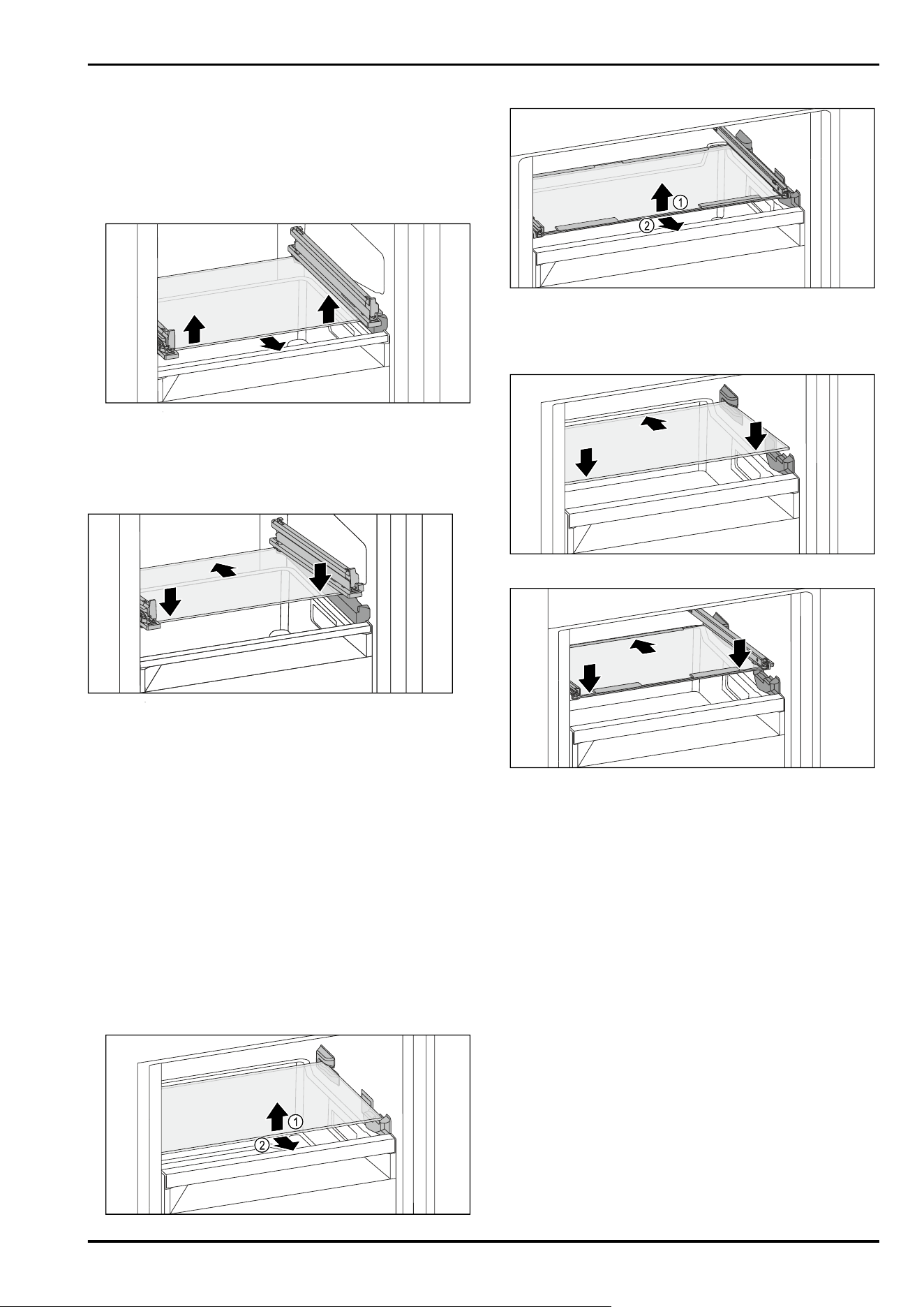

Fig. 107 Tilting drawer glass shelf

► Push glass shelf upwards from below on both sides. (see

Fig. 107)

► Take out the glass shelf to the front.

Inserting glass shelf

Fig. 108 Tilting drawer glass shelf

► Position glass shelf at an angle behind the stoppers. (see

Fig. 108)

► Lower glass shelf.

► Slide in glass shelf to the back.

▷ Glass shelf clicks into place.

8.3.2 Removing / inserting the glass shelf

Depending on the equipment, the glass shelf may be

located under the drawer.

Depending on the equipment, the glass shelf may be

located under the IceTower.

Make sure that the following requirements are fulfilled:

❑

Glass shelf under the drawer: The drawer has been

removed. (see8.1 Drawers)

❑

Pull-out board under IceTower: IceTower has been

removed. (see8.2 Pull-out board with IceTower)

Removing glass shelf

Fig. 109 Example illustration, glass shelf*

Fig. 110 Example illustration, glass shelf*

► Lift the glass shelf forwards.

► Remove the glass shelf forwards.

Inserting glass shelf

Fig. 111 Example illustration, glass shelf*

Fig. 112 Example illustration, glass shelf*

► Place the glass shelf at an angle behind the stoppers.

► Lower glass shelf.

► Slide in glass shelf to the back.

8.4 IceMaker

The IceMaker will produce ice cubes for household use only.

Ensure that the following conditions are met:

The IceMaker is clean. (see9 Maintenance)

IceMaker drawer is cleaned.

IceMaker drawer is fully inserted.

8.4.1 Producing ice cubes

The volume depends on the freezing temperature. The

colder the temperature, the more ice cubes the system can

produce in a certain time period.

After the IceMaker is turned on for the first time, it can take

up to 24 hours for the first ice cubes to be made.

► Activate the IceMaker function.

► Producing many ice cubes: Activate the MaxIce function.

► To make a high number of ice cubes: Move the divider in

the IceMaker drawer or remove it completely.

► Distribute the ice cubes evenly in the drawer to increase

the capacity.

Features

24 * Depending on model and options

► Closing the drawer: IceMaker starts making ice cubes

again automatically.

Note

When a certain level is reached in the IceMaker drawer, it

stops producing ice cubes. The IceMaker does not fill the

drawer all the way to the top.

8.5 VarioSpace

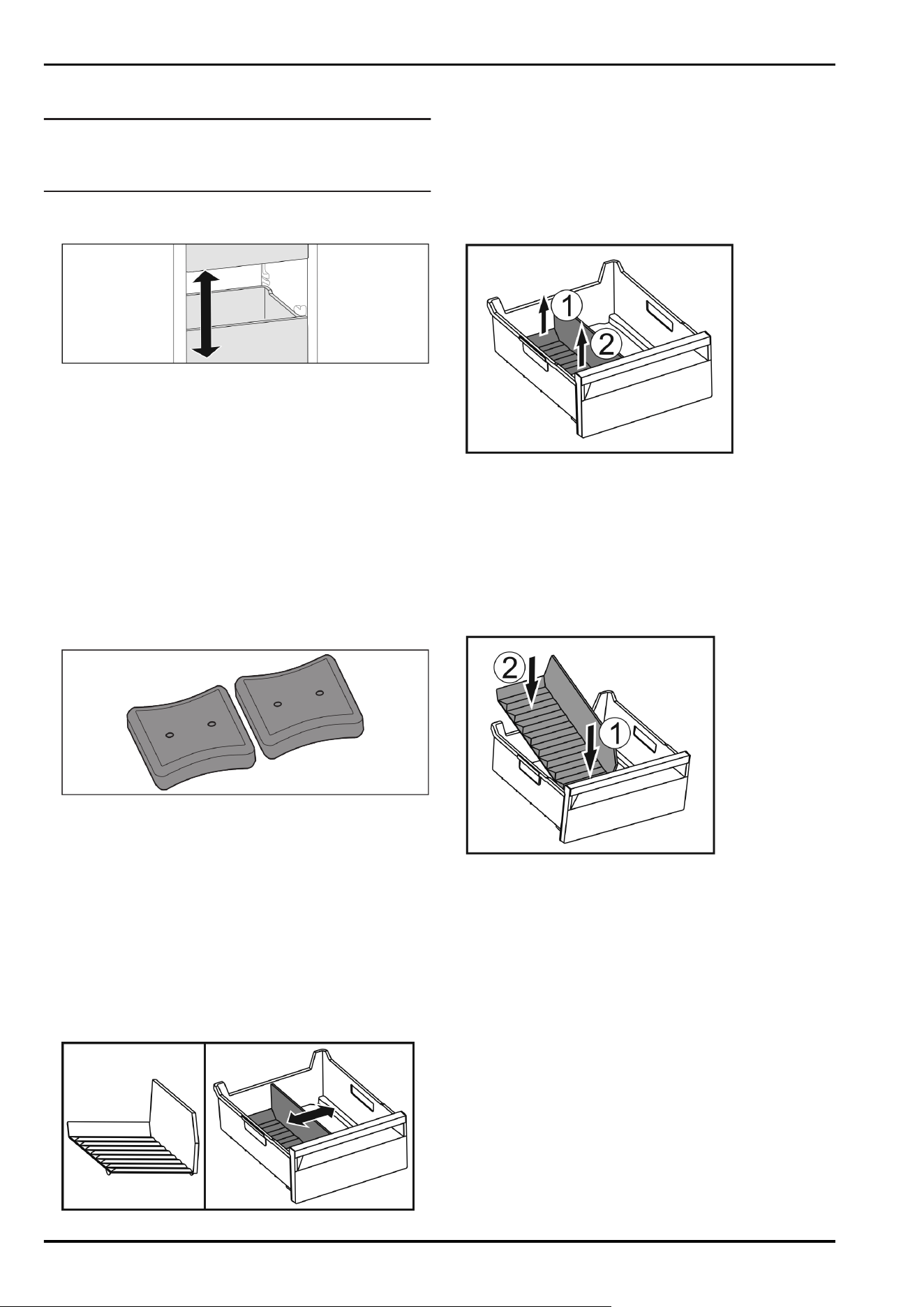

Fig.113

You can remove drawers and glass panels from your appli‐

ance. This provides more room for large food items such as

poultry, joints of meat, large game, and tall baked products.

You can then freeze these items whole for later preparation.

► Note the weight limits on the drawers and glass panels

(see 10.1 Technical specifications) .

8.6 Freezer pack

Freezer packs prevent the temperature rising too quickly

should there be a power cut.

The freezer packs are in the drawer.

You can store the freezer packs in the freezer tray.

8.6.1 Using the freezer pack

Fig. 114

When the freezer packs are fully frozen:

► Place on the frozen goods in the top, front part of the

freezer.

8.7 Flexible ice compartment divider

The IceMaker’s ice cube drawer has a flexible ice compart‐

ment divider. This allows you to store larger quantities of ice

cubes or additional food items as needed. You can move or

remove the ice compartment divider.

8.7.1 Moving in the flexible ice compartment

divider

Fig. 115 Example illustration of the ice compartment

divider

► Move the ice compartment divider to the desired position.

8.7.2 Removing the flexible ice compartment

divider

Make sure that the following requirements are fulfilled:

❑

Ice cube drawer is removed. (see8.1 Drawers)

Fig. 116

► Lift the rear part of the ice compartment divider.

Fig. 116(1)

► Remove the ice compartment divider upwards. Fig. 116(2)

8.7.3 Putting in the flexible ice compartment

divider

Make sure that the following requirements are fulfilled:

❑

Ice cube drawer is removed. (see8.1 Drawers)

Fig.117

► Insert the front part of the ice compartment divider.

Fig.117(1)

► Lower the rear part of the ice compartment divider to the

drawer bottom. Fig.117(2)

9 Maintenance

9.1 Disassembling / assembling pull-

out systems

9.1.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Maintenance

* Depending on model and options 25

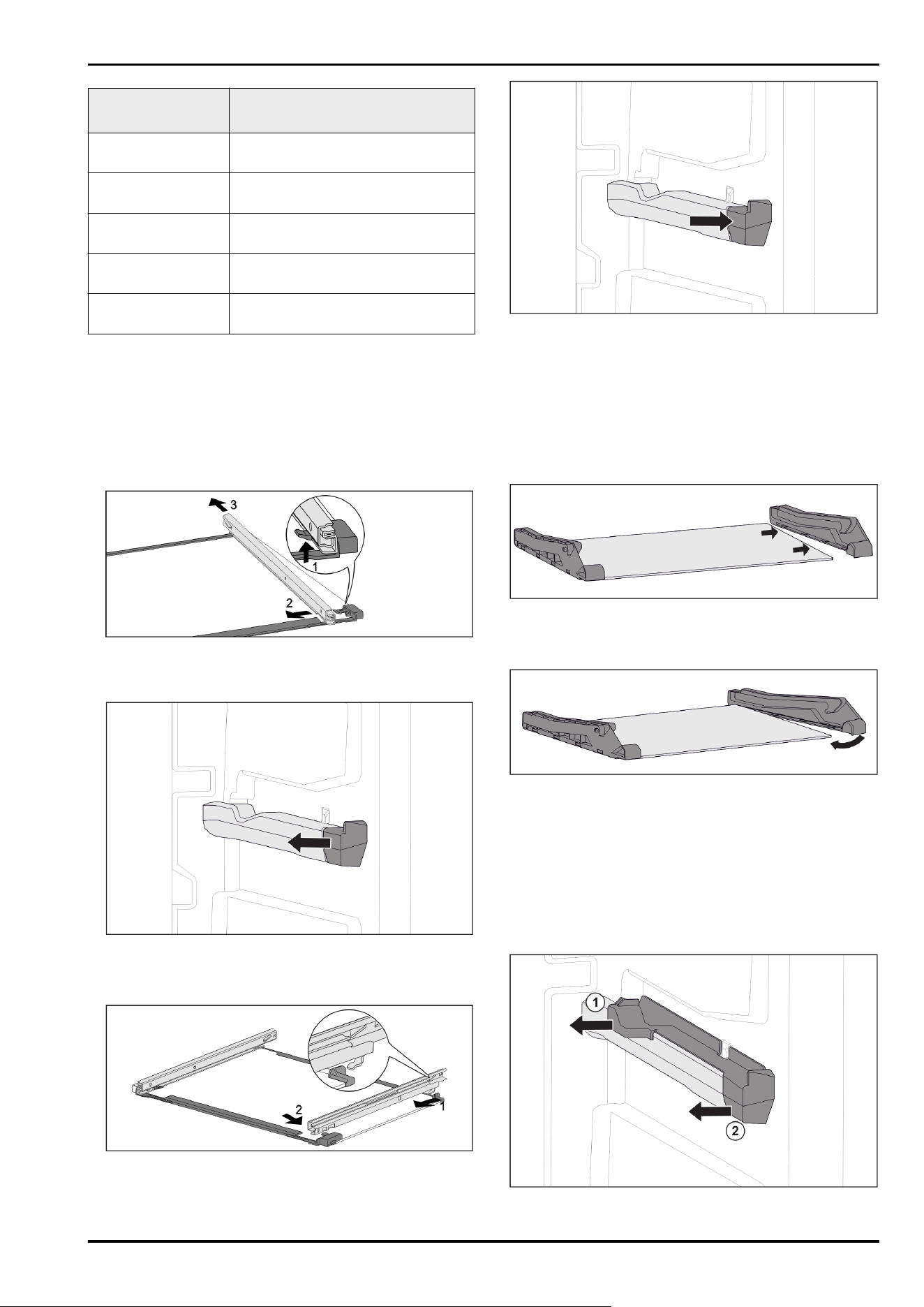

Pull-out system can be disassembled/

cannot be disassembled

Drawer on appliance

base or glass shelf

cannot be disassembled

Drawer guided on

glass shelf

can be disassembled (see Drawer on

glass shelf)

Top tiltable drawer can be disassembled (see 9.1.3 Top

tilting drawer)

Drawer guided on

container rib

can be disassembled

(see 9.1.4 Drawer on moulded rib)

IceTower can be disassembled

(see 9.1.5 IceTower)

9.1.2 Drawer on telescopic rails

Drawer on glass shelf

Disassembling pull-out system

Make sure the following prerequisites are met:

❑

Drawer has been removed.

❑

Glass shelf has been removed. (see 8.3 Glass shelves)

Fig. 118 Glass shelf with rails

► Push up front click-in hooks. (1)

► Move pull-out rails to the side (2) and to the rear (3).

Fig. 119 Attachment on the right moulded rib

► Remove moulded rib attachment sideways.

Installing pull-out system

Fig. 120 Glass shelf with rails

► Hook in rail at the back. (1)

► Hook in rail at the front. (2)

Fig. 121 Attachment on the right moulded rib

► Press attachment onto moulded rib.

9.1.3 Top tilting drawer

Disassembling pull-out system

Make sure the following prerequisites are met:

❑

Drawer has been removed. (see 8.1.3 Top tilting drawer)

❑

Glass shelf has been removed. (see 8.3 Glass shelves)

Fig.122Glass shelf with side parts

► Pull off side part from glass shelf sideways.

Installing pull-out system

Fig.123Glass shelf with side parts

► Place on side part at the back.

► Press side part onto glass shelf at the front.

9.1.4 Drawer on moulded rib

Disassembling pull-out system

Make sure the following prerequisites are met:

❑

Drawer has been removed. (see 8.1.4 Drawer on moulded

rib)

Fig. 124 Attachment on the right moulded rib

► Grab attachment at the back from below.

Maintenance

26 * Depending on model and options

► Pull off attachment at the back sideways. Fig. 124(1)

► Pull off attachment at the front sideways. Fig. 124(2)

Installing pull-out system

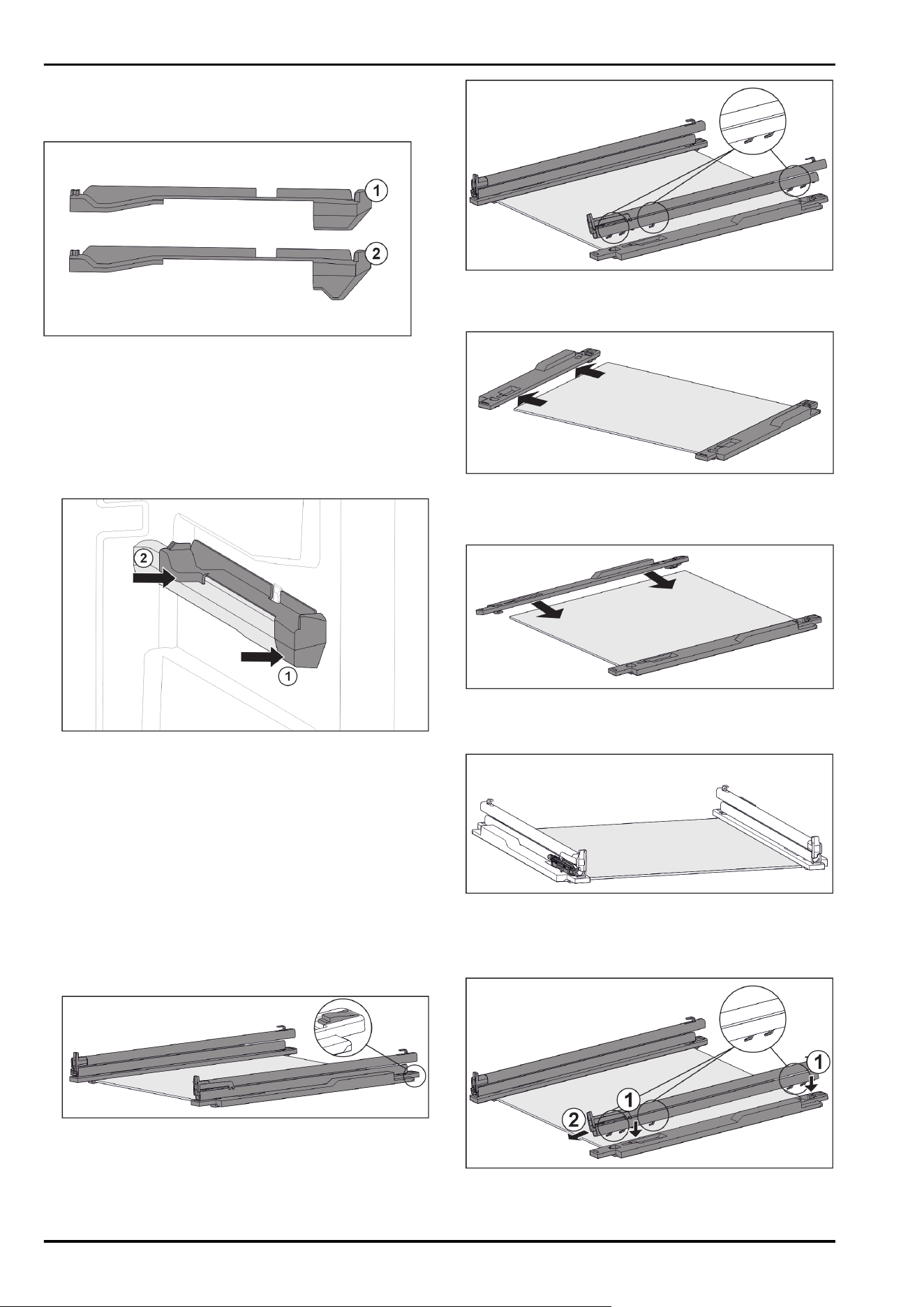

Fig. 125 Comparing attachments

There are two different attachments in the appliance. The

attachment above the lowest drawer Fig. 125 (2) has a

three-cornered edge. All other attachments Fig. 125 (1) have

a straight edge.

► Fit attachment Fig. 125 (2) with the three-cornered edge

above the lowest drawer.

► Fit attachment Fig. 125 (1) with straight edge in all other

positions.

Fig. 126 Attachment on the right moulded rib

► Position attachment on moulded rib at the front.

Fig. 126(1)

► Press on attachment at the back. Fig. 126(2)

9.1.5 IceTower

Disassembling pull-out system

Make sure the following prerequisites are met:

❑

IceTower has been removed. (see 8.2 Pull-out board with

IceTower)

❑

Glass shelf has been removed. (see 8.3 Glass shelves)

► Place pull-out board on a table.

▷ You are able to remove the rails more easily from the

glass shelf.

Fig. 127 Glass shelf with rails and retaining parts

► Press down retaining part at the rear (see Fig.127) and at

the same time push the rail back.

Fig. 128 Glass shelf with rails and retaining parts

▷ The rail hooks are released from the retaining part.

► Remove rail from retaining part.

Fig. 129 Glass shelf with retaining part

► Remove retaining part from glass shelf sideways.

Installing pull-out system

Fig. 130 Glass shelf with retaining part

► Fit retaining part on glass shelf.

► Push retaining part onto glass shelf as far as it will go.

Fig.131Damping mechanism

The damping mechanism is attached to the left rail. (see

Fig. 131) There is no damping mechanism attached to the

right rail.

Fig. 132 Glass shelf with rails and retaining parts

Install rail with damping mechanism:

Maintenance

* Depending on model and options 27

► Place rail hooks onto the openings of the left retaining

part. Fig.132(1)

► Push rail forwards. Fig.132(2)

▷ Rail latches in audibly.

Install rail without damping mechanism:

► Place rail hooks onto the openings of the right retaining

part. Fig.132(1)

► Push rail forwards. Fig.132(2)

▷ Rail latches in audibly.

9.2 Defrosting the appliance

9.2.1 Defrosting with NoFrost

Defrosting is performed automatically with the NoFrost

system. The moisture is deposited on the evaporator, is peri‐

odically defrosted and evaporates.

The appliance does not have to be defrosted.

9.3 Cleaning the appliance

9.3.1 Ready

WARNING

Danger of electric shock!

► Remove the refrigerator connector or interrupt the power

supply.

WARNING

Risk of fire

► Do not damage the refrigeration circuit.

► Empty the appliance.

► Remove mains connector.

9.3.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

9.3.3 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some

detergent:

- IceTower pull-out board

- Drawer

Please note: Do not remove the magnet on the drawer.

The magnet ensures the functionality of the IceMaker.

- Flexible ice compartment divider in the IceMaker's ice

cube drawer

- Freezer tray

Clean with a damp cloth:

- Retractable rails

Please note: The grease in the tracks is used for lubrica‐

tion and must not be removed!

Wash in the dishwasher up to 60°C:

- Ice cube scoop

► To disassemble components: see the relevant section.

► Clean the components.

9.3.4 Cleaning the IceMaker

There are various options for cleaning the IceMaker.

Cleaning is required in the following cases:

❑

Initial operation

❑

With mains connection:

If out of use for more than 5 days.

Ensure that the following conditions are met:

❑

IceMaker drawer is emptied.

❑

IceMaker drawer is in place.

❑

The IceMaker is activated.

First use or after a long period of non-use

Clean the IceMaker with the TubeClean function.

► Put an empty 1.5 l vessel (max. height 10 cm) in the

drawer under the IceMaker.

► Activate the TubeClean function.

▷ The rinse process is prepared (max. 60 min.): Symbol

flashes.

▷ Water pipes are rinsed: Symbol flashes.

▷ Rinsing process is complete: Function turns off automati‐

cally.

► Remove the IceMaker drawer and remove the container.

► Clean the IceMaker drawer with warm water and a little

detergent.

► Push the IceMaker drawer in.

▷ The system starts making ice cubes automatically.

Without a water filter

► Dispose of any ice cubes that were made 24 hours after

the first ice cubes.

If cleaning is required

Clean the IceMaker by hand.

► Remove the IceMaker drawer and clean with warm water

and a little detergent.

► Push the IceMaker drawer in.

▷ The system starts making ice cubes automatically.

9.3.5 After cleaning

► Wipe the appliance and the components dry.

► Connect and switch on the appliance.

► Activate SuperFrost (see 7.2Appliance functions) .

The temperature is cold enough:

► Place the food inside.

► Repeat cleaning regularly.

10 Customer help

10.1 Technical specifications

Temperature range

Freeze -28°C to -15°C

Customer help

28 * Depending on model and options

Maximum ice cube quantity / 24 hours

Freezer compart‐

ment

see type plate under “Freezing

capacity …/ 24 h”

Maximum component capacity

Features Appliance

width

550 mm

(see instal‐

lation

instruc‐

tions,

appliance

dimen‐

sions)

Appliance

width

600 mm

(see

installa‐

tion

instruc‐

tions,

appliance

dimen‐

sions)

Appliance

width

700 mm

(see instal‐

lation

instruc‐

tions, appli‐

ance

dimen‐

sions)

Drawer on glass

shelf

(see 8.1.1 Drawer

on appliance base

or glass shelf)

12 kg 15 kg --

Drawer on

container rib

(see 8.1.4 Drawer

on moulded rib)

14 kg 19 kg 19 kg

Drawer guided on

glass shelf

(see 8.1.2 Drawer

on telescopic rails)

12 kg 15 kg 22 kg

Bottom drawer -- 11 kg 19 kg

Top tiltable drawer

(see 8.1.3 Top

tilting drawer)

-- 19 kg 19 kg

Ice cube production with IceMaker

Ice cube produc‐

tion / 24 hours

At a temperature of -18 °C: 0.8 kg of

ice cubes

maximum ice

cube produc‐

tion / 24 hours

With the MaxIce function on: 1.2 kg of

ice cubes

Lighting

Class

Light source

This product contains one or more energy

efficiency class G light sources.

LED

The appliance may contain light sources with different

energy efficiency classes. The lowest energy efficiency class

is indicated.

For appliances with a WiFi connection:

Frequency specification

Frequency band 2.4GHz

Maximum radiated

power

< 100 mW

Purpose of the

wireless equipment

Integration in the local WiFi network

for data communication

10.2 Operating noises

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter.

At lower temperatures the food is cooled faster. It is

louder.

Examples:

•

Functions on (see 7.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

Noise

Possible cause Type of noise

Bubbling and

splashing

Coolant flowing

into the cooling

circuit.

Normal operating

noise

Hissing Coolant sprays

into the cooling

circuit.

Normal operating

noise

Humming The appliance

is cooling. The

volume depends

on the cooling

output.

Normal operating

noise

Suction noises Soft-closing door

is being opened

and closed.

Normal operating

noise

Humming and

rustling

The fan is running. Normal operating

noise

Clicking Components are

switched on and

off.

Normal switching

noise

Rattling or

humming

Valves or flaps are

working.

Normal switching

noise

Noise Possible

cause

Type of noise Lifting

Vibration Improper

installation

Defective

noise

Check the

installation.

Level the

appliance.

Rattling Components,

items inside

the appliance

Defective

noise

Secure

components.

Leave

enough

space

between the

items.

10.3 Technical fault

Your appliance is designed and built to ensure it works reli‐

ably and has a long service life. In the unlikely event that

a fault occurs during operation, please check whether it is

due to an operating error. If so, you will be charged for the

callout and repair costs even if it falls within the warranty

period.

You can fix the following faults yourself.

Customer help

* Depending on model and options 29

10.3.1 Appliance function

Defect Cause Remedy

The appliance is

not working.

→ The appliance is not switched on. ► Switch the appliance on.

→ The power plug is not properly

plugged into the socket.

► Check the power plug.

→ There is something wrong with the

power outlet fuse.

► Check the fuse.

→ Power cut ► Keep the appliance closed.

► Safeguarding food: Place cold packs on top of food or

use another freezer if the power cut lasts longer.

► Do not re-freeze defrosted food,

→ The IEC socket is not plugged into

the appliance correctly.

► Check the IEC socket.

Temperature is not

cold enough.

→ The appliance door is not closed

properly.

► Close the appliance door.

→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.

→ The ambient temperature is too

high.

► Problem solution: (see1.4 Appliance range of use)

→ The appliance was opened too

many times or for too long.

► Wait to see if the required temperature corrects itself.

If not, contact Customer Service. (see 10.4 Customer

Service)

→ Too much fresh food was placed

inside without SuperFrost.

► Solution: (see SuperFrost)

→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.

→ The appliance is too close to a heat

source (oven, radiator, etc).

► Move the appliance or the heat source.

→ The appliance was not correctly

installed in the recess.

► Check if the appliance was installed correctly and that

the door closes properly.

The door seal is

defective or needs

to be replaced for

another reason.

→ The door seal can be replaced. It

can be replaced without the need

for special tools.

► Contact Customer Service. (see 10.4 Customer Service)

The appliance

builds up too much

ice or condensa‐

tion.

→ The door seal may have slipped out

of its groove.

► Check that the door seal is well fitted in the groove.

10.3.2 Features

Defect Cause Remedy

You cannot acti‐

vate the IceMaker.

→ The appliance and therefore the

IceMaker are not connected.

► Connect the appliance (see the Installation Guide).

The IceMaker is

not producing ice

cubes.

→ The IceMaker is not on. ► Activate the IceMaker.

→ The drawer of the IceMakers is not

connected properly.

► Push the drawer in correctly.

→ The water connection is not open. ► Open the water connection.

The internal light

does not come on.

→ The appliance is not switched on. ► Switch the appliance on.

→ The door was open for longer than

15 minutes.

► Interior lighting switches off automatically after

about 15 minutes when the door is open.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see 10.4 Customer Service)

Customer help

30 * Depending on model and options

10.4 Customer Service

First check whether you can rectify the fault yourself

(see 10 Customer help) . If you cannot rectify the problem,

contact Customer Service.

You can find the address in the enclosed brochure “Liebherr-

Service” or at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► Have any repairs and action - not expressly specified -

on the appliance and mains cable carried out by service

personnel only. (see9 Maintenance)

► A damaged mains cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► In the case of appliances with an IEC connector, the

change may be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance name (model and index)

❑

Service no. (Service)

❑

Serial no. (S no.)

► Call up the appliance information via the display.

(see Device information)

-or-

► Refer to the type plate for appliance information.

(see 10.5 Model plate)

► Note down the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us to provide you with a faster, more accu‐

rate service.

► Follow further instructions from Customer Service.

10.5 Model plate

The model plate is behind the drawers on the inside of the

appliance.

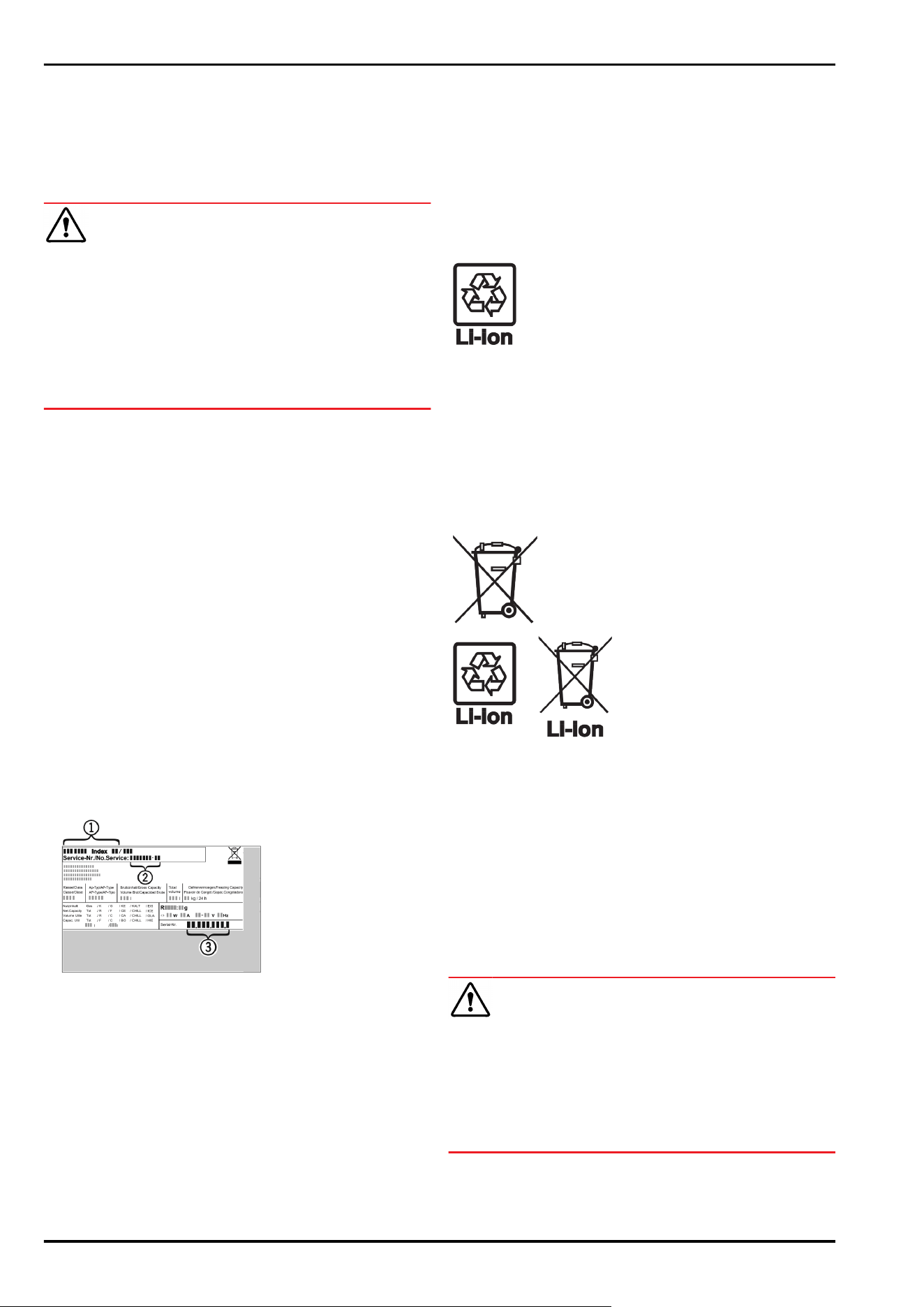

Fig.133

(1)

Appliance description (3) Serial no.

(2) Service no.

► Note the data on the model plate.

11 Shutting down

► Empty the appliance.

► Deactivate IceMaker. (see Deactivating the IceMaker and

MaxIce)

► Switch off appliance. (see Switching the appliance off

and on)

► Pull the mains plug out of the socket.

►

Remove the IEC socket if required: Pull the IEC socket out

of the appliance plug and move it to the left and right at

the same time.

► Clean appliance. (see 9.3Cleaning the appliance)

► Leave the door open, so that no unpleasant odours arise.

12 Disposal

12.1 Preparing appliance for disposal

Liebherr uses batteries in some of its appli‐

ances. In the EU, for environmental reasons,

legislation obliges the end user to remove

these batteries before disposing of old appli‐

ances. If your appliance contains batteries, a

corresponding notice is attached.

Lamps If you can remove the lamps yourself without

destroying them, also remove these before

disposal.

► Take the appliance out of operation.

► If possible: remove lamps without destroying them.

12.2 Disposing of the appliance in an

environmentally friendly manner

The appliance still contains

valuable materials and must

be disposed of separately from

unsorted municipal waste.

Dispose of batteries separately

from the old appliance. To do

this, you can return the batteries

free of charge to retailers as

well as recycling centres and

collection centres for recyclable

materials.

Lamps Dispose of removed lamps

via the respective collection

systems.

For Germany: You can dispose of the appli‐

ance free of charge via the

class 1 collection containers

at the local recycling and

recyclable material collection

centres. When purchasing a new

fridge/freezer, if the sales area

> 400 m

, retailers will also take

back the old appliance free of

charge.

WARNING

Leaking coolant and oil!

Fire. The coolant contained in the appliance is eco-friendly,

but also flammable. The oil contained in the appliance

is flammable. Escaping coolant and oil can ignite if the

concentration is high enough and in contact with an

external heat source.

► Do not damage the pipelines of the coolant circuit and

the compressor.

► Observe the notes on transporting the appliance.

► Transport the appliance without damaging it.

► Dispose of batteries, lamps and the appliance according

to the above specifications.

Shutting down

* Depending on model and options 31

home.liebherr.com/fridge-manuals

Integrated freezer

Issue date:20250505

Part number index:7088438-00

Liebherr-Hausgeräte GmbH

Memminger Straße 77-79

88416Ochsenhausen

Deutschland

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Contents

1 General safety instructions.................................. 3

2 The appliance at a glance..................................... 4

2.1 Delivered contents....................................................... 4

2.2 Overview of appliances and equipment................... 4

2.3 SmartDevice.................................................................. 5

2.4 Range of appliance use............................................... 5

2.5 Conformity..................................................................... 5

2.6 SVHC substances according to REACH regulation. 5

2.7 EPREL Database........................................................... 5

2.8 Spare parts.................................................................... 5

3 Functionality of the Touch&Swipe display......... 5

3.1 Navigation and symbol explanation......................... 5

3.2 Menus............................................................................. 6

3.3 Sleep mode................................................................... 7

4 Start-up................................................................. 7

4.1 Switching on appliance (first use)............................ 7

5 Storage.................................................................. 7

5.1 Information regarding storage................................... 7

5.2 Fridge compartment.................................................... 7

5.3 BioFresh......................................................................... 8

5.4 Storage times............................................................... 8

6 Energy saving........................................................ 9

7 Use......................................................................... 9

7.1 Controls and displays.................................................. 9

7.1.1 Status display..............................................................9

7.1.2 Display symbols.......................................................... 9

7.2 Appliance functions..................................................... 9

7.2.1 Notes on the appliance functions............................9

Switching appliance off and on.............................. 9

WiFi............................................................................ 10

Temperature.............................................................. 11

Temperature unit...................................................... 11

BioFresh B-Value ..................................................... 11

D-Value.......................................................................12

SuperCool..................................................................12

PartyMode ................................................................ 12

HolidayMode............................................................. 13

SabbathMode............................................................13

EnergySaver .............................................................14

CleaningMode...........................................................14

Display Brightness...................................................14

Door alarm.................................................................15

Input lock...................................................................15

Language...................................................................15

Appliance information.............................................16

Software.................................................................... 16

Reminder................................................................... 16

Demo mode............................................................... 17

Resetting to factory settings................................. 17

7.3 Messages...................................................................... 18

7.3.1 Overview of warnings...............................................18

7.3.2 Ending warnings....................................................... 18

7.3.3 Overview of reminders............................................. 18

7.3.4 Ending reminders...................................................... 18

8 Equipment............................................................. 19

8.1 Variable bottle shelf.................................................... 19

8.2 Drawers.......................................................................... 19

8.3 Lid for Fruit & Vegetable-safe.................................... 20

8.4 Butter dish.................................................................... 21

8.5 Egg rack......................................................................... 21

8.6 FlexSystem.................................................................... 21

9 Maintenance.......................................................... 22

9.1 FreshAir carbon filter................................................... 22

9.2 Disassembling / assembling pull-out systems...... 22

9.3 Removing / inserting the variable bottle shelf....... 23

9.4 Lid for Fruit & Vegetable-safe.................................... 23

9.5 Defrosting the appliance............................................ 24

9.6 Cleaning the appliance............................................... 24

10 Customer support................................................. 24

10.1 Technical specifications............................................. 24

10.2 Operating noises.......................................................... 25

10.3 Technical faults............................................................ 25

10.4 Customer Service......................................................... 26

10.5 Rating plate................................................................... 26

11 Decommissioning.................................................. 27

12 Disposal................................................................. 27

12.1 Preparing appliance for disposal.............................. 27

12.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 27

The manufacturer is constantly working to improve all types

and models. Therefore, please be aware that we reserve the

right to make changes to the shape, equipment and tech‐

nology.

Symbol

Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

2 * Depending on model and options

Symbol Explanation

Additional information online

The digital manual with supplemental informa‐

tion and in additional languages can be found

online by scanning the QR code on the front

page of this manual or by entering the service

number at home.liebherr.com/fridge-

manuals.

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so there may be differences. Sections that

apply to certain models only are indicated by

an asterisk (*).

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channel of Liebherr-Hausgeräte.

Open-source licenses:

The appliance includes software components that make

use of open-source licenses. You can find information on

the open-source licenses to be used here:

home.liebherr.com/open-source-licenses

These operating instructions apply to:

IRBP..i

5170

IRBPbsci 5170

1 General safety instructions

Please keep these operating instructions in a safe place so

you can refer back to them at any time.

If you pass the appliance on, please hand these operating

instructions to the new owner.

Read these operating instructions before use in order to use

the appliance safely and correctly. Follow the instructions,

safety instructions and warning messages included at all

times. They are important for ensuring you can operate and

install the appliance safely and without any problems.

Dangers for the user:

This appliance is suitable for use by children and persons

with reduced physical, sensory or mental capacities or

lack of experience and skills provided they are supervised

or have been instructed on the safe use of the appliance

and understand the hazards involved.

Children must not play with the appliance. Children must

not be allowed to clean or perform any user maintenance

without supervision. Children between the ages of 3-8

must not load or unload the appliance. Keep children

under the age of 3 away from the appliance if they are

not consistently supervised.

The socket must be easily accessible so that the appli‐

ance can be disconnected quickly from the electricity in

an emergency. It must not be located in the area behind

the appliance.

When disconnecting the appliance from the outlet,

always take hold of the plug. Do not pull on the cable.

Disconnect the power plug or switch off the power if a

fault occurs.

Do not damage the mains power line. Do not operate the

appliance from a defective mains power line.

Repairs and work on the appliance may only be carried

out by after sales service or other specifically trained

qualified personnel.

Only install, connect and dispose of the appliance in

accordance with the instructions.

Only operate the appliance after it has been installed.

Risk of fire:

The refrigerant contained within the appliance (specifica‐

tions on the rating plate) is environmentally friendly, but

flammable. Leaking refrigerant can ignite.

•

Do not damage the pipes of the refrigerant circuit.

•

Do not handle ignition sources inside the appliance.

•

Do not use electrical devices inside the appliance (e.g.

steam cleaners, heaters, ice cream makers, etc.).

•

If refrigerant leaks: Remove naked flames or ignition

sources located near the area of the leak. Air the room

well. Contact the customer service department.

Do not store explosive materials or spray cans with flam‐

mable propellants, such as e.g. butane, propane,

pentane, etc. in the appliance. You can recognize such

spray cans by the printed contents or a flame symbol.

Any leaking gasses can be ignited by electrical compo‐

nents.

Keep lit candles, lamps and other objects with naked

flames away from the appliance so they do not cause a

fire.

Alcoholic beverages or other containers holding alcohol

must always be tightly sealed for storage purposes. Any

leaking alcohol can be ignited by electrical components

Tipover hazard:

Do not stand or climb on the base, drawers, doors, etc.

This applies in particular to children.

Risk of food poisoning:

Do not consume food that has passed its best before

date.

Danger of frostbite, feelings of numbness and pain:

Avoid prolonged skin contact with cold surfaces or

chilled/frozen food or take protective measures, e.g.

wear gloves.

Risk of injury and damage:

Hot steam may lead to injuries. Do not use any electrical

heating or steam cleaning equipment, naked flames or

defrosting sprays for defrosting

Do not remove ice with sharp objects

Risk of crushing:

Do not reach into the hinge when opening and closing the

door. Fingers may get trapped.

Symbols on the device:

General safety instructions

* Depending on model and options 3

The symbol can be on the compressor. It

refers to the oil in the compressor and

refers to the following danger: Can be

lethal if swallowed or inhaled. This notice

only applies for recycling. There is no

danger during normal operation.

The symbol is located on the compressor

and indicates the danger of inflammable

materials. Do not remove the label.

This label or a similar one may be located

on the rear of the appliance. This label indi‐

cates that there are vacuum insulation

panels (VIP) or perlite panels in the door

and/or housing. This notice only applies for

recycling. Do not remove the label.

Observe the warning messages and other detailed infor‐

mation in the other sections:

DANGER

indicates a hazardous situation,

which if not avoided, will result in

death or serious injury.

WARNING indicates a hazardous situation,

which if not avoided, could result

in death or serious injury.

CAUTION indicates a hazardous situation,

which if not avoided, will result in

minor or moderate injury.

NOTICE indicates a hazardous situation,

which if not avoided, could result

in damage to property.

Note indicates useful advice and tips.

2 The appliance at a glance

2.1 Delivered contents

Check all parts for transport damage. If you have any

complaints, please contact the retailer or customer service.

(see 10.4 Customer Service)

Delivery contains the following parts:

Integrated appliance

Equipment (depending on your model)

Installation parts (depending on your model)

“Quick Start Guide”

“Installation Guide”

Service brochure

2.2 Overview of appliances and equip‐

ment

Fig. 1 Example illustration

Temperature range

(A)

Fridge compartment (C) Coldest zone

(B) BioFresh

Equipment

(1)

Controls (6) Lid for Fruit & Vegetable

safe

(2) Fan with FreshAir acti‐

vated charcoal filter

(7) Fruit & Vegetable safe

(3) Glass drawer (8) Drain hole

(4) Bottle holder (9) Meat & Dairy safe

(5) Variable bottle shelf (10) Type plate

Notes on loading

Fig.2

An individual drawer may

only be loaded to a

maximum of 22 kg.

The total load is a maximum

of 50 kg when you pull all

the drawers out at the

same time.

Note

► The shelves, drawers, and baskets are arranged for

optimal energy efficiency in the factory configuration.

However, changes to the arrangement within the given

insertion options – for example the arrangement of

shelves in the fridge compartment – have no effect on

energy consumption.

The appliance at a glance

4 * Depending on model and options

2.3 SmartDevice

SmartDevice is the networking solution for your refrigerator.

If your appliance is SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your WiFi.

With the SmartDevice app, you can operate your appliance

from a mobile device. Additional functions and setting

options are available in the SmartDevice app.

SmartDevice-

enabled appliance:

Your appliance is capable of being a

SmartDevice. To be able to connect

your device to WiFi, you need to

download the SmartDevice app.

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Downloading the

SmartDevice app:

After you have installed and config‐

ured the SmartDevice app, you can

connect your appliance to your WLAN

using your SmartDevice app the

WLAN device function (seeWiFi) .

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

2.4 Range of appliance use

Normal use

The appliance is only suitable for cooling food for residential

or other similar environments. This includes the following

types of uses

in staff kitchens, bed and breakfasts,

by guests in country homes, hotels, motels and other

types of accommodations,

for catering and similar wholesale services.

The appliance is not suitable for freezing food;

All other types of uses are not permitted.

Foreseeable misuse

The following uses are specifically prohibited:

Storage and cooling of medication, blood plasma, labora‐

tory preparations or similar substances and products in

accordance with the Medical Device Directive

2007/47/EC

Use in areas at risk of explosion

Incorrect appliance use can cause damage to the stored

products or cause them to spoil.

Climate ratings

The appliance is set to operate within specific ambient

temperature limits according to its climate rating The

climate rating for your appliance is printed on the rating

plate

Note

► To guarantee trouble-free operation, comply with the

indicated ambient temperatures.

Climate rating for ambient temperatures from

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

2.5 Conformity

The refrigerant circuit has been tested for leaks. When

installed, the appliance complies with the applicable safety

regulations and with the corresponding directives.

For the EU

market:

The appliance complies with directive

2014/53/EU.

For the GB

market:

The appliance complies with the Radio

Equipment Regulations 2017 SI 2017 No.

1206.

The full text of the EU Declaration of Conformity is available

on the following website: www.Liebherr.com

The BioFresh compartment meets the requirements of a

cold storage compartment as set out in DIN EN 62552:2020.

2.6 SVHC substances according to

REACH regulation

You can check whether your appliance contains SVHC

substances according to REACH regulation at the following

link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐

haltigkeit/umwelt/scip/scip.html

2.7 EPREL Database

Details about energy labeling and ecodesign requirements

will be available on the European product database (EPREL)

from March 1, 2021. You can access the product database at

the following link: https://eprel.ec.europa.eu/ You will be

asked to enter the model ID. You can find the model ID on

the type plate.

2.8 Spare parts

Spare parts for functional and storable parts of the equip‐

ment are available for 15 years.

3 Functionality of the

Touch&Swipe display

You operate your appliance using the Touch & Swipe display.

You select appliance functions in the Touch & Swipe display

(hereafter referred to as display) by tapping them. If you do

not perform any action on the display for 10 seconds, the

display either jumps back to the higher-level menu or

directly to the status display.

3.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Functionality of the Touch&Swipe display

* Depending on model and options 5

Symbol Description

Briefly touch the display:

Activates/deactivates function.

Confirms selection.

Opens submenu.

Touch the display for a specified time

(e.g. 3seconds):

Activates/deactivates function or

value.

Swipe left or right:

Navigate in the menu.

Briefly touch the Back symbol:

Jumps back one menu level.

Press and hold the Back symbol for

3seconds:

Jumps back to the status display.

Arrow with clock:

It takes more than 10 seconds for the

following message to appear in the

display.

Arrow with a time indication:

It takes the specified amount of time

until the following message appears in

the display.

“Open Settings menu” symbol:

Navigates to the Settings menu and

opens the settings menu.

If necessary: Navigate to the desired

function in the Settings menu.

(see 3.2.1 Opening the Settings menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu and

opens the advanced menu.

If necessary: Navigate to the desired

function in the Advanced menu.

(see 3.2.2 Opening expanded menu)

No action for

10seconds

If you do not perform any action on the

display for 10 seconds, the display

either jumps back to the higher-level

menu or directly to the status display.

Open door and

close it again.

If you open the door and immediately

close it again, the display jumps

directly back to the status display.

Note: Illustrations of the display are shown in the English

version.

3.2 Menus

The appliance functions are distributed over various menus:

Description

Main menu When you switch the appliance on, you

are automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced

menu.

Settings menu

The Settings menu contains additional

appliance functions for setting up your

appliance.

Advanced menu The advanced menu contains special

appliance functions for setting up your

appliance. Access to the Advanced menu

is protected by the numerical code 151.

3.2.1 Opening the Settings menu

Fig. 3 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

3.2.2 Opening expanded menu

Fig.4

Fig. 5 Example illustration, access with numerical code 151

► Carry out action steps according to the illustration.

▷ Expanded menu is open.

► If necessary: Navigate to the desired function.

Functionality of the Touch&Swipe display

6 * Depending on model and options

3.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

3.3.1 Ending sleep mode

► Touch the display briefly with your finger.

▷ Sleep mode is ended.

4 Start-up

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected

according to the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the

Touch & Swipe display. (see 3 Functionality of the

Touch&Swipe display)

Switch on the appliance using the Touch & Swipe display.

► If the display is in sleep mode: Briefly touch the display.

► Carry out action steps according to the illustration.

Fig. 6 Example illustration

▷ Status display appears.

▷ The appliance cools to the temperature set at the factory.

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

Start the SmartDevice for the first time. (see 2.3 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Stock with food: Wait for around 6 hours until the set

temperature is reached.

► Observe the notes on storing food. (see 5.1 Information

regarding storage)

Note

Accessories can be purchased from the Liebherr-Hausg‐

eräte store at home.liebherr.com/shop/de/deu/

zubehor.html.

5 Storage

5.1 Information regarding storage

WARNING

Risk of fire from electrical appliances!

If you use electrical devices in the food area of your appli‐

ance, they may case a fire.

► Do not use electrical devices in the food area of the

appliance if they have not been recommended by the

manufacturer.

Note

Insufficient ventilation results in an increase in energy

consumption and reduction of the refrigerating performance

► Always keep the air slots unobstructed.

Observe the following specifications for storage:

Keep the air vents on the fan free.

Package or cover foods that readily take on or give off

odors or taste in closed containers.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

Keep liquids in closed containers.

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

5.2 Fridge compartment

The air circulation in the appliance creates different temper‐

ature zones. You will find the different temperature zones in

the appliance and equipment overview. (see 2.2 Overview of

appliances and equipment)

5.2.1 Arranging your food properly

Note

Maximum load of a single drawer in the fridge compartment:

22 kg

Maximum load of the fridge compartment when all drawers

are pulled out at the same time: 50 kg

(see2.2 Overview of appliances and equipment)

Start-up

* Depending on model and options 7

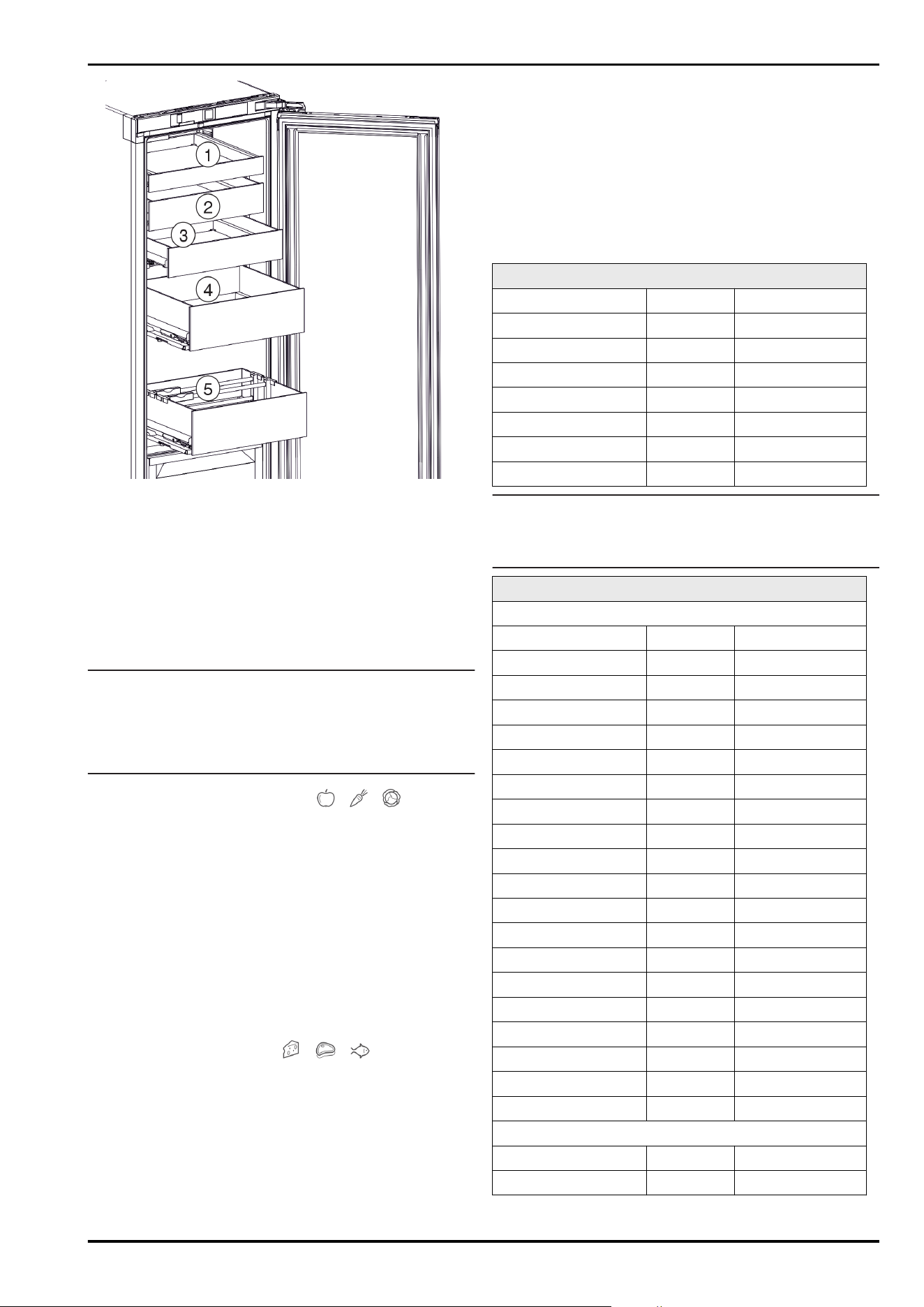

Fig. 7 Storage examples

(1)

Butter, eggs (4) Canned food, tins

(2) Yoghurt, quark (5) Bottles, Tetra Paks

(3) Foodstuffs in small

jars or in small cans

► Load drawers according to the size of the groceries.

5.3 BioFresh

BioFresh will extend the storage time for some fresh foods

compared to traditional refrigeration.

Note

If the temperatures drop below 0 °C foods may freeze to

each other.

► Store cold-sensitive produce such as cucumbers,

eggplants, zucchinis and tropical fruit in the fridge

compartment.

5.3.1 Fruit & Vegetable safe

This safe creates a climate of close to 0 °C. The compart‐

ment lid ensures constant levels of humidity. This storage

climate is suitable for storing unpackaged food with high

intrinsic moisture (for example, lettuce, vegetables, fruit).

The humidity in the compartment depends on the moisture

content of the chilled goods placed in it, and also depends

on how often the compartment is opened. You can regulate

the humidity level.

Arranging your food properly

► Store unpackaged fruit and vegetables.

If the humidity is too high:

► Regulate the humidity.

5.3.2 Meat & Dairy safe

This safe creates a storage climate of close to 0 °C. This

storage climate is suitable for more sensitive foods (e.g.

dairy products, meat, fish, sausage).

Arranging your food properly

► Store dry or packaged food.

5.4 Storage times

The storage times given are guidelines

Food with a “use by” date must still be consumed by the

date indicated on the package

5.4.1 Fridge

The best-before date stated on the packaging applies.

5.4.2 BioFresh

Guideline storage times for the Meat & Dairy-Safe

Butter at 1°C up to 90 days

Hard cheese at 1°C up to 110 days

Milk at 1°C up to 12 days

Sausage, cold cuts at 1°C up to 8 days

Poultry at 1°C up to 6 days

Pork at 1°C up to 6 days

Beef at 1°C up to 6 days

Game at 1°C up to 6 days

Note

► Note that higher-protein foods spoil more quickly So,

shellfish and crustaceans perish faster than fish, and fish

perishes faster than meat.

Guideline storage times for the Fruit & Vegetable-Safe

Vegetables, lettuce

Artichokes at 1°C up to 14 days

Celery at 1°C up to 28 days

Cauliflower at 1°C up to 21 days

Broccoli at 1°C up to 13 days

Endives at 1°C up to 27 days

Mâche at 1°C up to 19 days

Peas at 1°C up to 14 days

Kale at 1°C up to 14 days

Carrots at 1°C up to 80 days

Garlic at 1°C up to 160 days

Cabbage turnip at 1°C up to 14 days

Iceberg lettuce at 1°C up to 13 days

Herbs at 1°C up to 13 days

Leeks at 1°C up to 29 days

Mushrooms at 1°C up to 7 days

Radishes at 1°C up to 10 days

Brussels sprouts at 1°C up to 20 days

Asparagus at 1°C up to 18 days

Spinach at 1°C up to 13 days

Savoy cabbage at 1°C up to 20 days

Fruit

Apricots at 1°C up to 13 days

Apples at 1°C up to 80 days

Storage

8 * Depending on model and options

Guideline storage times for the Fruit & Vegetable-Safe

Pears at 1°C up to 55 days

Blackberries at 1°C up to 3 days

Dates at 1°C up to 180 days

Strawberries at 1°C up to 7 days

Figs at 1°C up to 7 days

Blueberries at 1°C up to 9 days

Raspberries at 1°C up to 3 days

Red currants at 1°C up to 7 days

Cherries, sweet at 1°C up to 14 days

Kiwi at 1°C up to 80 days

Peaches at 1°C up to 13 days

Plums at 1°C up to 20 days

Cranberries at 1°C up to 60 days

Rhubarb at 1°C up to 13 days

Gooseberries at 1°C up to 13 days

Grapes at 1°C up to 29 days

6 Energy saving

Always ensure good ventilation. Do not obstruct ventila‐

tion openings or grilles.

Never block air slits in the fan.

Do no install the appliance in an area with direct sunlight,

next to a heating unit or similar.

If you install the appliance directly next to an oven, its

energy consumption may increase slightly. This depends

on the service life and how often the oven is used.

Energy consumption depends on installation conditions

such as the ambient temperature (see2.4 Range of appli‐

ance use) . A warmer ambient temperature can increase

the energy consumption.

Avoid opening the appliance door for any longer then

necessary

The lower the temperature is set the higher the energy

consumption.

Sort your food items: home.liebherr.com/food.

All food stored in the appliance should be well wrapped

and covered. This prevents frost buildup.

Only take food out for as long as necessary so that it

does not get too warm.

Insertion of warm foods: first let the food cool down to

room temperature.

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

7 Use

7.1 Controls and displays

7.1.1 Status display

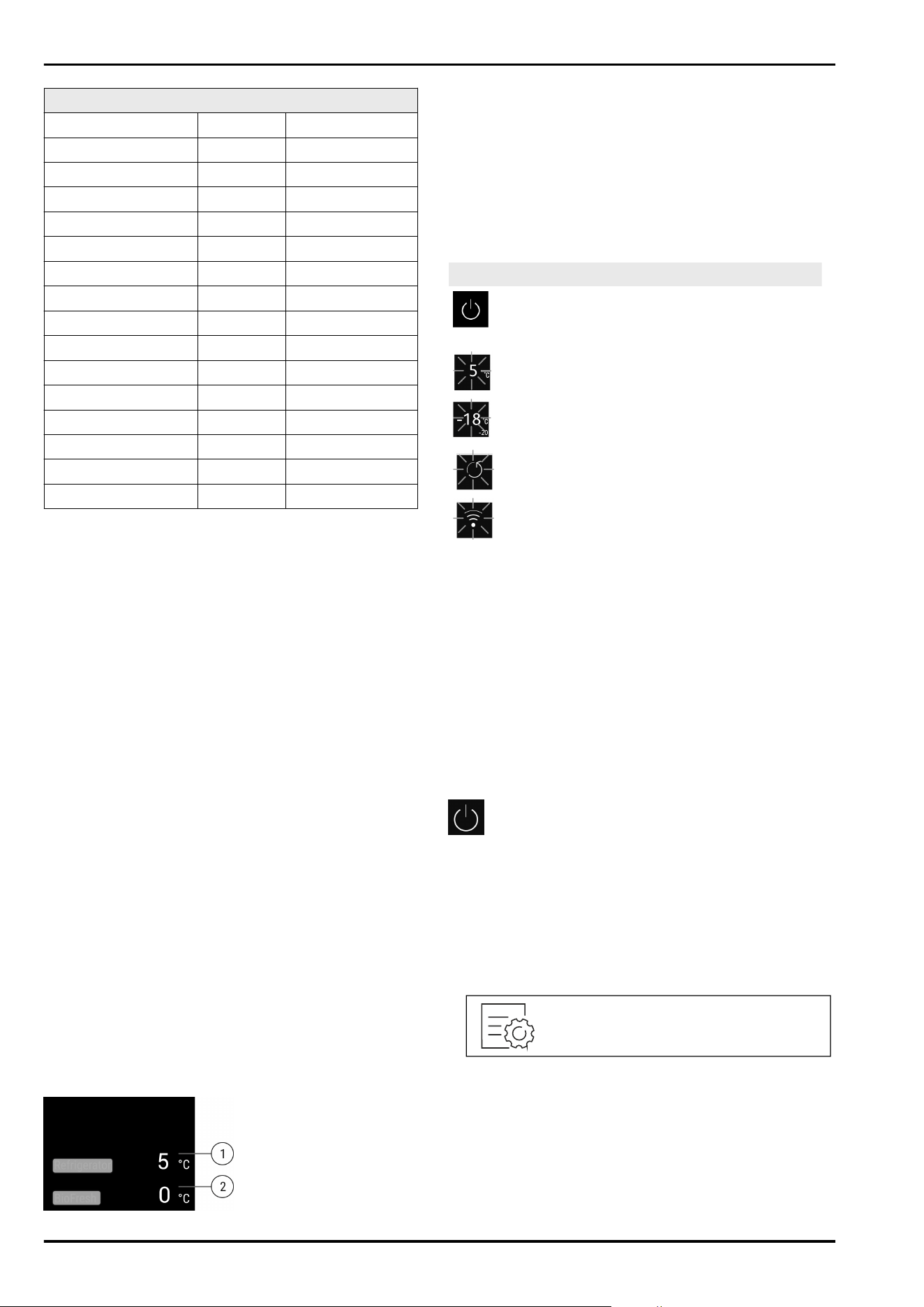

Fig. 8 Status display shows the actual temperature.

(1) Fridge compartment

temperature display

(2) Temperature display

BioFresh

The status display shows the actual temperature and is the

initial display. You can navigate from there to the functions

and settings.

7.1.2 Display symbols

The display symbols provide information about the current

appliance status.

Symbol Appliance status

Standby

The appliance or temperature zone

is turned off.

Flashing number

Appliance is working. Temperature

flashes until the set temperature is

reached.

Flashing symbol

Appliance is working. Setting is

made.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the appliance func‐

tions, make sure that the following requirements are met:

❑

You have read and understood the descriptions of how

the display works. (see 3 Functionality of the

Touch&Swipe display)

❑

You have familiarized yourself with the operating and

display elements of your appliance.

Switching appliance off and on

This function switches the entire appliance on and off.

Switching off the appliance

If you switch off the appliance, the settings that were made

before remain stored.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see 11 Decommissioning) have

been completed.

Fig.9

Energy saving

* Depending on model and options 9

Fig. 10

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ Standby symbol appears in the display.

▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Briefly touch the display.

Fig. 11 Example illustration

► Carry out action steps according to the illustration.

If the appliance starts in demo mode:

► Deactivate demo mode. (see Deactivating demo mode)

▷ Appliance is switched on.

▷ Previously made settings are re-established.

▷ The appliance cools to the set target temperature.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

More information on the SmartDevice: (see 2.3 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig.12

Fig.13

► Carry out action steps according to the illustration.

▷ Connection is established.

Disconnecting from the WiFi

Fig. 14

Fig. 15

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

Fig. 16

Fig.17

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Use

10 * Depending on model and options

Showing information about the WiFi connection

Fig. 18

Fig. 19

► Carry out action steps according to the illustration.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

How often the door is opened

How long the door is open

The room temperature of the installation site

Type, temperature and amount of food

Temperature zone

Factory-set

temperature

Recommended

setting

Fridge section

5°C 4°C

BioFresh

0°C B-Value (see

BioFresh B-Value )

Setting the temperature in the fridge section

Fig. 20 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in BioFresh

You set the temperature using the BioFresh B-Value. (see

BioFresh B-Value )

Temperature unit

Use this function to set the temperature unit. You can set

the temperature unit in either degrees Celsius or

degrees Fahrenheit.

Setting the temperature unit

Fig.21

Fig. 23 Example illustration: Switching between

degrees Celsius or degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ Temperature unit is set.

BioFresh B-Value

Use this function to set the BioFresh B-Value. Use the

BioFresh B-Value to adjust BioFresh slightly warmer or

colder if a higher or lower ambient temperature makes it

necessary. Upon delivery, the BioFresh B-Value is set to the

value B5. If you adjust the B-Value, please observe the

following table:

Value

Description

B1 Lowest temperature

B1-B4 The temperature can drop below 0 °C which means

foods can easily freeze.

B5 Pre-set temperature

B9 Highest temperature

Setting the BioFresh B-Value

Fig. 24

Use

* Depending on model and options 11

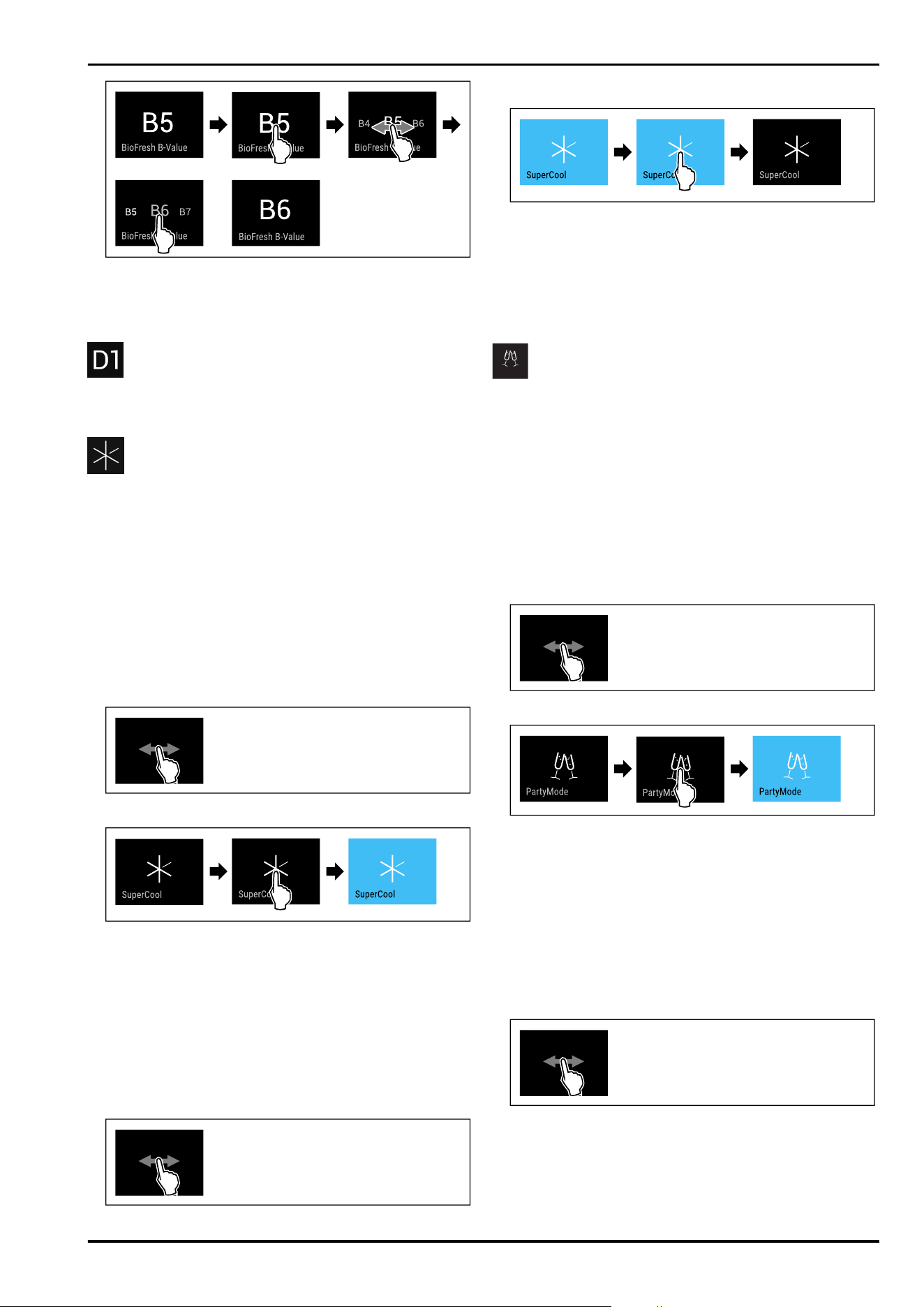

Fig. 26 Example illustration: Switching from B5 to B6.

► Carry out action steps according to the illustration.

▷ The BioFresh B-Value is set.

▷ Status display shows the target temperature.

D-Value

The D-Value is preset for your appliance and must not be

changed.

SuperCool

This function activates or deactivates SuperCool. If you acti‐

vate SuperCool the appliance increases the cooling

capacity. This allows you to achieve lower cooling tempera‐

tures. You can activate SuperCool if you want to quickly cool

large volumes of food.

If the function is active, the appliance operates at a higher

output. As a result, the operating noise of the appliance may

be temporarily louder, while energy consumption increases.

Activating SuperCool

Time for activating the function:

If you want to store fresh food in the fridge section: Acti‐

vate the function when storing food.

Fig.27

Fig.28

► Carry out action steps according to the illustration.

-or-

► Activating with the SmartDevice app.

▷ SuperCool is activated.

▷ Temperature display turns blue.

Deactivating SuperCool

SuperCool is automatically deactivated after 18 hours.

However, you can also manually deactivate SuperCool at

any time:

Fig.29

Fig.30

► Carry out action steps according to the illustration.

-or-

► Deactivating with the SmartDevice app.

▷ SuperCool is deactivated.

▷ Appliance continues to run in normal operation.

▷ The appliance first cools to the set temperature.

PartyMode

This function activates and deactivates PartyMode. Party‐

Mode activates different functions that are useful for a

party.

PartyMode activates the following functions:

SuperCool (seeSuperCool)

You can set all listed functions individually and flexibly. By

deactivating PartyMode all changes are discarded.

If the function is active, the appliance operates at a higher

output. As a result, the operating noise of the appliance may

be temporarily louder, while energy consumption increases.

Activating PartyMode

Fig.31

Fig.32

► Carry out action steps according to the illustration.

▷ PartyMode and the corresponding functions are acti‐

vated.

▷ Temperature display turns blue.

▷ The current temperature flashes until the target tempera‐

ture is reached.

Deactivating PartyMode

PartyMode is automatically deactivated after 24 hours.

However, you can also manually deactivate PartyMode at

any time:

Fig.33

Use

12 * Depending on model and options

Fig.34

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance first cools to the set temperature: The

current temperature flashes until the target temperature

is reached.

HolidayMode

Use this function to activate or deactivate HolidayMode. If

you activate HolidayMode the fridge section is set to 15 °C.

This helps you save energy if you are away for a longer

period of time and avoid bad smells and mold formation.

Appliance status with active HolidayMode

Fridge section cools to 15°C.

BioFresh cools down to 15°C.

PartyMode is deactivated.

SuperCool is deactivated.

Activating HolidayMode

► Empty the fridge section completely.

► Empty BioFresh completely.

Fig.35

Fig.36

► Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display turns blue and shows the Holiday‐

Mode symbol.

Deactivating HolidayMode

Fig.37

Fig.38

► Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

▷ The appliance first cools to the set temperature.

SabbathMode

This function activates and deactivates SabbathMode. If

you activate this function, some electronic functions are

switched off. Your appliance thereby meets the religious

requirements of Jewish holidays such as the Sabbath and

complies with STAR-K Kosher certification.

Appliance status with active SabbathMode

The status display continuously shows SabbathMode.

All functions in the display except the Deactivating

SabbathMode function are disabled.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Memories are not listed. The set time interval is stopped.

Memories and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The defrost cycle operates only for the specified time

without taking into account the appliance usage.

After a power failure, the device returns to SabbathMode.

Appliance status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that has been frozen and thawed.

Fig. 39

Fig.40

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ Status display continuously shows SabbathMode.

Deactivating SabbathMode

SabbathMode is automatically deactivated after 80 hours.

However, you can also manually deactivate SabbathMode at

any time:

Use

* Depending on model and options 13

Fig. 41

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

EnergySaver

Use this function to activate or deactivate energy saving

mode. If you activate energy saving mode, energy consump‐

tion drops and the temperature in the appliance increases.

Food remains fresh, but shelf life is reduced.

Temperature zone

Recommended

setting (see Setting

the temperature in

the fridge section)

Temperature

while Ener‐

gySaver is

active

Fridge

section

4°C 7°C

Temperatures

Activating EnergySaver

Fig. 42

Fig.43

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating EnergySaver

Fig.44

Fig.45

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

CleaningMode

This function activates and deactivates CleaningMode.

CleaningMode enables you to comfortably clean the appli‐

ance.

This setting relates to the fridge compartment.

Application:

Clean the fridge compartment. (see 9.6 Cleaning the

appliance)

Appliance status with active CleaningMode

The status display continuously shows CleaningMode.

The fridge section is switched off.

The interior lighting is activated.

Reminders and warnings are not displayed. No signal tone

is sounded.

Appliance status

Activating CleaningMode

Fig.46

Fig. 47

► Carry out action steps according to the illustration.

▷ CleaningMode is activated.

▷ Status display continuously shows CleaningMode.

Deactivating CleaningMode

CleaningMode is automatically deactivated after

60 minutes. However, you can also manually deactivate

CleaningMode at any time:

Fig.48

► Carry out action steps according to the illustration.

▷ CleaningMode is deactivated.

▷ The appliance first cools to the set temperature.

Display Brightness

Use this function to set the brightness of the display gradu‐

ally.

You can set the following brightness levels:

40%

60%

80%

100% (default setting)

Setting the brightness

Fig. 49

Use

14 * Depending on model and options

Fig. 50 Example illustration: Switching from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ Brightness is set.

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated upon delivery. You can set how long

to door can remain open until the door alarm sounds.

You can set the following values:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig.51

Fig. 52 Example illustration: Changing the door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ Door alarm is set.

Deactivating door alarm

Fig.54

Fig.55

► Carry out action steps according to the illustration.

▷ Door alarm is deactivated.

Input lock

This function activates and deactivates the input lock. The

input lock prevents the appliance from being operated acci‐

dentally, e. g. by children.

Application:

Prevent unintentional changes of functions.

Prevent switching off of the appliance.

Prevent unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus, however you cannot select or modify other

functions.

Fig.56

Fig.57

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig.58

Fig. 59

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Language

Use this function to set the display language.

Use

* Depending on model and options 15

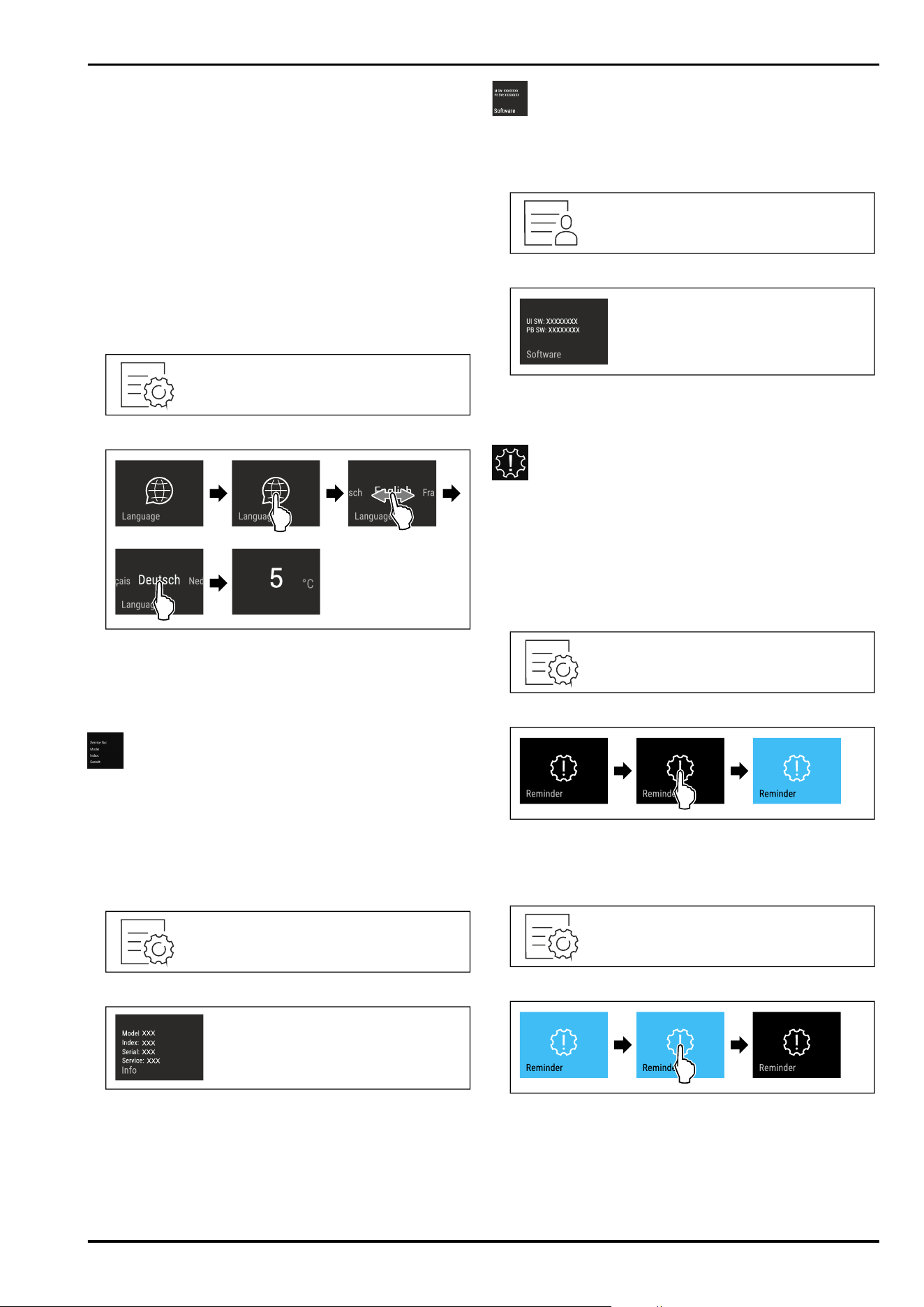

You can set the following languages:

German

English

French

Spanish

Italian

Dutch

Czech

Polish

Portuguese

Bulgarian

Russian

Chinese

Setting the language

Fig.60

Fig. 61 Example illustration depending on the language

and temperature

► Carry out action steps according to the illustration.

▷ Language is set.

▷ Display jumps back to the status display.

Appliance information

Use this function to display the model name, index, serial

number and service number of your appliance. You will need

the appliance information when you contact customer

service. (see 10.4 Customer Service)

You also use this function to open the expanded menu.

(see3 Functionality of the Touch&Swipe display)

Display appliance information

Fig. 62

Fig.63

► Carry out action steps according to the illustration.

▷ Display shows the appliance information.

Software

Use this function to display the software version of your

appliance.

Display software version

Fig.64

Fig.65

► Carry out action steps according to the illustration.

▷ Display indicates the software version.

Reminder

Use this function to activate or deactivate reminder. This

function is activated upon delivery.

The following reminders will then appear if the function is

activated:

Replace the FreshAir activated charcoal filter

(see Replace FreshAir activated charcoal filter)

Activating reminder

Fig.66

Fig. 67

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Deactivating reminder

Fig.68

Fig. 69

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Use

16 * Depending on model and options

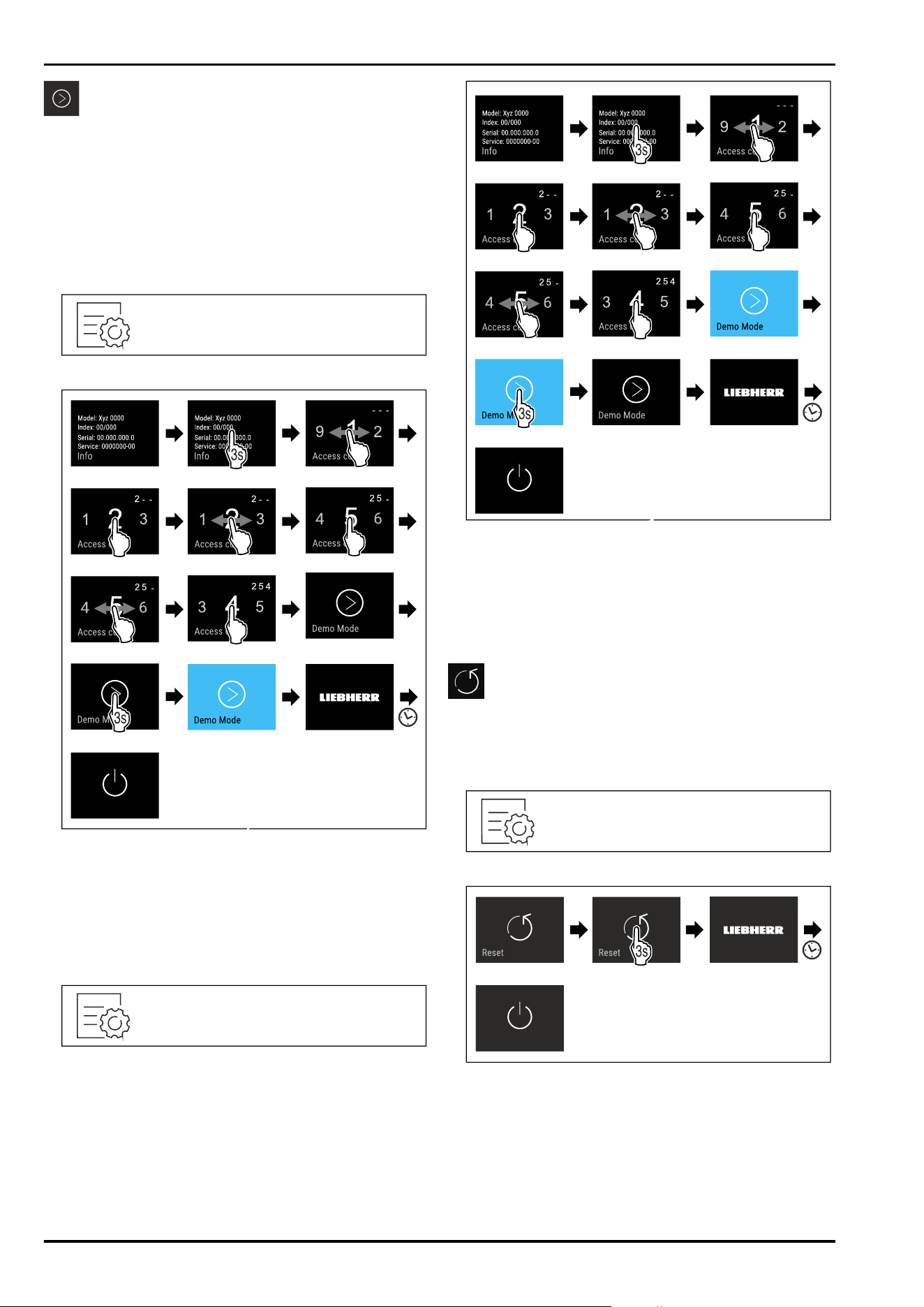

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the

status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig.70

Fig.71

► Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig.72

Fig.73

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 4.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory settings. All

settings you have made so far are reset to their original

settings.

Performing a reset

Fig. 74

Fig.75

► Carry out action steps according to the illustration.

▷ Appliance is reset.

▷ Appliance is switched off.

► Restart the appliance. (see 4.1 Switching on appliance

(first use))

Use

* Depending on model and options 17

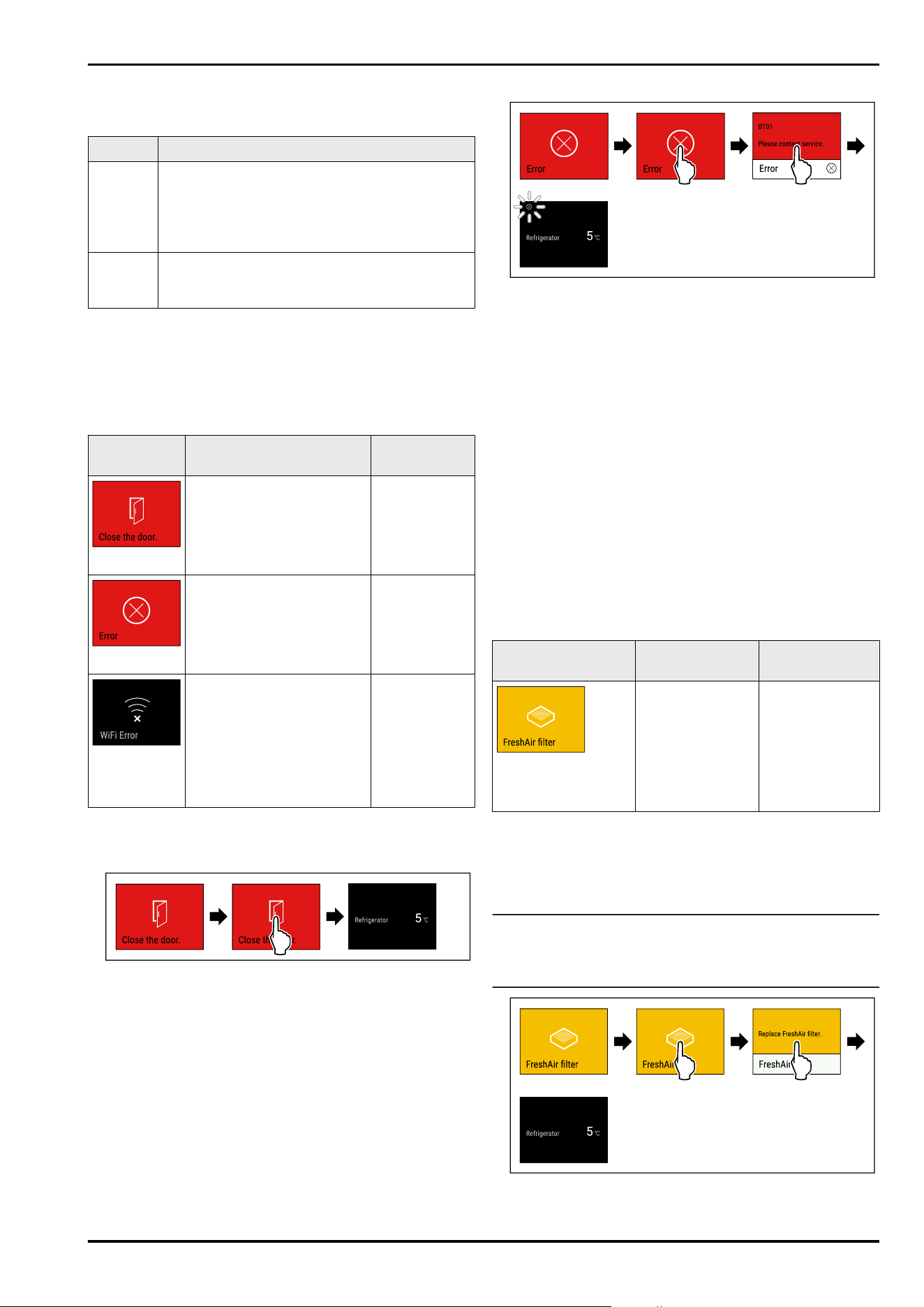

7.3 Messages

There are two categories of messages:

Category Meaning

Warning Warnings are displayed if there is a door alarm

or a malfunction.

You can easily end warnings yourself. For any

major malfunction, you must contact Customer

Service. (see 10.4 Customer Service)

Reminder Reminders remind you of general processes.

You can perform these processes and end the

message doing so.

7.3.1 Overview of warnings

The appliance’s behavior in the event of a warning:

Warning appears in the display in red.

Alarm sounds in increasing volume.

For some warnings the interior lighting pulses.

Message

Cause Ending the

message

Door alarm

The message appears if

the door is open for too

long.

Carry out

action steps

(see Door

alarm) .

Error

This message appears if

there is an appliance error.

An appliance module indi‐

cates an error.

Carry out

action steps

(see Error) .

WLAN error

This message appears if

the appliance could not be

connected to WLAN.

(see Establishing the WiFi

connection for the first

time) This message only

appears the first time the

appliance is set up.

Carry out

action steps

(see WLAN

error) .

7.3.2 Ending warnings

Door alarm

Fig. 76 Example illustration

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ Display skips to status display.

You can set how long to door may remain open until the

door alarm sounds. (see Setting the door alarm)

Error

Fig. 77 Example illustration

► Briefly touch the display.

▷ Error code is displayed.

► Make a note of the error code.

► Briefly touch the display.

▷ Display skips to status display.

► Contact Customer Service. (see 10.4 Customer Service)

WLAN error

► Check the WLAN connection.

► Connect the appliance to the WLAN again. (seeWiFi)

7.3.3 Overview of reminders

The appliance’s behavior in the event of a reminders:

Reminder appears in the display in yellow.

Alarm tone sounds.

For some reminders the interior lighting pulses.

You can deactivate the following reminders (see Deacti‐

vating reminder) :

Replace FreshAir activated charcoal filter

Message

Cause Ending the

message

Replace FreshAir

activated charcoal

filter

This message

appears if you

have to replace

the FreshAir acti‐

vated charcoal

filter.

Carry out action

steps

(see Replace

FreshAir acti‐

vated charcoal

filter) .

7.3.4 Ending reminders

Replace FreshAir activated charcoal filter

Liebherr recommends: Replace the FreshAir activated char‐

coal filter every 6 months.

Note

FreshAir activated charcoal filters can be purchased from

the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

Fig. 78 Example illustration

► Briefly touch the display.

Use

18 * Depending on model and options

▷ Display shows information about the reminder.

► Briefly touch the display.

► Replace activated charcoal filter. (see 9.1 FreshAir carbon

filter)

▷ The activated charcoal filter ensures optimum air quality

in the refrigerator.

▷ Reminder appears again after 6 months.

If you no longer want to keep this reminder, you can deacti‐

vate the reminder. (see Deactivating reminder)

8 Equipment

8.1 Variable bottle shelf

You can use either the glass shelf or the variable bottle

shelf on the floor of the fridge section. The glass shelf is

inserted upon delivery.

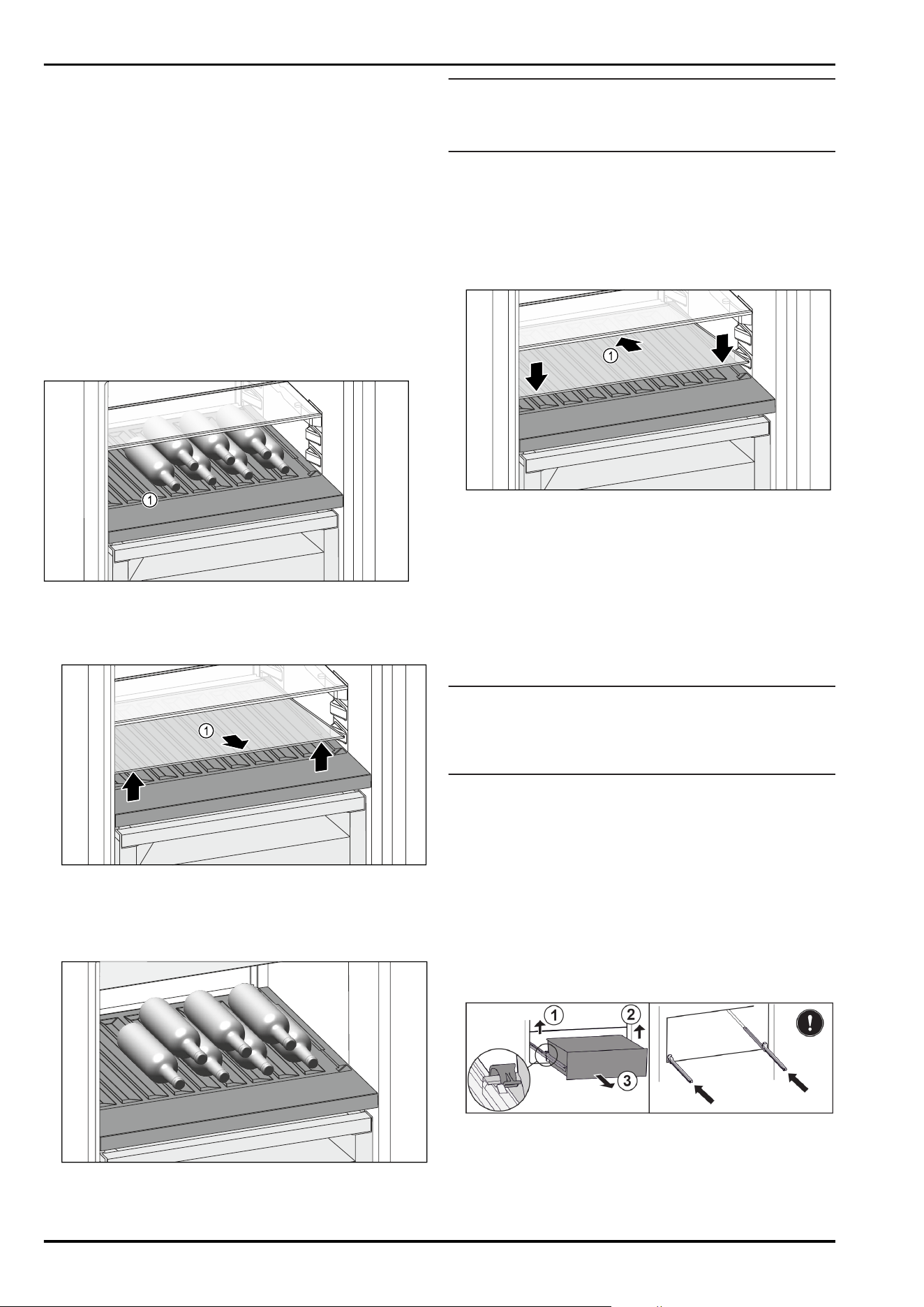

Fig. 79 Example illustration

(1)

Variable bottle rack

8.1.1 Using the variable bottle shelf

Fig.80

► Lift the glass shelf Fig. 80 (1) in the front at the recess

and pull it out.

► Store the glass shelf Fig. 80 (1) somewhere safe outside

of the appliance.

Fig.81

► Insert the bottles facing backwards towards the rear

wall. (see Fig.81)

Note

If the bottles protrude towards the front over the variable

bottle shelf:

► Set the lower door rack one position higher.

8.1.2 Using the glass shelf

Make sure that the following requirements are fulfilled:

❑

Bottles are removed.

❑

The variable bottle shelf has been cleaned.

(see 9.3 Removing / inserting the variable bottle shelf)

(see 9.6.3 Cleaning the equipment)

Fig.82

► Place the glass shelf Fig. 82 (1) at an angle, tilted back

and down.

► Lower the glass shelf Fig.82(1) at the front.

8.2 Drawers

You can remove the drawers for cleaning.

The way to remove/insert the drawers varies depending on

the pull-out system. Your appliance can contain a variety of

pull-out systems.

Note

Insufficient ventilation results in an increase in energy

consumption and reduction of the refrigerating perform‐

ance.

► Never obstruct the vents on the interior rear wall!

8.2.1 Drawer on telescopic rails

The drawer runs on full-extension rails (telescopic rails).

There are full-extension telescopic rails and telescopic rails

with partial pull-out. Drawers which are full extension can

be pulled out fully from the appliance. Drawers with partial

pull-out cannot be pulled out fully from the appliance. The

system in your appliance depends on the type of appliance.

Full extension*

If you have full-extension rails, there is a clamp located at

the back on the left and right of the rail.

Removing drawer

Fig.83

► Pull out drawer as far as it will go.

► Lift left clamp and simultaneously pull drawer forwards

on the left. Fig.83(1)

► Lift right clamp and simultaneously pull drawer forwards

on the right. Fig.83(2)

Equipment

* Depending on model and options 19

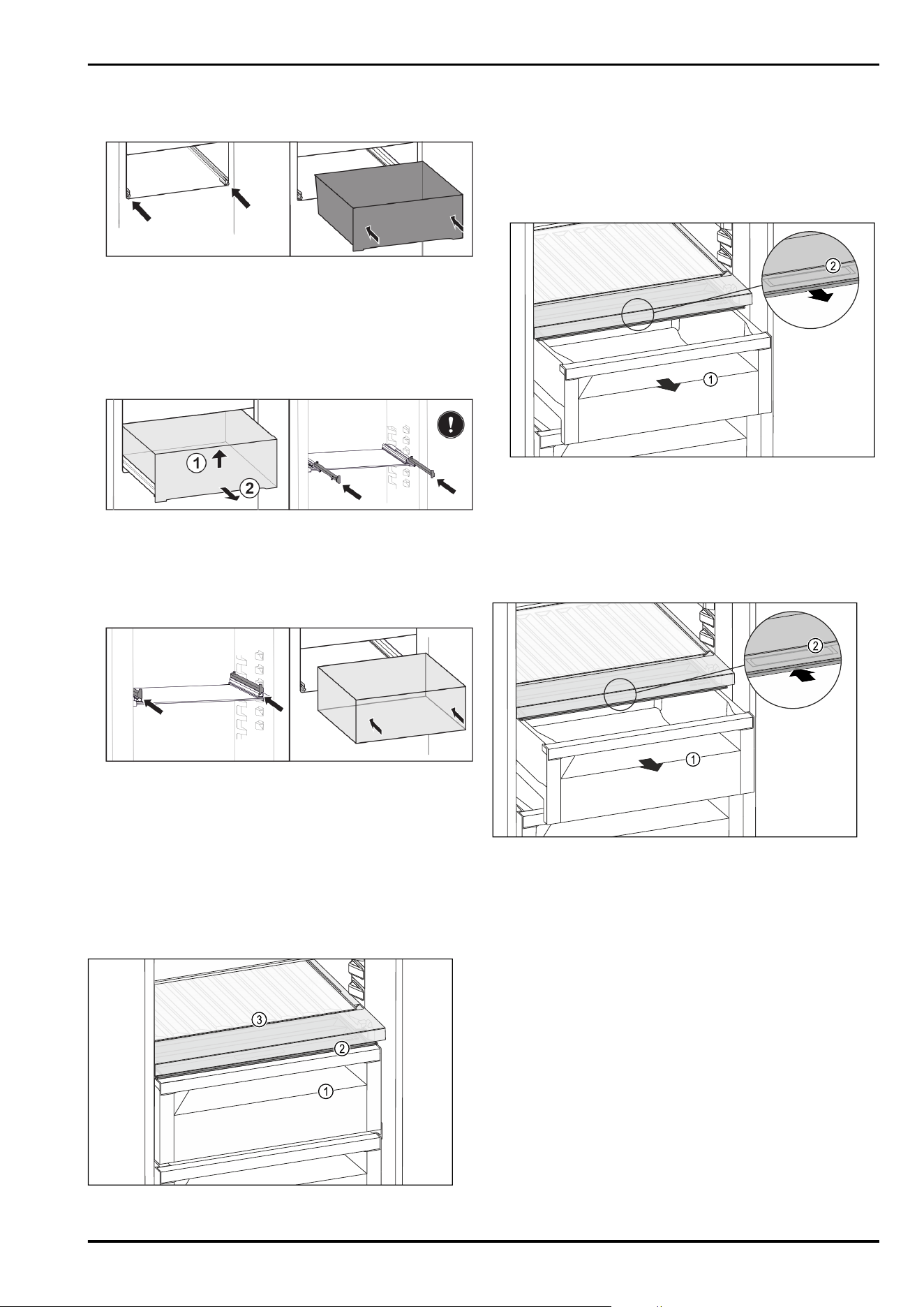

► Remove drawer to the front. Fig.83(3)

► Slide rails in.

Inserting drawer

Fig.84

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

▷ Drawer latches in audibly at the back.

Full-extension glass drawer*

Removing drawer

Fig.85

► Pull out drawer as far as it will go.

► Lift up drawer at the front. Fig.85(1)

► Remove drawer to the front. Fig.85(2)

► Slide rails in.

Inserting drawer

Fig.86

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

▷ Drawer latches in.

8.3 Lid for Fruit & Vegetable-safe

The lid ensures constant levels of humidity.

The lid is located directly on the drawer and can be covered

by shelves or additional drawers.

Fig. 87 Example illustration of the lid for Fruit & Vegetable-

safe

(1) Fruit & Vegetable-safe

(2) Lid for Fruit & Vege‐

table-safe

(3) Variable bottle rack

8.3.1 Reducing humidity in the drawer

Fig.88

► Pull out the drawer Fig.88(1).

► Grip the handle recess Fig. 88 (2) on the lid while pulling

the lid forward at the same time.

▷ When the drawer is closed, there is a small gap between

the lid and the drawer.

8.3.2 Increasing humidity in the drawer

Fig.89

► Pull out the drawer Fig.89(1).

► Grip the handle recess Fig. 89 (2) on the lid while pulling

the lid backward at the same time.

▷ When the drawer is closed, the lid closes tightly with the

drawer.

8.3.3 Using Fruit & Vegetable-safe as a

Meat & Dairy-safe

You can use the Fruit & Vegetable-safe as a Meat & Dairy-

safe. To do so, you must reduce the moisture in the drawer.

(see 8.3.1 Reducing humidity in the drawer)

Equipment

20 * Depending on model and options

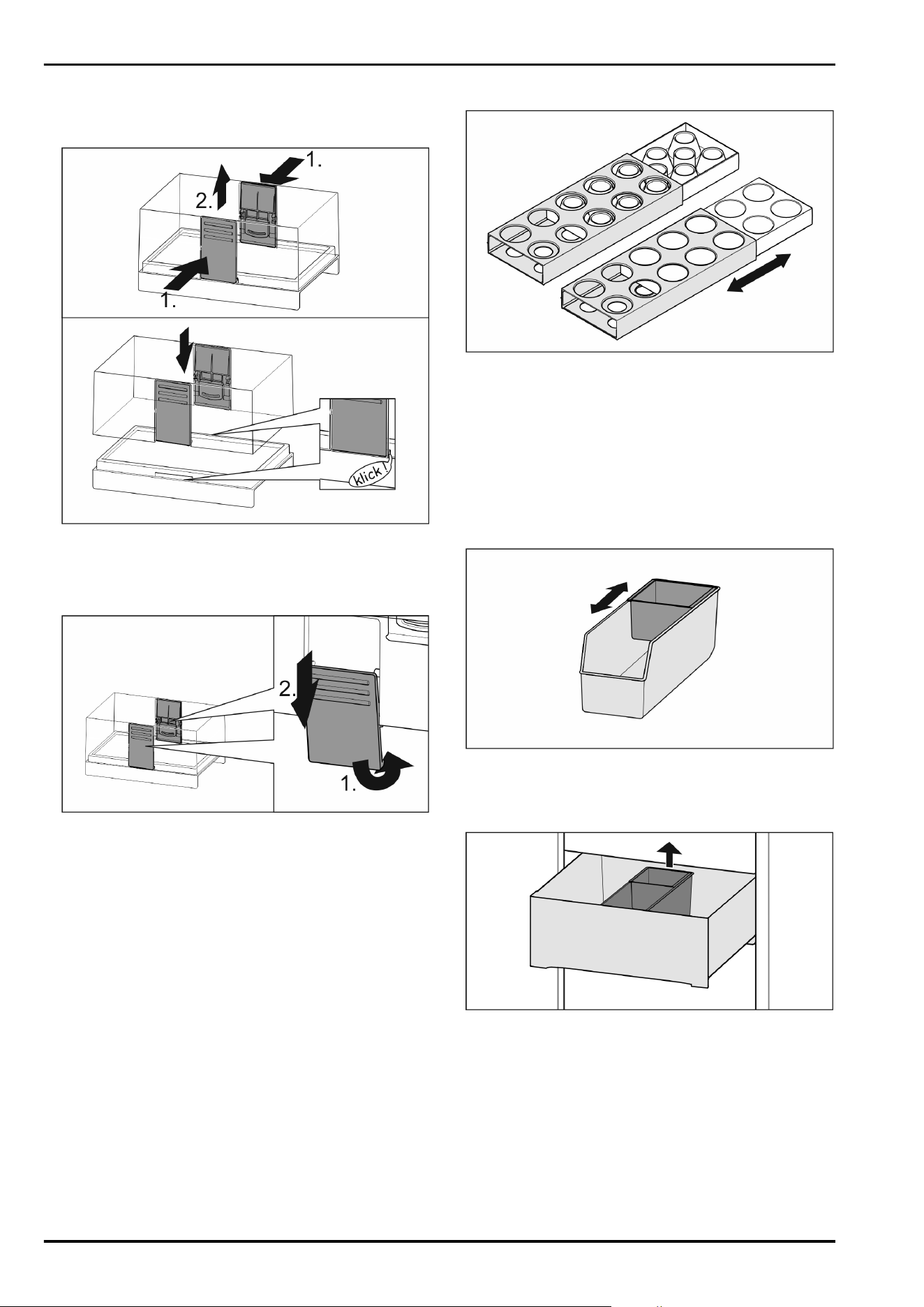

8.4 Butter dish

8.4.1 Opening/closing the butter dish

Fig.90

8.4.2 Dismantling the butter dish

You can disassemble the butter dish for cleaning.

Fig. 91

► Disassemble the butter dish.

8.5 Egg rack

You can pull out and turn the egg rack. You can use both

sides of the egg rack so you can label specifics like the

purchase date.

8.5.1 Using the egg rack

Fig.92

► Top section: store hen eggs.

► Bottom section: store quail eggs.

8.6 FlexSystem

8.6.1 Using the FlexSystem

The FlexSystem helps you store and arrange food clearly

and in the way you want. It lets you clearly divide your food

into fruit, vegetables or by use-by dates, for example.

Fig. 93

► Move the inside tray.

8.6.2 Removing the FlexSystem

Fig. 94

► Lift the FlexSystem at the back.

► Pull up and out.

Equipment

* Depending on model and options 21

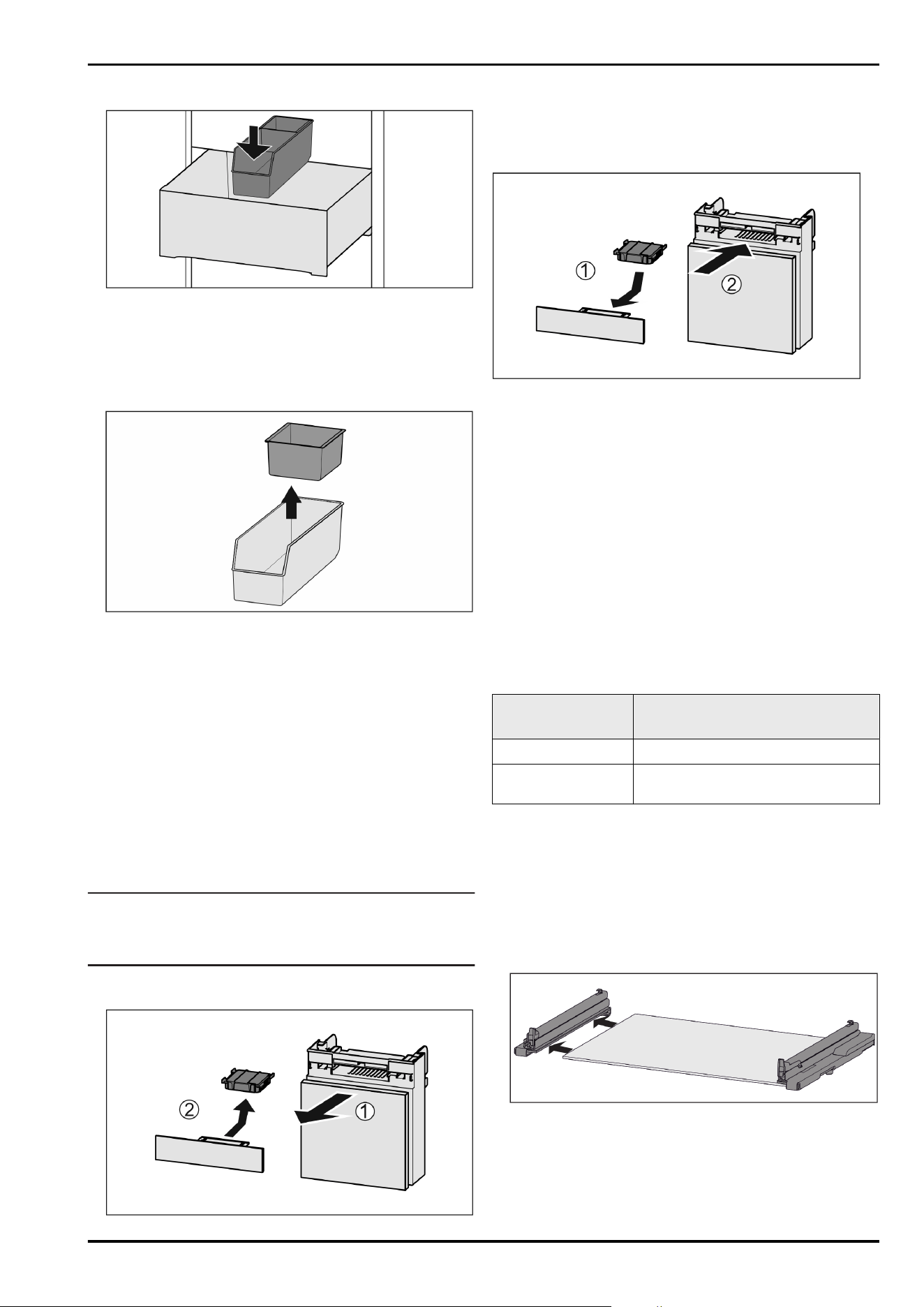

8.6.3 Inserting the FlexSystem

Fig.95

► Insert front of the FlexSystem first.

► Lower the back part.

8.6.4 Disassembling the FlexSystem

The FlexSystem can be dismantled for cleaning.

Fig.96

► Dismantling the FlexSystem.

9 Maintenance

9.1 FreshAir carbon filter

The FreshAir carbon filter is located in the compartment

above the fan.

It guarantees the best air quality.

❑

Change the carbon filter every 6 months.

When the reminder is set, a message on the display

prompts you to change it.

❑

You can dispose of the carbon filter with the regular

household waste.

Note

FreshAir activated charcoal filters can be purchased from

the Liebherr-Hausgeräte store at home.liebherr.com/

shop/de/deu/zubehor.html.

9.1.1 Removing the FreshAir carbon filter

Fig.97

► Pull out the compartment Fig.97(1).

► Remove the carbon filter Fig.97(2).

9.1.2 Inserting the FreshAir carbon filter

Fig.98

► Insert the carbon filter as shown in the diagram

Fig.98(1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

► Push the compartment in Fig.98(2).

▷ The carbon filter is now ready for use.

9.2 Disassembling / assembling pull-

out systems

9.2.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Pull-out system

can be disassembled/

cannot be disassembled

Full extension* cannot be disassembled*

Full-extension glass

drawer*

can be disassembled (see Full-

extension glass drawer*) *

9.2.2 Drawer on telescopic rails

Full-extension glass drawer*

Disassembling pull-out system

Make sure that the following requirements are fulfilled:

❑

Drawer has been removed. (see Full-extension glass

drawer*)

❑

Glass shelf has been removed.

Fig. 99 Glass shelf with rails

► Remove rail from glass shelf sideways.

Maintenance

22 * Depending on model and options

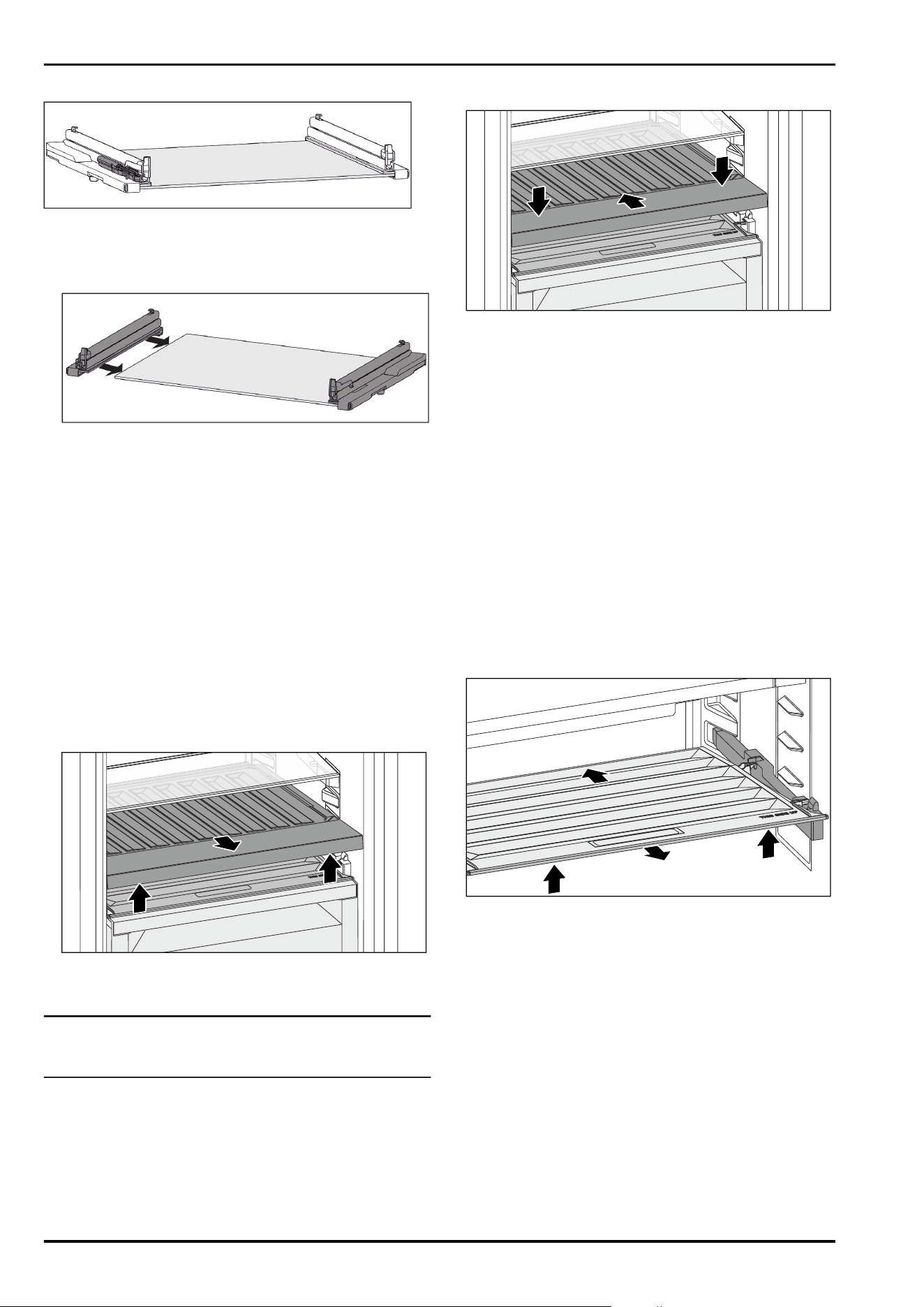

Installing pull-out system

Fig. 100Damping mechanism

The damping mechanism is attached to the left rail. (see

Fig. 100) There is no damping mechanism attached to the

right rail.

Fig. 101 Glass shelf with rails

Install rail with damping mechanism:

► Push rail as far as it will go onto the left side of the glass

shelf.

Install rail without damping mechanism:

► Push rail as far as it will go onto the right side of the

glass shelf.

9.3 Removing / inserting the variable

bottle shelf

You can remove the variable bottle shelf for cleaning.

9.3.1 Removing the variable bottle shelf

Make sure that the following requirements are fulfilled:

❑

Bottles are removed.

❑

Glass shelf is removed. (see 8.1.1 Using the variable

bottle shelf)

Fig. 102

► Lift the variable bottle shelf from the front and pull it out.

▷ The compartment lid is visible.

Note

Liebherr recommends:

Do not store any product on the compartment lid below it.

9.3.2 Inserting the variable bottle shelf

Fig. 103

► Push in the variable bottle shelf as far as it goes and

press it down.

▷ The back plugs on the variable bottle shelf are connected

automatically.

▷ LED light ups.

► Insert the glass shelf. (see8.1.2Using the glass shelf)

-or-

► Use the variable bottle shelf for bottles.

9.4 Lid for Fruit & Vegetable-safe

You can remove the lid for cleaning.

9.4.1 Removing the lid

Make sure that the following requirements are fulfilled:

❑

The glass plate directly above the variable bottle rack

has been removed.

❑

The variable bottle rack has been removed.

❑

The drawer directly below the lid has been removed.

(see8.2 Drawers)

Fig. 104

► Push the lid backward.

► Lift up the lid forward.

► Remove the front lid by lifting it up at an angle.

Maintenance

* Depending on model and options 23

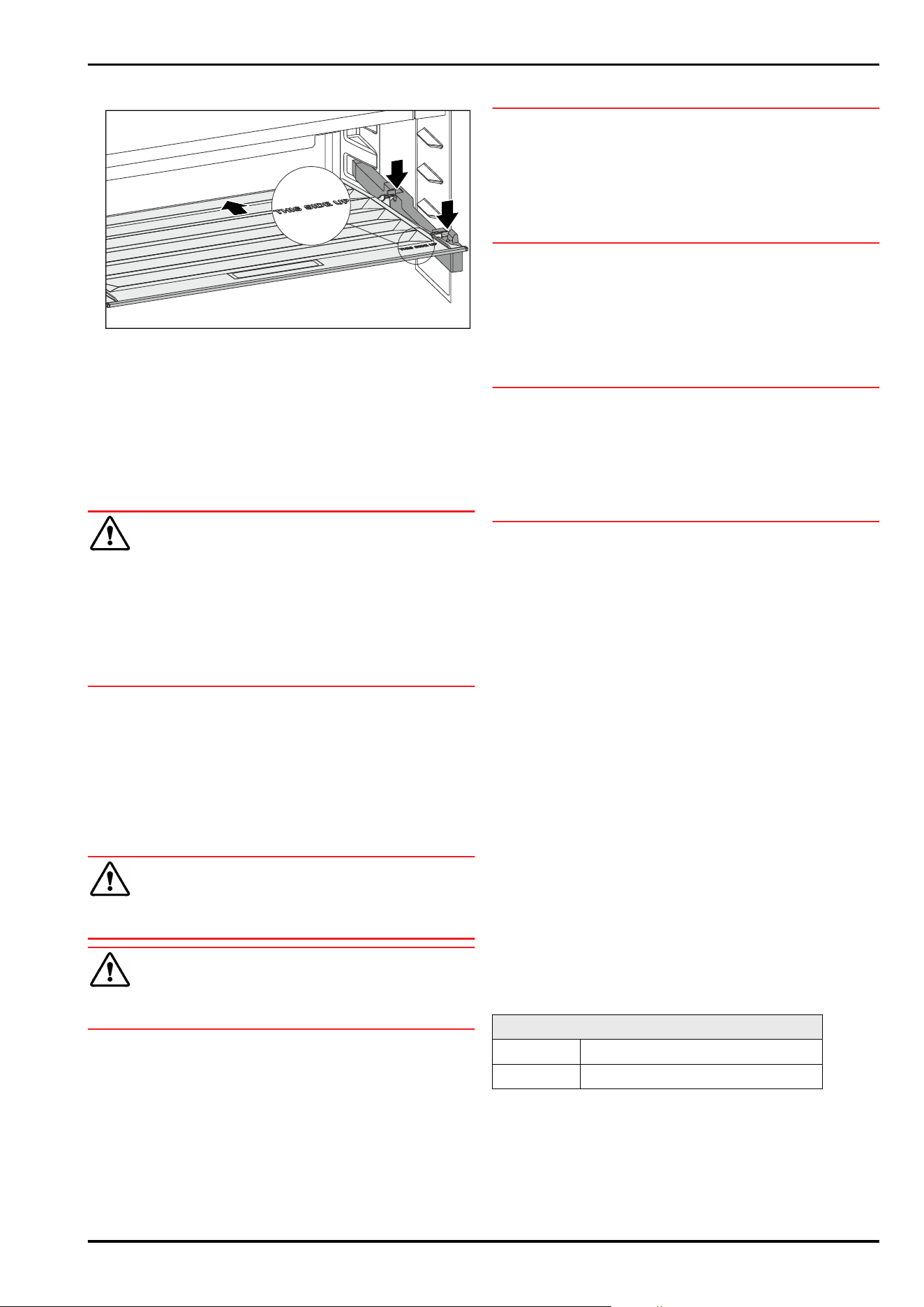

9.4.2 Inserting the lid

Fig. 105

If the lettering THIS SIDE UP is on top:

► Insert the rear bracket retainers in the corresponding rear

openings.

► Push the lid backward.

► Lower the lid at the front and latch the front bracket

retainers in the openings.

► Bring the lid to the desired position.

9.5 Defrosting the appliance

WARNING

Appliance incorrectly defrosted!

Injuries and damage.

► Do not use mechanical devices or other means to accel‐

erate the defrosting process, other than those recom‐

mended by the manufacturer.

► Do not use any electrical heating or steam cleaning

equipment, naked flames or defrosting sprays.

► Do not remove ice with sharp objects.

Defrosting is performed automatically. The water from the

thawing process runs out via the drain opening and is

evaporated.

► Clean the drain hole regularly. (see 9.6Cleaning the appli‐

ance)

9.6 Cleaning the appliance

9.6.1 Preparation

WARNING

Danger of electric shock.

► Unplug refrigerator or disconnect power.

WARNING

Danger of fire

► Do not damage the refrigerant circuit.

► Empty appliance.

► Pull out the power plug.

-or-

► Activate CleaningMode. (seeCleaningMode)

9.6.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not use steel wool or sponges that scour or scratch.

► Do not use caustic or abrasive cleaning materials or

those containing sand, chloride, or acids.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Drain hole: remove any deposits with a thin item such as

a cotton bud.

9.6.3 Cleaning the equipment

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not use steel wool or sponges that scour or scratch.

► Do not use caustic or abrasive cleaning materials or

those containing sand, chloride, or acids.

Clean with a soft, clean cloth, lukewarm water and a little

washing up liquid:

- Lid for Fruit & Vegetable-safe

- Drawer

- Variable bottle shelf

- FlexSystem

Clean with a damp cloth:

- Retracting rails

Please note: the grease in the tracks is there for lubrica‐

tion purposes and must not be removed!

Clean in the dishwasher up to 60°C:

- Egg rack

- Butter dish

► Disassemble the equipment: see the relevant section.

► Clean the equipment.

9.6.4 After cleaning

► Wipe dry the appliance and items of equipment

► Connect and switch on the appliance.

When the temperature is sufficiently cold

► Place the food inside.

► Repeat cleaning regularly.

10 Customer support

10.1 Technical specifications

Temperature zone

Cool: 3°C to 9°C

BioFresh 0°C to 3°C

Customer support

24 * Depending on model and options

Max. equipment capacity

Equipment Appliance

width

550 mm

(see instal‐

lation

instruc‐

tions,

appliance

dimen‐

sions)

Appliance

width

600 mm

(see

installa‐

tion

instruc‐

tions,

appliance

dimen‐

sions)

Appliance

width

700 mm

(see instal‐

lation

instruc‐

tions, appli‐

ance

dimen‐

sions)

Glass drawer,

height 59mm

15 kg -- --

Glass drawer,

height 100mm

15 kg -- --

Glass drawer,

height 150mm

20 kg -- --

Lighting

Energy efficiency class

Light source

This product contains one or more energy

efficiency class G light sources.

LED

The appliance may contain light sources with different

energy efficiency classes. The lowest energy efficiency class

is indicated.

For appliances with a WiFi connection:

Frequency specification

Frequency band 2.4GHz

Maximum radiated

power

< 100 mW

Purpose of the

wireless equipment

Integration in the local WiFi network

for data communication

10.2 Operating noises

The appliance makes noises while in operation.

At less cooling output the appliance saves energy but

takes longer to cool items. The volume is lower.

At a higher cooling output the food cools more quickly.

The volume is higher.

Examples:

•

Activated functions (see 7.2Appliance functions)

•

Running fan

•

Freshly sorted food

•

High ambient temperature

•

Door opened for long periods

Noise

Possible cause Type of noise

Bubbling and

splashing

Coolant is flowing

into the cooling

circuit.

Normal noise

Spitting and

hissing

Coolant is spraying

into the cooling

circuit.

Normal noise

Humming The appliance

cools. The volume

depends on the

cooling output.

Normal noise

Sipping noises The self-closing

door is being

opened and

closed.

Normal noise

Whirring and

murmuring

The fan is running. Normal operating

noise

Clicking Components are

being switched on

and off.

Normal switching

noise

Rattling or

humming

Valves are active. Normal switching

noise

Noise Possible

cause

Type of noise How to

resolve

Vibration Unsuitable

installation

Error noise Check instal‐

lation.

Set up the

appliance.

Clattering Equipment,

Objects

inside the

appliance

Error noise Secure

equipment

parts.

Leave a gap

between

items.

10.3 Technical faults

Your appliance is designed and manufactured for reliable

operation and a long service life. If a malfunction nonethe‐

less occurs during operation, please check whether the

malfunction is due to an operating error. In this case, you

will have to be charged for the costs incurred, even during

the warranty period.

You may be able to rectify the following faults yourself.

10.3.1 Appliance function

Defect

Cause Remedy

The appliance does

not work.

→ The appliance is not switched on. ► Switch on the appliance.

→ The power plug is not properly

inserted in the wall socket.

► Check the power plug.

→ The powerfuse in the wall socket is

not OK.

► Check the fuse.

→ Power failure. ► Keep the appliance closed.

Customer support

* Depending on model and options 25

Defect Cause Remedy

→ The IEC socket is not correctly

plugged into the appliance.

► Check the IEC socket.

The temperature is

not cold enough

→ This means that the door of the

appliance is not closed properly

► Close the appliance door

→ Insufficient ventilation ► Clear and clean the ventilation grille.

→ The ambient temperature is too

high

► Problem solution: (see2.4 Range of appliance use)

→ The appliance was opened too

frequently or for too long

► Wait to see if the required temperature corrects itself. If

not, contact Customer Service. (see 10.4 Customer

Service)

→ The temperature is incorrectly set ► Set to a colder temperature and check after 24 hours.

→ The appliance is too near to a heat

source (stove, heater etc).

► Change location of appliance or the heat source.

→ The appliance was not properly

installed in the recess.

► Make sure the appliance was installed correctly and the

door closes properly.

The door seal is

defective or should

be replaced for

other reasons.

→ The door seal is interchangeable.

You can replace it without the use

of any special tools.

► Contact Customer Service. (see 10.4 Customer Service)

The appliance is

iced up or conden‐

sation is building.

→ The door seal may have slipped out

of its groove.

► Check the door seal is well placed in the groove.

10.3.2 Equipment

Defect Cause Remedy

The interior light

does not turn on.

→ The appliance is not switched on. ► Switch on the appliance.

→ The door was open for more than

15 minutes.

► If the door is open, the interior lighting switches off

automatically after about 15 minutes.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see 10.4 Customer Service)

10.4 Customer Service

First check whether you can rectify the fault yourself

(see 10 Customer support) . If you cannot rectify the

problem, contact Customer Service.

You can find the address in the enclosed brochure “Liebherr-

Service” or at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► Repairs and work on the appliance and the power supply

cable not described in the Manual (see 9 Maintenance)

should only be carried out by a qualified service provider.

► A damaged power cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► For appliances with an IEC connector, the change can be

made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance name (model and index)

❑

Service no. (service)

❑

Serial no. (S no.)

► Call up the appliance information via the display. (see

Appliance information)

-or-

► Refer to the type plate for appliance information.

(see 10.5 Rating plate)

► Take note of the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us give you fast and accurate support.

► Follow further instructions from Customer Service.

10.5 Rating plate

The nameplate is located behind the drawers on the inside

of the appliance.

Customer support

26 * Depending on model and options

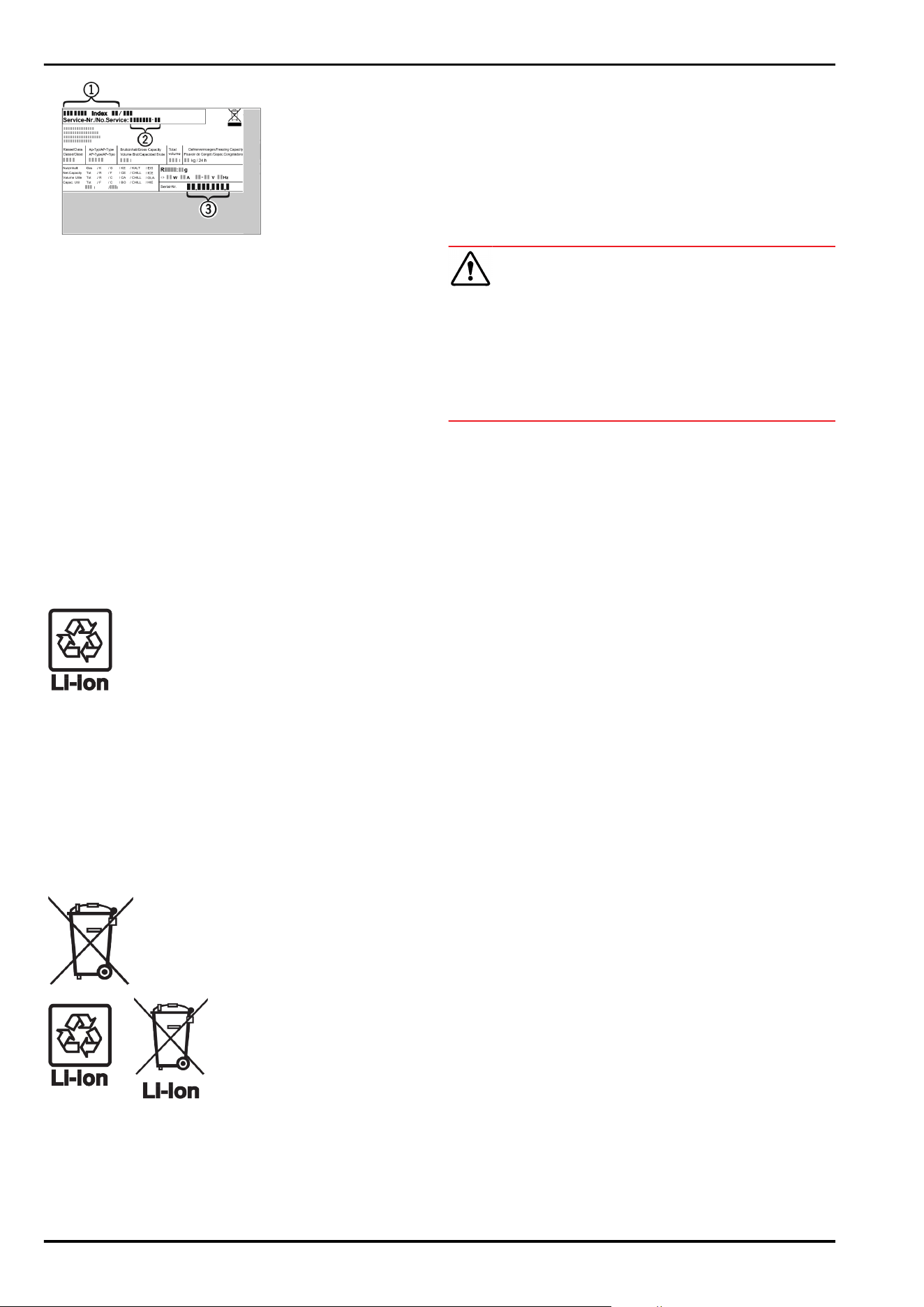

Fig. 106

(1) Appliance name (3) Serial no.

(2) Service no.

► Information from the nameplate.

11 Decommissioning

► Empty appliance.

► Switch off appliance. (see Switching appliance off and

on)

► Pull the power plug from the outlet.

► If necessary, remove the IEC socket: Pull the IEC socket

out of the appliance plug while turning it to the left and

right at the same time.

► Clean appliance. (see 9.6Cleaning the appliance)

► Leave the door open to prevent unpleasant odors.

12 Disposal

12.1 Preparing appliance for disposal

Liebherr uses batteries in some of its appli‐

ances. In the EU, for environmental reasons,

legislation obliges the end user to remove

these batteries before disposing of the old

appliances. If your appliance contains

batteries, a corresponding notice is attached to

the appliance.

Lamps If you can remove the lamps yourself without

destroying them, also remove these before

disposal.

► Take the appliance out of operation.

► If possible: Remove lamps without destroying them.

12.2 Disposing of the appliance in an

environmentally friendly manner

The appliance still contains

valuable materials and must be

collected separately from

unsorted municipal waste so it

can be recycled.

Dispose of batteries separately

from the old appliance. You can

do this by returning the

batteries free of charge to

retailers or taking them to recy‐

cling centers and collection

centers for recyclable materials.

Lamps Dispose of removed lamps via

the respective collection

systems.

For Germany: You can dispose of the appli‐

ance free of charge via the class

1 collection containers at the

local recycling and recyclable

material collection centers.

When purchasing a new fridge/

freezer, if the sales area > 400

, retailers will also take back

the old appliance free of charge.

WARNING

Leaking refrigerant and oil!

Fire. The refrigerant contained within the appliance is envi‐

ronmentally friendly, but flammable. The oil contained

within the appliance is flammable. Escaping refrigerant and

oil can ignite if they are of high enough concentration and

are exposed to an external heat source.

► Do not damage the pipelines of the coolant circuit and

the compressor.

►

Observe the notes on appliance transport.

► Transport the appliance away without damaging it.

► Dispose of batteries, lamps, and the appliance according

to the above specifications.

Decommissioning

* Depending on model and options 27

home.liebherr.com/fridge-manuals

Built-in refrigerator with BioFresh

Issue date:20250908

Part number index:7088425-00

Liebherr-Hausgeräte GmbH

Memminger Straße 77-79

88416Ochsenhausen

Deutschland

Liebherr IXRF 5175 PEAK BIOFRESH NOFROST data-next-head> Side-by-Side combination

Product's Documents

Operating instructions

Specifications

Liebherr IXRF 5175 PEAK BIOFRESH NOFROST Questions and Answers
